Mini Module External Antenna Implementation
INTRODUCTION
This Technical Note describes the host board layout
requirements for using an external antenna with the
MeshConnect™ ZigBee, Thread, and Bluetooth Smart
Mini Modules from California Eastern Laboratories
(CEL). The ZigBee and Thread ZICM35x Mini Modules
have been certied for use with an external antenna
through the use of the Mini Module castellation pin, a
U.FL connector, a U.FL cable assembly and the specied
external antenna. For the B1010SPx Mini Modules please
refer to the datasheet for latest regulatory certication.
This document details the implementation required
to be compliant with the regulatory certication. This
implementation is applicable to any host board provided
the implementation follows the requirements presented in
this document.
The RF signal is routed to castellation pin 32 on the
modules with Part Number ending in "-1C". The module has
castellation pins 31 and 33 connected to ground to provide
the ability to implement a 50 Ω co-planer transmission line
on a standard two layer FR4 printed circuit board with a
thickness of 0.062 inches.
COPLANAR WAVEGUIDE
The coplanar with ground plane waveguide structure
consists of the RF trace on the topside of the printed circuit
board with adjacent ground planes spaced close to the
RF transmission line. A ground plane under the RF trace
should also exist directly below the transmission line.
Since the module castellation pad is 40 mils wide on the
bottom of the module, an RF trace width of 40 mils, along with
a gap of 8 mils separation from the ground plane, will result
in a good 50Ω transmission line. Using the transmission line
width equal to the castellation pad width eliminates any RF
discontinuity which could degrade the return loss.
Figures 1 and 2 below detail the Gerber layout. The
transmission line is 40 mils wide with an 8 mil gap to the
ground. The length of the transmission line is 200 mils long
from the castellation pad to the edge of the U.FL connector.
Figure 1 below represents the top layer, while Figure 2 is
the bottom layer on the two layer FR4 printed circuit board.

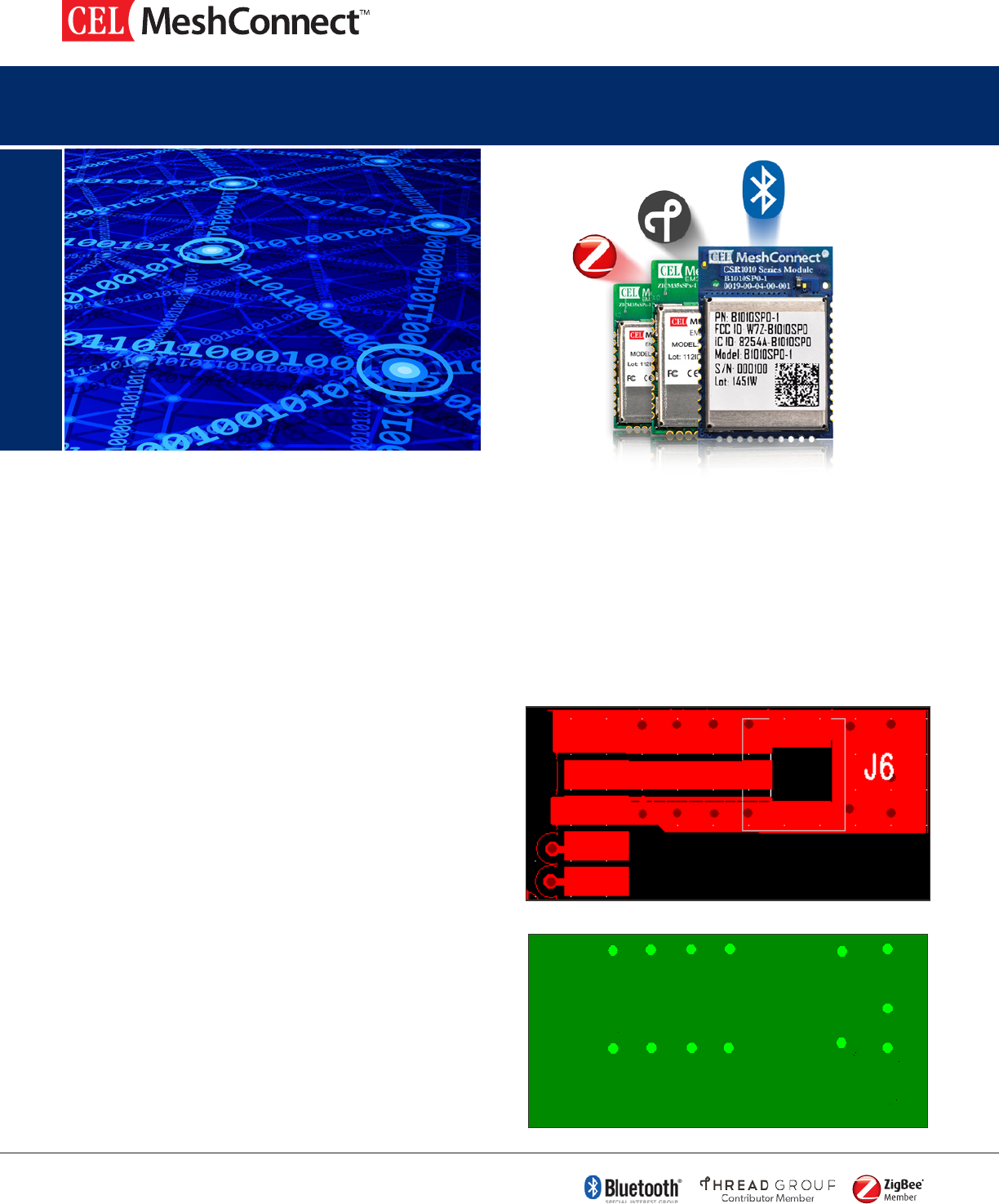

Figure 1. Top Layer
Figure 2. Bottom Layer
Page 2
Mini Module External Antenna Implementation
This document is subject to change without notice.
Document No: 0011-00-16-11-000 (Issue C)
Introduction.........................................................................................................................................................................................
1
Coplanar Waveguide.......................................................................................................................................................................
1
Components Used in the Implementation............................................................................................................................
3
Design Verication Test Procedure.........................................................................................................................................
5
Production Test Procedure for Ensuring Compliance .................................................................................................
5
References..........................................................................................................................................................................................
6
Revision History
............................................................................................................................................................................... 6
TABLE OF CONTENTS
Page 3
Mini Module External Antenna Implementation
This document is subject to change without notice.
Document No: 0011-00-16-11-000 (Issue C)
COMPONENTS USED IN THE IMPLEMENTATION
The following components specify the requirements for this implementation:
• CEL Module Part Number: ZICM35xSP2-1C is certied with external antenna "Nearson S181AH-2450S"
• CEL Module Part Number: ZICM35xSP0-1C is certied with external Antennas "E-2820-CA" & LSR 001-0100"
• U.FL Connector Part Number: U.FL-R-SMT(10) from Hirose Electric Co. Ltd.
• Host Board: FR4 two layer, 0.062” thick with dielectric constant of 4.2 typical. The transmission line between the
module and the U.FL connector should be a straight line with a width of 40mils, and ground plane spaced 8mils apart
on the top layer. The bottom layer should be a continuous ground plane under the transmission line. Ground vias
should be included between the module castellation pins and the U.FL connector ground pads to provide a good
RF ground connection.
• Connectors, Cable assemblies, and antennas must be as specied in photos below or equivalent.

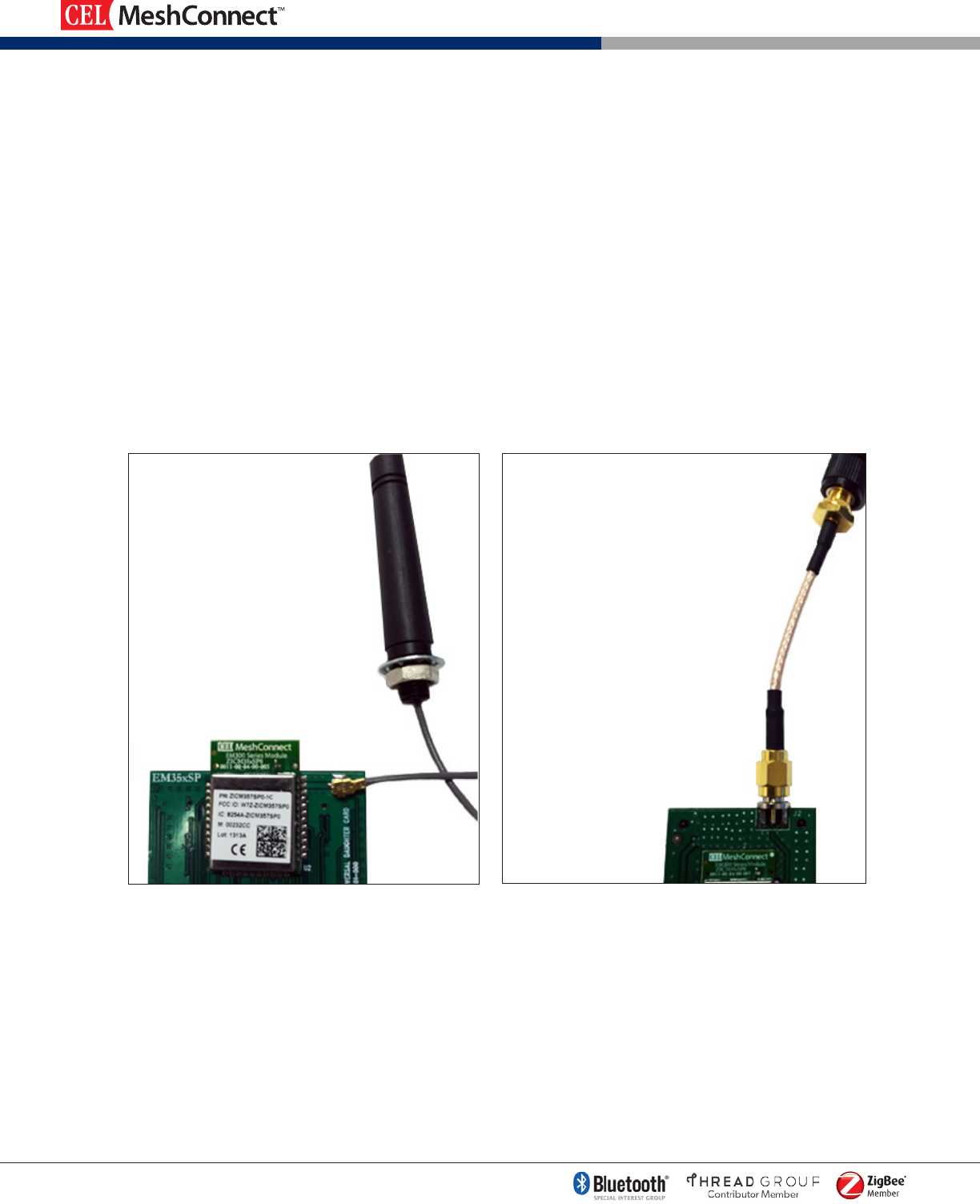

Figure 3 and 4 below illustrates the implementation.
Part Number ZICM35xSP1-1C
External Antenna Implementation
Figure 3. Implementation using connector, cable and external antenna
Antenna + Cable Assembly
E-2820-CA
Antenna: 001-0100
Cable: 095D1ASMARG316
Edge Mount Reverse Polarity SMA Connector
Page 4
Mini Module External Antenna Implementation
This document is subject to change without notice.
Document No: 0011-00-16-11-000 (Issue C)
Part Number ZICM35xSP2-1C
External Antenna Implementation

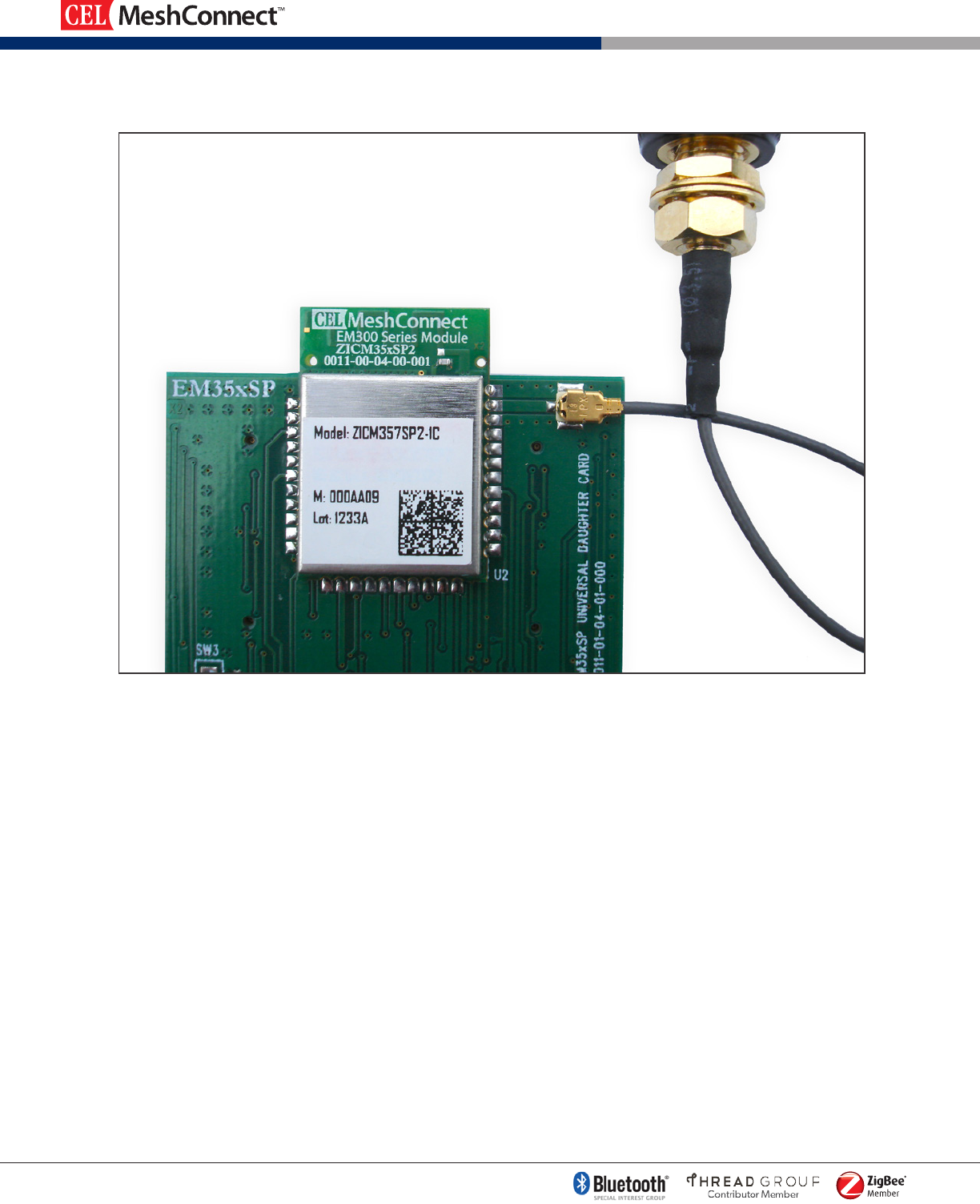

Figure 4. Implementation using connector, cable and external antenna
DESIGN VERIFICATION TEST PROCEDURE
Any manufacturer that chooses to implement the external antenna on their host board should verify that the implementation
was done properly. To assist with this, the following Test Procedure can be used. The procedure uses a Network Analyzer
capable of making return loss measurements at 2.4GHz.
1. Calibrate the network analyzer for a one port measurement with a center frequency of 2.44GHz and a span of 200MHz.
2. Take a blank host board and solder a 100Ω resistor between castellation Pin 31 and 32.
3. Solder a second 100Ω resistor between castellation Pin 32 and 33.
4. Solder the U.FL connector on the host board.
5. Using the appropriate U.FL to SMA adapter for your network analyzer, measure the Return Loss of the trace,
(either S11 or S22 depending on which port was chosen during the 1-port calibration).
6. A return loss of -15 dB or lower indicates an acceptable implementation (PASS).
Antenna: S181AH-2450S
Cable: 336320-12-0100
U.FL-R-SMT connector
Page 5
Mini Module External Antenna Implementation
This document is subject to change without notice.
Document No: 0011-00-16-11-000 (Issue C)

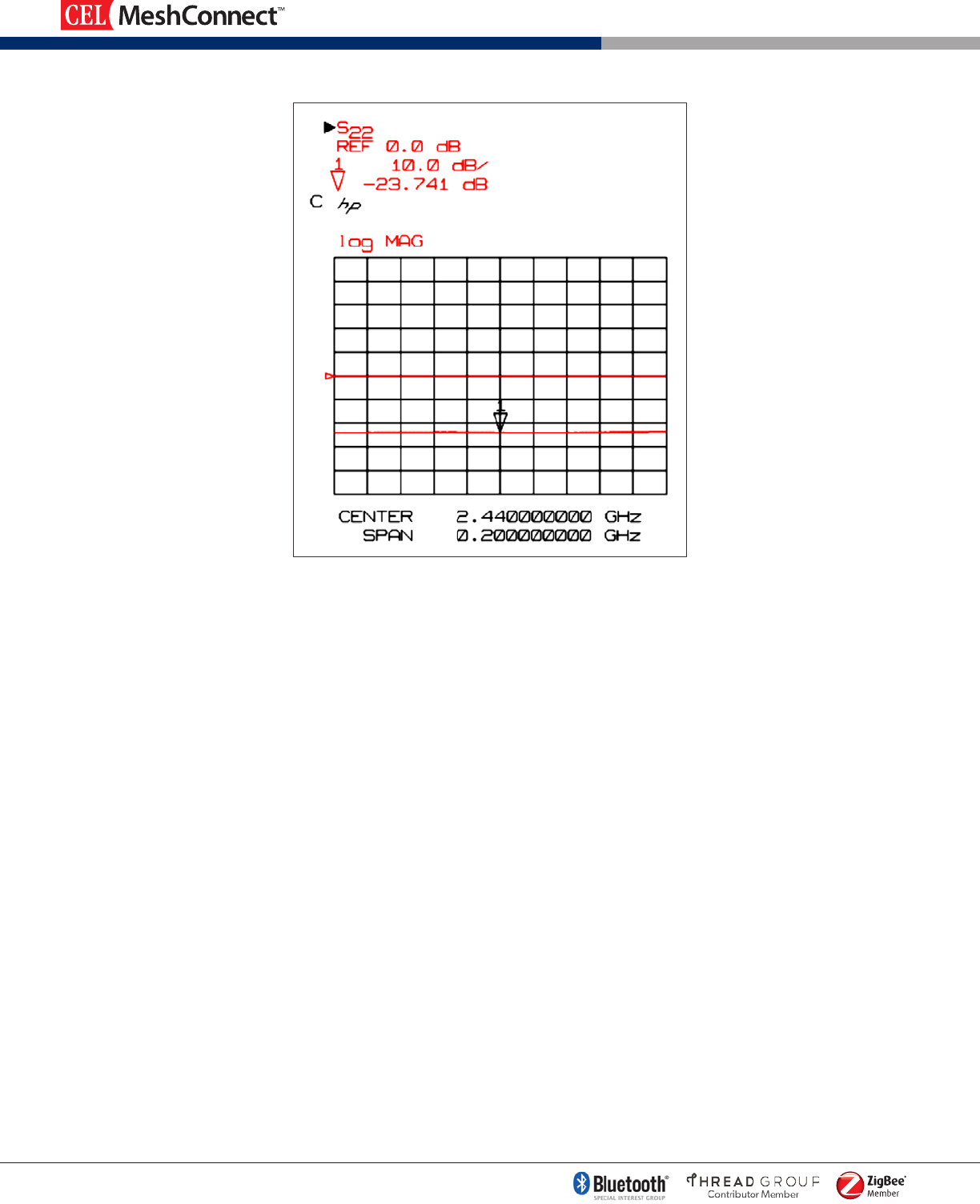

Figure 5. displays the measurement where Port 2 was used as the measurement Port.
Figure 5. Measured Return Loss of RF trace
PRODUCTION TEST PROCEDURE FOR ENSURING COMPLIANCE
During production, host boards should be tested to ensure compliance. CEL recommends that when the host board is
manufactured, the requirement of “Electrical Testing” is specied with the PCB order to guarantee that no short is present
anywhere on the host board (which includes the trace between the U.FL connector location and the module RF castellation
pad). This greatly simplies the production test requirements down to verifying that a solder short did not occur during
the component placement and reow of the host board assembly. Verifying no solder short has occurred can be done by
measuring an open circuit between castellation pins 32 and 33 using a DC multi-meter.
