8 Web Page Reference
149
NOTE: A raster limits the selection of the Rx frequency based upon the setting of the Tx
frequency.
Tx Color Code, Rx Color Code: When co-channel interference is from another PTP 600, co-
channel performance is improved by selecting different values for a new colour code attribute
at the victim and interfering links. Improvement may be up to 7dB. It will also allow the units to
operate at levels of C to I below 14dB, which is currently not possible.

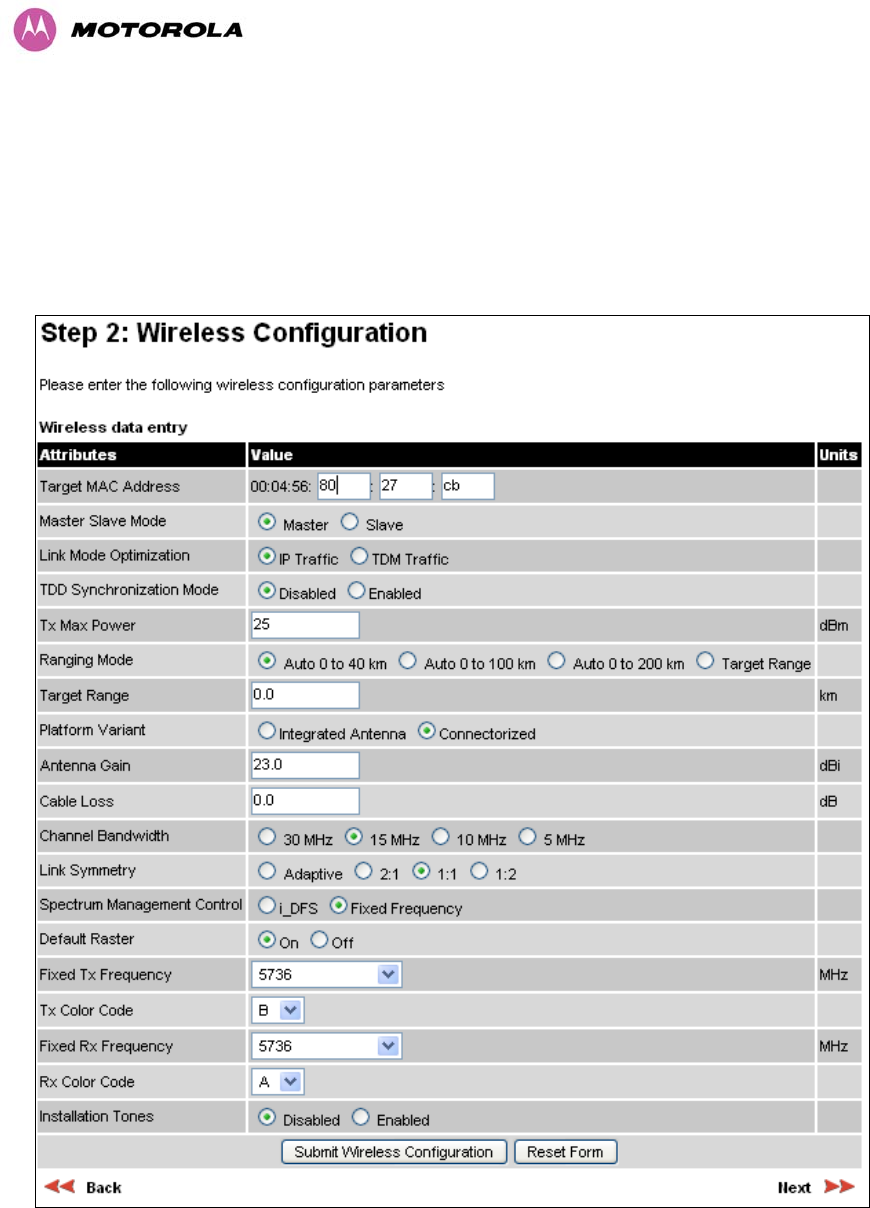

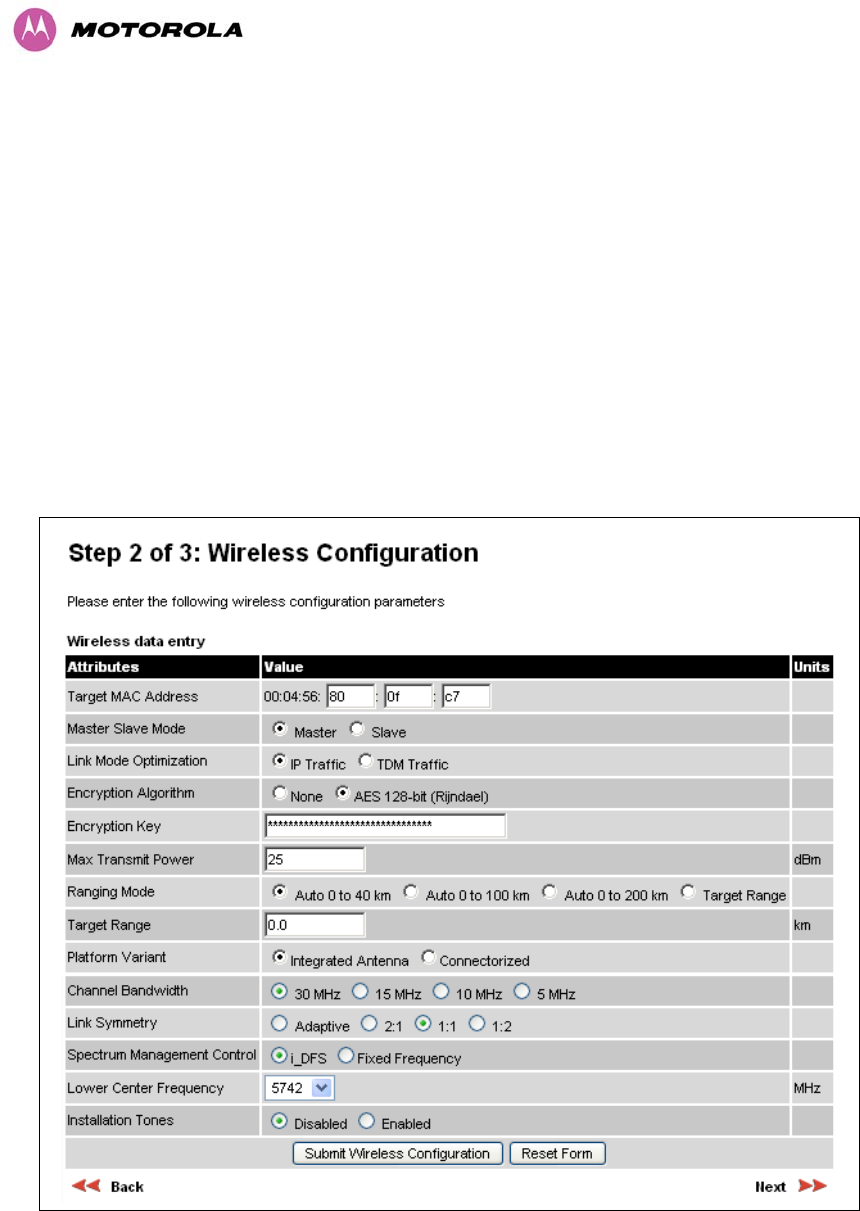

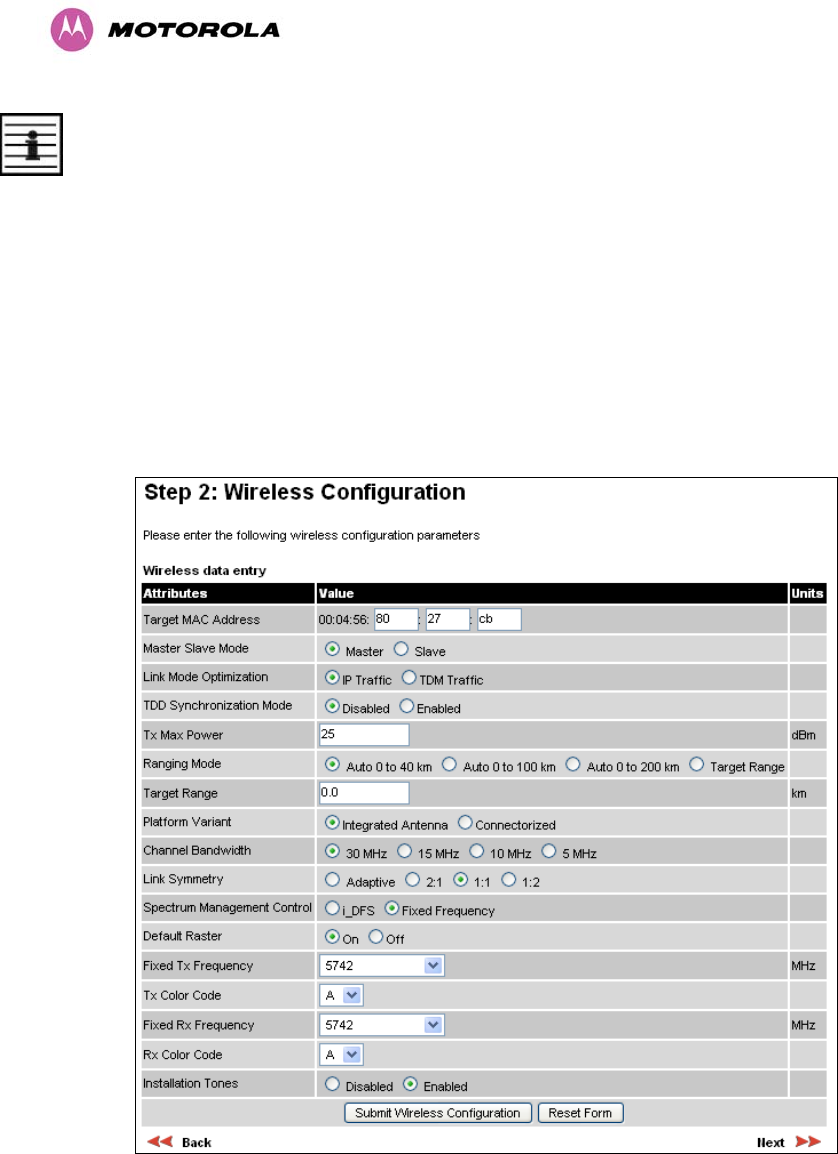

Figure 68 – PTP 59600, PTP 58600 and PTP 54600 Variants - Fixed Frequency Operation
8 Web Page Reference
150

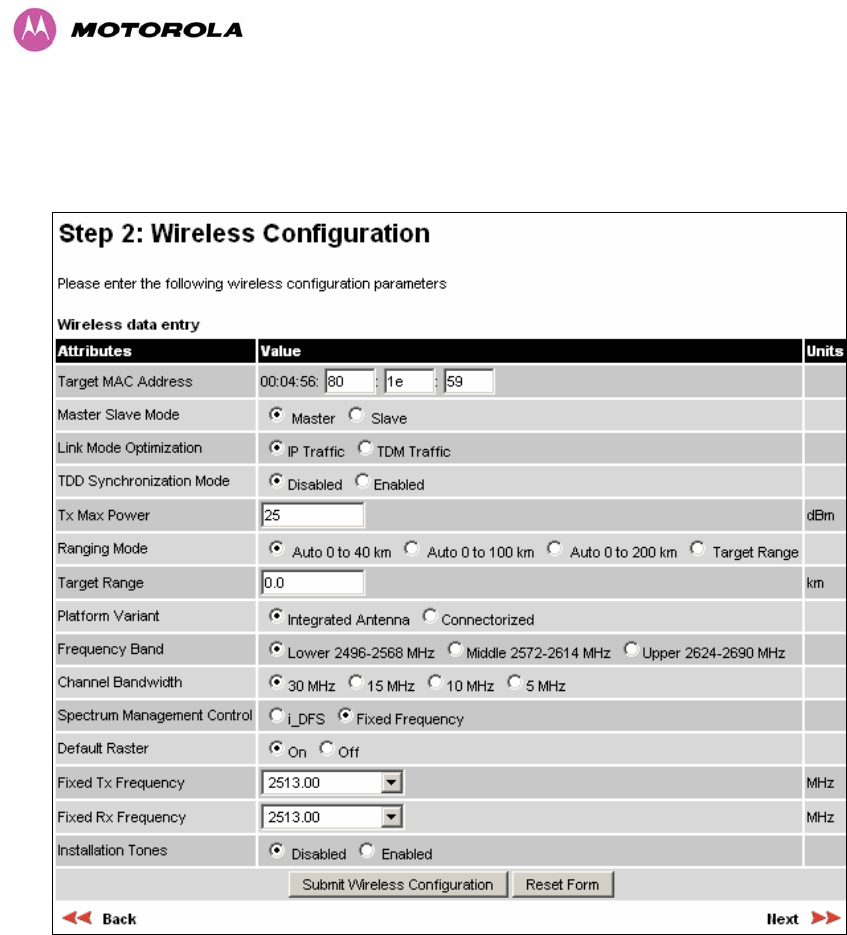

Figure 69 - PTP 25600 Variant - Fixed Frequency Operation
Installation Tones: Where the use of audio installation tones is not required, this control
allows the installer to optionally disable the tone generator during the installation process.
Once the installer is satisfied with the wireless configuration options then the “Submit
Wireless Configuration” button or the “Next” link should be clicked.
8 Web Page Reference
151
Figure 70 – PTP 59600, PTP 58600 and PTP 54600 Variants - Installation Wizard Confirm
Configuration
8 Web Page Reference
152

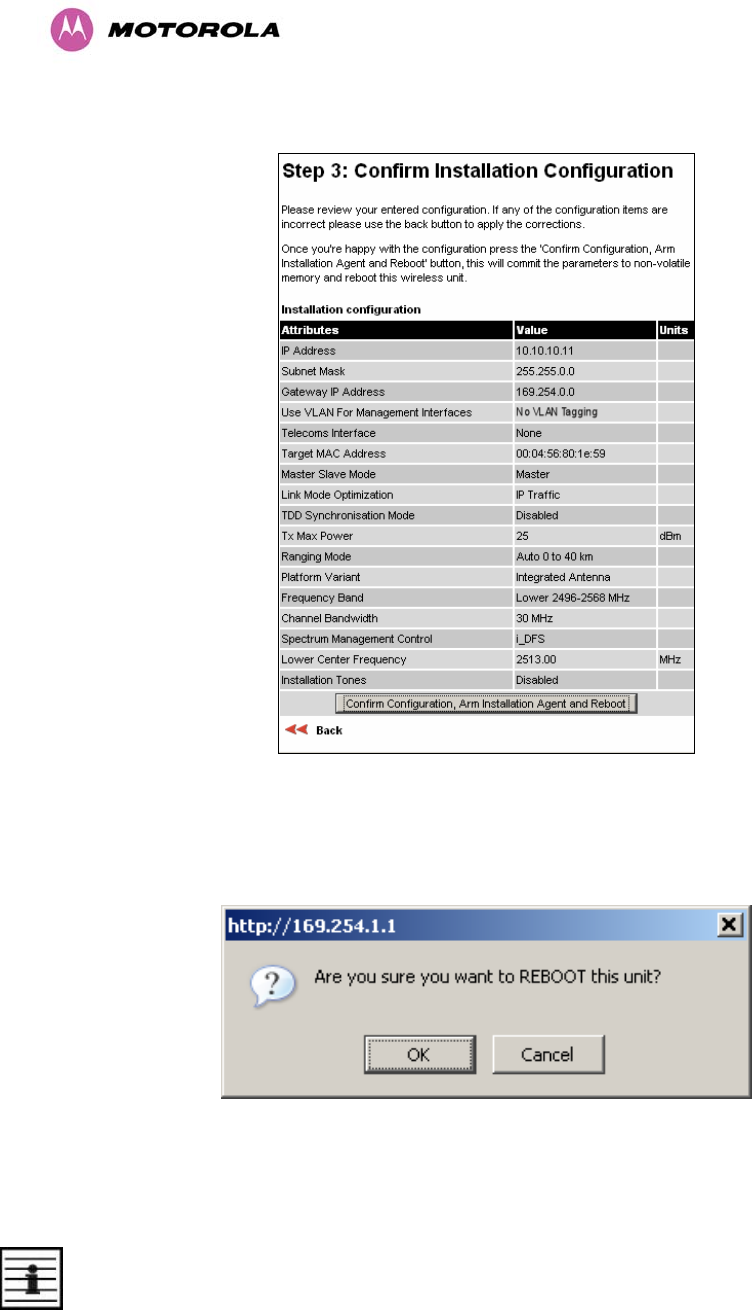

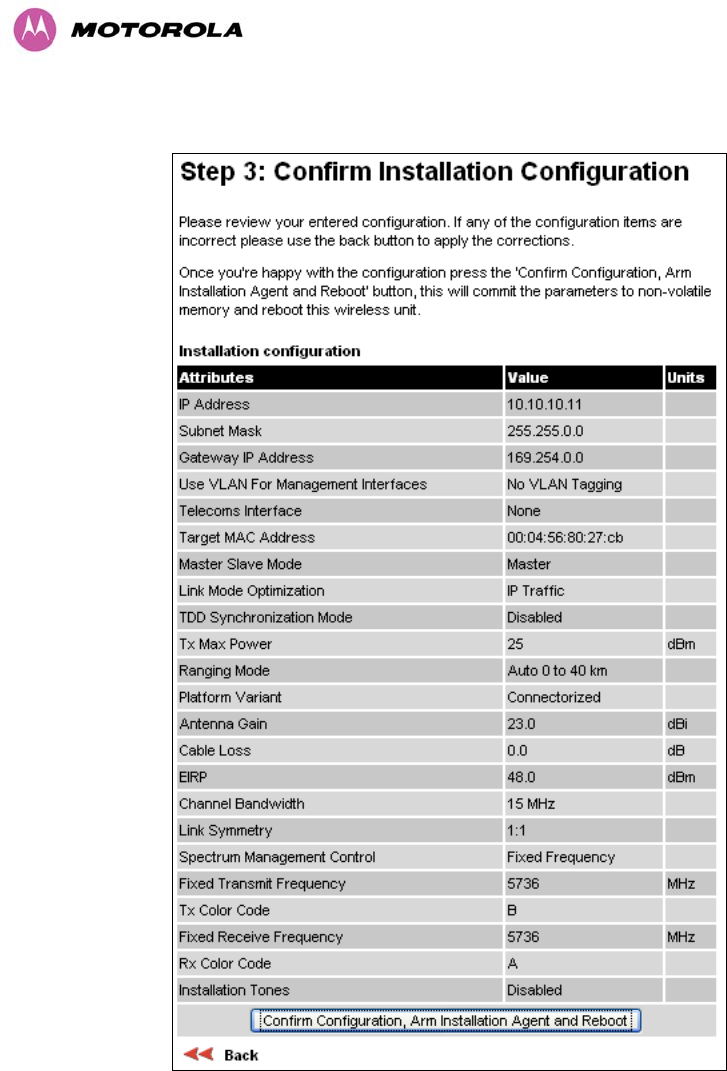

Figure 71 - PTP 25600 Variant - Installation Wizard Confirm Configuration
If the settings are correct and appropriate, click the “Confirm Configuration, Arm Installation
and Reboot” button. The user will now be prompted to confirm the action (Figure 72).

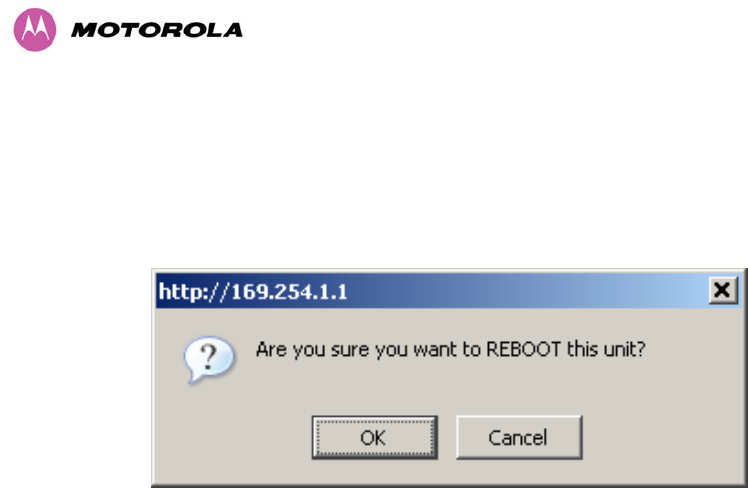

Figure 72 - Reboot Confirmation Pop Up
All the attributes are committed to non-volatile memory. Immediately following the write to
nonvolatile memory the unit is reset.
NOTE: If you have changed the Ethernet parameters you must reconnect using the correct
network and address settings.
8 Web Page Reference
153
8.3.4.5 Disarm
Step 5 of the installation wizard is the disarm phase.

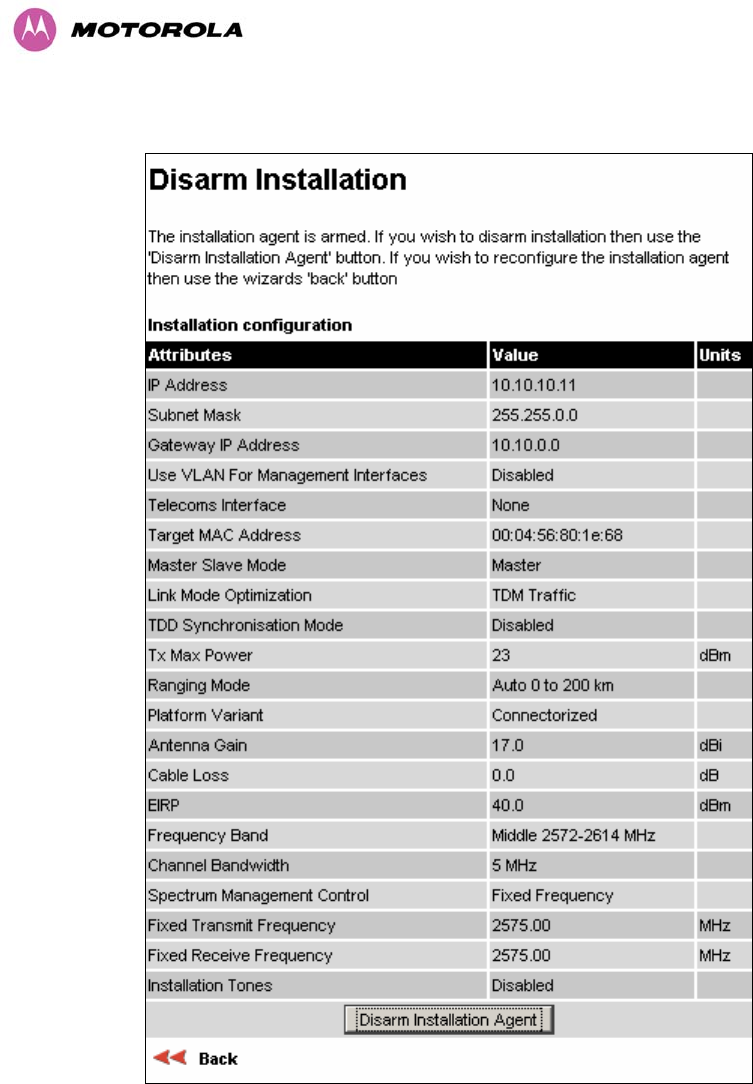

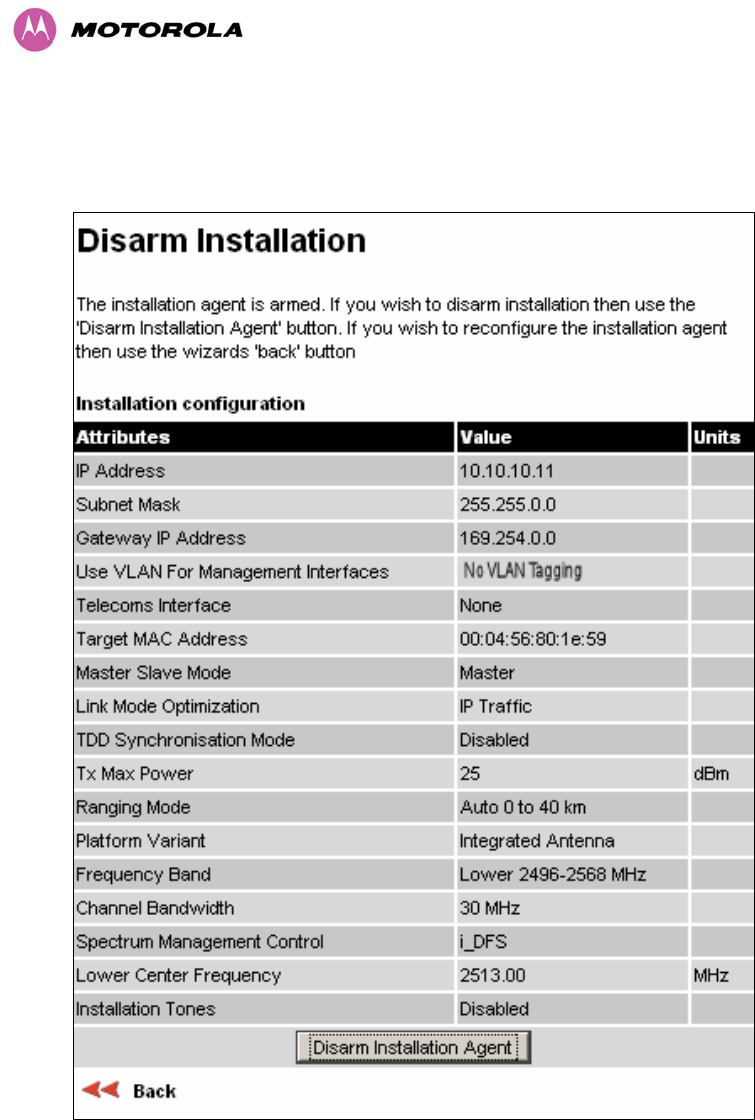

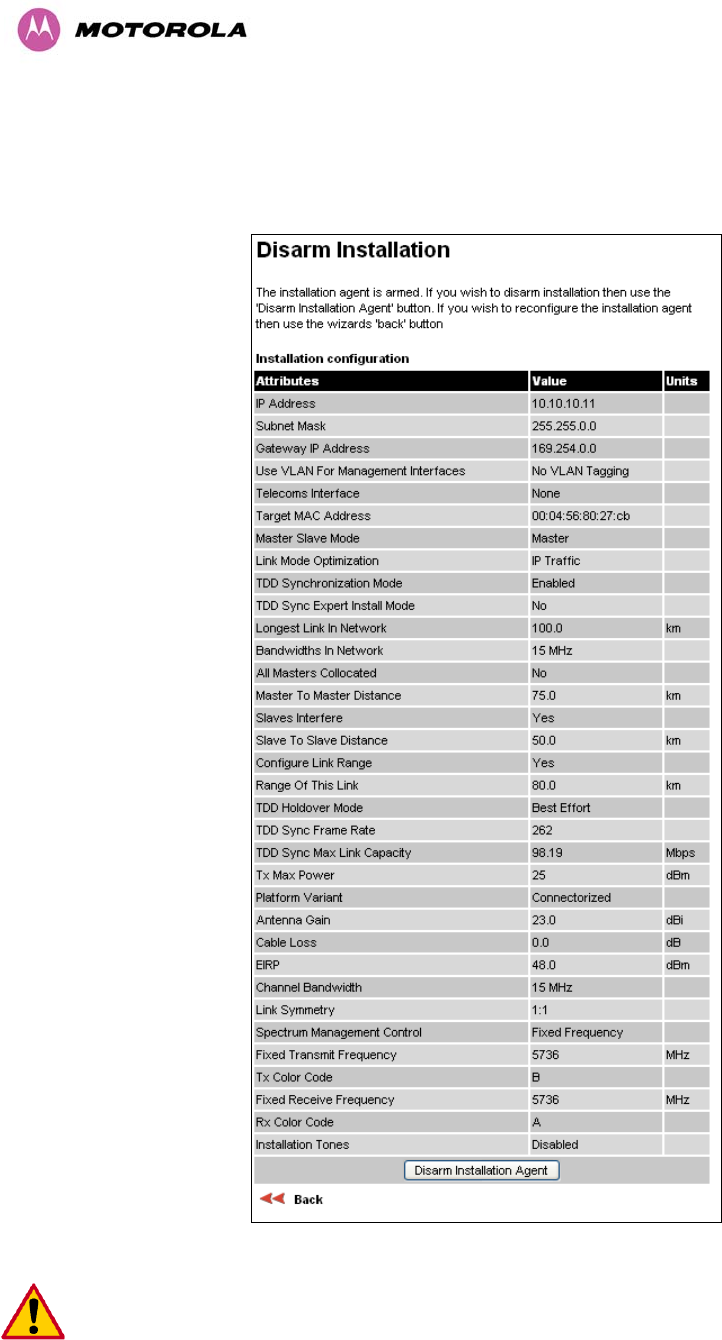

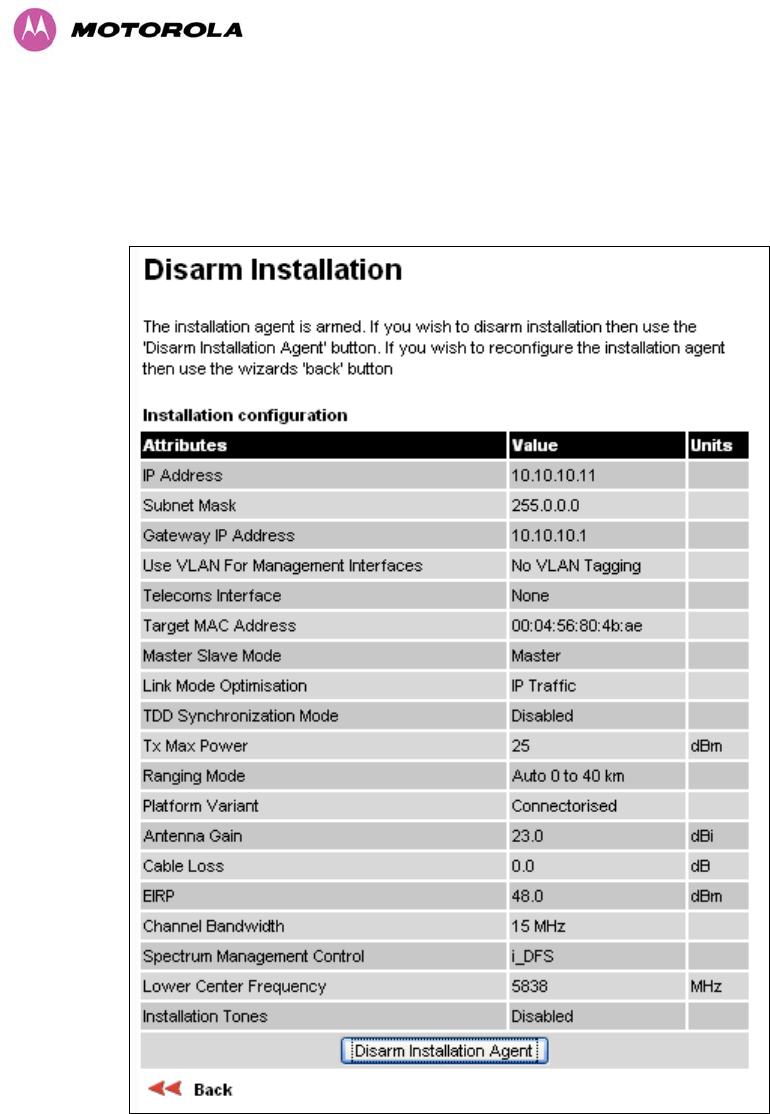

Figure 73 – PTP 59600, PTP 58600 and PTP 54600 Variant - Disarm Installation
8 Web Page Reference
154
Figure 74 - PTP 25600 Variant - Disarm Installation
8 Web Page Reference
155
Once Section 8.3.4.4 “Wireless Configuration” is complete pressing the “Disarm Installation
Agent” button completes the installation process19 and the audible installation tone will be
switched off. If the installer wishes to modify the installation configuration then the ‘Back’ link
can be used to access the installation wizard steps described above.

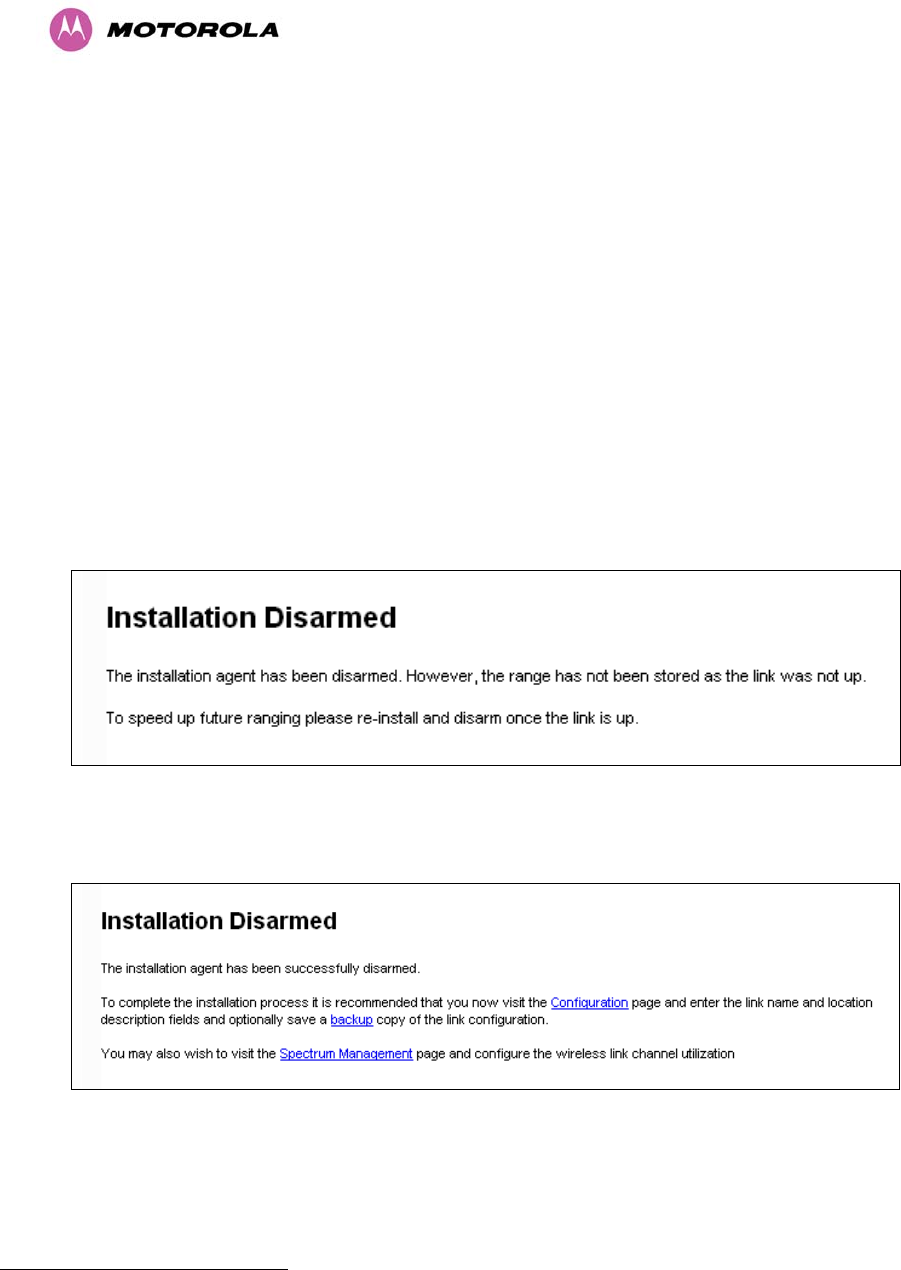

After disarming the wireless link the user is presented with one of two possible configuration
pages, see Figure 75 and
Figure 76. The screen presents hyperlinks to the main configuration and spectrum
management pages.
Figure 75 - Optional Post Disarm Configuration 1
Figure 76 - Optional Post Disarm Configuration 2
19 The installation process is completed when both ends of the link are ‘disarmed’.
8 Web Page Reference
156
After installation the system administrator may wish to modify the wireless units descriptive
configuration (link name and link location). In addition the system administrator may wish to
change the spectrum management configuration of the wireless unit, or look at the analysis of
the 5.8 GHz spectrum to see if the automatic channel selection is appropriate for the system
administrator’s network. It is also recommended that a backup copy of the wireless units
configuration is taken. Hyperlinks are provided on the post disarm page for ease of use.
8.3.5 Graphical Install
To aid the installation of wireless links two graphical installation aids have been introduced in
this 600 Series system version.
• A PDA installation screen
• A larger installation screen available from the main HTTP management interface.
The design of the installation screen has been deliberately kept simple and uncluttered. An
example of the installation screen is shown in Figure 77. Both the PDA and the large format
installation screen have the same content and only differ in size. The PDA installation screen
is 232 by 220 pixels to be compatible with the typical size of a PDA screen.

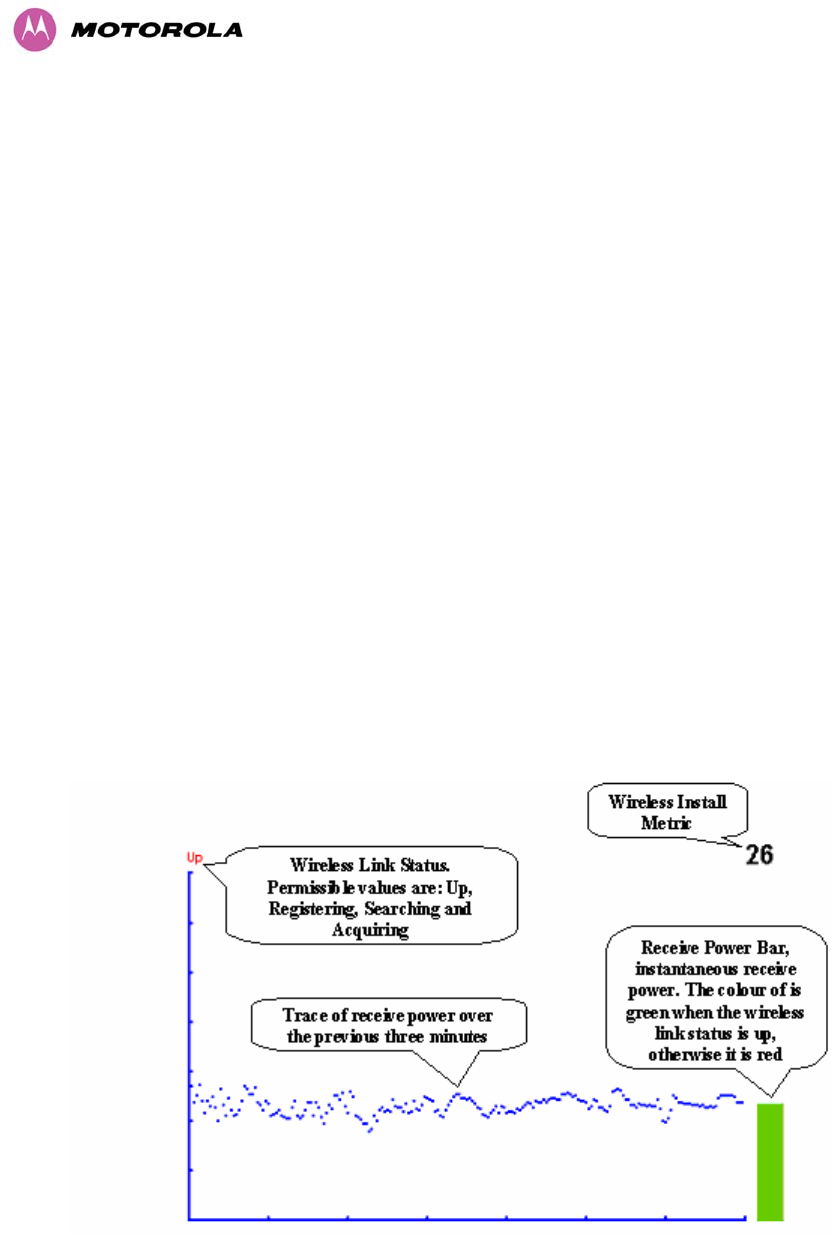

Figure 77 – Graphical Installation Screen
8 Web Page Reference
157
The screen displays the receive power over the last three minutes. This will allow the installer
to slowly sweep the antenna during installation and monitor the variation in signal strength
with angular position. The screen automatically refreshes every three seconds.
The screen also displays the current state of the wireless link in two ways. First, the actual
state of the wireless link is written in the top left corner of the screen. The instantaneous
receive power bar also encodes the state of the wireless link using green to signify that the
wireless link is up and red for all other states.
For the more technically, aware the installation metric is simply the instantaneous receive
power in dBm + 100.
The PDA installation tool is accessed via a hidden URL http://<ip-address>/pda.cgi. It should
be noted that this link is only available after the user has logged in as system administrator.
The large screen version of the graphical user interface is available as a submenu option of
the installation wizard.
8 Web Page Reference
158
8.3.6 Software Upgrade
The 600 Series system has two software image banks; one is a fixed image which is stored in
protected non-volatile memory and cannot be modified by the user. The second bank is used
by the system administrator to upgrade the firmware when necessary. Figure 78 shows the
main software upgrade web page.

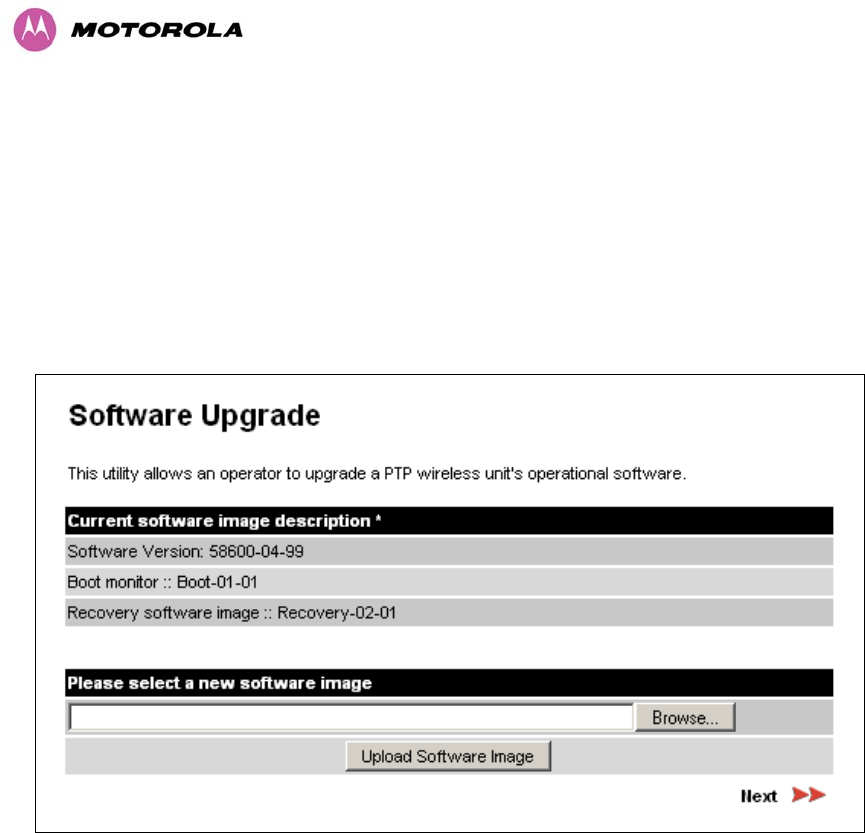

Figure 78 - Software Upgrade

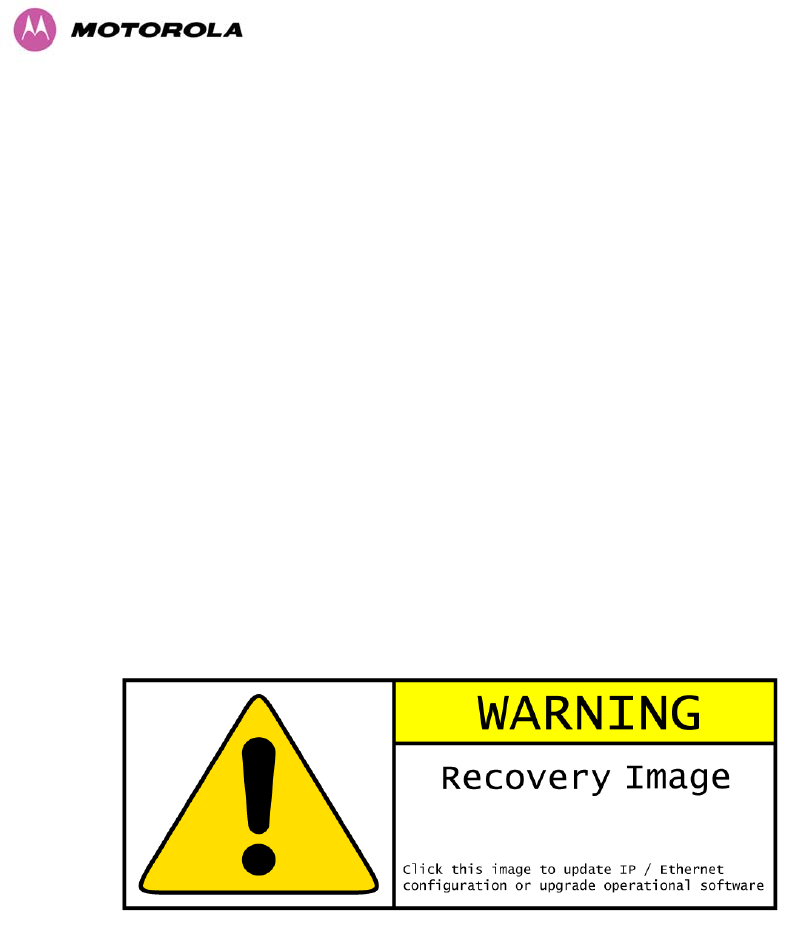

The ‘Fixed’ or ‘Recovery’ image is used by the System Administrator to:
• Reset Ethernet configuration to default settings
• Erase Configuration
• Upgrade software
For a full description of the Recovery image see Section 9 “Recovery Mode”.
The software upgrade pages are used to update a unit’s operational software. The software
image to be uploaded should be downloaded to local storage from the Motorola web site. The
software image is delivered by Motorola as a compressed zip file. Once the zip file has been
downloaded, the user should extract the PTP 600 Series Software image, identifiable by its
‘.dld’ file extension.
8 Web Page Reference
159
The first step (Figure 78) is to use the “Browse” button to locate the software image
previously downloaded to local storage from the Motorola web site. Once the image is
located, the user should press the “Upload image to wireless unit” button to start the software
upgrade process20.
The software image will now be uploaded to the unit. This upload should only take a few
seconds. Once complete the image is verified and validated to ensure that no errors occurred
during transfer and that the image is valid to run on the current platform. If there are any
problems a warning screen will appear.
The unit being upgraded will now display information about the build it currently has stored in
the image bank and the one that’s just been uploaded. If the image is not the right one, the
user has the option to go back and reload a new image. (See Figure 79)
Figure 79 - Software Upgrade Image Check

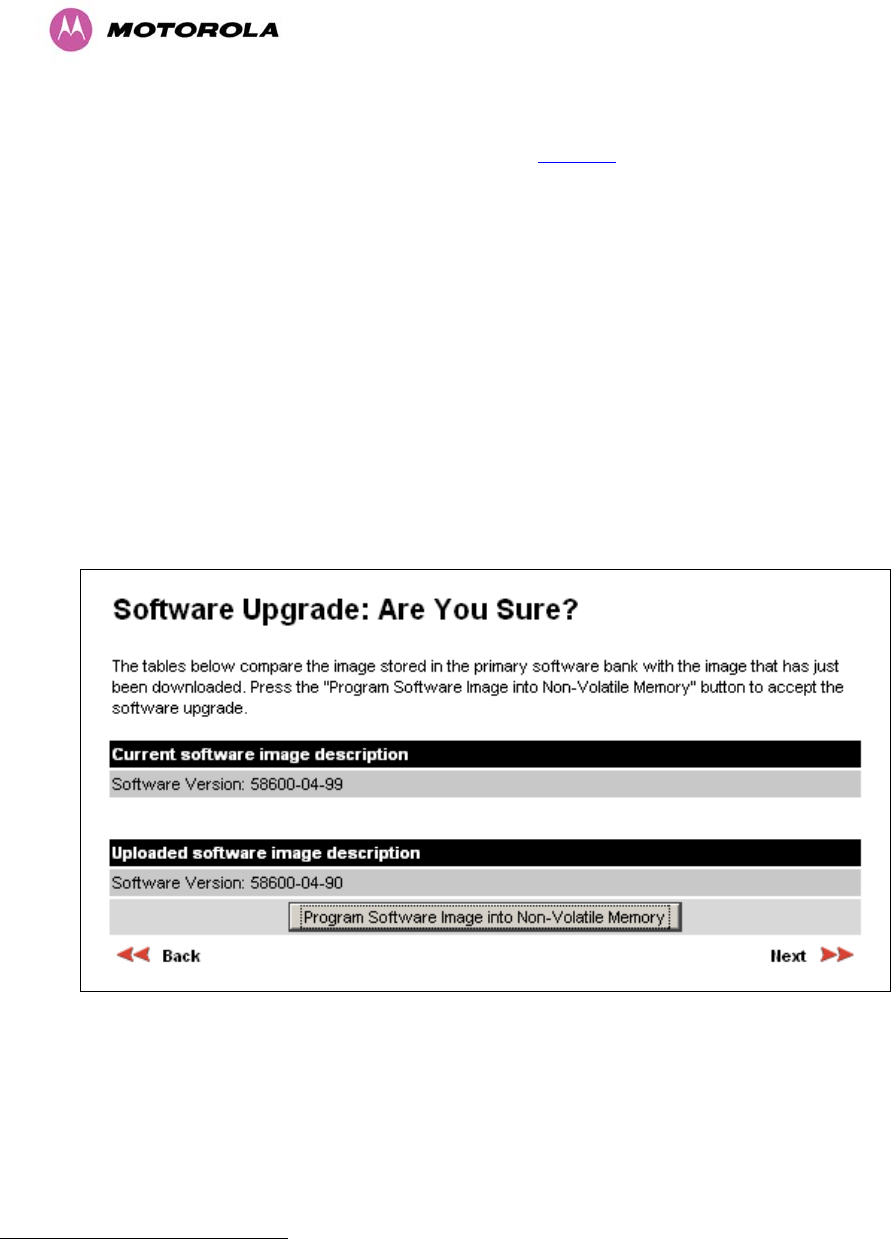

The user should ensure that the correct image is shown before pressing the “Program
Software Image into Non-Volatile Memory” button. Once this button has been pressed the
image is stored into non-volatile memory, this process can take up to 60 seconds and must
not be interrupted.
20 During the software upgrade process, ensure that the remote end is upgraded first using the wireless
connection and then the local end can be upgraded.
8 Web Page Reference
160
CAUTION: If the upgrade process is interrupted during the erasure of the image bank, or
during the reprogramming of the image bank, the image bank will be left in a corrupt state. If
this occurs the software must be reloaded. All software images that are stored in non-volatile
memory are protected via the use of CRCs. If the software detects an invalid CRC the image
bank is marked as ‘corrupt’ and the 600 Series bridge boot code will boot the fixed software
image. If this occurs the user must attempt to reload the correct version of software.
During the write process the progress of the upgrade is displayed on the progress tracking
page (Figure 80). The upgrade process should not be interrupted. Interruption of this process
can result in a corrupt main software image, which will result in the recovery image been
booted at the next reset cycle.

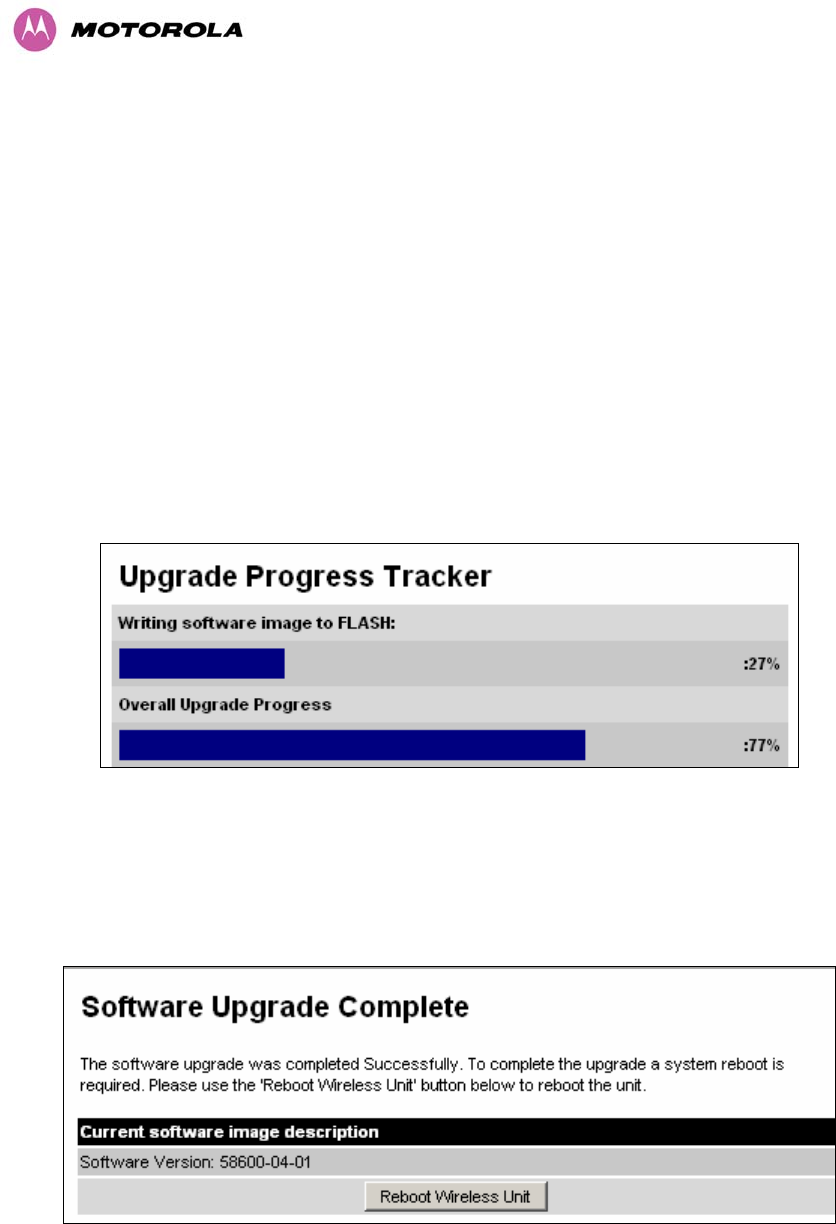

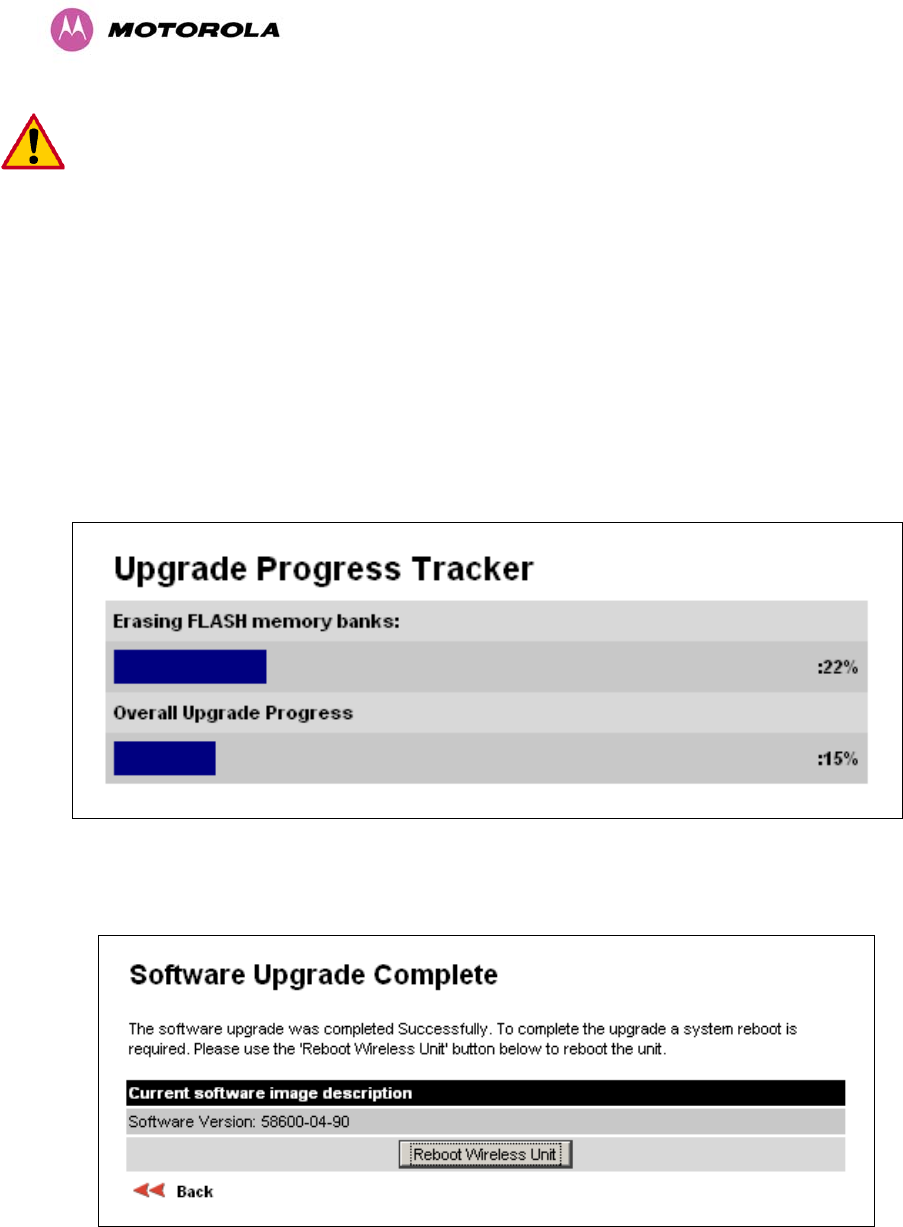

Figure 80 - Software Download Progress Indicator
Figure 81 - Software Upgrade Complete
When the software image has been written to non-volatile memory Figure 81 will be displayed
showing the status of the software upload.
8 Web Page Reference
161

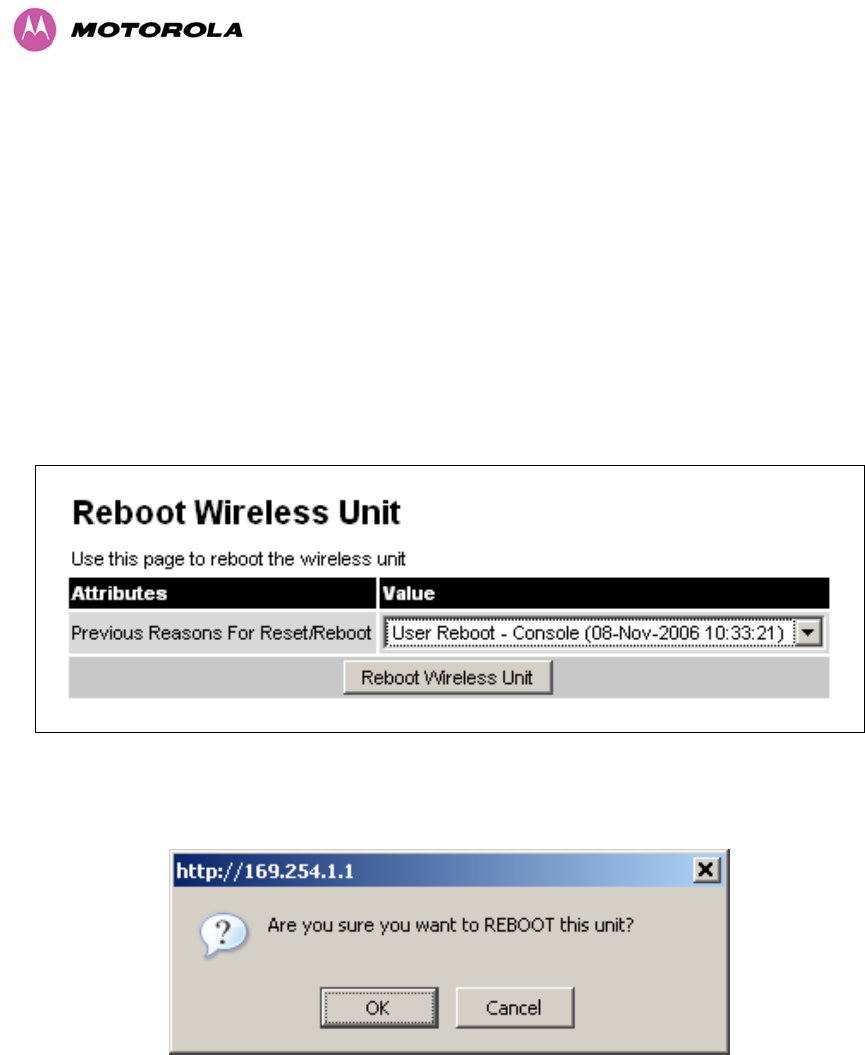

Reboot the unit by clicking the “Reboot Wireless Unit” button. You will be asked to confirm
this action as shown in Figure 82.

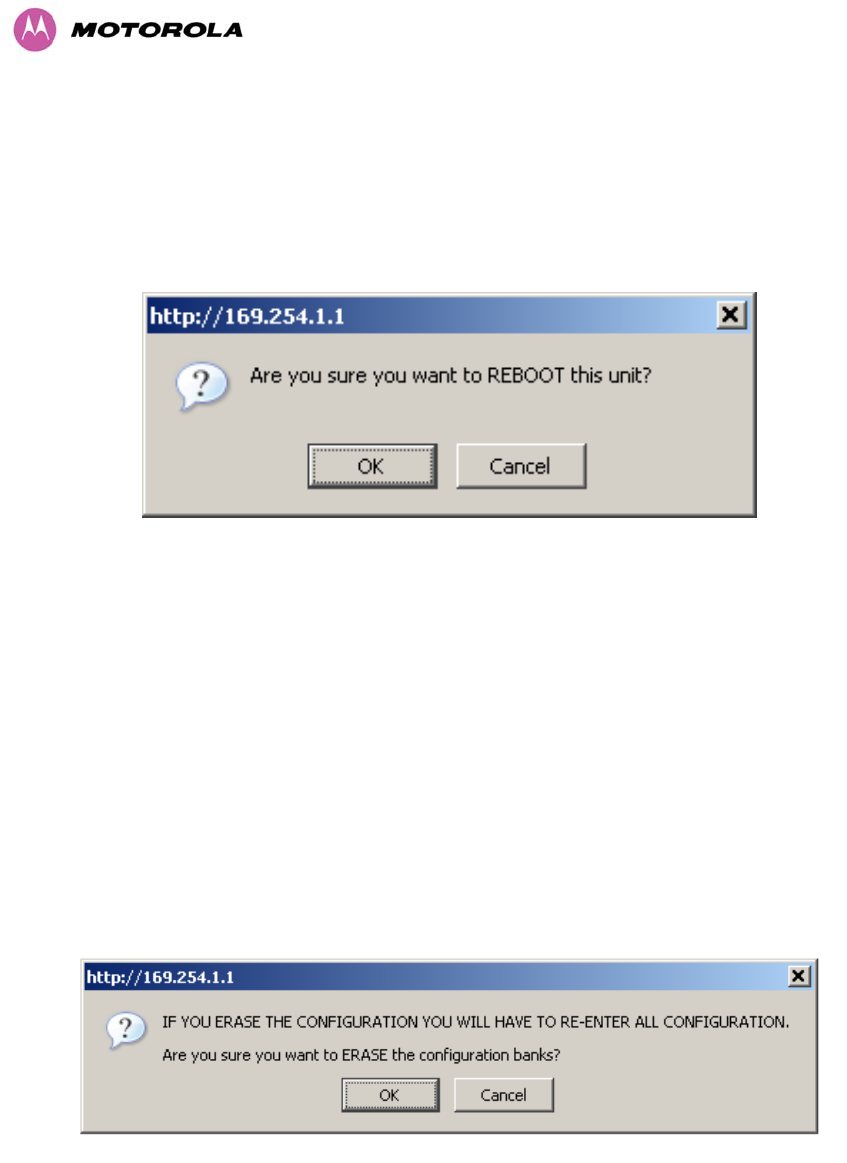

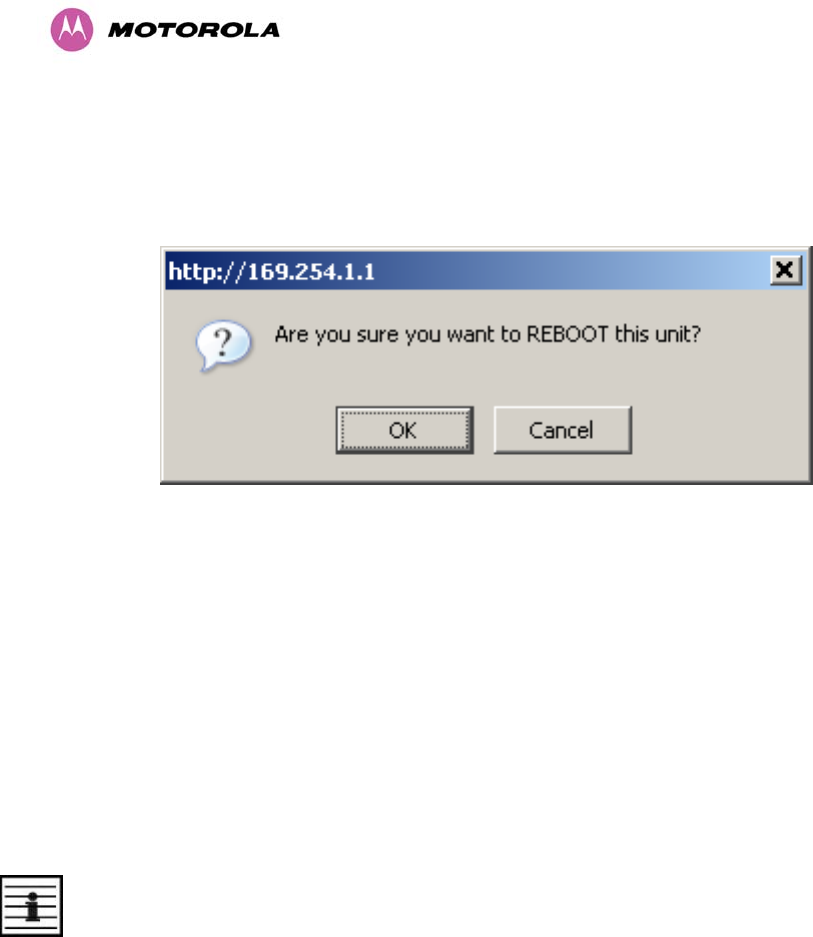

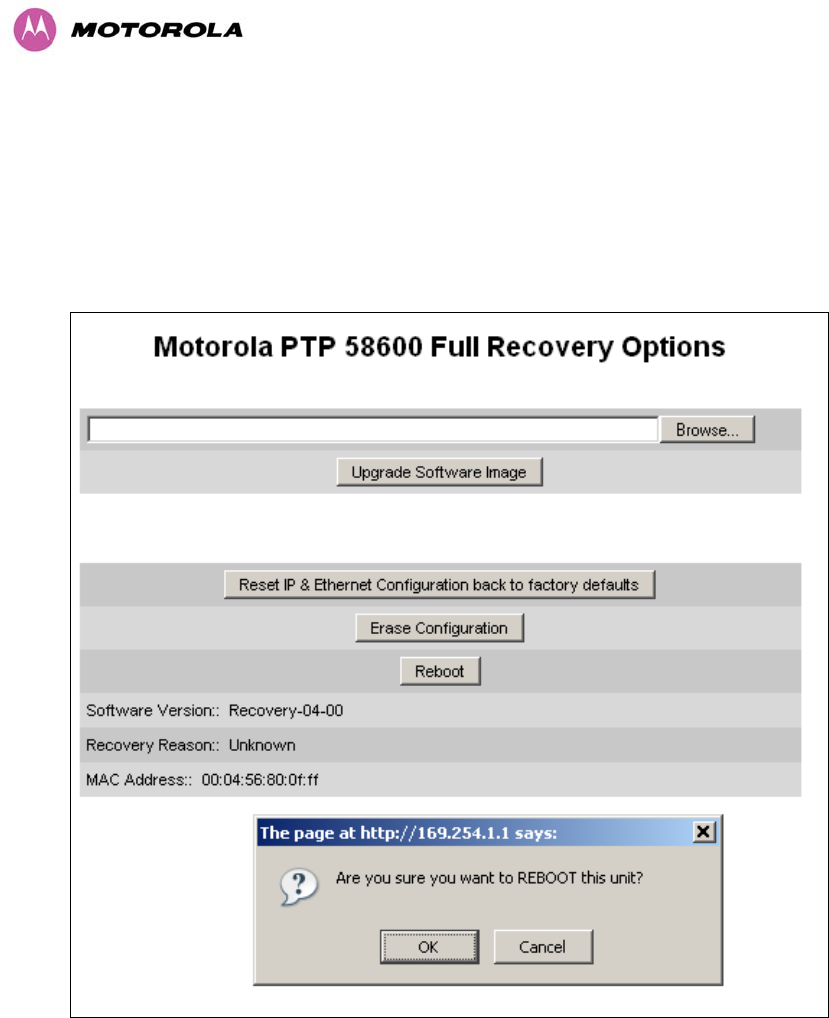

Figure 82 - Reboot Confirmation Pop Up
This will reboot the unit, taking up to 120 seconds. During this time you will not be able to
communicate with the unit.
If you cannot communicate with the unit after 120 seconds, this could indicate a problem with
the memory update process. Under these circumstances the user should enter “Recovery
Mode”, see Section 9 “Recovery Mode”.
After the reboot the user should check that the required software image is loaded and
running.
NOTE: Please ensure that you are upgrading the correct units. Units cannot be downgraded.
8 Web Page Reference
162
8.3.7 Spectrum Management
Spectrum Management Selection is the PTP 600 Series Bridge feature that monitors the
available wireless spectrum and directs both ends of the wireless link to operate on a channel
with a minimum level of co-channel and adjacent channel interference.
8.3.7.1 Wireless Channels
The PTP 600 Series Bridge operates using a set of predefined overlapping channels. There
are a different number of channels, depending on the raster mode selected. Each channel
occupies 30 MHz, 15 MHz, 10 MHz or 5 MHz of wireless spectrum and is offset in center
frequency from its neighboring channel by 10 MHz or 6 MHz. It is important to note that
adjacent channels on the Spectrum management display have a 10 MHz or 6 MHz overlap to
the adjacent channel.
The default channelization can be modified by varying the lower center frequency attribute in
the installation wizard - see Section 8.3.4.4 “Wireless Configuration”. See Section 5.4
“Variable Channel Bandwidth Operation” and 5.9 “PTP 58600 Specific Frequency Planning
Considerations” for more detail.

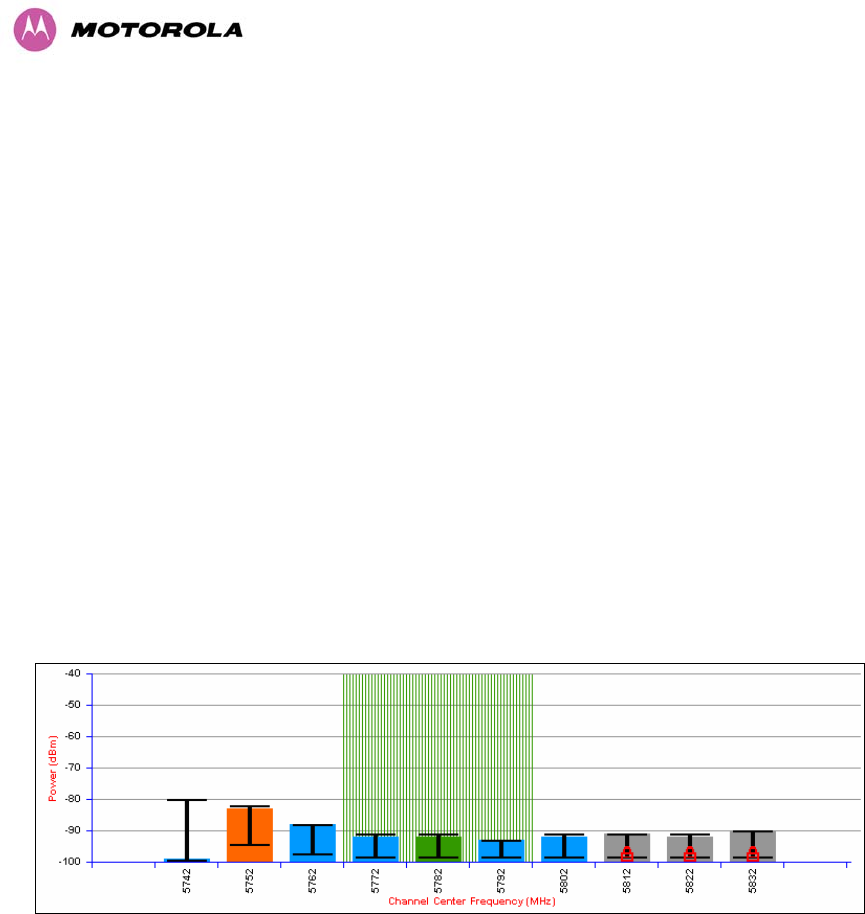

8.3.7.2 Spectrum Management Measurements
The 600 Series Bridge performs two mean signal measurements per TDD cycle, per channel.
This mean measurement represents the mean received signal power for the 40 microseconds
measurement period.
The Spectrum Management algorithm collects measurements equally from all channels. This
process is called the Channel Availability Check (hereafter referred to by the acronym CAC).
The CAC uses a round-robin channel selection process to collect an equal amount of
measurements from each channel. It is important to note that the CAC measurement process
is not altered by the channel barring process. Measurements are still collected for all
channels irrespective of the number of barred channels.
8.3.7.3 Measurement Analysis
Spectrum Management uses statistical analysis to process the received peak and mean
measurement. The statistical analysis is based on a fixed, one minute, measurement
quantization period. Spectrum Management collects data for the specified quantization period
and only at the end of the period is the statistical analysis performed.
8 Web Page Reference
163
The analysis produces three key metrics for each channel:
• Peak of Means
• 99.9% Percentile of the Means
• Mean of Means
Peak of Means is the largest mean interference measurement encountered during the
quantization period. The peak of means is similar to the peak of peaks and is useful for
detecting slightly longer duration spikes in the interference environment.
99.9% Percentile of the Means is the value of mean interference measurement which 99.9%
of all mean measurements fall below, during the quantization period. The 99.9% percentile
metric is useful for detecting short duration repetitive interference that by its very nature has a
minimal effect of the mean of means.
Mean of Means is the arithmetic mean21 of the measured means during a quantization
period. The mean of means is a coarse measure of signal interference and gives an
indication of the average interference level measured during the quantization period. The
metric is not very good at predicting intermittent interference and is included to show the
spread between the mean of means, the 99.9% percentile and the peak of means.
NOTE: Spectrum Management uses the 99.9% percentile as the prime interference
measurement. All subsequent references to interference level refer to this percentile
measurement.
The display of statistical measurement on the spectrum management page always shows a
statistical summary of all channel measurement. The statistical summary is controlled by the
Statistics Window attribute. This attribute defaults to a value of twenty minutes, which means
that the mean and percentile values displayed for each channel are calculated over the 20
minute period. All channel decisions are made using the values computed over the statistics
window period.
21 The arithmetic mean is the true power mean and not the mean of the values expressed in dBm.
8 Web Page Reference
164
8.3.7.4 The Spectrum Management Master / Slave Relationship
The Spectrum Management operates in a master / slave relationship. The master is assumed
to be the link master configured during installation. All Spectrum Management configuration
changes MUST be performed from the master. To enforce this, the Spectrum Management
web page has a different appearance depending if you are viewing the data from the master
or slave.
All configuration changes are applied at the master only. These changes are then messaged
from the master to the slave. Any Spectrum Management configuration messages received at
the slave are stored in non-volatile memory. This enables both master and slave to keep
identical copies of Spectrum Management configuration data in their non-volatile memories. It
is therefore possible to swap master and slave roles on an active Point-to-Point link without
modifying Spectrum Management configuration.
Figure 83 - Spectrum Management as seen from the Master
8 Web Page Reference
165
Figure 84 - Spectrum Management as seen from the Slave
Figure 83 shows an example Spectrum Management webpage as seen from the master.
Figure 84 shows an example Spectrum Management webpage as seen from the slave. It
should be noted that the key configuration attributes are not available on the slave web page.
8 Web Page Reference
166
8.3.7.5 Spectrum Management Configuration
The following section describes the user modifiable configuration accessible from the
Spectrum Management webpage. It is recommended that the default values are maintained.
If the user believes that the performance of the Spectrum Management algorithm requires
some modifications this should only be done after consulting your Motorola Point-to-Point
distributor or one of the system field support engineers.
Page Refresh Period: The page refreshes automatically according to the setting entered
here (in seconds).
Hopping Margin: Spectrum Management uses this margin when making a channel hop
decision. The target channel has to have an interference level 3 dB (default) better than the
current active channel.
Hopping Period (not configurable): The Spectrum Management algorithm evaluates the
metrics every ‘Hopping Period’ seconds (180 seconds by default) looking for a channel with
lower levels of interference. If a better channel is located, Spectrum Management performs
an automated channel hop. If SNMP or SMTP alerts are enabled an SNMP TRAP or an email
alert is sent warning the system administrator of the channel change.
Hopping Counter: is used to record the number of channel hops. The number in the “(+)”
brackets indicates the number of channel changes since the last screen refresh.
Interference Threshold: Spectrum Management uses the interference threshold to perform
instantaneous channel hops. If the measured interference on a channel exceeds the specified
threshold, then iDFS will instruct the wireless to immediately move to a better channel. If a
better channel cannot be found the 600 Series Bridge will continue to use the current active
channel. (Default –85 dBm)
Asymmetric DFS: The default configuration of symmetric operation constrains the link to
operate symmetrically, using the same transmit and receive channels. When in symmetric
mode the slave unit will always follow the master. If the master moves to a new channel the
slave will hop to the same channel. When the Point-to-Point link is configured as an
asymmetric link both the master and slave are free to select the best channel from their own
set of local interference metrics.
Channel Bandwidth (not configurable): shows the value of the variable channel bandwidth
selected.
8 Web Page Reference
167
8.3.7.6 Barring Channels
Channels can only be barred / unbarred by the system administrator from the master
Spectrum Management web page. The barring / unbarring operations are disabled on the
slave web page. If an attempt to bar / unbar a channel is made at the slave, a warning dialog
is generated.
Barring/Unbarring of channels is performed by clicking the appropriate channel on the local or
peer channel spectrum plots on the master web page. Each bar / unbar attempt will be
proceeded by a confirmation dialog. It should be noted that the channel bar will take effect
immediately and is not related to the measurement quantization period.
8.3.7.7 Master and Slave Channel Spectrum Graphics
Spectrum Management presents its computed statistical measurements in a graphical display
on both the master and slave Spectrum Management web page.

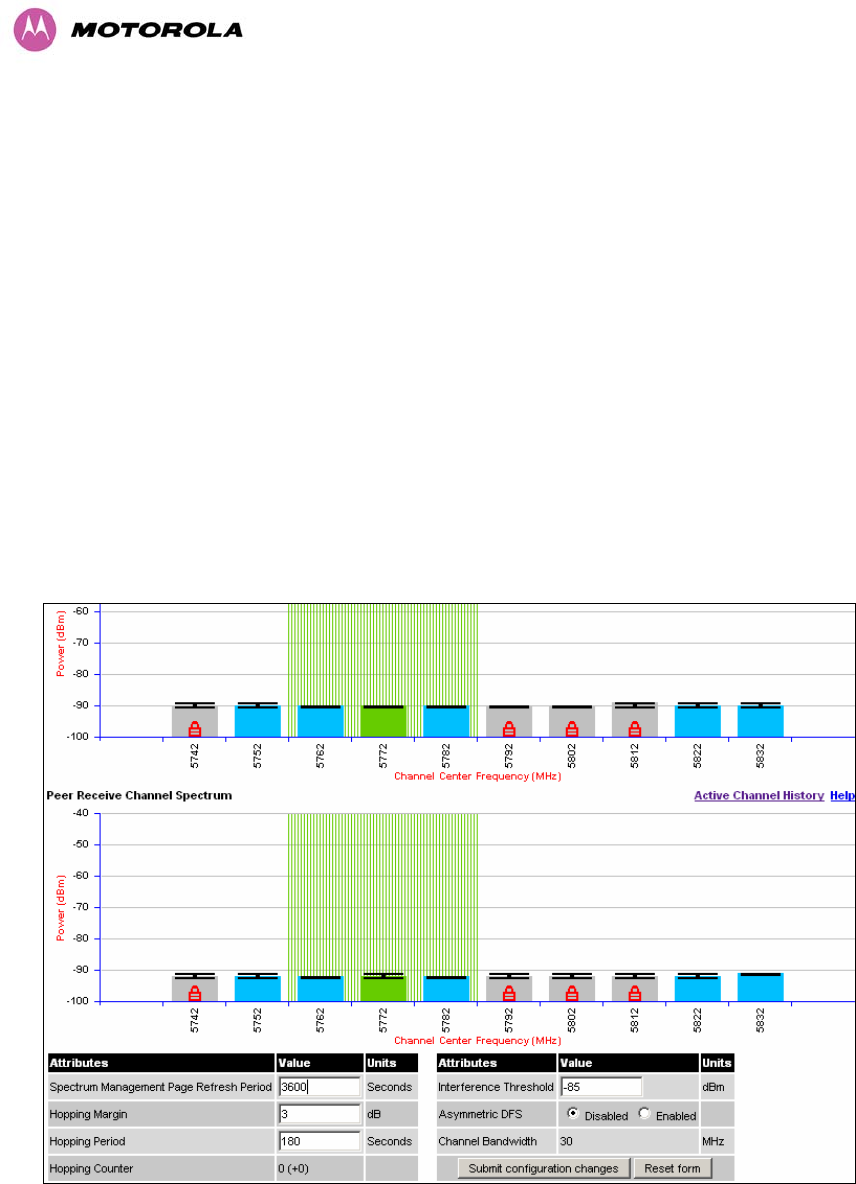

Figure 85 - Example Spectrum Management Graphic
The X-axis shows a stylized view of the 9 or 10 selectable wireless channels. It is important
to note that adjacent channels on the display have a 10 MHz overlap. The display separates
the display of channels to help the clarity of the resultant display. The axis is labeled using the
channel center frequencies in MHz.
The Y-axis shows the interference power levels from –100 to –40 dBm.
The active channel (channel 5 in Figure 85) is always marked using hatched green and white
lines. The width of the hatching is directly proportional the channel bandwidth spectral
occupancy of the channel.
The individual channel metrics are displayed using a colored bar and an ‘I’ bar.
8 Web Page Reference
168
The colored bar represents the following channel state:
Table 28 - Spectrum Management change state key
Green Active The channel is currently in use, hosting the
Point-to-Point wireless link
Orange Interference The channel has interference above the
interference threshold
Blue Available
The channel has an interference level below the
interference threshold and is considered by the
Spectrum Management algorithm suitable for
hosting the Point-to-Point link
Grey Barred
The system administrator has barred this channel
from use. For improved visibility, an additional red
‘lock’ symbol is used to indicate that a channel is
barred.
The top of the colored bar represents the 99.9% percentile metric for specific channel.
The ‘I’ Bar is used to display the mean of means and peak of means metrics. The lower
horizontal bar represents the mean of means and the upper horizontal bar represents the
peak of means. The vertical bar is used as a visual cue to highlight the statistical spread
between the peak and the mean of the statistical distribution.
8 Web Page Reference
169
8.3.7.8 Active Channel History
The active channel history is a time series display of the channels used by the PTP 600
Series Bridge over the last 25 hours. The active channel history is activated from the main
Spectrum Management page using the ‘Active Channel History’ hyperlink. An example of the
active channel history display is shown in Figure 86. Where there are parallel entries on the
display this signifies that the wireless link occupied this channel during the measurement
period. The measurement periods are one minute (from zero to sixty minutes) and twenty
minutes from (60 minutes to twenty five hours).

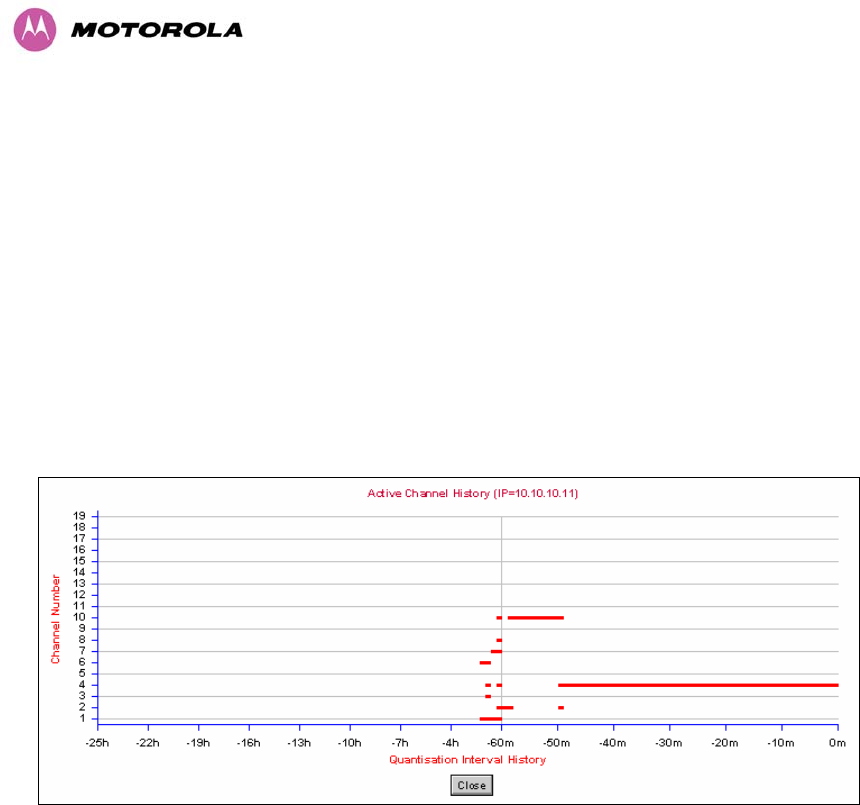

Figure 86 - Active Channel History Screen
8 Web Page Reference
170
8.3.7.9 Viewing Historic Spectrum Management Metrics
Spectrum Management allows the system administrator to view the results of previous
measurement quantization periods. Holding down the shift key and clicking the appropriate
channel on the local channel spectrum plots activates this feature. This feature is available on
both the master and slave web page.

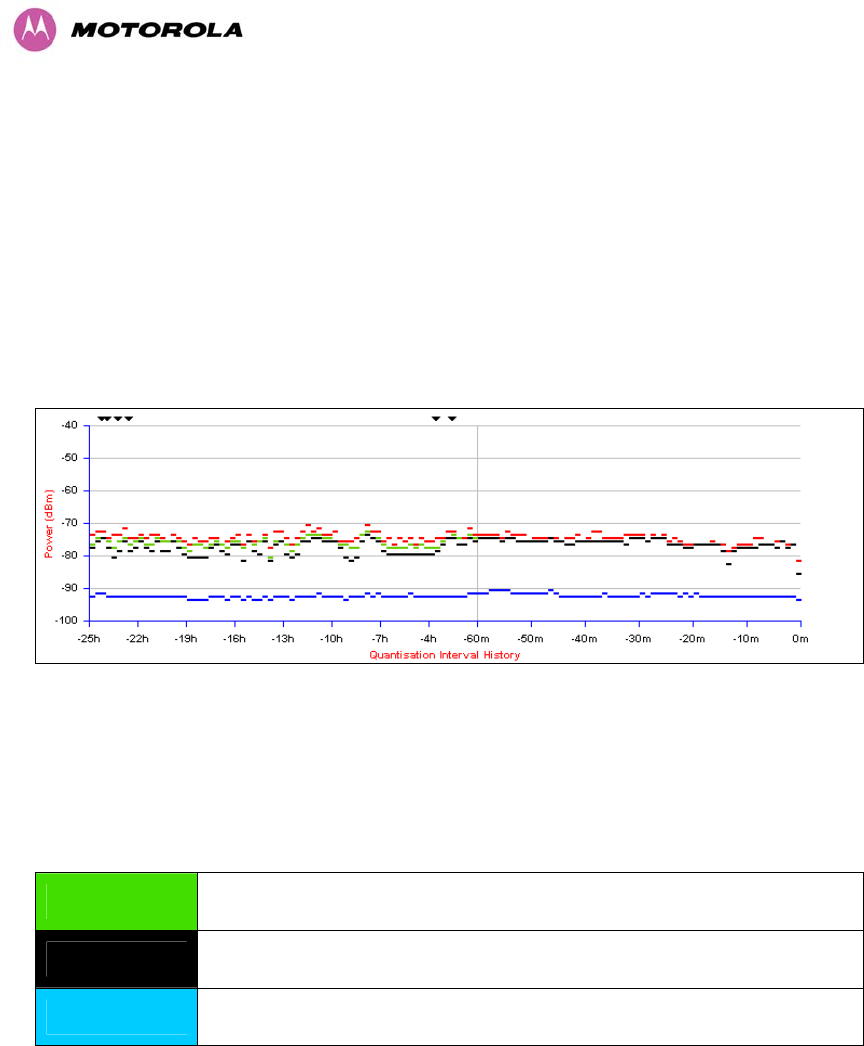

Figure 87 - Spectrum Management Time Series Plot
Figure 87 shows an example time series plot. A time series plot displays the previous 132
measurement quantization periods. If the PTP 600 Series Bridge has not been running for
132 quantization periods then only the number of measurement quantization periods that are
available are displayed.
Table 29 - Spectrum Management Time Series Key
GREEN Peak of Means interference measurement
BLACK 99.9% percentile of means interference measurement
BLUE Mean of Means interference measurement
8 Web Page Reference
171
8.3.8 Spectrum Management (Fixed Frequency)
The PTP 600 Series Bridge software allows a user to optionally fix transmit and receive
frequencies for a wireless link. Once configured, the spectrum management software will not
attempt to move the wireless link to a channel with lower co and adjacent channel
interference. Therefore this mode of operation is only recommended for deployments where
the installer has a good understanding the prevailing interference environment. (See Section
8.3.4.4 “Wireless Configuration”). Care must also be taken to ensure that the frequency
allocations at each end of the link are compatible. To help the user when identifying the mode
of operation Spectrum Management uses two visual cues. See Figure 88. The main page title
identifies the mode of operation using the “Fixed Frequency Mode” postfix and the selected
channels are identified by a red capital ‘F’.

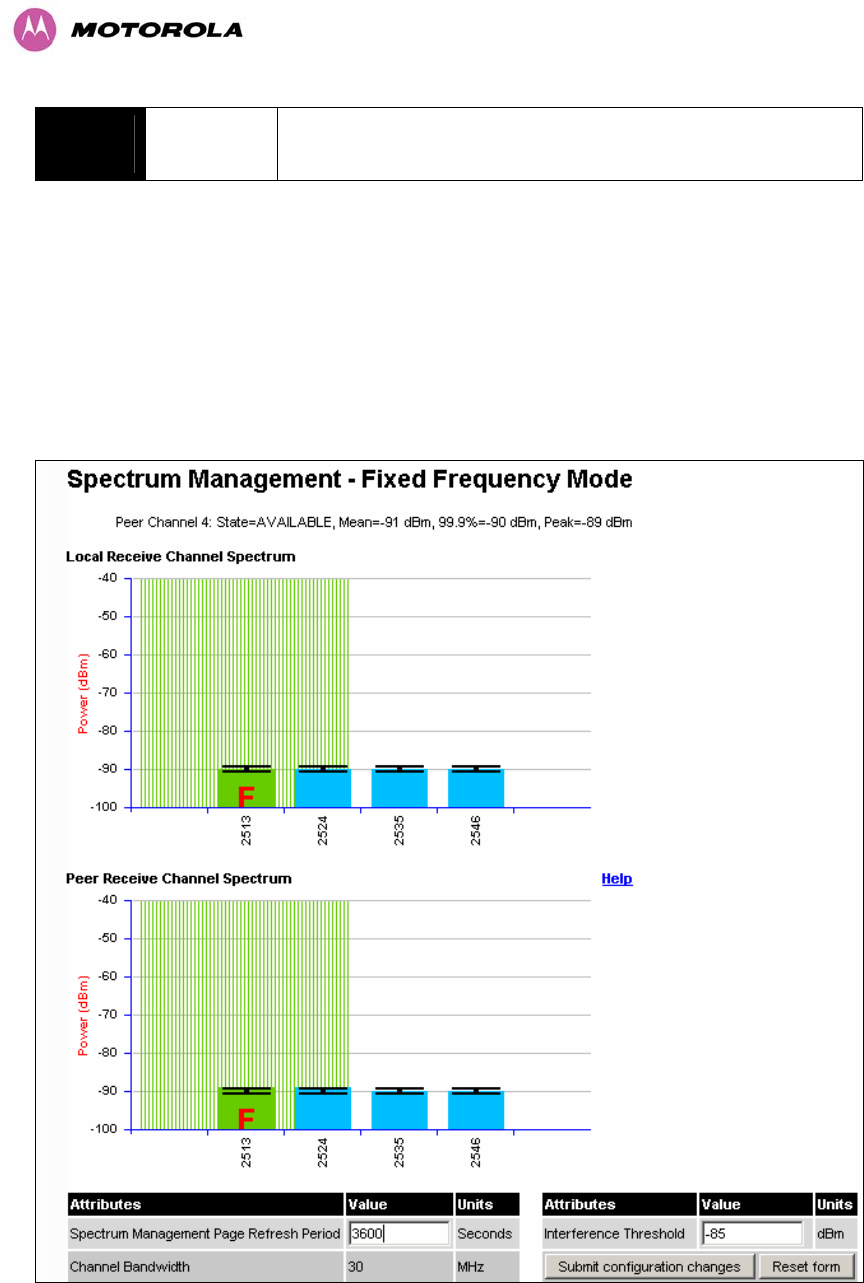

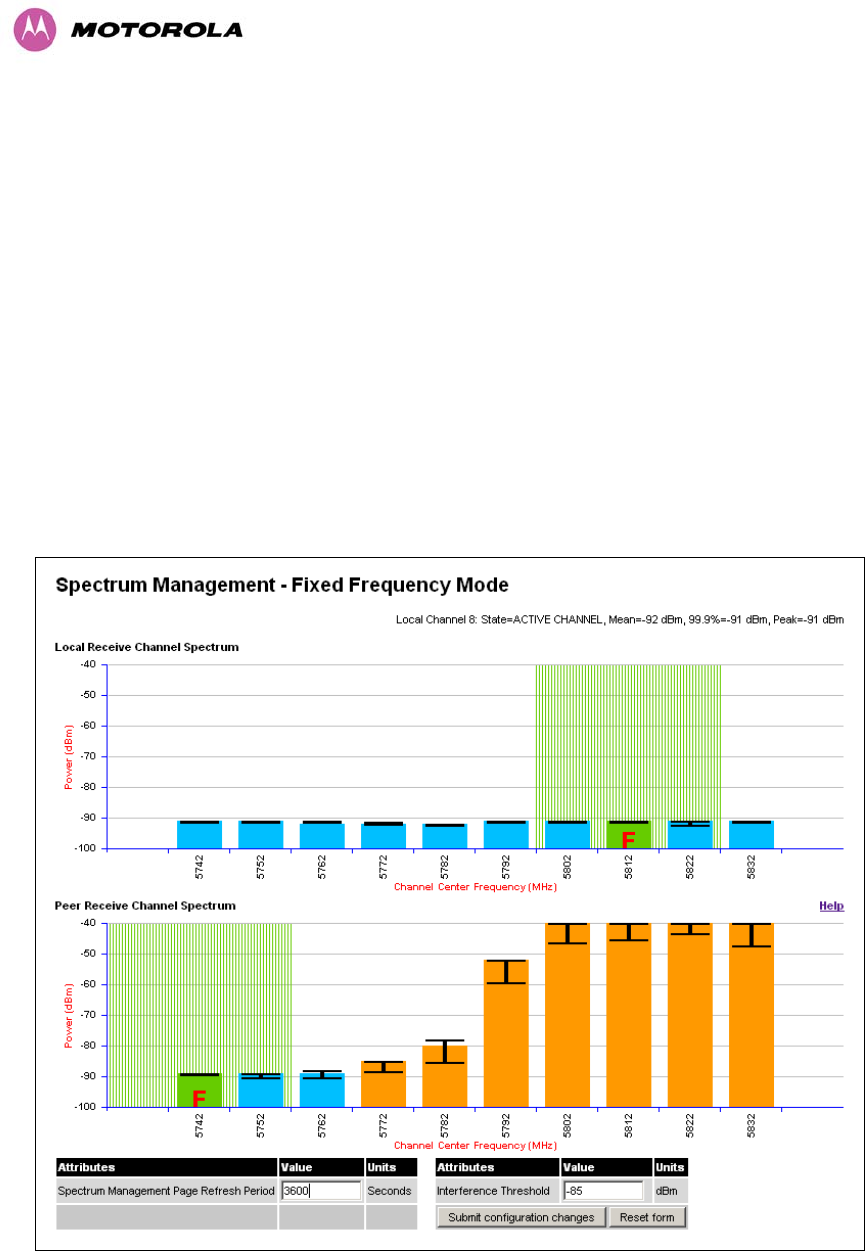

Figure 88 - Spectrum Management Fixed Frequency Screen
Channel barring is disabled in fixed frequency mode; it is not required as dynamic channel
hopping is prohibited in this mode.
8 Web Page Reference
172
The only controls available to the master are the Statistics Window and Interference
Threshold attributes. They will have no effect on the operation of the wireless link and will
only effect the generation of the channel spectrum graphics.
The active channel history menu is removed in this mode of operation as channel hopping is
prohibited.

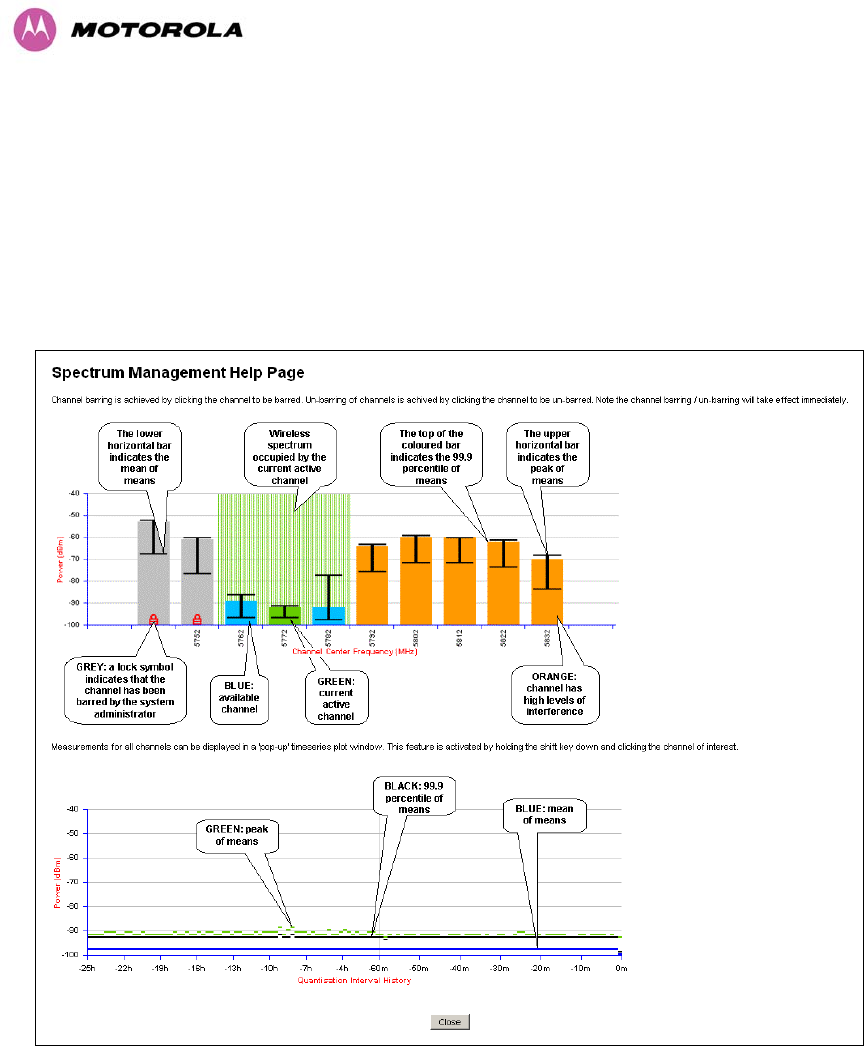

Figure 89 - Spectrum Management Help Page (Fixed Frequency)
8.3.9 Spectrum Management Control - With Operational Restrictions
When operating with Radar Avoidance enabled the following variances in operation apply:
• The words “Radar Avoidance” are appended to the “Spectrum Management” title at the
top of the screen. See Figure 90 and Figure 91.
• The only controls available to the master are the Interference Threshold attribute. This
has no effect on the operation of the wireless link and will only affect the generation of the
channel spectrum graphics. See Figure 90.
8 Web Page Reference
173
• Extra color coding of the interference histogram is provided. See Table 30.
When operating with RTTT (Road transport and Traffic Telematics) Avoidance enabled or
other regulatory restrictions on channel usage the following variances apply:
• All channels marked with a ‘no entry’ symbol with their associated statistics colored black
are the prohibited channels. See Figure 90 and Figure 91. These channels are never
used to host the wireless link, but CAC measurements are still taken so that adjacent
channel biases can be calculated correctly and so the user can see if other equipment is
in use.

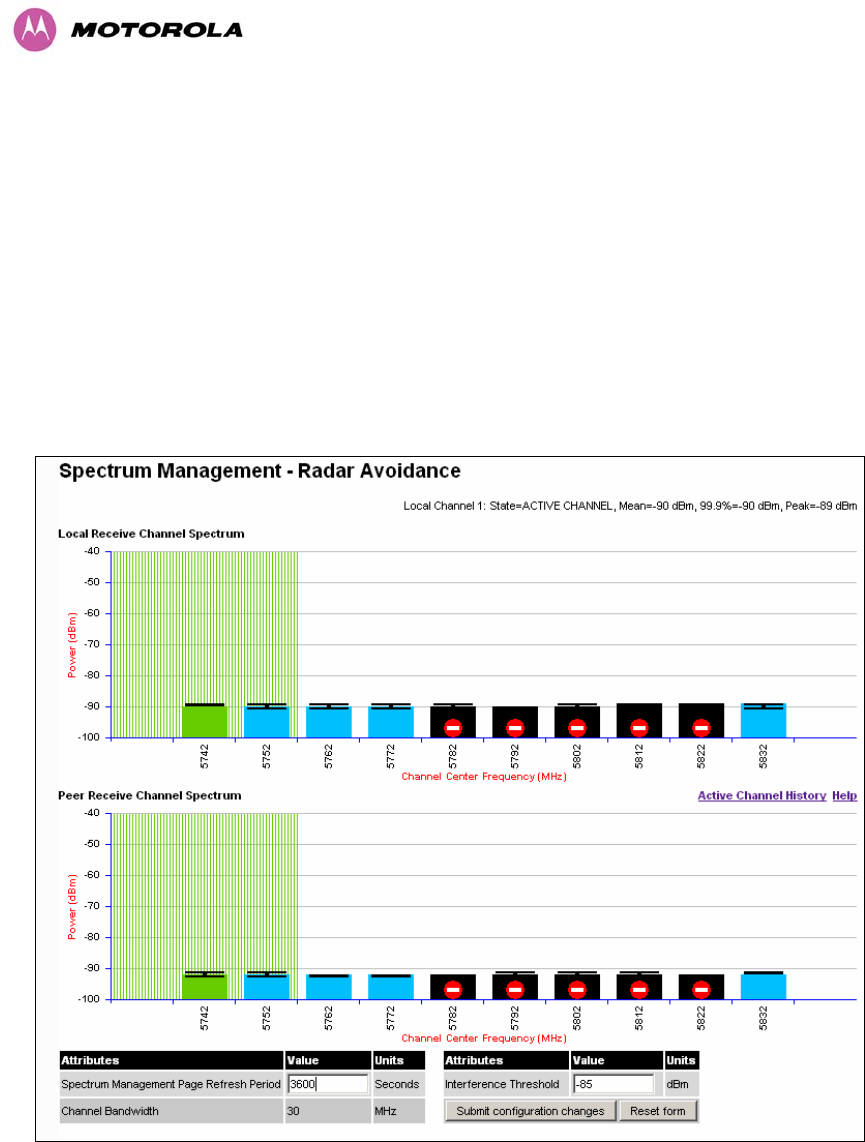

Figure 90 - Spectrum Management Master Screen With Operational Restrictions
8 Web Page Reference
174

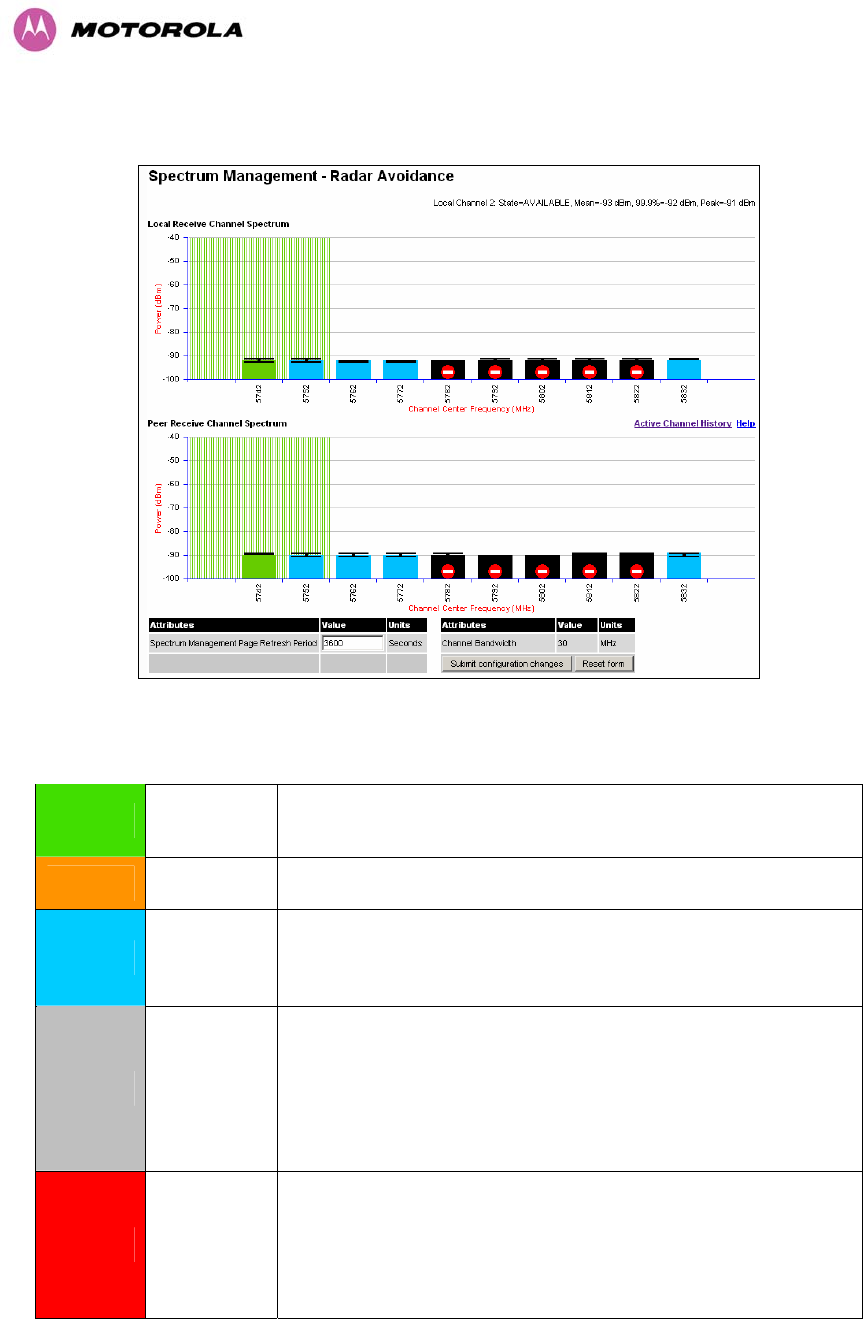

Figure 91 - Spectrum Management Slave Screen With Operational Restrictions
The colored bar represents the following channel state:
Table 30 - Spectrum Management Change State Key With Operational Restrictions
Green Active The channel is currently in use hosting the Point-to-Point
wireless link
Orange Interference The channel has interference above the interference threshold
Blue Available
The channel has an interference level below the interference
threshold and is considered by the Spectrum Management
algorithm suitable for hosting the Point-to-Point link
Grey Barred
The system administrator has barred this channel from use.
Because the low signal levels encountered when a unit is
powered up in a laboratory environment prior to installation
(which makes the grey of the channel bar difficult to see). An
additional red ‘lock’ symbol is used to indicate that a channel is
barred.
Red Radar
Detected
Impulsive Radar Interference has been detected on this
channel and the channel is unavailable for 30 minutes. At the
end of the 30 minute period a Channel Availability Check is
required to demonstrate no radar signals remain on this
channel before it can be used for the radio link.
8 Web Page Reference
175
Region
Bar Region Bar This channel has been barred from use by the local region
regulator
8.3.10 Spectrum Management – Example of PTP 25600 Product variant
As described in Section 5.5 “PTP 25600 Specific Frequency Planning Considerations”, the
PTP 25600 product variant can operate in three frequency bands. Figure 92 shows an
example of a Lower Band with a 30 MHz channel bandwidth.
Figure 92 - PTP 25600 Example of Spectrum Management Page
8 Web Page Reference
177

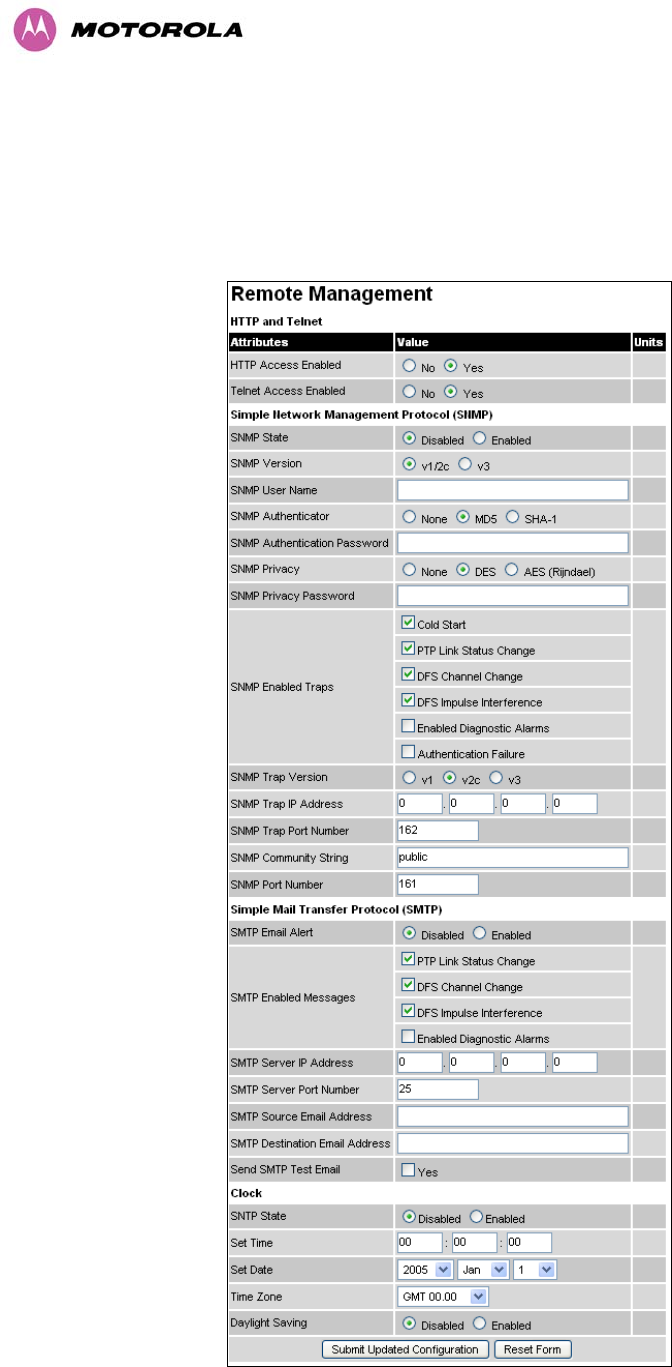

8.3.11.1 Control Access to HTTP Interface
The attribute HTTP Access Enabled allows a user to stop any access to a unit via the web
interface. The default value for this control is set to “yes”, which means that the unit can be
accessed using the web interface. If the option “No” is selected, then a warning is displayed
as shown in Figure 94.
8.3.11.2 Control Access to Telnet Interface
The attribute HTTP Telnet Enabled allows a user to stop any access to a unit via the telnet
interface. The default value for this control is set to “yes”, which means that the unit can be
accessed using the telnet interface22.
8.3.11.3 SNMP (Simple Network Management Protocol)
The industry standard remote management technique is SNMP (Simple Network
Management Protocol). The PTP 600 Series Bridge supports version 1 and version 2c of the
SNMP protocol.
8.3.11.4 Supported Management Information Bases (MIBS)
The PTP 600 Series Bridge SNMP stack currently supports the following MIBs:
• MIB-II, RFC-1213, The PTP 600 Series Bridge supports the ‘System Group’ and
‘Interfaces Group’.
• Bridge MIB, RFC-1493, The PTP 600 Series Bridge supports the ‘dot1dBase Group’ and
the ‘dot1dBasePortTable Group’.
• PTP 600 Series Bridge proprietary MIB
• RFC-2233 (High capacity counter) MIB
• WiMAX MIB
22 If HTTP, Telnet and SNMP interfaces have been disabled, then the user needs to use the Recovery image to
reset IP & Ethernet Configuration back to factory defaults to re-enable the HTTP-Telnet interfaces. SNMP can
also be used to re-enable the other interfaces if SNMP is enabled.
8 Web Page Reference
178
SNMP TRAPs supported:
• Cold Start
• Link Up
• Link Down
• DFS Channel Change
• DFS Impulsive Interference
Figure 94 – Warning when disabling HTTP interface
8 Web Page Reference
179
8.3.11.5 Diagnostics Alarms
A number of diagnostics alarms have been added to allow SNMP agents to receive traps and
emails if required. Refer to Section 8.1.1 “Home Page Alarm Display” for a description of all
these alarms. Checking the control “Enabled Diagnostic Alarms” in SNMP and/or SNTP
selects all the alarms shown in Figure 95. Users can access the sub-menu “Diagnostic
Alarms” to modify the alarms selected.

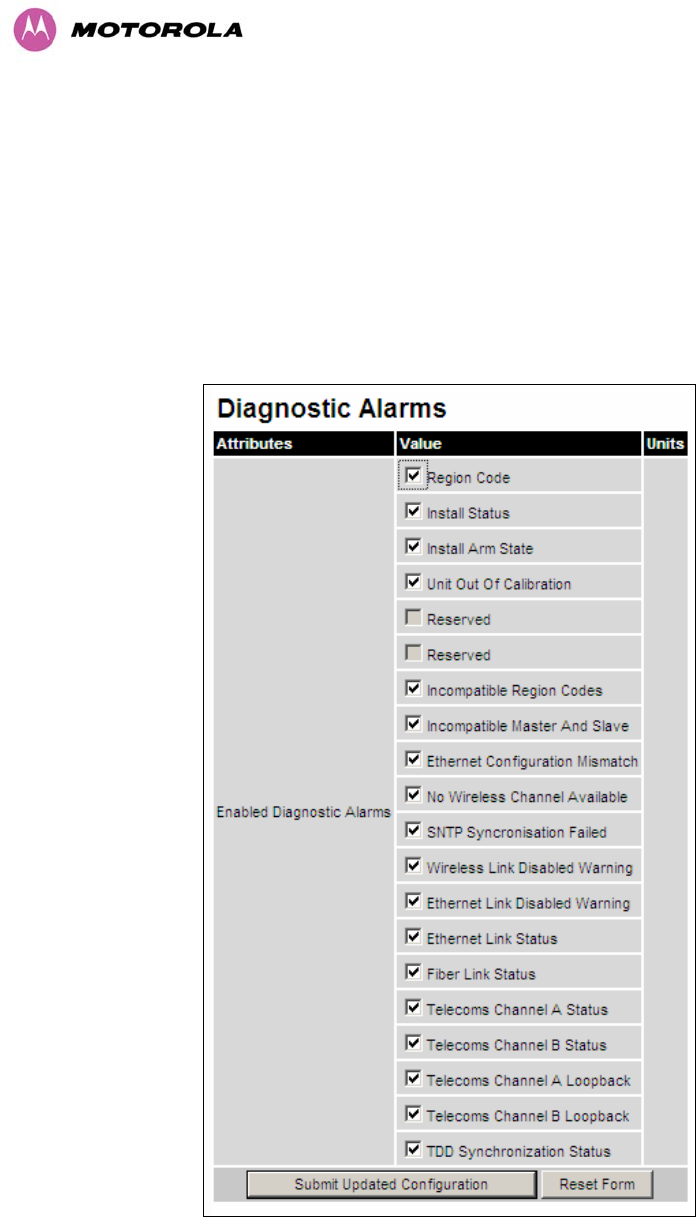

Figure 95 - Remote Management - Diagnostic Alarms
For a copy of the Motorola proprietary version 1 and version 2 MIB RFCs please consult the
installation CD
8 Web Page Reference
180
8.3.11.6 SNMP Configuration
SNMP State: The SNMP state attribute controls the creation of the SNMP features. Changing
the SNMP state attribute requires a mandatory reboot of the unit. Only when the SNMP state
is enabled at system start-up will the SNMP processor task be created.
SNMP Enabled Traps: The SNMP Enabled Traps attribute controls which SNMP Traps the
unit will send.
SNMP Community String: The SNMP community string acts like a password between the
networks SNMP management entity and the distributed SNMP clients (600 Series bridge).
Only if the community string is configured correctly on all SNMP entities can the flow of
management information take place. By convention the default value is set to ‘public’. When
the community string is changed the system requires a mandatory reboot before the new
string or phrase is adopted.
SNMP Port Number: Is the port the SNMP management agent is listening to for commands
from an SNMP manager. The default value for this port number is 161.
SNMP Trap IP Address: Is the address of either the network SNMP manager or Trap
receiver. When asynchronous events (traps in SNMP terminology) are generated, the client
unicasts these to this IP Address. When the address is changed the system requires a
mandatory reboot before the setting is adopted
SNMP Trap Port Number: The SNMP Trap Port Number is the port number of either the
networked SNMP manager or Trap receiver. By convention the default value for the port
number is 162. When the port number is changed the system requires a mandatory reboot
before the setting is adopted.
WiMAX Control: Enables and Disables the WiMAX (802.16) MIB. This control is only
displayed when ‘Fixed Frequency’ is selected during installation.
8.3.11.7 SMTP (Simple Mail Transport Protocol)
The SMTP client is an alternative method for the 600 Series bridge to alert a system
administrator when there are or have been system errors
SMTP Email Alert: This attribute controls the activation of the SMTP client.
SMTP Enabled Messages: The SMTP Enabled Messages attribute controls which email
alerts the unit will send.
SMTP IP Address: The IP address of the networked SMTP server.
8 Web Page Reference
181
SMTP Port Number: The SMTP Port Number is the port number used by the networked
SMTP server. By convention the default value for the port number is 25.
SMTP Source Email Address: The email address used by the 600 Series to log into the
SMTP server. This must be a valid email address that will be accepted by your SMTP
Server.
SMTP Destination Email Address: The email address to which the 600 Series bridge will
send the alert messages.
8.3.11.8 SNTP (Simple Network Time Protocol)
The SNTP client allows the 600 Series to obtain accurate date and time updates from a
networked timeserver. The system time is used for SNMP and event logging.
SNTP State: When enabled, the Remote Management web page permits the following
attributes to be set:
SNTP IP Address: The IP address of the networked SNTP server.
SNTP Port Number: The port number of the networked SNTP server. By convention the
default value for the port number is 123.
SNTP Poll Interval: The period at which the SNTP client polls the server for time correction
updates. Default 1 hour. If for any reason an SNTP poll fails, the client will automatically
perform 3 retries before waiting for the user defined poll period.
Time Zone: The time zone is a fixed offset from GMT that is added to the SNTP time to allow
the expression of time in all geographic time zones.
Daylight Saving: Allows a fixed offset of one hour to be added to the SNTP time in order to
reflect the local daylight saving time.
8.3.11.9 Setting the clock
The PTP 600 Series bridge has a system clock which can be used to supply accurate date
and time information in the absence of a SNTP server. The system clock is battery backed
and will continue to operate for several days if the 600 Series bridge has been switched off.
SNTP State: If the SNTP State is set to “Disabled”, see Figure 93, then the Remote
Management web page allows the following attributes to be set:
Set Time: Shows the current time in 24 hour mode. The three editable fields display hours
minutes and seconds.
8 Web Page Reference
182
Set Date: Displays the current date. The year, month and day can be set using the drop-
down selection boxes.
Time Zone: See Section.8.3.11.9 “Setting the clock”.
Daylight Saving: See Section 8.3.11.9 “Setting the clock”
8.3.12 Diagnostics
To further enhance the diagnostic capabilities of the PTP 600 Series, the storage of link
performance histograms has been extended to 31. To optimize RAM (volatile memory) usage
a cascading histogram approach has been adopted. The root histogram is identical to the
histograms in earlier releases of the software, that is data is stored for one hour at a
resolution of one second. Previously, the histograms were simple cyclic buffers which never
stored more that the last one hour of data. The new cascading histogram approach daisy
chains multiple histograms together. When the first histogram fills up the overflow from the
first is used as an input to the next histogram in line. To optimize memory utilization, a
statistical analysis is performed on the overflow to reduce the amount of data to be stored. In
the case of the PTP 600 Series the cascading histograms are defined as:
• Histogram 1: 1 hour at a resolution of 1 second
• Histogram 2: 24 hours at a resolution of 1 minute
• Histogram 3: 30 Days at a resolution of 1 hour
For example, when histogram 1 fills up and starts to overflow the first minute of overflow is
analyzed and the maximum, minimum and mean over that minute are computed and inserted
into histogram 2. When histogram 2 fills up and starts to overflow the first hour of overflow is
analyzed and the maximum, minimum and mean over that hour is computed and inserted into
histogram 3. When histogram 3 starts to overflow, the overflow data is simply discarded.
8 Web Page Reference
183
8.3.12.1 Diagnostic Plotter
New for the PTP 600 Series is the system administration diagnostic plotter facility see Figure
96.

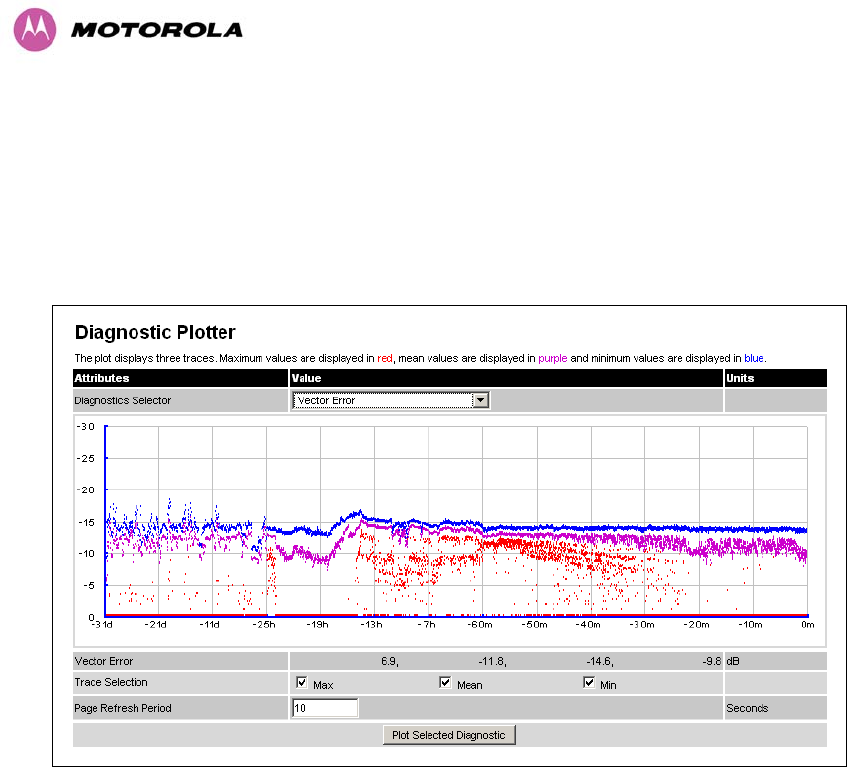

Figure 96 - Diagnostic Plotter
The diagnostic plotter allows the system administrator to view the cascading histogram data
in an easily accessible graphical form. The plot always displays three traces, maximum,
minimum and mean by default. The diagnostic selector allows the user to select the various
categories of histogram.
The histograms that are available are:
• Vector Error
• Rx Power
• Tx Power
• Signal Strength Ratio
• Link Loss
• Rx Data Rate
• Tx Data Rate
• Aggregate Data Rate
The diagnostic plotter uses a novel time representation in the x-axis which compresses the
timeline of the plot without sacrificing resolution.
8 Web Page Reference
184
The trace selection allows the user to control which traces are plotted.
As with other management pages the page refresh period can be used to interactively
monitor the wireless link.
8.3.12.2 Diagnostics Download

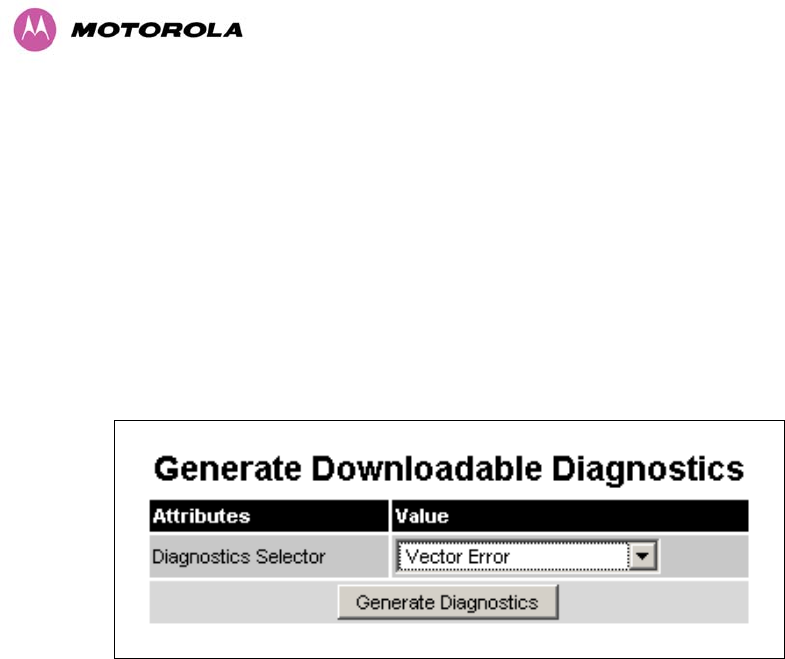

The diagnostics Download page allows the system administrator to download snapshots of
system diagnostics.
Figure 97 - CSV Download
The following diagnostics are available:
• Vector Error
• Rx Power
• Tx Power
• Signal Strength Ratio V/H
• Link Loss
• Rx Data Rate
• Tx Data Rate
• Aggregate Data Rate
• Receive SNR
• Rx Gain
All diagnostics are extracted from the associated status and statistics web page histograms.
They are translated in a CSV file containing at most 5784 entries. These 5784 entries
comprise 3600 entries for the first hour, 1440 entries for the next 24 hours and 744 entries for
the next 31 days.
8 Web Page Reference
185
8.3.13 Change System Administration Password

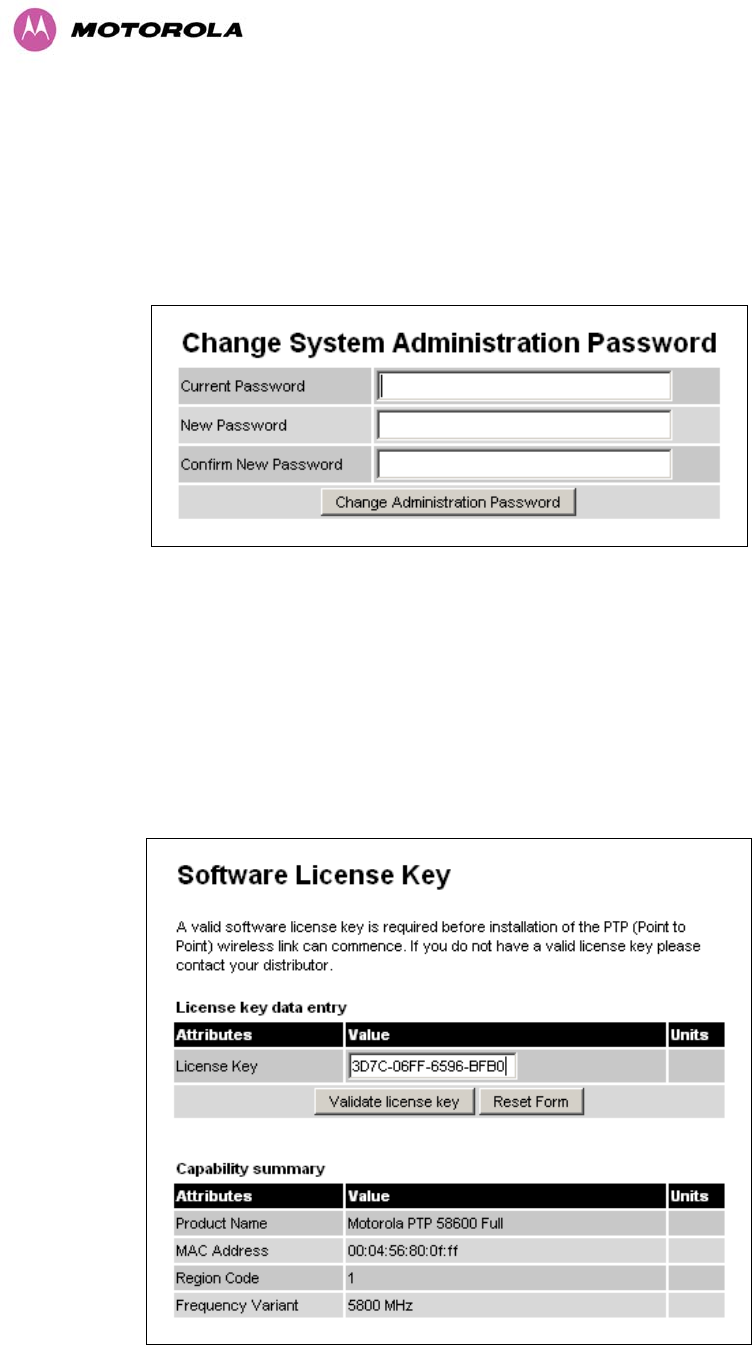

This page (Figure 98) is used to change the password for the system administration (The
factory default is blank).
Figure 98 - Password Change
To change the password any combination of alphanumeric characters, up to 31 characters in
length, can be used.
8.3.14 License Key
The License Key data entry page allows the system administrator to update the 600 Series
bridge license key. Figure 99 shows a sample license key data entry page.

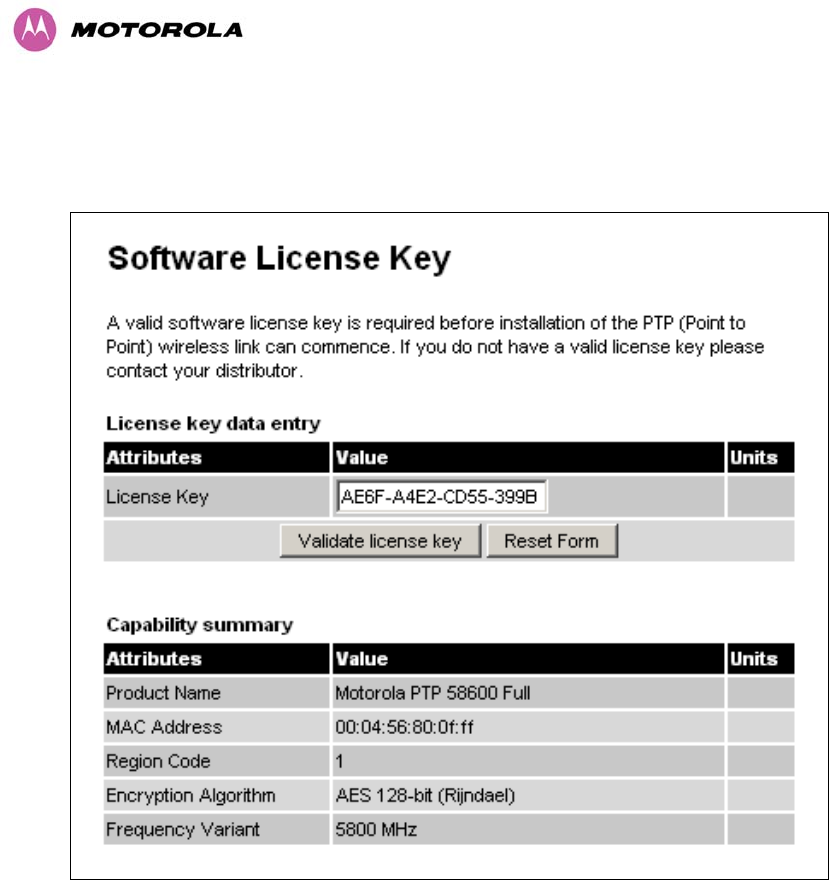

Figure 99 - Software License Key Data Entry
8 Web Page Reference
186
The user must enter the license key and click the ‘Validate License Key’ button to check that
the key is valid and program it to non-volatile memory.
If a valid license key is detected then the user will be presented by a system reboot screen.

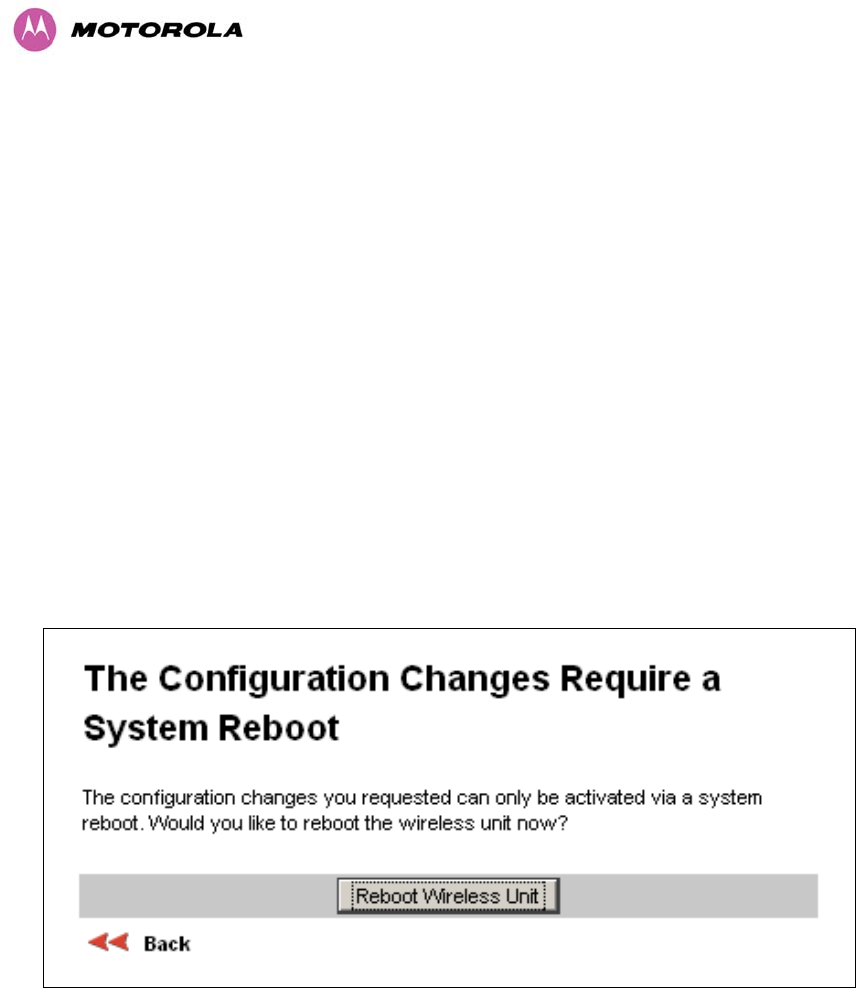

Figure 100: License Key reboot Screen
The user will then be asked to confirm the reboot (Figure 101).
Figure 101 - Reboot Confirmation Pop Up
8 Web Page Reference
187
8.3.15 Properties
The web page properties screen allows the user to configure the web page interface.

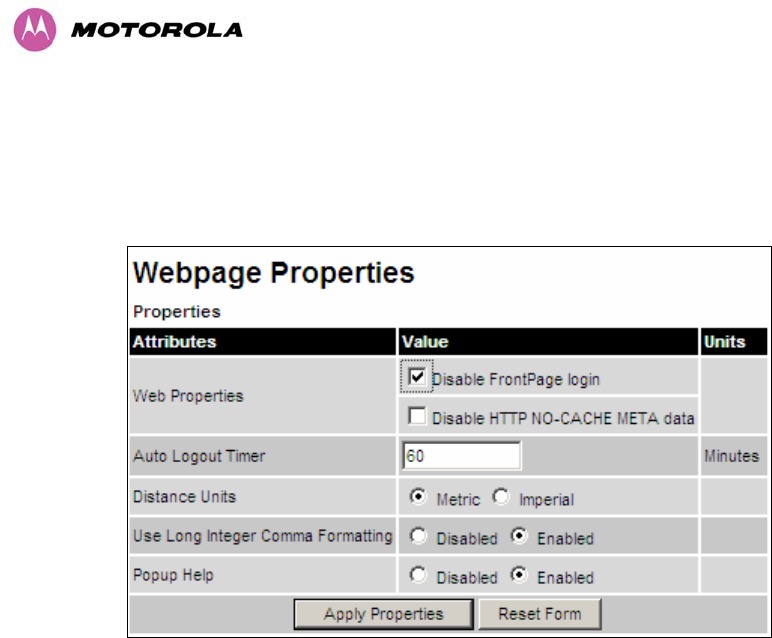

Figure 102 – Properties
WEB Properties: Disable Front Page Login. Allows access to homepage and status page
web pages without forcing a login as the system administrator.
WEB Properties: Disable HTTP NO-CACHE META data. Removes the HTTP NO-CACHE
META clause from all dynamically created web pages.
Auto Logout Timer Configures the time, in minutes, when the system administrator is
automatically logged out if no web page activity is detected.
Distance Units Swaps the default metric display of distance in to imperial units, for example
km to Miles.
Use Long Integer Comma Formatting Changes the format of long integers from 1000000 to
1,000,000.
8 Web Page Reference
188
8.3.16 Reboot
The reboot page allows the system administrator to perform commanded reboots of the
wireless unit. The reboot page also allows the system administrator to view a list of past
reboot reasons. The “Previous Reasons For Reset/Reboot” field has been implemented as a
drop down selection box, where the latest reason for reboot is located at the top of the list.
If the SNTP service from the remote management section above is active, or the system time
has been set, then the command reboot reason will be accompanied by the date and time at
which the reboot occurred.
Figure 103 - System Reboot
Figure 104 - Reboot Confirmation Pop Up
9 Recovery Mode
189

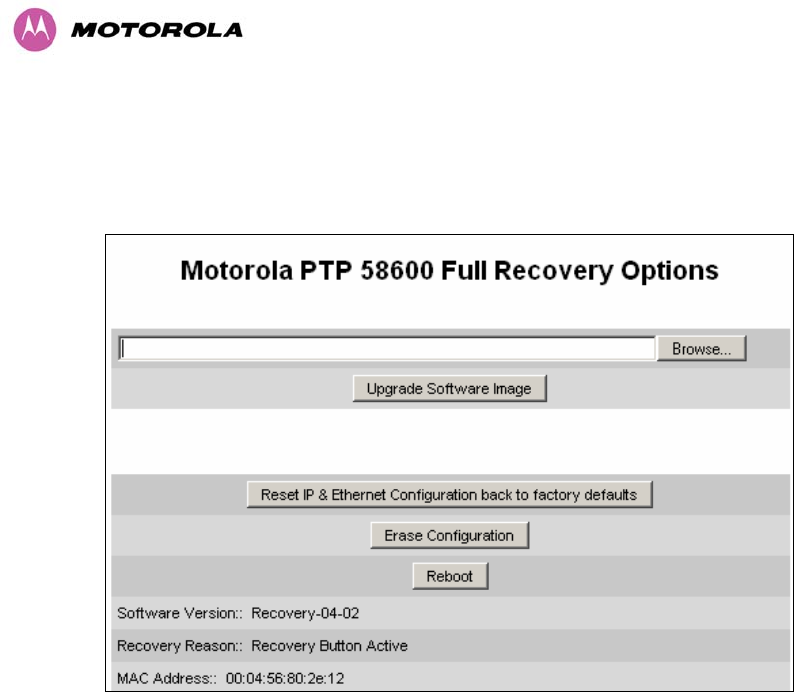

9 Recovery Mode
The Motorola PTP 600 point-to-point wireless Ethernet bridges have a special mode of
operation that allows the user to recover a unit from configuration errors or software image
corruption.
Recovery mode is entered by depressing the Recovery Switch located on the underside of
the PIDU Plus while applying mains power, as shown in Section 3.3.2 “PIDU Plus – PTP 600
Series Bridge” The Recovery Switch should be held in the depressed state for between 10
and 20 seconds after the application of mains power. The Ethernet LED will flash with 10
double flashes at power up (following the release of the Recovery switch).
When in recovery mode the user will be able to access the unit via the Ethernet interface. The
Ethernet interface will have its IP address set to 169.254.1.1 (or 10.10.10.10 see section
7.7.10 “Powering Up”). On connection to a unit in recovery mode the following screen is
displayed (Figure 105):
Figure 105 - Recovery Mode Warning Page
9 Recovery Mode
190
Clicking on the warning page image will take the user on to the Recovery Option Page
(Figure 106).
Figure 106 - Recovery Options Page
The recovery options available are:
Upgrade Software Image: This allows the user to reload a software image. This may be the
original image if software corruption is suspected or a step back to an old image if an
incorrect image has just been loaded.
Reset IP & Ethernet Configuration back to factory defaults: This allows the user to reset
the unit back to the factory defaults:
• IP Address 169.254.1.1 (or 10.10.10.10)
• Netmask 255.255.0.0
• Gateway 169.254.1.0
• Ethernet Interface Auto-negotiate, Auto-MDI/MDIX
Erase Configuration: This allows the user to erase the unit’s entire configuration. Executing
this option will also erase factory settings such as target MAC address, range setting, license
key, etc.
Reboot: This allows the user to reboot the unit. This option must be executed after resetting
the IP & Ethernet configuration or erasing the configuration detailed above.
Software Version: This is the software version of the recovery operating system permanently
installed during manufacture.
9 Recovery Mode
191
Recovery Reason: Indicates the reason the unit is operating in Recovery mode. Possible
reasons are “Recovery button active” or “Invalid or corrupt image”
MAC Address: The MAC address shown here is the MAC address of the unit programmed
during manufacture.
9.1 Upgrade Software Image
The first step (Figure 106) is to use the ‘Browse’ button to locate the software image to be
downloaded. Once located the user should press the “Upgrade Software Image” button to
start the software download process.
During software download, progress is indicated by a pair of progress bars (Figure 107).
Figure 107 - Software Download Progress Indicator Page
When the download is complete a page is displayed indicating the status of the software
download (Figure 108).
Figure 108 - Software Download Complete Page
9 Recovery Mode
192
After carefully checking that correct image has been downloaded the user should reboot the
unit by pressing the “Reboot Wireless Unit” button. The user will then be presented with a pop
up box asking them to confirm the action (Figure 109).
Figure 109 - Reboot Confirmation Pop Up
The unit will now reboot. Providing the unit configuration is still intact the unit should restart in
normal operational mode and the link should recover. Should the unit or link fail to recover the
user should refer to Section 10 “Fault Finding”.
9 Recovery Mode
193
9.2 Reset IP & Ethernet Configuration
To reset IP & Ethernet configuration back to factory defaults the user should press the “Reset
IP & Ethernet Configuration back to factory defaults” button on the “Recovery Options” page
(1Figure 106). The user will now be presented with a pop up box asking them to confirm the
action (Figure 110).

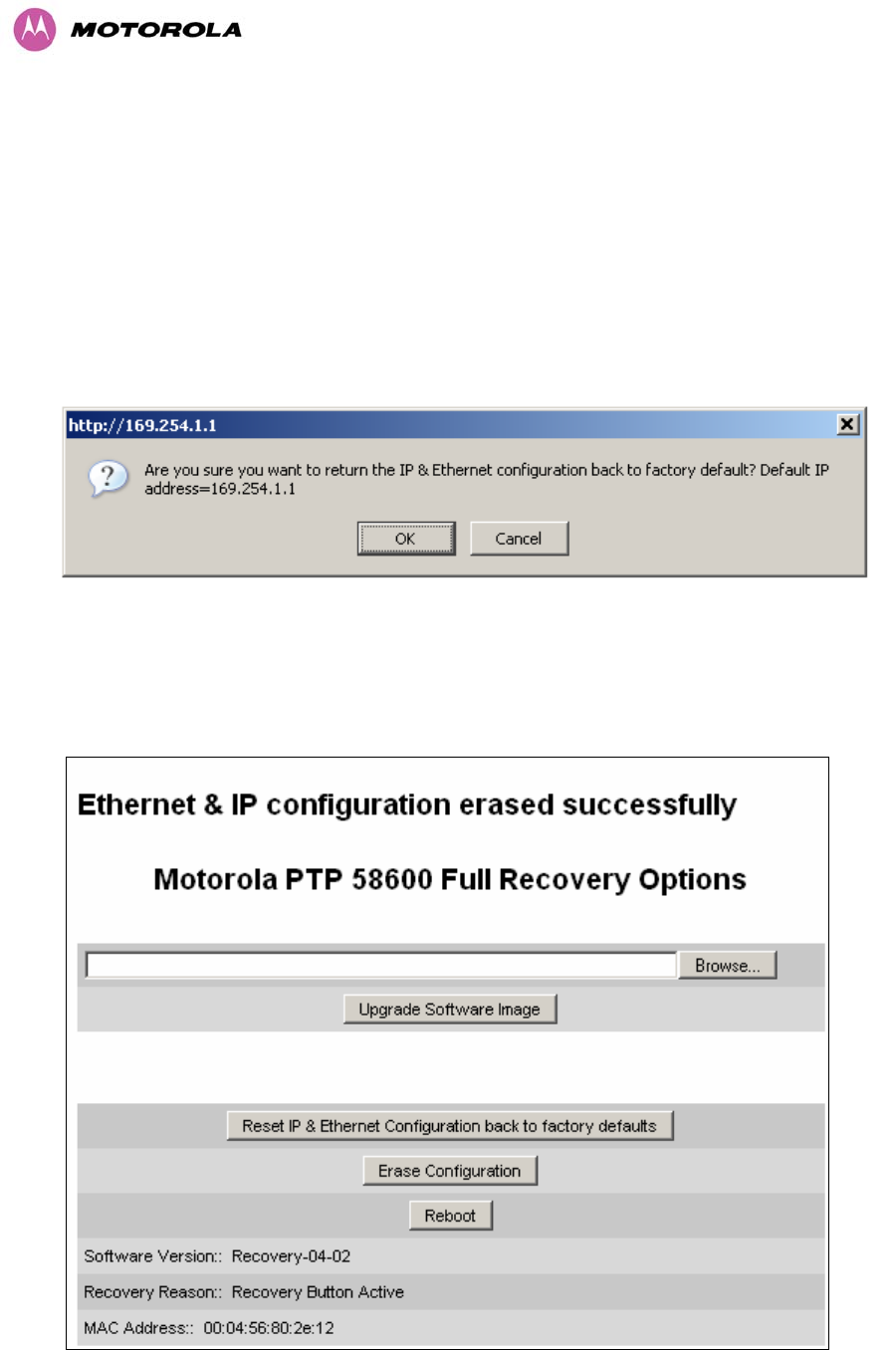

Figure 110 - Confirm Reset to Factory Default Pop Up
On confirmation the following page will be displayed (Figure 111). The user should now
reboot the unit by pressing the “Reboot” button.
Figure 111 - IP and Ethernet Erased Successfully page
9 Recovery Mode
194
The user will now be presented with a pop up box asking them to confirm the action (Figure
112).
Figure 112 - Reboot Confirmation Pop Up
The unit will now reboot. The unit should now start up in normal mode but with the IP address
set to 169.254.1.1 and the Ethernet interface set to auto-negotiate and auto-MDI/MDIX.
Should the unit fail to start up the user should refer to Section 10 “Fault Finding”.
9.3 Erase Configuration
To erase the unit’s configuration the user should press the “Erase Configuration” button on
the “Recovery Options” page (Figure 106). The user will now be presented with a pop up box
asking them to confirm the action (Figure 113).
Figure 113 - Confirm Erase Configuration Pop Up

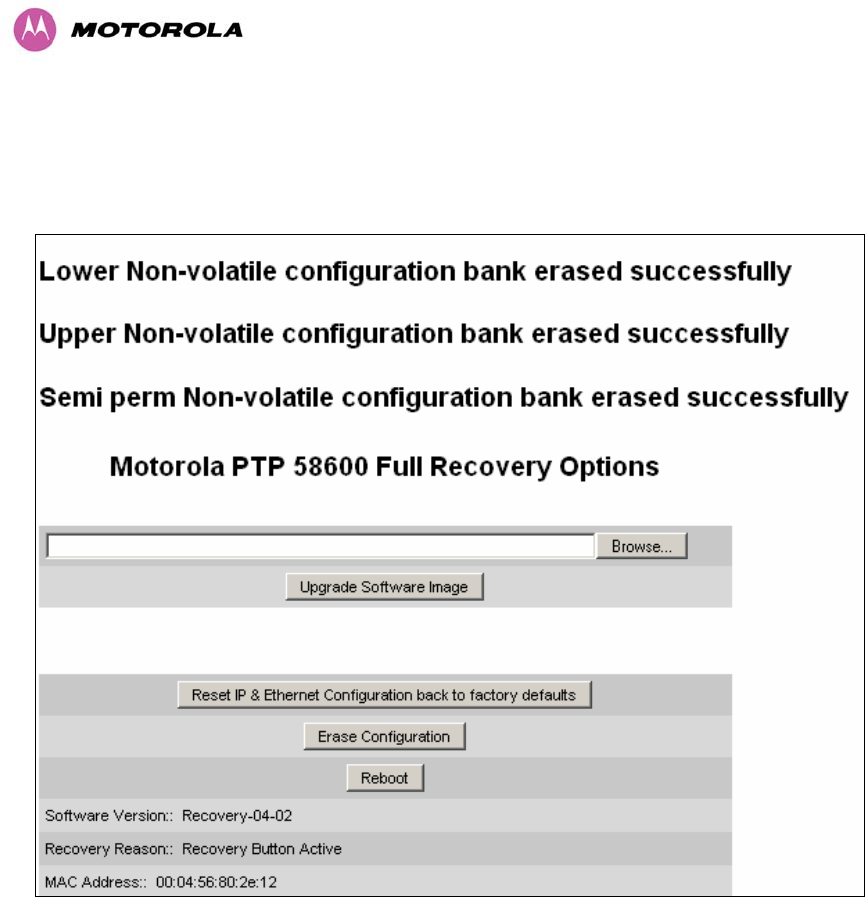

9 Recovery Mode
196
The user will now be presented with a pop up box asking them to confirm the action (Figure
115)
Figure 115 – Erase Configuration - Reboot Confirmation Pop Up
The unit will now reboot. The unit should now start up in normal mode but with all
configuration erased. Should the unit fail to start up the user should refer to Section 10 “Fault
Finding”.
9 Recovery Mode
197
9.4 Reboot
This option can be used to reboot the unit. The user will now be presented with a pop up box
asking them to confirm the action (Figure 116).
Figure 116 – Recovery - Reboot Confirmation Pop Up
The unit will now reboot. The unit should now start up in normal operational mode. Should the
unit fail to start up the user should refer to Section 10 “Fault Finding”.
10 Fault Finding
198
10 Fault Finding
If communication has been lost with the unit at the near end of the link then there may be a
hardware fault with the wiring, network or hardware. Go to the hardware section below. If
communication with the far end of the link is lost then go to the radio section below.
10.1 Hardware
If there are problems suspected with the link hardware the following procedure is
recommended:
10.1.1 Power
Check the power LED at each end of the link. If the power lights are illuminated go to the
Ethernet section below. If at either end they are not illuminated then23 check the power
source.
If neither is illuminated then there is no voltage on the power wires to the ODU.
• Check that the mains power is connected and switched on.
• Check that the power LED illuminates if the ODU connector is disconnected at the PIDU
Plus (Remove the PIDU Plus flap on the left hand side).
If it does illuminate then either the ODU is drawing too much current, or the power wiring to
the ODU is short circuit or the PSU is supplying insufficient power. The likely fault can be
determined by removing the jumper (J906), found inside the removable cover of the PIDU
Plus, and measuring the current taken with an ammeter placed across the 2 jumper pins. This
is normally 10mA without the ODU connected and 300mA to 1A when the ODU is connected.
If it does not illuminate then recheck that power is applied to the PIDU Plus by measuring the
voltage across +55V and 0V pads inside the removable cover in the PIDU Plus. Check that
the PIDU Plus is not short circuit by measuring the impedance across the Power connector. Is
the led faulty?
23 The power indicator LED should be continually illuminated.
10 Fault Finding
199
10.1.2 Ethernet
The Ethernet LED is driven from the ODU processor and thus is capable of informing you of
many conditions using different flash sequences. If the Ethernet indicator does not illuminate
at all there are four possible conditions.
• There is no power reaching the ODU because of a wiring fault
• The ODU is faulty
• The PIDU Plus is faulty
• The Ethernet network side is faulty
Look at the following table to check the LED response for power up, disconnect the power
and reapply and note what happens.
Differentiating between 1-3 and 4 can be achieved by removing the power for 1 second.
Watch the Ethernet indicator for 1 minute while power is removed, if it never flashes then the
problem is 1-3. Take the jumper (J905) out of the PIDU Plus and check the current taken by
the ODU. This should be 300mA to 1A when starting to run normally.
If the Ethernet indicator flashes to begin with but then stops flashing, the ODU is powered and
software loaded but Ethernet connectivity has been lost between the ODU and the users
connected equipment. All Ethernet connections should be rechecked.
10 Fault Finding
200
Table 31 - Power Indoor Unit LED check chart
Mode Green LED Yellow LED No Ethernet
Cable Connected
Yellow LED
Ethernet Cable
Connected between
PIDU Plus and
NIC/Switch/Hub
No Power Applied Off Off Off
Power Applied On
Will flash once per second
regularly approximately 30
seconds after power
applied for 10 seconds then
will go out and stay out
Will flash once per
second regularly
approximately 30
seconds after power
applied for 10
seconds then operate
as Ethernet
Link/Activity LED
Valid Ethernet Link
and no traffic On N/A Will be on solid for a
valid link.
Valid Ethernet Link
with traffic On N/A
Will be on solid, but
will blink randomly as
traffic passes through
Recovery Switch
Pressed and held
for >10 seconds
from power on
(Recovery is
pressed while
power is applied)
On
Off while switch pressed.
Approximately 30 seconds after releasing the
switch, flashes twice per second regularly for 10
seconds, then boots in “Recovery Mode”
While in “Recovery Mode” the unit will only be
accessible via the IP address 10.10.10.10 or
169.254.1.1.
10.1.3 Checking your wiring
If the above procedures fail to diagnose the issue you may have a wiring fault. Unplug the
RJ45 from the PIDU+ and check the following resistances at the RJ45:
1. Check the cable resistance between pins 1 & 2, 3 & 6, 4 & 5 and 7 & 8 at the RJ45.
2. Check against column 2 in Table 33. Resistances for each pair should be within 1 ohm of
each other.
3. Check the cable resistance between pins 1 & 3 at the RJ45. Check against column 3 in
Table 33.
10 Fault Finding
201
4. Check the cable resistance between pins 4 & 7 at the RJ45. Check against column 4 in
Table 33.
5. Ensure that there is greater than 100K ohms between pins 1 & 8 for all cable lengths.
6. Ensure that there is greater than 100K ohms between pin 1 and ODU ground for all cable
lengths.
7. Ensure that there is greater than 100K ohms between pin 8 and ODU ground for all cable
lengths
10.2 Radio
10.2.1 No Activity
If communication over the radio link has been lost and the unit at the other end of the link can
be managed on its local network, the following procedure should be adopted:
If there is no wireless activity then the configuration should be checked. It is essential that the
following items are correct:
• Check for Alarm conditions on Home page
• Check that the software at each end of the link is the same version
• Check that the Target Mac address has not been mis-configured at each end of the link
• Check Range
• Check Tx Power
• Check License keys to ensure that both units are the same product variant
• Check Master/Slave status for each unit and ensure that one unit is Master and the other
unit is slave
• Check that the link has not been further obscured or the ODU misaligned
• Check the DFS page at each end of the link and establish that there is a quiet wireless
channel to use.
If there are no faults found in the configuration and there is absolutely no wireless signal, retry
the installation procedure. If this does not work then the ODU may be faulty.
10 Fault Finding
202
10.2.2 Some Activity
If there is some activity but the link is unreliable or doesn’t achieve the data rates required
then:
• Check that the interference has not increased using the i-DFS measurements
• If a quieter channel is available check that it is not barred
• Check that the path loss is low enough for the communication rates required
• Check that the ODU has not become misaligned
11 Lightning Protection
203
11 Lightning Protection
CAUTION: EMD (Lightning) damage is not covered under standard warranty. The
recommendations in this user manual, when implemented correctly, give the user the best
protection from the harmful effects of EMD. However 100% protection is neither implied nor
possible.
11.1 Overview
The idea of lightning protection is to protect structures, equipment and people against
lightning by conducting the lightning current to ground via a separate preferential solid path.
The following should be treated as a guide only, the actual degree of lightning protection
required depends on local conditions and weather patterns and applicable local regulations.
Full details of lightning protection methods and requirements can be found in the international
standards IEC 61024-1 and IEC 61312-1, the U.S. National Electric Code ANSI/NFPA No.
70-1984 or section 54 of the Canadian Electric Code.
11.1.1 Lightning Protection Zones
The installation of the ODU can be classified into two different lightning protection zones:
• Zone A: In this zone a direct lighting strike is possible.
• Zone B: In this zone a direct lightning strike is unusual, but the un-attenuated
electromagnetic field is still present.
The zones are determined using the ‘rolling sphere method’, an imaginary sphere, typically 50
meter in radius is rolled over the structure. All structure points that contact the sphere, (Zone
A) indicate the zone where a direct strike is possible. Similarly points that do not contact the
sphere indicate a zone (zone B) where a direct strike is less likely.
11 Lightning Protection
204

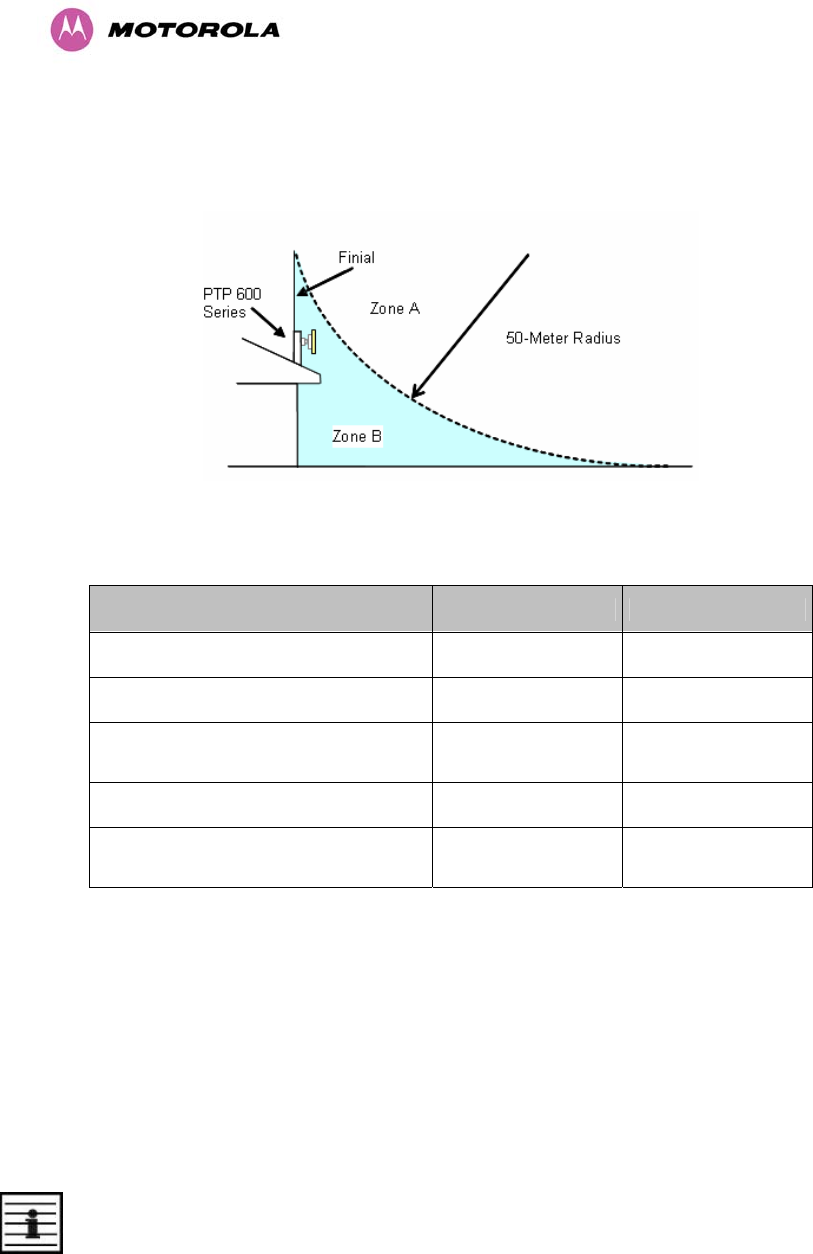

The following diagrams (Figure 117 & Figure 118) show this zoning pictorially:
Equipment mounted in Zone A should be capable of carrying the full lightning current.
Mounting of the ODU in Zone A is not recommended. Mounting in Zone A should only be
carried out observing the rules governing installations in Zone A24 Failure to do so may put
structures, equipment and life at risk.
Equipment mounted in Zone B should be grounded using grounding wire of at least 10 AWG.
This grounding wire should be connected to a grounding rod or the building grounding system
before entry in to building.
The PTP 600 Series bridge ODU grounding point can be found on the bottom of the unit. The
600 Series Bridge is supplied with an appropriate grounding lug for attachment to the ODU.
Figure 117 - ODU mounted in Zones A & B
24 Local regulations may also require the fitting of the 8 AWG ground wire referred below.
11 Lightning Protection
205
Figure 118 - Showing how the use of a Finial enables the ODU to be mounted inside Zone B
Table 32 - Protection Requirements
Component Zone A Zone B
Earth ODU Mandatory Mandatory
Screen Cable Mandatory Mandatory
Lightning Protection Unit at ODU –
PTP-LPU Mandatory Mandatory
Earth Cable at Building Entry Mandatory Mandatory
Lightning Protection Unit at Building
Entry – PTP-LPU Mandatory Mandatory
11.2 Detailed Installation
The recommended components for an installation protected for nearby strikes are:
• Recommended cables as described in Section 3.3.5 “Cables and connectors”.
• Lightning protection: Motorola PTP-LPUT - 4 per link (2 Motorola Kits, part number 2907)
• Grounding Stake
• RJ45 screened connectors
NOTE: There may be a local regulatory requirement to cross bond the CAT 5e cable at
regular intervals to the mast. This may be as frequent as every 10 meters (33 feet).
11 Lightning Protection
206
Figure 119 includes illustrations showing the placement of the PTP lightning protection units and the
recommended components for typical Mast/Tower or Wall installations.

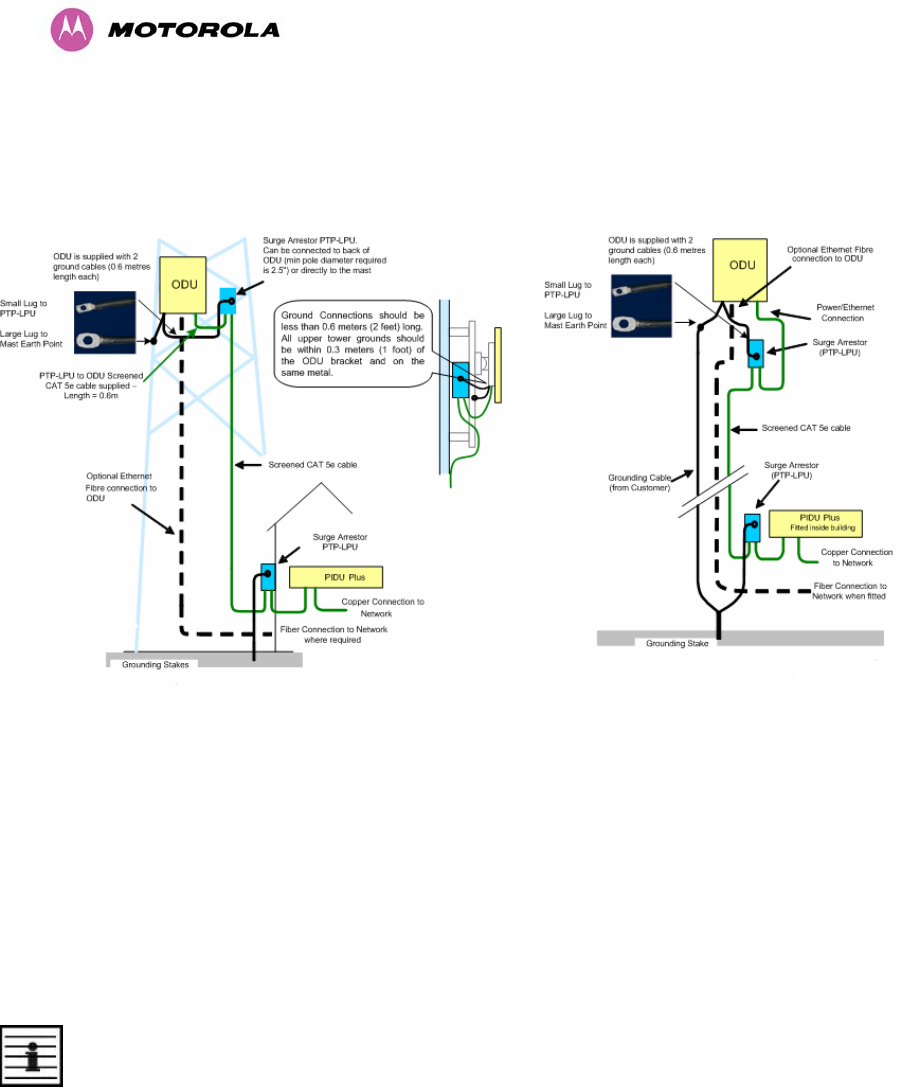

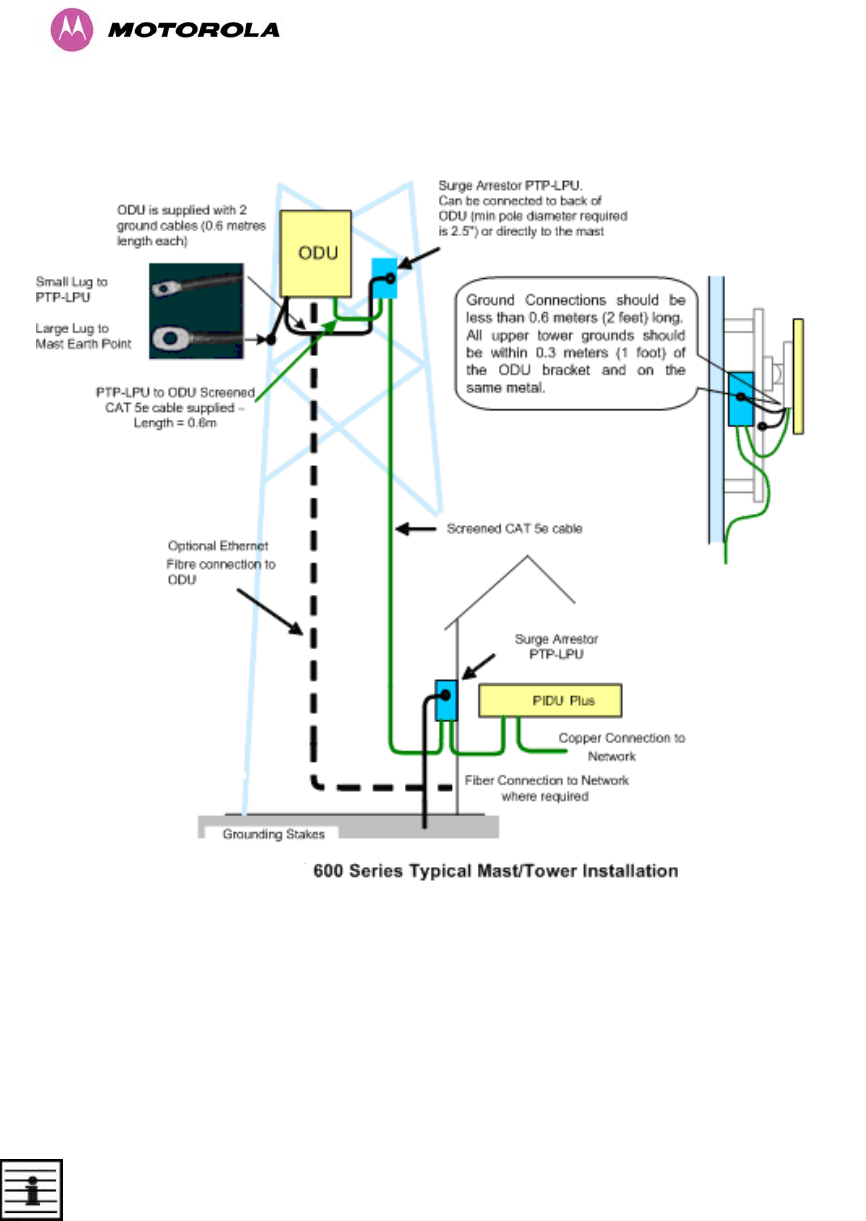

Figure 119 - Diagrammatically Showing Typical Mast and Wall Installations
The PTP LPU can be installed in one of the following configurations:
• Option 1: Back-to-Back with the ODU using the supplied brackets delivered part of the
installation of a link. This is the configuration recommended by Motorola.
• Option 2: using the U-Bolt bracket supplied with the PTP LPU Kit.
Typical examples of these two configurations are shown in Figure 120 and Figure 121.
NOTE: Grounding Points are shown unprotected for clarity. Grounding points should be
adequately weatherproofed to prevent corrosion and possible loss of ground continuity.
11 Lightning Protection
207

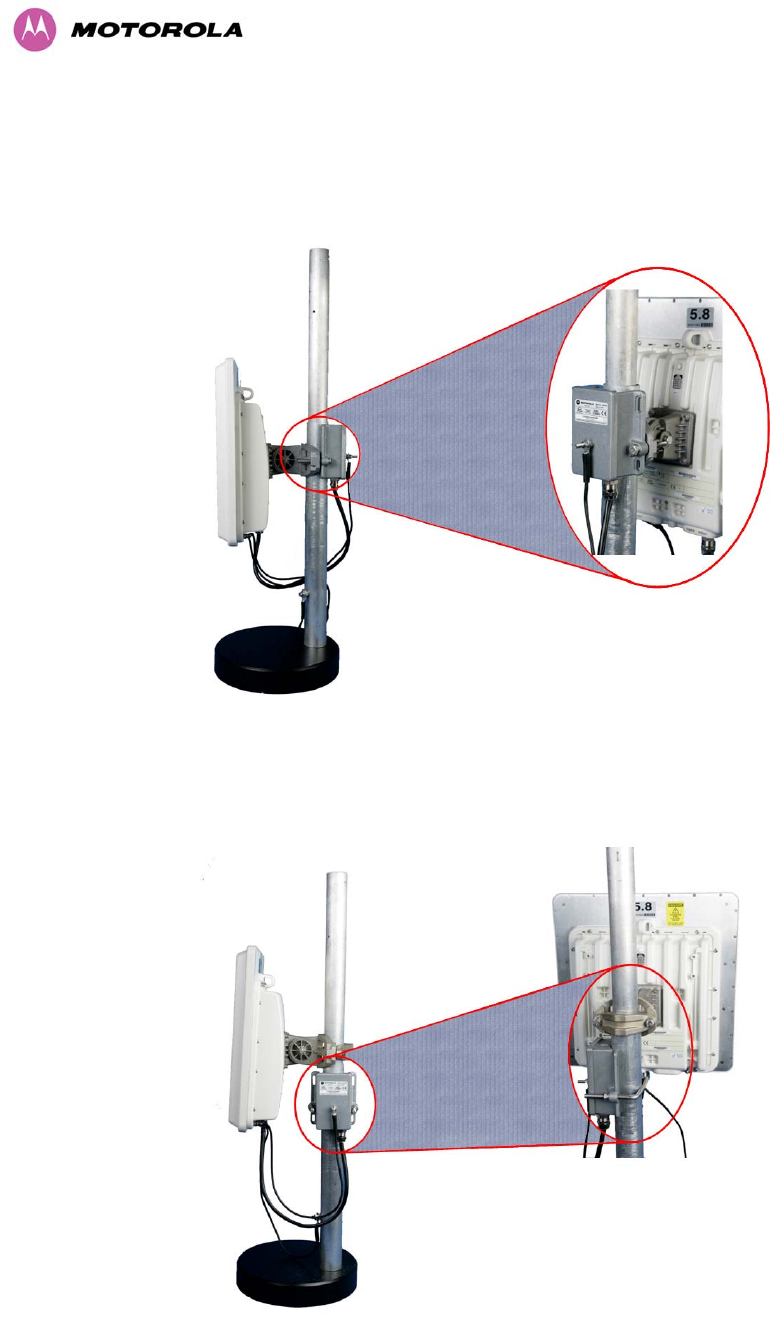

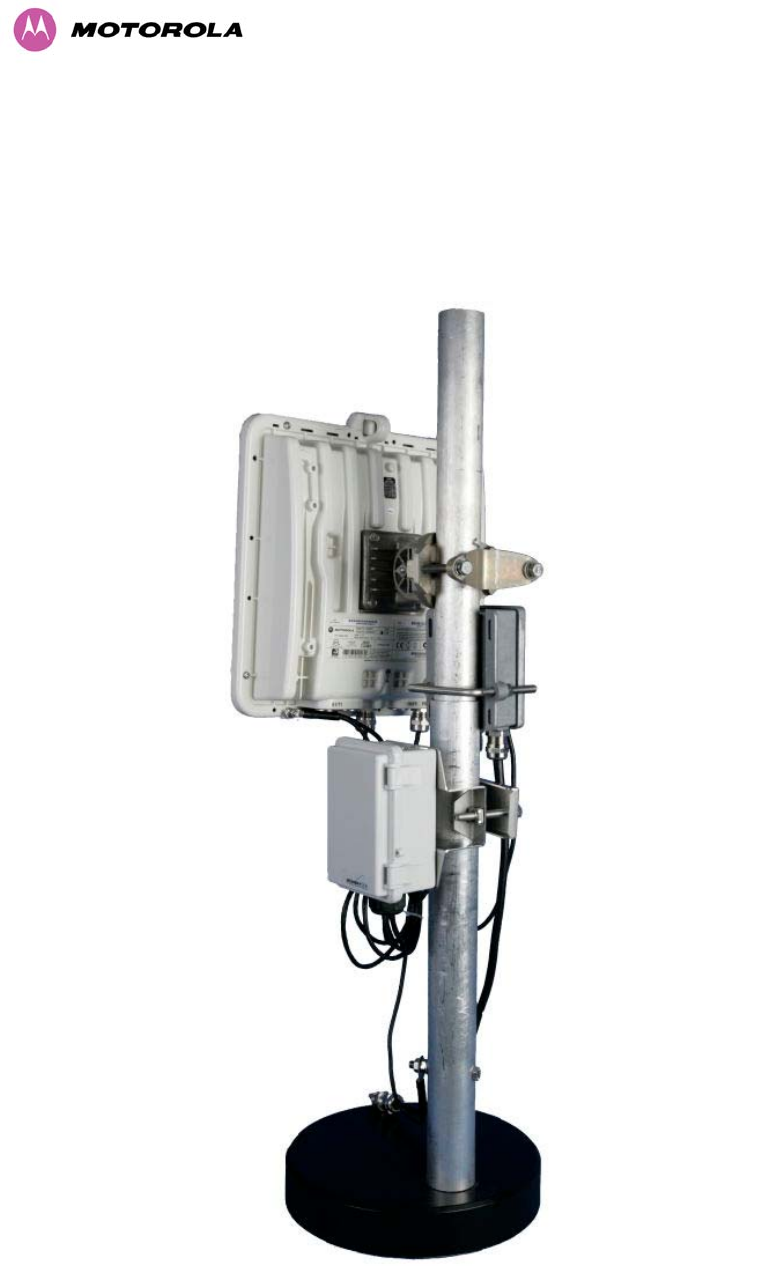

Figure 120 – Example of PTP-LPU Configuration – Option 1 (Back-to-Back Recommended)
Figure 121 - PTP-LPU - Installation Option 2 (Using U-Bolt)
11 Lightning Protection
208
A second Lightning protection Unit should be mounted at the building entry point and must be
grounded.
The PTP-LPU Kit is supplied with a 600mm ODU to PTP-LPU cable pre-fitted with glands.
Figure 122 shows all the components that are supplied with the Motorola Kit 2907.

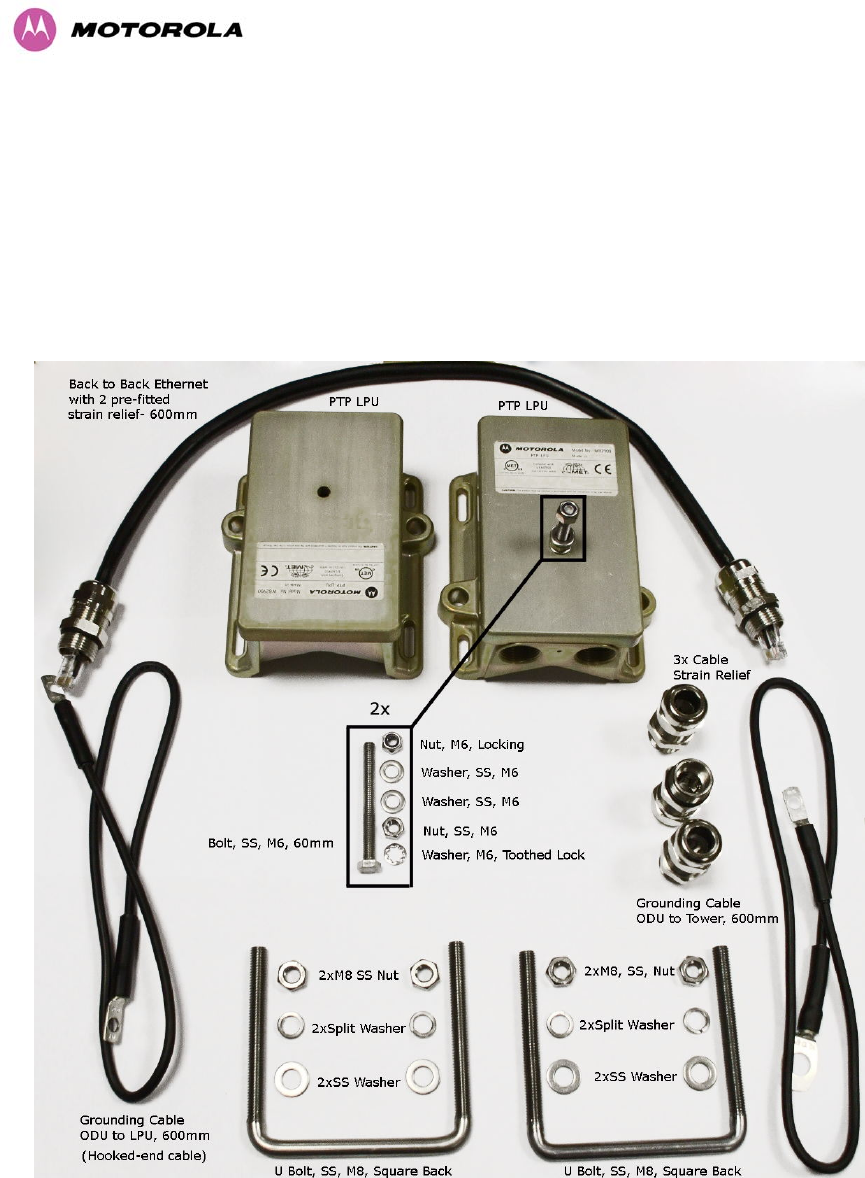

Figure 122 - PTP LPU Full Kit

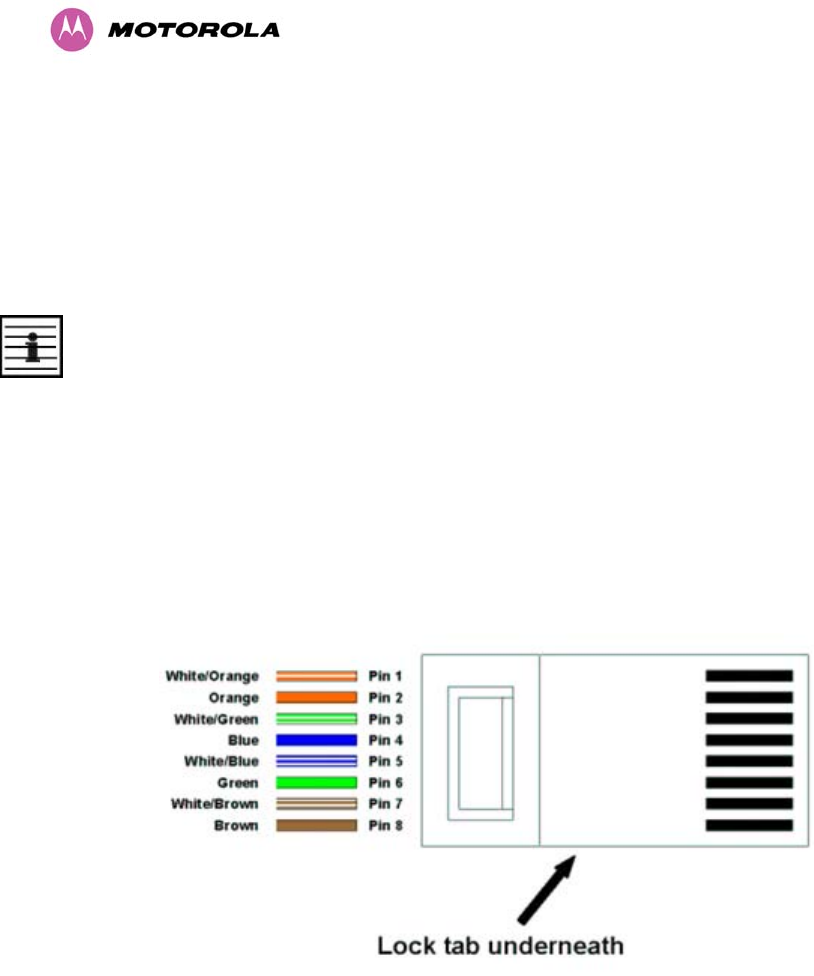

The cable between the two lightning protection units (top and bottom) should be of the type
recommended by Motorola (Section 3.3.5 “Cables and connectors”) and terminated as shown
in Figure 35.
11 Lightning Protection
209
11.3 Testing Your Installation
If you have followed the above instructions you will have wired your system to the following
diagram:

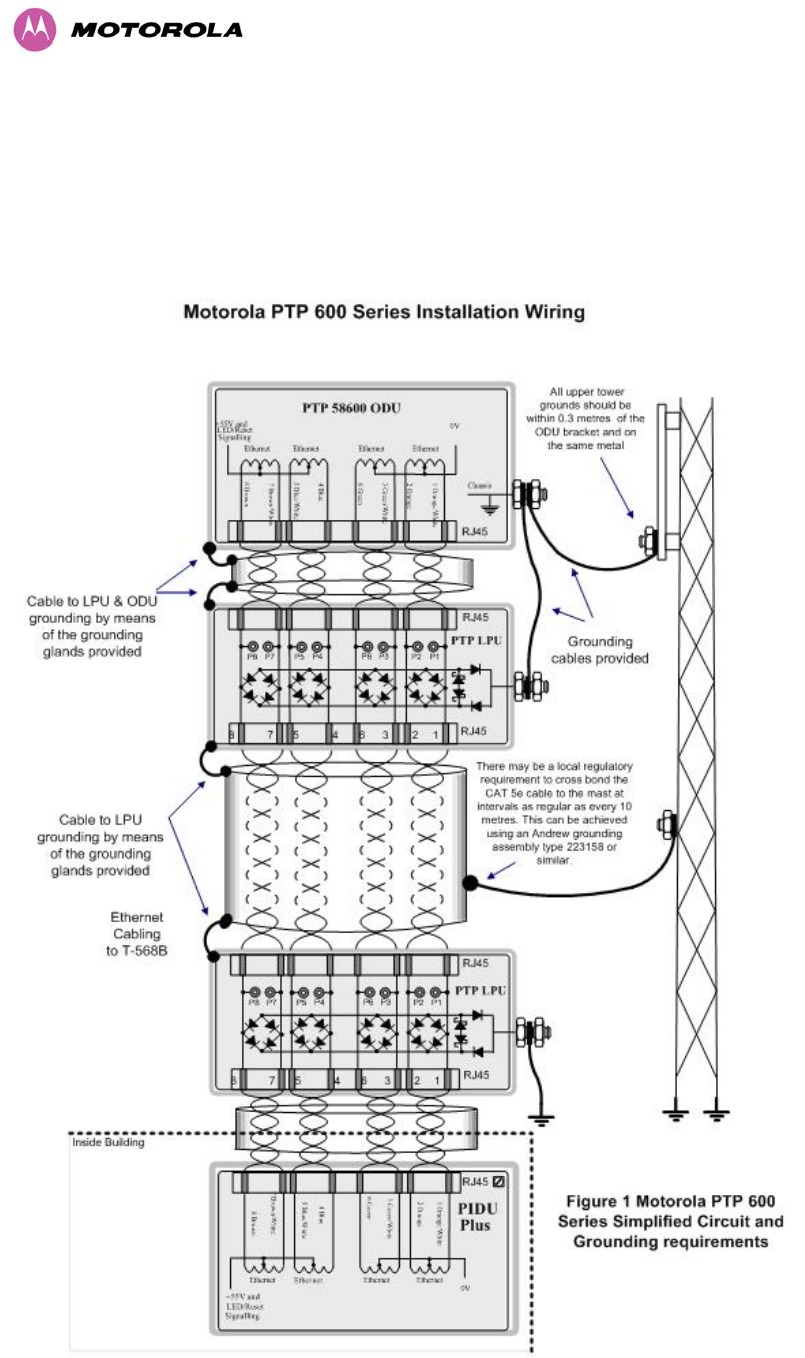

Figure 123 - Simplified Circuit Diagram
11 Lightning Protection
210
11.3.1 Pre-Power Testing
Before plugging the RJ45 from the lower LPU (or if not fitted the ODU) into the PIDU, check
the following resistances at the RJ45:
1. Check the cable resistance between pins 1&2, 3&6, 4&5 and 7&8 at the RJ45. Check
against column 2 in Table 33. Resistances for each pair should be within 1 ohm of each
other.
2. Check the cable resistance between pins 1&3 and 4&7 at the RJ45. Check against
columns 3 and 4 respectively in Table 33.
3. Ensure that there is greater than 100K ohms between pins 1&8 for all cable lengths.
4. Ensure that there is greater than 100K ohms between pin 1 and ODU ground for all cable
lengths.
5. Ensure that there is greater than 100K ohms between pin 8 and ODU ground for all cable
lengths.
Table 33 - Resistance Table Referenced To The RJ45 at the PIDU+
CAT-5
Length
(Meters)
Resistance between
pins 1&2, 3&6 , 4&5 and
pins 7&8 (ohms)
Resistance between
pins 1&3 (ohms) Resistance
between pins 4&7
(ohms)
0 0.8 1.0 1.6
10 2.5 2.7 3.3
20 4.2 4.4 5.0
30 5.9 6.1 6.7
40 7.6 7.8 8.4
50 9.3 9.5 10.1
60 11.0 11.2 11.8
70 12.7 12.9 13.5
80 14.4 14.6 15.2
90 16.1 16.3 16.9
100 17.8 18.0 18.6
150 26.3 26.5 27.1
200 34.8 35.0 35.6
250 43.3 43.5 44.1
11 Lightning Protection
211
300 51.8 52.0 52.6
11.3.2 Post-Power Testing
The Correct Operation is as follows
1. Connect the RJ45 to the PIDU and apply power to the PIDU, the power LED should
illuminate continuously.
2. 45 seconds after powering, the Ethernet LED should be observed starting with 10 slow
flashes.
3. If there is a network connection the Ethernet LED will then show Ethernet activity.
The PIDU Green power LED does not illuminate
Unplug the ODU connection from the PIDU and check the power LED illumination. If the
power LED still does not light then check the power source.
The PIDU Green power LED flashes
A flashing power LED indicates that there is a short circuit on the output of the PIDU. Check
that pins 4&5 and 7&8 are not crossed with pins 1&2 and 3&6 on the RJ45, and also greater
than 100K ohms between pins 1&8
The PIDU Ethernet LED does not flash 10 times
Failure of the Ethernet LED to illuminate can be due to wiring to pins 4&5 and 7&8 being
incorrect, for example if the wiring to pins 4 and 7 are crossed. An indication that power is
available on the cable to the ODU is available in the LPU as shown Figure 124.
The PIDU Ethernet LED flashes ten times but irregularly
Irregularly flashing, seen as a short gap followed by a long gap, indicates that the ODU has
booted in recovery mode. This may be due to either the installation wiring or a corrupted main
code image in the ODU.
The Ethernet LED flashes ten times but does not show Ethernet activity
Failure of the Ethernet LED to show Ethernet activity can be due to wiring to pins 1&2 and
3&6 being incorrect, for example if the wiring to pins 1 and 3 are crossed.
The Ethernet connection to the network is only 10/100 BaseT, when 1000 BaseT was
expected
It is likely there is a fault with the wiring to pins 4&5 and 7&8.
11 Lightning Protection
212
11.4 Locating the Fault
Having identified which of the wiring cores are likely to be connected incorrectly, the location
of the faulty cable can be narrowed by disconnecting sections of the drop cable and by
unplugging the relevant RJ45 connectors from the LPUs.
As a further aid to locating the fault the Ethernet connections are also available inside the
LPU. The connections can be accessed by rotating the LPU lid as shown in Figure 124 The
Lid nut only needs to be slacken, do not remove. Test point P1 on the LPU PCB
corresponds to pin 1 on the RJ45 etc.
An indication of power on the Ethernet cable is also provided inside the LPU, LED PWR1 will
illuminate in the case of the PTP600 series, LED PWR2 should not.
Figure 124 - PTP LPU test Points
12 Wind Loading
213
12 Wind Loading
12.1 General
Antennas and electronic equipment mounted on towers or pole mounted on buildings will
subject the mounting structure to significant lateral forces when there is appreciable wind.
Antennas are normally specified by the amount of force (in pounds) for specific wind
strengths.
The magnitude of the force depends on both the wind strength and size of the antenna.
12.2 Calculation of Lateral Force
The 600 Series bridge with or without the integral antenna is essentially a flat structure and so
the magnitude of the lateral force can be estimated from:
Force (in pounds) = 0.0042 . A . v2
Where A is the surface area in square feet and v is the wind speed in miles per hour.
The lateral force produced by a single 600 Series bridge (integrated or connectorized model)
at different wind speeds is shown in Table 34 and Table 35.
Table 34 - Lateral Force – Imperial
Lateral Force (Pound) at wind speed (mph)
Largest Surface
Area (sq ft) 80 100 120 140 150
PTP 600 Series
Bridge - Integrated 1.36 36.6 57.1 82.3 146.2 228.5
PTP 600 Series
Connectorized 1.00 26.9 42 60.5 107.5 168.0
Table 35 - Lateral Force – Metric
Lateral Force (kg) at wind speed (m/s)
Largest Surface
Area (sq m) 30 40 50 60 70
PTP 600 Series
Bridge - Integrated 0.130 12 22 34 49 66
PTP 600 Series-
Connectorized 0.093 9 16 24 35 48
12 Wind Loading
214
NOTE: When the connectorized version of 600 Series bridge is used with external antennas,
the figures from the antenna manufacturer for lateral force should be included to calculate to
total loading on the mounting structure.
12.3 Capabilities of the PTP 600 Series Bridges
The structure and mounting brackets of the PTP Series systems are capable of withstanding
wind speeds up to 151mph (242 kph). The installer should ensure that the structure to which
the 600 Series Bridge is fixed to is also capable of withstanding the prevalent wind speeds
and loads.
12.4 Wind Speed Statistics
Installers are recommended to contact the national meteorological office for the country
concerned to identify the likely wind speeds prevalent at the proposed location. This will
enable the installer to estimate the total wind loading on the support structures.
Examples of the sort of statistics that are available are:
USA - Reported Fastest Single Wind Velocities for Selected U.S. Cities
(Source: National Weather Service).
City, State Wind Velocity
(mph)
Bismarck, North Dakota 72
Buffalo, New York 91
Chicago, Illinois 87
Hatteras, North Carolina 110
Miami, Florida 132
New York, New York 99
Pensacola, Florida 114
UK Meteorological Office, www.meto.gov.uk
Peak wind speed contour maps can be found as Fig 3a/3b at:
http://www.meto.gov.uk/education/historic/1987.html
13 PTP 600 Series Bridge – Connectorized Model
215
13 PTP 600 Series Bridge – Connectorized Model
13.1 Scope
This section details the changes and additional features relevant to the connectorized version
of the PTP 600 Series products..
13.2 Product Description
13.2.1 Hardware
The Connectorized PTP 600 Series Bridge is a variant designed to provide the system
integrator and installer with the ability to provide extra capability to cope with very difficult
radio links compared to the PTP 600 Series Integrated model. The variant allows the use of a
variety of externally mounted antennas, either Flat Plate or Dish, which have higher gains
than provided by the integrated antenna that is normally used.

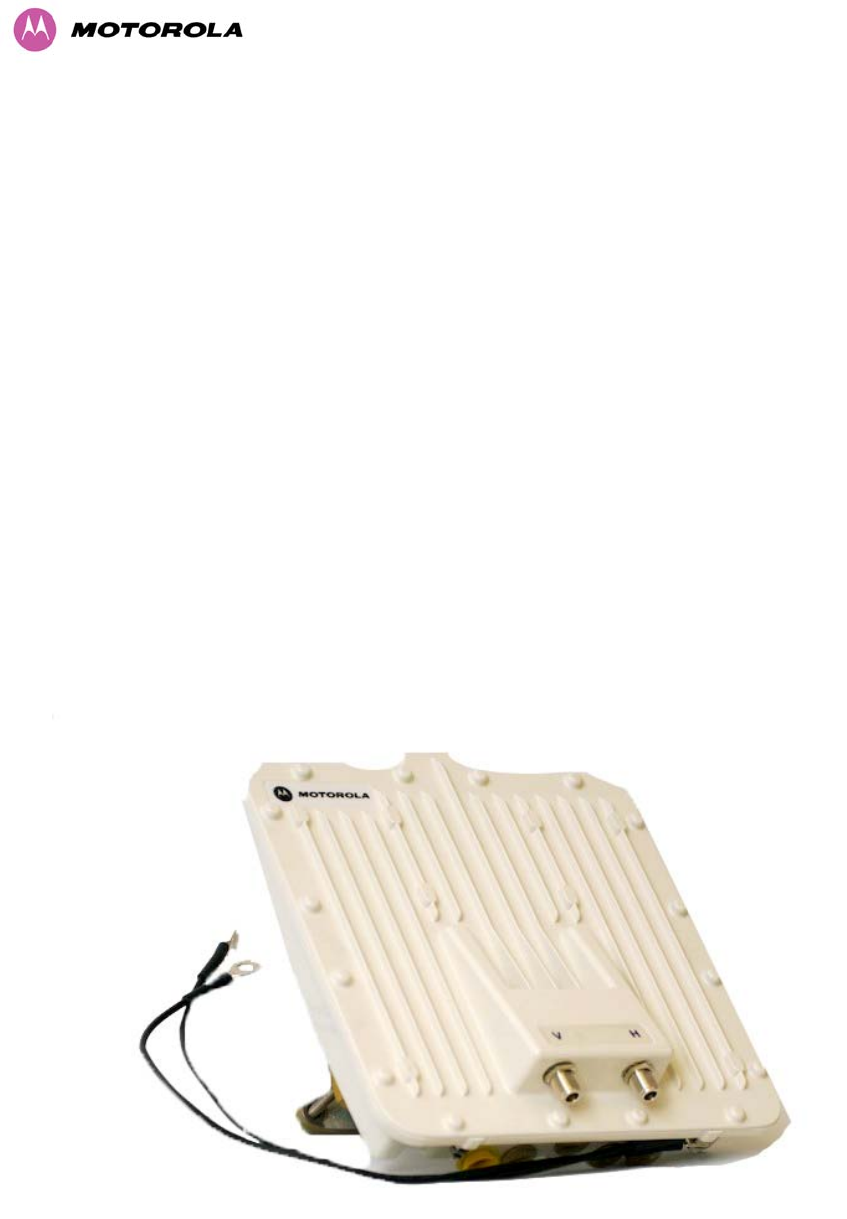

Figure 125 – Connectorized 600 Series Bridge Outdoor Unit
13.2.2 Antenna Choices – 5.9 GHz
N/A.
13 PTP 600 Series Bridge – Connectorized Model
216
13.2.3 Antenna Choices – 5.8 GHz
The integrated antenna has a gain of 23 dBi.
In non-FCC regions antenna choice is not restricted but any region specific EIRP limit must
be obeyed by reducing the maximum Transmit power25, see Section 5.2 “Licenses and
Region Codes”.
In FCC regions external antennas from the list in Section 13.6.3 “Antennas for USA / Canada
– 5.8 GHz” can be used with the Connectorized version of the 600 Series Bridge. These are
approved by the FCC for use with the product and are basically constrained by the following
limits:
• Single Polarization Flat Plate Antennas – up to 28dBi per antenna.
• Single/Dual Polarization Parabolic Dish Antennas – up to 37.7dBi per polarization or
antenna.
In FCC regions when using external antennas – cable loss between the connectorized
version of the 600 Series Bridge and the antenna ports must not be less than 1.2dB.
NOTE: When operating PTP 58600 with a 5 MHz channel bandwidth and with dish antennas
larger than 4 ft (1.2 metres) diameter, the maximum operating power must be reduced to 24
dBm (3 dB reduction) to ensure that FCC requirements are met.
13.2.4 Antenna Choices – 5.4 GHz
The integrated antenna has a gain of 23 dBi.
The PTP 54600 Series Bridge has been designed to operate with the antennas listed in
Section 13.6.4 “Antennas for USA/Canada - 5.4 GHz”, and having a maximum gain of 34.9
dB for the 30, 15 and 10 MHz channel bandwidth (32.3dBi for the 5MHz channel bandwidth)
variant.
However, the Maximum Transmit Power must be reduced to avoid exceeding the EIRP
limits25.
In FCC regions when using external antennas – cable loss between the connectorized
version of the 600 Series Bridge and the antenna ports must not be less than 1.2 dB.
25 Maximum Transmit Power Allowed = EIRP Limit – Antenna Gain + Cable Losses; set the power to the 1dB
value lower than the actual value calculated.
13 PTP 600 Series Bridge – Connectorized Model
217
13.2.5 Antenna Choices – 2.5 GHz
N/A.
13.3 Software/Features
The connectorized variant operates in the same way as the basic 600 Series and is released
initially with the feature set to the Connectorized 600 Series variant. The areas where the
functionality is modified are:
13.3.1 Status Page
The link loss calculation presented on the Status Page of the management interface has to be
modified to allow for the increased antenna gains at each end of the link. The manufacturing
process of the Connectorized 600 Series Bridge configures the standard hardware of the unit
for use with external antennas. The installer is prompted, as part of the installation process, to
enter the gain of the external antenna(s) and cable losses at each end of the link.
Peer-to-peer messaging is used to pass the effective antenna gain to each end of the link so
that the link loss calculations can be correctly computed.

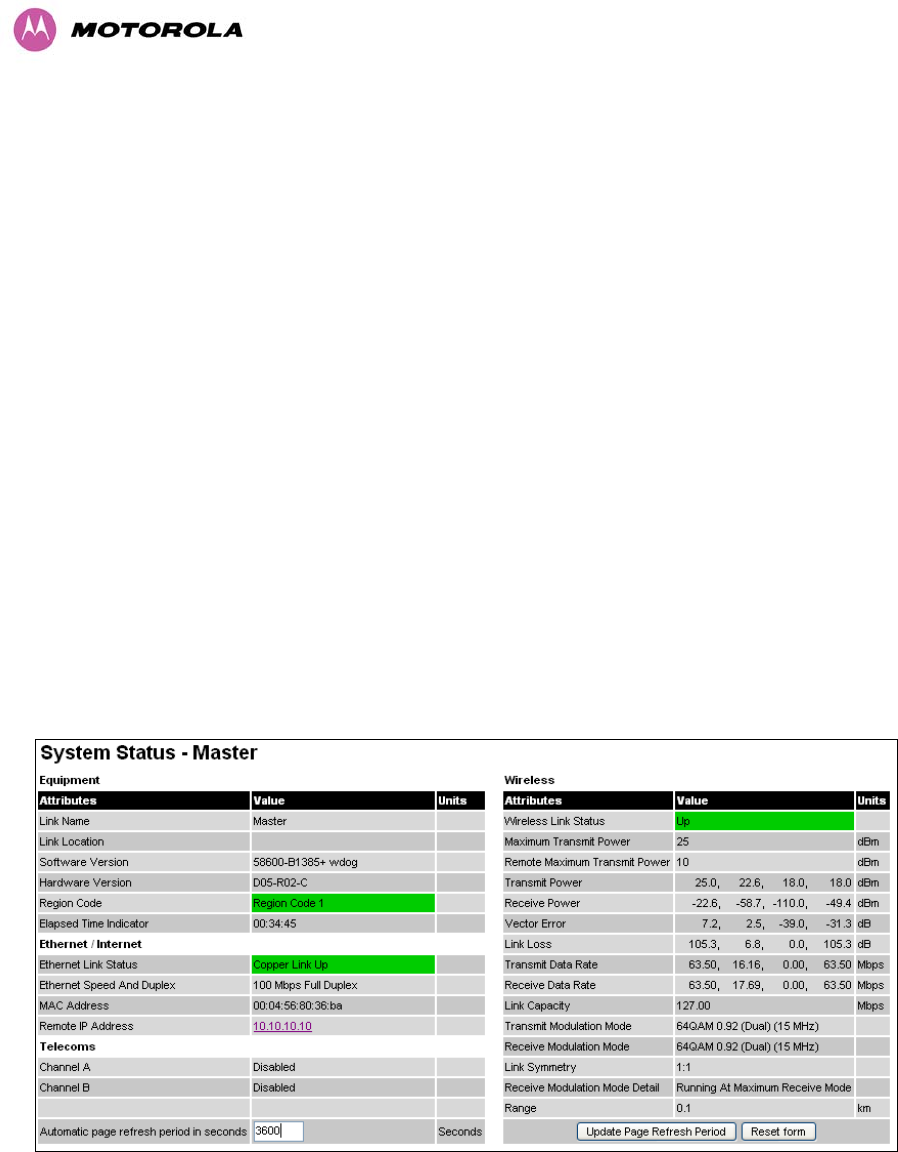

Figure 126 - Connectorized 600 Series bridge Status Page

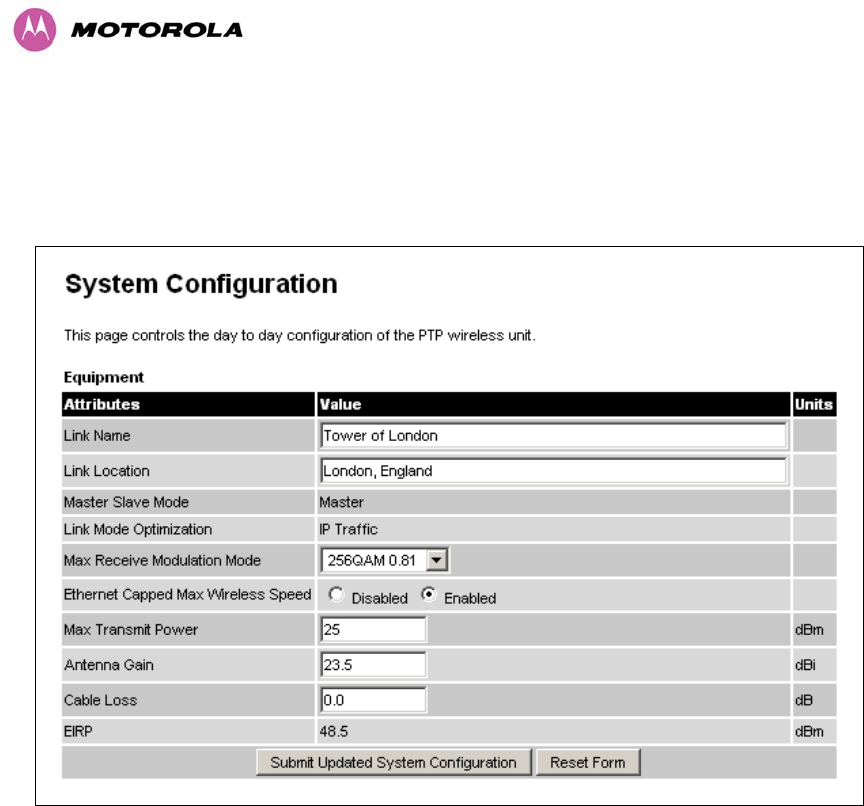

13 PTP 600 Series Bridge – Connectorized Model
219
13.3.3 Installation Pages
The installer is prompted to enter the Antenna Gain and Cable Loss (Connectorized PTP 600
Series Bridge to antenna) at each end of the link. The Installation Page(s) is shown as Figure
128 to Figure 130.
Figure 128 - Connectorized PTP 600 Series Bridge ‘Installation Wizard’ Page
Antenna Gain: Gain of the antenna you are connecting to the unit, see table in Section
13.6.4 “Antennas for USA/Canada - 5.4 GHz”
Cable Loss: Loss in the cable between the ODU and the antenna.
13 PTP 600 Series Bridge – Connectorized Model
220
NOTE: In the event that there is a significant difference in length of the antenna cables for the
two antenna ports, then the average value should be entered.
Spectrum Management Control: Is used to configure the 600 Series Bridge Spectrum
Management features, see Section 8.3.7 “Spectrum Management” for more details. iDFS is
the abbreviation for intelligent Dynamic Frequency Selection, which continually monitors the
spectrum looking for the channel with the lowest level of on channel and co-channel
interference. Fixed frequency mode allows the installer to fix the Transmit and receive
frequencies on the units. The frequencies may be configured symmetrically or
asymmetrically.
13 PTP 600 Series Bridge – Connectorized Model
221
Figure 129 - Connectorized 600 Series bridge ‘Confirm Installation’ Page
EIRP: The Confirm Installation Page displays the EIRP (Effective Isotropic Radiated Power),
which describes the strength of the radio signal leaving the wireless unit. This allows the
operator to verify that their link configuration (Max Transmit Power, Antenna Gain and Cable
Loss) do not cause the link to exceed any applicable regulatory limit.
13 PTP 600 Series Bridge – Connectorized Model
222
Figure 130 - Connectorized 600 Series bridge ‘Disarm Installation’ Page
13.4 Deployment Considerations
The majority of radio links can be successfully deployed with the 600 Series. It should only be
necessary to use external antennas where the LINKPlanner indicates marginal performance
for a specific link – for example when the link is heavily obscured by dense woodland on an
NLOS link or extremely long LOS links (>80km or >50 miles) over water.
13 PTP 600 Series Bridge – Connectorized Model
223
The external antennas can be either dual-polarization (as the integrated antenna) or two
single polarized antennas can be used in a spatially diverse configuration. It is expected that
the dual-polarization antennas would normally be used to simplify the installation process;
spatially diverse antennas may provide additional fade margin on very long LOS links where
there is evidence of correlation of the fading characteristics on Vertical and Horizontal
polarizations.
Dual polarization antennas (with a gain greater than the integrated antenna) are currently only
available in parabolic dish form.
13.5 Link Budget
An estimate of the link budget for a specific application can be obtained by using the Motorola
Systems link estimation tools. For more information see the Motorola web site.
13.6 Regulatory Issues
Installations must conform to any applicable local regulations for the Equivalent Isotropic
Radiated Power (EIRP).
Ensuring compliance becomes more complex when the connectorized unit is used with
external antennas which may be locally sourced. With higher gain external antennas fitted,
the Maximum Transmit power may need to be reduced for operation in specific countries.
See Section 5.2 “Licenses and Region Codes” for any EIRP restrictions that may apply in
your region.
In some regions, operation of the PTP 54600 products is constrained by an EIRP limit. The
normal constraint is that the EIRP does not exceed 30 dBm (33 dBm for PTP 58600) for radio
signals with a bandwidth of >=20 MHz. As the PTP 54600 operating bandwidth is
approximately 27 MHz, then the limit is 30 dBm EIRP (33 dBm for PTP 58600).
When operating with external antennas, the installer/operator has to set the maximum
transmit power to ensure that the EIRP limit is not exceeded. The Set_Max_Transmit_Power
is calculated as below:
Set_Max_Transmit_Power = [Max_Transmit_Power] rounded down to nearest lower dB.
13 PTP 600 Series Bridge – Connectorized Model
224
13.6.1 Antenna Choice (FCC and Industry Canada Regions Only)
For FCC and Industry Canada, the PTP 58600 Series Bridge has been designed to operate
with the antennas listed Section 13.6.3 “Antennas for USA / Canada – 5.8 GHz”, and having a
maximum gain of 37.7 dB.
The PTP 54600 Series Bridge has been designed to operate with the antennas listed in
Section 13.6.4 “Antennas for USA/Canada - 5.4 GHz”, and having a maximum gain of 34.9
dB for the 30, 15 and 10 MHz channel bandwidth (32.3dBi for the 5MHz channel bandwidth)
variant.
Antennas not included in these tables or having greater gains are strictly prohibited for use
with this device. The required antenna impedance is 50 ohms.
13.6.2 Cable Losses (FCC Regions Only)
The FCC approval for the product is based on tests with a cable loss between the units of
approximately 1.2dB at 5.8GHz. The use of lower cable losses would result in the installation
being outside the FCC rules.
As an indication, 1.2dB of cable loss corresponds to the following cable lengths excluding
connector losses (source: Times Microwave).
Table 36 - Cable Losses per Length
Length for 1.2dB Cable Loss at 5.8GHz
Cable (ft) (m)
LMR100 1.9 0.6
LMR200 4.6 1.4
LMR300 7.25 2.2
LMR400 11.1 3.4
LMR600 16.5 5.0
13 PTP 600 Series Bridge – Connectorized Model
225
13.6.3 Antennas for USA / Canada – 5.8 GHz
Table 37 - Allowed Antennas for Deployment in USA/Canada – 5.8 GHz
Manufacturer Antenna Type Gain
(dBi) Flat
Plate Parabolic
Dish
Andrew Andrew 1-foot Flat Panel,
FPA5250D12-N (23.6dBi)
23.6 Y
Andrew Andrew 2-foot Flat Panel,
FPA5250D24-N (28dBi)
28 Y
Gabriel Gabriel 1-foot Flat Panel, DFPD1-52
(23.5dBi)
23.5 Y
Gabriel Gabriel 2-foot Flat Panel, DFPD2-52
(28dBi)
28 Y
MTI MTI 17 inch Diamond Flat Panel, MT-
485009 (23dBi)
23 Y
MTI MTI 15 inch Dual-Pol Flat Panel,
MT-485025/NVH (23dBi)
23 Y
MTI MTI 2 ft Directional Flat Panel, MT-
20004 (28dBi)
28 Y
MTI MTI 2 ft Flat Panel, MT-486001 (28dBi) 28 Y
RFS RFS 1-foot Flat Panel, MA0528-23AN
(23dBi)
23 Y
RFS RFS 2-foot Flat Panel, MA0528-28AN
(28dBi)
28 Y
Telectronics Teletronics 2-foot Flat Plate Antenna,
ANT-P5828 (28dBi)
28 Y
Andrew Andrew 2-foot Parabolic, P2F-52
(29.4dBi)
29.4 Y
Andrew Andrew 2-foot Dual-Pol Parabolic,
PX2F-52 (29.4dBi)
29.4 Y
Andrew Andrew 3-foot Parabolic, P3F-52
(33.4dBi)
33.4 Y
Andrew Andrew 3-foot Dual-Pol Parabolic,
PX3F-52 (33.4dBi)
33.4 Y
Andrew Andrew 4-foot Parabolic, P4F-52
(34.9dBi)
34.9 Y
Andrew Andrew 4-foot Dual-Pol Parabolic,
PX4F-52 (34.9dBi)
34.9 Y
Andrew Andrew 6-foot Parabolic, P6F-52
(37.6dBi)
37.6 Y
13 PTP 600 Series Bridge – Connectorized Model
226
Manufacturer Antenna Type Gain
(dBi) Flat
Plate Parabolic
Dish
Andrew Andrew 6-foot Dual-Pol Parabolic,
PX6F-52 (37.6dBi)
37.6 Y
Gabriel Gabriel 2-foot High Performance
QuickFire Parabolic, HQF2-52-N
28.2 Y
Gabriel Gabriel 4-foot High Performance
QuickFire Parabolic, HQF4-52-N
34.4 Y
Gabriel Gabriel 6-foot High Performance
QuickFire Parabolic, HQF6-52-N
37.4 Y
Gabriel Gabriel 2-foot High Performance Dual
QuickFire Parabolic, HQFD2-52-N
28.1 Y
Gabriel Gabriel 4-foot High Performance Dual
QuickFire Parabolic, HQFD4-52-N
34.3 Y
Gabriel Gabriel 6-foot High Performance Dual
QuickFire Parabolic, HQFD6-52-N
37.3 Y
Gabriel Gabriel 2-foot Standard QuickFire
Parabolic,
QF2-52-N
28.5 Y
Gabriel Gabriel 2-foot Standard QuickFire
Parabolic,
QF2-52-N-RK
28.5 Y
Gabriel Gabriel 2.5-foot Standard QuickFire
Parabolic, QF2.5-52-N
31.2 Y
Gabriel Gabriel 4-foot Standard QuickFire
Parabolic,
QF4-52-N
34.8 Y
Gabriel Gabriel 4-foot Standard QuickFire
Parabolic,
QF4-52-N-RK
34.8 Y
Gabriel Gabriel 6-foot Standard QuickFire
Parabolic,
QF6-52-N
37.7 Y
Gabriel Gabriel 2-foot Standard Dual QuickFire
Parabolic, QFD2-52-N
28.4 Y
Gabriel Gabriel 2.5-foot Standard Dual
QuickFire Parabolic, QFD2.5-52-N
31.1 Y
Gabriel Gabriel 2-foot Standard Dual QuickFire
Parabolic, QFD2-52-N-RK
28.4 Y
Gabriel Gabriel 4-foot Standard Dual QuickFire
Parabolic, QFD4-52-N
34.7 Y
Gabriel Gabriel 4-foot Standard Dual QuickFire
Parabolic, QFD4-52-N-RK
34.7 Y
13 PTP 600 Series Bridge – Connectorized Model
227
Manufacturer Antenna Type Gain
(dBi) Flat
Plate Parabolic
Dish
Gabriel Gabriel 6-foot Standard Dual QuickFire
Parabolic, QFD6-52-N
37.7 Y
RadioWaves Radio Waves 2-foot Dual-Pol Parabolic,
SPD2-5.2 (28.1dBi)
28.1 Y
RadioWaves Radio Waves 2-foot Parabolic, SP2-5.2
(29.0dBi)
29 Y
RadioWaves Radio Waves 3-foot Dual-Pol Parabolic,
SPD3-5.2 (31.1dBi)
31.1 Y
RadioWaves Radio Waves 3-foot Parabolic, SP3-5.2
(31.4dBi)
31.4 Y
RadioWaves Radio Waves 4-foot Dual-Pol Parabolic,
SPD4-5.2 (34.4dBi)
34.4 Y
RadioWaves Radio Waves 4-foot Parabolic, SP4-5.2
(34.8dBi)
34.8 Y
RadioWaves Radio Waves 6-foot Dual-Pol Parabolic,
SPD6-5.2 (37.5dBi)
37.5 Y
RadioWaves Radio Waves 6-foot Parabolic, SP6-5.2
(37.7dBi)
37.7 Y
RadioWaves Radio Waves 2-foot Parabolic, SP2-2/5
(28.3dBi)
28.3 Y
RadioWaves Radio Waves 3-foot Parabolic, SP3-2/5
(31.4dBi)
31.4 Y
RadioWaves Radio Waves 4-foot Parabolic, SP4-2/5
(34.6dBi)
34.6 Y
RadioWaves Radio Waves 6-foot Parabolic, SP6-2/5
(37.7dBi)
37.7 Y
RFS RFS 2-foot Parabolic, SPF2-52AN or
SPFX2-52AN (27.9dBi)
27.9 Y
RFS RFS 3-foot Parabolic, SPF3-52AN or
SPFX3-52AN(31.4dBi)
31.4 Y
RFS RFS 4-foot Parabolic, SPF4-52AN or
SPFX4-52AN(33.9dBi)
33.9 Y
RFS RFS 6-foot Parabolic, SPF6-52AN or
SPFX6-52AN (37.4dBi)
37.4 Y
RFS RFS 2-foot HP Parabolic, SDF2-52AN
or SDFX2-52AN (31.4dBi)
31.4 Y
RFS RFS 4-foot HP Parabolic, SDF4-52AN
or SDFX4-52AN (33.9dBi)
33.9 Y
RFS RFS 6-foot HP Parabolic, SDF6-52AN
or SDFX6-52AN (37.4dBi)
37.4 Y
13 PTP 600 Series Bridge – Connectorized Model
228
Manufacturer Antenna Type Gain
(dBi) Flat
Plate Parabolic
Dish
StellaDoradus StellaDoradus 45 inch Parabolic
Antenna, 58PSD113
33.8 Y
13.6.4 Antennas for USA/Canada - 5.4 GHz
Table 38 - Allowed Antennas for Deployment in USA/Canada – 5.4 GHz
Manufacturer Antenna Type Gain
(dBi) Parabolic
Dish
Andrew Andrew 2-foot Parabolic, P2F-52 (29.4dBi) 29.4 Y
Andrew Andrew 2-foot Dual-Pol Parabolic, PX2F-52
(29.4dBi)
29.4 Y
Andrew Andrew 3-foot Parabolic, P3F-52 (33.4dBi) 33.4 Y
Andrew Andrew 3-foot Dual-Pol Parabolic, PX3F-52
(33.4dBi)
33.4 Y
Andrew Andrew 4-foot Parabolic, P4F-52 (34.9dBi) 34.9 Y
Andrew Andrew 4-foot Dual-Pol Parabolic, PX4F-52
(34.9dBi)
34.9 Y
Gabriel Gabriel 2-foot High Performance QuickFire
Parabolic, HQF2-52-N
28.2 Y
Gabriel Gabriel 4-foot High Performance QuickFire
Parabolic, HQF4-52-N
34.4 Y
Gabriel Gabriel 2-foot High Performance Dual
QuickFire Parabolic, HQFD2-52-N
28.1 Y
Gabriel Gabriel 4-foot High Performance Dual
QuickFire Parabolic, HQFD4-52-N
34.3 Y
Gabriel Gabriel 2-foot Standard QuickFire
Parabolic,
QF2-52-N
28.5 Y
Gabriel Gabriel 2-foot Standard QuickFire
Parabolic,
QF2-52-N-RK
28.5 Y
Gabriel Gabriel 2.5-foot Standard QuickFire
Parabolic, QF2.5-52-N
31.2 Y
Gabriel Gabriel 4-foot Standard QuickFire
Parabolic,
QF4-52-N
34.8 Y
Gabriel Gabriel 4-foot Standard QuickFire
Parabolic,
QF4-52-N-RK
34.8 Y
Gabriel Gabriel 2-foot Standard Dual QuickFire
Parabolic, QFD2-52-N
28.4 Y
13 PTP 600 Series Bridge – Connectorized Model
229
Manufacturer Antenna Type Gain
(dBi) Parabolic
Dish
Gabriel Gabriel 2.5-foot Standard Dual QuickFire
Parabolic, QFD2.5-52-N
31.1 Y
Gabriel Gabriel 2-foot Standard Dual QuickFire
Parabolic, QFD2-52-N-RK
28.4 Y
Gabriel Gabriel 4-foot Standard Dual QuickFire
Parabolic, QFD4-52-N
34.7 Y
Gabriel Gabriel 4-foot Standard Dual QuickFire
Parabolic, QFD4-52-N-RK
34.7 Y
RadioWaves Radio Waves 2-foot Dual-Pol Parabolic,
SPD2-5.2 (28.1dBi)
28.1 Y
RadioWaves Radio Waves 2-foot Parabolic, SP2-5.2
(29.0dBi)
29 Y
RadioWaves Radio Waves 3-foot Dual-Pol Parabolic,
SPD3-5.2 (31.1dBi)
31.1 Y
RadioWaves Radio Waves 3-foot Parabolic, SP3-5.2
(31.4dBi)
31.4 Y
RadioWaves Radio Waves 4-foot Dual-Pol Parabolic,
SPD4-5.2 (34.4dBi)
34.4 Y
RadioWaves Radio Waves 4-foot Parabolic, SP4-5.2
(34.8dBi)
34.8 Y
RadioWaves Radio Waves 2-foot Parabolic, SP2-2/5
(28.3dBi)
28.3 Y
RadioWaves Radio Waves 3-foot Parabolic, SP3-2/5
(31.4dBi)
31.4 Y
RadioWaves Radio Waves 4-foot Parabolic, SP4-2/5
(34.6dBi)
34.6 Y
RFS RFS 2-foot Parabolic, SPF2-52AN or
SPFX2-52AN (27.9dBi)
27.9 Y
RFS RFS 3-foot Parabolic, SPF3-52AN or
SPFX3-52AN(31.4dBi)
31.4 Y
RFS RFS 4-foot Parabolic, SPF4-52AN or
SPFX4-52AN(33.9dBi)
33.9 Y
RFS RFS 2-foot HP Parabolic, SDF2-52AN or
SDFX2-52AN (31.4dBi)
31.4 Y
RFS RFS 4-foot HP Parabolic, SDF4-52AN or
SDFX4-52AN (33.9dBi)
33.9 Y
13 PTP 600 Series Bridge – Connectorized Model
230
13.7 Installation
The section covers the generic installation instructions for the Connectorized versions of the
PTP 600 Series point-to-point wireless Ethernet bridges. The actual installation procedure will
depend on antenna choice, cable choice, required antenna separation etc.
13.7.1 Antenna Choice
Section 13.6.3 “Antennas for USA / Canada – 5.8 GHz” and Section 13.6.4 “Antennas for
USA/Canada - 5.4 GHz” show a wide variety of antennas that can be used with the
Connectorized PTP 600 Series bridge. The main selection criteria will be the required
antenna gain. The secondary criteria should be the ease of mounting and alignment. For
example the Radio Waves Parabolic dishes are supplied with a mount that allows adjustment
for alignment independent of the actual antenna mounting. This type of antenna is much
easier to align than those that have to be rotated around the mounting pole for alignment.
13.7.2 Cables and Connectors
Cables should be selected using the above criteria. However it should be noted that a cable
of a type similar to LMR400 is a lot more difficult to handle and route than a cable of a type
similar to LMR100.
Motorola recommends the use of weatherproof connectors -- preferably, ones that come
supplied with adhesive lined heat shrink sleeve that is fitted over the cable/connector
interface.
The connectors required at the Connectorized 600 Series bridge end of the antenna cables
are N-Type Male.
The connectors required at the antenna end of the antenna cables is dependant on the
antenna type chosen.
13.7.3 Tools
The tools required for mounting a Connectorized 600 Series bridge unit are the same as
those required for an Integrated 600 Series bridge detailed in Section 7.3 “Tools Required”.
The tools required for mounting the antennas are specific to the antenna chosen. The installer
should refer to the antenna manufacturer’s instructions.
13 PTP 600 Series Bridge – Connectorized Model
231
13.7.4 Miscellaneous supplies
The following miscellaneous supplies will be required:
• Cable ties, cable cleats – for securing cables
• Self-amalgamating tape – to weatherproof the RF connectors
• PVC tape – for additional protection of the RF connectors and securing cables
13.7.5 Mounting the Connectorized 600 Series Bridge
A Connectorized 600 Series bridge is shipped with the same bracket as supplied with an
Integrated unit. Details on the use of this bracket can be found in Section 3.3.7 “Mounting
Brackets”. The 600 Series Bridge should be mounted in a position that gives it maximum
protection from the elements, but still allows easy access for making off the various
connections and applying the recommended weatherproofing.
When using dual polar antennas the Connectorized 600 Series bridge should be mounted in
such a position as to minimize the cable length, keeping losses to a minimum (taking into
account the minimum cable lengths required by the FCC regulations, see Section 13.6.3
“Antennas for USA / Canada – 5.8 GHz”.
When using separate antennas the Connectorized 600 Series Bridge should be mounted in
such a position as to minimize both cable runs between the unit and the antennas. It is not
necessary to mount the Connectorized 600 Series Bridge at the mid point between the
antennas.
13.7.6 Mounting the antennas
The Antennas should be mounted according to the manufacturer’s instructions. Actual
antenna position will depend on the available mounting positions and link requirements. It
may be necessary to mount the antennas 20m apart or at a certain distance from the ground
to get the desired results.
13 PTP 600 Series Bridge – Connectorized Model
232
13.7.7 Alignment Process
When aligning antennas deployed with a Connectorized 600 Series bridge unit it may not be
possible to hear the alignment tone emanating from the unit. In this case it may be necessary
for a second installer to assist in the operation. Alternatively, it may be possible to extend the
tube on the supplied stethoscope to give a longer reach.
Recommendation: Fine antenna alignment can sometimes be achieved by tightening and
loosening the bolts on either side of the antenna mounting bracket, rather than trying to turn
the whole bracket on the mounting pole.
13.7.8 Aligning Dual Polar Antennas
The process for aligning a dual polar antenna is the same as aligning an Integrated unit with
an integrated antenna. This procedure is detailed in Section 7.7.11 “Aligning the PTP 600
Series Bridge ODUs”.
13.7.9 Aligning Separate Antennas
When using separate antennas to achieve spatial diversity, one should be mounted with
Horizontal polarization and the other with Vertical polarization.
The following steps should be followed:
Step 1: Mount the Antennas
Step 2: Mount the connectorized version of the PTP 600 Series Bridge unit
Step 3: Route and make off the ends of the Antenna cables
Step 4: Connect the antenna cables at the antennas
Step 5: Connect one of the antenna cables at the Connectorized version of the 600 Series
bridge unit.
Step 6: Connect the Connectorized 600 Series Bridge ODU to PIDU Plus cable and
configure the unit as described in Section 7.7 “Connecting Up”.
Step 7: Align the connected antenna using the tones as described in Section 7.7.11 “Aligning
the PTP 600 Series Bridge ODUs”.
Step 8: Connect the other antenna to the Connectorized 600 Series bridge.
Step 9: Disconnect the cable to the already aligned antenna.
13 PTP 600 Series Bridge – Connectorized Model
233
Step 10: Align the second antenna using the tones as described in Section 7.7.11 “Aligning
the PTP 600 Series Bridge ODUs”.
Step 11: Re-connect the second antenna to the Connectorized 600 Series bridge (Note: you
will notice the tone pitch increase as you re-connect the second antenna due to the additional
received signal).
Step 12: Use the relevant status web pages to check that you are getting the results you
expect from your link planning.
Step 13: Complete the installation as detailed below.
13.7.10 Completing the Installation
The installation should be completed by checking all mounting nuts bolts and screws,
securing all cables and weatherproofing the installation.
CAUTION: Finally tightening the antenna mountings may cause the antenna alignment to be
altered, due to distortion in the mounting bracket caused by action of tightening. It is
recommended that the installation tone be left turned on (armed) during this process so that
any movement can be noticed and counteracted by tightening the other side of the bracket.
13.7.11 Antenna Cable Fixing
Cables should be secured in place using cable ties, cleats or PVC tape. Care should be
taken to ensure that no undue strain is placed on the connectors on both the Connectorized
600 Series bridge and the Antennas and also to ensure that the cables do not flap in the
wind. Flapping cables are prone to damage and induce unwanted vibrations in the mast to
which the units are attached.
13 PTP 600 Series Bridge – Connectorized Model
234
13.7.12 Antenna Connection Weatherproofing
Where a cable connects to an antenna or unit from above, a drip loop should be left to ensure
that water is not constantly channeled towards the connector.
Figure 131 - Forming a Drip Loop
All joints should be weatherproofed using self-amalgamating tape. It is recommended that a
layer of PVC tape be placed over the self-amalgamating tape to protect the joint while the
self-amalgamating tape cures and gives additional protection. Figure 132 shows this
diagrammatically for the 600 Series bridge end of the antenna cables. If the antenna
manufacturer has not supplied guidance on this matter, the same technique should be
employed at the antenna end of the cable.
Figure 132 - Weatherproofing the Antenna Connections
13 PTP 600 Series Bridge – Connectorized Model
235
13.8 Additional Lightning Protection
The following guidelines should be applied in addition to those described in Section 11
”Lightning Protection”.
13.8.1 ODU Mounted Outdoors
Where the ODU is mounted outdoors and is mounted some distance from the antenna, it is
advisable to add additional grounding by utilizing Andrew Assemblies (such as Andrew Type
223158 www.andrew.com) as shown in Figure 133.

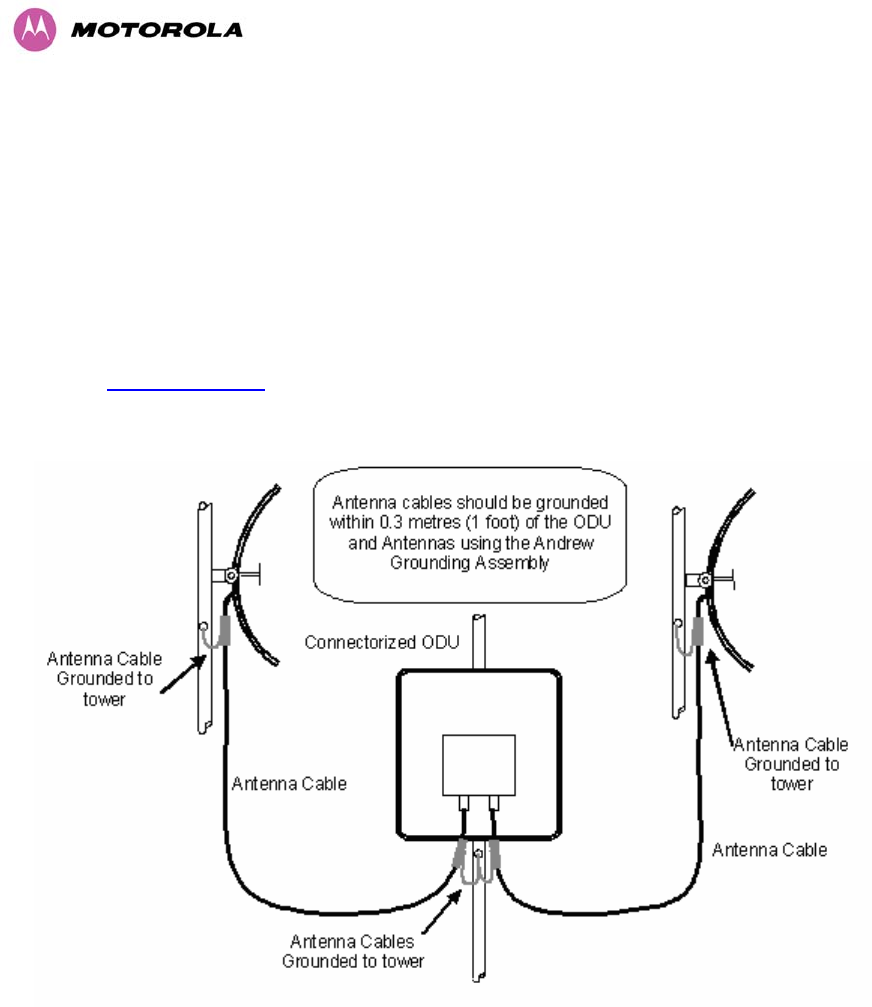

Figure 133- Additional Grounding When Using Connectorized Units
13 PTP 600 Series Bridge – Connectorized Model
236
13.8.2 ODU Mounted Indoors
Where the ODU is mounted indoors, lightning arrestors should be deployed where the
antenna cables enter the building as shown in Figure 134.

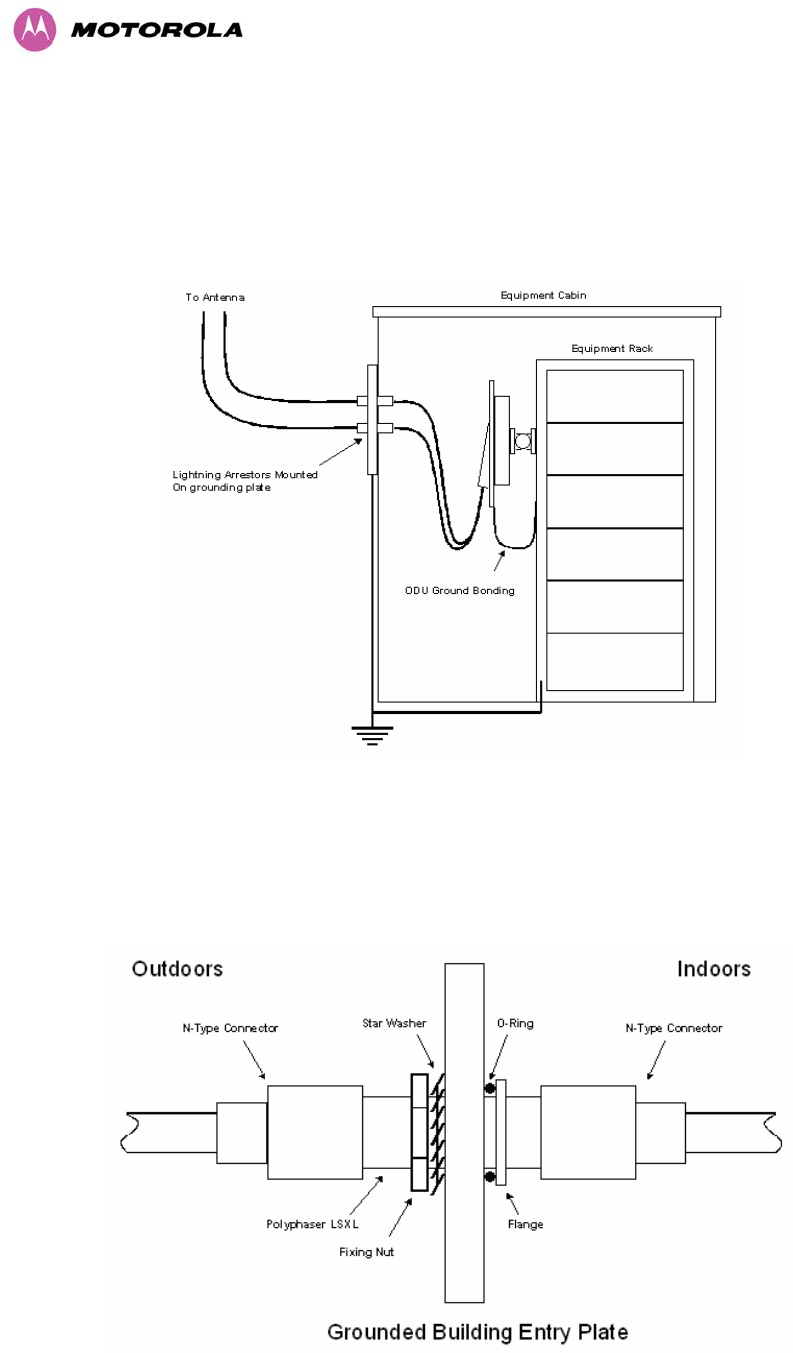

Figure 134 - Lightning Arrestor Mounting
The lighting arrestors should be ground bonded to the building ground at the point of entry.
Motorola recommends Polyphaser LSXL-ME or LSXL lighting arrestors. These should be
assembled as show in Figure 135.
Figure 135 - Polyphaser Assembly
14 TDD Synchronization Configuration and Installation
Guide
237
14 TDD Synchronization Configuration and Installation Guide
14.1 Introduction
When planning a network of links, a key consideration is the interference that exists between
the links. TDD synchronization is a feature which eliminates two specific interference
mechanisms, namely interference between Master and Master and interference between
Slave and Slave.
One example which highlights the need for TDD synchronization is the case where a number
of links are required from a single mast. Without TDD synchronization, high levels of
interference will occur between the units on the mast due to their close proximity. By enabling
TDD synchronization, interference between these units is eliminated if all are of the same
type. The recommendation is for all units on a mast to be configured as Masters. The
maximum number of links on a mast depends on the customer requirements such as required
throughput, link availability, available spectrum, maximum EIRP, bandwidth, channel
separation and the longest link. However, in some cases, it may even be possible to re-use
radio channels on the same mast which would not be possible without TDD synchronization.
In summary, by eliminating interference between units of a like type, TDD synchronization
increases network capacity by increasing frequency re-use and increasing the density of links
across the network.
This section will cover the two steps required to enable TDD synchronization:
• Physical installation of the GPS Synchronisation Unit. This will include wiring diagrams,
illustrations showing the placement of the GPS box and the recommended components
for installation.
• The latter will describe the step by step configuration process using the Web interface.
14 TDD Synchronization Configuration and Installation
Guide
238
14.1.1 Installing the Recommended GPS Synchronization Kit
The recommended GPS Sync installation kit includes the following:
• GPS Sync Unit from MemoryLink (see Figure 136), with three attached terminated
Ethernet and Sync cables and cable glands (2) which connect directly to a PTP 600
Series ODU.
• Mounting bracket and mounting bracket bolts
• Outdoor rated UV resistant cable tie
• GPS Sync Unit User Manual.
In addition to the hardware mentioned above, it is recommended to have an appropriate
lightning protection (PTP LPU as described in Section 15.6 “Lightning Protection and E1/T1”).
NOTE: Refer to GPS Sync Unit User manual for details on the lengths of cables used to
connect the GPS Sync Unit to the ODU and PTP LPU.

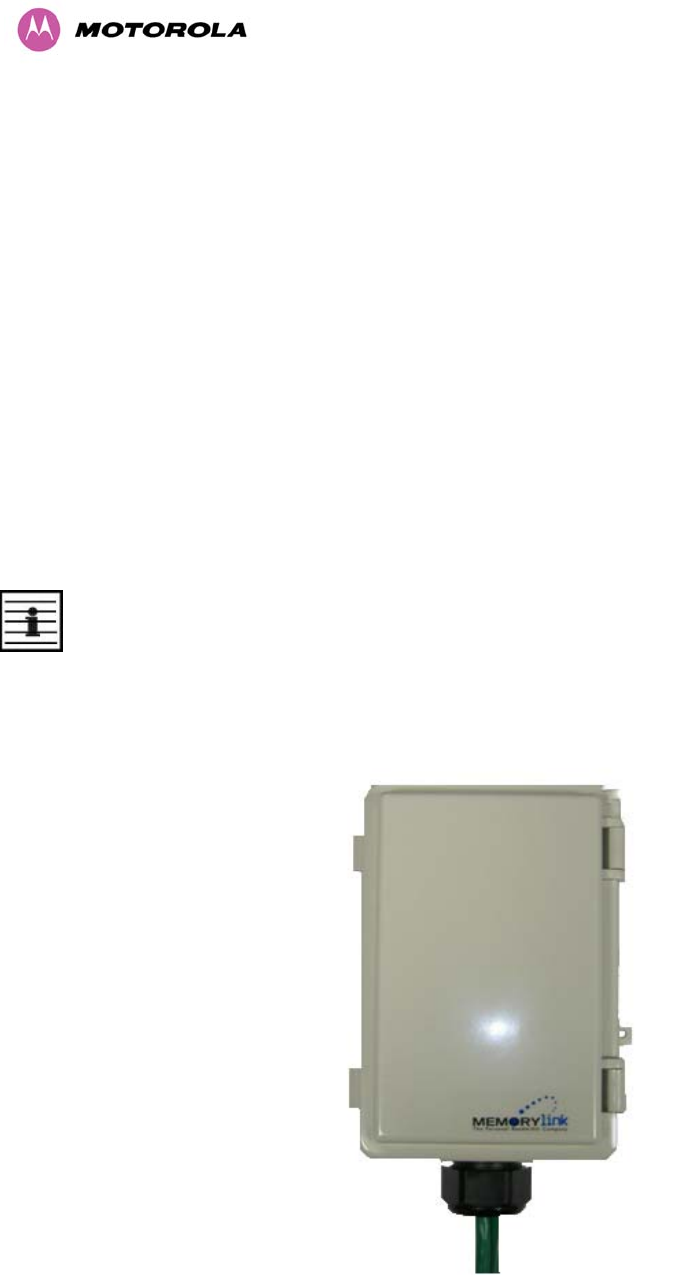

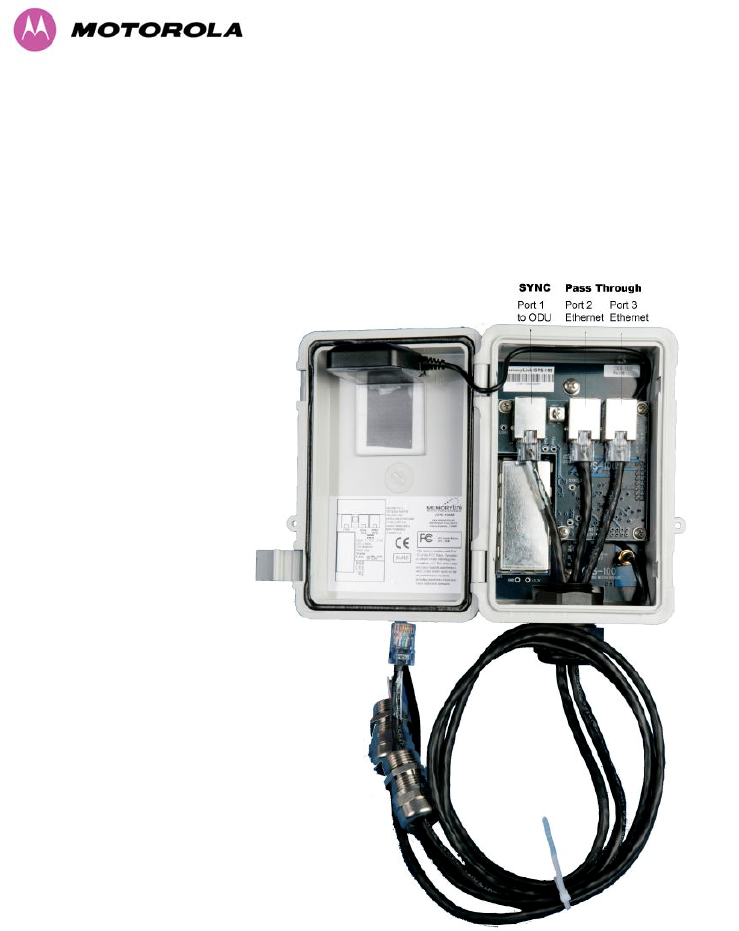

Figure 136 - GPS Synchronization Unit
14 TDD Synchronization Configuration and Installation
Guide
240
Figure 138 - TDD Sync - PTP600 Deployment Diagram
NOTE: Installation details of the GPS Sync Unit are described in the GPS Sync Unit User
Manual.
Figure 139 shows an example of mast installation using lightning protection and a GPS Sync
Unit.
14 TDD Synchronization Configuration and Installation
Guide
241
Figure 139- GPS Synchronization Unit Complete Installation
14 TDD Synchronization Configuration and Installation
Guide
242
14.2 TDD Synchronization Configuration – Standard Mode
TDD synchronization is enabled and configured using the install wizard during the installation
process of the link26.
14.2.1 TDD Synchronization Enable
Figure 140 shows how to enable TDD Synchronization.
Figure 140 - Enabling TDD Synchronization Feature
When TDD Synchronization is enabled, note that:
26 TDD synchronisation is not available in regions where radar avoidance is enabled.
14 TDD Synchronization Configuration and Installation
Guide
243
• Ranging Mode and Target Range are disabled on the wireless configuration page.
• Link Symmetry is forced to ‘1:1’ operation only.
• Spectrum Management Control is forced to ‘Fixed Frequency’ operation only.
14.2.2 TDD Synchronization Configuration Menu
14.2.2.1 TDD Synchronization Configuration - Standard Mode
When TDD Synchronization is enabled, there is an extra installation screen (“TDD
Synchronization”) as shown in Figure 141.

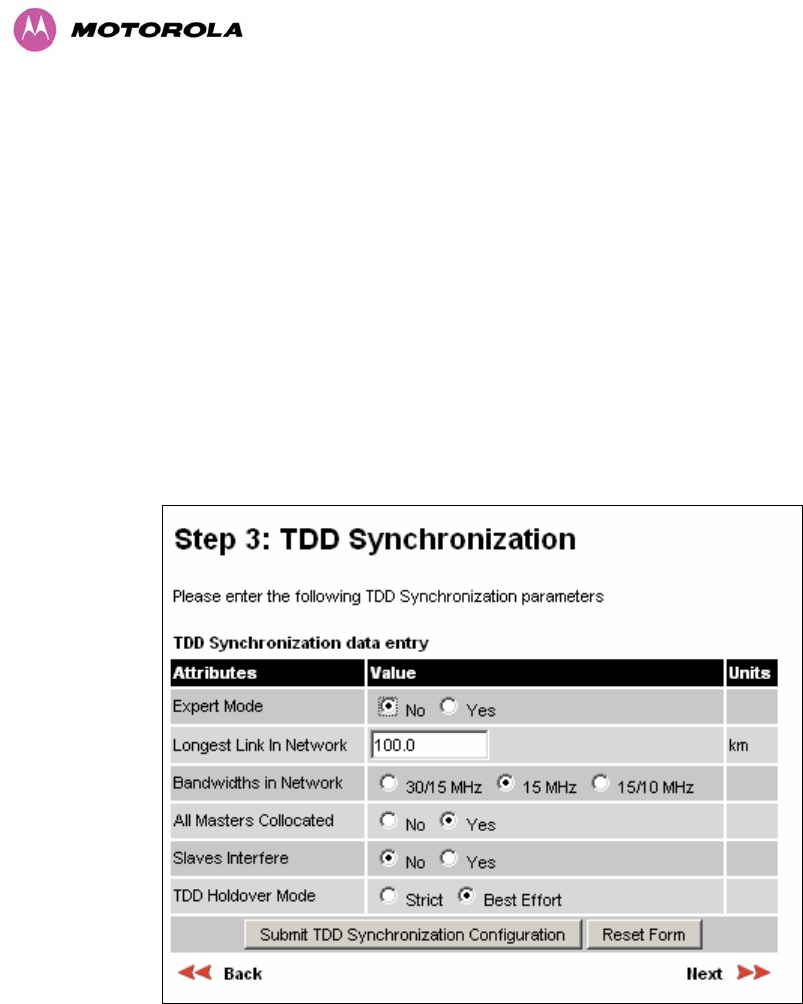

Figure 141 - Configuring TDD Synchronization – Screen 1
The TDD Synchronization screen provides the following controls:
Expert Mode: Select “Yes” to use “Expert Mode”. This is an option recommended only for
experienced network and cell planners and is outside the scope of this document (see Figure
143 for parameters required to configure in this mode). If “Expert Mode” is not selected, then
the user is required to enter some basic information to allow the software to calculate the best
values for Frame Duration and Burst Duration.
Longest Link in Network: Default value is 100 kms (60 miles). It is the distance of the
longest link in the network (maximum is 200 kms or 120 miles).
14 TDD Synchronization Configuration and Installation
Guide
244
Bandwidths in Network: It is very likely that there will be several different channel
bandwidths in a given network. Table 39 gives a list of bandwidth combinations that permit
synchronization without gross loss of efficiency. Note that depending on the channel
bandwidth size, only subsets of Table 39 will be shown in the configuration wizard screen.
Table 39 - Common Burst Durations
Bandwidth
Combination
(MHz)
30
30/5
30/10
5/10/30
15/30
15
10/15
5/10
10
5
Collocated Masters: The network needs to be configured differently depending on whether
all masters for which interference can potentially occur are collocated or whether interference
needs to be considered for masters which are not collocated. Answer “Yes” to this question if
master to master interference only occurs between collocated masters, otherwise answer
“No”. If “No” is selected, the maximum distance between masters which can potentially
interfere is required. This is the subject of the next bullet.
Master to Master Range: This is only displayed (see Figure 138.) if the answer to the above
question was “No”. In this case, the longest distance over which two masters can interfere
must be entered here. Maximum range is 200 km (120 miles).
Slave Interfere: Select “No” if there is no potential of a slave interfering with another slave.
Select “Yes” if there is potential for one slave to interfere with another slave. If the option
“Yes” is selected, then the maximum distance between slaves which can potentially interfere
is required. This is the subject of the next bullet.
Slave to Slave Range: This is only displayed (see Figure 138.) if the answer to the above
question was “Yes”. In this case, the longest distance over which two slaves can interfere
must be entered here. Maximum range is 200 km (120 miles).
14 TDD Synchronization Configuration and Installation
Guide
245
Configure Link Range: Choose “yes” to enter the range of the link in control below: Note
that Link Range MUST be less or equal to “Longest Link in Network”. In some networks,
throughput can be increased by entering the exact range of each link in the wizard.
TDD Holdover Mode: Two values: “Strict” and “Best Effort”. If a PTP 600 master ODU is
configured for a TDD Holdover Mode set to “Strict”, then it will not transmit when
synchronization is lost. On the other hand, a link configured for TDD Holdover Mode set to
“Best Effort” will synchronize when a reference signal is available, but will otherwise use best
efforts to operate in unsynchronized fashion.

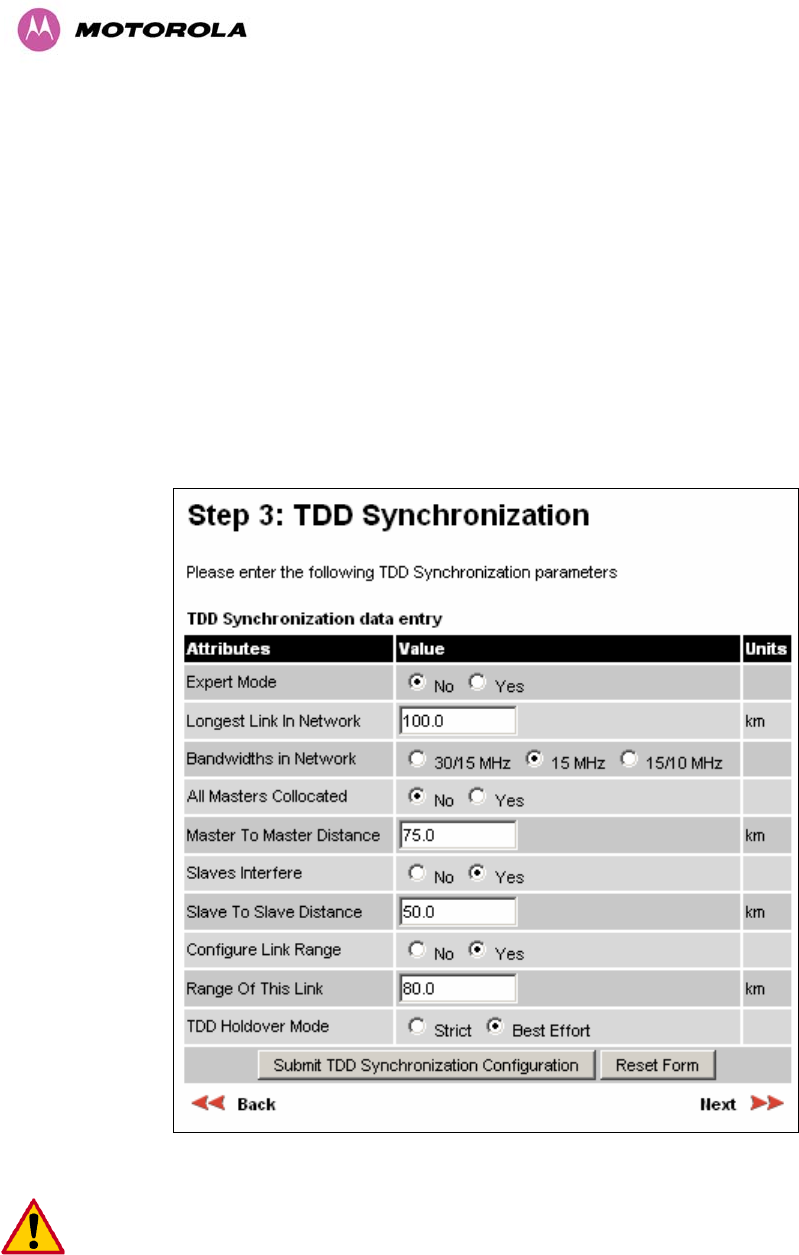

Figure 142 - Configuring TDD Synchronization Feature - Screen 2
CAUTION: the values entered for the controls in Figure 142 MUST be the same for
master/slave pairs for all the links in the network, except for the attribute “Range of This Link”
which can be entered exactly for better performance.
14 TDD Synchronization Configuration and Installation
Guide
246
14.2.2.2 TDD Synchronization Configuration – Expert Mode
When “Expert Mode” is selected, the user is required to configure the parameters27 shown in
Figure 143. As mentioned previously, this is outside the scope of this document. However,
this mode can be used as informative to ensure that the values of the parameters are the
same for all the links in the network.

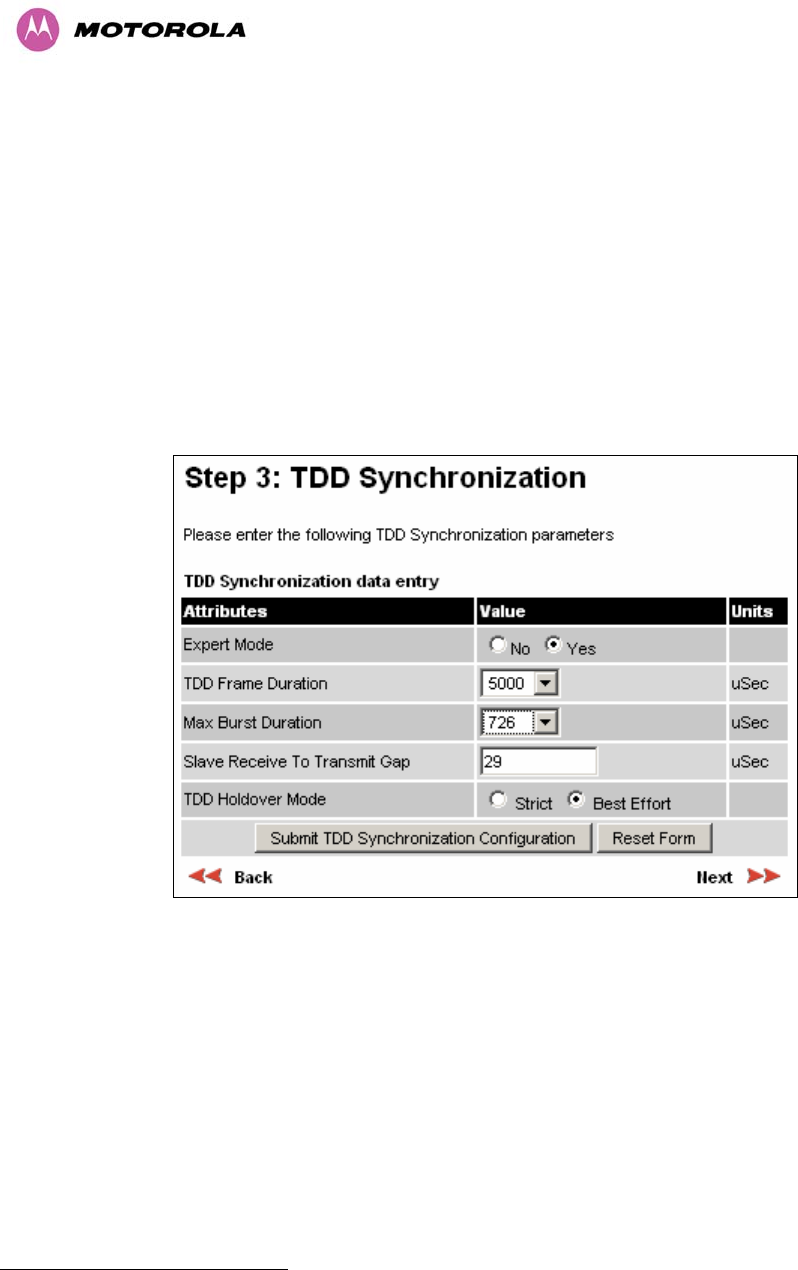

Figure 143 - Configure TDD Synchronisation Expert Mode
27 For the non-expert mode, the controls in Figure 143 are automatically filled by the software
14 TDD Synchronization Configuration and Installation
Guide
247
14.2.2.3 Confirm Settings and Reboot ODU
When all the parameters have been entered, then the user can commit the values to the unit
and reboot. Figure 144 shows the list of the installation parameters.
Figure 144 - Confirm TDD Synchronization Configuration Parameters
Following the reboot and provided the GPS has synchronized, an additional control is
displayed in the Status Page as shown in Figure 145 (Sync) or Figure 146 (Not Sync).
14 TDD Synchronization Configuration and Installation
Guide
248

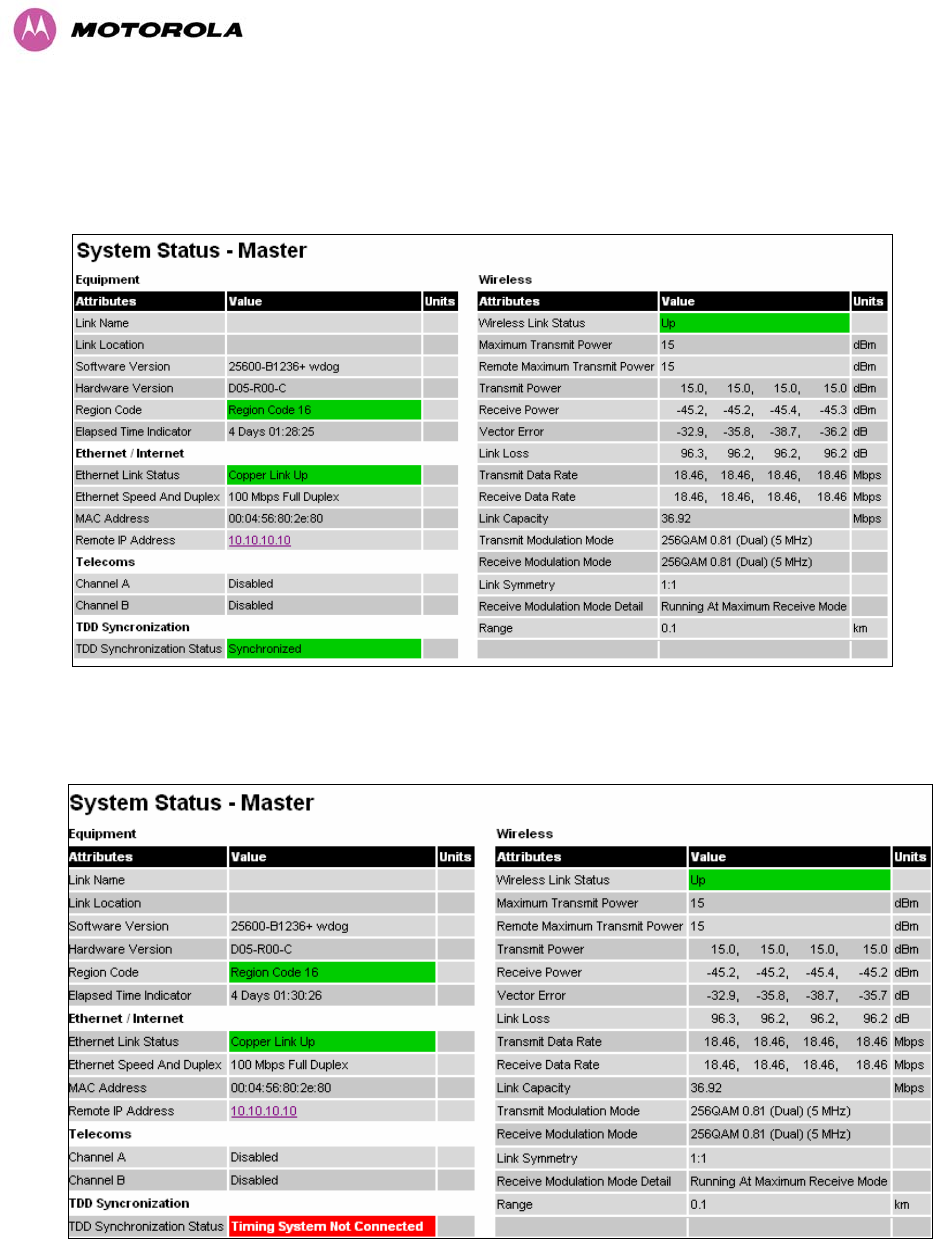

Figure 145 - Status Page - TDD Enabled and Synchronized
Figure 146 - Status Page - TDD Enabled and Not Synchronized
14 TDD Synchronization Configuration and Installation
Guide
249
14.2.2.4 Disarm ODU Following TDD Sync Configuration
Figure 147 - Disarm Following TDD Synchronization
CAUTION: In a synchronized network, links MUST be configured separately before bringing
the whole network up.
15 E1/T1 Installation Guide
250
15 E1/T1 Installation Guide
15.1 Preparing the PTP 600 Series Bridge E1/T1 Cable
NOTE: The maximum cable length between the ODU and the customers terminating
equipment is 200m (656 feet) for E1/T1.
The E1/T1 cable should be assembled as described in Section 3.3.5 “Cables and
connectors”. This procedure applies to the ODU termination. The above procedure should be
repeated for the customer equipment end of the cable when the cable is terminated with a
RJ45.

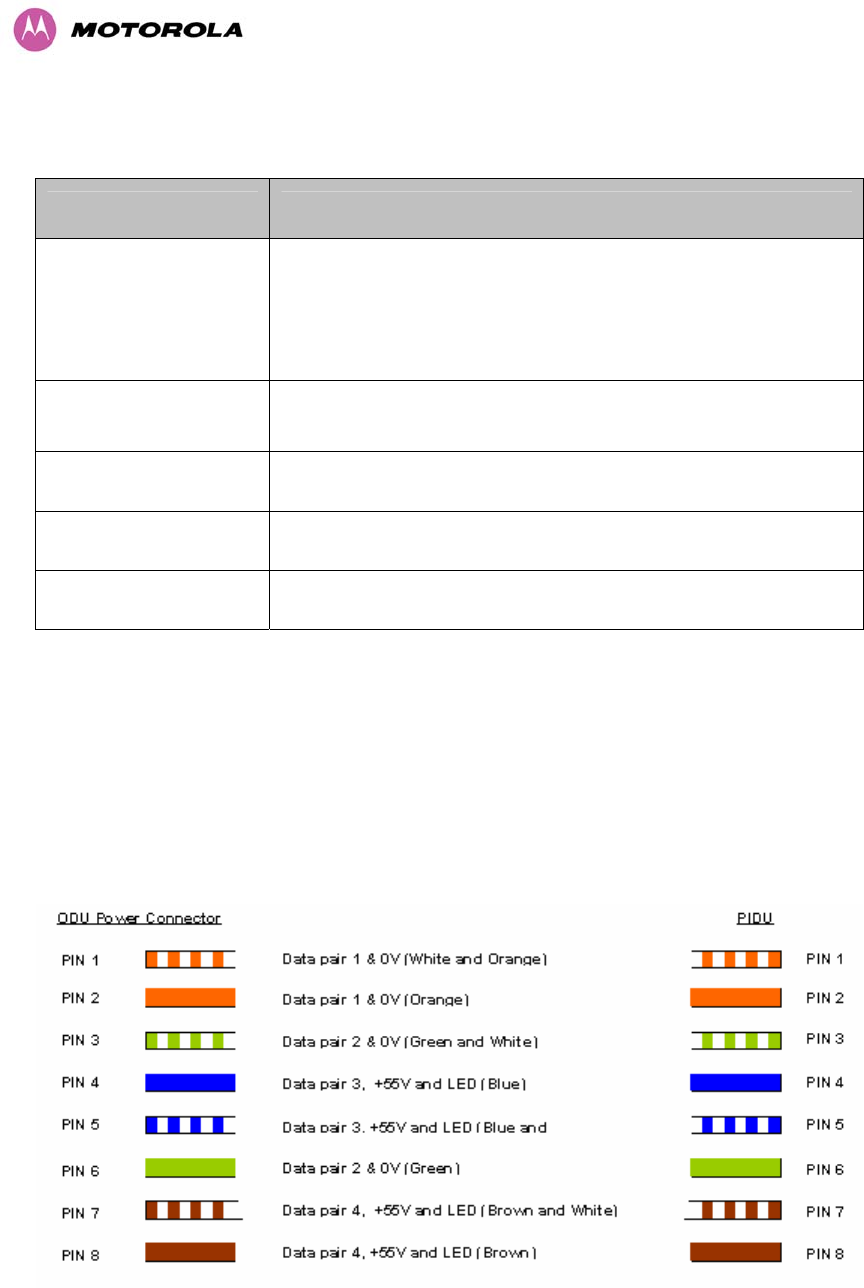

Figure 148 - RJ45 Pin Connection (T568B Color Coding)
15 E1/T1 Installation Guide
251
15.2 Making the Connection at the ODU
Looking at the back of the unit with the cable entry at the bottom, the PTP 600 Series Bridge
E1/T1 connection is the first hole on the left (Figure 149) and is labeled E1/T1.

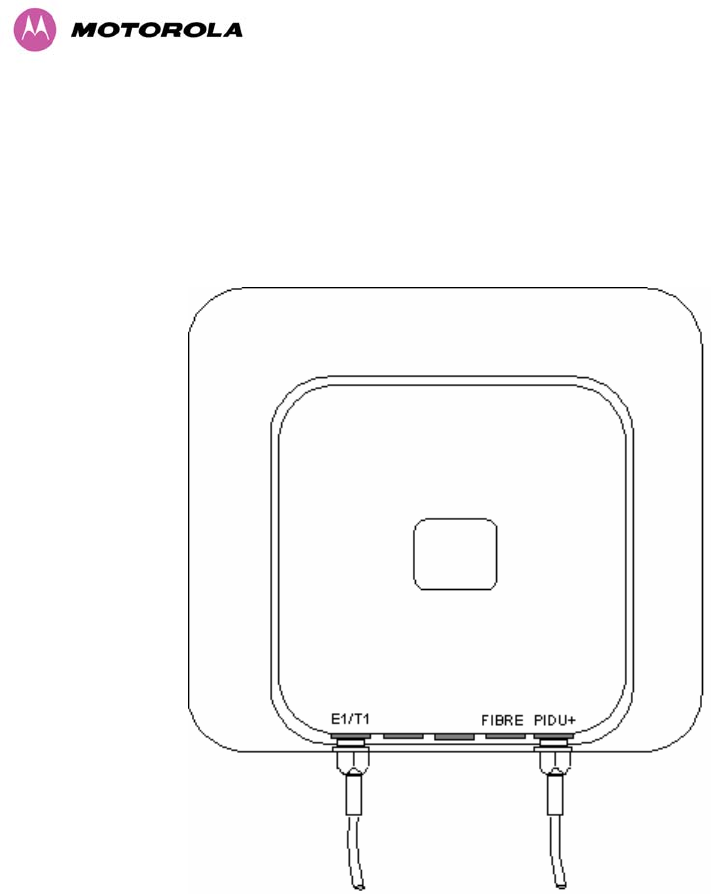

Figure 149 - PIDU Plus and E1-T1 Connexion
The following procedure describes how connection is made at the ODU. It is often easier to
carry out this procedure on the ground or a suitable surface prior to mounting the ODU.
Ensure no power is connected to the PIDU Plus.
15 E1/T1 Installation Guide
252

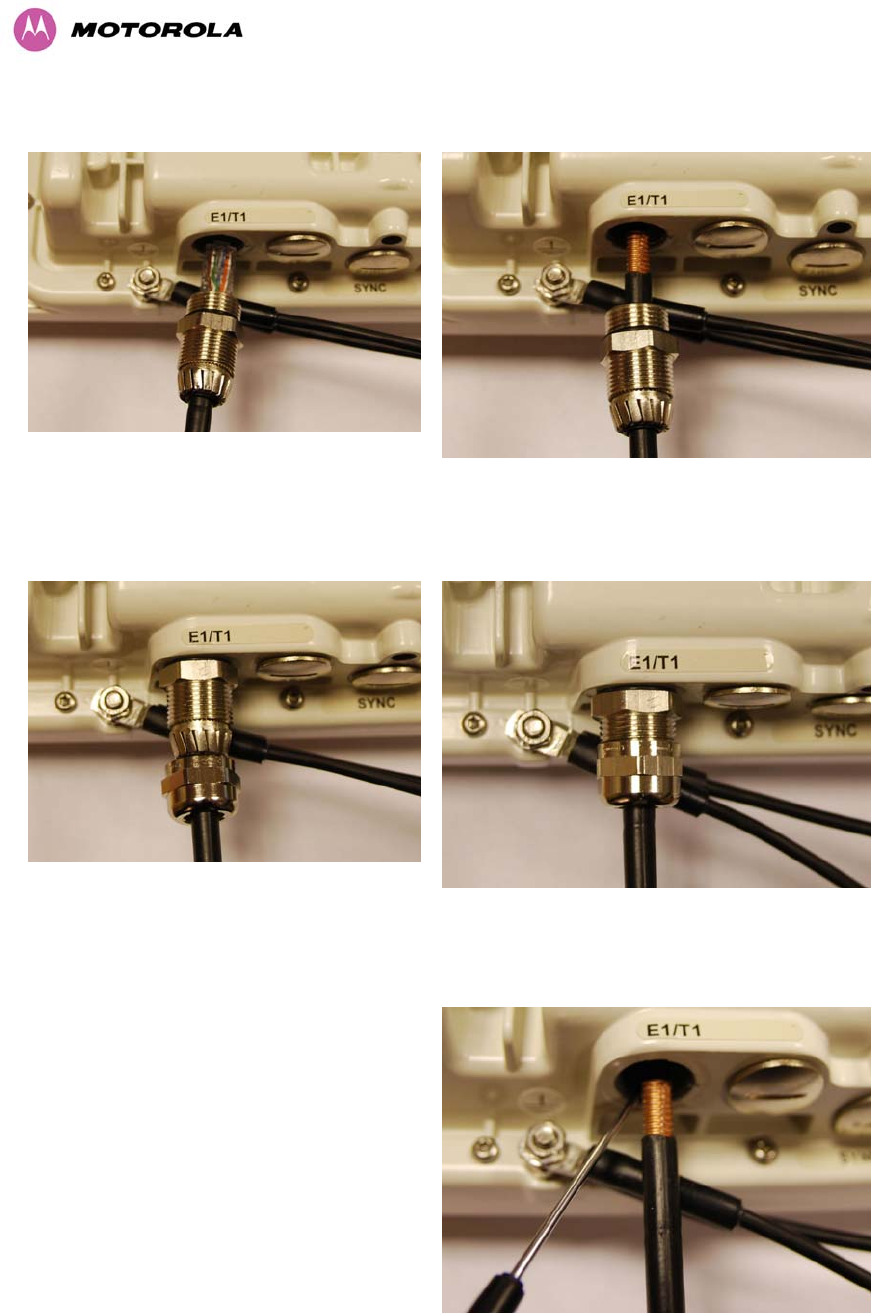

Figure 150 - Disconnecting the ODU
Step 1: Assemble the cable as described in
above
Step 2: Insert the RJ45 connector making sure
that the locking tab snaps home
Step 3: Screw in the body of the weather
proofing gland and tighten
Step 4: Screw on the clamping nut and tighten
Should it be necessary to disconnect the
E1/T1 cable at the ODU this can be
achieved by removing the weatherproofing
gland and depressing the RJ45 locking tab
with a small screwdriver as shown in the
opposite photograph.
15 E1/T1 Installation Guide
253
CAUTION: Do not over tighten the glands as the internal seal and structure may be
damaged. See Figure 37 for an example of an over tightened cable gland.
15.3 Routing the Cable
After connecting the cable to the ODU it can be routed and secured using standard cable
routing and securing techniques. When the cable is in place it can then be cut to the desired
length.
15.4 Fitting a Lightning Protection Unit
If you have opted to fit a Lightning Protection Unit, it should be installed as described in
Section 11 “Lightning Protection”.
15.5 Customer Cable Termination
The two channels can be separated by means of a patch panel which may include Baluns for
transmission over 75 Ohm co-axial unbalanced lines. Such equipment should conform to the
requirements of C.C.I.T.T. G703. An example of a Balun is shown below. It allows the
transmit and receive data carried over a 75 Ohm cable to be converted to a balanced form for
transmission over a 120 Ohm signal balanced twisted pair.
Figure 151 - Example of a Balun
15 E1/T1 Installation Guide
254

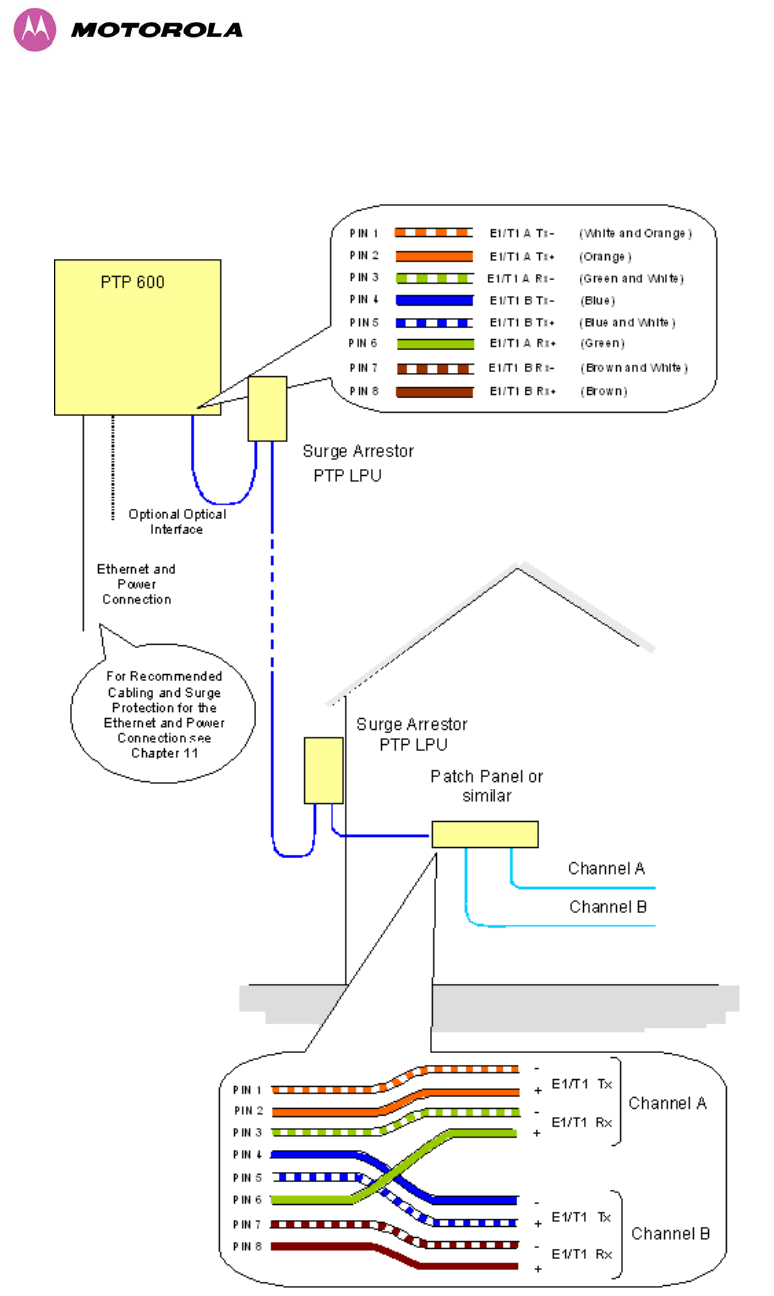

Figure 152 - Diagrammatically Showing the E1-T1 Connections
15 E1/T1 Installation Guide
255
Figure 153 - Two E1-T1-120 Ohms signal Balanced to PTP600 Interface
15 E1/T1 Installation Guide
256
15.6 Lightning Protection and E1/T1
15.6.1 Overview
Section 11 “Lightning Protection” contains the requirements for the Motorola PTP 600 Series
deployment. For E1/T1, an extra Earthing cable is supplied to connect the other PTP-LPU to
the ODU ground. This section details the additional requirements for the deployment of
E1/T1.
15.6.2 Recommended Additional Components for E1/T1 Installation.
For a description of Zone A and Zone B refer to Section 11 “Lightning Protection”.
Table 40 - Protection Requirements
Component Zone A Zone B
Earth ODU Mandatory Mandatory
Screen Cable Mandatory Mandatory
Lightning Protection Unit PTP LPU at ODU Mandatory Mandatory
Earth Cable at Building Entry Mandatory Mandatory
Lightning Protection Unit PTP LPU at Building
Entry
Mandatory Mandatory
15 E1/T1 Installation Guide
257
Figure 154 - Typical Mast Installation with the addition of the E1-T1 cable
The recommended components for an installation protected for nearby strikes are:
• Lightning Protection: Motorola PTP- LPU - 4 per link (2 Motorola Kits Part Number 2907).
• Grounding Stake
• RJ45 screened connectors.
NOTE: There may be a local regulatory requirement to cross bond the CAT 5 drop cable at
regular intervals to the mast. This may be as frequent as every 10 meters (33 feet).
15 E1/T1 Installation Guide
258

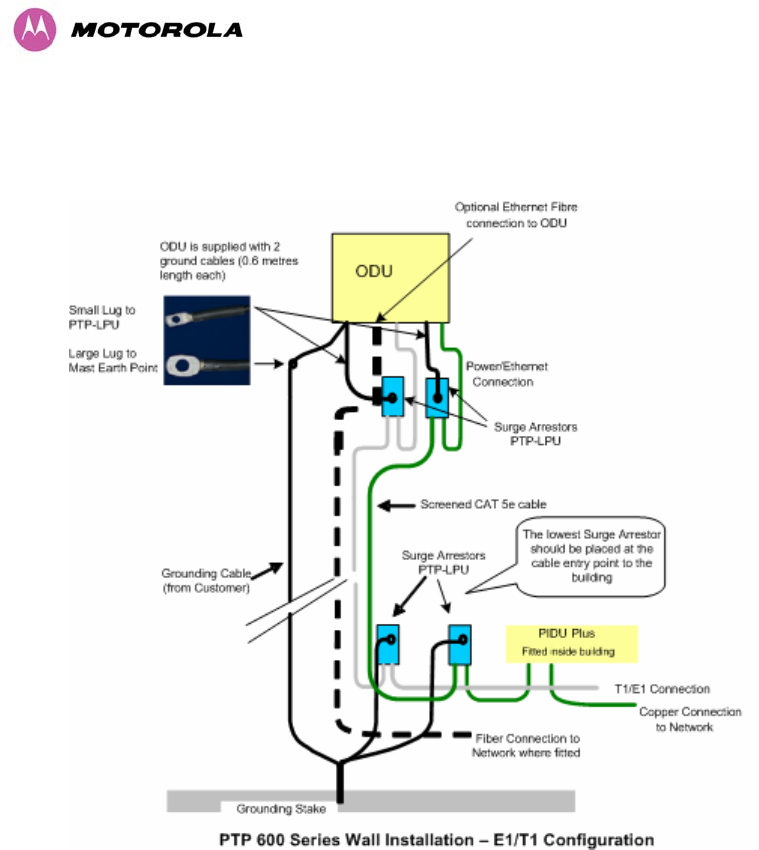

Figure 155 - Wall Installation with the addition of E1-T1 cable
15.6.3 Lightning Protection Wiring
Please refer to Section 3.3.5 “Cables and connectors” for recommended cables.
15 E1/T1 Installation Guide
259
15.7 Testing the E1/T1 Installation
If you have opted to fit a Lightning Protection Unit, it should be tested as described in Section
11.3 “Testing Your Installation”.
Test the telecoms links by performing loopback connections as described in Section 8.3.1.6
“Telecoms Configuration Page”.
15.7.1 Pre-Power Testing
Before connecting your E1/T1 source, check the following resistances:
Check the cable resistance between pins 3 & 6 (Green/White & Green) and 7 & 8
(Brown/White & Brown). Check against Table 41 column 2.
Check the cable resistance between pins 1 & 2 (Orange/White & Orange) and 4 & 5 (Blue &
Blue/White). Check against Table 41 column 3.
Table 41 - Resistance Table Referenced To the E1/T1 Source
CAT-5 Length (Meters) Resistance between pins
3 & 6 and pins 7 & 8
(ohms)
Resistance between pins
1 & 2 and pins 4 & 5
(ohms)
0 0.8 1.3
10 2.5 3.0
20 4.2 4.7
30 5.9 6.4
40 7.6 8.2
50 9.3 9.8
60 11.0 11.5
70 12.7 13.2
80 14.4 14.9
90 16.1 18.2
100 17.8 18.3
16 Data Rate Calculations
260
16 Data Rate Calculations
To aid the calculation of data rate throughput, the following plots of throughput verses link
range have been produced for all the PTP 600 Series modulation modes, assuming the units
are connected using Gigabit Ethernet.
Aggregate data rate capacity can be calculated using four key system parameters:
• Receive modulation mode
• Transmit modulation mode
• Range Between the two wireless units
• Wireless link mode (IP or TDM)
Using these parameters the Receive and Transmit data rates can be looked up using the
plots Figure 156 through Figure 168.

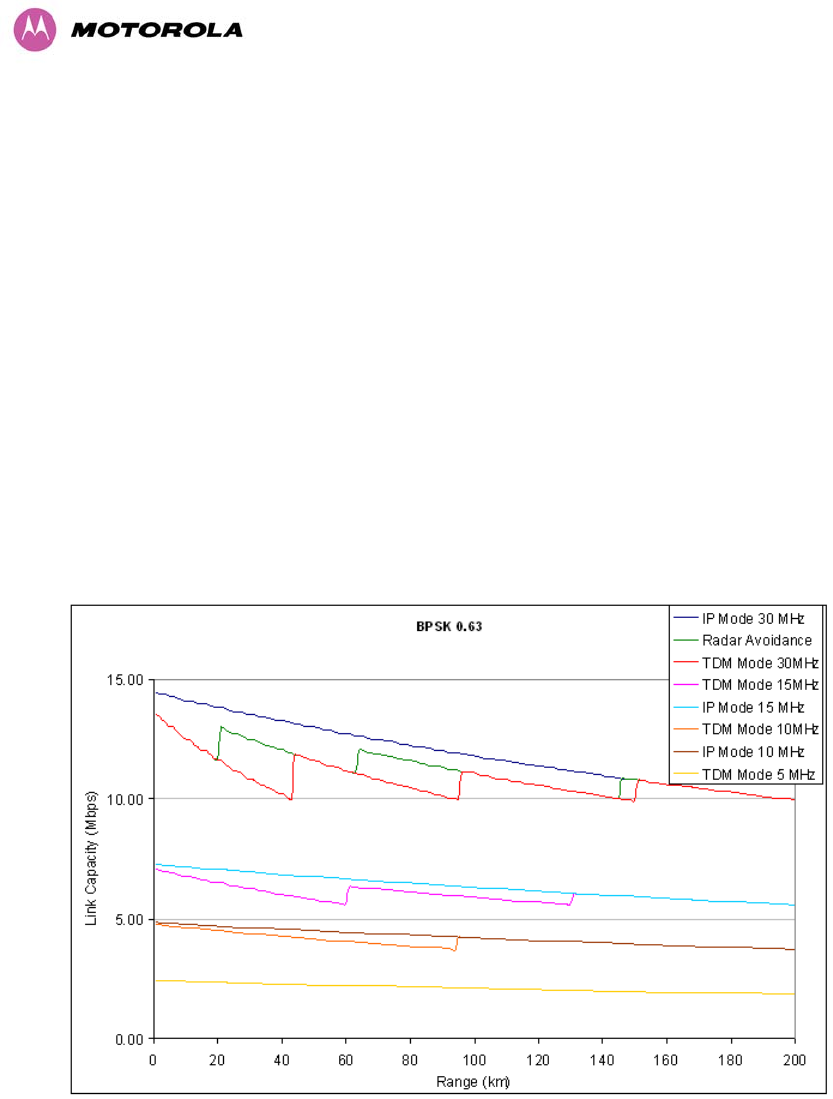

Figure 156 - BPSK 0.63 Single Payload
16 Data Rate Calculations
261
Figure 157 - QPSK 0.63 Single Payload
Figure 158 - QPSK 0.87 Single Payload
16 Data Rate Calculations
262

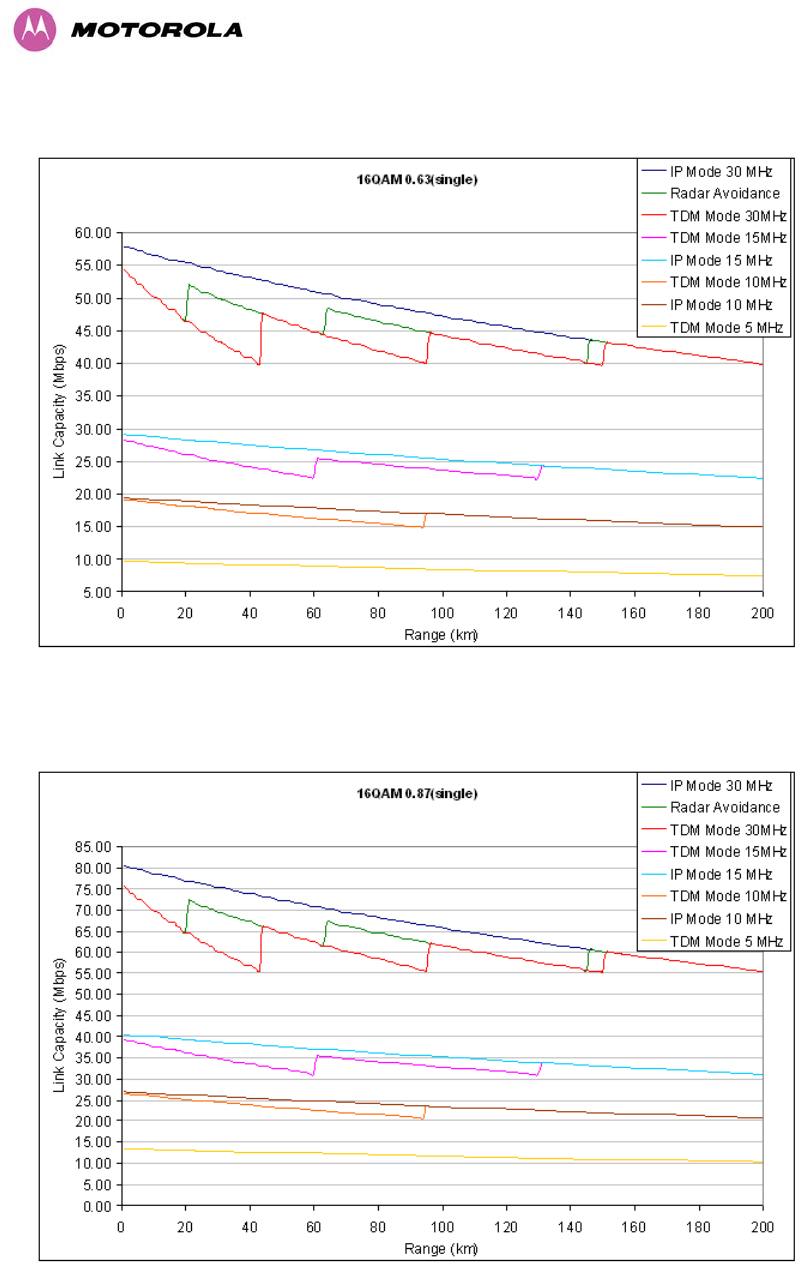

Figure 159 - 16 QAM 0.63 Single Payload
Figure 160 - 16 QAM 0.87 Single Payload
16 Data Rate Calculations
263

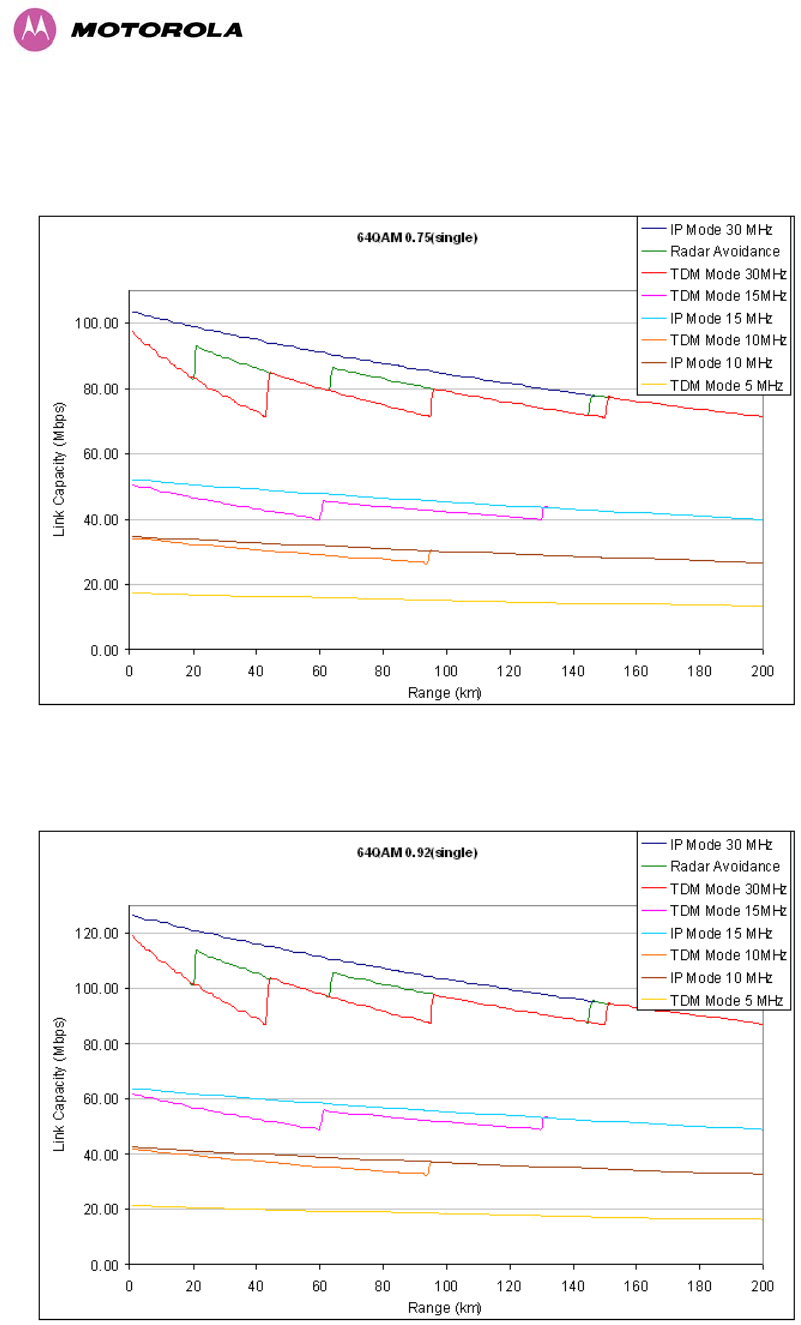

Figure 161 - 64 QAM 0.75 Single Payload
Figure 162 - 64 QAM 0.92 Single Payload
16 Data Rate Calculations
264

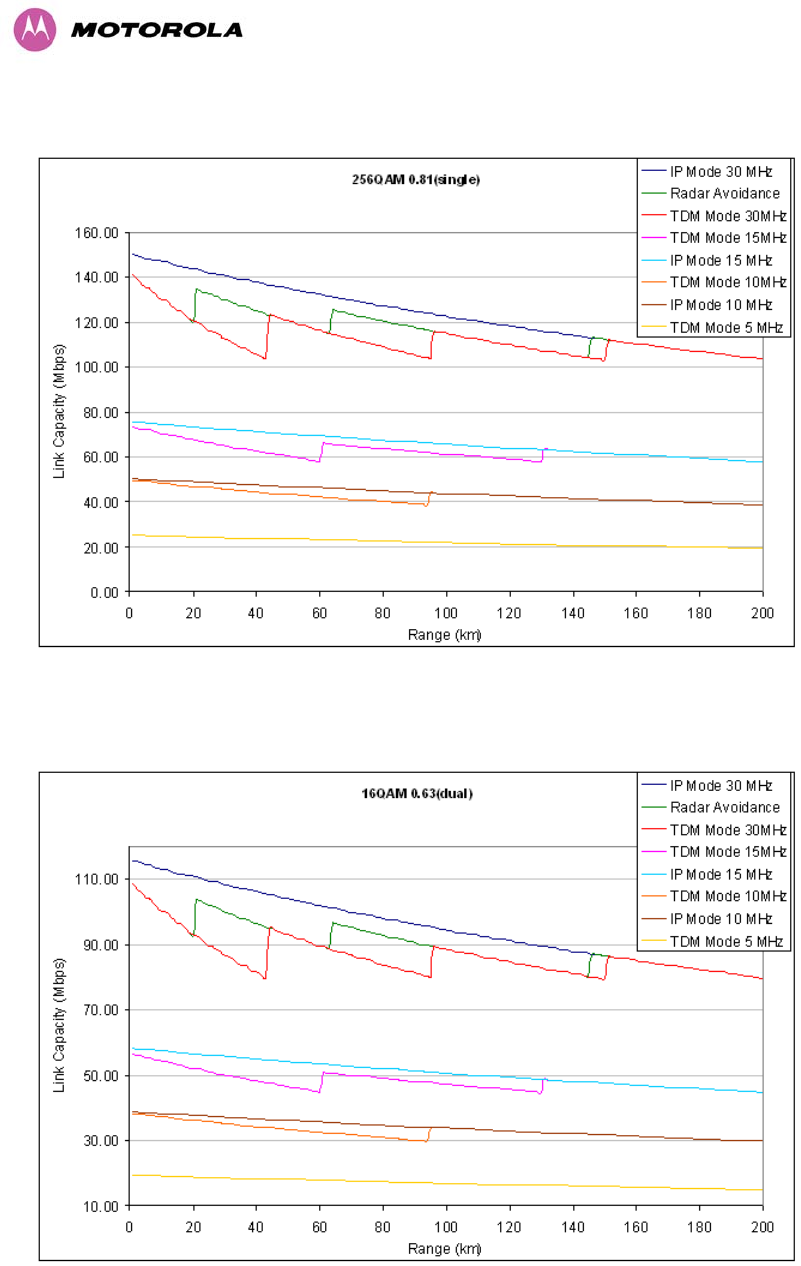

Figure 163 - 256 QAM 0.81 Single Payload
Figure 164 - 16 QAM 0.63 Dual Payload
16 Data Rate Calculations
265

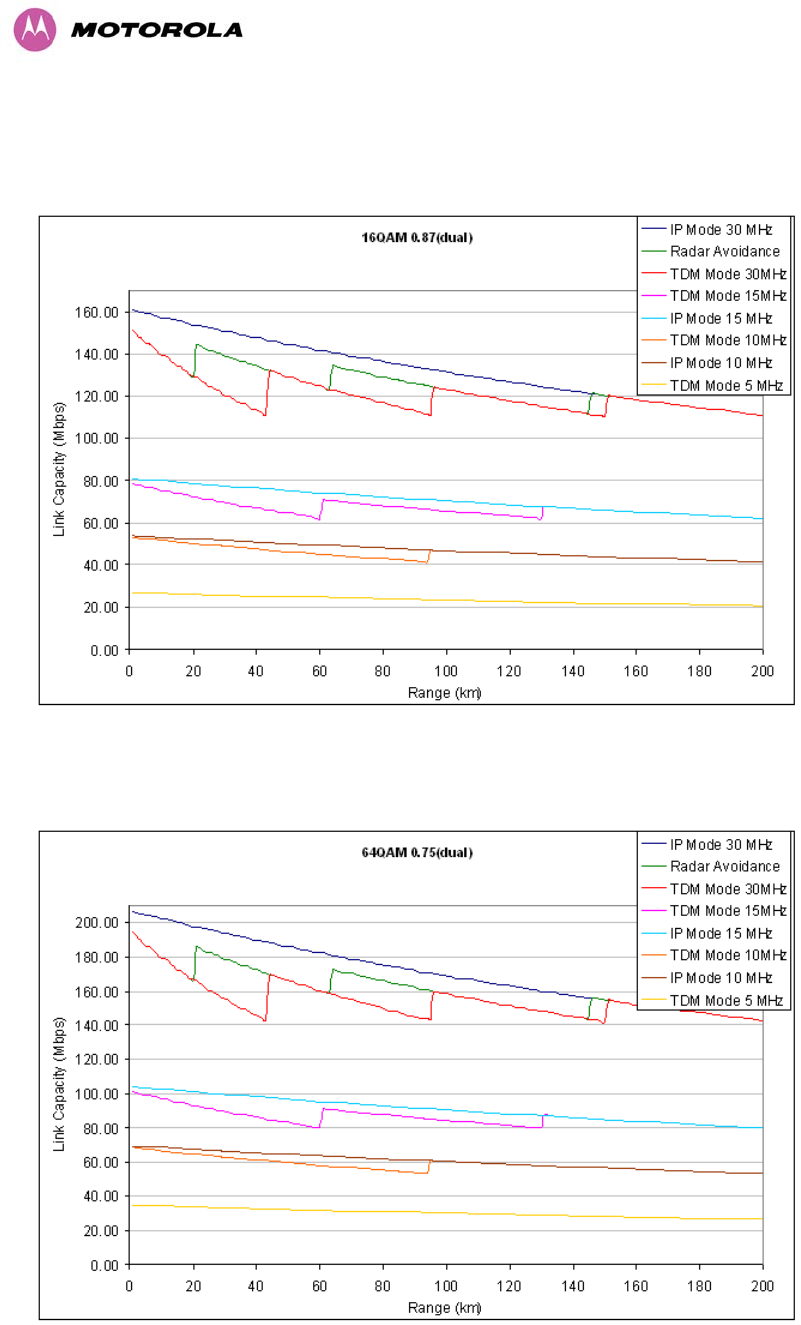

Figure 165 - 16 QAM 0.87 Dual Payload
Figure 166 - 64 QAM 0.75 Dual Payload
16 Data Rate Calculations
266
Figure 167 - 64 QAM 0.92 Dual Payload
Figure 168 - 256 QAM 0.81 Dual Payload
17 AES Encryption Upgrade
267
17 AES Encryption Upgrade
The Motorola PTP 600 Series bridges support link encryption using the NIST approved
Advanced Encryption Standard, HFIPS-197UTH. This standard specifies AES (Rijndael) as a
FIPS-approved symmetric encryption algorithm that may be used by U.S. Government
organizations (and others) to protect sensitive information.
Link Encryption is not available in the standard PTP 600 Series system. A license key to
enable link encryption can be purchased from your Motorola Point-to-Point Distributor or
Solutions Provider. AES can be activated on receipt of the activation on the Motorola
Systems Support Page.
There are two levels of encryption that are available to purchase:
• 128-bit
• 128 and 256-bit
Option 1 allows the user to encrypt all traffic sent over the wireless link using 128-bit
encryption. Option 2 allows the user to encrypt traffic using either 128 or 256-bit encryption.
The configuration process for both encryption variants is identical except for the selection of
algorithm. The following configuration example is for a 256-bit encryption key.
17.1 Configuring Link Encryption
After purchasing AES encryption for the PTP 600 Series wireless link, two new license keys
will be issued, one for each end of the wireless link. The following configuration process gives
a step by step guide to enabling AES link encryption on a PTP 600 Series bridge.
17.1.1 License Keys
The first step when configuring link encryption is to enter the new license keys in both 600
Series wireless units.
Figure 169 shows the license key data entry screen. This screen can only be accessed by the
system administrator. If you do not have access to the PTP 600 Series system administration
pages then please contact your designated system administrator.
17 AES Encryption Upgrade
268
Figure 169 – AES Software License Key Data Entry
Configuring link encryption will necessitate a 600 Series bridge service outage. Therefore it is
recommended that the configuration process be scheduled during an appropriate period of
low link utilization. Motorola recommends the following process for entering new license keys
and minimizing service outage:
1. Open two browsers, one for each end of the link
2. Navigate to the ‘License Key’ data entry page for each end of the link
3. Enter the license keys and click the ‘Validate license key’ button at each end of the
link. This will allow the software to validate the license key prior to the system reset.
(DO NOT CLICK ARE YOU SURE POPUP DIALOG)
17 AES Encryption Upgrade
269
4. When both license keys have been successfully validated confirm the reboot for both
ends of the link. The software is designed to allow five seconds so that a user can
command both ends of the link to reset before the wireless link drops.
5. The link will automatically re-establish.
17.1.2 Encryption Mode and Key
Entering the license keys only does not initialize AES link encryption. Link encryption can only
be enabled via the Configuration or Installation Wizard pages. Motorola recommends that the
Configuration page Figure 170 be used to configure AES link encryption.
Figure 170 – AES Configuration Data Entry Page
Motorola recommends the following process for entering AES link encryption configuration:
1. Open two browsers, one for each end of the link
17 AES Encryption Upgrade
270
2. Navigate to the ‘Configuration’ data entry page for each end of the link
3. At both ends of the link select the ‘AES (Rijndael)’ Encryption Algorithm required.
4. At both ends of the link enter ether an 128-bit or 256-bit encryption key. Note the key
consists of 32/64 case insensitive hexadecimal characters. The same Key must be
entered at both ends of the link. Failure to enter the same key will cause the link to
fail.
5. Submit configuration on both ends of the link, but do not reboot.
6. Reboot both ends of the link Figure 171. The software is designed to allow five
seconds so that a user can command both ends of the link to reboot before the
wireless link drops.
Figure 171 - Configuration Reboot Screen
17 AES Encryption Upgrade
271
17.2 Wireless Link Encryption FAQ
17.2.1 Encryption data entry fields are not available
Check that the correct license key has been inserted into the unit. The current license key is
displayed on the ‘License Key’ data entry page.
17.2.2 Link fails to bridge packets after enabling link encryption
If the wireless link status on the status web page indicates that the link is ‘Searching’, and you
can browse to the local end of the link but not to the remote end, then check that the same
encryption algorithm and key have been entered at both ends of the link. Failure to enter the
same algorithm and key will result in received packets not being decrypted correctly.
17.2.3 Loss of AES following downgrade
When downgrading (using Recovery software image 05-01 onwards) to an earlier version of
software that does not support AES, the unit will indicate that the region code is invalid. The
user will be required to re-install correct software (supplied when AES key was activated) and
reboot the unit.
18 Remote Software Upgrade by TFTP
272
18 Remote Software Upgrade by TFTP
The ODU software can be upgraded remotely using Trivial FTP (TFTP) triggered by SNMP.
To perform a remote software upgrade, follow this procedure:
1. Set the following tFTP attributes:
tFTPServerIPAddress: The IP address of the TFTP server from which the TFTP
software upgrade file Name will be retrieved. For example, to set the TFTP server IP
address for unit 10.10.10.10 to 10.10.10.1:
snmpset_d.exe -v 2c -c public 10.10.10.10 .iso.3.6.1.4.1.17713.1.9.5.0 a
10.10.10.1
tFTPServerPortNumber: This setting is optional. The port number of the TFTP server
from which the TFTP software upgrade file name will be retrieved (default=69).
tFTPSoftwareUpgradeFileName: The filename of the software upgrade to be loaded
from the TFTP server. For example, to set the TFTP software upgrade filename on
10.10.10.10 to "B1095.dld":
snmpset_d.exe -v 2c -c public 10.10.10.10 .iso.3.6.1.4.1.17713.1.9.7.0 s
B1095.dld
tFTPStartSoftwareUpgrade: Write '1' to this attribute to start the TFTP software upgrade
process. The attribute will be reset to 0 when the upgrade process has finished. Example:
snmpset_d.exe -v 2c -c public 10.10.10.10 .iso.3.6.1.4.1.17713.1.9.8.0 i
1
18 Remote Software Upgrade by TFTP
273
2. Monitor the values of the following tFTP attributes:
tFTPSoftwareUpgradeStatus: The current status of the TFTP software upgrade
process. Values:
o idle(0)
o uploadinprogress(1)
o uploadsuccessfulprogrammingFLASH(2)
o upgradesuccessfulreboottorunthenewsoftwareimage(3)
o upgradefailed(4).
Example:
snmpget_d.exe -v 2c -c public 10.10.10.10 .iso.3.6.1.4.1.17713.1.9.9.0
tFTPSoftwareUpgradeStatusText: This describes the status of the TFTP software
upgrade process, including any error details. Example:
snmpget_d.exe -v 2c -c public 10.10.10.10 .iso.3.6.1.4.1.17713.1.9.10.0
tFTPSoftwareUpgradeStatusAdditionalText: Used if tFTPSoftwareUpgradeStatusText
is full and there are more than 255 characters to report. Additional text describing the
status of the TFTP software upgrade process, including any error details. Example:
snmpget_d.exe -v 2c -c public 10.10.10.10 .iso.3.6.1.4.1.17713.1.9.11.0
3. When the upgrade is complete, reboot the ODU to run the newly loaded software image.
See Section 9.4“Reboot”.
19 Legal and Regulatory Notices
274
19 Legal and Regulatory Notices
19.1 Important Note on Modifications
Intentional or unintentional changes or modifications to the equipment must not be made
unless under the express consent of the party responsible for compliance. Any such
modifications could void the user’s authority to operate the equipment and will void the
manufacturer’s warranty.
19.2 National and Regional Regulatory Notices – PTP 59600 variant
19.2.1 Russia
This system has been tested for type approval in Russia of fixed link equipment under the
heading of BPD TZS 12.
19.3 National and Regional Regulatory Notices – PTP 58600 variant
19.3.1 U.S. Federal Communication Commission (FCC) and Industry Canada (IC) Notification
This system has achieved Type Approval in various countries around the world. This means
that the system has been tested against various local technical regulations and found to
comply. The frequency band in which the system operates is ‘license exempt’ and the system
is allowed to be used provided it does not cause interference. Further, the licensing authority
does not guaranteed protection against interference from other products and installations.
This device complies with part 15 of the US FCC Rules and Regulations and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. In Canada, users should be
cautioned to take note that high power radars are allocated as primary users (meaning they
have priority) of 5250 – 5350 MHz and 5650 – 5850 MHz and these radars could cause
interference and/or damage to license-exempt local area networks (LELAN).
For the connectorized version of the product and in order to reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the
Effective Isotropically Radiated Power (EIRP) is not more than that permitted for successful
communication.
19 Legal and Regulatory Notices
275
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the US FCC Rules and with RSS-210 of Industry Canada.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio-frequency
energy and, if not installed and used in accordance with these instructions, may cause
harmful interference to radio communications. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment on and off, the user is encouraged to correct the interference by one or more of
the following measures:
• Increase the separation between the affected equipment and the unit;
• Connect the affected equipment to a power outlet on a different circuit from that which the
receiver is connected to;
• Consult the dealer and/or experienced radio/TV technician for help.
• FCC IDs and Industry Canada Certification Numbers are listed below:
Where necessary, the end user is responsible for obtaining any National licenses required to
operate this product and these must be obtained before using the product in any particular
country. Contact the appropriate national administrations for details on the conditions of use
for the bands in question and any exceptions that might apply. Also see www.ero.dk for
further information.
19.3.2 European Union Notification
The PTP 58600 connectorized product is a two-way radio transceiver suitable for use in
Broadband Wireless Access System (BWAS), Radio Local Area Network (RLAN), or Fixed
Wireless Access (FWA) systems. It is a Class 2 device and uses operating frequencies that
are not harmonized throughout the EU member states. The operator is responsible for
obtaining any national licenses required to operate this product and these must be obtained
before using the product in any particular country.
This equipment complies with the essential requirements for the EU R&TTE Directive 1999/5/EC.
The use of 5.8GHz for Point to Point radio links is not harmonized across the EU and currently the
product may only be deployed in the UK and Eire (IRL). However, the regulatory situation in Europe is
changing and the radio spectrum may become available in other countries in the near future.
19 Legal and Regulatory Notices
276
This equipment is marked to show compliance with the European R&TTE directive 1999/5/EC.
The relevant Declaration of Conformity can be found at www.motorola.com/ptp.
European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive
The European Union's WEEE directive requires that products sold into EU countries must
have the crossed out trash bin label on the product (or the package in some cases).
As defined by the WEEE directive, this cross-out trash bin label means that customers and
end-users in EU countries should not dispose of electronic and electrical equipment or
accessories in household waste. Customers or end-users in EU countries should contact their
local equipment supplier representative or service center for information about the waste
collection system in their country.
19.3.3 UK Notification
The PTP 58600 connectorized product has been notified for operation in the UK, and when
operated in accordance with instructions for use it is compliant with UK Interface Requirement
IR2007. For UK use, installations must conform to the requirements of IR2007 in terms of
EIRP spectral density against elevation profile above the local horizon in order to protect
Fixed Satellite Services. The frequency range 5795-5815 MHz is assigned to Road Transport
& Traffic Telematics (RTTT) in the U.K. and shall not be used by FWA systems in order to
protect RTTT devices. UK Interface Requirement IR2007 specifies that radiolocation services
shall be protected by a Dynamic Frequency Selection (DFS) mechanism to prevent co-
channel operation in the presence of radar signals.
IMPORTANT: This equipment operates as a secondary application, so it has no rights
against harmful interference, even if generated by similar equipment, and must not cause
harmful interference on systems operating as primary applications.
19 Legal and Regulatory Notices
277
19.4 National and Regional Regulatory Notices – PTP 54600 Variant
19.4.1 U.S. Federal Communication Commission (FCC) and Industry Canada (IC)
Notification28
This device complies with part 15.407 of the US FCC Rules and Regulations and with RSS-
210 Issue 7 of Industry Canada. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation. In Canada, users should
be cautioned to take note that high power radars are allocated as primary users (meaning
they have priority) of 5250 – 5350 MHz and 5650 – 5850 MHz and these radars could cause
interference and/or damage to license-exempt local area networks (LELAN).
For the connectorized version of the product and in order to reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more than that permitted by the
regulations. The transmitted power must be reduced to achieve this requirement.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the US FCC Rules and with RSS-210 of Industry Canada.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio-frequency
energy and, if not installed and used in accordance with these instructions, may cause
harmful interference to radio communications. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment on and off, the user is encouraged to correct the interference by one or more of
the following measures:
• Increase the separation between the affected equipment and the unit;
• Connect the affected equipment to a power outlet on a different circuit from that which the
receiver is connected to;
• Consult the dealer and/or experienced radio/TV technician for help.
• FCC IDs and Industry Canada Certification Numbers are listed below:
28 FCC and IC certification approval applies ONLY to INTEGRATED variant.
19 Legal and Regulatory Notices
278
Where necessary, the end user is responsible for obtaining any National licenses required to
operate this product and these must be obtained before using the product in any particular
country. Contact the appropriate national administrations for details on the conditions of use
for the bands in question and any exceptions that might apply. Also see www.eor.dk for
further information.
19.4.2 European Union Notification
The PTP 54600 product is a two-way radio transceiver suitable for use in Broadband Wireless
Access System (WAS), Radio Local Area Network (RLAN), or Fixed Wireless Access (FWA)
systems. It is a Class 1 device and uses operating frequencies that are harmonized
throughout the EU member states. The operator is responsible for obtaining any national
licenses required to operate this product and these must be obtained before using the product
in any particular country.
This equipment complies with the essential requirements for the EU R&TTE Directive
1999/5/EC and has been tested compliant with EuroNorm EN 301 893.
This equipment is marked to show compliance with the European R&TTE directive
1999/5/EC.
The relevant Declaration of Conformity can be found at www.motorola.com
European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive
The European Union's WEEE directive requires that products sold into EU countries must
have the crossed out trash bin label on the product (or the package in some cases).
As defined by the WEEE directive, this cross-out trash bin label means that customers and
end-users in EU countries should not dispose of electronic and electrical equipment or
accessories in household waste. Customers or end-users in EU countries should contact their
local equipment supplier representative or service center for information about the waste
collection system in their country.
19 Legal and Regulatory Notices
279
19 Legal and Regulatory Notices
280
19.5 National and Regional Regulatory Notices – PTP 25600 Variant
19.5.1 U.S. Federal Communication Commission (FCC) Notification
This device complies with Part 27 of the US FCC Rules and Regulations. Use of this product
is limited to operators holding Licenses for the specific operating channels.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15E of the US FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio-frequency energy and, if not installed and
used in accordance with these instructions, may cause harmful interference to radio
communications. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment on and off, the user is
encouraged to correct the interference by one or more of the following measures:
• Increase the separation between the affected equipment and the unit;
• Connect the affected equipment to a power outlet on a different circuit from that which the
receiver is connected to;
• Consult the dealer and/or experienced radio/TV technician for help.
• FCC IDs Certification Numbers are listed below:
Where necessary, the end user is responsible for obtaining any National licenses required to
operate this product and these must be obtained before using the product in any particular
country. Contact the appropriate national administrations for details on the conditions of use
for the bands in question and any exceptions that might apply.
19.6 Exposure
See Section 2 “Avoiding Hazards”.
19 Legal and Regulatory Notices
281
19.7 Legal Notices
19.7.1 Motorola Inc. End User License Agreement
In connection with Motorola’s delivery of certain proprietary software or products
containing embedded or pre-loaded proprietary software, or both, Motorola is willing to
license this certain proprietary software and the accompanying documentation to you
only on the condition that you accept all the terms in this End User License Agreement
(“Agreement”).
IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, DO NOT USE THE
PRODUCT OR INSTALL THE SOFTWARE. INSTEAD, YOU MAY, FOR A FULL REFUND,
RETURN THIS PRODUCT TO THE LOCATION WHERE YOU ACQUIRED IT OR PROVIDE
WRITTEN VERIFICATION OF DELETION OF ALL COPIES OF THE SOFTWARE. ANY
USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE PRODUCT,
WILL CONSTITUTE YOUR ACCEPTANCE TO THE TERMS OF THIS AGREEMENT.
19.7.1.1 Definitions
In this Agreement, the word “Software” refers to the set of instructions for computers, in
executable form and in any media, (which may include diskette, CD-ROM, downloadable
internet, hardware, or firmware) licensed to you. The word “Documentation” refers to
electronic or printed manuals and accompanying instructional aids licensed to you. The word
“Product” refers to Motorola’s MOTOwi4™ fixed wireless broadband devices for which the
Software and Documentation is licensed for use.
19.7.1.2 Grant of License
Motorola, Inc. (“Motorola”) grants you (“Licensee” or “you”) a personal, nonexclusive, non-
transferable license to use the Software and Documentation subject to the Conditions of Use
set forth in Section 3 “Getting Started” and the terms and conditions of this Agreement. Any
terms or conditions relating to the Software and Documentation appearing on the face or
reverse side of any purchase order, purchase order acknowledgment or other order
document that are different from, or in addition to, the terms of this Agreement will not be
binding on the parties, even if payment is accepted.
19 Legal and Regulatory Notices
282
19.7.1.3 Conditions of Use
Any use of the Software and Documentation outside of the conditions set forth in this
Agreement is strictly prohibited and will be deemed a breach of this Agreement.
Only you, your employees or agents may use the Software and Documentation. You will take
all necessary steps to insure that your employees and agents abide by the terms of this
Agreement.
You will use the Software and Documentation (i) only for your internal business purposes; (ii)
only as described in the Software and Documentation; and (iii) in strict accordance with this
Agreement.
You may use the Software and Documentation, provided that the use is in conformance with
the terms set forth in this Agreement.
Portions of the Software and Documentation are protected by United States copyright laws,
international treaty provisions, and other applicable laws. Therefore, you must treat the
Software like any other copyrighted material (for example, a book or musical recording)
except that you may either: (i) make 1 copy of the transportable part of the Software (which
typically is supplied on diskette, CD-ROM, or downloadable internet), solely for back-up
purposes; or (ii) copy the transportable part of the Software to a PC hard disk, provided you
keep the original solely for back-up purposes. If the Documentation is in printed form, it may
not be copied. If the Documentation is in electronic form, you may print out 1 copy, which
then may not be copied. With regard to the copy made for backup or archival purposes, you
agree to reproduce any Motorola copyright notice, and other proprietary legends appearing
thereon. Such copyright notice(s) may appear in any of several forms, including machine-
readable form, and you agree to reproduce such notice in each form in which it appears, to
the extent it is physically possible to do so. Unauthorized duplication of the Software or
Documentation constitutes copyright infringement, and in the United States is punishable in
federal court by fine and imprisonment.
You will not transfer, directly or indirectly, any product, technical data or software to any
country for which the United States Government requires an export license or other
governmental approval without first obtaining such license or approval.
19 Legal and Regulatory Notices
283
19.7.1.4 Title; Restrictions
If you transfer possession of any copy of the Software and Documentation to another party
outside of the terms of this agreement, your license is automatically terminated. Title and
copyrights to the Software and Documentation and any copies made by you remain with
Motorola and its licensors. You will not, and will not permit others to: (i) modify, translate,
decompile, bootleg, reverse engineer, disassemble, or extract the inner workings of the
Software or Documentation, (ii) copy the look-and-feel or functionality of the Software or
Documentation; (iii) remove any proprietary notices, marks, labels, or logos from the Software
or Documentation; (iv) rent or transfer all or some of the Software or Documentation to any
other party without Motorola’s prior written consent; or (v) utilize any computer software or
hardware which is designed to defeat any copy protection device, should the Software and
Documentation be equipped with such a protection device. If the Software and
Documentation is provided on multiple types of media (such as diskette, CD-ROM,
downloadable internet), then you will only use the medium which best meets your specific
needs, and will not loan, rent, lease, or transfer the other media contained in the package
without Motorola’s written consent. Unauthorized copying of the Software or Documentation,
or failure to comply with any of the provisions of this Agreement, will result in automatic
termination of this license.
19.7.1.5 Confidentiality
You acknowledge that all Software and Documentation contain valuable proprietary
information and trade secrets and that unauthorized or improper use of the Software and
Documentation will result in irreparable harm to Motorola for which monetary damages would
be inadequate and for which Motorola will be entitled to immediate injunctive relief. If
applicable, you will limit access to the Software and Documentation to those of your
employees and agents who need to use the Software and Documentation for your internal
business purposes, and you will take appropriate action with those employees and agents to
preserve the confidentiality of the Software and Documentation, using the same degree of
care to avoid unauthorized or improper disclosure as you use for the protection of your own
proprietary software, but in no event less than reasonable care.
You have no obligation to preserve the confidentiality of any proprietary information that: (i)
was in the public domain at the time of disclosure; (ii) entered the public domain through no
fault of yours; (iii) was given to you free of any obligation to keep it confidential; (iv) is
independently developed by you; or (v) is disclosed as required by law provided that you
notify Motorola prior to such disclosure and provide Motorola with a reasonable opportunity to
respond.
19 Legal and Regulatory Notices
284
19.7.1.6 Right to Use Motorola’s Name
Except as required in 19.7.1.3 above, you will not, during the term of this Agreement or
thereafter, use any trademark of Motorola, or any word or symbol likely to be confused with
any Motorola trademark, either alone or in any combination with another word or words.
19.7.1.7 Transfer
The Software and Documentation may not be transferred to another party without the express
written consent of Motorola, regardless of whether or not such transfer is accomplished by
physical or electronic means. Motorola’s consent may be withheld at its discretion and may
be conditioned upon transferee paying all applicable license fees and agreeing to be bound
by this Agreement.
19.7.1.8 Updates
During the first 12 months after purchase of a Product, or during the term of any executed
Maintenance and Support Agreement for the Product, you are entitled to receive Updates.
An “Update” means any code in any form which is a bug fix, patch, error correction, or minor
enhancement, but excludes any major feature added to the Software. Updates are available
for download at http://www.motowi4solutions.com/software/.
Major features may be available from time to time for an additional license fee. If Motorola
makes available to you major features and no other end user license agreement is provided,
then the terms of this Agreement will apply.
19.7.1.9 Maintenance
Except as provided above, Motorola is not responsible for maintenance or field service of the
Software under this Agreement.
19 Legal and Regulatory Notices
285
19.7.1.10 Disclaimer
MOTOROLA DISCLAIMS ALL WARRANTIES OF ANY KIND, WHETHER EXPRESS,
IMPLIED, STATUTORY, OR IN ANY COMMUNICATION WITH YOU. MOTOROLA
SPECIFICALLY DISCLAIMS ANY WARRANTY INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILTY, NONINFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE.
THE SOFTWARE AND DOCUMENTATION ARE PROVIDED “AS IS.” MOTOROLA DOES
NOT WARRANT THAT THE SOFTWARE WILL MEET YOUR REQUIREMENTS, OR THAT
THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR FREE,
OR THAT DEFECTS IN THE SOFTWARE WILL BE CORRECTED. MOTOROLA MAKES
NO WARRANTY WITH RESPECT TO THE CORRECTNESS, ACCURACY, OR
RELIABILITY OF THE SOFTWARE AND DOCUMENTATION. Some jurisdictions do not
allow the exclusion of implied warranties, so the above exclusion may not apply to you.
19.7.1.11 Limitation of Liability
THE TOTAL LIABILITY OF MOTOROLA UNDER THIS AGREEMENT FOR DAMAGES WILL
NOT EXCEED THE TOTAL AMOUNT PAID BY YOU FOR THE PRODUCT LICENSED
UNDER THIS AGREEMENT. IN NO EVENT WILL MOTOROLA BE LIABLE IN ANY WAY
FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF
ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST BUSINESS PROFITS, OR
LIABILITY OR INJURY TO THIRD PERSONS, WHETHER FORESEEABLE OR NOT,
REGARDLESS OF WHETHER MOTOROLA HAS BEEN ADVISED OF THE POSSIBLITY
OF SUCH DAMAGES. Some jurisdictions do not permit limitations of liability for incidental or
consequential damages, so the above exclusions may not apply to you.
19 Legal and Regulatory Notices
286
19.7.1.12 U.S. Government
If you are acquiring the Product on behalf of any unit or agency of the U.S. Government, the
following applies. Use, duplication, or disclosure of the Software and Documentation is
subject to the restrictions set forth in subparagraphs (c) (1) and (2) of the Commercial
Computer Software – Restricted Rights clause at FAR 52.227-19 (JUNE 1987), if applicable,
unless being provided to the Department of Defense. If being provided to the Department of
Defense, use, duplication, or disclosure of the Products is subject to the restricted rights set
forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software
clause at DFARS 252.227-7013 (OCT 1988), if applicable. Software and Documentation may
or may not include a Restricted Rights notice, or other notice referring specifically to the terms
and conditions of this Agreement. The terms and conditions of this Agreement will each
continue to apply, but only to the extent that such terms and conditions are not inconsistent
with the rights provided to you under the aforementioned provisions of the FAR and DFARS,
as applicable to the particular procuring agency and procurement transaction.
19.7.1.13 Term of License
Your right to use the Software will continue in perpetuity unless terminated as follows. Your
right to use the Software will terminate immediately without notice upon a breach of this
Agreement by you. Within 30 days after termination of this Agreement, you will certify to
Motorola in writing that through your best efforts, and to the best of your knowledge, the
original and all copies, in whole or in part, in any form, of the Software and all related material
and Documentation, have been destroyed, except that, with prior written consent from
Motorola, you may retain one copy for archival or backup purposes. You may not
sublicense, assign or transfer the license or the Product, except as expressly provided in this
Agreement. Any attempt to otherwise sublicense, assign or transfer any of the rights, duties
or obligations hereunder is null and void.
19.7.1.14 Governing Law
This Agreement is governed by the laws of the United States of America to the extent that
they apply and otherwise by the laws of the State of Illinois.
19.7.1.15 Assignment
This agreement may not be assigned by you without Motorola’s prior written consent.
19 Legal and Regulatory Notices
287
19.7.1.16 Survival of Provisions
The parties agree that where the context of any provision indicates an intent that it survives
the term of this Agreement, then it will survive.
19.7.1.17 Entire Agreement
This agreement contains the parties’ entire agreement regarding your use of the Software
and may be amended only in writing signed by both parties, except that Motorola may modify
this Agreement as necessary to comply with applicable laws.
19.7.1.18 Third Party Software
The software may contain one or more items of Third-Party Software supplied by other third-
party suppliers. The terms of this Agreement govern your use of any Third-Party Software
UNLESS A SEPARATE THIRD-PARTY SOFTWARE LICENSE IS INCLUDED, IN WHICH
CASE YOUR USE OF THE THIRD-PARTY SOFTWARE WILL THEN BE GOVERNED BY
THE SEPARATE THIRD-PARTY LICENSE.
19 Legal and Regulatory Notices
288
UCD SNMP. Copyright 1989, 1991, 1992 by Carnegie Mellon University, Derivative Work –
1996, 1998-2000, Copyright 1996, 1998-2000 The regents of the University of California All
Rights reserved. Permission to use, copy, modify and distribute this software and its
documentation for any purpose and without fee is hereby granted, provided that the above
copyright notice appears in all copies and that both that copyright notice and this permission
notice appear in supporting documentation, and that the name of CMU and The Regents of
the University of California not be used in advertising or publicity pertaining to distribution of
the software without specific written permission. CMU AND THE REGENTS OF THE
UNIVERSITY OF CALIFORNIA DISCLAIM ALL WARRANTIES WITH REGARD TO THIS
SOFTWARE, INCLUDING ALL IMPLIED. WARRANTIES OF MERCHANTABILITY AND
FITNESS. IN NO EVENT SHALL CMU OR THE REGENTS OF THE UNIVERSITY OF
CALIFORNIA BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM THE LOSS OF USE,
DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR
OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE. ONLY OPEN THE PACKAGE, OR USE THE
SOFTWARE AND RELATED PRODUCT IF YOU ACCEPT THE TERMS OF THIS LICENSE.
BY BREAKING THE SEAL ON THIS DISK KIT / CDROM, OR IF YOU USE THE
SOFTWARE OR RELATED PRODUCT, YOU ACCEPT THE TERMS OF THIS LICENSE
AGREEMENT. IF YOU DO NOT AGREE TO THESE TERMS, DO NOT USE THE
SOFTWARE OR RELATED PRODUCT; INSTEAD, RETURN THE SOFTWARE TO PLACE
OF PURCHASE FOR A FULL REFUND. THE FOLLOWING AGREEMENT IS A LEGAL
AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR ENTITY), AND MOTOROLA,
INC. (FOR ITSELF AND ITS LICENSORS). THE RIGHT TO USE THIS PRODUCT IS
LICENSED ONLY ON THE CONDITION THAT YOU AGREE TO THE FOLLOWING TERMS.
BZIP2 License Terms. Terms. This. “bzip2" and associated library "libbzip2", are copyright
(C) 1996-2000 Julian R Seward. All rights reserved. Redistribution and use in source and
binary forms, with or without modification, are permitted provided that the following conditions
are met:
Redistributions of source code must retain the above copyright notice, this list of condition
sand the following disclaimer.
The origin of this software must not be misrepresented; you must not claim that you wrote the
original software. If you use this software in a product, an acknowledgment in the product
documentation would be appreciated but is not required.
19 Legal and Regulatory Notices
289
Altered source versions must be plainly marked as such, and must not be misrepresented as
being the original software.
The name of the author may not be used to endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
zlib.h – Interface of the 'zlib' general purpose compression library version 1.2.3, July 18th,
2005. Copyright (C) 1995-2005 Jean-loup Gailly and Mark Adler. This software is provided
'as-is', without any express or implied warranty. In no event will the authors be held liable for
any damages arising from the use of this software. Permission is granted to anyone to use
this software for any purpose, including commercial applications, and to alter it and
redistribute it freely, subject to the following restrictions:
• The origin of this software must not be misrepresented; you must not claim that you wrote
the original software. If you use this software in a product, an acknowledgment in the
product documentation would be appreciated but is not required.
• Altered source versions must be plainly marked as such, and must not be misrepresented
as being the original software.
• This notice may not be removed or altered from any source distribution.
Jean-loup Gailly jloup@gzip.org
Mark Adler madler@alumni.caltech.edu
19.7.2 Hardware Warranty in U.S.
Motorola U.S. offers a warranty covering a period of one year from the date of purchase by
the customer. If a product is found defective during the warranty period, Motorola will repair
or replace the product with the same or a similar model, which may be a reconditioned unit,
without charge for parts or labor.
19 Legal and Regulatory Notices
290
19.7.3 Limit of Liability
IN NO EVENT SHALL MOTOROLA BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY
DIRECT, INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY
OR OTHER DAMAGE ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION OR ANY OTHER
PECUNIARY LOSS, OR FROM ANY BREACH OF WARRANTY, EVEN IF MOTOROLA HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. (Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above exclusion or
limitation may not apply to you.) IN NO CASE SHALL MOTOROLA’S LIABILITY EXCEED
THE AMOUNT YOU PAID FOR THE PRODUCT.
20 Specifications
291
20 Specifications
20.1 System Specifications
20.1.1 Wireless PTP 25600 Variant
Radio Technology Specification
RF Band
Lower: 2496-2568 MHz
Middle: 2572-2614 MHz
Upper: 2618-2690 MHz
Channel Selection Manual selection.
Dynamic Frequency Control N/A
Channel size 5, 10, 15 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to other
users of the band.
Receiver Noise Figure Typically 5 dB
Antenna Type Integrated flat plate antenna
Antenna Gain 18 dBi typical
Antenna Beamwidth 18 Degrees
Max Path Loss (5 MHz
channel) 157 dB
Duplex Scheme TDD, Symmetric (1:1)
Range 125 miles (200km) optical Line-of-Sight
6 miles (10km) non-Line-of-Sight
Over-the-Air Encryption Proprietary scrambling mechanism.
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation Threshold
changes.
Error Correction FEC
20 Specifications
292
20.1.2 Wireless PTP 45600 Variant
Radio Technology Specification
RF Band 4400-4600 MHz
Channel Selection Manual selection.
Dynamic Frequency Control
By intelligent Dynamic Frequency Selection (i-DFS) or
manual intervention; automatic selection on start-up and
continual adaptation to avoid interference.
Channel size 5, 10, 15 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to other
users of the band.
Receiver Noise Figure Typically 5 dB
Antenna Type Integrated flat plate antenna
Antenna Gain 21.5 dBi typical
Antenna Beamwidth 11 Degrees
Max Path Loss (5 MHz
channel) 157 dB
Duplex Scheme TDD, Symmetric (1:1)
Range 125 miles (200km) optical Line-of-Sight
6 miles (10km) non-Line-of-Sight
Over-the-Air Encryption Proprietary scrambling mechanism.
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation Threshold
changes
Error Correction FEC
20 Specifications
293
20.1.3 Wireless PTP 54600 Variant
Radio Technology Specification
RF Band 5.470-5.725GHz
Channel Selection
By dynamic frequency control and manual intervention
Automatic detection on start-up and continual adaptation to
avoid interference.
Dynamic Frequency Control Initial capture 10-15 sec. Out of service on interference 100
ms.
Channel size 5, 10, 15 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to other
users of the band.
Receiver Noise Figure Typically 6 dB
Antenna Type Integrated flat plate antenna
Antenna Gain 23 dBi typical
Antenna Beamwidth 8 Degrees
Max Path Loss (5 MHz
channel) 169 dB
Duplex Scheme TDD, Symmetric (1:1)
Range 125 miles (200km) optical Line-of-Sight
6 miles (10km) non-Line-of-Sight
Over-the-Air Encryption Proprietary scrambling mechanism.
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation Threshold
changes
Error Correction FEC
20 Specifications
294
20.1.4 Wireless PTP 58600 Variant
Radio Technology Specification
RF Band 5.725-5.850GHz
Channel Selection
By dynamic frequency control and manual intervention
Automatic detection on start-up and continual adaptation to
avoid interference.
Dynamic Frequency Control Initial capture 10-15 sec. Out of service on interference 100
ms.
Channel size 5, 10, 15 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to other
users of the band.
Receiver Noise Figure Typically 6 dB
Antenna Type Integrated flat plate antenna
Antenna Gain 23 dBi typical
Antenna Beamwidth 8 Degrees
Max Path Loss (5 MHz
Channel) 166 dB
Duplex Scheme TDD, Symmetric (1:1)
Range 125 miles (200km) optical line-of-sight
6 miles (10km) non-line-of-sight
Over-the-Air Encryption Proprietary scrambling mechanism.
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation Threshold
changes
Error Correction FEC
20 Specifications
295
20.1.5 Wireless PTP 59600 Variant
Radio Technology Specification
RF Band 5.825-5.925GHz
Channel Selection
By dynamic frequency control and manual intervention
Automatic detection on start-up and continual adaptation to
avoid interference.
Dynamic Frequency Control Initial capture 10-15 sec. Out of service on interference 100
ms.
Channel size 5, 10, 15 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to other
users of the band.
Receiver Noise Figure Typically 6 dB
Antenna Type Integrated flat plate antenna
Antenna Gain 23 dBi typical
Antenna Beamwidth 8 Degrees
Max Path Loss (5 MHz
Channel) 166 dB
Duplex Scheme TDD, Symmetric (1:1)
Range 125 miles (200km) optical line-of-sight
6 miles (10km) non-line-of-sight
Over-the-Air Encryption Proprietary scrambling mechanism.
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation Threshold
changes
Error Correction FEC
20 Specifications
296
20.1.6 Management
Management Specification
Power status
Ethernet Link Status
Status Indication
Data activity
Web server and browser for setup
Audio tone feedback during installation , plus
graphical installation tool suitable for laptop and
PDA computing devices
Installation
Web server for confirmation
Radio Performance and Management Via web server and browser, SNMP
Alarms Via configurable email alerts, SNMP
20.1.7 Ethernet Bridging
Ethernet Bridging Specification
Protocol IEEE802.1; IEEE802.1p; IEEE802.3 compatible
Interface 10/100/1000BaseT (RJ-45), Supports MDI/MDIX
Auto Crossover
Data Rates See Section 16 “Data Rate Calculations”
Maximum Ethernet Frame Size 2000 bytes
NOTE: Practical Ethernet rates will depend on network configuration, higher layer protocols
and platforms used.
CAUTION: Over the air throughput will be capped to the rate of the Ethernet interface at the
receiving end of the link.
20 Specifications
297
20.1.8 Physical
Integrated Specification
Dimensions Width 14.5” (370mm), Height 14.5” (370mm), Depth 3.75” (95mm)
Weight 12.1 lbs (5.5 Kg) including bracket
Connectorized Specification
Dimensions Width 12” (305mm), Height 12” (305mm), Depth 4.01” (105mm)
Weight 9.1 lbs (4.3 Kg) including bracket
20.1.9 Powering
Power Supply Separate power supply unit (included)
Dimensions Width 9.75” (250mm), Height 1.5” (40mm), Depth 3” (80mm)
Weight 1.9 lbs (0.864 Kg)
Power source 90 – 264 VAC, 50 – 60 Hz / 36 – 60 VDC
Power consumption 55 W max
20.1.10 Telecoms Interface
Telecoms
Interfaces 2 E1 balanced 120R or 2 T1 balanced 100R over a CAT5 screened
twisted pair cable
Jitter and Wander Compliant with G.823/ G.824.
Surge Protection
and Power Cross Compliant with GR1089, EN60950, K20, K21.
20 Specifications
298
20.2 Safety Compliance
Region Specification
USA UL 60950
Canada CSA C22.2 No.60950
International CB certified & certificate to IEC 60950
20.3 EMC Emissions Compliance
20.3.1 PTP 25600 Variant
Region Specification
USA FCC Part 27 and FCC Part 15 (Class B)
20.3.2 PTP 45600 Variant
Region Specification
USA - Military NTIA JF 12
20.3.3 PTP 54600 Variant
Region Specification
USA FCC Part 15 Class B
Canada CSA Std C108.8, 1993 Class B
Europe EN55022 CISPR 22
20.3.4 PTP 58600 Variant
Region Specification
USA FCC Part 15 Class B
Canada CSA Std C108.8, 1993 Class B
Europe EN55022 CISPR 22
20 Specifications
299
20.4 EMC Immunity Compliance
Top-level Specification ETSI 301-489.
Specification Comment
EN 55082-1 Generic EMC and EMI
requirements for Europe
EN 61000-4-2: 1995 Electro Static
Discharge (ESD), Class 2, 8 kV air, 4 kV
contact discharge
Testing will be carried to ensure immunity to
15kV air and 8kV contact
EN 61000-4-3: 1995 ENV50140: 1993
(radiated immunity) 3 V/m
EN 61000-4-4: 1995 (Bursts/Transients),
Class 4, 4 kV level (power lines AC & DC) Signal lines @ 0.5 kV open circuit voltage.
EN 6100045:1995, (Surge Immunity) Requires screened connection to users
network
EN 61000-4-6: 1996 (Injected RF), power
line, Class 3 @ 10 V/m
Signal lines, Class 3 @ 3 V RMS un-
modulated.
20 Specifications
300
20.5 Radio Certifications
20.5.1 PTP 25600 Variant
Region Specification (Type Approvals)
USA FCC Part 27
20.5.2 PTP 54600 Variant
Region Specification (Type Approvals)
USA FCC Part 15.407
EU EN301 893 V1.2.3/V1.3.1
CANADA RSS 210 Issue 7
20.5.3 PTP 58600 Variant
Region Specification (Type Approvals)
USA FCC Part 15.247
CANADA RSS 210 Issue 7
UK IR 2007
Eire ComReg 03/42
20 Specifications
301
20.6 Environmental Specifications
Category Specification
Temperature
ODU: -40°F (-40°C) to 140°F (+60°C)
PIDU Plus (indoor deployment): 32°F (0°C) to 104oF (+40°C)
PIDU Plus (outdoor deployment within weatherproofed cabinet):
-40°F (-40°C) to 140°F (+60°C)
Wind Loading 150mph Max (242kph). See Section 12 “Wind Loading” for a full
description.
Humidity 100% Condensing
Waterproof IP65 (ODU), IP53 (PIDU Plus)
UV Exposure 10 year operational life (UL746C test evidence)
20.7 System Connections
20.7.1 PIDU Plus to ODU and ODU to Network Equipment Connections
Figure 172 - Cable Connection Diagram (T568B Color Coding)
20 Specifications
302
Table 42 - Telecoms Connection Pin Out
Telecoms Connector Pinout Signal Name
Pin 1 E1T1A_TX-
Pin 2 E1T1A_TX+
Pin 3 E1T1A_RX-
Pin 4 E1T1B_TX-
Pin 5 E1T1B_TX+
Pin 6 E1T1A_RX+
Pin 7 E1T1B_RX-
Pin 8 E1T1B_RX+
21 FAQs
303
21 FAQs
Can I source and use my own PoE adaptor with the 600 Series bridge? No. The 600
Series bridge uses a non-standard PoE configuration. Failure to use the Motorola supplied
Power Indoor Unit could result in equipment damage and will invalidate the safety certification
and may cause a safety hazard.
Why has Motorola launched the 600 Series bridge? The 600 Series bridge is the first
product to feature Multiple-Input Multiple-Output (MIMO). The PTP 600 Series solutions allow
wireless connections of up to 200km (124 miles) in near line-of-sight conditions and up to
10km (6 miles) in deep non-line-of-sight conditions.
What is Multiple-Input Multiple-Output (MIMO)? The 600 Series bridge radiates multiple
beams from the antenna - the effect of which is to significantly protect against fading and to
radically increase the probability that the receiver will decode a usable signal. When the
effects of MIMO are combined with those of OFDM techniques and a best in class link
budget, there is a significant improvement to the probability of a robust connection over a
non-line-of-sight path.
What do you mean by “non-line-of-sight”? A wireless connection between two points
without optical line-of-sight, that is, with obstructions between the antennas the transmitted
signal is still able to reach the receiver and produce a good quality link.
What else is special about the 600 Series bridge ? There are many special features built-
in to the hardware of the 600 Series bridge. The product offers the highest system gain in its
class through high sensitivity antennas for improved signal recovery. It also features a
Software Defined Radio system that operates on ultra fast digital signal processors but is
controlled by firmware giving the ability to download new firmware when enhancements
become available. The 600 Series bridge has a built-in web server for advanced management
capabilities including detailed radio signal diagnosis.
In which frequency bands does the 600 Series bridge operate? The Motorola point-to-
point 600 Series bridge operates in the licensed bands 2.5 GHz and 4.5 GHz, and in the
unlicensed bands 5.4 GHz (ETSI Band B), 5.8 GHz (ETSI Band C and FCC ISM band) and
5.9 GHz. Users must ensure that the PTP 600 Series bridge complies with local operating
regulations.
21 FAQs
304
Why does the 600 Series bridge operate in the 5GHz band? The 5 GHz band offers the
dual benefits of high data throughput and good radio propagation characteristics. The wide
band of spectrum available is subdivided into several channels such that multiple systems
can operate in the vicinity without causing interference to one another.
Is the 600 Series bridge an 802.11a device? No, although similar, the 600 Series bridge
uses different encoding and radio transmission systems from 802.11a. In areas where
802.11a systems are operating, the 600 Series bridge will detect the 802.11a radio signals
and choose a clear channel away from any interference.
How much power does the 600 Series bridge transmit? At all times the 600 Series bridge
operates within country / region specific regulations for radio power emissions. In addition, the
600 Series bridge uses a technique known as Transmit Power Control (TPC) to ensure that it
only transmits sufficient radio power such that the other antenna can receive a high quality
signal.
How does the PTP 600 Series Bridge avoid interference from other devices nearby? At
initialization, the 600 Series bridge monitors the available frequency channels to find a
channel that is clear of interference. In operation 600 Series bridge continuously monitors the
spectrum to ensure it is operating on the cleanest channel.
How does the 600 Series bridge integrate into my data network? The 600 Series bridge
acts as a transparent bridge between two segments of your network. In this sense, it can be
treated like a virtual wired connection between the two buildings. The 600 Series bridge
forwards 802.3 Ethernet packets destined for the other part of the network and filters packets
it does not need to forward. The system is transparent to higher-level management systems
such as VLANs and Spanning Tree.
How does the 600 Series bridge provide security for data traffic? The 600 Series bridge
has a range of security features. At installation time each link must be programmed with the
serial ID of its partner. The two ends of the link will only communicate with one another,
eliminating any chance of "man in the middle" attacks. Over the air security is achieved
through a proprietary scrambling mechanism that cannot be disabled, spoofed or snooped by
commercial tools.
Can I use Apple Macintosh OS X to control and monitor my 600 Series bridge? Yes, but
there are some restrictions. Mozilla 1.6 or higher is recommended.
22 Glossary
305
22 Glossary
ARP Address Resolution Protocol NLOS non-Line-of-Sight
ARQ Automatic Repeat reQuest ODU Outdoor Unit
BPSK Binary Phase Shift Keying OFDM Orthogonal Frequency Division
DC Direct Current Multiplex
DFS Dynamic Frequency Selection PC IBM Compatible Personal
Computer
ETSI European Telecommunications PIDU + Power Indoor Unit Plus
Standards Institute PING Packet Internet Groper
FAQ Frequently Asked Question POE Power over Ethernet
GPS Global Positioning System PSU Power Supply Unit
HP Hypertext Transfer Protocol PTP Point-to-Point
ID Identity QAM Quadrature Amplitude
Modulation
IEEE Institute of Electrical and
Electronic Engineers
RAM Random Access Memory
IP Internet Protocol STC Space Time Coding
IQ In phase / Quadrature STP Shielded Twisted Pair
ISM Industrial Scientific and Medical TCP Transmission Control Protocol
I International
Telecommunications Union
TPC Transmit Power Control
LAN Local Area Network URL Universal Resource Location
MAC Medium Access Control Layer USA United States of America
MDI Medium Dependent Interface UTP Unshielded Twisted Pair
MDIX Medium Dependent Interface
Crossover
UV Ultraviolet
VLAN Virtual Local Area Network
23 Index
306
23 Index
Alarm 109, 110, 111
Alignment 102, 232
antenna 216
Antenna 215, 216, 217, 219, 224, 230, 232
Architecture 45
Cable Loss 219, 224
Cables 96, 230, 233
channels 55, 173
Channels 162, 167, 169
Clock 181
Compliance 298, 299
Configuration44, 118, 124, 139, 140, 143, 166,
190, 194, 218
Connecting 92, 94, 95, 97, 98, 234, 301
Connectors 230
Deployment 222
diagnostics 114, 184
Diagnostics 184
Disarm 153
Distance 74
EIRP 221
Environmental 301
Ethernet 35, 121, 132, 199
Fault Finding 198
Glossary 305
Grounding 97
Installation 136, 205, 219, 230, 233, 256
IP address 101
Licence Key 185
license 45
Lightning 43, 74, 203
Link Budget 223
MAC Address 191
Management 44, 176
MIB 177
Mounting 43, 90, 99
Networking 74
Password 185
Path Loss 76
Planning 48, 75
Properties 187
radio 2, 6
Radio 201, 300
Reboot 188, 190, 197
Recovery 189
Regulatory 223
Repair 34
Reset 190, 193
Restore 125
Safety 33
Save 125
Service 34
SMTP 180
SNMP 177, 180
SNTP 181
Software 190, 217
Spectrum Management 162, 220
Statistics 131
Status 112, 217
Support 89
Surge 43, 96
TDD 71, 146
TFTP 272
Throughput 78, 80
Tools 89, 230
Upgrade 158, 190, 191
Warning 109, 111
Wind 213
23 Index
307
MOTOROLA, the stylized M Logo and all other trademarks indicated as such
herein are trademarks of Motorola, Inc. ® Reg. US Pat & Tm. Office. All other
product or service names are the property of their respective owners. © 2007
Motorola, Inc. All rights reserved.
Unit A1, Linhay Business Park
Eastern Road, Ashburton
Devon, TQ 13 7UP, UK
Telephone Support: +1 877 515-0400 (Worldwide)
+44 808 234 4640 (UK)
www.motorola.com/ptp
