PTP 600 Series
User Guide
MOTOROLA POINT-TO-POINT WIRELESS SOLUTIONS
![](/img.php?id=1237757&img=bg2.png)
phn-0896_009v003 Feb 2010
UNDER DEVELOPMENT
Accuracy
While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability
resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein.
Motorola, Inc. reserves the right to make changes to any products described herein to improve reliability, function, or
design, and reserves the right to revise this document and to make changes from time to time in content hereof with
no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of
the application or use of any product, software, or circuit described herein; neither does it convey license under its
patent rights or the rights of others. It is possible that this publication may contain references to, or information about
Motorola products (machines and programs), programming, or services that are not announced in your country. Such
references or information must not be construed to mean that Motorola intends to announce such Motorola products,
programming, or services in your country.
Copyrights
This document, Motorola products, and 3rd Party Software products described in this document may include or
describe copyrighted Motorola and other 3rd Party supplied computer programs stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for Motorola, its licensors, and other 3rd Party
supplied software certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in
any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of
Motorola, its licensors, or the 3rd Party software supplied material contained in the Motorola products described in
this document may not be copied, reproduced, reverse engineered, distributed, merged or modified in any manner
without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be
deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or
patent applications of Motorola or other 3rd Party supplied software, except for the normal non-exclusive, royalty free
license to use that arises by operation of law in the sale of a product.
Restrictions
Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of
the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or by any means, without prior written permission of
Motorola, Inc.
License Agreements
The software described in this document is the property of Motorola, Inc and its licensors. It is furnished by express
license agreement only and may be used only in accordance with the terms of such an agreement.
High Risk Materials
Components, units, or 3rd Party products used in the product described herein are NOT fault-tolerant and are NOT
designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments
requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication
Systems, Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities). Motorola and its supplier(s)
specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.
Trademarks
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service
names are the property of their respective owners.
![](/img.php?id=1237757&img=bg3.png)
Safety
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT i
Important safety information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
This section describes important safety guidelines that must be observed by personnel
installing or operating PTP 600 equipment.
WARNING
To prevent loss of life or physical injury, observe the safety guidelines
in this section.
Power lines
Exercise extreme care when installing antennas near power lines.
Working at heights
Exercise extreme care when working at heights.

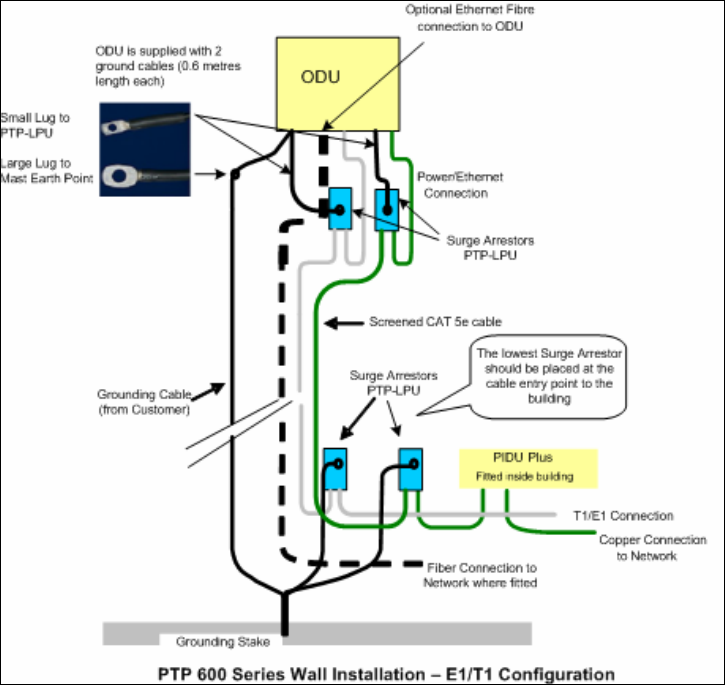

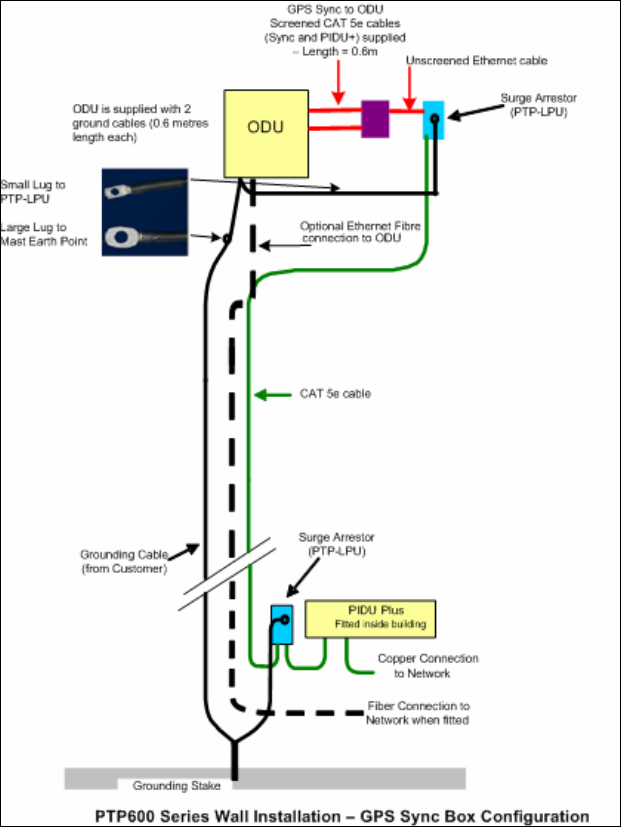

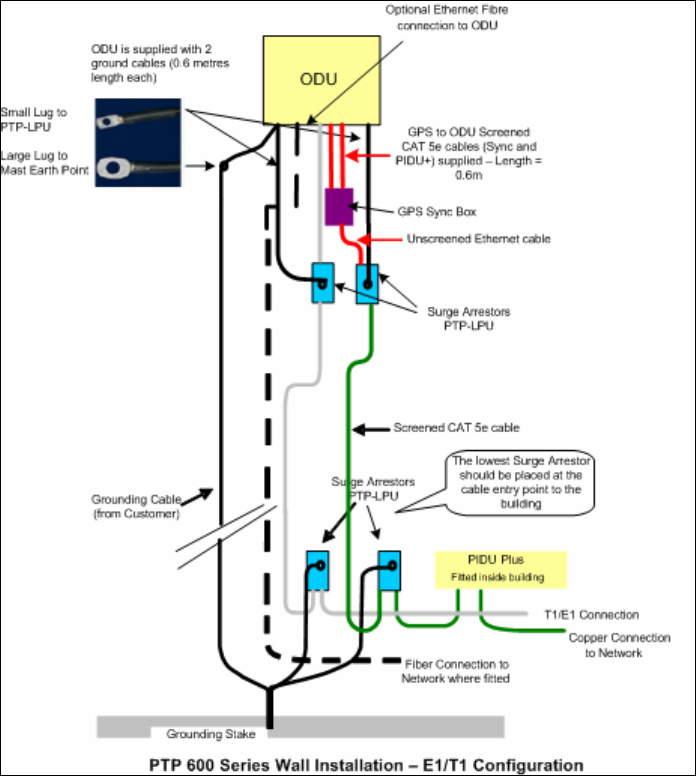

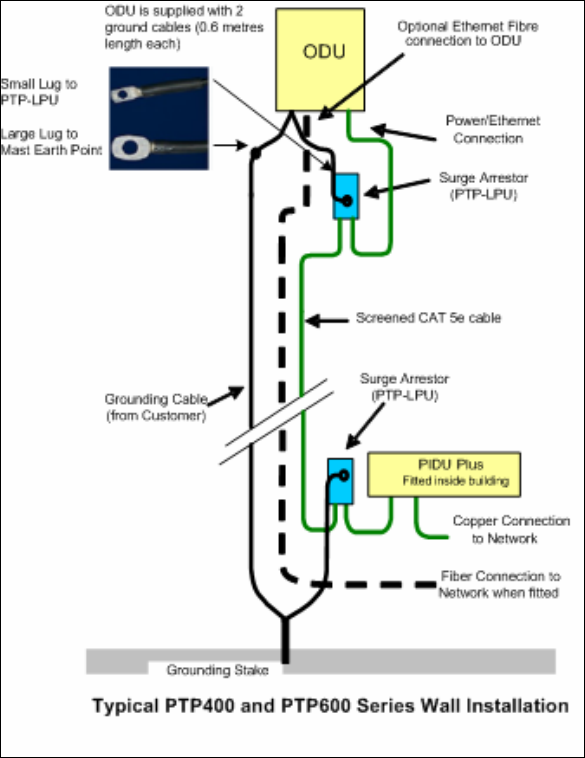

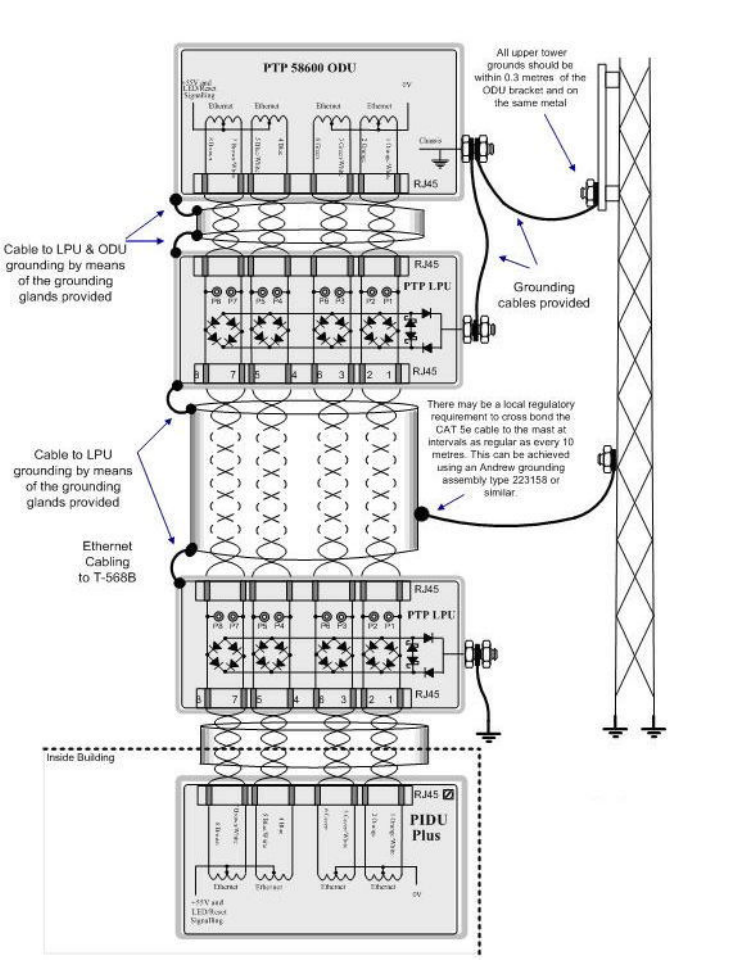

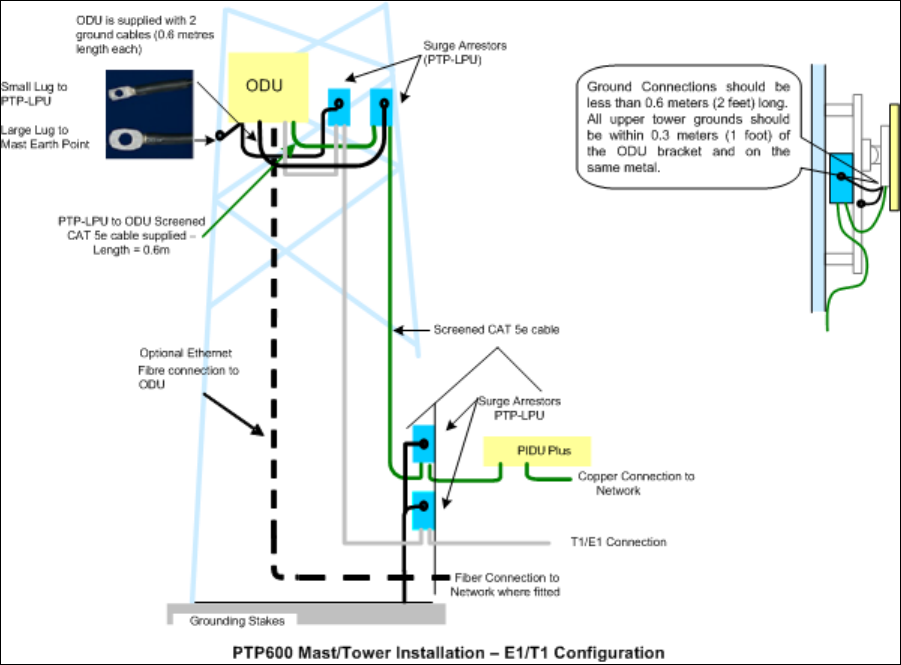

Grounding and protective earth
The Outdoor Unit (ODU) must be properly grounded to protect against lightning. In
the USA and Canada it is the user’s responsibility to install the equipment in
accordance with Section 810 of the National Electric Code, ANSI/NFPA No.70-1984 or
Section 54 of the Canadian Electrical Code. These codes describe correct installation
procedures for grounding the outdoor unit, mast, lead-in wire and discharge unit, size
of grounding conductors and connection requirements for grounding electrodes. Other
regulations may apply in different countries and therefore it is recommended that
installation of the outdoor unit be contracted to a professional installer.
Safety
phn-0896_009v003
ii UNDER DEVELOPMENT Feb 2010

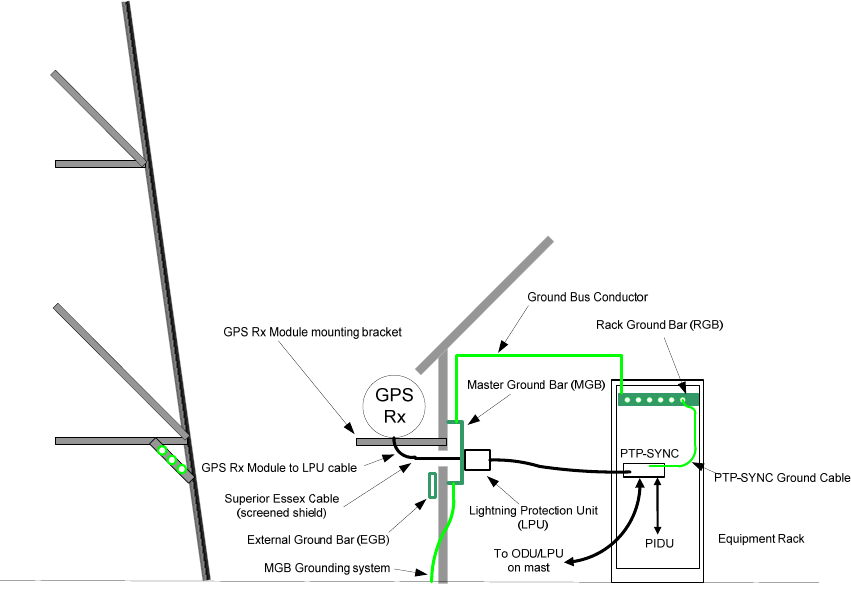

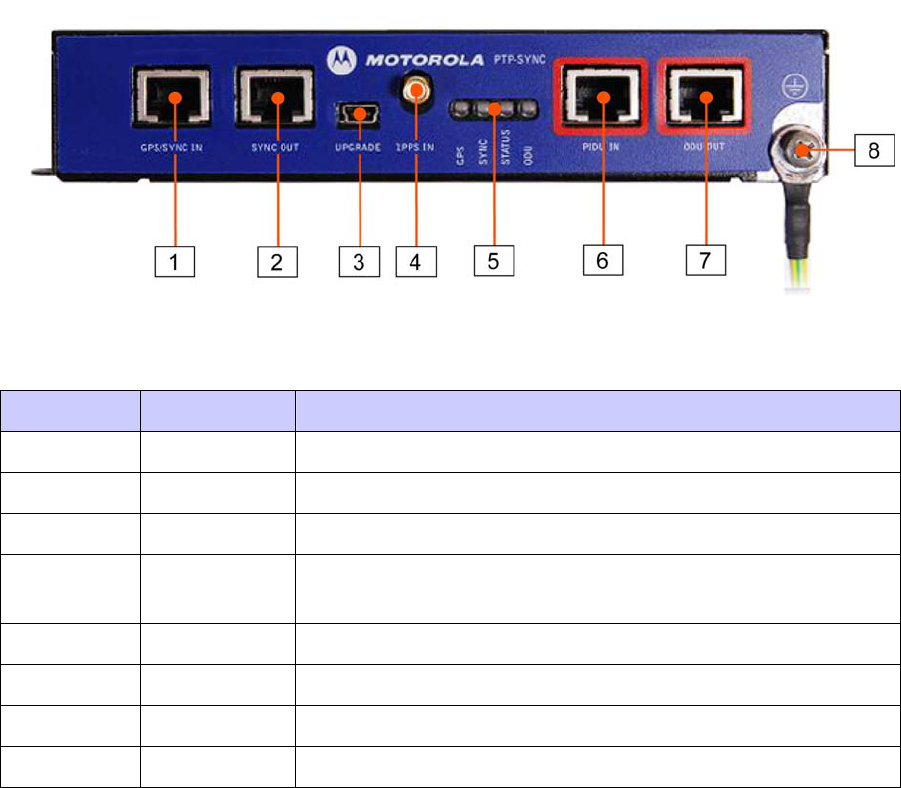

Grounding PTP-SYNC
In order to meet the safety requirements for deployment in Australia and New Zealand
(AS/NZS 60950-1), the PTP Sync unit, if deployed, must be grounded to a Protective
Earth in accordance with Local Electrical Regulations.

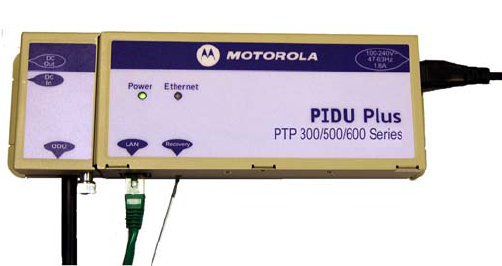

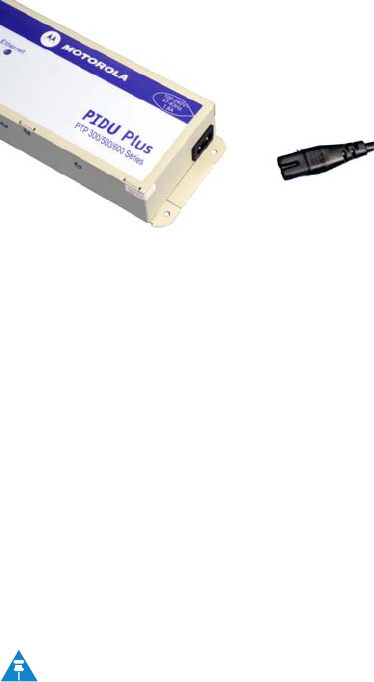

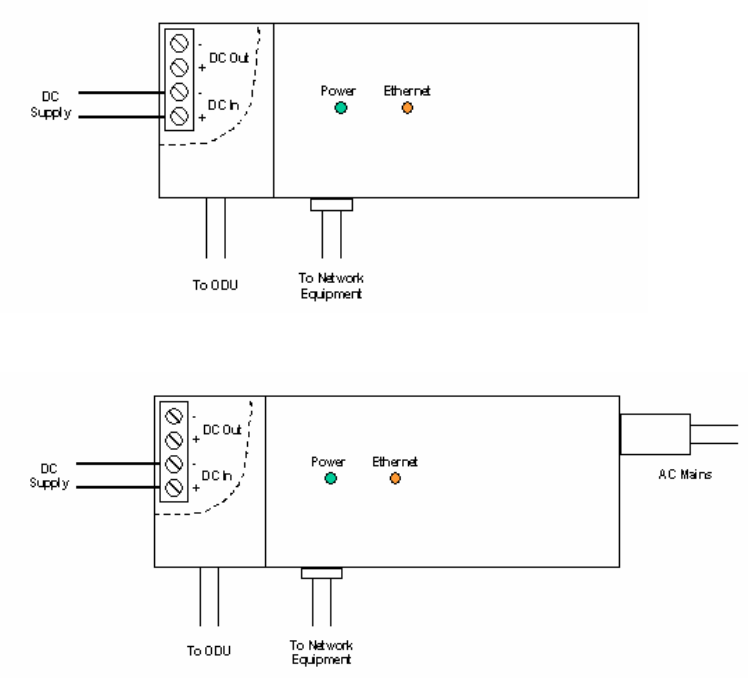

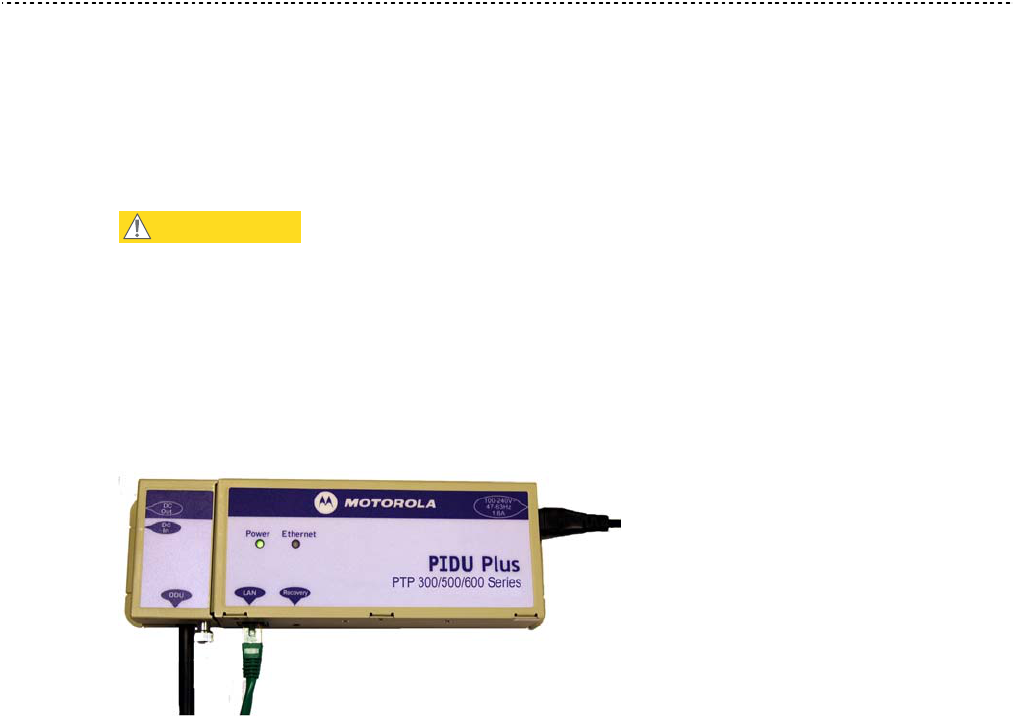

PIDU Plus
It is recommended that the supplied Power Indoor Plus (PIDU Plus PTP 300/500/600
Series) is used to power the ODU. The use of other power sources may invalidate
safety approval and affect your warranty.
Powering down before servicing
Always power down and unplug the equipment before servicing.
Cable measuring card
A cable measuring card must NEVER be used at the ODU end connected to power
from the PIDU. It must only be used at the bottom of the mast with a multimeter. This
is because the PIDU voltage exceeds the limit allowed in some countries for safe
handling in wet conditions and therefore may create a safety hazard.
Non-Motorola power supply
Safety may be compromised if a different power supply is used than the one supplied
by Motorola as part of the system.
Alternative DC supplies
When using alternative DC supplies (via the PIDU Plus DC in terminals), such as
battery-backed DC power source, the supply MUST comply with the following
requirements:
• The voltage and polarity is correct and is applied to the correct terminals in the
PIDU Plus.
• The power source is rated as SELV.
• The power source is rated to supply at least 1A continuously.
Safety
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT iii
• The power source cannot provide more than the Energy Hazard Limit as defined
by IEC/EN/UL6090, Clause 2.5, Limited Power (The Energy Hazard Limit is
240VA).
Primary disconnect device
The main power supply is the primary disconnect device.
External cables
Safety may be compromised if outdoor rated cables are not used for connections that
will be exposed to the weather.
RF exposure near the antenna
Strong radio frequency (RF) fields will be present close to the antenna when the
transmitter is on. Always mute the transmitter before undertaking maintenance
activities in front of the antenna.
Minimum separation distances
Install the PTP 600 ODUs so as to provide and maintain the minimum separation
distances from all persons. The minimum separation distances for each frequency
variant are specified in Calculated distances and power compliance margins on page 4-
12.
![](/img.php?id=1237757&img=bg6.png)
Table
of
Contents
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT iv
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
Important safety information............................................................................................i
Power lines.............................................................................................................................. i
Working at heights.................................................................................................................. i
Grounding and protective earth.............................................................................................. i
PIDU Plus ............................................................................................................................... ii
Powering down before servicing............................................................................................ ii
Cable measuring card ............................................................................................................ii
Non-Motorola power supply...................................................................................................ii
Alternative DC supplies .........................................................................................................ii
Primary disconnect device .................................................................................................... iii
External cables...................................................................................................................... iii
RF exposure near the antenna.............................................................................................. iii
About This User Guide......................................................................................................1
Revision history............................................................................................................................ 2
Version information ...............................................................................................................2
General information ..................................................................................................................... 3
Purpose .................................................................................................................................. 3
Cross references .................................................................................................................... 3
Text conventions .................................................................................................................... 4
Contacting Motorola .................................................................................................................... 5
Feedback................................................................................................................................ 5
Motorola Point-to-Point.......................................................................................................... 5
WiBB Technical Support telephone numbers ........................................................................ 6
Reporting problems ............................................................................................................... 7
Repair and service ................................................................................................................. 8
Warranty ................................................................................................................................ 8
![](/img.php?id=1237757&img=bg7.png)
Contents
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT v
Security advice.............................................................................................................................9
Warnings, cautions, and notes ...................................................................................................10
Warnings ..............................................................................................................................10
Cautions ...............................................................................................................................10
Notes ....................................................................................................................................10
Caring for the environment........................................................................................................11
In EU countries ....................................................................................................................11
In non-EU countries .............................................................................................................11
Chapter 1 Product description ...................................................................................... 1-1
Product function........................................................................................................................1-2
Typical deployment ...................................................................................................................1-3
Product variants........................................................................................................................1-4
Other product variants........................................................................................................1-5
Outdoor unit (ODU) ..................................................................................................................1-6
Mounting brackets ..............................................................................................................1-7
Network connection............................................................................................................1-7
PIDU Plus PTP 300/500/600 Series...........................................................................................1-9
Power and Ethernet LEDs...................................................................................................1-9
ODU, LAN and recovery....................................................................................................1-10
DC In and Out ...................................................................................................................1-10
Remote connectors and jumpers.......................................................................................1-10
Mains connection ..............................................................................................................1-11
Redundancy and alternative powering configurations .....................................................1-11
Remote LEDs and recovery switch ...................................................................................1-14
Cables and connectors ............................................................................................................1-15
Outdoor connections .........................................................................................................1-15
Indoor connections............................................................................................................1-17
PTP and lightning protection ..................................................................................................1-18
Wireless operation ..................................................................................................................1-19
Time division duplex .........................................................................................................1-19
Link mode optimization.....................................................................................................1-20
Link symmetry...................................................................................................................1-21
OFDM and channel bandwidth .........................................................................................1-22
Contents
phn-0896_009v003
vi UNDER DEVELOPMENT Feb 2010
Adaptive modulation .........................................................................................................1-22
MIMO ................................................................................................................................ 1-23
Intelligent dynamic frequency selection ........................................................................... 1-24
Radar avoidance................................................................................................................1-24
Time division duplex synchronization............................................................................... 1-25
Network timing reference................................................................................................. 1-26
Configuring the TDD frame ..............................................................................................1-26
Performance considerations when enabling TDD synchronization ..................................1-27
UltraSync .......................................................................................................................... 1-27
PTP-SYNC ......................................................................................................................... 1-27
Security ............................................................................................................................. 1-32
Ethernet bridging....................................................................................................................1-33
Ethernet frames ................................................................................................................1-33
Management function .......................................................................................................1-34
Networking information.................................................................................................... 1-35
Telecoms circuits .................................................................................................................... 1-36
Lowest telecoms modulation mode................................................................................... 1-36
Fixed frequency operation ................................................................................................1-36
Further reading.................................................................................................................1-37
System management ..............................................................................................................1-38
Management agent ...........................................................................................................1-38
Web interface.................................................................................................................... 1-38
SNMP ................................................................................................................................ 1-40
SNMPv3 security ..............................................................................................................1-42
Email alerts .......................................................................................................................1-47
AES license ....................................................................................................................... 1-48
Critical security parameters ............................................................................................. 1-49
Capacity upgrades ............................................................................................................1-49
Software upgrade..............................................................................................................1-50
Recovery mode.................................................................................................................. 1-50
FIPS 140-2 .............................................................................................................................. 1-52
Validated software image .................................................................................................1-52
Hardware security ............................................................................................................1-53

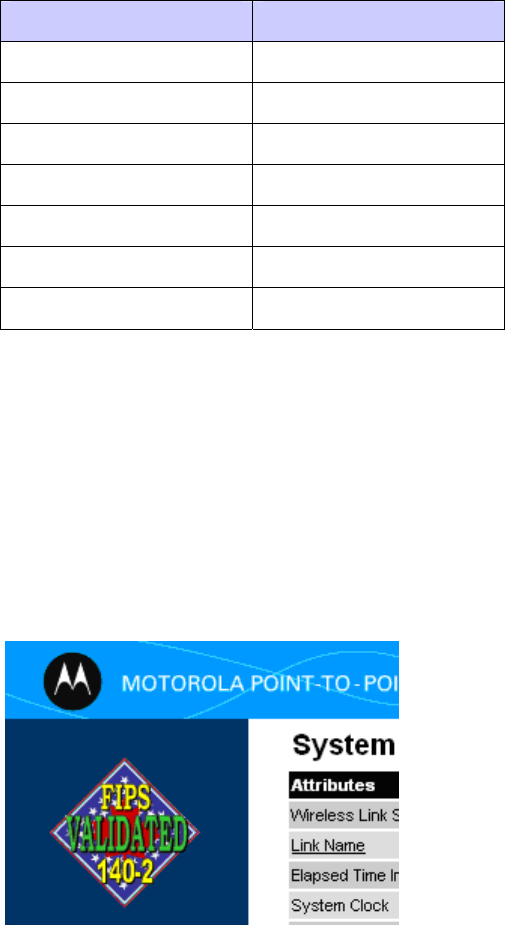

FIPS 140-2 mode indication.............................................................................................. 1-53
Contents
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT vii
Configuring HTTPS/TLS....................................................................................................1-54
Exiting from the FIPS 140-2 mode....................................................................................1-54
Prerequisites .....................................................................................................................1-54
Chapter 2 Planning considerations ............................................................................... 2-1
Spectrum planning....................................................................................................................2-2
Regions without mandatory radar detection ......................................................................2-2
Regions with mandatory radar detection............................................................................2-2
Licenses and region codes ........................................................................................................2-3
Radar avoidance and bandwidth operation ..............................................................................2-4
Channel barring ..................................................................................................................2-4
Variable channel bandwidth operation .....................................................................................2-5
Site planning .............................................................................................................................2-6
Site selection criteria ..........................................................................................................2-6
Wind loading .......................................................................................................................2-7
Link planning ............................................................................................................................2-9
Range and obstacles ...........................................................................................................2-9
PTP LINKPlanner ................................................................................................................2-9
Path loss considerations..........................................................................................................2-10
Calculating path loss.........................................................................................................2-10
Adaptive modulation .........................................................................................................2-10
Planning synchronized networks ............................................................................................2-12
Using PTP LINKPlanner for synchronized networks ........................................................2-12
TDD synchronization configuration options......................................................................2-12
System threshold, output power and link loss ........................................................................2-17
Lightning protection ...............................................................................................................2-18

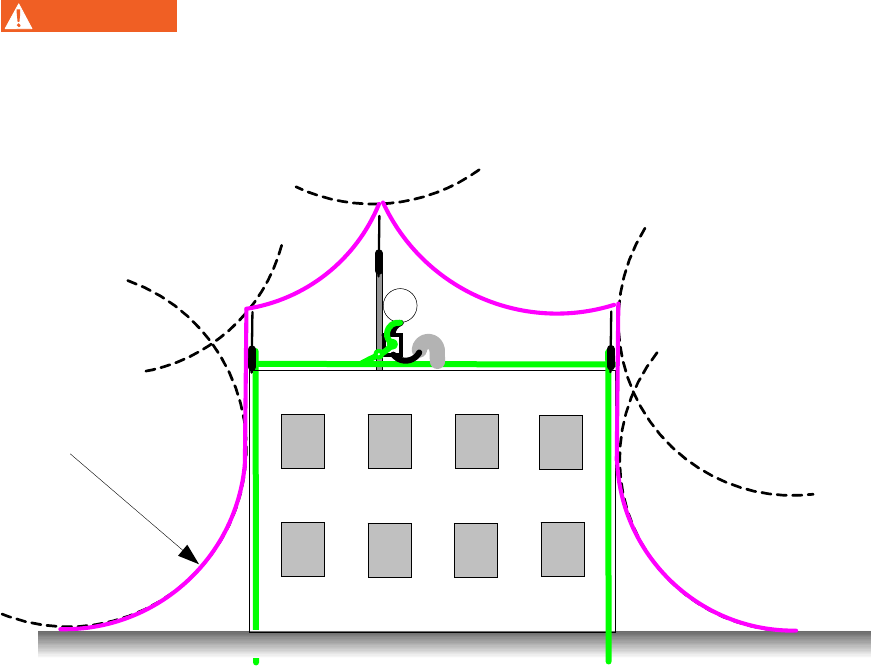

Lightning protection zones ...............................................................................................2-19
Grounding considerations .................................................................................................2-20
LPU configuration options ................................................................................................2-21

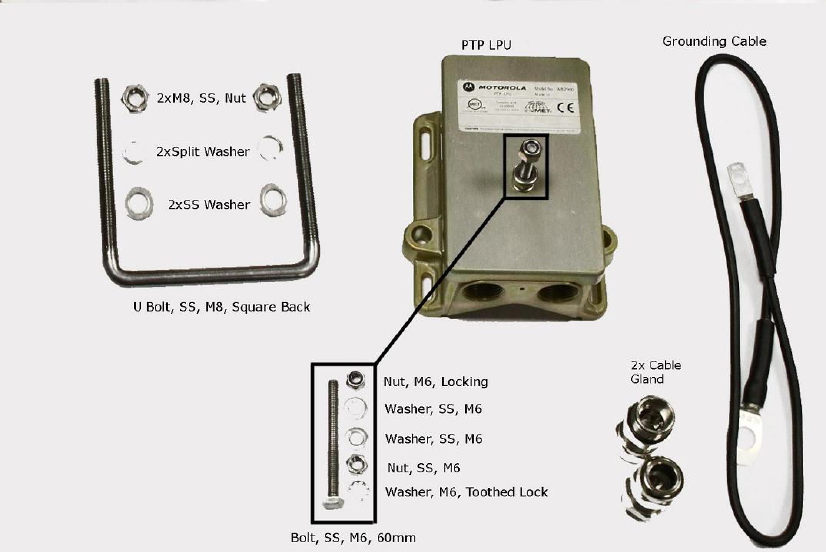

LPU kit ..............................................................................................................................2-22
LPU installation wiring .....................................................................................................2-24
Site installation diagrams .......................................................................................................2-26
Typical mast or tower installation.....................................................................................2-28
Typical wall installation ....................................................................................................2-29
Contents
phn-0896_009v003
viii UNDER DEVELOPMENT Feb 2010
Mast or tower installation with E1/T1 ..............................................................................2-30
Wall installation with E1/T1.............................................................................................. 2-31
Mast or tower installation with UltraSync GPS unit......................................................... 2-32
Wall installation with UltraSync GPS unit ........................................................................2-33

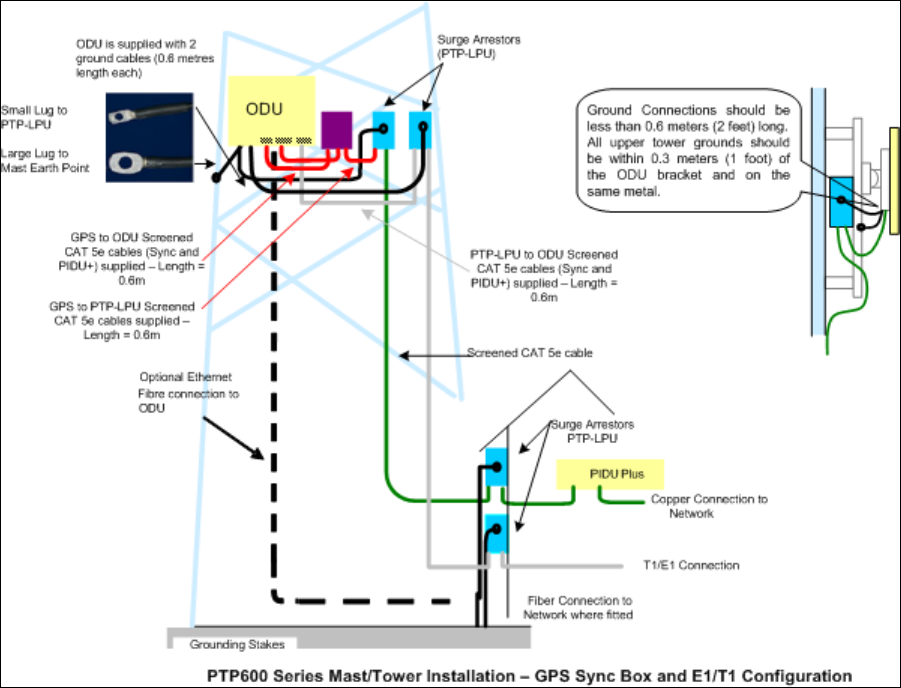

Mast or tower installation with UltraSync GPS unit and E1/T1 .......................................2-34
Wall installation with UltraSync GPS unit and E1/T1.......................................................2-35
Protection of the GPS receiver for PTP-SYNC ........................................................................ 2-36
GPS receiver mounting options ........................................................................................2-36
Mounting the GPS receiver module on the equipment building.......................................2-36
Mounting the GPS receiver module on a metal tower or mast......................................... 2-37
Chapter 3 Legal information......................................................................................... 3-1
Motorola Inc. end user license agreement ...............................................................................3-2
Definitions ........................................................................................................................... 3-2
Grant of license...................................................................................................................3-2
Conditions of use................................................................................................................. 3-3
Title and restrictions...........................................................................................................3-4
Confidentiality..................................................................................................................... 3-4
Right to use Motorola’s name .............................................................................................3-5
Transfer............................................................................................................................... 3-5
Updates ............................................................................................................................... 3-5
Maintenance ....................................................................................................................... 3-5
Disclaimer ........................................................................................................................... 3-6
Limitation of liability........................................................................................................... 3-6
U.S. government .................................................................................................................3-7
Term of license.................................................................................................................... 3-7
Governing law .....................................................................................................................3-7
Assignment.......................................................................................................................... 3-7
Survival of provisions..........................................................................................................3-8
Entire agreement ................................................................................................................3-8
Third party software ........................................................................................................... 3-8
Hardware warranty................................................................................................................. 3-12
Limit of liability....................................................................................................................... 3-13
Chapter 4 Reference information ................................................................................. 4-1
PTP 600 general reference information....................................................................................4-2
Contents
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT ix
Compliance with regulations ..............................................................................................4-2
System specifications..........................................................................................................4-5
Safety compliance ...............................................................................................................4-7
European EMC immunity compliance.................................................................................4-9
Electromagnetic energy....................................................................................................4-10
Environmental specifications............................................................................................4-15
PTP 25600 reference information ...........................................................................................4-16
PTP 25600 examples of regulatory limits .........................................................................4-16
PTP 25600 licenses and region codes...............................................................................4-17
PTP 25600 regulatory compliance ....................................................................................4-18
PTP 25600 radio system specifications.............................................................................4-19
PTP 25600 emissions and radio certifications ..................................................................4-20

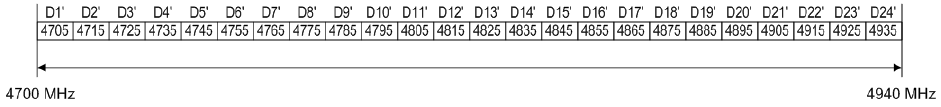

PTP 25600 available spectrum settings ............................................................................4-21
PTP 25600 system threshold, output power and link loss ................................................4-24
PTP 45600 reference information ...........................................................................................4-26
PTP 45600 examples of regulatory limits .........................................................................4-26
PTP 45600 licenses and region codes...............................................................................4-26
PTP 45600 radio system specifications.............................................................................4-27
PTP 45600 emissions and radio certifications ..................................................................4-28

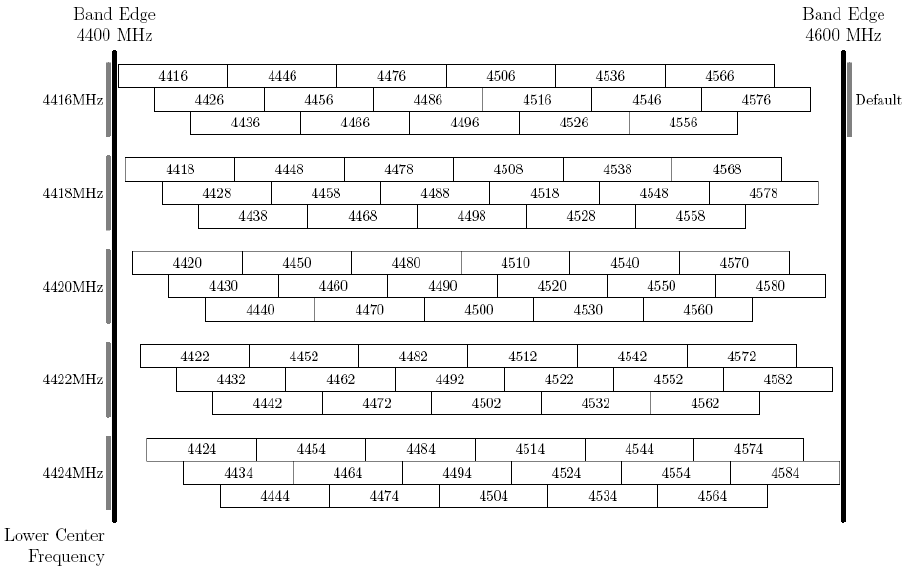

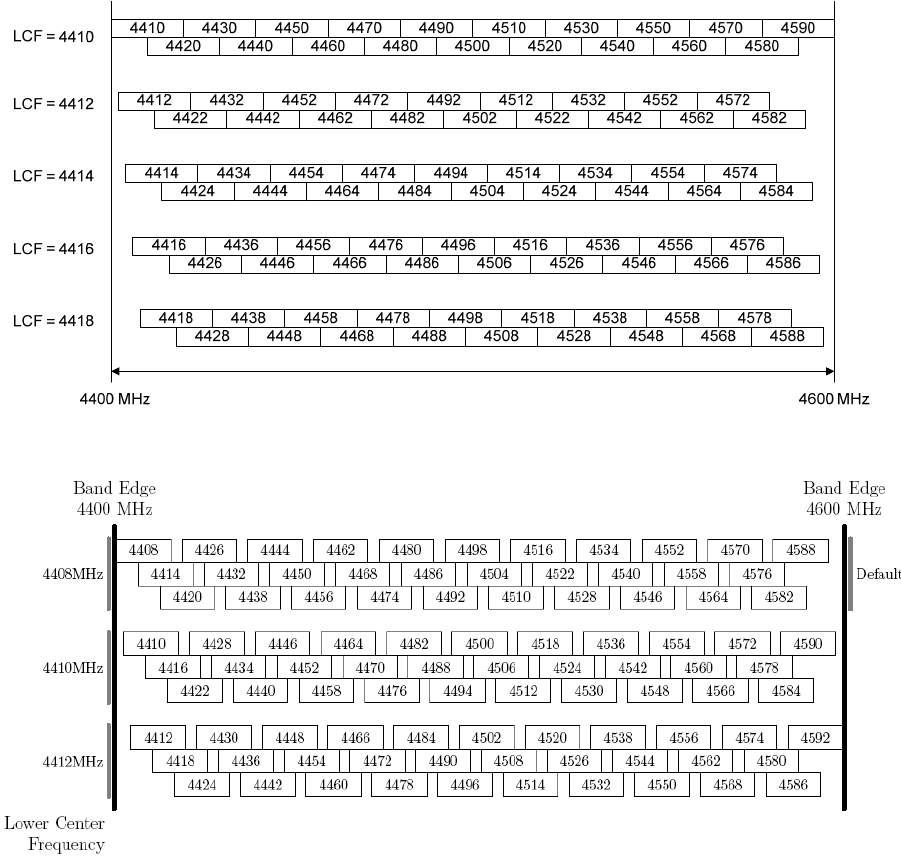

PTP 45600 available spectrum settings ............................................................................4-29
PTP 45600 system threshold, output power and link loss ................................................4-33
PTP 48600 reference information ...........................................................................................4-35
PTP 48600 examples of regulatory limits .........................................................................4-35
PTP 48600 licenses and region codes...............................................................................4-36
PTP 48600 radio system specifications.............................................................................4-37
PTP 48600 emissions and radio certifications ..................................................................4-38

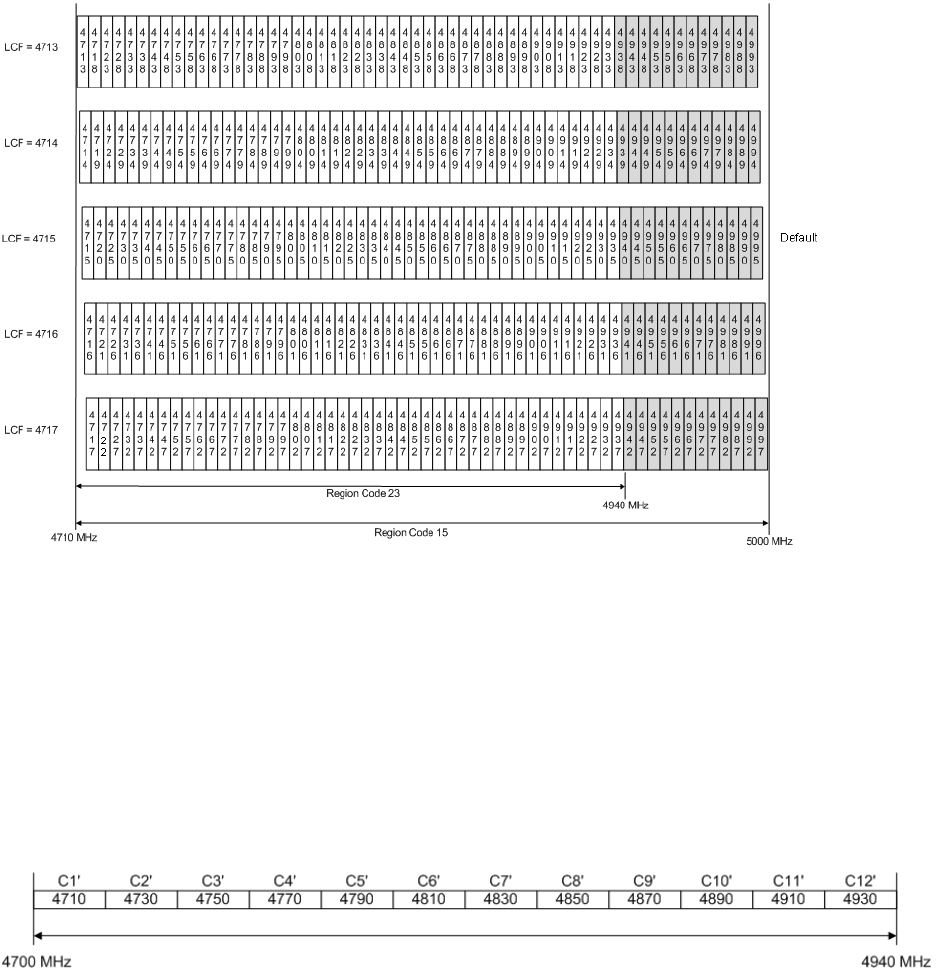

PTP 48600 available spectrum settings ............................................................................4-39
PTP 48600 system threshold, output power and link loss ................................................4-43
PTP 49600 reference information ...........................................................................................4-45
PTP 49600 examples of regulatory limits .........................................................................4-45
PTP 49600 licenses and region codes...............................................................................4-45
PTP 49600 regulatory compliance ....................................................................................4-46
PTP 49600 radio system specifications.............................................................................4-47
Contents
phn-0896_009v003
x UNDER DEVELOPMENT Feb 2010
PTP 49600 emissions and radio certifications ..................................................................4-48

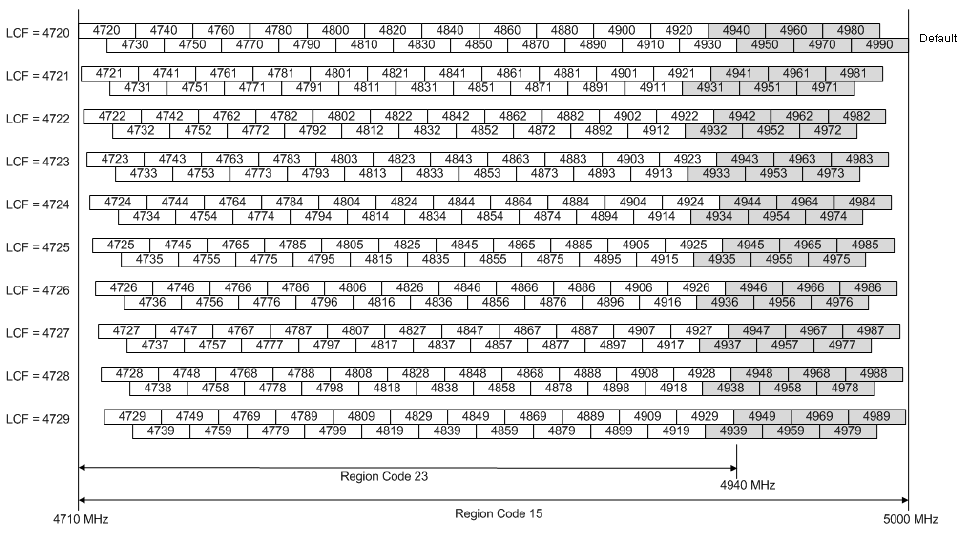

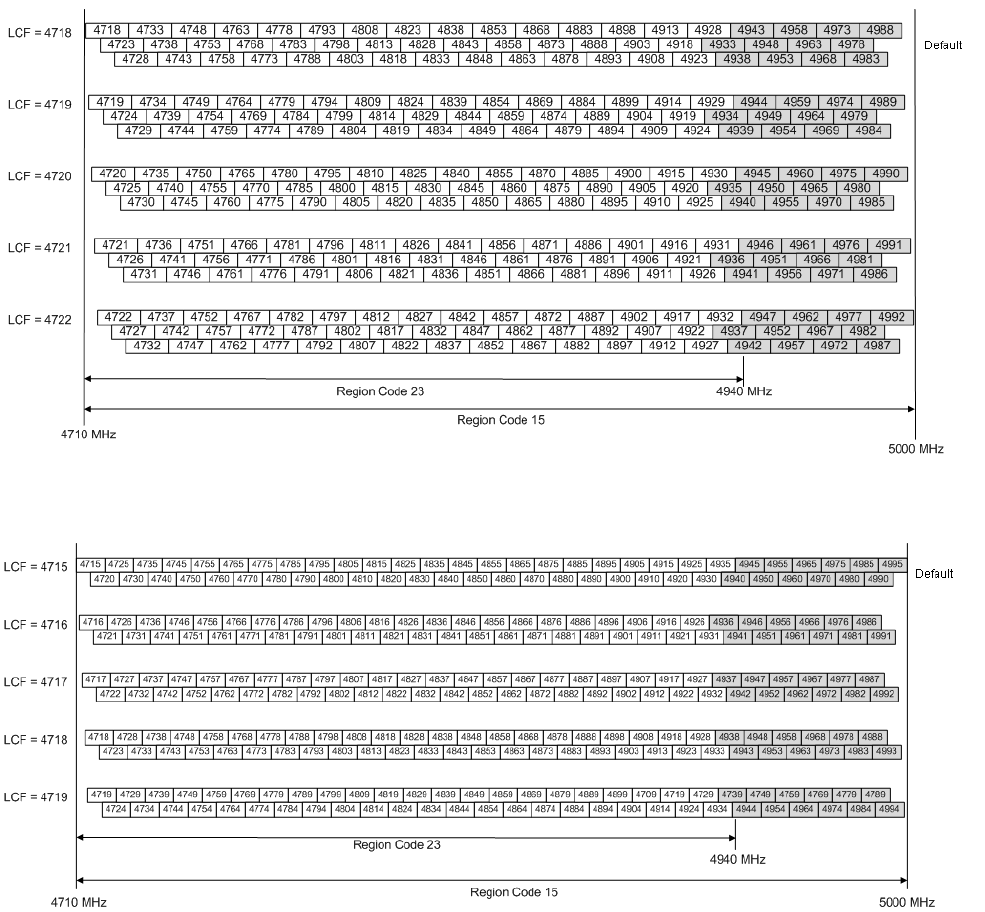

PTP 49600 available spectrum settings............................................................................ 4-49
PTP 49600 system threshold, output power and link loss ................................................ 4-51
PTP 54600 reference information...........................................................................................4-53
PTP 54600 examples of regulatory limits ......................................................................... 4-53
PTP 54600 licenses and region codes...............................................................................4-54
PTP 54600 regulatory compliance .................................................................................... 4-55
PTP 54600 radio system specifications............................................................................. 4-58
PTP 54600 emissions and radio certifications ..................................................................4-59

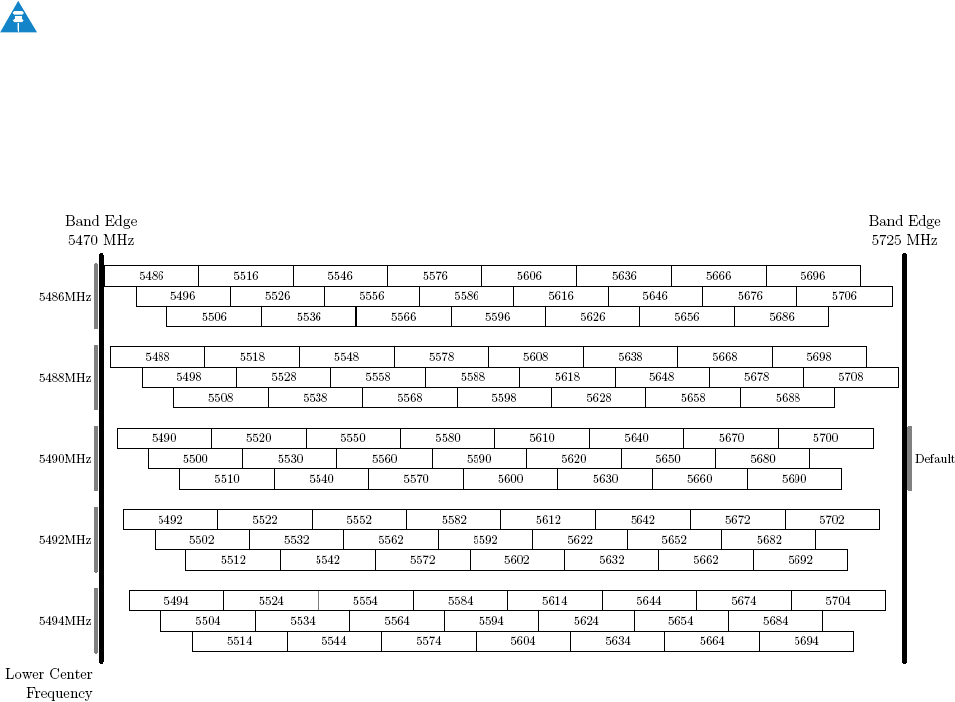

PTP 54600 available spectrum settings............................................................................ 4-60
PTP 54600 system threshold, output power and link loss ................................................ 4-62
PTP 54600 FCC antenna restrictions................................................................................4-64
PTP 58600 reference information...........................................................................................4-67
PTP 58600 examples of regulatory limits ......................................................................... 4-67
PTP 58600 licenses and region codes...............................................................................4-70
PTP 58600 regulatory compliance .................................................................................... 4-74
PTP 58600 radio system specifications............................................................................. 4-77
PTP 58600 emissions and radio certifications ..................................................................4-78
PTP 58600 available spectrum settings............................................................................ 4-80
PTP 58600 system threshold, output power and link loss ................................................ 4-83
PTP 58600 FCC antenna restrictions................................................................................4-85
PTP 59600 reference information...........................................................................................4-90
PTP 59600 examples of regulatory limits ......................................................................... 4-90
PTP 59600 licenses and region codes...............................................................................4-91
PTP 59600 regulatory compliance .................................................................................... 4-92
PTP 59600 radio system specifications............................................................................. 4-92
PTP 59600 available spectrum settings............................................................................ 4-93
PTP 59600 system threshold, output power and link loss ................................................ 4-97
Data rate calculations ............................................................................................................. 4-99
Data rate defined ..............................................................................................................4-99
Calculation procedure and example .................................................................................4-99
Data throughput capacity ...............................................................................................4-102
Range adjustment curves................................................................................................4-113
Chapter 5 Installation .................................................................................................. 5-1
Contents
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xi
Checking the configuration.......................................................................................................5-2
IP addresses of the Master and Slave units........................................................................5-2
Configuring the IP interface on the PC...............................................................................5-2
Powering up and connecting the PIDU Plus .......................................................................5-3
Opening the web interface..................................................................................................5-4
Checking LAN configuration...............................................................................................5-4
Checking software version..................................................................................................5-5
Checking region code..........................................................................................................5-5
Checking wireless configuration.........................................................................................5-6
Preparing for site installation ...................................................................................................5-7
Checks.................................................................................................................................5-7
Tools required .....................................................................................................................5-7
Cable connection procedures....................................................................................................5-8
Preparing the supported Superior Essex cable ..................................................................5-8
Grounding the drop cable to a metal tower or mast.........................................................5-11
Connecting the drop cable to an ODU or LPU ..................................................................5-16
Disconnecting the drop cable from an ODU or LPU .........................................................5-18
Mounting the ODUs ................................................................................................................5-19
Mounting bracket..............................................................................................................5-19
Hoist and safety loop.........................................................................................................5-19
ODU mounting procedure.................................................................................................5-21
Installing the UltraSync GPS receiver ....................................................................................5-23
Recommended kit..............................................................................................................5-23
UltraSync unit connections...............................................................................................5-25
Complete UltraSync unit installation................................................................................5-26
Installing the GPS receiver for PTP-SYNC..............................................................................5-28
Recommended kit..............................................................................................................5-28
Trimble GPS connector pin definition...............................................................................5-29
Mounting the GPS receiver...............................................................................................5-30
Connecting the GPS receiver to the drop cable................................................................5-30
Grounding the GPS receiver drop cable ...........................................................................5-35
Mounting the LPU and connecting the GPS receiver .......................................................5-35
Installing PTP-SYNC ...............................................................................................................5-36
![](/img.php?id=1237757&img=bge.png)
Contents
phn-0896_009v003
xii UNDER DEVELOPMENT Feb 2010
Recommended kit .............................................................................................................5-36
PTP-SYNC unit rack or wall mounting.............................................................................. 5-37
Connecting up PTP-SYNC ................................................................................................. 5-39
Power-up, testing and fault finding...................................................................................5-41
Fault Finding Guide ..........................................................................................................5-41
Connecting the ODU, PIDU and LPUs .................................................................................... 5-43
Locating the PIDU port on the ODU .................................................................................5-43
Connecting the ODU to the PIDU cable............................................................................5-44
Routing the cable .............................................................................................................. 5-45
Fitting lightning protection units...................................................................................... 5-45
Grounding the installation ................................................................................................5-46
Connecting the PIDU to the ODU cable............................................................................5-46
Mounting the PIDU Plus ................................................................................................... 5-48
Installing E1 and T1................................................................................................................ 5-50
E1/T1 connection diagrams ..............................................................................................5-50
Locating the E1/T1 port on the ODU ................................................................................5-54
Connecting the ODU to the E1/T1 cable...........................................................................5-55
Routing the cable .............................................................................................................. 5-56
Customer cable termination .............................................................................................5-56
Lightning protection and E1/T1 ........................................................................................5-57
Testing the E1/T1 installation...........................................................................................5-58
Establishing a radio link ......................................................................................................... 5-59
Using the ODU installation tones .....................................................................................5-59
Aligning the units..............................................................................................................5-60
Behaviour during alignment .............................................................................................5-61
Adjusting power settings .................................................................................................. 5-62
Disarm on completion ....................................................................................................... 5-63
Chapter 6 Operation..................................................................................................... 6-1
Web-based management...........................................................................................................6-2
Menu navigation bar ........................................................................................................... 6-2
Home (system summary) .................................................................................................... 6-4
System status.................................................................................................................... 6-10
System administration ......................................................................................................6-18
Configuring the PTP 600.........................................................................................................6-19
Contents
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xiii
System configuration ........................................................................................................6-19
Spectrum management .....................................................................................................6-22
QoS configuration .............................................................................................................6-39
Configuring the IP and Ethernet interfaces......................................................................6-42
Configuring the telecoms circuits .....................................................................................6-49
Installation pages....................................................................................................................6-51
Factory configuration........................................................................................................6-51
Manual configuration........................................................................................................6-52
Current installation summary ...........................................................................................6-54
Installation step 1 - interface configuration......................................................................6-55
Installation step 2 - wireless configuration.......................................................................6-59
TDD synchronization configuration ..................................................................................6-66
Installation step 3 - confirm configuration........................................................................6-69
Disarm installation ............................................................................................................6-72
Graphical install ................................................................................................................6-75
Upgrading the PTP 600...........................................................................................................6-77
Checking capability summary ...........................................................................................6-77
Using access keys to generate a new license key.............................................................6-79
Entering a license key.......................................................................................................6-80
Saving and restoring system configuration ......................................................................6-81
Upgrading PTP 600 software ............................................................................................6-84
Remote software upgrade by TFTP...................................................................................6-88
Managing security ..................................................................................................................6-90
Configuring user accounts ................................................................................................6-90
Creating or updating identity-based users........................................................................6-93
Changing own user password ...........................................................................................6-94
Controlling access to the HTTP interface .........................................................................6-95
Controlling access to the Telnet interface ........................................................................6-95
Enabling AES encryption at the wireless interface ..........................................................6-96
Configuring HTTPS/TLS using the Security Wizard .........................................................6-98
Configuring FIPS 140-2 mode.........................................................................................6-108
Zeroising critical security parameters............................................................................6-111
Managing faults ....................................................................................................................6-112
Contents
phn-0896_009v003
xiv UNDER DEVELOPMENT Feb 2010
Supported Management Information Bases (MIBs)........................................................6-113
Diagnostics alarms.......................................................................................................... 6-114
Configuring SNMP notifications .....................................................................................6-115
SMTP (Simple Mail Transport Protocol) .........................................................................6-116
SNTP (Simple Network Time Protocol)...........................................................................6-117
Setting the clock .............................................................................................................6-118
Managing performance.........................................................................................................6-119
Statistics ......................................................................................................................... 6-119
Detailed counters............................................................................................................ 6-124
Diagnostics plotter.......................................................................................................... 6-128
Properties.............................................................................................................................. 6-131
Reboot ................................................................................................................................... 6-132
Chapter 7 Troubleshooting........................................................................................... 7-1
Test link end hardware ............................................................................................................. 7-2
Power LED is off ................................................................................................................. 7-5
Power LED is flashing.........................................................................................................7-7
Ethernet LED did not flash 10 times...................................................................................7-7
No Ethernet activity............................................................................................................7-9
Irregular Ethernet activity..................................................................................................7-9
Connection is not 1000 BaseT.............................................................................................7-9
Test Ethernet packet errors reported by ODU .................................................................7-10
Test Ethernet packet errors reported by managed switch or router................................7-10
Test ping packet loss.........................................................................................................7-11
Test resistance at the PIDU end of the drop cable ........................................................... 7-12
Test UltraSync GPS receiver ............................................................................................7-16
Test radio link ......................................................................................................................... 7-17
No activity.........................................................................................................................7-17
Some activity.....................................................................................................................7-18
Lightning strike....................................................................................................................... 7-19
Using recovery mode ..............................................................................................................7-20
Entering recovery mode.................................................................................................... 7-20
Upgrade software image...................................................................................................7-22
Reset IP & Ethernet configuration.................................................................................... 7-23
Erase configuration...........................................................................................................7-25
Contents
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xv
Reboot ...............................................................................................................................7-27
Chapter 8 Connectorized PTP 600 series ...................................................................... 8-1
Product description...................................................................................................................8-2
Hardware ............................................................................................................................8-2
Antenna ...............................................................................................................................8-2
Software and features...............................................................................................................8-3
Status page .........................................................................................................................8-3
Configuration pages............................................................................................................8-3
Installation pages................................................................................................................8-5
Deployment considerations.......................................................................................................8-9
When to use external antennas...........................................................................................8-9
Link budget .........................................................................................................................8-9
Regulatory issues with connectorized units............................................................................8-10
Maximum EIRP .................................................................................................................8-10
Cable losses (FCC regions only)........................................................................................8-12
Antenna choices ......................................................................................................................8-13
Antenna selection criteria.................................................................................................8-13
Non-FCC regions...............................................................................................................8-13
FCC regions ......................................................................................................................8-13
Installing connectorized bridges.............................................................................................8-14
Cables and connectors ......................................................................................................8-14
Tools..................................................................................................................................8-14
Miscellaneous supplies .....................................................................................................8-15
Mounting the connectorized PTP 600...............................................................................8-15
Mounting the antennas .....................................................................................................8-15
Alignment process.............................................................................................................8-16
Aligning dual polar antennas ............................................................................................8-16
Aligning separate antennas...............................................................................................8-17
Completing the installation...............................................................................................8-18
Antenna cable fixing..........................................................................................................8-18
Antenna connection weatherproofing...............................................................................8-19
Additional lightning protection ...............................................................................................8-20
ODU mounted outdoors ....................................................................................................8-20
Contents
phn-0896_009v003
xvi UNDER DEVELOPMENT Feb 2010
ODU mounted indoors ......................................................................................................8-21
Chapter 9 FAQs ............................................................................................................ 9-1
General FAQs ............................................................................................................................ 9-2
Link encryption FAQs ............................................................................................................... 9-4
Encryption data entry fields are not available....................................................................9-4
Link fails to bridge packets after enabling link encryption ................................................ 9-4
Loss of AES following downgrade....................................................................................... 9-4
Glossary ........................................................................................................................... I
Index ............................................................................................................................ III
![](/img.php?id=1237757&img=bg13.png)
List
of
Figures
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xvii
List of Figures
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
Figure 1-1 Typical PTP 600 Series bridge deployment .................................................................1-3
Figure 1-2 PTP 600 Series outdoor unit (ODU) with PTP-LPU .....................................................1-6
Figure 1-3 Mod record label..........................................................................................................1-7
Figure 1-4 Power indoor unit (PIDU Plus PTP 300/500/600 Series) .............................................1-9
Figure 1-5 PIDU Plus recovery switch location ..........................................................................1-10
Figure 1-6 PIDU Plus power input ..............................................................................................1-11

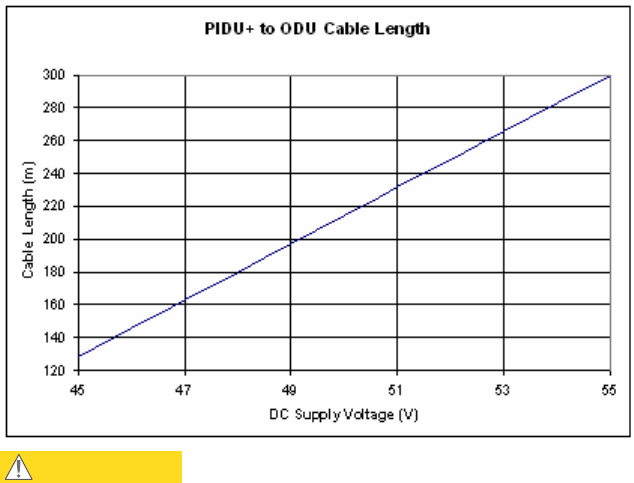

Figure 1-7 Relationship between DC voltage and cable length ..................................................1-12
Figure 1-8 External DC supply only ............................................................................................1-13
Figure 1-9 External DC supply and AC supply ............................................................................1-13
Figure 1-10 External DC supply and redundant AC supply ........................................................1-14
Figure 1-11 Remote LED and recovery switch wiring ................................................................1-14

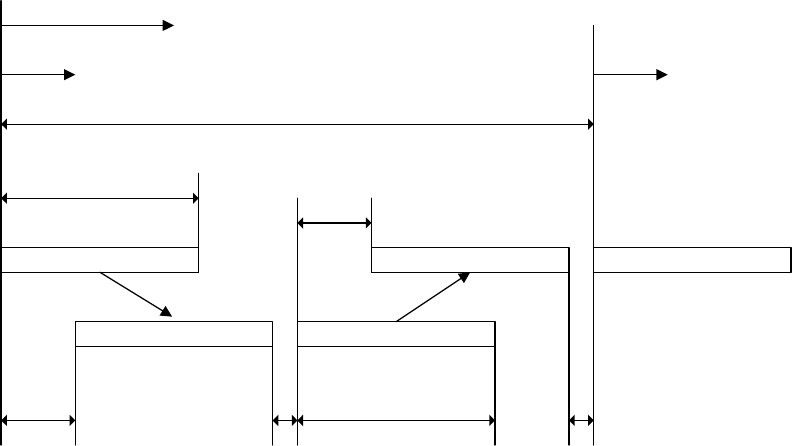

Figure 1-12 The TDD cycle of events ..........................................................................................1-20

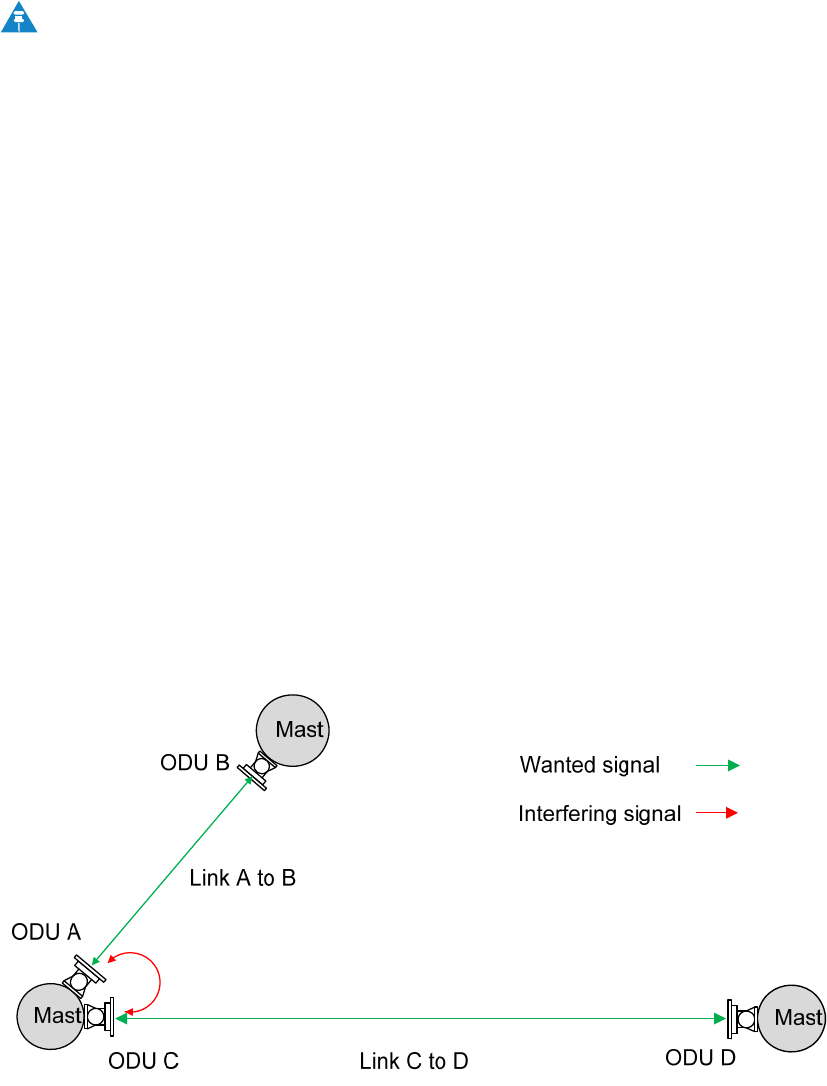

Figure 1-13 Interference between two ODUs on the same mast ................................................1-25
Figure 1-14 PTP-SYNC application..............................................................................................1-28
Figure 1-15 PTP-SYNC front panel..............................................................................................1-31
Figure 1-16 PTP 600 protocol layers...........................................................................................1-34
Figure 1-17 FIPS 140-2 mode......................................................................................................1-53
Figure 2-1 RTTT channel avoidance example (5.8 GHz UK).........................................................2-4

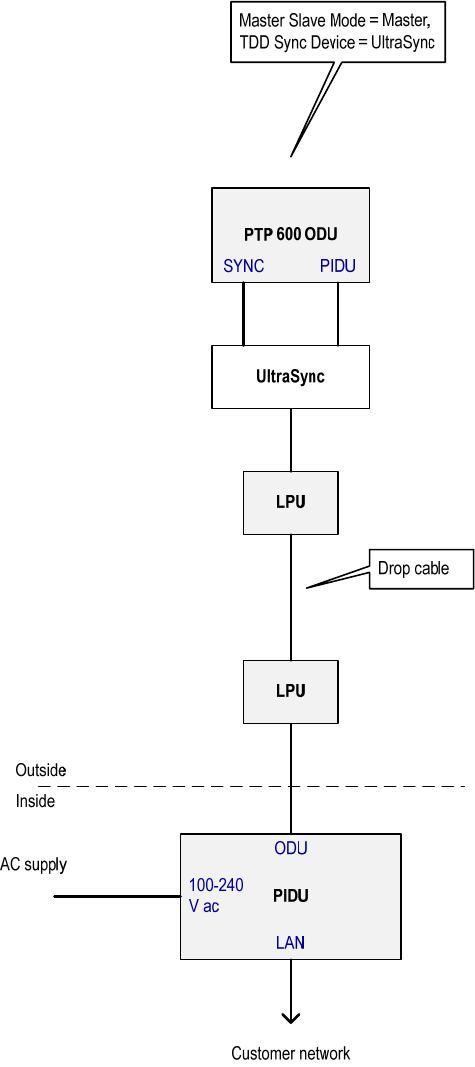

Figure 2-2 TDD synchronization configuration – standalone with UltraSync .............................2-13
Figure 2-3 TDD synchronization configuration – standalone with PTP SYNC ............................2-14

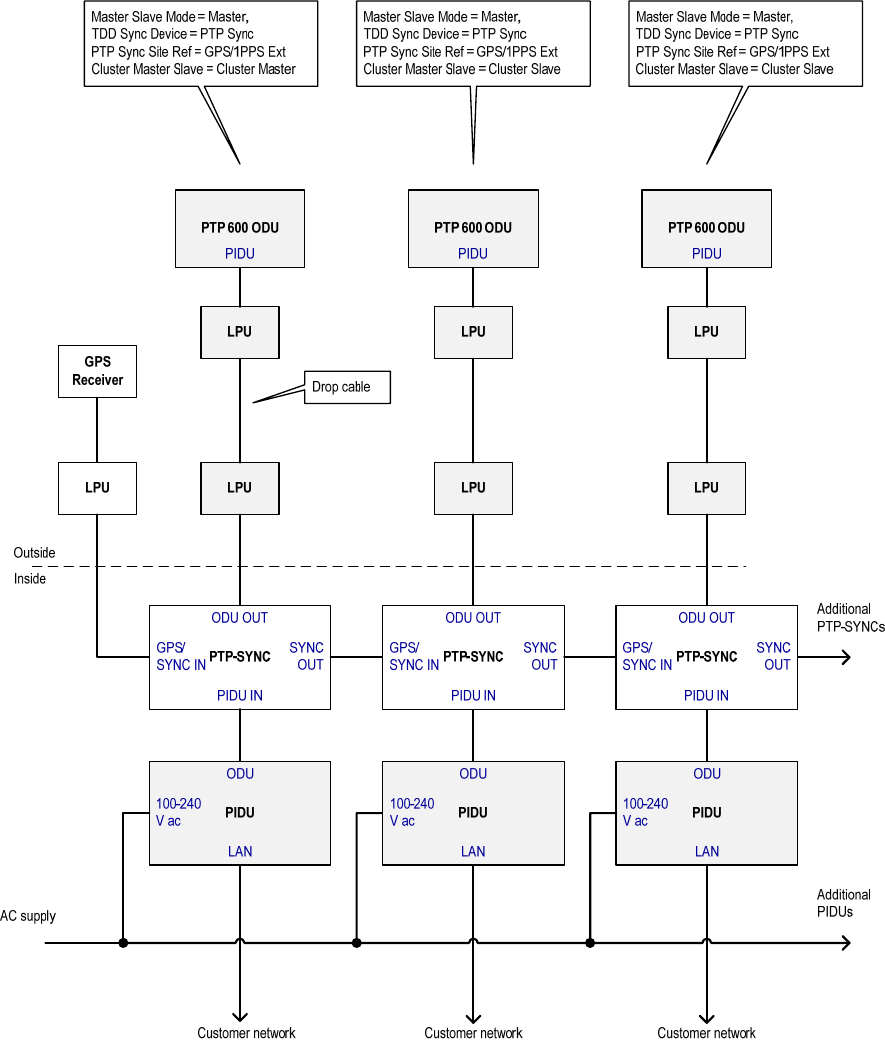

Figure 2-4 TDD synchronization configuration – cluster with PTP SYNC and GPS ....................2-15
Figure 2-5 TDD synchronization configuration – cluster with PTP SYNC and no GPS ...............2-16
Figure 2-6 Rolling sphere method to determine the lightning protection zones ........................2-19

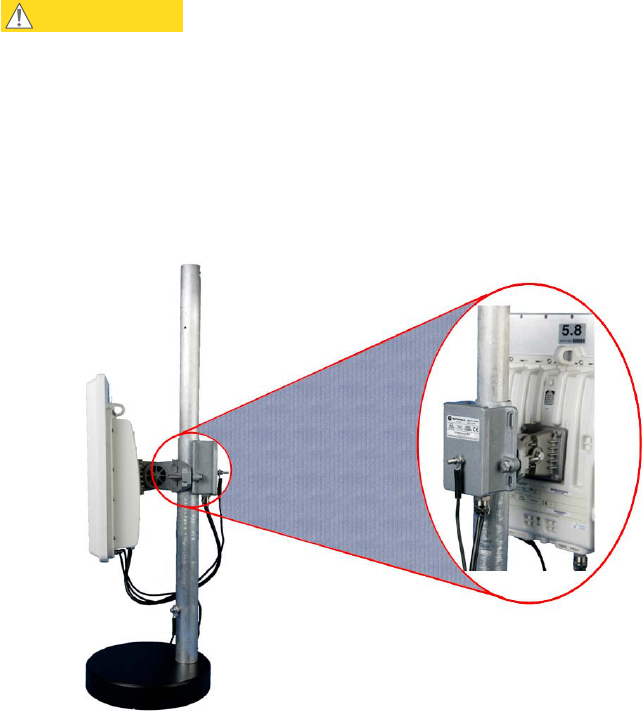

Figure 2-7 Example of PTP-LPU configuration option 1 (back-to-back)......................................2-21

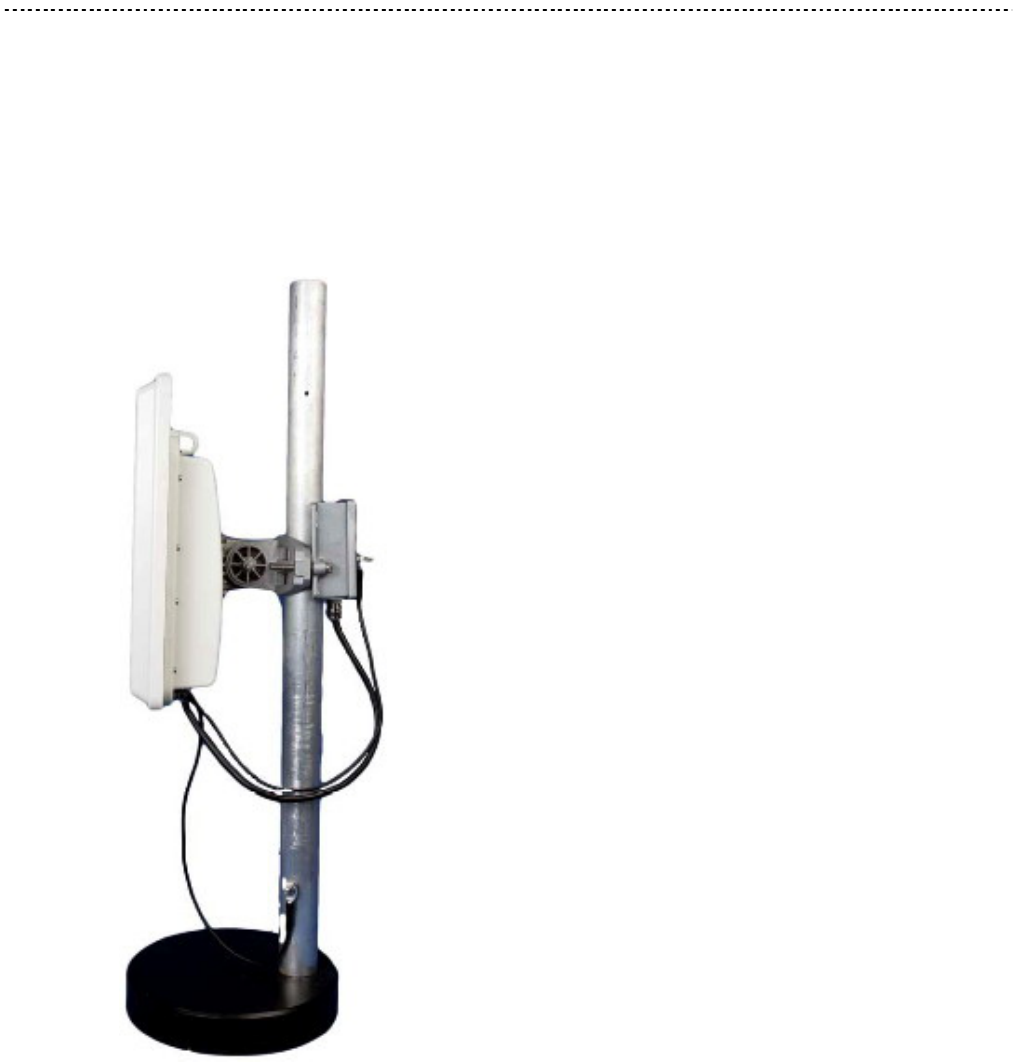

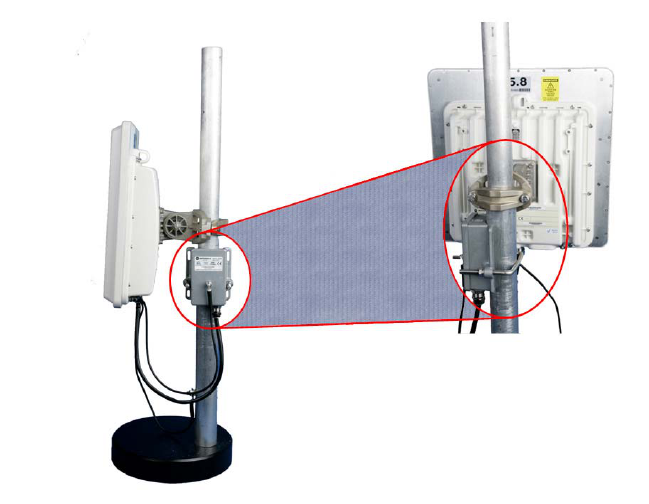

Figure 2-8 Example of PTP-LPU configuration option 2 (U-bolt) ................................................2-22

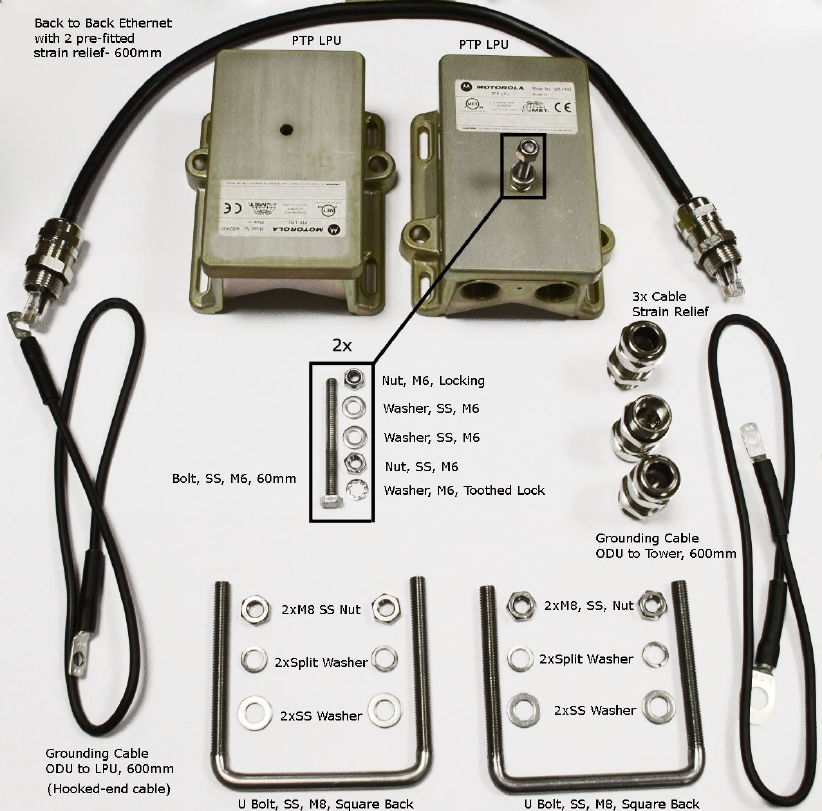

Figure 2-9 PTP LPU full kit .........................................................................................................2-23
List of Figures
phn-0896_009v003
xviii UNDER DEVELOPMENT Feb 2010
Figure 2-10 PTP-LPU additional kit.............................................................................................2-24
Figure 2-11 Simplified circuit diagram .......................................................................................2-25

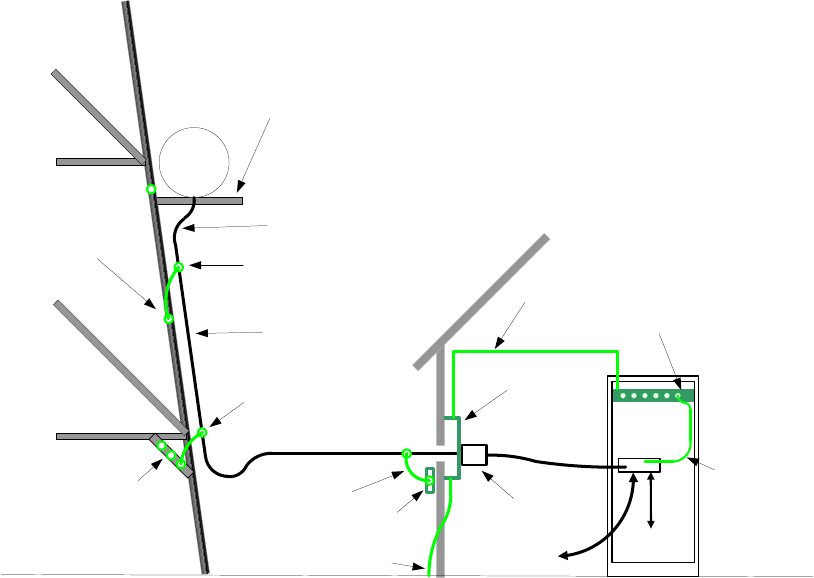

Figure 2-12 Typical mast or tower installation ...........................................................................2-28
Figure 2-13 Typical wall installation........................................................................................... 2-29
Figure 2-14 Mast or tower installation with E1/T1 .....................................................................2-30
Figure 2-15 Wall installation with E1/T1 ....................................................................................2-31
Figure 2-16 Mast or tower installation with UltraSync GPS sync unit .......................................2-32
Figure 2-17 Wall installation with UltraSync GPS sync unit....................................................... 2-33
Figure 2-18 Mast or tower installation with UltraSync GPS sync unit and E1/T1...................... 2-34
Figure 2-19 Wall installation with UltraSync GPS sync unit and E1/T1 ..................................... 2-35
Figure 2-20 GPS receiver mounted on equipment building........................................................2-37
Figure 2-21 GPS receiver mounted on tower or mast................................................................. 2-38

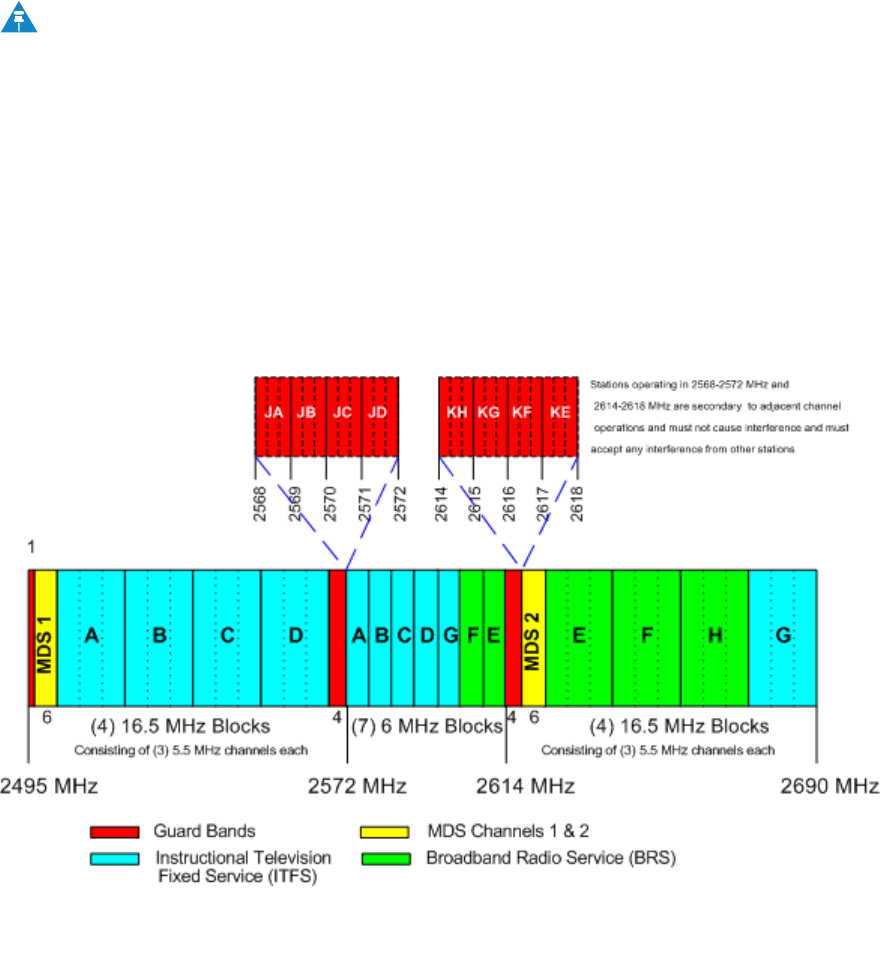

Figure 4-1 PTP 25600 BRS band channel assignments ..............................................................4-23

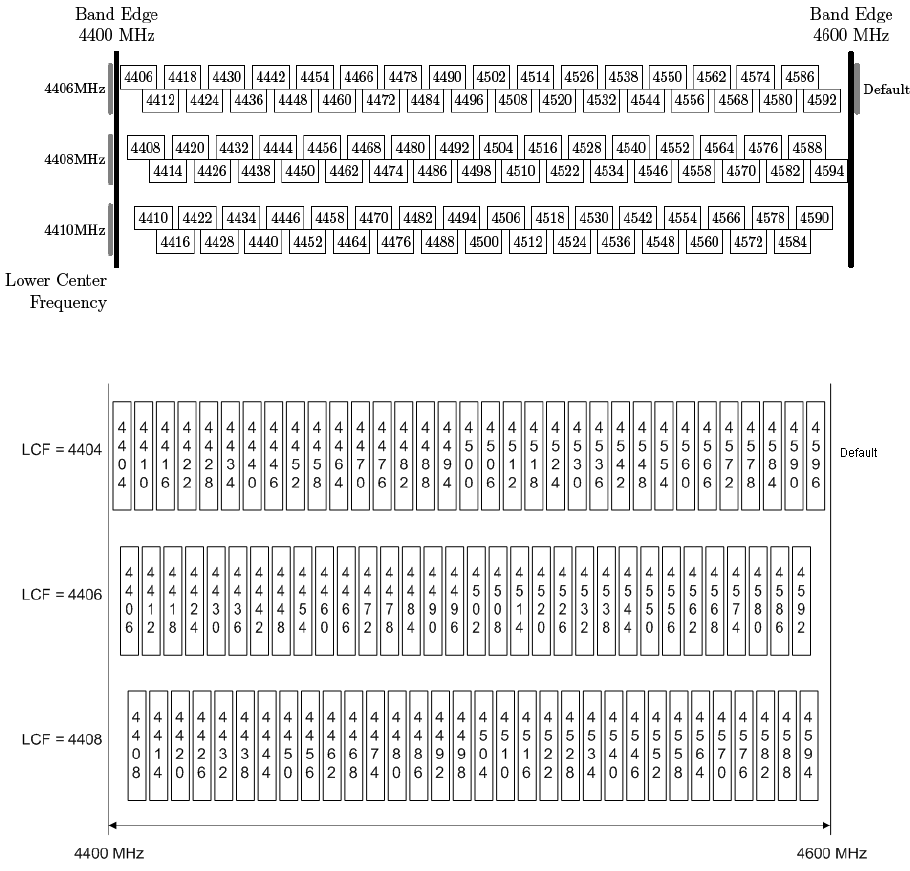

Figure 4-2 PTP 45600 available spectrum in 30 MHz channel bandwidth (RC 23).................... 4-29
Figure 4-3 PTP 45600 available spectrum in 20 MHz channel bandwidth (RC 23).................... 4-30
Figure 4-4 PTP 45600 available spectrum in 15 MHz channel bandwidth (RC 23).................... 4-30

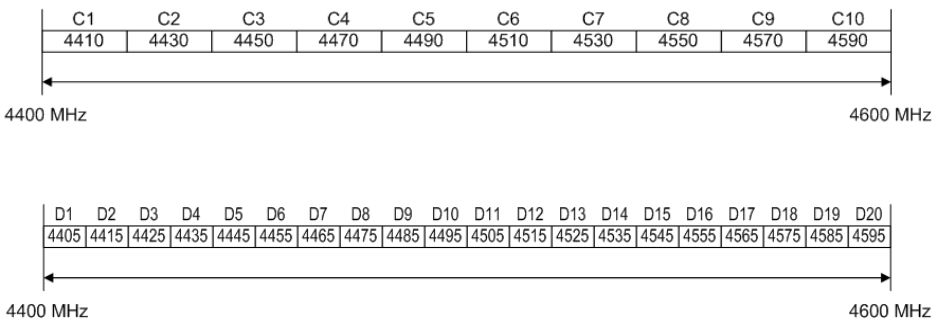

Figure 4-5 PTP 45600 available spectrum in 10 MHz channel bandwidth (RC 23).................... 4-31
Figure 4-6 PTP 45600 available spectrum in 5 MHz channel bandwidth (RC 23)...................... 4-31
Figure 4-7 PTP 45600 available spectrum in 20 MHz channel bandwidth (RC 24).................... 4-32
Figure 4-8 PTP 45600 available spectrum in 10 MHz channel bandwidth (RC 24).................... 4-32
Figure 4-9 PTP 48600 available spectrum in 20 MHz channel bandwidth (RC 15 and 23) ........ 4-39
Figure 4-10 PTP 48600 available spectrum in 15 MHz channel bandwidth (RC 15 and 23) ...... 4-40
Figure 4-11 PTP 48600 available spectrum in the 10 MHz channel bandwidth (RC 15 and 23) 4-40
Figure 4-12 PTP 48600 available spectrum in 5 MHz channel bandwidth (RC 15 and 23)........ 4-41
Figure 4-13 PTP 48600 available spectrum in the 20 MHz channel bandwidth (RC 24)............ 4-41
Figure 4-14 PTP 48600 available spectrum in 10 MHz channel bandwidth (RC 24).................. 4-42
Figure 4-15 PTP 49600 available spectrum in 20 MHz channel bandwidth ...............................4-49
Figure 4-16 PTP 49600 available spectrum in the 10 MHz channel bandwidth.........................4-49
Figure 4-17 PTP 49600 available spectrum in the 5 MHz channel bandwidth........................... 4-50
Figure 4-18 PTP 54600 available spectrum in 30 MHz channel bandwidth ...............................4-60
Figure 4-19 PTP 54600 available spectrum in 15 MHz channel bandwidth ...............................4-61
Figure 4-20 PTP 54600 available spectrum in 10 MHz channel bandwidth ...............................4-61
Figure 4-21 PTP 54600 available spectrum in 5 MHz channel bandwidth .................................4-61
Figure 4-22 PTP 58600 available spectrum in 30 MHz channel bandwidth ...............................4-80
List of Figures
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xix

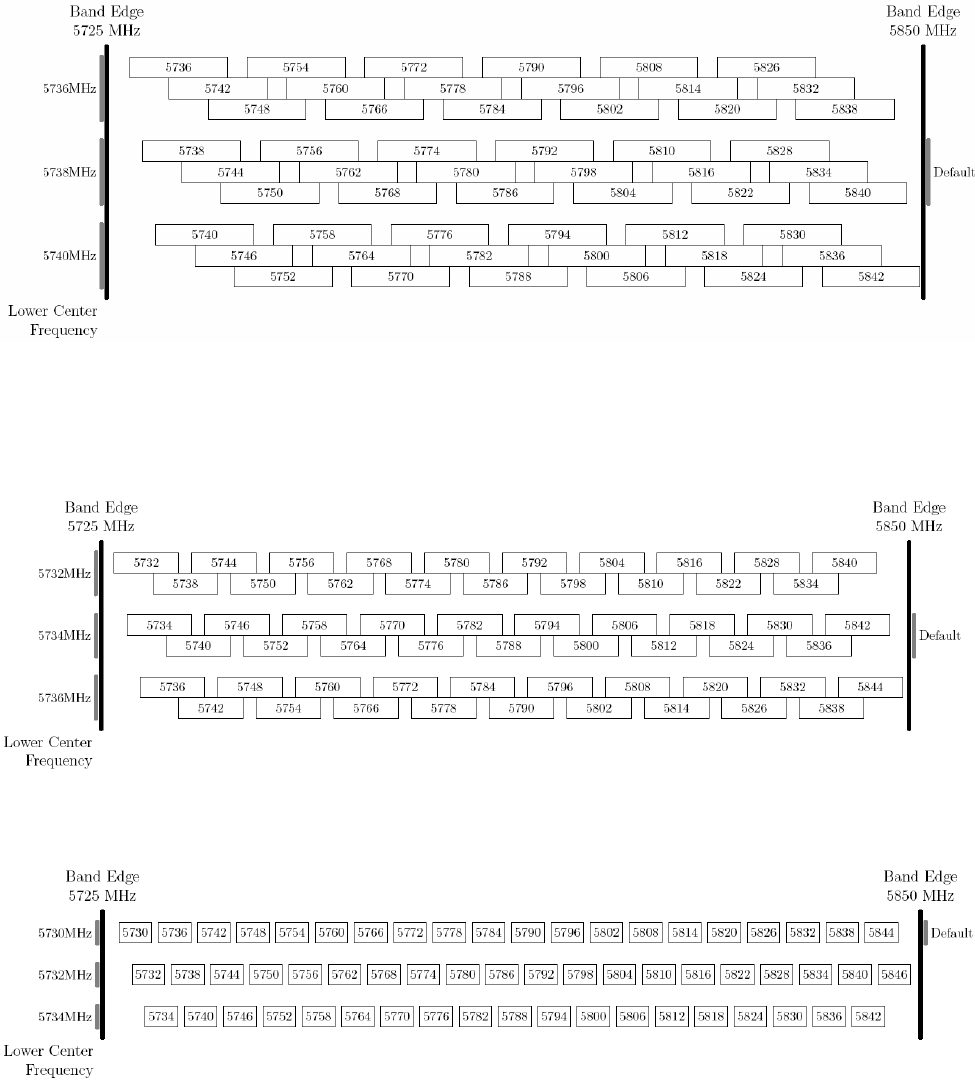

Figure 4-23 PTP 58600 available spectrum in 15 MHz channel bandwidth ...............................4-81
Figure 4-24 PTP 58600 available spectrum in the 10 MHz channel bandwidth .........................4-81
Figure 4-25 PTP 58600 available spectrum in 5 MHz channel bandwidth .................................4-81
Figure 4-26 PTP 59600 available spectrum in 30 MHz channel bandwidth ...............................4-94
Figure 4-27 PTP 59600 available spectrum in 15 MHz channel bandwidth ...............................4-95
Figure 4-28 PTP 59600 available spectrum in 10 MHz channel bandwidth ...............................4-96
Figure 4-29 PTP 59600 available spectrum in 5 MHz channel bandwidth .................................4-96
Figure 4-30 PTP 600 range adjustment for data rates, curve A................................................4-115
Figure 4-31 PTP 600 range adjustment for data rates, curve B................................................4-115
Figure 4-32 PTP 600 range adjustment for data rates, curve C ...............................................4-116
Figure 4-33 PTP 600 range adjustment for data rates, curve D ...............................................4-116
Figure 4-34 PTP 600 range adjustment for data rates, curve E................................................4-117
Figure 4-35 PTP 600 range adjustment for data rates, curve F................................................4-117
Figure 4-36 PTP 600 range adjustment for data rates, curve G ...............................................4-118
Figure 4-37 PTP 600 range adjustment for data rates, curve H ...............................................4-118
Figure 4-38 PTP 600 range adjustment for data rates, curve K................................................4-119
Figure 4-39 PTP 600 range adjustment for data rates, curve L................................................4-119
Figure 4-40 PTP 600 range adjustment for data rates, curve N ................................................4-120
Figure 4-41 PTP 600 range adjustment for data rates, curve O ...............................................4-121
Figure 5-1 Correct cable preparation for the supported Superior Essex cable............................5-9
Figure 5-2 Completed ODU connector ........................................................................................5-10
Figure 5-3 Cable grounding kit for 1/4” and 3/8” cable..............................................................5-11
Figure 5-4 Correct and incorrect tightening of cable gland back shell ......................................5-17
Figure 5-5 ODU with mounting bracket and earth bonding leads ..............................................5-19
Figure 5-6 Integral safety loop....................................................................................................5-20
Figure 5-7 UltraSync unit............................................................................................................5-24
Figure 5-8 UltraSync unit connections........................................................................................5-25
Figure 5-9 UltraSync - PTP600 deployment diagram..................................................................5-26
Figure 5-10 UltraSync unit complete installation .......................................................................5-27
Figure 5-11 RJ45 and Trimble connector pins ............................................................................5-30
Figure 5-12 PTP-SYNC kit ...........................................................................................................5-36
Figure 5-13 PTP800 CMU / PTP-SYNC 19” rack mount installation kit......................................5-37
Figure 5-14 Rack mount securing screws for PTP-SYNC............................................................5-38
List of Figures
phn-0896_009v003
xx UNDER DEVELOPMENT Feb 2010
Figure 5-15 PTP-SYNC mounted on wall..................................................................................... 5-38
Figure 5-16 ODU PIDU Plus connection .....................................................................................5-43
Figure 5-17 Correct and incorrect PIDU cable dressing............................................................. 5-48
Figure 5-18 PIDU Plus drip loop configuration........................................................................... 5-49
Figure 5-19 RJ45 pin connection (T568B color coding) ..............................................................5-50
Figure 5-20 Cable connection diagram (T568B color coding) ....................................................5-51
Figure 5-21 E1-T1 connections at the ODU and patch panel......................................................5-52
Figure 5-22 Two E1-T1-120 ohms signal balanced to PTP600 interface ....................................5-53
Figure 5-23 PIDU Plus and E1/T1 connection.............................................................................5-54
Figure 5-24 Example of a Balun.................................................................................................. 5-56
Figure 6-1 Menu navigation bar.................................................................................................... 6-3
Figure 6-2 System Summary page ................................................................................................6-4
Figure 6-3 Alarm warning triangle................................................................................................6-6
Figure 6-4 System Status page ................................................................................................... 6-10
Figure 6-5 Status page - TDD enabled and synchronized ........................................................... 6-17
Figure 6-6 Status page - TDD enabled and not synchronized..................................................... 6-17
Figure 6-7 System administration login page .............................................................................6-18
Figure 6-8 System Configuration Page .......................................................................................6-20
Figure 6-9 Spectrum Management as seen from the Master ..................................................... 6-25
Figure 6-10 Spectrum Management as seen from the Slave ......................................................6-26
Figure 6-11 Example spectrum management graphic ................................................................6-28
Figure 6-12 Active channel history screen..................................................................................6-30
Figure 6-13 Spectrum management time series plot..................................................................6-31
Figure 6-14 Spectrum Management Fixed Frequency Mode page.............................................6-32
Figure 6-15 Spectrum Management Help Page (fixed frequency).............................................. 6-33
Figure 6-16 Spectrum Management Radar Avoidance page - Master ........................................6-35
Figure 6-17 Spectrum Management Radar Avoidance page - Slave...........................................6-36
Figure 6-18 PTP 25600 example of Spectrum Management page.............................................. 6-38
Figure 6-19 QoS Configuration page .......................................................................................... 6-39
Figure 6-20 LAN Configuration page.......................................................................................... 6-42
Figure 6-21 Configuration Reboot page......................................................................................6-44
Figure 6-22 Configuration Reboot page - Ethernet auto negotiation disabled ...........................6-45
Figure 6-23 LAN Configuration page with VLAN fields.............................................................. 6-46
Figure 6-24 LAN Configuration page for manual Ethernet configuration ..................................6-48
List of Figures
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xxi
Figure 6-25 Telecoms page .........................................................................................................6-49
Figure 6-26 Software License Key page......................................................................................6-53
Figure 6-27 Current installation summary page .........................................................................6-54
Figure 6-28 Step 1: Interface Configuration page ......................................................................6-55
Figure 6-29 VLAN Warning .........................................................................................................6-56
Figure 6-30 Step 1: Interface Configuration page for telecoms .................................................6-57
Figure 6-31 Step 2: Wireless Configuration page .......................................................................6-59
Figure 6-32 Step 2: Wireless Configuration page (extract) for fixed frequency .........................6-65
Figure 6-33 Step 3: TDD Synchronization page..........................................................................6-66
Figure 6-34 Step 3: Confirm Installation Configuration page.....................................................6-70
Figure 6-35 Reboot confirmation pop up ....................................................................................6-71
Figure 6-36 Disarm Installation page..........................................................................................6-72
Figure 6-37 Optional post disarm configuration 1 ......................................................................6-73
Figure 6-38 Optional post disarm configuration 2 ......................................................................6-73
Figure 6-39 Disarm following TDD synchronization ...................................................................6-74
Figure 6-40 Graphical installation screen ...................................................................................6-75
Figure 6-41 Software License Key page......................................................................................6-77
Figure 6-42 Reboot Wireless Unit dialog ....................................................................................6-80
Figure 6-43 Reboot Confirmation dialog.....................................................................................6-80
Figure 6-44 Save & Restore Configuration page ........................................................................6-82
Figure 6-45 Software Upgrade page...........................................................................................6-85
Figure 6-46 Software Upgrade Confirmation page.....................................................................6-86
Figure 6-47 Upgrade Progress Tracker ......................................................................................6-86
Figure 6-48 Software Upgrade Complete page...........................................................................6-86
Figure 6-49 Reboot confirmation pop up ....................................................................................6-87
Figure 6-50 User Accounts page .................................................................................................6-91
Figure 6-51 Change Password page (System Administration example)......................................6-95
Figure 6-52 Step 2: Wireless Configuration page AES attributes ..............................................6-97
Figure 6-53 Configuration reboot screen....................................................................................6-97
Figure 6-54 Current Security Summary page .............................................................................6-99
Figure 6-55 Step 1: Enter Key of Keys page .............................................................................6-100
Figure 6-56 Step 2: TLS Private Key and Public Certificate page ............................................6-101
Figure 6-57 Step 3: User Security Banner page .......................................................................6-102
List of Figures
phn-0896_009v003
xxii UNDER DEVELOPMENT Feb 2010
Figure 6-58 Step 4: Random Number Entropy Input page ....................................................... 6-103
Figure 6-59 Step 5: Enter The Wireless Link Encryption Key page..........................................6-104
Figure 6-60 Step 6: HTTP and Telnet Settings page.................................................................6-105
Figure 6-61 Step 7: Commit Security Configuration page........................................................ 6-107
Figure 6-62 Tamper evident label on side edge of ODU ...........................................................6-110
Figure 6-63 Tamper evident label on top edge of ODU ............................................................6-110
Figure 6-64 Remote Management page.................................................................................... 6-112
Figure 6-65 Warning when disabling HTTP interface...............................................................6-113
Figure 6-66 Diagnostic Alarms page......................................................................................... 6-114
Figure 6-67 System Statistics page........................................................................................... 6-119
Figure 6-68 Detailed Counters page .........................................................................................6-124
Figure 6-69 Diagnostic Plotter page ......................................................................................... 6-129
Figure 6-70 Generate Downloadable Diagnostics page ............................................................ 6-130
Figure 6-71 Webpage Properties page......................................................................................6-131
Figure 6-72 Reboot Wireless Unit page ....................................................................................6-132
Figure 6-73 Reboot confirmation pop up ..................................................................................6-132
Figure 7-1 Link end hardware test flowchart #1..........................................................................7-3
Figure 7-2 Link end hardware test flowchart #2..........................................................................7-4
Figure 7-3 PTP LPU test points..................................................................................................... 7-8
Figure 7-4 Drop cable tester (front and back views) ..................................................................7-13
Figure 7-5 GPS synchronization unit ..........................................................................................7-16
Figure 7-6 Recovery Image Warning page..................................................................................7-20
Figure 7-7 Recovery Options page .............................................................................................. 7-21
Figure 7-8 Upgrade Progress Tracker page................................................................................ 7-22
Figure 7-9 Software Upgrade Complete page.............................................................................7-23
Figure 7-10 Reboot confirmation pop up ....................................................................................7-23
Figure 7-11 Confirm reset to factory default pop up .................................................................. 7-24
Figure 7-12 Ethernet & IP configuration erased successfully page ...........................................7-24
Figure 7-13 Reboot confirmation pop up ....................................................................................7-25
Figure 7-14 Confirm erase configuration pop up........................................................................ 7-25
Figure 7-15 Erase configuration successful page ....................................................................... 7-26
Figure 7-16 Erase configuration - reboot confirmation pop up .................................................. 7-27
Figure 7-17 Recovery - reboot confirmation pop up ...................................................................7-28
Figure 8-1 Connectorized PTP 600 Series outdoor unit................................................................ 8-2
List of Figures
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xxiii
Figure 8-2 Connectorized PTP 600 Series Status page.................................................................8-3
Figure 8-3 Connectorized PTP 600 Series System Configuration page ........................................8-4
Figure 8-4 Connectorized PTP 600 Series Wireless Configuration page ......................................8-5
Figure 8-5 Connectorized PTP 600 Series Confirm Installation page...........................................8-7
Figure 8-6 Connectorized PTP 600 Series Disarm Installation page ............................................8-8
Figure 8-7 Forming a drip loop ...................................................................................................8-19
Figure 8-8 Weatherproofing the antenna connections................................................................8-19
Figure 8-9 Additional grounding when using connectorized units .............................................8-20
Figure 8-10 Lightning arrestor mounting ...................................................................................8-21
Figure 8-11 Polyphaser assembly................................................................................................8-22
List of Figures
phn-0896_009v003
xxiv UNDER DEVELOPMENT Feb 2010
![](/img.php?id=1237757&img=bg1b.png)
List
of
Tables
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xxv
List of Tables
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
Table 1-1 PTP 600 Series frequency variants................................................................................1-4
Table 1-2 Supported Superior Essex cable - available lengths and part numbers......................1-15
Table 1-3 Recommended outdoor connectors for ODU and LPU ................................................1-16
Table 1-4 Recommended outdoor connectors for Trimble GPS receiver ....................................1-16
Table 1-5 Recommended indoor CAT5e connectors....................................................................1-17
Table 1-6 PTP-SYNC front panel interfaces ................................................................................1-31
Table 1-7 PTP-SYNC indicator LEDs ...........................................................................................1-32
Table 1-8 Default SNMPv3 users ................................................................................................1-43
Table 1-9 Default view trees........................................................................................................1-44
Table 1-10 Default data fill for access table................................................................................1-46
Table 1-11 Minimum part number suffix for FIPS 140-2 mode...................................................1-53
Table 2-1 Lateral force – imperial .................................................................................................2-7
Table 2-2 Lateral force – metric ....................................................................................................2-8
Table 4-1 PTP 600 management specifications.............................................................................4-5
Table 4-2 PTP 600 Ethernet bridging specifications.....................................................................4-5
Table 4-3 PTP 600 physical specifications ....................................................................................4-6
Table 4-4 PTP 600 power supply specifications ............................................................................4-6
Table 4-5 PTP 600 telecoms interface specifications ....................................................................4-7
Table 4-6 PTP 600 PTP-SYNC physical specifications...................................................................4-7
Table 4-7 PTP 600 safety compliance specifications.....................................................................4-7
Table 4-8 Power compliance margins .........................................................................................4-12
Table 4-9 PTP 600 environmental specifications ........................................................................4-15
Table 4-10 PTP 25600 examples of regulatory limits..................................................................4-16
Table 4-11 PTP 25600 licenses and region codes .......................................................................4-17
Table 4-12 PTP 25600 RF specifications .....................................................................................4-19
Table 4-13 PTP 25600 EMC emissions compliance.....................................................................4-20
List of Tables
phn-0896_009v003
xxvi UNDER DEVELOPMENT Feb 2010
Table 4-14 PTP 25600 radio certifications .................................................................................. 4-20
Table 4-15 PTP 25600 channel plan - FCC BRS-EBS Post-Transition Band................................ 4-22
Table 4-16 PTP 25600 - IP mode - threshold, power and link loss..............................................4-24
Table 4-17 PTP 25600 - TDM mode - threshold, power and link loss .........................................4-25
Table 4-18 PTP 45600 examples of regulatory limits..................................................................4-26
Table 4-19 PTP 45600 licenses and region codes ....................................................................... 4-26
Table 4-20 PTP 45600 RF specifications..................................................................................... 4-27
Table 4-21 PTP 45600 EMC emissions compliance..................................................................... 4-28
Table 4-22 PTP 45600 radio certifications .................................................................................. 4-28
Table 4-23 PTP 45600 - IP mode - threshold, power and loss per modulation mode.................. 4-33
Table 4-24 PTP 45600 - TDM mode - threshold, power and loss per modulation mode ............. 4-34
Table 4-25 PTP 48600 examples of regulatory limits..................................................................4-35
Table 4-26 PTP 48600 licenses and region codes ....................................................................... 4-36
Table 4-27 PTP 48600 RF specifications..................................................................................... 4-37
Table 4-28 PTP 48600 EMC emissions compliance..................................................................... 4-38
Table 4-29 PTP 48600 radio certifications .................................................................................. 4-38
Table 4-30 PTP 48600 - IP mode - threshold, power and loss per modulation mode.................. 4-43
Table 4-31 PTP 48600 - TDM Mode - threshold, power and loss per modulation mode ............. 4-44
Table 4-32 PTP 49600 examples of regulatory limits..................................................................4-45
Table 4-33 PTP 49600 licenses and region codes ....................................................................... 4-45
Table 4-34 PTP 49600 RF specifications..................................................................................... 4-47
Table 4-35 PTP 49600 EMC emissions compliance..................................................................... 4-48
Table 4-36 PTP 49600 radio certifications .................................................................................. 4-48
Table 4-37 PTP 49600 - IP mode - threshold, power and loss per modulation mode.................. 4-51
Table 4-38 PTP 49600 - TDM mode - threshold, power and loss per modulation mode ............. 4-52
Table 4-39 PTP 54600 examples of regulatory limits..................................................................4-53
Table 4-40 PTP 54600 licenses and region codes ....................................................................... 4-54
Table 4-41 PTP 54600 RF specifications..................................................................................... 4-58
Table 4-42 PTP 54600 EMC emissions compliance..................................................................... 4-59
Table 4-43 PTP 54600 radio certifications .................................................................................. 4-59
Table 4-44 PTP 54600 - IP mode - threshold, power and loss per modulation mode.................. 4-62
Table 4-45 PTP 54600 - TDM mode - threshold, power and loss per modulation mode ............. 4-63
Table 4-46 Allowed antennas for deployment in USA/Canada – 5.4 GHz ................................... 4-64
Table 4-47 PTP 58600 examples of regulatory limits..................................................................4-67
List of Tables
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT xxvii
Table 4-48 PTP 58600 licenses and region codes .......................................................................4-70
Table 4-49 PTP 58600 RF specifications .....................................................................................4-77
Table 4-50 PTP 58600 EMC emissions compliance.....................................................................4-78
Table 4-51 PTP 58600 radio certifications ..................................................................................4-79
Table 4-52 PTP 58600 band edge Tx power reduction................................................................4-82
Table 4-53 PTP 58600 - IP mode - threshold, power and loss per modulation mode.................4-83
Table 4-54 PTP 58600 - TDM mode - threshold, power and loss per modulation mode .............4-84
Table 4-55 Allowed antennas for deployment in USA/Canada – 5.8 GHz ...................................4-85
Table 4-56 Sectored antennas for deployment in USA/Canada – 5.8 GHz..................................4-89
Table 4-57 PTP 59600 examples of regulatory limits..................................................................4-90
Table 4-58 PTP 59600 licenses and region codes .......................................................................4-91
Table 4-59 PTP 59600 RF specifications .....................................................................................4-92
Table 4-60 PTP 59600 - IP mode - threshold, power and loss per modulation mode.................4-97
Table 4-61 PTP 59600 - TDM mode - threshold, power and loss per modulation mode .............4-98
Table 4-62 Throughput for PTP 600 Full, link symmetry 1:1, link optimization IP...................4-103
Table 4-63 Throughput for PTP 600 Full, link symmetry 1:1, link optimization TDM ..............4-105
Table 4-64 Throughput for PTP 600 Full, link symmetry 2:1, link optimization = IP ...............4-107
Table 4-65 Throughput for PTP 600 Full, link symmetry 2:1, link optimization = TDM...........4-109
Table 4-66 Throughput for PTP 600 Full, link symmetry Adaptive, link optimization = IP ......4-111
Table 4-67 Range adjustment characteristics ...........................................................................4-113
Table 5-1 Trimble connector to RJ45 pin mappings ....................................................................5-29
Table 5-2 Telecoms connection pin out.......................................................................................5-51
Table 5-3 Protection requirements..............................................................................................5-57
Table 5-4 Resistance referenced to the E1/T1 source.................................................................5-58
Table 5-5 ODU installation tones.................................................................................................5-59
Table 6-1 Spectrum management change state key ...................................................................6-29
Table 6-2 Spectrum management time series key ......................................................................6-31
Table 6-3 Spectrum management change state key with operational restrictions.....................6-37
Table 6-4 QoS default settings ....................................................................................................6-40
Table 6-5 Classification rules upgrade example..........................................................................6-40
Table 6-6 IEEE802.1Q classification rules ..................................................................................6-41
Table 6-7 Factory configuration values.......................................................................................6-51
Table 6-8 Capability summary attributes ....................................................................................6-78
List of Tables
phn-0896_009v003
xxviii UNDER DEVELOPMENT Feb 2010
Table 6-9 User accounts attributes .............................................................................................6-92
Table 6-10 Identity-based user accounts attributes.................................................................... 6-94
Table 6-11 HTTP and Telnet attributes..................................................................................... 6-106
Table 6-12 SNMP attributes in the Remote Management page................................................6-115
Table 7-1 Expected RJ45 cable resistances at the PIDU Plus .....................................................7-15
Table 8-1 Normal EIRP limits with operating channel bandwidth.............................................. 8-10
Table 8-2 Setting maximum transmit power to meet general EIRP limits..................................8-11
Table 8-3 Cable losses per length ............................................................................................... 8-12
![](/img.php?id=1237757&img=bg1f.png)
About
This
User Guide
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1
About This User Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
This guide describes the planning, installation and operation of the Motorola PTP 600
Series of Point-to-Point Wireless Ethernet Bridges. It is intended for use by the link
planner, system installer and the end user IT professional. The users of this guide will
require expertise in the following areas:
• Outdoor radio equipment installation
• Network configuration
• Use of web browser for system configuration, monitoring and fault finding
![](/img.php?id=1237757&img=bg20.png)
Revision history
phn-0896_009v003
2 UNDER DEVELOPMENT Feb 2010
Revision history
Version information
The following shows the issue status of this document since it was first released.
Document
issue Date of issue Remarks
008v000 Dec 2008 System release 600-08-00
008v004 Apr 2009 System release 600-08-01
008v005 May 2009 System release 600-08-02
008v007 Jul 2009 System release 600-08-03
009v000 Nov 2009 System release 600-08-03 (revised)
009v003
(*)
Feb 2010 System release 600-08-50 (under development)
(*) AUTHOR NOTE: Will be published as document issue 010v000.
![](/img.php?id=1237757&img=bg21.png)
General information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 3
General information
Purpose
Motorola Point-To-Point documents are intended to instruct and assist personnel in the
operation, installation and maintenance of the Motorola Point-To-Point equipment and
ancillary devices. It is recommended that all personnel engaged in such activities be
properly trained by Motorola.
Motorola disclaims all liability whatsoever, implied or express, for any risk of damage,
loss or reduction in system performance arising directly or indirectly out of the failure
of the customer, or anyone acting on the customer's behalf, to abide by the
instructions, system parameters, or recommendations made in this document.
Cross references
References to external publications are shown in italics. Other cross references,
emphasized in blue text in electronic versions, are active links to the references.
This document is divided into numbered chapters that are divided into sections.
Sections are not numbered, but are individually named at the top of each page, and
are listed in the table of contents.
![](/img.php?id=1237757&img=bg22.png)
General information
phn-0896_009v003
4 UNDER DEVELOPMENT Feb 2010
Text conventions
The following conventions are used in the Motorola Point-To-Point documents to
represent keyboard input text, screen output text and special key sequences.
Input
Characters typed in at the keyboard are shown like this.
Output
Messages, prompts, file listings, directories, utilities, and
environmental variables that appear on the screen are shown like this.
Special key sequences
Special key sequences are represented as follows:
CRTL-c or
CTRL+C
Press the Ctrl and C keys at the same time.
CTRL-SHIFT-c or
CTRL+SHIFT+C
Press the Ctrl, Shift, and C keys at the same time.
ALT-f or ALT+F Press the Alt and F keys at the same time.
ALT+SHIFT+F11 Press the Alt, Shift, and F11 keys at the same time.
| Press the pipe symbol key.
RETURN or
ENTER
Press the Return or Enter key.
![](/img.php?id=1237757&img=bg23.png)
Contacting Motorola
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 5
Contacting Motorola
Feedback
We appreciate feedback from the users of our documents. This includes feedback on
the structure, content, accuracy, or completeness of our documents. Send feedback to
support.ptp@motorola.com.
Motorola Point-to-Point
Postal Address:
Motorola, Inc.,
1303 E. Algonquin Road,
Schaumburg,
Illinois 60196
U.S.A.
Web Site: http://www.motorola.com/ptp
Sales Enquiries: sales.ptp@motorola.com
Web Support: http://www.motorola.com/ptp/support
Email Support: support.ptp@motorola.com
All Other Enquiries: info.ptp@motorola.com
![](/img.php?id=1237757&img=bg24.png)
Contacting Motorola
phn-0896_009v003
6 UNDER DEVELOPMENT Feb 2010
WiBB Technical Support telephone numbers
Region and country Support telephone number
North America:
USA and Canada 866-961-9288
Europe, Middle East and Africa:
Denmark 043682114
France 0157323434
Germany 06950070204
Italy 0291483230
Lithuania 800 030 828
Netherlands 0202061404
Norway 24159815
Portugal 0217616160
Spain 912754787
Russia 810 800 228 41044
Saudi Arabia 800 844 5345
South Africa 0800981900
United Kingdom 0203 0277499
All other countries +44 203 0277499
Latin and Central America:
Argentina 0800-666-2789
Brazil 0800-891-4360
![](/img.php?id=1237757&img=bg25.png)
Contacting Motorola
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 7
Region and country Support telephone number
Chile 800-225-288
Columbia 01-800-912-0557
Mexico 001-800-942-7721
Peru 0800-70-086
All other countries +420 533 336 946
Asia, Pacific and China:
Australia 800 457 439
Singapore 64 155 110
All other countries +420 533 336 946
Reporting problems
If any problems are encountered when installing or operating this equipment, follow
this procedure to investigate and report:
1. Search this document and the software release notes of supported releases.
2. Visit the Motorola website at http://ww.motorola.com/ptp.
3. Ask for assistance from the Motorola products supplier.
4. Gather information from affected units such as:
o The IP addresses and MAC addresses
o The software releases
o The configuration of software features
o Any available diagnostic downloads
5. Escalate the problem to Motorola as follows:
o Either: send e-mail to support.ptp@motorola.com
o Or: call WiBB Technical Support.
For warranty assistance, contact the reseller or distributor.
![](/img.php?id=1237757&img=bg26.png)
Contacting Motorola
phn-0896_009v003
8 UNDER DEVELOPMENT Feb 2010
Repair and service
For unit repair or service, contact the PTP Global Technical Support Center for Return
Material Authorization (RMA) and shipping instructions. The Global Technical Support
Center is contacted at:
http://www.motorola.com/ptp/support
Further details of the RMA process are available at:
http://www.motorola.com/ptp/support
Warranty
Motorola’s standard hardware warranty is for one (1) year from date of shipment from
Motorola or a Motorola Point-to-Point Distributor. Motorola warrants that hardware
will conform to the relevant published specifications and will be free from material
defects in material and workmanship under normal use and service. Motorola shall
within this time, at its own option, either repair or replace the defective product within
thirty (30) days of receipt of the defective product. Repaired or replaced product will
be subject to the original warranty period but not less than thirty (30) days.
Details of Motorola’s Extended Warranty Program are available at:
http://www.motorola.com/ptp/support
Please register your PTP products at:
http://www.motorola.com/ptp/support
CAUTION
Using non-Motorola parts for repair could damage the equipment or void
warranty. Contact Motorola Warranty and Repair for service and repair
instructions.
CAUTION
Portions of Motorola equipment may be damaged from exposure to
electrostatic discharge. Use precautions to prevent damage.
![](/img.php?id=1237757&img=bg27.png)
Security advice
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 9
Security advice
Motorola systems and equipment provide security parameters that can be configured
by the operator based on their particular operating environment. Motorola
recommends setting and using these parameters following industry recognized
security practices. Security aspects to be considered are protecting the confidentiality,
integrity, and availability of information and assets. Assets include the ability to
communicate, information about the nature of the communications, and information
about the parties involved.
In certain instances Motorola makes specific recommendations regarding security
practices, however the implementation of these recommendations and final
responsibility for the security of the system lies with the operator of the system.
![](/img.php?id=1237757&img=bg28.png)
Warnings, cautions, and notes
phn-0896_009v003
10 UNDER DEVELOPMENT Feb 2010
Warnings, cautions, and notes
The following describes how warnings and cautions are used in this document and in
all documents of this Motorola document set.
Warnings
Warnings precede instructions that contain potentially hazardous situations. Warnings
are used to alert the reader to possible hazards that could cause loss of life or physical
injury. A warning has the following format:
WARNING
Warning text and consequence for not following the instructions in
the warning.
Cautions
Cautions precede instructions and are used when there is a possibility of damage to
systems, software, or individual items of equipment within a system. However, this
damage presents no danger to personnel. A caution has the following format:
CAUTION
Caution text and consequence for not following the instructions in the
caution.
Notes
A note means that there is a possibility of an undesirable situation or provides
additional information to help the reader understand a topic or concept. A note has the
following format:
NOTE
Note text.
![](/img.php?id=1237757&img=bg29.png)
Caring for the environment
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 11
Caring for the environment
The following information describes national or regional requirements for the disposal
of Motorola supplied equipment and for the approved disposal of surplus packaging.
In EU countries
The following information is provided to enable regulatory compliance with the
European Union (EU) directives identified and any amendments made to these
directives when using Motorola equipment in EU countries.
Disposal of Motorola equipment
European Union (EU) Directive 2002/96/EC Waste Electrical and Electronic Equipment
(WEEE)
Do not dispose of Motorola equipment in landfill sites. In the EU, Motorola in
conjunction with a recycling partner ensures that equipment is collected and recycled
according to the requirements of EU environmental law.
Disposal of surplus packaging
Do not dispose of surplus packaging in landfill sites. In the EU, it is the individual
recipient’s responsibility to ensure that packaging materials are collected and recycled
according to the requirements of EU environmental law.
In non-EU countries
In non-EU countries, dispose of Motorola Networks equipment and all surplus
packaging in accordance with national and regional regulations.
![](/img.php?id=1237757&img=bg2b.png)
Chapter 1
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-1
Chapter 1 Product description
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
This chapter provides a high level description of the PTP 600 product. It describes in
general terms the function of the product, the main product variants and typical
deployment. It also describes the main hardware components.
The following topics are described in this chapter:
• Product function on page 1-2
• Typical deployment on page 1-3
• Product variants on page 1-4
• Outdoor unit (ODU) on page 1-6
• PIDU Plus PTP 300/500/600 Series on page 1-9
• Cables and connectors on page 1-15
• PTP and lightning protection on page 1-18
• Wireless operation on page 1-19
• Ethernet bridging on page 1-33
• Telecoms circuits on page 1-36
• System management on page 1-38
• FIPS 140-2 on page 1-52
![](/img.php?id=1237757&img=bg2c.png)
Product function Chapter 1 Product description
phn-0896_009v003
1-2 UNDER DEVELOPMENT Feb 2010
Product function
The PTP 600 Series Bridge has been developed to provide Point-to-Point data
connectivity via a wireless Ethernet bridge operating at broadband data rates.
The PTP 600 Series Bridge offers true non-line-of-sight (NLOS) operation by using a
combination of Orthogonal Frequency Division Multiplexing (OFDM) modulation and
Multiple-Input Multiple-Output (MIMO) techniques. These technologies enable the PTP
600 Series Bridge to drive through foliage and around buildings to such an extent that
almost universal coverage can be expected at short range.
The PTP 600 Series Bridge has been designed to coexist with other users of the band
in an optimal fashion using a combination of Transmit Power Control (TPC), Spectrum
Management functionality and Antenna beam shape. In order to maintain link
availability, the product employs adaptive modulation techniques that dynamically
reduce the data rate in severe or adverse conditions.
![](/img.php?id=1237757&img=bg2d.png)
User Guide: PTP 600 Series Typical deployment
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-3
Typical deployment
The PTP 600 Series Bridge consists of an identical pair of units deployed one at each
end of the link. The radio link operates on a single frequency channel in each direction
using Time Division Duplex (TDD). One unit is deployed as a master and the other as a
slave. The master unit takes responsibility for controlling the link in both directions.
The PTP 600 Series Bridge is aimed at a wide range of applications. An example
application is an enterprise that has a requirement to connect together the Local Area
Network (LAN) of two or more buildings as shown in Figure 1-1.
Figure 1-1 Typical PTP 600 Series bridge deployment
Each end of the link consists of:
• Outdoor Unit (ODU): An integrated (or connectorized - see Chapter 8
Connectorized PTP 600 series) outdoor transceiver unit containing all the radio
and networking electronics.
• PIDU Plus: An indoor connection box containing a mains power supply, status
indicators and network connection port.
A pair of units is normally supplied pre-configured as a link.
![](/img.php?id=1237757&img=bg2e.png)
Product variants Chapter 1 Product description
phn-0896_009v003
1-4 UNDER DEVELOPMENT Feb 2010
Product variants
Frequency variants
The PTP 600 Series has been developed to operate within license exempt frequency
bands as well as the licensed 2.5 GHz band in the USA. The frequency variants are
listed in Table 1-1.
Table 1-1 PTP 600 Series frequency variants
Variant Region Frequency
Coverage
Variable Channel
Bandwidth
Channel
Raster
2496-2568 MHz 5, 10, 15, 30 MHz 5.5 MHz
2572-2614 MHz 5, 10, 15, 30 MHz 6 MHz
PTP
25600
FCC BRS-EBS Post-
Transition Band
2618-2690 MHz 5, 10, 15, 30 MHz 5.5 MHz
4404-4596 MHz 5, 10, 15, 20 MHz 6 MHz US Federal
4404-4596 MHz 30 MHz 10 MHz
PTP
45600
NTIA 4400-4600 MHz 10, 20 MHz 6 MHz
US Federal 4710-4940 MHz 5, 10, 15, 20, MHz 5 MHz
US Federal Extended 4710-5000 MHz 5, 10, 15, 20, MHz 5 MHz
PTP
48600
NTIA 4700-4940 MHz 10, 20 MHz 5 MHz
USA/Canada Public
Safety
4940-4990 MHz 5, 10, 20 MHz 5 MHz PTP
49600
Hong Kong Public
Safety
4900-4950 MHz 5, 10, 20 MHz 5 MHz
5470-5725 MHz 5, 10, 15 MHz 6 MHz PTP
54600
ETSI 5 GHz Band B
FCC UNII Band 5470-5725 MHz 30 MHz 10 MHz
PTP ETSI 5 GHz Band C 5725-5850 MHz 5, 10, 15 MHz 6 MHz
![](/img.php?id=1237757&img=bg2f.png)
User Guide: PTP 600 Series Product variants
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-5
Variant Region Frequency
Coverage
Variable Channel
Bandwidth
Channel
Raster
58600 FCC ISM Band 5725-5850 MHz 30 MHz 10 MHz
5, 10, 15 MHz 6 MHz Russia 5825-5925 MHz
30 MHz 10 MHz
5, 10, 15 MHz 6 MHz
PTP
59600
India 5875-5925 MHz
30 MHz 10 MHz
NOTE
For PTP 25600, channel widths of 30 MHz are available where allowed by
local regulations and subject to some restrictions on channel choice.
For PTP 58600 ETSI 5 GHz Band C, use of the product is only allowed where
permitted by country-specific regulations.
Other product variants
The Lite versions have lower data throughput rates then the Full versions.
The PTP 600 outdoor unit (ODU) may be integrated (with its own antenna) or
connectorized (with a separate antenna).
![](/img.php?id=1237757&img=bg30.png)
Outdoor unit (ODU) Chapter 1 Product description
phn-0896_009v003
1-6 UNDER DEVELOPMENT Feb 2010
Outdoor unit (ODU)
The ODU is a self-contained unit. It houses both radio and networking electronics. The
ODU for the PTP 600 Series should only be deployed using the supplied PIDU PTP
300/500/600 Series. Figure 1-2 shows an installation example of a PTP 600 Series ODU
with a Motorola lightning protection unit (PTP-LPU).
Figure 1-2 PTP 600 Series outdoor unit (ODU) with PTP-LPU
![](/img.php?id=1237757&img=bg31.png)
User Guide: PTP 600 Series Outdoor unit (ODU)
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-7
Mounting brackets
The ODU is supplied with a bracket for mounting it to a pole of 50mm (2”) to 75mm
(3”) in diameter. For more details on mounting, see Chapter 3
The bracket allows for adjustment in both azimuth and elevation. The bracket may be
split to allow the pole mount section of the bracket to be mounted to the pole first.
This allows the installer to take the weight of the unit and secure it, one handed, with
a single mounting bolt.
• The PIDU can either be desk or wall mounted. The preference is wall mounted,
with the cables dressed to a cable channel. Wall mounting is achieved by
screwing through the mounting lugs on either side of the unit. Remember to
leave space for access to the Recovery button. See Section PIDU Plus PTP
300/500/600 Series on page 1-9.
Network connection
The network connection to a PTP 600 Series is made via a 1000BaseT Ethernet
connection. Power is provided to the ODU over the 1000BaseT Ethernet connection
using a patented non-standard powering technique.
Previous releases of the PTP 600 Series platform used different powering and
connection arrangements. Users of equipment prior to “Mod Record 1” should refer to
the User Guide shipped with the original equipment. The “Mod Record” label can be
found on the back of the ODU as shown in Figure 1-3.
Figure 1-3 Mod record label
Outdoor unit (ODU) Chapter 1 Product description
phn-0896_009v003
1-8 UNDER DEVELOPMENT Feb 2010
Alternatively, the network connection to a PTP 600 Series can be made using a
1000BaseSX Fiber Optic cable connected directly to the ODU. In this case power is
still provided over the 1000BaseT Ethernet connection. In the case of Fiber Optic cable
failure the PTP 600 Series will automatically fall back to the copper Ethernet
connection (provided the cable length <=100m [330 ft]). “PTP 600 Series Optical
Interface Upgrade Kits” can be obtained from your distributor, reseller or system
integrator.
![](/img.php?id=1237757&img=bg33.png)
User Guide: PTP 600 Series PIDU Plus PTP 300/500/600 Series
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-9
PIDU Plus PTP 300/500/600 Series
The PIDU Plus PTP 300/500/600 Series (Figure 1-4) is used to generate the ODU
supply voltage from the mains supply (or from an external DC source) and inject this
supply voltage into the 1000BaseT Ethernet connection to the ODU. The PIDU is
connected to the ODU and network equipment using CAT5e cable with standard RJ45
connectors.
CAUTION
Care should be taken not to connect equipment other than an ODU or LPU
for the PTP 600 Series to a PIDU ODU port, as equipment damage may
occur. The PIDU Plus PTP 300/500/600 Series is not interchangeable with
the PIDU Plus PTP 400 Series.
Figure 1-4 Power indoor unit (PIDU Plus PTP 300/500/600 Series)
Power and Ethernet LEDs
The front panel contains indicators showing the status of the power and Ethernet
connections:
• The Power indicator is illuminated when the PIDU is receiving mains power.
• The Ethernet indicator normally illuminates when the Ethernet link is working,
flashing when there is Ethernet activity. The fact that it lights also indicates that
the ODU is powered. At power up the LED will flash 10 times to indicate that a
correct start up sequence has occurred. See Chapter 7 Troubleshooting for
further fault finding information.
![](/img.php?id=1237757&img=bg34.png)
PIDU Plus PTP 300/500/600 Series Chapter 1 Product description
phn-0896_009v003
1-10 UNDER DEVELOPMENT Feb 2010
ODU, LAN and recovery
At the bottom of the PIDU is an entry point for the PIDU Plus to ODU cable, the
1000BaseT Ethernet network port and the Recovery switch.
Figure 1-5 PIDU Plus recovery switch location
The Recovery switch is used to recover the unit from configuration errors or software
image corruption. To put an ODU into recovery mode, the Recovery switch should be
pressed, then the power applied. The Recovery switch should be kept pressed for at
least 20 seconds after the power has been applied. Full instruction on the recovery
mode can be found in Using recovery mode on page 7-20.
A simple reboot can be performed by removing and re-applying the mains power to the
PIDU Plus.
DC In and Out
On the left hand side of the PIDU Plus, 48V DC input and output connections can be
found. These are used to power the PTP 600 Series from an external DC source or to
provide a level of power supply redundancy, as shown in Redundancy and alternative
powering configurations on page 1-11.
Remote connectors and jumpers
Also on the left hand side of the PIDU Plus, connectors and jumpers can be found that
allow the remote connection of power LED, Ethernet LED and Recovery switch. The
connection instructions can be found in Remote LEDs and recovery switch on page 1-
14 .
![](/img.php?id=1237757&img=bg35.png)
User Guide: PTP 600 Series PIDU Plus PTP 300/500/600 Series
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-11
Mains connection
The input supply range for the PIDU Plus is 90V-264V AC, 47-63Hz. Mains connection
to the PIDU Plus is made using a standard “figure of eight” mains lead as shown in
Figure 6.
Figure 1-6 PIDU Plus power input
Redundancy and alternative powering configurations
The PTP 600 Series can be powered from an external DC source and can be provided
with power supply redundancy as follows:
• External DC supply only (Figure 1-8): This configuration is for use where there is
no mains supply.
• External DC supply and AC supply (Figure 1-9): This configuration provides
redundancy through the use of mains and DC supply.
• External DC supply and redundant AC Supply (Figure 1-10): This configuration
guards against mains failure and failure of the DC output of single PTP
300/500/600 PIDU Plus.
NOTE
The use of DC supplies of less than 55v will reduce the usable distance
between the PIDU Plus and ODU (Figure 1-7).
![](/img.php?id=1237757&img=bg36.png)
PIDU Plus PTP 300/500/600 Series Chapter 1 Product description
phn-0896_009v003
1-12 UNDER DEVELOPMENT Feb 2010
Figure 1-7 Relationship between DC voltage and cable length
CAUTION
The maximum distance from the ODU to the connected network equipment
is 100m (330 ft) when using 1000BaseT. Powering distances over 100m (330
ft) are only applicable when using a 1000BaseSX (Fiber Optic) connection.
![](/img.php?id=1237757&img=bg37.png)
User Guide: PTP 600 Series PIDU Plus PTP 300/500/600 Series
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-13
Figure 1-8 External DC supply only
Figure 1-9 External DC supply and AC supply
![](/img.php?id=1237757&img=bg38.png)
PIDU Plus PTP 300/500/600 Series Chapter 1 Product description
phn-0896_009v003
1-14 UNDER DEVELOPMENT Feb 2010
Figure 1-10 External DC supply and redundant AC supply
Remote LEDs and recovery switch
The PIDU Plus provides a facility to connect remote LEDs and Recovery switch
allowing the PIDU Plus to be mounted inside an enclosure. At the left hand end of the
PIDU Plus under the ODU connection cover can be found a PCB header and three
jumpers. Jumpers J906 and J907 should be removed and connection to the remote
LEDs and Recovery switch made to J908 as shown in Figure 1-11.
Figure 1-11 Remote LED and recovery switch wiring
![](/img.php?id=1237757&img=bg39.png)
User Guide: PTP 600 Series Cables and connectors
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-15
Cables and connectors
Outdoor connections
The term ‘drop cable’ refers to the cable that is used for all connections that terminate
outside the building, that is for connections between the ODU, LPUs (if installed), GPS
receiver (if installed) and the ODU port of the PIDU Plus.
Supported Superior Essex cable
The only type of outdoor drop cable supported by Motorola is Superior Essex CAT5e,
which is UV resistant and has a screened shield. The available lengths and part
numbers are specified in Table 1-2.
CAUTION
Alternative types of drop cable are not supported by Motorola, as they may
increase the risk of lightning damage to the installation. See Lightning
protection on page 2-18.
Table 1-2 Supported Superior Essex cable - available lengths and part numbers
Length Part number
1000 ft BBDGe 04-001-55
2500 ft BBDGe 04-002-55
5000 ft BBDGe 04-003-55
Cut to length BBDGe 04-601-55
![](/img.php?id=1237757&img=bg3a.png)
Cables and connectors Chapter 1 Product description
phn-0896_009v003
1-16 UNDER DEVELOPMENT Feb 2010
Connectors and glands for outdoor use
The recommended connectors and glands to be used for connecting the supported
Superior Essex cable to the ODU or LPU are specified in Table 1-5.
Table 1-3 Recommended outdoor connectors for ODU and LPU
Item Manufacturer Part number
Connector Tyco (AMP) 5-569278
Crimp tool Tyco (AMP) 2-231652
Die set Tyco (AMP) 1-8534400-0
Gland Motorola WB1811
The recommended connectors and glands to be used for connecting the supported
Superior Essex cable to the Trimble GPS receiver are specified in Table 1-4.
Table 1-4 Recommended outdoor connectors for Trimble GPS receiver
Item Manufacturer Part number
12 way circular connector Deutsch IMC26-2212X
Size 22 crimp socket Deutsch 6862-201-22278
Crimp tool Daniels Manufacturing Corp MH860
Positioner Daniels Manufacturing Corp 86-5
Insertion / extraction tool Deutsch 6757-201-2201
Adaptor Deutsch IMC2AD
Self amalgamating tape
![](/img.php?id=1237757&img=bg3b.png)
User Guide: PTP 600 Series Cables and connectors
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-17
Indoor connections
The cable used for indoor connections, for example from the PIDU Plus to the network,
can be any standard screened or unscreened CAT5e cable. The recommended
connectors and glands to be used for indoor cables are specified in Table 1-5.
Table 1-5 Recommended indoor CAT5e connectors
Item Manufacturer Part number
Connector Tyco (AMP) 336330-1
Crimp tool Tyco (AMP) 790163-1 (includes die set)
The PIDU Plus provides screen continuity between the ODU and network equipment
connections.
NOTE
The ODU network connection implements automatic MDI/MDI-X sensing and
pair swapping, allowing connection to networking equipment that requires
cross-over cables (MDI-X networks) or straight-through cables (MDI
Networks).
![](/img.php?id=1237757&img=bg3c.png)
PTP and lightning protection Chapter 1 Product description
phn-0896_009v003
1-18 UNDER DEVELOPMENT Feb 2010
PTP and lightning protection
The PIDU Plus meets the low level static discharge specifications identified in
European EMC immunity compliance on page 4-9 but does not provide lightning or
surge suppression.
The amount of lightning protection is dependent on regulatory requirements and the
end user requirements. The standard ODU for the PTP 600 Series is fitted with surge
limiting circuits and other features to minimize the risk of damage due to nearby
lightning strikes. To be fully effective, these standard features require some additional
equipment to be configured as part of the system installation.
A separate Ethernet surge suppressor must be used and appropriately earthed.
Suitable surge suppressors can be sourced from your Motorola Point-to-Point
Distributor or Solutions Provider. See Lightning protection on page 2-18.
CAUTION
Motorola recommends the use of screened cable and Lightning Protection
units to protect connected equipment from nearby strikes.
The PTP 600 Series is not designed to survive direct lightning strikes. For
this reason the unit should not be installed as the highest point in a localized
area, unless specific precautions are taken. See Lightning protection on
page 2-18.
![](/img.php?id=1237757&img=bg3d.png)
User Guide: PTP 600 Series Wireless operation
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-19
Wireless operation
Time division duplex
PTP 600 series links use a duplexing scheme known as Time Division Duplex (TDD).
TDD operates by only allowing one end of the link to transmit at any one time. This
allows both link directions to operate on the same radio frequency, although this is not
mandatory. This differs from Frequency Division Duplex (FDD), where each end can
transmit and receive simultaneously but this does require the two directions to operate
on different frequencies, thereby increasing the demand for spectrum. TDD operates
cyclically, with the transmissions alternating between the two ends. The cycle of
events is illustrated in Figure 1-12, with the sequence being described as follows:
1. Master transmits a burst to the Slave.
2. A delay occurs as the Master burst propagates over the air.
3. Slave receives the burst from the Master.
4. A delay as the Slave processes the burst.
5. The slave transmits a burst to the Master.
6. A delay as the slave burst propagates over the air.
7. Master receives the burst from the Slave.
8. A delay as the Master processes the burst.
9. Master transmits the next burst to the Slave.
A transmission from either end is called a burst. The length of the burst is called the
Burst Duration. One cycle is called a TDD Frame. The cycle period is called the Frame
Duration. To make the illustration more clear, the duration of the processing delays
and propagation delays have been exaggerated compared to the Burst Durations.
![](/img.php?id=1237757&img=bg3e.png)
Wireless operation Chapter 1 Product description
phn-0896_009v003
1-20 UNDER DEVELOPMENT Feb 2010
Figure 1-12 The TDD cycle of events
Master Tx Burst Master Rx
Slave Rx Slave Tx Burst
Master Tx Burst
Propagation Delay
Propagation Delay
Processing Delay Processing Delay
Frame Duration
Master Burst Duration
Slave Burst Duration
Frame 1 Frame 2
Time
The Master PTP 600 automatically controls the structure of the TDD Frame, optimizing
Burst Duration and Frame Duration for either maximum capacity or minimum latency
depending on the setting of Link Mode Optimization and Link Symmetry.
When TDD synchronization is enabled (see TDD synchronization configuration on page
6-66
)
, the user must configure the TDD Frame which includes configuration of Burst
Duration and Frame Duration.
Link mode optimization
Link mode optimization allows the PTP 600 link to be optimized according to the type
of traffic that will be bridged. The link supports two modes, IP Traffic and TDM Traffic.
IP traffic
IP Traffic mode is optimized to provide the maximum possible link capacity. IP Traffic
mode is an appropriate choice where applications in the bridged networks provide
some measure of reliable transmission, and where very low latency is not critical. IP
mode supports both fixed and adaptive link symmetry (see Link symmetry on page 1-
21).
![](/img.php?id=1237757&img=bg3f.png)
User Guide: PTP 600 Series Wireless operation
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-21
TDM traffic
TDM Traffic mode is optimized to provide the lowest possible latency. TDM Traffic
mode additionally implements a more conservative approach to adaptive modulation,
leading to lower error rates in fading channels at the expense of slightly lower link
capacity. TDM Traffic mode is an appropriate choice for delay intolerant data without
reliable transmission (for example voice over IP data). TDM mode is selected
automatically when Telecom interfaces are enabled.
Link symmetry
The PTP 600 series provides four configuration options for apportioning the available
capacity between the two link directions.
• Symmetric: The Master and Slave have equal capacity. The PTP 600 series
achieves this by allocating an equal Burst Duration for the Master and the Slave.
• 2:1 The capacity in the direction Master to Slave is twice that of the direction
Slave to Master. The PTP 600 series achieves this by setting the Burst Duration
of the Master to twice that of the Slave. Note that this mode is not available
when TDD synchronization is enabled (see section
TDD Synchronization)
• 1:2 The capacity in the direction Slave to Master is twice that of the direction
Master to Slave. The PTP 600 series achieves this by setting the Burst Duration
of the Slave to twice that of the Master.
NOTE
This mode is not available when TDD synchronization is enabled (see Time
division duplex synchronization on page 1-25).
• Adaptive: The capacity allocated to a given link direction is dependant on the
offered level of network traffic in both link directions. If the level of offered
traffic in both directions is equally high or equally low, the PTP 600 will allocate
equal capacity to both directions. If however the offered level of traffic is greater
in one direction, it is allocated a greater proportion of the overall link capacity.
The PTP 600 series achieves this by increasing (or decreasing) the duration of
the Transmit Burst in a given link direction as the offered level of network traffic
increases (or decreases) in this same direction. This is done independently for
the two directions.
NOTE
This mode is not available in the following configurations :
![](/img.php?id=1237757&img=bg40.png)
Wireless operation Chapter 1 Product description
phn-0896_009v003
1-22 UNDER DEVELOPMENT Feb 2010
o When link mode optimization is set to TDM Traffic see Link mode
optimization on page 1-20).
o When TDD synchronization is enabled (see Time division duplex
synchronization on page 1-25).
o In regions where radar avoidance is operational (see Radar avoidance on
page 1-24).
OFDM and channel bandwidth
The PTP 600 series transmits using Orthogonal Frequency Division Multiplexing
(OFDM). This wideband signal consists of many equally spaced sub-carriers. Although
each sub carrier is modulated at a low rate using conventional modulation schemes,
the resultant data rate from all the sub-carriers is high. OFDM works exceptionally
over a Non-Line-of-Sight (NLoS) channel.
The channel bandwidth of the OFDM signal is configurable to one of five values: 5
MHz, 10 MHz, 15 MHz, 20 MHz and 30 MHz. Higher bandwidths provide greater link
capacity at the expense of using more spectrum. Systems configured for a narrower
channel bandwidth provide better receiver sensitivity and can also be an appropriate
choice in deployments where the amount of free spectrum is limited.
NOTE
The Channel Bandwidth must be configured to the same value at both ends
of the link.
Not all channel bandwidths are available in all regions or all frequency
variants.
Adaptive modulation
The PTP 600 series can transport data over the wireless link using a number of
different modulation modes ranging from 256QAM 0.81 to BPSK 0.63. For a given
channel bandwidth and TDD frame structure, each modulation mode transports data at
a fixed rate. Also, the receiver requires a given signal to noise ratio in order to
successfully demodulate a given modulation mode. Although the more complex
modulations such as 256QAM 0.81 will transport data at a much higher rate than the
less complex modulation modes, the receiver requires a much higher signal to noise
ratio.
![](/img.php?id=1237757&img=bg41.png)
User Guide: PTP 600 Series Wireless operation
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-23
The PTP 600 series provides an adaptive modulation scheme where the receiver
constantly monitors the quality of the received signal and notifies the far end of the
link of the optimum modulation mode with which to transmit. In this way, optimum
capacity is achieved at all times. This is one of a number of features which allows the
PTP 600 to operate in challenging none line of sight radio channels.
Specifications of capacity for all channel bandwidths, modulation modes and
configurations are provided in Data throughput capacity on page 4-102.
Specifications of receive level thresholds for each modulation mode (assuming no
interference) are provided in the various system threshold tables in Chapter 4
Reference information.
NOTE
Link Planner should be used to estimate the performance of a given link.
Link Planner includes an estimate of mean data rate, the data rate provided
by each modulation and the percentage of time spent in each modulation
mode.
MIMO
The PTP 600 transmits two signals on the same radio frequency, one which is
vertically polarized, the other which is horizontally polarized. The PTP 600 also has the
ability to adapt between two modes of operation:
• Dual Payload: When the radio channel conditions allow, the PTP 600 will
transmit two different and parallel data streams, one on the vertical channel and
one on the horizontal channel. This doubles the capacity of the PTP 600.
• Single Payload: As the radio channel becomes more challenging, the PTP 600
has the ability to detect this and switch to a mode which transmits the same data
stream on both vertical and horizontal channels. This provides polar diversity and
is another key feature which allows the PTP 600 to operate in challenging none
line of sight radio channels.
The two modes have been implemented by the introduction of two sets of modulation
modes. The lower order modulations (BPSK 0.63 up to QPSK 0.87) are only available
as single payload modes. Each of the higher order modulations (16QAM 0.63 to
256QAM 0.81) are available in single payload mode and dual payload mode. The
switching between modes is automatically controlled by the adaptive modulation
feature described in Adaptive modulation on page 1-22.
![](/img.php?id=1237757&img=bg42.png)
Wireless operation Chapter 1 Product description
phn-0896_009v003
1-24 UNDER DEVELOPMENT Feb 2010
Intelligent dynamic frequency selection
The PTP 600 series uses an interference mitigation technique known as Intelligent
Dynamic Frequency Selection (i-DFS). Both the PTP 600 Master and PTP 600 Slave
continually monitor for interference on all channels and then select the best frequency
of operation. This is a dynamic process where the PTP 600 can continually move
channels in response to changes in interference. Two modes of operation are available,
one where the two link directions are forced to select the same frequency. This is
determined by the Master. The second mode is where the frequency of operation can
be determined independently for each direction. This is a key feature which enables
the PTP 600 to operate successfully in areas where other radio equipments are
operating within the same band.
NOTE
i-DFS is not available in the 2.5 GHz band.
Radar avoidance
Similar to current description except that we need some words to cover the option of
hopping channels in response to interference other than Radar.
Radar avoidance requires that equipment used in the region:
• Detects interference from other systems and avoids co-channel operation with
these systems, notably radar systems.
• Provides a uniform loading of the spectrum across all devices, that is, fixed
frequency operation is not allowed.
To address the primary aims, the spectrum management algorithm implements a
radar detection function which looks for impulsive interference on the operating
channel only. If impulsive interference is detected, spectrum management will mark
the current operating channel as having detected radar (unavailable channel) and
initiate a channel hop to an available channel. The previous operating channel will
remain in the unavailable state for thirty minutes after the last impulsive interference
pulse was detected. After the thirty minutes have expired the channel will be returned
to the usable channel pool.
The equipment can only transmit on available channels, of which there are none at
initial power up. The radar detection algorithm will always scan a usable channel for
60 seconds for radar interference before making the channel an available channel.
This compulsory channel scan will mean that there is a 60 seconds service outage
every time radar is detected and that the installation time is extended by 60 seconds
even if there is found to be no radar on the channel.
![](/img.php?id=1237757&img=bg43.png)
User Guide: PTP 600 Series Wireless operation
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-25
NOTE
On system installation or start-up, this extends the initial scan time of the
Master unit by 60 seconds. To address the requirement to provide aggregate
uniform loading of the spectrum across all devices, the channel selection
algorithm will choose a channel at random from a list of useable channels.
The channel selection algorithm is initiated at link initialization and when
radar interference is detected.
Time division duplex synchronization
The performance of any radio system is dependent on the level of electromagnetic
interference to which it is subjected. This is also true for the PTP 600 ODUs. In an
ideal environment, any individual ODU will only receive transmissions from the paired
ODU at the other end of the link. However, when multiple PTP 600 links are installed,
an ODU may also be subjected to interference from the transmission of an ODU which
is part of another link. The levels of interference become very significant when ODUs
are installed in close proximity, for example on the same mast. In this case, one ODU
may be transmitting a burst at the same time as an ODU sharing the same mast is
receiving a burst from its paired ODU. This is shown in Figure 1-13, where ODU A is
seen to be interfering with ODU C and vice versa. This can adversely affect link
performance.

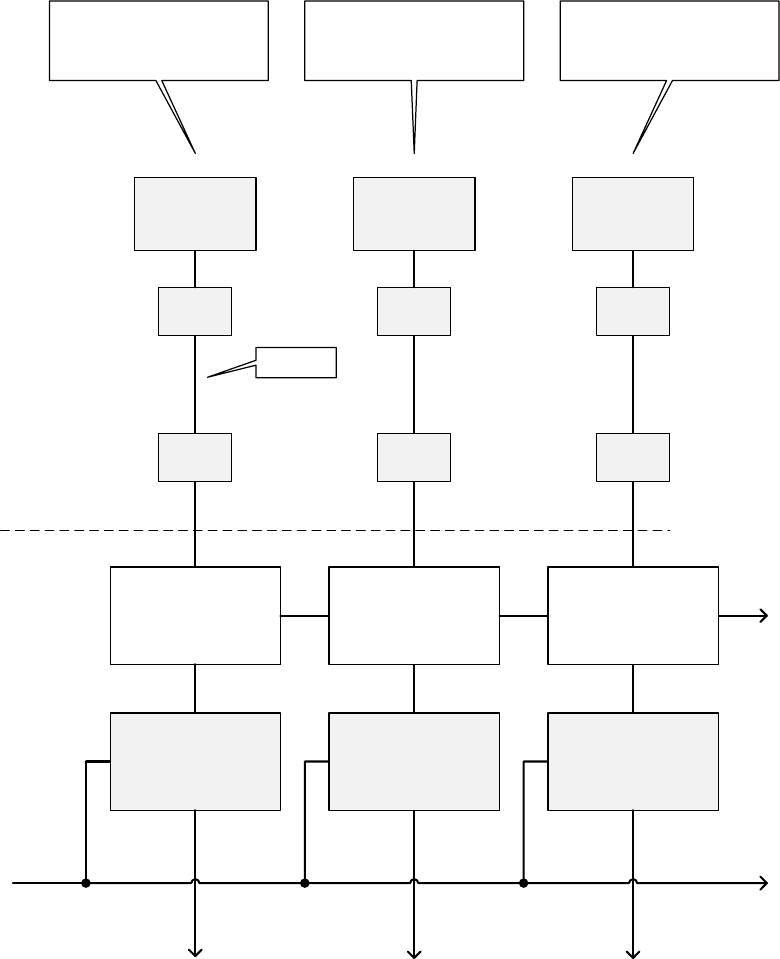

Figure 1-13 Interference between two ODUs on the same mast
Wireless operation Chapter 1 Product description
phn-0896_009v003
1-26 UNDER DEVELOPMENT Feb 2010
This type of interference may be eliminated if the TDD frames of the two links are
synchronized such that ODUs which share a mast are configured to always transmit
together and always receive together. An ODU will never be transmitting when an
ODU sharing the same mast is receiving. Similarly, the paired ODUs installed at the
remote ends from the common mast will also transmit together and receive together
but in the opposite half (or opposite phase) of the TDD cycle. Synchronization can be
extended beyond the single mast case where the TDD frames of all links in a network
can be synchronized. The benefit is that interference between any pair of units in the
network will be eliminated if they are configured to transmit in the same half of the
TDD frame, that is, with the same phase. In summary, TDD synchronization eliminates
half of the network interference mechanisms.
Network timing reference
For links to be synchronized, they must have access to a common network timing
reference. This is achieved by connecting each Master PTP 600 to a synchronization
unit. One synchronization unit is required for each Master. Two alternative
synchronization units are available:
• MemoryLink UltraSync GPS receiver: This unit contains a GPS receiver which
produces the common network timing reference. For more information, refer to
UltraSync on page 1-27.
• PTP-SYNC: This option is the preferred solution. For simple networks centred on
a single common mast, the common network timing reference may be derived
from one of the PTP 600 ODUs installed at the common mast. The timing signal is
then daisy chained to the other collocated ODUs. For larger distributed
networks, sites which consist of one or more Master PTP 600 units will require a
single GPS receiver. For more information, refer to PTP-SYNC on page 1-27.
Configuring the TDD frame
The Master PTP 600 automatically configures the TDD frame by optimizing parameters
such as the Frame Duration and Burst Duration (see Time division duplex
synchronization on page 1-25). When TDD synchronization is enabled, this is no longer
the case and it is up to the user to configure the frame parameters appropriately. This
should be done with the aid of LINKPlanner. Please refer to the
Link Planner User
Guide
for guidance on configuring TDD synchronization.
User Guide: PTP 600 Series Wireless operation
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-27
Performance considerations when enabling TDD
synchronization
In certain configurations, the TDD frame can adapt to allocate more of the frame to a
particular link direction. This is called adaptive TDD. It works by the PTP 600
automatically and independently adjusting the Burst Duration in each link direction as
the level of offered traffic in each direction changes. This was discussed in more detail
in Link symmetry on page 1-21
.
As TDD synchronization requires TDD frames to be
constantly aligned in time, a varying TDD frame is not an option when TDD
synchronization is enabled. Only the symmetric mode is available when TDD
synchronization is enabled.
When TDD synchronization is enabled, the capacity of an “ideal” link is generally a few
percent lower than the case where TDD synchronization is disabled. The term “ideal”
is important as this is the capacity assuming that there is no interference. The benefit
of eliminating half of the network interference mechanisms generally outweighs this
small reduction in capacity. The exact reduction can be examined using Link Planner.
UltraSync
PTP 600 application software supports the synchronization method based on the
MemoryLink UltraSync GPS receiver. An additional control in the web-based
management interface allows a user to configure the ODU for operation with
UltraSync or for PTP-SYNC. If the installation is converted from UltraSync to PTP-
SYNC, the UltraSync unit must be disconnected.
PTP-SYNC
TDD synchronization using PTP-SYNC is an improved method for synchronizing TDD
transmission in a network of PTP 600 links. This method is based on the PTP-SYNC
hardware platform connected in-line between the PIDU and the master ODU. Figure
1-14 shows a single PTP-SYNC within a system. In this example, the chosen system
configuration requires an LPU between the GPS receiver module and the PTP-SYNC.
![](/img.php?id=1237757&img=bg46.png)
Wireless operation Chapter 1 Product description
phn-0896_009v003
1-28 UNDER DEVELOPMENT Feb 2010
Figure 1-14 PTP-SYNC application
The PTP-SYNC is a compact indoor unit mounted on a wall or a shelf or (using an
optional rack mounting adaptor) in a standard 19 inch rack. The PTP-SYNC is powered
using standard PTP 600 power-over-Ethernet from the PIDU. One PTP-SYNC unit is
required for each synchronized link.
How PTP-SYNC works
TDD synchronization using the PTP-SYNC operates as follows:
1. The timing reference generates a precise 1 Hz signal that is synchronised in
both frequency and phase with a network-wide master,
2. The PTP 600 ODU generates a timing signal locked to its TDD frame timing,
![](/img.php?id=1237757&img=bg47.png)
User Guide: PTP 600 Series Wireless operation
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-29
3. The PTP-SYNC unit measures the difference between the TDD frame timing and
the 1 Hz time reference,
4. The PTP-SYNC signals this time difference to the ODU,
5. The ODU uses the measured time difference as an input to a control loop that
synchronizes TDD timing with the timing reference and thus indirectly with the
network-wide master.
Timing reference
PTP-SYNC requires a 1 Hz timing reference signal. One timing reference signal is
required at each site that contains PTP-SYNC units.
NOTE
One timing reference signal can be used to synchronize up to ten PTP-SYNC.
If more than ten PTP-SYNC must be synchronized on a single site, then
additional timing reference signals are required.
The timing source may be one of the following:
• A separate timing source (typically a GPS receiver) connected directly to the PTP-
SYNC, or through another PTP-SYNC in a daisy-chain arrangement (as shown in
Figure 1-14).
• In networks where all master ODUs are collocated (for example a network
consisting of a single hub), it is possible to use PTP-SYNCs in the standard
scheme but omitting the external timing source. In this case, one ODU must be
configured as the local timing master.
Advantages of PTP-SYNC over UltraSync
PTP-SYNC has several advantages over the UltraSync solution:
• PTP-SYNC does not require individual GPS receivers located close to the ODUs,
and this reduces the complexity and the cost of the installation on the mast,
• The GPS receiver can be located anywhere with a clear view of the sky, offering
additional flexibility in the installation,
• The PTP-SYNC solution is compatible with standard 1 Hz interfaces, allowing an
operator to take advantage of alternative timing references that may be already
present at the site,
Wireless operation Chapter 1 Product description
phn-0896_009v003
1-30 UNDER DEVELOPMENT Feb 2010
• The recommended GPS receiver continues to provide accurate timing even after
the number of received satellite has dropped down to one, leading to significantly
better availability of the reference signal,
• The PTP-SYNC offers the possibility of creating synchronised single-hub networks
where no GPS receiver is required.
![](/img.php?id=1237757&img=bg49.png)
User Guide: PTP 600 Series Wireless operation
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-31
PTP-SYNC front panel
The PTP-SYNC front panel is illustrated in Figure 1-15. The annotated interfaces are
described in Table 1-6.
Figure 1-15 PTP-SYNC front panel
Table 1-6 PTP-SYNC front panel interfaces
Number Description Function
1 GPS/SYNC IN Input from GPS receiver module.
2 SYNC OUT Output to cascaded GPS-SYNC units.
3 USB Input for software upgrades. Contact Motorola for instructions.
4 1PPS IN Coaxial alternative to GPS/SYNC IN. Peak input suppy must
not exceed 5V.
5 LED bank
LEDs and their functions are described in Table 1-7.
6 PIDU IN Input from PIDU.
7 ODU Output to ODU.
8 Ground stud For connecting to a ground point.
![](/img.php?id=1237757&img=bg4a.png)
Wireless operation Chapter 1 Product description
phn-0896_009v003
1-32 UNDER DEVELOPMENT Feb 2010
Table 1-7 PTP-SYNC indicator LEDs
Indicator Function Description
Off No GPS satellite data being received at
either the GPS/SYNC IN or 1PPS IN port.
GPS
On steady or blink GPS satellite data being received.
Off No data being received at the SYNC OUT
port.
SYNC
On steady or blink Data being received at the SYNC OUT port.
Off No power.
On steady Power but no satellite lock.
STATUS
Blink Power and satellite lock at either the
GPS/SYNC IN or 1PPS IN port.
Off No signal being received from the ODU. ODU
On Communication with the ODU is
established.
Security
Encryption standard used
The Motorola PTP 600 Series supports link encryption using the NIST approved
Advanced Encryption Standard, FIPS-197. This standard specifies AES (Rijndael) as a
FIPS-approved symmetric encryption algorithm that may be used by U.S. Government
organizations (and others) to protect sensitive information.
![](/img.php?id=1237757&img=bg4b.png)
User Guide: PTP 600 Series Ethernet bridging
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-33
Ethernet bridging
Ethernet frames
The PTP 600 series provides wireless Ethernet bridging between two fixed locations.
To be more precise, it forwards Ethernet frames as a two-port transparent
heterogeneous encapsulation bridge, meaning that each bridge forwards frames
between two dissimilar interfaces (Ethernet and wireless), encapsulating Ethernet
MAC frames within a PTP MAC frames for transmission at the wireless interface. A
link consisting of a pair of back to back bridges appears to the data network to be very
similar to a standard two-port Ethernet bridge.
The PTP 600 series provides eight traffic classes, classifying Ethernet frames into one
of eight prioritized queues based on inspection of the user priority field (802.1p) in a
customer (IEEE802.1Q) VLAN tag or provider (IEEE802.1ad) VLAN tag. Untagged
frames receive a default priority. The scheduling method is strict priority. The bridge
does not implement any VLAN functions for bridged frames apart from inspection of
the priority field, and consequently the bridge forwards tagged and untagged Ethernet
frames regardless of VLAN ID and without modification of any protocol header field.
The PTP 600 series supports a maximum Ethernet frame size of 2000 bytes for bridged
traffic.
![](/img.php?id=1237757&img=bg4c.png)
Ethernet bridging Chapter 1 Product description
phn-0896_009v003
1-34 UNDER DEVELOPMENT Feb 2010
Management function
The management function of the PTP 600 Series is logically equivalent to a separate
protocol stack with virtual point of attachment at the Ethernet interface. This is
illustrated in Figure 1-16.
Figure 1-16 PTP 600 protocol layers
Ethernet PHY
Ethernet MAC
TCP, UDP,
ICMP
HTTPS/TLS,
SNMP (v3, 2c or 1),
SMTP, HTTP,
Telnet
IP
MAC Relay
Ethernet MAC Ethernet MAC
Ethernet PHY PTP MAC
PTP PHY
Ethernet medium
Ethernet MAC
PTP MAC
PTP PHY
MAC Relay
Ethernet MAC
Ethernet PHY Ethernet PHY
Ethernet MAC
TCP, UDP,
ICMP
HTTPS/TLS,
SNMP (v3, 2c or 1),
SMTP, HTTP,
Telnet
IP
Ethernet medium
Radio medium
Management
function
Management
function
Bridge function Bridge function
Master ODU Slave ODU
Each unit in the link is manageable through an IP connection. Standard IP protocols
are utilized for all management functions. The unit can be configured to use a VLAN with
a single C-tag or S-tag on the management interfaces.
User Guide: PTP 600 Series Ethernet bridging
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-35
Networking information
The PTP 600 Series operates as a transparent Ethernet bridge. Although each unit
requires an IP address, this IP address is for management purposes only, and it plays
no part in the forwarding of bridged Ethernet frames. IP addresses are assigned
during initial configuration.
![](/img.php?id=1237757&img=bg4e.png)
Telecoms circuits Chapter 1 Product description
phn-0896_009v003
1-36 UNDER DEVELOPMENT Feb 2010
Telecoms circuits
The PTP 600 link provides native support for one or two E1 links, or one or two T1
links. The link relays unstructured E1 or T1 data and provides accurate timing
transfer.
Lowest telecoms modulation mode
In narrow channel bandwidth and lower modulation modes, the link may have
insufficient capacity to relay the E1/T1 payload; in this case, the wireless link
continues to carries timing information in order to maintain accurate clock
synchronization. The relay of telecoms data resumes automatically when the link
reaches a suitable modulation mode.
Links that are able to operate consistently in a high modulation mode can take
advantage of lower link latency. This option is configured by setting the "Lowest
Telecoms Modulation Mode" during installation. Appropriate settings for this control
may be determined by using the LINKPlanner tool. The reduction in latency is
achieved by disabling the relay of telecoms data in lower modulation modes, and this
necessarily results in somewhat lower availability for the telecoms circuit. The loss of
availability can be estimated using the LINKPlanner.
The unit will override the user setting of Lowest Telecoms Modulation Mode if the
selected mode has insufficient capacity to carry the telecoms data, or if the mode
demands very high latency and requires more buffering than the link can provide.
When the effective mode differs for Single and Dual Payload operation two modes will
be displayed: "Lowest Dual Payload Modulation Mode" and "Lowest Single Payload
Modulation Mode".
Fixed frequency operation
In the PTP 600 link, data errors may occur during channel changes on an operational
link. It may be appropriate to minimize channel-change-related errors in a link
carrying Telecoms traffic by preventing channel changes initiated by i-DFS. This can
be achieved by barring all channels except one in the Spectrum Management page, or
alternately by selecting Fixed Frequency mode. These steps unavoidably disable
interference avoidance mechanisms, and should not be taken if the risk of errors due
to interference is more severe than the risk due to channel changes.
Fixed frequency operation is not available when radar detection requirements exist in
the frequency band.
User Guide: PTP 600 Series Telecoms circuits
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-37
Further reading
Installation details are provided in Installing E1 and T1 on page 5-50.
E1/T1 circuits are configured using the web pages described in Section Configuring
the telecoms circuits on page 6-49 and Telecoms interface on page 6-57.
![](/img.php?id=1237757&img=bg50.png)
System management Chapter 1 Product description
phn-0896_009v003
1-38 UNDER DEVELOPMENT Feb 2010
System management
Management agent
PTP 600 equipment is managed through an embedded management agent.
Management workstations, network management systems or PCs can be connected to
this agent using standard management protocols multiplexed with user traffic at the
Ethernet data port.
Web interface
The PTP 600 management agent contains a web server. The management agent
provides comprehensive web-based fault, configuration, performance and security
management functions. Web-based management offers a convenient way to manage
the PTP 600 equipment from a locally connected computer or from a network
management workstation connected through a management network, without
requiring any special management software. The web-based interface is the only
interface supported for installation of PTP 600, and for the majority of PTP 600
configuration management tasks.
There are two servers, HTTP and HTTPS which, depending on prevailing licence key,
can be independently controlled
Management tasks using the web-based management interface are described in detail
in Chapter 6: Operation.
Installation wizard
The web-based interface includes an Installation wizard. This feature simplifies the
process of entering initial configuration details and arming the PTP 600 ready for
installation.
Configuration pages
The web-based interface includes a number of configuration pages. These pages allow
for modification of the system configuration of an installed link. Configuration pages
include controls relating to the management agent IP interface, the Ethernet
interfaces, quality of service at the wireless interface, security passwords and AES
keys.
User Guide: PTP 600 Series System management
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-39
Transport layer security
The PTP 600 management agent allows HTTP traffic at the web interface to be
encrypted using Transport Layer Security (TLS). PTP 600 uses AES to encrypt HTTP
traffic. Operation of HTTPS/TLS is enabled by purchase of an optional AES upgrade as
described in Upgrading the PTP 600 on page 6-77.
TLS operation requires installation of a key of keys, a private key, a related public key
certificate, and an entropy value. The subject of the public key certificate will be the IP
address or hostname of the ODU. If the subject of the certificate is the hostname, then
the network must include a DNS service capable of resolving the hostname to the IP
address of the ODU.
The private key and public key certificate must be installed as standard DER files.
The PTP 600 has no default public key certificate, and Motorola is not able to generate
public key certificates for specific network applications.
Security wizard
The web-based interface includes a Security Wizard. The Security Wizard is used to
enter configuration for TLS, including the key or keys, private key, public key
certificate and entropy value.
The Security Wizard additionally allows HTTP and Telnet interfaces to be disabled, and
encryption keys to be entered or updated for AES encryption at the wireless interface.
The Security Wizard is disabled until AES encryption or FIPS are enabled by license
key.
Management tasks using the Security Wizard are described in Configuring HTTPS/TLS
using the Security Wizard on page 6-98.
Identity-based user accounts
The PTP 600 web-based interface provides two methods of authenticating users:
• Role-based user authentication allows the user, on entry of a valid password, to
access all configuration capabilities and controls. This is the default method.
• Identify-based user authentication supports up to 10 users with individual
usernames and passwords.
When identity-based user accounts are enabled, a security officer can define from one
to ten user accounts, each of which may have one of the three possible roles:
• Security officer.
• System administrator.
System management Chapter 1 Product description
phn-0896_009v003
1-40 UNDER DEVELOPMENT Feb 2010
• Read only.
Identity-based user accounts are enabled in the User Accounts page of the web-based
interface.
Best-practice passwords
PTP 600 allows passwords to be checked for compliance with password best practice.
When checking is enabled, passwords must comply with the following:
• Passwords are case sensitive
• Passwords must contain at least:
o One uppercase letter.
o One lowercase letter.
o One numeral.
o One special character.
• When the password is changed, the new password must differ from the previous
password by at least four characters.
Special characters are any of the following:
! \ " # $ % & ' ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _ ` { | } ~
Best-practice passwords can be checked in role-based and identity-based
authentication methods.
SNMP
The management agent supports fault and performance management by means of an
SNMP interface. The management agent is compatible with SNMP v1, SNMP v2c, and
SNMPv3 using the following MIBs:
• PTP 600 enterprise MIB
• The system group and the interfaces group from MIB-II, RFC-1213
• The interfaces group and the ifXTable from RFC-2233
• The dot1dBase group and the dot1dBasePortTable group from the Bridge MIB,
RFC-1493.
User Guide: PTP 600 Series System management
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-41
Supported notifications
The supported notifications are as follows:
• Cold start
• Wireless Link Up/Down
• DFS Channel Change
• DFS Impulse Interference
• Authentication Failure
• Ethernet Link Up/Down
Supported alarms
PTP 600 supports the following diagnostic alarms:
• Region Code
• Install Status
• Install Arm State
• Unit Out Of Calibration
• Incompatible Region Codes
• Incompatible Master And Slave
• Ethernet Configuration Mismatch
• No Wireless Channel Available
• SNTP Synchronisation Failed
• Wireless Link Disabled Warning
• Ethernet Link Disabled Warning
• Ethernet Link Status
• Fiber Link Status
• Telecoms Channel A Status
• Telecoms Channel B Status
• Telecoms Channel A Loopback
• Telecoms Channel B Loopback
• TDD Synchronization Alarm
System management Chapter 1 Product description
phn-0896_009v003
1-42 UNDER DEVELOPMENT Feb 2010
• Link Mode Optimization Mismatch
The web-based interface may be used to enable or disable generation of each
supported SNMP notification or diagnostic alarm.
Enabling SNMP
The SNMP interface must be enabled for use by configuring the following attributes in
the Remote Management page:
• SNMP State (default disabled)
• SNMP Version (default SNMPv1/2c)
• SNMP Port Number (default 161)
When the SNMP Version is set to SNMPv1/2c the interface must be additionally
configured by entering the following attributes:
• SNMP Trap IP Address
• SNMP Trap Port Number
• SNMP Community String
SNMPv3 security
Secure configuration
PTP 600 provides a default SNMPv3 configuration. This initial configuration is not
secure, but it provides the means by which a secure configuration can be created.
The secure configuration should be configured in a controlled environment to prevent
disclosure of the initial security keys necessarily sent as plaintext, or sent as encrypted
data using a predictable key. The initial security information should not be configured
over an insecure network.
User-based security model
PTP 600 supports the SNMPv3 user-based security model (USM) for up to 10 users,
with MD5, SHA-1, DES and (subject to the license key) AES protocols in the following
combinations:
• No authentication, no privacy,
• MD5, no privacy,
• SHA-1, no privacy,
• MD5, DES,
![](/img.php?id=1237757&img=bg55.png)
User Guide: PTP 600 Series System management
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-43
• SHA-1, DES,
• MD5, AES,
• SHA-1, AES.
Use of AES privacy requires the PTP 600 AES upgrade described in AES license on
page 1-48. The ODU will allow the creation of users configured with AES privacy
protocol, regardless of license key. However, a user configured to use AES privacy
protocol will not be able to transmit and receive encrypted messages unless the
license key enables the AES capability.
Default configuration
The default configuration is restored when all PTP 600 configuration data is erased
using Erase configuration on page 7-25, or when all SNMP users are deleted using the
SNMP management interface.
Default configuration for the usmUserTable table is based on one initial user and four
template users as listed in Table 1-8.
Table 1-8 Default SNMPv3 users
Object Entry 1
Name initial
SecurityName initial
AuthProtocol usmHMACMD5AuthProtocol
PrivProtocol usmDESPrivProtocol
StorageType nonVolatile
Object Entry 2 Entry 3
Name templateMD5_DES templateSHA_DES
SecurityName templateMD5_DES templateSHA_DES
AuthProtocol usmHMACMD5AuthProtocol usmHMACSAHAuthProtocol
PrivProtocol usmDESPrivProtocol usmDESPrivProtocol
StorageType nonVolatile nonVolatile
Object Entry 4 Entry 5
![](/img.php?id=1237757&img=bg56.png)
System management Chapter 1 Product description
phn-0896_009v003
1-44 UNDER DEVELOPMENT Feb 2010
Name templateMD5_AES templateSHA_AES
SecurityName templateMD5_AES templateSHA_AES
AuthProtocol usmHMACMD5AuthProtocol usmHMACSHAAuthProtocol
PrivProtocol usmAESPrivProtocol usmAESPrivProtocol
StorageType nonVolatile nonVolatile
PTP 600 creates the initial user and template users with localised authentication and
privacy keys derived from the passphrase string “123456789”. Authentication keys for
the templates users are fixed and cannot be changed.
Any or all of the template users can be deleted.
The default user initial will have read/write access to the whole of the MIB. This is
described in further detail in View-based access control model on page 1-44 below.
The template users have no access to the MIB in the default configuration.
User initial will normally be used to create one or more additional users with secret
authentication and privacy keys, and with appropriate access to the whole of the MIB
or to particular views of the MIB according to the operator’s security policy. New
users must be created by cloning template users. The user initial may then be
deleted to prevent access using the well-known user name and keys. Alternatively, the
keys associated with initial may be set to some new secret value.
View-based access control model
PTP 600 supports the SNMPv3 view-based access control model (VACM) with a single
context. The context name is the empty string. The context table is read-only, and
cannot be modified by users. The default user initial is created with a view of the
entire MIB, requiring authentication for SET operations. There is no access for
template users.
NOTE
VACM grants access for requests sent with more than the configured
security level.
The default user initial is assigned to VACM group initial in the
vacmSecurityToGroupTable table. The template users are not assigned to a group.
PTP 600 creates default view trees and access as shown in Table 1-9 and Table 1-10.
Table 1-9 Default view trees
Object Entry 1 Entry 2
![](/img.php?id=1237757&img=bg57.png)
User Guide: PTP 600 Series System management
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-45
ViewName internet restricted
Subtree 1.3.6.1 1.3.6.1
Mask “” “”
Type included included
StorageType nonVolatile nonVolatile
![](/img.php?id=1237757&img=bg58.png)
System management Chapter 1 Product description
phn-0896_009v003
1-46 UNDER DEVELOPMENT Feb 2010
Table 1-10 Default data fill for access table
Object Entry 1 Entry 2
GroupName initial initial
ContextPrefix “” “”
SecurityLevel authNoPriv noAuthNoPriv
ContextMatch exact exact
ReadViewName internet restricted
WriteViewName internet “”
NotifyViewName internet restricted
StorageType nonVolatile nonVolatile
Access to critical security parameters
The SNMPv3 management interface does not provide access to critical security
parameters (CSPs) of PTP 600. It is not possible to read or modify AES keys used to
encrypt data transmitted at the wireless interface. Neither is it possible to read or
modify security parameters associated with TLS protection of the web-based
management interface. The recovery mode option to zeroise CSPs does not affect
SNMPv3 configuration.
Downgrade of the license key
A possible lockout condition exists if a user downgrades the PTP 600 license key so as
to disable the AES capability when SNMPv3 users are configured with AES privacy
and VACM is configured to require privacy. In this case, recovery is by either (a)
restoring the correct license key, or (b) using recovery mode to erase all configuration
and entering new configuration.
Option (b) will cause default users and access configuration to be re-created.
CAUTION
Care should be taken to avoid exposing the ODU to an insecure network
when configuration data is erased.
User Guide: PTP 600 Series System management
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-47
Email alerts
The management agent can be configured to generate alerts by electronic mail when
any of the following events occur:
• Wireless Link Up/Down
• DFS Channel Change
• DFS Impulse Interference
• Ethernet Link Up/Down
• Region Code
• Install Status
• Install Arm State
• Unit Out Of Calibration
• Incompatible Region Codes
• Incompatible Master And Slave
• Ethernet Configuration Mismatch
• No Wireless Channel Available
• SNTP Synchronisation Failed
• Wireless Link Disabled Warning
• Ethernet Link Disabled Warning
• Ethernet Link Status
• Fiber Link Status
• Telecoms Channel A Status
• Telecoms Channel B Status
• Telecoms Channel A Loopback
• Telecoms Channel B Loopback
• TDD Synchronization Alarm
• Link Mode Optimization Mismatch
![](/img.php?id=1237757&img=bg5a.png)
System management Chapter 1 Product description
phn-0896_009v003
1-48 UNDER DEVELOPMENT Feb 2010
AES license
PTP 600 provides optional encryption using the Advanced Encryption Standard (AES).
Encryption is not available in the standard PTP 600 system.
AES upgrades are supplied as an access key purchased from your Motorola Point-to-
Point distributor or solutions provider. The access key authorizes AES operation for
one ODU. Two access keys are needed to operate AES on a link. The upgrade is
applied by entering an access key together with the MAC address of the target ODU
into the PTP License Key Generator web page, which may be accessed from
http://www.motorola.com/ptp/support.
The License Key Generator creates a new license key that is delivered by email. The
license key must be installed on the ODU. When the license key is installed, the ODU
must be rebooted before AES can be enabled. Once applied, the AES upgrade is bound
to a single ODU and is not transferrable.
AES encryption may be used in the following ways:
• At the wireless port to encrypt data transmitted over the wireless link.
• At the SNMP management interface in the SNMPv3 mode.
• At the HTTP management interface in the TLS mode.
Two levels of encryption are available to purchase:
• 128-bit: This allows an operator to encrypt all traffic sent over the wireless link
using 128-bit encryption.
• 256-bit: This allows an operator to encrypt traffic using either 128-bit or 256-bit
encryption.
Encryption must be configured with the same size key in each direction.
AES encryption at the PTP 600 wireless port is based on pre-shared keys. An identical
key must be entered at each end of the link.
AES encryption for SNMPv3 or TLS is always based on a 128-bit key, regardless of
level enabled in the PTP 600 license key.
For more information, see:
• Upgrading the PTP 600 on page 6-77.
• Enabling AES encryption at the wireless interface on page 6-96.
![](/img.php?id=1237757&img=bg5b.png)
User Guide: PTP 600 Series System management
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-49
Critical security parameters
Critical security parameters (CSPs) are as follows:
• Key of keys.
• AES encryption keys for the wireless interface.
• Private key for the HTTPS/TLS interface.
• Entropy value for the HTTPS/TLS interface.
• User account passwords for the web-based interface.
CSPs can be erased (zeroised) using the Zeroise CSPs page of the web-based interface
or by selecting the Zeroise CSPs option in Recovery mode.
Capacity upgrades
Capacity upgrades are supplied as an access key purchased from your Motorola Point-
to-Point distributor or solutions provider. The upgrade is applied by entering an access
key together with the MAC address of the target ODU into the PTP License Key
Generator web page, which may be accessed from
http://www.motorola.com/ptp/support.
The License Key Generator creates a new license key delivered by email. The license
key must be installed on the ODU as described in reference to Upgrading the PTP 600
on page 6-77. Once applied, the capacity upgrade is bound to a single ODU and is not
transferrable.
![](/img.php?id=1237757&img=bg5c.png)
System management Chapter 1 Product description
phn-0896_009v003
1-50 UNDER DEVELOPMENT Feb 2010
Software upgrade
The management agent supports application software upgrade using either the web-
based interface or the SNMP interface.
PTP 600 software images are digitally signed, and the ODU will accept only images
that contain a valid Motorola PTP digital signature. The ODU always requires a reboot
to complete a software upgrade.
NOTE
Obtain the application software and this user guide from the support website
BEFORE warranty expires.
NOTE
ODU software version must be the same at both ends of the link. Limited
operation may sometimes be possible with dissimilar software version, but
such operation is not supported by Motorola.
The management process for software upgrade is described in detail in Upgrading the
PTP 600 on page 6-77.
Software can be downgraded using Recovery mode as described in Recovery mode on
page 1-50.
Recovery mode
The PTP 600 recovery mode provides a means to recover from serious configuration
errors including lost or forgotten passwords and unknown IP addresses.
Recovery mode also allows new main application software to be loaded even when the
integrity of the existing main application software image has been compromised. The
most likely cause of an integrity problem with the installed main application software
is where the power supply has been interrupted during an earlier software upgrade.
The ODU operates in recovery mode in the following circumstances:
• When a checksum error occurs for the main application software image.
• When the PIDU recovery button is pressed at the same time as the ODU is
rebooted or power cycled.
![](/img.php?id=1237757&img=bg5d.png)
User Guide: PTP 600 Series System management
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-51
Recovery mode options
Options in recovery mode are as follows:
• Load new main application software.
• Reset all configuration data to factory default. This option resets IP and Ethernet
configuration, and erases (zeroizes) critical security parameters.
• Reset IP and Ethernet configuration to factory default.
• Erase (zeroize) critical security parameters.
• Reboot with existing software and configuration.
NOTE
If recovery mode has been entered either because of a checksum error, by
default the ODU will reboot with existing software and configuration
following a 30 second wait.
The recovery software image is installed during manufacture of the ODU and cannot
be upgraded by operators.
For detailed instructions on using the recovery mode, see Using recovery mode on
page 7-20.
![](/img.php?id=1237757&img=bg5e.png)
FIPS 140-2 Chapter 1 Product description
phn-0896_009v003
1-52 UNDER DEVELOPMENT Feb 2010
FIPS 140-2
PTP 600 provides an optional secure cryptographic mode of operation validated to
Level 2 of Federal Information Processing Standards Publication 140-2.
PTP 600 operates in the FIPS mode when all of the following are true:
• The ODU software image is validated for FIPS operation.
• The ODU license key has AES encryption enabled.
• The ODU license key has FIPS operation enabled.
• The hardware security of the ODU is compatible with operation in the FIPS 140-2
mode.
• The HTTPS/TLS management interface is enabled.
• The HTTP management interface is disabled.
• The Telnet management interface is disabled.
Validated software image
FIPS validated software images are indicated by a FIPS- prefix to the file name, for
example: FIPS-PTP600-08-50.DLD2. The general features of a FIPS validated software
image are identical to those of the standard image with the same version number. For
example, FIPS-PTP600-08-50.DLD2 is equivalent to PTP600-08-50.DLD2 apart from the
ability of the FIPS image to operate in FIPS mode.
![](/img.php?id=1237757&img=bg5f.png)
User Guide: PTP 600 Series FIPS 140-2
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 1-53
Hardware security
The ODU has compatible hardware security if the part number suffix is no earlier than
the minimum listed in Table 1-11.
Table 1-11 Minimum part number suffix for FIPS 140-2 mode
Frequency variant Part number suffix
PTP 25600 BB
PTP 45600 BB
PTP 48600 AA
PTP 49600 AA
PTP 54600 EE
PTP 58600 DD
PTP 59600 BB
The ODU will also have compatible hardware security if the part number suffix is
earlier and PTP 600 Hardware Security Upgrade has been applied. The Hardware
Security Upgrade Kit is available as Motorola part number WB3593AA.
FIPS 140-2 mode indication
The FIPS 140-2 mode is indicated by a distinctive symbol displayed at the top of the
navigation bar in the web-based interface, as shown in Figure 1-17.
Figure 1-17 FIPS 140-2 mode
![](/img.php?id=1237757&img=bg60.png)
FIPS 140-2 Chapter 1 Product description
phn-0896_009v003
1-54 UNDER DEVELOPMENT Feb 2010
Configuring HTTPS/TLS
The HTTPS/TLS interface is configured using the Security Wizard. See Configuring
FIPS 140-2 mode on page 6-108 for further details of using the Security Wizard.
Exiting from the FIPS 140-2 mode
To exit from the FIPS 140-2 mode, do any of the following:
• Load a PTP 600 license key that has FIPS operation disabled and reboot.
• Load PTP 600 software that is not FIPS-validated and reboot.
• Zeroise CSPs and reboot.
The critical security parameters (CSPs) are always erased (zeroised) on exit from FIPS
140-2 mode.
Prerequisites
CAUTION
To operate in FIPS-140-2 mode ensure that you use:
o A FIPS-approved cryptographic key generator
o A FIPS-approved X509 RSA public/private key pair generator with the
DER output format.
o A FIPS-approved random number generator
o A HTTPS-enabled web browser supporting FIPS approved cipher
specifications.
![](/img.php?id=1237757&img=bg61.png)
Chapter 2
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-1
Chapter 2 Planning considerations
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
This chapter provides information to help the user to plan a PTP 600 link.
Each frequency variant has specific licensing restrictions that affect frequency range,
channel bandwidth, maximum power and radar avoidance. Link planning must take
account of obstructions, site selection, path loss and wind loading.
The following topics are described in this chapter:
• Spectrum planning on page 2-2
• Licenses and region codes on page 2-3
• Radar avoidance and bandwidth operation on page 2-4
• Variable channel bandwidth operation on page 2-5
• Site planning on page 2-6
• Link planning on page 2-9
• Path loss considerations on page 2-10
• Planning synchronized networks on page 2-12
• System threshold, output power and link loss on page 2-17
• Lightning protection on page 2-18
To calculate the data throughput capacity of a planned PTP 600 link, see Data rate
calculations on page 4-99.
![](/img.php?id=1237757&img=bg62.png)
Spectrum planning Chapter 2 Planning considerations
phn-0896_009v003
2-2 UNDER DEVELOPMENT Feb 2010
Spectrum planning
The PTP 600 may use one of four alternative methods of spectrum planning. The
choice of methods depends upon whether or not the region mandates radar detection.
Regions without mandatory radar detection
In regions that do not mandate DFS (Radar Detection), the frequencies may be
configured symmetrically or asymmetrically (different transmit and receive
frequencies). The Spectrum Management Control options are:
• Intelligent Dynamic Frequency Selection (i-DFS): This method continually
monitors the spectrum looking for the channel with the lowest level of on channel
and co-channel interference. Statistical techniques are used to select the most
appropriate transmit and receive channels. The i-DFS mode can be influenced in
its channel decision process by selectively barring channels from use.
• Fixed Frequency: This method allows the installer to allocate fixed transmit and
receive frequencies on the units.
Regions with mandatory radar detection
In regions that mandate DFS (Radar Detection), the frequency must always be
symmetrical (transmit and receive on the same frequency). The Spectrum
Management Control options are:
• Dynamic Frequency Selection (DFS): This method detects interference from
other systems and avoids co-channel operation with these systems, notably radar
systems.
• DFS with i-DFS: This method is similar to i-DFS. It differs in the event that
several alternative channels are equally the best within the 1 dB measurement
resolution. In i-DFS, the ODU selects the lowest channel number out of the set
of best channels. In DFS with i-DFS, the ODU monitors the interference level on
all the available channels and then randomly selects one channel from all that
are within 3dB of the lowest interference channel.
![](/img.php?id=1237757&img=bg63.png)
User Guide: PTP 600 Series Licenses and region codes
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-3
Licenses and region codes
The PTP 600 Series uses a system of region codes to control the operation of the radio
link. The user must ensure the product is configured to conform to local regulatory
requirements by installing a License Key for the correct region code.
CAUTION
For the connectorized model, when using external antennas of higher gain
than the appropriate integrated antenna, the regulations may require the
maximum Tx power to be reduced. To ensure that regulatory requirements
are met for connectorized installations, refer to Regulatory issues with
connectorized units on page 8-10.
The license and region codes for each frequency variant are listed in:
• PTP 25600 licenses and region codes on page 4-17
• PTP 45600 licenses and region codes on page 4-26
• PTP 48600 licenses and region codes on page 4-36
• PTP 49600 licenses and region codes on page 4-45
• PTP 54600 licenses and region codes on page 4-54
• PTP 58600 licenses and region codes on page 4-70
• PTP 59600 licenses and region codes on page 4-91
![](/img.php?id=1237757&img=bg64.png)
Radar avoidance and bandwidth operation Chapter 2 Planning considerations
phn-0896_009v003
2-4 UNDER DEVELOPMENT Feb 2010
Radar avoidance and bandwidth operation
Channel barring
Where regulatory restrictions apply to certain channels these channels are barred.
RTTT avoidance may be necessary in all channel bandwidths. The number of channels
barred is dependant on the channel raster selected. For example see the effect of the
UK RTTT channel restrictions in the 30 MHz bandwidth (Figure 2-1), where blocks in
red indicate channels that are barred. Barred channels are indicated by a “No Entry”
symbol displayed on the “Spectrum Management” web page, see Spectrum
management control with radar avoidance on page 6-34.

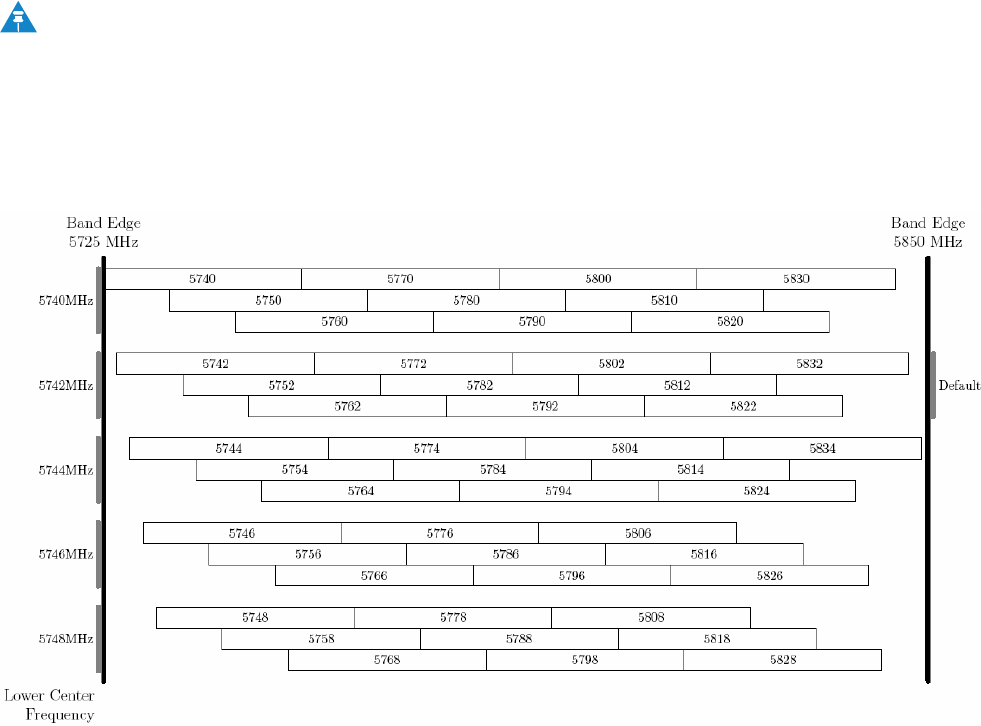

Figure 2-1 RTTT channel avoidance example (5.8 GHz UK)
NOTE
Radar avoidance requirements in the 5.4GHz band in the EU is detailed in
specification EN 301-893 version V1.4.1 (from July 2010, this becomes
V1.5.1) plus additional requirements shown in the OJ of the EC and in the US
in the specification FCC part 15.407. Radar avoidance at 5.8 GHz is
applicable to EU operation and the requirements are currently as defined in
EN 302 502.
![](/img.php?id=1237757&img=bg65.png)
User Guide: PTP 600 Series Variable channel bandwidth operation
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-5
Variable channel bandwidth operation
The selection of Channel Bandwidth depends upon the PTP frequency variant:
• For PTP 25600, PTP 45600, PTP 54600, PTP 58600 and PTP 59600, Channel
Bandwidth may be 30, 15, 10 or 5 MHz.
• For PTP 48600 and PTP 49600, Channel Bandwidth may be 20, 10 or 5 MHz.
The 30MHz channel widths are available where allowed by local regulations and
subject to some restrictions on channel choice.
Lite versions of the PTP 600 products do not support a Channel Bandwidths of 5 MHz.
Configuration of the variable bandwidth operation must be symmetric, that is, the
Transmit and receive channels must use identical Channel Bandwidths.
For details of the spectrum settings that are available to each frequency variant, refer
to:
• PTP 25600 available spectrum settings on page 4-21
• PTP 45600 available spectrum settings on page 4-29
• PTP 48600 available spectrum settings on page 4-39
• PTP 49600 available spectrum settings on page 4-49
• PTP 54600 available spectrum settings on page 4-60
• PTP 58600 available spectrum settings on page 4-80
• PTP 59600 available spectrum settings on page 4-93
![](/img.php?id=1237757&img=bg66.png)
Site planning Chapter 2 Planning considerations
phn-0896_009v003
2-6 UNDER DEVELOPMENT Feb 2010
Site planning
Site selection criteria
The following are guidelines for selecting the installation location of the ODU and
PIDU Plus for a PTP 600 Series.
ODU site selection
When selecting a site for the ODU the following should be taken into consideration:
• It should not be possible for people to stand or walk in front of the antenna
• Height and location to achieve the best radio path
• Height in relation to other objects with regard to lightning strikes
• Aesthetics and planning permission issues
• Distance from the ODU and connected Network equipment (Maximum cable run
from the ODU to the connected equipment is 100m [330 ft])
• Distance from the PIDU Plus to the ODU (Maximum cable run from the PIDU Plus
to the ODU is 300m [990 ft] when using the Fiber interface)
• If using the GPS Sync Unit, ensure that it is exposed to an unobstructed path to
the sky. Please refer to the “GPS Synchronization Unit Kit” User Manual
delivered with the kit.
• The effect of strong winds on the installation – see Section Wind loading on page
2-7.
PIDU Plus site selection
When selecting a site for the PIDU Plus the following should be taken into
consideration:
• Availability of a mains electricity supply
• Accessibility for viewing status indicators and pressing Recovery switch.
![](/img.php?id=1237757&img=bg67.png)
User Guide: PTP 600 Series Site planning
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-7
Wind loading
Antennas and electronic equipment mounted on towers or pole mounted on buildings
will subject the mounting structure to significant lateral forces when there is
appreciable wind. Antennas are normally specified by the amount of force (in pounds)
for specific wind strengths.
The magnitude of the force depends on both the wind strength and size of the antenna.
Calculation of lateral force
The PTP 600 Series with or without the integral antenna is essentially a flat structure
and so the magnitude of the lateral force can be estimated from:
Force (in pounds) = 0.0042 . A . v2
Where A is the surface area in square feet and v is the wind speed in miles per hour.
The lateral force produced by a single 600 Series (integrated or connectorized model)
at different wind speeds is shown in Table 2-1 and Table 2-2.
Table 2-1 Lateral force – imperial
Lateral Force (Pound) at wind speed
(mph)
Largest
Surface Area
(sq ft)
80 100 120 140 150
PTP 600 Series -
Integrated
1.36 36.6 57.1 82.3 146.2 228.5
PTP 600 Series -
Connectorized
1.00 26.9 42 60.5 107.5 168.0
![](/img.php?id=1237757&img=bg68.png)
Site planning Chapter 2 Planning considerations
phn-0896_009v003
2-8 UNDER DEVELOPMENT Feb 2010
Table 2-2 Lateral force – metric
Lateral Force (kg) at wind speed
(m/s)
Largest
Surface Area
(sq m)
30 40 50 60 70
PTP 600 Series -
Integrated
0.130 12 22 34 49 66
PTP 600 Series -
Connectorized
0.093 9 16 24 35 48
NOTE
When the connectorized version of 600 Series is used with external
antennas, the figures from the antenna manufacturer for lateral force should
be included to calculate to total loading on the mounting structure.
Capabilities of the PTP 600 Series
The structure and mounting brackets of the PTP Series systems are capable of
withstanding wind speeds up to 151mph (242 kph). The installer should ensure that
the structure to which the PTP 600 Series is fixed to is also capable of withstanding
the prevalent wind speeds and loads.
Wind speed statistics
Installers are recommended to contact the national meteorological office for the
country concerned to identify the likely wind speeds prevalent at the proposed
location. This will enable the installer to estimate the total wind loading on the
support structures. Sources of information:
• US National Weather Service, http://www.nws.noaa.gov/
• UK Meteorological Office, www.meto.gov.uk
![](/img.php?id=1237757&img=bg69.png)
User Guide: PTP 600 Series Link planning
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-9
Link planning
Range and obstacles
The PTP 600 Series are designed to operate in Non-Line-of-Sight (NLoS) and Line-of-
Sight (LoS) environments.
The PTP 600 Series will operate at ranges from 100 m (330 ft) to 200 km (124 miles),
within 3 modes: 0-40km (0-25 miles), 0-100km (0-62 miles) and 0-200km (0-124 miles).
Operation of the system will depend on obstacles in the path between the units.
Operation at 40 km (25 miles) or above will require a near line-of-sight path. Operation
at 100m (330 ft) could be achieved with one unit totally obscured from the other unit,
but with the penalty of transmitting at higher power in a non-optimal direction,
thereby increasing interference in the band.
A survey must be performed to identify all the obstructions (such as trees or buildings)
in the path and to assess the risk of interference. This information is important if you
are to achieve an accurate link feasibility assessment.
PTP LINKPlanner
Link planning enables a link of known quality to be installed. This involves the
acquisition of path profile data (using Motorola’s free LINKPlanner utility). The
LINKPlanner predicts data rates and reliability over the path. It allows the user to try
different antenna heights and RF power settings. When the link is installed, the mean
path loss can be checked to confirm that the predicted data rate and link reliability is
achievable. Motorola LINKPlanner is available to download from
http://www.motorola.com/ptp/support.
![](/img.php?id=1237757&img=bg6a.png)
Path loss considerations Chapter 2 Planning considerations
phn-0896_009v003
2-10 UNDER DEVELOPMENT Feb 2010
Path loss considerations
Path loss is the amount of attenuation the radio signal undergoes between the two
ends of the link.
Calculating path loss
The path loss is the sum of the attenuation of the path if there were no obstacles in the
way (Free Space Path Loss), the attenuation caused by obstacles (Excess Path Loss)
and a margin to allow for possible fading of the radio signal (Fade Margin). The
calculation of Equation 2-1 needs to be performed to judge whether a particular link
can be installed.
Equation 2-1 Path loss
capabilityseasonalfadeexcessspacefree LLLLL
<
+
+
+
_
Where
spacefree
L_ Free Space Path Loss (dB)
excess
L Excess Path Loss (dB)
fade
L Fade Margin Required (dB)
seasonal
L Seasonal Fading (dB)
capability
L Equipment Capability (dB)
Adaptive modulation
Adaptive modulation ensures that the highest throughput that can be achieved
instantaneously will be obtained, taking account of propagation and interference.
When the link has been installed, web pages provide information about the link loss
currently measured by the equipment, both instantaneously and averaged. The
averaged value will require maximum seasonal fading to be added, and then the radio
reliability of the link can be computed.
User Guide: PTP 600 Series Path loss considerations
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-11
For minimum error rates on TDM links, the maximum modulation mode should be
limited to 64QAM 0.75.
The values for (BPSK) are static receive sensitivity measurements. The other values
are static receive sensitivity measurements with an AMOD threshold applied. The
AMOD threshold applied is for a benign radio channel.
Modulation mode affects the following:
Sensitivity
Sensitivity is defined as the combined receive input signal level on both horizontal and
vertical inputs that produces a Null BER Error ratio of 3x10-7.
Output Power
The output power is for a centre channel in Region 1. The output power will be
reduced on the edge channels and may vary if different region codes are selected.
AMOD Threshold
The AMOD threshold is the combined receive input signal level on both horizontal and
vertical inputs that results in the link consistently entering the receive modulation
mode under consideration as the signal level is increased.
System Threshold
Thresholds for all modes except BPSK are for the relevant link optimization AMOD
thresholds. System threshold for BPSK is the RPSK receive sensitivity.
Max Link Loss
The maximum link loss for each modulation mode is derived from the AMOD threshold
for that mode (sensitivity threshold for BPSK) and the maximum Region 1 centre
channel output power. The figures assume integral antennas are used, with gain
depending upon frequency band as follows:
• 23 dBi (5.9 GHz, 5.8 GHz and 5.4 GHz)
• 22 dBi (4.8 GHz and 4.9 GHz)
• 21.5 dBi (4.5 GHz)
• 18 dBi (2.5 GHz)
![](/img.php?id=1237757&img=bg6c.png)
Planning synchronized networks Chapter 2 Planning considerations
phn-0896_009v003
2-12 UNDER DEVELOPMENT Feb 2010
Planning synchronized networks
Using PTP LINKPlanner for synchronized networks
TDD synchronization should be planned using LINKPlanner. This will provide the
necessary TDD Frame parameter values which are required to complete a
synchronized installation. Please refer to the
Link Planner User Guide
.
TDD synchronization configuration options
The PTP 600 supports the following TDD synchronization configurations:
• Standalone with UltraSync (Figure 2-2): Each link requires an Ultrasync GPS
receiver connected at the master ODU. Use this configuration only for legacy
applications.
• Standalone with PTP SYNC (Figure 2-3): Each link requires one PTP-SYNC unit
connected to the master ODU and one compatibles GPS receiver. Use this
configuration where a site contains only one TDD master ODU. The GPS Receiver
and LPU can be replaced by an alternative compatible 1 Hz timing reference.
• Cluster with PTP SYNC and GPS receiver (Figure 2-4): Each link requires one
PTP SYNC unit. Each site requires one compatible GPS receiver. Collocated PTP
SYNC units are connected together in a daisy-chain. Use this configuration
where a site contains collocated TDD master ODUs in an extended network
where TDD master ODUs are located at multiple sites.
• Cluster with PTP SYNC and no GPS receiver (Figure 2-5): Each link requires one
PTP SYNC unit. PTP SYNC units are connected together in a daisy-chain. One
ODU is designated as a cluster timing master. Use this configuration where all
master ODUs are collocated at a single site. As this configuration does not
require a GPS receiver, it provides additional flexibility, particularly in
applications requiring rapid deployment.
NOTE
If PTP-SYNC is the selected TDD synchronization method, select a 1 Hz
timing reference for the system. This will normally be a GPS receiver
module.
![](/img.php?id=1237757&img=bg6d.png)
User Guide: PTP 600 Series Planning synchronized networks
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-13
Figure 2-2 TDD synchronization configuration – standalone with UltraSync
![](/img.php?id=1237757&img=bg6e.png)
Planning synchronized networks Chapter 2 Planning considerations
phn-0896_009v003
2-14 UNDER DEVELOPMENT Feb 2010
Figure 2-3 TDD synchronization configuration – standalone with PTP SYNC
PIDU
100-240
V ac
ODU
LAN
AC supply
Customer network
PTP-SYNC
PIDU IN
ODU OUT
GPS/
SYNC IN SYNC
OUT
LPU
Outside
Inside
GPS
Receiver
LPU
PTP 600 ODU
PIDU
Drop cable
LPU
Master Slave Mode = Master,
TDD Sync Device = PTP Sync
PTP Sync Site Ref = GPS/1PPS Ext
Cluster Master Slave = Cluster Master
![](/img.php?id=1237757&img=bg6f.png)
User Guide: PTP 600 Series Planning synchronized networks
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-15
Figure 2-4 TDD synchronization configuration – cluster with PTP SYNC and GPS
![](/img.php?id=1237757&img=bg70.png)
Planning synchronized networks Chapter 2 Planning considerations
phn-0896_009v003
2-16 UNDER DEVELOPMENT Feb 2010
Figure 2-5 TDD synchronization configuration – cluster with PTP SYNC and no GPS
PIDU
100-240
V ac
ODU
LAN
AC supply
Customer network Customer network
PTP-SYNC
PIDU IN
ODU OUT
GPS/
SYNC IN SYNC
OUT
LPU LPU
Outside
Inside
LPU
PTP 600 ODU
PIDU
LPU
PTP 600 ODU
PIDU
Drop cable
Additional
PIDUs
Additional
PTP-SYNCs
PTP-SYNC
PIDU IN
ODU OUT
GPS/
SYNC IN SYNC
OUT
PIDU
100-240
V ac
ODU
LAN
LPU
LPU
PTP 600 ODU
PIDU
PTP-SYNC
PIDU IN
ODU OUT
GPS/
SYNC IN SYNC
OUT
PIDU
100-240
V ac
ODU
LAN
Customer network
Master Slave Mode = Master,
TDD Sync Device = PTP Sync
PTP Sync Site Ref = Internal
Cluster Master Slave = Cluster Master
Master Slave Mode = Master,
TDD Sync Device = PTP Sync
PTP Sync Site Ref = Internal
Cluster Master Slave = Cluster Slave
Master Slave Mode = Master,
TDD Sync Device = PTP Sync
PTP Sync Site Ref = Internal
Cluster Master Slave = Cluster Slave
![](/img.php?id=1237757&img=bg71.png)
User Guide: PTP 600 Series System threshold, output power and link loss
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-17
System threshold, output power and link loss
For details of the system threshold, output power and link loss for each frequency
variant in all modulation modes for all available channel bandwidths, refer to:
• PTP 25600 system threshold, output power and link loss on page 4-24
• PTP 45600 system threshold, output power and link loss on page 4-33
• PTP 48600 system threshold, output power and link loss on page 4-43
• PTP 49600 system threshold, output power and link loss on page 4-51
• PTP 54600 system threshold, output power and link loss on page 4-62
• PTP 58600 system threshold, output power and link loss on page 4-83
• PTP 59600 system threshold, output power and link loss on page 4-97
![](/img.php?id=1237757&img=bg72.png)
Lightning protection Chapter 2 Planning considerations
phn-0896_009v003
2-18 UNDER DEVELOPMENT Feb 2010
Lightning protection
This section provides instructions for protecting PTP 600 installations against
lightning strike. The purpose of lightning protection is to protect structures,
equipment and people against lightning by conducting the lightning current to ground
via a separate preferential solid path.
The following topics are described in this section:
• Lightning protection zones on page 2-19
• Grounding considerations on page 2-20
• LPU configuration options on page 2-21
• LPU kit on page 2-22
• LPU installation wiring on page 2-24
• Site installation diagrams on page 2-26
This section should be treated as a guide only. The actual degree of lightning
protection required depends on local conditions and weather patterns and applicable
local regulations. Full details of lightning protection methods and requirements can be
found in the international standards IEC 61024-1 and IEC 61312-1, the U.S. National
Electric Code ANSI/NFPA No. 70-1984 or section 54 of the Canadian Electric Code.
CAUTION
EMD (Lightning) damage is not covered under standard warranty. The
recommendations in this user manual, when implemented correctly, give the
user the best protection from the harmful effects of EMD. However 100%
protection is neither implied nor possible.
![](/img.php?id=1237757&img=bg73.png)
User Guide: PTP 600 Series Lightning protection
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-19
Lightning protection zones
Lightning protection zones are determined by using the ‘rolling sphere method’
(Figure 2-6). Assess locations on masts, towers and buildings to determine if the
location is in Zone A or Zone B:
• Zone A: In this zone a direct lightning strike is possible. Do not mount the ODU
and antenna in this zone.
• Zone B: In this zone, direct EMD (lightning) effects are still possible, but
mounting in this zone significantly reduces the possibility of a direct strike.
Mount the ODU and antenna in this zone.
WARNING
Never mount the ODU in Zone A. Mounting in Zone A may put
equipment, structures and life at risk.
Figure 2-6 Rolling sphere method to determine the lightning protection zones
ODU Zone B
Zone A
Zone A
50 m
Zone B
Lightning protection Chapter 2 Planning considerations
phn-0896_009v003
2-20 UNDER DEVELOPMENT Feb 2010
The rolling sphere method
An imaginary sphere, typically 50 meters in radius, is rolled over the structure (Figure
2-6). Where the sphere rests against the ground and a strike termination device (such
as a finial or ground bar) all the space under the sphere is considered to be in the zone
of protection (Zone B). Similarly, where the sphere rests on two finials the space under
the sphere is considered in the zone of protection.
Grounding considerations
The PTP 600 Series ODU grounding point can be found on the bottom of the unit. The
ODU is supplied with an appropriate grounding lug.
The following protection requirements are mandatory:
• The ODU must be earthed
• Screened CAT 5e cable must be used
• Surge arrestors of type PTP-LPU must be installed at both the ODU and building
entry
• There must be an earth connection at building entry
The recommended standard components for protecting installations are listed in Site
installation diagrams on page 2-26.
![](/img.php?id=1237757&img=bg75.png)
User Guide: PTP 600 Series Lightning protection
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-21
LPU configuration options
The PTP LPU can be installed in one of the following configurations:
• Option 1: Back-to-back with the ODU using the supplied brackets delivered part
of the installation of a link. This is the configuration recommended by Motorola.
• Option 2: Using the U-Bolt bracket supplied with the PTP LPU Kit.
Typical examples of these two configurations are shown in Figure 2-7 and Figure 2-8.
CAUTION
Grounding Points are shown unprotected for clarity. Grounding points
should be weatherproofed to prevent corrosion and possible loss of ground
continuity.
Figure 2-7 Example of PTP-LPU configuration option 1 (back-to-back)
![](/img.php?id=1237757&img=bg76.png)
Lightning protection Chapter 2 Planning considerations
phn-0896_009v003
2-22 UNDER DEVELOPMENT Feb 2010
Figure 2-8 Example of PTP-LPU configuration option 2 (U-bolt)
A second Lightning protection Unit should be mounted at the building entry point and
must be grounded.
LPU kit
Standard kit with two LPUs
The standard PTP-LPU kit (Figure 2-9) contains two LPUs, grounding cables and a
600mm ODU to LPU cable pre-fitted with glands. The Motorola part number for this
kit is WB2907AA.
![](/img.php?id=1237757&img=bg78.png)
Lightning protection Chapter 2 Planning considerations
phn-0896_009v003
2-24 UNDER DEVELOPMENT Feb 2010
Additional kit with one LPU
Some installation options, for example PTP-SYNC with Trimble GPS receiver, may
require an additional single LPU kit (Figure 2-10).
Figure 2-10 PTP-LPU additional kit
LPU installation wiring
Figure 2-11 shows the correct installation wiring for a PTP 600 with lightning
protection.
![](/img.php?id=1237757&img=bg79.png)
User Guide: PTP 600 Series Lightning protection
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-25
Figure 2-11 Simplified circuit diagram
![](/img.php?id=1237757&img=bg7a.png)
Site installation diagrams Chapter 2 Planning considerations
phn-0896_009v003
2-26 UNDER DEVELOPMENT Feb 2010
Site installation diagrams
This section contains diagrams to show how the components of PTP 600 sites are
installed and connected with LPU. The diagrams cover the following configurations:
• Typical mast or tower installation
• Typical wall installation
• Mast or tower installation with E1/T1
• Wall installation with E1/T1
• Mast or tower installation with GPS Sync Unit
• Wall installation with GPS Sync Unit
• Mast or tower installation with GPS Sync Unit and E1/T1
• Wall installation with GPS Sync Unit and E1/T1
The recommended standard components for protecting installations are:
• The supported Superior Essex cable
• Surge arrestor, type PTP-LPU: 4 or 8 per link (2 or 4 Motorola Kits Part Number
WB2907AA)
• Grounding stake
• Grounding cable: minimum size 8 AWG, preferably 6 or 4 AWG
• RJ45 screened connectors
Additional components are listed under each diagram where required. The
recommended cables are specified in Cables and connectors on page 1-15.
There may be a local regulatory requirement to cross bond the CAT 5e cable to the
mast or tower at intervals as regular as every 10 metres (33 feet). This can be
achieved using an Andrew grounding assembly type 223158 or similar.
NOTE
Refer to instructions contained in the Andrew grounding kit for correct
installation, or if instructions are missing, refer to:
http://awapps.commscope.com/catalog/product_details.aspx?id=15832&tab
=2
Where an installation already has, or requires the use of a Master Ground Bar then the
requirements of
Motorola Specification R56: STANDARDS AND GUIDELINES FOR
COMMUNICATION SITES (68P81089E50)
take precedence over those in this guide.
![](/img.php?id=1237757&img=bg7b.png)
User Guide: PTP 600 Series Site installation diagrams
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-27
NOTE
If a coaxial (or other) cable is already cross-bonded to the mast or tower, the
same cross bonding points on the mast or tower must be used for the CAT 5e
cable.
![](/img.php?id=1237757&img=bg7c.png)
Site installation diagrams Chapter 2 Planning considerations
phn-0896_009v003
2-28 UNDER DEVELOPMENT Feb 2010
Typical mast or tower installation
Figure 2-12 shows a typical PTP 600 Series mast or tower installation using PTP-LPU
Surge protection for a configuration without a GPS sync unit or E1/T1 ports. This
installation requires 4 Motorola PTP-LPU surge arrestors (2 kits).
Figure 2-12 Typical mast or tower installation
![](/img.php?id=1237757&img=bg7d.png)
User Guide: PTP 600 Series Site installation diagrams
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-29
Typical wall installation
Figure 2-13 shows a typical PTP 600 Series wall installation using PTP-LPU surge
protection for a configuration without a GPS sync unit or E1/T1 ports. This installation
requires 4 Motorola PTP-LPU surge arrestors (2 kits).
Figure 2-13 Typical wall installation
![](/img.php?id=1237757&img=bg7e.png)
Site installation diagrams Chapter 2 Planning considerations
phn-0896_009v003
2-30 UNDER DEVELOPMENT Feb 2010
Mast or tower installation with E1/T1
Figure 2-14 shows a typical PTP 600 Series mast or tower installation using PTP-LPU
surge protection for a configuration that includes E1/T1 ports. This installation
requires 8 Motorola PTP-LPU surge arrestors (4 kits).
Figure 2-14 Mast or tower installation with E1/T1
![](/img.php?id=1237757&img=bg7f.png)
User Guide: PTP 600 Series Site installation diagrams
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-31
Wall installation with E1/T1
Figure 2-15 shows a PTP 600 Series wall installation using PTP-LPU surge protection
for a configuration that includes E1/T1 ports. This installation requires 8 Motorola
PTP-LPU surge arrestors (4 kits).
Figure 2-15 Wall installation with E1/T1
![](/img.php?id=1237757&img=bg80.png)
Site installation diagrams Chapter 2 Planning considerations
phn-0896_009v003
2-32 UNDER DEVELOPMENT Feb 2010
Mast or tower installation with UltraSync GPS unit
Figure 2-16 shows a PTP 600 Series mast or tower installation using PTP-LPU surge
protection for a configuration that includes an UltraSync GPS sync unit. This
installation requires 4 Motorola PTP-LPU surge arrestors (2 kits). This installation also
requires: UltraSync GPS sync unit from MemoryLinkl – 1 per link (1 Motorola kit).
Figure 2-16 Mast or tower installation with UltraSync GPS sync unit
![](/img.php?id=1237757&img=bg81.png)
User Guide: PTP 600 Series Site installation diagrams
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-33
Wall installation with UltraSync GPS unit
Figure 2-17 shows a PTP 600 Series wall installation using PTP-LPU surge protection
for a configuration that includes an UltraSync GPS sync unit. This installation requires
4 Motorola PTP-LPU surge arrestors (2 kits). This installation also requires one
UltraSync GPS sync unit from MemoryLink per link (1 Motorola kit).
Figure 2-17 Wall installation with UltraSync GPS sync unit
![](/img.php?id=1237757&img=bg82.png)
Site installation diagrams Chapter 2 Planning considerations
phn-0896_009v003
2-34 UNDER DEVELOPMENT Feb 2010
Mast or tower installation with UltraSync GPS unit and E1/T1
Figure 2-18 shows a PTP 600 Series mast or tower installation using PTP-LPU surge
protection for a configuration that includes an UltraSync GPS sync unit and E1/T1
ports. This installation requires 8 Motorola PTP-LPU surge arrestors (4 kits). This
installation also requires: UltraSync GPS sync unit from MemoryLinkl – 1 per link (1
Motorola kit).
Figure 2-18 Mast or tower installation with UltraSync GPS sync unit and E1/T1
![](/img.php?id=1237757&img=bg83.png)
User Guide: PTP 600 Series Site installation diagrams
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-35
Wall installation with UltraSync GPS unit and E1/T1
Figure 2-19 shows a PTP 600 Series wall installation using PTP-LPU surge protection
for a configuration that includes an UltraSync GPS sync unit and E1/T1 ports. This
installation requires 8 Motorola PTP-LPU surge arrestors (4 kits). This installation also
requires: UltraSync GPS sync unit from MemoryLinkl – 1 per link (1 Motorola kit).
Figure 2-19 Wall installation with UltraSync GPS sync unit and E1/T1
![](/img.php?id=1237757&img=bg84.png)
Protection of the GPS receiver for PTP-SYNC Chapter 2 Planning considerations
phn-0896_009v003
2-36 UNDER DEVELOPMENT Feb 2010
Protection of the GPS receiver for PTP-SYNC
If PTP-SYNC is the selected TDD synchronization method, with a GPS receiver as the
timing reference source, then the GPS receiver must be protected as described in this
section.
CAUTION
Ensure that the GPS receiver module is mounted in a position where all
lightning protection requirements can be met.
GPS receiver mounting options
The options for mounting the GPS receiver module are as follows:
• Mount it on the wall of the equipment building, if there is a suitable position from
which it can receive an adequate satellite signal.
• Failing that, mount it on a metal tower or mast.
Mounting the GPS receiver module on the equipment building
If mounting the GPS receiver module on the equipment building (Figure 2-20), select a
position on the wall that meets the following requirements:
• It must have an un-interrupted view of the sky.
• It must receive an adequate signal from at least one GPS satellite.
• It must be in ‘Zone B’ (refer to Lightning protection zones on page 2-19).
• It must be below the roof height of the equipment building or below the height of
any roof-mounted equipment (such as air conditioning plant).
• It must be below the lightning terminals and finials.
• It must not project more than 600mm (24 inches) from the wall of the building.
• It must be possible to wire it to the PTP-SYNC unit via an LPU with Superior
Essex screened 4-pair cable.
If these requirements cannot all be met, then the module must be mounted on a metal
tower or mast.
![](/img.php?id=1237757&img=bg85.png)
User Guide: PTP 600 Series Protection of the GPS receiver for PTP-SYNC
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 2-37
Figure 2-20 GPS receiver mounted on equipment building
Mounting the GPS receiver module on a metal tower or mast
If mounting the GPS receiver module on a metal tower or mast (Figure 2-21), select a
position that meets the following requirements:
• It must have an un-interrupted view of the sky.
• It must not be mounted any higher than is necessary to receive an adequate
signal from a GPS satellite.
• It must be lower than the top of the tower or its lightning terminal and finial.
• It must be protected by a nearby lightning terminal or finial that projects further
out from the tower than the GPS receiver module.
• It must be possible to wire it to the PTP-SYNC unit via an LPU with Superior
Essex screened 4-pair cable.
![](/img.php?id=1237757&img=bg86.png)
Protection of the GPS receiver for PTP-SYNC Chapter 2 Planning considerations
phn-0896_009v003
2-38 UNDER DEVELOPMENT Feb 2010
The grounding requirements of a tower or mast mounted GPS receiver module are:
• The metal tower or mast must be correctly grounded.
• The cable screen must be bonded to the tower at the top and bottom ends.
• Additional grounding at intermediate points of the cable may be required if the
cable is longer than 15m (50 feet).
Figure 2-21 GPS receiver mounted on tower or mast
Tower Ground Bar (TGB)
External Ground Bar (EGB)
Rack Ground Bar (RGB)
Equipment Rack
PTP-SYNC
Cable Ground Kit note 1
Cable Ground Kit
Cable Ground Kit
Master Ground Bar (MGB)
PTP-SYNC Ground Cable
Ground Bus Conductor
GPS Rx Module to LPU cable
Superior Essex Cable
(screened shield)
Note 1 : Additional ground kits shall be installed as necessary to
reduce the distance between ground kits to 61m (200ft) or less.
In high lightning prone areas, additional ground kits should be
installed at spacing between 15.2 to 22.9m (50 to 75ft), this is
especially important on towers taller than 45.7m (150ft).
Ground wire should be
installed without drip
loops and pointing down
towards the ground.
MGB Grounding system
GPS
Rx
GPS Rx Module mounting bracket
Lightning Protection Unit
(LPU)
PIDU
To ODU/LPU
on mast
![](/img.php?id=1237757&img=bg87.png)
Chapter 3
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 3-1
Chapter 3 Legal information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
This chapter provides legal notices including software license agreements.
CAUTION
Intentional or unintentional changes or modifications to the equipment must
not be made unless under the express consent of the party responsible for
compliance. Any such modifications could void the user’s authority to
operate the equipment and will void the manufacturer’s warranty.
The following topics are described in this chapter:
• Motorola Inc. end user license agreementon page 3-2
• Hardware warranty on page 3-12
• Limit of liability on page 3-13
![](/img.php?id=1237757&img=bg88.png)
Motorola Inc. end user license agreement Chapter 3 Legal information
phn-0896_009v003
3-2 UNDER DEVELOPMENT Feb 2010
Motorola Inc. end user license agreement
In connection with Motorola’s delivery of certain proprietary software or products
containing embedded or pre-loaded proprietary software, or both, Motorola is willing
to license this certain proprietary software and the accompanying documentation to
you only on the condition that you accept all the terms in this End User License
Agreement (“Agreement”).
IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, DO NOT USE THE
PRODUCT OR INSTALL THE SOFTWARE. INSTEAD, YOU MAY, FOR A FULL
REFUND, RETURN THIS PRODUCT TO THE LOCATION WHERE YOU ACQUIRED IT
OR PROVIDE WRITTEN VERIFICATION OF DELETION OF ALL COPIES OF THE
SOFTWARE. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE
ON THE PRODUCT, WILL CONSTITUTE YOUR ACCEPTANCE TO THE TERMS OF
THIS AGREEMENT.
Definitions
In this Agreement, the word “Software” refers to the set of instructions for computers,
in executable form and in any media, (which may include diskette, CD-ROM,
downloadable internet, hardware, or firmware) licensed to you. The word
“Documentation” refers to electronic or printed manuals and accompanying
instructional aids licensed to you. The word “Product” refers to Motorola’s MOTOwi4™
fixed wireless broadband devices for which the Software and Documentation is
licensed for use.
Grant of license
Motorola, Inc. (“Motorola”) grants you (“Licensee” or “you”) a personal, nonexclusive,
non-transferable license to use the Software and Documentation subject to the
Conditions of Use set forth in “Conditions of use” and the terms and conditions of
this Agreement. Any terms or conditions relating to the Software and Documentation
appearing on the face or reverse side of any purchase order, purchase order
acknowledgment or other order document that are different from, or in addition to, the
terms of this Agreement will not be binding on the parties, even if payment is
accepted.
User Guide: PTP 600 Series Motorola Inc. end user license agreement
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 3-3
Conditions of use
Any use of the Software and Documentation outside of the conditions set forth in this
Agreement is strictly prohibited and will be deemed a breach of this Agreement.
1. Only you, your employees or agents may use the Software and Documentation.
You will take all necessary steps to insure that your employees and agents abide
by the terms of this Agreement.
2. You will use the Software and Documentation (i) only for your internal
business purposes; (ii) only as described in the Software and Documentation; and
(iii) in strict accordance with this Agreement.
3. You may use the Software and Documentation, provided that the use is in
conformance with the terms set forth in this Agreement.
4. Portions of the Software and Documentation are protected by United States
copyright laws, international treaty provisions, and other applicable laws.
Therefore, you must treat the Software like any other copyrighted material (for
example, a book or musical recording) except that you may either: (i) make 1
copy of the transportable part of the Software (which typically is supplied on
diskette, CD-ROM, or downloadable internet), solely for back-up purposes; or
(ii) copy the transportable part of the Software to a PC hard disk, provided you
keep the original solely for back-up purposes. If the Documentation is in printed
form, it may not be copied. If the Documentation is in electronic form, you may
print out 1 copy, which then may not be copied. With regard to the copy made
for backup or archival purposes, you agree to reproduce any Motorola copyright
notice, and other proprietary legends appearing thereon. Such copyright
notice(s) may appear in any of several forms, including machine-readable form,
and you agree to reproduce such notice in each form in which it appears, to the
extent it is physically possible to do so. Unauthorized duplication of the Software
or Documentation constitutes copyright infringement, and in the United States is
punishable in federal court by fine and imprisonment.
5. You will not transfer, directly or indirectly, any product, technical data or
software to any country for which the United States Government requires an
export license or other governmental approval without first obtaining such
license or approval.
Motorola Inc. end user license agreement Chapter 3 Legal information
phn-0896_009v003
3-4 UNDER DEVELOPMENT Feb 2010
Title and restrictions
If you transfer possession of any copy of the Software and Documentation to another
party outside of the terms of this agreement, your license is automatically terminated.
Title and copyrights to the Software and Documentation and any copies made by you
remain with Motorola and its licensors. You will not, and will not permit others to:
(i) modify, translate, decompile, bootleg, reverse engineer, disassemble, or extract the
inner workings of the Software or Documentation, (ii) copy the look-and-feel or
functionality of the Software or Documentation; (iii) remove any proprietary notices,
marks, labels, or logos from the Software or Documentation; (iv) rent or transfer all or
some of the Software or Documentation to any other party without Motorola’s prior
written consent; or (v) utilize any computer software or hardware which is designed to
defeat any copy protection device, should the Software and Documentation be
equipped with such a protection device. If the Software and Documentation is
provided on multiple types of media (such as diskette, CD-ROM, downloadable
internet), then you will only use the medium which best meets your specific needs, and
will not loan, rent, lease, or transfer the other media contained in the package without
Motorola’s written consent. Unauthorized copying of the Software or Documentation,
or failure to comply with any of the provisions of this Agreement, will result in
automatic termination of this license.
Confidentiality
You acknowledge that all Software and Documentation contain valuable proprietary
information and trade secrets and that unauthorized or improper use of the Software
and Documentation will result in irreparable harm to Motorola for which monetary
damages would be inadequate and for which Motorola will be entitled to immediate
injunctive relief. If applicable, you will limit access to the Software and
Documentation to those of your employees and agents who need to use the Software
and Documentation for your internal business purposes, and you will take appropriate
action with those employees and agents to preserve the confidentiality of the Software
and Documentation, using the same degree of care to avoid unauthorized or improper
disclosure as you use for the protection of your own proprietary software, but in no
event less than reasonable care.
You have no obligation to preserve the confidentiality of any proprietary information
that: (i) was in the public domain at the time of disclosure; (ii) entered the public
domain through no fault of yours; (iii) was given to you free of any obligation to keep it
confidential; (iv) is independently developed by you; or (v) is disclosed as required by
law provided that you notify Motorola prior to such disclosure and provide Motorola
with a reasonable opportunity to respond.
![](/img.php?id=1237757&img=bg8b.png)
User Guide: PTP 600 Series Motorola Inc. end user license agreement
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 3-5
Right to use Motorola’s name
Except as required in “Conditions of use”, you will not, during the term of this
Agreement or thereafter, use any trademark of Motorola, or any word or symbol likely
to be confused with any Motorola trademark, either alone or in any combination with
another word or words.
Transfer
The Software and Documentation may not be transferred to another party without the
express written consent of Motorola, regardless of whether or not such transfer is
accomplished by physical or electronic means. Motorola’s consent may be withheld at
its discretion and may be conditioned upon transferee paying all applicable license
fees and agreeing to be bound by this Agreement.
Updates
During the first 12 months after purchase of a Product, or during the term of any
executed Maintenance and Support Agreement for the Product, you are entitled to
receive Updates. An “Update” means any code in any form which is a bug fix, patch,
error correction, or minor enhancement, but excludes any major feature added to the
Software. Updates are available for download at
http://www.motorola.com/ptp/software.
Major features may be available from time to time for an additional license fee. If
Motorola makes available to you major features and no other end user license
agreement is provided, then the terms of this Agreement will apply.
Maintenance
Except as provided above, Motorola is not responsible for maintenance or field service
of the Software under this Agreement.
Motorola Inc. end user license agreement Chapter 3 Legal information
phn-0896_009v003
3-6 UNDER DEVELOPMENT Feb 2010
Disclaimer
MOTOROLA DISCLAIMS ALL WARRANTIES OF ANY KIND, WHETHER EXPRESS,
IMPLIED, STATUTORY, OR IN ANY COMMUNICATION WITH YOU. MOTOROLA
SPECIFICALLY DISCLAIMS ANY WARRANTY INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILTY, NONINFRINGEMENT, OR FITNESS FOR A PARTICULAR
PURPOSE. THE SOFTWARE AND DOCUMENTATION ARE PROVIDED “AS IS.”
MOTOROLA DOES NOT WARRANT THAT THE SOFTWARE WILL MEET YOUR
REQUIREMENTS, OR THAT THE OPERATION OF THE SOFTWARE WILL BE
UNINTERRUPTED OR ERROR FREE, OR THAT DEFECTS IN THE SOFTWARE WILL
BE CORRECTED. MOTOROLA MAKES NO WARRANTY WITH RESPECT TO THE
CORRECTNESS, ACCURACY, OR RELIABILITY OF THE SOFTWARE AND
DOCUMENTATION. Some jurisdictions do not allow the exclusion of implied
warranties, so the above exclusion may not apply to you.
Limitation of liability
THE TOTAL LIABILITY OF MOTOROLA UNDER THIS AGREEMENT FOR DAMAGES
WILL NOT EXCEED THE TOTAL AMOUNT PAID BY YOU FOR THE PRODUCT
LICENSED UNDER THIS AGREEMENT. IN NO EVENT WILL MOTOROLA BE LIABLE
IN ANY WAY FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR
PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST
BUSINESS PROFITS, OR LIABILITY OR INJURY TO THIRD PERSONS, WHETHER
FORESEEABLE OR NOT, REGARDLESS OF WHETHER MOTOROLA HAS BEEN
ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. Some jurisdictions do not permit
limitations of liability for incidental or consequential damages, so the above exclusions
may not apply to you.
User Guide: PTP 600 Series Motorola Inc. end user license agreement
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 3-7
U.S. government
If you are acquiring the Product on behalf of any unit or agency of the U.S.
Government, the following applies. Use, duplication, or disclosure of the Software and
Documentation is subject to the restrictions set forth in subparagraphs (c) (1) and (2)
of the Commercial Computer Software – Restricted Rights clause at FAR 52.227-19
(JUNE 1987), if applicable, unless being provided to the Department of Defense. If
being provided to the Department of Defense, use, duplication, or disclosure of the
Products is subject to the restricted rights set forth in subparagraph (c) (1) (ii) of the
Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 (OCT
1988), if applicable. Software and Documentation may or may not include a Restricted
Rights notice, or other notice referring specifically to the terms and conditions of this
Agreement. The terms and conditions of this Agreement will each continue to apply,
but only to the extent that such terms and conditions are not inconsistent with the
rights provided to you under the aforementioned provisions of the FAR and DFARS, as
applicable to the particular procuring agency and procurement transaction.
Term of license
Your right to use the Software will continue in perpetuity unless terminated as follows.
Your right to use the Software will terminate immediately without notice upon a
breach of this Agreement by you. Within 30 days after termination of this Agreement,
you will certify to Motorola in writing that through your best efforts, and to the best of
your knowledge, the original and all copies, in whole or in part, in any form, of the
Software and all related material and Documentation, have been destroyed, except
that, with prior written consent from Motorola, you may retain one copy for archival or
backup purposes. You may not sublicense, assign or transfer the license or the
Product, except as expressly provided in this Agreement. Any attempt to otherwise
sublicense, assign or transfer any of the rights, duties or obligations hereunder is null
and void.
Governing law
This Agreement is governed by the laws of the United States of America to the extent
that they apply and otherwise by the laws of the State of Illinois.
Assignment
This agreement may not be assigned by you without Motorola’s prior written consent.
![](/img.php?id=1237757&img=bg8e.png)
Motorola Inc. end user license agreement Chapter 3 Legal information
phn-0896_009v003
3-8 UNDER DEVELOPMENT Feb 2010
Survival of provisions
The parties agree that where the context of any provision indicates an intent that it
survives the term of this Agreement, then it will survive.
Entire agreement
This agreement contains the parties’ entire agreement regarding your use of the
Software and may be amended only in writing signed by both parties, except that
Motorola may modify this Agreement as necessary to comply with applicable laws.
Third party software
The software may contain one or more items of Third-Party Software supplied by other
third-party suppliers. The terms of this Agreement govern your use of any Third-Party
Software UNLESS A SEPARATE THIRD-PARTY SOFTWARE LICENSE IS INCLUDED,
IN WHICH CASE YOUR USE OF THE THIRD-PARTY SOFTWARE WILL THEN BE
GOVERNED BY THE SEPARATE THIRD-PARTY LICENSE.
Software
The following is a list of the third party computer software copyrights contained within this
Motorola product.
Vendor Copyright
UCD SNMP
Copyright 1989, 1991, 1992 by Carnegie Mellon University,
Derivative Work – 1996, 1998-2000, Copyright 1996, 1998-2000
The regents of the University of California All Rights reserved.
See UCD SNMP license on page 3-9.
BZIP2
“bzip2" and associated library "libbzip2", are copyright (C) 1996-
2000 Julian R Seward.
See BZIP2 license on page 3-10.
zlib.h
Interface of the 'zlib' general purpose compression library
version 1.2.3, July 18th, 2005. Copyright (C) 1995-2005 Jean-loup
Gailly and Mark Adler.
See zlib.h license on page 3-11.
*= Publicly Available Software
User Guide: PTP 600 Series Motorola Inc. end user license agreement
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 3-9
Trademarks
Java™ Technology and/or J2ME™ : Java and all other Java-based marks are trademarks
or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
UNIX® : UNIX is a registered trademark of The Open Group in the United States and
other countries.
UCD SNMP license
Copyright 1989, 1991, 1992 by Carnegie Mellon University, Derivative Work – 1996,
1998-2000, Copyright 1996, 1998-2000 The regents of the University of California All
Rights reserved. Permission to use, copy, modify and distribute this software and its
documentation for any purpose and without fee is hereby granted, provided that the
above copyright notice appears in all copies and that both that copyright notice and
this permission notice appear in supporting documentation, and that the name of CMU
and The Regents of the University of California not be used in advertising or publicity
pertaining to distribution of the software without specific written permission. CMU
AND THE REGENTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL
WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED.
WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU
OR THE REGENTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES
WHATSOEVER RESULTING FROM THE LOSS OF USE, DATA OR PROFITS,
WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS
ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE. ONLY OPEN THE PACKAGE, OR USE THE
SOFTWARE AND RELATED PRODUCT IF YOU ACCEPT THE TERMS OF THIS
LICENSE. BY BREAKING THE SEAL ON THIS DISK KIT / CDROM, OR IF YOU USE
THE SOFTWARE OR RELATED PRODUCT, YOU ACCEPT THE TERMS OF THIS
LICENSE AGREEMENT. IF YOU DO NOT AGREE TO THESE TERMS, DO NOT USE
THE SOFTWARE OR RELATED PRODUCT; INSTEAD, RETURN THE SOFTWARE TO
PLACE OF PURCHASE FOR A FULL REFUND. THE FOLLOWING AGREEMENT IS A
LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR ENTITY), AND
MOTOROLA, INC. (FOR ITSELF AND ITS LICENSORS). THE RIGHT TO USE THIS
PRODUCT IS LICENSED ONLY ON THE CONDITION THAT YOU AGREE TO THE
FOLLOWING TERMS.
Motorola Inc. end user license agreement Chapter 3 Legal information
phn-0896_009v003
3-10 UNDER DEVELOPMENT Feb 2010
BZIP2 license
“bzip2" and associated library "libbzip2", are copyright (C) 1996-2000 Julian R Seward.
All rights reserved. Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
• Redistributions of source code must retain the above copyright notice, this list of
condition sand the following disclaimer.
• The origin of this software must not be misrepresented; you must not claim that
you wrote the original software. If you use this software in a product, an
acknowledgment in the product documentation would be appreciated but is not
required.
• Altered source versions must be plainly marked as such, and must not be
misrepresented as being the original software.
• The name of the author may not be used to endorse or promote products derived
from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
![](/img.php?id=1237757&img=bg91.png)
User Guide: PTP 600 Series Motorola Inc. end user license agreement
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 3-11
zlib.h license
Interface of the 'zlib' general purpose compression library version 1.2.3, July 18th,
2005. Copyright (C) 1995-2005 Jean-loup Gailly and Mark Adler. This software is
provided 'as-is', without any express or implied warranty. In no event will the authors
be held liable for any damages arising from the use of this software. Permission is
granted to anyone to use this software for any purpose, including commercial
applications, and to alter it and redistribute it freely, subject to the following
restrictions:
• The origin of this software must not be misrepresented; you must not claim that
you wrote the original software. If you use this software in a product, an
acknowledgment in the product documentation would be appreciated but is not
required.
• Altered source versions must be plainly marked as such, and must not be
misrepresented as being the original software.
• This notice may not be removed or altered from any source distribution.
Jean-loup Gailly jloup@gzip.org
Mark Adler madler@alumni.caltech.edu
![](/img.php?id=1237757&img=bg92.png)
Hardware warranty Chapter 3 Legal information
phn-0896_009v003
3-12 UNDER DEVELOPMENT Feb 2010
Hardware warranty
Motorola’s standard hardware warranty is for one (1) year from date of shipment from
Motorola or a Motorola Point-to-Point Distributor. Motorola warrants that hardware
will conform to the relevant published specifications and will be free from material
defects in material and workmanship under normal use and service. Motorola shall
within this time, at its own option, either repair or replace the defective product within
thirty (30) days of receipt of the defective product. Repaired or replaced product will
be subject to the original warranty period but not less than thirty (30) days.
![](/img.php?id=1237757&img=bg93.png)
User Guide: PTP 600 Series Limit of liability
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 3-13
Limit of liability
IN NO EVENT SHALL MOTOROLA BE LIABLE TO YOU OR ANY OTHER PARTY FOR
ANY DIRECT, INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL,
EXEMPLARY OR OTHER DAMAGE ARISING OUT OF THE USE OR INABILITY TO
USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION OR ANY OTHER PECUNIARY LOSS, OR FROM ANY BREACH OF
WARRANTY, EVEN IF MOTOROLA HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. (Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above exclusion or limitation may not apply to you.) IN
NO CASE SHALL MOTOROLA’S LIABILITY EXCEED THE AMOUNT YOU PAID FOR
THE PRODUCT.
Limit of liability Chapter 3 Legal information
phn-0896_009v003
3-14 UNDER DEVELOPMENT Feb 2010
![](/img.php?id=1237757&img=bg95.png)
Chapter 4
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-1
Chapter 4 Reference information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
This chapter describes the reference information and regulatory notices that are
common to all PTP 600 products and those that are specific to each frequency variant.
The following topics are described in this chapter:
• PTP 600 general reference information on page 4-2
• PTP 25600 reference information on page 4-16
• PTP 45600 reference information on page 4-26
• PTP 48600 reference information on page 4-35
• PTP 49600 reference information on page 4-45
• PTP 54600 reference information on page 4-53
• PTP 58600 reference information on page 4-67
• PTP 59600 reference information on page 4-90
• Data rate calculations on page 4-99
![](/img.php?id=1237757&img=bg96.png)
PTP 600 general reference information Chapter 4 Reference information
phn-0896_009v003
4-2 UNDER DEVELOPMENT Feb 2010
PTP 600 general reference information
Compliance with regulations
Changes or modifications not expressly approved by Motorola could void the user’s
authority to operate the system.
This system has achieved Type Approval in various countries around the world. This
means that the system has been tested against various local technical regulations and
found to comply. The frequency bands in which the system operates may be
‘unlicensed’ and, in these bands, the system can be used provided it does not cause
interference. Further, it is not guaranteed protection against interference from other
products and installations.
CAUTION
When planning a link that will use Connectorized PTP 600 Seriess (with external
antennas), ensure that regulatory requirements are met for the installation, as
described in Regulatory issues with connectorized units on page 8-10.
FCC and ETSI compliance testing
The system has been tested for compliance to both US (FCC) and European (ETSI)
specifications. It has been shown to comply with the limits for emitted spurious
radiation for a Class B digital device, pursuant to Part 15 of the FCC Rules in the USA
and appropriate European ENs. These limits have been designed to provide reasonable
protection against harmful interference. However the equipment can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to other radio communications. There is no guarantee
that interference will not occur in a particular installation.
When the system is used with PTP-SYNC, then it meets the requirements for a Class A
digital device.
NOTE
A Class B Digital Device is a device that is marketed for use in a residential
environment, notwithstanding use in commercial, business and industrial
environments.
A Class A Digital Device is a device that is marketed for use in a commercial,
industrial or business environment, exclusive of a device which is marketed
for use by the general public or is intended to be used in the home.
User Guide: PTP 600 Series PTP 600 general reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-3
Radio and television interference
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the Outdoor Unit (ODU).
• Increase the separation between the affected equipment and ODU.
• Connect the ODU and PIDU Plus into a power outlet on a circuit different from
that to which the receiver is connected.
• Consult your installer or supplier for help.
Deployment and operation
The Radio Regulations of various countries’ limits constrain the operation of radio
products generally. In particular the local regulator may limit the amount of conducted
or radiated transmitter power and may require registration of the radio link.
The power transmitted by the PTP 600 Series is controlled by the use of Region-
specific License Keys. Contact your supplier/installer to ensure that your product is set
for the correct License Key for your Country/Region and to ensure that you have
fulfilled all the local regulatory requirements, especially if you are intending to use a
link with external antennas.
Examples of regulatory limits
For examples of how the regulatory limits apply to each frequency variant in specific
countries, refer to:
• PTP 25600 examples of regulatory limits on page 4-16
• PTP 45600 examples of regulatory limits on page 4-26
• PTP 48600 examples of regulatory limits on page 4-35
• PTP 49600 examples of regulatory limits on page 4-45
• PTP 54600 examples of regulatory limits on page 4-53
• PTP 58600 examples of regulatory limits on page 4-67
• PTP 59600 examples of regulatory limits on page 4-90
![](/img.php?id=1237757&img=bg98.png)
PTP 600 general reference information Chapter 4 Reference information
phn-0896_009v003
4-4 UNDER DEVELOPMENT Feb 2010
Registration of links
UK Registration of Links – OfCom, The application form may be found at:
http://www.ofcom.org.uk/radiocomms/isu
Eire Registration of Links – Commission for Communication Regulation, The
application form may be found at:
http://www.comreg.ie/licensing_and_services
![](/img.php?id=1237757&img=bg99.png)
User Guide: PTP 600 Series PTP 600 general reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-5
System specifications
Table 4-1 PTP 600 management specifications
Management Specification
Power status
Ethernet Link Status
Status Indication
Data activity
Web server and browser for setup
Audio tone feedback during installation , plus
graphical installation tool suitable for laptop
and PDA computing devices
Installation
Web server for confirmation
Radio Performance and
Management Via web server and browser, SNMP
Alarms Via configurable email alerts, SNMP
Table 4-2 PTP 600 Ethernet bridging specifications
Ethernet Bridging Specification
Protocol IEEE802.1; IEEE802.1p; IEEE802.3 compatible
QoS IEEE 802.1p (eight levels), IEEE 802.1Q, IEEE
802.1ad
Interface 10/100/1000BaseT (RJ-45), Supports MDI/MDIX
Auto Crossover
Data Rates See Data rate calculations on page 4-99.
Maximum Ethernet Frame Size 2000 bytes
![](/img.php?id=1237757&img=bg9a.png)
PTP 600 general reference information Chapter 4 Reference information
phn-0896_009v003
4-6 UNDER DEVELOPMENT Feb 2010
NOTE
Practical Ethernet rates will depend on network configuration, higher layer
protocols and platforms used.
Over the air throughput will be capped to the rate of the Ethernet interface
at the receiving end of the link.
Table 4-3 PTP 600 physical specifications
Integrated Specification
Dimensions Width 14.5” (370mm), Height 14.5” (370mm), Depth 3.75”
(95mm)
Weight 12.1 lbs (5.5 Kg) including bracket
Connectorized Specification
Dimensions Width 12” (305mm), Height 12” (305mm), Depth 4.01” (105mm)
Weight 9.1 lbs (4.3 Kg) including bracket
Table 4-4 PTP 600 power supply specifications
Power Supply Separate power supply unit (included)
Dimensions Width 9.75” (250mm), Height 1.5” (40mm), Depth 3” (80mm)
Weight 1.9 lbs (0.864 Kg)
Power source 90 – 264 V ac, 50 – 60 Hz / 36 – 60 V dc
Power
consumption 55 W max
![](/img.php?id=1237757&img=bg9b.png)
User Guide: PTP 600 Series PTP 600 general reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-7
Table 4-5 PTP 600 telecoms interface specifications
Telecoms Specification
Interfaces 2 E1 balanced 120R or 2 T1 balanced 100R over a CAT5
screened twisted pair cable
Jitter and Wander Compliant with G.823/ G.824.
Surge Protection
and Power Cross Compliant with GR1089, EN60950.
Table 4-6 PTP 600 PTP-SYNC physical specifications
PTP-SYNC Specification
Dimensions
Width excluding ears 6.69in (174mm)
Width including ears 7.54in (196mm)
Height 1.21in (31.5mm)
Depth 3.04in (79mm)
Weight 485 gm
Power supply Integrated with PIDU
Power source +39 V dc to +60 V dc
Power
consumption 1.5 W max
Safety compliance
Table 4-7 PTP 600 safety compliance specifications
Region Specification
USA UL 60950
Canada CSA C22.2 No.60950
![](/img.php?id=1237757&img=bg9c.png)
PTP 600 general reference information Chapter 4 Reference information
phn-0896_009v003
4-8 UNDER DEVELOPMENT Feb 2010
International CB certified & certificate to IEC 60950
![](/img.php?id=1237757&img=bg9d.png)
User Guide: PTP 600 Series PTP 600 general reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-9
European EMC immunity compliance
Complies with European EMC Specification EN301 489-1 with testing carried out to
the detailed requirements of EN301 489-4.
NOTE
For EN 61000-4-2: 1995 Electro Static Discharge (ESD), Class 2, 8 kV air, 4
kV contact discharge, the PTP 600 has been tested to ensure immunity to
15kV air and 8kV contact.
![](/img.php?id=1237757&img=bg9e.png)
PTP 600 general reference information Chapter 4 Reference information
phn-0896_009v003
4-10 UNDER DEVELOPMENT Feb 2010
Electromagnetic energy
Standards
Relevant standards (USA and EC) applicable when working with RF equipment are:
•
ANSI IEEE C95.1-1991, IEEE Standard for Safety Levels with Respect to Human
Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
• Council recommendation of 12 July 1999 on the limitation of exposure of the
general public to electromagnetic fields (0 Hz to 300 GHz) (1999/519/EC) and
respective national regulations.
•
Directive 2004/40/EC of the European Parliament and of the Council of 29 April
2004
on the minimum health and safety requirements regarding the exposure of
workers to the risks arising from physical agents (electromagnetic fields) (18th
individual Directive within the meaning of Article 16(1) of Directive 89/391/EEC).
• US FCC limits for the general population. See the FCC web site at
http://www.fcc.gov, and the policies, guidelines, and requirements in Part 1 of
Title 47 of the Code of Federal Regulations, as well as the guidelines and
suggestions for evaluating compliance in FCC OET Bulletin 65.
• Health Canada limits for the general population. See the Health Canada web site
at http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/99ehd-dhm237/limits-
limites_e.html and Safety Code 6.
• EN 50383:2002 Basic standard for the calculation and measurement of
electromagnetic field strength and SAR related to human exposure from radio
base stations and fixed terminal stations for wireless telecommunication systems
(110 MHz - 40 GHz).
• BS EN 50385:2002 Product standard to demonstrate the compliances of radio
base stations and fixed terminal stations for wireless telecommunication systems
with the basic restrictions or the reference levels related to human exposure to
radio frequency electromagnetic fields (110 MHz – 40 GHz) – general public.
• ICNIRP (International Commission on Non-Ionizing Radiation Protection)
guidelines for the general public. See the ICNIRP web site at
http://www.icnirp.de/ and Guidelines for Limiting Exposure to Time-Varying
Electric, Magnetic, and Electromagnetic Fields.
![](/img.php?id=1237757&img=bg9f.png)
User Guide: PTP 600 Series PTP 600 general reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-11
Power density exposure limit
Install the radios for the PTP 600 family of PTP wireless solutions so as to provide and
maintain the minimum separation distances from all persons.
The applicable power density exposure limit from the standards (see Electromagnetic
energy on page 4-10 ) is:
10 W/m2 for RF energy in the 2.4-, 5.2-, 5.4-, 5.8- and 5.9 GHz frequency bands.
Calculation of power density
NOTE
The following calculation is based on the ANSI IEEE C95.1-1991 method. as
that provides a worst case analysis. Details of the assessment to
EN50383:2002 can be provided, if required.
Peak power density in the far field of a radio frequency point source is calculated as
follows:
Where: Is:
S power density in W/m2
P maximum average transmit power
capability of the radio, in W
G total Tx gain as a factor, converted from
dB
d distance from point source, in m
Rearranging terms to solve for distance yields:
2
4
.
d
GP
S
π
=
S
GP
d.4
.
π
=
![](/img.php?id=1237757&img=bga0.png)
PTP 600 general reference information Chapter 4 Reference information
phn-0896_009v003
4-12 UNDER DEVELOPMENT Feb 2010
Calculated distances and power compliance margins
Table 4-8 shows calculated minimum separation distances d, recommended distances
and resulting margins for each frequency band and antenna combination. These are
conservative distances that include compliance margins. At these and greater
separation distances, the power density from the RF field is below generally accepted
limits for the general population.
Table 4-8 Power compliance margins
Equation Variables Band Antenna Max
Average
Transmit
Power in
Burst
(Watt)
P
(Watt)
G
(factor)
S
(W/m2)
d
(m)
Recommended
Distance (m)
Compliance
Margin
2.5
GHz Integrated 0.25 0.2 63 10 0.32
2 6.0
4.5
GHz Integrated 0.5 0.4 158 10 0.71
5 7.0
Integrated 0.5 0.4 158 10 0.71
5 7.0
4.8
GHz Connectorized 0.5 0.4 398 10 1.1 5 4.5
Integrated 0.25 0.2 158 10 0.5 2 4.0
4.9
GHz Connectorized 0.25 0.2 398 10 0.8 5 6.25
Integrated 0.005 0.004 200 10 0.08
5.4
GHz External 4ft
Dish 0.00035 0.00028
2884 10 0.08
1 12.5
Integrated 0.32 0.26 200 10 0.63
2 3.2 5.8
GHz
External 2ft
Flat Plate 0.32 0.26 631 10 1.0 5 5.0
![](/img.php?id=1237757&img=bga1.png)
User Guide: PTP 600 Series PTP 600 general reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-13
Equation Variables Band Antenna Max
Average
Transmit
Power in
Burst
(Watt)
P
(Watt)
G
(factor)
S
(W/m2)
d
(m)
Recommended
Distance (m)
Compliance
Margin
External 6ft
Dish 0.32 0.26 6310 10 3.07
10 3.25
External
sectored
antenna (60°) 0.32 0.26 50.1 10 0.28
1 3.6
Integrated 0.32 0.16 200 10 0.63
2 4.0
External 2ft
Flat Plate 0.32 0.16 631 10 1.0 5 5.0
5.9
GHz
External 6ft
Dish 0.32 0.16 6310 10 3.07
10 3.25
NOTE
Gain of antenna in dBi = 10*log(G).
The regulations require that the power used for the calculations is the
maximum power in the transmit burst subject to allowance for source-based
time-averaging.
At 5.4 GHz and EU 5.8 GHz, the products are generally limited to a fixed
EIRP which can be achieved with the Integrated Antenna. The calculations
above assume that the maximum EIRP allowed by the regulations is being
transmitted.
NOTE
If there are no EIRP limits in the country of deployment, use the distance
calculations for FCC 5.8 GHz for all frequency bands.
At FCC 5.8 GHz, for antennas between 0.6m (2ft) and 1.8m (6ft), alter the
distance proportionally to the antenna gain.
At 2.5 GHz, for antennas between 1.2m (4ft) and 3.6m (12ft) the safe
distance is increased to between 0.8m (2.6 ft) and 2.4m (7.8 ft).
PTP 600 general reference information Chapter 4 Reference information
phn-0896_009v003
4-14 UNDER DEVELOPMENT Feb 2010
![](/img.php?id=1237757&img=bga3.png)
User Guide: PTP 600 Series PTP 600 general reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-15
Environmental specifications
Table 4-9 PTP 600 environmental specifications
Category Specification
Temperature
ODU: -40°F (-40°C) to 140°F (+60°C)
PIDU Plus (indoor deployment): 32°F (0°C) to 104oF (+40°C)
PIDU Plus (outdoor deployment within weatherproofed
cabinet): -40°F (-40°C) to 140°F (+60°C)
PTP-SYNC: -40°F (-40°C) to 140°F (+60°C)
Wind Loading 150mph Max (242kph). See Wind loading on page 2-7 for a
full description.
Humidity 100% Condensing (ODU only)
Waterproof IP65 (ODU only)
UV Exposure 10 year operational life (UL746C test evidence)
![](/img.php?id=1237757&img=bga4.png)
PTP 25600 reference information Chapter 4 Reference information
phn-0896_009v003
4-16 UNDER DEVELOPMENT Feb 2010
PTP 25600 reference information
This section contains reference information that is specific to the PTP 25600 frequency
variant.
PTP 25600 examples of regulatory limits
Table 4-10 shows how the regulatory limits currently apply in specific countries.
Operators should note that regulations are subject to change.
Table 4-10 PTP 25600 examples of regulatory limits
Region Examples of Regulatory Limits at 2.5 GHz
FCC
Under FCC Regulations, operation of this product is only allowed with a
License Key for Region 16 which ensures that the product will meet the
requirements of FCC part 27.
Spectrum in this band (2496MHz to 2690MHz) is allocated on a licensed
basis in USA.
![](/img.php?id=1237757&img=bga5.png)
User Guide: PTP 600 Series PTP 25600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-17
PTP 25600 licenses and region codes
PTP 25600 units may be operated in any of the regions listed in Table 4-11.
When shipped, PTP 25600 units are configured with a license key for region code 16.
An alternative license key is provided in the
PTP 600 Installation Guide
for region code
18.
NOTE
For a PTP 25600 in region code 16, the EIRP limit is approximately 63 dBm
+ 10 x Log(360/Antenna Azimuth BW). PTP25600 products are not able to
exceed this EIRP limit with any available antenna.
The 30MHz bandwidth is not approved in FCC regions.
Table 4-11 PTP 25600 licenses and region codes
Region
Code
License /
Regulation Frequencies DFS
Channel
Bandwidth Max Power
FCC Upper
2624 - 2690
MHz
5, 10, 15, 30
MHz
63 dBm
EIRP
FCC Middle
2572 - 2614
MHz
5, 10, 15, 30
MHz
63 dBm
EIRP
16
FCC Lower
2496 - 2568
MHz
5, 10, 15, 30
MHz
63 dBm
EIRP
Taiwan Upper
2660 - 2690
MHz
5, 10, 15
MHz 23 dBm
Taiwan Middle
2595 - 2625
MHz
5, 10, 15
MHz 23 dBm
18
Taiwan Lower
2565 - 2595
MHz
5, 10, 15
MHz 23 dBm
![](/img.php?id=1237757&img=bga6.png)
PTP 25600 reference information Chapter 4 Reference information
phn-0896_009v003
4-18 UNDER DEVELOPMENT Feb 2010
PTP 25600 regulatory compliance
The PTP 25600 complies with the regulations that are in force in the USA. The
relevant notifications are specified in this section.
U.S. Federal Communication Commission (FCC) notification
This device complies with Part 27 of the US FCC Rules and Regulations. Use of this
product is limited to operators holding Licenses for the specific operating channels.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15E of the US FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio-frequency energy and, if not
installed and used in accordance with these instructions, may cause harmful
interference to radio communications. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment on and off, the user is encouraged to correct the interference by one or
more of the following measures:
• Increase the separation between the affected equipment and the unit;
• Connect the affected equipment to a power outlet on a different circuit from that
which the receiver is connected to;
• Consult the dealer and/or experienced radio/TV technician for help.
• FCC IDs Certification Numbers are listed below:
Where necessary, the end user is responsible for obtaining any National licenses
required to operate this product and these must be obtained before using the product
in any particular country. Contact the appropriate national administrations for details
on the conditions of use for the bands in question and any exceptions that might apply.
![](/img.php?id=1237757&img=bga7.png)
User Guide: PTP 600 Series PTP 25600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-19
PTP 25600 radio system specifications
Table 4-12 contains radio system specifications for the PTP 25600.
Table 4-12 PTP 25600 RF specifications
Radio Technology Specification
RF Band
Lower: 2.496-2.568 GHz
Middle: 2.572-2.614 GHz
Upper: 2.618-2.690 GHz
Channel Selection Manual selection.
Dynamic Frequency Control N/A
Channel size 5, 10, 15 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to
other users of the band.
Receiver Noise Figure Typically 5 dB
Antenna Type Integrated flat plate antenna
Antenna Gain 18 dBi typical
Antenna Beamwidth 18 Degrees
Max Path Loss (5 MHz
channel) 157 dB
Duplex Scheme Symmetric fixed, asymmetric fixed or adaptive TDD
Range
125 miles (200km) optical Line-of-Sight
6 miles (10km) non-Line-of-Sight
Over-the-Air Encryption Proprietary scrambling mechanism.
![](/img.php?id=1237757&img=bga8.png)
PTP 25600 reference information Chapter 4 Reference information
phn-0896_009v003
4-20 UNDER DEVELOPMENT Feb 2010
Radio Technology Specification
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation
Threshold changes.
Error Correction FEC
PTP 25600 emissions and radio certifications
Table 4-13 lists the EMC emissions specifications under which the PTP 25600 has
received type approval. Table 4-14 lists the radio specifications under which the PTP
25600 has received type approval.
Table 4-13 PTP 25600 EMC emissions compliance
Region Specification (Type Approvals)
USA FCC Part 15 (Class B)
Table 4-14 PTP 25600 radio certifications
Region Certification
![](/img.php?id=1237757&img=bga9.png)
User Guide: PTP 600 Series PTP 25600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-21
PTP 25600 available spectrum settings
The supported 2.5GHz frequency range is split into three bands, according to the
bands specified in the FCC BRS-EBS Post-Transition Band plan (only for PTP 25600
and region code 16):
• Lower: 2496 MHz to 2572 MHz with a 5.5MHz channel raster (76 MHz total).
• Middle: 2572 MHz to 2614 MHz with a 6 MHz channel raster (42 MHz total).
• Upper: 2618 MHz to 2690 MHz with a 5.5 MHz channel raster (76 MHz total).
NOTE
For the PTP 25600 product variant, the unit will only operate in Fixed
Frequency mode, and the user is unable to select i-DFS.
The PTP 25600 product variant support channel centre frequencies as specified in
Table 4-15. The 30MHz Channel Bandwidth is not supported in the FCC region.
![](/img.php?id=1237757&img=bgaa.png)
PTP 25600 reference information Chapter 4 Reference information
phn-0896_009v003
4-22 UNDER DEVELOPMENT Feb 2010
Table 4-15 PTP 25600 channel plan - FCC BRS-EBS Post-Transition Band
Block Channel
Bandwidth
(MHz)
Channel Centre Frequencies (MHz)
5 2499.25, 2504.75, 2510.25, 2515.75, 2521.25, 2526.75,
2532.25, 2537.75, 2543.25, 2548.75, 2554.25, 2559.75,
2565.25
10 2502, 2507.5, 2513, 2518.5, 2524, 2529.5, 2535, 2540.5,
2546, 2551.5, 2557, 2562.5
15 2504.75, 2510.25, 2515.75, 2521.25, 2526.75, 2532.25,
2537.75, 2543.25, 2548.75, 2554.25, 2559.75
Lower
Band
Segment
30 2513, 2524, 2535, 2546
5 2575, 2581, 2587, 2593, 2599, 2605, 2611
10 2578, 2584, 2590, 2596, 2602, 2608
15 2581, 2587, 2593, 2599, 2605
Middle
Band
Segment
30 2587, 2599
5 2626.75, 2632.25, 2637.75, 2643.25, 2648.75, 2654.25,
2659.75, 2665.25, 2670.75, 2676.25, 2681.75, 2687.25
10 2629.5, 2635, 2640.5, 2646, 2651.5, 2657, 2662.5, 2668,
2673.5, 2679, 2684.5
15 2632.25, 2637.75, 2643.25, 2648.75, 2654.25, 2659.75,
2665.25, 2670.75, 2676.25, 2681.75
Upper
Band
Segment
30 2640.5, 2651.5, 2662.5, 2673.5
The channel centre frequencies listed above have been selected to align with the so-
called post-transition BRS channels as shown in Figure 4-1.
![](/img.php?id=1237757&img=bgab.png)
User Guide: PTP 600 Series PTP 25600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-23
NOTE
The PTP 25600 frequency variant supports three portions of the BRS
spectrum allocation. These are configurable at installation and constrain the
wireless to operate in a limited portion of the Spectrum. The three frequency
bands are as shown in Figure 4-1:
Band 1: channels A, B, C and D (16.5 MHz blocks)
Band 2: channels A through G (6 MHz blocks)
Band 3: channels E, F, G and H (16.5 MHz blocks)
Figure 4-1 PTP 25600 BRS band channel assignments
![](/img.php?id=1237757&img=bgac.png)
PTP 25600 reference information Chapter 4 Reference information
phn-0896_009v003
4-24 UNDER DEVELOPMENT Feb 2010
PTP 25600 system threshold, output power and link loss
PTP 25600 system threshold, output power and maximum link loss are given in Table
4-16 (IP mode) and Table 4-17 (TDM mode). These figures assume that antenna gain is
23 dBi.
Table 4-16 PTP 25600 - IP mode - threshold, power and link loss
Threshold Value (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MHz
20
MHz
All
Bands
5
MHz
10
MHz
15
MHz
20
MHz
BPSK 0.63 single -97.6 -95.1 -93.0 -90.4 +23 156.6 154.1 152.0 149.4
QPSK 0.63 single -93.9 -90.7 -90.5 -86.7 +23 152.9 149.7 146.6 145.7
QPSK 0.87 single -90.7 -87.6 -87.5 -83.9 +23 149.7 146.6 146.5 142.9
16QAM 0.63 single -89.1 -86.0 -86.0 -82.1 +23 148.0 145.5 145.0 140.4
16QAM 0.63 dual -86.7 -83.9 -84.0 -79.4 +23 145.7 142.9 143.0 138.4
16QAM 0.87 single -84.2 -82.5 -80.5 -76.5 +23 143.2 141.4 139.5 135.5
16QAM 0.87 dual -81.0 -77.7 -77.4 -72.9 +23 140.0 136.6 136.4 131.9
64QAM 0.75 single -81.6 -79.2 -77.4 -73.5 +23 140.6 138.2 136.4 132.4
64QAM 0.75 dual -77.8 -74.7 -74.3 -69.8 +23 136.8 133.7 133.3 128.8
64QAM 0.92 single -78.8 -76.3 -74.4 -70.3 +23 137.8 135.2 133.4 129.3
64QAM 0.92 dual -75.5 -71.3 -71.9 -66.5 +23 134.5 130.3 130.9 125.5
256QAM 0.81 single -77.2 -74.9 -72.9 -68.8 +23 136.2 133.9 131.9 127.8
256QAM 0.81 dual -73.5 -70.1 -69.7 -65.1 +23 132.5 129.1 128.7 124.1
![](/img.php?id=1237757&img=bgad.png)
User Guide: PTP 600 Series PTP 25600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-25
Table 4-17 PTP 25600 - TDM mode - threshold, power and link loss
Threshold Value (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation Mode
5
MHz
10
MHz
15
MHz
20
MHz
All
Bands
5
MHz
10
MHz
15
MHz
20
MHz
BPSK 0.63 single -97.6 -95.1 -93.0 -90.4 +23 156.6 154.1 152.0 149.4
QPSK 0.63 single -91.6 -89.1 -88.2 -85.2 +23 150.6 148.1 147.2 144.2
QPSK 0.87 single -88.3 -85.6 -85.1 -81.5 +23 147.3 144.6 144.1 140.5
16QAM 0.63 single -86.4 -83.9 -83.5 -79.4 +23 145.4 142.9 142.5 138.4
16QAM 0.63 dual -84.2 -80.8 -80.7 -76.6 +23 143.2 139.8 139.7 135.6
16QAM 0.87 single -81.7 -78.1 -77.3 -73.6 +23 140.7 137.1 136.3 132.6
16QAM 0.87 dual -78.6 -74.4 -74.3 -70.0 +23 137.6 133.4 133.3 129.0
64QAM 0.75 single -78.8 -75.2 -74.2 -70.6 +23 137.8 134.2 133.2 129.6
64QAM 0.75 dual -75.4 -71.0 -70.9 -66.7 +23 134.4 130.0 129.9 125.7
64QAM 0.92 single -76.0 -73.4 -72.2 -68.6 +23 135.0 132.4 131.2 127.6
64QAM 0.92 dual -73.5 -69.3 -68.9 -64.8 +23 132.5 128.2 127.9 123.8
256QAM 0.81 single -73.4 -71.6 -69.1 -65.4 +23 132.4 130.6 128.1 124.4
256QAM 0.81 dual -70.4 -67.6 -65.9 -61.6 +23 129.4 126.6 124.9 120.6
![](/img.php?id=1237757&img=bgae.png)
PTP 45600 reference information Chapter 4 Reference information
phn-0896_009v003
4-26 UNDER DEVELOPMENT Feb 2010
PTP 45600 reference information
This section contains reference information for the PTP 45600 frequency variant.
PTP 45600 examples of regulatory limits
Table 4-18 shows how the regulatory limits currently apply in specific countries.
Operators should note that regulations are subject to change.
Table 4-18 PTP 45600 examples of regulatory limits
Region Examples of Regulatory Limits at 4.5 GHz
US Federal Operation of this product is only allowed with a License Key for Region 23
(US Federal).
NTIA Operation of this product is only allowed with a License Key for Region 24.
PTP 45600 licenses and region codes
PTP 45600 units may be operated in any of the regions listed in Table 4-19.
When shipped, PTP 45600 units are configured with a license key for region code 23.
Table 4-19 PTP 45600 licenses and region codes
Region
Code
License /
Regulation Frequencies DFS
Channel
Bandwidth Max Power
23 US Federal
4400 - 4600
MHz
5, 10, 15, 20, 30
MHz 27 dBm
24 NTIA
4400 - 4600
MHz 10, 20 MHz 27 dBm
![](/img.php?id=1237757&img=bgaf.png)
User Guide: PTP 600 Series PTP 45600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-27
PTP 45600 radio system specifications
Table 4-20 contains radio system specifications for the PTP 45600.
Table 4-20 PTP 45600 RF specifications
Radio Technology Specification
RF Band 4.400-4.600 GHz
Channel Selection Manual selection.
Dynamic Frequency Control
By intelligent Dynamic Frequency Selection (i-DFS) or
manual intervention; automatic selection on start-up and
continual adaptation to avoid interference.
Channel size 5, 10, 15, 20 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to
other users of the band.
Receiver Noise Figure Typically 5 dB
Antenna Type Integrated flat plate antenna
Antenna Gain 21.5 dBi typical
Antenna Beamwidth 11 Degrees
Max Path Loss (5 MHz
channel) 157 dB
Duplex Scheme Symmetric fixed, asymmetric fixed or adaptive TDD
Range
125 miles (200km) optical Line-of-Sight
6 miles (10km) non-Line-of-Sight
Over-the-Air Encryption Proprietary scrambling mechanism.
![](/img.php?id=1237757&img=bgb0.png)
PTP 45600 reference information Chapter 4 Reference information
phn-0896_009v003
4-28 UNDER DEVELOPMENT Feb 2010
Radio Technology Specification
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation
Threshold changes
Error Correction FEC
PTP 45600 emissions and radio certifications
Table 4-21 lists the EMC emissions specifications under which the PTP 45600 has
received type approval. Table 4-22 lists the radio specifications under which the PTP
45600 has received type approval.
Table 4-21 PTP 45600 EMC emissions compliance
Region Specification (Type Approvals)
US Federal
Table 4-22 PTP 45600 radio certifications
Region Certification
![](/img.php?id=1237757&img=bgb1.png)
User Guide: PTP 600 Series PTP 45600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-29
PTP 45600 available spectrum settings
The available spectrum settings for the PTP 45600 are illustrated in this section.
The PTP 45600 product variant does not apply any band edge power reduction.
Region code 23
Adjustment of the lower centre frequency allows the operator to slide the available
frequency settings up and down the 4.5 GHz band in steps of 2 MHz.
In the 30 MHz (Figure 4-2) and 20 MHz (Figure 4-3) channel bandwidths, the PTP
45600 variant operates on a 10 MHz channel raster. In the 15 MHz (Figure 4-4), 10
MHz (Figure 4-5) and 5 MHz (Figure 4-6) channel bandwidths, the PTP 45600 variant
operates on a 6 MHz channel raster. The channel raster is set to even centre
frequencies.
Figure 4-2 PTP 45600 available spectrum in 30 MHz channel bandwidth (RC 23)
![](/img.php?id=1237757&img=bgb2.png)
PTP 45600 reference information Chapter 4 Reference information
phn-0896_009v003
4-30 UNDER DEVELOPMENT Feb 2010
Figure 4-3 PTP 45600 available spectrum in 20 MHz channel bandwidth (RC 23)
Figure 4-4 PTP 45600 available spectrum in 15 MHz channel bandwidth (RC 23)
![](/img.php?id=1237757&img=bgb3.png)
User Guide: PTP 600 Series PTP 45600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-31
Figure 4-5 PTP 45600 available spectrum in 10 MHz channel bandwidth (RC 23)
Figure 4-6 PTP 45600 available spectrum in 5 MHz channel bandwidth (RC 23)
Region code 24 (NTIA)
In the 20 MHz (Figure 4-7) channel bandwidth, the PTP 45600 variant operates on a
20 MHz channel raster. In the 10 MHz (Figure 4-8) channel bandwidth, the PTP 45600
variant operates on a 10 MHz channel raster. The channel raster is set to even centre
frequencies.
![](/img.php?id=1237757&img=bgb4.png)
PTP 45600 reference information Chapter 4 Reference information
phn-0896_009v003
4-32 UNDER DEVELOPMENT Feb 2010
Figure 4-7 PTP 45600 available spectrum in 20 MHz channel bandwidth (RC 24)
Figure 4-8 PTP 45600 available spectrum in 10 MHz channel bandwidth (RC 24)
![](/img.php?id=1237757&img=bgb5.png)
User Guide: PTP 600 Series PTP 45600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-33
PTP 45600 system threshold, output power and link loss
PTP 45600 system threshold figures are given in Table 4-23 (IP mode) and Table 4-24
(TDM mode). These figures assume that antenna gain is 23 dBi.
Table 4-23 PTP 45600 - IP mode - threshold, power and loss per modulation mode
Threshold Value (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MHz
20
MH
z
30
MH
z
All
Bands
5
MHz
10
MHz
15
MHz
20
MHz
30
MHz
BPSK 0.63 single -96.6 -93.7 -92.0 -90.4 -88.0 +27 166.6 163.7 162.0 160.4 158.0
QPSK 0.63 single -92.0 -91.4 -89.3 -88.5 -85.8 +27 160.5 159.9 159.3 158.5 155.8
QPSK 0.87 single -90.0 -87.6 -85.7 -84.9 -82.2 +27 160.0 157.6 155.7 154.9 152.2
16QAM 0.63 single -88.3 -85.5 -83.3 -82.5 -80.1 +27 158.3 155.5 153.3 152.5 150.1
16QAM 0.63 dual -85.5 -81.9 -79.5 -78.9 -77.1 +27 155.5 151.9 149.5 148.9 147.1
16QAM 0.87 single -84.6 -80.7 -78.6 -77.8 -75.5 +27 154.6 150.7 148.6 147.8 145.5
16QAM 0.87 dual -81.3 -77.3 -75.0 -74.3 -72.3 +27 151.3 147.3 145.0 144.3 142.3
64QAM 0.75 single -81.2 -77.6 -75.5 -74.7 -72.4 +25 149.2 145.6 143.5 142.7 140.4
64QAM 0.75 dual -78.2 -74.2 -71.8 -71.1 -69.3 +25 146.2 142.2 139.8 139.1 137.3
64QAM 0.92 single -76.8 -73.1 -71.3 -70.0 -67.7 +25 144.8 141.1 139.3 138.0 135.7
64QAM 0.92 dual -73.2 -69.4 -67.6 -66.9 -65.0 +25 141.2 137.4 135.6 134.9 133.0
256QAM 0.81 single
256QAM 0.81 dual
Not supported
![](/img.php?id=1237757&img=bgb6.png)
PTP 45600 reference information Chapter 4 Reference information
phn-0896_009v003
4-34 UNDER DEVELOPMENT Feb 2010
Table 4-24 PTP 45600 - TDM mode - threshold, power and loss per modulation mode
Threshold Value (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MHz
20
MH
z
30
MH
z
All
Bands
5
MHz
10
MHz
15
MHz
20
MHz
30
MHz
BPSK 0.63 single -96.6 -93.7 -92.0 -90.4 -88.0 +27 166.6 163.7 162.0 160.4 158.0
QPSK 0.63 single -90.4 -89.1 -87.8 -86.0 -83.1 +27 158.1 155.4 153.3 151.6 149.5
QPSK 0.87 single -88.1 -85.4 -83.3 -81.6 -79.5 +27 160.3 159.1 157.8 156.0 153.1
16QAM 0.63 single -86.1 -82.8 -80.7 -79.2 -77.2 +27 156.1 152.8 150.7 149.2 147.2
16QAM 0.63 dual -82.5 -79.1 -77.2 -75.6 -73.9 +27 152.5 149.1 147.2 145.6 143.9
16QAM 0.87 single -81.2 -78.2 -76.1 -74.4 -72.0 +27 151.2 148.2 146.1 144.4 142.0
16QAM 0.87 dual -77.7 -74.4 -72.4 -70.8 -69.2 +27 147.7 144.4 142.4 140.8 139.2
64QAM 0.75 single -77.7 -74.5 -72.4 -70.7 -68.6 +25 145.7 142.5 140.4 138.7 136.6
64QAM 0.75 dual -74.2 -70.9 -69.1 -67.5 -65.9 +25 142.2 138.9 137.1 135.5 133.9
64QAM 0.92 single -75.9 -72.2 -70.2 -68.6 -66.5 +25 143.9 140.2 138.2 136.6 134.5
64QAM 0.92 dual -71.7 -68.5 -66.8 -65.4 -63.7 +25 139.7 136.5 134.8 133.4 131.7
256QAM 0.81 single
256QAM 0.81 dual
Not supported
![](/img.php?id=1237757&img=bgb7.png)
User Guide: PTP 600 Series PTP 48600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-35
PTP 48600 reference information
This section contains reference information for the PTP 48600 frequency variant.
PTP 48600 examples of regulatory limits
Table 4-25 shows how the regulatory limits currently apply in specific countries.
Operators should note that regulations are subject to change.
Table 4-25 PTP 48600 examples of regulatory limits
Region Examples of Regulatory Limits at 5.4GHz
US Federal Operation of this product is only allowed with a License Key for Regions 15
or 23 (US Federal).
NTIA Operation of this product is only allowed with a License Key for Region 24.
![](/img.php?id=1237757&img=bgb8.png)
PTP 48600 reference information Chapter 4 Reference information
phn-0896_009v003
4-36 UNDER DEVELOPMENT Feb 2010
PTP 48600 licenses and region codes
PTP 48600 units may be operated in any of the regions listed in Table 4-26.
When shipped, PTP 48600 units are configured with a license key for region code 15.
An alternative license key is provided in the
PTP 600 Installation Guide
for region code
23. If the link is to be installed in any other permitted region, the user must obtain a
new license key from the reseller or distributor.
Table 4-26 PTP 48600 licenses and region codes
Region
Code
License /
Regulation Frequencies
DFS
Channel
Bandwidth Max Power
14
USA/Canada
Public Safety
4940 - 4990
MHz 5, 10, 20 MHz 24 dBm
15
US Federal
Extended
4710 - 5000
MHz
5, 10, 15, 20
MHz 27 dBm
23 US Federal
4710 - 4940
MHz
5, 10, 15, 20
MHz 27 dBm
24 NTIA
4700 - 4940
MHz 10, 20 MHz 27 dBm
NOTE
region code 14 Max Power depends upon Antenna Gain:
If Antenna Gain < 26 dBi then Max Power = 24 dBm
If Antenna Gain >= 26 dBi then Max Power = (50 – Antenna Gain) dBm
![](/img.php?id=1237757&img=bgb9.png)
User Guide: PTP 600 Series PTP 48600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-37
PTP 48600 radio system specifications
Table 4-27 contains radio system specifications for the PTP 48600.
Table 4-27 PTP 48600 RF specifications
Radio Technology Specification
RF Band 4.710-5.000 GHz
Channel Selection Manual selection.
Dynamic Frequency Control
By intelligent Dynamic Frequency Selection (i-DFS) or
manual intervention; automatic selection on start-up and
continual adaptation to avoid interference.
Channel size 5, 10, 15, and 20 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to
other users of the band.
Receiver Noise Figure Typically 5 dB
Antenna Type Integrated flat plate antenna
Antenna Gain 22 dBi typical
Antenna Beamwidth 11 Degrees
Max Path Loss (5 MHz
channel) 157 dB
Duplex Scheme Symmetric fixed, asymmetric fixed or adaptive TDD
Range
125 miles (200km) optical Line-of-Sight
6 miles (10km) non-Line-of-Sight
Over-the-Air Encryption Proprietary scrambling mechanism.
![](/img.php?id=1237757&img=bgba.png)
PTP 48600 reference information Chapter 4 Reference information
phn-0896_009v003
4-38 UNDER DEVELOPMENT Feb 2010
Radio Technology Specification
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation
Threshold changes
Error Correction FEC
PTP 48600 emissions and radio certifications
Table 4-28 lists the EMC emissions specifications under which the PTP 48600 has
received type approval. Table 4-29 lists the radio specifications under which the PTP
48600 has received type approval.
Table 4-28 PTP 48600 EMC emissions compliance
Region Specification (type approvals)
US Federal
Table 4-29 PTP 48600 radio certifications
Region Certification
![](/img.php?id=1237757&img=bgbb.png)
User Guide: PTP 600 Series PTP 48600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-39
PTP 48600 available spectrum settings
The available spectrum settings for the PTP 48600 are illustrated in this section.
Region codes 15 and 23
Adjustment of the lower centre frequency allows the operator to slide the available
frequency settings up and down the 4.8 GHz band in steps of 1 MHz.
In the 20 MHz (Figure 4-9) channel bandwidth, the PTP 48600 variant operates on a
10 MHz channel raster. In the 15 MHz (Figure 4-10), 10 MHz (Figure 4-11) and 5 MHz
(Figure 4-12) channel bandwidths, the PTP 48600 variant operates on a 5 MHz
channel raster. The channel raster is set to even centre frequencies.
Figure 4-9 PTP 48600 available spectrum in 20 MHz channel bandwidth (RC 15 and
23)
![](/img.php?id=1237757&img=bgbc.png)
PTP 48600 reference information Chapter 4 Reference information
phn-0896_009v003
4-40 UNDER DEVELOPMENT Feb 2010
Figure 4-10 PTP 48600 available spectrum in 15 MHz channel bandwidth (RC 15 and
23)
Figure 4-11 PTP 48600 available spectrum in the 10 MHz channel bandwidth (RC 15
and 23)
![](/img.php?id=1237757&img=bgbd.png)
User Guide: PTP 600 Series PTP 48600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-41
Figure 4-12 PTP 48600 available spectrum in 5 MHz channel bandwidth (RC 15 and
23)
Region code 24 (NTIA)
In the 20 MHz (Figure 4-13) channel bandwidth, the PTP 48600 variant operates on a
20 MHz channel raster. In the 10 MHz (Figure 4-14) channel bandwidth, the PTP
48600 variant operates on a 10 MHz channel raster. The channel raster is set to even
centre frequencies.
Figure 4-13 PTP 48600 available spectrum in the 20 MHz channel bandwidth (RC
24)
![](/img.php?id=1237757&img=bgbe.png)
PTP 48600 reference information Chapter 4 Reference information
phn-0896_009v003
4-42 UNDER DEVELOPMENT Feb 2010
Figure 4-14 PTP 48600 available spectrum in 10 MHz channel bandwidth (RC 24)
![](/img.php?id=1237757&img=bgbf.png)
User Guide: PTP 600 Series PTP 48600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-43
PTP 48600 system threshold, output power and link loss
PTP 48600 system threshold figures are given in Table 4-30 (IP mode) and Table 4-31
(TDM mode). These figures assume that antenna gain is 22 dBi.
Table 4-30 PTP 48600 - IP mode - threshold, power and loss per modulation mode
System Threshold (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MH
z
20
MHz
5, 10,
15
MHz
20
MHz 5
MHz
10
MHz
15
MHz
20
MHz
BPSK 0.63 single -98.6 -95.5 -93.3 -91.9 +27 +27 169.6 166.5 164.3 162.9
QPSK 0.63 single -94.3 -90.7 -89.6 -87.5 +27 +27 165.3 161.7 160.6 158.5
QPSK 0.87 single -90.8 -87.3 -85.9 -84.0 +27 +26 161.8 158.3 156.9 154.0
16QAM 0.63 single -88.7 -85.2 -83.6 -81.8 +25 +25 157.7 154.2 152.6 150.8
16QAM 0.63 dual -85.3 -81.6 -80.0 -78.5 +25 +25 154.3 150.6 149.0 147.5
16QAM 0.87 single -84.4 -80.6 -78.8 -77.3 +25 +25 153.4 149.6 147.8 146.3
16QAM 0.87 dual -81.0 -77.2 -75.9 -74.5 +25 +25 150.0 146.2 144.9 143.5
64QAM 0.75 single -81.2 -77.7 -76.1 -74.7 +23 +23 148.2 144.7 143.1 141.7
64QAM 0.75 dual -78.2 -74.7 -73.4 -71.9 +23 +23 145.2 141.7 140.4 138.9
64QAM 0.92 single -77.0 -73.9 -72.7 -71.0 +21 +21 142.0 138.9 137.7 136.0
64QAM 0.92 dual -74.0 -70.9 -69.7 -67.6 +21 +21 139.0 135.9 134.7 132.6
256QAM 0.81 single -75.2 -71.9 -70.1 -68.0 +20 +20 139.2 135.9 134.1 132.0
256QAM 0.81 dual -72.1 -68.4 -66.9 -64.5 +20 +20 136.1 132.4 130.9 128.5
![](/img.php?id=1237757&img=bgc0.png)
PTP 48600 reference information Chapter 4 Reference information
phn-0896_009v003
4-44 UNDER DEVELOPMENT Feb 2010
Table 4-31 PTP 48600 - TDM Mode - threshold, power and loss per modulation mode
System Threshold (dBm) Output
Power (dBm) Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MH
z
20
MHz
5, 10,
15
MHz
20
MHz 5
MHz
10
MHz
15
MHz
20
MHz
BPSK 0.63 single -98.6 -95.5 -93.3 -91.9 +27 +27 169.6 166.5 164.3 162.9
QPSK 0.63 single -91.4 -88.8 -87.8 -85.7 +27 +27 162.4 159.8 158.8 156.7
QPSK 0.87 single -87.9 -85.2 -83.5 -81.9 +27 +26 158.9 156.2 154.5 151.9
16QAM 0.63 single -85.4 -82.7 -81.1 -79.6 +25 +25 154.4 151.7 150.1 148.6
16QAM 0.63 dual -81.9 -79.5 -77.8 -76.5 +25 +25 150.9 148.5 146.8 145.5
16QAM 0.87 single -81.0 -78.2 -76.8 -75.5 +25 +25 150.0 147.2 145.8 144.5
16QAM 0.87 dual -77.8 -75.4 -74.0 -72.5 +25 +25 146.8 144.4 143.0 141.5
64QAM 0.75 single -77.9 -75.2 -73.9 -72.6 +23 +23 144.9 142.2 140.9 139.6
64QAM 0.75 dual -75.0 -72.6 -71.1 -69.3 +23 +23 142.0 139.6 138.1 136.3
64QAM 0.92 single -76.5 -73.9 -72.3 -70.7 +21 +21 141.5 138.9 137.3 135.7
64QAM 0.92 dual -73.3 -71.0 -69.0 -67.2 +21 +21 138.3 136.0 134.0 132.2
256QAM 0.81 single -75.1 -72.3 -70.8 -69.3 +20 +20 139.1 136.3 134.8 133.3
256QAM 0.81 dual -71.7 -69.3 -67.3 -65.4 +20 +20 135.7 133.3 131.3 129.4
![](/img.php?id=1237757&img=bgc1.png)
User Guide: PTP 600 Series PTP 49600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-45
PTP 49600 reference information
This section contains reference information for the PTP 49600 frequency variant.
PTP 49600 examples of regulatory limits
Table 4-32 shows how the regulatory limits currently apply in specific countries.
Operators should note that regulations are subject to change.
Table 4-32 PTP 49600 examples of regulatory limits
Region Examples of Regulatory Limits at 5.4GHz
USA, Canada
and Hong
Kong Public
Safety
Operation of this product is only allowed with a License Key for Region
14 (USA/Canada Public Safety) or Region 18 (Hong Kong Public
Safety).
PTP 49600 licenses and region codes
PTP 49600 units may be operated in any of the regions listed in Table 4-33.
When shipped, PTP 49600 units are configured with a license key for region code 14.
An alternative license key is provided in the
PTP 600 Installation Guide
for region code
18.
Table 4-33 PTP 49600 licenses and region codes
Region
code
License /
Regulation Frequencies
DFS
Channel
Bandwidth Max Power Notes
14
USA/Canada
Public
Safety
4940 - 4990
MHz 5, 10, 20 MHz 24 dBm
See note
below.
18
Hong Kong
Public
Safety
4900 - 4950
MHz 5, 10, 20 MHz 24 dBm
See note
below.
![](/img.php?id=1237757&img=bgc2.png)
PTP 49600 reference information Chapter 4 Reference information
phn-0896_009v003
4-46 UNDER DEVELOPMENT Feb 2010
NOTE
Region codes 14 and 18 Max Power depends upon Antenna Gain:
If Antenna Gain < 26 dBi then Max Power = 24 dBm
If Antenna Gain >= 26 dBi then Max Power = (50 – Antenna Gain) dBm
PTP 49600 regulatory compliance
The PTP 49600 complies with the regulations that are in force in the USA and Canada.
The relevant notifications are specified in this section.
PTP 49600 FCC and IC notification
The system has been approved under FCC Part 90 and Industry Canada RSS-111 for
Public Safety Agency usage. The installer or operator is responsible for obtaining the
appropriate site licenses before installing or using the system.
FCC IDs and Industry Canada Certification Numbers are listed below:
![](/img.php?id=1237757&img=bgc3.png)
User Guide: PTP 600 Series PTP 49600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-47
PTP 49600 radio system specifications
Table 4-34 contains radio system specifications for the PTP 49600.
Table 4-34 PTP 49600 RF specifications
Radio Technology Specification
RF Band 4.900-4.990 GHz
Channel Selection Manual selection.
Dynamic Frequency Control
By intelligent Dynamic Frequency Selection (i-DFS) or
manual intervention; automatic selection on start-up and
continual adaptation to avoid interference.
Channel size 5, 10 and 20 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to
other users of the band.
Receiver Noise Figure Typically 5 dB
Antenna Type Integrated flat plate antenna
Antenna Gain
Typical: 22 dBi
Maximum permitted: 26 dBi
Antenna Beamwidth 11 Degrees
Max Path Loss (5 MHz
channel) 157 dB
Duplex Scheme Symmetric fixed, asymmetric fixed or adaptive TDD
Range
125 miles (200km) optical Line-of-Sight
6 miles (10km) non-Line-of-Sight
Over-the-Air Encryption Proprietary scrambling mechanism.
![](/img.php?id=1237757&img=bgc4.png)
PTP 49600 reference information Chapter 4 Reference information
phn-0896_009v003
4-48 UNDER DEVELOPMENT Feb 2010
Radio Technology Specification
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation
Threshold changes
Error Correction FEC
PTP 49600 emissions and radio certifications
Table 4-35 lists the EMC emissions specifications under which the PTP 49600 has
received type approval. Table 4-36 lists the radio specifications under which the PTP
49600 has received type approval.
Table 4-35 PTP 49600 EMC emissions compliance
Region Specification (Type Approvals)
USA FCC Part 15B
Table 4-36 PTP 49600 radio certifications
Region Specification (Type Approvals)
USA FCC Part 90
Canada RSS-111
![](/img.php?id=1237757&img=bgc5.png)
User Guide: PTP 600 Series PTP 49600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-49
PTP 49600 available spectrum settings
The available spectrum settings for the PTP 49600 are illustrated in this section. In the
20 MHz (Figure 4-15), 10 MHz (Figure 4-16) and 5 MHz (Figure 4-17) channel
bandwidths, the PTP 49600 variant operates on a 5 MHz channel raster. The channel
raster is set to even centre frequencies.
NOTE
These tables contain data for one typical region code. The specified channel
centre frequencies may not be available in other region codes.
The PTP 49600 product variant does not apply any band edge power reduction.
Figure 4-15 PTP 49600 available spectrum in 20 MHz channel bandwidth
Figure 4-16 PTP 49600 available spectrum in the 10 MHz channel bandwidth
![](/img.php?id=1237757&img=bgc6.png)
PTP 49600 reference information Chapter 4 Reference information
phn-0896_009v003
4-50 UNDER DEVELOPMENT Feb 2010
Figure 4-17 PTP 49600 available spectrum in the 5 MHz channel bandwidth
![](/img.php?id=1237757&img=bgc7.png)
User Guide: PTP 600 Series PTP 49600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-51
PTP 49600 system threshold, output power and link loss
PTP 49600 system threshold figures are given in Table 4-37 (IP mode) and Table 4-38
(TDM mode). These figures assume that antenna gain is 22 dBi.
Table 4-37 PTP 49600 - IP mode - threshold, power and loss per modulation mode
Threshold Value
(dBm)
Output
Power
(dBm)
Maximum Link Loss
(dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
20
MH
z
All
Bands
5
MHz
10
MHz
20
MHz
BPSK 0.63 single -98.6 -95.5 -91.9 +24 166.6 163.5 159.9
QPSK 0.63 single -94.3 -90.7 -87.5 +24 162.3 158.7 155.5
QPSK 0.87 single -90.8 -87.3 -84.0 +24 158.8 155.3 152.0
16QAM 0.63 single -88.7 -85.2 -81.8 +24 156.7 153.2 149.8
16QAM 0.63 dual -85.3 -81.6 -78.5 +24 153.3 149.6 146.5
16QAM 0.87 single -84.4 -80.6 -77.3 +24 152.4 148.6 145.3
16QAM 0.87 dual -81.0 -77.2 -74.5 +24 149.0 145.2 142.5
64QAM 0.75 single -81.2 -77.7 -74.7 +23 148.2 144.7 141.7
64QAM 0.75 dual -78.2 -74.7 -71.9 +23 145.2 141.7 138.9
64QAM 0.92 single -77.0 -73.9 -71.0 +21 142.0 138.9 136.0
64QAM 0.92 dual -74.0 -70.9 -67.6 +21 139.0 135.9 132.6
256QAM 0.81 single -75.2 -71.9 -68.0 +20 139.2 135.9 132.0
256QAM 0.81 dual -72.1 -68.4 -64.5 +20 136.1 132.4 128.5
![](/img.php?id=1237757&img=bgc8.png)
PTP 49600 reference information Chapter 4 Reference information
phn-0896_009v003
4-52 UNDER DEVELOPMENT Feb 2010
Table 4-38 PTP 49600 - TDM mode - threshold, power and loss per modulation mode
Threshold Value
(dBm)
Output
Power
(dBm)
Maximum Link Loss
(dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
20
MH
z
All
Bands
5
MHz
10
MHz
20
MHz
BPSK 0.63 single -98.6 -95.5 -91.9 +24 166.6 163.5 159.9
QPSK 0.63 single -91.4 -88.8 -85.7 +24 159.4 156.8 153.7
QPSK 0.87 single -87.9 -85.2 -81.9 +24 155.9 153.2 149.9
16QAM 0.63 single -85.4 -82.7 -79.6 +24 153.4 150.7 147.6
16QAM 0.63 dual -81.9 -79.5 -76.5 +24 149.9 147.5 144.5
16QAM 0.87 single -81.0 -78.2 -75.5 +24 149.0 146.2 143.5
16QAM 0.87 dual -77.8 -75.4 -72.5 +24 145.8 143.4 140.5
64QAM 0.75 single -77.9 -75.2 -72.6 +23 144.9 142.2 139.6
64QAM 0.75 dual -75.0 -72.6 -69.3 +23 142.0 139.6 136.3
64QAM 0.92 single -76.5 -73.9 -70.7 +21 141.5 138.9 135.7
64QAM 0.92 dual -73.3 -71.0 -67.2 +21 138.3 136.0 132.2
256QAM 0.81 single -75.1 -72.3 -69.3 +20 139.1 136.3 133.3
256QAM 0.81 dual -71.7 -69.3 -65.4 +20 135.7 133.3 129.4
![](/img.php?id=1237757&img=bgc9.png)
User Guide: PTP 600 Series PTP 54600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-53
PTP 54600 reference information
This section contains reference information for the PTP 54600 frequency variant.
PTP 54600 examples of regulatory limits
Table 4-39 shows how the regulatory limits currently apply in specific countries.
Operators should note that regulations are subject to change.
Table 4-39 PTP 54600 examples of regulatory limits
Region Examples of Regulatory Limits at 5.4GHz
FCC
Operation of this product is only allowed with a License Key for Region 12.
This implements Radar Detection in accordance with FCC Regulations and
limits the EIRP to the regulatory limits below:
EIRP ≤ Max of [(17 +10 x Log(Channel BW)) and 30] dBm.
ETSI
Operation of this product is only allowed with a License Key for Region 26.
This implements Radar Detection, including barring of the band from 5600
MHz to 5650 MHz and limits the EIRP to the regulatory limits below:
EIRP ≤ Max of [(17 +10 x Log(Channel BW)) and 30] dBm
Australia,
Canada
Operation of this product is only allowed with a License Key for Region 13.
This implements Radar Detection, including barring of the band from 5600
MHz to 5650 MHz and limits the EIRP to the regulatory limits below:
EIRP ≤ Max of [(17 +10 x Log(Channel BW)) and 30] dBm
Thailand Operation of this product is only allowed with a License Key for Region 20
(30 dBm or 1W EIRP)
Korea Operation of this product is only allowed with a License Key for Region 21
(28 dBm EIRP (15 MHz), 27 dBm EIRP (10 MHz), 24 dBm EIRP (5 MHz)).
General Notice Applicable to Europe – 5.4 GHz
This equipment complies with the essential requirements for
the EU R&E Directive 1999/5/EC.
![](/img.php?id=1237757&img=bgca.png)
PTP 54600 reference information Chapter 4 Reference information
phn-0896_009v003
4-54 UNDER DEVELOPMENT Feb 2010
NOTE
In regions other than EU/USA, specific local regulations may apply. It is the
responsibility of the installer/user to check that the equipment as deployed meets
local regulatory requirements.
PTP 54600 licenses and region codes
PTP 54600 units may be operated in any of the regions listed in Table 4-40. When
shipped, PTP 54600 units are configured with a license key for region code 26.
Alternative license keys are provided in the
PTP 600 Installation Guide
for region
codes 12 and 13. If the link is to be installed in any other permitted region, the user
must obtain a new license key from the reseller or distributor.
Table 4-40 PTP 54600 licenses and region codes
Region
code
License /
Regulation Frequencies DFS
Channel
Bandwidth Max Power Notes
7 Full Power
+ Radar
5470 - 5725
MHz
Yes 5, 10, 15, 30
MHz
25 dBm
8 Full Power 5470 - 5725
MHz
5, 10, 15, 30
MHz
25 dBm
30 MHz 30 dBm
EIRP
15 MHz 27 dBm
EIRP
10 MHz 25 dBm
EIRP
12
FCC 5470 - 5725
MHz
Yes
5 MHz 22 dBm
EIRP
13 Australia,
Canada
5470 - 5600
MHz
Yes 30 MHz 30 dBm
EIRP
The band
5600 MHz to
![](/img.php?id=1237757&img=bgcb.png)
User Guide: PTP 600 Series PTP 54600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-55
Region
code
License /
Regulation Frequencies DFS
Channel
Bandwidth Max Power Notes
15 MHz 27 dBm
EIRP
10 MHz 25 dBm
EIRP
5650 - 5725
MHz
5 MHz 22 dBm
EIRP
5650 MHz is
reserved for
the use of
weather
radars.
20 Thailand 5470 - 5725
MHz
5, 10, 15, 30
MHz
30 dBm
EIRP
15 MHz 28 dBm
EIRP
10 MHz 27 dBm
EIRP
21
Korea
5470 - 5650
MHz
5 MHz 24 dBm
EIRP
30 MHz
30 dBm
EIRP
15 MHz 27 dBm
EIRP
10 MHz 25 dBm
EIRP
26 ETSI 5470 - 5600
MHz
5650 - 5725
MHz
Yes
5 MHz 22 dBm
EIRP
The band
5600 MHz to
5650 MHz is
reserved for
the use of
weather
radars.
PTP 54600 regulatory compliance
The PTP 54600 complies with the regulations that are in force in the USA, Canada and
Europe. The relevant notifications are specified in this section.
PTP 54600 FCC and IC notification
U.S. Federal Communication Commission (FCC) and Industry Canada (IC) Notification.
![](/img.php?id=1237757&img=bgcc.png)
PTP 54600 reference information Chapter 4 Reference information
phn-0896_009v003
4-56 UNDER DEVELOPMENT Feb 2010
This device complies with part 15.407 of the US FCC Rules and Regulations and with
RSS-210 Issue 7 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause
undesired operation. In Canada, users should be cautioned to take note that high
power radars are allocated as primary users (meaning they have priority) of 5250 –
5350 MHz and 5650 – 5850 MHz and these radars could cause interference and/or
damage to license-exempt local area networks (LELAN).
For the connectorized version of the product and in order to reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more than that permitted by the
regulations. The transmitted power must be reduced to achieve this requirement.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the US FCC Rules and with RSS-210 of Industry
Canada. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio-frequency energy and, if not installed and used in accordance with these
instructions, may cause harmful interference to radio communications. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment on and off, the user is encouraged to correct
the interference by one or more of the following measures:
• Increase the separation between the affected equipment and the unit;
• Connect the affected equipment to a power outlet on a different circuit from that
which the receiver is connected to;
• Consult the dealer and/or experienced radio/TV technician for help.
• FCC IDs and Industry Canada Certification Numbers are listed below:
Where necessary, the end user is responsible for obtaining any National licenses
required to operate this product and these must be obtained before using the product
in any particular country. Contact the appropriate national administrations for details
on the conditions of use for the bands in question and any exceptions that might apply.
![](/img.php?id=1237757&img=bgcd.png)
User Guide: PTP 600 Series PTP 54600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-57
PTP 54600 European Union notification
The PTP 54600 product is a two-way radio transceiver suitable for use in Broadband
Wireless Access System (WAS), Radio Local Area Network (RLAN), or Fixed Wireless
Access (FWA) systems. It is a Class 1 device and uses operating frequencies that are
harmonized throughout the EU member states. The operator is responsible for
obtaining any national licenses required to operate this product and these must be
obtained before using the product in any particular country.
Hereby, Motorola declares that the PTP 54600 product complies with the essential requirements
and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be
consulted at http://motorola.canopywireless.com/doc.php.
This equipment is marked to show compliance with the European R&TTE directive
1999/5/EC.
European Union (EU) Waste of Electrical and Electronic Equipment (WEEE)
directive The European Union's WEEE directive requires that products sold into EU
countries must have the crossed out trash bin label on the product (or the package in
some cases). As defined by the WEEE directive, this cross-out trash bin label means
that customers and end-users in EU countries should not dispose of electronic and
electrical equipment or accessories in household waste. Customers or end-users in EU
countries should contact their local equipment supplier representative or service
center for information about the waste collection system in their country.
![](/img.php?id=1237757&img=bgce.png)
PTP 54600 reference information Chapter 4 Reference information
phn-0896_009v003
4-58 UNDER DEVELOPMENT Feb 2010
PTP 54600 radio system specifications
Table 4-41 contains radio system specifications for the PTP 54600.
Table 4-41 PTP 54600 RF specifications
Radio Technology Specification
RF Band 5.470-5.725 GHz
Channel Selection
By dynamic frequency control and manual intervention
Automatic detection on start-up and continual adaptation
to avoid interference.
Dynamic Frequency Control Initial capture 10-15 sec. Out of service on interference
100 ms.
Channel size 5, 10, 15 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to
other users of the band.
Receiver Noise Figure Typically 6 dB
Integrated Antenna
Type/Gain Integrated flat plate antenna; 23dBi
External Antenna Gain Depends on feeder losses, see Regulatory issues with
connectorized units on page 8-10.
Antenna Beamwidth 8 Degrees
Max Path Loss (5 MHz
channel, integrated antenna) 169 dB
Duplex Scheme Symmetric fixed, asymmetric fixed or adaptive TDD
Range
125 miles (200km) optical Line-of-Sight
6 miles (10km) non-Line-of-Sight
![](/img.php?id=1237757&img=bgcf.png)
User Guide: PTP 600 Series PTP 54600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-59
Radio Technology Specification
Over-the-Air Encryption Proprietary scrambling mechanism.
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation
Threshold changes
Error Correction FEC
PTP 54600 emissions and radio certifications
Table 4-42 lists the EMC emissions specifications under which the PTP 54600 has
received type approval. Table 4-43 lists the radio specifications under which the PTP
54600 has received type approval.
Table 4-42 PTP 54600 EMC emissions compliance
Region Specification (Type Approvals)
USA FCC Part 15 Class B
Canada CSA Std C108.8, 1993 Class B
Europe EN55022 CISPR 22
Table 4-43 PTP 54600 radio certifications
Region Specification (Type Approvals)
USA FCC Part 15 E
Canada RSS 210 Issue 7, Annex 9
Europe EN301 893 V1.4.1 with DFS testing using radar parameters
as defined in V1.5.1
![](/img.php?id=1237757&img=bgd0.png)
PTP 54600 reference information Chapter 4 Reference information
phn-0896_009v003
4-60 UNDER DEVELOPMENT Feb 2010
PTP 54600 available spectrum settings
The available spectrum settings for the PTP 54600 are illustrated in this section.
Adjustment of the lower centre frequency allows the operator to slide the available
frequency settings up and down the 5.4 GHz band in steps of 2 MHz.
In the 30 MHz channel bandwidth (Figure 4-18), the PTP 54600 variant operates on a
10 MHz channel raster. In the 15 MHz (Figure 4-19), 10 MHz (Figure 4-20) and 5 MHz
(Figure 4-21) channel bandwidths, the PTP 54600 variant operates on a 6 MHz
channel raster. The channel raster is set to even centre frequencies. The PTP 54600
product variant does not apply any band edge power reduction.
NOTE
These tables contain data for one typical region code. The specified channel
centre frequencies may not be available in other region codes.
Figure 4-18 PTP 54600 available spectrum in 30 MHz channel bandwidth
![](/img.php?id=1237757&img=bgd1.png)
User Guide: PTP 600 Series PTP 54600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-61
Figure 4-19 PTP 54600 available spectrum in 15 MHz channel bandwidth
Figure 4-20 PTP 54600 available spectrum in 10 MHz channel bandwidth
Figure 4-21 PTP 54600 available spectrum in 5 MHz channel bandwidth
![](/img.php?id=1237757&img=bgd2.png)
PTP 54600 reference information Chapter 4 Reference information
phn-0896_009v003
4-62 UNDER DEVELOPMENT Feb 2010
PTP 54600 system threshold, output power and link loss
PTP 54600 system threshold, output power and maximum link loss are given in Table
4-44 (IP mode) and Table 4-45 (TDM mode). These figures assume that antenna gain is
23 dBi.
Table 4-44 PTP 54600 - IP mode - threshold, power and loss per modulation mode
Threshold Value (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MHz
30
MH
z
All
Bands
5
MHz
10
MHz
15
MHz
30
MHz
BPSK 0.63 single -98.2 -94.6 -92.3 -88.9 +25 169.2 165.6 163.3 159.9
QPSK 0.63 single -93.0 -90.0 -88.5 -82.9 +24 163.0 160.0 158.5 152.9
QPSK 0.87 single -90.2 -86.7 -85.3 -80.1 +23 159.2 155.7 154.3 149.1
16QAM 0.63 single -88.0 -83.8 -82.8 -78.3 +22 156.0 151.8 150.8 146.3
16QAM 0.63 dual -84.3 -80.7 -79.3 -74.6 +22 152.3 148.7 147.3 142.6
16QAM 0.87 single -82.4 -79.1 -78.2 -73.0 +20 148.4 145.1 144.2 139.0
16QAM 0.87 dual -79.7 -75.7 -74.7 -70.6 +20 145.7 141.7 140.7 136.6
64QAM 0.75 single -78.9 -76.4 -74.9 -70.3 +18 142.9 140.4 138.9 134.3
64QAM 0.75 dual -76.5 -72.7 -71.6 -67.7 +18 140.5 136.7 135.6 131.7
64QAM 0.92 single -74.4 -71.7 -70.4 -65.0 +18 138.4 135.7 134.4 129.0
64 QAM 0.92 dual -70.7 -68.5 -66.9 -62.3 +18 134.7 132.5 130.9 126.3
256QAM 0.81 single N/A N/A N/A -63.6 +18 N/A N/A N/A 127.6
256QAM 0.81 dual N/A N/A N/A -60.5 +18 N/A N/A N/A 124.5
![](/img.php?id=1237757&img=bgd3.png)
User Guide: PTP 600 Series PTP 54600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-63
Table 4-45 PTP 54600 - TDM mode - threshold, power and loss per modulation mode
Threshold Value (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MHz
30
MH
z
All
Bands
5
MHz
10
MHz
15
MHz
30
MHz
BPSK 0.63 single -98.2 -94.6 -92.3 -88.9 +25 169.2 165.6 163.3 159.9
QPSK 0.63 single -89.7 -88.3 -86.4 -81.4 +24 159.7 158.3 156.4 151.4
QPSK 0.87 single -86.7 -84.3 -82.3 -78.4 +23 155.6 153.3 151.3 147.4
16QAM 0.63 single -86.6 -81.8 -79.9 -76.0 +22 151.7 149.8 147.9 144.0
16QAM 0.63 dual -83.7 -78.2 -76.5 -72.4 +22 148.8 146.3 144.5 140.4
16QAM 0.87 single -78.8 -76.6 -75.5 -69.8 +20 144.8 142.6 141.5 135.8
16QAM 0.87 dual -76.9 -73.9 -72.2 -68.7 +20 142.9 139.9 138.2 134.7
64QAM 0.75 single -74.7 -72.2 -71.8 -66.6 +18 138.7 136.2 135.8 130.6
64QAM 0.75 dual -73.0 -70.4 -68.8 -65.6 +18 137.0 134.4 132.8 129.6
64QAM 0.92 single -70.9 -68.6 -67.4 -62.9 +18 134.9 132.6 131.4 126.9
64 QAM 0.92 dual -68.2 -65.6 -64.2 -60.5 +18 132.1 129.6 128.2 124.5
256QAM 0.81 single N/A N/A N/A -65.4 +18 N/A N/A N/A 126.9
256QAM 0.81 dual N/A N/A N/A -60.5 +18 N/A N/A N/A 124.5
![](/img.php?id=1237757&img=bgd4.png)
PTP 54600 reference information Chapter 4 Reference information
phn-0896_009v003
4-64 UNDER DEVELOPMENT Feb 2010
PTP 54600 FCC antenna restrictions
In FCC regions, external antennas from the list in Table 4-46 can be used with the
Connectorized version of the PTP 54600. These are approved by the FCC for use with
the product and are constrained by the following limit for Single/Dual Polarization
Parabolic Dish Antennas: up to 34.9 dBi (33.4 dBi for 5 MHz bandwidth) per
polarization or antenna.
However, the Maximum Transmit Power must be reduced to avoid exceeding the EIRP
limits.
In FCC regions when using external antennas, cable loss between the connectorized
version of the PTP 600 Series and the antenna ports must not be less than 1.2 dB.
CAUTION
Antennas not included in this table, or those having a gain greater than the
specified maximum, are strictly prohibited for use with the PTP 54600. The
required antenna impedance is 50 ohms.
Table 4-46 Allowed antennas for deployment in USA/Canada – 5.4 GHz
Manufacturer Antenna Type Gain
(dBi)
Parabolic
Dish
Andrew Andrew 2-foot Parabolic, P2F-52 (29.4dBi) 29.4 Y
Andrew Andrew 2-foot Dual-Pol Parabolic, PX2F-52
(29.4dBi)
29.4 Y
Andrew Andrew 3-foot Parabolic, P3F-52 (33.4dBi) 33.4 Y
Andrew Andrew 3-foot Dual-Pol Parabolic, PX3F-52
(33.4dBi)
33.4 Y
Andrew Andrew 4-foot Parabolic, P4F-52 (34.9dBi) 34.9 Y
Andrew Andrew 4-foot Dual-Pol Parabolic, PX4F-52
(34.9dBi)
34.9 Y
Gabriel Gabriel 2-foot High Performance QuickFire
Parabolic, HQF2-52-N
28.2 Y
Gabriel Gabriel 4-foot High Performance QuickFire
Parabolic, HQF4-52-N
34.4 Y
![](/img.php?id=1237757&img=bgd5.png)
User Guide: PTP 600 Series PTP 54600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-65
Manufacturer Antenna Type Gain
(dBi)
Parabolic
Dish
Gabriel Gabriel 2-foot High Performance Dual
QuickFire Parabolic, HQFD2-52-N
28.1 Y
Gabriel Gabriel 4-foot High Performance Dual
QuickFire Parabolic, HQFD4-52-N
34.3 Y
Gabriel Gabriel 2-foot Standard QuickFire Parabolic,
QF2-52-N
28.5 Y
Gabriel Gabriel 2-foot Standard QuickFire Parabolic,
QF2-52-N-RK
28.5 Y
Gabriel Gabriel 2.5-foot Standard QuickFire Parabolic,
QF2.5-52-N
31.2 Y
Gabriel Gabriel 4-foot Standard QuickFire Parabolic,
QF4-52-N
34.8 Y
Gabriel Gabriel 4-foot Standard QuickFire Parabolic,
QF4-52-N-RK
34.8 Y
Gabriel Gabriel 2-foot Standard Dual QuickFire
Parabolic, QFD2-52-N
28.4 Y
Gabriel Gabriel 2.5-foot Standard Dual QuickFire
Parabolic, QFD2.5-52-N
31.1 Y
Gabriel Gabriel 2-foot Standard Dual QuickFire
Parabolic, QFD2-52-N-RK
28.4 Y
Gabriel Gabriel 4-foot Standard Dual QuickFire
Parabolic, QFD4-52-N
34.7 Y
Gabriel Gabriel 4-foot Standard Dual QuickFire
Parabolic, QFD4-52-N-RK
34.7 Y
RadioWaves Radio Waves 2-foot Dual-Pol Parabolic, SPD2-
5.2 (28.1dBi)
28.1 Y
RadioWaves Radio Waves 2-foot Parabolic, SP2-5.2
(29.0dBi)
29 Y
RadioWaves Radio Waves 3-foot Dual-Pol Parabolic, SPD3-
5.2 (31.1dBi)
31.1 Y
RadioWaves Radio Waves 3-foot Parabolic, SP3-5.2
(31.4dBi)
31.4 Y
![](/img.php?id=1237757&img=bgd6.png)
PTP 54600 reference information Chapter 4 Reference information
phn-0896_009v003
4-66 UNDER DEVELOPMENT Feb 2010
Manufacturer Antenna Type Gain
(dBi)
Parabolic
Dish
RadioWaves Radio Waves 4-foot Dual-Pol Parabolic, SPD4-
5.2 (34.4dBi)
34.4 Y
RadioWaves Radio Waves 4-foot Parabolic, SP4-5.2
(34.8dBi)
34.8 Y
RadioWaves Radio Waves 2-foot Parabolic, SP2-2/5
(28.3dBi)
28.3 Y
RadioWaves Radio Waves 3-foot Parabolic, SP3-2/5
(31.4dBi)
31.4 Y
RadioWaves Radio Waves 4-foot Parabolic, SP4-2/5
(34.6dBi)
34.6 Y
RFS RFS 2-foot Parabolic, SPF2-52AN or SPFX2-
52AN (27.9dBi)
27.9 Y
RFS RFS 3-foot Parabolic, SPF3-52AN or SPFX3-
52AN(31.4dBi)
31.4 Y
RFS RFS 4-foot Parabolic, SPF4-52AN or SPFX4-
52AN(33.9dBi)
33.9 Y
RFS RFS 2-foot HP Parabolic, SDF2-52AN or
SDFX2-52AN (31.4dBi)
31.4 Y
RFS RFS 4-foot HP Parabolic, SDF4-52AN or
SDFX4-52AN (33.9dBi)
33.9 Y
![](/img.php?id=1237757&img=bgd7.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-67
PTP 58600 reference information
This section contains reference information that is specific to the PTP 58600 frequency
variant.
PTP 58600 examples of regulatory limits
Table 4-47 shows how the regulatory limits currently apply in specific countries.
Operators should note that regulations are subject to change.
Table 4-47 PTP 58600 examples of regulatory limits
Region Examples of Regulatory Limits at 5.8GHz
USA/
Canada/
Taiwan/
Brazil
Equipment can be operated in any mode, best results will be
obtained using Region 1 settings. There are some limitations on the
use of antennas above 4ft diameter plus a band edge power
reduction.
China Operation of this product is only allowed with a License Key for
Region 2 (33 dBm or 2W EIRP).
Australia Operation of this product is only allowed with a License Key for
Region 3 (36 dBm or 4W EIRP).
Hong Kong Operation of this product is only allowed with a License Key for
Region 3 (36 dBm or 4W EIRP).
UK
Operation of this product is allowed with a License Key for Region
4. This implements Radar Detection with barring of the band from
5795 MHz to 5815 MHz and above 5850 MHz. It limits the EIRP to
the Regulatory Limits below:
EIRP ≤ Max of [(23 +10 x Log(Channel BW)) and 36] dBm
Singapore Operation of this product is only allowed with a License Key for
Region 5 (20 dBm or 100mW EIRP).
Eire
Operation of this product is only allowed with a License Key for
Region 6 (33 dBm or 2W EIRP). The lower power limits are lower in
narrower bandwidths.
Korea Operation of this product is only allowed with a License Key for
Region 11 (43 dBm or 20W EIRP).
![](/img.php?id=1237757&img=bgd8.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-68 UNDER DEVELOPMENT Feb 2010
Region Examples of Regulatory Limits at 5.8GHz
India
Operation of this product is only allowed with a License Key for
Region 19 (36 dBm or 4W EIRP at 15 MHz and 10 MHz and 33
dBm or 2 W EIRP at 5 MHz channel bandwidth).
Thailand Operation of this product is only allowed with a License Key for
Region 20 (30 dBm or 1W EIRP).
Germany Operation of this product is only allowed with a License Key for
Region 22. This limits the band of operation to 5755 MHz to 5850
MHz and limits the EIRP to the Regulatory Limits below:
EIRP ≤ Max of [(23 +10 x Log(Channel BW)) and 36] dBm
Bahrain Operation of this product is allowed with a License Key for Region
24 . This limits the EIRP to the Regulatory Limits below:
EIRP ≤ Max of [(20 +10 x Log(Channel BW)) and 33] dBm
Norway Under Norway Regulations, operation of this product is only
allowed with a License Key for Region 7. This implements Radar
Detection and limits the EIRP to the Regulatory Limits below:
EIRP ≤ Max of [(40 +10 x Log(Channel BW)) and 53] dBm
Spectral density at border between Norway and neighboring
countries shall not exceed -122,5 dBW/m2 measured with a
reference bandwidth of 1 MHz.
General Notice Applicable to Europe – 5.8 GHz
This equipment complies with the essential requirements for the EU R&E
Directive 1999/5/EC.
The use of 5.8GHz for Point to Point radio links is not harmonized across the EU
and currently the product may only be deployed in the UK, Eire (IRL), Germany,
Denmark and Norway.
However, the regulatory situation in Europe is changing and the radio spectrum
may become available in other countries in the near future. Please contact
Motorola for the latest situation.
![](/img.php?id=1237757&img=bgd9.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-69
![](/img.php?id=1237757&img=bgda.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-70 UNDER DEVELOPMENT Feb 2010
PTP 58600 licenses and region codes
PTP 58600 units may be operated in any of the regions listed in Table 4-48.
PTP 58600 units are configured with a license key for region code 1. An alternative
license key is provided in the
PTP 600 Installation Guide
for region code 25. For any
other permitted region, obtain a new license key from the reseller or distributor.
Table 4-48 PTP 58600 licenses and region codes
Region
code
License /
Regulation
Frequencies DFS Channel
Bandwidth
Max Power Notes
1 FCC USA,
Canada,
Taiwan,
Brazil
5725 - 5850
MHz
5, 10, 15, 30
MHz
25 dBm Reduced TX
power at
band edges
30 MHz 33 dBm
EIRP
15 MHz 31 dBm
EIRP
10 MHz 30 dBm
EIRP
2 China 5725 - 5850
MHz
5 MHz 27 dBm
EIRP
3 Australia,
Hong Kong
5725 - 5850
MHz
5, 10, 15, 30
MHz
36 dBm
EIRP
30 MHz 35 dBm
EIRP
15 MHz 34 dBm
EIRP
10 MHz 32 dBm
EIRP
4 UK 5725 - 5795
MHz
5815 - 5850
MHz
Yes
5 MHz 29 dBm
EIRP
5795 MHz to
5815 MHz is
assigned for
Road
Transport
and Traffic
Telematics
(RTTT).
![](/img.php?id=1237757&img=bgdb.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-71
Region
code
License /
Regulation
Frequencies
DFS Channel
Bandwidth
Max Power Notes
5 Singapore 5725 - 5850
MHz
5, 10, 15, 30
MHz
20 dBm
EIRP
30 MHz 33 dBm
EIRP
15 MHz 31 dBm
EIRP
10 MHz 30 dBm
EIRP
6
Eire
5725 - 5850
MHz
5 MHz 27 dBm
EIRP
30 MHz 53 dBm
EIRP
15 MHz 51 dBm
EIRP
10 MHz 50 dBm
EIRP
7 Norway 5725 - 5795
MHz
5815 - 5850
MHz
Yes
5 MHz 47 dBm
EIRP
5795 MHz to
5815 MHz is
assigned for
Road
Transport
and Traffic
Telematics
(RTTT).
8 Full Power 5725 - 5850
MHz
5, 10, 15, 30
MHz
25 dBm
30 MHz 43 dBm
EIRP
15 MHz 41 dBm
EIRP
10 MHz 40 dBm
EIRP
11
Korea
5725 - 5825
MHz
5 MHz 37 dBm
EIRP
10, 15 MHz 36 dBm
EIRP
19
India
5825 - 5850
MHz
5 MHz 33 dBm
EIRP
![](/img.php?id=1237757&img=bgdc.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-72 UNDER DEVELOPMENT Feb 2010
Region
code
License /
Regulation
Frequencies DFS Channel
Bandwidth
Max Power Notes
20 Thailand 5725 - 5850
MHz
5, 10, 15, 30
MHz
30 dBm
EIRP
30 MHz 35 dBm
EIRP
15 MHz 34 dBm
EIRP
10 MHz 32 dBm
EIRP
22 Germany 5755 - 5850
MHz
Yes
5 MHz 29 dBm
EIRP
1dB
reduction
required in
30 MHz to
achieve
adjacent
channel
emissions
30 MHz 33 dBm
EIRP
15 MHz 31 dBm
EIRP
10 MHz 30 dBm
EIRP
24 Bahrain 5725 - 5850
MHz
Yes
5 MHz 27 dBm
EIRP
30 MHz 35 dBm
EIRP
15 MHz 34 dBm
EIRP
10 MHz 32 dBm
EIRP
25 ETSI 5725 - 5850
MHz
Yes
5 MHz 29 dBm
EIRP
1dB
reduction
required in
30 MHz to
achieve
adjacent
channel
emissions
30 MHz 35 dBm
EIRP
15 MHz 34 dBm
EIRP
27 Denmark 5725 - 5795
5815 - 5850
MHz
Yes
10 MHz 32 dBm
EIRP
5795 MHz to
5815 MHz is
assigned for
Road
Transport
and Traffic
Telematics
![](/img.php?id=1237757&img=bgdd.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-73
Region
code
License /
Regulation
Frequencies
DFS Channel
Bandwidth
Max Power Notes
5 MHz 29 dBm
EIRP
(RTTT)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-74 UNDER DEVELOPMENT Feb 2010
PTP 58600 regulatory compliance
The PTP 58600 complies with the regulations that are in force in the USA, Canada and
Europe. The relevant notifications are specified in this section.
PTP 58600 FCC and IC notification
U.S. Federal Communication Commission (FCC) and Industry Canada (IC) Notification.
This system has achieved Type Approval in various countries around the world. This
means that the system has been tested against various local technical regulations and
found to comply. The frequency band in which the system operates is ‘license exempt’
and the system is allowed to be used provided it does not cause interference. Further,
the licensing authority does not guaranteed protection against interference from other
products and installations.
This device complies with part 15 of the US FCC Rules and Regulations and with RSS-
210 of Industry Canada. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation. In
Canada, users should be cautioned to take note that high power radars are allocated
as primary users (meaning they have priority) of the 5650 – 5850 MHz spectrum and
these radars could cause interference and/or damage to license-exempt local area
networks (LELAN).
For the connectorized version of the product and in order to reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the
Effective Isotropically Radiated Power (EIRP) is not more than that permitted for
successful communication.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the US FCC Rules and with RSS-210 of Industry
Canada. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio-frequency energy and, if not installed and used in accordance with these
instructions, may cause harmful interference to radio communications. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment on and off, the user is encouraged to correct
the interference by one or more of the following measures:
• Increase the separation between the affected equipment and the unit;
• Connect the affected equipment to a power outlet on a different circuit from that
which the receiver is connected to;
![](/img.php?id=1237757&img=bgdf.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-75
• Consult the dealer and/or experienced radio/TV technician for help.
FCC IDs and Industry Canada Certification Numbers are listed below:
Where necessary, the end user is responsible for obtaining any National licenses
required to operate this product and these must be obtained before using the product
in any particular country. Contact the appropriate national administrations for details
on the conditions of use for the bands in question and any exceptions that might apply.
PTP 58600 European Union notification
The PTP 58600 is a Class 2 device as it operates on frequencies that are not
harmonized across the EU. Currently the product may only be operated in the UK,
Eire (IRL), Germany, Norway and Denmark. However, the regulatory situation in
Europe is changing and the radio spectrum may become available in other countries in
future. See www.ero.dk for further information. The operator is responsible for
obtaining any national licenses required to operate this product and these must be
obtained before using the product in any particular country.
Hereby, Motorola declares that the PTP 58600 product complies with the essential requirements
and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be
consulted at http://motorola.canopywireless.com/doc.php.
This equipment is marked to show compliance with the European R&TTE directive
1999/5/EC.
![](/img.php?id=1237757&img=bge0.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-76 UNDER DEVELOPMENT Feb 2010
European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive
The European Union's WEEE directive requires that products sold into EU countries
must have the crossed out trash bin label on the product (or the package in some
cases). As defined by the WEEE directive, this cross-out trash bin label means
that customers and end-users in EU countries should not dispose of electronic and
electrical equipment or accessories in household waste. Customers or end-users in EU
countries should contact their local equipment supplier representative or service
center for information about the waste collection system in their country.
UK notification
The PTP 58600 connectorized product has been notified for operation in the UK, and
when operated in accordance with instructions for use it is compliant with UK
Interface Requirement IR2007. For UK use, installations must conform to the
requirements of IR2007 in terms of EIRP spectral density against elevation profile
above the local horizon in order to protect Fixed Satellite Services. The frequency
range 5795-5815 MHz is assigned to Road Transport & Traffic Telematics (RTTT) in
the U.K. and shall not be used by FWA systems in order to protect RTTT devices. UK
Interface Requirement IR2007 specifies that radiolocation services shall be protected
by a Dynamic Frequency Selection (DFS) mechanism to prevent co-channel operation
in the presence of radar signals.
CAUTION
This equipment operates as a secondary application, so it has no rights
against harmful interference, even if generated by similar equipment, and
must not cause harmful interference on systems operating as primary
applications.
![](/img.php?id=1237757&img=bge1.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-77
PTP 58600 radio system specifications
Table 4-49 contains radio system specifications for the PTP 58600.
Table 4-49 PTP 58600 RF specifications
Radio Technology Specification
RF Band 5.725-5.850 GHz
Channel Selection
By dynamic frequency control and manual intervention
Automatic detection on start-up and continual adaptation
to
avoid interference.
Dynamic Frequency Control Initial capture 10-15 sec. Out of service on interference
100 ms.
Channel size 5, 10, 15 and 30 MHz
Manual Power Control
Maximum power can be controlled lower than the power
limits shown above in order to control interference to
other users of the band.
Receiver Noise Figure Typically 6 dB
Antenna Type (Integrated) Flat plate antenna; 23 dBi
Antenna Type (External)
Parabolic dish, maximum permitted gain: 37.7 dBi
Flat plate; maximum permitted gain: 28.0 dBi
Antenna Beamwidth
(Integrated) 8 degrees
Max Path Loss (5 MHz
Channel) 166 dB
Duplex Scheme Symmetric fixed, asymmetric fixed or adaptive TDD
![](/img.php?id=1237757&img=bge2.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-78 UNDER DEVELOPMENT Feb 2010
Radio Technology Specification
Range
125 miles (200km) optical line-of-sight
6 miles (10km) non-line-of-sight
Over-the-Air Encryption Proprietary scrambling mechanism.
Weather Sensitivity
Sensitivity at higher modes may be reduced during high
winds through trees due to Adaptive Modulation
Threshold changes
Error Correction FEC
PTP 58600 emissions and radio certifications
Table 4-50 lists the EMC emissions specifications under which the PTP 58600 has
received type approval. Table 4-51 lists the radio specifications under which the PTP
58600 has received type approval.
Table 4-50 PTP 58600 EMC emissions compliance
Region Specification (Type Approvals)
USA FCC Part 15 Class B
Canada CSA Std C108.8, 1993 Class B
Europe EN55022 CISPR 22
![](/img.php?id=1237757&img=bge3.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-79
Table 4-51 PTP 58600 radio certifications
Region Specification (Type Approvals)
USA FCC Part 15.247
CANADA RSS 210 Issue 7, Annex 8
UK IR 2007
Eire ComReg 02/71R1
EU EN302 502 v 1.2.1
![](/img.php?id=1237757&img=bge4.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-80 UNDER DEVELOPMENT Feb 2010
PTP 58600 available spectrum settings
The available spectrum settings for the PTP 58600 are illustrated in this section.
Adjustment of the lower centre frequency allows the operator to slide the available
frequency settings up and down the 5.8 GHz band in steps of 2 MHz.
In the 30 MHz channel bandwidth (Figure 4-22), the PTP 58600 variant operates on a
10 MHz channel raster. In the 15 MHz (Figure 4-23), 10 MHz (Figure 4-24) and 5 MHz
(Figure 4-25) channel bandwidths, the PTP 58600 variant operates on a 6 MHz
channel raster. The channel raster is set to even centre frequencies.
NOTE
These tables contain data for one typical region code. The specified channel
centre frequencies may not be available in other region codes.
Figure 4-22 PTP 58600 available spectrum in 30 MHz channel bandwidth
![](/img.php?id=1237757&img=bge5.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-81
Figure 4-23 PTP 58600 available spectrum in 15 MHz channel bandwidth
Figure 4-24 PTP 58600 available spectrum in the 10 MHz channel bandwidth
Figure 4-25 PTP 58600 available spectrum in 5 MHz channel bandwidth
![](/img.php?id=1237757&img=bge6.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-82 UNDER DEVELOPMENT Feb 2010
PTP 58600 Transmit Power Reduction at the Band Edges
Operation at or near the 5.8 GHz band edges can results in a lower maximum transmit
power. In some configurations the PTP 600 Series solution reduces the power when
operating at the edge channels. The amount of reduction, if any, is dependant on the
region code of the region of operation. This currently only affects systems configured
with region code 1. The power reductions in the edge channels for 5 MHz, 10 MHz, 15
MHz and 30 MHz are presented in Table 4-52 (for region code 1 ONLY).
Table 4-52 PTP 58600 band edge Tx power reduction
Channel Width (MHz) Power Levels for
Channel Centre 5 10 15 30
5730 25 N/A N/A N/A
5732 25 23 N/A N/A
5734 25 25 N/A N/A
5736 25 25 23 N/A
5738 25 25 25 N/A
5740 25 25 25 17
5742 - 5750 25 25 25 21
5752 - 5822 25 25 25 25
5824 - 5832 25 25 25 21
5834 25 25 25 17
5840 25 25 23 N/A
5842 25 23 19 N/A
5844 25 19 N/A N/A
5846 23 N/A N/A N/A
![](/img.php?id=1237757&img=bge7.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-83
PTP 58600 system threshold, output power and link loss
PTP 58600 system threshold figures are given in Table 4-53 (IP mode) and Table 4-54
(TDM mode). These figures assume that antenna gain is 23 dBi.
Table 4-53 PTP 58600 - IP mode - threshold, power and loss per modulation mode
Threshold Value (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MHz
30
MH
z
All
Bands
5
MHz
10
MHz
15
MHz
30
MHz
BPSK 0.63 single -95.1 -92.5 -90.8 -86.3 +25 166.1 163.5 161.8 157.3
QPSK 0.63 single -91.9 -90.0 -87.7 -83.0 +24 161.9 160.0 157.7 153.0
QPSK 0.87 single -88.7 -86.6 -84.8 -80.3 +23 157.7 155.6 153.8 149.3
16QAM 0.63 single -86.0 -84.3 -82.4 -78.3 +22 154.0 152.3 150.4 146.3
16QAM 0.63 dual -83.5 -80.4 -78.5 -75.3 +22 151.5 148.4 146.5 143.3
16QAM 0.87 single -82.1 -79.5 -78.1 -72.5 +20 148.1 145.5 144.1 138.5
16QAM 0.87 dual -79.2 -76.2 -73.9 -71.5 +20 145.2 142.2 139.9 137.5
64QAM 0.75 single -78.8 -76.7 -75.2 -69.2 +18 142.8 140.7 139.2 133.2
64QAM 0.75 dual -76.1 -73.1 -71.0 -67.7 +18 140.1 137.1 135.0 131.7
64QAM 0.92 single -74.4 -72.5 -66.2 -65.0 +18 138.4 136.5 134.6 129.0
64 QAM 0.92 dual -70.2 -69.1 -70.7 -61.5 +18 134.2 133.1 130.2 125.5
256QAM 0.81 single N/A N/A N/A -64.0 +18 N/A N/A N/A 128.0
256QAM 0.81 dual N/A N/A N/A -59.6 +18 N/A N/A N/A 123.6
![](/img.php?id=1237757&img=bge8.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-84 UNDER DEVELOPMENT Feb 2010
Table 4-54 PTP 58600 - TDM mode - threshold, power and loss per modulation mode
Threshold Value (dBm)
Output
Power
(dBm)
Maximum Link Loss (dB)
Channel
Bandwidth
Modulation
Mode
5
MHz
10
MHz
15
MHz
30
MH
z
All
Bands
5
MHz
10
MHz
15
MHz
30
MHz
BPSK 0.63 single -95.1 -92.5 -90.8 -86.3 +25 166.1 163.5 161.8 157.3
QPSK 0.63 single -88.7 -87.8 -86.0 -80.6 +24 158.7 157.8 155.9 150.6
QPSK 0.87 single -85.5 -83.8 -81.6 -77.8 +23 154.5 152.8 150.6 146.8
16QAM 0.63 single -82.0 -81.3 -79.1 -75.3 +22 150.0 149..3 147.1 143.3
16QAM 0.63 dual -79.4 -77.6 -75.6 -71.7 +22 147.4 145.6 143.6 139.7
16QAM 0.87 single -78.7 -76.3 -74.7 -71.2 +20 144.7 142.3 140.7 137.2
16QAM 0.87 dual -75.1 -73.2 -71.0 -67.7 +20 141.0 139.2 137.0 133.7
64QAM 0.75 single -74.4 -72.3 -70.6 -67.9 +18 138.4 136.3 134.6 131.9
64QAM 0.75 dual -70.9 -69.5 -67.6 -64.0 +18 134.9 133.5 131.6 128.0
64QAM 0.92 single -70.9 -68.0 -66.6 -63.1 +18 134.9 132.0 130.6 127.1
64 QAM 0.92 dual -66.8 -64.6 -65.5 -58.7 +18 130.8 128.6 126.5 122.7
256QAM 0.81 single N/A N/A N/A -63.1 +18 N/A N/A N/A 127.1
256QAM 0.81 dual N/A N/A N/A -58.7 +18 N/A N/A N/A 122.7
![](/img.php?id=1237757&img=bge9.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-85
PTP 58600 FCC antenna restrictions
In FCC regions, external antennas from the lists in Table 4-55 and Table 4-56 can be
used with the Connectorized version of the PTP 58600. These are approved by the FCC
for use with the product and are constrained by the following limit for Single/Dual
Polarization Parabolic Dish Antennas: up to 37.7 dBi per polarization or antenna.
In FCC regions when using external antennas, cable loss between the connectorized
version of the PTP 600 Series and the antenna ports must not be less than 1.2 dB.
CAUTION
Antennas not included in this table, or those having a gain greater than the
specified maximum, are strictly prohibited for use with the PTP 58600. The
required antenna impedance is 50 ohms.
Table 4-55 Allowed antennas for deployment in USA/Canada – 5.8 GHz
Manufacturer Antenna Type Gain
(dBi)
Flat
Plate
Parabolic
Dish
Andrew Andrew 1-foot Flat Panel, FPA5250D12-N
(23.6dBi)
23.6 Y
Andrew Andrew 2-foot Flat Panel, FPA5250D24-N
(28dBi)
28 Y
Gabriel Gabriel 1-foot Flat Panel, DFPD1-52
(23.5dBi)
23.5 Y
Gabriel Gabriel 2-foot Flat Panel, DFPD2-52
(28dBi)
28 Y
MTI MTI 17 inch Diamond Flat Panel, MT-
485009 (23dBi)
23 Y
MTI MTI 15 inch Dual-Pol Flat Panel,
MT-485025/NVH (23dBi)
23 Y
MTI MTI 2 ft Directional Flat Panel, MT-20004
(28dBi)
28 Y
MTI MTI 2 ft Flat Panel, MT-486001 (28dBi) 28 Y
![](/img.php?id=1237757&img=bgea.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-86 UNDER DEVELOPMENT Feb 2010
Manufacturer Antenna Type Gain
(dBi)
Flat
Plate
Parabolic
Dish
RFS RFS 1-foot Flat Panel, MA0528-23AN
(23dBi)
23 Y
RFS RFS 2-foot Flat Panel, MA0528-28AN
(28dBi)
28 Y
Telectronics Teletronics 2-foot Flat Plate Antenna,
ANT-P5828 (28dBi)
28 Y
Andrew Andrew 2-foot Parabolic, P2F-52 (29.4dBi) 29.4 Y
Andrew Andrew 2-foot Dual-Pol Parabolic, PX2F-
52 (29.4dBi)
29.4 Y
Andrew Andrew 3-foot Parabolic, P3F-52 (33.4dBi) 33.4 Y
Andrew Andrew 3-foot Dual-Pol Parabolic, PX3F-
52 (33.4dBi)
33.4 Y
Andrew Andrew 4-foot Parabolic, P4F-52 (34.9dBi) 34.9 Y
Andrew Andrew 4-foot Dual-Pol Parabolic, PX4F-
52 (34.9dBi)
34.9 Y
Andrew Andrew 6-foot Parabolic, P6F-52 (37.6dBi) 37.6 Y
Andrew Andrew 6-foot Dual-Pol Parabolic, PX6F-
52 (37.6dBi)
37.6 Y
Gabriel Gabriel 2-foot High Performance
QuickFire Parabolic, HQF2-52-N
28.2 Y
Gabriel Gabriel 4-foot High Performance
QuickFire Parabolic, HQF4-52-N
34.4 Y
Gabriel Gabriel 6-foot High Performance
QuickFire Parabolic, HQF6-52-N
37.4 Y
Gabriel Gabriel 2-foot High Performance Dual
QuickFire Parabolic, HQFD2-52-N
28.1 Y
Gabriel Gabriel 4-foot High Performance Dual
QuickFire Parabolic, HQFD4-52-N
34.3 Y
Gabriel Gabriel 6-foot High Performance Dual
QuickFire Parabolic, HQFD6-52-N
37.3 Y
![](/img.php?id=1237757&img=bgeb.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-87
Manufacturer Antenna Type Gain
(dBi)
Flat
Plate
Parabolic
Dish
Gabriel Gabriel 2-foot Standard QuickFire
Parabolic,
QF2-52-N
28.5 Y
Gabriel Gabriel 2-foot Standard QuickFire
Parabolic,
QF2-52-N-RK
28.5 Y
Gabriel Gabriel 2.5-foot Standard QuickFire
Parabolic, QF2.5-52-N
31.2 Y
Gabriel Gabriel 4-foot Standard QuickFire
Parabolic,
QF4-52-N
34.8 Y
Gabriel Gabriel 4-foot Standard QuickFire
Parabolic,
QF4-52-N-RK
34.8 Y
Gabriel Gabriel 6-foot Standard QuickFire
Parabolic,
QF6-52-N
37.7 Y
Gabriel Gabriel 2-foot Standard Dual QuickFire
Parabolic, QFD2-52-N
28.4 Y
Gabriel Gabriel 2.5-foot Standard Dual QuickFire
Parabolic, QFD2.5-52-N
31.1 Y
Gabriel Gabriel 2-foot Standard Dual QuickFire
Parabolic, QFD2-52-N-RK
28.4 Y
Gabriel Gabriel 4-foot Standard Dual QuickFire
Parabolic, QFD4-52-N
34.7 Y
Gabriel Gabriel 4-foot Standard Dual QuickFire
Parabolic, QFD4-52-N-RK
34.7 Y
Gabriel Gabriel 6-foot Standard Dual QuickFire
Parabolic, QFD6-52-N
37.7 Y
RadioWaves Radio Waves 2-foot Dual-Pol Parabolic,
SPD2-5.2 (28.1dBi)
28.1 Y
RadioWaves Radio Waves 2-foot Parabolic, SP2-5.2
(29.0dBi)
29 Y
![](/img.php?id=1237757&img=bgec.png)
PTP 58600 reference information Chapter 4 Reference information
phn-0896_009v003
4-88 UNDER DEVELOPMENT Feb 2010
Manufacturer Antenna Type Gain
(dBi)
Flat
Plate
Parabolic
Dish
RadioWaves Radio Waves 3-foot Dual-Pol Parabolic,
SPD3-5.2 (31.1dBi)
31.1 Y
RadioWaves Radio Waves 3-foot Parabolic, SP3-5.2
(31.4dBi)
31.4 Y
RadioWaves Radio Waves 4-foot Dual-Pol Parabolic,
SPD4-5.2 (34.4dBi)
34.4 Y
RadioWaves Radio Waves 4-foot Parabolic, SP4-5.2
(34.8dBi)
34.8 Y
RadioWaves Radio Waves 6-foot Dual-Pol Parabolic,
SPD6-5.2 (37.5dBi)
37.5 Y
RadioWaves Radio Waves 6-foot Parabolic, SP6-5.2
(37.7dBi)
37.7 Y
RadioWaves Radio Waves 2-foot Parabolic, SP2-2/5
(28.3dBi)
28.3 Y
RadioWaves Radio Waves 3-foot Parabolic, SP3-2/5
(31.4dBi)
31.4 Y
RadioWaves Radio Waves 4-foot Parabolic, SP4-2/5
(34.6dBi)
34.6 Y
RadioWaves Radio Waves 6-foot Parabolic, SP6-2/5
(37.7dBi)
37.7 Y
RFS RFS 2-foot Parabolic, SPF2-52AN or
SPFX2-52AN (27.9dBi)
27.9 Y
RFS RFS 3-foot Parabolic, SPF3-52AN or
SPFX3-52AN(31.4dBi)
31.4 Y
RFS RFS 4-foot Parabolic, SPF4-52AN or
SPFX4-52AN(33.9dBi)
33.9 Y
RFS RFS 6-foot Parabolic, SPF6-52AN or
SPFX6-52AN (37.4dBi)
37.4 Y
RFS RFS 2-foot HP Parabolic, SDF2-52AN or
SDFX2-52AN (31.4dBi)
31.4 Y
RFS RFS 4-foot HP Parabolic, SDF4-52AN or
SDFX4-52AN (33.9dBi)
33.9 Y
![](/img.php?id=1237757&img=bged.png)
User Guide: PTP 600 Series PTP 58600 reference information
phn-0896_009v003
Feb 2010 UNDER DEVELOPMENT 4-89
Manufacturer Antenna Type Gain
(dBi)
Flat
Plate
Parabolic
Dish
RFS RFS 6-foot HP Parabolic, SDF6-52AN or
SDFX6-52AN (37.4dBi)
37.4 Y
StellaDoradus StellaDoradus 45 inch Parabolic Antenna,
58PSD113
33.8 Y
Table 4-56 Sectored antennas for deployment in USA/Canada – 5.8 GHz
Manufacturer Antenna Type Gain
(dBi) Beamwidth
RadioWaves SEC-55V-60-17
SEC-55H-60-17
SEC-55D-60-17
17 60°
RadioWaves SEC-55V-90-16
SEC-55H-90-16
SEC-55D-90-16
16 90°
