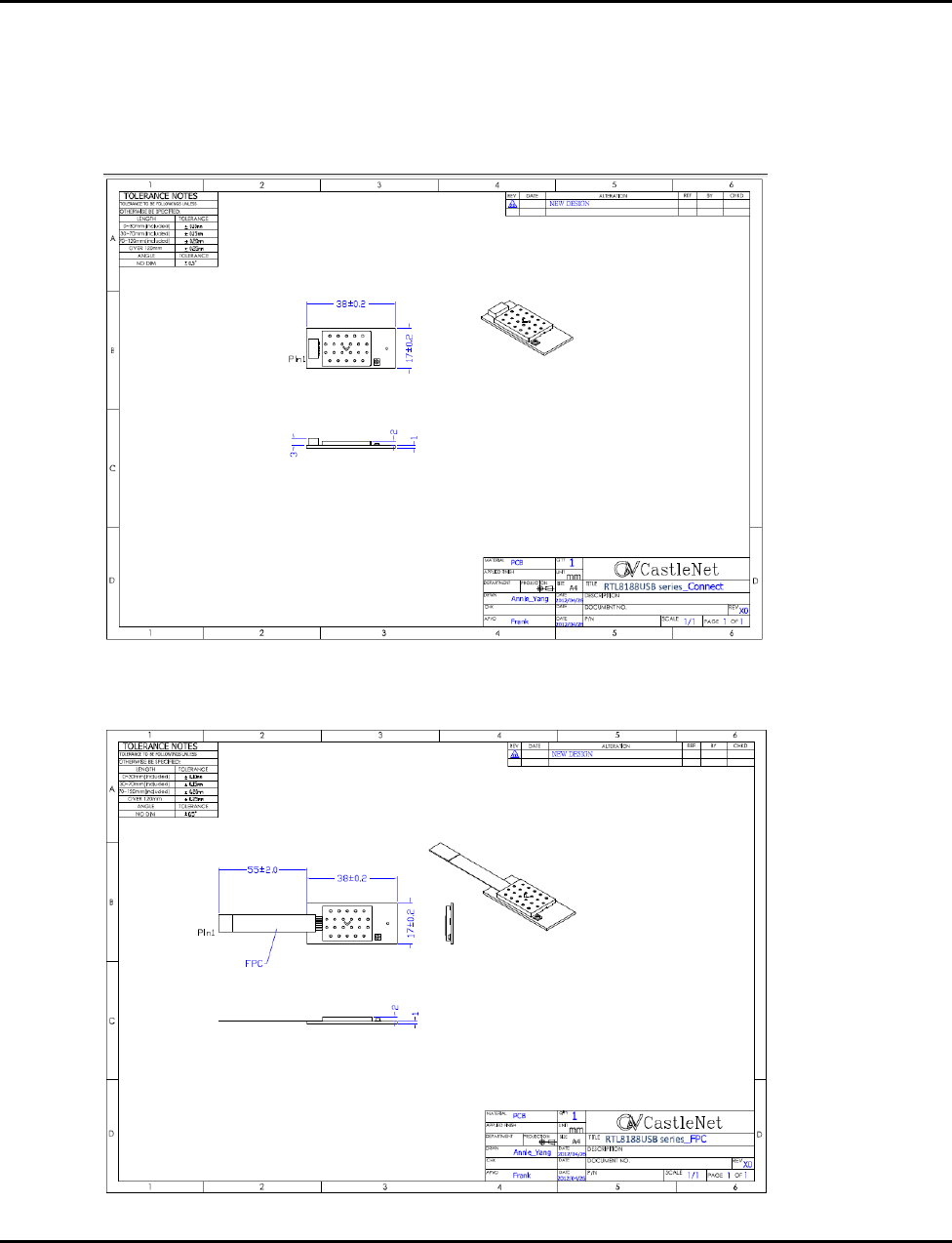

2.2.2 Mechanical Drawing (unit: mm) ................................................................................ 15
2.2.3 FFC specification (unit: mm) .................................................................................... 16
2.3 SOFTWARE SPECIFICATION ............................................................................................ 16
2.3.1 Operating system & Supported CPU Plaform .......................................................... 16
3. PACKING & ACCESSORIES ........................................................................................................ 17



8of 17
RevisionHistory
Rev.ChangeNoteDate
1.0‐ Firstrelease26Apr2012
 
Declaration
Thisdocumentcontainsinformationisconfidential.Anydisclosure,copying,distribution,oraction
takeninrelianceonthecontentsoftheinformationcontainedinthisdocumentisstrictlyprohibited.



9of 17
1. INTRODUCTION
1.1 Scope
TheRTL8188CTVSeriesistheWLAN802.11n1T1Rmodulethatoffersvariousflexiblemodeltypefor
maindevicedesignselectionlikeitcolayoutwithUSBconnectorandFlexFlatConnectorforUSBhost
interfacecommunicationwithmainboard,thedefaultRFantennaisPCBantennabutreserveIPEX
connectorpintosatisfyyourWiFiTX/RXperformancedesignconsiderationwithWiFiRFsignal,the
defaultinputvoltageis3.3Vbutallow5VcustomizationonothermodeltypeofRTL8188USBmodule
series.itisasuitablesolutionforIPC,MediaPlayer,SetTopBox,IPCAM,TabletwiththisWLAN11n
USBmoduleforwirelessconnectivity.
1.2 Features
General
z Formfactor:MiniSize.
z BusInterface:USBinterface.
z ConnectorType:USB6pin(Default)orFlexFlatCable(FFC),Optional.
z PCBDimension:38mmx17mmx1mm
z RFAntenna:PCBAntenna(default),IPEX(optional)forWiFidatatransmission.
z InputVoltage:+3.3V(5Visoptional).
z RoHSCompliant.
WLANFeatures
z Complete802.11n1T1R(1x1)solutionfor2.4GHzband
z Backwardcompatiblewith802.11b/gdeviceswhileoperatingat802.11ndatarates.
z 150MbpsPHYrate.
z 20MHz/40MHzbandwidth.
z WEP64/128,WPA,WPA2,TKIP,AES.
z QoSWMM,WMMPS.
z WPSPBC,PIN(Software).
z Supports16BSSIDs.



10 of 17
1.3 Module Appearance (Main Model Type)
1.4 Model Definition 
RTL8188USBseriesbasicallydistinguishvariousmodeltypesthataccordingtoMainChip,OS,USB
Connectortype,RFAntenna,andinputvoltage,themodelnamingruleshownbelow:
RTL8188CTVSCseriesRTL8188CTVSHseries
 
6pinFFC IPEXconnector
(Alternative)
USB6pin
Connector
IPEXconnector
(Alternative)
PCB
Antenna
(Default)
PCB
Antenna
(Default)
HotBar
Reflow



11 of 17
z MainChip:RTL8188CTVDefaultBasicModelType:RTL8188CTVSC3
ModelType OSConnectorAntennaInputVoltage
RTL8188CTVSH5
Linux/Android
Only
FFC(6pin)
PCBx1
5V
RTL8188CTVSH33.3V
RTL8188CTVSC5
USB6pinconnector
5V
RTL8188CTVSC33.3V
RTL8188CTVSH5X
FFC(6pin)
IPEXx1
5V
RTL8188CTVSH3X3.3V
RTL8188CTVSC5X
USB6pinconnector
5V
RTL8188CTVSC3X3.3V
2. HARDWARE SPECIFICATION
2.1.1 General Specification
SpecificationIEEE802.11b/g/nWirelessLocalAreaNetworks
Security WEP64/128,WPA,WPA2,TKIP,AES.
PHYRateMax.150MbpsPHYRateforbothtransmitandreceiving
RFFrequencyRange2.412G~2.484GHz
OperatingVoltage+3.3V(Default)5V(Selectable)
InterfaceUSB
ConnectorTypeUSBConnectororFlexFlatCable(Selectable)
WLANRFPCBantenna(Default)IPEXConnector(Optional)



12 of 17
2.1.2 Environmental
OperatingOperatingtemperature:0to85degreeC
RelativeHumidity:590%(noncondensing)
StorageTemperature:‐20to85degreeC
RelativeHumidity:595%(noncondensing)



13 of 17
2.1.3PINDefine&InputVoltage
ModelRTL8188USBmoduleseries
PIN#Definition
13.3VIN(Default)/5VIN(Optional)
2LED
3HighSpeedUSBD‐signal
4HighSpeedUSBD+signal
5RadioOn/OffHi=On;Low=Off
6GND
PIN1
PIN6
PIN1
PIN6
3.3V 5V
Notice:PleasedecidewhichInputvoltageofdefault3.3Vor5Vyouwillimplementtoyourmainboardand
refertomodeldefinitiontochoosethesuitablemodeltypeyouwantonChapter1.4
INPUTVOLTAGE:
PINDEFINE:



14 of 17
2.1.4 Power Consumption
Mode
(2.4GHzfrequencyband)Powerconsumption(mA)/3.3V
ActivityÎUplink DownlinkRadiooffIdleDisable
11bmode163/192mA121/133mA1.39mA97.8mA1.39mA
11gmode 154/195mA121/125mA1.39mA97.8mA1.39mA
11nmode(HT20)160/206mA117/123mA1.39mA98.5mA1.39mA
11nmode(HT40)183/215mA123/128mA1.39mA101.18mA1.39mA
2.2 MECHANICAL SPECIFICATION
2.2.1 Board Dimension
FormfactorCustommademinisize
PCBDimension38mm*17mm(+/‐0.20mm)
PCBthickness1.0mm(+/0.10mm)
SMDSingleside
Max.heightofcomponents
(fromPCB)
Topside3.0mm(USBconnectormodeltype)
2.0mm(FFCwithshieldingcase)
Bottomside0mm



15 of 17
2.2.2 Mechanical Drawing (unit: mm)

RTL8188CTVSCSeries
RTL8188CTVSHSeries



16 of 17
2.2.3 FFC specification (unit: mm)
2.3 SOFTWARE SPECIFICATION
2.3.1 Operating system & Supported CPU Plaform
OperatingSystem
z WindowsXP
z Windows7
z Linux(kernel2.6.18~2.6.38)
z Android1.6~2.3.x
RTL8188CTVSC/SHSeriesN/AYes
SupportedCPUPlatform:
z PCBasedX86system
z ARM(EmbeddedSystemwithARMprocessor:TBD/TBCisneeded)
z MIPS(ExcludeEmbeddedSystem)
RTL8188CTVSHSeries



17 of 17
3. PACKING & ACCESSORIES
ContentsUnitRemarks
RTL8188USBseries *1FollowcustomerLabelingspec.
Cable*0Nocableisnecessary.
CartonTBDPercustomerrequirement

Navigation menu
