Chamberlain Group The 6761 Gate Operator Ebox Assembly User Manual

Chamberlain Group Inc, The Gate Operator Ebox Assembly

User Manual SL3000 English Manual for FCC 01-37920 Pt1

11

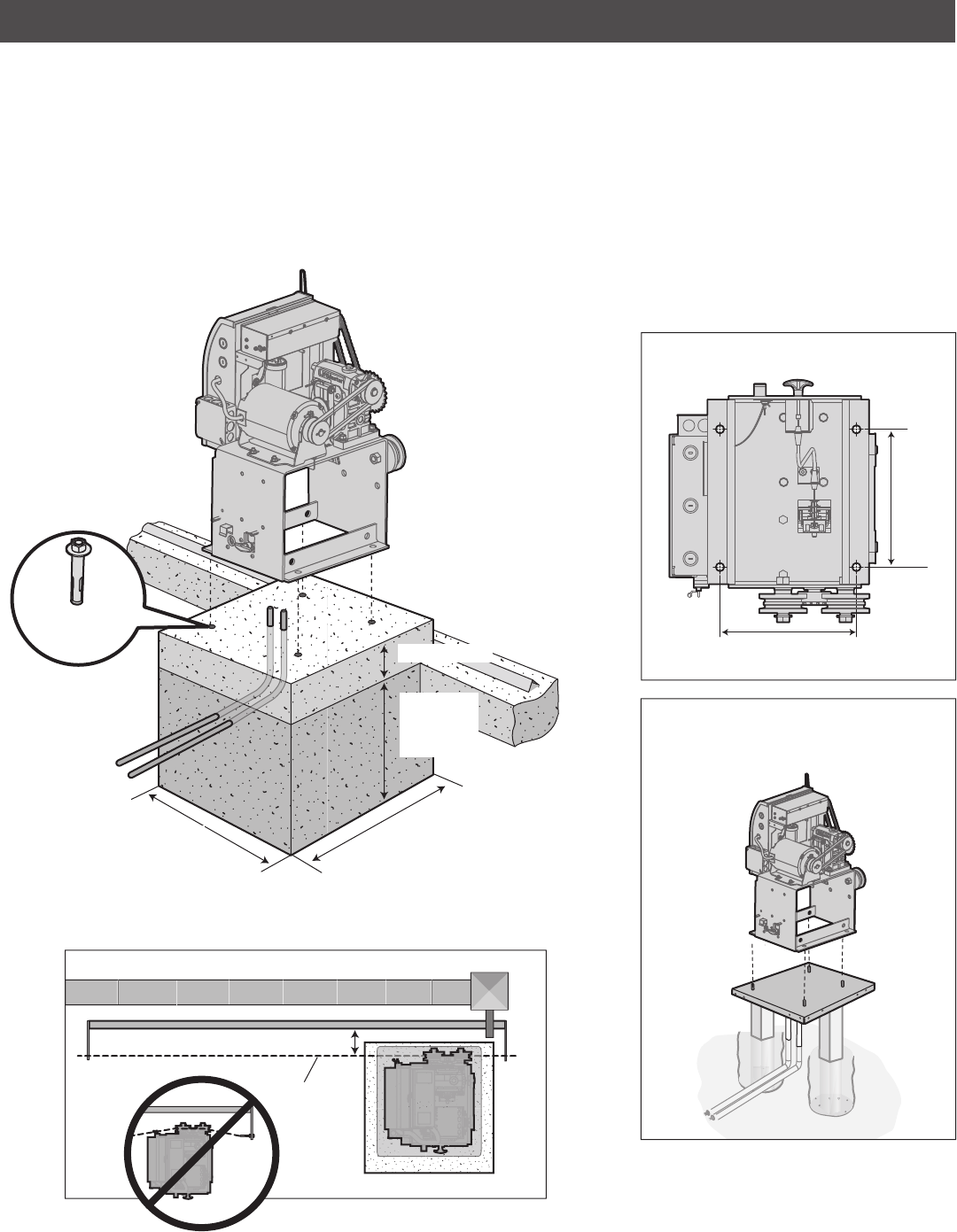

STEP 2
INSTALL THE OPERATOR
Attach the operator to the concrete pad with appropriate fasteners. The gate operator should be installed near the front roller of the gate or near the
back of the gate (in the OPEN position). The space between the gate and the output sprocket must be a minimum of 4 inches.
4 Concrete Anchors
1/2" x 3 1/2"
Below the frost
line. Check all
national and
local codes.
6" Above Ground
24" (61 cm)
24" (61 cm)
INSTALLATION
MOUNTING FOOTPRINT
10.4"
(26.4 cm)
10.3" (26.2 cm)
POST MOUNT
An alternative to a concrete pad is to post mount the
operator.
4" (10 cm)
(chain location) (operator)
12

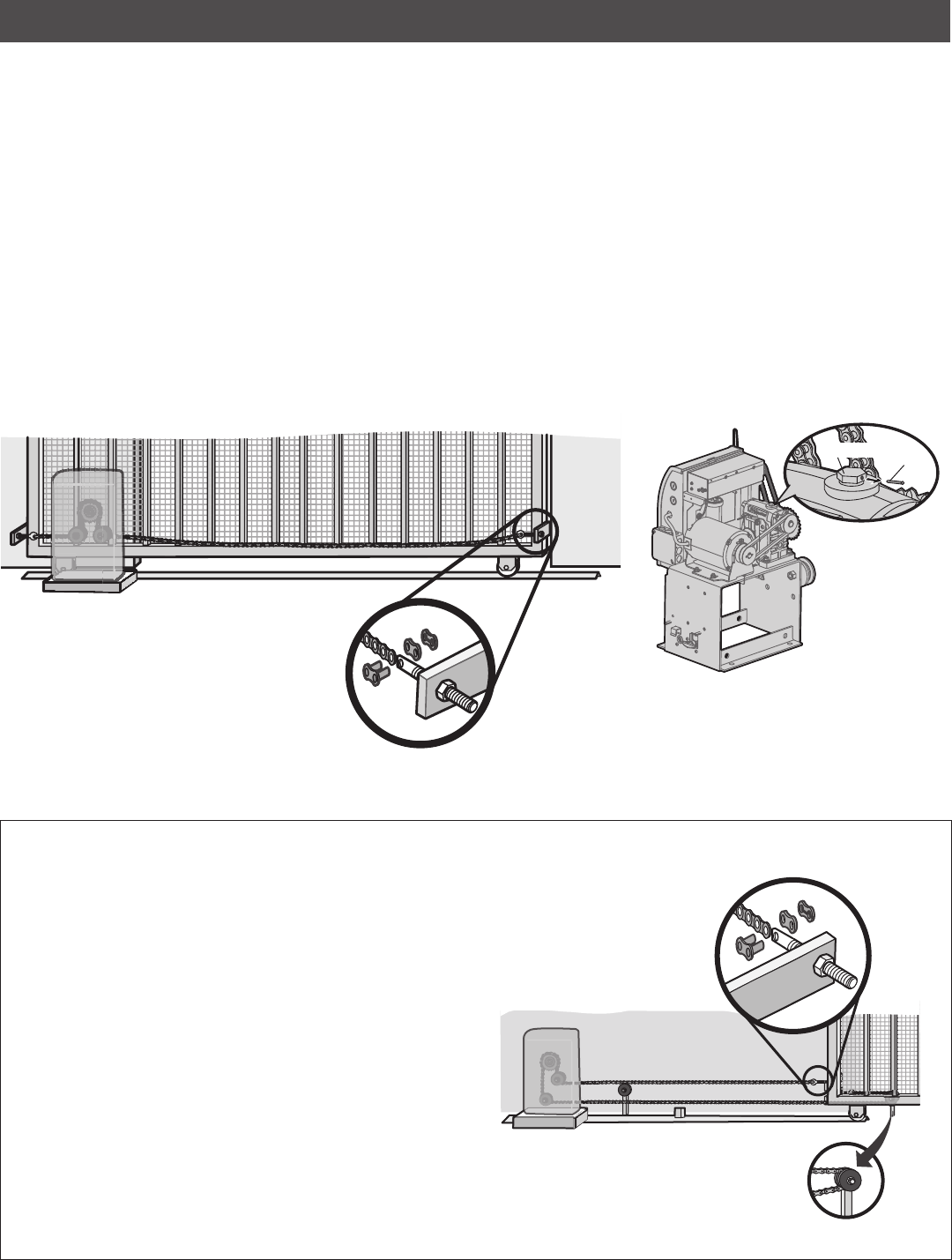

STEP 3
ATTACH THE CHAIN
DO NOT run the operator until instructed.
1. Manually open the gate and line up the front bracket so the chain will be level with the idler pulley and parallel to the ground. Weld the front
bracket in this position.
2. Manually close the gate and line up the rear bracket so the chain will be level with the idler pulley and parallel to the ground. Weld the rear
bracket in this position.
3. Route the chain through the operator.
4. Connect the chain to the brackets using the eye bolt hardware. Chain should not be too tight or have excessive slack.
5. Remove the pin from the vent plug on the gear box.
The chain should have no more than 1 inch of sag for every 10 feet of chain length.
INSTALLATION
2
3
1
4
5
REAR INSTALLATION
DO NOT run the operator until instructed.
NOTE: This installation will require two extra idler pulleys. Make
sure all exposed pinch points are guarded. Refer to Gate
Construction Information on page 4.
1. Move the back pulley to the bottom hole in the operator.
2. Manually close the gate and align the bottom bracket so the
chain will be level with the bottom idler pulley and parallel to the
ground. Weld the bottom bracket in this position.
3. Align the top bracket so the chain will be level with the top idler
pulley and parallel to the ground. Weld the upper bracket in this
position.
4. Route the chain through the operator.
5. Connect the chain to the brackets using the eye bolt hardware.
Chain should not be too tight or have excessive slack.
6. Remove the pin from the vent plug on the gear box (see above).
The chain should have no more than 1 inch of sag for every 10 feet
of chain length.
Pin
Vent Plug
Idler Pulley MUST have safety cover.
13

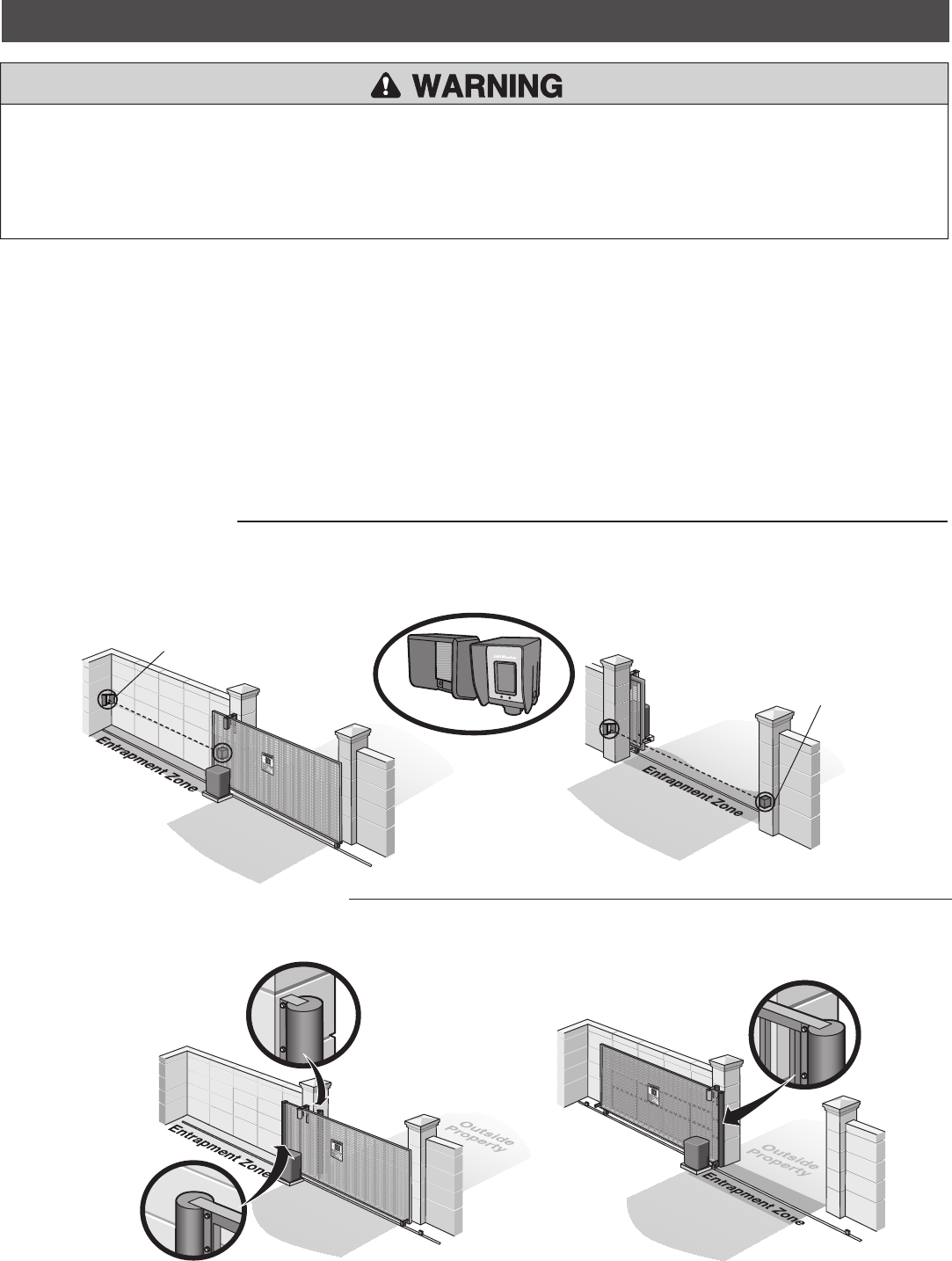

To prevent SERIOUS INJURY or DEATH from a moving gate:
• ALL gate operator systems REQUIRE two independent entrapment
protection systems for each entrapment zone.
• Entrapment protection devices MUST be installed to protect anyone
who may come near a moving gate.
• Locate entrapment protection devices to protect in BOTH the open
and close gate cycles.
• Locate entrapment protection devices to protect between moving
gate and RIGID objects, such as posts, walls, pillars, or columns.
NON-CONTACT SENSORS
If the photoelectric sensor beam gets blocked while the gate is moving, the gate will stop and reverse. The gate will not be able to travel in that
direction until the obstruction is cleared. Monitored photoelectric sensors MUST be used. If a monitored photoelectric sensor is not working or loses
power or the beam is blocked, then ALL gate operation in that direction will stop.
This operator contains an inherent (internal) entrapment protection system and REQUIRES the addition of an external monitored entrapment
protection system (non-contact photoelectric sensor or contact edge sensor) for EACH entrapment zone prior to gate movement. A monitored
device sends a pulsed signal to the operator so the operator is aware of the device. If the operator does not receive the signal from the device it will
not run.
An entrapment zone is every location or point of contact where a person can become entrapped between a moving gate and a stationary object. Your
application may contain one or many entrapment zones. Property owners are obligated to test entrapment protection devices monthly. Use only
LiftMaster approved entrapment protection devices (refer to the accessory page).
CONTACT SENSORS (EDGE SENSORS)
If the electrically activated edge sensor comes in contact with an obstruction while the gate is moving, the gate will stop and reverse. The gate will not
be able to travel in that direction until the obstruction is cleared.
INSTALLATION
STEP 4
INSTALL ENTRAPMENT PROTECTION
Outside
Property
Inside
Property
Inside
Property
Outside
Property
Monitored Photoelectric Sensors
Sensors for Open Cycle
Sensors for Close Cycle
Inside
Property
Inside
Property
Edge Sensor for Open Cycle
Edge Sensor for Open Cycle
Edge Sensor for Close Cycle
14
INSTALLATION
STEP 4 continued...
INSTALL ENTRAPMENT PROTECTION
There are three options for wiring the entrapment protection devices depending on the specific device and how the device will function. Refer to the
specific entrapment protection device manual for more information. These entrapment protection device inputs are for monitored devices, which
include pulsed photoelectric sensors, resistive edge sensors, and pulsed edge sensors. Only one monitored entrapment protection device may be
wired to each input. Additional entrapment protection devices may be wired to the expansion board.

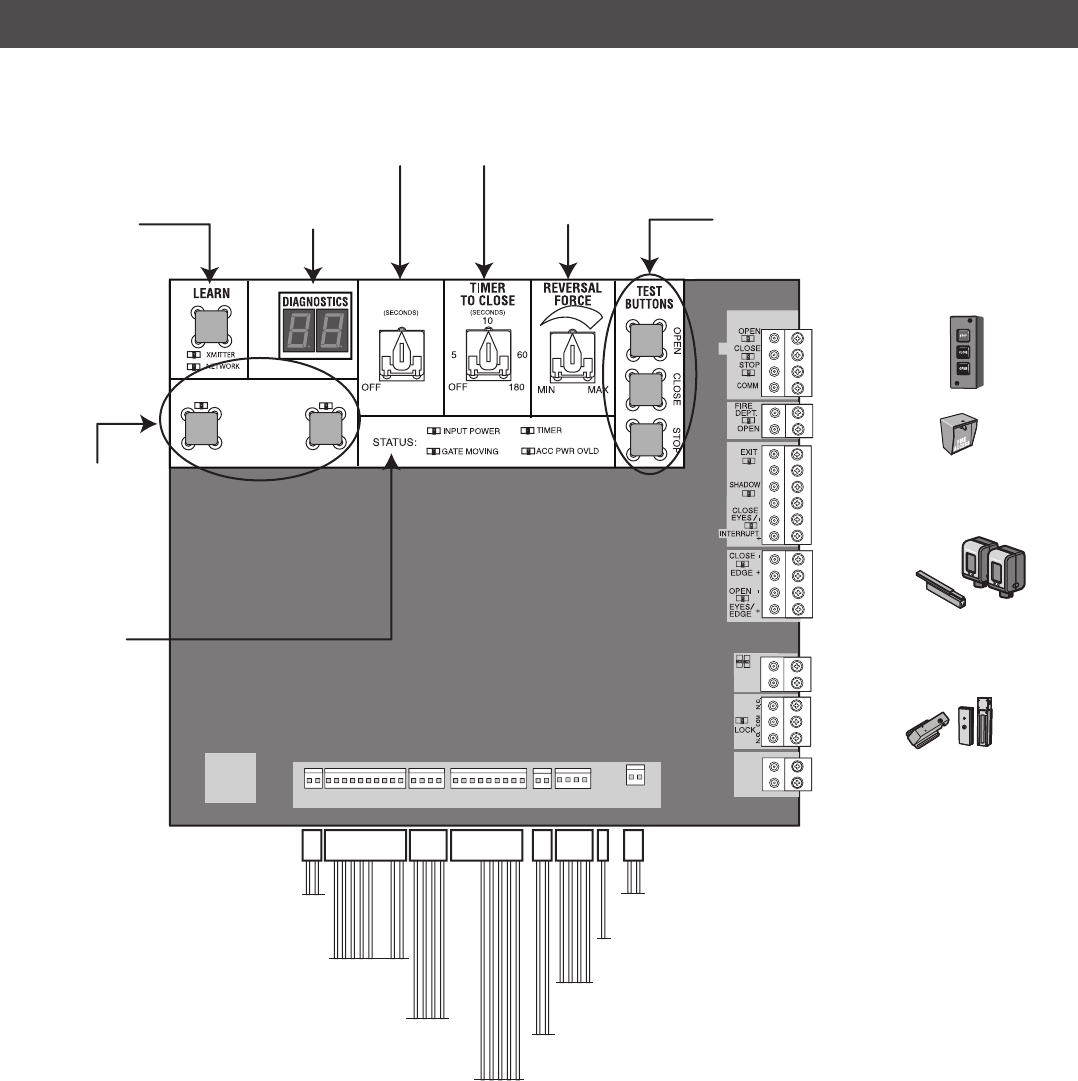

CONTROL BOARD
CLOSE EYES/INTERRUPT (2 Terminals)
The CLOSE EYES/INTERRUPT input is for photoelectric sensor entrapment
protection for the close direction. When an obstruction is sensed during gate
closing the gate will open to the full open position and resets the
Timer-to-Close. This input will be disregarded during gate opening.
CLOSE EDGE (2 Terminals)
The CLOSE EDGE input is for edge sensor entrapment protection for the
close direction. When an obstruction is sensed during gate closing the gate
will reverse to the full open position, disengaging the Timer-to-Close. This
input will be disregarded during gate opening.
OPEN EYES/EDGE (2 Terminals)
The OPEN EYES/EDGE input is for photoelectric sensor or edge sensor
entrapment protection for the open direction. When an obstruction is sensed
during gate opening the gate will reverse for 4 seconds then stop. This input
will be disregarded during gate closing.
EXPANSION BOARD
EYE ONLY and COM
Open or Close Direction Photoelectric Sensors, the functionality is based
on the switch settings (located next to the terminals)
Switch set to CLOSE: gate reverses fully when an obstruction is sensed
Switch set to OPEN: gate reverses 4 seconds when an obstruction is
sensed
EYE/EDGE and COM
Open or Close Direction Photoelectric Sensors or Edge Sensor, the
functionality is based on the switch settings (located next to the terminals)
Switch set to CLOSE: gate reverses fully when an obstruction is sensed
Switch set to OPEN: gate reverses 4 seconds when an obstruction is
sensed
COMM
LINK
BA
BIPART
DELAY
2
4
6
8
HANDING
OPEN
LEFT
OPEN
RIGHT
ANTENNA CURRENT
SENSOR
MOTOR DRIVE RPM & LIMITS ALARM EXP.
BOARD
24 VAC IN
CLASS 2 SUPPLY
24 VAC
500 mA MAX
ID RESET
GND
Close Photoelectric Sensors
Close Edge
Open EdgeOpen Photoelectric Sensors OR
SHADOW INTERUPT EXIT
SBC
OPN
CLS
STP
COM
EYE
ONLY
EYE/
EDGE
EYE/
EDGE
COM
1
2
3
OPEN
CLOSE
TO MAIN
BOARD
POWER
–
+
+
+
SBC
OPN
EYE
ONLY
EYE/
EDGE
EYE/
EDGE
COM
1
2
3
OPEN
CLOSE
TO MAIN
BOARD
Photoelectric Sensors
Edge Sensor
Photoelectric Sensors OR
Photoelectric Sensors
OR
Edge Sensor
15
For dual gate applications, power will have to be connected to each operator. Main power supply and control wiring MUST be run in separate
conduits.
NOTE: If using an external receiver use shielded wire for the connections and mount the receiver away from the operator to avoid
interference with the operator.
INSTALLATION
To reduce the risk of SEVERE INJURY or DEATH:
• ANY maintenance to the operator or in the area near the operator
MUST NOT be performed until disconnecting the electrical power (AC
or solar and battery) and locking-out the power via the operator
power switch. Upon completion of maintenance the area MUST be
cleared and secured, at that time the unit may be returned to service.
• Disconnect power at the fuse box BEFORE proceeding. Operator
MUST be properly grounded and connected in accordance with
national and local electrical codes.
NOTE:
The operator should be on
a separate fused line of adequate capacity.
• ALL electrical connections MUST be made by a qualified individual.
• DO NOT install ANY wiring or attempt to run the operator without
consulting the wiring diagram.
• ALL power wiring should be on a dedicated circuit and well
protected. The location of the power disconnect should be visible
and clearly labeled.
• ALL power and control wiring MUST be run in separate conduit.
STEP 5
EARTH GROUND ROD
Use the proper earth ground rod for your local area. The ground wire
must be a single, whole piece of wire. Never splice two wires for the
ground wire. If you should cut the ground wire too short, break it, or
destroy its integrity, replace it with a single wire length.
1. Install the earth ground rod within 3 feet of the operator.
2. Run wire from the earth ground rod to the operator.
NOTE: If the operator is not grounded properly the range of the remote
controls will be reduced and the operator will be more susceptible to
lightning and surge damage.
Check national and
local codes for
proper depth
To Operator
STEP 6
POWER WIRING
AMERICAN WIRE GAUGE (AWG) MAXIMUM WIRE LENGTH (1/2 HP, 120 VAC) MAXIMUM WIRE LENGTH (1 HP, 120 VAC)
14 250 feet (76 m) 125 feet (38 m)
12 400 feet (122 m) 200 feet (61 m)
10 650 feet (198 m) 325 feet (99 m)
8 1000 feet (305 m) 500 feet (152 m)
6 1500 feet (457 m) 750 feet (229 m)
4 2200 feet (671 m) 1100 feet (335 m)
USE copper conductors ONLY.
16

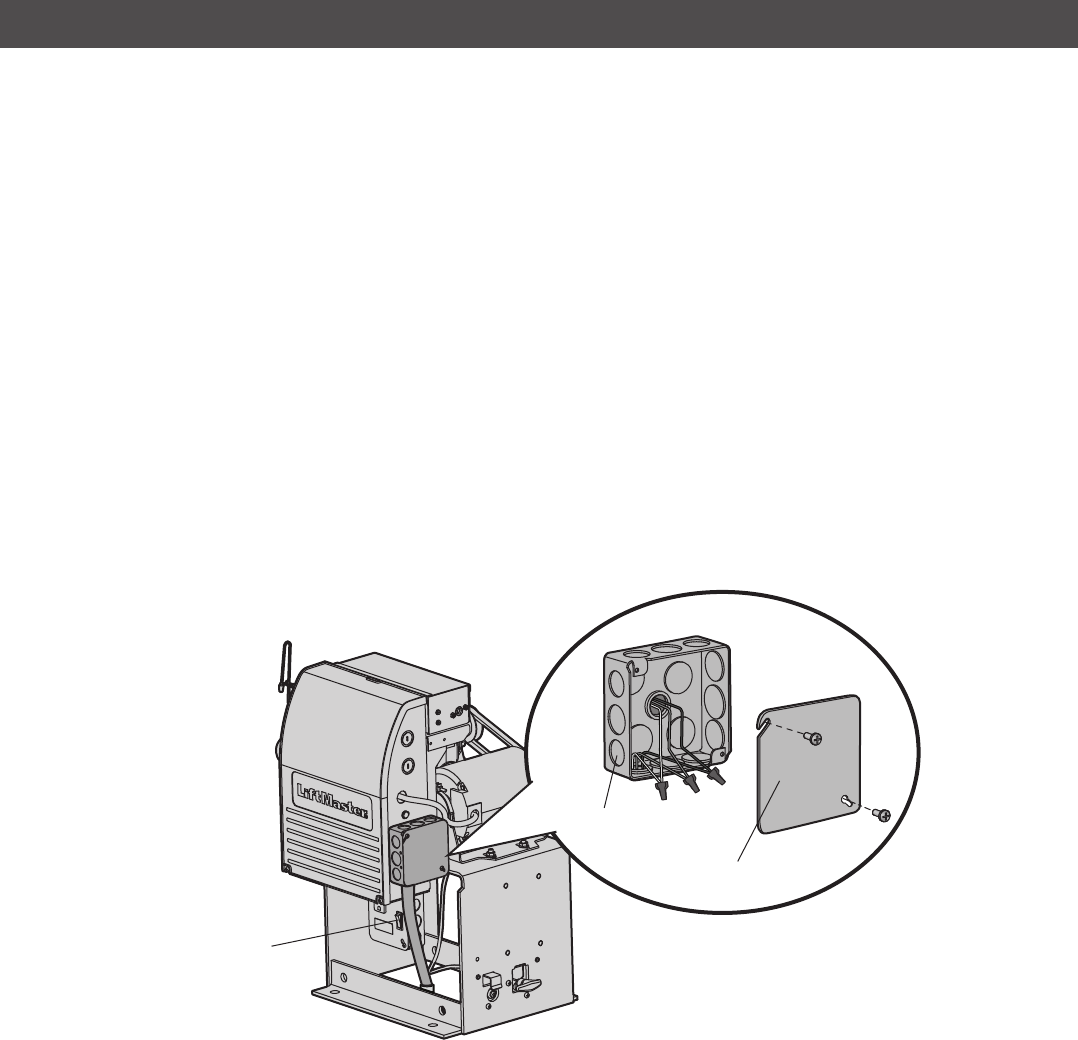

Junction Box Cover
STEP 6 continued...
POWER WIRING
INSTALLATION
Junction Box
1. Make sure the AC power switch on the operator is OFF (the AC power switch will turn the incoming 120/240 Vac power ON or OFF).
2. Turn off the AC power from the main power source circuit breaker.
3. Run the AC power wires to the junction box on the operator.
4. Remove the junction box cover.
5. Connect the green wire to the earth ground rod and AC ground using a wire nut.
NOTE: The earth ground rod can be grounded to the chassis.
6. Connect the white wire to NEUTRAL using a wire nut.
7. Connect the black wire to HOT using a wire nut.
8. Replace the junction box cover. Ensure the wires are not pinched.
9. Turn on the AC power from the main power source circuit breaker.
10. Turn on the AC power switch.
AC Power Switch
17
INSTALLATION
STEP 7
DUAL GATES ONLY
COMM
LINK
BA
BIPART
DELAY
2
4
6
8
HANDING
OPEN
LEFT
OPEN
RIGHT
ANTENNA CURRENT
SENSOR
MOTOR DRIVE RPM & LIMITS ALARM EXP.
BOARD
24 VAC IN
CLASS 2 SUPPLY
24 VAC
500 mA MAX
ID RESET
GND
OPEN
Outside
Property
Inside
Property

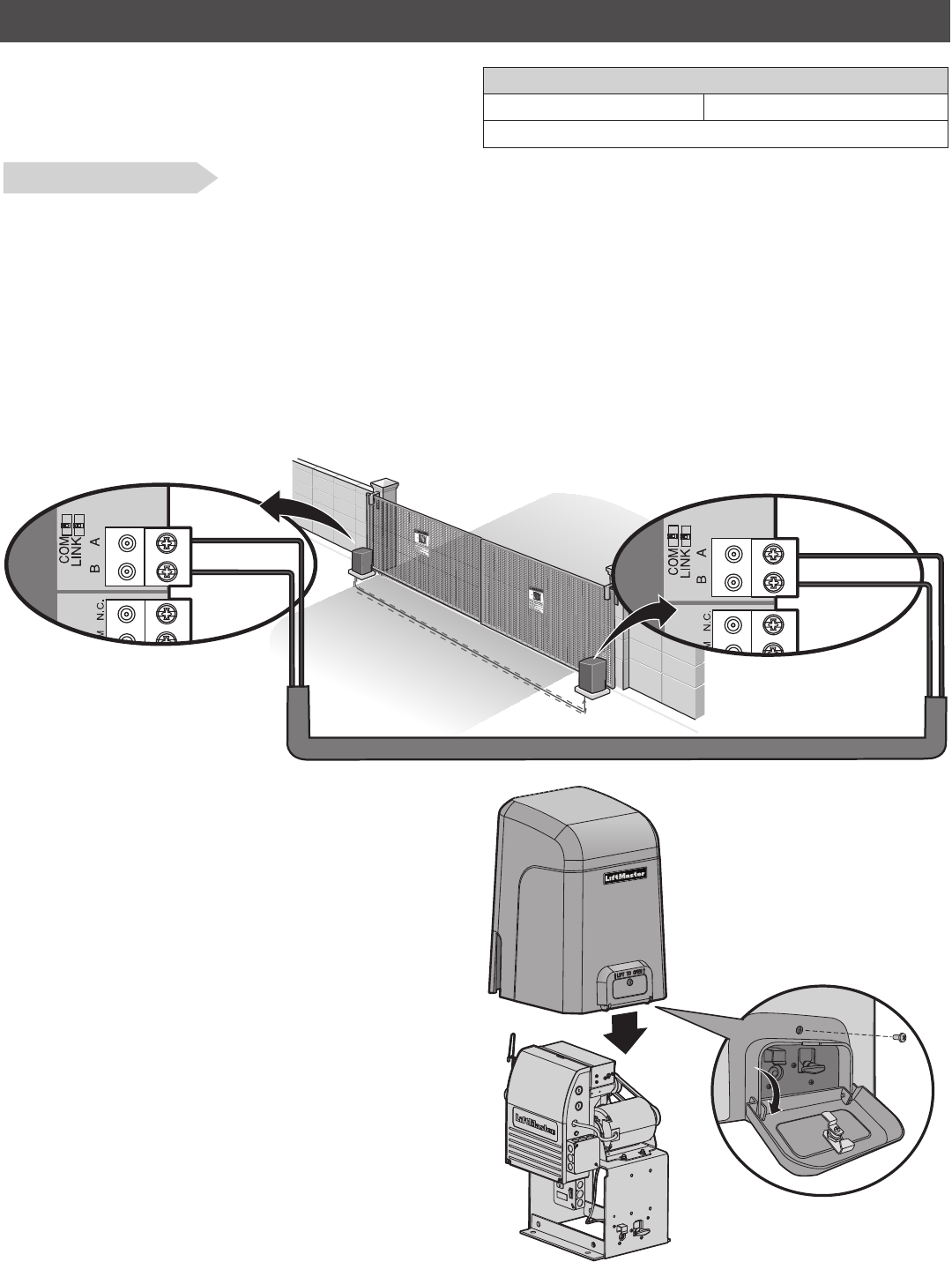

WIRELESS DUAL GATES
TO ACTIVATE THE WIRELESS FEATURE:
1. Choose an operator to be the network primary operator. All wireless accessories will need to be programmed to the primary operator.
NOTE:
We
recommend that all accessories and board configurations are set on the primary operator.
2. Press and release the LEARN button on the primary operator. The green XMITTER LED will light.
NOTE:
The operator will time out of programming
mode after 180 seconds.
3. Press and release the LEARN button again on the primary operator. The yellow NETWORK LED will light.
4. Press and release the OPEN test button to assign this operator as network primary.
5. Press and release the LEARN button on the second operator. The green XMITTER LED will light.
6. Press and release the LEARN button again on the second operator. The yellow NETWORK LED will light.
7. Press and release the CLOSE test button to assign this operator as network second.
Both operators will beep and the yellow NETWORK LEDs will turn off indicating programming is successful.
TO DEACTIVATE THE WIRELESS FEATURE:
1. Press and release the LEARN button on either operator. The green XMITTER LED will light.
2. Press and release the LEARN button again on the same operator. The yellow NETWORK LED will light.
3. Press and hold the LEARN button for 5 seconds. The yellow NETWORK LED will blink (operator will beep) then turn off indicating successful
deactivation.
Repeat the steps for the other operator.
There are two options for dual gate communication: wired or wireless. Follow the directions according to your application. Do not use wired and
wireless communication simultaneously.
18
Outside
Property
Inside
Property
Com Link Data A
Com Link Data B
Com Link Data A
Com Link Data B
DUAL GATE WIRE TYPE (SHIELDED TWISTED PAIR CABLE)
22AWG up to 200 feet (61 m) 18AWG - 200-1000 feet (61-305 m)
Wire must be rated at 30 Volt minimum
INSTALLATION
STEP 7 continued...
DUAL GATES ONLY
STEP 8
INSTALL THE COVER
1. Slide the cover over the operator.
2. Align the hole in the cover with the threaded hole in the operator's
chassis and secure the cover with the provided screw.
WIRED DUAL GATES
Before digging, contact local underground utility locating companies. Use PVC conduit to prevent damage to cables.
1. Disconnect ALL power to the operator.
2. Trench across driveway to bury the shielded twisted pair cable.
3. Connect the wires from the shielded twisted pair cable to the Com Link terminals on the primary gate operator control board.
NOTE: We
recommend that all accessories and board configurations are set on the primary operator.
4. Route the shielded twisted pair cable to the secondary gate operator's control board.
5. Connect the wires from the shielded twisted pair cable to the Com Link terminals on the secondary control board (Com Link A to Com Link A and
Com Link B to Com Link B). Ground the shield of the cable to the chassis ground of one operator.
6. Connect ALL power to the operator.
19
The adjustments allow you to set where the gate will stop in the open and close position. The force is adjusted automatically when you set the limits
but should be fine tuned using the FORCE dial on the control board (refer to Force Dial section). The Test Buttons on the control board will not work
until the handing is set. For dual gate applications the limits will have to be set for each operator. The gate MUST be attached to the operator before
setting the limits and force.
OPEN RIGHT: If the operator is installed on the right side of the driveway, the gate should be set to open right.
OPEN LEFT: If the operator is mounted on the left side of the driveway, the gate should be set to open left.
SET THE HANDING
1. To set the initial handing of the operator, make sure that both OPEN LEFT and OPEN RIGHT LEDs are flashing. If they are not flashing, press and
hold both the OPEN LEFT and OPEN RIGHT handing buttons until both handing LEDs start to flash and the operator beeps.
2. Press and release either the OPEN RIGHT or OPEN LEFT button depending on which direction the gate should open. The corresponding handing
LED will turn solid.
To reduce the risk of SEVERE INJURY or DEATH:
• Without a properly installed safety reversal system, persons
(particularly small children) could be SERIOUSLY INJURED or
KILLED by a moving gate.
• Too much force on gate will interfere with proper operation of safety
reversal system.
• NEVER increase force beyond minimum amount required to move
gate.
• NEVER use force adjustments to compensate for a binding or
sticking gate.
• If one control (force or travel limits) is adjusted, the other control
may also need adjustment.
• After ANY adjustments are made, the safety reversal system MUST
be tested. Gate MUST reverse on contact with a rigid object.
HANDING
OPEN
LEFT
OPEN
RIGHT
SET THE LIMITS
1. Make sure the gate is closed.
2. Press and release the OPEN test button to open the gate.
3. Press the STOP test button when the desired OPEN limit is reached. Adjust the
limit nut or cam so it makes contact with the OPEN limit switch at this position.
If the gate stops early, move the limit nut or cam to allow for additional travel.
4. Press and release the CLOSE test button to close the gate.
5. Press the STOP test button when the desired CLOSE limit is reached. Adjust the
limit nut or cam so it makes contact with the CLOSE limit switch at this position.
If the gates stops early, move the limit nut to allow for additional travel.
SET THE FORCE AND RUN DISTANCE
1. Press the OPEN test button to open the gate.
2. Press and release both the OPEN LEFT and OPEN RIGHT handing buttons.
3. Press the handing button below the solid LED.
4. Run the operator one full cycle using the test buttons. The initial forces and run
distance will be set during this cycle.
READJUST THE LIMITS
To readjust the limits, follow the “Set the Limits” and “Set the Force and Run
Distance” instructions above.
It is important that the force and run distance are
set after every limit readjustment.
INSTALLATION
STEP 9
ADJUST THE HANDING AND LIMITS
Limit Nuts
Limit Switches
20
Outside
Property
Inside
Property
23
COMM
LINK
BA
BIPART
DELAY
2
4
6
8
HANDING
OPEN
LEFT
OPEN
RIGHT
ANTENNA CURRENT
SENSOR
MOTOR DRIVE RPM & LIMITS ALARM EXP.
BOARD
24 VAC IN
CLASS 2 SUPPLY
24 VAC
500 mA MAX
ID RESET
GND
1
INSTALLATION

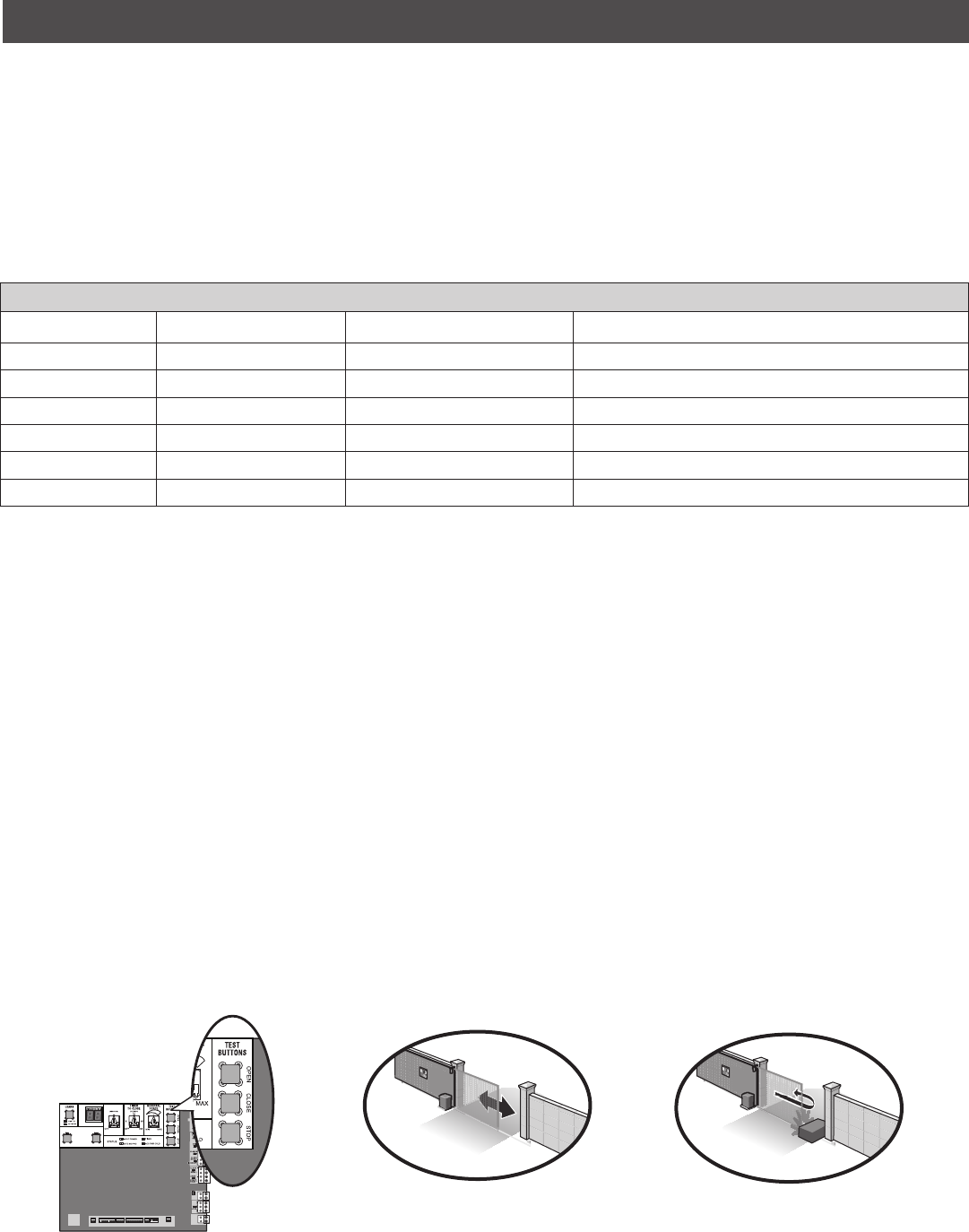

STEP 10
OBSTRUCTION TEST
STEP 9 (continued)
ADJUST THE HANDING AND LIMITS
The operator is equipped with an automatic obstruction sensing feature. If the gate encounters an obstruction during motion, the operator will
automatically reverse direction of the gate for a short time and then stop the gate. After any adjustments are made, test the operator:
1. Open and close the gate with the TEST BUTTONS, ensuring that the gate is stopping at the proper open and close limit positions.
2. Place a solid object between the open gate and a rigid structure. Ensure that the gate, the solid object, and the rigid structure can withstand the
forces generated during this obstruction test.
3. Run the gate in the close direction. The gate should stop and reverse upon contact with the solid object. If the gate does not reverse off the solid
object, reduce the force setting by turning the force control slightly counter-clockwise. The gate should have enough force to reach both the open
and close limits, but MUST reverse after contact with a solid object.
4. Repeat the test for the open direction.
ERASE THE HANDING
1. To erase the handing, press and hold the OPEN LEFT and OPEN RIGHT buttons simultaneously (5 seconds) until both the OPEN LEFT and OPEN
RIGHT LEDs blink rapidly and the operator beeps.
2. Release the buttons and the OPEN LEFT and OPEN RIGHT LEDs will blink slowly indicating the handing will need to be set.
HANDING LEDS
OPEN LEFT LED OPEN RIGHT LED OPERATOR MODE EXPLANATION
OFF OFF NORMAL MODE Control board not powered.
BLINKING BLINKING HANDING SETUP MODE Handing not set.
BLINKING ON HANDING SETUP MODE Handing set to the direction of the solid LED
ON BLINKING HANDING SETUP MODE Handing set to the direction of the solid LED
ON OFF NORMAL MODE Open left handing is set.
OFF ON NORMAL MODE Open right handing is set.
21
OPERATOR OVERVIEW
MANUAL RELEASE HANDLE
Pull the manual release handle
to manually open and close
the gate.
JUNCTION BOX
Page 31
ACCESSORY POWER
OUTLET
EXPANSION BOARD
Pages 27-30
AC POWER SWITCH
The AC Power switch on the
operator will turn the incoming
120 Vac power ON or OFF.
CONTROL BOARD
Pages 22-26
DUST GUARD
COVER
ANTENNA
RESET BUTTON
• Press the reset button to stop a moving gate during a
normal open/close cycle, like a stop button.
• Press the reset button once while the gate is in open
position to disable the Timer-to-Close. The gate will stay
in the open position. To restart the Timer-to-Close either
press the reset button or activate the gate with a
programmed remote control.
• Press the reset button to shut off the alarm and reset the
operator.
LIMIT SWITCHES
Page 19
1 HP OPERATOR
22
CONTROL BOARD OVERVIEW
COMM
LINK
BA
BIPART
DELAY
2
4
6
8
HANDING
OPEN
LEFT
OPEN
RIGHT
ANTENNA CURRENT
SENSOR
MOTOR DRIVE RPM & LIMITS ALARM EXP.
BOARD
24 VAC IN
CLASS 2 SUPPLY
24 VAC
500 mA MAX
ID RESET
GND
HANDING BUTTONS
Pages 19, 23
BIPART
DELAY
Page 23
LEARN BUTTON
Pages 23, 32-33
TEST BUTTONS
Pages 24, 37
CONTROL STATION
TERMINALS
Page 25
EXPANSION BOARD CONNECTION
Factory installed.
ACCESSORY POWER
TERMINALS
LOCK TERMINALS
Page 26
DUAL GATE TERMINALS
For dual gate connection.
EYES/EDGE TERMINALS
Page 26
LOOP TERMINALS
Page 25
FIRE DEPARTMENT
TERMINALS
Page 25
DIAGNOSTIC DISPLAY
Pages 23, 37-39
TIMER-TO-CLOSE
Page 23
FORCE DIAL
Page 24
STATUS LEDS
Page 24
GROUND
POWER
ALARM
Factory installed.
RPM SENSOR AND LIMITS
Factory installed.
MOTOR
Factory installed.
PRODUCT ID AND RESET
Factory installed.
CONTROL BOARD REFERENCE
CURRENT SENSOR
Factory installed

Navigation menu
