Coulomb CT1000 Wall Mount Smartlet Installation Instructions
Part Number: 75-001001-01
Revision 0.1
Copyright
Copyright© 2008 Coulomb Technologies, Inc. All rights reserved.
This material is protected by the copyright laws of the United States and other countries. It
may not be modied, reproduced or distributed without the prior, express written consent
of Coulomb Technologies, Inc.
Safety and Compliance
This manual only covers installation of Coulomb’s Smartlet™ Charging Station and should
not be used for any other product. Before installing the Smartlet Charging Station, you
should review this manual carefully and consult with a licensed contractor, licensed elec-
trician and trained installation expert to ensure compliance with local building practices,
climate conditions, safety standards, and state and local codes.
The Smartlet Charging Station should be installed only by a licensed contractor and a
licensed electrician and in accordance with the U.S. National Electric Code and the
National Fire Protection Association codes and standards. The Smartlet Charging Station
should be inspected by an authorized installer prior to the initial use.
Under no circumstances will compliance with the information in this manual relieve the
user of his/her responsibility for compliance with all applicable codes or safety standards.
No Guarantee as to Accuracy
Reasonable eort was made to ensure that the specications and other information in this
manual were accurate and complete at the time of its publication. However, the specica-
tions and other information in this manual are subject to change at any time without prior
notice.
Warranty Information and Disclaimer
Your use of or modication to the Smartlet Charging Station in a manner in which the
Smartlet Charging Station is not intended to be used or modied will void the limited
warranty. Other than any such limited warranty, the Coulomb products are provided “AS
IS,” and Coulomb and its distributors expressly disclaim all implied warranties, including
any warranty of design, merchantability, tness for a particular purposes and non-
infringement, to the maximum extent permitted by law.
Limitation of Liability
IN NO EVENT SHALL COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS
BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE, OR CONSEQUENTIAL
DAMAGES, INCLUDING WITHOUT LIMITATION LOST PROFITS, LOST DATA, LOSS OF USE,
COST OF COVER, OR LOSS OR DAMAGE TO THE SMARTLET CHARGING STATION, ARISING
OUT OF OR RELATING TO THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF COULOMB
TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Trademarks
COULOMB TECHNOLOGIES, SMARTLET, and CHARGEPOINT are trademarks or service
marks of Coulomb Technologies, Inc in the U.S. and other countries. All other trademarks
or service marks mentioned in this manual or on the Coulomb Technologies, Inc. website
are the property of their respective owners.
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Ø
6 PLC
7.00
63.50
400.00
139.70
139.70
ADA Height 38”
Front Panel
Template for Wall Drill Holes
Wall Mount Bracket
Bottom Plate
Body

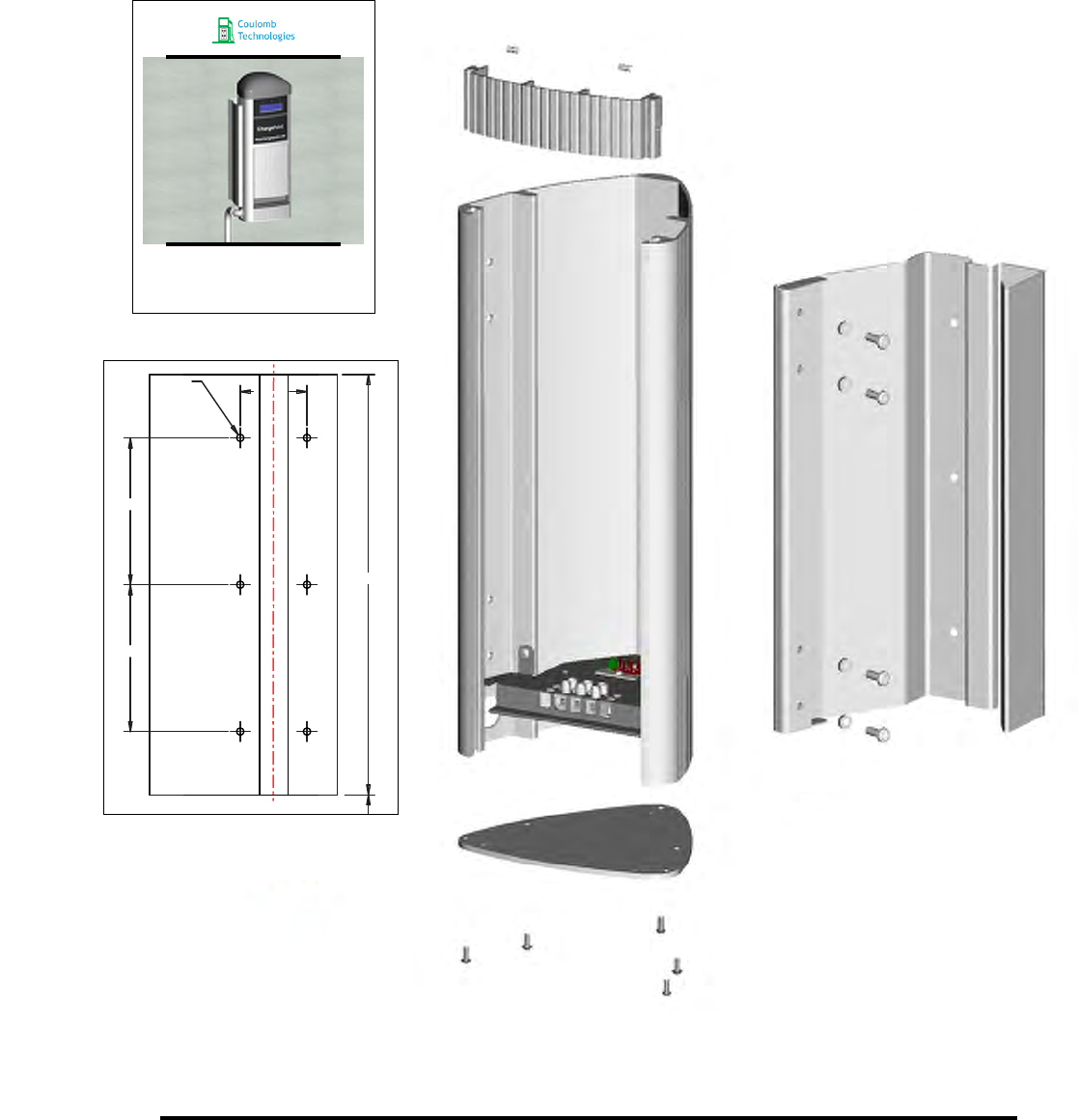

Components and Parts:
Body Installation Kit
(shipped to installer)
Documentation
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
6 PLC
Height to bottom of bracket 38” (965.20mm)
(USA ADA height is 48” to display)
15.75"
400.00 mm
2.50"
63.50 mm
5.50"
139.70 mm
5.50"
139.70 mm
Ø 0.28"
7.00 mm

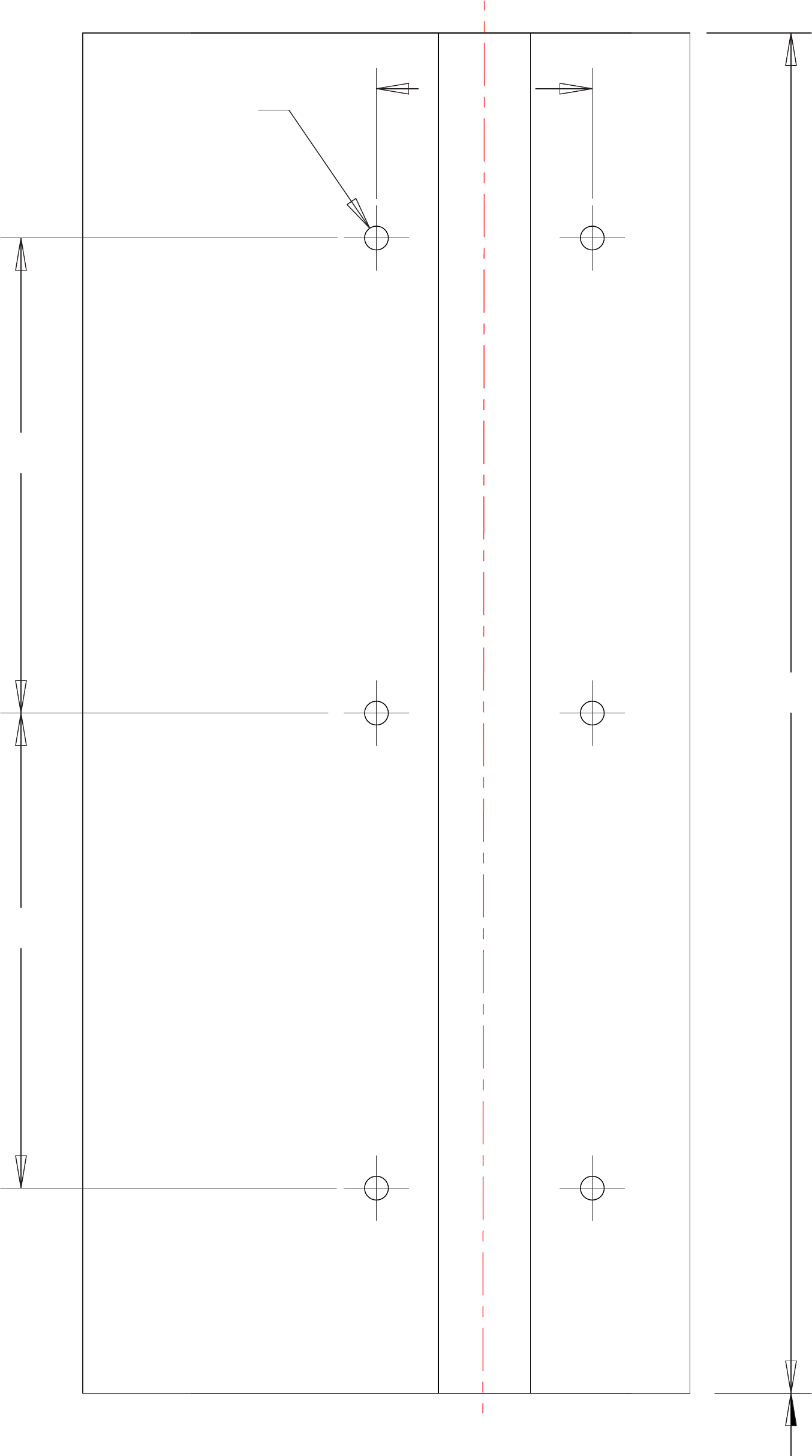

CT1000 Wall Mount Smartlet Template
NOT TO SCALE
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Components and Parts:
Head Module Installation Kit
Head Module
Security Screws
Caps for Security Screws
Required Hardware: (installer supplied)
Torx Driver T15 Torx 3" Blade Length 7-1/2", Tamper Resistant
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
see supplied template
6 - 1/4" Lag Screw 1-1/2"
McMaster P/N: 95526A125
6 - Long Lag Screw Anchor
McMaster P/N: 97039A029
(Installer supplied)
Drill Holes for Inserts (6 places)
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

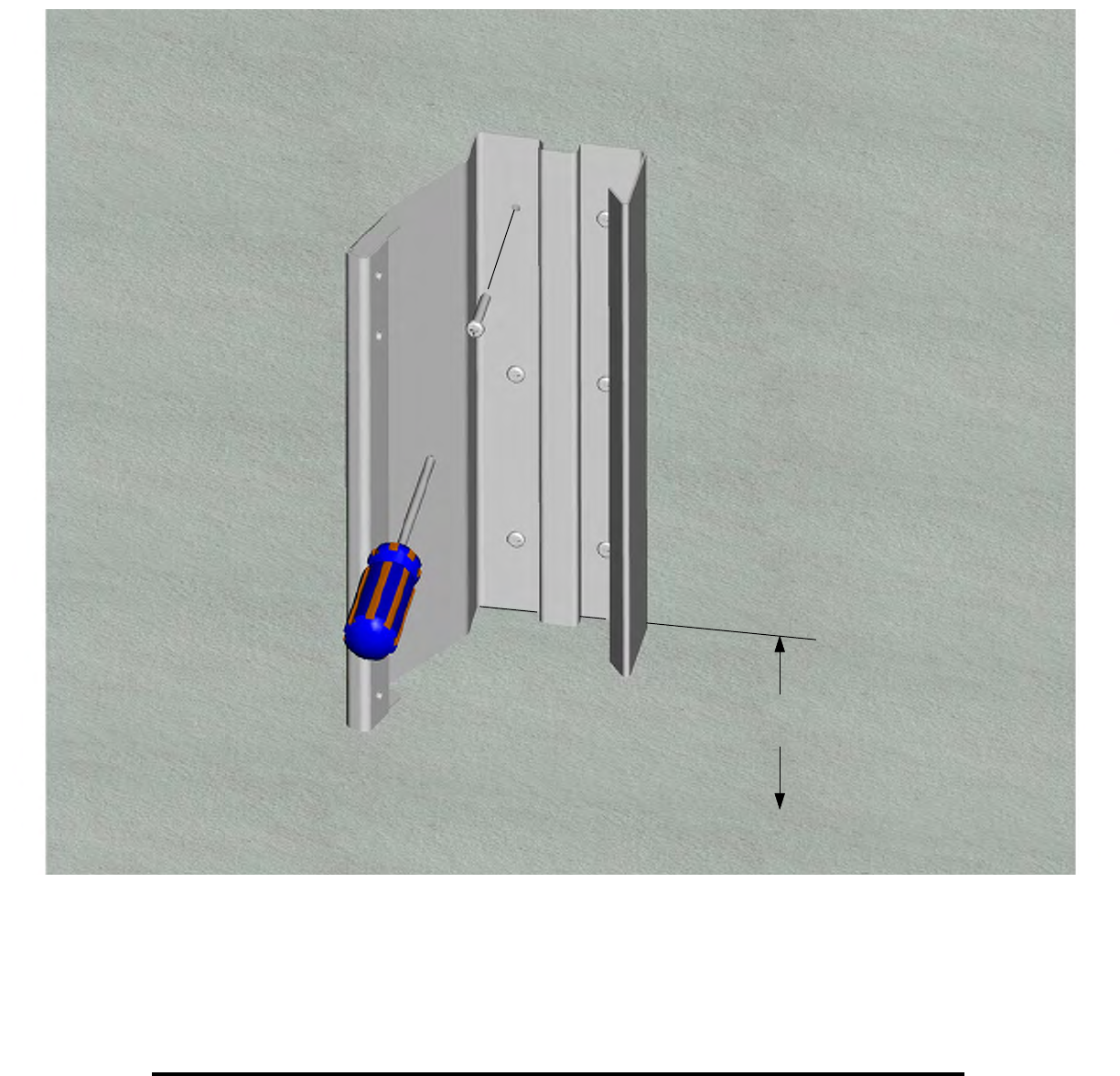

Attach Wall Bracket (6 places)
38” Max height above
surface for ADA compliance
(Installer supplied screws and inserts)
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Attach Body to Wall Bracket with 4 Supplied Screws and Washers
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Connect Conduit
3/4” coupling
(Installer supplied)
Attach installer supplied coupler to the wall mounted body and connect conduit.
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Feed Wire Through Conduit
White
Black
Green
Strip wires back 3/8".
SOLID WIRES ONLY.
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

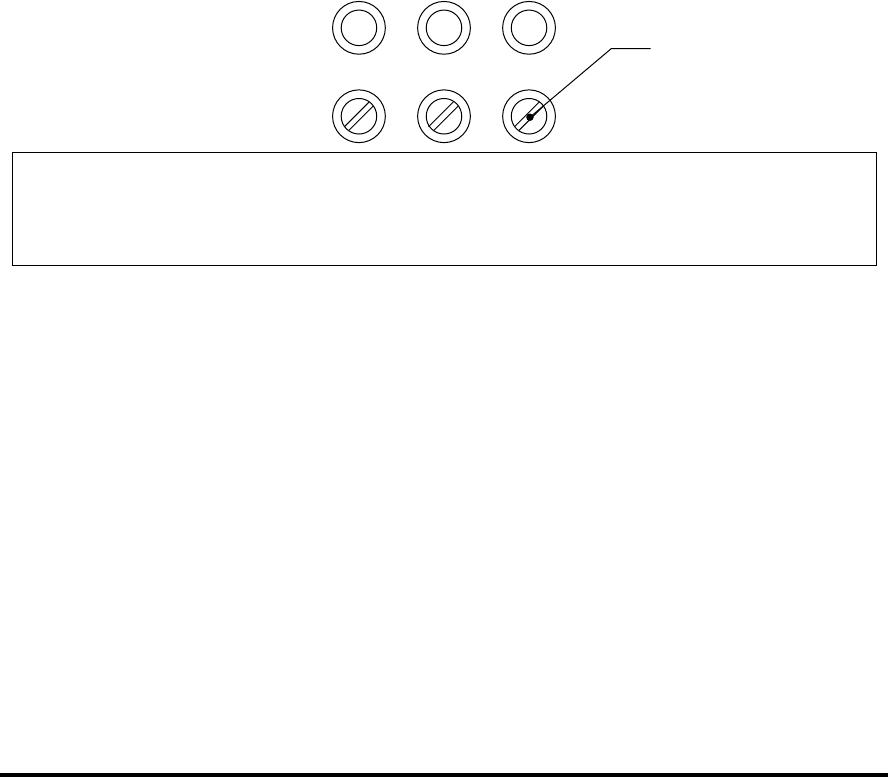

Wire Connection Label
Use these 3 screws
White
Neutral Black
Hot
120VAC Input
Requires 15A branch circuit and overcurrent protection on supply
Green
Ground
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

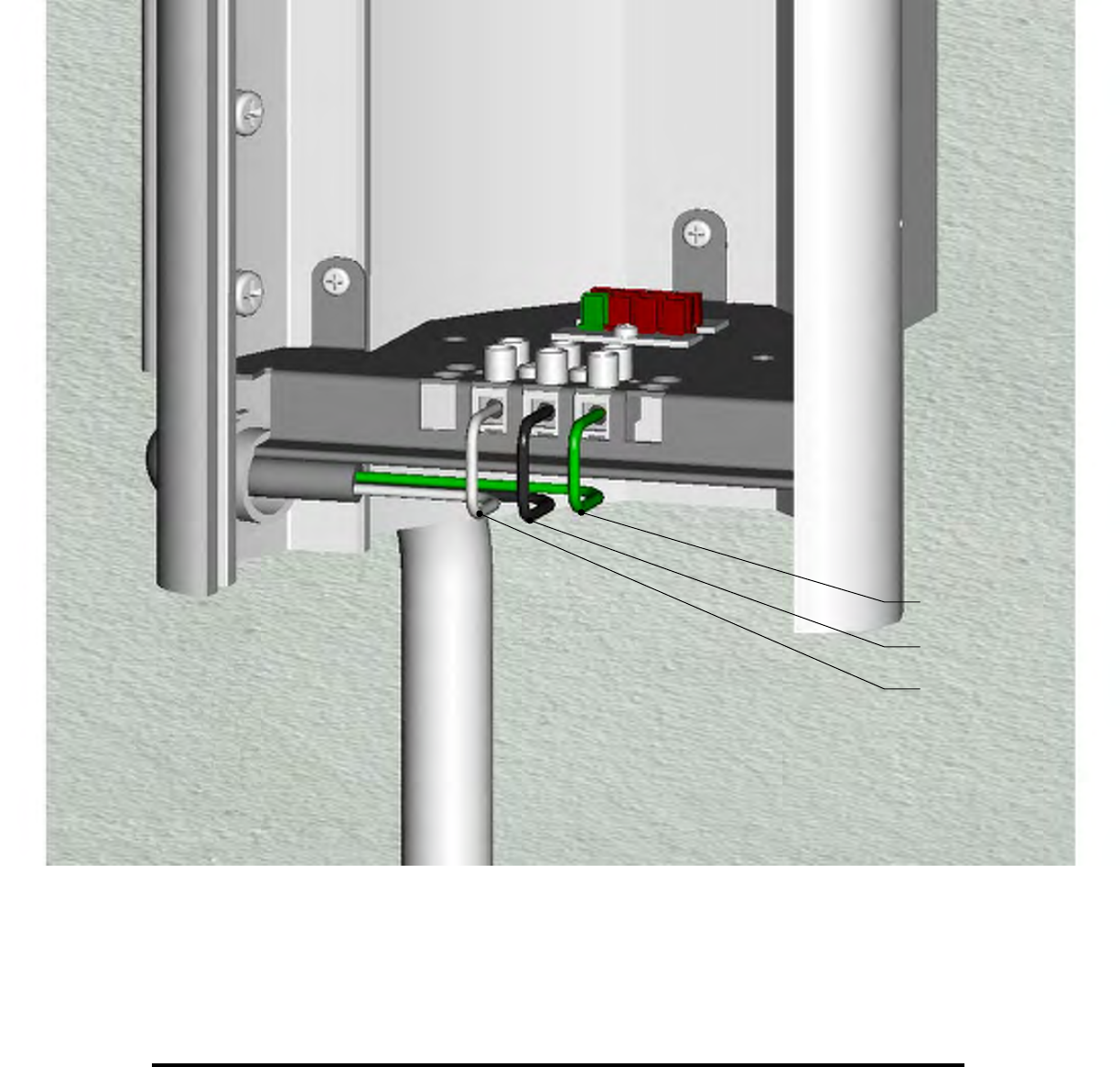

Connect Wire
White
Black
Green
View after wires are connected and screwed in place.
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Attach Bottom Plate
Torx Driver T15 Torx
3" Blade Length
7-1/2", Tamper-Resistant
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
in two places.
2. Tighten set screws with included alan wrench,
Inside view with panel in place.
Slide Front Panel into Place
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
1. Slide front panel into place.
Connect the attached cable from the head module with the connectors in the body.
Slide Head Module into Place
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Secure Head Module (4 screws)
Torx Driver T15 Torx
3" Blade Length
7-1/2", Tamper-Resistant
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Secure Cover Plugs for 4 Screws
Max height for
ADA is 48”
Coulomb CT1000 Wall Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Caution: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
