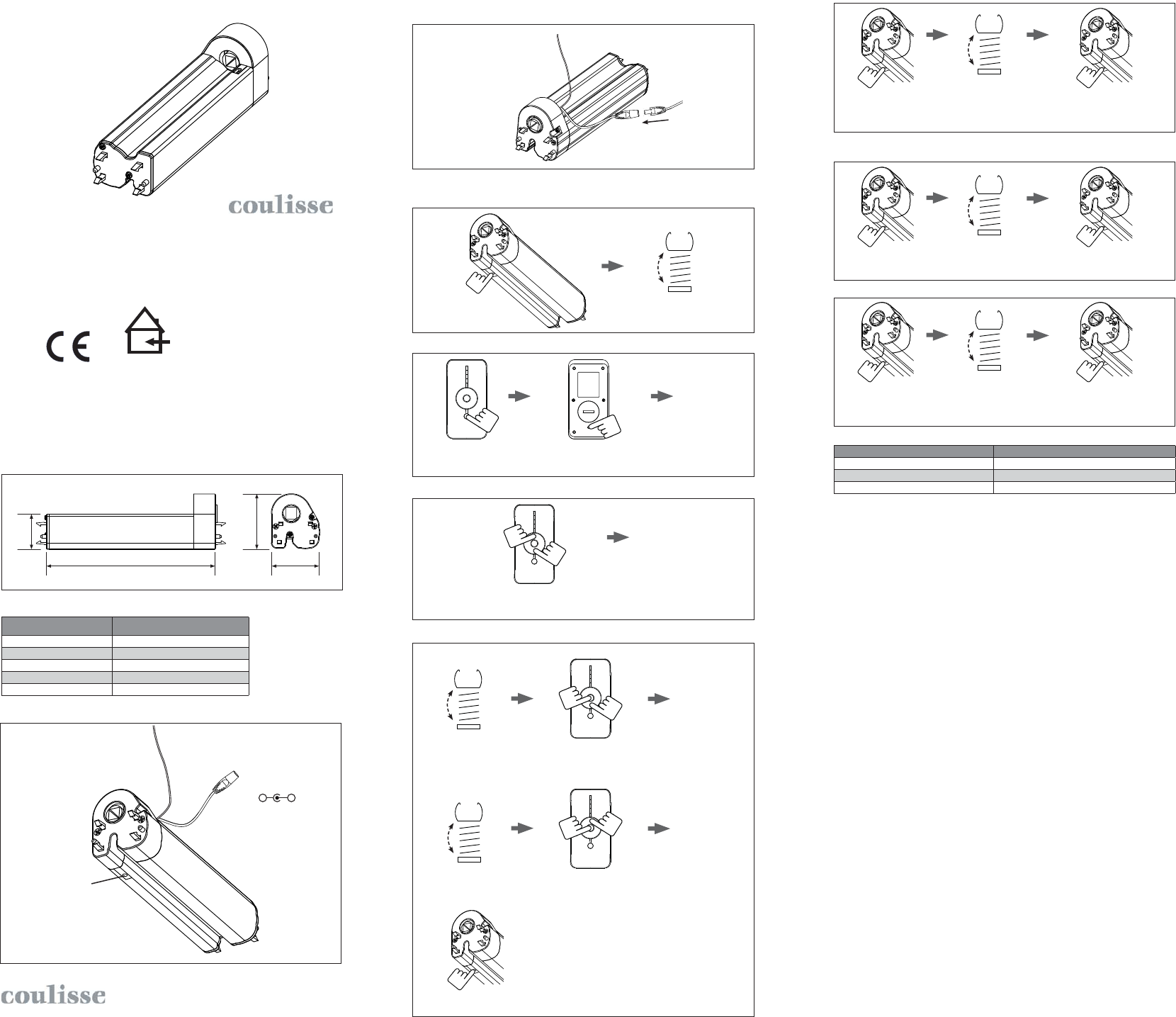

Coulisse ABC05 Motor for indoor blinds User Manual ABC 18 U indd
Coulisse B.V. Motor for indoor blinds ABC 18 U indd
Coulisse >
Contents
manual 3
ABC-18-A_R0_
Coulisse B.V., Vonderweg 48, 7468 DC Enter, The Netherlands
1. 2.
1.
2.
1.
2.
120 mm
25 mm
35 mm
38 mm
indoor use only
-
+
User manual
Tilt-only motor 35-50
ABC-18
2. Programming and operation
GB0
2.1 First use
WARNING: Important safety instructions. Follow all instructions,
since incorrect installation can lead to severe injury.
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
1. General information
The ABC-18 is a universal tilt-motor for 35 mm and 50 mm venetian blinds.
The motor is placed in the middle of the head rail.
1.1 Dimensions
Program button
12 - 24 V DC -0.6A input
2.2 Operation
- Manual operation
Press and hold
the program button
for at least 2 sec.
Blind is moving
as long as
the button remains
pressed (max. 15 sec.)
In order to make the blind move in
the other direction, release the button
and press and hold the button once
more for at least 2 sec.
>2 sec
See manual remote control for programming of advanced settings.
2.4 Advanced settings
Advanced settings: Available
Switch rotation direction Yes
Favourite position Yes
BatteryMode Yes
5. Service & Support
4. Safety & Cleaning
4.1 Safety
4.2 Cleaning
Follow these general rules when cleaning the outside of the device and its components:
- Make sure the device is unplugged.
- Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.
- Don’t use aerosol sprays, solvents, alcohol, or abrasives.
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
- Do not let children play with the blind and/or remote control.
- Only use powersupplies or batteries that comply with the specifi cations on the motor.
- In case of malfunction, unplug the device or remove the batteries and contact your dealer.
- Take care that the blind can move freely and is not blocked by objects.
- Take care that the powersupply cable is out of reach for children.
- Do not paint the device.
- Keep the device dry.
Online Resources
For the latest information and updated manuals go to www.coulisse.nl.
Obtaining Warranty Service
First follow the advice in this booklet and then go to your local dealer.
If the product appears to be damaged or does not function properly, go to your
local dealer for instructions on how to obtain warranty service.
3. Tips & Troubleshooting
Please check www.coulisse.nl for the latest tips and troubleshooting guide.
Disclaimer:
© Copyright Coulisse
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, by any means, electronic,
mechanical, photocopying, recording, digital or otherwise without the written permission of the publisher.
Although this manual has been composed with the most care, Coulisse B.V. does not accept any responsibility for damage due
to mistakes and/or faults in this manual.
Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its content at any time, without obligation to notify
any person or entity of such revisions or changes.
The most recent version replaces older versions of this manual. The most recent version is available at ww.coulisse.nl or contact
your Coulisse contact person.
We invite you to send remarks and comments about this manual to Coulisse at manuals@coulisse.nl.
ABC-18
Power supply 12-24V - 0,3 A
Rated power 3W
Torque (rpm) 0.65Nm
Operating temperature 5 - 60 °
Max. number of channels 32 channels
1.2 Specifi cations
1.3 Power supply and buttons
Step 5: Programming end positions
Now program the lower position
Use the up and down button
to go to the lower position
Confi rm the position
by pressing the middle and
down button
Action confi rmed:
blinds stop
stepping
for 3 sec.
Exit program mode:
shortly press program button
Action confi rmed:
blinds stop
stepping
for 3 sec.
Use the up and down
button to go to
the upper position
First program the upper position
Step 4: Switch direction of rotation
Press the up and down button
at the same time to switch
the direction of rotation
Action confi rmed:
blinds stop
stepping
for 3 sec.
Step 3: Pair blind to channel/remote control
Select channel
with Channelselect
button
Pair/unpair by pressing
the program button on the back side
of the remote control
Action confi rmed:
blinds stop
stepping
for 3 sec.
Step 2:
Set the blind in program mode by pressing the program button
(also possible with SingleSelect, See manual remote control)
Program mode:
blind is stepping…
1 sec
Set in program mode:
shortly press
program button
Step 1: Connect the motor to 12 - 24 V DC
Shortly press
program button
(<2 sec.)
Program mode:
blind is stepping…
Press and hold
the program button for 10 sec.
until the blind stops stepping
2.3 Reset
- Reset to factory defaults
1 sec 10 sec
- Reset to factory defaults & erase all paired channels/remote controls
Shortly press
program button
(<2 sec.)
Program mode:
blind is stepping…
Press and hold
the program button for 15 sec.
until the blind stops stepping
and steps once again.
1 sec 15 sec
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
