User Manual 1A HTML Version

User Manual 1A

DETAILED TECHNICAL USER MANUAL FOR:

PC/104 plus

smartModule855

MSM855/HLV/B/B2

Nordstrasse 11/F

CH - 4542 Luterbach

Tel.: ++41 (0)32 681 58 00

Fax: ++41 (0)32 681 58 01

Email: support@digitallogic.com

Homepage: http://www.digitallogic.com

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

For internal use only:

File: MSM855_Detailed_V1.0A

Path: R:\HANDBUCH\MSM\cpu_boards\MSM855\MSM855_Detailed_V1.0A.doc



 2008 BY DIGITAL-LOGIC AG

This publication is protected by copyright and all rights are reserved. No part of this document may be

reproduced, transmitted, transcribed or stored in a retrieval system, in any form or by any means, electronic,

mechanical, optical, manual, or otherwise, without the prior written permission of DIGITAL-LOGIC AG.

The software described herein, together with this document, are furnished under a license agreement and

may be used or copied only in accordance with the terms of that agreement.

About this Manual and How to Use It

This manual is written for the original equipment manufacturer (OEM) who plans to build computer systems

based on the single board MICROSPACE-PC. It is for integrators and programmers of systems based on the

MICROSPACE-Computer family. This manual provides instructions for installing and configuring the board,

and describes the system and setup requirements. This document contains information on hardware

requirements, interconnections, and details of how to program the system. Please check the Product CD for

further information and manuals.

REVISION HISTORY:

Document

Version

Date/Initials: Modification:

Remarks, News, Attention:

V1.0 02.2008 WAS Initial Version of Detailed Manual adapted from existing V1.4C

Sections 1.12, 1.13 added / 2.11.1 & 2.11.2 updated

V1.0A 07.2008 DAR Chapter 5.3.6 / 9.71

Attention!

1. All information in this manual, and the product, are subject to change without prior notice.

2. Read this manual prior to installation of the product.

3. Read the security information carefully prior to installation of the product.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

Table of Contents

1. PREFACE .....................................................................................................................................................6

1.1. Trademarks ..................................................................................................................................... 6

1.2. Disclaimer ....................................................................................................................................... 6

1.3. Environmental Protection Statement ........................................................................................... 6

1.4. Who should use this Product ....................................................................................................... 6

1.5. Recycling Information.................................................................................................................... 7

1.6. Technical Support .......................................................................................................................... 7

1.7. Limited Two Year Warranty........................................................................................................... 7

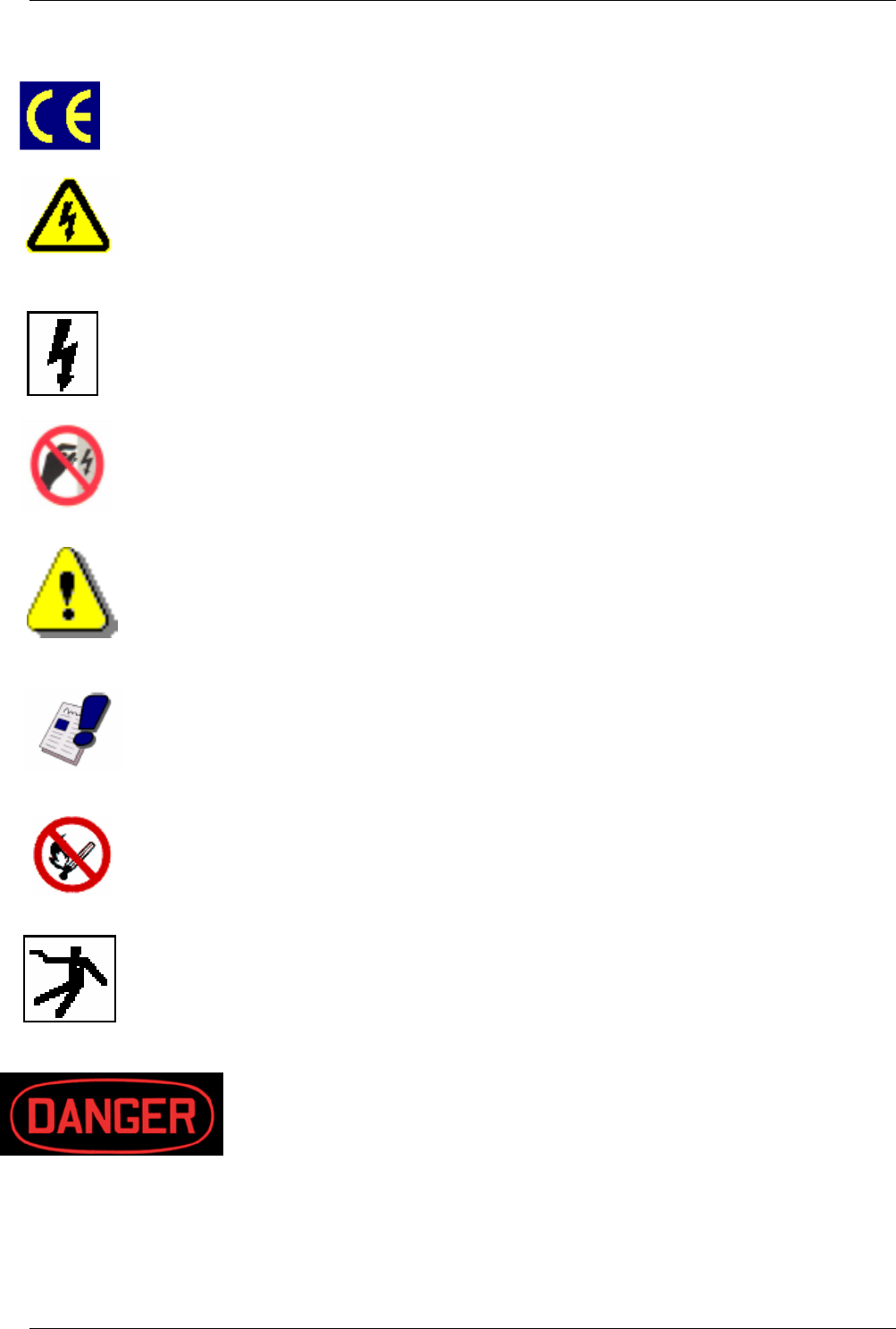

1.8. Explanation of Symbols................................................................................................................. 8

1.9. Applicable Documents and Standards ........................................................................................ 9

1.10. For Your Safety............................................................................................................................. 10

1.11. RoHS Commitment....................................................................................................................... 10

1.11.1. RoHS Compatible Product Design ........................................................................................ 11

1.11.2. RoHS Compliant Production Process ................................................................................... 11

1.11.3. WEEE Application.................................................................................................................. 11

1.12. Swiss Quality ................................................................................................................................ 12

1.13. The Swiss Association for Quality and Management Systems............................................... 12

2. OVERVIEW .................................................................................................................................................13

2.1. Standard Features........................................................................................................................ 13

2.2. Unique Features ........................................................................................................................... 13

2.3. Standards ...................................................................................................................................... 13

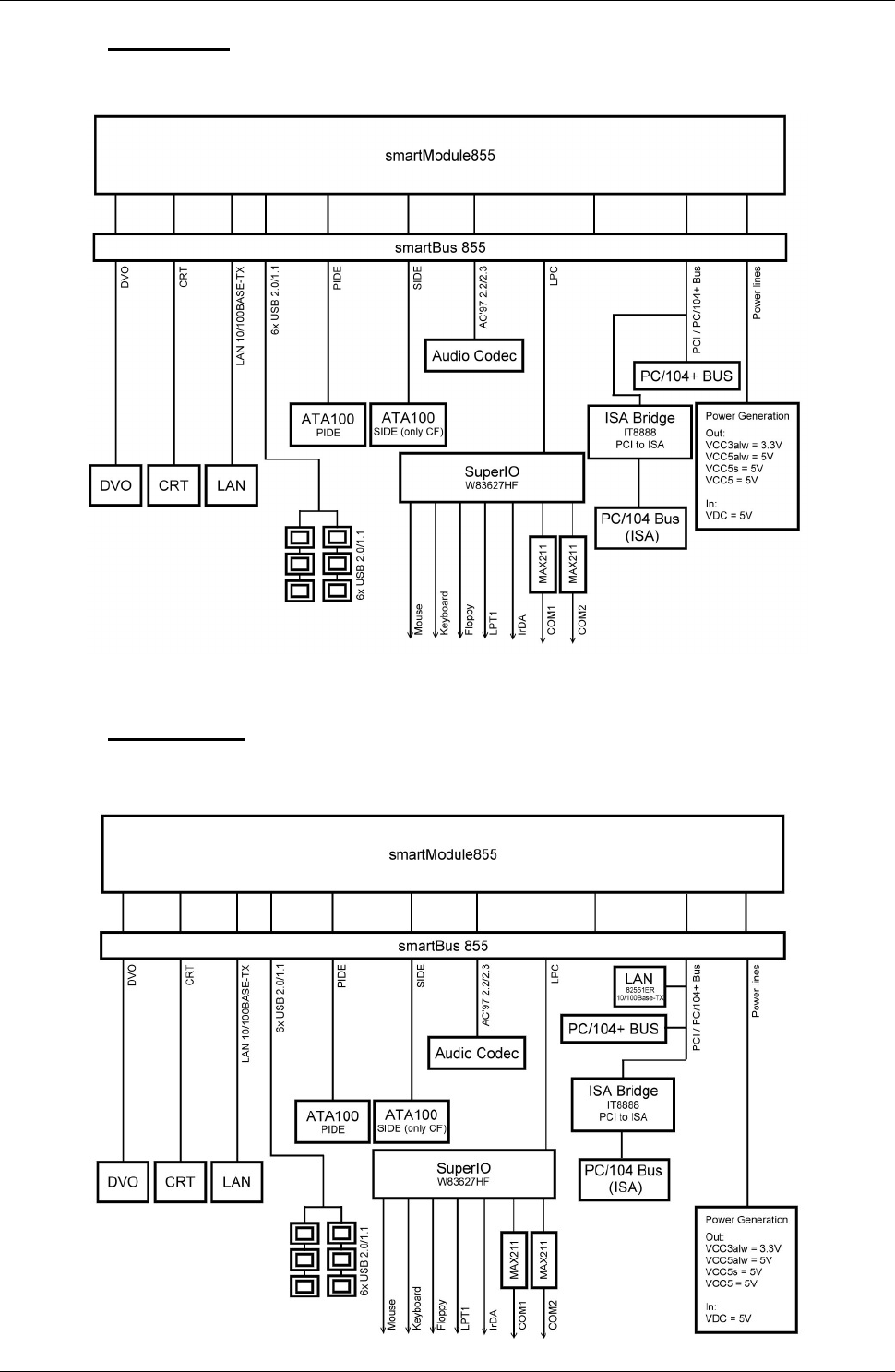

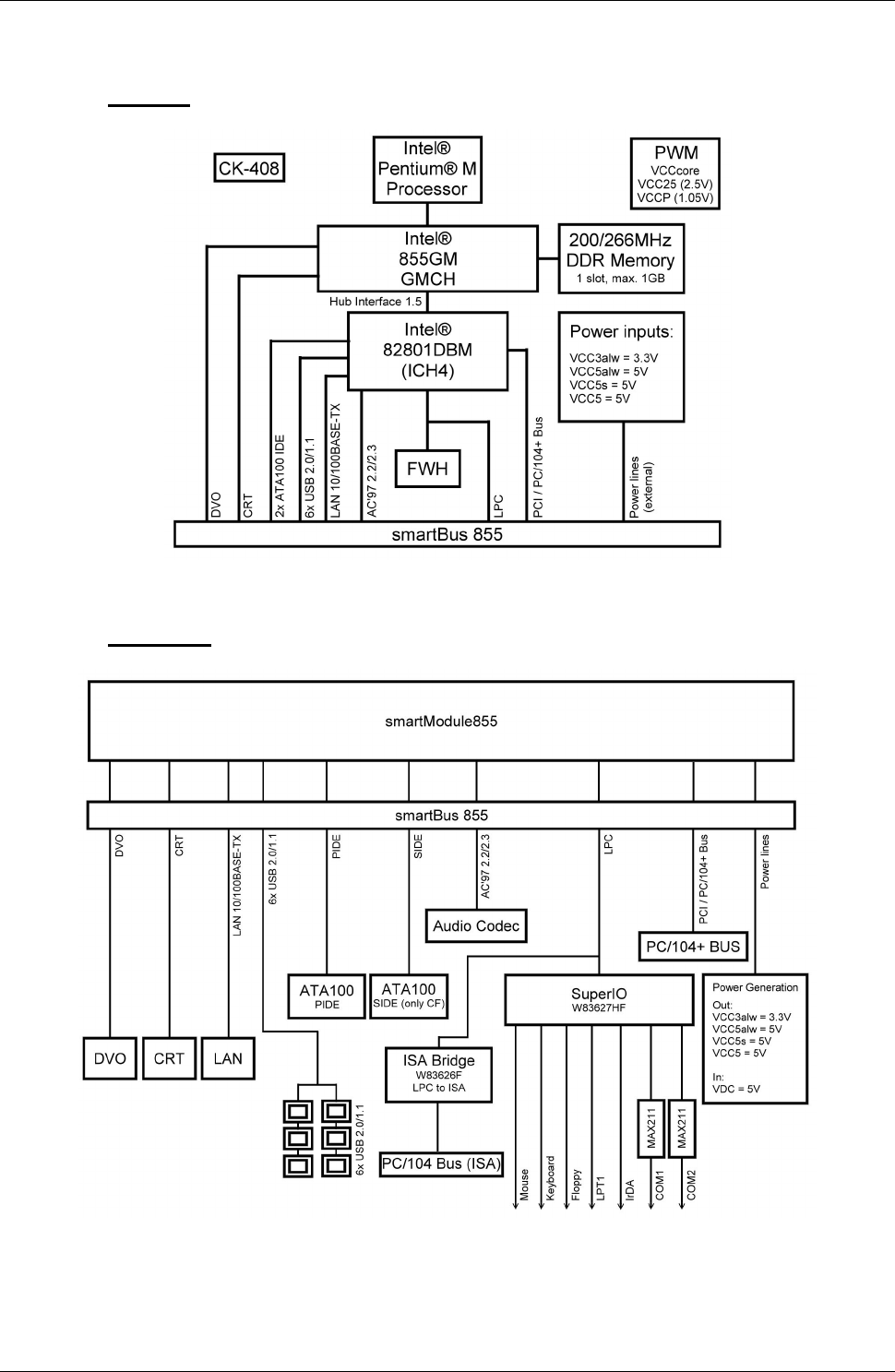

2.4. Block Diagrams ............................................................................................................................ 14

2.4.1. SM855 ................................................................................................................................... 14

2.4.2. MSM855 ................................................................................................................................ 14

2.4.3. MSM855B.............................................................................................................................. 15

2.4.4. MSM855B2 ............................................................................................................................ 15

2.5. Specifications ............................................................................................................................... 16

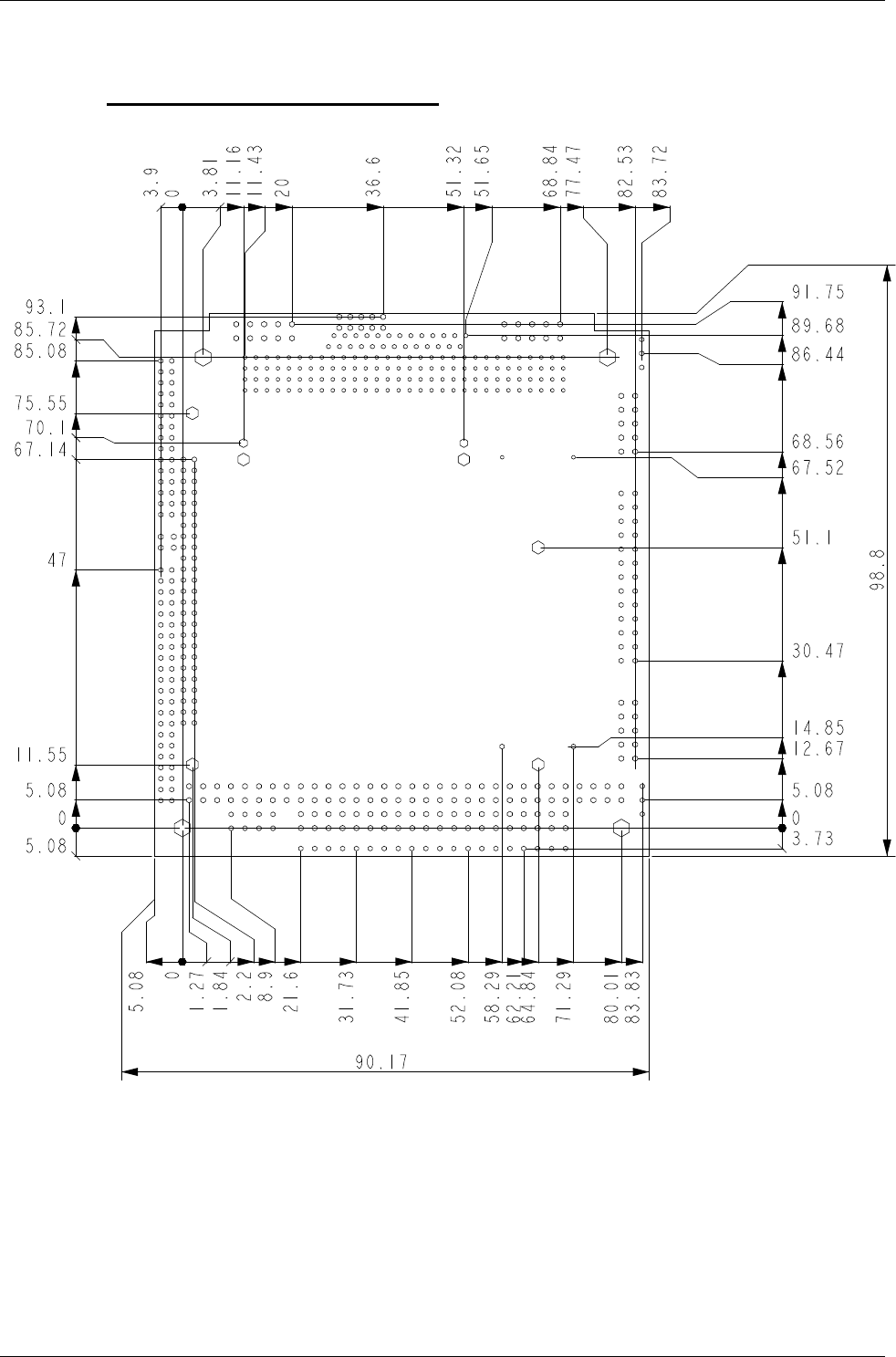

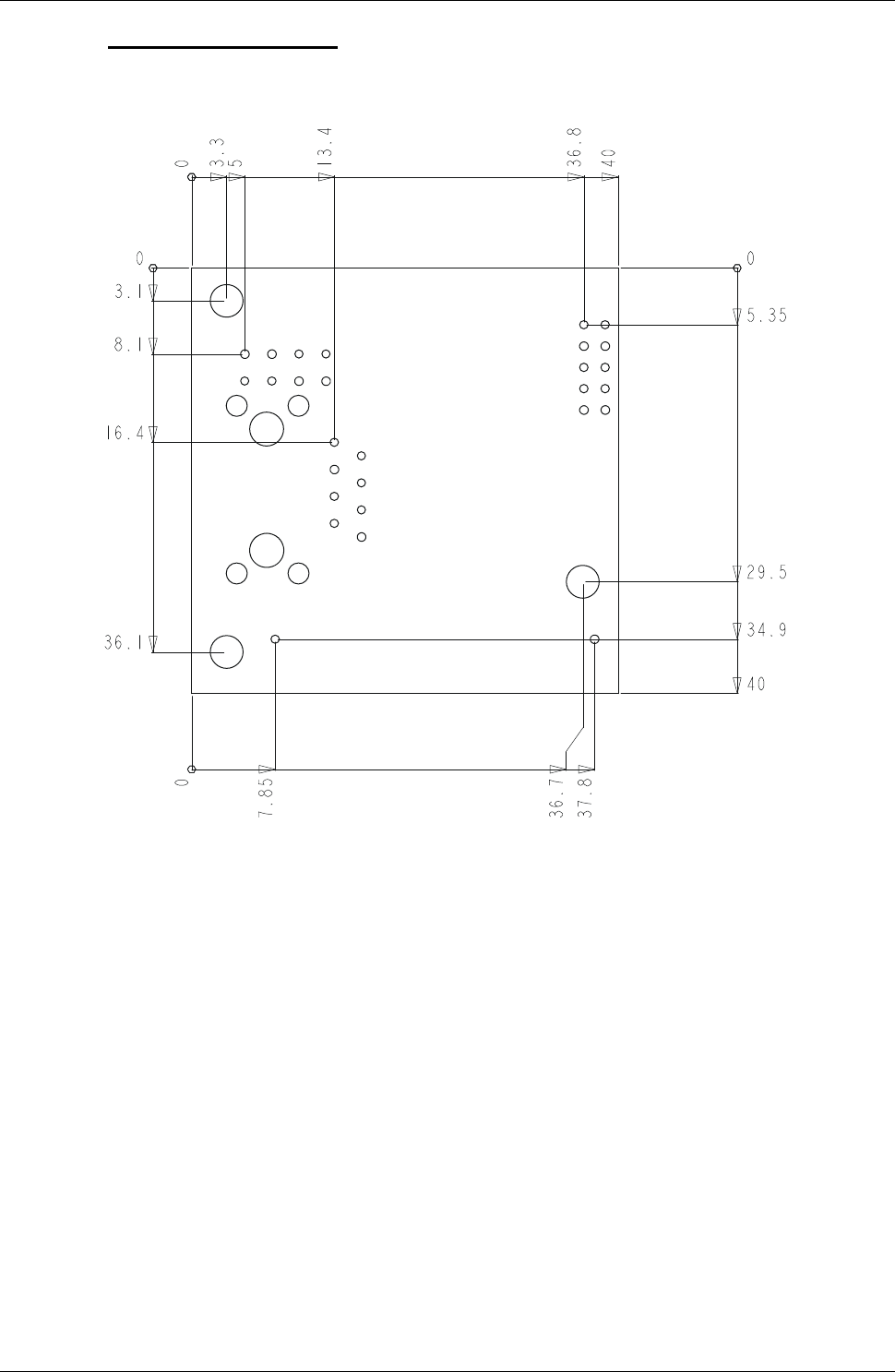

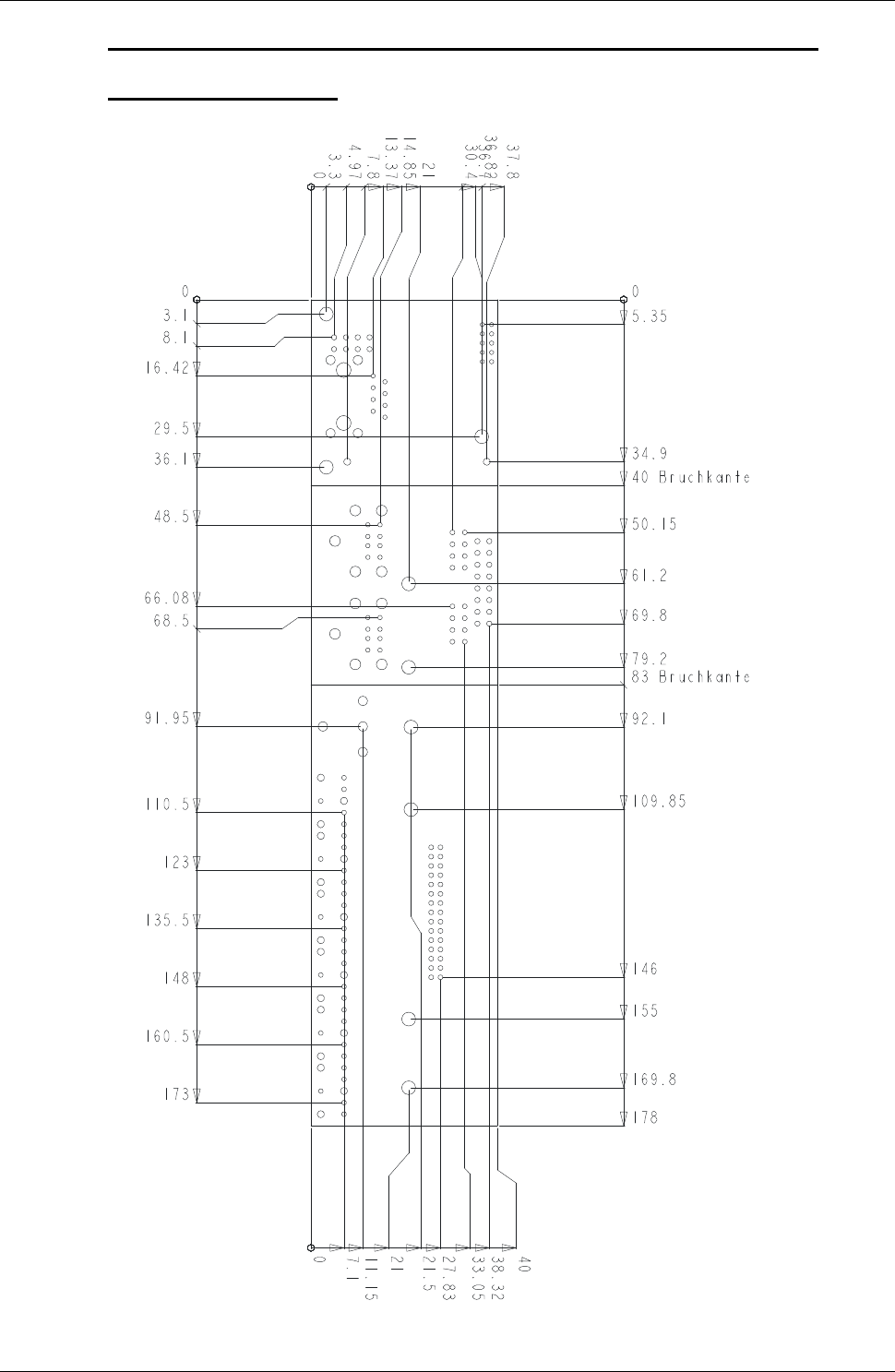

2.6. Dimensions and Diagrams .......................................................................................................... 19

2.6.1. MSM855/B/B2 (all versions) .................................................................................................. 19

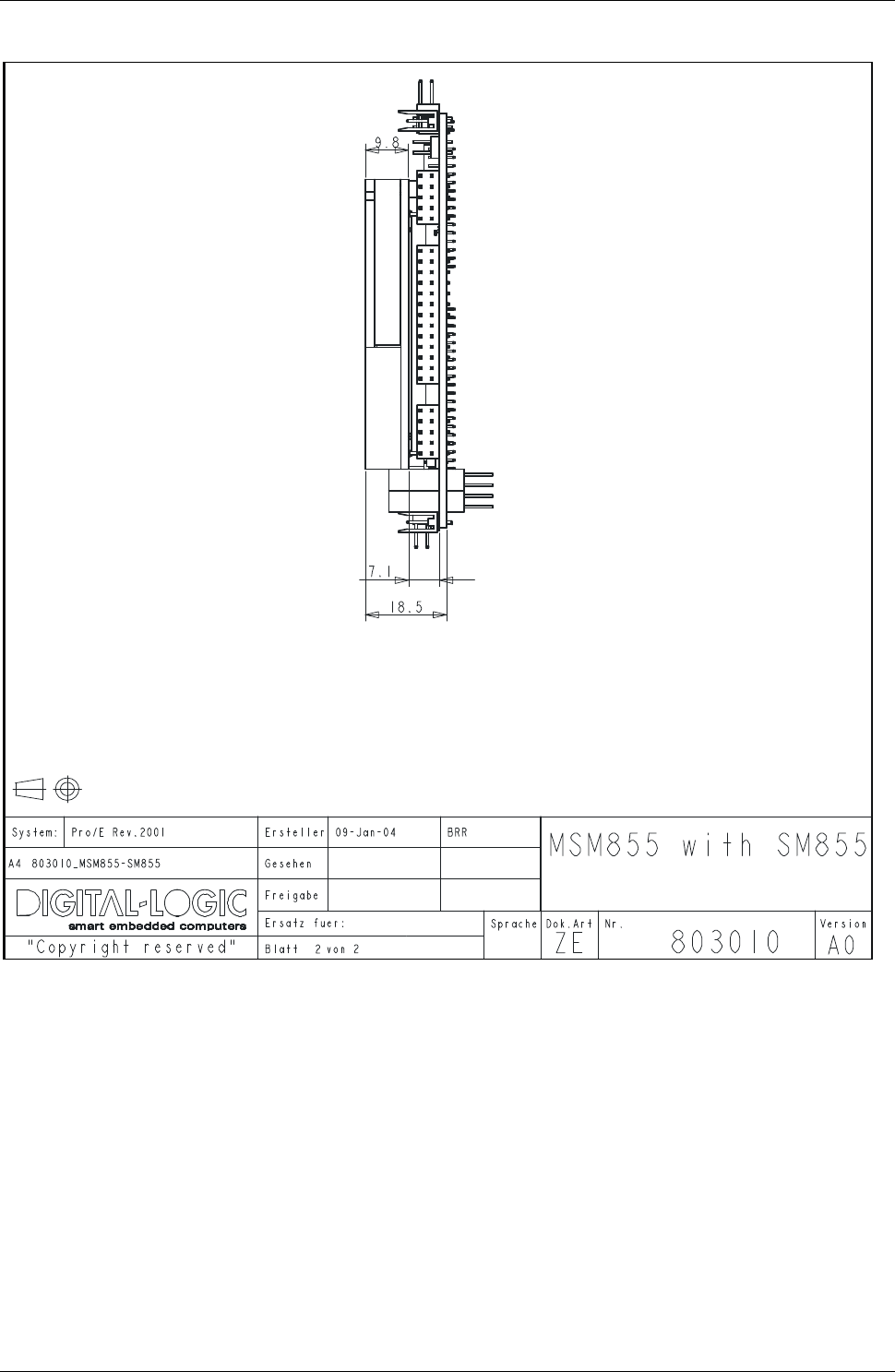

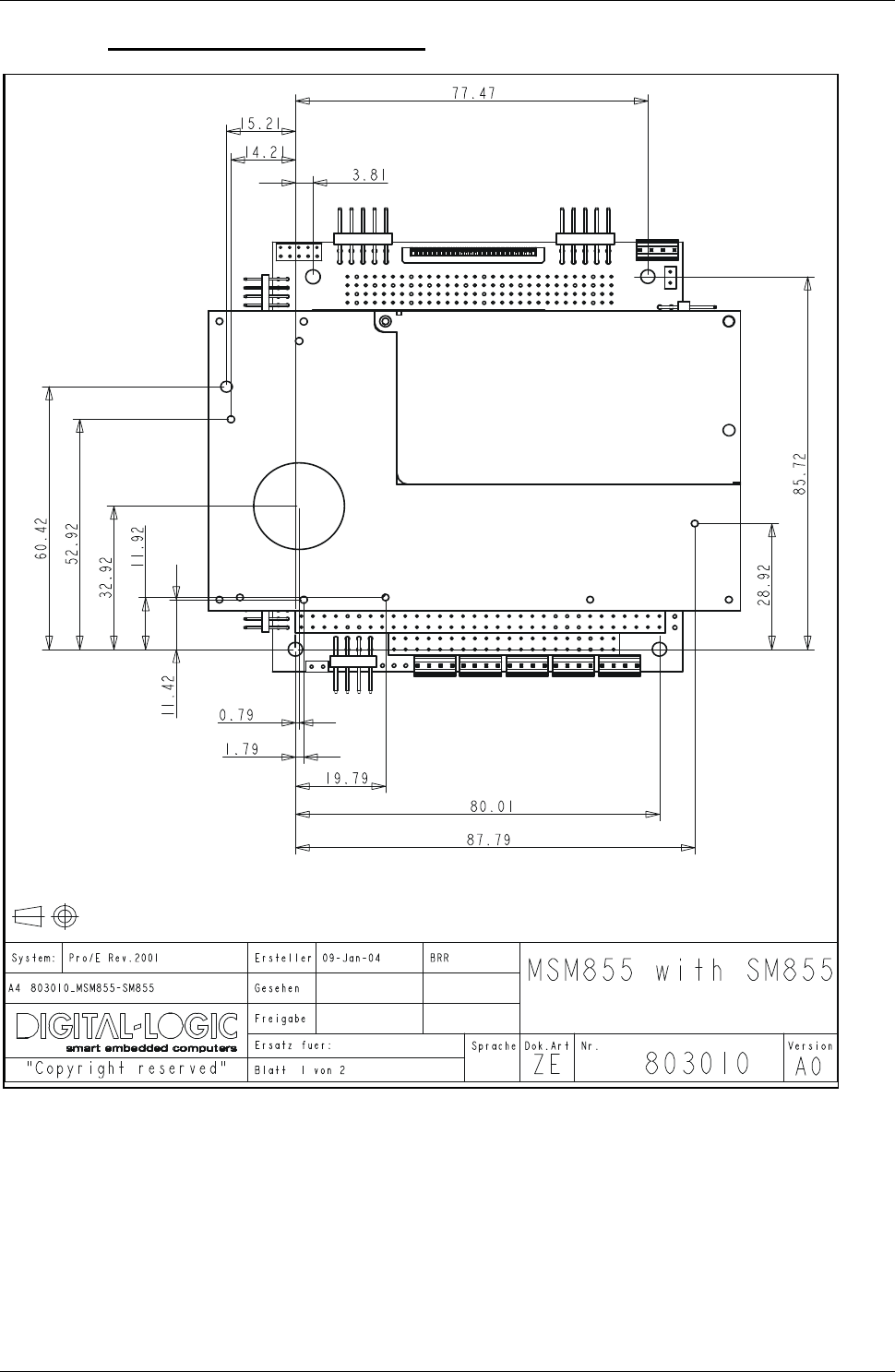

2.6.2. MSM855/B/B2 with SM855.................................................................................................... 20

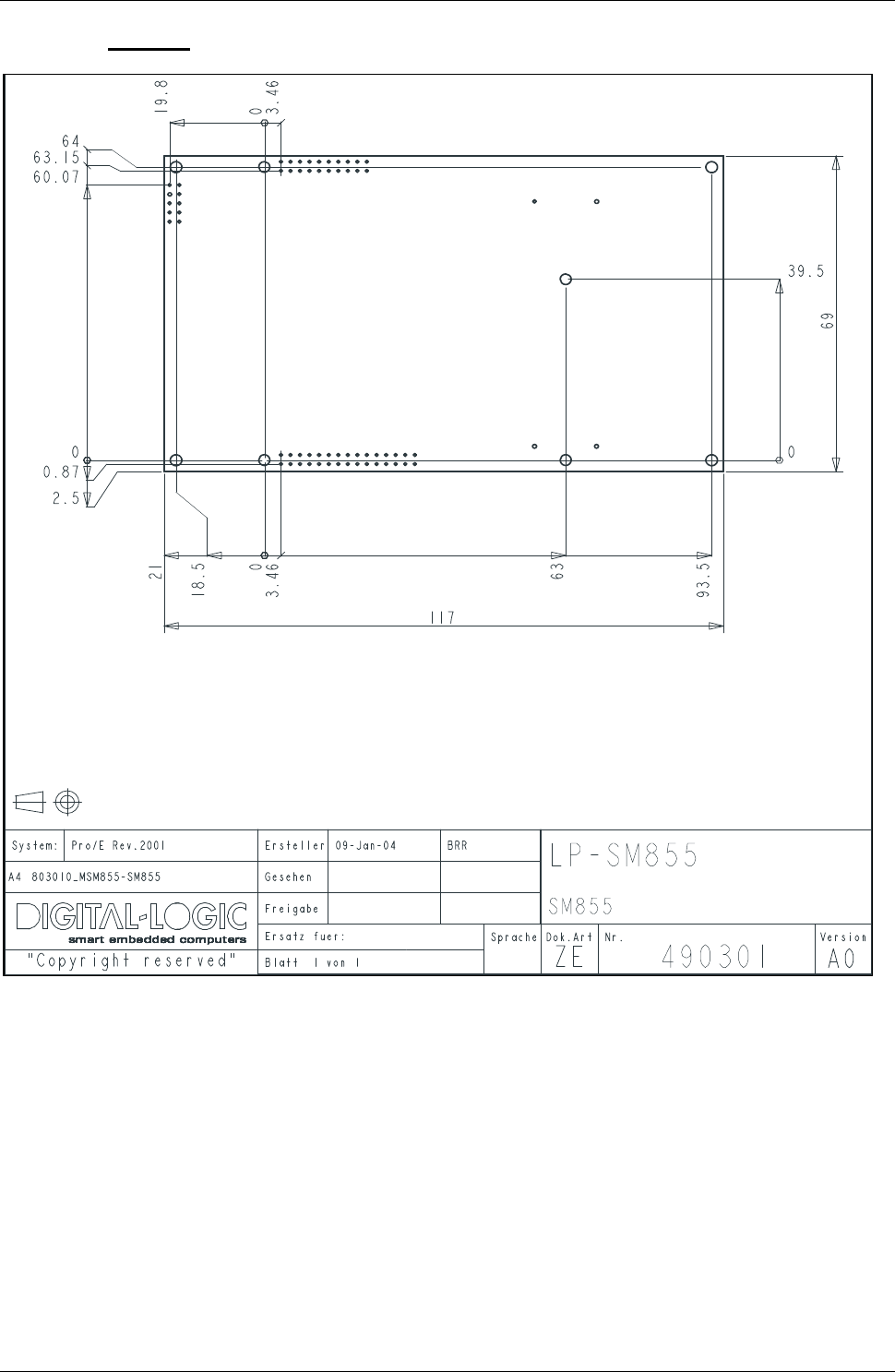

2.6.3. SM855 ................................................................................................................................... 22

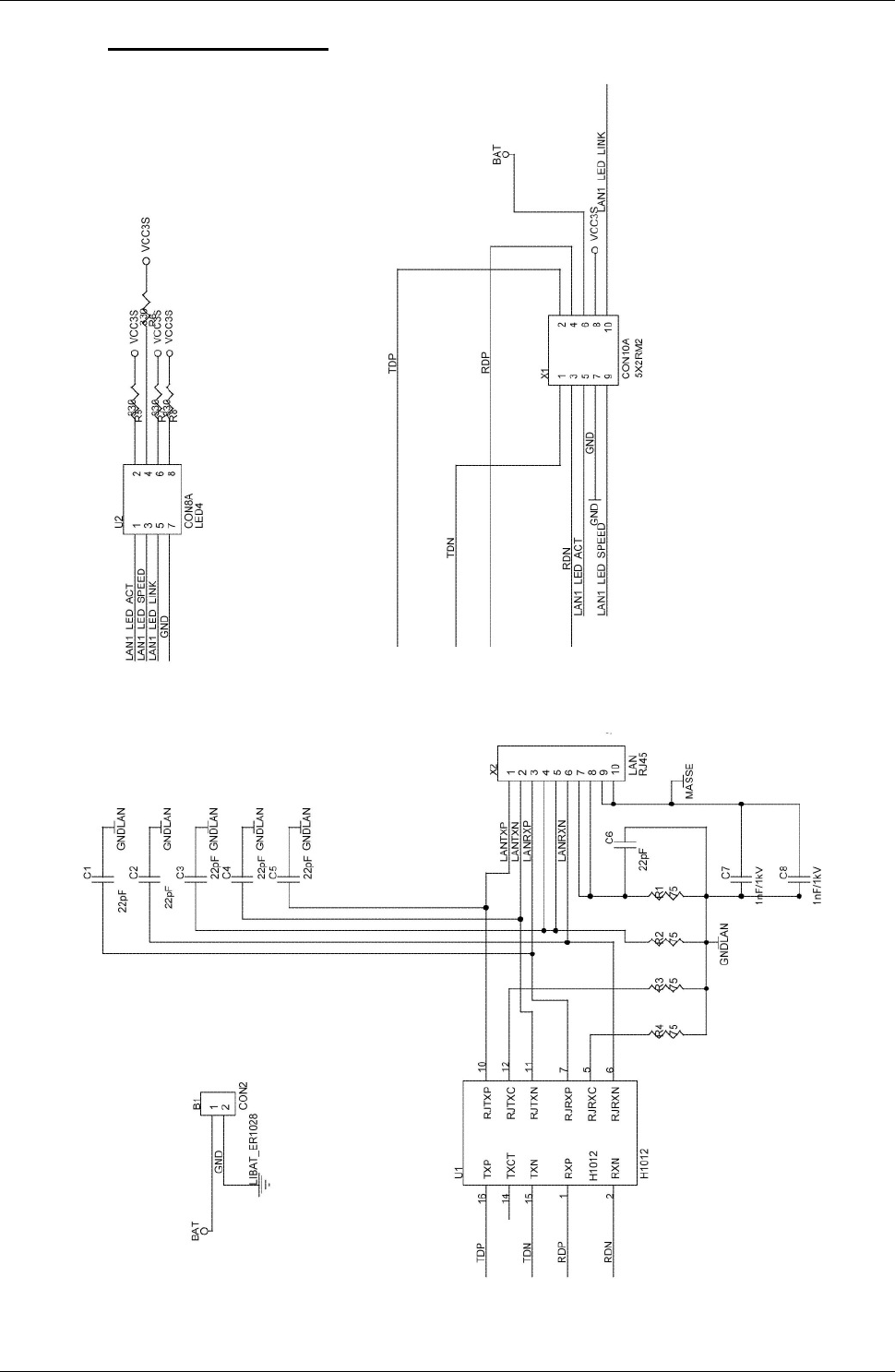

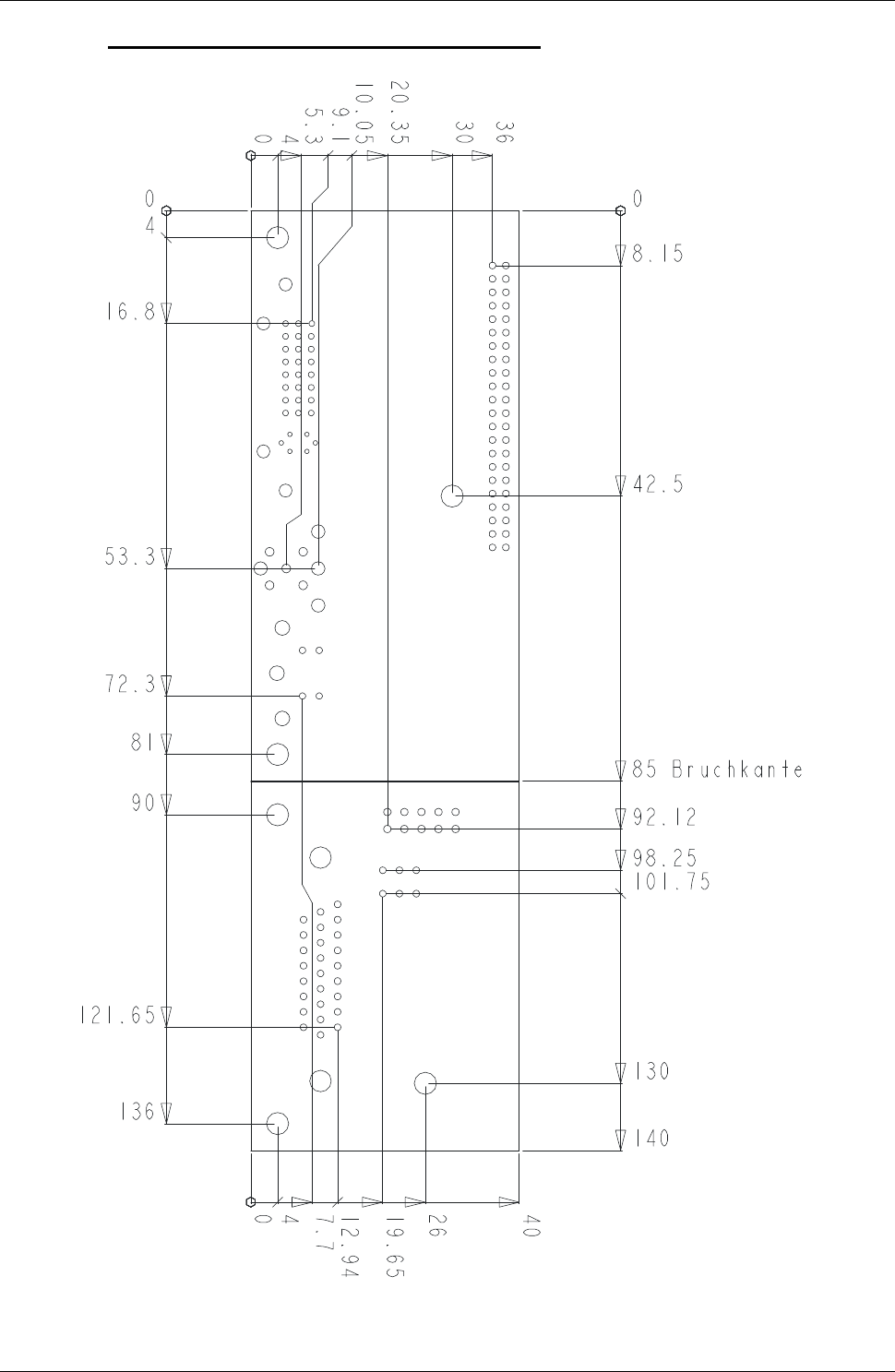

2.6.4. MSM855 LANCON ................................................................................................................ 24

2.6.5. MSM855 USB connector PCB............................................................................................... 26

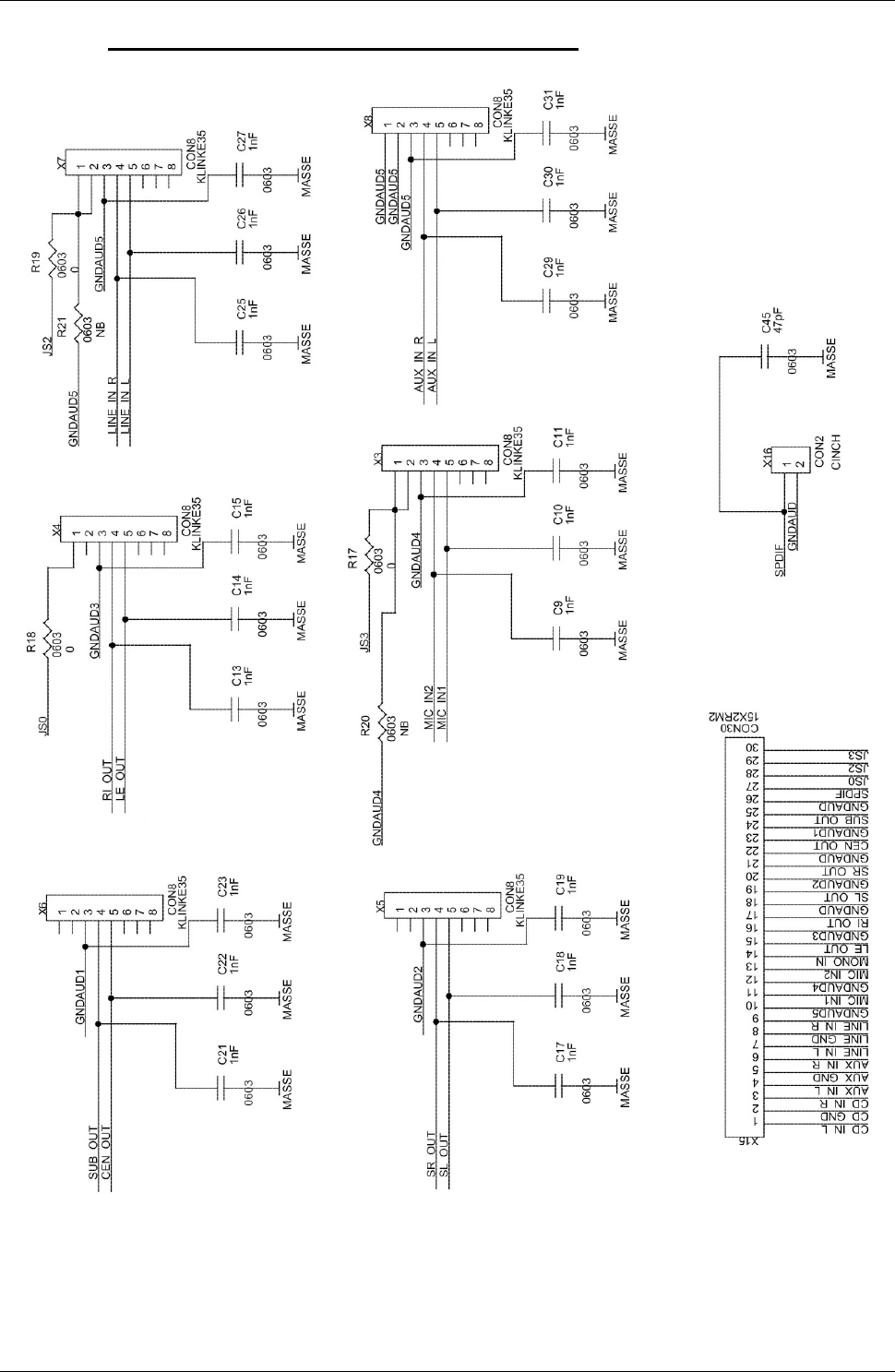

2.6.6. MSM855 AUDIO/SPDIF connector PCB............................................................................... 27

2.6.7. MSM855-CKCON (USB-, AUDIO- and LAN connector print) ............................................... 28

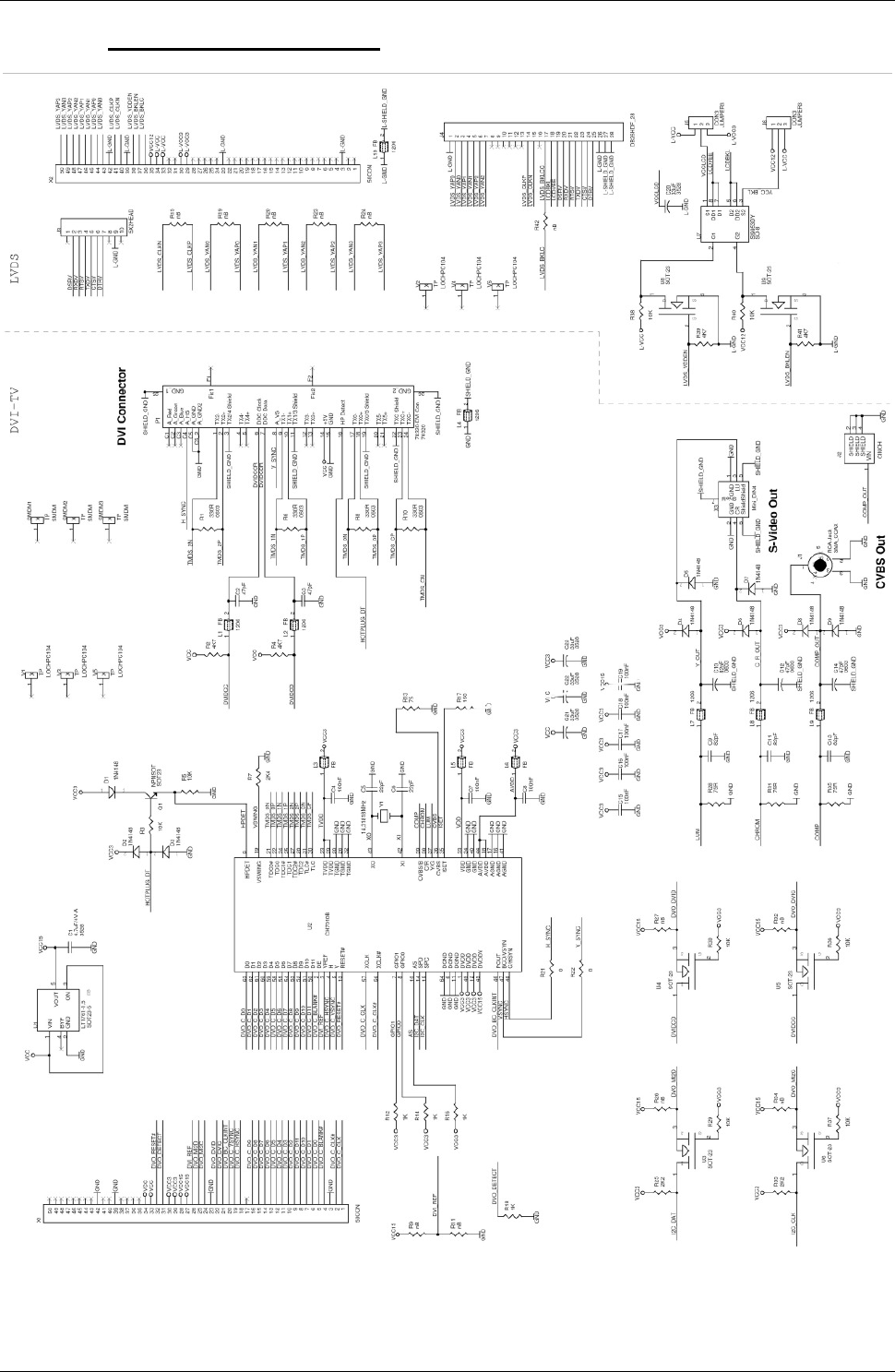

2.6.8. MSM855-DVICON V1.0......................................................................................................... 29

2.7. MSM855/B/B2 Incompatibilities to a standard PC/AT............................................................... 31

2.7.1. MSM855 / HLV ...................................................................................................................... 31

2.7.2. ISA-Incompatibilitiy with ISA-PCCARD-Controller ................................................................ 31

2.7.3. ISA-Incompatibilitiy with 16bit I/O Transfer with FPGA-Decoder .......................................... 32

2.7.4. ISA-Incompatibilitiy with 16bit Memory Transfer with FPGA-Decoder .................................. 32

2.7.5. Compatibilitiy with DIGITAL-LOGIC Peripheral ISA-Boards ................................................. 32

2.8. MSM855/B/B2/HLV Related Application Notes.......................................................................... 32

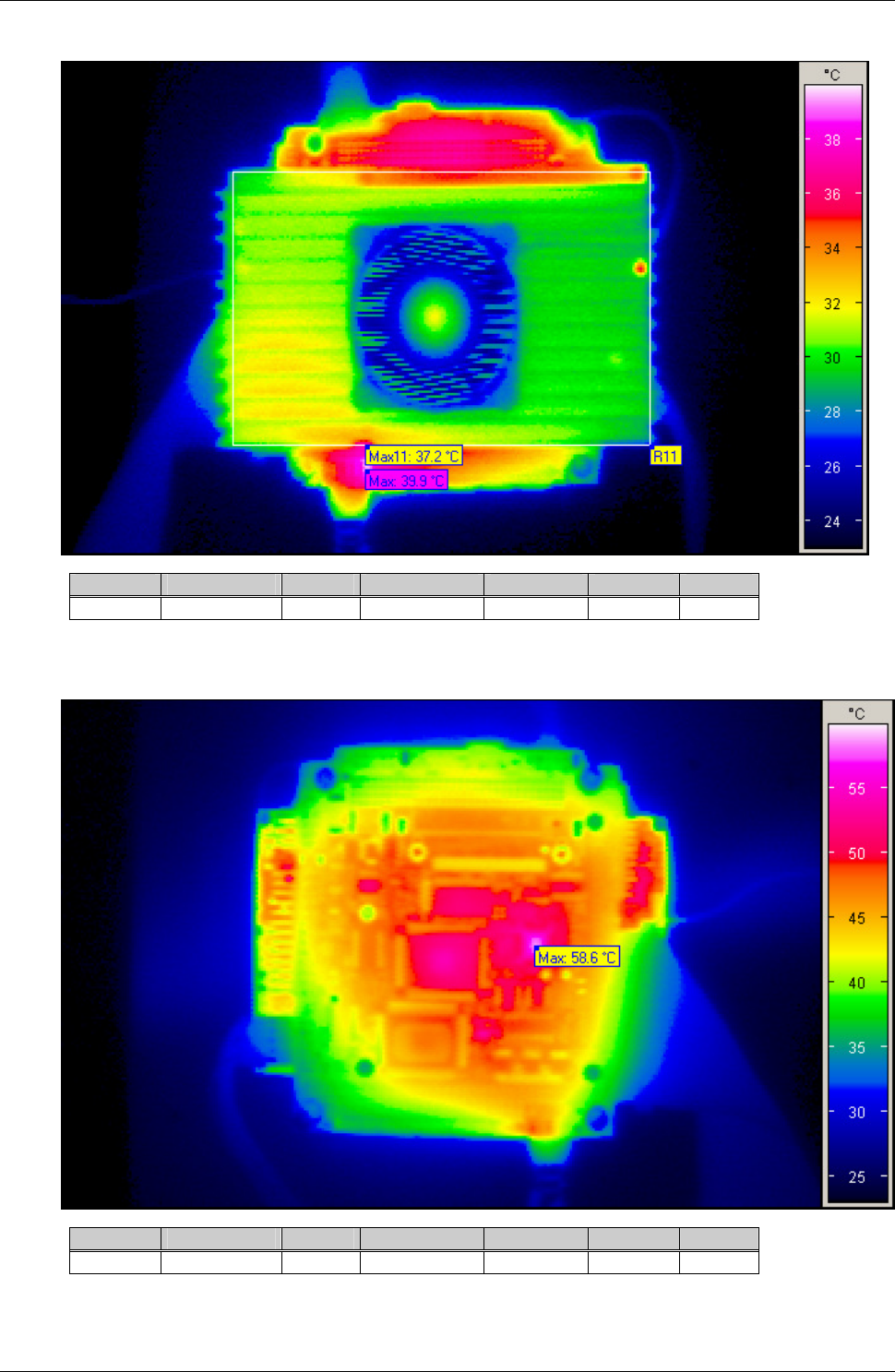

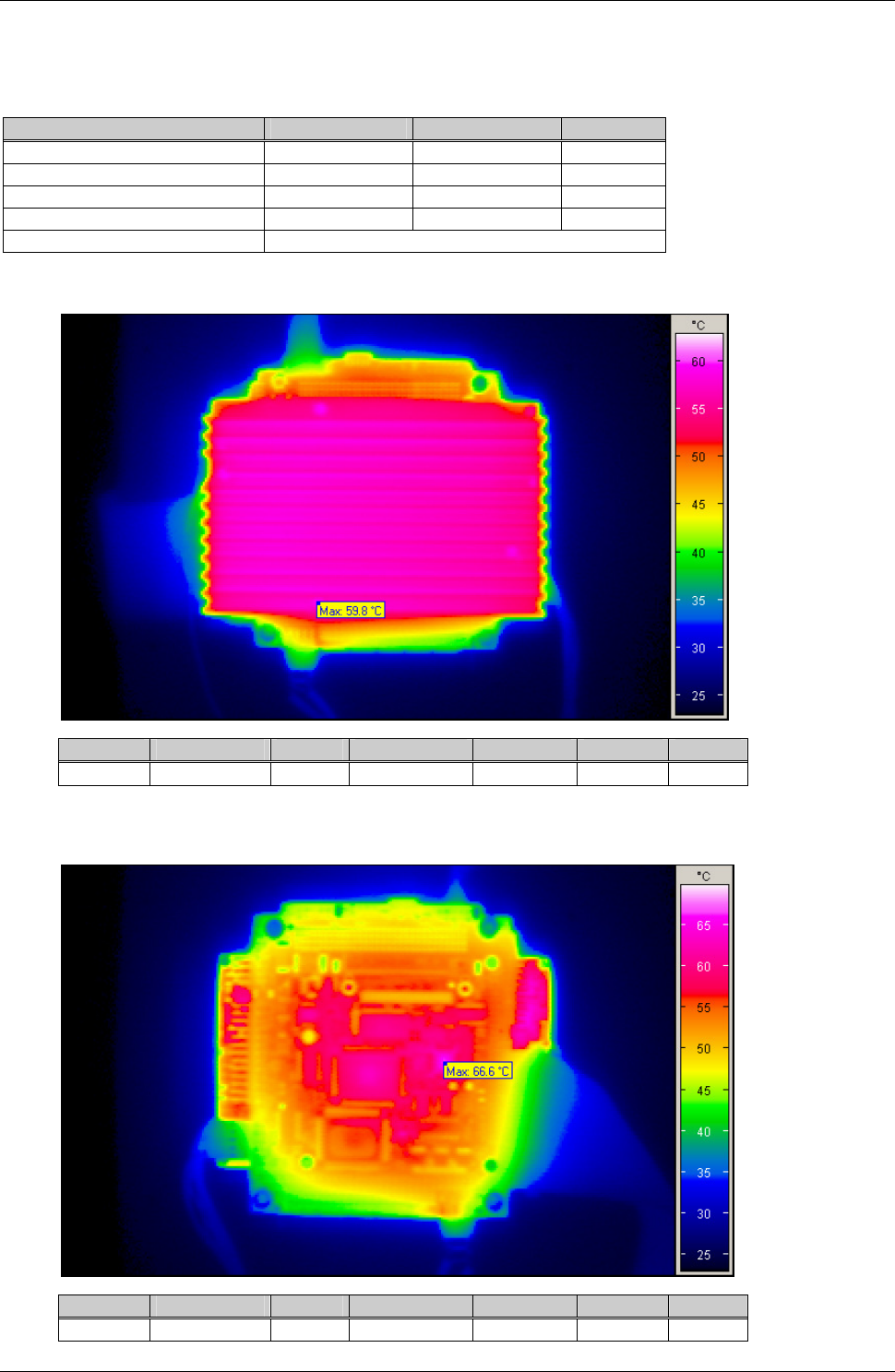

2.9. Thermoscan .................................................................................................................................. 33

2.10. High Frequency Radiation (to meet EN55022/EN61000) .......................................................... 35

2.10.1. For Peripheral Cables:........................................................................................................... 35

2.10.2. For Stack-Through Applications: ........................................................................................... 35

2.10.3. Power Supply:........................................................................................................................ 35

2.11. RTC Battery Lifetime.................................................................................................................... 36

2.11.1. Maxell ER3 (MSM855) .......................................................................................................... 36

2.11.2. BR1225 (MSM855B/B2) ........................................................................................................ 37

2.11.3. External Battery Assembly .................................................................................................... 37

3. CHIPSET DESCRIPTION ...............................................................................................................................38

3.1. INTEL Processor Pentium-M....................................................................................................... 38

3.1.1. Introduction ............................................................................................................................ 39

3.1.2. Deep Sleep State................................................................................................................... 39

3.1.3. Low Power Features.............................................................................................................. 39

3.1.4. Deeper Sleep State ............................................................................................................... 39

3.1.5. Enhanced Intel® SpeedStep® Technology............................................................................. 40

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

3.2. Graphic-Memory-Control Hub: INTEL 855GME........................................................................ 41

3.2.1. Processor Host Interface ....................................................................................................... 41

3.2.2. Intel 855GME GMCH Host Bus Error Checking.................................................................... 41

3.2.3. Intel 855GME GMCH System Memory Interface .................................................................. 41

3.2.4. Intel 855GME GMCH Internal Graphics ................................................................................ 42

3.2.5. Intel 855GME GMCH Analog Display Port............................................................................ 42

3.2.6. Intel 855GME GMCH Integrated DVO Ports ......................................................................... 42

3.2.7. Hub Interface ......................................................................................................................... 42

3.2.8. Address Decode Policies....................................................................................................... 42

3.3. IO Control Hub Intel-ICH4M / ICH4.............................................................................................. 43

4. BUS SIGNALS ............................................................................................................................................45

4.1. PC104 Bus..................................................................................................................................... 45

4.2. Expansion Bus ............................................................................................................................. 47

4.3. Addressing PCI Devices.............................................................................................................. 48

4.3.1. MSM855/HLV ........................................................................................................................ 48

4.3.2. MSM855B/B2:........................................................................................................................ 49

5. DETAILED SYSTEM DESCRIPTION ................................................................................................................50

5.1. Power Requirements.................................................................................................................... 50

5.1.1. Power Supply Cords.............................................................................................................. 50

5.1.2. Typical Power Consumption.................................................................................................. 51

5.1.3. Minimum Power-Off Time...................................................................................................... 51

5.1.4. ATX–Compatible Power Function ......................................................................................... 51

5.1.5. MSM855-HLV-Input (High Level Voltage Input).................................................................... 52

5.1.6. MSMPS104 (PC104 power supply)....................................................................................... 53

5.2. Boot Time...................................................................................................................................... 54

5.3. Interfaces ...................................................................................................................................... 54

5.3.1. AT Compatible Keyboard and PS/2 Mouse........................................................................... 54

5.3.2. Line Printer Port LPT1 ........................................................................................................... 54

5.3.3. Serial Ports COM1-COM2 ..................................................................................................... 55

5.3.4. Floppy Disk Interface............................................................................................................. 55

5.3.5. Speaker Interface .................................................................................................................. 56

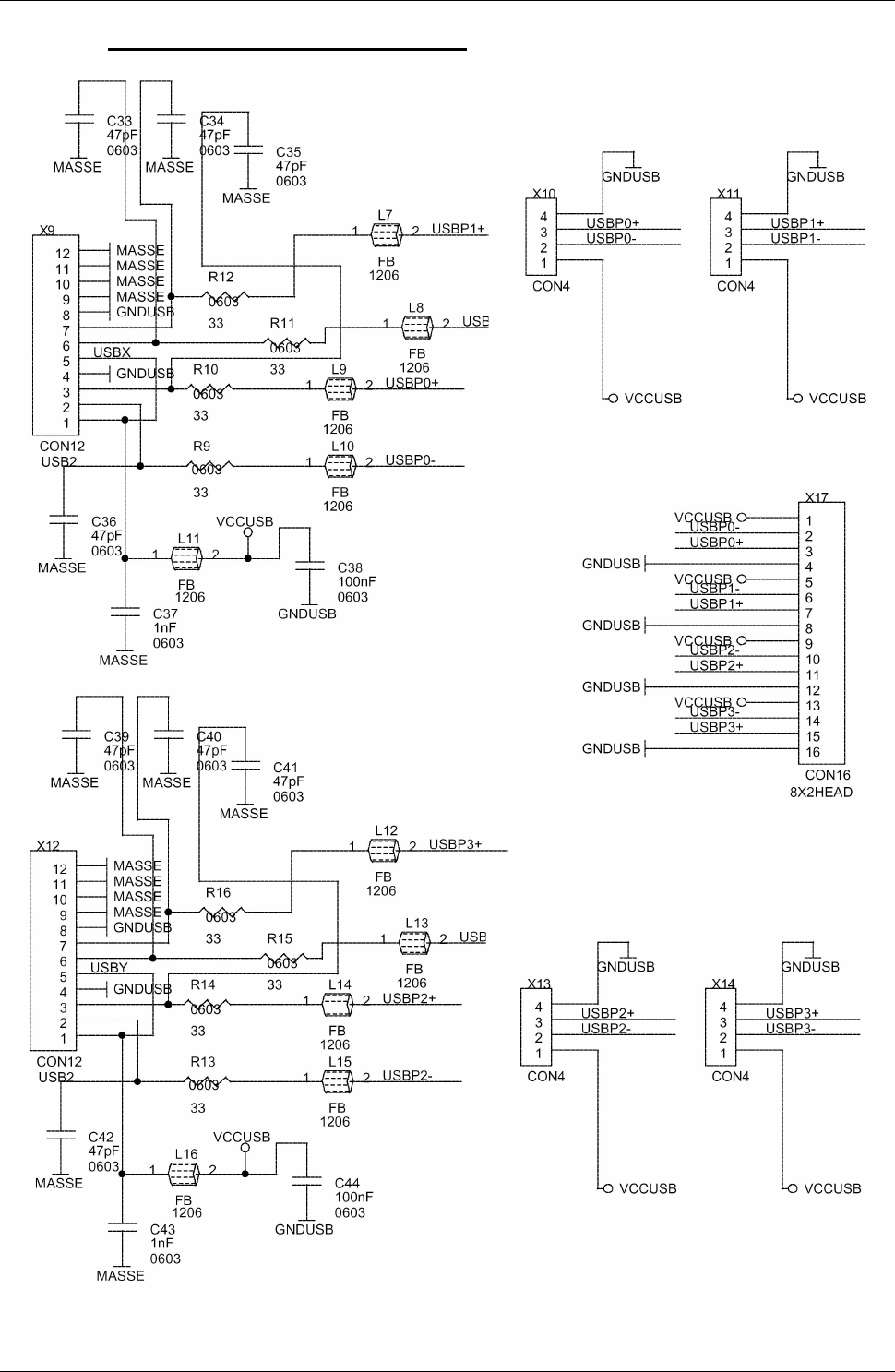

5.3.6. 6 Port USB V2.0 .................................................................................................................... 57

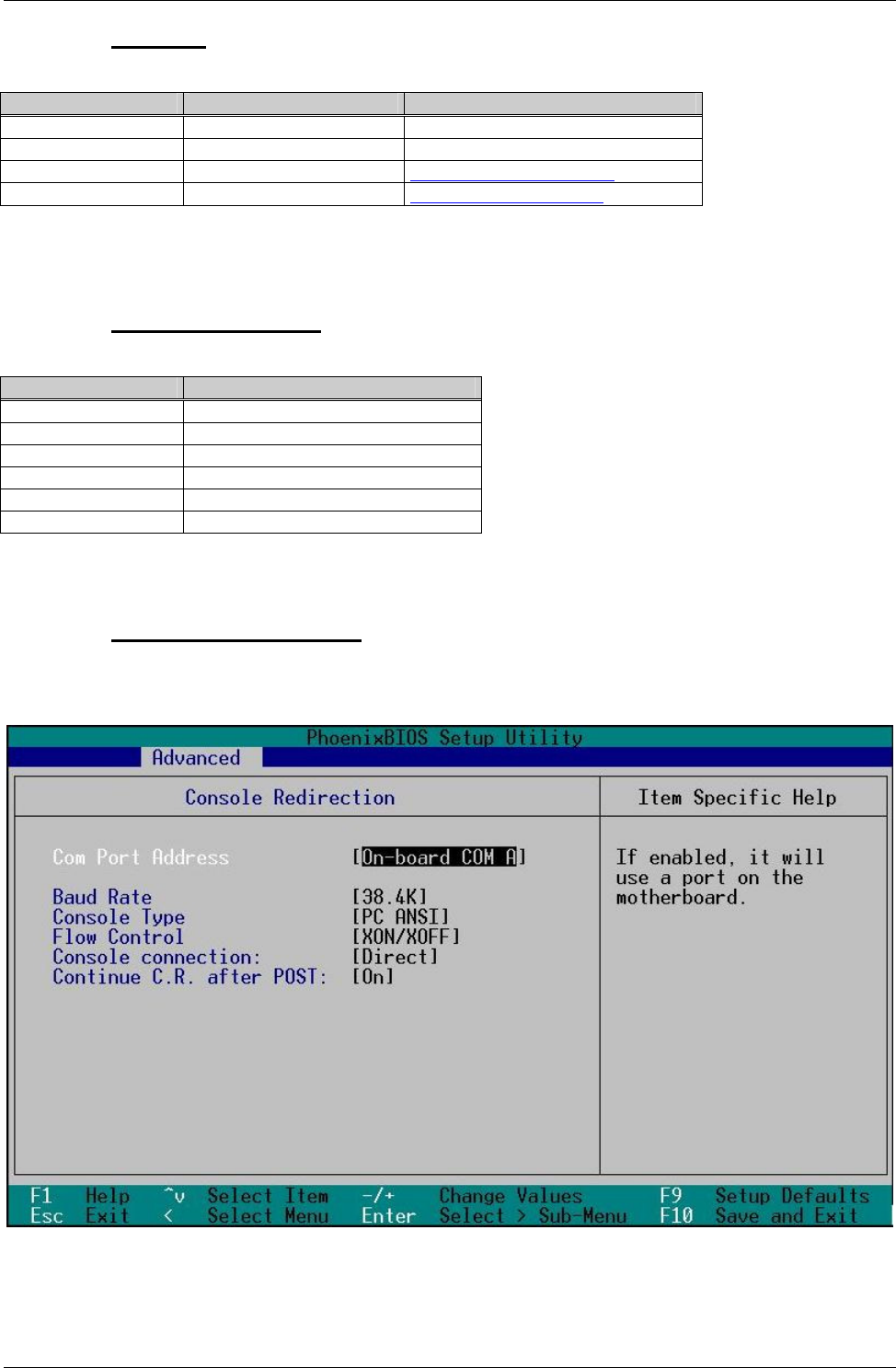

5.3.7. Console Redirection .............................................................................................................. 58

5.4. Controllers .................................................................................................................................... 59

5.4.1. Interrupt Controllers............................................................................................................... 59

5.5. Timers and Counters ................................................................................................................... 59

5.5.1. Programmable Timers ........................................................................................................... 59

5.5.2. Watchdog............................................................................................................................... 59

5.6. BIOS............................................................................................................................................... 60

5.6.1. BIOS History.......................................................................................................................... 60

5.6.2. Core BIOS Download ............................................................................................................ 61

5.6.3. ROM-BIOS Sockets............................................................................................................... 62

5.7. CMOS RAM Map ........................................................................................................................... 62

5.8. EEPROM Saved CMOS Setup ..................................................................................................... 67

5.8.1. EEPROM Memory for Setup ................................................................................................. 67

5.9. Memory & I/O Map ........................................................................................................................ 68

5.9.1. Replacement of the SODIMM-DDRAM ................................................................................. 68

5.9.2. System I/O Map..................................................................................................................... 70

5.10. VGA / LCD ..................................................................................................................................... 71

5.11. LVDS-Display................................................................................................................................ 73

5.12. LAN / Ethernet .............................................................................................................................. 73

5.12.1. LAN Cable Connection .......................................................................................................... 73

5.12.2. Boot from LAN ....................................................................................................................... 74

5.13. AC97 Sound .................................................................................................................................. 75

5.13.1. Audio Cable Connection........................................................................................................ 75

5.13.2. Sound Settings ...................................................................................................................... 75

5.14. SpeedStep Performance Control................................................................................................ 76

5.14.1. Set up Power Management ................................................................................................... 76

6. DESCRIPTION & LOCATION OF THE CONNECTORS........................................................................................78

6.1. Top Side of the MSM855 V1.2/V1.3 ............................................................................................. 79

6.2. Bottom Side of the MSM855 V1.2/V1.3 ....................................................................................... 80

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

6.3. Top Side of the MSM855B/B2 V1.1 ............................................................................................. 81

6.4. Top Side of the MSM855B/B2 V1.1 ............................................................................................. 81

7. JUMPER LOCATIONS ON THE BOARD...........................................................................................................91

7.1. The Jumpers on the MSM855...................................................................................................... 92

7.2. The Jumpers on the MSM855/B2 ................................................................................................ 93

8. LED CRITERIA ...........................................................................................................................................94

9. CABLE INTERFACES ...................................................................................................................................95

9.1. The Hard Disk Cable 44pin.......................................................................................................... 95

9.2. The COM 1/2 Serial Cable ............................................................................................................ 96

9.3. VGA Cable..................................................................................................................................... 96

9.4. The Printer Cable (P4).................................................................................................................. 97

9.5. USB Cable ..................................................................................................................................... 97

9.6. The Micro Floppy Cable............................................................................................................... 98

9.7. The LAN Interface Cable (RJ45).................................................................................................. 99

9.7.1. MSM855 LANCON .............................................................................................................. 100

9.7.2. MSM855B/B2 LANCON ...................................................................................................... 100

10. THERMAL SPECIFICATIONS...................................................................................................................101

10.1. Thermal Analysis for Case Integration .................................................................................... 101

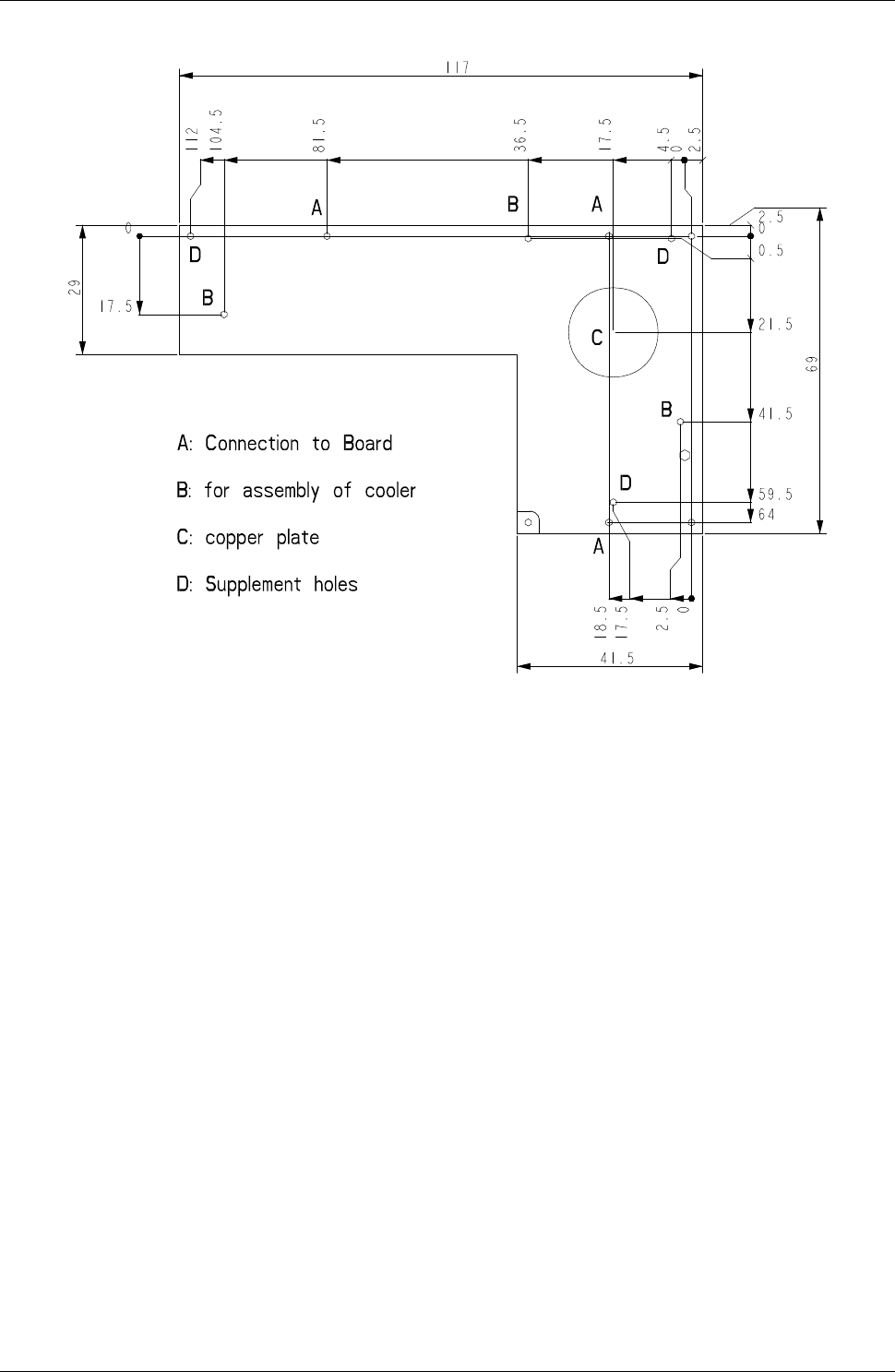

10.2. Assembly of the Passive Heat Sink.......................................................................................... 102

10.3. Assembly of the Active Heat Sink ............................................................................................ 103

11. ASSEMBLY VIEWS................................................................................................................................104

11.1. MSM855 V1.2 / V1.3 .................................................................................................................... 104

11.2. MSM855B/B2............................................................................................................................... 106

12. Q&A – QUESTIONS & ANSWERS ..........................................................................................................108

13. PREVIOUS PRODUCT VERSIONS............................................................................................................109

13.1. Mechanical Drawing V0.3/V0.4.................................................................................................. 109

13.2. Assembly Views ......................................................................................................................... 110

13.2.1. MSM855 V0.3 / V0.4 ........................................................................................................... 110

13.2.2. MSM855 V1.0 / V1.1 ........................................................................................................... 112

13.3. Connectors & Jumpers.............................................................................................................. 114

13.3.1. MSM855 V0.3 / V0.4 ........................................................................................................... 114

13.3.2. MSM855 V0.3 / V0.4 – Jumpers only.................................................................................. 116

13.3.3. MSM855 V1.0 / V1.1 ........................................................................................................... 118

13.4. Description of the Connectors for V0.4 ................................................................................... 120

13.5. Description of the Jumpers for V0.4 ........................................................................................ 121

14. INDEX ..................................................................................................................................................122

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

1. PREFACE

The information contained in this manual has been carefully checked and is believed to be accurate; it is

subject to change without notice. Product advances mean that some specifications may have changed.

DIGITAL-LOGIC AG assumes no responsibility for any inaccuracies, or the consequences thereof, that may

appear in this manual. Furthermore, DIGITAL-LOGIC AG does not accept any liability arising from the use or

application of any circuit or product described herein.

1.1. Trademarks

DIGITAL-LOGIC, DIGITAL-LOGIC-Logo, MICROSPACE, and smartModule are registered trademarks

owned worldwide by DIGITAL-LOGIC AG, Luterbach (Switzerland). In addition, this document may include

names, company logos, and registered trademarks which are, therefore, proprietary to their respective

owners.

1.2. Disclaimer

DIGITAL-LOGIC AG makes no representations or warranties with respect to the contents of this manual, and

specifically disclaims any implied warranty of merchantability or fitness, for any particular purpose. DIGITAL-

LOGIC AG shall, under no circumstances, be liable for incidental or consequential damages or related

expenses resulting from the use of this product, even if it has been notified of the possibility of such damage.

1.3. Environmental Protection Statement

This product has been manufactured to satisfy environmental protection requirements wherever possible.

Many of the components used (structural parts, printed circuit boards, connectors, batteries, etc.) are

capable of being recycled. Final disposal of this product after its service life must be accomplished in

accordance with applicable country, state, or local laws or regulations.

1.4. Who should use this Product

 Electrical engineers with know-how in PC-technology.

 Because of the complexity and the variability of PC-technology, we cannot guarantee that the product

will work in any particular situation or set-up. Our technical support will try to help you find a solution.

 Pay attention to electrostatic discharges; use a CMOS protected workplace.

 Power supply must be OFF when working on the board or connecting any cables or devices.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

1.5. Recycling Information

All components within this product fulfill the requirements of the RoHS (Restriction of Hazardous Substances

Directive). The product is soldered with a lead free process.

1.6. Technical Support

1. Contact your local DIGITAL-LOGIC Technical Support, in your country.

2. Use the Internet Support Request form at http://support.digitallogic.ch/  embedded products  New

Support Request

Support requests are only accepted with detailed information about the product (i.e., BIOS-, Board-

version)!

1.7. Limited Two Year Warranty

DIGITAL-LOGIC AG guarantees the hardware and software products it manufactures and produces to be

free from defects in materials and workmanship for two years following the date of shipment from DIGITAL-

LOGIC AG, Switzerland. This warranty is limited to the original purchaser of the product and is not

transferable.

During the two year warranty period, DIGITAL-LOGIC AG will repair or replace, at its discretion, any

defective product or part at no additional charge, provided that the product is returned, shipping prepaid, to

DIGITAL-LOGIC AG. All replaced parts and products become property of DIGITAL-LOGIC AG.

Before returning any product for repair, direct customers of DIGITAL-LOGIC AG, Switzerland

are required to register a RMA (Return Material Authorization) number in the Support Center at

http://support.digitallogic.ch/

All other customers must contact their local distributors for returning defective materials.

This limited warranty does not extend to any product which has been damaged as a result of accident,

misuse, abuse (such as use of incorrect input voltages, wrong cabling, wrong polarity, improper or

insufficient ventilation, failure to follow the operating instructions that are provided by DIGITAL-LOGIC AG or

other contingencies beyond the control of DIGITAL-LOGIC AG), wrong connection, wrong information or as

a result of service or modification by anyone other than DIGITAL-LOGIC AG. Nor if the user has insufficient

knowledge of these technologies or has not consulted the product manuals or the technical support of

DIGITAL-LOGIC AG and therefore the product has been damaged.

Empty batteries (external and onboard), as well as all other battery failures, are not covered by this

manufacturer’s limited warranty.

Except, as directly set forth above, no other warranties are expressed or implied, including, but not limited to,

any implied warranty of merchantability and fitness for a particular purpose, and DIGITAL-LOGIC AG

expressly disclaims all warranties not stated herein. Under no circumstances will DIGITAL-LOGIC AG be

liable to the purchaser or any user for any damage, including any incidental or consequential damage,

expenses, lost profits, lost savings, or other damages arising out of the use or inability to use the product.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

1.8. Explanation of Symbols

CE Conformity

This symbol indicates that the product described in this manual is in compliance with all

applied CE standards.

Caution, Electric Shock!

This symbol and title warn of hazards due to electrical shocks (> 60V) when touching

products or parts of them. Failure to observe the precautions indicated and/or prescribed by

the law may endanger your life/health and/or result in damage to your equipment.

Caution, Electric Shock!

This symbol and title warn of hazards due to electrical shocks (> 32V) when touching

products or parts of them. Failure to observe the precautions indicated and/or prescribed by

the law may endanger your life/health and/or result in damage to your equipment

Warning, ESD Sensitive Device!

This symbol and title inform that electronic boards and their components are sensitive to

Electro Static Discharge (ESD). In order to ensure product integrity at all times, care must

always be taken while handling and examining this product.

Attention!

This symbol and title emphasize points which, if not fully understood and taken into

consideration by the reader, may endanger your health and/or result in damage to your

equipment.

Note...

This symbol and title emphasize aspects the user should read through carefully for his, or

her, own advantage.

Warning, Heat Sensitive Device!

This symbol indicates a heat sensitive component.

Safety Instructions

This symbol shows safety instructions for the operator to follow.

This symbol warns of general hazards from mechanical, electrical, and/or

chemical failure. This may endanger your life/health and/or result in damage

to your equipment.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

1.9. Applicable Documents and Standards

The following publications are used in conjunction with this manual. When any of the referenced

specifications are superseded by an approved revision, that revision shall apply. All documents may be

obtained from their respective organizations.

 Advanced Configuration and Power Interface Specification Revision 2.0c, August 25, 2003 Copyright

 ANSI/TIA/EIA-644-A-2001: Electrical Characteristics of Low Voltage Differential Signaling (LVDS)

Interface Circuits, January 1, 2001. http://www.ansi.org/

 ANSI INCITS 361-2002: AT Attachment with Packet Interface - 6 (ATA/ATAPI-6), November 1, 2002.

http://www.ansi.org/

 ANSI INCITS 376-2003: American National Standard for Information Technology – Serial Attached

SCSI (SAS), October 30, 2003. http://www.ansi.org/

reserved. http://www.intel.com/labs/media/audio/

 Display Data Channel Command Interface (DDC/CI) Standard (formerly DDC2Bi) Version 1, August

http://www.vesa.org/summary/sumddcci.htm

http://www.expresscard.org/

 IEEE 802.3-2002, IEEE Standard for Information technology, Telecommunications and information

exchange between systems–Local and metropolitan area networks–Specific requirements – Part 3:

Carrier Sense Multiple Access with Collision Detection (CSMA/CD) Access Method and Physical

Layer Specifications. http://www.ieee.org

 IEEE 802.3ae (Amendment to IEEE 802.3-2002), Part 3: Carrier Sense Multiple Access with Collision

Detection (CSMA/CD) Access Method and Physical Layer Specifications, Amendment: Media Access

Control (MAC) Parameters, Physical Layers, and Management Parameters for 10 GB/s Operation.

http://www.ieee.org

 PICMG® Policies and Procedures for Specification Development, Revision 2.0, September 14, 2004,

PCI Industrial Computer Manufacturers Group (PICMG®), 401 Edgewater Place, Suite 500,

Wakefield, MA 01880, USA, Tel: 781.224.1100, Fax: 781.224.1239. http://www.picmg.org/

2003, APT Technologies, Inc, Dell Computer Corporation, Intel Corporation, Maxtor Corporation,

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

 Smart Battery Data Specification Revision 1.1, December 11, 1998. www.sbs-forum.org

1998, 2000 Duracell, Inc., Energizer Power Systems, Inc., Fujitsu, Ltd., Intel Corporation, Linear

Technology Inc., Maxim Integrated Products, Mitsubishi Electric Semiconductor Company, Power-

http://www.smbus.org/

Corporation, Hewlett-Packard Company, Intel Corporation, Lucent Technologies Inc., Microsoft

http://www.usb.org/

1.10. For Your Safety

Your new DIGITAL-LOGIC product was developed and tested carefully to provide all features

necessary to ensure its compliance with electrical safety requirements. It was also designed for a

long, fault-free life. However, this life expectancy can be drastically reduced by improper treatment

during unpacking and installation. Therefore, in the interest of your own safety and for the correct

operation of your new DIGITAL-LOGIC product, please comply with the following guidelines.

Attention!

All work on this device must only be carried out by sufficiently skilled personnel.

Caution, Electric Shock!

Before installing your new DIGITAL-LOGIC product, always ensure that your mains power is

switched off. This applies also to the installation of piggybacks or peripherals. Serious

electrical shock hazards can exist during all installation, repair and maintenance operations

with this product. Therefore, always unplug the power cable and any other cables which

provide external voltage before performing work.

Warning, ESD Sensitive Device!

Electronic boards and their components are sensitive to static electricity. In order to ensure

product integrity at all times, be careful during all handling and examinations of this product.

1.11. RoHS Commitment

DIGITAL-LOGIC AG is committed to develop and produce environmentally friendly products according to the

Restriction of Hazardous Substances (RoHS) Directive (2002/95/EC) and the Waste Electrical and Electronic

Equipment (WEEE) Directive (2002/96/EC) established by the European Union. The RoHS directive was

adopted in February 2003 by the European Union and came into effect on July 1, 2006. It is not a law but a

directive, which restricts the use of six hazardous materials in the manufacturing of various types of

electronic and electrical equipment. It is closely linked with the Waste Electrical and Electronic Equipment

Directive (WEEE) 2002/96/EC, which has set targets for collection, recycling and recovery of electrical goods

and is part of a legislative initiative to solve the problem of huge amounts of toxic e-waste.

Each European Union member state is adopting its own enforcement and implementation policies using the

directive as a guide. Therefore, there could be as many different versions of the law as there are states in

the EU. Additionally, non-EU countries like China, Japan, or states in the U.S. such as California may have

their own regulations for green products, which are similar, but not identical, to the RoHS directive.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

RoHS is often referred to as the "lead-free" directive but it restricts the use of the following substances:

 Lead

 Mercury

 Cadmium

 Chromium VI

 PBB and PBDE

The maximum allowable concentration of any of the above mentioned substances is 0.1% (except for

Cadmium, which is limited to 0.01%) by weight of homogeneous material. This means that the limits do not

apply to the weight of the finished product, or even to a component but to any single substance that could

(theoretically) be separated mechanically.

1.11.1. RoHS Compatible Product Design

All DIGITAL-LOGIC standard products comply with RoHS legislation.

Since July 1, 2006, there has been a strict adherence to the use of RoHS compliant electronic and

mechanical components during the design-in phase of all DIGITAL-LOGIC standard products.

1.11.2. RoHS Compliant Production Process

DIGITAL-LOGIC selects external suppliers that are capable of producing RoHS compliant devices. These

capabilities are verified by:

1. A confirmation from the supplier indicating that their production processes and resulting devices are

RoHS compliant.

2. If there is any doubt of the RoHS compliancy, the concentration of the previously mentioned

substances in a produced device will be measured. These measurements are carried out by an

accredited laboratory.

1.11.3. WEEE Application

The WEEE directive is closely related to the RoHS directive and applies to the following devices:

 Large and small household appliances

 IT equipment

 Telecommunications equipment (although infrastructure equipment is exempt in some countries)

 Consumer equipment

 Lighting equipment – including light bulbs

 Electronic and electrical tools

 Toys, leisure and sports equipment

 Automatic dispensers

It does not apply to fixed industrial plants and tools. The compliance is the responsibility of the company that

brings the product to market, as defined in the directive. Components and sub-assemblies are not subject to

product compliance. In other words, since DIGITAL-LOGIC does not deliver ready-made products to end

users the WEEE directive is not applicable for DIGITAL-LOGIC. Users are nevertheless encouraged to

properly recycle all electronic products that have reached the end of their life cycle.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

1.12. Swiss Quality

 100% Made in Switzerland

 DIGITAL-LOGIC is a member of "Swiss-Label"

 This product was not manufactured by employees earning

piecework wages

 This product was manufactured in humane work conditions

 All employees who worked on this product are paid

customary Swiss market wages and are insured

 ISO 9000:2001 (quality management system)

1.13. The Swiss Association for Quality and Management

Systems

The Swiss Association for Quality and Management Systems (SQS) provides certification and assessment

services for all types of industries and services. SQS certificates are accepted worldwide thanks to

accreditation by the Swiss Accreditation Service (SAS), active membership in the International Certification

Network, IQNet, and co-operation contracts/agreements with accredited partners.

www.sqs.ch

The SQS Certificate ISO 9001:2000 has been issued to DIGITAL-LOGIC AG, the entire company, in the field

of development, manufacturing and sales of embedded computer boards, embedded computer modules and

computer systems. The certification is valid for three years at which time an audit is performed for

recertification.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2. OVERVIEW

2.1. Standard Features

The MICROSPACE PC/104 is a miniaturized modular device incorporating the major elements of a PC/AT

compatible computer. It includes standard PC/AT compatible elements, such as:

 Powerful PENTIUM -M from 600MHz up to 2GHz

 BIOS ROM

 DDRAM 128-1024MByte SODIMM 200pin

 1024/2048kByte second level cache

 Timers

 DMA

 Real-time clock with CMOS-RAM and 10 year battery buffer

 LPT1 parallel port

 COM1-, COM2- RS2332 serial port 16C550 comp.

 Speaker interface

 AT-keyboard interface or PS/2-keyboard interface

 Floppy disk interface

 AT-IDE hard disk interface

 VGA video interface

 6 channel sound interface AC97-V2.3

 100/10-Base-T LAN (second LAN interface on the MSM855B2 with an Intel 82551ER)

 PC/104 embedded BUS (8bit on the MSM855; 8/16bit on the MSM855B/B2)

 PS/2 mouse interface

 Power management functions AMP and ACPI

 6 channel USB V1.1 & V2.0

2.2. Unique Features

The MICROSPACE MSM855 includes all standard PC/AT functions plus unique DIGITAL-LOGIC AG

enhancements, such as:

 Single 5Volt supply

 Watchdog

 Power-fail detection

 EEPROM for setup and configuration

 IrDA

 Optional: Compact Card holder type 1

 UL approved parts

 Console redirection

2.3. Standards

This MICROSPACE product meets all standards for personal computer architecture.

Standard How to contact the organization Remarks

PC/104BUS www.pc104.org

USB www.usb.org

PCI www.pcisig.com

SMB www.smbus.org

WfM www.intel.com/labs/manage/wfm Wired for management baseline

AC97 www.developer.intel.com/ial/scalableplatforms/audio

LPC www.developer.intel.com/design/chipsets/industry/lpc.htm

ATA/ATAPI-6 www.t13.org

ACPI www.acpi.info Power management

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.4. Block Diagrams

2.4.1. SM855

2.4.2. MSM855

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.4.3. MSM855B

On the MSM855B/B2 there is a PCI to ISA bridge (not an LPC to ISA bridge).

2.4.4. MSM855B2

There is a second LAN chip (Intel 82551ER) assembled on the MSM855B2.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.5. Specifications

CPU

CPU Intel® Pentium®-M or Intel® Celeron-M

Compatibility 8086-PentiumM

1st Level Cache 16k data and 16k code

2nd Level Cache 1024/2048kByte

Socket SmartBus855 320pin

Clock MSM855-16 1600MHz (600MHz up to 2GHz available)

FSB 400MHz

Power management Yes, APM2.1 and ACPI 1.2

FPU Integrated

Chipset

Northbridge I from Intel

Southbridge ICH4 from Intel

LAN Integrated (comp. to 82C559 Intel)

On the MSM855B2 is an additional Intel 82551ER.

Audio AC97 – V2.3 5.1-Sound

Firewire IEEE1394 Not on board

Video Intel Extreme Graphics 2

DirectX-9 compatible, 64MByte Video-DDRAM

Memory

Main Memory 1x SODIMM200 socket

SDRAM, 64bit, up to 1024Mbyte stacked

Flash-BIOS 1024kByte Flash

Setup EEPROM 2kByte for CMOS-backup in battery-free applications

Flash-Video BIOS Serial-Flash

Video RAM 16MByte to 64MByte DDRAM

Video

Controller Intel Extreme Graphics 2 is integrated in the Intel 855GME chipset

Memory 64MB

Channel 1 CRT VGA up to 2048 x 1600 pixels

Channel 2 LVDS ,DVI, TV-Out  = with the MSM855-DVICON

Bootup-Resolution 640x480 / 800x600 / 1024x768

2D-Graphics Integrated accelerator

3D-Graphics Integrated accelerator

Direct-X, Version 9

PnP Integrated

External Interfaces

Video interfaces CRT1, DVO

USB V1.1/2.0 6 channels

LPT1 IEEE1293 Printer

COM1 RS232

COM2 RS232

Keyboard PS/2

Mouse PS/2

Floppy 26pin FCC Interface for TEAC Mini-floppy

Hard disk 1 channel, 44pin RM2.0mm ATAIDE-cable

Speaker 0.1Watt Speaker

ISA-Bus PC/104

PCI-Bus PC/104plus

LAN 10/100 Base-TX (from the SM855)

LAN 2 10/100 Base-TX (only available on the MSM855B2 with Intel's 82551ER)

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

Power Supply MSM855/B/B2

Input voltage Nominal 5V Tolerance +/- 3%

Input inrush current Typically 5Amp, inrush current 15Amp for power-up of 10ms

Protection Not integrated, EMI filter must be added externally

Specification None

3.3Volt power output Not available

Power Supply MSM855-HLV

Input voltage 5-32V (typically 24V) and 5V (tolerance +/- 3%)

Input inrush current

Protection Not integrated, EMI filter must be added externally

Specification MIL-Norm VG 96916-5

3.3Volt power output Not available

Power Consumption

At 5V (with 256MByte)

MSM855-16

typically 2.0Amp (10W) at 600MHz

typically 5.0Amp (25W) at 1600MHz

Standby Typically 0.5Amp

Power-off Typically 40mA

Physical Characteristics PC/104plus

Dimensions Length: 91mm

Depth: 99mm

Height: 25mm

Weight 170gr

Operating Environment

Relative Humidity 5-90% non condensing

IEC68-2-30 at -20° to +50°C, operating

Vibration, operating IEC68-2-6 10-50Hz, 0.075mm and 55-500Hz, 1.0G

Vibration, non-operating IEC68-2-6 10-50Hz, 0.15mm and 55-500Hz, 2.0G

Shock, operating IEC68-2-27 10G, 11ms ½ sine

Shock, non-operating IEC68-2-27 50G, 11ms, ½ sine

Altitude IEC68-2-13 4571meter operating

Temperature, operating IEC68-2-1,2,14 MSM855, standard -20°C to +60°C

Extended Temperature (option)

MIL-810-501/502 see separate table below

Temperature, storage IEC68-2-1,2,14 -65°C to +125°C 

 The back-up battery is limited on -40°C to

+80°C operating and storage temperatures

Operating Temperature MIL-810-501

MIL-810-502

Extended Temperature Range

MSM855-16 (600MHz)

-40°C to +70°C

Security

e1 Not planned

UL Not planned

ETS 301 Not planned

CE/SEV Yes

Safety AR385-16

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

EMI / EMC Tests

Provided all signals are externally filtered and assembled into a closed metallic housing!

EMC Emission EN61000-6-2:2001

Conducted Disturbance EN55022 Class B

Radiated Disturbance EN55022 Class B

EMC Immunity EN61000-6-2

ESD Electrostatic Discharge EN61000-4-2

Voltage = 4kV contact / 8kV air, Criteria A

RF Radiated Field EN61000-4-3

Level = 10V/m, Criteria A

EFT Electrical Fast Transient (Burst) EN61000-4-4

Grade 2: DC-Power lines = 1000V (5/50ns)

Grade 2: AC-Power lines = 2000V (5/50ns)

Grade 2: Signal lines = 500V (5/50ns)

Criteria B

Surge EN61000-4-5

Grade 2: DC-Power lines = 1kV, (1.2/50us)

Grade 2: AC-Power lines = 2kV, (1.2/50us)

Criteria B

Conducted Disturbances EN61000-4-6

Voltage = 10V coupled by case, Criteria A

All information is subject to change without notice.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6. Dimensions and Diagrams

2.6.1. MSM855/B/B2 (all versions)

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.2. MSM855/B/B2 with SM855

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.3. SM855

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.4. MSM855 LANCON

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.4.1. Mechanical Drawing

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.5. MSM855 USB connector PCB

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.6. MSM855 AUDIO/SPDIF connector PCB

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.7. MSM855-CKCON (USB-, AUDIO- and LAN connector print)

2.6.7.1. Mechanical Drawing

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.8. MSM855-DVICON V1.0

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.6.8.1. MSM855-DVICON mechanical drawing

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.7. MSM855/B/B2 Incompatibilities to a standard PC/AT

2.7.1. MSM855 / HLV

On the Intel855GME Design and in the PC-03 specification, no ISA-Bus is available. For the BIOS and the

SuperIO functions, the LPC-Bus is integrated. The LPC-Bus is a serialized ISA-Bus with some limitations.

Onboard is an LPC to ISA-Bridge integrated to generate a standard ISA-Bus. In using the combination of the

LPC-Bus and the LPC-Bridge there are some incompatibilities.

The LPC support the following bus cycles:

This means that all non-Busmaster I/Os and MEM Cycles are only 8bit wide and never 16bit wide. 16bit data

transfer is available in the BusMaster modus only.

2.7.2. ISA-Incompatibilitiy with ISA-PCCARD-Controller

Experience shows that ATA-Drives controlled in an ISA-PCMCIA Controller do not work.

Solution: Use a PCCARD-Controller on the PCI-Bus.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.7.3. ISA-Incompatibilitiy with 16bit I/O Transfer with FPGA-Decoder

Our experience shows that 16bit I/O-transfers decoded with an FPGA do not always work correct. Each case

must be tested..

Solution: Use two 8bit transfers instead one 16bit transfer. For time critical transfers we recommend using

the PCI-Bus.

2.7.4. ISA-Incompatibilitiy with 16bit Memory Transfer with FPGA-

Decoder

Experience shows that 16bit Memory-transfers decoded with an FPGA do not always work correctly. Each

case must be tested. Expect problems on odd addresses.

Solution: Use two 8bit transfers instead of one 16bit transfer. For time critical transfers we recommend

using the PCI-Bus.

2.7.5. Compatibilitiy with DIGITAL-LOGIC Peripheral ISA-Boards

Funktion Product Transfer Result Remarks

Serial MSMX104 8bit I/O Works fine -

CAN-Bus MSMCAN104 8bit I/O Works fine -

Ethernet MSME104 16bit I/O Works fine Int. Autoaddressincrement

Video MSMV104 16bit MEM Works fine -

PCMCIA MSMJ104 8/16bit I/O & MEM

Doesn’t work with ATA-Cards

Flash- and SRAM-Cards with

16bit MEM are ok

Sound Card

MSMM104 16bit I/O DMA Works fine

2.8. MSM855/B/B2/HLV Related Application Notes

Application Notes are available at http://www.digitallogic.com 



 support, or on any DIGITAL-LOGIC

Application CD from.

# Description

80 High frequency Radiation (to meet EN55022)

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.9. Thermoscan

Equipment:

Product Part Number Serial Number Version

MSM855 803010 46201010507 1.1

SM855-11P 1.1GHz 805161 45216110026 0.8

SM855-P378 1.4GHz 805164 45316410032 0.8

SODIMM DDR 1GB 870672 - -

Software Windows XP SP2 running desk top

MSM855-11P Top view

t [min] fCPU [MHz]

I [A] TSensor[°C]

TCPU[°C] THS[°C] P [W]

60 1100 3.65 65 69 63 18.6

MSM855-11P Bottom view:

t [min] fCPU [MHz]

I [A] TSensor[°C]

TCPU[°C] TKK[°C]

P [W]

60 1100 3.68 67 72 65 18.8

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

MSM855-738 Top view:

t [min] fCPU [MHz]

I [A] TSensor[°C]

TCPU[°C] THS[°C] P [W]

60 1400 3.58 42 47 32 18.3

MSM855-738 Bottom view:

t [min] fCPU [MHz]

I [A] TSensor[°C]

TCPU[°C] THS[°C] P [W]

60 1400 3.65 53 59 44 18.6

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.10. High Frequency Radiation (to meet EN55022/EN61000)

Since the PC/104 CPU modules are very highly integrated embedded computers, peripheral lines are not

protected against radiation from the high frequency spectrum. To meet a typical EN55022 requirement, all

peripherals that go outside of the computer case must be externally filtered.

Typical signals that must be filtered:

Keyboard: KBCLK, KBDATA, VCC

Mouse: MSCLK, MSDATA, VCC

COM1/2/3/4: All serial signals must be filtered

LPT: All parallel signals must be filtered

CRT: Red, blue, green, hsynch and vsynch must be filtered

Typical signals that must not be filtered, since they are used internally:

IDE: Connected to the hard disk

Floppy: Connected to the floppy

LCD: Connected to the internal LCD

2.10.1. For Peripheral Cables:

Use a filtered version for all DSUB connectors. Select the filter specifications carefully. Place the filtered

DSUB connector directly on the front side and be sure that the shielding makes good contact with the case.

9pin DSUB connector from AMPHENOL: FCC17E09P 820pF

25pin DSUB connector from AMPHENOL: FCC17B25P 820pF

2.10.2. For Stack-Through Applications:

On each peripheral signal line that goes outside the computer case, place a serial inductivity followed by a

grounded capacitor of 100pF to 1000pF. In this case, no filtered connectors are needed. Place the filter

directly under or behind the onboard connector.

Serial Inductivity: TDK HF50ACB321611-T 100Mhz, 500mA, 1206 Case

Ground capacitor: Ceramic Capacitor with 1000pF

2.10.3. Power Supply:

Use a current-compensated dual inductor on the 5V supply.

For more information, please see Section 5.1.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.11. RTC Battery Lifetime

An AT compatible date/time clock is located within the chipset. The device also contains a CMOS static RAM

compatible with that in standard ATs. System configuration data is normally stored in the clock chip's CMOS

RAM in a manner consistent with the convention used in other AT compatible computers.

There are two ways to connect an external 3.6V lithium battery.

1. The most commonly used connection:

MSM855

The LAN-adaptor includes the LAN-transformer and the lithium battery. We recommend connecting

the battery to J29 , the universal LAN-Adaptor-Connector. The LAN-adaptor and the LAN-cable are

included.

MSM855B/B2

There is an onboard battery socket for a BR1225.

2. Alternative connection:

Keyboard connector J8 (pin8 = battery 3.6V input, pin7 = GND).

If the the battery is connected to J8, the J29 must not be used to connect the RTC-battery.

The battery-backed clock may be set during the boot process by using DIGITAL-LOGIC's setup.

2.11.1. Maxell ER3 (MSM855)

Battery Specifications Lowest Temp.

-40°C

Nominal Temp.

+20°C

Highest Temp.

+85°C

Manufacturer pbq

Type ER10280

Capacity versus Temp. 8uA 850mAh 910mAh 850mAh

Voltage versus Temp. 8uA 3.5V 3.6V Ca. 3.6V

Nominal Values 3.6V / 450mAh / -40°C...~+85°C

Information is taken from the datasheet of the pbq ER10280

Product Temperature

°C

Battery Voltage

VCC (+5V)

switched ON

µA

VCC (+5V)

switched off

µA

MSM855

+25°C 3.6 0.1 8

-40°C 3.5 0.1 8

Battery Current

+85°C 3.6 0.1 8

+25°C >10 years >5 years

-40°C >10 years >4 years

Battery Lifetime

+85°C >10 years ~3 years

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

2.11.2. BR1225 (MSM855B/B2)

Battery Specifications Lowest Temp.

-30°C

Nominal Temp.

+20°C

Highest Temp.

+80°C

Manufacturer Various

Type BR1225

Capacity versus Temp. 7uA 35mAh 48mAh 50mAh

Voltage versus Temp. 7uA 2.6V 3V 3V

Nominal Values 3V / 48mAh / -30°C...~+80°C

Information taken from the datasheet of Panasonic BR1225

Product Temperature

°C

Battery Voltage

VCC (+5V)

switched ON

µA

VCC (+5V)

switched off

µA

MSM855B/B2

+25°C 3 0.1 7

-40°C 2.6 0.1 7

Battery Current

+85°C 3 0.1 7

+25°C >5 years ~280 days

-40°C >5 years ~210 days

Battery Lifetime

+85°C >5 years ~300 days

2.11.3. External Battery Assembly

If the customer wants to connect an external battery (check for the appropriate connector in Chapter 6),

some precautions must be taken:

 Do not use a rechargeable battery – the battery is prohibited from charging.

 The RTC device defines a voltage level of 2.0-3.6V, so use an external battery within this range

(inclusive of the diode which is already assembled onboard).

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

3. CHIPSET DESCRIPTION

3.1. INTEL Processor Pentium-M

The Intel® Pentium® M processor is a high-performance, low-power mobile processor with several micro-

architectural enhancements over existing Intel mobile processors.

The following is a list of some of the key features on this processor:

 Supports Intel® Architecture with Dynamic Execution

 High-performance, low-power core

 On-die, primary 32kByte instruction cache and 32kByte write-back data cache

 On-die, 1/2MByte 2nd level cache with Advanced Transfer Cache Architecture

 Advanced Branch Prediction and Data Prefetch Logic

 Streaming SIMD Extensions 2 (SSE2)

 400/533MHz, source-synchronous processor system bus

 Advanced Power Management features including Enhanced Intel® SpeedStep® technology

 Micro-FCPGA and Micro-FCBGA packaging technologies

The Intel Pentium M processor is manufactured on Intel’s advanced 0.13/0.09 micron process technology

with copper interconnect. The processor maintains support for MMX™ technology and Internet Streaming

SIMD instructions and full compatibility with IA-32 software. The high-performance core features architectural

innovations like Micro-op Fusion and Advanced Stack Management that reduce the number of micro-ops

handled by the processor. This results in more efficient scheduling and better performance at lower power.

The on-die 32kB Level 1 instruction and data caches and the 1MB Level 2 cache with Advanced Transfer

Cache Architecture enable significant performance improvement over existing mobile processors. The

processor also features a very advanced branch prediction architecture that significantly reduces the number

of mispredicted branches. The processor’s Data Prefetch Logic speculatively fetches data to the L2 cache

before an L1 cache requests occurs, resulting in reduced bus cycle penalties and improved performance.

The Streaming SIMD Extensions 2 (SSE2) enable break-through levels of performance in multimedia

applications including 3-D graphics, video decoding/encoding, and speech recognition. The new packed

double-precision floating-point instructions enhance performance for applications that require greater range

and precision, including scientific and engineering applications and advanced 3-D geometry techniques,

such as ray tracing.

The Intel Pentium M processor’s 400MHz processor system bus utilizes a split-transaction, deferred reply

protocol. The 400MHz processor system bus uses Source-Synchronous Transfer (SST) of address and data

to improve performance by transferring data four times per bus clock (4X data transfer rate, as in AGP 4X).

Along with the 4X data bus, the address bus can deliver addresses two times per bus clock and is referred to

as a “double-clocked” or 2X address bus. Working together, the 4X data bus and 2X address bus provide a

data bus bandwidth of up to 3.2GBytes/second. The processor system bus uses Advanced Gunning

Transceiver Logic (AGTL+) signal technology, a variant of GTL+ signalling technology with low power

enhancements.

Note: The term AGTL+ has been used for Assisted Gunning Transceiver Logic technology on other Intel

products.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

3.1.1. Introduction

The processor features Enhanced Intel SpeedStep technology, which enables real-time dynamic switching

between multiple voltage and frequency points instead of two points supported on previous versions of Intel

SpeedStep technology. This results in optimal performance without compromising low power. The processor

features the Auto Halt, Stop-Grant, Deep Sleep, and Deeper Sleep low-power states. The Intel Pentium M

processor utilizes socket-able Micro Flip-Chip Pin Grid Array (Micro-FCPGA) and surface mount Micro Flip-

Chip Ball Grid Array (Micro-FCBGA) package technology. The Micro-FCPGA package plugs into a 479-hole,

surface-mount, Zero Insertion Force (ZIF) socket, which is referred to as the mPGA479M socket.

This document includes specifications for the Intel Pentium M processor at Highest Frequency Mode (HFM)

core frequencies of 1.30, 1.40, 1.50, and 1.60GHz, the Low Voltage Intel Pentium M processor at HFM core

frequency of 1.10GHz and the Ultra Low Voltage Intel Pentium M processor at HFM core frequency of

900MHz.

3.1.2. Deep Sleep State

Deep Sleep state is a very low power state the processor can enter while maintaining context. Deep Sleep

state is entered by asserting the DPSLP# pin while in the Sleep state. BCLK may be stopped during the

Deep Sleep state for additional platform level power savings. BCLK stop/restart timings on Intel 855PM and

Intel 855GME chipset-based platforms are as follows:

Intel® Pentium® M Processor Datasheet 14

3.1.3. Low Power Features

 Deep Sleep entry - DPSLP# and CPU_STP# are asserted simultaneously. The platform clock chip will

stop/tristate BCLK within 2 BCLKs +/- a few nanoseconds.

 Deep Sleep exit - DPSLP# and CPU_STP# are deasserted simultaneously. The platform clock chip

will drive BCLK to differential DC levels within 2-3 ns and starts toggling BCLK 2-6 BCLK periods later.

To re-enter the Sleep state, the DPSLP# pin must be deasserted. BCLK can be re-started after DPSLP#

deassertion as described above. A period of 30 microseconds (to allow for PLL stabilization) must occur

before the processor can be considered to be in the Sleep state. Once in the Sleep state, the SLP# pin must

be deasserted to re-enter the Stop-Grant state. While in Deep Sleep state, the processor is incapable of

responding to snoop transactions or latching interrupt signals. No transitions of signals are allowed on the

system bus while the processor is in Deep Sleep state. Any transition on an input signal before the processor

has returned to Stop-Grant state will result in unpredictable behavior.

3.1.4. Deeper Sleep State

The Deeper Sleep state is the lowest power state the processor can enter. This state is functionally identical

to the Deep Sleep state but at a lower core voltage. The control signals to the voltage regulator to initiate a

transition to the Deeper Sleep state are provided on the platform. Please refer to the platform design guides

for details.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

3.1.5. Enhanced Intel® SpeedStep® Technology

(only available with Pentium-M CPUs, not with Celeron-M CPUs)

The Intel Pentium M processor features Enhanced Intel SpeedStep® technology. Unlike previous

implementations of Intel SpeedStep, this technology enables the processor to switch between multiple

frequency and voltage points instead of two. This enables superior performance with optimal power savings.

Switching between states is software controlled unlike previous implementations where the GHI# pin was

used to toggle between the two states.

The key features of Enhanced Intel SpeedStep technology are:

 Multiple voltage/frequency operating points provide optimal performance at the lowest power.

 Voltage/Frequency selection is software controlled by writing to processor MSR’s (Model Specific

Registers) thus eliminating chipset dependency.

o If the target frequency is higher than the current frequency, Vcc is ramped up by placing a new

value on the VID pins and the PLL then locks to the new frequency.

o If the target frequency is lower than the current frequency, the PLL locks to the new frequency

and the Vcc is changed through the VID pin mechanism.

o Software transitions are accepted at any time. If a previous transition is in progress, the new

transition is deferred until its completion.

 The processor controls voltage ramp rates internally to ensure glitch free transitions.

 Low transition latency and large number of transitions possible per second.

o Processor core (including L2 cache) is unavailable for up to 10 µs during the frequency transition

o The bus protocol (BNR# mechanism) is used to block snooping

Low Power Features:

 No bus master arbiter disable required prior to transition and no processor cache flush necessary.

 Improved Intel Thermal Monitor mode.

o When the on-die thermal sensor indicates that the die temperature is too high, the processor can

automatically perform a transition to a lower frequency/voltage specified in a software

programmable MSR.

o The processor waits for a fixed time period. If the die temperature is down to acceptable levels, an

up transition to the previous frequency/voltage point occurs.

o An interrupt is generated for the up and down Intel Thermal Monitor transitions enabling better

system level thermal management.

Enhancements:

 Dynamic PSB Power Down

 BPRI# control for address and control input buffers

 Dynamic On Die Termination disabling

 Low VCCP (I/O termination voltage) switching power at all times monitoring requirements in the

Deeper Sleep state.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

3.2. Graphic-Memory-Control Hub: INTEL 855GME

3.2.1. Processor Host Interface

The GMCH is optimized for the Intel Pentium M processor. Key features of the Intel Pentium M processor

system bus (PSB) are:

 Source synchronous double-pumped address.

 Source synchronous quad-pumped data.

 System bus interrupt delivery.

 Low voltage swing (Vtt = 1.05 V).

 Dynamic Power Down (DPWR#) support.

 GMCH supports a 64-B cache line size.

 Support for a 400MHz system bus frequency. Dual processor is not supported.

 Integrates AGTL+ termination resistors on all of the AGTL+ signals.

 Supports 64bit host bus addressing allowing the CPU to access the entire 4GB of the GMCH

memory address space.

 A 12-deep, In-Order queue to support up to twelve outstanding pipelined address requests on the

host bus.

 Drives DPWR# signal to the processor, which can then disable its sense amplifiers.

 Supports only one outstanding defer cycle at a time to any particular I/O interface.

 Host initiated I/O cycles are positively decoded to the GMCH configuration space and subtractively

decoded to the Hub Interface

 Host initiated memory cycles are positively decoded to DDR SDRAM.

 Memory accesses initiated from the Hub Interface to DDR SDRAM will be snooped on the system

bus.

3.2.2. Intel 855GME GMCH Host Bus Error Checking

The Intel 855GME GMCH does not generate, nor check, parity on Data, Address/Request, and Response

signals on the PSB.

3.2.3. Intel 855GME GMCH System Memory Interface

The GMCH System Memory Controller directly supports the following:

 One channel of PC1600/2100 SO-DIMM DDR SDRAM memory.

 DDR SDRAM devices with densities of 128, 256 and 512MB technology.

 Maximum System Memory with two, double-sided SO-DIMMs (four rows populated) supporting up

to 1GB system memory, and high density supporting up to 2GB system memory.

 Variable page sizes of 2, 4, 8 and 16kB. Page size is individually selectable for every row and a

maximum of 16 pages may be opened simultaneously

The GMCH System Memory interface supports a thermal throttling scheme to selectively throttle reads

and/or writes. Throttling can be triggered either by the on-die thermal sensor, or by preset write bandwidth

limits. Read throttle can also be triggered by an external input pin. The memory controller logic supports

aggressive Dynamic Row Power Down features to help reduce power and supports Address and Control line

Tri-stating when DDR SDRAM is in an active power-down or in self-refresh state. The GMCH System

Memory architecture is optimized to maintain open pages (up to 16kB page size) across multiple rows. As a

result, up to 16 pages across four rows is supported. To complement this, the GMCH will tend to keep pages

open within rows, or will only close a single bank on a page miss. The GMCH supports only four bank

memory technologies.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

3.2.4. Intel 855GME GMCH Internal Graphics

The GMCH IGD provides a highly integrated graphics accelerator delivering high performance 2D, 3D, and

video capabilities. With its interfaces to UMA using a DVMT configuration, an analog display, a LVDS port,

and two digital display ports (e.g., flat panel), the GMCH can provide a complete graphics solution.

The GMCH also provides 2D hardware acceleration for block transfers of data (BLTs). The BLT engine

provides the ability to copy a source block of data to a destination and perform raster operations (e.g.,

ROP1, ROP2, and ROP3) on the data using a pattern, and/or another destination. Performing these

common tasks in hardware reduces CPU load, and thus improves performance. High bandwidth access to

data is provided through the System Memory interface. The GMCH uses Tiling architecture to increase

System Memory efficiency and thus maximize effective rendering bandwidth. The Intel 855GME GMCH also

improves 3D performance and quality with 3D Zone Rendering technology.

The GMCH has four display ports, one analog and three digital. These provide support for a progressive

scan analog monitor, a dedicated dual channel LVDS LCD panel, and two DVO devices. Each port can

transmit data according to one or more protocols. The DVO ports are connected to an external device that

converts one protocol to another. Examples of this are TV-out encoders, external DACs, LVDS transmitters,

and TMDS transmitters. Each display port has control signals that may be used to control, configure and/or

determine the capabilities of an external device. The data that is sent out the display port is selected from

one of the two possible sources, Pipe A or Pipe B.

3.2.5. Intel 855GME GMCH Analog Display Port

Intel 855GME GMCH has an integrated 350MHz, 24bit RAMDAC that can directly drive a progressive scan

analog monitor pixel resolution up to 2048x1600 at 85Hz refresh and up to 2048x1536 at 72Hz refresh. The

analog display port can be driven by Pipe A or Pipe B.

3.2.6. Intel 855GME GMCH Integrated DVO Ports

The DVO B/C interface is compliant with the DVI Specification 1.0. When combined with a DVI compliant

external device (e.g., TMDS Flat Panel Transmitter, TV-out encoder, etc.), the GMCH provides a high-speed

interface to a digital or analog display (e.g., flat panel, TV monitor, etc.).

The GMCH provides two DVO ports that are each capable of driving a 165MHz pixel clock at the DVO B or

DVO C interface. When DVO B and DVO C are combined into a single DVO port, then an effective pixel rate

of 330MHz can be achieved. The DVO B/C ports can be driven by Pipe A or Pipe B. If driven on Pipe B, then

the LVDS port must be disabled.

3.2.7. Hub Interface

A proprietary interconnect connects the GMCH to the ICH4-M. All communication between the GMCH and

the ICH4-M occurs over the Hub Interface 1.5. The Hub Interface runs at 66MHz (266MB/s).

3.2.8. Address Decode Policies

Host initiated I/O cycles are positively decoded to the GMCH configuration space and subtractively decoded

to the Hub Interface. Host initiated System Memory cycles are positively decoded to DDR SDRAM and are

again subtractively decoded to the Hub Interface if under 4GB. System Memory accesses from the Hub

Interface to DDR SDRAM will be snooped on the PSB.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

3.3. IO Control Hub Intel-ICH4M / ICH4

Features:

PCI Bus Interface Supports PCI Revision 2.2 Specification at 33MHz

133MB/sec maximum throughput

Supports up to six master devices on PCI

One PCI REQ/GNT pair can be given higher arbitration priority

(intended for external 1394 host controller)

Support for 44bit addressing on PCI using DAC protocol

Integrated LAN Controller WfM 2.0 and IEEE 802.3 compliant

LAN Connect Interface (LCI)

10/100Mbit/sec ethernet support

Integrated IDE Controller Supports "Native Mode” register and interrupts

Independent timing of up to 4 drives, with separate primary and

secondary IDE cable connections

Ultra ATA/100/66/33, BMIDE and PIO modes

Tri-state modes to enable swap bay

USB Includes three UHCI host controllers that support six external ports

New: Includes one EHCI high-speed USB 2.0 Host Controller that

supports all six ports

New: Supports a USB 2.0 high-speed debug port

Supports wake-up from sleeping states S1-S5

Supports legacy keyboard/mouse software

AC-Link for Audio CODECs Supports AC ’97 2.3

New: Third AC_SDATA_IN line for three codec support

New: Independent bus master logic for seven channels (PCM In/Out,

Mic 1 input, Mic 2 input, modem in/out, S/PDIF out)

Separate independent PCI functions for audio and modem

Support for up to six channels of PCM audio output (full AC3 decode)

Supports wake-up events

Interrupt Controller Support up to eight PCI interrupt pins

Supports PCI 2.2 message signaled interrupts

Two cascaded 82C59 with 15 interrupts

Integrated I/O APIC capability with 24 interrupts

Supports serial interrupt protocol

Supports processor system bus interrupt delivery

New: 1.5 V operation with 3.3 V I/O

5V tolerant buffers on IDE, PCI, USB overcurrent and legacy signals

Timers Based on 82C54 System timer, refresh request, speaker tone output

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

Power Management Logic ACPI 2.0 compliant

ACPI-defined power states (C1-C2, S3-S5)

Supports Desktop S1 state (like C2 state, only STPCLK# active)

ACPI power management timer

PCI PME# support

SMI# generation

All registers readable/restorable for proper resume from 0V suspend

states

External Glue Integration Integrated pull-up, pull-down and series termination resistors on IDE,

processor interface

Integrated pull-down and series resistors on USB

Enhanced Hub Interface Buffers improve routing flexibility (Not available with all MemController Hubs)

Firmware Hub (FWH) Interface supports BIOS memory size up to 8MB

Low Pin Count (LPC) Interface Supports two Master/DMA devices

Enhanced DMA Controller Two cascaded 8237 DMA controllers

PCI DMA: Supports PC/PCI (Includes two PC/PCI REQ#/GNT# pairs)

Supports LPC DMA

Supports DMA collection buffer to provide Type-F DMA performance

for all DMA channels

Real-Time Clock 256Byte battery-backed CMOS RAM

System TCO Reduction Circuits Timers to generate SMI# and Reset upon detection of system hang

Timers to detect improper processor reset

Supports ability to disable external devices

SMBus New: Hardware packet error checking

New: Supports SMBus 2.0 Specification

Host interface allows processor to communicate via SMBus

Slave interface allows an external microcontroller to access system

resources

Compatible with most 2-wire components that are also I2C compatible

GPIO TTL, open-drain, inversion

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

4. BUS SIGNALS

4.1. PC104 Bus

Note...

Not all of the signals are available on this board (please see Chapter 6 for a description of

the connectors).

AEN, output

Address Enable: used to degate the microprocessor and other devices from the I/O channel to allow

DMA transfers to take place. low = CPU Cycle, high = DMA Cycle

BALE, output

Address Latch Enable: provided by the bus controller and used on the system board to latch valid

addresses and memory decodes from the microprocessor. This signal is used so that devices on the

bus can latch LA17-23. The SA0-19 address lines latch internally according to this signal. BALE is

forced high during DMA cycles.

/DACK[0, 5-7], output

DMA Acknowledge: 0 to 3 and 5 to 7 are used to acknowledge DMA requests (DRQO through DRQ7).

They are active low. This signal indicates that the DMA operation can begin.

DRQ[0, 5-7], input

DMA Requests: 0 through 3 and 5 through 7 are asynchronous channel requests used by peripheral

devices and the I/O channel microprocessors to gain DMA service (or control of the system). A

request is generated by bringing a DRQ line to an active level. A DRQ line must be held high until the

corresponding DMA Request Acknowledge (DACK/) line goes active. DRQO through DRQ3 will

perform 8bit DMA transfers; DRQ5-7 are used for 16 accesses.

/IOCHCK, input

IOCHCK/: provides the system board with parity (error) information about memory or devices on the

I/O channel. low = parity error, high = normal operation

IOCHRDY, input

I/O Channel Ready: pulled low (not ready) by a memory or I/O device to lengthen I/O or memory

cycles. Any slow device using this line should drive it low immediately upon detecting its valid address

and a Read or Write command. Machine cycles are extended by an integral number of one clock cycle

(67 nanoseconds). This signal should be held in the range of 125-15600nS. low = wait, high =

normal operation

/IOCS16, input

I/O 16 Bit Chip Select: signals the system board that the present data transfer is a 16bit, 1 wait-state,

I/0 cycle. It is derived from an address decode. /IOCS16 is active low and should be driven with an

open collector (300 ohm pull-up) or tri-state driver capable of sinking 20mA. The signal is driven based

only on SA15-SAO (not /IOR or /IOW) when AEN is not asserted. In the 8bit I/O transfer, the default

transfers a 4 wait-state cycle.

/IOR, input/output

I/O Read instructs an I/O device to drive its data onto the data bus. It may be driven by the system

microprocessor or DMA controller, or by a microprocessor or DMA controller resident on the I/O

channel. This signal is active low.

/IOW, input/output

I/O Write: instructs an I/O device to read the data on the data bus. It may be driven by any

microprocessor or DMA controller in the system. This signal is active low.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

IRQ [10, 12, 14, 15], input

These signals are used to tell the microprocessor that an I/O device needs attention. An interrupt

request is generated when an IRQ line is raised from low to high. The line must be held high until

the microprocessor acknowledges the interrupt request.

/Master, input

This signal is used with a DRQ line to gain control of the system. A processor or DMA controller on the

I/0 channel may issue a DRQ to a DMA channel in cascade mode and receive a /DACK.

/MEMCS16, input

MEMCS16 Chip Select: signals the system board if the present data transfer is a 1 wait-state, 16bit,

memory cycle. It must be derived from the decode of LA17 through LA23. /MEMCS16 should be

driven with an open collector (300 ohm pull-up) or tri-state driver capable of sinking 20mA.

/MEMR, input/output

These signals instruct the memory devices to drive data onto the data bus. /MEMR is active on all

memory read cycles. /MEMR may be driven by any microprocessor or DMA controller in the system.

When a microprocessor on the I/0 channel wishes to drive /MEMR, it must have the address lines

valid on the bus for one system clock period before driving /MEMR active. These signals are active

low.

/MEMW, input/output

These signals instruct the memory devices to store the data present on the data bus. /MEMW is active

in all memory read cycles. /MEMW may be driven by any microprocessor or DMA controller in the

system. When a microprocessor on the I/O channel wishes to drive /MEMW, it must have the address

lines valid on the bus for one system clock period before driving /MEMW active. Both signals are

active low.

OSC, output

Oscillator (OSC): a high-speed clock with a 70 nanosecond period (14.31818 MHz). This signal is not

synchronous with the system clock. It has a 50% duty cycle. OSC starts 100µs after reset is inactive.

RESETDRV, output

Reset Drive: used to reset or initiate system logic at power-up time or during a low line-voltage outage.

This signal is active high. When the signal is active all adapters should turn off or tri-state all drivers

connected to the I/O channel. This signal is driven by the permanent Master.

/REFRESH, input/output

These signals are used to indicate a refresh cycle and can be driven by a microprocessor on the I/0

channel. These signals are active low.

SA0-SA19, LA17 - LA23 input/output

Address bits 0 through 19 are used to address memory and I/0 devices within the system. These 20

address lines, allow access of up to 1MBytes of memory. SAO through SA19 are gated on the system

bus when BALE is high and are latched on the falling edge of BALE. LA17 to LA23 are not latched and

addresses the full 16MByte range. These signals are generated by the microprocessors or DMA

controllers. They may also be driven by other microprocessor or DMA controllers that reside on the I/0

channel. The SA17-SA23 are always LA17-LA23 address timings for use with the MSCS16 signal.

This is advanced AT96 design. The timing is selectable with jumpers LAxx or SAxx.

/SBHE, input/output

Bus High Enable (system): indicates a transfer of data on the upper byte of the data bus, XD8 through

XD15. Sixteen-bit devices use /SBHE to condition data-bus buffers tied to XD8 through XD15.

SD[0-15], input/output

These signals provide bus bits 0 through 15 for the microprocessor, memory, and I/0 devices. D0 is

the least significant bit and D15 is the most significant bit. All 8bit devices on the I/O channel should

use D0 through D7 for communications to the microprocessor. The 16bit devices will use D0 through

D15. To support 8bit devices, the data on D8 through D15 will be gated to D0 through D7 during 8bit

transfers to these devices; 16bit microprocessor transfers to 8bit devices will be converted to two 8bit

transfers.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

/SMEMR, input/output

These signals instruct the memory devices to drive data onto the data bus for the first MByte. /SMEMR

is active on all memory read cycles. /SMEMR may be driven by any microprocessor or DMA controller

in the system. When a microprocessor on the I/0 channel wishes to drive /SMEMR, it must have the

address lines valid on the bus for one system clock period before driving /SMEMR active. The signal is

active low.

/SMEMW, input/output

These signals instruct the memory devices to store the data present on the data bus for the first

MByte. /SMEMW is active in all memory read cycles. /SMEMW may be driven by any microprocessor

or DMA controller in the system. When a microprocessor on the I/O channel wishes to drive /SMEMW,

it must have the address lines valid on the bus for one system clock period before driving /SMEMW

active. Both signals are active low.

SYSCLK, output

This is an 8MHz system clock. It is a synchronous microprocessor cycle clock with a cycle time of 167

nanoseconds. The clock has a 66% duty cycle. This signal should only be used for synchronization.

TC, output

Terminal Count: provides a pulse when the terminal count for any DMA channel is reached. The TC

completes a DMA-Transfer. This signal is expected by the onboard floppy disk controller. Do not use

this signal, because it is internally connected to the floppy controller.

/0WS, input

The Zero Wait State (/0WS) signal tells the microprocessor that it can complete the present bus cycle

without inserting any additional wait cycles. In order to run a memory cycle to a 16bit device without

wait cycles, /0WS is derived from an address decode gated with a Read or Write command. In order to

run a memory cycle to an 8bit device with a minimum of one-wait states, /OWS should be driven active

one system clock after the Read or Write command is active, gated with the address decode for the

device. Memory Read and Write commands to an 8bit device are active on the falling edge of the

system clock. /0WS is active low and should be driven with an open collector or tri-state driver

capable of sinking 20mA.

12V, +/- 5%

This signal is used only for the flat panel supply.

GROUND = 0V

This is used for the entire system.

VCC, +5V +/- 0.25V

This signal is used for logic and hard/floppy disk supply.

For further information about PC/104 and PC/104plus, please refer to the PC/104 Specification

Manual which is available on the internet: http://www.digitallogic.com (manuals).

4.2. Expansion Bus

The bus currents and maximum lengths are as follows:

Output Signals Voltage / Current Maximum Length

ISA-BUS  (8MHz) 5.0V @ 8mA 50cm terminated

PCI-BUS (33MHz) 3.3V 30cm

LPC-Bus 3.3V 2mA 5cm

ATA-HD (33 Ohm termination onboard) 3.3V 20cm

USB 3.3V 6meter

 for bus lengths > 10cm an AC-Bus termination is required.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

4.3. Addressing PCI Devices

4.3.1. MSM855/HLV

DEVICE IDSEL PIRQ #REG #GNT Remarks

Internal Chipset PCI Devices and Resources

GMCH Internal A / B / C / D - - PCI Bus 0

AGP Controller Internal A / B - - PCI Bus 0

Graphics Controller Internal A / B - - PCI Bus 0

ICH4_USB Controller Internal A / D / C / H - - PCI Bus 0

Func 0 = USB0 mapped to PIRQA

Func 1 = USB1 mapped to PIRQD

Func 2 = USB2 mapped to PIRQC

Func 7 = USB3 mapped to PIRQH

ICH4_PCI Controller Internal A / B / C / D - - PCI Bus 0

ICH4_LPC Controller C / B - - PCI Bus 0

IDE mapped to PIRQC

SMB mapped to PIRQB

AC97 Audio mapped to PIRQB

AC97 Modem mapped to PIRQB

Network AD24 E - - Internal chipset onboard device

External PCI Slots

PC/104+ Slot 1 AD20 E / F / G / H 0-4 0-4 PCI Bus 2

PC/104+ Slot 2 AD21 F / G / H / E 0-4 0-4 PCI Bus 2

PC/104+ Slot 3 AD22 G / H / E / F 0-4 0-4 PCI Bus 2

PC/104+ Slot 4 AD23 H / E / F / G 0-4 0-4 PCI Bus 2

Separate PCI Controller onboard:

DEVICE IDSEL PIRQ #REG #GNT Remarks

Firewire AD29 Not onboard

MiniPCI AD27 Not onboard

LAN2 AD26 Not onboard

LAN3 AD25 Not onboard

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

4.3.2. MSM855B/B2:

DEVICE IDSEL PIRQ #REG #GNT Remarks

Internal Chipset PCI Devices and Resources

GMCH Internal A / B / C / D - - PCI Bus 0

AGP Controller Internal A / B - - PCI Bus 0

Graphics Controller Internal A / B - - PCI Bus 0

ICH4_USB Controller Internal A / D / C / H - - PCI Bus 0

Func 0 = USB0 mapped to PIRQA

Func 1 = USB1 mapped to PIRQD

Func 2 = USB2 mapped to PIRQC

Func 7 = USB3 mapped to PIRQH

ICH4_PCI Controller Internal A / B / C / D - - PCI Bus 0

ICH4_LPC Controller C / B - - PCI Bus 0

IDE mapped to PIRQC

SMB mapped to PIRQB

AC97 Audio mapped to PIRQB

AC97 Modem mapped to PIRQB

Network AD24 E - - Internal chipset onboard device

Network AD26 B 2 2 Only on MSM855B2

PCI to ISA Bridge AD22 3 3

External PCI Slots

PC/104+ Slot 1 AD20 E / F / G / H 0-4 0-4 PCI Bus 2

PC/104+ Slot 2 AD21 F / G / H / E 0-4 0-4 PCI Bus 2

PC/104+ Slot 3 NOT AVAILABLE

PC/104+ Slot 4 AD23 H / E / F / G 0-4 0-4 PCI Bus 2

Separate PCI Controller onboard:

DEVICE IDSEL PIRQ #REG #GNT Remarks

Firewire AD29 Not onboard

MiniPCI AD27 Not onboard

LAN2  AD26 Not onboard

LAN3 AD25 Not onboard

 not available on MSM855B2

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5. DETAILED SYSTEM DESCRIPTION

This system's configuration is based on the ISA and PCI architecture. Read all information carefully as this is

very new computer technology.

5.1. Power Requirements

This product is an ATX-compatible PC and may only be provided through the power supply connector X8 or

X14/X15 with 5Volts if using the ATX- or ACPI features.

If you do not use the ATX- or ACPI features power may also be provided to the board through the PC104

BUS.

If using the MSMPS104 power supply from DIGITAL-LOGIC, then the ATX- or ACPI features are also

supported on the PC104 BUS.

Attention!

The Pentium-M is a very fast-changing, high-performance processor. The input current is a

direct function of the selected performance. The power supply must be capable of delivering the

maximum possible current (approximately 8Amp). Futhermore the supply must be able to

deliver the inrush current at power-on phase. The inrush current of 15Amp is very high but short

(only a few milliseconds).

We recommend the following power supplies:

1. PC104 PSU: MSMPS104 Part Nr.: 806032 – without UPS function

Part Nr.: 806030 – with UPS function

2. Laboratory PSU: EA-PS 1016-100 (0-16V/10A) http://www.elektroautomatik.de

3. AC/DC Switching PSU: TRACO TOL75-05 (5V/15A/75W) http://www.tracopower.com

5.1.1. Power Supply Cords

Power supply cords must be capable of fulfilling the voltage tolerance over the entire performance ratio. That

means not more than 100mV voltage drop at 8Ampere.

Since board V1.0, we recommend using the X14/X15 connectors to supply the board!

Note…

If you use connector X8: it is important to connect Pin2 and Pin8 of the power supply with +5Volt

and also connect Pin1 and Pin7 with ground. We recommend using a 4-wire cable, not longer

than 20cm, to the power supply.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.1.2. Typical Power Consumption

System with 2.5”-hard disk, CD-drive, PS2-KB&MS, 256MB-DDRAM, Pentium-M-1.6GHz CPU

Mode Power Consumption CPU-Performance Remarks

Booted under DOS 5V / 5Amp 1.6GHz No power management

Booted under XP and

idle in the desktop 5V / 2Amp Reduced to 0.6GHz ACPI power management

Stress test under XP 5V / 7Amp peak 1.6GHz and full

video performance

Standby from XP 5V / 0.8Amp CPU sleeps Not working

Average power 5V / 3Amp = 15Watt Office programs with more

than 80% idle time

Peripheral requirements

Device Quantity Power Consumption Remarks

USB 6 0.5A / 5V each Total 15W

Keyboard / Mouse 1 / 1 0.1A / 5V each Total 1W

HDD 80GB 1 4.7W (start-up) 2.3W (typical)

CDRW-DVD combo drive 1 0.9A / 5V 4.5W

5.1.3. Minimum Power-Off Time

Attention!

If the power is switched off, there must be a minimum 10 second off period.

All capacitors must be fully discharged before a new power-on is performed.

5.1.4. ATX–Compatible Power Function

Pin Signal Pin Signal

Pin 1 Main switch * Pin 2 GND

Pin 3 Power button **

* J16 default setting: closed by a jumper between Pins 1 and 2. If this jumper is closed until the main supply

comes up, the computer system starts by booting.

If you want to use a push button to start the system:

If this jumper is open until the main supply comes up, the board will not start. You must connect a

push button (main button) to Pin 1-2. After pushing the main button, the board will start. (If you press

the main button for more than 4 seconds, the power will switch off.)

** If you want to use the PWRBTN signal (i.e. in W2k or XP), you must connect another push button to Pins

2-3 of Jumper J16 in order to shut down the Windows OS at the push of the button.

Attention!

After the system is shut down using the power button; to restart, the main button (connected to Pins

1-2) must be used.

The PWRBTN signal is low active and internally pulled to 3.3Volt.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.1.5. MSM855-HLV-Input (High Level Voltage Input)

Note…

This product is only available with a separate part number (803012). For more information, please

contact your DIGITAL-LOGIC sales partner.

This product is also a MIL VG 96916-5-compatible PC. The board must be supplied through the power

supply connector or X14/X15 with 5-24Volt and 5V through the power pins of the PC104 bus.

The power dissipation of enclosed systems usually used for military mobile applications (24VDC supply) is

very critical depending on the system heat, especially in a harsh environment. For the thermal design power

(TDP) of the complete system, one must also be careful of the loss of DC/DC converters.

Starting with MSM855 Version 1.2, DIGITAL-LOGIC has solved this problem by providing HLV-Input which

allows the possibility of supplying the CPU board directly with 5-24V (approved to MIL VG 96916-5) on the

branch of the high power-consuming supply. For the additional peripheral 5V, a DC/DC converter with only

10W (instead 50-75W) can be used.

We recommend the following DC/DC converter: Eracom RP10S_DEW www.recom-international.de

PC104

MSM855

DC/DC

+5VDC / 50Watt

DC/DC

+24VDC /

60Watt

Other system components

+20..24VDC / 100Watt

PC104

Peripheral

3-6Watt loss

Typical configuration with a MSM855

PC104

MSM855

with

HLV-Input

DC/DC

+5VDC / 10Watt

DC/DC

+24VDC /

60Watt

+20..24VDC / 100Watt

PC104

Peripheral

0.5-1Watt loss

Optimized configuration with the MSM855-HLV-Input

Other system components

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.1.6. MSMPS104 (PC104 power supply)

Below is the description of how to connect and configure the MSMPS104 to an MSM855.

5.1.6.1. Necessary Parts

 MSMPS104, Part Nr. 806032

 MSM855, Part Nr. 803010

 MSM855-CK Cable Kit, Part Nor. 802032

 Spacerkit-PC/104, Part Nr. 802050

 Spacerkit-PC/104-Plus, Part Nr. 802051

(if option PC/104-Plus with connector long [Part Nr. 807006] is installed)

5.1.6.2. Procedure

1. Remove Jumper J2

2. Press the two 2x20 Pin and

the 2x32 Pin sockets in the

PC/104 connector of the

MSMPS104 board.

Press the 4x30 Pin socket in

the PC/104-Plus connector if

that option is installed.

Mount the four threaded

standoffs with four nuts on

the MSMPS104 board.

Place the MSM855 board on

the PC/104 connector of the

MSMPS104 and press it

down.

Fix the MSM855 board with

four screws on the threaded

standoffs.

Connect both boards

together with the cables

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.2. Boot Time

System Boot-Times:

Definitions/Boot-Medium Quick Boot* Normal Boot

MSM855-1600MHz with RTC-backup battery

Memory 256MB shared 8MB for video

time [s] time [s]

From Floppy disk:

Boot from Setup-Disk1 MS-DOS v6.22 to "Starting MS-DOS“-Prompt 10 26

Boot from Setup-Disk1 MS-DOS v6.22 to "Welcome Setup Screen“-Prompt 30 45

Boot from "(Sys a:)-Disk“ to "A:/>“-Prompt 18 33

From Hard disk-Toshiba MK2110MAF:

Boot from Hard disk to "Starting MS-DOS“-Prompt 10 26

Boot from Hard disk to "Win2000: Windows-Login“-Prompt 80 95

From CompactFlash SunDisk SDCFB-64-101-00 64MB:

Boot from CF to "Starting MS-DOS“-Prompt 10 26

Boot from CF to "C:\>“-Prompt 13 29

5.3. Interfaces

5.3.1. AT Compatible Keyboard and PS/2 Mouse

Pin Signal

1 Speaker out

2 GND

3 External reset input

4 VCC

5 Keyboard Data

6 Keyboard Clock

7 GND

8 External Battery

9 Mouse Clock (PS/2)

10 Mouse Data (PS/2)

5.3.2. Line Printer Port LPT1

A standard bi-directional LPT port is integrated into the MICROSPACE PC.

Further information about these signals is available in numerous publications, including the IBM technical

reference manuals for the PC and AT computers and from other reference documents.

The current is: IOH = 12mA IOL = 24mA

The SMC 37C672 may be programmed via software commands. In the new BIOS version, this selection may

be controlled with the BIOS setup screen.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.3.3. Serial Ports COM1-COM2

The serial channels are fully compatible with 16C550 UARTS. COM1 is the primary serial port, and is

supported by the board's ROM-BIOS as the PC-DOS 'COM1' device. The secondary serial port is COM2; it

is supported as the 'COM2' device.

Standard: COM 1/2: SMC 37C672: 2 x 16C550 compatible serial interfaces

Serial Port Connectors COM1, COM2

Pin Signal Name Function in/out DB25 Pin

DB9 Pin

1 CD Data Carrier Detect in 8 1

2 DSR Data Set Ready in 6 6

3 RXD Receive Data in 3 2

4 RTS Request To Send out 4 7

5 TXD Transmit Data out 2 3

6 CTS Clear to Send in 5 8

7 DTR Data Terminal Ready out 20 4

8 RI Ring Indicator in 22 9

9 GND Signal Ground 7 5

10 nc

The serial port signals are compatible with the RS232C specifications.

5.3.4. Floppy Disk Interface

The onboard floppy disk controller and ROM-BIOS support one or two floppy disk drives in any of the

standard PC-DOS and MS-DOS formats shown in the table.

Supported Floppy Formats

Capacity Drive size Tracks Data rate DOS version

1.2MB 5-1/4" 80 500 KHz 3.0 - 6.22

720K 3-1/2" 80 250 KHz 3.2 - 6.22

1.4M 3-1/2" 80 500 KHz 3.3 - 6.22

Floppy Interface Configuration

The desired configuration of floppy drives (number and type) must be properly initialized in the board's

CMOS - configuration memory. This is generally done by using DEL or F2 at boot-up time.

Floppy Interface Connector

The table shows the pin-out and signal definitions of the board's floppy disk interface connector. It is

identical in pin-out to the floppy connector of a standard AT. Note that, as in a standard PC or AT, both

floppy drives are jumpered to the same drive select: as the 'second' drive. The drives are uniquely

selected as a result of a swapping of a group of seven wires (conductors 10-16) that must be in the

cable between the two drives. The seven-wire swap goes between the computer board and drive 'A';

the wires to drive 'B' are unswapped (or swapped a second time). The 26pin high density (1mm pitch

FCC) connector has only one drive and motor select. The onboard jumper defines the drive A: or B:.

Default is always A:.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

Floppy Disk Interface Technology

Only CMOS drives are supported. This means that the termination resistors are 1 KOhm and 5 1/4“-

drives are not recommended (TTL interface).

The 26pin connector: FFC/FPC 0.3mm thick 1.0mm (0.039") pitch (MOLEX 52030 Serie)

Floppy Disk Interface Connector

FD26: Pin Signal Name Function in/out

1 VCC +5Volt

2 IDX Index Pulse in

3 VCC +5Volt

4 DS2 Drive Select 2 out

5 VCC +5Volt

6 DCHG Disk Change in

10 M02 Motor On 2 out

12 DIRC Direction Select out

14 STEP Step out

16 WD Write Data out

17 GND Signal grounds

18 WE Write Enable out

19 GND Signal grounds

20 TRKO Track 0 in

21 GND Signal grounds

22 WP Write Protect in

23 GND Signal grounds

24 RDD Read Data in

25 GND Signal grounds

26 HS Head Select out

5.3.5. Speaker Interface

One of the board's CPU devices provides the logic for a PC compatible speaker port. The speaker logic

signal is buffered by a transistor amplifier, and provides approximately 0.1Watt of audio power to an external

8 Ohm speaker. Connect the speaker between VCC and speaker output to have no quiescient current.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.3.6. 6 Port USB V2.0

USB cable connection

5.3.6.1. USB Interface Protection

Since the MSM855B and the MSM855 V1.3, this protection is implemented in the PCB

For all other versions of the MSM855:

The following is an example of a USB protection circuit (for two USB channels).

Attention!

This circuit must be implemented by the customer or it's possible the USB port or USB devices will

be destroyed (i.e., due to over voltage).

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.3.6.2. Part List

Part Value Link

C 63, C72 22uF

C64, C73 100nF

D3, D4, D5, D6 PGB0010603MR http://www.littelfuse.com/

LC1 DLP31DN201ML4 http://www.murata.com/

X11 is a double USB connector; depending on the version, this connector may vary slightly.

5.3.6.3. Signal Description

Signal Description

USBPWR0 USB VCC 5V (Channel 1)

USBPWR1 USB VCC 5V (Channel 2)

USB_P0P USB Data + (Channel1)

USB_P0N USB Data - (Channel 1)

USB_P1P USB Data + (Channel 2)

USB_P1N USB Data - (Channel 2)

5.3.7. Console Redirection

Use a Null-modem cable to connect COM1 or COM 2 of the MSM855 to the COM1 (COM2) port of the host

PC. In the BIOS setup of the MSM855 you can configure the console redirection:

On the host PC you must start a terminal program (MSDOS or WINDOWS) which is able to show a minimum

of 25 lines.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.4. Controllers

5.4.1. Interrupt Controllers

An 8259A compatible interrupt controller, within the chipset, provides seven prioritized interrupt levels. Of

these, several are normally associated with the board's onboard device interfaces and controllers, and

several are available on the AT expansion bus.

Interrupt Sources Used Onboard

IRQ0 ROM-BIOS clock tick function, from timer 0 Yes

IRQ1 Keyboard controller output buffer full Yes

IRQ2 Used for cascade 2. 8259 Yes

IRQ3 COM2 serial port Yes

IRQ4 COM1 serial port Yes

IRQ5 LPT2 parallel printer (if present) No *

IRQ6 Floppy controller Yes

IRQ7 LPT1 parallel printer Yes

IRQ8 Battery backed clock Yes

IRQ9 Free for user No *

IRQ10 Free for user No *

IRQ11 Free for user No *

IRQ12 PS/2 mouse Yes

IRQ13 Math. coprocessor Yes

IRQ14 Hard disk IDE / SCSI Yes

IRQ15 Free for user No **

* Depends on the LAN configuration.

** IRQ 15 – if the optional CF is not assembled, then free for user.

5.5. Timers and Counters

5.5.1. Programmable Timers

An 8253 compatible timer/counter device is also included in the board's ASIC device. This device is utilized

in precisely the same manner as in a standard AT implementation. Each channel of the 8253 is driven by a

1.190MHz clock, derived from a 14.318MHz oscillator, which can be internally divided in order to provide a

variety of frequencies.

Timer 2 can also be used as a general purpose timer if the speaker function is not required.

Timer Assignment

Timer Function

0 ROM-BIOS clock tick (18.2Hz)

1 DRAM refresh request timing (15µs)

2 Speaker tone generation time base

5.5.2. Watchdog

The watchdog timer detects a system crash and performs a hardware reset. After power up, the watchdog is

always disabled as the BIOS does not send strobes to the watchdog. In case the user wants to take

advantage of the watchdog, the application must produce a strobe at least every 800ms. If no strobe occurs

within the 800ms, the watchdog resets the system. Please refer to the driver/software/BIOS manual

855_BIOS, the chapter on Driver Installation, LINUX SM855 Watchdog Support.

The watchdog function has been available since board Version 1.0.

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.6. BIOS

5.6.1. BIOS History

Version

Date Status Modifications

1.2 Oct.03 Beta Basic version with APCI

1.5 Jan.04 Serial

release

Int15, IrDA, LPT, Standby functions, ACPI fixes

1.6 Feb.04

Boot from LAN, Wake up from LAN

1.7 Feb.04

IrDA fix, COM fix, Don't wait for F1 when error message

1.8 Mar.04

New video BIOS implemented, Int15 modified

1.9 Mar.04

Floppy boot / PXE boot enable

2.0 Apr.04 Keyboard init fix, new source code for Dothan implemented, new firmware hub

device support: SST49LF008A, ST50FW080

2.1 May.04

VGA BIOS 3276 implemented, PCI Table AD23 = RISER Card PIRQ H,E,F,G

2.2 Jun.04 New keyboard/mouse source code; CPU speed adjustable in the BIOS setup

2.3 Jul.04 LCD support is now adjustable in the BIOS setup; Dothan CPU support

added, ACPI fix for turn off COM1/2; LPT, Floppy and LAN under Windows

2.4 Aug.04



Ser_IRQ: newly configured to "continuous mode"



SuperI/O ACPI fix: If floppy, COM1/2 and LPT are disabled in the BIOS setup:

1. The devices are disabled and invisible in all OS

2. The free DMA are usable for other resources



PCI Configuration Menu under Advanced ( IRQ, DMA and UMB are

reservable for ISA).

2.5 Sep.04



Keyboard init fix



Dothan MicroCode update



HPET (High Performance Event Timer) enabled



Chassis Intruder detection removed

2.6 Oct.04



ATA100 support



PCITOISA Bridge support



Progress Bar



SMBattery Support (GPIO8 Interrupt)



VGA BIOS modified to enable CRT Monitor

2.7 Dec.04

SMBus optimized

2.8 Jan.05 Bugfix for Pod-Code 87h if CMOS invalid and Error during Boot

2.9 May.05

CPUID für Dothan Revision C0 (CPUID 6D8)

ACPI battery state, capacity and remaining time, ACPI negative temp. capture

corrected

3.01 Feb.06

CRTFIX: Added Setup Item IGD - CRTFix to set the LID Switch Status. If

closed, the Windows driver switches off LVDS and switches to CRT



Default Primary Video Adapter: Added this Setup item so it's possible to

select which graphics card is primary (internal or PCI)



ACPI Fix for No picture after standby



New VGA BIOS Version 1235, Add resolution 800x480 for LVDS Display



New PXE Boot Extension (removed RPL cause it was too large)



MemoryWindow set to 2MB for CardBus behind PCI Bridge

3.03 Mar.06



Final Video BIOS from Intel 1270



CH4/ICH4M universal BIOS



Fix for wrong SpeedStep Table if GV3

3.04 Mar.06



Fix for secondary IDE (was always Removable)



Corrected detection of Celeron without SpeedStep and TM1

3.05 Nov.06



Added USB 2.0 Legacy Support



Menu to select FullSpeed or HiSpeed



Disabling of USB2.0 Support fixed

3.09 Jul.07



PCI to ISA bridge

Attention! Please use the command line:

Phlash16.exe bios.wph /mode=3

to download a core BIOS greater than V3.05

DIGITAL-LOGIC AG MSM855/HLV/B/B2 Detailed Manual V1.0A

5.6.2. Core BIOS Download

5.6.2.1. Before downloading a BIOS

Please read through this section carefully and prepare for the download.

Make a bootable diskette which includes the following files:

 DELEP855.EXE

 phlash16.exe 

 core BIOS (SM855_xx_FLASHABL.ROM)

Rename the SM855_xx_FLASHABL.ROM file to bios.wph

 To update a BIOS to a version greater than V3.05 you must use the following command line:

phlash16.exe bios.wph /mode=3

Important: Do not use boot disks created in a Windows operating system. If you do not have an MSDOS

6.22 disk available, you can download a boot disk from www.bootdisk.com.

NOTE…

Use SM855_xx_FLASHABL.ROM for downloading with the phlash16.exe.

The BIOS SM855_xx.cor is only usable by an external programmer.

 Boot the DOS without config.sys and autoexec.bat  press F5 while starting the DOS boot.

 Disable the EMM386 or other memory managers in the CONFIG.SYS of your boot disk.

 Make sure that the PHLASH16.EXE program and the BIOS to download are on the same path and

directory!

 Check, where the PHLASH16.EXE is located, that the available disk space is larger than 64kB (for

safe storage).

 Make sure the floppy disk not write-protected.

5.6.2.2. Start the download

1. Start the system with the bootable diskette. If you do not have a bootable diskette or floppy drive, you

can start in DOS mode by pressing the F5 key to disable autoexec.bat and config.sys.

2. Run DELEP855.EXE to clear the CMOS and the EEPROM

Attention!

If you do not run delep855.exe, the system will be destroyed during the BIOS upgrade!

3. Run phlash16.exe bios.wph /mode=3

4. If the BIOS download is finished you must power-off the system

5. Power-on the system and wait for the long “beep” signal

6. Power-off the system again

7. After powering the system on again, press F2 to enter setup; set the default values with F9; save and

leave setup with F10

8. Power-off the system

9. The download procedure is now finished.
