©2012 大疆创新 版权所有 4 | Control mode Descriptions SpecificationGPS ATTIATTI ManualOperating Temperature -10°C ~ 50°CPower Consumption 3.12WTake-off Weight <1200gHovering Accuracy(GPS Mode)Vertical: ± 0.8mHorizontal: ± 2.5mMax Yaw AngularVelocity 200°/sMax Tilt Angle 45°Max Ascent /Descent Speed ±6m/sMax Flight Velocity 10m/sRudder VelocityMaximum rudder angular velocity is 200°/sCommandStick MeaningMulti attitude control; Stick center positionfor 0˚ attitude, its endpoint is 45˚.Max-angularvelocity is 150°/s.Altitude LockMaintain the altitude best above 1 meterfrom ground.NOStickReleasedLocks multi-rotor positionwhen GPS signal is adequate.Attitudestabilizing.NotRecommendedGPS LostWhen the GPS signal is lost for more than10seconds, the systementers Atti. Modeautomatically.Only attitudestabilization,GPS /position lock not used inthis mode.GPS not usedSafetyVoltage alarmDepends onexperience.Enhanced Fail-SafeAuto LevelFail-SafeApplicationsAP workSports flying. Extreme flyingWarning & Disclaimer NotesPlease strictly follow these steps to use thePHANTOM. DJI Innovations accepts no liabilityfor damage(s) or injuries incurred directly orindirectly from the use of this product.This manual will help you to get ready to fly. Youcan download an advanced manual from theDJI website which may lead you to know theperformance of the phantom further andenhance your flight experience.DJI and PHANTOM are registered trademarksof DJI Innovations. Names of product, brand,etc., appearing in this manual are trademarks orregistered trademarks of their respective ownercompanies. This product and manual arecopyrighted by DJI Innovations with all rightsreserved. No part of this product or manual shallbe reproduced in any form without the priorwritten consent or authorization of DJIInnovations. No patent liability is assumed withrespect to the use of the product or informationcontained herein.Make sure the positive and negative poles of the battery are connected correctly.Keep the antennas of TX and RX visible to each other (no obstacles).Avoid any impact by external forces to keep the high accuracy performance of the multi rotor and Tx.Do not disassemble or modify your multi rotor or transmitter.Not waterproof and not oil-proof.Keep the flight away from objects, such as obstacles, human beings, high-voltage lines, etc.Do not get close to or even touch the rotating motors and propellers, which will cause serious injury.Do not over load the multi-rotor, i.e. do not carry heavy weightCheck that the propellers and the motors are installed correctly and firmly before flight.Make sure the rotation direction of each propeller is correct.Make sure all parts are in good condition before flight. Do not fly with old or broken parts.Please switch on the transmitter first, then power on the quad-rotor before takeoff!Power off the quad-rotor first, and then switch off the transmitter after landing!Continuously rotating the multi rotor will cause a yaw error. In this case, you shouldstop or slow down the rotating, so as to have better flight performance.Please use the spares / accessories approved by DJI.Please contact customer service if you have any problems you cannot solve.FCC CE ROHS dji-innovations.com

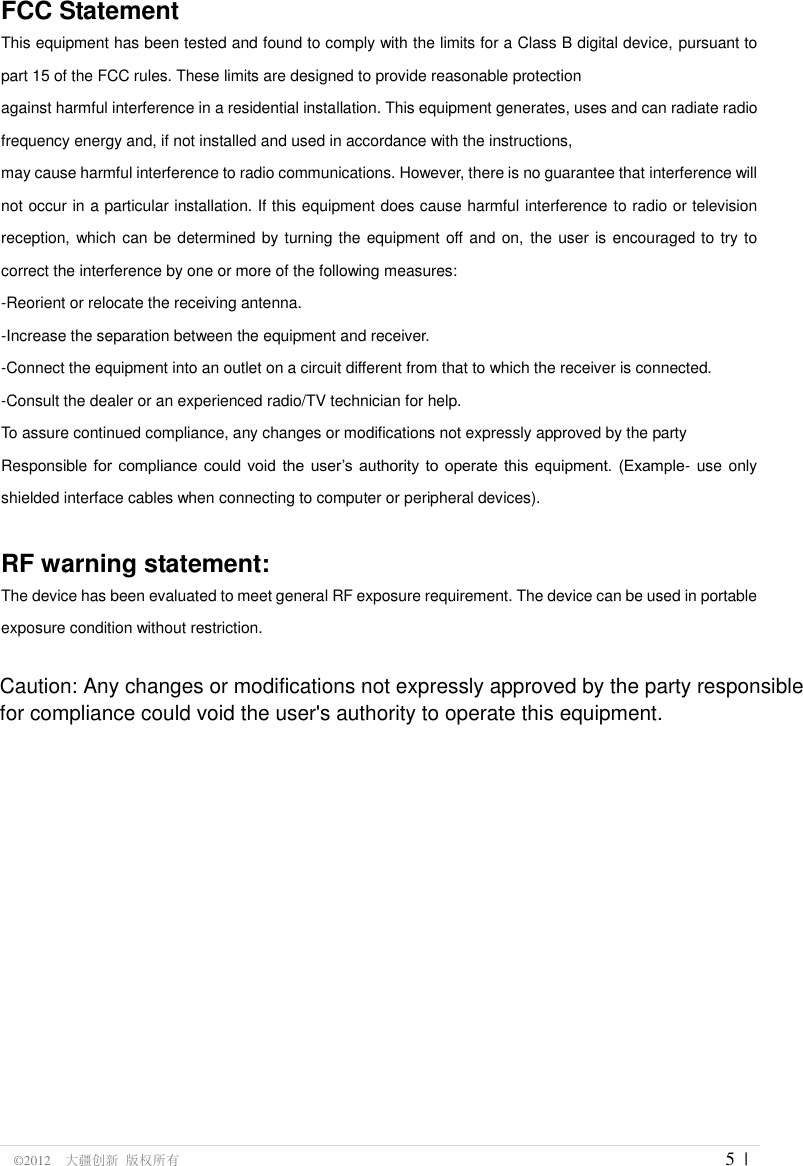

©2012 大疆创新 版权所有 5 | FCC StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant topart 15 of the FCC rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that interference willnot occur in a particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.To assure continued compliance, any changes or modifications not expressly approved by the partyResponsible for compliance could void the user’s authority to operate this equipment. (Example- use onlyshielded interface cables when connecting to computer or peripheral devices).RF warning statement:The device has been evaluated to meet general RF exposure requirement. The device can be used in portableexposure condition without restriction.Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
