EMS Technologies Canada JETWAVE2 Jetwave User Manual 23 15 29R004
EMS Technologies Canada, Ltd. Jetwave 23 15 29R004
Contents
User Manual_Part 5
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-119
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

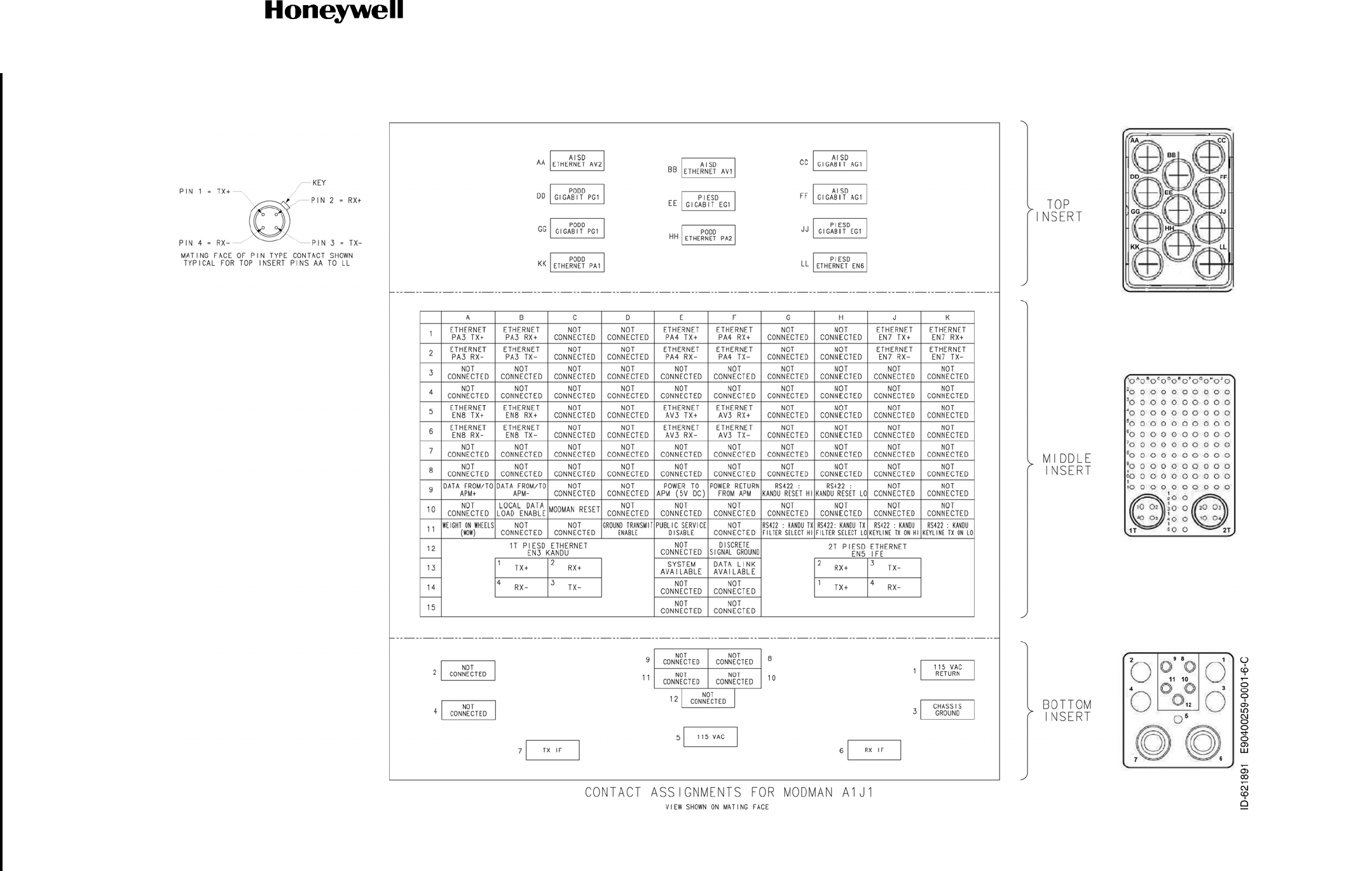

Figure 4-35. (Sheet 4 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Inside Aircraft Fuselage), (90400259-0001, REV C)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-120
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 4-35. (Sheet 5 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Inside Aircraft Fuselage), (90400259-0001, REV C)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-121
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

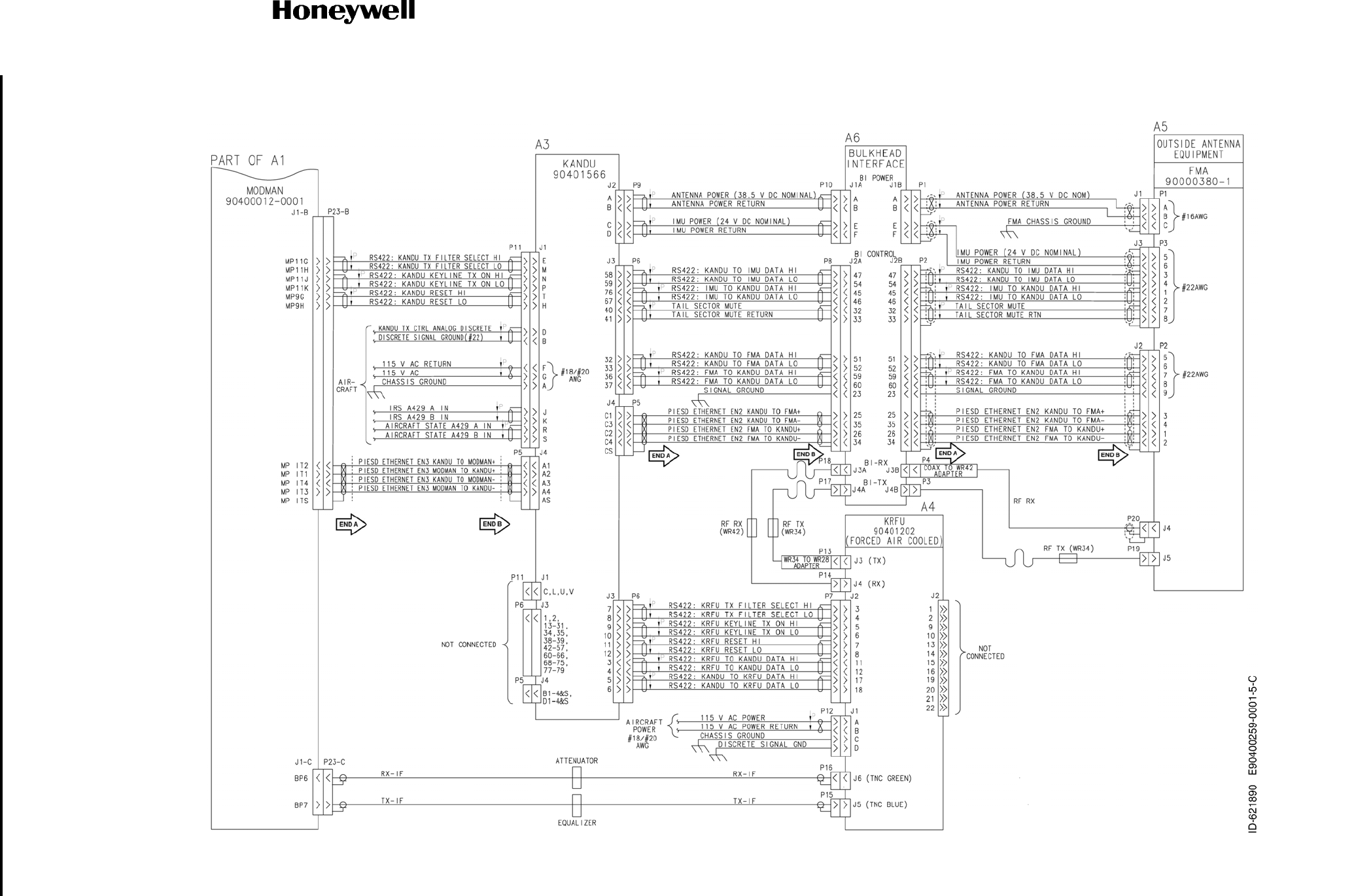

Figure 4-35. (Sheet 6 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Inside Aircraft Fuselage), (90400259-0001, REV C)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-122
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

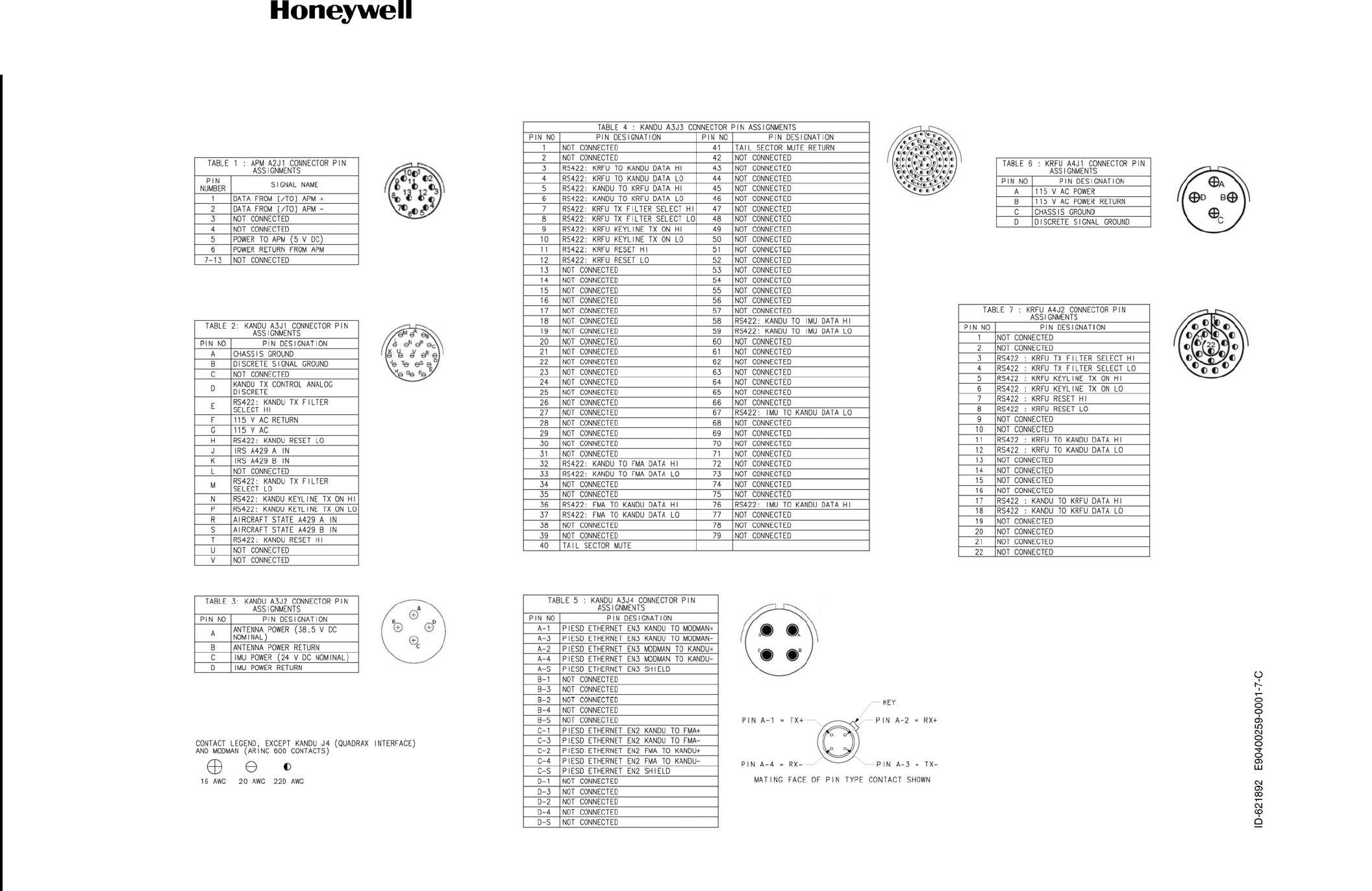

Figure 4-35. (Sheet 7 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Inside Aircraft Fuselage), (90400259-0001, REV C)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-123
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

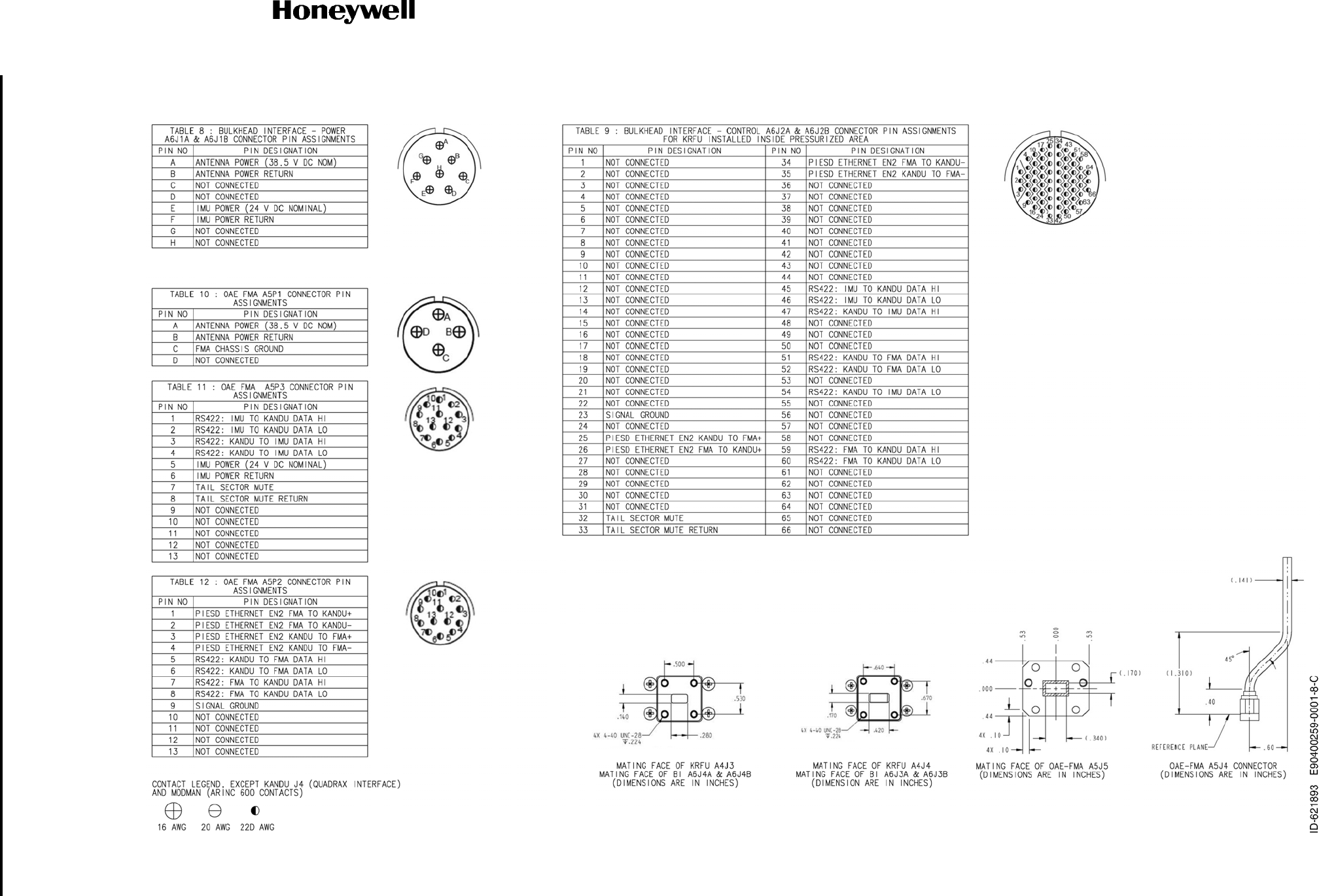

Figure 4-35. (Sheet 8 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Inside Aircraft Fuselage), (90400259-0001, REV C)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-124
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

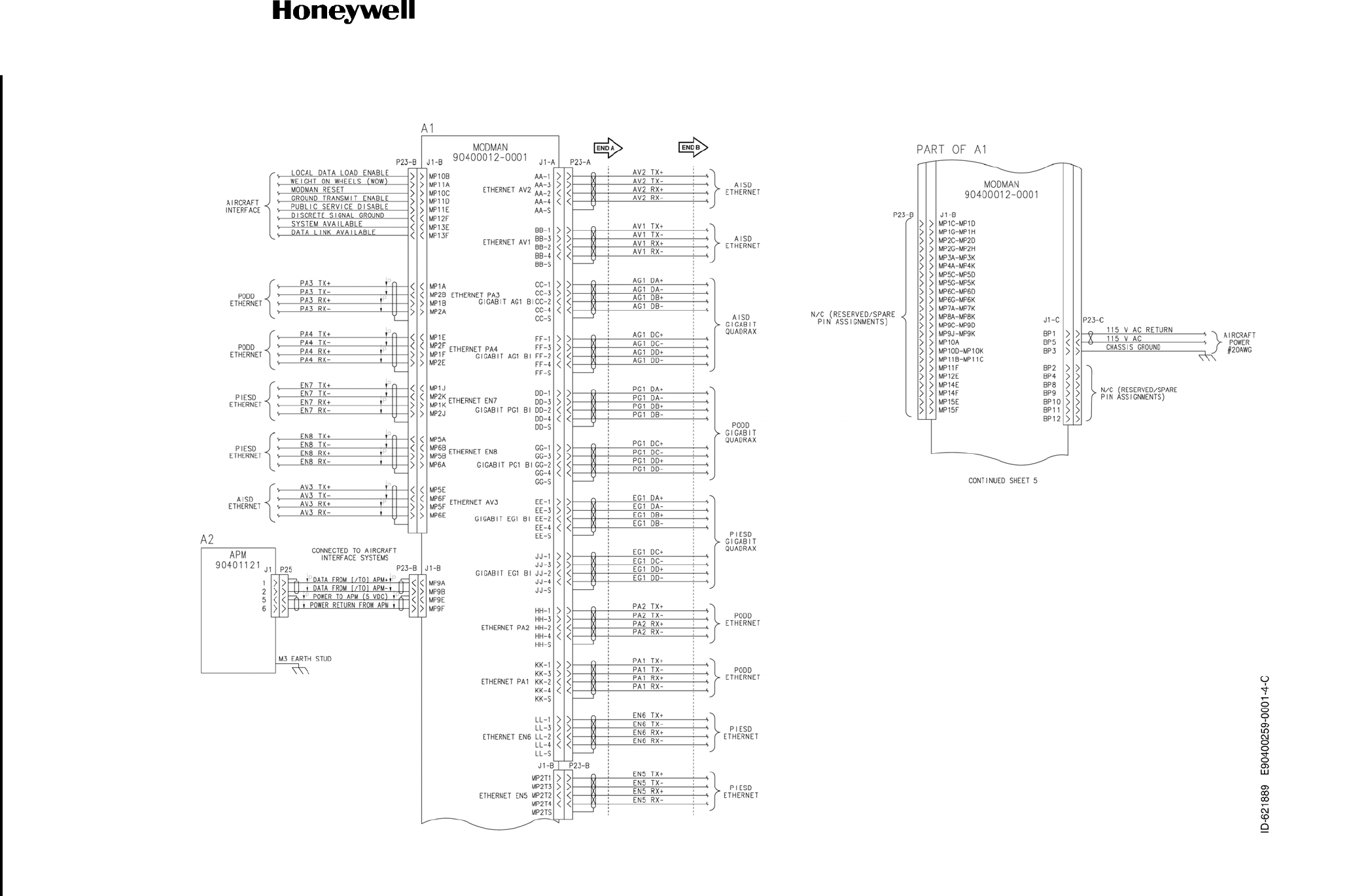

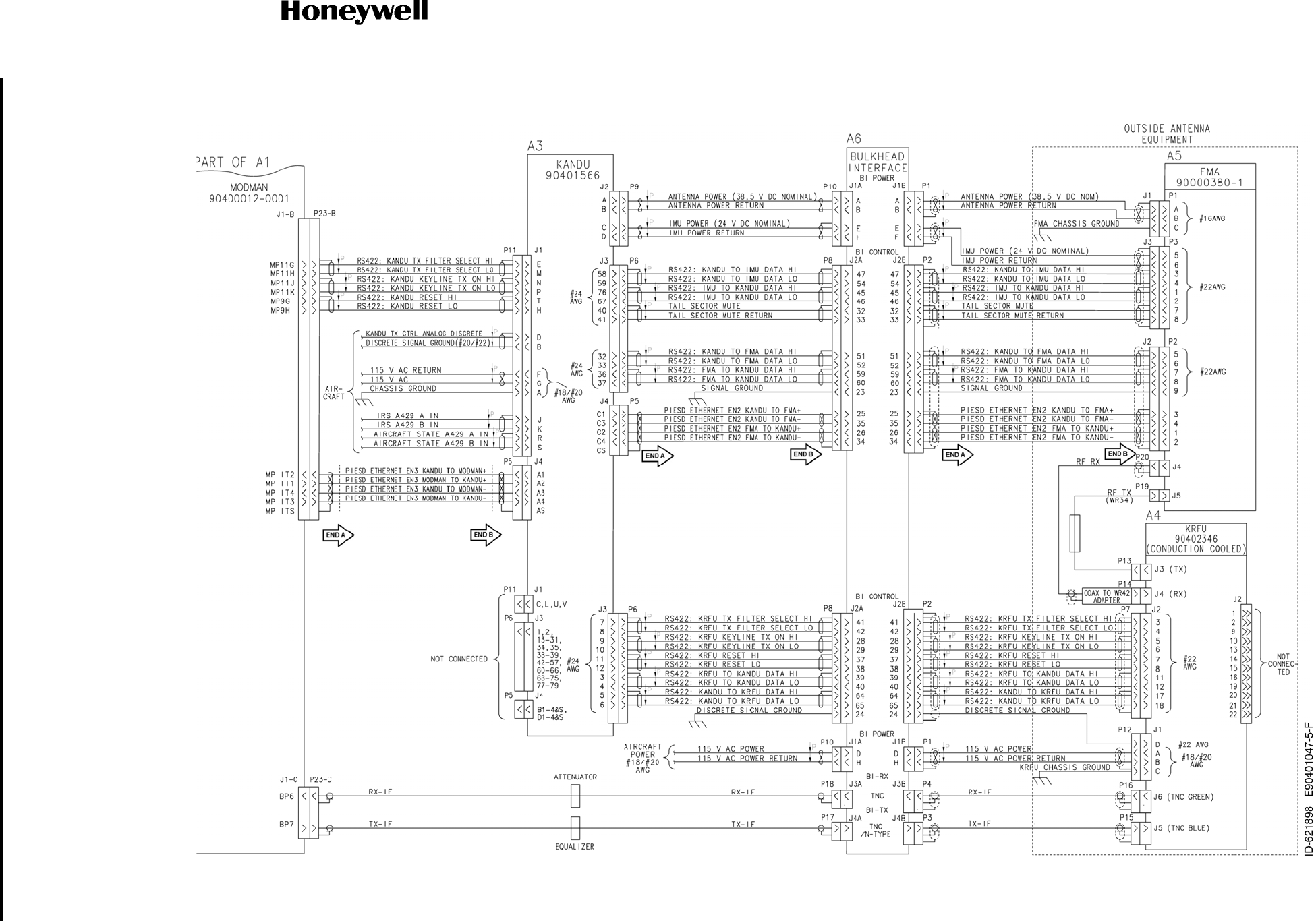

Figure 4-36. (Sheet 1 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Outside Aircraft Fuselage), (90401047-1, REV F)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-125
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

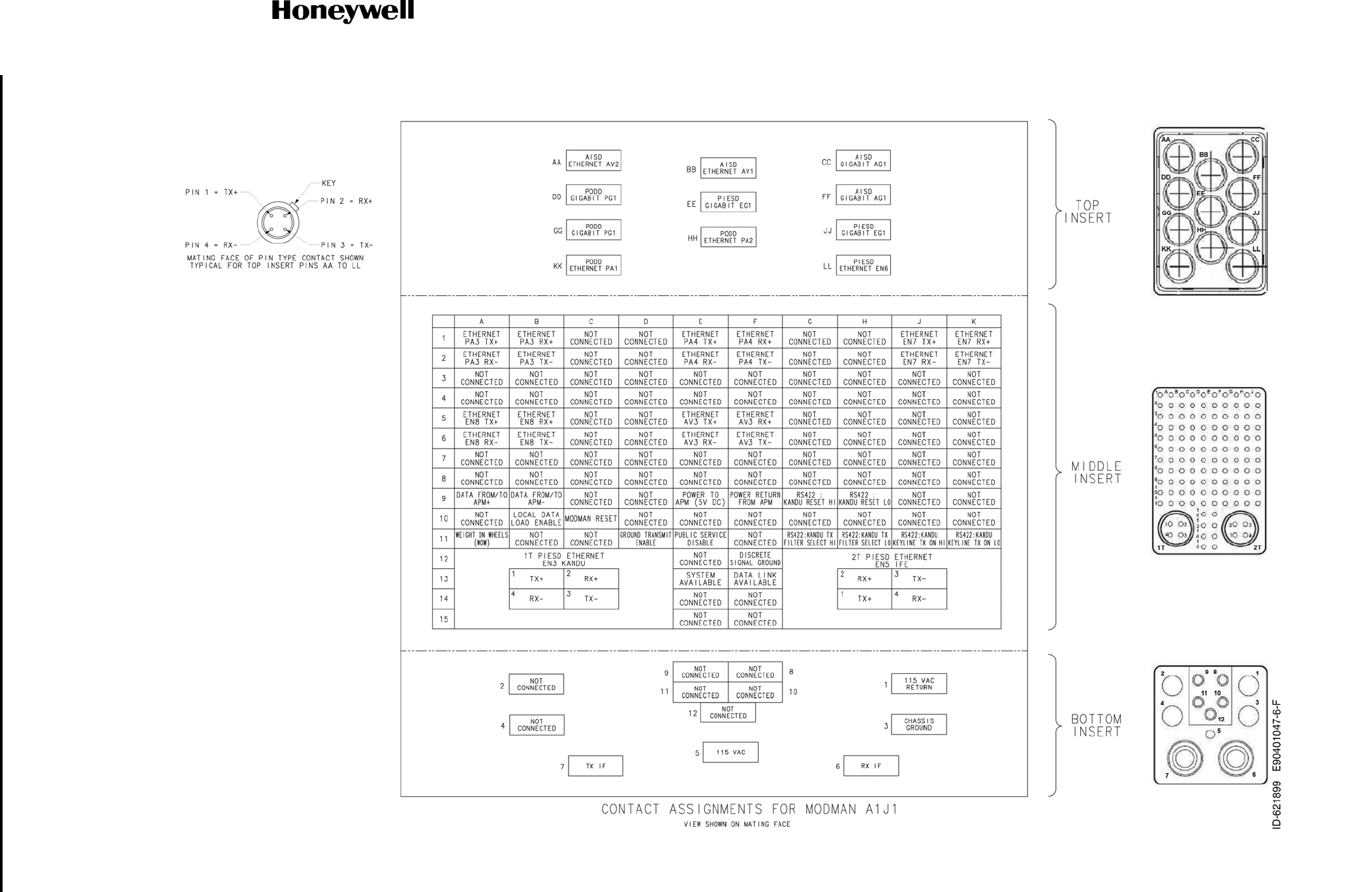

Figure 4-36. (Sheet 2 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Outside Aircraft Fuselage), (90401047-1, REV F)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-126
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 4-36. (Sheet 3 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Outside Aircraft Fuselage), (90401047-1, REV F)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-127
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

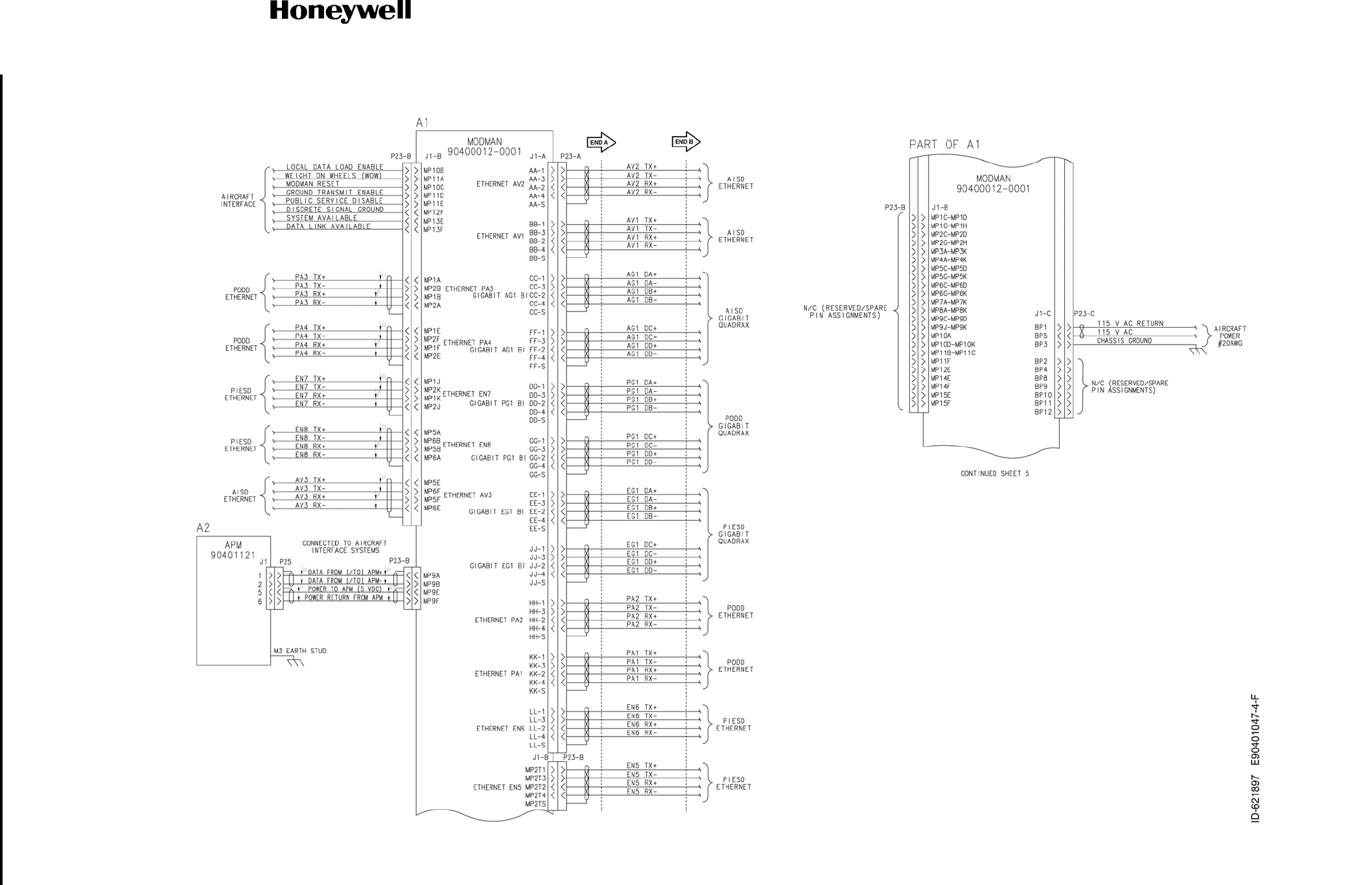

Figure 4-36. (Sheet 4 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Outside Aircraft Fuselage), (90401047-1, REV F)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-128
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

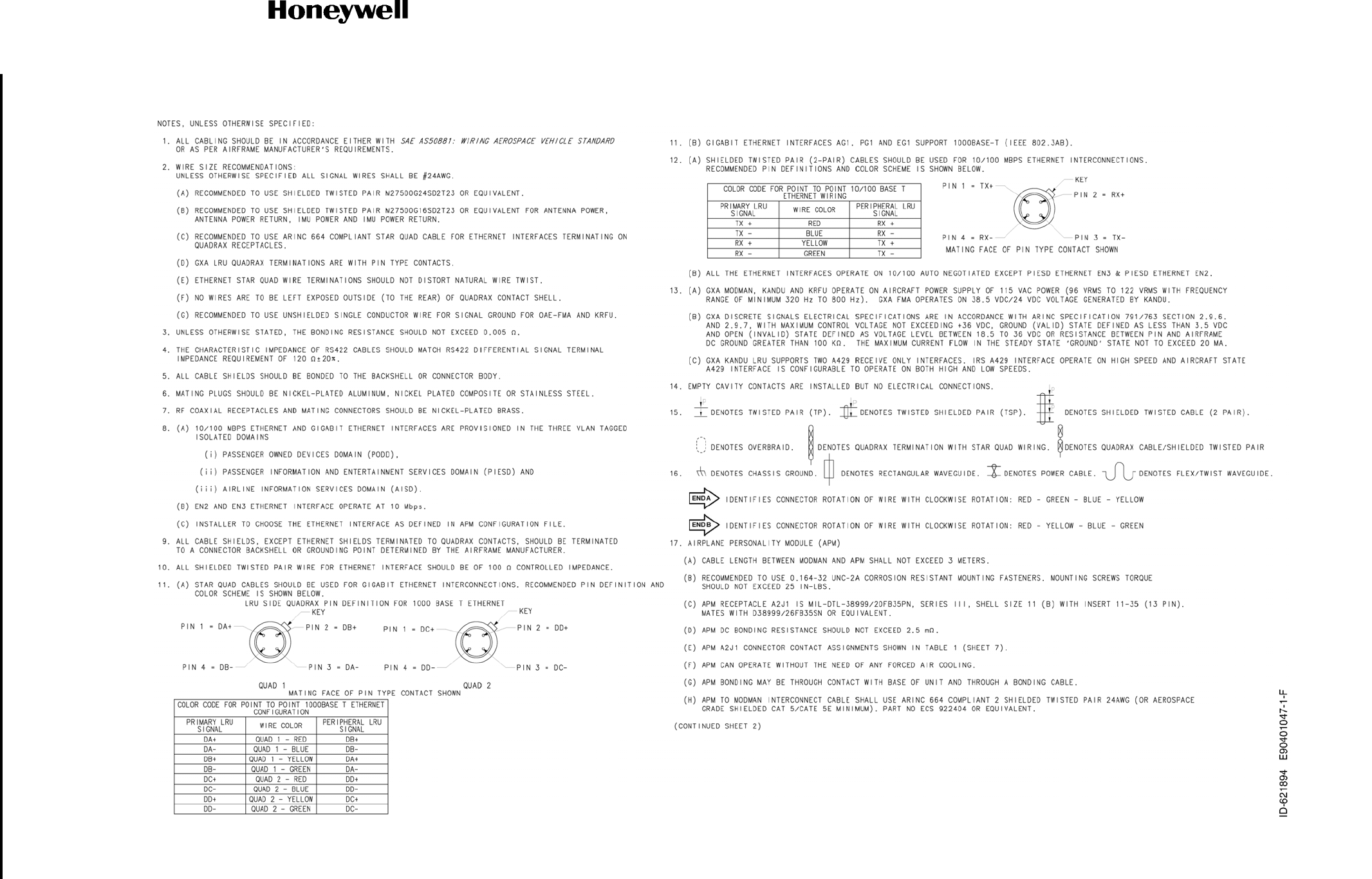

Figure 4-36. (Sheet 5 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Outside Aircraft Fuselage), (90401047-1, REV F)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-129
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

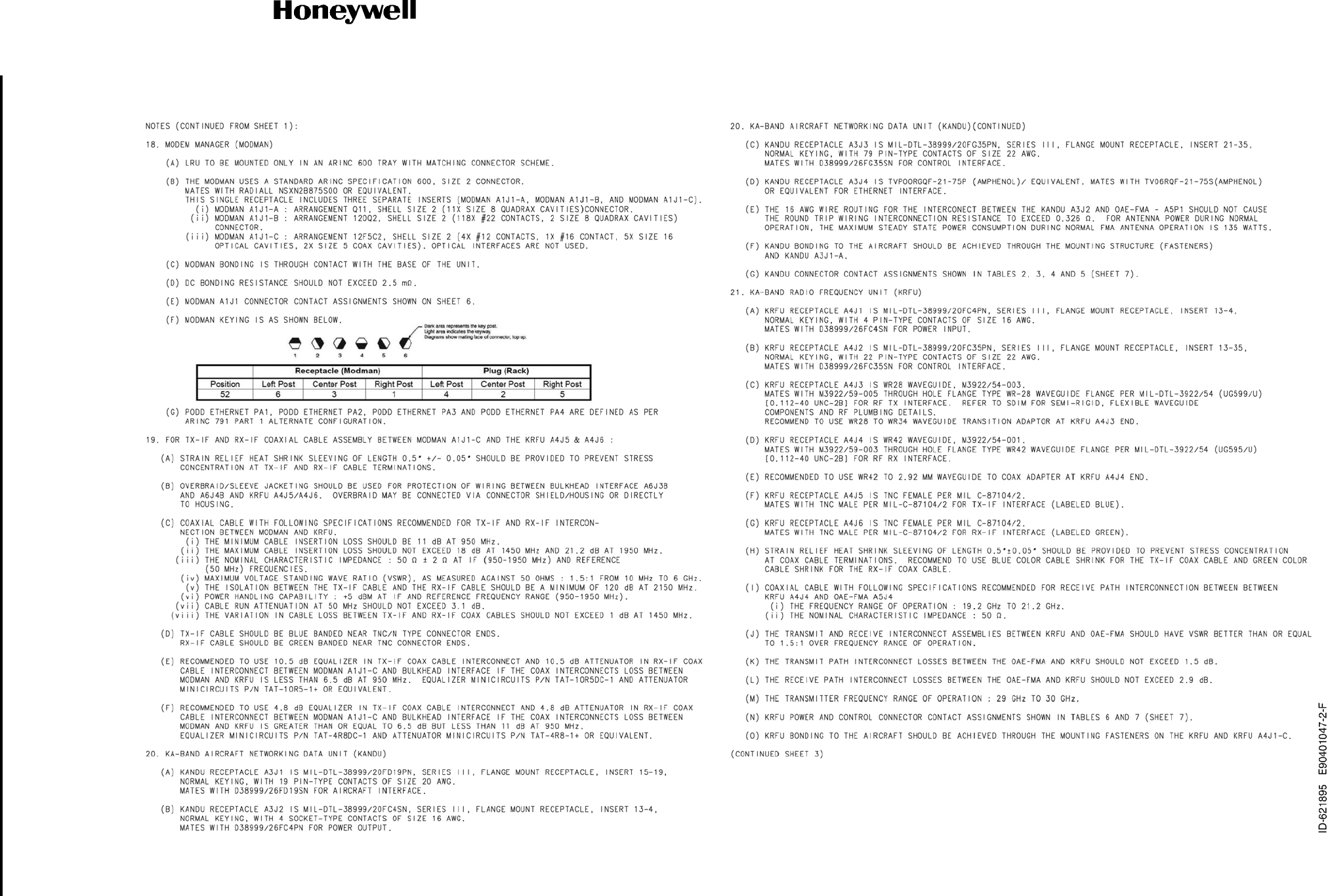

Figure 4-36. (Sheet 6 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Outside Aircraft Fuselage), (90401047-1, REV F)
Draft as of 31 May 2017
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 4-130
3 Mar 2017
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

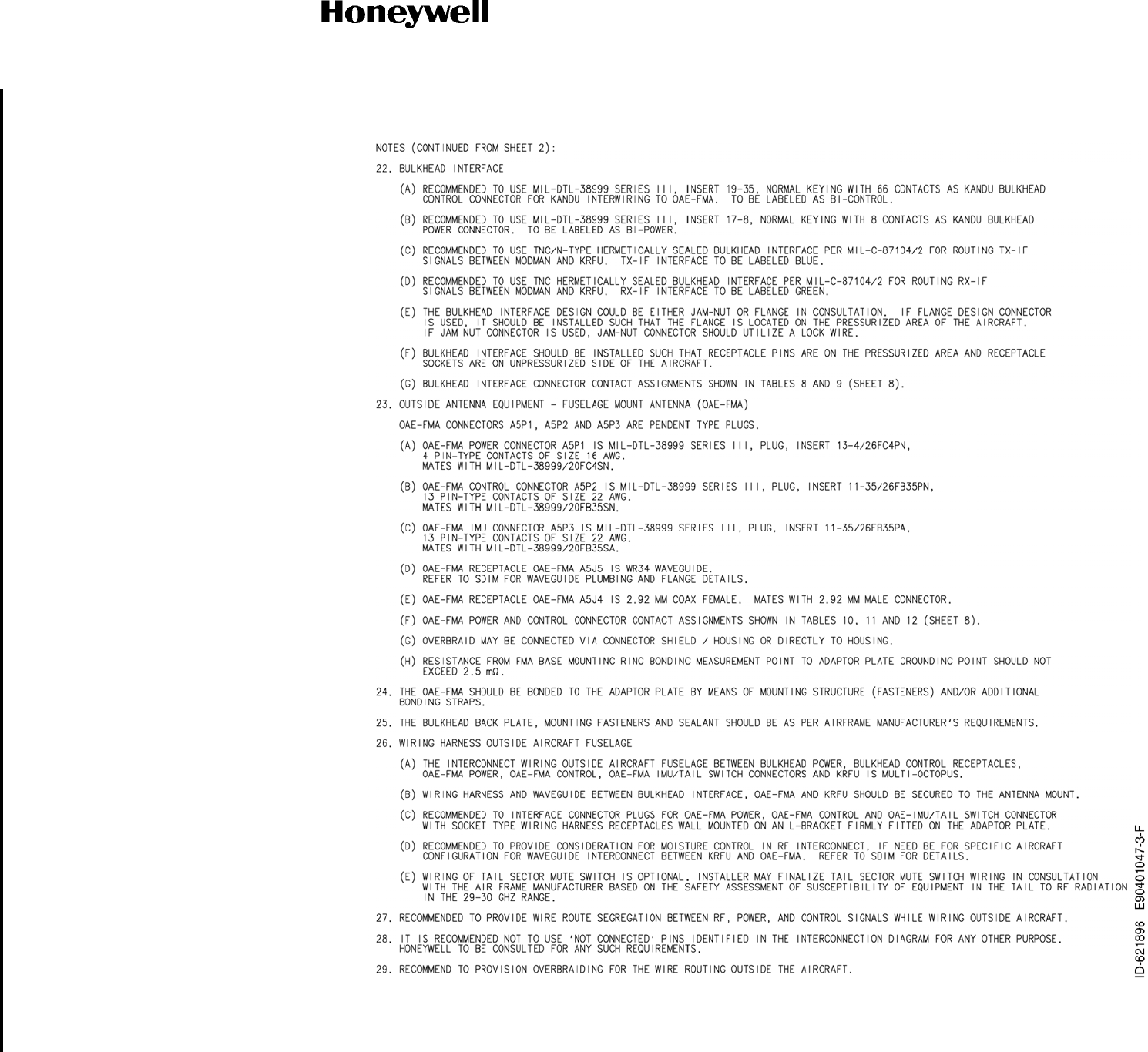

Figure 4-36. (Sheet 7 of 8) JetWave™ System Interconnect Diagram - FMA (KRFU Outside Aircraft Fuselage), (90401047-1, REV F)
Draft as of 31 May 2017
