Model 195Ea Specifications
Revised: 27 Jan 12 APX B-1 EST P/N AA107A
LED Indicators
Power On/Off
Receiver On/Off
Carrier Detect On/Off
Transmitter On/Off
Link Status On/Off
I/O Connectors
Ethernet 10/100Base T
RJ-45
RS-232C Programming/Data Port
RJ-45
Dual Antenna input/Outputs
TNC Reverse Female
Remote Input Power
Power Over Ethernet Cable
Direct Input Power
Optional, Header Screw Connector
Transmiter
Frequency of Operation
5.745 to 5.825 GHz
Software Selectable in 17 Channels
RF Data Rates
6 to 54 Mbps (8 steps)
Tx Peak Output Power
250mW to 1 Watt (Pk) (4-levels)
RF Output Impedance
50 ohms
Receiver
Rx Sensitivity
-72 dBm @54 Mbps to –92 dBm @ 6 Mbps
Frame Error Rate <10%
Power
Power over Ethernet
IEEE 802.3at Power Supply,
48 VDC @ 30 Watts
Power Connector on Unit
10 to 28 VDC
Receive
250 ma @ 12 VDC
Transmit
1.25 A @ 12 VDC
Case
Dimensions
1.9 in. H x 6.7 in. W x 6.2 in. L
Weight
1.25 lbs.
Outdoor Pole Mounting Kit
Optional, EST P/N 195PM
Other
Warranty
1 Year
Temperature Range
-30 to +60 C
Humidity
95% Non-condensing
FCC Type Acceptance
Pending
Industry Canada Type Acceptance
Pending
Specifications Subject to Change Without Notice
APPENDIX B
SPECIFICATIONS
Model 195Ea Case Specifications
Revised: 27 Jan 12 APX B-2 EST P/N AA107A
Model AA20DMEg
APPENDIX B
SPECIFICATIONS
Antenna Specifications
Revised: 27 Jan 12 APX B-3 EST P/N AA107A
Model: AA20DMEa
Applications: Model 195Ea direct case mount
Antenna Type: Omni-Directional, Sleeve dipole
Frequency: 5.735 to 5.835 GHz
Polarization: Vertical
Impedance: 50 ohms
Gain: 4.5 dBi (2.5 dBd)
VSWR: < 1.5:1
Power: 10 W
Front To Back Ratio: n/a
Horizontal Beamwidth: n/a
Vertical Beamwidth: n/a
Antenna Material: Polyurethane Plastic Radome
Recommended Mounting Hardware: n/a
Antenna Connector: TNC-R Male
Flexibility: +/- 20
Antenna Envelope: 7.36 in. length by .51 in. width
Temperature: -20 to +65 C
Weight: 28.4 grams
Model No: AA20Ea
Antenna Type: Omni Directional, DC Grounded
Applications: Fixed base
Frequency: 5.725-5.825 GHz
Polarization: Vertical
Impedance: 50 ohms
Gain: 6 dBi (8 dBd)
VSWR: 1.5:1 Typical
Vertical Beamwidth: 6 degrees @ ½ power
Recommended Mounting Hardware: Pole Mounting Bracket, Supplied
Antenna Connector: TNC male reverse polarity with
18 in. pigtail and weatherproof boot
Maximum Power Input: 25 Watts
Wind Survival: 125 mph
Antenna Envelope: 20.2 in. L x 1.25 in.
Equivalent Flat Plate Area: .06 sq. ft
Lateral Thrust at Rated Wind: 5.2 lbs feet
Radome: White UV resistant fiberglass
Weight: 0.5 lbs.

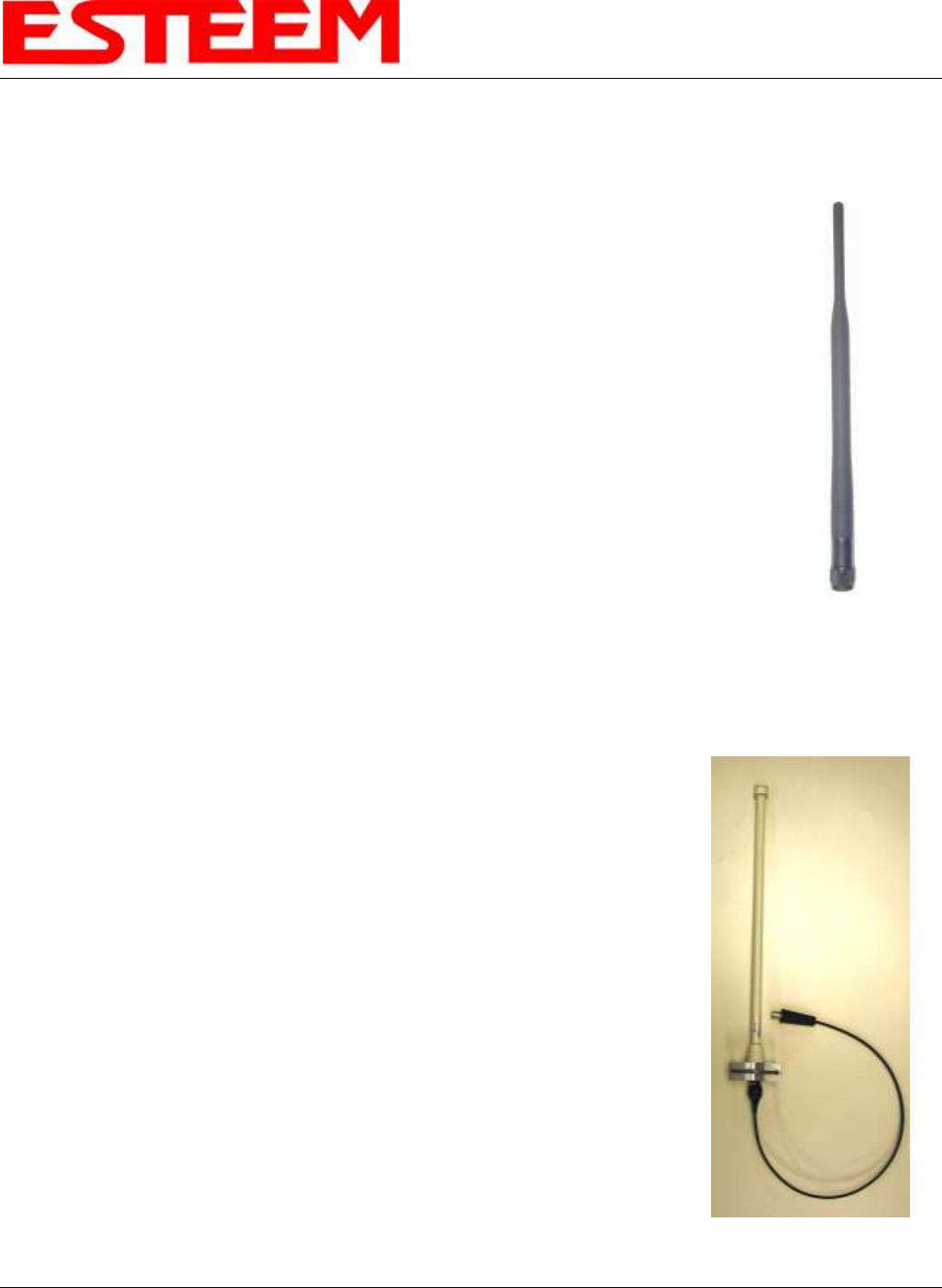

AA20DMEa
AA20Ea
Caution
To comply with the FCC
exposure compliance
requirements, a separation
distance of at least ~113
cm must be maintained
between the antenna and
all persons.
APPENDIX B
SPECIFICATIONS
Antenna Specifications
Revised: 27 Jan 12 APX B-4 EST P/N AA107A
Model No: AA205Ea
Applications: Fixed base mounting
Antenna Type: Directional, Linear Polarized Panel, DC grounded,
Integral Bandpass Filter
Frequency: 5.725-5.875 GHz
Polarization: Vertical or Horizontal
Impedance: 50 ohms
Gain: 22 dBi (20 dBd) nominal
VSWR: <1.5:1 nominal
Front to Back Ratio: ≥ 25 dB
Horizontal Beamwidth: 9 degrees @ ½ power
Vertical Beamwidth: 9 degrees @ ½ power
Antenna Material: White UV Resistant Polypropylene
Recommended Mounting Hardware: Adjustable Mounting Bracket
provided for wall mounting or masts between 1 in and 2.75 in. O.D.
Antenna Connector: TNC male reverse polarity with 18 in. pig-tail
and weatherproof boot.
Maximum Power Input: 20 Watts
Antenna Envelope: 14.5 in. length by 14.5 in. height by 1.75 in.
depth
Operating Temperature: -40 to +85 F.
Weight: 3.5 lbs.

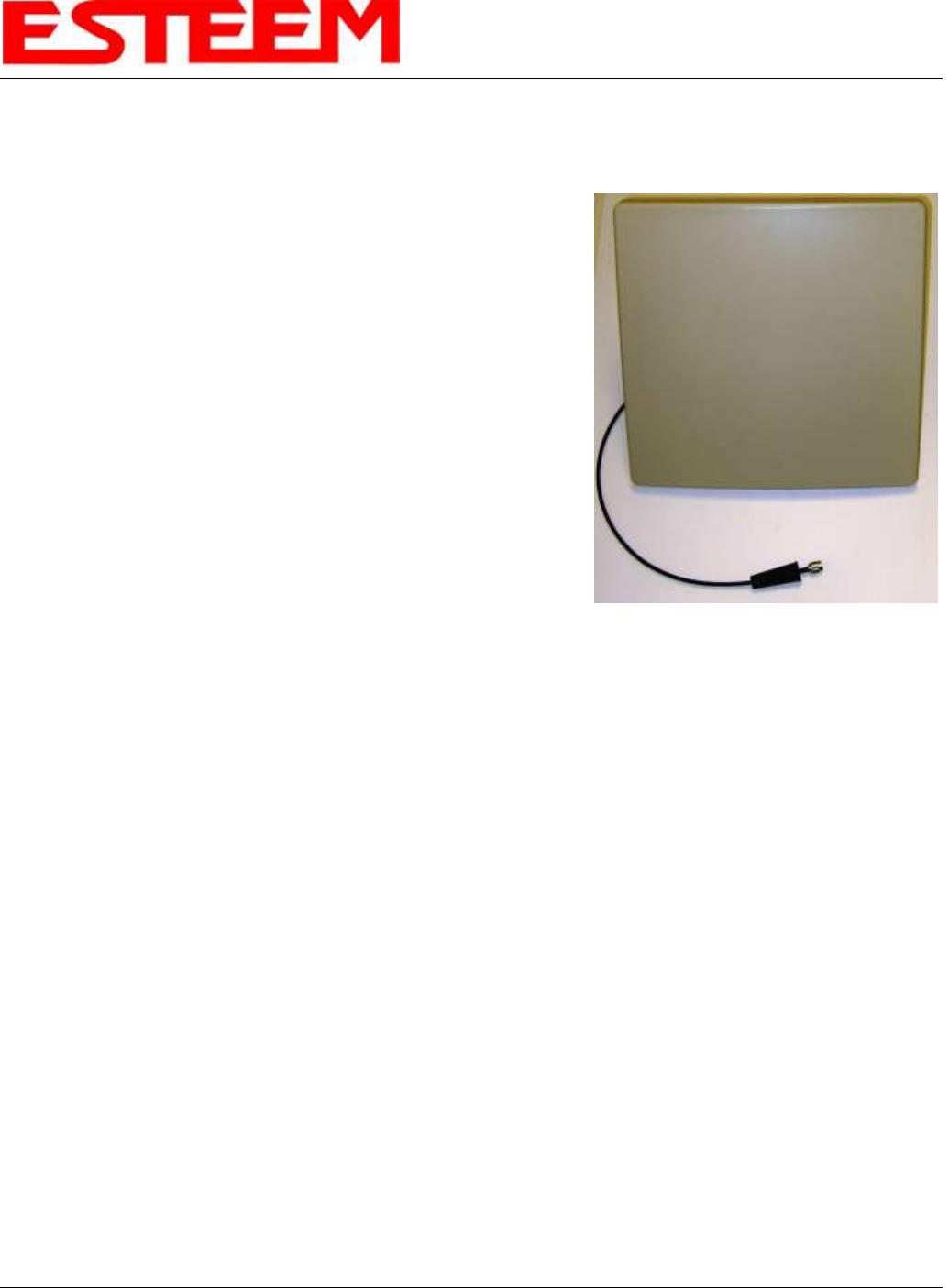

Model AA205Ea
Caution
To comply with the FCC
exposure compliance
requirements, a separation
distance of at least ~113
cm must be maintained
between the antenna and
all persons.
