REX™ Meter Installation Instructions
General
This leaflet contains installation instructions for the REX residential electronic watthour
meter with the following form factors:
■self-contained: Forms 1S, 2S, and 12S
■transformer-rated: Forms 3S and 4S
All meters are calibrated and sealed before shipment. For proper installation, accuracy, and
maximum life of the meters, use the following procedures.
WARNING
!
Use authorized utility procedures to install and service metering equipment. Dangerous
voltages are present. Equipment damage, personal injury, or death can result if safety
procedures are not followed.
WARNING
!
When using the REX meter with the internal service control switch, follow authorized utility
procedures to reconnect electrical service. Property damage, personal injury, or death can
result if safety precautions are not followed.
Installing the REX Meter
1. Make sure the meter to be installed matches service type (that is, form), current
class, capacity required, and service socket.
2. Check the socket and verify that the wiring is correct. See “Internal Wiring
Diagrams” on page 2 and “Installation Wiring Diagrams” on page 3 for all wiring
diagrams.
3. Make sure that the voltage disconnect or test link on the back of the meter is closed,
if installed.
4. Line up the meter blades to the socket jaws and rock the meter into place. Make
sure that the meter is in the upright position.
5. Make sure the LCD turns on and the energy use indicator flashes if load is present.
If load is applied, check that the pulse arrows on the LCD are blinking. The LCD has
two pulse arrows. The arrow pointing to the left indicates energy received; the
arrow pointing to the right indicates energy delivered. For more information, see the
technical manual for your meter.
6. Apply all seals and record any necessary information.
IL42-4026D
IL42-4026D August 2005
2

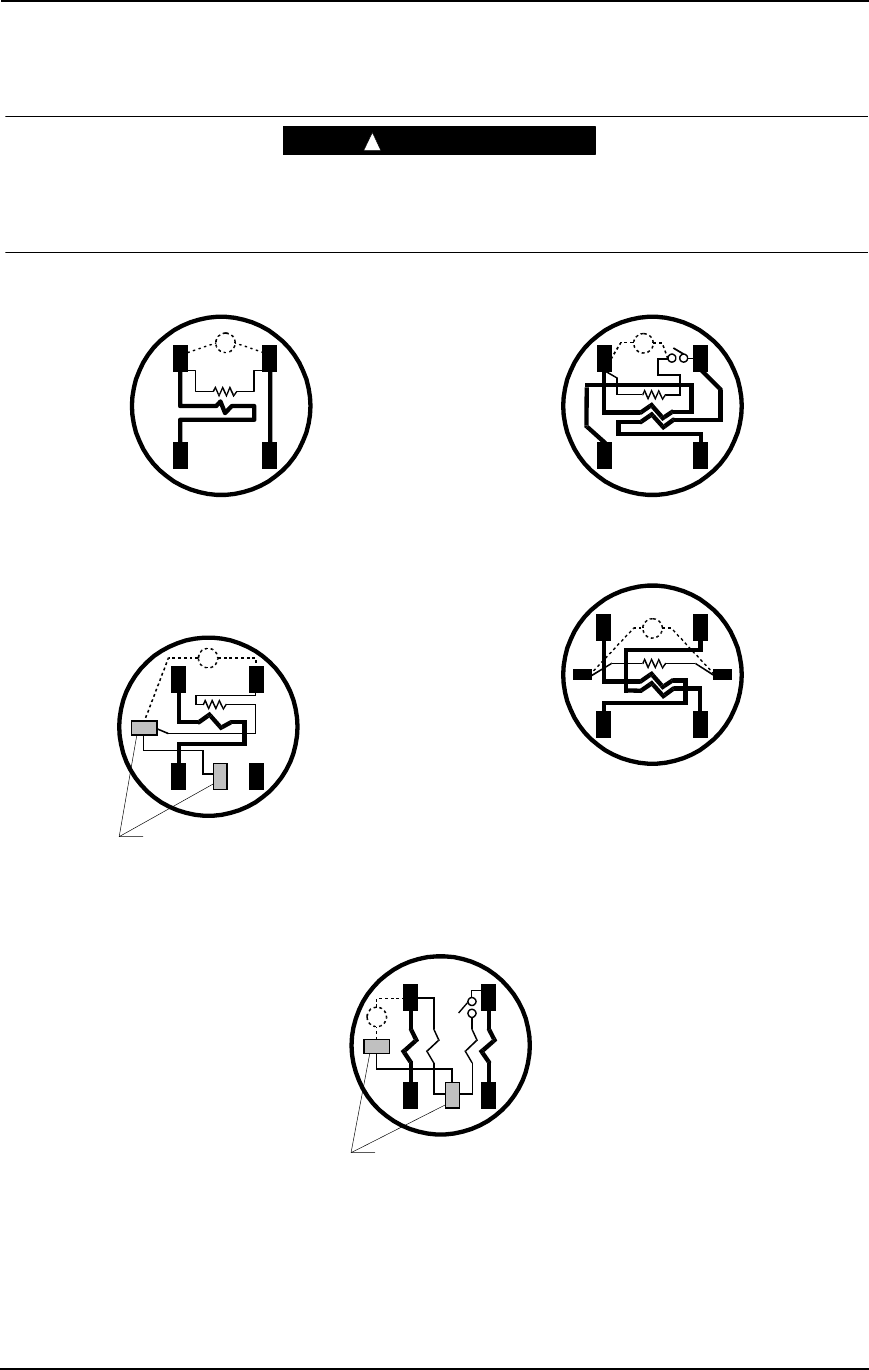

Internal Wiring Diagrams
WARNING
!
Use circuit-closing devices on current transformer secondaries used with Form 3S and
Form 4S meters. Dangerous currents and voltages are present. Equipment damage,
personal injury, or death can result if circuit-closing devices are not used.
Form 1S
PS PS
Form 2S
Alternate positions of movable
potential terminal
PS
Form 3S PS
Form 4S
31H05
PS

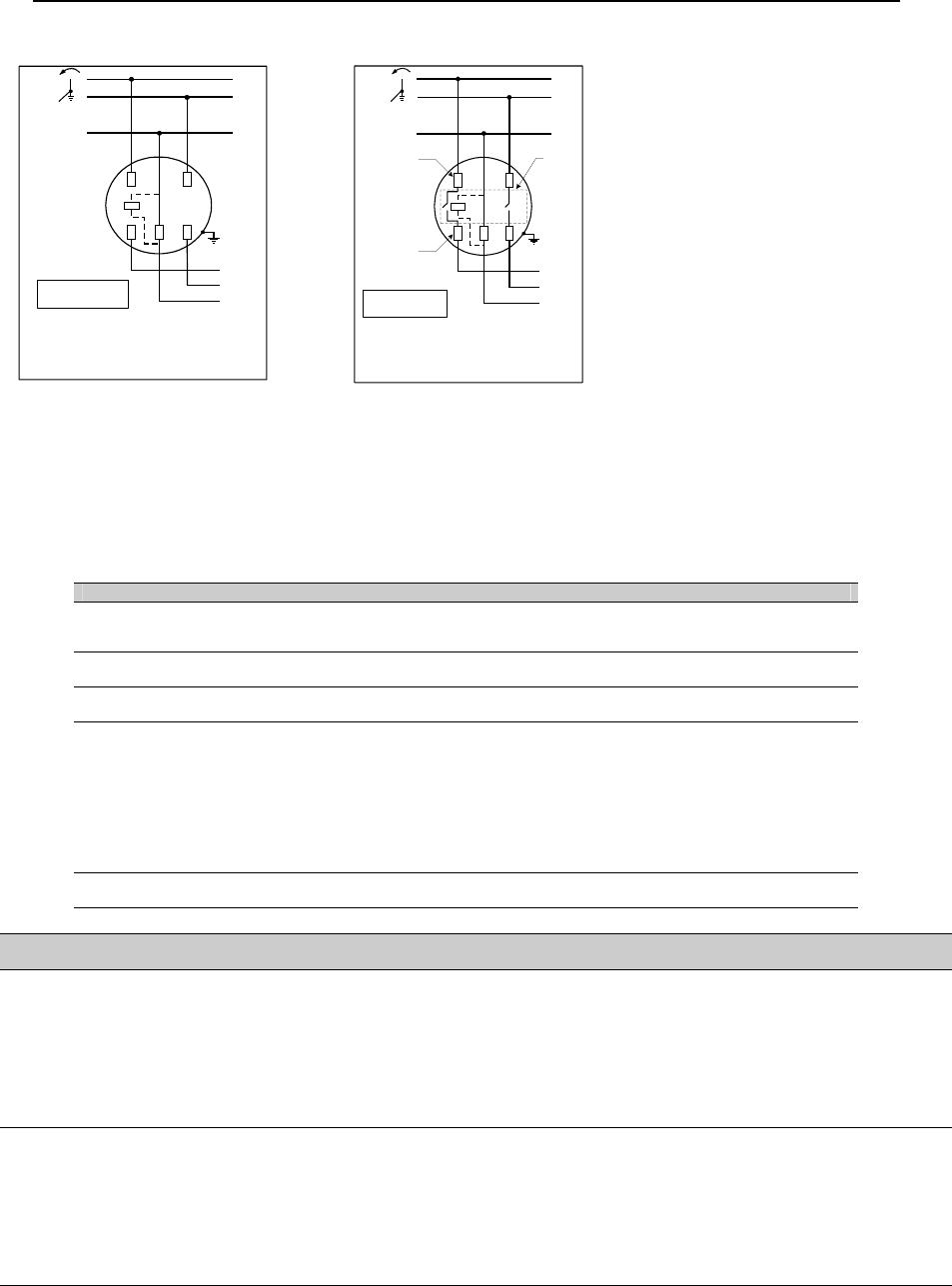

Form 12S
Alternate positions of movable
potential terminal
August 2005 IL42-4026D
3

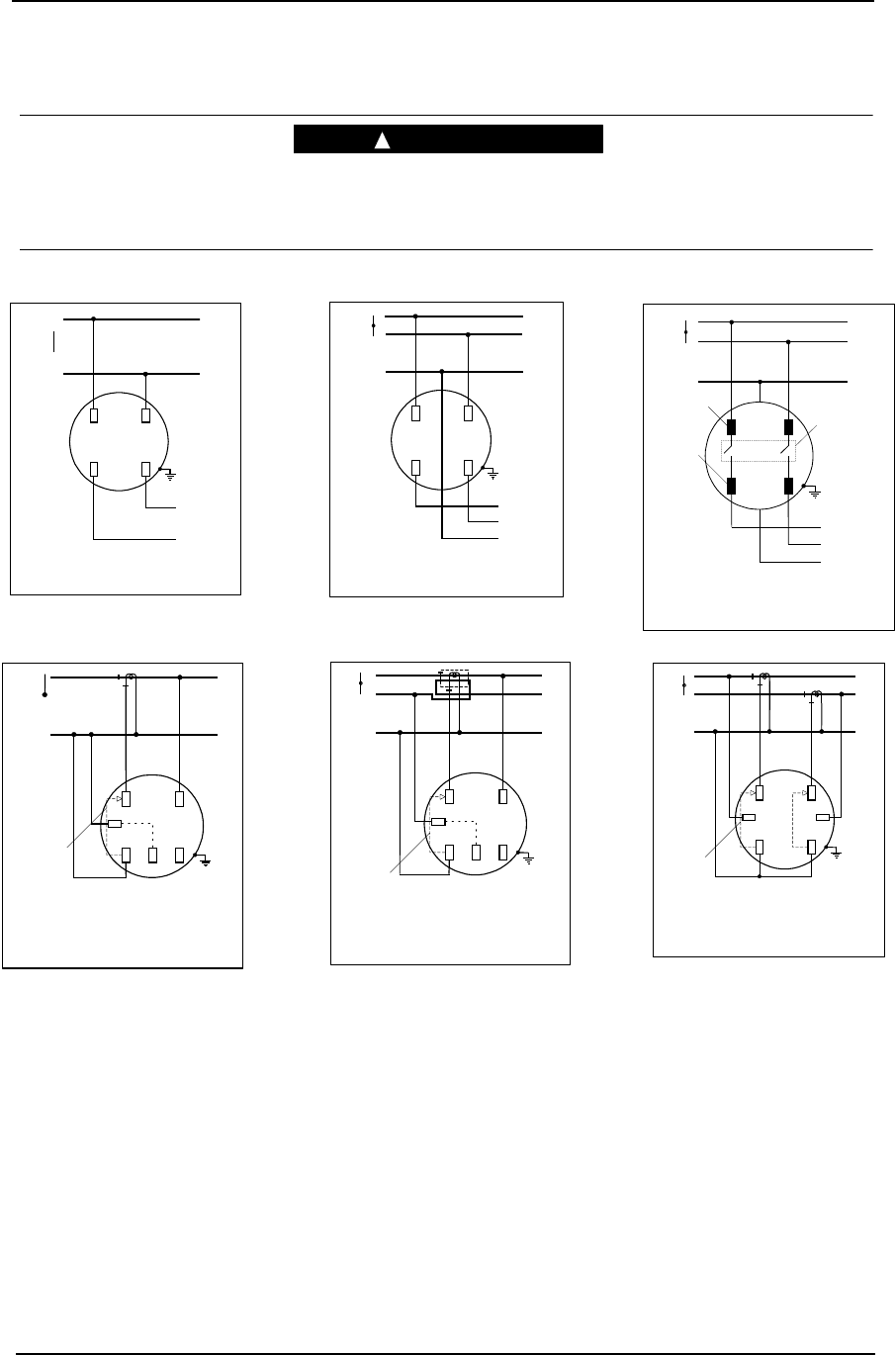

Installation Wiring Diagrams
WARNING
!
Use circuit-closing devices on current transformer secondaries used with Form 3S and
Form 4S meters. Dangerous currents and voltages are present. Equipment damage,
personal injury, or death can result if circuit-closing devices are not used.
N
1
L
O
A
D
1
N
1
N
Form 1S
1 phase, 2 wire
self–contained
20E01
1
2
N
L
O
A
D
2
N
1
N
2
1
Form 2S
1 phase, 3 wire
self–contained
20E01
L
O
A
D
N
2
1
Service control
switch
1
2
N
2
N
1
Service side
voltage
Load side
voltage
Form 2S
1 phase, 3 wire with
service control swith (open)
self–contained
16L03
Form 3S
1 phase, 2 wire
1 CT, no VTs
11G03
1
N
N
1
CIRCUIT
CLOSING
DEVICE
Form 3S
1 phase, 3 wire
1 CT, no VTs
11G03
1
2
N
N
2
1
CIRCUIT
CLOSING
DEVICE
Form 4S
1 Phase, 3 Wire
2 CTs, no VTs
11G03
1
2
N
N
2
1
CIRCUIT
CLOSING
DEVICE
IL42-4026D August 2005
DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY
There are no understandings, agreements, representations, or warranties either express or implied, including warranties of merchantabil-
ity or fitness for a particular purpose, other than those specifically set out by any existing contract between the parties. Any such con-
tract states the entire obligation of the seller. The contents of this document shall not become part of or modify any prior existing
agreement, commitment, or relationship.
The information, recommendations, descriptions, and safety notices in this document are based on Elster Electricity, LLC experience
and judgment with respect to operation and maintenance of the described product. This information should not be considered as all-
inclusive or covering all contingencies. If further information is required, Elster Electricity, LLC should be consulted.
No warranties, either expressed or implied, including warranties of fitness for a particular purpose or merchantability, or warranties arising
from the course of dealing or usage of trade, are made regarding the information, recommendations, descriptions, warnings, and cau-
tions contained herein.
In no event will Elster Electricity, LLC be responsible to the user in contract, in tort (including negligence), strict liability or otherwise for
any special, indirect, incidental, or consequential damage or loss whatsoever, including but not limited to: damage or loss of use of
equipment, cost of capital, loss of profits or revenues, or claims against the user by its customers resulting from the use of the informa-
tion, recommendations, descriptions, and safety notices contained herein.
Elster Electricity, LLC
Raleigh, North Carolina USA
*IL42-4026D*
© 2005 by Elster Electricity, LLC.
All rights reserved.
Printed in the United States.
L
O
A
D
2
N
1
1
2
N
N
2
1
Form 12S
