SSE-14-0023_2

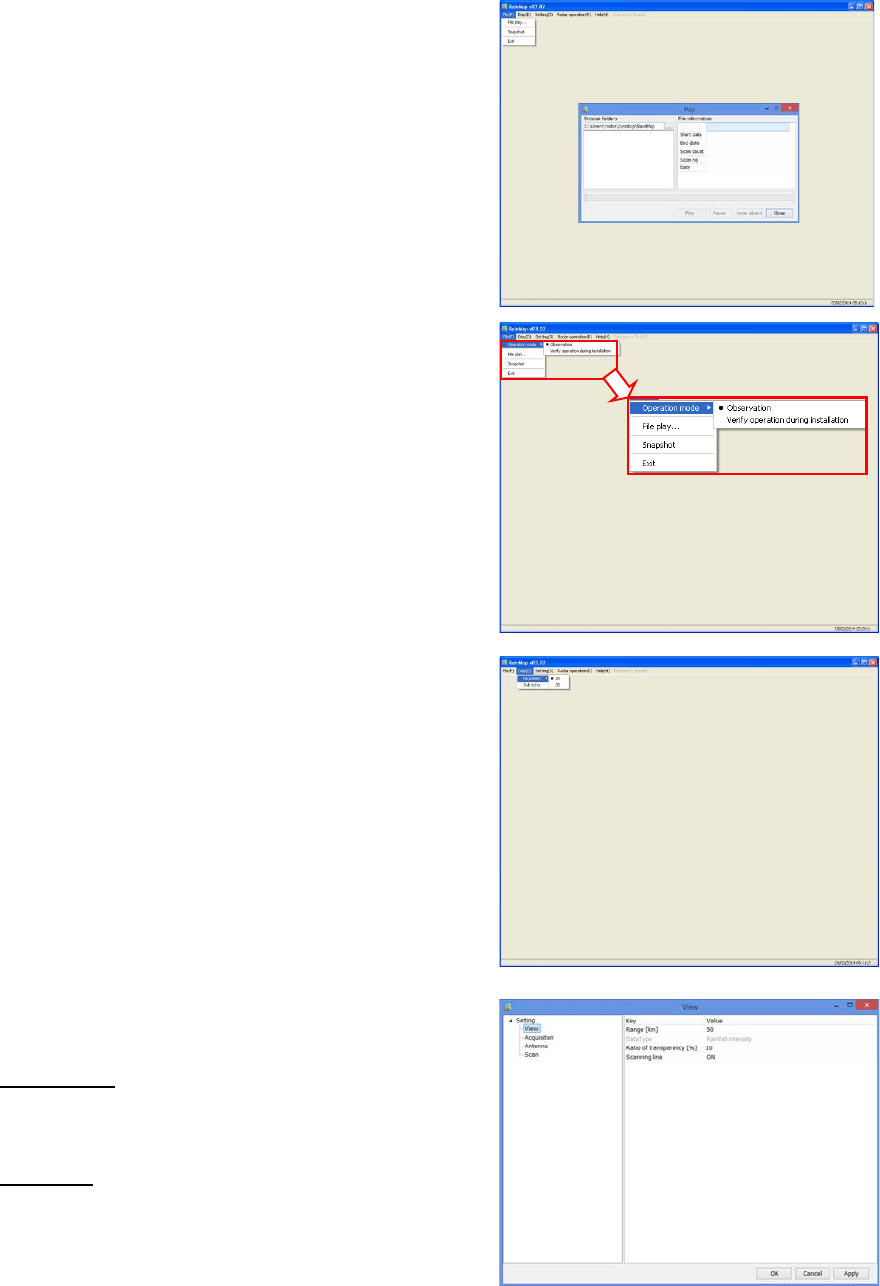

9-1
9. PC operation
9.1. File
1) File Play: To play a regular echo recorded file (idx)
(Refer “2) Acquisition” on 9.3.1.)
2) Snapshot: To indicate captured radar screen (jpg).
3) Exit: To exit the software of RainMap.
4) Operation mode: (Click “File” + [Ctrl] + [Alt] at
same time to Indicate the menu)
Do this operation mode after changed some
parameters to operate a radar.
- Observation:
Select the entered values at “Setting” menu
with regular mode.
- Verify operation during installation:
Change some parameters automatically to
verify operation during installation.
All parameters will set back to previous
setting (before this verify operation) if go
back to “Observation”
9.2. Disp
1) DispSelect
- 2D: Indicate the echo by 2 dimension.
- 3D: Indicate the echo by 3 dimension.
2) Sub echo: To show another screen to indicate
the echo
3) Information Indication: *Under construction.
9.3. Setting
9.3.1. Setting

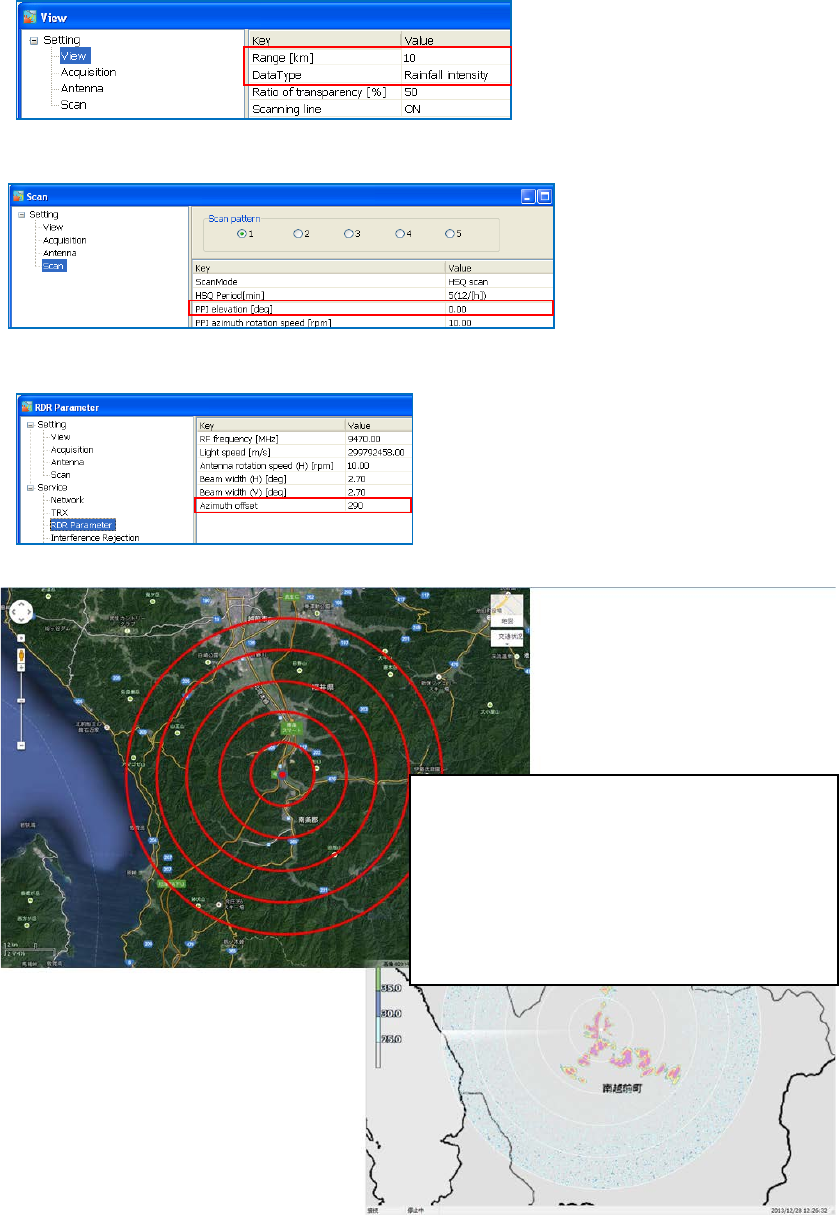

1) View
Range [km]
To setup an indication range.
♦ Confirm and setup the value before shipping.
DataType
To select an indication of the radar parameter.
・ Rainfall intensity: Intensity of rainfall [mm/h]
・ Reflective intensity (H): Reflection factor of
the horizontal polarimetric radar [dBz]
・ Reflective intensity (V): Reflection factor of the vertical polarimetric radar [dBz]
・ Doppler speed: Doppler speed [m/s]
・ Zdr [dB]: Radar reflection factor difference.
・ Kdp [deg/km]: Propagation phase difference rate of change.
![](/img.php?id=2470825&img=bg2.png)
SSE-14-0023_2

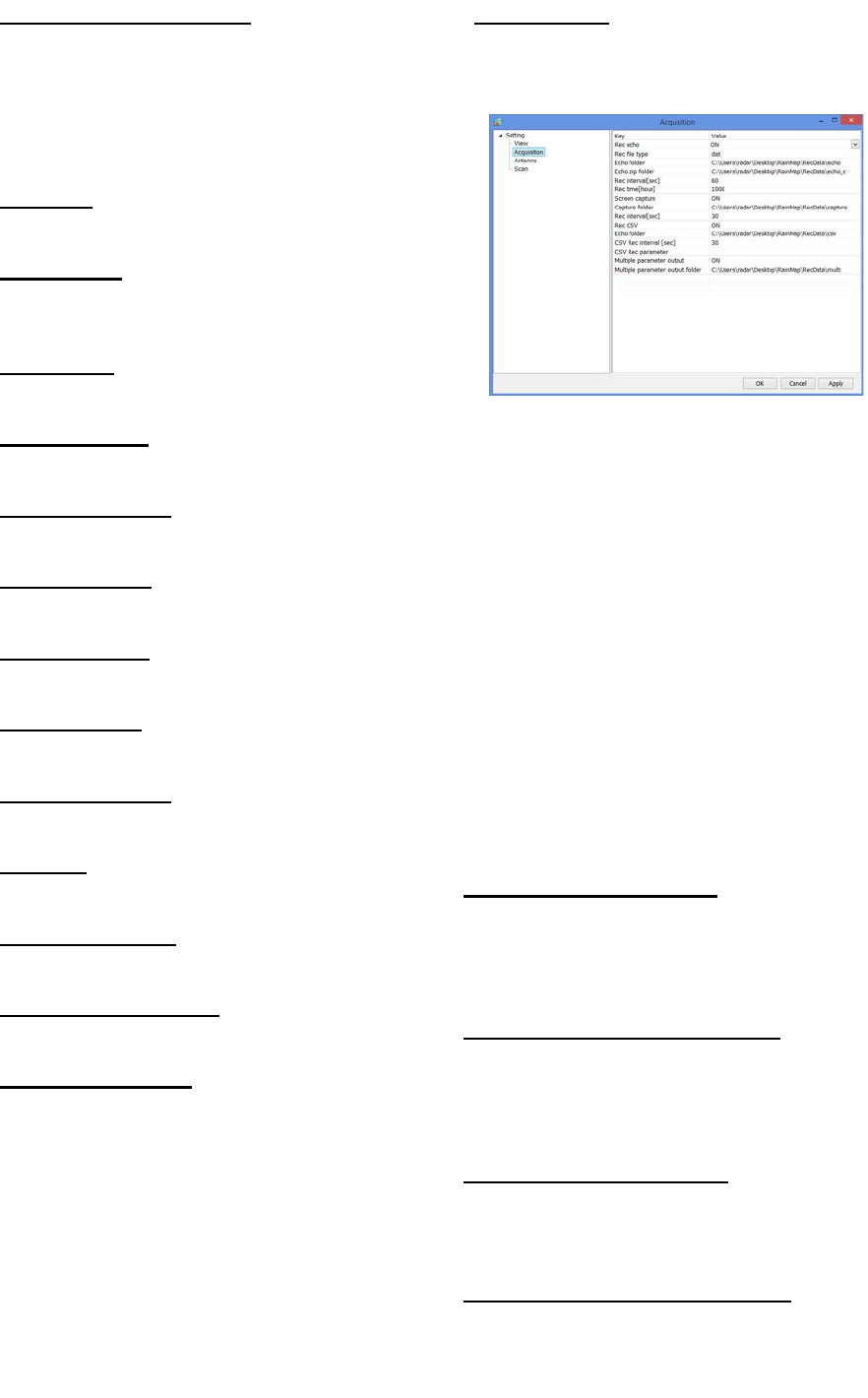

9-2
Ratio of transparency [%]
To setup a Transmittance of the indication
echo.
2) Acquisition
Notice: Turn “OFF” all the setting before shipping.
Rec echo
Turn ON or OFF a Log of echo data.
Rec file type
To select a log form of echo data.
(dat (idx) / ZIP / dat (idx) + ZIP)
Echo folder
To setup a log folder of echo data.
Echo zip folder
To setup a log folder of echo zip data file.
Rec interval [sec]
To setup a recording interval of echo data.
Rec time [hour]
To setup a time of recording echo data.
Screen capture
Turn ON or OFF a screen capture.
Capture folder
To setup a folder of capture (jpg).
Rec interval [sec]
To setup an interval time of capture.
Rec CSV
Turn ON or OFF a recording of CSV data.
Echo folder (CSV)
To setup a folder of CSV data.
CSV Rec interval [sec]
To setup an interval time of CSV data.
CSV Rec parameter
To select a weather parameter of recording
CSV.
- Rain [mm/h]: Intensity of rainfall
- Zhh [dBz]: Reflection factor of the
horizontal polarimetric radar
- Zvv [dBz]: Reflection factor of the
vertical polarimetric radar
- DS [m/s]: Doppler speed
- Zdr [dB]: Radar reflection factor
difference
- Kdp [deg/km]: Propagation phase
difference rate of change.
Multiple parameter output
Turn ON or OFF an output record of
multi-parameter.
(*It could setup only when Echo data
mode of TRX is applied)
Multiple parameter output folder
To setup a folder of recording
multi-parameter (scn).
(*It could
setup only when Echo data
mode of TRX is selected)
Rainfall information output
(*It will indicate during factory setting)
Turn ON or OFF
an output record of
rainfall information.
Rainfall information output folder
(*It will indicate during factory setting)
To setup a folder of recording rainfall
information.
Scanning line
Turn ON or OFF a scan line of screen.
![](/img.php?id=2470825&img=bg3.png)
SSE-14-0023_2
9-3

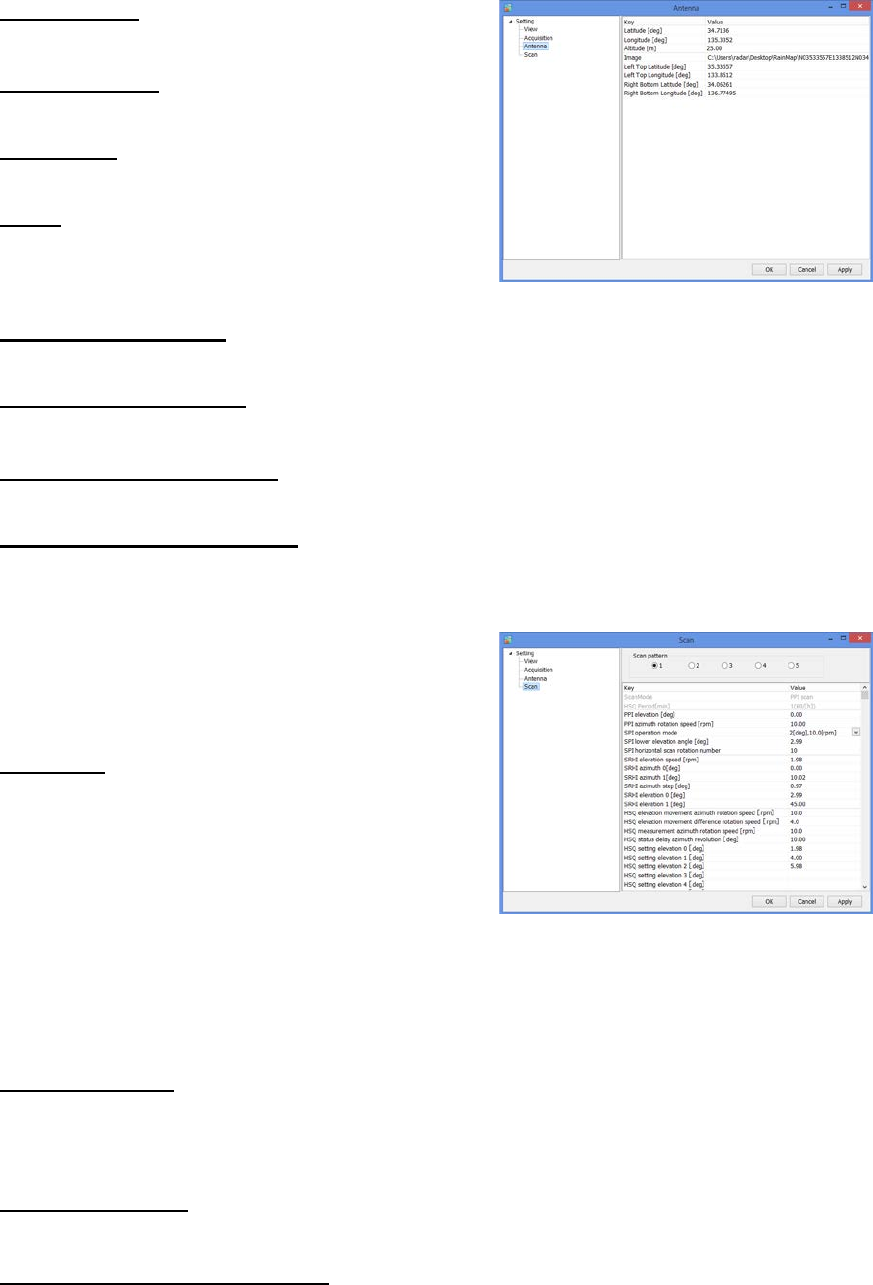

3) Antenna

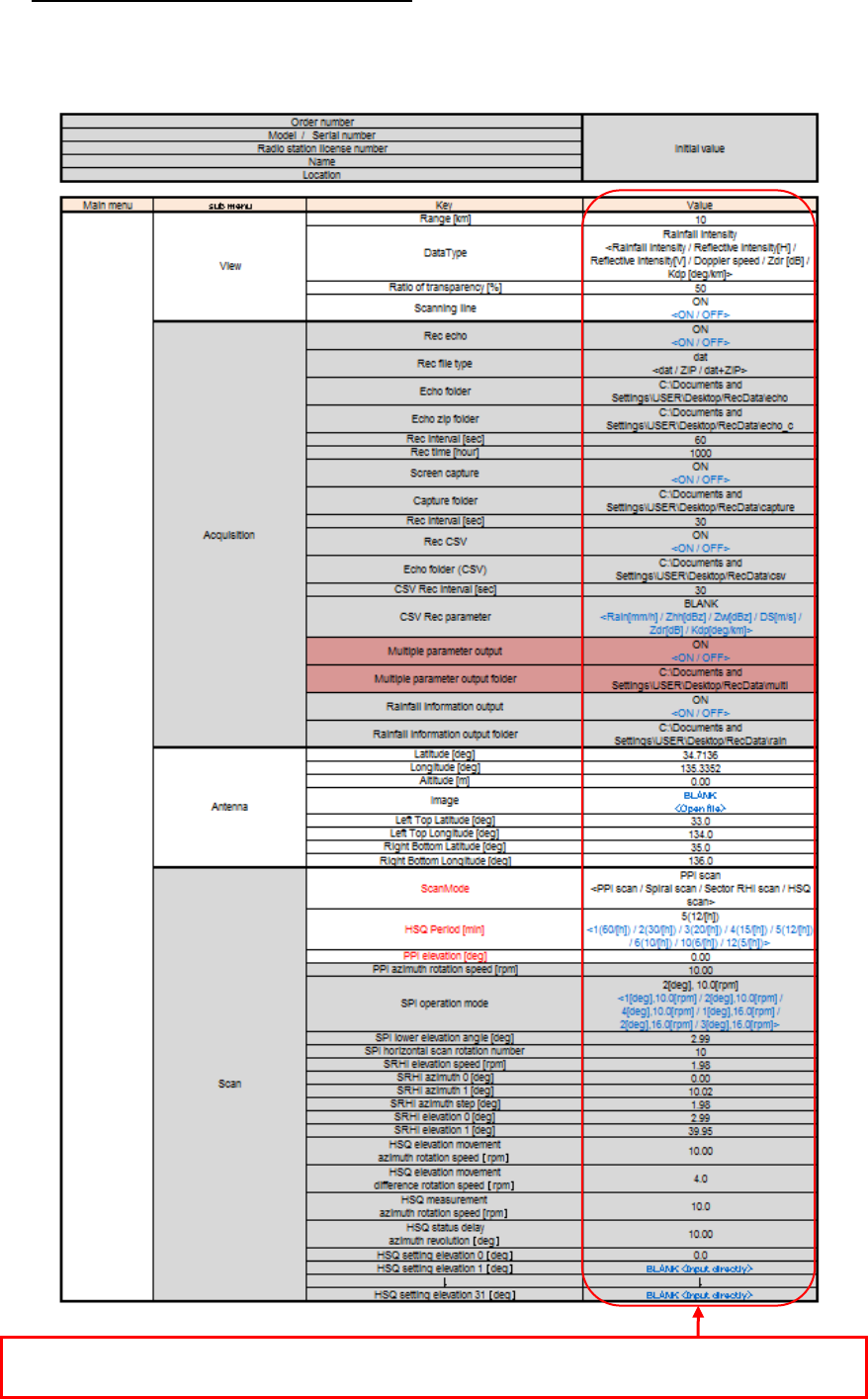

Notice: Follow a value of the management list to setup.
Latitude [deg]
To setup a latitude of the installed point.
Longitude [deg]
To setup a longitude of the installed point.
Altitude [m]
To setup an altitude of the installed point.
To setup a filename of map.
This program treats as the equidistant cylindrical
projection.
Left Top Latitude [deg]
To setup a latitude of left top corner of Map Image.
Left Top Longitude [deg]
To setup a longitude of left top corner of Map Image.
Right Bottom Latitude [deg]
To setup a latitude of bottom right corner of “Map Image”.
Right Bottom Longitude [deg]
To setup a longitude of bottom right corner of “Map Image”.
4) Scan
There are 5 scan patterns that could customize
and save a setting.
Notice: Follow a value of the management list to
setup on scan pattern 1.
ScanMode
To select a scan mode of antenna.
・ PPI scan: Equiangular elevation with horizontal
rotation mode. It generates 2 dimension data.
・ Spiral scan: The mode to rotate horizontal
while shifting elevation continuously, and scans
in a spiral. It generates 3 dimension data.
・ Sector RHI scan: The mode to scan elevation direction on special direction area, and
generate 3 dimension of rectangular solid angle.
・ HSQ scan: The mode to activate PPI scan while shifting an elevation. It generates 3
dimension data.
HSQ Period [min]
To select an periodic movement of HSQ during HSQ mode.
(1(60/(H)) / 2(30/(H)) / 3(20/(H)) / 4(15/(H)) / 5(12/(H)) / 6(10/(H)) / 10(6/(H)) / 12(5/(H)))
e.g. HSQ will activate every 2 minutes if select 2/30/(H). (It turns 30 times per hour)
PPI elevation [deg]
To setup an angle of antenna’s elevation during PPI mode.
PPI azimuth rotation speed [rpm]
To setup a rotation speed of azimuth in
rotation per minutes (rpm).
Parameters affect only to PPI mode.
![](/img.php?id=2470825&img=bg4.png)
SSE-14-0023_2
9-4
SPI operation mode
To setup an elevation angle step and azimuth rotation speed.
For example, when the setting is shown as below table 1, antenna will rotate at 2.99, 3.99 and
6.99 degrees. table 1 (Example of SPI (Spiral) operation)
Parameter Settings
SPI operation mode 2 [deg], 10 [rpm]
SPI lower elevation angle 2.99 [deg]
SPI horizontal scan rotation 3
SPI lower elevation angle [deg]
To setup an angle of SPI lowest elevation.
SPI mode will start from setup angle to upper angle.
SPI horizontal scan rotation number
To setup a number of rotation in horizontal direction of SPI scan.
It will move upward/downward as setup number while rotating on azimuth direction.
SRHI elevation speed [rpm]
To setup an elevation speed of SRHI (Sector RHI).
SRHI azimuth 0 [deg]
To setup an angle of azimuth.
It will observe RHI in between azimuth 0 to 1 continuously.
SRHI azimuth 1 [deg]
To setup an angle of azimuth during SRHI observation.
SRHI azimuth step [deg]
To setup a quantity of antenna rotation while changing an angle of azimuth.
SRHI elevation 0 [deg]
To setup an angle of elevation.
SRHI will start from elevation 1 to 2.
SRHI elevation 1 [deg]
To setup an angle of elevation in HSQ (Horizontal Sequence) observation.
HSQ elevation movement azimuth rotation speed [rpm]
To setup an azimuth rotation speed until the elevation movement in HSQ (Horizontal
Sequence) observation.
HSQ elevation movement difference rotation speed [rpm]
To setup a rotation speed of elevation direction during elevation change in HSQ (Horizontal
Sequence) observation.
Rotation speed of elevation direction = [HSQ elevation moving direction of rotation speed] +
[HSQ elevation movement difference of rotation speed]
Notice: [HSQ elevation moving direction of rotation speed] ≧ [HSQ elevation movement
difference of rotation speed]
HSQ measurement azimuth rotation speed [rpm]
To setup an azimuth rotation speed at fixed elevation angle.
HSQ status delay azimuth revolution [deg]
To setup an angle of shifting elevation in HSQ (Horizontal Sequence) observation.
HSQ setting elevation 0 – 31 [deg]
To setup an elevation variation.
It is possible to setup 32 elevation.
![](/img.php?id=2470825&img=bg5.png)
SSE-14-0023_2
9-5

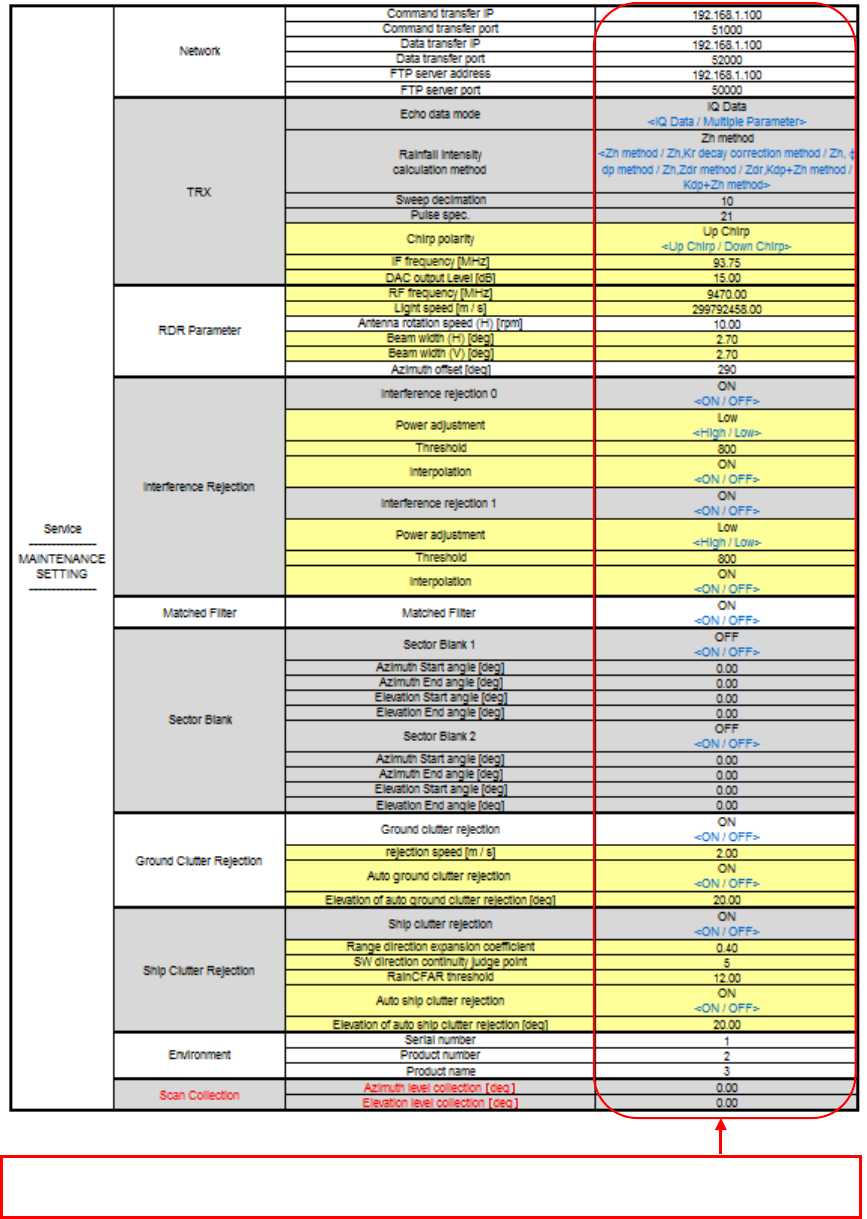

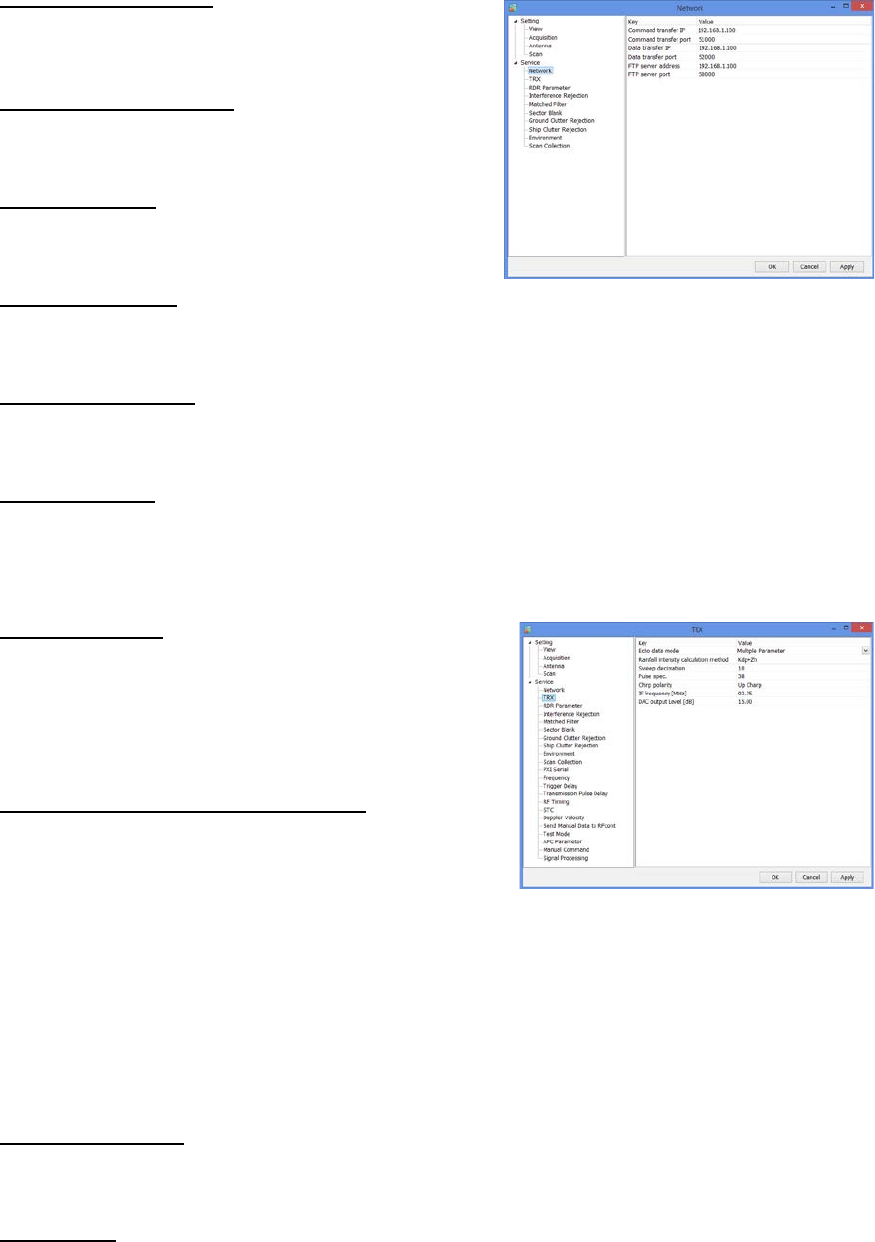

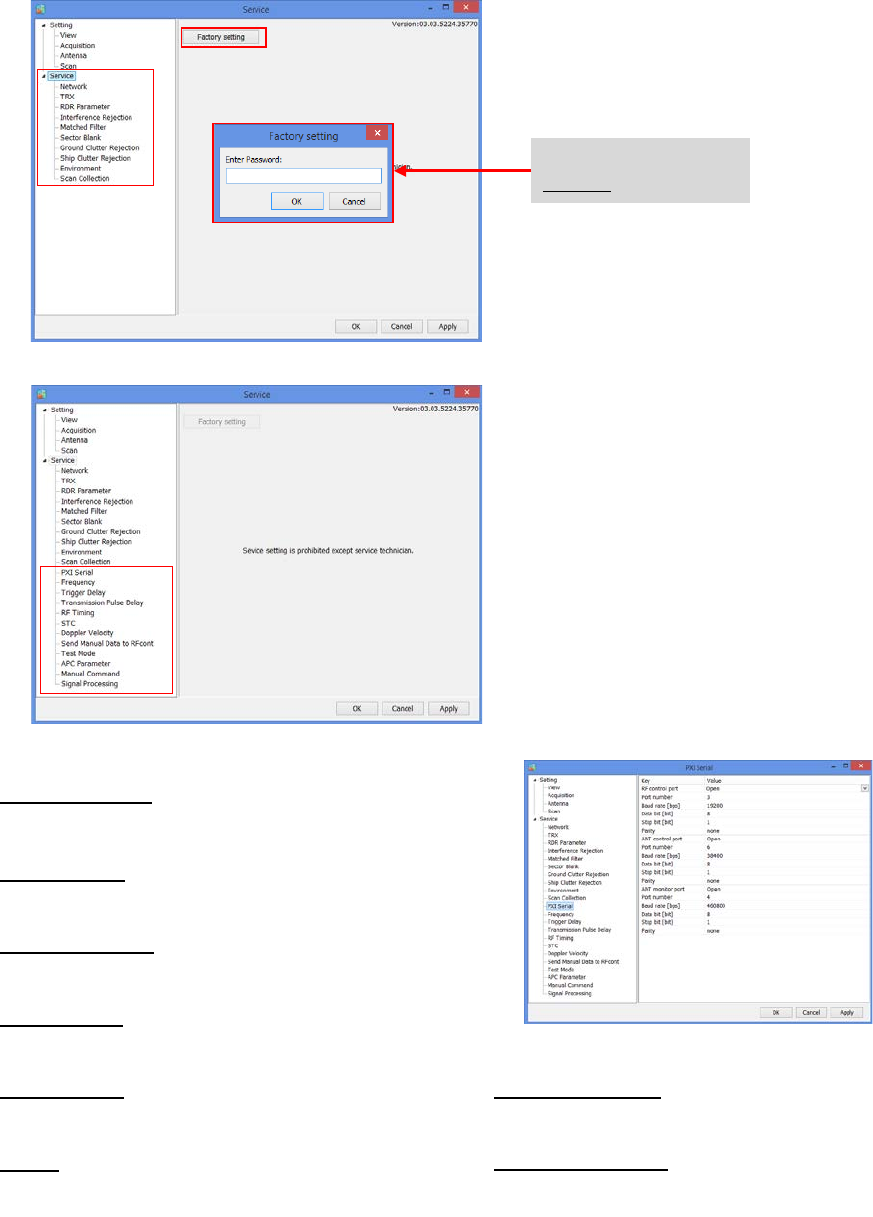

9.3.2. Service
Press [Ctrl] + [Alt] and click [Setting] simultaneously to indicate service menu.
Service menu has two types:
1. Maintenance setting: Regular menu for maintenance service engineer.
2. Factory setting: Adjust the setting of installed station use only for installation engineer.
Notice: Follow the management list to setup all values.
1) Network
Command transfer IP
To setup the IP address of command transfer.
♦ Constant value: 192.168.1.101
Command transfer port
To setup the port number of command transfer.
♦ Constant value: 51000
Data transfer IP
To setup the IP address of data transfer.
♦ Constant value: 192.168.1.101
Data transfer port
To setup the port number of data transfer.
♦ Constant value: 52000
FTP server address
To setup the IP address of FTP server.
♦ Constant value: 192.168.1.100
FTP server port
To setup the port number of FTP server.
♦ Constant value: 50000
2) TRX
Echo data mode
To select Echo data mode.
- IQ Data: Use amplitude of Horizontal wave only.
- Multiple Parameter: Use all information of
reflected wave such as H/V amplitude and
phase.
Rainfall intensity calculation method
To select a calculation method of Rainfall intensity
calculation.
・ Zh method: Use horizontal amplitude
information only.
・ Zh,Kr Attenuation correction method: Zh is calculated from the value that corrected rain
attenuation by the amplitude.
・ Zh, φ dp method: Zh is calculated from the value that corrected rain attenuation by the φ dp.
・ Zh, Zdr method: Calculated from Zh and Zdr.
・ Zdr, Kdp+Zh method: Add into Zh after calculated from Kdp and Zdr.
・ Kdp+Zh: Use complex information, amplitude, and phase.
Sweep decimation
To setup a number of decimation.
Size of transfer data. It uses the setting table when to determine a factor.
Pulse spec.
To setup a pulse number.
Refer to the setting table as details of pulse settings.
![](/img.php?id=2470825&img=bg6.png)
SSE-14-0023_2
9-6
Chirp polarity
(*It will indicate during factory setting)
To select frequency shift direction.
Up Charp: Sweep frequency to upward.
Down Charp: Sweep frequency to downward.
IF frequency [MHz]
(*It will indicate during factory setting)
To setup an IF (Intermediate Frequency) signal frequency.
DAC output Level [dB]
(*It will indicate during factory setting)
To setup an amplitude of transmission signal output from SPU.

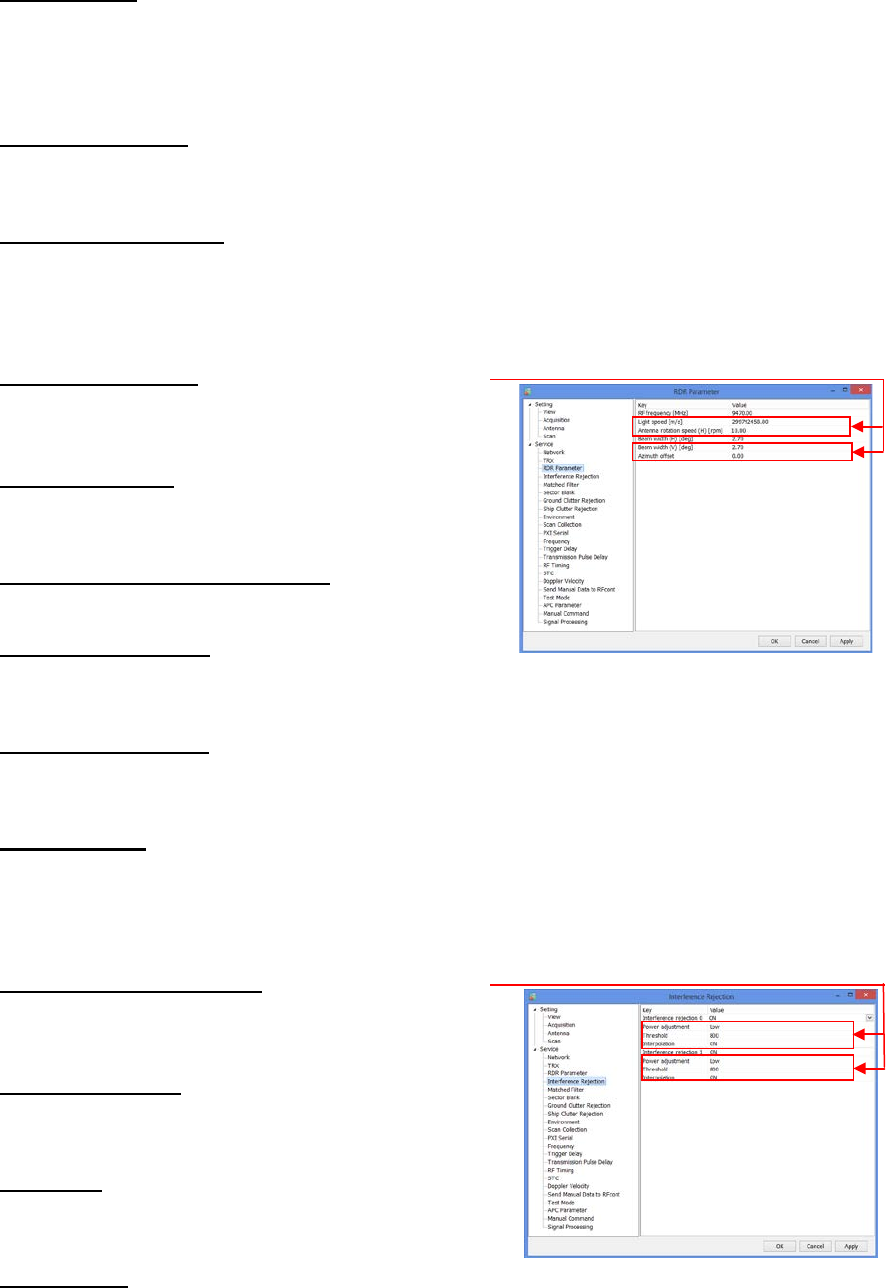

3) RDR Parameter
RF frequency [MHz]
(*It will indicate during factory setting)
To setup a carrier frequency of transmitting signal.
Light speed [m/s]
(*It will indicate during factory setting)
To setup a propagation speed of radio wave.
Antenna rotation speed (H) [rpm]
To setup a horizontal rotation speed of antenna.
Beam width (H) [deg]
(*It will indicate during factory setting)
To setup an angle (Beam width) that -3dB beam width of antenna in horizontal polarization.
Beam width (V) [deg]
(*It will indicate during factory setting)
To setup an angle (Beam width) that -3dB beam width of antenna in vertical polarization
Azimuth offset
(*It will indicate during factory setting)
To setup an azimuth offset angle from origin to north.
4) Interference Rejection
Interference rejection 0 - 1
Turn On or OFF an interference rejection function
from other radar.
Power adjustment
(*It will indicate during factory setting)
To select High or Low to adjust the power of IR0 -1.
Threshold
(*It will indicate during factory setting)
To setup a threshold of judging interference wave.
Interpolation
(*It will indicate during factory setting)
Turn On or OFF an interpolation.
It indicates only when Factory setting is on
It indicates only when Factory setting is on
![](/img.php?id=2470825&img=bg7.png)
SSE-14-0023_2
9-7

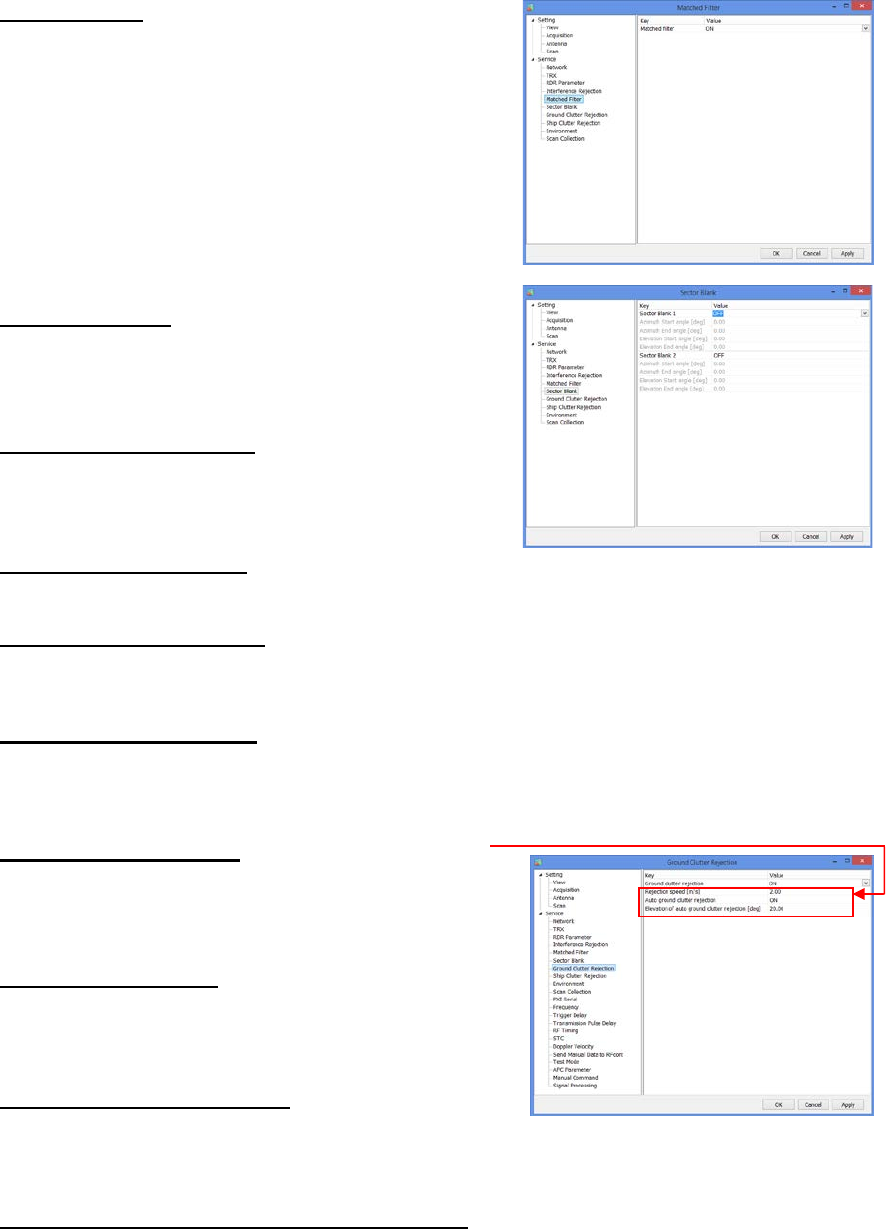

5) Matched Filter
Matched Filter
Turn “ON” when to use QON and VON.
This is a setting of receiving digital filter.
6) Sector Blank
Sector Blank 1 -2
Turn ON or OFF a setting of transmission prohibited
area. (Setup a rectangular solid angle area of
Azimuth and Elevation)
Azimuth Start angle [deg]
To setup a starting angle point of azimuth direction.
Starting point of azimuth is 0 degree on this unit.
Follow a clockwise direction.
Azimuth End angle [deg]
To setup an ending angle point of azimuth direction.
Elevation Start angle [deg]
To setup a starting elevation angle. Horizontal
direction is 0 degree. Follow a zenithal direction.
Elevation End angle [deg]
To setup an ending angle point of elevation.
7) Ground Clutter Rejection
Ground clutter rejection
Turn ON or OFF a judgment to remove ground
clutter as a target if moving speed is lower than
setting speed.
Rejection speed [m/s]
(*It will indicate during factory setting)
To setup a removal speed (upper limit) of judging
ground clutter.
Auto ground clutter rejection
(*It will indicate during factory setting)
Turn ON or OFF an auto ground clutter rejection. Turn it “OFF” if elevation is above setting
value.
Elevation of auto ground clutter rejection [deg]
(*It will indicate during factory setting)
To setup an angle of boundary elevation to turn off ground clutter rejection.
It indicates only when Factory setting is on
![](/img.php?id=2470825&img=bg8.png)
SSE-14-0023_2
9-8

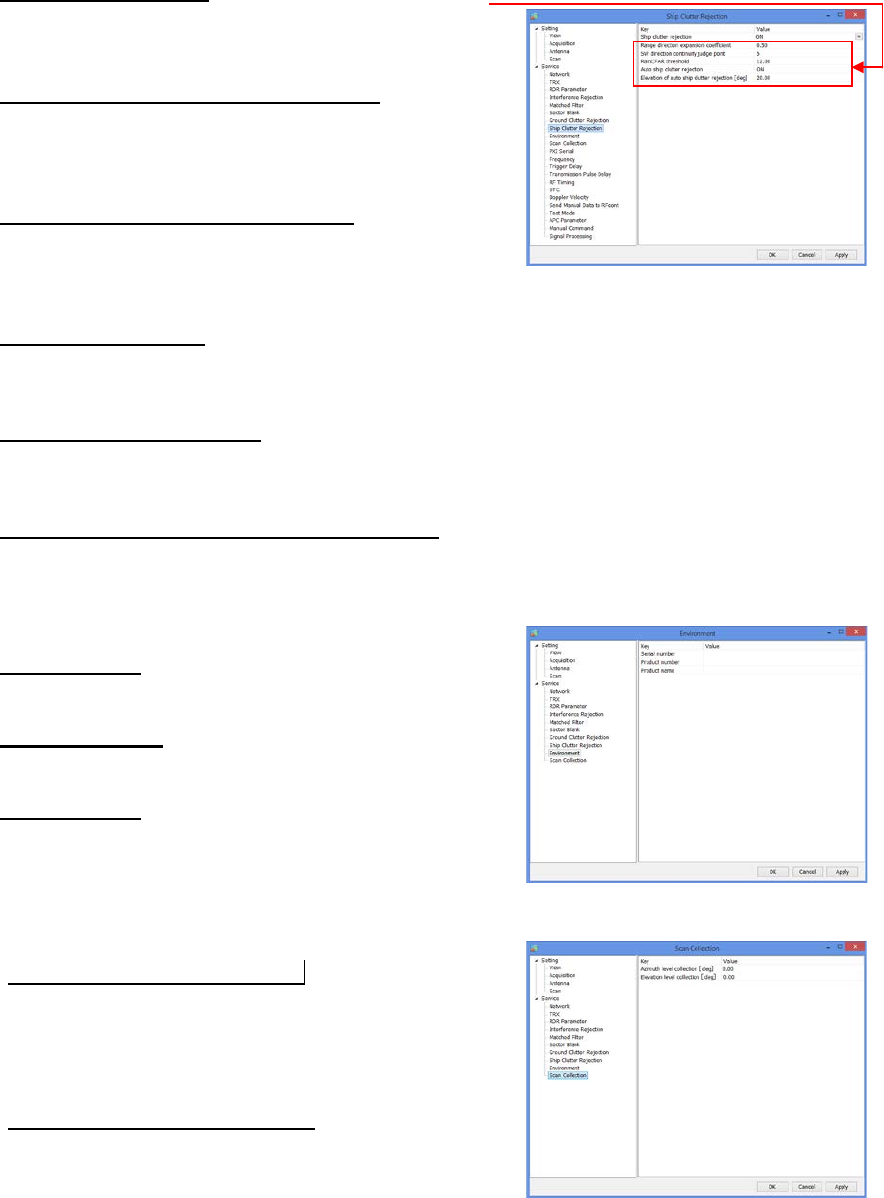

8) Ship Clutter Rejection
Ship clutter rejection
Turn ON or OFF for determine whether a target is
a ship and to eliminate.
Range direction expansion coefficient
(*It will indicate during factory setting)
To setup a range to expand a ship and the data to
judge in the range direction.
SW direction continuity judge point
(*It will indicate during factory setting)
To setup a point to judge the continuity of the sweep
direction
RainCFAR threshold
(*It will indicate during factory setting)
To setup a threshold to judge as a ship.
Auto ship clutter rejection
(*It will indicate during factory setting)
To setup a threshold to judge as a ship.
Elevation of auto ship clutter rejection [deg]
(*It will indicate during factory setting)
To setup an angle of boundary elevation to turn off ship clutter rejection.
9) Environment
Serial number
Enter the serial number.
Product number
Enter the product number.
Product name
Enter the product name.
10) Scan Collection
Azimuth level collection [deg]
To setup an azimuth offset from initial position.
Parameters affect to elevation angle calibration.
It adjusts the offset of magnet sensor by elevation
calibration.
Elevation level collection [deg]
To setup an elevation offset from horizontal level.
Measure the elevation angle after antenna
initialization and set a field.
It indicates only when Factory setting is on
![](/img.php?id=2470825&img=bg9.png)
SSE-14-0023_2
9-9
9.3.3. Factory setting
1. Click “Setting” + [Ctrl] + [Alt] simultaneously to Indicate the equipment setting of Service
menu.
2. [Factory setting] button will indicate on the right side menu when clicked [Service] in the left
menu.
3. Pop-up menu of [Enter password of Factory setting] will indicate when clicked [Factory
setting] button.
4. Factory setting menu will indicate below Service menu after entered the password
1) PXI Serial
RF control port
To Open or Close RF control port.
Port number
To setup a port number.
Baud rate [bps]
To setup a baud rate.
Data bit [bit]
To setup a data bit.
Stop bit [bit]
To setup a stop bit.
Parity
To select the setting.
(none / odd / even / mark / space)
Enter Password:
rainmap
ANT control port
To Open or Close ANT control port.
ANT monitor port
To Open or Close ANT monitor port.
![](/img.php?id=2470825&img=bga.png)
SSE-14-0023_2
9-10

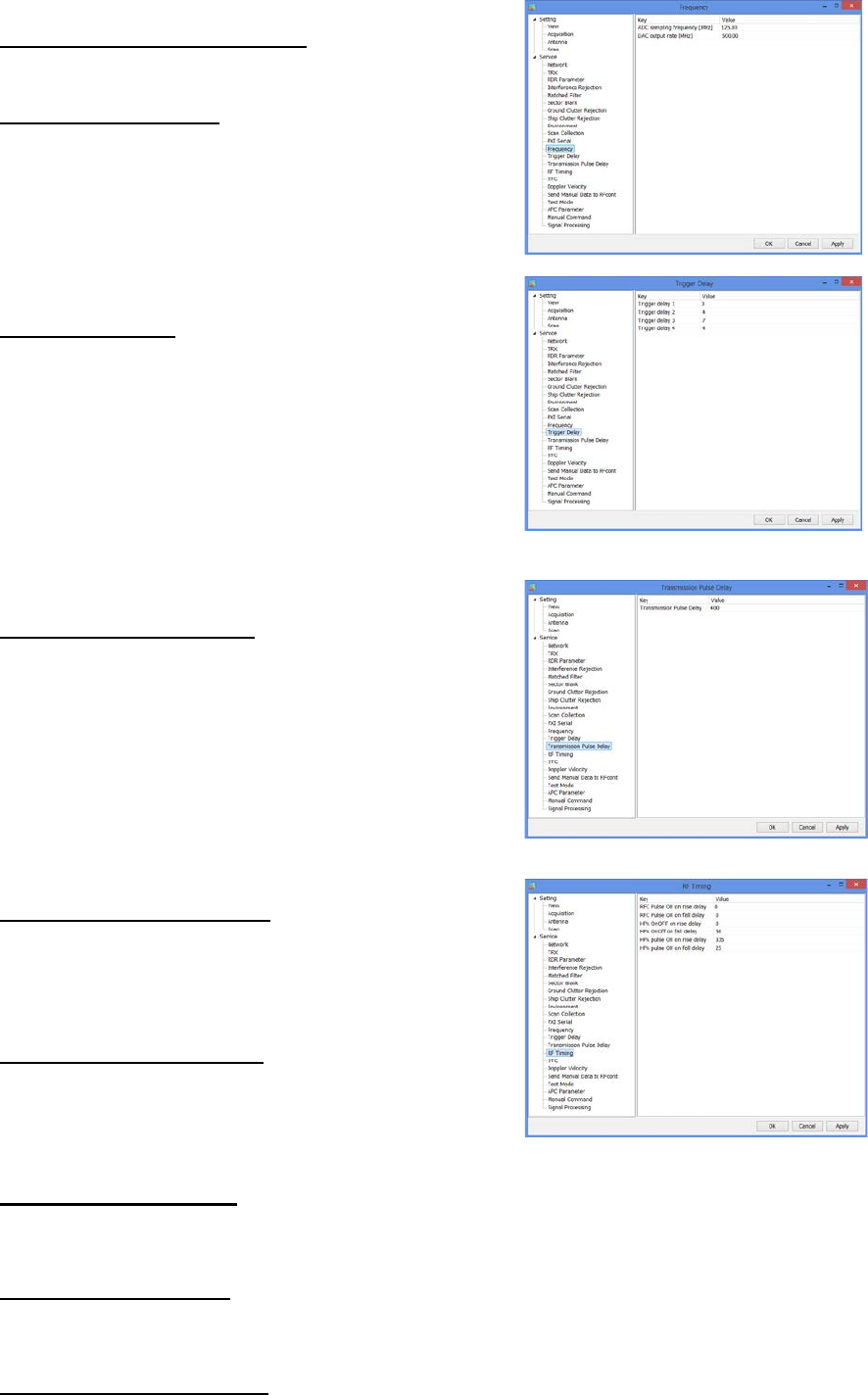

2) Frequency
ADC sampling frequency [MHz]
To setup a sampling frequency of AD converter.
DAC output rate [MHz]
To setup an output rate of DA converter.
3) Trigger delay
Trigger delay 1 - 4
To setup a trigger delay timing #1 - #4 of
transmission signal.
4) Transmission Pulse Delay
Transmission Pulse Delay
To setup a clock frequency (normally 125MHz) of
transmission pulse delay.
5) RF Timing
RFC pulse ON on rise delay
To setup a clock frequency (normally 125MHz) of
RFC pulse on rise delay.
It turns “OFF” a pulse of LNA bias during a period of
transmission. RF_trig rise against delay time.
RFC pulse ON on fall delay
To setup a clock frequency (normally 125MHz) of
RFC pulse on fall delay.
It turns “OFF” a pulse of LNA bias during a period of
transmission. RF_trig fall against delay time.
HPA OnOff on rise delay
Control signal (the power is “OFF” during HPA receiving period) of HPA power switch (drain
voltage) could setup a rise delay time for RF_Trig.
HPA OnOff on fall delay
Control signal (the power is “OFF” during HPA receiving period) of HPA power switch (drain
voltage) could setup a fall delay time for RF_Trig.
HPA pulse ON on rise delay
Control signal (the power is “OFF” during HPA receiving period) of HPA power switch (pulse
voltage) could setup a rise delay time for RF_Trig.
![](/img.php?id=2470825&img=bgb.png)
SSE-14-0023_2
9-11
HPA pulse ON on fall delay
Control signal (the power is “OFF” during HPA receiving period) of HPA power switch (pulse
voltage) could setup a fall delay time for RF_Trig.

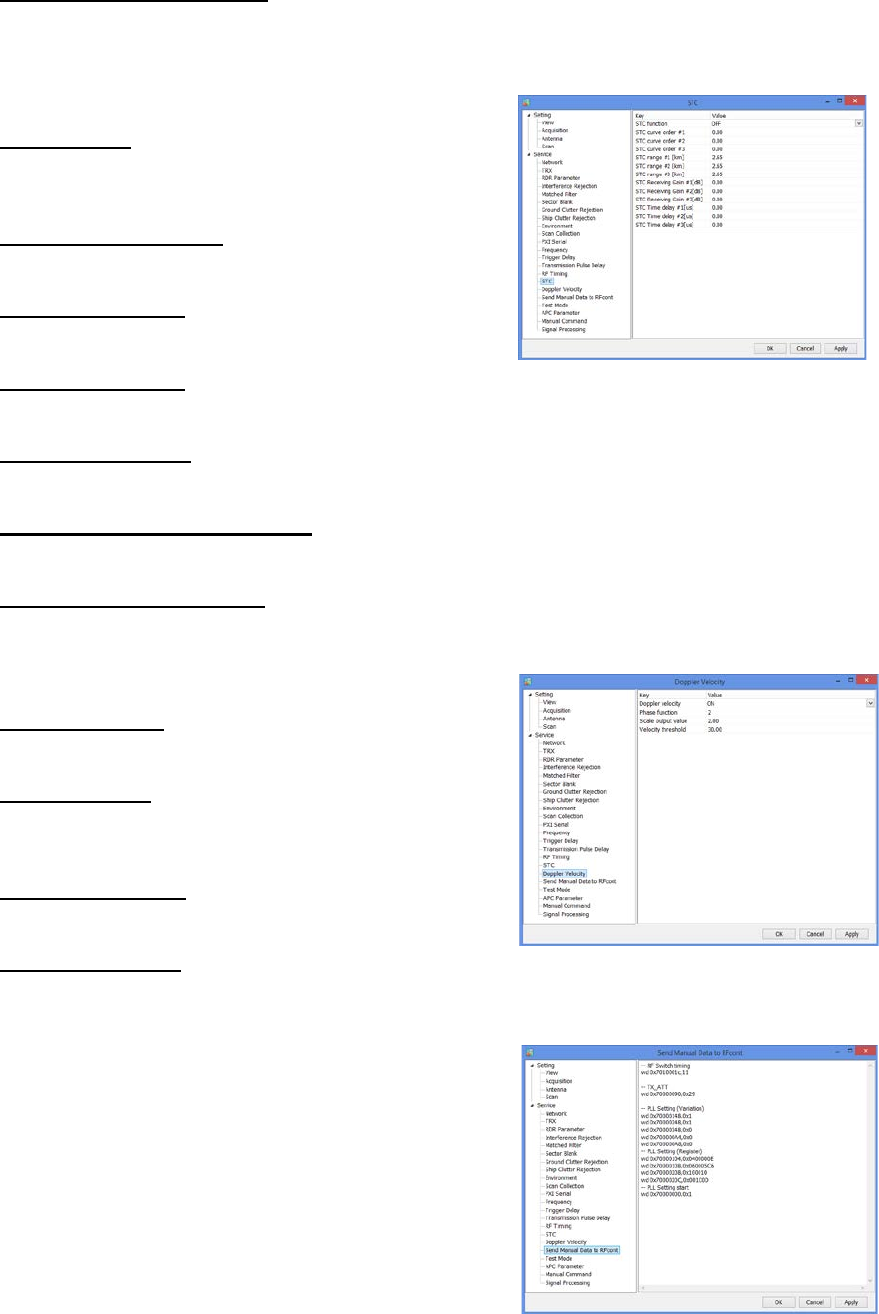

6) STC
STC function
Turn ON or OFF a STC (Sensitivity Time Control)
data transmission.
STC curve order #1 - 3
To setup a degree of 1 - 3 STC curve order area.
STC range #1 [km]
To setup a distance of 1st and 2nd STC area.
STC range #2 [km]
To setup a distance of 2nd and 3rd STC area.
STC range # 3 [km]
To setup the last distance of 3rd STC area.
STC Receiving Gain #1 – 3 [dB]
To setup a value of STC receiving gain #1 - 3.
STC Time delay #1 – 3 [us]
To setup a value of STC time delay #1 – 3.
7) Doppler Velocity
Doppler velocity
Turn ON or OFF a doppler velocity calculation.
Phase function
To setup a correlation coefficient when calculate
doppler velocity.
Scale output value
For spare.
Velocity threshold
For spare.
8) Send Manual Data to RFcont
Input manual setting data
![](/img.php?id=2470825&img=bgc.png)
SSE-14-0023_2
9-12
9) Test Mode
D00 (RFcont disconnect)
Turn ON or OFF a Rfcont board connection.
D01 (Loop back test)
Turn ON or OFF a loopback test.
Fix setting value of receiving area as each control
signal affect to a receiving system.
D02 – 07 (Reserve)
For spare.
D08 (Formed HP, BP inside)
For spare.
D09 – 15 (Reserve)
For spare.
STCIF fixed value
To setup a fixed value of STCIF for the gain of the receiver in the most far distance point.
PXI Loop back
Turn ON or OFF a PXI loopback.
It will receive even during transmitting by shifting forward the start timing if turns “ON”.
Antenna mode
To select an antenna mode.
Normal: Use actual machine data
Test mode (PXI internal formation): Use PXI internal formation as an angle for a test.
10) APC Parameter
Auto transmission power control
Turn ON or OFF an auto transmission output control.
APC coefficient (T5 – 0)
To setup 5th – 0th power of APC coefficient.
![](/img.php?id=2470825&img=bgd.png)
SSE-14-0023_2
9-13

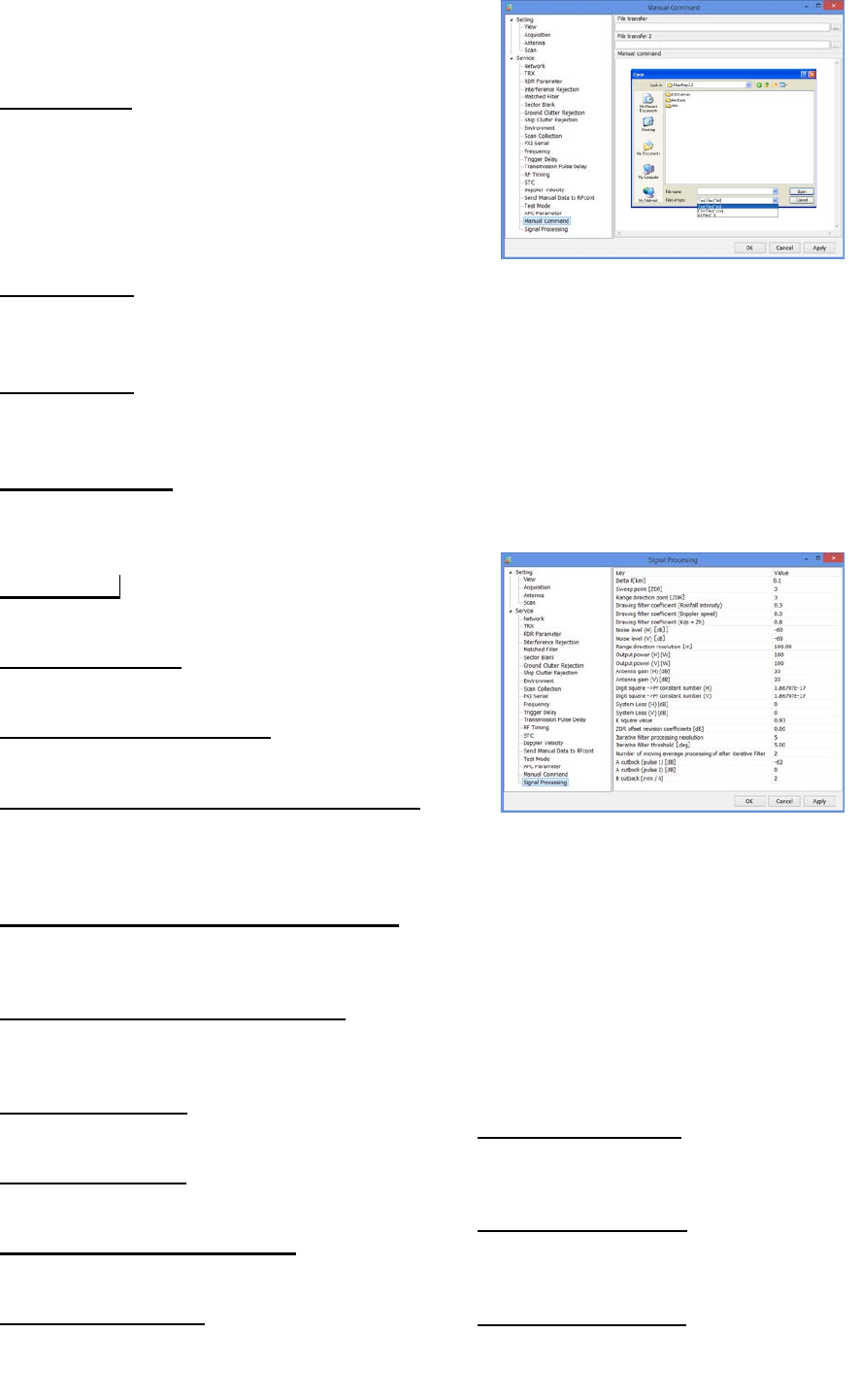

11) Manual Command
It has to select [All Files(*.*)] at extension instead of
[*.txt] to open [*.conf] file.
Filter transfer
Open parameter file which is necessary for
compact weather radar.
The setup value is for compact weather radar.
However it must have to turn OFF on Ground
Clutter Rejection for using selected file because it
is not for regular operation.
File transfer 1
FAR3000SSD_kisyou_No_32_P0N_GCR_OFF_yyyymmdd.conf
(yyyymmdd means Year/Month/Date)
File transfer 2
FAR3000SSD_kisyou_RFCONT_SNxxxx_ yyyymmdd.conf
(xxxx means a serial number of radar, yyyymmdd means Year/Month/Date)
Manual command
To setup radar command directory
12) Signal Processing
Delta R [km]
To setup a delta range that calculation of Kdp.
Sweep point [ZDR]
To setup a sweep point that calculate Zdr.
Range direction point [ZDR]
To setup a range direction point that calculate Zdr.
Drawing filter coefficient (Rainfall intensity)
To setup a value of drawing filter coefficient
(Rainfall intensity).
It convert indication data into LPF in the azimuth direction and improve the visibility of the echo.
Drawing filter coefficient (Doppler speed)
To setup a value of drawing filter coefficient (Doppler speed).
It convert indication data into LPF in the azimuth direction and improve the visibility of the echo.
Drawing filter coefficient (Kdp + Zh)
To setup a value of drawing filter coefficient (Kdp + Zh).
It convert indication data into LPF in the azimuth direction and improve the visibility of the echo.
Noise level (H) [dB]
To setup a noise level (Horizontal).
Noise level (V) [dB]
To setup a noise level (Vertical).
Range direction resolution [m]
To setup a range direction of resolution.
Output power (H) [W]
To setup an output power of transmission
(Horizontal).
Output power (V) [W]
To setup an output power of transmission
(Vertical).
Antenna gain (H) [dB]
To setup a value of antenna gain
(Horizontal).
Antenna gain (V) [dB]
To setup a value of antenna gain
(Vertical).
![](/img.php?id=2470825&img=bge.png)
SSE-14-0023_2
9-14
Digital square -> Pr constant number (H)
To setup a constant number to convert it into the electricity (Pr) of the antenna edge from a
digital data level sampled in ADC (Horizontal polarized wave).
Digital square -> Pr constant number (V)
To setup a constant number to convert it into the electricity (Pr) of the antenna edge from a
digital data level sampled in ADC (Vertical polarized wave).
System Loss (H) [dB]
To setup a value of system loss (Horizontal).
System Loss (V) [dB]
To setup a value of system loss (Vertical).
K square value
To setup a K square value (Typical weather radar multiplier).
ZDR offset revision coefficient [dB]
To setup a value of Zdr to revise amplitude deviation of horizontal and vertical.
Iterative filter processing resolution
To setup a number of iterative filter processing for φdp calculation.
Iterative filter threshold [deg]
To setup an angle of iterative filter threshold for φdp calculation.
Number of moving average processing of after iterative filter
To setup a number of moving average processing of after iterative filter for φdp calculation.
A cutback (pulse 1 -2) [dB]
To setup a threshold value for removing (not to indicate on a screen) noise (Pulse 1 - 2).
B cutback [mm/h]
To setup a value of B cutback for removing (not to indicate on a screen) noise.
Notice: Reboot RainMap for saving data which is in “ini” file.
![](/img.php?id=2470825&img=bgf.png)
SSE-14-0023_2
9-15

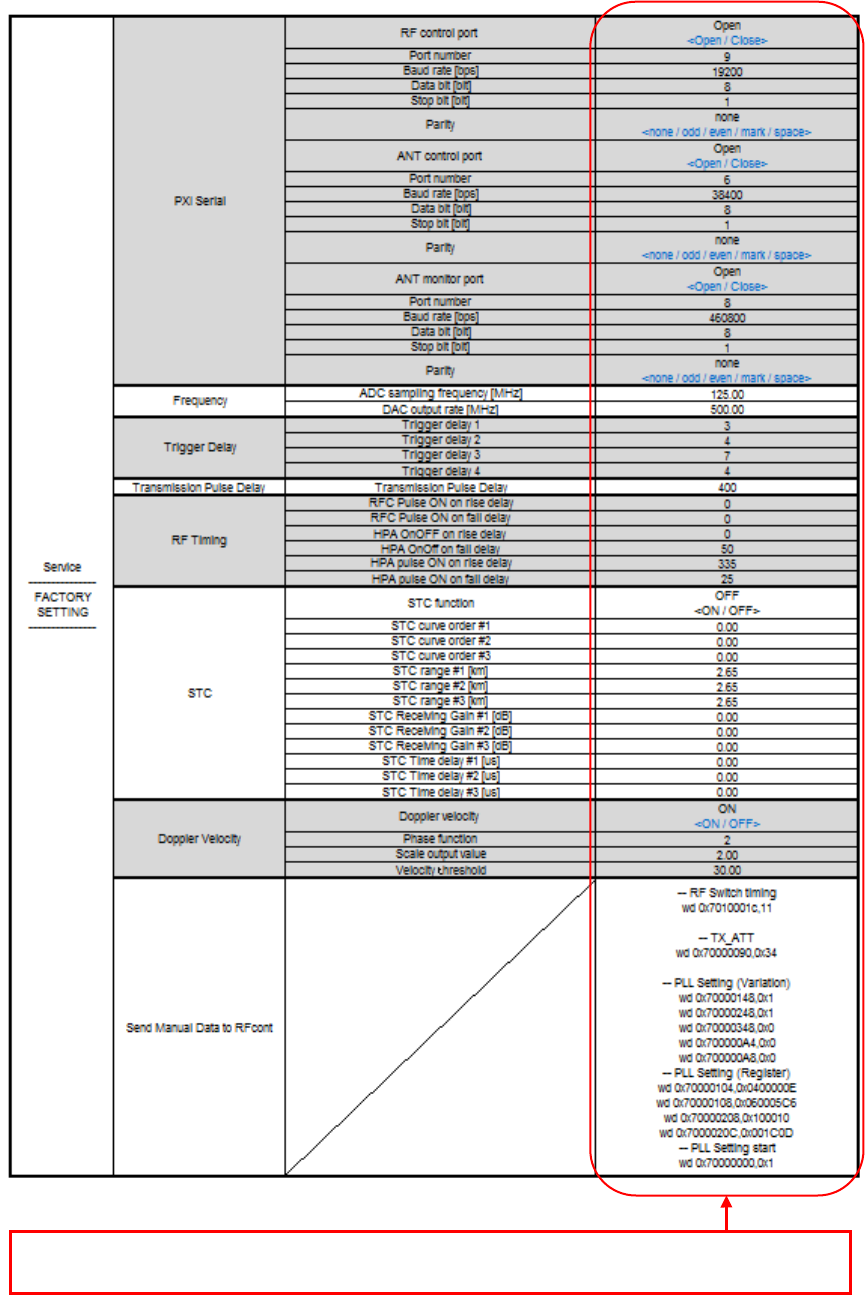

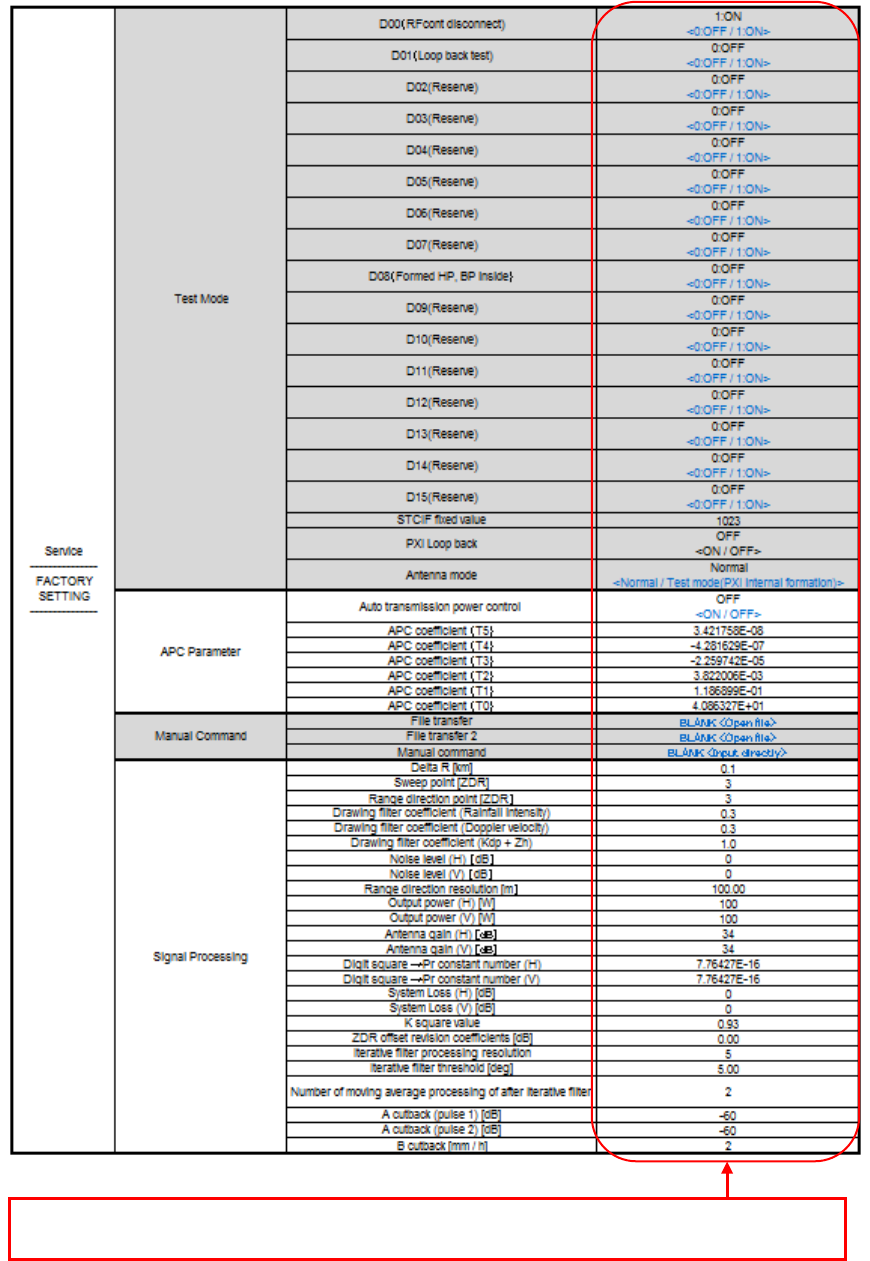

9.3.4. Management list
The management list would be attached with the RainMap to every location for setting.
Sample of default setting is shown below:
・ Please setup the correct values belong to the location.
・ Key & Value with yellow columns would indicate during factory setting.
1. Setting
Enter the correct value belong to the location in RainMap,
and please write down the adjusted values on this management list for your record.
![](/img.php?id=2470825&img=bg10.png)
SSE-14-0023_2
9-16
2. Service (Maintenance setting)
Enter the correct value belong to the location in RainMap,
and please write down the adjusted values on this management list for your record.
![](/img.php?id=2470825&img=bg11.png)
SSE-14-0023_2
9-17
3. Service (Factory setting)
Enter the correct value belong to the location in RainMap,
and please write down the adjusted values on this management list for your record.
![](/img.php?id=2470825&img=bg12.png)
SSE-14-0023_2
9-18
Enter the correct value belong to the location in RainMap,
and please write down the adjusted values on this management list for your record.
![](/img.php?id=2470825&img=bg13.png)
SSE-14-0023_2
9-19

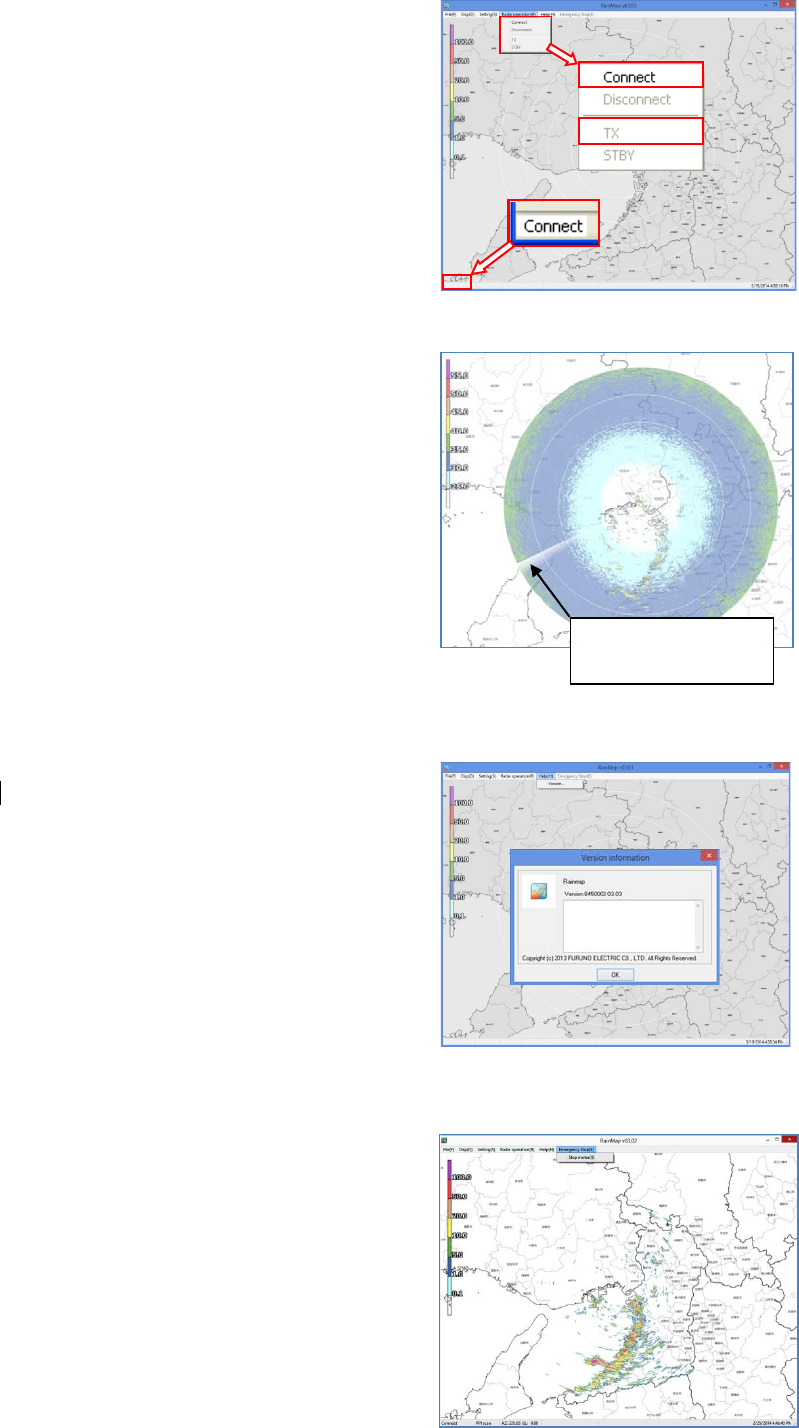

9.4. Radar Operation
1) Turn on the power of Display Unit (PC)
2) Software will start automatically.
3) Click [Connect] button to start radar operation.
[Connect] will be indicated in the left bottom.
4) Click [TX] button to start observation.
Radar echo will indicate with rotate scanning line
after the message of [Initializing] on the screen.
5) Click [STBY] button to stop observation.
6) Click [Disconnect] button to stop connecting with radar.
Notice) The following command could not operate
without connecting radar:
- Radar operation
(Connect/Disconnect, TX/STBY)
- Screen capture
9.5. Help
- Version:
To indicate the version information of software .
9.6. Emergency Stop
- Stop motor:
To stop motor of radar and TX at once.
This white line is
a scanning line
![](/img.php?id=2470825&img=bg14.png)
SSE-14-0023_2
9-20
9.7. Adjustment of Azimuth
The real geographical feature and azimuth are different with the initial echo indication, therefore it
has to make an adjustment.
Notice: Ground Clutter Rejection must be “OFF” during this operation.
1) Use a map of geographical features around the place installed the radar unit. (e.g. Google
map)
2) Setup “Range [km]”, “Data Type”, in [View] setting menu of RainMap.
3) Setup “PPI elevation” in [Scan] setting menu of RainMap.
4) Setup “Azimuth Offset” in [RDR Parameter] setting menu of RainMap.
Location
(Date)
<Image screen>
At first, to setup an Antenna elevation a
little higher to 5 degree. Next, to make
only the higher mountain that
can be
seen by
echo instead of surrounding
buildings .
To inferred a correct echo indicate
azimuth from characteristic echo and a
location of mountain map.
Zh echo
Elevation 5 degree
Range 10km
No.32 P0N transfer
GCR OFF
SSE-14-0023_2
9-21
5) Click [STBY] from [Radar operation] to Stop TRX.
6) Indicate a map and RainMap on a screen (or use other PC to see a map).
7) To grasp a characteristic geographical feature (check some top of the mountains’ line form,
distance, and relative bearing) from map.
8) To transfer the wavelength to a higher direction for not to receive an echo from lower building
or structure after setting elevation to 5 degrees (It could be 3 to 7 degrees in some case) in
RainMap.
9) To setup a distance that could be easier to confirm a geographical feature of “3)” to “Range
[km]” in [View] setting menu of RainMap.
10) To setup “Reflective Intensity [H]” at “DataType” in [View] setting menu of RainMap.
11) To confirm an echo after starting [TX] from [Radar operation]. Purple part means a strong echo
that might be came from a mountain.
12) Click [STBY] from [Radar operation] before make any change for setting. Then, to change an
angle of “Azimuth Offset” in [RDR Parameter] service menu of RainMap by comparing a shape
of echo with “3)” and “7)”. Echo indication will be rotated to clockwise if entered a large value
at “Azimuth Offset”. (Available range: -360 to 360)
13) Repeat a step “7)” to “8)” until an echo accords with a geographic feature
14) Click [STBY] from [Radar operation] after finished “9)”.
15) To set 0 degree at [Elevation] in [View] setting menu of RainMap.
16) To set a distance that suitable for the field at “Range [km]” in [View] setting menu of RainMap.
17) To select “Rainfall Intensity” at [DataType] in [View] setting menu of RainMap.
18) Finish a setting
9.8. Total operation test
Click [TRX] from [Radar operation] to confirm that a structure of a circumference is indicated.
1) To change a file which had changed at “11) Manual command” setting menu of RainMap. It
changes only to [File transfer].
FAR3000SSD_kisyou_No_32_P0N_yyyymmdd.conf (yyyymmdd means Year/Month/Date)
2) To confirm that an echo appears when started [TRX] from [Radar operation].
3) Click [STBY] from [Radar operation] to stop TRX.
4) To follow the same process of “1)” to change a file.
FAR3000SSD_kisyou_No_29_Q0N_yyyymmdd.conf (yyyymmdd means Year/Month/Date)
5) To confirm that an echo appears when started [TRX] from [Radar operation].
6) Click [STBY] from [Radar operation] to stop TRX.
7) To follow the same process of “1)” to change a file.
FAR3000SSD_kisyou_No_36_P0N+Q0N_PPI_yyyymmdd.conf
(yyyymmdd means Year/Month/Date).
8) Click [TRX] from [Radar operation] to confirm that an indication would shift an echo when a
scanning line rotates in every round.
9) Click [STBY] from [Radar operation] to stop TRX.
10) To select the best file at last by the local situation. Or to change the necessary setting like as
elevation to finish it.
Notice: To keep the setting according to the local situation at last. Make sure to turn ON/OFF the
power of radome and /or PC, and TRX/STBY the radar operation.
![](/img.php?id=2470825&img=bg16.png)
SSE-14-0023_2
10-2

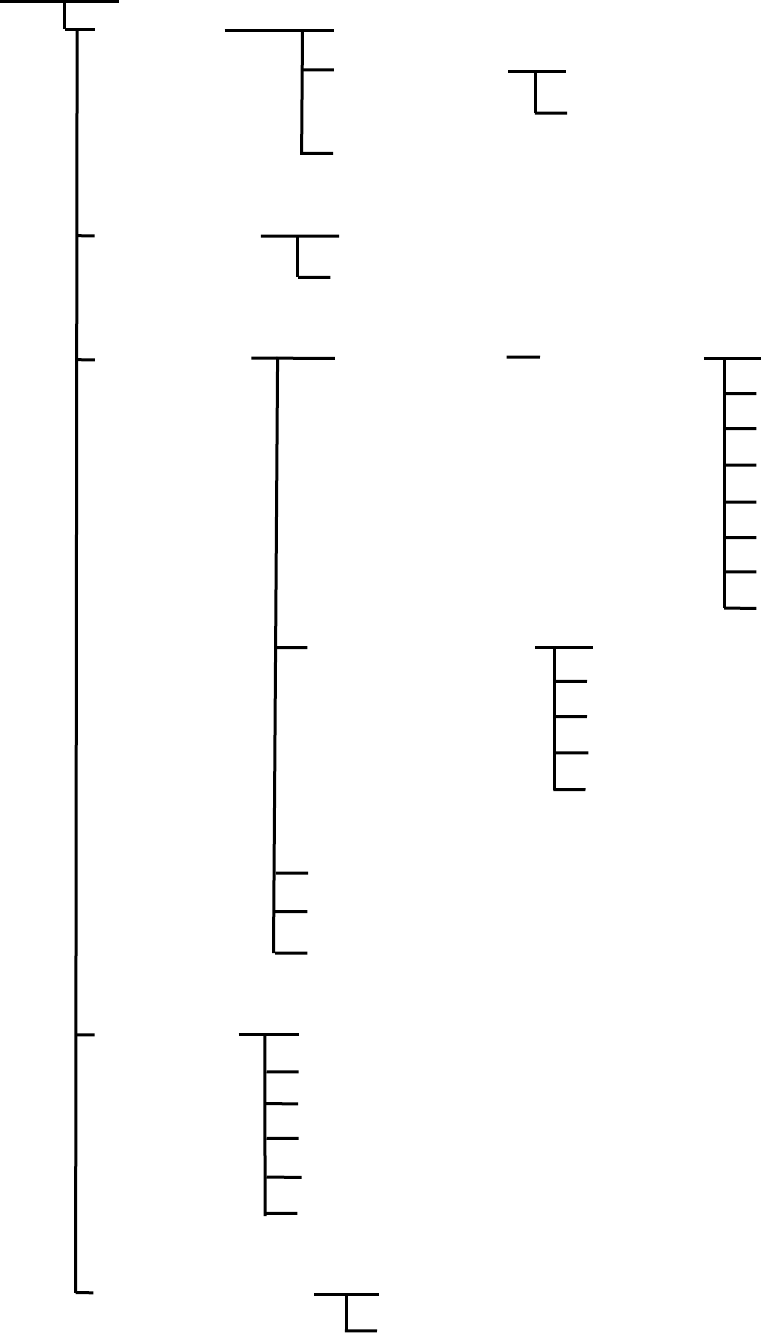

10. Menu Tree
RainMap Menu [File] Menu [File Play.]
Menu [Snapshot]
Menu [Exit]
Menu [Disp] Menu [Disp select] Menu [2D]
Menu [3D]
Menu [Sub echo]
Menu [Information Indication]
Menu [Setting] Input [View]
Input [Acquisition]
Input [Antenna]
Input [Scan]
Menu [Radar Operation] Menu [Connect]
Menu [Disconnect]
Menu [TX]
Menu [STBY]
Menu [Help] Menu [Version]
Menu [Emergency Stop] Menu [Stop motor]
![](/img.php?id=2470825&img=bg17.png)
SSE-14-0023_2
10-3
RainPlay
Menu [File] Menu [File Play]
Menu [Print] Menu [Main screen]
Menu [SRHI screen]
Menu [Exit]
Menu [Setting] Input [Scale]
Input [Azimuth Offset]
Menu [Disp] Menu [Select] Menu [View] Input [Rain]
Input [Zhh]
Input [V]
Input [Zdr]
Input [Kdp]
Input [φdp]
Input [phv]
Input [W]
Menu [Transparency] Input [0%]
Input [25%]
Input [50%]
Input [75%]
Input [100%]
Menu [Map]
Menu [SRHI screen]
Menu [Clear]
Menu [Play] Menu [Start]
Menu [Stop]
Menu [Pause]
Menu [Fast Forward]
Menu [Rewind]
Menu [Time Display]
Menu [Print screen ] Menu [Main screen]
Menu [SRHI screen]
![](/img.php?id=2470825&img=bg18.png)
SSE-14-0023_2
11-1
11. Specification
11.1. Antenna Unit
Parameter Descriptions Remarks
Transmit Frequency
9470 MHz
Occupied Band Width
60 MHz or less
Maximum range
Approx. 30km
Doppler measurement
Max. 79m/sec
Power supply
100-240VAC, Single Phase, 50/60 Hz
Power consumption
Max. 350W
Rated Ampere
1.5-3.5A
Size
Φ1086mm×H1024mm
radome size
Weight
65kg (144lb)
Operating Temperature
-10 to +50°C
Storage Temperature
-20 to +60°C
Water & Dust proof
IPX5
Maximum wind survival
60.0m/sec
Type of Emission
P0N(*1), Q0N(*2), V0N(*3)
Peak Power
100 W
Horizontal and Vertical each
Duty Ratio
Up to 12 %
Pulse Width
0.1 – 50μs
Pulse Repetition
Frequency
600 – 2500 Hz
Frequency Shift
2 – 20 MHz
except P0N
Antenna Type
Cassegrain
Aperture Size
Φ750 mm
Antenna Gain
33.0 dBi
Antenna Polarity
Dual polarimetric
Vertical and Horizontal
Beam Width
2.7 degrees
Both Horizontal and Vertical
Antenna Rotation Speed
2 to 16 rpm
Adjustable
Horizontal Scan Angle
360 degrees
Continuously-rotating
Vertical Scan Angle
-2 to 90 degrees
Resolution of Angle
0.1 degrees
Precision of Angle
0.2 degrees
*1 P0N : Sequence of pulses without modulation.
*2 Q0N : Sequence of pulses, frequency modulation within each pulse.
*3 V0N : Combination of P0N and Q0N.
![](/img.php?id=2470825&img=bg19.png)
SSE-14-0023_2
11-2
11.2. Signal Processing Unit
Parameter
Descriptions
Data Output
Reflectivity factor Zh (dBZ),
Doppler velocity V (m/s),Doppler velocity width W(m/s),
Cross polarization difference phase φdp(deg),
Specific differential phase KDP(deg/km),
Correlation coefficient between teo polarizations ρHV,
Differential reflectivity factor ZDR,Rainfall intensity R (mm/h)
Scan modes PPI,CAPPI,RHI(Sector Scacn availiable)
Ground clutter Rejection Enable
Data Correction
Distance attenuation, Rain attenuation, Excessive Doppler
velocity, Suppression of signal returns from lan, Clutter
suppression
Interface LAN 1 port, Ethernet 1000 Base-T (Cat5e or more)
Power supply
100-240VAC, Single Phase, 50/60 Hz
Power consumption
Max. 650W include Antenna Unit
Rated Ampere 2.7-6.5A
Size W725mm×D300mm×H750mm
Weight 50kg (111lb)
Operating Temperature range -10 to +50°C
Storage Temperature range
-20 to +60°C
Water & Dust proof
IPX5
![](/img.php?id=2470825&img=bg1a.png)
SSE-14-0023_2
11-3
11.3. Display Unit
Receive data from Signal Processing Unit (SPU) to indicate a picture of rainfall in real time.
Hardware
Parameter Descriptions
Main General Laptop PC
Power supply 100-240VAC, 50/60Hz
Power
consumption
Max. 200W
Rated Ampere 0.8-2.0A
CPU Core-i7 (2.3GHz) minimum
RAM 4GB minimum
HDD 500GB minimum
OS Windows8 64bit professional
Internal LAN x1 port, 1000base-T (Connect to SPU)
LAN Adapter USB3.0 1000base-T adapter x1 (Access with outside PC)
I/O USB2.0×1 port, and USB3.0×1 port minimum
Video Tip GeForce GTX 650M minimum
Display 17inch minimum
Resolution 1920×1080
Storage DVD±R/RW
Display Data
Rainfall echo
Doppler velocity (m/s)
Data Output Rainfall strength (mm/h) data file, Output 1 to 5 per minutes.
Operating
Temperature
+10 to +35°C
Display Software
Name Furuno RainMap.exe
Function Receive data from Signal Processing Unit (SPU) to indicate a picture of rainfall
in real time. And also to use cycle setting to make an observation data file.
Software of remote maintenance function
Name TeamViewer GmbH
Version TeamViewer Host (For remote server) 8.0 minimum
Function
Download the observation data and/or to set up an indicated software
connecting by remote.
Requirement It must be connecting to internet
![](/img.php?id=2470825&img=bg1b.png)
SSE-14-0023_2
12-1
12. APPENDIX
12.1. Outline drawing

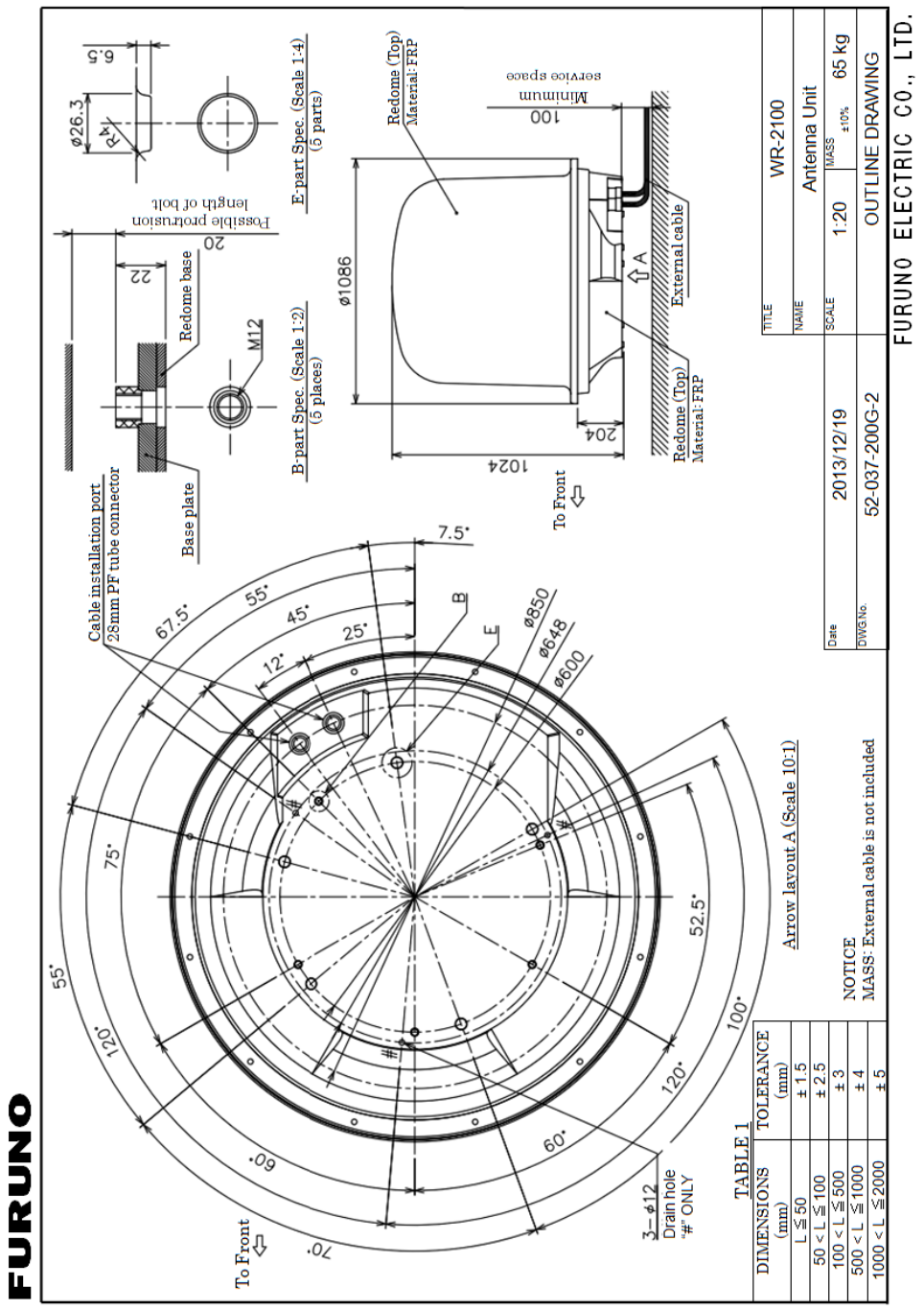

1) Antenna unit
![](/img.php?id=2470825&img=bg1c.png)
SSE-14-0023_2
12-2
2) Storage box
![](/img.php?id=2470825&img=bg1d.png)
SSE-14-0023_2
12-3

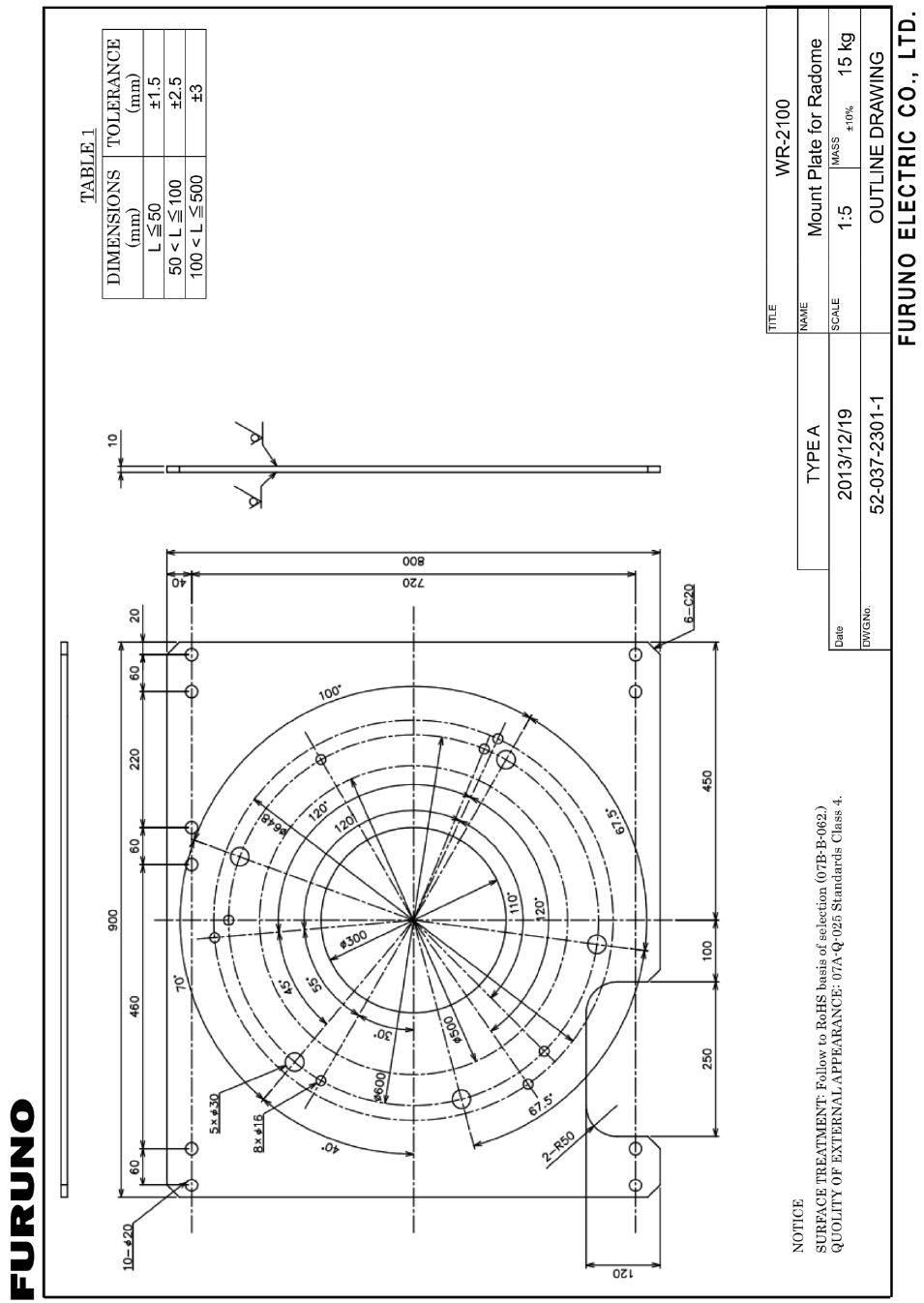

3) Radome mount plate (Type A)
![](/img.php?id=2470825&img=bg1e.png)
SSE-14-0023_2
12-4

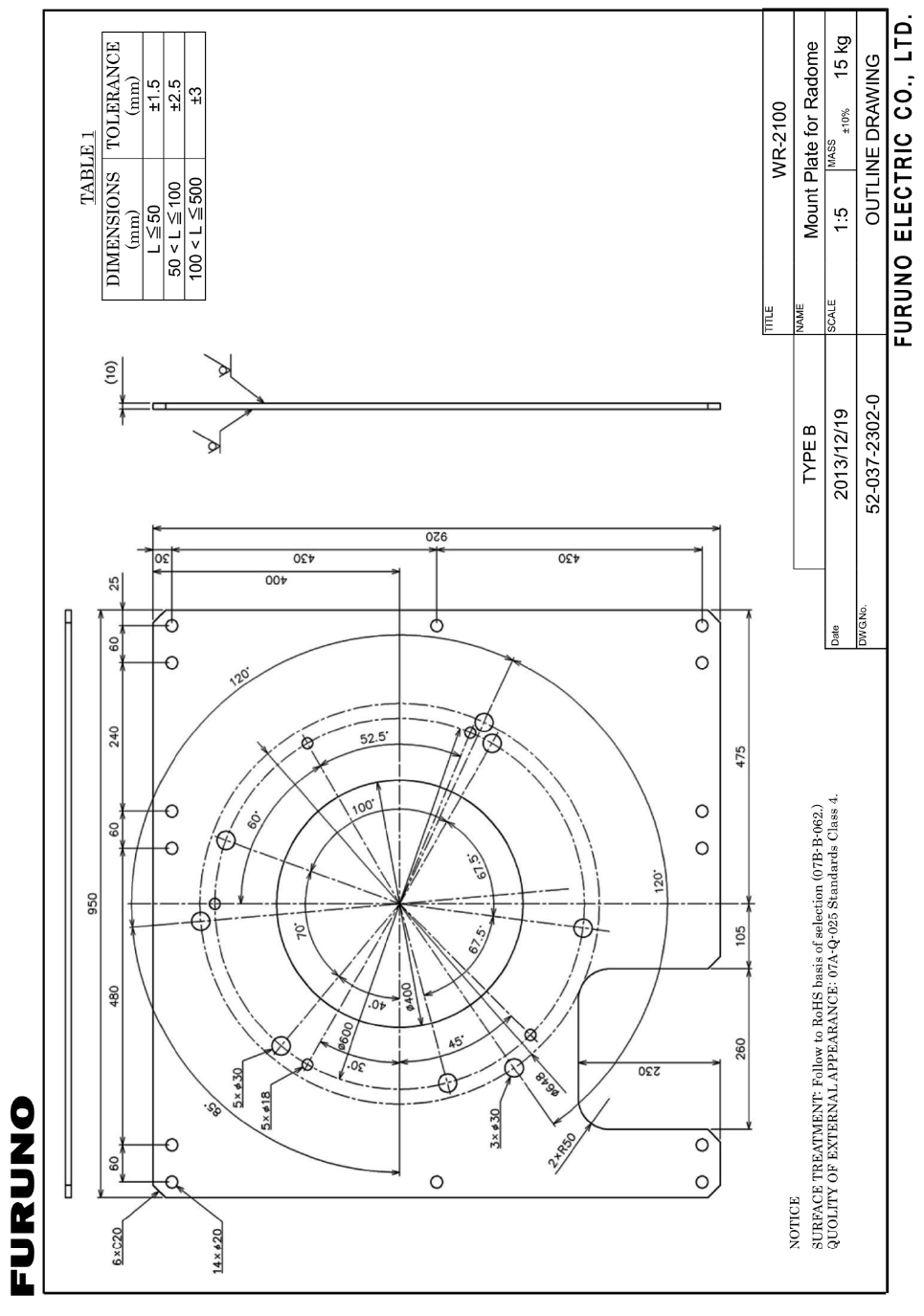

19) Radome mount plate (Type B)
![](/img.php?id=2470825&img=bg1f.png)
SSE-14-0023_2
12-5

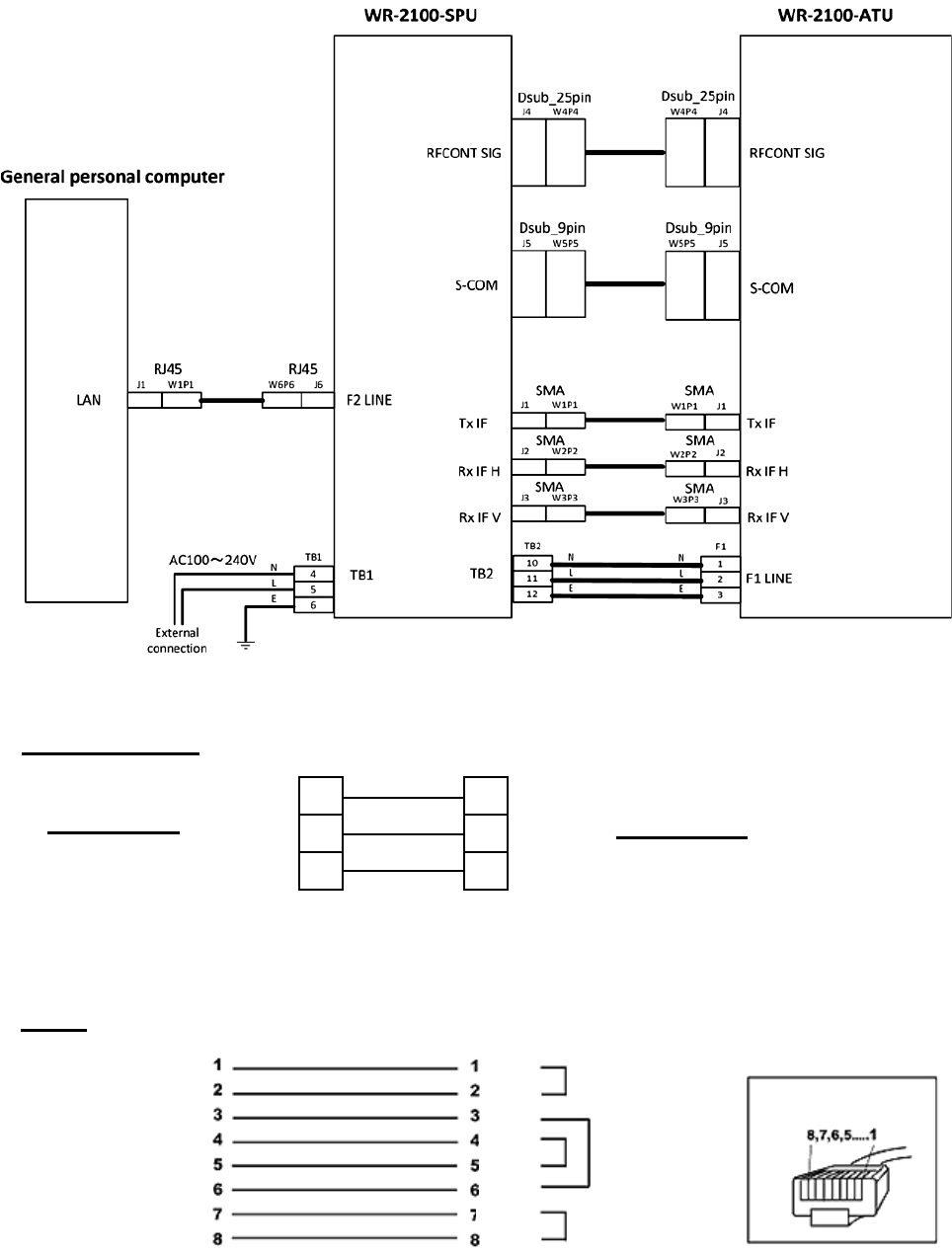

12.2. System diagram
LAN_PW
Display Unit
LAN_SPU
LAN_PW
SPU
LAN_SPU
RJ45
W/Br
W/G
G
W/O
W/Bl
Bl
O
Br
Pin No. (Front view)
Notice: Cable colors vary by country.
ACCOUT ACIN
Blue
Brown
Green
N
L
E
N
L
E
AC100~240V
Display Unit
SPU
SPU
Antenna Unit
W/Bl
W/Br
W/G
G
W/O
Bl
O
Br
![](/img.php?id=2470825&img=bg20.png)
SSE-14-0023_2
12-6

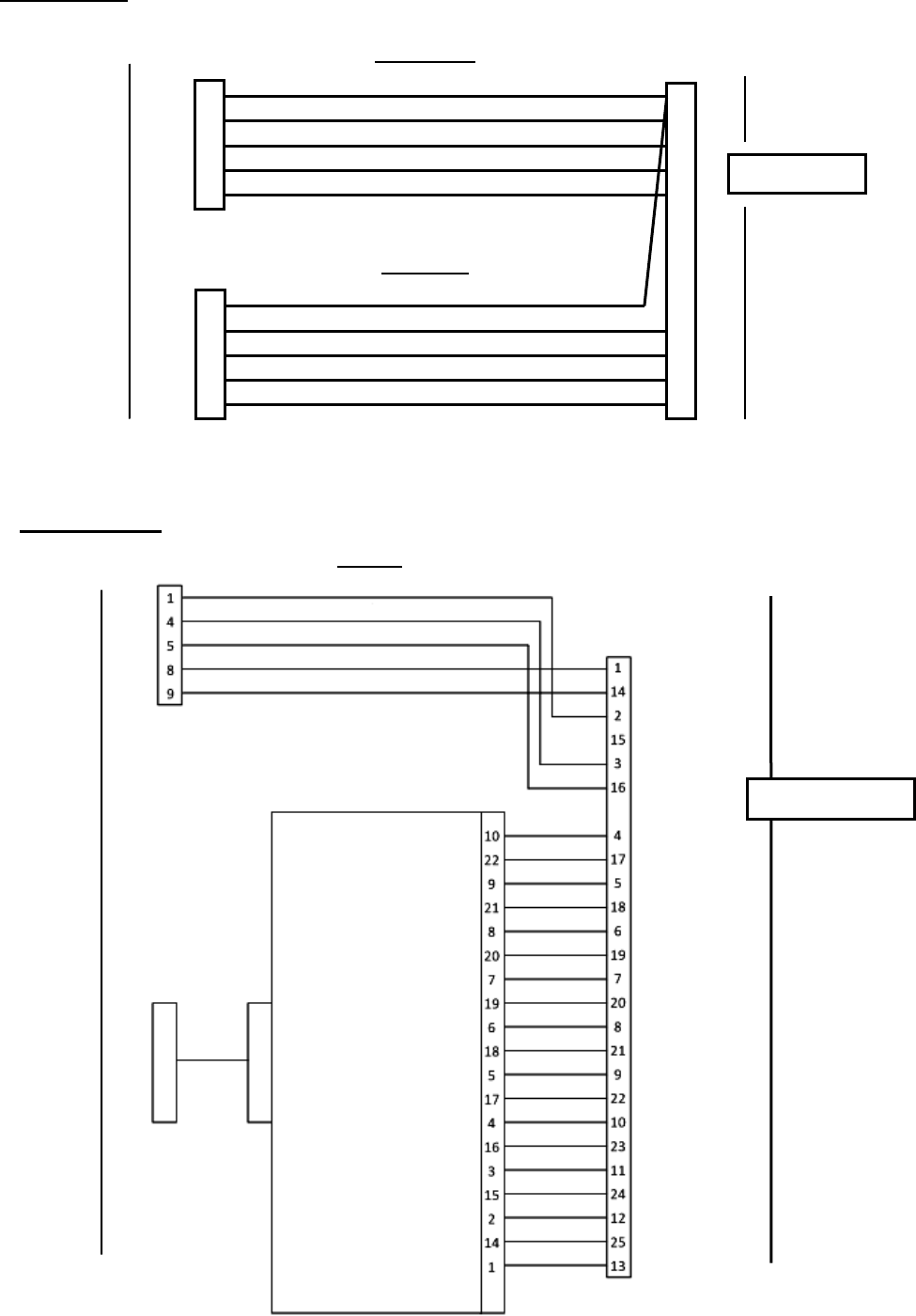

Dsub 25pin
SPU
SPU Antenna Unit
S-COM
Dsub 9pin
BLACK
ORANGE
YELLOW
GREEN
BLUE
MOTOR CTRL
S-COM
Dsub_9pin
Male
Dsub_9pin
Female
Dsub_9pin
Female
ANT ANGLE
BLACK
ORANGE
YELLOW
GREEN
BLUE
1
4
5
8
9
6
7
8
9
1
4
5
8
9
1
2
3
4
5
BLACK
ORANGE
YELLOW
GREEN
BLUE
RFCONT SIG
Dsub_25pin
Male
RED
RF CTRL
Dsub_9pin
Female
Dsub_25pin
Male
Level
Convert
BROWN
ORANGE
YELLOW
GREEN
BLUE
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
BLACK
Antenna Unit
SPU-TX-P
SPU-TX-N
GND
GND
SPU-RX-P
SPU-RX-N
RF_TRIG-P
RF_TRIG-N
GND
GND
TRIG-ACK-P
TRIG-ACK-N
Pulse_No(1)-P
Pulse_No(1)-N
GND
GND
Pulse_No(0)-P
Pulse_No(0)-N
TRX_ON-P
TRX_ON-N
GND
GND
Sector_Blank_N
Sector_Blank_N
GND
RFCON SIG
HDMI
