SYSTEM MENU

System Menu functions table

[DISPLAY]: LCD contrast and back light adjustment.

[SYSTEM TIMER]: Resets the accumulated timer for each model.

[USER NAME]: User name registration.

[SOUND]: Various volume control and low battery setting.

[H/W SETTING]: H/W reverse, stick mode, stick calibration, and switch position.

[INFORMATION]: Displays the program version, SD card information, and language selection.

[RANGE CHECK]: A transmitting output is lowered and the check before a ight is carried out.

[S.BUS SERVO]: S.BUS servo setting.

The System Menu sets up functions of the

transmitter: This does not set up any model data.

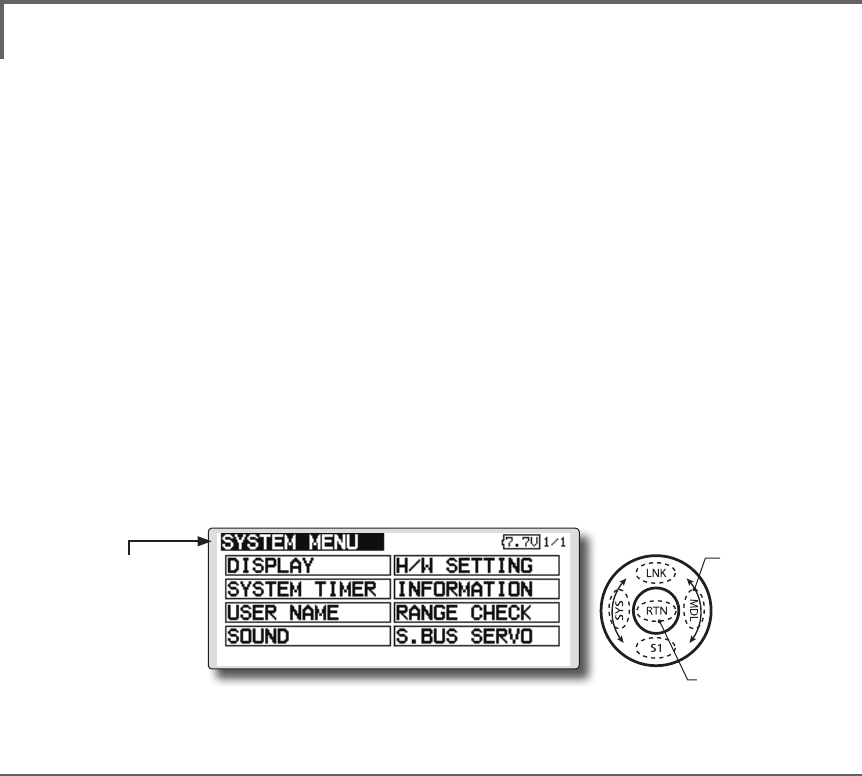

● Select [SYSTEM] at the home screen and call

the system menu shown below by touching

the RTN button.

● Scrolling the touch sensor to select the

function you want to set and call the setup

screen by touching the RTN button.

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

●Access setup screen

Scrolling

● Moving cursor

40 <Functions of System Menu>

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

LCD contrast adjustment

1. Scrolling the touch sensor to select "LCD

CONTRAST" and touch the RTN button to

switch to the data input mode and adjust

the contrast by turning the touch sensor to

the left and right.

Setting range: (Lighter) 0 to 30 (Darker)

Initial value: 15

Touch the RTN button to end adjustment and

return to the cursol move mode.

*Adjust to the contrast while watching the screen display.

*When you want to reset the contrast to the initial state,

select "LCD CONTRAST" and touch the RTN button for 1

second.

Backlight brightness adjustment

1. Scrolling the touch sensor to select

"BACKLIGHT BRIGHTNESS" and touch the RTN

button to switch to the data input mode

and adjust the contrast by turning the touch

sensor to the left and right.

Setting range: (Darker) 0 to 30 (Lighter)

Initial value: 10

Touch the RTN button to end adjustment and

return to the cursol move mode.

*Adjust to the brightness while watching the screen display.

*When you want to reset the contrast to the initial state, select

"BACKLIGHT BRIGHTNESS" and touch the RTN button

for 1 second.

Back-light off-timer

1. Select "Back-light timer" and touch the RTN

button to switch to the data input mode and

adjust the back-light off-timer by scrolling the

touch sensor.

"OFF TIMER": Adjust the time when the back-

DISPLAY LCD contrast adjustment and automatic key lock

The following LCD screen adjustments and auto

power off setting are possible:

● Backlighting brightness adjustment

● Backlighting off timer adjustment

● Automatic key lock setup

light turns off after operating the touch

sensor.

Setting range: 10 to 240 sec (each 10 sec),

OFF (always on)

Initial value: 10 sec

*When you want to reset the value to the initial state, touch

the RTN button for one second.

2. Touch the RTN button to end adjustment and

return to the cursor mode.

*If the back light is on for a long time, consumption current

will increase.

Start lock

Auto Lock functions automatically when the

model changes or power is turned on.

*To temporarily allow access to the T18SZ programming

press and hold the S1 button for one second. Please note,

the Auto Lock function timer will resume immediately once

again.

1. Select "STARTUP LOCK" and touch the RTN

button to switch to the data input mode and

adjust the ON or OFF by scrolling the touch

sensor.

Setting range: ON or OFF

Initial value: OFF

Automatic lock

Auto Lock functions automatically when there is

no operation from the HOME screen display for a

chosen number of seconds.

1. Scrolling the touch sensor to select

"AUTOMATIC LOCK" and touch the RTN

button to switch to the data input mode and

adjust the time by turning the touch sensor to

the left and right.

Setting range: INH, 0 to 120 (s)

Initial value: INH

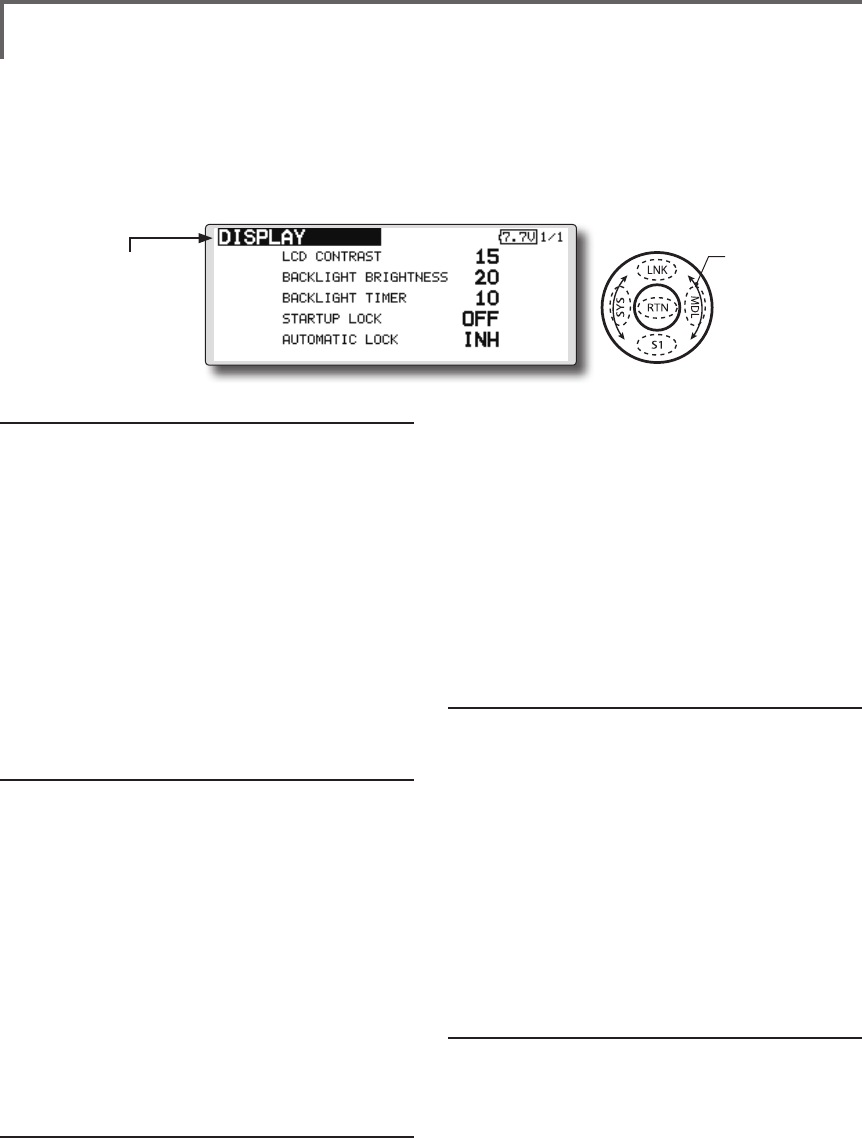

● Select [DISPLAY] at the system menu and call the setup

screen shown below by touching the RTN button.

Scrolling

● Moving cursor

● Selecting mode

● Adjusting value

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

Timer selection

1.Move the cursor to the [MODE] item and

touch the RTN button to switch to the data

input mode.

Select the mode by scrolling the touch sensor

and touch the RTN button.

TOTAL: Displays the total timer on the home

screen.

MODEL timer: Displays the model timer on

the home screen.

SYSTEM TIMER Resets the accumulated timer.

This function resets the system timer displayed

on the home screen.

● T18SZ has two type system timers.

TOTAL timer: Displays the total accumulated

time on the transmitter from the last time the

timer was reset.

MODEL timer: Displays the total accumulated

time on each model from the last time the

timer was reset.

● System timer displayed on the home screen

can be selected.

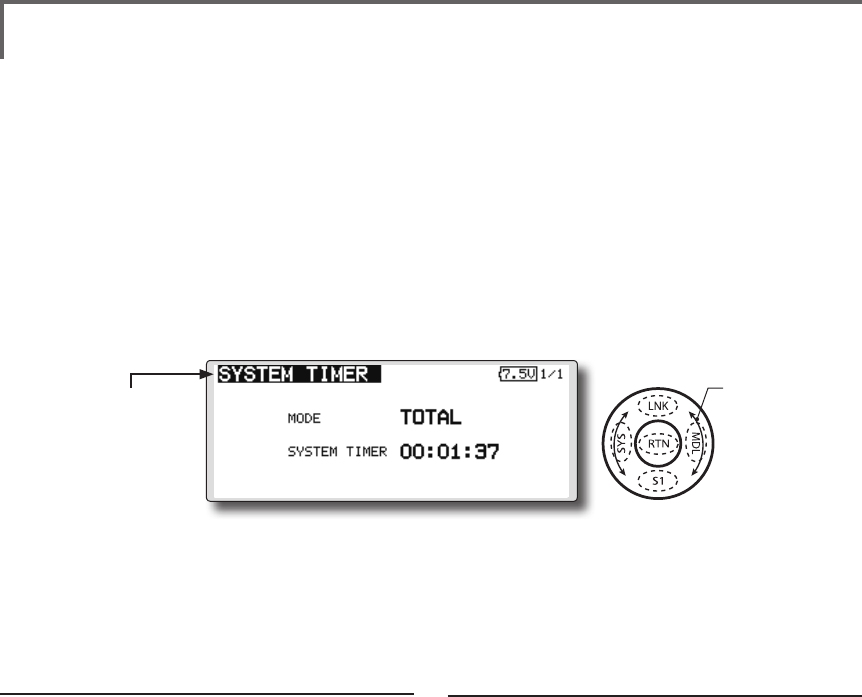

● Select [SYSTEM TIMER] at the system menu and

call the setup screen shown below by touching

the RTN button.

Timer reset

1.Move the cursor to the [SYSTEM TIMER] item

and reset the timer to "00:00:00" by touching

the RTN button for 1 second. After reset, the

timer restarts from "00:00:00".

Scrolling

● Moving cursor

● Selecting mode

42 <Functions of System Menu>

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

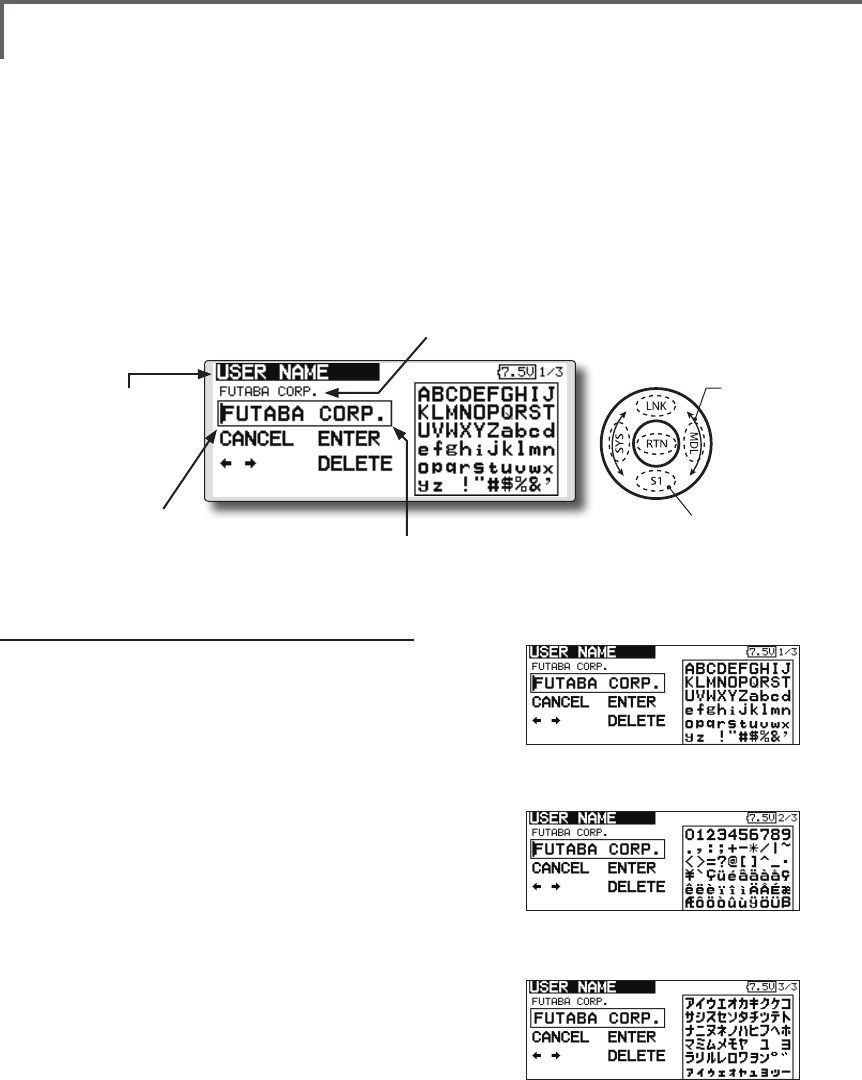

USER NAME User name registration

This function registers the T18SZ user name.

*A name of up to 12 characters can be entered as the user

name. (Space is also counted as 1 character.)

User name registration

1. Change the user name as described below:

[Moving cursor in input box]

Select [←] or [→], and touch the RTN button.

[Deleting a character]

When [DELETE] is selected and the RTN button

is touched, the character immediately after

the cursor is deleted.

[Adding a character]

When a candidate character is selected

from the character list and the RTN button

is touched, that character is added at the

position immediately after the cursor.

*A name of up to 12 characters long can be entered as the

user name. (A space is also counted as 1 character.)

2. At the end of input, select [ENTER] and touch

the RTN button. (To terminate input and

return to the original state, select [CANCEL]

and touch the RTN button.)

(Character list 1/3)

(Character list 2/3)

(Character list 3/3)

● Select [USER NAME] at the system menu and call

the setup screen shown below by touching the

RTN button.

● Push the S1 button to

call next page.

Current user name

Input box

Cursor (blink)

Scrolling

● Moving cursor

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

3 independent sound volumes: "WARNING",

"VOICE" and others, are available.

"LOW BATTERY" adjusts low battery alarm

voltage to match a battery.

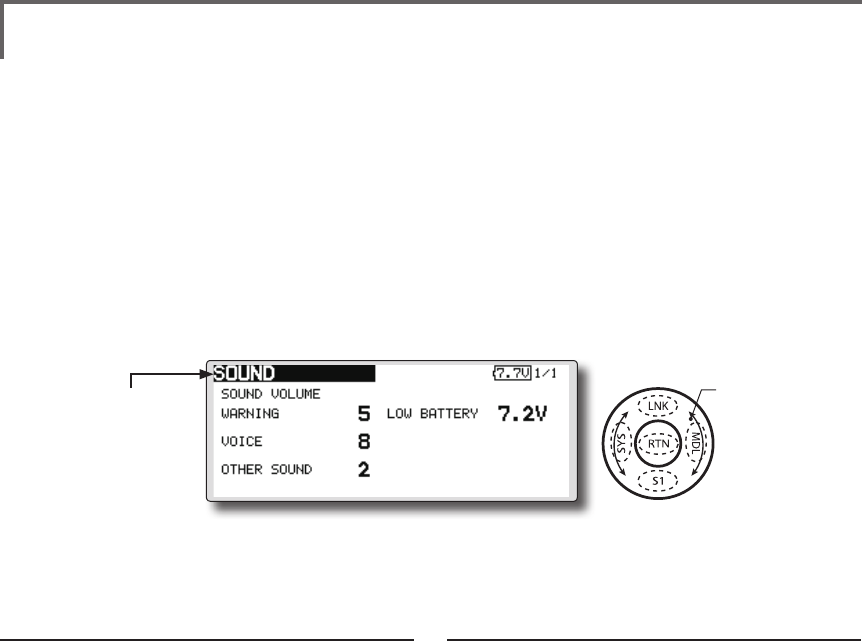

● Select [SOUND] at the system menu and access

the setup screen shown below by touching the

RTN button.

● LOW BATTERY : 6.8V~7.6V

Sound volume operation

1. Move the cursor to the [WARNING][VOICE]

or [OTHER SOUND] item and touch the RTN

button to switch to the data input mode.

2. Select the volume by scrolling the touch

sensor.

*The display blinks.

3.Touch the RTN button.

Low battery voltage operation

1. Move the cursor to the [LOW BATTERY] item

and touch the RTN button to voltage to the

data input mode.

2. Select the voltage by scrolling the touch

sensor. (6.8V-7.6V)

*The display blinks.

3.Touch the RTN button.

SOUND Turns off the buzzer.

Scrolling

● Moving cursor

● Adjusting value

44 <Functions of System Menu>

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

Operation direction reversal method

1.Select [H/W REVERSE] and call the setup

screen shown below by touching the RTN

button.

2.Use the touch sensor to move the cursor to

the "MODE" item corresponding to the H/W

(hardware) you want to reverse and touch

the RTN button to switch to the data input

mode.

3. Change the mode by turning the touch

sensor to the left or right. The display blinks.

When the RTN button is touched, the

operation direction is reversed. (To terminate

mode change, turn the touch sensor or push

the S1 button.)

"NORM": Normal operation direction

"REV" : Operation direction is reversed.

H/W SETTING Hardware reverse and stick mode, stick calibration, switch position

H/W reverse

This function reverses the operation signal of the

sticks, switches, trimmer levers, and knobs.

Note: This setting reverses the actual operation

signal, but does not change the display of

the indicators on the display. Use the Normal

mode as long as there is no special reason to

use the Reverse mode.

Stick mode

This function changes the stick mode of

transmitter.

Note: This will not change the throttle ratchet,

etc. Those are mechanical changes that

must be done by a Futaba service center.

Note: After changing the mode, it is applied

when setting a new model. It is not applied

to an existing model.

Stick calibration

J1-J4 stick correction can be performed.

Note: It does not carry out, when there is no

necessity.

Switch

It inputs, when the kind of switch is changed or

it adds.

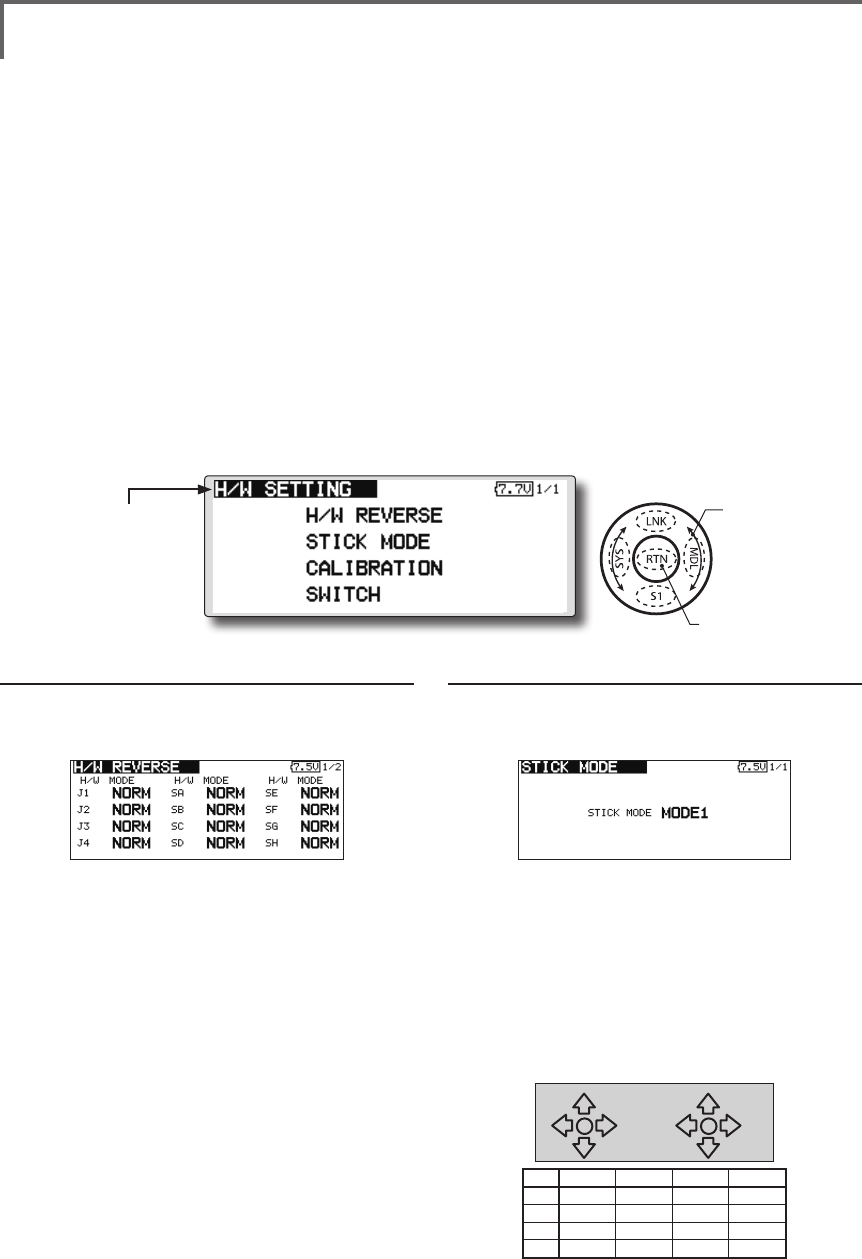

● Select [H/W SETTING] at the system menu and call the setup screen

shown below by touching the RTN button.

Operation direction reversal method

1.Select [STICK MODE] and call the setup

screen shown below by touching the RTN

button.

2. Use the touch sensor to move the cursor to

the "STICK MODE" item and touch the RTN

button to switch to the data input mode.

3. Change the mode by turning the touch

sensor to the left or right. The display blinks.

When the RTN button is touched, the stick

mode is changed. (To terminate mode

change, turn the touch sensor or push the S1

button.)

(J1)

(J2)

(J4)

(J3)

Mode J1 J2 J3 J4

1Aileron Throttle Elevator Rudder

2 Aileron Elevator Throttle Rudder

3 Rudder Throttle Elevator Aileron

4 Rudder Elevator Throttle Aileron

●Access setup screen

Scrolling

● Moving cursor

Operation switch setting method

1.Select [SWITCH] and call the setup screen

shown below by touching the RTN button.

2.Use the touch sensor to move the cursor to

the "SA-SJ" item corresponding to the switch

you want to change and touch the RTN

button to switch to the data input mode.

3. Change the "2Pos" or "3Pos" by turning the

touch sensor to the left or right. The display

blinks. It will decide, if the RTN button is

pushed. (To terminate mode change, turn

the touch sensor or push the S1 button.)

"3Pos": 3 position switch

"2Pos" : 2 position switch

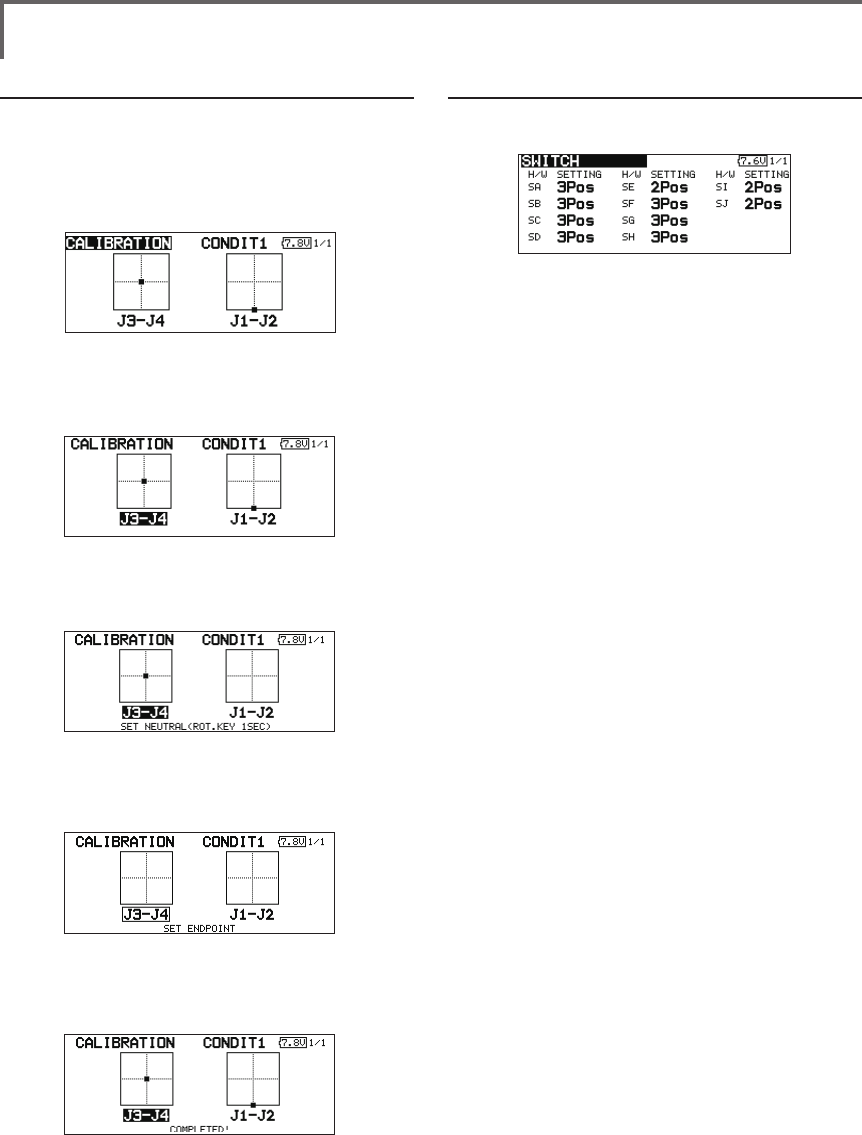

Stick calibration method

*J3 and J4 correction is described below. J1 and J2

corrections are performed using the same procedure.

1.Select [CALIBRATION] and access the setup

screen shown below by touching the RTN

button.

2.Move the cursor to the J3-J4 button and

touch the RTN button.

3.Move the J3 or J4 sticks to the neutral position

and press the RTN button for one second.

4.Set the J3 and J4 sticks fully to the bottom

right and wait until the buzzer sounds.

5.Set the J3 and J4 sticks fully to the top left and

wait until the buzzer sounds.

6.The above completes the correction

operation. Operate and check if stick

correction was performed normally.

46 <Functions of System Menu>

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

Displays the program version, SD card information, and product ID.

The T18SZ system program version information,

SD card information (maximum and vacant number

of model data), and product ID are displayed on the

Information screen.

*When the SD card is not inserted, the SD card information is

not displayed.

The language displayed in home, menu, and

setup screen is selectable.

Moreover, the unit of a telemetry display can

also be changed.

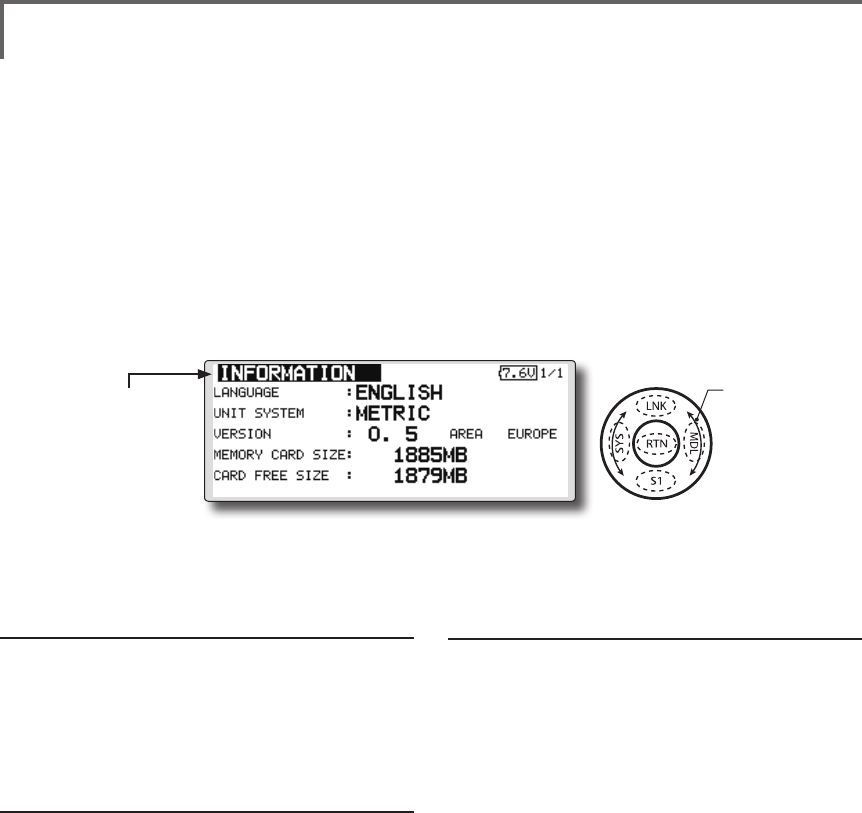

● Select [INFORMATION] at the system menu and

call the setup screen shown below by touching

the RTN button.

Information

"VERSION": T18SZ system program version

information

"MEMORY CARD SIZE": Maximum number of

model data (SD card)

"CARD FREE SIZE": Vacant number of model

data (SD card)

Language selection

1. Use the touch sensor to move the cursor to

the "LANGUAGE" item and touch the RTN

button to switch to the data input mode.

2. Change the language by turning the

touch sensor to the left or right. The display

blinks. When the RTN button is touched, the

language is changed. (To terminate mode

change, turn the touch sensor or push the S1

button.)

Unit system selection

1. Use the touch sensor to move the cursor to

the "UNIT SYSTEM" item and touch the RTN

button to switch to the data input mode.

2. Change the unit by turning the touch

sensor to the left or right. The display blinks.

When the RTN button is touched, the unit is

changed. (To terminate mode change, turn

the touch sensor or push the S1 button.)

Scrolling

● Moving cursor

● Selecting mode

INFORMATION

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

RANGE CHECK Before a ight ground range check.

The 'range check mode' reduces the transmission

range of the radio waves to allow for a ground

range check.

*The range check mode, when activated, will continue for90

seconds unless the user exits this mode early. When the

progress bar reaches 90 second mark, the RF transmission

automatically returns to the normal operating power.

● Pushing [U.menu/Mon]key is continued. →Turn ON the transmitter's power switch. (First, a throttle

stick is made into a low position, and turns on a power supply.) It is displayed as "TRANSMIT?" .

"NO" is chosen and [RTN] is pushed.

● [Yes] is chosen and [RTN] is pushed.

● Remaining time of

RANGE CHECK MODE

● Range Check mode is

disabled

● Range Check mode

timer is returned to 90

Rotation Range Check method

1. Pushing [U.menu/Mon]key is continued.

→Turn ON the transmitter's power switch.

(First, a throttle stick is made into a low

position, and turns on a power supply.)

It is displayed as "TRANSMIT?."

"NO" is chosen and [RTN] is pushed.

*For safety, the RANGE CHECK mode can not be selected

while the RF transmission is active.

2. In the system menu, choose the 'Range

Check' selection from the menu options.

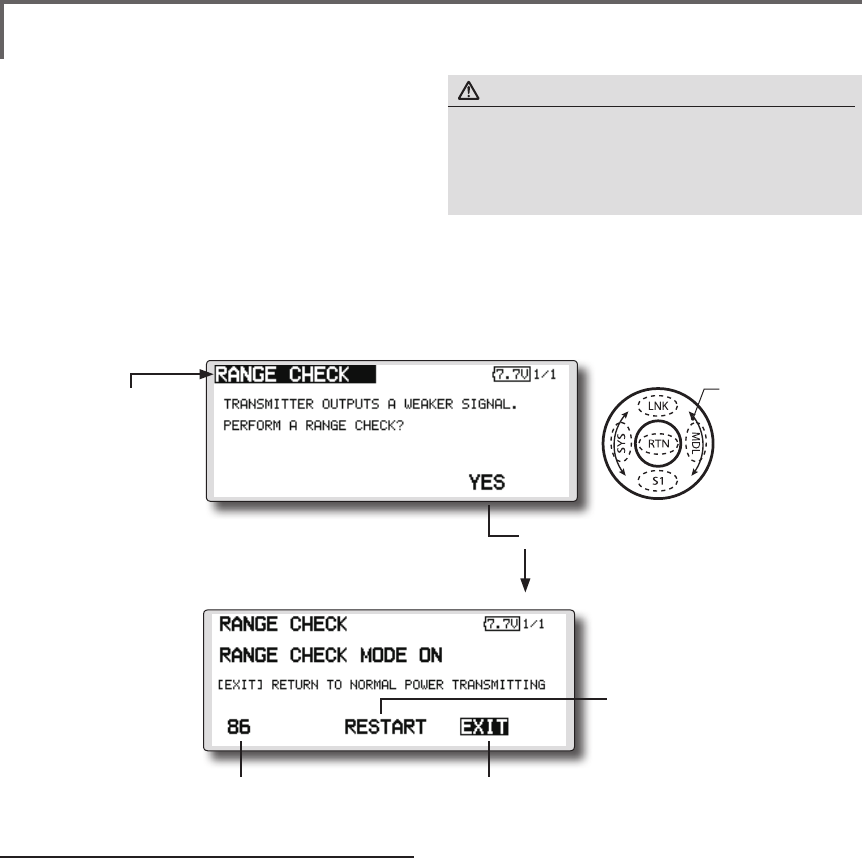

3. The Range Check screen is displayed. To

activate the Range Check mode press

the [Yes] button. During the Range Check

period, the RF power is reduced to allow the

ground range tests to be performed.

4. The Range Check function automatically

exits after the 90 second time limit has

expired. The count down time is displayed on

the transmitter's screen. Should you complete

the range check before the 90 seconds has

pressed, press the [Exit] button.

*When the [RESTART] button is pressed, the range check

mode timer is returned to 90.

*Please note, upon expiration of the 90 seconds, or when

[Exit] is selected, the transmitter will automatically return to

the normal RF operation as noted on the display.

*Once the T18SZ is transmitting at full power, it is not

possible to enter the Range Check mode without first

switching the transmitter Off and back On. This has been

designed to prevent a modeler from inadvertently ying in

the Range Check mode.

5. When the [Exit] button is pressed, the Range

Check mode is disabled and the T18SZ will

begin transmitting at full power.

*After exiting the Range Check mode, the function cannot be

selected again. To select the Range Check mode again you

must cycle the transmitter power switch.

● Select [RANGE CHECK] at the system menu and call the setup screen shown below by touching

the RTN button.

WARNING

Do not y in the range check mode.

■Since the range of the radio waves is short, if the model

is too far from the transmitter, control will be lost and the

model will crash.

Scrolling

● Moving cursor

48 <Functions of System Menu>

● Select the function name

and return to the System

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

Procedure for changing S.BUS/S.BUS2 servo

setting

1. Select [S.BUS Servo] of the System Menu.

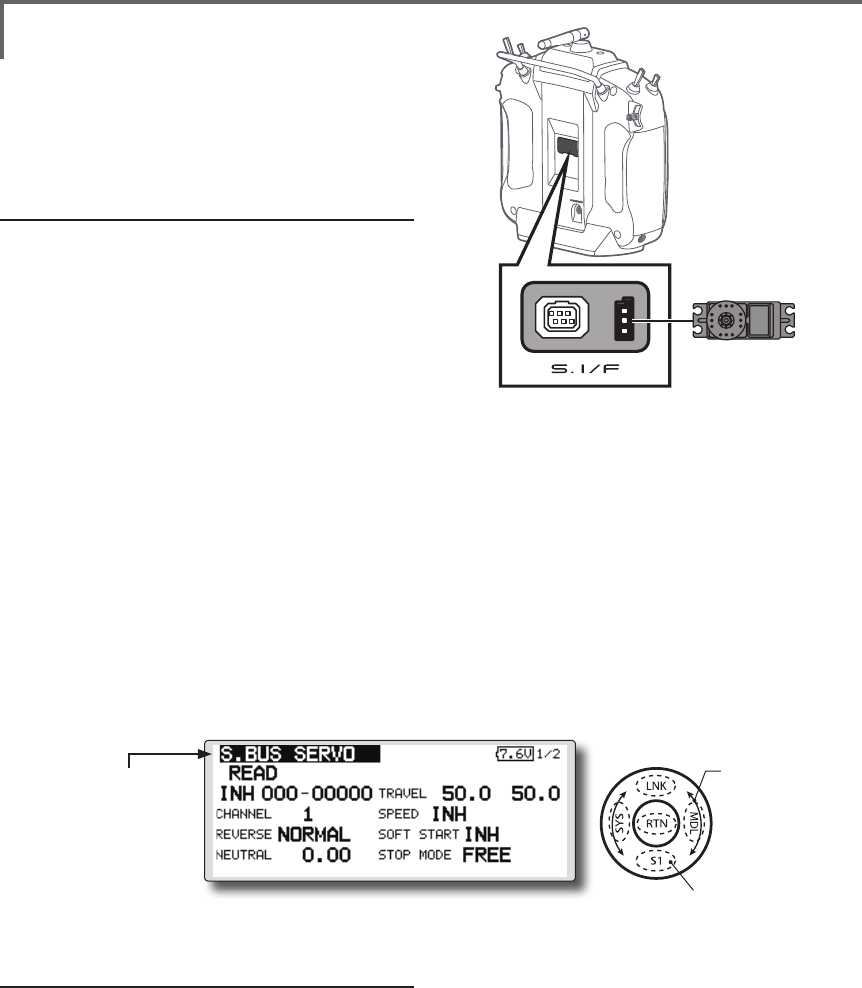

2. Wire the servo as shown in the gure above.

3. Press [READ]. The ID and current setting of

that servo are displayed.

4. When multiple servos are connected change

[INH] at the right side of the ID number on the

screen to [ACT] and enter the ID of the servo

you want to set.

5. Set each item. (Please see the next page.)

6. Press [WRITE]. The settings are changed.

S.BUS Servo S.BUS/S.BUS2 servo setting

An S.BUS/S.BUS2 servo can memorize

the channel and various settings itself. Servo

setting can be performed on the T18SZ screen

by wiring the servo as shown in the figure.

● Call the following setting screen by pressing

the [S.BUS Servo] button in the System

Menu.

●Servo ID number

Individual ID numbers are memorized for your

S.BUS servos in your T18SZ. When a servo is

used (as shown at the right), the servo ID number is

automatically read by the transmitter.

If you use multiple S.BUS servos and do not

want to change the settings on all that are mounted

in a fuselage, only the desired servo in the group

can be set by entering the ID of that specic servo.

* With S.BUS/S.BUS2 servos of use, there are a function which

can be used, and an impossible function and a display screen

changes.

(Only the function which can be used by a servo is displayed.)

* After reading completion, with connection of the above

gure, if a stick is moved, the test of operation of the servo

can be operated and carried out.

S.BUS/S.BUS2 servo

T18SZ

*It is not necessary to carry out multiple connection of the

battery like a T18MZ/T14SG.

(It will damage, if it connects.)

Scrolling

● Moving cursor

● Push the S1 button to

call next page.

*When you connect to a transmitter many servos which

consume many current, please use "Another power supply

HUB". And electric power is supplied to a servo with

another power supply.

S.BUS Servo Description of function of each parameter

*There are a function which can be used according to the kind of servo, and an impossible function.

• ID

Displays the ID of the servo whose parameters are to be read. It cannot be changed.

• Channel

Channel of the S.BUS system assigned to the servo. Always assign a channel before use.

• Reverse

The direction in which the servo rotates can be changed.

• Servo type

When “Retractable” is selected and the servo has been continuously stopped for 30 seconds, the dead

band expands and unnecessary hold current due to external force is eliminated. When a new control

signal enters, normal operation is resumed. When using the servo as a landing gear servo, select

“Retractable”. Also adjust the servo travel to match the landing gear movement range.

• Soft Start

Restricts operation in the speciﬁed direction the instant the power is turned on. By using this setting, the

ﬁrst initial movement when the power is turned on slowly moves the servo to the speciﬁed position.

• Stop Mode

The state of the servo when the servo input signal is lost can be speciﬁed. The "Hold" mode setting holds

the servo in its last commanded position even if using AM or FM system.

• Smoother

This function changes smoothness of the servo operation relative to stick movement changes. Smooth

setting is used for normal ﬂight. Select the "OFF" mode when quick operation is necessary such as 3D.

• Neutral Offset

The neutral position can be changed. When the neutral offset is large value, the servo's range of travel is

restricted on one side.

• Speed Control

Speeds can be matched by specifying the operating speed. The speed of multiple servos can be matched

without being affected by motor ﬂuctuations. This is effective for load torques below the maximum torque.

However, note that the maximum speed will not be exceed what the servo is capable of even if the servos

operating voltage is increased.

• Dead band

The dead band angle at stopping can be speciﬁed.

[Relationship between dead band set value and servo operation]

Small → Dead band angle is small and the servo is immediately operated by a small signal change.

Large → Dead band angle is large and the servo does not operate at small signal changes.

(Note) If the dead band angle is too small, the servo will operate continuously and the current

consumption will increase and the life of the servo will be shortened.

• Travel Adjust

The left and right travels centered about the neutral position can be set independently.

• Boost

The minimum current applied to the internal motor when starting the servo can be set. Since a small

travel does not start the motor, it essentially feels like the dead band was expanded. The motor can be

immediately started by adjusting the minimum current which can start the motor.

[Relationship between boost set value and servo operation]

Small → Motor reacts to a minute current and operation becomes smooth.

Large → Initial response improves and output torque increases. However, if the torque is too large,

operation will become rough.

50 <Functions of System Menu>

• Boost ON/OFF

OFF : It is the boost ON at the time of low-speed operation.(In the case of usual)

ON : It is always the boost ON.(When quick operation is hope)

• Damper

The characteristic when the servo is stopped can be set.

When smaller than the standard value, the characteristic becomes an overshoot characteristic. If the value

is larger than the standard value, the brake is applied before the stop position.

Especially, when a large load is applied, overshoot, etc. are suppressed by inertia and hunting may occur,

depending on the conditions. If hunting (phenomena which cause the servo to oscillate) occurs even

though the Dead Band, Stretcher, Boost and other parameters are suitable, adjust this parameter to a

value larger than the initial value.

[Relationship between damper set value and servo operation]

Small → When you want to overshoot. Set so that hunting does not occur.

Large → When you want to operate so that braking is not applied. However, it will feel like the servo

response has worsened.

(Note) If used in the hunting state, not only will the current consumption increase, but the life of the servo

will also be shortened.

• Stretcher

The servo hold characteristic can be set. The torque which attempts to return the servo to the target

position when the current servo position has deviated from the target position can be adjusted.

This is used when stopping hunting, etc., but the holding characteristic changes as shown below.

[Relationship between stretcher and servo operation]

Small → Servo holding force becomes weaker.

Large → Servo holding force becomes stronger.

(Note) When this parameter is large, the current consumption increases.

• Buzzer

When the power supply of a servo is previously turned on at the time of a power supply injection without

taking transmit of a transmitter, the buzzer sound of about 2.5 Hz continues sounding from a servo.

(Even when the transmit of a transmitter is taken out previously, a buzzer becomes until the signal of a

servo is outputted normally, but it is not unusual.)

The transmitter has been turned OFF ahead of a servo power supply → The buzzer sound of about 1.25

Hz continues sounding as servo power supply end failure alarm.

(Do not insert or remove the servo connector while the receiver power is ON.　A buzzer may

sound by incorrect recognition.)

＊ Buzzer sound is generated by vibrating the motor of a servo.

Since current is consumed and a servo generates heat, please do not operate the number more than

needed or do not continue sounding a buzzer for a long time.

MODEL BASIC SETTING PROCEDURE

1. Model addition and call

Initial setting assigns 1 model to the T18SZ

transmitter. The Model Select function of the Linkage

Menu is used to add models and to select models which

are already set.

The data for up to 30 models can be saved to the

transmitter. Data can also be saved to the optional SD

card.

The currently selected model name is displayed

at the top of the screen. Before flying and before

changing any settings, always confirm the model

name.

When a new model is added, the Model type

select screen and System/Receiver ID setup screen

automatically appear. Please be aware that the

transmitter will stop transmitting when you change

the model.

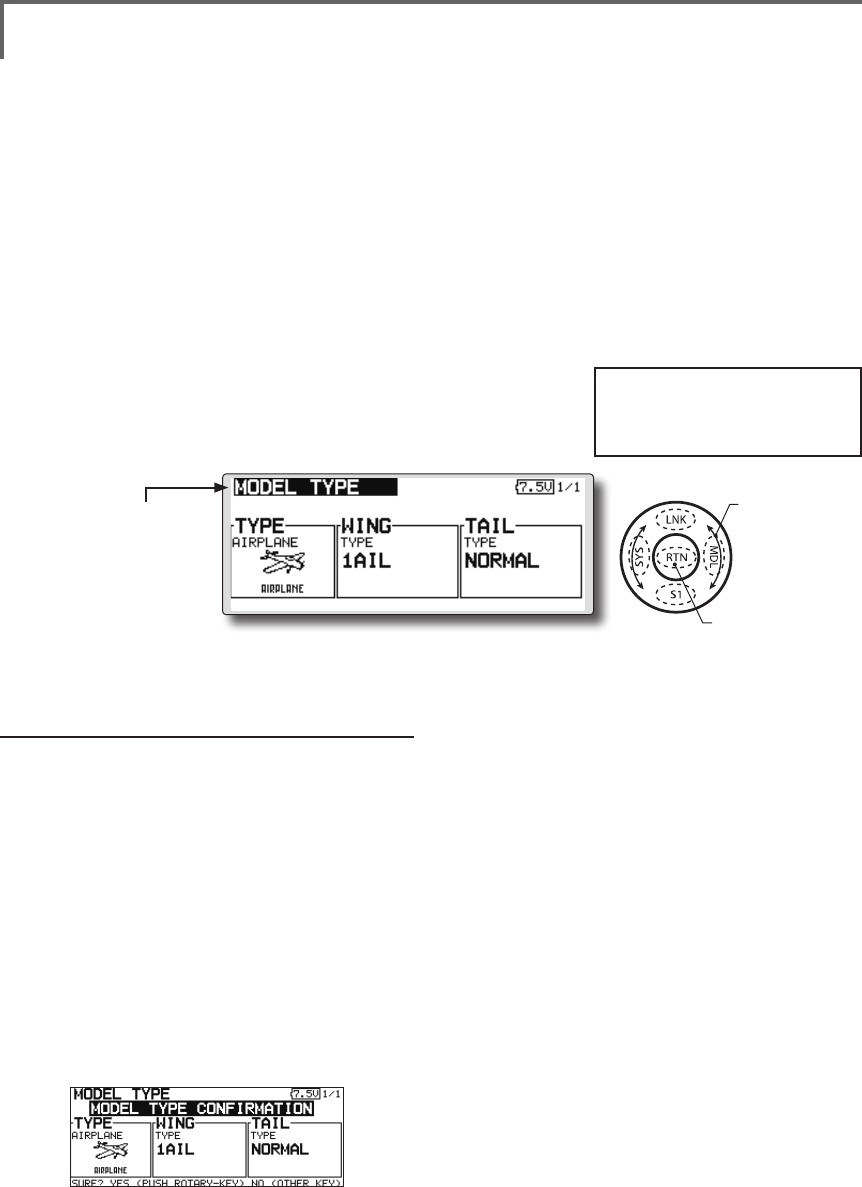

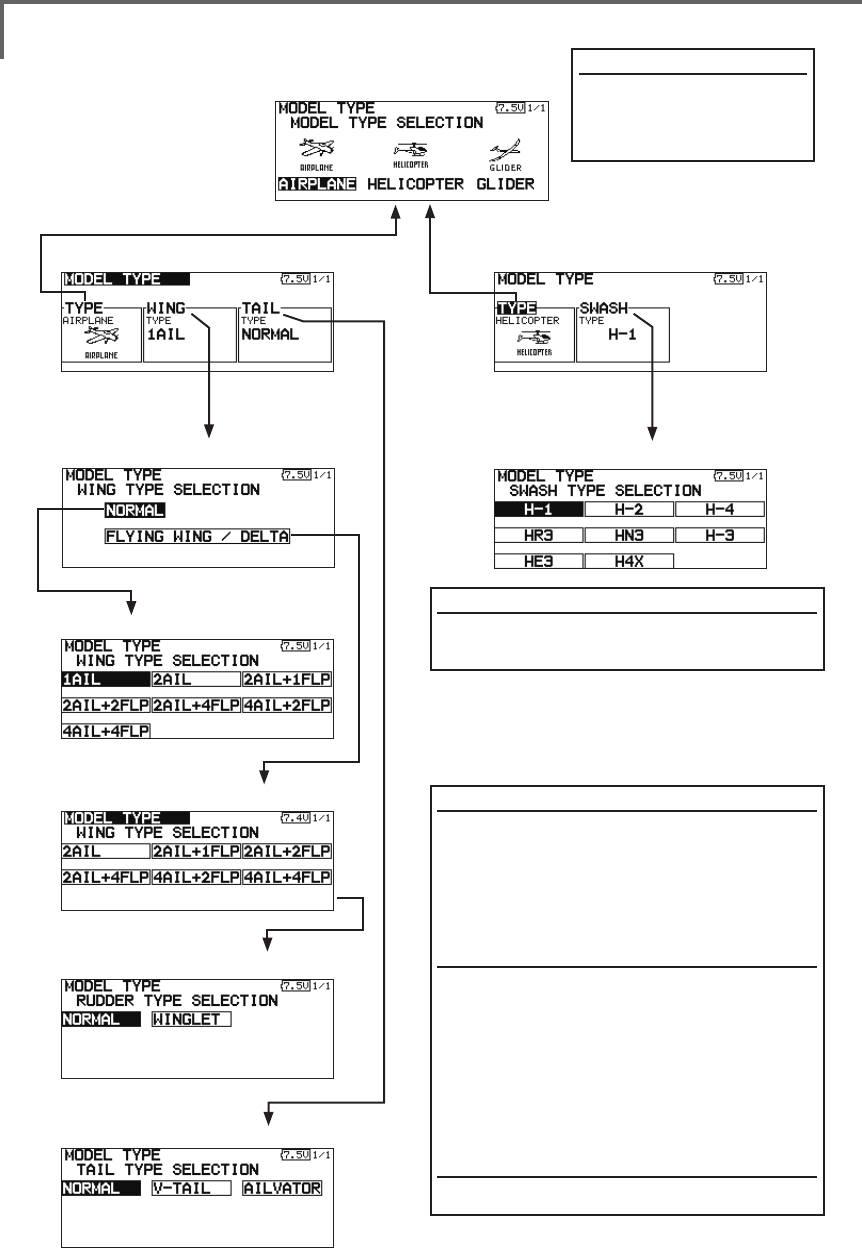

2. Model type selection

Select the model type matched to the aircraft with the

Model Type select function of the Linkage Menu. For an

airplane, select the model type from among the 2 types:

airplane and glider. After the wing type is selected the

tail type select screen is displayed. Select the tail type

matched to the aircraft.

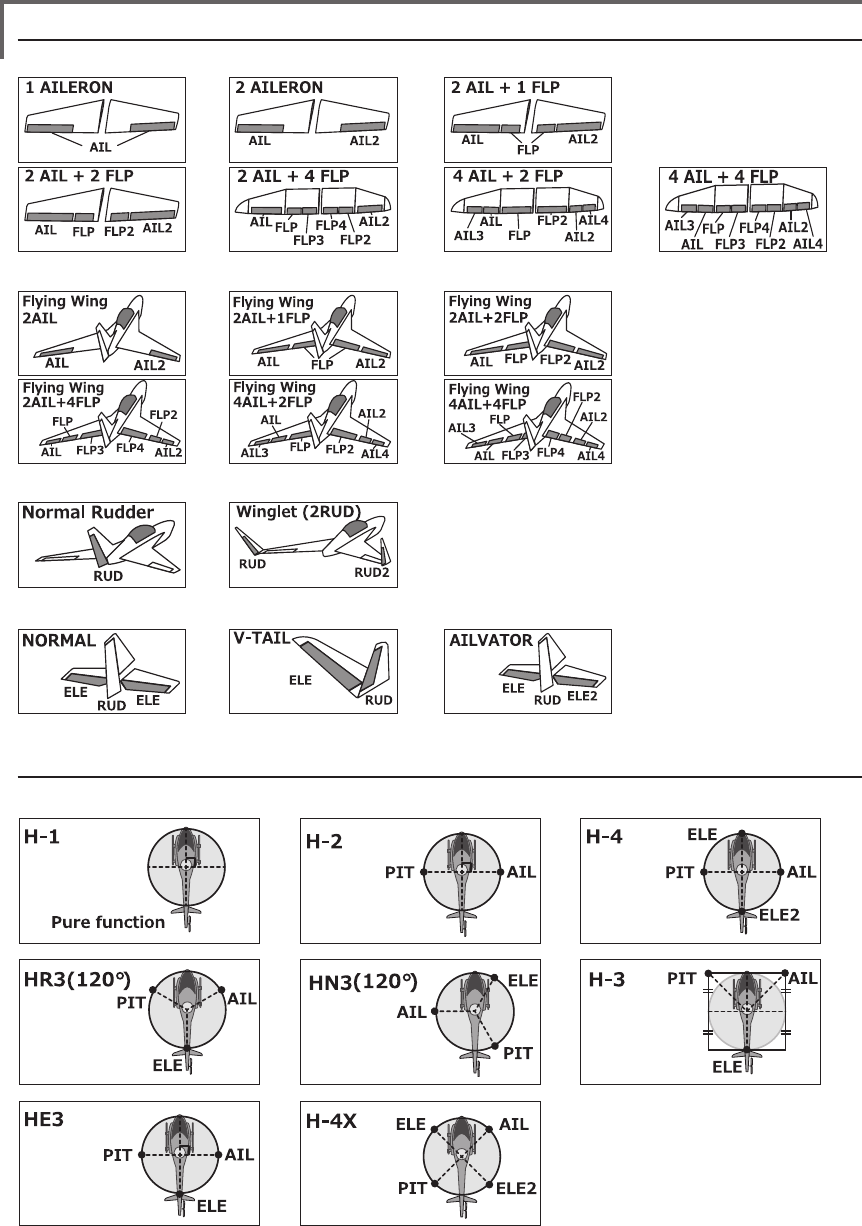

There are 13 wing types and 3 tail types for airplane

and glider.

Airplane/glider basic setting procedure

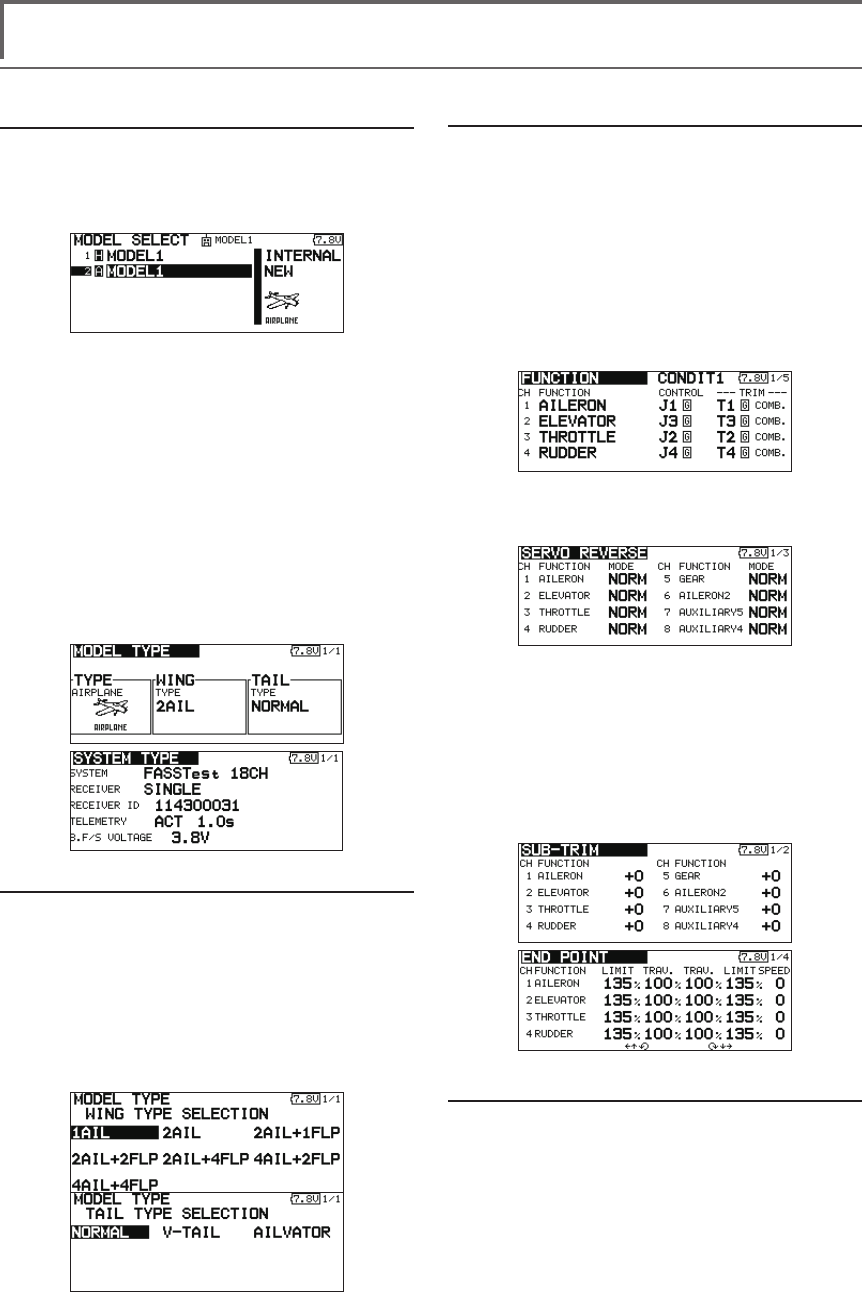

3. Fuselage linkage

Connect the ailerons, elevators, throttle, rudder, etc.

in accordance with the model's instruction manual. For

a description of the connection method, see the Receiver

and Servos Connection.

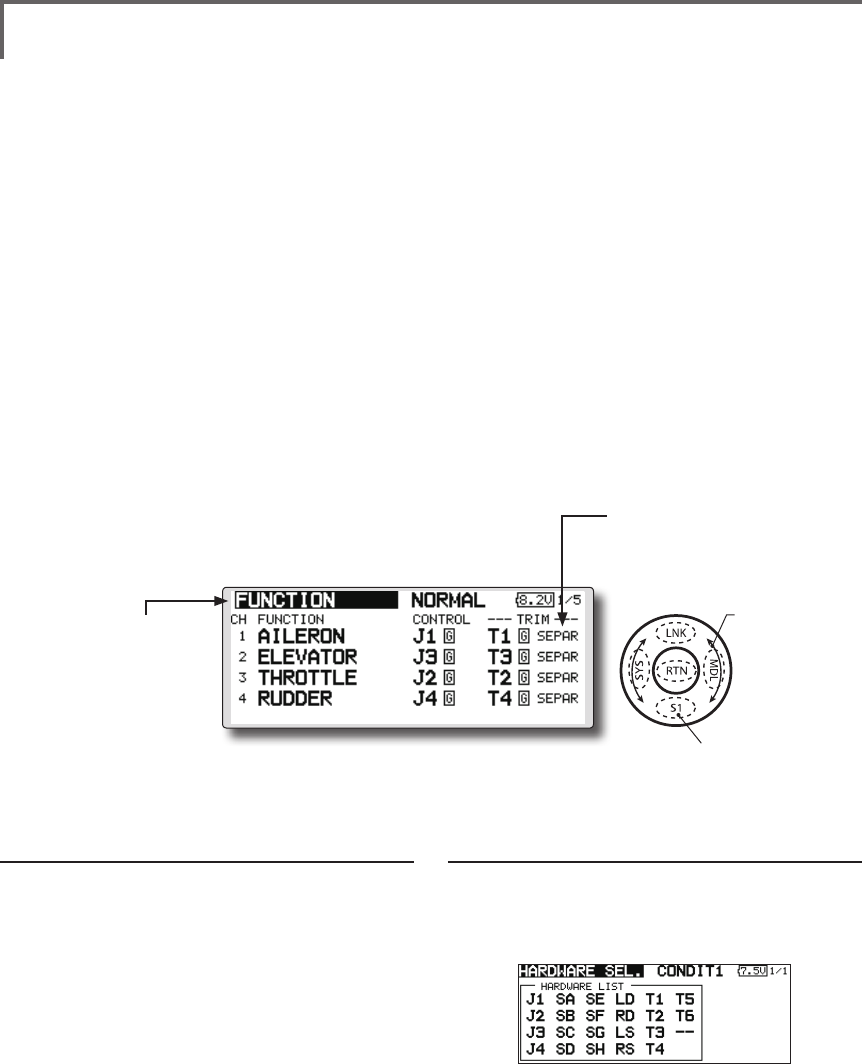

Note: The channel assignment of the T18SZ is

different from that of our existing systems. Note

that even for the same "airplane model", when the

wing type and tail type are different, the channel

assignment may be different. (The channel assigned

to each function can be checked at the Function

menu of the Linkage Menu.)

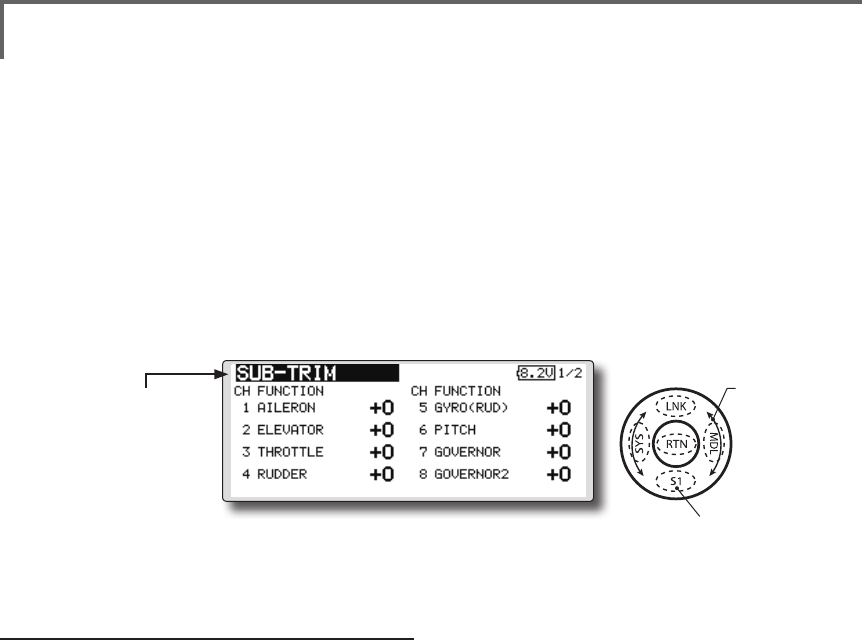

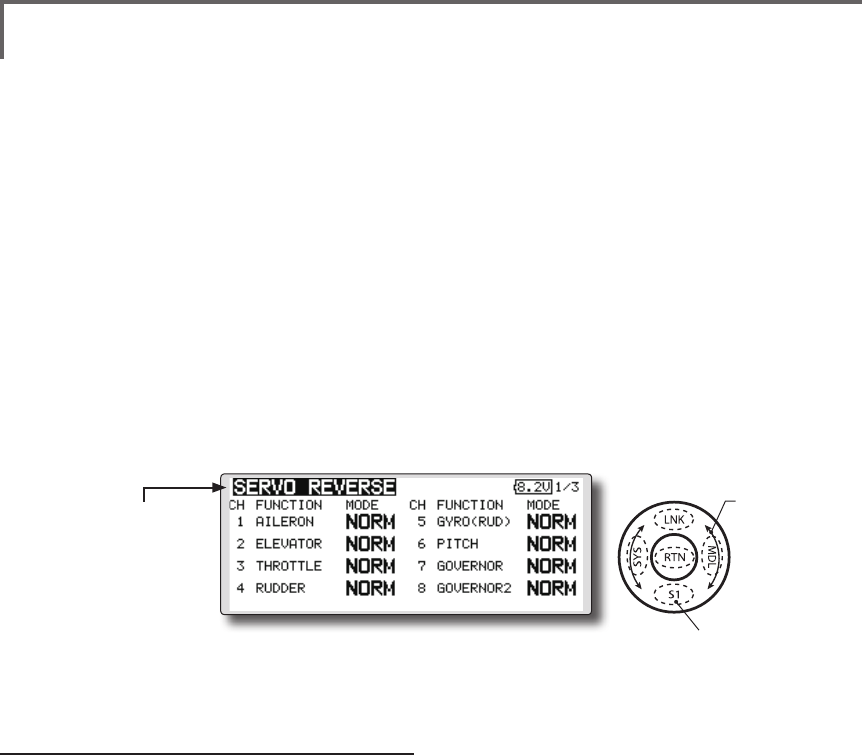

● If the direction of the servo is incorrect, adjust

the direction with the Reverse function of the

Linkage Menu.

● Adjust the neutral position and control surface

angle with the linkage, and fine tune them

with the Sub Trim and End Point functions

(angle adjustment). To protect the linkage, a

limit position can also be set with the End Point

function. The End Point function can adjust the

amount of up/down and left/right movement,

limit, and servo speed of each channel.

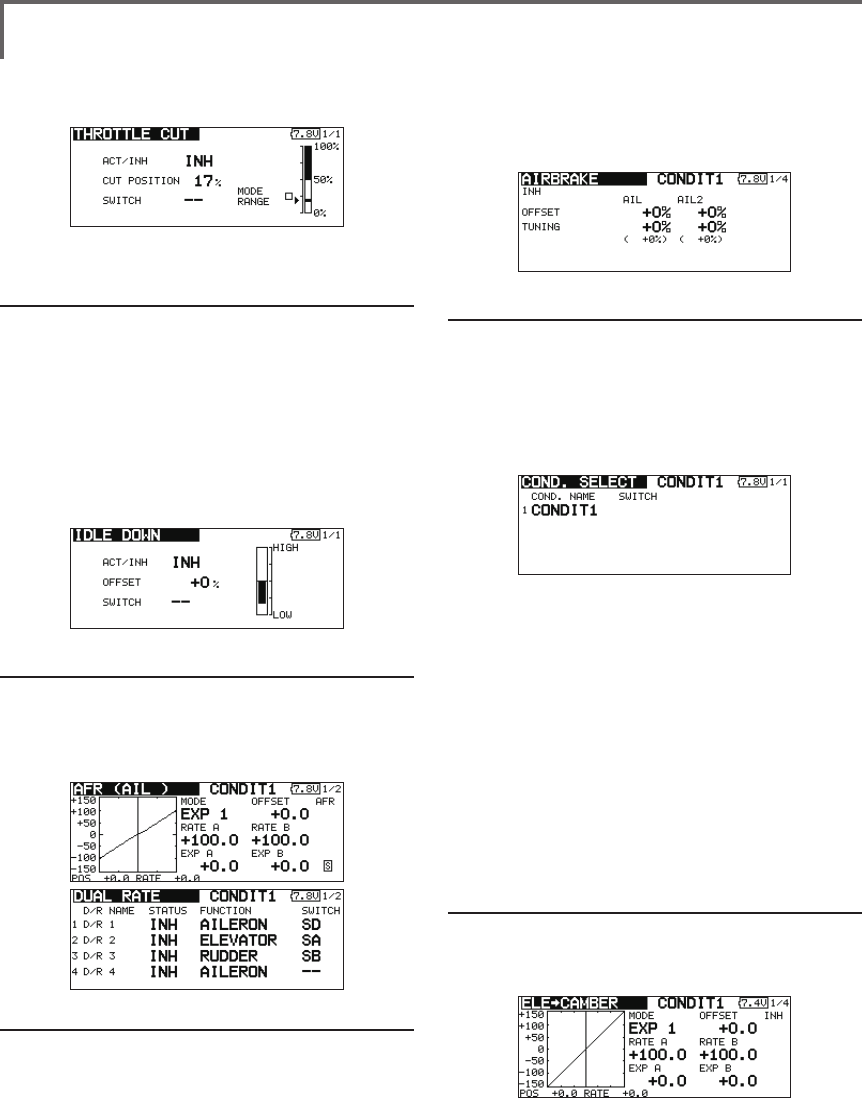

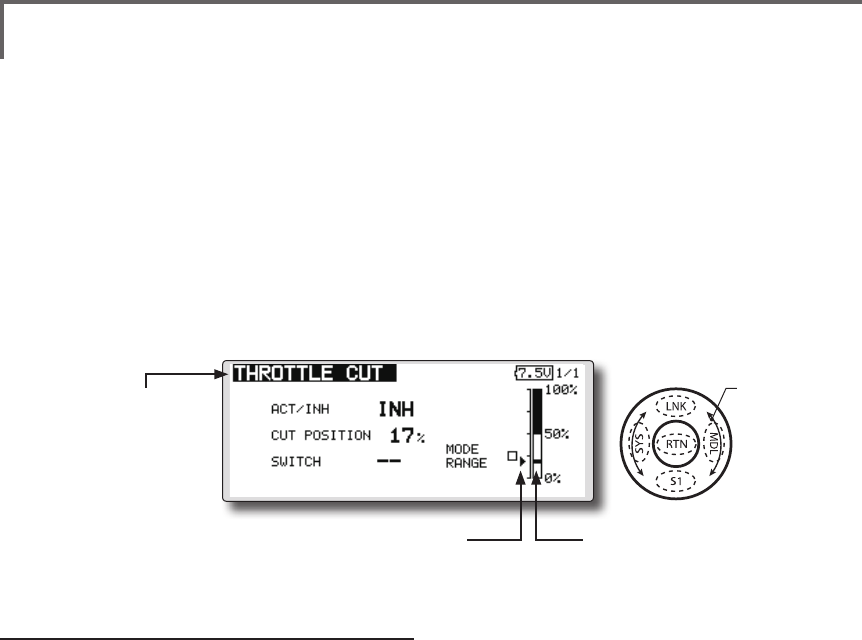

4. Throttle cut setting

Throttle cut can be performed with one touch by a

switch without changing the throttle trim position.

Set throttle cut with the Throttle Cut function of the

Linkage Menu. After activating the throttle cut function

and selecting the switch, adjust the throttle position so

that the carburetor becomes fully closed. For safety, the

52 <Model Basic Setting Procedure>

throttle cut function operates the throttle stick in the 1/3

or less (slow side) position.

5. Idle down setting

The idling speed can be lowered with one touch by

a switch without changing the throttle trim position.

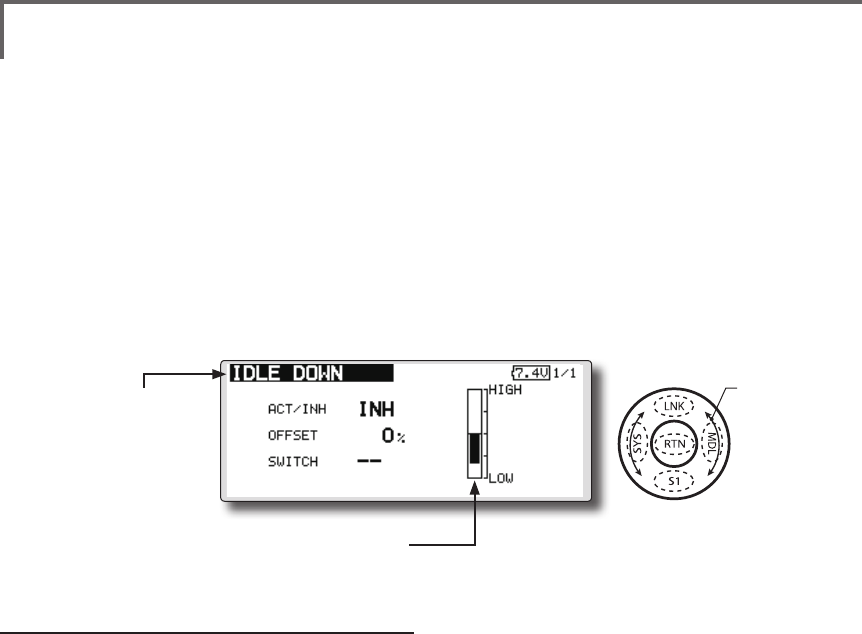

Perform this setting with the Idle Down function of the

Linkage Menu. After activating the Idle Down function

and selecting the switch, adjust the idle down speed. For

safety, the idle down function acts only when the throttle

stick is slow side.

*While the Throttle Cut function is in operation, the Idle

Down function does not work.

6. AFR (D/R)

AFR function is used to adjust the throw and operation

curve of the stick, lever, and switch functions for each

flight condition. This is normally used after End Point

has dened the maximum throw directions.

7. Airbrake

This function is used when an air brake is necessary

when taking off or diving, etc.

The preset elevators and aps (camber ap, brake ap)

offset amount can be activated by a switch.

The offset amount of the aileron, elevator, and flap

servos can be adjusted as needed. Also the speed of the

aileron, elevator, and flap servos can be adjusted. (IN

side/OUT side) A delay can be set for each condition,

and a Cut switch which will turn OFF the delay can be

chosen. Trim amounts can be ne-tuned by setting a VR.

You can also set the Auto Mode, which will link Airbrake

to a stick, switch, or dial. A separate stick switch or dial

can also be set as the ON/OFF switch.

8. Addition of ight conditions

The Condition Select function automatically allocates

the Condition 1 (CONDIT1) for each model. Condition 1

is the default condition and is the only one active when a

new model type is dened.

If you want to add ight conditions, please refer to a

description of the COND. SELECT function.

*The Condition 1 is always on, and remains on until other

conditions are activated by switches.

*When a new condition is added, the model data of the

Condition 1 is automatically copied to the new condition.

*You can set the model data of new condition in the switch

ON state. However, if the group mode (GROUP) was

selected in advance, the same data will be input at all the

conditions. Select the single mode (SINGLE) and adjust

only the condition you want to change. For Group/Single

mode switching, refer to the description at the back of this

manual.

*The Condition Delay can be programmed for each channel.

The Condition Delay is used to change the servo throw

smoothly when switching conditions.

9. When tailless wing model selected

Tailless wing elevator operation uses elevator to

camber mixing. This function cannot be performed at

initial setting.

1. Model addition and call

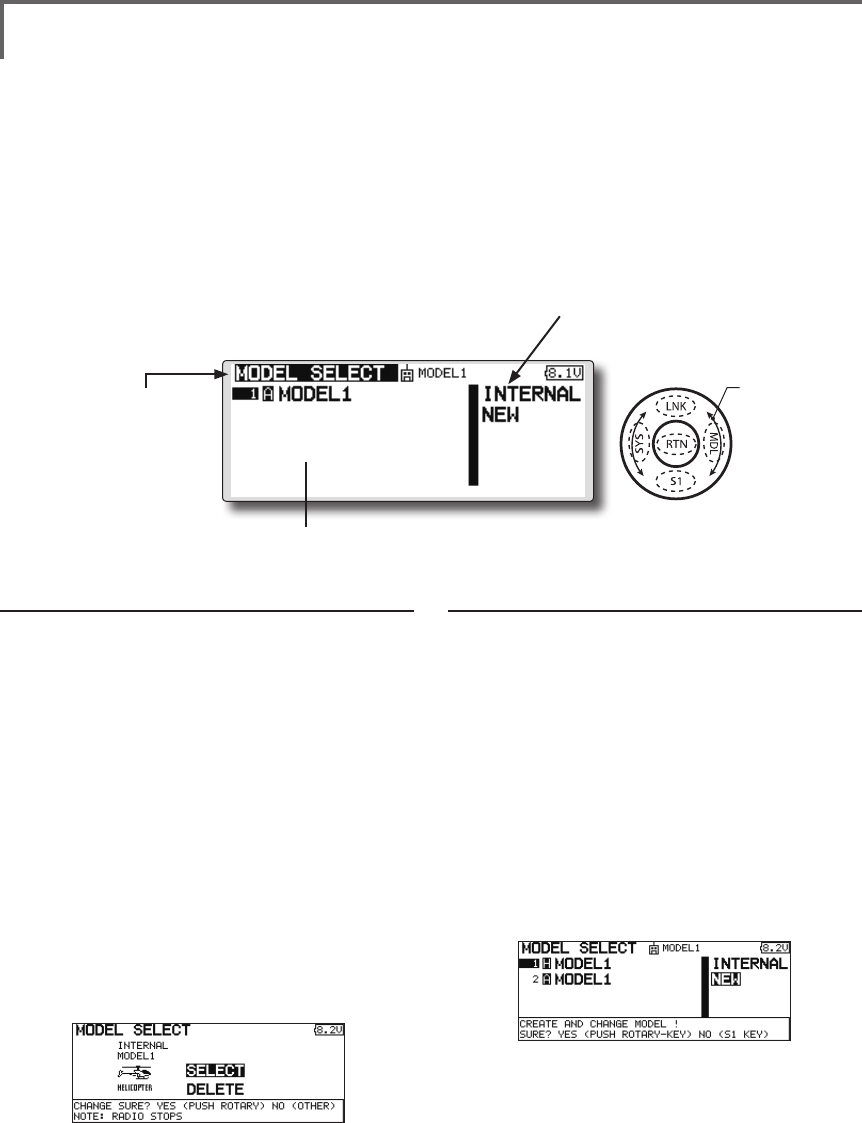

Default setting assigns 1 model to the T18SZ. To

add new models or to call a model already set, use

the Model Select function of the Linkage Menu.

This is convenient when calling a model after

registering the model names in advance. (The data

of up to 30 models can be saved at the transmitter.

Data can also be saved to the optional SD card.)

The currently called model is displayed at the top

of the screen. Before flying and before changing

any settings, always conrm the model name.

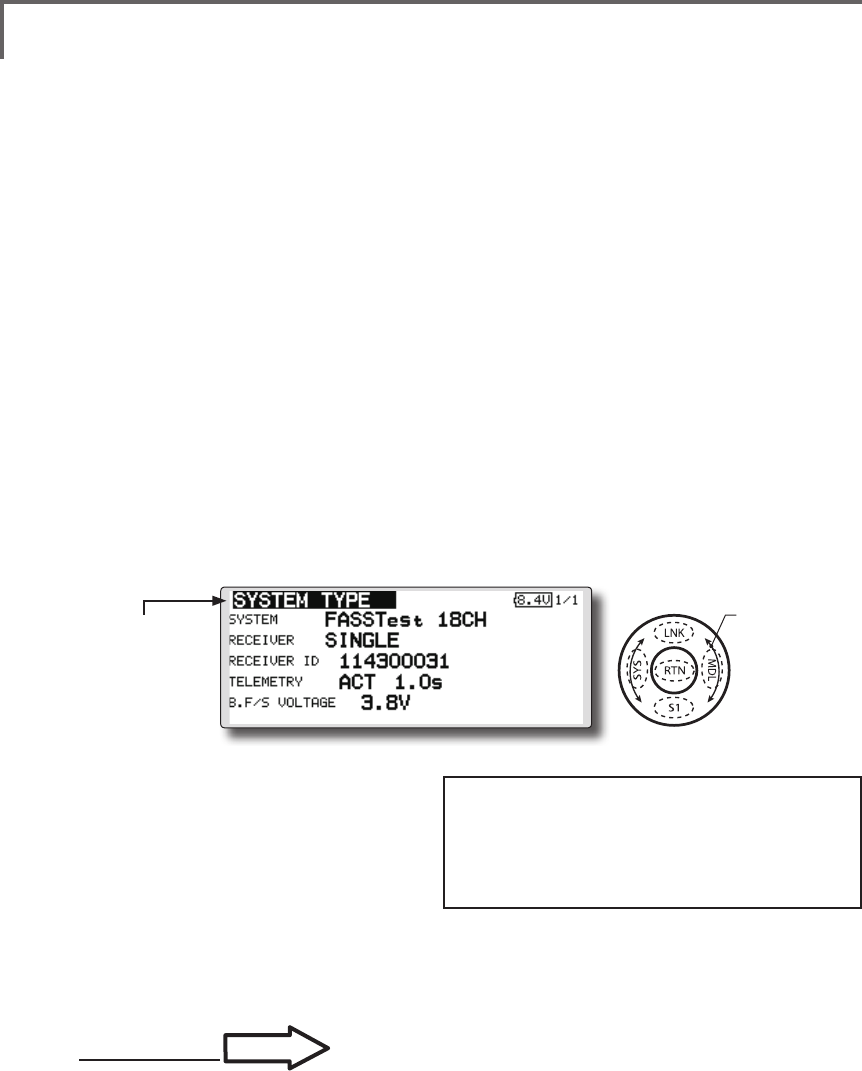

When a new model is added, the Model Type

Select screen and Frequency/Modulation mode/

Receiver ID setup screen automatically appear.

Change, or check that they match the type,

frequency, and receiver type of the model used.

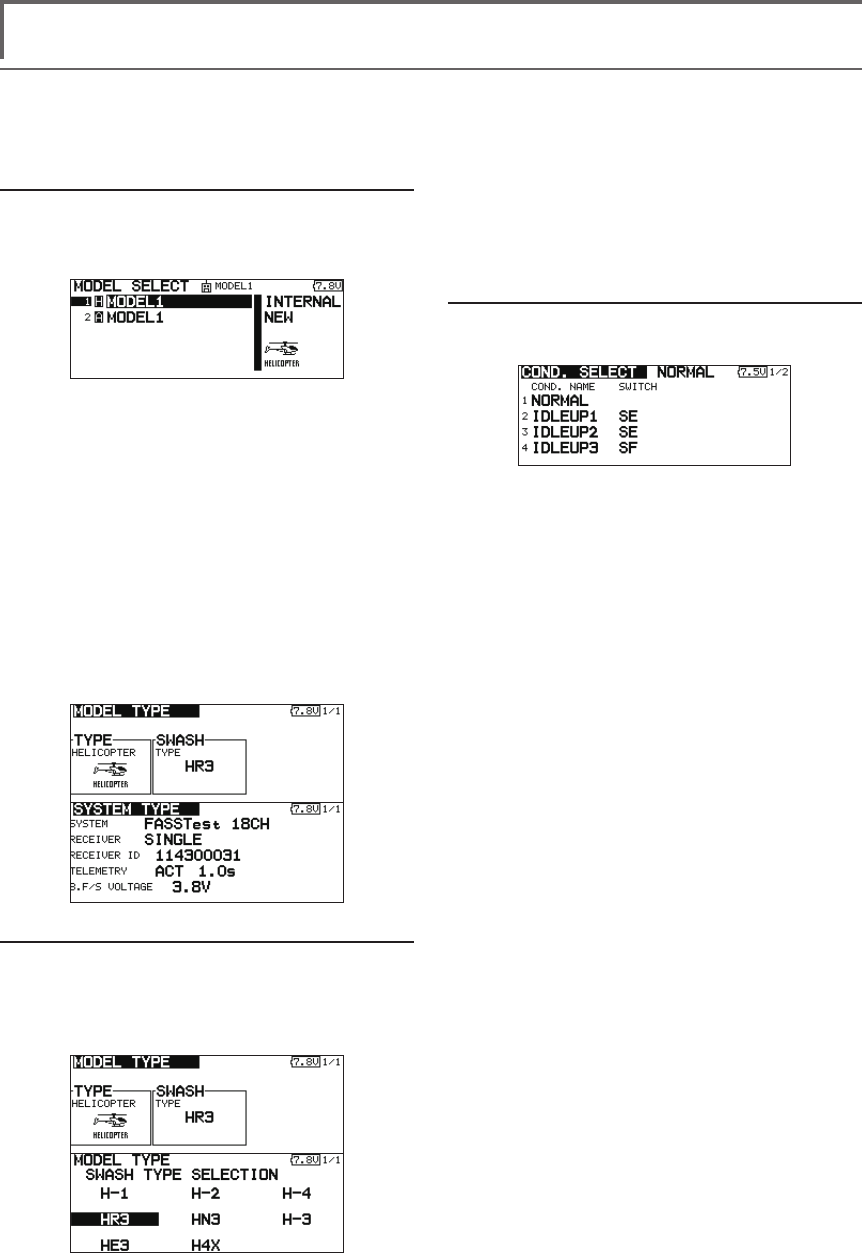

2. Model type and swash type selection

If a different model type is already selected,

select helicopter with the Model Type function of

the Linkage Menu, and then select the swash type

matched to the helicopter.

Helicopter basic setting procedure

This section outlines examples of use of the helicopter functions of the T18SZ. Adjust the actual values, etc. to

match the fuselage used.

*The Model Type function automatically selects the

appropriate output channels, control functions, and mixing

functions for the chosen model type. Eight swash types are

available for helicopters.

*For a description of the swash type selection, refer to the

MODEL TYPE function.

3. Flight condition addition

The transmitter can install up to eight ight conditions

per model.

The Condition Select function automatically allocates

ve conditions for helicopter.

(Initial setting)

● NORMAL

● IDLE UP1 (SW-E)

● IDLE UP2 (SW-E)

● IDLE UP3 (SW-F)

●HOLD (SW-G)

Note: Since you may accidentally activate

the conditions that has not been setup

during flight and this could cause a crash,

delete the conditions not used.

*For a description of the condition deletion, refer to the

COND. SELECT function.

The NORMAL condition is always on, and remains on

until other conditions are activated by switches.

The priority is throttle hold/idle up 2/idle up 1/normal.

Throttle hold has the highest priority.

Add other conditions, as required.

The Condition Delay can be programmed for each

channel. The Condition Delay is used to change the servo

throw smoothly when switching conditions.

(General ight condition setting example)

● Normal: (Use initial setting conditions/operate

when switch OFF)

Use from engine starting to hovering.

● Idle up 1: (Operate at SW-E center)

Use in 540º stall turn, loop, rolling stall turn, and other

maneuvers.

● Idle up 2: (Operate at SW-E forward side)

Use in rolls.

● Throttle hold: (Operate at SW-G forward side)

Use in auto rotation.

54 <Model Basic Setting Procedure>

5. Throttle/Pitch curve setting

This function adjusts the throttle or pitch operation

curve in relation to the movement of the throttle stick for

each condition.

Call the throttle curve of each condition with the

condition select switch.

●Normal curve adjustment

Normal curve creates a basic throttle curve

centered near hovering. This curve is adjusted

together with the pitch curve (Normal) so that the

engine speed is constant and up/down control is

easiest.

●Idle up curve adjustment

The low side Throttle curve creates a curve

matched for aerobatics (loop, roll, 3D, etc.).

●Throttle hold curve adjustment

The curve is not used when performing auto rotation

dives.

Conrm that the rate of the slowest position (0%) of

the stick is 0% (initial setting).

Call the pitch curve of each condition with the

condition select switch.

●Pitch curve (Normal)

Make the pitch at hovering approximately +5º~6º.

Set the pitch at hovering with the stick position at

the 50% point as the standard.

*Stability at hovering may be connected to the throttle curve.

Adjustment is easy by using the hovering throttle function

and hovering pitch function together.

●Pitch curve (Idle up 1)

The idle up 1 pitch curve function creates a curve

matched to airborne ight.

Set to -7º~+12º as standard.

●Pitch curve (Idle up 2)

The high side pitch setting is less than idle up 1.

The standard is +8º.

●Pitch curve (Hold)

At auto rotation, use the maximum pitch at both

the high and low sides.

[Pitch angle setting example]

Throttle hold: -7º~+12º

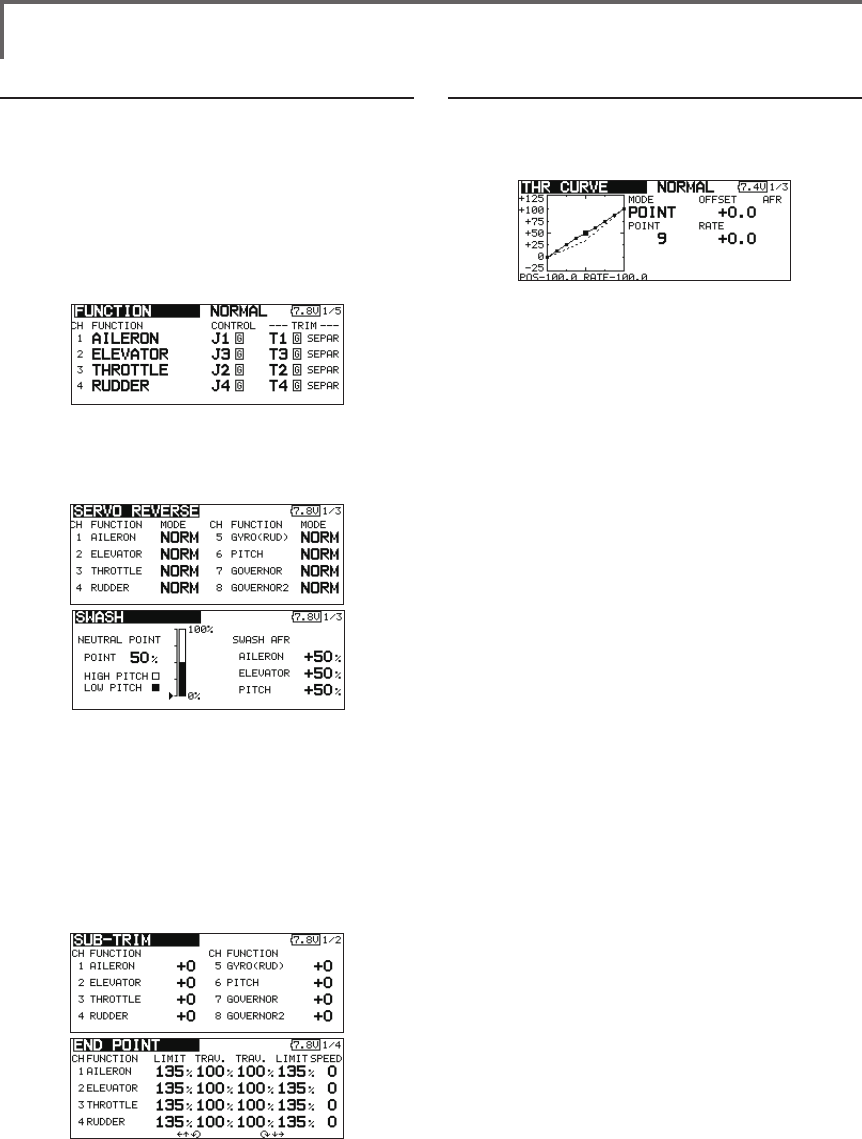

4. Fuselage linkage

Connect the throttle rudder, aileron, elevator, pitch,

and other servos in accordance with the kit instruction

manual. For a description of the connection method, see

"Receiver and Servos Connection".

Note: The channel assignment of the T18SZ

is different from that of our existing systems.

(The channel assigned to each function can

be checked at the Function menu of the

Linkage Menu.)

● If the direction of operation of the servo

is incorrect, use the Reverse function of

the Linkage Menu. Also use the swash AFR

function in other than the H-1 mode.

● Adjust the direction of operation of the gyro.

(Gyro side function)

● Connect the throttle linkage so that the

carburetor can fully close at full trim throttle

cut.

● Adjust the neutral position at the linkage side

and ne tune with the Sub-Trim function and

End Point function (rudder angle adjustment).

To protect the linkage, a limit position can

also be set with the End Point function.

● Swash plate correction (Except H-1 mode)

*If any interactions are noticed, for a description of the

linkage correction function, please refer to the SWASH

function.

do not use Pitch to RUD mixing.

Call the Pitch to RUD mixing function from the

Model Menu, and set the curve for each condition. (At

initial setting, this function is in the "INH" state. To use

it, set it to the "ON" state.)

Call the mixing curve of each condition with the

condition select switch.

1. A curve setting example is shown below.

●Pitch to RUD mixing curve (Normal)

Use the hovering system and set this curve to

match take off and landing and vertical climb at

a constant speed.

*For this curve, use the initial setting [EXP1] curve type.

●Pitch to RUD mixing (Idle up 1)

Use this curve in 540º stall turn, loop, and rolling

stall turn, and adjust it so the fuselage is facing

straight ahead when heading into the wind.

*For this curve, [EXP1] curve type can be used and the entire

curve can be lowered with the [Offset] function.

●Pitch to RUD mixing (Hold)

This function is set so that the fuselage is facing

straight ahead at straight line auto rotation. The

pitch of the tail rotor becomes nearly 0º.

*For this curve, [EXP1] curve type can be used and the entire

curve can be lowered with the [Offset] function.

●Other settings

The mixing rise characteristic at pitch operation

can be adjusted. An acceleration function which

temporarily increases and decreases the mixing

amount can be set.

9. Throttle hold setting

*If throttle hold is necessary, please refer to the THR HOLD

function.

10. Throttle cut setting

Throttle cut provides an easy way to stop the engine,

by flipping a switch with the throttle stick at idle. The

action is not functional at high throttle to avoid accidental

dead sticks. The switch’s location and direction must be

chosen, as it defaults to NULL.

6. AFR (D/R)

AFR (D/R) function is used to adjust the throw

and operation curve of aileron, elevator and rudder

for each condition.

*For throttle and pitch curve settings, refer to the above-

mentioned "Throttle/Pitch curve setting"

This is normally used after End Point has dened

the maximum throw directions.

7. Gyro sensitivity and mode switching

The gyro sensitivity and mode switching function is

dedicated gyro mixing of the Model Menu, and can be

set for each condition.

●Normal condition (hovering): Gyro sensitivity

maximum

●Idle up 1/Idle up 2/Throttle hold: Gyro

sensitivity minimum

●However, at auto rotation of a tail-driven

helicopter, this function may not have any

effect at high gyro sensitivity.

8. Pitch to RUD mixing setting

Note: When using a GY601, GY502, GY401,

or other heading hold gyro, this Pitch to RUD

mixing should not be used. The reaction

torque is corrected at the gyro side. When

operating the gyro in the AVCS mode, the

mixed signal will cause neutral deviation

symptoms and the gyro will not operate

normally.

Use this function when you want to suppress the

torque generated by the changes in the pitch and speed of

the main rotor during pitch operation. Adjust it so that the

nose does not swing in the rudder direction. However,

when using a heading hold gyro like those shown below,

56 <Model Basic Setting Procedure>

*With throttle stick at idle, adjust the cut position until

the engine consistently shuts off, but throttle linkage is

not binding.

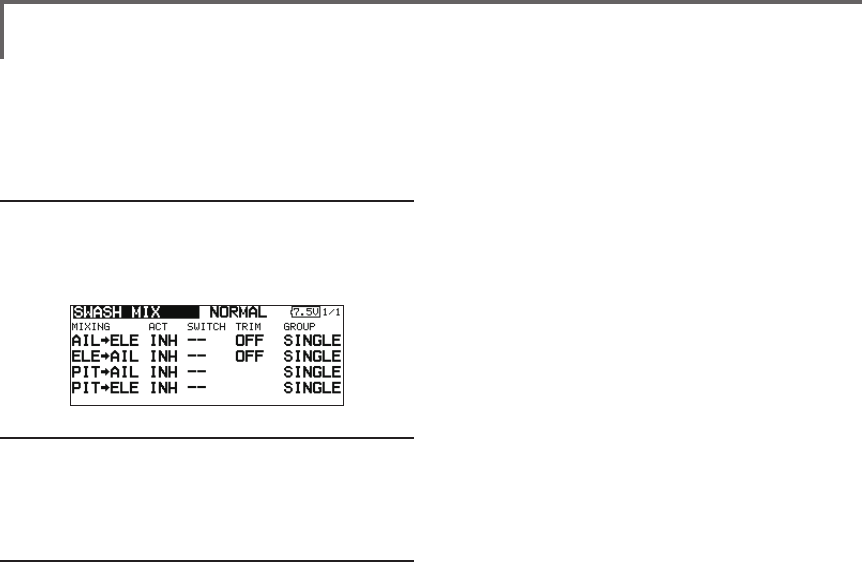

11. Swash Mix corrects aileron, elevator and

pitch interaction

The swash mix function is used to correct the swash

plate in the aileron (Left/Right Cyclic) and elevator

(Forward/Aft Cyclic) direction corresponding to each

operation of each condition.

12. Throttle mixing setting

*If throttle mixing is necessary for a compensation for

slowing of engine speed caused by swash plate operation

during aileron or elevator operation, please refer to the

THROTTLE MIX function.

13. Other special mixings

●Pitch to Needle mixing

This mixing is used with engines with a construction

which allows needle control during ight (fuel-air

mixture adjustment). A needle curve can be set.

The needle servo rise characteristics at throttle

stick acceleration/deceleration operation can be

adjusted. (Acceleration function)

●Governor mixing

This mixing is dedicated governor mixing when a

governor is used. Up to 3 rates (speeds) can be

switched for each condition.

58 <Model Basic Setting Procedure>

Servo connection by model type

The T18SZ transmitter channels are automatically assigned for optimal combination according to the type selected

with the Model Type function of the Linkage Menu. The channel assignment (initial setting) for each model type is

shown below. Connect the receiver and servos to match the type used.

*The set channels can be checked at the Function screen of the Linkage Menu. The channel assignments can also be changed.

For more information, read the description of the Function menu.

Airplane/glider/motor glider

●Airplane and V tail

1AIL 2AIL 2AIL+1FLAP 2AIL+2FLAP

Airplane Glider Airplane Glider Airplane Glider Airplane Glider

EP EP EP EP

1Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron

2Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator

3Throttle Motor AUX7 Throttle Motor AUX7 Throttle Motor AUX7 Throttle Motor AUX7

4Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder

5 Gear AUX6 AUX6 Gear AUX6 AUX6 Gear AUX6 AUX6 Aileron2 Aileron2 Aileron2

6Airbrake Airbrake Airbrake Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Flap Flap Flap

7 AUX5 AUX5 AUX5 AUX5 AUX5 AUX5 Flap Flap Flap Flap2 Flap2 Flap2

8AUX4 AUX4 AUX4 AUX4 AUX4 AUX4 AUX5 AUX5 AUX5 Gear AUX6 AUX6

9AUX3 AUX3 AUX3 AUX3 AUX3 AUX3 AUX4 AUX4 AUX4 AUX5 AUX5 AUX5

10 AUX2 AUX2 AUX2 AUX2 AUX2 AUX2 AUX3 AUX3 AUX3 AUX4 AUX4 AUX4

11 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2 AUX3 AUX3 AUX3

12 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2

13 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1

14 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1

15 AUX1 AUX1 AUX1 AUX1 Buttery Buttery AUX1 Buttery Buttery AUX1 Buttery Buttery

16 AUX1 AUX1 AUX1 Camber Camber Camber Camber Camber Camber Camber Camber Camber

DG1 SW SW SW SW SW SW SW SW SW SW SW SW

DG2 SW SW SW SW SW SW SW SW SW SW SW SW

2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP

Airplane Glider Airplane Glider Airplane Glider

EP EP EP

1Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron

2Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator

3Throttle Rudder Rudder Throttle Rudder Rudder Throttle Rudder Rudder

4Rudder Aileron2 Aileron2 Rudder Aileron2 Aileron2 Rudder Aileron2 Aileron2

5 Gear Flap Flap Gear Aileron3 Aileron3 Gear Aileron3 Aileron3

6Aileron2 Flap2 Flap2 Aileron2 Aileron4 Aileron4 Aileron2 Aileron4 Aileron4

7Flap Flap3 Flap3 Aileron3 Flap

Flap

Aileron3 Flap

Flap

8Flap2 Flap4 Flap4

Aileron4 Flap2 Flap2 Aileron4 Flap2 Flap2

9Flap3 Motor AUX7

Flap Motor

AUX7

Flap Flap3 Flap3

10 Flap4 AUX6 AUX6 Flap2 AUX6 AUX6

Flap2 Flap4 Flap4

11 AUX5 AUX5 AUX5 AUX5 AUX5 AUX5 Flap3 Motor AUX7

12 AUX4 AUX4 AUX4 AUX4 AUX4 AUX4 Flap4 AUX6 AUX6

13 AUX3 AUX3 AUX3 AUX3 AUX3 AUX3 AUX5 AUX5 AUX5

14 AUX2 AUX2 AUX2 AUX2 AUX2 AUX2 AUX4 AUX4 AUX4

15 AUX1 Buttery Buttery AUX1 Buttery Buttery AUX3 Buttery Buttery

16 Camber Camber Camber Camber Camber Camber Camber Camber Camber

DG1 SW SW SW SW SW SW SW SW SW

DG2 SW SW SW SW SW SW SW SW SW

FASST 7CH

S-FHSS

FASSTest 12CH

FASSTest 18CH FASST MULT

The output

CH of each

system

FASST 7CH

S-FHSS

FASSTest 12CH

FASSTest 18CH FASST MULT

The output

CH of each

system

1AIL 2AIL 2AIL+1FLAP 2AIL+2FLAP

Airplane Glider Airplane Glider Airplane Glider Airplane Glider

EP EP EP EP

1Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron

2Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator

3Throttle Motor AUX7 Throttle Motor AUX7 Throttle Motor AUX7 Throttle Motor AUX7

4Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder

5Gear AUX6 AUX6 Gear AUX6 AUX6 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2

6Airbrake Airbrake Airbrake Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2

7 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2 Flap Flap Flap Flap Flap Flap

8AUX5 AUX5 AUX5 AUX5 AUX5 AUX5 Gear AUX6 AUX6 Flap2 Flap2 Flap2

9AUX4 AUX4 AUX4 AUX4 AUX4 AUX4 AUX5 AUX5 AUX5 Gear AUX6 AUX6

10 AUX3 AUX3 AUX3 AUX3 AUX3 AUX3 AUX4 AUX4 AUX4 AUX5 AUX5 AUX5

11 AUX2 AUX2 AUX2 AUX2 AUX2 AUX2 AUX3 AUX3 AUX3 AUX4 AUX4 AUX4

12 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2 AUX3 AUX3 AUX3

13 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2

14 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1

15 AUX1 AUX1 AUX1 AUX1 Buttery Buttery AUX1 Buttery Buttery AUX1 Buttery Buttery

16 AUX1 AUX1 AUX1 Camber Camber Camber Camber Camber Camber Camber Camber Camber

DG1 SW SW SW SW SW SW SW SW SW SW SW SW

DG2 SW SW SW SW SW SW SW SW SW SW SW SW

2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP

Airplane Glider Airplane Glider Airplane Glider

EP EP EP

1Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron

2Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator

3Throttle Motor AUX7 Throttle Motor AUX7 Throttle Motor AUX7

4Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder

5 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2 Elevator2

6Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2

7Flap Flap Flap Aileron3 Aileron3 Aileron3 Aileron3 Aileron3 Aileron3

8Flap2 Flap2 Flap2 Aileron4 Aileron4

Aileron4

Aileron4 Aileron4

Aileron4

9Flap3 Flap3 Flap3

Flap Flap Flap Flap Flap Flap

10 Flap4 Flap4 Flap4

Flap2 Flap2

Flap2

Flap2 Flap2 Flap2

11 Gear AUX6 AUX6 Gear AUX6 AUX6 Flap3 Flap3

Flap3

12 AUX5 AUX5 AUX5 AUX5 AUX5 AUX5 Flap4 Flap4 Flap4

13 AUX4 AUX4 AUX4 AUX4 AUX4 AUX4 Gear AUX6 AUX6

14 AUX3 AUX3 AUX3 AUX3 AUX3 AUX3 AUX5 AUX5 AUX5

15 AUX2 Buttery Buttery AUX2 Buttery Buttery AUX4 Buttery Buttery

16 Camber Camber Camber Camber Camber Camber Camber Camber Camber

DG1 SW SW SW SW SW SW SW SW SW

DG2 SW SW SW SW SW SW SW SW SW

●Ailevator

FASST 7CH

S-FHSS

FASSTest 12CH

FASSTest 18CH FASST MULT

The output

CH of each

system

FASST 7CH

S-FHSS

FASSTest 12CH

FASSTest 18CH FASST MULT

The output

CH of each

system

60 <Model Basic Setting Procedure>

●Tailless wing

2AIL 2AIL+1FLAP 2AIL+2FLAP

Airplane Glider Airplane Glider Airplane Glider

EP EP EP

1Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron

2 AUX4 AUX4 AUX4 AUX4 AUX4 AUX4 AUX4 AUX4 AUX4

3Throttle Motor AUX7 Throttle Motor AUX7 Throttle Motor AUX7

4Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder

5 Gear AUX6 AUX6 Gear AUX6 AUX6 Aileron2 Aileron2 Aileron2

6Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Flap Flap Flap

7 AUX5 AUX5 AUX5 Flap Flap Flap Flap2 Flap2 Flap2

8AUX3 AUX3 AUX3 AUX5 AUX5 AUX5 Gear AUX6 AUX6

9AUX2 AUX2 AUX2 AUX3 AUX3 AUX3 AUX5 AUX5 AUX5

10 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2 AUX3 AUX3 AUX3

11 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2

12 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1

13 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1

14 AUX1 AUX1 AUX1 AUX1 Buttery Buttery AUX1 Buttery Buttery

15 Camber Camber Camber Camber Camber Camber Camber Camber Camber

16 Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator

DG1 SW SW SW SW SW SW SW SW SW

DG2 SW SW SW SW SW SW SW SW SW

2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP

Airplane Glider Airplane Glider Airplane Glider

EP EP EP

1Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron

2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2

3Throttle Motor AUX7 Throttle Motor

AUX7

Throttle Motor

AUX7

4Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder

5Flap Flap Flap Aileron3 Aileron3 Aileron3 Aileron3 Aileron3 Aileron3

6Flap2 Flap2 Flap2 Aileron4 Aileron4 Aileron4 Aileron4 Aileron4 Aileron4

7 Flap3 Flap3 Flap3 Flap

Flap

Flap Flap

Flap

8Flap4 Flap4 Flap4 Flap2 Flap2 Flap2 Flap2 Flap2 Flap2

9AUX4 AUX4 AUX4 AUX4 AUX4 AUX4

Flap3 Flap3 Flap3

10 Gear AUX6 AUX6 Gear AUX6 AUX6 Flap4 Flap4 Flap4

11 AUX5 AUX5 AUX5 AUX5 AUX5 AUX5 AUX4 AUX4 AUX4

12 AUX3 AUX3 AUX3 AUX3 AUX3 AUX3 Gear AUX6 AUX6

13 AUX2 AUX2 AUX2 AUX2 AUX2 AUX2 AUX5 AUX5 AUX5

14 AUX1 Buttery Buttery AUX1 Buttery Buttery AUX3 Buttery Buttery

15 Camber Camber Camber Camber Camber Camber Camber Camber Camber

16 Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator

DG1 SW SW SW SW SW SW SW SW SW

DG2 SW SW SW SW SW SW SW SW SW

FASST 7CH

S-FHSS

FASSTest 12CH

FASSTest 18CH FASST MULT

The output

CH of each

system FASST 7CH

S-FHSS

FASSTest 12CH

FASSTest 18CH FASST MULT

The output

CH of each

system

●Tailless wing Winglet 2Rudder

2AIL 2AIL+1FLAP 2AIL+2FLAP

Airplane Glider Airplane Glider Airplane Glider

EP EP EP

1Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron

2 RUD2 RUD2 RUD2 RUD2 RUD2 RUD2 RUD2 RUD2 RUD2

3Throttle Motor AUX7 Throttle Motor AUX7 Throttle Motor AUX7

4Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder

5 Gear AUX6 AUX6 Gear AUX6 AUX6 Aileron2 Aileron2 Aileron2

6Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Flap Flap Flap

7 AUX5 AUX5 AUX5 Flap Flap Flap Flap2 Flap2 Flap2

8AUX3 AUX3 AUX3 AUX5 AUX5 AUX5 Gear AUX6 AUX6

9AUX2 AUX2 AUX2 AUX3 AUX3 AUX3 AUX5 AUX5 AUX5

10 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2 AUX3 AUX3 AUX3

11 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2

12 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1

13 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1

14 AUX1 AUX1 AUX1 AUX1 Buttery Buttery AUX1 Buttery Buttery

15 Camber Camber Camber Camber Camber Camber Camber Camber Camber

16 Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator

DG1 SW SW SW SW SW SW SW SW SW

DG2 SW SW SW SW SW SW SW SW SW

2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP

Airplane Glider Airplane Glider Airplane Glider

EP EP EP

1Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron

2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2

3Throttle Motor AUX7 Throttle Motor

AUX7

Throttle Motor

AUX7

4Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder

5Flap Flap Flap Aileron3 Aileron3 Aileron3 Aileron3 Aileron3 Aileron3

6Flap2 Flap2 Flap2 Aileron4 Aileron4 Aileron4 Aileron4 Aileron4 Aileron4

7 Flap3 Flap3 Flap3 Flap

Flap

Flap Flap

Flap

8Flap4 Flap4 Flap4 Flap2 Flap2 Flap2 Flap2 Flap2 Flap2

9RUD2 RUD2 RUD2 RUD2 RUD2 RUD2

Flap3 Flap3 Flap3

10 Gear AUX6 AUX6 Gear AUX6 AUX6 Flap4 Flap4 Flap4

11 AUX5 AUX5 AUX5 AUX5 AUX5 AUX5 RUD2 RUD2 RUD2

12 AUX3 AUX3 AUX3 AUX3 AUX3 AUX3 Gear AUX6 AUX6

13 AUX2 AUX2 AUX2 AUX2 AUX2 AUX2 AUX5 AUX5 AUX5

14 AUX1 Buttery Buttery AUX1 Buttery Buttery AUX3 Buttery Buttery

15 Camber Camber Camber Camber Camber Camber Camber Camber Camber

16 Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator

DG1 SW SW SW SW SW SW SW SW SW

DG2 SW SW SW SW SW SW SW SW SW

* Output channels differ by each system of a table. When using a system with few channels,

there is a wing type which cannot be used. It cannot be used when there is a function

required out of the range of the arrow of a gure.

FASST 7CH

S-FHSS

FASSTest 12CH

FASSTest 18CH FASST MULT

The output

CH of each

system FASST 7CH

S-FHSS

FASSTest 12CH

FASSTest 18CH FASST MULT

The output

CH of each

system

62 <Model Basic Setting Procedure>

H-4/H-4X Swash

All Other

1Aileron Aileron

2Elevator Elevator

Throttle Throttle

Rudder Rudder

5 Gyro Gyro

Pitch Pitch

7 Governor

Governor

8Elevator2

Governor2

9GYRO2 GYRO2

10 GYRO3 GYRO3

Governor2 Needle

Needle AUX5

AUX4

AUX3

AUX2

AUX1

DG1

DG2

H-4/H-4X Swash

All Other

1Aileron Aileron

2Elevator Elevator

Throttle Throttle

Elevator2 Rudder

5Pitch Pitch

Gyro Gyro

7 Governor

Governor

8 Rudder

Governor2

9GYRO2 GYRO2

10 GYRO3 GYRO3

DG1

DG2

Helicopter

●FASSTest 18CH / FASST MULTI / FASST 7CH / S-FHSS

●FASSTest 12CH

FASST 7CH

S-FHSS

FASSTest 18CH FASST MULT

The output

CH of each

system

FASSTest 12CH

The output

CH of each

system

FUNCTIONS OF LINKAGE MENU

The Linkage Menu is made up of functions

which perform model addition, model type

selection, frequency setting, end point setting, and

other model basic settings.

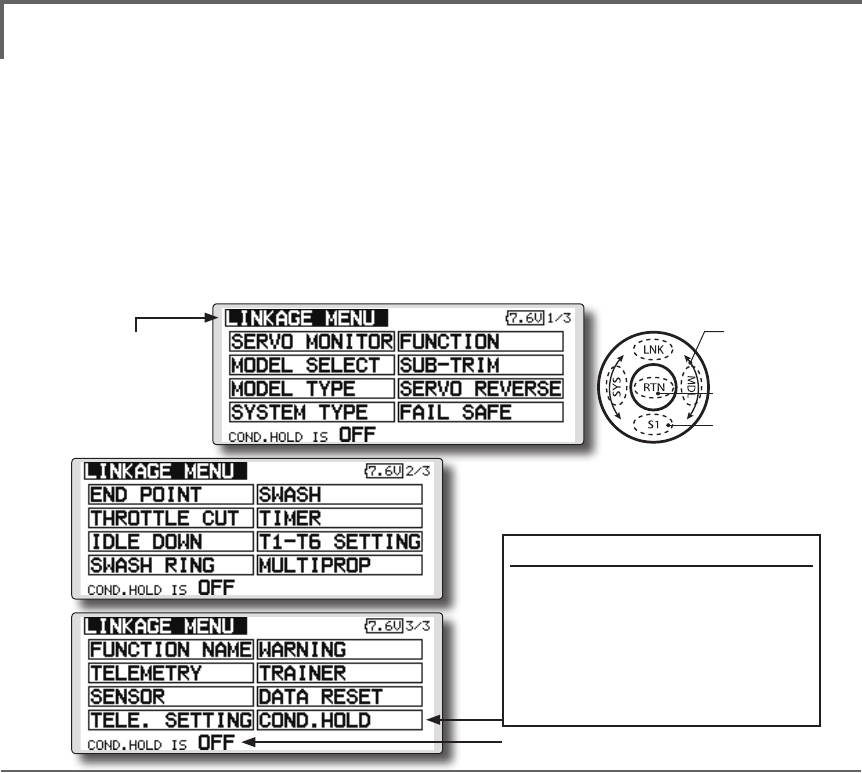

The functions which can be selected depend on

the model type. A typical menu screen is shown

below.

*The display screen is an example. The screen

depends on the model type.

Linkage Menu functions table

[SERVO MONITOR]: Displays the servo test and operation position

[MODEL SELECT]: Model addition, call, deletion, copy, model name setting

[MODEL TYPE]: Model type, wing type, swash type, etc. selection

[SYSTEM TYPE]: System mode selection, link of a transmitter and receiver, area mode selection

[FUNCTION]: Channel assignment of each function can be changed

[SUB-TRIM]: Adjusts the neutral position of each servo

[SERVO-REVERSE]: Servo direction reversal

[FAIL SAFE]: Fail safe function and battery fail safe function setting

[END POINT]: Servo basic rudder adjustment and limit setting

[THROTTLE CUT]: Stops the engine safely and easily (airplane and helicopter only)

[IDLE DOWN]: Lowers the idle speed of the engine (airplane and helicopter only)

[SWASH RING]: Limits the swash plate travel to within a xedrange. (helicopter only)

[SWASH]: Swash AFR and linkage correction function (helicopter only)

[TIMER]: Timer setting

[T1-T6 SETTING]: Control step amount and mode selection of the digital trim

[MULTIPROP]: CH is extended by MPDX-1 of an option

[FUNCTION NAME]: Function name can be changed

[TELEMETRY]: Displays various data sent from the receiver

[SENSOR]: Various telemetry sensors setting

[TELE.SETTING]: Various telemetry sensors setting

[WARNING]: Mixing warning normal reset

[TRAINER]: Starts and sets the trainer system.

[DATA RESET]: Model memory set data reset (by item)

[COND. HOLD]: Condition hold function (helicopter only)

● Select [LINKAGE] at the home screen and call

the linkage menu shown below by touching

the RTN button.

● Use the touch sensor to select the function

you want to set and call the setup screen by

touching the RTN button.

To activate/deactivate Condition Hold:

(Helicopter type only)

1.Move the cursor to [COND. HOLD].

2.Set the throttle stick lower than

the 1/3 point and touch the RTN

button to activate/deactivate the

condition hold function.

*Refer to condition hold function details.

*Condition hold operation is displayed.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button. ●Calling setup screen

Scrolling

● Moving cursor

● Push the S1 button

to call next page.

64 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

WARNING

Don't set a servo test mode when the drive

motor is connected and the engine was started.

■Inadvertent rotation of the motor or acceleration of the

engine is extremely dangerous.

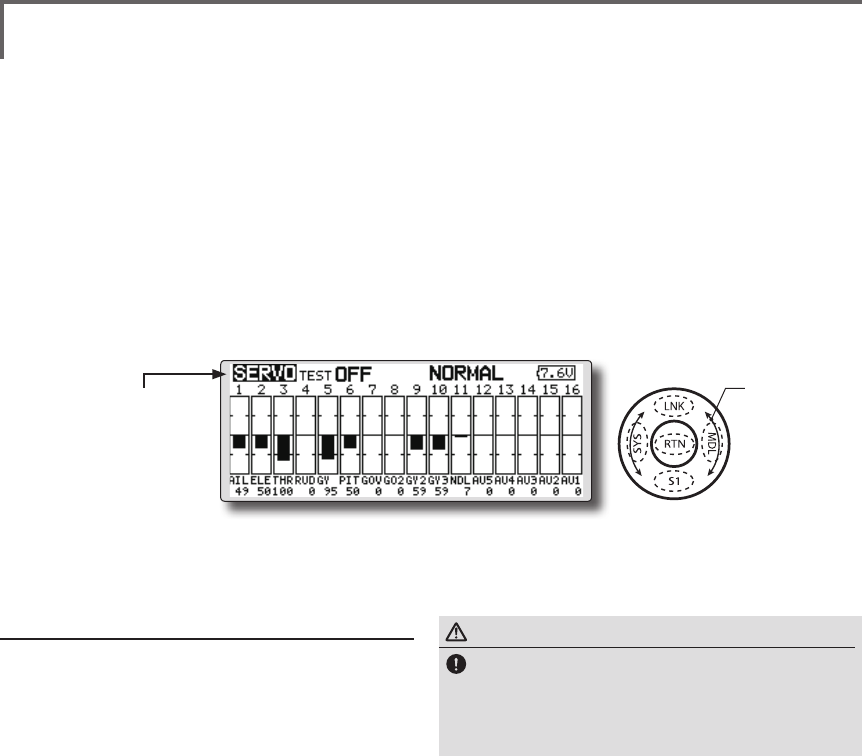

SERVO MONITOR Servo Test & Graph Display / Displays servo positions.

This is used for testing servo movement.

“Moving Test” (repetition mode) and “Neutral

Test” (xed position mode) are available.

The “Neutral Test” is good for finding the

neutral position of a servo horn.

In order to prevent any potential difficulties,

the servo test function will be inoperable, or

inaccessible, under certain conditions. Specically,

the Servo Test function is not operational if the

Throttle Cut is ON in either airplane or helicopter

modes; or if the Throttle Hold is ON in Helicopter

mode.

● Select [SERVO MONITOR] at the linkage menu and

call the setup screen shown below by touching

the RTN button.

Servo test operation

1. Use the touch sensor to move the cursor to

the [TEST] item and touch the RTN button to

switch to the data input mode.

Select the test mode by turning the touch

sensor to the left or right and touch the RTN

button.

[MOVING]: Mode which repeats operation of

each servo

[NEUTRAL]: Mode which locks each servo in

the neutral position

2. Use the touch sensor to move the cursor to

the [TEST] item and touch the RTN button to

switch to the data input mode.

Select the [OFF] by turning the touch sensor

and touch the RTN button. Testing is stopped.

*The display screen is an example. The screen

depends on the model type.

Scrolling

● Moving cursor

● Selecting mode

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

MODEL SELECT The Model Selection function performs model addition, call,

deletion, copy, and model name setting.

This function is used to load the settings of the

desired model into the T18SZ’s memory.

The settings may be selected from either the

transmitter’s built-in memory or a SD card (32MB-

2GB). Remember that up to 30 model memories are

available in the transmitter.

The name of the model stored in the transmitter

and the SD card may be changed. This can be very

useful to tell different models settings apart. Each

model name can be as long as 15 characters, and the

model name always appears in the display screen.

The Copy function is used to copy one set of model

data into a second memory within the transmitter and

the SD card. It may be used for getting a head-start

on setting up models with almost the same settings

(only differences need to be modified, instead of

entering the complete model from scratch). Also, this

function may be used to make a backup copy of a

model setup before any changes are made.

Model call

*Model data saved at models other than the model currently

used or saved on a SD card can be called.

1. Use the touch sensor to move to the save

destination ("INTERNAL" or "MEM.CARD") and

touch the RTN button to switch to the data

input mode.

Select the location which is to save the

desired model by turning the touch sensor to

the left or right. Touch the RTN button.

[INTERNAL]: Transmitter memory

[MEM. CARD]: SD card

2. After using the touch sensor to move the

cursor to the desired model in the model list,

touch the RTN button.

3. Use the touch sensor to move to [SELECT].

4. Touch the RTN button. When a conrmation

message is displayed and the RTN button is

touched again, calling is complete.

*Transmission stops and a send with new model conrmation

message ("TRANSMIT?") appears.

5. To start transmission, use the touch sensor to

select [YES] and then touch the RTN button.

To not transmit, select [NO] and touch the

RTN button.

Model addition

*A new model can be added to the transmitter memory or SD

card.

1. Use the touch sensor to move the cursor to

the save destination ("INTERNAL" or "MEM.

CARD) and touch the RTN button to switch to

the data input mode.

Select the save destination by turning the

touch sensor to the left or right. Touch the

RTN button.

[INTERNAL]: Transmitter memory

[MEM. CARD]: SD card

2. Use the touch sensor to move to [NEW].

3. Press the RTN button. A conrmation message

appears. Press the RTN button again.

*The model type setup screen and frequency setup screen are

automatically displayed. Conrm or change the model type

and frequency.

*A starting transmission with new model confirmation

message ("TRANSMIT") appears.

4. To start transmission, use the touch sensor to

select [YES] and then touch the RTN button.

To not transmit, select [NO] and touch the

RTN button.

*The added model appears in the model list.

● Select [MODEL SELECT] at the linkage menu and call the

setup screen shown below by touching the RTN button.

*The display screen is an example. The screen

depends on the model type.

(Model list)

●"Save to"

[INTERNAL]: transmitter memory

[MEM.CARD]: SD card

Scrolling

● Moving cursor

● Selecting mode

66 <Functions of Linkage Menu>

Model deletion

*The model stored in the transmitter memory or a SD card

can be deleted.

*The current model can not be deleted.

1. Use the touch sensor to move the cursor to

the save destination display ("INTERNAL" or

"MEM. CARD") and touch the RTN button to

switch to the data input mode.

Select the save destination by turning the

touch sensor to the left or right and touch the

RTN button.

[INTERNAL]: Transmitter memory

[MEM. CARD]: SD card

2. Use the touch sensor to move the cursor to

the model you want to delete in the model

list and then touch the RTN button.

3. Move the cursor to [DELETE].

4. Touch the RTN button. When a conrmation

message is displayed and the RTN button is

touched again, the model is deleted.

Model name change

*The current model's name can be changed.

1.Use the touch sensor to select the current

model in the model list and then touch the

RTN button.

2. Use the touch sensor to move to [RENAME].

3. Touch the RTN button.

*The model name setup screen is displayed.

4. Change the model name as described

below:

[Moving cursor in input box]

Select [←] or [→], and touch the RTN button.

[Deleting a character]

When [DELETE] is selected and the RTN button

is touched, the character immediately after

the cursor is deleted.

[Adding a character]

When a candidate character is selected

from the character list and the RTN button

is touched, that character is added at the

position immediately after the cursor.

*A name of up to 8 characters long can be entered as the

model name. (A space is also counted as 1 character.)

5. At the end of input, select [ENTER] and touch

the RTN button. (To terminate input and

return to the original state, select [CANCEL]

and touch the RTN button.)

Model copy

*A copy can be made of the current model.

1.Use the touch sensor to select the current

model in the model list and then touch the

RTN button.

2. Move to [COPY] with the touch sensor.

3. Touch the RTN button.

*The copy screen appears.

4. Use the touch sensor to move to the copy

destination position at the bottom of the

screen and touch the RTN button to switch to

the data input mode.

Select the save destination by turning the

touch sensor and touch the RTN button.

5. Use the touch sensor to move to [COPY].

6. Touch the RTN button. When a conrmation

message is displayed and the RTN button is

touched again, the model data is copied.

*T18SZ accepts a SD card formatted FAT file system, but

it does not supports the long file name feature used in

Windows or other modern operating systems. Thus T18SZ

can accept files whose name consists of only 8 characters

or less. Furthermore, it supports only basic alphanumeric

characters such as 'A" to 'Z", '0' to '9' and '_'.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

MODEL TYPE This function selects the model type from among airplane,

helicopter, and glider.

(The display screen is an example. The screen

depends on the model type.)

Seven types of main wings and three types

of tail wings are available for airplanes. Eight

swash types are available for helicopters. Seven

types of main wings and three types of tail wings

are available for gliders. Functions and mixing

functions necessary for each model type are set in

advance at the factory.

Note:

The Model Type function automatically selects

the appropriate output channels, control functions,

and mixing functions for the chosen model type.

When the Model Type Selection command is

accessed, all of the data in the active memory is

cleared (except the following swash type.) Be sure

that you don’t mind losing this data, or back it up to

another memory using the copying functions.

When you change the helicopter swash type

within the following each group, you can leave

the setting data other than the SWASH function. In

this case, confirmation screen appears. However,

it is initialized when you change the swash type

exceeding the group.

Model type selection

1. Use the touch sensor to move the cursor to

the item you want to change and then call

the selection screen by touching the RTN

button.

"TYPE": Model type

"WING " (airplane/glider): Wing type

"TAIL" (airplane/glider): Tail type

"SWASH" (helicopter): Swash type

2. Use the touch sensor to move the cursor to

the type you want to change and select the

type by touching the RTN button.

*When the model type was changed, the wing type, tail

type, or swash type selection screens sequentially appear

according to the model. Finally, the blinking confirmation

message "MODEL TYPE CONFIRMATION" appears.

3. Touch the RTN button to execute the

change. (Operate the touch sensor or S1

button to stop the change.)

● Select [MODEL TYPE] at the linkage menu and call

the setup screen shown below by touching the

RTN button.

*The model types which are displayed (which can be

selected) depend on the type of receiver used. See Servo

Connection by Model Type.

Swash type group A:

H-1, H-2, H-3, HR3, HN3, and HE3

Swash type group B:

H-4, H-4X

●Calling setup screen

Scrolling

● Moving cursor

● Selecting mode

68 <Functions of Linkage Menu>

Model type

Select the model type

from among airplane,

helicopter, and glider.

●Model type selection

(Airplane, glider) (Helicopter)

●Wing type selection (Normal)

●Wing type selection (Tailless wing)

●Rudder type selection

●Swash type selection

● Tail type selection

Wing type (Normal)

Select from among :

1 aileron, 2 ailerons, 2 ailerons + 1 ap,

2 ailerons + 2 aps, 2 ailerons + 4aps,

4 ailerons + 2 aps, 4 ailerons + 4 aps.

Wing type (Tailless wing)

Selection from among:

2 ailerons, 2 ailerons + 1 ap,

2 ailerons + 2 aps, 2 ailerons + 4 aps,

4 ailerons + 2 aps, 4 ailerons + 4 aps.

*For tailless wing, the rudder type can be selected from

normal rudder and winglet.

Tail type

Select from normal, V tail, and ailvator.

Helicopter swash type

Select from among H-1, H-2, H-4, HR3,

HN3, H-3, HE3, and H4X.

●Wing type selection

Model type selection (Airplane, Glider)

●Wing type (Normal)

 

●Wing type (Tailless wing)

 

●Rudder type



●Tail type

 

Model type selection (Helicopter)

●Swash type

70 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

System Type selection

The T18SZ is for 2.4GHz only. The system

can be changed from among 5 choices: FASSTest

18CH, FASSTest 12CH, FASST MULTI, FASST

7CH, T-FHSS, S-FHSS. It is FASSTest18CH and

FASSTest12CH which can be chosen by R7008SB

set. The method of selection is to the next page.

*If you change the System Type, other model data is not

reset.

*If a system type is changed in Helicopter mode, the

transmitter will offer two selections:

[Yes] : Selection sets the channel order suitable for System

Type. (We recommend here. )

[No] : The present channel order is maintained.

*After any change, remember to test the model and should

fully check servo direction and a motion.

*Analog servos cannot be used with the R7008SB in the

FASSTest 12CH mode.

SYSTEM TYPE System mode setting, Receiver link

Receiver linking

The receiver will only be controlled (without

being affected by other transmitters) by the

transmitter it is linked to. When using a receiver

other than one purchased as a set, linking is

necessary.

Moreover, a re-link is required when a new

model is added by model selection, and the time of

system type change.

Dual receiver function (only FASSTest 18CH /

T-FHSS mode)

Dual receivers can be linked with the T18SZ.

Two receivers are recognized individually by ID

numbers. For example, in R7008SB, CH output

setting function is used, by setting the first as as

"1-8CH", and setting the second as "9-16CH",

two sets of receivers can be used as a set in the

model, allowing you 16 channels. Separate fail-safe

voltage can be set to each receiver.

However, telemetry cannot be used for the 2nd

receiver.

Battery fail-safe voltage setup (only FASSTest /

T-FHSS mode)

The voltage which battery fail-safe activates,

can be set when you link. (3.5-8.4V) The receiver

memorizes the setting as it was at link.

Suggested setting voltages are as follows.

• 4 cells NiCd or NiMH (Normal: 4.8v) = 3.8 v

• 2 cells LiFe (Normal: 6.6 v) = 6.0 ~ 6.2 v

• 2 cells LiPo (Normal: 7.4 v) = 6.6 ~ 7.4 v

It is a rough reference value.

Since it changes with servos carried in the

condition and the model of a battery, please set to

your own model in a battery consumption current.

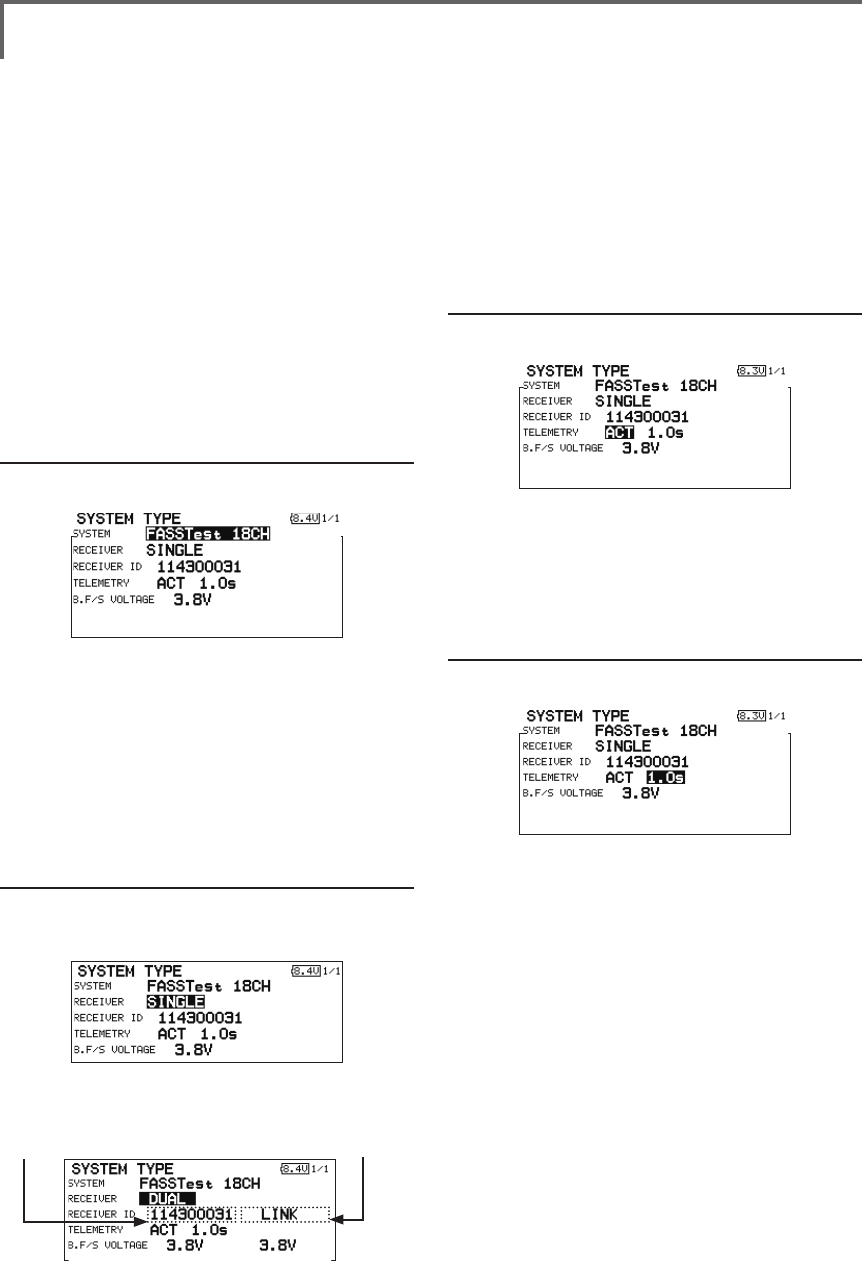

● Select [SYSTEM] in the Linkage menu and access

the setup screen shown below by touching the

RTN button.

P.36

Linking method

Cases when linking is necessary:

・When using a receiver other than the initial setting.

・When the communication system was changed.

(FASSTest18CH ↔FASSTest12CH etc. )

・When a new model was created by model

selection.

Scrolling

● Moving cursor

● Selecting mode

● Adjusting value

Telemetry function (FASSTest /T-FHSS mode

only)

To use the telemetry function, set “Telemetry” to

“ACT”.

DL Interval (FASSTest/T-FHSS mode only)

When a telemetry function is enabled, the

receiving interval (down-link interval) of sensor

data can be changed.

If a DL interval is increased, the response of

the sensor data display becomes slower, but stick

response will improve.

System Type selection procedure

1. Move the cursor to the [FASSTest-18CH] item

and touch the RTN button to switch to the

data input mode.

2. Select the system type by scrolling the touch

sensor.

[FASSTest-18CH][FASSTest-12CH][FASST-MULT]

[FASST-7CH][S-FHSS]

*An example of selections for each system is on the following

page.

3. Touch the RTN button to end adjustment and

return to the cursor mode.

Dual receiver function (only FASSTest 18CH /

T-FHSS mode) procedure

1. Move the cursor to the [SINGLE] item and

touch the RTN button to switch to the data

input mode.

2. Select the [SINGLE] or [DUAL] by scrolling the

touch sensor.

3. Touch the RTN button to end adjustment and

return to the cursor mode.

Telemetry ACT/INH procedure

1. Move the cursor to the TELEMETRY [ACT] item

and touch the RTN button to switch to the

data input mode.

2. Select the [ACT]or[INH] by scrolling the touch

sensor.

3. Touch the RTN button to end adjustment and

return to the cursor mode.

DL Interval set procedure

1. Move the cursor to the TELEMETRY DL[1.0s]

item and touch the RTN button to switch to

the data input mode.

2. Select the DL time by scrolling the touch

sensor. If a DL interval is increased, the

response of the sensor data display becomes

slower, but stick response will improve.

Initial value: 1.0s

Adjustment range : 0.1s~2.0s

3. Touch the RTN button to end adjustment and

ID of a Primary

receiver displays.

ID of a Secondary

receiver displays.

In DUAL, a primary receiver is link previously.

Next, a secondary receiver is link.

72 <Functions of Linkage Menu>

System Type

■FASSTest 18CH ---

■FASSTest 12CH ---

■FASST MULTI ---

■FASST 7CH ---FASST-7CHsystemreceivermode.Upto7channelscanbeused.

■T-FHSS Air ---

■S-FHSS ---S-FHSSsystemreceivermode.Upto8channelscanbeused.

FASSTestsystemreceivermode.Applicablewiththetelemetrysensorunit.Upto

18channels(linear16+ON/OFF2)canbeused.

T-FHSSsystemreceivermode.Applicablewiththetelemetrysensorunit.Upto

18channels(linear16+ON/OFF2)canbeused.

FASSTestsystemreceivermode.Applicablewithreceivervoltagedisplay.Upto12

channels(linear10+ON/OFF2)canbeused.TelemetrySensorcannotbeused,but

theresponsespeedisafasterthanthatofthe18CHmode.

FASST-MULTIsystemreceivermode.Upto18channels(linear16+ON/OFF2)can

beused.

• Analog servos cannot be used with the R7008SB in the FASSTest 12CH mode.

-Response speed has

priority over number

of channels

-Telemetry requires

only the current

receiver battery

-Want to use a

previously used

receiver as is

-Want to use a

miniature receiver

for indoor planes -Want to use an

S-FHSS system

miniature receiver

-Want to use an

T-FHSS system

receiver

FASSTest 18CH

FASSTest 12CH

FASST MULTI

FASST 7CH

S-FHSS

R608FS

R6008HS

R6108SB

R6208SB

R6014HS

R6014FS

R6203SB

R6203SBE

R6202SBW

R6303SB

R6303SBE

FMR-01

R7008SB

R7003SB

R7018SB

R617FS

R6004FF

R616FFM

R6106HF

R6106HFC

R6203SB

R6203SBE

R6202SBW

R6303SB

R6303SBE

R2006GS

R2106GF

R2008SB

FMR-01

R7008SB

R7003SB

R7018SB (Usable receivers)

-Want to use more channels

-Want to use a large number

of telemetry functions

(The time of June, 2015)

T-FHSS Air

R3006SB

R3008SB

-Want to use a large

number of telemetry

functions

The example for choosing System Type

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

FUNCTION Channel assignment of each function can be changed.

Function change

1. Use the touch sensor to move the cursor

to the "FUNCTION" item of the channel you

want to change and touch the RTN button.

*The function selection screen is displayed.

2. Use the touch sensor to move the cursor

to the function name you want to set and

touch the RTN button.

*The function name blinks.

3. Touch the RTN button to execute the

change. (When you want to cancel this

operation, operate the touch sensor or S1

button.)

*Multiple channels can be assigned to one function.

Operation control change

1. Use the touch sensor to move the cursor to

the "CONTROL" item of the channel you want

to change and touch the RTN button.

*The control selection screen is displayed.

2. Use the touch sensor to move the cursor to

the control you want to change, and touch

the RTN button.

*The same control can be assigned to multiple channels.

*The setting can be changed for each condition.

After the set mode is changed from group mode [G] to

single mode [S] at the control selection screen, only that

condition setting is changed by control change; setting of

other conditions remains the same.

(The display screen is an example. The screen

depends on the model type.)

● Select [FUNCTION] at the linkage menu and call

the setup screen shown below by touching the

RTN button.

● Trim operation mode

"COMB": Combination mode

"SEPAR": Separate mode

When you select model and wing (swash) types,

you will find that the optimized combinations of

servo output channels and functions have been

already preset. If you would like, you can freely

change combinations of servo output channels,

functions (aileron, elevator, etc), and control (sticks,

switches, and trim levers).

*You can also assign the same function to multiple servo

output channels such as assigning elevator function to CH2

and CH3.

Channel Replacement

When the channel is replaced in the function

menu, replaced channel uses the setting data (ATV,

SUB-TRIM, REVERSE, F/S, and B-F/S, etc.).

Servo Output Channels

For FASSTest 14CH mode, you can set 12 linear

channels and two digital channels. For FASSTest

18CH mode, you can set 10 linear channels and

two digital channels. For FASST MULT mode, you

can set 12 linear channels and two digital channels.

For FASST 7CH mode, you can set only 7 linear

channels. For S-FHSS mode, you can set only 8

linear channels.

*DG1/2 (digital channels)

These channels can function as switched channels. You can

freely change combinations between servo output channels

and input controls (sticks, switches, and trim levers).

Motor Function

If you have either a glider or airplane model type

selected, and choose to activate the motor function,

a reverse setting screen is displayed.

*If " YES" is selected, the output is reversed. If "NO" is

selected, the output is normal.

Scrolling

● Moving cursor

● Selecting mode

● Push the S1 button to

call next page.

74 <Functions of Linkage Menu>

Trim setting

Use the touch sensor to move the cursor to

the "TRIM" item of the channel you want to

change and touch the RTN button.

*The trim setup screen is displayed.

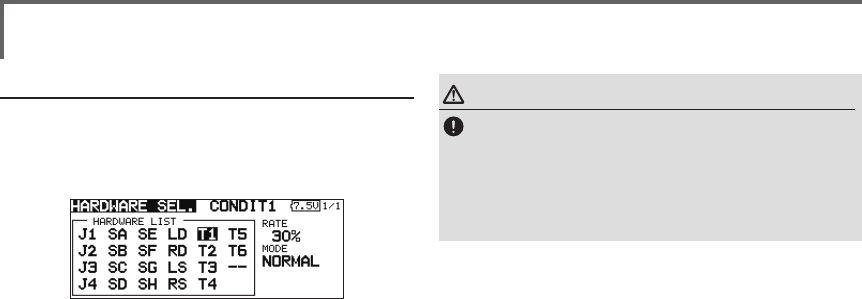

The following items can be set at the trim

setup screen:

*The setting can be changed for each condition.

After the set mode is changed from group mode [G] to

single mode [S] at the control selection screen, only that

condition setting is changed by control change; setting of

other conditions remains the same.

Trim selection

Use the touch sensor to move the cursor

to the trim, lever, etc. you want to set and

touch the RTN button.

*The setting can be changed.

Trim rate setting

Use the touch sensor to move the cursor to

the [RATE] item and touch the RTN button to

switch to the data input mode.

Set the trim rate by turning the touch sensor.

Initial value: +30%

Adjustment range : 0~150%

(When the RTN button is touched for 1 second, the trim rate

is reset to the initial value.)

Touch the RTN button to end adjustment and

return to the cursol move mode.

Trim mode selection

Use the touch sensor to move the cursor to

the [TRIM MODE] item and select the trim

mode by turning the touch sensor.

[NORM]: Normal mode. Normal trim (parallel

shift trim) operation.

[ATL]: ATL operation mode. Maximum

change near center by operation normally

used with throttle trim. Reverse is also

possible.

[NORM]/[REV] selection is possible at the "ATL

REV" item.

[CENTER]: Maximum change near center by

center trim operation.

WARNING

As a safety precaution to prevent the motor from

starting unexpectedly, please switch off the

motor accordingly. We also suggest removing

the propeller from the motor as an additional

precaution.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

SUB-TRIM Setting of neutral position of each servo.

(The display screen is an example. The screen

depends on the model type.)

The Sub-Trim function is used to set the servo

neutral position, and may be used to make fine

adjustments to the control surface after linkages

and touchrods are hooked up. When you begin to

set up a model, be sure that the digital trims are set

to their center position.

Sub trim adjustment

1. Use the touch sensor to move the cursor to

the channel you want to adjust and touch

the RTN button to switch to the data input

mode.

2. Adjust by turning the touch sensor.

Initial value: 0

Adjustment range: -240~+240 (steps)

(When the RTN button is touched for 1 second, sub trim is

reset to the initial value.)

*Before sub trim adjustment, adjustment of the linkage so that

control surfaces need not use sub trim as much as possible is

very important.

3. Repeat this procedure for each channel.

● Select [SUB-TRIM] at the linkage menu and call the

setup screen shown below by touching the RTN

button.

Scrolling

● Moving cursor

● Adjusting value

● Push the S1 button to

call next page.

76 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

SERVO-REVERSE Use to reverse the throw direction.

Servo Reverse changes the direction of an

individual servo’s response to a control stick

movement.

For CCPM helicopters, be sure to read the

section on Swash AFR before reversing any servos.

With CCPM helicopters, always complete your

servo reversing prior to any other programming.

If you use pre-built Airplane/Sailplane functions

Servo reversing procedure

*After linkage of a new model is complete, check whether or

not each servo is connected to the correct channel.

*Next, determine whether you need to reverse any channels

by moving each stick.

1. Use the touch sensor to move the cursor to

the channel you want to reverse and touch

the RTN button to switch to the data input

mode.

2. Turn the touch sensor and change the

display to [REVERSE] (or [NORMAL]).

*The display blinks.

3. When the RTN button is touched, servo

operation is reversed. (Operate touch sensor

or S1 button to stop reversal.)

*Repeat the operation above for each channel that must be

reversed.

that control multiple servos, it may be confusing

to tell whether the servo needs to be reversed or a

setting in the function needs to be reversed. See the

instructions for each specialized function for further

details. Always check servo direction prior to every

ight as an additional precaution to conrm proper

model memory, hook ups, and radio function.

(The display screen is an example. The screen

depends on the model type.)

● Select [SERVO REVERSE] at the linkage menu and

call the setup screen shown below by touching

the RTN button.

Scrolling

● Moving cursor

● Selecting mode

● Push the S1 button to

call next page.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

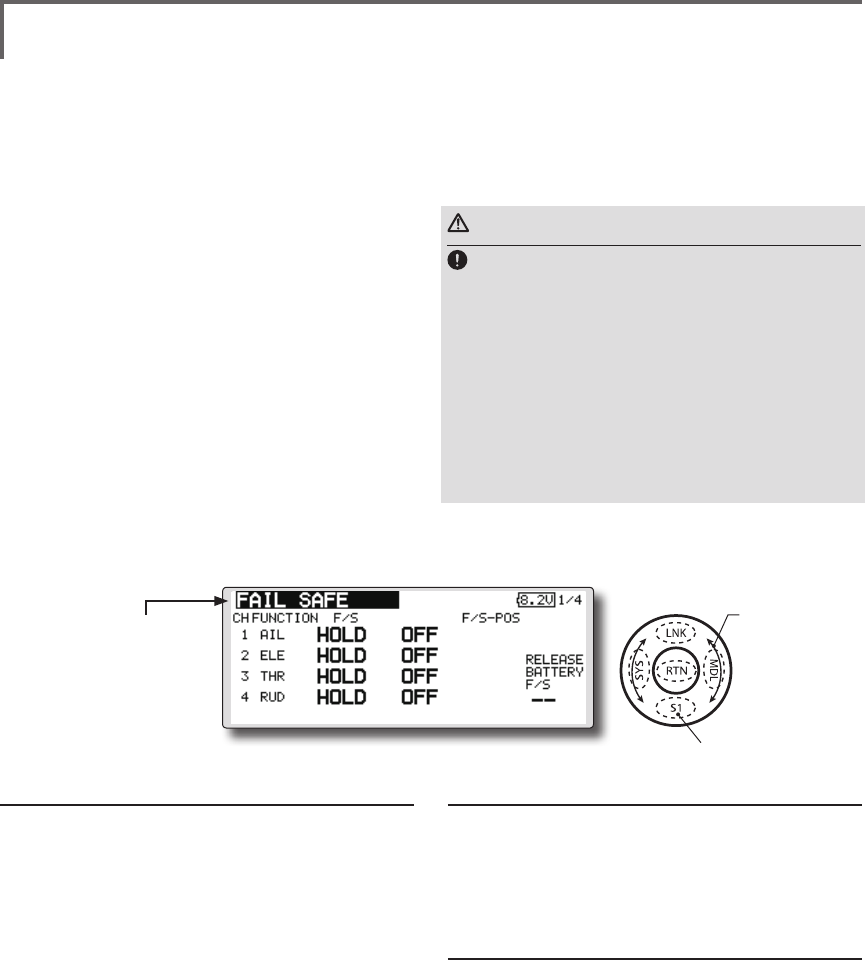

(The display screen is an example. The screen

depends on the model type.)

● Select [FAIL SAFE] at the linkage menu and call the

setup screen shown below by touching the RTN

button.

FAIL SAFE Sets the servos operating position when transmitter signals can no

longer be received or when the receiver battery voltage drops.

The Failsafe function may be used to set up

positions that the servos move to in the case of

radio interference.

You may set either of two positions for each

channel: Hold, where the servo maintains its last

commanded position, or Failsafe, where each

servo moves to a predetermined position. You may

choose either mode for each channel. (FASST 7CH

mode: CH3 only)

The T18SZ system also provides you with

an advanced battery monitoring function that

warns you when the receiver battery has only a

little power remaining. In this case, each servo is

moved to the defined failsafe position. (FASST

7CH mode: CH3 only) The battery failsafe may

be released by operating a predefined control on

the transmitter, do not continue to fly, land as

soon as possible. Remember, if the predefined

Fail safe setting procedure

1. Move the cursor to the "F/S" item of the

channel you want to set and touch the RTN

button to switch to the data input mode.

2. Select the F/S mode by scrolling the touch

sensor. A conrmation message appears.

*The display blinks.

3. Touch the RTN button. (Touch the S1 button

to stop setting.)

*The channel switches to the F/S mode.

4. Move the cursor to the "POS" item.

Hold the corresponding stick, knob, slider,

etc. in the position you want the servo

to move to when the fail safe function is

activated and touch the RTN button for one

second.

*The set position is displayed in percentage.

*If you want to return that channel to the hold mode, move

the cursor to the "F/S" item and touch the RTN button

to switch to the data input mode. Select the F/S mode by

scrolling the touch sensor. A conrmation message appears

and then change the mode by touching the RTN button.

control suddenly moves to a position you did not

command, land at once and check your receiver

battery.

Denes servo position when signals are lost and

when receiver battery voltage becomes low.

WARNING

For safety, always set the fail safe functions.

●Remember to set the throttle channel fail safe function so that

the servo moves to the maximum slow side for airplanes and

to the slow side from the hovering position for helicopters.

Crashing of the model at full high when normal radio waves

cannot be received due to interference, etc., is very dangerous.

●If the battery fail safe is reset by the throttle stick, it may

be mistaken for an engine malfunction and will be reset at

throttle slow and the model will continue to y. If you have

any doubts, immediately land.

Battery fail safe setting procedure

Battery fail safe can be set for each channel

by the same method as the fail safe setting

procedure. Select and set the "B.F/S" item.

[ON]: Battery fail safe function ON

[OFF]: Battery fail safe function OFF

Battery fail safe release switch setting

This function temporarily releases the battery

fail safe function, so the fuselage can

recover after the battery fail safe function

was activated by a drop in the receiver

battery voltage. This setting selects the switch

which releases the battery fail safe function.

1. Move the cursor to the [RELEASE B.F/S] item in

the setup screen (last page).

2. Touch the RTN button.

*The switch selection screen is called.

*For a detailed description of the switch selection and ON/

OFF direction setting method, see [Switch Setting Method]

at the back of this manual.

Scrolling

● Moving cursor

● Selecting mode

● Push the S1 button to

call next page.

78 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

END POINT Sets the travel, limit point, and speed of each servo.

The End Point function adjusts the left and right

servo throws, generates differential throws, and

will correct improper linkage settings.

The travel rate can be varied from 30% to 140%

in each direction on channels 1 to 12. Also, the

limit point where servo throw stops may be varied

from 0% to 155%.

Servo travel adjustment

1. Use the touch sensor to move the cursor to

the "TRAV." item of the channel you want to

adjust and touch the RTN button to switch to

the data input mode.

2. Turn the touch sensor to adjust the rate.

Initial value: 100%

Adjustment range: 30%~140%

(When the RTN button is touched for 1 second, the rate is

reset to the initial value.)

Touch the RTN button to end adjustment and

return to the cursol move mode.

3. Repeat this procedure for each rate.

Limit point adjustment

1. Use the touch sensor to move the cursor to

the "LIMIT" item of the channel you want to

adjust and touch the RTN button to switch to

the data input mode.

2. Turn the touch sensor to adjust the limit point.

Initial value: 135%

Adjustment range: 0%~155%

(When the RTN button is touched for 1 second, the limit point

is reset to the initial value.)

Touch the RTN button to end adjustment and

return to the cursol move mode.

3. Repeat this procedure for each limit point.

NOTE: The servo speed setting is used to set the servo delay

for each channel, from channel l to channel 12. The system

uses the programmed speed (delay) to slow down servo

position changes. The servo speed setting can be varied from

0 to 27 in each channel.

Servo speed setting

1. Use the touch sensor to move the cursor to

the "SPEED" item of the channel you want to

adjust and touch the RTN button to switch to

the data input mode.

2. Turn the touch sensor to adjust the servo

speed.

Initial value: 0

Adjustment range: 0~27 (steps)

(When the RTN button is touched for 1 second, the servo

speed is reset to the initial value.)

Touch the RTN button to end adjustment and

return to the cursol move mode.

3. Repeat this procedure for each channel.

● Select [END POINT] at the linkage menu and call

the setup screen shown below by touching the

RTN button.

(The display screen is an example. The screen

depends on the model type.)

Scrolling

● Moving cursor

● Adjusting value

● Push the S1 button to

call next page.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

THROTTLE CUT Stops the engine safely and easily.(airplane and helicopter only)

Throttle cut provides an easy way to stop the

engine, by ipping a switch with the throttle stick

at idle. The action is not functional at high throttle

to avoid accidental dead sticks. The switch’s

location and direction must be chosen, as it defaults

to NULL.

Throttle cut setting procedure

*Perform the following settings before using the touch sensor

to move the cursor to the item to be set.

1. Activate the function:

Move the cursor to the [ACT/INH] item and

touch the RTN button to switch to the data

input mode.

Turn the touch sensor to the left until the

blinking changes from "INH" to "ACT" and

then touch the RTN button.

2. Switch setting:

Move the cursor to the [SWITCH] item and

call the switch setup screen by pressing the

RTN button and select the switch and ON

direction.

(For a detailed description of the setting method, see [Switch

Setting Method] at the back of this manual.)

3. Throttle cut position setting:

Move the cursor to the [CUT POSITION] item

and touch the RTN button to switch to the

data input mode.

Adjust the servo operation position at throttle

cut operation by turning the touch sensor to

the left or right.

Initial value: 17%

Adjustment range: 0%~50%

(When the RTN button is pressed for 1 second, the servo

operation position is reset to the initial value.)

Touch the RTN button to end adjustment and

return to the cursol move mode.

*With the selected cut switch ON and the throttle stick at idle;

adjust the rate until the engine consistently cuts off.

However, be sure that the throttle linkage is not pulled too

tight and unreasonable force is not applied to the servo.

● Select [THROTTLE CUT] at the linkage menu and

call the setup screen shown below by touching

the RTN button.

● Current throttle position ● Cut position

Scrolling

● Moving cursor

● Selecting mode

● Adjusting value

80 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

IDLE DOWN Lowers the engine idling speed.(airplane and helicopter only)

The Idle Down function lowers the engines idle

by ipping a switch with the throttle stick at idle.

The action is not functional at high throttle to avoid

accidental dead sticks. The switch’s location and

direction must be chosen, as it defaults to NULL.

Idle down setting procedure

*Perform the following settings after using the touch sensor

to move the cursor to the item you want to set.

1. Activate the function:

Move the cursor to the [ACT/INH] item and

touch the RTN button to switch to the data

input mode.

Switch the blinking from "INH" to "ACT" by

turning the touch sensor to the left and then

touch the RTN button.

2. Switch setting:

Move the cursor to the [SWITCH] item, call

the switch setup screen by touching the

RTN button, and select the switch and ON

direction.

(For a detailed description of the setting method, see [Switch

Setting Method] at the back of this manual.)

3. Offset rate setting:

Move the cursor to the [OFFSET] item and

touch the RTN button to switch to the data

input mode.

Adjust the servo offset rate at idle down

operation by turning the touch sensor to the

left or right.

Initial value: 0%

Adjustment range: -100%~100%

(When the RTN button is touched for 1 second, the offset rate

is reset to the initial value.)

*Maximum offset amount is near maximum slow.

*When a minus rate is input, offset is applied to the high side.

Touch the RTN button to end adjustment and

return to the cursol move mode.

● Select [IDLE DOWN] at the linkage menu and call

the setup screen shown below by touching the

RTN button.

● Current throttle position

Scrolling

● Moving cursor

● Selecting mode

● Adjusting value

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

SWASH RING

Swash ring setting procedure

*Perform the following settings after using the touch sensor

to move the cursor to the item you want to set.

1. Activate the function:

Move the cursor to the [ACT/INH] item and

touch the RTN button to switch to the data

input mode.

Switch the blinking from "INH" to "ACT" by

turning the touch sensor to the left and then

touch the RTN button.

2. Rate setting:

Use the touch sensor to move the cursor

to the [RATE] item touch the RTN button to

switch to the data input mode.

Use the touch sensor to set the rate.

Initial value: 100%.

Adjustment range: 50% to 200%.

*Adjust the rate to maximum swash tilt.

(When the RTN button is touched for 1 second, the rate is

reset to the initial value.)

Touch the RTN button to end adjustment and

return to the cursol move mode.

Limits the swash plate travel to within a xed range. (Helicopter only)

This function limits the swash travel to within

a fixed range to prevent damaging of the swash

linkage by simultaneous operation of the ailerons

and elevators. It is effective in 3D aerobatics which

use a large travel.

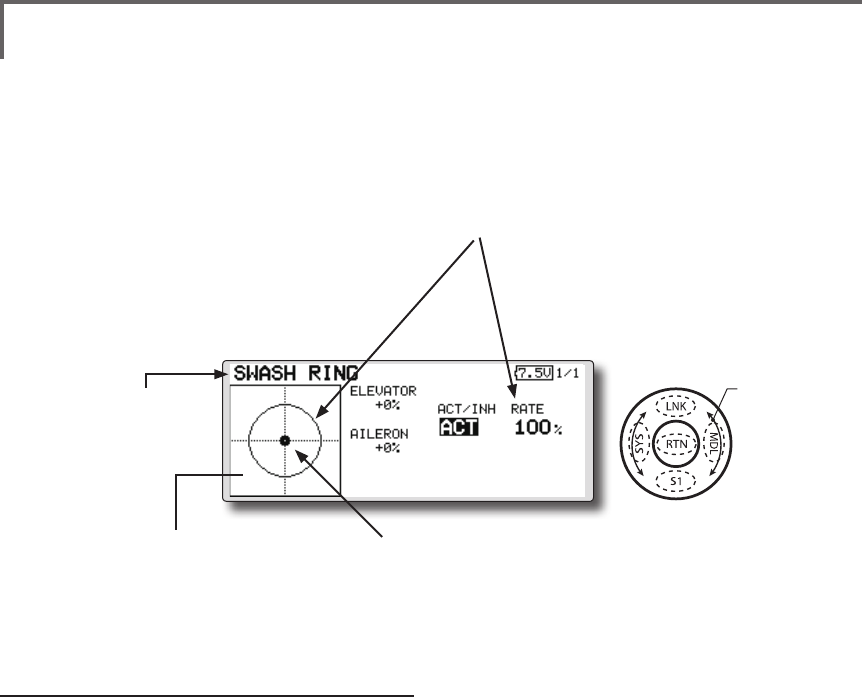

● The operating range display area:

The vertical direction shows the

elevator travel. The horizontal

direction shows the aileron travel.

● The marker shows the

stick position.

● Select [SWASH RING] at the linkage

menu and call the setup screen

shown below by touching the RTN

button.

● When the swash ring function is activated,

a circle is displayed in the operating

range display area and the rate input

box is displayed. Stick operation is limited

to within the area of this circle.

Scrolling

● Moving cursor

● Selecting mode

● Adjusting value

82 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

SWASH Swash operation linkage correction function.(helicopter only, except

swash type H-1)

Neutral Point

At your linkages, if the servo horn deviates from

a perpendicular position at neutral, the linkage

compensation functions in this menu may not

compensate effectively. To correct this use the

neutral point function. This will move the neutral

point of the servos to the actual perpendicular

position. However, this adjustment changes only

the axis point of the compensation functions in this

menu, and does not affect the neutral position of

other functions.

Swash AFR

Swash AFR function reduces/increases/reverses

the rate (travel) of the aileron, elevator and

collective pitch functions, by adjusting or reversing

the motion of all servos involved in that function,

only when using that function.

*Before making the following settings, use the touch sensor

to move the cursor to the item you want to set.

Neutral point setting procedure

The neutral point becomes the correction

standard point.

*Adjusting the servo horn so that the neutral point is near the

50% position makes the mixing amount small.

1. Neutral point setting

Move the cursor to the [POINT] item and hold

the pitch operation so that the servo horn is

at a right angle to the linkage rod and touch

the RTN button for 1 second and read the

neutral position.

*The neutral point can also be displayed by bar graph.

After reading the neutral point, use the

other correction functions to make further

adjustments.

Mixing Rate

This compensation mixing is used to correct

the tendency of the swash-plate for each control.

The following compensation mixing is possible;

PIT to AIL, PIT to ELE, AIL to PIT, ELE to AIL,

and ELE to PIT (HR3 mode.) It adjusts the swash-

plate to operate correctly for each control using the

corresponding compensation mixing.

Linkage Compensation

This compensation mixing is used to correct the

tendency of the swash-plate for pitch control at low

pitch and high pitch.

Speed Compensation

This function is used to cancel the reaction that is

generated by the difference of the operation amount

of each servo when the swash-plate moves.

Swash AFR setting procedure

The swash AFR function makes adjustments

so that the servos travel the specified amount

by [AILERON], [ELEVATOR], and [PITCH]

operation.

1. Use the touch sensor to move the cursor to

the function you want to adjust and touch

the RTN button to switch to the data input

mode.

2. Adjust the AFR rate by turning the touch

sensor to the left or right.

Initial value: +50%

Adjustment range: -100%~+100%

(When the RTN button is touched for 1 second, the AFR rate

is reset to the initial value.)

Touch the RTN button to end adjustment and

return to the cursol move mode.

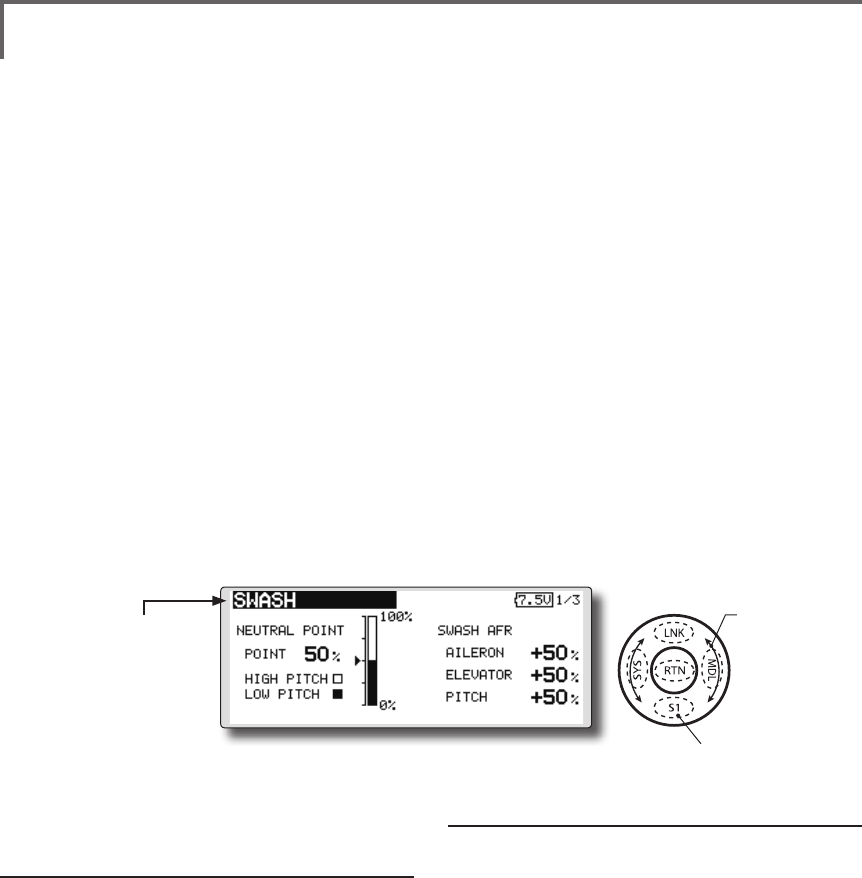

● Select [SWASH] at the linkage menu and call the

setup screen shown below by touching the RTN

button.

● Push the S1 button to

call next page.

Scrolling

● Moving cursor

● Selecting mode

● Adjusting value

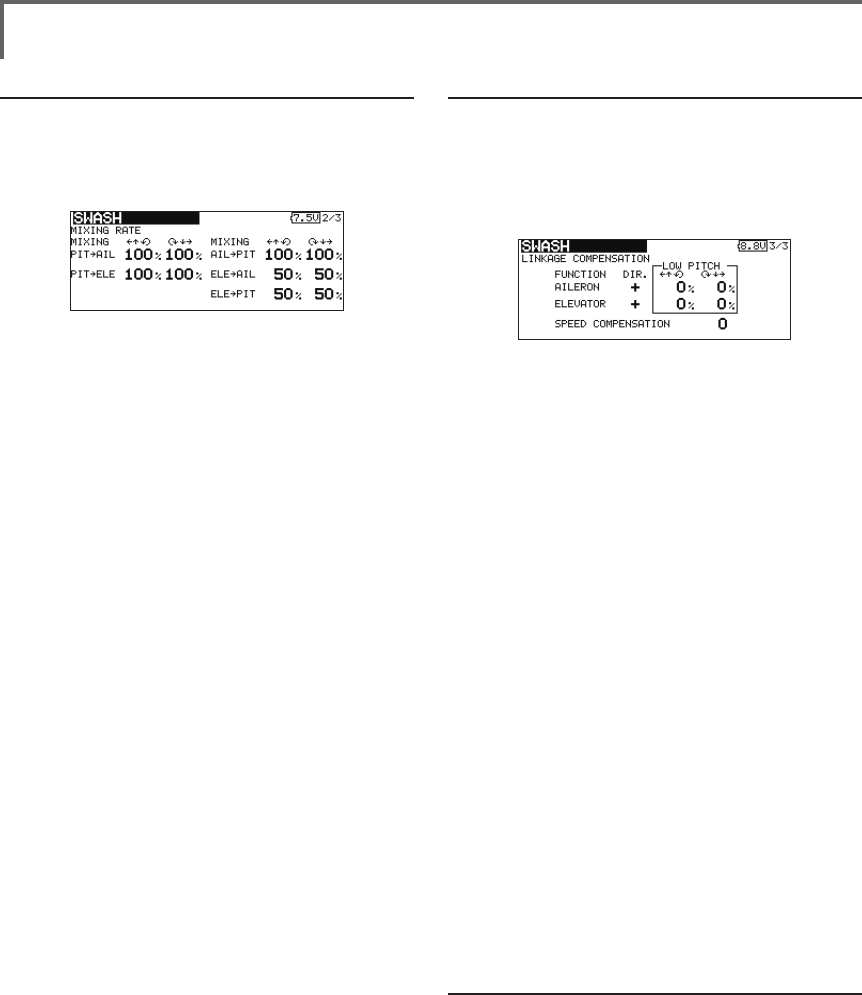

Mixing rate setting procedure

The HR-3 is taken as an example to describe

mixing rate setting. Mixing applied in other swash

modes is different, but the setting procedure is the

same.

*Set the throttle stick to the preset neutral point. Adjust the

length of the linkage rod so that the swash plate is horizontal

at this position.

*The sub trim function can be used to make small

adjustments.

*Adjust so that the pitch curve is a straight line and pitch

operation is maximum.

*When making the following setting, use the touch sensor

to move the cursor to the item you want to set and touch

the RTN button to switch to the data input mode. Touch the

RTN button to end adjustment and return to the cursol move

mode.

1. Adjustment at aileron operation [AIL to PIT]

Adjust the AIL to PIT rate so there is no

interference in the elevator or pitch direction

when the aileron stick is moved to the left

and right.

*Adjust by turning the touch sensor to the left or right.

*The left and right sides can be adjusted individually.

2. Adjustment at elevator operation [ELE to

AIL]/[ELE to PIT]

Adjust the ELE to AIL and ELE to PIT rates so

there is no interference in the aileron or pitch

direction when the elevator stick is moved

up and down.

*Adjust by turning the touch sensor to the left and right.

*The up and down sides can be adjusted individually.

3. Adjustment at pitch operation [PIT to AIL][PIT

to ELE]

Adjust the PIT to AIL and PIT to ELE rates so

that the swash plate moves to the horizontal

position when the throttle stick was moved to

maximum slow and full high.

*Adjust by turning the touch sensor to the left and right.

*The slow and high sides can be adjusted individually.

Linkage compensation setting procedure

*Perform linkage compensation setting after mixing rate

setting.

*Linkage compensation compensates for interference by

aileron operation with the elevator or elevator operation

with the aileron at collective pitch control for low pitch and

high pitch.

*When making the following setting, use the touch sensor

to move the cursor to the item you want to set and touch

the RTN button to switch to the data input mode. Touch the

RTN button to end adjustment and return to the cursol move

mode.

1. Compensation at aileron operation

[AILERON]

Set the throttle to the maximum slow position.

Move the aileron stick to the left and right

and adjust the aileron compensation amount

so that interference in the elevator or pitch

direction at that time is minimum.

*Adjust the touch sensor to the left and right.

*The left and right sides can be adjusted individually.

*When the interference increases when the compensation

amount was increased, make adjustments with the

compensation direction [DIR] as "-".

2. Compensation at elevator operation

[ELEVATOR]

Adjust the elevator compensation amount

so that the aileron or pitch direction

interference when the elevator stick was

moved up and down is minimum.

3. Regarding steps 1 and 2 above, perform

aileron and elevator compensation similarly

at the full high side of the throttle stick also.

Speed compensation setting procedure

1. Use the touch sensor to move the cursor to

the "SPEED COMPENSATION" item and touch

the RTN button to switch to the data input

mode.

2. Set the throttle stick to the neutral point

position. Quickly move the elevator stick and

adjust the speed compensation amount

[SPEED COMPENSATION] for minimum

interference in the pitch direction.

*Adjust by turning the touch sensor to the left and right.

Touch the RTN button to end adjustment and

return to the cursol move mode.

84 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

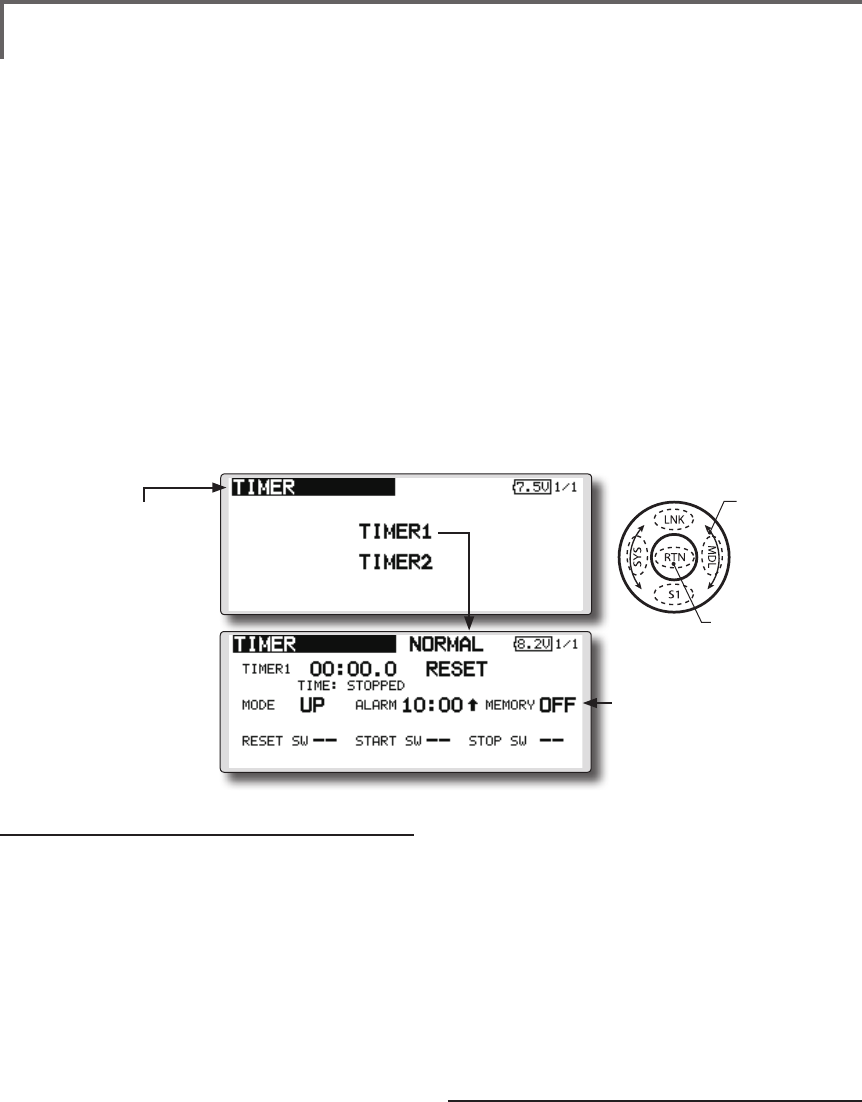

TIMER Timer setting

The Timer function may be set for any desired

time, i.e. engine run time, specified times for

competitions, etc. Two independent timers are

provided for your use. The timers are stored

independently with each model, meaning that

when you switch between model setups, the timer

associated with the new model is brought up

automatically.

The timers may be set to start and stop from

the motion of any switch or stick. You may set the

ON and OFF directions freely. Each timer has a

capacity of up to 59 minutes 59 seconds.

Timer setting

*Perform the following settings after using the touch sensor

to move the cursor to the item you want to set.

1. Up timer/down timer setting

Move the cursor to the [MODE] item and

touch the RTN button to switch to the data

input mode.

Select the mode by moving the touch sensor

to the left or right and touch the RTN button.

[UP]: Up timer

[DOWN]: Down timer

2. Timer time setting

Move the cursor to the [10]:[100] item and

touch the RTN button to switch to the data

input mode.

Set the time by turning the touch sensor to

the left or right.

[00]:[00]:[min]:[sec]

Touch the RTN button to end adjustment and

Each timer may be set for count-down or count

up operation with a target time.

If a target time is set and the timer reaches the set

time, a buzzer sound for each count is generated.

Countdown timers sound one short beep during

the last twenty seconds and two short beeps during

the last ten seconds before reaching the target, then

a long tone at the target time, and continue counting

with displaying a minus (-) sign. Count-up timers

also beep the last twenty and ten seconds, beep the

target time, and keep counting upwards until shut

down.

return to the cursol move mode.

3. Switch setting

Move the cursor to the item of the switch

you want to set, call the switch setup screen

by touching the RTN button, and select the

switch and ON direction.

[For a detailed description of the setting method, see [Switch

Setting Method] at the back of this manual.]

[RESET SW]: Reset switch

[START SW]: Start switch

[STOP SW]: Stop switch

Timer operation

● Timer 1 and Timer 2 are started/stopped by

pre-selected start/stop switch.

● To reset a timer, operate the pre-selected

reset switch, or move the cursor to the [RESET]

display on the timer screen and touch the

RTN button.

● Select [TIMER] at the linkage menu and call the setup

screen shown below by touching the RTN button.

● The timer value is held

even if the power is

turned off or the model is

switched.

Memory →ON

●Calling setup screen

Scrolling

● Moving cursor

● Selecting mode

Alarm mode

*A mode which sounds an alarm every minute during the

remaining time up to the timer alarm time.

1. Change the setting by pressing ↑or

↓button.

[

↑]: An alarm sounds every minute of the

elapsed time from timer start. (Conventional

mode)

[

↓]: An alarm sounds every minute of the

remaining time up to the alarm time.

HOUR mode

*An HOUR mode counts up to 99 hours 50 minutes to the timer

modes.

● This mode is convenient when used at

engine maintenance period and other long

term measurements.

● When the HORU mode is set, "xx(hour) :

xx(minute)" is displayed on the count time

display. Seconds are not displayed.

● When the HORU mode is set, " : " blinks each

second during timer operation.

● When the HORU mode is set, the alarm

function/lap time measurement function are

inhibited.

86 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

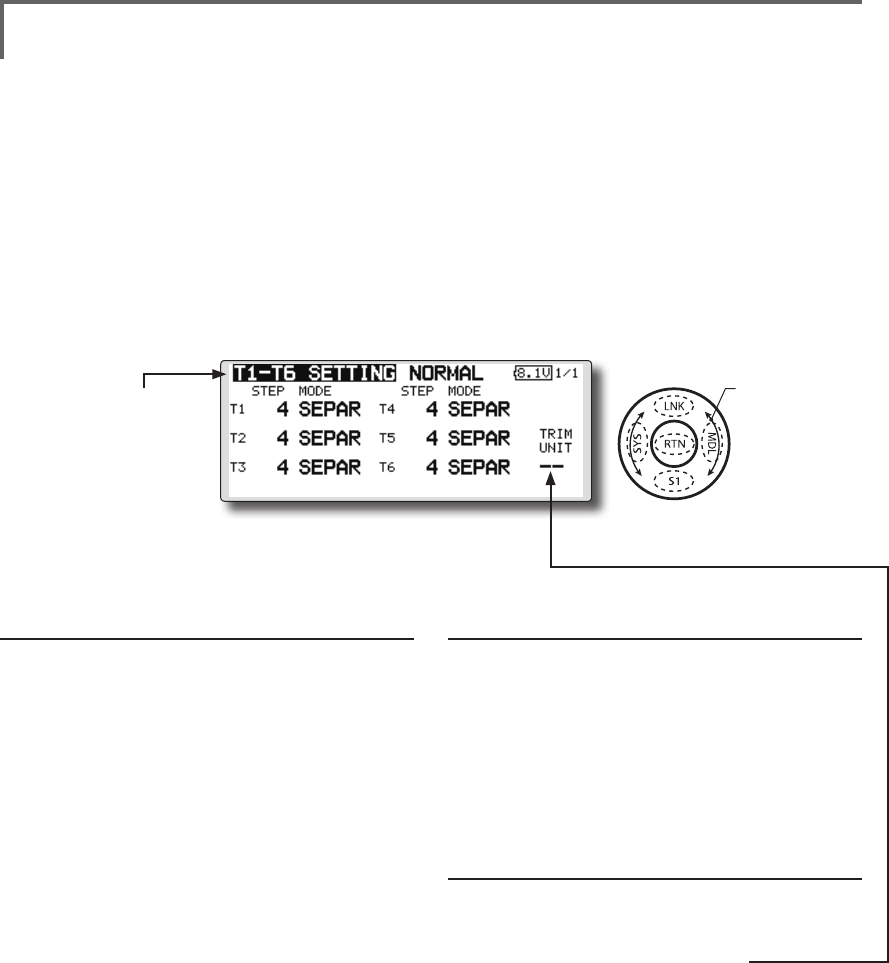

T1-T6 SETTING Digital trim settings

This function adjusts the digital trim's control

step amount and operation mode (T1~T6.)

When the flight conditions are set, the trim

operation can be coupled with among all the

conditions which combination mode is selected.

Control step amount setting

1. Use the touch sensor to move the cursor to

the [STEP] item and touch the RTN button to

switch to the data input mode.

Set the control step amount by turning the

touch sensor.

Initial value: 4

Adjustment range: 1~200

(When the RTN button is touched for 1 second, the control

step amount is reset to the initial value.)

*When the value is made large, the change per step becomes

larger.

2. Touch the RTN button to end adjustment and

return to the cursol move mode.

Separate/combination mode selection

1. Use the touch sensor to move the cursor

to the [SEPA./COMB.] item and change to

blinking by turning the touch sensor and

select the mode by touching the RTN button.

[COMB]: Combination mode. The trim data

are reected at all the ight conditions.

[SEPAR]: Separate mode. Trim adjustment for

each ight condition.

Trim display units

● Percentage(%) display can be selected at

trim.

1. Select "TRIM UNIT" and turn the dial and

switch the display to [%] or [--].

*The display blinks.

[%]: Trim is displayed in % units.

[--]: Trim is displayed numerically as in the

past.

2. When the RTN button touched, the setting is

changed.

● Select [T1-T6 SETTING] at the linkage menu and call

the setup screen shown below by touching the

RTN button.

Scrolling

● Moving cursor

● Selecting mode

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

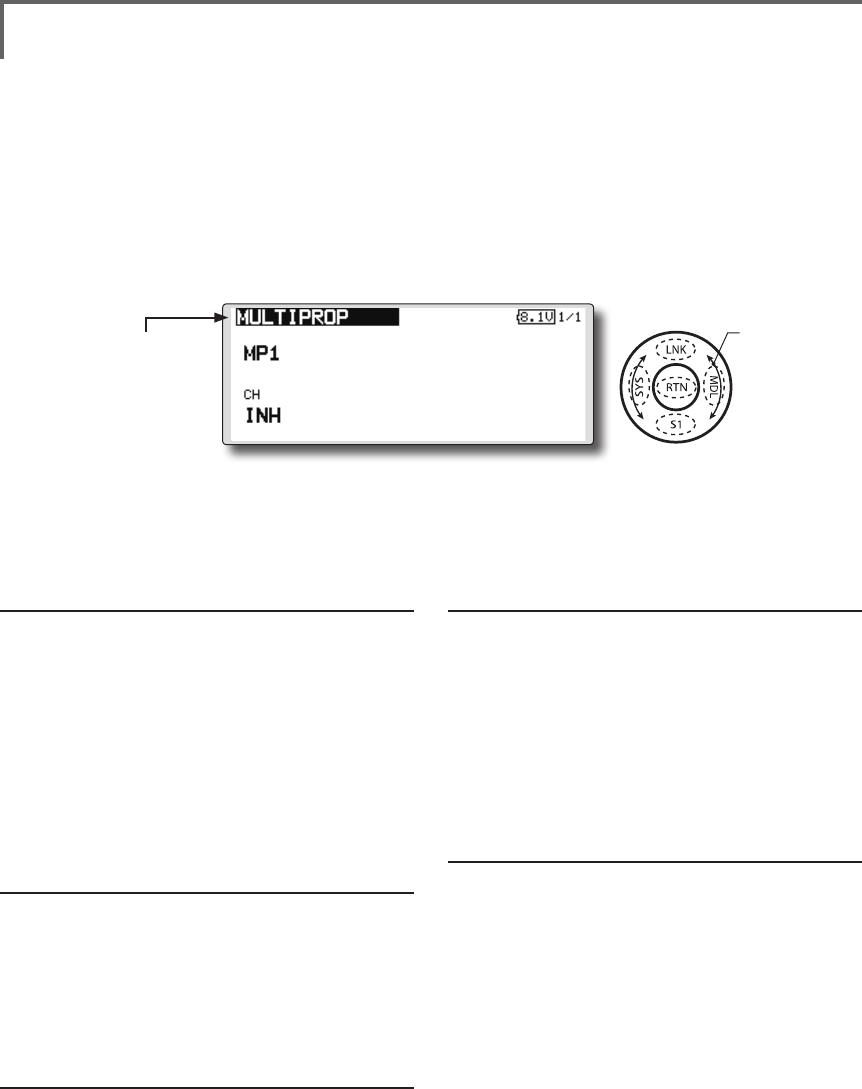

MULTIPROP CH is extended by MPDX-1 of an option

The system has compatible with the Futaba

MPDX-1 multiprop decoder. One channel can

be expanded to 8 channels by using the MPDX-

1 multiprop decoder. Up to two MPDX-1 can be

used.

*The trim step amount and trim rate are not reset.

Multiprop selection

1. Select the Linkage Menu multiprop setting

[MULTIPROP] and touch the RTN button.

2. The MULTIPROP setup screen is displayed.

3. Select [MP1] and touch the RTN button.

4. Scrolling the touch sensor and switch the

display to [MP1] or [MP2].

*The display blinks.

[MP1]: Multiprop 1

[MP2]: Multiprop 2

5. Touch the RTN button.

Channel setting

1. Select [CH] and touch the RTN button.

Scrolling the touch sensor and display the

channel to which the MPDX-1 is connected.

*To turn off the multiprop function, set [--] at CH.

2. When the activated channel is selected and

touch the RTN button, the multiprop setting

contents are displayed.

Control setting

1. Select the "CONTROL" row of the multiprop

channel whose control you want to set and

touch the RTN button.

2. A hardware selection screen is displayed.

Select the hardware which is to set control

and touch the RTN button.

Servo reverse setting

1. Select the "REVERSE" row of the multiprop

channel which is to be reversed and touch

the RTN button.

2. Scrolling the touch sensor and switch the

display to [NORM] or [REV].

*The display blinks.

[NORM]: Normal mode

[REV]: Reverse mode

3. Touch the RTN button.

End Point Setting

1. Select the " ←↑

" row or " ↓→

" row of the

multiprop channel whose end point is to be

set and switch to the data input mode by

touch the RTN button.

2. Adjust the end point by scrolling the touch

sensor .

Initial value : 100%

Adjustment range : 30-100%

3. After adjustment, touch the RTN button.

● Select [MULTPROP] at the linkage menu and call

the setup screen shown below by touching the

RTN button.

Scrolling

● Moving cursor

● Selecting mode

88 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

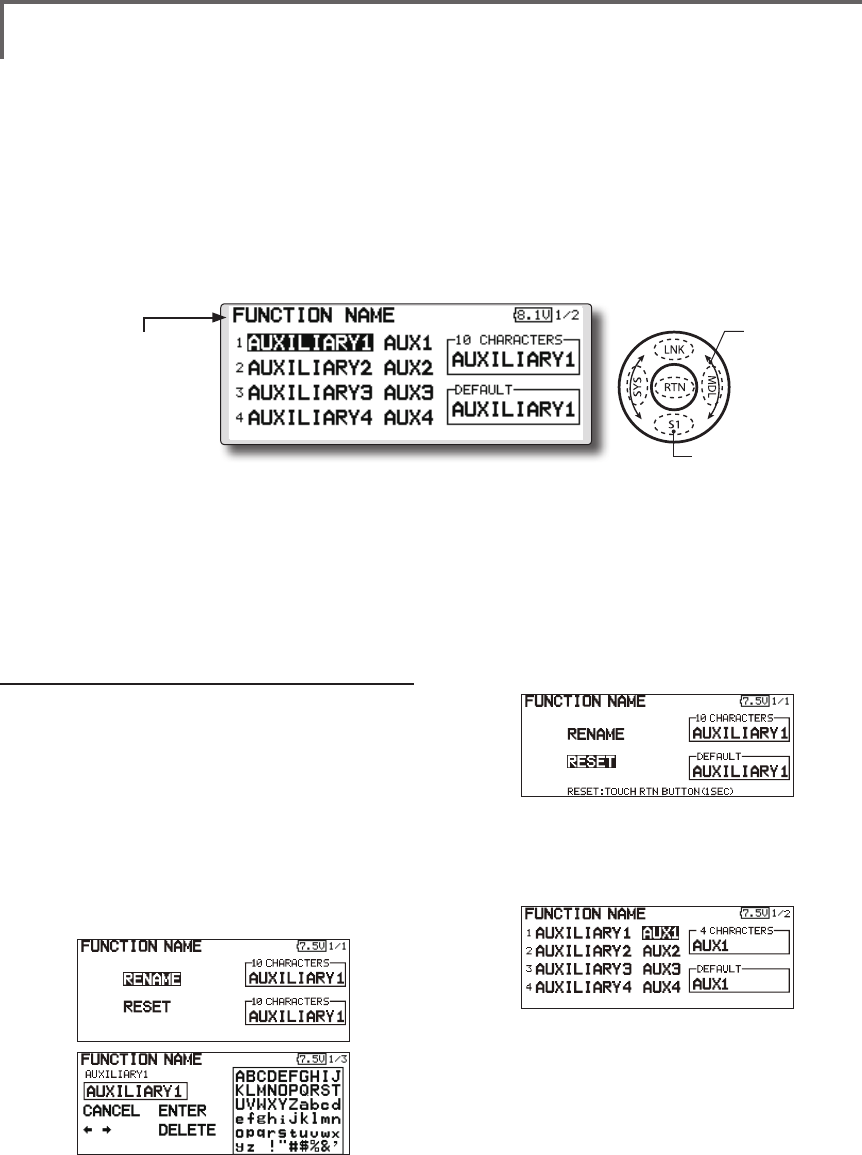

FUNCTION NAME Function name can be changed

The name of the spare functions

(AUXILIARY1-8) can be changed for the full

name (10 characters) or for the abbreviated name (4

characters).

Function name change method

1. Select [FUNCTION NAME] of the Linkage

Menu and touch the RTN button.

2. The FUNCTION NAME setup screen is

displayed.

3. When the function whose name is be

change is selected and the RTN button is

touched , a modication screen is displayed.

4. Select the function to be renamed and

select [RENAME] and touch the RTN button.

A character input screen is displayed. Input

the function name.

5. When [RESET] is selected and the RTN button

is held down, the function name is set to the

initial state function name.

6. The function name may be displayed in 10

characters or 4 characters, depending on

the setup screen. For 4 characters, display,

input the function name as required.

● Select [FUNCTION NAME] at the linkage menu and

call the setup screen shown below by touching

the RTN button.

Scrolling

● Moving cursor

● To next page

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

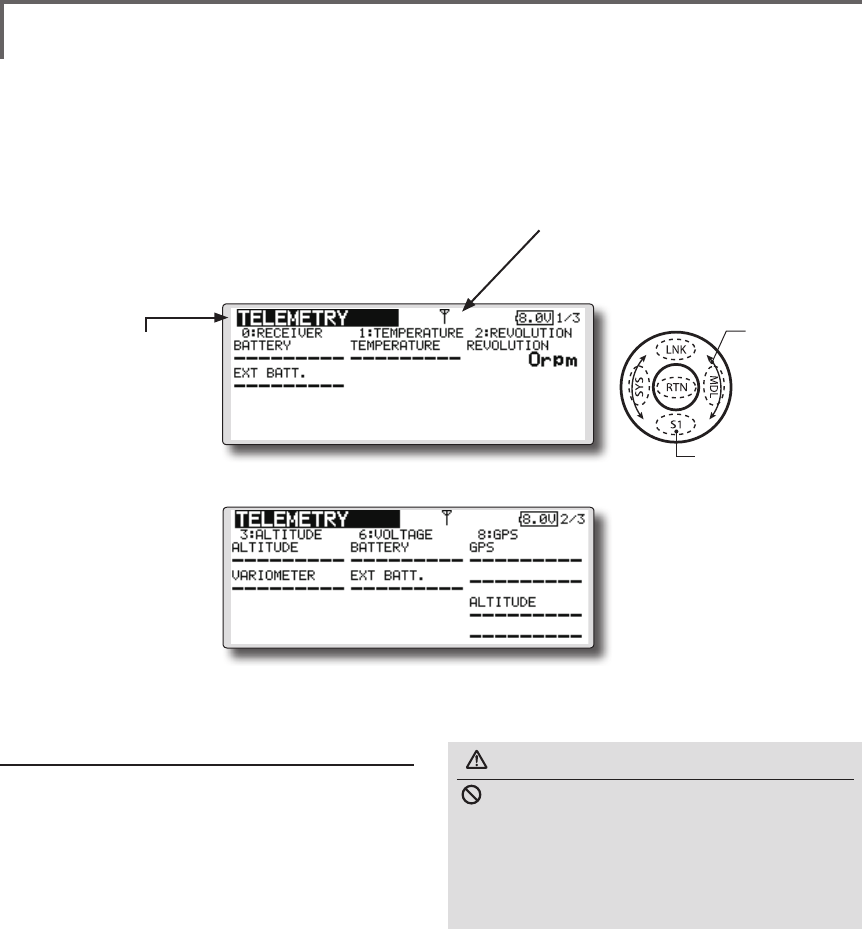

TELEMETRY Displaying data from the receiver

This screen displays your choice of data from the

receiver.

Also warnings can be activated regarding

other data from your aircraft. For example, if the

receiver voltage drops, the user can be warned by

an alarm (and vibration).

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage can be used in

FASSTest12CH mode.

*The FASSTest18CH mode can use all the telemetry functions.

● Select [TELEMETRY] in the Linkage menu and

access the setup screen shown below by touching

the RTN button.

● Push S1 button to advance to next page.

Scrolling

● Moving cursor

● To next page

● Receiver → Transmitter. The

reception strength is shown.

How to see telemetry date

1. Telemetry screen can be called select

[TELEMETRY] in the Linkage menu and access

the setup screen by touching the RTN button.

2. If each item is chosen and the RTN button is

pushed, an alarm setup can be performed

with the minimum/maximum after a

transmitter is turned on.

*Receiver voltage can be checked immediately. An optional

sensor will need to be attached to S.BUS2 of a receiver if

you would like to see other information.

*No special setup is necessary if each sensor displayed

is left as in the default setup. Separate sensor ID

is also unnecessary. However, if two or more of

one kind of sensor is used, setup is required in the

"SENSOR" menu.

WARNING

Do not watch the transmitter screen during

ight.

*You may loose sight of the aircraft during ight and this

is extremely dangerous. Have an assistant on hand to

check the screen for you. A pilot should NEVER take

his eyes off his aircraft.

90 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

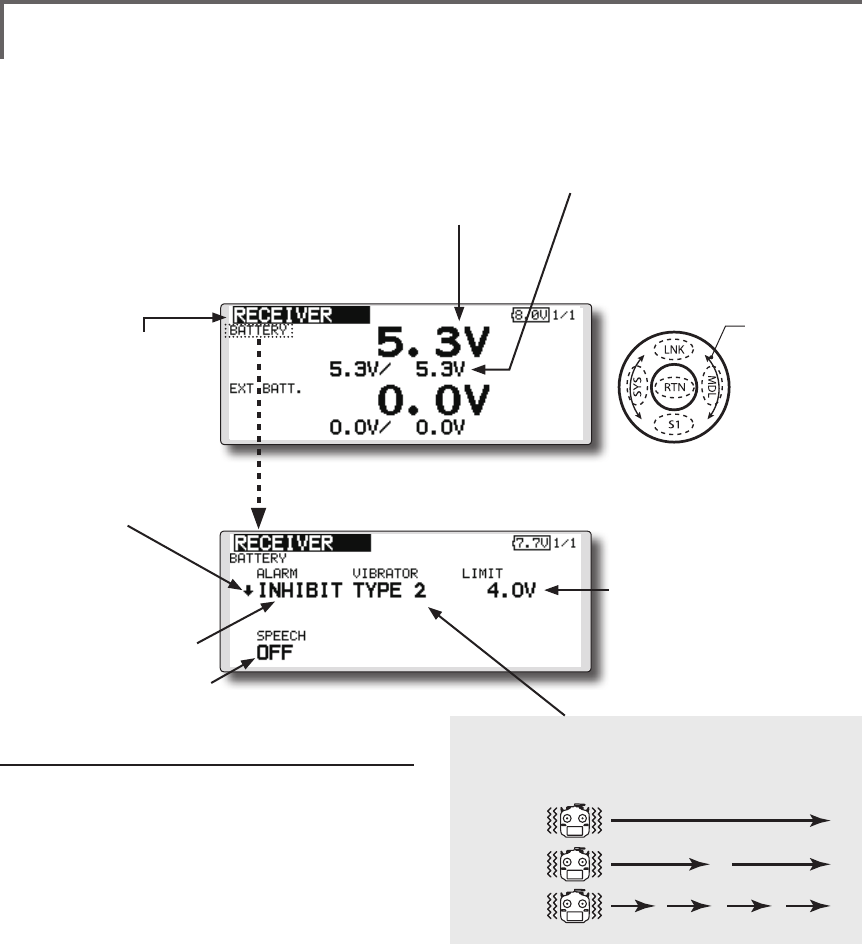

TELEMETRY : RECEIVER [BATTERY] Displaying data from the

receiver battery voltage

In this screen, the battery voltage of a receiver is

displayed.

If it becomes higher or lower than the setting an

alarm and/or vibration will alert you.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage can be used in

FASSTest12CH mode.

*The FASSTest18CH mode can use all the telemetry functions.

● Select [Rx-BATT.] in the TELEMETRY screen

and access the setup screen shown

below by touching the RTN button.

● Select [BATTERY] in the RECEIVER screen

and access the setup screen shown

below by touching the RTN button.

●A setup of the voltage on

which the alarm operates.

Scrolling

● Moving cursor

● Receiver battery voltage

● The maximum and the minimum

when powering ON are shown.

It will be preset, if a cursor is

moved to this place and the

RTN button is pushed for 1

second.

● ↓The "down" arrow

will indicate that

an alarm will sound

when the voltage

drops to below the

setting.

● ALARM is chosen

from BUZZER,

VOICE, and INHIBIT.

● The ON/OFF switch of SPEECH is

chosen.

Alarm set

1. Move the cursor to the ↓ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [4.0V] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 4.0V

Adjustment range: 0.0V~100.0V

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the transmitter

will vibrate during the warning.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

● Select [Rx-BATT.] in the TELEMETRY screen

and access the setup screen shown

below by touching the RTN button.

● Select [EXT BATT.] in the RECEIVER screen

and access the setup screen shown

below by touching the RTN button.

●A setup of the voltage on

which the alarm operates.

Scrolling

● Moving cursor

● EXT battery voltage ● The maximum and the minimum

when powering ON are shown. It

will be preset, if a cursor is moved

to this place and the RTN button is

pushed for 1 second.

● ↓The "down" arrow

will indicate that an

alarm will sound when

the voltage drops to

below the setting.

● ALARM is chosen

from BUZZER,

VOICE, and INHIBIT.

● The ON/OFF switch of SPEECH is

chosen.

Alarm set

1. Move the cursor to the ↓ALARM item, and

it chooses from BUZZER, VOICE, and INHIBIT,

and pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [4.0V] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 4.0V

Adjustment range: 0.0V~100.0V

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the transmitter

will vibrate during the warning.

TELEMETRY : RECEIVER [EXT BATT.] Displaying data from the EXT

battery voltage port

The EXT-VOLT screen will display the data from

the EXT-battery output from the R7008SB receiver.

In order to use this function, it is necessary to

connect external voltage connector of the R7008SB

receiver to a CA-RVIN-700 (FUTM5551) or

SBS-01V to the battery you desire to measure the

voltage of the EXT-battery.

You will be alerted by an alarm or vibration if

the voltage set by you is exceeded.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage will be received in

the FASSTest12CH mode.

*The FASSTest18CH mode will display all telemetry data.

*CA-RVIN-700 must be installed in the aircraft.

92 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

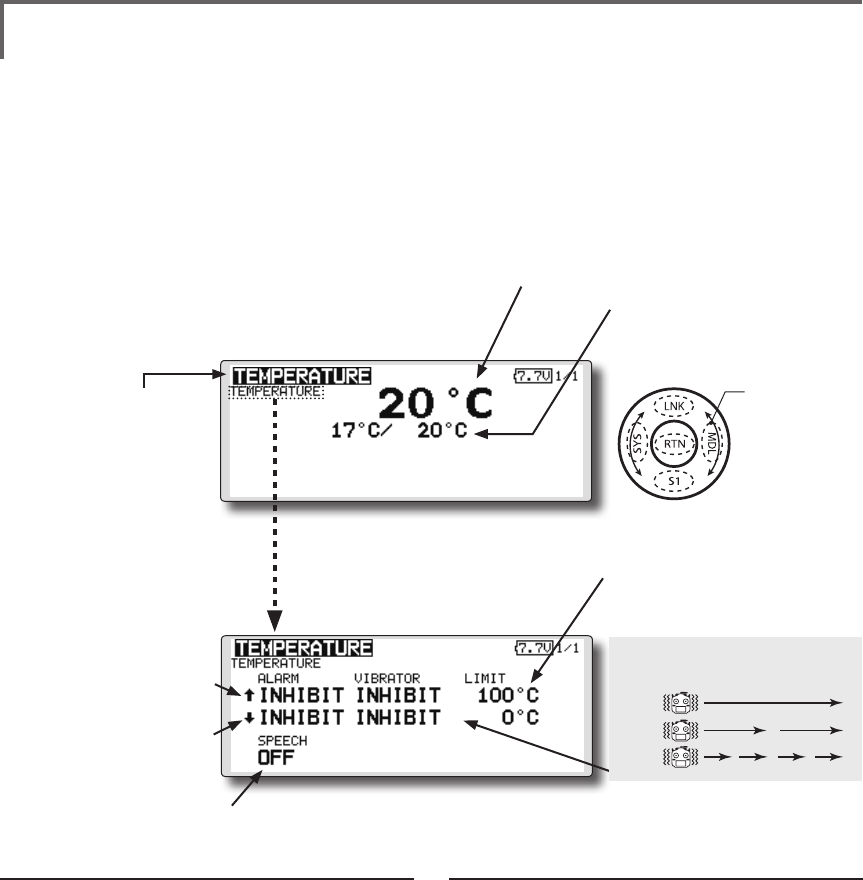

TELEMETRY : TEMPERATURE Displaying data from the temperature

Temperature is a screen which displays/sets

up the temperature information from an optional

temperature sensor.

The temperature of the model (engine, motor,

battery, etc.) which is ying can be displayed.

If it becomes higher or lower than the setting an

alarm and/or vibration will alert you.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage can be used in

FASSTest12CH mode.

*The FASSTest18CH mode can use all the telemetry functions.

● Select [TEMPERATURE] in the TELEMETRY screen

and access the setup screen shown below by

touching the RTN button.

Scrolling

● Moving cursor

● Temperature

● The maximum and the minimum

when powering ON are shown.

It will be preset, if a cursor is

moved to this place and the

RTN button is pushed for 1

second.

● ↓ A downward arrow

will show that an alarm

will sound when the

temperature drops

below the set value.

● ↑ An upward arrow will

show that an alarm

will sound when the

temperature rises above

the set value.

Alert set : Hot warning

1. Move the cursor to the ↑ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [ ℃] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 100℃

Adjustment range: 0℃~200℃

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

Alert set : Low-temperature warning

1. Move the cursor to the ↓ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [ ℃] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 0℃

Adjustment range: 0℃~200℃

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

*A temperature sensor must be installed in the aircraft.

●Select [TEMPERATURE](small font

display) in the TEMPERATURE

screen and access the setup

screen shown below by

touching the RTN button.

● The ON/OFF switch of SPEECH is

chosen.

●A setup of the temperature

on which the alarm

operates.

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the transmitter

will vibrate during the warning.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

● The maximum and the minimum

when powering ON are shown. It will

be preset, if a cursor is moved to this

place and the RTN button is pushed

for 1 second.

●A setup of the revolution on

which the alarm operates.

TELEMETRY : RPM SENSOR Displaying data from the RPM

RPM sensor is a screen which displays / sets up

the rotation information from an optional RPM

sensor.

The rotation of the model (engine, motor, etc.)

which is ying can be shown.

If it becomes higher or lower than the setting an

alarm and/or vibration will alert you.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage can be used in

FASSTest12CH mode.

*The FASSTest18CH mode can use all the telemetry functions.

● Select [RPM sensor] in the TELEMETRY

screen and access the setup screen

shown below by touching the RTN button.

Scrolling

● Moving cursor

● RPM

●"MAGNET" or "OPTICS" is

set according to the

sensor you use.

SBS-01RM : MAGNET

SBS-01RO : OPTICS

● ↓A downward arrow

indicates that the

alarm will sound

when the RPM falls

below the set value.

● ↑An upward arrow

indicates that the

alarm will sound

when the RPM rises

above the set value.

Alarm set : Over rotations

1. Move the cursor to the ↑ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [2,000rpm] item

and touch the RTN button to switch to the

data input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 2,000rpm

Adjustment range: 0rpm~150,000rpm

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

Alarm set : Under rotations

1. Move the cursor to the ↓ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [0rpm] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 0rpm

Adjustment range: 0rpm~150,000rpm

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

● In "MAGNET", the gear ratio of

your engine (motor) you are

using is entered.

● In "OPTICS", the number of

blades of the propeller ( r o t

o r ) your model is entered.

*A RPM sensor must be installed in the aircraft.

●Select [ROTATION](small font

display) in the RPM sensor

screen and access the setup

screen shown below by

touching the RTN button.

● The ON/OFF switch

of SPEECH is chosen.

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the transmitter

will vibrate during the warning.

94 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

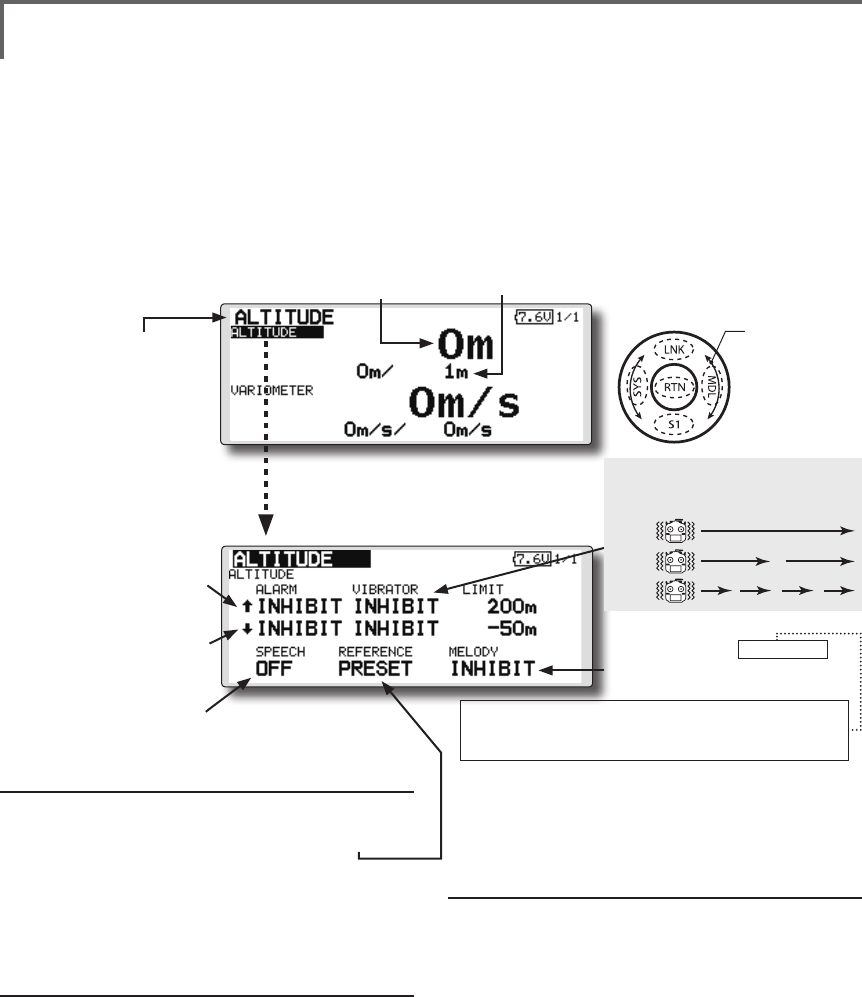

TELEMETRY : ALTITUDE Displaying data from the altitude

ALTITUDE is a screen which displays / sets up the

altitude information from an optional altitude sensor or GPS

sensor. The altitude of the model which is flying can be

known. If it becomes higher (low) than preset altitude, you

can be told by alarm. To show warning by vibration can also

be chosen. Data when a power supply is turned on shall be

0 m, and it displays the altitude which changed from there.

Even if the altitude of an aireld is high, that shall be 0 m

and the altitude difference from an airfield is displayed.

This sensor calculates the altitude from atmospheric

pressure. Atmospheric pressure will get lower as you go up

in altitude, using this the sensor will estimate the altitude.

Please understand that an exact advanced display cannot

be performed if atmospheric pressure changes in a weather

situation.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage can be used in FASSTest12CH mode.

*The FASSTest18CH mode can use all the telemetry functions.

● Select [ALTITUDE] in the TELEMETRY screen

and access the setup screen shown

below by touching the RTN button.

Scrolling

● Moving cursor

● Altitude

● ↓ A downward arrow

indicates the alarm

will sound when the

altitude reaches

below your set value.

● ↑ An upward arrow

indicates the alarm

will sound when the

altitude reaches

above your set value.

First, the set of a reference is required.

1. The model and transmitter to which the

altitude sensor was connected are turned on.

2. Move the cursor to the [PRESET] of

"REFERENCE" item.

3. Touch the RTN button is pushed for 1 second.

(To terminate the input and return to the original

state, touch the Home/Exit button.)

*Atmospheric pressure is changed according to the weather also

at the same aireld. You should preset before a ight.

Alarm set : High side

1. Move the cursor to the ↑ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [m] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 200m

Adjustment range-500m~+3,000m

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

Alarm set : Low side

1. Move the cursor to the ↓ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [m] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: -50m

Adjustment range-500m~+3,000m

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

*An altitude sensor or GPS sensor must be installed in the aircraft.

●Select [ALTITUDE](small font display)

in the TEMPERATURE screen and

access the setup screen shown

below by touching the RTN button.

● The maximum and the minimum when powering ON

are shown. It will be preset, if a cursor is moved to this

place and the RTN button is pushed for 1 second.

●The ON/OFF switch of

SPEECH is chosen.

●If this is set to MODE1-4, a

rise and dive are told by a

different melody.

MODE1: Little rise/dive →Melody changes (sensitively)

MODE4: Big rise/dive →Melody changes (insensible)

. . .

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the

transmitter will vibrate during the warning.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

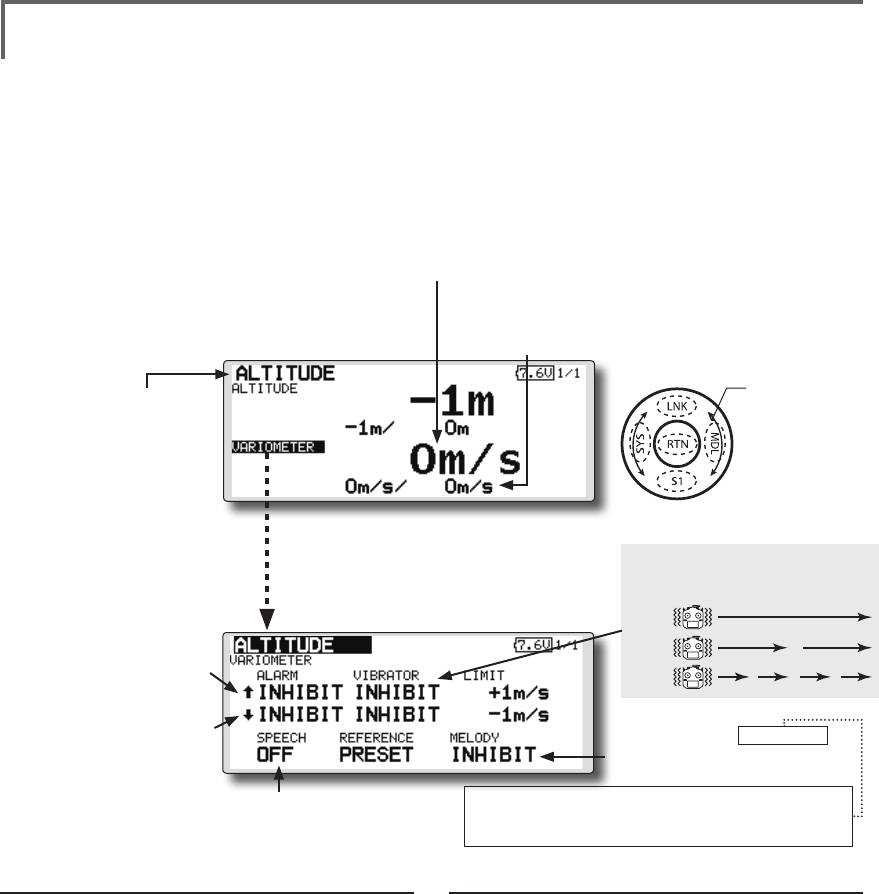

● Select [ALTITUDE] in the TELEMETRY screen

and access the setup screen shown below

by touching the RTN button.

Scrolling

● Moving cursor

● ↓ A downward arrow

indicates the alarm

will sound when the

variomete reaches

below your set value.

● ↑ An upward arrow

indicates the alarm

will sound when the

variometer reaches

above your set value.

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the

transmitter will vibrate during the warning.

●Select [VARIOMETER](small font display)

in the TEMPERATURE screen and access

the setup screen shown below by

touching the RTN button.

● The maximum and the minimum when

powering ON are shown. It will be preset, if

a cursor is moved to this place and the RTN

button is pushed for 1 second.

TELEMETRY : ALTITUDE [VARIOMETER] Displaying data from the

variometer

VARIO is a screen which displays / sets up the

variometer information from an optional altitude

sensor or GPS sensor.

The variometer of the model which is ying can

be known.

If it becomes higher or lower than the setting an

alarm and/or vibration will alert you.

To ensure that the pilot is aware as to the model's

status, the T18SZ incorporates a different melody

for ascent and descent. Additionally, depending

upon the rate of climb or descent, the tones vary to

indicate whether or not the airplane is climbing or

descending at a rapid rate.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage can be used in　

FASSTest12CH mode.

*The FASSTest18CH mode can use all the telemetry functions.

● Variometer

Alert set : Rise side

1. Move the cursor to the ↑ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [m/s] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: +1m

Adjustment range-50m/s~+50m/s

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

Alert set : Dive side

1. Move the cursor to the ↓ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [m/s] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: -1m

Adjustment range-50m/s~+50m/s

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

*An altitude sensor or GPS sensor must be installed in the aircraft.

●The ON/OFF switch of

SPEECH is chosen.

●If this is set to MODE1-4, a

rise and dive are told by a

different melody.

MODE1: Little rise/dive →Melody changes (sensitively)

MODE4: Big rise/dive →Melody changes (insensible)

. . .

96 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

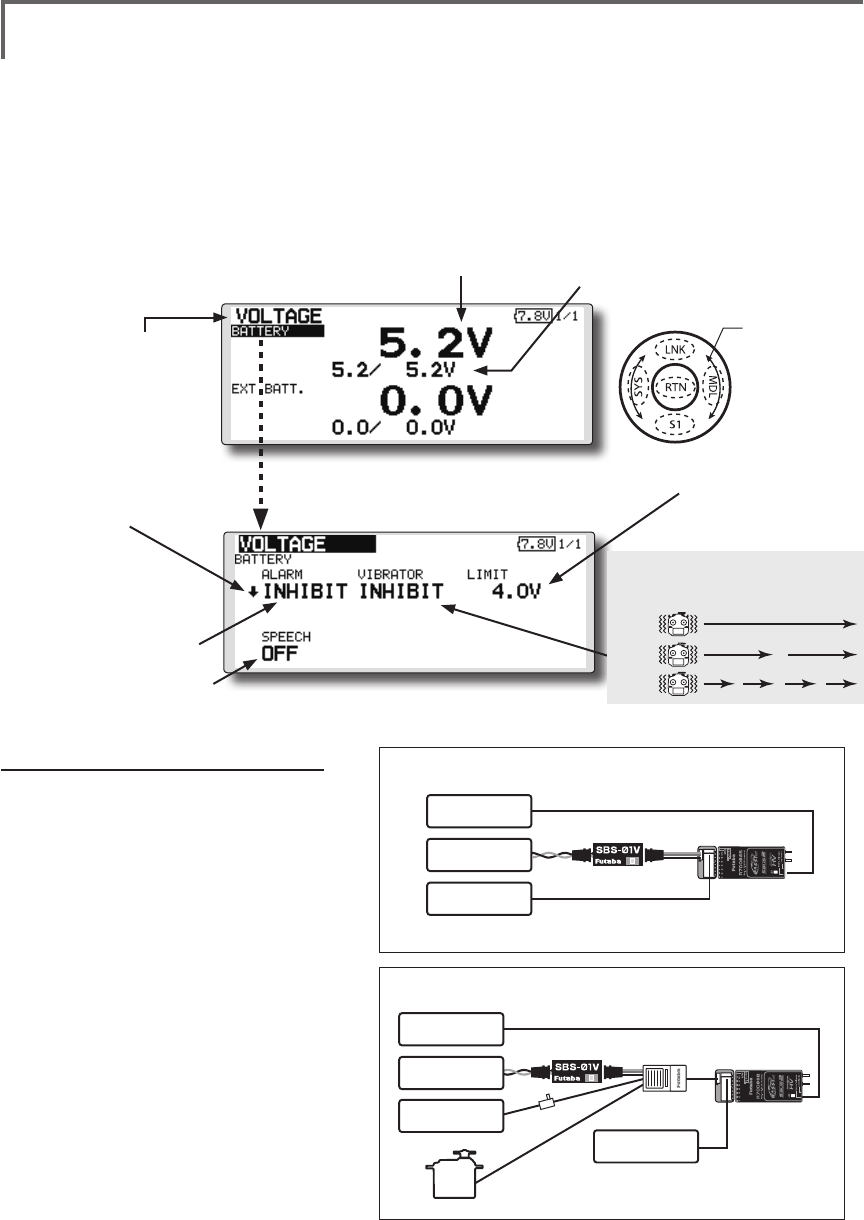

In this screen, the battery voltage is displayed.

In order to use this function, it is necessary to

connect External voltage connector of R7008SB ⇔

SBS-01V ⇔ Battery

SBS-01V measures two batteries. The power

battery connected to two lines is displayed on EXT-

VOLT. The battery for receivers connected to 3P

lines is displayed here.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage can be used in

FASSTest12CH mode.

*The FASSTest18CH mode can use all the telemetry functions.

*SBS-01V must be installed in the aircraft.

＜Two examples of wiring are shown ＞

*Refer to the manual of SBS-01V for the details of wiring.

to S.BUS2

port

to S.BUS2

port

R7008SB

Drive battery 1

（EXT Battery)

Receiver battery

Drive battery 2

（EXT Battery)

Drive battery 1

（EXT Battery)

Drive battery 2

（EXT Battery)

Switch

Power supplies

for servos

Another power

supply Hub

S.BUS2

servos

Two drive batteries are measured (R7008SB use)

Two drive batteries and power supplies for servos are measured (R7008SB use)

●Battery voltage measurement for receivers [R7008SB use]

●The drive battery 1 is measured in an EXT port [R7008SB use]

●The drive battery 2 is measured in an EXT line [SBS-01V use]

●Battery voltage measurement for receivers [R7008SB use]

●The drive battery 1 is measured in an EXT port [R7008SB use]

●The drive battery 2 is measured in an EXT line [SBS-01V use]

●The voltage for servos is measured in a power supply line [SBS-01V use]

Normal Line

EXT Line

*SBS-01V measures two voltage. One corresponds to high voltages, such as a drive battery,

with an EXT line. Another is a normal line and is measurement of the battery for receivers of a

line connected to 3P connector, or the battery for servos.

TELEMETRY : VOLTAGE [BATTERY] Displaying data from the battery

voltage

●Select [VOLTAGE] in the TELEMETRY screen and

access the setup screen shown below by touching

the RTN button.

●Select [BATTERY] in the VOLTAGE screen and

access the setup screen shown below by

touching the RTN button.

●A setup of the voltage

on which the alarm

operates.

Scrolling

● Moving cursor

●Battery

voltage

●The maximum and the minimum when

powering ON are shown. It will be

preset, if a cursor is moved to this place

and the RTN button is pushed for 1

second.

●↓The "down" arrow will

indicate that an alarm will

sound when the voltage

drops to below the setting.

●ALARM is chosen from

BUZZER, VOICE, and

INHIBIT.

●The ON/OFF switch of SPEECH is

chosen.

Alarm set

1. Move the cursor to the ↓ALARM

item, and it chooses from BUZZER,

VOICE, INHIBIT, and pushes RTN.

2. When not operating vibrator, it is

"VIBRATOR" to INHIBIT. TYPE1-3 will

be chosen if it is made to operate.

3. Move the cursor to the LIMIT [4.0V]

item and touch the RTN button to

switch to the data input mode.

4. Ajust the rate by scrolling the

touch sensor.

Initial value: 4.0V

Adjustment range: 0.0V~100.0V

*When the RTN button is touched for one second,

the rate is reset to the initial value.

5. Touch the RTN button. (To

terminate the input and return

to the original state, touch the

Home/Exit button.)

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the

transmitter will vibrate during the warning.

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

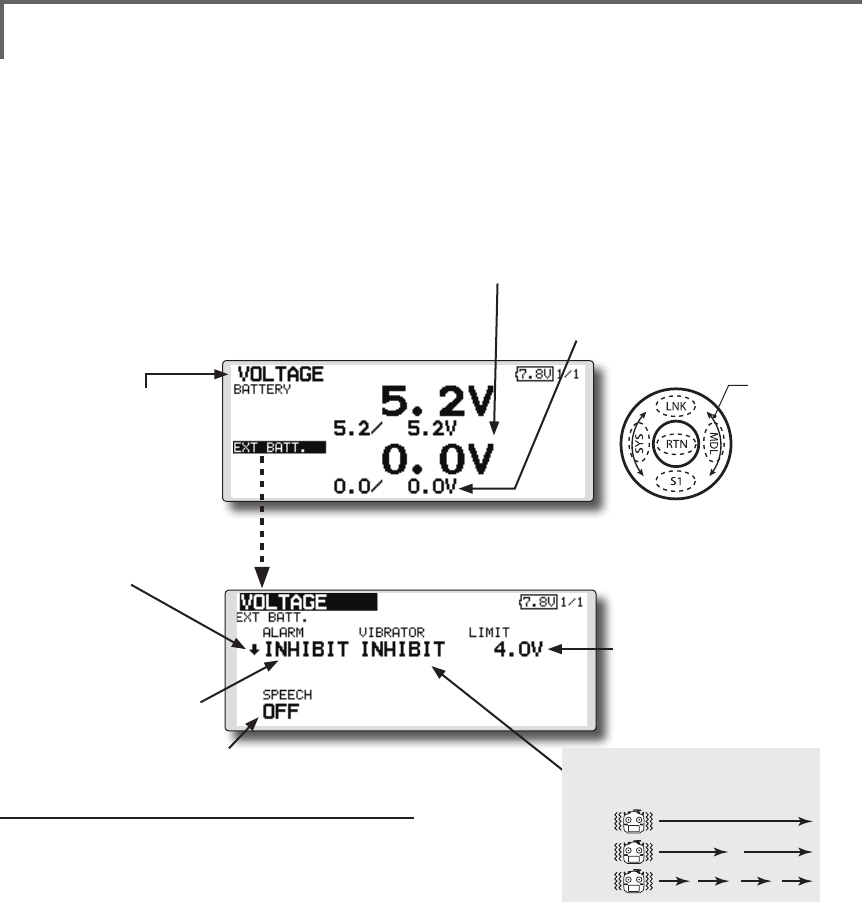

● Select [VOLTAGE] in the TELEMETRY

screen and access the setup screen

shown below by touching the RTN

button.

● Select [EXT BATT.] in the RECEIVER screen

and access the setup screen shown

below by touching the RTN button.

●A setup of the voltage on

which the alarm operates.

Scrolling

● Moving cursor

● EXT battery voltage

● The maximum and the minimum

when powering ON are shown.

It will be preset, if a cursor is

moved to this place and the

RTN button is pushed for 1

second.

● ↓The "down" arrow

will indicate that

an alarm will sound

when the voltage

drops to below the

setting.

● ALARM is chosen

from BUZZER, VOICE,

and INHIBIT.

● The ON/OFF switch of SPEECH is

chosen.

Alarm set

1. Move the cursor to the ↓ALARM item, and

it chooses from BUZZER, VOICE, and INHIBIT,

and pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [4.0V] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 4.0V

Adjustment range: 0.0V~100.0V

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

TELEMETRY : VOLTAGE [EXT-VOLT] Displaying data from the EXT

battery voltage port

In this screen, the EXT battery voltage is

displayed. In order to use this function, it is

necessary to connect External voltage connector of

R7008SB ⇔ SBS-01V ⇔ Battery

SBS-01V measures two batteries. The power

battery connected to two lines is displayed on EXT-

VOLT.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage will be received in

the FASSTest12CH mode.

*The FASSTest18CH mode will display all telemetry data.

*SBS-01V must be installed in the aircraft.

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the

transmitter will vibrate during the warning.

98 <Functions of Linkage Menu>

● Select the function name

and return to the Linkage

menu by touching the

RTN button or pushing the

Home/Exit button.

<SensorTouch™>

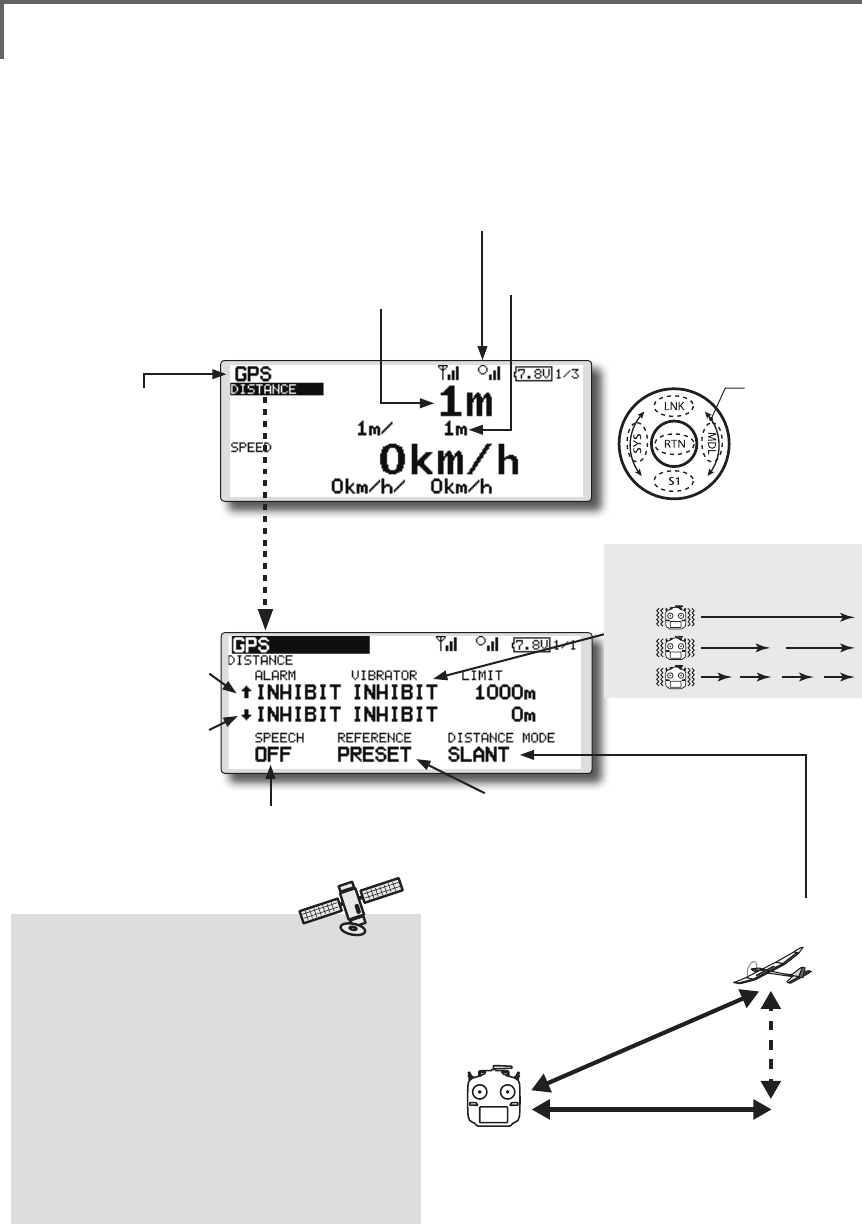

TELEMETRY : GPS [DISTANCE] Displaying data from the Distance Screen

The Distance screen displays and sets altitude

data from an SBS-01G GPS Sensor (sold

separately), and allows the distance to the airborne

aircraft to be read by the transmitter. When the

aircraft flies inside or outside the set distance an

alarm and vibration alerts the pilot.

*The GPS sensor is necessary, and is sold separately. Mount

and connect the sensor in accordance with the sensor

instruction manual.

*It cannot be used in FASST mode and S-FHSS mode.

*Only receiver voltage and EXT voltage can be used in　

FASSTest12CH mode.

*The FASSTest18CH mode can use all the telemetry functions.

*A GPS sensor must be installed in the aircraft.

●This indicates the receiving accuracy

from a GPS Satellite. When three bars

are displayed, the GPS is ready for use.

Surface

Altitude

Slant

●Altitude calculated as either straight　line

distance (slant) or surface distance on a

map can also be selected.

●Select <SLANT> <SURFACE> to “DISTANCE

MODE”, scroll either to the desired method

and touch the RTN button.

*Positioning time of GPS

When powered up, the SBS-01G begins to

acquire GPS satellite data. This process can

take several minutes. Please do not move the

model during this process. During acquisition,

the LED on the SBS-01G will blink green;

after the satellites signals have been acquired,

the LED will become solid green, and the GPS

signal strength display on the transmitter will

show three bars.

Moving the model before the satellites are fully

acquired will cause a delay in acquiring the

satellite signal.

● Select [GPS] in the TELEMETRY screen

and access the setup screen shown

below by touching the RTN button.

Scrolling

● Moving cursor

● Distance

● ↓ A downward arrow

indicates the alarm

will sound when the

distance reaches

below your set value.

● ↑ An upward arrow

indicates the alarm

will sound when the

distance reaches

above your set value.

●Select [DISTANCE](small font

display) in the TEMPERATURE screen

and access the setup screen

shown below by touching the RTN

button.

● The maximum and the minimum when

powering ON are shown. It will be preset,

if a cursor is moved to this place and the

RTN button is pushed for 1 second.

●The ON/OFF switch of

SPEECH is chosen.

●Move the cursor to the [PRESET]

of "REFERENCE" item. Touch

the RTN button is pushed for 1

second. Sets the current aircraft

position as the starting point.

TYPE 1

TYPE 2

TYPE 3

"VIBRATOR" type

If the following types are selected, the

transmitter will vibrate during the warning.

First, the set of a reference is required.

1. The model and transmitter to which the GPS

sensor was connected are turned on.

2. Move the cursor to the [PRESET] of

"REFERENCE" item.

3. Touch the RTN button is pushed for 1 second.

(To terminate the input and return to the original

state, touch the Home/Exit button.)

*Now, the position of the present model was set to 0 m.

Setting a "too far" alarm distance

1. Move the cursor to the ↑ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [m] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 1,000m

Adjustment range 0m~3,000m

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

Setting a "too close" alarm distance

1. Move the cursor to the ↓ALARM item, and

it chooses from BUZZER, VOICE, INHIBIT, and

pushes RTN.

2. When not operating vibrator, it is "VIBRATOR"

to INHIBIT. TYPE1-3 will be chosen if it is made

to operate.

3. Move the cursor to the LIMIT [m] item and

touch the RTN button to switch to the data

input mode.

4. Ajust the rate by scrolling the touch sensor.

Initial value: 0m

Adjustment range 0m~3,000m

(↑LIMIT ≧ ↓LIMIT)

*When the RTN button is touched for one second, the rate is

reset to the initial value.

5. Touch the RTN button. (To terminate the input

and return to the original state, touch the

Home/Exit button.)

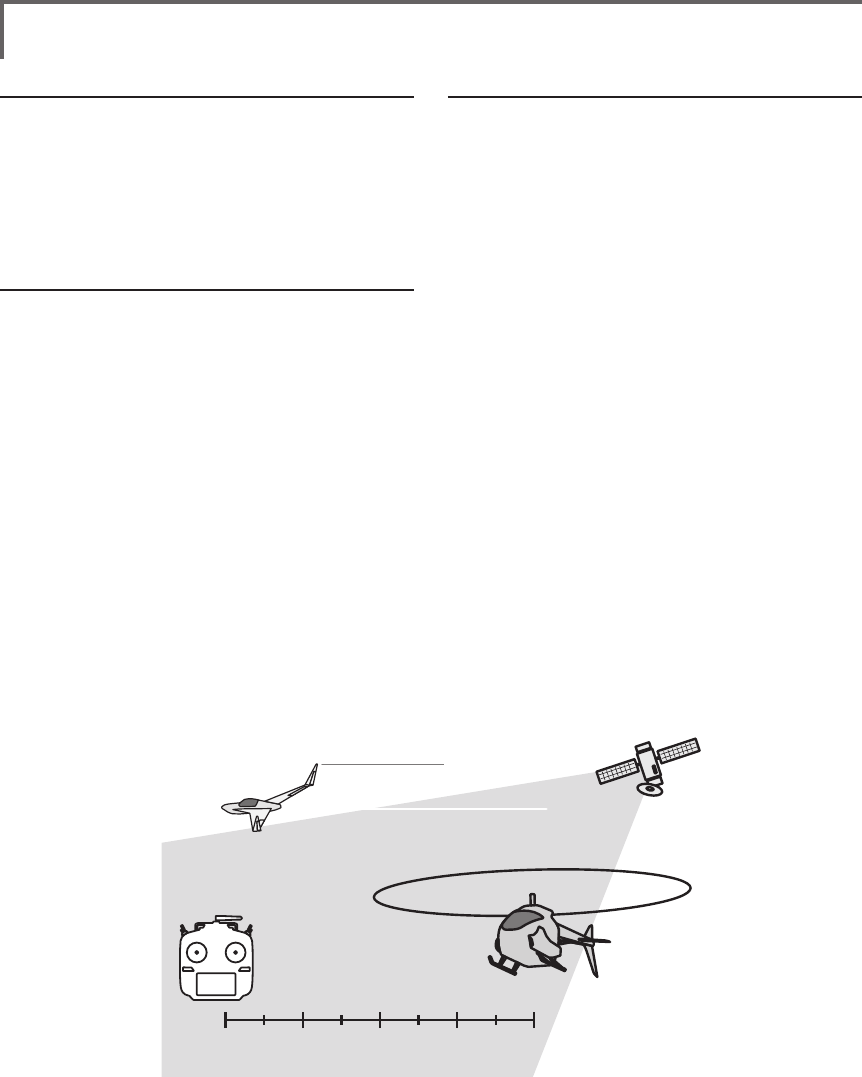

Distance

Speed

position

Telemetry

Data

Futaba T18SZ-24G Radio Control User Manual Part II

Futaba Corporation Radio Control Part II

Contents

User Manual-Part II

Navigation menu

Namespaces

Views

Navigation
