Contents
Part 5
3E0680 SmartReader BR Series 3E0680
Page 79
Specifications

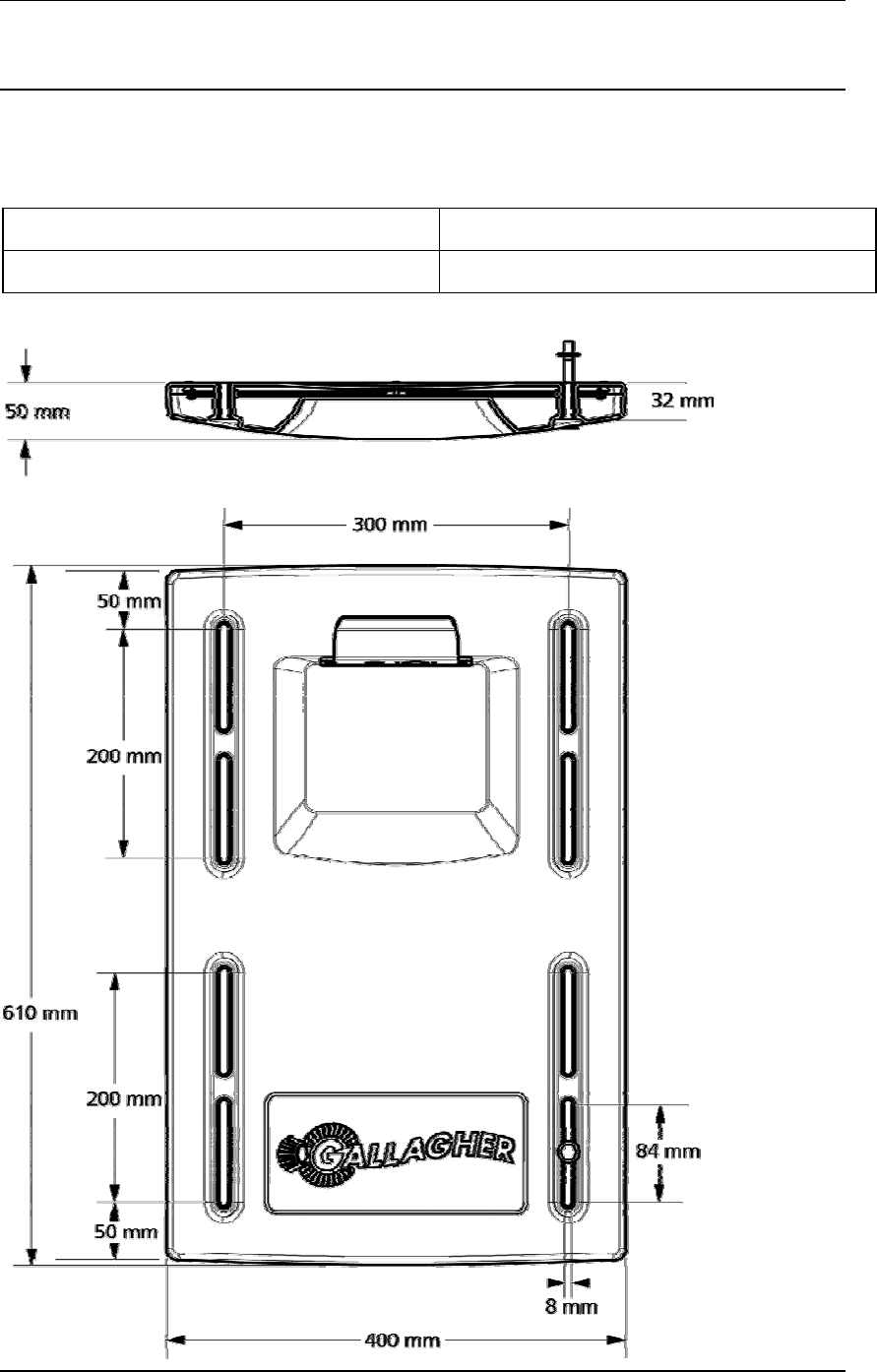

Small Antenna Panels
Small
Small Antenna Panel 3 kg
Dimensions (w x h x d) 400 x 600 x 50 mm
3E0680 3E0680 SmartReader BR Series
Page 80

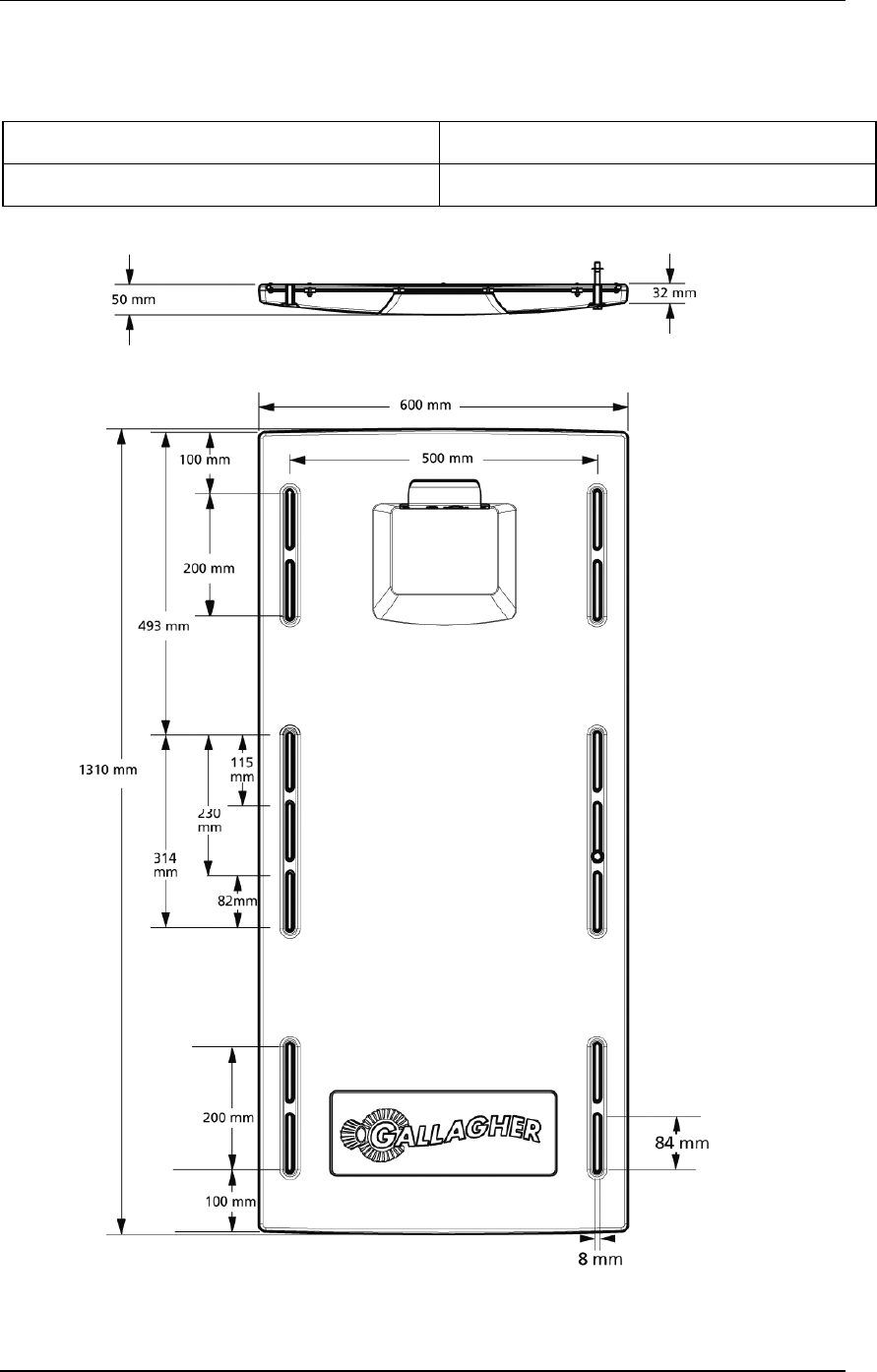

Large Antenna Panels
Large
Large Antenna Panel 7.3 kg
Dimensions (w x h x d) 400 x 1300 x 50 mm
3E0680 SmartReader BR Series 3E0680
Page 81
Electronic Controller
Weight BR Series series 6.8 kg
Dimensions (w x h x d) 300 x 220 x 100 mm (approx)
The front and back are slightly curved
out.
3E0680 3E0680 SmartReader BR Series
Page 82
Standards
Physical / Environmental
IP rating IP66
Operating Temperature -10 to 55 °C
Storage Temperature -40 to 85 °C
Standards
Safety Standards Australia and New Zealand (AS/NZS 3350.2.29 or
AS/NZS 60335.2.29)
Europe(EN 60335.2.29)
Radio Standards Europe, Australia or New Zealand (ETSI EN 300
330-2)
"Electromagnetic compatibility and Radio spectrum
Matters (ERM); Short Range Devices (SRD); Radio
equipment in the frequency range 9 kHz to 25 MHz
and inductive loop systems in the frequency range 9
kHzto30MHz"
EN immunity standards All Panel readers sold in Europe (ETSI EN 301 489-
3)
"Electromagnetic compatibility and Radio spectrum
Matters (ERM); Electromagnetic Compatibility
(EMC) standard for radio equipment and services;
Part 3: Specific conditions for Short-Range Devices
(SRD) operating on frequencies between 9 kHz and
40 GHz"
C-Tick approval New Zealand & Australia
CE Mark EN 300 330-2, EN 301 489-3
EN 60335.2.29 with respect to the Low Voltage
Directive.
3E0680 SmartReader BR Series 3E0680
Page 83
Federal regulations NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment
and receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV
technician for help.
3E0680 3E0680 SmartReader BR Series
Page 84
Battery
Specifications
Battery type 12V 7AH
Sealed Lead Acid battery
Expected battery life per full
charge
8 hours minimum
Note: Battery life is reduced if the
SmartReader is stored at elevated
temperatures for extended periods
Battery charge time 6 hours approx.
(Depending on operating
temperature and discharge)
Battery charger
Mean Well PB-120P-13C
Model Mean Well PB-120P-13C
Protection Short circuit/Over load/Over voltage/Over temperature
AC input
range
110 V AC & 230 V AC Switchable
Input Fuse 4A / 250V
Output Fuse 15A / 125V
3E0680 SmartReader BR Series 3E0680
Page 85
TWO YEAR WARRANTY
FOR THIS PRODUCT FROM DATE OF PURCHASE
MODEL
.....................................................................................
SERIAL NO
.....................................................................................
DATE PURCHASED
....................................................................................
This product is guaranteed free from defects in
material or workmanship for a period of two years
from date of purchase by the end user. Gallagher will
repair or replace at their option any faulty product
returned to them or their Dealer within this time
period. Freight/forwarding costs incurred by the
Customer in the warranty process remain the
responsibility of the Customer.
This warranty does not cover damage (including
subsequent corrosive damage) due to:
Unauthorised repairs
Modifications
Failure to follow care and maintenance
guidelines described in the User Manual
Physical Mishandling
Lightning Strike
Floods, fires or acts of God
Use of an arc welder on loadbars or equipment or
steelwork attached to loadbars while a
WeighScale is connected
Gallagher, their Distributors, and their Dealers accept
no responsibility for the misuse of this product.
Gallagher, their Distributors, and their Dealers accept
no responsibility for any accident caused subsequently
to any tampering with or modification to or misuse of
this product.
Gallagher, their Distributors, and their Dealers accept
no liability for consequences and/or secondary
damages or losses of any kind sustained directly or
indirectly, a result of failure or defect in any product,
material, installation or service.
