VHF 300 Series
owners manual
Draft
© 2009 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151
st
Street,
Olathe, Kansas 66062, USA
Tel. (913) 397.8200 or
(800) 800.1020
Fax (913) 397.8282
Garmin (Europe) Ltd.
Liberty House
Hounsdown Business Park,
Southampton, Hampshire, SO40 9LR UK
Tel. +44 (0) 870.8501241 (outside the UK)
0808 2380000 (within the UK)
Fax +44 (0) 870.8501251
Garmin Corporation
No. 68, Jangshu 2
nd
Road,
Shijr, Taipei County, Taiwan
Tel. 886/2.2642.9199
Fax 886/2.2642.9099
July 2009 Part Number 190-01098-00 Rev. B Printed in China
All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied,
transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express
prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual
onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any
revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of
this copyright notice and provided further that any unauthorized commercial distribution of this manual or any
revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Garmin reserves the right to change or improve
its products and to make changes in the content without obligation to notify any person or organization of such
changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental
information concerning the use and operation of this and other Garmin products.
Garmin
®
and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other
countries. GHS
is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the
express permission of Garmin.
United States Power Squadrons
®
is a registered trademark of United States Power Squadrons. NMEA 2000
®
and
the NMEA 2000 logo are registered trademarks of the National Maritime Electronics Association.
CE Notication
CE Notied Body number (0168) valid for the VHF 100i/VHF 200i/VHF 300i/VHF 300i AIS only.
0168
Draft
VHF 300 Series Owner’s Manual i
Introduction
Introduction
The VHF 300 series radios equip you with the ability to communicate on all International,
USA, and Canadian marine channels, as well as preset private channels. They also allow
monitoring of ten WX (weather) channels.
NOTE: The International frequency band is the only band available for the VHF 300i and
the VHF 300i AIS, unless you have the other bands enabled by an Garmin
®
authorized
dealer.
The VHF 300 series radios have many enhanced features, including those listed in the
following table.
VHF 300 VHF 300i VHF 300
AIS
VHF 300i
AIS
North American usage ● ●
International usage ● ●
Multilingual user interface: English, French,
Italian, German, and Spanish ● ● ●
Receives NOAA weather alerts ● ●
Automatic Transmitter Identication System
(ATIS) support ● ●
Automatic Identication System (AIS)
receiver ● ●
Full Class D Digital Selective Calling (DSC) ● ● ●
Private channel customization
(pre-set by your Garmin dealer) ● ●
Auto power on ● ● ●
Position tracking to track up to three other
boats ● ● ●
Transmits position requests ● ● ●
Local receiver mode to improve receiver
performance in busy port environments ● ● ●
Up to 25 watts of transmit power, selectable
between 1 watt and 25 watts ● ● ●
Dedicated key for easy, one-touch access
to Channels 16/9 Channel 16
only Channel 16
only
NMEA 0183 interface capabilities ● ● ●
NMEA 2000
®
interface capabilities ● ● ●
Additional capabilities with NMEA 2000
compatible Garmin chartplotters and
Garmin autopilot system
● ● ●
Draft
ii VHF 300 Series Owner’s Manual
Introduction
VHF 300 VHF 300i VHF 300
AIS
VHF 300i
AIS
Relocatable speaker and microphone ● ● ●
Supports Garmin GHS
full-function
handsets ● ● ●
Hailer and foghorn output at 30 watts with
automatic and manual foghorn signals and
adjustable, base-fog frequencies
● ● ●
Two-way hailer functionality for listening
back when connected to a compatible horn
speaker
● ● ●
Intercom capabilities ● ● ●
Manual Conventions
In this manual, when you are instructed to select an item using the Channel knob, turn the
channel knob to highlight the item, and then press the Channel knob to select the item.
Small arrows (>) in the text indicate that you should use the Channel knob to select
each item in order. For example, if the text indicates “select COMMUNICATIONS >
PROTOCOL,” you should complete these steps:
1. Turn the Channel knob to highlight COMMUNICATIONS, and then press the Channel
knob to select COMMUNICATIONS.
2. Turn the Channel knob to highlight PROTOCOL, and then press the Channel knob to
select PROTOCOL.
Draft
VHF 300 Series Owner’s Manual iii
Introduction
Table of Contents
Introduction ...............................................................................................................i
Manual Conventions ............................................................................................................ ii
Getting Started .........................................................................................................1
Garmin GHS Series Handsets ............................................................................................. 1
Garmin GHS Series Handset Display .................................................................................. 2
Tips ...................................................................................................................................... 3
Basic Operation .......................................................................................................4
Turning the Radio On and Off .............................................................................................. 4
Adjusting the Volume ........................................................................................................... 4
Adjusting the Squelch .......................................................................................................... 4
Selecting Channels .............................................................................................................. 4
Transmitting with the Radio.................................................................................................. 4
Bypassing the LO (1 W) Transmission Power Setting ......................................................... 5
Scanning and Saving Channels ........................................................................................... 5
Repeating the Last Received Communication ..................................................................... 6
Monitoring Multiple Channels ............................................................................................... 6
Reprogramming the Second-Priority Channel ..................................................................... 7
Using 16/9 Mode .................................................................................................................. 7
Switching Between 1 W and 25 W Transmitting Modes ...................................................... 8
Adjusting the Local/Distant Receiving Sensitivity ................................................................ 8
Using the Intercom ............................................................................................................... 9
Using the Hailer ................................................................................................................... 9
Using the Foghorn ............................................................................................................. 10
Listening to NOAA Weather Broadcasts and Enabling Weather Alerts ............................. 11
Automatic Transmitter Identication System ...................................................................... 12
Digital Selective Calling ........................................................................................14
Entering Your MMSI Number .............................................................................................14
Viewing Your MMSI Number .............................................................................................. 15
DSC Distress Calls ............................................................................................................ 15
Placing Calls ...................................................................................................................... 18
Receiving Calls .................................................................................................................. 20
Position Tracking ................................................................................................................ 21
Working with the Call Logs ................................................................................................ 23
Using the Directory ............................................................................................................ 25
Adding and Modifying Group Entries ................................................................................. 26
Conguring DSC Settings .................................................................................................. 26
Sending Voicemail .............................................................................................................28
Automatic Identication System ......................................................................................... 28
Draft
iv VHF 300 Series Owner’s Manual
Introduction
Advanced Operation .............................................................................................29
NMEA 0183 and NMEA 2000 ............................................................................................. 29
Modifying the Operating Settings ....................................................................................... 31
Appendix ................................................................................................................35
Alarms and Messages ....................................................................................................... 35
Channel Lists ..................................................................................................................... 36
Specications ..................................................................................................................... 46
Caring for the Unit .............................................................................................................. 50
Index .......................................................................................................................51
Draft
VHF 300 Series Owner’s Manual 1
Getting Started
Getting Started

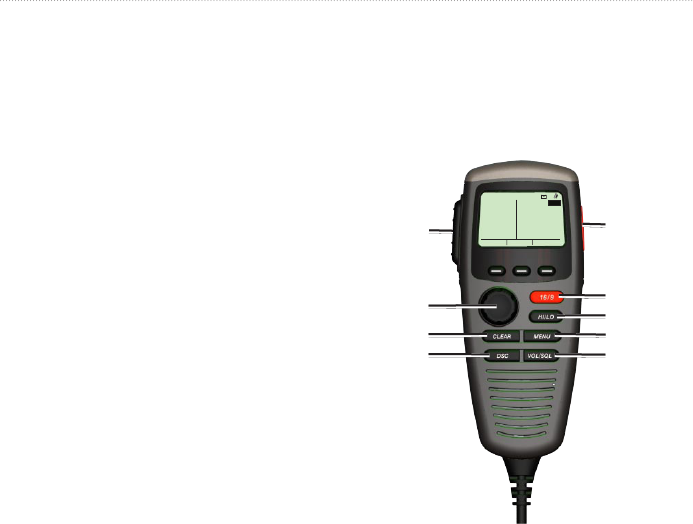

Garmin GHS Series Handsets
Use a Garmin GHS handset to operate all VHF 300 model radios.
PTT (Push-to-talk)—press to exit the current
menu and return to the Home screen to begin
broadcasting.
DISTRESS—lift the spring-loaded door and
press the DISTRESS key to start a Digital
Selective Calling (DSC) distress call if you
have programmed your radio with an MMSI
number.
Channel—rotate to change the channel on the
radio, or press to select a menu item. When
on the Home screen, press to access WX
(weather) channels (North American models
only).
CLEAR—press to return to the previous screen when you are in the menu options. This key
also cancels or mutes an incoming DSC call.
DSC—press to display a menu of DSC options. Press again to return to the Home screen.
This key only works if you have programmed an MMSI number into the radio (page 14).
16/9 (North American models) or 16+ (International models)—press and release to toggle
between Channel 16, your second-priority channel, and your original channel.
HI/LO—press to select between local and distant receive settings or to bypass 1 W
transmission power for some channels.
MENU—press to display a menu of conguration options. Press again to return to the
Home screen.
Volume/Squelch—press to toggle the function of the Channel knob to adjust the volume
and squelch levels.
PTT
Channel
CLEAR
DSC
16/9 or 16+
HI/LO
MENU
Volume/
Squelch
USA
16
DISTRESS
REPEAT PA SCAN
“‰°Š‹.Œ‘’’ƒ
ˆ‰Š°‹Œ.‘’“’†
ˆ‰:‹ŒPM UTC
W25
DISTRESS
PTT
Channel
CLEAR
DSC
16/9 or 16+
HI/LO
MENU
Volume/
Squelch
USA
16
DISTRESS
REPEAT PA SCAN
“‰°Š‹.Œ‘’’ƒ
ˆ‰Š°‹Œ.‘’“’†
ˆ‰:‹ŒPM UTC
W25
DISTRESS
Draft
2 VHF 300 Series Owner’s Manual
Getting Started

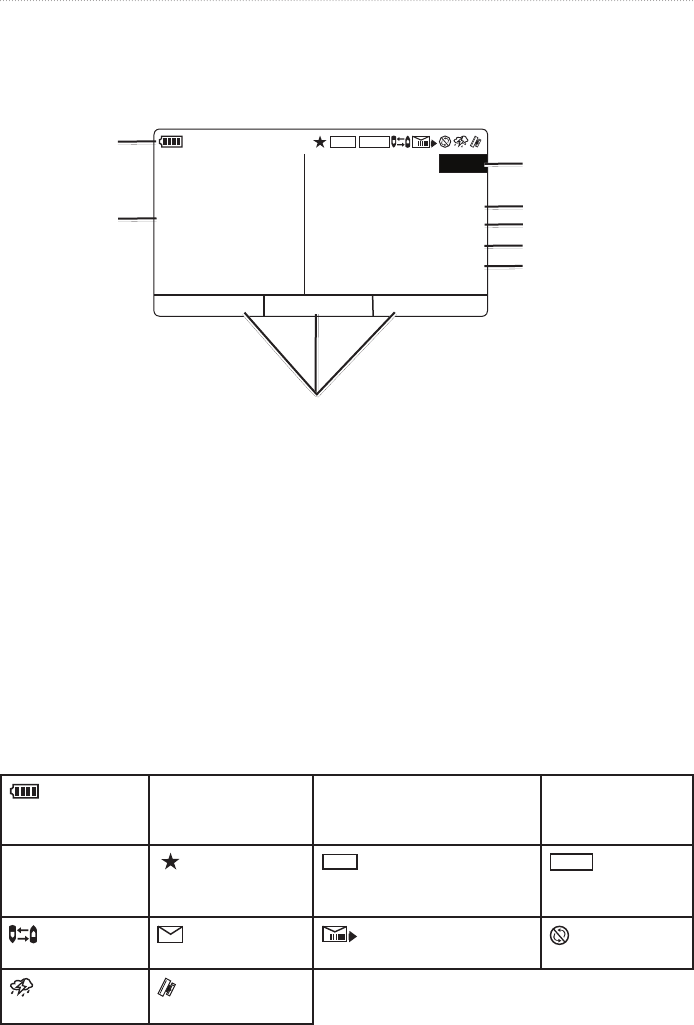

Garmin GHS Series Handset Display
The Home screen is the most-viewed screen in the system. It displays all of your current
information, such as the current channel, the frequency band, and the channel name.
Frequency band
Latitude
Time
Speed Over Ground/
Course Over Ground
System-status
icons
Channel Longitude
Soft keys
USA
16
DISTRESS
REPEAT PA SCAN
“‰°Š‹.Œ‘’’ƒ
ˆ‰Š°‹Œ.‘’“’†
ˆ‰:‹Œ UTC
””MPH ˆ’”°T
TX
W25
ATIS
1W
LOC
Channel—current working channel.
Frequency band—current frequency band: International, Canadian, or USA.
Latitude, Longitude, and Time—current latitude, longitude, and time are displayed if
the transceiver is connected to a GPS device. If the transceiver is not connected to a GPS
device, you can manually enter the position and the time that you entered the position data.
Speed Over Ground (SOG)/Course Over Ground (COG)—current SOG or COG is
displayed if the transceiver is connected to a GPS device.
Soft keys—used to select items. The function of these keys changes depending on what you
are doing.
System-status icons—see the following table.
Battery status
RX
Squelch level is
broken by reception
of an incoming signal
TX
Transmitting
W25
Transmitting
at 25 watts
1W
Transmitting at
1 watt
Saved channel
LOC
Receiver mode for
areas with radio frequency
interference (such as harbors)
ATIS
ATIS
enabled
Position
tracking enabled
Incoming or
missed DSC call
Outgoing voicemail Auto channel
changing disabled
Weather alert External GPS
connected
Draft
VHF 300 Series Owner’s Manual 3
Getting Started
Tips
Keep the following tips in mind when using your radio or handset:
Press and release the PTT key at any time during a series of steps to return to the Home
screen.
Press the CLEAR key to view the previous screen.
Select OK to save your changes and return to the Home screen.
Select ab when entering data to return to a previous character.
Draft
4 VHF 300 Series Owner’s Manual
Basic Operation
Basic Operation
Turning the Radio On and Off
IMPORTANT: To use the DSC capabilities of your radio, you must rst enter an MMSI
number. See page 14 for more information.
To turn on the radio, press and hold the 16/9 key (North American models) or 16+ key
(International models). If you have not entered a Mobile Maritime Safety Identity (MMSI)
number, you must press the CLEAR key to access the Home screen. To turn off the radio,
press and hold the 16/9 key or the 16+ key.
TIP: For information on enabling auto power-on, see page 31.
Adjusting the Volume
TIP: To set the appropriate volume level, rst turn the squelch level to off, and then adjust
the volume. See below for more information on adjusting the squelch level.
1. Press the VOL/SQL key until the screen displays “CURRENT VOLUME.”
2. Turn the Channel knob on the handset to adjust the level.
Adjusting the Squelch
1. Press the VOL/SQL key until the screen displays “CURRENT SQUELCH.”
2. When receiving, rotate the Volume knob counterclockwise until you hear audio.
3. Rotate the Volume knob clockwise until there is no background noise.
Selecting Channels
Turn the Channel knob clockwise or counterclockwise to change channels. See page 36 for
lists of International, Canadian, and USA channels.
Transmitting with the Radio
1. Select the appropriate channel.
2. Check to ensure that the channel is clear before transmitting. The Federal
Communications Commission (FCC) and international regulations require that you not
obstruct the communications of others.
3. Press the PTT key on the handset to transmit on the current channel. The
TX
icon is
displayed at the top of the screen.
4. Speak your message and release the PTT key.
NOTE: Five minutes is the maximum amount of time for transmission. After you have
pressed PTT key for ve minutes, PTT is disabled until you release the PTT key.
Draft
VHF 300 Series Owner’s Manual 5
Basic Operation
Bypassing the LO (1 W) Transmission Power Setting
In the USA frequency band, transmissions on Channels 13 and 67 are required to be low-
power (1 watt) by default. You can bypass this power setting by pressing the 25W soft key
during transmission.
1. If you are on USA Channels 13 or 67, when you press the PTT key, the screen displays
a message to press 25W to bypass the 1 W transmission requirement.
2. Press the 25W soft key to broadcast on HI. The radio bypasses the 1 W transmission
requirement until you release the PTT key.
Scanning and Saving Channels
IMPORTANT: If you turn on ATIS, the radio cannot scan or save channels. See page 12.
Scanning All Channels
When you scan channels, the radio searches for channels that are broadcasting. If a channel
is broadcasting, the radio pauses on that channel until the broadcast stops. After four
seconds of inactivity on the channel, the radio resumes scanning.
1. Select SCAN > ALL.
2. Choose from the following options:
SKIP—this option is displayed if active channels are detected. When you select
this option, the system resumes the scan and does not include that channel in
subsequent passes.
+CH16—Channel 16 is scanned every other channel (for example: 21, 16, 22, 16,
and so on). “ALL SCAN +CH16” is displayed on the screen.
-CH16—Channel 16 is scanned in its normal order (for example, 14, 15, 16, 17, and
so on). “ALL SCAN” is displayed on the screen.
EXIT—returns you to Home screen. The system ends the current scan and continues
to receive on the channel where you ended the scan.
Saving Channels
You can save any channel other than the WX (weather) channels to the transceiver memory.
You can scan your saved channels separately from scanning all of the channels that radio
receives. There is no limit to the number of channels you can save.
To save a channel:
1. Select SCAN.
2. Turn the Channel knob to access different channels.
3. To save a channel, select SAV CH. A star on the top of the screen denotes a saved
channel.
Draft
6 VHF 300 Series Owner’s Manual
Basic Operation
To remove the saved status from a channel:
1. Select SCAN.
2. Turn the Channel knob to access different channels.
3. Select SAV CH.
Scanning Saved Channels
1. Select SCAN.
2. Select SAVED.
NOTE: This scan does not include Channel 16 unless you saved Channel 16 to memory.
However, you can select +CH16 to scan Channel 16 every other channel (for example: 21,
16, 32, 16). When this setting is active, the soft key displays -16. Select -CH16 to scan your
saved channels in their normal order (for example, 08, 10, 11, 14).
Repeating the Last Received Communication
When repeat is turned on, the radio records up to the last 90 seconds of the last received
transmission. When repeat is turned off, recording is disabled; the radio plays back the last
saved transmission from when repeat was on. During playback, the radio does not receive
transmissions on the current channel.
The radio will not save the beginning (less than one second) of each received transmission.
This prevents intermittent RF noise from overriding audio transmissions that have been
received and saved
To turn repeat on or off:
1. Select REPEAT. The radio plays back up to the last 90 seconds of the last received
transmission.
2. Select ON or OFF.
To repeat the last received transmission:
1. Select REPEAT. The radio plays back up to the last 90 seconds of the last received
transmission.
2. Select REPEAT again to play the message from the beginning.
Monitoring Multiple Channels
IMPORTANT: The radio disables multiple-channel monitoring (Dual watch and Tri watch)
if you turn on ATIS. See page 12.
Use the Watch feature to monitor priority channels and the currently selected channel for
broadcasting activity. Channel 16 is the rst-priority channel on your radio. Channel 9 is the
default second-priority channel, but you can select another channel as your second-priority
channel. For more information on reprogramming the second-priority channel, see page 7.
Draft
VHF 300 Series Owner’s Manual 7
Basic Operation
Monitoring Two Channels (Dual Watch)
Dual watch allows you to cycle between monitoring the current channel you have selected
and Channel 16.
1. Select MENU > CHANNEL > WATCH.
2. Select DUAL. “DUAL WATCH”, the currently selected channel, and Channel 16 are
displayed on the screen—for example, “DUAL WATCH CH: 75 + 16”.
3. To exit Dual watch, select EXIT.
Monitoring Three Channels (Tri Watch)
Tri watch allows you to cycle between monitoring the current channel you have selected,
Channel 16, and your second-priority channel.
1. Select MENU > CHANNEL > WATCH.
2. Select TRI. “TRI WATCH”, the currently selected channel, Channel 16, and your second-
priority channel are displayed on the screen—for example,
“TRI WATCH CH: 75 + 16 + 9”.
3. To exit Tri watch, select EXIT.
Reprogramming the Second-Priority Channel
You can program your radio to recognize a channel other than Channel 9 as your second-
priority channel.
1. Select MENU.
2. Select CHANNEL > 2ND PRIORITY.
3. Turn the Channel knob to change the channel displayed on the screen.
4. When the correct channel is displayed, select OK.
Using 16/9 Mode
16/9 is a priority operation that is activated by pressing the 16/9 key (North American
models) or the 16+ key (International models) on the handset. Pressing the 16/9 key or the
16+ key stops the current operation and changes your current working channel to Channel
16 on the rst press, your second-priority channel on the second press, and your original
channel on the third press. Entering this mode changes the transmit power to HI (25 W), and
leaving this mode restores the previous setting.
1. Press the 16/9 key or the 16+ key to immediately switch to Channel 16 and change the
transmit power to HI (25 W). To transmit on LO power in 16/9 mode, press the HI/LO
key, and then select 1W. The radio displays
1W
on the screen to indicate low-power
transmission.
2. Press the 16/9 key or the 16+ key again to switch to your second-priority channel.
3. Press the 16/9 key or the 16+ key a third time to return to your previous current working
channel and the previous transmit power setting.
Draft
8 VHF 300 Series Owner’s Manual
Basic Operation
Switching Between 1 W and 25 W Transmitting Modes
You can control the transmitting power of the radio. There are two options: LO (1 W) and
HI (25 W). LO is typically used for local transmissions, while HI is typically used for
distance and distress transmissions.
NOTE: When you press the 16/9 key (North American models) or the 16+ key
(International models), the radio switches to HI power. While in 16/9 mode, Channel 16
and the second-priority channel (Channel 9 by default) automatically transmit on HI power.
However, you can switch to LO power in 16/9 mode.
When two signals are broadcast on the same frequency, a VHF radio only receives the
stronger of the two signals. Other than distress calls, transmit using the lowest power
setting that allows you to communicate. This reduces the possibility of your transmissions
interfering with the transmissions of disinterested parties.
In the USA frequency band, transmissions on Channels 13 and 67 are required to be low-
power (1 watt) by default. You can bypass this power setting by pressing the 25W soft key
during transmission.
To switch between LO and HI transmitting power:
1. Press the HI/LO key.
2. Select 1W or 25W to toggle between LO and HI transmit power modes.
TIP: The radio returns to the Home screen automatically two seconds after changing the
1 W/25 W mode. You can also select OK to return to the Home screen.
Adjusting the Local/Distant Receiving Sensitivity
You can control the receiving sensitivity of the radio. If you are experiencing noise in high-
trafc areas or areas with electromagnetic interference (caused by cell-phone towers, for
example), set the receiving sensitivity to Local to decrease the sensitivity of the receiver. In
remote areas and in open water, set the receiving sensitivity to Distant to ensure that you are
using the maximum range of the receiver.
The
LOC
icon is displayed on the screen when set to Local receiving sensitivity.
1. Press the HI/LO key.
2. Select LOCAL/DIST to toggle between local and distant modes.
Draft
VHF 300 Series Owner’s Manual 9
Basic Operation
Using the Intercom
The intercom is part of the Public Address (PA) system of your radio. You can use multiple
handset stations as an intercom system for two-way communication. Use the radio handset
to initiate communication with a remote handset station, and use a remote handset station to
initiate communication with the radio handset.
TIP: When the radio is in intercom mode, it does not receive trafc from your current
channel.
Initiating an Intercom Call
1. Select PA > INTRCM.
2. Select a device from the list. Selecting ALL will transmit to every station. The other party
must press the PTT key on the receiving unit to accept the call.
3. Press and hold the PTT key and speak your message.
4. Release the PTT key and listen for a response.
5. When you and the other party have nished talking, select EXIT to return to the Home
screen.
Receiving an Intercom Call
1. The screen indicates which station is calling. Press and release the PTT key to accept
the call.
2. When the other party has nished talking, press and hold the PTT key and speak your
message.
3. When you and the other party have nished talking, select EXIT to return to the Home
screen.
Using the Hailer
You must provide and install an optional hailer horn on the deck or tower to use the hailer
feature. See the VHF 300 Series Installation Instructions for installation information.
The hailer, which is part of the PA system of your radio, allows you to make on-boat or
ship-to-shore announcements. The hailer allows two-way communication; you can address
the ship using the handset, and sounds received through the horn can be heard through
the external speaker. For vessels with enclosed cabins, this allows you to hear what is
happening on deck.
NOTE: When the radio is in hailer mode, it does not receive trafc from your current
channel.
Draft
10 VHF 300 Series Owner’s Manual
Basic Operation
To operate the hailer:
1. Select PA > HAILER. Sounds received through the horn can be heard through the radio
speaker.
2. Press and hold the PTT key and speak your announcement.
3. Turn the Channel knob to adjust the horn volume.
4. Release the PTT key to listen.
5. Select EXIT to return to the Home screen.
Using the Foghorn
You must provide and install an optional hailer horn on the deck or tower to use the foghorn
feature. See the VHF 300 Series Installation Instructions for installation information.
The foghorn is part of the PA system of your radio. You can sound the foghorn through
a hailer horn or an external speaker. Your radio can sound the horn automatically using
standard, pre-dened patterns, or you can sound the horn manually.
Similar to the hailer, when you are manually operating the foghorn, sounds received through
the horn can be heard through the external speaker between soundings.
Automatically Sounding the Foghorn
1. Select PA > FOG.
2. Select AUTO from the list.
3. Select an item from the following options. The radio alternates between sounding the
pattern of tones or rings and receiving radio trafc.
UNDERWAY
STOPPED
SAILING/FISHING
RESTRICT/TOW
UNDER TOW
PILOT
AT ANCHOR
AGROUND
4. Turn the Channel knob to adjust the volume of the horn.
5. Select EXIT to turn off the automatic soundings and return to the Home screen.
Manually Sounding the Foghorn
NOTE: When you manually sound the horn, the radio will not alternate to receive radio
trafc between horn soundings.
To sound the fog horn:
1. Select PA > FOG.
2. Select MANUAL from the list. Sounds received through the horn can be heard through
the radio speaker.
Draft
VHF 300 Series Owner’s Manual 11
Basic Operation
3. Press the PTT key on the handset to sound the horn. The horn will stop when you
release the PTT key.
4. Turn the Channel knob to adjust the volume of the horn.
5. Select EXIT to return to the Home screen.
Adjusting the Sound Frequency of the Foghorn
You can increase or decrease the sound frequency of the foghorn. The pitch of the tone
will rise with an increase in the frequency, and will fall with a decrease in frequency. The
minimum setting is 200 Hz and the maximum setting is 850 Hz. The default setting is 350
Hz. Regulations dictate the correct frequency of foghorns. Typically, these regulations
correlate the required foghorn frequency with the size of the vessel.
1. Select the MENU key.
2. Select SYSTEM > FOG FREQUENCY.
3. Use the Channel knob to adjust the frequency in 50 Hz increments.
4. Select ACCEPT to save your changes and return to the Home screen. Select CANCEL
to disregard the changes and return to the previous screen.
Listening to NOAA Weather Broadcasts and Enabling
Weather Alerts
NOTE: This functionality is not available with the VHF 300i or VHF 300i AIS. NOAA
broadcasts on the WX channels are only available in the USA and certain regions in Canada.
There are 10 WX (weather) channels that are pre-programmed into your radio to monitor
weather broadcasts from the National Oceanic and Atmospheric Organization (NOAA). WX
channels are listen-only channels.
These broadcasts are in a continuous loop and are updated regularly. Because the NOAA
weather centers broadcasting the information are regional, the weather information will be
relevant to your broadcast area.
Accessing WX (Weather) Mode
1. While viewing the Home screen, press the Channel knob. “WX” is displayed to indicate
that you are listening to WX frequencies.
2. Turn the Channel knob to change the channel.
3. Select EXIT to return to the Home screen. The radio returns to the channel you were
listening to before you entered WX mode.
Draft
12 VHF 300 Series Owner’s Manual
Basic Operation
Enabling WX (Weather) Alerts
You can enable your radio to continually monitor NOAA weather alerts. If the radio detects
an incoming weather alert, it will automatically tune to the WX channel that is broadcasting
the alert. The radio will not receive WX alerts if the transmitter is active.
NOTE: When you enable weather alerts, the radio only monitors the last monitored weather
channel.
1. Press the Channel knob to access WX mode.
2. Select ALERT.
3. Select EXIT or press the Channel knob to return to the Home screen.
The icon indicates that WX alerts are enabled.
Disabling WX (Weather) Alerts
1. Press the Channel knob to access WX mode.
2. Select ALERT.
3. Select EXIT to return to the Home screen.
Automatic Transmitter Identication System
The Automatic Transmitter Identication System (ATIS) is a vessel identication system
that can be used on certain inland waterways in certain countries throughout Europe. Your
Garmin dealer can program your VHF 300i or VHF 300i AIS to use ATIS if you plan to
use your radio on waterways that are within the bounds of the Regional Arrangement
Concerning the Radiotelephone Service on Inland Waterways (the Basel Agreement). The
use of ATIS is prohibited outside the European inland waterways covered by the Basel
Agreement.
When you enable ATIS, a data signal identifying your station is sent at the end of every
transmission. Data identifying your position is not sent; however, your position is calculated
through the method of triangulation by coastal stations receiving your transmissions.
To enable ATIS, enter your ATIS identication number (see below), and then turn on ATIS
(see page 13). Contact your Garmin dealer to determine your ATIS identication number
and to learn about ATIS requirements for your region.
Your radio disables the following functions when you enable ATIS:
Digital Selective Calling (DSC)
Dual watch and Tri watch
Channel scanning
The following International channels are restricted to transmit on low-power (1 watt) when
you enable ATIS: 6, 8, 10, 11, 12, 13, 14, 71, 72, 74, and 77.
Draft
VHF 300 Series Owner’s Manual 13
Basic Operation
Entering Your ATIS Identication Number
IMPORTANT: Use caution when entering your ATIS identication number because you
can only enter it once. If you need to change your ATIS identication number after entering
it, you must take the radio to your Garmin dealer for reprogramming.
1. Press the MENU key.
2. Select ATIS > MY ATIS ID.
3. For each number in the sequence, turn the Channel knob clockwise to increase the
number, and counterclockwise to decrease the number.
4. Press the Channel knob to accept the number and move to the next number in the
sequence.
5. Select ACCEPT when you have entered your ATIS number. The radio prompts you
reenter your number.
6. Enter your ATIS ID number again, and press ACCEPT. If the ATIS ID numbers you
entered do not match, the screen displays “ATIS ID NUMBERS DO NOT MATCH”.
Select RETRY and enter the numbers again.
Viewing Your ATIS ID Number
1. Press the MENU key.
2. Select ATIS > MY ATIS ID.
3. Select OK to return to the previous screen, or press the MENU key to return to the Home
screen.
Turning ATIS Functionality On and Off
1. Press the MENU key.
2. Select ATIS > ATIS.
3. Select ON or OFF. When ATIS is enabled, the
ATIS
icon is displayed on the screen.
4. Select OK to save your changes and return to the Home screen. Press the MENU key to
return to the Home screen without saving your changes.
Draft
14 VHF 300 Series Owner’s Manual
Digital Selective Calling
Digital Selective Calling
Digital Selective Calling (DSC) is a key component of the Global Maritime Distress and
Safety System (GMDSS). DSC provides VHF radios with the ability to place and receive
digital calls directly with other vessels and shore stations, including the USA and Canadian
Coast Guards. Your radio includes full Class D DSC capabilities.
If you have a GPS device connected to the transceiver, your latitude and longitude and the
current time are transmitted when you send a distress call or other type of DSC call. If you
have manually entered your position information, your latitude, longitude, and time of entry
are transmitted with the call. Having your location automatically transmitted prevents you
from needing to identify your location in an emergency situation.
Channel 70 is reserved exclusively for DSC calls, and your radio uses a dedicated receiver
to maintain a constant watch on Channel 70. You do not need to change the channel to make
a DSC call, since your radio automatically changes to Channel 70 to transmit a DSC call.
Your radio sends the DSC data over Channel 70 in less than one second, and then tunes to
the appropriate channel for voice communications. The icon is displayed when you
have an incoming or missed DSC call.
IMPORTANT: To use the DSC capabilities of your radio, you must rst enter a Mobile
Maritime Safety Identity (MMSI) number. An MMSI number identies each DSC radio,
like a telephone number.
IMPORTANT: The radio disables DSC if you turn on ATIS. See page 12.
Entering Your MMSI Number
The Mobile Maritime Safety Identity (MMSI) number is a nine-digit code that acts as a
DSC self-identication number, and is required in order to use the DSC capabilities of your
radio. You can obtain an MMSI number from the telecommunications authority or ship
registry for your country. In the USA, you can obtain an MMSI number from the following
sources:
Federal Communications Commission (FCC)—assignments are recognized
internationally
BoatU.S., Sea Tow, or United States Power Squadrons
®
—assignments are for USA
waters only
After obtaining your MMSI number, you must program the number into your radio to
enable DSC.
Draft
VHF 300 Series Owner’s Manual 15
Digital Selective Calling
IMPORTANT: Use caution when entering your MMSI number, because you can only enter
it once. If you need to change your MMSI number after entering it, you must take the radio
to your Garmin dealer for reprogramming.
To enter your MMSI number:
1. Press the MENU key.
2. Select DSC > MY MMSI.
3. For each number in the sequence, turn the Channel knob clockwise to increase the
number, and counterclockwise to decrease the number. Press the Channel knob to
move to the next number in the sequence. Select ab to return to a previous character.
4. Select ACCEPT when you have entered your MMSI number. The radio prompts you
conrm your entry.
5. Enter your MMSI number again, and select ACCEPT. If the MMSI numbers you entered
do not match, the screen displays “MMSI NUMBERS DO NOT MATCH”. Select RETRY
and repeat the process. If you do not want to enter your MMSI number at this time,
select CANCEL.
Viewing Your MMSI Number
1. Press the MENU key.
2. Select DSC > MY MMSI.
3. Select OK to return to the previous screen, or press the MENU key to return to the Home
screen.
DSC Distress Calls
When you make a DSC distress call, your call is transmitted to all DSC-capable radios
within receiving range. Your current GPS position (latitude and longitude) and the
current time are included in the transmission if you have a GPS device connected to your
transceiver. If you have manually entered your position information with the time, that
data is transmitted with the call. For information on manually updating your position
information, see page 26.
NOTE: Familiarize yourself with the standard distress-call format and protocol to ensure
that your calls are clear and effective.
Sending an Undesignated Distress Call
When you send an undesignated distress call, the nature of your emergency is not
transmitted to the receiving stations. Sending an undesignated distress call is a shorter and
quicker procedure that can save you time during an emergency.
1. Lift the spring-loaded door, and press and hold the DISTRESS key for at least three
seconds. The transceiver beeps, and the screen displays “DISTRESS CALL COUNTING
DOWN”. The channel pane counts down the seconds from 3 to 1.
Draft
16 VHF 300 Series Owner’s Manual
Digital Selective Calling
2. The radio automatically sounds an alarm, switches to Channel 70, and transmits your
call on HI (25 W) power. You can press any key to turn off the alarm sound.
3. After transmitting your distress call, the radio automatically tunes to Channel 16 on HI
(25 W) power. Press the PTT key on the handset and speak your message. The radio
waits for an acknowledgement (ACK) on Channel 70 from a listening station.
Sending a Designated Distress Call
When you send a designated distress call, the nature of your emergency is transmitted to the
receiving stations.
1. Lift the spring-loaded door and press the DISTRESS key.
2. Use the Channel knob to select the type of distress call:
UNDESIGNATED
FIRE
FLOODING
COLLISION
GROUNDING
CAPSIZING
SINKING
ADRIFT
ABANDONING
PIRACY
MAN OVERBOARD
NOTE: To exit this screen without sending a designated distress call, press the CLEAR key
to return to the Home screen, or press the 16/9 key (North American models) or the 16+ key
(International models) to tune to Channel 16.
3. Press and hold the DISTRESS key for at least three seconds.
4. The transceiver beeps, and the screen displays “DISTRESS CALL COUNTING DOWN”.
The channel pane counts down the seconds from 3 to 1.
5. The radio automatically sounds an alarm, switches to Channel 70, and transmits your
call on HI (25 W) power. You can press any key to turn off the alarm sound.
6. After transmitting your distress call, the radio automatically tunes to Channel 16 on HI
(25 W) power. Press the PTT key on the handset and speak your message. The radio
waits for an acknowledgement (ACK) from a listening station.
Draft
VHF 300 Series Owner’s Manual 17
Digital Selective Calling
Waiting for a Distress Call Acknowledgement
If the radio does not receive a distress call acknowledgement, the radio retransmits the
distress call at a random time between 3.5 and 4.5 minutes. This process is repeated
continually until the radio receives an acknowledgement.
Receiving a distress call acknowledgement:
1. When the radio receives a distress call acknowledgment, the radio beeps and the screen
displays “DISTRESS ACK”. Press any key to turn off the beeping.
2. Select ] to view additional information. If the MMSI of the station transmitting the
ACK signal is an entry in your directory, the name associated with the MMSI number is
indicated on the screen. If not, the screen displays the MMSI number.
3. Select ACCEPT.
Stopping Automatic Retransmission of Distress Calls
To stop the radio from automatically retransmitting a distress call, select CANCEL.
The radio remains tuned to Channel 16. Selecting CANCEL does not communicate to
other stations that you no longer have an emergency. Selecting CANCEL only stops the
automatic repetition of the call. For information on revoking a distress call, see below.
Revoking a Distress Call
A DSC distress call is not transmitted until you press and hold the DISTRESS key for at
least three seconds. However, if you inadvertently make a DSC distress call or are no longer
in distress, it is important to cancel the call immediately by transmitting a voice message to
All Stations on Channel 16.
1. Select CANCEL to cancel the distress alert.
2. Press the 16/9 key. The radio tunes to the Channel 16.
3. Press the PTT key on the handset and speak a voice message to cancel the false
distress alert. The following is an example of an appropriate cancellation message:
“All Stations, All Stations, All Stations, this is ________ (vessel name), MMSI number
________, Position ________ North (or South), ________ West (or East). Cancel my
distress alert of ________ (date and time). This is ________ (vessel name), MMSI number
________, Out.”
Draft
18 VHF 300 Series Owner’s Manual
Digital Selective Calling
Placing Calls
Placing Individual Calls
1. Press the DSC key.
2. Select INDIVIDUAL.
3. Select from the following options to select the place from which the MMSI number is
retrieved:
MANUAL—a screen is displayed that allows you to enter the MMSI number manually.
Select a number and move to the next character. When you have entered the correct
MMSI number, select ACCEPT.
DIRECTORY—the directory is displayed. Select an entry.
RECENT CALLS—a screen is displayed that allows you to select from your recent
calls. Select an entry.
4. After you have selected the vessel or entered the MMSI number manually, select the
channel on which you want to communicate. The radio transmits this request with your
call. See below for information on selecting a channel.
5. Select CALL.
The radio transmits the call on Channel 70 and returns to the current working channel. The
radio listens for an acknowledgement on Channel 70 while staying on the working channel.
After an acknowledgement is received, the radio automatically tunes to the channel you
selected.
Placing Group Calls
You can contact a group of specic vessels, such as a sailing club or otilla, by making a
group call. Before placing a call to a group, ensure that the MMSI number of the group is
entered into the memory. For more information on entering a group, see page 26.
1. Press the DSC key.
2. Select GROUP > CALL.
3. Select an entry.
4. After you have selected the group, select the channel on which you want to
communicate. The radio will transmit this request with your call. See below for
information on selecting a channel.
5. Select CALL. The radio transmits the call on Channel 70 and tunes to the channel you
selected.
Draft
VHF 300 Series Owner’s Manual 19
Digital Selective Calling
Selecting the Channel for Individual Calls or Group Calls
When placing an individual or group call, you can select from the following channels on
which you want to communicate. The radio transmits this request with your call.
USA: 6, 8 ,9 ,10 ,13 ,16, 17, 67, 68, 69, 71, 72, 73, or 77
Canadian and International: All of the channels listed previously, plus Channel 15
In most cases, the selection of a DSC channel is limited to those channels that are available
in all frequency bands. When selecting the channel, select CUSTOM to select a different
channel than the ones listed above. If you select a custom channel, be aware that the station
you are calling may not be able to comply with the specied channel. Ensure that you select
a channel that is appropriate for communication.
Placing All-Ships Calls
All-ships calls are transmitted to all stations within receiving distance of your radio. You can
make two types of all-ships calls:
Safety calls are used to broadcast signicant navigational or weather-related information.
Urgency calls are used to communicate situations about the safety of a vessel or person
when danger is not imminent. Discerning whether a situation warrants a distress call or
an urgency call is the responsibility of the captain.
To place an all-ships call:
1. Press the DSC key.
2. Select ALL SHIPS.
3. Select SAFETY or URGENCY to indicate the reason for your call.
4. Select CALL. The radio transmits the call on Channel 70 and then automatically
switches to Channel 16.
Placing Position Request Calls
Position data received from stations that respond to position request calls is sent over the
NMEA network, so that you can track the vessels on your Garmin chartplotter, for example.
For more information on NMEA 0183 and NMEA 2000, see page 29.
1. Press the DSC key.
2. Select POS. REQUEST.
3. Select from the following options to select the place from which the MMSI number is
retrieved:
MANUAL—a screen is displayed that gives you the ability to enter the MMSI number
manually. Select a number and move to the next character. When you have entered
the correct MMSI number, select ACCEPT.
DIRECTORY—the directory is displayed. Select an entry.
Draft
20 VHF 300 Series Owner’s Manual
Digital Selective Calling
4. Select ACCEPT when you have entered your MMSI number.
5. Select CALL. The radio transmits the call on Channel 70, and then switches to your
current working channel. The screen displays “POS REQUEST WAITING FOR
ACKNOWLEDGE”.
Receiving Calls
Receiving Distress Calls and Distress Relay Calls
The radio sends data relative to the call over the NMEA network based on how you have
MMSI ltering congured. See page 30 for more information.
1. When receiving a distress call or a distress relay call, the screen displays the
“DISTRESS” or “DISTR RELAY” and information about the call (for example, the MMSI
number and the nature of the distress). Select ] to view additional information.
2. If necessary, select OK to tune to Channel 16. See page 27 for more information on
conguring the auto channel-change setting. If you select CANCEL, the radio does not
change channels and continues to receive on the current channel.
3. Select OK to return to the Home screen on the new channel.
Receiving All-Ships Urgency Calls
1. When receiving an all-ships urgency call, “ALL SHIPS” is displayed on the screen.
“URGENCY” is shown as the type of call.
2. If necessary, select OK to switch to Channel 16. See page 27 for more information on
conguring the auto channel change setting. If you select CANCEL, the radio does not
change channels and continues to receive on the current channel.
3. Select OK to return to the Home screen on the new channel.
Receiving All-Ships Safety Calls
1. When receiving an all-ships safety call, “ALL SHIPS” is displayed on the screen.
“SAFETY” is shown as the type of call. Select OK to change the channel. If you select
CANCEL, the radio does not change channels and continues to receive on the current
channel.
2. Select OK to return to the Home screen on the new channel.
Receiving Individual Routine Calls
1. When receiving an individual routine call, “INDIVIDUAL” is displayed on the screen.
“ROUTINE” is shown as the type of call. If the channel request is for an invalid channel,
“INVALID CH REQUEST” is displayed on the screen.
2. If the channel request is for a valid channel, select OK to change channels. If you select
CANCEL, the radio does not change channels and continues to receive on the current
channel.
Draft
VHF 300 Series Owner’s Manual 21
Digital Selective Calling
Receiving Position Request Calls
You can congure your radio reply automatically to incoming position requests, to prompt
you to review and approve the incoming requests before replying, or to ignore incoming
requests (see page 27 for more information).
If you enable automatic position replies, the screen displays “SENDING POSITION
CALLING” and sends your position when receiving a position request. After the call has
been transmitted successfully, the screen displays “POSITION SENT”.
When receiving a position request, “POS. REQUEST FROM [VESSEL NAME or MMSI
NUMBER]” is displayed on the screen. If GPS data is available, press OK to send the
position reply. If GPS data is not available, the screen displays “NO GPS DATA. UNABLE
TO COMPLY”.
Receiving Position Send Calls
When receiving a position send call (position report), “POS. SEND FROM [VESSEL
NAME or MMSI NUMBER]” is displayed on the screen with the position data. Select OK
to return to the Home screen.
Receiving Group Calls
1. When receiving a group call, “GROUP ROUTINE” is displayed on the screen. The radio
prompts you to change to the requested channel. If the channel request is for an invalid
channel, “INVALID CH REQUEST” is displayed on the screen.
2. Select OK to change the working channel.
3. Select OK to return to the Home screen on the new channel.
Position Tracking
When you enable position tracking, your radio uses interval position-request calls to track
up to three vessels. Regulations allow transmission of one position-request call every ve
minutes. You can call up to three vessels that your radio will alternate calling at ve-minute
intervals. If a vessel does not respond to ve consecutive position-request calls, the vessel is
removed from the position-tracking list.
The following timetable shows the polling sequence when you have three vessels in the
position-tracking list. The radio continues to send position-request calls until you stop
position tracking by selecting EXIT.
Time 0 minutes 5 minutes 10 minutes 15 minutes 20 minutes
Vessel Polled Ship 1 Ship 2 Ship 3 Ship 1 Ship 2
Draft
22 VHF 300 Series Owner’s Manual
Digital Selective Calling
Position data received from stations that respond to position-request calls is sent over the
NMEA network, so that you can track the vessels using your Garmin chartplotter. For more
information on NMEA 0183 and NMEA 2000, see page 29.
Selecting the Vessels and Activating the Call
1. Press the DSC key.
2. Select POS. TRACKING > ADD ENTRY. You can have no more than three vessels on
the position tracking list at one time. If you select ADD ENTRY and the radio sounds a
triple error beep, you must delete an entry before adding another.
3. Select the vessels from the directory.
4. Select BEGIN TRACKING. The icon is displayed to indicate that position tracking is
in progress.
5. Select EXIT to stop position tracking.
Viewing and Deactivating Vessels on the Position Tracking List
1. Press the DSC key.
2. Select POS. TRACKING.
3. To view the vessels on the list, select VESSELS.
4. To congure the radio to keep a vessel on the list, but to not call that vessel for position
tracking information, select the vessel.
5. Select OFF.
Deleting a Vessel from the Position Tracking List
1. Press the DSC key.
2. Select POS. TRACKING > DELETE.
3. Select the vessel.
4. Select YES to delete the vessel from the list. Select NO to return to the previous screen
without deleting.
Draft
VHF 300 Series Owner’s Manual 23
Digital Selective Calling
Working with the Call Logs
For every DSC call that your radio receives, the calling station, type of call, and date and
time of the call are recorded in the call logs. The latitude and longitude of the calling station
are also recorded if they are transmitted with a call.
There are three categories for calls that are logged: distress, position, and other. The
following table indicates where each type of call is located in the call logs.
Call Type Call Log
Distress Distress
Distress relay Distress
Distress ACK Distress
Position send Position
Position request Position
Group Other
All Ships Other
Individual Other
If you have entered the calling station in your directory, the name of the station is displayed
in the list of calls. If not, the MMSI number is displayed. A symbol indicating the station
type may be displayed to the left of the station name or MMSI number. The following table
indicates the meaning of these symbols and the MMSI number format for different station
types.
Symbol Meaning MMSI Number Format
$
Ship station xxxxxxxxx
Group call 0xxxxxxxx
&
Coastal station 00xxxxxxx
Viewing the Calls Stored in the Call Logs
1. Press the DSC key.
2. Select CALL LOG > DISTRESS LOG, POSITION LOG, or OTHER LOG.
3. Select the call. Information about the call is displayed on the screen. Select ] to scroll
and view all of the information.
Draft
24 VHF 300 Series Owner’s Manual
Digital Selective Calling
Placing a Call from a Call Log
All calls placed from the call log are individual routine calls.
1. Press the DSC key.
2. Select CALL LOG > DISTRESS LOG, POSITION LOG, or OTHER LOG.
3. Select the MMSI number or the station name.
4. Select CALL. The screen indicates individual routine as the call type.
5. Select the channel on which you want to communicate. The radio transmits this request
with your call. See page 19 for information on selecting a channel.
6. Select CALL.
Saving a Vessel to the Directory from a Call Log
1. Press the DSC key.
2. Select CALL LOG > DISTRESS LOG, POSITION LOG, or OTHER LOG.
3. Select the MMSI number. Select a station name if you want to edit the name in the
directory.
4. Select SAVE.
5. To edit the name, turn the Channel knob to change the character. Press the Channel
knob to select the character and move to the next character in the name. Select ab to
return to a previous character. You can enter up to 10 characters.
6. Select ACCEPT to save your changes. Select CANCEL to exit the edit screen without
saving your changes.
Deleting a Call Log Entry
1. Press the DSC key.
2. Use the Channel knob to select CALL LOG > POSITION LOG, DISTRESS LOG, or
OTHER LOG.
3. Use the Channel knob to select the MMSI number or station.
4. Select ].
5. Select DELETE.
6. Select YES to delete the call. Select NO to cancel this action and return to the previous
screen.
Draft
VHF 300 Series Owner’s Manual 25
Digital Selective Calling
Using the Directory
Viewing the Directory
1. Press the DSC key.
2. Select DIRECTORY.
3. Select a station name in your directory.
4. Press the CLEAR key to return to the previous screen. Press the MENU key to return to
the Home screen.
Adding an Individual Entry to the Directory
1. Press the DSC key.
2. Select DIRECTORY > ADD ENTRY.
3. Enter the MMSI number.
4. Enter a name. You can enter up to 10 characters.
5. Select ACCEPT to save your changes to the directory. Select BACK to return to the
previous screen without saving your changes. Press the MENU key at any time to return
to the Home screen.
Editing an Individual Entry in the Directory
1. Press the DSC key.
2. Select DIRECTORY > EDIT ENTRY.
3. Select an entry in the directory.
4. Change the characters in the MMSI eld or the Name eld.
5. Select ACCEPT to save your changes to the directory. Select BACK to return to the
previous screen without saving your changes. Press the MENU key to return to the
Home screen.
Deleting an Individual Entry from the Directory
1. Press the DSC key.
2. Select DIRECTORY > DELETE.
3. Select the entry to delete.
4. Select YES to delete the entry. Select NO to quit the action and return to the directory
list. Press the CLEAR key at any time to return to the previous screen without saving
your changes. Press the MENU key to return to the Home screen.
Draft
26 VHF 300 Series Owner’s Manual
Digital Selective Calling
Adding and Modifying Group Entries
Adding a Group
1. Press the DSC key.
2. Select GROUP > ADD ENTRY.
3. Enter the MMSI number.
4. Enter a name.
5. Select ACCEPT to save your changes. Select CANCEL to return to the previous screen
without saving the changes. Press the MENU key to return to the Home screen.
Editing a Group
1. Press the DSC key.
2. Select GROUP > EDIT ENTRY.
3. Change the characters in the MMSI eld or the Name eld.
4. Select ACCEPT to save your changes. Select CANCEL to return to the previous screen
without saving the changes. Press the MENU key to return to the Home screen.
Deleting a Group
1. Select the DSC key.
2. Select GROUP > DELETE.
3. Select YES to delete the entry. Select NO to quit the action and return to the previous
screen.
Conguring DSC Settings
Manually Entering Position Information
If you do not have a GPS device connected to your radio, manually enter your position and
time of entry so that this information will be transmitted with DSC calls. When you enter
the position and time manually, “MANUAL POS” is displayed on the screen.
Your radio has two alarms to indicate that you need to update your position data:
When the position data you entered manually is over four hours old, the radio beeps and
displays “DATA IS OVER 4 HOURS OLD” on the screen.
After 23.5 hours, manually-entered position data is considered invalid. The radio
displays “DATA IS INVALID” on the screen. The radio will not transmit position data
that is more than 23.5 hours old.
See page 35 for more information on GPS alarms.
When you manually enter your position with the time, the time remains xed at the value
you specify. The radio updates the time only if you connect a GPS device to the radio.
Draft
VHF 300 Series Owner’s Manual 27
Digital Selective Calling
To enter position information:
1. Press the MENU key.
2. Select SYSTEM > MANUAL GPS.
3. For each number in the sequence, turn the Channel knob clockwise to increase the
number, and counterclockwise to decrease the number. When entering a direction
character, rotate the channel knob to switch between N or S and E or W.
Conguring the Automatic Channel Change Setting
This setting determines whether the radio automatically tunes to Channel 16 when receiving
the following types of calls:
Distress
Distress relay
All-ships urgency
Under certain conditions, you may want to disable automatic channel changing, such as
when you need to continually monitor a channel to maintain uninterrupted communication
with another vessel. When disabled, the icon is displayed on the screen.
1. Press the MENU key.
2. Select DSC > AUTO CHANGE CH.
3. Select from the following options:
ON—when a qualifying call is received, the radio automatically turns the channel to
Channel 16.
OFF—when a qualifying call is received, a message is displayed that prompts you to
accept or decline the changing of channels.
4. Press the MENU key to return to the Home screen.
Conguring the Automatic Position Reply Setting
You can congure the way your radio responds to incoming position requests.
1. Press the MENU key.
2. Select DSC > POSITION REPLY.
3. Select from the following options:
AUTO—the radio automatically and immediately sends position information to all
position inquiries.
MANUAL—the radio sends position information only after you review and approve
the request.
OFF—the radio does not send position information or notify you when a position
inquiry has been received.
4. Press the MENU key to return to the Home screen.
Draft
28 VHF 300 Series Owner’s Manual
Digital Selective Calling
Sending Voicemail
You can record a 15-second voicemail message and send it to another vessel. When you
send the voicemail, the radio will call the other vessel and transfer the voicemail if the other
vessel responds with an acknowledgement message. The icon is displayed when you
have an outgoing voicemail message.
If the radio is unable to successfully transmit your voicemail within one hour, the radio
prompts you to retry or cancel the call. If you do not make a selection after three minutes,
the call is cancelled automatically.
To record a voicemail message:
1. Select DSC > VOICEMAIL > MESSAGE.
2. Press the PTT key to record your voice message. You can record up to 15 seconds.
NOTE: If you want to rerecord your voicemail message, press the PTT key again.
To listen to a voicemail message:
1. Select DSC > VOICEMAIL > MESSAGE.
2. Select LISTEN.
To delete a voicemail message:
1. Select DSC > VOICEMAIL > MESSAGE.
2. Select DELETE.
To transmit a voicemail message:
1. Select DSC > VOICEMAIL > SEND VOICEMAIL.
2. Select an entry from the directory.
3. Use the CHANNEL knob to select a channel.
4. Select CALL. The radio calls the other vessel and transfers the voicemail if the other
vessel responds with an acknowledgement message.
Automatic Identication System
The VHF 300 AIS and VHF 300i AIS are equipped with Automatic Identication System
(AIS) receivers. AIS information can be sent over a NMEA 2000 network or a high-speed
NMEA 0183 network, depending on the communication protocol settings (see page 30).
To turn AIS on or off:
Select MENU > AIS > ON (or OFF).
Draft
VHF 300 Series Owner’s Manual 29
Advanced Operation
Advanced Operation
NMEA 0183 and NMEA 2000
Connect your radio to a NMEA 0183 network or to a NMEA 2000 network to perform the
following functions:
Transfer received DSC distress and position information to any compatible chartplotter.
Receive GPS position. GPS position can be displayed on the Home screen and is
transmitted with DSC calls. The icon is displayed when GPS data is available, and
blinks when GPS data is not present. When GPS data is not present, the radio will signal
for you to enter your position manually every four hours.
Transfer AIS information that the radio receives from other vessels. The radio can
transfer this data over a NMEA 2000 network or a NMEA 0183 high-speed network. For
information on enabling AIS, see page 28.
For supported NMEA 0183 sentences and NMEA 2000 PGNs, see page 49. For more
information on connecting your radio to a NMEA network, see the VHF 300 Series
Installation Instructions.
Additional Functionality with Other Garmin Devices
Your VHF 300 series radio has additional capabilities when connected with other Garmin
devices.
NOTE: Your Garmin chartplotter may require a free software upgrade to use the
functionality listed in this section. Go to www.garmin.com for current updates to your
Garmin chartplotter software.
When you connect your radio to a Garmin chartplotter using NMEA 0183 or
NMEA 2000, your chartplotter can keep track of the current and previous positions of
the contacts in the radio directory.
TIP: Try using position tracking on up to three contacts to automate this process.
When your VHF 300 series radio is connected to a NMEA 2000 network with another
Garmin chartplotter, you can use the chartplotter interface to set up an individual routine
call.
As an additional safety measure, when your VHF 300 series radio is connected to a
NMEA 2000 network and you initiate a man-overboard distress call from your radio,
your Garmin chartplotter displays the man-overboard screen and prompts you to navigate
to the man-overboard point. If you have a Garmin autopilot system connected to the
network, it prompts you to start a Williamson’s turn to the man-overboard point.
Draft
30 VHF 300 Series Owner’s Manual
Advanced Operation
Selecting NMEA 0183 or NMEA 2000
This setting determines whether you are connected to a NMEA 0183 network or a NMEA
2000 network. The radio can only communicate over one network type at a time.
To congure a VHF 300 or a VHF 300i:
1. Press the MENU key.
2. Select COMMUNICATIONS > PROTOCOL.
3. Select NMEA2000 or NMEA0183.
To congure a VHF 300 AIS or a VHF 300i AIS:
1. Press the MENU key.
2. Select COMMUNICATIONS > PROTOCOL.
3. Select NMEA2000 or NMEA0183.
4. If you selected NMEA0183, select one of the following options:
If AIS is disabled, select NMEA STANDARD or NMEA HIGH SPD.
If AIS is enabled, you can only select NMEA HIGH SPD.
MMSI (Vessel) Filtering over a NMEA Network
Your radio can send call-related data over NMEA 0183 or NMEA 2000 when it receives
distress calls, acknowledgements to position request calls, and other position-send calls. You
can lter the MMSI numbers (vessels) for which your radio sends this data in three ways:
any MMSI number (all vessels), no MMSI numbers (no vessels), or select MMSI numbers
(vessels selected from your directory).
When you congure the radio to send data for select vessels, and you receive an
acknowledgement to a position request call, or other position-send call from an MMSI
number not in your directory, your radio does not send NMEA data for that call. Distress
call information will still be sent. For more information about NMEA output from your
radio, see page 49.
Conguring MMSI Filtering for Select Vessels
1. Press the MENU key.
2. Select COMMUNICATIONS > DSC OUTPUT > SELECT VESSELS. You can also select
ALL VESSELS to send data when you receive a call from any MMSI number, or select
NO VESSELS to not send data for any MMSI number.
3. Select the vessel in your directory.
4. Select from the following options:
ON—the radio will send call-related data over your NMEA network when you receive
a distress call, an acknowledgement to a position request call or other position send
call from this vessel.
Draft
VHF 300 Series Owner’s Manual 31
Advanced Operation
OFF—the radio will not send data for this vessel. Distress call information will still be
sent.
Modifying the Operating Settings
Modifying the Backlight and Contrast Settings
1. Press the MENU key.
2. Select SYSTEM > DISPLAY > BACKLIGHT or CONTRAST.
3. Turn the Channel knob to adjust the backlight or contrast. “MAX” represents the
maximum setting, and the number 1 represents the minimum setting.
4. Select CANCEL to disregard your changes and return to the previous screen. Select OK
to save your changes and return to the Home screen.
Modifying the Beeper Setting
You can change the volume of the beeper tone that sounds when you press keys or the
Channel knob, or you can turn the beeper tone off.
1. Press the MENU key.
2. Select SYSTEM > BEEPER.
3. Select from the following options:
OFF—the radio does not beep when you press keys, or when you press the Channel
knob.
QUIET or LOUD—set the beeper volume level.
Turning the Auto Power-On Setting On or Off
1. Press the MENU key.
2. Select SYSTEM > AUTO POWER-ON.
3. Select ON or OFF.
Conguring Whether Latitude and Longitude are Displayed on the
Home Screen
You can display the latitude and longitude on the home screen if you have a GPS device
connected to your radio, or if you enter position data manually.
1. Press the MENU key.
2. Select SYSTEM > NUMBERS > LAT/LONG.
3. Select from the following options:
AUTO—latitude and longitude information is displayed on the Home screen.
HIDE—latitude and longitude information is not displayed on the Home screen.
Draft
32 VHF 300 Series Owner’s Manual
Advanced Operation
Conguring Course Over Ground/Speed Over Ground (COG/SOG)
Information Displayed on the Home Screen
You can display COG and SOG on the home screen if you have a GPS device connected to
your radio.
1. Press the MENU key.
2. Select SYSTEM > NUMBERS > COG/SOG.
3. Select from the following options:
AUTO—COG/SOG information is displayed on the Home screen.
HIDE—COG/SOG information is not displayed on the Home screen.
Conguring Whether the Time is Displayed on the Home Screen
You can congure whether the time is displayed on the Home screen. The radio updates the
time only if you connect a GPS device to the radio. When you manually enter your position
with the time, the time remains xed at the value you specify. This time of entry is always
displayed on the Home screen, even if you hide the time.
1. Press the MENU key.
2. Select SYSTEM > NUMBERS > TIME.
3. Select from the following options:
AUTO—time information is displayed on the Home screen.
HIDE—time information is not displayed on the Home screen.
Conguring the Time Format
1. Press the MENU key.
2. Select SYSTEM > UNITS > TIME > FORMAT.
3. Select 12 Hour, 24 Hour, or UTC.
Conguring the Time Offset
If you prefer to have your unit display the time in local time rather than Universal
Coordinated Time (UTC), you need to indicate the local time offset from UTC time. When
you make an adjustment for local time, “LOC” is displayed after the time instead of “UTC”
on the Home screen.
NOTE: The time sent when you make a DSC call is always sent in UTC format.
To congure the UTC offset:
1. Press the MENU key.
2. Select SYSTEM > UNITS > TIME > OFFSET.
3. Turn the Channel knob to enter an offset number in increments of 0.5 hours. You can set
the offset to a maximum of +/- 13 hours.
Draft
VHF 300 Series Owner’s Manual 33
Advanced Operation
4. Select from the following options:
OK—save your changes and return to the previous screen.
CANCEL—remove your changes.
Modifying the Speed Unit of Measurement
You can adjust the unit of measure that is displayed for the speed calculation throughout
the radio. The Speed Over Ground (SOG) on the Home screen will be displayed in the
measurement you select here.
1. Press the MENU key.
2. Select SYSTEM > UNITS > SPEED.
3. Select from the following options:
KNOTS—change the unit of measure to knots.
MPH—change the unit of measure to miles per hour.
KPH—change the unit of measure to kilometers per hour.
Modifying the Heading Display
You can modify the heading to display either true or magnetic calculations. This heading
measurement is displayed throughout the radio including Course Over Ground (COG) on
the Home screen.
1. Press the MENU key.
2. Select SYSTEM > UNITS > HEADING.
3. Select from the following options:
TRUE—change the calculation to reect true north.
MAGNETIC—change the calculation to reect magnetic north.
NOTE: If your radio is congured for NMEA 2000 communication, you cannot select
TRUE or MAGNETIC. Your radio displays AUTO as the setting and displays heading
data based on the information provided over the network (PGN 129026 – COG/SOG, Rapid
Update).
Selecting the Frequency Band
You can switch between the USA, International, or Canadian frequency bands. For a list of
channels available in each frequency band, see pages 36–43.
NOTE: The International frequency band is the only band available for the VHF 300i and
the VHF 300i AIS, unless you have the other bands enabled by an Garmin authorized dealer.
1. Press the MENU key.
2. Select MENU > CHANNEL > FREQUENCY BAND.
3. Use the Channel knob to select USA, INTERNATIONAL, or CANADA.
Draft
34 VHF 300 Series Owner’s Manual
Advanced Operation
Changing the Language
1. Press the MENU key.
2. Select LANGUAGE.
3. Select the system language.
Changing the Channel Names
Channel names are displayed on the Home screen using nine characters. If the name is
longer than nine characters, the full name scrolls across the top of the screen and then
switches to the short name. You can change the nine-character name of the channel to reect
a local meaning.
1. Press the MENU key.
2. Select CHANNEL > NAME.
3. Select the channel you want to edit.
4. To edit the default name, turn the Channel knob to change the character. Press the
Channel knob to select the character and move to the next character in the word. You
can enter a maximum of nine characters for a channel name.
5. Select any of the following options to perform various functions:
Press ab to return to a previous character.
CANCEL—return to the previous screen without saving your changes.
6. When you have completed renaming the channel, select ACCEPT.
Restoring Factory Settings
You can restore the radio to utilize the factory default settings. When you perform this
action, any changes you have made to the radio settings are lost, and the call logs are
deleted. The directory and group entries are retained.
1. Press the MENU key.
2. Select SYSTEM > SYSTEM INFO.
3. Select RESET.
4. Select from the following options:
YES—restart the radio and restore it to the original factory default settings.
NO—return to the previous screen.
Testing the System Operation
1. Press the MENU key.
2. Select SYSTEM > SYSTEM INFO.
3. Select TEST. A list of test items is displayed.
4. If necessary, use the arrow keys to scroll through the information.
Draft
VHF 300 Series Owner’s Manual 35
Appendix
Appendix
Alarms and Messages
The radio may generate the following alarms or system messages.
Battery Alarm
If the radio detects a voltage greater than 15.8 Vdc or less than 10 Vdc, “HIGH VOLTAGE”
or “LOW VOLTAGE” is displayed on the screen. Check the wiring if any of these
conditions occur.
Main in Use
When the primary VHF 300 series radio unit is being used, “MAIN IN USE” is displayed
on the screen of all remote Garmin GHS series handsets. The screen returns to normal three
seconds after the last input on the primary station.
Remote handset stations cannot interrupt the primary radio unit. However, remote handset
stations can interrupt the operation of other handset stations.
WX (Weather Alert)
If you set the WX alarm and an incoming weather alert is detected, the radio automatically
tunes to the WX channel that is broadcasting the alert. See page 11 for more information on
weather alerts.
GPS Data Alarm
When GPS data from a NMEA network or position data you entered manually is over four
hours old, the alarm tone beeps and “DATA IS OVER 4 HOURS OLD” is displayed on the
screen.
Select IGNORE to disregard the alarm and to turn off the alarm beeping. When you take
no action after three minutes, IGNORE is selected automatically.
Select SET to enter a new position. See page 26 for more information on manually
entering position data.
Invalid GPS Data Alarm
When GPS data from a NMEA network or position data you entered manually is over 23.5
hours old, “DATA IS INVALID” is displayed on the screen. The radio will not transmit
position data that is more than 23.5 hours old.
Select IGNORE to discard the old position data. The screen displays “NO GPS INFO”
on the Home screen. When you take no action after three minutes, IGNORE is selected
automatically.
Draft
36 VHF 300 Series Owner’s Manual
Appendix
Select SET to enter a new position. See page 26 for more information on manually
entering position data.
Position Tracking
After ve consecutive failed attempts to request position information from a vessel, “NO
POS FOR [VESSEL NAME]” is displayed on the screen.
Select RETRY to reattempt the position request.
Select REMOVE to discontinue calling the vessel. When you take no action after three
minutes, REMOVE is selected automatically.
Channel Lists
The USA, Canadian, and International channel lists provided in this Appendix are for
reference only. It is the responsibility of the radio operator to ensure that channels are used
correctly according to local regulations.
USA Channels
For the latest information on USA channels, visit www.navcen.uscg.gov/marcomms
/vhf.htm. Also visit the Federal Communications Commission’s Marine VHF Radio
Channels page at http://wireless.fcc.gov/services/index.htm?job=service
_bandplan&id=ship_stations. The FCC page does not include frequency information, but
has more complete information on the use of the channels.
IMPORTANT: Boaters primarily should use channels listed as non-commercial. Use
Channel 16 to call other stations or for distress alerting. Use Channel 13 to contact a ship
when there is danger of collision. All ships of length 20 m or greater are required to guard
VHF Channel 13, in addition to VHF Channel 16, when operating within USA territorial
waters. Users may be ned by the FCC for improper use of these channels.
Channel
Number
Transmission
MHz
Receiving
MHz
User
01A 156.050 156.050 Port operations and commercial, VTS. Available only in
the New Orleans and lower Mississippi areas.
03A 156.150 156.150 Government only
05A 156.250 156.250 Port operations or VTS in the Houston, New Orleans,
and Seattle areas.
6 156.300 156.300 Intership safety
07A 156.350 156.350 Commercial
8 156.400 156.400 Commercial (Intership only)
9 156.450 156.450 Boater Calling. Commercial and non-commercial.
10 156.500 156.500 Commercial
Draft
VHF 300 Series Owner’s Manual 37
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
User
11 156.550 156.550 Commercial. VTS in selected areas.
12 156.600 156.600 Port operations. VTS in selected areas.
13 156.650 156.650 Intership navigation safety (bridge-to-bridge).
Ships greater than 20 meters in length maintain a
listening watch on this channel in US waters.
14 156.700 156.700 Port operations. VTS in selected areas.
15 -- 156.750 Environmental (receive only). Used by Class C
Emergency Position Indicating Radio Beacons
(EPIRBs).
16 156.800 156.800 International distress, safety, and calling. Ships required
to carry radio, USCG, and most coast stations maintain
a listening watch on this channel.
17 156.850 156.850 State control
18A 156.900 156.900 Commercial
19A 156.950 156.950 Commercial
20 157.000 161.600 Port operations (duplex)
20A 157.000 157.000 Port operations
21A 157.050 157.050 USA Coast Guard only
22A 157.100 157.100 Coast Guard Liaison and Maritime Safety Information
Broadcasts. Broadcasts are announced on Channel 16.
23A 157.150 157.150 USA Coast Guard only
24 157.200 161.800 Public correspondence (Marine Operator)
25 157.250 161.850 Public correspondence (Marine Operator)
26 157.300 161.900 Public correspondence (Marine Operator)
27 157.350 161.950 Public correspondence (Marine Operator)
28 157.400 162.000 Public correspondence (Marine Operator)
61A 156.075 156.075 Government only
63A 156.175 156.175 Port operations and commercial, VTS. Available only in
the New Orleans and lower Mississippi areas.
64A 156.225 156.225 Coast Guard only
65A 156.275 156.275 Port operations
66A 156.325 156.325 Port operations
67 156.375 156.375 Commercial. Used for Bridge-to-bridge communications
in lower Mississippi River. Intership only.
68 156.425 156.425 Non-Commercial
69 156.475 156.475 Non-Commercial
Draft
38 VHF 300 Series Owner’s Manual
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
User
70 156.525 156.525 Digital Selective Calling
(voice communications not allowed)
71 156.575 156.575 Non-Commercial
72 156.625 156.625 Non-Commercial (Intership only)
73 156.675 156.675 Port Operations
74 156.725 156.725 Port Operations
77 156.875 156.875 Port Operations (Intership only)
78A 156.925 156.925 Non-Commercial
79A 156.975 156.975 Commercial. Non-Commercial in the Great Lakes only.
80A 157.025 157.025 Commercial. Non-Commercial in the Great Lakes only.
81A 157.075 157.075 USA Government only. Environmental protection
operations.
82A 157.125 157.125 USA Government only
83A 157.175 157.175 USA Coast Guard only
84 157.225 161.825 Public Correspondence (Marine Operator)
85 157.275 161.875 Public Correspondence (Marine Operator)
86 157.325 161.925 Public Correspondence (Marine Operator)
87 157.375 161.975 Public Correspondence (Marine Operator)
88 157.425 162.025 Public Correspondence only near Canadian border.
88A 157.425 157.425 Commercial, Intership only
The letter “A” indicates simplex use of the ship station transmit side of an international
duplex channel, and that operations are different than international operations on that
channel. “A” channels are generally only used in the USA, and use is normally not
recognized or allowed outside the USA.
The letter “B” indicates simplex use of the coast station transmit side of an international
duplex channel. The USA does not currently use “B” channels for simplex communications
in this band.
WX (Weather) Channels
Channel Frequency (MHz)
WX1 162.55
WX2 162.4
WX3 162.475
WX4 162.425
Draft
VHF 300 Series Owner’s Manual 39
Appendix
Channel Frequency (MHz)
WX5 162.45
WX6 162.5
WX7 162.525
Canadian Channels
Channel
Number
Transmission
MHz
Receiving
MHz
Area of
Operation
User
01 156.050 160.650 PC Public correspondence
02 156.100 160.700 PC Public correspondence
03 156.150 160.750 PC Public correspondence
04A 156.200 156.200 PC Intership, Ship/Shore, and Safety:
Canadian Coast Guard search and rescue
04A 156.200 156.200 EC Intership, Ship/Shore, and Commercial:
Commercial shing only.
05A 156.250 156.250 Ship Movement
06 156.300 156.300 All areas Intership, Commercial, Non-commercial,
and Safety: May be used for search and
rescue communications between ships
and aircraft.
07A 156.350 156.350 All areas Intership, Ship/Shore, and Commercial
08 156.400 156.400 WC, EC Intership, Commercial, and Safety: Also
assigned for operations in the Lake
Winnipeg area.
09 156.450 156.450 AC Intership, Ship/Shore, Commercial,
Non-commercial, and Ship Movement:
May be used to communicate with aircraft
and helicopters in predominantly maritime
support operations.
10 156.500 156.500 AC, GL Intership, Ship/Shore, Commercial,
Non-commercial, Safety, and Ship
Movement: May also be used for
communications with aircraft engaged
in coordinated search and rescue and
antipollution operations.
11 156.550 156.550 PC, AC, GL Intership, Ship/Shore, Commercial,
Non-commercial, and Ship Movement:
Also used for pilotage purposes.
12 156.600 156.600 WC, AC, GL Intership, Ship/Shore, Commercial,
Non-commercial, and Ship Movement:
Port operations and pilot information and
messages.
Draft
40 VHF 300 Series Owner’s Manual
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
Area of
Operation
User
13 156.650 156.650 All areas Intership, Commercial, Non-commercial,
and Ship Movement: Exclusively for
bridge-to-bridge navigational trafc.
Limited to 1 watt maximum power.
14 156.700 156.700 AC, GL Intership, Ship/Shore, Commercial,
Non-commercial, and Ship Movement:
Port operations and pilot information and
messages.
15 156.750 156.750 All areas Intership, Ship/Shore, Commercial,
Non-commercial, and Ship Movement:
All operations limited to 1 watt maximum
power. May also be used for on-board
communications.
16 156.800 156.800 All areas International Distress, Safety, and Calling
17 156.850 156.850 All areas Intership, Ship/Shore, Commercial,
Non-commercial, and Ship Movement:
All operations limited to 1 watt maximum
power. May also be used for on-board
communications.
18A 156.900 156.900 All areas Intership, Ship/Shore, and Commercial:
Towing on the Pacic Coast.
19A 156.950 156.950 All areas
except PC
Intership and Ship/Shore: Canadian
Coast Guard only.
19A 156.950 156.950 PC Intership and Ship/Shore: various
Government departments.
20 157.000 161.600 All areas Ship/Shore, Safety, and Ship Movement:
Port operations only with 1 watt maximum
power.
21A 157.050 157.050 All areas Intership and Ship/Shore: Canadian
Coast Guard only.
21B - 161.650 All areas Safety: Continuous Marine Broadcast
(CMB) service.
22A 157.100 157.100 All areas Intership, Ship/Shore, Commercial, and
Non-commercial: For communications
between Canadian Coast Guard and non-
Canadian Coast Guard stations only.
23 157.150 161.750 PC Ship/Shore and Public Correspondence:
Also in the inland waters of British
Columbia and the Yukon.
24 157.200 161.800 All areas Ship/Shore and Public Correspondence
Draft
VHF 300 Series Owner’s Manual 41
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
Area of
Operation
User
25 157.250 161.850 PC Ship/Shore and Public Correspondence:
Also assigned for operations in the Lake
Winnipeg area.
25B - 161.850 AC Safety: Continuous Marine Broadcast
(CMB) service.
26 157.300 161.900 All areas Ship/Shore, Safety, and Public
Correspondence
27 157.350 161.950 AC, GL, PC Ship/Shore and Public Correspondence
28 157.400 162.000 PC Ship/Shore, Safety, and Public
Correspondence
28B - 162.000 AC Safety: Continuous Marine Broadcast
(CMB) service.
60 156.025 160.625 PC Ship/Shore and Public Correspondence
61A 156.075 156.075 PC Intership and Ship/Shore: Canadian
Coast Guard only.
61A 156.075 156.075 EC Intership, Ship/Shore, and Commercial:
Commercial shing only.
62A 156.125 156.125 PC Intership and Ship/Shore: Canadian
Coast Guard only.
62A 156.125 156.125 EC Intership, Ship/Shore, and Commercial:
Commercial shing only.
64 156.225 160.825 PC Ship/Shore and Public Correspondence
64A 156.225 156.225 EC Intership, Ship/Shore, and Commercial:
Commercial shing only.
65A 156.275 156.275 Intership, Ship/Shore, Commercial,
Non-commercial, and Safety: Search and
rescue and antipollution operations on the
Great Lakes. Towing on the Pacic Coast.
Port operations only in the St. Lawrence
River areas with 1 watt maximum power.
Pleasure craft in the inland waters of
Alberta, Saskatchewan and Manitoba
(excluding Lake Winnipeg and the Red
River).
66A 156.325 156.325 Intership, Ship/Shore, Commercial, Non-
commercial, Safety, and Ship Movement:
Port operations only in the St. Lawrence
River/Great Lakes Areas with 1 watt
maximum power.
67 156.375 156.375 EC Intership, Ship/Shore, and Commercial:
Commercial shing only.
Draft
42 VHF 300 Series Owner’s Manual
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
Area of
Operation
User
67 156.375 156.375 All areas
except EC
Intership, Ship/Shore, Commercial,
Non-commercial, and Safety: May also
be used for communications with aircraft
engaged in coordinated search and
rescue and antipollution operations.
68 156.425 156.425 All areas Intership, Ship/Shore, and Non-
commercial: For marinas and yacht clubs.
69 156.475 156.475 All areas
except EC
Intership, Ship/Shore, Commercial and
Non-commercial
69 156.475 156.475 EC Intership, Ship/Shore, and Commercial:
Commercial shing only.
71 156.575 156.575 PC Intership, Ship/Shore, Commercial, Non-
commercial, Safety, and Ship Movement
71 156.575 156.575 Intership, Ship/Shore, and Non-
commercial: For marinas and yacht clubs
on the East Coast and on Lake Winnipeg.
72 156.625 156.625 EC, PC Intership, Commercial, and Non-
commercial: May be used to
communicate with aircraft and helicopters
in predominantly maritime support
operations. For marinas and yacht clubs
on the East Coast and on Lake Winnipeg.
73 156.675 156.675 EC Intership, Ship/Shore, and Commercial:
Commercial shing only
73 156.675 156.675 All areas
except EC
Intership, Ship/Shore, Commercial,
Non-commercial, and Safety: May also
be used for communications with aircraft
engaged in coordinated search and
rescue and antipollution operations.
74 156.725 156.725 EC, PC Intership, Ship/Shore, Commercial,
Non-commercial, and Ship Movement.
77 156.875 156.875 Intership, Ship/Shore, Safety, and Ship
Movement: Pilotage on Pacic Coast.
Port operations only in the St. Lawrence
River/Great Lakes areas with 1 watt
maximum power.
78A 156.925 156.925 EC, PC Intership, Ship/Shore and Commercial
79A 156.975 156.975 EC, PC Intership, Ship/Shore and Commercial
80A 157.025 157.025 EC, PC Intership, Ship/Shore and Commercial
81A 157.075 157.075 Intership and Ship/Shore: Canadian
Coast Guard use only in the St. Lawrence
River/Great Lakes areas.
Draft
VHF 300 Series Owner’s Manual 43
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
Area of
Operation
User
81A 157.075 157.075 PC Intership, Ship/Shore, and Safety:
Canadian Coast Guard antipollution.
82A 157.125 157.125 PC Intership, Ship/Shore, and Safety:
Canadian Coast Guard use only.
82A 157.125 157.125 Intership and Ship/Shore: Canadian
Coast Guard use only in the St. Lawrence
River/Great Lakes areas.
83 157.175 161.775 PC Ship/Shore and Safety: Canadian Coast
Guard use only.
83A 157.175 157.175 EC Intership and Ship/Shore: Canadian Coast
Guard and other Government agencies.
83B - 161.775 AC, GL Safety: Continuous Marine Broadcast
(CMB) Service.
84 157.225 161.825 PC Ship/Shore and Public Correspondence
85 157.275 161.875 AC, GL, NL Ship/Shore and Public Correspondence
86 157.325 161.925 PC Ship/Shore and Public Correspondence
87 157.375 161.975 AC, GL, NL Ship/Shore and Public Correspondence
88 157.425 162.025 AC, GL, NL Ship/Shore and Public Correspondence
Key
PC: Pacic Coast
EC (East Coast): includes NL, AC, GL and Eastern
Arctic areas
WC (West Coast): Pacic Coast, Western Arctic and
Athabasca-Mackenzie Watershed areas
NL: Newfoundland and Labrador
AC: Atlantic Coast, Gulf, and St. Lawrence River up to
and including Montreal
GL: Great Lakes (including St. Lawrence above
Montreal)
All areas: includes East and West Coast areas
International Channels
Channel
Number
Transmission
MHz
Receiving
MHz
User
01 156.050 160.650 Public Correspondence, Port Operations, and Ship
Movement
02 156.100 160.700 Public Correspondence, Port Operations, and Ship
Movement
03 156.150 160.750 Public Correspondence, Port Operations, and Ship
Movement
04 156.200 160.800 Public Correspondence, Port Operations, and Ship
Movement
05 156.250 160.850 Public Correspondence, Port Operations, and Ship
Movement
06 156.300 156.300 Intership
Draft
44 VHF 300 Series Owner’s Manual
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
User
07 156.350 160.950 Public Correspondence, Port Operations, and Ship
Movement
08 156.400 156.400 Intership
09 156.450 156.450 Intership, Port Operations, and Ship Movement
10 156.500 156.500 Intership, Port Operations, and Ship Movement
11 156.550 156.550 Port Operations and Ship Movement
12 156.600 156.600 Port Operations and Ship Movement
13 156.650 156.650 Intership Safety, Port Operations, and Ship Movement
14 156.700 156.700 Port Operations and Ship Movement
15 156.750 156.750 Intership and On-board Communications at 1 watt only
16 156.800 156.800 Distress, Safety, and Calling
17 156.850 156.850 Intership and On-board Communications at 1 watt only
18 156.900 161.500 Public Correspondence, Port Operations, and Ship
Movement
19 156.950 161.550 Public Correspondence, Port Operations, and Ship
Movement
20 157.000 161.600 Public Correspondence, Port Operations, and Ship
Movement
21 157.050 161.650 Public Correspondence, Port Operations, and Ship
Movement
22 157.100 161.700 Public Correspondence, Port Operations, and Ship
Movement
23 157.150 161.750 Public Correspondence, Port Operations, and Ship
Movement
24 157.200 161.800 Public Correspondence, Port Operations, and Ship
Movement
25 157.250 161.850 Public Correspondence, Port Operations, and Ship
Movement
26 157.300 161.900 Public Correspondence, Port Operations, and Ship
Movement
27 157.350 161.950 Public Correspondence, Port Operations, and Ship
Movement
28 157.400 162.000 Public Correspondence, Port Operations, and Ship
Movement
60 156.025 160.625 Public Correspondence, Port Operations, and Ship
Movement
61 156.075 160.675 Public Correspondence, Port Operations, and Ship
Movement
Draft
VHF 300 Series Owner’s Manual 45
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
User
62 156.125 160.725 Public Correspondence, Port Operations, and Ship
Movement
63 156.175 160.775 Public Correspondence, Port Operations, and Ship
Movement
64 156.225 160.825 Public Correspondence, Port Operations, and Ship
Movement
65 156.275 160.875 Public Correspondence, Port Operations, and Ship
Movement
66 156.325 160.925 Public Correspondence, Port Operations, and Ship
Movement
67 156.375 156.375 Intership, Port Operations, and Ship Movement
68 156.425 156.425 Port Operations and Ship Movement
69 156.475 156.475 Intership, Port Operations, and Ship Movement
70 - - Reserved for DSC
71 156.575 156.575 Port Operations and Ship Movement
72 156.625 156.625 Intership
73 156.675 156.675 Intership
74 156.725 156.725 Port operations and Ship movement
75 156.775 156.775 Port operations and Ship movement
76 156.825 156.825 Port operations and Ship movement
77 156.875 156.875 Intership
78 156.925 161.525 Public correspondence, Port Operations, and Ship
Movement
79 156.975 161.575 Public correspondence, Port Operations, and Ship
Movement
80 157.025 161.625 Public correspondence, Port Operations, and Ship
Movement
81 157.075 161.675 Public correspondence, Port Operations, and Ship
Movement
82 157.125 161.725 Public correspondence, Port Operations, and Ship
Movement
83 157.175 161.775 Public correspondence, Port Operations, and Ship
Movement
84 157.225 161.825 Public correspondence, Port Operations, and Ship
Movement
85 157.275 161.875 Public correspondence, Port Operations, and Ship
Movement
Draft
46 VHF 300 Series Owner’s Manual
Appendix
Channel
Number
Transmission
MHz
Receiving
MHz
User
86 157.325 161.925 Public correspondence, Port Operations, and Ship
Movement
87 157.375 157.375 Port Operations and Ship Movement
88 157.425 157.425 Port Operations and Ship Movement
Specications
VHF 300/300i Specications
Dimensions: W × H × D: 9
3
/
4
× 7
3
/
32
× 2
1
/
2
in. (248 × 180 × 64 mm)
Weight: 4.177 lb. (1.895 kg)
Temperature Range: from 14ºF to 122ºF (from -10ºC to 50ºC)
Compass-safe Distance: 20 in. (500 mm)
Waterproof: IEC 60529 IPX7 (Immersion in 1 meter of water for 30 minutes)
Antenna Connector: S0-239 (50 Ω)
Digital Selective Calling: Class D
Frequency Bands: All USA, Canadian, and International marine channels; 10 NOAA
weather channels
Maximum Antenna Gain: 9 dBi
Antenna Port Impedance: 50 Ω
Power
Operating Voltage: from 10.8 to 15.6 Vdc (12 Vdc boat battery)
Current Drain:
Transmit (High Power): 6 A max
Transmit (Low Power): 2 A max
Transmitter
Frequency Error: +/- 500 Hz
Transmit Power (at 13.6 Vdc):
High Power: 25 W (23–25 W)
Low Power: 1 W (.7–1 W)
Maximum Deviation: 5 kHz
Hum and Noise: -40 dB or less
Modulation Distortion: 10% or less
Draft
VHF 300 Series Owner’s Manual 47
Appendix
Adjacent Channel Power: -70 dBc or less
Conducted Spurious Emission: -36 dBm or less
Receiver
Audio Distortion: Less than 10%
Hum and Noise: Less than -40 dB
Squelch Operation: Less than 107 dBm at tight setting
Adjacent Channel Rejection: 70 dB or more
Spurious Response: 70 dB or more
Inter-modulation Response: 70 dB or more
Audio
Full-function Handset:
Impedance: 4 Ω
Input Power: 4 W
External Speaker:
Output Power: 4 W (4 Ω/max)
VHF 300/300i AIS Specications
Dimensions: W × H × D: 9
3
/
4
× 7
3
/
32
× 2
1
/
2
in. (248 × 180 × 64 mm)
Weight: 4.177 lb. (1.895 kg)
Temperature Range: from 14ºF to 122ºF (from -10ºC to 50ºC)
Compass-safe Distance: 20 in. (500 mm)
Waterproof: IEC 60529 IPX7 (Immersion in 1 meter of water for 30 minutes)
Antenna Connector: S0-239 (50 Ω)
Digital Selective Calling: Class D
Frequency Bands: All USA, Canadian, and International marine channels; 10 NOAA
weather channels
Maximum Antenna Gain: 9 dBi
Antenna Port Impedance: 50 Ω
Power
Operating Voltage: from 10.8 to 15.6 Vdc (12 Vdc boat battery)
Current Drain:
Transmit (High Power): 6 A max
Transmit (Low Power): 2 A max
Draft
48 VHF 300 Series Owner’s Manual
Appendix
Transmitter
Frequency Error: +/- 500 Hz
Transmit Power (at 13.6 Vdc):
High Power: 25 W (23–25 W)
Low Power: 1 W (.7–1 W)
Maximum Deviation: 5 kHz
Hum and Noise: -40 dB or less
Modulation Distortion: 10% or less
Adjacent Channel Power: -70 dBc or less
Conducted Spurious Emission: -36 dBm or less
Receiver
Audio Distortion: Less than 10%
Hum and Noise: Less than -40 dB
Squelch Operation: Less than 107 dBm at tight setting
Adjacent Channel Rejection: 70 dB or more
Spurious Response: 70 dB or more
Inter-modulation Response: 70 dB or more
AIS Receiver
Adjacent Channel Rejection: 70 dB or more
Spurious Response: 70 dB or more
Inter-modulation Response: 70 dB or more
Audio
Full-function Handset:
Impedance: 4 Ω
Input Power: 4 W
External Speaker:
Output Power: 4 W (4 Ω/max)
VHF 300 Series and VHF 300 AIS Series Auxiliary Component
Specications
Hailer Output Power: 30 W max
Hailer Horn Impedance: 4 Ω
Draft
VHF 300 Series Owner’s Manual 49
Appendix
NMEA (VHF 300 models and VHF 300 AIS models)
NMEA 0183 IN Sentences Supported (NMEA 0183 version 3.01)
Sentence Denition
GGA Global Positioning System Fix Data
GLL Geographic Position - Latitude/Longitude
GNS GNSS Fix Data
RMA Recommended Minimum Specic Loran-C Data
RMB Recommended Minimum Navigation Information
RMC Recommended Minimum Specic GNSS Data
NMEA 0183 OUT Sentences Supported (NMEA 0183 version 3.01)
Sentence Denition
DSC DSC Information
DSE Expanded DSC
VDM* AIS Information
NMEA 2000 PGN Information
Receive Transmit
059392 ISO Acknowledgement 059392 ISO Acknowledgement
059904 ISO Request 060928 ISO Address Claim
060928 ISO Address Claim 126208 NMEA Request/Command/Ack
126208 NMEA Request/Command/Ack 126464 PGN List
129026 COG/SOG, Rapid Update 126996 Product Information
129029 GNSS Position Data 129799 Radio Frequency/Mode/Power
129029 GNSS Position Data 129799 Radio Frequency/Mode/Power
129808 DSC Call Information 129038* AIS Class A Position Report
129039* AIS Class B Position Report 129040* AIS Class B Extended Position
Report
129794* AIS Class A Static and Voyage
Related Data
129798* AIS SAR Aircraft Position Report
* VHF 300 AIS models only
Draft
50 VHF 300 Series Owner’s Manual
Appendix
GHS 10 and GHS 10i Specications
Dimensions: 6
11
/
32
× 2
13
/
16
× 1
11
/
16
in. (161 × 71.6 × 42.8 mm)
Weight: 12.98 oz. (368 g)
Temperature Range: from 14ºF to 122ºF (from -10ºC to 50ºC)
Compass-safe Distance: 20 in. (500 mm)
Waterproof: IEC 60529 IPX7 (Immersion in 1 meter of water for 30 minutes)
Contact Garmin
Contact Garmin Product Support if you have any questions while using your VHF 300 series radio. In the USA,
go to www.garmin.com/support, or contact Garmin USA by phone at (913) 397.8200 or (800) 800.1020.
In the UK, contact Garmin (Europe) Ltd. by phone at 0808 2380000.
In Europe, go to www.garmin.com/support and click Contact Support for in-country support information, or
contact Garmin (Europe) Ltd. by phone at +44 (0) 870.8501241.
Caring for the Unit
The case is constructed of high quality materials and does not require user maintenance, except cleaning.
Cleaning the Case
Clean the unit’s outer casing (except for the screen) using a cloth dampened with a mild detergent solution and
then wipe dry. Avoid chemical cleaners and solvents that may damage plastic components.
Cleaning the Screen
The unit’s lens is textured to reduce glare, and is sensitive to skin oils, waxes and abrasive cleaners. Cleaners
containing ammonia, alcohol, abrasives, or anti-grease detergents will harm the anti-reective coating. It is
important to clean the lens using an eyeglass lens cleaner (that is specied as safe for anti-reective coatings)
and a clean, lint-free cloth.
Water Immersion
The unit is waterproof to IEC Standard 60529 IPX7. It can withstand immersion in 1 meter of water for 30
minutes. Prolonged submersion can cause damage to the unit. After submersion, be certain to wipe and air dry
the unit before reuse.
Draft
VHF 300 Series Owner’s Manual 51
Index
Index
Symbols
16/9 mode 7
1 W power transmission 8
25 W power transmission 8
A
AIS
.
See Automatic Identication System
alarms
battery 35
GPS data 35
invalid GPS data 35
WX (weather alert) 35
ATIS 12
disabled functions with 12
disabling 13
enabling 13
entering identication number 13
viewing identication number 13
Automatic Identication System
disabling 28
enabling 28
autopilot capabilities 29
auto power-on 31
B
backlight level 31
beeper volume 31
bypassing 1 W transmission power 5
C
call logs
deleting entries 24
placing calls from 24
saving vessels to directory 24
types of 23
viewing stored calls 23
channel changing, automatic 27
channel monitoring
Dual watch 7
Tri watch 7
channels
Canadian 39
changing names of 34
International 43
removing saved status 6
saving 5
scanning all 5
scanning saved 6
selecting 4
USA 36
WX (weather) 38
chartplotter capabilities 29
cleaning
case 50
screen 50
communication playback 6
contrast level 31
course over ground, displaying 32
D
Digital Selective Calling 14–28
directory
adding entries 25
deleting entries 25
editing entries 25
viewing 25
distant/local reception
sensitivity adjustment 8
distress calls 15–17
receiving acknowledgement 17
revoking 17
sending designated 16
sending undesignated 15
stopping automatic transmission 17
waiting for acknowledgement 17
DSC
.
See Digital Selective Calling
Dual watch 7
F
factory settings, restoring 34
features i–ii
foghorn 10–12
frequency, adjusting 11
sounding, automatic 10
sounding, manual 10
frequency band, selecting 33
Draft
52 VHF 300 Series Owner’s Manual
Index
G
Garmin
contact information 50
Garmin GHS series handsets
display 2
overview 1
groups
adding 26
deleting 26
editing 26
receiving calls from 21
H
hailer, using 9
heading display, modifying 33
HI power transmission 8
I
intercom 9
initiating call 9
receiving call 9
L
language, changing 34
latitude and longitude
displaying 31
local/distant reception
sensitivity adjustment 8
LO power transmission 8
M
MMSI ltering over NMEA network 30
conguring 30
MMSI number
entering 14–15
formats 23
obtaining 14
viewing 15
monitoring multiple channels 6
N
NMEA
feature overview 29
NMEA 0183 sentences 49
NMEA 2000 PGNs 49
selecting NMEA 0183 or NMEA 2000 30
sending call-related data over network 30
NOAA weather broadcasts 11
P
placing calls
all-ships safety 19
all-ships urgency 19
group 18
individual 18
position request 19
selecting the channel for 19
position information
entering manually 26
position replies
automatic setting 27
position tracking 21–22
activating calls 22
removing vessels from list 22
selecting vessels 22
power 4
auto power-on 31
battery alarm 35
R
radio
features i–ii
testing 34
receiving calls
all-ships safety calls 20
all-ships urgency 20
distress 20
distress relay 20
group 21
individual routine 20
position request 21
position send 21
receiving sensitivity 8
repeating communication 6
S
saving channels 5
scanning
all channels 5
saved channels 6
screen
backlight level 31
contrast level 31
second-priority channel
reprogramming 7
selecting channels 4
Draft
VHF 300 Series Owner’s Manual 53
Index
specications
GHS 10 series 50
VHF 300/300i AIS 47
VHF 300 series 46
Speed Over Ground
displaying 32
speed unit of measurement
modifying 33
squelch
adjusting with handset 4
adjusting with radio 4
system messages
main in use 35
position tracking 36
T
testing the radio 34
time
changing format 32
conguring offset 32
displaying 32
transmitting
with handset 4
with radio 4
transmitting power
adjusting 8–9
Tri watch 7
U
UTC offset 32
V
voicemail 28
volume
adjusting with handset 4
adjusting with radio 4
W
water immersion 50
weather
accessing channels 11
alerts 11
,
35
channel list 38
disabling alerts 12
enabling alerts 12
tuning to weather channels 11
WX
.
See weather
Draft
Draft
Draft
© 2009 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151st Street, Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9LR UK
Garmin Corporation
No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan
www.garmin.com
July 2009 Part Number 190-01098-00 Rev. B Printed in China
This equipment is for use worldwide, including the following European countries:
AT DK DE IT MT SK GB CH
BE EE GR LV NL SI IS BG
CY FI HU LT PL ES LI RO
CZ FR IE LU PT SE NO TR
Draft

Navigation menu
