Client Summary
4020210 Rev
A
99

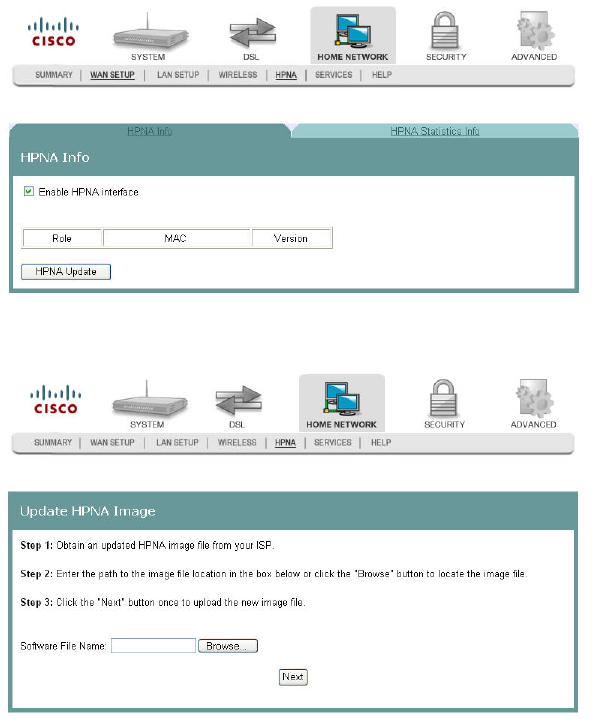

3 Click Show HPNA Client. After processing, the HPNA Info screen opens. This
screen shows the role, MAC Address, and the version of HPNA.
4 Click HPNA Update to update the HPNA software of HPNA devices attached to
the residential gateway. The Update HPNA Image window opens.
5 In the Software File Name field, enter the name of the file that you want to use to
update your system. You can click Browse to locate the file.
6 Click Next and wait for the software for the attached HPNA devices to be
updated.
Wireless Station List
This page shows the attached clients (also known as associated stations) to the
wireless access point (AP) of the residential gateway. At this time, there is no limit to
the number of simultaneously attached devices.
Cha
p
te
r
5 Home Network Confi
g
uration
100 4020210
Rev
A
Path: Home Network > Summary > Show Wireless Client
Showing Attached Clients
To show the attached clients to the wireless access point of the residential gateway,
complete the following steps.
1 Click Home Network on the main screen.

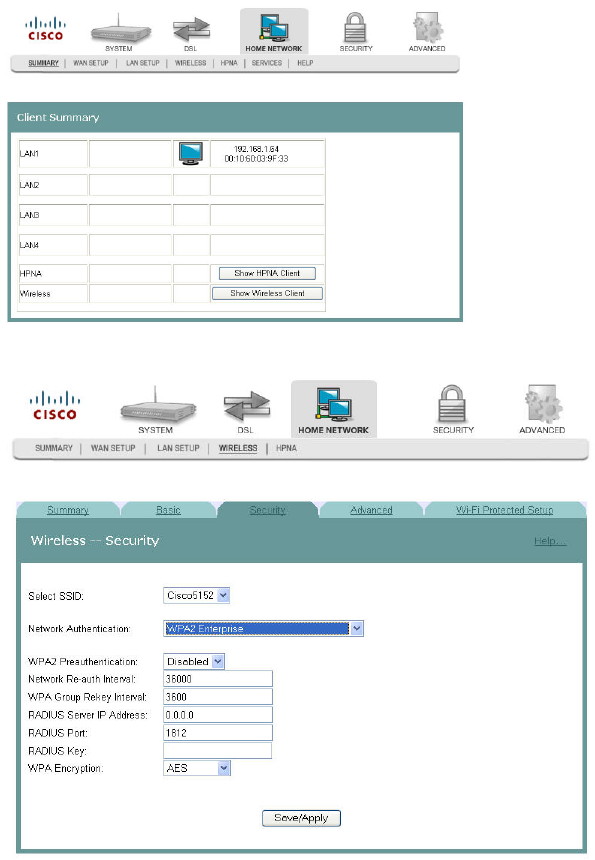

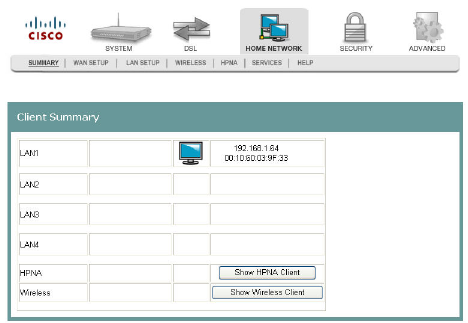

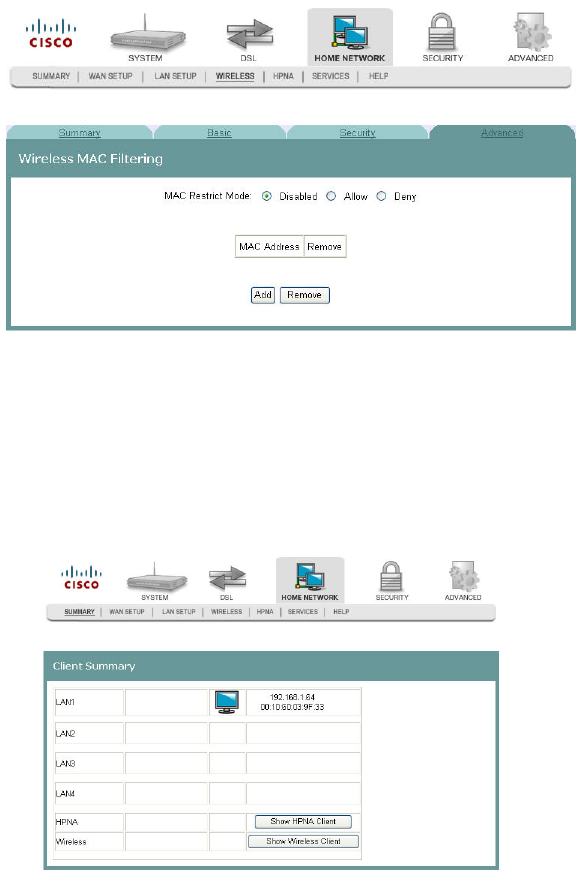

2 Click Summary. The Client Summary screen opens.

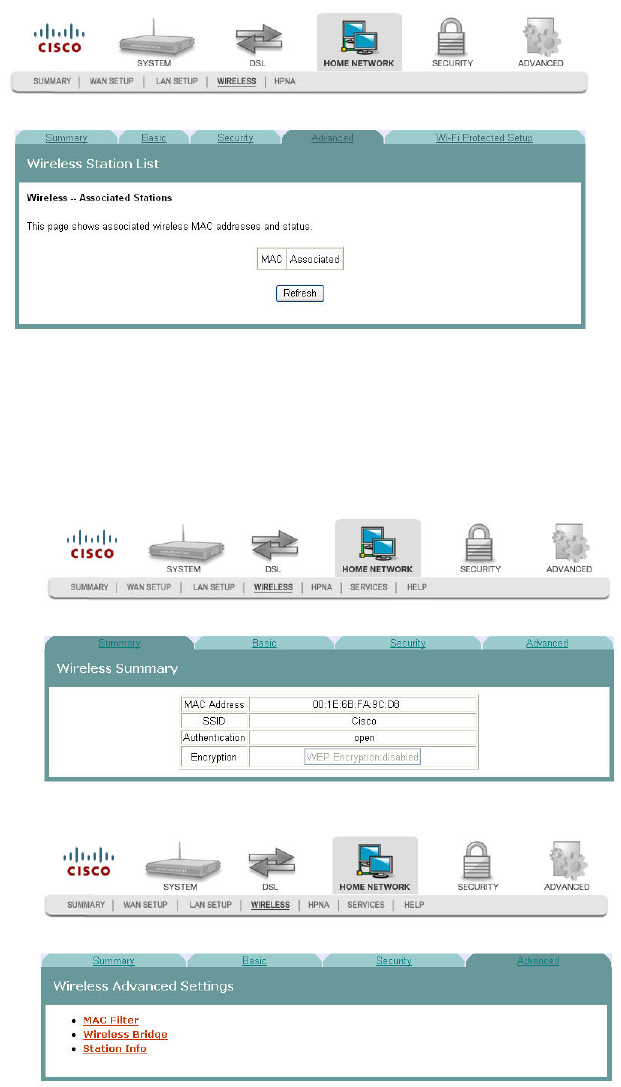

3 Click Show Wireless Client. The Wireless Station List screen opens. If you have
a wireless client attached to the residential gateway, the screen displays the MAC
Address of the client and whether the client is associated with the residential
gateway.
4 Click Refresh to update the list of attached clients.
WAN Quick Setup
4020210 Rev
A
101
WAN Quick Setup
The WAN Quick Setup screen allows you to set up wide area network (WAN)
connections and settings, such as virtual channel identifiers (VCi), virtual path
identifiers (VPI), and quality of service (QoS).
Path: Home Network > WAN Setup > WAN Quick Setup
Configuring the WAN Interface (PPPoE Broadband Type)
To configure a WAN interface with the PPP over Ethernet (PPPoE) broadband type,
complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
Cha
p
te
r
5 Home Network Confi
g
uration
102 4020210
Rev
A

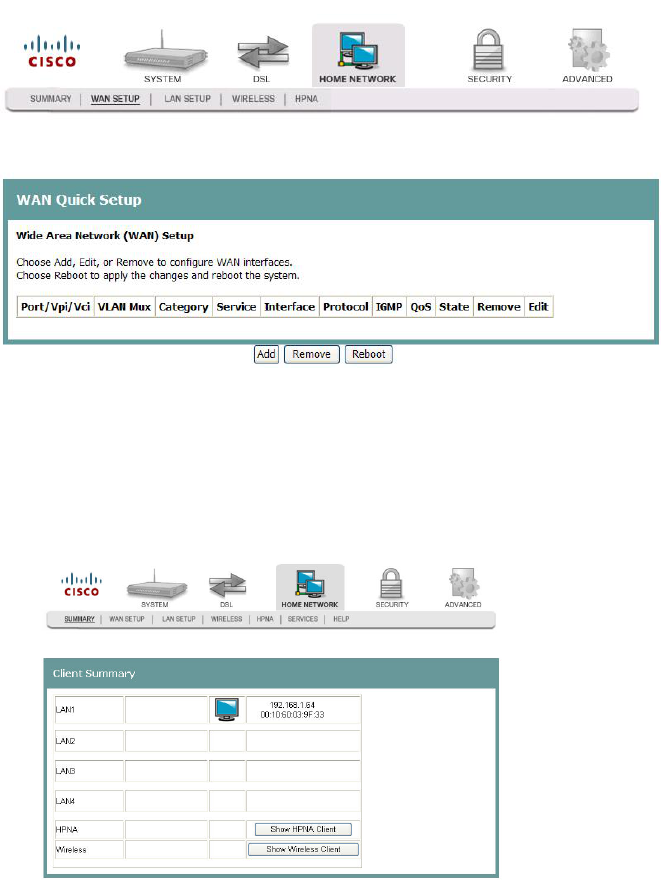

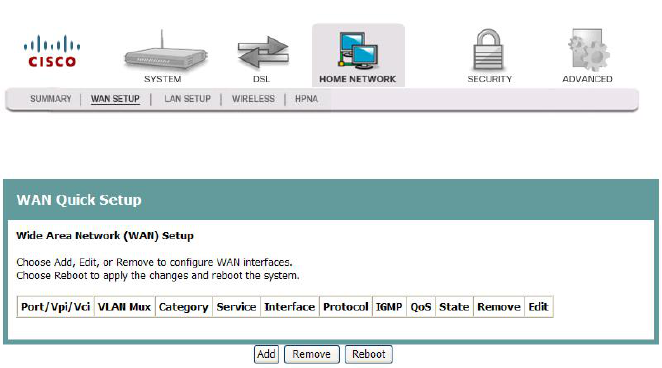

2 Click WAN Setup. The WAN Quick Setup screen opens.
WAN Quick Setup
4020210 Rev
A
103
3 Click Add to configure a new WAN interface, or click Edit to edit an existing
WAN interface.
4 In the Broadband Type field, select DSL.
5 In the DSL Mode field, select ATM. More fields populate on the screen.
6 Complete the following fields on the screen as follows:
Note: This configuration is an example of a specific setting for the residential
gateway. Your values may differ depending upon your service provider.
a In the Broadband Connect Type field, select PPP over Ethernet (PPPoE).
b In the Encapsulation Mode field, select LLC/SNAP - Bridging.
Cha
p
te
r
5 Home Network Confi
g
uration
104 4020210
Rev
A
c Check the VLAN Mux - Enable Multiple Protocols Over a Single PVC
check box, if applicable.
d In the PPP Username: field, enter the user name for the point-to-point
protocol.
e In the PPP Password: field, enter the password for the point-to-point
protocol.
f In the PPPoE Service Name: field, enter the name for the point-to-point over
Ethernet service.
g In the VPI field, enter the virtual path identifier (VPI). Values are: 0 to 65535.
h In the VCI field, enter the virtual channel identifier (VCI). Values are:
0 to 65535.
i In the Service Category field, select ABRI Without PCR.
j Check the 'Enable Quality of Service' check box if applicable
k In the Authentication Method field, select AUTO.
l Check Enable NAT.
m Check the Enable IGMP Multicast check box, if applicable
n Check the Enable WAN Service check box
7 Click Save to save your settings.
8 Click Reboot. This action reboots the residential gateway so that the WAN setup
configuration takes effect.
Configuring the WAN Interface (MER Broadband Type)
To configure a WAN interface for MAC Encapsulation Routing (MER) broadband
type, complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
WAN Quick Setup
4020210 Rev
A
105
2 Click WAN Setup. The WAN Quick Setup screen opens.
Cha
p
te
r
5 Home Network Confi
g
uration
106 4020210
Rev
A
3 Click Add to add a new WAN interface, or click Edit to modify an existing WAN
interface.
4 In the Broadband Type field, enter DSL.
5 In the DSL Mode field, select ATM. More fields populate on the screen.
6 Complete the following fields on the screen as follows:
Note: This configuration is an example of a specific setting for the residential
gateway. Your values may differ depending upon your service provider.
a In the Broadband Connect Type field, select MAC Encapsulation Routing
(MER).
b In the Encapsulation Mode field, select LLC/SNAP - Bridging.
WAN Quick Setup
4020210 Rev
A
107
c Select the VLAN Mux - Enable Multiple Protocols Over a Single PVC check
box, if applicable.
d In the VLAN ID[0-4095]: field, enter an ID for the VLAN. Values are: 0 to
4095.
e In the VPI field, enter the virtual path identifier (VPI). Values are: 0 to 65535.
f In the VCI field, enter the virtual channel identifier (VCI). Values are: 0 to
65535.
g In the Service Category field, select UBR Without PCR.
h Select the Enable Quality of Service check box, if applicable.
i Select the Obtain an IP address automatically option.
j Select the Obtain default gateway automatically option.
k Select the Obtain DNS server addresses automatically option.
l Select Enable NAT.
m Select the Enable IGMP Multicast check box.
n Select the Enable WAN Service check box.
7 Click Save. The system returns to the previous screen.
8 Click Reboot. This action reboots the residential gateway so that the WAN setup
configuration takes effect.
Cha
p
te
r
5 Home Network Confi
g
uration
108 4020210
Rev
A
LAN Setup
The Local Area Network (LAN) Setup screen allows users to set up LAN settings
such as Dynamic Host Configuration Protocol (DHCP), Internet Gateway Multicast
Protocol (IGMP), and Universal Plug and Play (UPnP).
Path: Home Network > LAN Setup
Configuring the LAN Interface
To configure the LAN interface, complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
LAN Setup
4020210 Rev
A
109

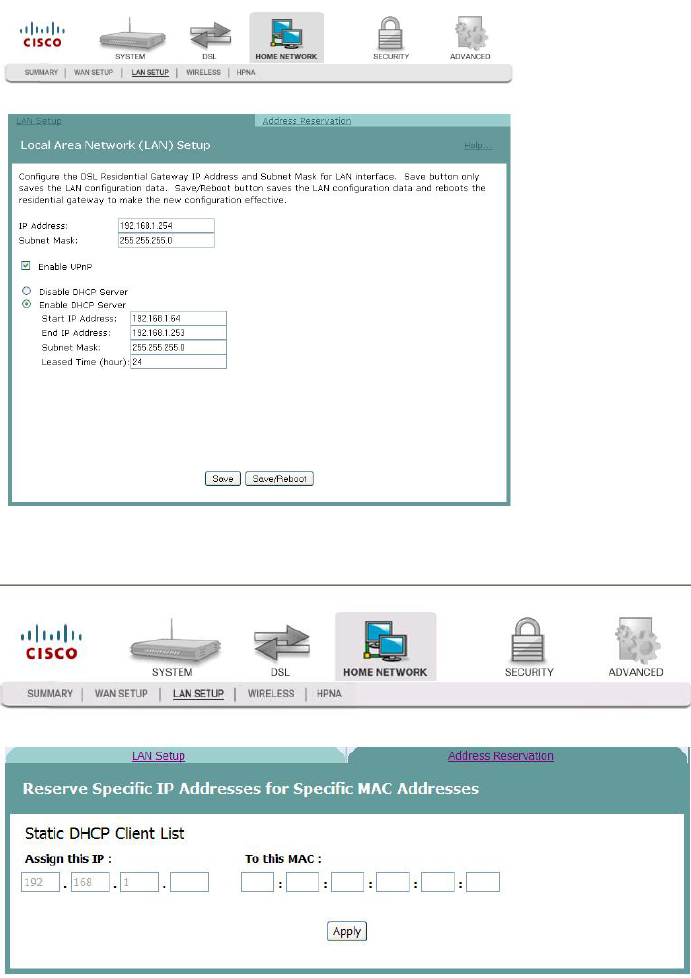

2 Click LAN Setup. The Local Area Network (LAN) setup screen opens.
3 In the IP Address field, enter the IP address for the residential gateway.
4 In the Subnet Mask field, enter the subnet mask for the residential gateway.
5 Do you want to enable UpnP?
If yes, check the Enable UPnP check-box.
If no, clear the Enable UPnp check-box.
6 Do you want to Enable the DHCP server?
If yes, select Enable DHCP Server, and go to step 7.
If no, select Disable DHCP Server, and go to step 8.
7 Under Enable DHCP server, enter the following information:
a In the Start IP Address field, enter the first IP address in the range for the
DHCP IP address lease pool.
b In the End IP Address field, enter the last IP address in the range for the
DHCP IP address lease pool.
c In the Subnet Mask field, enter the subnet mask for the DHCP server.
d In the Leased Time (hour) field, enter the duration of the DHCP lease
address.
8 Click Save to save the changes or click Save/Reboot to save the changes and
reboot the residential gateway.
Cha
p
te
r
5 Home Network Confi
g
uration
110 4020210
Rev
A

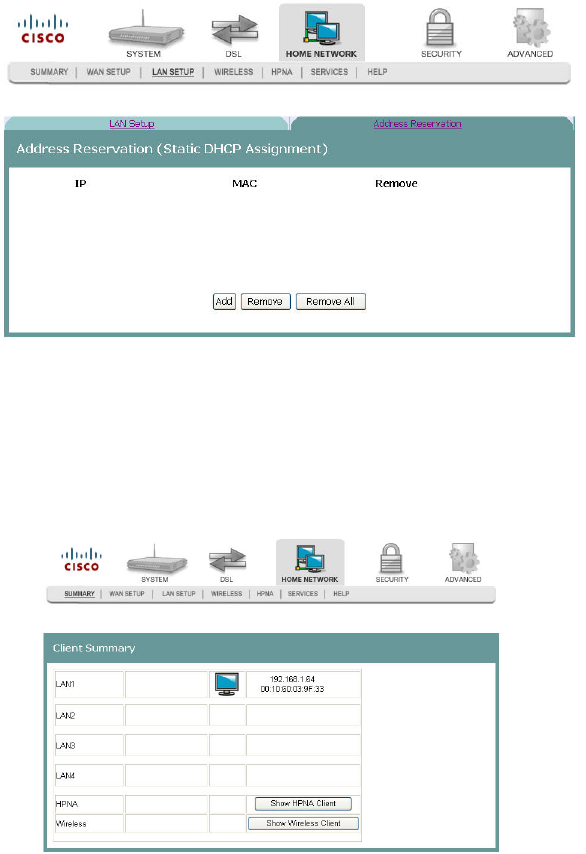

Reserving IP Addresses
The Address Reservation screen allows you to reserve IP addresses for specific
devices. For example, you can reserve IP addresses for your laptop or PC in your
home.
Path: Home Network > LAN Setup > Address Reservation
Reserving IP Addresses
To reserve a specific IP address for a specific MAC address, complete the following
steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
LAN Setup
4020210 Rev
A
111
2 Click LAN Setup. The Local Area Network (LAN) setup screen opens.
3 Click Address Reservation. The Reserve Specific IP Addresses for Specific MAC
Addresses screen opens.
4 In the Assign this IP field, enter the IP address you want to assign to the MAC
address.
5 In the To this MAC field, enter the MAC address to which you want to assign the
IP address.
6 Click Save to save your settings.
Cha
p
te
r
5 Home Network Confi
g
uration
112 4020210
Rev
A

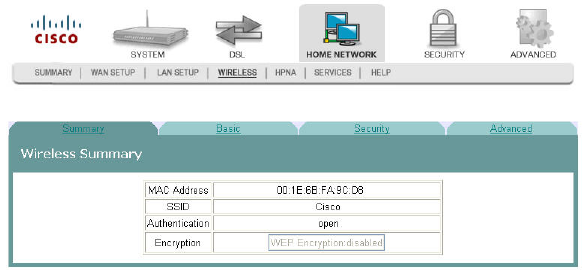

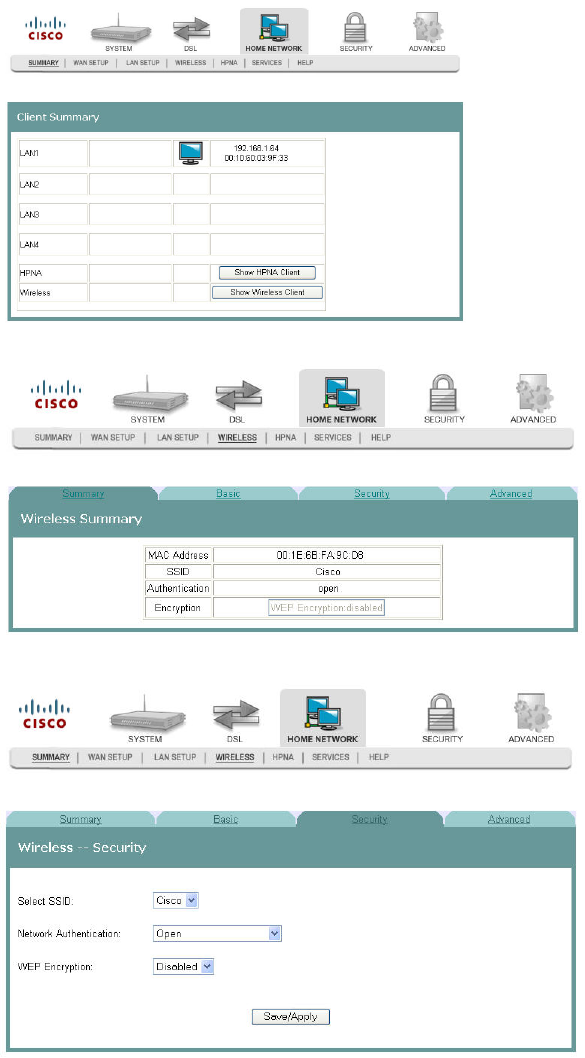

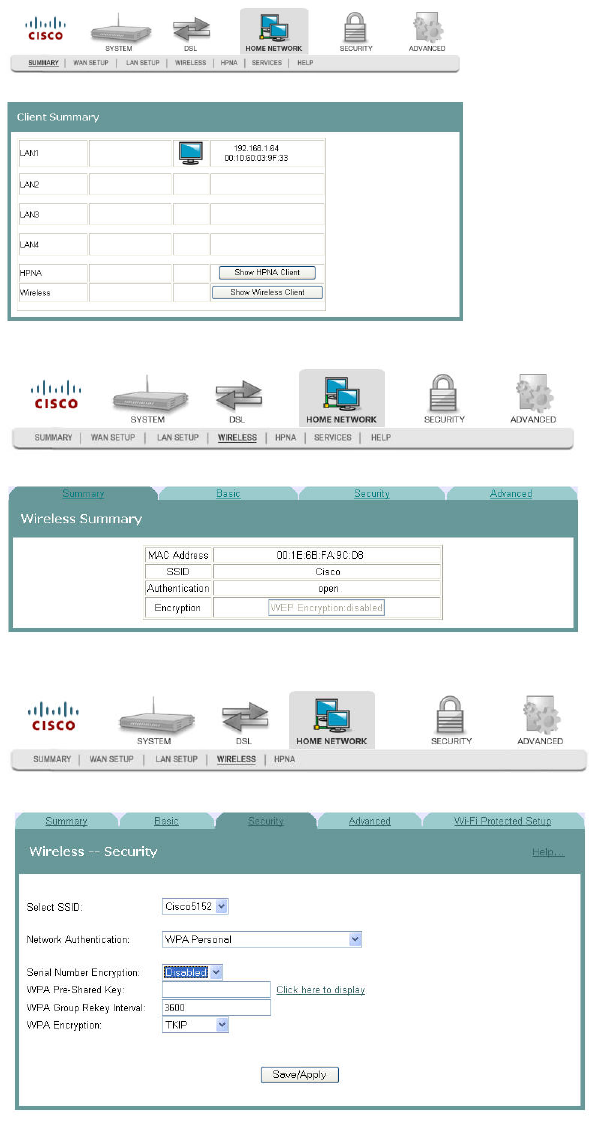

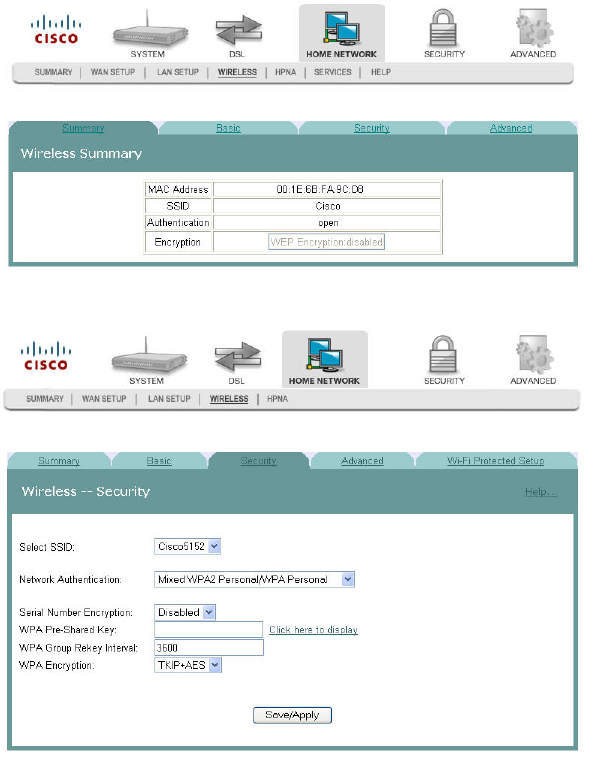

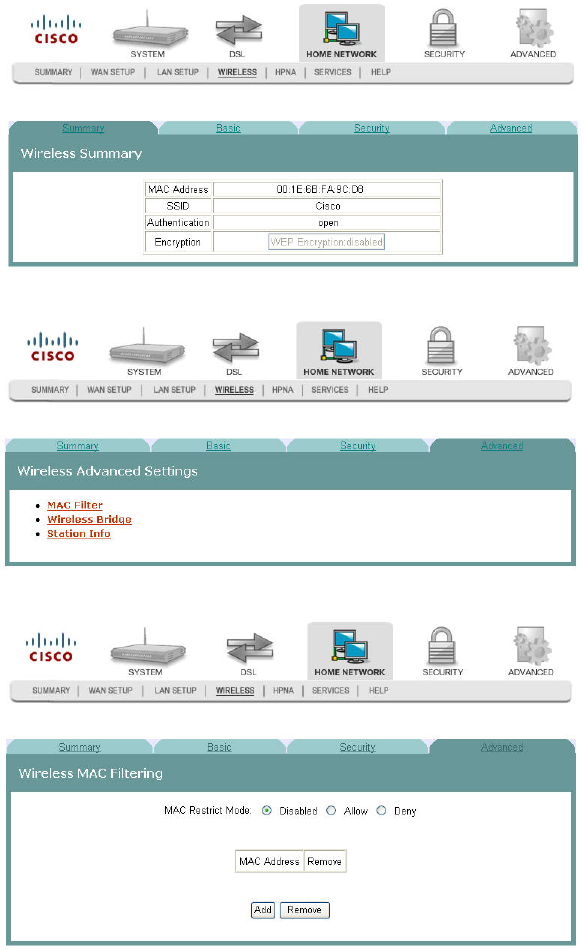

Wireless Summary
The Wireless Summary screen shows the MAC address and security information for
the wireless connection.
Path: Home Network > Wireless > Summary
Wireless Basic
4020210 Rev
A
113

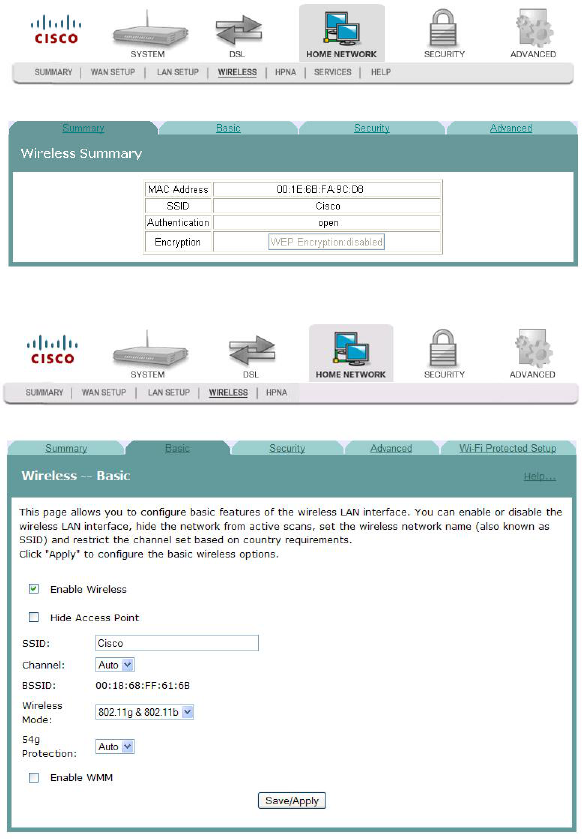

Wireless Basic
The Wireless -- Basic screen allows you to configure the basic features of the wireless
LAN interface. You can enable or disable the LAN interface, hide the network from
active scans, enter a name for the wireless network, and restrict the channel set based
on country requirements.
Path: Home Network > Wireless > Basic
Enabling the Wireless Network
To enable the wireless network, complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
Cha
p
te
r
5 Home Network Confi
g
uration
114 4020210
Rev
A
2 Click Wireless. The Wireless Summary screen opens.
3 Click Basic. The Wireless Basic screen opens.
4 Check the Enable Wireless check box to enable the wireless network. The screen
populates with additional fields.
5 Do you want to prevent other wireless clients from communicating with the
wireless access point (AP) of the residential gateway?
If yes, check the Hide Access Point check box. This feature prevents any
other wireless client from communicating with the access point of the
residential gateway (or disables the wireless connection).
If no, uncheck the Hide Access Point check box.
6 In the SSID field, enter the Service Set Identifier (SSID).
7 From the Channel drop-down list, select Auto or a channel from 1 to 11.
8 In the Wireless Mode field, select the wireless mode from the drop-down list:
802.11g & 802.11b - Allows you to mix Wireless-B with Wireless-G
equipment, but you will lose the higher performance speeds of Wireless-G.
Wireless Basic
4020210 Rev
A
115
802.11g only - Features the same benefits as Wireless-B, but offers 5 times the
speed at up to 54 Mbps. Wireless-G currently offers the best combination of
performance and value. You can mix Wireless-B with Wireless-G equipment,
but you will lose the higher performance speeds of Wireless-G.
802.11b only - Operates on the 2.4GHz frequency band and can transmit data
at speeds of up to 11 Mbps within a range of up to 100-150 feet. Wireless
range can be affected by reflective or signal-blocking obstacles, such as
mirrors, walls, devices and location, whether indoors or outdoors.
9 In the 54g Protection field, select Auto or Off. Do not disable 54g Protection if
there is a possibility that an 802.11b device may need to use your wireless
network.
Notes:
– 54g Protection allows 802.11g and 802.11b devices to co-exist in the same
network without “speaking” at the same time. In Auto Mode, the
wireless device will use RTS/CTS to improve 802.11g performance in
mixed 802.11g/802.11b networks. Turn protection off to maximize
802.11g throughput under most conditions.
– You can enable Wi-Fi Multimedia (WMM) support to help improve the
Quality of Service (QoS) for your wireless traffic. It is recommended that
you leave these settings unchanged if you are not sure about your
configuration. Changing these values may lead to unexpected blockages
of traffic on your wireless LAN, and the blockages might be difficult to
diagnose.
10 Click Save/Apply to enable the wireless network.
Securing Your Wireless Network with WEP
WEP is a security protocol for wireless networks. WEP provides security by
encrypting data over radio waves so that it is protected as it is transmitted from one
end point to another. A shared key (similar to a password) is used to allow
communication between the computers and the residential gateway. WEP offers a
basic, but satisfactory level of security for wireless data transmission.
To secure your wireless network with Wired Equivalent Privacy (WEP), complete
the following steps.
Cha
p
te
r
5 Home Network Confi
g
uration
116 4020210
Rev
A
1 Click Home Network on the main screen. The Client Summary screen opens.
2 Click Wireless. The Wireless Summary screen opens.
3 Click Security. The Wireless -- Security screen opens.
4 In the Select SSID field, use the drop-down list to choose an option for the
service set identifier (SSID).
Note: You can add options to this drop-down list on the Wireless -- Basic screen.
Wireless Basic
4020210 Rev
A
117
5 In the Network Authentication field, choose one of these two options for the
authentication method.
Open. All devices may access the wireless network when WEP Encryption is
disabled. When no authentication is required and if encryption is disabled,
then the data that is passing between the access point and the client is also
not encrypted. When WEP is enabled, the data is encrypted, but the client is
not authenticated.
WPA/WPA2. See Securing Your Wireless Network with Encryption Keys (on
page 120).
6 In the WEP Encryption field, select Enabled. The Wireless -- Security screen
populates with more fields.
7 In the Encryption Strength field, choose one of the following options:
64-bit. Secures your network by 64-bit (10 hex) encryption of all traffic using
a static key.
128-bit. Secures your network by 128-bit (26 hex) encryption of all traffic
using a static key.
Important: These settings must be identical to your wireless client devices.
Cha
p
te
r
5 Home Network Confi
g
uration
118 4020210
Rev
A
8 Do you want the system to generate the network key for you?
If yes, go to step 11.
If no, you must disable Serial Number Encryption and enter your own
network key(s) in the field provided. Go to step 9.
9 In the Current Network Key field, select a network key from the drop-down list.
Values are: 1, 2, 3, or 4.
10 In the Network Key 1 field, enter the network key you wish to you use based on
the encryption strength as discussed in step 7.
11 Based on the encryption strength you chose in step 7, do one of the following.
For 64-bit encryption, you can choose to enable Serial Number Encryption.
When you enable Serial Number Encryption, the serial number of the
gateway is preceded with a 0 (numeric zero) and is then used as the Network
Key. Serial Number Encryption is not available for 128-bit encryption. If you
don't want to use Serial Number Encryption (64 bit only), disable it by
selecting Disabled from the drop-down list. Repeat steps 9 and 10 for keys 1
through 4 if you use 64-bit encryption. Go to step 12.
For 128-bit encryption, only one network key is used. Go to step 12.
12 In the WEP Key Paraphrase field, enter your information as follows based on 64-
bit or 128-bit encryption strength:
For 64-bit encryption strength, enter a passphrase (1 to 31 characters) and
click Generate. Four keys are generated based on the passphrase.
For 128-bit encryption, enter a passphrase (1 to 31 characters) and click
Generate. Four keys are generated based on the passphrase.
13 Click Save/Apply.
Disabling the Wireless Network
To disable the wireless network, complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
Wireless Basic
4020210 Rev
A
119
2 Click Wireless. The Wireless Summary screen opens.
3 Click Basic. The Wireless Basic screen opens.
4 Uncheck the Enable Wireless check box. The wireless network fields are
removed from the screen.
5 Click Save/Apply to disable the wireless network.
Cha
p
te
r
5 Home Network Confi
g
uration
120 4020210
Rev
A

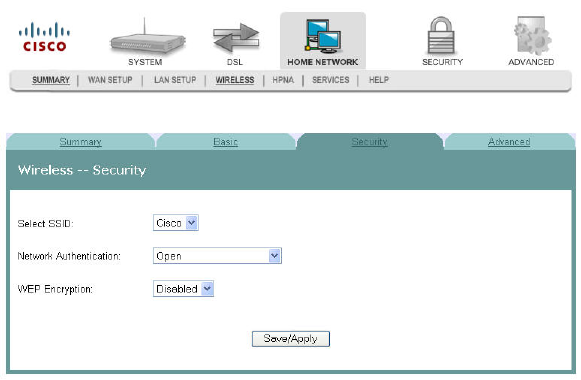

Wireless Security
The Wireless Security screen allows you to configure security features of the wireless
LAN interface. You can set the network authentication method, select data
encryption, specify whether a network key is required to authenticate to this
wireless network, and specify the encryption strength.
Path: Home Network > Wireless > Security
WEP Encryption Disabled
Securing Your Wireless Network with Encryption Keys
If you choose WPA Personal (also known as Wi-Fi Protected Access-PreShared Key)
as the network authentication method, you can secure your network by encrypting
all traffic using a pre-shared dynamic key. The following security methods are
described:
WPA Personal or WPA2 Personal
Mixed WPA2 Personal/WPA Personal
WPA/WPA2 Enterprise
Mixed WPA/WPA2 Enterprise
WPA Personal or WPA2 Personal
To secure your wireless network with a pre-shared dynamic key, complete the
following steps.
Wireless Security
4020210 Rev
A
121
1 Click Home Network on the main screen. The Client Summary screen opens.
2 Click Wireless. The Wireless Summary screen opens.
3 Click Security. The Wireless -- Security screen opens.
4 In the Network Authentication field, select WPA Personal or WPA2 Personal
from the drop-down list.
Cha
p
te
r
5 Home Network Confi
g
uration
122 4020210
Rev
A
5 Select Enabled or Disabled to enable or disable your Serial Number Encryption
function. Your serial number is printed on the back label of your device. If you
enable this function, the system will automatically use your serial number as the
pre-shared key for WPA Authentication.
6 In the WPA Pre-Shared Key field, enter a shared Key (8-63 characters). The
system will periodically generate a dynamic key based on the shared key.
7 In the WPA Group Rekey Interval field, enter the group key renewal time period
(in seconds). This time defines how often the dynamic key is regenerated
8 In the WPA Encryption field, select the encryption from the drop-down list. You
have the option of choosing TKIP (Temporal Key Integrity Protocol), AES
(Advanced Encryption System), or both. Typically AES is seen to be a more
reliable form of encryption.
9 Click Save/Apply to save your settings.
Mixed WPA2 Personal/WPA Personal
The security mode supports simultaneous WPA Personal and WPA2 Personal
connections. You can have devices that use either WPA Personal or WPA2 Personal.
The access point automatically chooses the encryption algorithm used by each client
device.
To configure the Mixed WPA Personal and WPA2 Personal security settings for the
access point, follow these steps:
1 Click Home Network on the main screen. The Client Summary screen opens.
Wireless Security
4020210 Rev
A
123
2 Click Wireless. The Wireless Summary screen opens.
3 Click Security. The Wireless -- Security screen opens.
4 In the Network Authentication field, select Mixed WPA2 Personal/WPA
Personal from the drop-down list.
5 Select Enabled or Disabled to enable or disable your Serial Number Encryption
function. Your serial number will be printed on the back label of your device. If
you enable this function, the system will automatically use your serial number as
the network key for your WEP encryption.
6 In the WPA Pre-Shared Key field, enter a shared Key (8-63 characters). The
system will periodically generate a dynamic key based on the shared key.
7 In the WPA Group Rekey Interval field, enter the group key renewal time period
(in seconds). This time defines how often the dynamic key is regenerated
8 In the WPA Encryption field, select the encryption from the drop-down list.
9 Click Save/Apply to save your settings.
Cha
p
te
r
5 Home Network Confi
g
uration
124 4020210
Rev
A
WPA/WPA2 Enterprise
WPA/WPA2 Enterprise is used in coordination with a Remote Authentication
Dial-In Use Service (RADIUS) server for client authentication.. If you choose this to
be your authentication method, make sure that a RADIUS server is available in the
network for authentication.
To configure the WPA/WPA2 Enterprise security settings for the access point,
complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
2 Click Wireless. The Wireless Summary screen opens.
3 In the Network Authentication field, select WPA/WPA2 Enterprise from the
drop-down list.
4 Select Enabled or Disabled for your WPA2 Pre-authentication.
Wireless Security
4020210 Rev
A
125
Note: In pre-authentication, a WPA2 wireless client can perform an 802.1X
authentication with other wireless access points in its range when it is still
connected to its current wireless access point.
5 In the Network Re-auth Interval, enter the interval at which the re-authentication
occurs.
6 In the WPA Group Rekey Interval field, enter the group key renewal time period
(in seconds). This time defines how often the dynamic key will be regenerated.
7 In the RADIUS Server IP Address enter the IP address for your RADIUS server.
8 In the RADIUS Port field, enter the port number for your RADIUS server. The
default port is 1812.
9 In the Radius Key field, please enter the secret key used by the access point and
RADIUS server.
10 In the WPA Encryption field, please select your data encryption method from
TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption
Standard).
11 Click Save/Apply to save your settings.

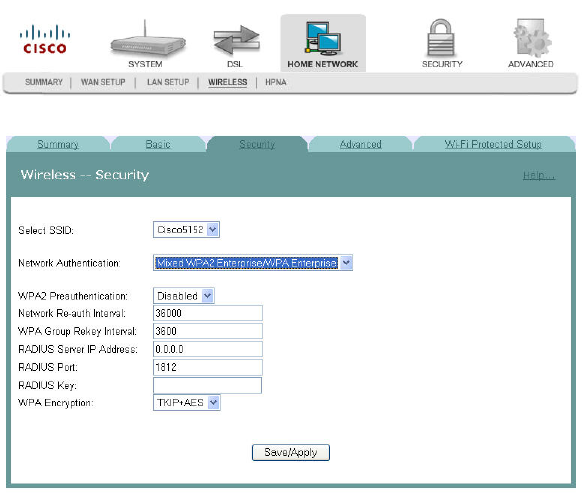

Mixed WPA/WPA2 Enterprise
The security mode supports simultaneous WPA Enterprise and WPA2 Enterprise
connections. You can have devices that use either WPA Enterprise or WPA2
Enterprise. The access point automatically chooses the encryption algorithm used by
each client device.
To configure the Mixed WPA/WPA2 Enterprise security settings for the access
point, complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
Cha
p
te
r
5 Home Network Confi
g
uration
126 4020210
Rev
A
2 Click Wireless. The Wireless Summary screen opens.
3 In the Network Authentication field, select Mixed WPA2 Enterprise/WPA
Enterprise from the drop-down list.
4 Select Enabled or Disabled for you WPA2 Pre-authentication.
Note: In pre-authentication, a WPA2 wireless client can perform an 802.1X
authentication with other wireless access points in its range when it is still
connected to its current wireless access point.
5 In the Network Re-auth Interval, enter the interval at which the re-authentication
occurs.
6 In the WPA Group Rekey Interval field, enter the group key renewal time
period. This time defines how often the dynamic key will be regenerated.
7 In the RADIUS Server IP Address, enter the IP address for your RADIUS server.
8 In the RADIUS Port field, enter the port number for your RADIUS server. The
default port is 1812.
9 In the Radius Key field, enter the secret key used by the access point and
RADIUS server.
10 In the WPA Encryption field, select your data encryption method from TKIP
(Temporal Key Integrity Protocol), AES (Advanced Encryption Standard), or
TKIP+AES.
11 Click Save/Apply to save your settings.
Wireless MAC Filtering
4020210 Rev
A
127

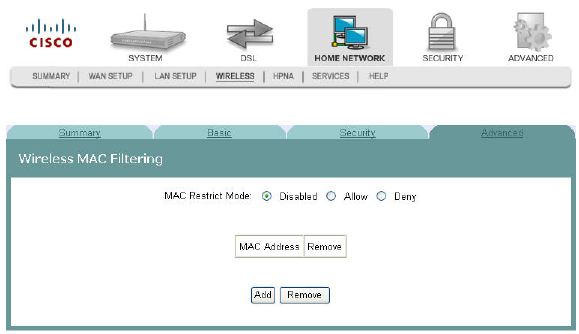

Wireless MAC Filtering
The Wireless -- MAC Filtering screen allows you to allow or block certain wireless
clients from accessing the residential gateway. If you know the MAC address of the
client you want to block, you can use this screen to provide access to the residential
gateway or block that client from accessing it.
Path: Home Network > Wireless > Advanced > MAC Filter
Allowing Wireless Clients to Access the Residential Gateway
You can allow wireless clients to access the residential gateway if you know the
client's MAC address. MAC restrict mode must be enabled. To allow wireless clients
to access the residential gateway, complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
Cha
p
te
r
5 Home Network Confi
g
uration
128 4020210
Rev
A
2 Click Wireless. The Wireless Summary screen opens.
3 Click Advanced. The Wireless Advanced Settings screen opens.
4 Click MAC Filter. The Wireless MAC Filtering screen opens.
5 In the MAC Restrict Mode field, click Allow to enable the MAC restrict mode.
6 Click Add. The Wireless -- MAC Filter screen opens.
7 In the MAC Address field, enter the MAC address of the client that you want to
allow access to the residential gateway.
8 Click Save/Apply to allow this wireless client to access the residential gateway.
Wireless MAC Filtering
4020210 Rev
A
129
Blocking Wireless Clients
You can block wireless clients from accessing the residential gateway if you know
the client's MAC address. MAC restrict mode must be enabled. To prevent wireless
clients from accessing the residential gateway, complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
2 Click Wireless. The Wireless Summary screen opens.
3 Click Advanced. The Wireless Advanced Settings screen opens.
Cha
p
te
r
5 Home Network Confi
g
uration
130 4020210
Rev
A
4 Click MAC Filter. The Wireless MAC Filtering screen opens.
5 In the MAC Restrict Mode field, click Deny to enable the MAC restrict mode.
6 Click Add. The Wireless -- MAC Filter screen opens.
7 In the MAC Address field, enter the MAC address of the client that you want to
prevent from accessing the residential gateway.
8 Click Save/Apply to prevent this wireless client from accessing the residential
gateway.
Wireless Bridge
4020210 Rev
A
131
Wireless Bridge
Wireless LAN Bridging (also referred to as a Wireless Distribution System, WDS)
refers to two or more 802.11 access points that send traffic between them (from
access point to access point) as opposed to between access point and a client
computer.
The Wireless Bridge screen allows you to configure the wireless bridge features of
the wireless LAN interface as follows:
Select Wireless Bridge in the AP mode to disable access point functionality.
Select Access Point in the AP mode to enables access point functionality.
Wireless bridge functionality will still be available and wireless stations will be
able to associate to the AP.
Select Disabled in the Bridge Restrict field to disable wireless bridge restriction
so any device can communicate with the residential gateway over the wireless
bridge.
Select Enabled in the Bridge Restrict field to enable wireless bridge restriction to
restrict the bridges that can communicate with the residential gateway over the
wireless interface.
Enter the MAC Address of the remote bridge in the Remote Bridges MAC
Address field
Path: Home Network > Wireless > Advanced > Wireless Bridge
Bridge Restrict Disabled
Cha
p
te
r
5 Home Network Confi
g
uration
132 4020210
Rev
A

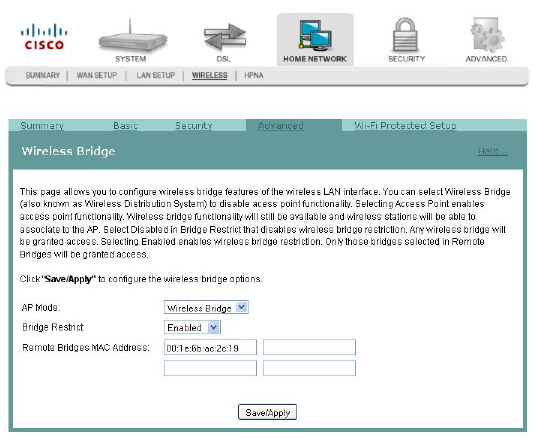

Bridge Restrict Enabled
Wireless Station List
4020210 Rev
A
133
Wireless Station List
This page shows associated wireless MAC addresses and status.
Path: Home Network > Wireless > Advanced > Station Info
Showing MAC Addresses and Clients
To show the wireless MAC Address and clients, complete the following steps.
1 Click Home Network on the main screen.
2 Click Wireless. The Wireless Summary screen opens.
3 Click Advanced. The Wireless Advanced Settings screen opens.
Cha
p
te
r
5 Home Network Confi
g
uration
134 4020210
Rev
A
4 Click Station Info. The Wireless Station List opens.
5 Click Refresh to update the list of MAC addresses and associated status.
Wi-Fi Protected Setup
4020210 Rev
A
135
Wi-Fi Protected Setup
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a
wireless home network.
You can choose to use either the PBC or PIN method for connecting the wireless
networks using WPS. But first, you will still need to configure the appropriate
authentication on your router. For more information, see Security Configuration (on
page 141).
Note: Ensure that your wireless client supports WPS. If your wireless client does not
support WPS, you cannot use this functionality.

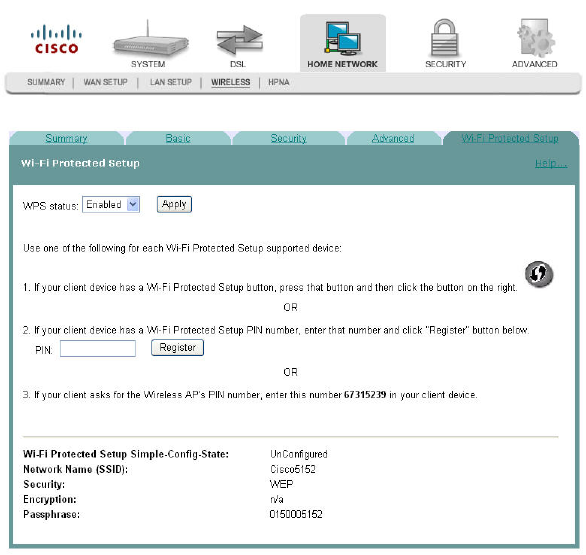

Path: Home Network > Wireless > Wi-Fi Protected Setup
PBC Method
The PBC method requires the user to press a button (either actual or virtual) on both
the DDR2200 and the new wireless client device to establish the wireless connection.
To set up your wireless network using the PBC method, complete the following
steps.
1 Click Home Network on the main screen.
2 Click Wi-Fi Protected Setup. The Wi-Fi Protected Setup screen opens.
3 For the WPS status drop-down field, select Enabled to enable the WPS status.
Cha
p
te
r
5 Home Network Confi
g
uration
136 4020210
Rev
A
4 Click the button at the right-hand-side on the page or the Wi-Fi-sec button on the
device. Then, within 2 minutes, push another button on your client adapter's
WPS setup screen. It should start the process of configuring the wireless security
on your client station.
PIN Method
The PIN method requires the user to enter a personal identification number (PIN)
from a label on the new device to establish the wireless connection.
To set up your wireless network using a PIN:
1 Click Home Network on the main screen.
2 Click Wi-Fi Protected Setup. The Wi-Fi Protected Setup screen opens.
3 For the WPS status drop-down field, select Enabled to enable the WPS status.
4 In the PIN field, enter the same PIN number (8-digit number, sometimes it will
be shipped with your client's adapter if it supports WPS) for both of the wireless
router and station. Then click Register to start the process of configuring the
wireless security on your client station.
HPNA Information
4020210 Rev
A
137
HPNA Information
The HPNA Info screen allows you to view the HPNA devices connected to the
residential gateway.
Path: Home Network > HPNA > HPNA Info
Updating HPNA Information
To update the HPNA information, complete the following steps.
1 Click Home Network on the main screen. The Client Summary screen opens.
Cha
p
te
r
5 Home Network Confi
g
uration
138 4020210
Rev
A
2 Click HPNA. After a moment of processing, the HPNA Info screen opens.
3 Click HPNA Update to update the HPNA software of HPNA devices attached to
the residential gateway The Update HPNA Image window opens.
4 In the Software File Name field, enter the name of the file that you want to use to
update your system. You can click Browse to locate the file.
5 Click Next. The software for the attached HPNA devices is updated.
HPNA Statistics Information
4020210 Rev
A
139

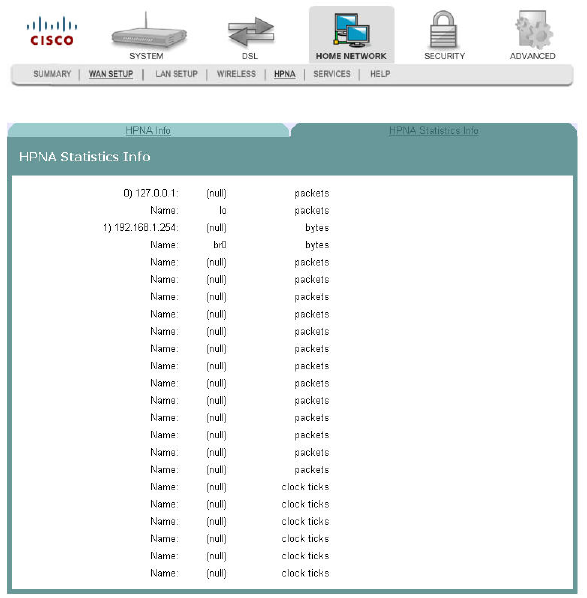

HPNA Statistics Information
The HPNA Statistics Info screen displays the statistics for the HPNA devices
connected to the residential gateway.
Path: Home Network > HPNA > HPNA Statistics Info
4020210 Rev
A
141
The Security tab allows you to check the security configuration and
modify the configuration.
Use this chapter to help you check the status of the security
configuration or make changes to the configuration.
6 Chapter 6
Security Configuration
In This Chapter
MAC Filtering Setup .......................................................................... 142
Incoming IP Filtering.......................................................................... 148

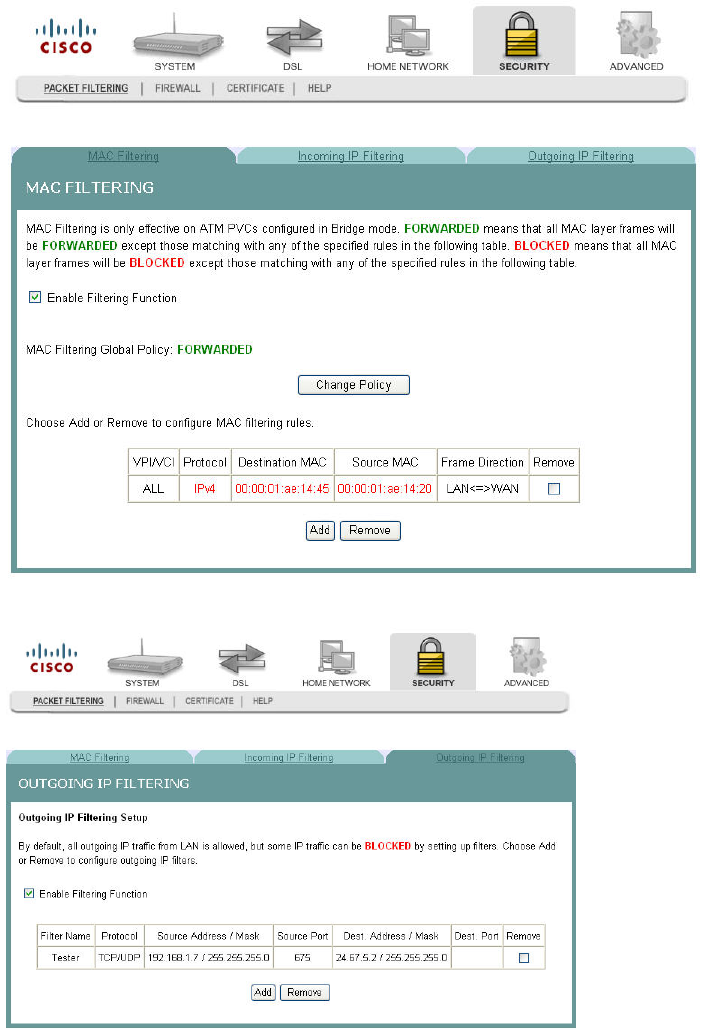

Outgoing IP Filtering ......................................................................... 154

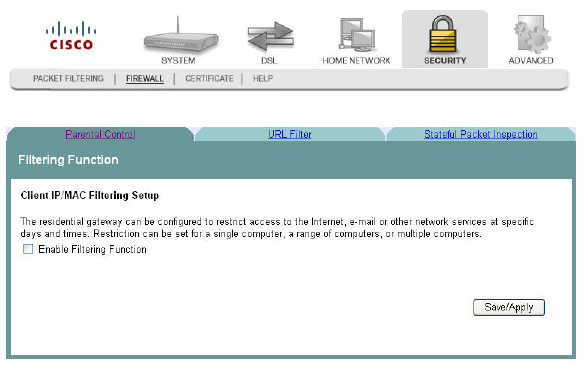

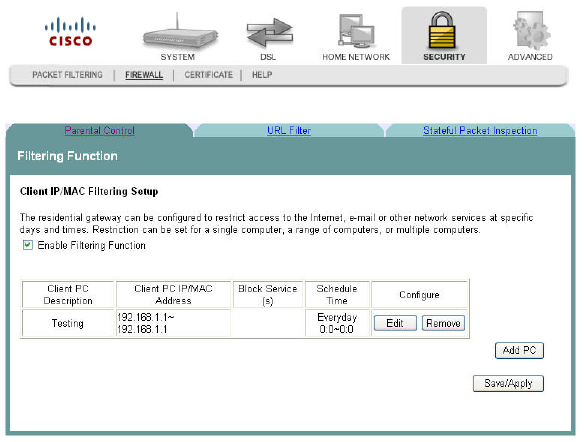

Parental Control Setup - Filtering Function.................................... 159

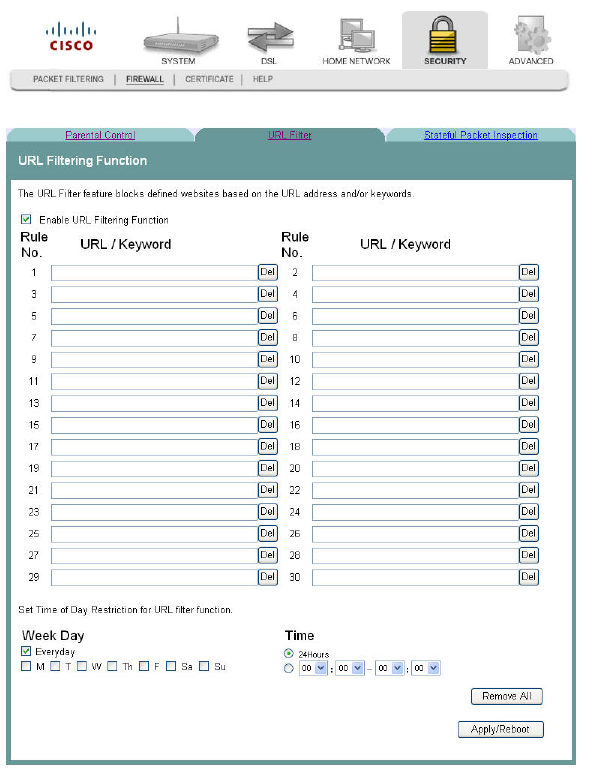

URL Filtering Function ...................................................................... 165

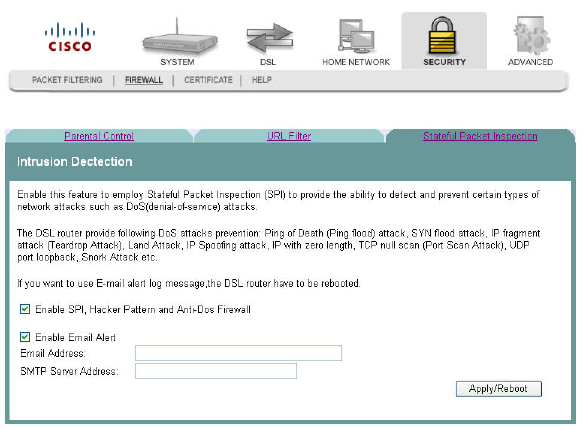

Stateful Packet Inspection.................................................................. 170

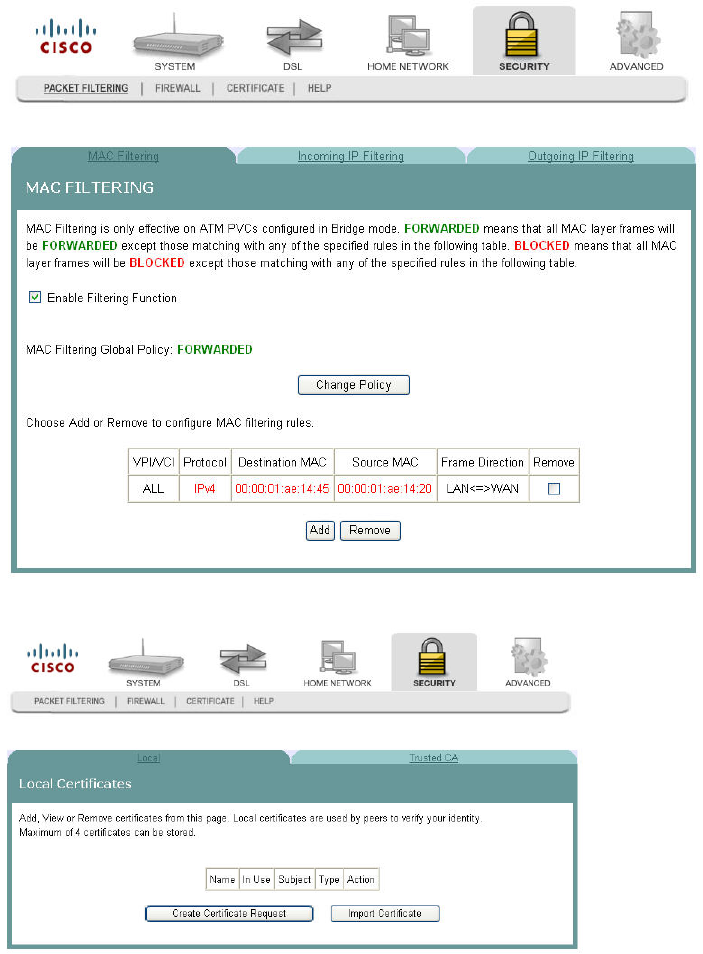

Local Certificates................................................................................. 173

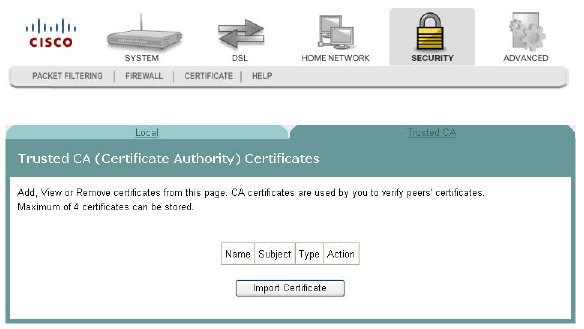

Trusted CA Certificates...................................................................... 178
Cha
p
te
r
6 Securit
y
Confi
g
uration
142 4020210
Rev
A

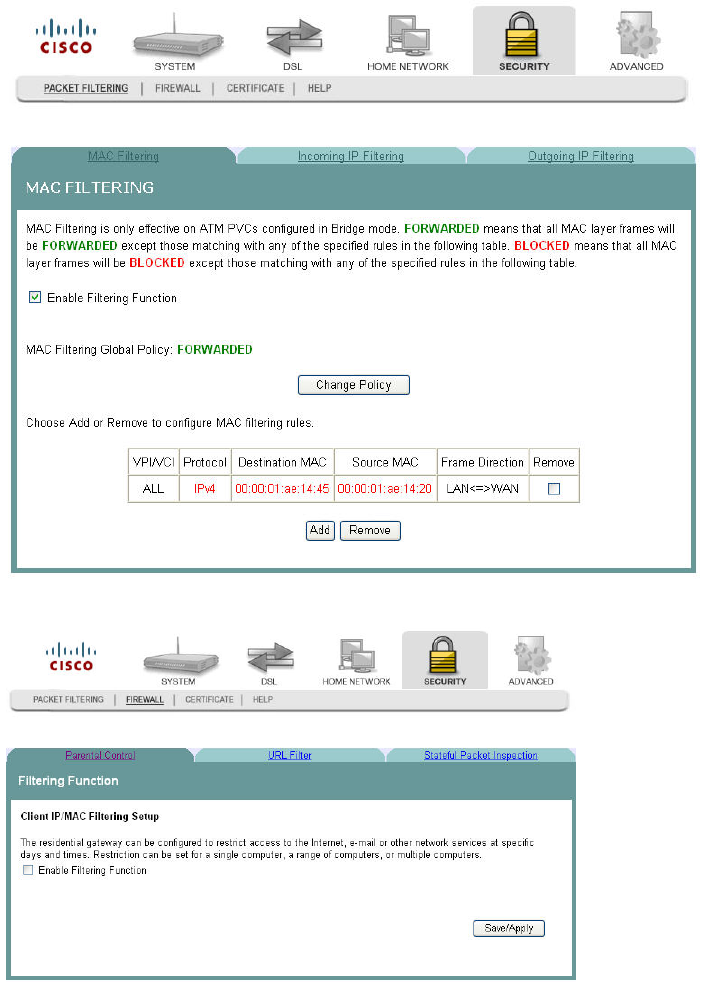

MAC Filtering Setup

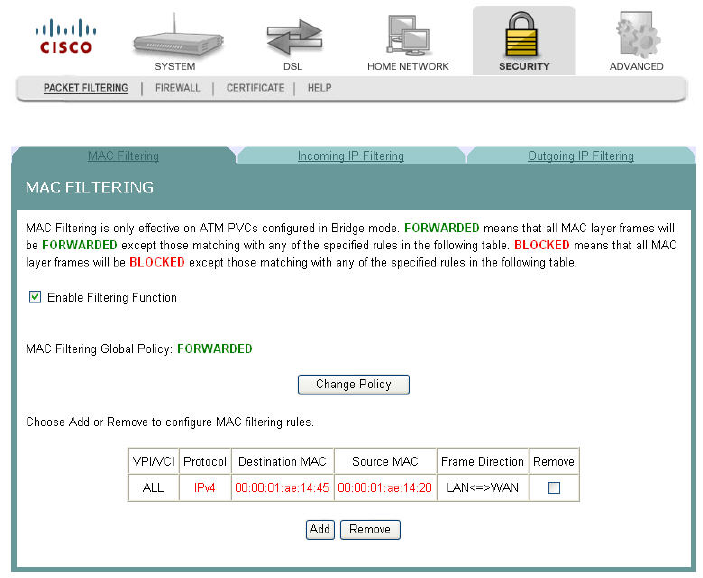

The MAC Filtering Setup screen allows you to set up filters for packets containing
configured MAC addresses. With the MAC Filtering feature, you can restrict access
to certain servers based on their MAC address. MAC Filtering is only effective on
ATM PVCs configured in Bridge mode.
Path: Security > Packet Filtering > MAC Filtering
Forwarded MAC Filtering
Forwarded MAC Filtering means that all MAC layer frames will be FORWARDED
except those that match any of the specified rules in the following screen.
MAC Filtering Setup
4020210 Rev
A
143
Blocked MAC Filtering
Blocked MAC Filtering means that all MAC layer frames will be BLOCKED except
those that match any of the specified rules in the following screen.
Adding MAC Filtering
To add MAC Filtering, complete the following steps.
1 Click Security on the main screen. The Packet Filtering tab opens by default.
Cha
p
te
r
6 Securit
y
Confi
g
uration
144 4020210
Rev
A

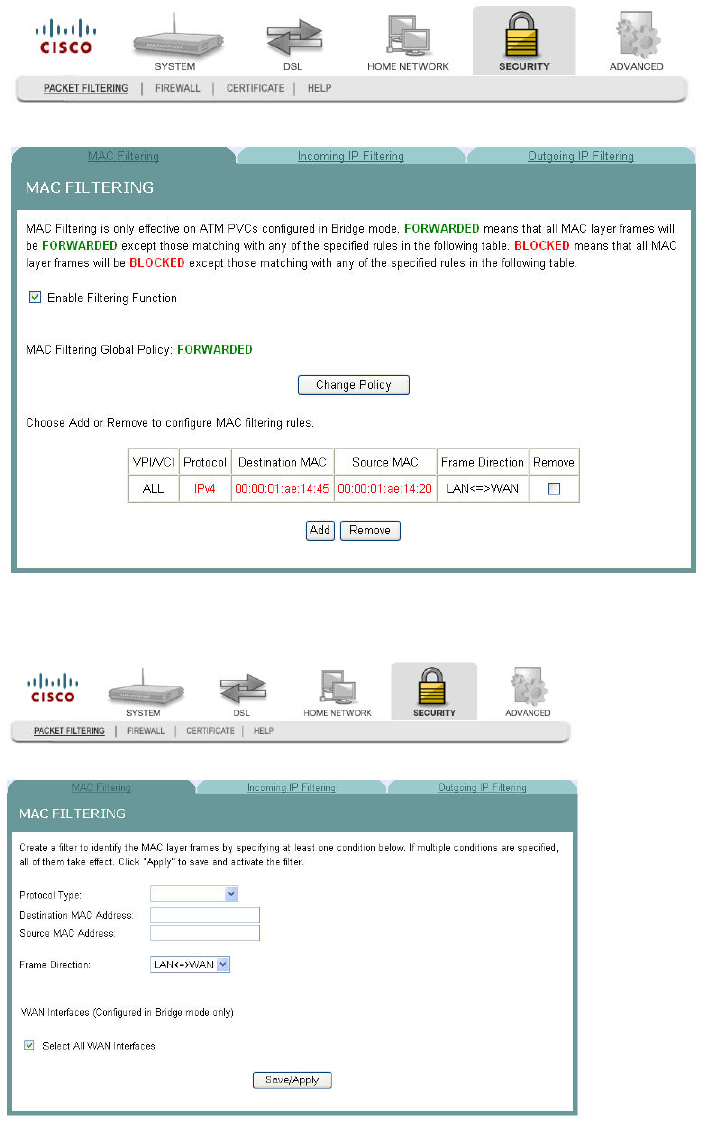

2 Click MAC Filtering. The MAC Filtering screen opens.
3 Check the Enable Filtering Function check box.
4 Click Add to open a blank MAC Filtering screen.
MAC Filtering Setup
4020210 Rev
A
145
5 In the Protocol Type field, select one of the following protocols from the drop-
down menu.
PPPoE
IPv4
IPv6
AppleTalk
IPX
NetBEUI
IGMP
6 In the Destination MAC Address field, enter the frame's destination MAC
address.
7 In the Source MAC Address field, enter the frame's source MAC address.
8 In the Frame Direction field, select one of the following choices from the drop-
down menu:
LAN<->WAN
WAN<->LAN
9 Do you want to select all WAN interfaces?
If yes, check the Select All WAN Interfaces check box under the WAN
Interfaces (Configured in Bridge mode only) field.
If no, uncheck the Select All WAN Interfaces check box under the WAN
Interfaces (Configured in Bridge mode only) field.
10 Click Save/Apply to add the MAC Filter.
Forwarding or Blocking MAC Layer Frames
You can change the policy on how MAC layer frames are forwarded or blocked.
FORWARDED means that all MAC layer frames will be forwarded except those
matching with any of the specified rules in the table on the screen. BLOCKED means
that all MAC layer frames will be blocked except those matching with any of the
specified rules in the table on the screen.
To change the policy on how MAC layer frames are forwarded or blocked, complete
the following steps.
1 Click Security on the main screen. The Packet Filtering tab opens by default.
Cha
p
te
r
6 Securit
y
Confi
g
uration
146 4020210
Rev
A

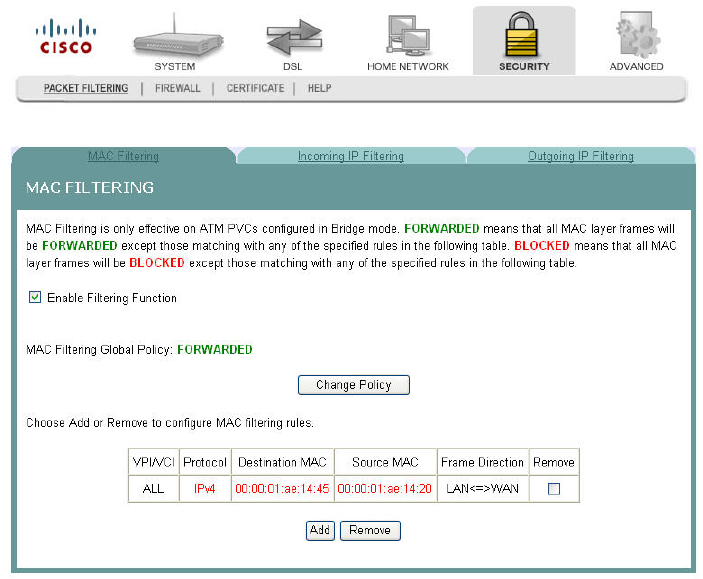

2 Click MAC Filtering. The MAC Filtering screen opens.
3 Check the Enable Filtering Function check box.

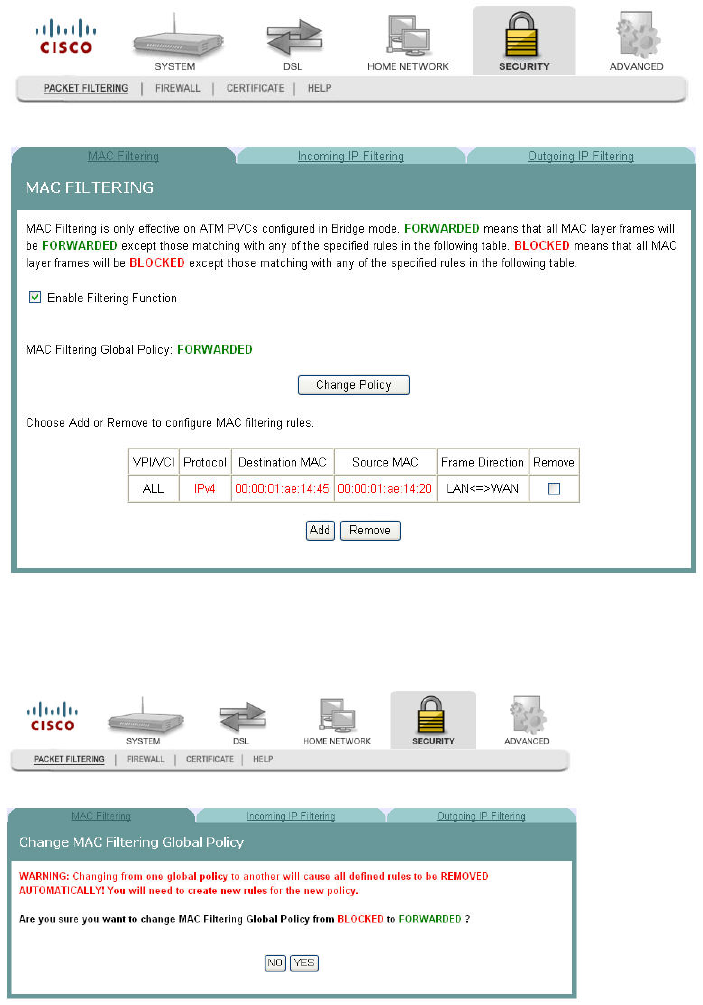

4 Click Change Policy. The Change MAC Filtering Global Policy screen opens. In
this example, the global policy for MAC filtering is "Blocked."
5 Do you want to change the Global Policy?
If yes, click Yes. If the policy is forwarded, clicking Yes changes the policy to
blocked and vise versa.
If no, click No and the policy remains unchanged.
MAC Filtering Setup
4020210 Rev
A
147
Removing MAC Filtering
To remove a MAC filtering rule you have set up, complete the following steps.
1 Click Security on the main screen. The Packet Filtering tab opens by default.
2 Click MAC Filtering. The MAC Filtering screen opens.
3 From the MAC Filtering screen, select Remove in the Remove column next to the
MAC filtering rule you wish to remove.
4 Click Remove to remove the MAC filtering.
Cha
p
te
r
6 Securit
y
Confi
g
uration
148 4020210
Rev
A

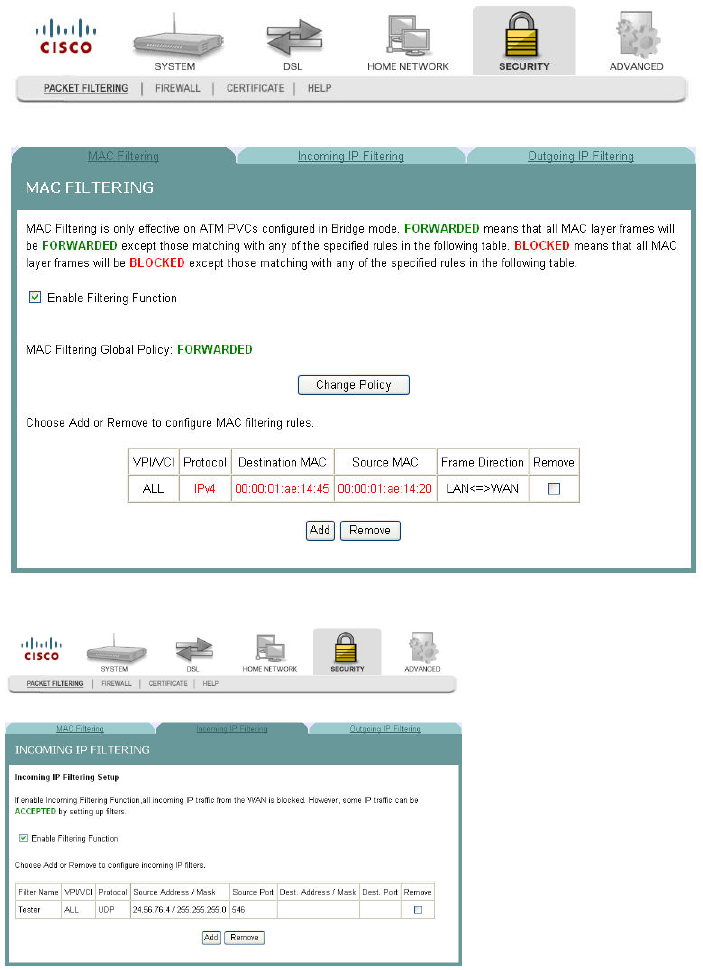

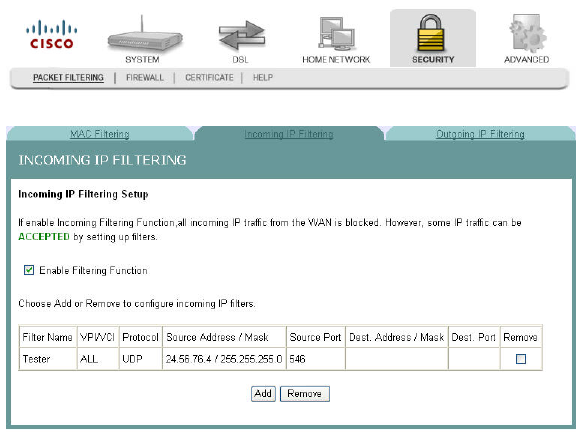

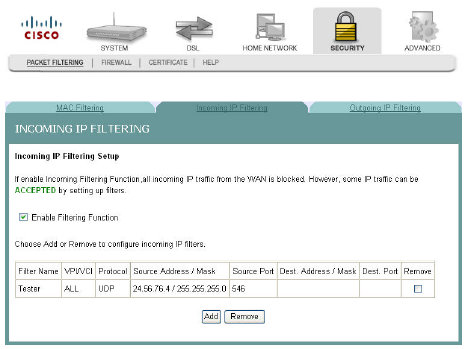

Incoming IP Filtering
By default, all incoming IP traffic from the WAN is blocked when the firewall is
enabled. However, some IP traffic can be accepted by setting up filters.
Path: Security > Packet Filtering > Incoming IP Filtering
Adding an Incoming IP Filter
You can create a filter rule to identify incoming IP traffic by specifying a new filter
name and at least one condition for the filter. All of the specified conditions in this
filter rule must be satisfied for the rule to take effect.
To add an incoming IP filter, complete the following steps.
Incoming IP Filtering
4020210 Rev
A
149
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Select the Incoming IP Filtering tab. The Incoming IP Filtering screen opens.
Cha
p
te
r
6 Securit
y
Confi
g
uration
150 4020210
Rev
A

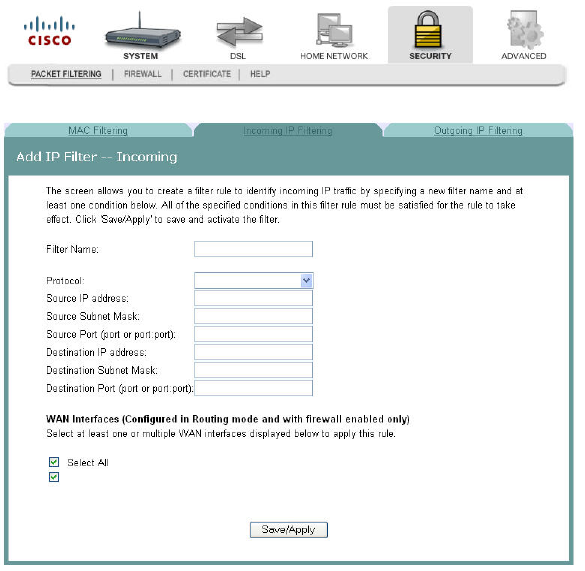

3 Click Add. The Add IP Filter Incoming screen opens.
4 In the Filter Name field, enter the name of the filter.
5 In the Protocol field, select one of the following protocols:
TCP/UDP
TCP
UDP
ICMP
6 In the Source IP address field, enter the source IP address of the server sending
the incoming packets.
7 In the Source Subnet Mask field, enter the subnet mask of the server sending the
incoming packets.
8 In the Source Port field, enter the port number of the server sending the
incoming packets. You can enter one port or a range of ports using the following
format: port or port:port.
Example: 0:5 indicates ports 0 through 5.
9 In the Destination IP address field, enter the destination IP address for the server
receiving the packets.
10 In the Destination Subnet Mask field, enter the subnet mask for the server
receiving the packets.
Incoming IP Filtering
4020210 Rev
A
151
11 In the Destination Port field, enter the port number for the server receiving the
packets. You can enter one port or a range of ports using the following format:
port or port:port.
Example: 0:5 indicates ports 0 through 5.
12 Do you want to select all of the WAN interfaces?
If yes, check the Select All field under WAN Interfaces (Configured in
Routing mode and with firewall enabled only).
If no, clear the Select All field under WAN Interfaces (Configured in Routing
mode and with firewall enabled only).
13 Click Save/Apply to add the filter.
Enabling the Filtering Function
To enable the filtering function, complete the following steps.
1 Click Security on the main screen. The MAC Filtering screen opens by default.
Cha
p
te
r
6 Securit
y
Confi
g
uration
152 4020210
Rev
A
2 Click Incoming IP Filtering. The Incoming IP Filtering screen opens.
3 Check the Enable Filtering Function check box to enable the filtering function.
Removing an Incoming IP Filter
To remove an incoming IP filter, complete the following steps.
1 Click Security on the main screen. The MAC Filtering screen opens by default.
Incoming IP Filtering
4020210 Rev
A
153
2 Select the Incoming IP Filtering tab. The Incoming IP Filtering screen opens.
3 From the Incoming IP Filtering screen, select Remove in the Remove column
next to the filter you wish to remove.
4 Click Remove to remove the filter.
Cha
p
te
r
6 Securit
y
Confi
g
uration
154 4020210
Rev
A

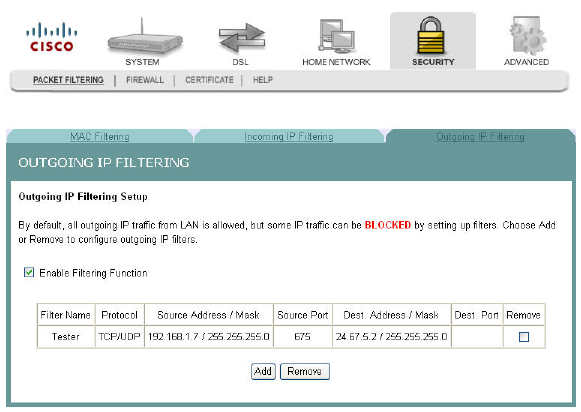

Outgoing IP Filtering
By default, all outgoing IP traffic from LAN is allowed, but some IP traffic can be
BLOCKED by setting up filters.
Path: Security > Packet Filtering > Outgoing IP Filtering
Enabling the Filtering Function
To enable the outgoing IP filtering function, complete the following steps.
Outgoing IP Filtering
4020210 Rev
A
155
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Click Outgoing IP Filtering. The Outgoing IP Filtering screen opens.
3 Check the Enable Filtering Function check box to enable the filtering function.
Adding an Outgoing IP Filter
To add an outgoing IP filter, complete the following steps.
Cha
p
te
r
6 Securit
y
Confi
g
uration
156 4020210
Rev
A
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Select the Outgoing IP Filtering tab. The Outgoing IP Filtering screen opens.
Outgoing IP Filtering
4020210 Rev
A
157
3 Click Add. The Add IP Filter Outgoing screen opens.
4 In the Filter Name field, enter the name of the filter.
Note: You cannot use blank spaces in the filter name.
5 In the Protocol field, select one of the following protocols:
TCP/UDP
TCP
UDP
ICMP
6 In the Source IP address field, enter the source IP address for the server sending
the incoming packets.
7 In the Source Subnet Mask field, enter the subnet mask for the server sending the
incoming packets.
8 In the Source Port field, enter the port number for the server sending the
incoming packets. Use the following format: port or port:port.
9 In the Destination IP address field, enter the destination IP address for the server
receiving the packets.
10 In the Destination Subnet Mask field, enter the subnet mask for the server
receiving the packets.
11 In the Destination Port field, enter the port number for the server receiving the
packets. Use the following format: port or port:port.
12 Click Save/Apply to add the filter.
Cha
p
te
r
6 Securit
y
Confi
g
uration
158 4020210
Rev
A
Removing an Outgoing IP Filter
To remove an outgoing IP filter, complete the following steps.
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Select the Outgoing IP Filtering tab. The Outgoing IP Filtering screen opens.
3 From the Outgoing IP Filtering screen, select Remove in the Remove column
next to the filter you wish to remove.
4 Click Remove to remove the filter.
Parental Control Setup - Filtering Function
4020210 Rev
A
159
Parental Control Setup - Filtering Function
The Client IP/MAC Filtering Setup screen allows you to configure the residential
gateway to restrict access to the Internet, email, or other network services at specific
days and times. You can set time restrictions for a single computer, a range or
computers, or multiple computers.
Path: Security >Firewall > Parental Control
Adding Time of Day Restrictions
The Filtering Function screen allows you to block access to the Internet for certain
times of the day. This screen adds time of day restriction to a special LAN device
connected to the residential gateway. The browser's MAC Address automatically
displays the MAC address of the LAN device where the browser is running. To
restrict other LAN devices, select the Other MAC Address option and enter the
MAC address of the other LAN device. To find out the MAC address of a Windows
based PC, go to a command window and type ipconfig /all.
Path: Security > Firewall > Parental Control
To add time of day restrictions, complete the following steps.
Cha
p
te
r
6 Securit
y
Confi
g
uration
160 4020210
Rev
A
1 Click Security on the main screen. The MAC Filtering screen opens by default.

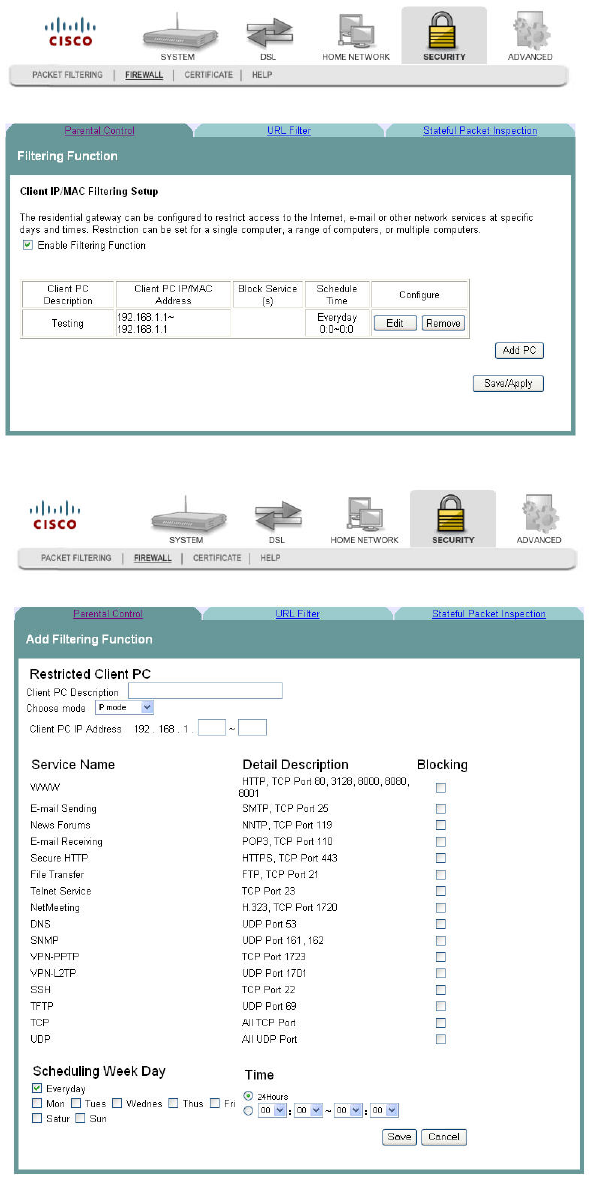

2 Click the Firewall tab. The Filtering Function screen opens.
Parental Control Setup - Filtering Function
4020210 Rev
A
161
3 Check the Enable Filtering Function check box to enable the filtering function.
The Client IP MAC Filtering screen populates with any time restrictions that are
set.
4 Click Add PC. The Add Filtering Function screen opens.
Cha
p
te
r
6 Securit
y
Confi
g
uration
162 4020210
Rev
A
5 In the Client PC Description field, enter a description of the PC for which you
want to block services.
6 In the Choose mode field, select IP mode or MAC mode from the drop-down
menu.
7 Enter the IP address in the Client PC IP Address field, or enter the MAC address
in the MAC address field depending upon the mode you selected in step 6.
8 Under Service Name area, check the Blocking check box for every service that
you wish to filter.
9 In the Scheduling Week Day area, check the check boxes next to each day where
you want to set up time of day restrictions. If you want to apply the time of day
restrictions to everyday, check the Everyday check box. For example, check the F,
Sa, and Su check boxes to apply time of day restrictions to Friday, Saturday, and
Sunday.
10 In the Time area set the time as follows:
Click the 24Hours option to apply the restrictions 24 hours a day
Click the option where you select the time from the drop-down menus. Use
the drop down menus to enter the time when you want the restriction to start
and end.
11 Click Save/Apply to enable the time of day restrictions.
Removing Time of Day Restrictions
To remove time of day restrictions, complete the following steps.
Parental Control Setup - Filtering Function
4020210 Rev
A
163
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Click the Firewall tab. The Filtering Function screen opens.
Cha
p
te
r
6 Securit
y
Confi
g
uration
164 4020210
Rev
A
3 Check the Enable Filtering Function check box to enable the filtering function.
The Client IP/MAC Filtering Setup screen populates with any time restrictions
that are set.
4 From the Configure field select Remove in the Remove column next to the time
of day restriction that you wish to remove.
5 Click Remove to remove the restriction.
URL Filtering Function
4020210 Rev
A
165
URL Filtering Function
The URL Filtering Function screen allows you to block websites based on the URL
address and/or key words used in the website. For example, if you have children in
the home, you may want to block websites that are inappropriate for children by
entering the URL or key words.
Path: Security > Firewall > URL Filter
Enabling URL Filtering
To enable URL filtering for the firewall, complete the following steps.
Cha
p
te
r
6 Securit
y
Confi
g
uration
166 4020210
Rev
A
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Click the Firewall tab. The Filtering Function screen opens by default.
URL Filtering Function
4020210 Rev
A
167
3 Click the URL Filter tab. The URL Filtering Function screen opens.
4 Click Enable URL Filtering Function. The URL Filtering Function screen
updates with blank fields for entering the URLs that you want to block.
5 For each rule, enter the URL or keyword that you want to block.
6 In the Week Day area, select Everyday or select the individual days on which
you want the filter to take effect.
7 In the Time area, select 24Hours or select the individual times that you want the
filter to take effect.
8 Click Save.
Removing a URL Filter
To remove a URL filter from the firewall, complete the following steps.
Cha
p
te
r
6 Securit
y
Confi
g
uration
168 4020210
Rev
A
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Click the Firewall tab. The Filtering Function screen opens by default.
3 Click the URL Filter tab. The URL Filtering Function screen opens.
URL Filtering Function
4020210 Rev
A
169
4 Click Enable URL Filtering Function. The URL Filtering Function screen
updates with blank fields for entering the URLs that you want to block.
5 Click Del next to each rule that you want to delete. If you want to remove all the
rules, click Remove All.
6 Click Save.
Cha
p
te
r
6 Securit
y
Confi
g
uration
170 4020210
Rev
A
Stateful Packet Inspection
The Stateful Packet Inspection screen allows the gateway to inspect packets passing
through it to deny network attacks.
Path: Security > Firewall > Stateful Packet Inspection
Enabling Stateful Packet Inspection
To enable stateful packet inspection (SPI), complete the following steps.
Stateful Packet Inspection
4020210 Rev
A
171
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Click the Firewall tab. The Filtering Function screen opens by default.
Cha
p
te
r
6 Securit
y
Confi
g
uration
172 4020210
Rev
A
3 Click the Stateful Packet Inspection tab. The Intrusion Detection screen opens.
4 Select the Enable SPI, Hacker Pattern and Anti-Dos Firewall field.
5 Select the Enable Email Alert field and fill in the email address and SMTP server
address that you want to notify when the DSL must be rebooted.
6 Click Save/Apply to enable stateful packet inspection.
Local Certificates
4020210 Rev
A
173
Local Certificates
The Local Certificates screen allows you to load certificates onto the residential
gateway. Local certificates are used by peers to verify your identity. A maximum of
four certificates can be stored on the residential gateway.
Path: Security > Certificate > Local > Local Certificates
Creating Certificates
The Create Certificate screen allows you to generate a certificate by specifying
certificate parameters shown in this screen.
To create a certificate, complete the following steps.
Cha
p
te
r
6 Securit
y
Confi
g
uration
174 4020210
Rev
A
1 Click Security on the main screen. The MAC Filtering screen opens.
2 Click Add. The Local Certificates screen opens.
Local Certificates
4020210 Rev
A
175

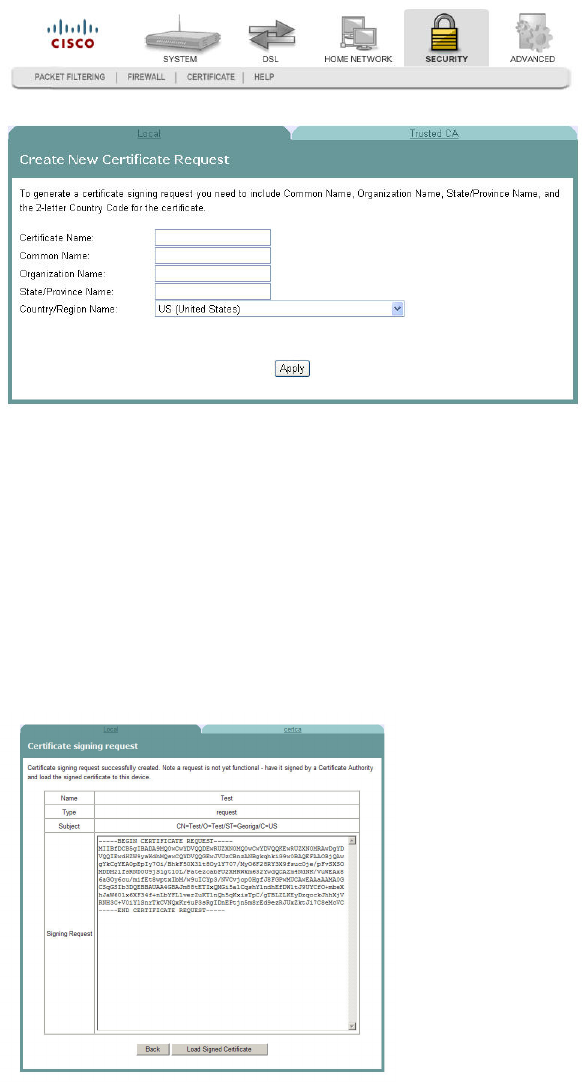

3 Click Create Certificate Request. The Create New Certificate Request screen
opens.
4 In the Certificate Name field, enter the name for the certificate.
5 In the Common Name field, enter the common name of the certificate.
6 In the Organization Name field, enter the name of the organization that owns the
certificate.
7 In the State/Province Name field, enter the state or province where you want to
register the certificate.
8 In the Country/Region Name field, use the drop-down list to select the country
or region where you want to register the certificate.
9 Click Apply to create the certificate. The certificate signing request screen opens.
10 Click Load Signed Certificate to save the certificate on the residential gateway.
Cha
p
te
r
6 Securit
y
Confi
g
uration
176 4020210
Rev
A
Importing Local Certificates
The Import Certificate screen allows you to import a pre-existing certificate to the
residential gateway.
To import a certificate, complete the following steps.
1 Click Security on the main screen. The MAC Filtering screen opens by default.
2 Click Certificate. The Local Certificates screen opens.
Local Certificates
4020210 Rev
A
177
3 Click Import Certificate. The Import certificate screen opens.
4 In the Certificate Name field, enter the name of the certificate.
5 In the Certificate area, copy and paste the contents of the certificate file provided
by the service provider.
6 In the Private Key area, copy and paste the private key from the certificate file
provided by the service provider.
7 Click Apply to save the certificate on the residential gateway.
Cha
p
te
r
6 Securit
y
Confi
g
uration
178 4020210
Rev
A
Trusted CA Certificates
The Trusted CA (Certificate Authority) Certificates screen allows you to load
certificates onto the residential gateway. You can use CA certificates to verify peers'
certificates. A maximum of four certificates can be stored.
Path: Security > Certificate > Trusted CA > Trusted CA (Certificate Authority)
Certificates
Importing Trusted CA Certificates
The Import CA certificate screen allows you to import a pre-existing trusted CA
certificate to the residential gateway.

Navigation menu
