Operator’s Manual

MM102341V1 P5A

M7100IP Series

Mobile Radios

SUPPLEMENTARY INFORMATION:

At this time, the M7100IP mobile radio may not be operated while in a desktop station in the

European Community since it does not meet immunity requirements when operated in this mode.

The M7100IP mobile radio can be used in both trunked and conventional applications.

ACKNOWLEDGEMENTS

This device is made under license under one or more of the following US patents: 4,590,473;

4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229.

The voice coding technology embodied in this product is protected by intellectual property rights

including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of

this technology is explicitly prohibited from attempting to decompile, reverse engineer, or

disassemble the Object Code, or in any other way convert the Object Code into human-readable

form.

EDACS is a registered trademark and ProGrammer, SCAT, Failsoft, ProSound, ProScan, Aegis,

ProFile, ProVoice, and G-STAR are trademarks of M/A-COM, Inc.

NOTICE!

This manual covers M/A-COM, Inc. products manufactured and sold by M/A-COM, Inc.

NOTICE!

Repairs to this equipment should be made only by an authorized service technician or facility

designated by the supplier. Any repairs, alterations or substitution of recommended parts made

by the user to this equipment not approved by the manufacturer could void the user's authority to

operate the equipment in addition to the manufacturer's warranty.

This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by

typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-

COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this

manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and

recording, for any purpose, without the express written permission of M/A-COM, Inc.

TABLE OF CONTENTS Page

RF ENERGY EXPOSURE INFORMATION .............................................5

RF ENERGY AWARENESS, CONTROL, AND OPERATION................5

COMPLIANCE WITH RF EXPOSURE STANDARDS ............................6

OPERATION SAFETY RECOMMENDATIONS.......................................8

TRANSMITTER HAZARDS ....................................................................8

SAFE DRIVING RECOMMENDATIONS ................................................9

OPERATING RULES AND REGULATIONS.........................................10

OPERATING TIPS................................................................................11

INTRODUCTION....................................................................................12

USER INTERFACE................................................................................13

CONTROLS...........................................................................................15

POWER ON-OFF VOLUME KNOB ......................................................15

SYSTEM/GROUP CHANNEL KNOB....................................................15

RAMP CONTROL.................................................................................15

SCAN ON/OFF .....................................................................................15

SCAN ADD/DELETE ............................................................................16

INDICATORS........................................................................................16

KEYPAD ...............................................................................................17

DISPLAY................................................................................................21

RADIO STATUS ICONS.......................................................................21

MESSAGES..........................................................................................22

ALERT TONES......................................................................................27

CALL ORIGINATE ................................................................................27

AUTOKEY (TRUNKED MODE ONLY)..................................................27

CALL QUEUED (TRUNKED MODE ONLY) .........................................27

SYSTEM BUSY (TRUNKED MODE ONLY) .........................................27

CALL DENIED (TRUNKED MODE ONLY) ...........................................27

CARRIER CONTROL TIMER ...............................................................27

KEY PRESS ALERT.............................................................................28

DUAL CONTROL SWITCHING ............................................................28

OPERATION..........................................................................................29

TURNING THE RADIO ON...................................................................29

SELECTION MODE RULES.................................................................29

DIRECT ACCESS.................................................................................30

MENU ...................................................................................................31

FEATURE ENCRYPTION DISPLAY.....................................................35

SYSTEM/GROUP/CHANNEL SELECTION..........................................37

TRUNKED MODE OPERATION............................................................39

RECEIVING A CALL.............................................................................39

SENDING A CALL ................................................................................39

CONVENTIONAL FAILSOFT ...............................................................40

EMERGENCY OPERATION.................................................................40

SYSTEM SCAN OPERATION ..............................................................41

GROUP SCAN OPERATION................................................................43

TABLE OF CONTENTS Page

INDIVIDUAL CALLS............................................................................. 45

SCAT OPERATION.............................................................................. 48

TELEPHONE INTERCONNECT CALLS.............................................. 48

MOBILE DATA ..................................................................................... 50

STATUS/MESSAGE OPERATION ...................................................... 53

EDACS CONVENTIONAL P1 SCAN ................................................... 54

DYNAMIC REGROUP OPERATION.................................................... 55

CONVENTIONAL MODE OPERATION................................................ 56

RECEIVING A CALL ............................................................................ 56

SENDING A CALL................................................................................ 56

EMERGENCY OPERATION ................................................................ 57

SCANNING CONVENTIONAL CHANNELS......................................... 58

TURNING SCAN ON............................................................................ 59

TURNING SCAN OFF.......................................................................... 60

SQUELCH ADJUST............................................................................. 60

TYPE 99 DECODE (CONVENTIONAL ONLY) .................................... 61

DIRECT MODE OPERATION (CONVENTIONAL ONLY).................... 62

PROJECT 25 (P25) CONVENTIONAL OPERATION ........................... 63

GROUP CALLS IN P25 MODE ............................................................ 63

INDIVIDUAL CALLS IN P25 MODE ..................................................... 63

EMERGENCY GROUP CALLS IN P25 MODE .................................... 64

TRUNKED OR CONVENTIONAL MODE OPERATION ....................... 66

SIREN/LIGHT OPERATION................................................................. 66

DIGITAL VOICE (PROVOICE/AEGIS/VOICE GUARD OPERATION). 66

DUAL CONTROL OPERATION ........................................................... 72

MULTIPLE RADIO OPERATION ......................................................... 73

CHANGING SELECTED RADIO.......................................................... 74

LAST SYSTEM/GROUP/CHANNEL RECALL ..................................... 75

MACRO KEY OPERATION.................................................................. 75

INTERCONNECT CALL (SYSTEM MODEL ONLY) ............................ 75

KEYPAD REMAPPING ........................................................................ 77

GLOSSARY........................................................................................... 78

WARRANTY.......................................................................................... 83

RF ENERGY EXPOSURE INFORMATION

RF ENERGY EXPOSURE AWARENESS, CONTROL

INFORMATION, AND OPERATION INSTRUCTIONS FOR

FCC OCCUPATIONAL USE REQUIREMENTS

BEFORE USING YOUR MOBILE TWO-WAY RADIO, READ THIS

IMPORTANT RF ENERGY AWARENESS AND CONTROL

INFORMATION AND OPERATIONAL INSTRUCTIONS TO ENSURE

COMPLIANCE WITH THE FCC’S RF EXPOSURE GUIDELINES.

NOTICE: This radio is intended for use in occupational/controlled

conditions, where users have full knowledge of their exposure and can

exercise control over their exposure to meet FCC limits. This radio

device is NOT authorized for general population, consumer, or any other

use.

This two-way radio uses electromagnetic energy in the radio frequency (RF)

spectrum to provide communications between two or more users over a

distance. It uses RF energy or radio waves to send and receive calls. RF

energy is one form of electromagnetic energy. Other forms include, but are

not limited to, electric power, sunlight, and x-rays. RF energy, however,

should not be confused with these other forms of electromagnetic energy,

which, when used improperly, can cause biological damage. Very high levels

of x-rays, for example, can damage tissues and genetic material.

Experts in science, engineering, medicine, health, and industry work with

organizations to develop standards for exposure to RF energy. These

standards provide recommended levels of RF exposure for both workers and

the general public. These recommended RF exposure levels include

substantial margins of protection. All two-way radios marketed in North

America are designed, manufactured, and tested to ensure they meet

government established RF exposure levels. In addition, manufacturers also

recommend specific operating instructions to users of two-way radios. These

instructions are important because they inform users about RF energy

exposure and provide simple procedures on how to control it. Please refer to

the following websites for more information on what RF energy exposure is

and how to control your exposure to assure compliance with established RF

exposure limits.

http://www.fcc.gov/oet/rfsafety/rf-faqs.html

http://www.osha.gov./SLTC/radiofrequencyradiation/index.html

Federal Communications Commission Regulations

Your M/A-COM, Inc. M7100IP mobile two-way radio is designed and tested

to comply with the FCC RF energy exposure limits for mobile two-way radios

before it can be marketed in the United States. When two-way radios are used

as a consequence of employment, the FCC requires users to be fully aware of

and able to control their exposure to meet occupational requirements.

Exposure awareness can be facilitated by the use of a label directing users to

specific user awareness information. Your M/A-COM, Inc. M7100IP two-way

radio has an RF exposure product label. Also, your M7100IP Installation and

Operator’s Manuals include information and operating instructions required to

control your RF exposure and to satisfy compliance requirements.

COMPLIANCE WITH RF EXPOSURE STANDARDS

Your M/A-COM, Inc. M7100IP mobile two-way radio is designed and tested

to comply with a number of national and international standards and

guidelines (listed below) regarding human exposure to RF electromagnetic

energy. This radio complies with the IEEE and ICNIRP exposure limits for

occupational/controlled RF exposure environment at duty factors of up to 50%

talk-50% listen and is authorized by the FCC for occupational use. In terms of

measuring RF energy for compliance with the FCC exposure guidelines, your

radio antenna radiates measurable RF energy only while it is transmitting

(talking), not when it is receiving (listening) or in standby mode.

Your M/A-COM, Inc. M7100IP mobile two-way radio complies with the

following RF energy exposure standards and guidelines:

• United States Federal Communications Commission (FCC), Code of

Federal Regulations; 47 CFR §§ 2 sub-part J.

• American National Standards Institute (ANSI)/Institute of Electrical

and Electronic Engineers (IEEE) C95.1-1992.

• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999.

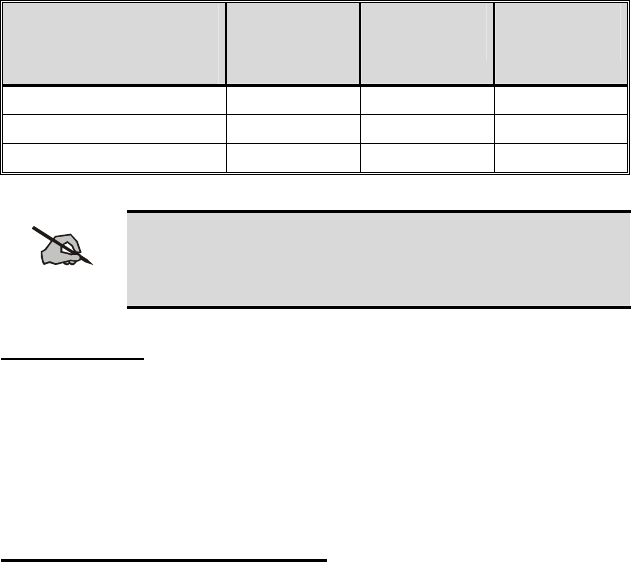

NOTE – Table 1 lists the recommended minimum lateral distance for

bystanders in an uncontrolled and controlled environment, from transmitting

types of antennas (i.e., monopoles over a ground plane, or dipoles) at rated

radio power for mobile radios installed in a vehicle.

Table 1 - Rated Power and Recommended Minimum Lateral Distance

RECOMMENDED MINIMUM

LATERAL DISTANCE FROM

TRANSMITTING ANTENNA

RATED POWER OF

VEHICLE-INSTALLED

MOBILE TWO-WAY RADIO

Controlled Uncontrolled

110 Watts 92.87 cm 207.67 cm

Mobile Antennas

Install the radio’s antenna (M/A-COM part number 19B209568P6) in the

center of the vehicle’s roof. These mobile antenna installation guidelines are

limited to metal body motor vehicles or vehicles with appropriate ground

planes. The antenna installation should additionally be in accordance with the

following.

1. The requirements of the antenna manufacturer/supplier included with

the antenna.

2. Instructions in the Radio Installation Manual, including minimum

antenna cable lengths.

3. The installation manual providing specific information of how to

install the antennas to facilitate recommended operating distances to

all potentially exposed persons.

Use only the M/A-COM approved/supplied antenna(s) or approved

replacement antenna. Unauthorized antennas, modifications, or attachments

could damage the radio and may violate FCC regulations.

Approved Accessories

This radio has been tested and meets the FCC RF exposure guidelines when

used with the M/A-COM accessories supplied or designated for use with this

product. Use of other accessories may not ensure compliance with the FCC’s

RF exposure guidelines, and may violate FCC regulations.

For a list of M/A-COM approved accessories refer to the product manuals,

M/A-COM’s Products and Services Catalog, or contact M/A-COM at 1-800-

528-7711.

Contact Information

For additional information on exposure requirements or other information,

contact M/A-COM, Inc. at 1-800-528-7711 or at http://www.macom-

wireless.com.

OPERATION SAFETY RECOMMENDATIONS

TRANSMITTER HAZARDS

WARNING

The operator of any mobile radio should be aware of certain

hazards common to the operation of vehicular radio

transmitters. A list of several possible hazards is given:

• Explosive Atmospheres – Just as it is dangerous to fuel a vehicle with

the motor running, similar hazards exist when operating a mobile radio.

Be sure to turn the radio off while fueling a vehicle. Do not carry

containers of fuel in the trunk of a vehicle if the radio is mounted in the

trunk.

Areas with potentially explosive atmosphere are often, but not

always, clearly marked. Turn OFF your radio when in any area with

a potentially explosive atmosphere. It is rare, but not impossible that

the radio or its accessories could generate sparks.

• Interference to Vehicular Electronics Systems – Electronic fuel

injection systems, electronic anti-skid braking systems, electronic cruise

control systems, etc., are typical electronic systems that can malfunction

due to the lack of protection from radio frequency energy present when

transmitting. If the vehicle contains such equipment, consult the dealer

and enlist their aid in determining the expected performance of electronic

circuits when the radio is transmitting.

• Dynamite Blasting Caps – Dynamite blasting caps can be caused to

explode by operating a radio within 500 feet of the blasting caps. Always

obey the “Turn Off Two-Way Radios” signs posted where dynamite is

being used.

• When transporting blasting caps in your vehicle:

 Carry the blasting caps in a closed metal box with a soft lining.

 Leave the radio OFF whenever the blasting caps are being put into or

removed from the vehicle.

• Liquefied Petroleum (LP) Gas Powered Vehicles – Mobile radio

installations in vehicles powered by liquefied petroleum gas with the LP

gas container in the trunk or other sealed-off space within the interior of

the vehicle must conform to the National Fire Protection Association

standard NFPA 58 requiring:

 The space containing the radio equipment shall be isolated by a seal

from the space containing the LP gas container and its fittings.

 Outside filling connections shall be used for the LP gas container.

 The LP gas container shall be vented to the outside of the vehicle.

SAFE DRIVING RECOMMENDATIONS

(Recommended by AAA)

• Read the literature on the safe operation of the radio.

• Keep both hands on the steering wheel and the microphone in its hanger

whenever the vehicle is in motion.

• Place calls only when the vehicle is stopped.

• When talking from a moving vehicle is unavoidable, drive in the slower

lane. Keep conversations brief.

• If a conversation requires taking notes or complex thought, stop the

vehicle in a safe place and continue the call.

• Whenever using a mobile radio, exercise caution.

OPERATING RULES AND REGULATIONS

Two-way FM radio systems must be operated in accordance with the rules and

regulations of the local, regional, or national government.

In the United States, the M7100IP Series mobile radio must be operated in

accordance with the rules and regulations of the Federal Communications

Commission (FCC). As an operator of two-way radio equipment, you must be

thoroughly familiar with the rules that apply to your particular type of radio

operation. Following these rules helps eliminate confusion, assures the most

efficient use of the existing radio channels, and results in a smoothly

functioning radio network.

When using your two-way radio, remember these rules:

• It is a violation of FCC rules to interrupt any distress or emergency

message. As your radio operates in much the same way as a telephone

“party line,” always listen to make sure that the channel is clear before

transmitting. Emergency calls have priority over all other messages. If

someone is sending an emergency message – such as reporting a fire or

asking for help in an accident – KEEP OFF THE AIR!

• The use of profane or obscene language is prohibited by Federal law.

• It is against the law to send false call letters or false distress or emergency

messages. The FCC requires that you keep conversations brief and

confine them to business. To save time, use coded messages whenever

possible.

• Using your radio to send personal messages (except in an emergency) is a

violation of FCC rules. You may send only those messages that are

essential for the operation of your business.

• It is against Federal law to repeat or otherwise make known anything you

overhear on your radio. Conversations between others sharing your

channel must be regarded as confidential.

• The FCC requires that you identify yourself at certain specific times by

means of your call letters. Refer to the rules that apply to your particular

type of operation for the proper procedure.

• No changes or adjustments shall be made to the equipment except by an

authorized or certified electronics technician.

IMPORTANT!

Under U.S. law, operation of an unlicensed

radio transmitter within the jurisdiction of the

United States may be punishable by a fine of up

to $10,000, imprisonment for up to two (2)

years, or both.

OPERATING TIPS

The following conditions tend to reduce the effective range of two-way radios

and should be avoided whenever possible:

• Operating the radio in areas of low terrain, or while under power lines or

bridges

• Obstructions such as mountains and buildings

• In areas where transmission or reception is poor, some improvement can

be obtained by moving a few yards in another direction or moving to a

higher elevation.

INTRODUCTION

This manual describes how to use the M7100IP Series Mobile Radio. The

M7100IP is a synthesized, microprocessor-based, high performance mobile

FM radio providing reliable two-way communications in both the Enhanced

Digital Access Communications System (EDACS®) trunking environment

and conventional communication systems.

In the EDACS or trunked system mode, the user selects a communications

system and group. In this mode, channel selection is transparent to the user

and is controlled via digital communication with the system controller. This

provides advanced programmable features and fast access to communication

channels.

In the conventional mode, the user selects a channel and directly

communicates on that channel. In this mode, a system refers to a set of

channels. A channel is a transmit/receive radio frequency pair.

The exact operation of the radio will depend on the operating mode, the

radio's programming and the particular radio system. Most features described

in this manual can be enabled or disabled through programming. Consult the

system administrator for the particular features that are programmed into the

M7100IP.

USER INTERFACE

The M7100IP operating controls are located on the radio's front panel (see

Figure 1 and Figure 2). A keypad, vacuum florescent display for radio status

information and a microphone jack are on the front panel. The front panel also

provides a rotary SYSTEM/GROUP/CHANNEL knob, POWER ON-

OFF/VOLUME control, a ramp up/ramp down control, Scan add/delete

control, and a SCAN ON-OFF control for scan operation.

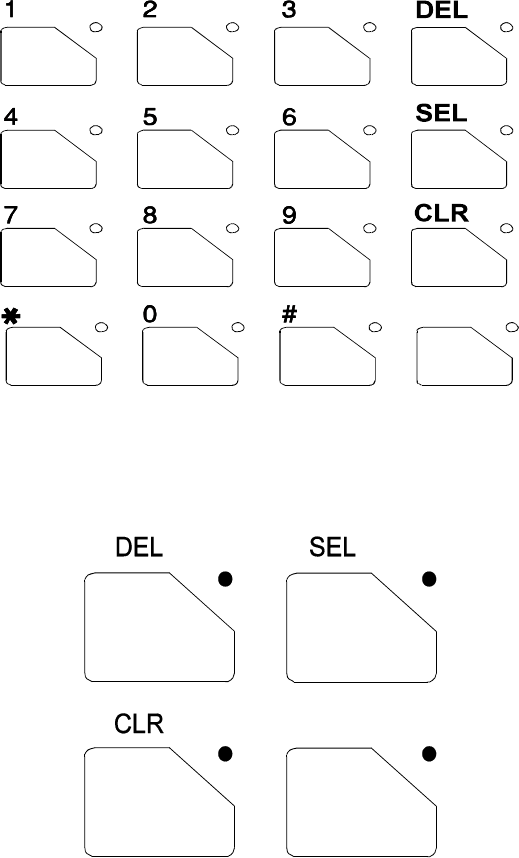

The keypad is used for manual number entry for individual calls, access to a

telephone interconnect system and activation of various EDACS or

conventional features such as menu selection. Each key has an associated

LED for status indication.

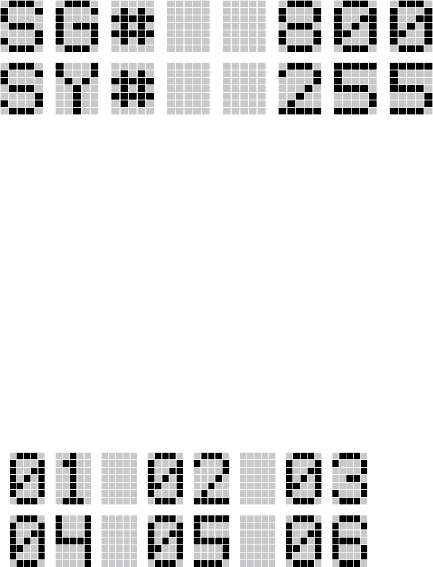

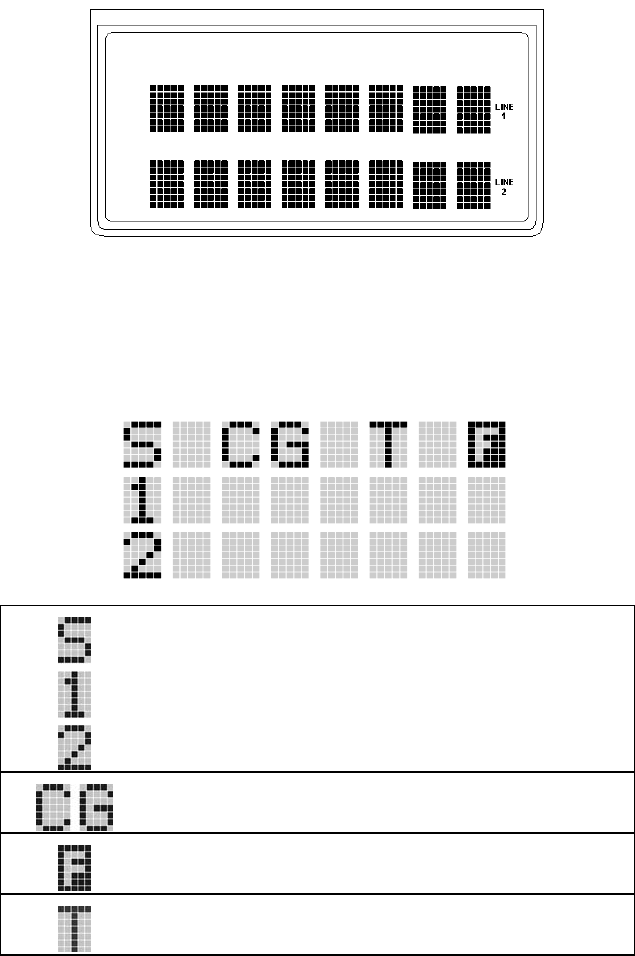

The display has two lines with eight alphanumeric-characters used to show the

operational mode of the radio. There is one LED for indicating transmitter ON

and one LED to indicate CHANNEL BUSY located below the POWER ON-

OFF/VOLUME Control.

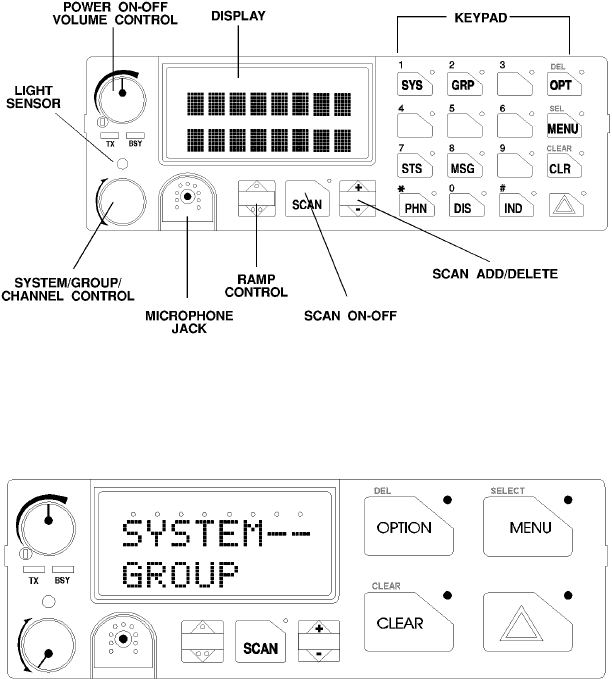

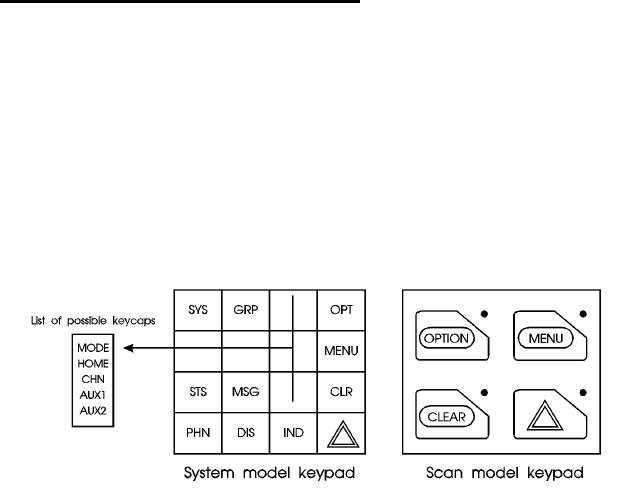

Figure 1 - M7100IP Series Mobile Radio System Model Front Panel

Figure 2 - M7100IP Series Mobile Radio Scan Model Front Panel

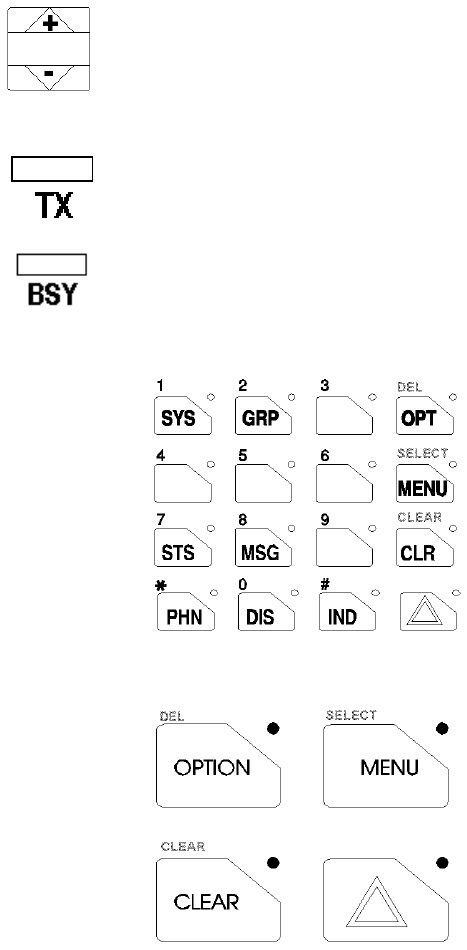

CONTROLS

This section describes the buttons, keys and rotary knobs used to control the

M7100IP Series Mobile Scan and System Model radios. All functions and

controls of the Scan radio operate the same as the corresponding functions and

controls on the System radio. The Scan radio is equipped with a 4-button

keypad and the System radio is equipped with a 16-button keypad.

Many of the control buttons and keys have or can be programmed to have a

primary function and a secondary function. The SCAN button can be

programmed (as a secondary function) to toggle the keypad keys between

their primary function and their secondary function.

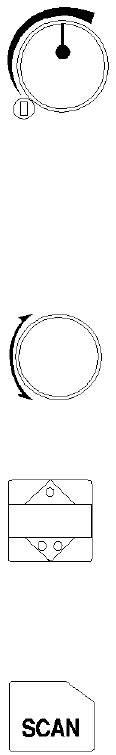

POWER ON-OFF VOLUME KNOB

This rotary knob applies power to the radio and adjusts the

receiver volume. Rotating the control clockwise out o

detent applies power to the radio. A single alert tone sounds

(if enabled through programming) to indicate the radio is

operational.

Rotating the control clockwise increases the volume level. Minimum volume

levels can be programmed into the radio to prevent missed calls due to a low

volume setting. While adjusting the volume, the display will briefly indicate

the volume level (i.e. VOL = 31). The volume range is from a minimum level

of zero (displayed as OFF in the display) up to 31, which is the loudest level.

SYSTEM/GROUP CHANNEL KNOB

This rotary knob selects the systems or groups/channels,

depending upon programming. This 16-

osition knob has no

stop or detent. See SYSTEM/GROUP/CHANNEL

SELECTION section for more details.

RAMP CONTROL

The primary function of this rocker type button is to scroll

through the System list or the Group/Channel list depending

upon programming. The secondary function is to increment o

decrement items within a list (phone list for example). Press ,

to scroll in increasing order and press .to scroll in decreasing

order. To auto-ramp, press and hold the button.

SCAN ON/OFF

The primary function of this button is to toggle scan operation on

and OFF. When the radio is scanning, the SCAN LED is on and

all groups or channels in the scan list of the currently selected

systems are scanned.

The secondary function of the SCAN button is to toggle the keypad buttons

between their primary function and their secondary function.

SCAN ADD/DELETE

This rocker type button is used to display the current SCAN

status for a group/channel and then either add or delete the

group/channel from the system scan list.

INDICATORS

Transmitter enabled - ON when the radio is transmitting.

BuSY - On indicates a carrier is being received (the channel is

busy).

ote that if the selected channel is programmed fo

Channel Guard (CG), Digital Channel Guard (DCG) or Type

99 (T99) tone decode operation, the radio will not un-squelch

if a valid tone or code is not received; the BSY indicator will

be on.

Figure 3 – M7100IP System Model Keypad

Figure 4 - M7100IP Scan Model Keypad

KEYPAD

The keypad is similar to a telephone keypad but with four (4) additional

buttons on the side for a total of 16 keys. In addition to numbers (1-9, *, 0 and

#), which is a secondary function, most of the keys have or can be

programmed to have a primary function. A symbol or abbreviated word

describing its primary function is labeled on the keycap. Each labeled keycap

is associated with a radio feature (or primary function). The radio must be

programmed to operate with the Standard or the Optional keycap

configuration.

A keylight (LED) is associated with each key or button. This can light when

the associated function is active. In some conditions, the keylight can blink to

indicate an action status.

The keypad key functions can be remapped to any of the primary function

keys using the PC programming software. It is suggested that the blank

keypad (located at the back of this manual) be completed if the keypad key

functions are changed.

Standard Keycap Configuration

The Standard keycap package for the System radio includes five (5) labeled

keycaps (MODE, HOME, CHN, AUX1 and AUX2) and six (6) blank

keycaps, which can be placed on any of the five key locations (numbers 3-6

and 9) shown in Figure 5. The keycap represents the primary function

programmed for that key location. See the Key Descriptions section for a

description of the primary function associated with these five (5) keycaps.

The standard keycap package for the Scan radio includes five (5) labeled

keycaps [MENU, CLEAR, SELECT, EMERGENCY ( E), OPTION] and five

(5) blank keycaps, which can be placed on any of the four (4) keypad keys.

The keycap represents the primary function programmed for that key location.

Figure 5 - Standard M7100IP Keycaps Configuration

Optional Keycap Configuration

The optional keycap package for the System radio includes sixty (60)

additional keycaps (shown in the Key Descriptions section), which can be

placed on any key location desired. Keep in mind, the keycap represents the

primary function programmed for that key location.

Key Descriptions

MODE This key is used to enter the Conventional System selection

mode.

HOME This key returns the radio to the Home System/Group where it

is programmed.

CHN This key is used to enter the Channel select mode.

AUX1 & 2 These keys are used to control output 1 or 2. Their definition

is PC programmable.

S This key is used to enter the System select mode.

G This key is used to enter the Group select mode.

This key function is used to toggle a PC programmable

feature ON and OFF.

DEL Secondary function - used to delete a digit during numeric

entry (see SELECTION MODE RULES).

M Primary function - accesses the menu list. This is a list of

additional features that are not available directly from the

keypad. See MENU section for details.

SELECT Secondary function - activates a selected item within a list.

After the menus list is accessed, select a menu item from the

list via RAMP controls, , or ., and activate it with this

key. Once activated, MENU continues its secondary function

for activating a selected parameter setting until the radio

returns to its normal receive state. This is similar to an enter

key.

S The Status key permits the transmission of a pre-programmed

status message to an EDACS site.

N The Message key permits the transmission of a pre-

programmed message to an EDACS site.

Serves several purposes depending on the operating mode. In

trunked mode, the CLR button exits the current operation and

removes all displays associated with it. The radio and display

then return to the group receive state. In Conventional mode,

pressing this button unmutes the receiver so activity on the

selected channel can be monitored. When pressed and held

for approximately 3 seconds, this button toggles conventional

channel decoding (Channel Guard, Digital Channel Guard,

T99) ON and OFF if programmed for the selected channel.

P Used to place telephone calls through the radio by selecting

the interconnect special call function. See TELEPHONE

INTERCONNECT CALLS for details.

D Used to adjust the current display intensity and the keypad

backlight level.

I Used to call an individual or make an all-call by selecting the

individual call function. See INDIVIDUAL CALLS for

details.

E This key function is used to declare emergencies.

ALM This key toggles the external alarm ON/OFF. The external

alarm is used to indicate the radio is receiving an Individual

Call. Press the key once to enable external alarm and press

again to disable external alarm.

SG1-SG5 This key corresponds to five (5) pre-programmed

System/Groups. Pressing a key programmed for SG1 would

switch the radio to the pre-programmed System/Group 1.

Pressing a key programmed for SG2 would switch the radio to

the pre-programmed System/Group 2, etc.

WAIL, YLP,

RST, SL1-

SL8

The WAIL and YLP (Yelp) keys are designed to control an

optional Siren package. The SL1-SL8 (Siren/Light) keys are

designed to control an optional Siren/Light package. The

RST (Reset) key is used to turn all sirens and lights OFF.

SPK This key function is used to toggle the external speaker

ON/OFF.

STO-ST9 The status 0-9 keys are used to send a pre-programmed status

message to the EDACS site.

PVT The PVT key enables or disables Private Mode for the

System/Group displayed. See the Private Operation section.

KEY Displays the Encrypted Keys. This selects the DISP KEY

operation from the menu functions.

G* This key function is used in Conventional Mode to send G

STAR emergency signaling.

PA This key function enables and disables the Public Address

feature.

# DTMF keypad function.

1 thru 9 Keypad numbers.

* DTMF Keypad function.

Primary Functions (Quick Access)

The secondary function of the k button is to toggle the keypad buttons

between their primary function and their secondary function. When the

secondary keypad is active, i.e. entering phone digits for an interconnect call,

the k button can be used to toggle the keypad buttons back to their primary

function, perform a task (siren/light enable), and then toggle back to finish

entering the digits for the phone number. PRIMARY is displayed when the

k button is used to toggle the keypad keys back to their primary functions.

This provides quick access to the primary functions of the keypad. This is a

programmable feature of the k button only. Careful consideration should be

given to possible operational conflicts before enabling this feature.

Several keys on the Scan version have a secondary function. The m key is

the SELECT secondary function with the C key remaining the same for the

secondary function. On the System version, the o has a secondary function

for DELETE, m is SELECT, and c retains its CLEAR function.

DISPLAY

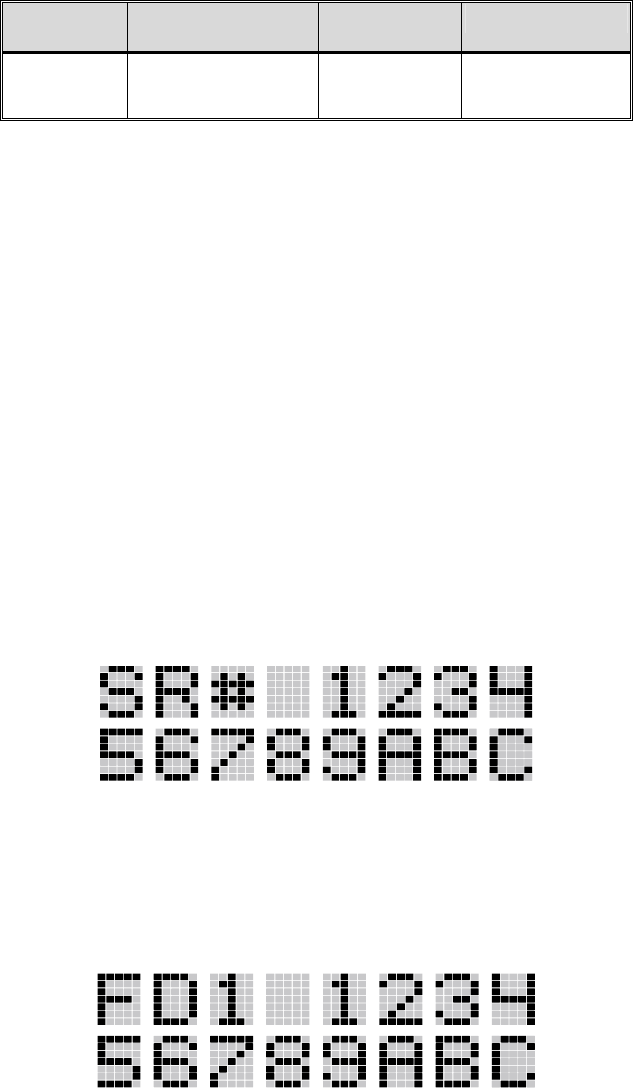

The radio's display is shown in Figure 6. The two character lines are used to

display system, group and channel names and also operational messages. Each

line contains eight alphanumeric character blocks. See Figure 2 for a typical

display.

Figure 6 – M7100IP Series Mobile Radio Display

RADIO STATUS ICONS

Status icons are indicators that show the various operating characteristics of

the radio. The icons appear on the first line of the display.

• indicates selected group or channel is in scan list.

• indicates selected group or channel is programmed as

Priority 1 in scan list.

• indicates selected group or channel is programmed as

Priority 2 in scan list.

• indicates conventional channel enabled with Channel

Guard function.

• indicates the EDACS system is in Failsoft™ mode (if

enabled through programming).

• indicates Type 99 Decode is enabled on a

conventional channel.

MESSAGES

During radio operation, various messages are displayed on either line 1 or line

2. Typical messages include control channel status information, such as

system busy or call denied, or messages associated with the radio's operation,

(i.e. volume adjust). These messages are described as follows:

Table 2 – Display Messages

MESSAGE NAME DESCRIPTION

QUEUED Call Queued Trunked mode only. Indicates the system has

placed the call in a request queue.

SYS BUSY System Busy Trunked mode only. Indicates the system is busy,

no channels are currently available, the queue is

full or an individual call is being attempted to a

radio that is currently transmitting.

DENIED Call Denied Trunked mode only. Indicates the radio is not

authorized to operate on the selected system.

CC SCAN Control Channel Scan Trunked mode only. Indicates the control channel

is lost and the radio has entered the Control

Channel Scan mode to search for the control

channel.

WA SCAN Wide Area Scan Trunked mode only. Indicates the control channel

is lost and the radio has entered the Wide Area

Scan mode to search for a new system (if enabled

through programming).

TALKARND Talk-around Conventional mode only. Indicates the radio is

operating on conventional channels in talk-

around mode (no repeater).

*RXEMER* Receive Emergency Trunked mode only. Indicates an emergency call

is being received. This message will be flashing

on line 2.

*TXEMER* Transmit Emergency Trunked mode only. Indicates an emergency call

has been transmitted. This message will be

flashing on line 2.

VOL=31 Volume Level Indicates the current volume level. The volume

level display ranges from OFF (silent) to 31

(loudest).

UNKNOWN Caller's ID Not

Received Indicates that an individual call is being received,

but the caller's ID was not received.

TX DATA Transmit Data Trunked mode only. Indicates the radio is

transmitting a data call.

RX DATA Receive Data Trunked mode only. Indicates the radio is

receiving a data call. Displayed on line 2.

DATA OFF Data OFF Trunked mode only. Indicates the radio is in the

data disabled state. Displayed on line 1.

DATA ON Data ON Trunked mode only. Indicates the radio has been

toggled to the data enable state. Displayed for

two seconds on line 1 when toggled to enable

state.

MESSAGE NAME DESCRIPTION

SYSC ON System Scan Features

ON Trunked mode only. Indicates the System Scan

features are enabled.

SYSC OFF System Scan Features

OFF Trunked mode only. Indicates the System Scan

features are disabled.

T99 ON Type 99 Decode ON Conventional mode only. Indicates the Type 99

Decode feature is enabled.

T99 OFF Type 99 Decode OFF Conventional mode only. Indicates the Type 99

Decode feature is disabled.

PA ON Public Address ON Indicates that the public address function of the

radio is enabled.

PA OFF Public Address OFF Momentary (2 seconds) indicates that public

address function of the radio was disabled.

ALRM ON External Alarm Enabled Indicates that the external alarm function of the

radio is enabled.

ALRM OFF External Alarm

Disabled Momentary (2 seconds) indicates that the

external alarm function of the radio was disabled.

PVT DIS Private Mode Disabled Indicates that private mode is disabled or no

encryption key has been programmed for the

selected group/channel or special call.

FRCD PVT Forced Private

Operation Indicates that forced private operation has been

pre-programmed into radio.

NO KEY # Encryption Key

Missing Flashing indicator indicates that no encryption

key or an incorrect encryption key is

programmed into the radio.

BCKL=1-6 Backlight Indicates the display intensity and keypad

backlight level.

GR Group ID Indicates that the call is a group call and is

followed by the GID of the caller (trunked mode

only).

ID Individual ID Indicates the call is an individual call and the ID

number of the caller, example "ID 2725"

(trunked mode only).

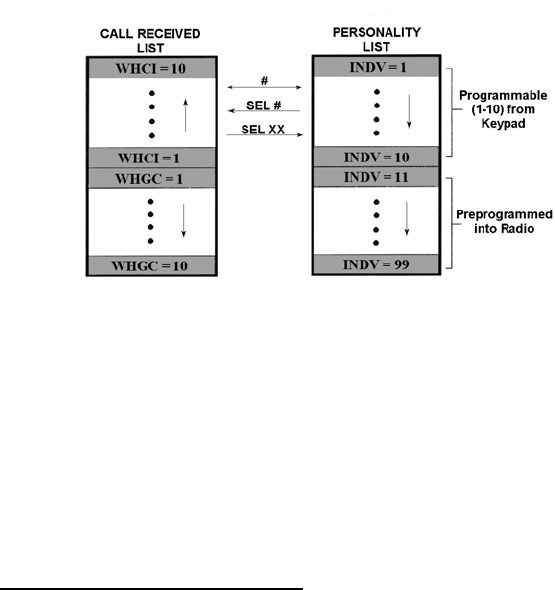

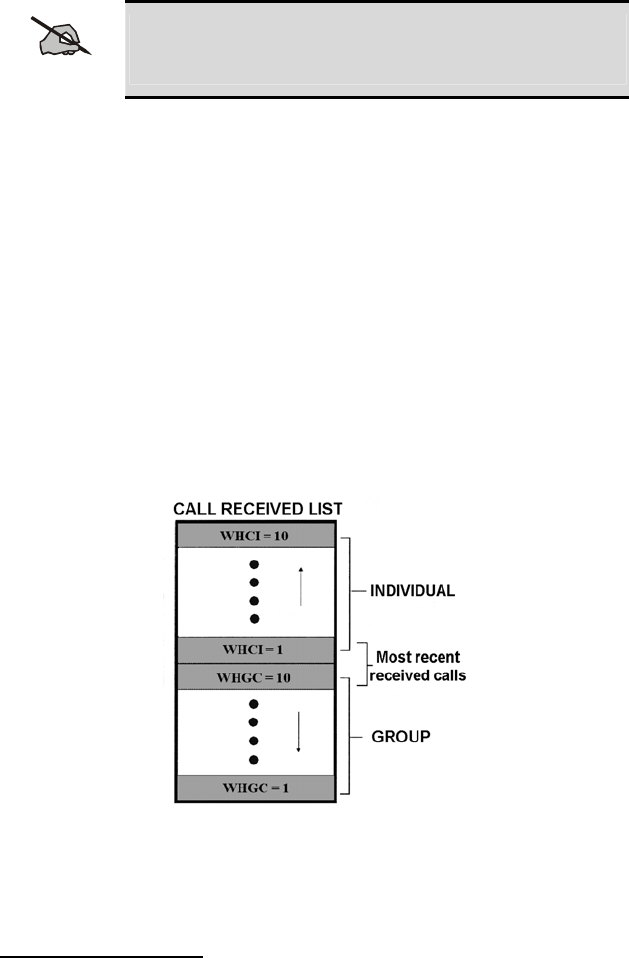

WHC=1 Who Has Called This display indicates the number from the Who

Has Called list. Individual calls received but not

responded to are stored in a Who Has Called list.

This list is accessible by pressing the # key and

then the INDV key after the Individual call has

timed out or the Clear button is pressed. This

display is on line 2 and the LID of the caller is

displayed on the top line. Currently the list is not

implemented and the display will always be

WHC=1.

PHONE Phone Call Displayed when a phone call is received from the

site. It is displayed in line 1 of the display. Line 2

of the display will contain the display *INDV*

when line 1 contains this message. The radio

interprets a received phone call as an individual

call.

MESSAGE NAME DESCRIPTION

CONV FS Conventional Failsoft Displayed when a failure of the EDACS system

occurs. All communication will be in

conventional mode (trunked mode only).

MENU Displayed when the menu key is pressed and

remains displayed in line 1 until a menu item is

selected.

SYS=1-64 System = 1 - 64 The system number for the current base station of

the system displayed in line 1. It is displayed in

line 2 of the display. Press the system key to

obtain this display.

GRP=1-64 Group = 1 - 64 The group number of the group displayed in line

2 of display. It is displayed in line 1 of the

display. Press the group key to obtain this

display. There are up to 48 groups available (i.e.

3 banks of 16). The maximum number of groups

programmed in a radio is determined by the

personality.

INDV=1-99 Individual = 1 - 99 Indicates which item in the individual call list is

being displayed. It is displayed in line 2 of the

display. The name or ID of the item in the list is

displayed in line 1 of the display.

PHN=1-99 Phone = 1 - 99 Indicates which item in the phone list is being

displayed. It is displayed in line 2 of the display.

Line 1 of the display will be the last 3 characters

of the list item contents.

SEL PHN Select Phone After pressing the PHN key, selecting an entry

from the phone list by typing the entry number

will display this message on Line 1.

SEL INDV Select Individual ID Displayed on line 1 when an entry from the

individual ID list is selected after pressing the

INDV key. The entry is a number between 1 and

32 inclusive (trunked mode only).

SYS ALL System All Call Displayed on line 1 to indicate a system all-call

has been received (trunked mode only).

Ggg-v.vv Code Group and

Revision Number This is code group and revision number that is

displayed in line 2 when the menu item

"REVISION" is selected. The `gg' is the group

number of the software. The first `v' is the

hardware version and `vv' is the revision of the

software.

*PHONE* Phone Call Displayed when an initiated phone call is in

progress. This is displayed on line 2 of the

display.

DUAL Dual Control Operation Displayed on an idle control unit when

configured as dual control operation.

NO ENTRY Indicates that there is no data stored in one of the

programmable items in either the phone list or

individual call list. The user programmable items

are items 1 through 10 in each list.

INV SYS Invalid System Displayed when the current system is an invalid

type.

MESSAGE NAME DESCRIPTION

CHN=1-99 Channel = 1 - 99 Displayed on line 1 of the display. This is a

conventional channel index displayed when the

group key is depressed.

FIX LIST Fixed List The Priority scan list is fixed and cannot be

changed using the add or delete keys.

FIXED P1 Fixed Priority 1 The Priority 1 scan channel is fixed and cannot

be changed using the add or delete keys.

COM" is displayed in line 1 while displaying

different items under the menu when

‘REVISION’ is selected by the operator.

EM Emergency Indicates an emergency has been declared by the

LID that follows the display, ‘EM.’ An example

of this is “EM 01201.”

*INDV* Individual Call Displayed in line 2 of the display when an

individual call is in progress (trunked and T99

modes only).

*GROUP* Group Call Indicates a group call is in progress and is

displayed on line 1 of the display (trunked and

T99 modes only).

SPKR ON External Speaker ON Displayed when the external speaker is enabled.

SPKR OFF External Speaker OFF Displayed when the external speaker is disabled.

BANK=1-8 The bank of keys that are going to be loaded

when the keyloader loads encryption keys. This

is only valid for radios that support VGS, VGE,

or DES encryption. It is displayed on line 2 of the

display when the encryption keyloader is

connected.

REGR_0x Dynamic Regroup Indicates which group in the dynamic regroup

operation has been enabled, where "x" is a digit

of 1 to 8 (trunked mode only).

KEY LOAD Displayed on line 1 of the display when the

encryption keyloader is connected.

KEY ZERO Displayed on line 2 of the display when the reset

and option buttons are pressed simultaneously for

approximately two seconds. The encryption keys

are zeroed.

SYS KEY System Key Displayed on line 1 of the display in the display

key mode of the menu. It is followed in the

second line with a key number `KEY = <1..7>'.

GRP KEY Group Key Displayed on line 1 of the display in the display

key mode of the menu for trunked systems only.

It is followed in the second line with a key

number ‘KEY = <1..7>.’

CHN KEY Channel Key Displayed on line 1 of the display in the display

key mode of the menu for conventional systems

only. It is followed in the second line with a key

number ‘KEY = <1..7>.’

MESSAGE NAME DESCRIPTION

KEY=1-7 Displayed on line 2 of the display in the display

key mode of the menu for conventional systems

when the ‘SYS KEY’ or ‘CHN KEY’ is

displayed in line 1 and for trunked systems when

the ‘SYS KEY’ or ‘GRP KEY’ is displayed in

line 1.

PRIMARY Displayed on line 1 of the display when the

primary keys are enabled.

PRS NAME Personality Name Displayed on line 1 of the display under the

revision selection of the menu. The personality

name is displayed on line 2 at the same time.

M/A-COM Displayed on line 1 of the display under the

revision selection of the menu. The copyright

year is shown in line 2 of display at the same

ALERT TONES

The M7100IP Series mobile radio also provides audible alert tones or "beeps"

to indicate the various operating conditions. These alert tones can be enabled

or disabled through programming.

CALL ORIGINATE

A short mid-pitched alert tone sounds after keying the radio (Push-To-Talk

button is pressed). This tone indicates the radio has been assigned a working

channel or that the radio is transmitting on a conventional channel and voice

communication can begin immediately. In conventional mode, this tone may

be delayed after the PTT button is pressed due to G-STAR™ signaling (if

enabled through programming).

AUTOKEY (TRUNKED MODE ONLY)

After being placed in a queue or releasing the PTT button prior to a working

channel assignment, the site calls the radio when a channel becomes available.

At this point, the radio automatically keys the transmitter (autokey) for a short

period to hold the channel. The radio sounds a mid-pitched tone when it is

clear to talk. Immediately press the PTT button to keep the assigned channel.

CALL QUEUED (TRUNKED MODE ONLY)

A high-pitched tone after pressing the PTT button indicates the system has

placed the call request in the queue. The receiving unit(s) also hears the tones

to indicate they will receive a call shortly. If the PTT button is released, the

radio will autokey whenever a channel becomes available (see Autokey).

SYSTEM BUSY (TRUNKED MODE ONLY)

Three low-pitched beeps will be heard if the radio is keyed when the system is

busy, if no channels are available for sending the message, if the call queue is

full, or if an individual call is being attempted to a radio that is transmitting.

Releasing the PTT button and re-keying initiates a new channel request.

CALL DENIED (TRUNKED MODE ONLY)

If the radio is keyed and a low-pitched tone is heard, the radio is not

authorized on the system that has been selected.

CARRIER CONTROL TIMER

If the programmed time for continuous transmission is exceeded, the radio

will issue five short high-pitched warning tones followed by a long low-

pitched tone. The transmitter will shut down shortly after the alert,

interrupting communications. Release and re-key the PTT button to maintain

communications. This will reset the carrier control timer and turn the

transmitter back on.

KEY PRESS ALERT

A short tone or "beep" will sound to indicate a key has been pressed. A short

low-pitched tone indicates no action was taken because the key is not active in

the current mode.

DUAL CONTROL SWITCHING

When control is switched to a previously idle control unit, two short high-

pitched tones will sound at the control unit where the PTT was pressed (now

the active controller).

OPERATION

The M7100IP Series mobile radio unit can be programmed to operate in a

trunked system, a conventional system, or both. Operating features and

functions have been grouped according to the type of system the radio is

operating in. This first section contains general operating procedures (e.g.,

Turning the Radio On). The second section, TRUNKED MODE

OPERATION, covers those operating procedures that are only used in a

trunked system (e.g., Group Scan). The third section, CONVENTIONAL

MODE OPERATION, covers those operating procedures that are only used

in a conventional system (e.g., Squelch Adjust). The fourth section,

TRUNKED OR CONVENTIONAL MODE OPERATION, covers those

operating procedures that can be used in either a trunked or a conventional

system (e.g., Multiple Radio Operation).

TURNING THE RADIO ON

Rotate the POWER ON-OFF/VOLUME knob clockwise, out of detent to

turn the radio on. A short beep (if enabled through programming) indicates the

radio is ready for operation. The display indicates, if programmed, the last

selected system name on line 1 and the last selected group or channel name on

line 2.

In the EDACS trunked environment, if communication with the system's

control channel cannot be established, the CC SCAN message will be

displayed. This can occur if, for example, the radio is out of range of the

trunking site. It may be necessary to move to another location or select

another trunking system to re-establish the control channel link for trunked

mode operations.

SELECTION MODE RULES

Many operations require selection from a list such as system, group or phone

number. This selection process is handled in the same manner for all lists. The

RAMP controls, , and ., SEL, 0-9, *, #, the DEL button, and the c

button are used during the selection process. The following example systems

list is used to explain the process:

NOTE

The hookswitch functions the same as the c key in I-Call,

phone call, and menu modes.

SYSTEM

1 NORTH

2 SOUTH

3 EAST

4 WEST

After entering a selection mode, the following generic display format will

appear:

X X X X X X X X

Y Y Y = Z Z Z

Line 1 shows the currently selected item name (XXXXXXXX) from the list.

Line 2 indicates the list (YYY) that the selection is to be made from and the

number of the selected item (ZZZ) within the list. (In some cases the

information on lines 1 and 2 will be exchanged.) Enter the system selection

mode by pressing the S key. If SYSTEM 2 is the current selection, the

display appears as follows:

S O U T H

S Y S = 2

Line 1 contains the current system name, SOUTH; and line 2, SYS = 2,

indicates that selection is from the system list and it is the second system

within the list.

A new system from the list is selected by using the RAMP control, , or .,

or by directly entering the system number with the numeric keys. The RAMP

controls, , or ., scroll through the list in increasing and decreasing order.

In the previous example, pressing the RAMP control , selects the EAST

system as shown in the next display.

E A S T

S Y S = 3

The radio can be programmed to wrap around from one end of a list to the

other end or to stop at the ends.

DIRECT ACCESS

To directly access a selection, enter the corresponding number (e.g. 4)

followed by SEL to activate the selection. The entered number is displayed on

line 2 as shown below. Line 1 shows the current list being used for selection.

S E L S Y S

If a mistake is made while entering the number, press the DEL button to

backspace once and correct the entry. If an invalid number is entered, a short

low-pitched tone sounds when SEL is pressed.

To exit the selection mode, press the c button or wait for the time-out. If

the selection mode is cleared while an entry is pending (i.e., numbers are

entered on line 2, but SEL has not been pressed), the entry on line 2 will be

disregarded and the previous selection will remain active. If the time-out

activates while an entry is pending, the entry on line 2 will be selected if it is

within the valid range; if it is out of range, the entry on line 2 will be

disregarded and the previous selection will remain active.

NOTE

While in system, group or channel selection mode, the radio

continues to receive calls normally and continues scanning, if it

is enabled. If a call is received during the selection mode

process the radio will return to the normal receive mode

display. Continuing with the selection process will return the

display to the same point in the selection process if the

selection mode time out has not yet expired. Any press of the

PTT button during the selection mode process will initiate

transmission and exit the selection mode.

The menu function accesses features that are not available directly from the

keypad. The order and specific number of menu items available is

configurable through programming. Upon radio power up, the menu item at

the beginning of the menu list will always be displayed first. Subsequent

access to the menu function will return the last menu item that was shown in

the display. To enter the menu mode, press m. The RAMP controls, , and

., the SEL and the c buttons are used during the selection process. All of

the selection mode rules previously detailed apply to the menu item selection

process with the exception of direct access. The radio will continue to receive

and transmit normally while in the menu function.

A new item is displayed by using the RAMP controls, , and ., to scroll

through the list in increasing and decreasing order. The displayed menu item

is made active by pressing SEL.

After entering the menu selection mode, the following generic display format

will appear.

M E N U

Y Y Y Y Y Y Y Y

Line 1 indicates the radio is in the menu selection mode. Line 2 indicates the

menu item (YYYYYYYY) that is to be viewed or changed (some menu items

provide radio information and do not have changeable parameters).

An example of the menu item selection process and menu item parameter

change is detailed below for the backlight menu item.

PRESS: m

The menu mode is entered.

PRESS: The RAMP controls, , or ., until the display shows:

M E N U

B C K L G H T

PRESS: SEL

The backlight menu item is activated and the display will be similar to the

following:

B C K = X X X

Y Y Y Y Y Y Y Y

Line 1 shows the active menu item and its current parameter setting (XXX).

Line 2 shows the currently selected system or group name (YYYYYYYY).

The menu item's parameter setting shown in the display can now be changed

by using the RAMP controls, , and ., to scroll through the list of

parameter values. Once the desired setting is reached press SEL to store the

value and return to the normal display. For menu items that display radio

information, pressing , and . will scroll through a list of informational

displays. The menu items are listed in Table 3.

Table 3 – Menu Item Information

FEATURE DISPLAY PARAMETER

SETTINGS COMMENT

Backlight Adjust Menu Item:

BCKLIGHT

Once selected:

BCKL=

OFF, 1, 2, 3, 4 Selects the light level

for backlighting.

Radio Revision

Information Menu item:

REVISION Informational

displays only

(see radio); no user

selectable settings.

Selects the information

display to view.

PHONE CALL Menu item:

PHN CALL

Once selected: See

Telephone Interconnect

Call Section

Allows access to the

Phone Call Feature.

Individual Call

(Trunked Systems

Only)

Menu Item:

IND CALL

Once Selected: See

Individual Call Section

Allows access to the

Individual Call Feature.

External Alarm Menu Item: EXTALARM

Once Selected:

EXTALARM

ON, OFF EXTALARM replaces

the system name on the

display as long as the

external alarm feature is

enabled.

FEATURE DISPLAY PARAMETER

SETTINGS COMMENT

PUBLIC

ADDRESS Menu item:

PUB ADDR

Once selected:

PA ON or

PA OFF

ON, OFF Public Address is

toggled ON and OFF.

EXTERNAL

SPEAKER Menu item:

EXT SPKR

Once selected:

SPKR ON or

SPKR OFF

ON, OFF External Speaker is

toggled ON and OFF.

Encryption Key

Loading Menu item: KEYLOAD

Once selected:

KEY LOAD BANK = N

Up to 8 banks of 7

keys Enables the radio to

accept the loading of

encryption keys.

Display Current

Encryption

Key(s)

Menu item: DISP KEY

Once selected:

SYS KEY, GRP KEY or

CHN KEY and KEY = N

Displays current

encryption key number.

Front Panel

Squelch Adjust

(Conventional

Only)

Menu item:

SQUELCH

Once selected:

SQLCH=xx

1-16 Allows setting of

squelch.

Scan Menu item: SCAN ON, OFF Toggles scan function

ON or OFF.

Private Mode Menu Item: PRIVATE

Once selected: PVT or key

light.

ON, OFF Toggles private function

ON or OFF.

Scan Add Menu item: SCAN ADD

Once selected: Proper scan

icon displayed .

S, 2 or 1 Adds group or channel

to scan list.

Scan Delete Menu item: SCAN DEL

Once selected: Scan icon

goes out.

Deletes group or channel

from scan list.

Scan Add/Delete Menu item: SCAN A/D

When selected: Toggles

through scan selections

Toggle sequence

S, 2, 1, S, ... Changes present group

or channel to next scan

choice in scan list.

Home group or

channel selection Menu item: HOME

Once selected: Home group

or channel displayed.

Changes to the group or

channel defined for

Home function.

System select Menu item: SYS SEL

Once selected: SYS = n 1-64 = (n)umber of

desired system Displays the system

selected.

External alarm #2 Menu item: EXTALRM2 ON, OFF Toggles external alarm

#2 feature ON or OFF.

System and group

selection Menu item: SYSGRP 1

Menu item: SYSGRP 2

Menu item: SYSGRP 3

Menu item: SYSGRP 4

Menu item: SYSGRP 5

Changes to the System

& Group/Channel

programmed for

SYSGRP 1-5.

FEATURE DISPLAY PARAMETER

SETTINGS COMMENT

Mute Menu item: MUTE ON, OFF Toggles the mute

function ON or OFF to

control the audio output

from the selected radio.

Mute #1 Menu item: MUTE 1 ON, OFF Toggles the mute 1

function ON or OFF on

radio #1.

Mute #2 Menu item: MUTE 2 ON, OFF Toggles the mute 2

function ON or OFF on

radio #2.

Multiple radio

operation Menu item: RADIO ON, OFF Toggles the currently

selected radio.

Radio selection Menu item: RADIO 1 ON, OFF Changes to radio #1.

Menu item: RADIO 2 ON, OFF Changes to radio #2.

No Data (Trunked

System Only) Menu item: NO DATA ON, OFF Toggles data feature ON

or OFF.

EDACS/Convent-

ional Channel 1

Scan (Trunked

System Only)

Menu item: ECP1SCAN ON, OFF Toggles this feature ON

or OFF.

Group selection

(Trunked System

Only)

Menu item: GRP SEL

Once selected: GRP = n 1-64 = (n)umber of

desired group Displays the group

selected.

Status Condition

(Trunked System

Only)

Menu item: STATUS Once

selected: ST =n 0-9 = (n)umber of

pre-programmed

status

Transmits the pre-

programmed status

message.

Message

Condition

(Trunked System

Only)

Menu item: MESSAGE

Once selected: MSG =n 0-9 = (n)umber of

pre-programmed

messages

Transmits the pre-

programmed message.

Talkaround

feature

(Conventional

System Only)

Menu item: TALKARND

Once selected:

TALKARND on line 1

ON, OFF Toggles selected

talkaround channel ON

or OFF.

Channel selection

(Conventional

System Only)

Menu item: CHN SEL

Once selected: CHN = n 1-99 = (n)umber of

desired channel Displays the

conventional channel

selected.

Feature

Encryption

Display

Menu Item: FEATURES

Once selected:

See Feature Encryption

Display section

Informational

displays only; no

user selectable

settings

Indicates current features

program- med into the

radio as well as certain

information required to

add features to the radio

(refer to the Table of

Contents for Feature

Encryption Display.

System Scan

Enable Menu Item: SYS SCAN

Once selected: SYSC ON

or SYSC OFF

ON, OFF System Scan features are

toggled ON and OFF.

FEATURE DISPLAY PARAMETER

SETTINGS COMMENT

Type 99 Decode

Enable Menu Item: T99 ENAB

Once selected:

T99 ON or T99 OFF

ON, OFF Type 99 Decode is

toggled ON and OFF.

FEATURE ENCRYPTION DISPLAY

Feature Encryption Display is available through the menu function and, if

programmed, appears in the menu as "FEATURES." This data indicates

current features programmed into the radio as well as information required to

add features to the radio. This feature applies to 512K RAM radios only.

Once the feature has been accessed, all normal menu functions work. The user

can scroll up or down through all of the entries.

Feature Encryption Display provides the ability to view, in the order

displayed, the following:

• Serial number ROM data - serial number of the ROM

• Feature encryption data stream - used to enable features

• Number Fields - defines limits

• Features enabled - displays bit fields of enabled features

Serial Number ROM (12 Hex Digits)

Example:

When the user wants to enable a feature in his radio, he will need to call M/A-

COM, Inc. They will ask for the ROM serial number. The serial number

shown here is for example only.

Feature Encryption Data Stream

Example:

These data streams define the features the user has enabled in his radio and are

required by M/A-COM, Inc. to enable other features. The data streams shown

here are for example only. Note: There are three displays: FD1, FD2, FD3. All

three are required.

Number Fields

Example:

These number fields show the set limits of the of the user's radio as:

• SG# XXX - Maximum number of system/groups combination available

• SY# XXX - EDACS maximum trunked system limit

• CH# XXX - Maximum number of conventional channels available

The user needs to know the limits of his radio before attempting to enable

other features. The numbers shown here are for example only.

Features Enabled

These numbers indicate which features are enabled.

Example:

Table 3 lists possible features available in the user's radio.

Table 4 – Available Feature Numbers

BIT FIELDS POSSIBLE FEATURES

01 Conventional mode Priority Scan

02 EDACS 3 Site System Scan

03 Public Address operation

04 EDACS Group Scan operation

05 EDACS Priority System Scan

06 ProSound™/ProScan™

07 EDACS Dynamic Regroup operation

08 EDACS Emergency Operation

09 Type 99 Encode

10 Conventional mode Emergency operation

11 Not Supported

12 Aegis™ Digital Voice operation

13 VGE encryption

14 DES encryption

15 User-defined speech encryption

16 Mobile Data operation

17 Status and Message operation

18 Test Unit Operation

21 Alternate Language Operation

22 Over The Air Personality Programming (ProFile™)

23 Not Supported

29 ProVoice™ Operation

SYSTEM/GROUP/CHANNEL SELECTION

In the following description of SYSTEM/GROUP/CHANNEL

SELECTION, the term group is used for both group and channel.

The M7100IP SYSTEM/GROUP/CHANNEL knob and the RAMP controls,

, and ., are programmable for maximum flexibility. If the

SYSTEM/GROUP/CHANNEL knob is assigned to select groups, then the

RAMP controls, , and ., are assigned to select systems. If the

SYSTEM/GROUP/CHANNEL knob is assigned to select systems, then the

RAMP controls, , and ., are assigned to select groups. System, group,

and channel selection is the primary function for these controls.

Either systems or groups can also be selected by entering the select mode and

following the selection mode rules described earlier. The system select or

group select modes are entered by pressing SYS or GRP, respectively, from

the standard receive mode. Using the RAMP controls, , or ., after

entering a particular selection mode in this manner is the secondary function

of these keys.

System Selection

Several methods, some of which depend on programming, can be used to

select a new system. These procedures are presumed to be starting from the

normal receive display.

METHOD 1 If system selection is programmed to the SYSTEM/

GROUP/CHANNEL knob, select a system by turning the

SYSTEM/ GROUP/CHANNEL knob to the desired system

osition. The display registers the new system name on line

1. If the wrap option is OFF and the knob is moved to a

osition greater than the number of programmed systems, the

highest programmed system will remain selected.

METHOD 2 If system selection is programmed as the primary function of

the RAMP control , and ., select a system by pressing

, or .to scroll through the system list. The display

registers the new system name on line 1.

METHOD 3 Press S to enter the system select mode and follow the

selection mode rules detailed earlier. Press the RAMP

controls, , or ., to scroll through the systems.

Group and Channel Selection

Several methods, some of which depend on programming, can be used to

select a new group or channel. These procedures assume starting from the

normal receive display.

METHOD 1 If group selection is programmed to the SYSTEM/GROUP/

CHANNEL knob, select a group by turning the SYSTEM/

GROUP/CHANNEL knob to the desired group. The display

registers the new group name on line 2. If the wrap option is

OFF and the knob is moved to a position greater than the

number of programmed groups, the highest programmed

group will remain selected.

METHOD 2 If group selection is programmed as the primary function of

the RAMP controls, , and ., select a group by pressing

, or ., to scroll through the group list. The display

registers the new group name on line 2.

METHOD 3 Press gto enter the group select mode and follow the

selection mode rules detailed earlier. Pressing the RAMP

controls will now scroll through different groups.

TRUNKED MODE OPERATION

Digital trunking provides fast communication access at all times, even during

busy hours. In this mode, the operator selects a communications system and

group and the audio communication or working channel (WC) is allocated

through digital signaling with the site.

RECEIVING A CALL

1. Turn the radio on by rotating the POWER ON-OFF/VOLUME knob

clockwise (out of detente). A short alert signal (if enabled through

programming) indicates the radio is ready to use.

2. The display shows the last selected or the power up (depending on

programming) system and group names. If the radio is unable to obtain a

control channel, line 2 shows CC SCAN.

3. Adjust the POWER ON-OFF/VOLUME knob to the desired volume level.

4. Select the desired system and group. The display indicates the current

system and group names.

5. The radio is now ready to receive calls.

6. When the radio receives a group call, it unmutes on the assigned working

channel and the BSY indicator comes on. Line 1 shows GR followed by

the logical ID number (if received) of the unit sending the message, or the

associated name if the ID number is found in the individual call list.

SENDING A CALL

1. Turn the radio on and set the POWER ON-OFF/VOLUME knob to the

desired volume level. Select the desired system and group.

2. Press and hold the PTT button. The radio will display the system and

group names and perform the necessary signaling required to obtain a

communication channel.

3. When the working channel is assigned, TX and BSY indicators are turned

ON and a short beep is sounded indicating communication can begin.

(NOTE: If two or more tones, or a high-pitched tone is heard, the system

may be busy and the call request has been placed in queue or the request

has been denied for some reason. Refer to the ALERT TONES section for

more details).

4. Hold the microphone approximately three inches from the mouth and

speak in a normal voice.

5. Release the PTT button when the transmission is complete and listen for a

reply.

CONVENTIONAL FAILSOFT

In the unlikely event of a failure of the EDACS system, communications can

take place in conventional failsoft mode. The radio will be automatically

directed to a communications channel set up for this purpose. During this

mode of operation, the control unit will display CONV FS in the

alphanumeric display. An increase in activity on the channel during

conventional failsoft operation may be noticed, so be careful not to transmit

until the channel is clear.

Operation during conventional failsoft will be the same as operation on a

conventional system, except that it will not be possible to select a

communications channel, or use emergency and special call. When trunking

is restored, the radio will automatically be returned to normal operation.

NOTE

Emergency and Special Call are not operational during

conventional failsoft. In addition, the GROUP control will not

operate.

EMERGENCY OPERATION

The radio's ability to declare an emergency, clear an emergency, remain

locked on an emergency and group, and the emergency audio and display

freeze can each be enabled or disabled through programming. When an

emergency is declared scanning will stop and will restart only after the

emergency has been cleared.

Receiving an Emergency Call

When receiving an emergency call from the selected group and system, an

alert beep is heard and the BSY indicator lights. The message *RXEMER*

flashes in the display on line 2 until the emergency condition is cleared.

Follow standard emergency procedures.

Declaring an Emergency

To send an emergency call to the selected system and group (or on an

optionally pre-programmed emergency group), proceed as follows:

1. Press and hold the red E button for approximately one second. (This

time is programmable and therefore could be longer or shorter. Check with

the system administrator.) The radio will transmit an emergency call

request with the radio ID until an emergency channel assignment is

received.

2. When the working channel assignment is received, the radio sounds a

single beep (Autokey alert tone) indicating it is ready for voice

transmission. *TXEMER* flashes on line 2 in the display until the

emergency is cleared.

3. Press PTT and speak into the microphone in a normal voice.

4. Release PTT when the transmission is complete and listen for a reply.

5. The emergency can be cleared by pressing and holding the c button

followed by pressing the E button then releasing both buttons.

SYSTEM SCAN OPERATION

The radio can be programmed with the following System Scan features. These

features are automatically enabled upon radio power up. A key or menu option

is also defined to allow the System Scan features to be toggled during radio

operation. This is covered in the Menu Selection and Pre-Programmed

Keypad Key sections. The System Scan state will be maintained through

system changes but will default to ON at power up.

Wide Area System Scan

The M7100IP Series mobile radio can be programmed for wide area system

scan operation for multi-site applications. Upon the loss of the currently

selected system's control channel, radios can be programmed to automatically

scan the control channels of other systems. If a new control channel is found,

the radio will switch to the new system and sound an alert tone.

ProSound

The radio can be programmed for ProSound system scan operation for multi-

site applications. ProSound is an enhanced multi-site system scanning

algorithm, compared to Wide Area System Scan. ProSound provides the radio

with the ability to select a new system for the radio to communicate on, when

the selected system drops below a predefined level. This is accomplished by

enabling each radio to analyze the signal quality of its current control channel

and compare it with the signal quality of the control channel for each site in its

adjacency scan list. (The signal quality metric used for the ProSound

algorithm is based on Digital Received Signal Strength Indicator [RSSI]

measurements.) When the selected system’s signal quality level degrades

below a pre-programmed level, the radio will begin to look for a better control

channel. Once a control channel that exceeds the pre-programmed parameters

is found, the radio will change to the new system and emit a tone. If the

control channel is completely lost the radio, will enter Wide Area System

Scanning and search the programmed adjacent systems until a suitable control

channel is found.

ProScan

The radio can be programmed for ProScan system scan operation for multi-

site applications depending on the version of radio flash code. (The ProScan

algorithm is available on the M7100IP platform with Group 32 or higher radio

flash code.) ProScan is an improved multi-site system scanning algorithm

designed to replace the ProSound algorithm. ProScan provides the radio with

the ability to select a new system for the radio to communicate on, when the

selected system drops below a predefined level. This is accomplished by

enabling each radio to analyze the signal quality of its current control channel

and compare it with the signal quality of the control channel for each site in its

adjacency scan list. (The signal quality metric used for the ProScan algorithm

is based on a combination of both Received Signal Strength Indicator [RSSI]

and Control Channel Verification [CCV] measurements.) When the selected

system’s signal quality level degrades below a pre-programmed level, the

radio will begin to look for a better control channel. Once a control channel

that exceeds the pre-programmed parameters is found, the radio will change to

the new system and emit a tone. If the control channel is completely lost the

radio, will enter Wide Area System Scanning and search the programmed

adjacent systems until a suitable control channel is found.

Priority System Scan

The radio can also be programmed for Priority System Scan. (To ensure that

this feature operates correctly, the control channel of the priority system must

be located on channel one unless you are using the ProSound/ProScan

algorithm.) The priority system is the desired or preferred system. While

receiving the control channel of the selected system, the radio will

periodically leave the selected system and search for the control channel of the

priority system at a programmable rate. The programmable rate is defined by

the value in the Priority Scan Time control, (unless the ProSound/ProScan

algorithm is enabled as explained below). This priority scan timer is reset

each time the PTT button is pressed or when a call is received. If the priority

system control channel is found, or meets the predefined ProSound/ProScan

criteria, the radio will automatically switch to the priority system.

When Wide Area System Scan Is Enabled

If the radio cannot find the control channel of the selected system and begins

Wide Area System Scan, the radio will only scan for the priority system

control channel if the priority system is in the Wide Area System Scan list.

When ProSound/ProScan Is Enabled

The radio monitors the priority system and will switch to the priority system if

the priority system meets the criteria defined in the “ProSound/ProScan

Options” dialog box. If ProSound/ProScan is enabled, the rate at which the

radio will scan for the priority system is defined by the System Sample Time

control.

Menu Selection

Press M and then use the RAMP controls, , and ., to scroll through the

selections until SYS SCAN is displayed. Then press M to toggle the

System Scan state. The SYSC ON or SYSC OFF display message is

displayed for two seconds to show the new state.

Pre-Programmed Keypad Key

Press the pre-programmed key and the SYSC ON or SYSC OFF display

message is displayed for two seconds to show the new state.

GROUP SCAN OPERATION

Only Groups that are part of the radio's scan list will be scanned. Groups are

added to the scan list on a per system basis through programming, the radio

keypad, or both, dependent upon programming. This scan list can be changed

by the user from the keypad unless programmed otherwise. Each system's

group scan list is retained in memory when the radio is turned off. The

M7100IP Series mobile radio can also be programmed to provide Trunked

Priority Group Scan capability, which operates similar to priority scan in

Conventional mode.

The following is a description of programmable scan features that should be

helpful in understanding the Group Scan Operation of the radio:

Scan Hang Time - the delay time the radio waits before resuming scan after

the push-to-talk is released or after the carrier has dropped a channel.

TX Select - the group the radio will transmit on while scanning. The radio is

programmed to transmit on either the scanned group or the selected group.

Scan List (privileges) - this feature allows or prohibits scan list changes by the

user.

P1 Programming - priority group programming is accomplished by one (and

only one) of three methods:

1. From the keypad, where the Priority programming is not fixed and

does not follow the selected channel,

2. Priority 1 group programming follows the selected channel, or

3. Priority 1 group programming is fixed during PC Programming and

cannot be changed by the user.

P1 Always Scan - determines if the Priority 1 Group will always be scanned,

regardless of the scan state set by the user.

Adding Groups to a Scan List

1. With scan operation turned off, select the desired group to add to the

selected Trunked system group scan list.

2. Press < or > on the SCAN add/delete control. The current priority

status of the group will be displayed in column 1 of line 1 for a time-out

period. If the group is not part of the scan list the status will be blank.

3. While the status is displayed press < to add the group to the scan list.

"S" is displayed on line 1.

4. Press < a second time to set the group to Priority 2. A "2" is displayed

on line 1.

5. Press < a third time to set the group to Priority 1. A "1" is displayed on

line 1. The priority level selection sequence only advances the group to

next higher priority level and stops at priority level 1. To select a lower

priority level, the group must be deleted from the scan list and then added

back to the scan list. Each new group added to the scan list starts at the

lowest priority. If the Priority 1 and Priority 2 groups are already set and

a new group is assigned as Priority 1 or Priority 2, the previously assigned

group will change to non-priority scanning.

Deleting Groups from a Scan List

1. With scan operation turned off, select the desired group to delete from the

selected trunked system's group scan list.

2. Press

< or > on the SCAN add/delete control. The current status of the

group is displayed for a time-out period.

3. Press

> to delete the group from the scan list. "S", "2" or "1" turns off.

Any group that is not in a trunked system group scan list will show a

"blank" for the time period when it is the selected channel.

Nuisance Delete

A group can also be deleted from the scan list, if it is not the currently selected

group, by pressing > during scan operation while the radio is displaying the

unwanted group. The group will be deleted from the system's group scan list

in the same manner as if done using the steps above. Deletions done in this

manner will not remain deleted if the radio is turned off and then back on.

Turning Scan On

1. Toggle scan operation by pressing k. The SCAN indicator will turn on

when the radio is scanning.

NOTE

The kkey light will blink when temporarily disabled.

Scanning will stop while microphone is off-hook if the

hookswitch feature is enabled through programming.

2. When a group on the scan list receives a channel assignment, the radio

unmutes on the assigned channel, the BSY indicator comes on and the

received scan group is displayed.

• The radio will continue scanning if a new group is selected when

scan is on.

• Pressing the PTT button when scan is on will cause the radio to

transmit on the displayed group or to the currently selected group

depending on programming.

• Pressing < when scan is on will cause the radio to recall the scanned

group that was last received. This group is recalled for a period equal

to the scan hang time.

Priority Group Scanning

When scan is enabled and the Priority 1 and Priority 2 groups have been

identified, the radio will listen to calls on those groups and the selected group.

While receiving a scanned group call, the radio will continue to monitor the

selected Priority 1 and Priority 2 groups and will drop the call if the selected

group or other higher priority call becomes active. During a Priority 2 call the

radio will continue to monitor for a Priority 1 group call.

The radio will monitor for Agency and Fleet calls that correspond to the

Agency and Fleet associated with the Priority 1 and Priority 2 groups. Priority

Agency and Fleet calls will be indicated by displaying AGENCY or FLEET

on the System line of the display and associated Priority 1 or 2 group on the

Group line of the display.

Turning Scan Off

Toggle scan operation off by pressing k. The radio will resume operation

on the selected group.

INDIVIDUAL CALLS

Receiving and Responding to an Individual Call

When the radio receives an individual call (a call directed only to the user's

radio), it unmutes on the assigned working channel and turns on the BSY

indicator. Line 1 shows “ID” followed by the logical ID number of the radio

sending the message, or the associated name if the ID number is found in the

individual call list. The individual call indicator will display *INDV* on line 2.

The radio can be programmed to ring when an individual call is received. If

enabled, the ring begins five seconds after the caller unkeys and will continue

until the PTT button, the c button, or i is pressed.

NOTE

Hookswitch functions the same as c key in I-CALL,

phone call, and menu modes.

If a response is made to the call prior to the programmed call-back time-out,

the call will automatically be directed to the originating unit. If a response is

not made before the call-back time-out, the radio will return to normal receive

mode, but * WHC * will be displayed. If the caller's ID is not received,

UNKNOWN will display for the duration of the call and there will be no call-

back hangtime.

To respond after the call-back time-out, press the i key. The radio's display

will show the callers ID on the first line and WHCI=1 on the second line.

Pressing the PTT button at this point will initiate an individual call back to the

original caller. (If the last call was a group call, the display will show

WHCG=1. Pressing the PTT button will place the call as an individual call.)

The radio stores the IDs of the last 10 callers in the Calls Received List as

shown. Individual calls are stored in the top half of the list (1-10) and group

calls are stored in the bottom half of the list (1-10). The most recent call is

stored in position 1, the second most recent call is stored in position 2, etc.

To access the list, press the i key twice. Use the , or . keys to scroll

through the list. Pressing the m key will display the time elapsed since the

call was received.

Call Storage Lists

There are two lists available for call storage in the radio, the calls received list

(1-10) and the personality list (1-99 as defined by the user). When the

individual call mode is entered by pressing i, the calls received list is

available. The user can toggle to the personality list by selecting any key other

than d (0) or toggle between the two lists by pressing the i key. If wrap is

enabled, the calls received list wraps on itself and not into the other list.

The saved call list shows all ten storage locations. if no calls have been

received, the saved call list will be empty and the pre-stored list will be

available upon entering the individual call mode.

When in the saved call list, pressing m toggles the time stamp on and OFF.

The time stamp indicates how long ago the call was received. The display

indicates this information as HH:MM:SS where HH = hours, MM = minutes

and SS = seconds.

When in the pre-stored list, pressing m toggles the Logical IDentification

(LID) on and OFF.

Sending An Individual Call

The following procedures describe how to initiate and complete an individual

call.

1. To select a previously stored individual, select the I-Call mode from the

menu or press i followed by the RAMP control , or . to scroll

through the list of stored individuals. The selection mode rules apply.

While in the individual call list, the menu key will toggle the display

between the call name and the unit ID number. If the individual is not

stored in this list but the individual's unit ID is known, it can be entered

directly from the keypad.

2. Press the PTT button; the radio performs the necessary signaling to obtain

a communication channel. When the signaling is complete and the radio is

clear to transmit, TX indicator turns ON and the channel access tone

sounds. Line 1 shows the called individual's name if found in the list of

stored individuals or ID followed by the logical ID number of the unit

being called. The message *INDV* displays on line 2. Proceed with the

message.

SCAT OPERATION

A SCAT™ (Single Channel Autonomous Trunking) System operates with

same set of features as a standard EDACS system. The only significant user

change relates to the BSY indicator. Since only one channel, operating as both

control and working channel, exists in a SCAT System, the BSY indicator

will be ON when the SCAT channel is in the working channel mode. When

the transmission on the channel is completed, the indicator turns OFF and

indicates the return of SCAT control channel signaling.

TELEPHONE INTERCONNECT CALLS

Receiving a Telephone Interconnect Call (Trunked

Mode Only)

Receiving a telephone interconnect call is identical to receiving an individual

call. See the DTMF Overdial Operation section if access to services requiring

"over-dial" is needed. Overdial operations are available for any special call

whether it is an individual call or a telephone interconnect call.

Sending a Telephone Interconnect Call (Trunked Mode

Only)

Use the following procedures to initiate and complete a Telephone

Interconnect call:

1. To select a previously stored phone number, select phone call mode from

the menu, press p and use the RAMP control , or . to scroll

through the list of stored phone numbers. The selection mode rules apply.

While in the phone call list, the m key will toggle the display between the

phone call name and the phone call number. If the phone number is not

stored in this list but the phone number is known, it can be entered directly

from the keypad. If necessary, a pause can be entered by pressing and

holding 0-9, *, or # until an underscore appears in the display.

2. Press and release the PTT button; the radio performs the necessary

signaling to obtain a communication channel. When the signaling is

complete and the radio is clear to transmit, TX indicator turns on and the

channel access tone sounds. Line 1 shows the accompanying name if

selected from the list of stored numbers or the phone number if entered

directly. The message *PHONE* displays on line 2. The radio then

automatically transmits the programmed number stored in the special call

queue.

3. The telephone ringing will be heard. When someone answers the phone,

press the PTT button and speak into the microphone. Release the PTT

button to listen to the caller. Unsuccessful interconnect signaling returns

the radio to the normal receive mode and the number remains displayed

until the special call is cleared by pressing the c button or the time-out

expires or another group or system is selected.

4. To terminate the call, momentarily press the c button.

NOTE

The M7100IP Series mobile radio is capable of simplex

(one-way) conversation only. The caller can only hear the

radio if the PTT button is pressed (the radio is transmitting)

and the caller can only be heard when PTT is released (the

radio is receiving).

DTMF Overdial/Conventional Mode Telephone

Interconnect

Once the radio has established a connection to the public telephone system, it

may be necessary to "over-dial" more digits to access banking services,

answering machines, credit card calls or other types of systems that require

DTMF (Dual-Tone Multi-Frequency) access digits. Overdial operation can

also be used to initiate a telephone interconnect call via DTMF signaling if a

dial tone has already been accessed on the system. This is the method that is

used for making a telephone interconnect call while operating in the

conventional mode but will also function in trunked mode if a dial tone is

directly accessible. Telephone numbers and other number sequences for

overdialing can be stored in the phone list when programming the radio or

stored by the operator in the first ten phone list entries. These numbers are

accessed by pressing p then following the selection mode rules.

The following steps are required to dial these numbers:

1. Follow the procedure in Sending a Telephone Interconnect Call

(Trunked Mode Only) to establish a connection to the telephone system

or consult the system administrator for the procedure to access a dial tone

on the trunked or conventional system.

2. Overdial numbers are transmitted using either method as follows:

METHOD 1: Press and hold PTT while entering the overdial number

sequence from the keypad. This method sends DTMF tones

during individual, telephone interconnect, trunked group, o

conventional channel calls. Anytime the PTT button is

pressed and held, the keypad is enabled for DTMF entry.

METHOD 2: Press p to enter the overdial select/entry mode and follow

the selection mode rules to call up a stored number from the

hone list or to directly enter the overdial digits. Press PTT to

send the overdial sequence once. If the number needs to be

transmitted again it must be selected or entered again (this

revents unwanted numbers from being sent the next time the

PTT button is pressed during the call).

This overdial select/entry mode remains active until the call is

dropped, cleared, or m is pressed. The overdial select/entry

mode can be re-entered if the call is still active by pressing

Programmable Entries

Individual call ID numbers, telephone numbers and other number sequences

for overdialing are stored in the special call lists when programming the radio.

The first ten entry locations of these lists can be changed by the radio

operator. The keypad is used when adding, changing and storing numbers in

these entry locations.

Use the following procedure to store a number in one of the first ten entries of

a special call list:

1. Press i or p to enter the individual call list or the phone call list. The

selection mode rules apply.

2. Scroll through the list using the RAMP control , or . until one of the

first ten entries is reached. NO ENTRY is displayed if the location is

empty.

3. Enter the desired number. If necessary, a pause can be entered by pressing

and holding 0-9, (*), or (#) until an underscore appears in the display. The

individual call list entries will accept up to 5 digits. The phone call list

entries accept a combination of up to 31 digits and pauses.

4. Press and hold m until the display changes indicating that the number has

been stored.

5. Repeat the steps above if the number stored in an entry location needs to

be changed.

MOBILE DATA

The M7100IP Series mobile radios, when operating in the EDACS

configuration, permit either voice or data calls to be transmitted or received.

The radio can handle only one type of call at a time; however, selection of

either data or voice is selected transparently by the operator through normal

usage of the radio. Data communications is not supported in the conventional

mode.

The mobile radios can be connected to Mobile Data Terminals (MDT) or to a

host computer. Any RS-232 compatible device that supports the Radio Data

Interface (RDI) protocol (Version 1.91 or greater) can be connected to the

mobile radio. Support for MDT's or host computers is a programmable option

per radio. Additionally, radios programmed for host computers can also be

programmed for data only operation (no voice calls transmitted or received).

NOTE

Turn the power of the radio OFF before connecting or

disconnecting any cables, including the data cable. Also,

turn the power of the radio OFF when docking or undocking

a connected laptop computer. Failure to turn the power to

the radio OFF can damage the radio, requiring the

replacement of an internal non-user serviceable fuse.

Displays

The following will be displayed on the control unit during the various states of

data mode of operation.

TX DATA Displayed on bottom line of display when the radio is

transmitting a data call.

RX DATA Displayed on bottom line of display when the radio is

receiving a data call.

DATA OFF Displayed on top line of display when the radio is in the data

disabled state.

DATA ON Displayed for two seconds on top line of display when the

radio is toggled to the data enabled state.

Data OFF Operation

The radio can be placed in the data disable state by any of the following

methods. When the data state is disabled, the control unit displays "DATA

OFF" on the top line. An ongoing data call is allowed to complete except in

the case of declaring an emergency.

• Removing the microphone from the hookswitch (hookswitch option must

be enabled by pre-programming).

• Declaring an emergency (not to be used unless an actual emergency

condition exists). Alert tone will sound.

• Pressing the o button (System Model) or O(Scan Model) (pre-

programmed). Alert tone will sound.

• Selecting the function using the m button (pre-programmed).

• Pressing the ND button (System Model Only) (pre-programmed).

Data On Operation

The data state is enabled by one of the following (depending on how it was

disabled). "DATA ON" will be displayed top line of display for 2 seconds

then the display returns to normal.

• Replacing the microphone into the hookswitch (going on-hook). Only

valid if the data OFF operation was entered by removing the microphone

from the hookswitch (going OFF-hook).

• Pressing the ND key toggles data state on or OFF.

• Clearing an emergency but valid only if emergency caused data OFF

operation.

Exiting Data Calls

Under normal conditions, the radio enters the scan lockout mode and returns

to the control channel after completion of a data call (transmit or receive). If,

during a data call, one of the following conditions occurs, the data call is

immediately terminated and the radio performs the desired function:

• The PTT is activated

• The PTT is in Public Address mode.

• An emergency is declared by pressing the pre-programmed emergency

button.

• A group or system change is made.

Scan Lockout Mode

Following the transmission or reception of a data call, if scan is enabled,

scanning will stop temporarily (duration pre-programmed). During this time

the scan LED will flash to indicate that scan is enabled but temporarily

suspended. This mode is normally exited when the pre-programmed time

expires; however, the following actions will terminate the scan lockout mode

before the timeout is completed.

• The c (System Model) or C (Scan Model) button is pressed.

• The PTT is pressed.

• A group or system change is made.

• Enter phone call mode.

• Enter individual call mode.

• A new emergency assignment has been received.

• The PTT is pressed in Public Address Mode.

• An emergency is declared or cleared.

• Microphone is removed from hookswitch (OFF-hook).

• Receiving an individual or phone call.

• Receiving an Agency, Fleet or System All Call.

• Pressing the k button to turn scan ON or OFF.

Data Lockout Mode

The data lock mode is a pre-programmed mode when the radio will not

respond to any data channel assignments and prevents receive data calls from

interrupting voice calls. Transmit data calls will still be initiated when needed

by the operator. After a pre-programmed time, the radio will respond to

receive data calls; however, the following conditions will clear the data

lockout mode:

• The c (System Model) or C (Scan Model) button is pressed.

• Transmitting a data call.

• Changing a system.

• An emergency is declared.

• Pressing the PTT while in Public Address mode.

• Turning scan ON with the SCAN button.

STATUS/MESSAGE OPERATION

Status and message operation is possible with either the Scan or System

version of the M7100IP Series mobile radio unit. The following procedure is

applicable for the System version. For operation with the Scan version, the

four primary keycaps must be reconfigured and pre-programmed for

status/message operation.

Status Operation

Status operation permits the transmission of a pre-programmed status

condition to the EDACS site.

To send a status condition, press the s button (keylight comes on) then press

one of the number buttons (0-9) to select the pre-programmed status. If no

status has been programmed for the selected number button, the radio will

display NO ENTRY and the radio will sound a low tone. A valid selection

will permit the status text to appear in the display for a pre-programmed time.

After the time-out expires or the m button has been pressed (the m button

will override the time-out period), the status is selected and will be transmitted

to the site or stored in the radio memory where it can be polled by the site at a

future time. If the site receives the status properly, when transmitted or polled

by the site, a high-pitched tone sounds and the keylight associated with that

status will remain lit. If the site does not receive the status properly, a low-

pitched tone sounds and the keylight associated with the status will blink.

If an incorrect status was selected or the incorrect number button was pressed,

the status can be changed during the pre-programmed time-out period by

pressing another number button. The status selection can also be cancelled by

pressing the c button prior to the time-out period.

To view the currently selected status after it has been transmitted, press the

s button. If the status was not sent successfully to the site, the text

associated with the status will flash in the display.

The radio can also be pre-programmed to redesignate the keypad buttons for

ST0 thru ST9 to send status condition. In this configuration the radio status

operation will operate as previously described except the s button is not

required. The keylight associated with ST0 thru ST9 will indicate which

status is selected.

Message Operation

Message operation permits the transmission of a pre-programmed message

text to an EDACS site.

To send a message, press the n button (keylight comes on) then press one of

the number buttons (0-9) to select the pre-programmed message text. If no

message text has been programmed for the selected number button, the radio

will display NO ENTRY and a low-pitched tone sounds. A valid selection

will permit the message text to appear in the display for a pre-programmed

time. After the time-out expires or the m button has been pressed (the m

button will override the time-out period), the message text is selected and will

be transmitted to the site. If the site receives the message properly when

transmitted, a high pitched tone sounds and the n keylight remains lit. If the

site does not receive the message properly, a low-pitched tone sounds and the

n keylight will blink.

If an incorrect message text was selected or the incorrect number button was

pressed, the message text can be changed during the pre-programmed time-out

period by pressing another number button. The message text selection can also

be cancelled by pressing the c button prior to the time-out period.

To view the currently selected message text after it has been transmitted, press

the n button and then the c button prior to the time-out period. If the

message text was not sent successfully to the site, the text associated with the

message will flash in the display.

EDACS CONVENTIONAL P1 SCAN

This feature permits the radio user to scan a pre-programmed conventional

system and channel as a Priority 1 (P1) channel while the radio is selected for

EDACS trunked system. If activity is detected on the conventional P1

channel, the radio will unmute and remain on this conventional channel for the

programmable hang time.

The radio must be pre-programmed to designate a button for scan ON/OFF

operation.

DYNAMIC REGROUP OPERATION

Dynamic regroup operation permits multiple talk groups (up to eight) to be

added to a radio via the system manager. The radio must be pre-programmed

to respond to regrouping. Dynamic regrouping will not be activated in a radio

until an activation message is sent by the system manager. Each radio that

receives and acknowledges regrouping instructions is successfully regrouped.

Pressing and holding the C (Scan Model) or c (System Model) button for

2.5 seconds toggles the user into and out of the dynamic regroup group set. A

double beep will sound for entry or exit. The display will indicate REGR_0x

where "x" is a digit of 1 to 8 indicating the group when dynamic regroup has

been enabled by the user. If the radio is in dynamic regroup and the user

selects a group that has not been regrouped, the display will show NO

ENTRY. The radio will be prevented from transmitting and receiving calls in

this condition except for scanned groups.

Emergency Operation

If the pre-programmed group set on the currently selected system contains an

EMER/HOME group and the radio is in dynamic regroup, the radio will exit

dynamic regroup and declare the emergency on the HOME group. If no

EMER/HOME group is present, the radio will declare the emergency on the

currently selected dynamic regroup group.

CONVENTIONAL MODE OPERATION

The radio functions in the conventional mode when using conventional

communications channels (non-trunked). Each channel consists of a preset

frequency pair for transmit and receive during repeater operation or a single

frequency for both transmit and receive during talk-around (no repeater)

operation. To use this mode, the operator selects a conventional system that

includes one or more conventional channels. Each conventional channel may

have one or more features, such as Channel Guard, programmed when the

channel is selected.

The c button unmutes the receiver so activity on the selected channel can be

monitored. When pressed and held for approximately 3 seconds this button

toggles conventional channel decoding (Channel Guard, Digital Channel

Guard or T99) ON and OFF, if programmed for the selected channel.

RECEIVING A CALL

1. Turn the radio on by rotating the POWER ON-OFF/VOLUME knob

clockwise (out of detente). A short alert signal (if enabled through

programming) indicates the radio is ready to use.

2. Adjust the POWER ON-OFF/VOLUME knob to the desired volume

level.

3. Select the desired conventional system and channel. The display indicates

the current conventional system and channel names.

4. The radio is now ready to receive calls.

5. When the radio receives a call (and the correct encoding is decoded, if

programmed and enabled), it unmutes on the channel and the BSY

indicator comes on.

SENDING A CALL

1. Turn ON the radio and set the POWER ON-OFF/VOLUME knob to the

desired volume level. Select the desired conventional system and channel.

2. Ensure that the channel is not busy by pressing the c button to briefly

disable any channel decoding and unmute the receiver or observe the unlit

BSY indicator. If the Channel Busy Lockout feature is programmed for

the selected channel, the radio will not transmit when the channel is busy.

3. Press and hold the PTT button. The TX indicator will turn on and a short

beep sounds (if programmed) indicating that communication can begin.

4. Hold the microphone approximately three inches from the mouth and

speak in a normal voice.

5. Release the PTT button when the transmission is complete and listen for a

reply.

EMERGENCY OPERATION

If enabled, G-STAR emergency signaling can be transmitted when operating

in the conventional mode. This G-STAR signaling will transmit 5 times with a

delay between each transmission. To send an emergency call on the selected

conventional system and channel (or on an optionally pre-programmed

conventional emergency system and channel), proceed as follows:

Press and hold the red E button for approximately one second (this time is

programmable and, therefore, could be longer or shorter; check with the

system administrator). The radio turns on the TX indicator and proceeds to

transmit the pre-programmed G-STAR emergency signaling sequence.

G-STAR is programmed to transmit in one of the following methods:

METHOD 1: G-STAR is transmitted on the selected channel. If the channel

is changed the emergency signaling will continue to be

transmitted on the newly selected channel.

METHOD 2: Same as METHOD 1 but the radio will lock on to the

currently selected channel. Any attempts to change the system

or channel will be disabled.

METHOD 3: G-STAR is transmitted on a pre-

rogrammed conventional

emergency system and channel regardless of the selected

channel. In this case the selected channel is available fo

voice transmission and the radio will periodically change to

the pre-programmed emergency system and channel to sen

the emergency signaling and then change back to the selected

channel.

METHOD 4: Same as METHOD 3 but the radio will lock on to the pre-

rogrammed emergency system and channel. Any attempts to

change the system or channel will be disabled.

The emergency state can be cleared by turning the radio OFF and then back

ON.

Using 5-Tone Signaling to Declare an Emergency

If 5-Tone signaling is defined for emergency declaration in place of G-STAR

emergency signaling, a pre-programmed tone sequence will be transmitted

instead of the G-STAR sequence. This emergency declaration functions as the

G-STAR emergency in all other respects.

Tone Encode Transmission

In conventional mode two keys can be defined to be tone encode triggers. If

either one of the pre-programmed tone encode triggers is pressed, a pre-

programmed tone sequence will be transmitted on the current system and

channel. (See Emergency Operation if E key is used.) The TX indicator

will light during tone transmission and a beep will sound at the end of the

transmission. If enabled, audible side tones will be heard in the radio speaker

as well. If PTT is pre-programmed as one of the triggers, the microphone will

become active for voice communication after the tone sequence is complete.

Tone encode will be transmitted with Channel Guard if one is defined, and

tones are always transmitted in clear voice mode, even if the channel is set for

digital or private (see VOICE MODES). Digital or private voice transmission

will resume normally after the tone transmission.

SCANNING CONVENTIONAL CHANNELS

Channels, which have been previously added to the scan list on a per system

basis, can be scanned. The selected channel is scanned (if enabled through

programming) whether or not it is in the scan list. Each conventional system's

channel scan list is retained in memory when the radio is turned OFF.

The scan rate will vary depending upon the number of channels in the scan list

and whether or not the radio is programmed to scan for channels with

decoding enabled. Fewer channels will result in a faster scan rate. If

programmed for dual-priority scan operation, the priority-one, priority-two

and the remaining scan list channels are scanned. Once a signal is detected

and the correct encoded squelch signal is decoded (if programmed), the radio

receives the message and displays the received scan channel. At the same

time, scanning continues on the priority-one and priority-two channels. If a

priority-one or priority-two channel carrier, regardless of encoded squelch

decoding, is detected while a non-priority channel is being received, the

display name is updated and the received channel is switched to the priority

channel. Scanning of the priority-one channel will continue if a message is

being received on the priority-two channel.

While receiving a call on a non-priority or a priority two channel, the radio

periodically checks the priority one and two channels. If Scan with Channel

Guard is enabled, the radio will use Channel Guard to decide whether to

unmute on a priority channel. The radio will stop, on squelch detection, on a

priority channel. In normal operation, the radio will unmute only on detecting

the correct Channel Guard; otherwise, it will remain muted until the priority

channel call and hang time have ended. An optional feature allows the radio to

continue scanning upon the detection of the wrong Channel Guard on a

priority channel. The user can then select the rate at which this channel is

scanned until the call ends.

Adding Channels To A Scan List

1. With scan operation turned OFF select the desired channel to add to the

selected conventional system channel scan list.

2. Press < or > on the SCAN add/delete control. The current status will be

displayed in column 1 of line 1 for a time-out period. Press < to add the

channel to the scan list. S is displayed on the line. This sets the selected

channel for non-priority scanning. A second press of < sets the channel

for priority-two scanning and 2 is displayed on line 1. An additional press

of < sets the channel for priority-one scanning and 1 is displayed on line

1. If the priority-one or priority-two channels are already set and a new

channel is then assigned as the priority-one or priority-two channel, the

previously assigned priority channel will change to non-priority scanning.

The priority setting selection sequence is set and stops at priority-one

therefore the channel must be deleted from the scan list by pressing >

before the channel is set to a previous priority setting. Any channel that is

in a system's channel scan list will show S, 2, or 1 for the time-out period

when it is the selected channel.

Deleting Channels From A Scan List

1. With scan operation turned OFF select the desired channel to delete from

the selected conventional system's channel scan list.

2. Press < or > on the SCAN add/delete control. The current status is

displayed for a time-out period. Press > to delete the channel from the

scan list. S, 2, or 1 will turn OFF. Any channel that is not in a

conventional system channel scan list will show a "blank" for the time-

out period when it is the selected channel.

Nuisance Delete

A channel can also be deleted from the scan list, if it is not the currently

selected channel, by pressing > during scan operation while the radio is

displaying the unwanted channel. The channel will be deleted from the

conventional system's channel scan list in the same manner as if done using

the steps above. Deletions done in this manner will not remain deleted if the

radio is turned OFF and then back ON.

TURNING SCAN ON

1. Toggle the scan operation ON by pressing k. The SCAN indicator will

turn ON when the radio is scanning.

NOTE

Scanning will stop while the microphone is OFF-hook if the

hookswitch feature is enabled through programming.

2. When a channel on the scan list receives a channel assignment, the radio

unmutes on the assigned channel, BSY indicator comes ON and the

received scan channel is displayed.

• The radio will continue scanning if a new channel is selected when

scan is ON.

• Pressing the PTT button when scan is ON will cause the radio to

transmit on the displayed channel or to the currently selected channel

depending on programming.

• Pressing < when scan is ON will cause the radio to recall the

scanned channel that was last received. This channel is recalled for a

period equal to the scan hang time.

TURNING SCAN OFF

Toggle the scan operation OFF by pressing k. The radio will resume

operation on the selected channel.

SQUELCH ADJUST

In the conventional mode of operation, the squelch can be re-adjusted in the

MENU selection mode or from a front panel key on the keypad that has been

pre-programmed using ProGrammer™ software. A default value of 9, or any

user level between 1 and 16, can be selected using ProGrammer software.

The user can change this setting either of two ways from the front panel keys.

NOTE

A value of 16 requires a strong signal to open squelch, a

value of 2 requires a very weak signal to open squelch, and

a value of 1 is open squelch.

NOTE

When the squelch adjust feature is activated, Channel

Guard, T99 decode, and Scan are disabled. When the

squelch adjust feature is exited, Channel Guard, T99

decode, and Scan are restored to their previous states.

Menu Selection

1. Press the m key and then use the RAMP control , or . to scroll

through the selections until SQUELCH is displayed. Then press m

(SELECT) again.

2. The display will show SQLCH=xx, where "xx" is the value between 1

and 16.

3. Use the RAMP control , or . to scroll through the values. Then press

the m (SELECT) key to save the new value after the display time-out (2

seconds). The displayed value will be selected and saved.

4. If the m or c key is pressed before the time-out, the menu feature will

exit and the squelch level will not be updated. The original value will be

restored.

Pre-Programmed Keypad Key

1. Press the pre-programmed key and the display will indicate SQLCH=xx,

where "xx" is the value between 1 and 16.

2. Use the RAMP control , or . to scroll through the values. Then press

the m (SELECT) key to save the new value or wait for the display time-

out (2 seconds). The displayed value will be selected and saved.

3. If the c key is pressed before the time-out, the squelch level will not be

updated and the original value will be restored.

TYPE 99 DECODE (CONVENTIONAL ONLY)

If the Type 99 Decode Option has been pre-programmed, individual selective

calling is possible. The radio can now decode individual, group or supergroup

paging calls. Two sets of Type 99 paging codes must be pre-programmed into

the radio. When the radio decodes an appropriate Type 99 code sequence, an

alert tone and visual indicator is provided to the user. The receiver then

operates as a noise squelched unit until Type 99 is reset. Type 99 decode

continues to operate during this noise squelched period. The appropriate Type

99 alert tone will sound again if it detects a valid two-tone sequence.

Type 99 operation can be reset manually or automatically (pre-programmed).

Manual reset is achieved by briefly pressing c, if programmed. Automatic

reset, if enabled, occurs after a 30 second interval following the most recent

decode of a Type 99 tone sequence. Hookswitch (pre-programmed) can also

enable or disable Type 99 decode. The pre-programmed key light will blink

when Type 99 is disabled by the hookswitch.

Type 99 decode will continue to be active while the radio's c button is

pressed. This allows the user to monitor calls and still be alerted when a call is

directed to the user. While the user continues to press c, the user will hear

both calls and all Type 99 tone signals. If c is pressed for longer than two

(2) seconds, Type 99 decode will either be disabled or re-enabled depending

upon its present state.

To check the Type 99 enable status, press the Scan Add/Delete < or >. The

current status of Type 99 decode will be displayed for a time-out period. Type

99 is enabled when the letter T is displayed in the third segment from right on

the first line of the LCD.

If a Horn Alert Option is installed and enabled with the Type 99 Decode

Option, the radio can beep the vehicle horn when a Type 99 call is received.

This option permits alerting persons out of the vehicle when a call is received.

NOTE

Type 99 is automatically disabled when Scan is enabled.

Menu Selection

Press M and then use . or , controls to scroll through the selections until

T99 ENAB is displayed. Then press M to toggle the Type 99 decode state.

The T99 ON or T99 OFF display message is displayed for two seconds to

show the new state.

Pre-Programmed Keypad Key

Press the pre-programmed key and the T99 ON or T99 OFF display message

is displayed for two seconds to show the new state.

DIRECT MODE OPERATION (CONVENTIONAL ONLY)

The direct mode (or talk-around) provides short range, line of sight

communications. One of the buttons on the control unit must be pre-

programmed for this feature to function.

1. Make sure the radio is ON and then select the desired conventional system

and channel.

2. Press the pre-programmed button to toggle the talk-around function ON.

3. Ensure that the channel is not busy by pressing the c or C (Scan

Version) to briefly disable any channel decoding and unmute the receiver

or observe the unlit BSY indicator. If the Channel Busy Lockout feature is

programmed for the selected channel, the radio will not transmit when the

channel is busy.

4. Press and hold the PTT button. The TX indicator will light and a short

beep sounds (if pre-programmed) indicating that communication can

begin.

5. Release the PTT button when the transmission is complete and listen for a

reply.

6. When the communications is completed, press the pre-programmed button

to toggle the talk-around function OFF.

PROJECT 25 (P25) CONVENTIONAL

OPERATION

GROUP CALLS IN P25 MODE

Transmitting a Group Call

1. Select the desired P25 system. (P25 icon will appear in display.)

2. Select the Talk Group/Conventional Channel. (Selected simultaneously

using either the system/group/channel knob or the group key.)

3. Press and hold the PTT.

4. When a grant tone is received (if enabled through programming), speak

into the microphone.

5. Release PTT and wait for response.

Receiving a Group Call

The radio will unmute according to the squelch mode defined in the radio

personality (monitor, normal, selective).

1. Select the desired P25 system and Talk Group/Channel or turn scan on

and make sure the desired channel is in the scan list.

2. When the radio receives a P25 call, the radio will unmute and the channel

name will appear in the display.

3. Press the PTT button to respond.

INDIVIDUAL CALLS IN P25 MODE

Transmitting an Individual Call

1. Select the desired P25 system. (The P25 icon will appear in the display.)

2. Select the radio unit to call (callee source ID) from the pre-programmed

individual call list or enter the ID number on the radio keypad.

3. Press and hold the PTT.

4. When grant tone is received (if enabled through programming) speak into

the microphone.

5. Release the PTT.

Receiving an Individual Call

The radio will unmute according to the squelch mode defined in the radio

personality (monitor, normal, selective).

1. Select the desired P25 system and Talk Group/Channel or turn scan on

and make sure the desired channel is in the scan list.

2. When the radio receives a P25 call, the radio will unmute and the ID of

the transmitting radio will appear in the display.

3. Press the PTT button to respond.

Unanswered calls will appear in the Who Has Called (WHC) list.

EMERGENCY GROUP CALLS IN P25 MODE

There is no method available for a system-wide Emergency

clear. An emergency group call must be cleared on each

individual radio.

Declaring an Emergency Group Call

1. Select the desired P25 system and Talk Group/Channel.

2. Press the red emergency button on the top of the radio. The radio will

broadcast a short emergency transmission with the emergency bit set.

“TXEMER” will appear in the display of the transmitting radio.

3. While the PTT is NOT pressed, the mic will be open and the radio will

broadcast an approximately 2 second transmission (e.g., background

noise) which will be repeated at 10-30 second intervals.

4. Press the PTT to stop the short transmissions.

5. To send a voice message, press the PTT and speak into the microphone.

6. To clear an emergency from the transmitting radio, perform one of the

following steps:

a) Change systems.

b) Change channels (if not prohibited by programming).

c) Cycle power by turning radio off and then back on.

d) Press the Clear and Emergency buttons simultaneously, providing the

Clear Emergency option is enabled in the Supervisory Options in the

personality.

Receiving an Emergency Group Call

1. Select the desired P25 System and Talk Group/Channel.

2. When the radio detects an incoming Emergency Group Call, the radio

will sound an alert tone and “RXEMER” will appear in the display.

3. Voice or emergency transmissions will be heard at the receiving radio.

4. To clear an emergency from the receiving radio, perform one of the

following steps:

a) Change systems.

b) Change channels (if not prohibited by programming).

c) Cycle power by turning radio off and then back on.

d) Press the Clear and Emergency buttons simultaneously, providing the

Clear Emergency option is enabled in the Supervisory Options in the

personality.

TRUNKED OR CONVENTIONAL MODE

OPERATION

SIREN/LIGHT OPERATION

Each siren/light key is designed to control an optional siren/light package.

Pressing a siren/light key will light the key indicator. Each siren/light key

(except RESET) can be programmed for either CANCEL or ADDITIVE

operation. If programmed for CANCEL, then all other siren/light activity is

cancelled except for the activity associated with this key. If programmed for

ADDITIVE, then a key press will add its respective siren/light activity to the

current siren/light activity. It is important to note that while the lights are

additive, only a single siren can be active at a time. The current siren will be

determined from the recently pressed key that contains a siren assignment.

Each siren/light key (except RESET) can be programmed for Toggle,

Momentary, or Timed. In Toggle, each key press will toggle the state of the

key between ON and OFF. In Momentary, a key's respective feature will only

be active while the key is pressed and held. When programmed for Timed, the

siren/light key activity will only be active during the programmable time-out

window. The duration of the time-out window is programmable between from

.5-127.5 seconds. During the time-out window the respective key indicator

will be ON. When the timer expires, the activity will be terminated and the

indicator will turn OFF. If an additional time-out key (programmed for

ADDITIVE) is pressed during the time-out window, then the time-out window

is reset and both activities will terminate at the same time.

DIGITAL VOICE (PROVOICE/AEGIS/VOICE GUARD

OPERATION)

Voice Modes

Each system (trunked or conventional) in the radio is programmed for no

digital voice operation (analog only) or one of the two digital voice formats

supported (ProVoice or Aegis). Aegis or ProVoice programmed systems have

three (3) different voice modes: clear (analog), digital, and private. The voice

modes are programmed on a per-group basis within each trunked system and

on a per-channel basis within each conventional system. A radio must be

equipped with the encrypt/decrypt option before it will operate in private

mode.

NOTE

Current ProVoice Conventional operation is for talk-around

mode only

Table 5 – Transmit/Receive Mode Compatibility

for Aegis/ProVoice Operation

GROUP/CHANNEL

PROGRAMMING

(TRANSMIT)

CLEAR

RECEIVE DIGITAL

RECEIVE PRIVATE

RECEIVE

CLEAR Yes No No

DIGITAL Yes Yes No

PRIVATE Yes No Yes

NOTE

Conventional Aegis or encrypted channels require Channel

Guard on the channel to operate correctly.

Clear Modes

Aegis clear and ProVoice clear modes are identical voice modes in which the

radio transmits and receives only clear (analog) voice signals. These analog

signals are non-digitized and non-encrypted. Clear mode transmissions can

easily be monitored by unauthorized persons. Groups or channels

programmed for clear operation cannot transmit or receive unencrypted digital

or private messages.

Aegis/ProVoice Digital Mode

Aegis/ProVoice digital mode allows the radio to transmit and receive digitized

voice signals. These digital signals provide improved weak signal

performance and they cannot be easily monitored with a standard receiver.

Groups and channels programmed for Aegis or ProVoice digital operation

transmit only digital signals. Private calls cannot be received or transmitted

when the radio is in the Aegis or ProVoice digital mode because the radio

does not know the cryptographic key used.

Message trunked group calls and individual calls will be answered back in the

mode they were received, assuming the call or hang time is still active.

Individual, phone, all and emergency calls will be transmitted clear if digital

mode is disabled or inoperative.

1. If receiving an analog message trunked call, the radio will respond in

analog mode during the hang time on the working channel.

2. If receiving an analog I-Call, the radio will respond in analog mode during

the hang time.

3. When using the "WHC" feature to respond to an I-Call (after the hang time

has expired), the call will be transmitted in the mode defined by the system

mode as programmed for the current system if the ID being called is not in

the I-Call list. If the ID is in the I-Call list, then the call will be transmitted

as defined by the I-Call mode programmed in the list for that ID.

DTMF

The overdial and hot keypad features for transmitting DTMF tones are not

available while in the Aegis Digital Mode or ProVoice Digital Mode.

ERROR Messages

If any of the following error messages are displayed, the radio was either

programmed incorrectly or needs servicing:

DSP ERR

ERR=xxxx DSP ERR DIGV ERR

Power Up Only

If the Aegis or ProVoice circuit board is not responding, correctly, one of the

following error messages will be displayed and the radio needs servicing:

HARDWARE

ERR= 3X

3X will be a number between 30 and 38

Aegis Private, ProVoice Private, and Voice Guard1

Private Modes

The Aegis and ProVoice private modes allow the radio to transmit encrypted

messages and receive clear or private transmissions. The radio will transmit

private if the group/channel is programmed for private operation and forced

operation is pre-programmed.

If the radio was pre-programmed for auto-select, the radio will transmit in the

following modes;

• If Private mode is enabled, transmissions are always in private mode.

• If Private mode is disabled and a private call is received, the Reply

transmission will be in Private mode if the transmission is made during

the scan hangtime. If the reply transmission occurs after the scan

hangtime, the transmission will be in Clear mode.

Aegis or ProVoice transmissions cannot be received by another radio (other

than M7100IP or JAGUAR 725M) set to receive a Voice Guard® transmission.

Accordingly, Voice Guard or ProVoice transmissions cannot be received by a

radio set to receive an Aegis transmission and neither Aegis nor Voice Guard

transmissions can be received by a radio set to receive ProVoice.

1 Voice Guard encryption is not supported by M7100IP Series mobile radios.

Cryptographic keys are transferred to the radio using a cryptographic

Keyloader. Up to seven (7) different cryptographic keys, numbered 1-7, can

be transferred from a Keyloader and stored in the radio. An individual key is

automatically selected on a per-group/channel basis according to the radio's

programming. Groups and channels within Aegis or ProVoice systems can be

programmed for keys 1-7. Up to 8 banks of 7 keys can be stored for Aegis

(DES and VGE) systems.

DES radios require a DES Keyloader (Option V4025 with software version

3.n or later). VGE radios require a VGE Keyloader (Option V4028 with

software version 2.n or later).

When operating on a group or channel programmed for private mode, all

transmissions will be private transmissions and the radio will receive clear and

private signals. The PVT keylight (System Model) or OPTION keylight (Scan

Model) turns ON when the private mode is enabled. If the selected group or

channel is programmed for auto-select capability, the mode can be toggled

between private and clear with the PVT button (System Model) or O button

(Scan Model). Radios programmed for forced private operation do not allow a

change of the transmit mode; therefore, the PVT button (System Model) or O

button (Scan Model) has no effect.

Transferring Keys to the Radio

The following procedure outlines basic key transferring steps:

1. Turn the radio OFF.

2. Ensure that the PC programming cables and adapter box are disconnected

from radio unit.

3. Plug the modular connector of the Keyloader cable into the Keyloader

modular jack.

4. Connect the Keyloader cable to the keyloader level converter and then to

the extended options cable DB25 on the rear of the radio.

5. Press the PWR button on the Keyloader and wait for the Keyloader to

display "MASTER MODE."

6. Press the TRN button on the Keyloader. If necessary, select a different

cryptographic key to be transferred into the radio.

7. Turn the radio ON. Use the m button to access the menu options then the

RAMP , or . controls to select KEYLOAD.

8. Press m (SELECT). Then use the RAMP , or . controls to select

the bank location.

9. Press the EXE button on the Keyloader to transfer the key. The Keyloader

will display "GOOD 1.x TRANSFER" where "x" is the selected

cryptographic key number.

10. Disconnect the cable from the extended option cable. Press the C

(Scan Model) or c (System Model) button to exit the keyload operation.

The radio will change to the selected group or channel as indicated in the

display.

Displaying the Currently Used Cryptographic Key Number

To display the cryptographic key currently in use for either the system

encryption key (for special call such as individual, phone, all, agency or fleet)

or the group/channel key (for group or conventional calls), perform the

following procedure:

1. Press the m button.

2. Use the , or . button (ramp control) to select DISP KEY. Then press

the m (SEL) button.

3. Then use the , or . buttons to toggle between displaying the system key

or the group/channel key.

Table 6 – Current Cryptographic Key Display

ENCRYPTION KEY DISPLAYED MESSAGE DISPLAYED

System "SYS KEY"

"KEY = 1"

Group/Channel "GRP KEY"/"CHN KEY"

"KEY = 2"/KEY = 2"

Key Zero

All cryptographic keys can be zeroed (erased from radio memory) by pressing

the c button (System Model) or C (Scan Model) and while still pressing

this button, press and hold the o button (System Model) or O (Scan Model).

Press both buttons for 2 seconds. A series of warning beeps will begin at the

start of this 2-second period and then switch to a solid tone after the keys have

been zeroed. The display will indicate KEY ZERO.

If the cryptographic key(s) are zeroed, one or more keys must be transferred

from the Keyloader into the radio before private communications can

continue.

Private Operation

Receiving an Encrypted Call

When receiving, the radio automatically switches between clear or private

operation. If the transmission being received is an encrypted transmission, it

will be decrypted, the PVT keylight (System Model) or OPTION keylight

(Scan Model) will flash, the receiver will unsquelch and the message will be

heard in the speaker. For this to occur the selected group or channel must be

programmed for private operation and the correct cryptographic key must be

loaded into the radio.

Transmitting an Encrypted Call

1. Select the desired group or channel.

2. Place the radio in private mode by pressing the PVT button (System

Model) or O (Scan Model). When private mode is enabled, the PVT

keylight (System Model) or OPTION keylight (Scan Model) will be ON.

If the last state of the radio was private mode, the private mode will be

enabled on power up. In addition, the private mode will be enabled if

forced operation has been programmed in the radio

If a group or channel is not programmed for private mode operation, PVT

DIS will be displayed if an attempt is made to enable private transmit

mode. It is not possible to operate on this group/channel in private mode.

If the radio is programmed for forced private transmit operation, FRCD

PVT will be displayed if an attempt is made to disable private transmit

mode. It is not possible to transmit on this group/channel in clear mode.

If the radio does not have the correct encryption key loaded, NO KEY #

will be displayed and the call will not be transmitted.

3. Continue with standard transmission procedures. A private mode access

tone will be heard when the PTT button is pressed.

Scanned Group Calls

Receiving a scanned group call is the same as receiving a selected group call.

During the scan hang time, if the radio was programmed for auto-select, it will

transmit back in the same mode it received the call. For example, if a clear

group is entered in the scan list, it will only receive clear calls. If the same

group was available in private and entered in the scan list, it can receive clear

and private calls, provided auto-select was programmed in the radio. The user

can select transmitting on the scanned or selected group. If a group is entered

in the scan list more than once and in different modes (clear, digital, private),

only the first occurrence of the group will be used.

Conventional Operation

Outside Address

The same outside address (works similar to Channel Guard operation) must be

programmed in the transmitting and receiving radios when Aegis or ProVoice

digital or private operation is enabled. If address is not correct, the radios will

not communicate.

Channel Guard

Channel Guard encode is transmitted on analog clear channels only. Channel

Guard decode will operate on either a clear or private channel. The exception

is when G-STAR signaling is used (see G-STAR paragraph).

G-STAR

When G-STAR is programmed on a private channel, the radio will transmit G-

STAR in clear mode and then switch to private for the voice portion of the

call. If G-STAR is sent with Channel Guard, then both are sent in clear mode

and the radio switches to private mode. Emergency G-STAR data burst is

transmitted in clear mode.

DUAL CONTROL OPERATION

The M7100IP Series mobile radio can be programmed to operate from two

separate Control Units. This permits radio operation from two separate

locations in the vehicle. Dual control operation is available in both trunked

and conventional modes. Only one control unit can control the mobile radio

unit at a time. The control unit that controls the radio operation is called the

active controller and the second unit is called the idle controller.

Switching Control

Control can be switched to the idle controller by pressing the push-to-talk

(PTT) on the microphone associated with the idle controller. Once PTT is

pressed, the radio will switch control to the idle controller unless the active

controller is currently transmitting (i.e., PTT pressed on active controller), in

which case the switch will not occur. When control is switched to the idle

controller, two short high-pitched tones will sound at the controller where

PTT was pressed to indicate that the idle controller is now the active controller

and the previous active controller is now the idle controller.

Control Switching Modes

The radio can be pre-programmed for two modes of dual operation, “Slave”

and Independent. In the “Slave” mode, the two controllers will use the same

radio System and Group settings. The Independent mode permits each

controller to have its own saved System and Group settings.

Slave Mode Operation

In “Slave” mode, either controller can operate the radio with no change in

System and Group settings when control is switched. Both controllers display

the current information. If a key is pressed at the idle controller, other than

PTT, E or siren and light keys as noted in following paragraphs, a low tone

will sound and the display will temporarily show DUAL on line 1 of the idle

controller.

When control is switched in a “Slave” mode system, all of the radio settings

and states will remain in effect that have been selected on the active

controller.

Independent Mode Operation

In Independent mode, the radio system operates as if there are two radio units

each controlled by a separate control unit. Each control unit maintains its own

System and Group settings that are restored when control is switched.

The idle controller will display DUAL on line 1 to indicate that it is idle. If a

key is pressed at the idle controller, other than PTT, E or siren and light

keys as noted in following paragraphs, a low tone will sound at the idle

controller.

When control is switched in Independent mode, the idle controller will restore

its own System and Group settings instead of using the settings of the

previously active controller. Any pending operations at the active controller,

other than E or Siren & Light, will be terminated.

Emergency Operation

Either control unit (active or idle controller) can declare an emergency,

provided radio has been pre-programmed to enable emergency declaration. If

the idle controller declares an emergency, control is switched to the idle

controller and any current transmission from the previously active controller is

terminated.

Siren & Light Control

Siren & Light control is only available from the control unit that is pre-

programmed for these functions. Typically, the control unit at the driver's

location would be programmed. The control unit that has these functions

programmed can activate them regardless of whether it is an active or an idle

controller.

Dual Control Audio

Audio output during dual control operation is a pre-programmed function.

Default operation routes audio only to the active controller.

MULTIPLE RADIO OPERATION

The M7100IP Series mobile radio can be configured to operate in multiple

radio mode that permits more than one radio to be controlled from a single

control unit or control location. The radios could be different frequency splits,

trunked/conventional, etc.

In multiple radio operation, the radios continue to operate as individual radios

except with a common control unit. The control unit is used for display and

control. The control unit display is shared by the multiple radio units and,

when selected, a radio can be controlled by the control unit.

For multiple radio operation, the control unit keypad must be pre-programmed

for a variety of multiple radio buttons such as radio selection and radio mute.

CHANGING SELECTED RADIO

A radio unit can be selected by pressing the radio selection button (pre-

programmed) on the control unit. In addition, a button can be pre-

programmed to rotate selection through the radio units; e.g., if radio #1 is

selected, pressing the radio select button will select radio #2. Similarly, radio

#2 will be selected if the radio select button is pressed when radio #1 was

selected.

Shared Control Unit Display Modes

Radios in the multiple radio operation share the control unit display. Pre-

programming the radios determines what the control unit displays. There are

two modes of display: alternating radio display or first-come first-serve

display. See also the following paragraph on Audio Modes.

Alternating Radio Display

In this mode, the control unit display will alternate between showing the call

information for the radios when more than one call is being received. This

mode is available only if audio is summed (see following paragraph on Audio

Modes).

First-Come First-Serve Display

In this mode, the control unit display will show the call information of the

radio that is providing the audio. A call in process prevents audio from other

radios from being heard for the duration of the call. This mode corresponds

with the first-come first-serve audio mode (see following paragraph on Audio

Modes).

Audio Modes

In multiple radio operation, the audio from the mobile radio units can be pre-

programmed to be summed or available on a first-come first-serve process.

Audio Summed

When audio is summed, the audio from all radios will be available whenever

the radios receive a call. If two radios receive a call simultaneously, both calls

will be heard in the speaker.

Audio First-Come First-Serve

When audio is pre-programmed for first-come first-serve, the audio from the

radio that receives a call first will be heard from the speaker for the duration

of the call. During this time, audio from the other mobile radios will be muted.

Muting a Specified Radio

Pressing the control unit mute button associated with a particular radio will

mute its audio for a pre-programmed time period. The time period can be

cleared by pressing the control unit mute button or the radio selection button.

Multiple Radio and Siren & Light Operation

For siren and lights to function correctly, both the master and slave radios

must be programmed with the same siren and light information.

Multiple Radio and Data Operation

Only the master radio supports mobile data operation.

LAST SYSTEM/GROUP/CHANNEL RECALL

This feature, available for Master units only, enables the user to recall the last

selected system/group after an EDACS emergency or home function, a

conventional emergency or home function or system/group key function. This

feature must be enabled through ProGrammer to function. For example, if the

Home button (pre-programmed) is pressed, the radio will go to the designated

Home system/group or channel. If the Home button is pressed again, the radio

returns to the previous system/group or channel. At this time, the user can

toggle between the Home system/group or channel and the previous

system/group or channel. The operation is the same for the SG1-SG5 buttons.

MACRO KEY OPERATION

Macro key operation permits the user to accomplish a series of keystrokes

with a single "macro" keystroke. Up to ten (10) macro keys can be defined,

each capable of executing up to twenty (20) keystrokes, to any pushbutton

input (i.e., keypad keys, buttons, etc.). Each macro key can be pre-

programmed to activate when pressed or when released.

A macro key can also be pre-programmed to change the keystroke sequence

the next time the macro key is activated.

For detail operation and assignment of macro keys, contact your

communications supervisor or administrator.

INTERCONNECT CALL (SYSTEM MODEL ONLY)

To send a manually entered telephone interconnect call:

1. Select a channel in the radio system that has telephone interconnect

capability. The radio should be programmed for DTMF operation on this

channel.

2. Press the k button to toggle the keypad to the DTMF function

(secondary function).

3. Press and hold PTT to key the transmitter. While holding the PTT, press

the * or # key (as required by the radio system to obtain a telephone line).

The radio will transmit the selected tone.

4. Release the PTT and listen for a dial tone. When the dial tone is heard,

press and hold the PTT while entering the desired telephone number. As

each digit is entered and transmitted, the DTMF side tone will be heard

from the speaker, if programmed to do so through ProGrammer.

5. After all the digits have been entered and transmitted, release the PTT.

6. When the call is answered, press the PTT and speak directly into the

microphone. Release the PTT immediately to receive a reply.

7. When the call is finished, press and hold PTT and then press the * or # key

(as required by radio system) to terminate the interconnect call. Release

the PTT.

8. To return to the primary function of the keypad, press k. To continue

with another interconnect call, repeat steps 3 through 8.

KEYPAD REMAPPING

If the keys have been remapped to provide new functions, fill in the following

templates (Figure 7 and Figure 8) for future reference.

Figure 7 – M7100IP System Model Keypad

Figure 8 – M7100IP Scan Model Keypad

GLOSSARY

Agency - An agency is composed of multiple fleets. Units can be

rogrammed to initiate agency calls to access multiple

fleets. (Trunked Mode Only)

Base/Unit

Operation - A programmed option used in some fleets so units can

only hear and talk to a base dispatch unit, not to othe

mobiles or personals in the group. In this mode o

operation, when a unit in a particular group is talking to

the base dispatch unit, all other mobile and personal

radios in that group will receive a "System Busy" tone i

they try to access the system. (Trunked Mode Only)

Control

Channel - A radio channel in a trunked system that is used to

digitally communicate with the radios operating on the

system when they are not engaged in active voice

communications.

Conventional

Channel - A radio channel (transmit/receive frequency pair) that is

allocated for conventional (non-trunked) use and can be

manually selected by the operator.

Conventional

Mode - Communicating on radio channels allocated fo

conventional use (i.e. conventional system).

CCT - Carrier Controlled Timer - a programmable timer that

will disable a transmission if the length is exceeded.

CG - Channel Guard - a method of controlling speaker mute

with a tone or digital code.

Fleet - A fleet of users consists of multiple groups (sub-fleets).

Radios can be programmed to make fleet calls to

simultaneously access multiple user groups. (Trunked

Mode Only)

Group or

Sub-fleet - A group of users share the same program group

identification number in their mobile and portable radios.

All units in the same group will receive a dispatch call

laced by any one unit in the group. (Trunked Mode

only).

Group Scan - Programming that allows the radio to monitor many

groups simultaneously (multi-group decode), permitting

the user to both monitor and receive calls from these

groups. The radio can be programmed with a scan hang

time which causes the radio to remain on the scanned

group for a pre-

rogrammed amount of time, responding

only to calls of a higher priority such as priority scan

group calls, individual calls, fleet calls, agency calls, etc.

When activity on the scan group ends, and the pre-

programmed time has expired, the radio returns to

monitoring multiple groups. (Trunked Mode Only)

Individual

Call - Every radio in the system is programmed with a unique

individual identification code. A mobile or portable uni

can be programmed to call another particular unit by

selecting the individual by name or ID number. (Trunked

Mode Only)

Queueing - The process that occurs when all channels in a trunked

system are busy and calls must be addressed on a priority

basis.

Site

Controller - The computer controlled radio equipment at the repeate

site that controls a trunking system.

System

(area) - The terms "system" and "area" are used interchangeably

to refer to the particular group of station repeaters

currently providing service to the radio.

System

Manager - A computer that performs the databasing and syste

monitoring for the site controller.

System

Scan - A programmed feature to scan (monitor activity on)

separate trunked systems and receive calls on any of these

systems. (Trunked Mode Only).

Talk-around

Mode - Also referred to as "direct mode," talk-around provides

direct unit-to-unit short-range communications link. It is

intended to maintain communications outside of the main

system coverage area.

Telephone

Inter-

Connect

- This feature allows the user to initiate or receive

telephone calls through the radio if the system is

configured for this operation. (Trunked Mode Only)

Trunked

Group - A radio communications path shared by two or more

users.

Trunked

Operation - Trunked Operation refers to the use of a set of radio

frequency channels by multiple user groups. By using

high-speed digital data, the radio goes to an unused

channel when a call is initiated and responds only to calls

in the same user group. In this way, conversation privac

between user groups is assured.

Trunked

Radio

System

- A radio system in which a limited number of radio

channels are dynamically allocated to groups of people

for communication purposes.

Trunked

System - A set of one or more trunked groups.

T99 - Type 99 - a method of opening mute for selective page

operations using sequential tones.

Wide Area

Encode - A programmed option that ensures all system-scanning

mobile and portable radios have time to lock onto the call

before the initiating unit is allowed to talk.

Working

Channel - A radio channel (transmit/receive frequency pair) that is

automatically assigned by the site controller for voice o

data communications.

RADIO SETUP

RADIO TYPE:

FREQUENCY BAND:

OPERATOR'S NAME:

EMERGENCY GROUP:

SYSTEM

NUMBER SYSTEM

NAME

TRK/CNV GRP/CHN

NUMBER GRP/CHN

NAME

USE

SYSTEM

NUMBER SYSTEM

NAME

TRK/CNV GRP/CHN

NUMBER GRP/CHN

NAME

USE

WARRANTY

A. M/A-COM, Inc. (hereinafter "Seller") warrants to the original purchaser for use

(hereinafter "Buyer") that Equipment manufactured by or for the Seller shall be free

from defects in material and workmanship, and shall conform to its published

specifications. With respect to all non-M/A-COM Equipment, Seller gives no

warranty, and only the warranty, if any, given by the manufacturer shall apply.

Rechargeable batteries are excluded from this warranty but are warranted under a

separate Rechargeable Battery Warranty (ECR-7048).

B. Seller’s obligations set forth in Paragraph C below shall apply only to failures to

meet the above warranties occurring within the following periods of time from date

of sale to the Buyer and are conditioned on Buyer’s giving written notice to Seller

within thirty (30) days of such occurrence:

1. for fuses and non-rechargeable batteries, operable on arrival only.

2. for parts and accessories (except as noted in B.1) sold by Seller’s Service Parts

Operation, ninety (90) days.

3. for PANTHER™ Series handportable and mobile radios, two (2) years.

4. for Cougar™ Series handportable and mobile radios, two (2) years.

5. for OpenSky®, ProVoice™, and EDACS® Equipment of Seller’s manufacture, one

(1) year.

C. If any Equipment fails to meet the foregoing warranties, Seller shall correct the

failure at its option (i) by repairing any defective or damaged part or parts thereof,

(ii) by making available at Seller’s factory any necessary repaired or replacement

parts, or (iii) by replacing the failed Equipment with equivalent new or refurbished

Equipment. Any repaired or replacement part furnished hereunder shall be

warranted for the remainder of the warranty period of the Equipment in which it is

installed. Where such failure cannot be corrected by Seller’s reasonable efforts, the

parties will negotiate an equitable adjustment in price. Labor to perform warranty

service will be provided at no charge during the warranty period only for the

Equipment covered under Paragraph B.3-B.5. To be eligible for no-charge labor,

service must be performed at a M/A-COM factory (for OpenSky® Equipment only),

by an Authorized Service Center (ASC) or other Servicer approved for these

purposes either at its place of business during normal business hours, for mobile or

personal equipment, or at the Buyer’s location, for fixed location equipment. Service

on fixed location equipment more than thirty (30) miles from the Service Center or

other approved Servicer’s place of business will include a charge for transportation.

D. Seller’s obligations under Paragraph C shall not apply to any Equipment, or part

thereof, which (i) has been modified or otherwise altered other than pursuant to

Seller’s written instructions or written approval or, (ii) is normally consumed in

operation or, (iii) has a normal life inherently shorter than the warranty periods

specified in Paragraph B, or (iv) is not properly stored, installed, used, maintained or

repaired, or, (v) has been subjected to any other kind of misuse or detrimental

exposure, or has been involved in an accident.

E. The preceding paragraphs set forth the exclusive remedies for claims based upon

defects in or nonconformity of the Equipment, whether the claim is in contract,

warranty, tort (including negligence), strict liability or otherwise, and however

instituted. Upon the expiration of the warranty period, all such liability shall

terminate. The foregoing warranties are exclusive and in lieu of all other warranties,

whether oral, written, expressed, implied or statutory. NO IMPLIED OR

STATUTORY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR

PARTICULAR PURPOSE SHALL APPLY. IN NO EVENT SHALL THE SELLER BE

LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT OR

EXEMPLARY DAMAGES.

This warranty applies only within the United States.

M/A-COM, Inc. M/A-COM, Inc.

1011 Pawtucket Blvd. 221 Jefferson Ridge Parkway

Lowell, MA 01853 Lynchburg, VA 24501

1-877-OPENSKY 1-800-528-7711

ECR-7047B

M/A-COM Wireless Systems

3315 Old Forest Road

Lynchburg, Virginia 24501

(Outside USA, 434-385-2400) Toll Free 800-528-7711

www.macom-wireless.com Printed in U.S.A.
