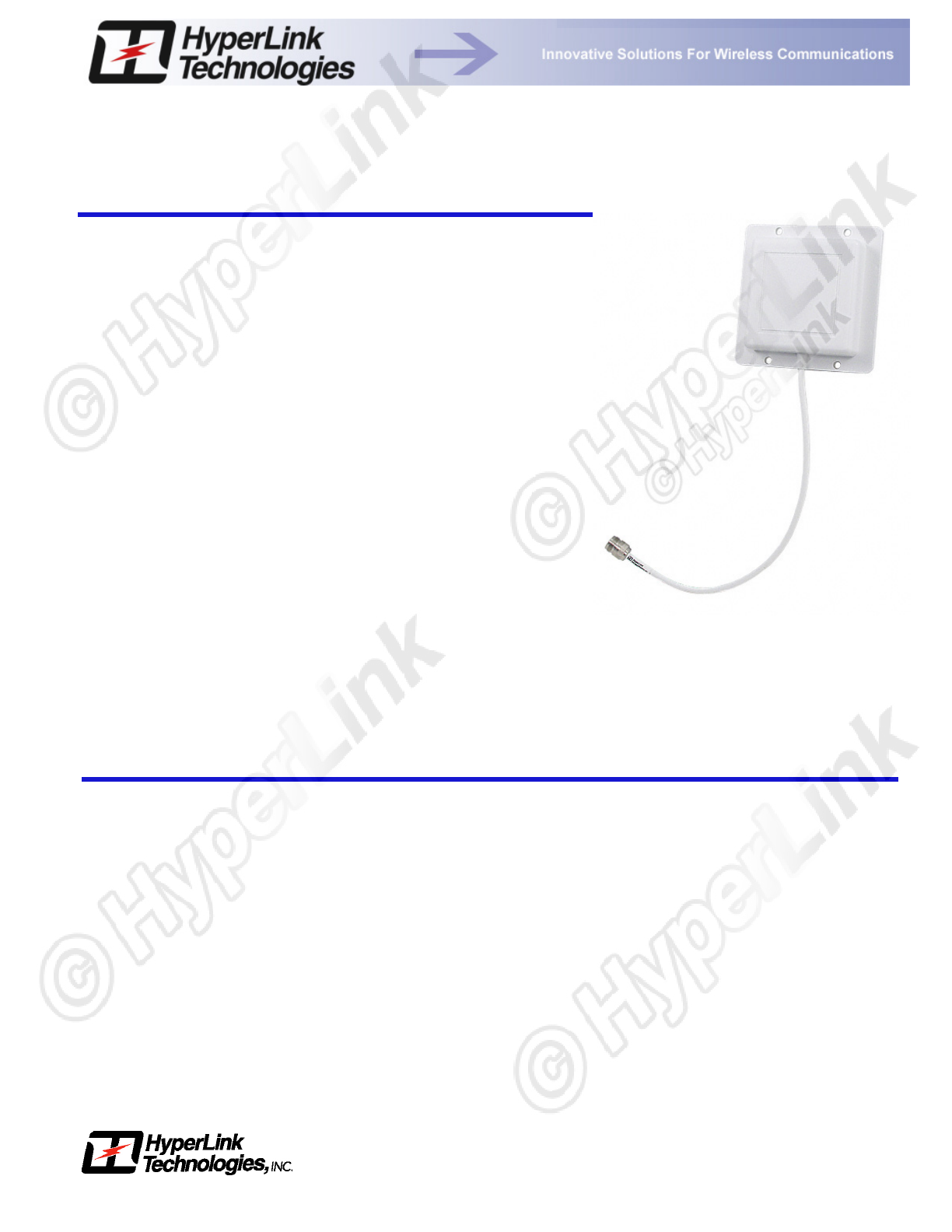

2.4 GHz 8 dBi Wireless LAN Circular Polarized Flat
Patch Antenna
Applications and Features
Applications: • 2.4 GHz ISM Band
• IEEE 802.11b and 802.11g Wireless LAN
• Bluetooth®
• Public Wireless Hotspot
• WiFi
Features: • Superior performance
• Compact size, 4.5" Square
• Durable UV-stable, UL flame rated radome
• Low loss solid brass element
• DC Short lightning protecting
• 12 inch coax lead
• Available in right or left hand polarization
• Optional mounting brackets available
Model: HG2409PC
Description
This very compact flat WiFi patch antenna provides 8 dBic gain with very broad coverage. The use of a circular polarized
antenna on a fixed AP can be advantageous if the linear polarized remote links are constantly moving. Circular polarized
antennas have equal response to either horizontal or vertical polarized antennas. It is suitable for both indoor and outdoor
applications in the 2.4GHz ISM band such as IEEE 802.11b and 802.11g, Bluetooth® and for public wireless hotspot
applications. Available in left or right circular polarization, this antenna's construction features a sealed internal brass element
and an aesthetic UV-stable, UL-flame rated white polymer radome. Can be wall or ceiling mounted, as well as mast-mounted
using U-bolts.
web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487
e-mail: sales@hyperlinktech.com • tel: 561-995-2256 • fax: 561-995-2432
Model: HG2409PC
Specifications
Electrical Specifications
Frequency 2400-2500 MHz
Gain 8 dBic
Polarization (HG2409PCL) Left Hand Circular
Polarization (HG2409PCR) Right Hand Circular
Horizontal Beam Width 65 degrees
Vertical Beam Width 65 degrees
Impedance 50 Ohm
VSWR < 1.5:1 avg.
Lightning Protection DC Short
Mechanical Specifications
Weight 0.4 lbs. (.18 Kg)
Dimensions 4.5 x 4.5 x .9 inches
114 x 114 x 23 mm
Radome Material UV-inhibited Polymer
Flame Rating UL 94HB
Operating Temperature -40° C to to 85° C
(-40° F to 185° F)
Mounting Four ¼ in. (6.3 mm) Holes
Wind Survival >150 MPH (241 KPH)

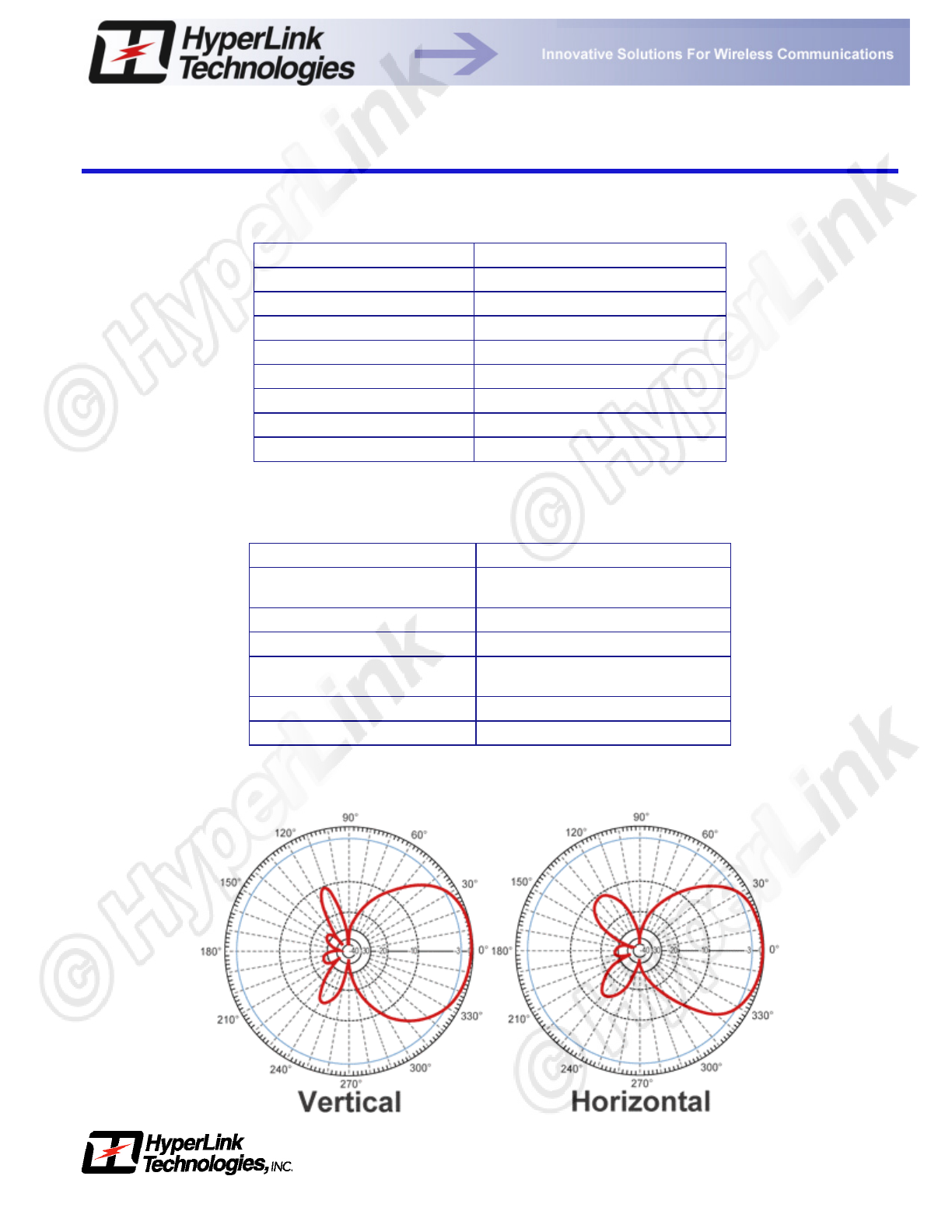

Antenna Patterns
web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487
e-mail: sales@hyperlinktech.com • tel: 561-995-2256 • fax: 561-995-2432
Model: HG2409PC

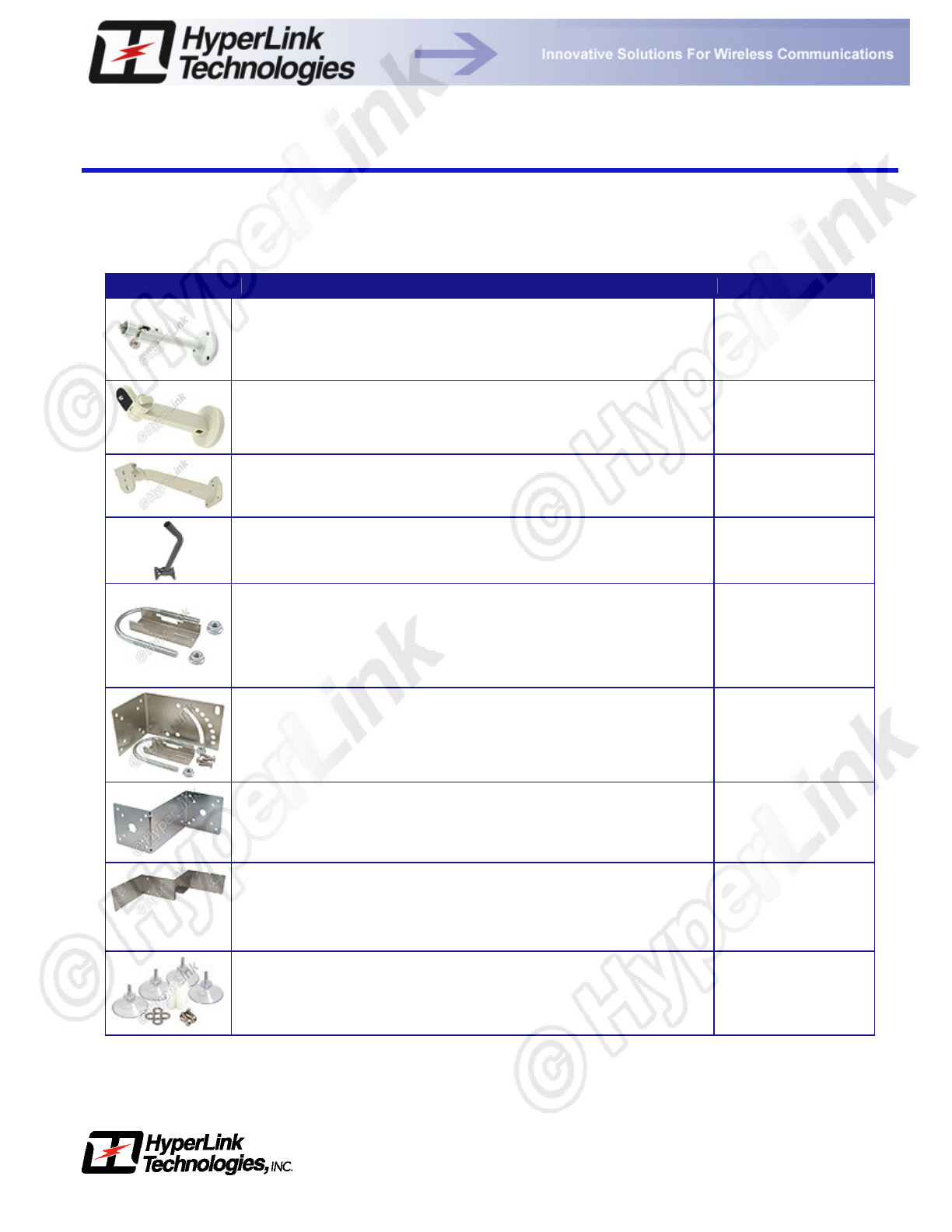

Mounting Options
Hyperlink's patch antennas offer several unique mounting options. They can be mounted flat against a wall, or to a mast using a
pair of 2 inch U-bolts. The antennas also accept most tilt-and-swivel security camera brackets equipped with standard 1/4-20
threads.
Description Part Number
Small Metal Tilt-and-Swivel Mounting Bracket for indoor wall mounting.
Includes wall-mounting hardware.
HGX-PMT02
Medium Plastic Tilt-and-Swivel Mounting Bracket for indoor wall mounting.
Includes wall-mounting hardware. HGX-PMT03
Large Metal Tilt-and-Swivel Mounting Bracket for indoor and outdoor wall or
mast mounting. Includes wall-mounting hardware. Can be mast-mounted
using U-Bolt Kit (sold separately).
HGX-PMT04
Universal Antenna Mount powder coated galvanized steel “DSS-style” arm
for outdoor wall mounting. Requires a pair of 2 inch U-bolts (sold
separately). HGX-UMOUNT
Stationary Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Includes U-
Bolts, nuts and mast clamp.
HGX-PMT07
60 Degree Tilt-and-Swivel Mounting Kit for mounting to 1-1/4" to 2" dia.
masts. Mounting hardware included. HGX-PMT06
Ceiling/Wall Universal Antenna Mount can be used with HyperLink's 4.5" sq
and 8.5" sq. patch antennas as well as N-Type bulkhead and TNC/BNC
bulkhead omni directional antennas. Includes ceiling/wall mounting
hardware.
HGX-UMOUNT02
Universal Corner Mounting Bracket: This bracket is designed to mount to an
outside corner of a structure. It can be used with HyperLink's 4.5" and 8.5"
sq. patch antennas, radome enclosed Yagi antennas, the HGX-PMT02 tilt &
swivel bracket and can also accommodate the SC2402N and SC5802N 2-
Way signal splitters as well as HyperAmp outdoor amplifiers.
HGX-UMOUNT03
Window Mounting Kit Includes suction cups and mounting hardware.
HGX-PMT08
