HUBSAN INTELLIGENT 507DRX X4 STAR FPV User Manual 2 of 2

SHENZHEN HUBSAN INTELLIGENT COMPANY LIMITED X4 STAR FPV 2 of 2

Contents

User Manual (2 of 2)

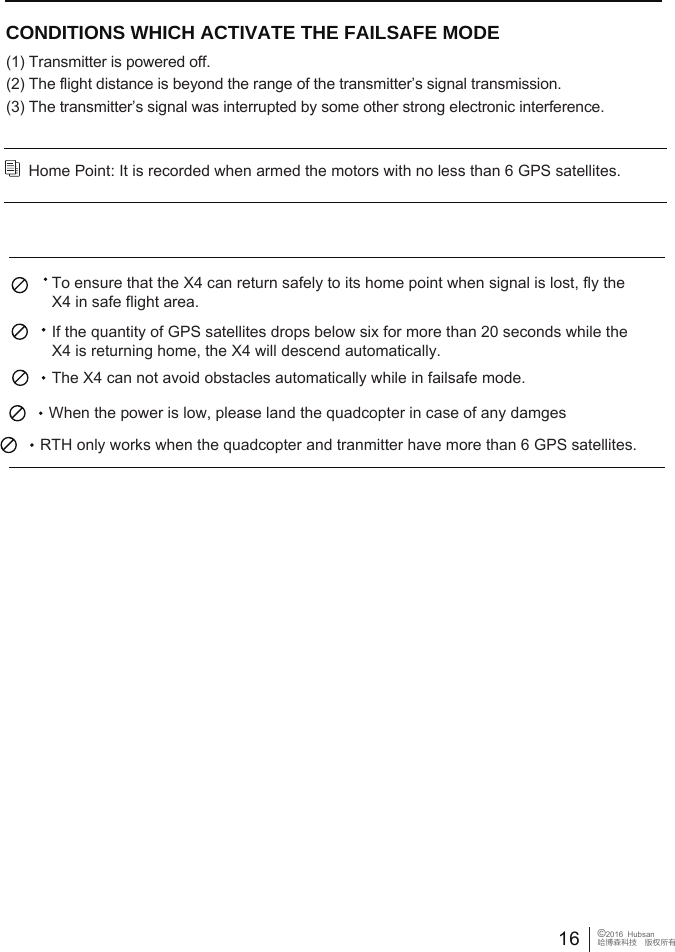

16©2016 Hubsan哈博森科技　版权所有Home Point: It is recorded when armed the motors with no less than 6 GPS satellites. CONDITIONS WHICH ACTIVATE THE FAILSAFE MODE (1) Transmitter is powered off. (2) The flight distance is beyond the range of the transmitter’s signal transmission.(3) The transmitter’s signal was interrupted by some other strong electronic interference. To ensure that the X4 can return safely to its home point when signal is lost, fly the X4 in safe flight area.If the quantity of GPS satellites drops below six for more than 20 seconds while the X4 is returning home, the X4 will descend automatically. The X4 can not avoid obstacles automatically while in failsafe mode. When the power is low, please land the quadcopter in case of any damges RTH only works when the quadcopter and tranmitter have more than 6 GPS satellites.

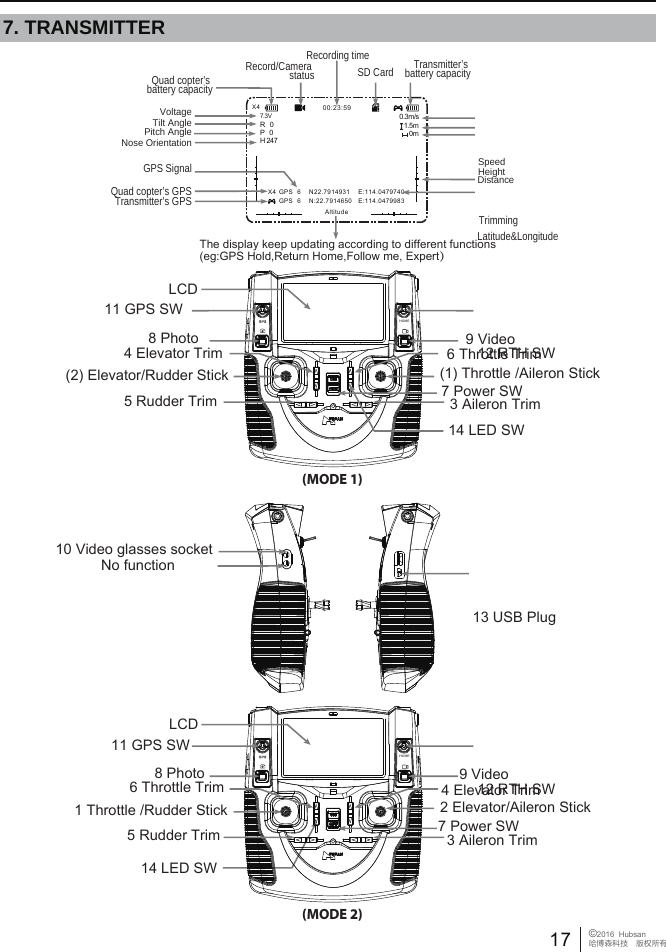

17©2016 Hubsan哈博森科技　版权所有 LCD8 Photo(MODE 1)4 Elevator Trim(2) Elevator/Rudder Stick5 Rudder Trim14 LED SW14 LED SW6 Throttle Trim 9 Video(1) Throttle /Aileron Stick7 Power SW12 RTH SW11 GPS SW12 RTH SW11 GPS SW3 Aileron TrimLCD8 Photo(MODE 2)4 Elevator Trim2 Elevator/Aileron Stick5 Rudder Trim6 Throttle Trim 9 Video1 Throttle /Rudder Stick7 Power SW3 Aileron Trim10 Video glasses socketNo function13 USB PlugHOMEVoltageQuad copter’s battery capacityRecording timeSD Card Transmitter’s battery capacity TrimmingThe display keep updating according to different functions(eg:GPS Hold,Return Home,Follow me, Expert）Latitude&LongitudeRecord/Camera statusTilt AnglePitch AngleNose OrientationGPS SignalQuad copter’s GPSTransmitter’s GPS00:23:59Altitude GPS 6 N22.7914931 E:114.0479740 GPS 6 N:22.7914650 E:114.04799837.3VHOME7. TRANSMITTERR 0P 0H 2470.3m/s1.5m0mSpeedHeightDistanceX4X4

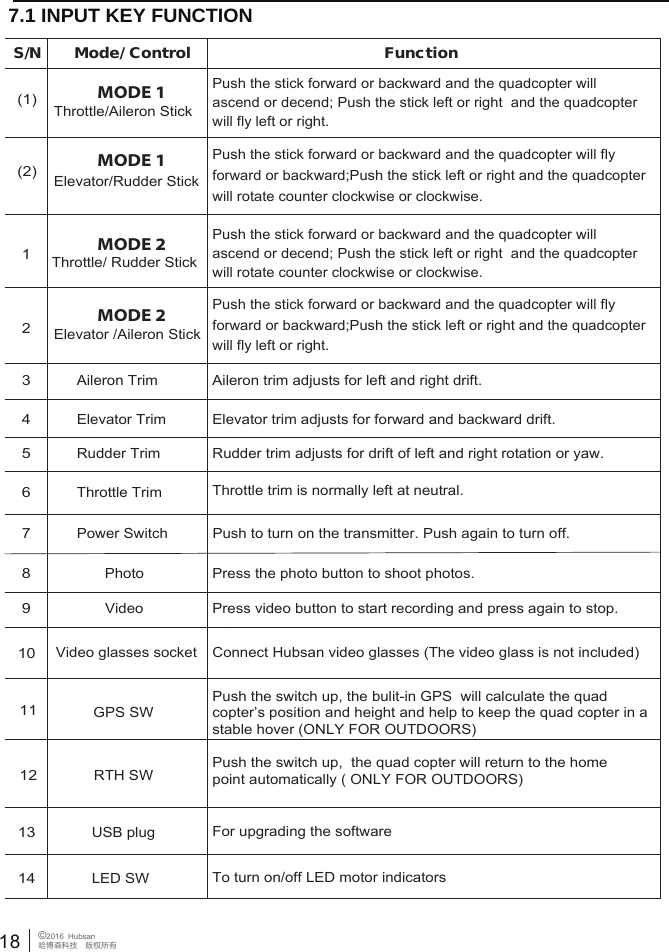

18©2016 Hubsan哈博森科技　版权所有7.1 INPUT KEY FUNCTIONMODE 2S/N Mode/ Control Function MODE 1(1) Throttle/Aileron Stick Push the stick forward or backward and the quadcopter willascend or decend; Push the stick left or right and the quadcopter will fly left or right.Push the stick forward or backward and the quadcopter willascend or decend; Push the stick left or right and the quadcopter will rotate counter clockwise or clockwise.MODE 1(2) Elevator/Rudder Stick Push the stick forward or backward and the quadcopter will fly forward or backward;Push the stick left or right and the quadcopter will rotate counter clockwise or clockwise.Push the stick forward or backward and the quadcopter will fly forward or backward;Push the stick left or right and the quadcopter will fly left or right.3 Aileron Trim Aileron trim adjusts for left and right drift.4 Elevator Trim Elevator trim adjusts for forward and backward drift.5 Rudder Trim Rudder trim adjusts for drift of left and right rotation or yaw.6 Throttle Trim Throttle trim is normally left at neutral. 7 Power Switch Push to turn on the transmitter. Push again to turn off.MODE 22 Elevator /Aileron Stick 1 Throttle/ Rudder Stick8 10 Photo9 VideoVideo glasses socketPress the photo button to shoot photos. Press video button to start recording and press again to stop. Connect Hubsan video glasses (The video glass is not included)13 USB plug For upgrading the software14LED SW To turn on/off LED motor indicators11GPS SWPush the switch up, the bulit-in GPS will calculate the quad copter’s position and height and help to keep the quad copter in a stable hover (ONLY FOR OUTDOORS)12RTH SW Push the switch up, the quad copter will return to the homepoint automatically ( ONLY FOR OUTDOORS)

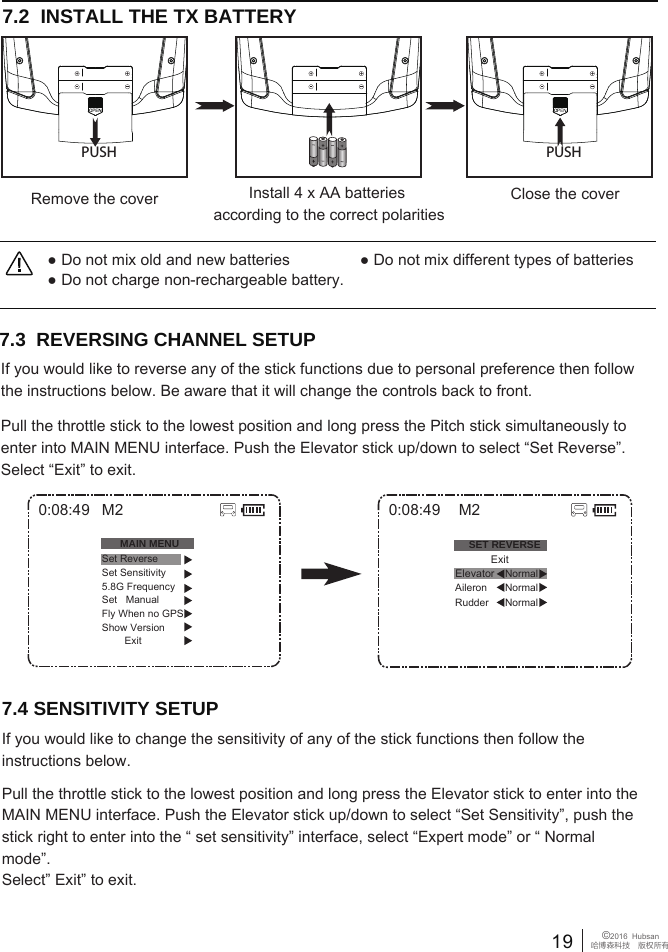

19 ©2016 Hubsan哈博森科技　版权所有7.2 INSTALL THE TX BATTERY7.3 REVERSING CHANNEL SETUP If you would like to reverse any of the stick functions due to personal preference then follow the instructions below. Be aware that it will change the controls back to front.Pull the throttle stick to the lowest position and long press the Pitch stick simultaneously to enter into MAIN MENU interface. Push the Elevator stick up/down to select “Set Reverse”. Select “Exit” to exit.7.4 SENSITIVITY SETUPIf you would like to change the sensitivity of any of the stick functions then follow the instructions below. Pull the throttle stick to the lowest position and long press the Elevator stick to enter into the MAIN MENU interface. Push the Elevator stick up/down to select “Set Sensitivity”, push the stick right to enter into the “ set sensitivity” interface, select “Expert mode” or “ Normal mode”.Select” Exit” to exit.0:08:49SET REVERSENormalRudder Aileron NormalNormalM2 ExitElevator0:08:49MAIN MENUSet ReverseSet Sensitivity5.8G FrequencySet ManualFly When no GPSShow Version ExitM2● Do not mix old and new batteries ● Do not mix different types of batteries● Do not charge non-rechargeable battery.Close the coverRemove the cover Install 4 x AA batteries according to the correct polaritiesPUSH PUSH

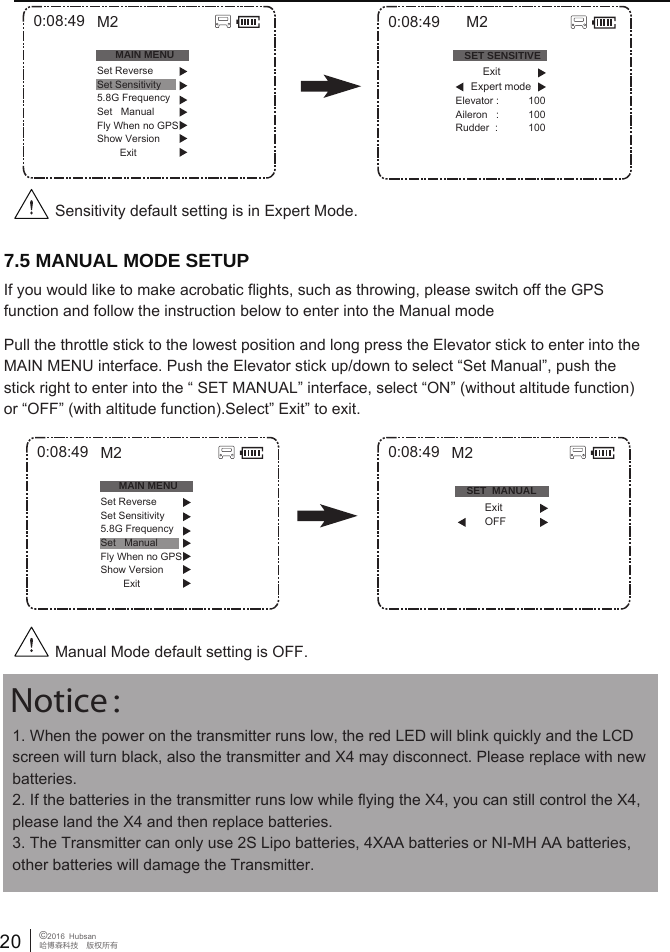

20 ©2016 Hubsan哈博森科技　版权所有1. When the power on the transmitter runs low, the red LED will blink quickly and the LCD screen will turn black, also the transmitter and X4 may disconnect. Please replace with new batteries. 2. If the batteries in the transmitter runs low while flying the X4, you can still control the X4, please land the X4 and then replace batteries. 3. The Transmitter can only use 2S Lipo batteries, 4XAA batteries or NI-MH AA batteries, other batteries will damage the Transmitter. Notice：7.5 MANUAL MODE SETUPIf you would like to make acrobatic flights, such as throwing, please switch off the GPS function and follow the instruction below to enter into the Manual modePull the throttle stick to the lowest position and long press the Elevator stick to enter into the MAIN MENU interface. Push the Elevator stick up/down to select “Set Manual”, push the stick right to enter into the “ SET MANUAL” interface, select “ON” (without altitude function) or “OFF” (with altitude function).Select” Exit” to exit.Sensitivity default setting is in Expert Mode.0:08:49MAIN MENUSet ReverseSet Sensitivity5.8G FrequencySet ManualFly When no GPSShow Version ExitM20:08:49MAIN MENUSet ReverseSet Sensitivity5.8G FrequencySet ManualFly When no GPSShow Version ExitM20:08:49SET SENSITIVEElevator :Aileron :Rudder :100100100M2 Exit Expert modeManual Mode default setting is OFF.0:08:49 M2SET MANUAL Exit OFF

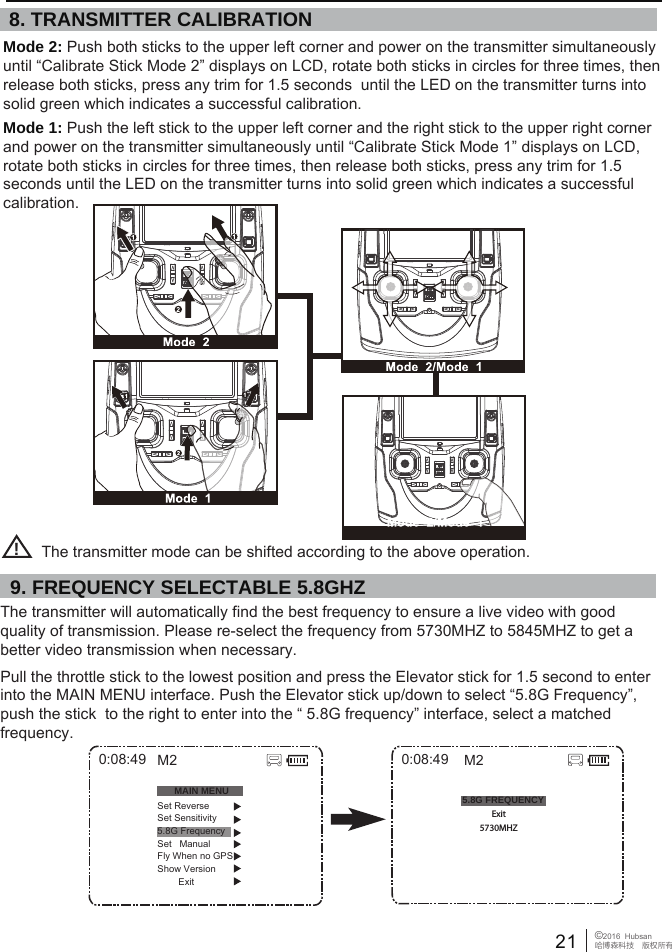

21 ©2016 Hubsan哈博森科技　版权所有The transmitter will automatically find the best frequency to ensure a live video with good quality of transmission. Please re-select the frequency from 5730MHZ to 5845MHZ to get a better video transmission when necessary.Pull the throttle stick to the lowest position and press the Elevator stick for 1.5 second to enter into the MAIN MENU interface. Push the Elevator stick up/down to select “5.8G Frequency”, push the stick to the right to enter into the “ 5.8G frequency” interface, select a matched frequency.Mode 2: Push both sticks to the upper left corner and power on the transmitter simultaneously until “Calibrate Stick Mode 2” displays on LCD, rotate both sticks in circles for three times, then release both sticks, press any trim for 1.5 seconds until the LED on the transmitter turns into solid green which indicates a successful calibration. Mode 1: Push the left stick to the upper left corner and the right stick to the upper right corner and power on the transmitter simultaneously until “Calibrate Stick Mode 1” displays on LCD, rotate both sticks in circles for three times, then release both sticks, press any trim for 1.5 seconds until the LED on the transmitter turns into solid green which indicates a successful calibration. !5.8G FREQUENCY0:08:49Exit5730MHZM20:08:49MAIN MENUSet ReverseSet Sensitivity5.8G FrequencySet ManualFly When no GPSShow Version ExitM28. TRANSMITTER CALIBRATION9. FREQUENCY SELECTABLE 5.8GHZ The transmitter mode can be shifted according to the above operation.

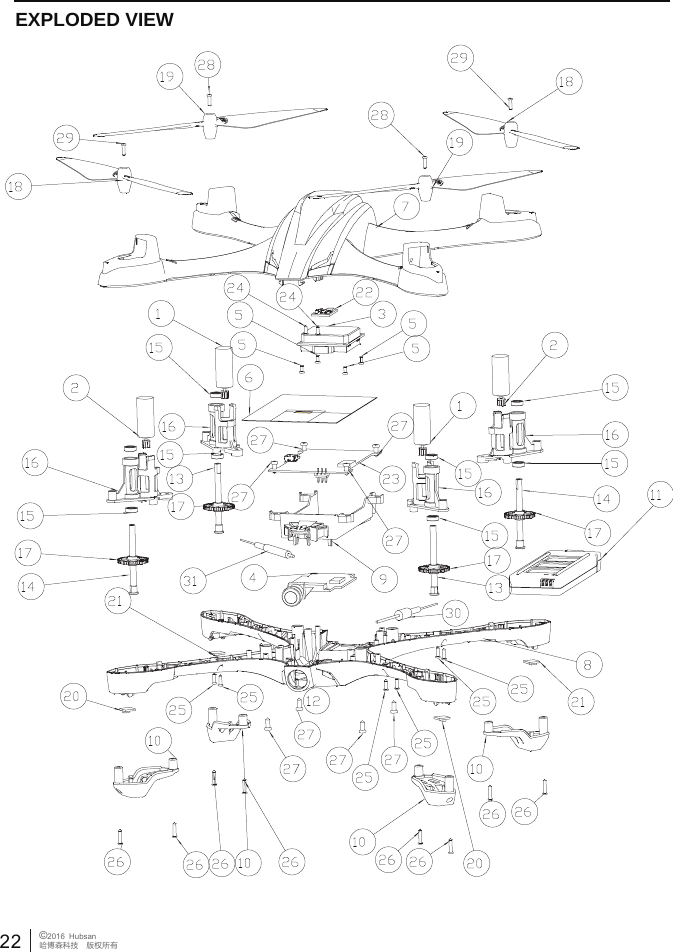

22 ©2016 Hubsan哈博森科技　版权所有EXPLODED VIEW

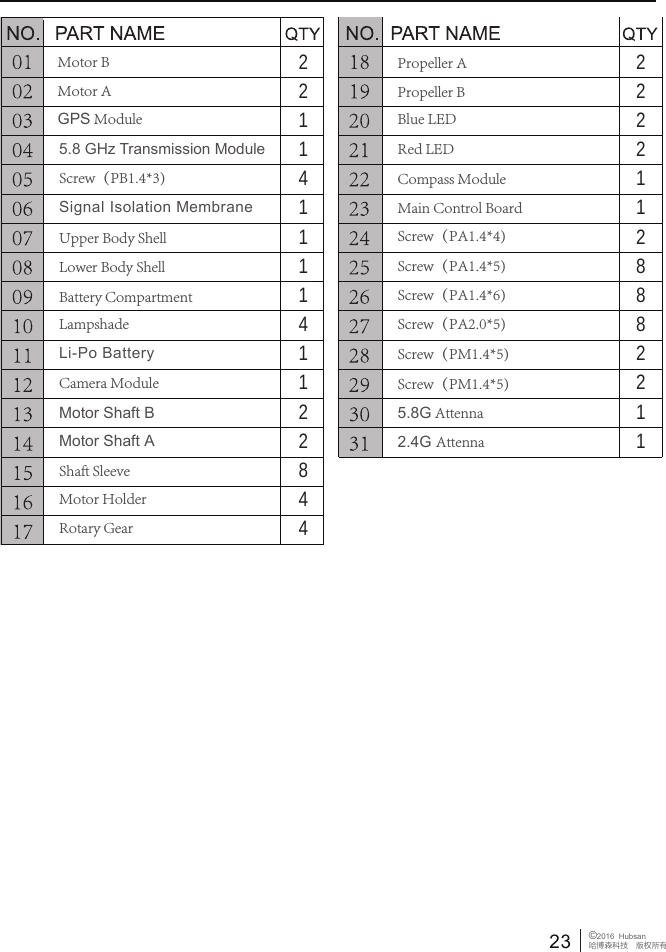

23 ©2016 Hubsan哈博森科技　版权所有Motor BMotor AGPS Module5.8 GHz Transmission ModuleScrew（PB1.4*3)Signal Isolation MembraneUpper Body ShellLower Body ShellBattery CompartmentLampshadeLi-Po BatteryCamera ModuleMotor Shaft BMotor Shaft AShaft SleeveMotor HolderRotary GearPropeller APropeller BBlue LEDRed LEDCompass ModuleMain Control BoardScrew（PA1.4*4)Screw（PA1.4*5)Screw（PA1.4*6)Screw（PA2.0*5)Screw（PM1.4*5)Screw（PM1.4*5)5.8G Attenna2.4G Attenna2211411114112284422221128882211

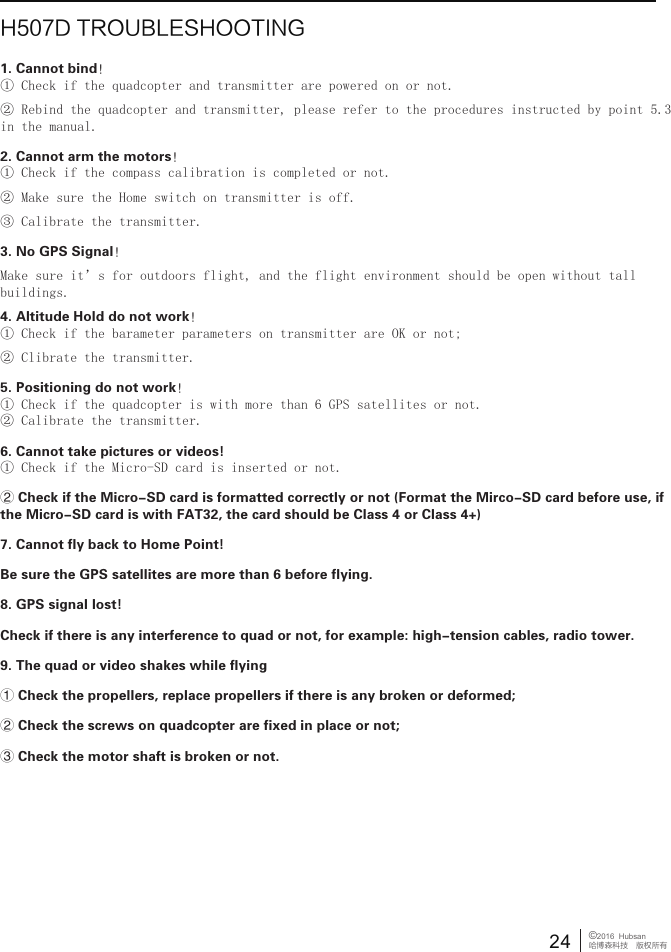

24©2016 Hubsan哈博森科技　版权所有H507D TROUBLESHOOTING1. Cannot bind！① Check if the quadcopter and transmitter are powered on or not.② Rebind the quadcopter and transmitter, please refer to the procedures instructed by point 5.3 in the manual.2. Cannot arm the motors！① Check if the compass calibration is completed or not.② Make sure the Home switch on transmitter is off.③ Calibrate the transmitter.3. No GPS Signal！Make sure it’s for outdoors flight, and the flight environment should be open without tall buildings.4. Altitude Hold do not work！① Check if the barameter parameters on transmitter are OK or not;② Clibrate the transmitter.5. Positioning do not work！① Check if the quadcopter is with more than 6 GPS satellites or not.② Calibrate the transmitter.6. Cannot take pictures or videos!① Check if the Micro-SD card is inserted or not.② Check if the Micro-SD card is formatted correctly or not (Format the Mirco-SD card before use, if the Micro-SD card is with FAT32, the card should be Class 4 or Class 4+)7. Cannot fly back to Home Point!Be sure the GPS satellites are more than 6 before flying.8. GPS signal lost!Check if there is any interference to quad or not, for example: high-tension cables, radio tower. 9. The quad or video shakes while flying① Check the propellers, replace propellers if there is any broken or deformed;② Check the screws on quadcopter are fixed in place or not;③ Check the motor shaft is broken or not.

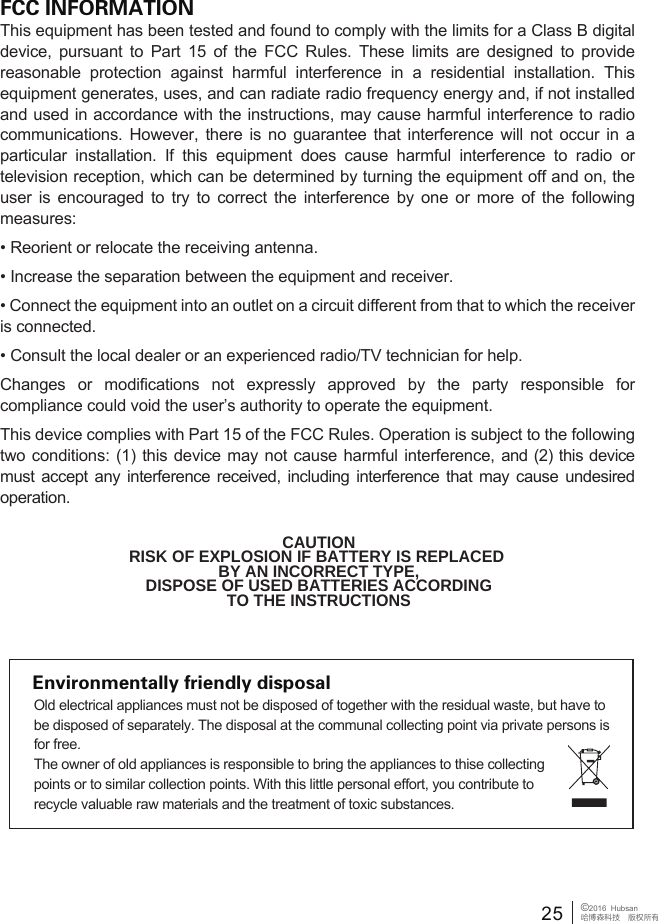

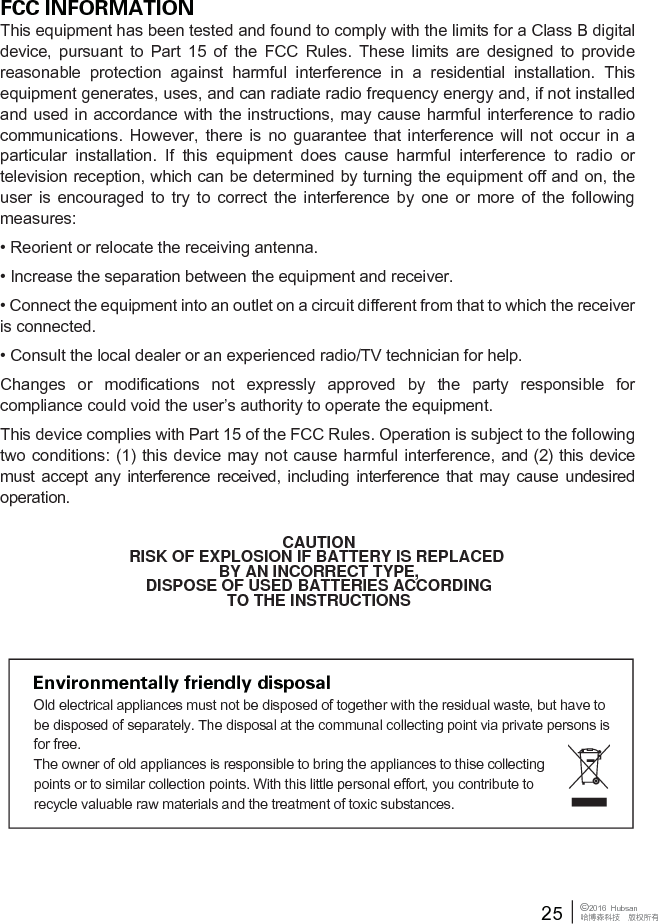

FCC INFORMATIONThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the local dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.CAUTIONRISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE,DISPOSE OF USED BATTERIES ACCORDINGTO THE INSTRUCTIONSEnvironmentally friendly disposalOld electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to thise collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances.25©2016 Hubsan哈博森科技　版权所有
User manual is subject to change without prior notice due to unforseen product upgrades.WWW.HUBSAN.COMVERSION 1.0 ENH507A TROUBLESHOOTING26©2016 Hubsan哈博森科技　版权所有
