2-30 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
The device may not support normal
operation if MP3 Players, cellular phones,
digital cameras, or other electronic
devices (USB devices not recognized as
portable disk drives) are connected to the
device.
The device may not support normal
operation when using a USB memory
type besides the Metal Cover Type USB
Memory.
The device may not support normal
operation when using formats such as
HDD Type, CF, or SD Memory.
The device will not support files locked by
DRM (Digital Rights Management).
The device may not support. Please make
sure to use normal operation if the proper
connection with the USB memory fails
due to vibrations caused by the vehicle. (i-
stick type, etc.)
Please avoid using USB memory products
which can be used as key chains or
cellular phone accessories as they could
cause damage to the USB jack.

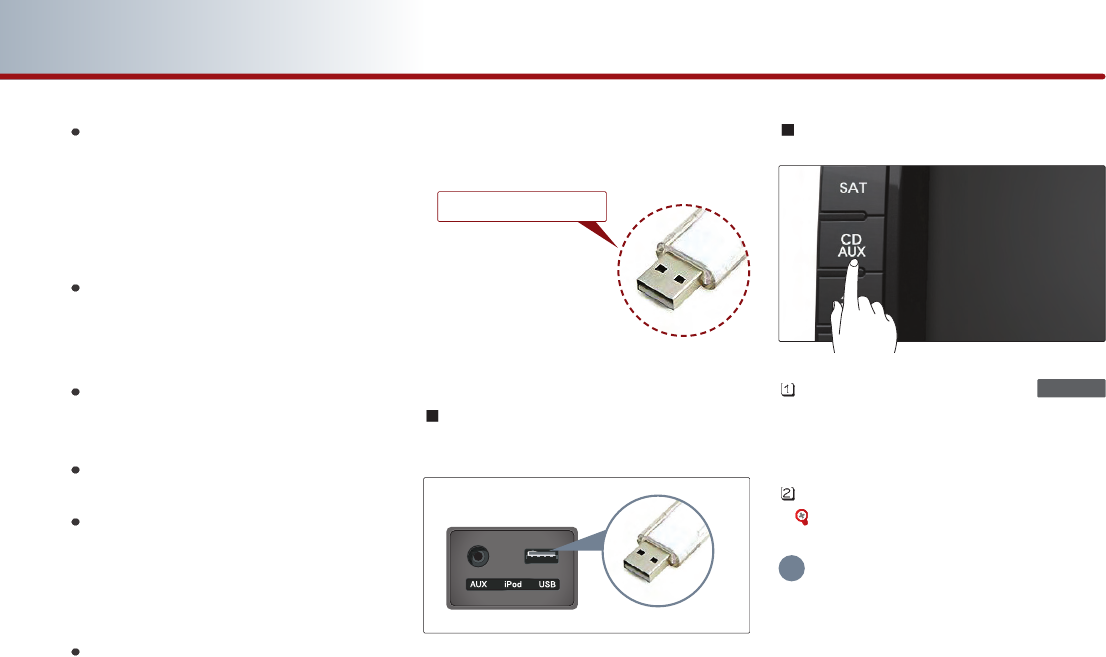

Please make certain only to use plug type
connector products as shown below.
Connecting the USB devices
Connect the USB as shown in the picture.
Listening to USB music
Connect a USB or press the
button on the control panel if the USB is
already connected.
Select the desired file.
[Selecting the MP3 file], page 2-21.
INFORMATION
The USB screen and operation method is the
same with MP3 mode.
Please refer to the MP3 mode section for
more information.
CD/AUX
i
Plug Type Connector
AUDIO SYSTEM 2-31
Operating the external devices
Voice Command
1. Press the button on the steering wheel
remote controller.
2. After the beep sound, say a command.
"USB"
AUX
Connecting AUX
Connect the external Audio player as
shown in the picture.
INFORMATION
Connect only by using AUX terminals.
Playing AUX
Connect an AUX or press the
button on the control panel if the AUX is
already connected.
Voice Command
1. Press the button on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Line In"
CD/AUX
i
External Audio Device
2-32 AUDIO SYSTEM
PART 2 AUDIO SYSTEM

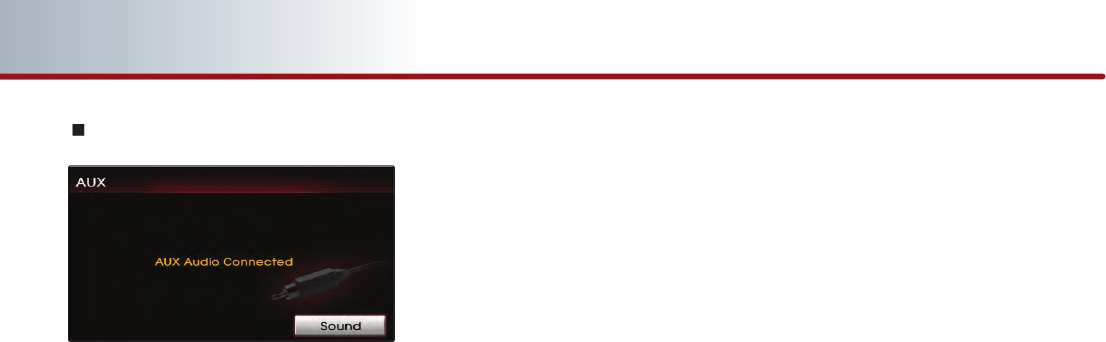

AUX screen
Audio AUX screen
Operating the external devices
MEMO
NAVIGATION SYSTEM 3-1
NAVIGATION SYSTEM
PART 3
NAVIGATION SYSTEM
Setup and Information 3-36
Setup menu screen and functions 3-36
Main setting 3-36
Setting keyboard for inputting
letter 3-36
Setting voice command feedback
ON/OFF 3-37
Setting Language 3-37
Initializing system 3-37
Navigation setting 3-38
Setting units (mile/km) 3-38
Setting arrival time and distance
display 3-38
Registering avoid area 3-38
Editing avoid area 3-40
Deleting avoid area 3-41
Deleting all avoid areas 3-41
Setting Q.POI icons 3-42
Setting estimate travel time 3-42
My places setting 3-43
Registering new address in
address book 3-43
Editing an address of
address book 3-45
Deleting an address of address
book 3-46
Deleting an address book 3-47
Registering home address 3-48
Deleting home address 3-48
Registering favorite place 3-49
Deleting favorite place 3-50
System information and update 3-51
Voice guidance volume setting 3-51
Voice guidance volume control 3-51
Adaptive volume control ON/OFF
3-52
Traffic Setup 3-52
Traffic Information 3-52
Help 3-54
3-2 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Limitations of the
navigation system

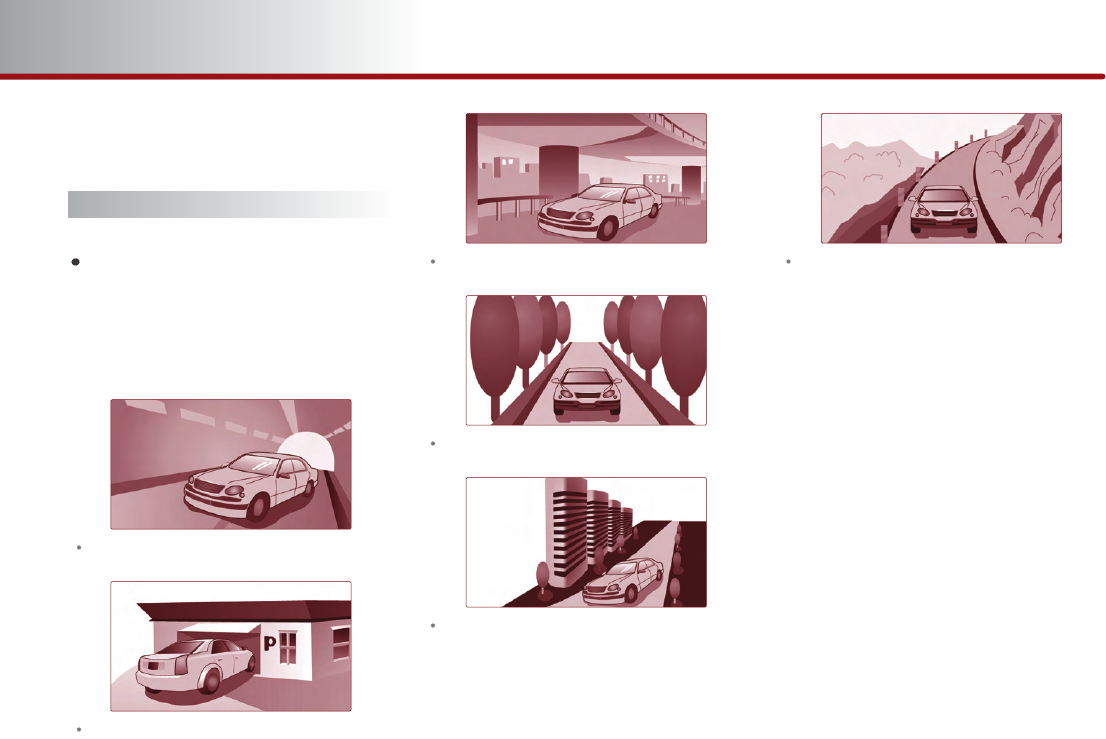

GPS signal reception state
As the GPS satellite frequency is received
/transmitted in straight lines, reception
may not work if hiding devices are placed
on or near the GPS antenna or when
traveling through the following locations.
Tunnels
Basement parking structures
Underneath an overpass
Roads within forested areas
Areas near high rise buildings
Roads within canyons
NAVIGATION SYSTEM 3-3
NAVIGATION SYSTEM
Vehicle position display
If multipass errors occur due to reflections
from buildings or related causes, the
current position mark on the navigation
may differ from the actual position of the
vehicle.
The position of the vehicle on the
navigation may be different from the
actual position if the vehicle is under the
following conditions. If such differences
occur, driving for a short period of time
will automatically correct the position of
the vehicle through map matching or GPS
information (several minutes may be
necessary in certain cases).
When driving on a Y-shaped road with a
narrow angle, the current position may
be displayed in the opposite direction.
If the vehicle is loaded onto a ferry or a
car transport vehicle, the current
position mark may be stalled on the last
position prior to loading.
When driving on a spiral-shaped road.
When driving in mountain regions with
sharp turns or sudden brakes.
When entering a road after having been
in an underground parking structure,
building parking structure, or turntable
with many rotations.
When the tires have recently been
replaced (Especially upon use of spare or
studless tires)
If the battery terminal is removed.
When driving in city streets, the current
position may be displayed on the
opposite side or on an off-road position.
When changing the zoom level from the
maximum zoom in level to a different
zoom level, the current position mark
may be displayed on a different road.
When driving in heavy traffic with frequent
go stops in traffic or intersections.
When driving under slippery conditions,
such as heavy sand, snow, etc.
When driving with the tire chain in place.
When using a tire with an incorrect size
specification.
When the tire pressure for the 4 tires are
different.
When the replacement tire is a worn or
used tire (Especially studless tires having
passed a 2nd seasons, etc.)
When driving near high-rise buildings
If a roof carrier has been installed
When driving under high speeds or
having calculated a long-distance route.
Route Guidance
Suitable route guidance may not occur
caused by search conditions or the
driving position.
Guidance to go straight may be given
while driving on a straight road.
Guidance may not be given even when
having turned at an intersection.
There are certain intersections in which
guidance may not occur.
A route guidance signaling for a U-Turn
in a No U-Turn location may occur.
A route guidance signaling entrance into
a no enter zone may occur (No enter
zone, road under construction, etc.).
Guidance may be given to a position
removed from the actual destination if
roads to reach the actual destination do
not exist or are too narrow.
Faulty voice guidance may be given if
the vehicle breaks from the designated
route (ex: if a turn is made at an
intersection while the navigation
provided guidance to go straight).
Map Data may be missing or incorrect
causing route guidance to not be given.
Route Re-calculation
The following phenomena may occur
after conducting route recalculation.
Guidance may be given to a position
differing from the current position when
turning at an intersection.
Route Recalculation may take a longer
period of time when driving under high
speeds.
A route guidance signaling for a U-Turn
in a No U-Turn location may occur.
A route guidance signaling entrance into a
no enter zone may occur (No enter zone,
road under construction, etc).
Guidance may be given to a position
removed from the actual destination if
roads to reach the actual destination do
not exist or are too narrow.
Faulty voice guidance may be given if
the vehicle breaks from the designated
route (ex: if a turn is made at an
intersection while the navigation
provided guidance to go straight)
3-4 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
NAVIGATION SYSTEM 3-5
NAVIGATION SYSTEM

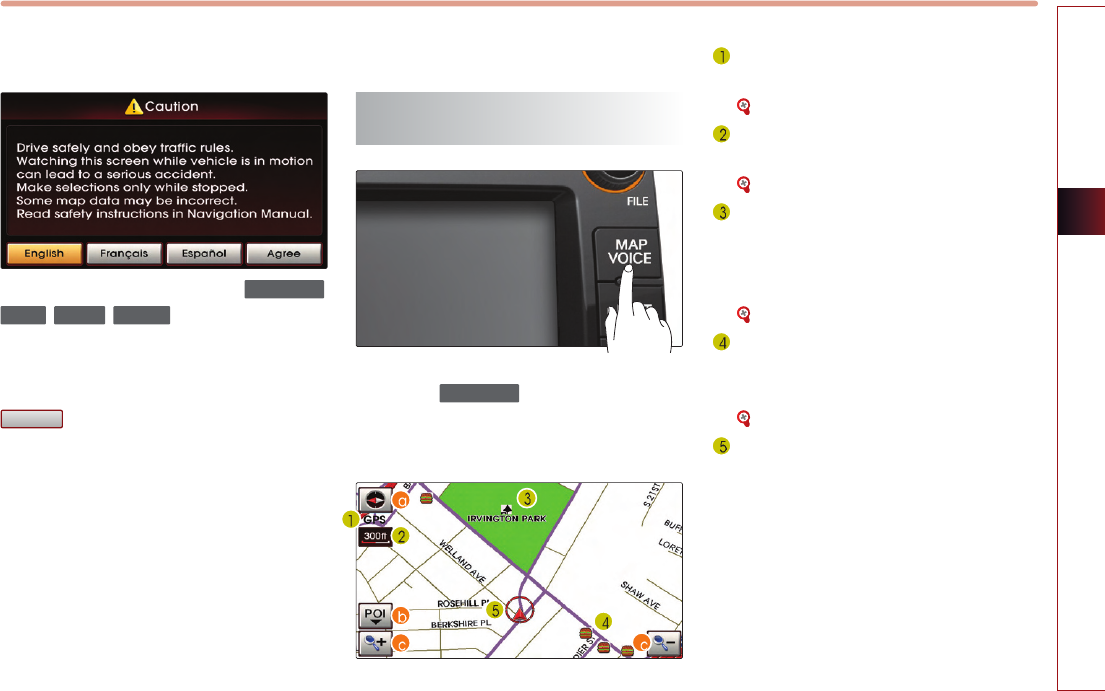

Starting navigation system
Press the Navigation mode key ( ,
, , ). The Caution screen
will always be displayed when first entering
into Navigation mode. Read the contents of
the caution screen carefully and press the
button.
Map Functions
Current position map screen
(without route)
Press the key on the control
panel to display the map of current position
and the neighboring area.
GPS signal state indicator : Displays the
state of GPS signal reception.
[Viewing GPS signal state], page 3-7.
Map scale level indicator : Displays the
current map scale.
[Changing the map scale], page 3-8.
Landmark icons : Landmark icons are
displayed on the map when the map
scale level is set to under 300 ft (100m
depending on map data)
[Appendix : Landmark icons], page 7-11.
POI icons : POI icons are displayed on
the map when the map scale level is set
to under 0.5 mi (800m).
[Appendix : POI icons], page 7-8.
Current vehicle position icon : Displays
the current position of the vehicle.
MAPVOICE
Agree
SETUP
ROUTE
DEST
MAPVOICE
3-6 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
North Up / Heading Up switch :
Displays the current map mode and the
map mode can be switched between
North Up and Heading Up.
[Switching map mode], page 3-6.

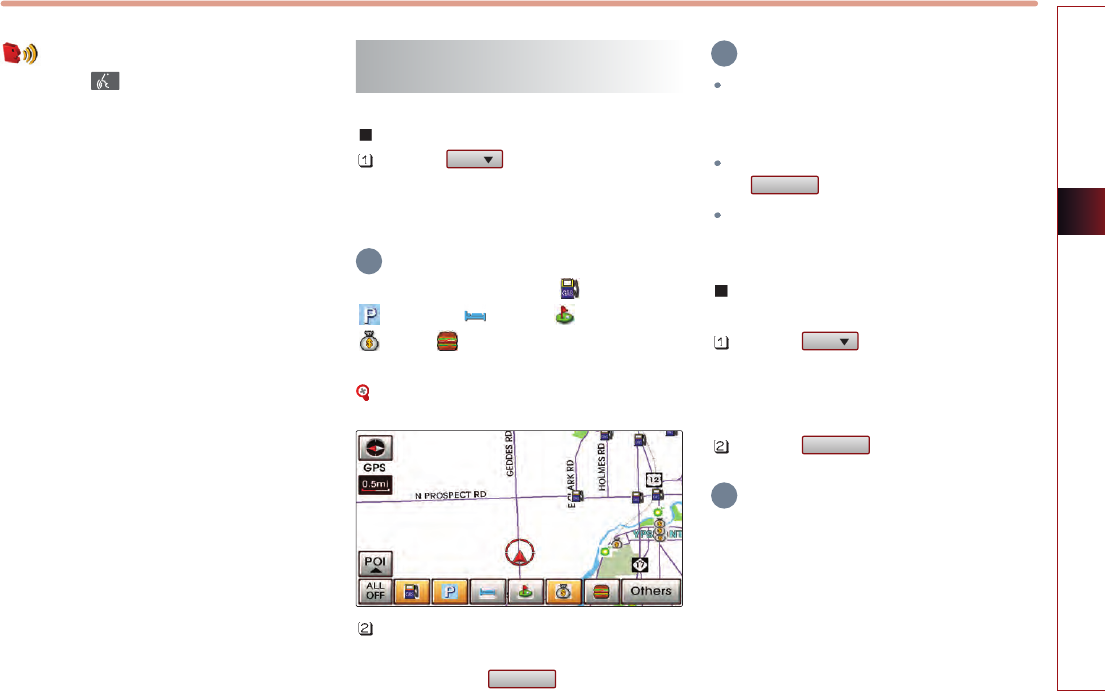

POI : Displays or hides the POI icon on
the map.
[Displaying/Hiding POI icons on the
map], page 3-9.

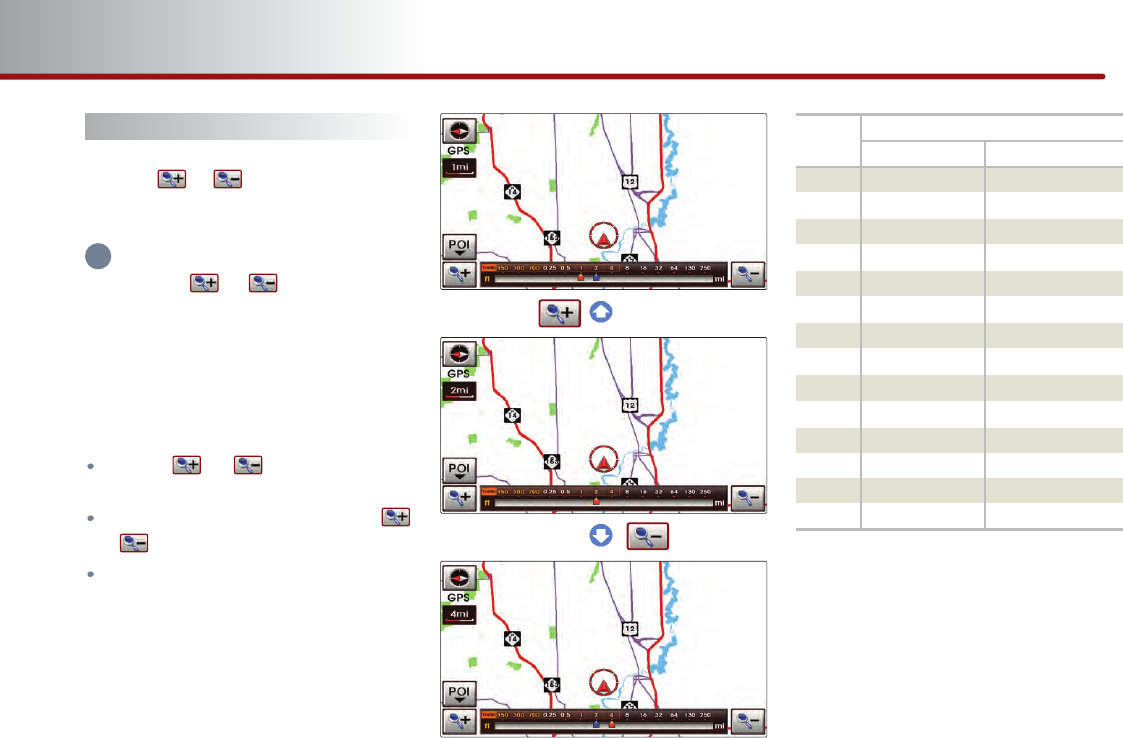

Map scale : Increases or decreases the
map scale.
[Changing the map scale], page 3-8.

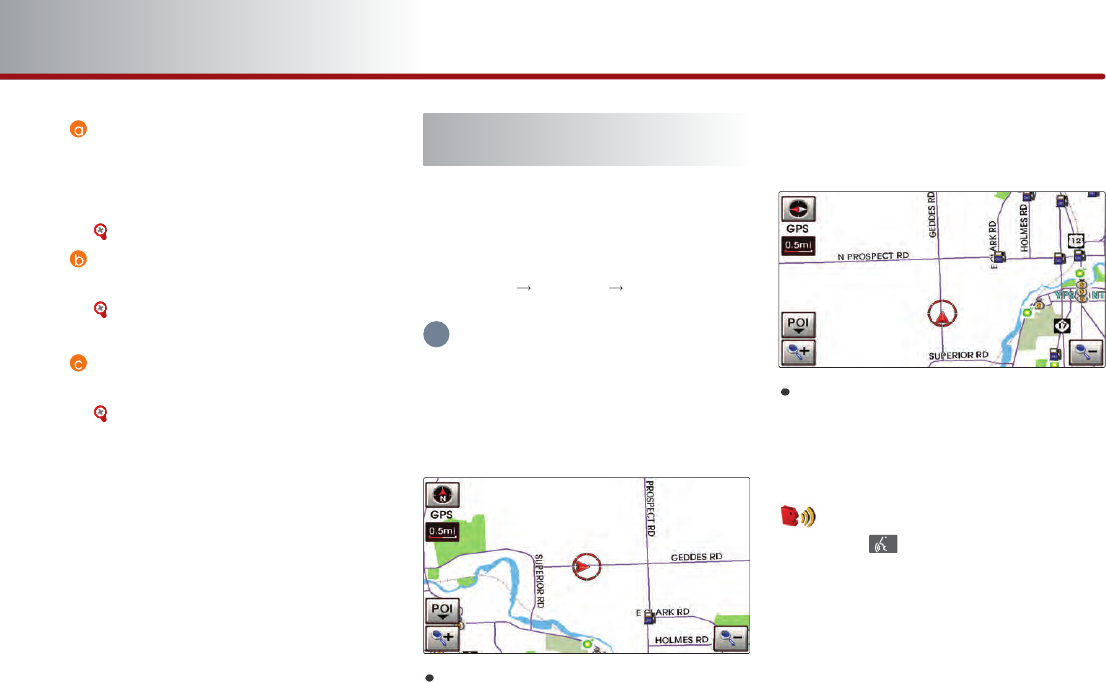

Switching map mode (North Up /
Heading Up)
Each time the compass button is pressed,
the screen will switch in the order shown
below.
Heading Up North Up Heading Up
INFORMATION
All map screens (map screen after setting
destination & whole route display screen)
except the current position screen will always
be displayed in North Up mode.
North Up : displays the map always facing
the North direction regardless of the
direction which the vehicle is traveling.
The vehicle icon is displayed in the center
position of the map.
Heading Up : displays the map always
facing the direction which the vehicle is
traveling. The vehicle icon is displayed in
the lower center position of the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"North Up"
"Heading Up"
i
NAVIGATION SYSTEM 3-7
NAVIGATION SYSTEM
Viewing GPS signal state
The state of GPS signal reception is
displayed as shown below.
GPS (active) :
GPS reception is satisfactory.
GPS (inactive) :
GPS reception is unsatisfactory.
[System information and update], page
3-51.
INFORMATION
GPS (Global Position System) : GPS is a
system developed and operated by the
United States which determines the current
location of the user (longitude, latitude, etc.)
by generally using 4 or more satellites. This
system is used with related GPS information,
various sensors, road map data, and other
navigation related information.
GPS information may not operate under the
following conditions.
- When buildings, tunnels, or other
obstructions block satellite signals.
- When materials are placed above the GPS
antenna and block satellite signals.
- When the satellite does not transmit
signals (signal transmission is controlled
by the satellite control center in the
United States and may not transmit when
under repair, modification, etc).
- When a digital cellular phone (1.5GHz) is
placed near the GPS antenna.
This system uses GPS information, various
sensors, road map data, and other related
information to display the current position.
Errors may occur if the satellite is
transmitting inaccurate signals or if which
can only two or less satellite signals can be
received.
Errors which occur in such conditions
cannot be corrected.
i
3-8 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Changing the map scale
Press the or button. The map scale
will be increased or decreased by one level.
INFORMATION
Each time the
or
button is pressed,
the scale bar will be displayed.
The scale can be changed by directly pressing
the scale level on the scale bar.
The green color on the scale bar indicates the
current scale level while the orange color
indicates the selected scale level.
Press the
or
button for over 0.8
second. The scale will continuously change.
If the scale range limit is reached, the
or
button will be disabled.
The map scale range is between 1 and 14:
10,240,000 ~ 1 : 5,000.
i
Level Actual distance
mi / ft km / m
1 150 ft 50 m
2 300 ft 100 m
3 700 ft 200 m
4 0.25 mi 400 m
5 0.5 mi 800 m
6 1 mi 1.6 km
7 2 mi 3.2 km
8 4 mi 6.4 km
9 8 mi 12 km
10 16 mi 25 km
11 32 mi 50 km
12 64 mi 100 km
13 130 mi 200 km
14 250 mi 400 km
NAVIGATION SYSTEM 3-9
NAVIGATION SYSTEM
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Zoom In"
"Zoom Out"
"Zoom Maximum"
"Zoom Minimum"
"Zoom level <1 to 14>"
"Zoom <actual distance>"
" (ex. Zoom 700ft)"
Displaying / Hiding POI icons on
the map
Displaying/Hiding Q.POI icons
Press the button.
Related menu buttons will be displayed
at the bottom of the screen.
INFORMATION
The Q.POI icons are set to - Gas Station,
- Parking, - Hotel, - Golf Course,
- Bank, - Fast Food (6 icons) by default.
This setting can be changed in SETUP.
[Setting Q.POI icons], page 3-42.
Press the icon buttons to display or hide.
To turn off all POI icons displayed on the
map, press the button.
INFORMATION
The current displayed POI icons are
highlighted while the icons not being
displayed are shown as normal buttons.
If there are no POI icons being displayed,
the button will be disabled.
POI icons are displayed when the scale is
under 0.5 mi (800m).
Displaying / Hiding icons other
than Q.POI icons
Press the button.
Related menu buttons will be displayed
at the bottom of the screen.
Press the button.
INFORMATION
Q.POI stands for Quick POI and refers to the
function which turns POI icon display on or off
on the map.
Others
POI
ALL OFF
ALL OFF
POI
i
i
i
3-10 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

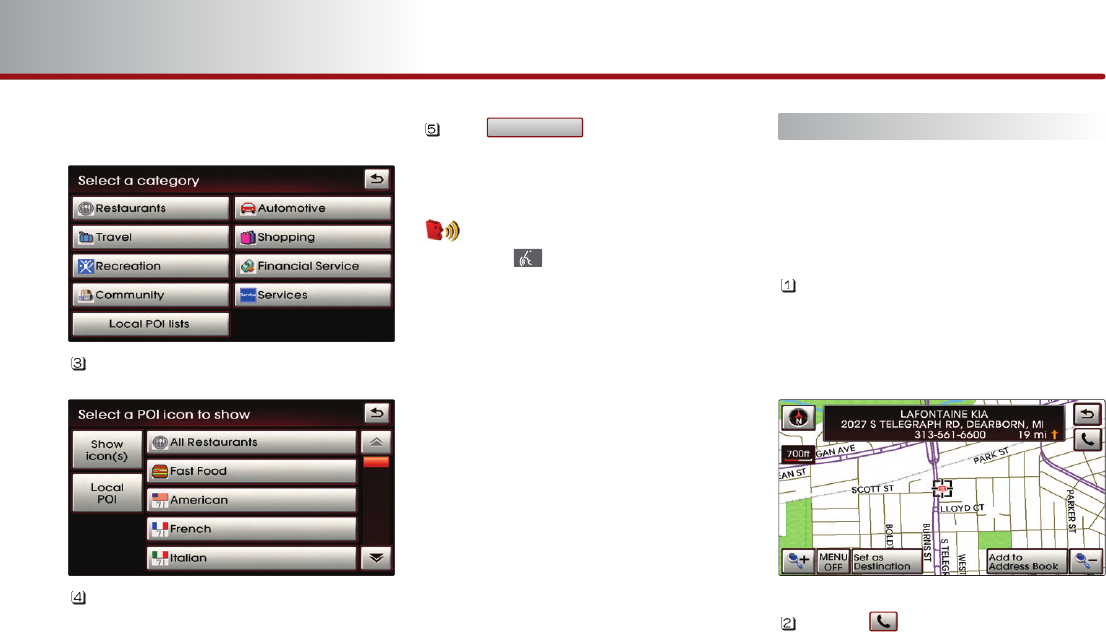

(a) by category list
Press the desired main category button.
Select the desired sub category menu to
display or hide (Multiple selections are
possible).
Press the selected menu again to cancel
the selection.
If the button is pressed, the
selected menus will be displayed or
hidden on the map screen.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Show <POI name>" (ex. Show ATM)
"Hide <POI name>" (ex. Hide ATM)
"Hide All"
Making a call to POI
After searching a POI, the POI phone
number information can be used to make a
call to the POI facility.
Use the various search methods, such as
the map scroll function, Q.POI search
function, and destination search function
to search for a POI.
Press the button.
Show Icon(s)
NAVIGATION SYSTEM 3-11
NAVIGATION SYSTEM
Bluetooth is used to make a call to the
POI facility.
Once the call is ended, the map is
restored to the current vehicle location.
INFORMATION
Making a call is not possible if there is no
telephone information for a POI or if there is
no mobile phone connected through
Bluetooth.
For more information of mobile phone
authentication through Bluetooth or
detailed information on conducting search,
refer to [Pairing and connecting a
Bluetooth phone], page 5-4.
Scrolling map
Press the map area on the map screen.
The selected point will be centered on the
screen and the scroll mark will be displayed.
Information about the marked point and
straight line distance from the current
position will be displayed at the top of the
screen.
INFORMATION
If a map area on the map screen is pressed,
the map will continuously scroll in the
corresponding direction until the pressing is
released.
i
i
3-12 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

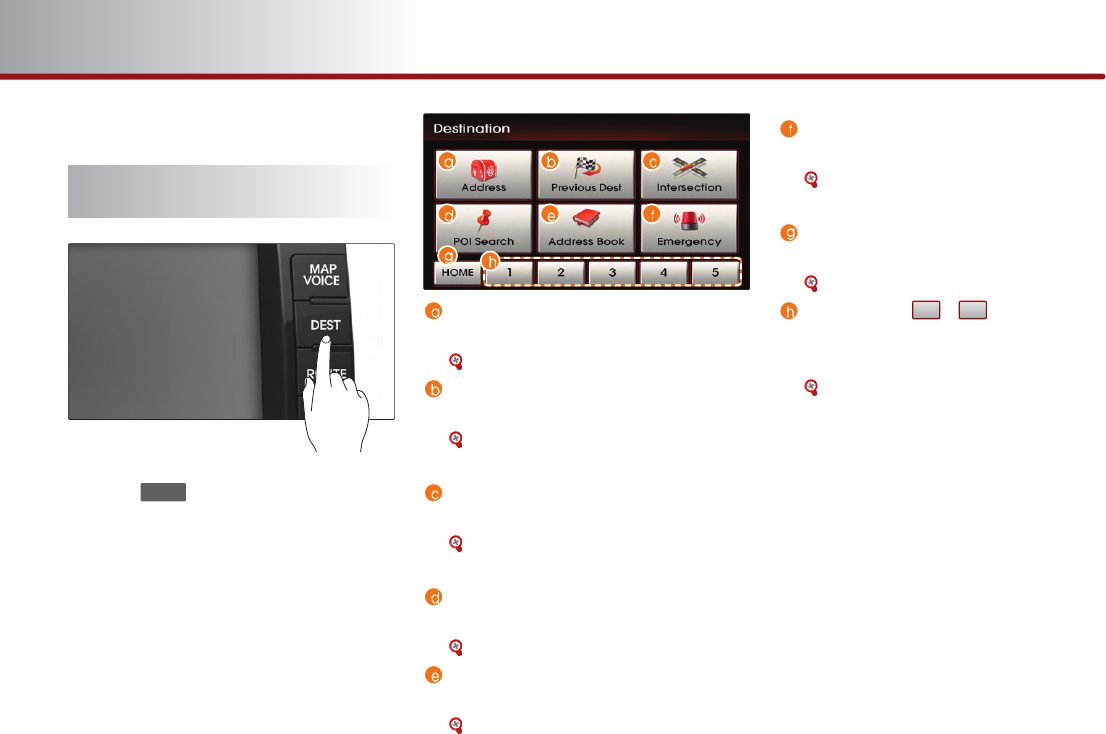

Setting a destination
Destination menu screen and
functions
Press the key on the control panel to
display the destination menu screen.
Address : Sets the destination through
address search.
[Searching an Address], page 3-13.
Previous Dest : Sets the destination
through the previous destination list.
[Searching a Previous Destination],
page 3-17 .
Intersection : Sets the destination
through intersection search.
[Searching an Intersection], page 3-
17.
POI Search : Sets the destination through
POI Category search.
[Searching a POI], page 3-20 .
Address Book : Sets the destination
through address book search.
[Searching from Address book], page
3-24 .
Emergency : Sets the destination
through emergency facilities search.
[Searching for Emergency facilities],
page 3-25 .
HOME : Sets the stored HOME as the
destination.
[Searching your Home], page 3-25 .
Favorite place ~ :
Sets the destination with one of the
stored favorite places.
[Searching favorite places], page 3-26 .
51
DEST
NAVIGATION SYSTEM 3-13
NAVIGATION SYSTEM

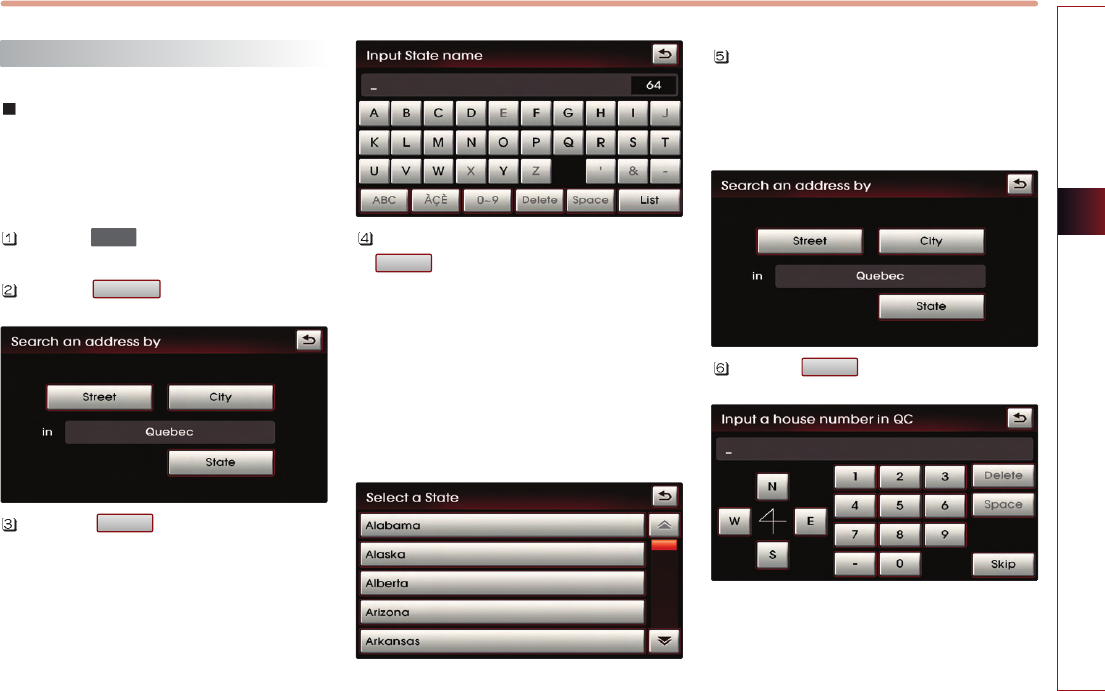

Searching a Destination
Searching an Address
There are 2 ways to set the destination
through address search-(a) by street, (b) by
city.
Press the key.
Press the button.
Press the button to change the
state.
Input the State name and press the
button.
If the number of matches with the input
is less than 4 results, then the state list
screen will be displayed automatically.
If the number of matches is only one
result, then the state will automatically be
changed without having to manually
select the state.
Select the desired state from the list to
change the state.
(a) by street
Press the button.
Street
List
State
Address
DEST
3-14 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

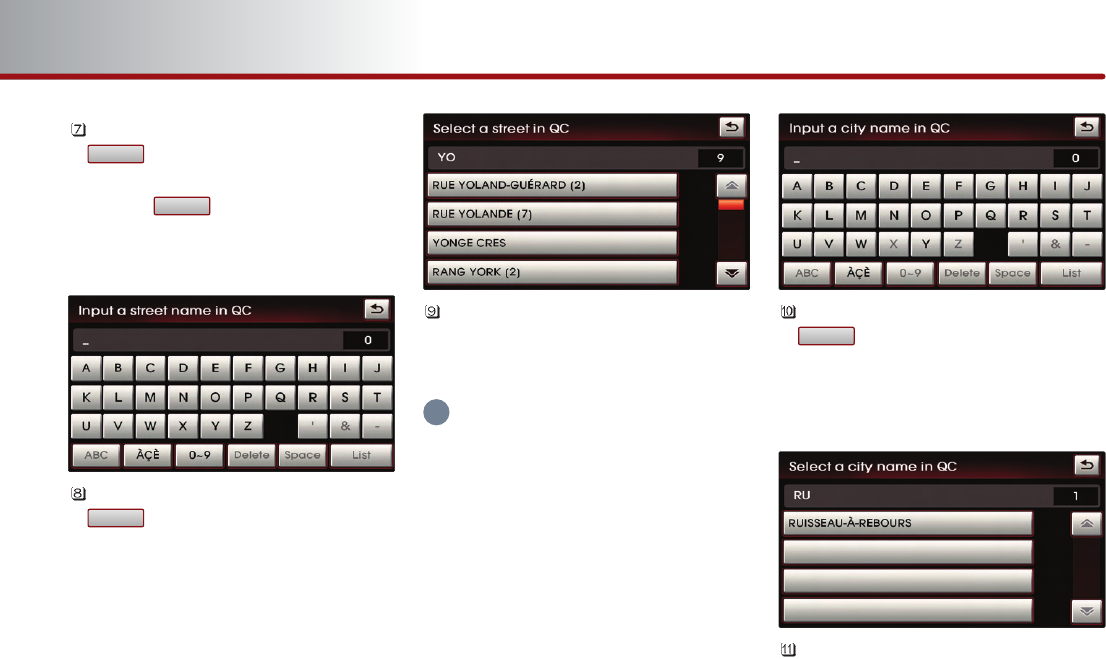

Input the House number and Press the
button to complete.
If the House number is not recognized,
press the button.
In this case, the range of house numbers
will be displayed during the last step.
Input the Street name and press the
button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
If the desired street from the list is
selected, the corresponding position will
be displayed on the map.
INFORMATION
If more than 30 cities exist with the selected
street, then the city input screen will be
displayed. If less than 30 cities exist, then the
city selection screen will be displayed.
Input the city name and press the
button to complete.
If the number of matches with the input
is less than 4 results, then the list screen
will be displayed automatically.
Select the desired city from the list.
List
List
Skip
Done
i
NAVIGATION SYSTEM 3-15
NAVIGATION SYSTEM

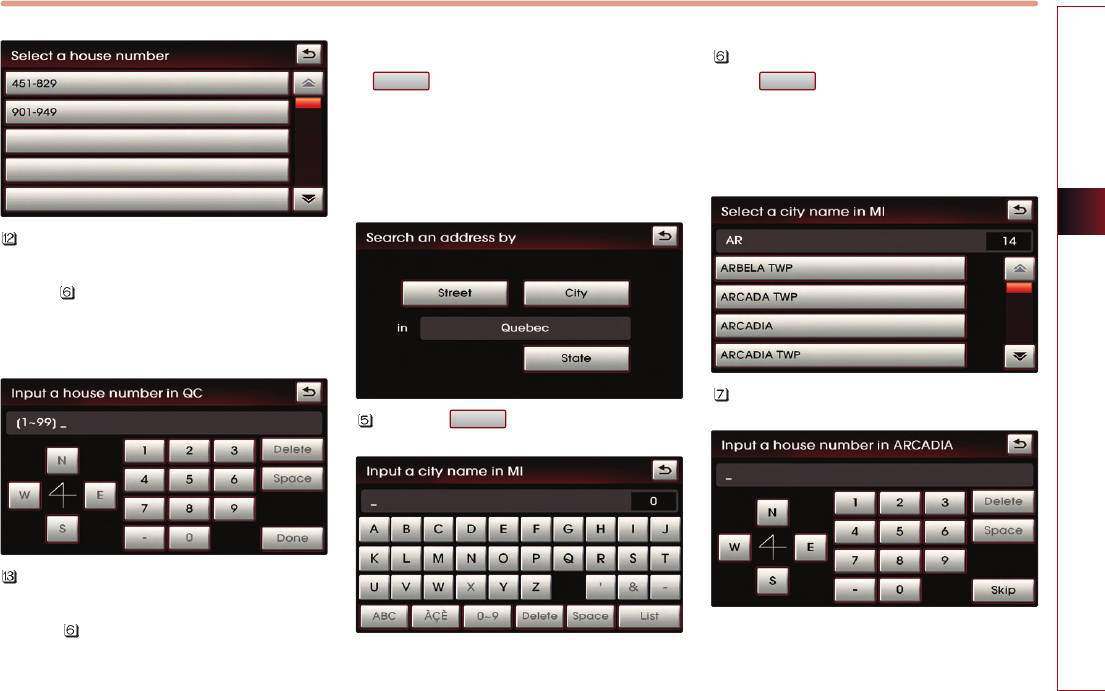

This screen will be displayed if the House
number had not been inputted during
step and more than 2 house numbers
ranges exist.
Select the desired House number range.
This screen will be displayed if the House
number had not been inputted during
step and only one house numbers
range exists.
Input the House number and press the
button to complete.
The corresponding position will be
displayed on the map.
(b) by city
Press the button.
Input the city name and press and press
the button.
If the number of matches with the input
is less than 4 results, then the city list
screen will be displayed automatically.
Select the desired city from the list.
List
City
Done
3-16 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

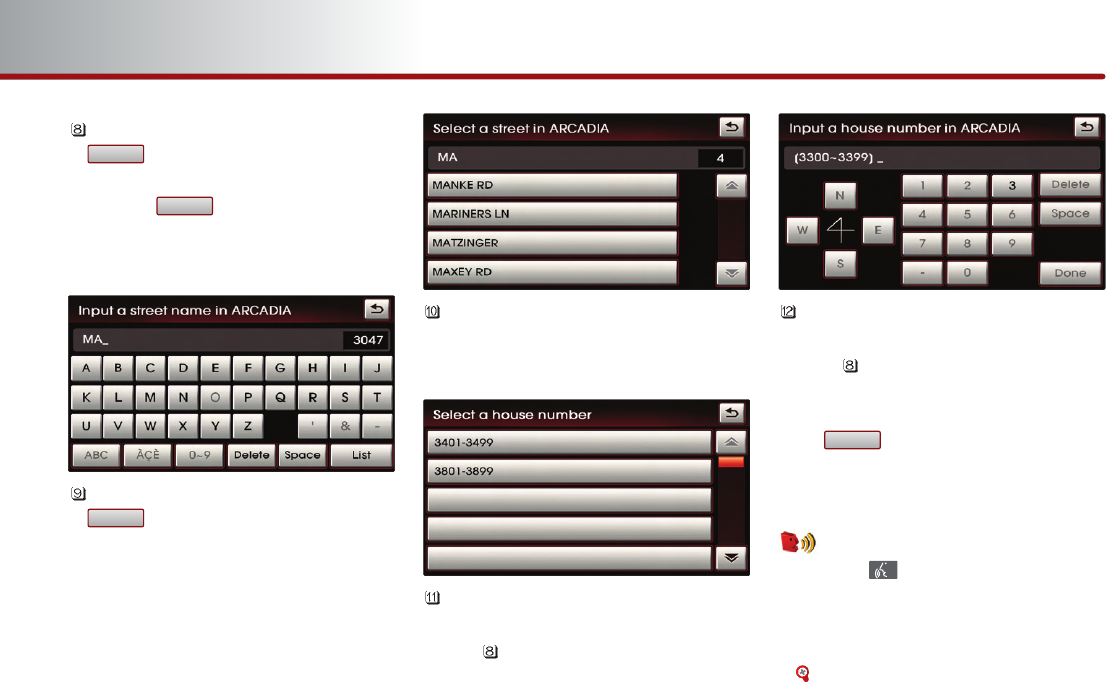

Input the house number and press the
button to complete.
If the House number is not recognized,
press the button.
In this case, the range of house numbers
will be displayed during the last step.
Input the Street name and press the
button to complete.
If the number of matches with the input is
less than 4 results, then the street list
screen will be displayed automatically.
Select the desired street from the list and
the corresponding position will be
displayed on the map.
This screen will be displayed if the House
number had not been inputted during
step and more than 2 House number
ranges exist.
Select the desired House number range.
This screen will be displayed if the House
number had not been inputted during
step and only one House number
range exists.
Select the house number range and Press
the button to complete.
The corresponding position will be
displayed on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find address"
[Find address], page 4-19.
Done
List
Skip
Done
NAVIGATION SYSTEM 3-17
NAVIGATION SYSTEM

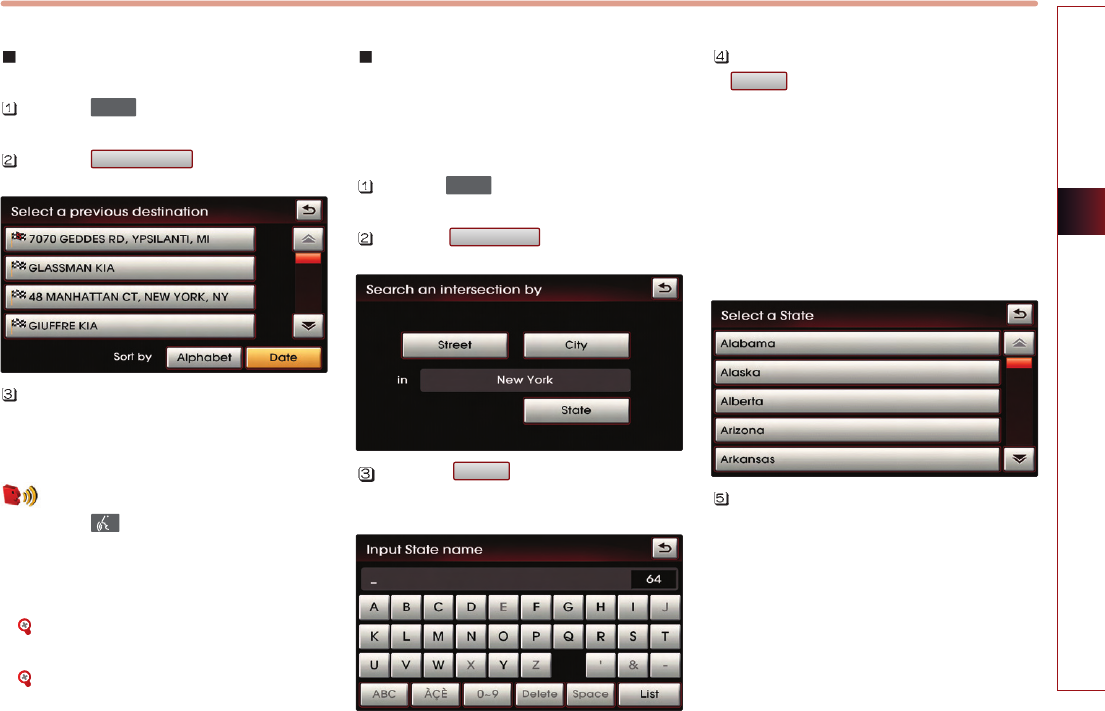

Searching a Previous Destination
Press the key.
Press the button.
Select the desired previous destination.
The corresponding position will be
displayed on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Previous destination"
[Previous destination], page 4-24.
"Previous start point"
[Previous start point], page 4-25.

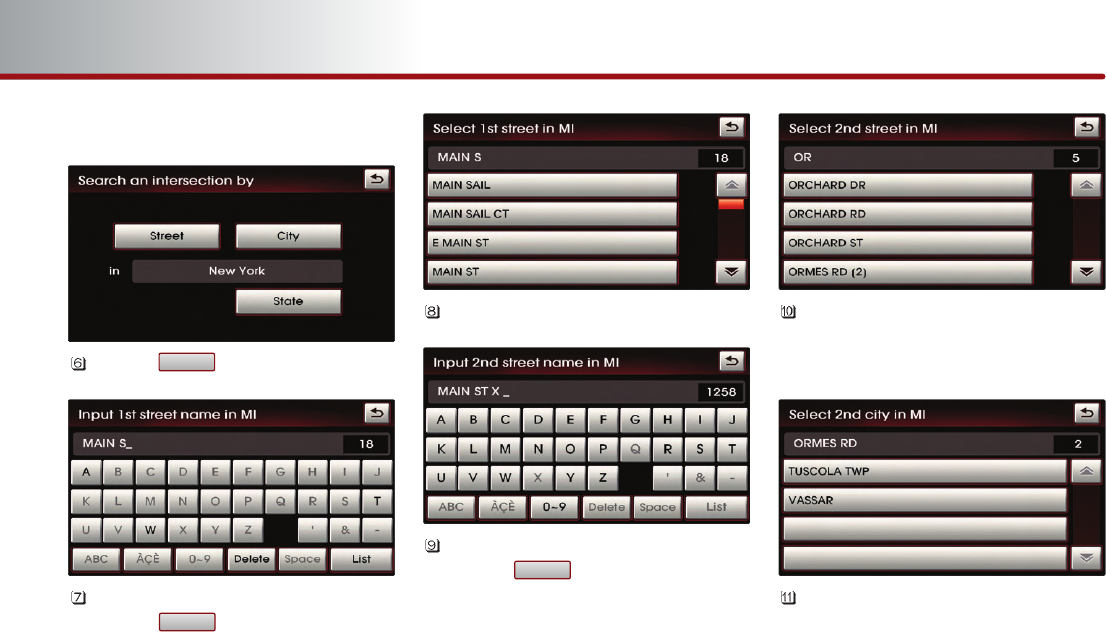

Searching an Intersection
There are two ways to set the destination
through intersection search-(a) by street, (b)
by city.
Press the key.
Press the button.
Press the button to change the
state.
Input the state name and press the
button. If the number of matches
with the input is less than 4 results, then
the state list screen will be displayed
automatically.
If the number of matches is only one
result, then the state will automatically be
changed without having to manually
select the state.
Select the desired state from the list to
change the state.
List
State
Intersection
DEST
Previous Dest
DEST

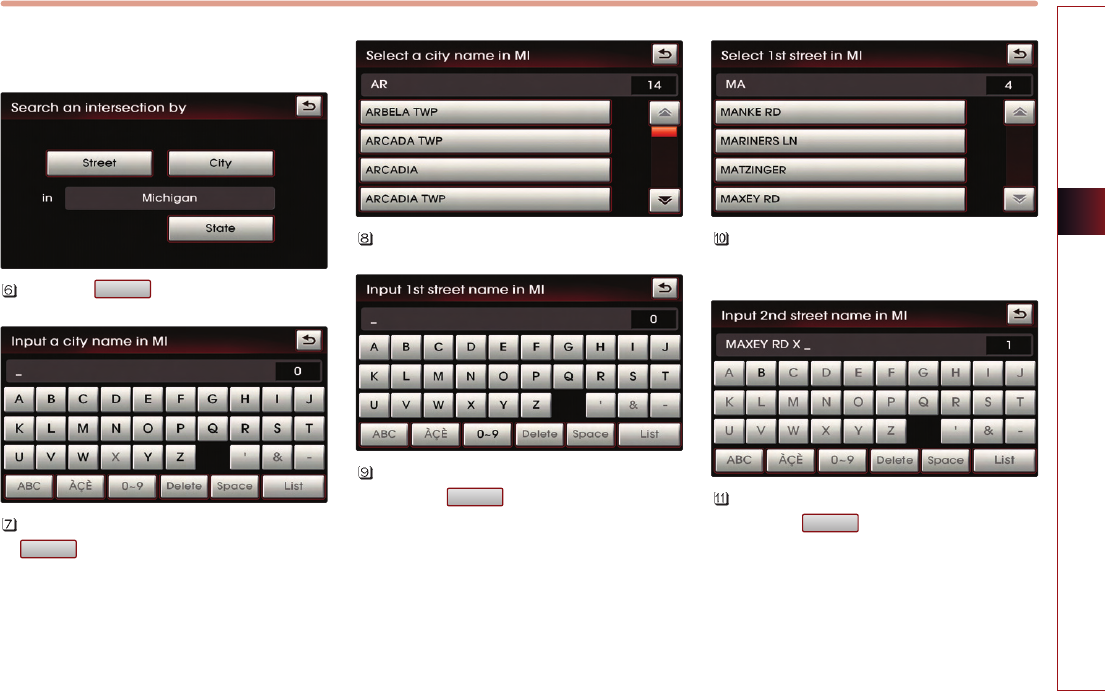

(a) by street
Press the button.
Input the name of the 1st street and
press the button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
Select the desired 1st street from the list.
Input the name of the 2nd street and
press the button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
Select the desired 2nd street menu from
the list. The corresponding position will
be displayed on the map.
If the selected 2nd street is within more
than 2 cities, then the city list screen will
be displayed.
Select the desired city menu from the list.
The corresponding position will be
displayed on the map.
List
List
Street
3-18 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
NAVIGATION SYSTEM 3-19
NAVIGATION SYSTEM
(b) by city
Press the button.
Input the city name and press the
button.
If the number of matches with the input
is less than 4 results, then the city list
screen will be displayed automatically.
Select the desired city name.
Input the name of the 1st street and
press the button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
Select the desired 1st street menu from
the list.
Input the name of the 2nd street and
press the button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
List
List
List
City

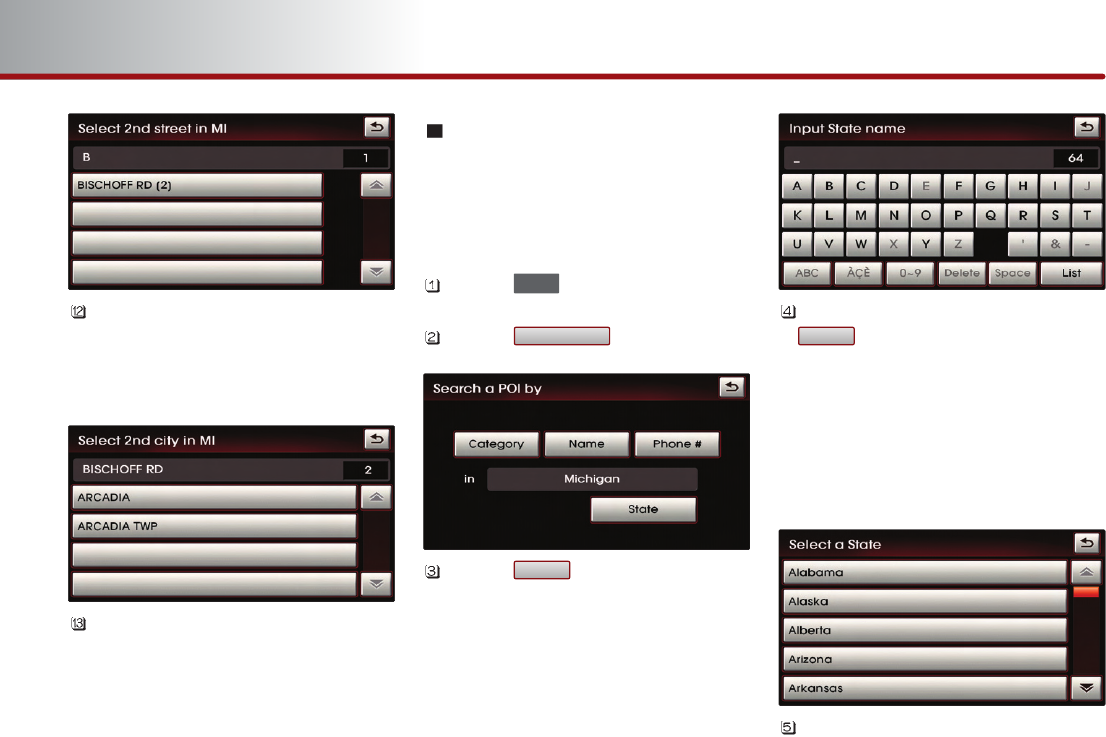

Select the desired 2nd street menu from
the list.
The corresponding position will be
displayed on the map.
If the selected 2nd street is within more
than 2 cities, then the city list screen will
be displayed.
Select the desired city menu from the list.
The corresponding position will be
displayed on the map.

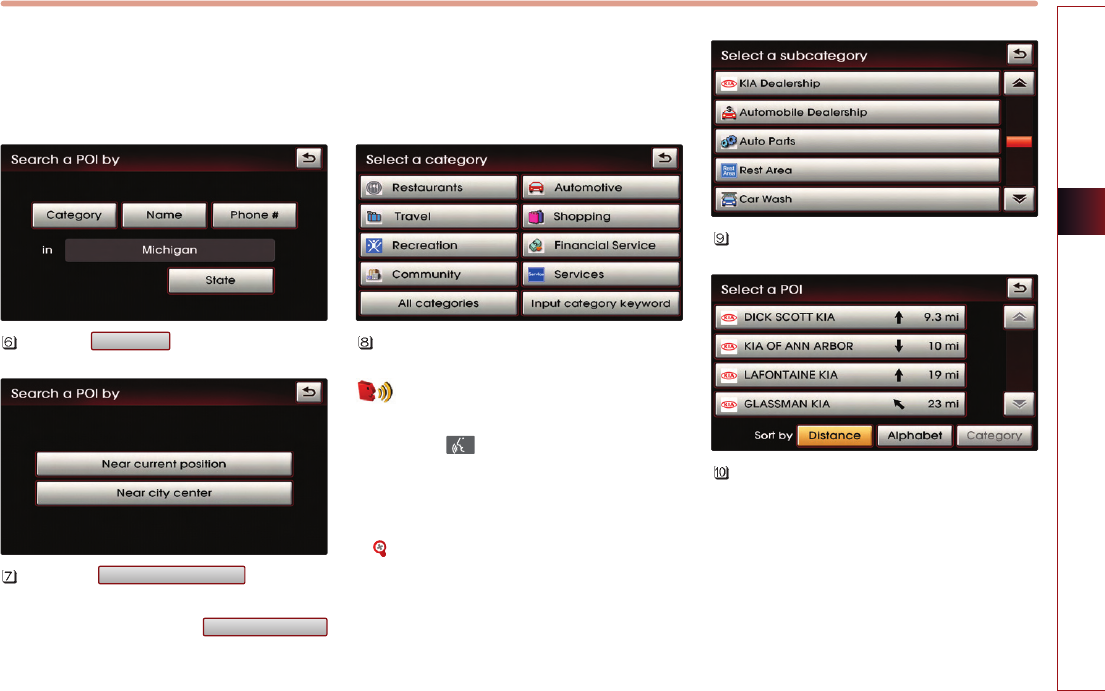

Searching a POI
There are 3 ways to set the destination
through POI search - (a) by category, (b) by
name, (c) by phone number.
Press the key.
Press the button.
Press the button.
Input the state name and press the
button. If the number of matches
with the input is less than 4 results, then
the state list screen will be displayed
automatically. If there is only one
matching result, then the state will
automatically be changed without having
to manually select the state.
Select the desired state from the list to
change the state.
List
State
POI Search
DEST
3-20 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
NAVIGATION SYSTEM 3-21
NAVIGATION SYSTEM
(a) By category
Searches for facilities nearby the current
position or from the city center.
Press the button.
Press the button to
search for facilities nearby the current
position, or press the
button to search for facilities in the near
city center.
(a-1) Near current position
Searches for facilities within a 30 mi (45km)
radius of the current position.
Press the desired main category menu.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find nearest POI"
[Find nearest POI], page 4-20.
Press the desired sub category menu.
Select the desired menu button.
The corresponding position will be
displayed on the map.
Near city center
Near current position
Category
