INSTRUCTION MANUAL
iF43TR
UHF TRUNKED RADIO
(LTR®/Passport version)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the condition that this device
does not cause harmful interference.
i
R DANGER! NEVER short the terminals of the bat-
tery pack.
R DANGER! Use and charge only specified Icom battery
packs with Icom radios or Icom chargers. Only Icom battery
packs are tested and approved for use with Icom radios or
charged with Icom chargers. Using third-party or counterfeit
battery packs or chargers may cause smoke, fire, or cause
the battery to burst.
R WARNING! NEVER hold the transceiver so that
the antenna is very close to, or touching exposed parts of
the body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 2 to 4 in. (5
to 10 cm) away from the lips and the transceiver is vertical.
R WARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
R WARNING! NEVER operate the transceiver while
driving a vehicle. Safe driving requires your full attention—
anything less may result in an accident.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United states, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
LTR® is a registered trademark of the E.F.Johnson Company.
All other products or brands are registered trademarks or trademarks of their
respective holders.
IMPORTANT
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This
instruction manual contains important oper ating instructions
for the IC-F43TR UHF TRUNKED RADIO.
EXPLICIT DEFINITIONS
WORD DEFINITION
RDANGER! Personal death, serious injury or an explo-
sion may occur.
RWARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
PRECAUTIONS
ii
CAUTION: MAKE SURE the flexible antenna and bat-
tery pack are securely attached to the transceiver, and that the
antenna and battery pack are dry before attachment.
Exposing the inside of the transceiver to water will result in
serious damage to the transceiver.
DO NOT operate the transceiver near unshielded electrical
blasting caps or in an explosive atmosphere.
DO NOT use harsh solvents such as benzine or alcohol
when cleaning, as they will damage the transceiver surfaces.
DO NOT push PTT when not actually intending to transmit.
DO NOT use or place the transceiver in direct sunlight or
in areas with temperatures below +22°F (–30°C) or above
+140°F (+60°C).
The basic operations, transmission and reception of the trans-
ceiver are guaranteed within the specified operating temper-
ature range. However, the LCD display may not be operate
correctly, or show an indication in the case of long hours of
operation, or after being placed in extremely cold areas.
DO NOT modify the transceiver for any reason. The trans-
ceiver warranty does not cover any problems caused by un-
authorized modification.
BE CAREFUL! The transceiver will become hot when op-
erating it continuously for long periods of time.
KEEP the transceiver away from the heavy rain, and Never
immerse it in the water. The transceiver construction is water
resistant*, not waterproof.
* Only when the supplied battery pack, flexible antenna and jack
cover are attached.
MAKE SURE to turn the transceiver power OFF before
connecting the supplied/optional equipment.
For U.S.A. only
CAUTION: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.
PRECAUTIONS
iii
FCC INFORMATION
• FOR CLASS B UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following meas-
ures:
 •Reorientorrelocatethereceivingantenna.
 •Increasetheseparationbetweentheequipmentandre-
ceiver.
 •Connecttheequipmentintoanoutletonacircuitdiffer-
ent from that to which the receiver is connected.
 •Consultthedealeroranexperiencedradio/TVtechni-
cian for help.
iv
TABLE OF CONTENTS
IMPORTANT .......................................................................... i
EXPLICIT DEFINITIONS ....................................................... i
PRECAUTIONS .................................................................... ii
FCC INFORMATION ........................................................... iii
TABLE OF CONTENTS ....................................................... iv
1 ACCESSORIES ...........................................................1–2
 ■ Supplied accessories ...................................................1
 ■ Accessory attachments ................................................1
2 PANEL DESCRIPTION ................................................3–7
 ■ Front panel ...................................................................3
 ■ Function display ...........................................................4
 ■ Programmable function keys ........................................5
3 BASIC OPERATION ........................................................8
 ■ Turning power ON ........................................................8
 ■ Channel selection .........................................................8
 ■ Call procedure ..............................................................8
4 PASSPORT OPERATION ..........................................9–11

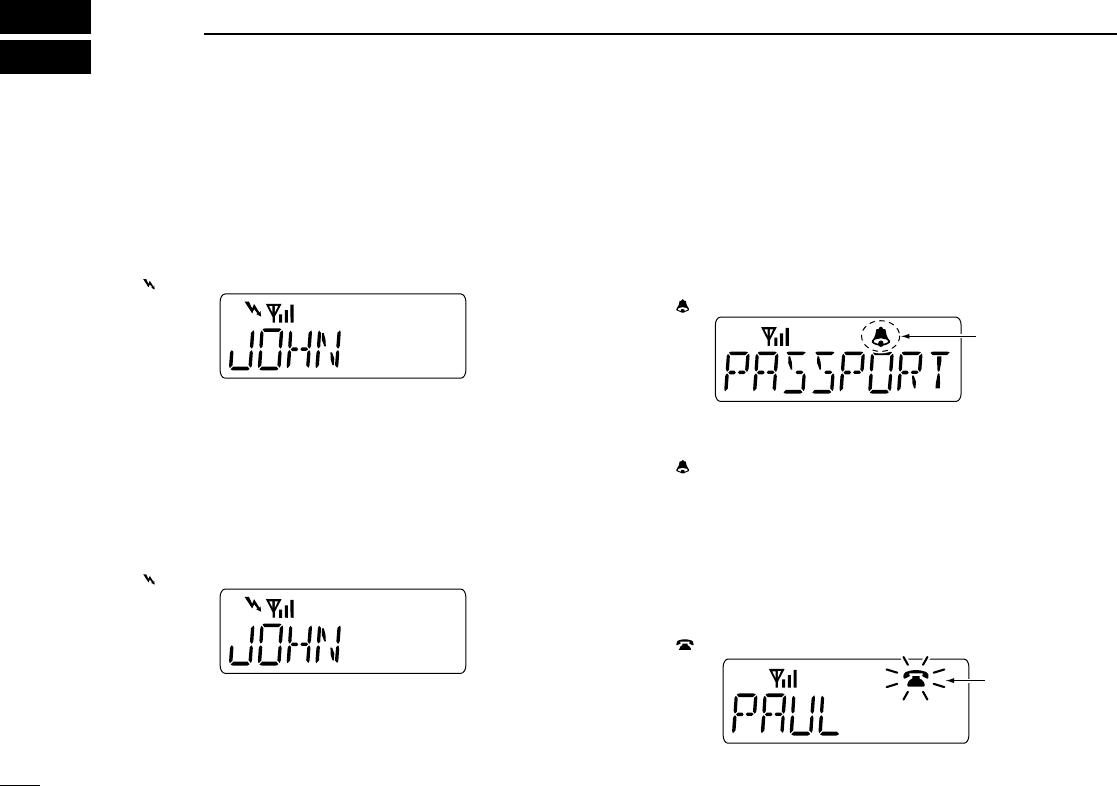

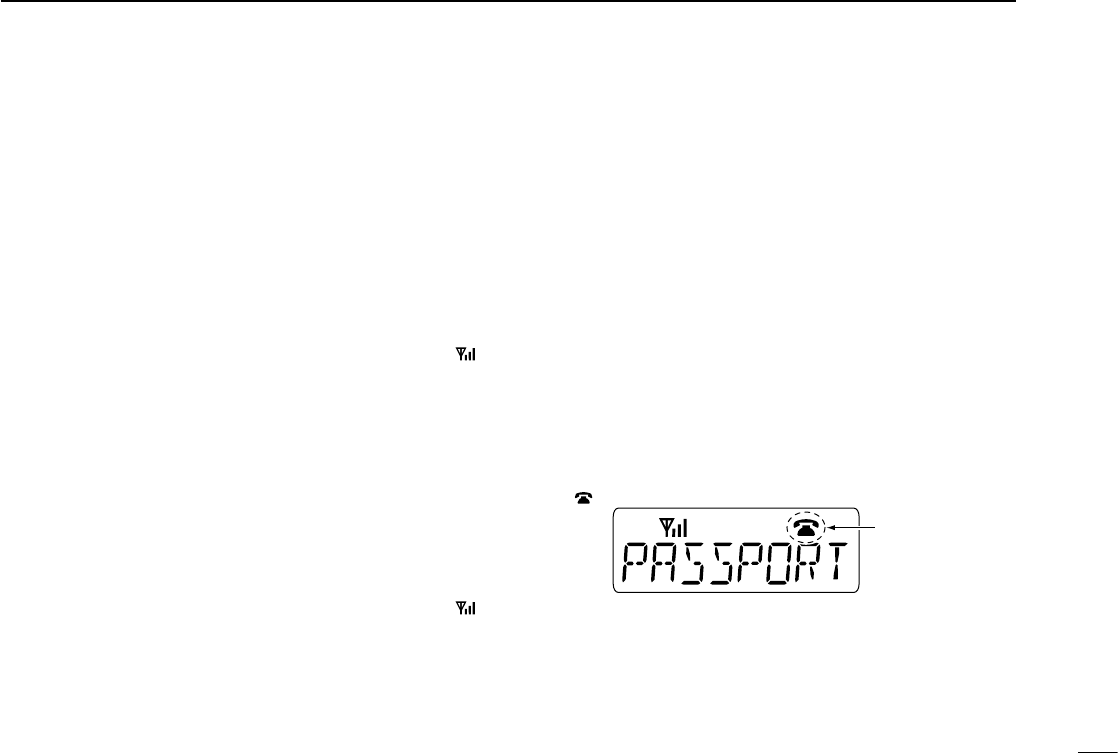

 ■ Receiving a call ............................................................9
 ■ Transmitting a call .......................................................10
 ■ Other functions ...........................................................11
5 LTR OPERATION ....................................................12–13
 ■ Receiving a call ..........................................................12
 ■ Transmitting a call .......................................................13
6 CONVENTIONAL OPERATION ..............................14–16
 ■ Receiving and transmitting .........................................14
 ■ User set mode ............................................................15
 ■ Emergency transmission ............................................16
 ■ Scrambler function .....................................................16
 ■ Stun function ..............................................................16
 ■ Man Down transmission .............................................16

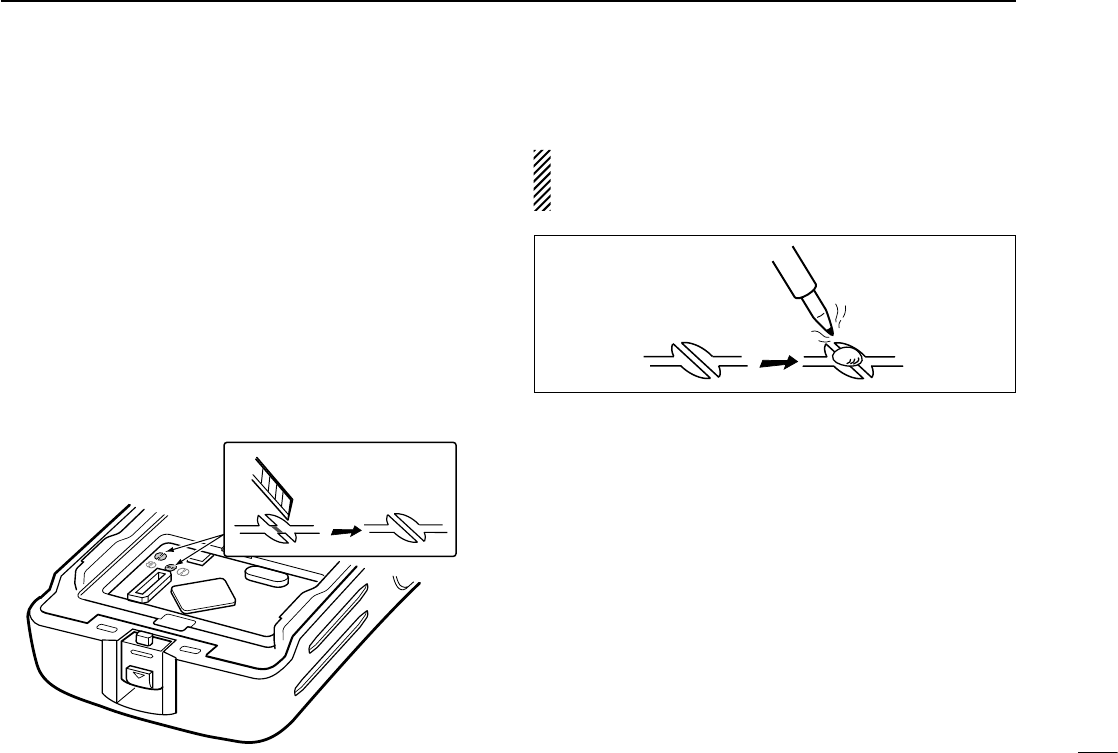

7 OPTIONAL UNIT INSTALLATION ..........................17–18
 ■ UT-124 installation ......................................................17
 ■ UT-108 installation ......................................................17
 ■
UT-109 and UT-110 installation ....................................18

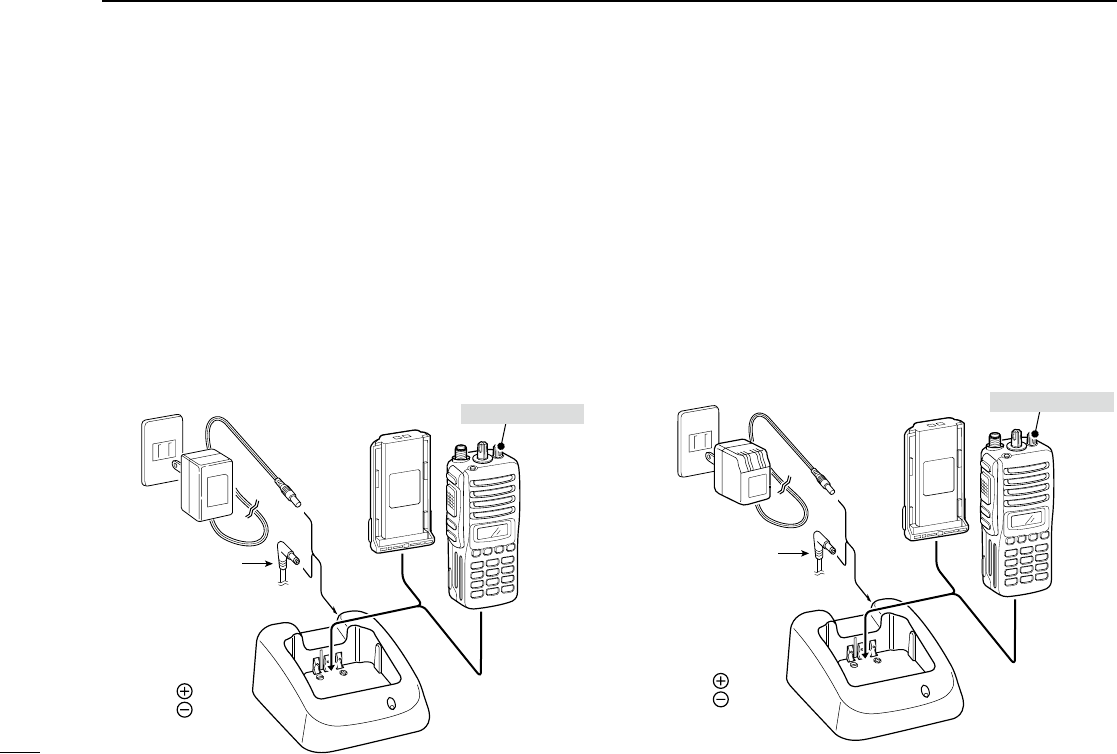

8 BATTERY CHARGING ............................................19–23
 ■ Caution .......................................................................19

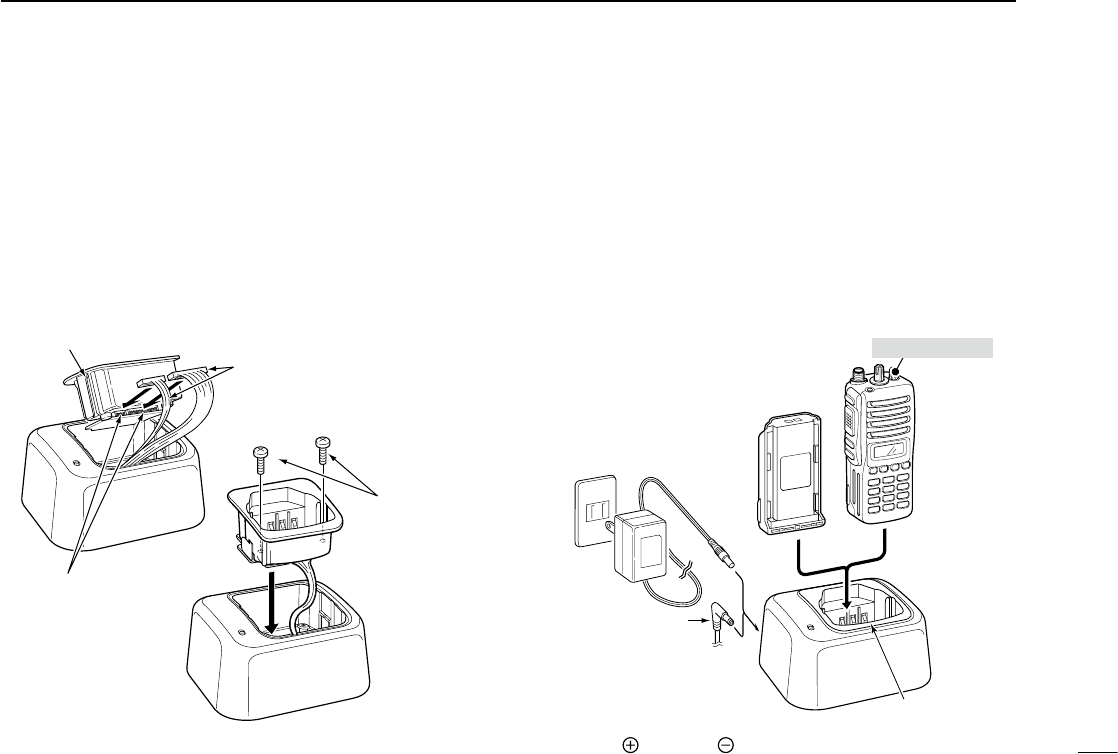

 ■ Optional battery chargers ...........................................21
9 BATTERY CASE ............................................................24

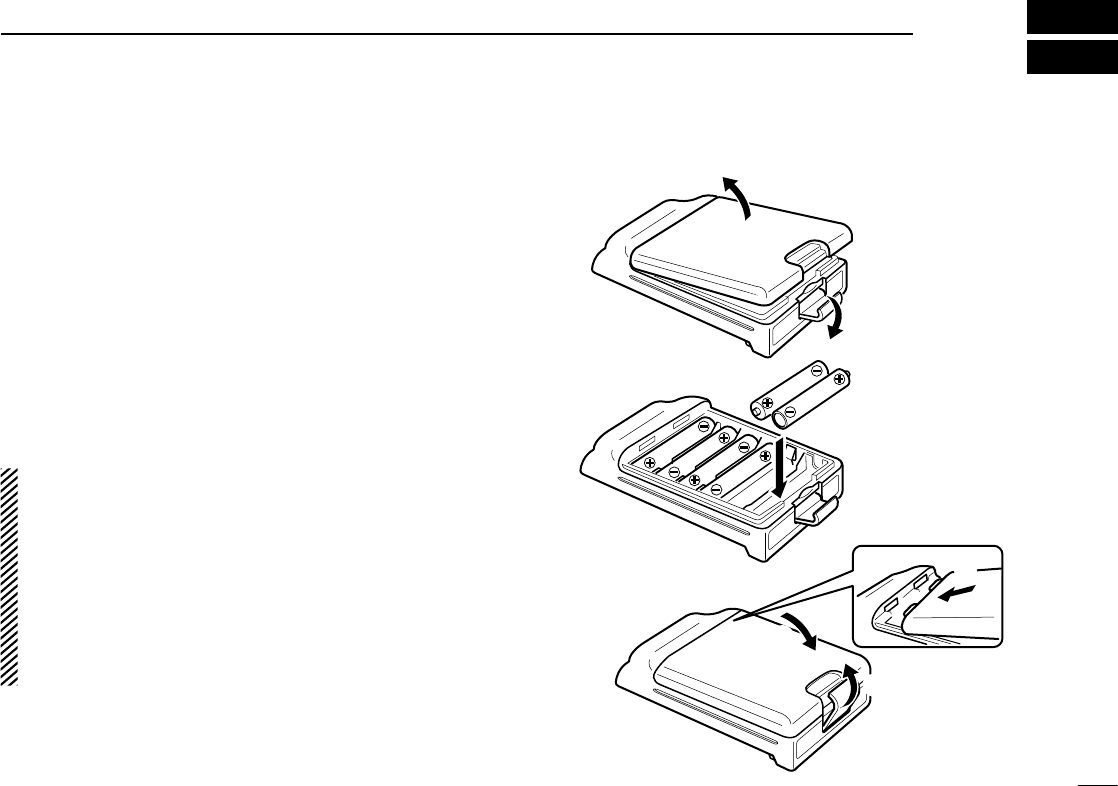

 ■ Optional battery case (BP-240) ..................................24

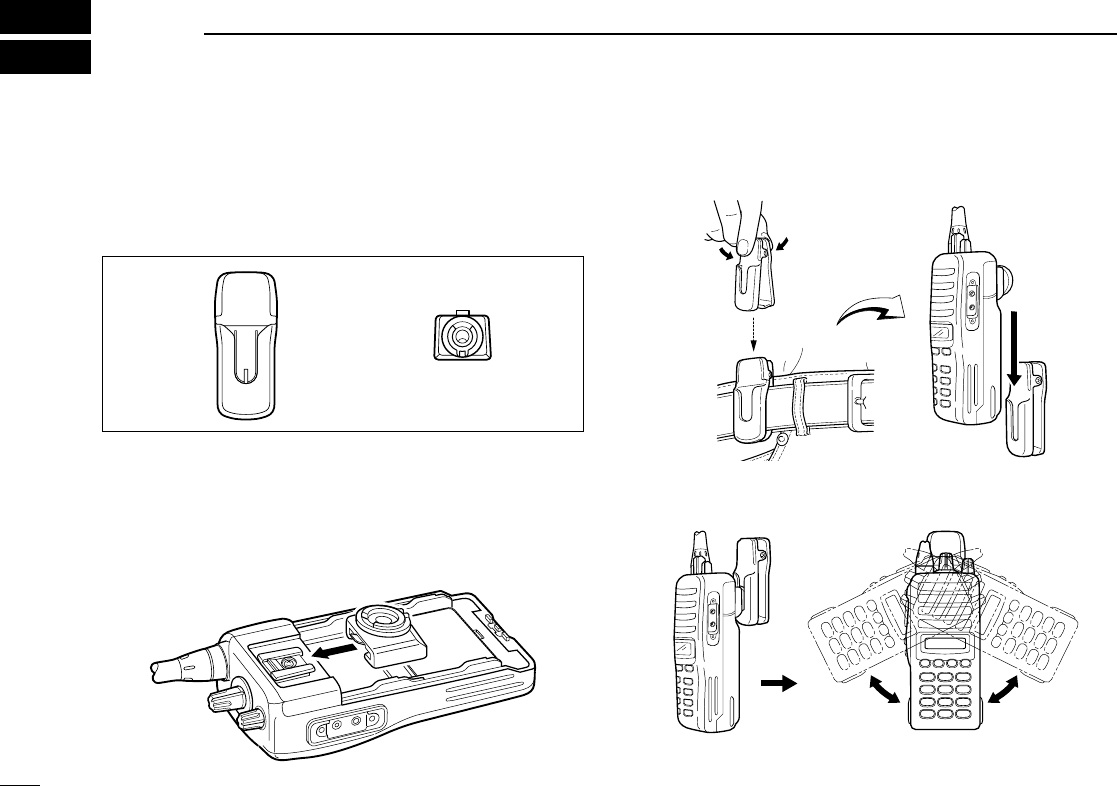

10 SWIVEL BELT CLIP ................................................25–26
 ■ MB-93 contents ..........................................................25
 ■ To attach .....................................................................25
 ■ To detach ....................................................................26
11 OPTIONS .................................................................27–28
12 SAFETY TRAINING INFORMATION .......................29–30
1
1ACCESSORIES

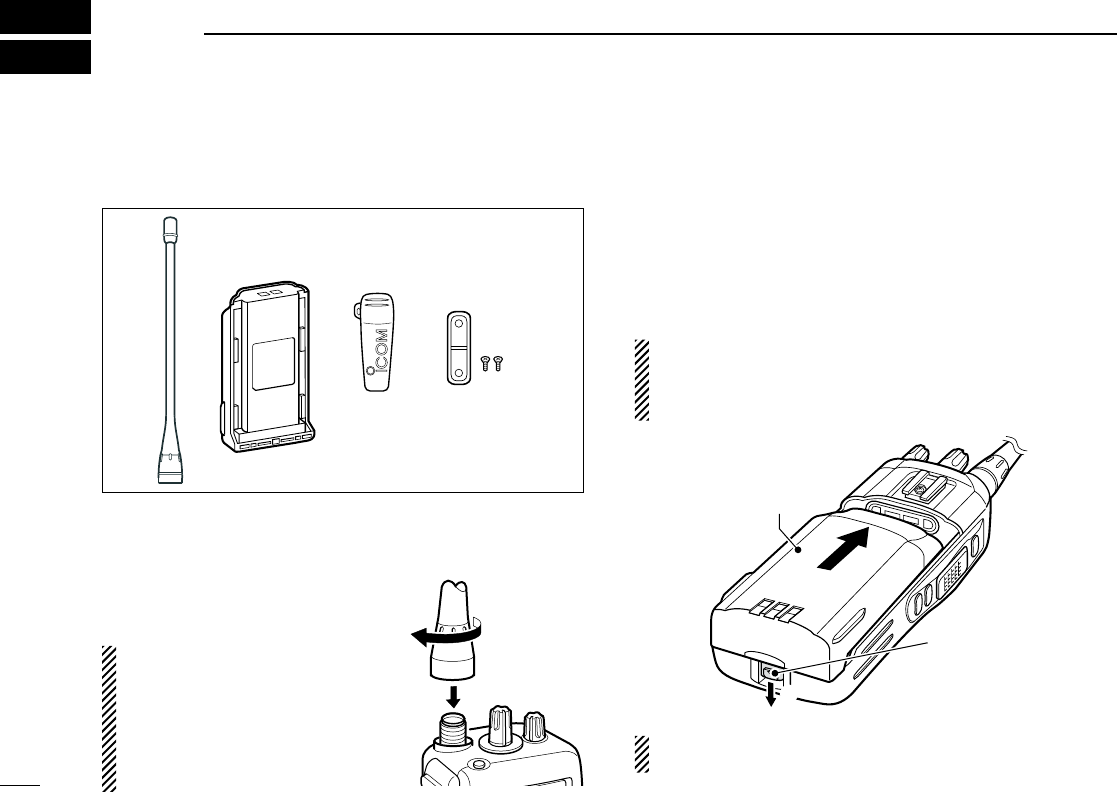

■ Supplied accessories
The following accessories are supplied:
Flexible antenna
Battery pack
Belt clip Jack cover
(with screws)
■ Accessory attachments
D Flexible antenna
Connect the supplied flexible an-
tenna to the antenna connector.
CAUTION:
•NEVER carry the transceiver
by holding only the antenna.
•DO NOT connect the antenna
other than listed on page 28.
• Transmitting without an antenna
may damage the transceiver.
D Battery pack
To attach the battery pack:
Slide the battery pack in the direction of the arrow (q), then
lock it with the battery release button.
•Slidethebatterypackuntilthebatteryreleasebuttonmakesa‘click’
sound.
To remove the battery pack:
Push the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then removed.
NEVER remove or attach the battery pack when the trans-
ceiver is wet or soiled. This may result water or dust getting
into the transceiver/battery pack and may result in the
transceiver being damaged.
q
w
Battery pack
Battery release
button
NOTE:Keepthebatterypackterminalsclean.It’sagood
idea to occasionally clean them.
2
1
ACCESSORIES

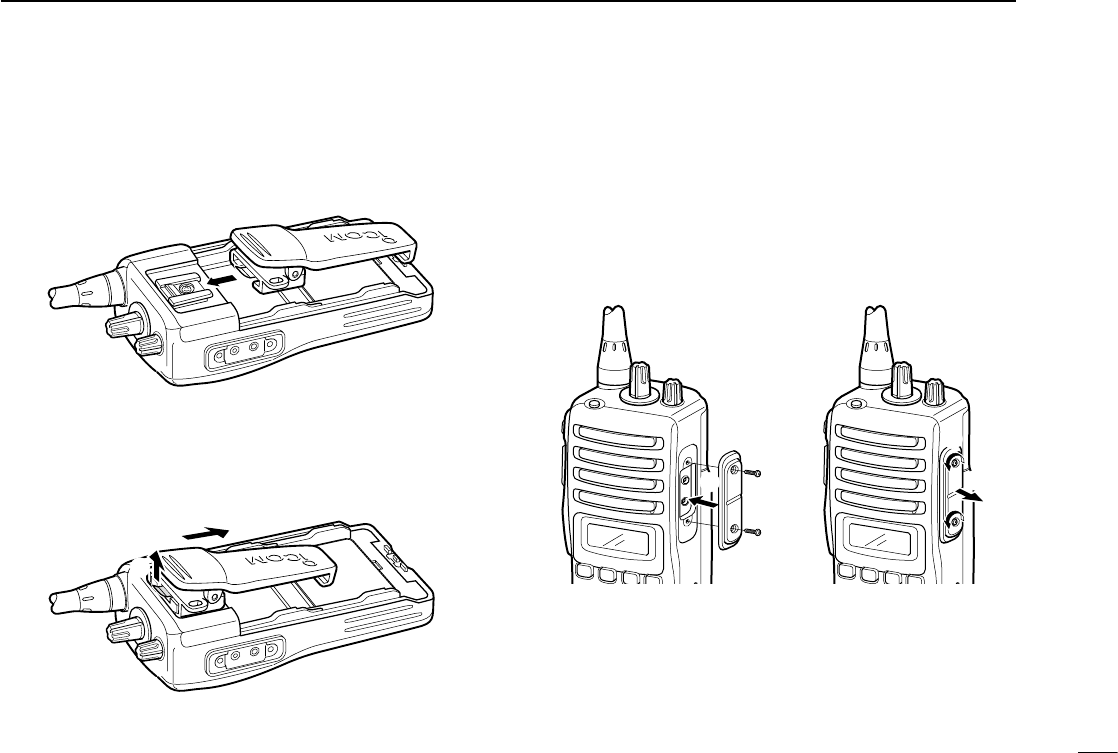

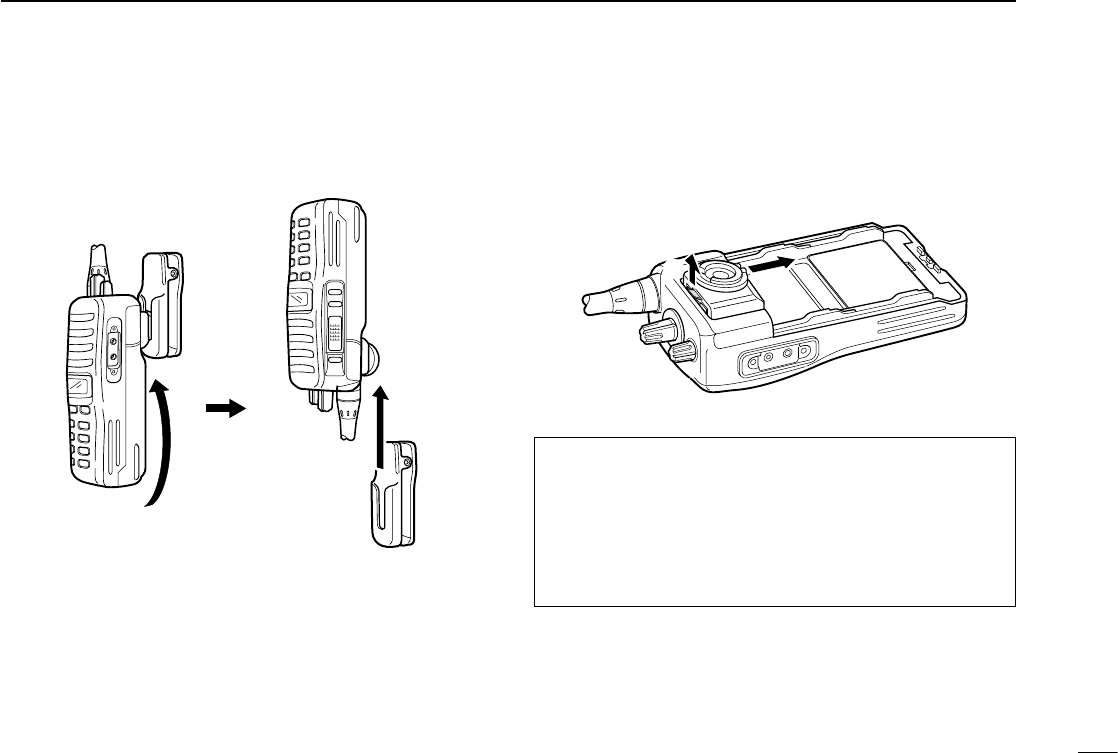

D Belt clip
To attach the belt clip:
q Remove the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clipislockedandmakesa‘click’sound.
To detach the belt clip:
q Remove the battery pack if it is attached.
w Lift the clip (q), and slide the belt clip in the direction of
the arrow (w).
D Jack cover
Attach the jack cover when the optional speaker-microphone
is not used.
q
w
To attach the jack cover:
q Attach the jack cover on
the [SP MIC] connector.
w Tighten the screws.
To detach the jack cover:
q Remove the screw with a
Phillips screwdriver.
w Detach the jack cover for
the speaker-microphone
connection.
q
w
q
w
3
2PANEL DESCRIPTION

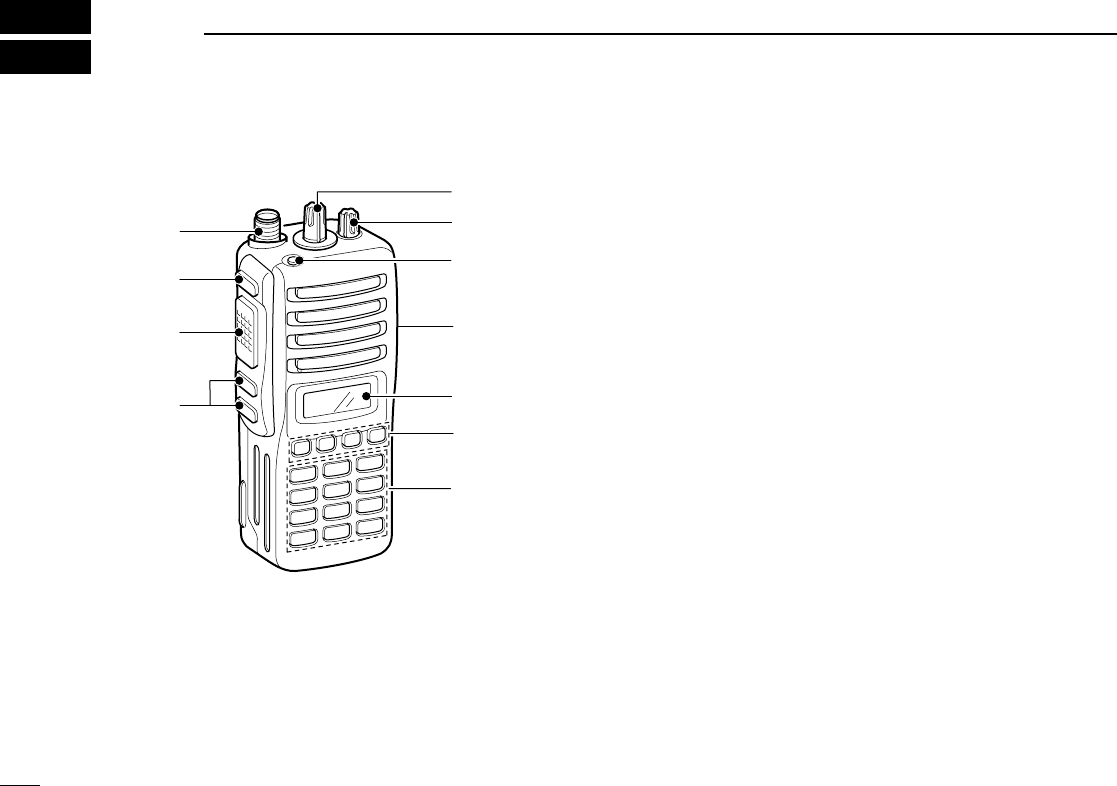

■ Front panel
q ROTARY SELECTOR
Selects the pre-programmed system channels or talk
groups (Max. 16) on the LTR/Passport system.
(Depending on the pre-setting)
w VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
e EMERGENCY KEY
Push to transmit the DTMF emergency call.
r [SP]/[MIC] JACK
Connect the optional speaker-microphone.
 •Attachthejackcoverwhentheoptionalspeaker-microphoneis
not used. (p. 2)

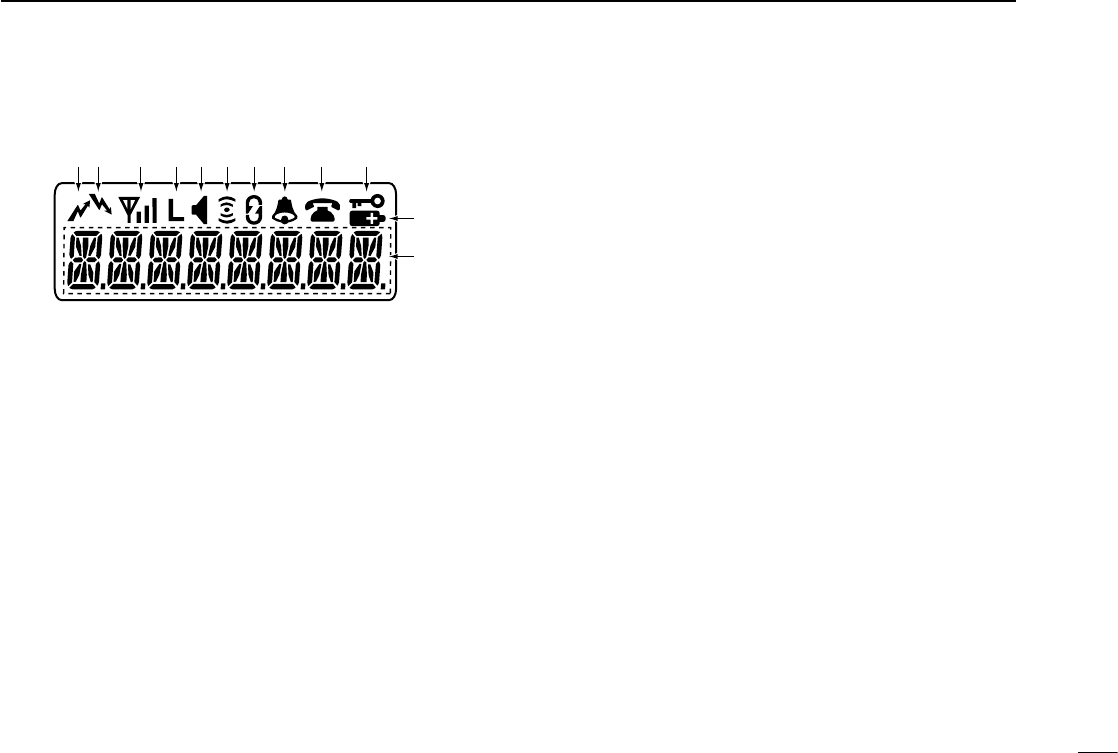

t FUNCTION DISPLAY
Displays a variety of information such as operating chan-
nel name, DTMF encode channel, selected function, etc.
y DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer.
u 10-KEYPAD (Depending on version)
Used to enter DTMF encode channel, phone number, etc.
i UP/DOWN [∫]/[√] KEYS
➥ Push to select the operating channel.
➥ Push to select the talk group on the LTR or Passport
system. (p. 9)
o PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
!0 MONITOR KEY
Push to mute and release the CTCSS (DTCS) squelch
mute. Open squelch/deactivate mute while pushing this
key.
!1 ANTENNA CONNECTOR
Connects the supplied antenna.
it
r
q
e
u
y
w
o
!0
!1
10-keypad version
4
2
PANEL DESCRIPTION
■ Function display
q TRANSMIT INDICATOR
 Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
➥ Indicates relative signal strength level.
➥ Does not appear when the transceiver is out of the
communication area on the PassPort system.
r LOW POWER INDICATOR
Appears when low output power is selected.
 •Whenthebatterypowerdecreasestoaspecifiedlevel,low
power is selected automatically.
t MONITOR INDICATOR
 Appears when the monitor key is pushed.
y COMPANDER INDICATOR
Appears when the compander function is activated.
u SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
i BELL INDICATOR
➥ Appears when the DTMF select call function is acti-
vated.
➥ Blinks when the DTMF select call is received.
o PHONE INDICATOR
➥ Appears on the system channel/talk group in which a
phone call is available.
➥ Blinks when the phone call is received.
!0 KEY LOCK INDICATOR
Appears during the key lock function ON.
!1 BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
!2 ALPHANUMERIC DISPLAY
 Displays an operating channel name, DTMF encode
channel, etc.
q!0oiuytrew
!1
!2
5
2PANEL DESCRIPTION
■ Programmable function keys
The following functions can be assigned to [P0], [P1], [P2],
[P3], [Emergency], [Monitor], [M]* and [#]* programmable
function keys.
Consult your Icom dealer or system operator for details con-
cerning your transceivers programming.
If the programmable function names are bracketed in the
following explanations, the specific key used to activate the
function depends on programming.
*Available on 10-keypad version only.
SEND DTMF KEY
Push to enter the DTMF encode channel selection mode.
SELECT CALL KEY
➥ Push to turn the DTMF select call mute function ON.
➥ Push and hold to turn the DTMF select call mute function
OFF.
PRIORITY KEY
Push to select the priority channel.
EMERGENCY KEY
Push to select the priority channel and automatically trans-
mit a DTMF emergency call code.
SCAN A KEY
➥Thiskey’soperationdependsonthePowerONScanset-
ting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation. In case of
transmission during scan, cancels scanning.
When the power ON scan function is turned ON;
Push to pause scanning. Scanning resumes after pass-
ing a specified time period. In case of transmission during
scan, pauses scanning. Scanning resumes after passing
a specified time period specified.
➥ Push and hold this key for 1 sec. to indicate the scan
group, then push to select the desired group.
SCAN B KEY
➥ Push to start and cancel scanning operation. In case of
transmission during scan, pauses scanning. Scanning
resumes after passing a specified time period.
➥ Push and hold this key for 1 sec. to indicate the scan
group, then push to select the desired group.
PRIORITY CHANNEL KEYS
➥ Push to select Priority A or Priority B channel.
➥ Push and hold [Prio A (Rewrite)] to rewrite the Prio A
channel.
6
2
PANEL DESCRIPTION
MONITOR KEY
Push to mute and release the CTCSS (DTCS) squelch mute.
Open squelch/deactivate mute while pushing this key.
NUISANCE DELETE KEY
Push to cancel the displayed channel from the scan list in
the talk group.
SCAN TYPE KEY
Push to toggle the scan type from Individual or Block.
SPEED DIAL KEY
Push to send the most recently transmitted DTMF code se-
lected with [Send DTMF].
TALK AROUND KEY
Turn the talk around function ON and OFF.
This function equalizes the transmit frequency to the receive
frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY
PushtotoggletheIFpassbandwidthfrom“Wide”or“Nar-
row”channelspacingforbothtransmissionandreception
temporarily. Once the channel or bank has changed, the
passband width returns to the original setting.
TX POWER KEY
Push to toggle the transmit output power level from the inde-
pendent settings of each channel.
RE-DIAL KEY
Push to send the most recently transmitted DTMF code ed-
ited with 10-keypad.
RSSI KEY
Push to display the RSSI (Received Signal Strength Indica-
tor) level.
MODE DISPLAY TYPE KEY
Push to toggle the scan mode display type from Individual
and Block.
LOCK KEY
Push and hold for 2 sec. to turn the lock function ON and
OFF.
PHONE REQUEST KEY
Push to turn the phone call function ON and OFF in the op-
erating channel.
7
2PANEL DESCRIPTION
ROAM REQUEST KEY
➥ Push to return to the home site.
➥ Push and hold to start roaming.
SITE LOCK KEY
Push to turn the Site Lock function ON and OFF.
This function inhibits automatic roaming, and can be useful
when the transceiver is out of the communication area such
as on a subway or in an elevator.
EMERGENCY KEY
Push and hold for the specified time period to select the
emergency channel and automatically send a DTMF emer-
gency signal once or repeatedly.
SCRAMBLER KEY
Push to toggle the scrambler function ON or OFF.
COMPANDER KEY
Push to turn the compander function ON and OFF.
The compander function reduces noise components from
the transmitted audio to provide clear communication.
USER SET MODE KEY
Push for 1 sec. to enter the User set mode.
The User set mode allows you to set seldom-changed set-
tings.
Push this key momentarily in the User set mode to select
the function, and push [CH Up] or [CH Down] to change the
setting.
SIREN KEY
Push to emit a siren. This function can be used for situations
such as a security alarm for example.
SELECT MODE KEY (available for Passport/LTR only)
Push to select the operating mode from System or Talk
Group.
• System channel and talk group selection
q Push [Select Mode] to select the operating mode from
System or Talk Group.
w Then push [UP] or [DOWN] to select the desired system
channel or talk group, in sequence.
8
3
BASIC OPERATION
■ Turning power ON
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up passcode,
input the digit codes as directed by your dealer.
 •Thekeysinthetablebelowcanbeusedforpasswordinput:
 •Thetransceiverdetectsnumbersinthesameblockasidentical.
Therefore“01234”and“56789”arethesame.
eWhenthe“PASSWORD”indicationdoesnotclearafterin-
putting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
■ Channel selection
Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the desired system channel or talk group, in se-
quence.
•Upto16pre-programmedchannelscanbeselectedvia[ROTARY
SELECTOR].
■ Call procedure
When your system employs tone signalling (excluding
CTCSS and DTCS), the call procedure may be necessary
prior to voice transmission. The tone signalling employed may
be a selective calling system which allows you to call specific
station(s) only and prevent unwanted stations from contact-
ing you.
q Select the desired DTMF encode channel according to
yourSystemOperator’sinstructions.
 •Thismaynotbenecessarydependingonprogramming.
 •Refertopages10,13or15forselection.
w Push the [PTT].
e After transmitting a DTMF code, the remainder of your
communication can be carried out in the normal fashion.
Selective calling Non-selective calling
KEY
NUMBER 0
5
4
9
3
8
2
7
1
6
UP
9
4PASSPORT OPERATION
■ Receiving a call
D Group call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
wWhenacallisreceived;
•“ ”andthecallingstationname/IDappear.
e Push and hold [PTT], then speak into the microphone at
a normal voice level.
r Release [PTT] to return to receive.
D Individual call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
wWhenacallisreceived;
•“ ”andthecallingstationname/IDappear.
e Push and hold [PTT], then speak into the microphone at
a normal voice level.
r Release [PTT] to return to receive.
t To finish the conversation, push [DOWN] to send the
“ClearDown”signal.
D Selective call (DTMF call)
—Optional UT-108 is required—
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
w Push [Select call] to mute the channel.
•“ ”appears.
Appears
eWhenreceivingacall,thecallingstationnameappears
and a beep is emitted. Then the mute is released.
 •“ ”disappears.
D Phone call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
wWhenaphonecallisreceived(transceiverrings),push
and hold [PTT], then speak into the microphone at a nor-
mal voice level.
 •“ ”blinksandcallingstationname/IDappearsfor1sec.
Blinks
e Release [PTT] to return to receive.
r Push [#] while pushing [PTT] to finish the communication.
10
4
PASSPORT OPERATION
■ Transmitting a call
D Group call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group in
which the group ID is pre-programmed.
wWhilepushingandholding[PTT], speak into the micro-
phone at a normal voice level after a beep is emitted.
 •Ifanerrorbeepisemitted,release[PTT]. After a while, repeat
step w again.
 •ThebeepcanbeturnedOFFinUsersetmode.
 •Whenthetransceiverisoutofthecommunicationarea,“ ”
disappears,and“NOSVC”messageappears.
D Individual call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group in
which the MID (Mobile ID) is pre-programmed.
wWhilepushingandholding[PTT], speak into the micro-
phone at a normal voice level after a beep is emitted.
 •Ifanerrorbeepisemitted,release[PTT]. After a while, repeat
step w again.
 •ThebeepcanbeturnedOFFinUsersetmode.
 •Whenthetransceiverisoutofthecommunicationarea,“ ”
disappears,and“NOSVC”messageappears.
e To finish the conversation, push [DOWN] to send the
“ClearDown”signal.
D Selective call (DTMF call)
—Optional UT-108 is required—
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
w Push [Send DTMF]— a DTMF encode channel appears.
e Push [UP] or [DOWN] to select the desired DTMF en-
code channel.
r Push [PTT] to transmit the selected DTMF code in the
selected DTMF channel.
 •Push[P0] to cancel the DTMF transmission.
D Phone call (Available for 10-keypad version only)
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
w Push [Phone request] to enable the phone call.
 •“ ”appears.
Appears
e Push [PTT] to connect the phone line.
 •Theproceedtoneisemittedafterconnectiontothephoneline.
r
Whilepushingandholding[PTT], enter the phone number
via the 10-keypad to make the call. Then release [PTT].
t Push [PTT] to transmit; release to receive.
y Push [#] while pushing [PTT] to finish the communication.
11
4PASSPORT OPERATION
■ Other functions
D Manual roaming start function
If the transceiver has [Roam Request] assigned to it, you
can start roaming manually to search for another site.
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
w Push and hold [Roam Request] to start roaming.
 •“ROAMSITE”isdisplayed.
 •When“INVALID”isdisplayed,thehomerepeatermaynothave
a neighbour site. After a while, repeat step w.
e Push [Roam Request] to cancel roaming.
D Site lock function
If the transceiver has [Site Lock] assigned to it, automatic
roaming can be inhibited. This function is useful when the
transceiver is out of the communication area such as on a
subway or in an elevator.
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
w Push [Site Lock] to turn the site lock function ON and
OFF.
 •“SITELOCK”isdisplayed.
12
5
LTR OPERATION
■ Receiving a call
D Group call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the LTR system channel or talk group.
wWhenacallisreceived;
•“ ”andthecallingstationname/IDappear.
e Push and hold [PTT], then speak into the microphone at
a normal voice level.
r Release [PTT] to return to receive.
D Selective call (DTMF call)
—Optional UT-108 is required—
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the LTR system channel or talk group.
w Push [Select call] to mute the channel.
 •“ ”appears.
Appears
eWhenreceivingacall,thecallingstationnameappears
and a beep is emitted. Then the mute is released.
 •“ ”disappears.
D Phone call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the LTR system channel or talk group.
wWhenaphonecallisreceived(transceiverrings),push
and hold [PTT], then speak into the microphone at a
normal voice level.
 •“ ”blinksandcallingstationname/IDappearsfor1sec.
Blinks
e Release [PTT] to return to receive.
r Push [#] while pushing [PTT] to finish the communication.
13
5LTR OPERATION
■ Transmitting a call
D Group call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the LTR system channel or talk group.
wWhilepushingandholding[PTT], speak into the micro-
phone at a normal voice level after a beep is emitted.
 •Ifanerrorbeepisemitted,release[PTT]. After a while, repeat
step w.
 •ThebeepcanbeturnedOFFinUsersetmode.
D Selective call (DTMF call)
—Optional UT-108 is required—
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the LTR system channel or talk group.
w Push [Send DTMF]— a DTMF encode channel appears.
e Push [UP] or [DOWN] to select the desired DTMF en-
code channel.
r Push [PTT] to transmit the selected DTMF code in the
selected DTMF channel.
 •Push[Send DTMF] to cancel the DTMF transmission.
14
6
CONVENTIONAL OPERATION
■ Receiving and transmitting
NOTE: Transmitting without an antenna may damage the
transceiver. See page 1 for antenna attachment.
Receiving:
q Rotate [VOL] to turn the power ON.
w Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the conventional system channel, in sequence.
eWhenreceivingacall,adjusttheaudiooutputleveltoa
comfortable listening level.
Transmitting:
Waitforthechanneltobecomecleartoavoidinterference.
qWhilepushingandholding[PTT], speak into the micro-
phone at a normal voice level.
w Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak into the microphone at a nor-
mal voice level.
D Transmitting notes
• Transmit inhibit function
The transceiver has several inhibit functions which restrict
transmission under the following conditions:
- Channel is busy.
- Un-matched (or matched) CTCSS is received.
-Theselectedchannelisa‘receiveonly’channel.
• Time-out timer
After continuous transmission for the pre-programmed time
period, the time-out timer is activated, causing the trans-
ceiver to stop transmitting.
• Penalty timer
Once the time-out timer is activated, transmission is further
inhibited for a period determined by the penalty timer.
15
6CONVENTIONALOPERATION
D DTMF receiving and transmitting
—Optional UT-108 is required—
If the transceiver has [Send DTMF] assigned to it, a
DTMF encode channel is displayed when pushed, and as-
signed DTMF encode channels can be selected via [UP] or
[DOWN].
Receiving:
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the conventional system channel, in sequence.
w Push [Select call] to mute the channel. (“ ”appears)
eWhenreceivingacall,abeepisemittedandmuteisre-
leased. (“ ”disappears)
Transmitting:
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the conventional system channel, in sequence.
w Push [Send DTMF]— a DTMF encode channel appears.
e Push [UP] or [DOWN] to select the desired DTMF en-
code channel.
r Push [PTT] to transmit the selected DTMF code in the
selected DTMF channel.
 •Push[P0] to cancel the DTMF transmission.
■ User set mode
If the transceiver has [User Set Mode] assigned to it, you
can“customize”thetransceiveroperationtosuityourprefer-
ences and operating style.
Entering the user set mode:
q Push and hold [User Set Mode] to enter user set mode.
Push [User Set Mode] momentarily to select the item.
Then push [UP] or [DOWN] to set the desired level/condi-
tion.
Available set mode functions:
 •Backlight :ON,AutoorOFF
 •Ringer :ONorOFF
 •Beep :ONorOFF
 •SQLLevel :0to255
 •MicGain :1to5
 •BatteryVoltage :ONorOFF
•SystemInformation :ONorOFF
 •Run-Time :Thetransceiver’srunningtimeis
displayed.
w Push and hold [User Set Mode] to exit user set mode.
16
6
CONVENTIONALOPERATION
■ Emergency transmission
When[Emergency] is pushed and held for the specified
time period, the DTMF emergency signal is automatically
transmitted once or repeatedly on the emergency channel.
However, when no emergency channel is specified, the sig-
nal is transmitted on the previously selected channel.
If you want to cancel the emergency call, push and hold the
key again before transmitting the call.
■ Scrambler function
The voice scrambler function provides private communi-
cation between stations. The frequency inversion type is
equipped to all versions, moreover, the optional Rolling or
Non-rolling type can be available.
q Push [Scrambler] to turn the scrambler function ON.
•“ ”appears.
w Push [Scrambler] again to turn the scrambler function
OFF.
•“ ”disappears.
■ Stun function
Whenthespecifiedcode,setasastuncode,isreceived,
thestunfunctionwillbeactivated.Whenthestuncodeis
received,“STUNNED”appearsonthedisplayandthetrans-
ceiver cannot be used. To use the transceiver, the stun re-
lease code must be received.
Also,ifthetransceiver’srunningtimeexceedsthepreset
running time limit, the transceiver cannot be used. To use
the transceiver, extend the running time limit or turn the Run
Time Limit function OFF using the CS-F43TR c l o n i n g s o f t -
w a r e .
■ Man Down transmission
WhentheoptionalUT-124man d o w n unit is installed, the
Man Down function can be used. The Man Down function
transmits a man down emergency call after the specified
time period has passed with the transceiver in a horizontal
position.
17
7OPTIONAL UNIT INSTALLATION
■ UT-124 installation
Install the optional UT-124 m a n d o w n u n i t as follows:
q Rotate [VOL] to turn the power OFF, and remove the bat-
tery pack. (p. 1)
w Remove the unit cover.
NOTE: Use a flat head screw driver or a similar flat instrument,
and insert into the hollow of the chassis, then lift and take away
the unit cover. (The removed cover cannot be used again.)
e Install the unit as shown below.
r Replace the unit cover and the battery pack, then rotate
[VOL] to turn the power ON.
■ UT-108 installation
Install the optional UT-108 d t m f d e c o d e r u n i t as follows:
q Rotate [VOL] to turn the power OFF, and remove the bat-
tery pack. (p. 1)
w Remove the unit cover as shown at left.
e Cut and solder the pattern on the PCB at the RX AF cir-
cuit as shown below.
r Install the UT-108 d t m f d e c o d e r u n i t the same way as de-
scribed in the optional UT-124 installation as shown at left.
t Replace the unit cover and the battery pack, then rotate
[VOL] to turn the power ON.
NOTE: Be sure to un-solder A and B, and re-solder B
and C, otherwise no AF output is available when you
remove the DTMF decoder unit.
A
B
C
18
7
OPTIONAL UNIT INSTALLATION
■
UT-109 and UT-110 installation
Install the optional UT-109/UT-110 scrambler units as fol-
lows:
q Rotate [VOL] to turn the power OFF, and remove the bat-
tery pack. (p. 1)
w Remove the unit cover as shown on page 17 (UT-124 in-
stallation).
e Cut the pattern on the PCB at the TX mic circuit (C) and
RX AF circuit (F) as shown below.
r Install the UT-109/UT-110 s c r a m b l e r u n i t s as described
in the optional UT-124 installation. (p. 17)
t Replace the unit cover and the battery pack, then rotate
[VOL] to turn the power ON.
NOTE: Be sure to re-solder the disconnected points at
left, otherwise no TX modulation or AF output is available
when you remove the scrambler units.
19
8BATTERY CHARGING
■ Caution
Misuse of Lithium-ion batteries may result in the following
hazards: smoke, fire, or the battery may rupture. Misuse
can also cause damage to the battery or degradation of
battery performance.
•R DANGER! Use and charge only specified Icom battery
packs with Icom radios or Icom charger. Only Icom battery
packs are tested and approved for use and charge with
Icom radios or Icom charger. Using third-party or coun-
terfeit battery packs or charger may cause smoke, fire, or
cause the battery to burst.
D Battery caution
•R DANGER! DO NOT hammer or otherwise impact the
battery. Do not use the battery if it has been severely im-
pacted or dropped, or if the battery has been subjected to
heavy pressure. Battery damage may not be visible on the
outside of the case. Even if the surface of the battery does
not show cracks or any other damage, the cells inside the
battery may rupture or catch fire.
•R DANGER! NEVER use or leave battery packs in areas
with temperatures above +60˚C (+140˚F). High tempera-
ture buildup in the battery, such as could occur near fires
or stoves, inside a sun heated car, or in direct sunlight
may cause the battery to rupture or catch fire. Excessive
temperatures may also degrade battery performance or
shorten battery life.
•R DANGER! DO NOT expose the battery to rain, snow,
seawater, or any other liquids. Never charge or use a wet
battery. If the battery gets wet, be sure to wipe it dry before
using. The battery is not waterproof.
•R DANGER! NEVER incinerate used battery packs since
internal battery gas may cause them to rupture, or may
cause an explosion.
•R DANGER! NEVER solder the battery terminals or
NEVERmodifythebatterypack.Thismaycauseheatgen-
eration, and the battery may rupture, emit smoke or catch
fire.
•R DANGER! Use the battery only with the transceiver for
which it is specified. Never use a battery with any other
equipment, or for any purpose that is not specified in this
instruction manual.
•R DANGER! If fluid from inside the battery gets in your
eyes, blindness can result. Rinse your eyes with clean
water, without rubbing them, and see a doctor immediately.
20
8
BATTERY CHARGING
•WARNING! Immediately stop using the battery if it emits
an abnormal odor, heats up, or is discolored or deformed. If
any of these conditions occur, contact your Icom dealer or
distributor.
•WARNING! Immediately wash, using clean water, any part
of the body that comes into contact with fluid from inside
the battery.
•
WARNING! NEVER put the battery in a microwave oven, high-
pressure container, or in an induction heating cooker. This
could cause a fire, overheating, or cause the battery to rupture.
•CAUTION: Always use the battery within the specified tem-
perature range for the transceiver (–30˚C to +60˚C; –22˚F
to +140˚F) and the battery itself (–20˚C to +60˚C; –4˚F to
+140˚F). Using the battery out of its specified temperature
rangewillreducethebattery’sperformanceandbatterylife.
•CAUTION: Shorter battery life could occur if the battery
is left fully charged, completely discharged, or in an ex-
cessive temperature environment (above +50˚C; +122˚F)
for an extended period of time. If the battery must be left
unused for a long time, it must be detached from the radio
after discharging. You may use the battery until the remain-
ing capacity is about half, then keep it safely in a cool dry
place with the temperature range as below:
–20˚C to +50˚C (–4˚F to +122˚F) (within a month)
–20˚C to +40˚C (–4˚F to +95˚F) (within three months)
–20˚C to +20˚C (–4˚F to +68˚F) (within a year)
D Charging caution
•R DANGER! NEVER charge the battery pack in areas with
extremely high temperatures, such as near fires or stoves,
inside a sun heated car, or in direct sunlight. In such en-
vironments, the safety/protection circuit in the battery will
activate, causing the battery to stop charging.
•WARNING! NEVER charge or leave the battery in the bat-
tery charger beyond the specified time for charging. If the
battery is not completely charged by the specified time,
stop charging and remove the battery from the battery
charger. Continuing to charge the battery beyond the speci-
fied time limit may cause a fire, overheating, or the battery
may rupture.
•WARNING! NEVER insert the transceiver (battery attached
to the transceiver) into the charger if it is wet or soiled. This
could corrode the battery charger terminals or damage the
charger. The charger is not waterproof.
•
CAUTION:
NEVER charge the battery outside of the speci-
fied temperature range: BC-160 (0˚C to +40˚C; +32˚F to
+104˚F). Icom recommends charging the battery at +20˚C
(+68˚F). The battery may heat up or rupture if charged out
of the specified temperature range. Additionally, battery per-
formance or battery life may be reduced.
21
8BATTERY CHARGING
■ Optional battery chargers
D Rapid charging with the BC-160
The optional BC-160 provides rapid charging of the Li-ion
battery pack.
Charging period: Approximately 3 hours (with BP-232H)
The following items are additionally required:
•AnACadapter(maybesuppliedwithBC-160depending
on version) or the DC power cable (OPC-515L/CP-23L)
AC adapter
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
About OPC-515L
White line:
Black line :
*
Optional OPC-515L*
(for power source) or
CP-23L (for 12 V ciga-
rette lighter socket)
can be used instead
of the AC adapter.
BATTERY
PACK
TRANSCEIVER
Tu rn power OFF
D Regular charging with the BC-171
The optional BC-171 provides regular charging of the Li-ion
battery pack.
Charging period: Approximately 11 hours (with BP-232H)
The following items are additionally required:
•AnACadapter(maybesuppliedwithBC-171depending
on version) or the DC power cable (OPC-515L/CP-23L).
BATTERY
PACK
TRANSCEIVER
Tu rn power OFF
AC adapter
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
About OPC-515L
White line:
Black line :
*
Optional OPC-515L*
(for power source) or
CP-23L (for 12 V ciga-
rette lighter socket)
can be used instead
of the AC adapter.
22
8
BATTERY CHARGING
D AD-106 installation
The AD-106 charger adapter must be installed into the
BC-119N or BC-121N before battery charging.
q Attach the plugs from the BC-119N/BC-121N to the AD-
106 c h a r g e r a d a p t e r .
w Secure the AD-106 into the holder space of the BC-119N/
BC-121N with the supplied screws.
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs.
Charging period: Approximately 3 hours (with BP-232H)
The following items are additionally required:
•AD-106c h a r g e r a d a p t e r (purchase separately)
•AnACadapter(maybesuppliedwithBC-119Ndepending
on version) or the DC power cable (OPC-515L/CP-23L).
Screws supplied
with the charger
adapter
Desktop charger adapter
Plugs
Sockets
* This illustration shows the BC-119N.
23
8BATTERY CHARGING

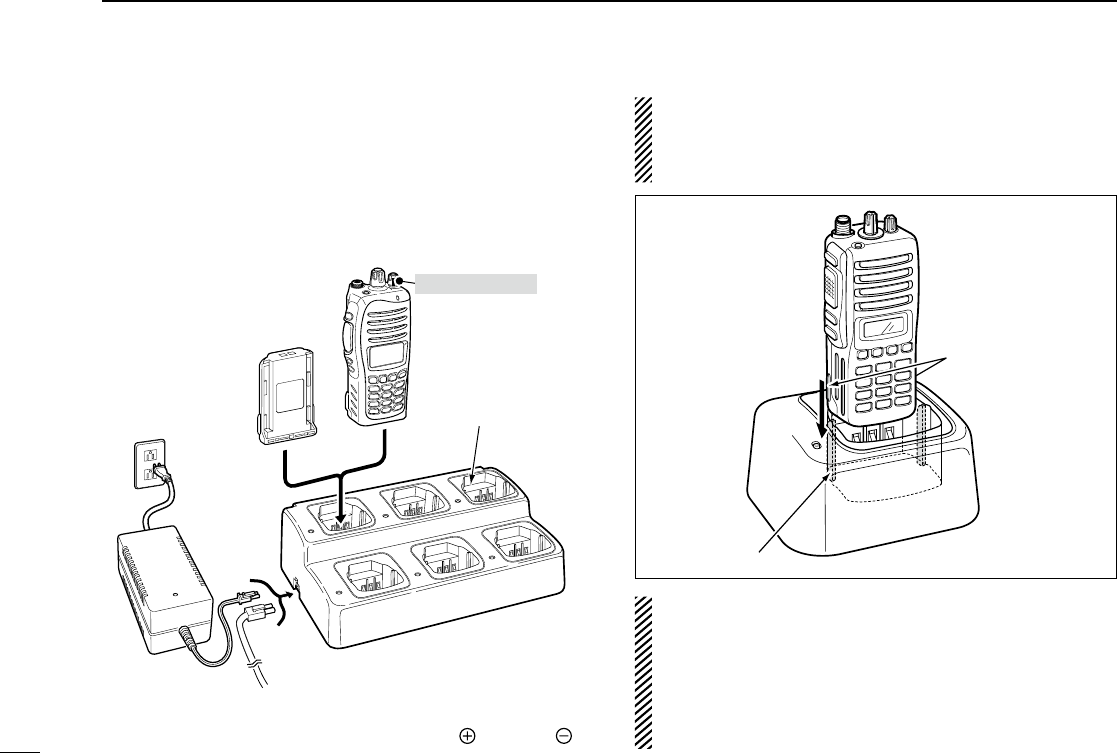

D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously.
Charging period: Approximately 3 hours (with BP-232H)
The following items are additionally required:
•SixAD-106chargeradapters(purchaseseparately)
•AnACadapterortheDCpowercable(OPC-656)
IMPORTANT: Battery charging
Ensure the guide Tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration shows the BC-119N.)
AD-106 charger
adapters are installed
in each slot.
AC adapter
(Purchase
separately)
Transceiver
Battery
pack
Tu rn power OFF
DC power cable (OPC-656*)
(Connect with a DC power supply;
13.8 V/at least 7 A)
*About the OPC-656
Red line: Black line:
CAUTION:
When using the OPC-515L/OPC-656 DC power cable
NEVER reverse the polarity when connecting the OPC-
515L/OPC-656 to a power source. This will ruin the battery
charger.
OPC-515L:Whiteline:+, Black line: _
OPC-656 : Red line: +, Black line: _
Tabs
Guide rail
24
9
BATTERY CASE
■ Optional battery case (BP-240)
Whenusingtheoptionalbatterycaseattachedtothetrans-
ceiver, install 6 × AAA (LR03) size alkaline batteries as illus-
trated at right.
q Unhook the battery cover release hook (q), and open the
cover in the direction of the arrow (w). (Fig.1)
w Then, install 6 × AAA (LR03) size alkaline batteries.
(Fig.2)
 •Installthealkalinebatteriesonly.
 •Besuretoobservethecorrectpolarity.
e Fit the cover in the direction of the arrow (e), then close
(r). And hook the battery cover release hook until it
makesa‘click’sound(t). (Fig.3)
CAUTION:
•Wheninstalling batteries,makesure theyareall the
same brand, type and capacity. Also, do not mix new and
old batteries together.
•Keepbatteryterminalsclean.It’sagoodideatoocca-
sionally clean them.
•Neverincinerateusedbatterycellssinceinternalbattery
gas may cause them to rupture.
•
Never expose a detached battery case to water. If the bat-
tery case gets wet, be sure to wipe it dry before using it.
q
BP-240
w
Fig.1
Fig.2
Fig.3
e
r
t
25
10 SWIVEL BELT CLIP
■ MB-93 contents
 Qty.
q Belt clip .......................................................................... 1
w Base clip ........................................................................ 1
■ To attach
q Remove the battery pack if it is attached. (p. 1)
w Slide the base clip in the direction of the arrow until the
baseclipislockedandmakesa‘click’sound.
e Attach the battery pack. (p. 1)
r Clip the belt clip to a part of your belt. And insert the
transceiver into the belt clip until the base clip inserted
fully into the groove.
t Once the transceiver is locked in place, it swivels as illus-
trated below.
q w
Once the transceiver is locked in place,
it will swivel 360 degrees.
26
10
SWIVELBELTCLIP
■ To detach
q Turn the transceiver upside down in the direction of the
arrow and pull out from the belt clip.
w Remove the battery pack if it is attached. (p. 1)
e Pinch the clip (q), and slide the base clip in the direction
of the arrow (w).
CAUTION:
HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING
OR DETACHING THE TRANSCEIVER FROM THE BELT
CLIP.
Otherwise the transceiver may not be attached to the holder
or swivel properly if the transceiver is accidentally dropped
and the base clip is scratched or damaged.
qw
27
11 OPTIONS
D BATTERY PACK
Battery pack Voltage Capacity Battery life*1
BP-230N 7.4V 950 mAh (min.)
980 mAh (typ.) 7.35 hrs.
BP-232N 7.4V 1900 mAh (min.)
2000 mAh (typ.) 15 hrs.
BP-232H 7.4V 2250 mAh (min.)
2300 mAh (typ.) 17.5 hrs.
BP-240 Battery case for AAA
(LR03) × 6 alkaline —*2
*1
WhenthepowersavefunctionisturnedON,andtheoperating
periods are calculated under the following ratios;
TX : RX : standby = 5 : 5 : 90
*2 Operating period depends on the alkaline cells used.
D CHARGERS
• BC-119N d e s k t o p c h a r g e r + AD-106 c h a r g e r a d a p t e r
+ BC-145S a c a d a p t e r
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger depending on versions.
Charging period: Approximately 3 hours when BP-232H is
attached.
• BC-121N m u l t i -c h a r g e r + AD-106 c h a r g e r a d a p t e r (6 pcs.)
+ BC-157 a c a d a p t e r
 Forrapidchargingofupto6batterypacks(sixAD-106’s
are required) simultaneously. An AC adapter should be pur-
chased separately.
Charging period: Approximately 3 hours when BP-232H is
attached.
• BC-160 d e s k t o p c h a r g e r + BC-145S a c a d a p t e r
For rapid charging of battery pack. An AC adapter is sup-
plied with the charger depending on versions.
Charging period: Approximately 3 hours when BP-232H is
attached.
• BC-171 d e s k t o p c h a r g e r + BC-147S a c a d a p t e r
 Forregularchargingofbatterypacks.Werecommendthat
the BP-230N charging. An AC adapter is supplied with the
charger depending on versions.
Charging period: Approximately
11 hours when BP-232H is
attached.
Approximately 4 hours when BP-230N is
attached.
D DC CABLES
• CP-23L c i g a r e t t e l i g h t e r c a b l e
 Allowschargingofthebatterypackthrougha12Vcigarette
lighter socket. (For BC-119N/BC-160/BC-171)
• OPC-515L/OPC-656 d c p o w e r c a b l e s
 Allowschargingofthebatterypackusinga13.8Vpower
source instead of the AC adapter.
OPC-515L: For BC-119N/BC-160/BC-171
OPC-656 : For BC-121N
D BELT CLIPS
• MB-94 b e lt c l i p
Exclusive alligator-type belt clip.
• MB-93 s w i v e l b e lt c l i p
• MB-96*/96F l e at h e r b e lt h a n g e r
*MB-93’sbaseclipisrequired.
28
11
OPTIONS
D OPTIONAL UNITS
• UT-108 d t m f d e c o d e r u n i t
Provides pager and code squelch capabilities.
• UT-109 (#02)/UT-110 (#02) s c r a m b l e r u n i t s
Non-rolling type (UT-109)/Rolling type (UT-110) voice scram-
bler unit provides higher communication security.
• UT-124 m a n d o w n u n i t
Provides a measure of safety when working in a hazardous
environment, etc.
D ANTENNAS
• FA-SC73US s t u b b y a n t e n n a s
FA-SC73US : 450–490 MHz
• FA-SC25U/FA-SC57U/FA-SC72U f l e x i b l e a n t e n n a s
FA-SC25U : 400–430 MHz
FA-SC57U : 430–470 MHz
FA-SC72U : 470–520 MHz
• FA-SC61UC c u t a n t e n n a
FA-SC61UC : 380–520 MHz
D OTHER OPTIONS
• SP-13 e a r p h o n e
Provides clear receive audio in noisy environment.
• HM-131L s p e a k e r -m i c r o p h o n e
Combination speaker-microphone that provides convenient
operation while hanging the transceiver from your belt.
• HS-94/HS-95/HS-97 h e a d s e t + VS-1L v o x /p t t c a s e
HS-94 : Ear-piece type
HS-95 : Neck-arm type
HS-97 : Throat microphone
VS-1L :VOX/PTTswitchboxforhands-freeoperation,etc.
•MB-130 v e h i c l e c h a r g e r b r a c k e t
 VehiclemountingbracketfortheBC-160batterycharger.
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event the Icom transceiver is used with
equipment that is not manufactured or approved by Icom.
Some options may not available in some countries. Please ask your
dealer for details.
29
12 SAFETY TRAINING INFORMATION
Your Icom radio generates RF electromagnetic
energy during transmit mode. This radio is de-
signed for and classified as “Occupational Use
Only”,meaningitmustbeusedonlyduringthe
course of employment by individuals aware of the
hazards, and the ways to minimize such hazards.
ThisradioisNOTintendedforusebythe“GeneralPopulation”
in an uncontrolled environment.
This radio has been tested and complies with the FCC RF ex-
posurelimitsfor“OccupationalUseOnly”.Inaddition,yourIcom
radio complies with the following Standards and Guidelines with
regard to RF energy and electromagnetic energy levels and
evaluation of such levels for exposure to humans:
 •FCCOETBulletin65Edition97-01SupplementC,Evaluat-
ing Compliance with FCC Guidelines for Human Exposure
to Radio Frequency Electromagnetic Fields.
 •AmericanNationalStandardsInstitute(C95.1-1992),IEEE
Standard for Safety Levels with Respect to Human Expo-
sure to Radio Frequency Electromagnetic Fields, 3 kHz to
300 GHz.
 •AmericanNationalStandardsInstitute(C95.3-1992),IEEE
Recommended Practice for the Measurement of Potentially
Hazardous Electromagnetic Fields– RF and Microwave.
 •Thefollowingaccessoriesareauthorizedforusewiththis
product. Use of accessories other than those specified
may result in RF exposure levels exceeding the FCC re-
quirements for wireless RF exposure.; Belt Clip (MB-94),
Rechargeable Li-ion Battery Pack (BP-230N/BP-232H) and
Speaker-microphone (HM-131L).
To ensure that your expose to RF electromag-
netic energy is within the FCC allowable limits
for occupational use, always adhere to the fol-
lowing guidelines:
 •DO NOT operate the radio without a proper antenna at-
tached, as this may damaged the radio and may also cause
you to exceed FCC RF exposure limits. A proper antenna is
the antenna supplied with this radio by the manufacturer or
antenna specifically authorized by the manufacturer for use
with this radio.
 •DO NOT transmit for more than 50% of total radio use time
(“50%dutycycle”).Transmittingmorethan50%ofthetime
can cause FCC RF exposure compliance requirements to
be exceeded. The radio is transmitting when the TX indica-
tor lights. You can cause the radio to transmit by pressing
the“PTT”switch.
 •ALWAYS keep the antenna at least 2.5 cm (1 inch) away
from the body when transmitting and only use the Icom belt-
clips listed on page 27 when attaching the radio to your belt,
etc., to ensure FCC RF exposure compliance requirements
are not exceeded. To provide the recipients of your trans-
mission the best sound quality, hold the antenna at least 5
cm (2 inches) from your mouth, and slightly off to one side.
The information listed above provides the user with the infor-
mation needed to make him or her aware of RF exposure, and
what to do to assure that this radio operates with the FCC RF
exposure limits of this radio.
CAUTION
WARNING
30
12
SAFETY TRAINING INFORMATION
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that
can possibly cause interference with other devices or systems.
To avoid such interference, turn off the radio in areas where
signs are posted to do so. DO NOT operate the transmitter in
areas that are sensitive to electromagnetic radiation such as
hospitals, aircraft, and blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are
exposed as consequence of their employment provided those
persons are fully aware of the potential for exposure and can
exercise control over their exposure.
MEMO
MEMO
MEMO
MEMO
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
A-6344H-1EX-y
Printed in Japan
© 2004–2012 Icom Inc.
Printed on recycled paper with soy ink.

Navigation menu
