User Manual
INSTRUCTION MANUAL
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition
that this device does not cause harmful inter-
ference.
UHF TRANSCEIVERS
iF4011
iF4013
VHF TRANSCEIVERS
iF3011
iF3013
i
W AR N IN G
Your Icom radio generates RF electromagnetic energy
during transmit mode. This radio is designed for and
classified as “Occupational Use Only”, meaning it must
be used only during the course of employment by indi-
viduals aware of the hazards, and the ways to minimize
such hazards. This radio is NOT intended for use by the
“General Population” in an uncontrolled environment.
This radio has been tested and complies with the FCC
RF exposure limits for “Occupational Use Only”. In addition, your Icom
radio complies with the following Standards and Guidelines with regard
to RF energy and electromagnetic energy levels and evaluation of such
levels for exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields.
• American National Standards Institute (C95.1-1992), IEEE Standard
for Safety Levels with Respect to Human Exposure to Radio Fre-
quency Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992), IEEE Recom-
mended Practice for the Measurement of Potentially Hazardous
Electromagnetic Fields– RF and Microwave.
• The following accessories are authorized for use with this product.
Use of accessories other than those specified may result in RF ex-
posure levels exceeding the FCC requirements for wireless RF ex-
posure.; Belt Clip (MB-94), Rechargeable Li-Ion Battery Pack (BP-
230N/BP-232N) and Speaker-microphone (HM-131L).
C AU T IO N
To ensure that your expose to RF electromagnetic
energy is within the FCC allowable limits for occu-
pational use, always adhere to the following guide-
lines:
SAFETY TRAINING INFORMATION
SAFETY TRAINING INFORMATION
• DO NOT operate the radio without a proper antenna attached, as
this may damaged the radio and may also cause you to exceed FCC
RF exposure limits. A proper antenna is the antenna supplied with
this radio by the manufacturer or antenna specifically authorized by
the manufacturer for use with this radio.
•
DO NOT transmit for more than 50% of total radio use time (“50%
duty cycle”). “50% duty cycle” is also applicable to VOX/PTT mode.
Transmitting more than 50% of the time can cause FCC RF expo-
sure compliance requirements to be exceeded. The radio is trans-
mitting when the “LED indicator” lights red. You can cause the radio
to transmit by pressing the “PTT” switch or VOX function.
•
ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the
body when transmitting and only use the Icom belt-clip which is
listed on page 33 when attaching the radio to your belt, etc., to en-
sure FCC RF exposure compliance requirements are not exceeded.
To provide the recipients of your transmission the best sound qual-
ity, hold the antenna at least 5 cm (2 inches) from your mouth, and
slightly off to one side.
The information listed above provides the user with the information
needed to make him or her aware of RF exposure, and what to do to as-
sure that this radio operates with the FCC RF exposure limits of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that can
possibly cause interference with other devices or systems. To avoid such
interference, turn off the radio in areas where signs are posted to do so.
DO NOT operate the transmitter in areas that are sensitive to electro-
magnetic radiation such as hospitals, aircraft, and blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are exposed as
consequence of their employment provided those persons are fully aware
of the potential for exposure and can exercise control over their exposure.
ii
iii
FOREWORD
READ ALL INSTRUCTIONS carefully and completely before
using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This instruction
manual contains important operating instructions for the IC-F3011/
IC-F3013 vhf transceivers and IC-F4011/IC-F4013 uhf trans-
ceivers.
EXPLICIT DEFINITIONS
WORD DEFINITION
RDANGER Personal death, serious injury or an explo-
sion may occur.
RWARNING Personal injury, fire hazard or electric shock
may occur.
CAUTION Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorpo-
rated (Japan) in Japan, the United States, the United Kingdom, Germany, France,
Spain, Russia and/or other countries.
iv
R CAUTION! NEVER hold the transceiver so that the antenna
is very close to, or touching exposed parts of the body, especially
the face or eyes, while transmitting. The transceiver will perform
best if the microphone is 5 to 10 cm (2 to 4 in.) away from the lips
and the transceiver is vertical.
R CAUTION! NEVER operate the transceiver with a headset
or other audio accessories at high volume levels.
R CAUTION! NEVER short the terminals of the battery pack.
R CAUTION! NEVER use non-Icom battery packs/chargers to
prevent the loss of the transceiver’s good performance and warranty.
R CAUTION! NEVER
expose the transceiver to rain, snow or
any liquids. The transceiver may be damaged.
DO NOT push [PTT] when not actually desiring to transmit.
DO NOT use or place the transceiver in direct sunlight or in areas
with temperatures below –30°C (+22°F) or above +60°C (+140°F).
DO NOT modify the transceiver. The transceiver warranty does
not cover any problems caused by unauthorized modification.
MAKE SURE the flexible antenna and battery pack are securely
attached to the transceiver, and that the antenna and battery pack
are dry before attachment. Exposing the inside of the transceiver
to water will result in serious damage to the transceiver.
The use of non-Icom battery packs/chargers may impair trans-
ceiver performance and invalidate the warranty.
For U.S.A. only
CAUTION! Changes or modifications to this device, not expressly
approved by Icom Inc., could void your authority to operate this
transceiver under FCC regulations.
PRECAUTIONS
TABLE OF CONTENTS
SAFETY TRAINING INFORMATION .................................................... i
FOREWORD .......................................................................................iii
EXPLICIT DEFINITIONS .....................................................................iii
PRECAUTIONS .................................................................................. iv
TABLE OF CONTENTS ....................................................................... v
1 ACCESSORIES ......................................................................... 1–5
■ Supplied accessories .................................................................. 1
■ Accessory attachments .............................................................. 2
2 PANEL DESCRIPTION ............................................................ 6–11
■ Front, top and side panels .......................................................... 6
■ LED indicator .............................................................................. 8
■ Programmable function keys ......................................................9
3 CONVENTIONAL OPERATION ............................................. 12–15
■ Turning power ON ..................................................................... 12
■ Channel selection ..................................................................... 12
■ Receiving and transmitting ....................................................... 13
■ Setting the squelch level ........................................................... 15
4 SIGNALING OPERATIONS ................................................... 16–17
■ Call procedure .......................................................................... 16
■ Emergency Call ........................................................................ 17
■ DTMF transmission ................................................................... 17
5 BATTERY CHARGING .......................................................... 18–25
■ Caution ..................................................................................... 18
■ Battery chargers ....................................................................... 21
6 BATTERY CASE .................................................................... 26–27
■ Optional battery case (BP-240) ................................................ 26
7 SWIVEL BELT CLIP .............................................................. 28–31
■ MB-93 contents......................................................................... 28
■ To attach ................................................................................... 28
■ To detach .................................................................................. 30
8 OPTIONS ............................................................................... 32–35
9 FCC INFORMATION .................................................................... 36
1
1
ACCESSORIES
■ Supplied accessories

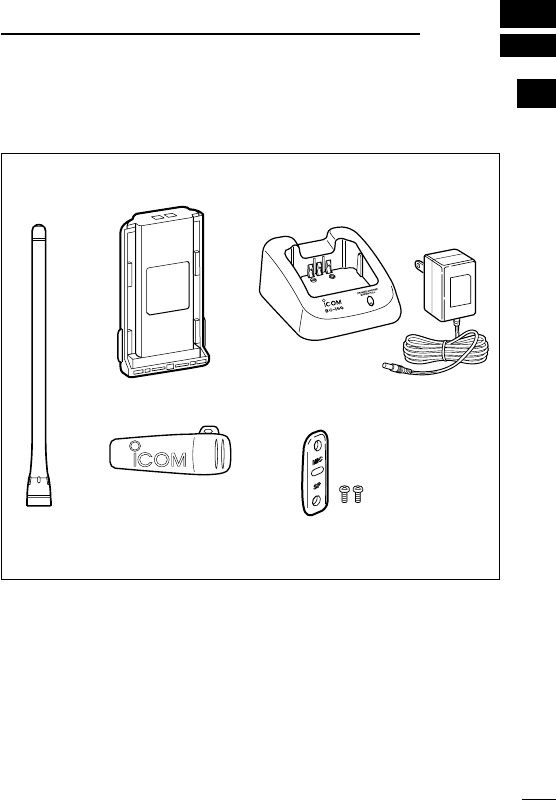

The following accessories are supplied.
Flexible
antenna*
Battery pack Battery carger
(with AC adapter)
Belt clip Jack cover (with screws)
*This illustration is described
with the VHF type.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
1ACCESSORIES
■ Accessory attachments
D Flexible antenna
Connect the supplied flexible antenna to
the antenna connector.
CAUTION:
•
NEVER HOLD the antenna when
carrying the transceiver.
• Transmitting without an antenna
may damage the transceiver.
3
1
ACCESSORIES
D Battery pack

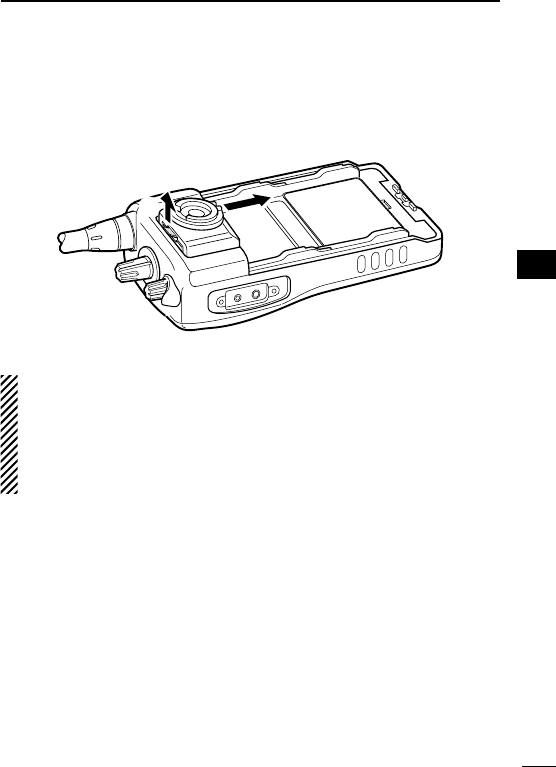

To attach the battery pack:
Slide the battery pack on the back of the transceiver in the direction
of the arrow (q), then lock it with the battery release button.
• Slide the battery pack until the battery release button makes a ‘click’
sound.
To release the battery pack:
Push the battery release button in the direction of the arrow (w) as
shown below. The battery pack is then released.
NEVER release or attach the battery pack when the transceiver
is wet or soiled. This may result in water or dust getting into the
transceiver/battery pack and may result in the transceiver being
damaged.
q
w
Battery release
button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
4
1ACCESSORIES

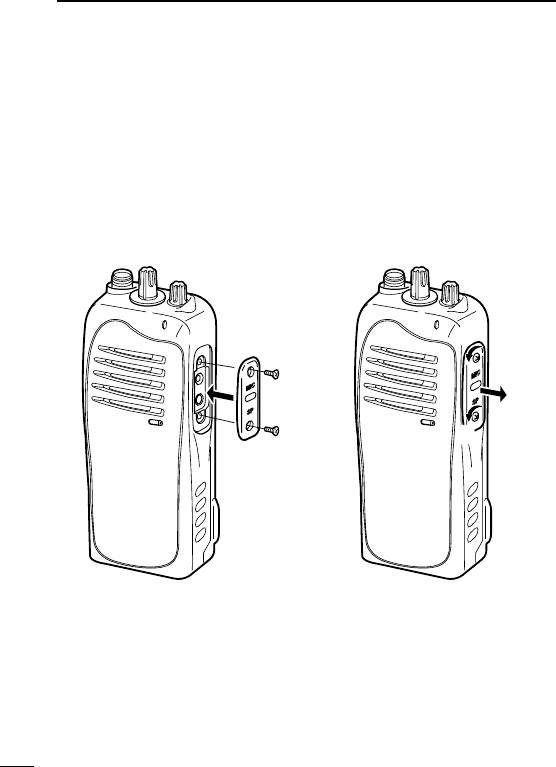

D Jack cover
Attach the jack cover when the optional speaker-microphone is not
used.
To attach the jack cover:
q Attach the jack cover to the
[SP MIC] connector.
w Tighten the screws.
To detach the jack cover:
e Unscrew the screws with a
phillips screwdriver.
r Detach the jack cover for the
optional equipment connec-
tion.
e
e
r
w
w
q
5
1
ACCESSORIES
D Belt clip

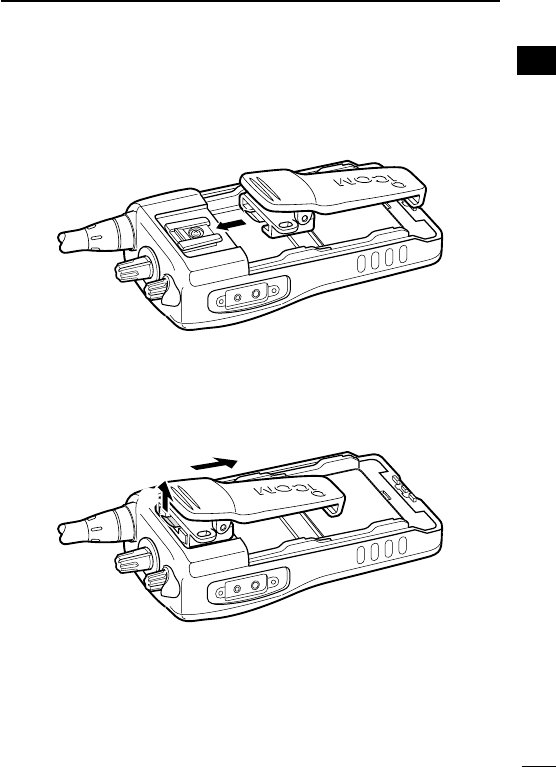

To attach the belt clip:
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt clip is
locked and makes a ‘click’ sound.
To detach the belt clip:
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of the
arrow (w).
q
w
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
6
2PANEL DESCRIPTION

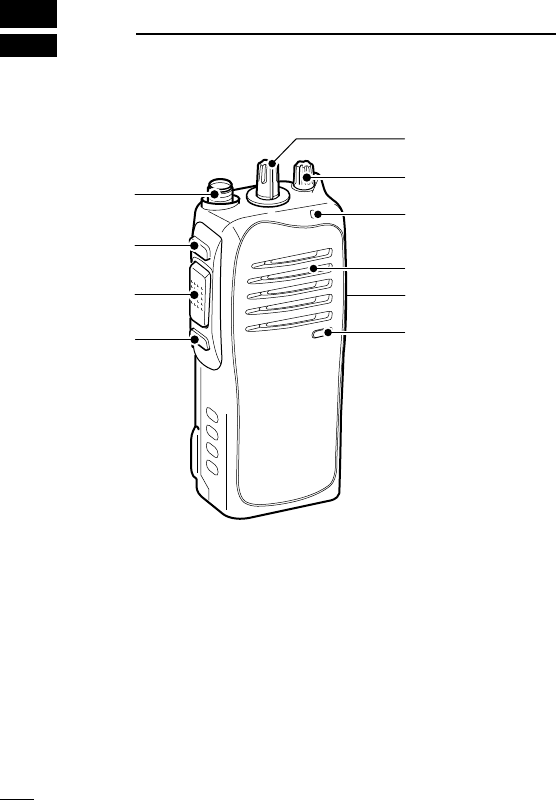

■ Front, top and side panels

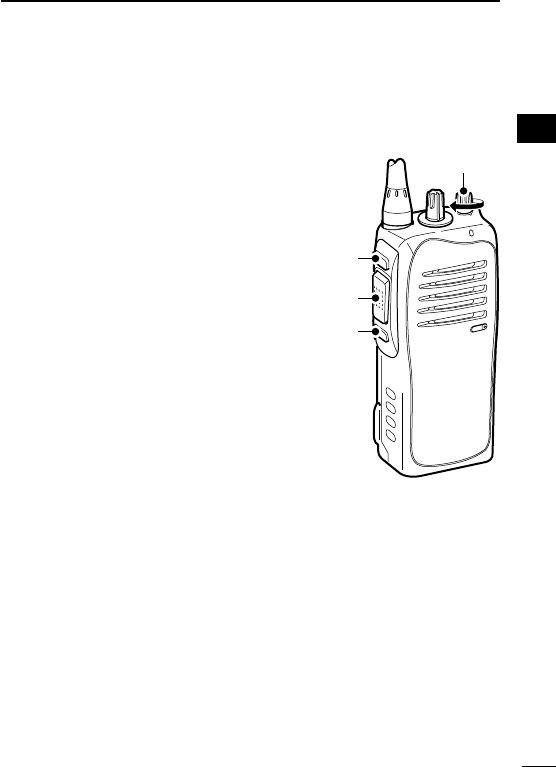

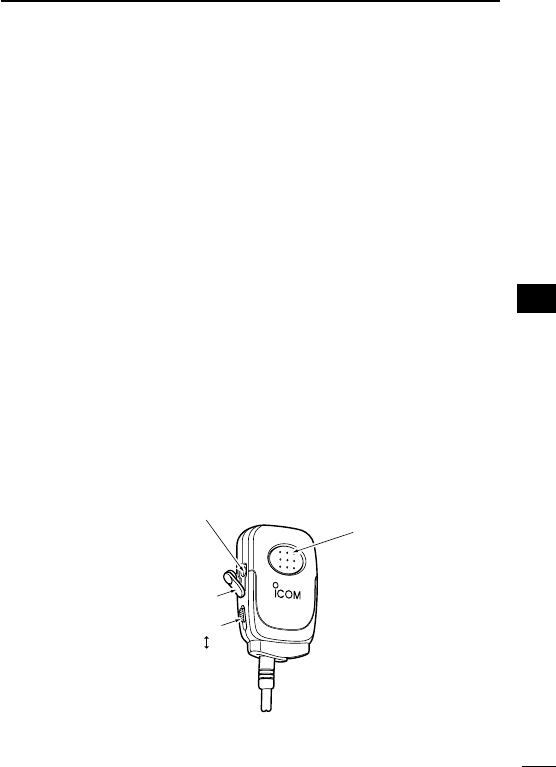

Microphone
Speaker
r
w
e
y
u
i
t
q
q CHANNEL SELECTOR
Rotate the channel selector to select the pre-programmed mem-
ory channels.
w VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjust the audio level.
7
2
PANEL DESCRIPTION
e LED INDICATOR (p. 8)
➥ Lights red while transmitting.
➥ Lights green while receiving a signal, or when the squelch is
open.
➥ Lights/blinks orange when the matched 2/5-tone code is re-
ceived, according to the pre-programming. (For IC-F3013/
F4013 only)
r SPEAKER-MICROPHONE CONNECTOR [SP MIC]
Connects the optional speaker-microphone, earphone, etc.
[SP MIC] jack cover
NOTE: Attach the [SP MIC] jack
cover when the optional equip-
ment is not used. (p. 4)
t DEALER-PROGRAMMABLE KEY [Lower]
The desired function can be assigned by your dealer. (p. 9)
y PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
u DEALER-PROGRAMMABLE KEY [Upper]
The desired function can be assigned by your dealer. (p. 9)
i ANTENNA CONNECTOR
Connects the supplied antenna.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
8
2PANEL DESCRIPTION
■ LED indicator

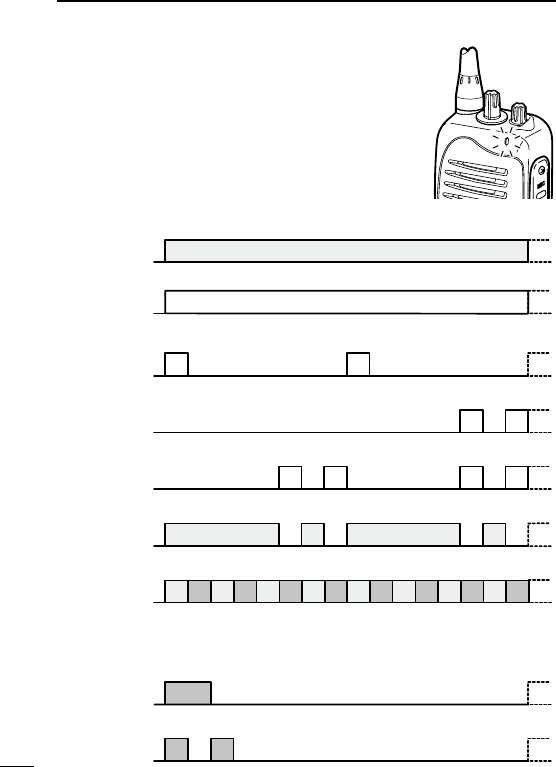

The LED indicator indicates several information
as follows;
(Ref.; R=Red, G=Green, O=Orange)
R R R R
G G G G
G G
G G G G G G G G
R G R G R G R G R G R G R G R G
R O R O R O R O R O R O R O R O
G
G G
Clone Err
Clone TX/RX
Low BATT1
Low BATT2
Busy
F/S Scan
O O
O O
Call LED Blink
Call LED ON
TX Low BATT2
R
TX
• TX: Turns Red while transmitting a signal.
• RX: Turns Green while receiving a signal.
For IC-F3013/IC-F4013 only
• Call LED (ON): When receiving a matched 2/5-tone.
• Call LED (Blink): When receiving a matched 2/5-tone.
• Fast/Slow scan: Blinks while Fast/Slow scan is activated.
• Low BATT1: You should charge the battery. (blinks slowly)
• Low BATT2: You must charge the battery. (blinks fast)
• TX low BATT2: Low BATT2 was detected during TX mode.
• CH error: Non-programmed channel is selected.
9
2
PANEL DESCRIPTION
■ Programmable function keys
The following functions can be assigned to [Upper] and [Lower]
programmable function keys.
Consult your Icom dealer or system operator for details concerning
your transceivers programming.
D For All models
SCAN A KEY
➥ Push to start and cancel scanning operation.
➥ When the Power ON scan function is turned ON, push to pause
the scanning operation. The paused scan restarts after the spec-
ified time period has passed.
SCAN B KEY
Push to start and cancel scanning operation. In case of transmis-
sion during scan, pauses scanning. The paused scan restarts after
the specified time period has passed.
PRIORITY CHANNEL KEYS
➥ Push to select the Priority A or Priority B channel.
➥ Push and hold [Prio A (Rewrite)] to rewrite the Prio A channel.
MR-CH 1/2/3/4 KEYS
Push to select a memory channels 1 to 4 directly.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
10
2PANEL DESCRIPTION
OUTPUT POWER SELECTION KEY
Select the transmit output power temporarily or permanently, de-
pending on the pre-setting.
• Ask your dealer for the output power level for each selection.
TALK AROUND KEY
➥ Push to turn the talk around function OFF.
➥ Push and hold to turn the talk around function ON.
• The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY
➥ Push to select the IF bandwidth to wide.
• The wide passband width can be selected from 25 or 20 kHz using
the optional cloning software (PMR operation only). Ask your dealer
for details.
➥ Push and hold to select the IF bandwidth to narrow.
SIREN KEY
Push to emit a siren. This function can be used for situations other
than an emergency alert such as a security alarm for example.
LOCK KEY
Push and hold to electronically lock all programmable keys except
the followings:
[Moni(Audi)], [Call] (incl. Call A and Call B)* and
[Emergency Single]/[Emergency Repeat]
(incl. Silent)*.
* Available for IC-F3013/IC-F4013 only.
11
2
PANEL DESCRIPTION
MONITOR KEY
➥ Push to mute and release the CTCSS (DTCS) or 2Tone* squelch
mute. Open any squelches/deactivate any mutes while pushing
this key. (LMR operation only)
* Available for the IC-F3013/F4013 only.
➥ Activates one of (or two of) the following functions on each chan-
nel independently: (PMR operation only)
• Push and hold to un-mute the channel (audio is emitted; ‘Audible’).
• Push to mute the channel (audio is not emitted; ‘Inaudible’).
• Push to send a ‘reset code’ after the communication is finished.
NOTE: The un-mute condition (‘Audible’ condition) may auto-
matically return to the mute condition (‘Inaudible’ condition)
after a specified period.
D For IC-F3013/IC-F4013 only
DTMF AUTODIAL KEY
Push to transmit the programmed DTMF code.
CALL KEYS
Push to transmit a 2/5-tone code.
• Call transmission is necessary before you call another station depend-
ing on your signalling system.
• [Call A] and/or [Call B] keys may be available when your system em-
ploys selective ‘Individual/Group’ calls. Ask your dealer which call is
assigned to each key.
EMERGENCY SINGLE/EMERGENCY REPEAT KEYS
➥ Push and hold for the specified time period to transmit an emer-
gency call once or repeatedly.
➥
When [Emergency Single (Silent)] or [Emergency Repeat (Silent)]
is pushed, an emergency call is transmitted with no beep emission.
• If you want to cancel the emergency call, push (or push and hold)
the key again before transmitting the call.
• The emergency call is transmitted one time only or repeatedly until
receiving a control code depending on the pre-setting.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
12
3
CONVENTIONAL OPERATION
■ Turning power ON

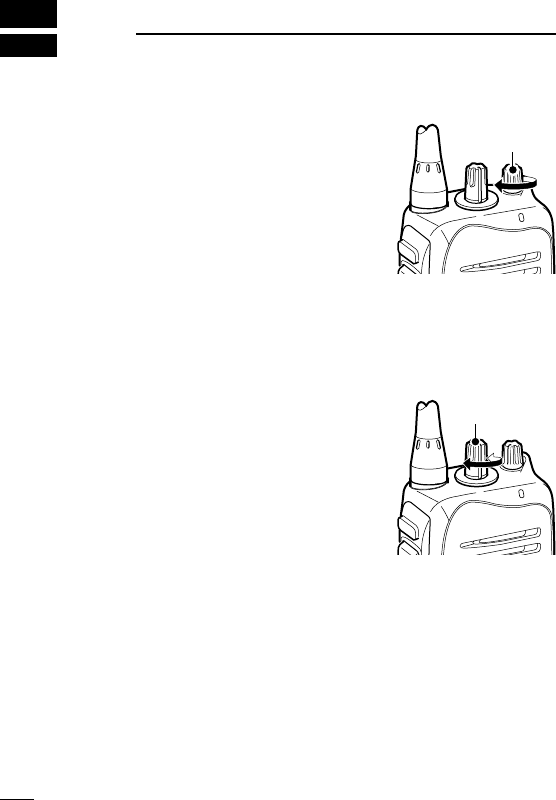

Rotate [VOL] to turn power ON.
■ Channel selection
Rotate [CHANNEL SELECTOR] to se-
lect the desired operating channel, in
sequence; or, push one of [MR-CH 1] to
[MR-CH 4] key to select a channel di-
rectly.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this
type. When turning the power ON, the
transceiver automatically starts scanning.
Scanning stops when receiving a call.
[VOL]
[CHANNEL
SELECTOR]
13
3
CONVENTIONAL OPERATION
■ Receiving and transmitting
NOTE: Transmitting without an antenna may damage the trans-
ceiver. See p. 2 for antenna attachment.
Receiving:
q Rotate [VOL] to turn power ON.
w Rotate [CHANNEL SELECTOR] or push one of [MR-CH 1] to
[MR-CH 4] key to select a channel.
e When receiving a call, adjust the audio output level to a comfort-
able listening level.
Transmitting:
Wait for the channel to become clear to avoid interference.
q While pushing and holding [PTT], speak into the microphone at
a normal voice level.
w Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from your
mouth, then speak into the microphone at a normal voice
level.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
14
3CONVENTIONAL OPERATION
D Transmitting notes
• Transmit inhibit function
The transceiver has several inhibit functions which restrict trans-
mission under the following conditions:
- The channel is in mute condition.
- The channel is busy.
- Un-matched (or matched) CTCSS is received.
- The selected channel is a ‘receive only’ channel.
• Time-out timer
After continuous transmission for the pre-programmed time period, the
time-out timer activates, and causes the transceiver to stop transmit-
ting.
• Penalty timer
Once the time-out timer activates, transmission is further inhibited
for a period determined by the penalty timer.
15
3
CONVENTIONAL OPERATION
■ Setting the squelch level
The squelch circuit mutes the received audio signal depending on
the signal strength.
q While pushing [PTT] and [Lower],
rotate [VOL] to turn the power ON
to enter the squelch level adjust-
ment mode.
w Push [Upper] to increase the
squelch level (tight squelch) or
[Lower] to decrease the squelch
level (loose squelch).
e Rotate [VOL] to turn the power
OFF to fix the squelch level.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[VOL]
[Upper]
[Lower]
[PTT]
16
4SIGNALING OPERATIONS
NOTE: The tone signalling operations are available for the
IC-F3013/F4013 only.
■ Call procedure
When your system employs tone signalling (excluding CTCSS and
DTCS), the call procedure may be necessary prior to voice trans-
mission. The tone signalling employed may be a selective calling
system which allows you to call specific station(s) only and prevent
unwanted stations from contacting you.
q Select the desired TX code channel or 2/5-tone code according
to your System Operator’s instructions.
• This may not be necessary depending on programming.
w Push [Call]. (p. 11)
e After transmitting a 2/5-tone code, the remainder of your com-
munication can be carried out in the normal fashion.

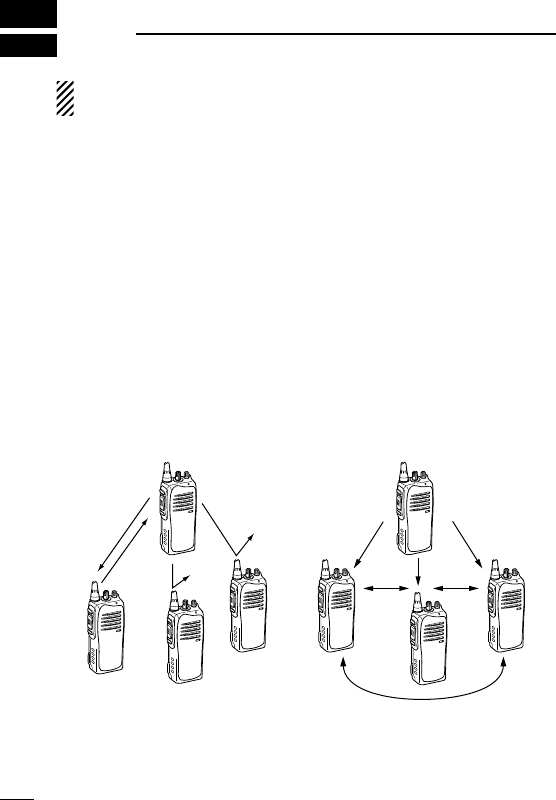

Selective calling Non-selective calling
D Transmitting notes— PTTID call
The transceiver sends the ID code (5-tone, DTMF or digital ANI)
automatically when [PTT] is pushed (beginning of transmission)
and released (end of transmission) depends on the setting.
17
4
SIGNALING OPERATIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
■ Emergency Call
When [Emergency Single] or [Emergency Repeat] (p. 11) is
pushed and held for the specified time period, the emergency sig-
nal (5-tone, DTMF or MDC 1200) is transmitted once or repeatedly
on the emergency channel. A repeat emergency signal is auto-
matically transmitted until it receives the acknowledgement signal.
When no emergency channel is specified, the signal is transmitted
on the previously selected channel.
If you want to cancel the emergency call, push and hold the key
again before transmitting the call.
The emergency call can be transmitted without a beep emission,
and the LCD indication if [Emergency Single (Silent)] or [Emer-
gency Repeat (Silent)] (p. 11) is pushed.
The transceiver can also be programmed to keep the microphone
open during an emergency call, allowing monitoring of the situa-
tion.
IMPORTANT: It is recommended to set an emergency channel
individually to provide the certain emergency call operation.
■ DTMF transmission
If the transceiver has [DTMF Autodial] assigned to it, the auto-
matic DTMF transmission function is available.
➥ Push [DTMF Autodial] to transmit the DTMF code.
18
5BATTERY CHARGING
■ Caution
Misuse of Lithium-ion batteries may result in the following
hazards: smoke, fire, or the battery may rupture. Misuse can
also cause damage to the battery or degradation of battery
performance.
R DANGER! Use and charge only specified Icom battery packs
with Icom radios or Icom charger. Only Icom battery packs are
tested and approved for use and charge with Icom radios or Icom
charger. Using third-party or counterfeit battery packs or charger
may cause smoke, fire, or cause the battery to burst.
D Battery caution
R DANGER! DO NOT hammer or otherwise impact the battery. Do
not use the battery if it has been severely impacted or dropped, or if
the battery has been subjected to heavy pressure. Battery damage
may not be visible on the outside of the case. Even if the surface
of the battery does not show cracks or any other damage, the cells
inside the battery may rupture or catch fire.
R DANGER! NEVER use or leave battery packs in areas with
temperatures above +60˚C (+140˚F). High temperature buildup in
the battery, such as could occur near fires or stoves, inside a sun
heated car, or in direct sunlight may cause the battery to rupture or
catch fire. Excessive temperatures may also degrade battery per-
formance or shorten battery life.
R DANGER! DO NOT expose the battery to rain, snow, seawater,
or any other liquids. Do not charge or use a wet battery. If the bat-
tery gets wet, be sure to wipe it dry before using. The battery is not
waterproof.
19
5
BATTERY CHARGING
R DANGER! NEVER incinerate used battery packs since internal
battery gas may cause them to rupture, or may cause an explosion.
R DANGER! NEVER solder the battery terminals or NEVER mod-
ify the battery pack. This may cause heat generation, and the bat-
tery may rupture, emit smoke or catch fire.
R DANGER! Use the battery only with the transceiver for which it
is specified. Never use a battery with any other equipment, or for
any purpose that is not specified in this instruction manual.
R DANGER! If fluid from inside the battery gets in your eyes, blind-
ness can result. Rinse your eyes with clean water, without rubbing
them, and see a doctor immediately.
WARNING! Immediately stop using the battery if it emits an ab-
normal odor, heats up, or is discolored or deformed. If any of these
conditions occur, contact your Icom dealer or distributor.
WARNING! Immediately wash, using clean water, any part of the
body that comes into contact with fluid from inside the battery.
WARNING! NEVER put the battery in a microwave oven, high-
pressure container, or in an induction heating cooker. This could
cause a fire, overheating, or cause the battery to rupture.
CAUTION! Always use the battery within the specified temperature
range for the transceiver (–30˚C to +60˚C; –22˚F to +140˚F) and
the battery itself (–20˚C to +60˚C; –4˚F to +140˚F). Using the bat-
tery out of its specified temperature range will reduce the battery’s
performance and battery life.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
5BATTERY CHARGING
CAUTION! Shorter battery life could occur if the battery is left fully
charged, completely discharged, or in an excessive temperature
environment (above +50˚C; +122˚F) for an extended period of time.
If the battery must be left unused for a long time, it must be de-
tached from the radio after discharging.
You may use the battery until the remaining capacity is about half, then
keep it safely in a cool dry place with the temperature range as below:
–20˚C to +50˚C (–4˚F to +122˚F) (within a month)
–20˚C to +35˚C (–4˚F to +95˚F) (within three months)
–20˚C to +20˚C (–4˚F to +68˚F) (within a year)
D Charging caution
R DANGER! NEVER charge the battery pack in areas with ex-
tremely high temperatures, such as near fires or stoves, inside
a sun heated car, or in direct sunlight. In such environments, the
safety/protection circuit in the battery will activate, causing the bat-
tery to stop charging.
WARNING! DO NOT charge or leave the battery in the battery
charger beyond the specified time for charging. If the battery is not
completely charged by the specified time, stop charging and re-
move the battery from the battery charger. Continuing to charge the
battery beyond the specified time limit may cause a fire, overheat-
ing, or the battery may rupture.
WARNING! NEVER insert the transceiver (battery attached to the
transceiver) into the charger if it is wet or soiled. This could corrode
the battery charger terminals or damage the charger. The charger
is not waterproof.
CAUTION! DO NOT charge the battery outside of the specified
temperature range: BC-160 (0˚C to +40˚C; +32˚F to +104˚F). Icom
recommends charging the battery at +20˚C (+68˚F). The battery
may heat up or rupture if charged out of the specified temperature
range. Additionally, battery performance or battery life may be re-
duced.
21
5
BATTERY CHARGING
■ Battery chargers

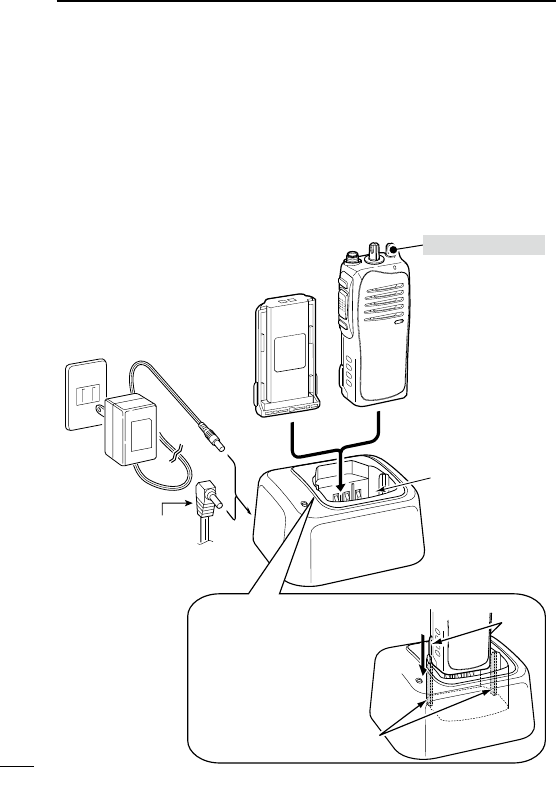

D Rapid charging with the BC-160
The optional BC-160 provides rapid charging of the Li-Ion battery
pack. Charging period: Approx. 3 hours (with BP-232N)
The following items are additionally required:
• An AC adapter (not supplied with some versions) or the DC power
cable (OPC-515L/CP-17L) is additionally required.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Battery pack Transceiver
Turn power OFF
IMPORTANT!
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Guide rail
Lobes
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
5BATTERY CHARGING

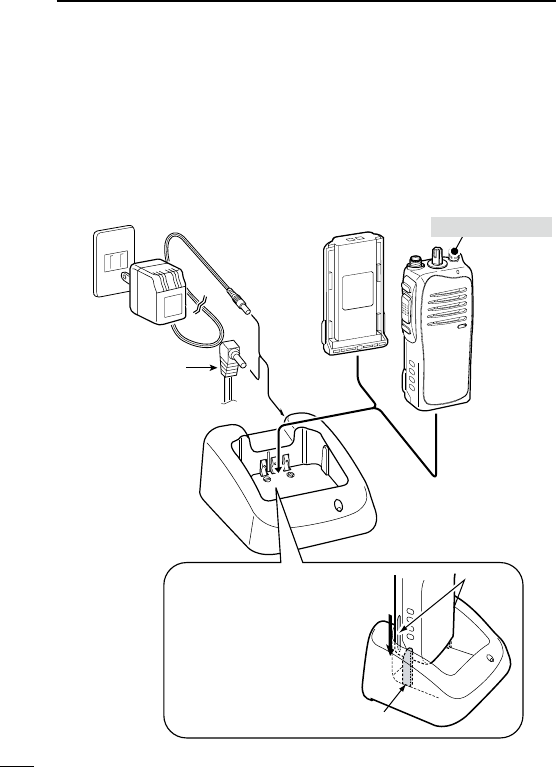

D Regular charging with the BC-171
The optional BC-171 provides regular charging of the Li-Ion battery
pack. Charging period: Approx. 10 hours (with BP-232N)
The following items are additionally required:
• An AC adapter (not supplied with some versions) or the DC power
cable (OPC-515L/CP-17L) is additionally required.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Battery pack Transceiver
Turn power OFF
IMPORTANT!
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Guide rail
Lobes
23
5
BATTERY CHARGING

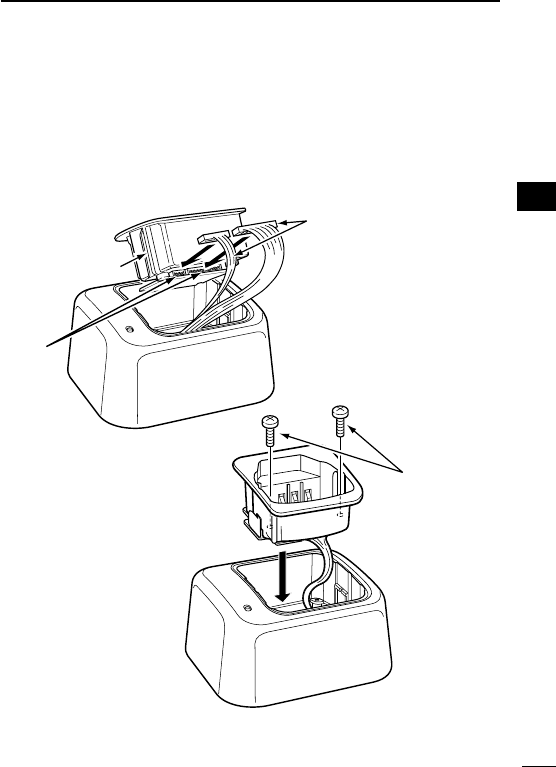

D AD-106 installation
The AD-106 charger adapter must be installed into the BC-119N
or BC-121N before battery charging.
➥
Connect the AD-106 charger adapter and the BC-119N/BC-
121N as below, then install the AD-106 into the holder space of
the BC-119N or BC-121N with the supplied screws.
Desktop charger
adapter
Connectors
Plugs
Screws supplied
with the charger
adapter
This illustration is described with the BC-119N.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
24
5BATTERY CHARGING

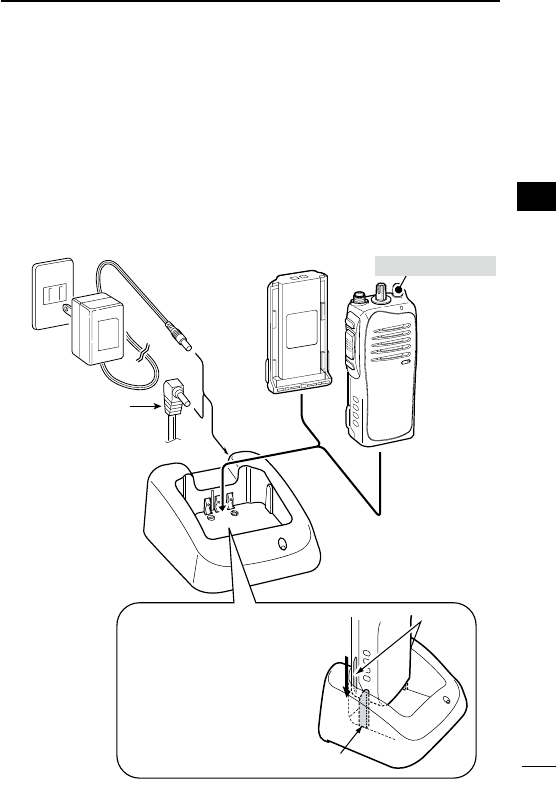

D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-Ion battery
pack. Charging period: Approx. 3 hours (with BP-232N)
The following items are additionally required:
• An AD-106 (purchase separately).
• An AC adapter (not supplied with some versions) or the DC power
cable (OPC-515L/CP-17L).
AD-106 charger
adapter is installed
in BC-119N.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Battery pack
Transceiver
IMPORTANT!
Ensure the guide
lobes on the bat-
tery pack are
correctly aligned
with the guide
rails inside the
charger adapter. Guide rails
Turn power OFF
Lobes
25
5
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

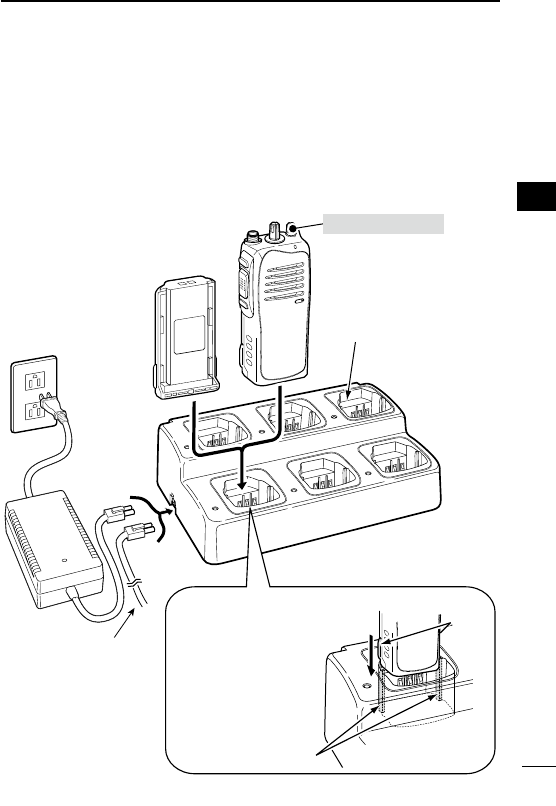

D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be charged
simultaneously. Charging period: Approx. 3 hours (with BP-232N)
The following items are additionally required.
• Six AD-106.
• An AC adapter (BC-157) or the DC power cable (OPC-656)
AC adapter
(Purchase
separately)
AD-106 charger
adapters are installed
in each slot.
DC power cable
(OPC-656)
(Connect with the
DC power supply;
13.8 V/at least 7 A)
IMPORTANT!
Ensure the guide
lobes on the bat-
tery pack are
correctly aligned
with the guide
rails inside the
charger adapter.
Guide rails
Lobes
Battery pack
Transceiver Turn power OFF
26
6BATTERY CASE

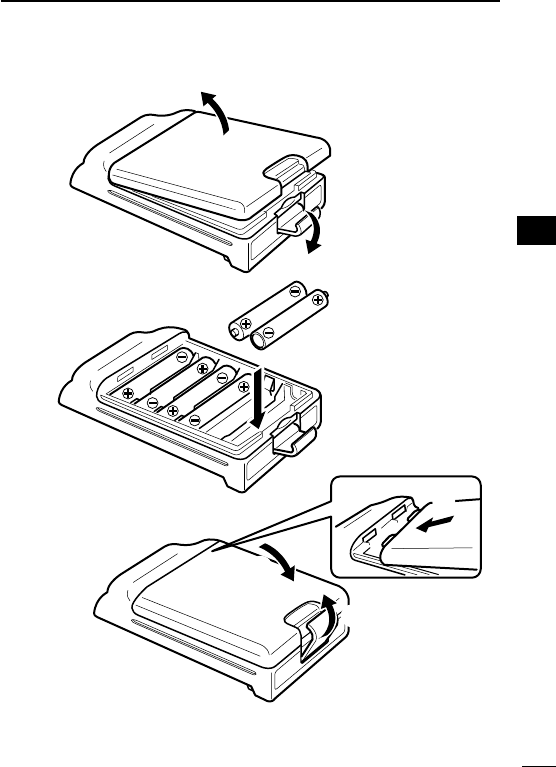

■ Optional battery case (BP-240)
When using the optional battery case, install 6 × AAA (LR03) size
alkaline batteries as illustrated at right.
q Unhook the battery cover release hook (q), and open the cover
in the direction of the arrow (w). (Fig.1)
w Then, install 6 × AAA (LR03) size alkaline batteries. (Fig.2)
• Install the alkaline batteries only.
• Be sure to observe the correct polarity.
• Do not pin the ribbon under the batteries.
e Fit the cover in the direction of the arrow (e), then close (r).
Hook the battery cover release hook until it makes a ‘click’ sound
(t). (Fig.3)
CAUTION:
• When installing batteries, make sure they are all the same
brand, type and capacity. Also, do not mix new and old batter-
ies together.
• Keep battery contacts clean. It’s a good idea to clean battery
terminals once a week.
• Never incinerate used battery cells since internal battery gas
may cause them to rupture.
• Never expose a detached battery case to water. If the battery
case gets wet, be sure to wipe it dry before using it.
NOTE: When the optional battery case is attached, the battery
type must be selected to “Alkaline battery operation” when turn-
ing the transceiver ON. Ask your dealer for details.
27
6
BATTERY CASE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
q
BP-240
w
Fig.1
Fig.2
Fig.3
e
r
t
28
7SWIVEL BELT CLIP
■ MB-93 contents
Qty.
q Belt clip .................................................................................... 1
w Base clip .................................................................................. 1
■ To attach
q Release the battery pack if it is attached. (p. 3)
w Slide the base clip in the direction of the arrow until the base clip
is locked and makes a ‘click’ sound.
q w
29
7
SWIVEL BELT CLIP
e Clip the belt clip to a part of your belt. And insert the transceiver
into the belt clip until the base clip inserted fully into the groove.
r Once the transceiver is locked in place, it swivels as illustrated
below.
Once the transceiver is locked in place,
it will swivel 360 degrees.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
30
7SWIVEL BELT CLIP
■ To detach
q Turn the transceiver upside down in the direction of the arrow
and pull out from the belt clip.
31
7

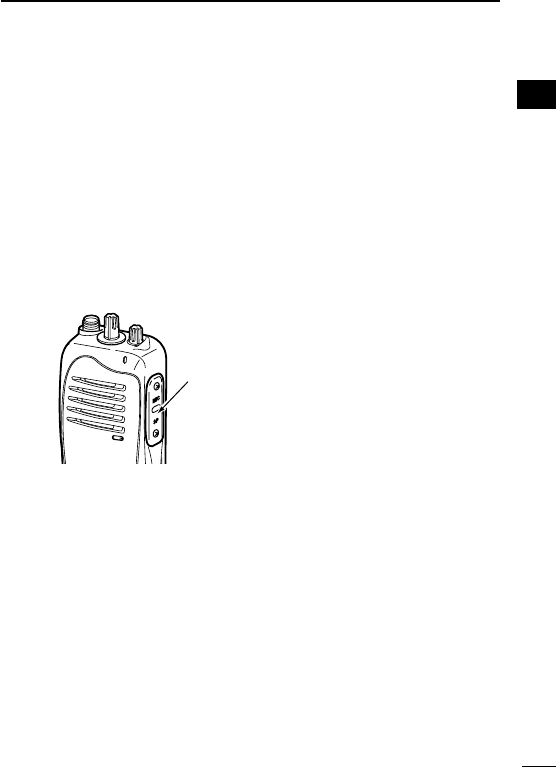

SWIVEL BELT CLIP
6
w Release the battery pack if it is attached. (p. 3)
e Pinch the clip (q), and slide the base clip in the direction of the
arrow (w).
qw
CAUTION:
HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING OR
DETACHING THE TRANSCEIVER FROM THE BELT CLIP.
Otherwise the transceiver may not be attached to the holder or
swivel properly if the transceiver is accidentally dropped and the
base clip is scratched or damaged.
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
32
8OPTIONS
D BATTERY PACK
Battery pack Voltage Capacity Battery life*1
BP-230N 7.4 V 950 mAh (min.)
980 mAh (typ.) 9 hrs.
BP-232N 7.4 V 1900 mAh (min.)
2000 mAh (typ.) 18 hrs.
BP-240 Battery case for AAA
(LR03) × 6 alkaline —*2
*1
When the power save function is turned ON, and the operating pe-
riods are calculated under the following conditions;
TX : RX : standby = 5 : 5 : 90
*2 Operating period depends on the alkaline cells used.
D CHARGERS
• BC-119N desktop charger + AD-106 charger adapter
+ BC-145S ac adapter
For rapid charging of battery packs. An AC adapter is supplied
with the charger depending on versions.
Charging time: approx. 3 hours when BP-232N is attached.
• BC-121N multi-charger + AD-106 charger adapter (6 pcs.)
+ BC-157 ac adapter
For rapid charging of up to 6 battery packs (six AD-106’s are required)
simultaneously. An AC adapter should be purchased separately.
Charging time: approx. 3 hours when BP-232N is attached.
• BC-160 desktop charger + BC-145S ac adapter
For rapid charging of battery packs. An AC adapter is supplied
with the charger depending on versions.
Charging time: approx. 3 hours when BP-232N is attached.
33
8
OPTIONS
• BC-171 desktop charger + BC-147S ac adapter
For regular charging of battery packs. We recommend that the
BP-230N charging. An AC adapter is supplied with the charger
depending on versions.
Charging time: Approx. 10 hours when BP-232N is attached.
Approx. 4 hours when BP-230N is attached.
D BELT CLIPS
• MB-93 swivel belt clip
• MB-94 belt clip
Exclusive alligator-type belt clip.
• MB-96N/96F leather belt hanger
D DC CABLES
• CP-17L cigarette lighter cable
Allows charging of the battery pack through a 12 V cigarette lighter
socket. (For BC-119N)
• OPC-515L/OPC-656 dc power cables
Allows charging of the battery pack using a 13.8 V power source
instead of the AC adapter.
OPC-515L: For BC-119N
OPC-656 : For BC-121N
D ANTENNAS
• FA-SC73US/FA-SC56VS/FA-SC57VS stubby antennas
FA-SC73US: 450–490 MHz FA-SC56VS: 150–162 MHz
FA-SC57VS: 160–174 MHz
• FA-SC01U/FA-SC25U/FA-SC57U/FA-SC72U/FA-SC25V/
FA-SC55V antennas
FA-SC01U: 350–400 MHz FA-SC25U: 400–430 MHz
FA-SC57U: 430–470 MHz FA-SC72U: 470–520 MHz
FA-SC25V: 136–155 MHz FA-SC55V: 146–174 MHz
• FA-SC61VC/FA-SC61UC cut antennas
FA-SC61VC: 136–174 MHz FA-SC61UC: 380–520 MHz
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
34
8OPTIONS
D OTHER OPTIONS
• SP-13 earphone
Provides clear receive audio in noisy environment.
• HM-153L earphone-microphone
• HM-131L/158L/159L speaker-microphone
Combination speaker-microphone that provides convenient op-
eration while hanging the transceiver from your belt.
• VS-1L vox/ptt case + HS-94/HS-95/HS-97 headset
VS-1L: VOX/PTT switch box for hands-free operation, etc.
HS-94: Ear hook type HS-95: Neck-arm type
HS-97: Throat microphone
Icom optional equipment are designed for optimal performance when
used with this transceiver. We are not responsible for the transceiver
being damaged or any accident caused when using non-Icom optional
equipment.
Some options may not be available in some countries. Please ask your
dealer for details.
35
8
OPTIONS
D About VS-1L vox/ptt case
The VS-1L is a VOX/PTT unit for Icom handheld transceivers, and
allows you hands-free operation.
An optional headset (HS-94, etc.) is additionally required for opera-
tion.
• The VOX (voice operated transmission) function starts transmission
without pushing PTT switch when you speak into the microphone;
then, automatically returns to receive when you stop speaking.
Features
➥ Straight type head SP/MIC plug equipped
➥ Water resistant construction
➥ Durable construction
➥ Equipped with a PTT switch and revolving clip.
MIC/VOX gain adjustment
1 Remove the water protection cover on the right side of the VS-1L.
2 Adjust the MIC/VOX gain with a thin screw driver. Clockwise rota-
tion increases the MIC/VOX gain.
3 Return the protective cover back to the MIC/VOX gain adjustment
hole.
VS-1L
VOX
PTT
Adjusting pot
Water protection cover
PTT switch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
36
9FCC INFORMATION
• FOR CLASS B UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
MEMO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
MEMO
MEMO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
MEMO
MEMO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
A-6768H-1EX-q
Printed in Japan
© 2009 Icom Inc.
Printed on recycled paper with soy ink.
