iA110
VHF AIR BAND TRANSCEIVER
INSTRUCTION MANUAL
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
condition that this device does not cause
harmful interference.
CAUTIONS
i
R WARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
Hearing experts advise against continuous high volume op-
eration. If you experience a ringing in your ears, reduce the
volume level or discontinue use.
NEVER connect the transceiver to an AC outlet or to a
power source of more than 27.5 V DC. Such a connection
will damage the transceiver.
NEVER connect the transceiver to a power source that is
DC fused at more than 5 A. Accidental reverse connection
will be protected by this fuse, higher fuse values will not give
any protection against such accidents and the transceiver will
be ruined.
DO NOT operate the transceiver near unshielded electrical
blasting caps or in an explosive atmosphere.
DO NOT connect the transceiver to a power source using
reverse polarity. This connection will not only blow fuses but
also may damage the transceiver.
DO NOT place unit in a non-secure place to avoid inadvert-
ent use by children.
FOREWORD
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This in-
struction manual contains important operating instructions for
the IC-A110.
EXPLICIT DEFINITIONS
The explicit definitions below apply to this instruction man-
ual.
WORD DEFINITION
RWARNING!
CAUTION
NOTE
Personal injury, fire hazard or electric shock
may occur.
Equipment damage may occur.
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United states, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
DO NOT push [PTT] when not actually desiring to trans-
mit.
DO NOT use or place the transceiver in direct sunlight or
in areas with temperatures below –30°C (–22°F) or above
+60°C (+140°F).
DO NOT place the transceiver in excessively dusty envi-
ronments.
DO NOT place the transceiver against walls. This will ob-
struct heat dissipation.
DO NOT use harsh solvents such as benzine or alcohol to
clean the transceiver, as they can damage the trans ceiver’s
surfaces.
BE CAREFUL! The transceiver will become hot when op-
erating continuously for long periods of time.
CAUTIONS
ii
FCC caution: Changes or modifications to this transceiver,
not expressly approved by Icom Inc., could void your authority
to operate this transceiver under FCC regulations.
TABLE OF CONTENTS
FOREWORD .......................................................................................... i
EXPLICIT DEFINITIONS ........................................................................ i
CAUTIONS ............................................................................................. i
TABLE OF CONTENTS ......................................................................... ii
1 PANEL DESCRIPTION ............................................................... 1–3
■ Panel description ..................................................................... 1–2
■ Function display ........................................................................... 3
2 BASIC OPERATION ................................................................... 4–5
■ Power ON .................................................................................... 4
■ Channel selection ......................................................................... 4
■ Squelch function ........................................................................... 5
■ Side tone function ......................................................................... 5
■ LCD backlight control.................................................................... 5
■ Dial select function........................................................................ 5
3 SCAN OPERATION .................................................................... 6–7
■ Scan operation ............................................................................ 6
■ ON-hook scan .............................................................................. 7
■ Dualwatch .................................................................................... 7
4 MEMORY PROGRAMMING ....................................................... 8–9
■ Programming a memory channel.................................................. 8
■ Memory names ............................................................................. 9
5 OTHER FUNCTIONS .............................................................. 10–11
■ Initial Set mode .......................................................................... 10
6 CONNECTION AND INSTALLATION .................................... 12–13
■ Rear panel and connections ...................................................... 12
■ Mounting .................................................................................... 13
■ Supplied accessories .................................................................. 13
7 CLONING ...................................................................................... 14
8 SPECIFICATIONS .................................................................. 15–16
9 OPTIONS ................................................................................. 17–18
■ OPC-871 Headset adapter ......................................................... 17
■ Other options .............................................................................. 17
10 FOR CLASS B UNINTENTIONAL RADIATORS ......................... 19
11 SAFETY TRAINING INFORMATION ........................................... 20
■ Panel description

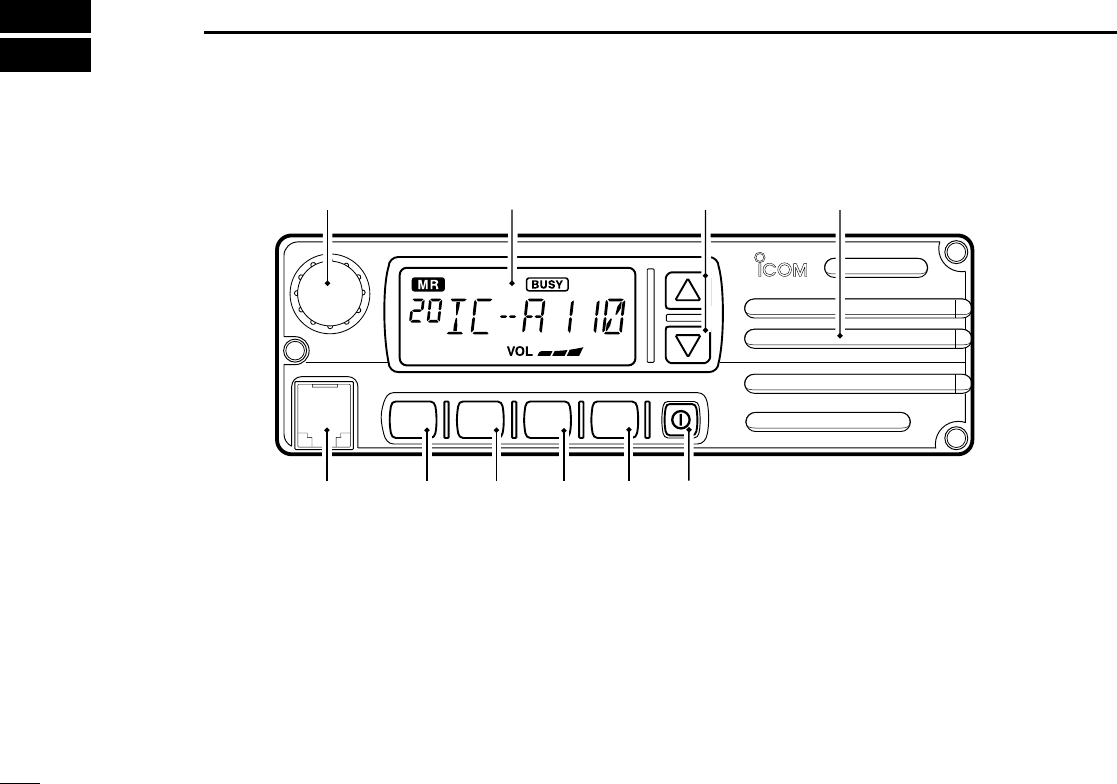

q TUNING [DIAL] [TS](DIAL)
➥ Changes the operating frequency; memory channel in
the Memory mode; set mode contents in the Set mode,
etc.
➥ Push to toggle the dimmer control OFF, Low or High.
➥ Hold down for 1 second to select the Tuning Step
[TS]; 1 MHz or 10 kHz are selectable. (p. 5)
w FUNCTION DISPLAY (p. 3)
Displays the operating frequency, memory channel name,
etc.
e VOLUME UP [Y] DOWN [Z] KEY
Adjusts the audio output level.
r LOUD SPEAKER
Front mounted loud speaker.
t POWER SWITCH [POWER]
Hold down 0.5 seconds to turn the power ON or OFF.
• At Power ON, the Initial Set mode (p. 10) or the Cloning mode
(p. 14) can optionally be selected.
1
1PANEL DESCRIPTION
V/M
SCAN
PRI SQL
!0
qwe
r
tyu
io
2
1
PANEL DESCRIPTION
y SQL SWITCH [SQL]
➥ Push to turn ON the squelch adjust mode. (p. 6)
➥ Hold down this switch for 1 second to turn the both in-
ternal and external speaker output ON or OFF. (p. 4)
u PRIORITY SWITCH [PRI]
Push to select the priority channel. (p. 11)
• “Pr” appears on the display.
i SCAN SWITCH [SCAN]
➥ Starts and stops the scan function:
• VFO mode: VFO scan function. (p. 6)
• Memory mode: Memory channel scan function. (p. 6)
➥ Hold down this switch for 5 seconds to set the displayed
channel as a memory lockout channel. (p. 8)
• “LOCK OUT” appears on the display.

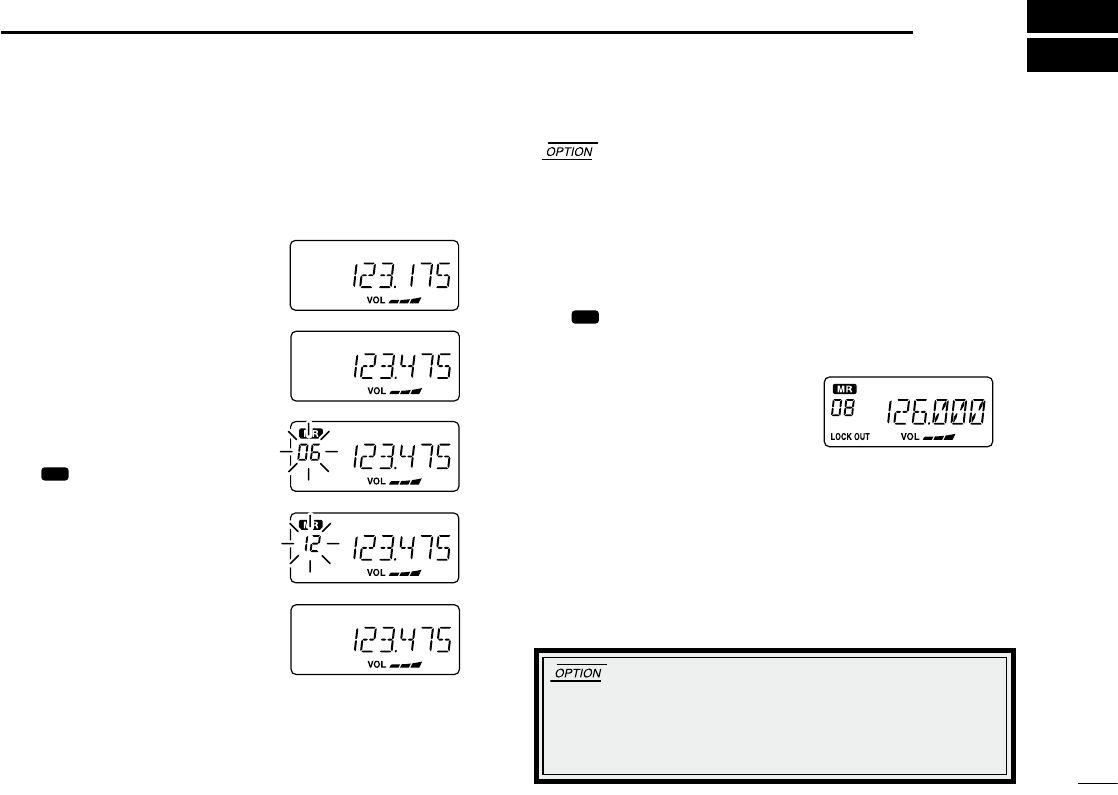

o VFO/MEMORY SWITCH [V/M] [MW](V/M)
➥ Push to toggle between the VFO mode and the Memory
mode. (p. 4)
• “X” and memory channel number appear when the Mem-
ory mode is selected.
• The transceiver has 99 memory channels.
➥ When the VFO mode is selected;
• Hold down this switch for 5 seconds to enter the VFO fre-
quency into the memory channel. (p. 8)
➥ When the Memory mode is selected;
• Hold down this switch for 5 seconds to turn ON the “Memory
name write mode.”
!0 MICROPHONE CONNECTOR
Connects to the supplied microphone or optional.
NEVER connect other microphones. The pin assignments
may be different and the transceiver may be damaged.
MICROPHONE
The supplied microphone has a PTT switch and a cradle.
The following functions are available when the microphone is
taken off the hook or put back on the hook:
➥ Automatic scan starts when the microphone is put ON Hook.
(p. 7)
➥ Automatic scan stops when the microphone is taken OFF Hook.
(p. 7)
NOTE: Optional functions vary with transceiver version.
In this manual, optional functions are indicated by an
“” Icon.
Please contact your dealer for details.
3
1PANEL DESCRIPTION
■ Function display

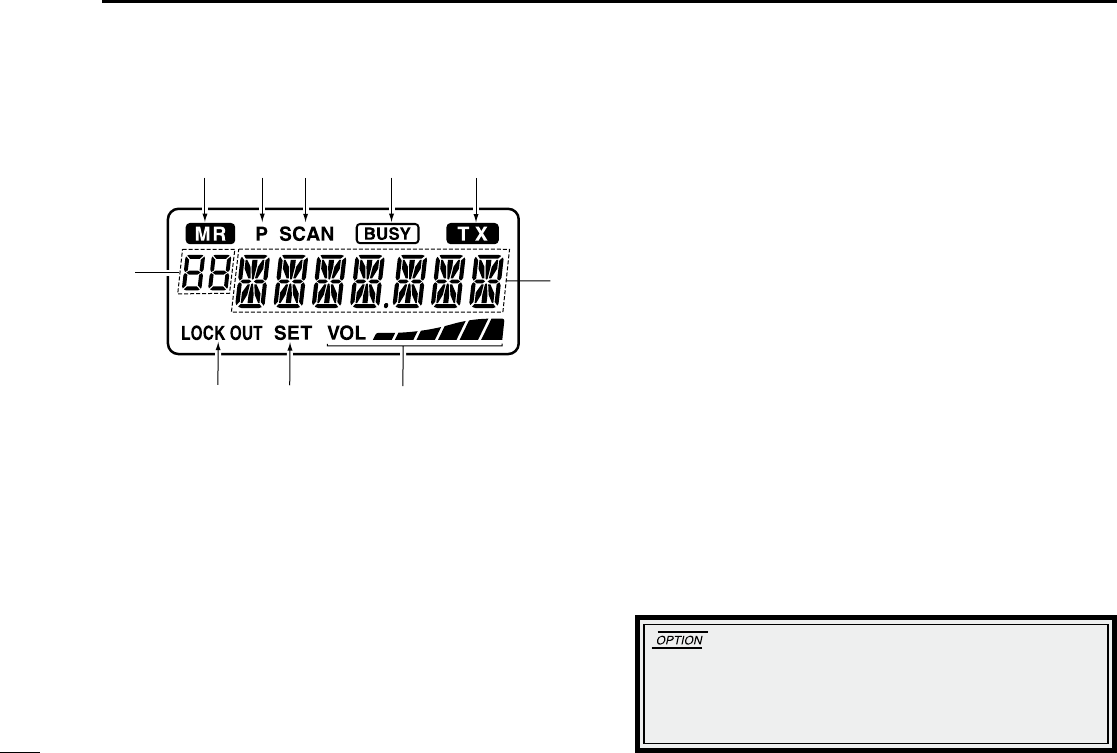

q MEMORY MODE INDICATOR (p. 5)
Appears when the Memory mode is selected.
w DUALWATCH INDICATOR (p. 7)
Appears when the dualwatch function is activated.
e SCAN INDICATOR (p. 8)
Appears when the scan function is selected.
r BUSY INDICATOR (p. 6)
“BUSY” appears when receiving a signal or when the
squelch is open. (p. 6)
t TX INDICATOR (p. 5)
Appears while transmitting.
y FREQUENCY DISPLAY (p. 11)
➥Shows the operating frequency.
➥ Shows the channel name when the memory name func-
tion is selected. (p. 10)
u VOLUME LEVEL INDICATORS
➥ Shows the AF volume level (while receiving).
i SET MODE INDICATOR
➥ Appears when the Initial Set mode is selected. (p. 12)
o LOCK OUT INDICATOR
➥ Appears when the channel is set as a ‘LOCK OUT’
channel. (p. 8)
!0 MEMORY CHANNEL INDICATOR
➥ Displays the selected memory channel number
➥ ‘Pr’ appears when the priority channel is selected.
*NOTE: The VFO/memory switch [V/M] and the memory
write switch [MW](V/M) functions may not be available,
depending on the version.
wqrt
!1
e
oiu
y
4
2
BASIC OPERATION
■ Power ON
q Push [POWER] to turn ON the power.
w Operate the transceiver as described in the following sec-
tions.
e Select the desired memory channel (or VFO frequency)
with the [V/M] keys.
• When receiving a signal, appears and audio is heard
from the speaker.
• Further adjustment of the audio level may be necessary at this
point.
• Push [SQL] to adjust the squelch level. (p. 6)
• Hold down [TS](DIAL) for 1 second to select the tuning step.
1 MHz or 10 kHz are selectable. (p. 7)

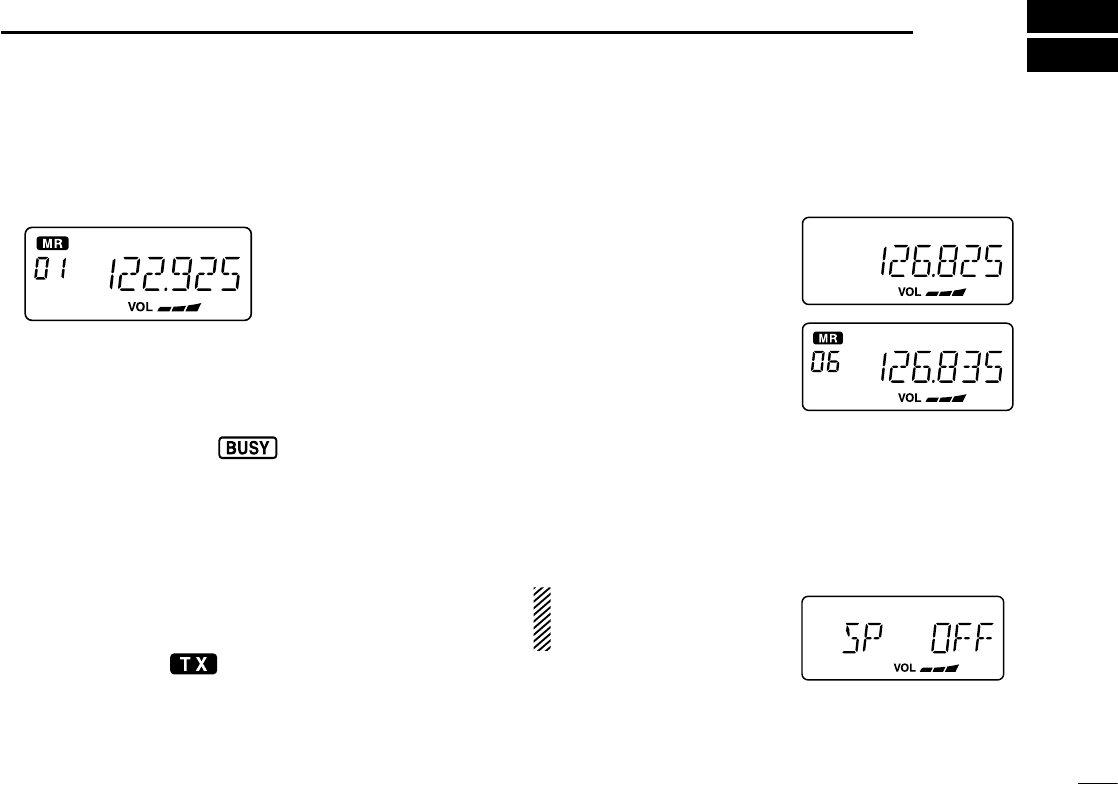

r Hold down [PTT] to transmit, then speak into the micro-
phone at your normal voice level.
• Transmit indicator lights.
t Release [PTT] to receive.
■ Channel selection
ï VFO/Memory selection
Push [V/M] to select the Memory
mode or the VFO mode.
➥ Rotate [DIAL] to select a de-
sired frequency or channel.
ï External speaker output control
External speaker output can be turned OFF, if desired.
q Hold down [SQL] for 1 second.
w Rotate [DIAL] to select “SP OFF”.
e Push [SQL] to return to the previous mode.
NOTE: This function is avail-
able for both internal and ex-
ternal speakers.
5
2BASIC OPERATION
■ Squelch function
The transceiver has a noise squelch circuit to mute undesired
noise while receiving no signals.
D Setting the squelch level
q Push [SQL] to turn ON the level adjusting mode.
w Rotate [DIAL] to select the squelch level.
• ‘SQ 01’ is loose squelch and ‘SQ 25’ is tight squelch.
(Initial level is ‘SQ 01’)
• ‘SQ 01’ indicates that the squelch circuit is turned off.
• “ ” appears on the display.
e Push [SQL] to return to regular operation.
■ Side tone function
When using an optional headset, such as those from the
David Clark Co. using the OPC-871 HEAD SET ADAPTER, the
transceiver outputs your transmitted voice to the headset for
monitoring. (p. 17)
■ LCD backlight control
The backlight of the LCD can be set to OFF, Low or High.
➥ Push [DIAL] to toggle the backlight control; OFF, Low or
High are selectable.
■ Dial select function
Use the dial select function to adjust the tuning steps of the
[DIAL] keys. Use 1 MHz tuning when you want to change the
frequency in large increments; use regular tuning (25 kHz or
8.33 kHz) when you want to change the frequency in smaller
increments.
q Push [V/M] to select VFO
mode.
w Hold down [TS](DIAL) for 1
second to select the desired
tuning increment.
• 1 MHz tuning or regular
tuning steps can be se-
lected. (see the diagrams
to the right)
e Hold down [TS](DIAL) for 1
second to return to normal
operation.
NOTE: Large tuning steps should be used only when you
want to change the frequency in large increments. Please
select regular tuning steps for normal operation.
1 MHz tuning selected
Regular tuning selected
6
3
SCAN OPERATION
■ Scan operation
q Push [V/M] to select the Memory mode or the VFO mode,
if necessary.
• “
MR
” appears when in the Memory mode.
w Make sure the squelch level is set to the threshold point.
• Set the squelch level (01 to 25) where the noise is just muted.
e Push [SCAN] to start the scan.
• To change the scan direction, turn [DIAL].
• “SCAN (or P SCAN)” ashes while scanning.
r Push [SCAN] again to stop the scan.
NOTE: Normal scan or Priority scan is pre-programmed
by cloning. Please ask your dealer or system operator for
details.
ï NORMAL SCAN
• Memory lock scan
Repeatedly scans memory
channels except skip (lockout)
channels.
• VFO scan
Repeatedly scans all
frequencies over the entire
band.
Scan step is minimum
channel spacing. (eg 25
kHz or 8.33 kHz)
ï PRIORITY SCAN
• Priority memory scan
While scanning in the
Memory mode, priority
watch checks for a signal on
the selected priority channel
every 250 msec., and skips
the lockout channel(s).
Mch 2*
Mch 1
Mch 3
Mch 99
250 msec.
SKIP
*: Lockout ch
Priority
ch
Mch 2*
Mch 1
Mch 3
Mch 99
250 msec. 250 msec.
SKIP
*: Lockout ch
7
3SCAN OPERATION
■ ON–Hook scan
An ON–Hook scan (Hanger scan) stops when taking the
microphone off its hanger (OFF–Hook) and resumes when
putting it back on the hanger (ON–Hook).
➥ Push [SCAN] to start scanning.
• When a signal is received, the scan pauses until the signal dis-
appears.
• The scan resumes 2 seconds after the signal disappears, unless
you pushed [PTT] and transmitted.
• Take the microphone off the hanger to stop the scan.
• Put the microphone back on the hanger to resume scan-
ning.
When you take the microphone OFF Hook during the scan
operation.
• In VFO scan;
the scan stops on the last frequency that was scanned.
• In memory scan;
the scan stops on the last memory channel that was
scanned.
• In priority memory scan;
the scan stops on the priority channel.
NOTE: Be sure to connect the supplied microphone
hanger to the vehicle’s ground for ON and OFF Hook mi-
crophone functions. (p. 12)
■ Dualwatch
Dualwatch monitors the priority channel while you are
receiving another channel (VFO or memory channel).
• If a signal is received on the
priority channel, dualwatch
pauses on the priority chan-
nel until the signal disap-
pears.
• To transmit on the selected
channel during dualwatch,
hold down [PTT].
See page 11 for details of the priority channel setting.
ï Operation
q Select the desired operating channel (VFO or Memory
channel).
w Hold down [PRI] for 1 second to start dualwatch.
‘P’ blinks during dualwatch.
e To cancel dualwatch, push [PRI] again.
VFO
frequency
or
memory
channel
Priority
channel
5 sec.
250 msec.
8
4
MEMORY PROGRAMMING
D Setting lockout channels
In order to speed up the scan periods, you can set memory
channels you don’t wish to be scanned as lockout channels.
q Push [V/M] to select the Memory mode, if necessary.
• “
MR
” appears.
w Rotate [DIAL] to select a memory channel to set as a lock-
out channel.
e Hold down [SCAN] for 5 sec-
onds to toggle the lockout
setting ON or OFF.
• “LOCK OUT” appears when
the channel is set as a lockout
channel.
The transceiver has 99 memory channels for storage of of-
ten-used frequencies.
q Push [V/M] to select the VFO
mode, if necessary.
w Rotate [DIAL] to select the
desired frequency.
• Push [TS](DIAL) one or more
times to use the dial select
function, if desired.
e Hold down [MW](V/M) for 5
seconds to enter memory
programming mode.
• “
MR
” and memory channel
number appear.
r Rotate [DIAL] to select the
desired memory channel
number.
t Hold down [MW](V/M) for 1
second to program the infor-
mation into the channel and
return to VFO mode.
• To clear the memory informa-
tion, hold down [SQL] for 1 sec-
ond.
MR
MR
MR
BUSY
SKIP
50
*NOTE: The VFO/memory switch [V/M] and the memory
write switch [MW] functions may not be available, de-
pending on version.
Memory channel 8 is set
as a lockout channel.
■ Programming a memory channel
9
4MEMORY PROGRAMMING
■ Memory names
ï Programming memory names
q Select the memory channel to be programmed:
➥ Push [V/M] to select the Memory mode.
➥ Rotate [DIAL] to select the memory channel.
w Hold down [MW](V/M) for 5 seconds to enter memory
name writing mode.
• The rst digit blinks.
e Repeatedly rotate [DIAL] to select the desired character.
• To erase a character, overwrite with a space (displayed as _).
• To move the cursor forwards or backwards, push [Y] or [Z].
• Hold down [SQL] for 2 seconds to erase all characters.
r Hold down [MW](V/M) for 1 second to input the entered
name.
• The character stops blinking.
• Memory channels can be programmed with names of up to 7
characters in length.
• When no name is programmed, the display shows the operating
frequency.
NOTE: Push [PTT] to cancel the memory name programming.
• The following characters can be used in names:
➥ 0 to 9, A to Z (capitals), (space), $, %, ’, (, ), ✽, +, “ , ”,
–, /, <, =, >, ?, @, [, \, ], ^, _ and `.
V/M
for 5 sec.
V/M
for 1 sec.
+or

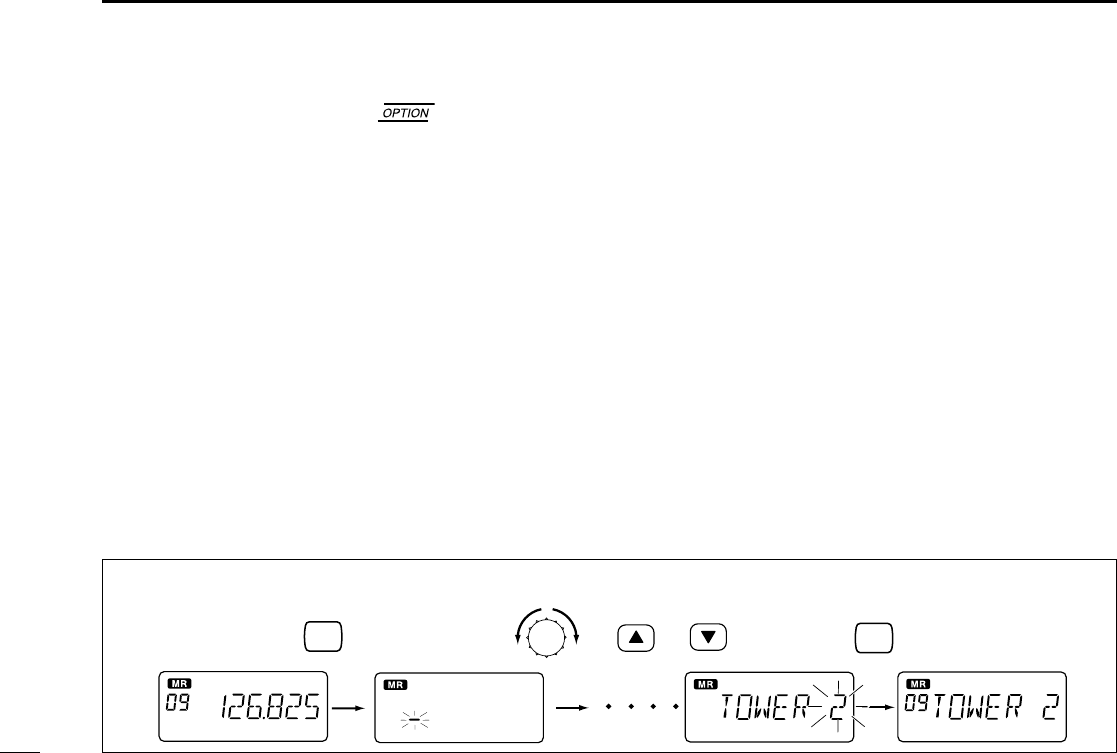

[EXAMPLE]: Setting the name to “TOWER 2”
5
OTHER FUNCTIONS
10
■ Initial Set mode
The Initial Set mode is entered at Power ON and allows
you to set seldom-changed settings. In this way you
can “customize” the transceiver operations to suit your
preferences and operating style.
D Entering Initial Set mode
q While holding down [V/M] + [TS](DIAL), push [POWER] to
turn ON the power.
• The transceiver enters the Initial Set mode and “MN”, “BP”, “ST”
or “PR” (p. 11) appears on the display.
w Push [TS](DIAL) to select the
desired item as described below
and to the right.
e Rotate [DIAL] to select the de-
sired option or setting.
r Push [SCAN] to exit the Initial
Set mode and return to the pre-
vious operating mode.
D Memory names
This item allows you to display a memory name instead of
the frequency.
• When a memory channel has not been programmed with a
name, the frequency appears instead.

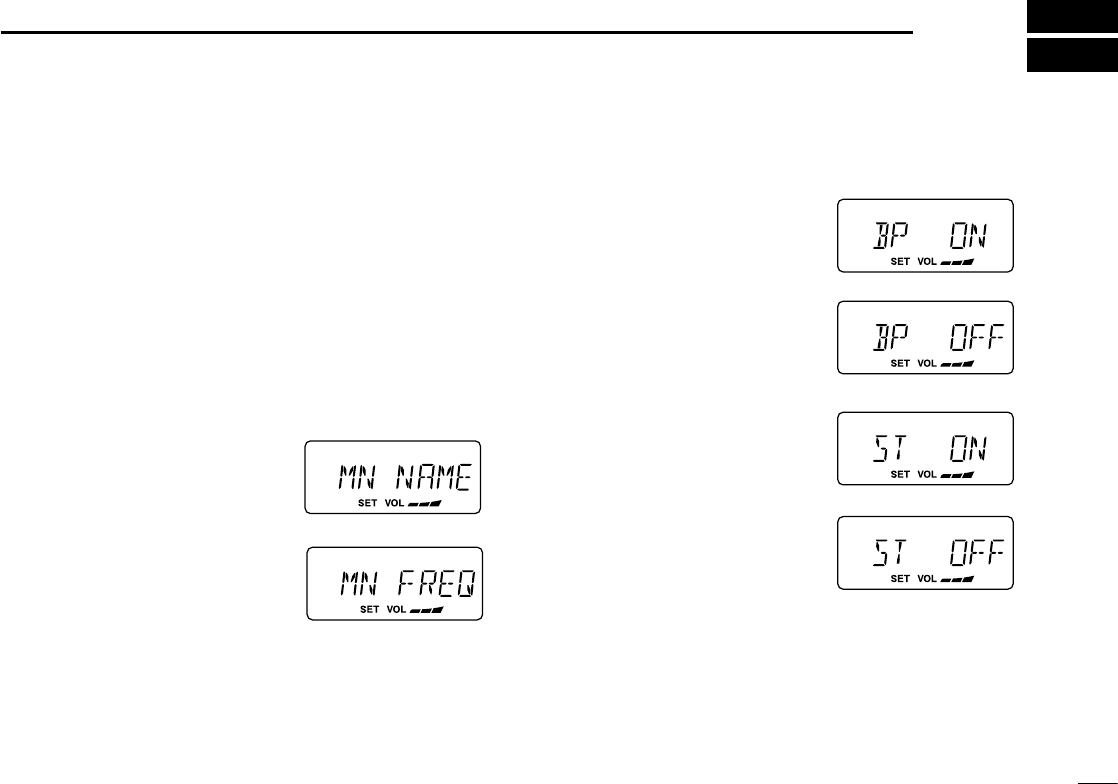

D Beep tones ON/OFF
Confirmation beep tones normally
sound when you push a key.
These can be turned ON or OFF,
as you prefer.
D Side tones ON/OFF
When using an optional head-
set such as those from the David
Clark Co. using an the adapter,
the transceiver outputs your trans-
mitted voice to the headset for
monitoring.
•  Optional OPC-871 HEADSET
ADAPTER is required.
OTHER FUNCTION
5
11
D Priority channel
The priority channel is used to store your most often-used
channel for quick recall. In addition, the priority channel is
monitored during priority scan modes. The default setting for
the priority channel will differ, depending on pre-program-
ming.
➥ Push [PRI] to toggle the prior-
ity channel mode or the previ-
ous mode.

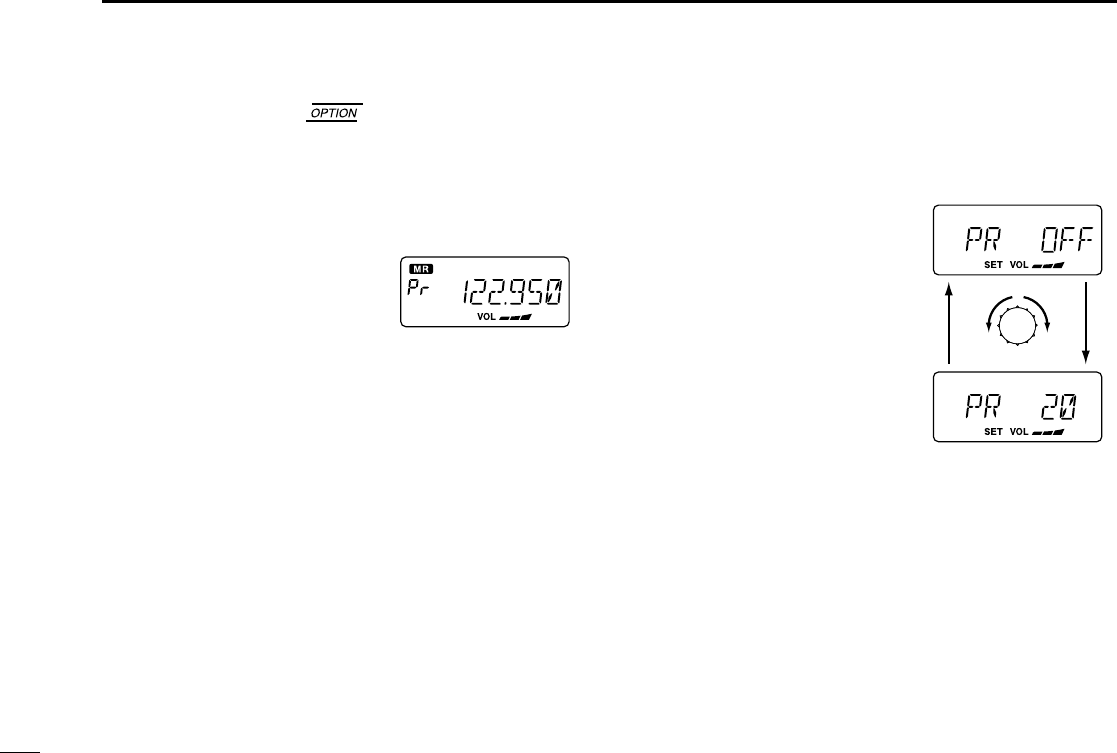

• Setting the priority channel
q While holding down [V/M] and [TS](DIAL), push [POWER]
to turn ON the power.
• The transceiver enters the
Initial Set mode.
w Push [TS](DIAL) to select
the priority channel Set
mode.
e Rotate [DIAL] to select the
desired channel number as
a priority channel or OFF.
r Hold down [POWER] to
turn OFF the power.
NEVER select the blank memory channel as the priority
channel. In such a case the priority function is automatically
set to the OFF position.
6
CONNECTION AND INSTALLATION
12
■ Rear panel and connections
q Connects to an antenna
Ask your dealer about antenna selection and best installa-
tion location. (Standard 50 Ω antenna with an SWR <3.0)
w MICROPHONE HANGER
Connect the supplied microphone hanger to the vehicle’s
ground to use the hanger scan function when hanging or
removing the microphone.
e DC POWER RECEPTACLE
Connects to a 12 or 24 V DC battery. Pay attention to
polarities. NEVER connect to a over 27.5 V battery. This
could damage the transceiver.
r EXTERNAL SPEAKER JACK
Connect an 8 Ω, 30 W (Min.) external speaker, if desired.
CAUTION: DO NOT use an external speaker whose
power input rating is less than 30 W or whose impedance
is less than 8 Ω. Using a speaker of less than 30 W power
rating, or less than 8 Ω impedance, could cause damage
to the external speaker or to the transceiver itself.
t OPC-871 OPTIONAL HEADSET ADAPTER
Connect an optional headset. (See p. 17)
w
q
e
r
t
black: _
red: +
External speaker jack
OPC-871 HEADSET
ADAPTER (Option)
Antenna
Supplied DC
power cable
12 V or 24 V
Battery
13
6CONNECTION AND INSTALLATION

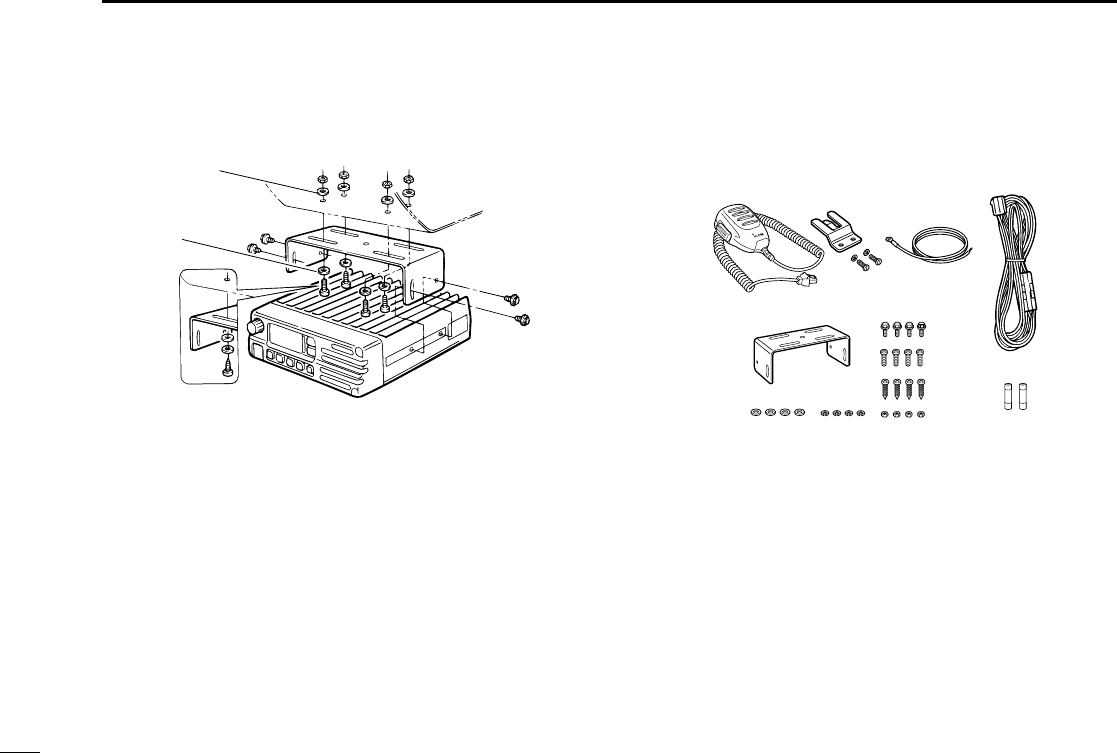

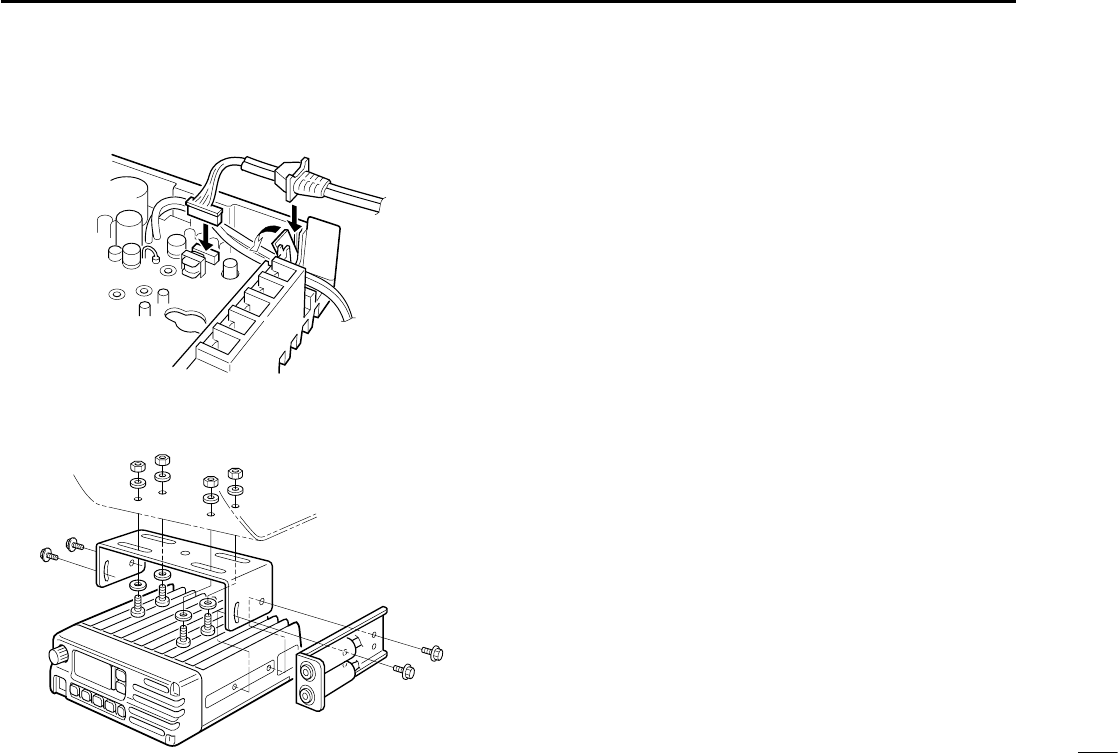

■ Mounting
The universal mounting bracket supplied with your trans-
ceiver allows overhead or dashboard mounting. Please read
the following instructions carefully.
• Mount the transceiver securely with the 4 supplied screws
(M5 × 20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is
at 90˚ to your line of sight when operating.
■ Supplied accessories
q Microphone �������������������������������������������������������������������������������� 1
w Microphone hanger and screw set ��������������������������������������� 1 set
e Microphone cable ����������������������������������������������������������������������� 1
r DC power cable (OPC-344) ������������������������������������������������������� 1
t Mounting bracket ����������������������������������������������������������������������� 1
y Bracket bolts ������������������������������������������������������������������������������ 4
u Mounting screws (M5 × 12) �������������������������������������������������������� 4
i Self-tapping screws (M5 × 20) ��������������������������������������������������� 4
o Flat washers �������������������������������������������������������������������������������� 4
!0 Spring washers �������������������������������������������������������������������������� 4
!1 Nuts �������������������������������������������������������������������������������������������� 4
!2 Fuses (10 A) ������������������������������������������������������������������������������ 2
qw
e
r
t
y
u
i
o!0 !1 !2
Flat washer
Spring washer
When using
self-tapping screws
14
7
CLONING
D Data cloning
Cloning allows you to quickly and easily
transfer the programmed contents from one transceiver to
another transceiver or data from a PC to a transceiver using
the optional CS-A110/EURO cloning software.
D Transceiver to transceiver cloning
q Connect the OPC-591 CLONING CABLE with adapter plugs to
the [MIC] jack of the master and sub-transceivers.
• The master transceiver is used to send data to the sub-trans-
ceiver.
w While holding down [Y] + [Z] + [V/M], push [POWER] to
enter cloning mode (master transceiver only —power ON
only for sub-transceiver).
• “CLONE” appears and the
transceivers enter the clone
standby mode.
e Push [POWER] on the mas-
ter transceiver.
• “CL-OUT” appears in the
master transceiver’s dis-
play.
• “CL-IN” appears automati-
cally in the sub-transceiver’s
display.
e When cloning is finished, turn
power OFF, then ON again
to exit the cloning mode.
D Cloning using PC
Data can be cloned to and from a PC using the optional
CS-A110/EURO CLONING SOFTWARE and the optional OPC-478
CLONING CABLE+ OPC-592 CLONING CABLE ADAPTER. Consult the CS-
A110/EURO CLONING SOFTWARE HELP message for details.
D Cloning error
When the display to the right
appears, a cloning error has oc-
curred.
In this case, both transceivers automatically return to the
clone standby mode and cloning must be repeated.
]
15
SPECIFICATIONS
8
D General
• Frequency coverage : 118 to 136.975 MHz
• Channel spacing : 25 kHz or 25/8.33 kHz
• Mode : AM (6K00A3E/5K6A3E)
• Number of memory channels : 99
• Acceptable power supply : 13.75† V or 27.5† V DC
(negative ground) †Automatic selection
• Usable temp. range : –30˚C to +60˚C
• Frequency stability : ±5 ppm
• Current drain
(at 13.75 V DC)
:
Tx 5 A (max.)
Rx 4 A ( at AF max.)
0.5 A (at STANDBY)
• Dimensions : 150 (W) ✕ 50 (H) ✕ 180 (D) mm
(projections not incl.)
5.9(W) ✕ 2(H) ✕ 7.1(D) in
• Weight (approximately) : 1.5 kg; 3 lb 5 oz
D Transmitter
• Output power : 36 W (pep) typical
9 W (carrier) typical
• Modulation : Last Stage modulation
• Modulation limiting : 70% to 100%
• Audio harmonic distortion : Less than 10%
(at 85 % modulation)
• Hum and noise ratio : More than 40 dB
• Spurious emissions : –16dBm or less
• Antenna impedance : Standard 50 Ω with SWR <3
D Receiver
• Receive system : Double conversion
superheterodyne
• Intermediate frequencies : 1st 38.85 MHz
2nd 450 kHz
• Sensitivity (at 6 dB S/N) : Less than 1 µV (pd)
• Squelch sensitivity : Less than 0.35 µV (pd)
(at threshold)
• Selectivity
25 kHz ch. spacing : More than ±8 kHz (at –6 dB)
Less than ±17 kHz (at –40 dB)
Less than ±25 kHz (at –60 dB)
8.33 kHz ch. spacing More than ±2.778 kHz (at –6 dB)
Less than ±7.37 kHz (at –60 dB)
• Spurious response rejc, : More than 74 dBµ
• Audio output power : More than 10 W (at 13.75 V
DC with 8 Ω load 60% MOD.
10% distortion)
Side tone More than 100 mW (with 500 Ω
load 60% MOD. 10% distortion)
• Hum and noise : More than 25 dB
• Audio output impedance : Ext. SP 8 Ω
Side tone 500 Ω
All stated specifications are subject to change without notice
or obligation.
16
8
SPECIFICATIONS (VFO CHANNEL ID LIST)
• Channel spacing: 25 kHz (Actual frequency is displayed.)
Operating Frequency
(MHz)
Channel spacing
(kHz)
Channel ID
(Displayed Frequency)
118.0000 25 118.000
118.0250 25 118.025
118.0500 25 118.050
118.0750 25 118.075
118.1000 25 118.100
• Channel spacing: 8.33 kHz
Operating Frequency
(MHz)
Channel spacing
(kHz)
Channel ID
(Displayed Frequency)
118.0000 8.33 118.005
118.0083 8.33 118.010
118.0167 8.33 118.015
118.0250 8.33 118.030
118.0333 8.33 118.035
118.0417 8.33 118.040
118.0500 8.33 118.055
118.0583 8.33 118.060
118.0667 8.33 118.065
118.0750 8.33 118.080
118.0833 8.33 118.085
118.0917 8.33 118.090
118.1000 8.33 118.105
• Channel spacing: 25/8.33 kHz auto selection mode
Operating Frequency
(MHz)
Channel spacing
(kHz)
Channel ID
(Displayed Frequency)
118.0000 25 118.000
118.0000 8.33 118.005
118.0083 8.33 118.010
118.0167 8.33 118.015
118.0250 25 118.025
118.0250 8.33 118.030
118.0333 8.33 118.035
118.0417 8.33 118.040
118.0500 25 118.050
118.0500 8.33 118.055
118.0583 8.33 118.060
118.0667 8.33 118.065
118.0750 25 118.075
118.0750 8.33 118.080
118.0833 8.33 118.085
118.0917 8.33 118.090
118.1000 25 118.100
118.1000 8.33 118.105
These tables show just the display example between 118.0000 MHz
and 118.1000 MHz, not show all frequencies in the band.
17
9OPTIONS
■ OPC-871 Headset adapter
When using a headset (supplied from 3rd party) with an
adapter, the transceiver outputs your transmitted voice to the
headset for monitoring. (pp. 5, 10)
D Installation
The optional OPC-871 HEADSET ADAPTER is installed as
follows.
q Turn OFF the power, then disconnect the DC power
cable.
w Unscrew the 4 screws, then remove the bottom cover. (Fig. 1)
e Insert the connector as shown below. (Fig. 2)
r Mount the phone plug attachment together with the mobile
mounting bracket with 2 supplied screws. (Fig. 3)
HEADSET
( Purchase sepa-
rately.)
PTT switch
Use a PTT switch with a
3.5 mm diameter plug, if
required.
D Connection
Fig. 1
18
9
OPTIONS
• Use the upper side mounting hole.
• You can mount the attachment on either side of the trans-
ceiver.
• Bend the plastic dust cover down before installing the strain
relief into the notch.
Fig. 2
Fig. 3
■ Other options
OPC-871 HEADSET ADAPTER (See pp. 17–18)
CS-A110/EURO
CLONING SOFTWARE
Provides quick and easy programming of items, including pri-
vate channels, scan settings, etc. to the transceiver, using a
PC.
OPC-478
CLONING CABLE
OPC-592
CLONING CABLE ADAPTER
These three components work as one set and provide for quick
and easy programming of items, including memory channels,
memory names and set mode contents, etc. with a PC.
OPC-591
CLONING CABLE
Cloning cable for transceiver to transceiver cloning. Very con-
venient to transfer of programmed contents from one transceiver
to another.
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with equipment
that is not manufactured or approved by Icom.
19
10 FOR CLASS B UNINTENTIONAL RADIATORS
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in ac-
cordance with the Instructions, may cause harmful interfer-
ence to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and re-
ceiver.
• Connect the equipment into an outlet on a circuit differ-
ent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
20
11
SAFETY TRAINING INFORMATION
Your Icom radio generates RF electromag-
netic energy during transmit mode. This
radio is designed for and classified as “Oc-
cupational Use Only”, meaning it must be
used only during the course of employment
by individuals aware of the hazards, and the
ways to minimize such hazards. This radio is
NOT intended for use by the “General Popu-
lation” in an uncontrolled environment.
• For compliance with FCC and Industry Canada RF Expo-
sure Requirements, the transmitter antenna installation
shall comply with the following two conditions:
1. The transmitter antenna gain shall not exceed 0 dBi.
2. The antenna is required to be located outside of a vehicle
and kept at a distance of 38 centimeters or more between
the transmitting antenna of this device and any persons
during operation. For small vehicle as worst case, the an-
tenna shall be located on the roof top at any place on
the centre line along the vehicle in order to achieve 38
centimeters separation distance. In order to ensure this
distance is met, the installation of the antenna must be
mounted at least 38 centimeters away from the nearest
edge of the vehicle in order to protect against exposure
to bystanders.
To ensure that your exposure to RF elec-
tromagnetic energy is within the FCC al-
lowable limits for occupational use, always
adhere to the following guidelines:
• DO NOT operate the radio without a proper antenna at-
tached, as this may damage the radio and may also cause
you to exceed FCC RF exposure limits. A proper antenna is
the antenna supplied with this radio by the manufacturer or
an antenna specifically authorized by the manufacturer for
use with this radio.
• DO NOT transmit for more than 50% of total radio use time
(“50% duty cycle”). Transmitting more than 50% of the time
can cause FCC RF exposure compliance requirements to
be exceeded. The radio is transmitting when the “TX indica-
tor” appears. You can cause the radio to transmit by press-
ing the “PTT” switch.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF en-
ergy that can possibly cause interference with other devices
or systems. To avoid such interference, turn off the radio in
areas where signs are posted to do so. DO NOT operate the
transmitter in areas that are sensitive to electromagnetic ra-
diation such as hospitals, aircraft, and blasting sites.
WARNING
CAUTION
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
A-5616H-1EX-t
Printed in Japan
© 1999–2011 Icom Inc.
Printed on recycled paper with soy ink.

Navigation menu
