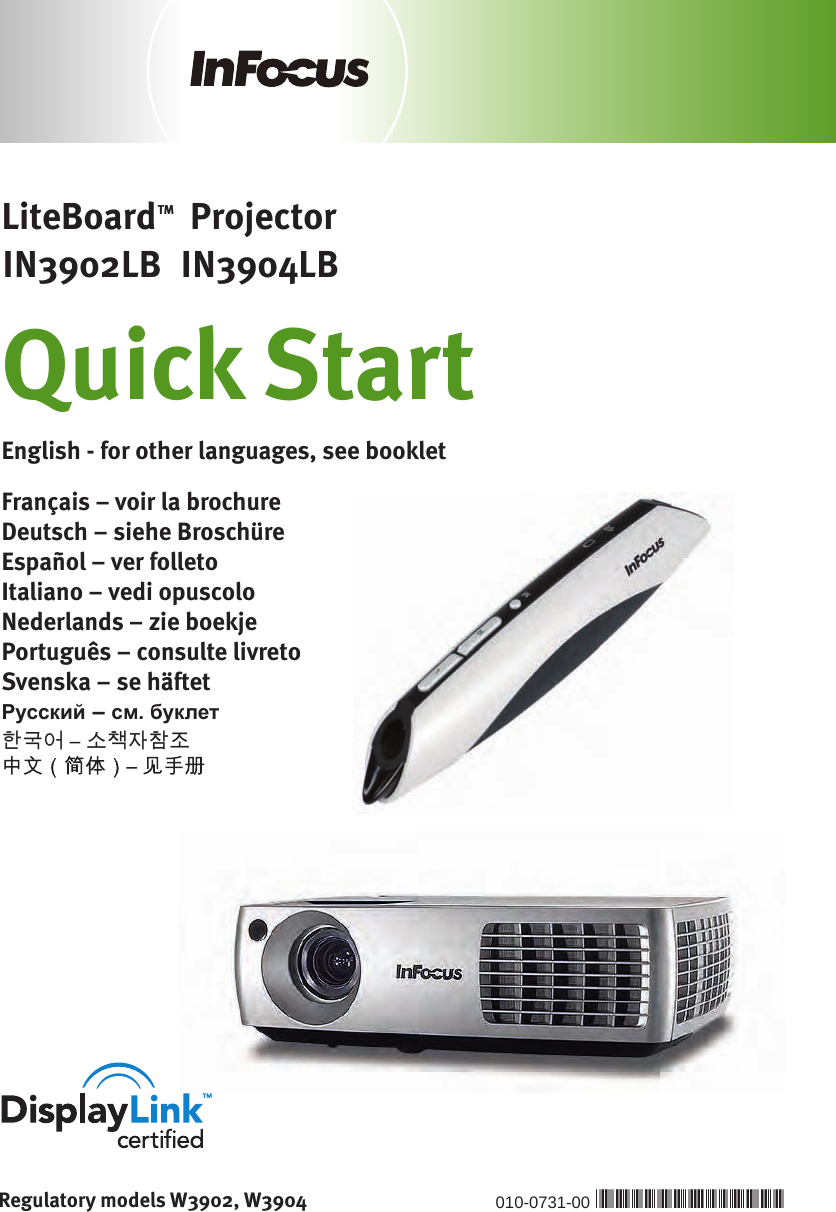

IN3902LB IN3904LBQuick StartEnglish - for other languages, see bookletFrançais – voir la brochureDeutsch – siehe BroschüreEspañol – ver folletoItaliano – vedi opuscoloNederlands – zie boekjePortuguês – consulte livretoSvenska – se häftetРусский – см. буклет한국어 – 소책자참조Regulatory models W3902, W3904LiteBoard ProjectorTM010-0731-00 *010-0731-00*

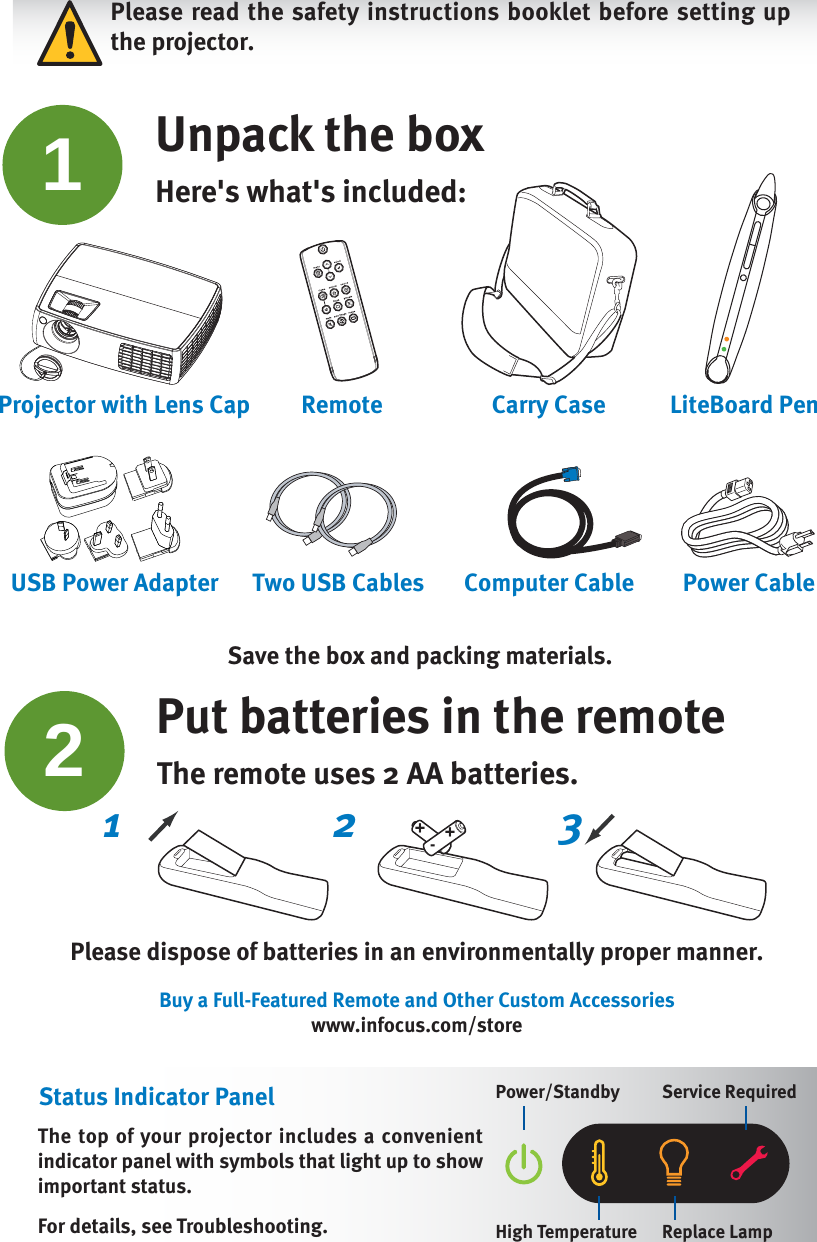

Please read the safety instructions booklet before setting up the projector.12Unpack the boxHere's what's included: Put batteries in the remoteThe remote uses 2 AA batteries.Please dispose of batteries in an environmentally proper manner.Buy a Full-Featured Remote and Other Custom Accessorieswww.infocus.com/storeThe top of your projector includes a convenient indicator panel with symbols that light up to show important status.For details, see Troubleshooting.Status Indicator Panel Power/Standby Service RequiredHigh Temperature Replace Lamp2 31 +-+Save the box and packing materials.Carry Case LiteBoard PenRemoteProjector with Lens CapPUSHTwo USB Cables Computer Cable Power CableUSB Power Adapter

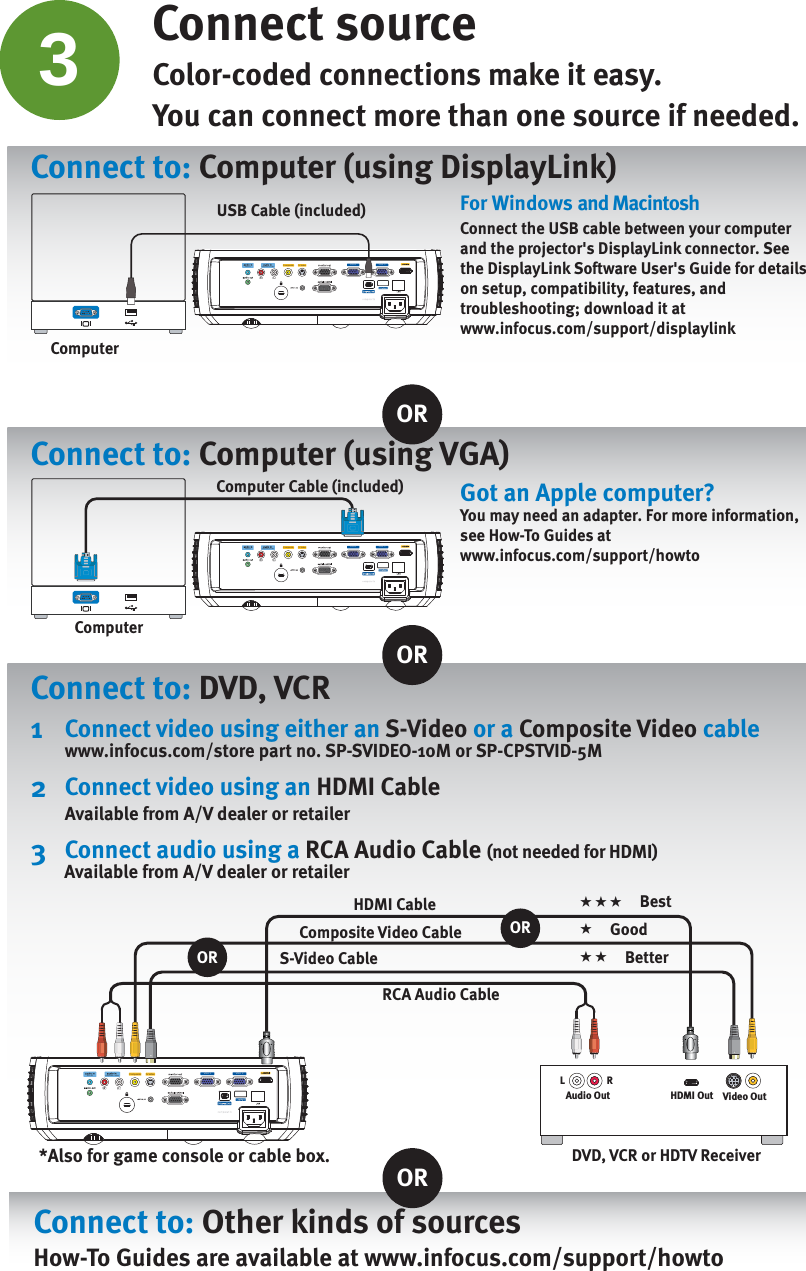

VGA 1/2 VGA 1 VGA 2composite s-video Composite S-Video VGA 1/2 VGA 1 VGA 2composite s-video Composite S-Video VGA 1/2 VGA 1 VGA 2composite s-video Composite S-Video 3Connect sourceColor-coded connections make it easy.You can connect more than one source if needed.Got an Apple computer?You may need an adapter. For more information, see How-To Guides at www.infocus.com/support/howtoConnect to: Computer (using DisplayLink)Connect to: DVD, VCRConnect to: Other kinds of sourcesHow-To Guides are available at www.infocus.com/support/howtoORComputerUSB Cable (included)ORAudio OutL RVideo OutHDMI OutDVD, VCR or HDTV ReceiverComposite Video Cable  Good BetterS-Video CableRCA Audio CableHDMI Cable  BestOR*Also for game console or cable box.ComputerComputer Cable (included)Connect to: Computer (using VGA)ORFor Windows and MacintoshConnect the USB cable between your computer and the projector's DisplayLink connector. See the DisplayLink Software User's Guide for details on setup, compatibility, features, andtroubleshooting; download it atwww.infocus.com/support/displaylinkOR1 Connect video using either an S-Video or a Composite Video cable www.infocus.com/store part no. SP-SVIDEO-10M or SP-CPSTVID-5M2 Connect video using an HDMI Cable Available from A/V dealer or retailer3 Connect audio using a RCA Audio Cable (not needed for HDMI) Available from A/V dealer or retailer
