Integrated Microwave Technologies 23GP2-L5 Video Booster Amplifier User Manual M13 0002 00A GoPac revDp4 MANUAL
Integrated Microwave Technologies, LLC. Video Booster Amplifier M13 0002 00A GoPac revDp4 MANUAL
Contents
- 1. Users Manual 1
- 2. Users Manual 2
- 3. Users Manual 3
- 4. Users Manual 4
Users Manual 4
Nucomm Inc.
101 Bilby Road
Hackettstown, NJ 07840
Tel: 908-852-3700 Fax: 908-813-0399
www.Nucomm.com
G
O
P
AC
Docking Station and Amplifier
User Manual
M13-0002-00A - REV D.4
GoPac
M13-0002-00A Rev D.4 2 User Manual
CAUTION!
RISK OF ELECTRICAL SHOCK. DO NOT REMOVE COVERS.
• Do not remove any covers.
• Refer servicing to qualified technicians only.
• Disconnect all power before servicing.
• Read and perform all instructions carefully. Failure to follow suggested instructions and
guidelines may void all warranties.
© Copyrighted 2007, Nucomm, Inc., Hackettstown, New Jersey 08740
FCC STATEMENT
This equipment has been tested and found to comply with Part 74.637 (a) (2) of
the FCC Rules and Regulations. Any unauthorized changes or modifications not
expressly approved by Nucomm, Inc. could void the user’s authority to operate
the equipment, and invalidate the equipment’s warranty.
Operation of this device is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device”.
RF Exposure Warning
This unit is a radio transmitter designed to permit, produce and emit RF radiation into an
antenna for the purpose of delivering RF to an appropriate receiving device.
The Maximum Permissible Exposure (MPE) limit for units of this type is 1.0mW/cm2. This
low-powered device will generally not create RF exposure in excess of the MPE limits issued
by the FCC (US) in OET Bulletin 65; 97-01, unless properly connected to an antenna, at which
time the radiated power can exceed the MPE limits.
Min. Allowable Distance from Antenna @
Antenna
Gain 5W Power 12W Power
0 dBi 20 cm 31 cm
5 dBi 35 cm 55 cm
16 dBi 126 cm 195 cm
30 dBi 631 cm 977 cm
The user is solely and exclusively responsible for determining the level of RF exposure when
connecting the unit to an antenna or other equipment, taking appropriate steps to limit RF
exposure, and for ensuring compliance with the FCC requirements in OET Bulletin 65.
GoPac
M13-0002-00A Rev D.4 3 User Manual
Proprietary & Disclaimer Notice
All information and graphic images herein contained within this manual are considered the sole
property of Nucomm, Inc. and is issued in the strictest of confidence. This material may not be
reproduced, stored, copied, or converted in any form, nor shall it be disclosed to others or used for
manufacturing or any other purpose without the written permission of an authorized
representative of Nucomm, Inc.
Nucomm, Inc. has made every effort to ensure the accuracy of this material at the time of printing.
However, as the specifications, equipment, and this manual are subject to change without notice,
Nucomm, Inc. assumes no responsibility or liability what so ever for any errors or inaccuracies
that may appear in this manual, or for any decisions based on its use. This manual is supplied for
informational purposes only and should not be construed as a commitment by Nucomm, Inc.
Warranty
Equipment manufactured by Nucomm, Inc. is warranted to meet all customer specifications and
to be free from defects in material and workmanship within a period of two years from date of
shipment from Nucomm. The company’s liability under this warranty is limited to:
• Servicing or adjusting equipment.
• Replacement of defective parts.
Any equipment returned to the factory shall have the freight paid for by the buyer.
Equipment showing damage by misuse, abnormal conditions of operation, or attempts to repair by
other than authorized service personnel shall be excluded from this warranty. Nucomm, Inc. shall
in no event be responsible for incidental injury or property damage. Since Nucomm, Inc. has no
control over conditions of use, no warranty is made or implied as to suitability for the customer’s
intended use, beyond such performance specifications as are made part of the purchase order.
There are no warranties expressed or implied, except as stated herein. This limitation on
warranties shall not be modified by verbal representations.
Shipping Damage
Equipment shipped FOB Nucomm, Inc.; shall become the property of buyer upon delivery to and
receipt from carrier. Any damage in shipment should be handled by the buyer directly with the
carrier. Immediately request the carrier’s inspection upon evidence of damage in shipment.
GoPac
M13-0002-00A Rev D.4 4 User Manual
Field Service
Nucomm products are designed with easy access to components to facilitate service. However, to
prevent voiding of the Nucomm warranty that protects the equipment, please contact Nucomm
before servicing or making any repairs. When troubleshooting, the user is cautioned to read all
module descriptions in this manual. Some Nucomm modules cannot be serviced in the field.
Warnings are included in the circuit descriptions and on certain modules themselves.
Replacement Modules
Troubleshooting to the component level is often not cost-effective and frequently impossible.
Often the practical method of effecting field repairs is to substitute known good spare modules for
suspect units. Nucomm maintains an inventory of replacement modules for its standard line of
products.
Customer Service Information
Telephone Consultation
Customer Service technicians at Nucomm are available to extend technical assistance to
customers installing, operating or troubleshooting Nucomm equipment
Should there be a need for telephone consultation, please have your model number and serial
number available for the Customer Service technician.
Contact Information
Telephone:
During Nucomm business hours, 8:30am – 5:30pm EST (-5:00 GMT):
US: ..........................................................................(908) 852-3700
International:...........................................................001 - 1 - (908) 852-3700
24-Hour Hotline:
US: ..........................................................................(888) 531-3892
International:...........................................................001 - 1 - (888) 531-3892
GoPac
M13-0002-00A Rev D.4 5 User Manual
Equipment Returns
If equipment cannot be successfully restored through telephone consultation, the equipment may
be returned to the factory for repair. Loaner equipment is often available until Nucomm is able to
return the repaired unit(s).
For out-of-warranty equipment only: Nucomm evaluates all returned units, and then confers with
the client on corrective action. If no fault is found, or no corrective action is authorized, a
diagnostic fee may be charged.
Do not return any Nucomm product to the factory until you have received a return material
authorization (RMA) number and shipping instructions from Nucomm.
When returning equipment to Nucomm, it is very helpful to enclose a letter containing the
following:
• RMA number.
• Model number.
• Serial number.
• Frequency operating range (especially when returning modules only).
• A detailed description of the problem.
• Name of an engineer or technician we may contact in regards to this problem.
• A “ship to” and “bill to” address.
Ship all returns to:
Nucomm, Inc
101 Bilby Rd
Hackettstown, NJ 07840, USA
Attn: RMA# (your RMA number)
(908) 852-3700
For International returns:
In addition to the instructions above, when shipping internationally Nucomm recommends the use
of a courier such as Federal Express, UPS, etc, and that the goods be shipped DOOR-TO-DOOR
PRE-PAID. This will reduce Customs costs, handling charges and delays. Enclose all the
information above, plus a statement that the equipment was manufactured in the United States
(the latter is needed to expedite customs processing).
GoPac
M13-0002-00A Rev D.4 6 User Manual
Table of Contents
1. Description & Features...................................................................................................9
1.1 Description.........................................................................................................9
1.2 Features..............................................................................................................9
2. Theory of Operation .......................................................................................................11
3. Specifications .................................................................................................................13
4. Installation......................................................................................................................15
4.1 Unpacking and Inspection..................................................................................15
4.2 Mechanical Installation ......................................................................................15
5. Operation........................................................................................................................19
5.1 CONTROLS AND INDICATORS ...................................................................19
5.2 POWER ON / OFF (1).......................................................................................19
5.3 RF MODE (2) ....................................................................................................19
5.4 STATUS LEDS (3)............................................................................................19
5.5 Power Up............................................................................................................19
5.6 NORMAL SCREEN ..........................................................................................19
5.7 RF SETUP..........................................................................................................20
5.8 RF OUPUT POWER..........................................................................................20
5.9 ALARMS ...........................................................................................................20
Figures

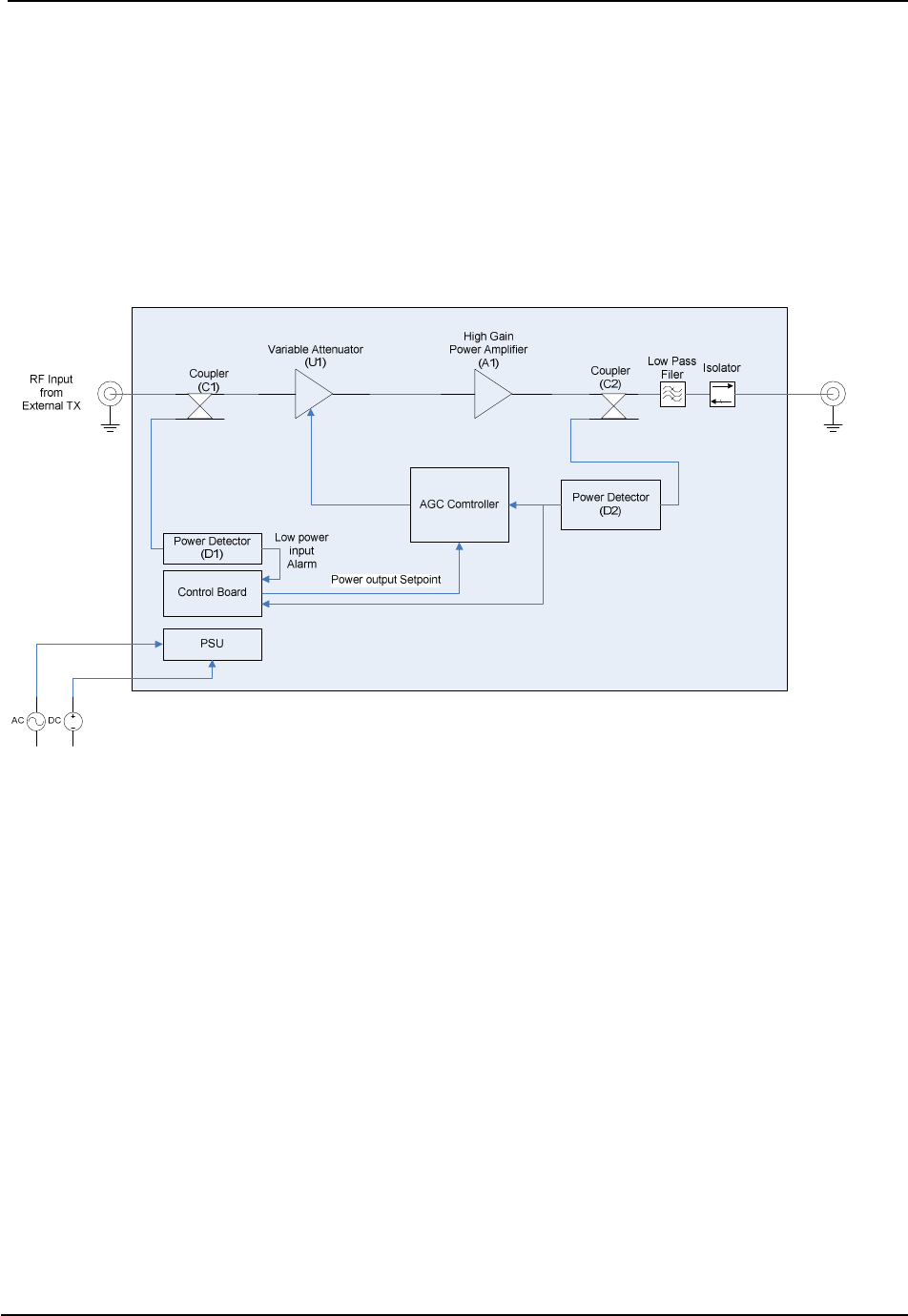

Figure 1: System Block Diagram...........................................................................................12

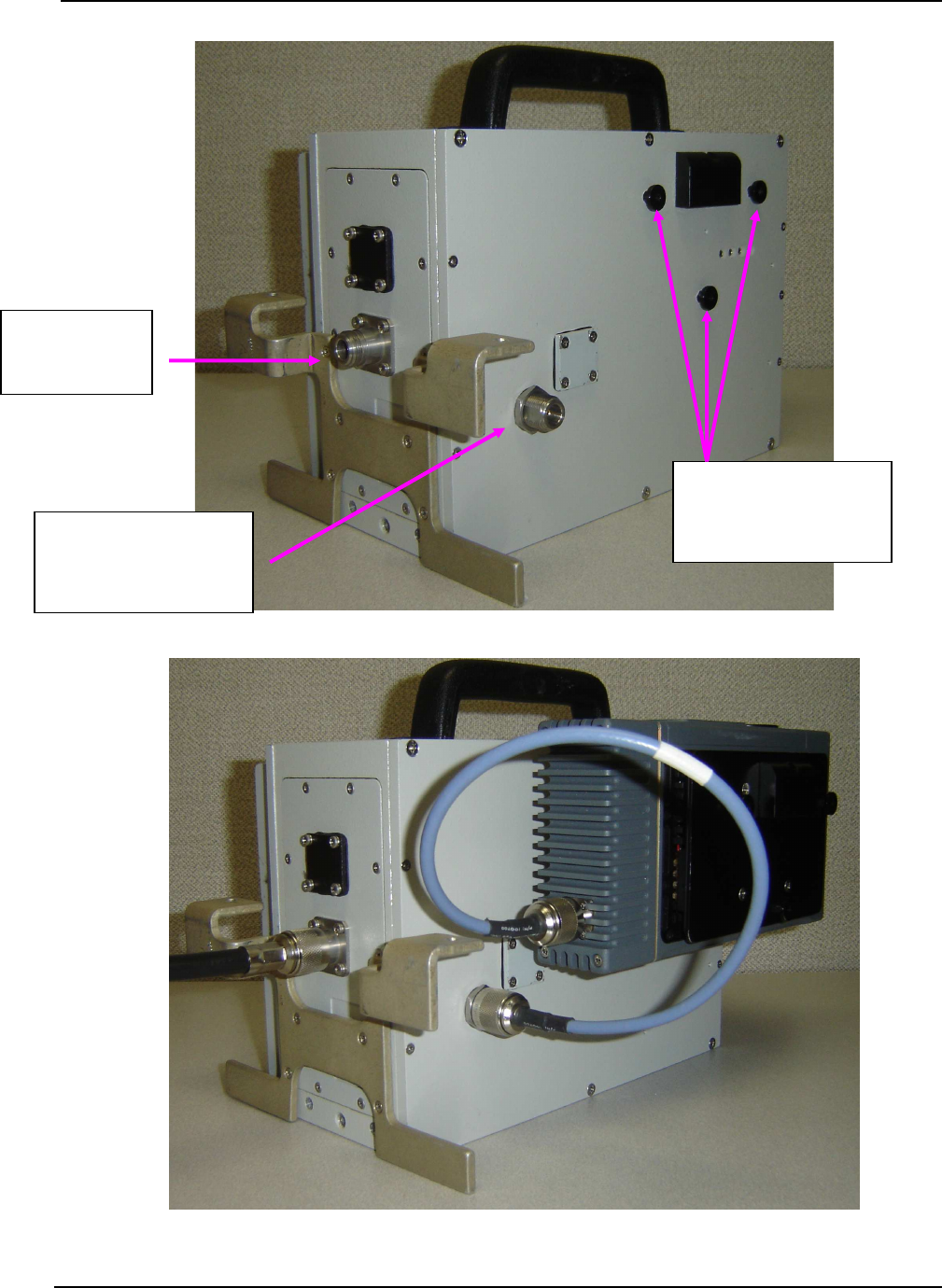

Figure 2: GoPac Guide Pins & RF Connectors .....................................................................16
Figure 3: GoPac fitted with RF cables...................................................................................16
Figure 4: Input Power & Breakers location ..........................................................................17
Figure 5: Input Power Connector pinout ...............................................................................17

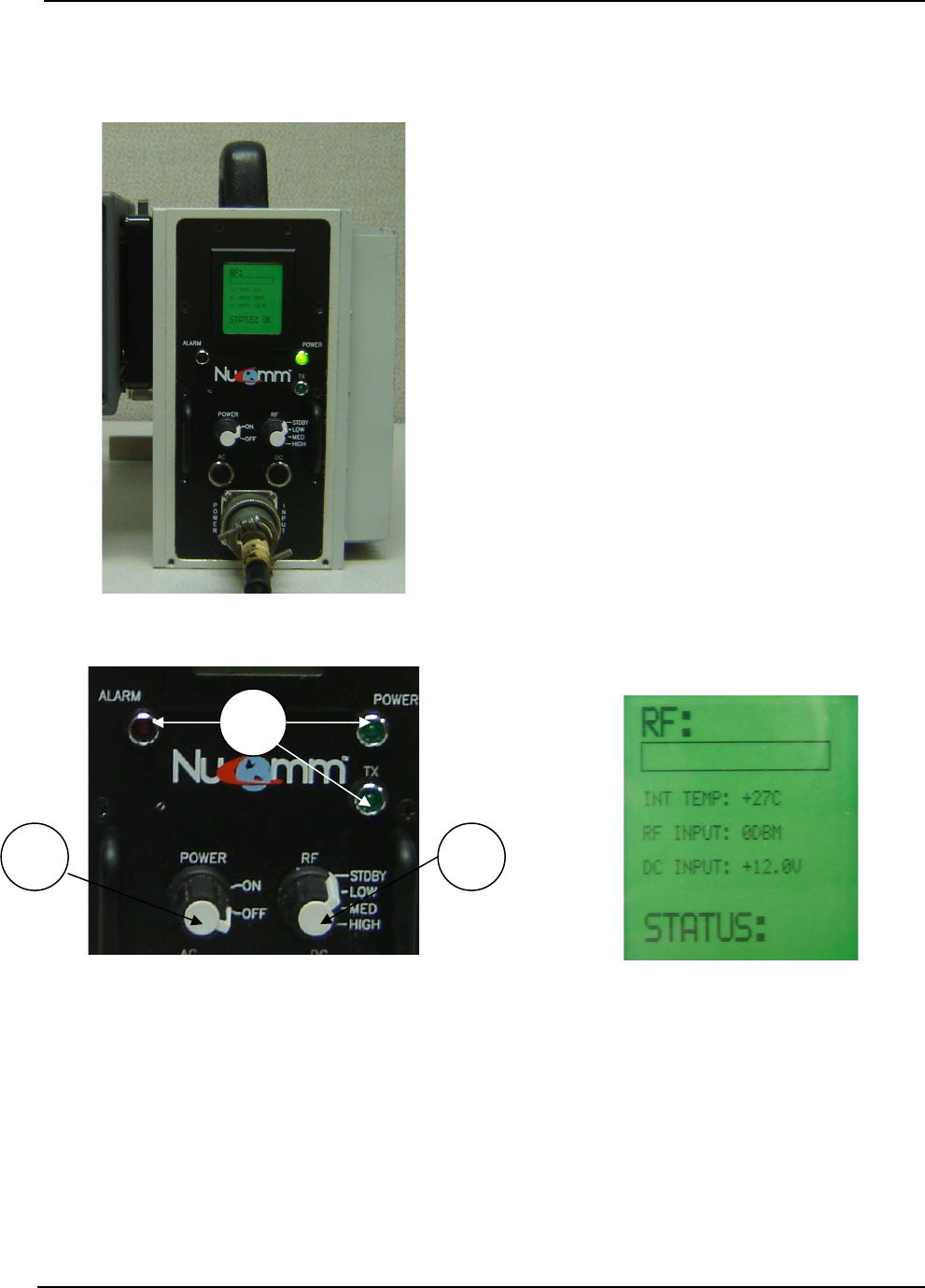

Figure 6: GoPac Front Panel..................................................................................................19

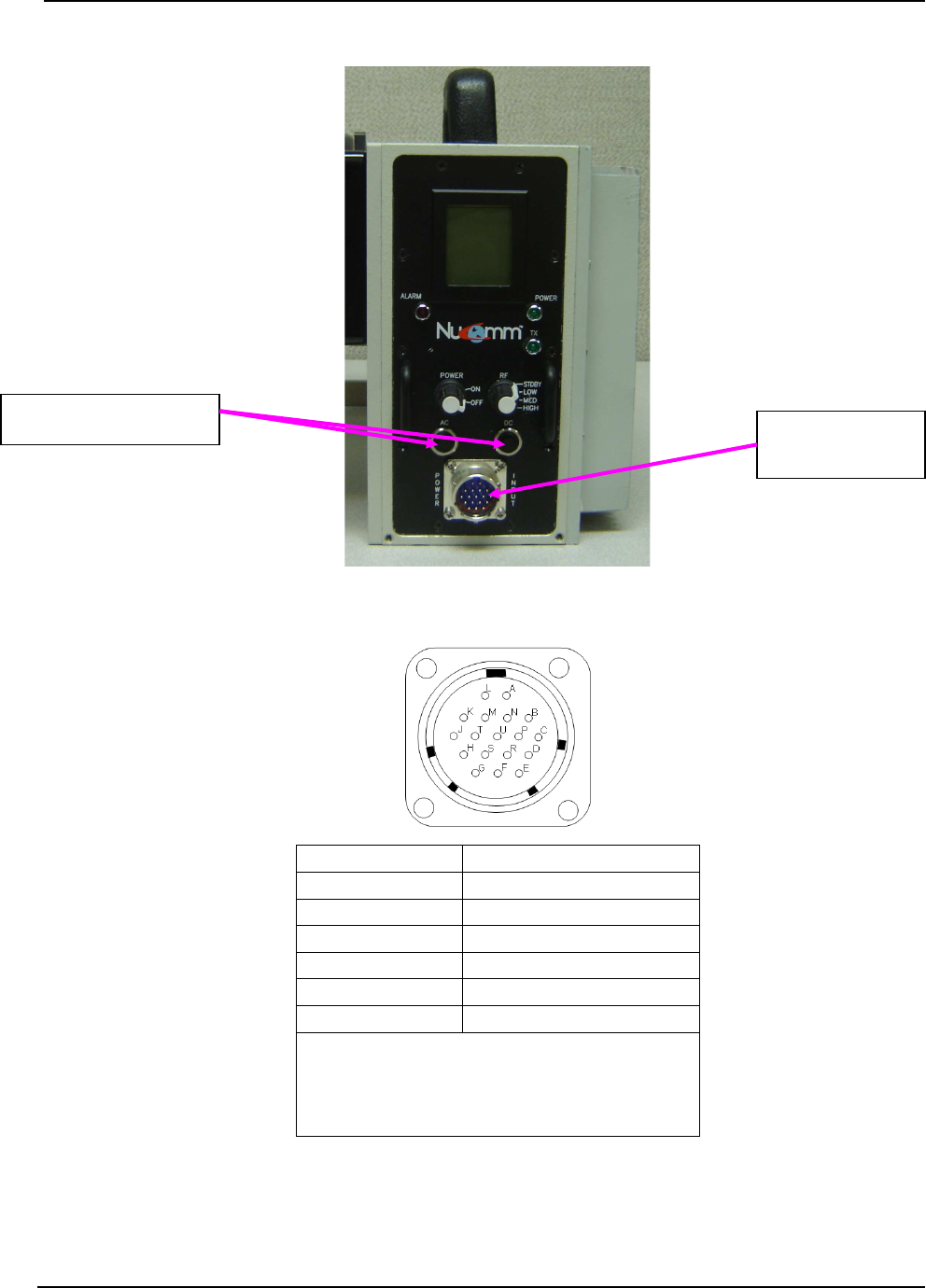

Figure 7: Controls & Indicators.............................................................................................19
Figure 8: Normal Screen........................................................................................................19
Figure 9: RF INPUT LOW ....................................................................................................20
GoPac
M13-0002-00A Rev D.4 7 User Manual
Document Revision
Date Modified Revision Modified by Modification Detail
April 9, 2007
April 10, 2007
April 10, 2007
D.2
D.3
D.4
M Hardy
M Hardy
G Williamson
Added extra FCC language
Added RF Exposure warning
Added minimum allowable
distance from antenna table
GoPac
M13-0002-00A Rev D.4 8 User Manual
GoPac Description& Features
M13-0002-00A Rev D.3 9 User Manual
1. DESCRIPTION & FEATURES
1.1 D
ESCRIPTION
The GoPac is a multi-functional transmitter
docking station and amplifier, designed
specifically to provide extended range
operation for low power camera back
transmitters, however the GoPac can also be
used with units other than camera back
transmitters.
A camera back transmitter can be mounted
onto the GoPac using standard Anton Bauer
Battery (or IDX) mounting clips, and the RF
output is routed to the GoPac input via N-type
connectors. If desired, the two units can be
separated up to 100 feet using SF214 RF
cable. In either configuration, an appropriate
antenna either attaches directly to the RF
output of the GoPac, or can be remoted using
RF cable.
The standard GoPac is pre-configured for
either single or dual band operation, with
coverage of the following US frequency
bands:
• 1.99 – 2.70 GHz
• 6.40 – 7.10 GHz
Other frequency coverage may be available,
please contact Nucomm for specifics.
This manual is written in general form to
cover all typical configurations and options
for the GoPac.
1.2
F
EATURES
The GoPac was specifically designed to
support ultra portable ENG.
POWER OUTPUT
Typically camera back transmitters are limited
to less than 250 mW of output power, limiting
their range. For extended range operation, the
GoPac docking station/amplifier outputs up to
5W digital (optional up to 8W digital).
POWER SOURCES
The GoPac features a built-in universal power
supply which operates on power ranging from
90 to 240 VAC (40 to 60Hz), or +11 to +32
VDC without the need for internal jumpers or
switch settings.
A camera back transmitter can be attached to
the GoPac and be powered via the integrated
IDX (Sony “V" clip) or Anton Bauer battery
adapter plates.
STANDBY MODE
The GoPac has a rotary switch for selecting
the unit to Standby mode; however an
integrated detector circuit inhibits the GoPac
from transmitting in the absence of an RF
signal from the external device.
In Standby Mode the RF output is muted. If
an external RF source is applied to the input
connector, rotating the GoPac selector switch
to one of the transmit modes will result in an
instantaneous on-frequency transmission.
INTERNAL SELF-TEST
The GoPac has a built-in self-test feature,
which checks the unit for functionality and
several internal parameters. Should an error
or malfunction be detected, the red alarm LED
will illuminate and an alarm message will be
displayed on the LCD.
GoPac Description& Features
M13-0002-00A Rev D.3 10 User Manual
GoPac Theory of Operation
M13-0002-00A Rev D.3 11 User Manual
2. THEORY OF OPERATION
The GoPac Power amplifier has been designed
to receive the output from a low power
transmitter and amplify it. The following
discussion assumes that the external
transmitter has output power less than 250mW
and has been verified to abide by all FCC
rules and regulations.
The RF output from the low power transmitter
is applied to the RF Input Connector (J1) as
shown in Figure 1. The signal is passed
through a power coupler (C1). This coupler
feeds two circuits: a variable attenuator (U1),
and a power detector (D1). This power
detector (the first of two) is designed to detect
the presence of an RF signal at J1. If the
signal is too high or too low, the main power
amplifier (A1) will be forced into standby by
the internal controller. This is to prevent the
power amplifier from going into transmit
mode without a signal applied, or with a signal
that is too high for the system to handle.
Power control:
After the RF signal from the coupler (C1) is
applied to variable attenuator (U1), it is routed
to a high gain high power amplifier (A1). The
output of the amplifier is then applied to a
power couple (C2). A portion of the output
power is applied to a second power detector
(D2) that is then fed back through an
automatic gain control loop (AGC). The
output of the AGC loop controls the variable
attenuator. An analog signal from the
microprocessor is applied to the AGC
controller. This signal is compared to the
power level from the main power detector
(D2). If the signal from (D2) is higher than
the signal from the microprocessor, the
attenuator is increased therefore reducing the
total output power, reducing the voltage from
(D2). If the signal from (D2) is lower than the
signal from the microprocessor, the attenuator
is reduced therefore increasing the total output
power, and increasing the voltage from (D2).
This process is performed continuously until a
steady state output power has been reached.
Main RF output:
The RF output from the amplifier is routed
through a low pass filter and an output
isolator. The low pass filter is used to remove
any unwanted harmonics created inside the
power amplifier. The output isolator is used
to protect the power amplifier from being
damaged when devices with poor RF match
are applied.
GoPac Theory of Operation
M13-0002-00A Rev D.3 12 User Manual
Figure 1: System Block Diagram
GoPac Specifications
M13-0002-00A Rev D.3 13 User Manual
3. SPECIFICATIONS
RF Performance
Frequency band:......................................................1.99 GHz – 2.70 GHz
.................................................................................6.40 GHz – 7.10 GHz
Frequency tuning step size:.....................................50 KHz (United States)
RF Output Power: ...................................................1 to 5W (digital) standard (8W optional)
RF Power Modes
Standby: ..................................................................No RF out
Tx:...........................................................................Instant on-frequency transmission
Stability:..................................................................+/– 2.5 PPM
Power Requirements
Input Range.............................................................90 to 240 VAC (40 to 60Hz), or +11 to +32 VDC
(without the need for internal jumpers or switch settings)
Consumption:..........................................................80 watts (with attached camera back transmitter)
Physical Characteristics
Dimensions: ............................................................6.8”(17.27cm) x 13”(33cm) x 17”(43.2cm)
Weight:....................................................................8.8 lbs (4 kg)
Environmental
Temperature:...........................................................-20°C to +65°C (operational)
Humidity: ................................................................95% (+10°C to +50°C)
Connectors
Power ......................................................................Multi-pin MS Type(Detoronics DT02H-14-18PN)
RF:...........................................................................Type “N” (Female) (50 ohms)
GoPac Specifications
M13-0002-00A Rev D.3 14 User Manual
GoPac Installation
M13-0002-00A Rev D.3 15 User Manual
4. INSTALLATION
4.1 UNPACKING & INSPECTION
Unpack and visually inspect the unit for LCD,
connector, and surface area damage. All
claims should be filed with the carrier. Save
all shipping and packing materials for possible
re-use.
4.2 MECHANICAL INSTALLATION
The GoPac comes standard with an Anton
Bauer Mounting Bracket Assembly. This
allows a camera back transmitter to be quickly
attached or removed from the docking station.
To mount a camera back transmitter to the
GoPac, perform the following:
1. Orient the camera back transmitter
mounting slots to align with the GoPac
guide pins as shown in (Figure 2).
2. Slide the camera back transmitter onto the
GoPac guide pins until you hear the
thumb-catch lock. Ensure that there is no
play between the camera back transmitter
and the GoPac.
3. Connect an appropriate RF jumper
between the RF output of the camera back
transmitter, and the RF input of the GoPac.
(Figure 3).
To connect a power source to GoPac:
The built-in power supply accepts 90 to 240
VAC (40 to 60 Hz) or +11 VDC to
+32 VDC without requiring any jumper or
switch settings.
Nucomm ships a DC cable, and the
appropriate local AC line cord. Alternate line
cords are available upon request.
Connect the supplied cable between an
appropriate power source and the GoPac front
panel power connector. (Figures 4 & 5).
CIRCUIT BREAKERS
The GoPac is protected against over/under
voltage and reverse polarity conditions. The
unit has AC & DC circuit breakers, as shown
in Figure 4. The breakers will trip at 10
Amps.
If a breaker trips, check and verify all power
connections and specs, then reset the breaker
by pushing it back into position.
GoPac Installation
M13-0002-00A Rev D.3 16 User Manual
Figure 2: GoPac Guide Pins & RF Connectors
Figure 3: GoPac fitted with RF cables
RF Output
(to antenna)
RF Input
(from camera back
transmitter, e.g.)
Guide pins for
mounting camera
back transmitter
GoPac Installation
M13-0002-00A Rev D.3 17 User Manual
Figure 4: Input Power & Breakers location
Figure 5: Input Power Connector pinout
PIN-OUT DESCRIPTION
C AC Neutral
E Chassis GND
G AC Line
H, S GND
P, U, B +DC IN
Nucomm P/N: 512-M2001-000
Detoronics P/N: DT02H-14-18PN
Mating Connector
Nucomm P/N 512-F3001-000
Mil-C-26482, Series 1
P/N: MS3116F-14-1PS
AC & DC breakers Power Input
connector
GoPac Installation
M13-0002-00A Rev D.3 18 User Manual
GoPac Installation
M13-0002-00A Rev D.3 19 User Manual
5. OPERATION
Figure 6: GoPac Front Panel
Figure 7: Controls & Indicators
The GoPac operations and functions are all
controlled from the front panel, with status
information shown via the LCD display and/or
the LED indicators.
5.1 CONTROLS AND INDICATORS
5.2 POWER ON / OFF (1)
5.3 RF MODE (2)
• STANDBY
• LOW
• MEDIUM
• HIGH
5.4 STATUS LEDS (3)
• POWER (GREEN) – Power is on.
• TX (GREEN) – Unit is transmitting.
• ALARM (RED) – Unit is in alarm.
5.5 POWER UP
The CamPac2 is turned on by rotating the
POWER switch to the ON position. The unit
will boot-up and go immediately to the
Normal Screen.
5.6 NORMAL SCREEN
Once the unit has initialized, the Normal
Screen will appear as illustrated in Figure 8.
Figure 8: Normal Screen
The Normal Screen displays the following:
• RF Level (bar graph of RF output)
• Internal Temperature
• RF input level
• DC input voltage
• Status/Alarm messages
1 2
3
GoPac Operation
M13-0002-00A Rev D.3 20 User Manual
5.7 RF SETUP
All frequency selection is done via the
attached input device, typically a camera back
portable transmitter. As such, the only RF
setting available on the GoPac is the
adjustment of the RF Power Output level.
5.8 RF OUPUT POWER
The RF Power Output is adjustable from 1 to
5 Watts digital (8 watts optional) via the RF
switch (2), which has the following selections:
• STANDBY
• LOW
• MEDIUM
• HIGH
In Standby Mode the RF output is muted. If
an external RF source is applied to the input
connector, rotating the GoPac selector switch
to one of the transmit modes will result in an
instantaneous on-frequency transmission.
When transmitting, the bar graph will display
the relative output power.
NOTE: If there is no RF input from the
connected device (typically a camera back
transmitter), the GoPac will not transmit,
regardless of the mode selected, and an “RF
INPUT LOW” alarm will be displayed, as in
the following figure.

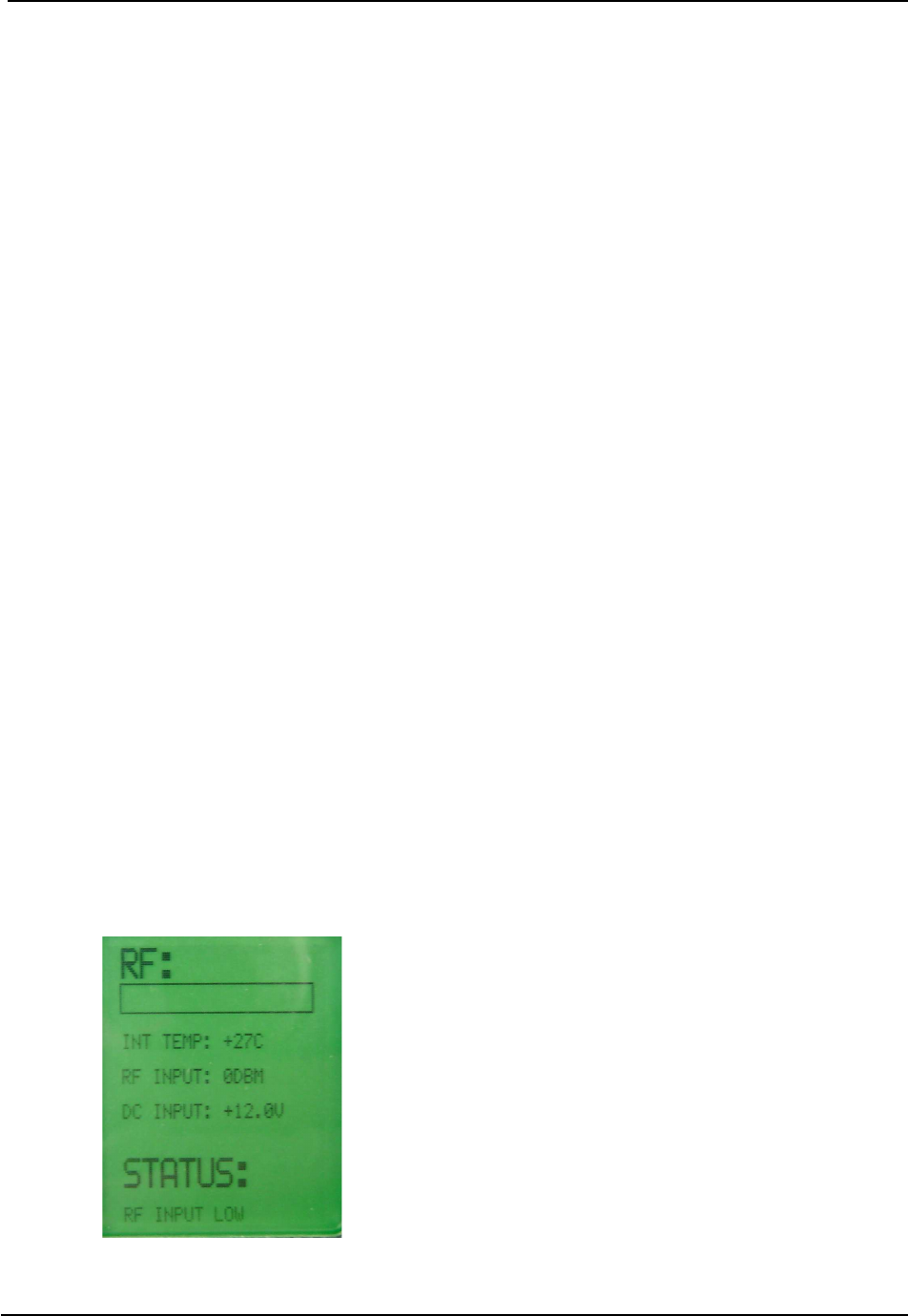

Figure 9: RF INPUT LOW
5.9 ALARMS
The GoPac “STATUS” display section will
detail any errors that may occur in the unit.
GoPac Operation
M13-0002-00A Rev D.3 21 User Manual
GoPac
M13-0002-00A Rev D.3 22 User Manual
Nucomm Inc.
101 Bilby Road
Hackettstown, NJ 07840
Tel: 908-852-3700 Fax: 908-813-0399
www.Nucomm.com
