Installation Manual Part 9

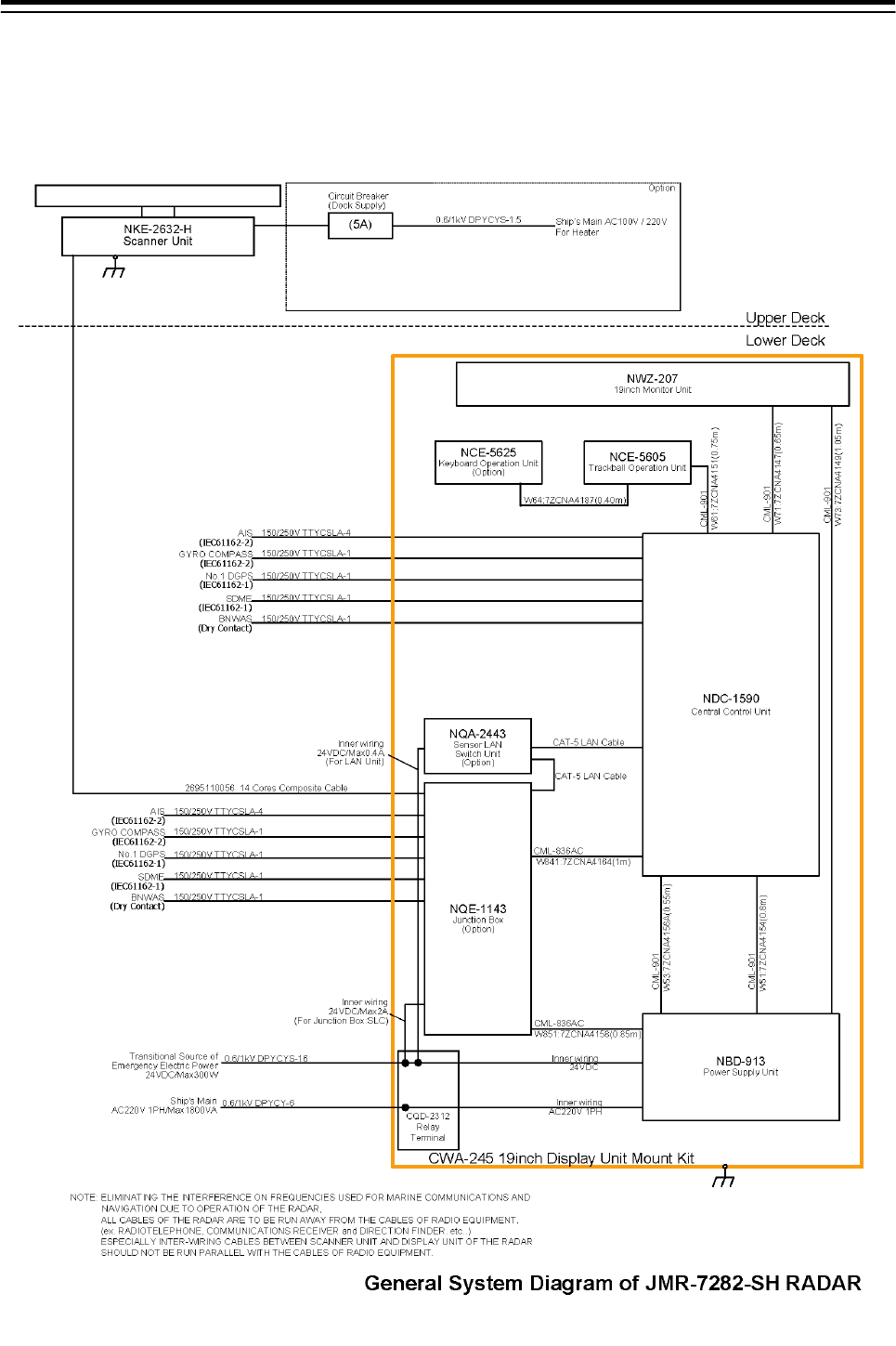

6. Appendix > 6.2 General System Diagram of Standalone Type
6-51
6.2.24 JMR-7272-S
6. Appendix > 6.2 General System Diagram of Standalone Type
6-52
6.2.25 JMR-7282-S
6. Appendix > 6.2 General System Diagram of Standalone Type
6-53

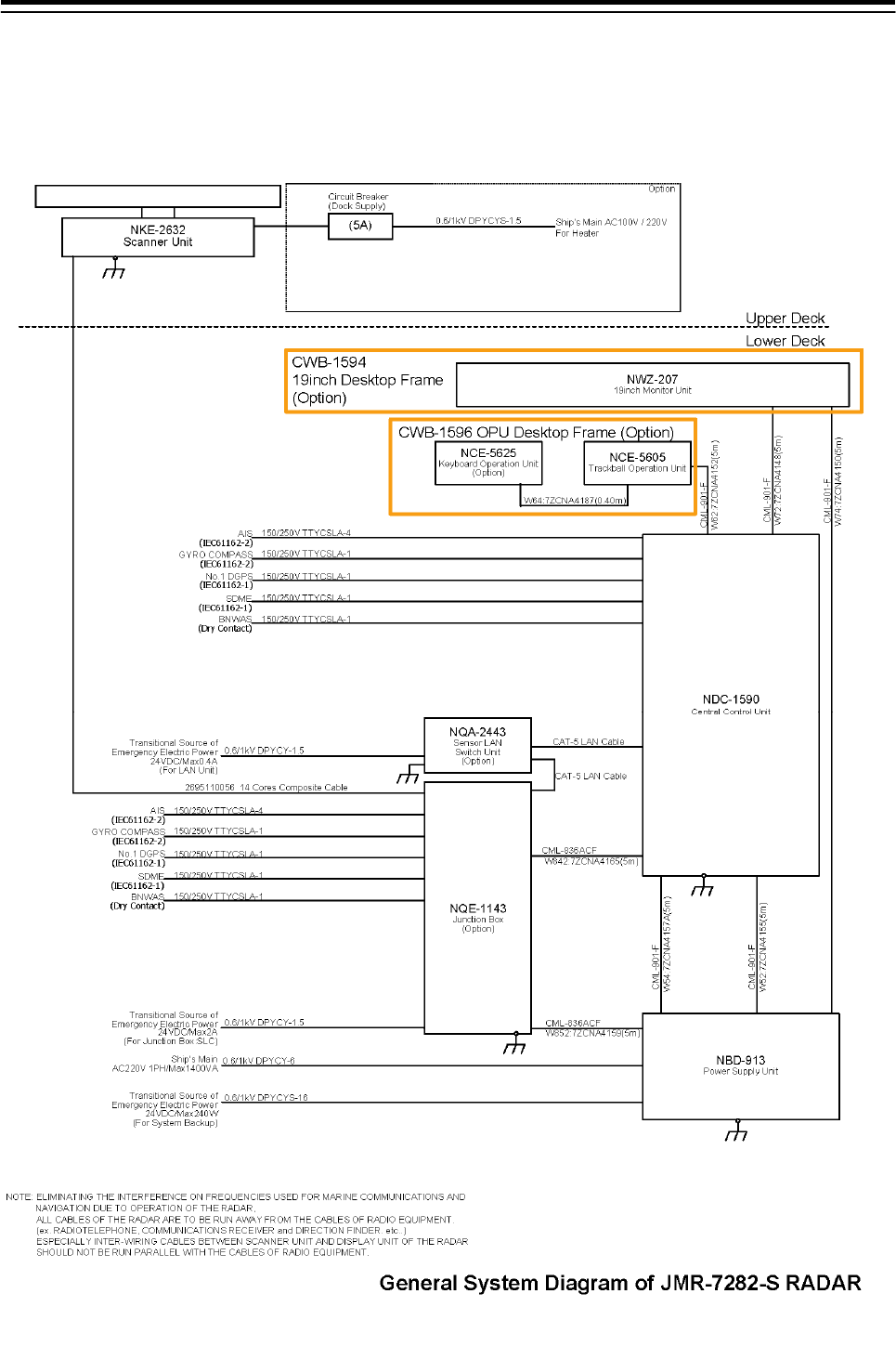

6.2.26 JMR-7282-SH
6. Appendix > 6.2 General System Diagram of Standalone Type
6-54
6.2.27 JAN-7201
6. Appendix > 6.2 General System Diagram of Standalone Type
6-55
6.2.28 JAN-7202
6. Appendix > 6.3 General System Diagram of Desktop Type
6-56
6.3 General System Diagram of Desktop Type
6.3.1 JMR-9210-6X
6. Appendix > 6.3 General System Diagram of Desktop Type
6-57
6.3.2 JMR-9210-6XH
6. Appendix > 6.3 General System Diagram of Desktop Type
6-58
6.3.3 JMR-9225-6X
6. Appendix > 6.3 General System Diagram of Desktop Type
6-59

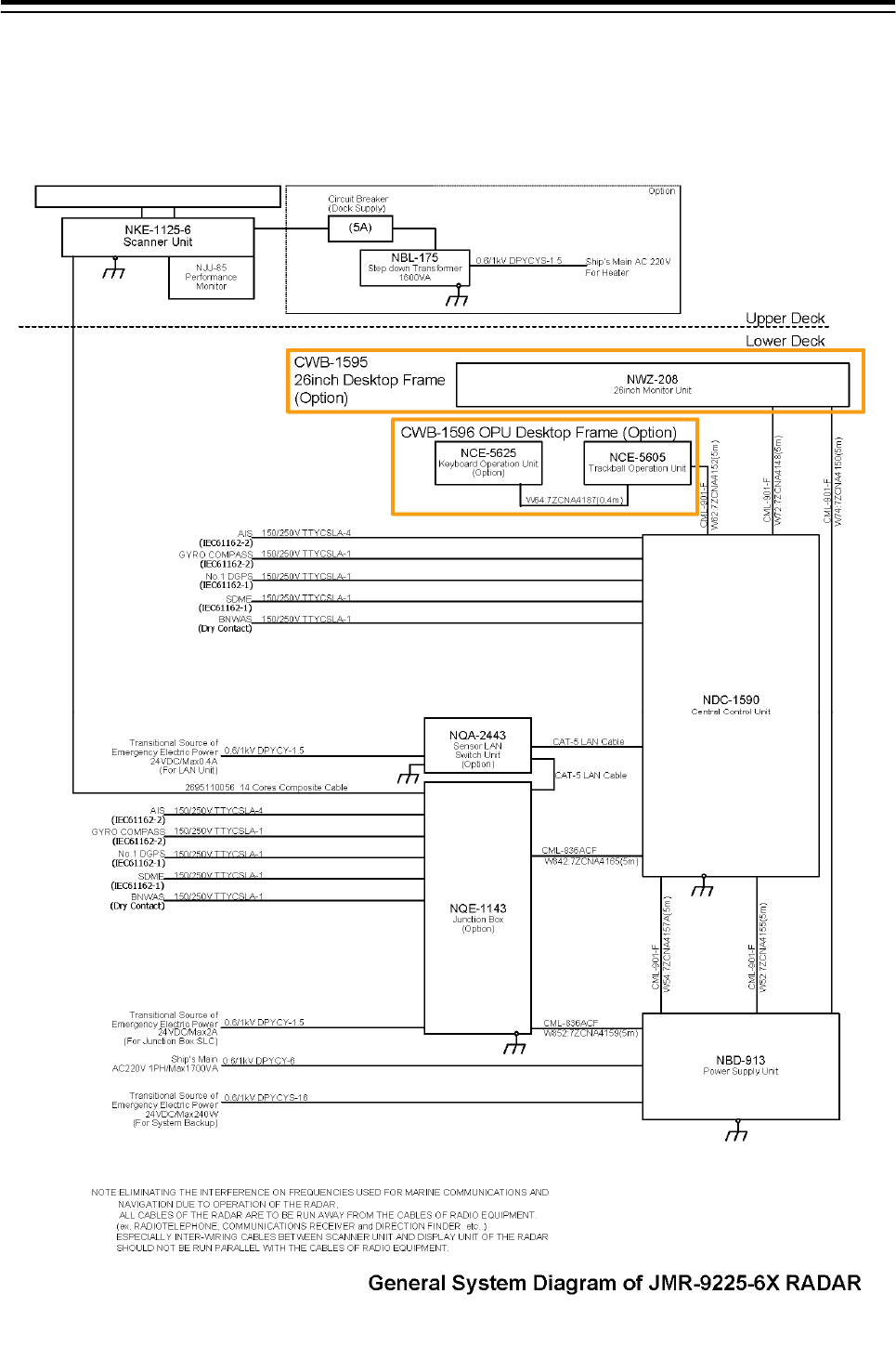

6.3.4 JMR-9225-6XH
6. Appendix > 6.3 General System Diagram of Desktop Type
6-60
6.3.5 JMR-9225-9X
6. Appendix > 6.3 General System Diagram of Desktop Type
6-61

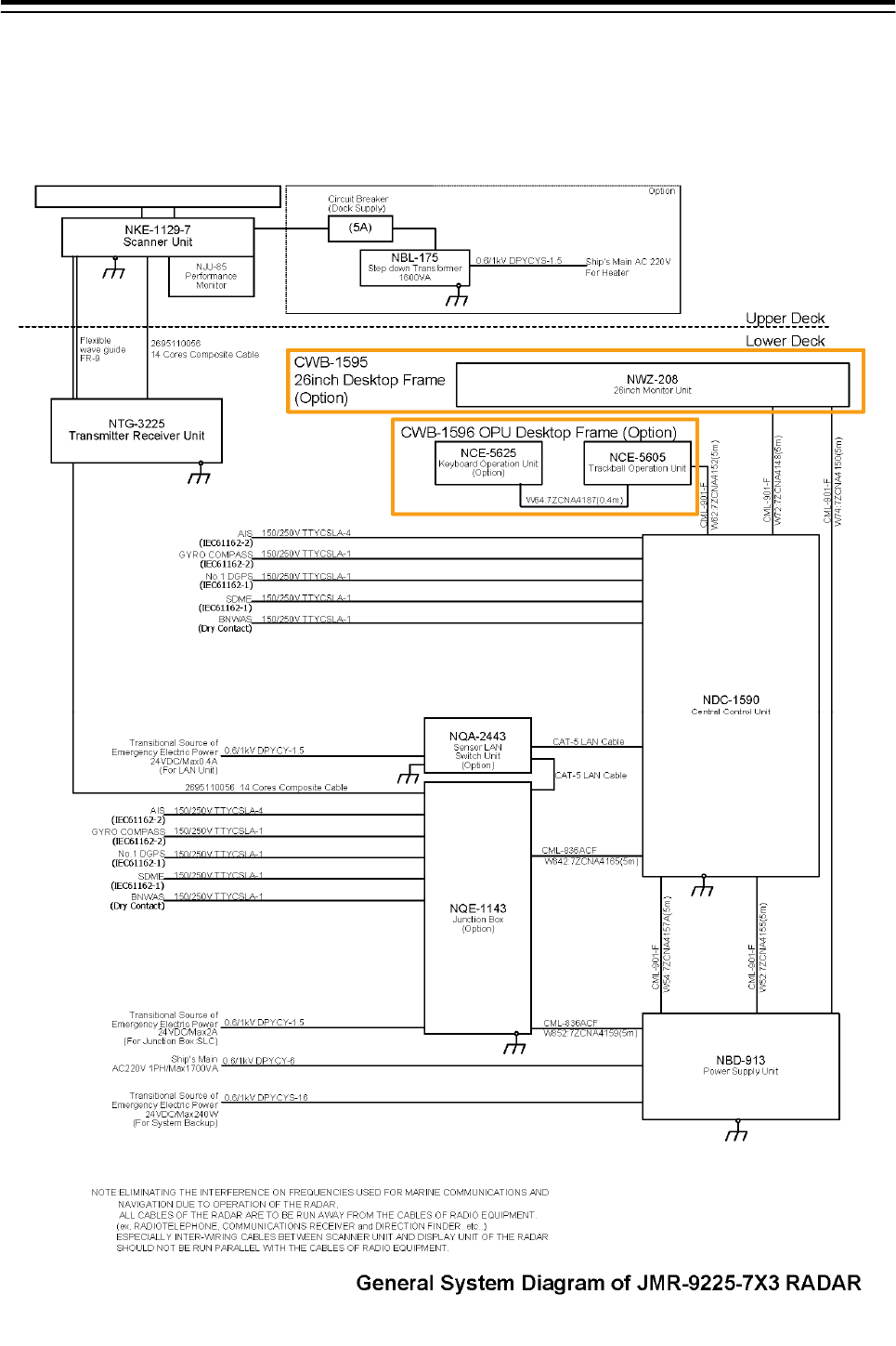

6.3.6 JMR-9225-7X3
6. Appendix > 6.3 General System Diagram of Desktop Type
6-62

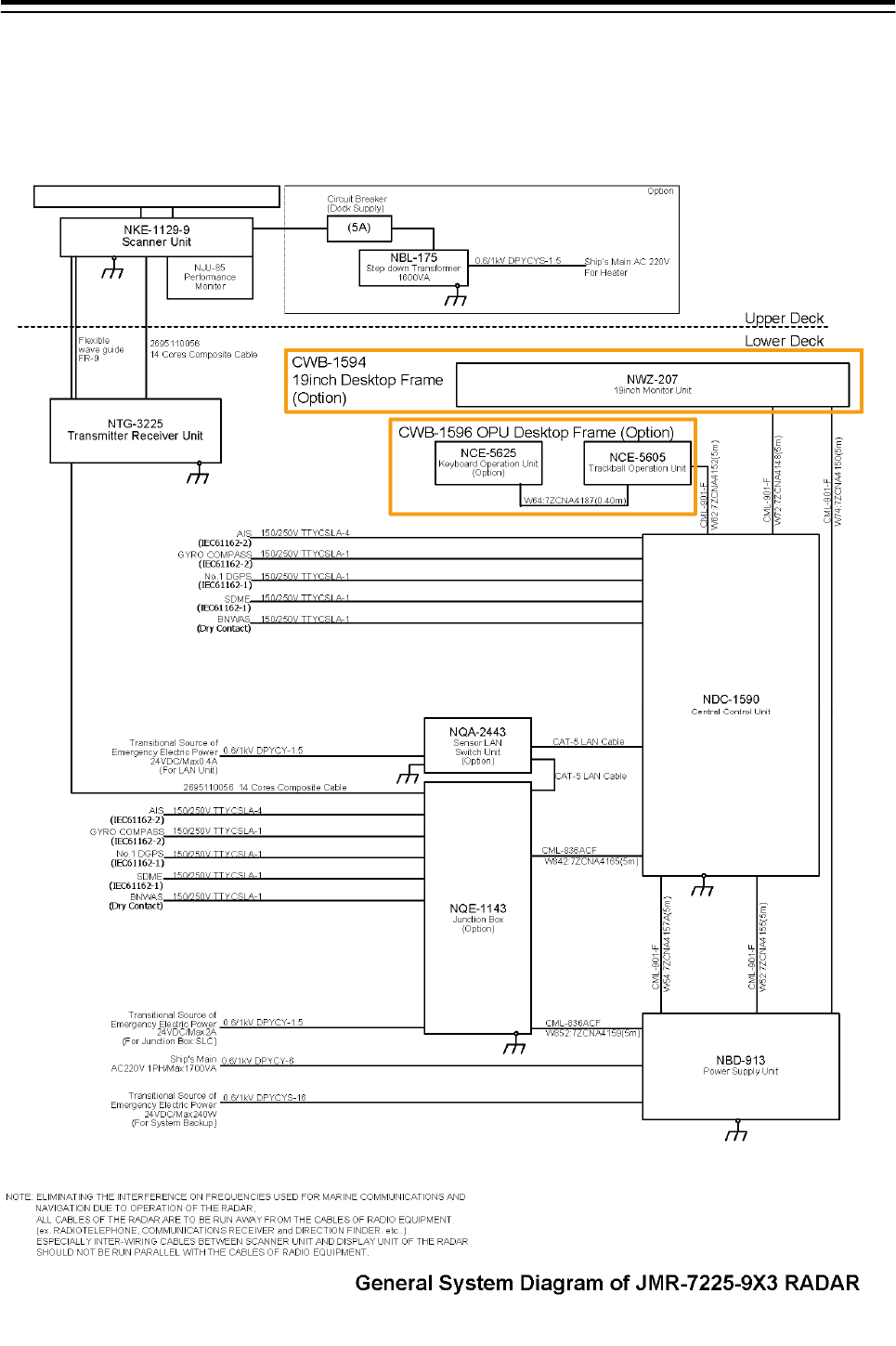

6.3.7 JMR-9225-9X3
6. Appendix > 6.3 General System Diagram of Desktop Type
6-63
6.3.8 JMR-9230-S
6. Appendix > 6.3 General System Diagram of Desktop Type
6-64

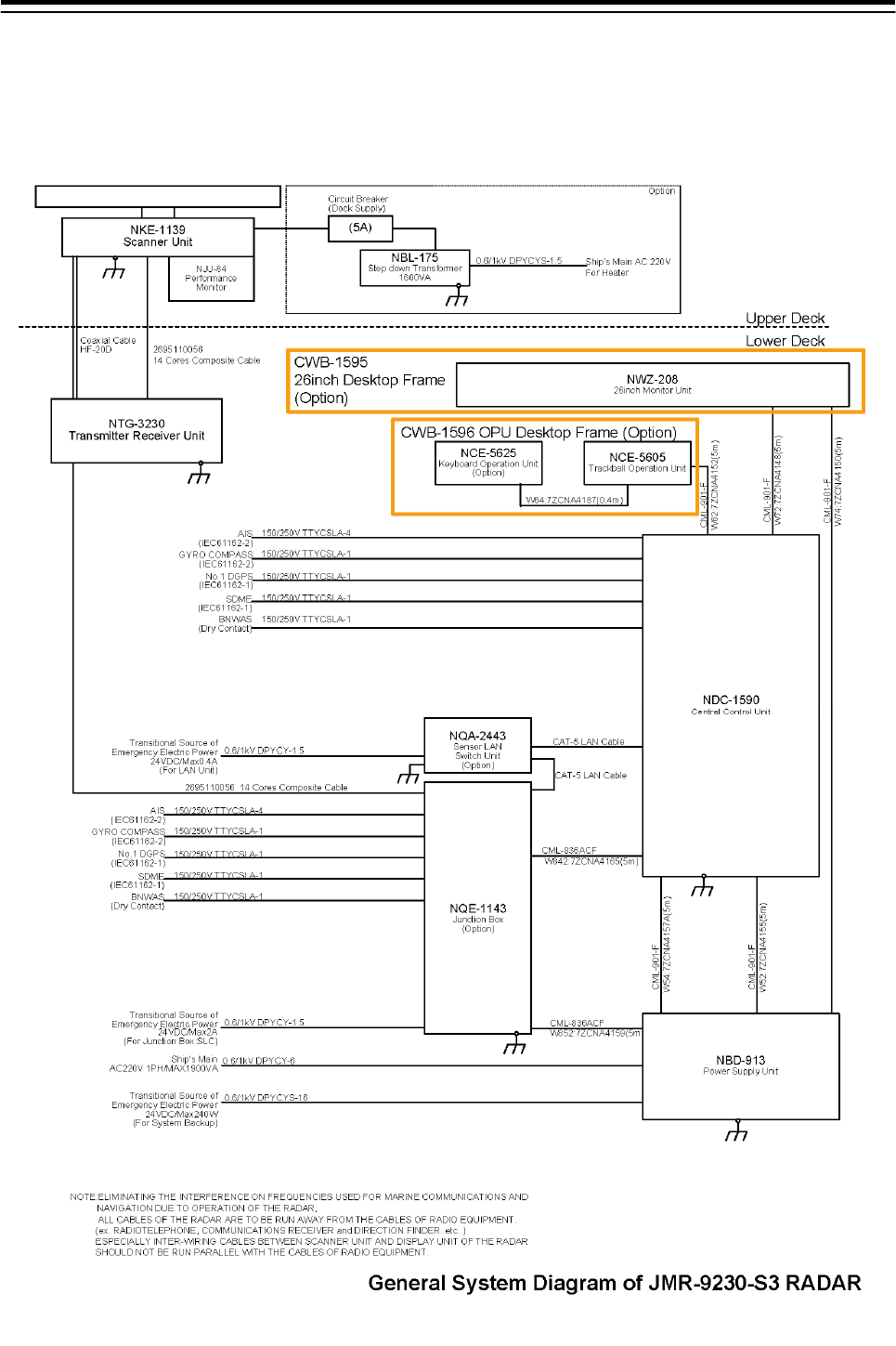

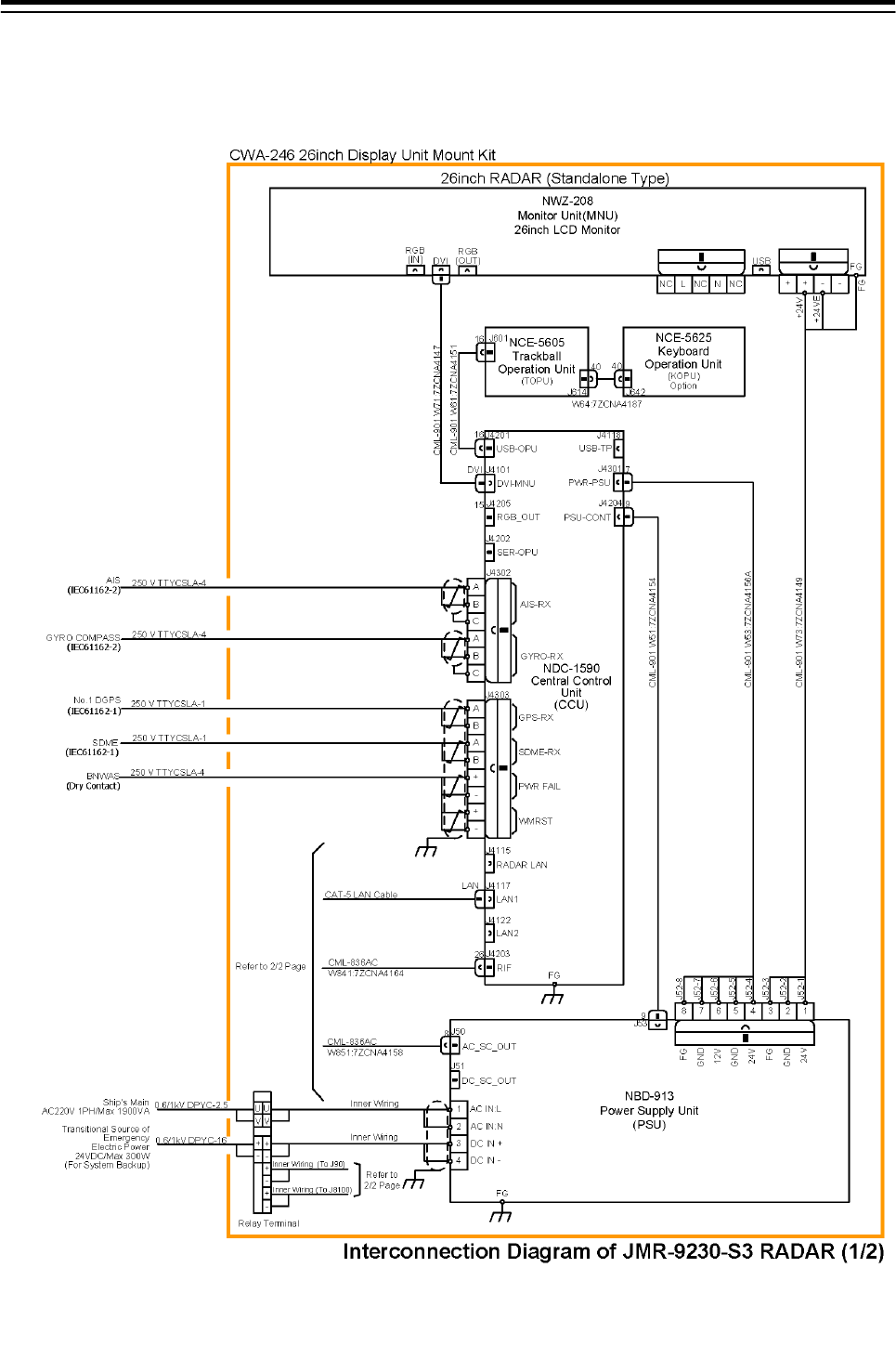

6.3.9 JMR-9230-S3
6. Appendix > 6.3 General System Diagram of Desktop Type
6-65

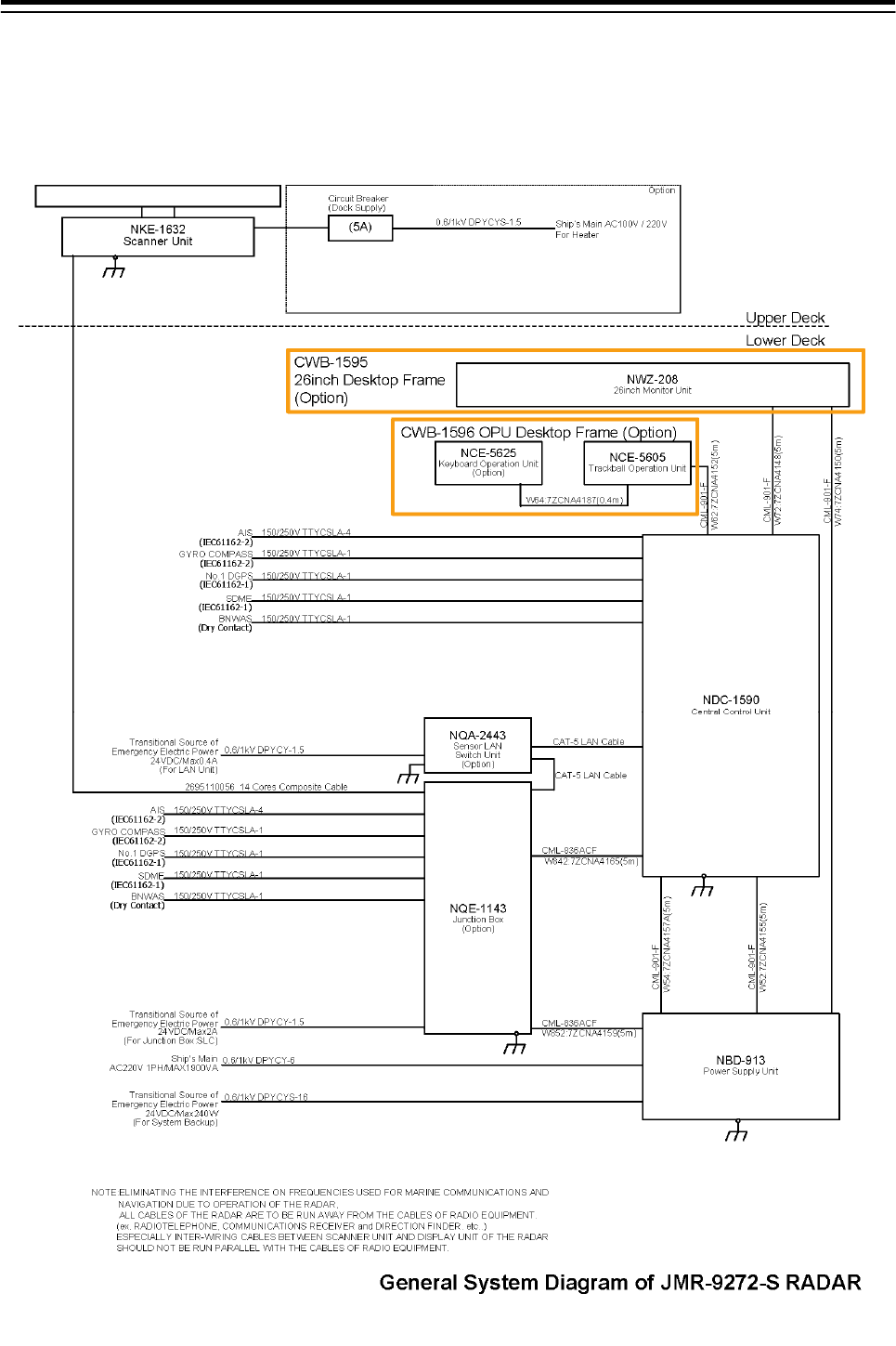

6.3.10 JMR-9272-S
6. Appendix > 6.3 General System Diagram of Desktop Type
6-66
6.3.11 JMR-9282-S
6. Appendix > 6.3 General System Diagram of Desktop Type
6-67

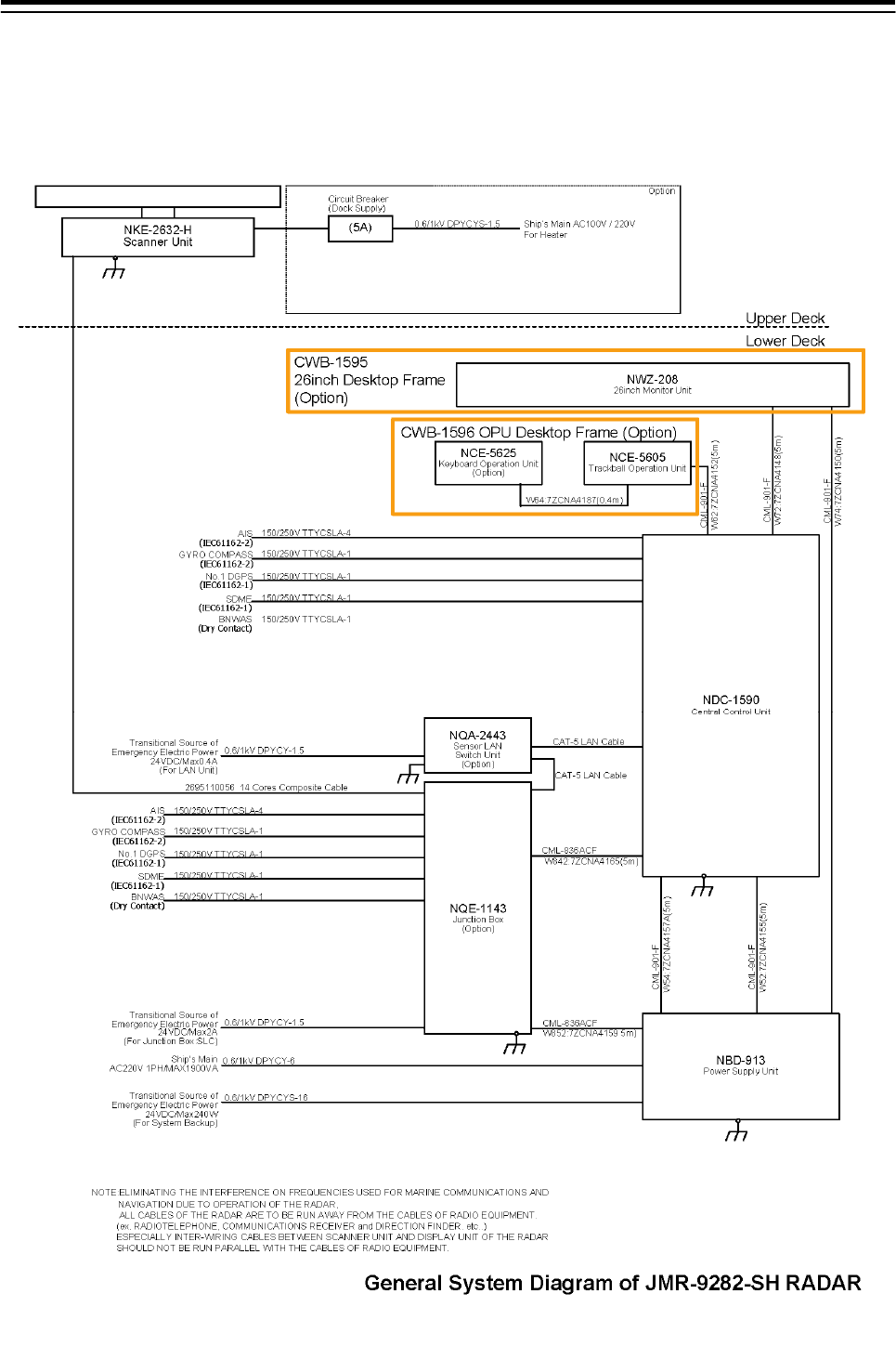

6.3.12 JMR-9282-SH
6. Appendix > 6.3 General System Diagram of Desktop Type
6-68

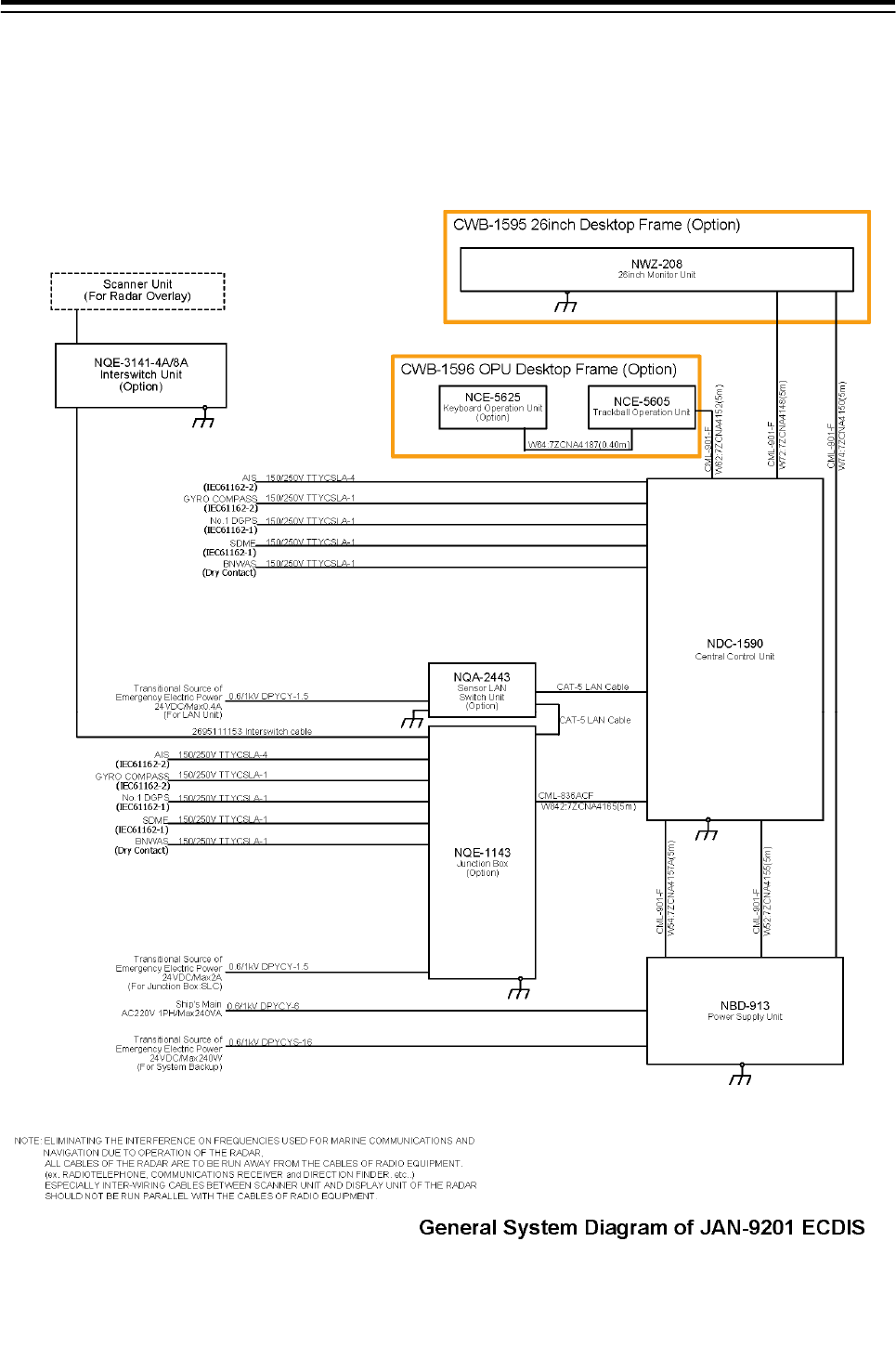

6.3.13 JAN-9201
6. Appendix > 6.3 General System Diagram of Desktop Type
6-69

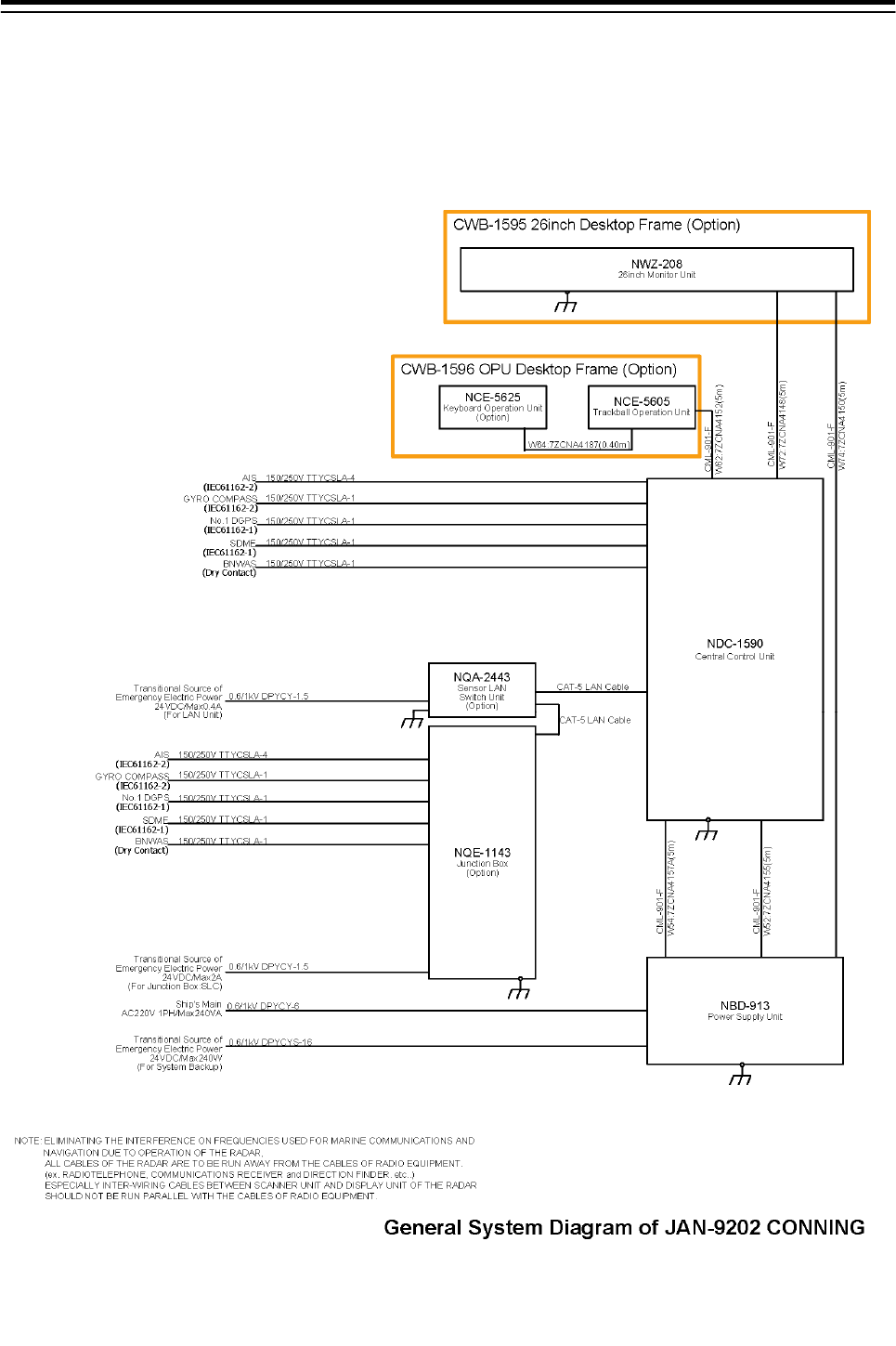

6.3.14 JAN-9202
6. Appendix > 6.3 General System Diagram of Desktop Type
6-70
6.3.15 JMR-7210-6X
6. Appendix > 6.3 General System Diagram of Desktop Type
6-71

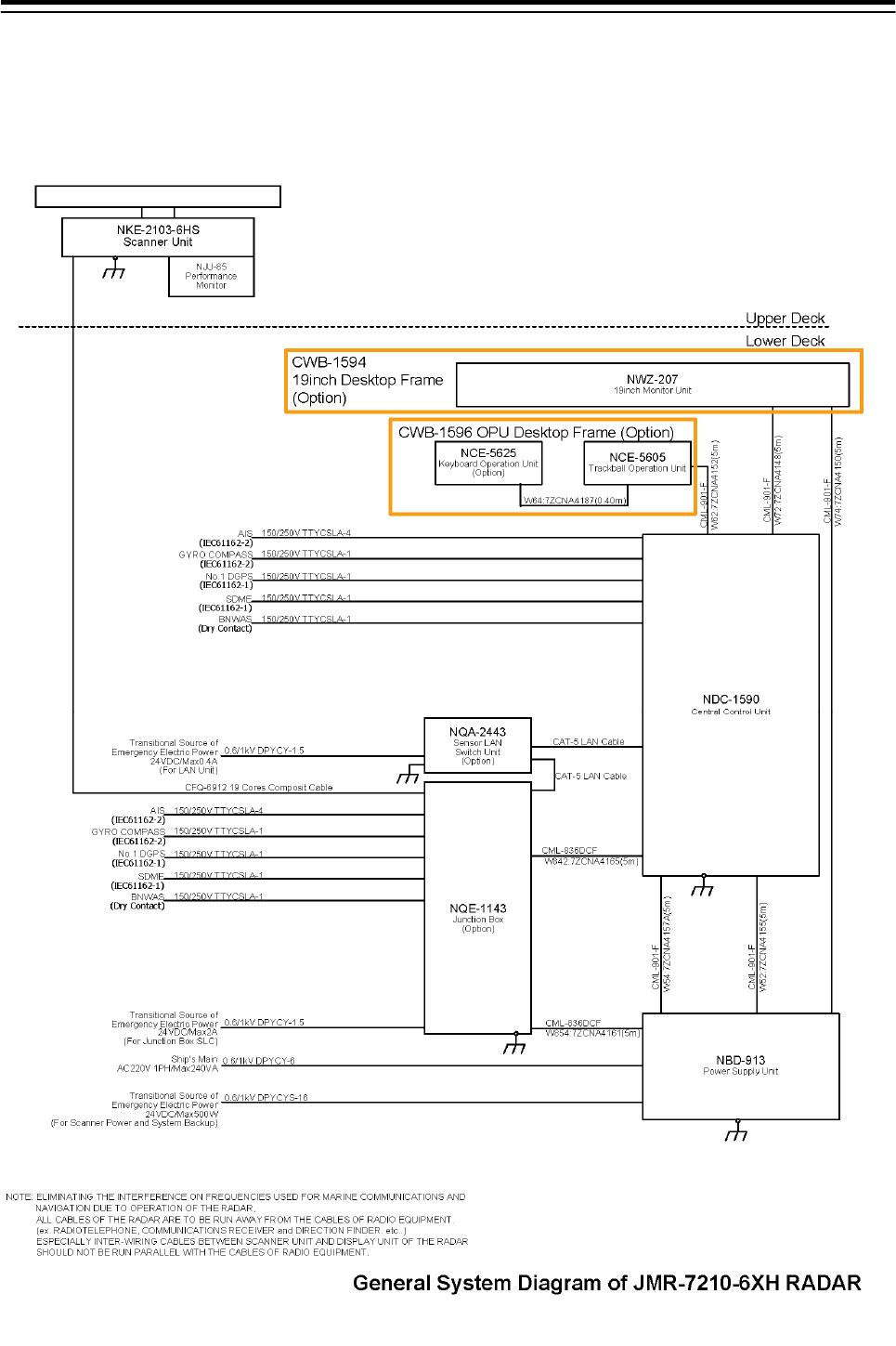

6.3.16 JMR-7210-6XH
6. Appendix > 6.3 General System Diagram of Desktop Type
6-72

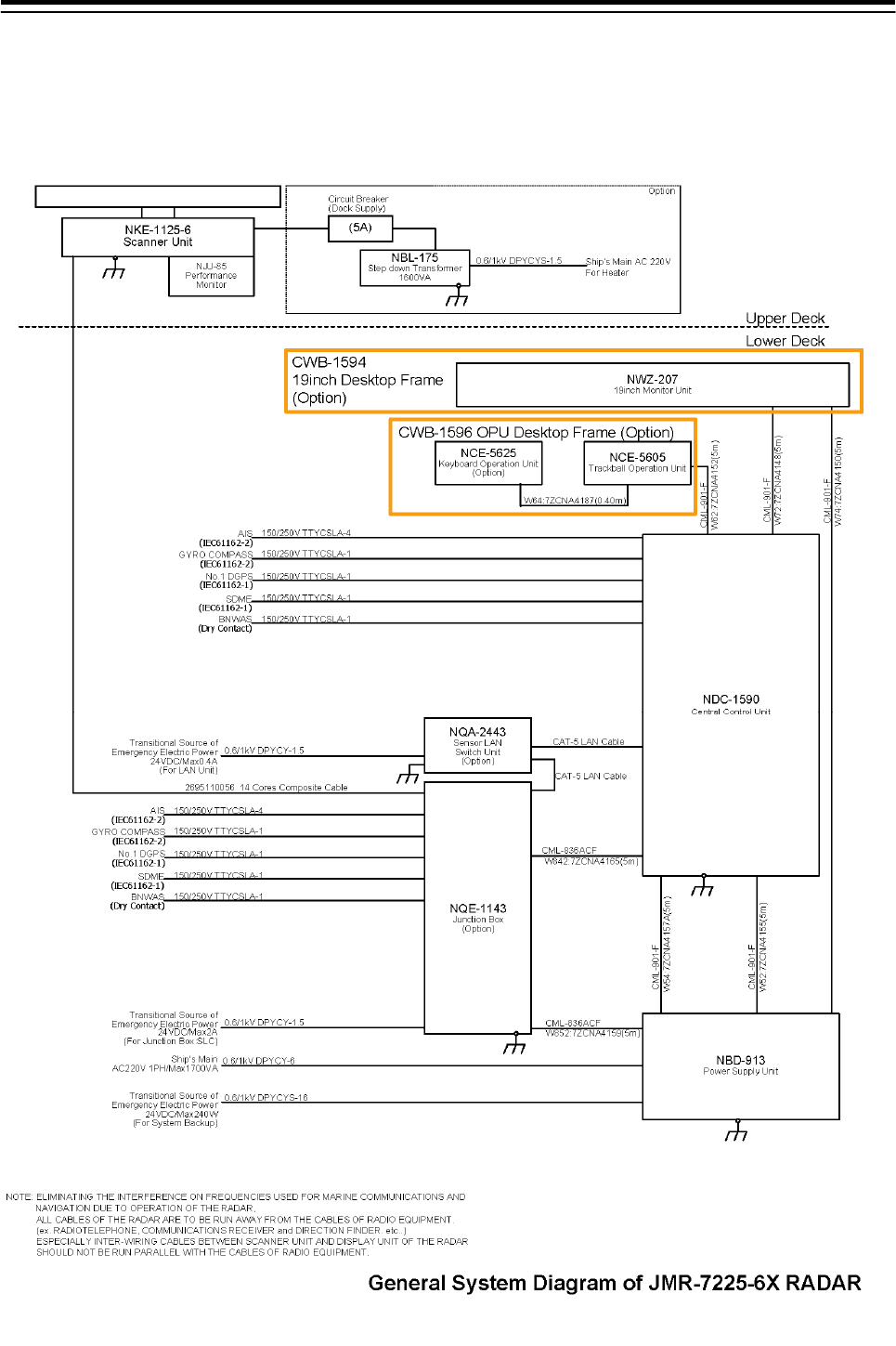

6.3.17 JMR-7225-6X
6. Appendix > 6.3 General System Diagram of Desktop Type
6-73

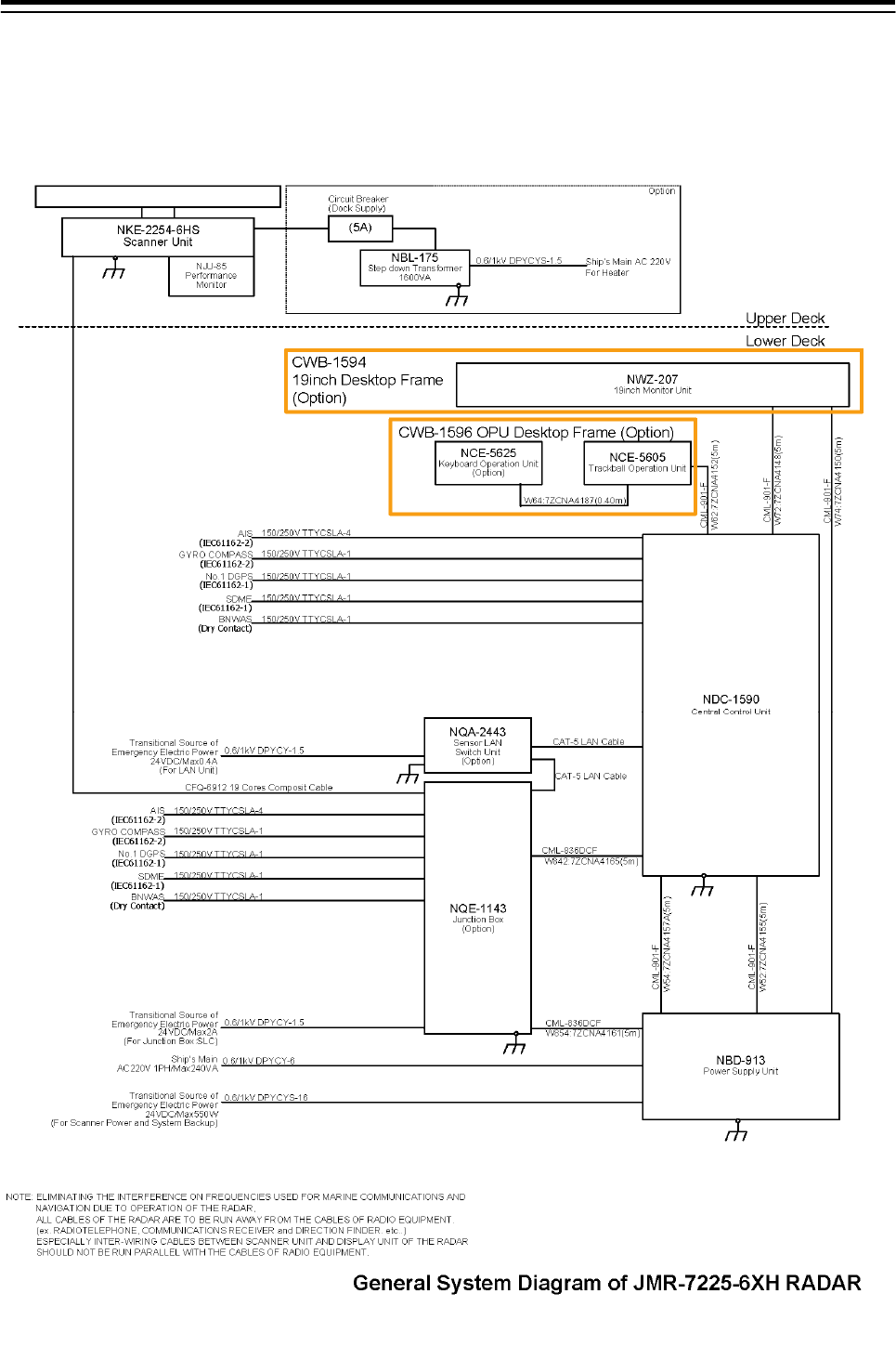

6.3.18 JMR-7225-6XH
6. Appendix > 6.3 General System Diagram of Desktop Type
6-74
6.3.19 JMR-7225-9X
6. Appendix > 6.3 General System Diagram of Desktop Type
6-75
6.3.20 JMR-7225-7X3
6. Appendix > 6.3 General System Diagram of Desktop Type
6-76
6.3.21 JMR-7225-9X3
6. Appendix > 6.3 General System Diagram of Desktop Type
6-77
6.3.22 JMR-7230-S
6. Appendix > 6.3 General System Diagram of Desktop Type
6-78
6.3.23 JMR-7230-S3
6. Appendix > 6.3 General System Diagram of Desktop Type
6-79
6.3.24 JMR-7272-S
6. Appendix > 6.3 General System Diagram of Desktop Type
6-80
6.3.25 JMR-7282-S
6. Appendix > 6.3 General System Diagram of Desktop Type
6-81
6.3.26 JMR-7282-SH
6. Appendix > 6.3 General System Diagram of Desktop Type
6-82

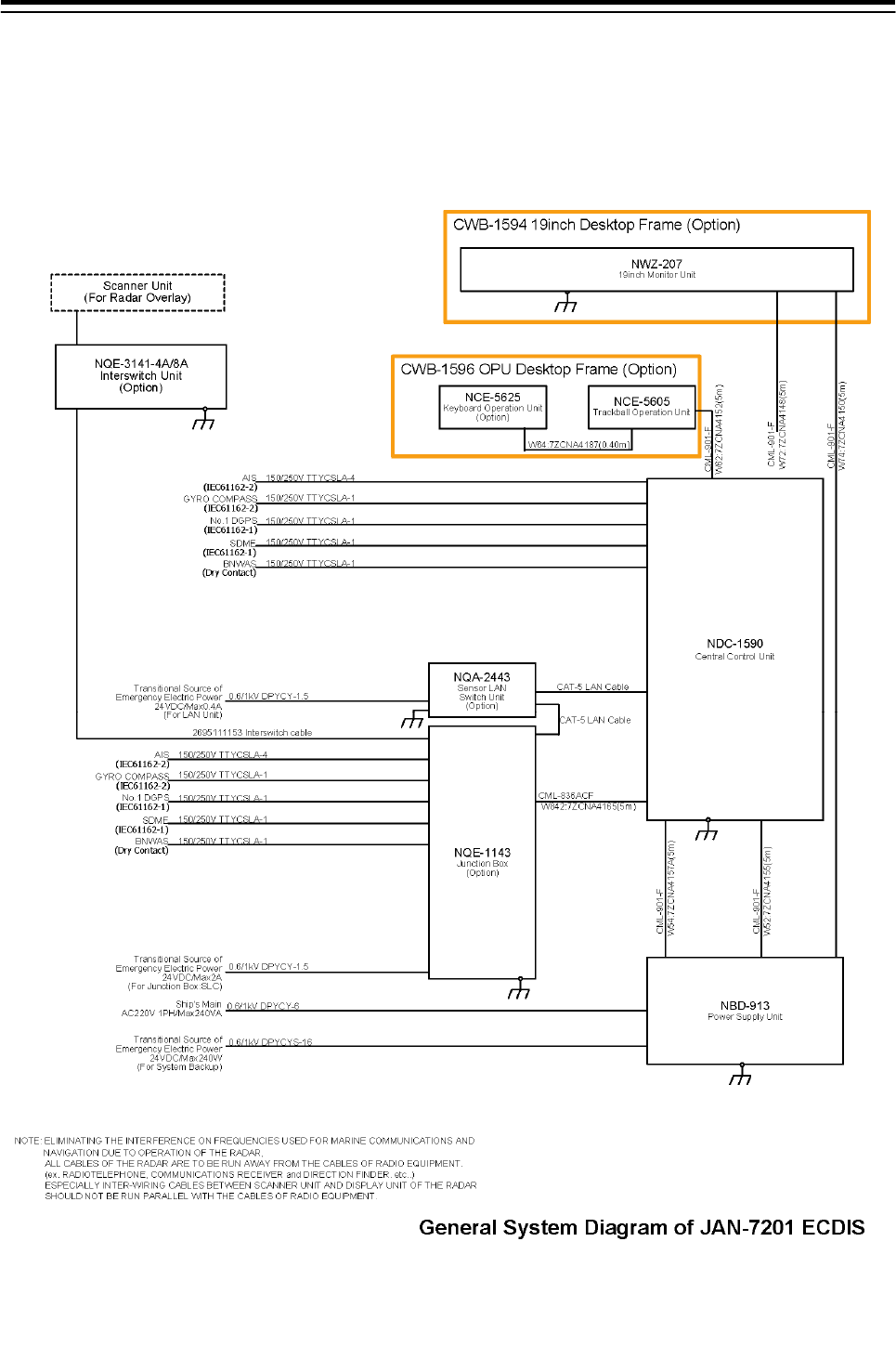

6.3.27 JAN-7201
6. Appendix > 6.3 General System Diagram of Desktop Type
6-83

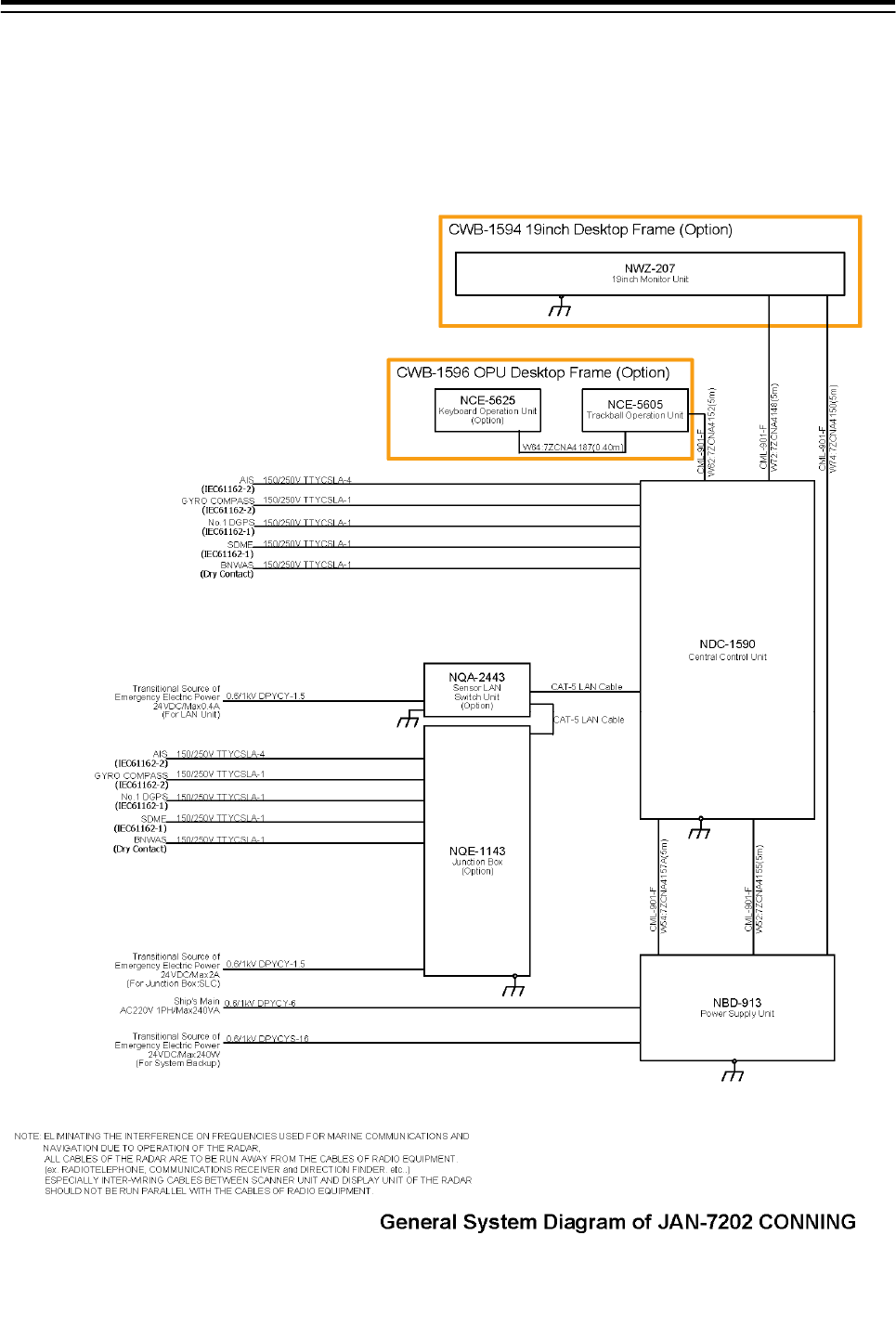

6.3.28 JAN-7202
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-84

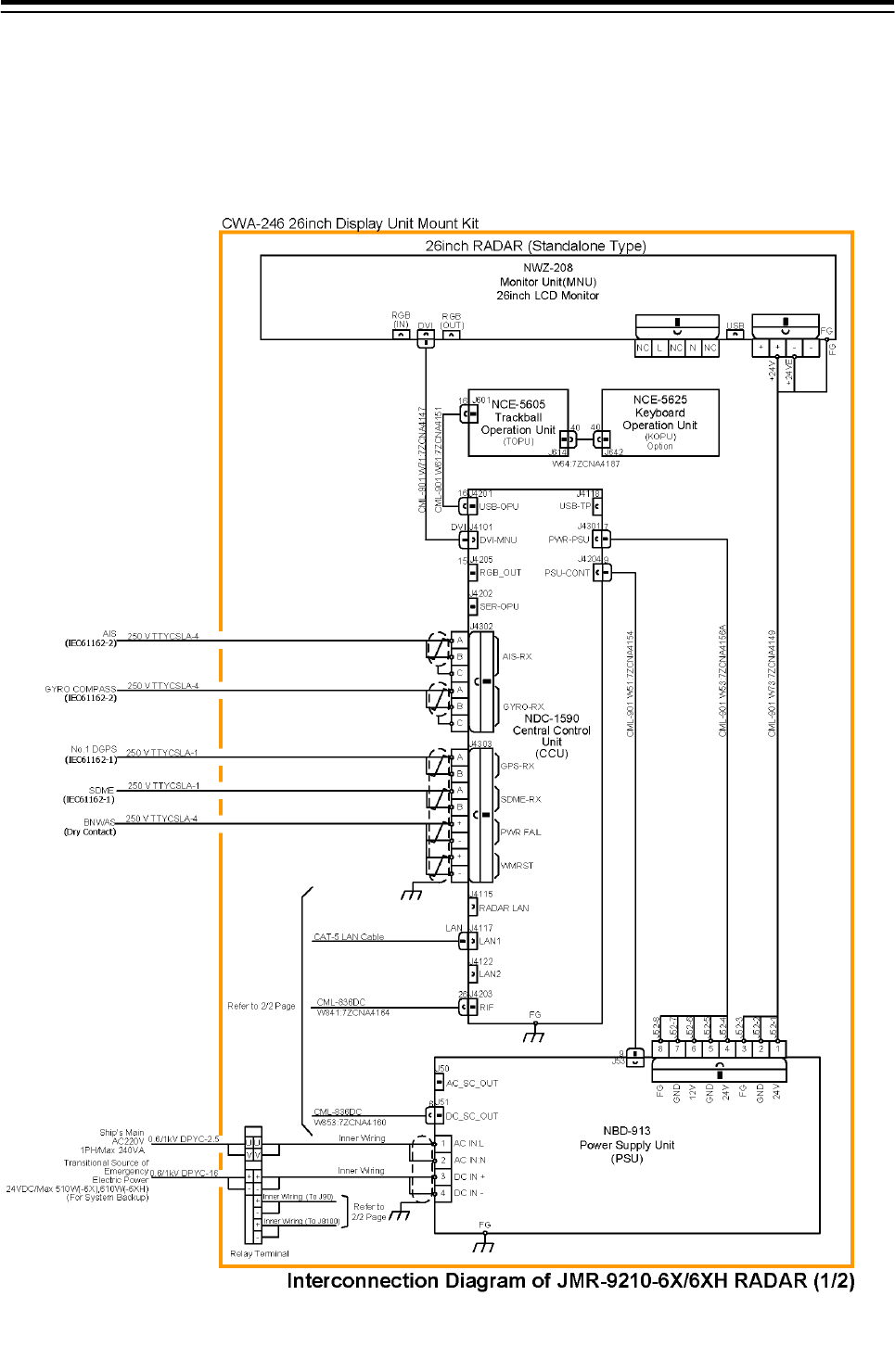

6.4 Interconnection Diagram of Standalone Type
6.4.1 JMR-9210-6X/6XH
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-85

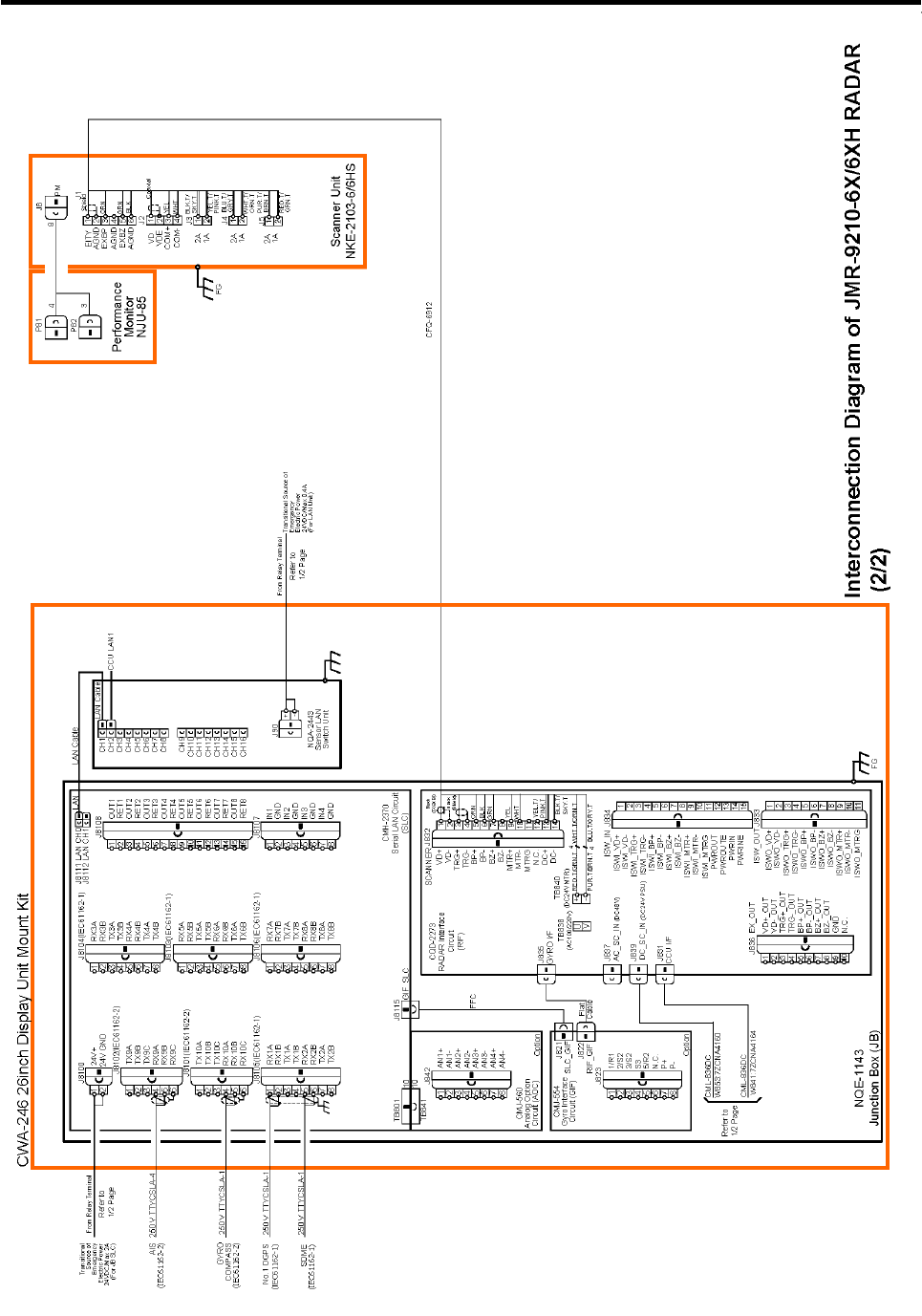

6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-86
6.4.2 JMR-9225-6X/9X
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-87

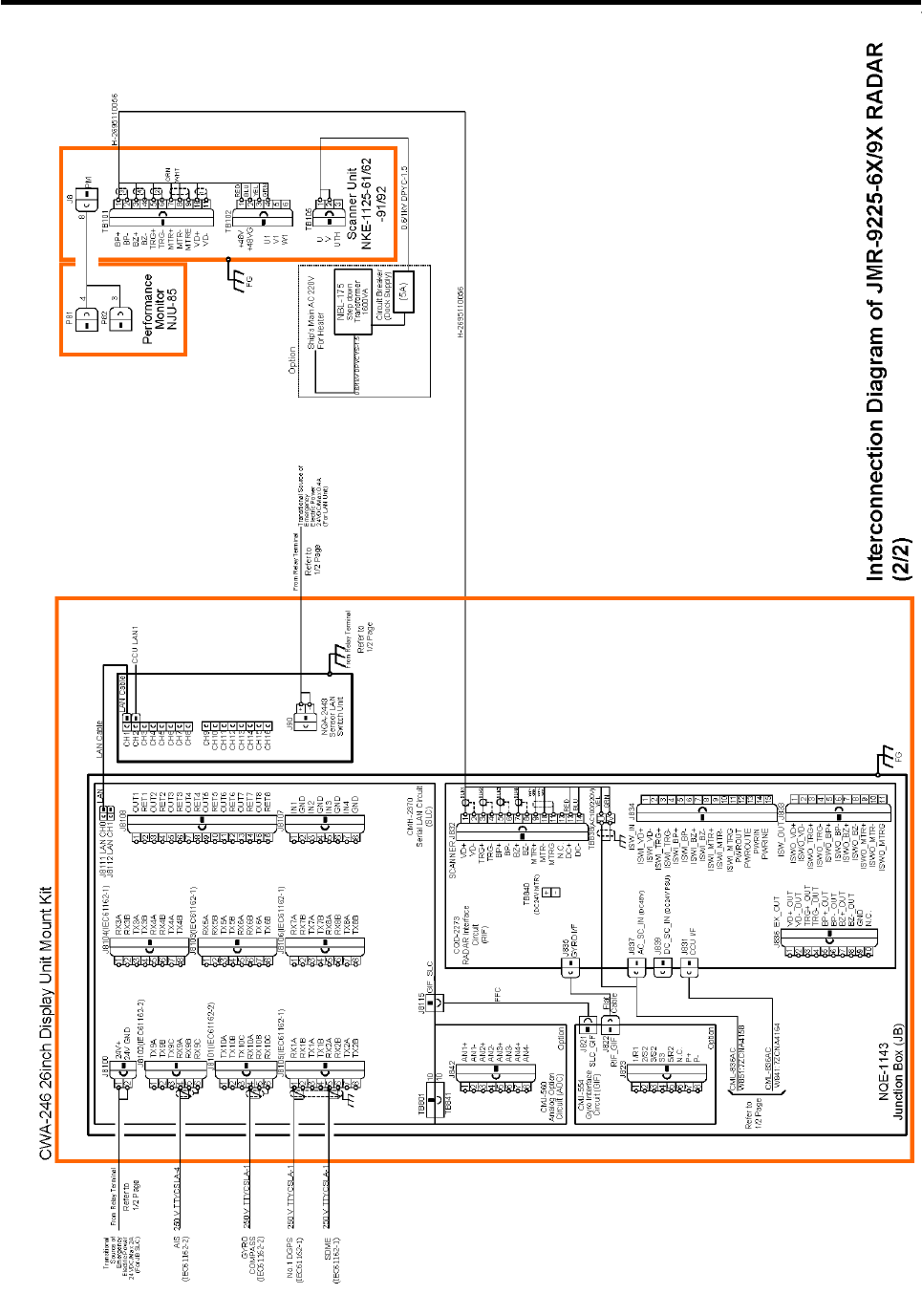

6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-88

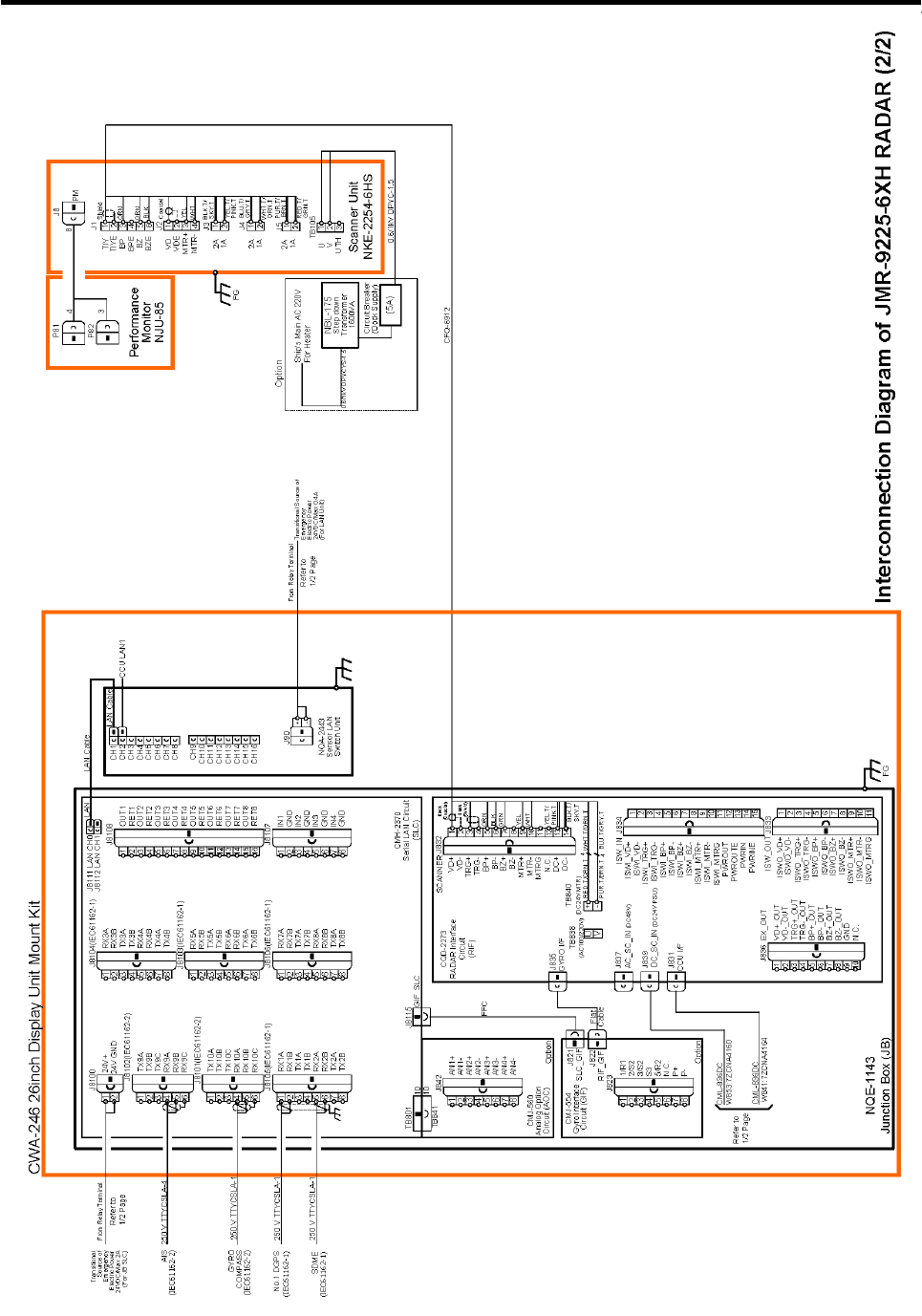

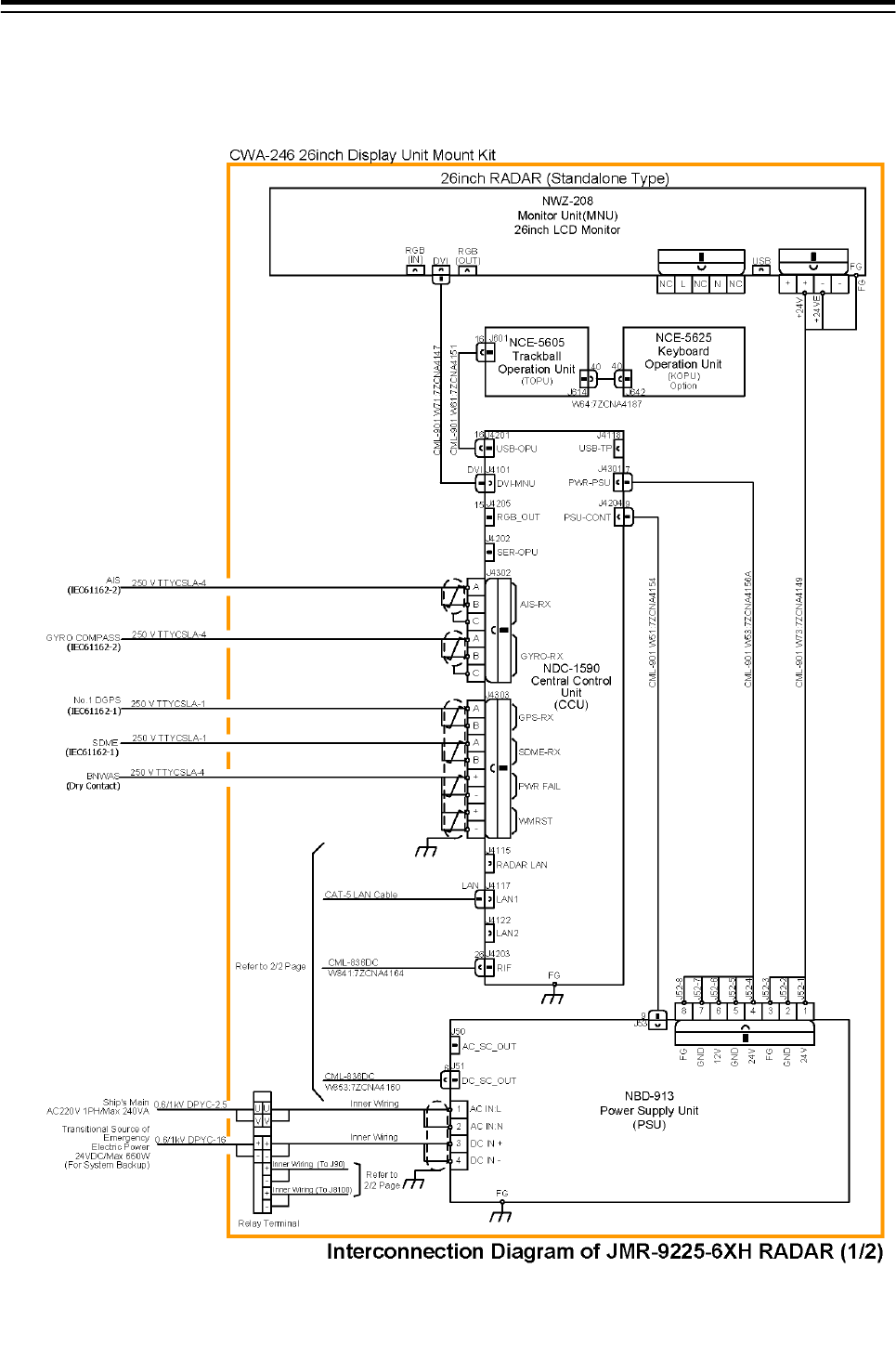

6.4.3 JMR-9225-6XH
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-89
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-90

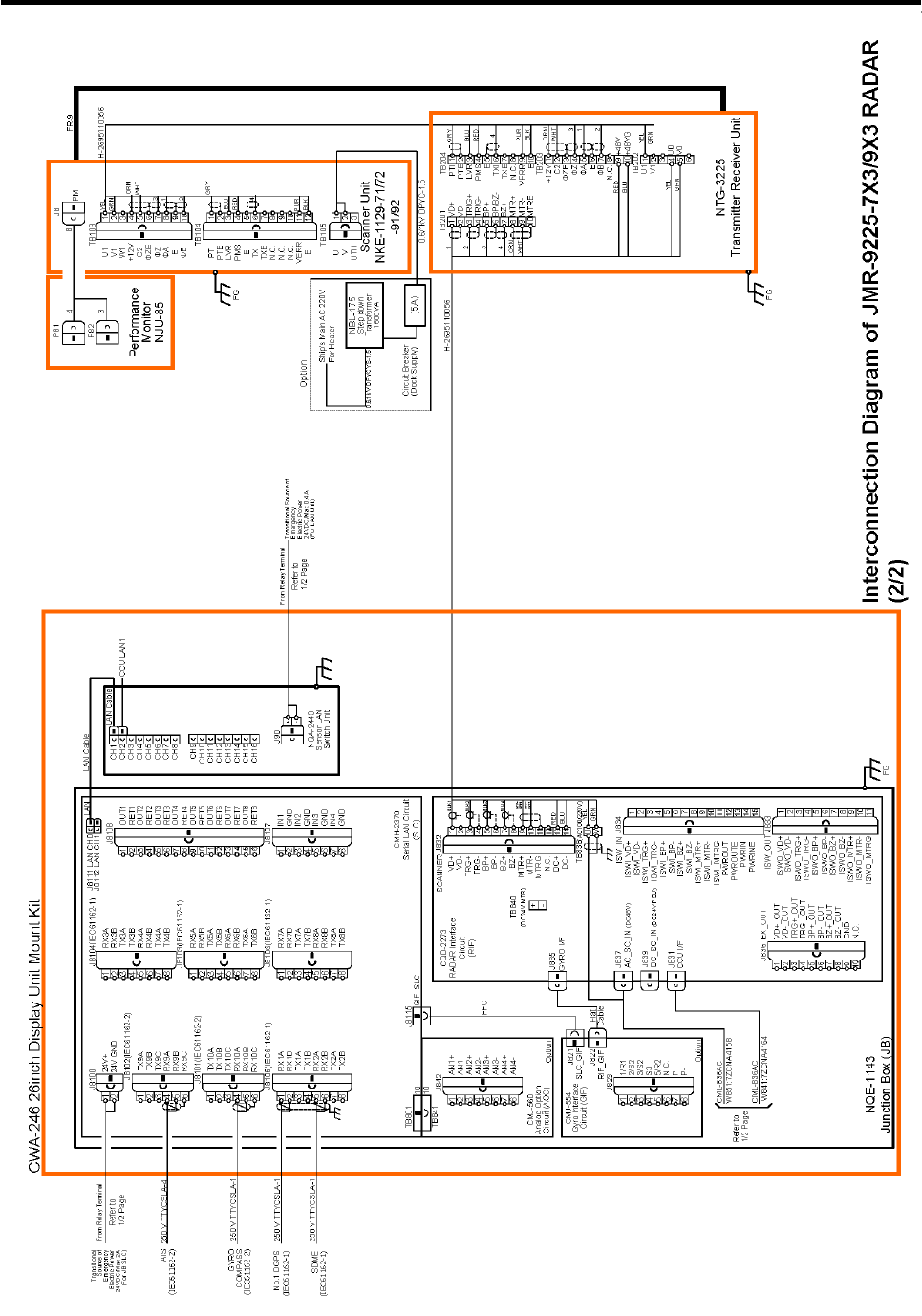

6.4.4 JMR-9225-7X3/9X3
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-91
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-92

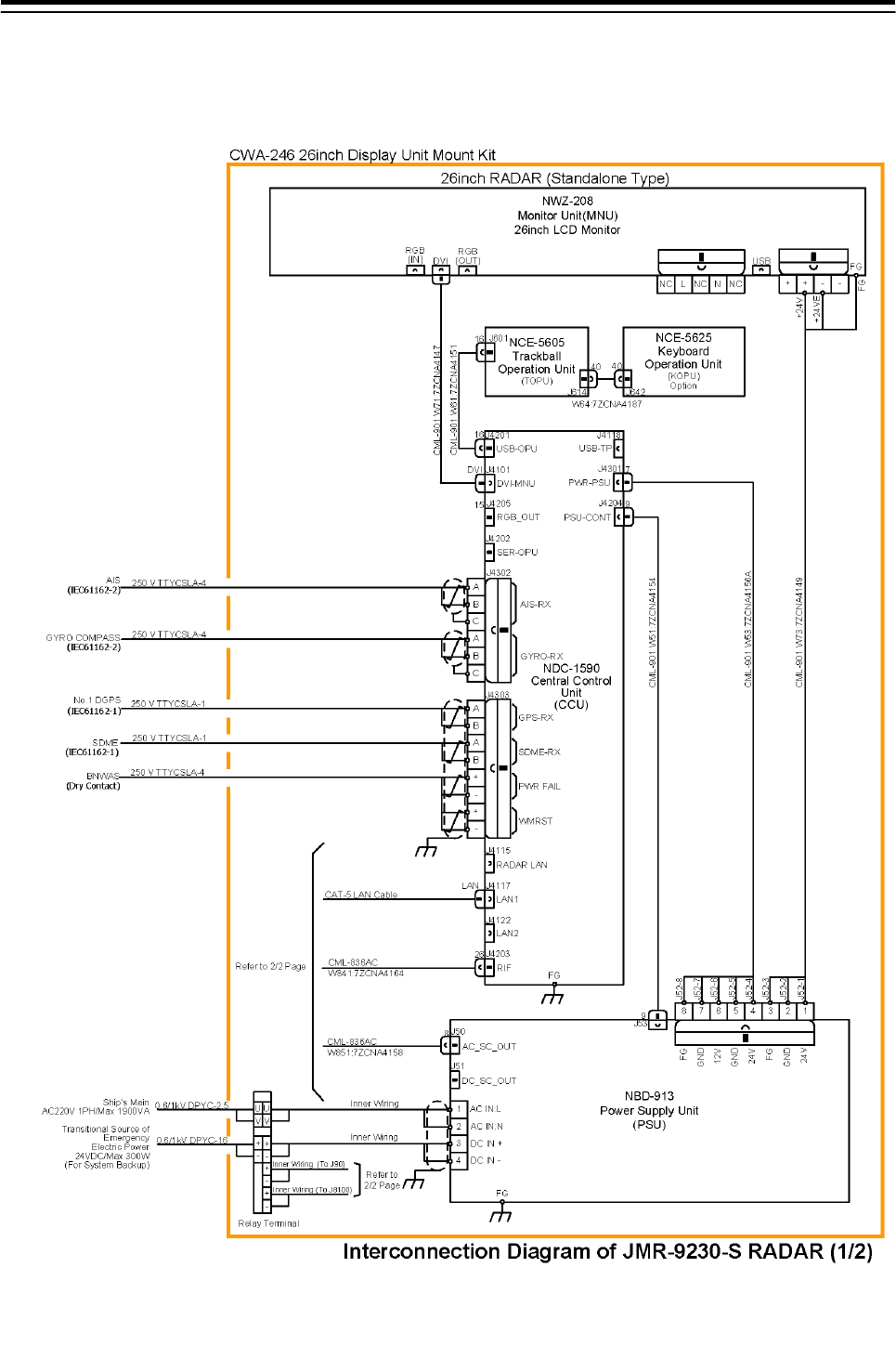

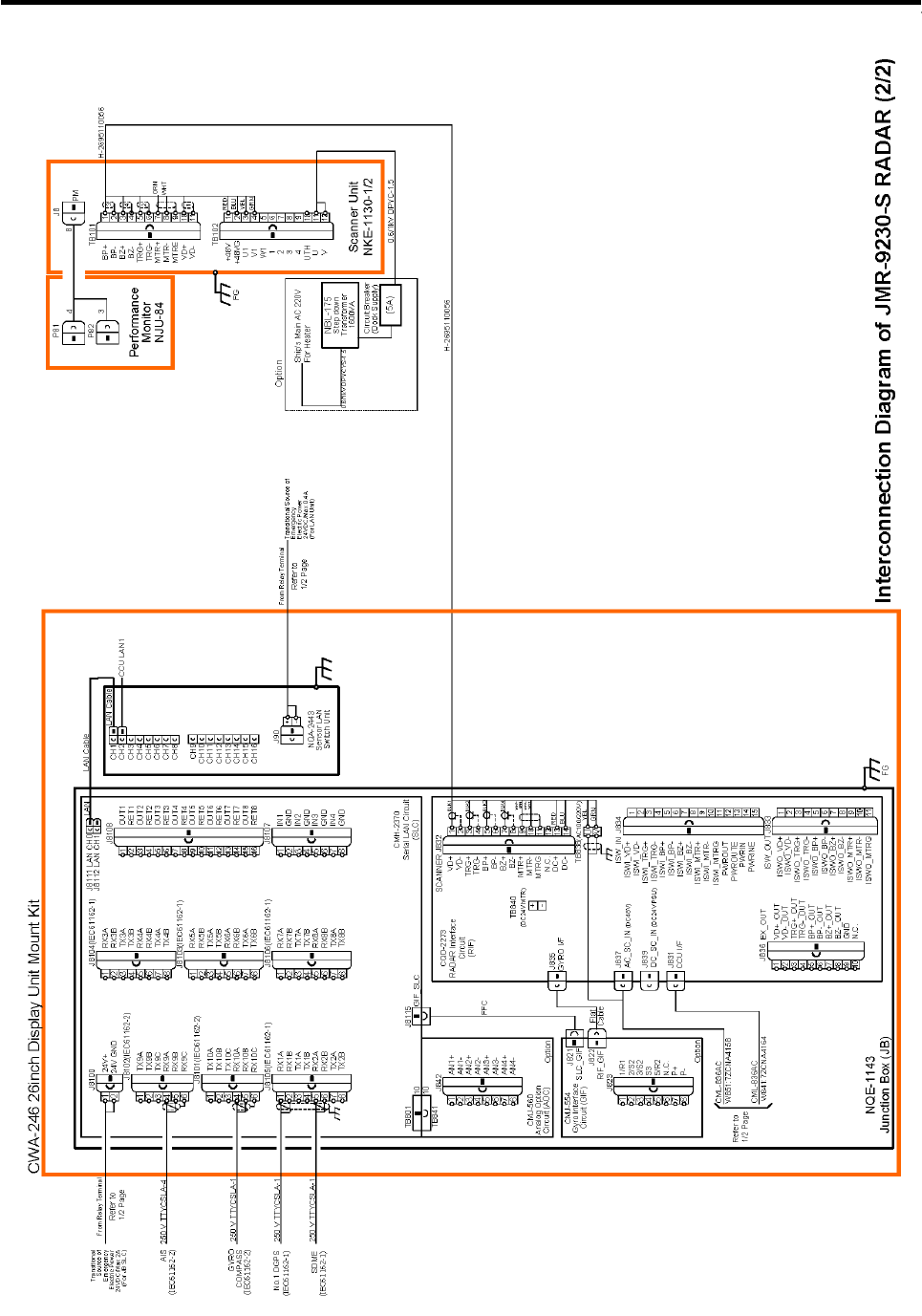

6.4.5 JMR-9230-S
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-93
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-94

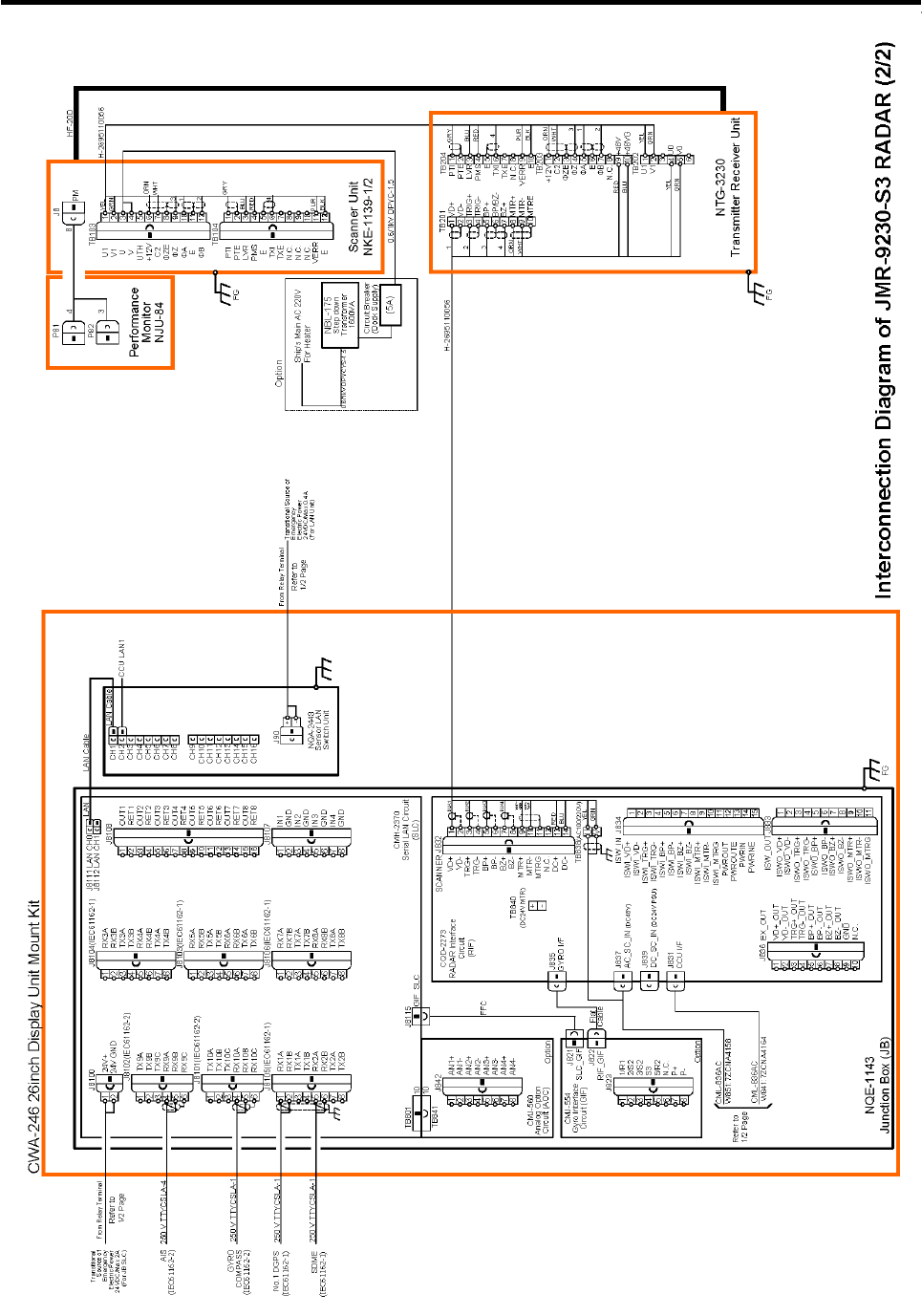

6.4.6 JMR-9230-S3
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-95
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-96
6.4.7 JMR-9272-S
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-97

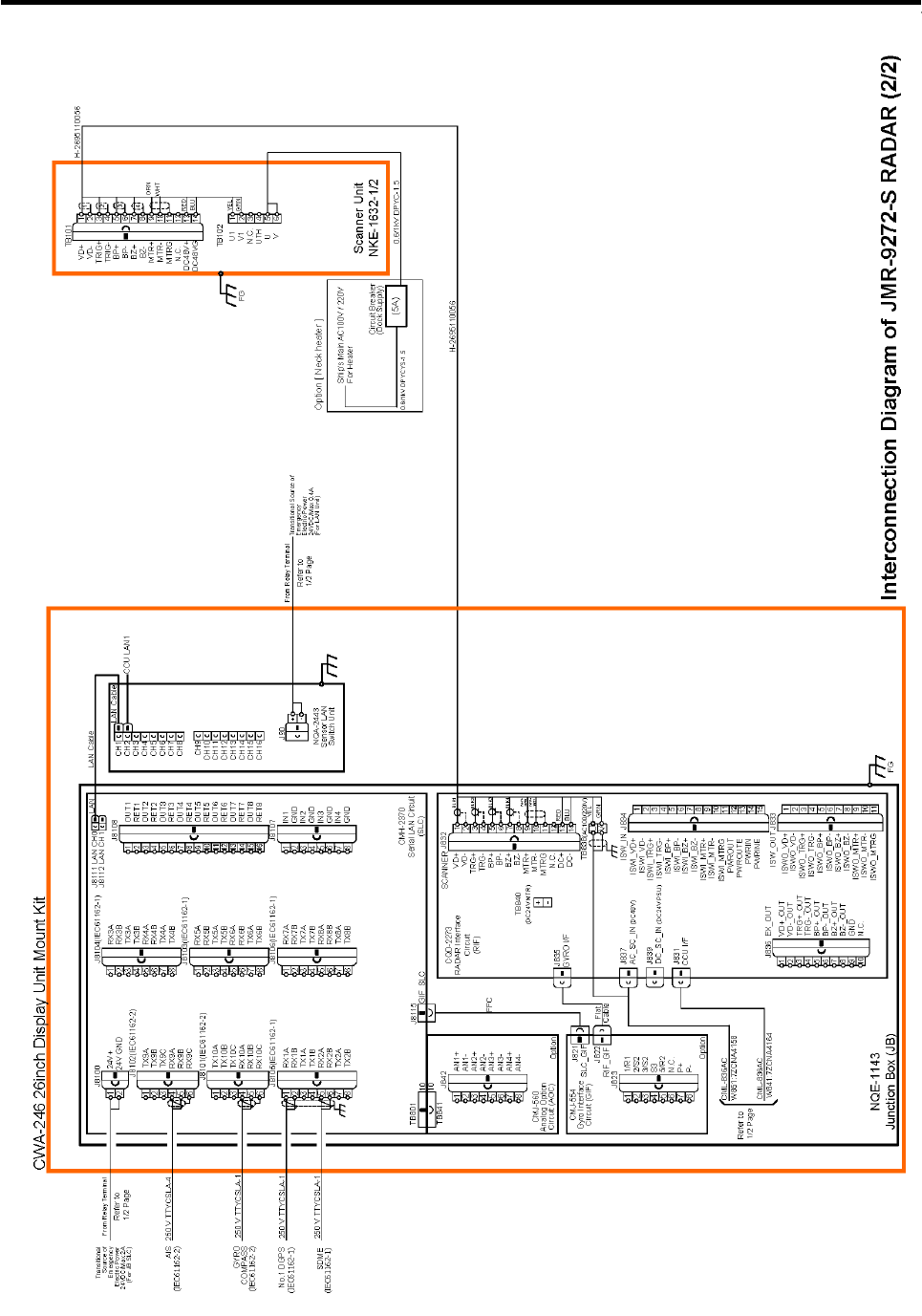

6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-98

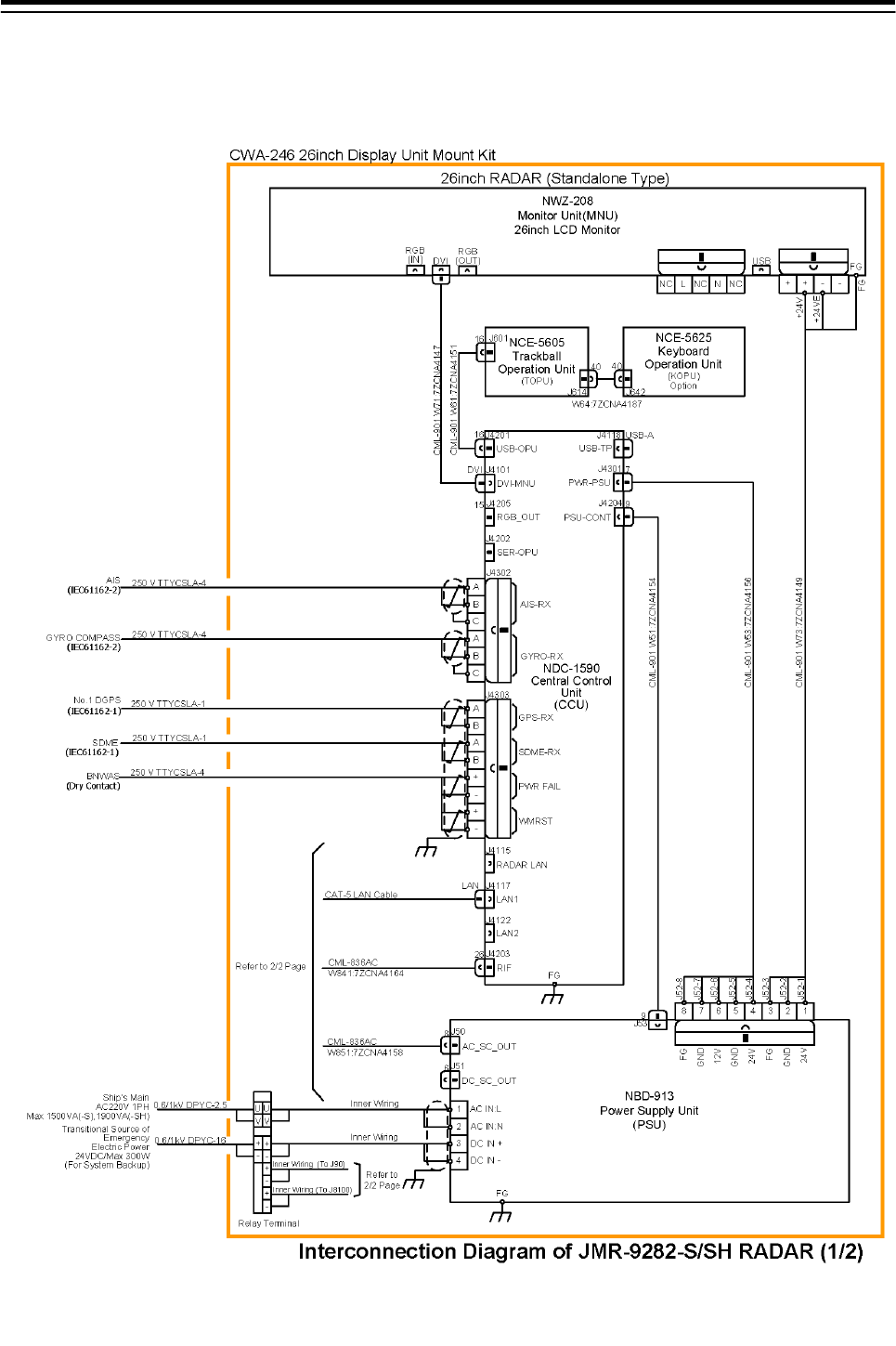

6.4.8 JMR-9282-S/SH
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-99
6. Appendix > 6.4 Interconnection Diagram of Standalone Type
6-100

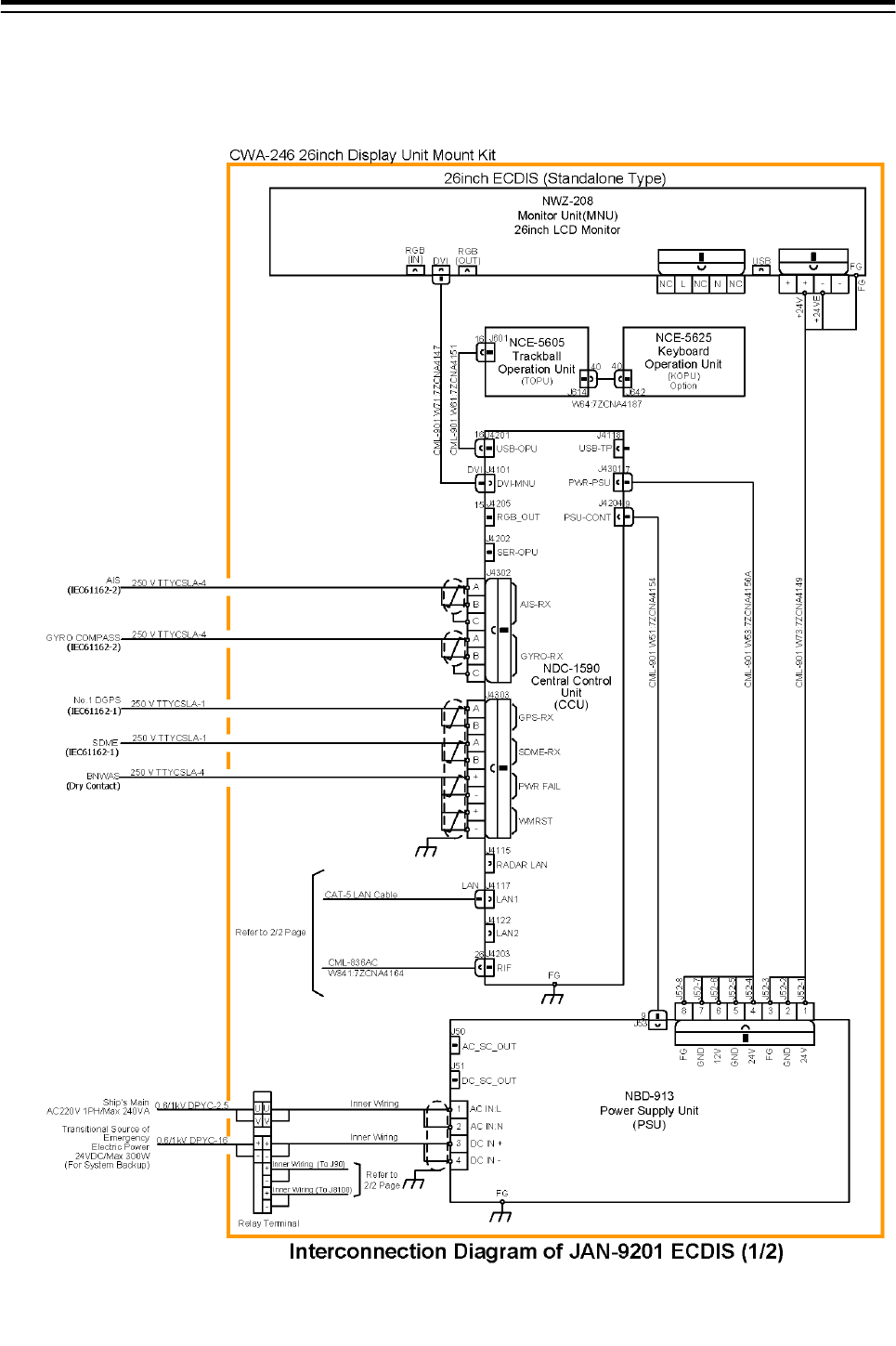

6.4.9 JAN-9201
