User Manual part 1 of 2
iDEN 800MHz RRH
iDEN 800MHz RRHiDEN 800MHz RRH
iDEN 800MHz RRH
U
UU
User Guide
ser Guideser Guide
ser Guide
iDEN 800MHz RRH
User Guide
Written by Reviewed by Approved by
Joonyong Jang Michael Yoon Michael Yoon
iDEN 800MHz RRH
iDEN 800MHz RRHiDEN 800MHz RRH
iDEN 800MHz RRH
U
UU
User Guide
ser Guideser Guide
ser Guide
Index
Contents
1. FCC Information ------------------------------------------------- 3
2. Test Environment ------------------------------------------------ 3
2.1. Preperation List ------------------------------------------ 3
2.2. Testing Environement Configuration --------------- 3
2.3. RRH Setup Procedure --------------------------------- 4
3. Network Configuration ----------------------------------------- 5
4. Operate GUI Program ----------------------------------------- 6
iDEN 800MHz RRH
iDEN 800MHz RRHiDEN 800MHz RRH
iDEN 800MHz RRH
1. FCC Information
RF Exposure compliance must be addressed at the time of licensing
2. Test Environment
2.1. Preperation List
• iDEN 800Mhz RRH
(Remote Radio Head 800MHz)
• PSU
(Power Supply Unit)
• BBU
(Base Band Unit, Alacaltel Lucent)
• Optic transceiver 2EA (
Yellow
• Optic Cable
• RJ45 Ehternet Cable
•
Laptop computer for RRH GUI

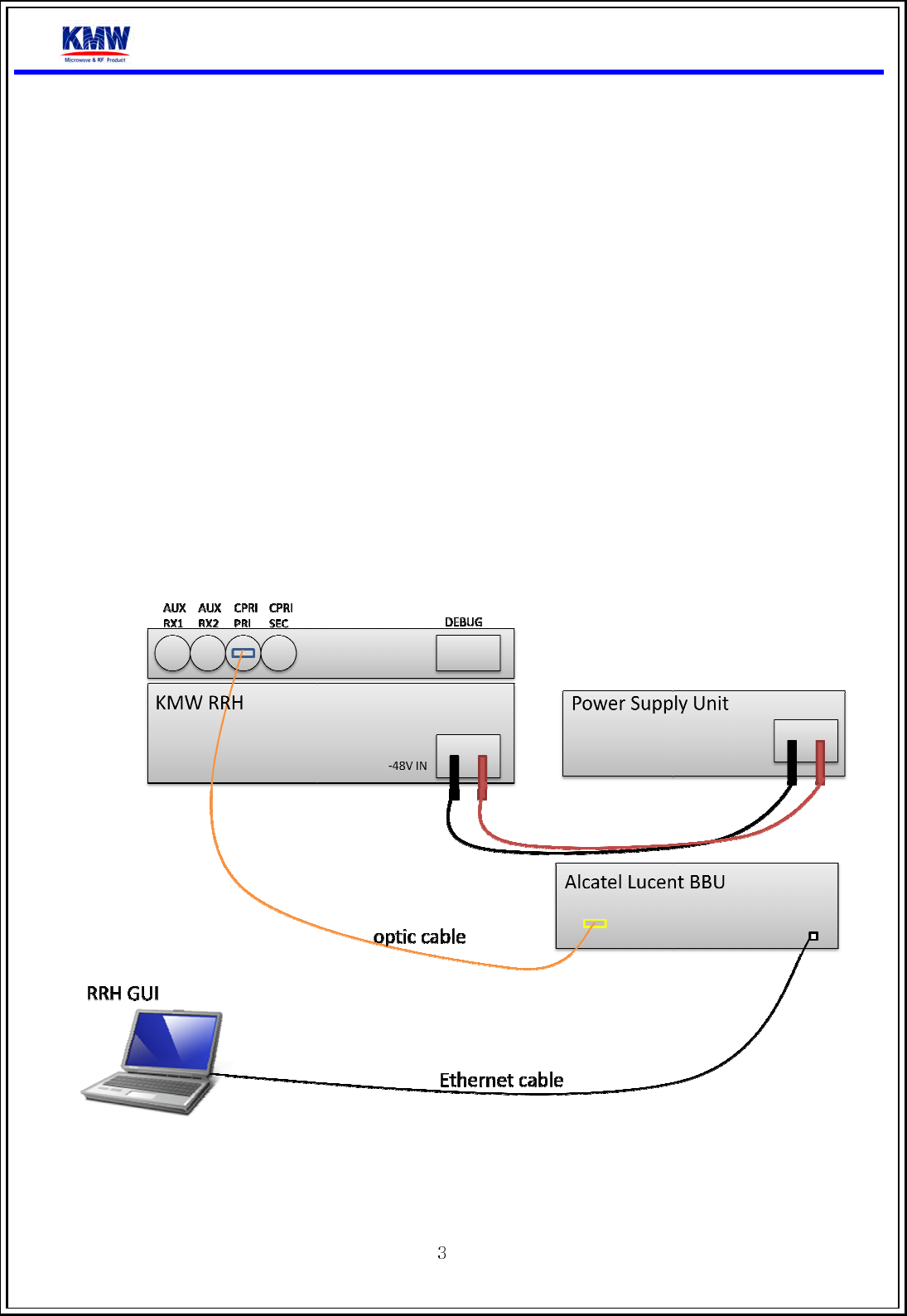

2.2.
Testing Environement Configuration
iDEN 800MHz RRH
iDEN 800MHz RRHiDEN 800MHz RRH
iDEN 800MHz RRH
U
UU
User Guide
ser Guideser Guide
ser Guide
RF Exposure compliance must be addressed at the time of licensing
.
(Remote Radio Head 800MHz)
(Power Supply Unit)
(Base Band Unit, Alacaltel Lucent)
Yellow
- 1550nm, Blue- 1310nm)
Laptop computer for RRH GUI
Testing Environement Configuration
iDEN 800MHz RRH
iDEN 800MHz RRHiDEN 800MHz RRH
iDEN 800MHz RRH
U
UU
User Guide
ser Guideser Guide
ser Guide
• PSU Setting Table
Voltage Current Limit
Low : -38V 12 A
Normal : -48V 9.5 A
High : -57V 8 A

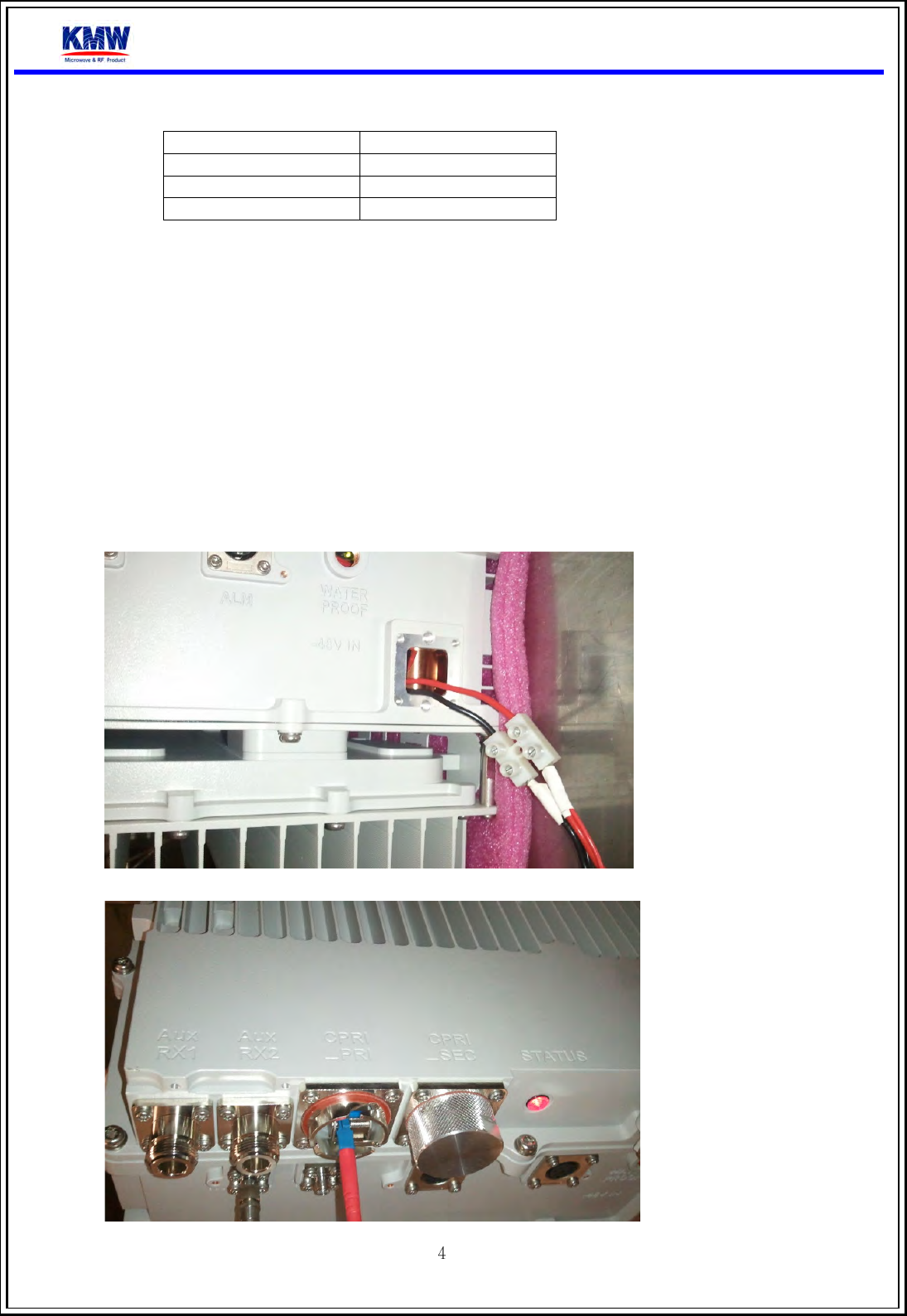

2.3. RRH Setup Procedure
•
••
• Checke PSU Power 48V off
•
••
• Connect PSU power to RRH Power connector
•
••
• Connect BBU and RRH with Optic transceiver and Optic cable
RRH side; Blue Transceiver (1310nm)
BBU side; Yellow Transceiver (1550nm)
•
••
• Turn on PSU to power up RRH
•
••
• Make sure computer to join RRH and BBU network.
If the computer joined the same network which BBU joined, it is able to access RRH network from the GUI.
iDEN 800MHz RRH
iDEN 800MHz RRHiDEN 800MHz RRH
iDEN 800MHz RRH
U
UU
User Guide
ser Guideser Guide
ser Guide

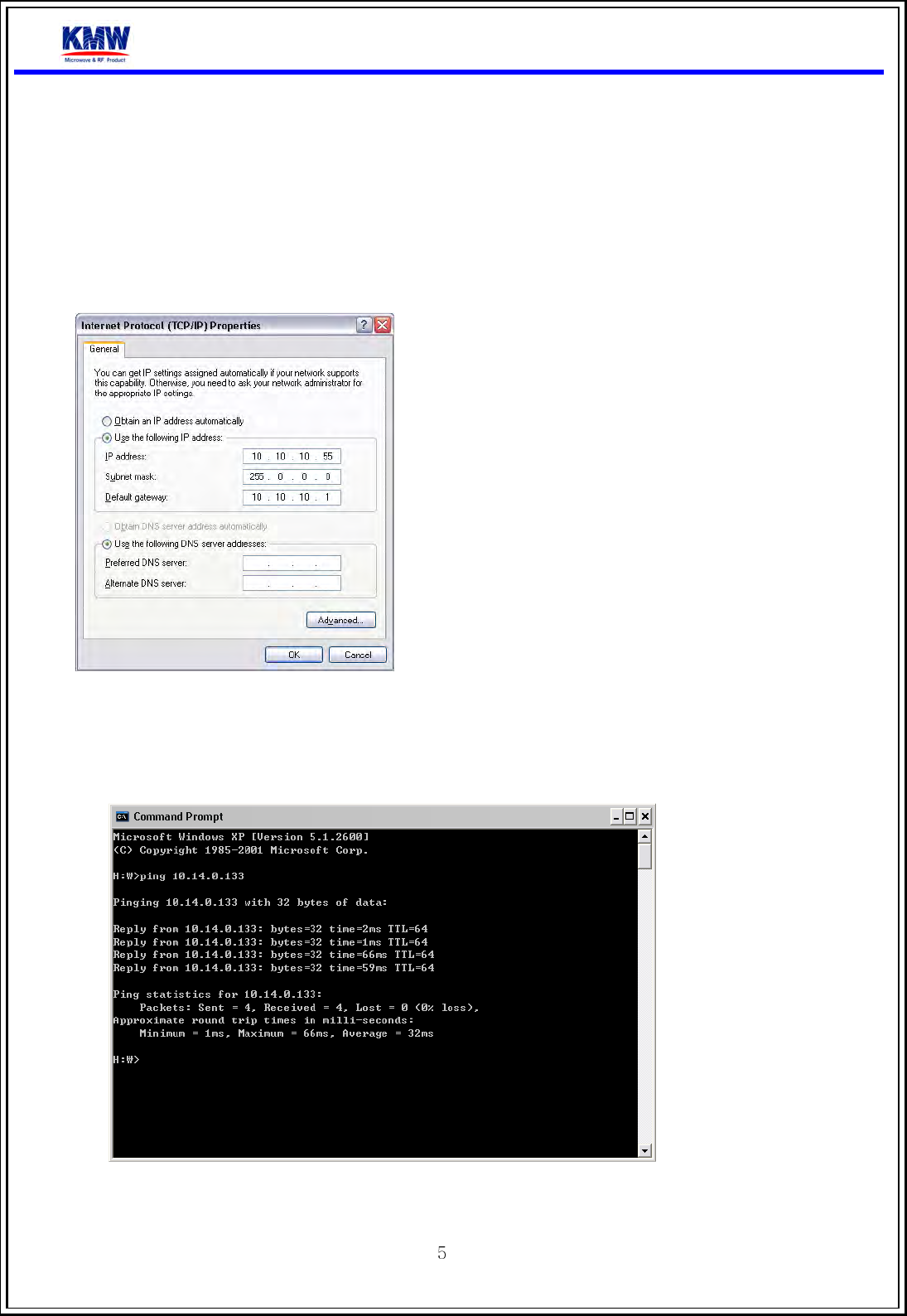

3. Network Configuration
• Setup computer network configuration
IP: assigned by ALU (ex; 10.10.10.55)
Subnet mask: 255.0.0.0
Default gateway: assigned by ALU (ex; 10.10.10.1)
DNS: assigned by ALU
• Test network configuration
Windows Start > Run > CMD [Enter]
C:\> ping RRH IP(10.14.0.196) [Enter]
iDEN 800MHz RRH
iDEN 800MHz RRHiDEN 800MHz RRH
iDEN 800MHz RRH

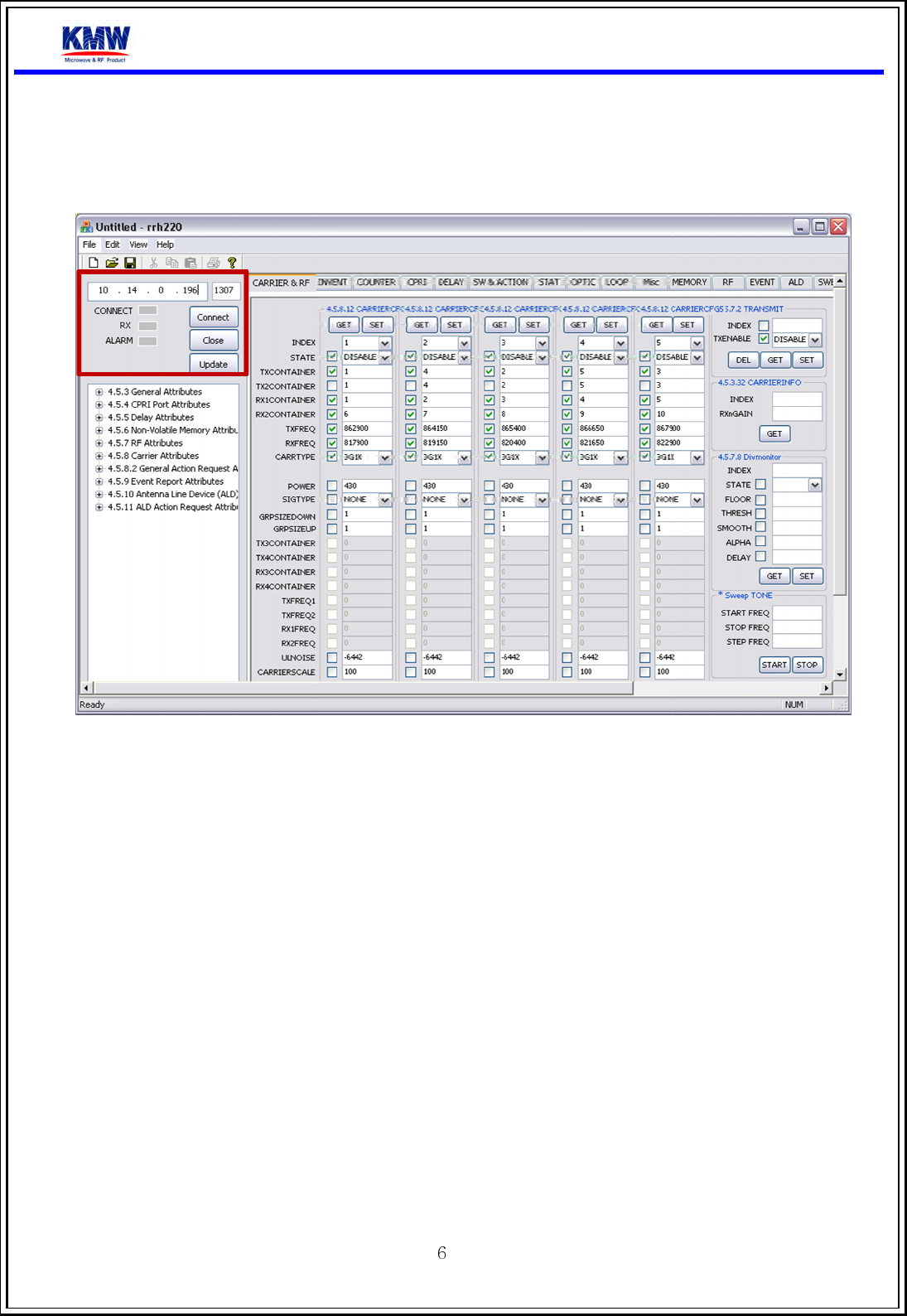

4. Operate GUI Program
•
••
• Run RRH GUI Program.
Input RRH’s IP and click the Connect button
•
••
•
Setup the carrier configuration on the index to turn o
If you want to make CDMA single carrier configuration, please follow below setting and click (A) SET button.
Ex) 1FA setup with CDMA signam on Index 3 (Tx; 865.4MHz, Rx; 820.4MHz)
Index : 3
STATE : [v] Enable
TXCONTAINER : [v] 2
TX2CONTAINER : [v] 2
RX1CONTAINER : [v] 3
RX2CONTAINER : [v] 8
TXFREQ : [v] 865400
RXFREQ : [v] 820400
CARRTYPE : [v] 3G1X
iDEN 800MHz RRH
iDEN 800MHz RRHiDEN 800MHz RRH
iDEN 800MHz RRH
U
UU
User Guide
ser Guideser Guide
ser Guide
Input RRH’s IP and click the Connect button
Setup the carrier configuration on the index to turn o
n carrier power.
If you want to make CDMA single carrier configuration, please follow below setting and click (A) SET button.
Ex) 1FA setup with CDMA signam on Index 3 (Tx; 865.4MHz, Rx; 820.4MHz)
If you want to make CDMA single carrier configuration, please follow below setting and click (A) SET button.
