User Manual
iDEN 800MHz RRH User Guide
1
iDEN 800MHz RRH
User Guide
Written by
Reviewed by
Approved by
JINHEE LEE
KSHIN
MICHALE YOON
iDEN 800MHz RRH User Guide
2
Index
Contents
1. FCC Information ………………………………….….……..3
2. Test Environment ………………………………..………..3
2.1. Preperation List …………………………………..……..3
2.2. Testing Environement Configuration …………..……..3
2.3. RRH Setup Procedure …………………………..……….4
3. Network Configuration ………………………...………….5
4. Operate GUI Program ……………………………………6
iDEN 800MHz RRH User Guide
3
1. FCC Information
RF Exposure compliance must be addressed at the time of licensing
2. Test Environment
2.1. Preperation List
iDEN 800Mhz RRH (Remote Radio Head 800MHz)
PSU (Power Supply Unit)
BBU (Base Band Unit, Alacaltel Lucent)
Optic transceiver 2EA (Yellow- 1550nm, Blue- 1310nm)
Optic Cable
RJ45 Ehternet Cable
Laptop computer for RRH GUI

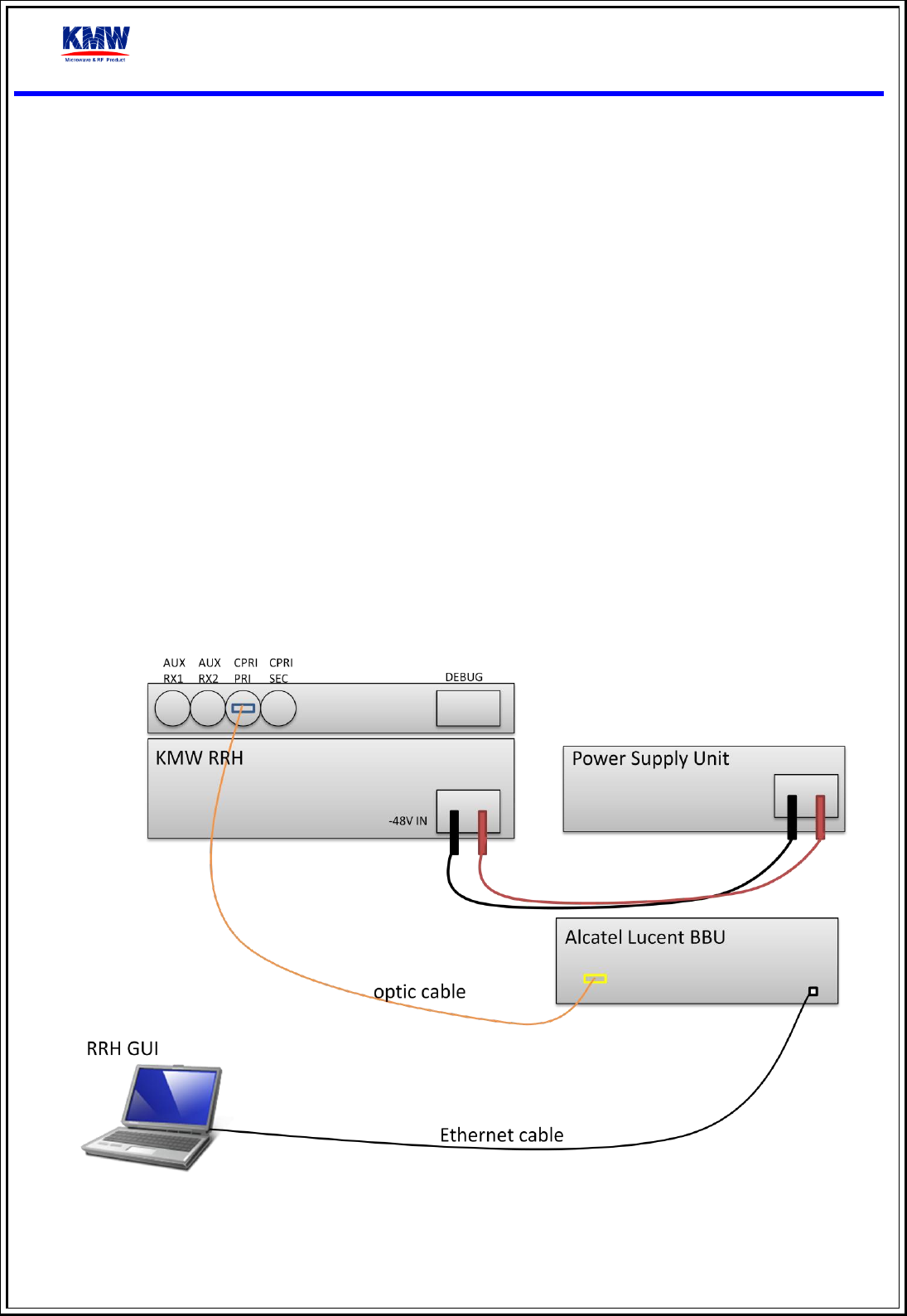

2.2. Testing Environement Configuration
iDEN 800MHz RRH User Guide
4
PSU Setting Table
Voltage
Current Limit
Low : -38V
12 A
Normal : -48V
9.5 A
High : -57V
8 A

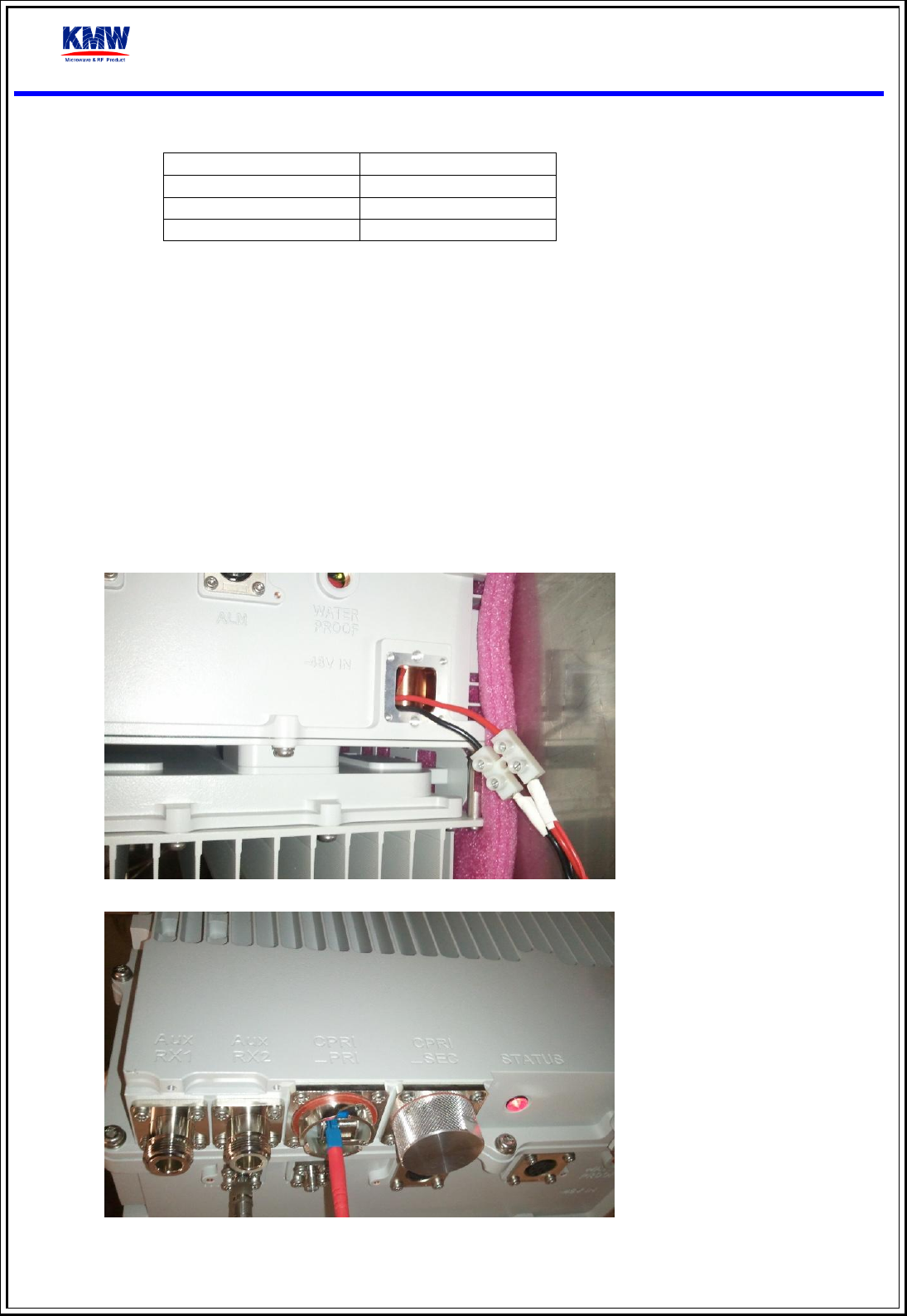

2.3. RRH Setup Procedure
Checke PSU Power 48V off
Connect PSU power to RRH Power connector
Connect BBU and RRH with Optic transceiver and Optic cable
RRH side; Blue Transceiver (1310nm)
BBU side; Yellow Transceiver (1550nm)
Turn on PSU to power up RRH
Make sure computer to join RRH and BBU network.
If the computer joined the same network which BBU joined, it is able to access RRH network from the GUI.
iDEN 800MHz RRH User Guide
5
3. Network Configuration
Setup computer network configuration
IP: assigned by ALU (ex; 10.10.10.55)
Subnet mask: 255.0.0.0
Default gateway: assigned by ALU (ex; 10.10.10.1)
DNS: assigned by ALU

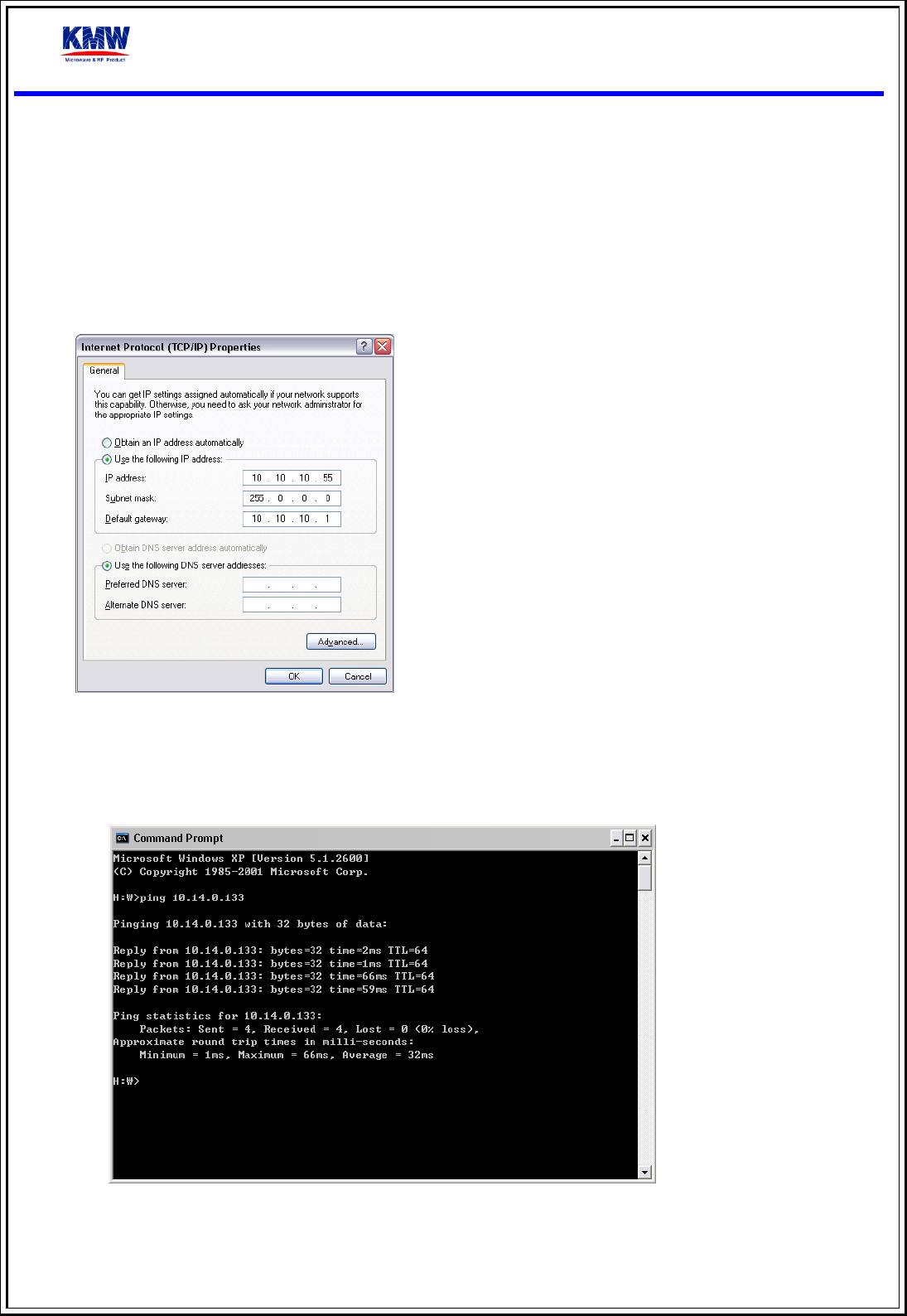

Test network configuration
Windows Start > Run > CMD [Enter]
C:\> ping RRH IP(10.14.0.196) [Enter]
iDEN 800MHz RRH User Guide
6
4. Operate GUI Program

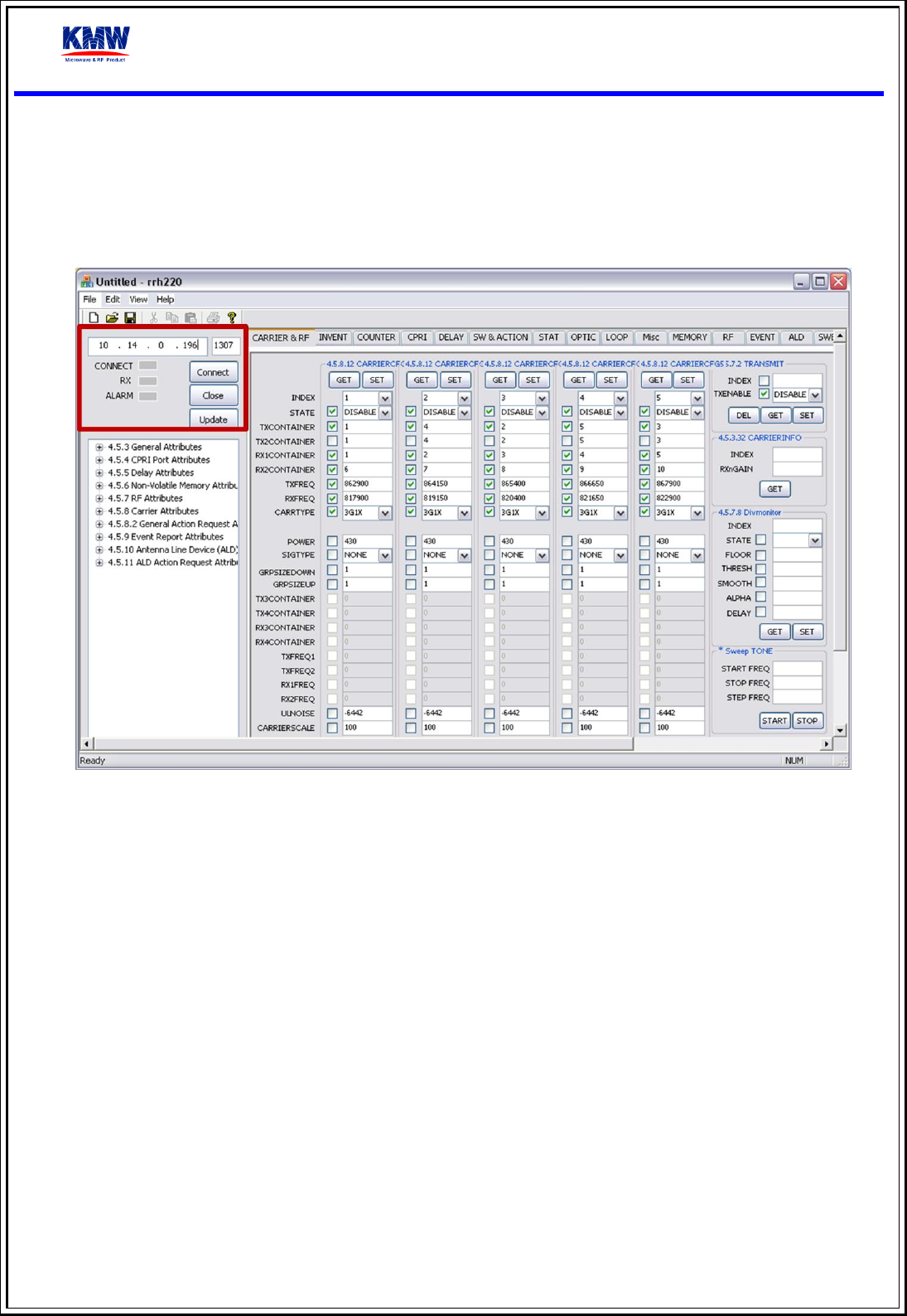

Run GUI Program.
Input RRH’s IP and click the Connect button
Setup the carrier configuration on the index to turn on carrier power.
If you want to make LTE single carrier configuration, please follow below setting and click (A) SET button.
Ex) 1FA setup with LTE signam on Index 3 (Tx; 865.4MHz, Rx; 820.4MHz)
Index : 3
STATE : [v] Enable
TXCONTAINER : [v] 2
TX2CONTAINER : [v] 2
RX1CONTAINER : [v] 3
RX2CONTAINER : [v] 8
TXFREQ : [v] 865400
RXFREQ : [v] 820400
CARRTYPE : [v] LTE
iDEN 800MHz RRH User Guide
7

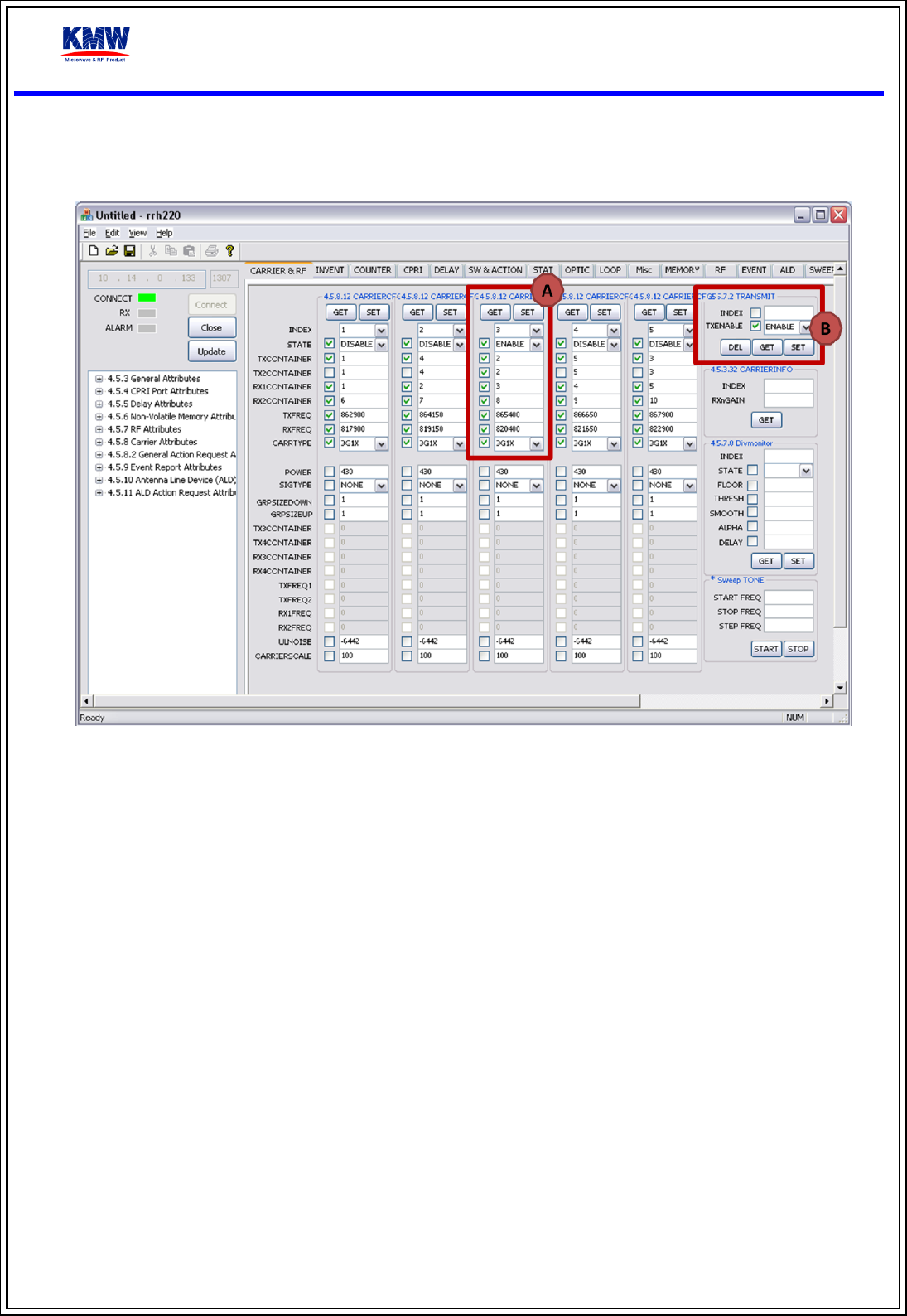

Change TXENABLE[v] from DISABLE to ENABLE and click (B)SET button to turn on RF Power
iDEN 800MHz RRH User Guide
8

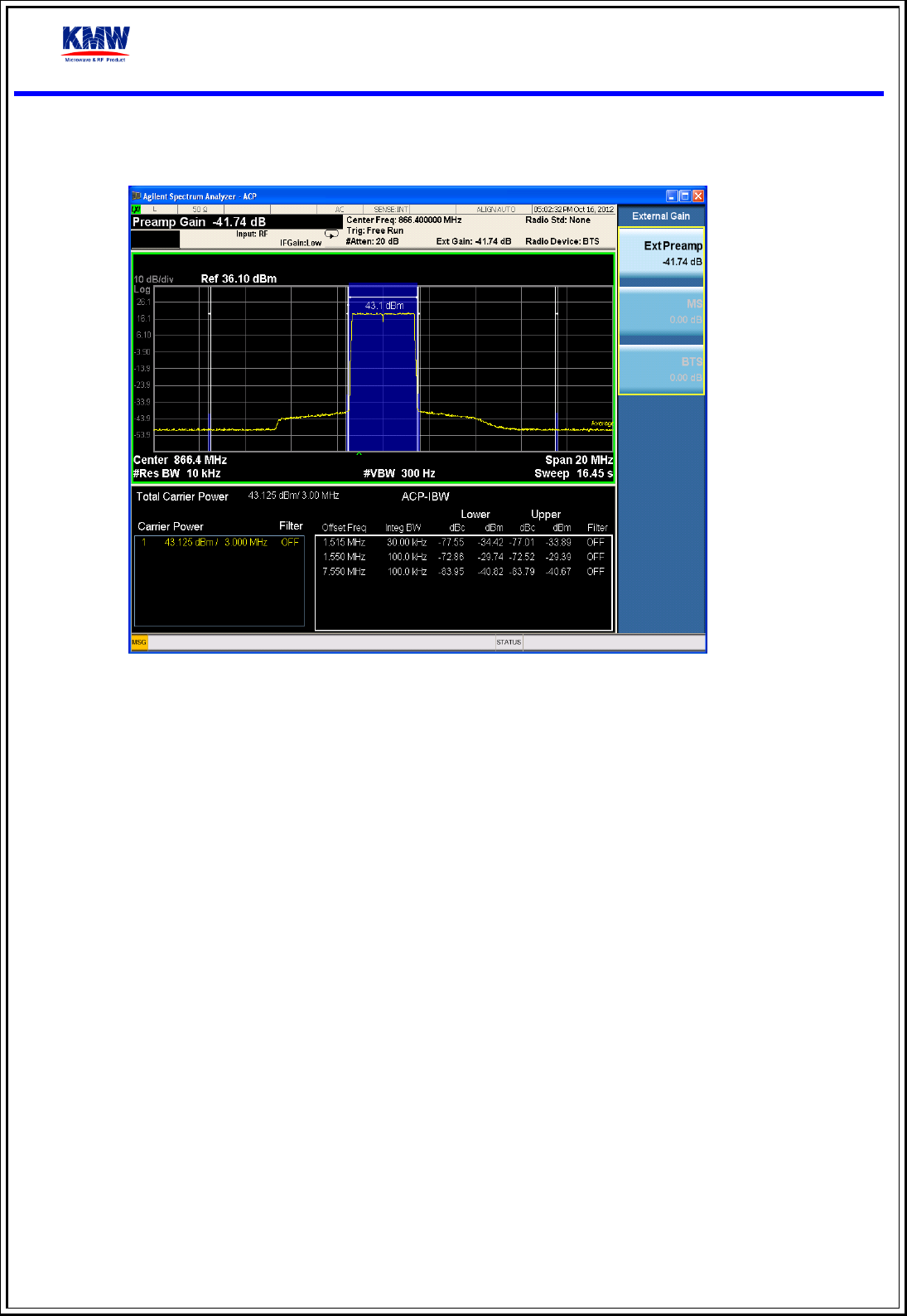

If you set up Signal Analyzer, you can monitor carrier power just like below image.
