User Manual 3

32
Operation
- There are two different ways in
order to add or delete scanned
channels. One is "Custom List"
and the other is "Favorite List" in
the channel list. Both of them are
available after EZ Scan on the
SETUP menu.
- A Custom List can be created by
toggling each channel on or off
with ENTER button. The chan-
nels in the Custom List are dis-
played in black color, and the
channels deleted from the
Custom List are displayed in gray
color. Once a channel is high-
lighted you can add or delete the
channel by referring to the small
window at the top-left corner of
the screen.You can create your
own Favorite List. Use the FAV
button on the remote control
when a channel is highlighted
and then you can add or delete
the channel to/from the Favorite
List.

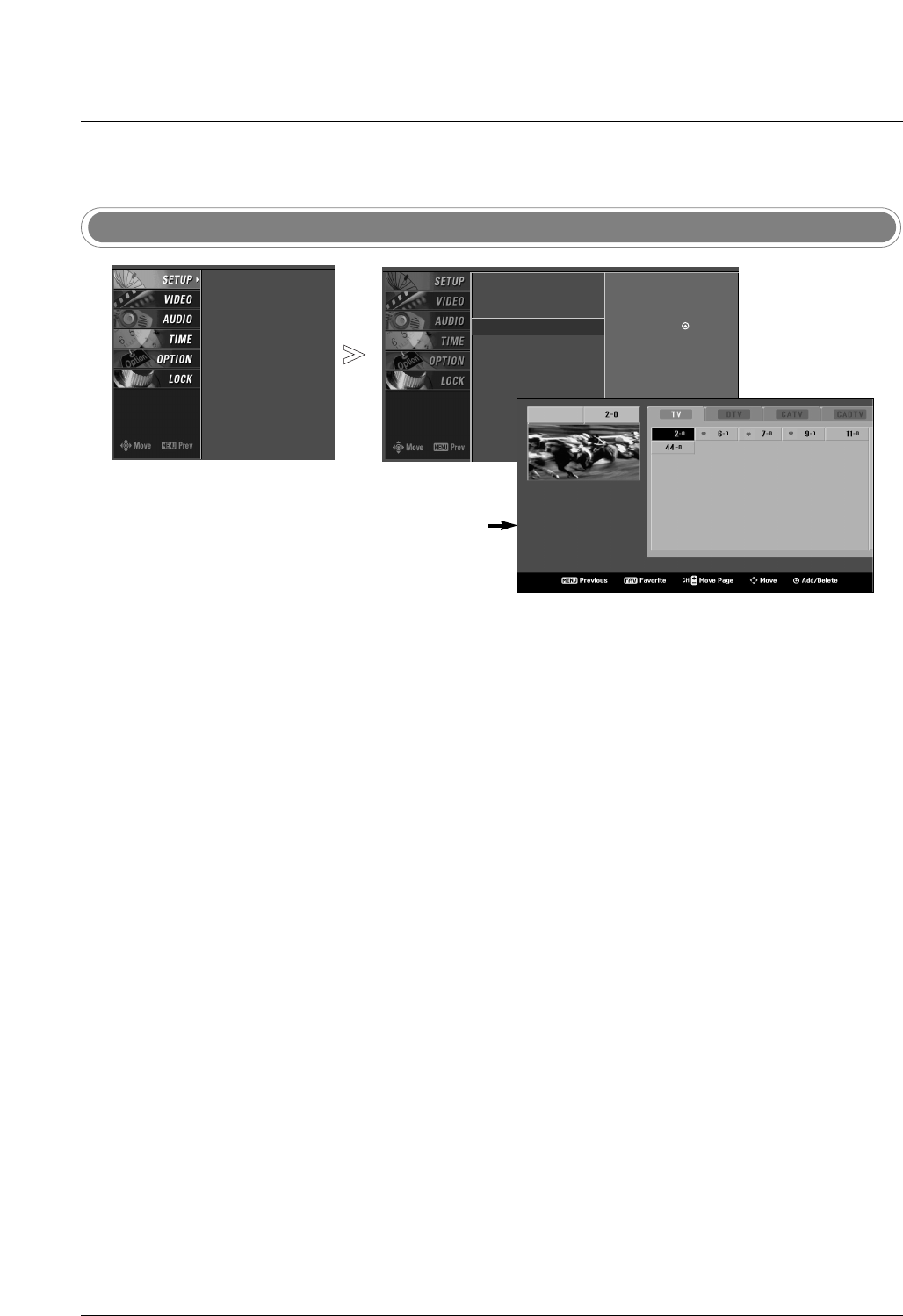

Channel Edit
Press the MENU button and then use DD / EEbutton to select the SETUP menu.
Press the GGbutton and then use DD / EEbutton to select Channel Edit.
Press the GGbutton. You will now see a screen filled with channel num-
bers and a preview picture.
Use DD / EE/ FF / GG button to select a channel and then use the ENTER
button to add or delete it. Press FAV button to add the channel to the
Favorite List. The heart-mark will appear in front of that channel num-
ber.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
* Custom List
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source
Input Label
Set ID
EZ Scan
Manual Scan
Channel Edit G
DTV Signal
Input Source
Input Label
Set ID
Selection ( Gor ) leads
you to the channel edit
screen.
33
Operation

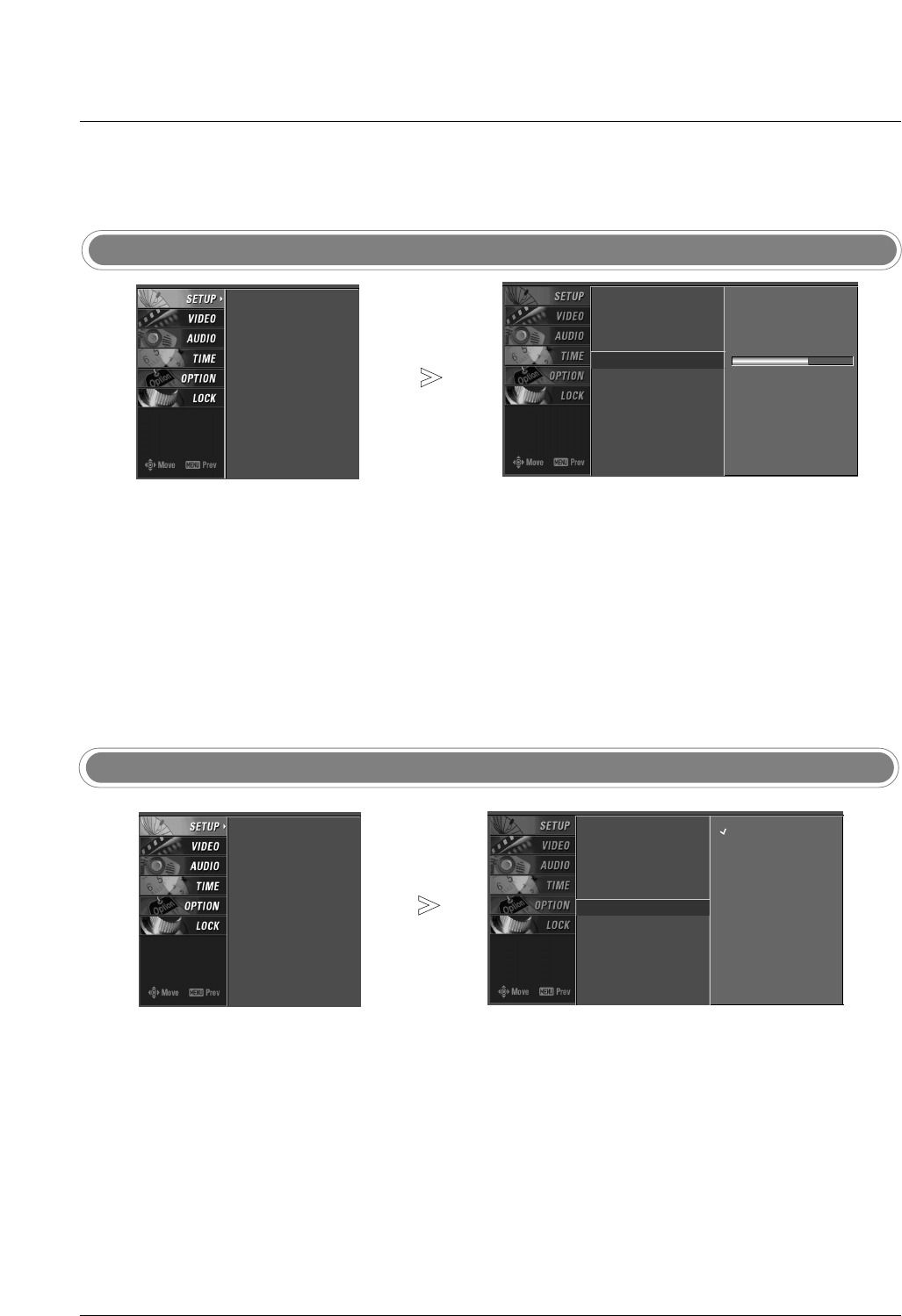

DTV Signal Strength
- Shows how strong your DTV sig-
nal is and whether you need to
adjust your antenna or digital
cable input. The higher the signal
strength, the less likely you are
to experience picture degrada-
tion.
- DTV Signals: Only when the
input signal is DTV or CADTV,
this function is available.
Press the MENU button and then use DD / EEbutton to select the SETUP menu.
Press the GGbutton and then use DD / EEbutton to select DTV Signal.
View the on-screen signal strength monitor to see the quality of the signal
being received.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
- Changes the picture source so
you can watch your TV, cable TV,
VCR, DVD, or any other devices
that are connected to your TV.
Input Source
Press the MENU button and then use DD / EEbutton to select the SETUP menu.
Press the GGbutton and then use DD / EEbutton to select Input Source.
Press the GGbutton and then use DD / EEbutton to select the source:
TV, AV1, AV2, Component1, Component2, RGB-PC, HDMI1/DVI, or
HDMI2.
• To toggle RGB-PC, select RGB-PC and press GGbutton.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Setup Menu Options continued
Setup Menu Options continued
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source
Input Label
Set ID
Bad Normal Good
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source
Input Label
Set ID
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source
Input Label
Set ID
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source G
Input Label
Set ID
TV
AV1
AV2
Component1
Component2
RGB-PC
HDMI1/DVI
HDMI2
34
Operation
- Sets a label to each input source
or lets you skip the input source
which is not in use when you
press INPUT button.
Input Label
Press the MENU button and then use DD / EEbutton to select the SETUP menu.
Press the GGbutton and then use DD / EEbutton to select Input Label.
Press the GGbutton and then use DD / EEbutton to select the source: AV1-
2, Component1-2, RGB-PC, HDMI1/DVI or HDMI2.
Press the FF / GGbutton to select the label.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source
Input Label
Set ID
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source
Input Label G
Set ID
AV1 Cable Box
AV2 VCR
Component1 DVD
Component2 Set Top Box
RGB-PC PC
HDMI1/DVI Game
HDMI2 Satellite
35
Operation
V
Video Menu Options
ideo Menu Options
Auto Picture Control
Auto Picture Control (
(EZ Picture)
- EZ Picture adjusts the TV for the best
picture appearance. Select the preset
value in the EZ Picture menu based
on the program category.
- Daylight, Normal, Night Time set-
tings are preset for optimum picture
quality at the factory and are not
adjustable.
- In the User 1,and User 2 modes only,
user can directly adjust the contrast,
brightness, color, sharpness, tint.

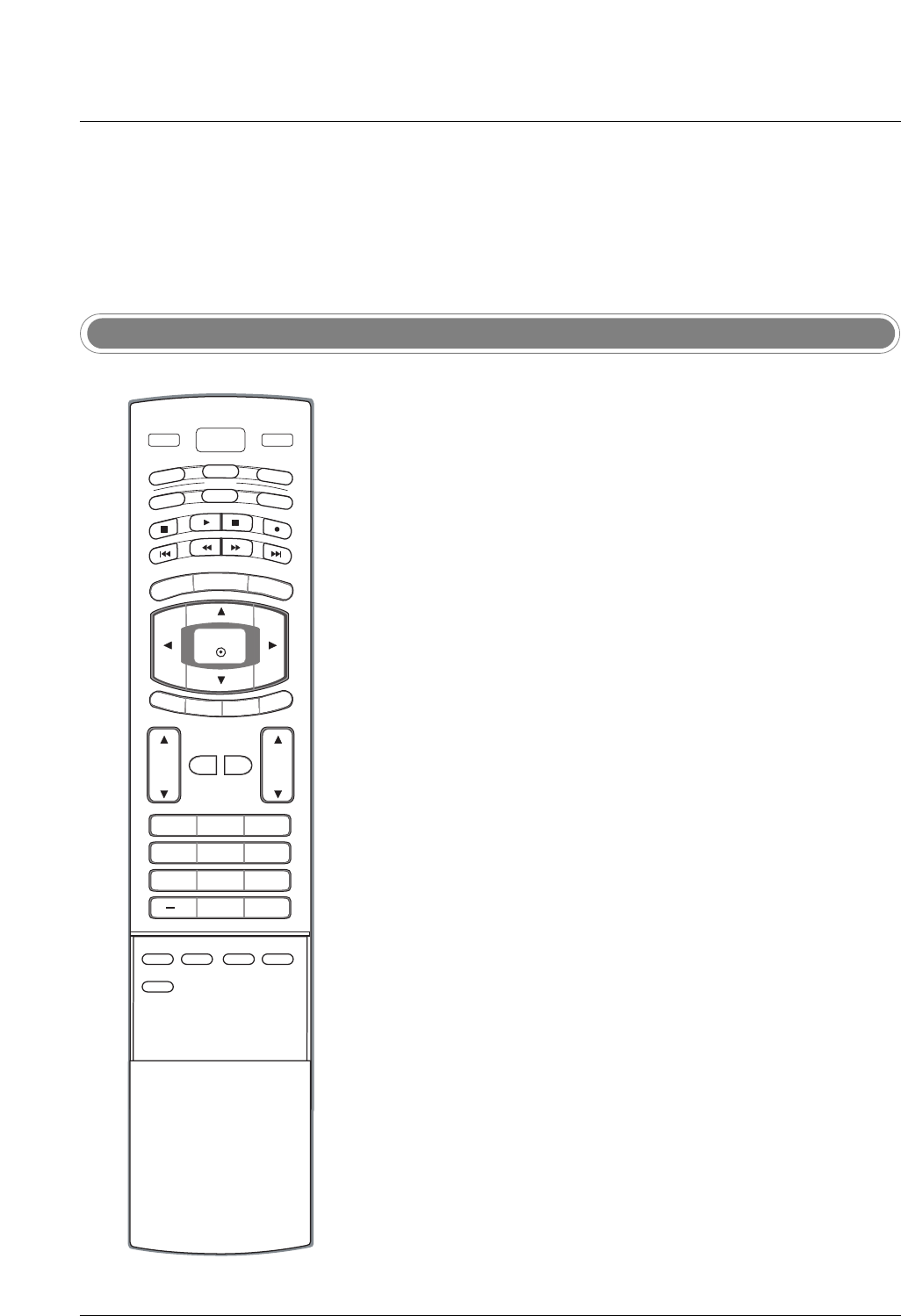

Press the EZ Pic button repeatedly to select the picture appear-
ance setup option as shown below:
Daylight, Normal, Night Time, User 1 and User 2(your own set-
tings).
• You can also use the VIDEO menu to adjust EZ Picture.
Press the EXIT button to save and return to TV viewing .
1
2
Color Temperature Control
- Choose one of three automatic
color adjustments. Set to warm
to enhance hotter colors such as
red, or set to cool to see less
intense colors with more blue.

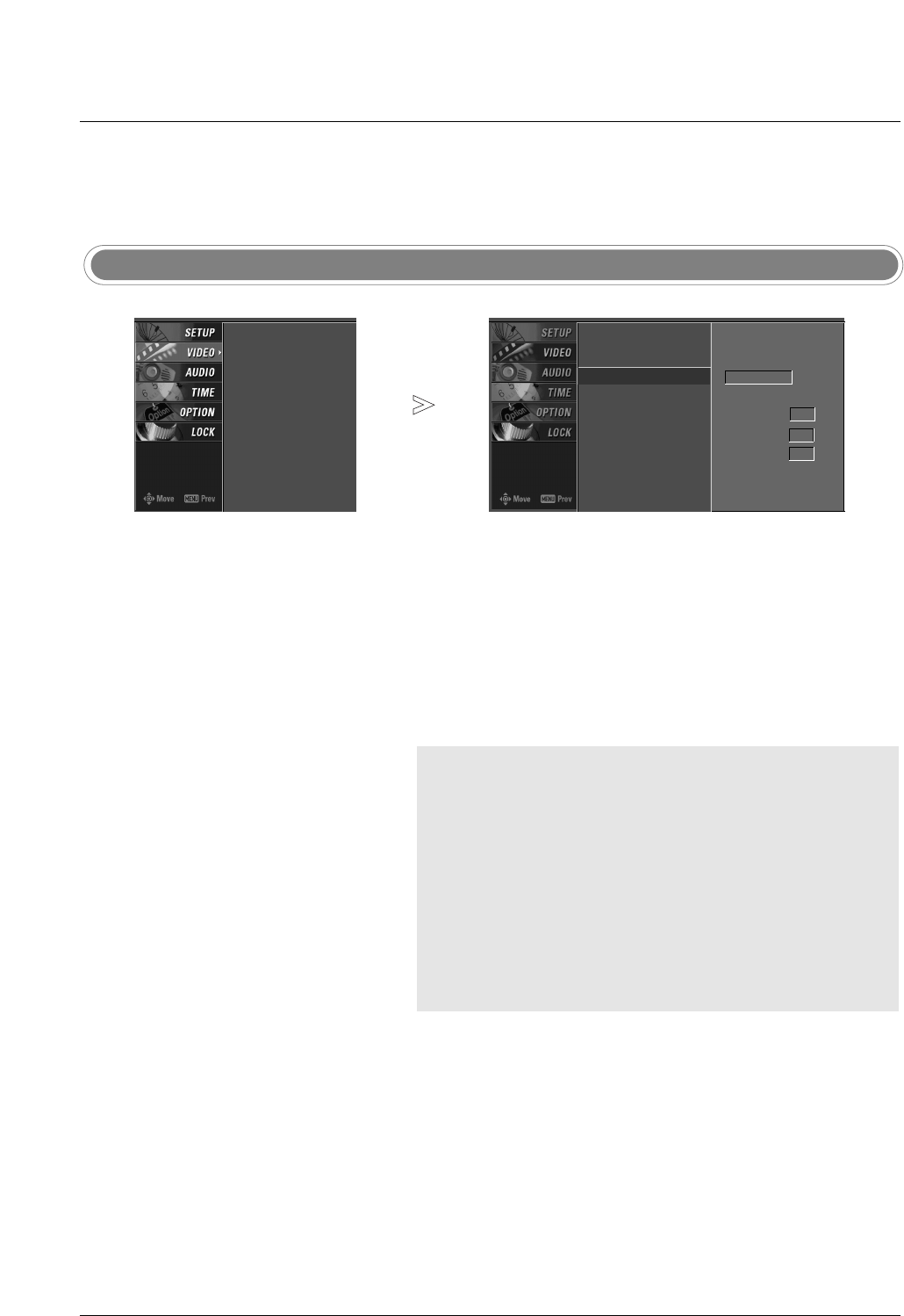

Press the MENU button and then use DD / EEbutton to select the VIDEO menu.
Press the GGbutton and then use DD / EEbutton to select Color Temperature.
Press the GGbutton and then use DD / EEbutton to select either Cool,
Medium, Warm, or User.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
EZ Picture
Color Temperature G
XD
Advanced
Video Reset
EZ Picture
Color Temperature
XD
Advanced
Video Reset
Cool
Medium
Warm
User
36
Operation

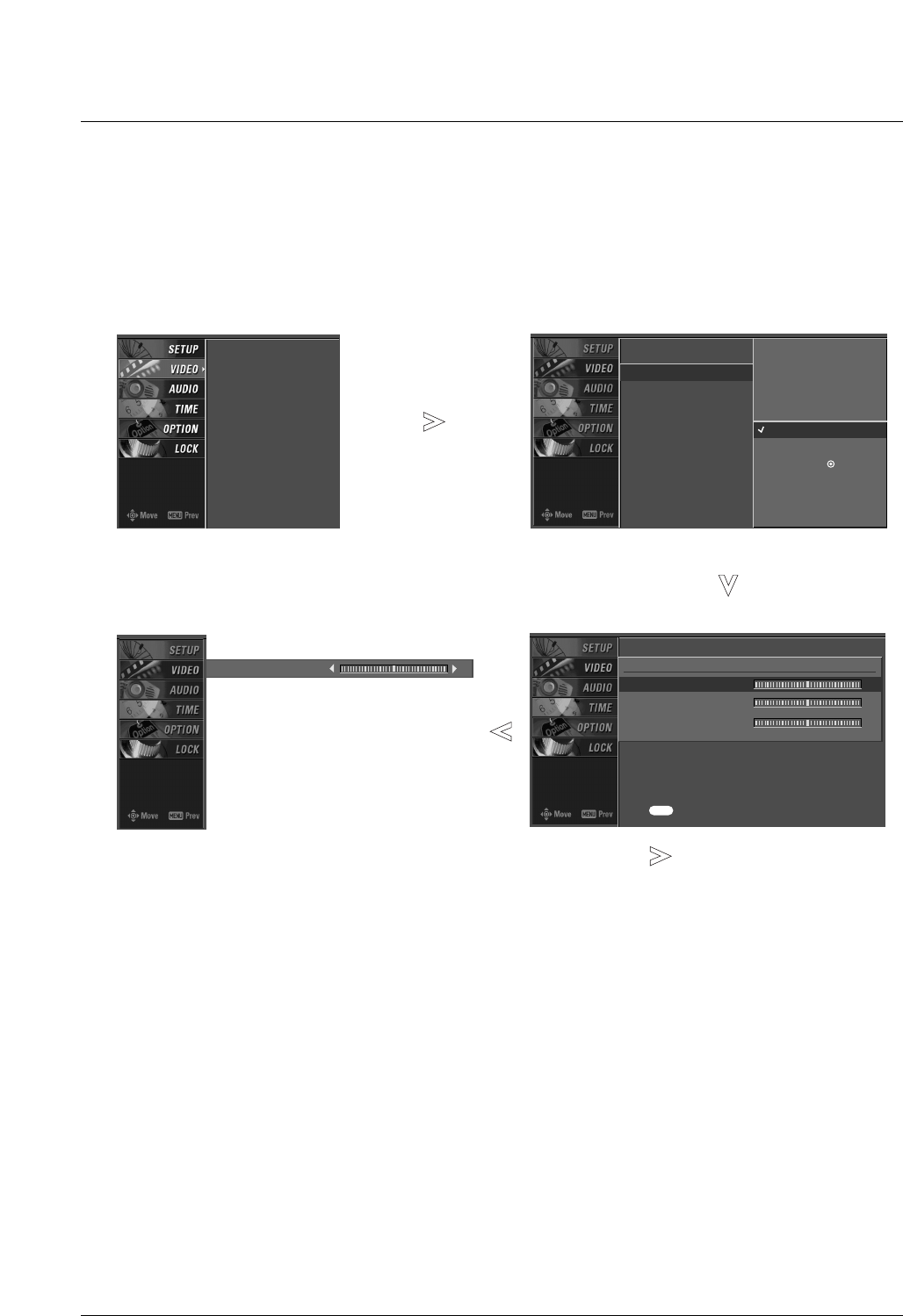

Manual Color Temperature Control
- You can also adjust the detailed set
tings(Red, Green, Blue) by selecting
the User menu.
EZ Picture
Color Temperature
XD
Advanced
Video Reset
Red 0
EE
EZ Picture
Color Temperature
XD
Advanced
Video Reset
Press to confirm.
MENU
Selection ( Gor ) leads you
to the detailed setting
screen.
Cool
Medium
Warm
User G
User
Red 0 G
Green 0
Blue 0
Press the MENU button and then use DD / EEbutton to select the
VIDEO menu.
Press the GGbutton and then use DD / EEbutton to select Color
Temperature .
Press the GGbutton and then use DD / EEbutton to select User .
Press the GGbutton and then use DD / EEbutton to select Red,
Green or Blue .
Press the GGbutton and then use FF / GGbutton to make appropri-
ate adjustments.
• The adjustment range of Red, Green or Blue is -20~ +20.
Press EXIT button to return to TV viewing or press MENU but-
ton to return to the previous menu.
1
2
3
4
5
6
37
Operation
- XD is LG Electronic’s unique picture
improving technology to display a
real HD source through an
advanced dig-ital signal processing
algorithm.
- When selecting EZ Picture options
(Daylight, Normal and Night time),
XD is automatically change to Auto.
- When selecting EZ Picture options
(User 1 and User 2), you can
choose the Auto / Manual and when
selecting Manual, you can adjust
the XD Contrast, XD color and XD
Noise.
EZ Picture
Color Temperature
XD
Advanced
Video Reset
EZ Picture
Color Temperature
XD G
Advanced
Video Reset
Manual
XD Contrast On
XD Color On
XD Noise On
Press the MENU button and then use DD / EEbutton to select the VIDEO
menu.
Press the GGbutton and then use DD / EEbutton to select XD.
Press the GGbutton and then use DD / EEbutton to select Auto or
Manual.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
* Selecting the Manual
1. Press the GGbutton and then use FF / GGbutton to select XD
Contrast, XD Color or XD Noise.
XD Contrast :Optimizing the contrast automatically according
to the
brightness of the reflection.
XD Color :Adjusting the colors of the reflection automatically
to repro-duce as closely as possible to the natural colors.
XD Noise :Removing the noise up to the point where it does
not damage the original picture.
2. Use the DD / EEbutton to make appropriate adjustments.
XD
1
2
3
4
38
Operation
Advanced-Cinema 3:2 Mode / Black Level
Advanced-Cinema 3:2 Mode / Black Level
• Cinema 3:2 Mode
- Set up the TV for the best picture
appearance for viewing movies.
When you operate Cinema (3:2 Pull-
Down Mode or Cinema Correction
Mode),the TV will adjust 24 fps video
from movies to 30 fps video for display
(This function is only available in
Analog,AV1,AV2,Component 480i
mode.)
• Black level
- Adjusting the contrast and the brightness
of the screen using the black level of the
screen.
This feature operates only in HDMI1/DVI
, HDMI2 or AV1, AV2 mode.
EZ Picture
Color Temperature
XD
Advanced
Video Reset
EZ Picture
Color Temperature
XD
Advanced G
Video Reset
Cinema 3:2 Mode Off
Black Level Low
Press the MENU button and then use DD / EEbutton to select the VIDEO
menu.
Press the GGbutton and then use DD / EEbutton to select
Advanced .
Press the GGbutton and then use DD / EEbutton to select
Cinema 3:2 Mode or Black Level.
Press EXIT button to return to TV viewing or press MENU button
to return to the previous menu.
* Selecting the Cinema 3:2
Mode
Press the GGbutton and then
use DD / EE
button to select On or Off .
* Selecting the Black Level
Press the GGbutton and then
use DD / EE
button to select Low or
High.
Low
The reflection of the screen gets
darker.
High
The reflection of the screen gets
brighter.
1
2
3
4
5
39
Operation
- Use to quickly reset all the Video
menu options to their original fac-
tory preset values.
Press the MENU button and then use DD / EEbutton to select the VIDEO menu.
Press the GGbutton and then use DD / EEbutton to select Video Reset.
Press the GGbutton to reset the Video menu options to original values.
1
2
3
Video Reset
EZ Picture
Color Temperature
XD
Advanced
Video Reset
EZ Picture
Color Temperature
XD
Advanced
Video Reset GSelection ( Gor ) resets to
the factory settings (default).
40
Operation
Audio Menu Options
Audio Menu Options
- Other languages may be available
if a digital signal is provided by the
broadcasting station.
Audio Language
Press the MENU button and then use DD / EEbutton to select the
AUDIO menu.
Press the GGbutton and then use DD / EEbutton to select Audio Language.
Press the GGbutton and then use DD / EEbutton to select: English,
Spanish, or French.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Audio Language G
EZ Sound
Balance
TV Speaker
English
Spanish
French
Audio Language
EZ Sound
Balance
TV Speaker
41
Operation

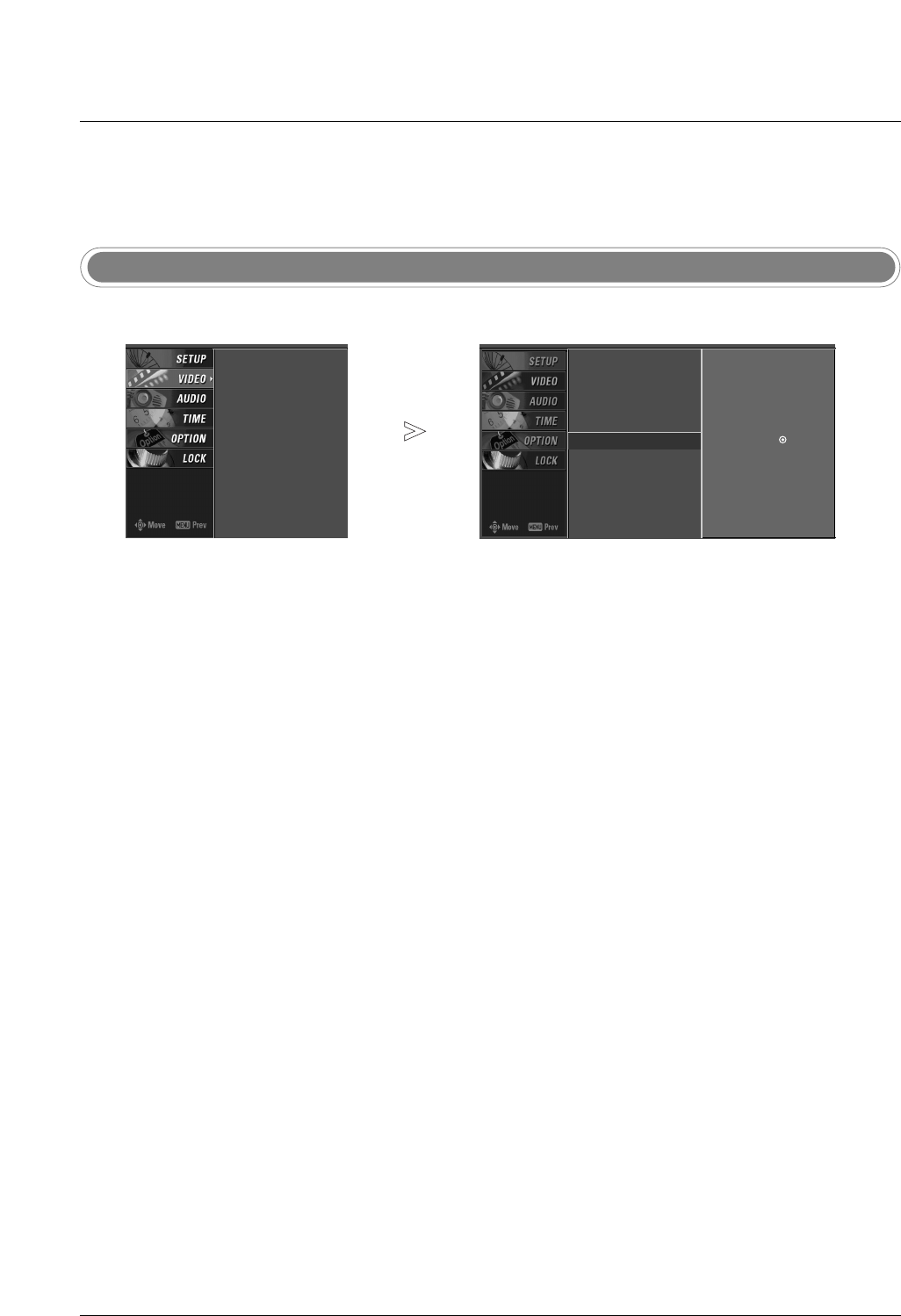

Auto Sound Control (
Auto Sound Control (EZ Sound)
Manual Sound Control (EZ Sound-User option)
-EZ Sound lets you enjoy the best
sound without any special adjust-
ment because the TV sets the
appropriate sound options based
on the program content.
-Normal,Stadium,News,Music
and Theater are preset for good
sound quality at the factory and
are not adjustable.
- Adjust the sound in your prefer-
ence and surrounded environ-
ment.
Press the EZ Sound button repeatedly to select the appropriate sound
setup as shown below :
Normal, Stadium, News, Music, Theater and User (your own
settings) .
• You can also adjust EZ Sound in the AUDIO menu.
Press EXIT button to save and return to TV viewing.
1
2
Press the MENU button and then use DD / EEbutton to select the
AUDIO menu.
Press the GGbutton and then use DD / EEbutton to select EZ Sound.
Press the GGbutton and then use DD / EEbutton to select User.
Press the GGbutton and then use DD / EEbutton to select the desired sound
option (Treble,Bass or Front Surround).
Press the GGbutton and then use FF / GGbutton to make appropriate
adjustments.
1
2
3
4
5
User
Treble 50 G
Bass 50
Front Surround Off
Press to confirm.
MENU
Audio Language
EZ Sound
Balance
TV Speaker
BBE
Selection ( Gor ) leads you
to the detailed setting
screen.
Normal
Stadium
News
Music
Theater
User G
42
Operation
front Surround SRS TruSurround XT
* Selecting the Front Surround
Press the GGbutton and then use FF / GGbutton to select Off
or SRS (Sound Retrieval System) TruSurround XT .
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
6
SRS TruSurround XT
Takes advantage of any multi-channel format without needing to add extra speakers or equipment. Dialog clarity,
bass enrichment, and the addition of stereo audio enhancement produces an immersive sound experience from
standard stereo material.
Note: When SRS (Sound Retrieval System) TruSurround XT is
selected, Audio Balance function is disable and set to 0 .
When Off is selected, Audio Balance function is enable and reset the bal-
ance as previous.
43
Operation

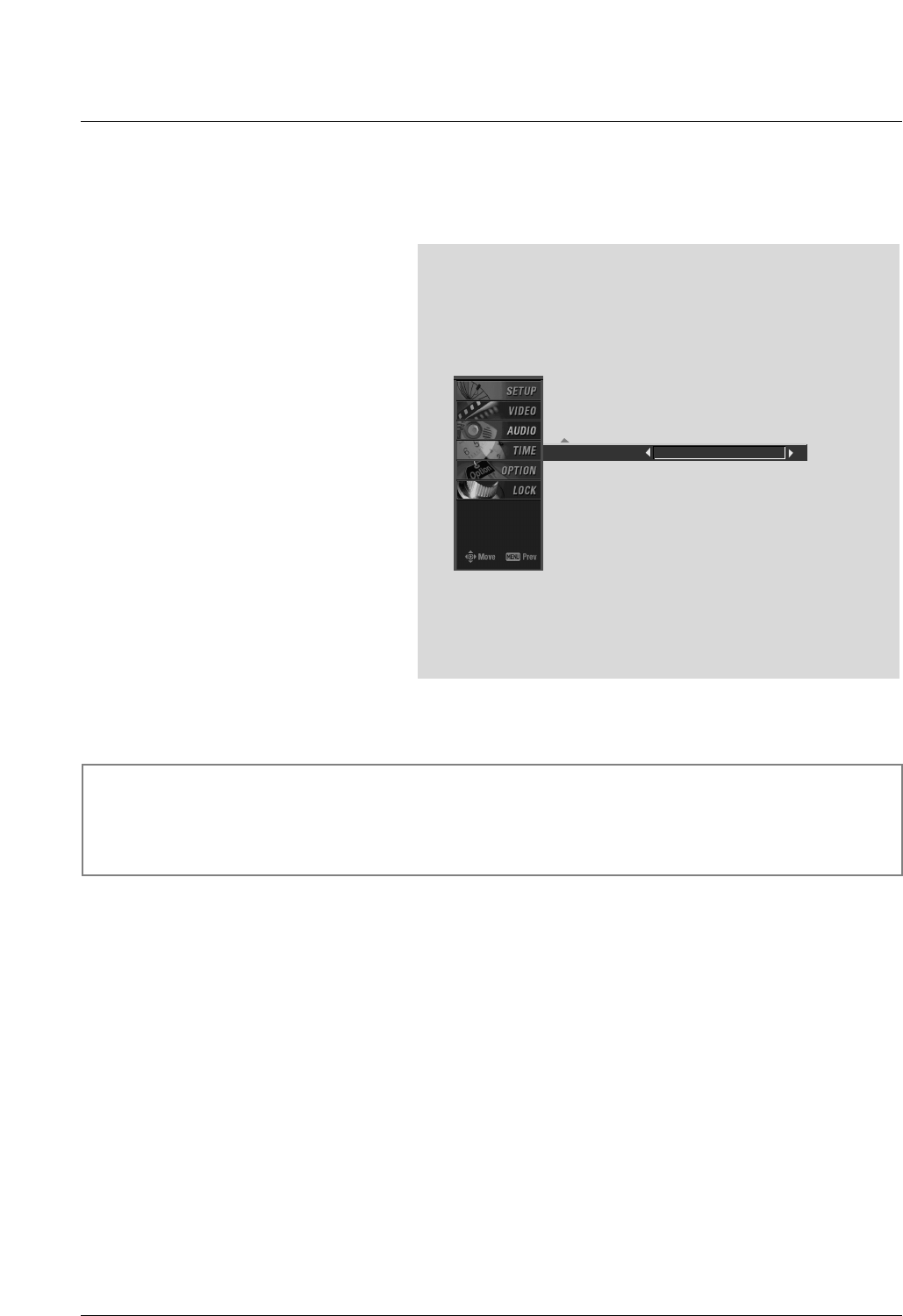

-Adjust the sound in your preference and surrounded environment.
Audio Language
EZ Sound
Balance
TV Speaker
L R
Balance 0
Audio Language
EZ Sound
Balance 0
TV Speaker
L R

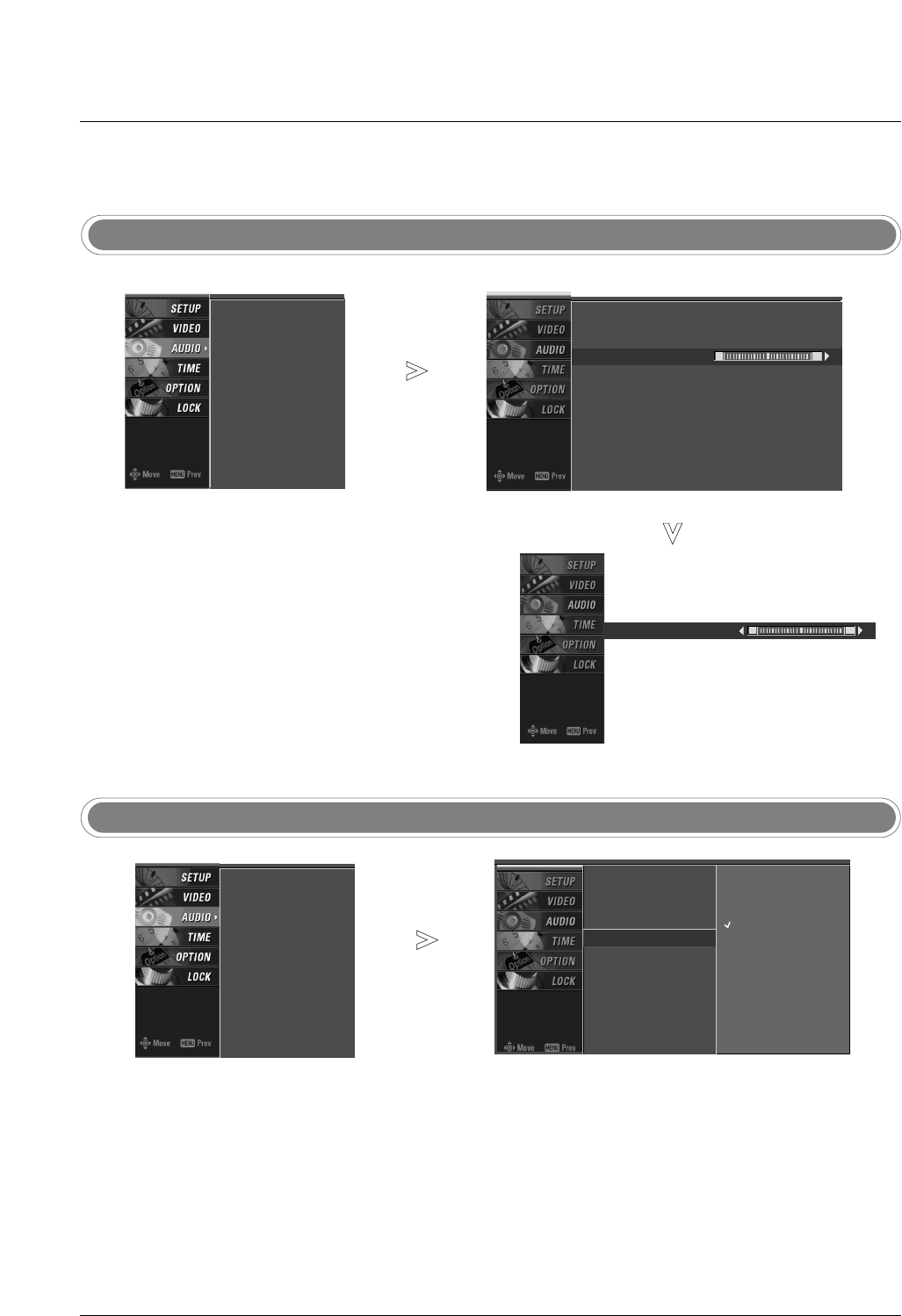

Press the MENU button and then use DD / EE button to
select the AUDIO menu.
Press the GGbutton and then use DD / EEbutton to select
Balance.
Press the GGbutton and then use FF / GGbutton to make
appropriate adjustments.
Press EXIT button to return to TV viewing or press
MENU button to return to the previous menu.
Balance
Balance
1
2
3
4
TV Speakers On/Off Setup
- Turn TV speakers off if using
external audio equipment.
Feature turns the TV Speakers
option On or Off.
Press the MENU button and then use DD / EEbutton to select the
AUDIO menu.
Press the GGbutton and then use DD / EEbutton to select TV Speaker.
Press the GGbutton and then use DD / EEbutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Audio Language
EZ Sound
Balance
TV Speaker
Audio Language
EZ Sound
Balance
TV Speaker G
Off
On
44
Operation
T

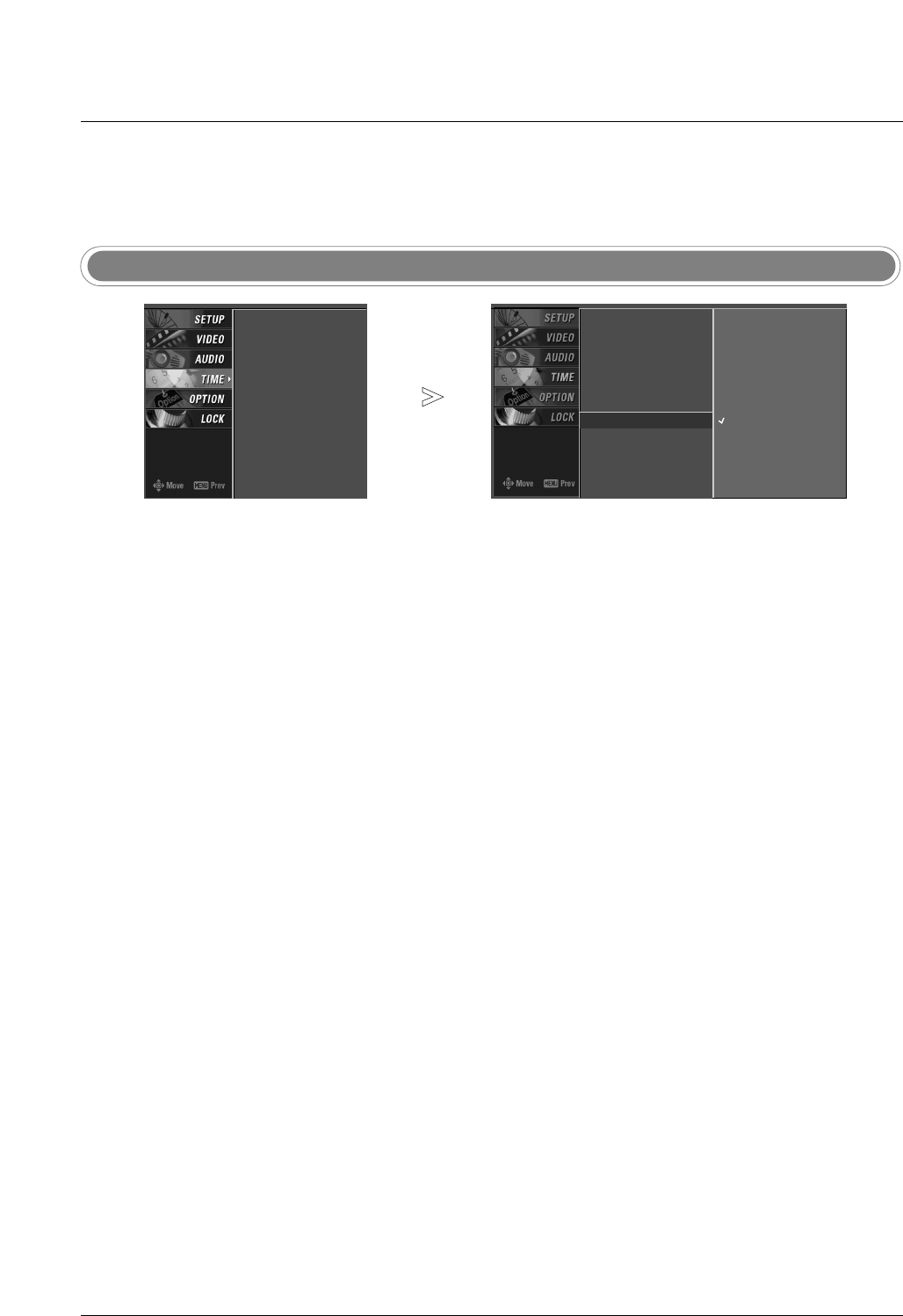

Time Menu Options
ime Menu Options
- If current time setting is wrong,
reset the clock manually.
Auto Clock Setup
Manual Clock Setup

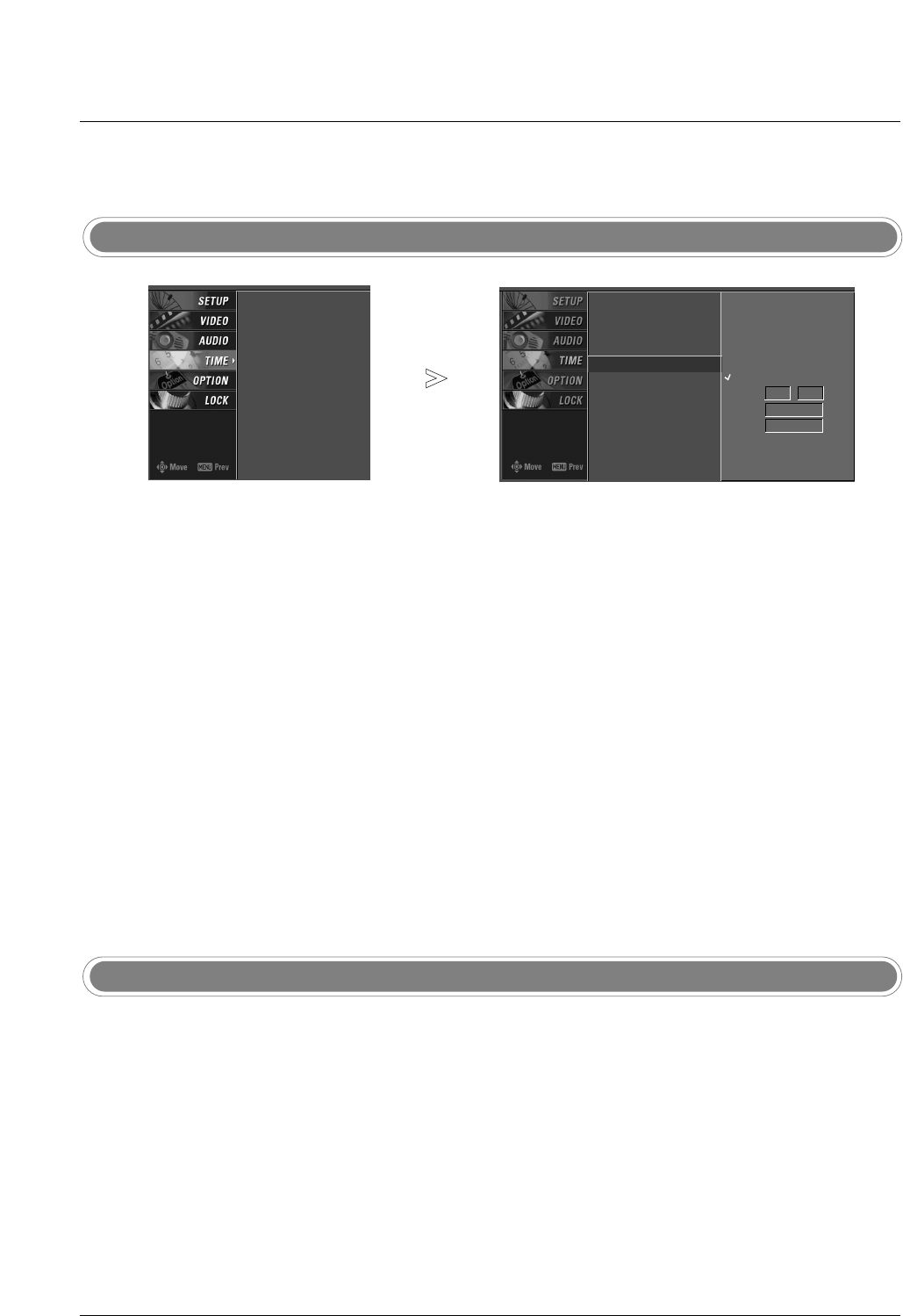

Press the MENU button and then use DD / EEbutton to select the TIME menu.
Press the GGbutton and then use DD / EEbutton to select Auto Clock.
Press the GGbutton and then use DD / EEbutton to select On.
Press the GGbutton and then use DD / EEbutton to select your viewing
area time zone.
• U.S.A: Eastern, Central, Mountain, Pacific, Alaska, or Hawaii.
• Canada: Eastern, Central, Mountain, Pacific, New F.land, or
Atlantic.
Press the GGbutton and then use DD / EEbutton to select Auto, Off, On,
depending on whether or not your viewing area observes Daylight
Saving time.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
6
Press the MENU button and then use DD / EEbutton to select the TIME menu.
Press the GGbutton and then use DD / EEbutton to select Manual
Clock.
Press the GGbutton and then use FF / GGbutton to select either the year,
date, or time option. Once selected, use the DD / EEbutton to set the year,
date, and time options.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
- The current time will be set auto-
matically from a digital channel
signal provided by the broadcast-
ing station.
- Set the clock manually, if the cur-
rent time is set incorrectly by the
auto clock function.
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Auto Clock G
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Off
On
Time Zone Eastern
Auto
Daylight
Saving
Auto Clock
Manual Clock G
Off Timer
On Timer
Sleep Timer
Auto Off
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Year - - - -
Date - - / - -
Time - - : - - - -
45
Operation
On/Off Timer Setup
Sleep Timer
- Timer function operates only if
current time has been set.
- Off-Timer function overrides On-
Timer function if they are set both
set to the same time.
- The TV must be in standby mode
for the On-Timer to work.
- If you do not press any button
within 2 hours after the TV turns
on with the On Timer function,
the TV will automatically revert to
standby mode.
- The Sleep Timer turns the TV off
at the preset time. Note that this
setting is cleared when the TV is
turned off.
- You can also set up the Sleep
Timer in the TIME menu.

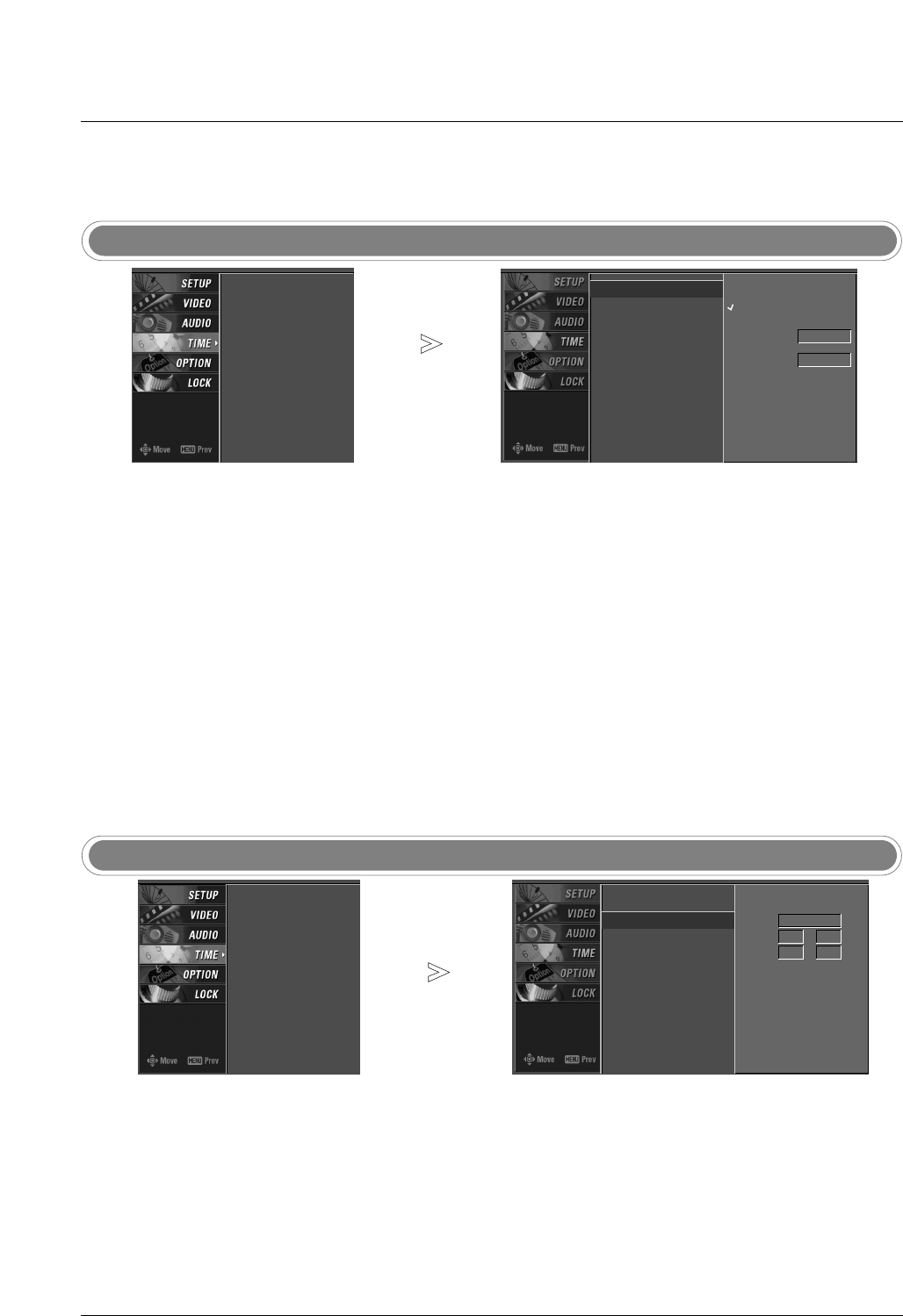

Press the MENU button and then use DD / EEbutton to select the TIME menu.
Press the GGbutton and then use DD / EEbutton to select Off Timer or
On Timer.
Press the GGbutton and then use DD / EEbutton to select On.
• To cancel On/Off Timer function, select Off.
Press the GGbutton and then use DD / EEbutton to set the hour.
Press the GGbutton and then use DD / EEbutton to set the minutes.
For only On Timer function
Press the GGbutton and then use DD / EEbutton to select the channel at
turn-on.
Press the GGbutton and then use DD / EEbutton to set the sound level at
turn-on.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
6
7
Press the TIMER button repeatedly to select the number of minutes.
First the Off option appears on the screen, followed by the following
sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
When the number of minutes you want is displayed on the screen,
press the TIMER button. The timer begins to count down from the num-
ber of minutes selected.
To check the remaining minutes before the TV turns off, press the
TIMER button once.
To cancel the Sleep Timer, press the TIMER button repeatedly to select Off.
1
2
3
4
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Auto Clock
Manual Clock
Off Timer
On Timer G
Sleep Timer
Auto Off
Off
On
Time 6 : 30 AM
Ch. TV 2-0
Vol 17
46
Operation
T
Time Menu Options continued
ime Menu Options continued
Auto Off
- If the TV is on and there is no
input signal, the TV turns off
automatically after 10 minutes.
Press the MENU button and then use DD / EEbutton to select the TIME menu.
Press the GGbutton and then use DD / EEbutton to select Auto Off.
Press the GGbutton and then use DD / EEbutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off G
Off
On
TV will be automatically
turned off, in case of No
Signal for 10 minutes.
47
Operation

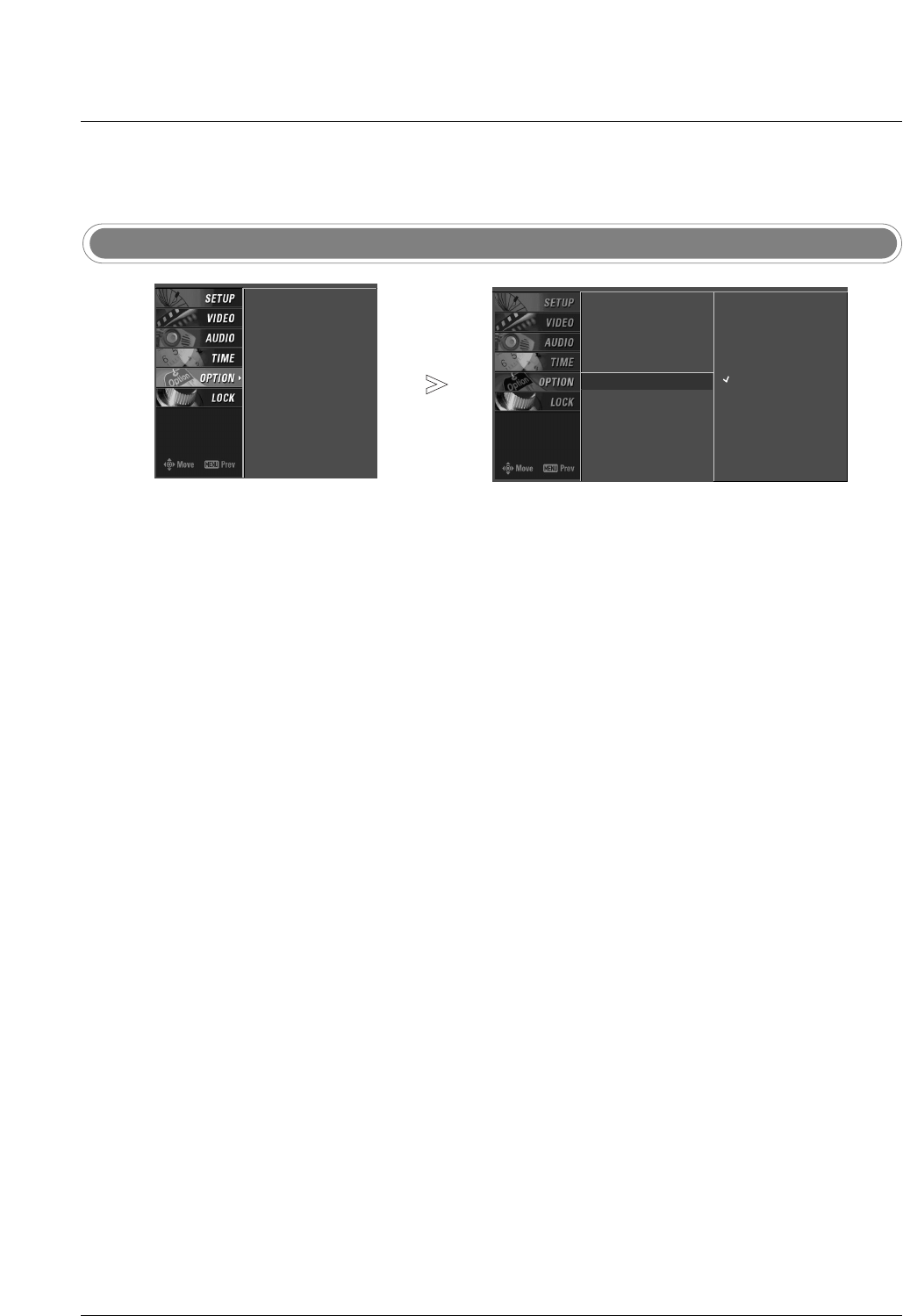

Aspect Ratio Control
Option Menu Features
Option Menu Features
1
- This feature allow an analog picture with 4:3
aspect ratio to be displayed in a different propor-
tion. When 4:3 analog signal is received on the
16:9 TV, personally preferred aspect ratio needs
to be specified.
- RGB-PC/DVI-PC input source use 4:3 or 16:9
aspect ratio.
Press the RATIO button repeatedly to select the
desired picture format.
• You can also adjust the Aspect Ratio in the
OPTION menu.
Set by program
Selects the proper picture proportion to match the source’s
image.
4:3
Choose 4:3 when you want to view a picture with an original
4:3 aspect ratio.
16:9
Adjust the picture horizontally, in a linear proportion to fill the
entire screen.
Horizon
The screen size is, more enlarged at both sides, to create
a spectacular view.
Zoom 1
Choose Zoom 1 when you want to view the picture with-
out any alteration. However, the top and bottom portions
of the picture will be cropped.
Zoom 2
Choose Zoom 2 when you want the picture to be altered,
both vertically extended and cropped. The picture taking a
halfway trade off between alteration and screen coverage.
Set By Program
4:3
16 : 9
Horizon
Zoom 1
Zoom 2
Set By Program
(4:3 4:3) (16:9 16:9)
48
Operation
Option Menu Features continued
Option Menu Features continued
- Select a caption mode for dis-
playing captioning information if
provided on a program.
- Analog caption displays informa-
tion at any position on the screen.
- Text displays information, usually
at the bottom position and is
used for a data service.
- Caption/Text, if provided by the
broadcaster, would be available
for both digital and analog chan-
nels on the Antenna/Cable.
- This TV is programmed to
remember the caption/text mode
it was last set to, when you turn
the power off.
- Whe you select the CC1~Text4,
Caption Option must be dis-
abled.
Caption/Text
* Digital Broadcasting System Captions
* Analog Broadcasting System Captions
- Choose the language you want
the DTV/CADTV Captions to
appear in.
- Other languages can be chosen
for digital sources only if they are
included on the program.
- Caption may not be available
depends if the service is not pro-
vided by the digital broadcaster.
Press the MENU button and then use DD / EEbutton to select the
OPTION menu.
Press the GGbutton and then use DD / EEbutton to select Caption/Text.
Press the GGbutton and then use DD / EEbutton to select available cap-
tion languages: English, Spanish, or French.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Press the MENU button and then use DD / EEbutton to select the
OPTION menu.
Press the GGbutton and then use DD / EEbutton to select Caption/Text.
Press the GGbutton and then use DD / EEbutton to select caption: CC1,
CC2, CC3, CC4, Text1, Text2, Text3, or Text4.
• CAPTION
The term for the words that scroll across the bottom of the TV screen.
• TEXT
The term for the words that appear in a large black frame and almost
cover the entire screen; usually messages provided by the broadcaster.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Use the CC button repeatedly to select Caption Off, CC1, CC2, CC3,
CC4, Text1, Text2, Text3, or Text4.
Press EXIT button to save and return to TV viewing.
1
2
Aspect Ratio
Caption/Text G
Caption Option
Language
ISM Method
Low Power
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
Off
CC 1
CC 2
CC 3
CC 4
Text 1
Text 2
Text 3
Text 4
Aspect Ratio
Caption/Text G
Caption Option
Language
ISM Method
Low Power
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
Off
English
Spanish
French
49
- Customize the DTV/CADTV cap-
tions that appear on your screen.
Caption Option
Press the MENU button and then use DD / EEbutton to select the
OPTION menu.
Press the GGbutton and then use DD / EEbutton to select Caption Option.
Press the GGbutton and then use FF / GGbutton to select Custom.
Use DD / EEbutton to customize the Style, Font, etc., to your preference.
A preview icon is provided at the bottom of the screen, use it to see the
caption language.
• Size: Set the size the words will appear in.
• Font: Select a typeface for the words.
• Text Color: Choose a color for the text.
• Text Opacity: Specify the opacity for the text color.
• Bg (Background) Color: Select a background color.
• Bg (Background) Opacity: Select the opacity for the background color.
• Edge Type: Select an edge type.
• Edge Color: Select a color for the edges.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
- Low power reduces the power
consumption of plasma display.
Low Power (50PC3D / 60PC1D only)
Press the MENU button and then use DD / EEbutton to select the
OPTION menu.
Press the GGbutton and then use DD / EEbutton to select Low Power.
Press the GGbutton and then use DD / EEbutton On or Off.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Operation
Aspect Ratio
Caption/Text
Caption Option G
Language
ISM Method
Low Power
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
Style Custom
Size A Standard
Font Font 0
Text Color White
Text Opacity
Solid
Bg Color Black
Bg Opacity Solid
Edge Type None
Edge Color Black
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power Off
On
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power G
50
Operation
Option Menu Features continued
Option Menu Features continued
- A frozen still picture from a
PC/video game displayed on the
screen for prolonged periods will
result in a ghost image ; even
though the image is changed.
Use our unique method to mini-
mize any fixed image on the
screen.
ISM (Image Sticking Minimization) Method (50PC3D / 60PC1D only)
Press the MENU button and then use DD / EEbutton to select the
OPTION menu.
Press the GGbutton and then use DD / EEbutton to select ISM Method.
Press the GGbutton and then use DD / EEbutton to select Normal,
White Wash, Orbiter or Inversion.
• Normal
If image sticking is never a problem, ISM is not necessary - set to
Normal.
• White Wash
White Wash removes permanent images from the screen.
Note: An excessive permanent image may be impossible to clear
entirely with White Wash. To return to normal viewing, press the any
button.
• Orbiter
Orbiter may help prevent ghost images. However, it is best not to
allow any fixed image to remain on the screen. To avoid a permanent
image on the screen, the image will move once per 2 minutes: Left →
Right → Upside →Downside →Right →Left →Downside →Upside.
• Inversion
Inversion will automatically invert the plasma display panel color every
30 minutes.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
Normal
White Wash
Orbiter
Inversion
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method G
Low Power
51
Operation
Lock Menu Options
Lock Menu Options
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcast-
ing station. The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program
and by the categories chosen to be blocked. It is also possible to block all program viewing for a time period. To use
this function, the following must be done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be
blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video
movies use the Movie Rating System (MPAA) only.
Ratings for Movies previously shown in theaters:
Movie Ratings :
• Blocking Off (Permits all programs)
• G (General audience)
• PG (Parental guidance suggested)
• PG-13 (Parents strongly cautioned)
• R (Restricted)
• NC-17 (No one 17 and under admitted)
• X (Adult only)
If you set PG-13 : G and PG movies will be avail-
able, PG-13, R, NC-17 and X will be blocked.
Ratings for Television programs including
made-for-TV movies :
• TV-G (General audience)
• TV-PG (Parental guidance suggested)
• TV-14 (Parents strongly cautioned)
• TV-MA (Mature audience only)
• TV-Y (All children)
• TV-Y7 (Children 7 years older)
TV Rating-Children:
• Age (applies to TV-Y, TV-Y7)
• Fantasy Violence (applies to TV-Y7)
TV Rating-General:
• Age (applies to TV-G, TV-PG, TV-14, TV-MA)
• Dialogue- sexual dialogue (applies to TV-PG, TV-14)
• Language- adult language (applies to TV-PG, TV-
14, TV-MA)
• Sex- sexual situations (applies to TV-PG, TV-14,
TV-MA)
• Violence (applies to TV-PG, TV-14, TV-MA)
Input Block
• AV1, 2 (On, Off)
• Component 1, 2 (On, Off)
• RGB, HDMI1/DVI and HDMI2 (On, Off)
For USA
TV Rating-English:
• E (Exempt)
• C (Children)
• C8+ (8 years and up)
• G (General programming. Suitable
for all audiences)
• PG (Parental guidance suggested)
• 14+ (Viewers 14 years and up)
• 18+ (Adult programming)
• Blocking off (Permits all programming)
TV Rating-French:
• E (Exempt)
• G (General)
• 8 ans+ (8 years and up)
• 13 ans+ (13 years and up)
• 16 ans+ (16 years and up)
• 18 ans+ (Adults only)
• Blocking off (Permits all programming)
Input Block
• AV 1, 2 (On, Off)
• Component 1, 2 (On, Off)
• RGB, HDMI1/DVI and HDMI2 (On, Off)
For Canada
52
Operation
- Set up blocking schemes to
block specific channels, ratings,
and external viewing sources.
- A password is required to gain
access to this menu if the Lock
System is turned on.
Parental Lock Setup
Press the MENU button and then use DD / EEbutton to select the LOCK
menu. Then, press the GGbutton
•If Lock is already set, enter the password as requested.
• The TV is set up with the initial password “0-0-0-0”.
Use the DD /EEbutton to choose from the following Lock Menu options.
Once the option is selected, change the settings to your preference.
• Lock System: Activates or disables the blocking scheme you set up
previously.
• Set Password: Change the password by inputting a new password
twice.
• Block Channel.: Select a channel number that you wish to block.
• Input block: Enables you to select a source to block from the exter-
nal source devices you have hooked up.
W
W
For USA
• Movie Rating (MPPA): Blocks movies according to the movie rat-
ings limits specified, so children cannot view certain movies. You
can set the ratings limit by blocking out all the movies with the rat-
ings above a specified level. Keep in mind that the movie ratings
limit only applies to movies shown on TV, not TV programs, such as
soap operas.
• TV Rating-Children: Prevents children from watching certain chil-
dren's TV programs, according to the ratings limit set. The children
rating does not apply to other TV programs. Unless you block certain
TV programs intended for mature audiences in the TV Rating - sub
menu, your children can view those programs.
• TV Rating-General: Based on the ratings, blocks certain TV pro-
grams that you and your family do not want to view.
W
W
For Canada
• TV Rating-English / TV Rating-French: Selecting canadian English
/French language rating system.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
• If you ever forget your pass-
word, key in ‘7’, ‘7’, ‘7’, ‘7’on
the remote control. Then, the
password reset to ‘7’, ‘7’, ‘7’,
‘7’.
Lock System G
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Off
On
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
53
Reference
No. Pin Name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire Configurations
(Serial female-female NULL modem cable)
D-Sub 9
3
2
5
6
4
8
7
TV
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-Wire Configurations
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
TV
D-Sub 9

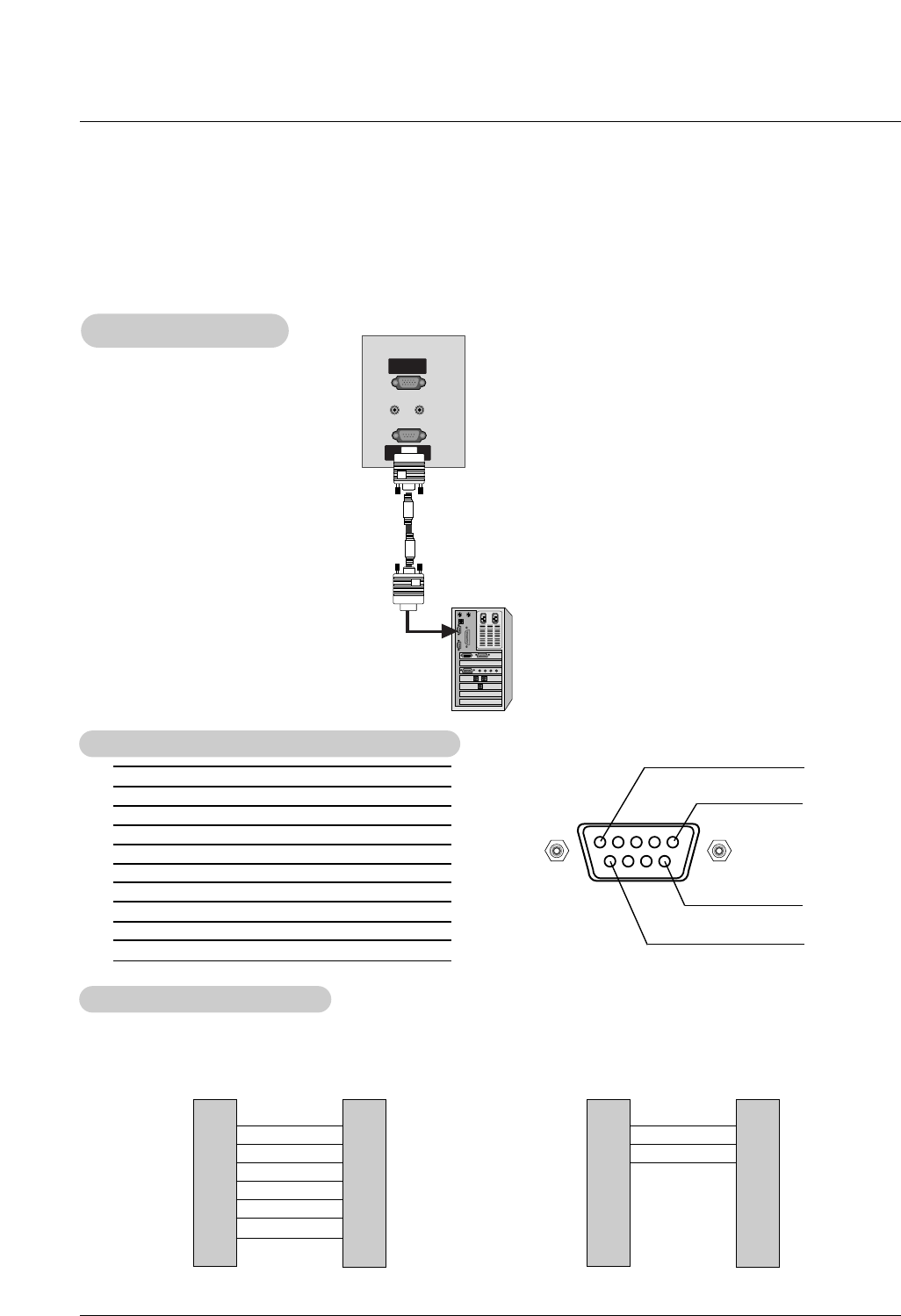

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and
control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the TV back panel.
- RS-232C connection cables are not supplied with the TV.
T
Type of Connector; D-Sub 9-Pin Male
ype of Connector; D-Sub 9-Pin Male
RS-232C Configurations
RS-232C Configurations
External Control Device Setup
External Control Device Setup
RS-232C Setup
RS-232C Setup
PC
54
Reference
Set ID
Set ID
- Use this function to specify a TV ID number.
- Refer to ‘Real Data Mapping’. See page 55.
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
* Use a crossed (reverse) cable.
Communication Parameters
Communication Parameters
1. Press the MENU button and then use DD /EEbutton to select the
SETUP menu.
2. Press the GGbutton and then use DD /EEbutton to select Set ID.
3. Press the GGbutton and then use DD /EEbutton to adjust Set ID to
choose the desired TV ID number. The adjustment range of Set ID
is 1 ~ 99.
4. Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
Transmission
* [Command 1]: First command to control the set.(j,k,m or x)
* [Command 2]: Second command to control the set.
* [Set ID]: You can adjust the set ID to choose desired monitor
ID number in Setup menu. Adjustment range is 1
~ 99. When selecting Set ID ‘0’, every connected
the TV is controlled. Set ID is indicated as decimal
(1~99) on menu and as Hexa decimal (0x0~0x63)
on transmission/receiving protocol.
* [DATA]: To transmit command data.
Transmit ‘FF’data to read status of command.
* [Cr]: Carriage Return
ASCII code ‘0x0D’
* [ ]: ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
OK Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from non-viable
functions or communication errors.
[Command2][ ][Set ID][ ][NG][Data][x]
Data 1: Illegal Code
2: Not supported function
3: Wait more time
20. Channel Tuning m a physical/program high major/program low major low minor high minor low attribute
21. Channel Add/Del m b 00 ~ 01
22. Key m c key code
23. Input Select x b *(Refer to p.58)
COM-
MAND 2
COM-
MAND 1
DATA 0
(Hexadecimal)
DATA 1
(Hexadecimal)
DATA 2
(Hexadecimal)
DATA 3
(Hexadecimal)
DATA 4
(Hexadecimal)
DATA 5
(Hexadecimal)
01. Power k a 0 ~ 1
02. Input Select k b *(Refer to p.55)
03. Aspect Ratio k c *(Refer to p.55)
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k l 0 ~ 1
13.
Remote Control Lock Mode
k m 0 ~ 1
14. Treble k r 0 ~ 64
15. Bass k s 0 ~ 64
16. Balance k t 0 ~ 64
17. Color Temperature k u 0 ~ 3
18. ISM Method j p *(Refer to p.57)
19. Low Power j q 0 ~ 1
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
Command Reference List
Command Reference List
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input Source
Input Label
Set ID G1
55
Reference
02. Input Select (Command2:b) (Main Picture Input)
GTo select input source for the TV.
Transmission
Data 0: DTV
1: Analog
2: AV1
3: AV2
4: Component 1
5: Component 2
7: RGB-PC
8: HDMI1/DVI
9: HDMI2
Date 1: 4:3
2: 16:9
3: Horizon
4: Zoom 1
5: Zoom 2
6: Set by program
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command2:a)
GTo control Power On/Off of the TV.
Transmission
Data 0 : Power Off 1 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
* In a like manner, if other functions transmit ‘FF’data
based on this format, Acknowledgement data feedback
presents status about each function.
05. Volume Mute (Command2:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute off (Volume on)
1 : Volume mute on (Volume off)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command2:c) (Main picture format)
GTo adjust the screen format.
You can also adjust the screen format using the RATIO
button on remote control or in the Option menu.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command2:d)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command2:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’as shown below.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command2:g)
GTo adjust screen contrast.
You can also adjust contrast in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’as shown below.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command2:h)
GTo adjust screen brightness.
You can also adjust brightness in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’as shown below.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
* Real data mapping
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
63 : Step 99 (SET ID 99)
64 : Step 100
* Tint : R50 ~ G50
* Balance : L50 ~ R50
56
Reference
09. Color (Command2:i)
GTo adjust the screen color.
You can also adjust color in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’. See page 55.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
10. Tint (Command2:j)
GTo adjust the screen tint.
You can also adjust tint in the Video menu.
Transmission
Data Red : 0 ~ Green : 64
•Refer to ‘Real data mapping’. See page 55.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[ j ][ ][Set ID][ ][OK][Data][x]
13. Remote Control Lock Mode (Command2:m)
GTo lock the remote control and the front panel controls on
the set.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Lock off 1: Lock on
[m][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the Video menu.
Transmission
11. Sharpness (Command2:k)
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 55.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command2:l)
GTo select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: OSD off 1: OSD on
[l][ ][Set ID][ ][OK][Data][x]
14. Treble (Command2:r)
GTo adjust treble.
You can also adjust treble in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 55.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
16. Balance (Command2:t)
GTo adjust balance.
You can also adjust balance in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 55.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
15. Bass (Command2:s)
GTo adjust bass.
You can also adjust bass in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 55.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
17. Color Temperature (Command2:u)
GTo adjust color temperature.
You can also adjust color temperature in the Video
menu.
Transmission
Data 0: Medium 1: Cool 2: Warm 3: User
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
57
Reference
20. Tune Command (Command: m a)
GTo tune channel to following physical/major/minor number
Transmission
Data 0: Physical Channel Number(Transmit by Hexadecimal code)
NTSC air:02~45
NTSC cable: 01~87
ATSC air:02~45
ATSC cable:01~87
Data 1,Data 2:
Major Channel Number(two part) or Channel Number(One part)
Data1: High byte
Data2: Low byte
Two part channel number: Major number-Minor number
One part channel number: If the channel band is ATSC digital cable,
it can be used. In case of using one part channel number, minor
channel does not need.
Data 3, Data 4:
Minor Channel Number Data3: High byte Data4: Low byte
Data 5:
[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]
7Main
Picture 6
Two/One
Part
Channel
Using
Physical
Channel
4
Reserv
ed 3210Step
0
1
Main 0
1
Two
One
Use
No Use
x
xx
x
x
x
x
x
x
x
x
x
0
1
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
0
0
1
0
1
0
1
1
1
0
1
1
0
x
x0110
NTSC Air
ATSC
cable_auto
ATSC
Cable_irc
ATSC
Cable_hrc
ATSC
Cable_std
NTSC Cable
ATSC Air
Reserved
...
Reserved
5
0
1
[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][Data5][x]
[a][ ][Set ID][ ][NG][Data0][x]
Acknowledgement
* All data are transmitted by Hexadecimal code
*Two/One part Channel: 6th bit
This bit is used in a cable-ready system.
*Using physical channel: 5th bit
If the channel band is NTSC air or NTSC cable, channel tuning
can be done by only physical channel. In this case, using phys-
ical channel bit must be low(0).
But if the channel band is ATSC air or ATSC cable, there are two
cases that physical channel enable or disable.
If the physical channel sending is meaningful, you should set
this bit low(0). If the physical channel sending is
meaningless, you should set this bit high(1).
Example)
1. Analog channel: NTSC cable, channel number(35), main pic-
ture Command: ma 00 23 xx xx xx xx 01attribute(0x01): main
picture, two part(it’s not mandatory), using physical channel,
NTSC cable ‘xx’data: don’t care major and minor channel
number in case analog channel tuning.
2. Digital channel: ATSC air, channel number(don’t know physi-
cal channel, major(30), minor(3)), main picture
Command: ma 00 xx 00 1E 00 03 22 attribute(0x22): main
picture, two part, not using physical channel, ATSC air ‘xx’
data: don’t care analog channel number in case digital chan-
nel tuning.
3. Digital channel: ATSC air, channel number (physical(20),
major (30), minor (5)), main picture
Command: ma 00 14 00 1E 00 05 02 attribute(0x02): main
picture, two part, using physical channel, ATSC air.
18. ISM Method (Command2:p)
These functions are available in
42PC3DU/42PC3DVU/50PC3DU/ 60PC1D
model only.
GTo avoid having a fixed image remain on screen.
Transmission
Data 1: Inversion
2: Orbiter
4: White Wash
8: Normal
[ j ][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
19. Low Power (Command2:q)
GTo control the Low Power function on/off.
You can also adjust Low Power in Option menu.
Transmission
Data 0: Low Power off
1: Low Power on
[ j ][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
58
Reference
23. Input select(Command: x b) (Main Picture Input)
GTo select input source for TV.
Transmission
[x][b][][Set ID][][Data][Cr]
21. Channel Add/Del (Command: m b)
GTo add and delete the channels
Transmission
Data 0: Channel Delete
1: Channel Add
[m][b][ ][Set ID][ ][Data][Cr]
[b][ ][Set ID][ ][OK][Data][x]
[b][ ][Set ID][ ][NG][Data][x]
Acknowledgement
22. Key (Command: m c)
GTo send IR remote key code
Transmission
Data Key code: Refer to page 60.
[m][c][ ][Set ID][ ][Data][Cr]
[c][ ][Set ID][ ][OK][Data][x]
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
Acknowledgement
Data Structure
DATA(Hex) INPUT
00 DTV (Antenna)
01
10
11
20
21
40
41
60
90
DTV (Cable)
Analog (Antenna)
Analog (Cable)
AV1
AV2
Component 1
Component 2
RGB PC
HDMI1/DVI
91 HDMI2
59
Reference
G Connect your wired remote control to the Remote Control port on the TV.
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
G Configuration of frame
G Repeat code
G Lead code
• 1st frame
Low
custom code
Lead
code
High
custom code Data code Data code
TC
Tf
T1
C0
Carrier frequency
FCAR = 1/TC= fOSC/12
Duty ratio = T1/TC= 1/3
• Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
G Bit description
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
• Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
• Bit “1”
2.24 ms
IR Codes
IR Codes
How to Connect
Remote Control IR Codes
60
Reference
0B
0F
98
08
C4
C5
79
0E
10 ~ 19
4C
1A
09
02
03
00
01
1E
AA
39
40
41
07
06
44
43
52
4D
5B
0A
CB
D6
5A
D0
BF
D4
D5
CE
CC
76
77
AF
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (TV Input Selection)
Discrete IR Code (AV1 Input Selection)
Discrete IR Code (AV2 Input Selection)
Discrete IR Code (Component1 Input Selection)
Discrete IR Code (Component2 Input Selection)
Discrete IR Code (RGB-PC Input Selection)
Discrete IR Code (HDMI-DVI Input Selection)
Discrete IR Code (HDMI2 Input Selection)
Discrete IR Code (Only 4:3 Mode)
Discrete IR Code (Only 16:9 Mode)
Discrete IR Code (Only Zoom1 Mode)
Code (Hexa) Function Note
INPUT
TV INPUT
MULTIMEDIA
POWER
POWER ON
POWER OFF
RATIO
TIMER
Number Key 0~ 9
- (Dash)
FLASHBK
MUTE
VOL DD
VOLEE
CH DD
CH EE
FAV
INFO
CC
D
E
F
G
ENTER
MENU
EZ SOUND
EZ PIC
EXIT
SAP
ADJUST
TV
AV1
AV2
COMPONENT 1
COMPONENT 2
RGB-PC
HDMI1/DVI
HDMI2
Ratio 4:3
Ratio 16:9
Ratio Zoom
61
Reference
G The remote control is a multi-brand or universal remote control. It can be programmed to operate most
remote-controllable devices of other manufacturers.
Note that the remote control may not control all models of other brands.
Programming the Remote
Programming the Remote
VOL
CH
POWER
1 2 3
4 5 6
78
0
9
MENU
MUTE
FAV
BRIGHT +
VCR
TV
DVD
ENTER
ADJUST
SAP
EZ SOUND
EZ PIC
CC
FLASHBK
EXIT
TIMER
RATIO
INFO
AUDIO
CABLE
STB
MODE
TV INPUT INPUT
BRIGHT -
Programming a code into a remote mode
Test your remote control.
To find out whether your remote control can operate the component
without programming, turn on the component such as a VCR and press
the corresponding MODE button (VCR) on the remote control, while
illuminating on the selected component. Test the POWER button to see
if the component responds properly. If not, the remote requires pro-
gramming to operate the device.
Turn on the component to be programmed, then press the correspond-
ing MODE button on the remote control.
Press the MENU and MUTE buttons simultaneously for 2 seconds, the
button selected component lights on the remote control. If you don't
press any button for 20 seconds, the button selected component will turn
off on the remote control. At a moment, you have to repeat from step 2.
Enter a code number using the number buttons on the remote. When
pressing the button, the light is blinked at a time. Programming code
numbers for the corresponding component can be found on the follow-
ing pages. Again, if the code is correct, the device will turn off.
Press the MENU button to store the code. After blinking twice, this code
is stored.
Test the remote control functions to see if the component responds
properly. If not, repeat from step 2.
1
2
3
4
5
6
62
Reference
Programming Codes
Programming Codes
AIWA 034
AKAI 016 043 046 124
125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
065 108 110 111
112 116 117 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
107 109 144 147
GO VIDEO 132 136
HARMAN KARDON
012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 106 114 123
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
MARANTZ 012 031 033 067
069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
133 140 145
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
107 109 140 144
145 147
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
105 107 109 112
113 115 120 122
125
SANSUI 022 043 048 135
SANYO 003 007 010 014
102 134
SCOTT 017 037 112 129
131
SEARS 003 008 009 010
013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK
016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
VCRs
Cable Box
63
Reference
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
ALPHASTAR DSR
123
AMPLICA 050
BIRDVIEW 051 126 129
CHANNEL MASTER
013 014 015 018
036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010
011 052 112 116
141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058
093 094 095 096
097 098 099 100
122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027
133 134
GENERAL INSTRUMENT
003 004 016 029
031 059 101
HITACHI 139 140
HOUSTON TRACKER
033 037 039 051
057 104
HUGHES 068
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064
065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE 143
PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO
028 035 047 057
085
SCIENTIFIC ATLANTA
032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087
088 090 107 130
137
TOSHIBA 002 127
UNIDEN 016 025 042 043
044 045 048 049
078 079 080 086
101
UNIDEN 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084
091 120
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
AIWA 014 028 070 096
125 129 139 229
230
AKAI 163
ANAM 003 014 017 023
059 106 189 216
217 235 236
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 084
102 148 198 221
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029
087 107 108 110
190 191 192 210
211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
INKEL 037 058 062 069
078 079 095 121
122 149 150 151
152 153 154 155
157 158 159 160
189 207 222 224
225 226 227 243
247
JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089
170 171 197 206
215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098
100 172 173 174
175 176 177 178
179 180 181 183
201 202 208 213
214 219 223 232
238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025
034 041 081 090
097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047
048 056 057 132
133 140
OPTIMUS 158
PANASONIC 007 033 064 113
142 220 241 251
PENNEY 104
PHILIPS 026 112 143
PIONEER 039 042 043 063
065 091 093 094
115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182
193 194 195 203
204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052
072 082 117 119
156 184 199 200
206 209
SHERWOOD 005 006 158
SONY 044 045 109 114
118 126 248 249
TAEKWANG 012 020 073 074
076 077 105 161
162 163 164 165
166 167 168 169
205 231 233 242
TEAC 010 085 106 136
185 187 237
TECHNICS 101 113 128 134
147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092
199
Brand Codes Brand Codes Brand Codes Brand Codes
Digital Cable/Satellite Box
Audio
DVD
64
Reference
T
Troubleshooting Checklist
roubleshooting Checklist
The video function does not work.
No picture &
No sound
No or poor color
or poor picture
•Adjust Color in menu option.
•Keep a sufficient distance between the product and the VCR.
•Try another channel. The problem may be with the broadcast.
•Are the video cables installed properly?
•Activate any function to restore the brightness of the picture.
Picture appears
slowly after
switching on
•This is normal, the image is muted during the product startup process.
Please contact your service center, if the picture has not appeared after five
minutes.
Horizontal/verti-
cal bars or pic-
ture shaking
•Check for local interference such as an electrical appliance or power tool.
Poor reception on
some channels
•Station or cable product experiencing problems, tune to another station.
•Station signal is weak, reorient antenna to receive weaker station.
•Check for sources of possible interference.
Lines or streaks
in pictures •Check antenna (Change the direction of the antenna).
•Check whether the product is turned on.
•Try another channel. The problem may be with the broadcast.
•Is the power cord inserted into wall power outlet?
•Check your antenna direction and/or location.
•Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.
The remote control
doesn’t work
The operation does not work normally.
•Check to see if there is any object between the product and the remote
control causing obstruction.
•Are batteries installed with correct polarity (+ to +, - to -)?
•Correct remote operating mode set: TV, VCR etc.?
•Install new batteries.
Power is suddenly
turned off
•Is the sleep timer set?
•Check the power control settings. Power interrupted
•No broadcast on station tuned with Auto off activated.
65
Reference
The audio function does not work.
Picture OK &
No sound
•Press the VOL or VOLUME button.
•Sound muted? Press MUTE button.
•Try another channel. The problem may be with the broadcast.
•Are the audio cables installed properly?
Unusual sound
from inside the
product
•A change in ambient humidity or temperature may result in an unusual
noise when the product is turned on or off and does not indicate a fault with
the product.
No output from one
of the speakers
•Adjust Balance in menu option.
Screen color is
unstable or single
color
•Check the signal cable.
•Reinstall the PC video card.
The signal is out of
range.
There is a problem in PC mode.
(Only PC mode applied)
•Adjust resolution, horizontal frequency, or vertical frequency.
•Check it whether the signal cable is connected or loose.
•Check the input source.
Vertical bar or
stripe on back-
ground &
Horizontal Noise &
Incorrect position
•Work the Auto configure or adjust clock, phase, or H/V position. (Option)
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water
and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe
the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please do not use a wet cloth.
If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to
unplug the power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have
your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
Maintenance
Maintenance
Product Specifications
Product Specifications
66
Reference
60PC1D
(60PC1D-UE)
AC100-240V ~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2 ~ 13, UHF 14 ~ 69,
CATV 1 ~ 135, CADTV 1 ~ 135, DTV 2 ~ 69
75 Ω
32 ~ 104°F (0 ~ 40°C)
Less than 80%
-4 ~ 140°F (-20 ~ 60°C)
Less than 85%
60.8 x 40.8 x 16.0 inches
1544.0 x 1035.5 x 408.2 mm
60.8 x 38.4 x 4.7 inches
1544.0 x 977.0 x 119.2 mm
163 pounds / 74.0 kg
137.3 pounds / 62.26 kg
Dimensions
(Width x Height x Depth)
Weight
with stand
without stand
with stand
without stand
42PC3DU
(42PC3DU-UE)
44.4 x 29.5x 15.0 inches
1129.0 x 748.5 x 380.0 mm
44.4 x 27.4 x 4.1 inches
1129.0 x 695 x 103.7 mm
64.4 pounds / 29.2 kg
55.8 pounds / 25.3 kg
Dimensions
(Width x Height x Depth)
Weight
with stand
without stand
with stand
without stand
42PC3DVU
(42PC3DVU-UE)
44.4 x 29.5x 15.0 inches
1129.0 x 748.5 x 380.0 mm
44.4 x 27.4 x 4.1 inches
1129.0 x 695 x 103.7 mm
62.6 pounds / 28.4 kg
54.0 pounds / 24.5 kg
Dimensions
(Width x Height x Depth)
Weight
with stand
without stand
with stand
without stand
50PC3DU
(50PC3DU-UE)
51.3 x 34.3 x 14.0 inches
1302.6 x 872.0 x 355.8 mm
51.3 x 31.9 x 4.2 inches
1302.6 x 810.0 x 107.7 mm
114.4 pounds / 51.9 kg
95.0 pounds / 43.1 kg
Dimensions
(Width x Height x Depth)
Weight
with stand
without stand
with stand
without stand
Power requirement
Television System
Program Coverage
External Antenna Impedance
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Environmental
condition
s•The specifications shown above may be changed without prior notice for quality improvement.
67
Reference
•The specifications shown above may be changed without prior notice for quality improvement.
32LC2DU
(32LC2DU-UE)
AC100-240V ~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2 ~ 13, UHF 14 ~ 69,
CATV 1 ~ 135, CADTV 1 ~ 135, DTV 2 ~ 69
75 Ω
32 ~ 104°F (0 ~ 40°C)
Less than 80%
-4 ~ 140°F (-20 ~ 60°C)
Less than 85%
31.9 x 24.8 x 9.3 inches
811 x 630 x 235 mm
31.9 x 22.3 x 4.9 inches
811.0 x 566.8 x 123.5 mm
48.3 pounds / 21.9 kg
40.8 pounds / 18.5 kg
Dimensions
(Width x Height x Depth)
Weight
with stand
without stand
with stand
without stand
37LC2DU
(37LC2DU-UE)
37.2 x 28.7 x 11.3 inches
944 x 729 x 286 mm
37.2 x26.0 x 5.1 inches
944.0 x 659.3 x 129.7 mm
65.0 pounds / 29.5 kg
54.9 pounds / 24.9 kg
Dimensions
(Width x Height x Depth)
Weight
with stand
without stand
with stand
without stand
42LC2DU
(42LC2DU-UE)
41.5 x 32.0 x 11.9 inches
1054 x 813 x 302 mm
41.5 x 29.4x 5.4 inches
1054.0 x 746.0 x 136.8 mm
81.6 pounds / 37.0 kg
67.0 pounds / 30.4 kg
Dimensions
(Width x Height x Depth)
Weight
with stand
without stand
with stand
without stand
Power requirement
Television System
Program Coverage
External Antenna Impedance
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Environmental
condition

Navigation menu
