PARENTAL CONTROL / RATINGS

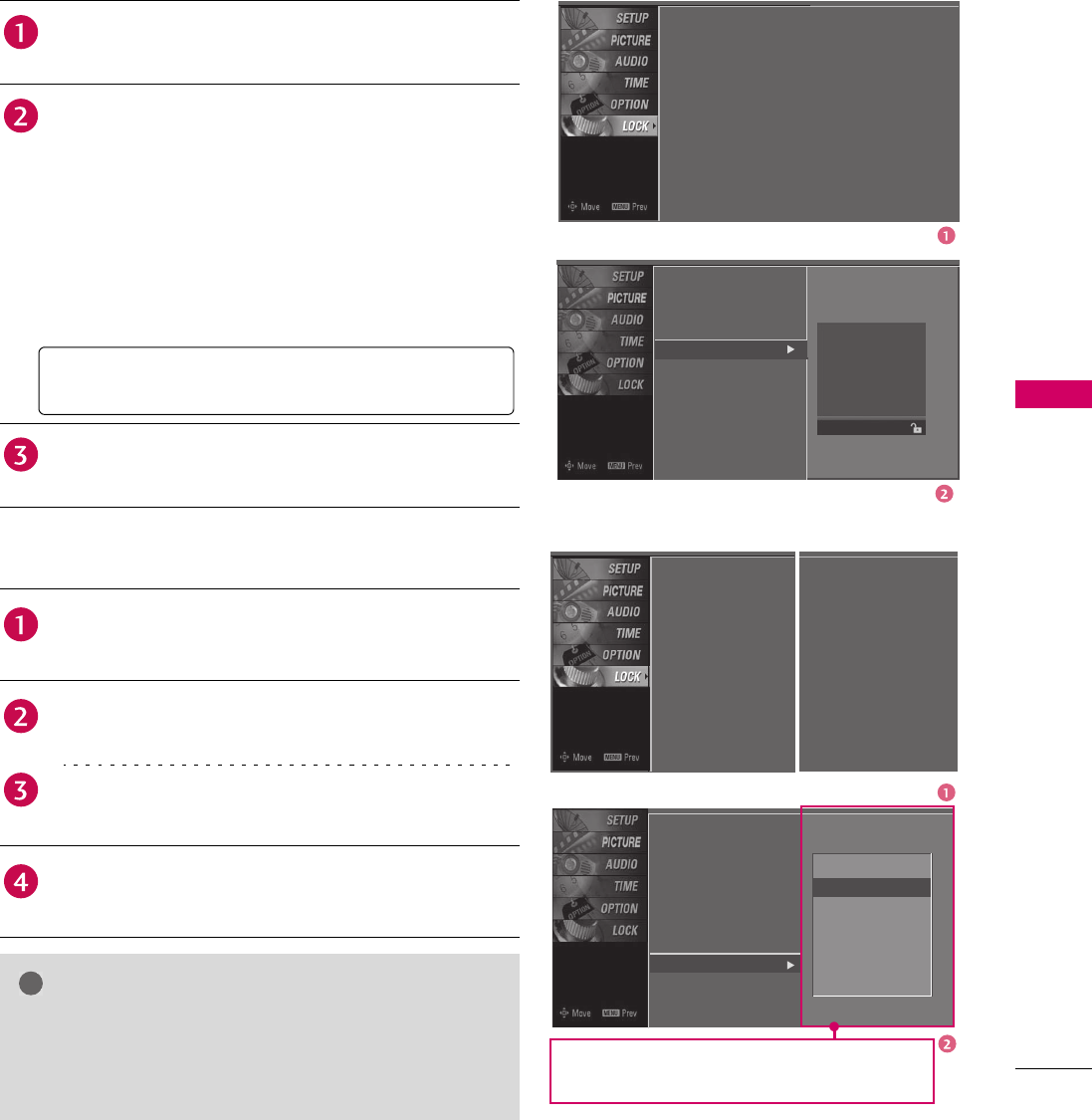

Set Password
Change the password by inputting a new password twice.
Lock System
Enables or disables the blocking scheme you set up
previously.

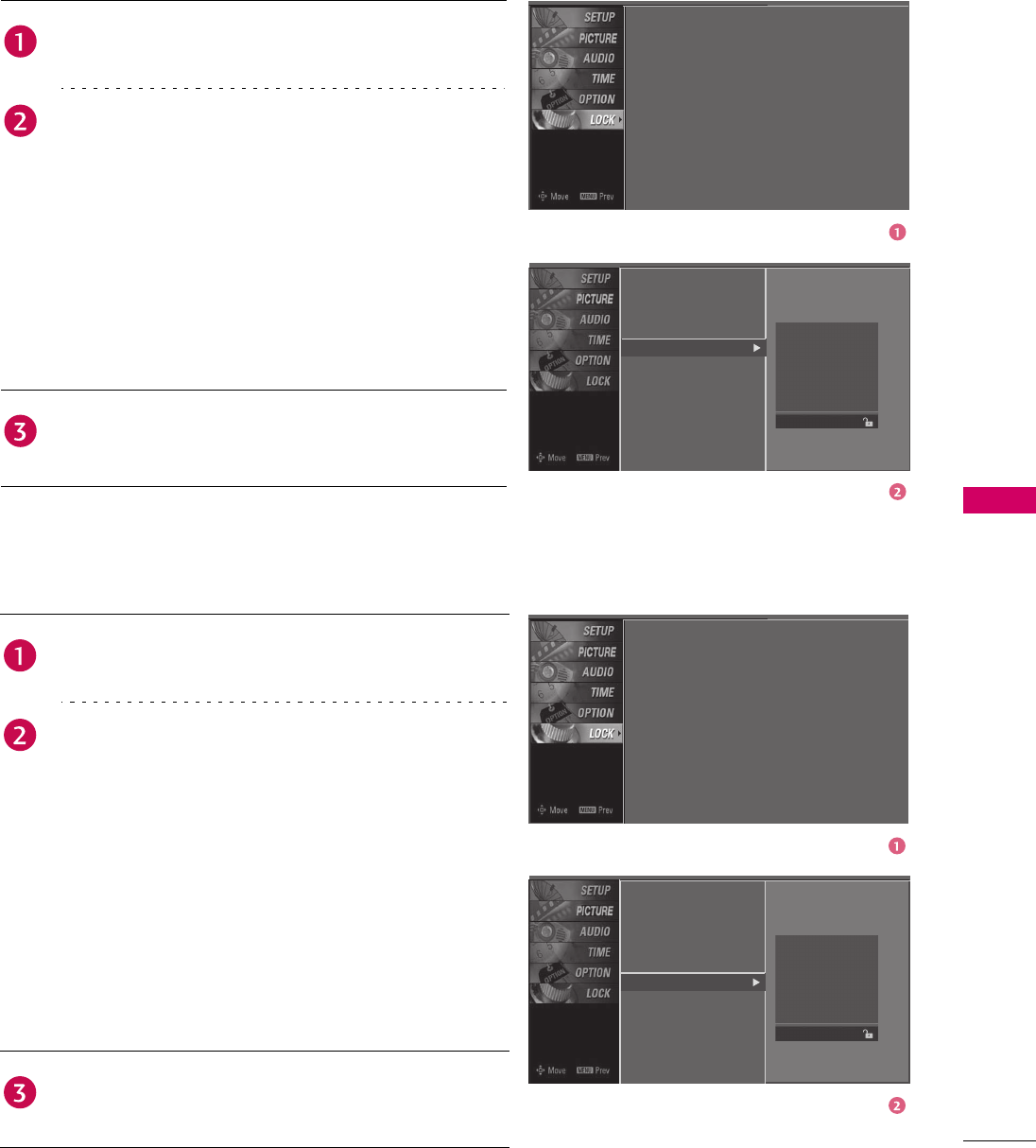

After inputting the password, use the 1 or 2 button
to choose Lock System.
Press the 4 button and then use the 1 or 2 button
to select On or Off.
When you select On, the Lock System is enable.
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
Lock System : Off
Set Password
Block Channel
Movie Rating
TV Rating-Children
Lock System : Off
Set Password
Block Channel
TV Rating-English
TV Rating-French
TV Rating-General
Downloadable Rating
Input Block
Downloadable Rating
Input Block
For USA For Canada
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
New
Confirm
TV Rating-General
Downloadable Rating
Input Block
After inputting the password, use 1 or 2 button to
choose Set Password.
Press the 4 button and then choose any 4 digits for
your new password.
As soon as the 4 digits are entered, re-enter the same
4 digits on the Confirm.
Then your changed password has been memorized.
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
Off
On
TV Rating-General
Downloadable Rating
Input Block
Lock System : Off
Set Password
Block Channel
Movie Rating
TV Rating-Children
Lock System : Off
Set Password
Block Channel
TV Rating-English
TV Rating-French
TV Rating-General
Downloadable Rating
Input Block
Downloadable Rating
Input Block
For USA For Canada
68
PARENTAL CONTROL / RATINGS
PARENTAL CONTROL / RATINGS

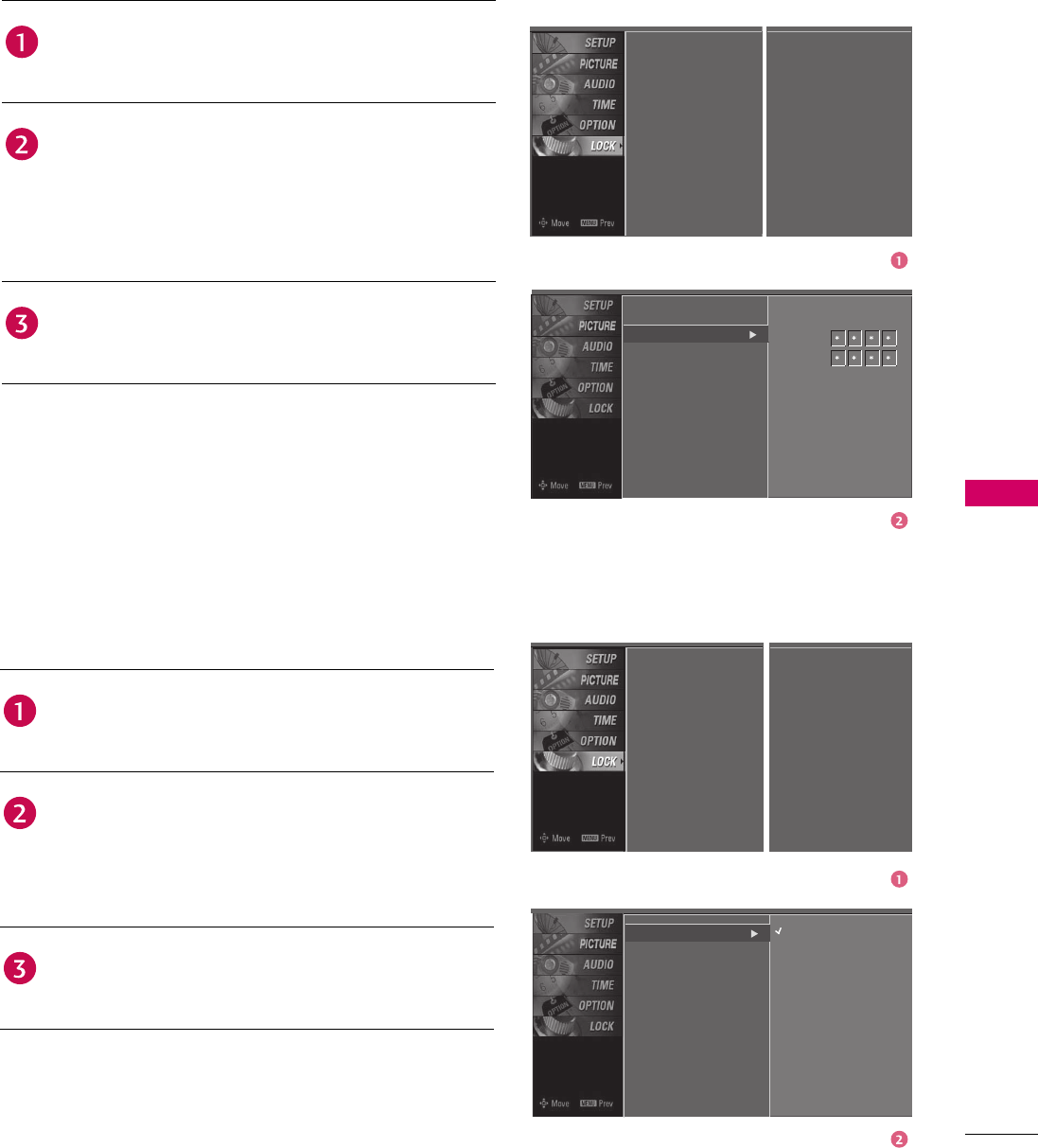

CHANNEL BLOCKING
Blocks any channels that you do not want to watch or that
you do not want your children to watch.
EXTERNAL INPUT BLOCKING
Enables you to block an input.

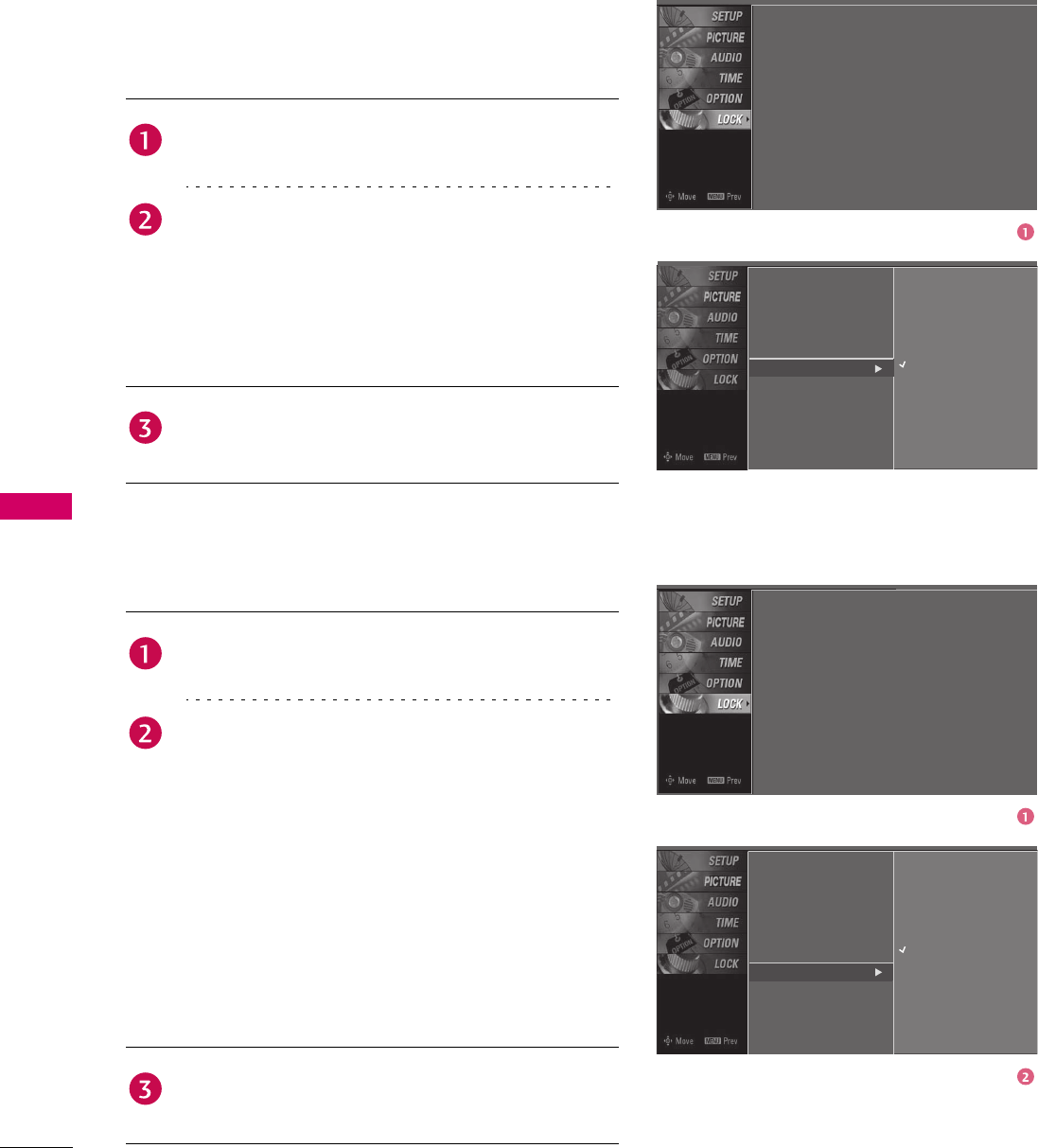

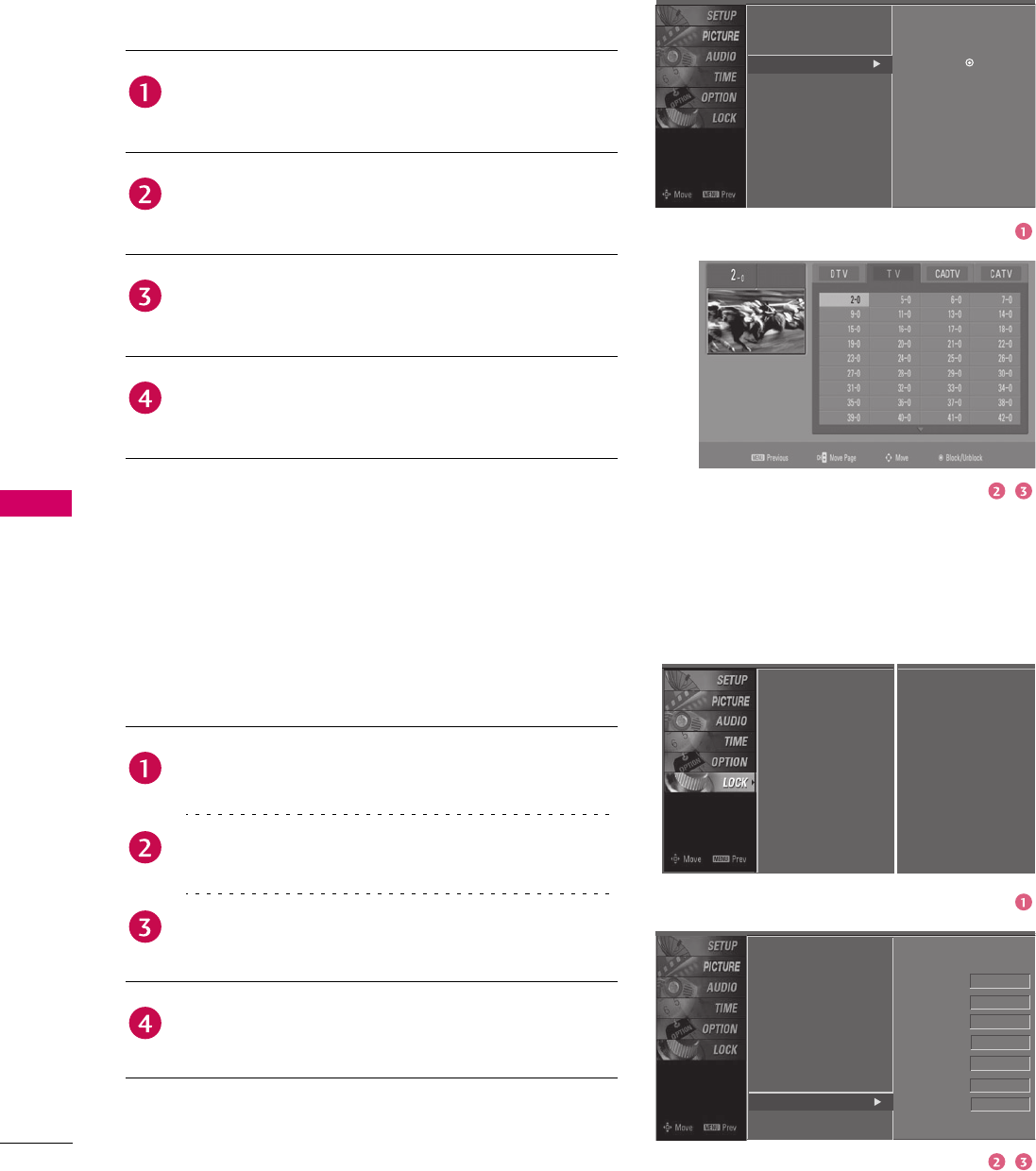

After inputting the password, use the 1 or 2 button
to choose Block Channel.
Press the 4 button. You will now see a screen filled
with channel numbers and a preview picture.
Use 1 2 3 4 button to select a channel and then use
the ENTER button to block or unblock it.
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Downloadable Rating
Input Block
Selection (X or ) leads you
to the block channel screen.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
AV 1
AV 2
Component 1
Component 2
TV Rating-General
Downloadable Rating
Input Block
RGB-PC
HDMI1
HDMI2
On
On
Off
On
Off
Off
Off
Lock System : Off
Set Password
Block Channel
Movie Rating
TV Rating-Children
Lock System : Off
Set Password
Block Channel
TV Rating-English
TV Rating-French
TV Rating-General
Downloadable Rating
Input Block
Downloadable Rating
Input Block
For USA For Canada
After inputting the password, use the 1 or 2 button
to choose Input Block.
Press the 4 button and then use the 1 or 2 button
select a source.
Use the 3 or 4 button to select On or Off on the
each source.
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
69
PARENTAL CONTROL / RATINGS
MOVIE & TV RATING
Movie Rating (MPAA) - for USA only
Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can
set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the
movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
Blocking Off: permits
all programs
G
PG
PG-13
TV Rating-General
Downloadable Rating
Input Block
R
NC-17
Blocking Off
After inputting the password, use the 1 or 2 button
to choose Movie Rating.
Press the 4 button and then use the 1 or 2 button
to select G, PG, PG-13, R, NC-17 or X.
G (General audience)
PG (Parental guidance suggested)
PG-13 (Parents strongly cautioned)
R (Restricted)
NC-17 (No one 17 and under admitted)
X (Adult only)
Blocking Off (Permits all programs)
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
XIf you set PG-13: G and PG movies will be
available, PG-13, R, NC-17 and X will be blocked.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
: Off
TV Rating-General
Downloadable Rating
Input Block
X
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
Downloadable Rating
Dim0
Dim1
Dim2
TV Rating-General
Downloadable Rating
Input Block
Dim3
Downloadable Rating
After inputting the password, use the 1 or 2 button
to choose Downloadable Rating.
Press the 4 button and then use the 1 or 2 button
to select Dim0, Dim1, Dim2, or Dim3.
Press the 4 button and then use the 1 or 2 button
to select D1L1, D1L2, or D1L3.
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
NOTE
XThis function may become available in the future and
will be available only for digital channels.
XThis function operates only when TV has received
Region5 Rating data.
!
X
Based on rating table, your TV's OSD (On Screen
Display) may differ slightly from what is shown in
this manual.
Lock System : Off
Set Password
Block Channel
Movie Rating
TV Rating-Children
Lock System : Off
Set Password
Block Channel
TV Rating-English
TV Rating-French
TV Rating-General
Downloadable Rating
Input Block
Downloadable Rating
Input Block
For USA For Canada
70
PARENTAL CONTROL / RATINGS
PARENTAL CONTROL / RATINGS
TV Rating Children - for USA only
Prevents children from watching certain children's TV
programs, according to the ratings limit set. The children
rating does not apply to other TV programs. Unless you block
certain TV programs intended for mature audiences in the TV
Rating - sub menu, your children can view those programs.
TV Rating General - for USA only
Based on the ratings, blocks certain TV programs that you and
your family do not want to view.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children Age
Fantasy Violence
TV Rating-General
Downloadable Rating
Input Block
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
: Off
TV Rating-General
Downloadable Rating
Input Block
After inputting the password, use the 1 or 2 button
to choose TV Rating-Children.
Press the 4 button and then use the 1 or 2 button
select Age, or Fantasy Violence.
Press the 4 button and then use the 1 or 2 button
select block options.
Age (applies to TV-Y, TV-Y7)
Fantasy Violence (applies to TV-Y7)
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children Age
Dialogue
TV Rating-General
Downloadable Rating
Input Block
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
: Off
TV Rating-General
Downloadable Rating
Input Block
Language
Sex
Violence
After inputting the password, use the 1 or 2 button
to choose TV Rating-General.
Press the 4 button and then use the 1 or 2 button
to select Age, Dialogue, Language, Sex or Violence.
Press the 4 button and then use the 1 or 2 button
to select block options.
Age (applies to TV-G, TV-PG, TV-14, TV-MA)
Dialogue-sexual dialogue (applies to TV-PG,
TV-14)
Language-adult language (applies to TV-PG,
TV-14, TV-MA)
Sex-sexual situations (applies to TV-PG, TV-14,
TV-MA)
Violence (applies to TV-PG, TV-14, TV-MA)
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
71
PARENTAL CONTROL / RATINGS
TV Rating English - for CANADA only
Selecting Canadian English language rating system.
TV Rating French - for CANADA only
Selecting Canadian French language rating system.
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Downloadable Rating
Input Block
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
: Off
Downloadable Rating
Input Block
Blocking off : permits all
programs
E
C
C8+
G
PG
14+
18+
Blocking Off
After inputting the password, use the 1 or 2 button to
choose TV Rating-English.
Press the
4
button and then use the
1
or
2
button to
select
E
,
C
,
C8+
,
G
,
PG
,
14 +
,
18 +
, or
Blocking Off
.
E (Exempt)
C (Children)
C8+ (Children eight years and older)
G (General programming, suitable for all audiences)
PG (Parental Guidance )
14+ (Viewers 14 years and older)
18+ (Adult programming)
Blocking Off (Permits all programs)
Press RETURN button to return to TV viewing or press
MENU button to return to the previous menu.
After inputting the password, use the 1 or 2 button to
choose TV Rating-French.
Press the 4 button and then use the 1 or 2 button to
select E, G, 8 ans+, 13 ans +, 16 a n s + , 18 a n s + , or
Blocking Off.
E (Exempt)
G (General)
8 ans+ (General-Not convenient for little children)
13 ans+ (Not convenient for children of 13 years and
younger)
16 ans+ (Not convenient for children of 16 years and
younger)
18 ans+ (This programs is only for adults)
Blocking Off (Permits all programs)
Press RETURN button to return to TV viewing or press
MENU button to return to the previous menu.
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Downloadable Rating
Input Block
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
: Off
Downloadable Rating
Input Block
Blocking off : permits all
programs
E
G
8 ans+
13 ans+
16 ans+
18 ans+
Blocking Off
72
APPENDIX
APPENDIX
TRO U B L E S H O O T I N G
The operation does not work normally.
The remote control
doesn’t work
Check to see if there is any object between the product and the remote control
causing obstruction. Ensure you are pointing the remote control directly at the TV.
Ensure that the batteries are installed with correct polarity (+ to +, - to -).
Ensure that the correct remote operating mode is set: TV, VCR etc.
Install new batteries.
Power is suddenly
turned off
Is the sleep timer set?
Check the power control settings. Power interrupted.
The video function does not work.
No picture &No sound
Check whether the TV is turned on.
Try another channel. The problem may be with the broadcast.
Is the power cord inserted into wall power outlet?
Check your antenna direction and/or location.
Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.
Picture appears slowly
after switching on
This is normal, the image is muted during the product startup process. Please
contact your service center, if the picture has not appeared after five minutes.
No or poor color or
poor picture
Adjust Color in menu option.
Keep a sufficient distance between the product and the VCR.
Try another channel. The problem may be with the broadcast.
Are the video cables installed properly?
Activate any function to restore the brightness of the picture.
Horizontal/vertical bars
or picture shaking Check for local interference such as an electrical appliance or power tool.
Poor reception on some
channels
Station or cable product experiencing problems, tune to another station.
Station signal is weak, reorient antenna to receive weaker station.
Check for sources of possible interference.
Lines or streaks in
pictures Check antenna (Change the direction of the antenna).
73
APPENDIX
The audio function does not work.
Picture OK & No sound
Press the VOL or VOLUME button.
Sound muted? Press MUTE button.
Try another channel. The problem may be with the broadcast.
Are the audio cables installed properly?
No output from one of
the speakers Adjust Balance in menu option.
Unusual sound from
inside the product
A change in ambient humidity or temperature may result in an unusual noise when
the product is turned on or off and does not indicate a fault with the product.
There is a problem in PC mode. (Only PC mode applied)
The signal is out of
range
Adjust resolution, horizontal frequency, or vertical frequency.
Check the input source.
Vertical bar or stripe on
background &
Horizontal Noise &
Incorrect position
Work the Auto configure or adjust clock, phase, or H/V position. (Option)
Screen color is unstable
or single color
Check the signal cable.
Reinstall the PC video card.
74
APPENDIX
APPENDIX
MAINTENANCE
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy
your new TV.
Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
Extended Absence
Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then
use it to wipe the screen.
Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
CAUTION
XIf you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the
power cord to protect against possible damage from lightning or power surges.
75
APPENDIX
PRODUCT SPECIFICATIONS
The specifications shown above may be changed without prior notice for quality improvement.
MODELS Z42LC6DF
(Z42LC6DF-UN) Z47LC6DF
(Z47LC6DF-UN)
Dimensions
(Width x Height x Depth)
Including stand 1038.1 x 751.6 x 335.6 mm
40.9x 29.6 x 13.2 inches
1146 x 800.3 x 348.3 mm
45.1 x 31.5x 13.7 inches
Excluding stand 1038.1 x 687.9 x 88.5 mm
40.9 x 27.1 x 3.5 inches
1146 x 754.7 x 103.0 mm
45.1 x 29.7 x 4.1 inches
Weight Including stand
Excluding stand
25.5 kg / 56.2 lbs
22.1 kg / 48.7 lbs
31.5 kg / 69.4 lbs
26.5 kg / 58.4 lbs
Power requirement
Television System
Program Coverage
External Antenna Impedance
AC100-240V ~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
75 ohm
Environment condition
Operating Temperature
Operating Humidity
32 ~ 104°F (0 ~ 40°C)
Less than 80%
Storage Temperature
Storage Humidity
-4 ~ 140°F (-20 ~ 60°C)
Less than 85%
76
APPENDIX
APPENDIX
PROGRAMMING THE REMOTE CONTROL
The provided universal remote control can be programmed to operate most remote-controllable devices.
Note that the remote may not control all models of other brands.
Programming a code into a remote mode
To find out whether your remote control can operate each device without programming, turn on the device
(such as a VCR) and press the corresponding mode button on the remote.
After that, press the POWER button. If the device is turned off and it responds properly the remote control
need not be programmed. If not, the remote should be programmed to operate the device. The
programming procedures are explained below.
Press the MENU and MUTE button continuously at the same time for two seconds; the currently selected
device button is illuminated.
If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case,
you have to repeat from step 2.
Enter the appropriate code from the code table on the following pages. When pressing the button, the light
blinks at a time. If the device turned off, the programming is successful.
Press the MENU button to store the code. After blinking twice, this code is stored.
Test the remote control functions to see if the device responds properly. If not, steps 2-5.
77
APPENDIX
Remote Control Code
VCR
Brand Codes Brand Codes Brand Codes
AIWA 034 MAGNAVOX 031 033 034 041 SAMSUNG 032 040 102 104
AKAI 016 043 046 124 067 068 105 107 109 112
125 146 MARANTZ 012 031 033 067 113 115 120 122
AMPRO 072 069 125
ANAM 031 033 103 MARTA 101 SANSUI 022 043 048 135
AUDIO DYNAMICS 012 023 039 043 MATSUI 027 030 SANYO 003 007 010 014
BROKSONIC 035 037 129 MEI 031 033 102 134
CANON 028 031 033 MEMOREX 003 010 014 031 SCOTT 017 037 112 129
CAPEHART 108 033 034 053 072 131
CRAIG 003 040 135 101 102 134 139 SEARS 003 008 009 010
CURTIS MATHES 031 033 041 MGA 045 046 059 013 014 017 020
DAEWOO 005 007 010 064 MINOLTA 013 020 031 042 073 081
0 6 5 10 8 110 111 MITSUBISHI 013 020 045 046 101
112 116 117 119 049 051 059 061 SHARP 031 054 149
DAYTRON 10 8 151 SHINTOM 024
DBX 012 023 039 043 MTC 034 040 SONY 003 009 031 052
DYNATECH 034 053 MULTITECH 024 034 056 057 058 076
ELECTROHOME 059 NEC 012 023 039 043 077 078 149
EMERSON 006 017 025 027 048 SOUNDESIGN 034
029 031 034 035 NORDMENDE 043 STS 013
036 037 046 101 OPTONICA 053 054 SYLVANIA 031 033 034 059
129 131 138 153 PANASONIC 066 070 074 083 067
FISHER 003 008 009 010 133 14 0 145 SYMPHONIC 034
FUNAI 034 TA N DY 010 034
GE 031 033 063 072 PENTAX 013 020 031 033 TAT U N G 039 043
107 10 9 144 147 063 TEAC 034 039 043
GO VIDEO 132 136 PHILCO 031 034 067 TECHNICS 031 033 070
HARMAN KARDON 012 045 PHILIPS 031 033 034 054 TEKNIKA 019 031 033 034
HITACHI 004 018 026 034 067 071 101 101
043 063 137 150 PILOT 101 THOMAS 034
INSTANTREPLAY 031 033 PIONEER 013 021 048 TMK 006
JCL 031 033 PORTLAND 108 TOSHIBA 008 013 042 047
J C P E N N Y 012 013 015 033 PULSAR 072 059 082 112 131
040 066 101 QUARTZ 011 014 TOTEVISION 040 101
JENSEN 043 QUASAR 033 066 075 145 UNITECH 040
JVC 012 031 033 043 RCA 013 020 033 034
VECTOR RESEARCH
012
048 050 055 060 040 041 062 063 VICTOR 048
130 15 0 152 107 10 9 140 14 4 VIDEO CONCEPTS 012 034 046
KENWOOD 014 034 039 043 145 147 VIDEOSONIC 040
047 048 REALISTIC 003 008 010 014 WARDS 003 013 017 024
LG (GOLDSTAR) 001 012 013 020 031 033 034 040 031 033 034 040
101 10 6 114 123 053 054 101 053 054 131
LLOYD 034 RICO 058 YAM AH A 012 034 039 043
LXI 003 009 013 014 RUNCO 148 ZENITH 034 048 056
017 034 101 106 SALORA 014 058 072 080 101
MAGIN 040
78
APPENDIX
APPENDIX
HDSTB
DVD
Brand Codes Brand Codes Brand Codes
ALPHASTAR DSR 123
HOUSTON TRACKER
033 037 039 051 PROSAT 072
AMPLICA 050 057 104 RCA 066 106
BIRDVIEW 051 126 129 HUGHES 068 REALISTIC 043 074
CHANNEL MASTER 013 014 015 018 JANIEL 060 147 SAMSUNG 123
036 055 JERROLD 061
SATELLITE SERVICE CO
028 035 047 057
CHAPARRAL 008 009 012 077 KATHREIN 108 085
CITOH 054 LEGEND 057
SCIENTIFIC ATLANTA
032 138
CURTIS MATHES 050 145 LG 001 SONY 103
DRAKE 005 006 007 010 LUTRON 132 STARCAST 041
011 052 112 116 LUXOR 062 144 SUPER GUIDE 020 124 125
141 MACOM 010 059 063 064 TEECOM 023 026 075 087
DX ANTENNA 024 046 056 076 065 088 090 107 130
ECHOSTAR 038 040 057 058 MEMOREX 057 137
093 094 095 096 NEXTWAVE 028 124 125 TOSHIBA 002 127
097 098 099 100 NORSAT 069 070 UNIDEN 016 025 042 043
122
PACE SKY SATELLITE
143 044 045 048 049
ELECTRO HOME 089 PANASONIC 060 142 078 079 080 086
EUROPLUS 114 PANSAT 121 101 135 136
FUJITSU 017 021 022 027 PERSONAL CABLE 117 VIEWSTAR 115
133 134 PHILIPS 071 WINEGARD 128 14 6
GENERAL INSTRUMENT
003 004 016 029 PICO 105 ZENITH 081 082 083 084
031 059 101 PRESIDENT 019 102 091 120
HITACHI 139 140 PRIMESTAR 030 110 111
Brand Codes Brand Codes Brand Codes
APEX DIGITAL 022 MITSUBISHI 002 RCA 005 006
DENON 020 014 NAD 023 SAMSUNG 011 015
GE 005 006 ONKYO 008 017 SONY 007
HARMAN KARDON 027 PANASONIC 003 009 THOMPSON 005 006
JVC 012 PHILIPS 013 TOSHIBA 019 008
LG 001 010 016 025 PIONEER 004 026 YAMAHA 009 018
MAGNAVOX 013 PROCEED 021 ZENITH 010 016 025
MARANTZ 024 PROSCAN 005 006
79
APPENDIX
Cable Box
Brand Codes Brand Codes Brand Codes
003 004 039 042 074 REMBRANT 025
ABC 046 052 053
LG (GOLDSTAR)
001 106 101 005 SAMSUNG 102 107 030 068
AJIN 112 M-NET 037
SCIENTIFIC ATLANTA
003 011 041 042
ANTRONIK 014 MACOM 033 043 045 046
ARCHER 005 007 014 024 MAGNAVOX 010 012 064 079 SHERITECH 022
CABLE STAR 026 MEMOREX 10 0 SIGNAL 030
CENTURION 092 MOVIE TIME 028 032
SIGNATURE
052
CENTURY 007 NSC 015 028 038 071 SL MARX 030
CITIZEN 007 073 SPRUCER 047 078
COLOUR VOICE 065 090 OAK 016 031 037 053 STARCOM 002 004 008 009
COMBANO 080 081 PANASONIC 044 047 STARGATE 008 030
COMTRONICS 019 030 PARAGON 100 TA D I R A N 030
DIAMOND 023 TA E K WA N G 110
EAGLE 020 030 040 PHILIPS 006 012 013 020 TA I H A N 105
EASTERN 057 062 066 065 085 090 TA N DY 017
ELECTRICORD 032 PIONEER 034 051 052 063 TEXSCAN 029
GE 072 076 TOCOM 039 040 056
GEMINI 008 022 025 054
POST NEWS WEEK
016 TOSHIBA 10 0
GI 052 074 PRUCER 059 UNIKA 007 014 024
GOLDEN CHANNEL
030 PTS 011 048 071 072 UNITED CABLE 004 053
HAMLIN
049 050 055 073 074 UNIVERSAL 005 007 014 024
HITACHI 052 055 PULSAR 100 026 027 032 035
HOSPITALITY 070 077 RCA 047 VI E WS TAR 012 015 018 086
JERROLD 002 003 004 008 REGAL 049 050 087 088 089
009 010 052 069 REGENCY 057 ZENITH 100 114 060 093
80
APPENDIX
IR CODES
1. How to Connect
Connect your wired remote control to the Remote Control port on the TV.
2. Remote Control IR Codes

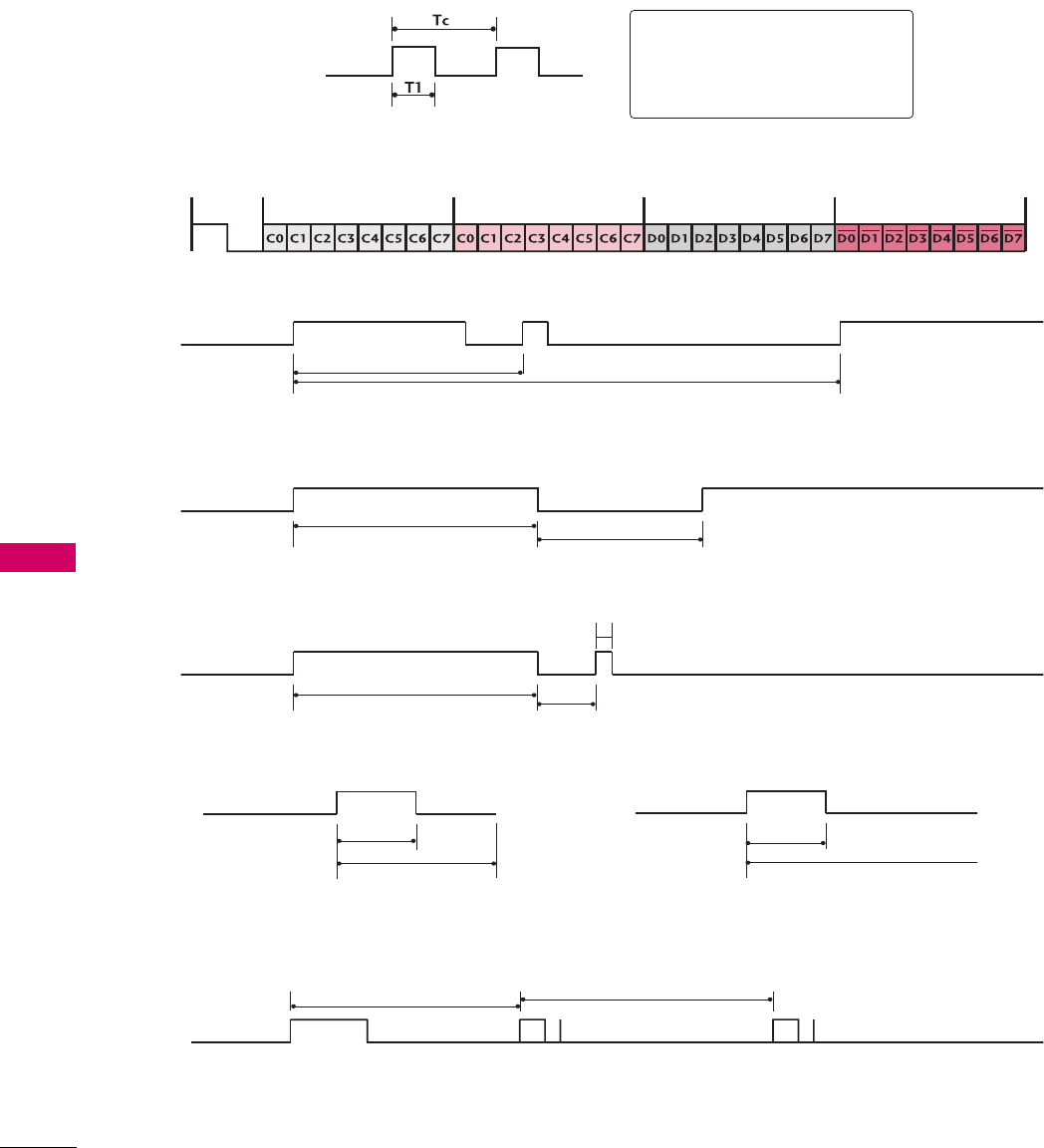

Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
Configuration of frame
1st frame
Repeat frame
Lead code
Repeat code
Bit description
Frame interval: Tf
The waveform is transmitted as long as a key is depressed.
Carrier frequency
FCAR = 1/TC = fOSC/12
Duty ratio = T1/TC = 1/3
Lead code Low custom code High custom code Data code Data code
Repeat code Tf
9 ms
4.5 ms
9 ms 2.25 ms
0.55 ms
0.56 ms
1.12 ms 2.24 ms
0.56 ms
Bit “0” Bit “1”
Tf Tf
Tf=108ms @455KHz
81
APPENDIX
Code
(Hexa) Function Note Code
(Hexa) Function Note
0B INPUT Remote control Button BF COMPONENT 1 Discrete IR Code
08 POWER Remote control Button (Power On/Off) (Component1 Input Selection)
79 RATIO Remote control Button D4 COMPONENT 2 Discrete IR Code
0E TIMER Remote control Button (Component2 Input Selection)
10-19 Number Key 0-9 Remote control Button D5 RGB-PC Discrete IR Code
4C - (Dash) Remote control Button (RGB-PC Input Selection)
1A FLASHBK Remote control Button CE HDMI1 Discrete IR Code
09 MUTE Remote control Button (HDMI1 Input Selection)
02 VOL + Remote control Button CC HDMI2 Discrete IR Code
03 VOL - Remote control Button (HDMI2 Input Selection)
00 CH 1Remote control Button E9 HDMI3 Discrete IR Code
01 CH 2Remote control Button (HDMI3 Input Selection)
1E FAV Remote control Button 76 Ratio 4:3 Discrete IR Code
39 CC Remote control Button (Only 4:3 Mode)
40 1Remote control Button 77 Ratio 16:9 Discrete IR Code
41 2Remote control Button (Only 16:9 Mode)
07 3Remote control Button AF Ratio Zoom Discrete IR Code
06 4Remote control Button (Only Zoom1 Mode)
44 ENTER Remote control Button C4 POWER ON Discrete IR Code
E1 BRIGHT - Remote control Button (Only Power On)
43 MENU Remote control Button C5 POWER OFF Discrete IR Code
E0 BRIGHT + Remote control Button (Only Power Off)
52 SOUND Remote control Button B0 PLAY Remote control Button
4D PICTURE Remote control Button BA PAUSE Remote control Button
5B MENU Remote control Button B1 STOP Remote control Button
0A SAP Remote control Button BD REC Remote control Button
D6 TV Discrete IR Code 8F REW Remote control Button
(TV Input Selection) 8E FF Remote control Button
5A AV 1 Discrete IR Code B2 GO TO PREV Remote control Button
(AV1 Input Selection) B3 GO TO NEXT Remote control Button
D0 AV 2 Discrete IR Code 7D MARK Remote control Button
(AV2 Input Selection)
82
APPENDIX
APPENDIX
EXTERNAL CONTROL THROUGH RS-232C
The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a
computer or an A/V control system) to control the TV’s functions externally.
Note: RS-232C on this unit is intended to be used with third party RS-232 control hardware and software.
The instructions below are provided to help with programming software or to test functionality using telenet
software.

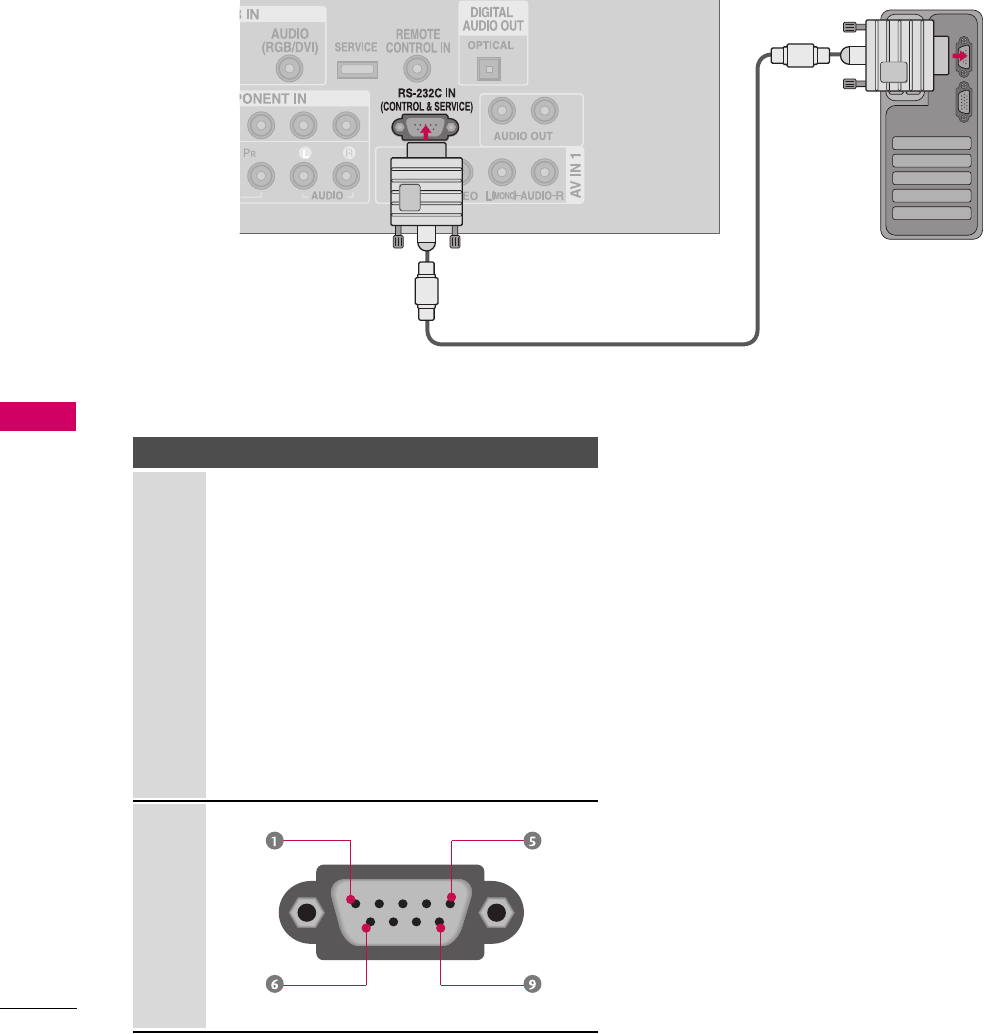

RS-232C Setup
Type of Connector; D-Sub 9-Pin Male
PC
No. Pin Name
1No connection
2RXD (Receive data)
3TXD (Transmit data)
4DTR (DTE side ready)
5GND
6DSR (DCE side ready)
7RTS (Ready to send)
8CTS (Clear to send)
9No Connection
83
APPENDIX
RS-232C Configurations
Either cable below can be used.
Set ID
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping1'. Xp.86
Communication Parameters

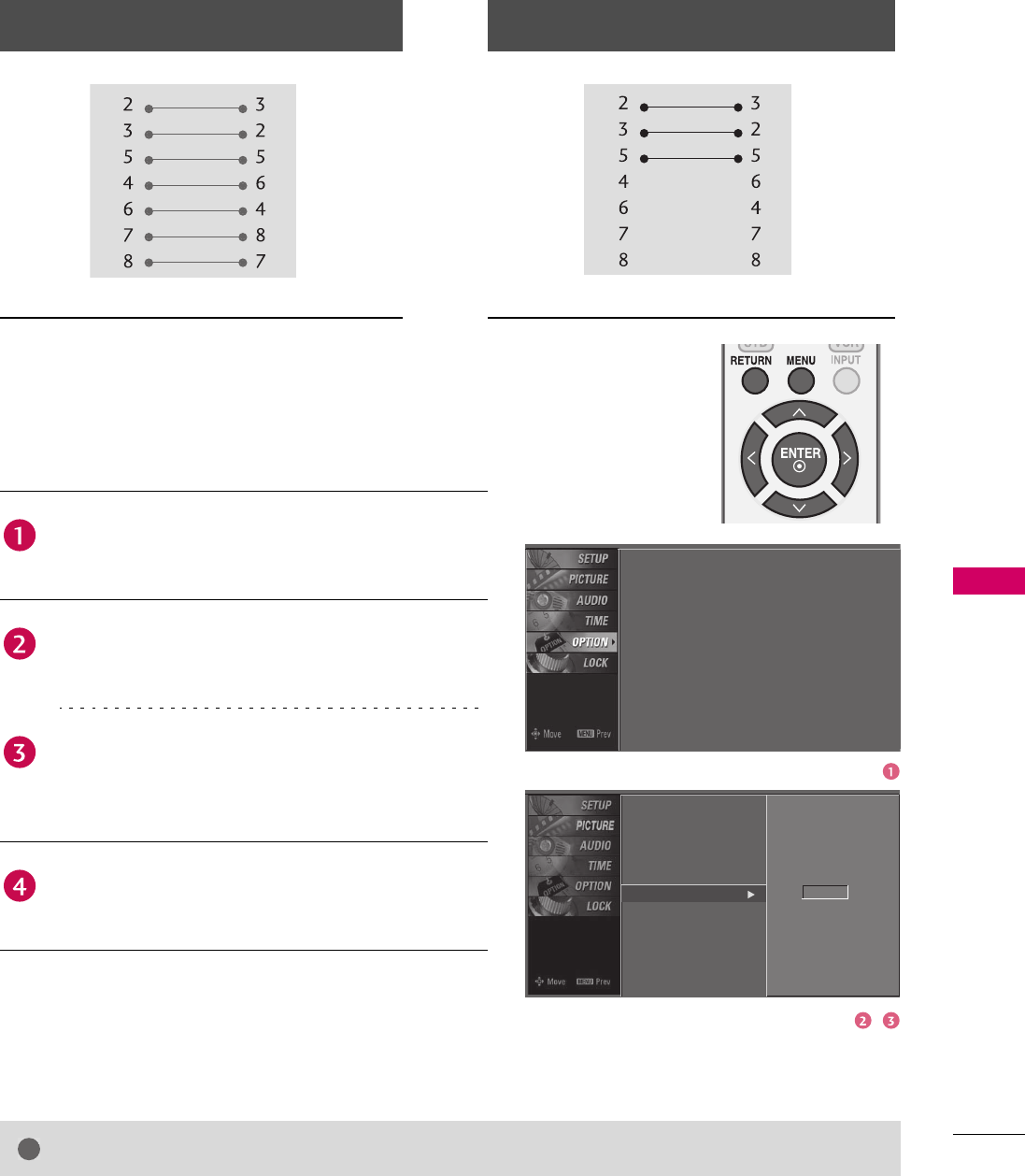

7-Wire Configuration
(Serial female-female NULL modem cable)
3-Wire Configurations
(Not standard)
PC TV PC TV
RXD TXD RXD TXD
TXD RXD TXD RXD
GND GND GND GND
DTR DSR DTR DTR
DSR DTR DSR DSR
RTS CTS RTS RTS
CTS RTS CTS CTS
D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9
Press the MENU button and then use 1 or 2 button
to select the OPTION menu.
Press the 4 button and then use 1 or 2 button to
select Set ID.
Press the 4 button and then use 1 or 2 button to
adjust Set ID to choose the desired TV ID number.
The adjustment range of Set ID is 1~99.
Press RETURN button to return to TV viewing or
press MENU button to return to the previous menu.
NOTE XThis product has command echo back in the RS-232C Command.
Language
Input Label
Key Lock
Caption
Set ID
: English
: Off
: Off
: 1
Language
Input Label
Key Lock
Caption
Set ID 1
Baud rate: 9600 bps (UART)
Data length: 8 bits
Parity: None
Stop bit: 1 bit
Communication code: ASCII code
Use a crossed (reverse) cable.
!
84
APPENDIX
APPENDIX
Command Reference List
Transmission / Receiving Protocol
COMMAND1 COMMAND2 DATA
(Hexadecimal) COMMAND1 COMMAND2 DATA
(Hexadecimal)
01. Power k a 0 ~ 1 15 . Treble k r 0 ~ 64
02. Input Select k b (Xp.85) 16 . Bass k s 0 ~ 64
03. Input Select x b (Xp.85) 17. Balance k t 0 ~ 64
04. Aspect Ratio k c (Xp.85) 18 .
Color Temperature
k u 0 ~ 3
05. Screen Mute k d 0 ~ 1 19 . Red Adjustment k v 0 ~ C8
06. Volume Mute k e 0 ~ 1 20. Green Adjustment k w 0 ~ C8
07. Volume Control k f 0 ~ 64 21 . Blue Adjustment k $ 0 ~ C8
08. Contrast k g 0 ~ 64 23. Channel Add/Del m b 0 ~ 1
09. Brightness k h 0 ~ 64 24. Key m c (Xp.88)
10 . Color k i 0 ~ 64 25. Back Light m g 0 ~ 64
11 . Tint k j 0 ~ 64 26.
Auto Configuration
ju(Xp.88)
12 . Sharpness k k 0 ~ 64
13 . OSD Select k l 0 ~ 1
14 . Remote Control
Lock Mode k m 0 ~ 1
COMMAND1 COMMAND2 DATA0
(Hexadecimal) DATA1
(Hexadecimal) DATA2
(Hexadecimal) DATA3
(Hexadecimal) DATA4
(Hexadecimal) DATA5
(Hexadecimal)
22. Channel Tuning m a physical
program high
major
program low major low minor high minor low attribute
Transmission
[Command 1]: First command to control the set.(j, k, m or x)
[Command 2]: Second command to control the set.
[Set ID]: You can adjust the set ID to choose desired TV ID
number in Setup menu. Adjustment range is 1~ 99.
When selecting Set ID '0', every connected the TV is
controlled. Set ID is indicated as decimal (1~ 99) on
menu and as Hexa decimal (0x0~0x63) on
transmission/receiving protocol.
[DATA]: To transmit the command data.
Transmit the 'FF' data to read status of command.
[Cr]: Carriage Return
ASCII code '0x0D'
[ ]: ASCII code 'space (0x20)'
* In this model, TV will not send the status during the standby
mode.
OK Acknowledgement
The TV transmits ACK (acknowledgement) based on this
format when receiving normal data. At this time, if the data is
data read mode, it indicates present status data. If the data is
data write mode, it returns the data of the PC computer.
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command2][ ][Set ID][ ][OK][Data][x]
* In this model, TV will not send the status during the standby
mode.
* Data Format
[Command 2]: Use as command.
[Set ID]: Use the small character, if set ID is 10, it will send the
'0', 'a'.
[DATA]: Use the small character, if data is 0 x ab, it will send
the 'a', 'b'.
[OK]: Use the large character.
Error Acknowledgement
The TV transmits ACK (acknowledgement) based on this
format when receiving abnormal data from non-viable functions
or communication errors.
Data1: Illegal Code
Data2: Not supported function
Data3: Wait more time
* In this model, TV will not send the status during the standby
mode.
* Data Format
[Command 2]: Use as command.
[Set ID]: Use the small character, if set ID is 10, it will send the
'0', 'a'.
[DATA]: Use the small character, if data is 0 x ab, it will send
the 'a', 'b'.
[NG]: Use the large character.
[Command2][ ][Set ID][ ][NG][Data][x]
APPENDIX
85
01. Power (Command: k a)
To control Power On/Off of the TV.
Data 0: Power Off Data 1: Power On
* In a like manner, if other functions transmit ‘FF’ data
based on this format, Acknowledgement data feedback
presents status about each function.
* Note: In this model, TV will send the Acknowledge after
power on processing completion.
There might be a time delay between command and
acknowledge.
02. Input Select (Command: k b) (Main Picture Input)
To select input source for the TV.
Data 0: DTV Data 1: Analog
Data 2: AV 1 Data 3: AV 2
Data 4: Component 1 Data 5: Component 2
Data 7: RGB-PC Data 8: HDMI1
Data 9: HDMI2 Data10: HDMI3
* If you select input source, we recommend “command x b”.
03. Input Select (Command: x b)
To select input source for TV.
Data 00: DTV (Antenna) Data 01: DTV (Cable)
Data 10: Analog (Antenna) Data 11: Analog (Cable)
Data 20: AV 1 Data 21: AV 2
Data 40: Component 1 Data 41: Component 2
Data 60: RGB-PC Data 90: HDMI1
Data 91: HDMI2 Data 92: HDMI3
04. Aspect Ratio (Command: k c)
To adjust the screen format.
You can also adjust the screen format using the RATIO
button on remote control or in the PICTURE menu.
Data 1: 4:3 5: Zoom 2
2: 16:9 6: Set by program
4: Zoom 1 9: Just Scan
Reserved
05. Screen Mute (Command: k d)
To select screen mute on/off.
Data 0: Screen mute off (Picture on)
Data 1: Screen mute on (Picture off)
06. Volume Mute (Command: k e)
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Data 0: Volume mute on (Volume off)
Data 1: Volume mute off (Volume on)
07. Volume Control (Command: k f)
To adjust volume.
You can also adjust volume with the volume buttons on
remote control.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’. See page 86.
08. Contrast (Command: k g)
To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’. See page 86.
09. Brightness (Command: k h)
To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’. See page 86.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
86
APPENDIX
APPENDIX
10. Color (Command: k i)
To adjust screen color.
You can also adjust color in the PICTURE menu.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’ as shown below.
11. Tint (Command: k j)
To adjust screen tint.
You can also adjust tint in the PICTURE menu.
Data Red: 0 ~ Green: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’ as shown below.
12. Sharpness (Command: k k)
To adjust screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’ as shown below.
13. OSD Select (Command: k l)
To select OSD (On Screen Display) on/off.
Data 0: OSD off Data 1: OSD on
14. Remote Control Lock Mode (Command: k m)
To lock the remote control and the front panel controls on
the set.
Data 0: Lock off Data 1: Lock on
If you’re not using the remote control and front panel
controls on the TV, use this mode. When main power is
on/off, remote control lock is released.
15. Treble (Command: k r)
To adjust treble.
You can also adjust treble in the AUDIO menu.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’ as shown.
16. Bass (Command: k s)
To adjust bass.
You can also adjust bass in the AUDIO menu.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’ as shown below.
17. Balance (Command: k t)
To adjust balance.
You can also adjust balance in the AUDIO menu.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’ as shown below.
18. Color Temperature (Command: k u)
To adjust color temperature.
You can also adjust color temperature in the PICTURE
menu.
Data 0: Medium 1: Cool 2: Warm 3: User
19. Red Adjustment (Command: k v)
To adjust red in color temperature.
Data Min: 0 ~ Max: C8
* Refer to ‘Real data mapping 2’ as shown below.
20. Green Adjustment (Command: k w)
To adjust green in color temperature.
Data Min: 0 ~ Max: C8
* Refer to ‘Real data mapping 2’ as shown below.
*Real data mapping 1 *Real data mapping 2
0: Step 0 0: -20
5: -19
A: Step 10 (SET ID 10) A: -18
F: Step 15 (SET ID 15) 5F: -1
10: Step 16 (SET ID 16) 64: 0
69: +1
63: Step 99 (SET ID 99)
64: Step 100 C3: +19
C8: +20
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[ j ][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][v][ ][Set ID][ ][Data][Cr]
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][w][ ][Set ID][ ][Data][Cr]
Acknowledgement
[w][ ][Set ID][ ][OK/NG][Data][x]
APPENDIX
87
21. Blue Adjustment (Command: k $)
To adjust blue in color temperature.
Data Min: 0 ~ Max: C8
* Refer to ‘Real data mapping 2’. See page 86.
22. Channel Tuning (Command: m a)
To tune channel to following physical/major/minor
number.
Digital channels have a Physical, Major, and Minor channel
number. The Physical number is the actual digital channel
number, the Major is the number that the channel should
be mapped to, and the Minor is the sub-channel. Since the
ATSC tuner automatically maps the channel to the Major
number, the Physical number is not required when sending
a command.
Data 0: Physical Channel Number
NTSC air: 02~45, NTSC cable: 01, 0E~7D
ATSC air: 01~45, ATSC cable: 01~87
Data1 & 2: Major Channel Number
Data1: High byte Data2: Low byte
Two bytes are available for the Major and Minor,
normally only the second byte is used.
Data3 & 4: Minor Channel Number
Not needed for NTSC.
Transmission
[k][$][ ][Set ID][ ][Data][Cr]
Acknowledgement
[$][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[m][a][ ][Set ID][ ][Data0][ ][Data1]
[ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]
88
APPENDIX
APPENDIX
The table above lists the binary code which must be
converted to Hexadecimal before sending. For example:
The binary code to tune the sub source to an NTSC
cable channel is “1000 0001”, which translates to “81”
in Hex.
* 7th bit: For which source do you want to change the
channel.
* 6th bit: Use a two part or one part channel. Most cases
just use 0 since it’s ignored when using NTSC.
* 5th bit: Use 0 with NTSC since it can only use the
physical channel number. Normally use 1 for ATSC since
most times it doesn’t matter what the physical number
is.
* 4th bit: Set to 0.
* 3-0 bits: Choose signal type.
* Tune Command Examples:
1. Tune to the analog (NTSC) cable channel 35.
Data 0 = Physical of 35 = 23
Data 1 & 2 = No Major = 00 00
Data 3 & 4 = No Minor = 00 00
Data 5 = 0000 0001 in binary = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital (ATSC) local channel 30-3.
Data 0 = Don’t know Physical = 00
Data 1 & 2 = Major is 30 = 00 1E
Data 3 & 4 = Minor is 3 = 00 03
Data 5 = 0010 0010 in binary = 22
Total = ma 00 00 00 1E 00 03 22
23. Channel Add/Del (Command: m b)
To add and delete the channels
Data 0: Channel Delete Data 1: Channel Add
24. Key (Command: m c)
To send IR remote key code.
Data Key code: Refer to page 81.
25. Back Light (Command: m g)
To adjust screen back light.
Data Min: 0 ~ Max: 64 (*transmit by Hexadecimal code)
* Refer to ‘Real data mapping 1’. See page 86.
26. Auto Configuration (Command: j u)
To adjust picture position and minimize image shaking
automatically. Auto configuration only works in RGB-PC
mode.
Data 1: To set
Data5: 7Main/Sub
Picture 6Two /O ne
Part Channel 5Using Physical
Channel 4
Reserved 3210 Step
0Main 0Two 0Use x 0 0 0 0 NTSC Air
1Sub 1One 1No Use x 0 0 0 1 NTSC Cable
x 0 0 1 0 ATSC Air
x 0 0 1 1 ATSC Cable_std
x 0 1 0 0 ATSC Cable_hrc
x 0 1 0 1 ATSC Cable_irc
x 0 1 1 0 ATSC cable_auto
x 0 1 1 1 Reserved
xxxxx ...
x 1 1 1 1 Reserved
Acknowledgement
[a][ ][Set ID][ ][OK][Data0][Data1]
[Data2][Data3][Data4][x][a][ ][Set ID]
[ ][NG][Data0][x]
Transmission
[m][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[m][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
89
APPENDIX
OPEN SOURCE SOFTWARE LICENSE
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51
Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of
this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your
freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share and
change free software - to make sure the software is free for all its
users. This General Public License applies to most of the Free
Software Foundation's software and to any other program whose
authors commit to using it. (Some other free software foundation
software is covered by the GNU Lesser General Public License
instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not
price. Our General Public Licenses are designed to make sure that
you have the freedom to distribute copies of free software (and
charge for this service if you wish), that you receive source code or
can get it if you want it, that you can change the software or use
pieces of it in new free programs; and that you know you can do
these things.
To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the
rights. These restrictions translate to certain responsibilities for
you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether
gratis or for a fee, you must give the recipients all the rights that
you have. You must make sure that they, too, receive or can get the
source code. And you must show them these terms so they know
their rights.
We protect your rights with two steps: (1) copyright the software,
and (2) offer you this license which gives you legal permission to
copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make
certain that everyone understands that there is no warranty for
this free software. If the software is modified by someone else and
passed on, we want its recipients to know that what they have is
not the original, so that any problems introduced by others will
not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software
patents. We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making
the program proprietary. To prevent this, we have made it clear
that any patent must be licensed for everyone's free use or not
licensed at all.
The precise terms and conditions for copying, distribution and
modification follow.
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND
MODIFICATION
0. This license applies to any program or other work which
contains a notice placed by the copyright holder saying it may
be distributed under the terms of this General Public License.
The "Program", below, refers to any such program or work, and
a "work based on the Program" means either the Program or
any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or
with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the
term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification
are not covered by this license; they are outside its scope. The
act of running the Program is not restricted, and the output
from the program is covered only if its contents constitute a
work based on the program (independent of having been
made by running the program). Whether that is true depends
on what the program does.
1. You may copy and distribute verbatim copies of the program's
source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this license and to the
absence of any warranty; and give any other recipients of the
program a copy of this license along with the Program.
You may charge a fee for the physical act of transferring a
copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the program or any
portion of it, thus forming a work based on the Program, and
copy and distribute such modifications or work under the
terms of section 1 above, provided that you also meet all of
these conditions:
a) You must cause the modified files to carry prominent
notices stating that you changed the files and the date of
any change.
b) You must cause any work that you distribute or publish,
that in whole or in part contains or is derived from the
90
APPENDIX
APPENDIX
Program or any part there of, to be licensed as a whole at
no charge to all third parties under the terms of this
license.
c) If the modified program normally reads commands
interactively when run, you must cause it, when started
running for such interactive use in the most ordinary way,
to print or display an announcement including an
appropriate copyright notice and a notice that there is no
warranty (or else, saying that you provide a warranty) and
that users may redistribute the program under these
conditions, and telling the user how to view a copy of this
license. (Exception: if the Program itself is interactive but
does not normally print such an announcement, your work
based on the Program is not required to print an
announcement.)
These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and
separate works in themselves, then this license, and its terms,
do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as
part of a whole which is a work based on the Program, the
distribution of the whole must be on the terms of this license,
whose permissions for other licensees extend to the entire
whole, and thus to each and every part regardless of who
wrote it.
Thus, it is not the intent of this section to claim rights or
contest your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of
derivative or collective works based on the program.
In addition, mere aggregation of another work not based on
the program with the Program (or with a work based on the
program) on a volume of a storage or distribution medium
does not bring the other work under the scope of this license.
3. You may copy and distribute the program (or a work based on
it, under section 2) in object code or executable form under
the terms of sections 1 and 2 above provided that you also do
one of the following:
a) Accompany it with the complete corresponding
machinereadable source code, which must be distributed
under the terms of sections 1 and 2 above on a medium
customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three
years, to give any third party, for a charge no more than
your cost of physically performing source distribution, a
complete machine-readable copy of the corresponding
source code, to be distributed under the terms of sections
1 and 2 above on a medium customarily used for software
interchange; or,
c) Accompany it with the information you received as to the
offer to distribute corresponding source code. (This
alternative is allowed only for noncommercial distribution
and only if you received the program in object code or
executable form with such an offer, in accord with
Subsection b above.)
The source code for a work means the preferred form of the
work for making modifications to it. For an executable work,
complete source code means all the source code for all
modules it contains, plus any associated interface definition
files, plus the scripts used to control compilation and
installation of the executable. However, as a special exception,
the source code distributed need not include anything that is
normally distributed (in either source or binary form) with the
major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that
component itself accompanies the executable.
If distribution of executable or object code is made by offering
access to copy from a designated place, then offering
equivalent access to copy the source code from the same
place counts as distribution of the source code, even though
third parties are not compelled to copy the source along with
the object code.
4. You may not copy, modify, sublicense, or distribute the
Program except as expressly provided under this license. Any
attempt otherwise to copy, modify, sublicense or distribute the
Program is void, and will automatically terminate your rights
under this license. However, parties who have received copies,
or rights, from you under this license will not have their
licenses terminated so long as such parties remain in full
compliance.
5. You are not required to accept this license, since you have not
signed it. However, nothing else grants you permission to
modify or distribute the Program or its derivative works. These
actions are prohibited by law if you do not accept this license.
Therefore, by modifying or distributing the program (or any
work based on the program), you indicate your acceptance of
this license to do so, and all its terms and conditions for
copying, distributing or modifying the program or works based
on it.
6. Each time you redistribute the program (or any work based on
the Program), the recipient automatically receives a license
from the original licensor to copy, distribute or modify the
Program subject to these terms and conditions. You may not
impose any further restrictions on the recipients' exercise of
the rights granted herein. You are not responsible for
enforcing compliance by third parties to this license.
91
APPENDIX
7. If, as a consequence of a court judgment or allegation of
patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the
conditions of this license, they do not excuse you from the
conditions of this license. If you cannot distribute so as to
satisfy simultaneously your obligations under this license and
any other pertinent obligations, then as a consequence you
may not distribute the program at all. For example, if a patent
license would not permit royalty-free redistribution of the
program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and
this license would be to refrain entirely from distribution of the
program.
If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section
is intended to apply and the section as a whole is intended to
apply in other circumstances.
It is not the purpose of this section to induce you to infringe
any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of
protecting the integrity of the free software distribution
system, which is implemented by public license practices.
Many people have made generous contributions to the wide
range of software distributed through that system in reliance
on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute
software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is
believed to be a consequence of the rest of this license.
8. If the distribution and/or use of the program is restricted in
certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places the
program under this license may add an explicit geographical
distribution limitation excluding those countries, so that
distribution is permitted only in or among countries not thus
excluded. In such case, this license incorporates the limitation
as if written in the body of this license.
9. The Free Software Foundation may publish revised and/or new
versions of the General Public License from time to time. Such
new versions will be similar in spirit to the present version, but
may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the
program specifies a version number of this license which
applies to it and "any later version", you have the option of
following the terms and conditions either of that version or of
any later version published by the Free Software Foundation. If
the program does not specify a version number of this license,
you may choose any version ever published by the Free
Software Foundation.
10. If you wish to incorporate parts of the program into other free
programs whose distribution conditions are different, write to
the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this.
Our decision will be guided by the two goals of preserving the
free status of all derivatives of our free software and of
promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE
EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES PROVIDE THE
PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD
THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE
COST OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,
OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE
PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF
DATA OR DATA BEING RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF
THE PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
92
APPENDIX
APPENDIX
END OF TERMS AND CONDITIONS
How to apply these terms to your new programs
If you develop a new program, and you want it to be of the
greatest possible use to the public, the best way to achieve this is
to make it free software which everyone can redistribute and
change under these terms.
To do so, attach the following notices to the program. It is safest
to attach them to the start of each source file to most effectively
convey the exclusion of warranty; and each file should have at least
the "copyright" line and a pointer to where the full notice is found.
One line to give the program's name and a brief idea of what it
does.
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or
modify it under the terms of the GNU General Public License as
published by the Free Software Foundation; either version 2 of the
license, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
See the GNU General Public License for more details.
You should have received a copy of the GNU General Public
License along with this program; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA
02110-1301 USA.
Also add information on how to contact you by electronic and
paper mail.
If the program is interactive, make it output a short notice like this
when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author
Gnomovision comes with ABSOLUTELY NO WARRANTY; for
details type ‘show w’. This is free software, and you are welcome to
redistribute it under certain conditions; type ‘show c’ for details.
The hypothetical commands ‘show w’ and ‘show c’ should show
the appropriate parts of the General Public License. Of course, the
commands you use may be called something other than ‘show w’
and ‘show c’; they could even be mouse-clicks or menu
items-whatever suits your program.
You should also get your employer (if you work as a programmer)
or your school, if any, to sign a “copyright disclaimer” for the
program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the
program ‘Gnomovision’ (which makes passes at compilers) written
by James Hacker.
Signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your
program into proprietary programs. If your program is a subroutine
library, you may consider it more useful to permit linking
proprietary applications with the library. If this is what you want to
do, use the GNU Lesser General Public License instead of this
license.

Navigation menu
