Lilee Systems TRANSAIRP3004 TransAir PTC-3004 User Manual 220MHz 3dBi Antenna

Lilee Systems, Ltd. TransAir PTC-3004 220MHz 3dBi Antenna

220MHz 3dBi Antenna

The TransAir 220 MHz 3 dBi Pifa antenna is specically
designed for use with the Lilee Systems TransAir
PTC Locomotive Radio in Positive Train Control (PTC)
deployments for freight and commuter rail.
The TransAir 220 MHz antennas rugged construction
provides increased reliability and ensures long life in
extreme environmental conditions encountered in railroad
applications. In addition, the TransAir 220 MHz antennas
aluminum construction protects against corrosion to
withstand the harsh chemicals used on the exterior of the
locomotive.

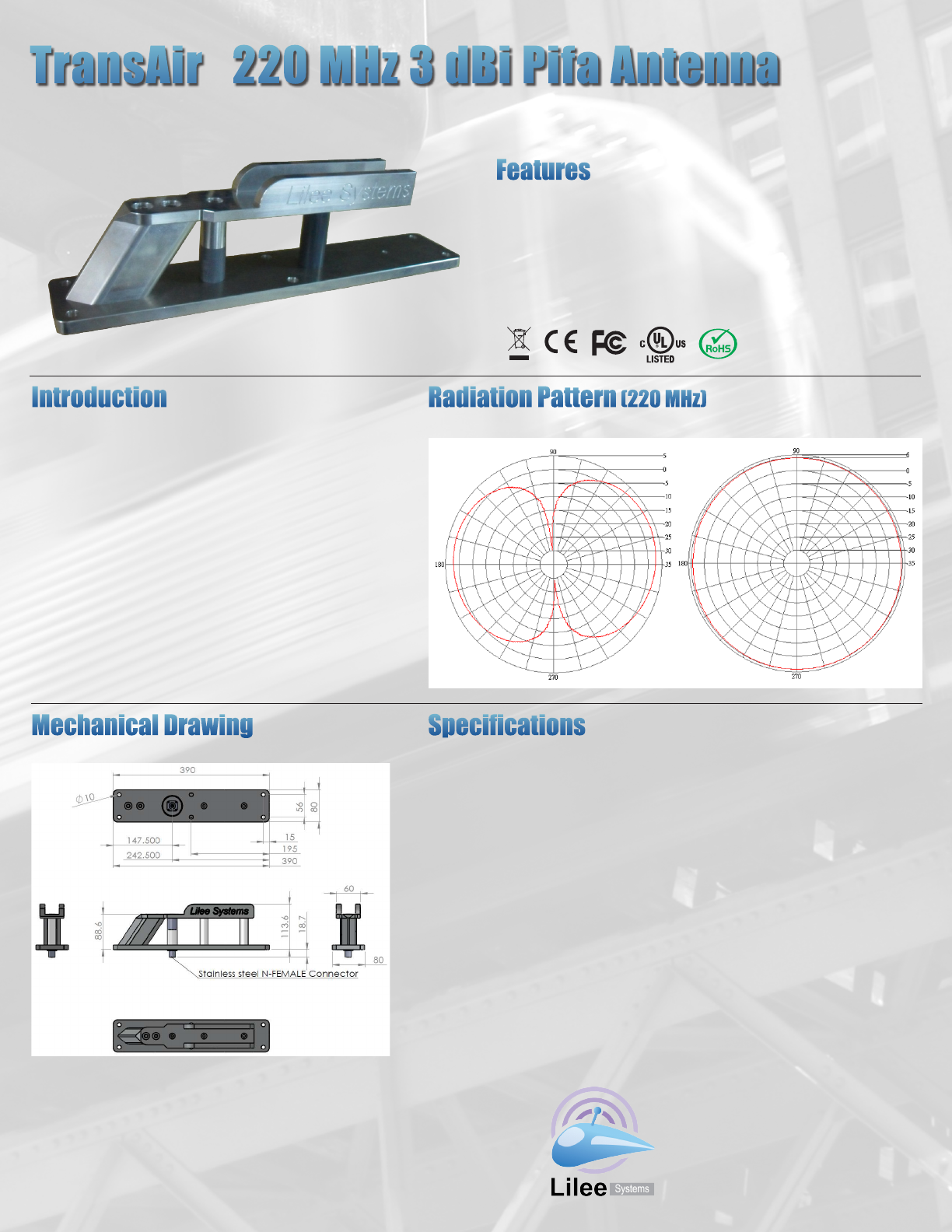

TransAir 220 MHz 3 dBi Pifa Antenna
Lilee Systems Locomotive Antenna for Positive Train Control (PTC) Applications
Features
Rugged, nearly indestructible aluminum design with a
low prole
Wide bandwidth to reduce detuning from harsh
weather such as ice and snow
Reduces EMF noise introduced into the
communications system
Introduction Radiation Pattern (220 MHz)
E-Plane H-Plane
210 MHz 220 MHz 230 MHz
E-plane H-plane E-plane H-plane E-plane H-plane
Max Gain (dBi) 0.83 2.79 3.2 5.02 2.73 3.78
Max Gain@Angle (degree) 159 225 21 286 0 308
Min Gain (dBi) -29.95 1.43 -29.72 4.27 -31.06 2.05
Min Gain@Angle (degree) 88 13 95 173 92 179
Average Gain (dBi) -2.02 2.33 -0.01 4.68 -.37 3.1
-3 dB Angle L (degree) 223.6 223.4 60.75 285.3 51.75 307.3
-3 dB Angle R (degree) 121.6 223.5 325.8 285.4 305.8 307.4
Half-Power Beam Width 102 .1 94.95 0.1 105.95 0.1
Front-to-back Ratio (dBi) 1.7 1.01 1.64 0.25 1.27 1.08
Frequency Range 210 - 230 MHz
Power Rating 300 W
Pattern Omni-directional
Connector N-Type Female Connector
Material Aluminum
Dimensions (H x W x L) 113.6 cm x 80 cm x 390 cm ( 4.47 in x 3.15 in x 15.35 in)
Weight
Mounting Six mounting holes
Mechanical Drawing Specications
1www.moxa.cominfo@moxa.com
WLAN & Cellular Solutions
AWK-4121 Series
IEEE 802.11a/b/g compliant
Redundant power inputs and PoE
Higher security with WEP/WPA/WPA2/802.11X and powerful
filter
Turbo Roaming
TM for seamless wireless connections
Long-distance communication support
Wide operating temperature range and IP68-rated metal
housing for hazardous environments
Specifications
Introduction
Industrial IEEE 802.11a/b/g outdoor wireless AP/Bridge/Client
The AWK-4121 outdoor wireless AP/Bridge/Client is an ideal 3-in-1
solution for industrial applications that are hard to wire, too expensive
to wire, or use mobile equipment that connects to a TCP/IP network.
The AWK-4121 can operate at temperatures ranging from -40 to 75°C,
and its dust-tight and weatherproof design is IP68-rated and allows
you to set up a WLAN, or extend existing wired networks to outdoor
locations. In addition, the AWK-4121 is equipped with detachable
special-purpose antennas. The AWK-4121’s two redundant DC power
inputs increases the reliability of the power supply. It can also be
powered via PoE and is easy to deploy.
IP68-rated metal housing
Waterproof and dust-tight RJ45 connectors
M12 connectors protect against shock and vibration
Hardened mounting kit for flexible installation outdoors
Turbo Roaming™ for rapid handover during client roaming
Long-distance data transmission over 10 km
Integrated DI/DO for on-site monitoring and warning
Status LED indicators for on-site monitoring and diagnosis
Specifications for Industrial-grade Applications
Ruggedized Design for Critical Environments
WLAN Interface
Standards:
IEEE 802.11a/g/b for Wireless LAN
IEEE 802.11i for Wireless Security
IEEE 802.3u for 10/100BaseT(X)
IEEE 802.3af for Power-over-Ethernet
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
Spread Spectrum and Modulation (typical):
DSSS with DBPSK, DQPSK, CCK
OFDM with BPSK, QPSK, 16QAM, 64QAM
64QAM @ 54 Mbps, 16QAM @ 24/36 Mbps, QPSK @ 12/18 Mbps,
CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBSK@ 1 Mbps
Operating Channels (central frequency):
US:
2.412 to 2.462 GHz (11 channels)
5.18 to 5.24 GHz (4 channels)
EU:
2.412 to 2.472 GHz (13 channels)
5.18 to 5.24 GHz (4 channels)
JP:
2.412 to 2.472 GHz (13 channels, OFDM)
2.412 to 2.484 GHz (14 channels, DSSS)
5.18 to 5.24 GHz (4 channels for W52)
Security:
SSID broadcast enable/disable
Firewall for MAC/IP/Protocol/Port-base
64-bit and 128-bit WEP encryption, WPA /WPA2 Personal and
Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
Transmission Rates:
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
TX Transmit Power (for hardware revisions 1.0 and 1.1):
802.11b:
Typ. 18±1.5 dBm @ 1 to 11 Mbps
802.11g:
Typ. 18±1.5 dBm @ 6 to 24 Mbps, Typ. 16±1.5 dBm @ 36 to 48
Mbps, Typ. 15±1.5 dBm @ 54 Mbps
802.11a:
Typ. 16±1.5 dBm @ 6 to 24 Mbps, Typ. 14±1.5 dBm @ 36 to 48
Mbps, Typ. 13±1.5 dBm @ 54 Mbps
RX Sensitivity (for hardware revisions 1.0 and 1.1):
802.11b:
-92 dBm @ 1 Mbps, -90 dBm @ 2 Mbps, -88 dBm @ 5.5 Mbps, -84
dBm @ 11 Mbps
802.11g:
-87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -82
dBm @ 18 Mbps, -80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps, -72
dBm @ 48 Mbps, -70 dBm @ 54 Mbps
802.11a:
-87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -82
dBm @ 18 Mbps, -80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps, -72
dBm @ 48 Mbps, -70 dBm @ 54 Mbps
1www.moxa.com info@moxa.com
WLAN & Cellular Solutions
AWK-4121 Series
IEEE 802.11a/b/g compliant
Redundant power inputs and PoE
Higher security with WEP/WPA/WPA2/802.11X and powerful
filter
Turbo Roaming
TM for seamless wireless connections
Long-distance communication support
Wide operating temperature range and IP68-rated metal
housing for hazardous environments
Specifications
Introduction
Industrial IEEE 802.11a/b/g outdoor wireless AP/Bridge/Client
The AWK-4121 outdoor wireless AP/Bridge/Client is an ideal 3-in-1
solution for industrial applications that are hard to wire, too expensive
to wire, or use mobile equipment that connects to a TCP/IP network.
The AWK-4121 can operate at temperatures ranging from -40 to 75°C,
and its dust-tight and weatherproof design is IP68-rated and allows
you to set up a WLAN, or extend existing wired networks to outdoor
locations. In addition, the AWK-4121 is equipped with detachable
antennas so it can give you the flexibility of choosing your own
special-purpose antennas. The AWK-4121’s two redundant DC power
inputs increases the reliability of the power supply. It can also be
powered via PoE and is easy to deploy.
IP68-rated metal housing•
Waterproof and dust-tight RJ45 connectors•
M12 connectors protect against shock and vibration•
Hardened mounting kit for flexible installation outdoors•
Turbo Roaming™ for rapid handover during client roaming•
Long-distance data transmission over 10 km•
Integrated DI/DO for on-site monitoring and warning•
Status LED indicators for on-site monitoring and diagnosis•
Specifications for Industrial-grade Applications
Ruggedized Design for Critical Environments
WLAN Interface
Standards:
IEEE 802.11a/g/b for Wireless LAN
IEEE 802.11i for Wireless Security
IEEE 802.3u for 10/100BaseT(X)
IEEE 802.3af for Power-over-Ethernet
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
Spread Spectrum and Modulation (typical):
•DSSSwithDBPSK,DQPSK,CCK
•OFDMwithBPSK,QPSK,16QAM,64QAM
64QAM@54Mbps,16QAM@24/36Mbps,QPSK@12/18Mbps,
CCK@11/5.5Mbps,DQPSK@2Mbps,DBSK@1Mbps
Operating Channels (central frequency):
US:
2.412 to 2.462 GHz (11 channels)
5.18 to 5.24 GHz (4 channels)
EU:
2.412 to 2.472 GHz (13 channels)
5.18 to 5.24 GHz (4 channels)
JP:
2.412to2.472GHz(13channels,OFDM)
2.412 to 2.484 GHz (14 channels, DSSS)
5.18 to 5.24 GHz (4 channels for W52)
Security:
•SSIDbroadcastenable/disable
•FirewallforMAC/IP/Protocol/Port-baseltering
•64-bitand128-bitWEPencryption,WPA/WPA2Personaland
Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
Transmission Rates:
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
TX Transmit Power (for hardware revisions 1.0 and 1.1):
802.11b:
Typ.18±1.5dBm@1to11Mbps
802.11g:
Typ.18±1.5dBm@6to24Mbps,Typ.16±1.5dBm@36to48
Mbps,Typ.15±1.5dBm@54Mbps
802.11a:
Typ.16±1.5dBm@6to24Mbps,Typ.14±1.5dBm@36to48
Mbps,Typ.13±1.5dBm@54Mbps
RX Sensitivity (for hardware revisions 1.0 and 1.1):
802.11b:
-92dBm@1Mbps,-90dBm@2Mbps,-88dBm@5.5Mbps,-84
dBm@11Mbps
802.11g:
-87dBm@6Mbps,-86dBm@9Mbps,-85dBm@12Mbps,-82
dBm@18Mbps,-80dBm@24Mbps,-76dBm@36Mbps,-72
dBm@48Mbps,-70dBm@54Mbps
802.11a:
-87dBm@6Mbps,-86dBm@9Mbps,-85dBm@12Mbps,-82
dBm@18Mbps,-80dBm@24Mbps,-76dBm@36Mbps,-72
dBm@48Mbps,-70dBm@54Mbps
© Lilee Systems. Lilee and TransAir are trademarks of Lilee Systems. All rights reserved. Specications subject to change without notice. Please visit our website for the most up-to-date product information. August 2, 2011
Lilee Systems, Inc.
2905 Stender Way, Suite 78
Santa Clara, CA 95054
Tel: 408.988.8672
www.lileesystems.com
