Lilee Systems TRANSAIRP3004 TransAir PTC-3004 User Manual Dual Yagi Antenna

Lilee Systems, Ltd. TransAir PTC-3004 Dual Yagi Antenna

Dual Yagi Antenna

Antennas
Low Band, Aviation, and VHF Antennas
SY2062(E) Series
SY2062-SF11SNM(U) Dual Yagi, 12 dBd, universal mount, 216-225 MHz
• Two- Six element Yagi
• Outstanding durability and performance
• DC ground potential for lightning protection
• Center or end mounting
The SY2062 series of antennas consists of two six-element Yagis of outstanding
durability and performance. All elements including the folded dipole are maintained
at DC Ground potential for lightning protection. All elements on this antenna are
attached to the boom with solid cast aluminum clamps.
This highly versatile antenna is available as a standard mount Yagi (C version),
or, as an extended boom (E version) mounted unit.
As with other Yagi's, this VHF antenna is available in multiple-unit arrays for
added gain. Horizontally or vertically parallel kits of ‘H’ frames can readily be
supplied to mount two or four Yagi's with a common feed.
Region United States Europe, Middle East and Africa Caribbean and Latin America Canada and rest of the world
Telephone USA: 1 800 263 3275 International: +44 (0) 1487 84 28 19 International: +1 905 726 7676 Canada: 1 800 263 3275
International: +1 905 727 0165
E-mail salesusa@sinctech.com salesuk@sinctech.com salesla@sinctech.com salescan@sinctech.com
Product Specification Sheet SY2062-SF11SNM(U) Issue: 1 Dated: 31-10-11
EPR 018607 Dated: 04-04-11
Sinclair’s commitment to product leadership may result in improvement or change to this product
Copyright © Sinclair Technologies Page 1/
2
www.sinctech.com
Antennas
Low Band, Aviation, and VHF Antennas
SY2062(E) Series

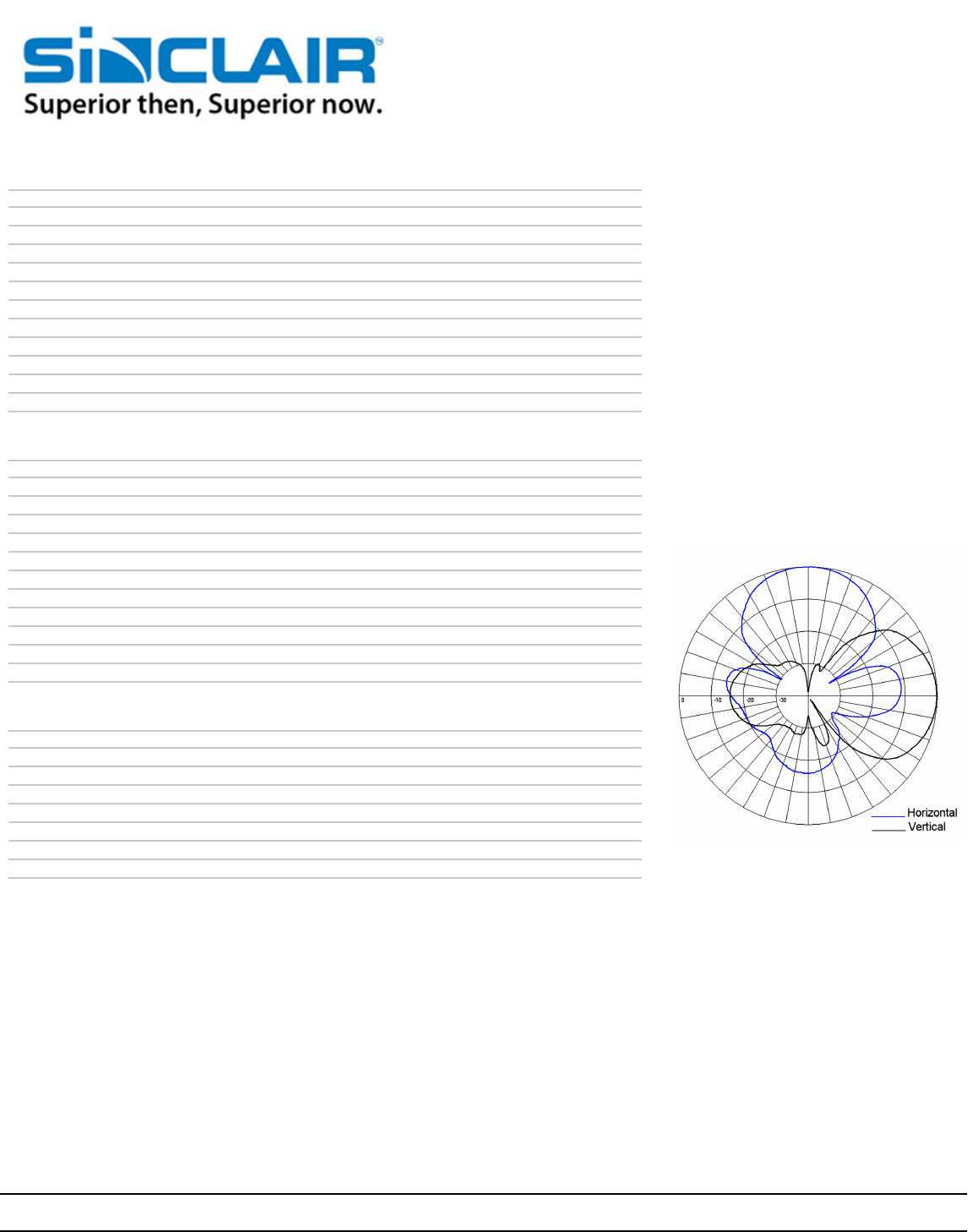

Electrical Specifications
Frequency Range MHz 216 to 225
Bandwidth MHz 9
Gain (nominal) dBd (dBi) 12 (14.1)
Input VSWR (max) 1.5:1
Polarization vertical or horizontal
Impedance Ω 50
Pattern Directional
Horizontal beamwidth (typ) degrees 56
Vertical beamwidth (typ) degrees 23
Average Power Input (max) W 300
Lightning protection DC ground
Front-to-back ratio (typ) dB 17
Mechanical Specifications
Connector N-Male
Depth in (mm) 5.25 (133)
Length/ Height in (mm) 63 (1600)
Width in (mm) 5.5 (140)
Base pipe diameter in (mm) 1.5 (38)
Radiating element material aluminum
Reflector material aluminum
Weight lbs (kg) 13 (5.9)
Weight iced lbs (kg) 51 (23.15) *1
Mounting Hardware (Standard) Clamp001
Actual Shipping weight lbs (kg) 35 (15.89)
Shipping dimensions in (mm) 72x6x2.5 (1829x152x64) *2
Environmental Specifications
Temperature range °F (°C) -40 to +140 (-40 to +60)
Wind Loading Area (Flat Plate Equivalent) ft² (m²) 2.08 (0.19)
Wind Loading Area (ice) ft² (m²) 3.88 (0.36)
Rated wind velocity (no ice) mph (km/h) 175 (282)
Rated wind velocity (1/2" radial ice) mph (km/h) 115 (185)
Lateral thrust (100 mph No Ice) lbs (N) 77 (342.5) *3
Bending moment (100 mph No Ice) ft-lbs (Nm) 162 (218.7) *4
Tip deflection (100 mph No Ice) degrees 2.3 *5
*1 : 0.5" radial ice
*2 : Shipped in two boxes
*3 : Value based on 100 mph with 0 inches ice.
*4 : Value based on 100 mph with 0 inches ice.
*5 : Value based on 100 mph with 0" ice.
Notes
Region United States Europe, Middle East and Africa Caribbean and Latin America Canada and rest of the world
Telephone USA: 1 800 263 3275 International: +44 (0) 1487 84 28 19 International: +1 905 726 7676 Canada: 1 800 263 3275
International: +1 905 727 0165
E-mail salesusa@sinctech.com salesuk@sinctech.com salesla@sinctech.com salescan@sinctech.com
Product Specification Sheet SY2062-SF11SNM(U) Issue: 1 Dated: 31-10-11
EPR 018607 Dated: 04-04-11
Sinclair’s commitment to product leadership may result in improvement or change to this product
Copyright © Sinclair Technologies Page 2/
2
www.sinctech.com
