Lilee Systems TRANSAIRP3004 TransAir PTC-3004 User Manual TransAir 3dBi Omni Antenna
Lilee Systems, Ltd. TransAir PTC-3004 TransAir 3dBi Omni Antenna
Contents
TransAir 3dBi Omni Antenna
FEATURES
INTRODUCTION
• Ruggeddesign
• WindSurvivalgreaterthan180mph

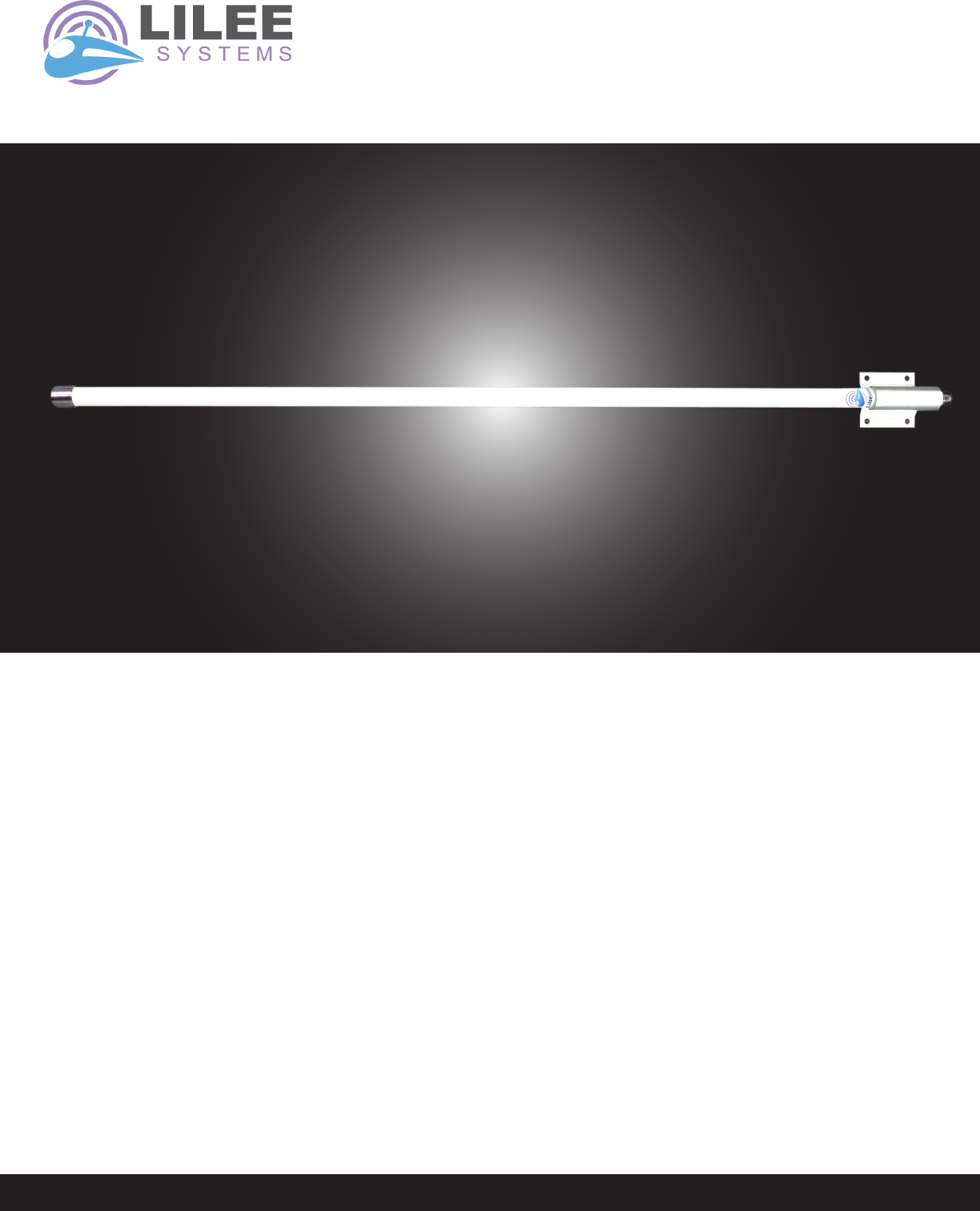

TheTransAir220MHz3dBiomniantennaisdesignedforawide
rangeofwirelessIP-basedcommunicationapplications.Itisrugged,
capableofmaintainingperformanceatwindspeedsupto180mph
(290kmph)andishighlyresistanttodamage.Theantenna’srugged
constructionprovidesincreasedreliabilityandensureslonglifein
extremeenvironmentalconditions.
TheTransAir220MHz3dBiomniantennaisspecicallydesigned
forusewithLileeSystemsTransAirCommunicationsSystem’s
PTCfamilyofsoftware-denedradiostodelivermissioncritical
wirelesscommunicationsforlong-distancedata/videotransmission
inmonitoringandcontrolapplicationsfromenvironmentaltosmart
energy,disastermitigationtotransitandPositiveTrainControl.
REV20120618
©LileeSystems.LileeandTransAiraretrademarksofLileeSystems.Allrightsreserved.Specicationsandfeaturesvarybymodelandare
subjecttochangewithoutnotice.Pleasevisitourwebsiteforthemostup-to-dateproductinformation.
TRANSAIR™ 220 MHz 3 dBi ANTENNA
Lilee Systems™ Omnidirectional Antenna for Mobile Wireless IP-Based Communication Applications
E-Plane
H-Plane
2905StenderWay,Suite78|SantaClara,CA95054|Tel:408.988.8672|www.lileesystems.com|information@lileesystems.com
MECHANICAL DRAWING SPECIFICATIONS
RADIATION PATTERN
FrequencyRange 217-222MHz
PowerRating 200W
Impedence 50ohms
AntennaType Collinear
Pattern Omni-directional
Polarization Vertical
VSWR <1.5:1
VerticalBeam-width 68°
HorizontalBeam-width 360°
SPECIFICATIONS
E-PLANE H-PLANE
MaxGain(dBi) 2.26 2.97
MinGain(dBi) 1.84 2.33
AverageGain(dBi) 2.02 2.67
Half-PowerBeamWidth 68.12° 360°
Front-to-backRatio(dBi) 0.60 1.12
Connector N-TypeFemaleConnector
RandomeMaterial WhiteFiberglass
GroundMaterial AlluminumorCopper
WindSurvival Greaterthan180mph
Dimensions 3.27inx2.76inx40.31in(83mmx70mmx1024mm)
Weight 1.59lbs(720g)
Mounting Polemount/Wellmount;27mm-51mmclamps
