1.Important notice for user
![](/img.php?id=1458605&img=bg3.png)
4
Important notice for user
1-1. Read this carefully before using the Notebook PC.
X
Regulatory Notices
X
How to protect the human body from the hazardous RF energy exposure.
We recommend that the human body should be kept off at least 15 mm from the external antenna plug-
in-radio-card or the internal antenna located in screen section during the operation or moving.
X
Energy Star
Energy Star Compliance
As an Energy Star partner, LG has determined that standard configurations of this product meet the
ENERGY STAR guidelines for energy efficiency.
The ENERGY STAR program is a partnership with electronic equipment manufacturers to promote
energy-efficient products.
Reducing energy consumption of products saves money and helps conserve valuable resources.
This computer is shipped with power management enabled with the computer set to sleep after 20 mi-
nutes of user inactivity.
To wake your computer, click the mouse or touchpad button or press any key on the keyboard.
Using Wake on LAN
1. Select Start > Computer > Control Panel > View by > Small icons > Device Mana-
ger > Network and Adapter.
2. Right-click the LAN card and select [Properties].
3. When the LAN card properties window is displayed, go to the Power Management
tab, check the “You can exit the standby mode using this device" menu and click
[OK].
![](/img.php?id=1458605&img=bg4.png)
Important notice for user
5
X

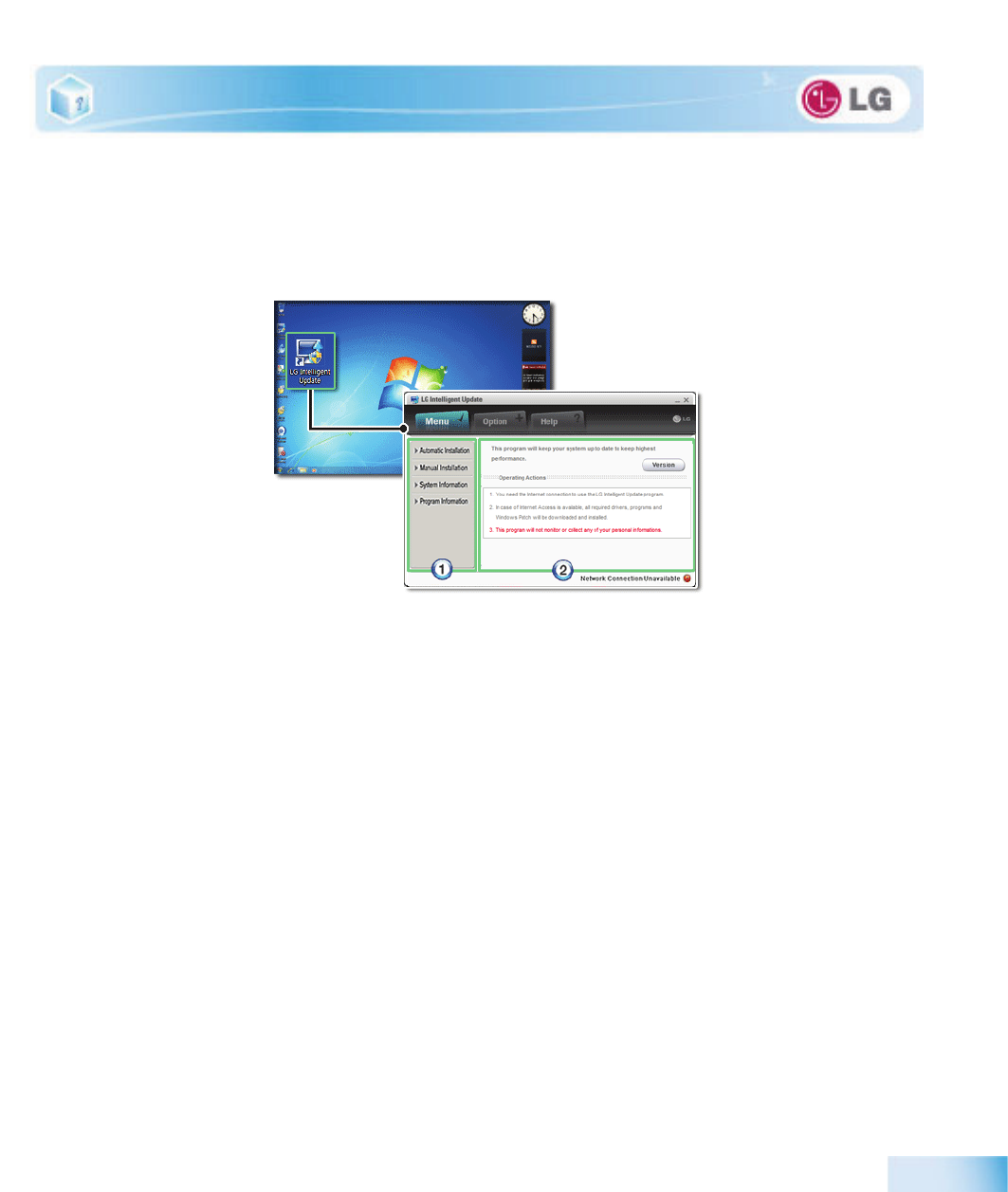

Using LG Intelligent Update
To install a driver or application, use LG Intelligent Update provided by LG Electronics.
LG Intelligent Update comes preinstalled in your system. You can also download the application from the web-
site "www.lg.com".
1. Guides you to configure the optimal environment for the system.
2. Provides you with an overview before use.
![](/img.php?id=1458605&img=bg5.png)
6
Important notice for user
X

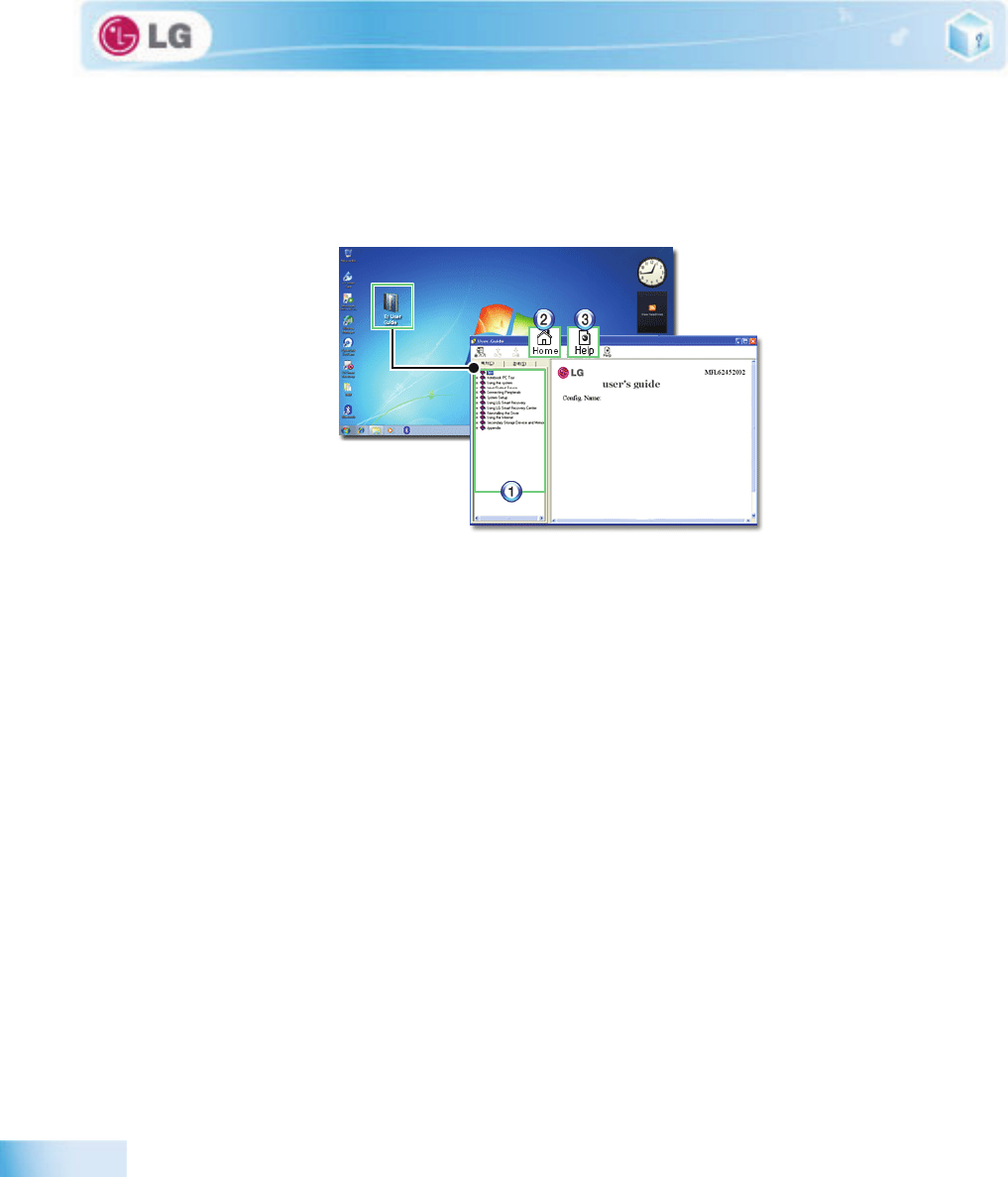

Using Ez User's Guide/Ez Troubleshooting
For more convenient use of the machine, we provide you Ez User's Guide/Ez Troubleshooting.
Click Help button and refer to Tour to learn how to use Ez User's Guide and Ez Troubleshooting.
1. Table of Co nte nt s
2. Home
3. Help: Helps you to find the answers to your questions and solve problems.
X
Ez User's Guide
Thank you for purchasing the LG Electronics product.
This machine is built on cutting-edge technology and has been tested reliably.
For the sake of convenient use, please read this manual in advance.
The below symbols are to inform you of dangers and safety concerns that you must be aware of. Read
the symbol-indicated instructions with caution to avoid any possible mishap.
![](/img.php?id=1458605&img=bg6.png)
Important notice for user
7
Microsoft, MS, WinPE, and Windows are the registered trademarks of Microsoft Corporation.
IBM, IBM Personal Computer, PS/2, and PC AT are the registered trademarks of International
Business Machines Corporation.
Copyright (C) 2010, LG Electronics Inc., DigitalMate Co., Ltd.
Please be understanding that this manual may contain incorrect parts despite our dedicated efforts to
Appears in the case of noncompliance with the instruction that may cause
serious physical damage or fatal injuries.
Appears in the case of noncompliance with the instruction that may cause
minor damage to the body or the machine.
Tip
Indicates that the following information is added to help the user utilize the
machine more conveniently.
Optional The Optional symbol indicates that the concerned device is not included in
the product package and thus has to be purchased separately, or the device
may not be applied to the user's machine depending on model type.
LG logo is a registered trademark of LG Corporation.
SONY logo and Memory Stick are the registered trademarks of SONY Corporation.
Transcend logo is a registered trademark of Transcend Corporation.
SD logo is a registered trademark of Secure Digital Corporation.
xD logo is a registered trademark of FUJIFILM Co., ltd.
and is a trademark of SRS Labs, inc..
WOW HD and TruSurround HD technology is incorporated under license from SRS La-
bs, inc..
![](/img.php?id=1458605&img=bg7.png)
8
Important notice for user
perfect it.
The examplified figures in this manual may not exactly the same as the real products.
LG Electronics Inc. has rights to modify any part of this manual for the better without prior notice.
Unauthorized reproduction or duplication of any part of this manual is strictly prohibited.
Country of Origin: China
Manufacturer: Tech-Front(Shanghai)Computer Co., LTD
Company Identifier: LGE
X

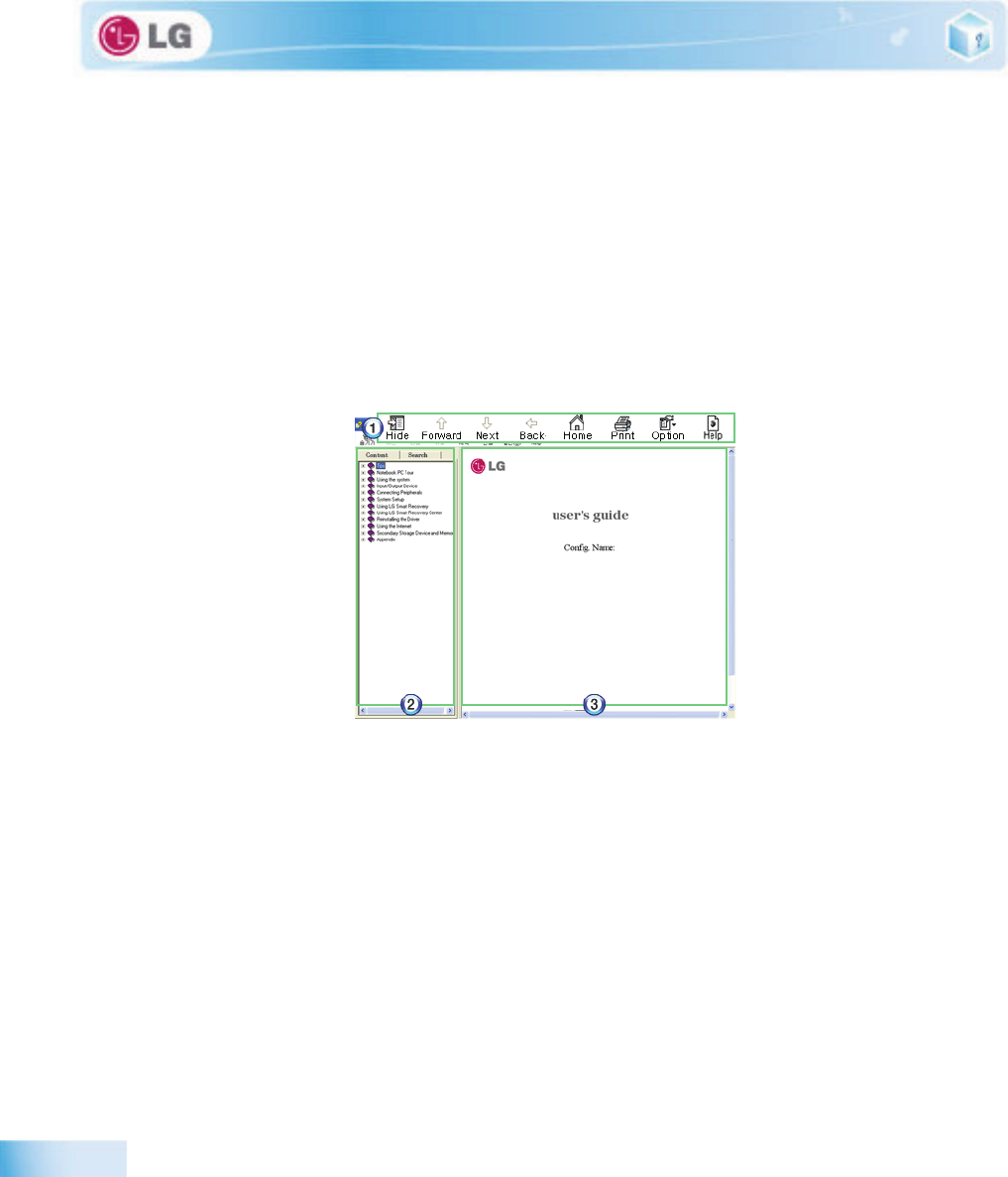

Ez User's Guide Tour
1. Toolbar
Hide/Show: Hide or show the navigation window.
Previous: Displays the previous page in the order of Table of Contents.
Next: Displays the next page in the order of Table of Contents.
Back: Displays the previous page in the navigation history.
Home: Displays the Home page.
Print: Prints the current page.
Option: Displays options.
Help: Mostly used for touring this guide.
2. Navigation Bar
Index: Displays a categorized list of subjects.
Search: Allows users to type key words and search manually.
3. Description Pane
![](/img.php?id=1458605&img=bg8.png)
Important notice for user
9
Displays the explanation of the selected item.
X

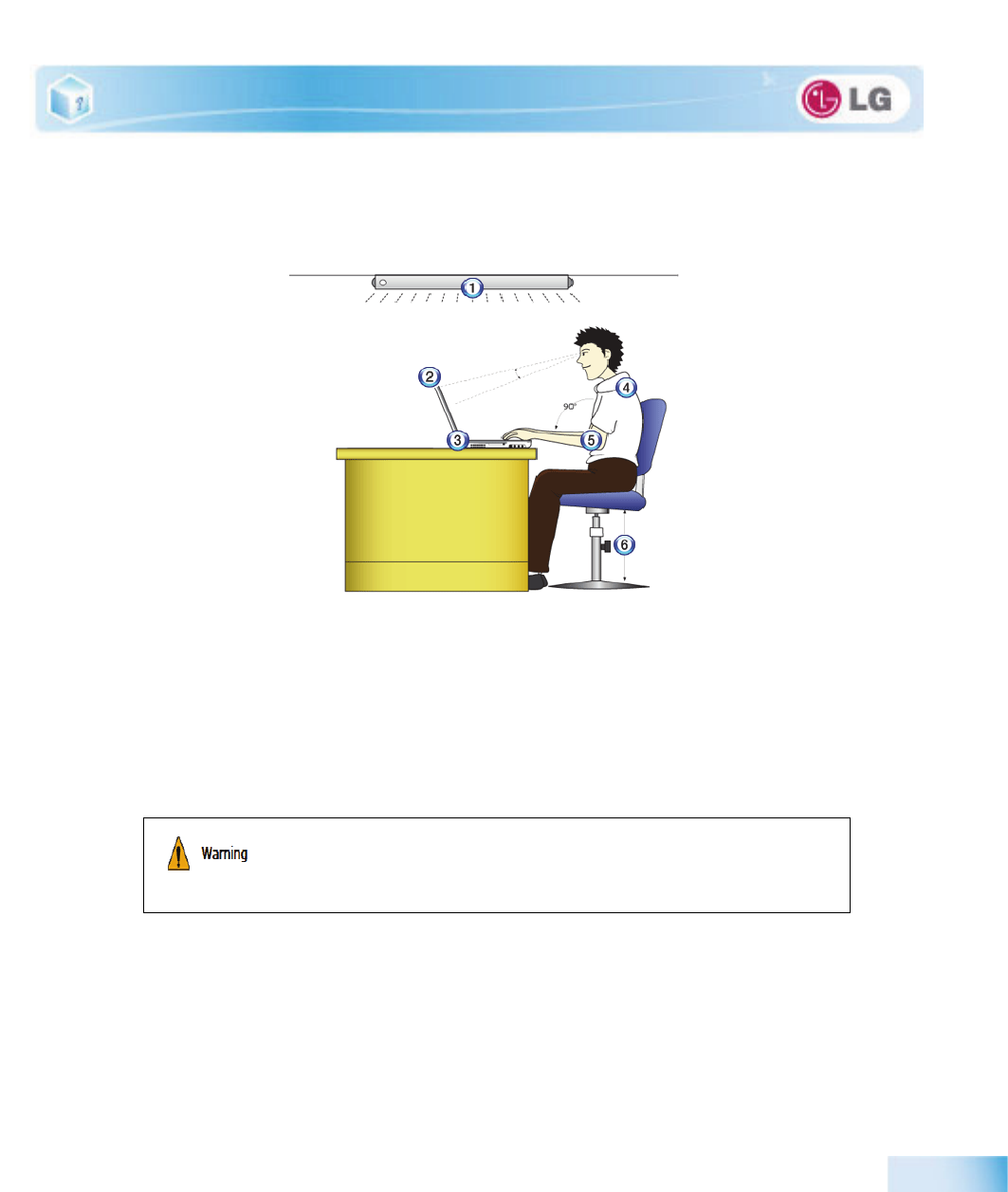

When using the computer, sit in the good posture as shown below.
1. Do not have light directly reflected on the monitor.
2. Set the upper part of the screen to be on the even level with or slightly lower level than your eyes.
3. Adjust the screen while avoiding illuminated reflection.
4. Stretch the neck and back straight.
5. Keep the hands, wrists, and arms horizontally.
6. Adjust the chair to set the hands and arms properly for the keyboard.
X
Adjusting volume (headset and speakers)
Check the volume before listening to music.
■Long time use of computer may cause physical fatigue.
■A 10 minutes break after 50 minute use is desirable. Avoid using the computer more
than 2 hours a day.
■Take a rest regularly and stretch your body.
![](/img.php?id=1458605&img=bg9.png)
10
Important notice for user
X
System Protection Feature
If the system becomes too hot, the system protection feature automatically stops battery recharging and
switches the power mode to Maximum Power Saving or OFF.
The system may not be reactivated until it cools down enough.
■Before using the headset, check if the volume is too high.
■Do not use the headset too long.
■A headphone that has a resistance higher than 20 can cause electromag-
netic interference. Therefore, we recommend you to use a headphone that
has a resistance less than 20 .
![](/img.php?id=1458605&img=bga.png)
Important notice for user
11
1-2. Important safety information
Please avoid any undesirable environmental factor that shortens the machine's life span. Use the ma-
chine in a safe and stable place.
The warranty does not cover any damage resulting from reckless use or use in undesirable environments.
X
Using Battery
Charge the battery only with the provided instrument.
Otherwise, the battery may be damaged presenting a risk of fire.
Do not throw or disassemble the battery.
The resulting impairment may cause an injury, explosion, or fire.
Use batteries certified and acknowledged by LG Electronic Inc.
Otherwise, an explosion or fire may occur.
Prevent the battery from being contact with any metallic object like a car ignition
key or a paper clip.
Otherwise, the battery may be overheated to be damaged resulting in a fire or an injury.
Keep the battery away from heat.
Otherwise, an explosion or fire may occur.
Do not short-circuit the battery.
Otherwise, it may explode.
![](/img.php?id=1458605&img=bgb.png)
12
Important notice for user
Do not dispose of a spent (backup) battery arbitrarily.
It may explode or cause a fire.
Disposal methods may differ by country and region. Dispose of the spent battery in ac-
cordance with the laws and safety rules of the country and region.
If you find leakage or smell bad odor from the battery, remove the battery and con-
tact the local service center.
It may explode or cause a fire.
Avoid humidity and heat above 60 as in cars or saunas.
It may explode or cause a fire.
Keep the battery out of reach of children or pets.
If damaged, it could cause an injury.
Keep the battery from being pierced by a sharp object or a chew of your pet.
It may explode or cause a fire.
Do not sink the battery in water.
Otherwise, the battery may be damaged presenting a risk of explosion.
Ensure that the battery pack is locked to the machine after installation.
Otherwise, the battery pack may be damaged.
![](/img.php?id=1458605&img=bgc.png)
Important notice for user
13
X
Installation
Do not use the laptop on top of carpet, blanket or bed. Also, do not put the adapter
under the blanket.
The product may malfunction, cause a fire or burn the user due to temperature rise.
Read the directions printed on the battery pack carefully before use.
Keep the battery at room temperature. Refer to other Tips and directions in this guide to
store the battery properly.
Do not use the machine in damp places like a laundry room or bathroom.
Moisture may cause a glitch or an electric shock.
The desirable temperature and humidity ranges are from 10 to 35 and from 20 to 80
RH, respectively.
Dispose of the desiccating agent and wrapping plastic properly.
The desiccating agent and wrapping plastic may cause suffocation.
Use the product in a dust-free environment.
Otherwise, the system may not function properly.
Do not leave any object nearer than 15 cm in from the computer.
Otherwise, lack of ventilation could overheat the machine from inside and you could get
a burn from the heat.
![](/img.php?id=1458605&img=bgd.png)
14
Important notice for user
X
Using AC Adapter
Place the machine in a safe place so that it does not fall.
If dropped, the machine could be damaged and even cause an injury.
Do not leave or use the computer near a magnetic object.
Otherwise, the hard disk and the system may be damaged and fail to operate properly.
Never place the computer on a bag with magnetic objects including magnetic but-
tons.
Otherwise, the hard disk and the system may be damaged and fail to operate properly.
Operate the product in a place without electromagnetic interference.
Keep a proper distance between the computer and such electronic appliances as speakers
that generate strong magnetic fields.
Otherwise, data may be lost from the hard disk or the LCD may show impaired coloration.
Do not put any heavy object on the machine.
If falling, the object could damage the machine and cause an injury.
Do not use loose plugs or damaged power cords.
An electric shock or fire may occur.
![](/img.php?id=1458605&img=bge.png)
Important notice for user
15
Do not touch the power cord with your hands wet.
Otherwise, an electric shock may occur.
Pull the plug, not the cord, to disconnect the power.
Otherwise, a fire may occur or the product may get damaged.
Operate the product at the proper voltage.
Excessive voltage may result in damage on the product, electric shock or fire.
Use power outlets with an earth pin installed and proper supply of rated electricity.
An electric leakage may cause an electric shock or fire.
Plug the power cord tightly into the outlet.
Loose connection of the power cord could cause a fire.
In the case that a strange noise is heard from the cord or plug, disconnect the power
cord from the outlet immediately and contact the service center.
A fire or electric shock may occur.
Never disassemble the power supply and adapter.
A damaged power cord may cause an electric shock or fire.
Use a socket with an earth pin equipped.
If not earthed, the product may cause an electric shock and get damaged.
![](/img.php?id=1458605&img=bgf.png)
16
Important notice for user
X
Using Notebook PC
Ensure that the power outlet is earthed before plugging in.
Otherwise, an electric shock from power leakage may occur.
Always keep the power cord and the outlet clean.
A fire may occur.
Do not impair the cord by bending or pressing it too hard. Keep children and pets
from damaging the power cord.
An impaired cord could damage computer parts causing a fire or electric shock.
Disconnect the machine completely from others before cleaning it.
Otherwise, an electric shock or impairment may occur.
If the power circuit and machine are soaked, disconnect the battery, AC adapter,
and all others before contacting the local service center.
Otherwise, an electric shock may occur.
Clean the computer with a proper agent and dry it completely before using it again.
If the computer is wet while used, an electric shock or fire may occur.
![](/img.php?id=1458605&img=bg10.png)
Important notice for user
17
When lightning flashes in your area, disconnect the power, modem, LAN and other
connections.
An electric shock or fire may occur.
Do not leave a cup or other containers filled with watery substance near the compu-
ter.
If the machine is soaked, a fire or electric shock may occur.
Do not connect the modem to a key telephone system.
A fire may occur or the product may get damaged.
If you have dropped or damaged the computer, disconnect the power and contact
the local service center for a safety check.
If a damaged computer is used continuously, an electric shock or fire may occur.
Do not put a lit candle or live cigarette on the computer.
A fire may occur.
The fluorescent lamps on the LCD panel contains mercury.
If you have contacted the liquid from the LCD panel, immediately wash the substance
away with water. If you feel any slightest trouble, visit your doctor immediately.
If you smell or see smoke from the computer, stop using the computer and discon-
nect the power before contacting the local service center.
A fire may occur.
Do not play computer games too much.
Playing a computer game for an extensive time may cause a mental disorder. It could even
inflict physical impairments on feeble people including children and the elderly.
![](/img.php?id=1458605&img=bg11.png)
18
Important notice for user

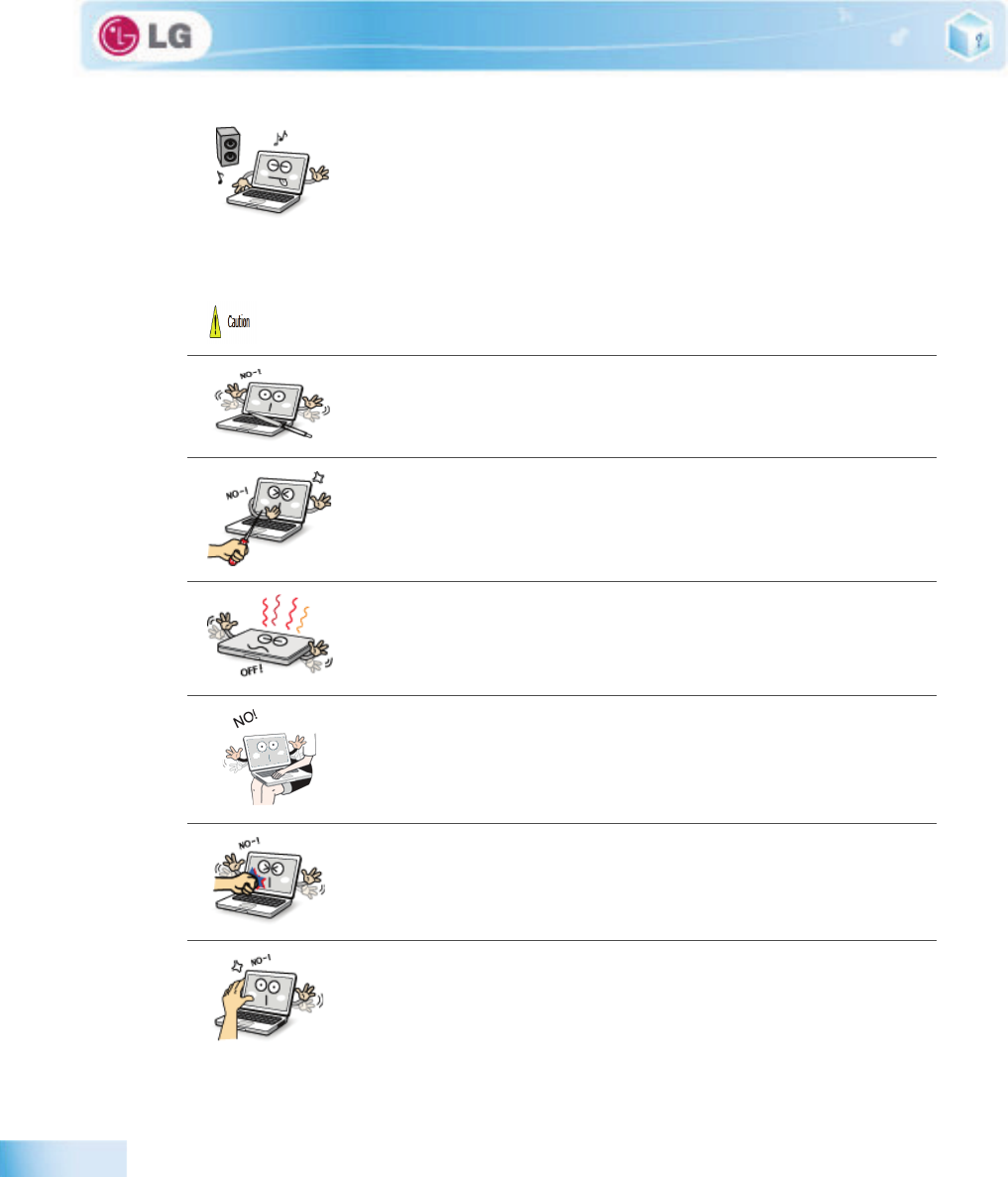

You may hear noise while on 3D mode.
Do not leave any object such as a pen on the keypad.
You might break the LCD panel by unwittingly shutting it down with the object remai-
ning on the pad.
Do not press or scratch the LCD panel with a sharp object.
It may cause an impairment.
Ensure the power is off before shutting the panel.
The machine may be deformed due to temperature rise.
The bottom of the computer gets hot when the system is working. Please avoid touching
it and do not put it on your laps.
Do not impose excessive force on the LCD panel or drop it.
You could break the LCD glass panel.
Do not forcibly open the LCD panel with one hand.
The machine may be twisted.
![](/img.php?id=1458605&img=bg12.png)
Important notice for user
19
To clean the LCD panel, use designated agents and soft cloth and rub the panel in
one direction.
Too much force may damage the panel.
When handling computer parts, follow the instructions in the manual.
Otherwise, damage may be inflicted.
Do not put your finger or an object in the PC card slots.
An injury or electric shock may occur.
Install a vaccine program on your computer and do not download illegal programs
nor access any corruptive web site such as those pushing pornographic contents.
The system may be infected and impaired.
Ask one of our engineers to run a safety check after your computer has been repai-
red.
Otherwise, an electric shock or fire may occur.
For minors, we recommend a program that blocks access to illegal or pornographic
web sites.
Minors' exposure to adult-only contents may inflict psychological instability or even trau-
ma on them. Take an extra precaution for your children if the whole family is using this
machine.
Do not press Eject button while the CD-ROM drive is running.
The data may be lost or the disk may spin out unexpectedly to cause an injury.
![](/img.php?id=1458605&img=bg13.png)
20
Important notice for user
Keep the machine away from heat-emitting devices such as a heater.
The product may get deformed or catch on fire.
Do not insert other devices than designated ones in the ports.
Otherwise, the product may get damaged.
Do not use a damaged CD-ROM disk or floppy disk.
It may cause product damage or physical injury.
Prevent children from thrusting their finger in the CD drive tray.
The finger may be stuck in the tray and injured.
To remove a CD, turn off the CD program and when the drive lamp is off press Eject
button.
Otherwise, the fast spinning CD may spring out of the tray and hurt you.
Do not block the ventilation hole on the sides with any object.
Otherwise, an electric shock may occur.
Do not leave the machine in a car.
The battery may cause an explosion or fire.
![](/img.php?id=1458605&img=bg14.png)
Important notice for user
21
X
Upgrading Notebook PC
Avoid using a wireless LAN connection within the 5 m radius of a microwave or plas-
ma lamp. If you have to use wireless LAN and a plasma bulb within the range, ho-
wever, do it through a channel between 11 and 13.
The transmission rate may drop even if the connection is made.
Turn off the computer if you are not going to use it for an extended time period.
It may overheat the battery.
As the adapter can be hot, do not touch it with bare skin while using the notebook.
Make sure that the memory cover is securely closed before turning on the machine.
Do not use the machine when the memory cover is open. It may damage the machine.
To upgrade the machine, turn off the system and disconnect the power cord and the
battery. Disconnect the telephone line linked to the modem, if any.
An electric shock or fire may occur.
When you disassemble and upgrade the machine, prevent children from swallowing
any parts including bolts.
If a child swallowed a nut, they may get suffocated.
In that case, see the doctor immediately.
![](/img.php?id=1458605&img=bg15.png)
22
Important notice for user
X
Carrying Notebook PC
Please use parts certified by LG Electronics Inc.
Otherwise, a fire or product damage may occur.
Consult our service engineer before you use a peripheral device not manufactured
by LG Electronics Inc.
The product may get damaged.
Do not disassemble or moderate the machine arbitrarily.
You could get an electric shock and would not be able to receive the warranty service for
that.
Handle devices and parts of the machine with care.
The product may get damaged.
Ensure that everything including the case is reassembled completely before connec-
ting the machine to the power.
Any exposed part may give you an electric shock.
Do not drop any part or device of the machine while disassembling it.
If dropped, it may be damaged and cause an injury.
![](/img.php?id=1458605&img=bg16.png)
Important notice for user
23

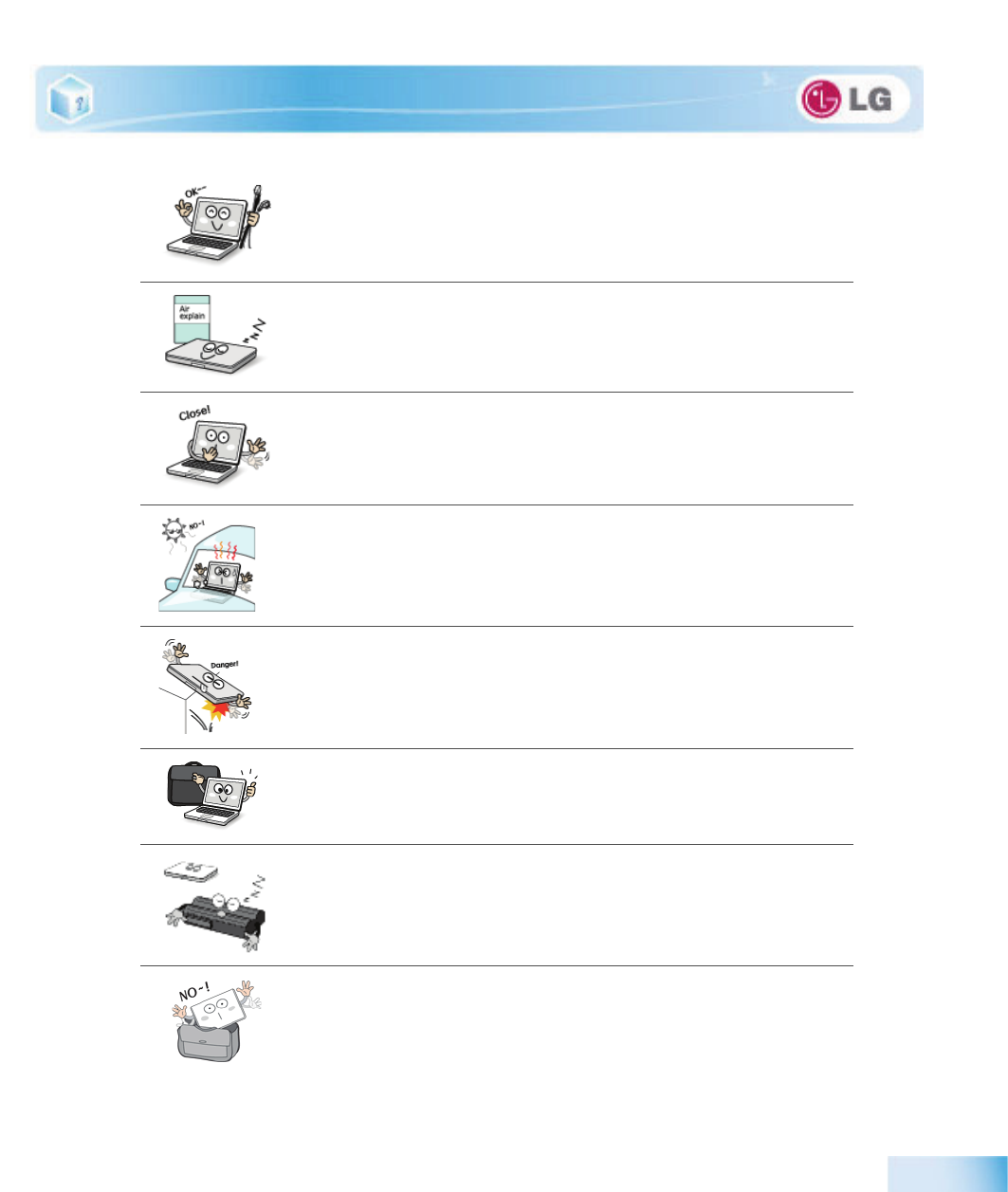

To carry the machine, turn off the power and disconnect all the cables.
Otherwise, you may trip over the wire, damaging the computer and getting an injury.
During air traveling, follow the directions of flight attendants.
Using a laptop during flight may cause an aircraft accident.
Do not carry the machine with the LCD panel open.
Otherwise, the product may get damaged.
When leaving the machine in a car, keep it in shadow.
The product may be deformed or caught on fire due to temperature rise.
Protect the machine from any shock while carrying it.
System damage or an injury may result.
Carry the machine in a bag designed for it.
Carrying it in an other type of bag may result in product damage.
If the machine is not used for a long time, remove the battery pack and discharge
electricity to store them.
That way, the battery can maintain the optimal state.
Do not leave the powered-on computer in a space without enough ventilation (i.e. ba-
gs) for an extended or repeated time.
The battery may overheat and cause a fire.
![](/img.php?id=1458605&img=bg17.png)
24
Important notice for user
X
Safety Notes to Prevent Data Loss (HDD Management)
Handle the computer with care to prevent a data loss.
Since the hard disk is sensitive to shocks, please make a back-up file of important data all
the time.
The manufacturer will not be responsible for any hard-disk data loss caused by your mis-
take.
Hard disk damage and data loss may occur when:
External shocks are inflicted on the machine while disassembling or installing it.
When the computer is abruptly reset (rebooted) due to power failure, the hard disk may
get damaged.
The computer is infected with a virus, tainting the data irrecoverably.
Abrupt turning-off of the computer can damage the computer.
Moving, shaking or pounding the computer while the hard disk is running, and thus cau-
sing file damage or bad sectors.
It is recommended to back up the data to minimize damage caused by hard disk da-
mage.
The manufacturer is not responsible for any data loss.
![](/img.php?id=1458605&img=bg18.png)
2.Notebook PC Tour
![](/img.php?id=1458605&img=bg19.png)
26
Notebook PC Tour
2-1. Opening/Closing Notebook PC
1. Raise the Notebook PC cover upward.
Adjust the angle for the best convenient position.

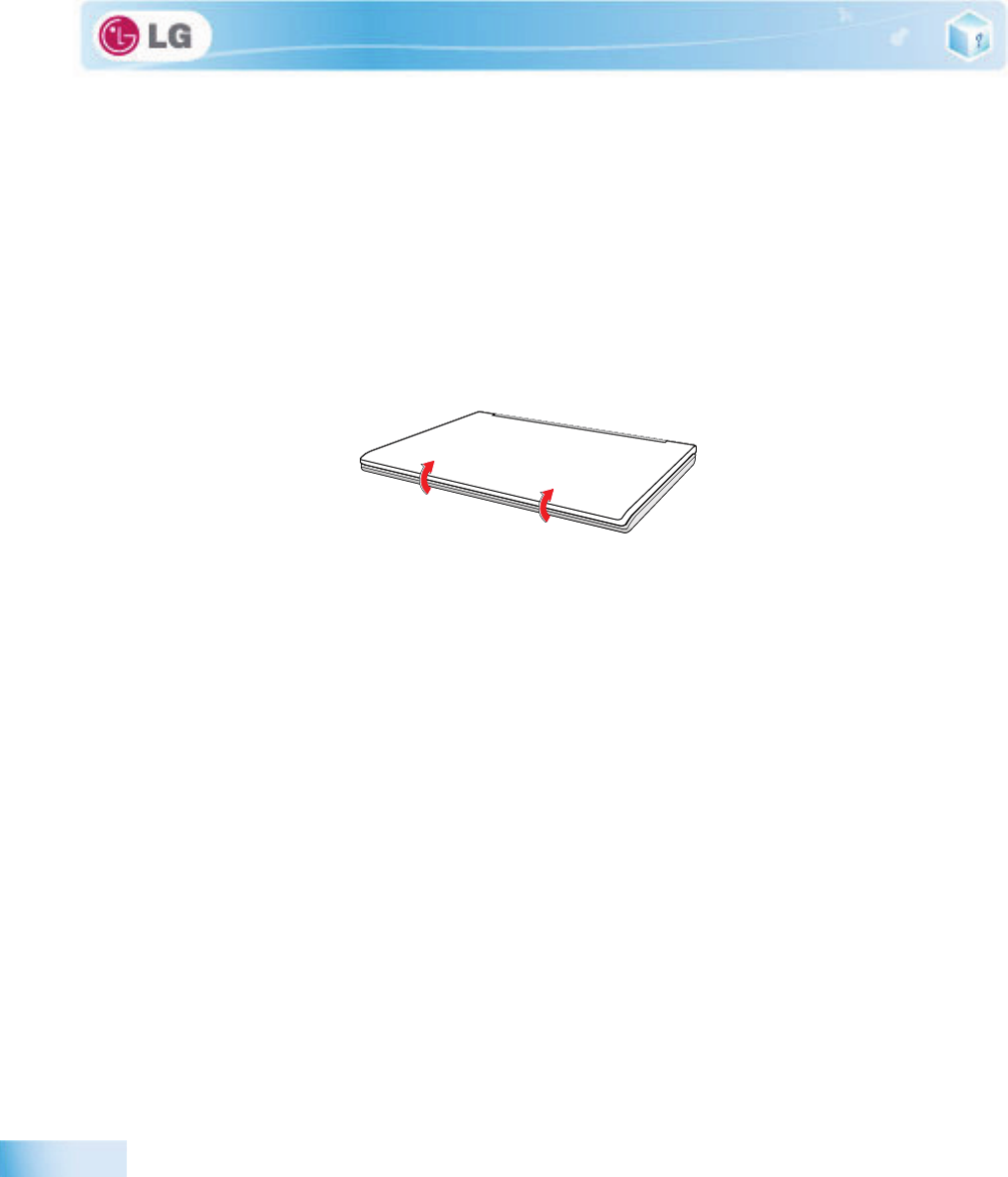

2. Be sure to close the computer after use.
![](/img.php?id=1458605&img=bg1a.png)
Notebook PC Tour
27

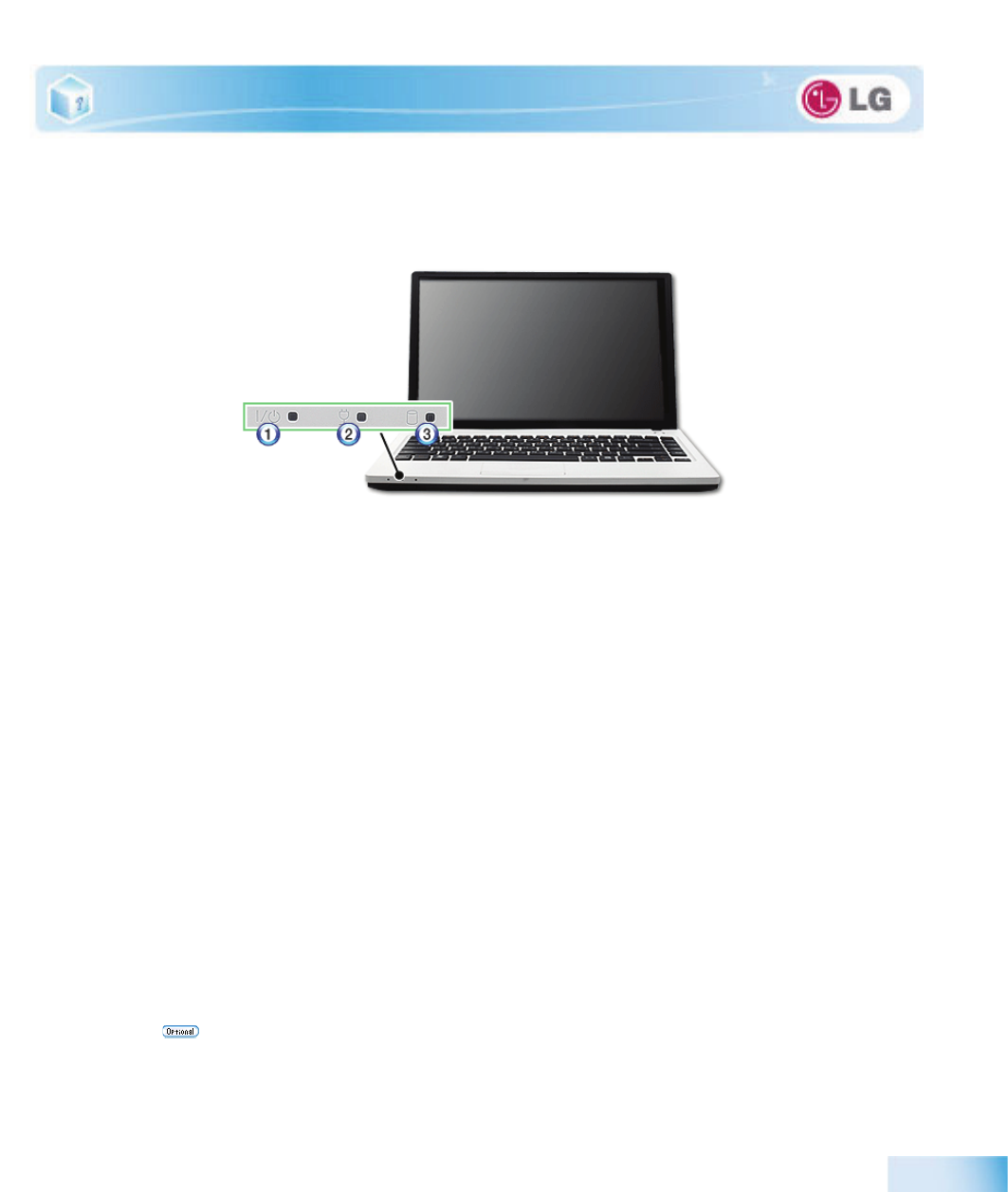

2-2. Operation Status Lamps
1. Power Lamp
Blinking: The system is in Standby mode.
On: The system is running on the AC power or battery.
Off: The system is turned off or in Hibernate mode.
2. AC Power and Battery Status Lamp
Off: The AC adapter is not connected.
On: The AC adapter is connected.
Blinking: The battery is charged less than 10 %.
If you try to turn on the system that has entered the Hibernates mode or been turned off after a low-battery alarm,
the system will not be turned on but the lamp will blink three times.
3. Hard Disk Drive Lamp
The lamp is turned on when the HDD is running.
Do not turn off the power forcibly while the hard disk drive lamp is on. Otherwise, the data may get impaired.
4. Wireless LAN lamp
Off: Wireless LAN is not in use.
Blinking (short interval): Wireless LAN/Bluetooth is connected and data are being transmitted.
Blinking (every 2 - 3 seconds): Wireless LAN/Bluetooth is not connected but Wireless Radio is on.
Blinking (every 3 - 4 seconds): An access Point is being searched for to connect Wireless LAN/Bluetooth.
On: An access point is being searched for or Wireless LAN is connected.
The Wireless LAN/Bluetooth lamp may operate differently depending on model type.
The Wireless LAN card and the Bluetooth device are optional, and so it may not be supported in some mod-
els.
![](/img.php?id=1458605&img=bg1b.png)
28
Notebook PC Tour
![](/img.php?id=1458605&img=bg1c.png)
3.Using the system
![](/img.php?id=1458605&img=bg1d.png)
30
Using the system
3-1. Running on Battery
Notebook PC runs on AC power or battery. This section describes the procedure that the user should
take initially for a new system. The provided AC adapter can be used from 100 V to 240 V.
Charge the new battery with the AC adapter before use.
Refer to [Charging Battery with AC Adapter] in User Guide.

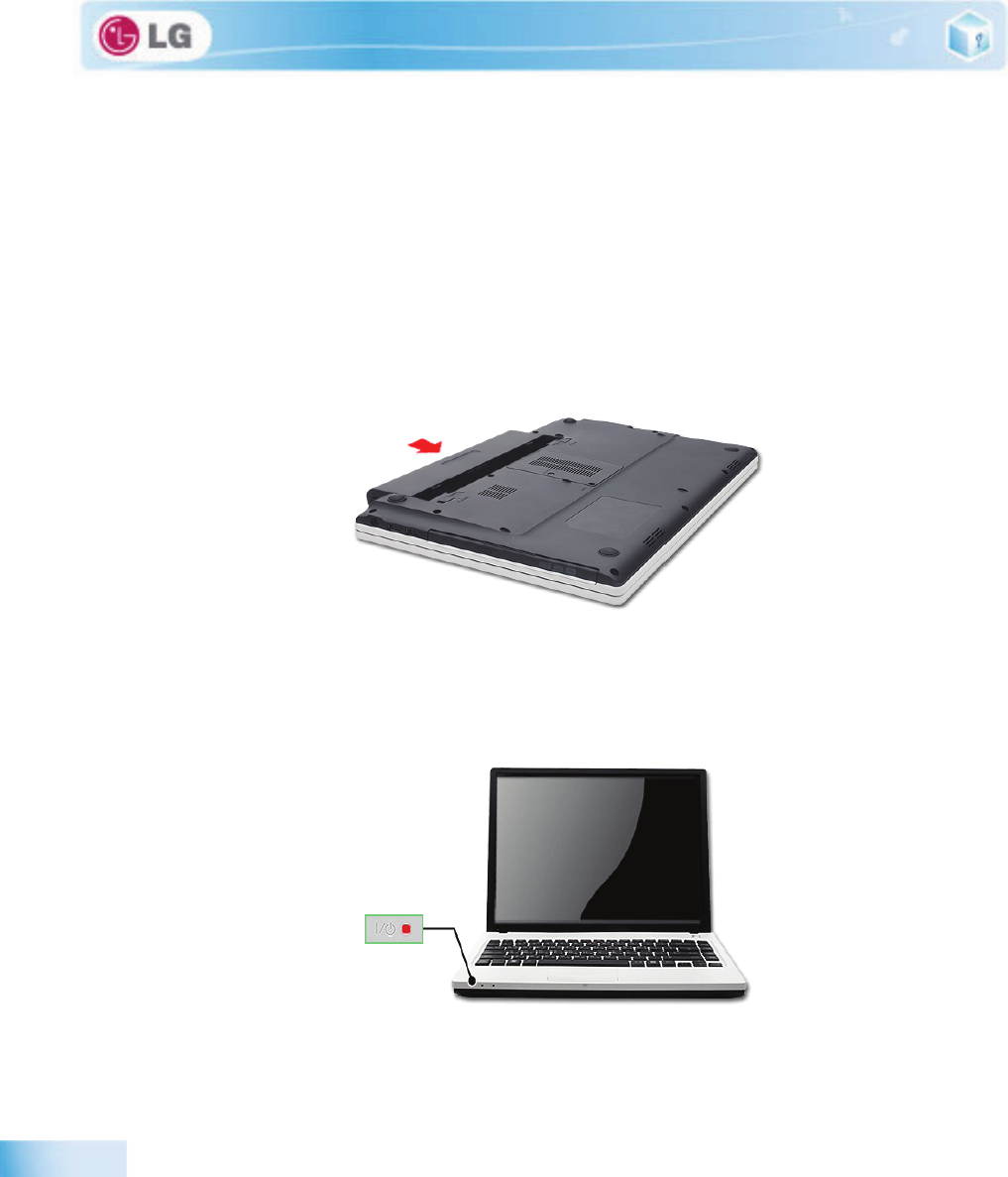

1. Turn the machine over to see the battery pack chamber and equip the pack.
Insert the battery pack into the chamber as shown in the following figure and push it in the direction of the arrow
until you hear a clicking sound.
2. Open the machine and turn the power on.
3. Check the battery state.
When the battery status lamp is blinking, charge it fully with the AC adapter before using it.
![](/img.php?id=1458605&img=bg1e.png)
Using the system
31

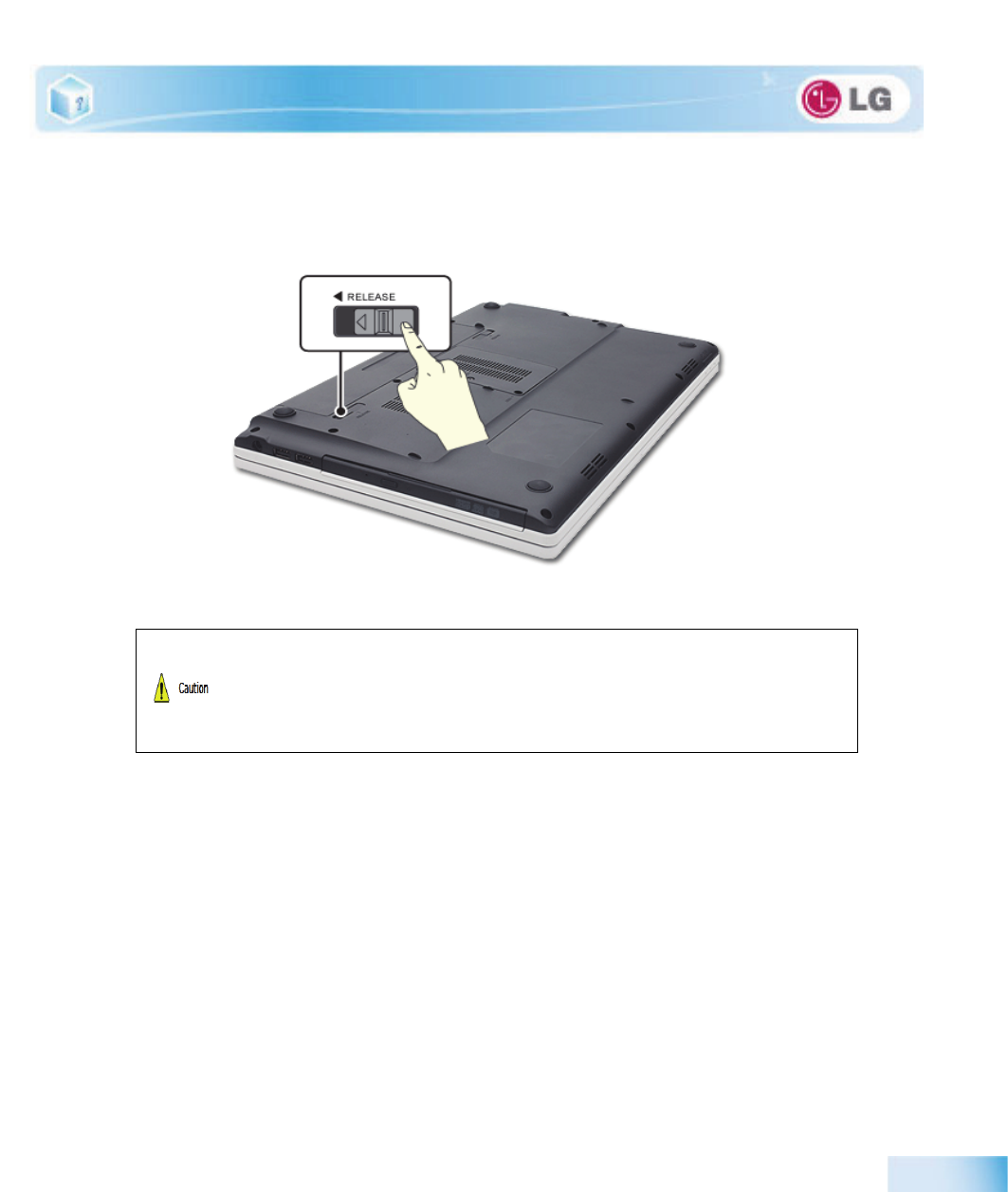

4. Remove the battery pack as shown in the diagram below.
Use batteries certified and acknowledged by LG Electronic Inc.
■Uncertified batteries may explode.
■Ensure the power is off before changing the battery pack.
Keep the battery pack removed when the machine is not in use.
■Otherwise, a fire and product damage may result.
![](/img.php?id=1458605&img=bg1f.png)
32
Using the system
For a safe and efficient use of battery, follow the below directions.
■Do not short-circuit the battery.
■Keep the room temperature between 0 and 60 . Do not expose the machine to the
heat hotter than 60 .
■Keep the battery out of reach of children.
■A visible swelling of the battery pack indicates a possible danger. When this occurs,
contact your local vendor or service center immediately.
■Use only a certified and designated recharger.
■Keep the battery pack away from heat. (Never put it in a microwave.)
■Do not leave inside a car under the summer heat.
■Do not leave or use at a hot and humid place like a sauna.
■Do not use the machine placed on a heating blanket or other heat reserving materials.
■Do not leave the machine turned on inside a closed space.
■Make sure that the power ports are not touched by any metallic objects like a key, coin,
necklace, and watch.
■Use only a lithium secondary battery certified and guaranteed by mobile device manu-
factures.
■Keep the machine dry.
■Do not disassemble or alter the battery pack.
■Before using this machine, read this guide carefully.
For more efficient use of the battery, read the following carefully.
■Natural discharge: The battery runs low naturally even if it is kept unused.
■Periodical full (dis)charge: Repeated recharge in midway shortens the running time gradually. To
lengthen the span, charge and discharge the battery to the fullest once or twice. For optimal use,
execute the full charge/discharge every 30 to 60 days. Still better, recharge the battery after it
has run out.
The battery capacity may change due to chemical reactions during charge and discharge.
■The system checks the charge status of LG batteries frequently, and then calculates and indicates
the actual battery duration on the current system setup.
■The battery is wearable goods and thus the life span may be getting shorter as used. The battery
running time may also become shorter accordingly.
■When the battery is fully charged the machine stops recharging, and it resumes recharging when
the battery charge rate drops below 95 %.
■When the temperature of the battery drops below 9.6 , it is charged in a low current. In this
case, charging time may stretched to 32 hours or longer.
![](/img.php?id=1458605&img=bg20.png)
Using the system
33

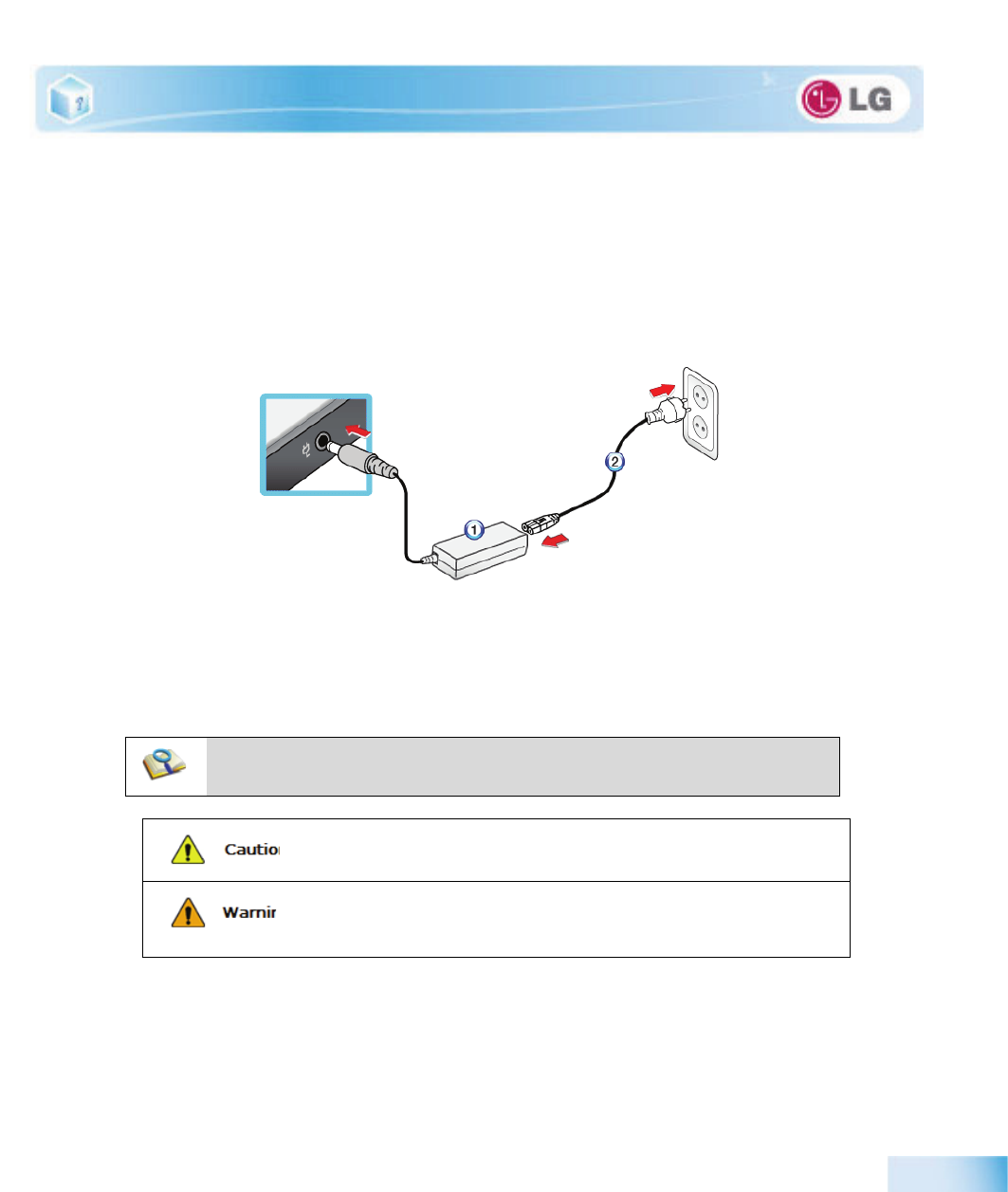

3-2. Charging Battery with AC Adapter
Notebook PC runs on AC power or battery.
This section describes the procedure that the user should take initially for a new system.
The provided AC adapter can be used from 100 V to 240 V.
1. Connect the AC adapter to a power outlet with the power cable.
2. Connect the adapter to the machine.
1. AC Adapter
2. Power cable
3. Adjust the LCD panel to the most comfortable angle.
4. Press the power button to turn on the machine.
■You need a different plug to use the AC adapter on 110 V. (The extra plug for 110 V is sold se-
parately.)
Do not leave a liquid container on the computer.
■The system may be short-circuited and damaged.
Please use an AC adapter certified by LG Electronics.
■Otherwise, an explosion or fire may occur.
■It may cause a problem in battery charging or system operation.
![](/img.php?id=1458605&img=bg21.png)
34
Using the system
3-3. Windows 7 Overview
Windows 7 has many advantages in terms of information management and security, enhancing your
productivity. Windows 7 allows you to access information in your computer or in your corporate net-
work more easily and provides better security for your data.
Virtual XP Mode is supported only in Windows 7 Professional Version or above. Also this feature may not be
supported in some CPU models.
Windows 7 Starter and Home Basic do not support some functions such as Aero and Flip 3D.
In some models, the Windows Aero and Flip 3D functions can reduce the system speed and hinder normal movie
clip play.
For detailed information about Windows 7, select Start > Help and Support.
X

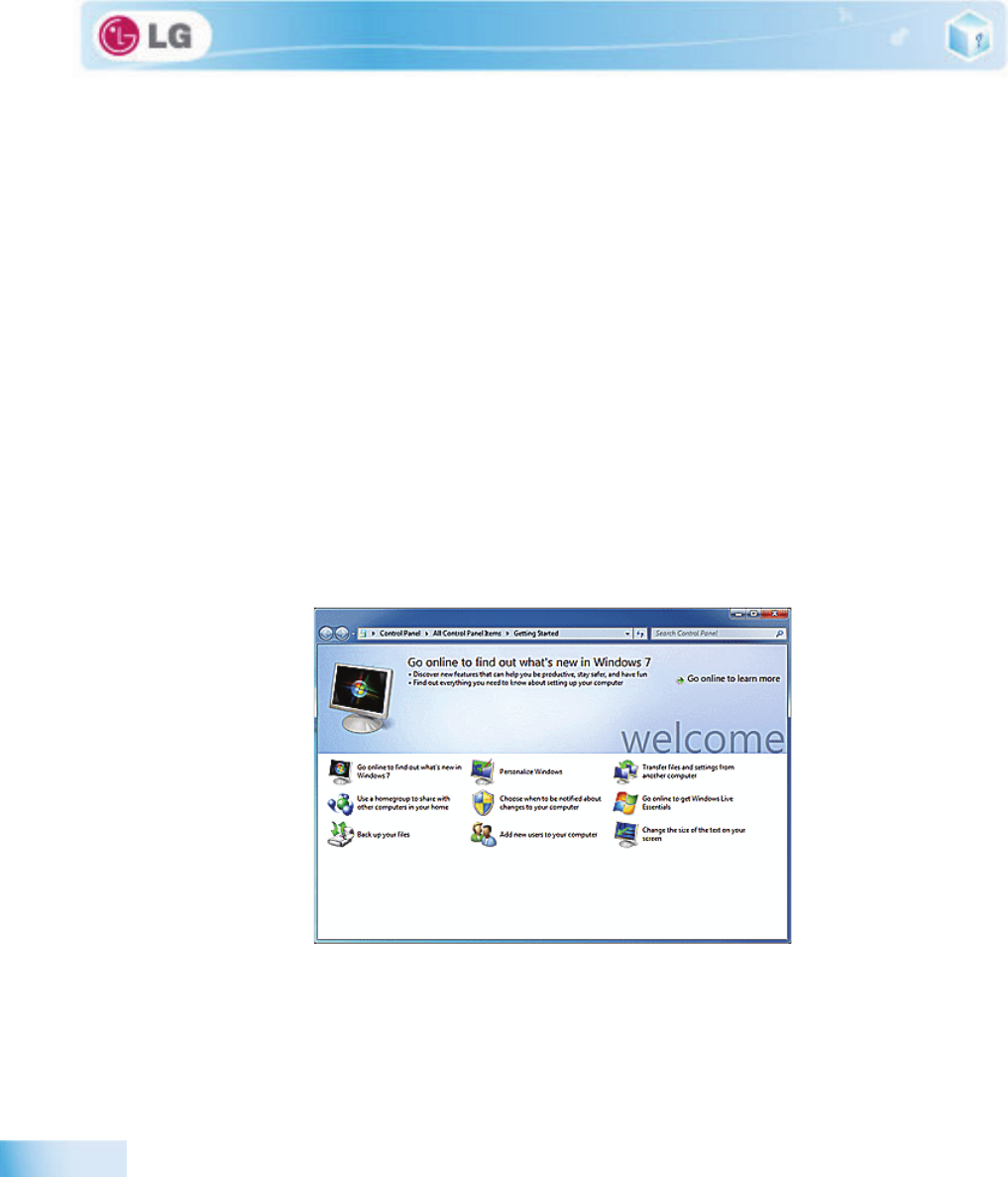

Windows 7 Start Menu
Windows 7 Start menu shows you the new features of Windows 7 and provides the basic tools for using
Windows 7, such as Personalize Windows and File Backup.
1. Click Start > [Start].
By clicking the arrow on the right of the [Start] button, you can select the menu you want to use.
2. Select an item to execute the task or view the information.
Items displayed on the Windows 7 Start menu may differ depending on the product specifications.
![](/img.php?id=1458605&img=bg22.png)
Using the system
35
X

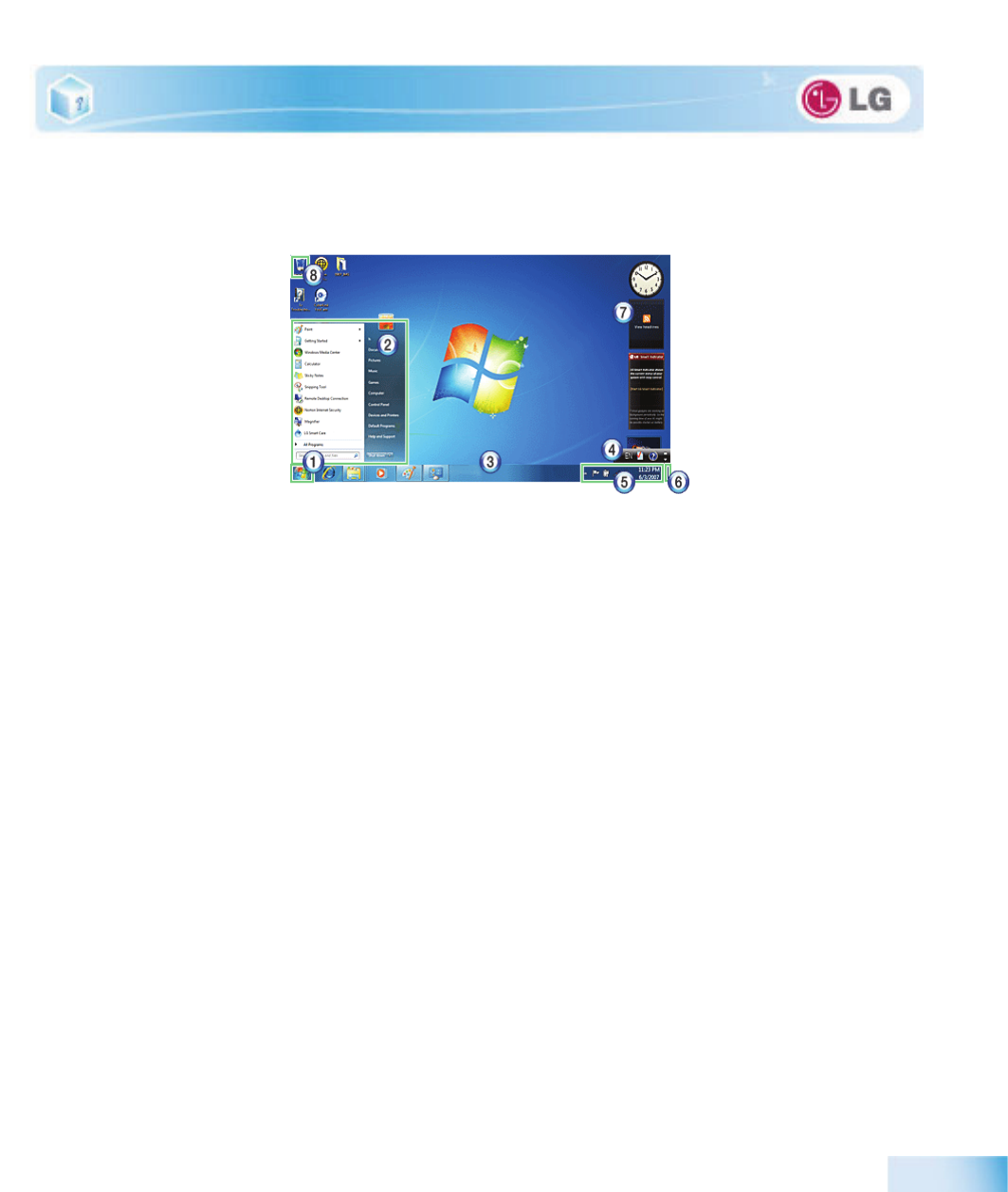

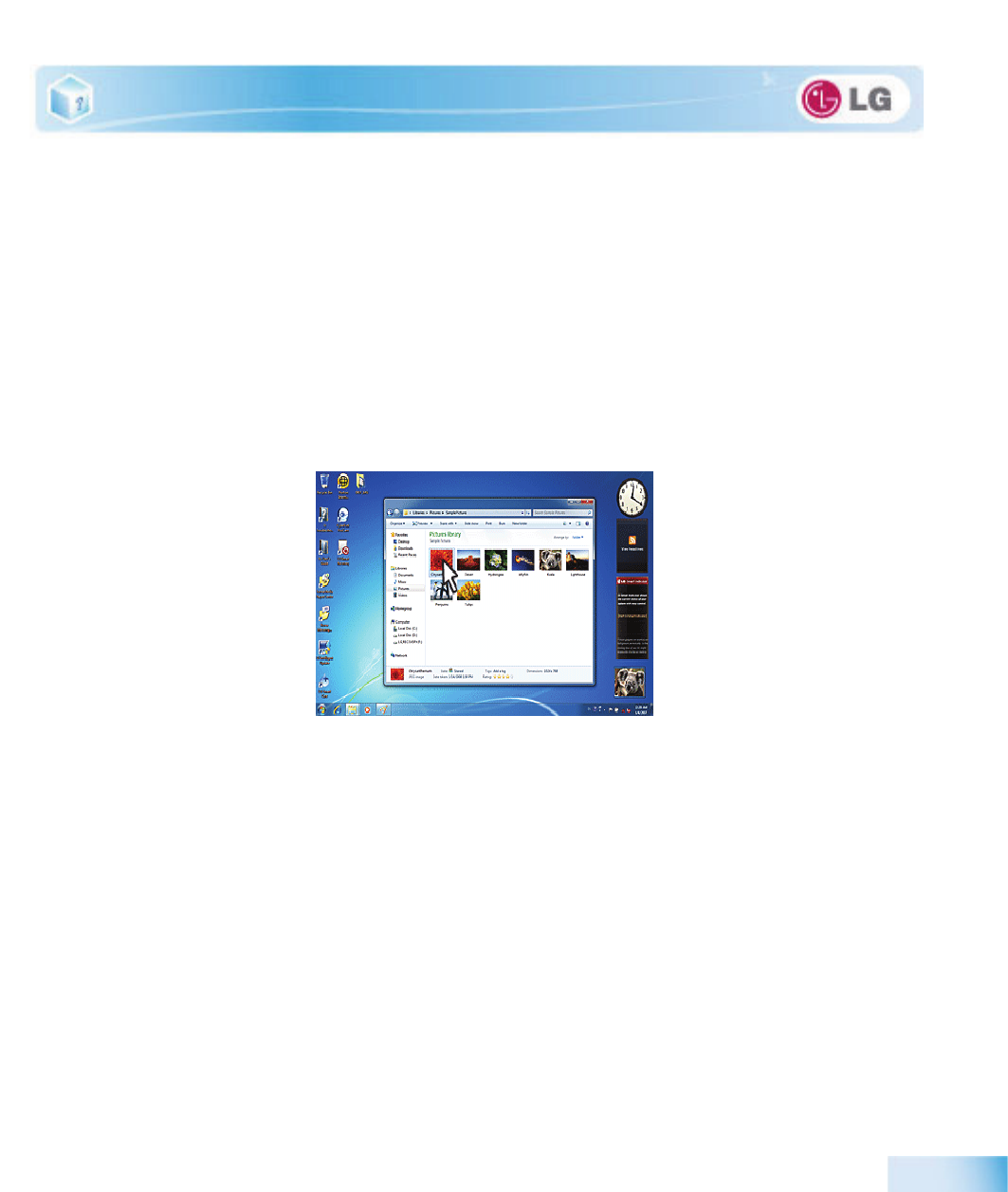

Windows 7 Desktop
Desktop may differ by model type and software version.
1. Start button
Unfolds Start menu when clicked.
2. Start menu
Displays Windows programs that you can start directly from the menu.
To find an application or a file from here, input search terms in the Instant Search field and start search.
3. Taskbar
Shows all currently running programs.
4. Language bar
Allows you to switch languages while typing.
5. Taskbar icons and clock
Allows you to set up Volume, Power Management, Backup and other basic configurations.
6. Return to the Desktop
If you place the mouse pointer on this menu, all the open windows become transparent (Aero Peek). If you click
the menu, all the open windows become minimized to display the desktop.
7. Windows Gadgets
The right side of the desktop displays mini-applications called Gadgets. You can download more Windows 7 gad-
gets from the service website.
8. Recycle Bin
Keeps dropped files and folders. Empty Recycle Bin deletes files and folders in Recycle Bin from the computer
permanently. Deleted files and folders can not be restored.
![](/img.php?id=1458605&img=bg23.png)
36
Using the system
X

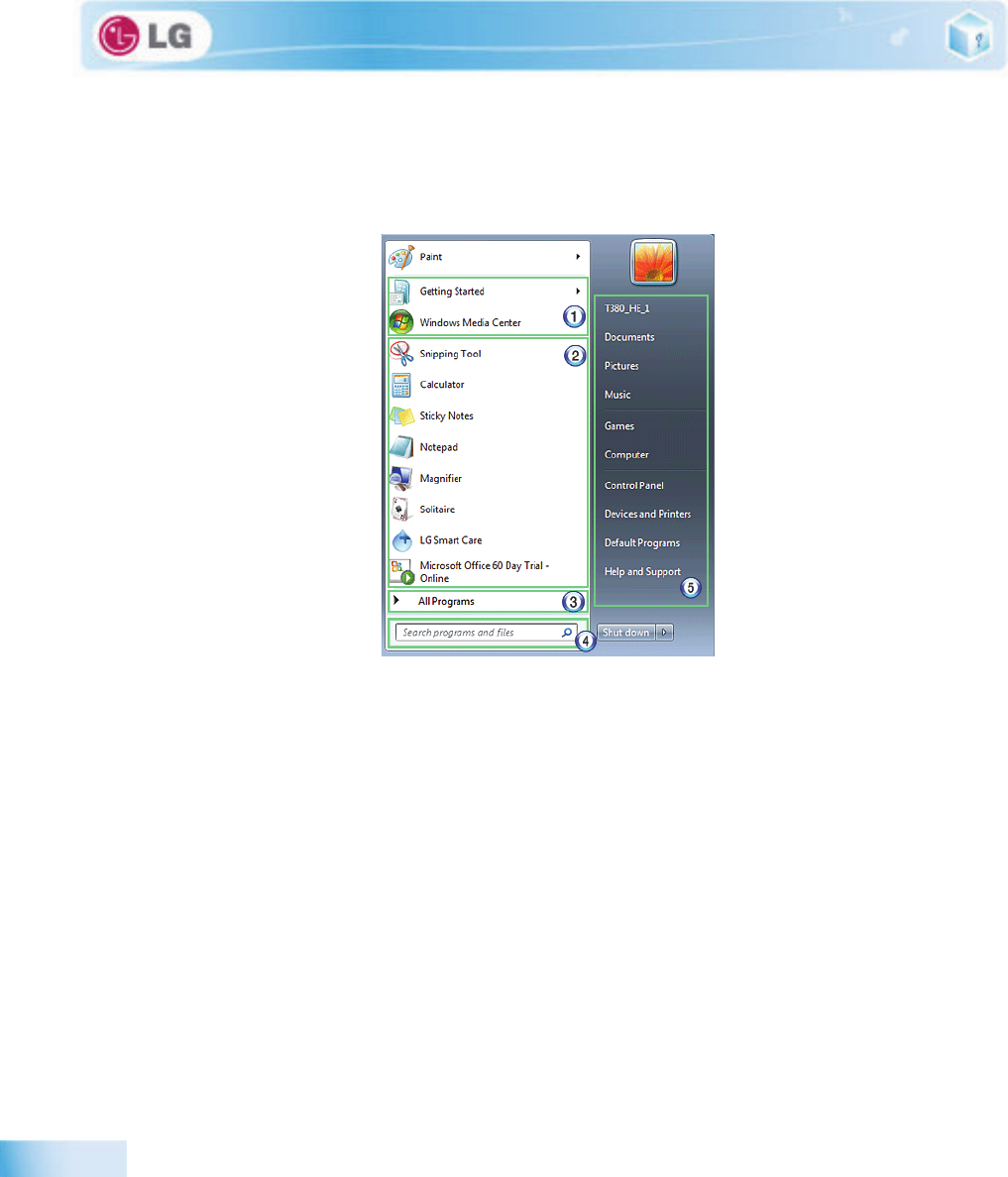

Start menu
Includes all programs needed to start Windows.
Desktop and Start menu may differ by model type and software version.
1. Fixed Items
2. Recently Used Programs
The order of the programs is subject to change.
3. All Programs
4. Instant Search Field
Allows the user to search for a specific application, file, Internet favorite or many others. Type search words and
start search to display the results by category.
5. Shortcut
Displays folder categories like Document, Picture and Music so that you can access to a specific file or folder di-
rectly from the list.
X
Help and Support
Allows you to learn about Windows use and get troubleshooting information and technical supports.
Please read the menu before using the computer.
![](/img.php?id=1458605&img=bg24.png)
Using the system
37

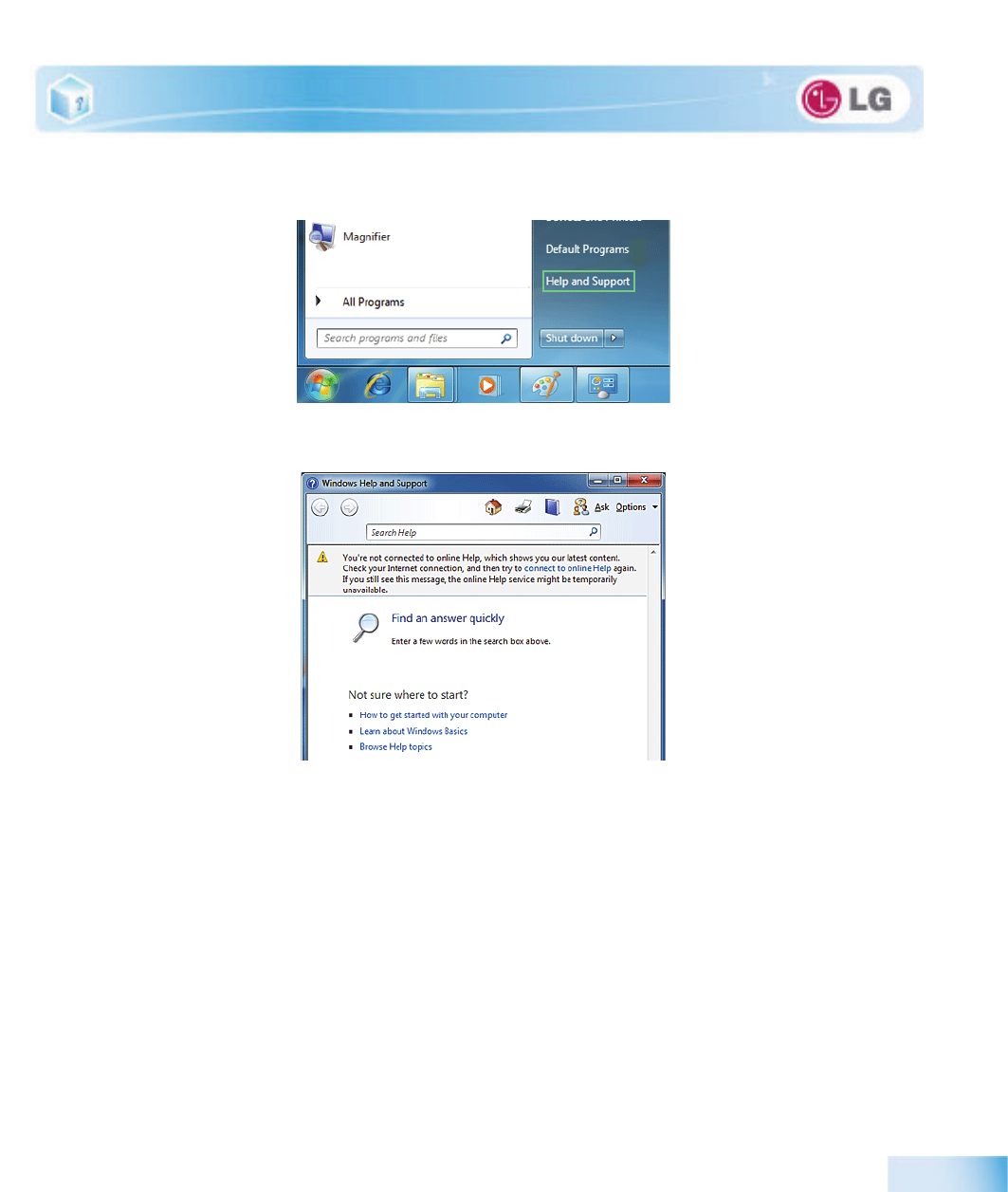

1. Click Start button and Help and Support on Start menu.
2. Follow the instructions on the screen to use Help and Support.
Helps you with many such troubles as learning about the features of Windows 7 and getting troubleshooting infor-
mation through appropriate items.
Fetches information provided by Microsoft.
X
Preview Workpane
Windows 7 groups the windows such as Internet Explorer, My Computer and Windows Explorer and
displays them as a single icon. You can minimize or maximize the windows on the screen conveniently
using this menu.
1. Preview Internet Explorer
If you place the mouse pointer on the Preview window after clicking the workpane group icon, the corresponding
![](/img.php?id=1458605&img=bg25.png)
38
Using the system
windows are displayed on the desktop. Click a window in the Preview to open the window.
2. Preview My Computer/Windows Explorer
X
Convenient Features of Windows 7
Windows 7 is designed to help you use frequently used functions more easily. Utilize the following fea-
tures to use your system more efficiently.
1. Minimize Unnecessary Windows(Aero Shake): Click and shake the title bar of the window you want
to use to minimize other windows to the task bar.
![](/img.php?id=1458605&img=bg26.png)
Using the system
39

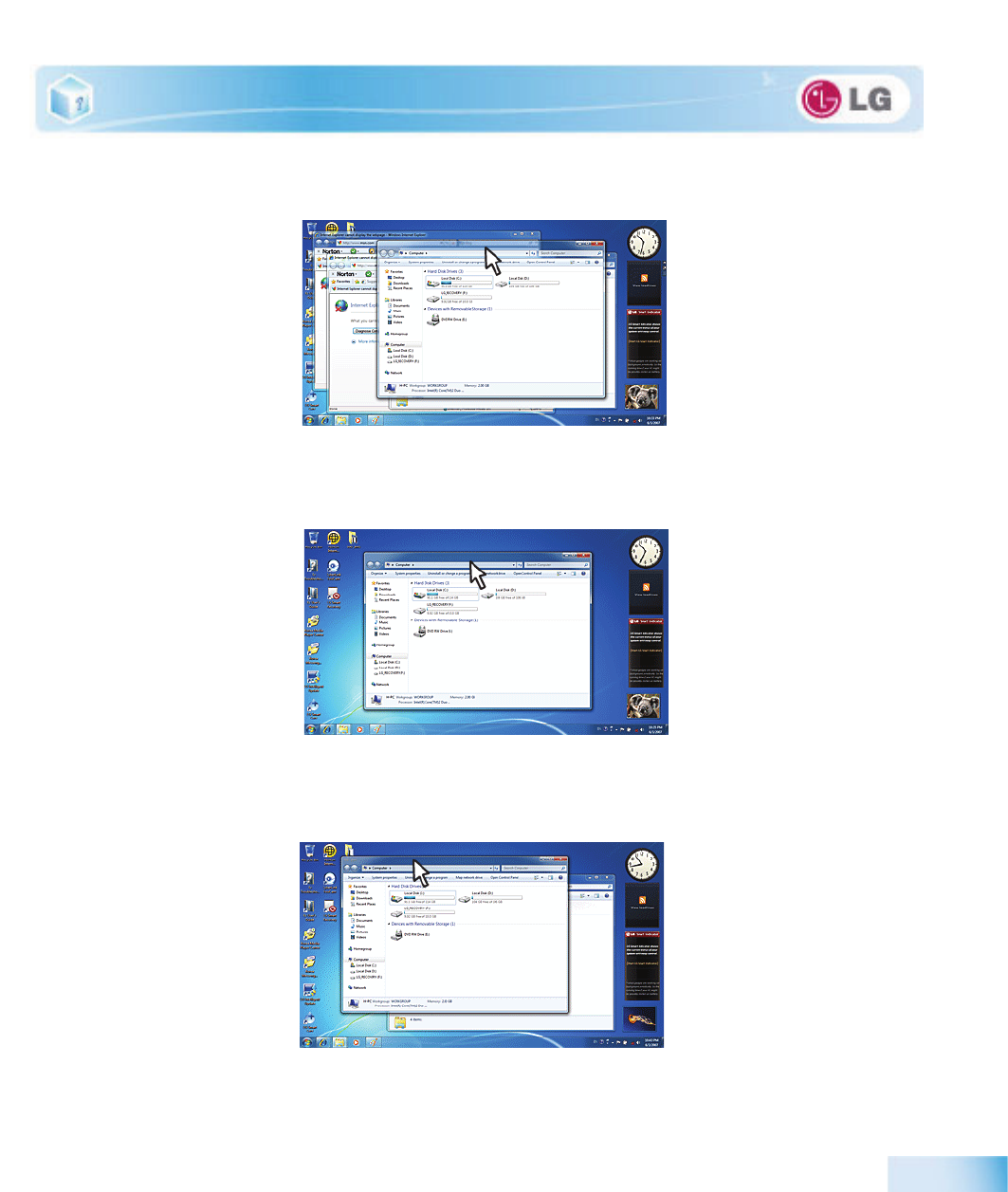

If you want to display the windows again, click and shake the title bar of the open window again.
2. Switch Window Mode Quickly: Click the title bar of a window and drag it to the top of the screen to
maximize it. Click the title bar of a window and drag it to the bottom of the screen to minimize it.
3. Auto-align Two Windows: Click the title bar of one of the two windows you want to use and drag it to
the rightmost or leftmost side of the screen to make the window occupy one half of the screen.
![](/img.php?id=1458605&img=bg27.png)
40
Using the system
X
Changing User Account Control Settings
User Account Control prevents any unauthorized alteration to system configurations. When someone
tries to change settings or install a program that could affect others' system use, User Account Control
confirms his or her authority first.
We recommend that User Account Control not be disabled. If this feature is disabled, enable it imme-
diately to protect the system.
1. Select Start > Control Panel > View by > Small icons > User Accounts > Change User Account
Control Settings.
2. After changing User Account Control settings, click [OK].
It is recommended to use the default settings for the security and safety of your system.
X
Enable Windows Aero
Windows Aero delivers the exquisite visual effects of Windows 7. It presents window animations in
new transparent and delicate visualization.
Windows Aero may be enabled by default depending on model type and software version.

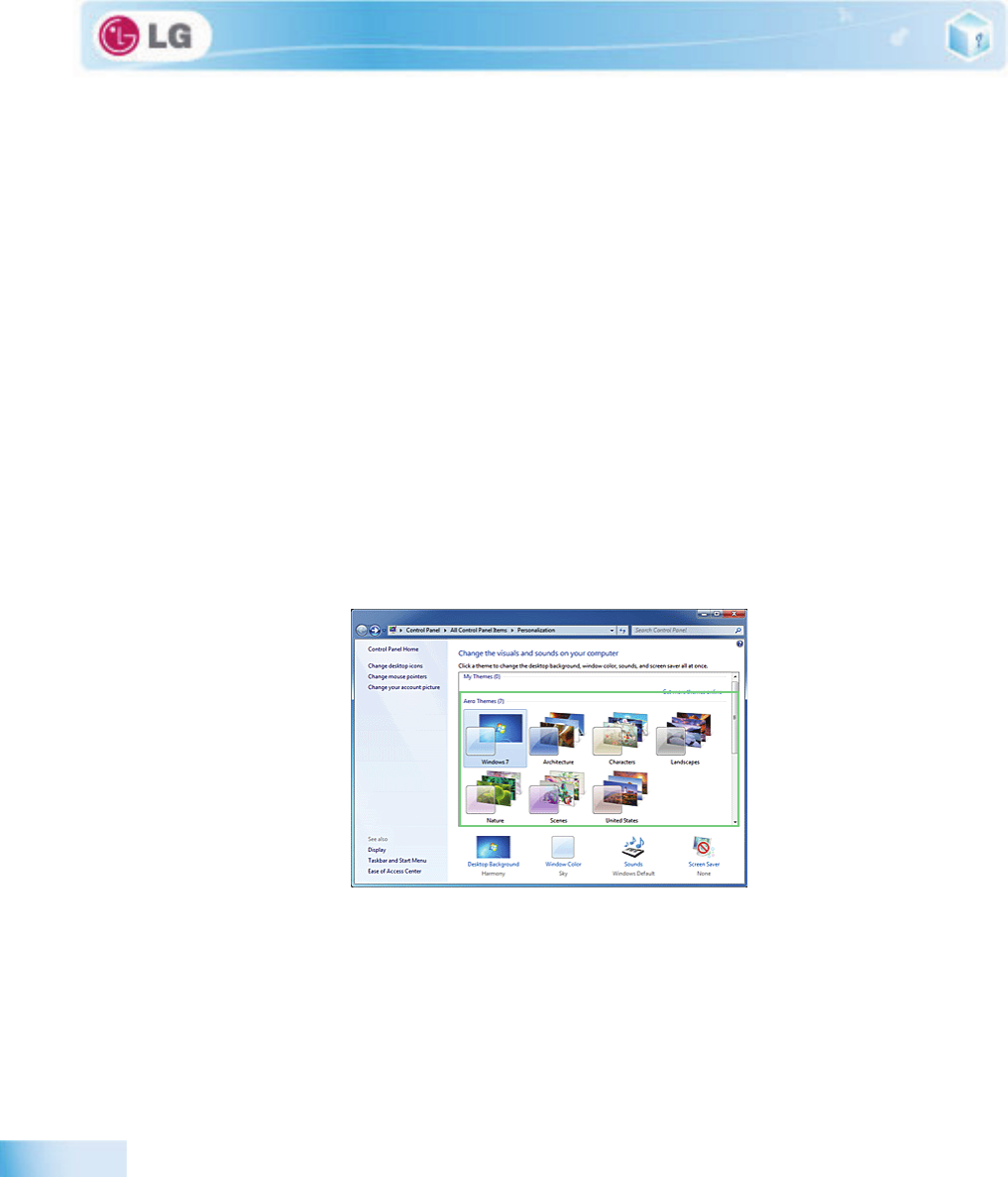

1. Right-click the desktop to display a popup window. Then click [Personalize].
2. Once the [Change Visual Effect and Sound] screen appears, select the Aero theme you want to use.
3. The Aero theme where the transparence feature is applied becomes enabled.
X
Disable Windows Aero
1. Right-click the desktop to display a popup window. Then click [Personalize].
![](/img.php?id=1458605&img=bg28.png)
Using the system
41

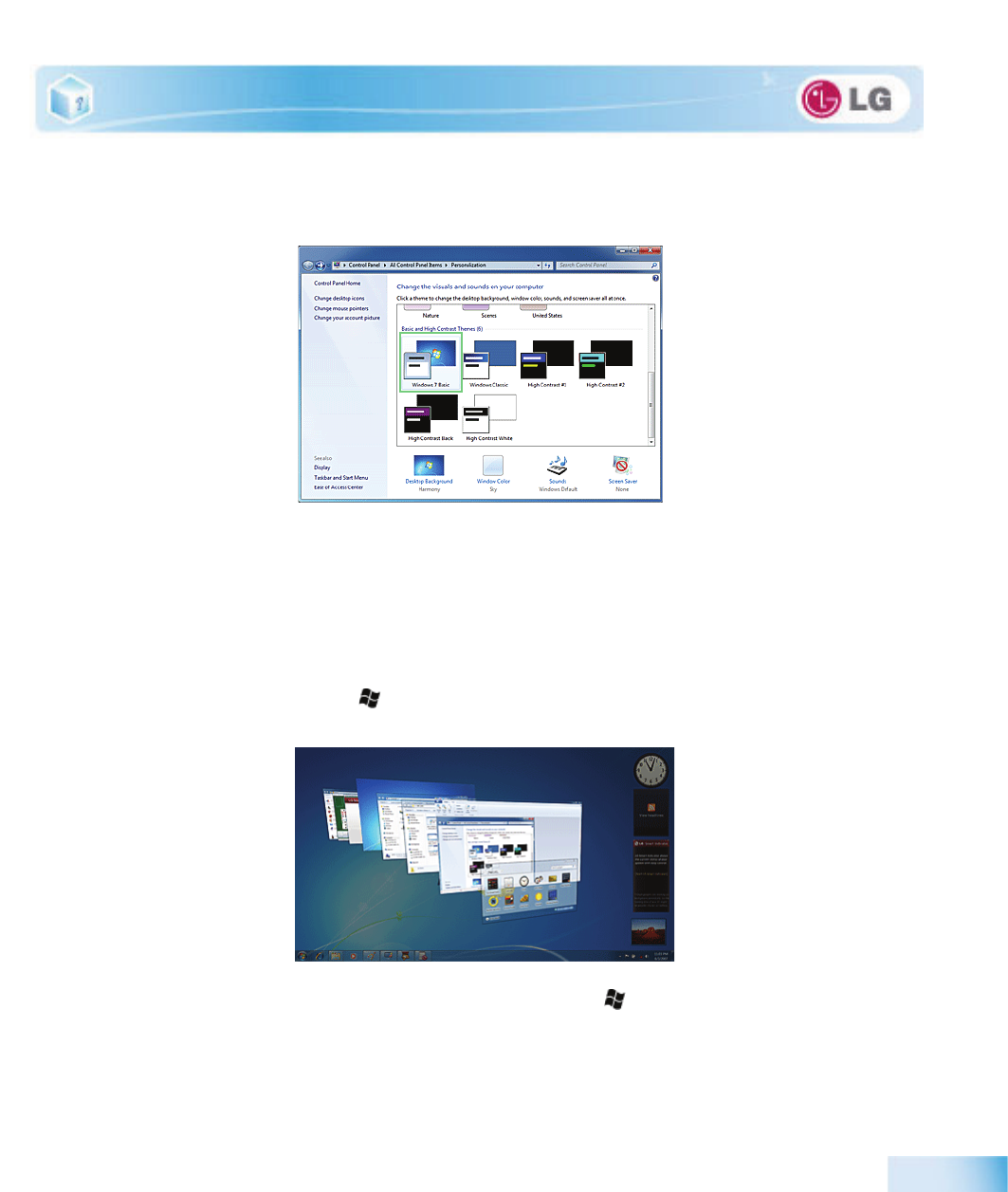

2. When the Change Visual Effect and Sound window appears, select [Windows 7 Basic ] in the [Basic
and High Contrast Theme] menu.
3. The Aero theme is disabled.
X
Using Windows Flip 3D
Windows Flip 3D allows you to view all the open windows on the Desktop on one screen. Flip 3D dis-
plays all the open windows in 3D, stacked view.
To use Windows Flip 3D, the Windows Aero feature must be enabled.
1. Press the Windows logo key ( ) + Tab to enable or disable Flip 3D.
2. To flip through the open windows, hold down the Windows logo ( ) key, and press Ta b key or sim-
ply rotate the mouse wheel. To flip over the windows clockwise or anti-clockwise one by one, hold
down the Windows logo key and press the Left or Right arrow key.
![](/img.php?id=1458605&img=bg29.png)
42
Using the system
3. When the intended window is displayed at the top, release the Windows logo ( ) key. To display a
window without flipping through the stack, hold down the Windows logo key and click the intended
window.
X

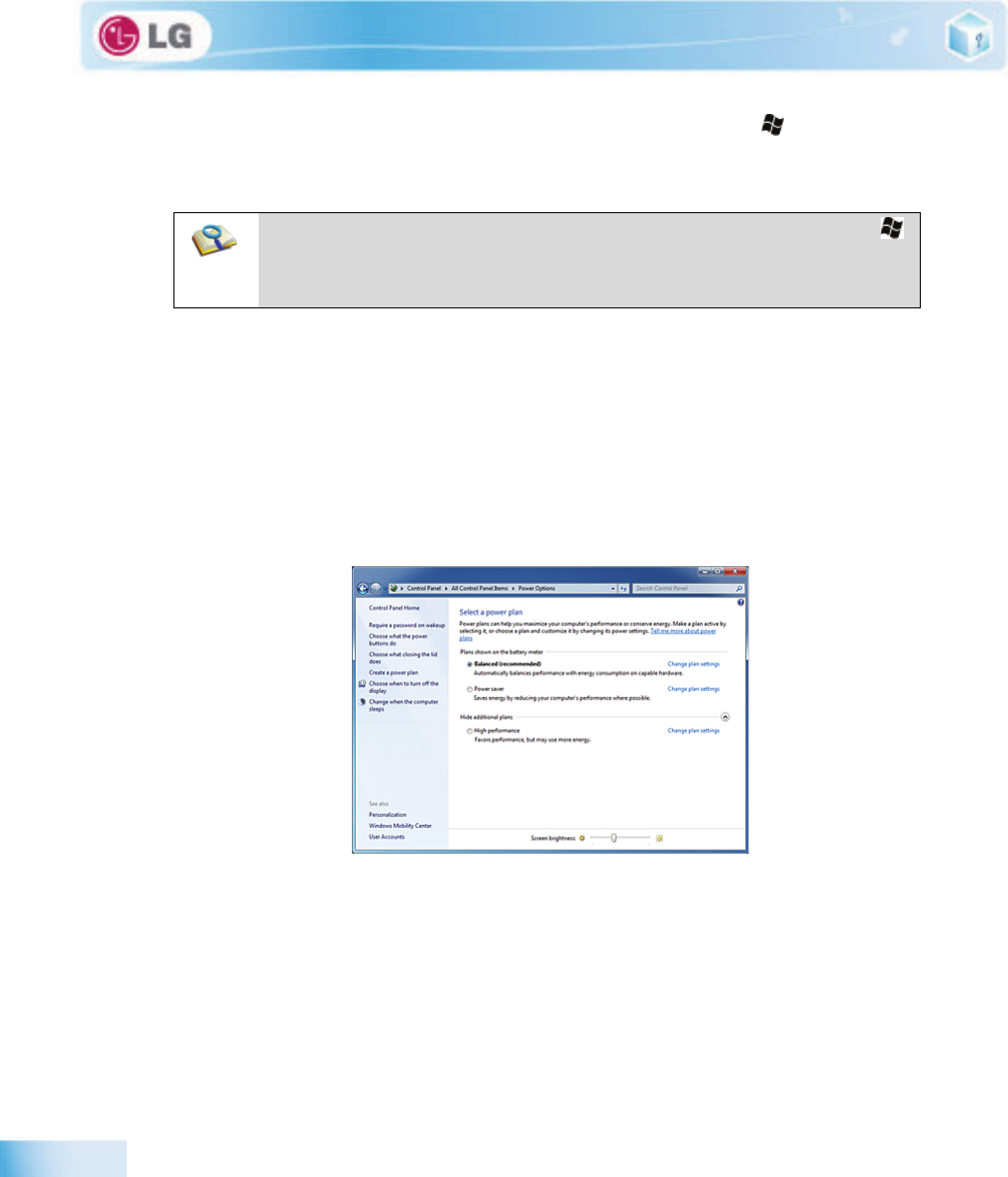

Windows 7 Power Management
Windows 7 provides a more simple and reliable power management environment than that of previous
Windows. With that, you can make Notebook PC consume power more effectively.
1. Select Start > Control Panel > View by > Small icons > Power Options.
2. When the [Select a power plan] window appears, select one of the items displayed under Battery
Meter Plans.
If the High Performance Settings tab is not displayed, click the down arrow on the right of [Display More Power
Plans] to display it.
Balanced: Ensures the maximum performance when needed and saves power when the system is not used.
Power saver: Reduces system performance to save power. This plan maximizes battery life.
High performance: Increases system performance and response time to their maximum. In this plan, the battery
does not last long.
X
System Termination Options
In Windows 7, you can use the shortcut menu to log off from user account, lock or restart the system
■If you want to display windows in the Flip 3D state constantly, press Ctrl + Windows logo ()
+ Tab keys. In this state, to flip over the windows one by one, press Tab. In this state, to flip
over the windows clockwise or anti-clockwise one by one, press the Left/Down or Right/Up ar-
row key. Press Enter to end the Flip 3D state and open the selected window.
![](/img.php?id=1458605&img=bg2a.png)
Using the system
43
and switch users fast without logging off.

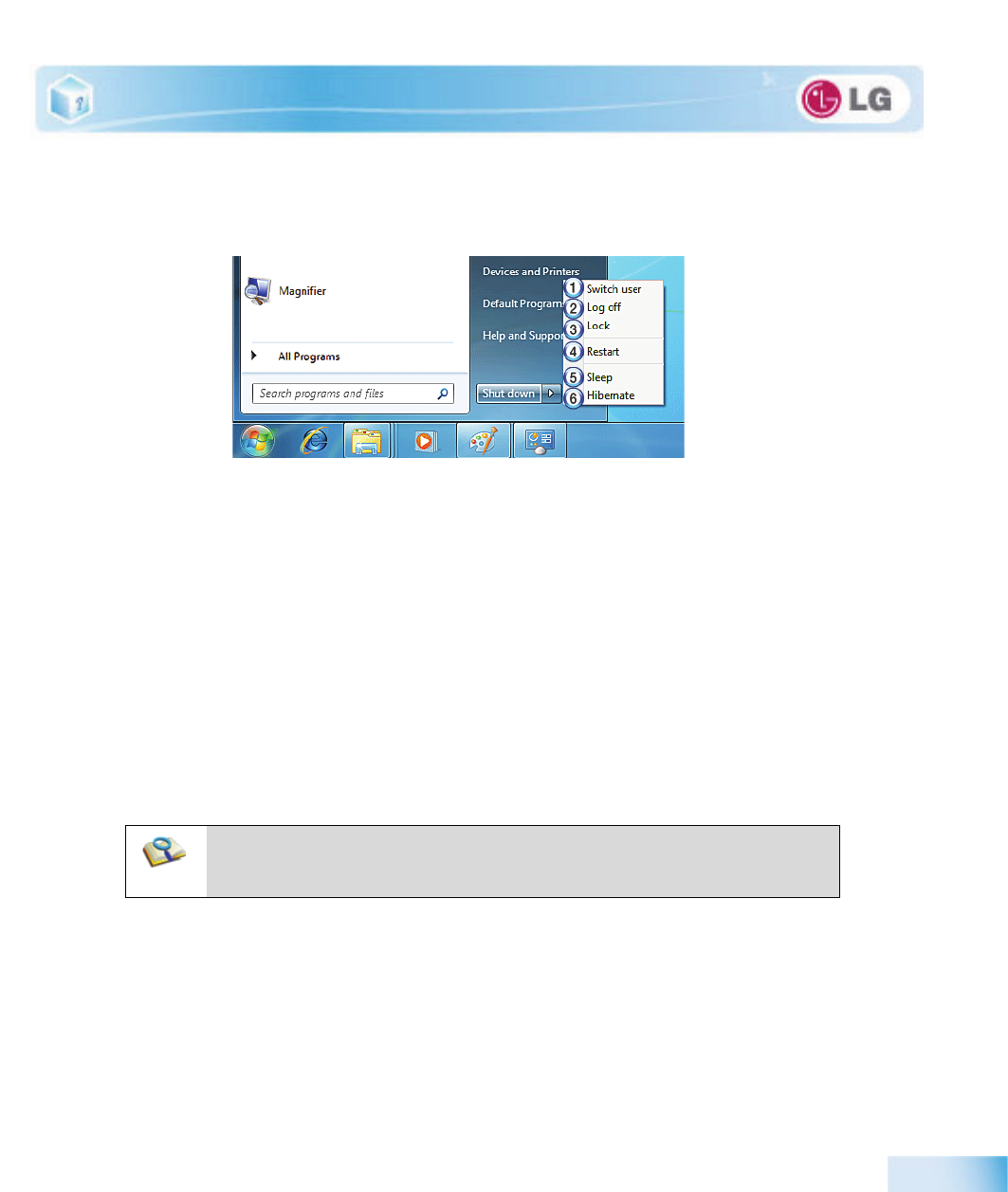

Click the arrow button on the right of the [Shutdown] button to display more shutdown options.
1. Switch User
Logs on using another user account registered in the system.
2. Log Off
Exits all programs and logs off from the user account.
3. Lock
Locks the user account.
4. Start Again
Exits all programs and reboots the system.
5. Sleep
Turns off the devices you are not using to minimize the power consumption.
6. Hibernate
Stores the user programs and turns off the system.
■The sleep mode reduces the power consumption. If you use the sleep mode, you can go back to
your work quickly. It is recommended to save all the data in all open programs before using this
mode.
![](/img.php?id=1458605&img=bg2b.png)
44
Using the system

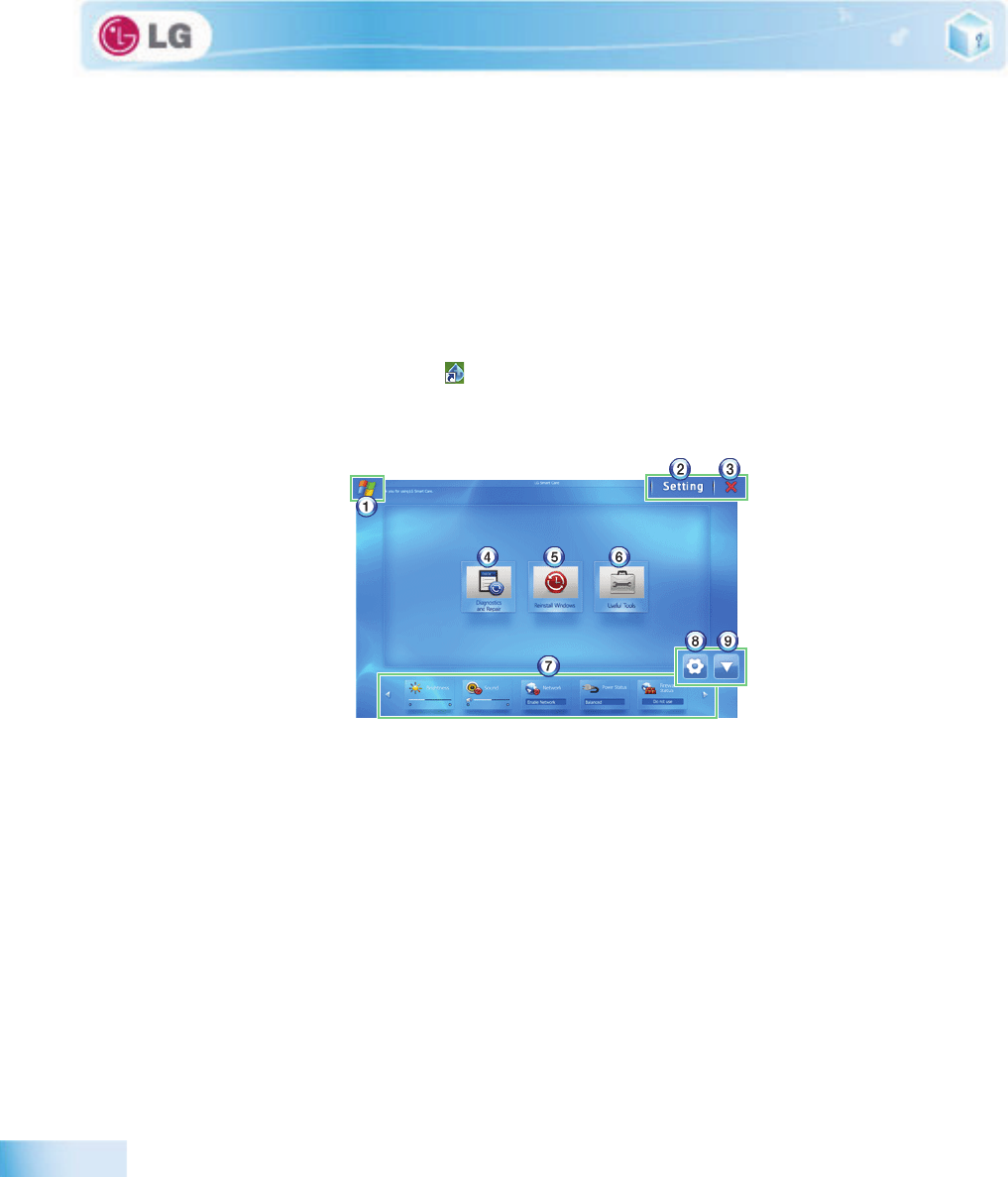

3-4. LG Smart Care
LG Smart Care is an application that allows you to diagnose and optimize the system conveniently.
The figures herein are subject to change without prior notice.
You can download and install LG Smart Care using the online update feature of LG Intelligent Update.
LG Smart Care may not be available depending on the model.
"Diagnostics and Repair" function of LG Smart Care needs network connection or LG Intelligent Update.
Before using LG Smart Care, make sure to connect the system to the network or install LG Intelligent Update.
X
Using LG Smart Care
1. Double-click the LG Smart Care icon on the Desktop to run the program.
2. LG Smart Care Home Page appears as follows.
1. Windows Button: Switches to Windows.
2. Setting Button: Allows you to change the settings of the LG Smart Care program.
3. Exit Button: Exits the LG Smart Care program.
4. Diagnostics and Repair: Diagnoses the system and solves the problems diagnosed.
5. Reinstall Windows: Restores the system to the restoration point set by LG Smart Recovery or Windows.
6. Useful Tools: Provides various utilities (Internet connection, HDD defragmentor, system cleanup, etc.) that are
needed for the system management.
7. Indicator: Displays the system preferences (display brightness, sound, power status, firewall, updates, etc.) and
allows you to change the settings.
8. Indicator Environment configuration: Allows you to edit the indicator components displayed on the screen.
9. Hide/Show Indicator Button: Hides or shows the indicator window.
![](/img.php?id=1458605&img=bg2c.png)
Using the system
45
3-5. CyberLink YouCam
Cyberlink YouCam is the program that can take picture or moving images through the Web Camera.
The figures herein are subject to change without prior notice.
Web Camera is optional, and so it may not be installed in some models.
For more information about its operations, refer to the Help of CyberLink YouCam.
X

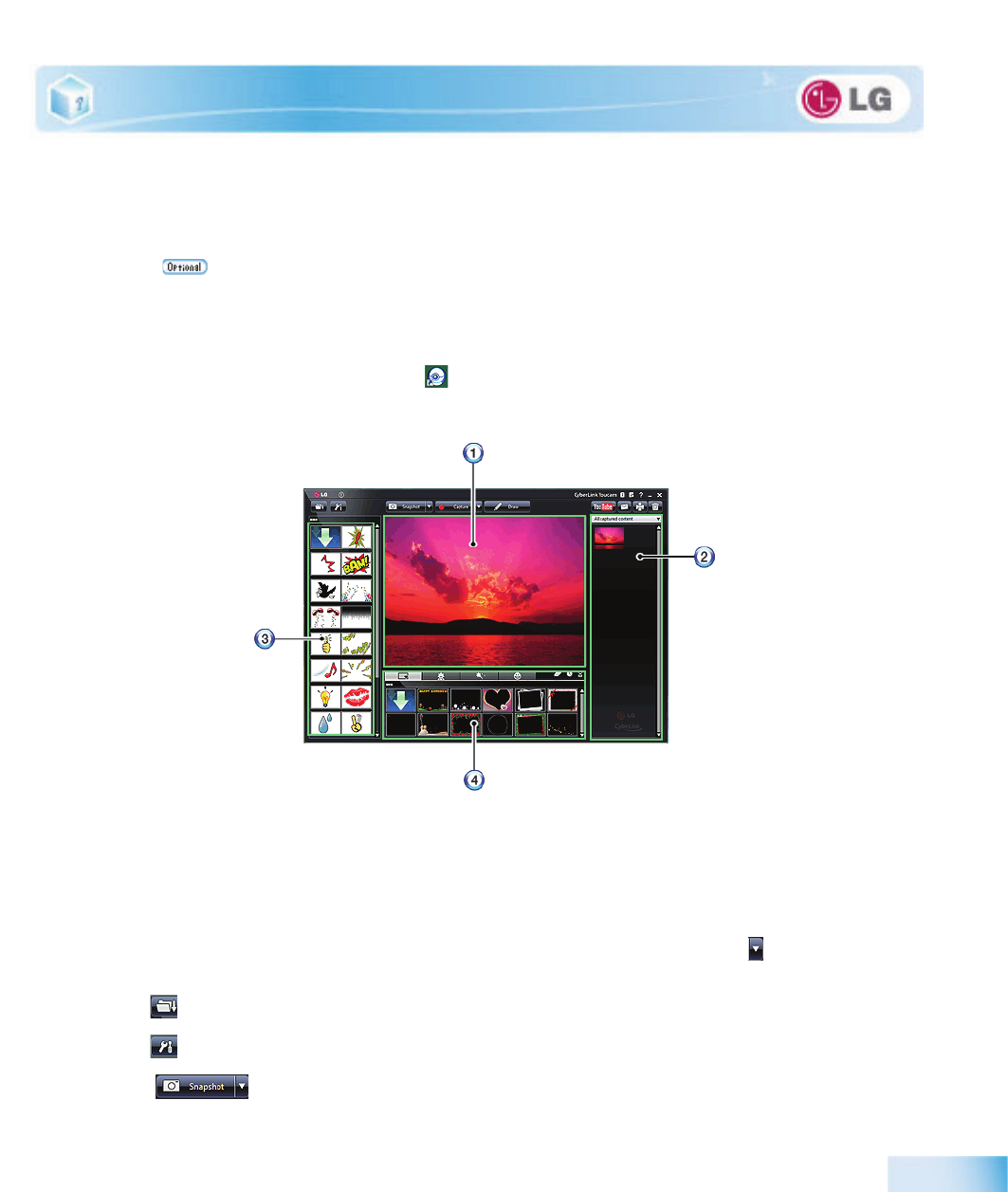

Using Cyberlink YouCam
1. Double-click the CyberLink YouCam Icon on the Desktop to run the program.
2. CyberLink YouCam Home Page appears as follows.
1. Viewer: Displays the Webcam screen.
2. Image Gallery: Use to record pictures and moving images, play back or delete those images.
3. Animation Effect menu: Can add a frame and animation effect on the screen.
4. Frame / Animation Effect menu: Can add a frame and animation effect on the screen.
X
Major Buttons
Snapshot/Burst and Capture/Timed Recording functions can be toggled by pressing on the right
of the corresponding menu icon.
1. Import Downloaded Emotion File: Opens a downloaded emotion file.
2. Configure CyberLink YouCam Settings: Configures the environment for CyberLink YouCam.
3. Snapshot: Takes pictures.
![](/img.php?id=1458605&img=bg2d.png)
46
Using the system
4. Burst: Takes pictures continuously.
5. Capture: Records movie clips.
6. Timed Recording: Records a movie clip at the date and time set by the user.
7. Draw: Enables you to edit the pictures using a pen or stamp.
8. Upload Movie Clip to YouTube: Uploads movie clips to YouTube.
9. Send Media File Using E-mail: Sends the taken pictures or moving images through E-mail.
10. Print: Prints the selected picture.
11. Recycle Bin: Deletes the selected picture or movie clip.
12. Help: Displays the help window for CyberLink YouCam.
![](/img.php?id=1458605&img=bg2e.png)
4.Input/Output Device
![](/img.php?id=1458605&img=bg2f.png)
48
Input/Output Device
4-1. Using the Keyboard
The keyboard allows the user to input data or give commands.
The keyboard may look different depending on model type.
X
Keyboard Overview
The keyboard consists of character and numeric keys as well as function keys.
1. Function keys (F1 - F12)
The usage may differ by OS or applications types.
2. Pg Up and Pg Dn keys:
Moves a screened page up or down.
3. Fn key
Works as part of hot keys if used with function keys.
4. Character and Numeric Keys
Consists of keys, spacebar, numeric keys (0 - 9), and special symbol keys.
Spacebar: Inserts a white space per hit while you type.
5. Arrow keys
Moves the cursor and others in their respective directions.
![](/img.php?id=1458605&img=bg30.png)
Input/Output Device
49
X

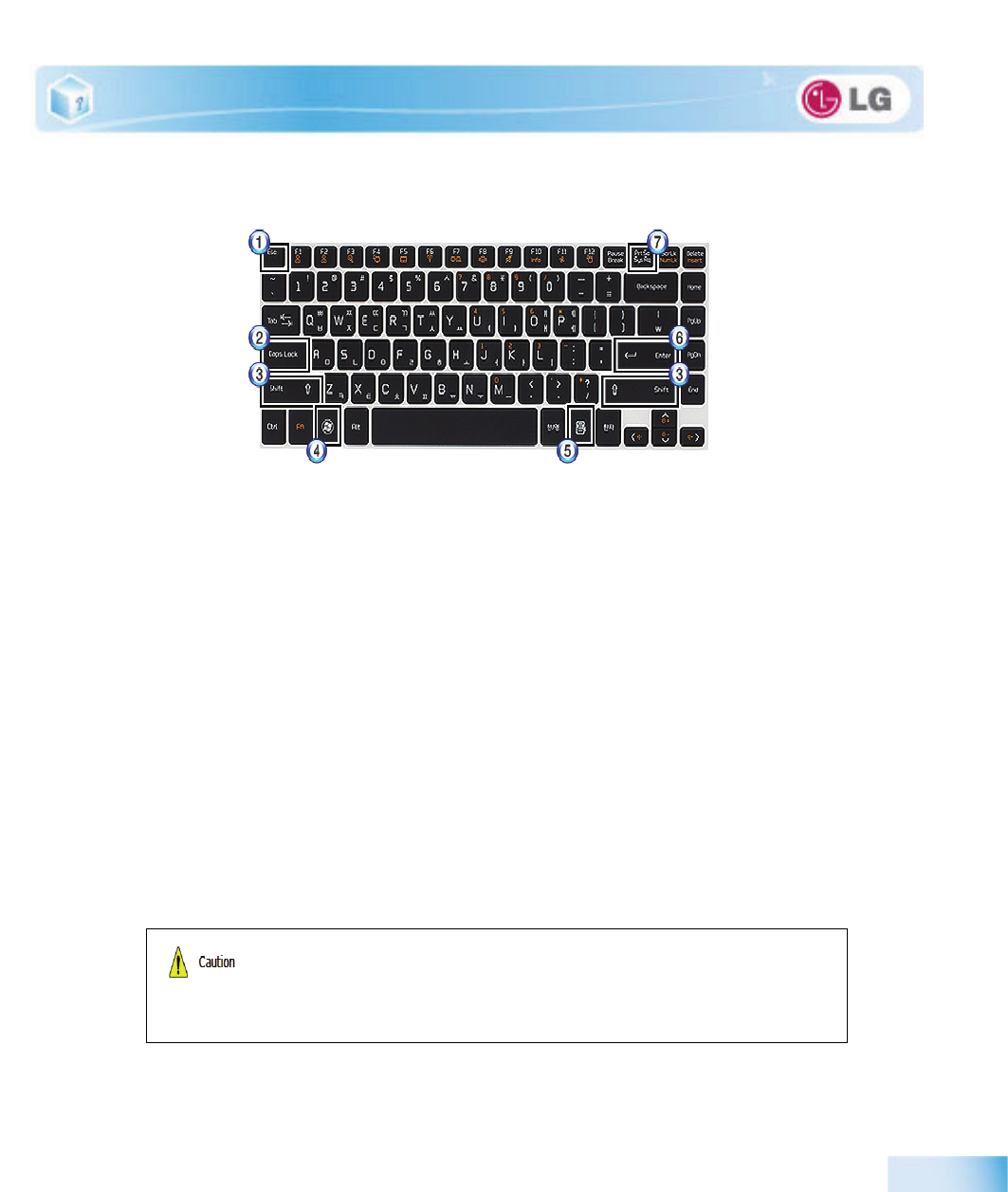

Using Special Keys
1. Esc key
Terminates or stops a program.
2. Caps Lock key
You can enter capital letters using the keyboard when this key is pressed. To type lowercase letters, press this key
again.
3. Shift key
used to type uppercase letters or as part of hot keys.
4. Windows key
Allows you to select the Windows Start button and open the Start menu.
5. Shortcut Menu Key
Allows you to open the Windows shortcut menus. (The shortcut menus are the same as those you can see when
right-clicking a file or folder.)
6. Enter key
Used to inform the computer of the completion of one command or to change the line.
7. Prt Sc key (Print Screen)
Prints or temporarily saves the current screen display.
■Spilling a watery substance like coffee or juice on the keyboard may cause a fault,
malfunction, or electric shock.
■The keys may not work properly when you use several keys at the same time while
playing a PC game. (Please change the key combination settings according to the
combinations necessary for the game play.
![](/img.php?id=1458605&img=bg31.png)
50
Input/Output Device
X
Hot Keys
By pressing the following key combinations at the same time, you can immediately start the designated
features (such as adjusting the screen brightness).
■Toggle Caps Lock key to turn the Caps Lock lamp ON or OFF. The on/off status is displayed
through the lamp on the notebook PC body.
■To change the input mode temporarily, you can press the Shift key together with the letter you
wan to enter. By doing so, you can enter an uppercase letter when the Caps Lock key is not pres-
sed and a lowercase letter when the Caps Lock key is pressed.
For more convenient use of Windows, remember the following Windows key combinations:
■Displays Windows Help.
■Displays "Search Result" window.
■Displays an input window for program execution.
■Starts Flip 3D if Windows 7 Aero is running. Flip 3D is not executed if Aero is not running.
■Minimizes the current window.
Fn + F1 Customizable hot keys. (Configurable through OSD settings)
Fn + F2 Customizable hot keys. (Configurable through OSD settings)
Fn + F3 Magnifying hot keys
![](/img.php?id=1458605&img=bg32.png)
Input/Output Device
51

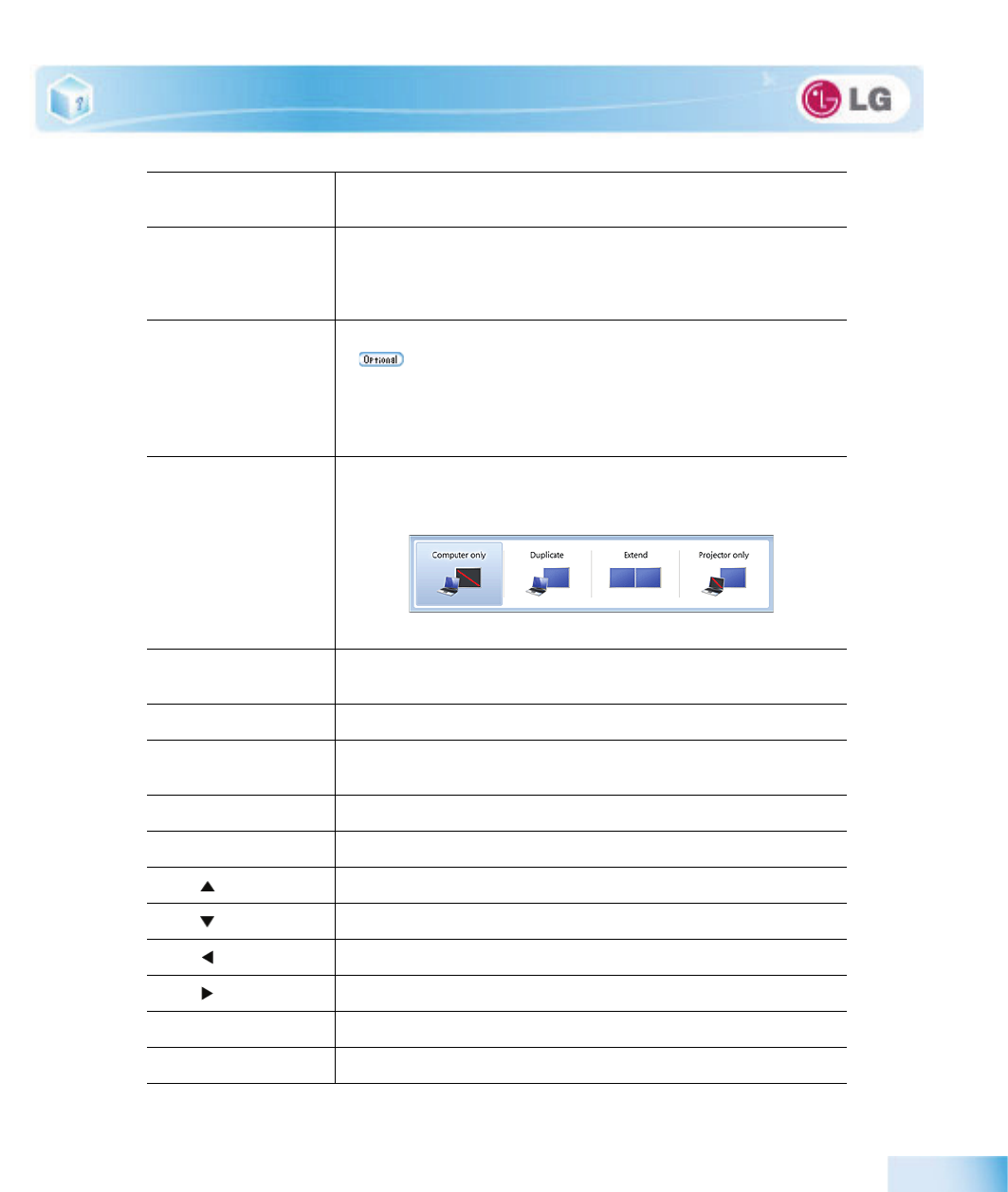

Fn + F4 Windows Executes the mode defined in the Power Save Mode. (Example:
Standby Mode, Maximum Power Saving Mode)
Fn + F5 When the user presses Fn + F5 keys, the touchpad mode toggles from Tou-
chpad Disable, to Touchpad Auto-Disable (upon connection of external
USB mouse), to Touchpad Enable in order. (Initialization takes 1 - 2 secon-
ds. It is recommended to use after the initialization.)
Fn + F6 Turns the wireless devices (incl. Wireless LAN and Bluetooth) on and off
( Bluetooth is optional, and so it may not be installed in some mo-
dels.)
Through hot key settings in the OSD Tray menu, the user can customize
[Fn]+[F6] features. Default setting is, for all wireless devices (incl. Wireless
LAN and Bluetooth), ON/Off.
Fn + F7 The following screen appears when you press Fn + F7 keys. (Windows 7
Starter does not support the Monitor Extension mode)
Select the mode you want to use and press [Enter] to switch the monitor.
Fn + F8 Switches between the SRS Off, SRS WOW HD, SRS TruSurround HD mo-
des for each pressing the Fn + F8 keys.
Fn + F9 Mute (Sound ON / Sound OFF)
Fn + F10 indicating the embedded numeric keys are available. If you press [Fn] +
[Num Lk] again, you can enter text characters.
Fn + F11 Works as [Scroll Lock].
Fn + F12 Hibernate mode (When OSD is installed)
Fn + Increases LCD brightness, which can have eight different levels.
Fn + Decreases LCD brightness, which can have eight different levels.
Fn + Turns down the volume.
Fn + Turns up the volume.
Fn + PgUp Works as Home.
Fn + PgDn Works as End.
![](/img.php?id=1458605&img=bg33.png)
52
Input/Output Device
Fn + Prt Sc Works as Pause.
Fn + Delete Works as Insert.
![](/img.php?id=1458605&img=bg34.png)
Input/Output Device
53

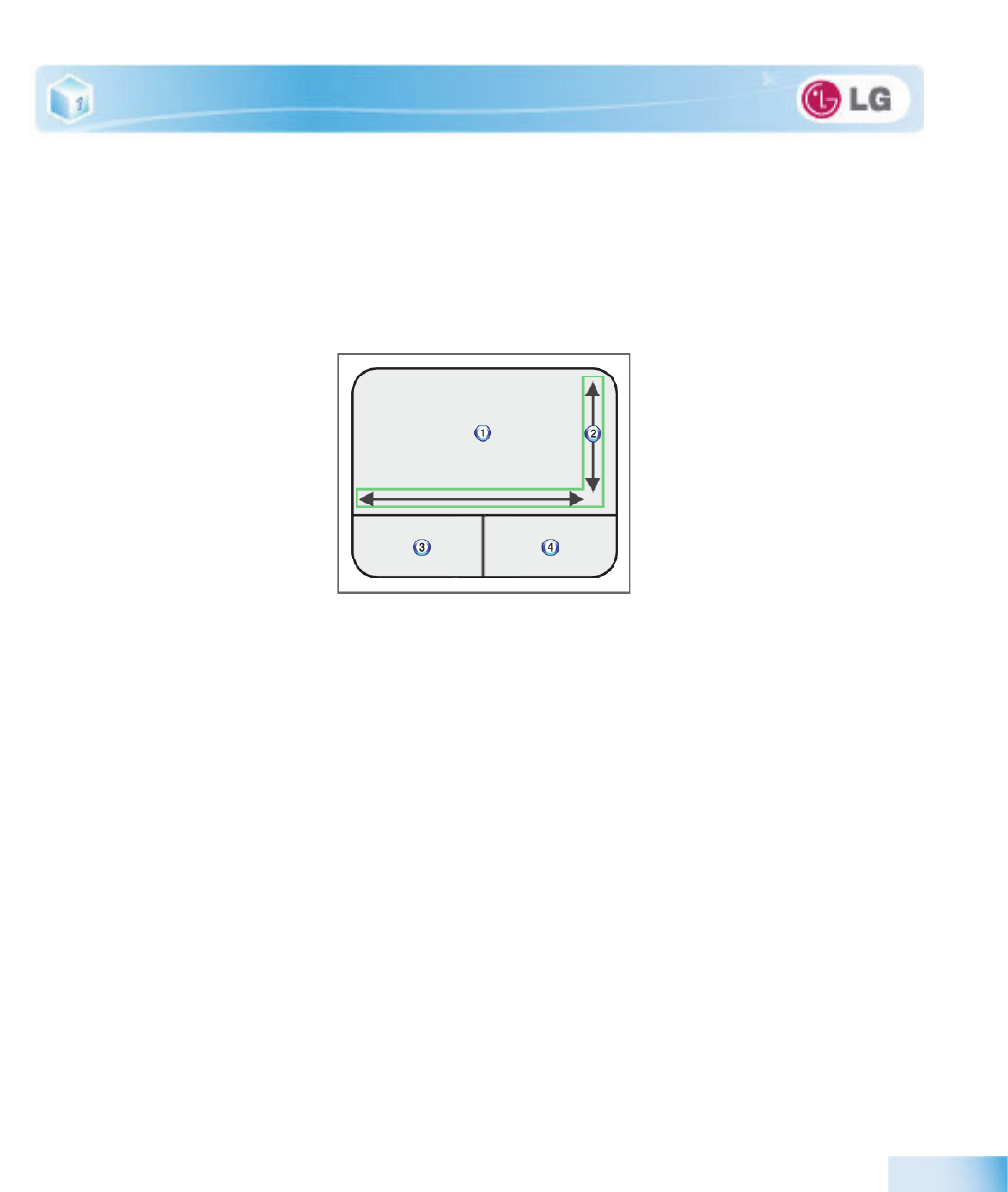

4-2. Using the Touchpad (and Mouse)
The touch pad is equipped with the scroll feature and can function as a wheel mouse. The touchpad is
compatible with the USB-type mouse in software. The touchpad functions same as the USB-type mouse
and is very useful for a program supporting mouse use like the Windows.
The touchpad and a USB-type mouse can be used together on the same system.
The touchpad scroll function is not supported in the model that supports the gesture function.
1. Touchpad
Moves the cursor.
2. Left button
Used to select or execute programs.
3. Right button
Functions as the right button of a mouse in most cases. However, the usage may differ depending on programs.
4. Scrolling area
![](/img.php?id=1458605&img=bg35.png)
54
Input/Output Device
X
Moving the Cursor (Pointer) on the Screen
Place a finger on the touchpad and glide the finger.
X
Click (Select)
Press and release the left button swiftly. (Or tap the touchpad once.)
Do this, for example, to select a menu or icon and to place the cursor to type on a word processor file.
X
Double-click (Execute)
Press and release the left button twice swiftly in a series. (Or tap the touchpad twice.)
Do this, for example, to run a program after selecting its execution file (or icon).
Notes on Using the Touchpad
■Do not use a sharp object such as a pen on the pad nor peel the cover. It may cause
an impairment.
■Do not place more than one finger, and do not use while wearing a glove or when the
hand is wet. The Touchpad will not work properly. Oil or dirt at the finger tip can
also cause an impairment.
■The touchpad is sensitive. Do not give excessive load or maintain an uncomfortable
position. Otherwise, a finger or wrist injury may be resulted in.
![](/img.php?id=1458605&img=bg36.png)
Input/Output Device
55
X
Drag & Drop
To drag, click and hold an icon, for example, and move it to another location.
To drop, release the dragged icon in the location you want.
To move a file icon, for example, to another folder or to Recycle Bin, place the cursor (or the pointer)
on the icon, press and hold the left button, and glide another finger on the touchpad until the icon reaches
the aimed location. After reaching the destination, release the left button.
1. Drag
Glide one finger on the pad with another finger pressing and holding the left button.
2. Drop
Release the left button to drop. (By doing this, you could drop a file into Recycle Bin, if you want to.)
X
Click-free Dragging
When activated, this feature allows you to drag an icon without pressing and holding the left button.
Do the following to activate the click-free dragging feature. If it has been done, pressing the left button
for an extensive time replaces pressing and constant holding so that you can drag without holding the
left button.
![](/img.php?id=1458605&img=bg37.png)
56
Input/Output Device

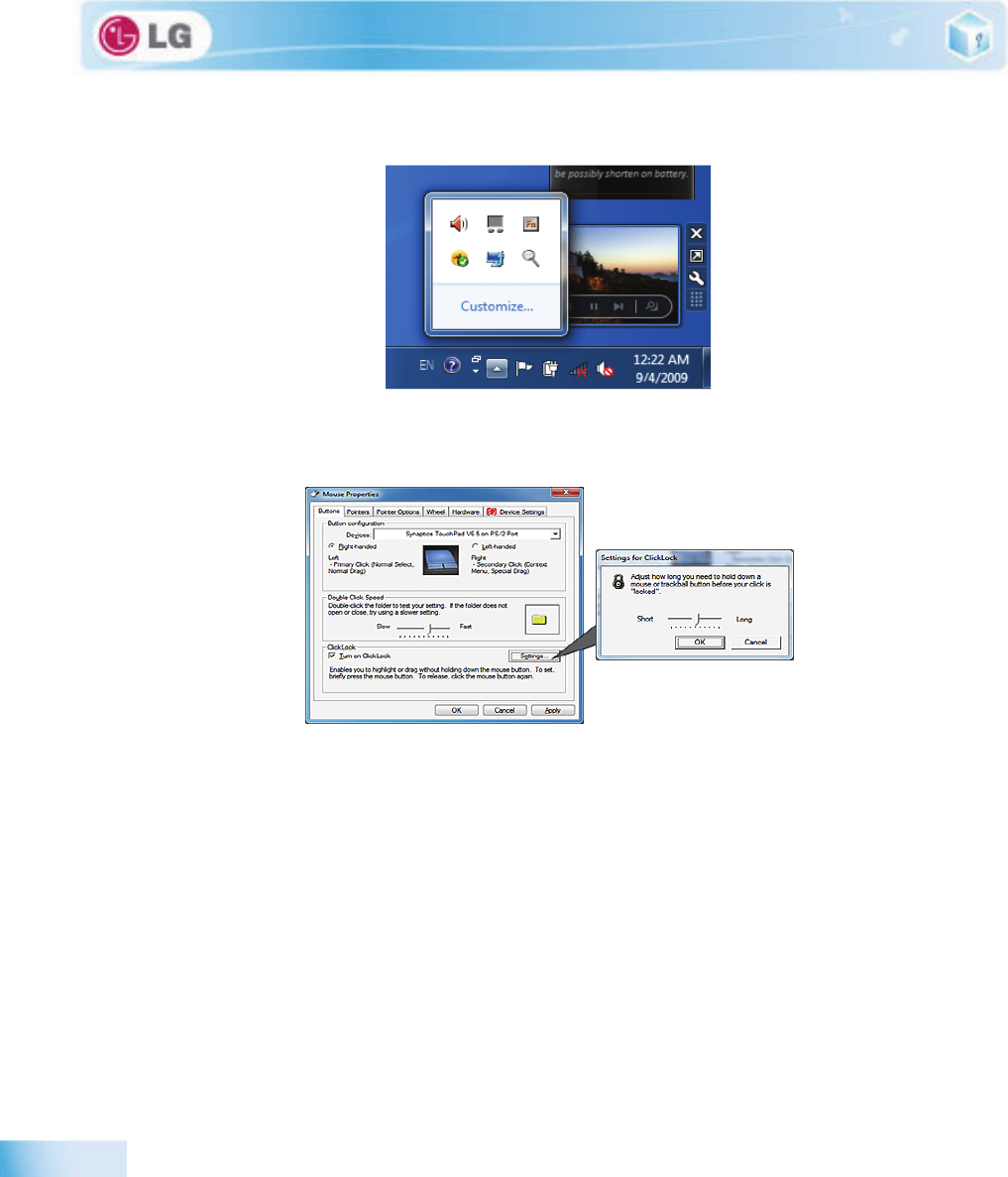

1. Click [Mouse Properties] icon in Notification Area.
2. Select Activate click-free dragging (T) and click [Setup] button to adjust the time span for which you
should press the left button to execute the feature.
X

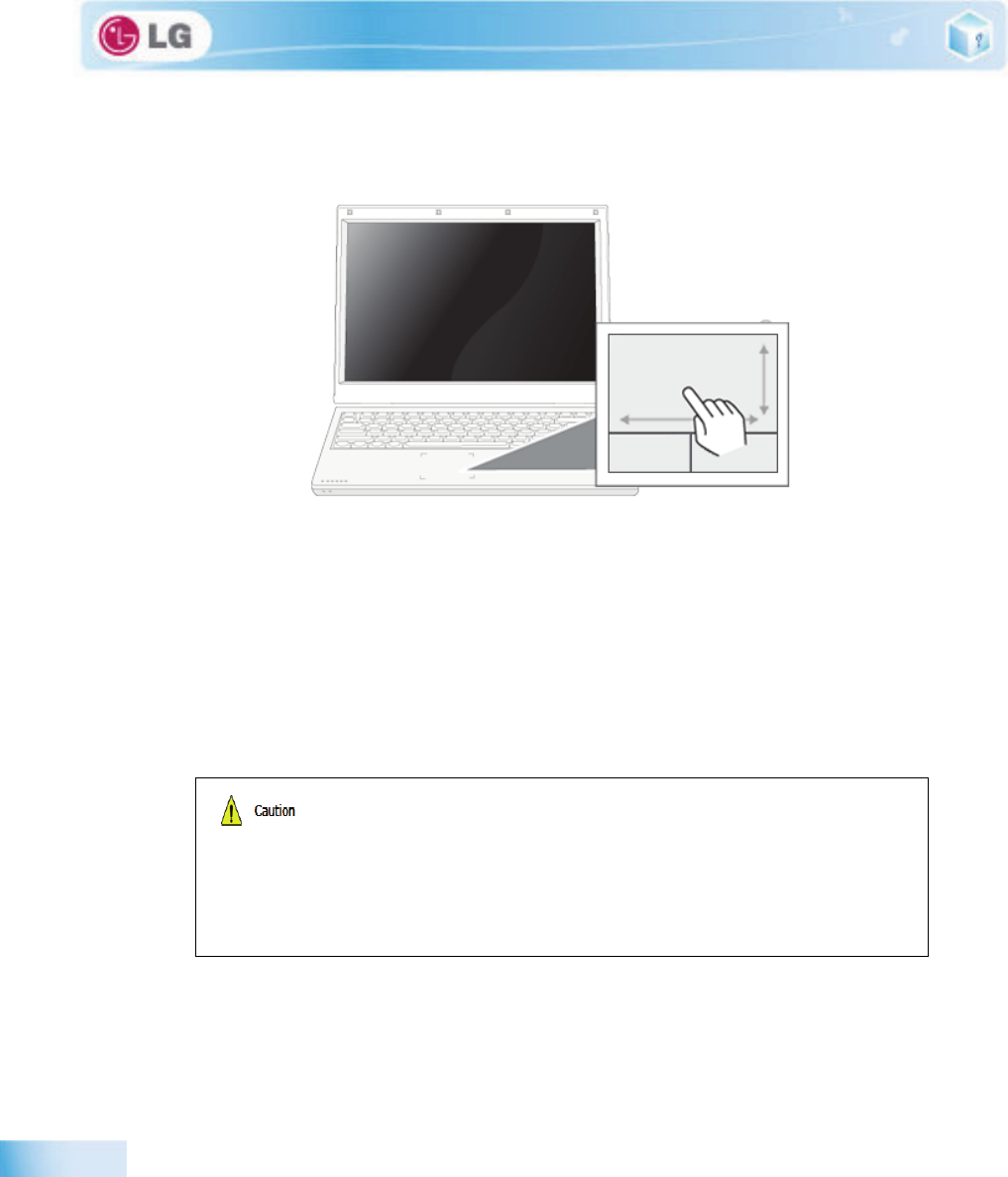

Scrolling
The touch pad supports the scrolling feature.
To scroll vertically or horizontally, glide your finger along the right or bottom edge. Now the screen
follows your finger movements if there is a scroll bar on either edge.
![](/img.php?id=1458605&img=bg38.png)
Input/Output Device
57
Scroll area may differ by model type.
![](/img.php?id=1458605&img=bg39.png)
58
Input/Output Device
4-3. Using Touchpad Gesture
The touchpad gesture function allows you to use Windows programs more easily by utilizing different
touching methods.
The touchpad gesture function may not work in some applications that are not provided by Windows.
The touchpad gesture function may not work in some models.
X
Using Image Slide Show/ Internet Explorer
Select Start > My Computer and open the image file saved in the notebook PC or USB memory.

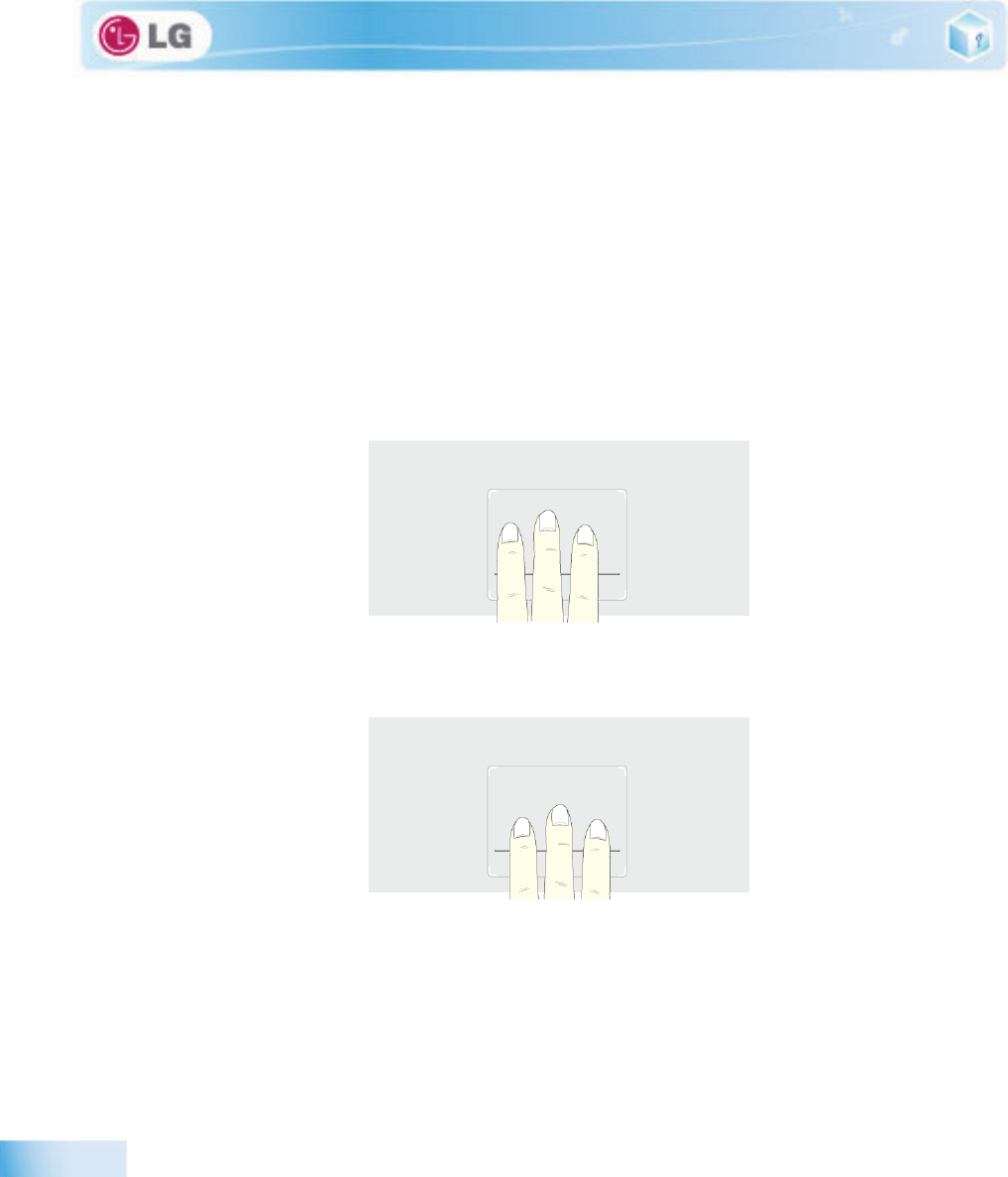

1. Go to Next/Previous Image: Place three fingers on the touchpad and move to the left or right to go to
the previous or next image respectively. (In Internet Explorer, the previous or next page is displayed
respectively).
2. Switch to Full Screen: Place three fingers on the touchpad and move to the top or down to maximize
the slide window or return to its original size respectively.
![](/img.php?id=1458605&img=bg3a.png)
Input/Output Device
59

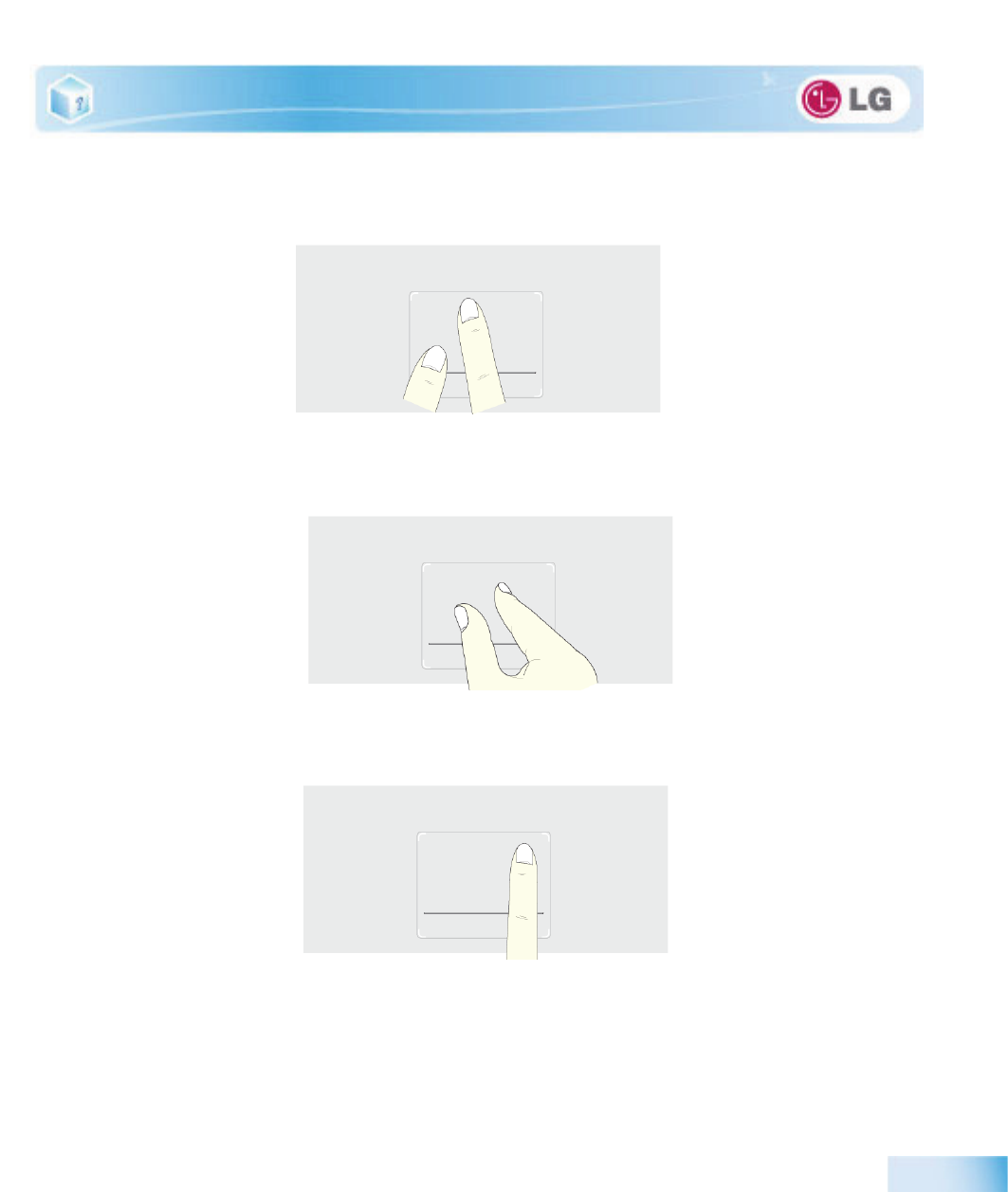

3. Rotate Image: Place the thumb on the bottom right of the touchpad and move another finger in a spiral
pattern on the touchpad to rotate the slide.
4. Zoom an Image: Place the thumb and index finger on the touchpad and increase or decrease the dis-
tance between the fingers to enlarge or reduce the image respectively, as shown in the figure.
5. Scroll Using One Finger: Place the index finger on the top right of the touchpad and move to the left
or right in a circular pattern to scroll the screen down or up respectively.
![](/img.php?id=1458605&img=bg3b.png)
60
Input/Output Device
6. Scroll Using Two Fingers: Place two fingers on the touchpad and move up/down/left/right to scroll
the screen.
X
Setting Touchpad Functions
You can change the touchpad functions or enable/disable the gesture function.
The figures herein may differ by language selection and be subject to change without prior notice.

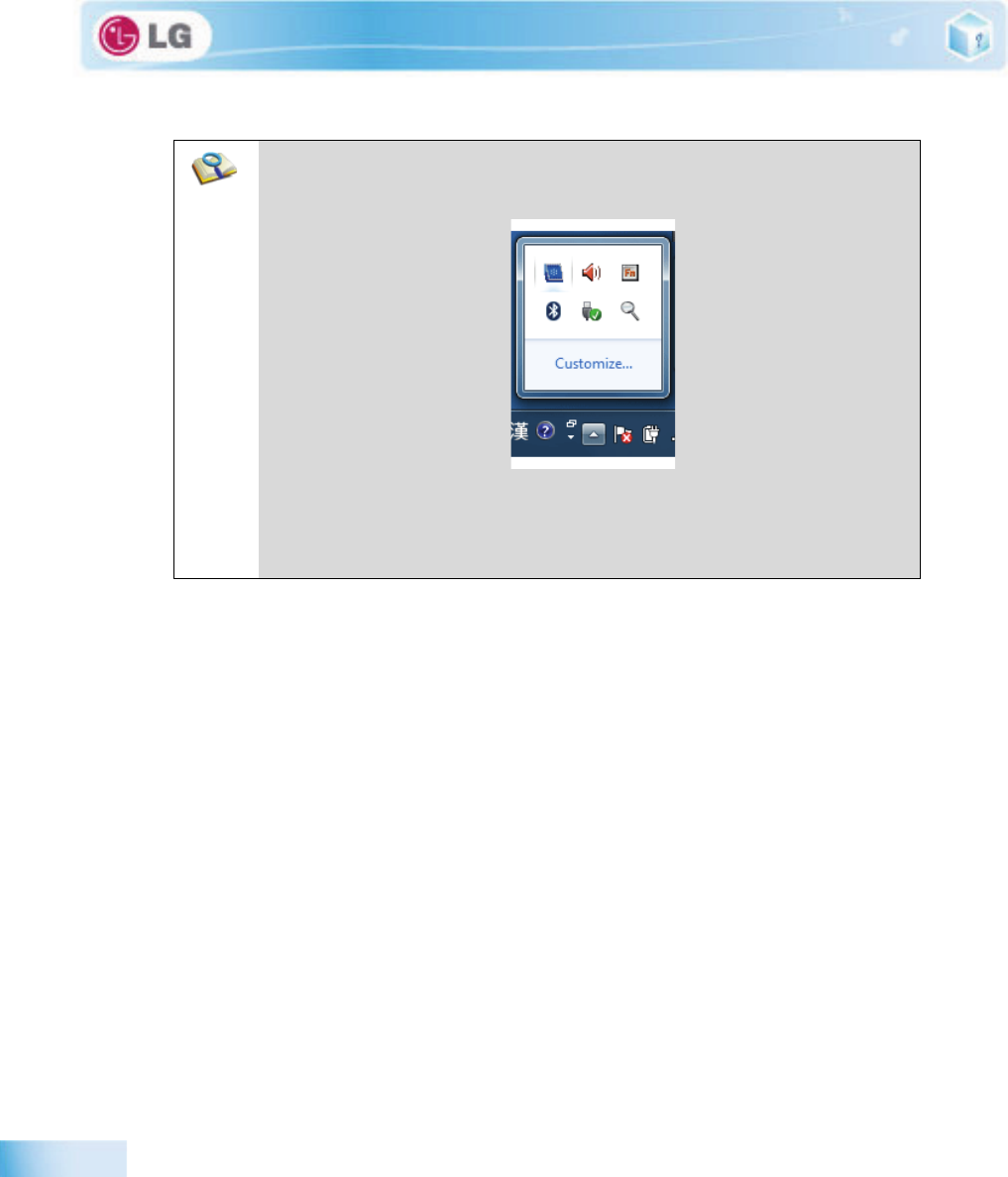

1. Click [Mouse Properties] icon in Notification Area.
If you cannot find the Mouse Properties icon in Notification Area, Select Start > Control Panel > View by >
Small icons > Mouse menu.
![](/img.php?id=1458605&img=bg3c.png)
Input/Output Device
61

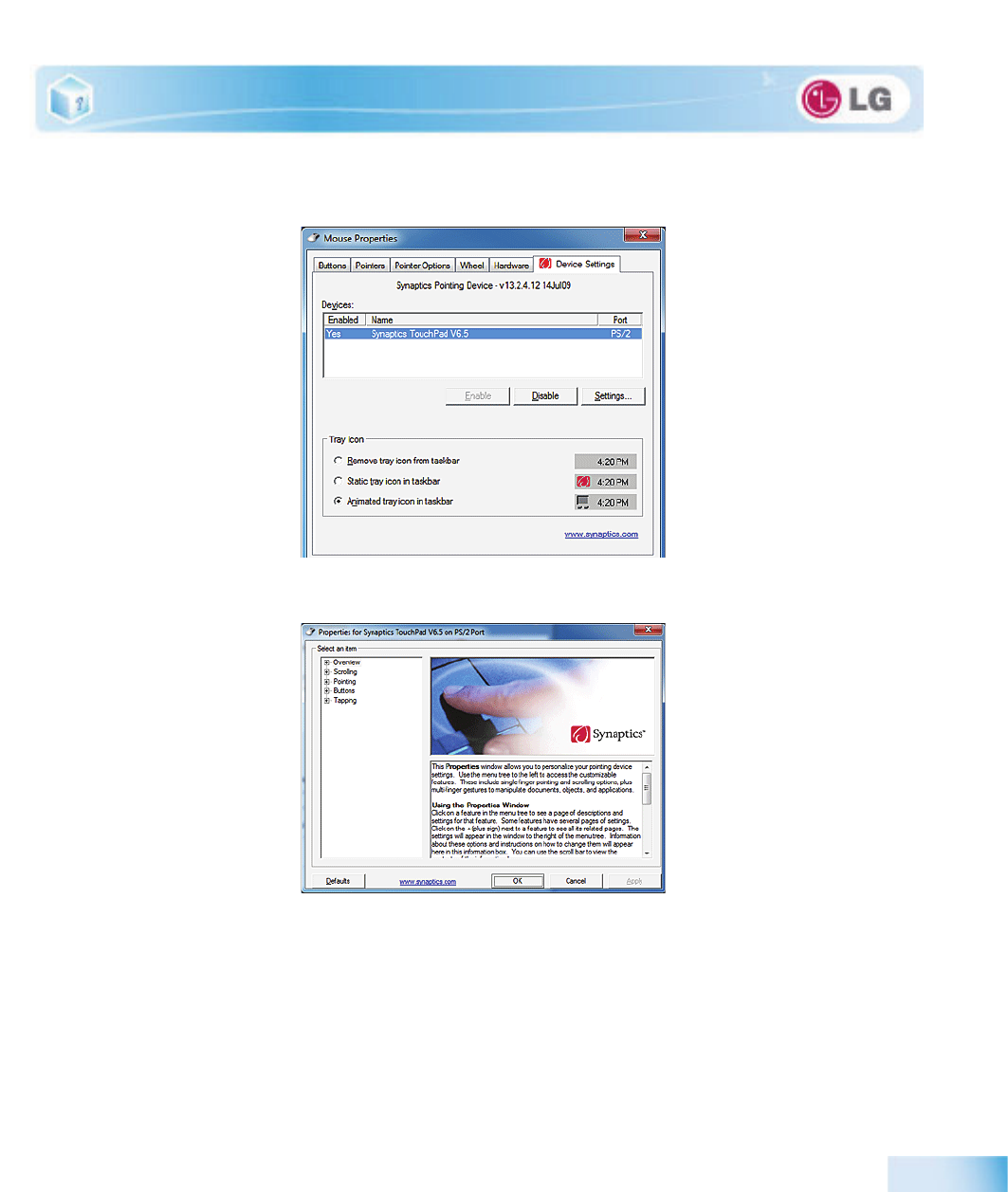

2. When the following screen appears, select the [Device Settings] tab and click [Settings...].
3. When the following screen appears, change the settings as required and click [OK].
![](/img.php?id=1458605&img=bg3d.png)
62
Input/Output Device
![](/img.php?id=1458605&img=bg3e.png)
5.Connecting Peripherals
![](/img.php?id=1458605&img=bg3f.png)
64
Connecting Peripherals

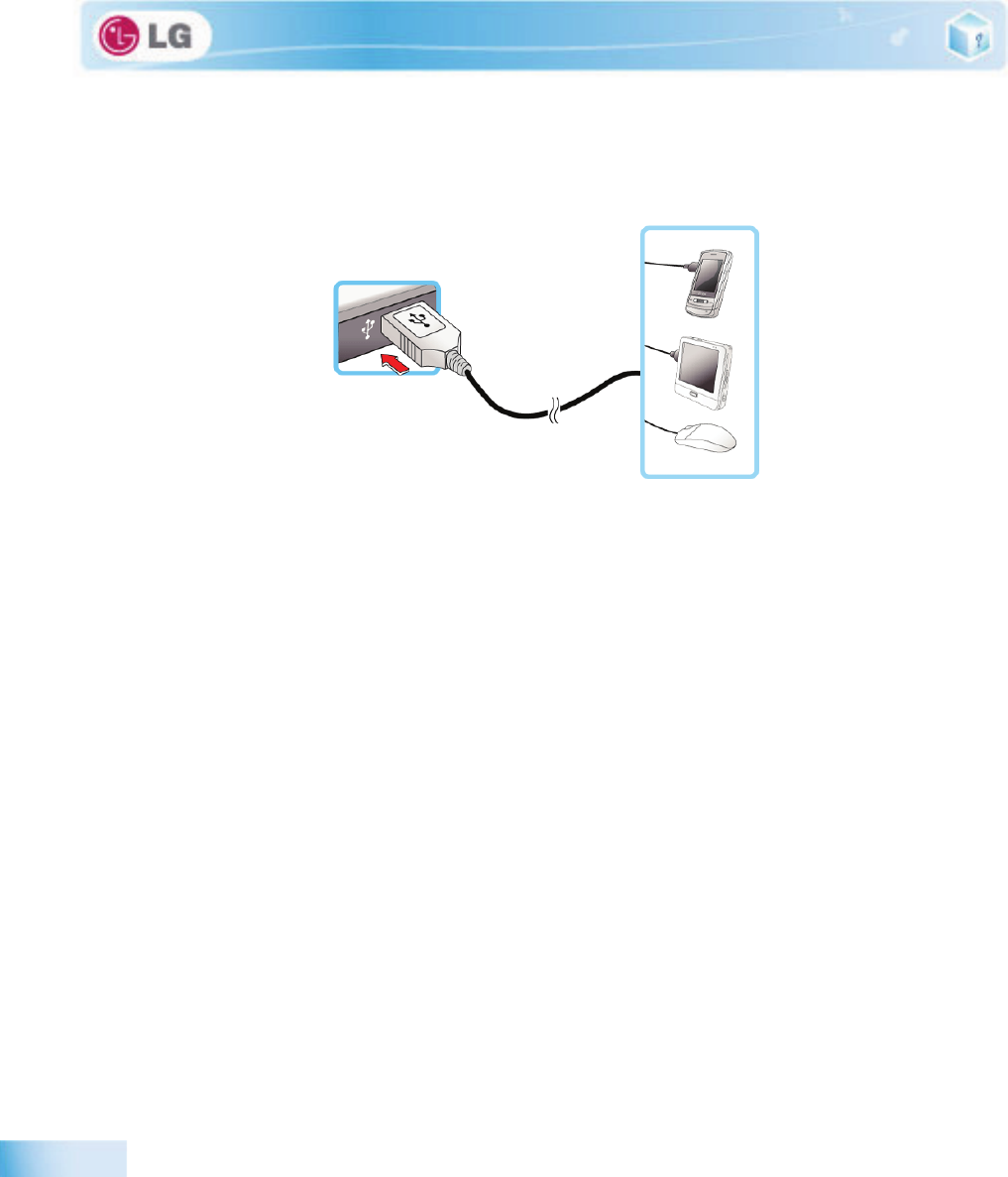

5-1. Connecting USB 2.0
Following peripherals can be connected to the Notebook PC.
Those peripherals need to be purchased separately.
The notebook PC can be connected with other USB supporting devices such as USB keyboard, Hub,
digital camera, etc.
![](/img.php?id=1458605&img=bg40.png)
Connecting Peripherals
65

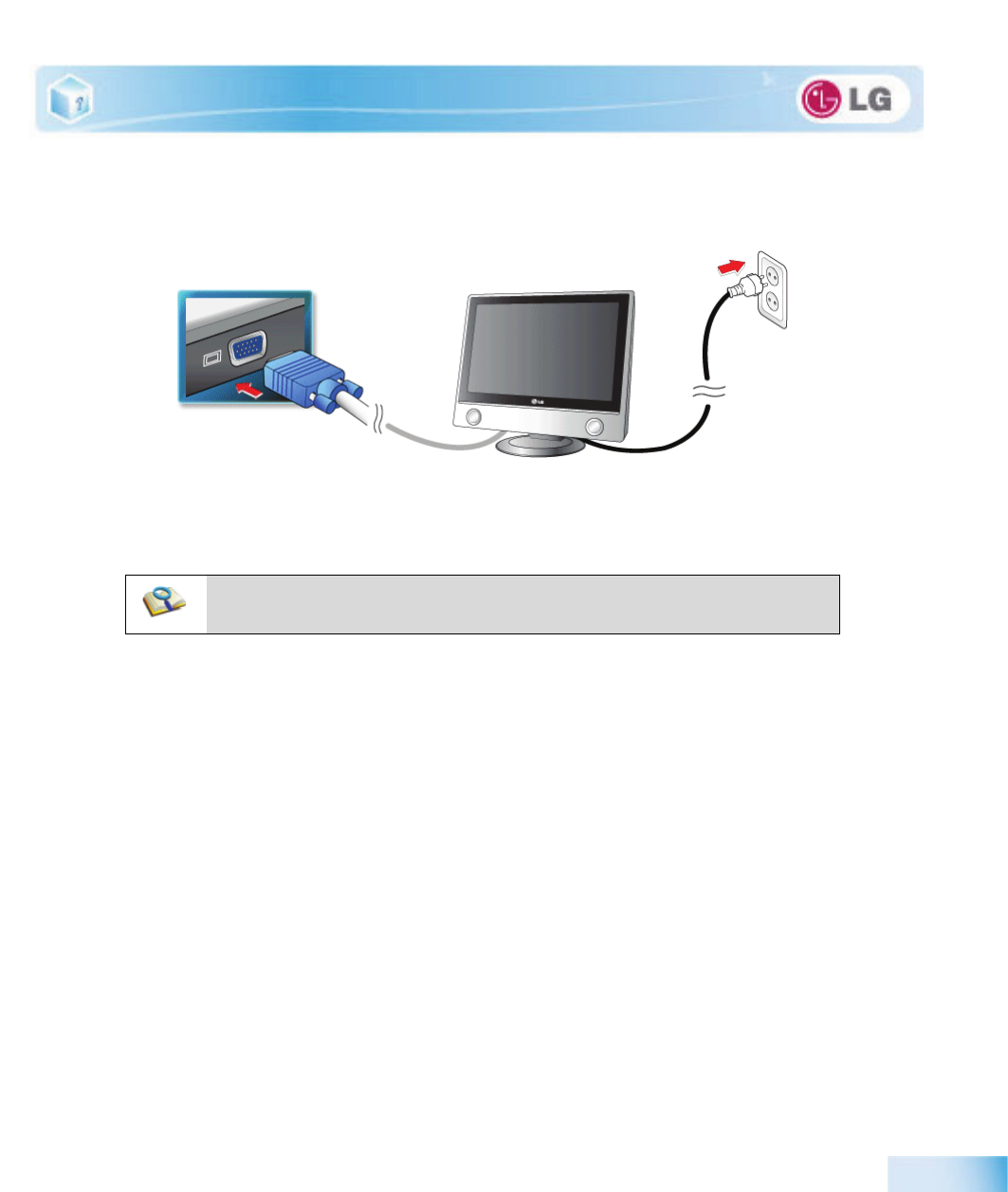

5-2. Connecting Monitor
Monitor Toggle Features (Converting the Screen Using the Shortcut Key)
If you have an external monitor connected to the computer, press the Fn + F7 keys to rotate the display mode be-
tween LCD only, Monitor only, and LCD + Monitor both in order.
■Ensure the monitor power is off before connect external monitor to the notebook pc.
![](/img.php?id=1458605&img=bg41.png)
66
Connecting Peripherals
5-3. Using IVT BlueSoleil
IVT BlueSoleil is a Windows-based IVT software which establishes wireless connection between Blu-
etooth-enabled desktop or notebook PC and other Bluetooth-enabled devices. IVT BlueSoleil allows
the user to access various Bluetooth-enabled digital devices such as camera, cell phone, headset, printer,
GPS receiver, etc. It can also establish network and exchange data with other Bluetooth-enabled com-
puter or PDA.
Bluetooth is optional, and so it may not be installed in some models.
The figures herein may differ by language selection and be subject to change without prior notice.
For more details about how to use Bluesoleil, refer to the corresponding help.
X

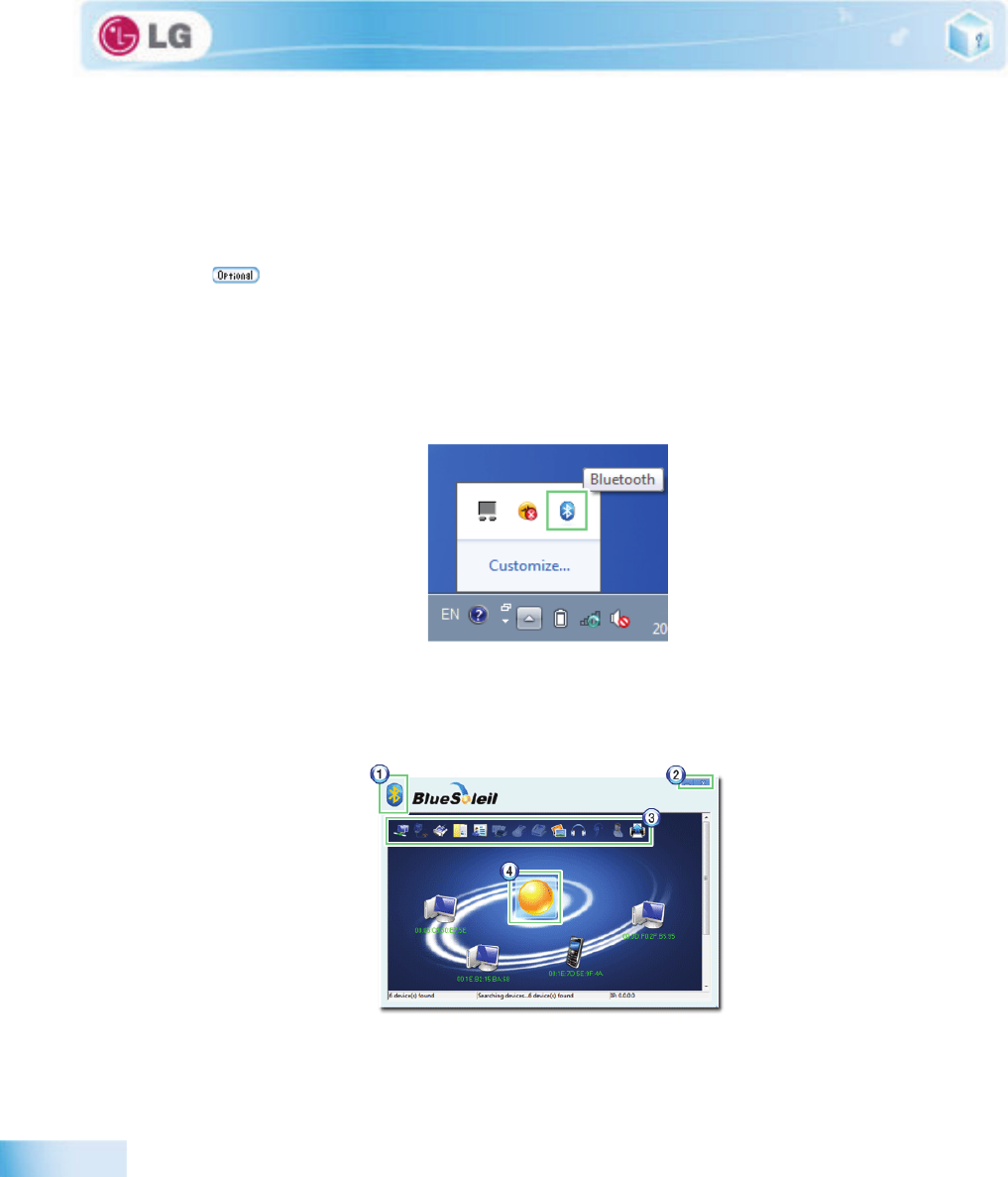

Bluesoleil
1. Double-click the icon on the right bottom of the taskbar.
2. Bluesoleil screen appears.
If Bluetooth is turned on, it searches the Bluetooth devices in the area and displays them on the screen.
If a Bluetooth device is not displayed on the screen, press [F5] or [Fn]+[F6] to see if Bluetooth is turned on.
1. Bluesoleil Menu Button: Provides menus such as Find Device, Sorting Criteria, My Device and Help.
2. Minimize/Exit Button: Minimizes the Bluesoleil window or exits the program.
![](/img.php?id=1458605&img=bg42.png)
Connecting Peripherals
67
3. Available Services: Displays the list of services available for a Bluetooth device.
4. Bluetooth Device Status: Displays the Bluetooth device information and their status for the current notebook
PC.
![](/img.php?id=1458605&img=bg43.png)
68
Connecting Peripherals
![](/img.php?id=1458605&img=bg44.png)
6.System Setup
![](/img.php?id=1458605&img=bg45.png)
70
System Setup
6-1. Starting System Setup
System setup means storing the hardware configuration information of the computer in the CMOS
RAM. Through system setup, the computer retrieves various information including current date and
time, memory capacity, and hard disk capacity and type.
You setup the system when you set passwords, change the booting order, and add new peripheral devic-
es to the machine.
Items displayed on the Setup screen may differ by model type and spec.
■ Refer to [
Setting the Password
].
■ Refer to [
Changing or Deleting the Password
].
■ Refer to [
Restore the Default Settings
].

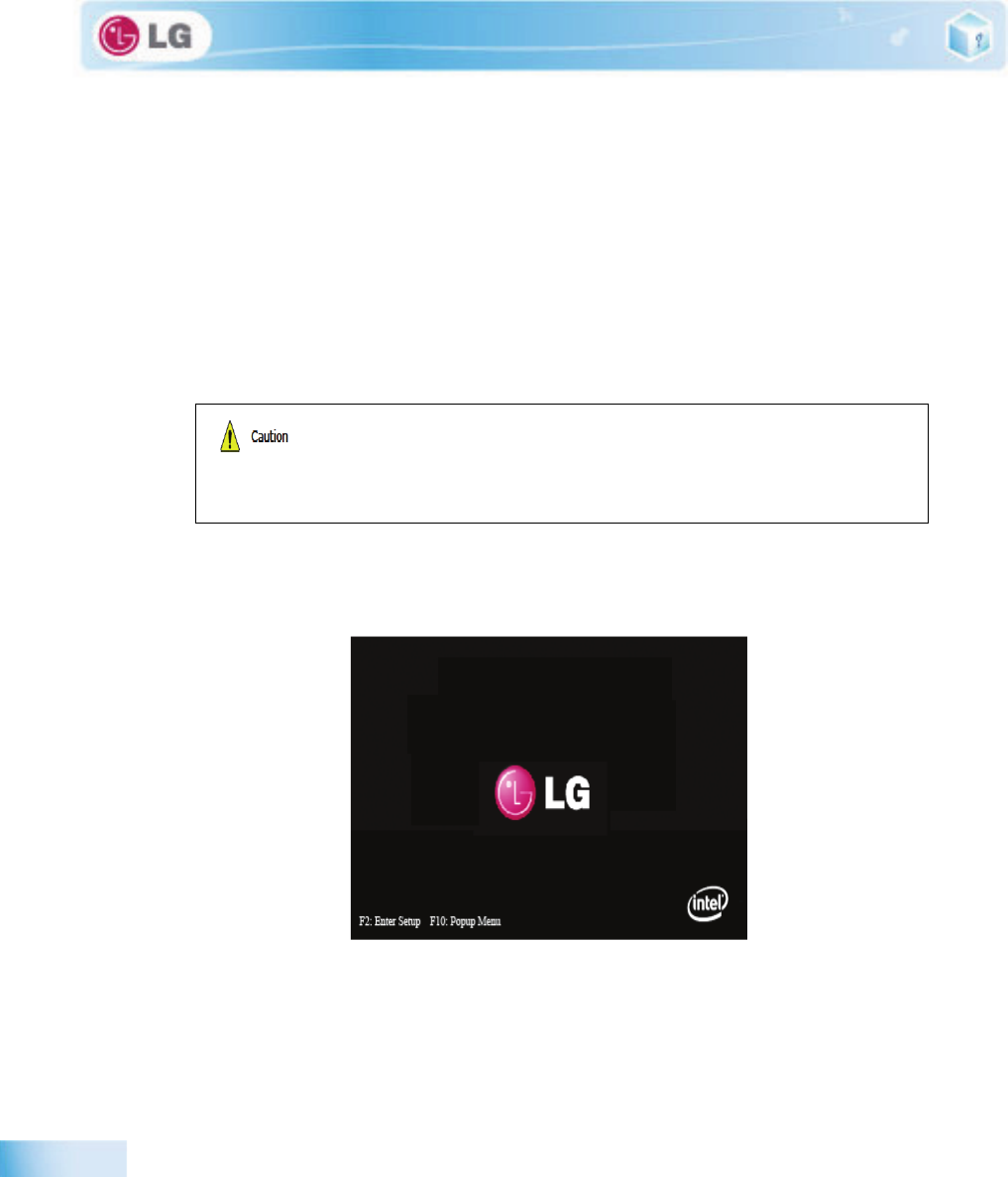

1. Turn on the notebook PC.
2. Press [F2] while "[F2]: BIOS Setup, [F12]: Boot Menu" appears on the bottom of the LG logo
screen.
■Do not change the system setup unless necessary. Incorrect system setup may cause
errors during system operation. Take caution when changing the system setup.
■For performance improvement, CMOS setup menu configuration and the initial set-
up status may be changed and may become different from images included in the
user manual.
![](/img.php?id=1458605&img=bg46.png)
System Setup
71

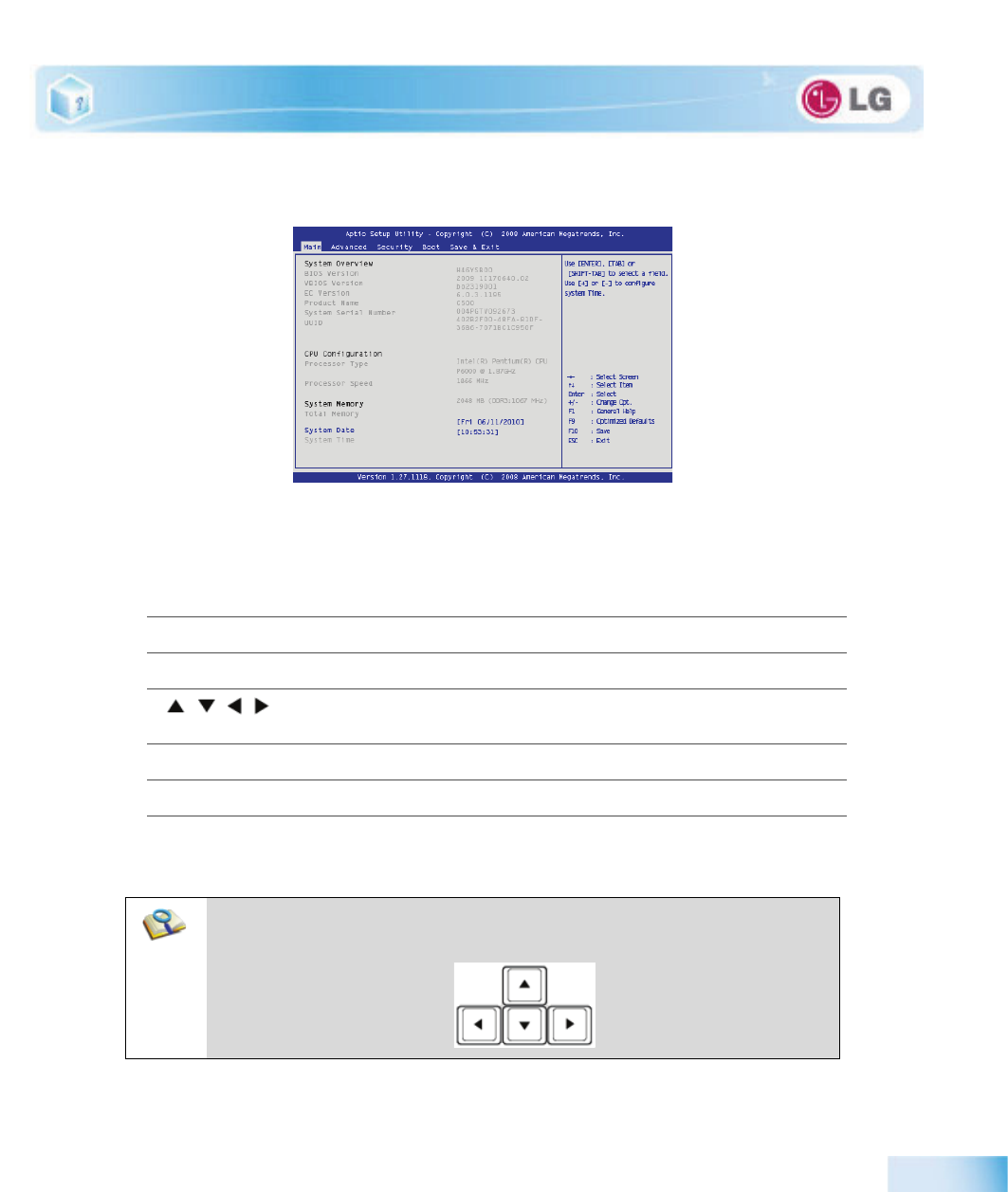

3. A while later, the system setup home screen appears.
X
Keys Used in System Setup
Keys Function
Enter Selects the current item.
Esc To deselect the current item or to move to the previous screen.
, , , (Arrow
keys)
Moves the cursor up, down, left, and right.
+, - Increases or decreases the item value.
F9 Recovers the default system settings.
F10 Stores new contents or ends the system setup.
Cursor Keypad
■These keys are used to move the cursors up, down, right, and left.
![](/img.php?id=1458605&img=bg47.png)
72
System Setup
6-2. Setting the Password
This process is to set a password so that other people cannot use the notebook PC or change the settings.
The user can set a password while booting the system or setting up the system.
X
Set Supervisor Password
The password prevents unauthorized people from accessing the notebook PC. By default, no password
is set for the machine. If an unauthorized person changes the password in the CMOS Setup, you will be
unable to access the system.

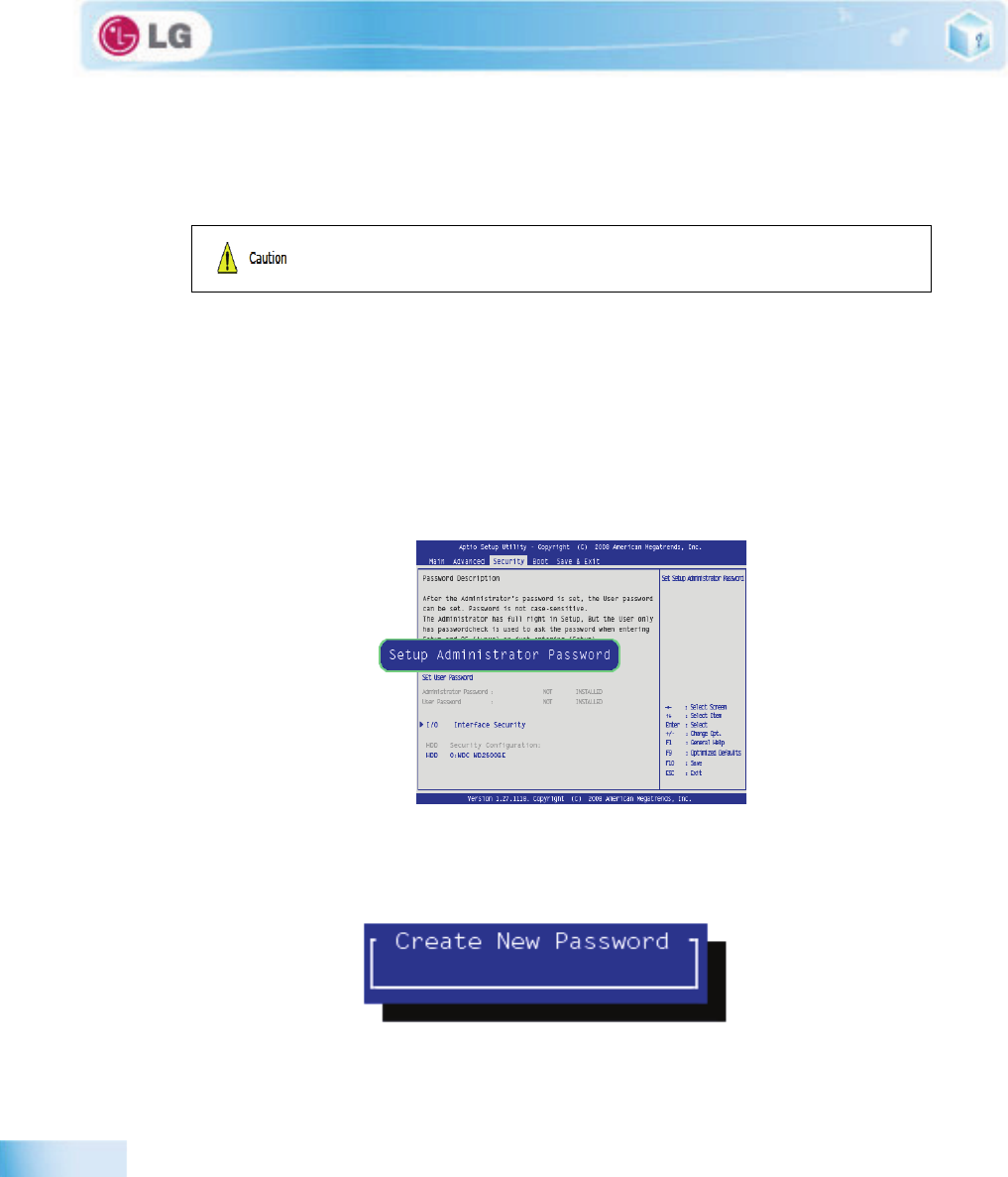

1. After opening the system setup screen, use the arrow keys to move to [Security].
2. When the following screen appears, select [Set Supervisor Password] with the arrow keys and press
[Enter].

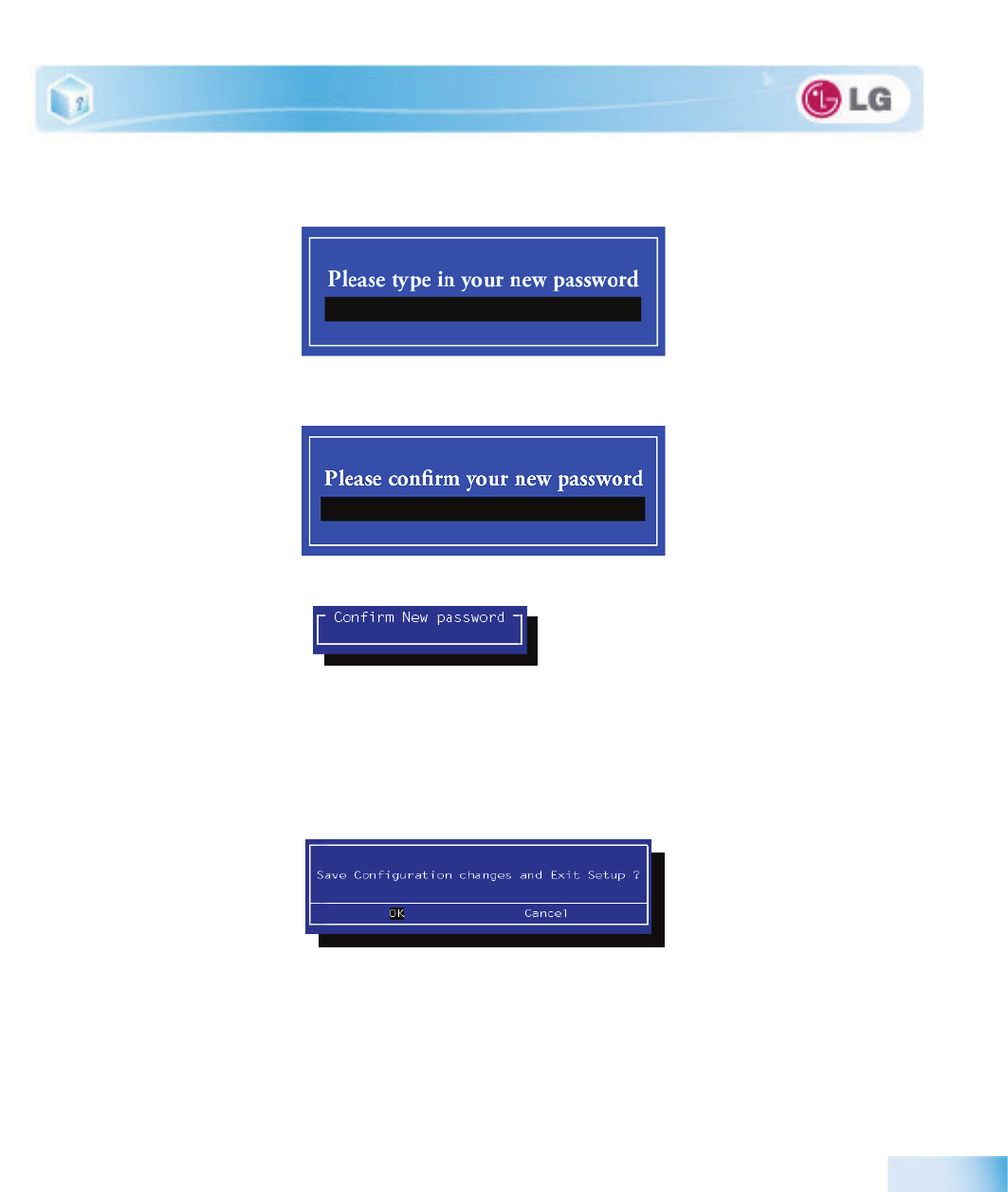

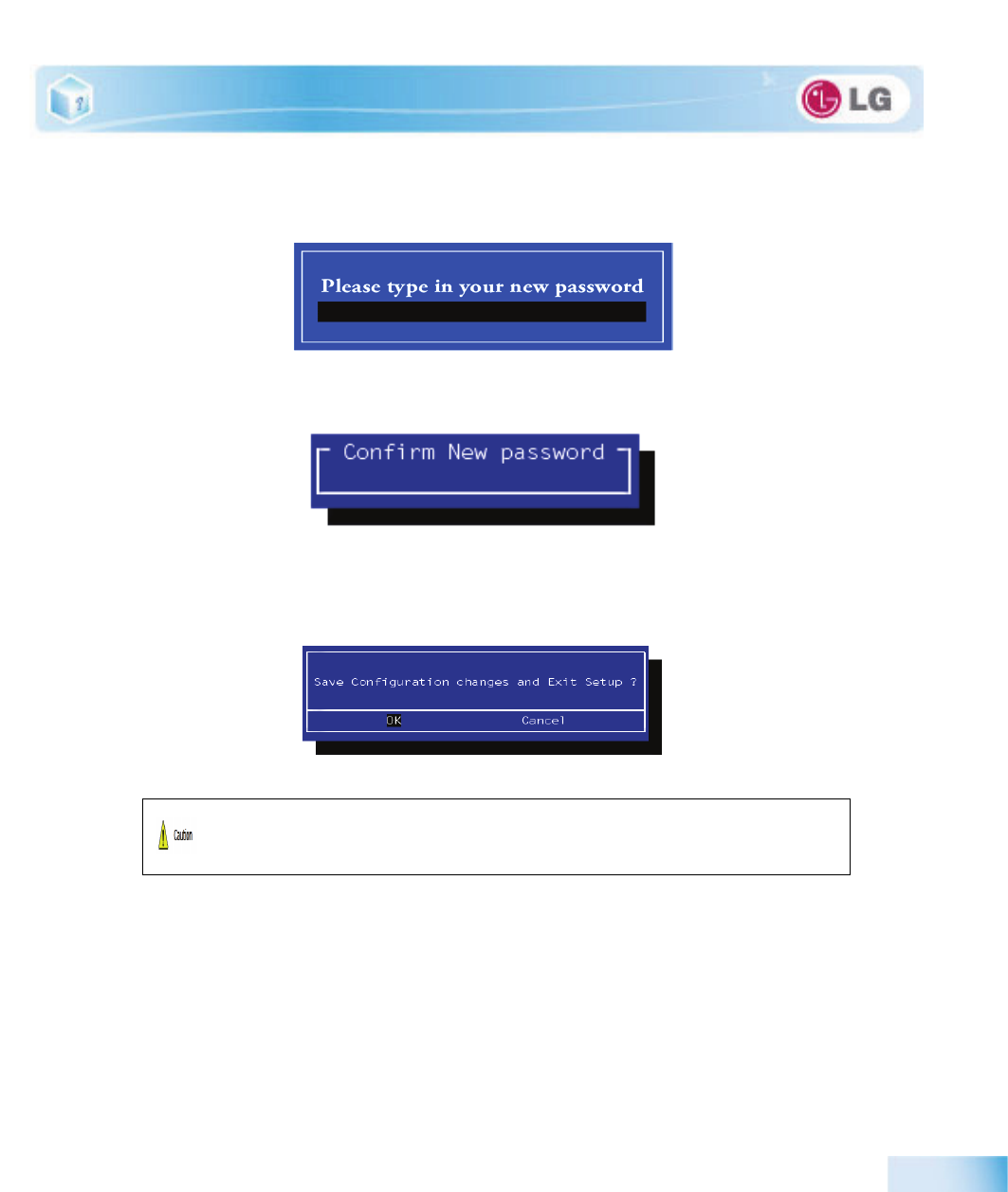

3. When the following message appears, input the password and press [Enter]. The password must not
exceed 8 characters of letter (A - Z), number (0 - 9) or their combination.
■Without the registered password, if any, access to the system will be denied. Write
down and keep the password in a safe place.
![](/img.php?id=1458605&img=bg48.png)
System Setup
73

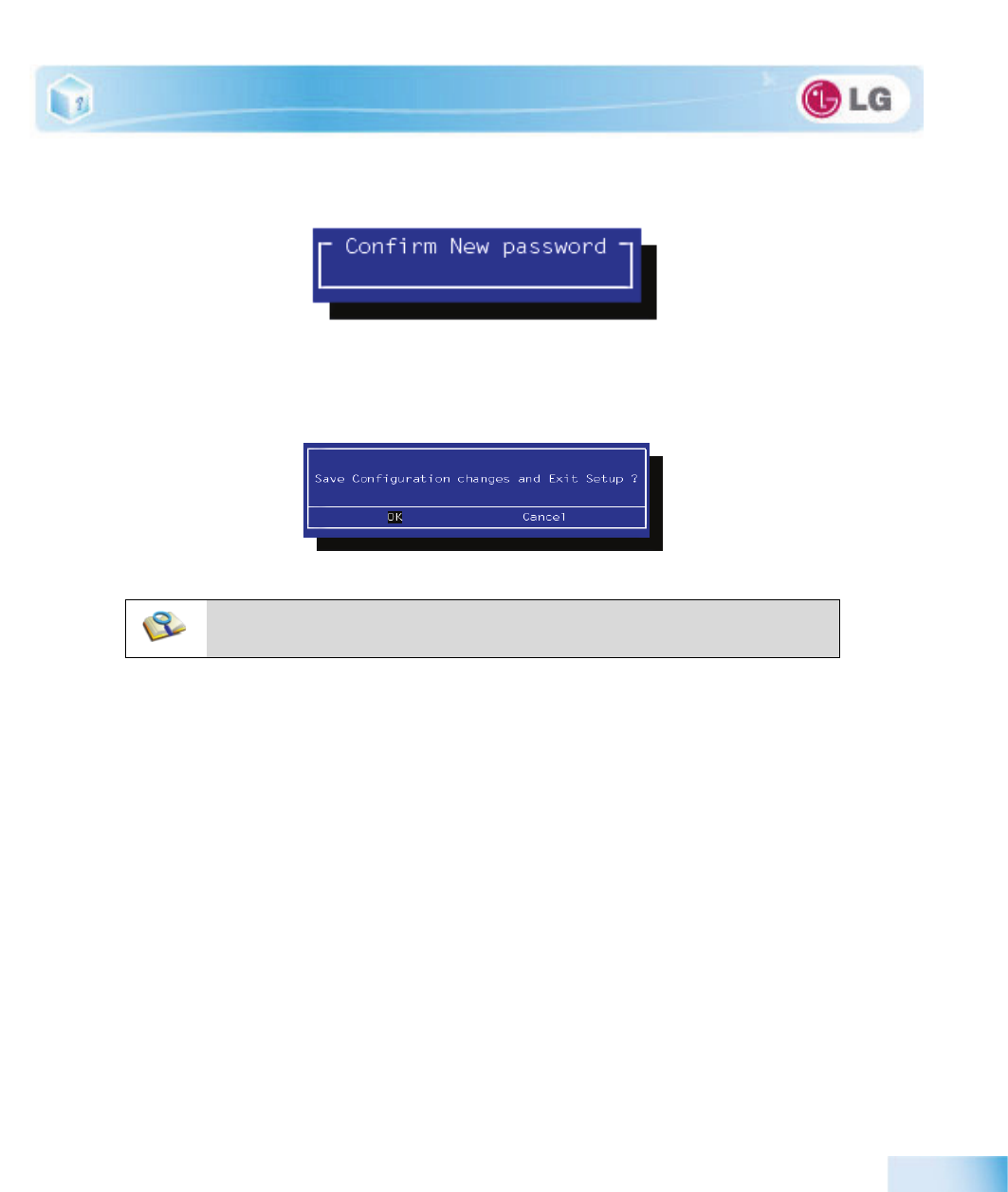

4. When the following message appears, press [Enter].
5. To save the changes in system setup, press [F10].
6. When the following message appears, select [Yes] and press [Enter]. The notebook PC will restart.
X
Set User Password
The password set by the Set User Password process is lower than that set by the Set Supervisor Pass-
word process, and so the user can use theSet User Password only after setting a password in the Set
Supervisor Password menu.
1. After opening the system setup screen, use the arrow keys to move to Security .
■With Supervisor Password, the user will be authorized to set all items in the CMOS setup menu.
In case other people also use the notebook PC, it is recommended to set the User Password.
![](/img.php?id=1458605&img=bg49.png)
74
System Setup

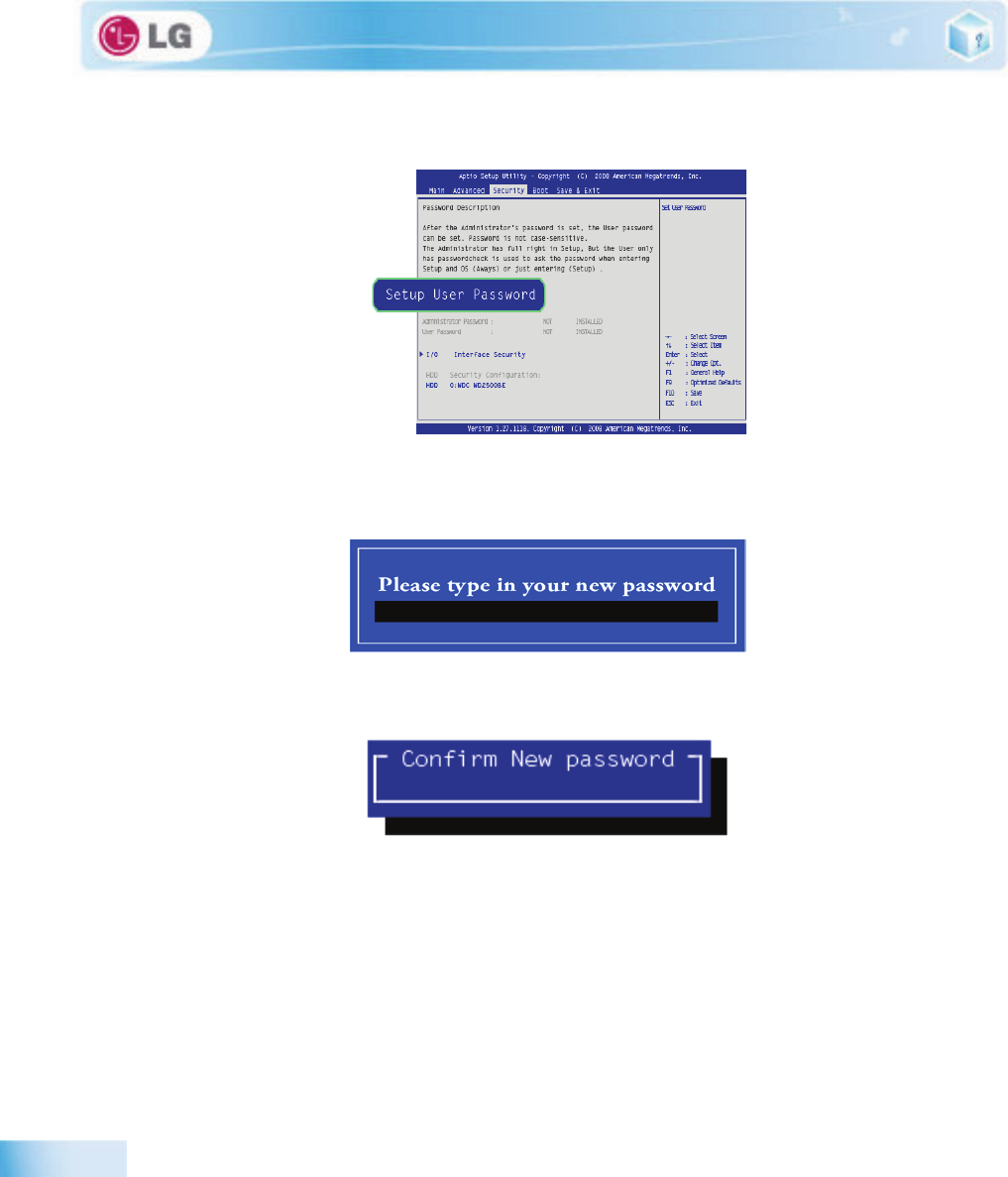

2. When the following screen appears, select Set User Password with the arrow keys and press [Enter].
3. When the following message appears, input the password and press [Enter]. The password must not
exceed 8 characters of letter (A - Z), number (0 - 9) or their combination.
4. When the following message appears, press [Enter].
5. To save the changes in system setup, press [F10].
![](/img.php?id=1458605&img=bg4a.png)
System Setup
75
6. When the following message appears, select [Yes] and press [Enter]. The notebook PC will restart.
X
Power on Password

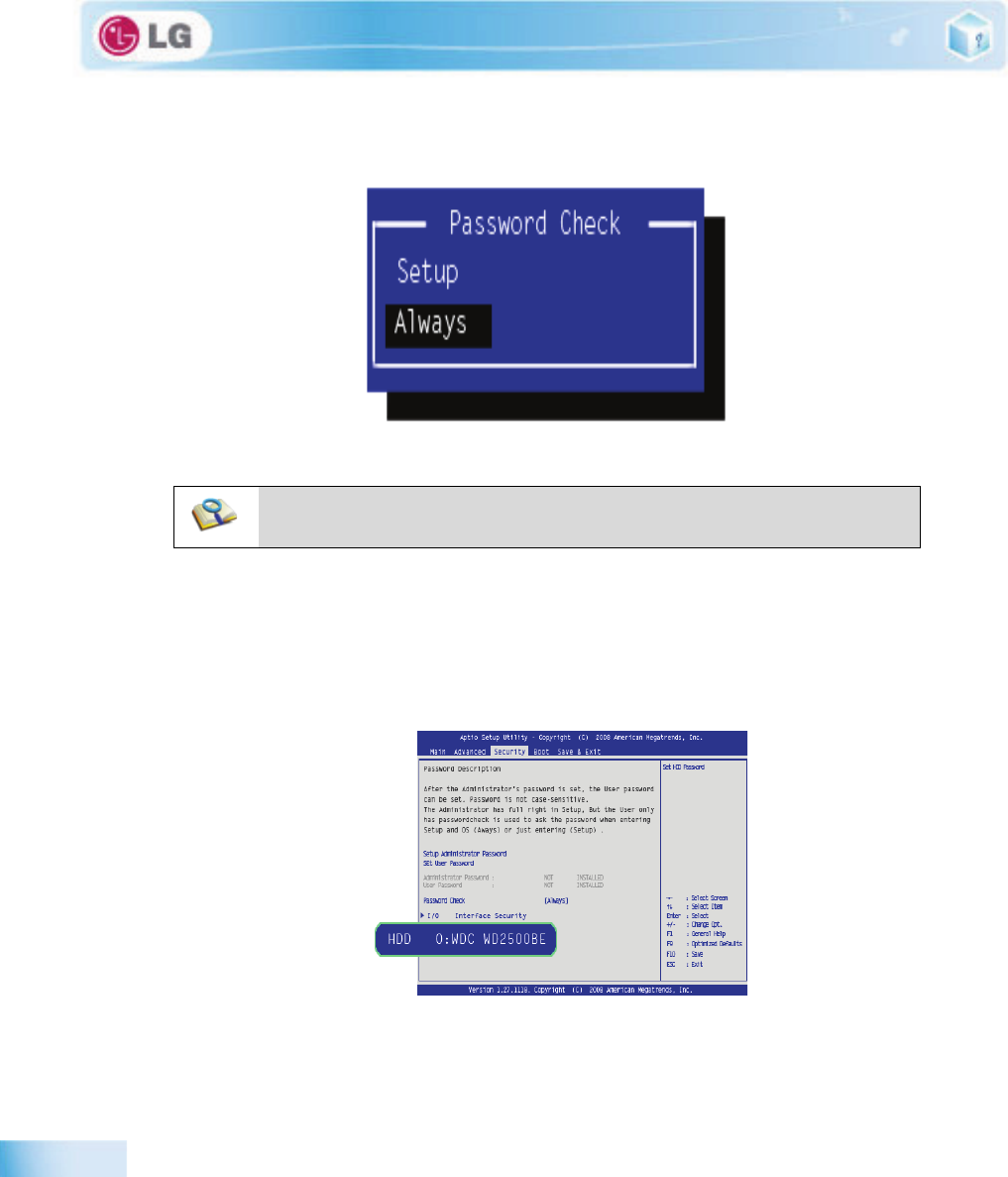

Power on password feature protects the system by requesting Set Supervisor Password or Set User
Password during boot up.
1. After opening the system setup screen, use the arrow keys to move to Security.
2. When the following screen appears, set Set Supervisor Password only or both Set Supervisor Pas-
sword and Set User Password.
■UserPassword allows limited access to the items in CMOS setup compared to the Supervisor
Password item.
![](/img.php?id=1458605&img=bg4b.png)
76
System Setup

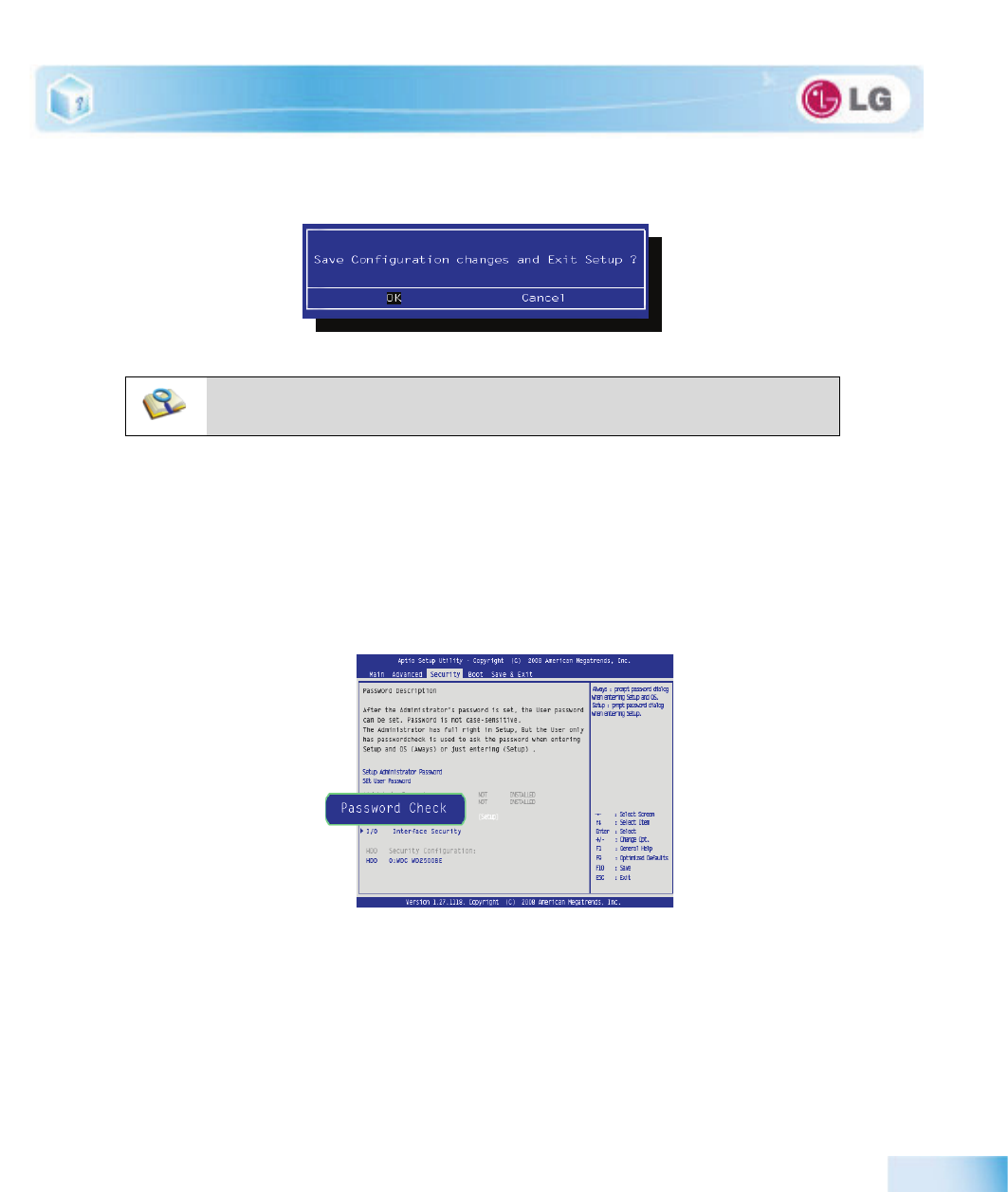

3. Select Power on passwrod, and change Disable into Enable using + and - keys.
X
Set All Hdd Password
Set All Hdd Password is to set a password in the HDD separately from the Supervisor Password.
1. After opening the system setup screen, use the arrow keys to move to Security.
2. When the following screen appears, select Set All Hdd Password with the arrow keys and press [Enter].
■If the user presses both [Shift] and [+], he/she can select between [Enabled] and [Disabled].
![](/img.php?id=1458605&img=bg4c.png)
System Setup
77
3. When the following message appears, input the password and press [Enter]. The password must not
exceed 8 characters of letter (A - Z), number (0 - 9) or their combination.
4. When the following message appears, press [Enter].
5. To save the changes in system setup, press [F10].
6. When the following message appears, select [Yes] and press [Enter]. The notebook PC will restart.
Without the HDD password, it is impossible to recover the HDD.
■The replacement of the HDD due to missing of the HDD Password is not covered by
the warranty.
![](/img.php?id=1458605&img=bg4d.png)
78
System Setup
6-3. Changing or Deleting the Password
You can delete or change the password only after inputting the current password.
X
Changing the Password
1. Execute the System Setup, enter the password, and press [Enter] .
2. Change the password in the same way as setting one.
X
Deleting the Password
1. Execute the System Setup, enter the password, and press [Enter].
2. After opening the system setup screen, use the arrow keys to move to Security.

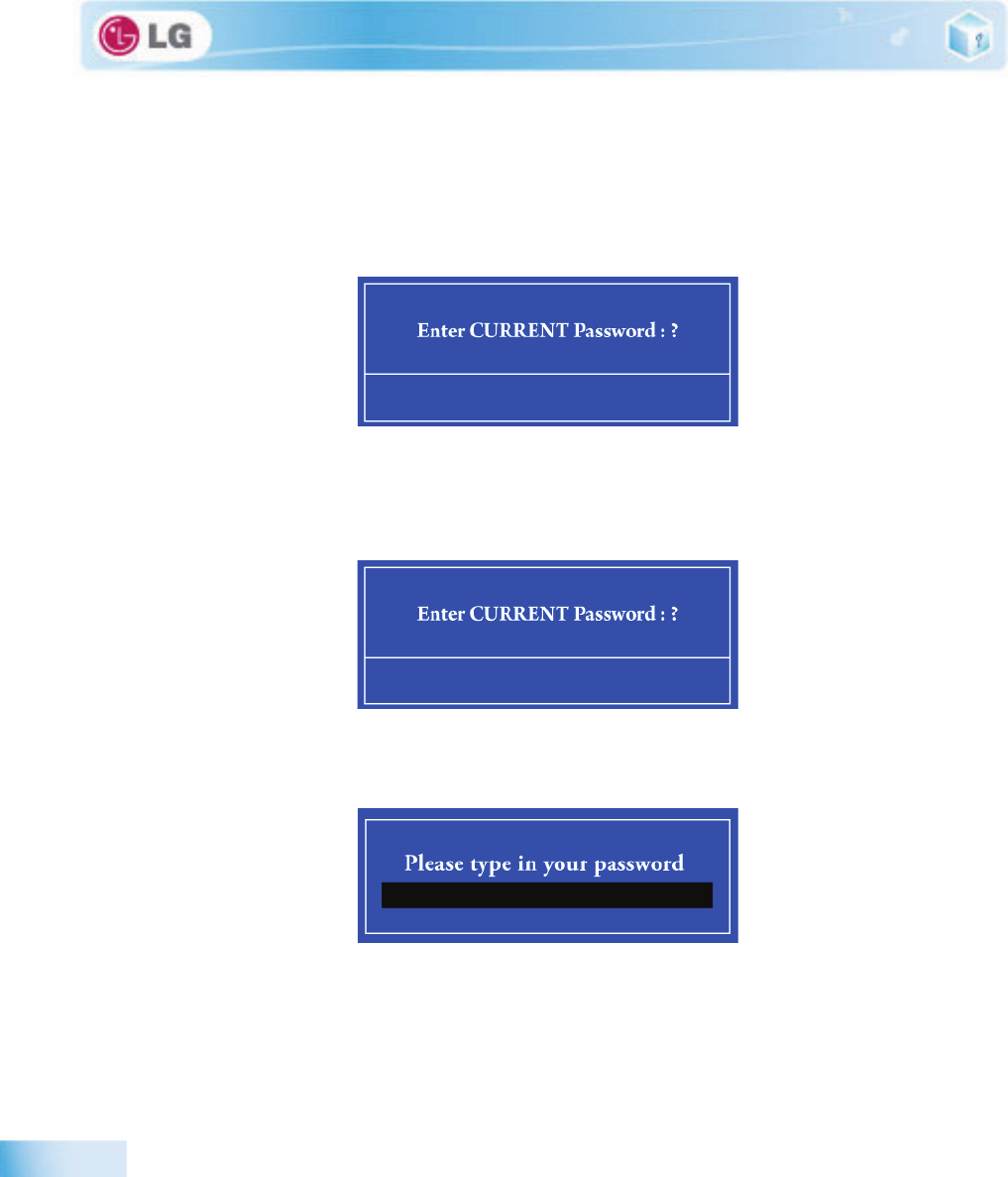

3. Select a password to change, press [Enter], and enter the current password.
![](/img.php?id=1458605&img=bg4e.png)
System Setup
79
4. When the following screen appears, press [Enter].
5. When the following screen appears, press [Enter].
6. When the following screen appears, check the settings and press [Enter].
7. To save the changes in system setup, press [F10].
8. When the following message appears, select [Yes] and press [Enter]. The notebook PC will restart.
![](/img.php?id=1458605&img=bg4f.png)
80
System Setup
6-4. Restore the Default Settings
If you have changed the system setup by mistake, you can restore the default settings.
1. After opening the system setup screen, use the arrow keys to move to Exit.
2. Use the arrow keys to select Load Optimal Defaults, and press [Enter].
3. When the following message appears, select [Yes] and press [Enter]. The settings will be reset to their
original defaults.
4. To save the changes in system setup, press [F10].
5. When the following message appears, select [Yes] and press [Enter]. The notebook PC will restart.
■You may also press [F9] to use Load Setup Defaults.
![](/img.php?id=1458605&img=bg50.png)
7.Using LG Smart Recovery
![](/img.php?id=1458605&img=bg51.png)
82
Using LG Smart Recovery
7-1. LG Smart Recovery System Backup
LG Smart Recovery helps you safely install and recover Windows 7.
The figures herein may differ by language selection and be subject to change without prior notice.

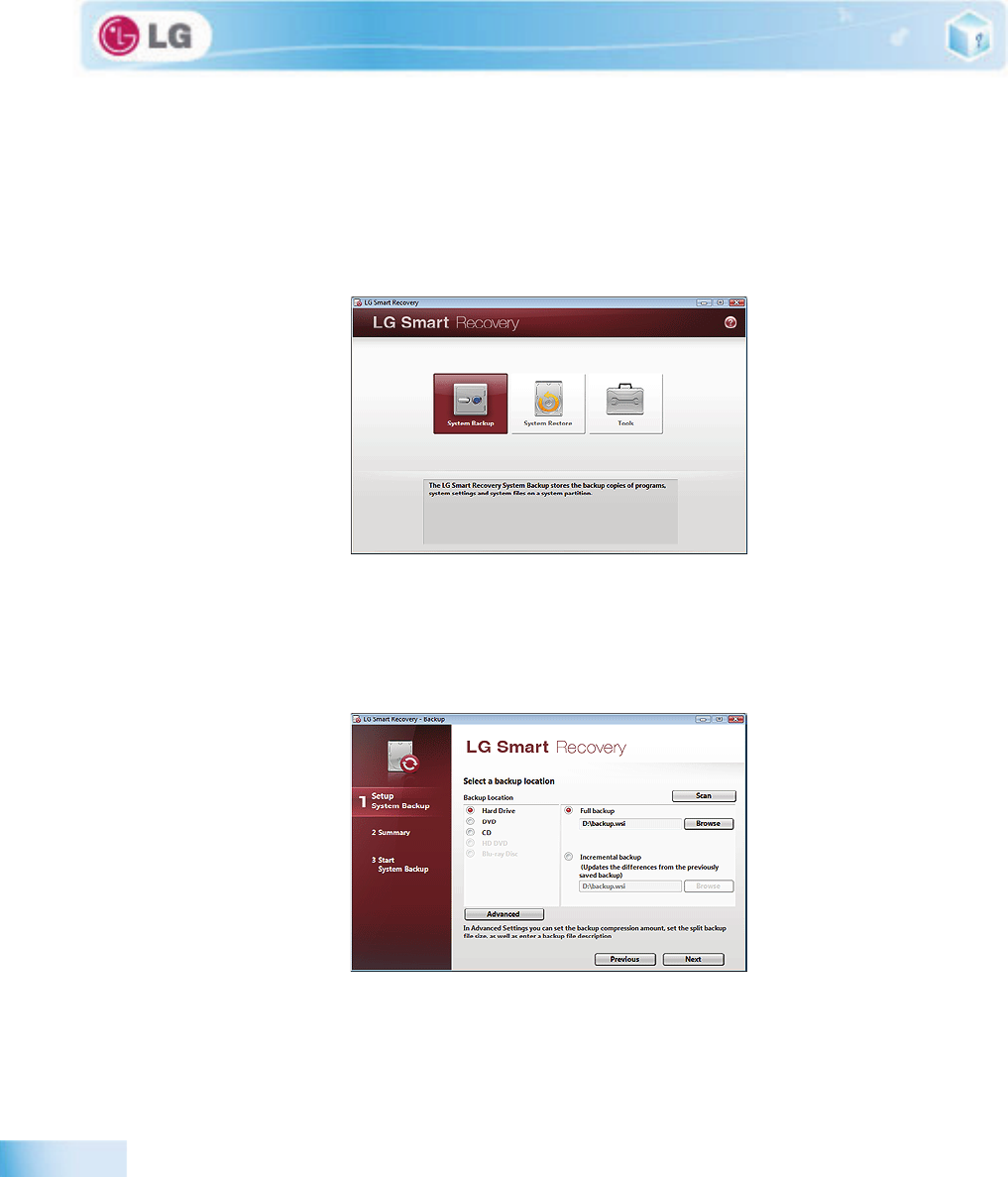

1. Double-click the LG Smart Recovery icon to run LG Smart Recovery.
2. Click the System Backup icon.
3. When the following screen appears, select the location to back up.
If you choose one among DVD, CD, HD DVD, Blu-ray Disc, a Media Disc for the restoration purpose will be
generated, and you can restore system only by rebooting it with the Media Disc.
The backup locations may vary depending on product specifications.

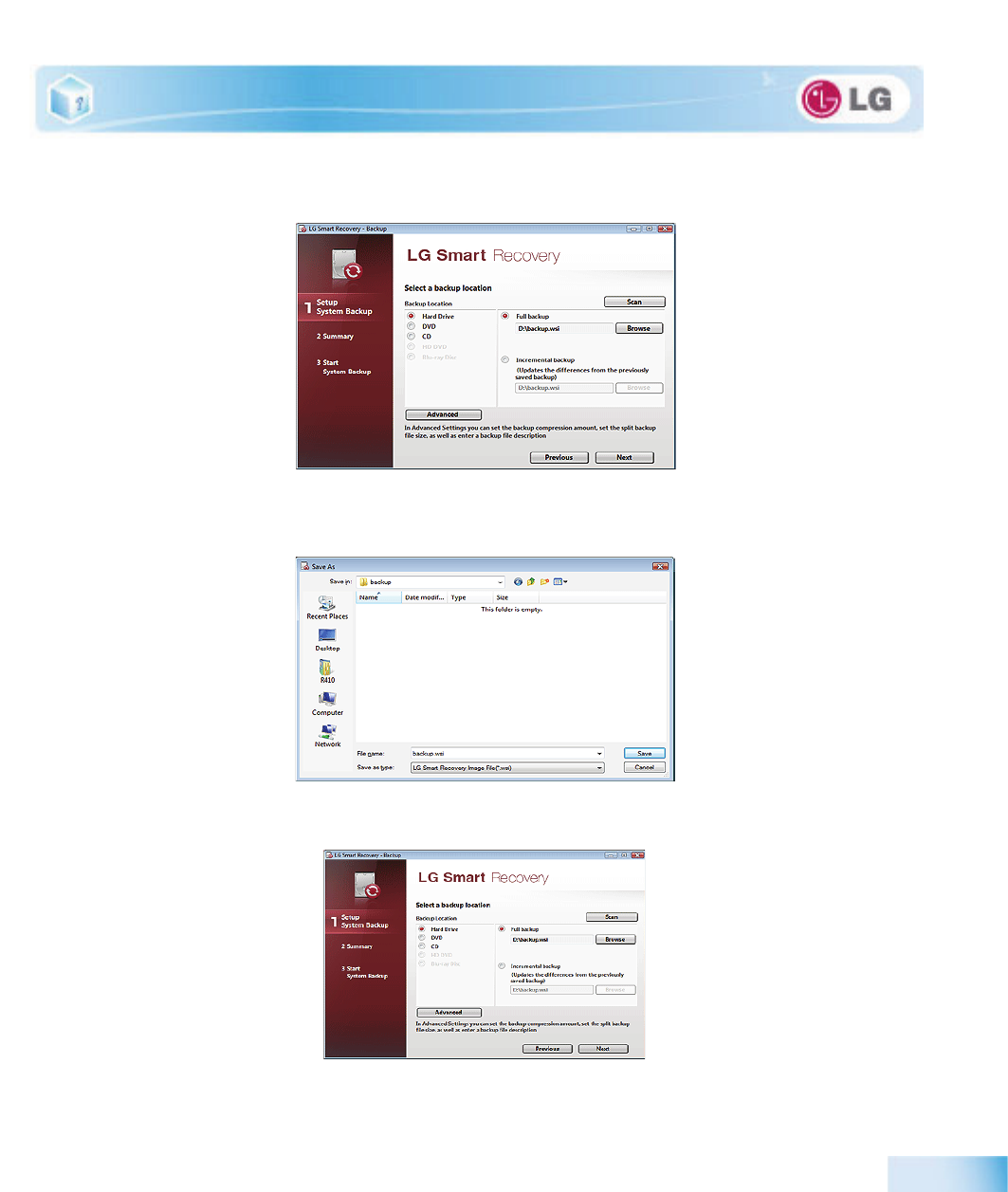

4. Choose Full Backup or Incremental Backup and click Browse button.
You can select Incremental Backup only when you have previously run Full Backup and the system has complete
![](/img.php?id=1458605&img=bg52.png)
Using LG Smart Recovery
83
backup data.
5. Specify the location to save the backup file, type file name and click Save button.
If you have selected Incremental Backup, choose the existing Full backup data and click Open.
6. Once you complete the process to set the Full Backup location, click Next.

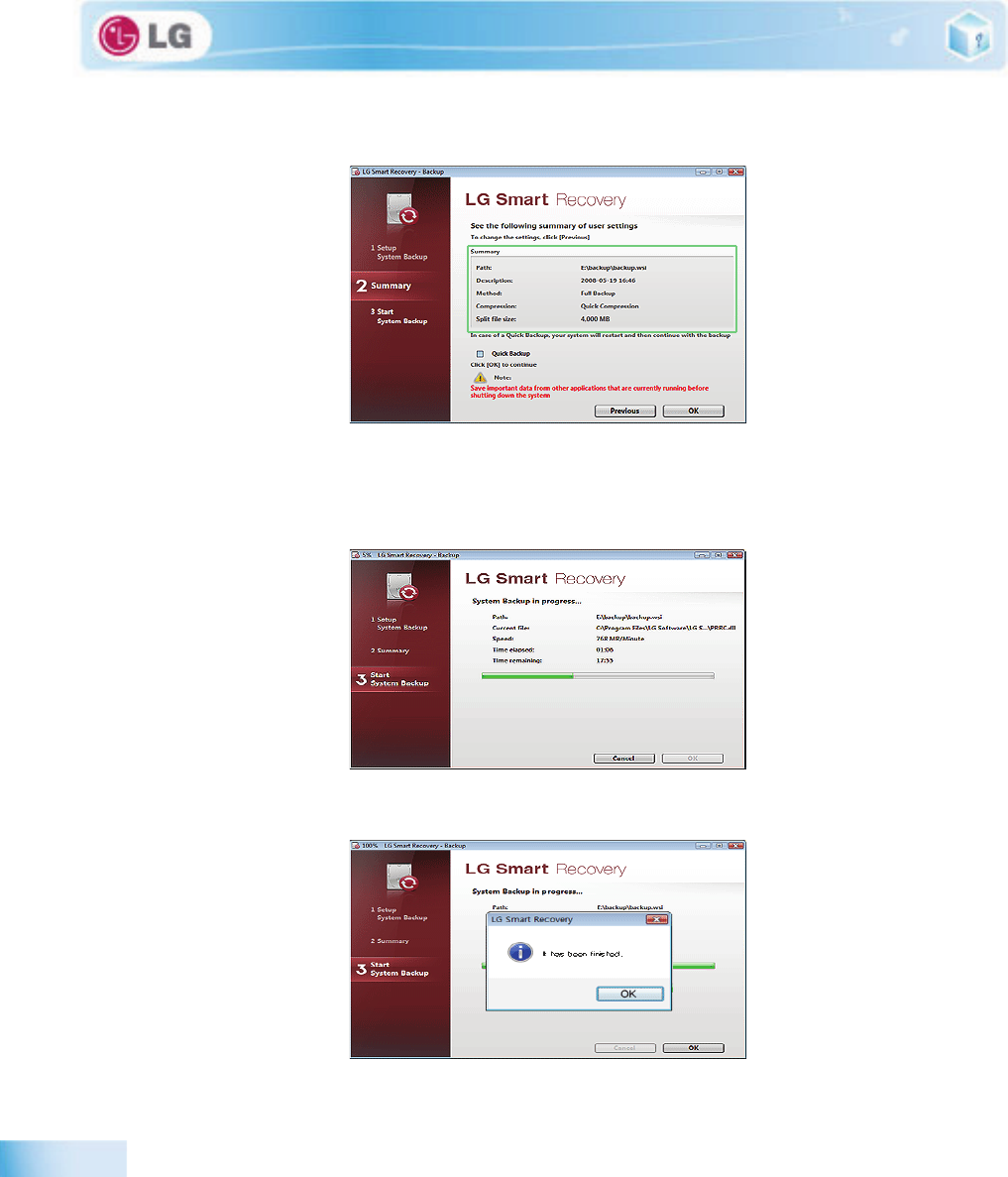

7. Check the system backup preferences you have selected and click OK button.
![](/img.php?id=1458605&img=bg53.png)
84
Using LG Smart Recovery
Quick Backup reduces time required to backup the system.
8. The screen showing the progress of system backup appears.
Depending on product specifications and backup file size, the system may need longer time to load the file. Do not
turn off the power forcibly or reboots the system while it is loading the file.
9. After the system backup is complete, click OK to finish the process.
![](/img.php?id=1458605&img=bg54.png)
Using LG Smart Recovery
85

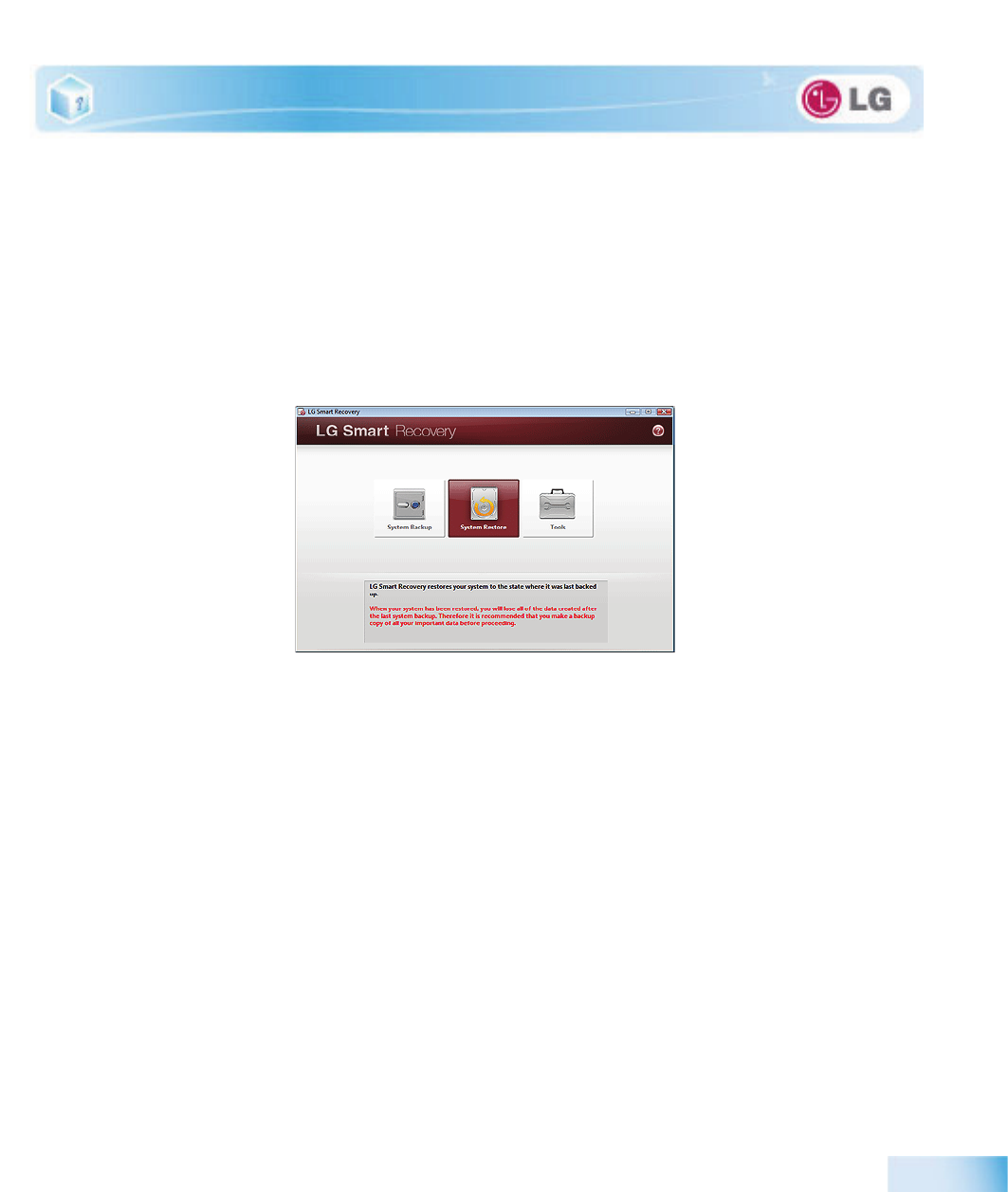

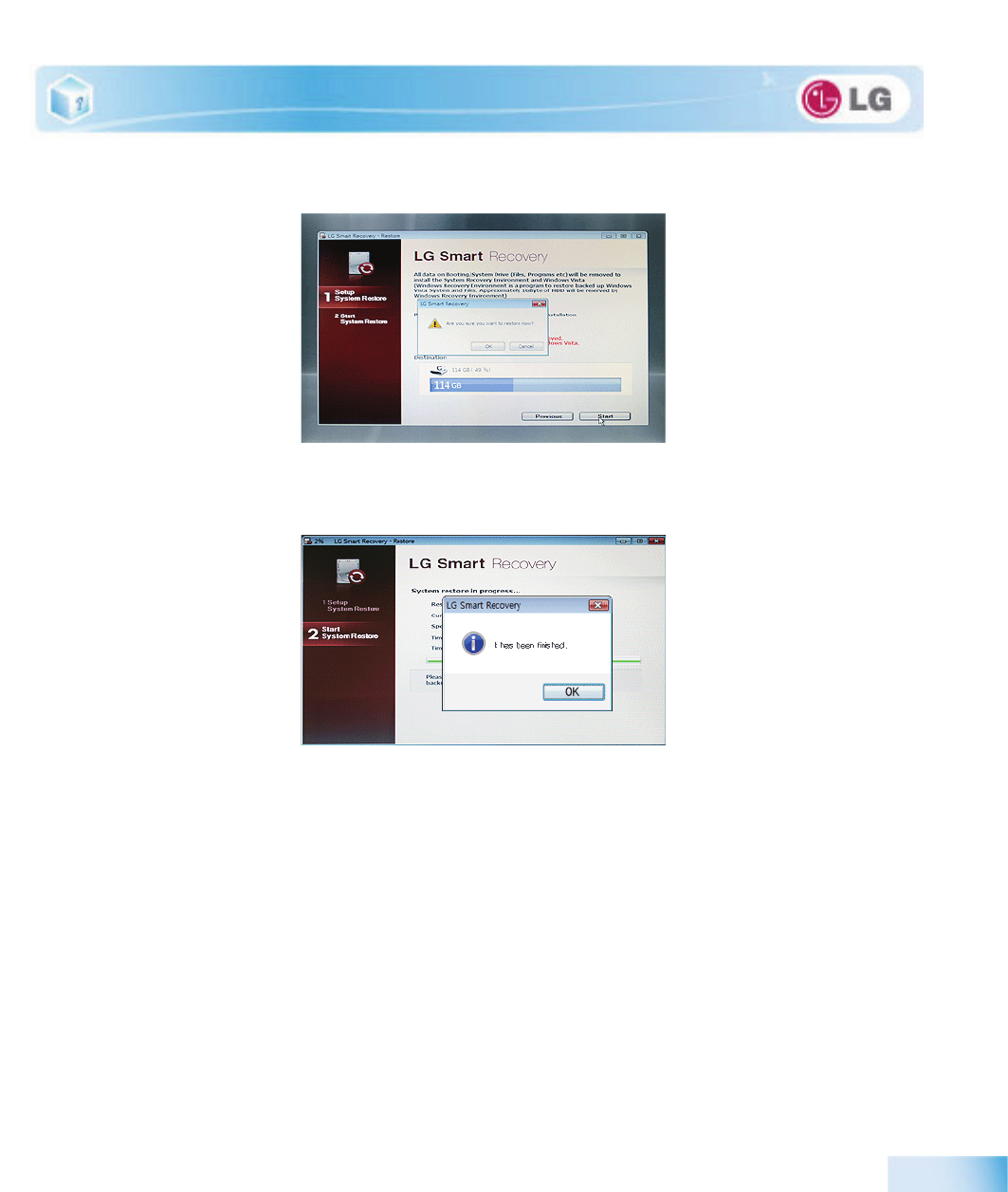

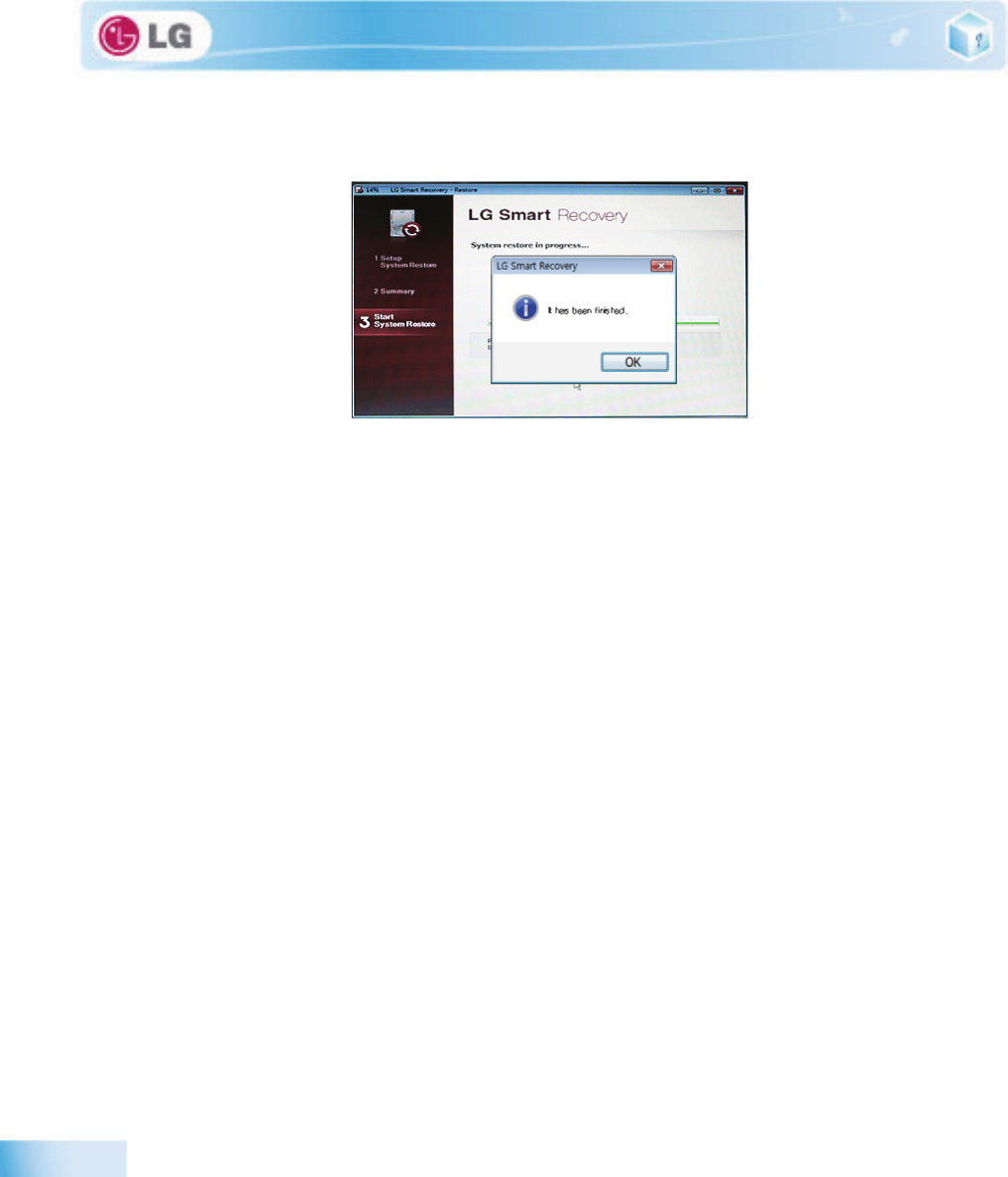

7-2. LG Smart Recovery System Restoration
You can restore the system by using the LG Smart Recovery backup data.
The figures and instructions herein are subject to change without prior notice.
1. Double-click the LG Smart Recovery icon to run LG Smart Recovery.
When Windows 7 does not operate normally, restart the computer. When "PRESS F11 TO RUN LG RECOV-
ERY.." appears on the screen during the booting process, press F11 to start LG Smart Recovery.
Backup important data by using Tools menu before starting the System Restore process.
2. Click the System Restoration button.
![](/img.php?id=1458605&img=bg55.png)
86
Using LG Smart Recovery

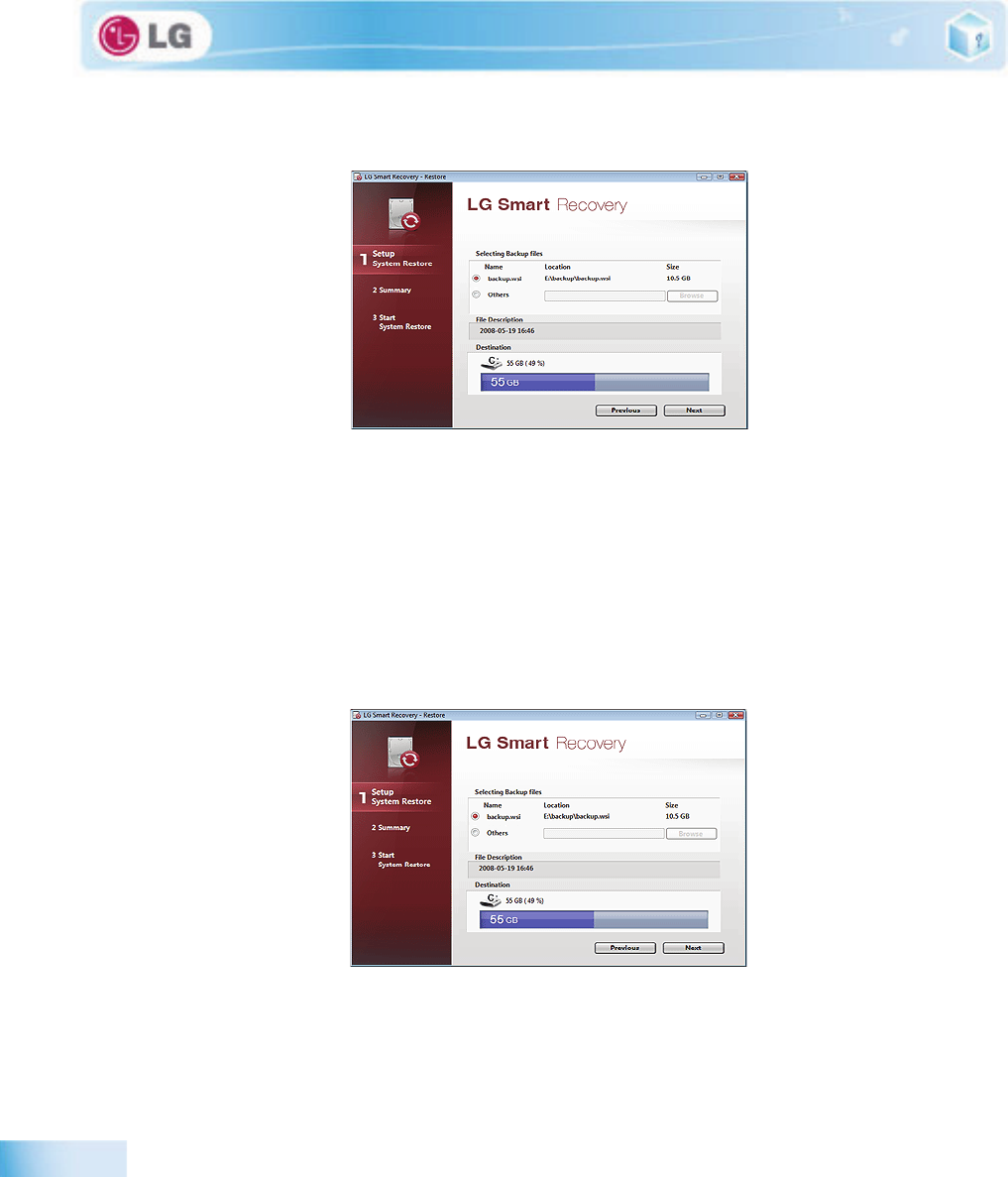

3. The System Restore Settings screen will appear.
4. Click the Protected Hard Disk Area or Browse to select a file you want to back up and click Next.
The Protected Hard Disk Area option will be presented only if you have selected the Safe Backup when you run
the LG Smart Recovery for the first time.
If you select the Protected Hard Disk Area, the system will be restored to the initial status when you have bought it.
![](/img.php?id=1458605&img=bg56.png)
Using LG Smart Recovery
87

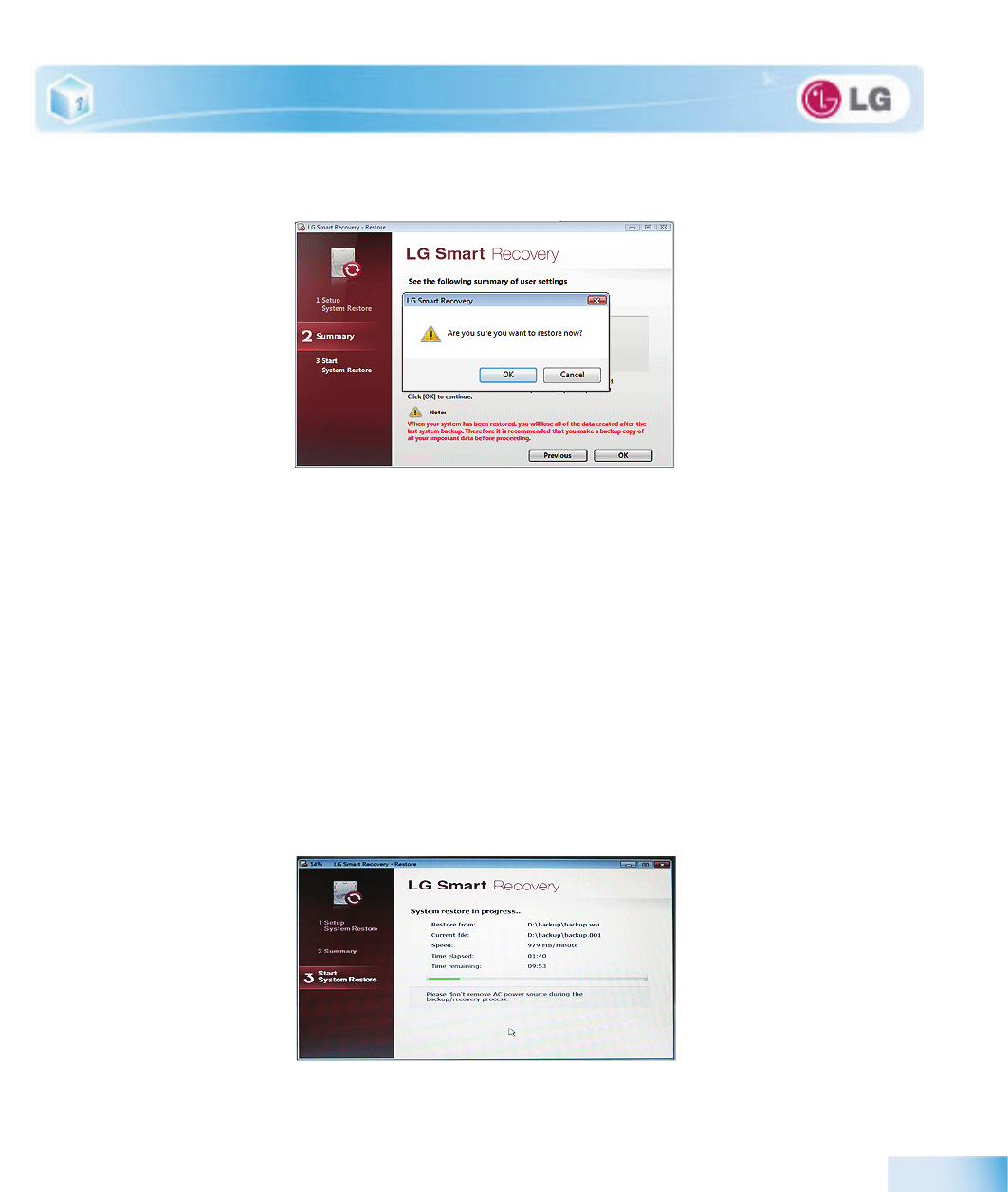

5. Confirm the restoration settings and click OK. The Restoration In Process message will appear.
6. Click OK. The system will automatically restart in 1 minute and show the System Backup In Process
screen.
Depending on product specifications and backup file size, the system may need longer time to load the file. Do not
turn off the power forcibly or reboots the system while it is loading the file.
![](/img.php?id=1458605&img=bg57.png)
88
Using LG Smart Recovery
7. Once the system restoration process completes, click OK and the system will automatically restart in
10 seconds.
![](/img.php?id=1458605&img=bg58.png)
Using LG Smart Recovery
89

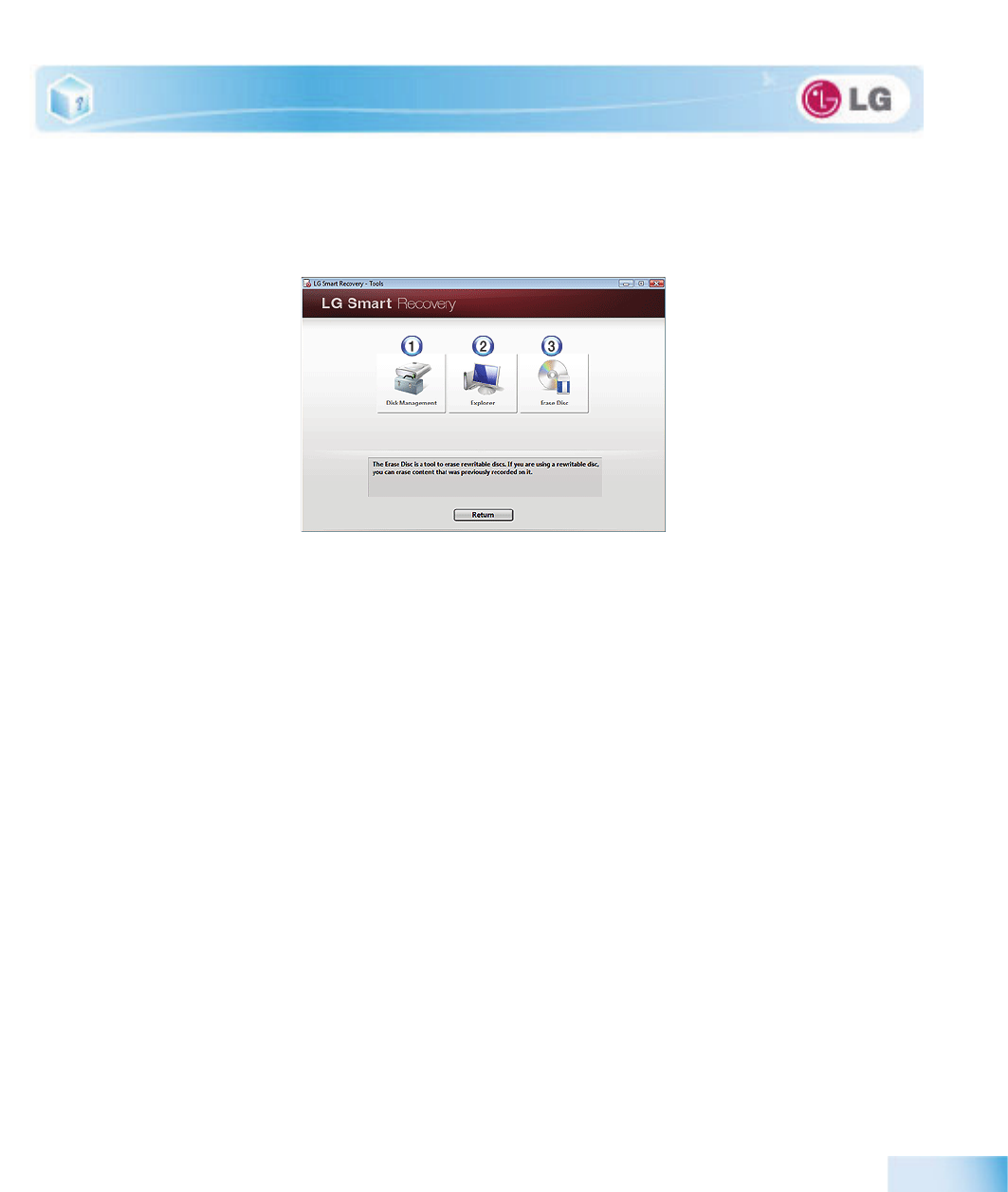

7-3. LG Smart Recovery Tools Menu
LG Smart Recovery Tools menu provide useful tools to back up and restore the system efficiently.
The figures and instructions herein are subject to change without prior notice.
1. Disk Management: By using the Disk Management tool, you can perform disk-related tasks including
creating partition and volume, formatting, and assigning drive letter.
2. Explorer: This tool shows drive disks and other hardware connected to the computer.
By using the Explorer, you can back up user data before proceeding the system restore.
3. Delete Disk: You can delete rewritable disks.
![](/img.php?id=1458605&img=bg59.png)
90
Using LG Smart Recovery
![](/img.php?id=1458605&img=bg5a.png)
8.Using LG Smart Recovery Center
![](/img.php?id=1458605&img=bg5b.png)
92
Using LG Smart Recovery Center
8-1. LG Smart Recovery Center
LG Smart Recovery Center DVD may not be available depending on the model.
When LG Smart Recovery fails to restore the system, you can reinstall Windows 7 by using the LG
Smart Recovery Center.
1. Insert the LG Smart Recovery Center DVD into the DVD-ROM and restart the system.
If the LG Smart Recovery Center DVD fails to boot the system, restart the computer and press F2 to start the
BIOS SETUP and change the Booting Order option.
2. When the booting completes, the System Restore screen will appear.
3. Click the System Restoration button.
Backup important data by using Tools menu before starting the System Restoration process.
4. Click Start button.
![](/img.php?id=1458605&img=bg5c.png)
Using LG Smart Recovery Center
93
5. When prompted to confirm to start the System Restoration, click OK.
6. When it completes the restoration process, the system will present the Completed the Restoration mes-
sage.
7. Click OK to restart the system automatically after 10 seconds.
Remove the LG Smart Recovery Center DVD from the DVD-ROM once the System Restoration process com-
pletes.
![](/img.php?id=1458605&img=bg5d.png)
94
Using LG Smart Recovery Center
![](/img.php?id=1458605&img=bg5e.png)
9.Reinstalling the Driver
![](/img.php?id=1458605&img=bg5f.png)
96
Reinstalling the Driver
9-1. Reinstalling the Driver
The figures herein may differ by language selection and be subject to change without prior notice.
X
Reinstalling the Driver Using LG Intelligent Update

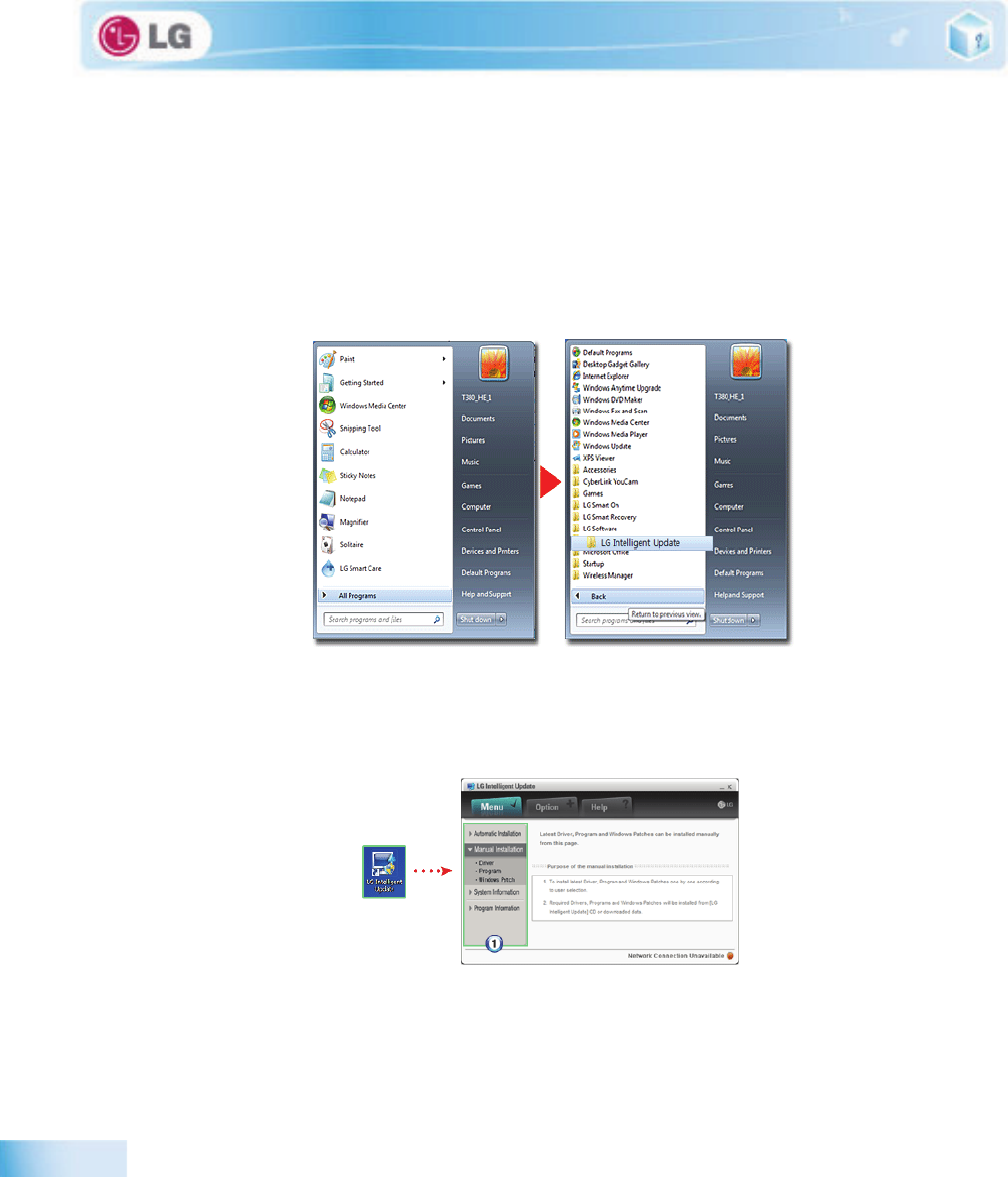

1. Select Start > All Programs > LG Software > LG Intelligent Update to continue.
You can also double-click the LG Intelligent Update icon to run the program.
2. Select [Automatic Installation] or [Manual Installation] to reinstall the driver.
For more details, refer to Help.
1. Now, you can install drivers and applications needed for the system.
![](/img.php?id=1458605&img=bg60.png)
Reinstalling the Driver
97
X
Installing LG Intelligent Update
LG Intelligent Update comes preinstalled in your system. You can also download the application from the Inter-
net.
1. Go to "www.lg.com", download LG Intelligent Update and install the program.
2. When the installation screen appears, click Next > Next > Finish or press Enter to install the program.
3. LG Intelligent Update screen appears.
![](/img.php?id=1458605&img=bg61.png)
98
Reinstalling the Driver
![](/img.php?id=1458605&img=bg62.png)
10.Using the Internet
![](/img.php?id=1458605&img=bg63.png)
100
Using the Internet
10-1. Using the Internet
There are various methods to access the Internet. Choose the most desirable method for user environ-
ments and system specifications.
Items displayed during the process may differ by model type and spec.
X
Using LAN
LAN refers to high speed network environments linking companies and households.

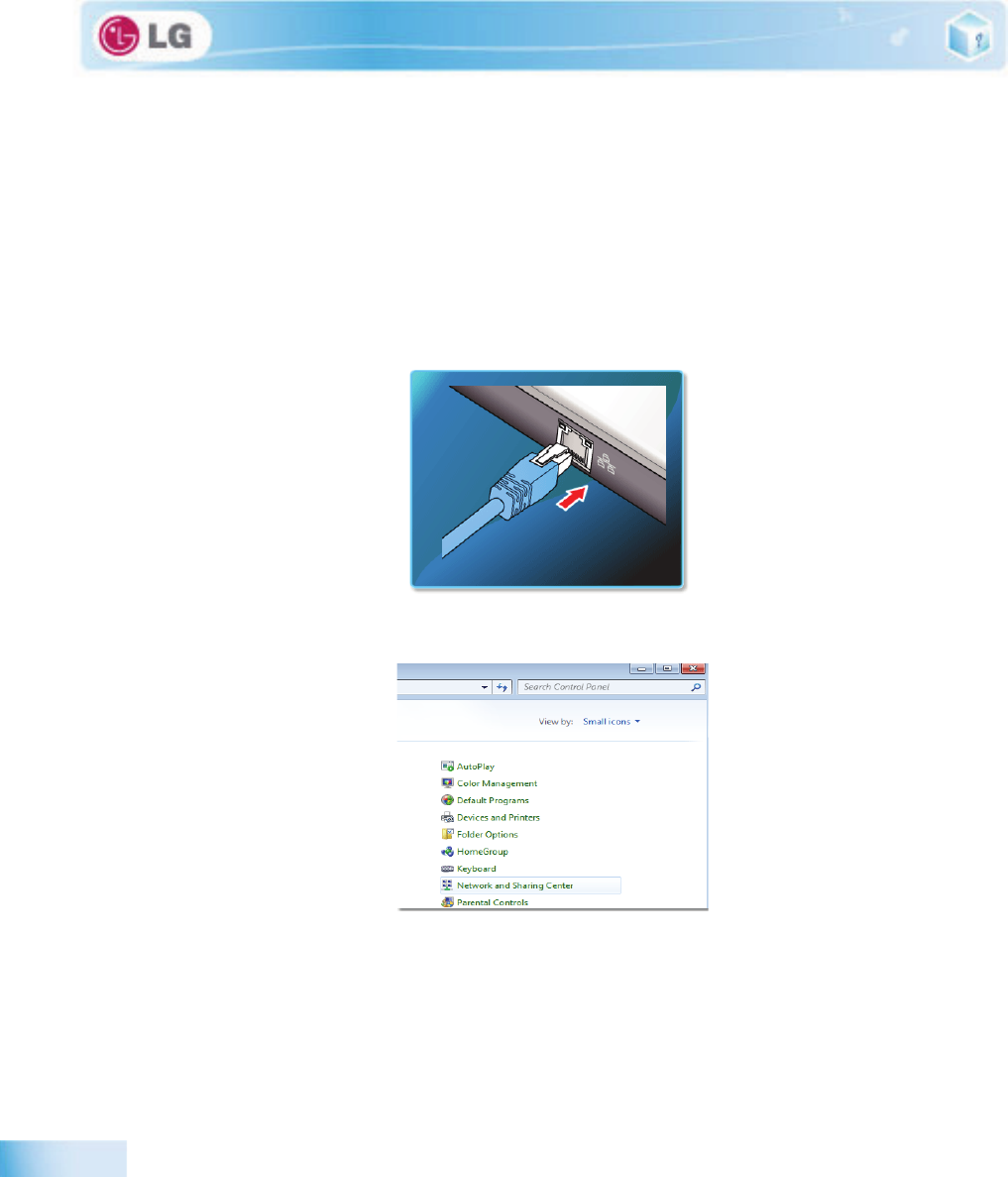

1. Connect LAN cable to the LAN port.
2. Select Start > Control Panel > View by > Small icons > Network and Sharing Center.
![](/img.php?id=1458605&img=bg64.png)
Using the Internet
101
3. Click Change Adapter Settings.
4. Right-click Local Area Connections and select Properties.
![](/img.php?id=1458605&img=bg65.png)
102
Using the Internet

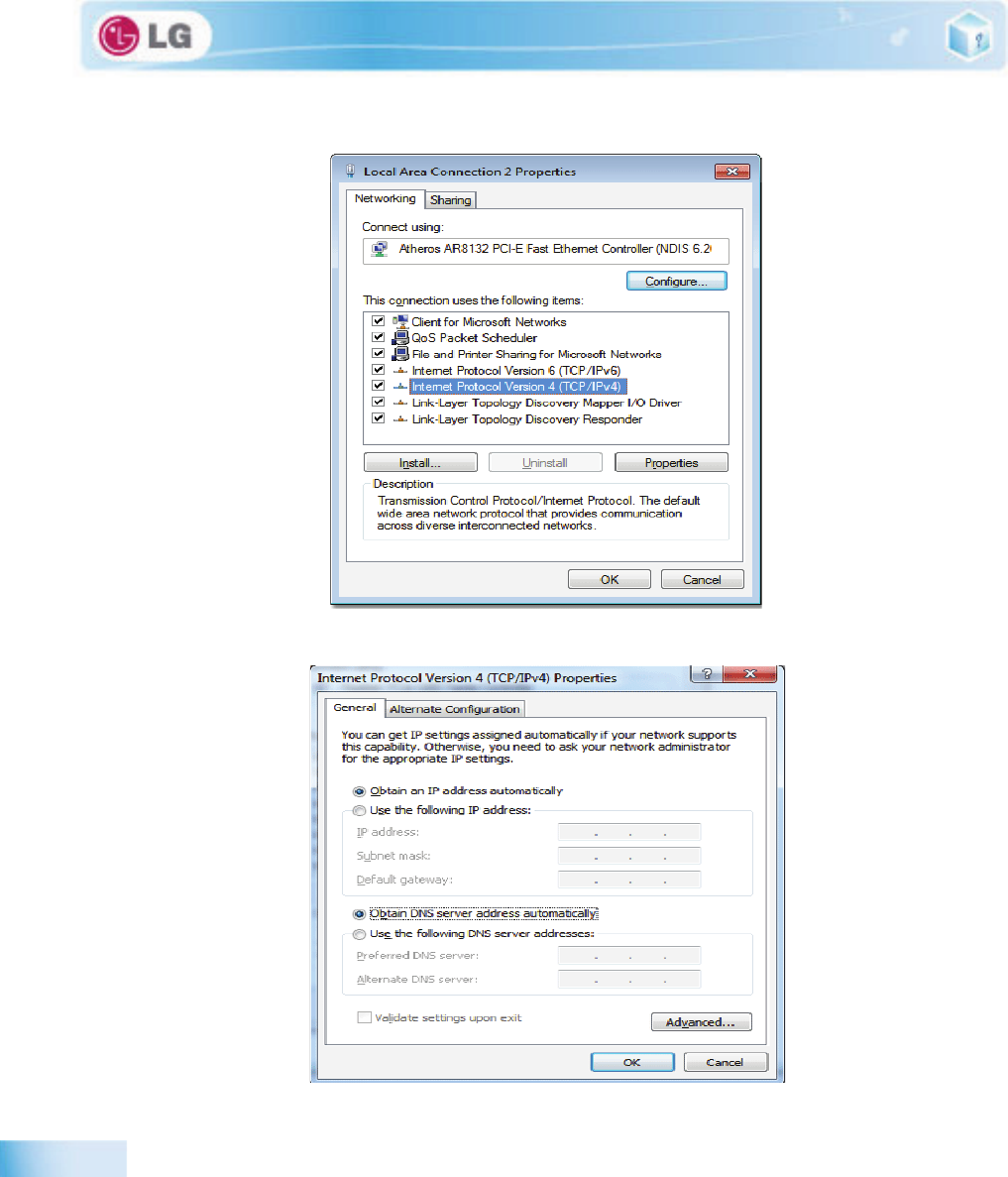

5. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
6. On the General tab, select Obtain an IP address automatically.
![](/img.php?id=1458605&img=bg66.png)
Using the Internet
103
7. Click the OK button when the Internet Protocol (TCP/IP) properties are set.
X
Using Wireless LAN
The Wireless LAN card is optional, and so it may not be installed in some models.
Wireless LAN supports multi-terminal networking at home and office.
Wireless network offers general network features (e.g. sharing files, folders, and a printer) and allows a
computer without the Internet connection in a small network to access the Internet through another ter-
minal.
By default, this computer is set for wireless network on the Windows.
X
Setting Wireless LAN Environment

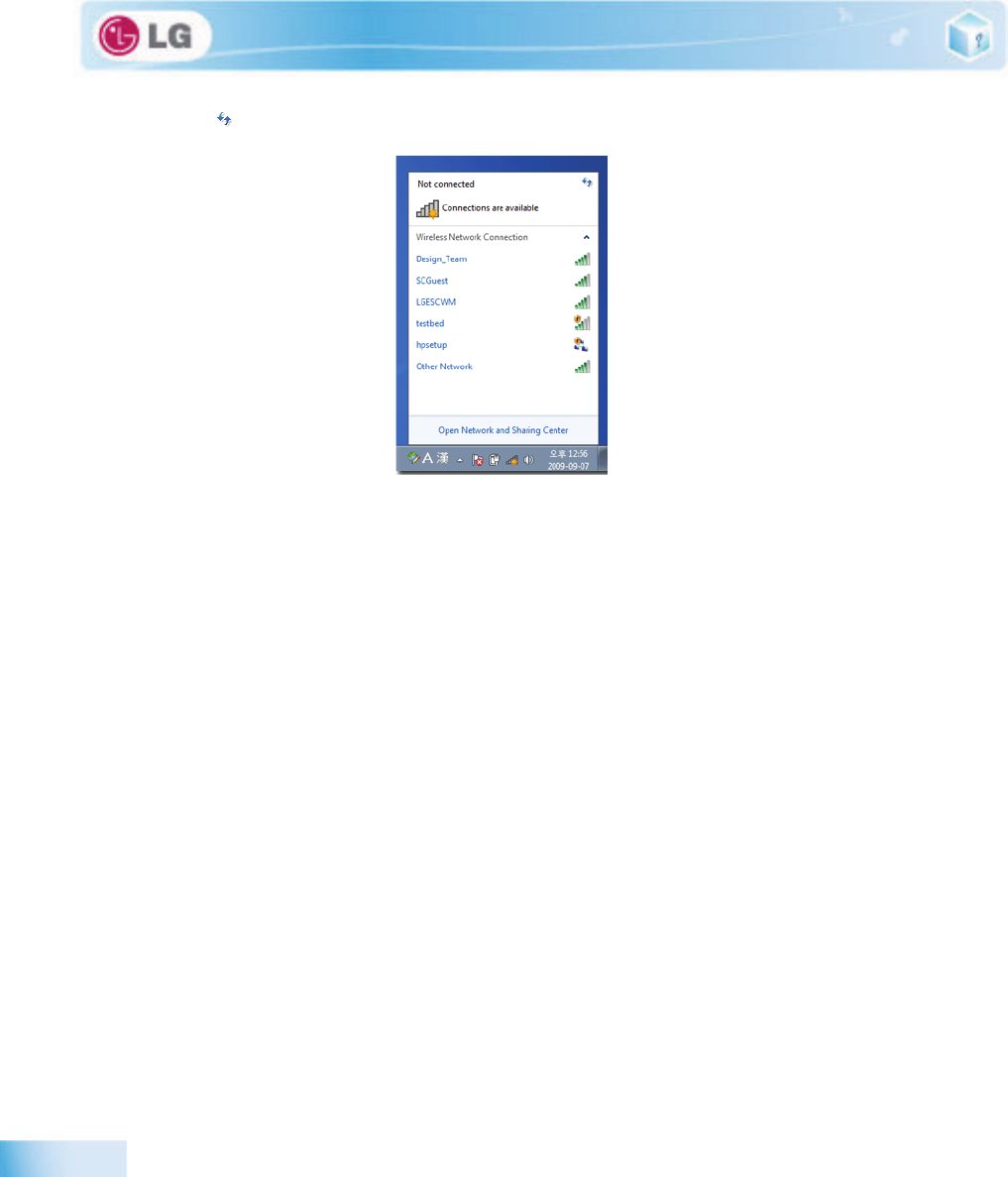

1. Click the button to display the available wireless network list.
When the wireless network list is not displayed, check if the wireless network device is turned on. Then click the
![](/img.php?id=1458605&img=bg67.png)
104
Using the Internet
button to search for the wireless network again.

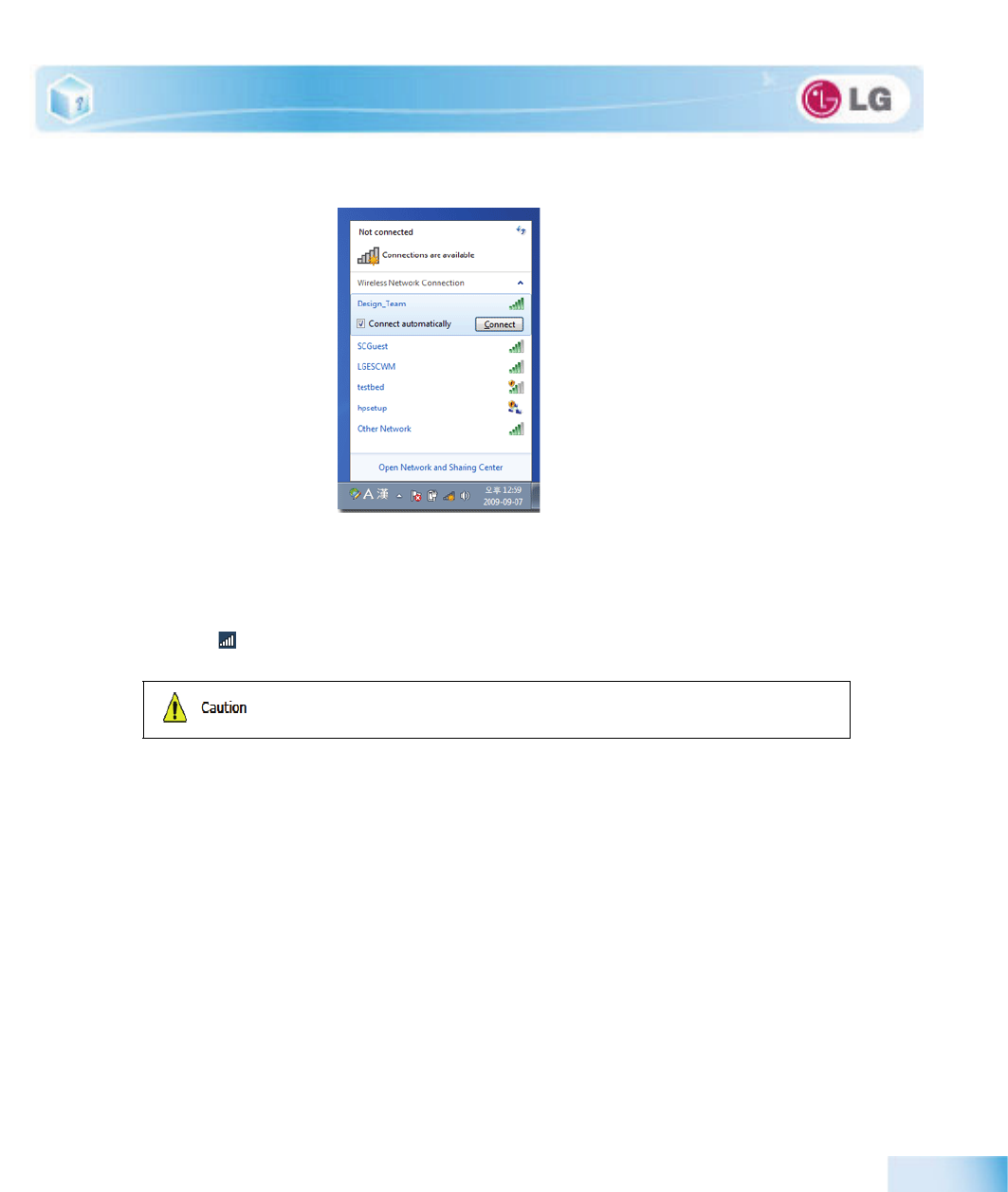

2. Select the Access Point (wireless network) you want to use and click [Connect] to connect to the
Access Point.
![](/img.php?id=1458605&img=bg68.png)
Using the Internet
105
If a password is set for the wireless network, the Enter Password window appears.
3. Click the button to see if the Access Point is connected to the network.
■Ensure the network is secured to share the computer and be careful not to share con-
fidential data.
![](/img.php?id=1458605&img=bg69.png)
106
Using the Internet
![](/img.php?id=1458605&img=bg6a.png)
11.Secondary Storage Device and Memory
![](/img.php?id=1458605&img=bg6b.png)
108
Secondary Storage Device and Memory
11-1. Using the Memory Card
X
Checking Available Memory Card
This model supports SD, MMC, Memory Stick, and Memory Stick Pro.
SD, MMC, Memory Stick, Memory Stick Pro cards are mobile storage devices like a floppy disk,
widely used in many digital products these days.
To use Memory Stick Duo, Memory Stick Pro Duo, mini SD, micro SD and MMC mobile cards,
mount it on the dedicated adapter and insert the adapter into the multi-card slot.
(The available memory type and capacity may differ by the computer model type.)
Check availability before buying a memory card.
X

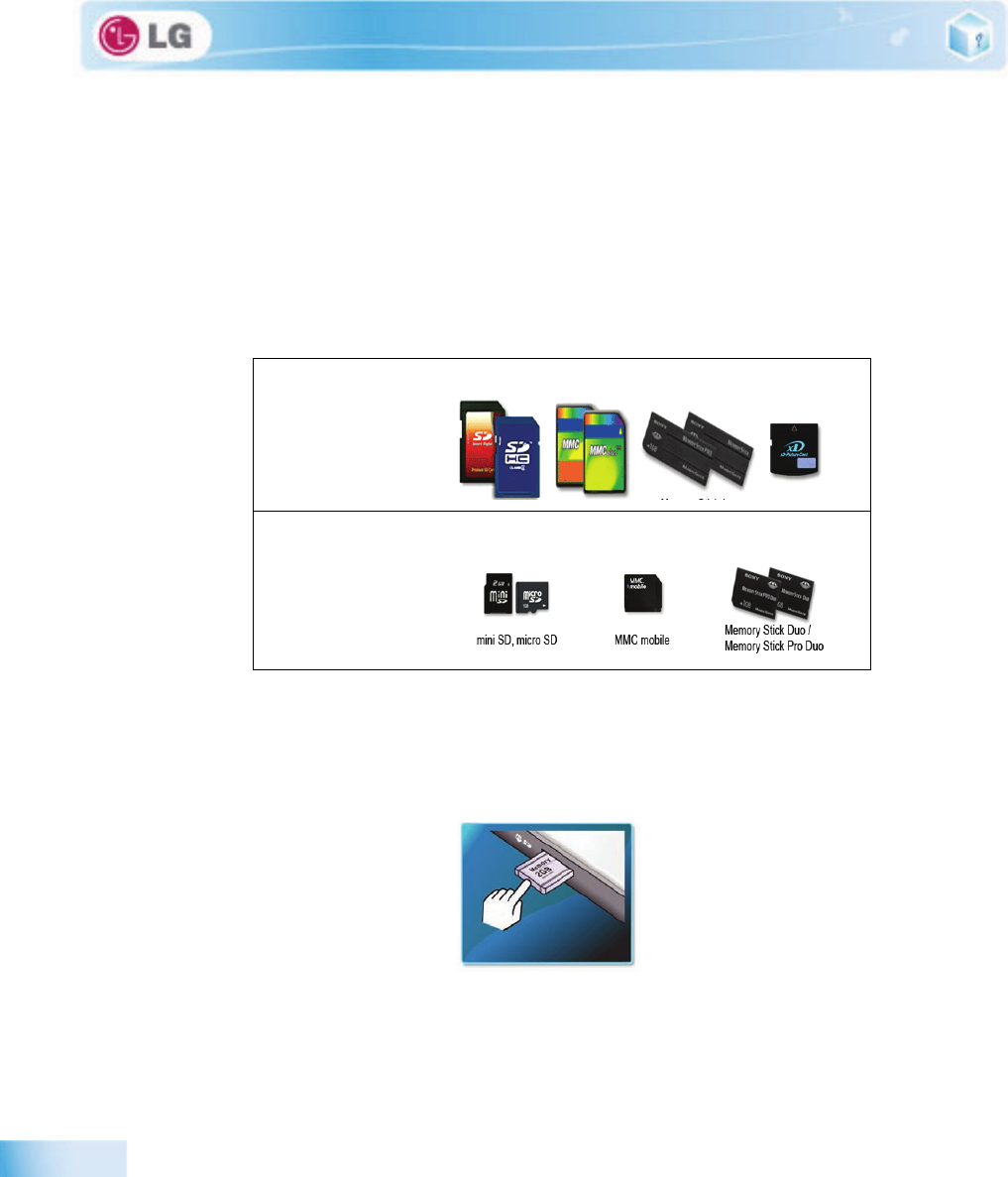

Mounting and Using Memory Card
Insert the card into the multi-card slot to the fullest in the right direction.
Directly applicable
memory cards
Memory cards applica-
ble indirectly through
dedicated adapter
![](/img.php?id=1458605&img=bg6c.png)
Secondary Storage Device and Memory
109
X
Removing memory card
Push the card as depicted in the following picture to make the card spring out of the slot. Pull the card
out in the direction of the arrow.
■When the memory card is formatted, the data stored in the memory card will be deleted. Check
whether there are important data before formatting the memory stick.
■To format a memory card, right-click the memory card drive and select Format. When Format
window appears, click Start to continue.
■The format feature may not be available on those Windows whose version is lower than Windo-
ws Vista. Format the card on other digital devices or format it after installing Memory Stick For-
matter.
■If the writing prevention tab of memory card is locked, the user cannot format the memory stick
nor write or delete the data.
■SD, MMC memory cards can be used only as storage devices and do not support the copyright
protection function.
When using an MMC card:
■Place the MMC card with the arrow facing upward ( ), and insert it into the slot.
Forcing the MMC card into the slot may cause an impairment.
■Some memory products manufactured by Transcend are made of metal and may
cause a short circuit when contacting with the connection port in the multi-card slot.
Avoid using metallic-surfaced memory products. They could offset the system per-
formance.
When using a memory card through dedicated adapter:
■Use the dedicated adapter. Otherwise a short-circuit may occur, causing damage to
the computer and the memory card.
![](/img.php?id=1458605&img=bg6d.png)
110
Secondary Storage Device and Memory
To safely removing a memory card:
1. Click Safely Remove Hardware icon on the taskbar.
2. Click Safely Remove Hardware (S).
3. When Safety Remove Hardware window appears, click Stop.
4. When Stop Hardware window appears, click OK.
![](/img.php?id=1458605&img=bg6e.png)
Secondary Storage Device and Memory
111
11-2. Expanding Memory Capacity
You may need to expand the notebook memory for better performance.
For memory expansion, we recommend that you receive a paid service from a service center certified by LG. LG
disclaims any responsibility for damage resulting from uncertified service or arbitrary disassembly.
X
About Memory
This system uses a 204-pin, SO-DIMM (Small Outline Dual In-Line Memory Module)-type DDR3
SDRAM.
Each socket supports 1024 MB - 2048 MB, and the maximum capacity of the main board is 4 GB.
X
Preparing Memory
Before purchasing memory, study the specifications and features of the current memory.
1. Rated Capacity: PC3-10600S(1066 MHz) DDR2 SDRAM SO-DIMM
2. Speed: 1066 MHz (533 MHz x 2)
3. Type: 1 GB(1024 MB) or 2 GB(2048 MB)
■When expanding the memory, add a memory with the same specification (DDR3 SDRAM for
1.5 V). (Subject to change depending on model type)

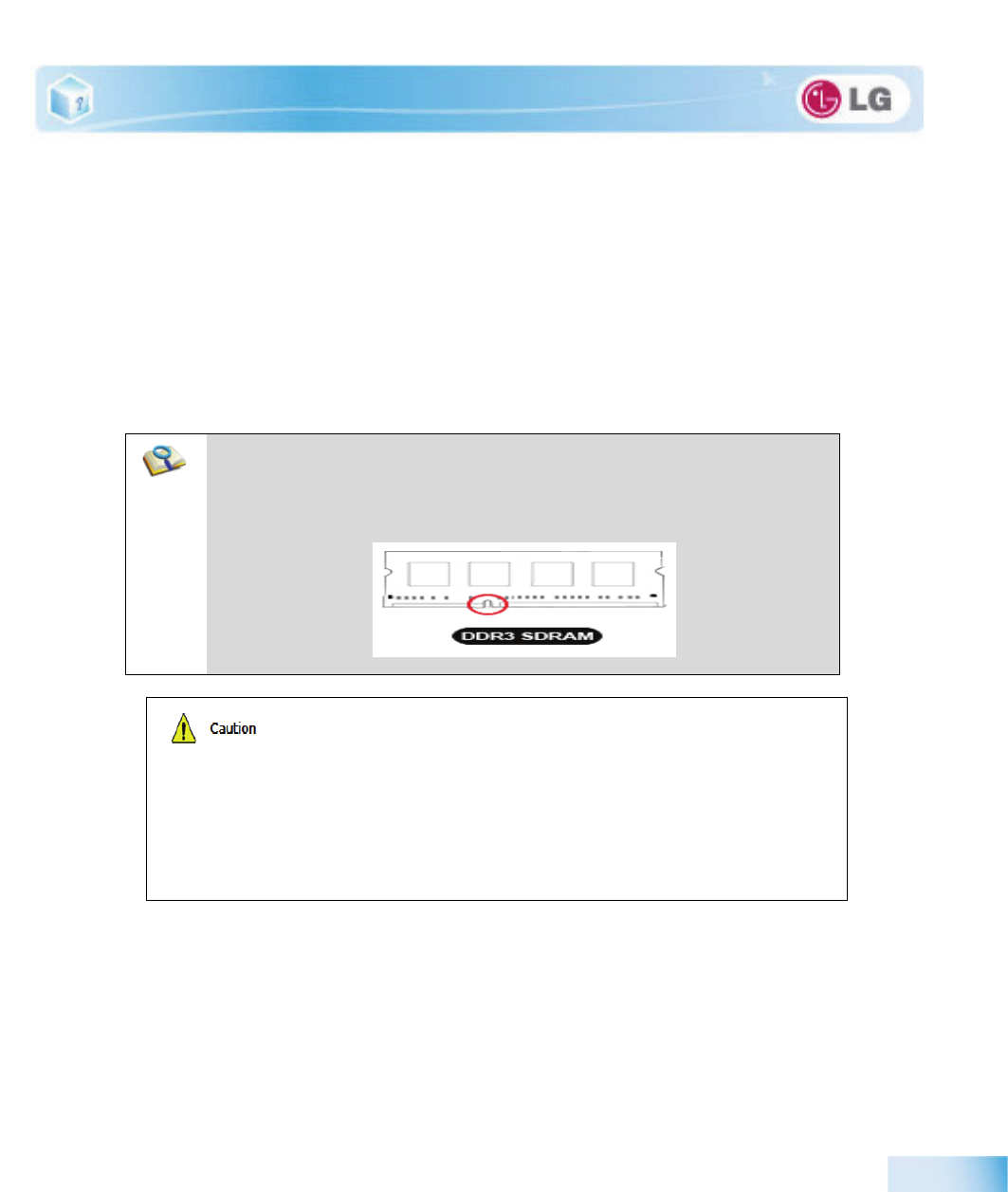

■The DDR3 memory provides greatly improved transmission rate than existing memories, and is
differently shaped.
To upgrade the machine, turn off the system and disconnect the power cord and the
battery.
■Disconnect the telephone line linked to the modem, if any. An electric shock or fire
may occur.
Supported Memory
■PC3-10600S(1066 MHz) 1 GB(1024 MB) or 2 GB(2048 MB) DDR3 SDRAM
SO-DIMM
When you expand your memory capacity, make sure to use the memory from the
same company.
![](/img.php?id=1458605&img=bg6f.png)
112
Secondary Storage Device and Memory
X
Expanding Memory Capacity
Main board configuration, memory socket and memory type may differ by model.

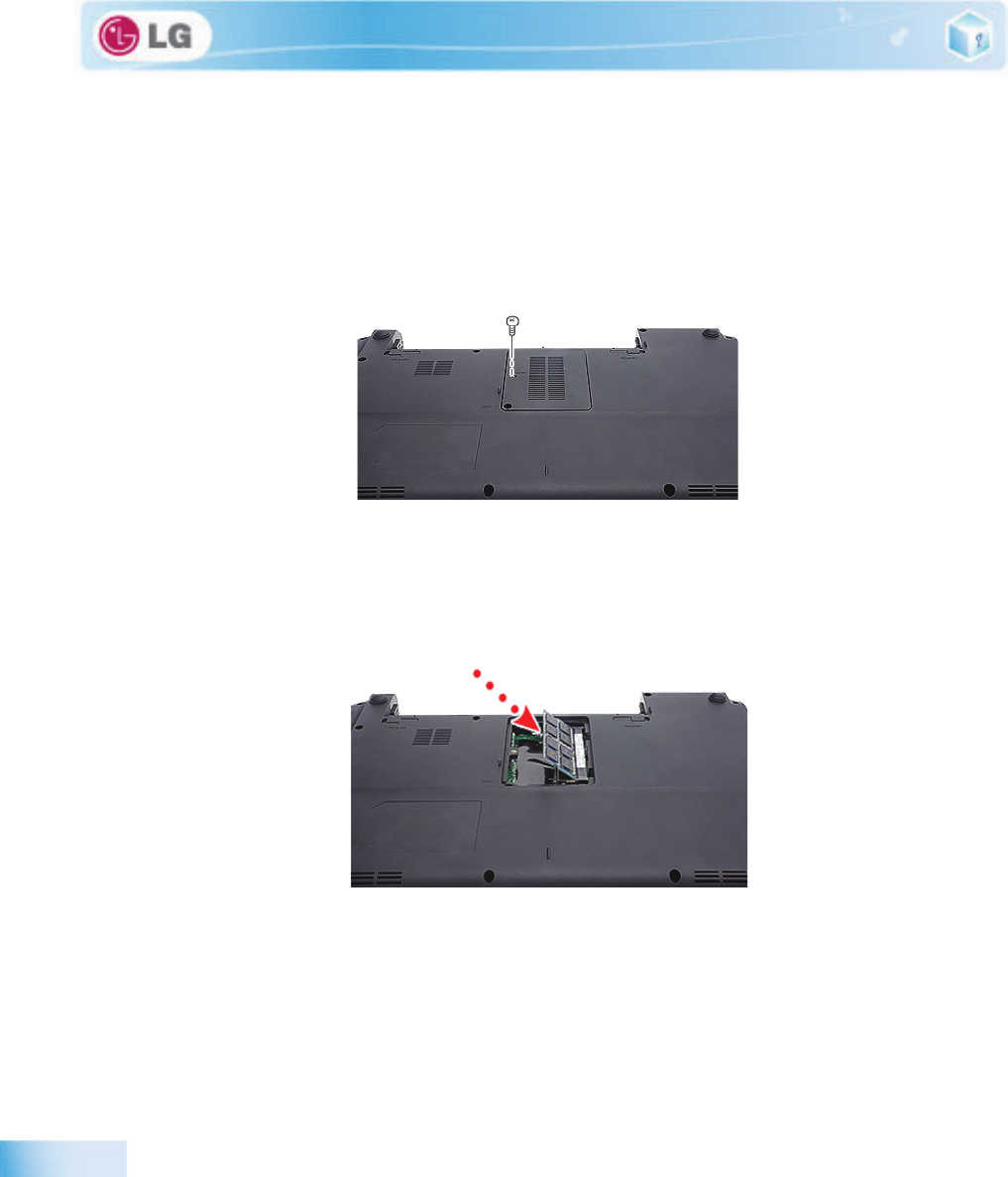

1. Loosen the two screws at the bottom of the notebook PC to remove the cover.
2. Insert the expansion memory to the memory socket as indicated by the arrow.
![](/img.php?id=1458605&img=bg70.png)
Secondary Storage Device and Memory
113

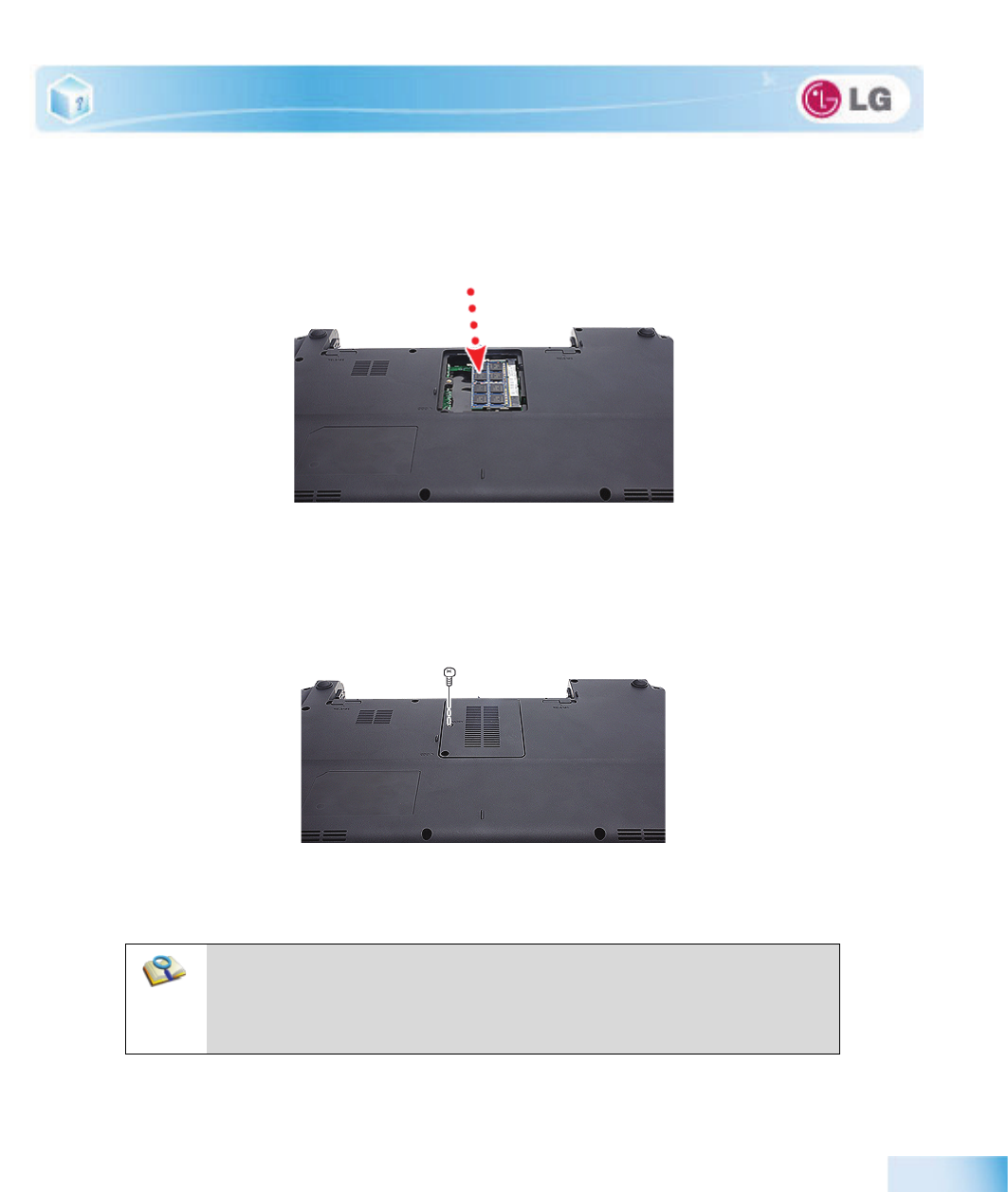

3. Push the memory in the direction of the arrow until you hear a "click" sound.
4. After inserting the memory, fasten the cover with the screws.
5. If an error message related to the main memory capacity is displayed during booting after the memory
is expanded, press F2 key and save the settings.
■Before remove the PC cover, turn off the AC power, and remove the battery and all peripherals.
Then, disconnect the cable.
■Push till the memory is completely fixed in the lock.
■Check the memory capacity during the second booting. If the memory capacity is not correct, ins-
tall the main memory again.
![](/img.php?id=1458605&img=bg71.png)
114
Secondary Storage Device and Memory
■Use only the expandable main memory module manufactured by LG. Using a main
memory module other than recommended products may cause malfunctioning of the
notebook PC.
![](/img.php?id=1458605&img=bg72.png)
12.Appendix
![](/img.php?id=1458605&img=bg73.png)
116
Appendix
12-1. Specifications
X
Available Processors
Intel Core i7 / i3 Intel Pentium processors (L3 cache memory: 3 MB - 8 MB) are supported.
L3 cache memory size differs depending on the CPU, which in turn differs depending on the model.
The user must not replace or expand the CPU capacity.
X
Main Memory
Each socket supports 1024 MB to 4096 MB, and the maximum capacity of the main board is 8 GB.
We recommend 2 GB (2048 MB) or 4 GB (4096 MB) memory for the main memory upgrade.
Memory of 4 GB or more is supported only in 64 bit O/S. 32 bit Windows Vista, Windows XP, and Windows 7
do not support memory of 4 GB or more.
Memory types and capacity may differ depending on the model. When you want to use both memory sockets, you
need to use the memory manufactured by the same company.
X
Secondary Storage Devices
6.35 cm(2.5 inches) Hard Disk Drive(SATA)
The capacity of the storage device or the hard disk type may differ depending on the model.
X
LCD
35.5 cm(14 inches) HD LED (1366 x 768) TFT Color LCD
Some models are equipped with Glare Type LCD. This model is enhanced the sharpness compare to the other types
of LCD. So, it may appears glaring a lot but this is the normal status.
The size and the resolution rate of the LCD depend on the notebook PC model.
X
Bluetooth / Wireless LAN
Bluetooth 3.0 + HS
3rd Party 802.11bgn (BT Combo, 1 x 1)
Intel Centrino Wireless - N 1030 (BGN, BT Combo, 1 x 2)
Wireless LAN specifications may differ by model type and cannot be arbitrarily changed by the user.
Manufacturers and installers cannot provide services related to human safety as this wireless device may cause
radio interference.
Models with Intel Wireless LAN support Bluetooth 2.1.
Bluetooth If you connect to both Bluetooth device and wireless LAN at the same time, the system may become
slow.
In order to use Bletooth 3.0, the device you want to connect to should support Bluetooth 3.0.
The Bluetooth device is optional and may not be available depending on the model. The Bluetooth module
you can use may differ depending on the model.
![](/img.php?id=1458605&img=bg74.png)
Appendix
117
X
Smart Cam
HD Smart Cam
X
External I/O Interface
External VGA Monitor Port: 1
HDMI Port: 1
Microphone (stereo): 1
Microphone Input Port: 1
Headset Output Port: 1
USB 2.0 Ports: 3
Multi-card Slot: 1
RJ 45 (LAN) Port: 1
X
Video
NVIDIA Geforce GT 520M w/ DDR3 512MB or 1024MB
TurboCache - This technology actively utilizes part of the System Memory when processing large graphic data
like 3D graphics. The size of the utilized memory is determined by the Video Memory and System Memory siz-
es.
If TurboCache technology is applied to the Graphics Memory, the System Memory can allot up to 1717 MB
out of 2 GB (2048 MB) and up to 4095 MB out of 8 GB (8192 MB) for large graphic data.
Intel HD Graphics 3000
The DVMT actively utilizes part of the system memory when processing large graphic data like 3D graphics.
Therefore, the size of the graphic memory is displayed as the sum of the actual graphic memory size and the uti-
lized amount of memory, which is decided by the size of system memory.
Up to 815 MB out of 2 GB (2048 MB) system memory and up to 1696 MB out of 8 GB (8192 MB) system memory
can be used as graphic memory with DVMT.
Applications (graphics program, game, etc.) requiring strong graphic processing power may not work properly.
Specifications may differ by model type.
X
Sound
HD Audio, SRS WOW HD, SRS TrueSurround HD
Built-in Stereo Speakers
Simultaneous speaker output while using the built-in microphone is not supported.
![](/img.php?id=1458605&img=bg75.png)
118
Appendix
X
LAN
Gigabit
RJ 45 Jack
The LAN specifications may differ depending on the model.
X
Weight
Full Installation: About 1.94 kg (six-cell battery/ODD included)
Battery: 000 g (6 cell)
Weight descriptions may differ by model type.
![](/img.php?id=1458605&img=bg76.png)
Appendix
119
12-2. Power Supply and Environments
X
AC Adapter (Free Voltage)
Power Capacity: 65 W / 90 W
Input: AC 100 to 240 V, 1.2 A, 50 / 60 Hz
Output: DC 19 V
Caution: Use a rated and legitimate AC adapter, suitable for the model.
X
Battery (Li-Ion)
Rated Capacity: 11.1 V or 10.8 V
Charging Hours: At room temperature (10 to 40 ) and power turned off - less than 3 hours (6-cell battery)
Not charged under 0 .
The above temperatures are internal temperatures of the battery pack, and may be different from the actual room
temperature.
X
Operation and Storage Environments
Operating Temperature: 10 to 35
Operating Humidity: 20 % RH to 80 % RH
Storage Temperature: -10 to 60
Storage Humidity: 10 % RH to 80 % RH
X
Power Consumption
The above power consumption is calculated on the assumption that the battery is fully charged.
Power consumption during operation or standby may differ depending on the programs the system is running and
product specifications.
Even when the system is turned off, it consumes a minute amount of power, if supplied. To cut off the power sup-
ply completely, disconnect the power cord from the power outlet.
Operating Conditions Approximately 17.7 W When running video clips
Standby mode (Idle state) Approximately 6 W When the monitor display is off
Power Saving mode (Sleep Mode) 0.7 W or lower In S3(Suspend)
Off Mode (Standby(off) Mode) 0.5 W or lower When the system is turned off
