2-24 Foreman PC Hardware Installation Guide
Revision A: October 2002

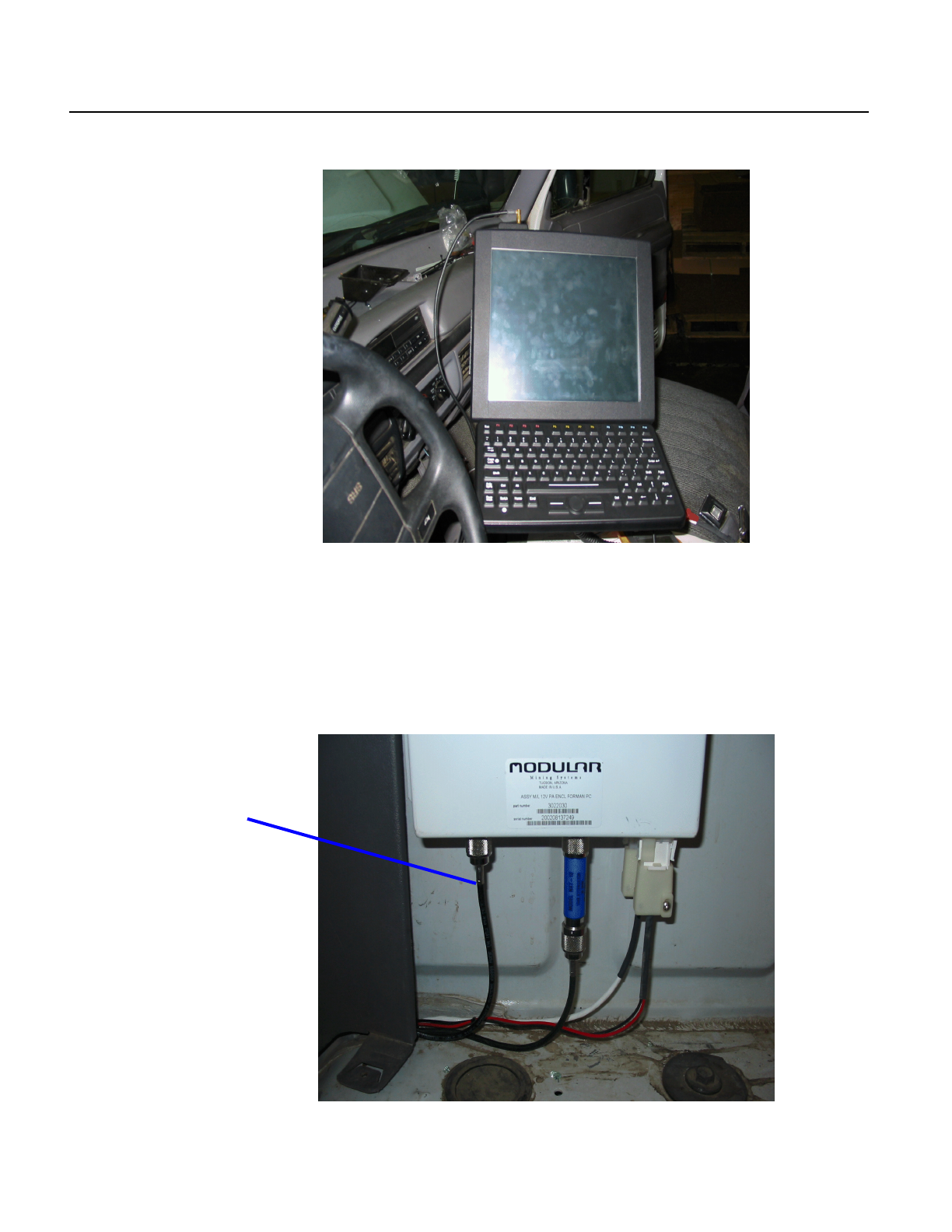

Figure 2.25 Cable 302202 Attached to Top of PC
Connecting the RF
Feedline (302255) to
Electrical Box
Terminate the RF feedline (part number 302255) (drawing 4013416)
and connect it to the electrical box, as shown below. For maximum
output power, minimize the length of this cable. The cable must be at
least six feet long, however, for FCC compliance.
Figure 2.26 RF Feedline Connected
RF feedline
