Ex8 User Manual 2of 2 i58sr
FIRST DRAFT 103
Assisted Global Positioning
System
Your phone’s AGPS feature uses information from satellites orbiting the Earth
to calculate the exact geographical location, or position, of your phone.
When you make an emergency call, your phone’s position is automatically
transmitted to emergency workers to help them locate you.
You can use the AGPS feature to view your phone’s position at any time. Java
applications loaded on your phone can also read your phone’s position.
You can set your AGPS privacy options to control which, if any, Java
applications are permitted to read your phone’s position. You can even remove
the GPS option from your main menu, so that your phone’s position is only
calculated for use by emergency workers when you make an emergency call.
This section includes:
Accessing the AGPS Feature
To the AGPS feature:
Accessing the AGPS Feature Page 103
Viewing Your Position Page 104
Setting Privacy Options Page 105
Setting Data Flow Page 106
Removing GPS from the Main Menu Page 107
1
From the Ready screen, press m.
2
Press R to scroll to GPS.
3
Press B under SELECT.
www.motorola.com/iden
104 FIRST DRAFT
Viewing Your Position
To view your AGPS position:
This displays the following information about the last time your phone’s
position was calculated:
• the time (as Greenwich Mean Time) and date that the position was last
calculated.
• the position, expressed as latitude and longitude.
• the number of satellites used to calculated the position.
• the estimated accuracy of the calculated position (for example, the
calculated position may be accurate within 50 feet of your phone’s actual
position).
To calculate your phone’s position again:
The Position screen displays the updated information.
To cancel a position calculated before it is completed::
Each time your phone’s position is calculated, the latest position information is
stored in your phone and remains there even when your phone is powered off.
You will see this information the next time you view the Position screen.
If you received a phone call, Private call, or any kind of alert while attempting
the calculate your phone’s position, the Position screen will disappear, but your
phone will continue to calculate its position. The next time you view the
Position screen, the new position information will be displayed.
1
From the GPS screen, press R to scroll to Position.
2
Press B under SELECT.
3
To view the entire displayed screen, press S to scroll.
Press B under RFRSH.
Press e.
Setting Privacy Options
FIRST DRAFT 105
Setting Privacy Options
Your AGPS privacy options control whether Java applications on your phone
may read your phone’s GPS position.You may set your phone to one of three
AGPS privacy option:
•Restricted — No Java applications may read your phone’s position.
•Unrestricted — All Java applications may read your phone’s position,
without notifying you.
•By Permission — When a Java application attempts to read your phone’s
position, you will be prompted to give permission.
To set your AGPS privacy options:
Setting the GPS PIN Security Feature
To prevent your GPS privacy settings from being altered without your
knowledge, your GPS privacy option can be protected by a PIN.
When you receive your phone, the GPS security feature is turned off, so you do
not have to enter a GPS PIN to access your GPS privacy options. If you turn this
feature on, you will be required to enter a GPS PIN to access your GPS privacy
options.
To turn the GPS security feature on of off:
1
From the GPS screen, press R to scroll to Privacy.
2
Press B under SELECT.
3
If your GPS PIN security feature is enabled, enter your GPS PIN. (See
“Setting the GPS PIN Security Feature” on page 105 for more
information.)
4
Press S to scroll to the privacy setting you want.
5
Press B under SELECT.
1
At the Ready screen, press m and then press R to scroll to Settings.
2
Press B under SELECT.
3
Press R to scroll to Security and press B under SELECT.
www.motorola.com/iden
106 FIRST DRAFT
To change your GPS PIN:
Setting Data Flow
You can control NMEA data flow through the accessory connector at the bottom
of your phone. Each time you power your phone on, NMEA data flow is
automatically set to Off.
4
Press R to scroll to GPS PIN and press B under SELECT.
5
Press R to scroll to On or Off. On enables the GPS PIN requirement;
Off disables the SIM PIN requirement. Press B under SELECT.
6
At the Verify SIM PIN Code screen, enter the current GPS PIN and
press B under OK.
NOTE: When your receive your phone, your GPS PIN is 0000.
1
At the Ready screen, press m and then press R to scroll to Settings.
2
Press B under SELECT.
3
Press R to scroll to Security and press B under SELECT.
4
Press R to scroll to New Passwords and press B under SELECT.
5
At the New Passwords screen, press R to scroll to GPS PIN and press
B under SELECT.
6
At the Enter Old GPS PIN Code screen, enter the current GPS PIN
and press B under OK.
NOTE: When your receive your phone, your GPS PIN is 0000.
7
At the Enter New GPS PIN Code screen, enter the new 4- to 8-digit
GPS PIN and press B under OK.
8
At the Re-enter New GPS PIN Code screen, re-enter the new GPS PIN
to confirm, and press B under OK.
Removing GPS from the Main Menu
FIRST DRAFT 107
To set NMEA On, or set it back to Off without powering off the phone:
Removing GPS from the Main Menu
If your remove the GPS option from your main menu, you will not be able to
view your phone’s position and no Java application will be able to read your
phone’s position. Your phone’s position will only be available to emergency
workers, only when you make on emergency call.
If information on how to remove the GPS option from your main menu, go to
www.motorola.com/idenupdate.
1
From the GPS screen, press R to scroll to Interface.
2
Press B under SELECT.
3
Press B under CHANGE.
4
Press S to scroll to On or Off.
5
Press B under SELECT.
www.motorola.com/iden
108 FIRST DRAFT
FIRST DRAFT 109
Datebook
The Datebook is a calendar in your i58sr phone that enables you to schedule and
organize events, such as appointments and meetings. Schedules can be created
and viewed for specific days, and reminder alarms can be set so that you never
miss important events.
You can view upcoming events by week or by day. The Datebook stores and
manages 250 events over a 13-month period (12 months ahead and 1 month
back).
NOTE: The time and date format and the year used in Datebook can be
set by you. Before using Datebook for the first time, ensure that
the current year is correct. See “Initial Setup” on page 142 for
more information.
This section includes:
Datebook Icons Page 110
Viewing Your Datebook Page 110
About Datebook Events Page 112
Adding New Events Page 113
Editing Events Page 117
Deleting Events Page 117
Datebook Event Reminders Page 118
Customizing Datebook Set Up Page 118
www.motorola.com/iden
110 FIRST DRAFT
Datebook Icons
There are several icons commonly used in the Datebook application:
Viewing Your Datebook
To access your Datebook:
Information in your Datebook can be viewed in three ways: by the week, by the
day, or by the event.
This information is structured hierarchically. When you access the Datebook, it
displays the current week. You can select a day to view and display the events of
that day. When the events of a day are displayed, you can select an event to view
and display details of that event.
Symbol Description
CEvent without a start/
end time
fMore options are
available
jRecurring
Appointment
IDatebook Alarm
GUsed to move through
fields when setting a
time and date.
1
From the Ready screen, press m.
2
Press R to scroll to Datebook.
3
Press B under SELECT.
Viewing Your Datebook
FIRST DRAFT 111
Viewing a Week
When you access your
Datebook, the current week is
displayed. You can scroll to
other weeks by pressing S.
The dates of the displayed
week appear at the top of the
text area of your phone’s
screen.
Below the dates are letters
indicating the days of the
week. When you access your
Datebook, the current day is highlighted. You can scroll to other days by
pressing T.
Below each letter is a 12-hour time window for each day. Scheduled events are
shown within the time window in black.
A small bar between the letter and the time window indicates an event on that
day that does not have a time of day associated with it, such as a birthday.
Viewing a Day
To view a day in your Datebook:
The day and date appear at the top of the text display area. Events for the day
selected are listed by time. Events without times are displayed at the top of the
list with a bullet to the left of them.
1
With a week displayed, select the day you want to view by pressing T
until the letter for that day is highlighted.
2
Press B under VIEW.
Displayed week
Days of week
Events
c
www.motorola.com/iden
112 FIRST DRAFT
Viewing Event Details
To view the details of an event:
This displays event details such as day of week, time, title, duration, alarm time,
and repeat cycle. For more information about events, see “About Datebook
Events” on page 112.
Viewing Today
You can easily go to the current day when viewing your Datebook:
About Datebook Events
Each Datebook event may contain the following information:
• The title you assign to the event. You can enter a title using the phone’s
alphanumeric keypad or choose from a list of commonly used titles. A title
is required for every event (maximum of 128 characters).
• Additional text following the event’s title.
• The start time and duration of the event.
• The date of the event.
• An option to repeat the event in your Datebook.
• An alarm to notify you of the event before it begins.
• The style you want your phone to use when the event occurs. See
“Customizing the i58sr Phone” on page 133 for more information.
1
Select and view the day containing the event you want to view.
2
Press S to scroll to the event.
3
Press B under VIEW.
1
While viewing any week, day, or event, press m. This displays the
Datebook Menu with Go to Today highlighted.
2
Press B under SELECT.
Adding New Events
FIRST DRAFT 113
Adding New Events
Using the following instructions, you will enter the information in the order the
items appear on the Event Form screen. However, you can enter this
information in any order by pressing S to scroll through the items on the Event
Form screen. You can leave any item blank or unchanged by pressing S to
scroll past it on the Event Form screen. Only a title and a date are required for a
valid event.
To cancel a Datebook event entry at any time, press e to return to the Ready
screen.
To add a Datebook event:
1
Access the Event Form screen:
While viewing a week in the Datebook,
press m to access the Datebook Menu.
Press R to scroll to New.
Press B under SELECT.
The Event Form screen displays with the
Title field highlighted.
2
With the Title field highlighted, press B under CHANGE to access
the Title screen.
3
Assign a title to the event:
Press B under BROWSE to choose from a list of commonly used
event titles. Press S to scroll to the title you want and press B under
SELECT.
Or,
Type the title using the alphanumeric keypad. See “Using T9 Text
Input” on page 31 for information about entering text into this field.
You can also enter a description of the appointment or any other text.
When you are finished, press B under OK.
The Event Form screen returns with the Start field highlighted.
b
www.motorola.com/iden
114 FIRST DRAFT
4
If you want to assign a time of day to the event:
With the Start field highlighted, press B under CHANGE.
From the Start screen, enter the time the event will begin.
Type in the start time, or press S to scroll through the hours, minutes,
and am, pm, or 24 hour clock. Press T or press B under G to move
through the fields.
Press A under DONE.
The Event Form screen returns with the Duration field highlighted.
5
After you have assigned a start time to the event, you can specify the
duration of the event. The default duration is one hour. To assign a
different duration:
With the Duration field highlighted, press B under CHANGE.
From the Duration screen, press R to scroll to the desired duration. If
you select None, the event will have a duration of zero minutes.
Press B under SELECT.
The Event Form screen returns with the StartDate field highlighted.
6
The default date assigned to an event is the day that was highlighted
when you accessed the Event Form screen to add the event. To assign a
different date:
With the StartDate field highlighted, press B under CHANGE.
From the StartDate screen, enter the date of the event:
Type in the date, or press S to scroll through the months, days, and
years. Press T or press B under G to move through the fields.
Press A under DONE.
The Event Form screen returns with the Repeat field highlighted.
Adding New Events
FIRST DRAFT 115
7
If you want the event to recur in your Datebook, assign a repeat cycle to
it:
With the Repeat field highlighted, press B under CHANGE.
NOTE: When Repeat is set to none or yearly, it will not be possible
to access the Repeat End field.
From the Repeat screen, press S to scroll to the desired repeat cycle.
Press B under SELECT.
The Event Form screen returns with the RepeatEnd field highlighted.
Press B under CHANGE and enter the date on which you want the
event to stop repeating. When you have finished, press A under
DONE.
The Event Form screen returns with the Alarm field highlighted.
8
If you want to set an alarm to remind you
that the event is approaching:
With the Alarm field highlighted, press
B under CHANGE.
From the Alarm screen, press S to scroll
to the desired alarm option.
Press B under SELECT. Y
www.motorola.com/iden
116 FIRST DRAFT
9
If you want your phone to change to a
style you have defined when the event
occurs (see “Customizing the i58sr
Phone” on page 133):
With MORE highlighted, press B
under SELECT. The Style field appears.
Press B under CHANGE.
From the Style screen, you see a list of
styles you have created. Press S to
scroll to the desired style.
Press B under SELECT.
10
When you have entered all the desired
information about the event, press A
under DONE.
h
X
Editing Events
FIRST DRAFT 117
Editing Events
Deleting Events
1
If you are viewing the week containing the event:
Press B under EDIT.
Or,
If you are viewing the day containing the event:
Press m to display the Datebook Menu.
Press R to scroll to Edit and press then B under SELECT.
2
Follow the applicable instructions in “Adding New Events” on page
113, to edit the various fields.
1
View the day containing the event and press S to scroll to the event
you want to delete.
Or,
View the details of the event you want to delete.
2
Press m. The Datebook Menu displays.
3
Press R to scroll to Delete and press B under SELECT.
4
If the event is a recurring event, the Delete Event screen appears:
• To delete only the occurrence of the event you select in step 1,
leave This Event Only highlighted.
• To delete all occurrences of the event, press R to highlight
Repeat Events.
Press B under SELECT.
5
If the event is a recurring event, a confirmation screen appears. Press
A under YES to confirm.
www.motorola.com/iden
118 FIRST DRAFT
Datebook Event Reminders
If you have set an alarm to remind you that a Datebook event is approaching,
your phone sounds an audible alarm and displays a reminder.
NOTE: You must have the Time and Date display turned on to receive
event reminders. This is the default setting.
When a Datebook event reminder appears on the screen:
Customizing Datebook Set Up
Datebook allows you to customize some of its set up features:
•DailyBegin — sets the beginning time of the 12-hour day your Datebook
displays when you are viewing a week.
•Reminder — controls the behavior of alarms you have set in Datebook:
•Active Only sets Datebook to ignore alarms that occur when your
phone is powered off.
•Delayed If Off sets Datebook to delay alarms that occur when your
phone is powered off until your phone is next powered on.
•Weekday — sets the first day of the week your Datebook displays when
you are viewing a week.
•DeleteAfter — controls how long your Datebook waits to delete an event
after it has occurred.
Press A under VIEW to view more
information about the Datebook event.
Or,
Press A under EXIT to dismiss the event
reminder. F
Customizing Datebook Set Up
FIRST DRAFT 119
To customize your Datebook set up:
1
While viewing a week in the Datebook, press m to access the
Datebook Menu.
2
Press S to scroll to Setup and then press B under SELECT
3
Press R to scroll to any of the set-up features.
Press B under CHANGE.
Use the screens that appear to make your changes.
www.motorola.com/iden
120 FIRST DRAFT
FIRST DRAFT 121
Memo
The Memo application provides you with a place to store a numeric note in your
i58sr phone.
This section includes:
Adding a New Memo
Viewing a Memo
Adding a New Memo Page 121
Viewing a Memo Page 121
Editing a Memo Page 122
Deleting a Memo Page 122
1
From the Ready screen, press m.
2
Press R to scroll to Memo.
3
Press B under SELECT. The Memo screen displays.
4
Type your numeric memo using the phone’s keypad.
5
Press B under STORE.
1
From the Ready screen, press m.
2
Press R to scroll to Memo.
3
Press B under SELECT.
www.motorola.com/iden
122 FIRST DRAFT
Editing a Memo
Deleting a Memo
1
From the Ready screen, press m.
2
Press R to scroll to Memo.
3
Press B under SELECT.
4
Type the new number.
You can delete a digit by pressing A under DELETE. To all the digits,
press and hold A under DELETE.
5
Press B under STORE.
1
From the Ready screen, press m.
2
Press R to scroll to Memo.
3
Press B under SELECT.
4
Press and hold A under DELETE.
5
Press B under STORE.
FIRST DRAFT 123
Voice Record*
The Voice Record feature of your i58sr phone enables you to record and play
back personal messages or the incoming portion of phone calls on your i58sr
phone.
*Optional feature. Please consult your service provider for availability of purchase.
This section includes:
About Voice Record
Your phone can store up to 20 Voice Records, with a total time of about three
minutes, depending on available memory.
Accessing Voice Record
To access the Voice Record feature:
About Voice Record Page 123
Accessing Voice Record Page 123
Recording a Voice Record Page 124
Playing a Voice Record Page 124
Adding to a Voice Record Page 125
Labeling a Voice Record Page 125
Deleting a Voice Record Page 126
Locking/Unlocking a Voice Record Page 126
Voice Record Memory Page 127
1
From the Ready screen, press m.
www.motorola.com/iden
124 FIRST DRAFT
Recording a Voice Record
NOTE: Recording of phone calls is subject to varying State and Federal
laws regarding privacy and recording of phone conversations.
To record a personal message as a Voice Record:
To record the incoming portion of a call as a Voice Record:
Playing a Voice Record
2
Press R to scroll to VoiceRecord.
3
Press B under SELECT.
1
From the VoiceRecord screen, press R to scroll to [New VoiceRec].
2
Press B under RECORD and speak the message you want to record
into the microphone.
3
When you are finished recording your Voice Record, press B under
STOP.
1
While on an active call, press m.
2
Press R to scroll to VoiceRecord.
3
Press B under SELECT to record the incoming portion of the call.
Your own voice will not be recorded.
4
When you are finished recording your Voice Record, press B under
STOP.
1
From the VoiceRecord screen, press R to scroll to the Voice Record
you want to play.
2
Press B under PLAY.
3
To stop the Voice Record while it is playing, press A under BACK.
Adding to a Voice Record
FIRST DRAFT 125
Adding to a Voice Record
After you create a Voice Record, you can record more at the end of the existing
Voice Record:
Labeling a Voice Record
When you create a Voice Record, it is labeled with the time and date it was
recorded. After a Voice Record has been recorded, you can re-name it with a
custom label.
To label a Voice Record:
1
From the VoiceRecord screen, press R to scroll to the Voice Record
you want to add to.
2
Press m to view the VoiceRecd Menu.
3
Press R to scroll to Add To.
4
Press B under SELECT and speak the message you want to record
into the microphone.
5
When you are finished recording, press B under STOP.
1
From the VoiceRecord screen, press R to scroll to Voice Record you
want to name.
2
Press m to view the VoiceRecd Menu.
3
Press R to scroll to Label and press B under SELECT.
4
At the Enter Label screen, enter a label for the Voice Record using the
alphanumeric keypad.
5
Press B under OK.
www.motorola.com/iden
126 FIRST DRAFT
Deleting a Voice Record
To delete a Voice Record:
To delete all unlocked Voice Record:
Locking/Unlocking a Voice Record
Locking a Voice Record prevents it from being deleted. When a Voice Record is
locked, the locked icon M appears next to it.
To lock or unlock a Voice Record:
1
From the VoiceRecord screen, press R to scroll to Voice Record you
want to delete.
2
Press m to view the VoiceRecd Menu.
3
Press R to scroll to Delete and press B under SELECT.
4
A confirmation screen appears. Press A under YES to confirm.
1
From the VoiceRecord screen, press m to view the VoiceRecd Menu.
2
Press R to scroll to Delete All and press B under SELECT.
3
A confirmation screen appears. Press A under YES to confirm.
1
From the VoiceRecord screen, press R to scroll to Voice Record you
want to lock or unlock.
2
Press m to view the VoiceRecd Menu.
3
Press R to scroll to Lock or Unlock.
4
Press B under SELECT. A confirmation screen displays.
Voice Record Memory
FIRST DRAFT 127
Voice Record Memory
Typically, you can store 20 Voice Record with a total time of about three
minutes. To check the amount of memory available for Voice Record:
NOTE: Because Voice Record is stored in your phone using the same
memory space used to store Java applications, using a large
amount of memory to store Java applications reduces the space
available for Voice Record. When this occurs, deleting Java
applications from your phone’s memory frees memory space
for Voice Records. For more information about Java
applications stored in your phone, see “Java” on page 129.
1
From the VoiceRecord screen, press m to view the VoiceRecd Menu.
2
Press R to scroll to Memory.
3
Press B under SELECT to display the Memory Meter screen.
The memory meter shows the amount of Voice Record memory space
currently in use. It fills in from left to right as your Voice Record
memory space fills up.
4
From the Memory Meter screen, you can free more Voice Record
memory space by pressing B under DELETE to delete all unlocked
Vo i c e R e c o r d .
A confirmation screen displays. Press A under YES to confirm.
www.motorola.com/iden
128 FIRST DRAFT
FIRST DRAFT 129
Java
The Java feature of your i58sr phone runs programs, or applications, written in
the Java 2 Micro Edition programming language.
The phone comes with Java applications downloaded and ready for installation.
You can choose to order or purchase Java applications and download them into
your phone via the Internet. For more information, see “Downloading Java
Applications” on page 131.
This section includes:
Accessing Java Menu
To access the Java menu:
The Java menu displays all of your Java applications.
Accessing Java Menu Page 129
Installing Java Applications Page 130
Running Java Applications Page 130
Downloading Java Applications Page 131
Java Memory Page 131
Deinstalling Java Applications Page 132
IMPORTANT: To avoid personal injury, do not play games on
your i58sr phone when operating machines or
driving vehicles.
1
From the Ready screen, press m.
2
Press R to scroll to Java Apps.
3
Press B under SELECT.
www.motorola.com/iden
130 FIRST DRAFT
Installing Java Applications
To install a Java application:
Running Java Applications
To run an application:
NOTE: If you receive an incoming phone call, the Java application will
be suspended.
To suspend a running application:
1
From the Java Apps screen, press R to scroll to the desired
application.
2
To determine whether the application needs to be installed, look at the
display options on the screen.
If the display option is RUN or SELECT, the application is already
installed and ready to run. See “Running Java Applications” on page
130.
If the display option is INSTALL, press B under INSTALL to install
the application.
3
The screen will display a series of installation steps. A checkmark will
appear as each step is completed. This may take several minutes.
When your phone has finished installing the application, press A
under DONE.
1
From the Java Apps screen, press R to scroll to the application you
want to run.
2
Press B under RUN or SELECT.
Press e.
Downloading Java Applications
FIRST DRAFT 131
To resume a suspended application:
To stop running an application:

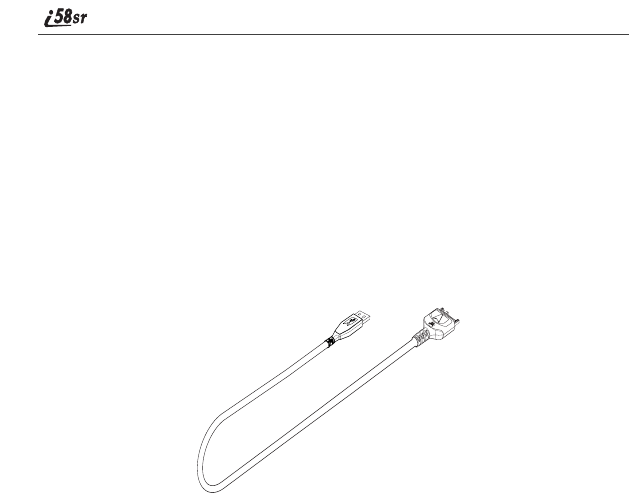

Downloading Java Applications
You can customize your phone by ordering additional Java applications via the
iDEN Update Website. Please go to www.motorola.com/idenupdate for a
selection of applications available and downloading instructions. You can

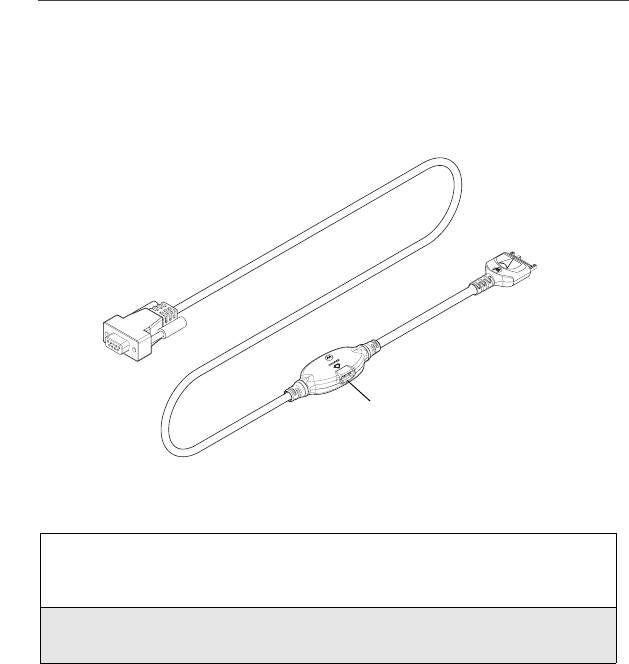

download these applications by connecting your phone to a PC using a data
cable and the iDEN Update Software Application.
NOTE: This is network subscription dependent feature. Please check
with your Service Provider for availability.
Java Memory
In order to download, store and run the application of your choice, you must
have enough Data and Program memory available in your phone.
•Data memory refers to the memory needed to download an application to
your phone.
•Program memory refers to the memory needed to install and run an
application on your phone.
To check how much memory your phone has available for Java applications:
Press B under RESUME.
Press e and then press A under EXIT.
1
From the Ready screen, press m.
2
Press S to scoll to Java Apps. Press B under SELECT.
3
From the Java Apps screen, press S to scroll to Java System. Press
B under SELECT.
4
Press B under NEXT to go to the Java System screen. The Data
Space and Prog. Space information will be available.
www.motorola.com/iden
132 FIRST DRAFT
You may free more Data Memory and Program Memory space by deinstalling
an application that you do not wish to use. Deinstalled applications that were
obtained from iDEN Update may be redownloaded at a later time at no cost. For
information on deinstalling, see “Deinstalling Java Applications” on page 132.
NOTE: Java applications are stored in your phone using the same
memory space used to store Voice Records. Using a large
amount of data memory to store Voice Records reduces the
data memory available for downloading of Java applications.
When this occurs, deleting Voice Records from your phone’s
data memory space will free memory space for Java
applications.
Deinstalling Java Applications
To remove a Java application from your phone:
1
From the Java Apps screen, press S to scroll to the application you
want to remove.
2
Press m.
3
Press R to scroll to DEINSTALL.
4
Press B under SELECT. A confirmation screen displays.
5
Press A under YES. A warning screen displays. Press A under OK.
6
When your phone has finished deinstalling the application, press A
under DONE.
FIRST DRAFT 133
Customizing the i58sr Phone
You can customize your i58sr phone to fit the way you want to use it.
This section includes:
Settings
Using Settings, you can set or change a wide variety of your phone’s features.
To access Settings:
From the Settings screen, you can access these Settings options:
•Ring/Vibe — controls how your phone rings or vibrates when you receive
calls and messages.
•Phone Setup — sets call-answering features, turns off non-telephone
features, chooses which phone line is used, and sets your network ID.
•In Call Setup — sets call timer, message notification, and call waiting
features.
•Security — sets security features including phone lock, keypad lock, and
SIM PIN.
•Personalize — controls which features are most accessible when you turn
on your phone.
•Initial Setup — sets a variety of display features including the language
displayed, the size of the characters on the text screen, time and date
formats, current year, backlight, status light, and scrolling. Also turns auto
redial on or off and sets baud rate.
Settings Page 133
Styles Page 150
Shortcuts Page 155
1
From the Ready screen, press m.
2
Press R to scroll to Settings.
3
Press B under SELECT.
www.motorola.com/iden
134 FIRST DRAFT
•VoiceVolume — sets the volume of your phone’s earpiece and speaker.
•Tkgrp — sets certain Talkgroup options.
•Service Status — shows the status of your phone’s services.
To access any of these options:
Many of these options have other options within them. Press S to scroll
through the lists of options, and press A to select and modify options and the
features, according to the instructions on your phone’s screen. For some options,
you can also press T to select sub-options.
In screens that show lists of options for a setting, a check mark to the left of the
option indicates the current option for the setting.
Ring/Vibe
Ring/Vibe enables you to control how your phone rings and vibrates when you
receive calls and messages. You can set ring volume, choose ring styles, and use
the VibraCall® Alert feature which enables you to set your phone to alert you to
calls and messages by vibrating.
Main Options
Ring/Vibe provides these main options:
•Ringer Vol — sets ring volume.
•Keypad Vol — sets volume of sounds associated with keypad actions.
•Mail Vol — sets volume of Text Message, Voice Mail, and Net Alert
notifications.
1
From the Settings screen, press R to scroll to the option you want to
access.
2
Press B under SELECT.
3
With the Type field highlight, press B under CHANGE.
4
Press R to scroll to the notification type you want to assign to the
feature.
5
To assign the notification type, press B under SELECT.
Settings
FIRST DRAFT 135
•Headset — choosing the HdsetOnly option prevents sound from being
emitted from the phone’s speaker when the headset is being used.
•VibeAll — choosing On sets the phone to vibrate for all calls, messages,
and alerts; choosing Off enables you set the type of notification for each
these features.
Ring Style and Notification Type
When you set VibeAll to On, your phone vibrates to notify you of all types of
calls, messages, and alerts.
When you set VibeAll to Off, the following features display after VibeAll on
the Ring/Vibrate screen, enabling you to set notification options for each:
•Line 1 — sets the ring style and type of notification for calls on Line 1.
•Line 2 — sets the ring style and type of notification for calls on Line 2.
•Pvt/Grp — sets type of notification for Private and Group calls.
•Call Alert — sets the ring style and type of notification for call alerts.
•Text Msgs — sets type of notification for Text Messages.
•Reminder — sets type of notification for Datebook reminder alarms.
•Voice m ail — sets type of notification for Voice Mail messages.
•Netmail — sets type of notification for Net Alert messages.
To set VibeAll to Off or On:
1
From the Ring/Vibrate screen, press S to scroll to the VibeAll:.
2
Press B under CHANGE.
3
Press S to scroll to Off or On.
4
Press B under SELECT.
www.motorola.com/iden
136 FIRST DRAFT
The following icons appear on the second row of your display screen to indicate
the options you have chosen:
Notification Types
When you set a notification type, you have these options:
•Ring — the phone rings to notify you.
•Vibe — the phone vibrates to notify you.
•Vibe/Ring — the phone vibrates and then rings to notify you. This option
is only available for calls on Line 1 and Line 2.
•Silent — the phone does not ring to notify you.
To set a notification type:
Icon Indicates...
-Vibrate All — phone is set to vibrate when
you receive all types of calls, messages,
and alerts; the VibeAll option is On.
[Vibrate On — phone is set to vibrate when
you receive phone calls.
\Vibrate Then Ring — phone is set to
vibrate and then ring when you receive
phone calls.
*Silent — phone is set not to ring.
1
From the Ring/Vibrate screen, ensure that VibeAll is set to Off. Then
press S to scroll to any of the features on the Ring/Vibrate screen
after VibeAll.
2
Press B under SELECT.
3
With the Type field highlight, press B under CHANGE.
4
Press R to scroll to the notification type you want to assign to the
feature.
5
To assign the notification type, press B under SELECT.
Settings
FIRST DRAFT 137
Ring Styles
When you set a ring style, you can choose from any of nine pre-set ring styles.
To set a ring style:
USER TIP:To hear the ring style you have selected, press the volume
button on the side of your phone.
Phone Setup
Phone Setup sets some basic phone features. Access Phone Setup to set the
following options:
•Line — enables you to choose Line 1 or Line 2 as the active line for
outgoing calls.
•AutoAns — sets your phone to automatically answer an incoming call
after a specified number of rings. When this feature is turned on, the phone
answers by connecting you to the caller; it does not send the call to Voice
Mail, unless you are out of coverage or on the line.
•Any Key — when turned on, enables you to answer calls by pressing any
key on the alphanumeric keypad.
•Phone Only — when turned on, prevents your phone from making or
receiving Private calls or Group calls.
•Network ID — enables you to set the phone’s network IDs and their
roaming options.
1
From the Ring/Vibrate screen, ensure that VibeAll is set to Off. Then
press S to scroll to any of the features that allow you to set a ringer
style: Line1, Line2, or Call Alert.
2
Press B under SELECT.
3
With the Style field highlight, press B under CHANGE.
4
Press R to scroll to the ring style you want to assign to the feature.
5
To assign the ring style, press B under SELECT.
www.motorola.com/iden
138 FIRST DRAFT
In Call Setup
In Call Setup sets the in-call timer, message notification, and call-waiting
features.
• The In Call Timer option turns the following features on and off:
•Display — the duration of the current call displays on the phone’s
screen.
•Minute Beep — an audible beep occurs every minute of an active
call.
• The Notifications option controls message notification during calls:
•Receive All — notifies you of all types of messages during calls.
•Msg Mail Only — notifies you of mail messages only; all other types
of message notifications are delayed until the call has ended.
•Delay All — delays notification of all messages until the call has
ended.
•Call Waiting — enables you to turn off call waiting for the next call. After
you hang up, call waiting is turned back on.
Security
Security allows you to set security features:
•Phone Lock — sets an optional code that locks your phone.
•Keypad Lock — displays instructions for locking and unlocking your
phone’s keypad.
•SIM PIN — enables and disables your phone’s SIM PIN requirement.
•New Passwords — enables you to change your phone’s security code,
phone unlock code, and SIM PIN.
•Master Reset — allows your service provider to reset your service in the
event of a security or provisioning problem.
Using Phone Lock
The Phone Lock feature enables you to prevent your phone from being used
unless an Unlock code is typed into the keypad.
The Unlock code is required to enable the phone lock feature, to unlock the
phone, and to set a new Unlock code. Contact your service provider for your
default Unlock code.
Settings
FIRST DRAFT 139
Phone lock provides two options for locking the phone:
•Lock Now locks the phone immediately after you set the option.
•Auto Lock locks the phone the next time the phone is powered on.
Setting Keypad Lock
The i58sr phone includes a keypad lock feature that enables you to lock your
phone’s keypad to avoid inadvertantly pressing or replacing calls. See “Keypad
Lock” on page 25 for more information on locking the keypad.
Enabling and Disabling SIM PIN
The SIM PIN option enables and disables the feature that requires a SIM PIN
code to be typed into the phone to access the information on the SIM card and to
make or receive calls. See “SIM Card Personal Identification Number (PIN)” on
page 18 for more information.
Setting New Passwords
The New Passwords option enables you to set three types of passwords that
control access to your phone:
•Unlock Code — this code is used to control access to the phone using
Phone Lock. It is also required to access the Master Clear and Feature
Reset features. If you want to use any of these features, contact your
service provider for your default Unlock code.
•Security Code — this code is used to access the Master Reset feature
under the direction of your service provider. It can also be used to override
your Unlock code under the direction of your service provider.
•SIM PIN — this code is used to access the information on your SIM card
and to make or receive calls. When you get your phone, your SIM PIN is
0000. You should change this to a SIM PIN known only to you as soon as
your get your phone. For information on changing your SIM PIN, see
“Changing the PIN” on page 20.
Using Master Reset
The Master Reset option is provided for use only under the direction of your
service provider. It resets your service.
www.motorola.com/iden
140 FIRST DRAFT
Personalize
Personalize contains three options that control which major features are easiest
to access when you turn on your phone:
•Main Menu — changes the order of the items on your main menu.
•Keys — controls which main menu items appear above the two option keys
on the Ready screen.
•Power Up App — sets any of the programs on the main menu to run when
you turn on your phone.
Reordering Main Menu
Changing Ready Screen Options
Two options from the main menu always appear on your Ready screen above
the left and right option keys. Each option can be accessed by pressing the
corresponding option key.
1
From the Personalize screen with Main Menu highlighted, press B
under SELECT to access the Reorder Menu screen.
2
Press S to scroll to the main menu option you want to move.
3
Press B under GRAB.
4
Press S to move the option up or down in the list.
5
When the item is where you would like it to appear in the main menu,
press B under INSERT.
6
Repeat step 2 through step 5 for all main menu items you want to move.
7
Press A under DONE.
Settings
FIRST DRAFT 141
Your phone arrives with Phonebook (PHBK) assigned to the left option key
(B) and Messages (MESG) assigned to the right option key (B). You can
assign any Main Menu option you want to the option keys.
Changing Power-Up Program
Your phone is set to display the Ready screen when it is powered on. You can
set the phone to display the main screen of any main menu option when it is
powered on.
1
From the Personalize screen, press R to scroll to Keys.
2
Press B under SELECT. The Keys screen shows the option assigned
to each option key (Left and Right).
3
To change the option assigned to the left option key, press B under
CHANGE while Left is highlighted.
4
Press R to scroll to the option you want to assign to the left option key.
5
Press B under SELECT.
6
To change the option assigned to the right option key, press R to
highlight Right and press B under CHANGE. Repeat steps 4 and 5 for
the right option key.
1
From the Personalize screen, press R to scroll to Power Up App.
2
Press B under SELECT. The Power Up App screen shows the name
of the program or screen that currently appears when the phone is
powered on.
3
Press B under CHANGE.
4
Press R to scroll to the option you want to appear when the phone is
powered on.
5
Press B under SELECT.
www.motorola.com/iden
142 FIRST DRAFT
Initial Setup
Initial Setup enables you to control a variety of your phone’s features that you
may want to modify when you first get your phone:
•Time/Date Format — sets the format in which the time and date display
on your phone.
•Ye a r — sets the current year.
NOTE: Changing the current year may affect stored Datebook events.
Datebook stores events 12 month ahead and one month after
the current date. Events outside this range will be deleted. See
“Datebook” on page 109 for more information.
•Auto Redial — turns the automatic redial feature on and off.
•Backlight — controls how long your phone’s backlight stays on.
•Sensor — controls the photo sensor to activate the backlight when your
phone is in poor lighting conditions.
•Status Light — controls whether the status light is on when the phone is
on.
•Display — controls the size of the text in the text display area.
•Contrast — controls how light or dark the screens appears.
•Scroll — sets how you can scroll lists and menus.
•Language — sets the language that your phone displays.
•Master Clear — returns all settings to their original defaults and erases all
stored lists. Use only under the direction of your service provider.
•Feature Reset — returns all settings to their original defaults. Use only
under the direction of your service provider.
•Baud Rate — sets the baud rate at which your phone communicates with a
laptop computer, PC, or similar device.
•TTY Setup — sets TTY options. By default, your phone is set to function
with a TTY device.
•TTY Baud Rate — sets the baud rate at which your phone communicates
when connected to a TTY device.
•Alert Timeout — controls the amount of time the Call Alert tone sounds.
•Return to Home — controls how long the Recent Calls screen displays
before returing to the Ready screen after phone and private/group
conversations.
Settings
FIRST DRAFT 143
Changing Time and Date Format
Your phone displays times in 12-hour-clock format (12:00 am through 11:59
pm) or 24-hour-clock format (0:00 through 23:59). It displays dates in month/
day format or day/month format.
NOTE: If you turn the time and date display off, no times are associated
with calls on your Recent Calls list, and the alarm feature of
your Datebook is disabled.
To set the time and date format, or turn time and date display on or off:
1
From the Initial Setup screen with Time/Date Format highlighted,
press B under SELECT to access the Time/Date Format screen.
2
To change the time format:
With Time Format highlighted, press B under CHANGE to access
Time Format screen.
Press S to highlight the time format you want.
Press B under SELECT.
3
To change the date format:
Press S to highlight Date Format, and press B under CHANGE to
access Date Format screen.
Press S to highlight the date format you want.
Press B under SELECT.
4
To turn the time and date format on or off:
Press R to highlight Display, and press B under CHANGE to access
Display screen.
Press S to choose Off or On.
Press B under SELECT.
www.motorola.com/iden
144 FIRST DRAFT
Setting Auto Redial
When Auto Redial is set to On, if you receive a System Busy, Try Later
message while making a call, the phone will redial the number automatically.
You will hear a ring-back tone when a successful call is placed.
When Auto Redial is set to Off, you must press and hold s to redial the last
number dialed.
Setting Backlight Timer
The backlight illuminates the display when you receive or make calls. You can
set the amount of time that the backlight stays on to 5, 10, 20, or 30 seconds, or
set it to stay on continuously or stay off at all times.
Setting Photo Sensor
To conserve battery power, the photosensor will disable the backlight when you
are in good lighting conditions. To force the backlight to come on every time a
key is pressed, you can turn the photosensor off.
NOTE: Setting the Backlight to come on continuously while the
Photosensor is turned on will drain your battery power.
1
From the Initial Setup screen, press R to scroll to Backlight.
2
Press B under CHANGE.
3
Press S to scroll to the desired backlight option.
4
Press B under SELECT.
1
From the Initial Setup screen, press R to scroll to Sensor.
2
Press B under CHANGE.
3
Press S to scroll to the desired option.
4
Press B under SELECT.
Settings
FIRST DRAFT 145
Adjusting Status Light
The status light is part of your phone’s power button. It illuminates when the
phone is on. You can turn the status light feature on or off from the Initial Setup
screen.
Setting Text Display
You can set your phone’s text display area to show more text using smaller
characters or less text using larger characters. The size and amount of text
displayed depends on the view selected:
•Standard view — five lines of text, 14 characters per line.
•Compressed view — seven lines of text, 18 characters per line.
•Zoom view — four lines of text, 11 characters per line.
To set the text display view:
NOTE: Unless otherwise noted, illustrations in this User’s Guide depict
Standard view.
Setting Scrolling
You can set your phone to scroll through menus and lists in either of two ways:
•Up/Down — when you reach the bottom or top of list or menu scrolling
stops until you scroll in the other direction.
•Wrap Around — when you reach the bottom or top or a list or menu
scrolling “wraps” around and continues at the other end of the lists of
menu.
You can set the scrolling style from the Initial Setup screen, using the Scroll
option.
1
From the Initial Setup screen, press R to scroll to Display:.
2
Press B under CHANGE.
3
Press S to scroll to the desired display option.
4
Press B under SELECT.
www.motorola.com/iden
146 FIRST DRAFT
Changing Display Language
You can customize the i58sr phone to display menus in English, French,
Spanish, or Portuguese. The default language is English.
To change the display language:
Master Clear
Master Clear returns all your phone’s settings to their original defaults and
erases all stored lists. To use this feature, you must contact your service provider
to receive your phone’s Unlock code.
Feature Reset
Feature Reset returns all your phone’s settings to their original defaults. To use
this feature, you must contact your service provider to receive your phone’s
Unlock code.
Setting Baud Rate
You can set your phone’s baud rate from the Initial Setup screen. Scroll to the
Baud Rate option and then choose the baud rate you want, or choose Auto to
set your phone to automatically choose the appropriate baud rate.
Setting TTY Mode
NOTE: This feature may not be offered by your service provider.
TTY Setup enables you to set your options for using your phone with a
teletypewriter (TTY) device. By default, your phone is set to function with a
TTY device in TTY mode.
Your phone supports the following TTY modes:
•TTY — for calls in which you type and read text on your TTY device.
1
From the Initial Setup screen, press R to scroll to Language.
2
Press B under CHANGE.
3
Press R to scroll to the language you want your phone to display.
4
Press B under SELECT.
Settings
FIRST DRAFT 147
•VCO (Voice-Carry-Over) — for calls in which you speak into your phone
and read text replies on your TTY device.
•HCO (Hearing-Carry-Over) — for calls in which you type text on your
TTY device on listen to voice replies on your phone’s speaker.
You can set your TTY mode using your phone’s Settings menu at any time, or
by issuing commands from your TTY device while on an active call.
To set your phone’s TTY mode using your phone’s Settings menu:
To set your phone’s TTY mode from your TTY device, issue one of the
following commands while on an active call:
• “VCO please” — to select VCO mode.
• “HCO please” — to select HCO mode.
• “HCO off please” — to turn off HCO mode.
NOTE: TTY device manufacturer’s proprietary feature such as Turbo-
Code, High-Speed, and Interruption are not supported by your
phone. These features must be turned off or disabled to use
your TTY device with your phone.
Setting TTY Baud Rate
NOTE: This feature may not be offered by your service provider.
By default, your phone’s TTY baud rate is set to 45.45, the baud rate required
for TTY calls within the US. To make calls outside the US, set your TTY baud
rate to 50.0.
1
From the Initial Setup screen, press R to scroll to TTY Setup.
2
Press C under CHANGE.
3
Press S to scroll to the desired TTY mode; Off, TTY, VCO, or HCO.
4
Press C under SELECT.
IMPORTANT: When you are using HCO, the sound coming from
your phone speaker may be uncomfortably loud.
Use caution when putting the phone to your ear.
(For information on setting your phone’s speaker
volume, see “Alert Timeout” on page 148.)
www.motorola.com/iden
148 FIRST DRAFT
To change the TTY baud rate:
Alert Timeout
Alert timeout controls the amount of time the Call Alert tone sounds. The
display will continue to show the alert information even though the Call Alert
tone has stopped.
You can set your phone’s alert timeout rules from the Initial Setup screen.
Scroll to the Alert Timeout option and then choose the desired interval. (No
Alert Tone, 5 Minutes, 30 Minutes, 1 Hour, or Continuous.
Return to Home
You can control the amount of time that the recent call screen displays after a
call. You can set different timeouts (30 seconds, 1 min, 5 min, or 10 min) for
phone calls and Nextel Direct calls:
•After Phone — Set the time that the recent calls screen displays after a
phone call.
•After Prvt/Group — Set the time that the recent calls screen displays after
a private or group call.
To set the recent calls timeout.:
1
From the Initial Setup screen, press R to scroll to TTY Baud.
2
Press C under CHANGE.
3
Press S to scroll to the baud rate for your location.
4
Press C under SELECT.
1
From the Initial Setup screen, press R to scroll to Return to Home.
2
Press B under CHANGE.
3
Press S to scroll to the desired display option.
4
Press B under SELECT.
Settings
FIRST DRAFT 149
Voice Volume
Voice Volume sets the volume of the sound coming from your phone’s earpiece
or speaker:
Tkgrp (Talkgroup) Settings
Tkgrp Settings enables you to set certain Talkgroup options. See “Group Call”
on page 98 for more information.
Service Status
The Service Status screen shows the status of your phone’s services. This screen
is for information only; no options can be set.
1
From the Voice Volume screen, highlight Earpiece Vol to set the
earpiece volume, or press R to scroll to Speaker Vol to set the speaker
volume.
2
Press B under CHANGE.
3
To select a volume level:
Press T to raise of lower the volume setting.
Or,
Press the Volume Control keys on the side of your phone.
4
Press B under OK.
www.motorola.com/iden
150 FIRST DRAFT
Styles*
*Optional feature. Please consult your service provider for availability of purchase.
This feature enables you to save a group of settings for call and message
notifications, screen display, and call answering features. You save your
selections as a “style” and access them at any time. You can use pre-set styles,
such as Car & Meeting, or you can edit them or create your own styles. You can
store up to ten styles.
The Styles feature enables you to save a group of settings for call and message
notification, screen display, and call answering features. You save your
selections as a “style” and access them at any time. You can store up to ten
styles.
You may want to use this feature to create a style for use in your car, or in
meetings, for example.
Each style contains the following settings:
•Ring/Vibe — controls how your phone rings and vibrates when you
receive calls and other messages. See “Ring/Vibe” on page 134.
•Backlight — controls how long your phone’s backlight stays on. See
“Setting Backlight Timer” on page 144.
•Display — controls the size of the text in the text display area. See “Setting
Text Display” on page 145.
•Call Filter — enables you to set your phone to not ring or vibrate when
you receive some of all calls, messages, and alerts. See “Setting Call
Filtering” on page 153.
•Auto Answer — sets your phone to automatically answer an incoming call
after a specified number of rings. When this feature is turned on, the phone
answers by connecting you to the caller; it does not send the call to Voice
Mail.
Using the Styles feature, you can create styles, edit styles, view a style’s
properties, delete styles, activate any style you have created, or turn off the
active style.
To access the Styles Menu:
1
From the Ready screen, press m.
2
Press R to scroll to Styles.
3
Press B under SELECT.
Settings
FIRST DRAFT 151
From the Styles Menu, you can:
• activate a style or turn off the currently active style
• create a new style
• access the Styles menu for more Styles functions
Creating a Style
When you create a style, you give it a name and set the features of that style. The
name of the style then appears on the Styles Menu.
To create a style:
1
From the Styles Menu screen, press R to scroll to [New Style].
2
Press B under SELECT.
3
Assign a name to the style you are creating:
In the Name screen, use the alphanumeric keypad to enter the name you
want to give the style.
As you type, you can delete a letter by pressing A under DELETE. To
create a space, press P once.
Press B under OK.
4
In the New screen, press R to scroll through the settings for each style
option.
5
To change any style option:
Press R to highlight the option.
Press B under CHANGE or SELECT.
Use the screens that appear to make your changes.
6
When all the style options have the settings you want, press A under
DONE.
www.motorola.com/iden
152 FIRST DRAFT
Editing a Style
To change the settings of a style:
Activating a Style
When you access the Styles Menu, a check mark appears to the left of the name
of the style that is currently active on your phone. If no style is active, the check
mark appears next to Off.
To activate a style:
The style immediately becomes active on your phone.
1
From the Styles Menu screen, press R to scroll to the name of the
style you want to edit.
2
Press m to access the Styles menu.
3
Press R to scroll to Edit and press B under SELECT.
4
To change any style option:
Press R to highlight the option.
Press B under CHANGE or SELECT.
Use the screens that appear to make your changes.
5
When all the style options have the settings you want, press A under
DONE.
1
From the Styles Menu screen, press R to scroll to the name of the
style you want to activate.
2
Press B under SELECT.
Settings
FIRST DRAFT 153
Turning Off a Style
To turn off a style without activating another style:
Using the Styles Menu
When you highlight a style on the Styles Menu, you can then access the Styles
menu for additional Styles functions.
To access the Styles menu, press m from the Styles menu.
The Styles menu provides the following options:
•View — view settings of the highlighted style.
•Change — activate the highlighted style.
•Edit — edit the settings of the highlighted style.
•New — create a new style.
•Delete — delete the highlighted style.
•Delete All — delete all styles.
Setting Call Filtering
The Call Filter feature enables you to control which calls, messages, and alerts
your phone responds to, and which it ignores.
From the Call Filter screen, you set separate filtering options for phone calls,
Private and Group calls, alerts, and messages:
•Phone — sets filtering options for phone calls.
•Prvt/Grp — sets filtering options for Private and Group calls.
•Alerts — sets filtering options for call alerts.
•Notifications — sets filtering options for messages.
Setting Phone Call Filtering
Call Filter enables you to set your phone responds to all calls, no calls, or only
calls from some or all numbers in your Phonebook:
1
From the Styles Menu screen, press R to scroll Off.
2
Press B under SELECT.
www.motorola.com/iden
154 FIRST DRAFT
•Off sets your phone notify you of all calls.
•All sets your phone to ignore all calls.
•All Phonebook sets your phone to notify you only of calls from the
numbers stored in your Phonebook.
•Some Phonebook sets your phone to notify you only of calls from
numbers you select from your Phonebook. You may choose up to five
Phonebook entries.
To choose Phonebook entries that you want your phone to respond to calls from:
Setting Private and Group Call Filtering
Setting Prvt/Grp to On sets your phone to ignore all Private and Group calls.
Setting Prvt/Grp to Off sets your phone to respond to all Private and Group
calls.
Setting Alert Filtering
Setting Alerts to On sets your phone to ignore all call alerts. Setting Alerts to
Off sets your phone to respond to all call alerts.
1
From the Call Filter screen, press R to scroll Phone:.
2
Press B under CHANGE.
3
Press R to scroll Some Phonebook.
4
Press B under SELECT. The entries stored in your Phonebook appear.
5
To select a Phonebook entry as one you want to your phone to respond
to calls from, press S to scroll the Phonebook entry and press B
under SELECT.
A check mark appears next to each selected Phonebook entry. You may
select up to five Phonebook entries.
6
To remove a selected Phonebook entry from the list, press S to scroll
the name and press B under SELECT.
7
When you have selected the Phonebook entries you want, press A
under DONE.
Shortcuts
FIRST DRAFT 155
Setting Message Notification Filtering
Call Filter enables you to set your phone to notify you of some types of
messages, all types of messages, or no messages:
•Off allows your phone to notify you of all messages.
•Voice Messages allows your phone to notify you of Voice Mail messages.
•Text Messages allows your phone to notify you of Text Messages
messages.
•All prevents your phone from notifying you of all messages.
Call Filter can prevent your phone from ringing or vibrating when you receive a
message. Your display screen will still indicate that you have messages.
Shortcuts
The Shortcuts feature enables you to access most menu or sub-menu options in
your phone by pressing a numeric button on the keypad or speaking a voice
name for the shortcut. You create the shortcut to the menu by assigning a
number to it and then access the menu by pressing the number.
Creating a Shortcut
1
Navigate to the menu item to which you want to create a shortcut. For
example, if you wanted to create a shortcut to Ring/Vibe:
From the Ready screen, press m, then press R to scroll to Setting.
Press B under SELECT. Ring/Vibe is now highlighted in the Settings
screen.
2
Press and hold m for about 2 seconds.
3
A confirmation screen displays showing the name of the menu item to
which you want to create a shortcut. To proceed with assigning the
shortcut, press A under YES.
www.motorola.com/iden
156 FIRST DRAFT
Using a Shortcut
To use a shortcut to access a menu:
Or,
4
A screen displays showing the assigned shortcut number.
If you want to change the shortcut number:
Press B under CHANGE.
Press A under DELETE to erase the assigned number.
Enter the desired number on your keypad and press B under OK.
5
If you want to record a voice name for that shortcut:
Press R to highlight the Voice field.
Press B under RECORD.
As directed by the screen prompts, say and repeat the name you want to
assign to the shortcut. Speak clearly into the microphone.
An ) icon appears in the Voice field indicating that the voice name has
been recorded.
USER TIP:For best results, record in a quiet environment.
6
Press A under DONE.
1
From the Ready screen, press m.
2
Press the number assigned to the shortcut. You have 2 seconds to do this
after pressing m.
1
From the Ready screen, press m.
2
Press R to scroll to Shortcuts.
Shortcuts
FIRST DRAFT 157
Or, if you have assigned the shortcut a voice name*:
*Optional feature. Please consult your service provider for availability of purchase.
Using the Shortcut Menu
The Shortcut Menu enables you to manage your shortcuts with the following
options.
•New Entry — view instructions for assigning a shortcut.
•Edit — edit a shortcut name and key number.
•Reorder — assign existing shortcuts to different key number.
•Delete — delete any highlighted Shortcut.
•Delete All — delete all stored Shortcuts.
To access the Shortcut menu:
3
Press B under SELECT.
4
Press S to scroll to the shortcut you want to use.
5
Press B under GOTO.
1
From the Ready screen, press and hold t on the side of your phone
until the Say Name Now screen appears.
2
Say the voice name assigned to the shortcut into your phone’s
microphone.
3
Your phone will play the voice name back to you.
1
From the Ready screen, press m.
2
Press R to scroll to Shortcuts.
3
Press B under SELECT.
4
Press m.
www.motorola.com/iden
158 FIRST DRAFT
FIRST DRAFT 159
Accessories
To order additional accessories, log on to our Web site at: www.motorola.com/
iden or contact your Motorola Authorized Retailer.
This section includes information on the following accessories included with
your phone:
Carrying Solutions

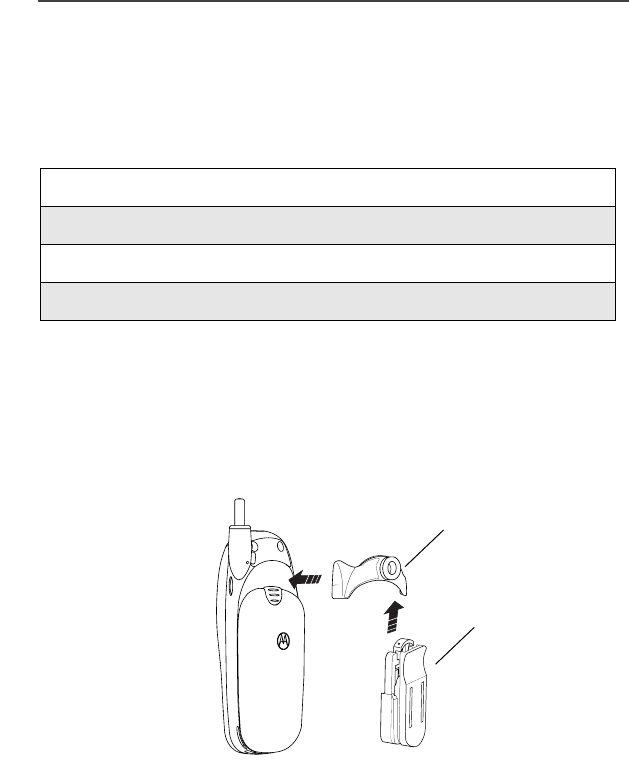

Swivel Carry Clip
The Swivel Carry Clip provides a convenient means by which to carry your
i58sr phone with you. It consists of the Phone Clip and the Belt Clip.
Carrying Solutions Page 159
Batteries Page 161
Travel Chargers Page 162
Data Accessories Page 164
Phone Clip
Belt Clip
www.motorola.com/iden
160 FIRST DRAFT

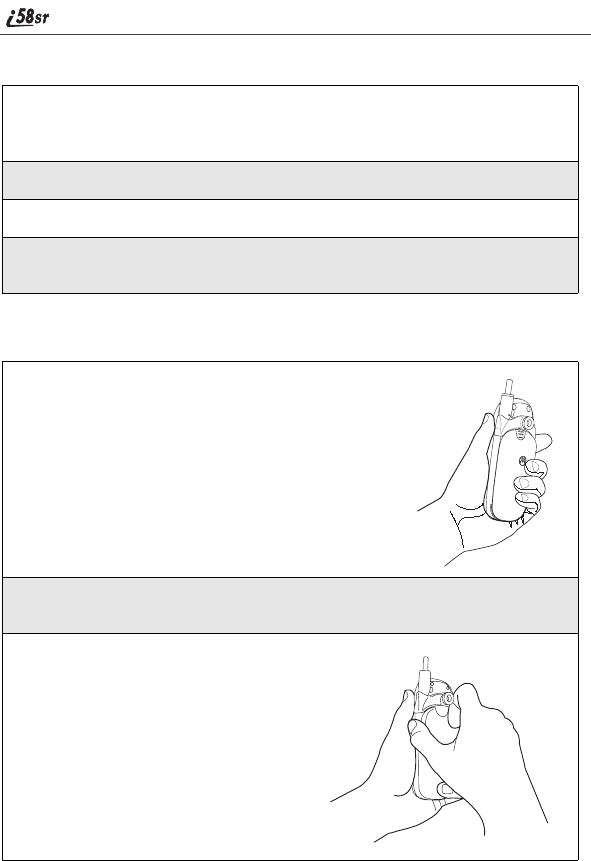

Using the Swivel Carry Clip
Removing the Swivel Carry Clip
1
Attach the Phone Clip to the phone.
USER TIP:Start with the antenna side of the clip.
2
Slide the Belt Clip onto the Phone Clip until you hear it click.
3
Attach the Swivel Carry Clip (Phone Clip and Belt Clip) to your belt.
4
To release phone from belt clip, push the button on the top of the belt
clip.
1
Hold the phone securely in your left hand.
2
Curl the right hand index finger and place the outer edge of the finger
against the knob of the Phone Clip.
3
Place the thumb of your right hand
on the side of the phone, directly
below the left side of the Phone
Clip.
Batteries
FIRST DRAFT 161
Batteries
For best results, charge the batteries within the temperature range of 10oC to
40oC (50oF to 104oF).
Prolonged charging is not recommended. For battery charging guidelines, see
Table below.
Charging Lithium Ion Batteries
Table 1 provides the approximate time to fully charge a battery using a
Motorola iDEN Approved Lithium Ion battery charger. Check the kit number on
your battery and charger to determine the appropriate charging time.
Table 1: Battery Charging Times
* These batteries are available with rubber overmolded battery covers.
NOTE: Charging times are based on a fully discharged battery.
4
Squeeze the right hand thumb and index finger together until the clip
snaps out of the retaining slot on the left side
5
Remove the clip.
MOTOROLA BATTERIES Charging Time to 100%
Kit Number Description/Chemistry Rapid
Charger
(SPN4716)
Mid-Rate
Charger
(SPN4940) or
(SPN4808)
SNN5717 Slim Li Ion 2 hours
30 minutes
4 hours
SNN5705* High Performance Li Ion 2 hours
30 minutes
5 hours
SNN5706 Extra Capacity Li Ion 2 hours
30 minutes
7 hours
SNN5716* Maximum Capacity Li Ion 3 hours 8 hours
www.motorola.com/iden
162 FIRST DRAFT
For optimal battery life, use a Motorola iDEN Approved Lithium Ion battery
charger with your Motorola iDEN Lithium Ion battery. Other chargers may not
fully charge your Lithium Ion battery.
Battery Operating Instructions
• Extreme temperatures will degrade battery performance. Do not store your
battery where temperatures exceed 60°C (140°F) or fall below -20°C (4°F).
• Lithium Ion batteries have a self discharge rate and without use, will lose
about 1% of its charge per day.
• The battery capacity will be degraded if stored for long periods while fully
charged. If long term storage is required, store at half capacity.
• The Motorola iDEN Approved Lithium Ion chargers will provide optimum
performance. Other chargers may not fully charge your iDEN Lithium Ion
battery or may yield reduced number of lifetime charge cycles.
• If the battery appears inoperative, the internal protection circuitry may
have been activated. Remove the battery from the phone and put it into the
charger for several minutes to reset the circuitry.
• When batteries are not in use, always store them in the plastic safety tray.
Travel Chargers
Using one of the Travel Chargers listed below, you can charge a battery from an
AC outlet. On one end of the Travel Charger, an accessory connector attaches to
the bottom of the phone. At the other (AC outlet) end of the device, there is a
compact housing that contains the plug-in power supply.
NOTE: Additional adaptor plugs to accommodate various International
power outlets can be purchased separately for the multi-voltage
Travel Chargers.
TRAVEL CHARGERS
Kit Number Description
SPN4940 Mid-Rate Multi-Voltage Travel Charger
SPN4716 Rapid Multi-Voltage Travel Charger
SPN4808 Mid-Rate Economy Travel Charger
Travel Chargers
FIRST DRAFT 163

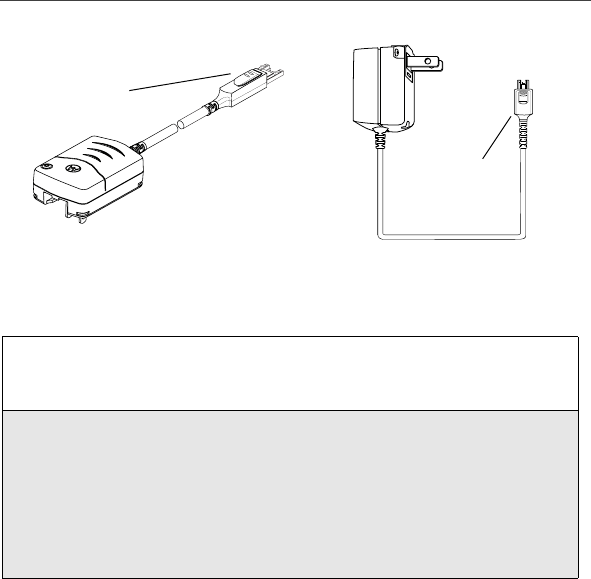

Using the Travel Charger
Multi-Voltage Travel Charger Operating Specifications
Input voltage range: 90-264 VAC @ 50/60 Hz.
Operating temperature range: 0°C to +50°C
Economy Travel Charger (U.S. Only)
Input voltage range: 90-120 VAC @60Hz.
Operating temperature range: 0°C to +50°C
1
While holding the phone with its keypad facing up, insert the accessory
connector (with the Motorola logo facing you) into the bottom of the
phone until you hear a click.
2
If you have either the Mid-Rate Multi-Voltage Travel Charger or the
Rapid Multi-Voltage Travel Charger, flip open the prongs, and plug the
Travel Charger transformer into an AC wall outlet.
Or
If you have the Mid-Rate Economy Travel Charger, plug the Travel
Charger transformer into an AC wall outlet.
Accessory
Connector
Accessory
Connector
www.motorola.com/iden
164 FIRST DRAFT

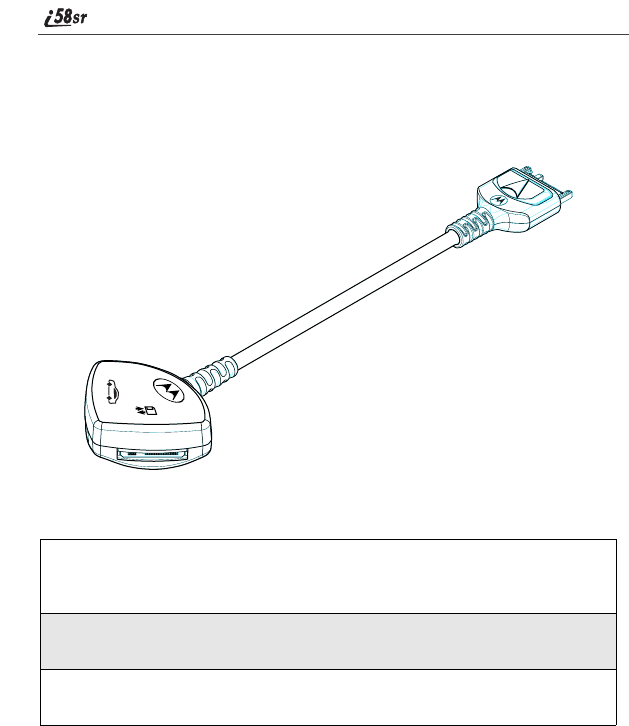

Data Accessories
Universal Serial Bus (USB)
Your user will be able communicate with USB capable laptop and desktop
computers.
USB capable i58sr phone supports both RS232 communications and USB
communications (with USB mother devices). The i58sr phone will
automatically detect whether an RS232 or USB cable has been connected to it
and will utilize the appropriate protocol accordingly. No other action is required
by the user in order to select between USB or RS232 serial communications.
iDEN PC applications will support USB drivers for the following operating
systems only:
• Windows 98
• Windows 2000
• Windows ME
USB Cable
Data Accessories
FIRST DRAFT 165

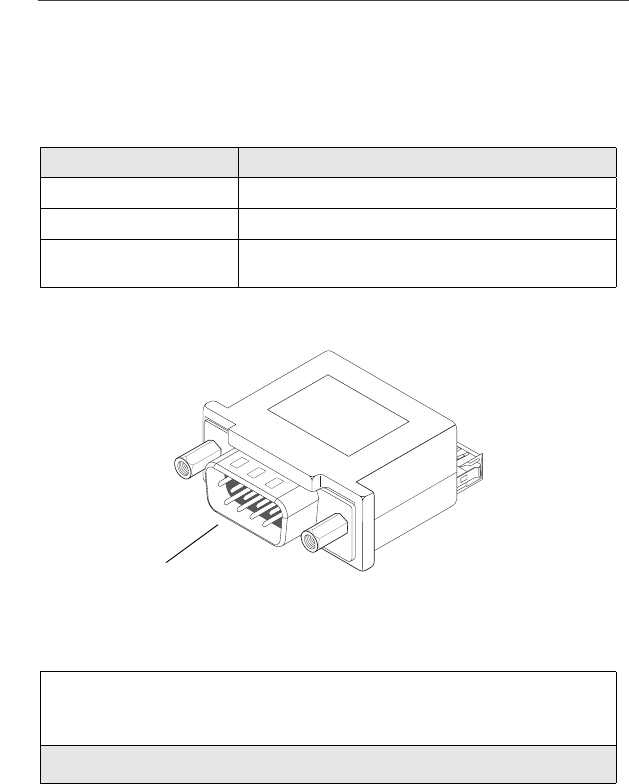

RS232 Data Cable
The RS232 Data Cable facilitates quick and easy data synchronization between
your i58sr phone and a PC. This cable accommodates both circuit and packet
data applications. The cable also features a charging port. Any applicable phone
charger may be used to charge the phone simultaneously.
Using the Data Cable
1
While holding the phone with its keypad facing up, insert the accessory
connector (with the Motorola logo facing you) into the bottom of the
phone until you hear a click.
2
Insert the data plug directly into your PC or one of the many other data
compatible iDEN accessories.
Port for charging source
www.motorola.com/iden
166 FIRST DRAFT
Dual Port Adapter Cable
The Dual Port Adapter Cable enables in-vehicle communications and charging
of the i58sr phone via the Hands-Free Car kit, while being simultaneously
connected for data operations.
Using the Dual Port Adapter Cable
1
Insert the flat end of the Dual Port Adapter Cable cord into the bottom
connector of the i58sr phone. Make sure the Motorola logo is facing
upward.
2
Insert the round end of the RS232 Data Cable into the receptacle on the
Dual Port Adapter Cable labeled “Data”.
3
Insert the Hands-Free Car Kit into the receptacle on the Dual Port
Adapter Cable labeled “Car Kit”.
DATA
CAR KIT
Data Accessories
FIRST DRAFT 167
PDA Converter Plugs
The PDA (Pocket Digital Assistant) plug is a convenient way to connect your
i58sr phone to many types of PDA devices, both PC and Windows CE
compatible.
Below is the list of adapters which can be used with your i58sr phone:
Using the PDA Converter Plug
Item Number Description
NTN6546 Palm IIITM/VIITM Cable Adapter
NKN6547 Palm VTM Cable Adapter
NTN8993 Generic Pocket Digital Assistant (PDA) -Male-
Female Serial Adapter (Not Shown)
1
While holding the phone with its keypad facing up, insert the accessory
connector (with the Motorola logo facing you) into the bottom of the
phone until you hear a click.
2
Connect the opposite end of the data cable to the PDA converter.
NTN6546 and
NTN6547 Type Plug
www.motorola.com/iden
168 FIRST DRAFT
NOTE: Please see the label on the bottom of your Dual-Pocket Desktop
Charger for more information regarding battery charging status.
3
Connect other end of PDA converter to the mating connector of the
PDA device.
4
If you are using the NTN8993 PDA adapter, connect the other end of
the adapter to the PDA’s supplied data synchronization cradle and place
the PDA into the cradle.
FIRST DRAFT 169
Other Important Information
This section includes the following topics:
Understanding Status Messages
The following table lists and describes the status messages.
Understanding Status Messages Page 169
Safety and General Information Page 171
Limited Warranty Information Page 187
Patent and Trademark Information Page 195
Status Messages Message Description
Number Not in Service The number that you entered is not valid.
User Not Available The phone that you called is either busy, out-
of-coverage, or turned off. Please try again
later.
User Not Authorized The person that you called has not purchased
this service.
Please Try Later This service is temporarily not available.
Please try again later.
User Busy in Private The phone that you called is busy in a Private
call.
User Busy in Data The phone that you called is busy in a Dial-Up
call.
Service Restricted This service was restricted by your service
provider, or this service was not purchased.
Service Not Available This feature is not available on the current
network.
www.motorola.com/iden
170 FIRST DRAFT
System Busy Try Later The system is experiencing heavy traffic.
Please try again later.
Service Conflict This service cannot be enabled because an
incompatible service has already been turned
on.
Please Try Again An error occurred. Please try again.
Self Check Error A fault was detected with your phone. If this
error recurs, note the error code and contact
Customer Care.
Self Check Fail An operational fault was detected with your
phone. Note the numeric code, turn your phone
off, and contact Customer Care.
PIN Blocked
Call Your Provider
The incorrect PIN was entered three
consecutive times. You will be unable to place
or receive calls on your i58sr phone. Call your
service provider to have them obtain the PIN
Unblocking Key (PUK) code.
Insert SIM Your SIM Card is not being detected. Please
check to ensure that you have inserted the SIM
Card.
Check SIM Card Please check your SIM Card to make sure it has
been inserted properly.
Wrong PIN You have entered an incorrect PIN number.
Wrong Code Your phone will not accept a SIM card that is
not from your carrier.
Enter PIN Please enter your 4-8 digit SIM Pin code.
Enter Unlock Code Auto Phonelock is activated. Enter your unlock
code.
New Browser Message
Memory Full!
Warns of low memory for Net Alerts
Status Messages Message Description
RF Operational Characteristics
FIRST DRAFT 171
Safety and General Information
RF Operational Characteristics
Your radio product contains a radio frequency transmitter to convey the
information you wish to send as well as occasional automatic signals used to
sustain connection to the wireless network, and a receiver which enables you to
receive communication and connection information from the network.
PORTABLE RADIO PRODUCT OPERATION AND
EME EXPOSURE
Your Motorola radio product is designed to comply with the following RF
exposure standards and guidelines:
• United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR part 2 sub-part J
• American National Standards Institute (ANSI) / Institute of Electrical and
Electronics Engineers (IEEE). C95. 1-1992
• Institute of Electrical and Electronics Engineers (IEEE). C95. 1-1999
Edition
• International Commission on Non-Ionizing Radiation Protection (ICNIRP)
1998
• Ministry of Health (Canada). Safety Code 6. Limits of Human Exposure to
Radiofrequency Electromagnetic Fields in the Frequency Range from 3
kHz to 300 GHz, 1999.
• Australian Communications Authority Radiocommunications
(Electromagnetic Radiation - Human Exposure) Standard 2001
• ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001)
“additional requirements for SMR, cellular and PCS product certification.”
To assure optimal radio product performance and make sure human
exposure to radio frequency electromagnetic energy is within the guidelines
set forth in the above standards, always adhere to the following procedures:
IMPORTANT INFORMATION ON SAFE AND
EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING
YOUR INTEGRATED MULTI-SERVICE
PORTABLE RADIO.
www.motorola.com/iden
172 FIRST DRAFT
Phone Operation
When placing or receiving a phone call, hold your radio product as you would a
wireline telephone. Speak directly into the microphone.
Two-way radio operation
When using your radio product as a traditional two-way
radio, hold the radio product in a vertical position with
the microphone one to two inches (2.5 to 5 cm) away
from the lips.
Body-worn operation
To maintain compliance with FCC RF exposure guidelines, if you wear a radio
product on your body when transmitting, always place the radio product in a
Motorola approved clip, holder, holster, case or body harness for this
product. Use of non-Motorola-approved accessories may exceed FCC RF
exposure guidelines. If you do not use a Motorola approved body-worn
accessory and are not using the radio product in the intended use positions
along side the head in the phone mode or in front of the face in the two-way
radio mode, then ensure the antenna and the radio product are kept the
following minimum distances from the body when transmitting
• Phone or Two-way radio mode: one inch (2.5 cm)
• Data operation using any data feature with or without an accessory
cable: one inch (2.5 cm)
Antenna Care
Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the radio product and
may violate FCC regulations.
DO NOT hold the antenna when the radio product is “IN USE”. Holding the
antenna affects call quality and may cause the radio product to operate at a
higher power level than needed.
PORTABLE RADIO PRODUCT OPERATION AND EME EXPOSURE
FIRST DRAFT 173
Approved Accessories
For a list of approved Motorola accessories call 1-800-453-0920, visit our
website at www.mot.com/iden, or look in the accessory section of this manual.
ALL MODELS WITH FCC ID AZ489FT5815 MEET THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The guidelines
are based on standards that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are
conducted using standard operating positions reviewed by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands. Although the SAR is determined at
the highest certified power level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC
that is does not exceed the limit established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body)
as required by the FCC for each model. The highest SAR value for this model phone when tested
for use at the ear is 1.24 W/kg and when tested on the body, as described in this user guide, is
0.267 W/kg during voice transmission using Phone Mode and 0.50 W/kg during packet data
transmission. (Body-worn measurements differ among phone models, depending upon available
accessories and FCC requirements.) While there may be differences between the SAR levels of
various phones and at various positions, they all meet the government requirement for safe
exposure.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on FCC ID AZ489FT5815.
Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com.
______________________________________
* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6
watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin
of safety to give additional protection for the public and to account for any variations in
measurements.
www.motorola.com/iden
174 FIRST DRAFT
Electro Magnetic Interference/Compatibility
NOTE: Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed or
otherwise configured for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off
your radio product in any facility where posted notices instruct you to do so.
Hospitals or health care facilities may be using equipment that is sensitive to
external RF energy.
Aircraft
When instructed to do so, turn off your radio product when on board an aircraft.
Any use of a radio product must be in accordance with applicable regulations
per airline crew instructions.
Medical Devices
Pacemakers
The Advanced Medical Technology Association (AdvaMed) recommends that a
minimum separation of 6 inches (15 cm) be maintained between a handheld
wireless radio product and a pacemaker. These recommendations are consistent
with those of the U.S. Food and Drug Administration.
Persons with pacemakers should:
• ALWAYS keep the radio product more than 6 inches (15 cm) from their
pacemaker when the radio product is turned ON.
• Not carry the radio product in a breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for
interference.
• Turn the radio product OFF immediately if you have any reason to suspect
that interference is taking place.
Hearing Aids
Some digital wireless radio products may interfere with some hearing aids. In
the event of such interference, you may want to consult your hearing aid
manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if it is adequately shielded from RF energy. Your physician
may be able to assist you in obtaining this information.
Medical Devices
FIRST DRAFT 175
Use While Driving
Check the laws and regulations on the use of radio products in the area where
you drive. Always obey them.
When using the radio product while driving, please:
• Give full attention to driving and to the road.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call if driving
conditions so require.
www.motorola.com/iden
176 FIRST DRAFT
Operational Warnings
For Vehicles with an Air Bag
Do not place a portable radio product in the area over the air bag or in the
air bag deployment area. Air bags inflate with great force. If a portable
radio is placed in the air bag deployment area and the air bag inflates, the
radio product may be propelled with great force and cause serious injury to
occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your radio product prior to entering any area with a potentially
explosive atmosphere, unless it is a radio product type especially qualified
for use in such areas as “Intrinsically Safe” (for example, Factory Mutual,
CSA, or UL approved). Do not remove, install, or charge batteries in such
areas. Sparks in a potentially explosive atmosphere can cause an explosion
or fire resulting in bodily injury or even death.
NOTE: The areas with potentially explosive atmospheres referred to
above include fueling areas such as below decks on boats, fuel or
chemical transfer or storage facilities, areas where the air
contains chemicals or particles, such as grain, dust or metal
powders, and any other area where you would normally be
advised to turn off your vehicle engine. Areas with potentially
explosive atmospheres are often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio
product when you are near electrical blasting caps, in a blasting area, or in
areas posted: “Turn off two-way radio”. Obey all signs and instructions.
!
W A R N I N G
!
Operational Cautions
FIRST DRAFT 177
Cleaning and Drying Considerations
Using a leather carry case may help protect the surfaces and help prevent liquids
(e.g., rain) from entering into the interior of the radio product. This product is
not water proof, and exposing the unit to liquids may result in permanent
damage to the unit.
If your radio product interior gets wet, then do not try to accelerate drying with
the use of an oven or a dryer as this will damage the radio product and void the
warranty. Instead, do the following:
1. Immediately power off the radio product.
2. Remove Battery and SIM card (if so equipped) from radio product.
3. Shake excess liquid from radio product.
4. Place the radio product and battery in an area that is at room temperature
and has good air flow.
Operational Cautions
Antennas
Do not use any portable radio product that has a damaged antenna. If
a damaged antenna comes into contact with your skin, a minor burn can
result.
Batteries
All batteries can cause property damage and/or bodily injury, such as burns
if a conductive material such as jewelry, keys, or beaded chains touches
exposed terminals. The conductive material may complete an electrical
circuit (short circuit) and become quite hot. Exercise care in handling any
charged battery, particularly when placing it inside a pocket, purse, or other
container with metal objects.
!
C a u t i o n
www.motorola.com/iden
178 FIRST DRAFT
5. Let the radio product, battery dry, and SIM card for 72 hours before
reconnecting the battery and/or powering on the radio product.
If the radio product does not work after following the steps listed above, contact
your dealer for servicing information.
Clean the external surfaces of the radio product with a damp cloth, using a mild
solution of dishwashing detergent and water. Some household cleaners may
contain chemicals that could seriously damage the radio product. Avoid the use
of any petroleum-based solvent cleaners. Also, avoid applying liquids directly
on the radio product.
Accessory Safety Information
FIRST DRAFT 179
Accessory Safety Information
IMPORTANT:
SAVE THESE ACCESSORY SAFETY INSTRUCTIONS
• Before using any battery or battery charger, read all the instructions for and
cautionary markings on (1) the battery, (2) the battery charger, which may
include a separate wall-mounted power supply or transformer, and (3) the
radio product using the battery.
• Do not expose any battery charger to water, rain, or snow as they are
designed for indoor or in-vehicle use only.
• To reduce the risk of damage to the cord or plug, pull by the plug rather
than the cord when you disconnect the battery charger from the power
source outlet.
• Do not operate any battery charger with a damaged cord or plug — replace
them immediately.
• Battery chargers may become warm during operation, but not hot. If it
becomes hot to the touch, unplug it from the power outlet immediately and
discontinue its use.
• Use of a non-recommended attachment to a battery charger may result in a
risk of fire, electric shock, or injury to persons.
• Make sure the battery charger power cord is located so that it will not be
stepped on, tripped over, or subjected to damage or stress.
• An extension cord should not be used with any battery charger unless
absolutely necessary. Use of an improper extension cord could result in a
risk of fire and electric shock. If an extension cord must be used, make sure
that:
• The pins on the plug of the extension cord are the same number, size,
and shape as those on the plug of the charger.
• The extension cord is properly wired and in good electrical condition.
• The cord size is 18AWG for lengths up to 100 feet and 16AWG for
lengths up to 150 feet.
To reduce the risk of injury, charge only the
rechargeable batteries listed in the Accessories
section of this manual. Other types of batteries
may burst, causing personal injury and damage.
!
W A R N I N G
!
www.motorola.com/iden
180 FIRST DRAFT
• Do not operate any battery charger if it has received a sharp blow, has been
dropped, or has been damaged in any way; take it to a qualified service
technician.
• Do not disassemble a battery charger; take it to a qualified service
technician when service or repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
• Maximum ambient temperature around the power supply or transformer of
any battery charger should not exceed 40°C (104°F).
• The output power from the power supply or transformer must not exceed
the rating given on the Desktop Dual-Pocket Charger.
• The disconnection from the line voltage is made by unplugging the power
supply from the AC receptacle.
• To reduce risk of electric shock, unplug any battery charger from the outlet
before attempting any maintenance or cleaning.
For optimum charging performance, turn off the radio product while charging it
in any battery charger.
U.S.F.D.A. Update on Mobile Phones
U.S.F.D.A. Update on Mobile Phones
FIRST DRAFT 181
The U.S. Food and Drug
Administration’s Center for
Devices and Radiological Health
Consumer Update on Mobile
Phones
FDA has been receiving inquiries about the safety of mobile phones, including
cellular phones and PCS phones. The following summarizes what is known—
and what remains unknown—about whether these products can pose a hazard to
health, and what can be done to minimize any potential risk. This information
may be used to respond to questions.
Why the concern?
Mobile phones emit low levels of radiofrequency energy (i.e., radiofrequency
radiation) in the microwave range while being used. They also emit very low
levels of radiofrequency energy (RF), considered non-significant, when in the
stand-by mode. It is well known that high levels of RF can produce biological
damage through heating effects (this is how your microwave oven is able to
cook food). However, it is not known whether, to what extent, or through what
mechanism, lower levels of RF might cause adverse health effects as well.
Although some research has been done to address these questions, no clear
picture of the biological effects of this type of radiation has emerged to date.
Thus, the available science does not allow us to conclude that mobile phones are
absolutely safe, or that they are unsafe. However, the available scientific
evidence does not demonstrate any adverse health effects associated with the
use of mobile phones.
What kinds of phones are in question?
Questions have been raised about hand-held mobile phones, the kind that have a
built-in antenna that is positioned close to the user's head during normal
telephone conversation. These types of mobile phones are of concern because of
the short distance between the phone’s antenna—the primary source of the
RF—and the person’s head. The exposure to RF from mobile phones in which
the antenna is located at greater distances from the user (on the outside of a car,
for example) is drastically lower than that from hand-held phones, because a
person’s RF exposure decreases rapidly with distance from the source. The
safety of so-called “cordless phones,” which have a base unit connected to the
telephone wiring in a house and which operate at far lower power levels and
frequencies, has not been questioned.
www.motorola.com/iden
182 FIRST DRAFT
How much evidence is there that hand-held mobile phones
might be harmful?
Briefly, there is not enough evidence to know for sure, either way; however,
research efforts are on-going. The existing scientific evidence is conflicting and
many of the studies that have been done to date have suffered from flaws in their
research methods. Animal experiments investigating the effects of RF exposures
characteristic of mobile phones have yielded conflicting results. A few animal
studies, however, have suggested that low levels of RF could accelerate the
development of cancer in laboratory animals. In one study, mice genetically
altered to be predisposed to developing one type of cancer developed more than
twice as many such cancers when they were exposed to RF energy compared to
controls. There is much uncertainty among scientists about whether results
obtained from animal studies apply to the use of mobile phones. First, it is
uncertain how to apply the results obtained in rats and mice to humans. Second,
many of the studies that showed increased tumor development used animals that
had already been treated with cancer-causing chemicals, and other studies
exposed the animals to the RF virtually continuously—up to 22 hours per day.
For the past five years in the United States, the mobile phone industry has
supported research into the safety of mobile phones. This research has resulted
in two findings in particular that merit additional study:
1. In a hospital-based, case-control study, researchers looked for an
association between mobile phone use and either glioma (a type of brain
cancer) or acoustic neuroma (a benign tumor of the nerve sheath). No
statistically significant association was found between mobile phone use
and acoustic neuroma. There was also no association between mobile
phone use and gliomas when all types of types of gliomas were considered
together. It should be noted that the average length of mobile phone
exposure in this study was less than three years.
2. When 20 types of glioma were considered separately, however, an
association was found between mobile phone use and one rare type of
glioma, neuroepithelliomatous tumors. It is possible with multiple
comparisons of the same sample that this association occurred by chance.
Moreover, the risk did not increase with how often the mobile phone was
used, or the length of the calls. In fact, the risk actually decreased with
cumulative hours of mobile phone use. Most cancer causing agents
increase risk with increased exposure. An ongoing study of brain cancers
by the National Cancer Institute is expected to bear on the accuracy and
repeatability of these results.(1)
U.S.F.D.A. Update on Mobile Phones
FIRST DRAFT 183
3. Researchers conducted a large battery of laboratory tests to assess the
effects of exposure to mobile phone RF on genetic material. These included
tests for several kinds of abnormalities, including mutations, chromosomal
aberrations, DNA strand breaks, and structural changes in the genetic
material of blood cells called lymphocytes. None of the tests showed any
effect of the RF except for the micronucleus assay, which detects structural
effects on the genetic material. The cells in this assay showed changes after
exposure to simulated cell phone radiation, but only after 24 hours of
exposure. It is possible that exposing the test cells to radiation for this long
resulted in heating. Since this assay is known to be sensitive to heating,
heat alone could have caused the abnormalities to occur. The data already
in the literature on the response of the micronucleus assay to RF are
conflicting. Thus, follow-up research is necessary.(2)
FDA is currently working with government, industry, and academic groups to
ensure the proper follow-up to these industry-funded research findings.
Collaboration with the Cellular Telecommunications Industry Association
(CTIA) in particular is expected to lead to FDA providing research
recommendations and scientific oversight of new CTIA-funded research based
on such recommendations.
Two other studies of interest have been reported recently in the literature:
1. Two groups of 18 people were exposed to simulated mobile phone signals
under laboratory conditions while they performed cognitive function tests.
There were no changes in the subjects’ ability to recall words, numbers, or
pictures, or in their spatial memory, but they were able to make choices
more quickly in one visual test when they were exposed to simulated
mobile phone signals. This was the only change noted among more than 20
variables compared.(3)
2. In a study of 209 brain tumor cases and 425 matched controls, there was no
increased risk of brain tumors associated with mobile phone use. When
tumors did exist in certain locations, however, they were more likely to be
on the side of the head where the mobile phone was used. Because this
occurred in only a small number of cases, the increased likelihood was too
small to be statistically significant.(4)
www.motorola.com/iden
184 FIRST DRAFT
In summary, we do not have enough information at this point to assure the
public that there are, or are not, any low incident health problems associated
with use of mobile phones. FDA continues to work with all parties, including
other federal agencies and industry, to assure that research is undertaken to
provide the necessary answers to the outstanding questions about the safety of
mobile phones.
What is known about cases of human cancer that have been
reported in users of hand-held mobile phones?
Some people who have used mobile phones have been diagnosed with brain
cancer. But it is important to understand that this type of cancer also occurs
among people who have not used mobile phones. In fact, brain cancer occurs in
the U.S. population at a rate of about 6 new cases per 100,000 people each year.
At that rate, assuming 80 million users of mobile phones (a number increasing at
a rate of about 1 million per month), about 4800 cases of brain cancer would be
expected each year among those 80 million people, whether or not they used
their phones. Thus it is not possible to tell whether any individual's cancer arose
because of the phone, or whether it would have happened anyway. A key
question is whether the risk of getting a particular form of cancer is greater
among people who use mobile phones than among the rest of the population.
One way to answer that question is to compare the usage of mobile phones
among people with brain cancer with the use of mobile phones among
appropriately matched people without brain cancer. This is called a case-control
study. The current case-control study of brain cancers by the National Cancer
Institute, as well as the follow-up research to be sponsored by industry, will
begin to generate this type of information.
What is FDA’s role concerning the safety of mobile phones?
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as mobile phones before marketing, as it does with new drugs or
medical devices. However, the agency has authority to take action if mobile
phones are shown to emit radiation at a level that is hazardous to the user. In
such a case, FDA could require the manufacturers of mobile phones to notify
users of the health hazard and to repair, replace or recall the phones so that the
hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions at
this time, FDA has urged the mobile phone industry to take a number of steps to
assure public safety. The agency has recommended that the industry:
• support needed research into possible biological effects of RF of the type
emitted by mobile phones;
U.S.F.D.A. Update on Mobile Phones
FIRST DRAFT 185
• design mobile phones in a way that minimizes any RF exposure to the user
that is not necessary for device function; and
• cooperate in providing mobile phone users with the best possible
information on what is known about possible effects of mobile phone use
on human health.
At the same time, FDA belongs to an interagency working group of the federal
agencies that have responsibility for different aspects of mobile phone safety to
ensure a coordinated effort at the federal level. These agencies are:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Health and Safety Administration
• National Telecommunications and Information Administration
The National Institute of Health also participates in this group.
In the absence of conclusive information about any possible
risk, what can concerned individuals do?
If there is a risk from these products—and at this point we do not know that
there is—it is probably very small. But if people are concerned about avoiding
even potential risks, there are simple steps they can take to do so. For example,
time is a key factor in how much exposure a person receives. Those persons who
spend long periods of time on their hand-held mobile phones could consider
holding lengthy conversations on conventional phones and reserving the hand-
held models for shorter conversations or for situations when other types of
phones are not available.
People who must conduct extended conversations in their cars every day could
switch to a type of mobile phone that places more distance between their bodies
and the source of the RF, since the exposure level drops off dramatically with
distance. For example, they could switch to:
• a mobile phone in which the antenna is located outside the vehicle,
• a hand-held phone with a built-in antenna connected to a different antenna
mounted on the outside of the car or built into a separate package, or
• a headset with a remote antenna to a mobile phone carried at the waist.
Again, the scientific data do not demonstrate that mobile phones are harmful.
But if people are concerned about the radiofrequency energy from these
products, taking the simple precautions outlined above can reduce any possible
risk.
www.motorola.com/iden
186 FIRST DRAFT
Where can I find additional information?
For additional information, see the following websites:
•Federal Communications Commission (FCC) RF Safety Program (select
“Information on Human Exposure to RF Fields from Cellular and PCS
Radio Transmitters”): http://www.fcc.gov/oet/rfsafety .
•World Health Organization (WHO) International Commission on Non-
Ionizing Radiation Protection (select Qs & As): http://www.who.int/emf
•United Kingdom, National Radiological Protection Board: http://
www.nrpb.org.uk .
•Cellular Telecommunications Industry Association (CTIA): http://
www.wow-com.com .
•U.S. Food and Drug Administration (FDA) Center for Devices and
Radiological Health: http://www.fda.gov/cdrh/consumer/ .
References:
1. Muscat et al. Epidemiological Study of Cellular Telephone Use and
Malignant Brain Tumors. In: State of the Science Symposium;1999 June 20;
Long Beach, California.
2. Tice et al. Tests of mobile phone signals for activity in genotoxicity and
other laboratory assays. In: Annual Meeting of the Environmental Mutagen
Society; March 29, 1999, Washington, D.C.; and personal communication,
unpublished results.
3. Preece, AW, Iwi, G, Davies-Smith, A, Wesnes, K, Butler, S, Lim, E, and
Varey, A. Effect of a 915-MHz simulated mobile phone signal on cognitive
function in man. Int. J. Radiat. Biol., April 8, 1999.
4. Hardell, L, Nasman, A, Pahlson, A, Hallquist, A and Mild, KH. Use of
cellular telephones and the risk for brain tumors: a case-control study. Int. J.
Oncol., 15: 113-116, 1999.
Limited Warranty Motorola Communication Products
FIRST DRAFT 187
Limited Warranty Motorola Communication
Products
I. WHAT THIS WARRANTY COVERS AND FOR
HOW LONG:
MOTOROLA, INC. (“MOTOROLA”) warrants the MOTOROLA
manufactured iDEN Communication Products listed below (“Product”) against
defects in material and workmanship under normal use and service for a period
of time from the date of purchase as scheduled below:
Rechargeable Batteries will be replaced during the applicable warranty period
if:
a. the battery capacity falls below 80% of rated capacity, or
b. the battery develops leakage.
MOTOROLA, at its option, will at no charge either repair the Product (with new
or reconditioned parts), replace it (with a new or reconditioned Product), or
refund the purchase price of the Product during the warranty period provided it
is returned in accordance with the terms of this warranty. Replaced parts or
boards are warranted for the balance of the original applicable warranty period.
All replaced parts of Product shall become the property of MOTOROLA.
This express limited warranty is extended by MOTOROLA to the original end
user purchaser only and is not assignable or transferable to any other party. This
is the complete warranty for the Product manufactured by MOTOROLA.
MOTOROLA assumes no obligations or liability for additions or modifications
NOTE: This Warranty applies within the fifty (50) united
states and the District of Columbia
iDEN Subscriber Digital Mobile and
Portable Units
One (1) Year
Product Accessories One (1) Year
Batteries One (1) Year
www.motorola.com/iden
188 FIRST DRAFT
to this warranty unless made in writing and signed by an officer of
MOTOROLA. Unless made in a separate agreement between MOTOROLA and
the original end user purchaser, MOTOROLA does not warrant the installation,
maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary equipment not
furnished by MOTOROLA which is attached to or used in connection with the
Product, or for operation of the Product with any ancillary equipment, and all
such equipment if expressly excluded from this warranty. Because each system
which may use the Product is unique, MOTOROLA disclaims liability for
range, coverage, or operation of the system as a whole under this warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of MOTOROLA’S responsibilities
regarding the Product, Repair, replacement or refund of the purchase price, at
MOTOROLA’S options, is the exclusive remedy. THIS WARRANTY IS
GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INLCUDING WITHOUT LIMITATION, IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE
FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE,
COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE
FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.
III. STATE LAW RIGHTS:
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATION ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY.
This warranty gives specific legal rights, and there may be other rights which
may vary from state to state.
Limited Warranty Motorola Communication Products
FIRST DRAFT 189
IV. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date of purchase and Product
item serial number) in order to receive warranty service and, also, deliver or
send the Product item, transportation and insurance prepaid, to an authorized
warranty service location. Warranty service will be provided by MOTOROLA
through one of its authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or communication service
provider), it can facilitate your obtaining warranty service. You can also call
MOTOROLA at 1-800-453-0920 for warranty service location information.
V. WHAT THIS WARRANTY DOES NOT COVER:
a. Defects or damage resulting from use of the Product in other than its
normal and customary manner.
b. Defects or damage from misuse, accident, water, or neglect.
c. Defects or damage from improper testing, operation, maintenance,
installation, alteration, modification, or adjustment.
d. Breakage or damage to antennas unless caused directly by defects in
material workmanship.
e. A Product subjected to unauthorized Product modifications,
disassemblies or repairs (including, without limitation, the audition to
the Product of non-MOTOROLA supplied equipment) which
adversely affect performance of the Product or interfere with
MOTOROLA’S normal warranty inspection and testing of the
Product to verify any warranty claim.
f. Product which has had the serial number removed or made illegible.
g. Rechargeable batteries if:
1. Any of the seals on the battery enclosure of cells are broken or show
evidence of tampering.
2. The damage or defect is caused by charging or using the battery in
equipment or service other than the Product for which it is specified.
h. Freight costs to the repair depot.
i. A Product which, due to illegal or unauthorized alteration of the
software/firmware in the Product, does not function in accordance
with MOTOROLA’S published specifications or the FCC type
acceptance labeling in effect for the Product at the time the Product
was initially distributed from MOTOROLA.
j. Scratches or other cosmetic damage to Product surfaces that does not
effect the operation of the Product.
k. Normal and customary wear and tear.
www.motorola.com/iden
190 FIRST DRAFT
VI. PATENT AND SOFTWARE PROVISIONS:
MOTOROLA will defend, at its own expense, any suit brought against the end
user purchaser to the extent that it is based on a claim that the Product or parts
infringe a United States patent, and Motorola will pay those costs and damages
finally awarded against the end user purchaser in any such suit which are
attributable to any such claim, but such defense and payments are conditioned
on the following:
a. That MOTOROLA will be notified promptly in writing by such
purchaser of any notice of such claim;
b. That MOTOROLA will have sole control of the defense of such suit
and all negotiations for its settlement or compromise; and
c. Should the Product or parts become, or in MOTOROLA’S opinion be
likely to become, the subject of a claim of infringement of a patent,
that such purchaser will permit MOTOROLA, at its option and
expense, either to procure for such purchaser the right to continue
using the Product or parts or to replace or modify the same so that it
becomes non-infringing or to grant such purchaser a credit for the
Product or parts as depreciated and accept its return. The depreciation
will be an equal amount per year over the lifetime of the Product or
parts as established by MOTOROLA.
MOTOROLA will have no liability with respect to any claim of patent
infringement which is based upon the combination of the Product or parts
furnished hereunder with software, apparatus or devices not furnished by
MOTOROLA, nor will MOTOROLA have any liability for the use of ancillary
equipment or software not furnished by MOTOROLA which is attached to or
used in connection with the Product or any parts thereof.
Laws in the United States and other countries preserve for MOTOROLA certain
exclusive rights for copyrighted MOTOROLA software, such as the exclusive
rights to reproduce in copies and distribute copies of such MOTOROLA
software. MOTOROLA software may be used in only the Product in which the
software was originally embodied and such software in such Product may not be
replaced, copied, distributed, modified in any way, or used to produce any
derivative thereof. No other use including, without limitation, alteration,
modification, reproduction, distribution, or reverse engineering of such
MOTOROLA software or exercise or rights in such MOTOROLA software is
permitted. No license is granted by implication, estoppel or otherwise under
MOTOROLA patent rights or copyrights.
Limited Warranty Motorola Communication Products (International)
FIRST DRAFT 191
Limited Warranty Motorola Communication
Products (International)
I. WHAT THIS WARRANTY COVERS AND FOR
HOW LONG:
MOTOROLA warrants the MOTOROLA manufactured iDEN Communication
Products listed below (“Product”) against defects in material and workmanship
under normal use and service for a period of time from the date of purchase as
scheduled below:
Rechargeable Batteries will be replaced during the applicable warranty period
if:
a. the battery capacity falls below 80% of rated capacity, or
b. the battery develops leakage.
MOTOROLA, at its option, will at no charge either repair the Product (with new
or reconditioned parts), replace it (with a new or reconditioned Product), or
refund the purchase price of the Product during the warranty period provided it
is returned in accordance with the terms of this warranty. Replaced parts or
boards are warranted for the balance of the original applicable warranty period.
All replaced parts of Product shall become the property of MOTOROLA.
This express limited warranty is extended by MOTOROLA to the original end
user purchaser only and is not assignable or transferable to any other party. This
is the complete warranty for the Product manufactured by MOTOROLA.
MOTOROLA assumes no obligations or liability for additions or modifications
NOTE: This Warranty applies in Singapore and the
Philippines.
iDEN Subscriber Digital Mobile and
Portable Units
One (1) Year
Product Accessories (manufactured by
or under license from MOTOROLA)
One (1) Year
Batteries One (1) Year
www.motorola.com/iden
192 FIRST DRAFT
to this warranty unless made in writing and signed by an officer of
MOTOROLA. Unless made in a separate agreement between MOTOROLA and
the original end user purchaser, MOTOROLA does not warrant the installation,
maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary equipment not
furnished by MOTOROLA which is attached to or used in connection with the
Product, or for operation of the Product with any ancillary equipment, and all
such equipment if expressly excluded from this warranty. Because each system
which may use the Product is unique, MOTOROLA disclaims liability for
range, coverage, or operation of the system as a whole under this warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of MOTOROLA’S responsibilities
regarding the Product, Repair, replacement or refund of the purchase price, at
MOTOROLA’S options, is the exclusive remedy. THIS WARRANTY IS
GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INLCUDING WITHOUT LIMITATION, IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY TO THE FULL EXTENT SUCH MAY BE
DISCLAIMED BY LAW. IN NO EVENT SHALL MOTOROLA BE LIABLE
FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE,
COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE
FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.
III. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date of purchase and Product
item serial number) in order to receive warranty service and, also, deliver or
send the Product item, transportation and insurance prepaid, to an authorized
warranty service location. Warranty service will be provided by MOTOROLA
through one of its authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or communication service
provider), it can facilitate your obtaining warranty service.
IV. WHAT THIS WARRANTY DOES NOT COVER:
a. Defects or damage resulting from use of the Product in other than its
normal and customary manner.
Limited Warranty Motorola Communication Products (International)
FIRST DRAFT 193
b. Defects or damage from misuse, accident, water, or neglect.
c. Defects or damage from improper testing, operation, maintenance,
installation, alteration, modification, or adjustment.
d. Breakage or damage to antennas unless caused directly by defects in
material workmanship.
e. A Product subjected to unauthorized Product modifications,
disassemblies or repairs (including, without limitation, the audition to
the Product of non-MOTOROLA supplied equipment).
f. Product which has had the serial number removed or made illegible.
g. Rechargeable batteries if:
1. Any of the seals on the battery enclosure of cells are broken or
show evidence of tampering.
2. The damage or defect is caused by charging or using the battery in
equipment or service other than the Product for which it is
specified.
h. Freight costs to the repair depot.
i. A Product which, due to illegal or unauthorized alteration of the
software/firmware in the Product, does not function in accordance
with MOTOROLA’S published specifications or the local type
acceptance labeling in effect for the Product at the time the Product
was initially distributed from MOTOROLA.
j. Scratches or other cosmetic damage to Product surfaces that does not
effect the operation of the Product.
k. Normal and customary wear and tear.
l. Exclusion for defects or damage arising from use of the products in
connection with non-MOTOROLA equipment.
V. PATENT AND SOFTWARE PROVISIONS:
MOTOROLA will defend, at its own expense, any suit brought against the end
user purchaser to the extent that it is based on a claim that the Product or parts
infringe a patent, and Motorola will pay those costs and damages finally
awarded against the end user purchaser in any such suit which are attributable to
any such claim, but such defense and payments are conditioned on the
following:
a. That MOTOROLA will be notified promptly in writing by such
purchaser of any notice of such claim;
b. That MOTOROLA will have sole control of the defense of such suit
and all negotiations for its settlement or compromise; and
c. Should the Product or parts become, or in MOTOROLA’S opinion be
likely to become, the subject of a claim of infringement of a patent,
www.motorola.com/iden
194 FIRST DRAFT
that such purchaser will permit MOTOROLA, at its option and
expense, either to procure for such purchaser the right to continue
using the Product or parts or to replace or modify the same so that it
becomes non-infringing or to grant such purchaser a credit for the
Product or parts as depreciated and accept its return. The depreciation
will be an equal amount per year over the lifetime of the Product or
parts as established by MOTOROLA.
MOTOROLA will have no liability with respect to any claim of patent
infringement which is based upon the combination of the Product or parts
furnished hereunder with software, apparatus or devices not furnished by
MOTOROLA, nor will MOTOROLA have any liability for the use of ancillary
equipment or software not furnished by MOTOROLA which is attached to or
sued in connection with the Product or any parts thereof. In no event shall
MOTOROLA be liable for any incidental, special or consequential damages
arising from any claim of patent infringement or alleged infringement.
Laws in the United States and other countries preserve for MOTOROLA certain
exclusive rights for copyrighted MOTOROLA software, such as the exclusive
rights to reproduce in copies and distribute copies of such MOTOROLA
software. MOTOROLA software may be used in only the Product in which the
software was originally embodied and such software in such Product may not be
replaced, copied, distributed, modified in any way, or used to produce any
derivative thereof. No other use including, without limitation, alteration,
modification, reproduction, distribution, or reverse engineering of such
MOTOROLA software or exercise or rights in such MOTOROLA software is
permitted. No license is granted by implication, estoppel or otherwise under
MOTOROLA patent rights or copyrights.
Patent and Trademark Information
FIRST DRAFT 195
Patent and Trademark Information
MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are
trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. © 2002 Motorola, Inc. All
rights reserved. Manufactured under one or more of the U.S. patents listed in the User’s
Guide.
Microsoft and, Microsoft WEB Explorer, are registered trademarks of Microsoft
Corporation.
Netscape Navigator is a registered trademark of Netscape Communications Corporation.
T9 is a trademark owned by Tegic Communications.
T9® Text Input Patent and Trademark Information
This product is covered by U.S. Pat. 5,818,437, U.S. Pat. 5,953,541, U.S. Pat. 6,011,554
and other patents pending.
Java and all other Java-based marks are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
Direct Protect is a trademark of Signal Insurance Company.
All other product or service names mentioned in this manual are the property of their
respective trademark owners.
www.motorola.com/iden
196 FIRST DRAFT
197
A
Accessories 161
batteries 163
Data cable 91, 167, 168
Dual Port Adapter Cable 168
Swivel Carry Clip 161
Travel Charger 164
Accessory safety information 181
Adapter cable 168
Additional Health and Safety 183
Alpha mode, text entry 34
Auto Redial 146
B
Backlight timer 146
Battery 163
attaching 15
charge strength 17
charging 16
detaching 16
operating 164
Baud rate 148
C
Call Alert Queue 97
Call alerts 95
from Phonebook 96
receiving 97
Call Filtering 155
Call Forwarding 75
turning off 77
turning on 76
Call Hold 73
Call Timers 71, 72
Call Waiting 72, 140
accepting calls 72
declining calls 73
ending active calls 73
switching between calls 73
turning off 73
Charge strength 17
Circuit data 91
Circuit data number 32
CompanionPro 48
Connection status 31
Customizing Java applications 133
Customizing phone 135
D
Data cable 91, 167, 168
Datebook 111
event reminders 120
set up 120
viewing 112
viewing a day 113
viewing a week 113
viewing event details 114
viewing today 114
Datebook events 114
adding 115
deleting 119
editing 119
Datebook icons 112
Dialing menu 56
Digital cellular 61
Direct dial 62
Display options 42
changing 142
Driving safety 11
Index
198 FIRST DRAFT
www.motorola.com/iden
E
email 91
sending and receiving 90
Entering text, see Text entry
F
Faxes
sending and receiving 91
G
Getting started 13
Group calls 100
I
Icons
context sensitive 39
Datebook 112
main menu 44
Phonebook 48
status 39
In Call Setup 140
Initial Setup 144
Initial SIM PIN number 21
International calls 60, 65
IP Address 32
J
Java applications 131
deinstalling 134
downloading 133
installing 132
memory 133
K
Keypad Lock 141
L
Language 148
M
Main menu 45
icons 44
options 44
reordering 142
Making call alerts 96
Making phone calls 61
Making Private calls 93
Master Reset 141
Memo 123
adding 123
deleting 124
editing 124
viewing 123
Memory
Java 133
Voice Record 129
Menu icon 42
Menus 42, 43, 56
main menu 45
Shortcut 159
Styles menu 153, 155
Message Center 85
Messages 85
Net Alert 90
text and numeric 88
voice mail 86
Messages, Net Alert
receiving 90
Messages, text and numeric
receiving 89
viewing 89
Missed Calls 71
Modem, phone as 91
Motorola 10
Mute 70
My Information 32
FIRST DRAFT 199
N
Net Alert 90
Notifications 140
setting 138
Numeric mode, text entry 37
P
Packet data 91
Password
security code 141
SIM PIN 141
unlock code 141
Patent information 197
Pause digit entry 59
Personalize 142
Phone
modem 91
off 18
on 18
status 31
Phone calls 61
ending 66
from Phonebook 62
from Recent Calls list 63
international calls 65
receiving 66
speed dial 64
Turbo Dial 64
Phone Lock 140
Phone Setup 139
Phonebook 47
capacity 52
CompanionPro 48
making call alerts 96
making calls 62
Private calls 93
storing Recent Calls 68
Phonebook entries 50
adding 53
deleting 59
editing 58
sorting 51
viewing 51
Plus dialing 60
Power button 18
Powering phone on or off 18
Private calls 93
from Phonebook 93
from Recent Calls list 94
making 93
receiving 94
voice names 95
Private ID 93
R
Radio frequency 173
Ready screen 39
Recent Calls 63, 67
deleting 69
details 68
Private calls 94
storing to Phonebook 68
viewing 67
Recent Calls list
storing numbers from 57
Ring styles 139
Ring/Vibe 136
S
Safety
accessory 181
electromagnetic interference
176
medical devices 176
radio frequency 173
200 FIRST DRAFT
www.motorola.com/iden
Scrolling 147
Security 20, 140
Settings 135
In Call Setup 140
Initial Setup 144
Personalize 142
Phone Setup 139
Ring/Vibe 136
Security 140
VoiceVolume 150, 151
Shortcuts 157
creating 157
using 158
SIM card 20, 47
inserting and removing 25
unblocking 23
SIM PIN 20, 141
changing 22
default 21
disabling 24
enabling 24
entering 21
Speed Dial numbers 48, 55, 64
Status light 31, 147
Status messages 171
Status of connection 31
storing numbers
Recent Calls list 57
Styles
activating 154
creating 153
turning off 155
Swivel Carry Clip 161
Symbols mode, text entry 37
T
T9 Text Input 33
also see Text entry
Talkgroups 100
joining 102
naming 100
Text and numeric messages 88
Text display
area 42
size 147
Text entry
Alpha mode 34
Numeric mode 37
Symbols mode 37
Word mode 34
Three-Way Calling 74
Time and date format 145
Trademark information 197
Travel Charger 164
TTY devices 91
making calls 65
setting baud rate 149
setting mode 148
Turbo Dial 64
Turning phone on or off 18
Two-way radio, see Private calls
Typing text, see Text entry
U
Unblocking SIM PIN 23
V
Viewing Datebook 112
Voice Activated dialing 95
also see Voice names
Voice Mail 86
logging in 87
receiving messages 86
transferring calls to 86
Voice names 49
creating 55, 158
FIRST DRAFT 201
making calls 95
Phonebook 55
shortcuts 158, 159
Voice Record 69, 125
adding 127
deleting 128
labeling 127
locking 128
memory 129
playing 126
recording 126
W
Warranty 193
Word mode, text entry 34
202 FIRST DRAFT
www.motorola.com/iden
