ASTRO® APX™
O5 Control Head Mobile Radio
Quick Reference Card
RF Energy Exposure and Product Safety Guide for
Mobile Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before using the
radio, read the RF Energy Exposure and Product Safety Guide for
Mobile Two-Way Radios which contains important operating
instructions for safe usage and RF energy awareness and control
for Compliance with applicable standards and Regulations.

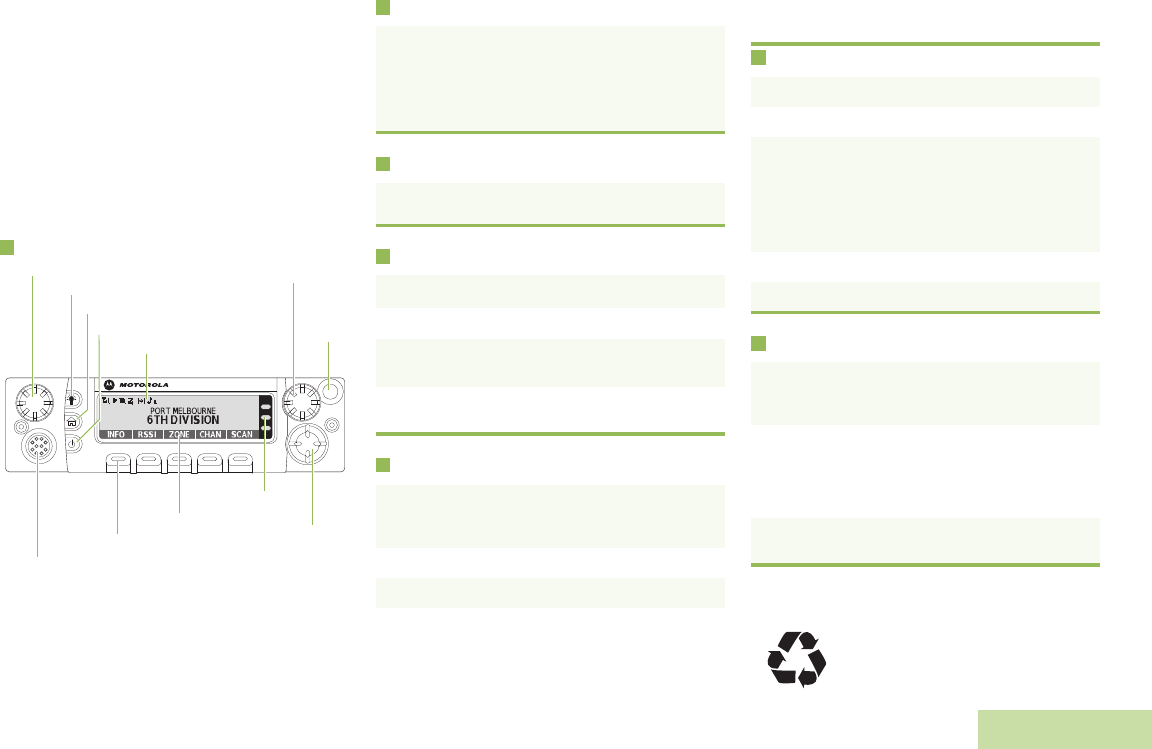

Radio Controls
Radio On/Off
Adjusting Volume
Selecting a Zone
Selecting a Channel
Receiving and Transmitting
Sending an Emergency Alarm
To exit emergency at any time, press and hold the
Emergency button.
Volume Knob
Accessory Port (Microphone)
Menu Select Button
Menu Entries
LED Indicators
Dim Button
Home Button
Navigation
Button
Power On/Off Button
Indicators
Mode Knob
Orange
Button
Press the Power On/Off button to toggle the power on
or off.*
* The duration that user must press and hold the
Power On/Off button to turn off the radio is
programmable by a qualified radio technician.
Turn the Volume Knob clockwise to increase volume or
counterclockwise to decrease the volume.
1> or < to ZONE.
2> or < button until the desired zone is displayed.
3Press H or the PTT button to confirm the selected
zone number.
4Press the PTT button to begin transmitting on the
displayed zone channel.
1Press and hold > to scroll to CHAN and press the
Menu Select button directly below CHAN. The
display shows the current zone and channel.
2Rotate the Mode knob to the desired channel.
3Press H or the PTT button to confirm the channel.
4Press the PTT button to transmit on the displayed
zone channel.
1Take the microphone off hook.
2Select zone/channel.
3Listen for a transmission.
OR
Turn the Volume Knob.
OR
> or < to MON then press the Menu Select button
directly below MON and listen for activity.
4Adjust volume, if necessary.
5Press the PTT button to transmit; release to receive.
1Press the Emergency button. A tone sounds and the
display alternates EMERGENCY and the home
display.
2A dispatcher acknowledgment ACK RECEIVED
display follows.
AND, Trunking Only:
A high-pitched tone indicates that the alarm has been
received by the trunked system’s central controller.
3Press and hold the emergency button or the PTT
button to return to normal operation.
*PMLN5592G*
PMLN5592G
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.
© 2009–2011, 2013, 2015 by Motorola Solutions, Inc.
All Rights Reserved. 06/15
1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.
English
Sending an Emergency Call (Trunking Only)
To exit emergency at any time, press and hold the
Emergency button.
Sending a Silent Emergency Alarm
If silent emergency alarm is used with emergency call,
pressing the PTT button exits the silent mode and
initiates the emergency call.
Display Status Icons
1Press Emergency button.
2A tone sounds and the display alternates
EMERGENCY and the home display.
OR
A talk prohibited tone sounds when the selected
channel does not support emergency.
3Press and hold the PTT button. Speak clearly into the
microphone.
4Release the PTT to end the transmission.
1Press the preprogrammed Emergency button to
activate the silent alarm feature.
2The display does not change; the LED does not light
up, and there is no tone.
Receiving a call or data.
Transmitting a call or data.
The more stripes, the stronger the signal
strength for the current site (trunking only).
u
t
V
Direct radio-to-radio communication or
communication through a repeater.
On = Direct
Off = Repeater
This channel is being monitored.
Voice muting the affiliated trunking talkgroup
or selected conventional channel.
On = Enabled
Off = Disabled
L = Radio is set at Low power.
H = Radio is set at High power.
Scanning a scan list.
Blinking dot = Detects activity on the
Priority-One Channel during
scan.
Steady dot = Detects activity on the Priority-
Two Channel during scan.
The vote scan feature is enabled.
O
M
K
HOR.
i
j
k
On = Secure operation.
Off = Clear operation.
Blinking = Receiving an encrypted voice
call.
On = AES Secure operation.
Off = Clear operation.
Blinking = Receiving an encrypted voice
call.
On = Location feature enabled, and location
signal available.
Off = Location feature disabled.
Blinking = Location feature enabled, but
location signal unavailable.
On = User is currently associated with the
radio.
Off = User is currently not associated with
the radio.
Blinking = Device registration or user
registration with the server
failed due to an invalid
username or pin.
Data activity is present.
Indicates that the text entry is currently in
hexadecimal mode.
m
l
G
n
o
{
Menu Navigation
< or > to Menu Entry.
g directly below Menu Entry to
select.
H to exit.
< or > to scroll through sub-list.
g directly below Menu Entry to
select.
