Users Manual
Moxa 802.11a/b/g/n PCI Module
WAPN008 User’s Manual
www.moxa.com
First Edition, July 2015
2015 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.
WAPN008 User’s Manual
The hardware and software described in this manual is furnished under a license agreement and may be used
only in accordance with the terms of that agreement.
Copyright Notice
Copyright 2015 Moxa Inc.
All rights reserved.
Reproduction without permission is prohibited.
Trademarks
MOXA is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the
part of Moxa.
Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but
not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this
manual, or to the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no
responsibility for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to
the information herein to correct such errors, and these changes are incorporated into new editions of the
publication.
Technical Support Contact Information
www.moxa.com/support
Moxa Americas:
Toll-free: 1-888-669-2872
Tel: +1-714-528-6777
Fax: +1-714-528-6778
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel: +86-21-5258-9955
Fax: +86-10-6872-3958
Moxa Europe:
Tel: +49-89-3 70 03 99-0
Fax: +49-89-3 70 03 99-99
Moxa Asia-Pacific:
Tel: +886-2-8919-1230
Fax: +886-2-8919-1231
Table of Contents
Chapter 1 Introduction
Overview
Specification
Chapter 2 Getting Started
Module Layout
Block Diagram
Hardware Installation
Software Installation
WAPN008 User’s Manual Introduction
1
1
Chapter 1
Introduction
The following topics are covered in this chapter:
Overview
Specifications
WAPN008 User’s Manual Introduction
Overview
WAPN008 PCI module is designed to provide wireless communication for Moxa industrial wireless products. It
communicates via the standard 802.11a/b/g/n protocols on standard 2.4GHz/5GHz and 5GHz DFS channels.
The WAPN008 uses the AR9344 SoC Wireless chipset from Atheros.
Specification
Features WAPN008
Chipset Atheros AR9344
Baseband
Processor (BBP)
- DSSS with DBPSK, DQPSK, CCK
- OFDM with BPSK, QPSK, 16QAM, 64QAM
- 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps
- 802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps,
BPSK @ 9/6 Mbps
- 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps (multiple rates supported)
security engine - 64-bit and 128-bit WEP encryption, WPA /WPA2-Personal and Enterprise (IEEE
802.1X/RADIUS, TKIP and AES)
Connectors Defined BTB connector is using 2x40 pins header, and Support PCI Express standard.
Power
requirement
3.3V +/-10%
Dimension 60mm x 60mm x 1.2mm
Operating
Temperature
-40 to +80 ℃
Storage
Temperature:
-40 to +150℃
Operates in 2.4
and 5 GHz
frequency bands.
US:
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 (4 channels)
5.260 to 5.320 (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)
EU:
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 (4 channels)
5.260 to 5.320 (4 channels)
5.500 to 5.700 GHz (11 channels)
JP:
2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 (4 channels)
5.260 to 5.320 (4 channels)
5.500 to 5.700 GHz (11 channels)
TX Transmit Power:
802.11b:
Typ. 26±1.5 dBm @ 1 Mbps, Typ. 26±1.5 dBm @ 2 Mbps,
Typ. 26±1.5 dBm @ 5.5 Mbps, Typ. 25±1.5 dBm @ 11 Mbps
802.11g:
Typ. 24±1.5 dBm @ 6 to 24 Mbps, Typ. 22±1.5 dBm @ 36 Mbps,
WAPN008 User’s Manual Introduction
Typ. 20±1.5 dBm @ 48 Mbps, Typ. 18±1.5 dBm @ 54 Mbps
802.11n (2.4 GHz):
Typ. 23±1.5 dBm @ MCS0/8 20 MHz, Typ. 17±1.5 dBm @ MCS7/15 20 MHz
Typ. 23±1.5 dBm @ MCS0/8 40 MHz, Typ. 17±1.5 dBm @ MCS7/15 40 MHz
802.11a:
Typ. 23±1.5 dBm @ 6 to 24 Mbps, Typ. 21±1.5 dBm @ 36 Mbps,
Typ. 20±1.5 dBm @ 48 Mbps,Typ. 18±1.5 dBm @ 54 Mbps
802.11n (5 GHz):
Typ. 23±1.5 dBm @ MCS0/8 20 MHz, Typ. 18±1.5 dBm @ MCS7/15 20 MHz
Typ. 23±1.5 dBm @ MCS0/8 40 MHz, Typ. 18±1.5 dBm @ MCS7/15 40 MHz
RX Receive
Sensitivity:
802.11b:
-93 dBm @ 1 Mbps, -93 dBm @ 2 Mbps,
-93 dBm @ 5.5 Mbps, -88 dBm @ 11 Mbps
802.11g:
-88 dBm @ 6 Mbps, -88 dBm @ 9 Mbps,
-85 dBm @ 12 Mbps, -85 dBm @ 18 Mbps,
-85 dBm @ 24 Mbps, -82 dBm @ 36 Mbps,
-78 dBm @ 48 Mbps, -74 dBm @ 54 Mbps
802.11n (2.4 GHz):
-70 dBm @ MCS7 20 MHz, -69 dBm @ MCS15 20 MHz
-67 dBm @ MCS7 40MHz, -67 dBm @ MCS15 40 MHz
802.11a:
-90 dBm @ 6 Mbps, -88 dBm @ 9 Mbps,
-85 dBm @ 12 Mbps, -85 dBm @ 18 Mbps,
-81 dBm @ 24 Mbps, -78 dBm @ 36 Mbps,
-78 dBm @ 48 Mbps, -72 dBm @ 54 Mbps
802.11n (5 GHz):
-69 dBm @ MCS7 20MHz, -71 dBm @ MCS15 20 MHz
-66 dBm @ MCS7 40MHz, -68 dBm @ MCS15 40 MHz
2
2
Chapter 2
Getting Started
This chapter covers the module layout, and block diagram, hardware installation of the WAPN008. Software
installation is covered in the next chapter.
The following topics are covered:
Module Layout
Block Diagram
Hardware Installation
Software Installation
WAPN008 User’s Manual Getting Started

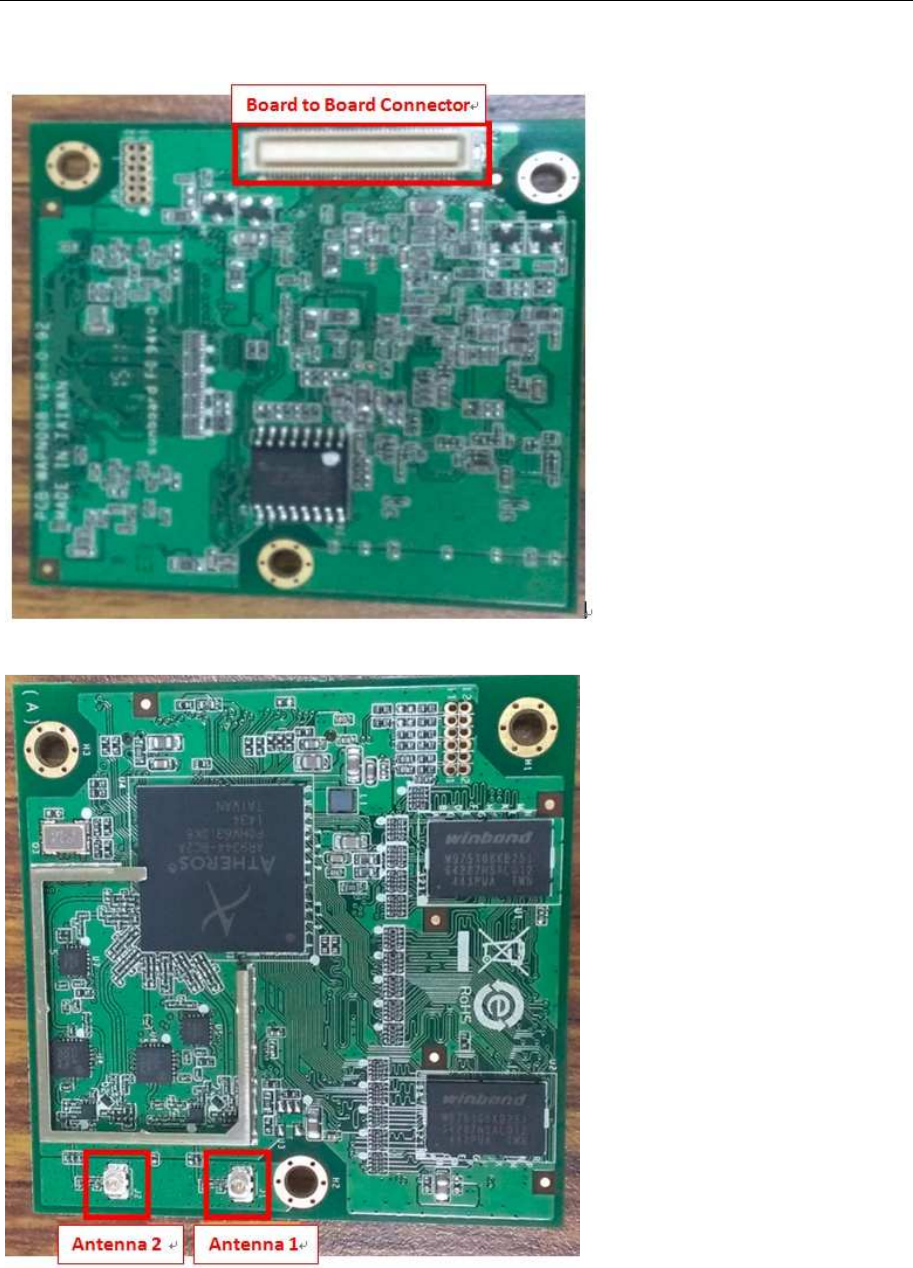

Module Layout
Top and Bottom

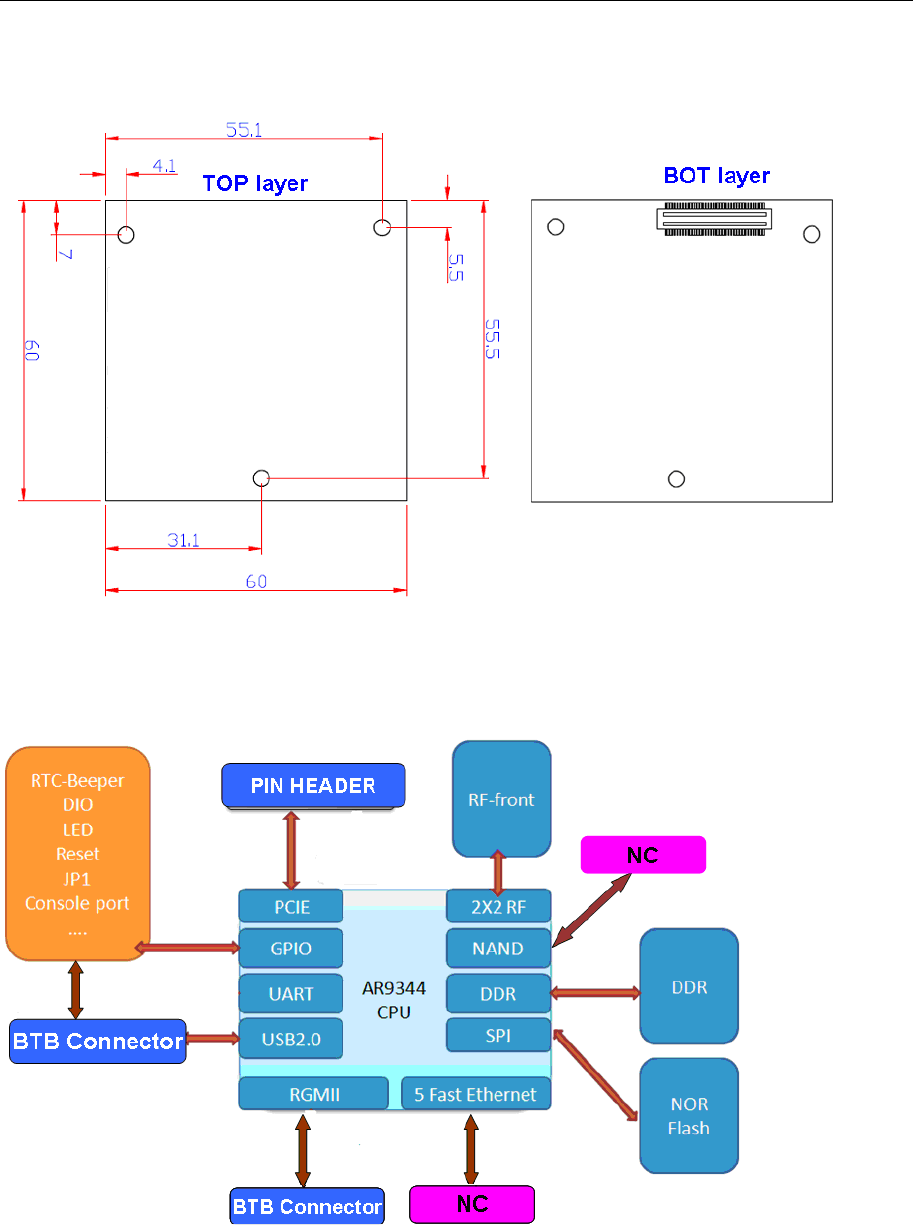

Block Diagram
Below is a block diagram of the WAPN008.
WAPN008 User’s Manual Getting Started
Connector Locations
WAPN008 User’s Manual Getting Started
PCI Bus Connector PIN Assignments
Function Connect to Pin Pin Function Connect to
3.3v 3.3v 1 2 GND GND
3.3v 3.3v 3 4 GND GND
3.3v 3.3v 5 6 ERXD3 PHY RGMII
3.3v 3.3v 7 8 ERXD2 PHY RGMII
3.3v 3.3v 9 10 ERXD1 PHY RGMII
3.3v 3.3v 11 12 ERXD0 PHY RGMII
3.3v 3.3v 13 14 GND GND
GPIO 16 I2C_SCLK 15 16 GND GND
GPIO 17 I2C_DATA 17 18 ETX_CLK ETX_CLK
GND GND 19 20 GND GND
GPIO 21 POWER 2 21 22 GND GND
GPIO 1 JP1 Debug 23 24 ETX_EN ETX_EN
GND GND 25 26 GND GND
GPIO 4 S17_INT 27 28 GND GND
GND GND 29 30 ETXD3 PHY RGMII
GPIO 0 I2C_INT0 31 32 ETXD2 PHY RGMII
GND GND 33 34 ETXD1 PHY RGMII
GPIO 3 UR_DSR 35 36 ETXD0 PHY RGMII
GPIO 9 UR_SIN 37 38 GND GND
GPIO 10 UR_SOUT 39 40 GND GND
GPIO 13 MDC 41 42 ERX_CLK ERX_CLK
GPIO 14 MDIO 43 44 GND GND
GPIO 20 POWER 1 45 46 GND GND
GND GND 47 48 ERX_EN ERX_EN
GPIO 22 POWER 3 49 50 GND GND
GND GND 51 52 GND GND
GPIO 2 UR_DTR 53 54 EMDC GIGA PHY
GND GND 55 56 EMDIO GIGA PHY
GPIO 11 Reset 57 58 GND GND
GND GND 59 60 GND GND
GPIO 12 LAN 10/100 61 62 TXP0 10/100 LAN
GND GND 63 64 TXN0 10/100 LAN
GPIO 15 Reserved 65 66 GND GND
GND GND 67 68 RXP0 10/100 LAN
SYS_RST_L GIGA PHY Reset 69 70 RXN0 10/100 LAN
AVDD18 Fast Ethernet bios 71 72 GND GND
AVDD18 Fast Ethernet bios 73 74 GND GND
AVDD18 Fast Ethernet bios 75 76 USB_DM USB port
GND GND 77 78 USB_DP USB port
GND GND 79 80 GND GND
WAPN008 User’s Manual Getting Started
Hardware Installation
The WAPN008 can be installed into all Moxa wireless system board series.
Step for Installation
1. Install the WAPN008 PCI card on the system board. Apply pressure to both bus
connectors and gently press the board onto the stack. The board should slide into the
matching bus connectors. Do not attempt to force the board, as this can lead to bent/broken
pins.
2. Screw on the WAPN008 PCI card.
3. Screw on the all the necessary chassis.
Software Installation
After physically installing the WAPN008, your operating system must be configured to recognize
the new system board.
Step for Installation
1. Apply power to the system board.
2. Connect system board and PC with Ethernet cable.
3. Open a browser and type: 192.168.127.253 to open the system login webpage.
4. Login the webpage with default password: root in order to verify that all of the hardware is
install properly.
WAPN008 User’s Manual Getting Started
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
To assure continued compliance, (example - use only shielded interface cables when connecting to computer or
peripheral devices) any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
This module is restricted to mobile configuration. To comply with FCC RF exposure compliance requirements,
the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from
all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This
transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm
may be maintained between the antenna and users. The final end product must be labeled in a visible area with
the following: "Contains FCC ID: SLE-WAPN008 ”
WAPN008 User’s Manual Getting Started
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
This radio transmitter FCCID: SLE-WAPN008 has been approved by FCC to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
Antenna List
No.
Manufacturer Part No. Antenna Type Peak Gain
1 KINSUN ANT-WDB-O-2 BK Dipole 2.9dBi for 2.4 GHz
2.34dBi for 5GHz
2 KINSUN ANT-WDB-ANM-0502 Dipole 4.62dBi for 2.4 GHz
1.41dBi for 5GHz
Note: The antenna connector is Reverse SMA type
