Moxa WAPN008 MOXA IEEE 802.11 a/b/g/n User Manual Moxa Tough AP TAP 213 User s Manual

Moxa Inc. MOXA IEEE 802.11 a/b/g/n Moxa Tough AP TAP 213 User s Manual

WAPN008- UserMan_AWK-3131A-SSC-RTG_20180820

Moxa AWK-3131A-RTG User’s Manual
Edition 1.0, July 2018
www.moxa.com/product
© 2018 Moxa Inc. All rights reserved.
Moxa AWK-3131A-RTG User’s Manual
The software described in this manual is furnished under a license agreement and may be used only in accordance with
the terms of that agreement.
Copyright Notice
© 2018 Moxa Inc. All rights reserved.
Trademarks
The MOXA logo is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the part of
Moxa.
Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited
to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the
products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for
its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the publication.
Technical Support Contact Information
www.moxa.com/support
Moxa Americas
Toll-free: 1-888-669-2872
Tel: +1-714-528-6777
Fax: +1-714-528-6778
Moxa China (Shanghai office)
Toll-free: 800-820-5036
Tel: +86-21-5258-9955
Fax: +86-21-5258-5505
Moxa Europe
Tel: +49-89-3 70 03 99-0
Fax: +49-89-3 70 03 99-99
Moxa Asia-Pacific
Tel: +886-2-8919-1230
Fax: +886-2-8919-1231
Moxa India
Tel: +91-80-4172-9088
Fax: +91-80-4132-1045
Table of Contents
1. Introduction ...................................................................................................................................... 1-1
Overview ........................................................................................................................................... 1-2
Package Checklist ............................................................................................................................... 1-2
Product Features ................................................................................................................................ 1-2
Product Specifications ......................................................................................................................... 1-3
Functional Design ............................................................................................................................... 1-3
LAN Port .................................................................................................................................... 1-3
LED Indicators ............................................................................................................................ 1-4
Beeper ....................................................................................................................................... 1-5
Reset Button ............................................................................................................................... 1-5
2. Getting Started .................................................................................................................................. 2-1
First-Time Installation and Configuration ............................................................................................... 2-2

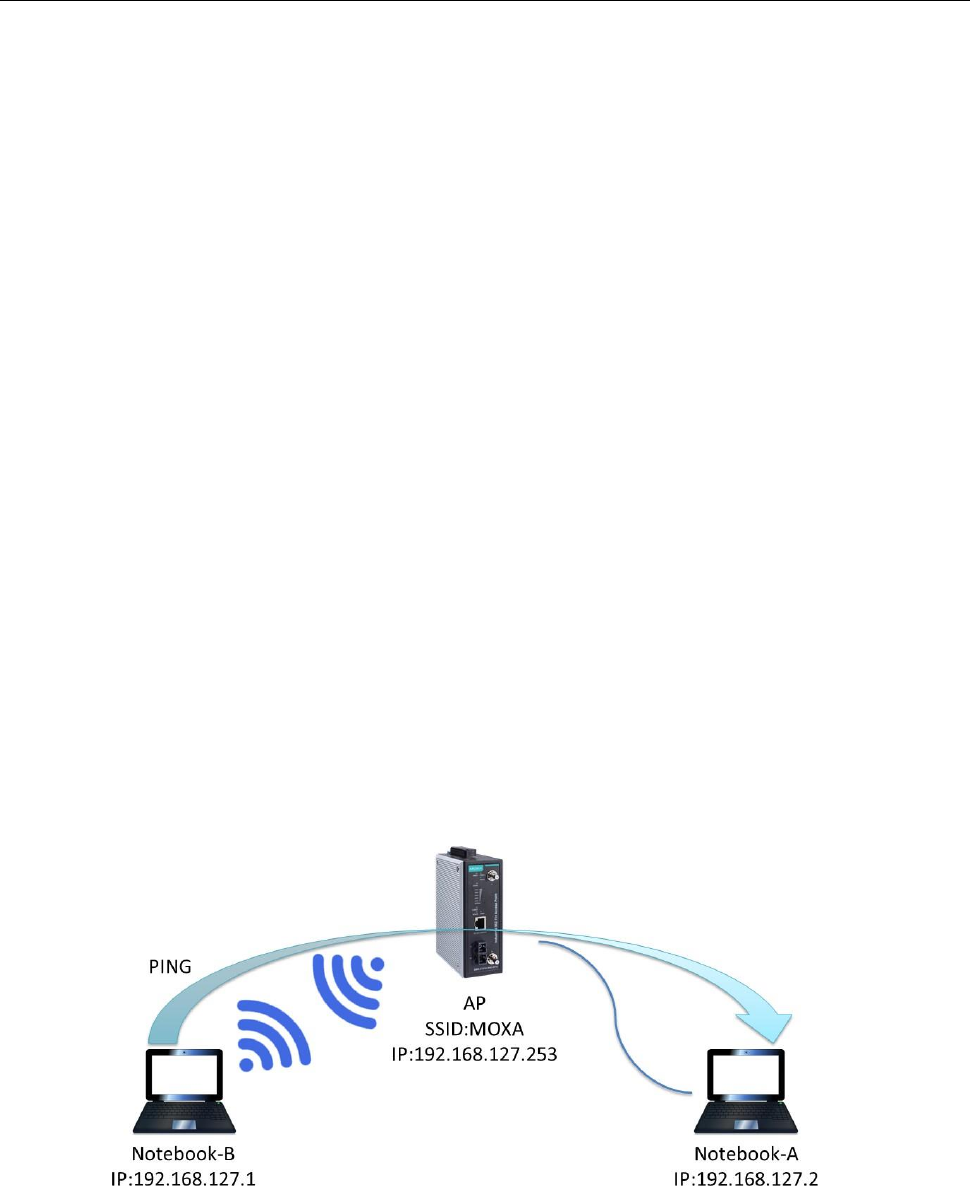

Communication Testing ....................................................................................................................... 2-3
Function Map ..................................................................................................................................... 2-5
3. Web Console Configuration ............................................................................................................... 3-1

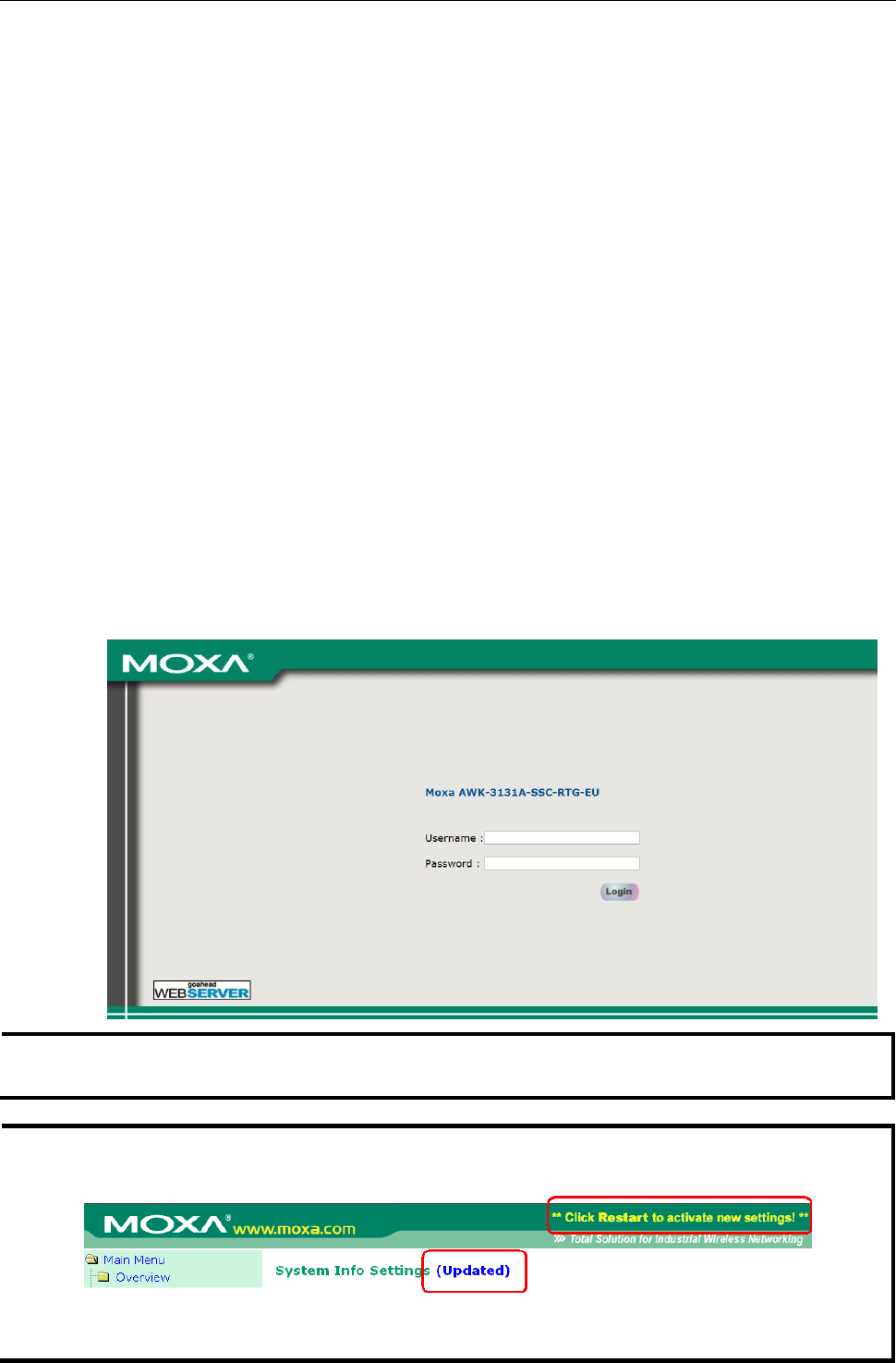

Web Browser Configuration .................................................................................................................. 3-3

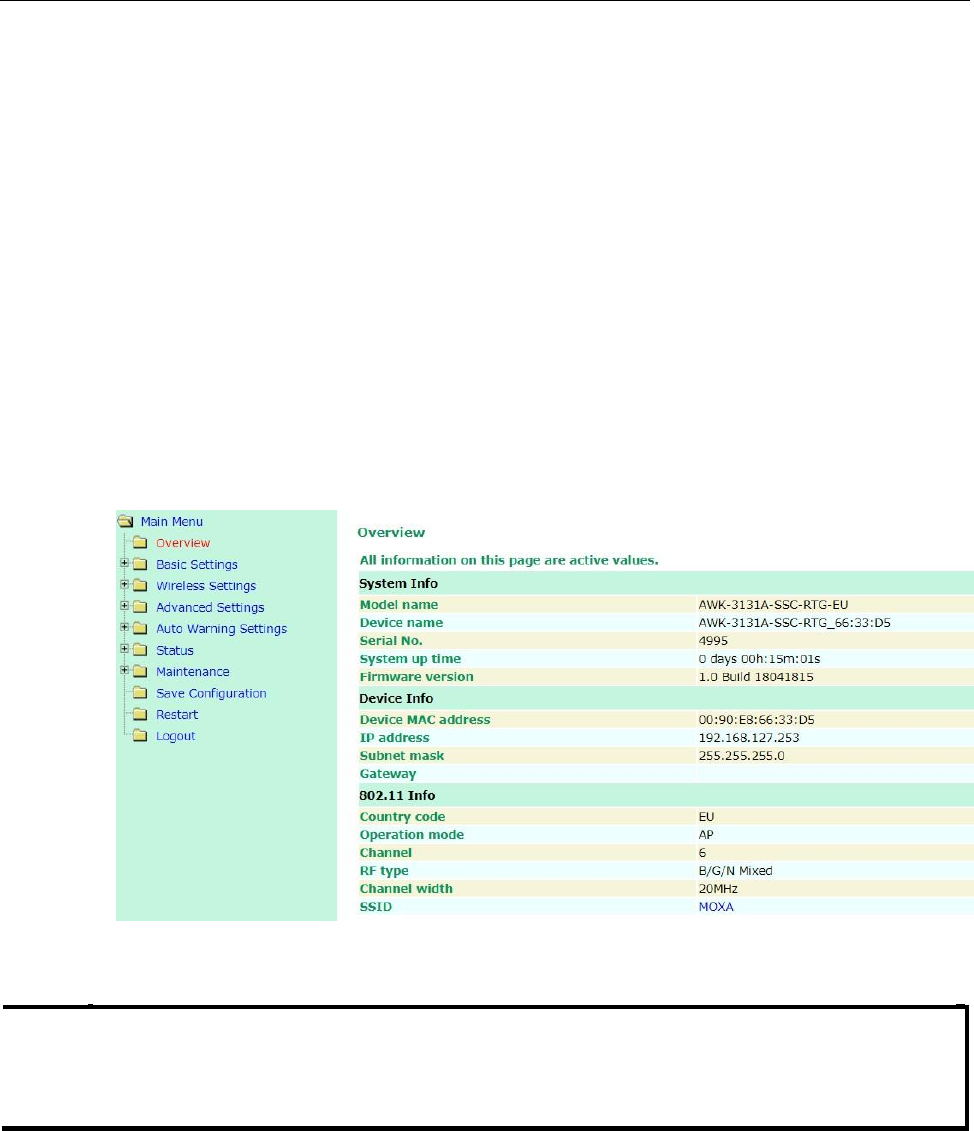

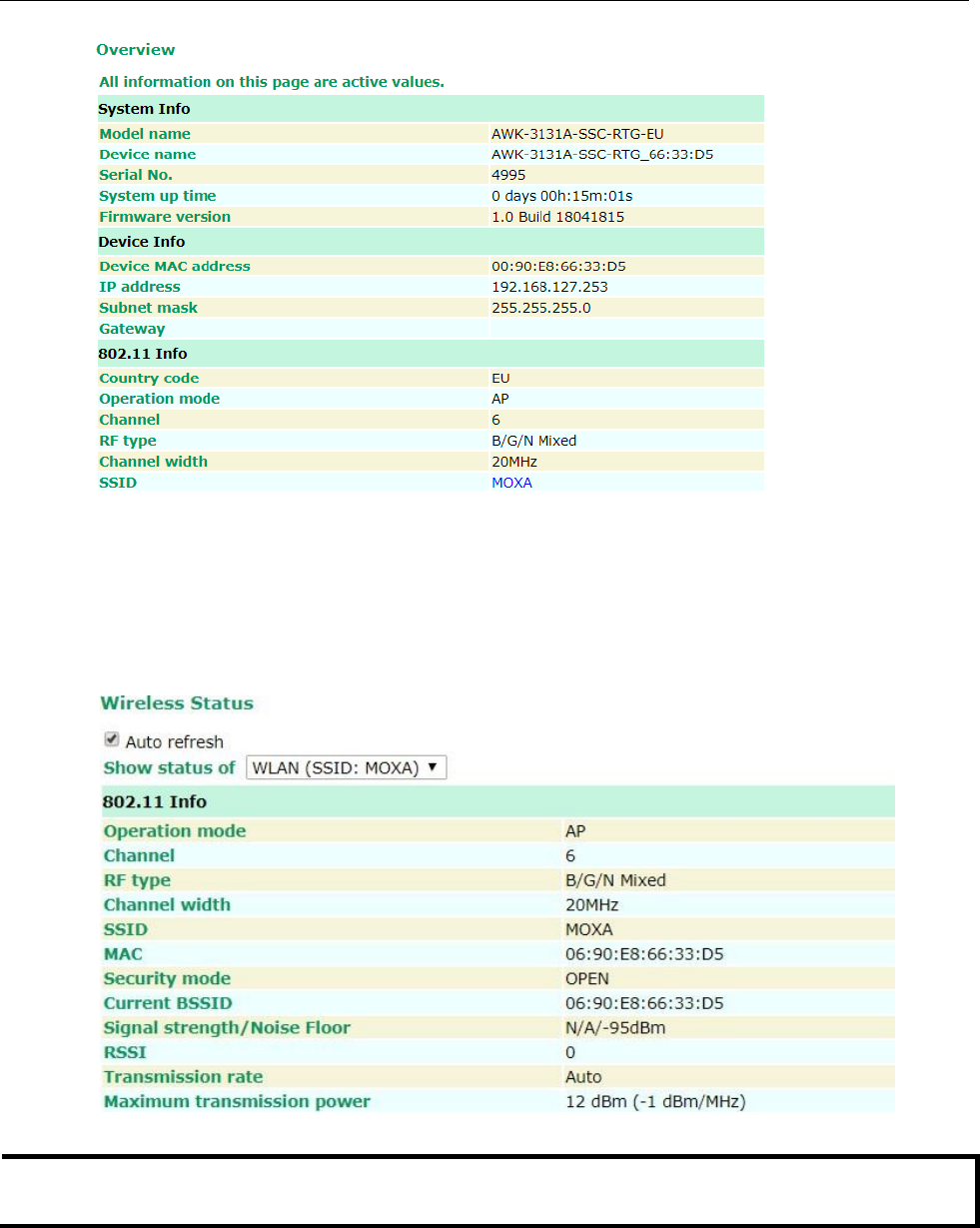

Overview ........................................................................................................................................... 3-4
Basic Settings .................................................................................................................................... 3-5
System Info Settings ................................................................................................................... 3-6

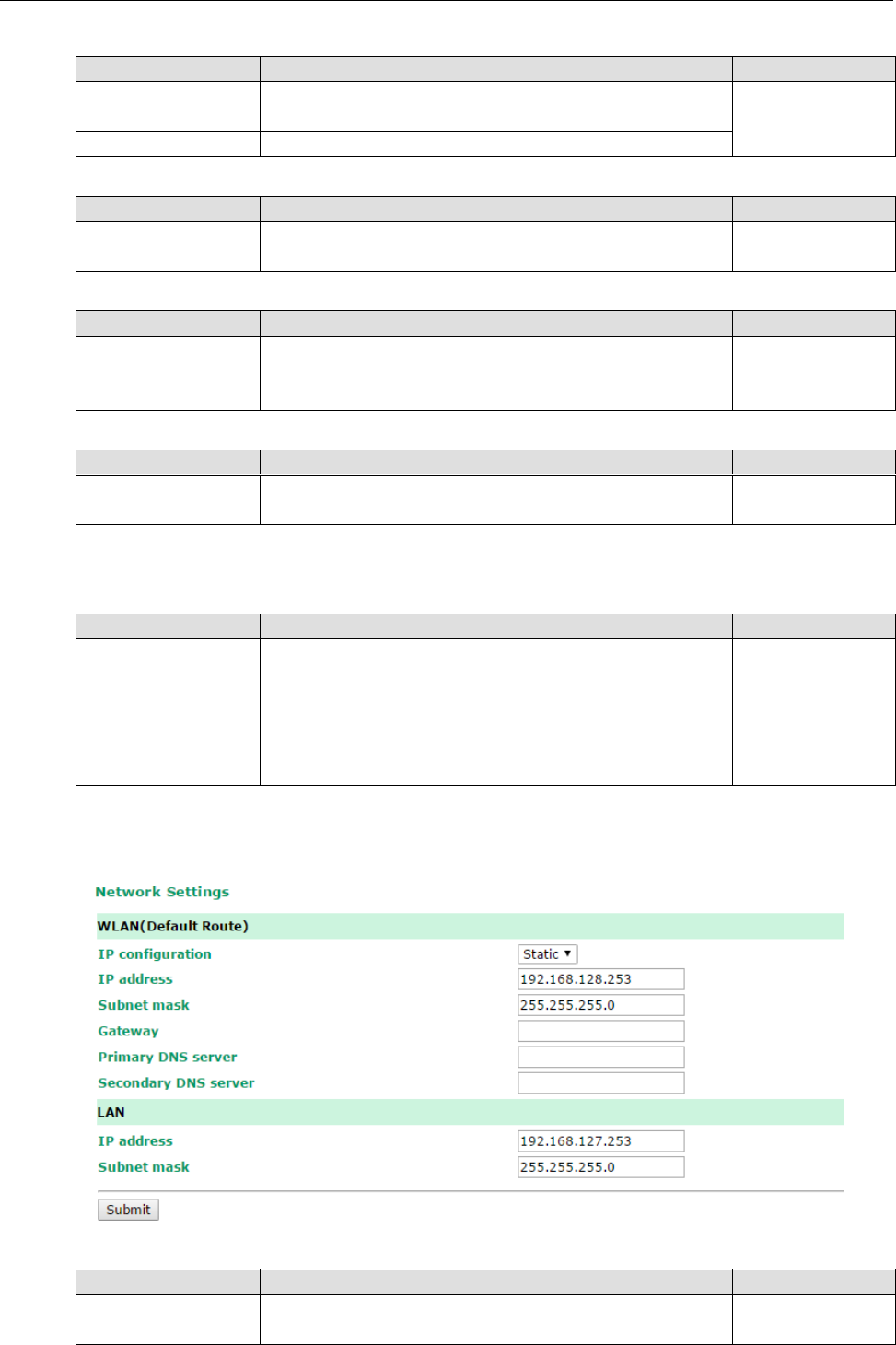

Network Settings ......................................................................................................................... 3-6

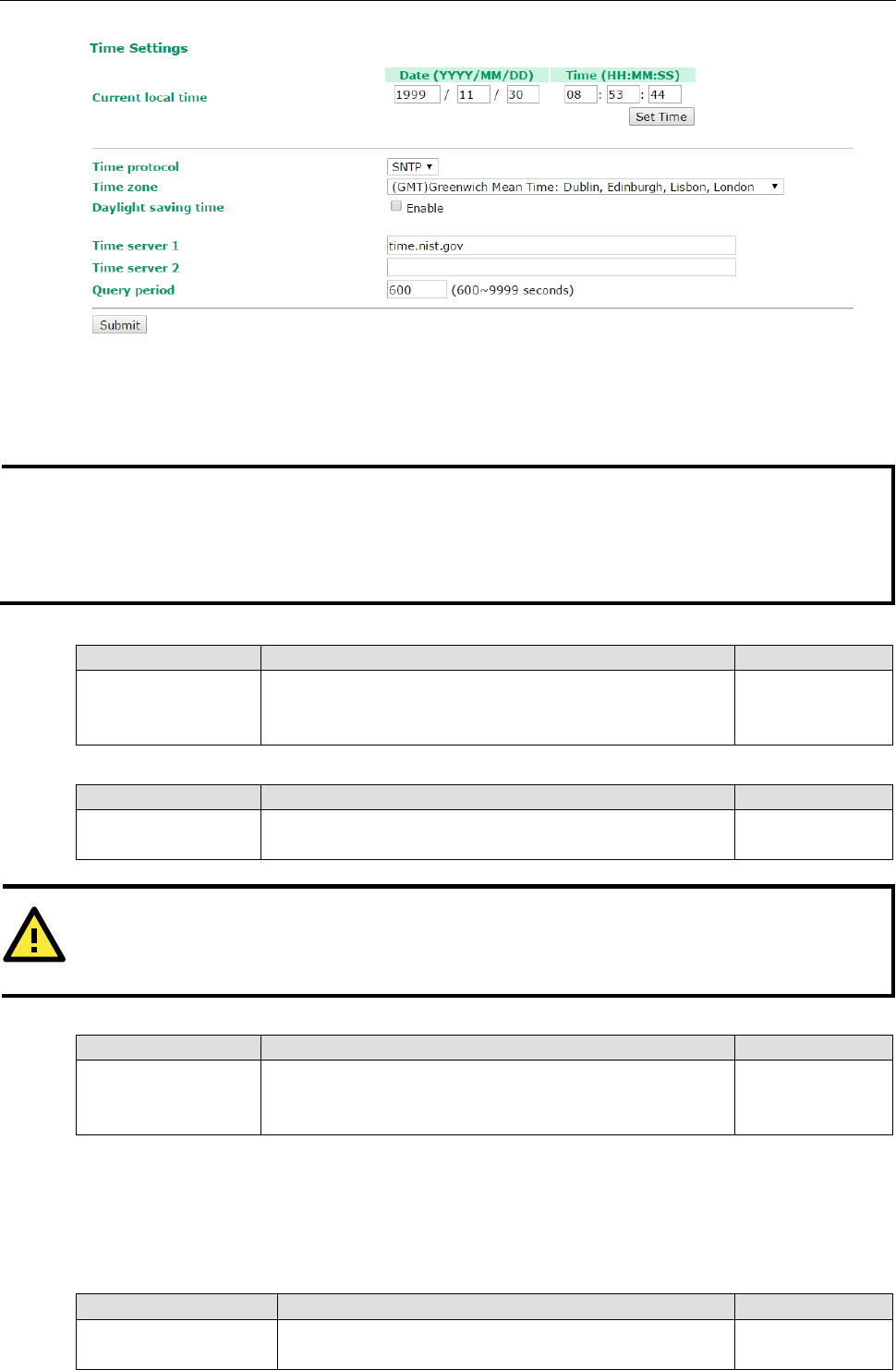

Time Settings ............................................................................................................................. 3-8
Wireless Settings .............................................................................................................................. 3-10

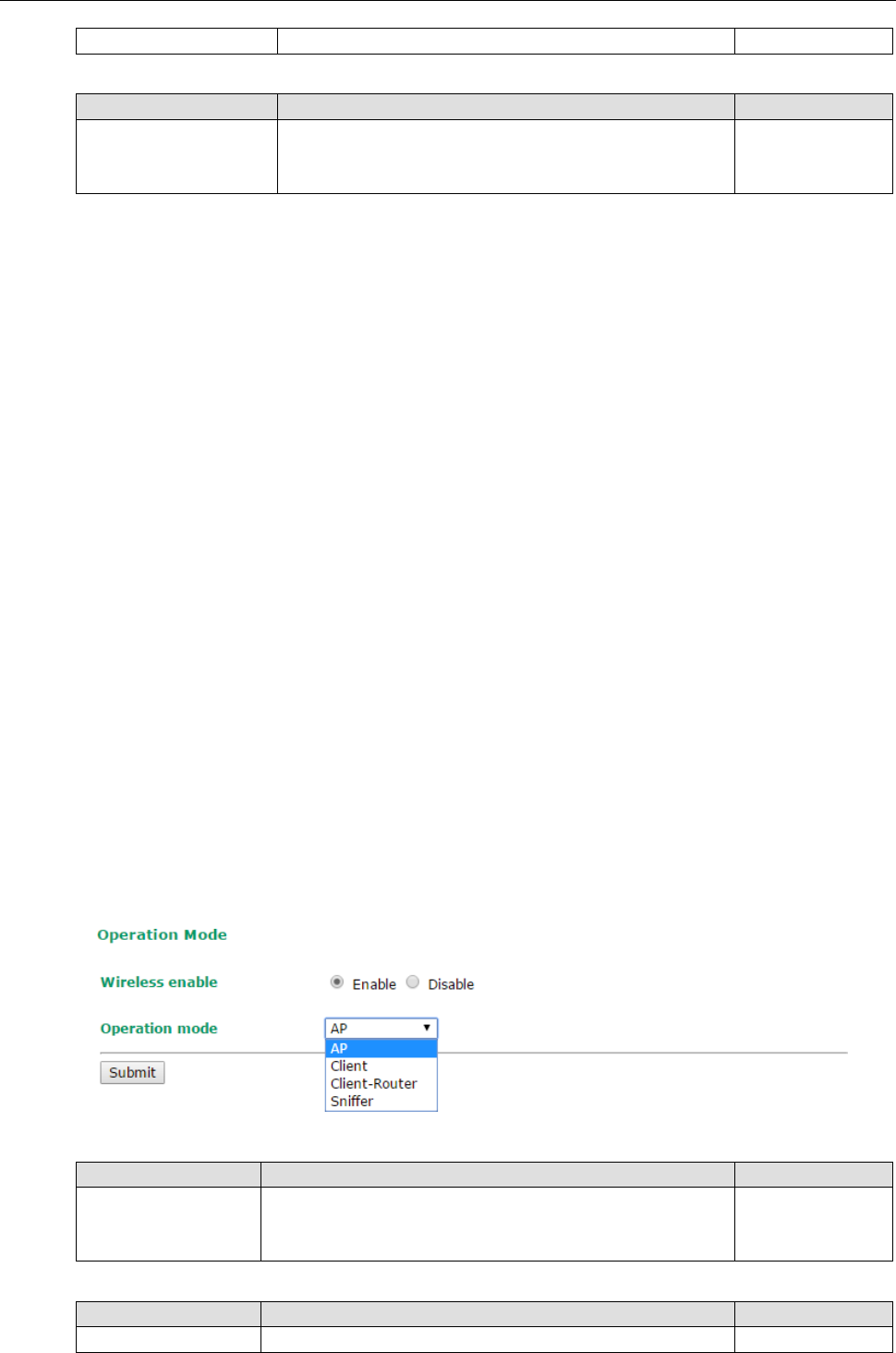

Operation Mode ................................................................................................................................ 3-10

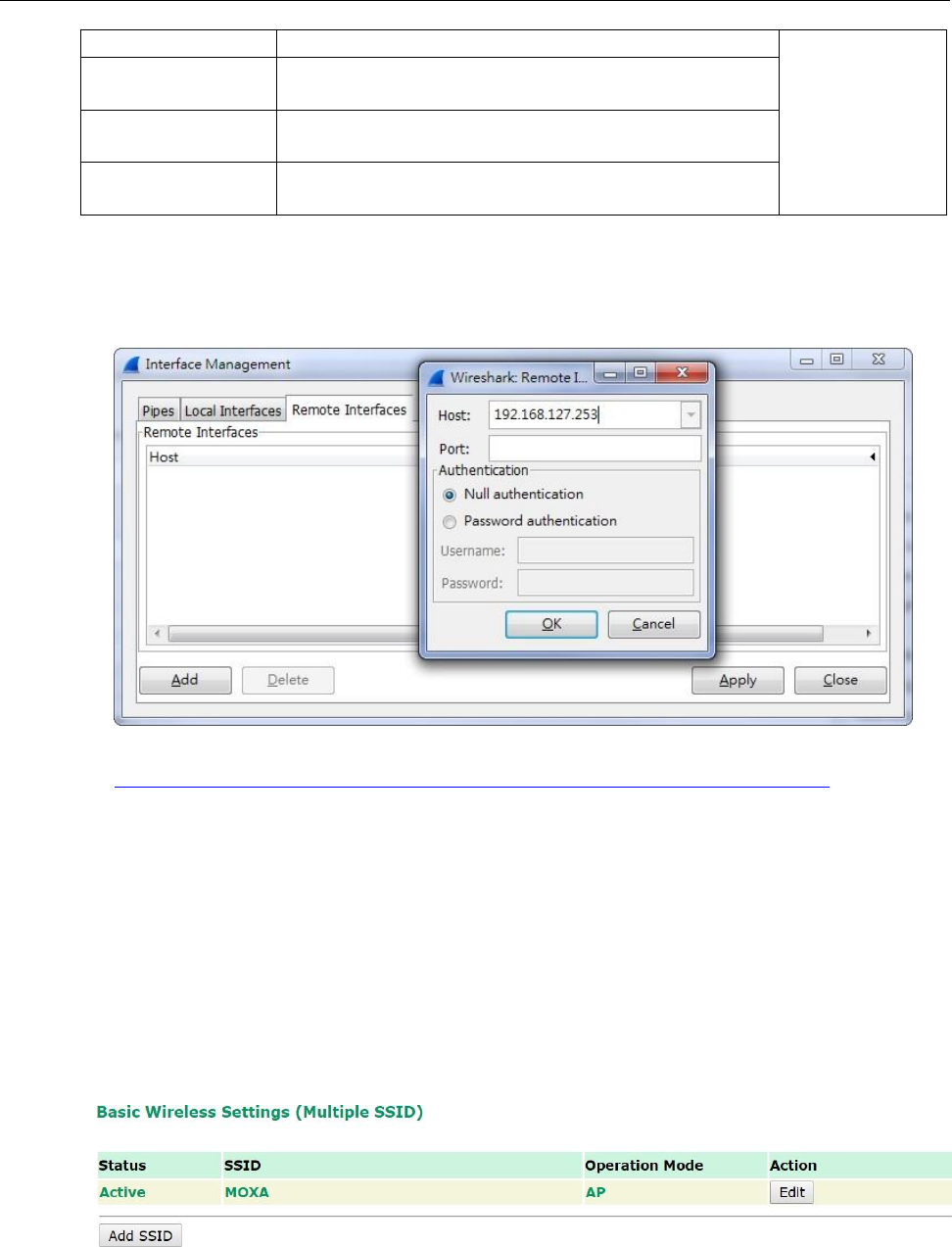

Basic Wireless Settings (Multiple SSID) ............................................................................................... 3-11

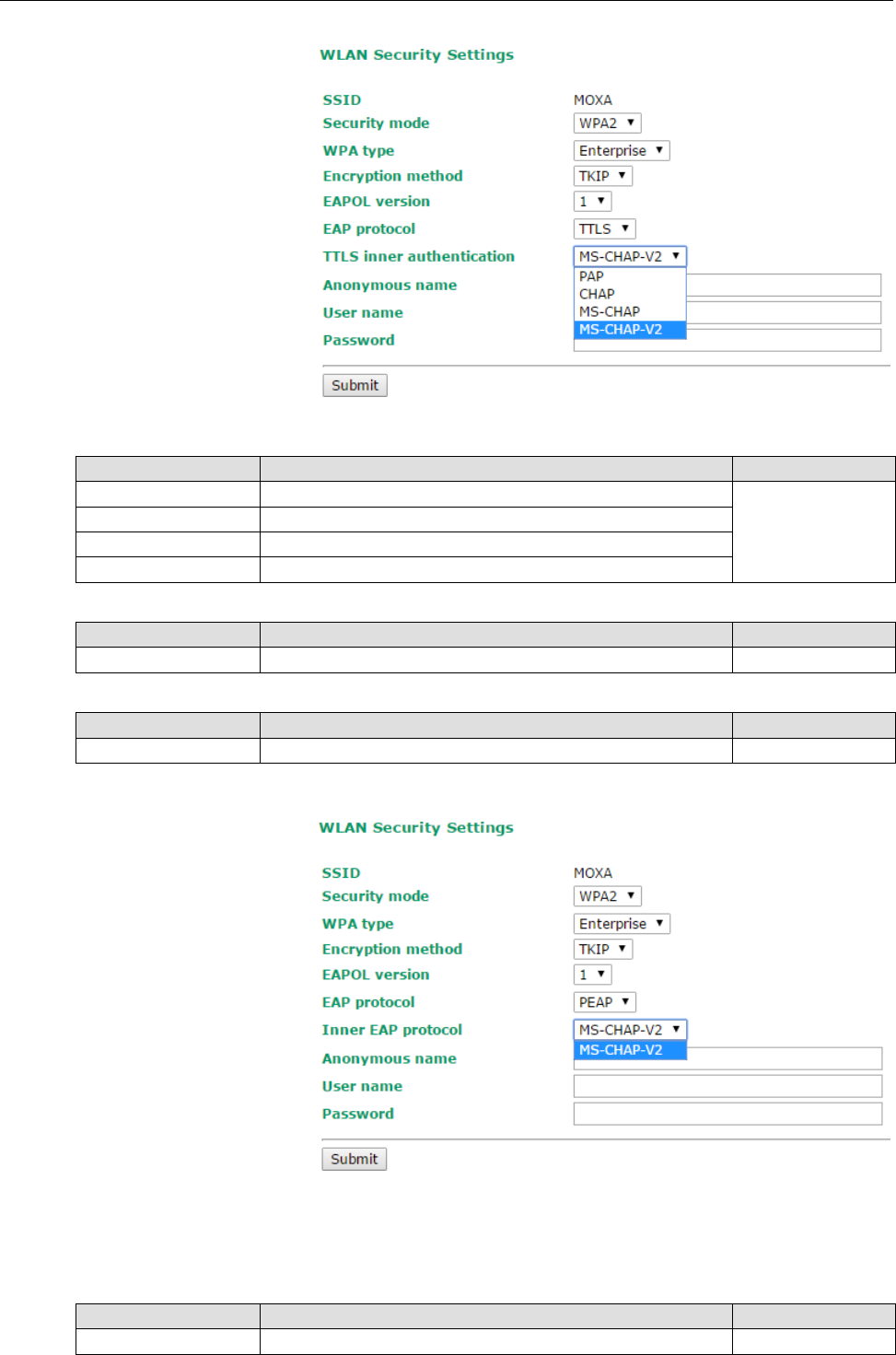

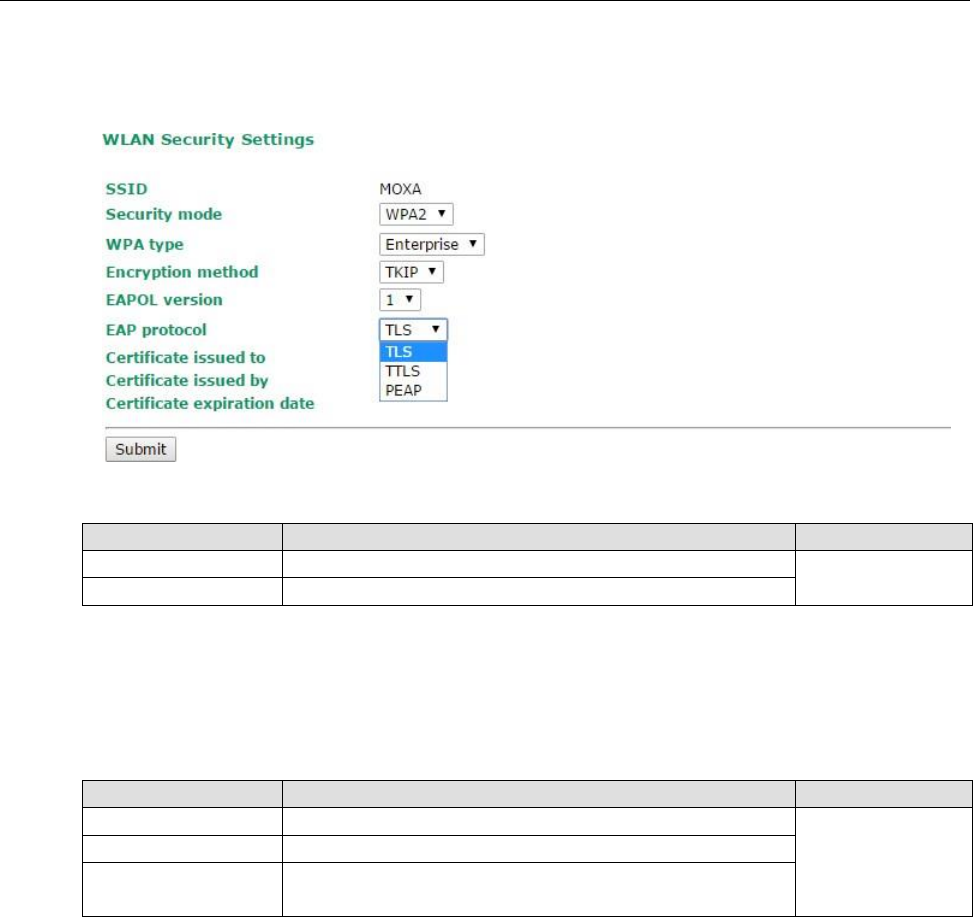

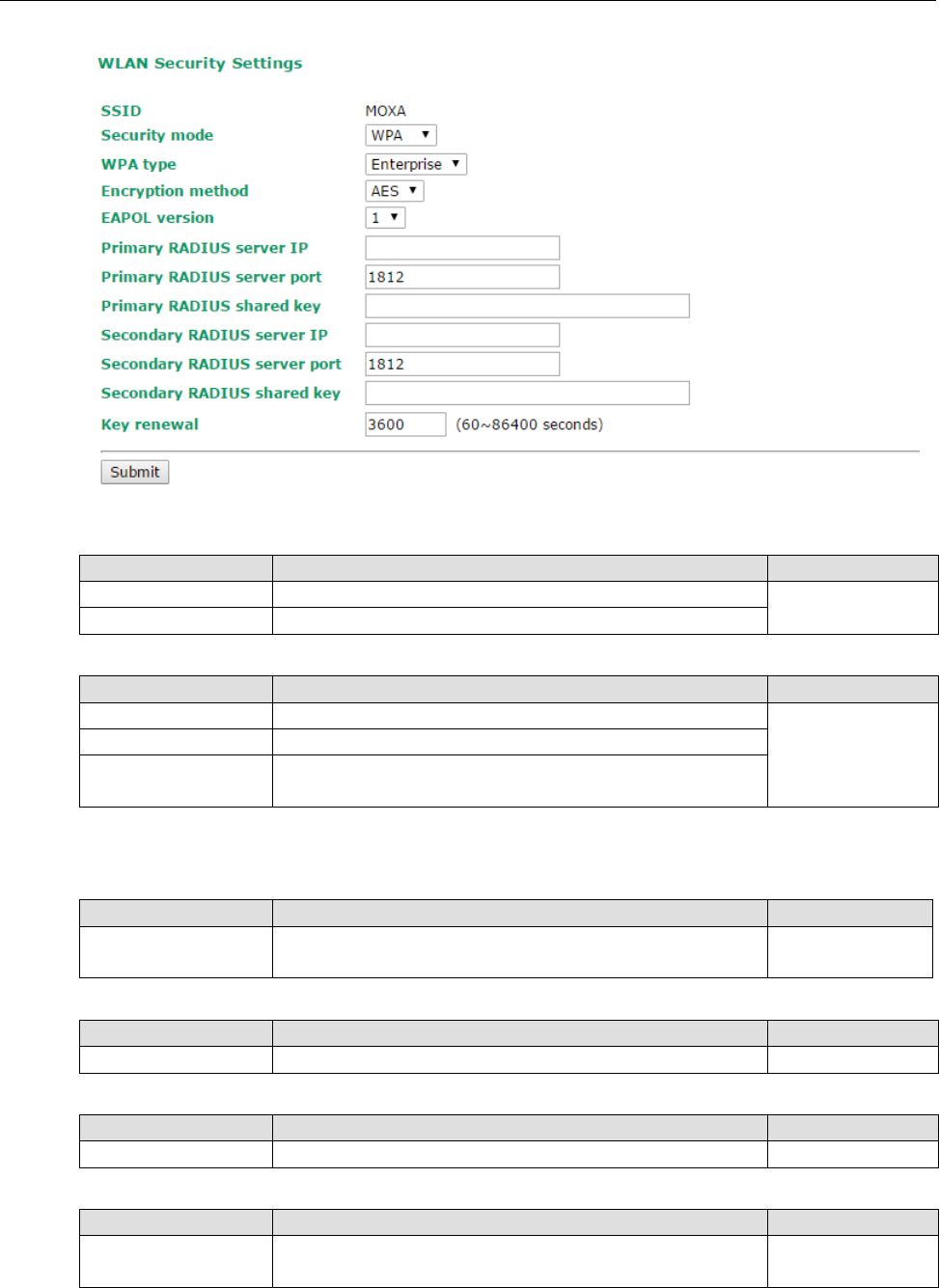

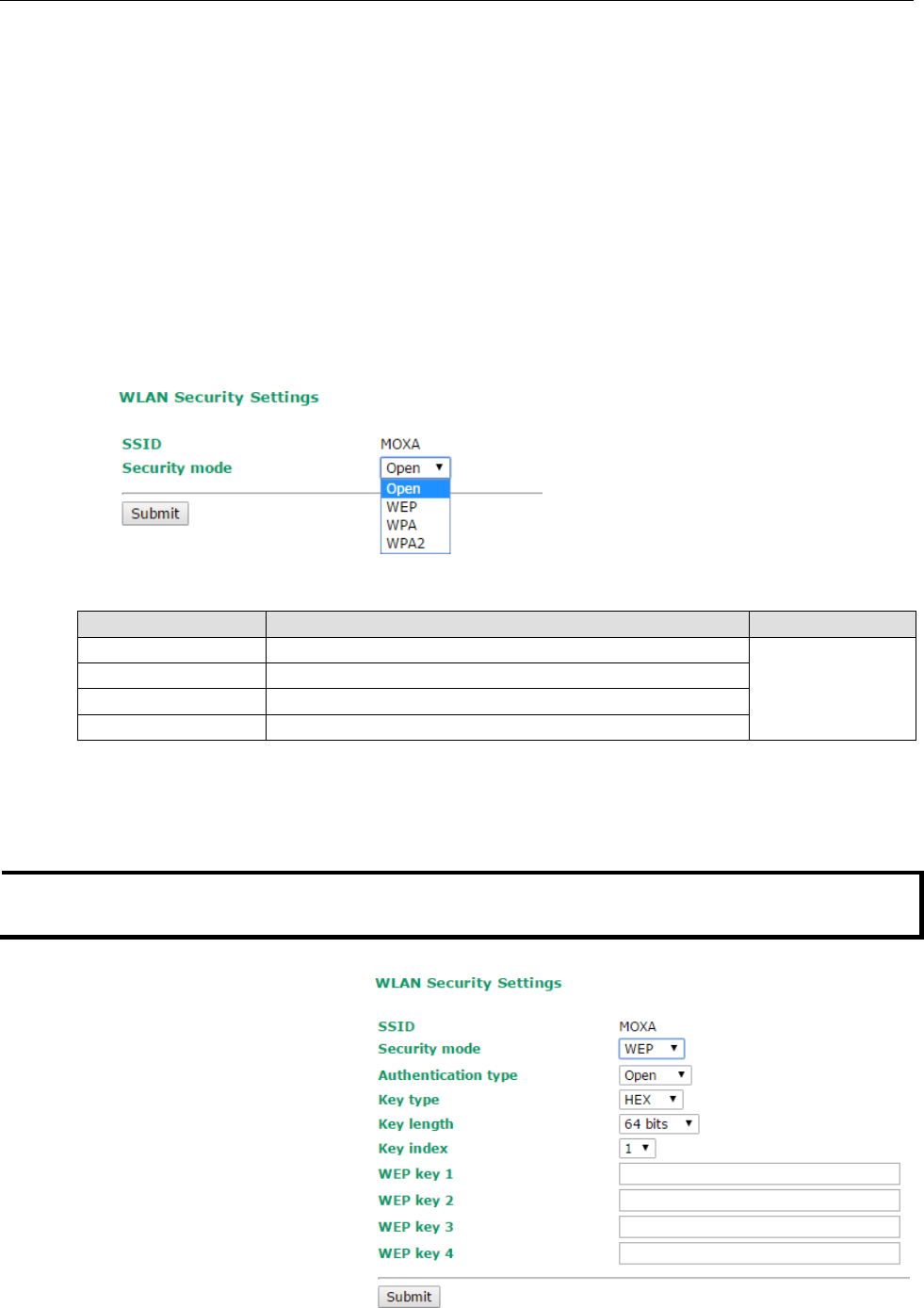

WLAN Security Settings .............................................................................................................. 3-14

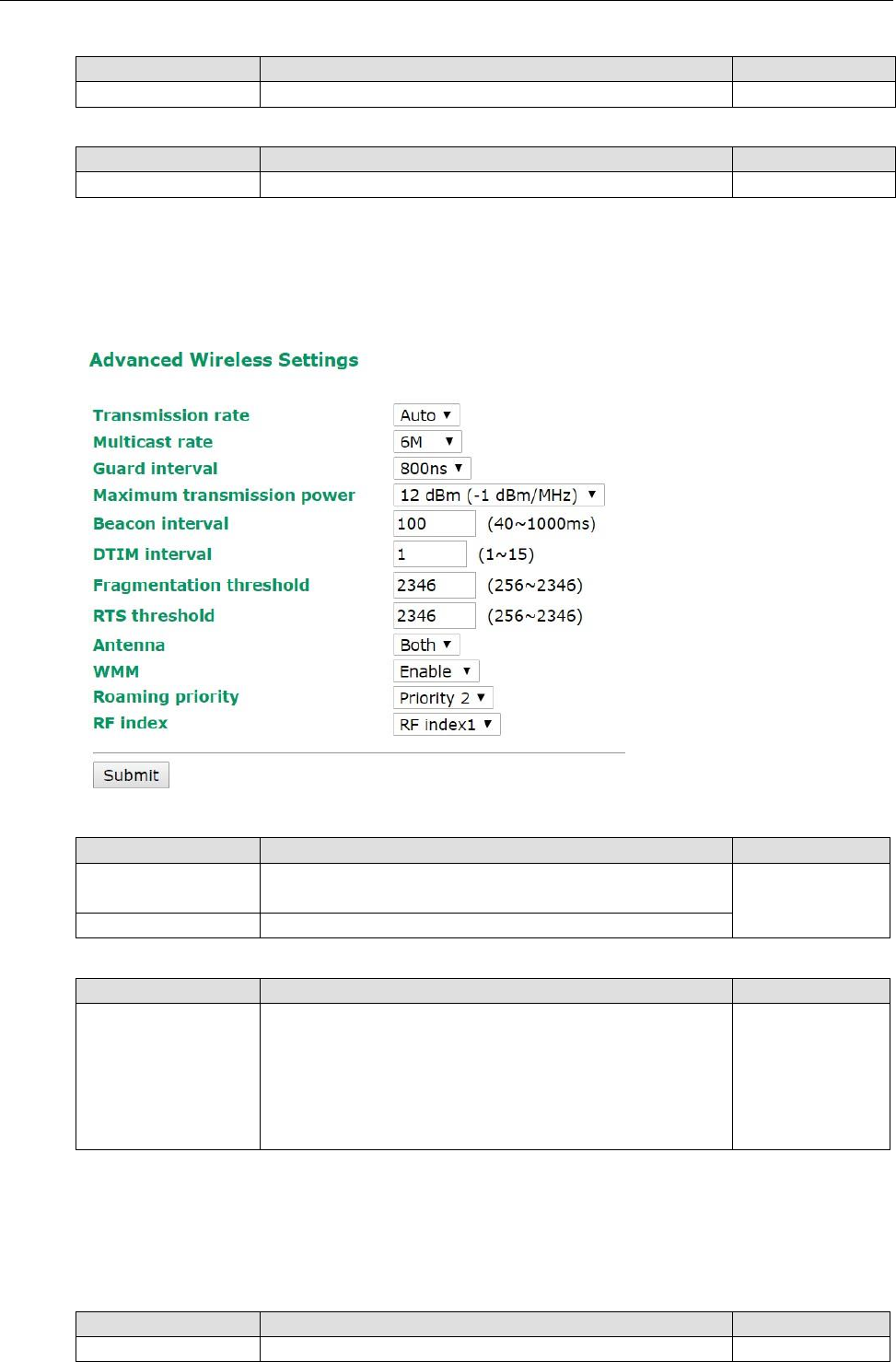

Advanced Wireless Settings ........................................................................................................ 3-21

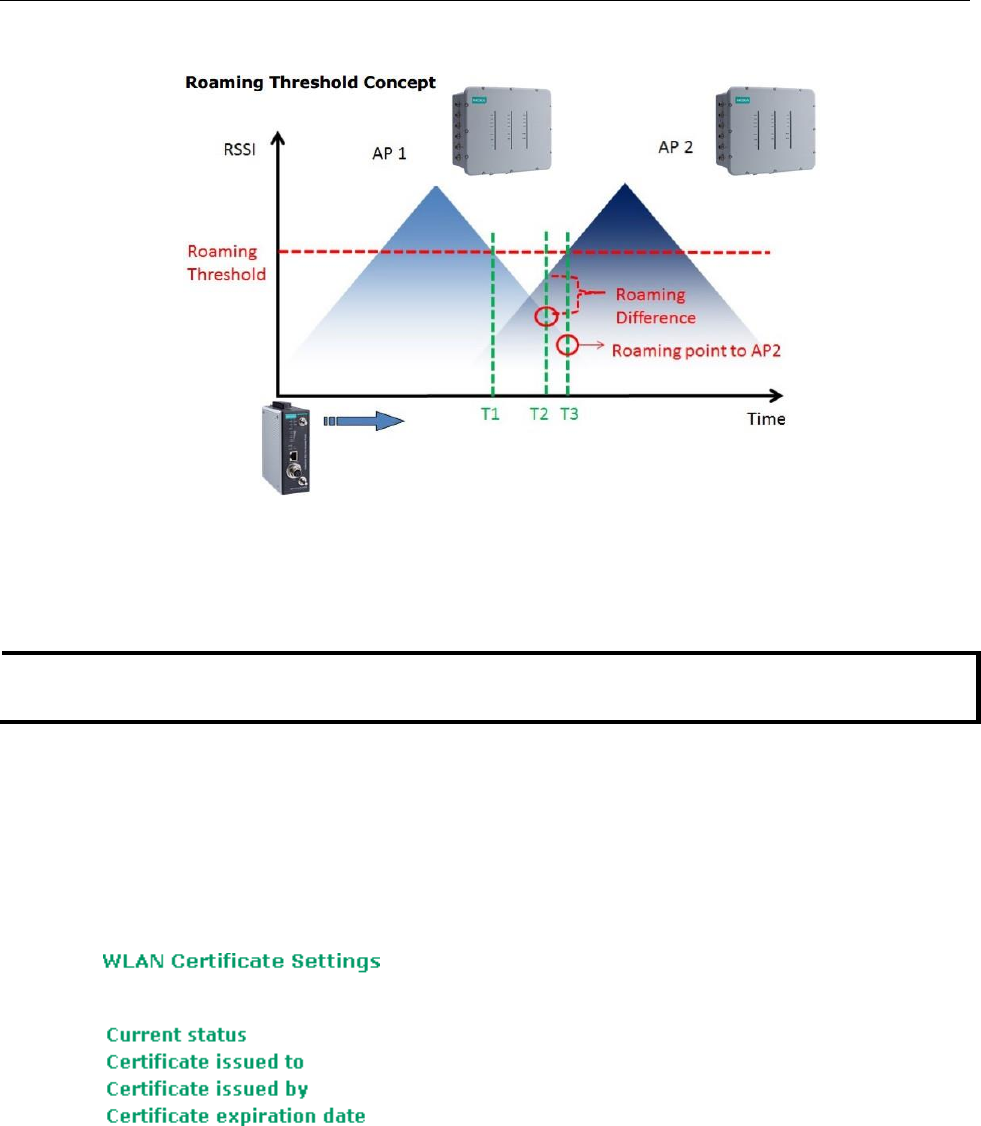

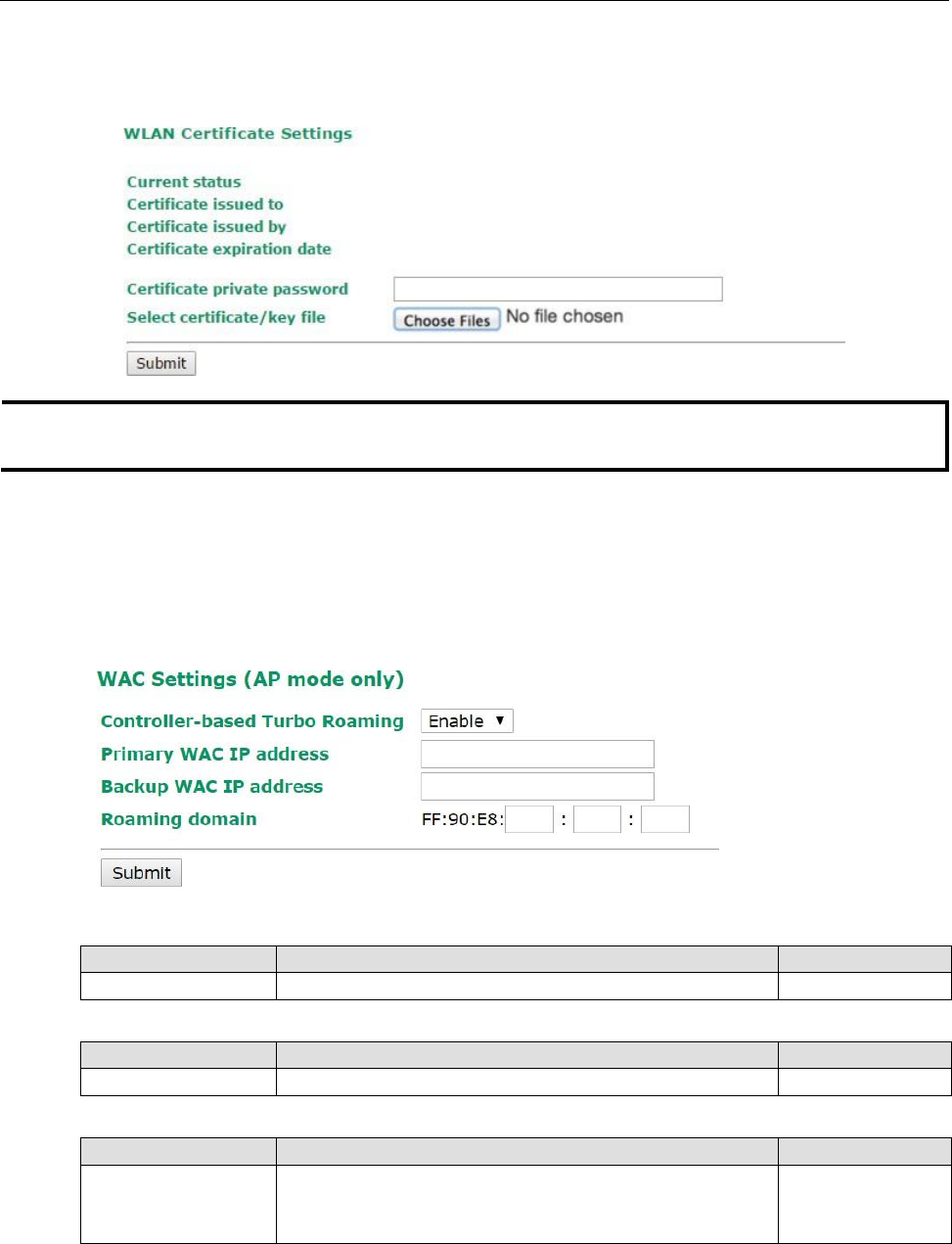

WLAN Certification Settings (Only For EAP-TLS in Client Mode) ....................................................... 3-26
WAC Settings (AP Mode Only) ..................................................................................................... 3-27
Advanced Settings ............................................................................................................................ 3-27

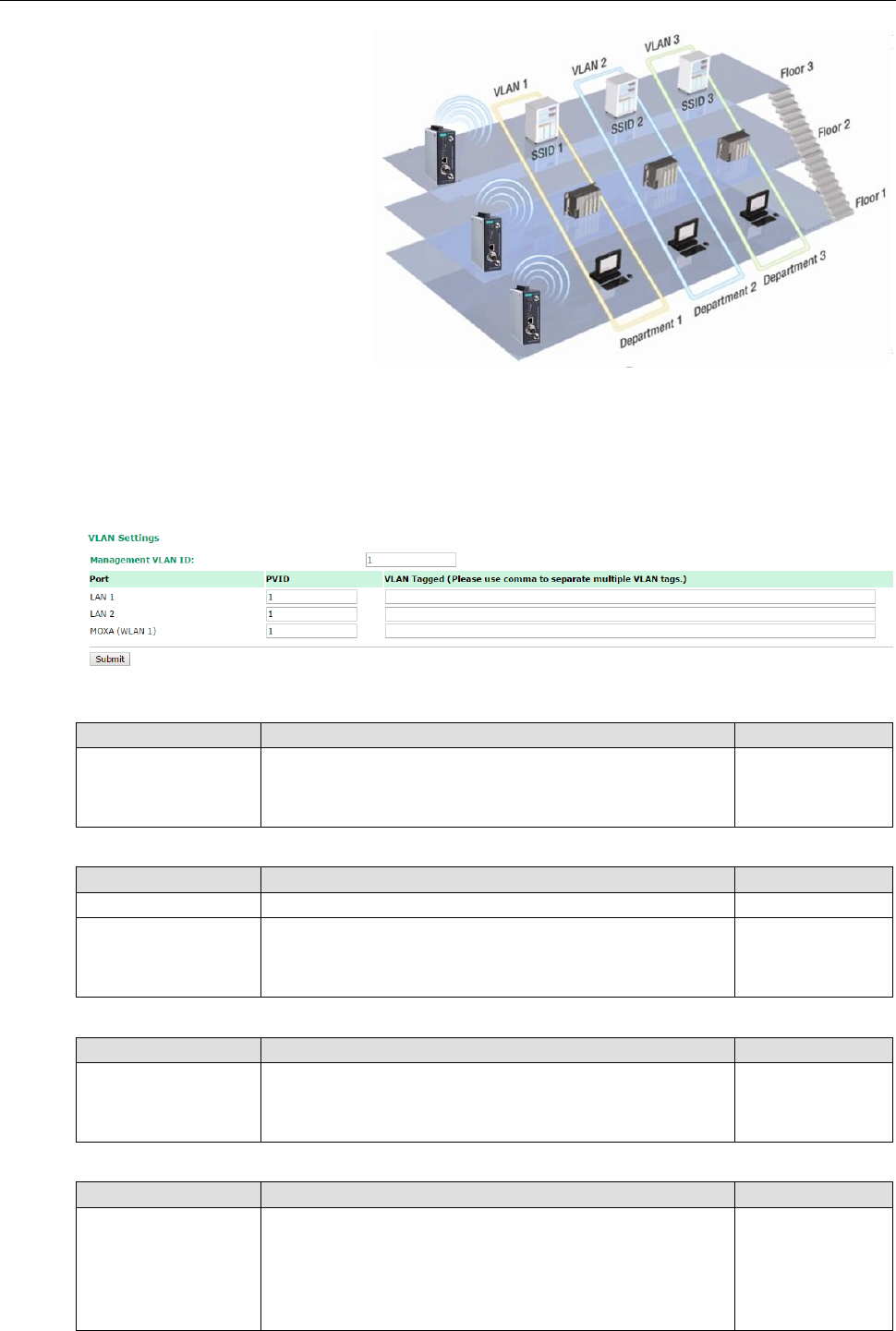

Using Virtual LAN ...................................................................................................................... 3-28
Configuring Virtual LAN .............................................................................................................. 3-29
DHCP Server ............................................................................................................................. 3-30

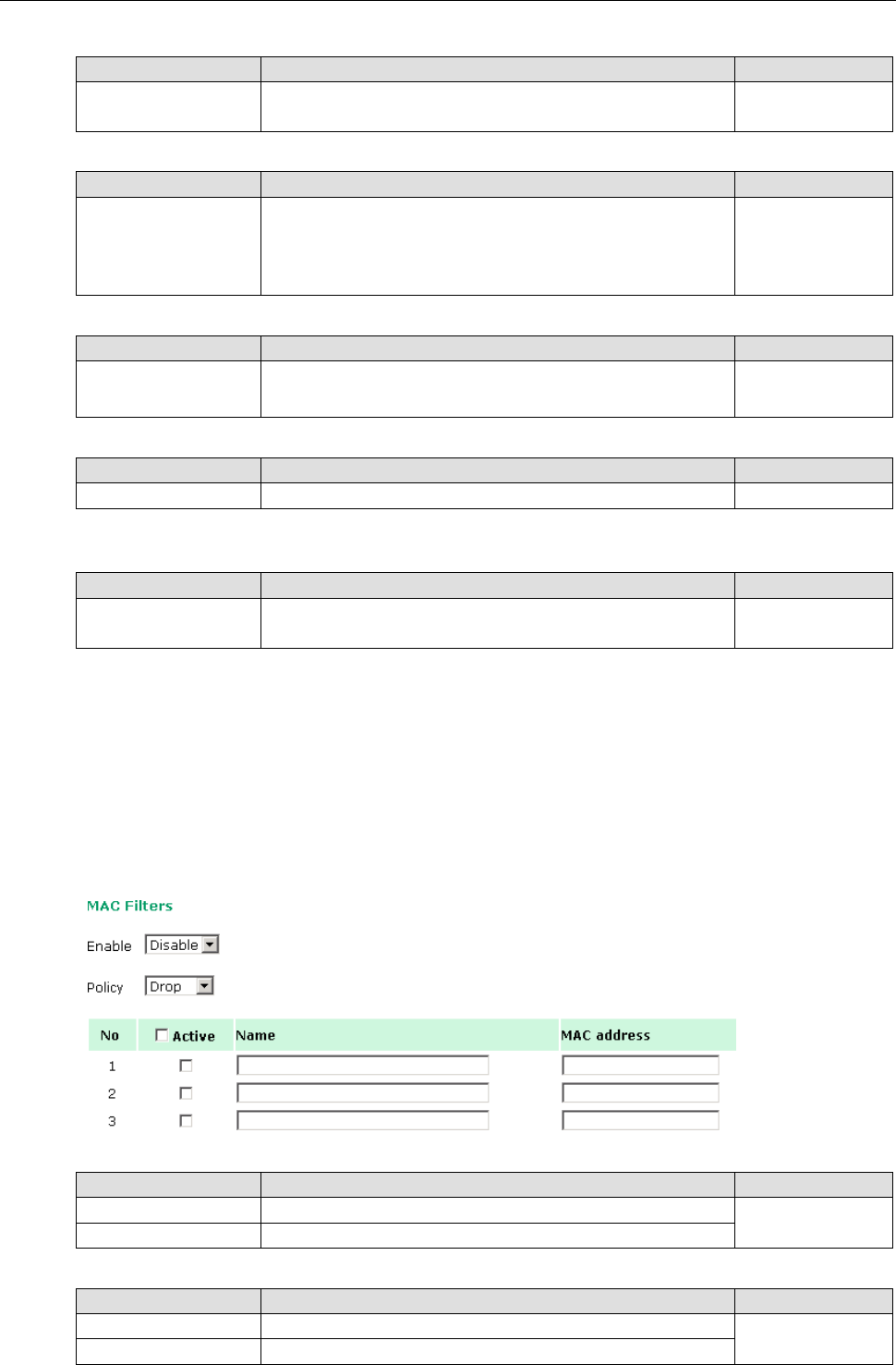

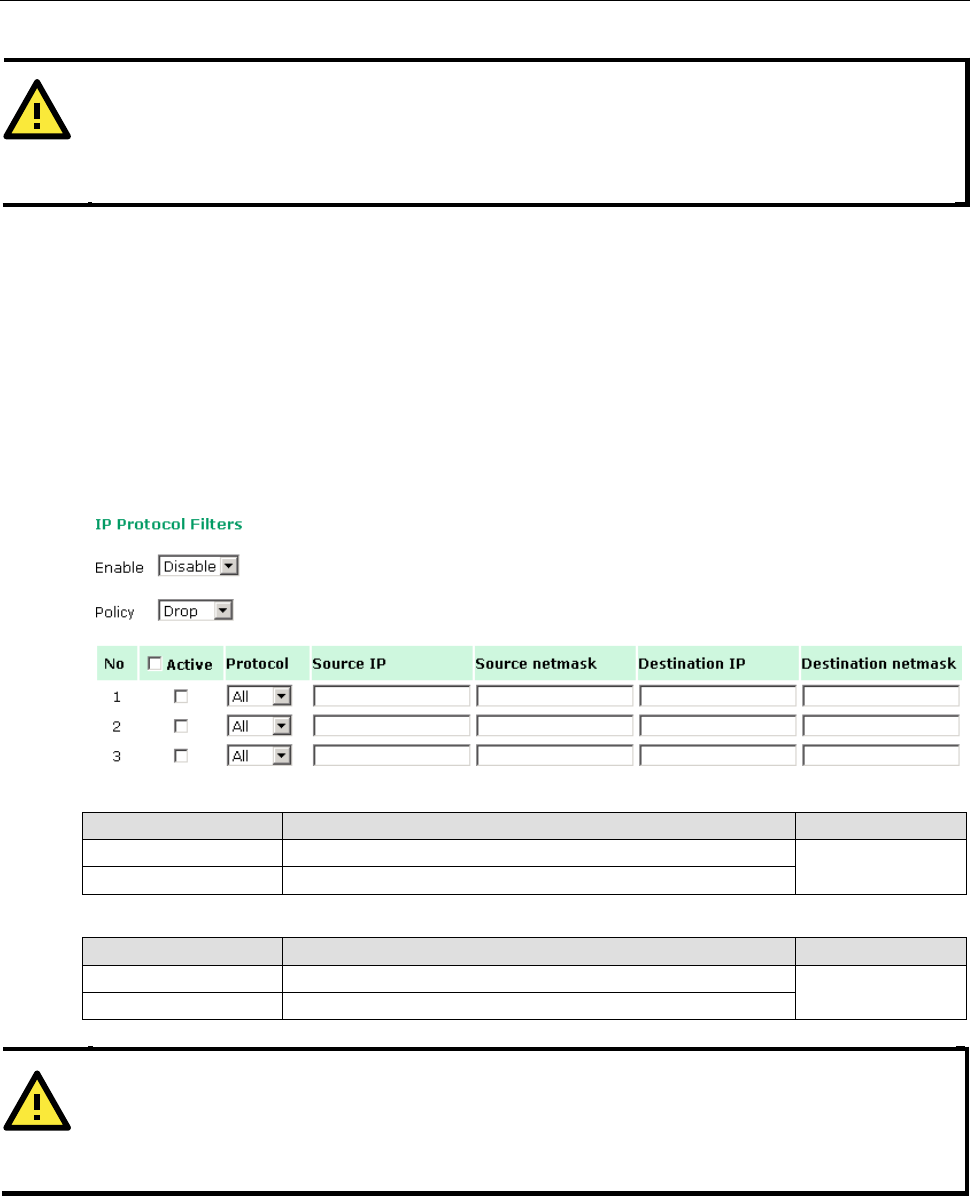

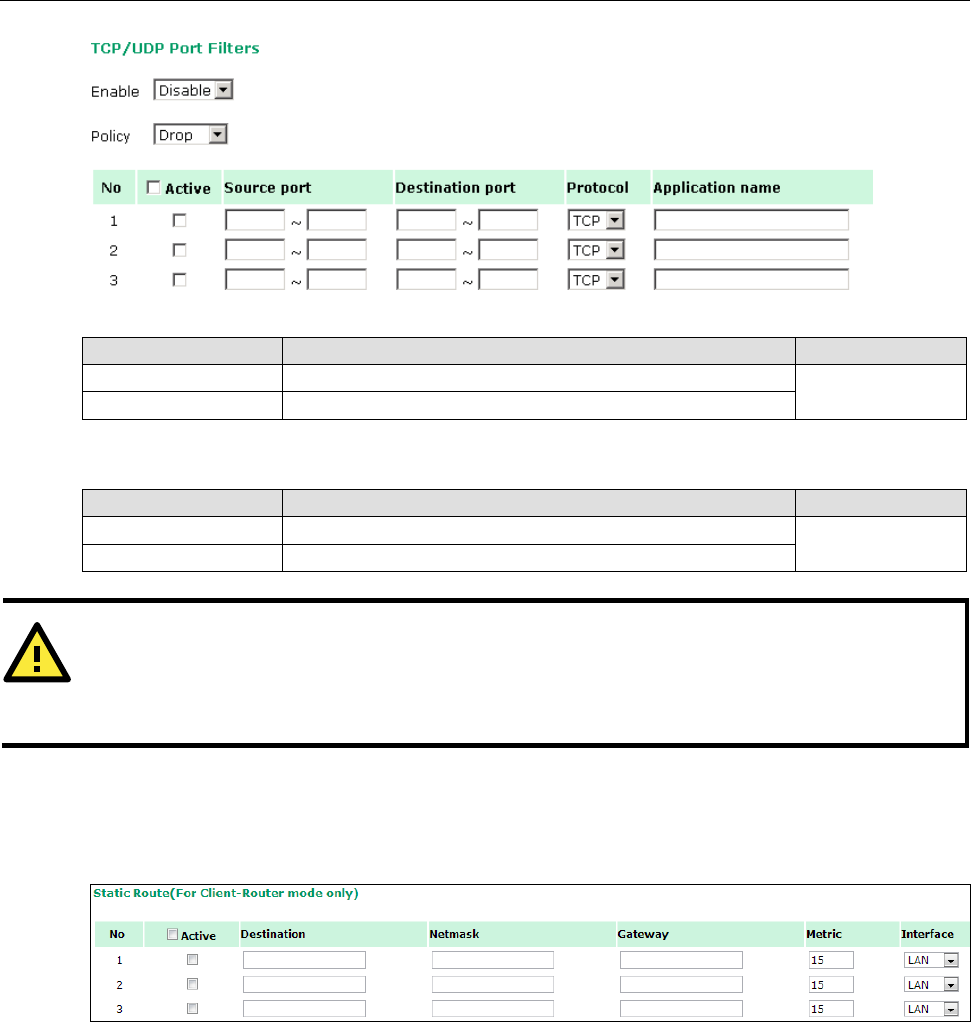

Packet Filters ............................................................................................................................ 3-31
Static Route (For Client-Router Mode Only) .................................................................................. 3-33

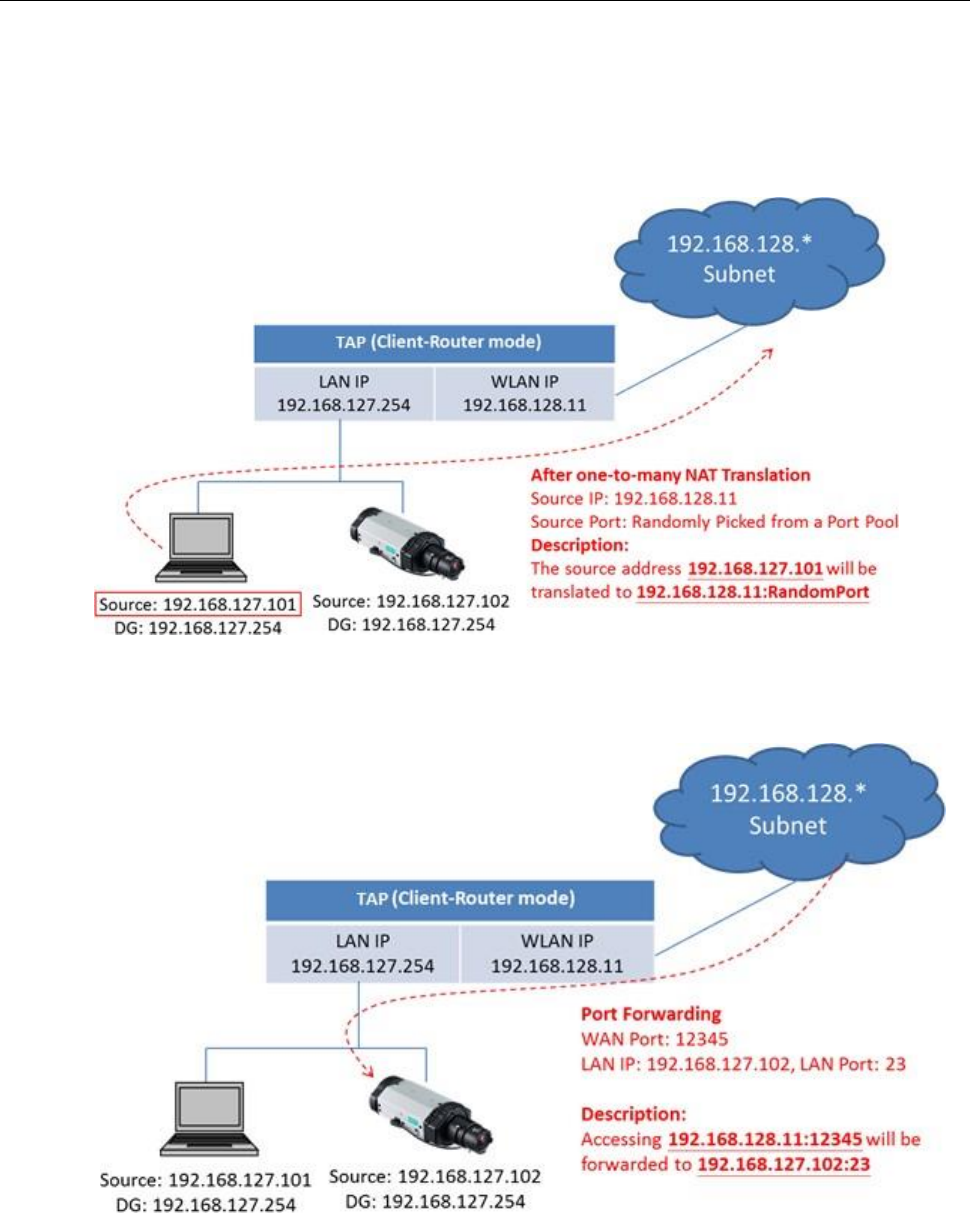

NAT Settings/Port Forwarding (For Client-Router Mode Only) .......................................................... 3-35

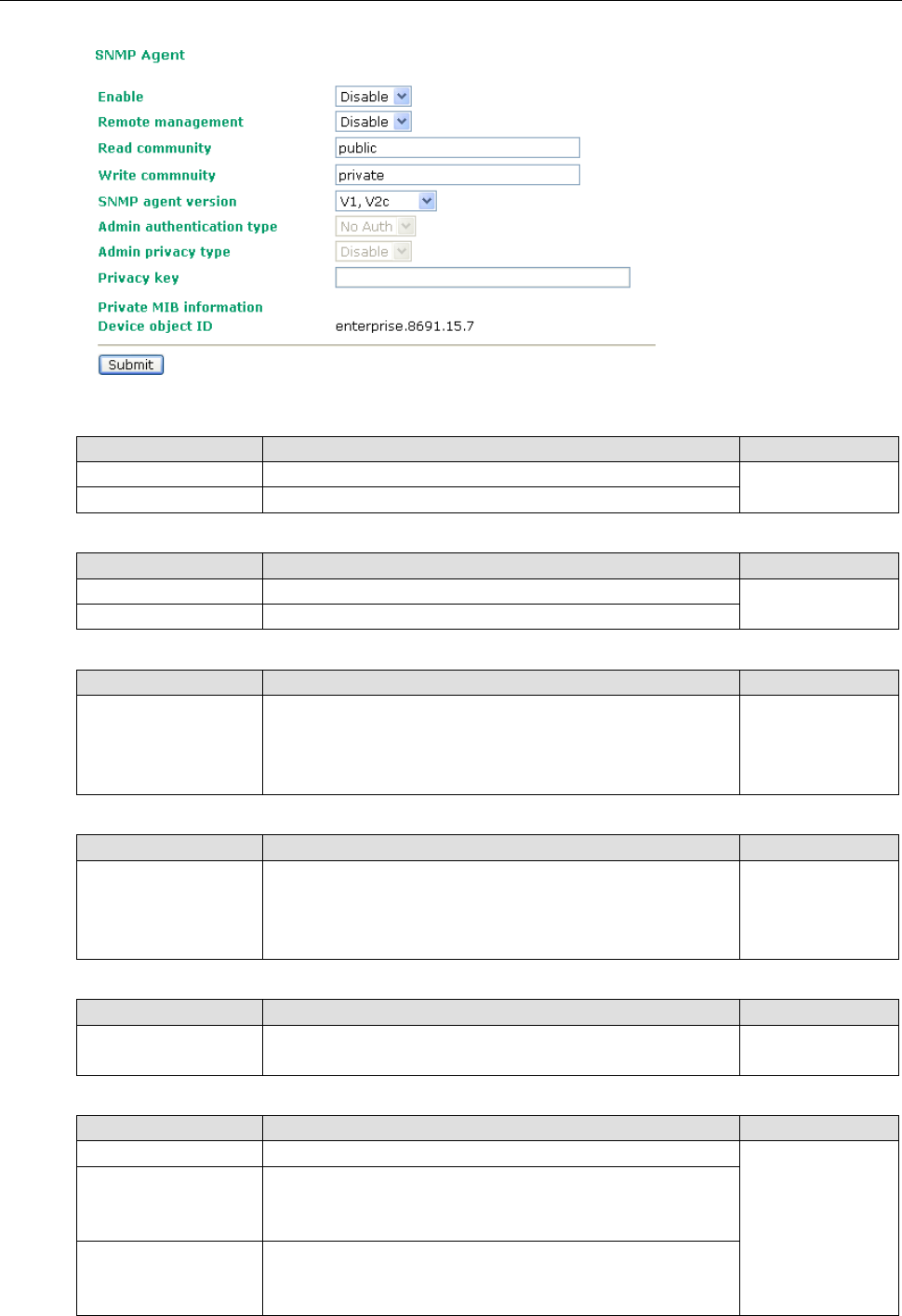

SNMP Agent .............................................................................................................................. 3-36

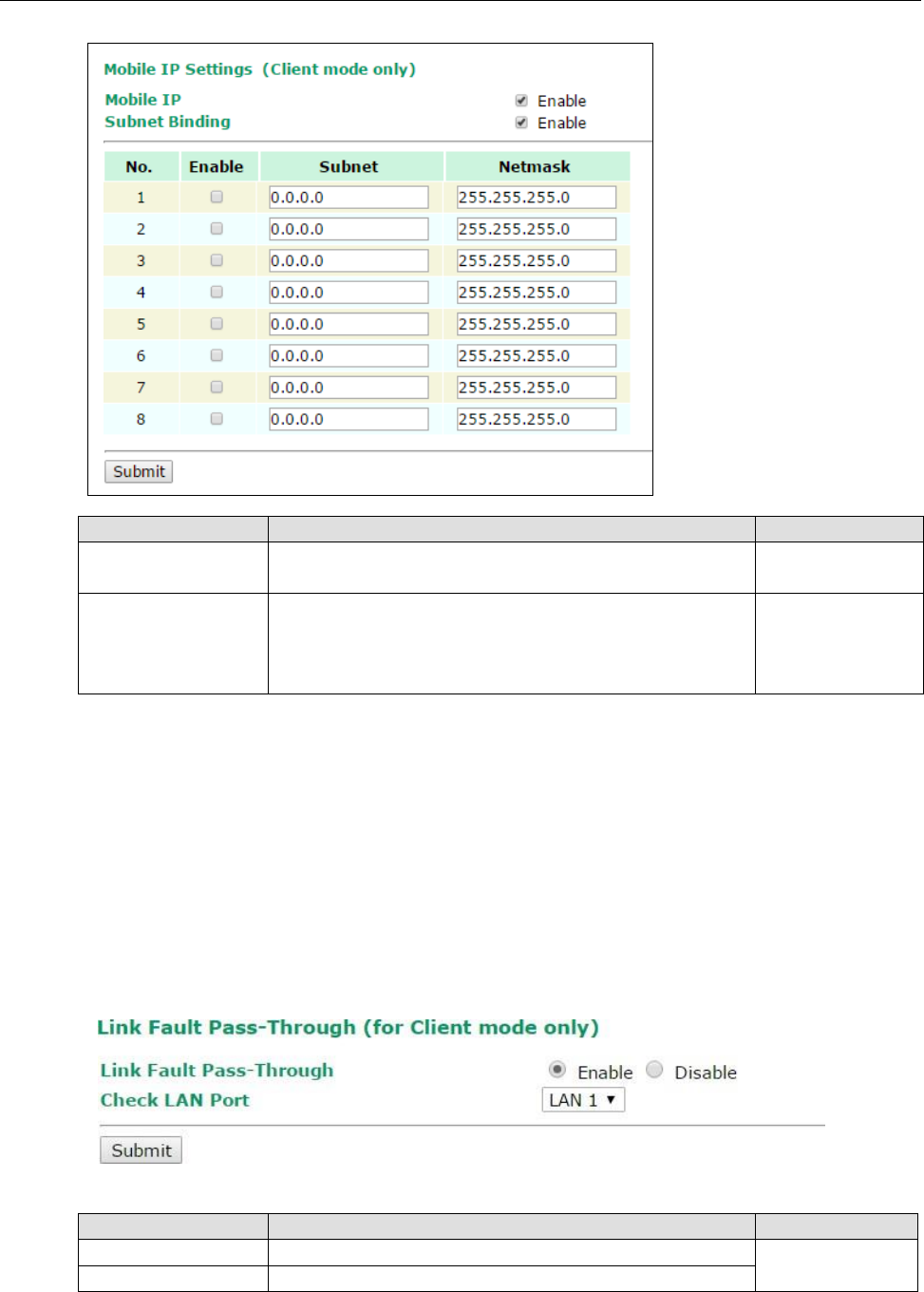

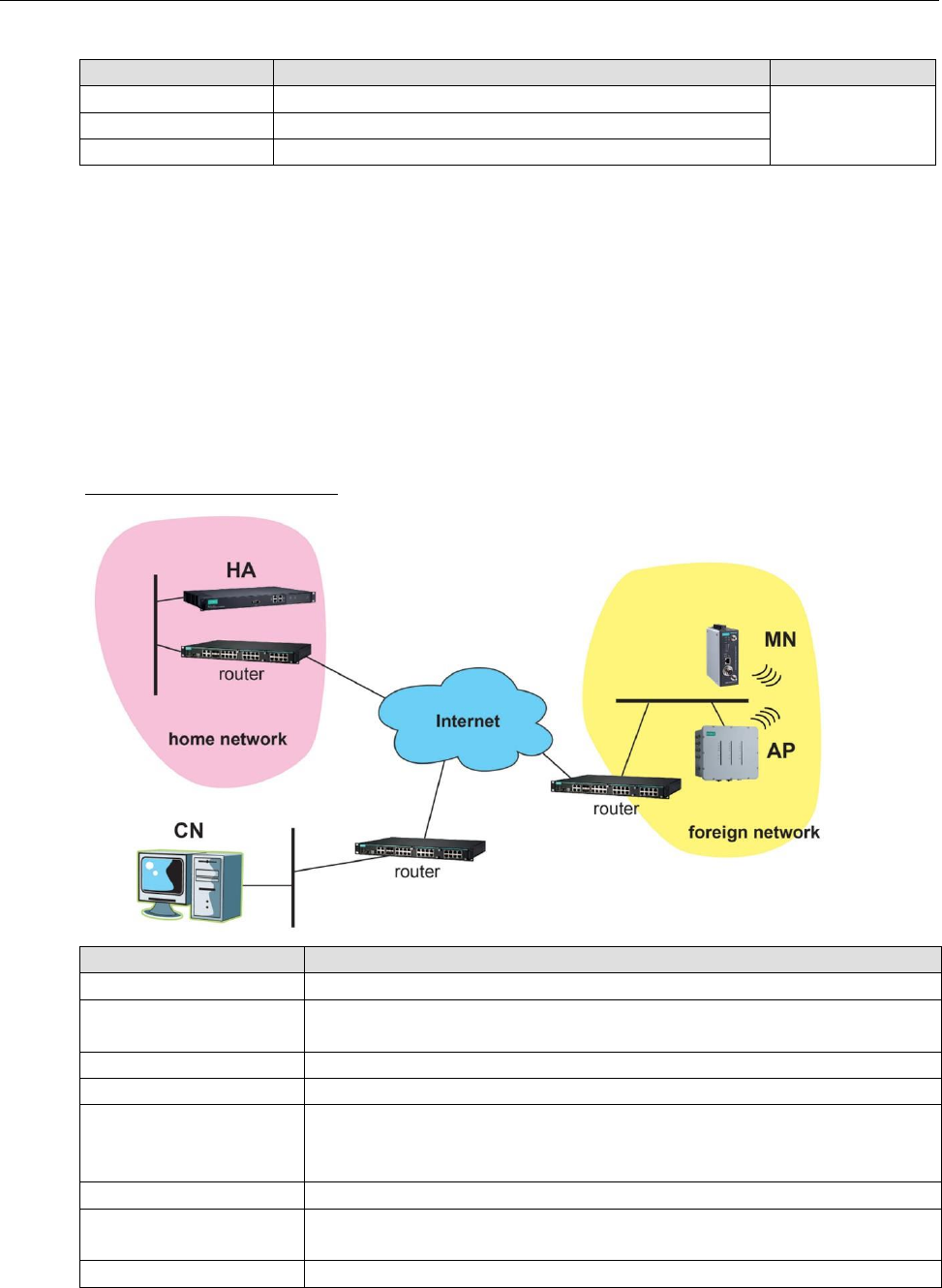

Mobile IP Settings ...................................................................................................................... 3-38
Link Fault Pass-Through (For Client Mode Only) ............................................................................ 3-39
Auto Warning Settings....................................................................................................................... 3-40

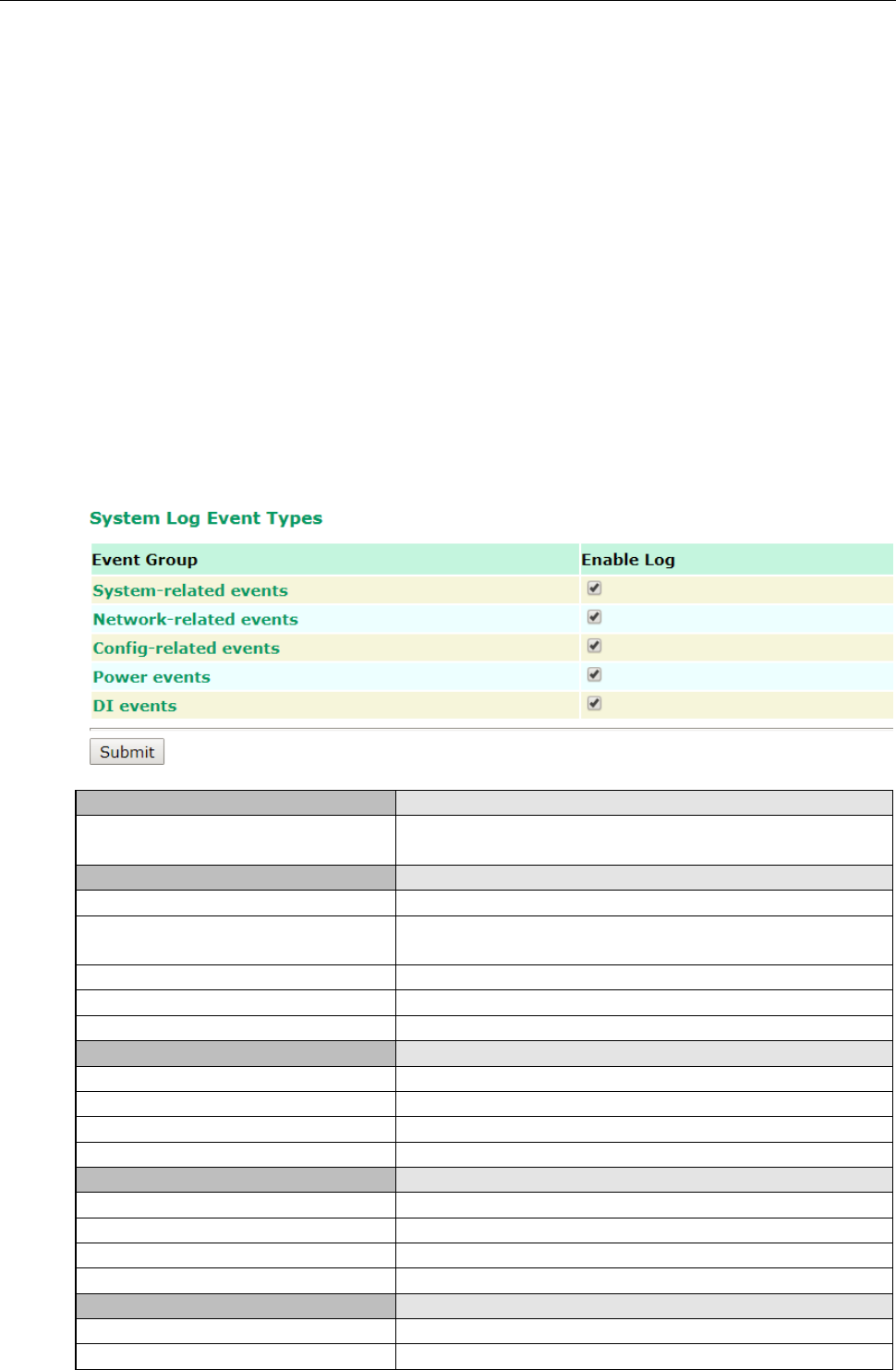

System Log .............................................................................................................................. 3-40

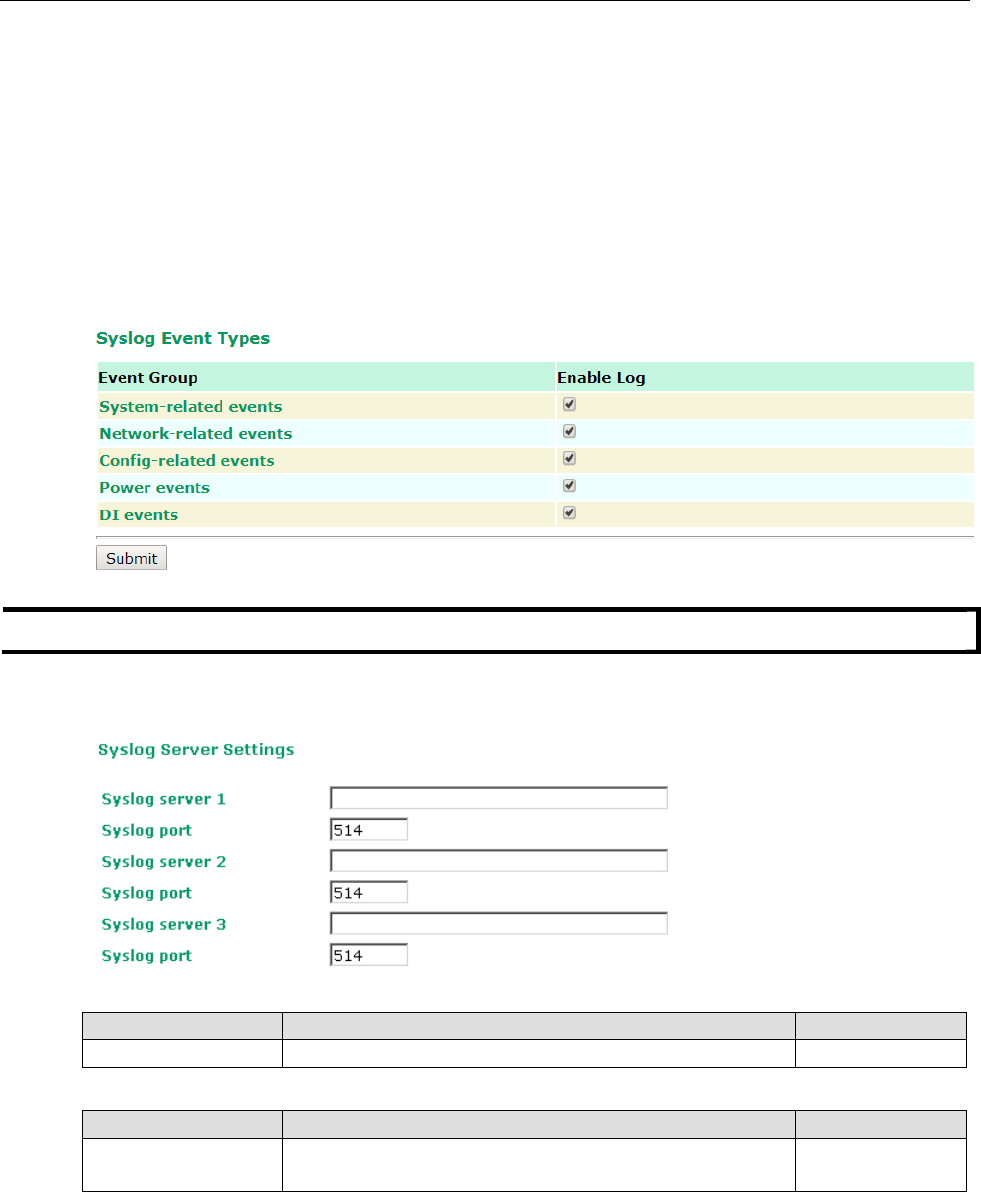

Syslog ..................................................................................................................................... 3-41
E-mail ...................................................................................................................................... 3-42

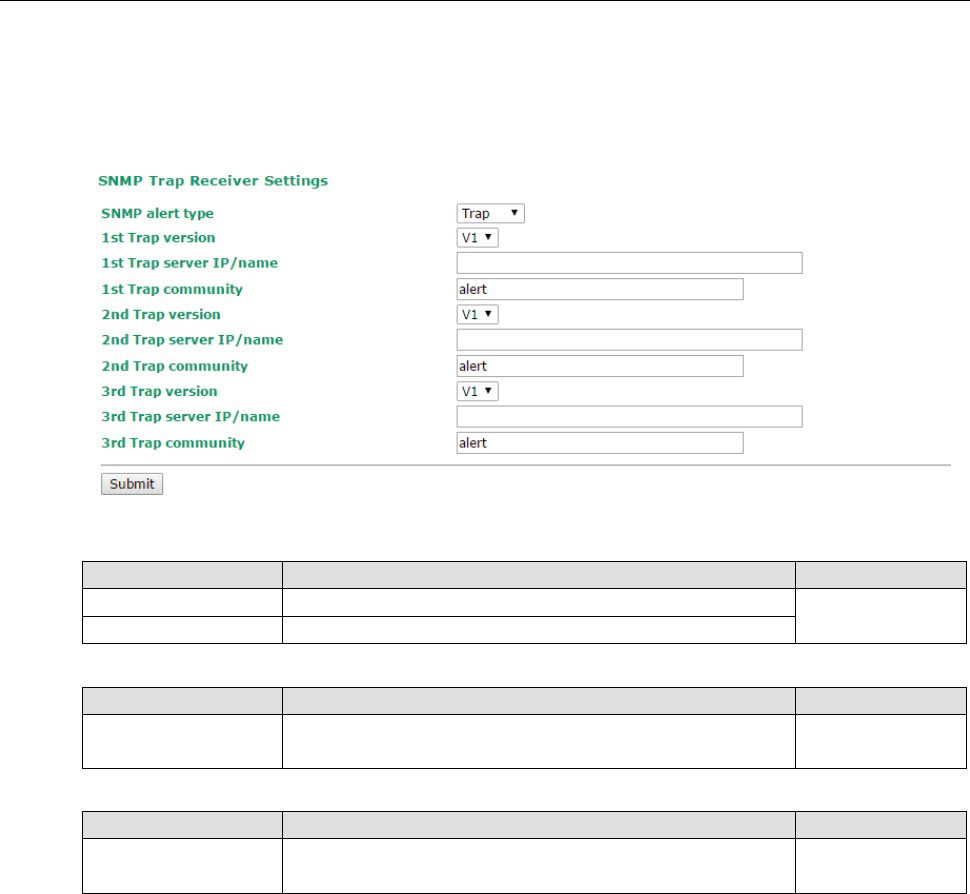

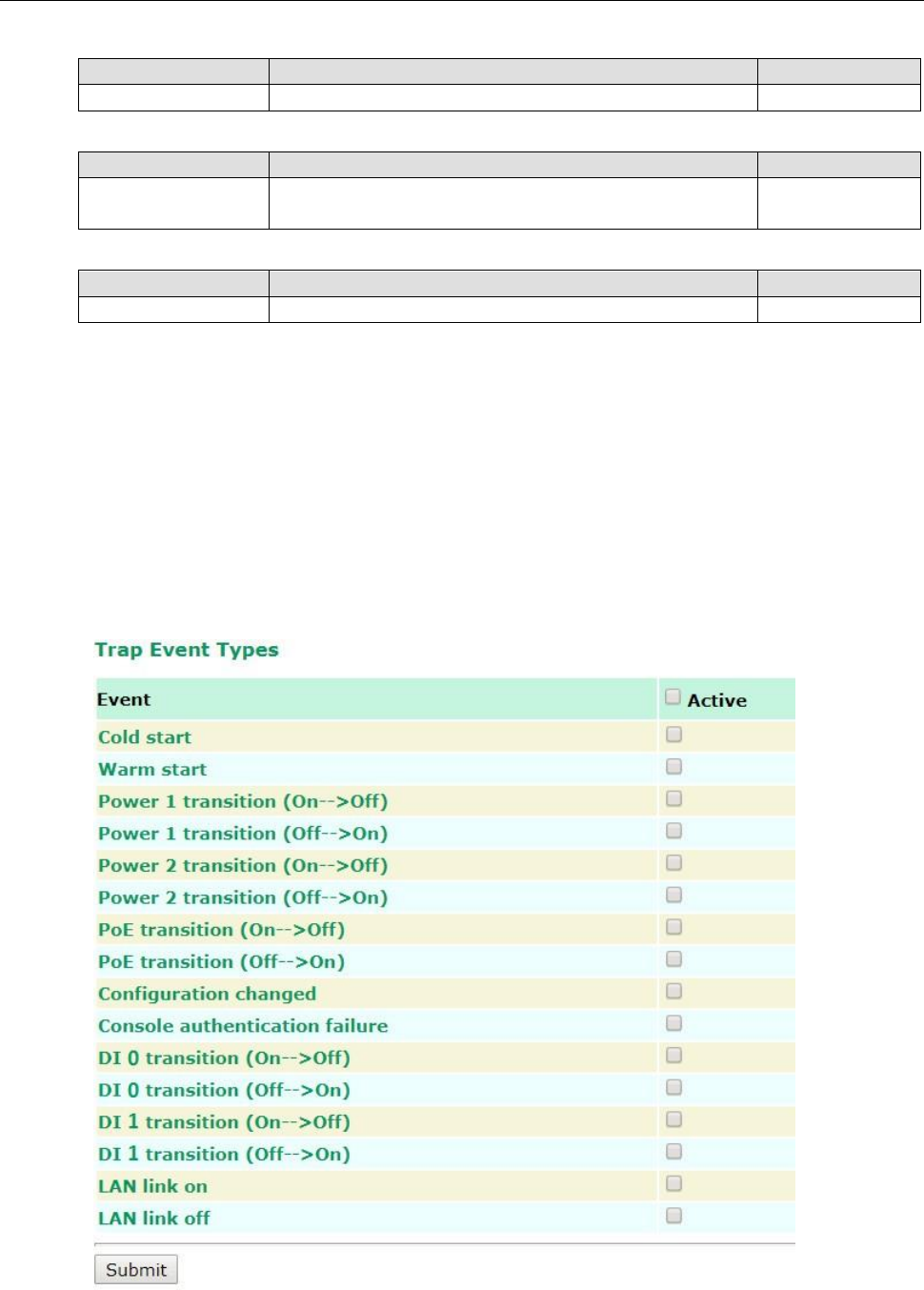

Traps ....................................................................................................................................... 3-43
Status ............................................................................................................................................. 3-45

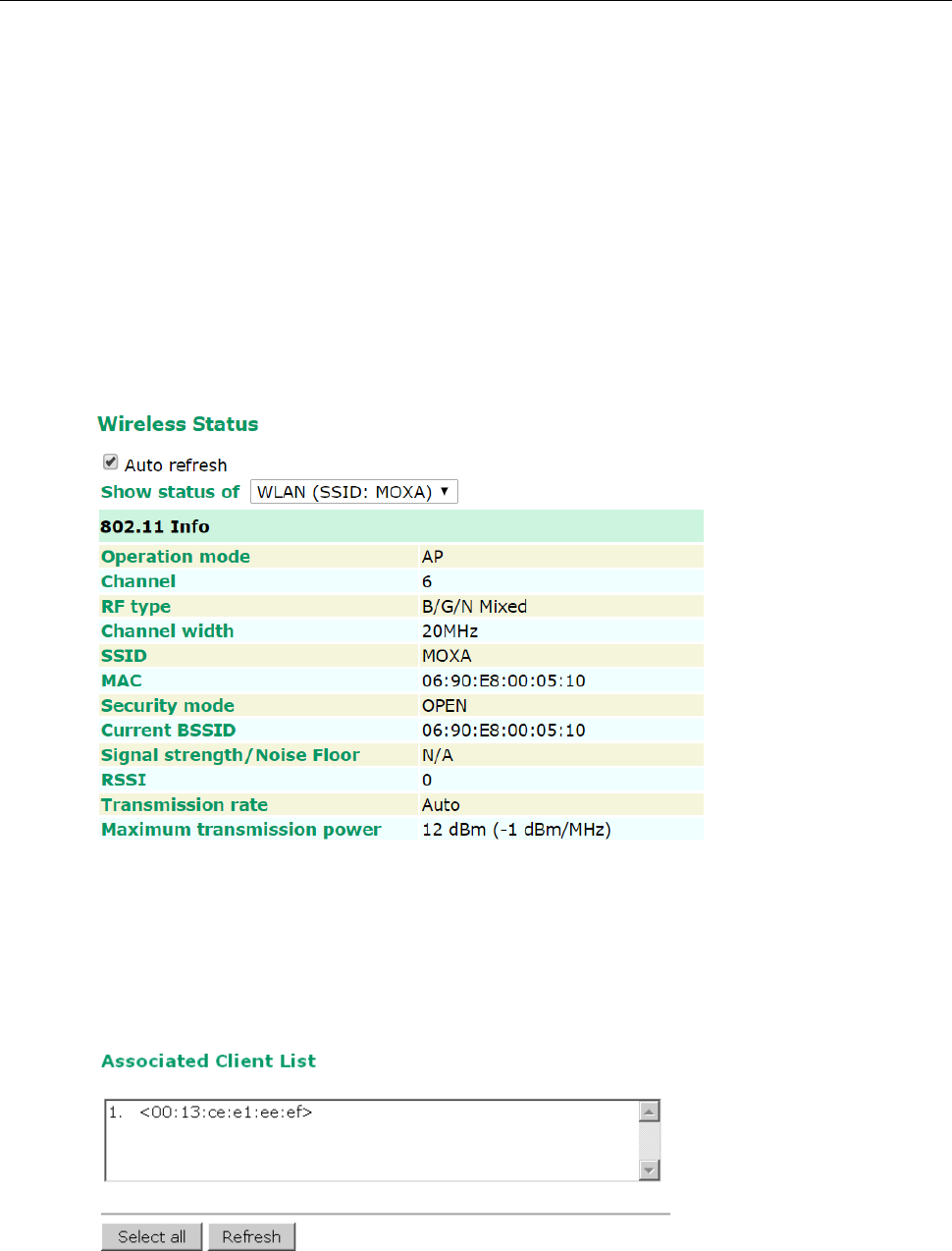

Wireless Status ......................................................................................................................... 3-45
Associated Client List (For AP Mode Only) ..................................................................................... 3-45
DHCP Client List ........................................................................................................................ 3-46
System Log .............................................................................................................................. 3-46

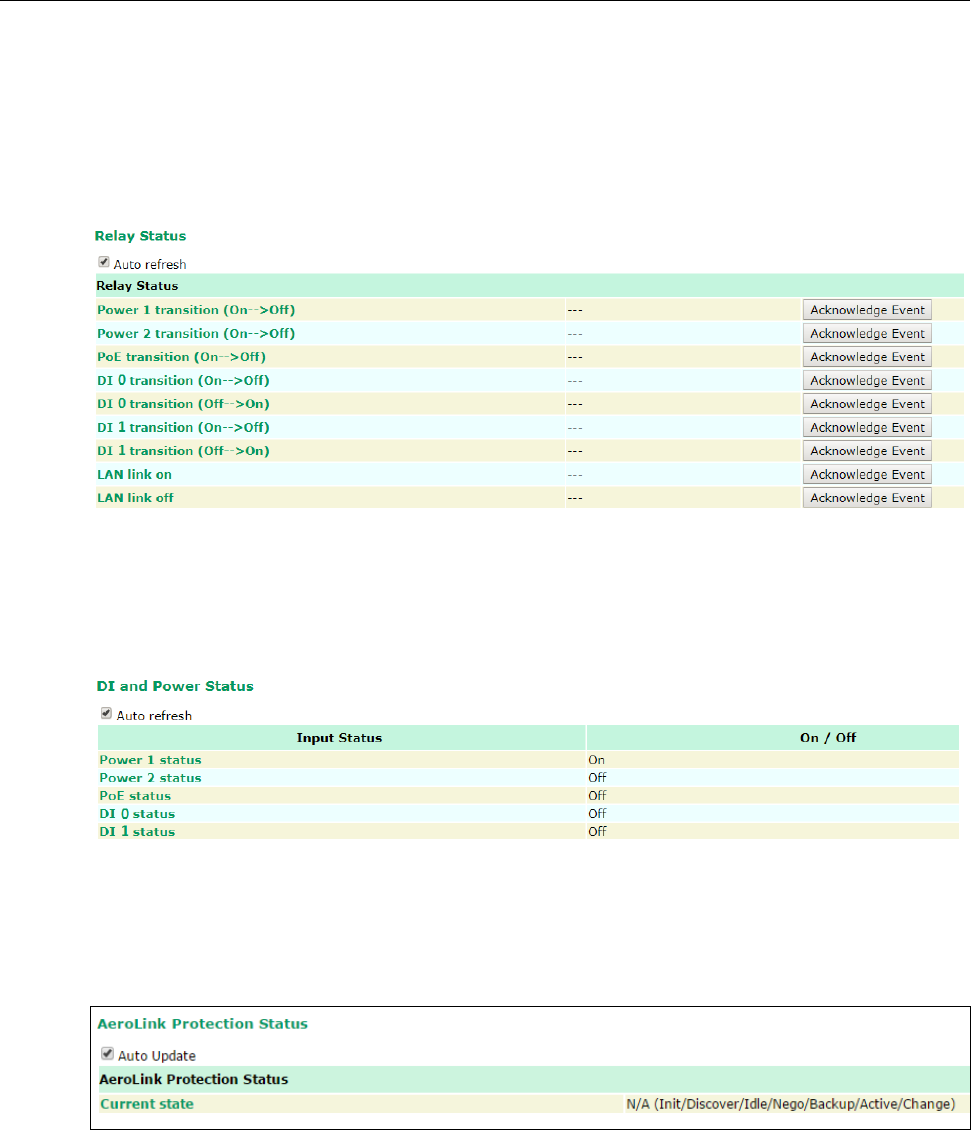

Relay Status ............................................................................................................................. 3-47
DI and Power Status .................................................................................................................. 3-47

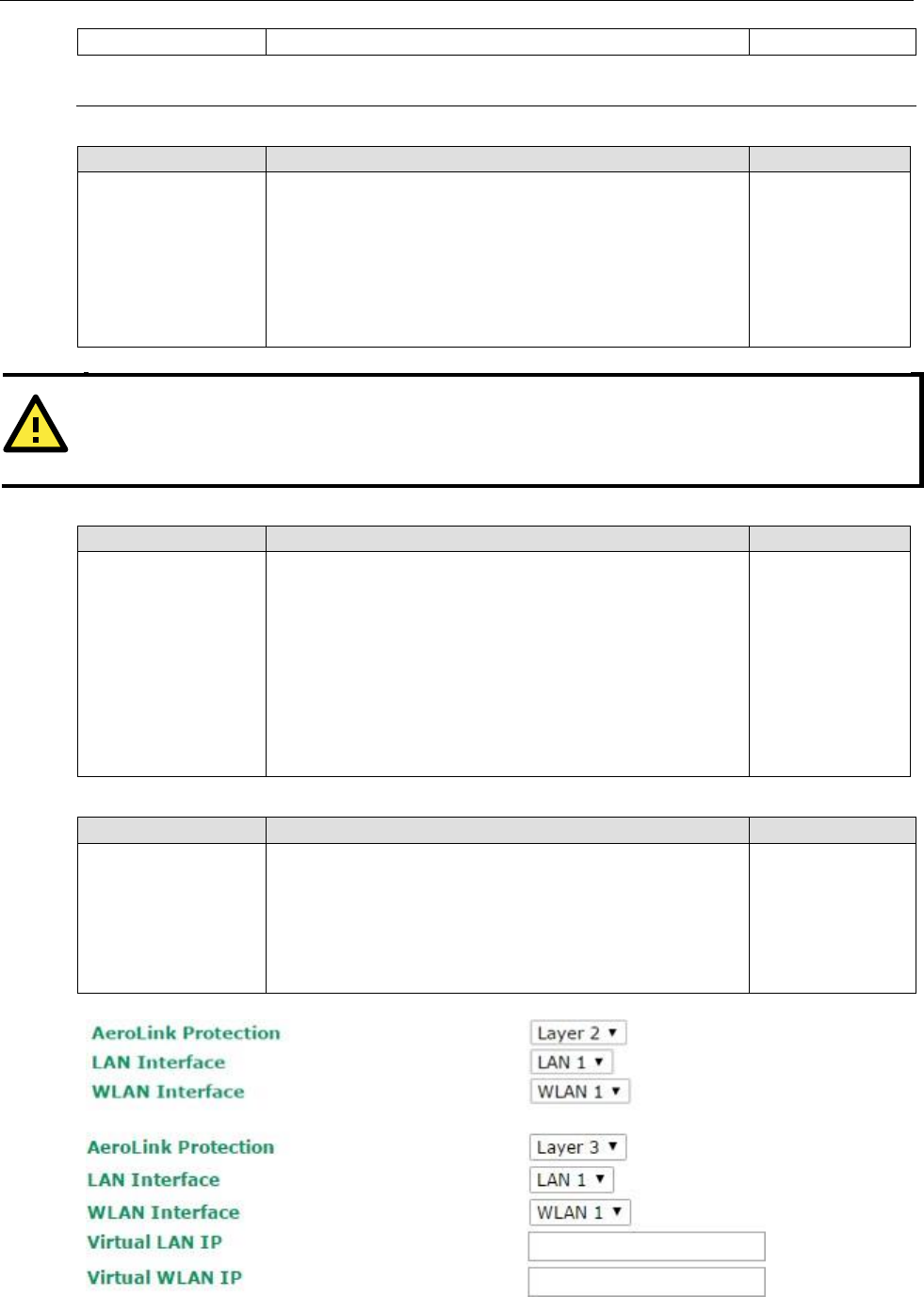

AeroLink Protection Status (For Client Mode Only) ......................................................................... 3-47

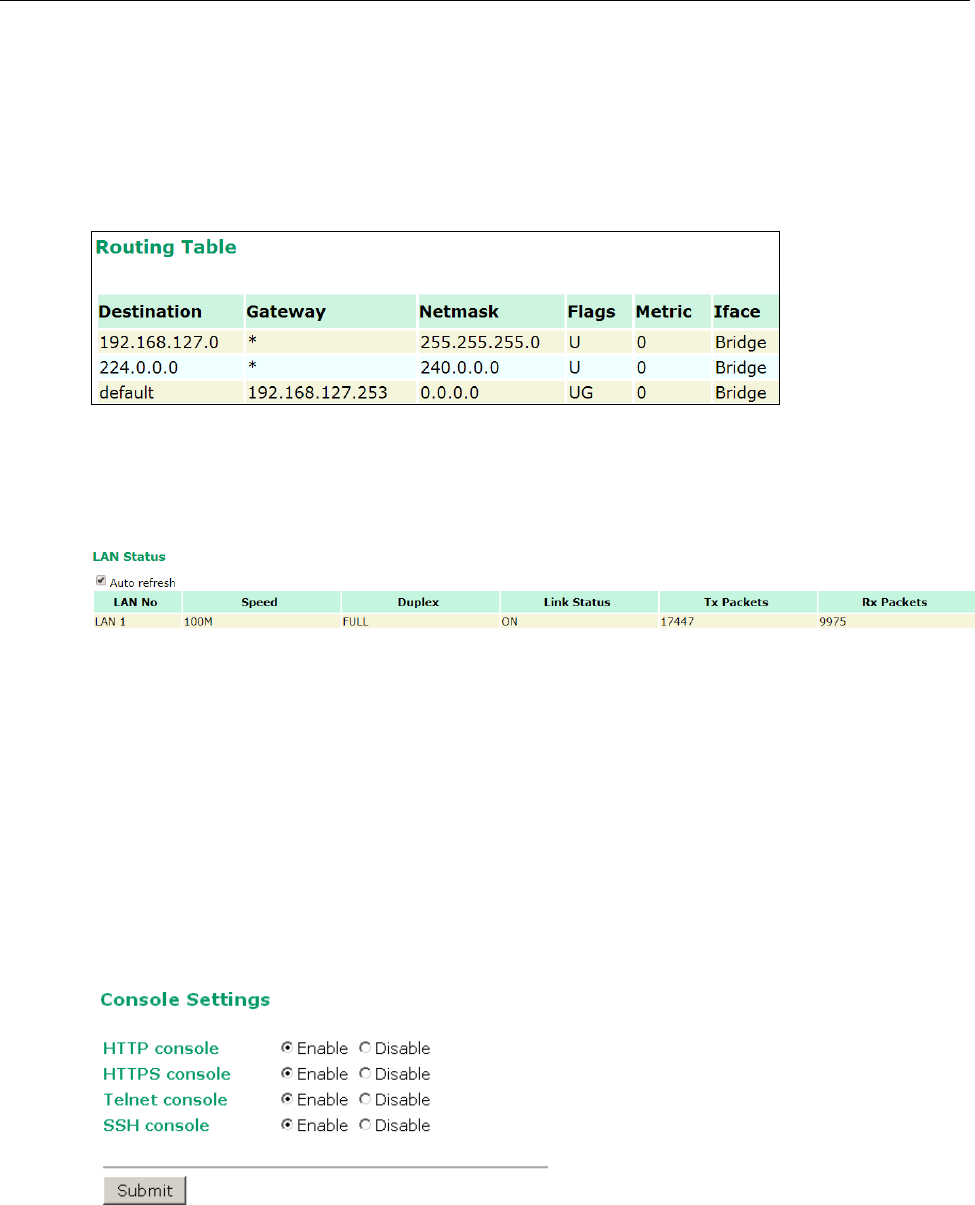

Routing Table ........................................................................................................................... 3-48
LAN Status ............................................................................................................................... 3-48
Maintenance .................................................................................................................................... 3-48

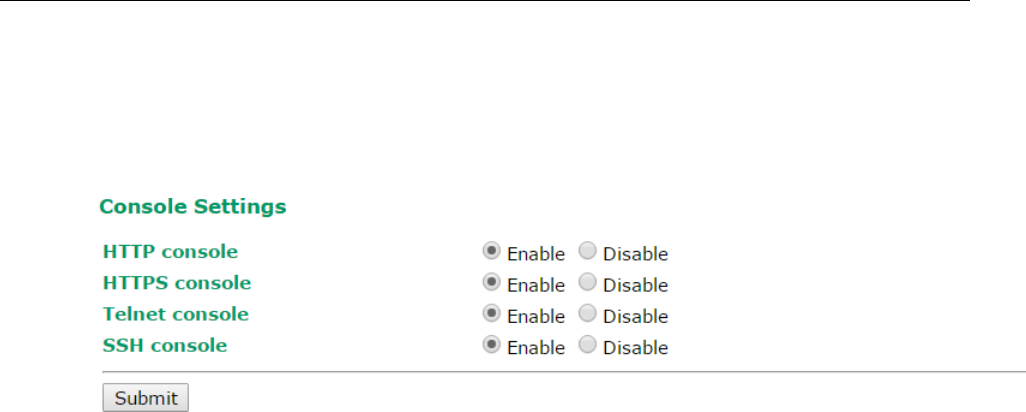

Console Settings ....................................................................................................................... 3-48

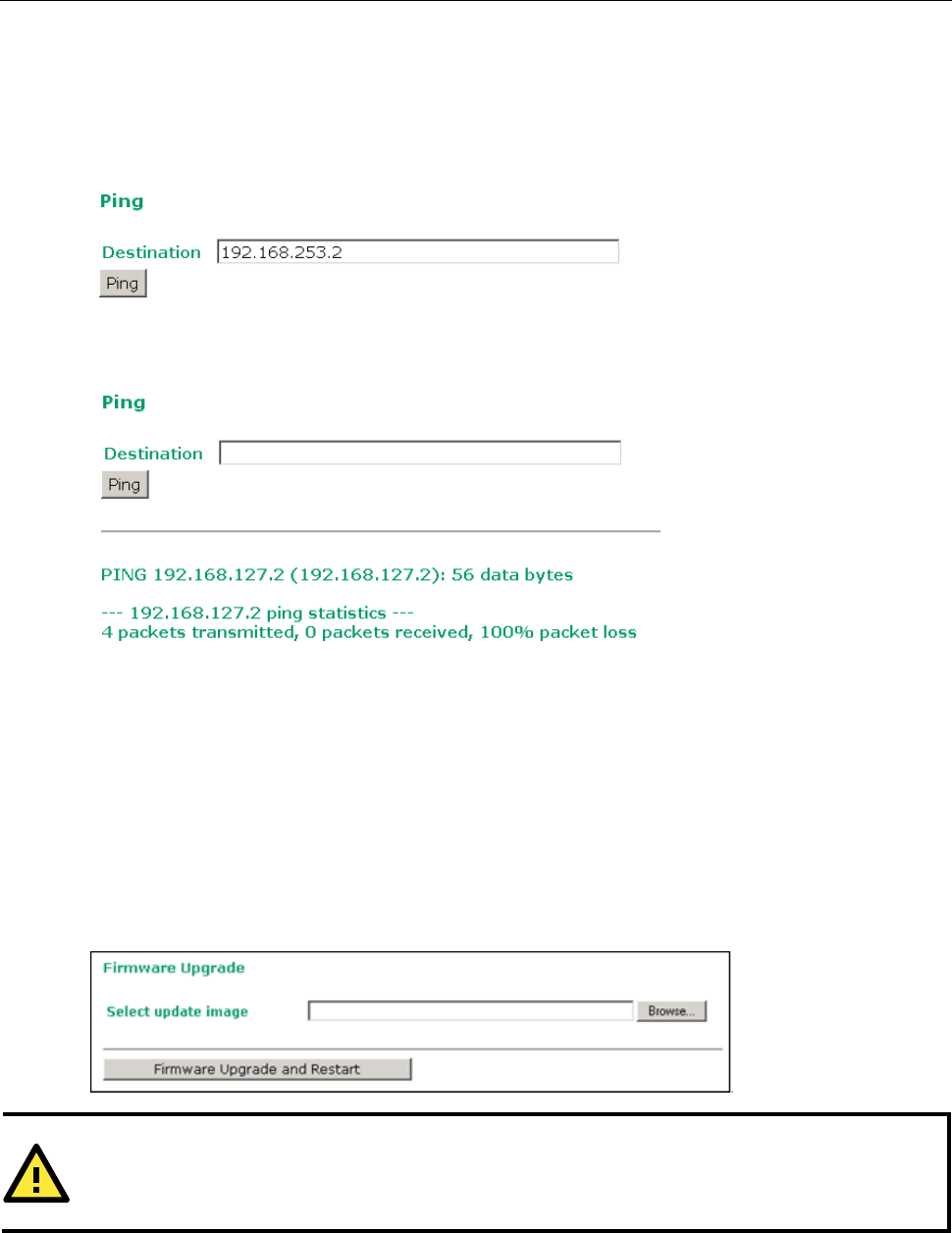

Ping ......................................................................................................................................... 3-49
Firmware Upgrade ..................................................................................................................... 3-49

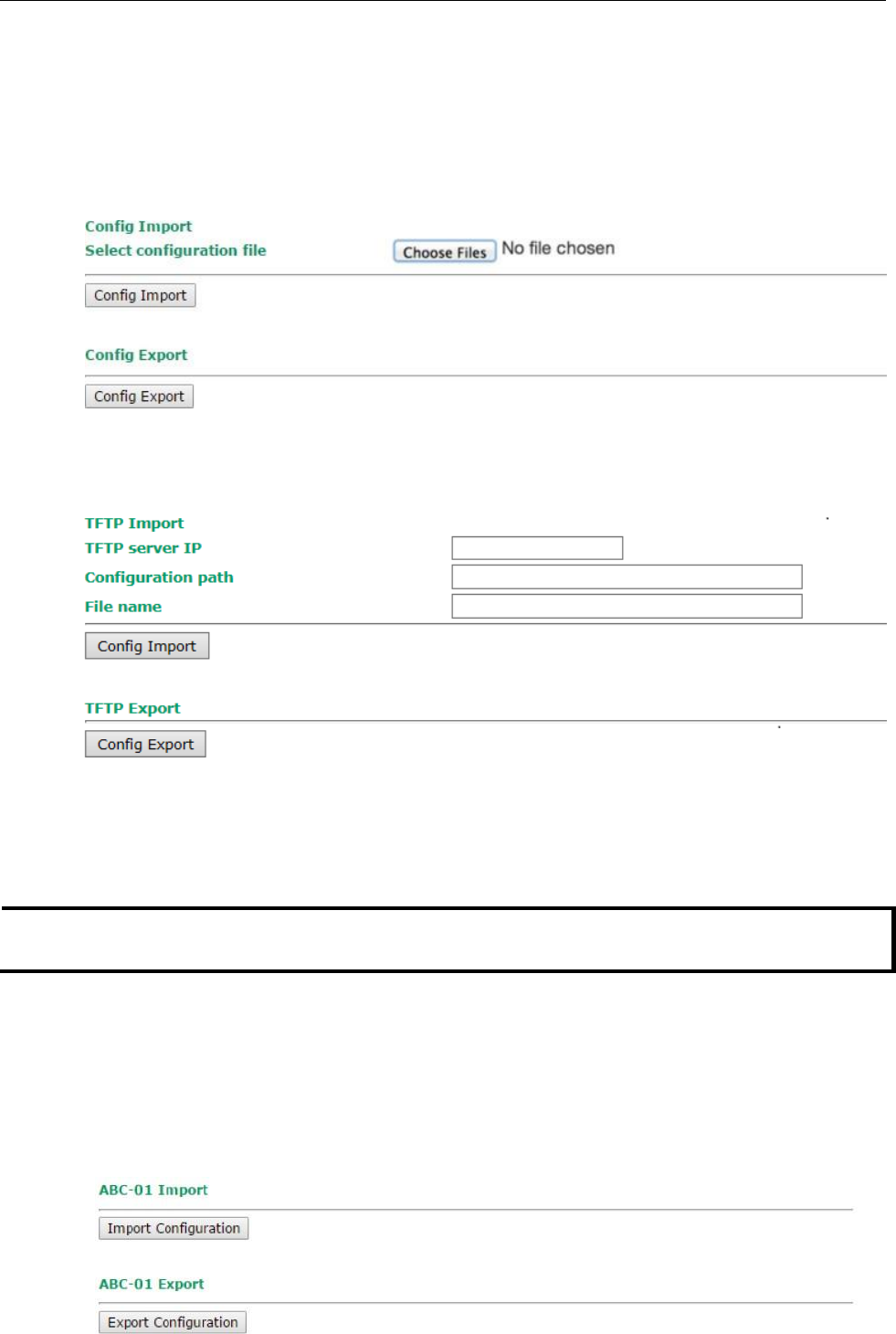

Config Import/Export ................................................................................................................. 3-50
Load Factory Default .................................................................................................................. 3-51
Username/Password .................................................................................................................. 3-51
Locate Device ........................................................................................................................... 3-51

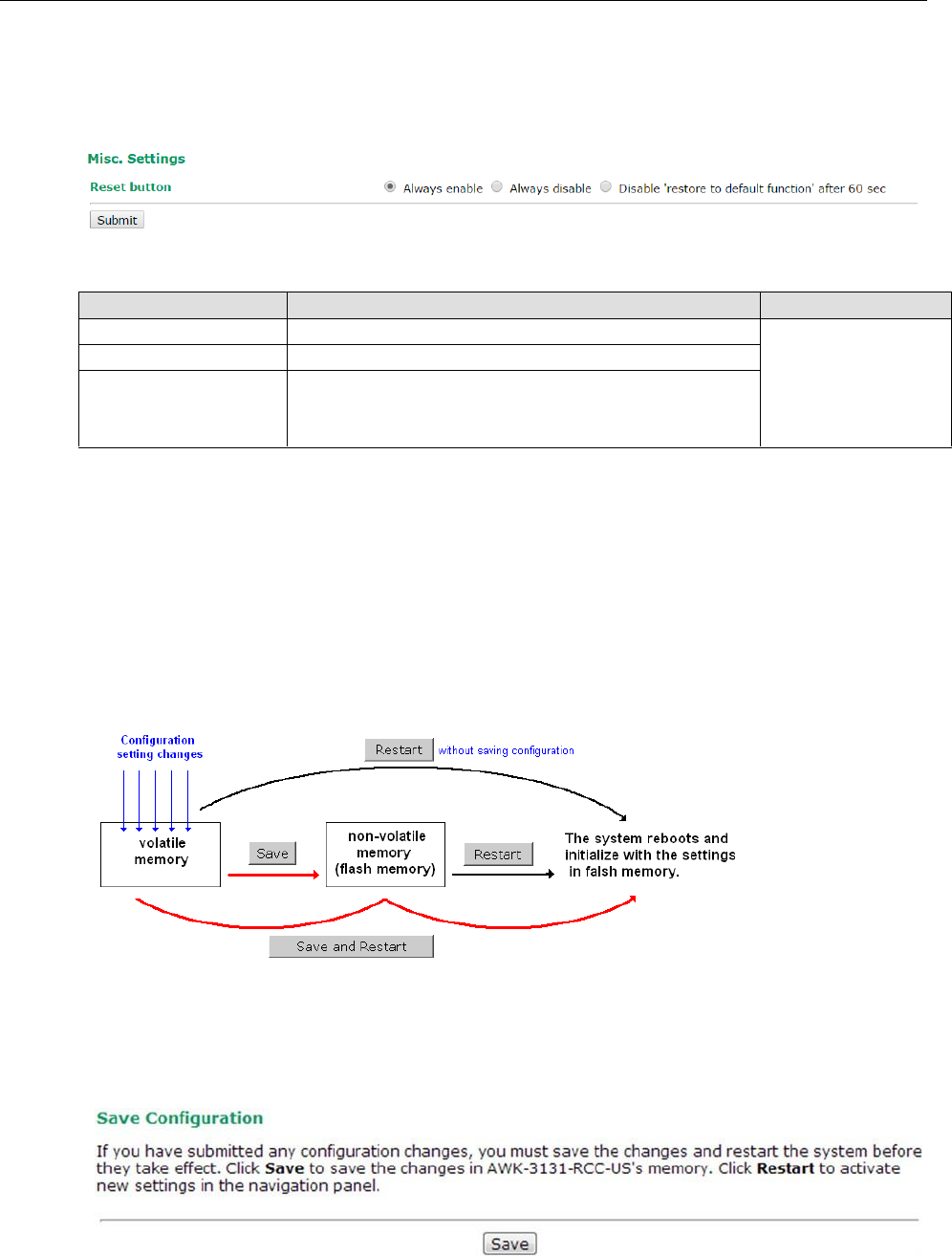

Misc. Settings ........................................................................................................................... 3-52
Save Configuration ........................................................................................................................... 3-52
Restart ............................................................................................................................................ 3-53
Logout............................................................................................................................................. 3-53
4. Software Installation and Configuration ........................................................................................... 4-1
Overview ........................................................................................................................................... 4-2

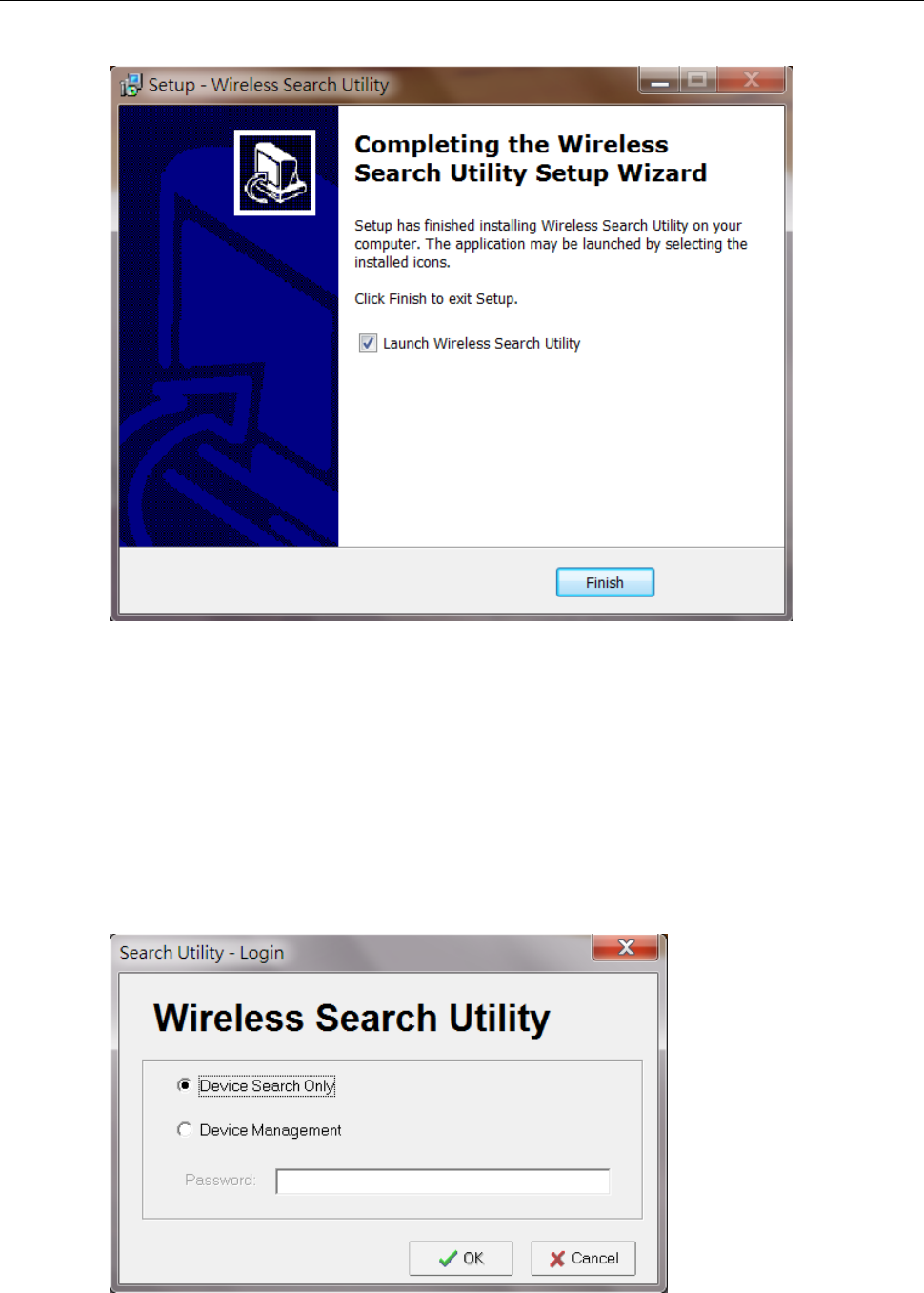

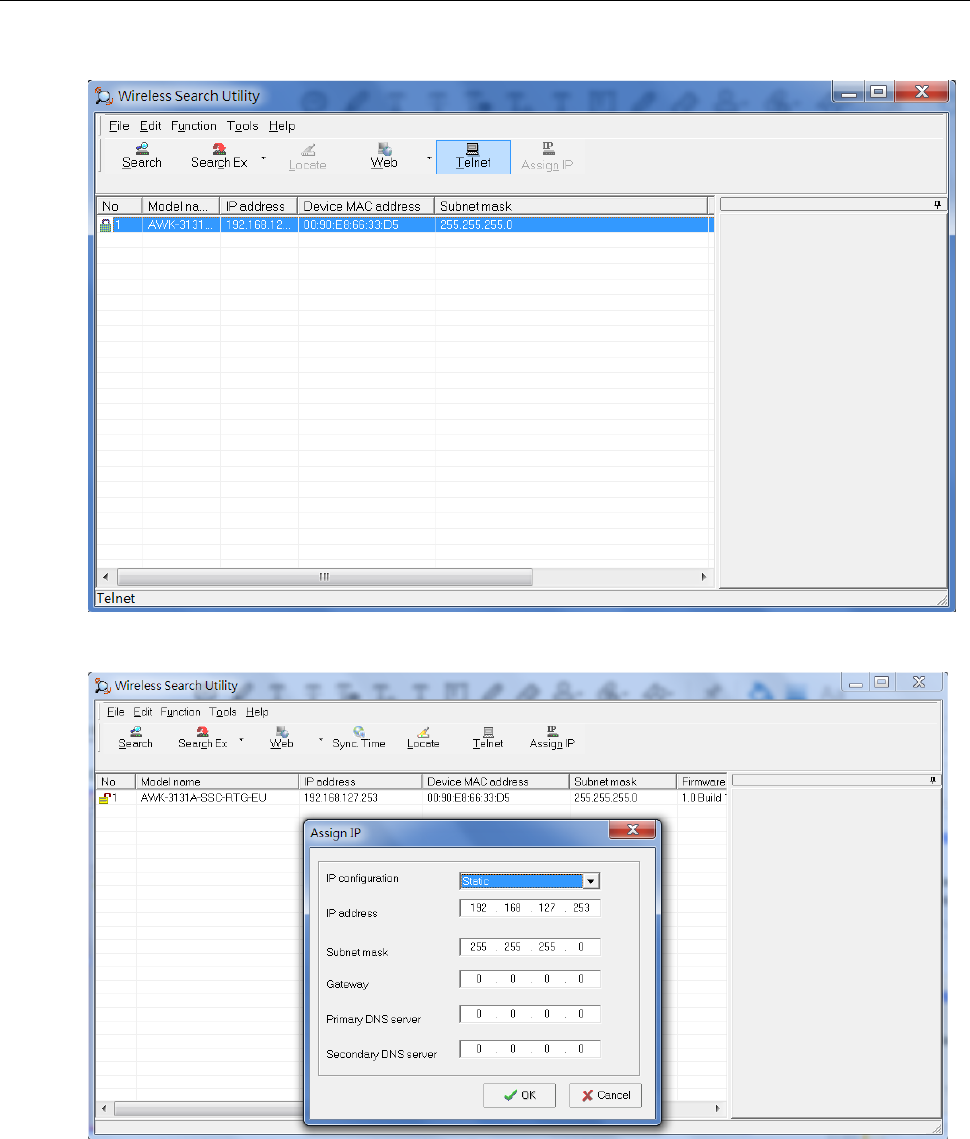

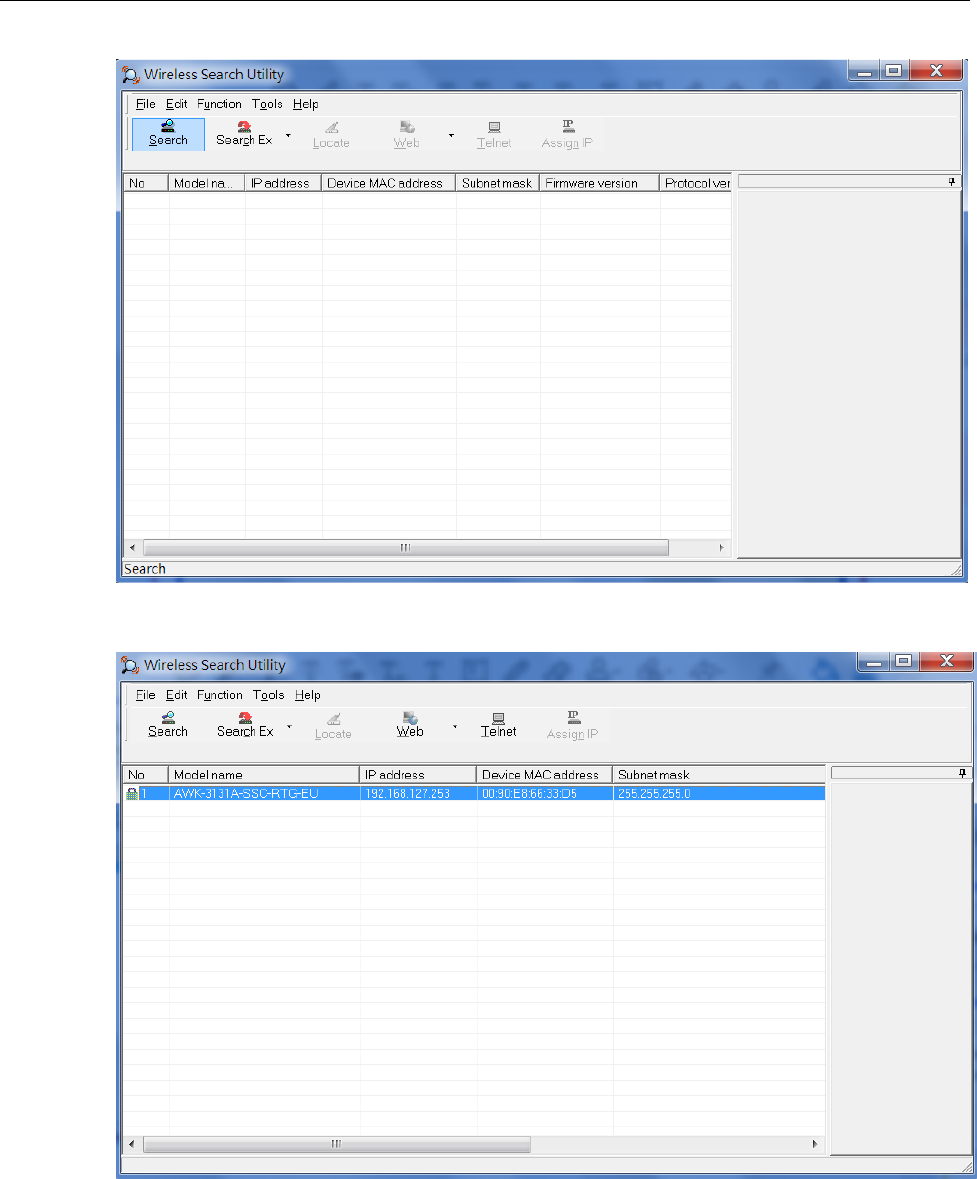

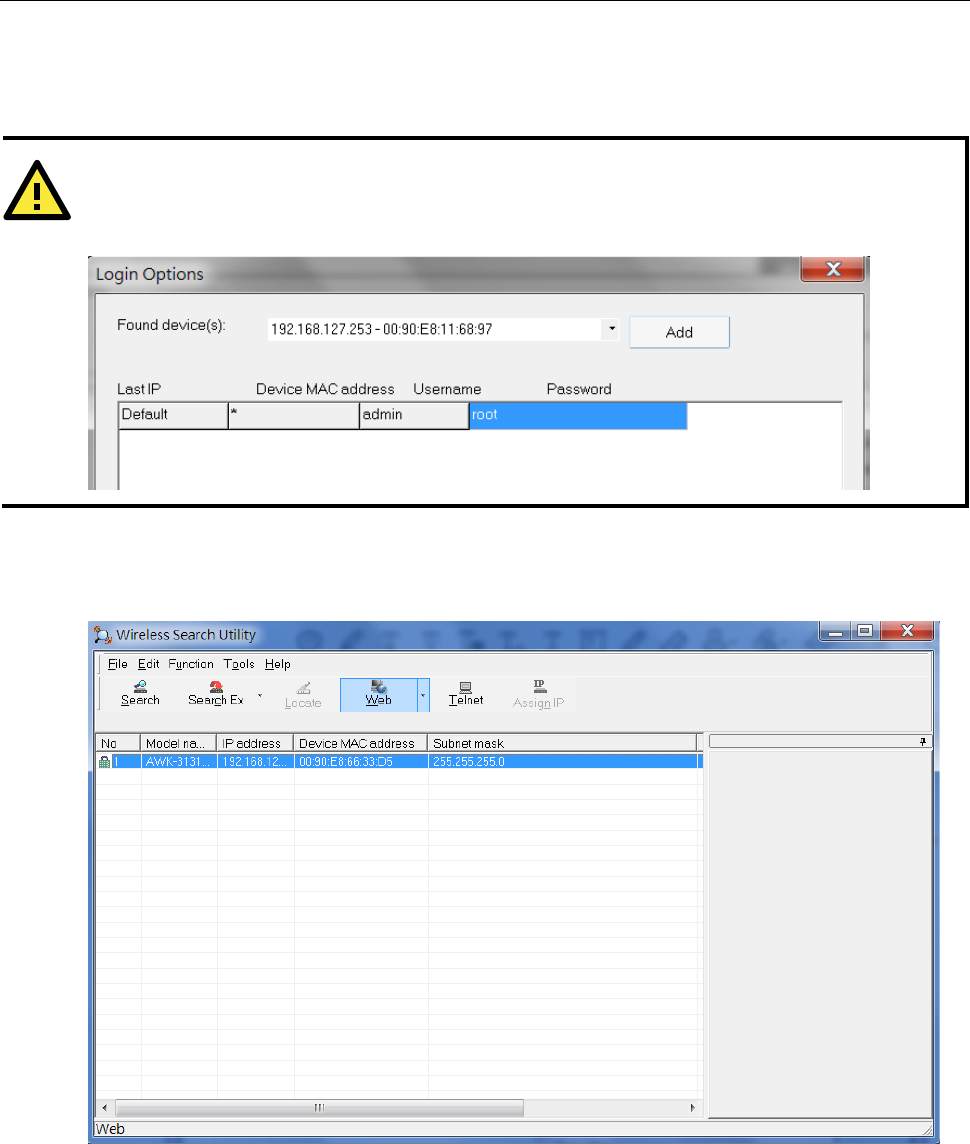

Wireless Search Utility ......................................................................................................................... 4-2

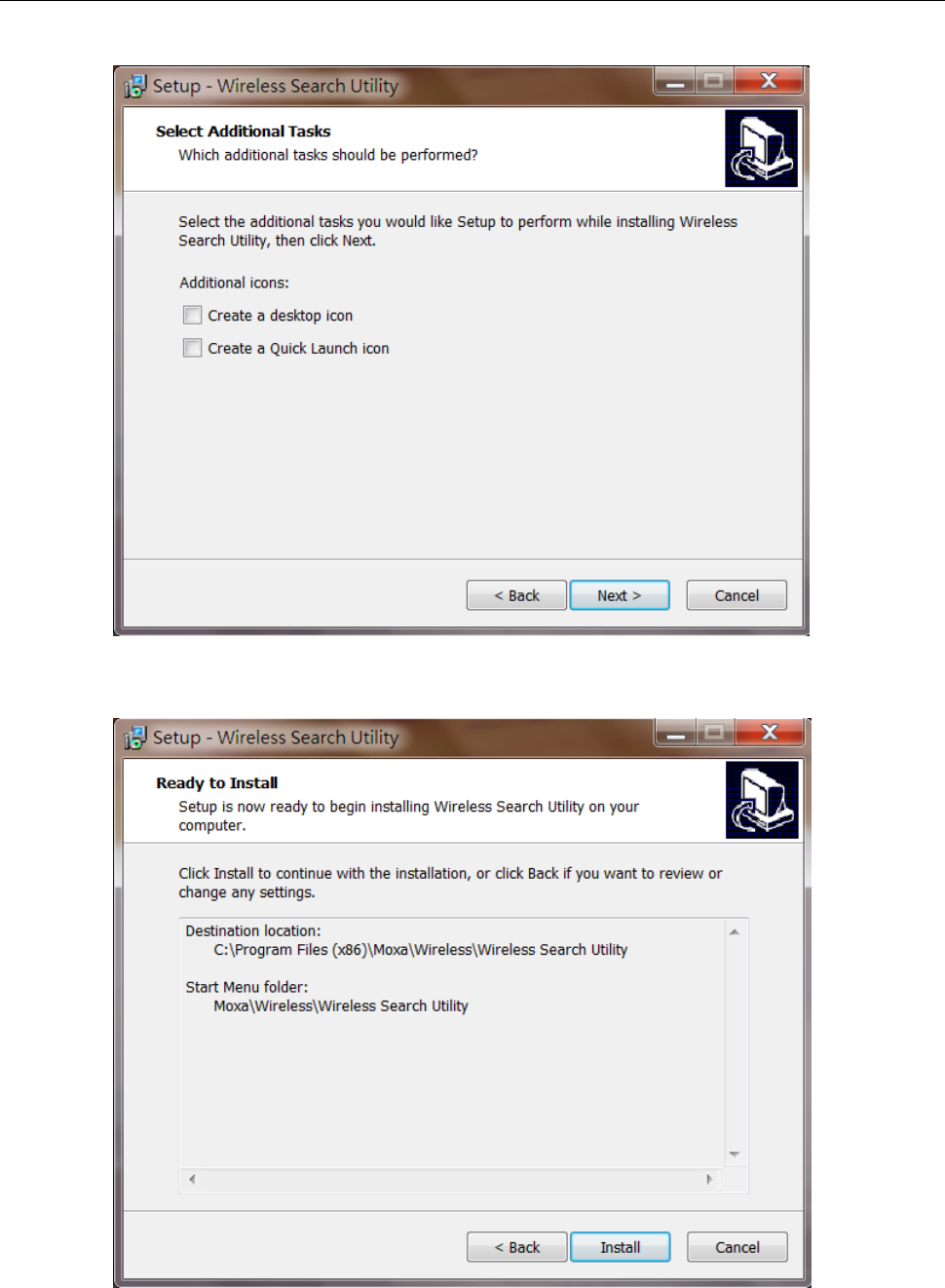

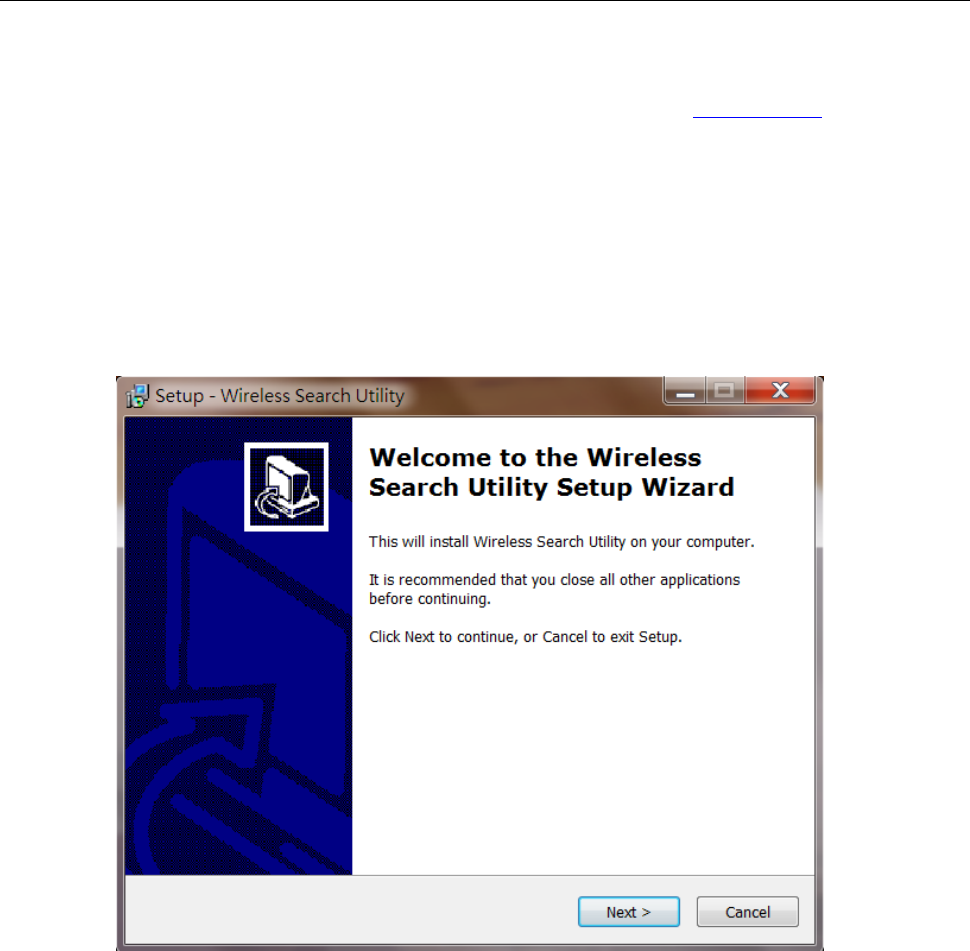

Installing Wireless Search Utility ................................................................................................... 4-2

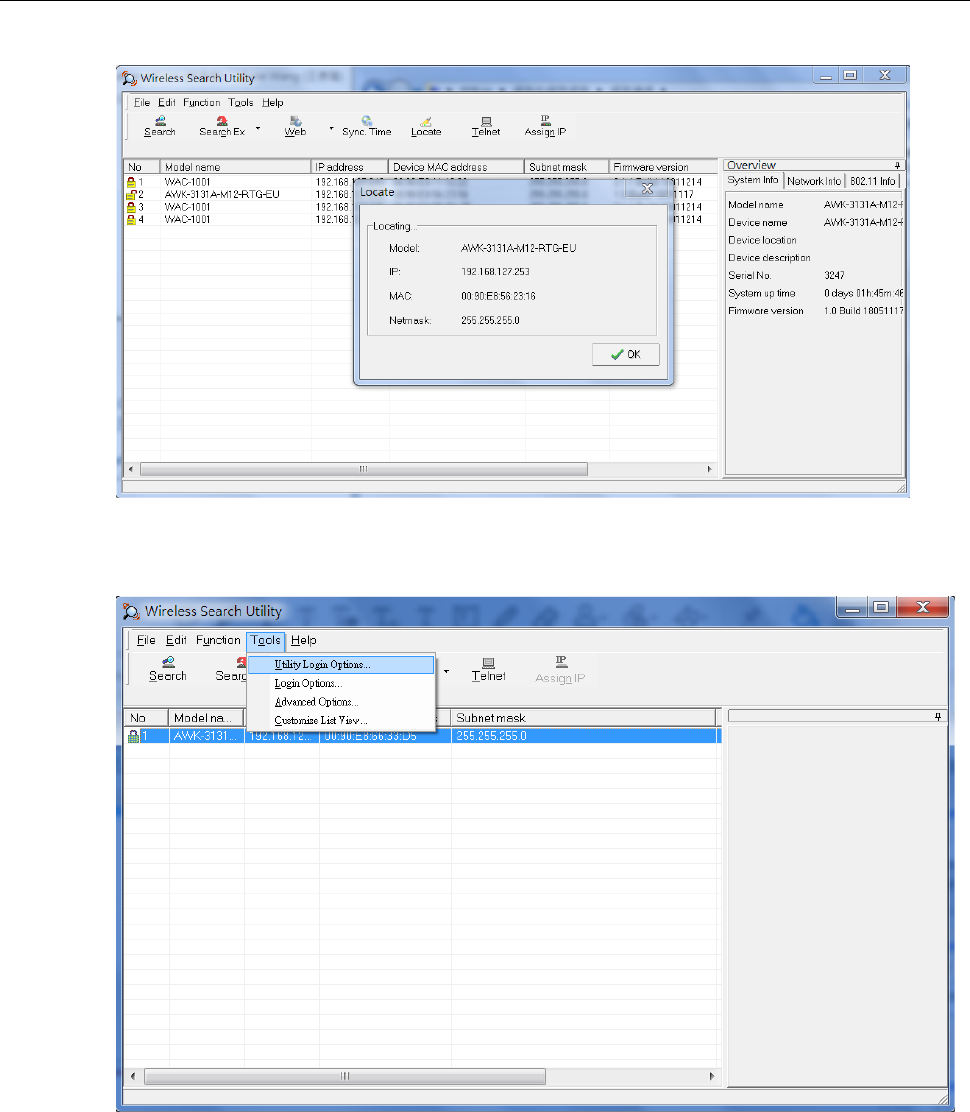

Configuring Wireless Search Utility ................................................................................................ 4-5
5. Using Other Consoles ........................................................................................................................ 5-1

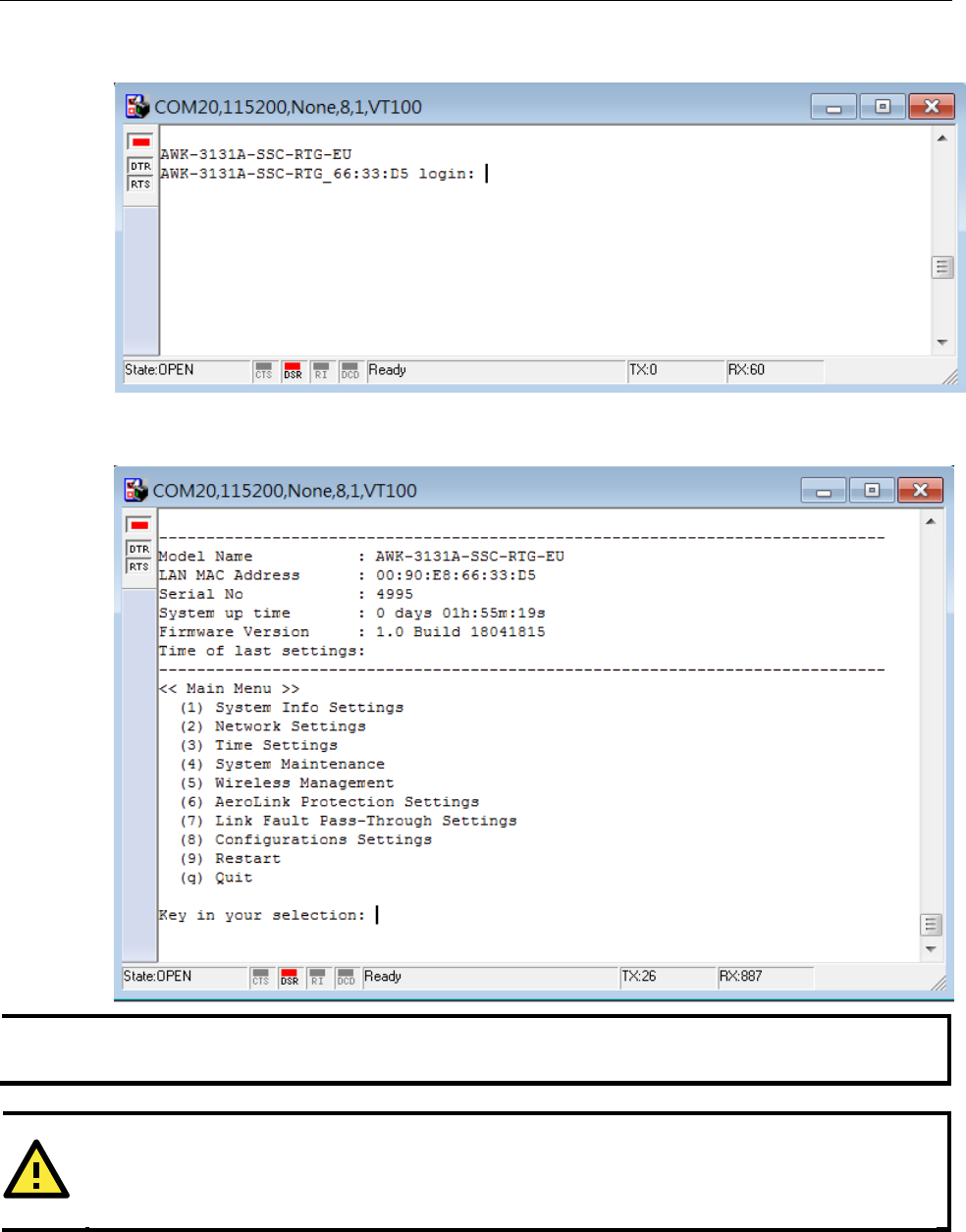

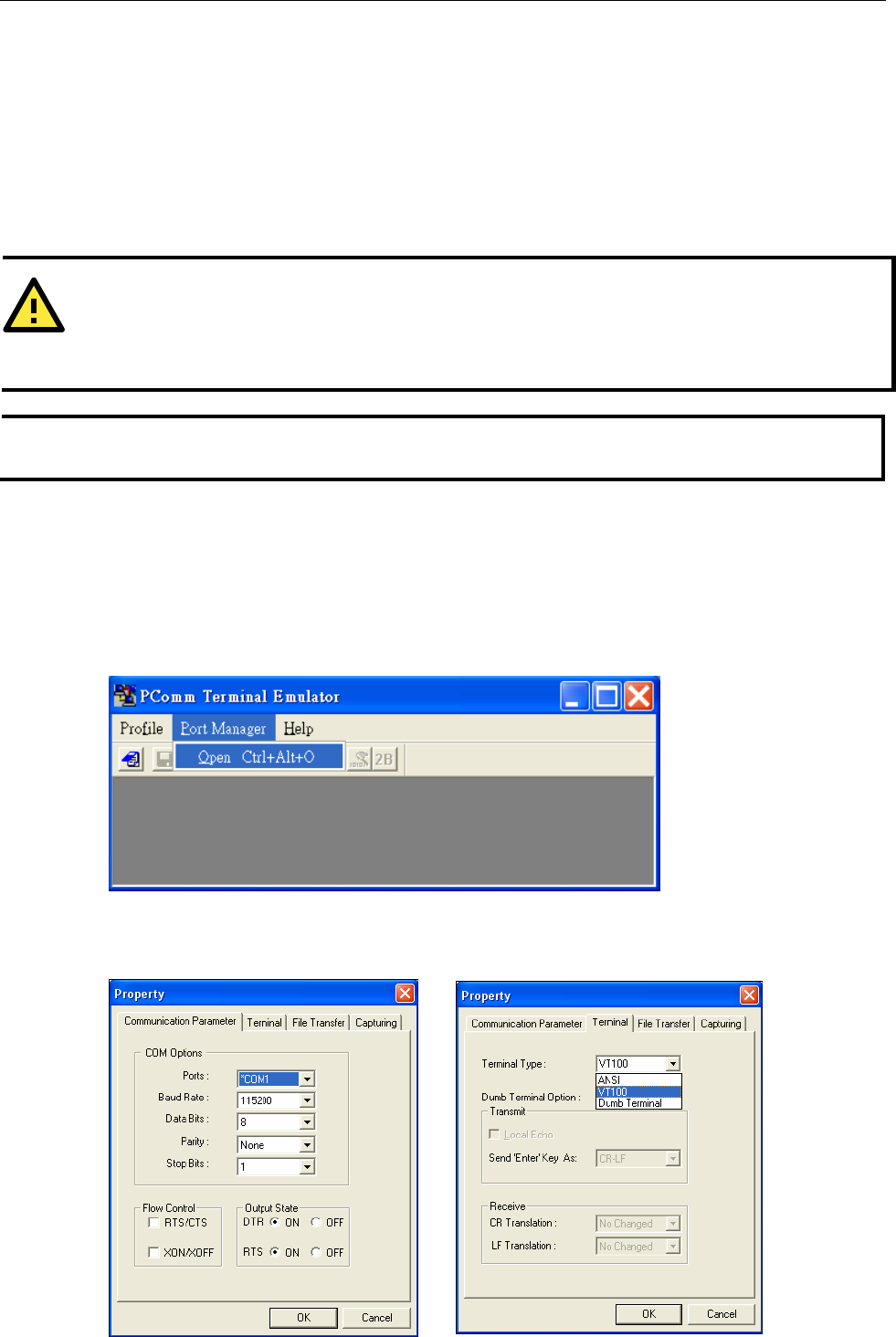

USB Console Configuration (115200, None, 8, 1, VT100) ......................................................................... 5-2

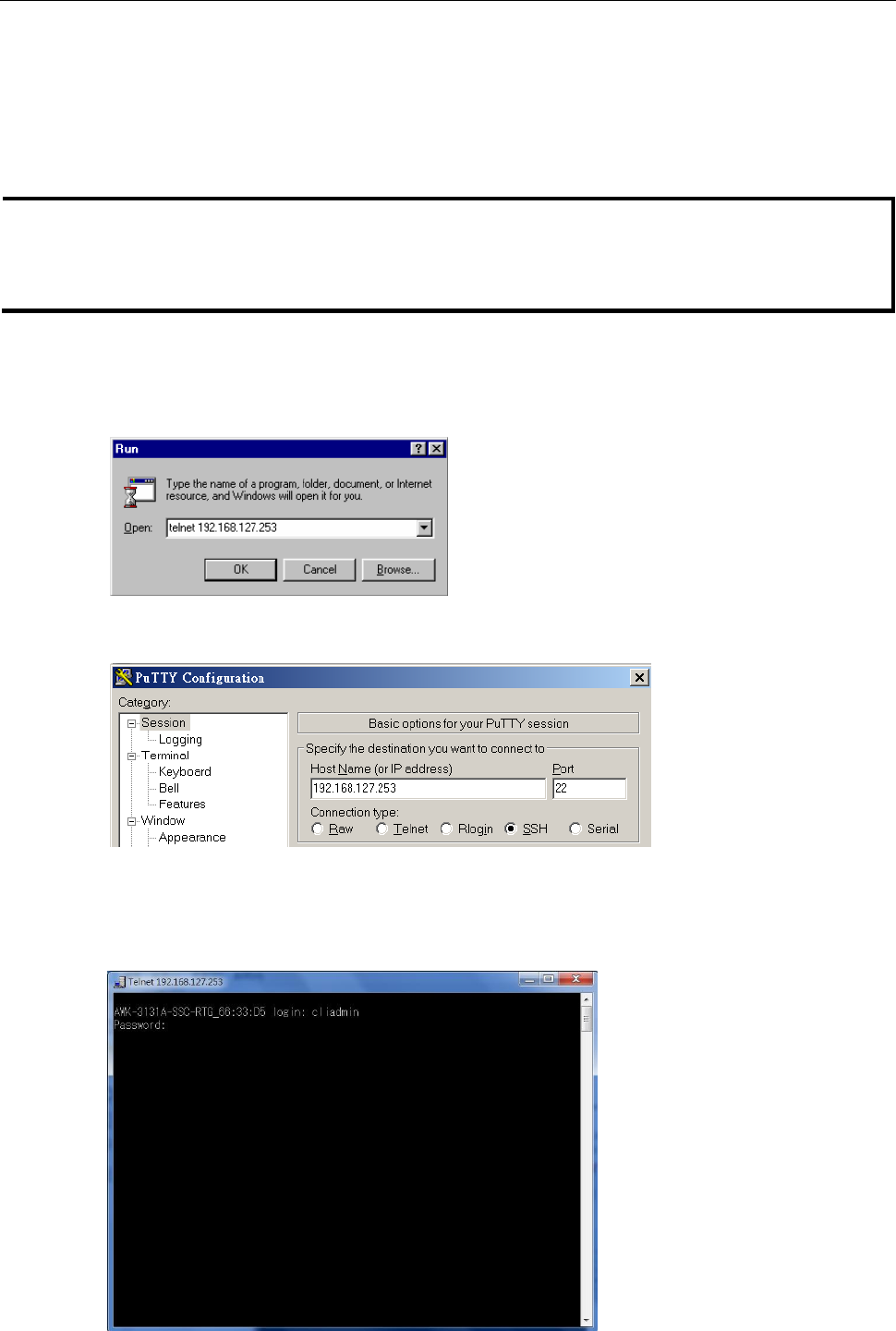

Configuration via Telnet and SSH Consoles ............................................................................................ 5-4

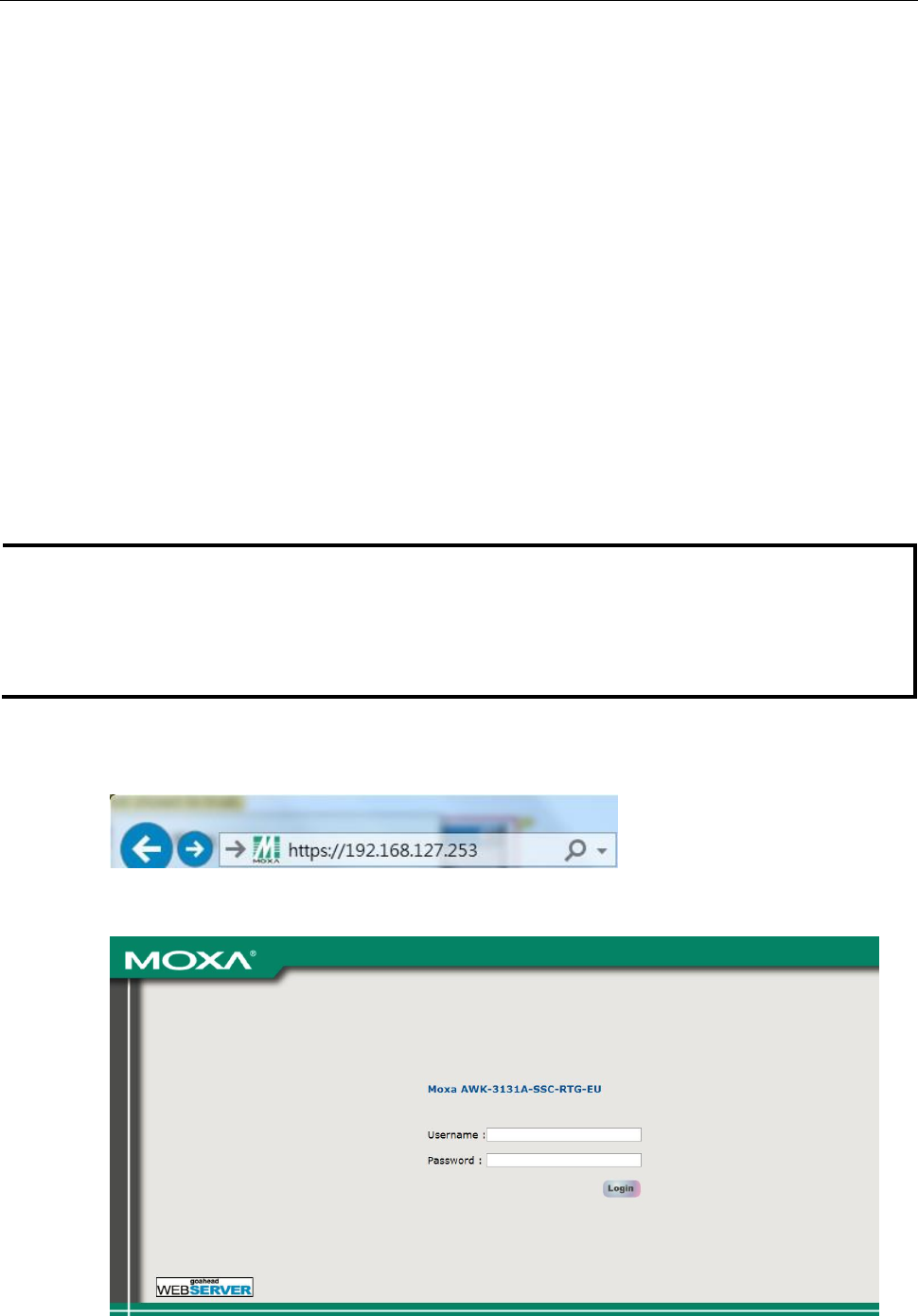

Configuration by Web Browser with HTTPS/SSL ...................................................................................... 5-5
Disabling Telnet and Browser Access ..................................................................................................... 5-6
A. References ........................................................................................................................................ A-1
Beacon ..............................................................................................................................................A-2
DTIM.................................................................................................................................................A-2
Fragment...........................................................................................................................................A-2
RTS Threshold ....................................................................................................................................A-2
STP and RSTP ....................................................................................................................................A-2
The STP/RSTP Concept ................................................................................................................A-2
Differences between RSTP and STP................................................................................................A-3
B. Supporting Information .................................................................................................................... B-1
Firmware Recovery .............................................................................................................................B-2
DoC (Declaration of Conformity) ...........................................................................................................B-3
Federal Communication Commission Interference Statement ............................................................B-3
RED Compliance Statement ..........................................................................................................B-3
Canada, Industry Canada (IC) Notices ...........................................................................................B-4
Antenna Gain and RF Radiated Power ............................................................................................B-5
R&TTE Compliance Statement .......................................................................................................B-7
1
Introduction
The AWK-3131A-RTG series wireless AP/client is the wireless solution for railway train-to-ground applications
such as CCTV and CBTC communications. It can provide speeds of up to 300 Mbps with IEEE 802.11n
technology. The AWK-3131A-RTG series can operate at temperatures ranging from -25 to 60°C for standard
models and -40 to 75°C for extended temperature models, and is rugged enough for rolling stock environments.
Installation is easy, with either DIN-rail mounting or distribution boxes, and the DIN-rail mounting capability,
wide operating temperature range, and IP30 housing with LED indicators make the AWK-3131A-RTG a
convenient yet reliable solution for any rolling stock application.
The following topics are covered in this chapter:
Overview
Package Checklist
Product Features
Product Specifications
Functional Design
LAN Port

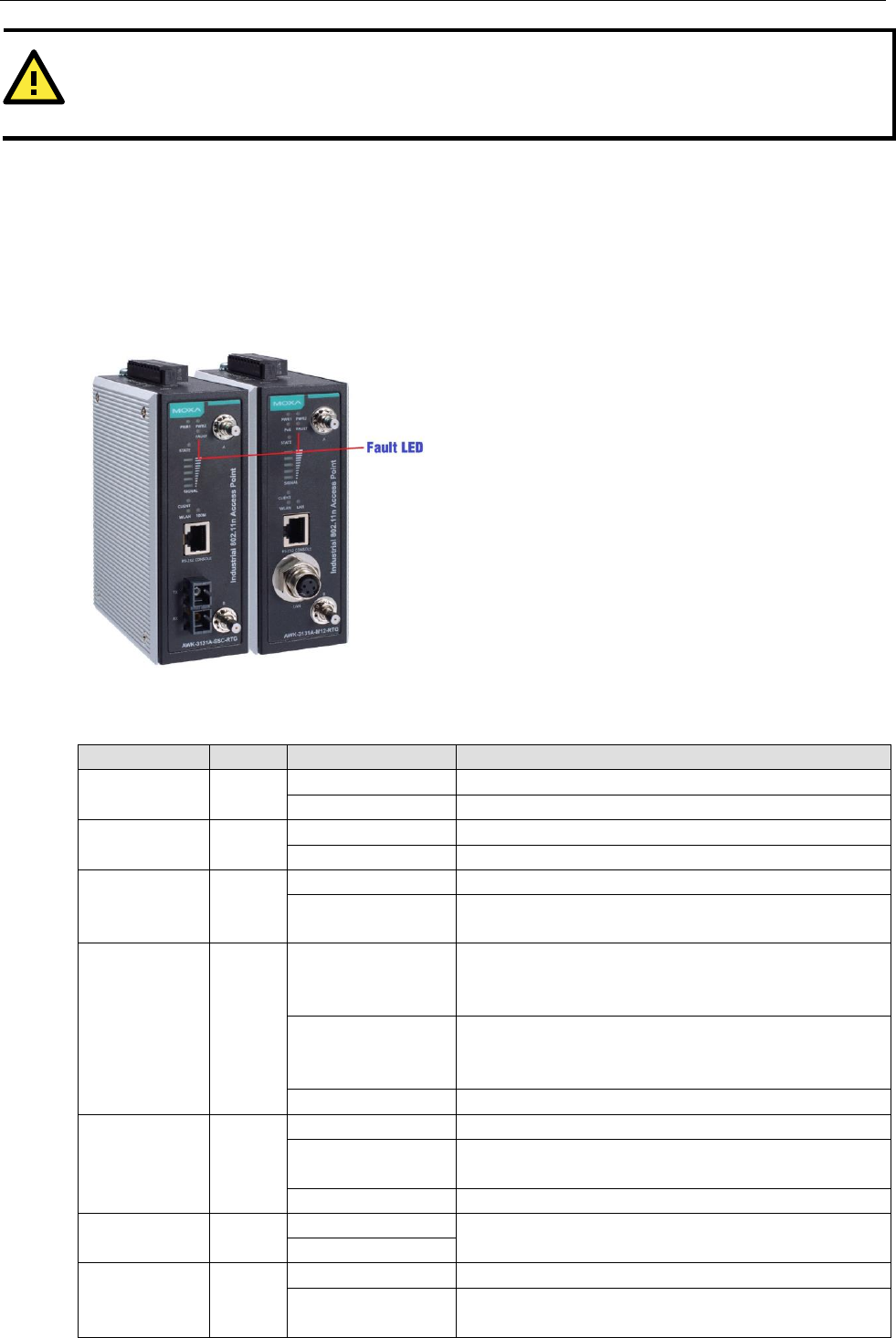

LED Indicators
Beeper

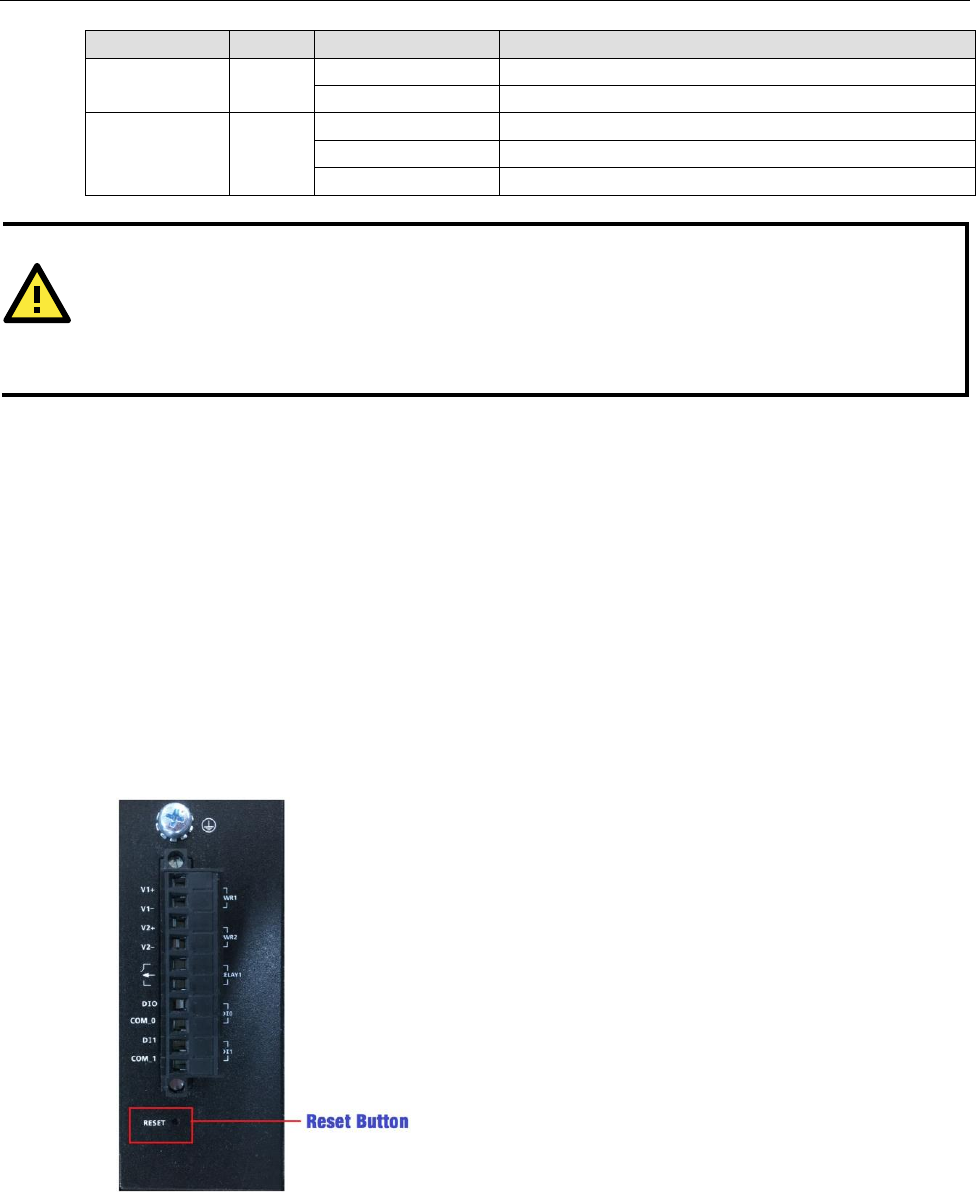

Reset Button
AWK-3131A-RTG UM
Introduction
1-2
Overview
The AWK-3131A-RTG is 802.11n compliant to deliver speed, range, and reliability to support even the most
bandwidth-intensive applications. The 802.11n standard incorporates multiple technologies, including MIMO
(Multi-In, Multi-Out) Spatial Multiplexing, multiple channels (5, 10, 20 and 40 MHz), and dual bands (2.4 GHz
and 5 GHz) to achieve high speeds, while still being able to communicate with legacy 802.11a/b/g devices.
The AWK-3131A-RTG is compliant with the EN 50155 standard that covers operating temperature range,
power input voltage, surge, ESD, and vibration. The AWK-3131A-RTG can be easily mounted on to a wall, DIN
rail or in distribution boxes. Its wide operating temperature range, IP68-rated housing with LED indicators, and
the DIN-rail mounting capability make the AWK-3131A-RTG a convenient yet reliable solution for all types of
industrial wireless applications.
Package Checklist
Moxa’s AWK-3131A-RTG is shipped with the following items. If any of these items is missing or damaged,
please contact your customer service representative for assistance.
• 1 AWK-3131A-RTG
• 1 DIN-rail kit
• 2 plastic RJ45 protective cap: One for the console port and the other for use as a backup
• 1 plastic protective cap for fiber port (AWK-3131A-SSC-RTG only)
• Cable holder with one screw
• Quick installation guide (printed)
• Warranty card
Antennas are not included and should be purchased separately.
Product Features
• Designed specifically for the wireless communication requirements in train-to-ground communication (e.g.:
CBTC and CCTV).
• 2x2 MIMO technology

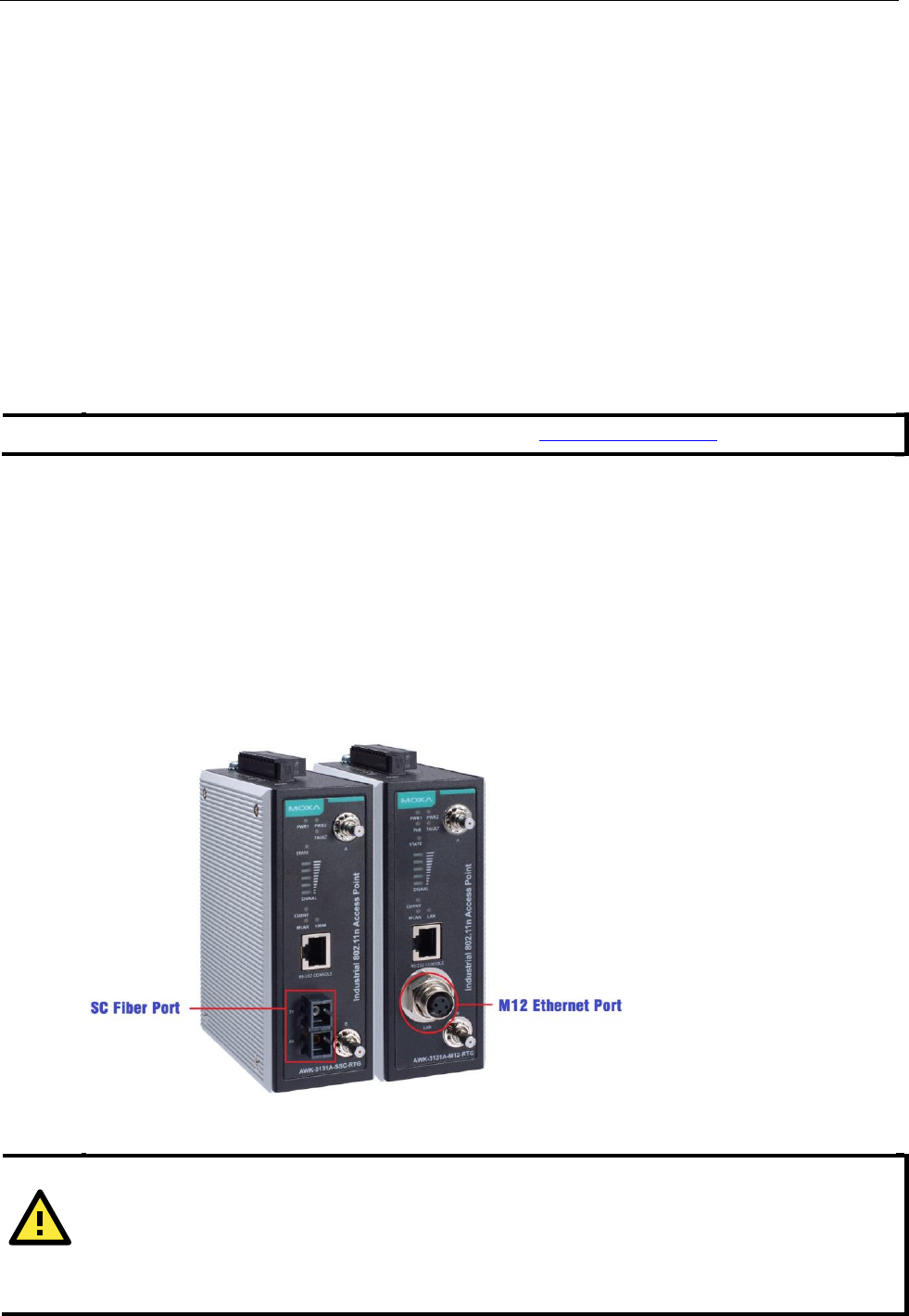

• M12 anti-vibration connectors (AWK-3131A-M12-RTG)
• SC optical fiber connection (AWK-3131A-SSC-RTG)
• -40 to 75°C operating temperature range (T models)
• Certified against the EN 50121-4 railway standard
• Complies with all EN 50155 mandatory test items*
• Controller-based Turbo Roaming (handover time < 50 ms @ 3 channels, WPA2) - available only when used
with the WAC-1001 or WAC-2004
• Supports 5.8 GHz band in the standard model
• Supports QoS function, which can help assign high priority to your critical traffic
• Provides advanced wireless security settings
• Provides 64-bit and 128-bit WEP/WPA/WPA2 encryption
• SSID Hiding, IEEE 802.1X security, and RADIUS
• Packet access control and filtering
• Supports SNMP, SNTP, SSH, HTTPS, TFTP for remote management
• Wall mountable
• Long-distance transmission support
AWK-3131A-RTG UM
Introduction
1-3
ATTENTION
• The AWK-3131A-RTG is NOT a portable mobile device and should be located at least 20 cm away from the
human body.
• The AWK-3131A-RTG is NOT designed for the general public. To establish a wireless network safely using
the AWK-3131A-RTG, a well-trained technician should be consulted for installation.
There are many factors that affect the performance of a device when it is used in long-distance applications.
These factors include:
• Test architecture
• Installation distance
• Car speed
• Antenna gain
• Band
• Transmission Power
• Signal Strength
• Channel interference
For details, please contact your Moxa sales representative.
Product Specifications
NOTE
The latest specifications for Moxa’s products can be found at https://www.moxa.com.
Functional Design
LAN Port
The standard model of the AWK-3131A-RTG is provided with one M12 D code Megabit port. The LAN LED will
light up when you insert the cable in the LAN port and a connection is established.
The standard model of AWK-3131A-SSC-RTG is provided with one SC fiber port. The 100M LED will light up
when you insert the cable in the SC fiber port and a connection is established.
AWK-3131A-RTG UM
Introduction
1-4
LED Indicators
The LEDs on the front panel provide a quick and easy means of determining the current operational status and
wireless settings of the AWK-3131A-RTG.
The FAULT LED indicates system failures. If the AWK-3131A-RTG cannot retrieve the IP address from a DHCP
server, the FAULT LED will blink at one-second intervals.
The following table summarizes how to read the device’s wireless settings based on the LED displays. More
information is available in Chapter 3 in the “Basic Wireless Settings” section.
LED
Color
State
Description
PWR1
Green
On
Power is being supplied from power input 1.
Off
Power is not being supplied from power input 1.
PWR2
Green
On
Power is being supplied from power input 2.
Off
Power is not being supplied from power input 2.
PoE
(AWK-3131A-
M12-RTG only)
Amber
On
Power is being supplied via PoE.
Off
Power is not being supplied via PoE.
FAULT
Red
Blinking
(slow at 1-second
intervals)
Cannot get an IP address from the DHCP server
Blinking
(fast at 0.5-second
intervals)
IP address conflict
Off
No errors
STATE
Green/
Red
Green
System startup is complete and the system is in operation
Green (blinking at
1-second intervals)
The AWK has been located by the Wireless Search Utility.
Red
Boot up error
SIGNAL
(5 LEDs)
Green
On
Signal level
(for Client and Client-Router mode only)
Off
CLIENT MODE
Green
On
The AWK is functioning in Client or Client-Router Mode.
Off
The AWK is not functioning in Client or Client-Router
Mode.
ATTENTION
Do not use a PoE (Power over Ethernet) Injector for the PoE device(s). Instead, use an IEEE 802.3af or IEEE
802.3at compliant PSE (Power Sourcing Equipment).
AWK-3131A-RTG UM
Introduction
1-5
ATTENTION
When the system fails to boot, the LEDs for STATE (Green), FAULT, and WLAN will all light up
simultaneously and blink at one-second intervals. This may be due to improper operation or issues such as an
unexpected shutdown while updating the firmware. To recover the firmware, refer to the “Firmware
Recovery” section in Appendix B Supporting Information.
LED
Color
State
Description
WLAN
Amber
On
WLAN is in use.
Off
WLAN is not in use.
LAN/
100M*
Green
On
100 Mbps link is active.
Blinking
Data is being transmitted at 100 Mbps.
Off
100 Mbps link is inactive.
Beeper
The beeper emits two short beeps when the system is ready.
Reset Button
The Reset button is located on the bottom panel of the AWK-3131A-RTG. You can reboot the AWK-3131A-RTG
or reset it to factory default settings by pressing the Reset button with a pointed object such as an unfolded
paper clip.
• System reboot: Hold the Reset button down for under 5 seconds and then release.
• Reset to factory default: Hold the Reset button down for over 5 seconds until the STATE LED starts
blinking green light. Release the button to reset the AWK-3131A-RTG.
2
Getting Started
This chapter explains how to install Moxa’s AirWorks AWK-3131A-RTG for the first time to quickly set up your
wireless network and how to test whether the connection is working well. The function map provided in Chapter
3 is a convenient reference to the various functions available on the AWK-3131A-RTG and to determine the
functions that you need to use.
The following topics are covered in this chapter:
First-Time Installation and Configuration
Communication Testing
Function Map
AWK-3131A-RTG UM
Getting Started
2-2
First-Time Installation and Configuration
Before installing the AWK-3131A-RTG, make sure that all items mentioned in the package checklist are in the
box. You will also need access to a notebook computer or PC equipped with an Ethernet port. The
AWK-3131A-RTG has a default IP address that you must use when connecting to the device for the first time.
• Step 1: Select the power source.
The AWK-3131A-RTG can be powered by a DC power input or PoE (Power over Ethernet).
• Step 2: Connect the AWK-3131A-RTG to a notebook or PC.
Since the AWK-3131A-RTG is provided with the MDI/MDI-X auto-sensing capability, you can use either a
straight-through cable or crossover cable to connect it to a computer. When the connection between the
AWK-3131A-RTG and the computer is established, the LED indicator on the AWK-3131A-RTG’s LAN port
lights up.
• Step 3: Set up the computer’s IP address.
Set an IP address for the computer so that it is on the same subnet as that of the AWK-3131A-RTG. Since
the AWK-3131A-RTG’s default IP address is 192.168.127.253, and the subnet mask is 255.255.255.0,
set the IP address of the computer in the 192.168.127.xxx IP range and subnet mask to 255.255.255.0.
• Step 4: Use the web-based manager to configure the AWK-3131A-RTG
Open your computer’s web browser and type http://192.168.127.253 in the address field to access the
homepage of the web-based Network Manager. Before the homepage opens, you will need to enter the user
name and password as shown in the following figure. For first-time configuration, enter the following
default user name and password and click on the Login button:
User Name: admin
Password: moxa
For security reasons, we strongly recommend changing the default password. To change the password, select
Maintenance Password and follow the instructions on the screen.
After you click Submit to apply changes, the web page is refreshed and an (Updated) indicator is displayed
next to the page heading along with a blinking reminder to restart the device.
To activate the changes, click Restart and then click Save and Restart after you change the settings. The
AWK-3131A-RTG will take about 30 seconds to complete the reboot process.
AWK-3131A-RTG UM
Getting Started
3-2
• Step 5: Select the operation mode for the AWK-3131A-RTG.
By default, the operation mode of the AWK-3131A-RTG is set to AP. You can change this setting to Client
mode at Wireless Settings WLAN Basic Wireless Settings. Detailed information about configuring
the AWK-3131A-RTG is available in Chapter 3.
• Step 6: Test the network connection.
In the following sections we describe two methods that you can use to test that a network connection has
been established.
Communication Testing
After installing the AWK-3131A-RTG you can run a sample test to make sure the wireless connection on the
AWK-3131A-RTG is functioning normally. Two testing methods are described below. Use the first method if you
are using only one AWK-3131A-RTG device and the second method if you are using two or more
AWK-3131A-RTG units.

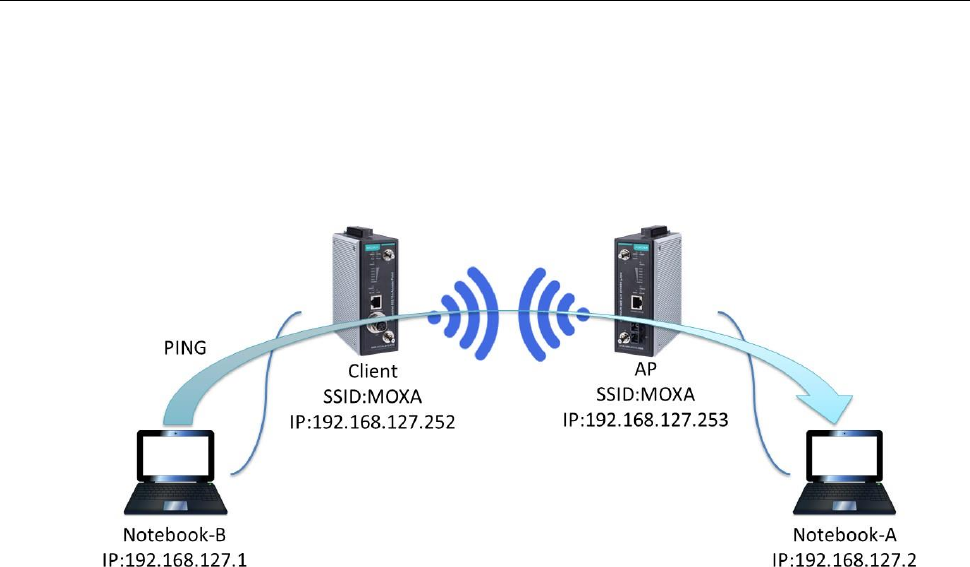

How to Test One AWK-3131A-RTG
If you are only using one AWK-3131A-RTG, you will need one additional notebook computer equipped with a
WLAN card. Configure the WLAN card to connect to the AWK-3131A-RTG (NOTE: the default SSID is MOXA),
and change the IP address of the second notebook (Notebook B) so that it is on the same subnet as the first
notebook (Notebook A), which is connected to the AWK-3131A-RTG.
After configuring the WLAN card, establish a wireless connection with the AWK-3131A-RTG and open a DOS
window on Notebook B. At the prompt, type the following:
ping <IP address of notebook A>
and then press Enter (see the figure below). A “Reply from IP address …” response means the communication
was successful. A “Request timed out.” response means the communication failed. In this case, recheck the
configuration to make sure the connections are correct.
AWK-3131A-RTG UM
Getting Started
4-2
How to Test Two or More AWK-3131A-RTG Units
If you have two or more AWK-3131A-RTG units, you will need a second notebook computer (Notebook B)
equipped with an Ethernet port. Use the default settings for the first AWK-3131A-RTG connected to notebook
A and change the second or third AWK-3131A-RTG connected to notebook B to Client mode, and then configure
the notebooks and AWK-3131A-RTG units properly.
After setting up the testing environment, open a DOS window on notebook B. At the prompt type:
ping <IP address of notebook A>
and then press Enter. A “Reply from IP address …” response means the communication was successful. A
“Request timed out” response means the communication failed. In the latter case, recheck the configuration to
make sure the settings are correct.
AWK-3131A-RTG UM
Getting Started
5-2
Function Map
Quick overview of the AWK-3131A-M12-RTG’s
status
Essential settings related to establishing a wireless
network
Advanced features to support additional network
management and secure wired and wireless
communication
Note: These advanced functions are all optional
Application-oriented device management
functions to set up events, traps, and reactions via
e-mail and SNMP notifications
Note: These functions are all optional
On-demand functions to support the web-based
console management operation
Functions for maintaining the AWK-3131A-M12-RTG,
and for diagnosing the network
Basic settings for administering the
AWK-3131A-M12-RTG
Current status information for monitoring
wired/wireless network performance, advanced
services, and device management functions
3
Web Console Configuration
In this chapter, we explain all aspects of web-based console configuration. Moxa’s easy-to-use management
functions help you set up your AWK-3131A-RTG and make it easy to establish and maintain your wireless
network.
The following topics are covered in this chapter:
Web Browser Configuration
Overview
Basic Settings

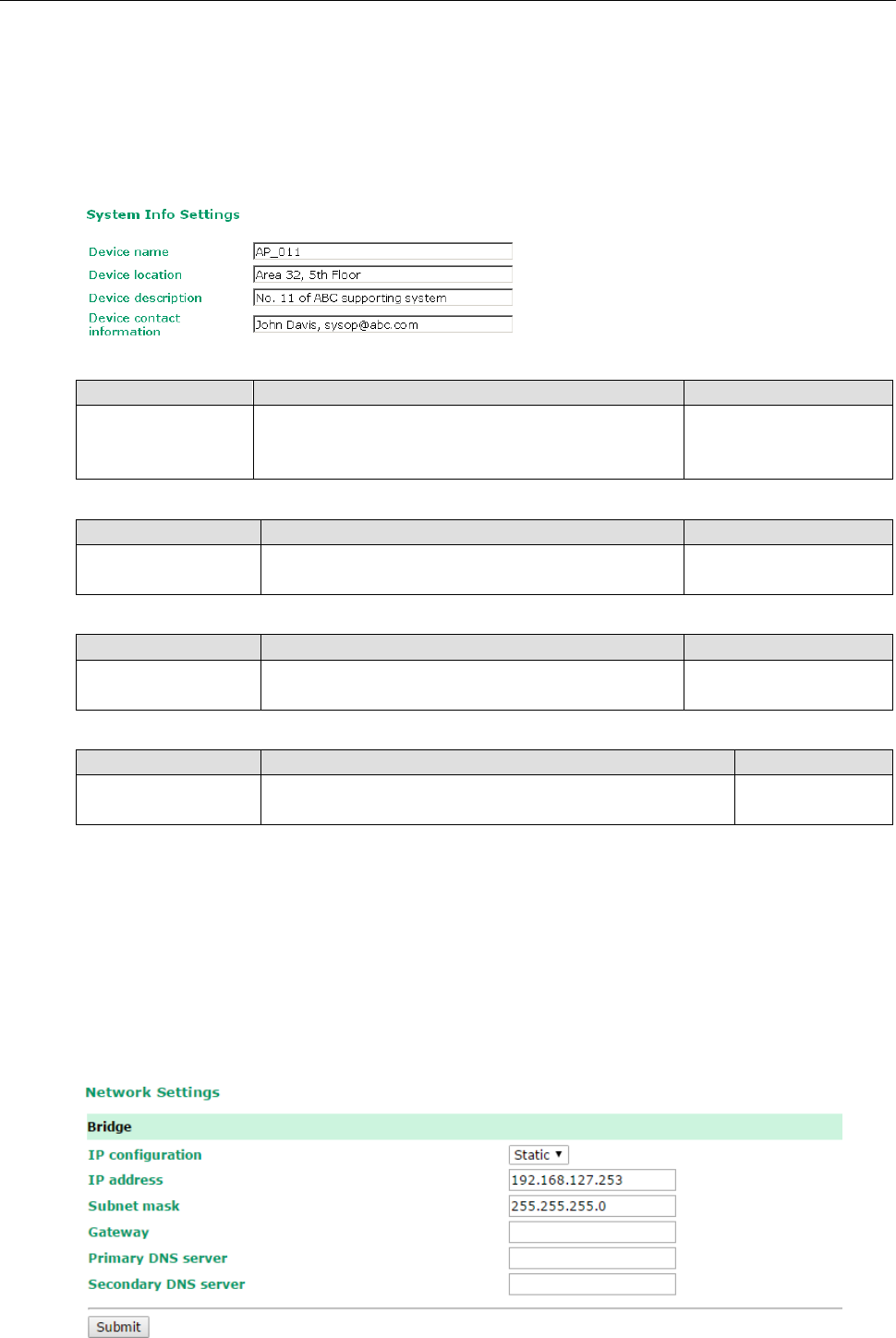

System Info Settings
Network Settings
Time Settings
Wireless Settings
Operation Mode
Basic Wireless Settings (Multiple SSID)

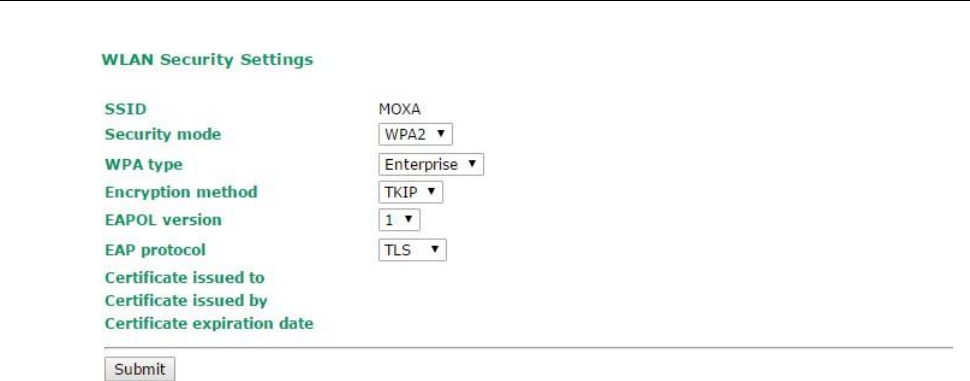

WLAN Security Settings
Advanced Wireless Settings
WLAN Certification Settings (Only For EAP-TLS in Client Mode)
WAC Settings (AP Mode Only)
Advanced Settings
Using Virtual LAN
Configuring Virtual LAN
DHCP Server
Packet Filters

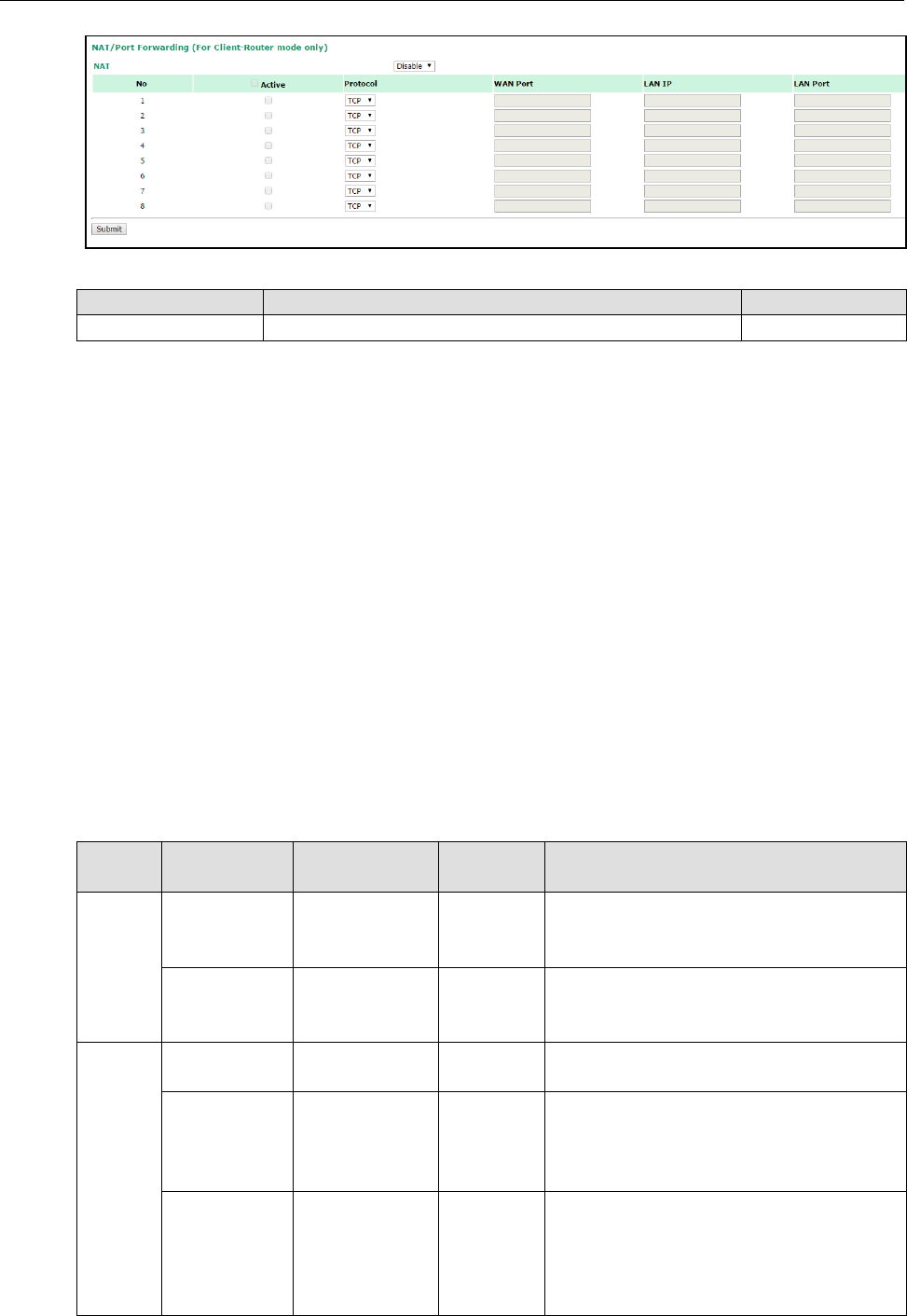

NAT Settings/Port Forwarding (For Client-Router Mode Only)
SNMP Agent
Mobile IP Settings
Link Fault Pass-Through (For Client Mode Only)
Auto Warning Settings
System Log
Syslog
E-mail
Traps
Status
Wireless Status
Associated Client List (For AP Mode Only)
DHCP Client List
System Log
Relay Status
DI and Power Status
AWK-3131A-RTG UM
Web Console Configuration
3-2
AeroLink Protection Status (For Client Mode Only)
Routing Table
LAN Status
Maintenance
Console Settings
Ping
Firmware Upgrade
Config Import/Export
Load Factory Default
Username/Password
Locate Device
Misc. Settings
Save Configuration
AWK-3131A-RTG UM
Web Console Configuration
3-3
NOTE To use the management and monitoring functions of the AWK-3131A-RTG from a PC host connected to the
same LAN as the AWK-3131A-RTG, you must make sure that the PC host and the AWK-3131A-RTG are on the
same logical subnet. Similarly, if the AWK-3131A-RTG is configured on a different VLAN than the PC, you must
make sure your PC host is on the management VLAN so that it can access the AWK-3131A-RTG.
The default IP address of the AWK is 192.168.127.253.
Restart
Logout
Web Browser Configuration
The web interface provides a convenient way to modify the configuration of the AWK-3131A-RTG and access its
built-in monitoring and network administration functions. The recommended web browser is Microsoft®
Internet Explorer 11.0 with JVM (Java Virtual Machine) installed.
To access the web interface of the AWK-3131A-RTG, do the following:
1. Open a web browser (e.g., Internet Explorer), type in the default IP address of the AWK-3131A-RTG in the
address field, and press Enter.
2. In the login page that is displayed, enter the Username and Password (default Username = admin;
default Password = moxa) and click Login to continue.
AWK-3131A-RTG UM
Web Console Configuration
3-4
NOTE The model name of the AWK-3131A-RTG is shown as AWK-3131A-RTG-XX, where XX indicates the country
code. The model name indicates the AWK-3131A-RTG version and the bandwidth it uses. We use
AWK-3131A-RTG-US as an example in the following figures. (The country code and model name that
appears on your computer screen may be different.)
You may need to wait a few moments for the main page to download to your computer. Note that the model
name and IP address of the AWK-3131A-RTG are both shown in the title bar of the web page. You can
identify the web interfaces of multiple AWK-3131A-RTG units using this information.
3. Use the menu tree on the left side of the window to open the configuration pages for the AWK-3131A-RTG’s
functions.
In the following paragraphs, we describe each AWK-3131A-RTG management function in detail. An overview of
all the functions is available in the “Function Map” section of this manual.
Overview
The Overview page summarizes the AWK-3131A-RTG’s current status. The information is categorized into the
following groups: System Info, Device Info, and 802.11 Info.
AWK-3131A-RTG UM
Web Console Configuration
3-5
Click on the SSID (MOXA, in this case) to display detailed information on 802.11as shown below:
The 802.11 Info that is displayed may differ based on the operation mode selected. For example, Current
BSSID is not available in Client mode, and Signal strength/Noise Floor is not available in AP mode.
Basic Settings
The Basic Settings group includes the most commonly used settings required by administrators to maintain
and control the AWK-3131A-RTG.
AWK-3131A-RTG UM
Web Console Configuration
3-6
System Info Settings
The System Info related settings that you configure here, especially the Device name and Device
description, are displayed on the Overview page. They are also included in the SNMP information and email
alerts. Configuring the System Info settings for each AWK-3131A-RTG makes it easier to identify the different
AWK-3131A-RTG units connected to your network.
Device name
Format
Description
Factory Default
Maximum of 31
characters
Specifies the role or application of this AWK-3131A-RTG
unit.
AWK-3131A-RTG_<Serial
No. of this
AWK-3131A-RTG>
Device location
Format
Description
Factory Default
Maximum. of 31
characters
Specifies the location of this AWK-3131A-RTG unit.
None
Device description
Format
Description
Factory Default
Maximum of 31
characters
You can use this space to record a more detailed
description of this AWK-3131A-RTG
None
Device contact information
Format
Description
Factory Default
Maximum of 31
characters
You can use this space to record the contact information of the
person responsible for maintaining this AWK-3131A-RTG.
None
Network Settings
The Network Settings configuration panel allows you to modify the usual TCP/IP network parameters.
However, due to the addition of the client-router operation mode, this panel provides two different sets of
network parameters. Explanations for both types of configuration are given below.
Network Settings for AP/Client Operation Mode
AWK-3131A-RTG UM
Web Console Configuration
3-7
IP address assignment
Setting
Description
Factory Default
DHCP
The AWK-3131A-RTG’s IP address will be assigned
automatically by the network’s DHCP server
Static
Static
Set up the AWK-3131A-RTG’s IP address manually.
IP address
Setting
Description
Factory Default
AWK-3131A-RTG’s IP
address
Identifies the AWK-3131A-RTG on a TCP/IP network.
192.168.127.253
Subnet mask
Setting
Description
Factory Default
AWK-3131A-RTG’s
subnet mask
Identifies the type of network to which the AWK-3131A-RTG is
connected (e.g., 255.255.0.0 for a Class B network, or
255.255.255.0 for a Class C network).
255.255.255.0
Gateway
Setting
Description
Factory Default
AWK-3131A-RTG’s
default gateway
The IP address of the router that connects the LAN to an
outside network.
None
Primary/ Secondary DNS server
Setting
Description
Factory Default
IP address of the
Primary/Secondary
DNS server
The IP address of the DNS Server used by your network. After
entering the DNS Server’s IP address, you can input the
AWK-3131A-RTG’s URL (e.g., http://ap11.abc.com) in your
browser’s address field instead of entering the IP address. The
Secondary DNS server will be used if the Primary DNS server
fails to connect.
None
Network Settings for Client-Router Operation Mode
WLAN IP address assignment
Setting
Description
Factory Default
DHCP
The AWK-3131A-RTG WLAN interface’s IP address will be
assigned automatically by the network’s DHCP server
Static
AWK-3131A-RTG UM
Web Console Configuration
3-8
Static
Set up the AWK-3131A-RTG WLAN interface’s IP address
manually.
WLAN IP address
Setting
Description
Factory Default
AWK-3131A-RTG
WLAN interface’s IP
address
Identifies the AWK-3131A-RTG WLAN interface’s IP address on
a TCP/IP network.
192.168.128.253
WLAN subnet mask
Setting
Description
Factory Default
AWK-3131A-RTG
WLAN interface’s
subnet mask
Identifies the type of network to which the AWK-3131A-RTG’s
WLAN interface is connected (e.g., 255.255.0.0 for a Class B
network, or 255.255.255.0 for a Class C network).
255.255.255.0
WLAN gateway
Setting
Description
Factory Default
AWK-3131A-RTG
WLAN interface’s
default gateway
The IP address of the router that connects the WLAN to an
outside network.
None
Primary/Secondary DNS server
Setting
Description
Factory Default
IP address of the
Primary/Secondary
DNS server
The IP address of the DNS Server used by your network. After
entering the DNS Server’s IP address, you can input the
AWK-3131A-RTG’s URL (e.g., http://ap11.abc.com) in your
browser’s address field instead of entering the IP address. The
Secondary DNS server will be used if the Primary DNS server
fails to connect.
None
LAN IP address
Setting
Description
Factory Default
AWK-3131A-RTG LAN
interface’s IP address
Identifies the AWK-3131A-RTG LAN interface’s IP address on a
TCP/IP network.
192.168.127.253
LAN subnet mask
Setting
Description
Factory Default
AWK-3131A-RTG LAN
interface’s subnet mask
Identifies the type of network to which the AWK-3131A-RTG’s
LAN interface is connected (e.g., 255.255.0.0 for a Class B
network, or 255.255.255.0 for a Class C network).
255.255.255.0
Time Settings
The AWK-3131A-RTG has a time calibration function that can update the date and time information based on
an NTP server or the date and time information specified by the user.
AWK-3131A-RTG UM
Web Console Configuration
3-9
ATTENTION
Changing the time zone will automatically adjust the Current local time. You should configure the Time
zone before setting the Current local time.
The Current local time shows the AWK-3131A-RTG’s system time when you open this web page. After you
update the date and time setting, click on the Set Time button to activate the new date and time. An
“(Updated)” string is displayed next to the date and time fields to indicate that the change is complete. Any
change in the date and time setting is effective immediately and does not need a system restart.
The AWK-3131A-RTG has a built-in real time clock (RTC). The RTC is a computer clock (most often in the form
of an integrated circuit) that keeps track of the current time. We strongly recommend that users update the
Time Settings of the AWK-3131A-RTG after the initial setup is complete or when the AWK-3131A-RTG is
switched on after a long-term shutdown, especially if the network does not have an Internet connection for
accessing a NTP server or there is no NTP server on the LAN.
Current local time
Setting
Description
Factory Default
User-specified date and
time
The date and time parameters allow configuration of the local
time with immediate activation.
Use 24-hour format: yyyy/mm/dd hh:mm:ss
None
Time zone
Setting
Description
Factory Default
User-specified time
zone
The time zone setting allows the conversion from GMT
(Greenwich Mean Time) to the local time.
GMT
Daylight saving time
Setting
Description
Factory Default
Enable/ Disable
Daylight saving time (also known as DST or summer time)
involves advancing clocks (usually 1 hour) during the summer
time to provide an extra hour of daylight in the afternoon.
Disable
When Daylight saving time is enabled, the following parameters will be shown:
• Starts at: The date that daylight saving time begins.
• Stops at: The date that daylight saving time ends.
• Time offset: Indicates the number of hours the clock should be advanced.
Time server 1/2
Setting
Description
Factory Default
IP address of the name of
the Time Server 1/2
IP address or domain name of the NTP time server. The
second NTP server will be used if the first NTP server fails to
time.nist.gov
AWK-3131A-RTG UM
Web Console Configuration
3-10
connect.
Query period
Setting
Description
Factory Default
The query period to sync
with the time server
(1 to 9999 seconds)
This parameter determines how often the time is updated
from the NTP server.
600 (seconds)
Wireless Settings
The essential settings for wireless networks are presented in the wireless settings function group. You must
configure these settings correctly before you establish your wireless network. Familiarize yourself with the
following terms before starting the configuration process:
AP: In a wireless local area network (WLAN), an access point is a station that transmits and receives data.
Client: When the AWK-3131A-RTG is configured for Client mode, it can be used as an Ethernet-to-wireless (or
LAN-to-WLAN) network adapter. For example, a notebook computer equipped with an Ethernet adaptor but no
wireless card can be connected to this device with an Ethernet cable to provide wireless connectivity to another
AP.
Operation Mode
The AWK-3131A-RTG supports five main operation modes—AP, Client, and Client-Router, each of which
plays a distinct role on the wireless network.
Wireless Enable
Setting
Description
Factory Default
Enable/Disable
Use this function to turn the RF (Radio Frequency) module on or
off manually.
NOTE: This function is available in AP operation mode only.
Enable
Operation Mode
Setting
Description
Factory Default
AP
The most common mode used by the AWK-3131A-RTG wherein
AP
AWK-3131A-RTG UM
Web Console Configuration
3-11
it plays the role of a wireless AP
Client
In this mode, the AWK-3131A-RTG can connect to wireless AP
devices
Client-Router
The AWK-3131A-RTG plays the role of a wireless client and a
router.
Sniffer
Turns the device into a remote Wireshark interface to capture
802.11 packets for analysis.
Sniffer Mode Instructions:
1. Set operation mode to Sniffer mode on the AWK-3131A-RTG and then save/reboot the device.
2. Connect the AWK-3131A-RTG to a laptop with Wireshark installed (v1.12.0 or later release) via Ethernet.
3. Add a remote interface by entering the IP address of the AWK-3131A-RTG.
Detailed Wireshark instructions can be found at:
https://www.wireshark.org/docs/wsug_html_chunked/ChCapInterfaceRemoteSection.html
4. Start capturing 802.11 wireless packets with Wireshark.
Basic Wireless Settings (Multiple SSID)
You can add new SSIDs or edit existing ones in the WLAN Basic Setting Selection panel. You can configure
up to 9 SSIDs for an AWK and configure each SSID differently.
An SSID is a unique identifier that wireless networking devices use to establish and maintain wireless
connectivity. Multiple access points on a network or sub-network can use the same SSIDs. All of the SSIDs that
you configure for an AP are active at the same time. That is, client devices can use any of the SSIDs to associate
with the AP.
To create an SSID for your AWK, click on Add SSID. To edit an existing SSID and assign different configuration
settings to it, click on the Edit button corresponding to the SSID. A configuration panel is displayed as follows:
AWK-3131A-RTG UM
Web Console Configuration
3-12
When you switch to Client mode, a Site Survey button will be available on the Basic Wireless Settings
panel. Use the Site Survey function to view information about available APs, as shown in the following figures.
You can also click on an SSID listed on the Site Survey page to bring the details of the SSID onto the Basic
Wireless Settings page. To update the site survey table, click the Refresh button.
If this client is connecting to an AP, a brief disconnection will occur when you click on Site Survey.
RF type
Setting
Description
Factory Default
2.4 GHz
B
Only supports the IEEE 802.11b standard
B/G/N Mixed
G
Only supports the IEEE 802.11g standard
AWK-3131A-RTG UM
Web Console Configuration
3-13
B/G Mixed
Supports IEEE 802.11b/g standards, but 802.11g might
operate at a slower speed when 802.11b clients are on the
network
G/N Mixed
Supports IEEE 802.11g/n standards, but 802.11n might
operate at a slower speed if 802.11g clients are on the network
B/G/N Mixed
Supports IEEE 802.11b/g/n standards, but 802.11g/n might
operate at a slower speed if 802.11b clients are on the network
N Only (2.4GHz)
Only supports the 2.4 GHz IEEE 802.11n standard
5 GHz
A
Only supports the IEEE 802.11a standard
A/N Mixed
Supports IEEE 802.11a/n standards, but 802.11n may operate
at a slower speed if 802.11a clients are on the network
N Only (5GHz)
Only supports the 5 GHz IEEE 802.11n standard
Channel (for AP mode only)
Setting
Description
Factory Default
The available channels
vary with the RF type
setting
The channel on which the AWK should operate. The
AWK-3131A-RTG plays the role of a wireless AP here.
6 (in B/G/N Mixed
mode)
Channel Width (for any 11N RF type only)
Setting
Description
Factory Default
20 MHz
Select the channel width.
If you are not sure, use the 20/40 MHz (Auto) option
20 MHz
20/40 MHz
Channel bonding
If you have selected 20/40 MHz only in the Channel Width setting, this setting will automatically set the
channel based on the Channel setting.
SSID
Setting
Description
Factory Default
Maximum of 31
characters
The SSID of a client and the SSID of the AP must be identical for
the client and AP to be able to communicate with each other.
MOXA
SSID broadcast (for AP mode only)
Setting
Description
Factory Default
Enable/Disable
Use this setting to specify if the SSID can be broadcast or not
Enable
Management frame encryption
Setting
Description
Factory Default
Enable/Disable
Enables management frame encryption to protect your wireless
network from DoS attacks. This function only works with
Moxa's TAP and AWK-RTG series.
Disable

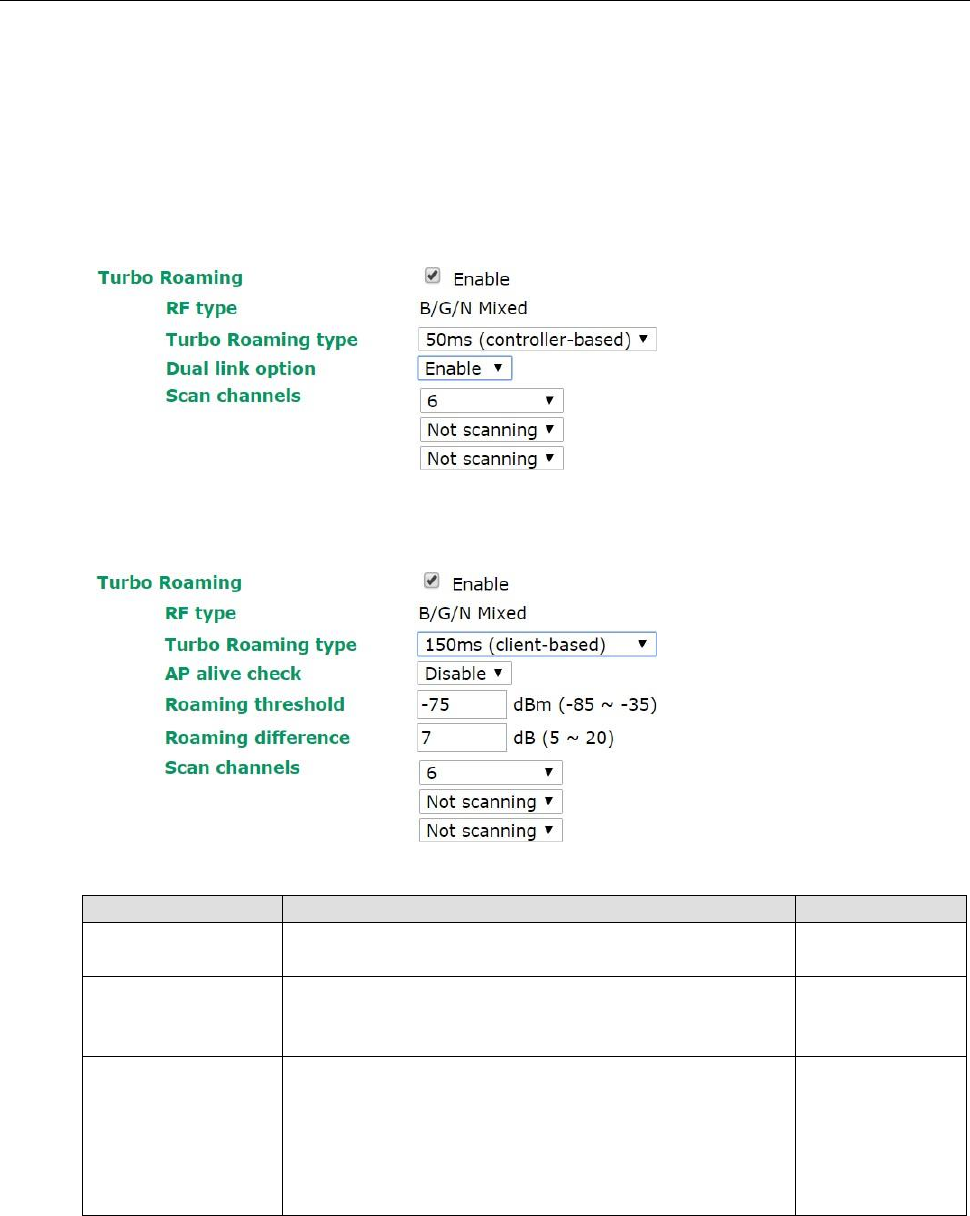

50ms Turbo Roaming (controller-based)
Setting
Description
Factory Default
Enable/Disable
Determines whether or not the AWK-3131A-RTG supports 50
ms roaming. This function only works with the WAC-1001,
WAC-2004, TAP, and AWK-RTG series.
Disable
AWK-3131A-RTG UM
Web Console Configuration
3-14
WLAN Security Settings
The AWK-3131A-RTG provides four standardized wireless security modes: Open, WEP (Wired Equivalent
Privacy), WPA (Wi-Fi Protected Access), and WPA2. Several security modes are available in the
AWK-3131A-RTG by selecting Security mode and WPA type:
• Open: No authentication, no data encryption.
• WEP: Static WEP (Wired Equivalent Privacy) keys must be configured manually.
• WPA/WPA2-Personal: Also known as WPA/WPA2-PSK. You will need to specify the Pre-Shared Key in the
Passphrase field, which will be used by the TKIP or AES engine as a master key to generate keys that
actually encrypt outgoing packets and decrypt incoming packets.
• WPA/WPA2-Enterprise: Also called WPA/WPA2-EAP (Extensible Authentication Protocol). In addition to
device-based authentication, WPA/WPA2-Enterprise enables user-based authentication via IEEE 802.1X.
The AWK-3131A-RTG can support three EAP methods: EAP-TLS, EAP-TTLS, and EAP-PEAP.
Security mode
Setting
Description
Factory Default
Open
No authentication
Open
WEP
Static WEP is used
WPA
WPA is used
WPA2
Fully supports IEEE 802.11i with “TKIP/AES + 802.1X”
Open
For security reasons, you should NOT set security mode to Open System, since authentication and data
encryption are NOT performed in Open System mode.
WEP (only for legacy mode)
Moxa includes WEP security mode only for legacy purposes. WEP is highly insecure and is considered fully
deprecated by the Wi-Fi alliance. We do not recommend the use of WEP security under any circumstances.
According to the IEEE 802.11
standard, WEP can be used for
authentication and data encryption
to maintain confidentiality. Shared
(or Shared Key) authentication type
is used if WEP authentication and
data encryption are both needed.
Normally, Open (or Open System)
authentication type is used when
WEP data encryption is run with
authentication.
When WEP is enabled as a security
mode, the length of a key (so-called
WEP seed) can be specified as
64/128 bits, which is actually a 40/104-bit secret key with a 24-bit initialization vector. The AWK-3131A-RTG
provides 4 entities of WEP key settings that can be selected to use with Key index.
AWK-3131A-RTG UM
Web Console Configuration
3-15
The selected key setting specifies the key to be used as a send-key for encrypting traffic from the AP side to the
wireless client side. All 4 WEP keys are used as receive-keys to decrypt traffic from the wireless client side to
the AP side.
The WEP key can be presented in two Key types, HEX and ASCII. Each ASCII character has 8 bits, so a 40-bit
(or 64-bit) WEP key contains 5 characters, and a 104-bit (or 128-bit) key has 13 characters. In hex, each
character uses 4 bits, so a 40-bit key has 10 hex characters, and a 128-bit key has 26 characters.
Authentication type
Setting
Description
Factory Default
Open
Data encryption is enabled, but without authentication
Open
Shared
Data encryption and authentication are both enabled.
Key type
Setting
Description
Factory Default
HEX
Specifies WEP keys in hex-decimal number form
HEX
ASCII
Specifies WEP keys in ASCII form
Key length
Setting
Description
Factory Default
64 bits
Uses 40-bit secret keys with 24-bit initialization vector
64 bits
128 bits
Uses 104-bit secret key with 24-bit initialization vector
Key index
Setting
Description
Factory Default
1-4
Specifies which WEP key is used
Open
WEP key 1-4
Setting
Description
Factory Default
ASCII type:
64 bits: 5 chars
128 bits: 13chars
HEX type:
64 bits: 10 hex chars
128 bits: 26 hex chars
A string that can be used as a WEP seed for the RC4 encryption
engine.
None
WPA/WPA2-Personal
WPA (Wi-Fi Protected Access) and WPA2 represent significant improvements over the WEP encryption method.
WPA is a security standard based on 802.11i draft 3, while WPA2 is based on the fully ratified version of 802.11i.
The initial vector is transmitted, encrypted, and enhanced with its 48 bits, twice as long as WEP. The key is
regularly changed so that true session is secured.
Even though AES encryption is only included in the WPA2 standard, it is widely available in the WPA security
mode of some wireless APs and clients as well. The AWK-3131A-RTG also supports AES algorithms in WPA and
WPA2 for better compatibility.
Personal versions of WPA/WPA2, also known as WPA/WPA-PSK (Pre-Shared Key), provide a simple way of
encrypting a wireless connection for high confidentiality. A Passphrase is used as a basis for encryption
methods (or cipher types) in a WLAN connection. The passphrases should be complicated and as long as
possible. There must be at least 8 ASCII characters in the Passphrase, and it could go up to 63. For security
reasons, this passphrase should only be disclosed to users who need it, and it should be changed regularly.
AWK-3131A-RTG UM
Web Console Configuration
3-16
WPA type
Setting
Description
Factory Default
Personal
Provides Pre-Shared Key-enabled WPA and WPA2
Personal
Enterprise
Provides enterprise-level security for WPA and WPA2
Encryption method
Setting
Description
Factory Default
TKIP**
Temporal Key Integrity Protocol is enabled
AES
AES
Advance Encryption System is enabled
Mixed*
Provides TKIP broadcast key and TKIP+AES unicast key for
some legacy AP clients. This option is rarely used.
** This option is only available with 802.11a/b/g standard
* This option is only available for legacy mode in APs and does not support AES-enabled clients.
Passphrase
Setting
Description
Factory Default
8 to 63 characters
Master key to generate keys for encryption and decryption
None
Key renewal (for AP mode only)
Setting
Description
Factory Default
60 to 86400 seconds
(1 minute to 1 day)
Specifies the time period of group key renewal
3600 (seconds)
The key renewal value dictates how often the wireless AP encryption keys should be changed. The security
level is generally higher if you set the key renewal value to a shorter number, which forces the encryption keys
to be changed more frequently. The default value is 3600 seconds (6 minutes). Longer time periods can be
considered if the line is not very busy.
WPA/WPA2-Enterprise (for AP mode)
By setting WPA type to Enterprise, you can use EAP (Extensible Authentication Protocol), a framework
authentication protocol used by 802.1X to provide network authentication. In these Enterprise-level security
modes, a back-end RADIUS (Remote Authentication Dial-In User Service) server is needed if IEEE 802.1X
functionality is enabled in WPA /WPA2. The IEEE 802.1X protocol also offers the possibility of carrying out an
efficient connection authentication on a large-scale network. It is not necessary to exchange keys or
passphrases.
AWK-3131A-RTG UM
Web Console Configuration
3-17
WPA type
Setting
Description
Factory Default
Personal
Provides Pre-Shared Key-enabled WPA and WPA2
Personal
Enterprise
Provides enterprise-level security for WPA and WPA2
Encryption method
Setting
Description
Factory Default
TKIP**
Temporal Key Integrity Protocol is enabled
AES
AES
Advance Encryption System is enabled
Mixed*
Provides TKIP broadcast key and TKIP+AES unicast key for
some legacy AP clients. This option is rarely used.
** This option is only available with 802.11a/b/g standard
* This option is available only for legacy mode in APs and does not support AES-enabled clients.
Primary/Secondary RADIUS server IP
Setting
Description
Factory Default
The IP address of
RADIUS server
Specifies the delegated RADIUS server for EAP
None
Primary/Secondary RADIUS port
Setting
Description
Factory Default
Port number
Specifies the port number of the delegated RADIUS server
1812
Primary/ Secondary RADIUS shared key
Setting
Description
Factory Default
Max. of 31 characters
The secret key shared between AP and RADIUS server
None
Key renewal
Setting
Description
Factory Default
60 to 86400 seconds
(1 minute to 1 day)
Specifies the time period of group key renewal
3600 (seconds)
AWK-3131A-RTG UM
Web Console Configuration
3-18
WPA/WPA2-Enterprise (for Client/Client-Router mode)
When used as a client, the AWK-3131A-RTG can support three EAP methods (or EAP protocols): EAP-TLS,
EAP-TTLS, and EAP-PEAP, corresponding to WPA/WPA-Enterprise settings on the AP side.
Encryption method
Setting
Description
Factory Default
TKIP**
Temporal Key Integrity Protocol is enabled
TKIP
AES
Advance Encryption System is enabled
**This option is only available with 802.11a/b/g standard.
EAP protocol
Setting
Description
Factory Default
TLS
Specifies Transport Layer Security protocol
TLS
TTLS
Specifies Tunneled Transport Layer Security
PEAP
Specifies Protected Extensible Authentication Protocol, or
Protected EAP
Before choosing the EAP protocol for your WPA/WPA2-Enterpise settings on the client end, please contact the
network administrator to make sure the system supports the protocol on the AP end. Detailed information on
these three popular EAP protocols is presented in the following sections.
EAP-TLS
TLS is the standards-based successor to Secure Socket Layer (SSL). It can establish a trusted communication
channel over a distrusted network. TLS provides mutual authentication through certificate exchange. EAP-TLS
is also secure to use. You are required to submit a digital certificate to the authentication server for validation,
but the authentication server must also supply a certificate.
You can use Basic WLAN Setup WLAN Certificate Settings to import your WLAN certificate and enable
EAP-TLS on the client end.
AWK-3131A-RTG UM
Web Console Configuration
3-19
You can check the current certificate status in Current Status if it is available.
• Certificate issued to: Shows the certificate user
• Certificate issued by: Shows the certificate issuer
• Certificate expiration date: Indicates when the certificate has expired
EAP-TTLS
It is usually much easier to re-use existing authentication systems, such as a Windows domain or Active
Directory, LDAP directory, or Kerberos realm, rather than creating a parallel authentication system. As a
result, TTLS (Tunneled TLS) and PEAP (Protected EAP) are used to support the use of so-called “legacy
authentication methods.”
TTLS and PEAP work in a similar way. First, they establish a TLS tunnel (EAP-TLS for example), and validate
whether the network is trustworthy with digital certificates on the authentication server. This step
establishes a tunnel that protects the next step (or “inner” authentication), and consequently is sometimes
referred to as “outer” authentication. The TLS tunnel is then used to encrypt an older authentication protocol
that authenticates the user for the network.
As you can see, digital certificates are still needed for outer authentication in a simplified form. Only a small
number of certificates are required, which can be generated by a small certificate authority. Certificate
reduction makes TTLS and PEAP much more popular than EAP-TLS.
The AWK-3131A-RTG provides some non-cryptographic EAP methods, including PAP, CHAP, MS-CHAP, and
MS-CHAP-V2. These EAP methods are not recommended for direct use on wireless networks. However, they
may be useful as inner authentication methods with TTLS and PEAP.
AWK-3131A-RTG UM
Web Console Configuration
3-20
Because the inner and outer
authentications can use
distinct user names in TTLS
and PEAP, you can use an
anonymous user name for the
outer authentication, with the
true user name only shown
through the encrypted
channel. Keep in mind that not
all client software supports
anonymous alteration.
Confirm this with the network
administrator before you
enable identity hiding in TTLS
and PEAP.
TTL inner authentication
Setting
Description
Factory Default
PAP
Password Authentication Protocol is used
MS-CHAP-V2
CHAP
Challenge Handshake Authentication Protocol is used
MS-CHAP
Microsoft CHAP is used
MS-CHAP-V2
Microsoft CHAP version 2 is used
Anonymous
Setting
Description
Factory Default
Max. of 31 characters
A distinct name used for outer authentication
None
User name & Password
Setting
Description
Factory Default
User name and password used in inner authentication
None
PEAP
There are a few differences in
the TTLS and PEAP inner
authentication procedures.
TTLS uses the encrypted
channel to exchange
attribute-value pairs (AVPs),
while PEAP uses the encrypted
channel to start a second EAP
exchange inside of the tunnel.
The AWK-3131A-RTG
provides MS-CHAP-V2
merely as an EAP method for
inner authentication.
Inner EAP protocol
Setting
Description
Factory Default
MS-CHAP-V2
Microsoft CHAP version 2 is used
MS-CHAP-V2
AWK-3131A-RTG UM
Web Console Configuration
3-21
Anonymous
Setting
Description
Factory Default
Max. of 31 characters
A distinct name used for outer authentication
None
User name & Password
Setting
Description
Factory Default
User name and password used in inner authentication
None
Advanced Wireless Settings
Additional wireless-related parameters are presented in this section to help you set up your wireless network
in detail.
Transmission Rate (for A, B, G, B/G mixed, and N modes only)
Setting
Description
Factory Default
Auto
The AWK-3131A-RTG senses and adjusts the data rate
automatically
Auto
Available rates
Users can manually select a target transmission data rate
Multicast Rate (for AP mode only)
Setting
Description
Factory Default
Multicast rate
(6M ~ 54M)
You can set a fixed multicast rate for the transmission of
broadcast and multicast packets on a per-radio basis. This
parameter can be useful in an environment where multicast
video streaming is occurring in the wireless medium, provided
that the wireless clients are capable of handling the configured
rate.
6M
Guard Interval
Setting
Description
Factory Default
Guard Interval
Guard interval is used to ensure that distinct transmissions do
800 ns.
AWK-3131A-RTG UM
Web Console Configuration
3-22
not interfere with one another. You can select the guard
interval manually for Wireless-N connections. The two options
are Short (400 ns) and Long (800 ns).
NOTE: This function can be modified in N mode only.
Maximum transmission power
Setting
Description
Factory Default
Available Power
Users can manually select a target power to mask max output
power. Because different transmission rates might have their
own max output power, please reference product datasheet.
The available setting is from 3 to 26.
dBm/MHz: The density of transmission power in channel width.
12 dBm
(-1 dBm/MHz)
Most countries define a limit for the Equivalent Isotropically Radiated Power (EIRP) for an RF transmitting
system. The EIRP should not exceed the allowed value. EIRP = transmission power + antenna gain (dBi).
Transmission power indicates the maximum value of transmission power which the user plans. However, the
real transmitted power depends on the radio module and some facts, such as country, regulatory limitations
and data rate. Please check the Transmission power in Status > Wireless Status for a real and updated value
of transmission power, which the AWK is currently using.
You can refer to the related glossaries in the reference section for detailed information about the
above-mentioned settings. By setting these parameters properly, you can better tune the performance of your
wireless network.
Beacon Interval (for AP mode only)
Setting
Description
Factory Default
Beacon Interval
(40 to 1000 ms)
Indicates the frequency interval of the beacon
100 (ms)
DTIM Interval (for AP mode only)
Setting
Description
Factory Default
Data Beacon Rate
(1 to 15)
Indicates how often the AWK-3131A-RTG sends out a Delivery
Traffic Indication Message
1
Fragmentation threshold
Setting
Description
Factory Default
Fragment Length
(256 to 2346)
Specifies the maximum size a data packet before splitting and
creating another new packet
2346
RTS threshold
Setting
Description
Factory Default
RTS/CTS Threshold
(256 to 2346)
Determines how large a packet can be before the Access Point
coordinates transmission and reception to ensure efficient
communication
2346
Antenna
Setting
Description
Factory Default
A/B/Both
Specifies the output antenna port. Setting “Antenna” to Auto
allows 2x2 MIMO communication under 802.11n and 2T2R*
Both
AWK-3131A-RTG UM
Web Console Configuration
3-23
communication in legacy 802.11a/b/g modes.
*Note: Different from 802.11n’s multiple spatial data stream (2x2 MIMO), which doubles the throughput, 2T2R
is transmits/receives the same piece of data on both antenna ports.
WMM
Setting
Description
Factory Default
Enable/Disable
WMM is a QoS standard for WLAN traffic. Voice and video data
will be given priority bandwidth when enabled with WMM
supported wireless clients.
NOTE: This setting can be enabled/disabled only in A, B, and
B/G Mixed modes. For N, G/N Mixed, B/G/N Mixed, and A/N
Mixed modes, this setting is enabled by default.
Disable
Roaming Priority (Only for AP mode)
Setting
Description
Factory Default
Priority 1/2
The roaming priority should be set based on how the radios are
deployed along the trackside.
Priority 1: radios along the trackside are deployed with open air
radiating antennas.
Priority 2: radios along the trackside are deployed with leaky
feeder like coverage patterns.
Due to the differences in coverage patterns between different
deployment scenarios, the roaming priority you select will
impact roaming performance.
Priority 2
AeroLink Protection (Only for Client mode)
Setting
Description
Factory Default
Disable/L2/L3
• Enable AeroLink Protection to allow wireless clients on the
same LAN network to automatically negotiate with each
other and form a redundant wireless communication. For
more details, see Status AeroLink Protection Status.
• Select L2 for roaming on an L2 trackside network.
• Select L3 for roaming on an L3 trackside network.
Disabled
When L3 is selected, Virtual LAN IP and Virtual WLAN IP are shown as additional setting parameters.
READ THIS BEFORE CHANGING THE DFS SETTING
DFS (Dynamic Frequency Selection) is a mechanism to allow unlicensed wireless devices to share spectrum
with existing radar systems by detecting radar systems and avoid causing interference with them.
AWK-3131A-RTG UM
Web Console Configuration
3-24
Virtual LAN IP: This IP should be defined as the gateway IP for onboard devices so that all incoming and
outgoing traffic can be routed properly via this common IP in case of any role changes of the onboard clients.
All AeroLink protected clients within the same subnet need to be configured with the same virtual LAN IP.
Virtual WLAN IP: This IP should be defined as the virtual gateway IP for the wayside router, which can route
traffic to any onboard client regardless of the client’s home WAC. This IP only needs to be configured when
different clients have to backup each other while the clients are registered to different WAC units. For the router
to work properly, all clients and the wayside router will need to be configured to have this routing rule (i.e., to
use this virtual WLAN IP).

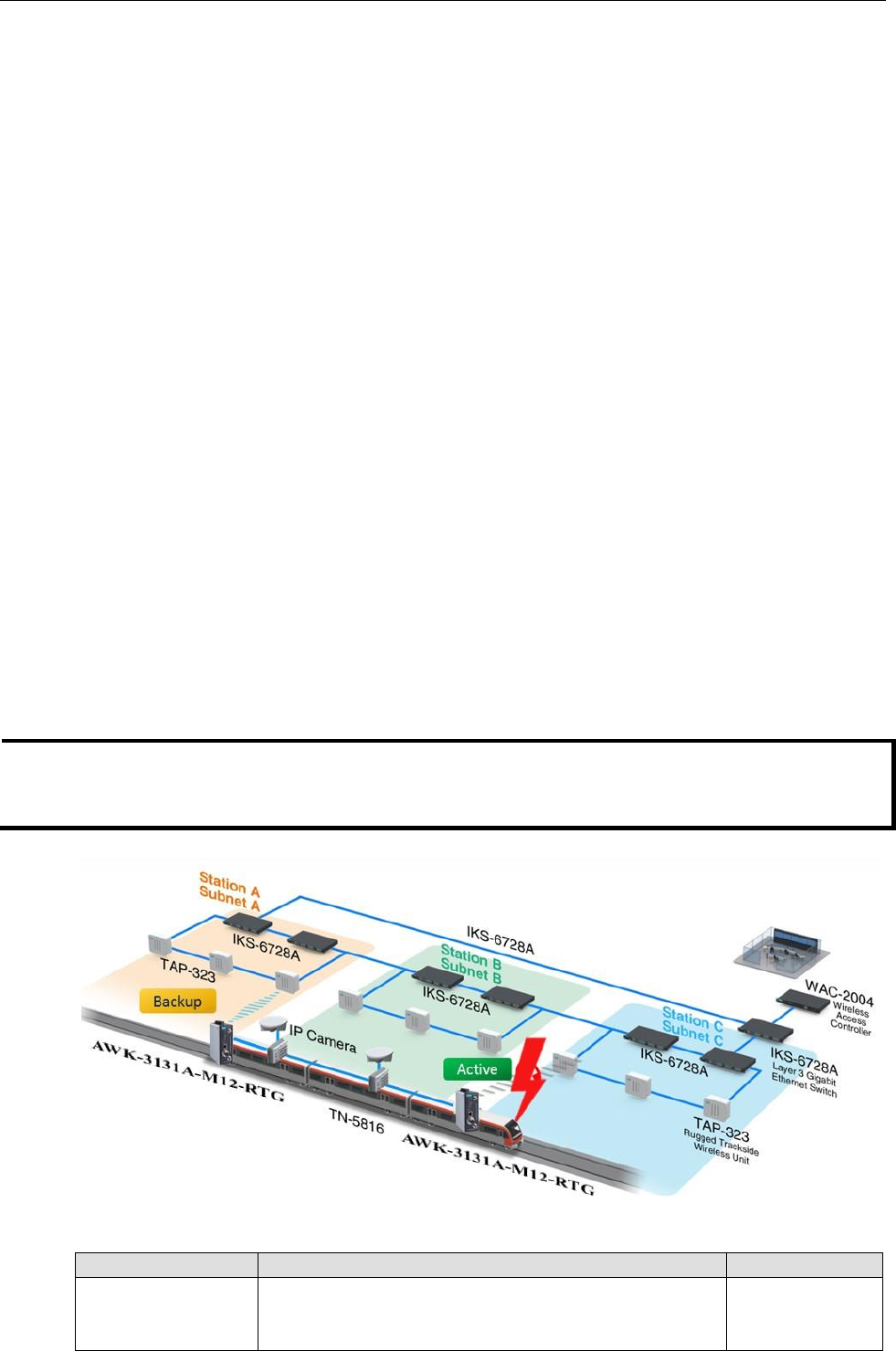

How AeroLink Protection Works
In vehicle-to-ground applications, it is essential to minimize system downtime and maximize system
availability of the train-to-ground link to ensure proper communication. Moxa’s AeroLink Protection provides a
reliable wireless network-level redundancy protocol to ensure that there will always be a live
onboard-to-ground link, even when failures occur:
1. Communication Failover: AeroLink Protection members can negotiate with each other to automatically elect
an Active node for data communication. If the Active node is no longer capable of sending data across to its
access point, it will inform other Backup nodes to resume the communication via another path.
2. Frequency-Interference Failover: This concept is similar to “Communication Failover.” If the
communication frequency is interfered with and data can no longer be transmitted over the current active
frequency, the connection is resumed via a backup frequency.
3. Device Failover: After handling communication and frequency failures, in order to provide a wireless
network free of single points of failure, AeroLink Protection also checks the device status. If the Active node
has a power failure, the Backup nodes will automatically resume the wireless communication.
4. Scalable: AeroLink Protection is designed to allow multiple backup paths, making it possible for users to
realize a complete redundant wireless network free from all the above failure types.
5. Fast Recovery: In addition to maintaining a redundant wireless network, providing uninterrupted
communication when a failure occurs is equally important. AeroLink Protection is designed to recover from
a failure in under 300 ms.
When you enable the AeroLink Protection function, management packets will be broadcast every 10 ms so that
the devices can negotiate with each other. If these broadcast packets are overwhelming your network, you can
disable this function
Turbo Roaming
Setting
Description
Factory Default
Enable/ Disable
Moxa’s Turbo Roaming can enable rapid handover when the
AWK-3131A-RTG, as a client or client-router, roams among a
group of APs.
Disable
AWK-3131A-RTG UM
Web Console Configuration
3-25
When Turbo Roaming is enabled, Turbo Roaming type, RF type, Dual link option, and Scan channels will
be shown as follows. There are two options available for Turbo Roaming type; 50ms (controller-based)
that only works with the RTG version of the access point and the WAC-1001 and WAC-2004, and 150ms
(client-based) that supports all brands of AP. Dual link reduces the packet-loss rate when roaming between
difference APs; this function only works with a single channel roaming structure. The RF type shows the current
RF type that this client is using. There are three Scan channels available. Note that the Scan channels may
need to be modified when the RF type is changed. (For example, channel 36 is not available in B, G, or B/G
Mix mode.)
If you set Turbo Roaming type to 150ms (client-based), three additional roaming parameters, Roaming
threshold, Roaming difference and AP alive check for 802.11b/g (or b/a) are shown as follows:
Roaming Parameters
Setting
Description
Factory Default
Roaming threshold
When the current RSSI value is lower than the “roaming
threshold,” the client will start the roaming process.
-75
Roaming difference
When the RSSI of a candidate AP is greater than “the current
RSSI value plus the roaming difference,” the client will roam to
this new candidate AP.
7
AP alive check
When “AP alive check” is enabled, the client will actively send
alive-check packets over the wireless network; APs who receive
the packets will respond to indicate that they are currently
available. By doing this, the client can maintain a ready list of
available APs, and then quickly hand over to a new AP once it
loses contact with the AP it is currently connected to.
-82
AWK-3131A-RTG UM
Web Console Configuration
3-26
Roaming Threshold Concept
T1 = Probing for new AP candidate to connect (background scan)
T2 = At this point is when the roaming difference conditions are met and
the client will initiate the roaming
T3 = At this point the client has successfully roamed over to the new AP2
When 50 ms Turbo Roaming is enabled without using the WAC-1001 or WAC-2004, the connection between the
AP and client will not work.
WLAN Certification Settings (Only For EAP-TLS in Client Mode)
When EAP-TLS is used, a WLAN Certificate will be required at the client end to support WPA/WPA2-Enterprise.
The AWK-3131A-RTG can support the PKCS #12, also known as Personal Information Exchange Syntax
Standard, certificate formats that define file formats commonly used to store private keys with accompanying
public key certificates, protected with a password-based symmetric key.
Current Status displays information for the current WLAN certificate, which has been imported into the
AWK-3131A-RTG. Nothing will be shown if a certificate is not available.
Certificate issued to: Shows the certificate user
Certificate issued by: Shows the certificate issuer
Certificate expiration date: Indicates when the certificate has expired
You can import a new WLAN certificate in Import WLAN Certificate by following these steps, in order:
1. Input the corresponding password (or key) in the Certificate private password field and then click
Submit to set the password.
2. The password will be displayed in the Certificate private password field. Click on the Browse button in
Select certificate/key file and select the certificate file.
AWK-3131A-RTG UM
Web Console Configuration
3-27
3. Click Upload Certificate File to import the certificate file. If the import succeeds, you can see the
information uploaded in Current Certificate. If it fails, you may need to return to step 1 to set the
password correctly and then import the certificate file again.
NOTE
The WLAN certificate will remain after the AWK-3131A-RTG reboots. Even though it has expired, it can still be
seen on the Current Certificate.
WAC Settings (AP Mode Only)
Controller-based Turbo Roaming function is automatically enabled when you enable the 50ms Turbo
Roaming (controller-based) option on the Wireless Settings > WLAN > Basic Wireless Settings > Edit
page. The Primary WAC IP address, Backup WAC IP address, and Roaming domain fields are displayed.
Primary WAC IP address
Setting
Description
Factory Default
IP address
Enter the IP address of the primary WAC-1001 or WAC-2004
None
Backup WAC IP address
Setting
Description
Factory Default
IP address
Enter the IP address of the backup WAC-1001 or WAC-2004
None
Primary WAC IP address
Setting
Description
Factory Default
6 Hex characters
Specifies the area served by the WAC-1001 or WAC-2004. All
related controllers, APs, and clients use this IP address as
identification to work and communicate with each other.
None
Advanced Settings
Several advanced functions are available to increase the functionality of your AWK-3131A-RTG and wireless
network system. A VLAN is a collection of clients and hosts grouped together as if they were connected to the
broadcast domains in a layer-2 network. The DHCP server helps you deploy wireless clients efficiently. Packet
filters provide security mechanisms, such as firewalls, in different network layers. Moreover, the
AWK-3131A-RTG UM
Web Console Configuration
3-28
AWK-3131A-RTG can support STP/RSTP protocol to increase reliability across the entire network, and SNMP
support can make network management easier.
Using Virtual LAN
Setting up Virtual LANs (VLANs) on your AWK series increases the efficiency of your network by dividing the
LAN into logical segments, as opposed to physical segments. In general, VLANs are easier to manage.
The Virtual LAN (VLAN) Concept
What is a VLAN?
A virtual LAN, commonly known as a VLAN, is a group of hosts with a common set of requirements that
communicate as if they were attached to the same broadcast domain, regardless of their physical location. A
VLAN has the same attributes as a physical LAN, but it allows for end stations to be grouped together even if
they are not located on the same network switch. Network reconfiguration can be done through software
instead of physically relocating devices.
VLANs now extend as far as the reach of the access point signal. Clients can be segmented into wireless
sub-networks via SSID and VLAN assignment. A Client can access the network by connecting to an AP
configured to support its assigned SSID/VLAN.
Benefits of VLANs
VLANs are used to conveniently, efficiently, and easily manage your network in the following ways:
• Manage adds, moves, and changes from a single point of contact
• Define and monitor groups
• Reduce broadcast and multicast traffic to unnecessary destinations
• Improve network performance and reduce latency
• Increase security
• Secure network restricts members to resources on their own VLAN
• Clients roam without compromising security
VLAN Workgroups and Traffic Management
The AP assigns clients to a VLAN based on a Network Name (SSID). The AP can support up to 9 SSIDs per radio
interface, with a unique VLAN configurable per SSID.
The AP matches packets transmitted or received to a network name with the associated VLAN. Traffic received
by a VLAN is only sent on the wireless interface associated with that same VLAN. This eliminates unnecessary
traffic on the wireless LAN, conserving bandwidth and maximizing throughput.
In addition to enhancing wireless traffic management, the VLAN-capable AP supports easy assignment of
wireless users to workgroups. In a typical scenario, each user VLAN represents a department workgroup; for
example, one VLAN could be used for a marketing department and the other for a human resource department.
In this scenario, the AP would assign every packet it accepted to a VLAN. Each packet would then be identified
as marketing or human resource, depending on which wireless client received it. The AP would insert VLAN
headers or “tags” with identifiers into the packets transmitted on the wired backbone to a network switch.
AWK-3131A-RTG UM
Web Console Configuration
3-29
Finally, the switch would be configured
to route packets from the marketing
department to the appropriate
corporate resources such as printers
and servers. Packets from the human
resource department could be
restricted to a gateway that allowed
access to only the Internet. A member
of the human resource department
could send and receive e-mail and
access the Internet, but would be
prevented from accessing servers or
hosts on the local corporate network.
Configuring Virtual LAN
VLAN Settings
To configure the AWK’s VLAN, use the VLAN Setting page to configure the ports.
Management VLAN ID
Setting
Description
Factory Default
VLAN ID
ranges from
1 to 4094
Set the management VLAN of this AWK.
1
Port
Type
Description
Trunk Port
LAN
This port is the LAN port on the AWK.
Yes
WLAN
This is a wireless port for the specific SSID. This field will refer
to the SSID that you have created. If more SSIDs have been
created, new rows will be added.
Port PVID
Setting
Description
Factory Default
VLAN ID ranging from 1
to 4094
Set the port’s VLAN ID for devices that connect to the port. The
port can be a LAN port or WLAN ports.
1
VLAN Tagged
Setting
Description
Factory Default
A comma-separated list
of VLAN IDs. Each of
the VLAN IDs range
from 1 to 4094. For
example: 1,2,3,4.
Specify which VLANs can communicate with this specific VLAN.
(Empty)
AWK-3131A-RTG UM
Web Console Configuration
3-30
DHCP Server
DHCP (Dynamic Host Configuration Protocol) is a networking protocol that allows administrators to assign
temporary IP addresses to network computers by “leasing” an IP address to a user for a limited amount of time,
instead of assigning permanent IP addresses.
The AWK-3131A-RTG can act as a simplified DHCP server and easily assign IP addresses to your DHCP clients
by responding to the DHCP requests from the client ends. The IP-related parameters you set on this page will
also be sent to the client.
You can also assign a static IP address to a specific client by entering its MAC address. The AWK-3131A-RTG
provides a Static DHCP mapping list with up to 16 entities. Be reminded to check the Active check box for
each entity to activate the setting.
You can check the IP assignment status under Status DHCP Client List.
DHCP server
Setting
Description
Factory Default
Enable
Enables AWK-3131A-RTG as a DHCP server
Disable
Disable
Disable DHCP server function
Default gateway
Setting
Description
Factory Default
IP address of a default
gateway
The IP address of the router that connects to an outside
network
None
NOTE The VLAN feature can allow wireless clients to manage the AP. If the VLAN Management ID matches a VLAN
ID, then those wireless clients who are members of that VLAN will have AP management access.
CAUTION: Once a VLAN Management ID is configured and is equivalent to one of the VLAN IDs on the AP, all
members of that User VLAN will have management access to the AP. Be careful to restrict VLAN membership
to those with legitimate access to the AP.
AWK-3131A-RTG UM
Web Console Configuration
3-31
Subnet mask
Setting
Description
Factory Default
subnet mask
Identifies the type of sub-network (e.g., 255.255.0.0 for a
Class B network, or 255.255.255.0 for a Class C network)
None
Primary/ Secondary DNS server
Setting
Description
Factory Default
IP address of Primary/
Secondary DNS server
The IP address of the DNS Server used by your network. After
entering the DNS Server’s IP address, you can use URL as well.
The Secondary DNS server will be used if the Primary DNS
server fails to connect.
None
Start IP address
Setting
Description
Factory Default
IP address
Indicates the IP address which AWK-3131A-RTG can start
assigning
None
Maximum number of users
Setting
Description
Factory Default
1–128 users
Specifies how many IP address can be assigned continuously
None
Client lease time
Setting
Description
Factory Default
5-1440 minutes
The lease time for which an IP address is assigned. The IP
address may go expired after the lease time is reached.
5 (minutes)
Packet Filters
The AWK-3131A-RTG includes various filters for IP-based packets going through LAN and WLAN interfaces.
You can set these filters as a firewall to help enhance network security.
MAC Filter
The AWK-3131A-RTG’s MAC filter is a policy-based filter that can allow or filter out IP-based packets with
specified MAC addresses. The AWK-3131A-RTG provides 8 entities for setting MAC addresses in your filtering
policy. Remember to check the Active check box for each entity to activate the setting.
Enable
Setting
Description
Factory Default
Enable
Enables MAC filter
Disable
Disable
Disables MAC filter
Policy
Setting
Description
Factory Default
Accept
Only the packets fitting the entities on list can be allowed.
Drop
Drop
Any packet fitting the entities on list will be denied.
AWK-3131A-RTG UM
Web Console Configuration
3-32
IP Protocol Filter
The AWK-3131A-RTG’s IP protocol filter is a policy-based filter that can allow or filter out IP-based packets with
specified IP protocol and source/destination IP addresses.
The AWK-3131A-RTG provides 8 entities for setting IP protocol and source/destination IP addresses in your
filtering policy. Four IP protocols are available: All, ICMP, TCP, and UDP. You must specify either the Source
IP or the Destination IP. By combining IP addresses and netmasks, you can specify a single IP address or a
range of IP addresses to accept or drop. For example, “IP address 192.168.1.1 and netmask 255.255.255.255”
refers to the sole IP address 192.168.1.1. “IP address 192.168.1.1 and netmask 255.255.255.0” refers to the
range of IP addresses from 192.168.1.1 to 192.168.1.255. Remember to check the Active check box for each
entity to activate the setting.
Enable
Setting
Description
Factory Default
Enable
Enables IP protocol filter
Disable
Disable
Disables IP protocol filter
Policy
Setting
Description
Factory Default
Accept
Only the packets fitting the entities on the list can be allowed
Drop
Drop
Any packet fitting the entities on the list will be denied
TCP/UDP Port Filter
The AWK-3131A-RTG’s TCP/UDP port filter is a policy-based filter that can allow or filter out TCP/UDP-based
packets with a specified source or destination port.
The AWK-3131A-RTG provides 8 entities for setting the range of source/destination ports of a specific protocol.
In addition to selecting TCP or UDP protocol, you can set either the source port, destination port, or both. The
end port can be left empty if only a single port is specified. Of course, the end port cannot be larger than the
start port.
The Application name is a text string that describes the corresponding entity with up to 31 characters.
Remember to check the Active check box for each entity to activate the setting.
ATTENTION
Be careful when you enable the filter function:
Drop + “no entity on list is activated” = all packets are allowed
Accept + “no entity on list is activated” = all packets are denied
ATTENTION
Be careful when you enable the filter function:
Drop + “no entity on list is activated” = all packets are allowed.
Accept + “no entity on list is activated” = all packets are denied.
AWK-3131A-RTG UM
Web Console Configuration
3-33
Enable
Setting
Description
Factory Default
Enable
Enables the TCP/UDP port filter
Disable
Disable
Disables the TCP/UDP port filter
Policy
Setting
Description
Factory Default
Accept
Only the packets fitting the entities on list can be allowed.
Drop
Drop
Any packet fitting the entities on list will be denied.
Static Route (For Client-Router Mode Only)
The Static Routing page is used to configure AWK-3131A-RTG’s static routing table.
Active
Click the checkbox to enable Static Routing.
Destination
You can specify the destination IP address.
Netmask
This option is used to specify the subnet mask for this IP address.
Gateway
The IP address of the router that connects the LAN to an external network.
Metric
Use this option to specify a “cost” for accessing the neighboring network.
Interface
You can select which interface does your routing rules would be set.
ATTENTION
Be careful when you enable the filter function:
Drop + “no entity on list is activated” = all packets are allowed
Accept + “no entity on list is activated” = all packets are denied
AWK-3131A-RTG UM
Web Console Configuration
3-34
AWK-3131A-RTG UM
Web Console Configuration
3-35
NAT Settings/Port Forwarding (For Client-Router Mode Only)
Network Address Translation (NAT)—or more specifically, one-to-many NAT, NAPT, or PAT—is supported to
facilitate the Client-Router operation mode. This feature translates the out-going communication from multiple
private IPs to a single external IP (WLAN IP) with randomly assigned port for return traffic.
Port Forwarding is needed to allow external devices to initiate communication. Port Forwarding specifies a
static map between external ports (WAN Port) and internal IP/port combos (LAN IP/LAN Port)
Enabling NAT and Port Forwarding provides the following benefits:
• Uses the NAT function to hide the Internal IP address of a critical network or device to increase the level of
security of industrial network applications.
• Uses the same private IP address for different, but identical, groups of Ethernet devices. For example,
1-to-1 NAT makes it easy to duplicate or extend identical production lines
AWK-3131A-RTG UM
Web Console Configuration
3-36
NAT
Setting
Description
Factory Default
Enable/Disable
Enables or disables the NAT translation
Disable
Port Forwarding
Active: Click the checkbox to enable Port Forwarding rule(s).
Protocol: Specifies the communication protocol.
WAN Port: Specifies the external port to be forwarded to.
LAN IP: Specifies the “forward to” LAN IP.
LAN Port: Specifies the “forward to” LAN Port.
SNMP Agent
The AWK-3131A-RTG supports SNMP V1/V2c/V3. SNMP V1 and SNMP V2c use a community string match for
authentication, which means that SNMP servers access all objects with read-only or read/write permissions
using the community string public/private (default value). SNMP V3, which requires you to select an
authentication level of MD5 or SHA, is the most secure protocol. You can also enable data encryption to
enhance data security.
The AWK-3131A-RTG’s MIB can be found in the software CD and supports reading the attributes via SNMP.
(Only get method is supported.)
SNMP security modes and security levels supported by the AWK-3131A-RTG are shown in the following table.
Select the security mode and level that will be used to communicate between the SNMP agent and manager.
Protocol
Version
Setting on
UI web page
Authentication
Type
Data
Encryption
Method
SNMP
V1, V2c
V1, V2c
Read
Community
Community string
No
Use a community string match for
authentication
V1, V2c
Write/Read
Community
Community string
No
Use a community string match for
authentication
SNMP V3
No-Auth
No
No
Use account with admin or user to access
objects
MD5 or SHA
Authentication
based on MD5 or
SHA
No
Provides authentication based on HMAC-MD5,
or HMAC-SHA algorithms. 8-character
passwords are the minimum requirement for
authentication.
MD5 or SHA
Authentication
based on MD5 or
SHA
Data
encryption
key
Provides authentication based on HMAC-MD5
or HMAC-SHA algorithms, and data encryption
key. 8-character passwords and a data
encryption key are the minimum requirements
for authentication and encryption.
The following parameters can be configured on the SNMP Agent page. A more detailed explanation of each
parameter is given below:
AWK-3131A-RTG UM
Web Console Configuration
3-37
Enable
Setting
Description
Factory Default
Enable
Enables SNMP Agent
Disable
Disable
Disables SNMP Agent
Remote Management
Setting
Description
Factory Default
Enable
Allow remote management via SNMP agent
Disable
Disable
Disallow remote management via SNMP agent
Read community (for V1, V2c)
Setting
Description
Factory Default
V1, V2c Read
Community
Use a community string match with a maximum of 31
characters for authentication. This means that the SNMP agent
can access all objects with read-only permissions using this
community string.
public
Write community (for V1, V2c)
Setting
Description
Factory Default
V1, V2c Read /Write
Community
Use a community string match with a maximum of 31
characters for authentication. This means that the SNMP agent
can accesses all objects with read/write permissions using this
community string.
private
SNMP agent version
Setting
Description
Factory Default
V1, V2c, V3, or
V1, V2c, or V3 only
Select the SNMP protocol version used to manage the switch.
V1, V2c
Admin auth type (for V1, V2c, V3, and V3 only)
Setting
Description
Factory Default
No Auth
Use admin account to access objects. No authentication
No Auth
MD5
Provide authentication based on the HMAC-MD5 algorithms.
8-character passwords are the minimum requirement for
authentication.
SHA
Provides authentication based on
HMAC-SHA algorithms. 8-character passwords are the
minimum requirement for authentication.
AWK-3131A-RTG UM
Web Console Configuration
3-38
Admin private key (for V1, V2c, V3, and V3 only)
Setting
Description
Factory Default
Disable
No data encryption
Disable
DES
DES-based data encryption
AES
AES-based data encryption
Private key
A data encryption key is the minimum requirement for data encryption (maximum of 63 characters)
Private MIB Information Device Object ID
Also known as the OID, this is the AWK-3131A-RTG’s enterprise value and is a fixed value.
Mobile IP Settings
The mobile IP technology enables the AWK-3131A-RTG to roam between Layer 3 networks with a roaming
break time less than 50 ms. When the AWK-3131A-RTG is in client/client router mode, it is a mobile node (MN)
that is able to roam across different subnets without changing its IP address.
Mobile IP Topology Example:
Terminology
Description
Mobile Node (MN)
A host or router that changes its location from one network to another.
Home network
The network within which the MN receives its identifying IP address (home
address)
Home address
The IP address assigned to the MN within its home network
Foreign network
The network in which an MN is operating when away from its home network
Home agent (HA)
A router on the home network that provides services to the MN. The home agent
intercepts packets sent to the MN within the home network, encapsulates them,
and then tunnels them to the MN.
Correspondent Node (CN)
A peer with which a mobile node is communicating
Co-located Care-of Address
(CCoA)
The new IP address of the MN when operating on a foreign network.
Binding
The association of the home address with a CCoA
AWK-3131A-RTG UM
Web Console Configuration
3-39
Setting
Description
Factory Default
Mobile IP
Enable/disable mobile IP capability of the client (mobile node)
for L3 controller based roaming
Disable
Subnet Binding
Define a subnet of devices connected behind the client (MN) so
that data will be forwarded to the corresponding device
subnets. Proper IP planning is required to avoid configuring the
subnet binding IP to limit access to the AWK.
Disable
Note that when the Mobile IP is enabled, the corresponding AP and WAC (HA) controller will also need to be
configured properly (with 50 ms roaming enabled) to ensure correct operation of the L3 roaming network.
Link Fault Pass-Through (For Client Mode Only)
This function means if Ethernet port is link down, wireless connection will be forced to disconnect. Once
Ethernet link is recovered, AWK will try to connect to AP.
If wireless is disconnected, AWK restarts auto-negotiation on Ethernet port but always stays in the link failure
state. Once the wireless connection is recovered, AWK will try to recover the Ethernet link.
System log will indicate the link fault pass-through events in addition to the original link up/down events.
Link Fault Pass-Through
Setting
Description
Factory Default
Enable
Enables the Link Fault Pass-Through function
Disable
Disable
Disables the Link Fault Pass-Through function
AWK-3131A-RTG UM
Web Console Configuration
3-40
Auto Warning Settings
Since industrial-grade devices are often located at the endpoints of a system, these devices will not always
know what is happening elsewhere on the network. This means that these devices, including wireless APs or
clients, must provide system maintainers with real-time alarm messages. Even when system administrators
are out of the control room for an extended period, they can still be informed of the status of devices almost
instantaneously when exceptions occur.
In addition to logging these events, the AWK-3131A-RTG supports different approaches to warn engineers
automatically, such as SNMP trap and e-mail. It also supports two digital inputs to integrate sensors into your
system to automate alarms by email.
System Log
System Log Event Types
Detail information for grouped events is shown in the following table. You can check the box for Enable log to
enable the grouped events. All default values are enabled (checked). The log for system events can be seen in
Status System Log.
System-related events
Event is triggered when…
System restart (warm start)
The AWK-3131A-RTG is rebooted, such as when its settings are
changed (IP address, subnet mask, etc.).
Network-related events
Event is triggered when…
LAN link on
The LAN port is connected to a device or network.
LAN link off
The port is disconnected (e.g., the cable is pulled out, or the
opposing device shuts down).
Client joined/ left (for AP mode)
A wireless client is associated or disassociated.
WLAN connected to AP (for Client mode)
The AWK-3131A-RTG is associated with an AP.
WLAN disconnected (for Client mode)
The AWK-3131A-RTG is disassociated from an AP.
Config-related events
Event is triggered when…
Configuration Changed
A configuration item has been changed.
Configuration file import via Web Console
The configuration file is imported to the AWK-3131A-RTG.
Console authentication failure
An incorrect password is entered.
Firmware upgraded
The AWK-3131A-RTG’s firmware is updated.
Power events
Event is triggered when…
Power 1/2 transition (On -> Off)
The AWK-3131A-RTG is powered down in PWR1/2.
PoE transition (On -> Off)
The AWK-3131A-RTG is powered down in PoE.
Power 1/2 transition (Off -> On)
The AWK-3131A-RTG is powered via PWR1/2.
PoE transition (Off -> On)
The AWK-3131A-RTG is powered via PoE.
DI events
Event is triggered when…
DI0/DI1 (On -> Off)
Digital Input 0/1 is triggered by on-to-off transition.
DI0/DI1 (Off -> On)
Digital Input 0/1 is triggered by off-to-on transition.
AWK-3131A-RTG UM
Web Console Configuration
3-41
Syslog
This function provides the event logs for the Syslog server. The function supports up to three configurable
Syslog servers and Syslog server UDP port numbers. When an event occurs, the event will be sent as a Syslog
UDP packet to the specified Syslog servers.
Syslog Event Types
Detail information for the grouped events is shown in the following table. You can check the box for Enable log
to enable the grouped events. All default values are enabled (checked). Details for each event group can be
found on the “System log Event Types” table on page 3-31.
NOTE
The RSSI report events option is only supported in client mode.
Syslog Server Settings
You can configure the parameters for your Syslog servers in this page.
Syslog server 1/ 2/ 3
Setting
Description
Factory Default
IP address
Enter the IP address of the 1st/ 2nd/ 3rd Syslog Server
None
Syslog port
Setting
Description
Factory Default
Port destination
(1 to 65535)
Enter the UDP port of the corresponding Syslog server
514
AWK-3131A-RTG UM
Web Console Configuration
3-42
E-mail
E-mail Event Types
Check the box for Active to enable the event items. All default values are deactivated (unchecked). Details for
each event item can be found on the “System log Event Types” table on page 3-31.
E-mail Server Settings
You can set up to 4 e-mail addresses to receive alarm emails from the AWK-3131A-RTG. The following
parameters can be configured on the E-mail Server Settings page. In addition, a Send Test Mail button can
be used to test whether the Mail server and e-mail addresses work well. More detailed explanations about these
parameters are given after the following figure.
Mail server (SMTP)
Setting
Description
Factory Default
IP address
The IP Address of your email server.
None
AWK-3131A-RTG UM
Web Console Configuration
3-43
User name & Password
Setting
Description
Factory Default
User name and password used in the SMTP server
None
From e-mail address
Setting
Description
Factory Default
Max. 63 characters
Enter the administrator’s e-mail address which will be shown in
the “From” field of a warning e-mail.
None
To E-mail address 1/ 2/ 3/ 4
Setting
Description
Factory Default
Max. 63 characters
Enter the receivers’ e-mail addresses.
None
Traps
Traps can be used to signal abnormal conditions (notifications) to a management station. This trap-driven
notification can make your network more efficient.
Because a management station usually takes care of a large number of devices that have a large number of
objects, it will be overloading for the management station to poll or send requests to query every object on
every device. It would be better if the managed device agent could notify the management station by sending
a message known as a trap for the event.
Trap Event Types
AWK-3131A-RTG UM
Web Console Configuration
3-44
SNMP Trap Receiver Settings
SNMP traps are defined in SMIv1 MIBs (SNMPv1) and SMIv2 MIBs (SNMPv2c). The two styles are basically
equivalent, and it is possible to convert between the two. You can set the parameters for SNMP trap receivers
through the web page.
1st / 2nd Trap version
Setting
Description
Factory Default
V1
SNMP trap defined in SNMPv1
V1
V2
SNMP trap defined in SNMPv2
1st / 2nd Trap server IP/name
Setting
Description
Factory Default
IP address or host
name
Enter the IP address or name of the trap server used by your
network.
None
1st / 2nd Trap community
Setting
Description
Factory Default
Max. of 31 characters
Use a community string match with a maximum of 31
characters for authentication.
alert
AWK-3131A-RTG UM
Web Console Configuration
3-45
Status
Wireless Status
The status for 802.11 info parameters, such as Operation mode and Channel, are shown on the Wireless
Status page. The status will refresh every 5 seconds if the Auto refresh box is checked.
Depending on the operation mode, certain 802.11 info values may not be displayed. For example, the
Current BSSID and Signal strength parameters are not available in the AP mode.
It is helpful to use the continuously updated information on this page, such as Signal strength, to monitor the
signal strength of the AWK-3131A-RTG in Client mode.
The transmission power indicated is the current transmission power being updated periodically.
Associated Client List (For AP Mode Only)
Associated Client List shows all the clients that are currently associated to a particular AWK-3131A-RTG. You
can click Select all to select all the content in the list for further editing. You can click Refresh to refresh the
list.
AWK-3131A-RTG UM
Web Console Configuration
3-46
DHCP Client List
The DHCP Client List shows all the clients that require and have successfully received IP assignments. You can
click the Refresh button to refresh the list.
You can press Select all button to select all content in the list for further editing.
System Log
Triggered events are recorded in System Log. You can export the log contents to an available viewer by clicking
Export Log. You can use the Clear Log button to clear the log contents and the Refresh button to refresh the
log.
AWK-3131A-RTG UM
Web Console Configuration
3-47
Relay Status
The status of user-configurable events can be found under Relay Status. The status will refresh every 5 seconds
if the Auto refresh box is checked.
If an event is triggered, it will be noted on this list. System administrators can click Acknowledge Event when
they have acknowledged the event and addressed it.
DI and Power Status
The status of power inputs and digital inputs is shown here. The status will refresh every 5 seconds if the Auto
refresh box is checked.
AeroLink Protection Status (For Client Mode Only)
After enabling AeroLink Protection from the Advanced WLAN Setup panel, the following table shows the current
state of the AeroLink Protection for easier diagnosis.
An AeroLink Protection member could be in 1 or 7 different states:
Initiation State (Init): Initiates the AeroLink Protection Protocol.
Discovering State (Discover): Discovers other AeroLink Protection members for further negotiation.
Idle State (Idle): Internal protocol checkpoint.
Negotiation State (Nego): Negotiates with other AeroLink Protection members and selects Active node.
Backup State (Backup): After negotiation, this node is assigned as the Backup node. All traffic will pass
through the Active node. NOTE: When a node is acting as a Backup node, the STATE LED for the node will blink
to advertise this fact to nearby support engineers.
Active State (Active): After negotiation, this node is assigned Active node status, which means that all traffic
will pass through that node.
AWK-3131A-RTG UM
Web Console Configuration
3-48
Role Change State (Change): If the Active node is no longer capable of data transmission via the WLAN, the
device will enter “change state,” which will result in the device going back to Nego state (likely becoming the
Backup device since the active link is down).
Routing Table
The Routing Table page shows all routing entries.
LAN Status
The LAN Status page shows the LAN information, which includes speed, duplex, link status, and packet status.
Maintenance
Maintenance functions provide the administrator with tools to manage the AWK-3131A-RTG and wired/wireless
networks.
Console Settings
You can enable or disable access permission for the following consoles: HTTP, HTTPS, Telnet, and SSH
connections. For more security, we recommend you only allow access to the two secured consoles, HTTPS and
SSH.
AWK-3131A-RTG UM
Web Console Configuration
3-49
Ping
Ping helps to diagnose the integrity of wired or wireless networks. By inputting a node’s IP address in the
Destination field, you can use the ping command to make sure it exists and whether or not the access path
is available.
If the node and access path are available, you will see that all packets were successfully transmitted with no
loss. Otherwise, some, or even all, packets may get lost, as shown in the following figure.
Firmware Upgrade
The AWK-3131A-RTG can be enhanced with more value-added functions by installing firmware upgrades. The
latest firmware is available at Moxa’s download center.
Before running a firmware upgrade, make sure the AWK-3131A-RTG is off-line. Click the Browse button to
specify the firmware image file and click Firmware Upgrade and Restart to start the firmware upgrade. After
the progress bar reaches 100%, the AWK-3131A-RTG will reboot itself.
When upgrading your firmware, the AWK-3131A-RTG’s other functions are forbidden.
ATTENTION
Please make sure the power source is stable when you upgrade your firmware. An unexpected power breakup
may damage your AWK-3131A-RTG.
AWK-3131A-RTG UM
Web Console Configuration
3-50
Config Import/Export
You can back up and restore the AWK-3131A-RTG’s configuration with Config Import and Config Export
functions.
In the Config Import section, click Browse to specify the configuration file and click on the Config Import
button to begin importing the configuration.
Downloading the Configuration from a TFTP Server
You can download a configuration file from a TFTP server on to your AWK-3131A-RTG as follows:
1. Start your TFTP server.
2. Copy the AWK-3131A-RTG configuration file to a folder on the TFTP server.
3. On the AWK-3131A-RTG Config Import page, input your TFTP server IP and Configuration path.
The configuration path is the path of the configuration file, which is a relative path. If your configuration file is
already available in a folder on the TFTP server, you can leave this field blank.
4. Input your configuration File name with the filename extension or click on the Config Import button to
browse to the file.
Once the configuration downloads successful, you will see "TFTP import success" information on the web
page.
5. Click Save and then Restart on the top-right side.
You can also back up or restore the ABC-01 configuration with Config Import Export.
AWK-3131A-RTG UM
Web Console Configuration
3-51
You can also get the SNMP MIB file by clicking on MIB Export in the SNMP MIB file Export section.
SNMP MIB file for AWK-3131A-RTG is embedded in the device. To export the MIB file, simply click on the “MIB
Export” button and save it to your local drive.
Load Factory Default
Use this function to reset the AWK-3131A-RTG and roll all settings back to the factory or customized (using
imported configuration file in the Default Config Import screen) default values. You can also reset the
hardware by pressing the reset button on the bottom panel of the AWK-3131A-RTG.
Username/Password
You can change the administration username and password for each of the AWK-3131A-RTG’s console
managers by using the Username/Password function. Before you set up a new password, you must input the
current password and reenter the new password for confirmation. For your security, do not use the default
password moxa, and remember to change the administration password regularly.
Locate Device
The AP can be identified by a beeping sound and flashing LED when clicking on the “start to locate” button. To
stop the beeping, click on the “stop locating” button.
AWK-3131A-RTG UM
Web Console Configuration
3-52
Misc. Settings
Additional settings to help you manage your AWK-3131A-RTG are available on this page.
Reset button
Setting
Description
Factory Default
Always enable
The AWK-3131A-RTG’s reset button works normally.
Always enable
Always disable
The AWK-3131A-RTG’s reset button will not work.
Disable ‘restore to default
function’ after 60 sec
The AWK-3131A-RTG’s reset to default function will be
inactive 60 seconds after the AWK-3131A-RTG finishes
booting up.
Save Configuration
The following figure shows how the AWK-3131A-RTG stores the setting changes into volatile and non-volatile
memory. All data stored in volatile memory will disappear when the AWK-3131A-RTG is shutdown or rebooted
unless they are y. Because the AWK-3131A-RTG starts up and initializes with the settings stored in flash
memory, all new changes must be saved to flash memory before restarting the AWK-3131A-RTG.
This also means the new changes will not work unless you run either the Save Configuration function or the
Restart function.
After you click on Save Configuration in the left menu box, the following screen will appear. Click Save if you
wish to update the configuration settings in the flash memory at this time. Alternatively, you may choose to run
other functions and put off saving the configuration until later. However, the new setting changes will remain
in the non-volatile memory until you save the configurations.
AWK-3131A-RTG UM
Web Console Configuration
3-53
Restart
If you submitted configuration changes, you will find a blinking string in the upper right corner of the screen.
After making all your changes, click the Restart function in the left menu box. One of two different screens will
appear.
If you made changes recently but did not save, you will be given two options. Clicking the Restart button here
will reboot the AWK-3131A-RTG directly, and all setting changes will be ignored. Clicking the Save and
Restart button will apply all setting changes and then reboot the AWK-3131A-RTG.
If you run the Restart function without changing any configurations or saving all your changes, you will see
just one Restart button on your screen.
You will not be able to run any of the AWK-3131A-RTG’s functions while the system is rebooting.
Logout
Logout helps users disconnect the current HTTP or HTTPS session and go to the Login page. For security
reasons, we recommend you logout before quitting the console manager.
4
Software Installation and Configuration
The following topics are covered in this chapter:
Overview
Wireless Search Utility
Installing Wireless Search Utility
Configuring Wireless Search Utility
AWK-3131A-RTG UM
Software Installation and Configuration
4-2
Overview
The Wireless Search Utility can be downloaded from the Moxa website at www.moxa.com.
Wireless Search Utility
Installing Wireless Search Utility
Once the Wireless Search Utility is downloaded, run the setup executable to start the installation.
1. Click Next in the Welcome screen to proceed with the installation.
AWK-3131A-RTG UM
Software Installation and Configuration
4-3

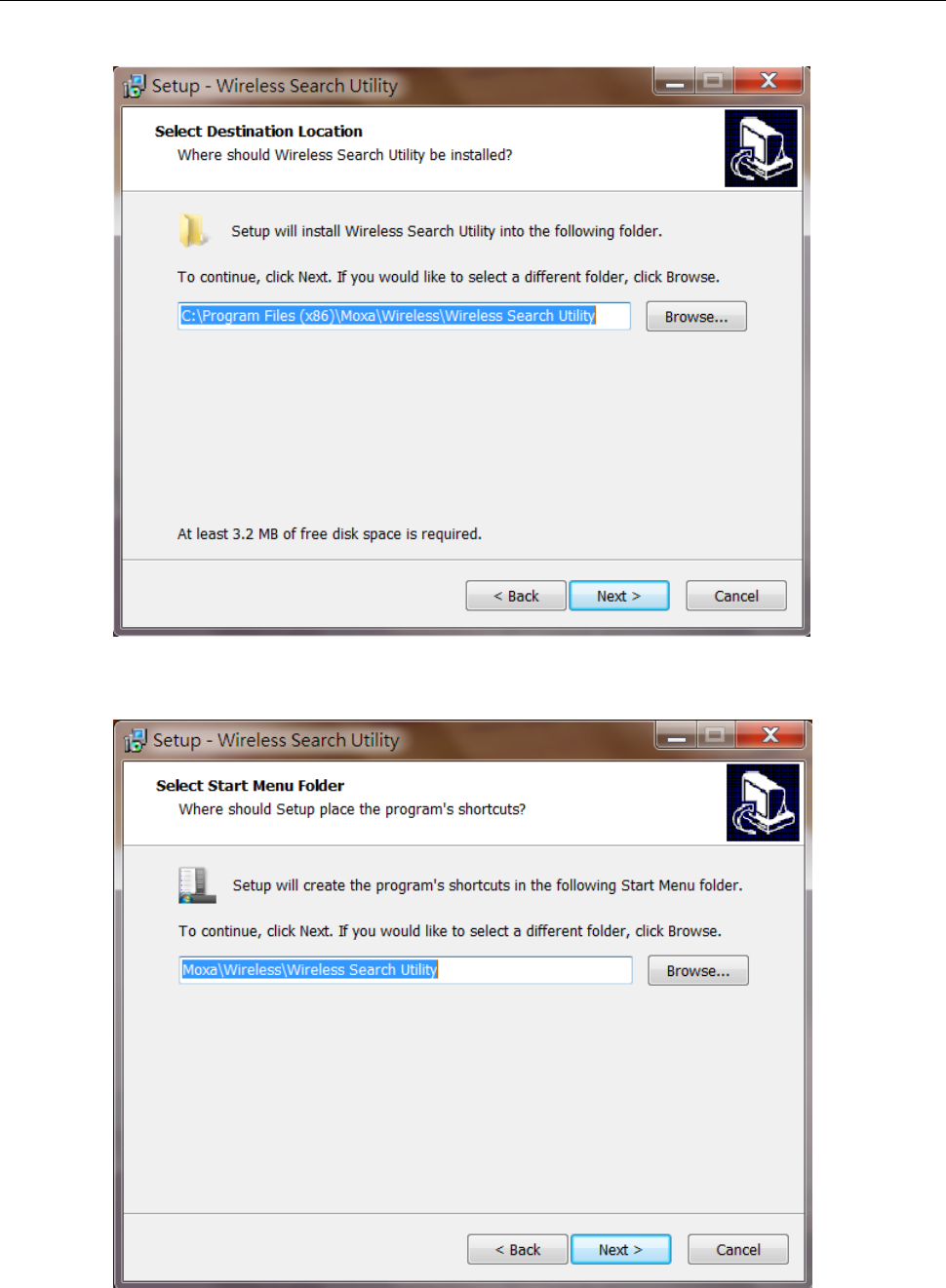

2. Click Next to install program files to the default directory, or click Browse to select an alternate location.
3. Click Next to install the program’s shortcut files in the default directory, or click Browse to select an
alternate location.
AWK-3131A-RTG UM
Software Installation and Configuration
4-4
4. Click Next to select additional tasks.
5. Click Install to proceed with the installation. The installer then displays a summary of the installation
options.
6. Click Install to begin the installation. The setup window will report the progress of the installation. To
change the installation settings, click Back and navigate to the previous screen.
AWK-3131A-RTG UM
Software Installation and Configuration
4-5
7. Click Finish to complete the installation of Wireless Search Utility.
Configuring Wireless Search Utility
The Broadcast Search function is used to locate all AWK-3131A-RTG APs that are connected to the same LAN
as your computer. After locating the AWK-3131A-RTG, you will be able to change its IP address. Since the
Broadcast Search function searches by UDP packets and not IP address, it doesn’t matter if the
AWK-3131A-RTG is configured as an AP or Client. In either case, APs and Clients connected to the LAN will be
located, regardless of whether or not they are part of the same subnet as the host.
1. Start the Wireless Search Utility program. When the Login page appears, select the “Device Search only”
option to search for AWKs and to view each AWK’s configuration. Select the “Device management” option
to assign IPs, upgrade firmware, and locate devices.
AWK-3131A-RTG UM
Software Installation and Configuration
4-6
2. Open the Wireless Search Utility and then click the Search icon.
3. The “Searching” window indicates the progress of the search. When the search is complete, all AWKs that
were located will be displayed in the Wireless Search Utility window.
AWK-3131A-RTG UM
Software Installation and Configuration
4-7
4. Click Locate to cause the selected device to beep.
5. Make sure your AWK is unlocked before using the search utility’s icons setting. The AWK will unlock
automatically if the password is set to the default. Otherwise you must enter the new password manually.
6. Go to Tools Login Options to manage and unlock additional AWKs.
AWK-3131A-RTG UM
Software Installation and Configuration
4-8
7. Use the scroll down list to select the MAC addresses of those AWKs you would like to manage, and then click
Add. Key in the password for the AWK device and then click OK to save. If you return to the search page
and search for the AWK again, you will find that the AWK will unlock automatically.
To modify the configuration of the highlighted AWK, click on the Web icon to open the web console. This will
take you to the web console, where you can make all configuration changes. Refer to Chapter 3, “Using the Web
Console,” for information on how to use the web console.
ATTENTION
For security purposes, we suggest you can change the wireless search utility login password instead of using
the default.
AWK-3131A-RTG UM
Software Installation and Configuration
4-9
Click on Telnet if you would like to use telnet to configure your AWKs.
Click Assign IP to change the IP setting.
AWK-3131A-RTG UM
Software Installation and Configuration
4-10

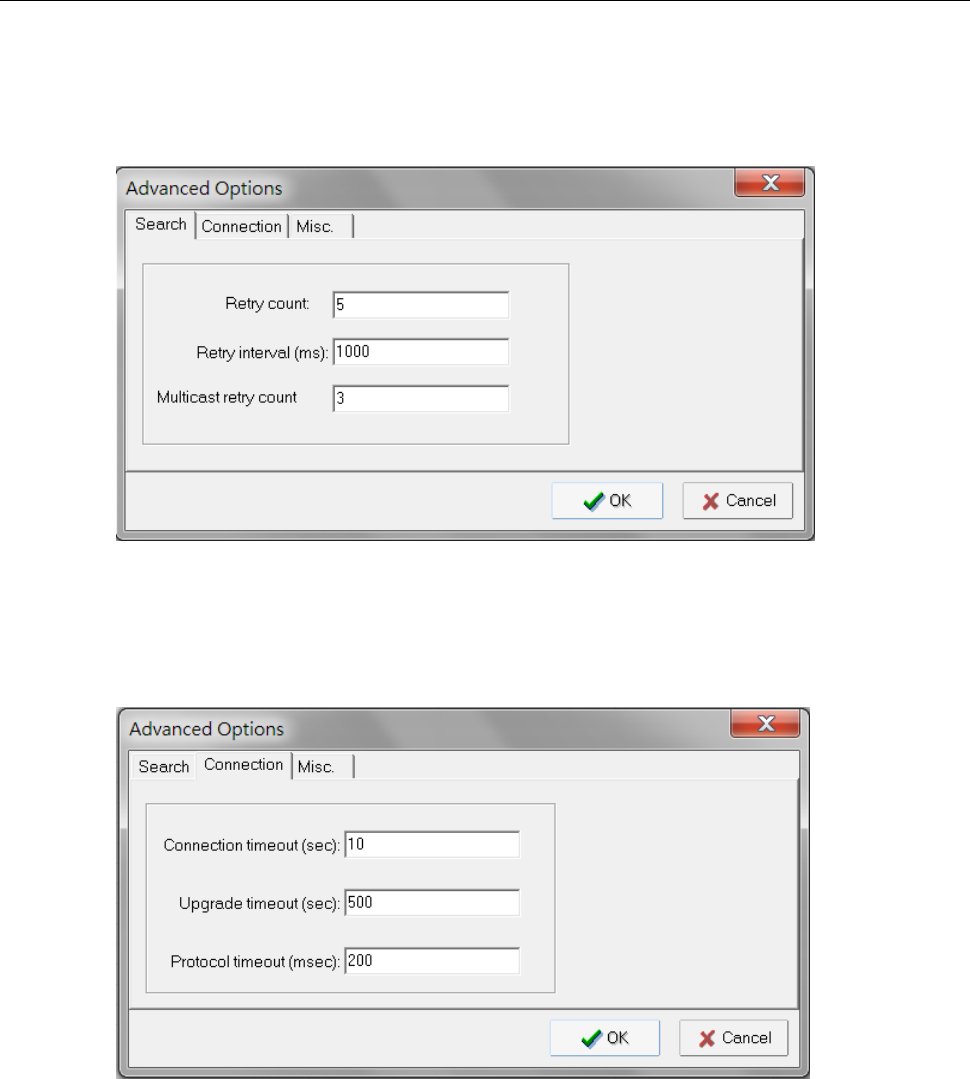

The three advanced options—Search, Connection, and Miscellaneous—are explained below:
Search
• Retry count (default=5): Indicates how many times the search will be retried automatically.
• Retry interval (ms): The time elapsed between retries.
Connection
• Connection timeout (secs): Use this option to set the waiting time for the Default Login, Locate,
Assign IP, Upload Firmware, and Unlock to complete.
• Upgrade timeout (secs): Use this option to set the waiting time for the connection to disconnect while the
firmware is upgrading. Use this option to set the waiting time for the Firmware to write to flash.
AWK-3131A-RTG UM
Software Installation and Configuration
4-11
Misc.
Search on start: Checkmark this box if you would like the search function to start searching for devices after
you log in to the Wireless Search Utility.
5
Using Other Consoles
This chapter explains how to access the AWK-3131A-RTG for the first time. In addition to HTTP access, there
are four ways to access the AWK-3131A-RTG: USB console, Telnet console, SSH console, and HTTPS console.
The USB console connection method, which requires using a short USB cable to connect the AWK-3131A-RTG
to a PC’s COM port, can be used if you do not know the AWK-3131A-RTG’s IP address. The other consoles can
be used to access the AWK-3131A-RTG over an Ethernet LAN, or over the Internet.
The following topics are covered in this chapter:
USB Console Configuration (115200, None, 8, 1, VT100)
Configuration via Telnet and SSH Consoles
Configuration by Web Browser with HTTPS/SSL
Disabling Telnet and Browser Access
AWK-3131A-RTG UM
Using Other Consoles
5-2
USB Console Configuration (115200, None, 8, 1,
VT100)
The serial console connection method, which requires using a short serial cable to connect the AWK-3131A-RTG to a PC’s
COM port, can be used if you do not know the AWK-3131A-RTG’s IP address. It is also convenient to use USB console
configurations when you cannot access the AWK-3131A-RTG over Ethernet LAN, such as in the case of LAN cable
disconnections or broadcast storming over the LAN.
We recommend using the Moxa PComm (Lite) Terminal Emulator, which is available for download at:
http://www.moxa.com/product/download_pcommlite_info.htm.
Before running PComm Terminal Emulator, use a RJ45 to DB9-F (or RJ45 to DB25-F) cable to connect the
AWK-3131A-RTG’s RS-232 console port to your PC’s COM port (generally COM1 or COM2, depending on how
your system is set up). After installing PComm Terminal Emulator, take the following steps to access the
RS-232 console utility.
1. From the Windows desktop, open the Start menu and run the PComm Terminal Emulator from the
PComm (Lite) group.
2. In the Port Manager menu, select Open to open a new connection.
3. The Communication Parameter page of the Property window opens. Select the appropriate COM port for
Console Connection, 115200 for Baud Rate, 8 for Data Bits, None for Parity, and 1 for Stop Bits. Click on
the Terminal tab, and select VT100 (or ANSI) for Terminal Type. Click on OK to continue.
ATTENTION
Do not use the RS-232 console manager when the AWK-3131A-RTG is powered at reversed voltage (ex.
-48VDC), even though reverse voltage protection is supported.
If you need to connect the RS-232 console at reversed voltage, Moxa’s TCC-82 isolator is your best solution.
AWK-3131A-RTG UM
Using Other Consoles
5-3
4. The Console login screen will appear. Log into the USB console with the login name (default: admin) and
password (default: moxa, if no new password is set).
5. The AWK-3131A-RTG’s device information and Main Menu will be displayed. Please follow the description on
screen and select the administration option you wish to perform.
To modify the appearance of the PComm Terminal Emulator window, select Edit Font and then choose the
desired formatting options.
ATTENTION
If you unplug the USB cable or trigger DTR, a disconnection event will be evoked to enforce logout for network
security. You will need to log in again to resume operation.
AWK-3131A-RTG UM
Using Other Consoles
5-4
Configuration via Telnet and SSH Consoles
You may use Telnet or SSH client to access the AWK-3131A-RTG and manage the console over a network. To
access the AWK-3131A-RTG’s functions over the network from a PC host that is connected to the same LAN as
the AWK-3131A-RTG, you need to make sure that the PC host and the AWK-3131A-RTG are on the same logical
subnet. To do this, check your PC host’s IP address and subnet mask.
Follow the steps below to access the console utility via Telnet or SSH client.
1. From Windows Desktop, go to Start Run, and then use Telnet to access the AWK-3131A-RTG’s IP
address from the Windows Run window (you may also issue the telnet command from the MS-DOS
prompt).
2. When using SSH client (ex. PuTTY), please run the client program (ex. putty.exe) and then input the
AWK-3131A-RTG’s IP address, specifying 22 for the SSH connection port.
The console login screen is displayed. Refer to the USB Console Configuration section for login and
administration information.
3. Log in into the command page (default username/password is cliadmin/moxa, if no new password is set).
AWK-3131A-RTG supports the CLI mode. You can use the TAB key to check a related CLI command.
NOTE The AWK-3131A-RTG’s default IP address is 192.168.127.253 and the default subnet mask is
255.255.255.0 (for a Class C network). If you do not set these values properly, please check the network
settings of your PC host and then change the IP address to 192.168.127.xxx and subnet mask to
255.255.255.0.
AWK-3131A-RTG UM
Using Other Consoles
5-5

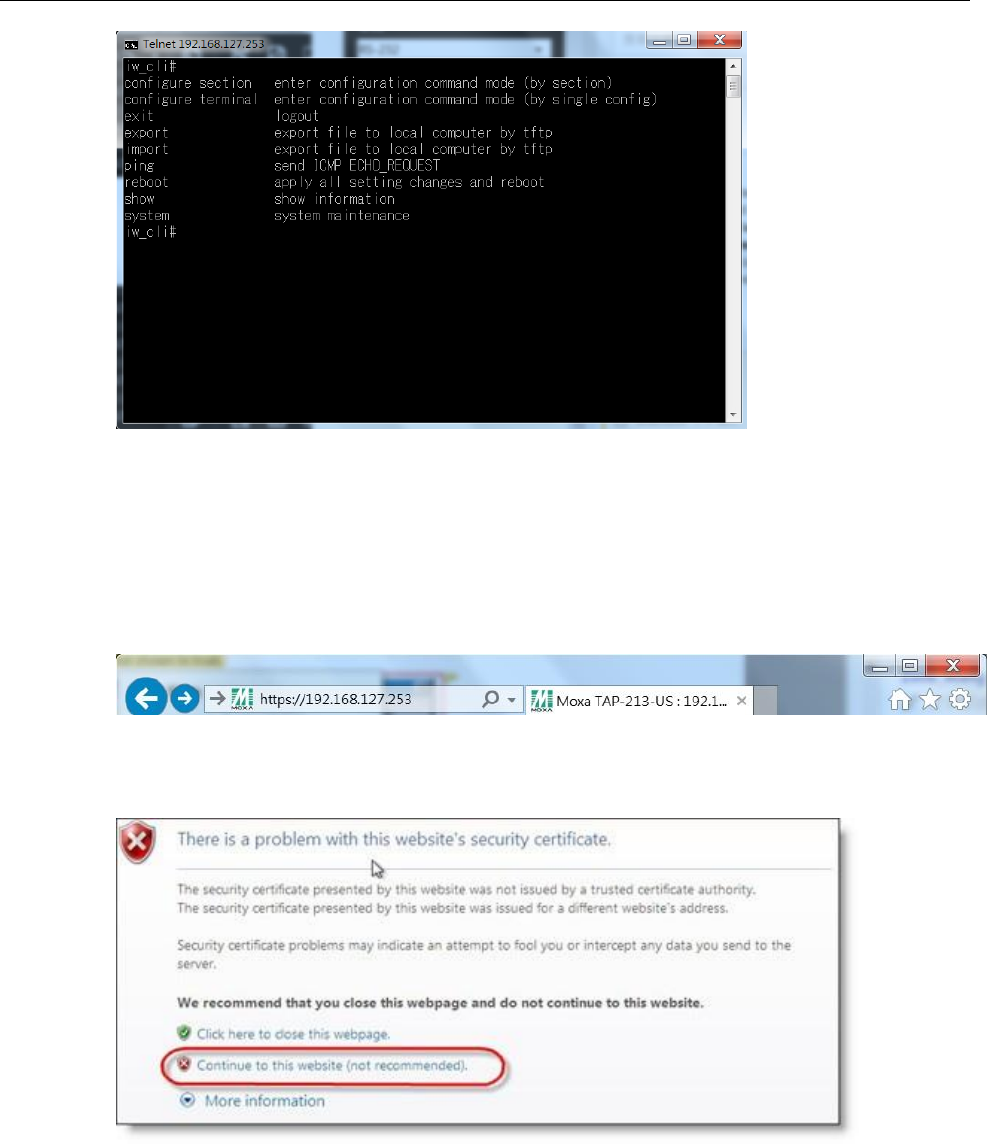

Configuration by Web Browser with HTTPS/SSL
To secure your HTTP access, the AWK-3131A-RTG supports HTTPS/SSL encryption for all HTTP traffic. Perform
the following steps to access the AWK-3131A-RTG’s web browser interface via HTTPS/SSL.
1. Open your web browser and type https://<AWK-3131A-RTG’s IP address> in the address field. Press Enter
to establish the connection.
2. Click on continue to this website.
The protocol in the URL changes to HTTPS. You can now enter your username and password to login into the
function page.
AWK-3131A-RTG UM
Using Other Consoles
5-6
Disabling Telnet and Browser Access
If you are connecting the AWK-3131A-RTG to a public network but do not intend to use its management
functions over the network, then we suggest disabling both Telnet Console and Web Configuration. Please run
Maintenance Console Settings to disable them, as shown in the following figure.
A
References
This chapter provides more detailed information about wireless-related technologies. The information in this
chapter can help you manage your AWK-3131A-RTGs and plan your industrial wireless network better.
The following topics are covered in this appendix:
Beacon
DTIM
Fragment
RTS Threshold
STP and RSTP
The STP/RSTP Concept
Differences between RSTP and STP
AWK-3131A-RTG UM
References
A-2
Beacon
A beacon is a packet broadcast by the AP to keep the network synchronized. A beacon includes the wireless LAN
service area, the AP address, the Broadcast destination address, a time stamp, Delivery Traffic Indicator Maps
(DTIM), and the Traffic Indicator Message (TIM). Beacon Interval indicates the frequency interval of AP.
DTIM
Delivery Traffic Indication Map (DTIM) is contained in beacon frames. It is used to indicate that broadcast and
multicast frames buffered by the AP will be delivered shortly. Lower settings result in more efficient networking,
while preventing your wireless client from dropping into power-saving sleep mode. Higher settings allow your
PC to enter sleep mode, thus saving power.
Fragment
A lower setting means smaller packets, which will create more packets for each transmission. If you have
decreased this value and experience high packet error rates, you can increase it again, but it will likely decrease
overall network performance. Only minor modifications of this value are recommended.
RTS Threshold
RTS Threshold (256-2346) – This setting determines how large a packet can be before the Access Point
coordinates transmission and reception to ensure efficient communication. This value should remain at its
default setting of 2,346. When you encounter inconsistent data flow, only minor modifications are
recommended.
STP and RSTP
The STP/RSTP Concept
Spanning Tree Protocol (STP) was designed to help reduce link failures in a network, and provide protection
from loops. Networks that have a complicated architecture are prone to broadcast storms caused by
unintended loops in the network. The STP protocol is part of the IEEE802.1D standard, 1998 Edition bridge
specification.
Rapid Spanning Tree Protocol (RSTP) implements the Spanning Tree Algorithm and Protocol defined by
IEEE802.1w-2001 standard. RSTP provides the following benefits:
• The topology of a bridged network will be determined much more quickly compared to STP.
• RSTP is backward compatible with STP, making it relatively easy to deploy. For example:
Defaults to sending 802.1D-style BPDUs if packets with this format are received.
STP (802.1D) and RSTP (802.1w) can operate on the LAN ports and WLAN ports of the same
AWK-3131A-RTG.
This feature is particularly helpful when the AWK-3131A-RTG connects to older equipment, such as legacy
switches.
AWK-3131A-RTG UM
References
A-3
Differences between RSTP and STP
RSTP is similar to STP, but includes additional information in the BPDUs that allow each bridge to confirm that
it has taken action to prevent loops from forming when it decides to enable a link to a neighboring bridge.
Adjacent bridges connected via point-to-point links will be able to enable a link without waiting to ensure that
all other bridges in the network have had time to react to the change. The main benefit of RSTP is that the
configuration decision is made locally rather than network-wide, allowing RSTP to carry out automatic
configuration and restore a link faster than STP.
B
Supporting Information
This chapter presents additional information about this product. You can also learn how to contact Moxa for
technical support.
The following topics are covered in this appendix:
Firmware Recovery
DoC (Declaration of Conformity)
Federal Communication Commission Interference Statement
RED Compliance Statement
Canada, Industry Canada (IC) Notices
Antenna Gain and RF Radiated Power
R&TTE Compliance Statement
AWK-3131A-RTG UM
Supporting Information
B-2
Firmware Recovery
When the LEDs of FAULT, Signal Strength, CLIENT, and WLAN all light up simultaneously and blink at
one-second interval, it means the system booting has failed. It may result from some wrong operation or
uncontrollable issues, such as an unexpected shutdown during firmware update. The Firmware Recovery mode
is designed to help administrators recover such damage and resume system operation rapidly. You can refer to
the following instructions to recover the firmware:
Connect to the AWK-3131A-RTG’s RS-232 console with 115200bps and N-8-1. You will see the following
message shown on the terminal emulator every one second.
please set-up
TFTP
server
192.168.127.1
contains
awk3131a-rtg.rom
for
firmware
recovery.
please set-up
TFTP
server
192.168.127.1
contains
awk3131a-rtg.rom
for
firmware
recovery.
please set-up
TFTP
server
192.168.127.1
contains
awk3131a-rtg.rom
for
firmware
recovery.
please set-up
TFTP
server
192.168.127.1
contains
awk3131a-rtg.rom
for
firmware
recovery.
please set-up
TFTP
server
192.168.127.1
contains
awk3131a-rtg.rom
for
firmware
recovery.
please set-up
TFTP
server
192.168.127.1
contains
awk3131a-rtg.rom
for
firmware
recovery.
To initiate a firmware recovery process, do the following:
1. Change the IP address of the laptop to 192.168.127.1.
2. Set up a TFTP sever on your laptop.
3. Download the AWK-3131A-RTG’s firmware from Moxa’s Website.
4. Change the firmware file name to awk3131a-rtg.rom
5. Connect to the AWK-3131A-RTG’s M12 Ethernet port or SC fiber port.
If the setting is correct, you will see the following message shown on the terminal emulator, and the
AWK-3131A-RTG will reboot when the firmware recovery process has finished.
Trying eth0
Using eth0 device
TFTP from server 192.168.127.1; our IP address is 192.168.127.253
Filename 'awk3131a-rtg.rom'.
Load address: 0x80060000
Loading:
*#################################################################
#################################################################
#################################################################
AWK-3131A-RTG UM
Supporting Information
B-3
DoC (Declaration of Conformity)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons
and must not be co-located or operating in conjunction with any other antenna or transmitter, End-users and
installers must be provide with antenna installation instructions and transmitter. End-users and installers
must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
Antenna List
Antenna Part No.
Antenna Type
Maximum Antenna Gain
ANT-WDB-WDB-O-2-BK
Dipole Antenna
2.34 dBi for 5.25~5.35GHz
2.34 dBi for 5.47~5.725GHz
ANT-WDB-ARM-0202
Dipole Antenna
1.6 dBi for 5.25~5.35 GHz
1.8 dBi for 5.47~5.725 GHz
AWK-3131A-RTG UM
Supporting Information
B-4
RED Compliance Statement
Hereby, Moxa declares that this AWK-3131A-RTG is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU. The 5150 – 5350 MHz frequency range is restricted to indoor use
only. Outdoor operation in this range is prohibited.
Moxa declares that the apparatus AWK-3131A-RTG complies with the essential requirements and other
relevant provisions of Directive 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March
1999 on radio equipment and telecommunication terminal equipment and the mutual recognition of their
conformity (R&TTE). The R&TTE directive repeals and replaces the Directive 98/13/EEC (Telecommunications
Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the manufacturer must therefore be followed at all times to ensure the
safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland,
France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, Portugal, Spain,
Sweden, The Netherlands, and United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states Norway and Switzerland.
EU Countries Not Intended for Use
None.
Potential Restrictive Use
France: only channels 10, 11, 12, and 13.
Canada, Industry Canada (IC) Notices
This device complies with Industry Canada’s license-exempt RSS standard(s). Operation is subject to the
following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
Warning:
Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to
LE-LAN devices.
Canada, avis d'Industry Canada (IC)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Devraient également être informés les utilisateurs que les radars à haute puissance sont désignés comme
utilisateurs principaux (c.-à-utilisateurs prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz et que ces
radars pourraient provoquer des interférences et / ou endommager les appareils LE-LAN.
AWK-3131A-RTG UM
Supporting Information
B-5
Radio Frequency (RF) Exposure Information
The radiated output power of this wireless device is below the Industry Canada (IC) radio frequency exposure
limits. This wireless device should be used in such a manner such that the potential for human contact during
normal operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure
conditions (i.e., the device antennas are greater than 20 cm from a person's body).
Informations concernant l'exposition aux frequences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio
d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du
fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des
conditions d'exposition à des appareils mobiles (antennes sont supérieures à 20 cm à partir du corps d'une
personne).
Antenna Gain and RF Radiated Power
The following sections contain the FCC rules regarding adapting the product transmission power based on the
antenna used.
Antenna Part No.
Antenna Type
Maximum Antenna Gain
ANT-WDB-WDB-O-2-BK
Dipole Antenna
2.34 dBi for 5.25~5.35GHz
2.34 dBi for 5.47~5.725GHz
ANT-WDB-ARM-0202
Dipole Antenna
1.6 dBi for 5.25~5.35 GHz
1.8 dBi for 5.47~5.725 GHz
AWK-3131A-RTG UM
Supporting Information
B-6
NCC (National Communication Commission)
本產品符合低功率電波輻射性電機管理辦法第十二條、第十四條等條文規定:
經型式認證合格之低功率射頻電機, 非經許可,公司, 商號或使用者均不得擅自變更頻率,加大功率或變更原設
計之特性及功能。
低功率射頻電機之使用不得影響飛航影響安全及干擾合法通信, 經發現有干擾現象時,應立即停用,並改善至
無干擾時方得繼續使用。
前項合法通信,指一電信法規定作業之無線電通信低功率射頻電機需忍受合法通信或工業,科學及醫療用電波
輻射性電機設備之干擾。
AWK-3131A-RTG UM
Supporting Information
B-7
R&TTE Compliance Statement
Moxa declares that the apparatus AWK-3131A-RTG complies with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT
AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal equipment and the
mutual recognition of their conformity (R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal
Equipment and Satellite Earth Station Equipment) as of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the computer manufacturer must therefore be allowed at all times to
ensure the safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland,
France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, Portugal, Spain,
Sweden, The Netherlands, and United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states Norway and Switzerland.
EU Countries Not Intended for Use
None.
Potential Restrictive Use
France: only channels 10, 11, 12, and 13.

Navigation menu
