Manual UHF portion
Lumen iL33 ADD-ON T325R RFID UPGRADE
Copyright © by N.V. Nederlandsche Apparatenfabriek NEDAP. No part of this drawing may be reproduced or distributed
in any form or by any means, or stored in a data base or retrieval system without the prior written permission of NEDAP.
item
date
revision
dsgn
document
Quick reference : ADD-ON T325R RFID UPGRADE
: 28 August 2018 11:20 AM
: CvdB
: A.01
: T986847-45.01
: 9986847
N.V. Nederlandsche Apparatenfabriek “Nedap”
Parallelweg 2, NL-7141 DC Groenlo (The Netherlands)
Mail: support-retail@nedap.com

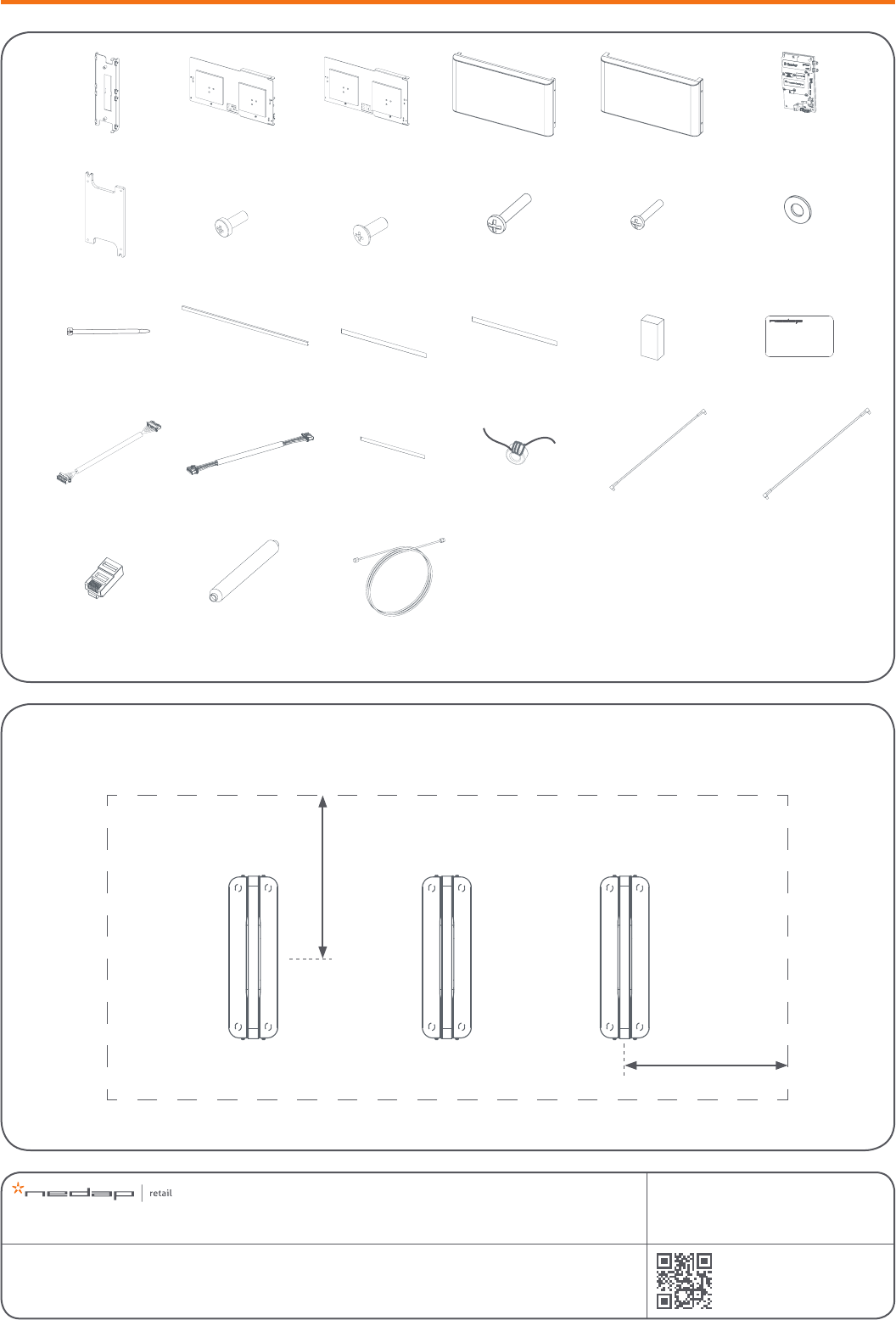

label free zone
> 100 cm (3.3 ft)
> 100 cm (3.3 ft)
1x | RFID coaxial cable
1x | coaxial cable (short)
2x | lter2x | connector RJ45
1x | switch cable
2x | tie-wrap
1x | antenna 1
2x | label 38x19
4x | screw M3x810x | screw M3x6
1x | antenna 2
1x | USB cable + core
1x | reader RFID
(3.5m / 11ft)
1x | cover A
1x | at cable 1x | coaxial cable (long)
2x | cable tray
1x | cover B
2x | bracket
1x | heatsink
2x | degreaser
2x | screw M4x25 4x | screw M3x12 2x | nylon washer
2x | foam tape4x | double sided tape 2x | tape for covers
1x | sync cable

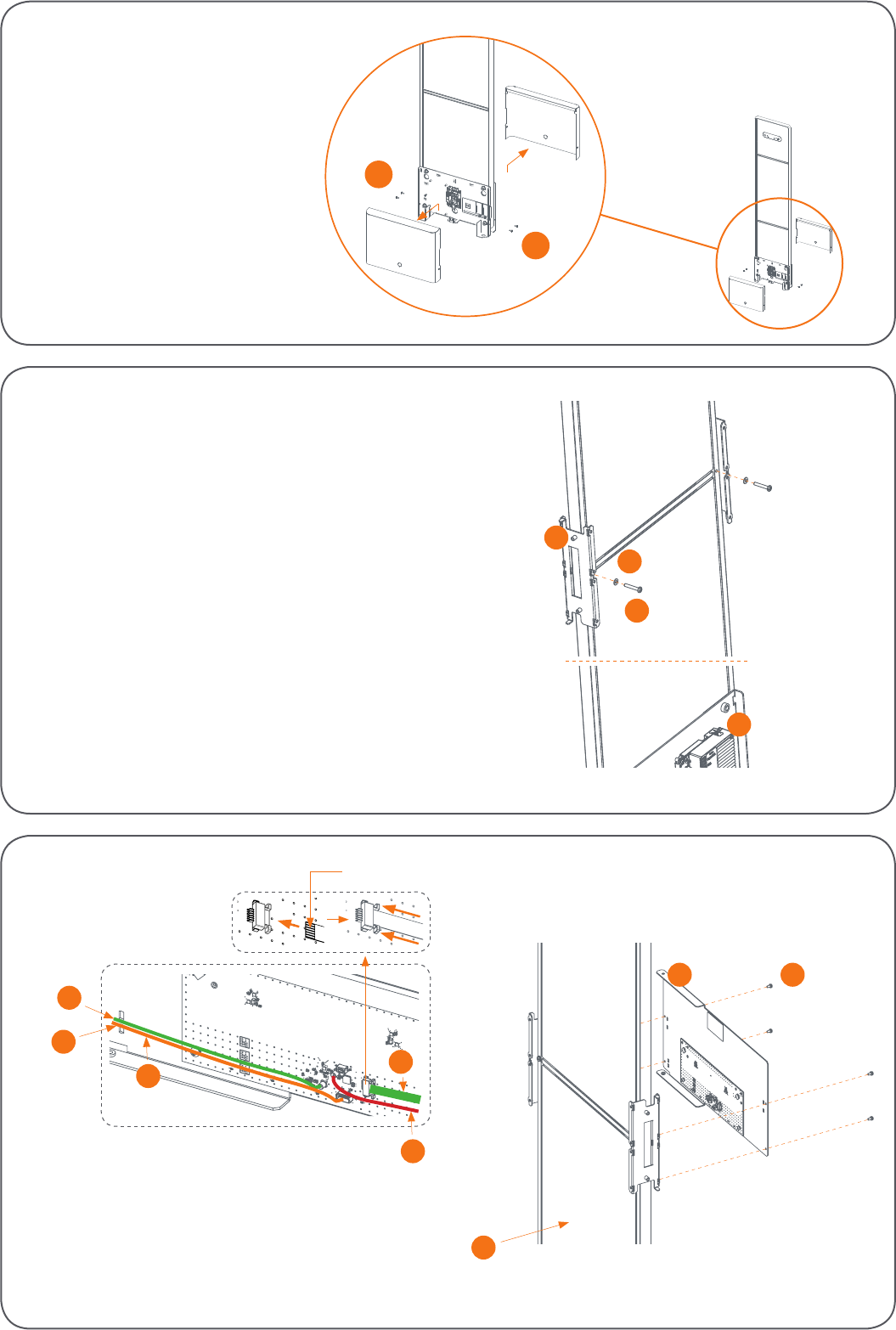

remove covers
1
1
1 Screw M3x10 (4x)
mount the brackets
4
3
1
2
1 Renos side (important)
2 Bracket (2x)
3 Nylon washer (2x)
4 Screw M4x25 (2x)
mounting antenna 1
1 Coaxial cable (Short) - (You should hear “Click”)
2 Coaxial cable (Long) - (You should hear “Click”)
3 Switch cable
4 Flat cable
5 Fix with tie-wrap
6 Renos side (important)
7 Antenna 1
8 Screw M3x6 (4x)
8
3
1
2
6
5
4
7
contact-side

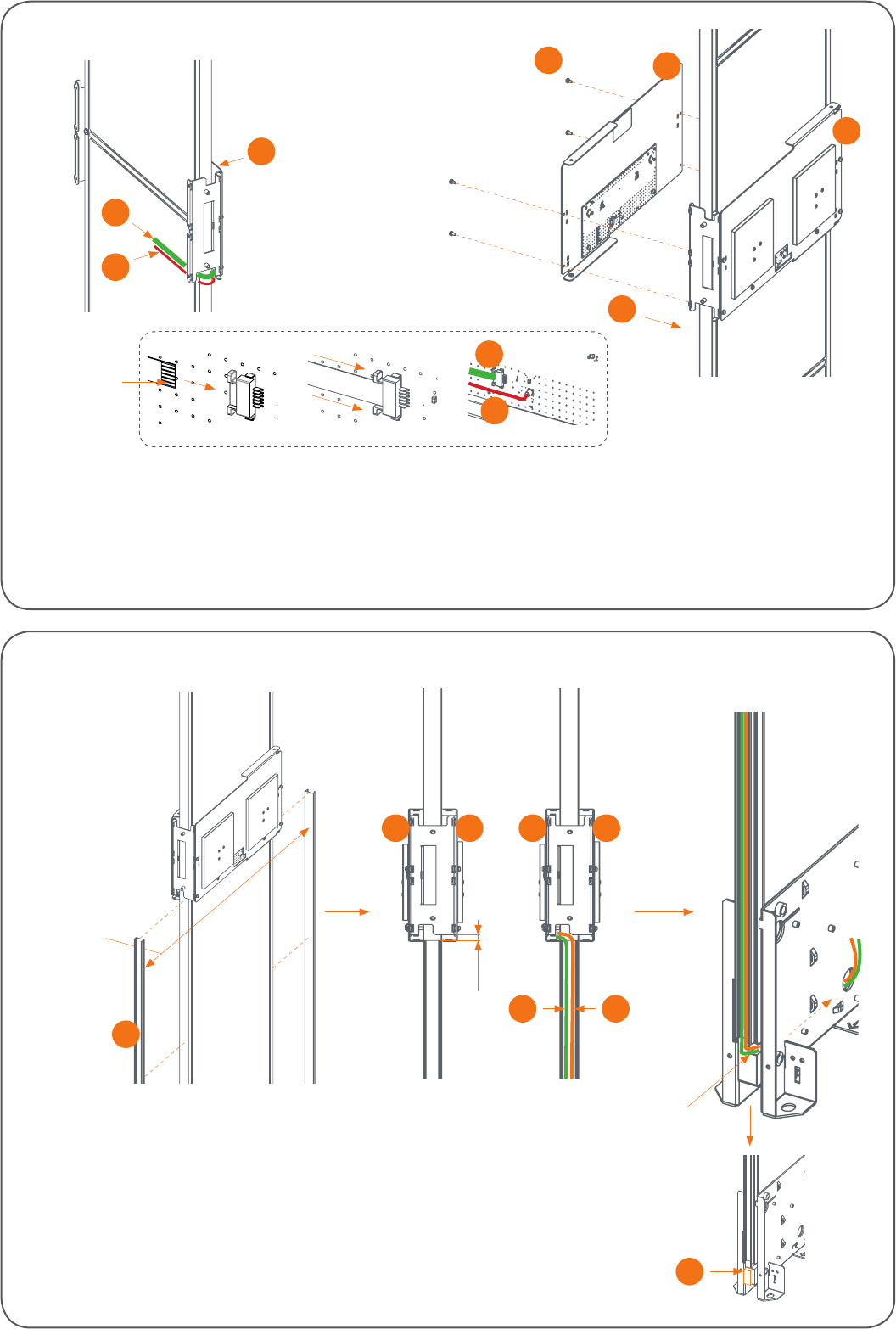

mounting antenna 2
1 Antenna 1
2 Flat cable
3 Coaxial cable (Short)
4 Coaxial cable (Short) - (You should hear “Click”)
5 Renos side
6 Antenna 2
7 Screw M3x6 (4x)
1
2
3
mounting cable tray
1 Antenna 1
2 Antenna 2
3 Cable tray
4 Coaxial cable (Long)
5 Switch cable
6 Foam tape (2x)
4
2
5
1
76
~8mm
1 2 1 2
5
4
3
Place double-sided
tape (2x 2 pcs)
1st - Switch cable
2nd - Coaxial cable
6
Both sides (clean surface before)
Clean surface.
contact-side
Place covers (RFID)
1 Place cable tray cover (Both sides)
2 Tape black
3 Cover A
4 Cover B
5 Screw M3x8 (Stainless steel) (4x)
1
2
4
3
5
2
1st
1st
2nd
3rd
4th
4th
Remove
paper layer
Clean surface inside
before placing the cover.
Torque max. 0.3Nm
make sure there are
no visable cables
4

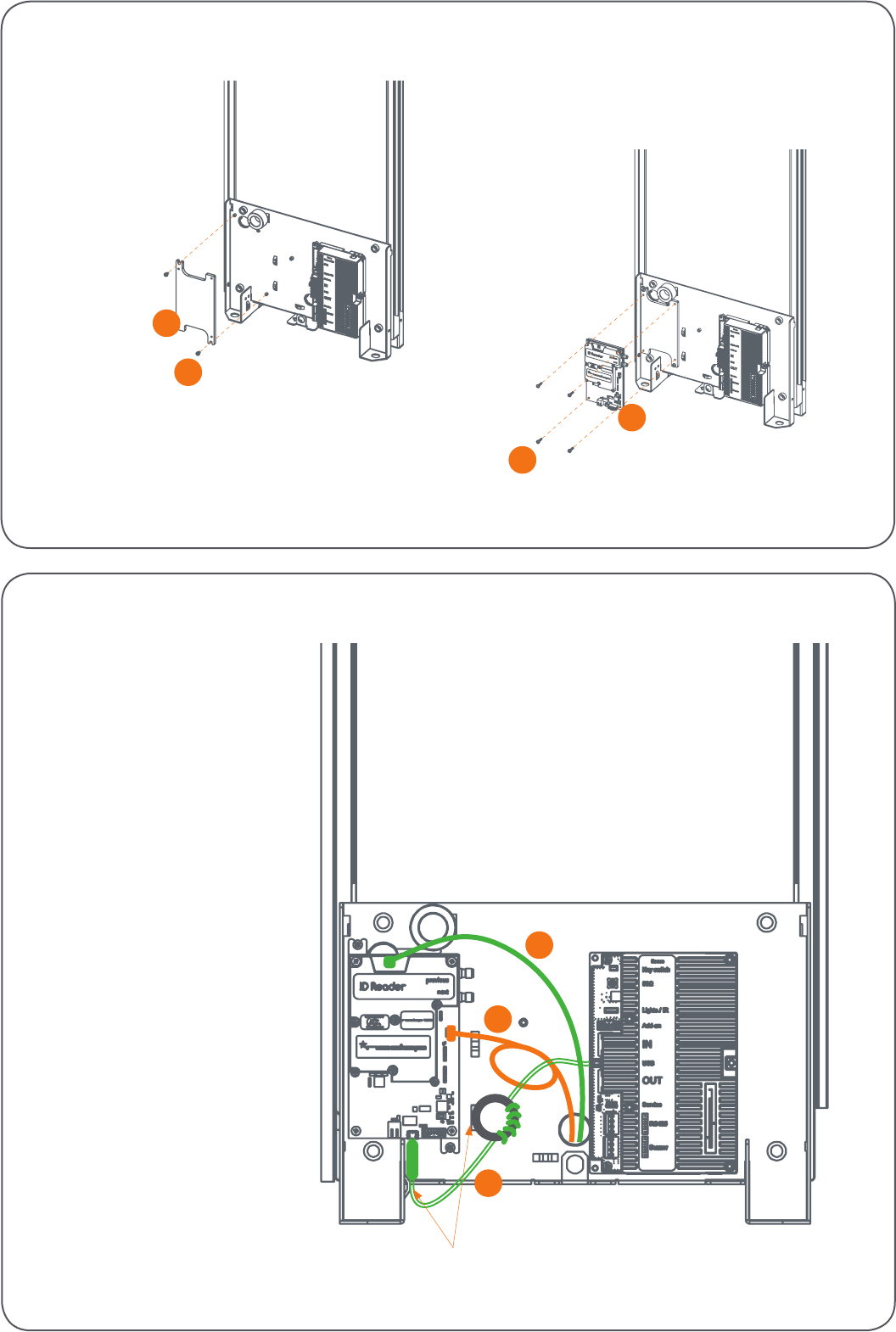

Place RFID Reader
1 Heatsink
2 Screw M3x6 (2x)
3 RFID Reader
4 Screw M3x12 (4x)
1
2
3
Fix with tie-wrap
Mount switch and coaxial cable
1 Coaxial cable
2 Switch cable
3 USB cable + core
1
2
3

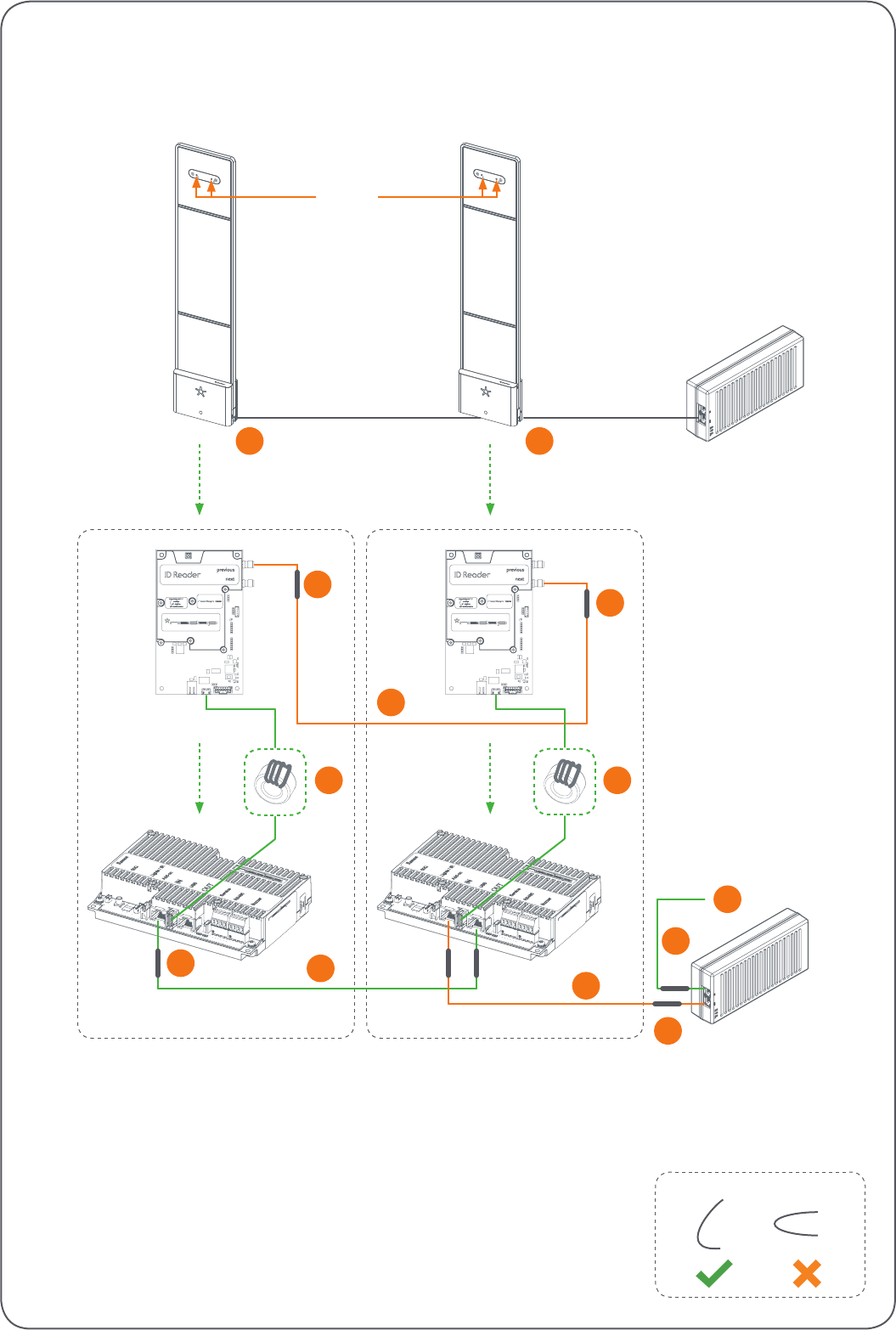

installation
1 Gate 1
2 Gate 2
3 RFID coaxial cable 11ft
4 Filter
5 Ethernet cable cat5e (not included)
6 Connect to customer network
7 USB cable + core
12
do not bend coaxial cable
4
3
45
5
6
RX sensors
5
77
4
4

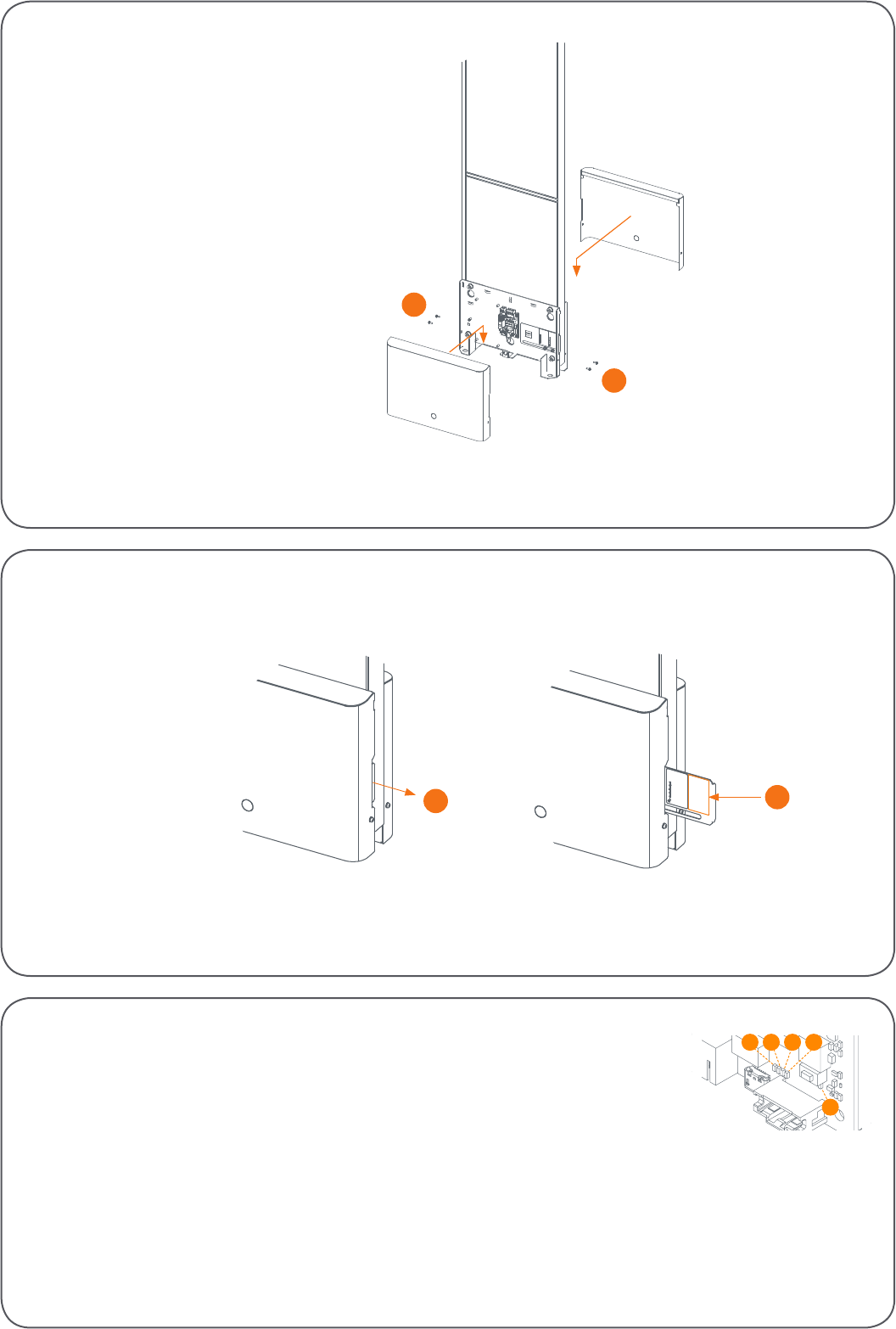

place covers
1 Screw M3x10 (4x)
1
replace label after installation
1
1 Pull to see the label information (Two labels at the front side and two at the back side)
2 Replace label with the correct REGION and MODEL name.
2
5
1234
status LEDs RFID Reader
1 Blue On The RFID Reader is connected to the Renos rmware
Blinking The RFID Reader has received a command from the Renos rmware
O The RFID reader is not connected to the Renos rmware
2 Yellow Blinking slow The rmware on the RFID Reader is running
O The rmware on the RFID reader is not running
3 Red On There is an error with the RFID output
O There is no error with the RFID output
4 Green On The RFID output is active
Blinking The reader is reading RFID labels
O The RFID output is not active
5 Green On The RFID reader is powered by the Renos unit
O The RFID reader is not powered by the Renos unit
1
FCC and IC Compliance statement
This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Cet appareil se conforme aux normes CNR 210 exemptés de license du Industry Canada. L’opération est soumis aux deux conditions suivantes:
(1) cet appareil ne doit causer aucune interférence, et
(2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une
opération non pas voulu de cet appareil. Les changements ou modications n’ayant pas été expressément approuvés par la partie responsable de la
conformité peuvent faire perdre à l’utilisateur l’autorisation de faire fonctionner le matériel.
FCC and IC Radiation Exposure Statement
This equipment complies with FCC and Canadian radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 5 cm between the radiator and a human body for normal operation. Personal standing permanently next to the
antenna frame must keep a distance of at least 30 cm. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Cet équipement est conforme a CNR-102 limites énoncées pour un environne- ment non contrôlé. Cet équipement doit être installé et utilisé avec une distance
minimale de 5 cm entre le radiateur et un corps humain pour un fonctionnement normal. Les personnes se tenant en permanence à côté du cadre de l’antenne
doivent respecter une distance minimale de 30 cm.. This Class B digital apparatus complies with Canadian ICES-003 Cet appareil numérique de Classe B est
con-forme à la norme Canadienne ICES-003.
FCC Information to the user
Note: This equipment has been tested and found to comply with the limits for a class B digital devices, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequent energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful interference to radio or television reception, which
can be determine by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an
outlet on a circuit different from that to which the receiver.
NOTE: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. To
ensure compliance with FCC regulations, use only the shielded interface cables provided with the product, or additional specified components or accessories
that can be used with the installation of the product.
Declaration of Conformity
Hereby, De N.V. Nederlandsche Apparatenfabriek “Nedap” declares that the radio equipment type ASSY T325R RF is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: https://portal.nedapretail.com/
User manual
The complete instruction manual can be found at https://portal.nedapretail.com/
Disclaimer
Nedap intends to make this manual accurate and complete. However, Nedap does not warrant that the information contained herein covers all details, conditions
or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. Nedap disclaims any liability for damage
to property or personal injury resulting, in whole or in part, from improper installation, modication, use or misuse of its products. The information contained in
this document is subject to change without notice.
