User Manual 03
Page 1 of 3
®
INSTALLATION MANUAL

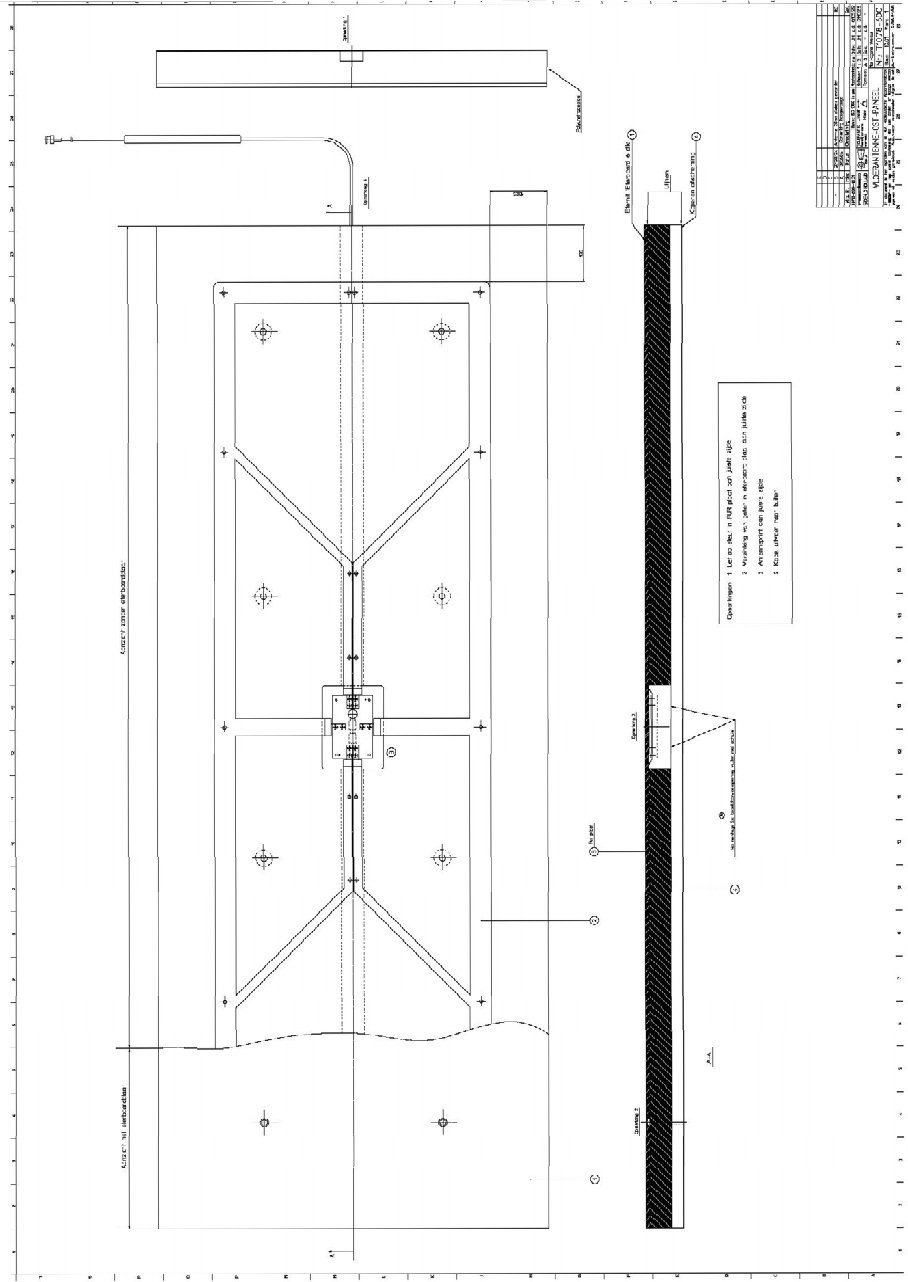

FLOOR ANTENNA
EQ 45-F
February 07, 2012 Part#: 9886168
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness;
Its publication conveys no license under patent or other right, nor does the publisher assume
Liability for any consequence of its use; specifications and availability of goods mentioned in it are
Subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the
written consent of the publisher.
© N.V. Nederlandsche Apparatenfabriek “Nedap”
Page 2 of 3
INSTALLATION

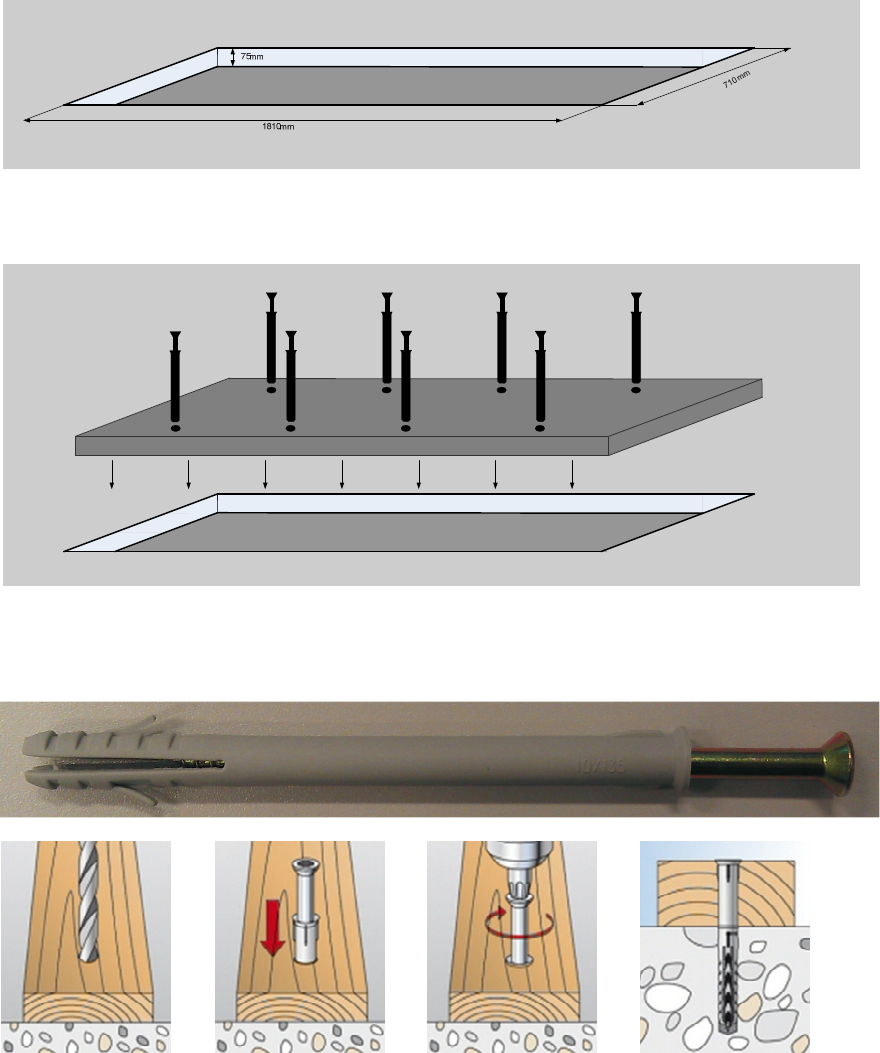

1 Make a hole in the floor 1810mm x 710mm with a depth of 74 mm.
Equalize the surface with fluid concrete or another material to equalize the surface.
2 Fit the antenna in the hole and mark the drill holes to drill 8 holes with a diameter of 10mm deep
80mm.
3 Place the Antenna assembly 9886168 in the hole and fix the antenna assembly so that the surfaces
from the floor and antenna are equal.
4 Fix the Antenna construction with the fisher screws article Fisher Hammerfix article 50347
5 After mounting the antenna assembly the rest holes can be filled with fluid concrete or another fill
material.
