USERS MANUAL 2
Network Maintenance
61
N300 Wireless ADSL2+ Modem Router DGN2200v3
GUI Language Version. The currently selected language.
Internet Port Settings
MAC Address. The Ethernet MAC address of the DSL port.
IP Address. The DSL port IP address. If no address is shown, the modem router cannot
connect to the Internet.
Network Type. The value depends on your ISP.
IP Subnet Mask. The DSL port IP subnet mask.
Gateway IP Address. The IP address used as a gateway to the Internet for computers
configured to use DHCP.
Domain Name Server. The modem router DNS server IP addresses. These addresses are
usually obtained dynamically from the ISP.
LAN Port (Local Ports)
MAC Address. The modem router LAN port Ethernet MAC address.
IP Address. The modem router LAN port IP address. The default is 192.168.0.1.
DHCP. If Off, the modem router does not assign IP addresses to PCs on the LAN. If On, the
modem router does assign IP addresses to PCs on the LAN.
IP Subnet Mask. The IP subnet mask used by the modem router LAN. The default is
255.255.255.0.
Modem
ADSL Firmware Version. The version of the firmware.
Modem Status. The connection status of the modem.
DownStream Connection Speed. The modem receives data from the DSL line at this
speed.
UpStream Connection Speed. The modem transmits data to the DSL line at this speed.
VPI. The Virtual Path Identifier setting.
VCI. The Virtual Channel Identifier setting.
Wireless Port
See Wireless Settings Screen on page 33 for a more detailed description of these settings.
Name (SSID). The Wi-Fi network name (service set ID) for the wireless network.
Region. The country where the unit is set up for use.
Network Maintenance
62
N300 Wireless ADSL2+ Modem Router DGN2200v3
Channel. The current channel, which determines the operating frequency.
Mode. The current mbps setting.
Wireless AP. Indicates if the access point feature is enabled. If disabled, the Wireless LED
on the front panel is off.
Broadcast Name. Indicates if the modem router is configured to broadcast its SSID.

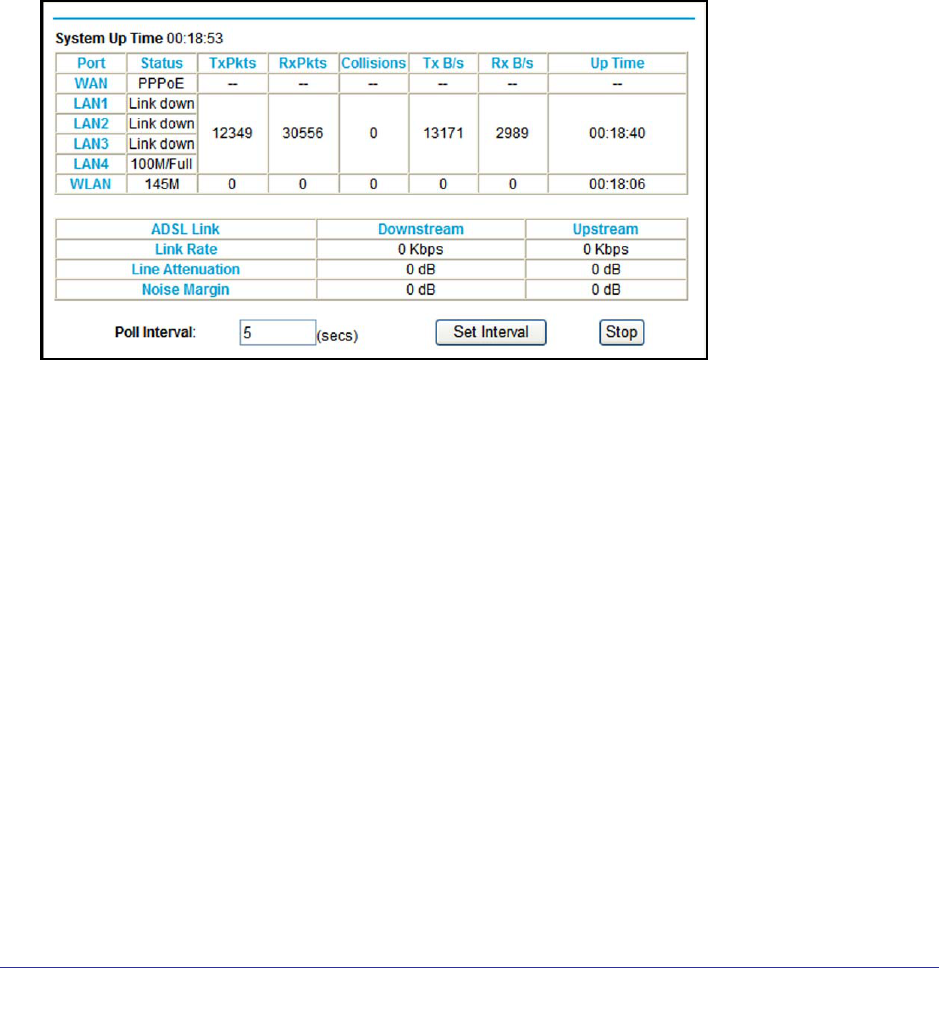

Show Statistics
Click the Show Statistics button on the Router Status screen to display a screen similar to
this:
Port
The statistics for the WAN (Internet), LAN (local), and wireless LAN (WLAN) ports. For each
port, the screen displays the following:
• Status. The link status of the port.
• TxPkts. The number of packets transmitted since reset or manual clear.
• RxPkts. The number of packets received since reset or manual clear.
• Collisions. The number of collisions since reset or manual clear.
• Tx B/s. The current line utilization—percentage of current bandwidth used.
• Rx B/s. The average line utilization.
• Up Time. The time elapsed since the last power cycle or reset.
ADSL Link Downstream or Upstream
The statistics for the upstream and downstream DSL link. These statistics are of interest to
your technical support representative if you have problems obtaining or maintaining a
connection.
Network Maintenance
63
N300 Wireless ADSL2+ Modem Router DGN2200v3
• Connection Speed. Typically, the downstream speed is faster than the upstream speed.
• Line Attenuation. The line attenuation increases the farther you are physically located
from your ISP’s facilities.
• Noise Margin. The signal-to-noise ratio, which is a measure of the quality of the signal on
the line.
• Poll Interval. The interval at which the statistics are updated in this window. Click the
Stop button to freeze the display.

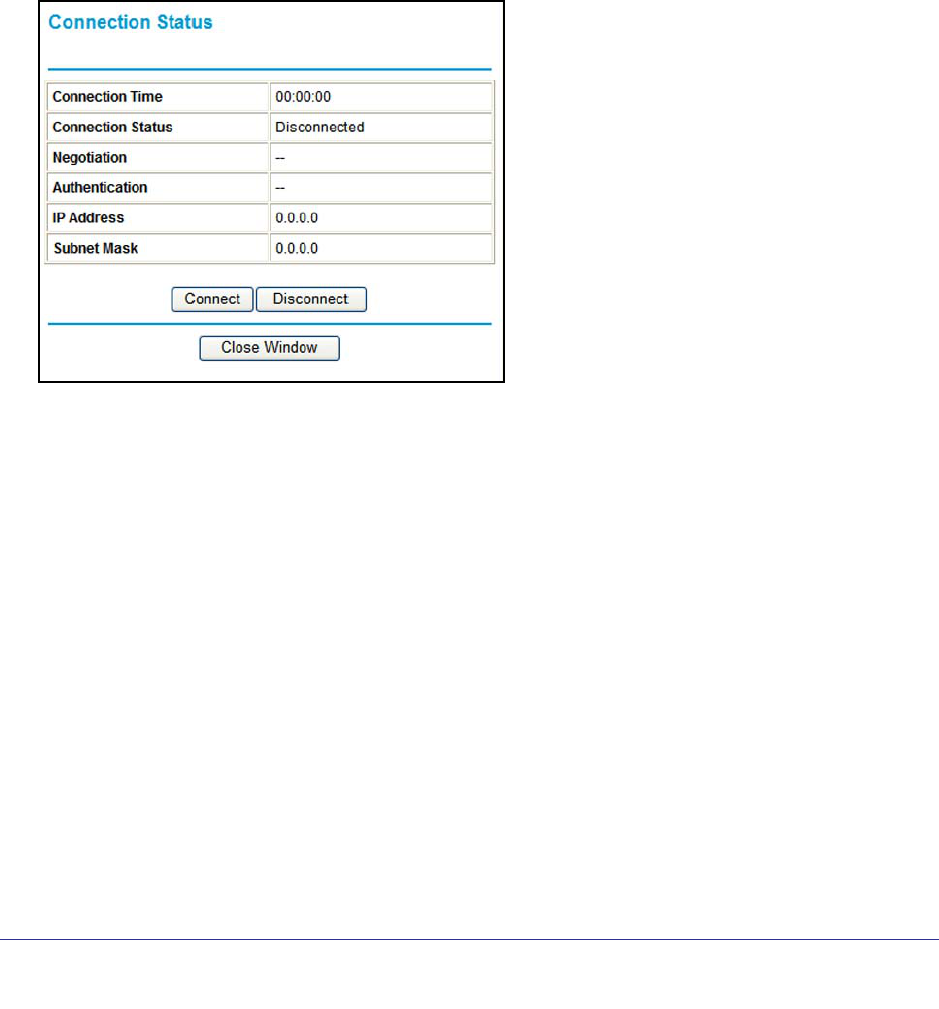

Connection Status
In the Router Status screen, click the Connection Status button to display a screen similar to
this:
• Connection Time. The time elapsed since the last connection to the Internet through the
DSL port.
• Connecting to sender. The connection status.
• Negotiation. On or Off.
• Authentication. On or Off.
• Getting IP Address. The IP address assigned to the WAN port by the ISP.
• Getting Network Mask. The network mask assigned to the WAN port by the ISP.

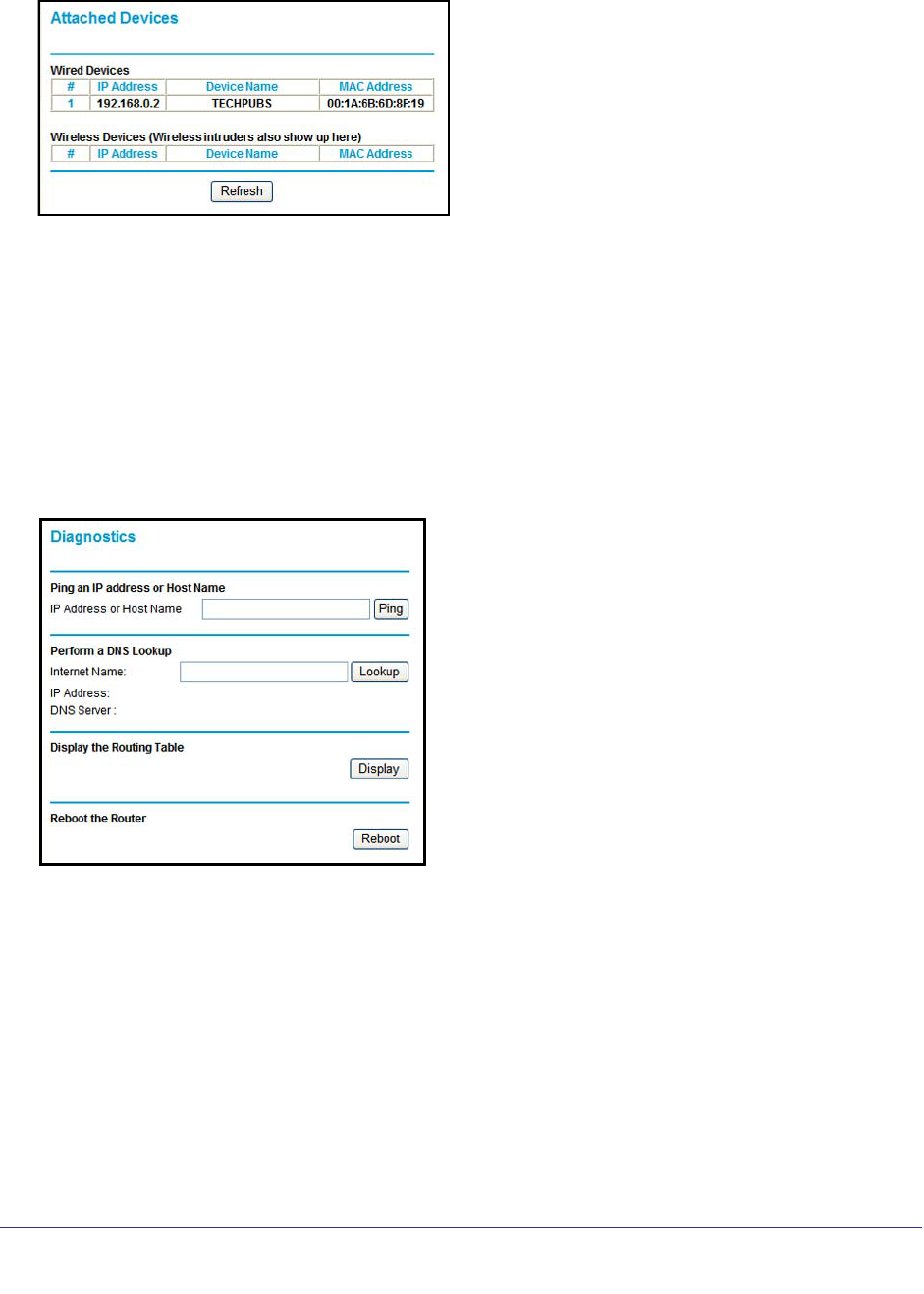

View Attached Devices
The Attached Devices screen shows all IP devices that the modem router has discovered on
the local network.
Network Maintenance
64
N300 Wireless ADSL2+ Modem Router DGN2200v3
Select Maintenance > Attached Devices.
For each device, the table shows the IP address, the device name if available, and the
Ethernet MAC address. Note that if the modem router is rebooted, the table data is lost until
the modem router rediscovers the devices. To force the modem router to look for attached
devices, click the Refresh button.
Run Diagnostic Utilities
The modem router has a diagnostics feature. Select Maintenance > Diagnostics to display
the following screen.
You can perform the following functions:
• Ping an IP address or host name to test connectivity to see if you can reach a remote
host.
• Perform a DNS lookup to test if an Internet name resolves to an IP address to verify that
the DNS server configuration is working.
• Display the routing table to identify what other modem routers the modem router is
communicating with.
• Reboot the modem router to enable new network configurations to take effect or to clear
problems with the modem router’s network connection.
65
6
6. USB Storage
This chapter describes how to access and configure a USB storage drive attached to your
modem router.

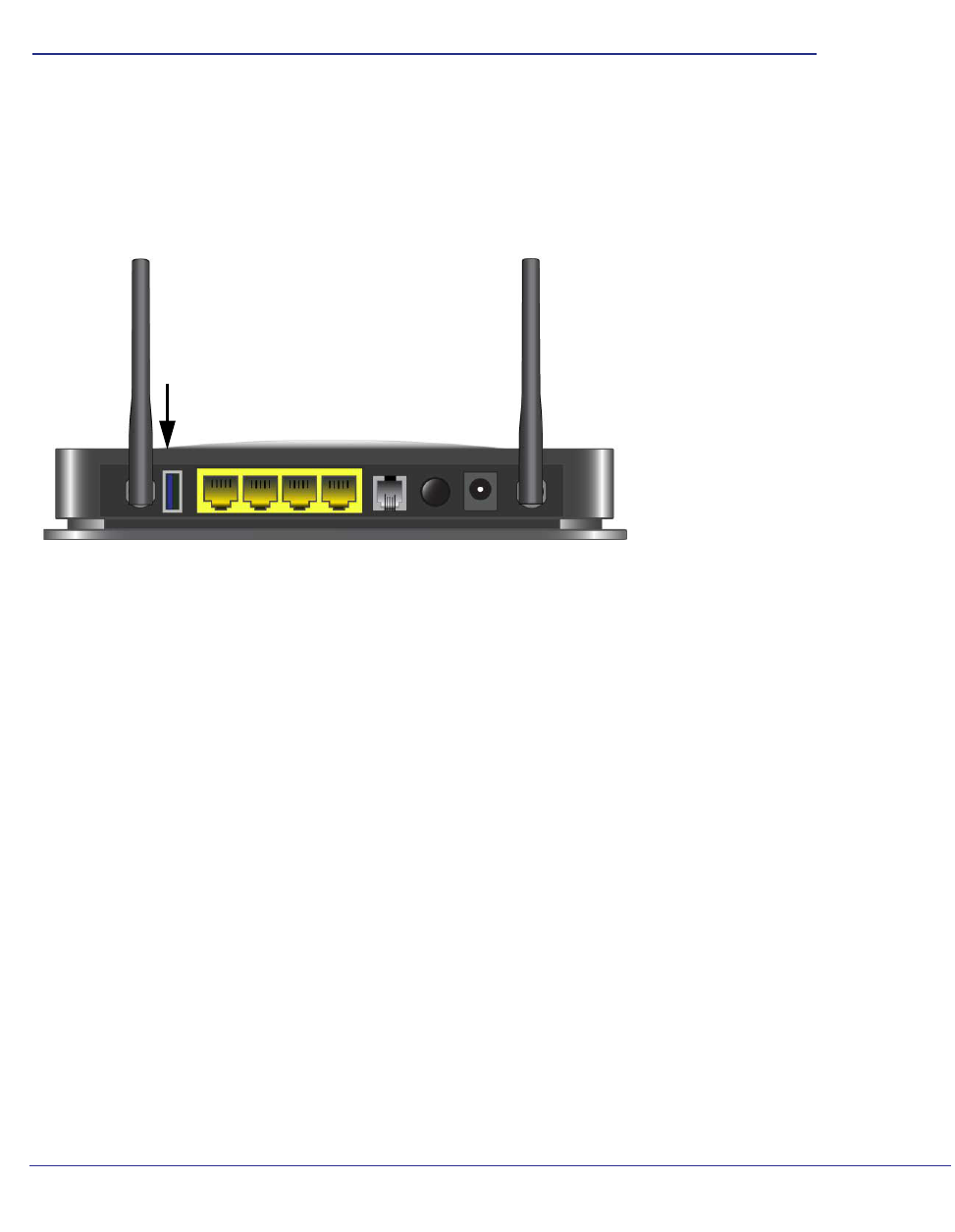

Figure 8. USB port on rear panel.
The USB port on the modem router can be used only to connect USB storage devices like flash
drives or hard drives. Do not connect computers, USB modems, printers, CD drives, or DVD
drives to the this USB port.
This chapter includes the following sections:
• USB Drive Requirements
• You can enable the HTTP (via Internet) option on the Advanced USB Storage screen to
share large files. This option supports downloading files only.
• USB Storage Basic Settings
• Edit a Network Folder
• USB Storage Advanced Settings
• Safely Remove USB Drive

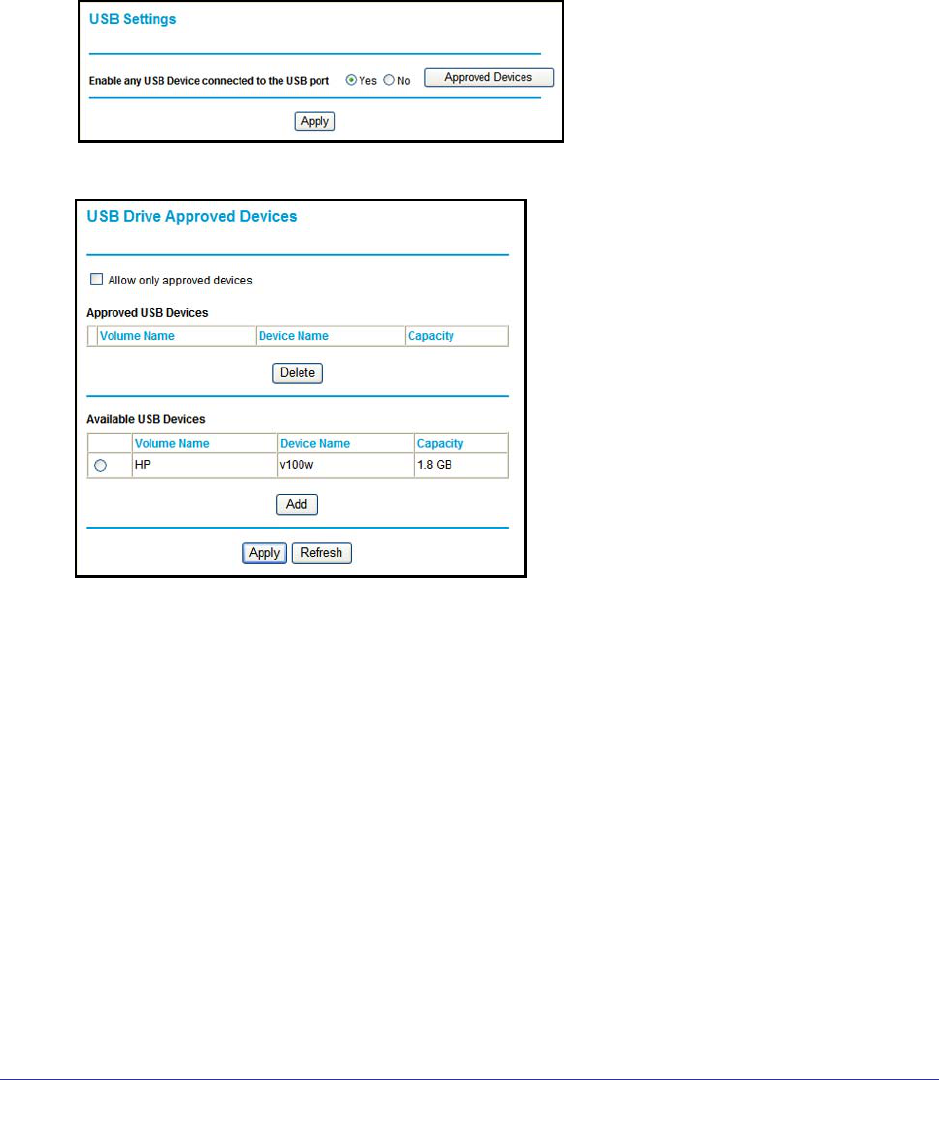

• Approved USB Devices (Advanced USB Settings)
• Connect to the USB Drive from a Remote Computer
• Connect to the USB Drive with Microsoft Network Settings
USB Storage
66
N300 Wireless ADSL2+ Modem Router DGN2200v3
USB Drive Requirements
The modem router works with 1.0 and 1.1 (USB Full Speed) and 2.0 (USB High Speed)
standards. The approximate USB bus speeds are shown in the following table. Actual bus
speeds can vary, depending on the CPU speed, memory, speed of the network, and other
variables.
Table 2. USB Drive Speeds
Bus Speed/Sec
USB 1.1 12 Mbits
USB 2.0 480 Mbits
The modem router should work with most USB-compliant external flash and hard drives. For
the most up-to-date list of USB drives supported by the modem router, go to:
http://kbserver.netgear.com/readyshare
The modem router supports both read and write for FAT16, FAT32, NTFS, and Linux file
systems (EXT2 and EXT3).
Note: Some USB external hard drives and flash drives require drivers to
be loaded in to the PC before the PC can access the USB device.
Such USB devices do not work with the modem router.

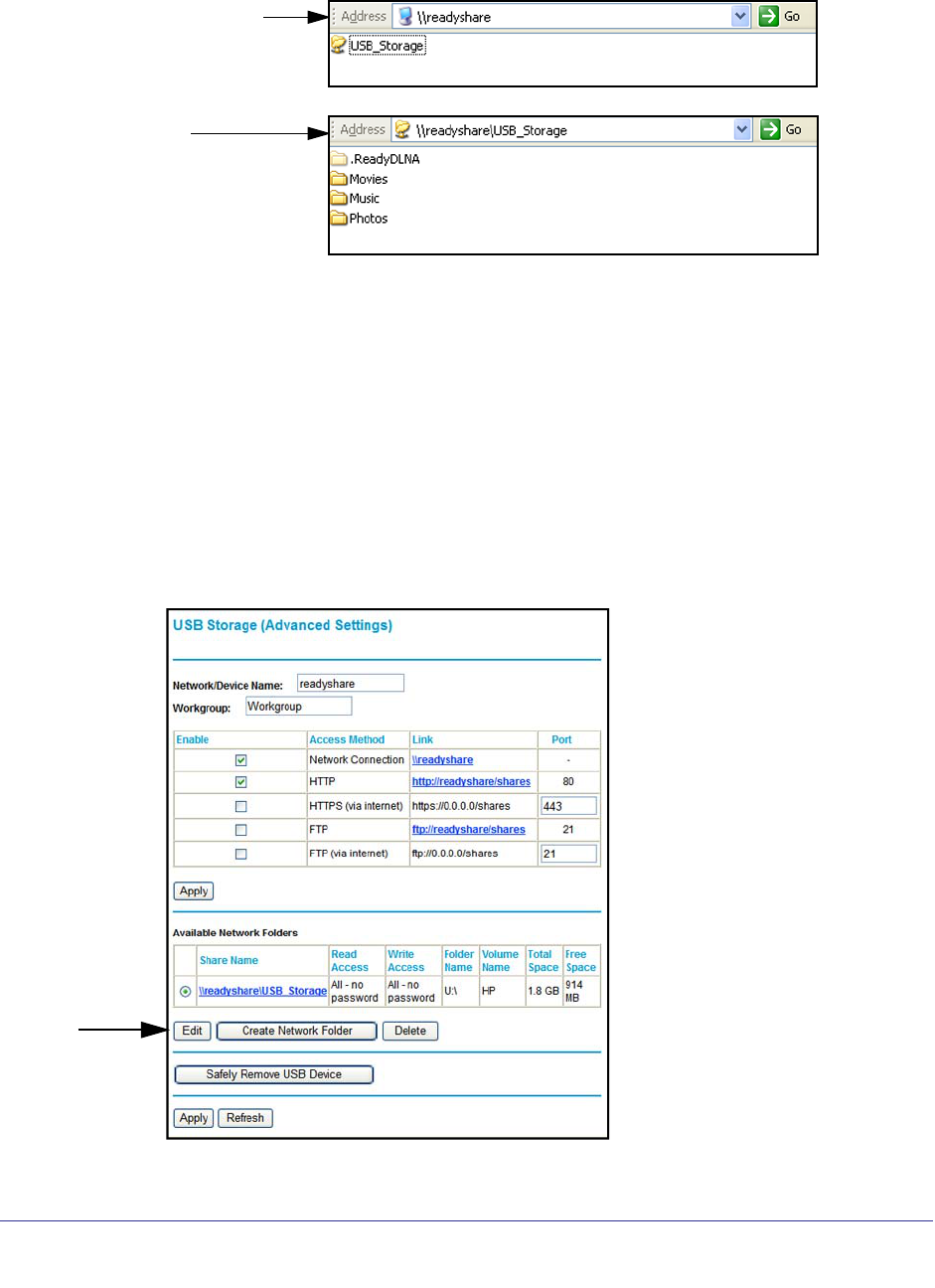

ReadySHARE Access
Once you have set up your modem router, you can connect any USB storage device and
share the contents with other users on your network.
You can access your USB device in any of the following ways:
• On Windows 7, Windows XP, Windows Vista, and Windows 2000 systems, select Start >
Run, and enter \\readyshare in the dialog box. Click OK.
• On Windows 7, Windows XP, Windows Vista, and Windows 2000 systems, open Internet
Explorer or Safari, and enter \\readyshare in the address bar.
• On Mac OS X (version 10.2 or later), enter smb://readyshare in the address bar.
• In My Network Places, enter \\readyshare in the address bar.
USB Storage
67
N300 Wireless ADSL2+ Modem Router DGN2200v3
File-Sharing Scenarios
You can share files on the USB drive for a wide variety of business and recreational
purposes. The files can be any PC, Mac, or Linux file type including text files, Word,
PowerPoint, Excel, MP3, pictures, and multimedia. USB drive applications include:
• Sharing multimedia with friends and family such as MP3 files, pictures, and other
multimedia with local and remote users.
• Sharing resources on your network. You might want to store files in a central location so
that you do not have to power up a computer to perform local sharing. In addition, you
can share files between Macintosh, Linux, and PC computers by using the USB drive as
a go-between across the systems.
• Sharing files such as Word documents, PowerPoint presentations, and text files with
remote users.
A few common uses are described in the following sections.
Sharing Photos
You can create your own central storage location for photos and multimedia. This eliminates
the need to log in to (and pay for) an external photo-sharing site.
To share files with your friends and family:
1. Insert your USB drive into the USB port on the modem router either directly or with a
USB cable.
Computers on your local area network (LAN) can automatically access this USB drive
using a web browser or Microsoft Networking.
2. If you want to specify read-only access or to allow access from the Internet, see Approved
USB Devices (Advanced USB Settings) on page 74.
Storing Files in a Central Location for Printing
This scenario is for a family that has one high-quality color printer directly attached to a
computer, but not shared on the local area network (LAN). This family does not have a print
server.
• One family member has photos on a Macintosh computer that she wants to print.
• The photo-capable color printer is directly attached to a PC, but not shared on the
network.
• The Mac and PC are not visible to each other on the network.
To print photos from a Mac on the printer attached to a PC:
1. On the Mac, access the USB drive by typing \\readyshare in the address field of a web
browser. Then copy the photos to the USB drive.
2. On the PC, use a web browser or Microsoft Networking to copy the files from the USB drive
to the PC. Then print the files.
USB Storage
68
N300 Wireless ADSL2+ Modem Router DGN2200v3
Sharing Large Files over the Internet
Sending files that are larger than 5 MB can pose a problem for many email systems. The
modem router allows you to share very large files such as PowerPoint presentations or .zip
files over the Internet. FTP can be used to easily download shared files from the modem
router.
Sharing files with a remote colleague involves the following considerations:
• There are two user accounts: admin and guest. The password for admin is the same one
that you use to access the modem router. By default, it is password. The guest user
account has no password.
• On the FTP site, the person receiving the files should use the guest user account and
enter any password (FTP requires that you type something in the password field).
• Be sure to select the FTP (via Internet) check box in the USB Storage Advanced Settings
screen. This option supports both downloading and uploading of files.
Note: You can enable the HTTP (via Internet) option on the Advanced
USB Storage screen to share large files. This option supports
downloading files only.

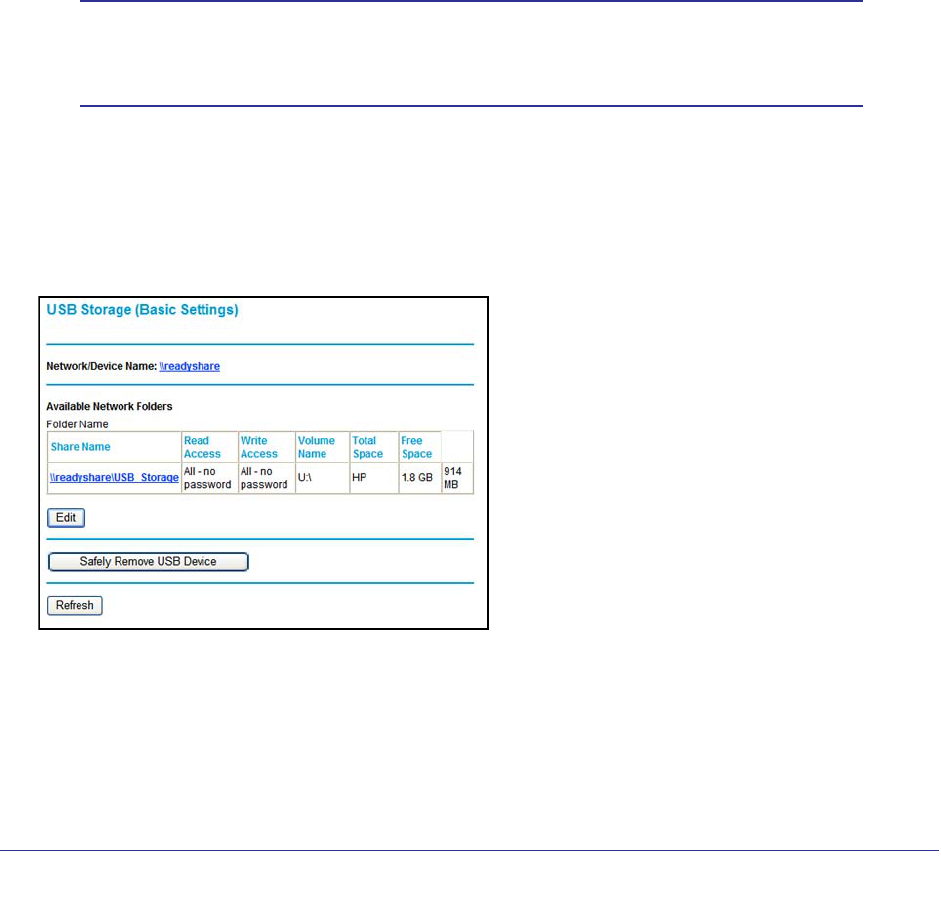

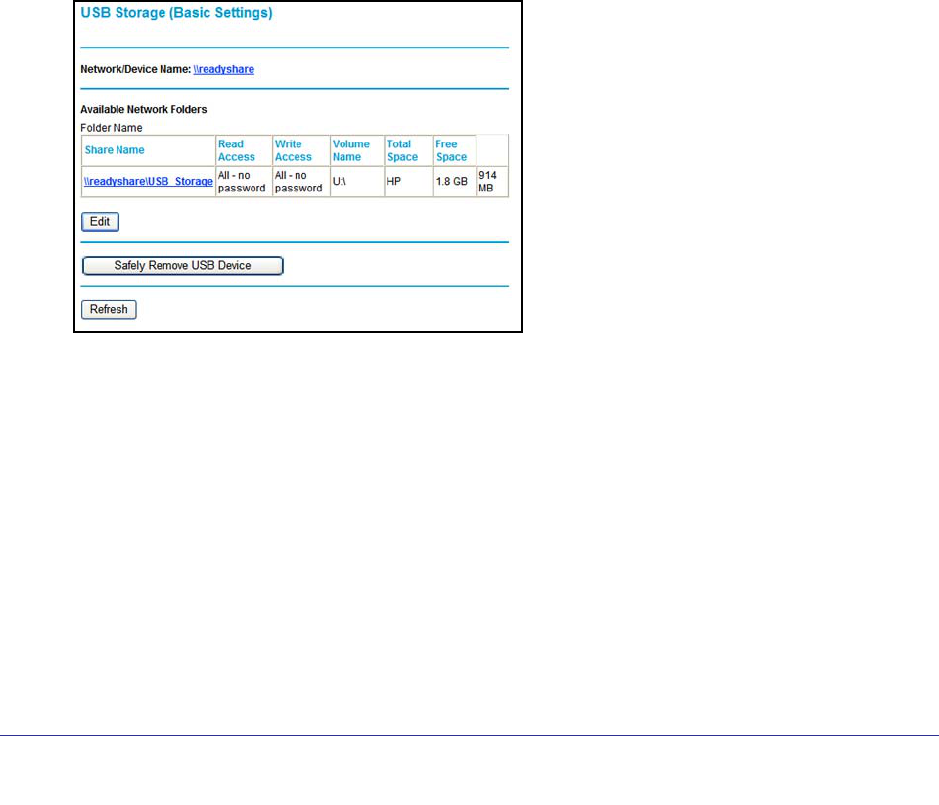

USB Storage Basic Settings
You can view or edit basic settings for the USB storage device attached to your modem
router. Select USB > Basic Settings. The following screen displays:
If you logged in to the modem router before you connected your USB device, you might not
see your USB device in the modem router screens until you log out and then log in again.
This screen includes the following fields and buttons:
• Network Device Name. The default is \\readyshare. This is the name used to access the
USB device connected to the modem router.
USB Storage
69
N300 Wireless ADSL2+ Modem Router DGN2200v3
• Folder Name. Full path of the used by the Network folder.
• Volume Name. Volume name from the storage device (either USB drive or HDD).
• Total/Free Space. Shows the current utilization of the storage device.
• Share Name. You can click the name shown, or you can type it in the address field of
your Web browser.
If Not Shared is shown, then the default share has been deleted and no other share for
the root folder exists. Click the link to change this setting.
• Read/Write Access. Shows the network folder permissions and access controls.
-All no password allows all users to access the network folder.
-admin uses the same password that you use to log in to the modem router main
menu.

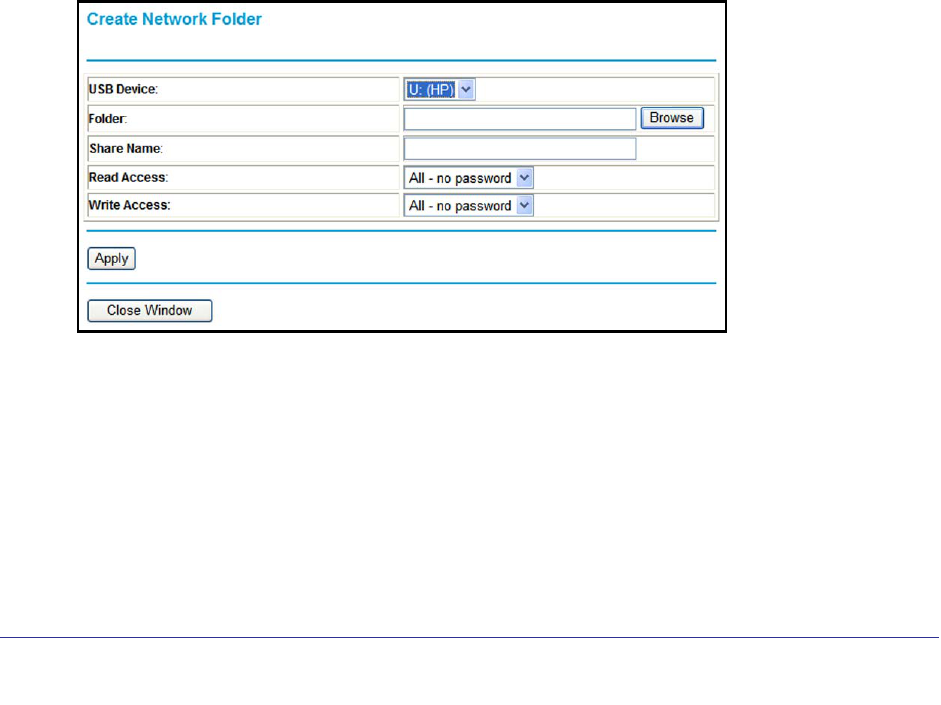

• Edit. You can click the Edit button to edit the Available Network folder settings. See Edit
a Network Folder on page 70.
• Safely Remove USB Device. Click this button to safely remove the USB device attached
to your modem router. See Safely Remove USB Drive on page 73.
To access a USB device attached to the modem router USB port:
1. Select USB > Basic Settings. The following screen displays:
By default, the USB device is available to all computers on your local area network (LAN).
USB Storage
70
N300 Wireless ADSL2+ Modem Router DGN2200v3
2. To access your USB device, click the share name or type \\readyshare in the address field
of your Web browser.
Network/device name:
Share name:
\\readyshare
\\readyshare\USB_Storage
If you logged in to the modem router before you connected your USB device, you might not
see your USB device in the modem router screens until you log out and then log in again.
Edit a Network Folder
You can use the Edit button on either the USB Storage (Basic Settings) or USB Storage
(Advanced Settings) screen.
To edit a network folder:
1. Select USB > Advanced Settings. The USB Storage (Advanced Settings) screen
displays:
2. Click the Edit button
USB Storage
71
N300 Wireless ADSL2+ Modem Router DGN2200v3
3. Click Apply for your changes to take effect.
USB Storage Advanced Settings

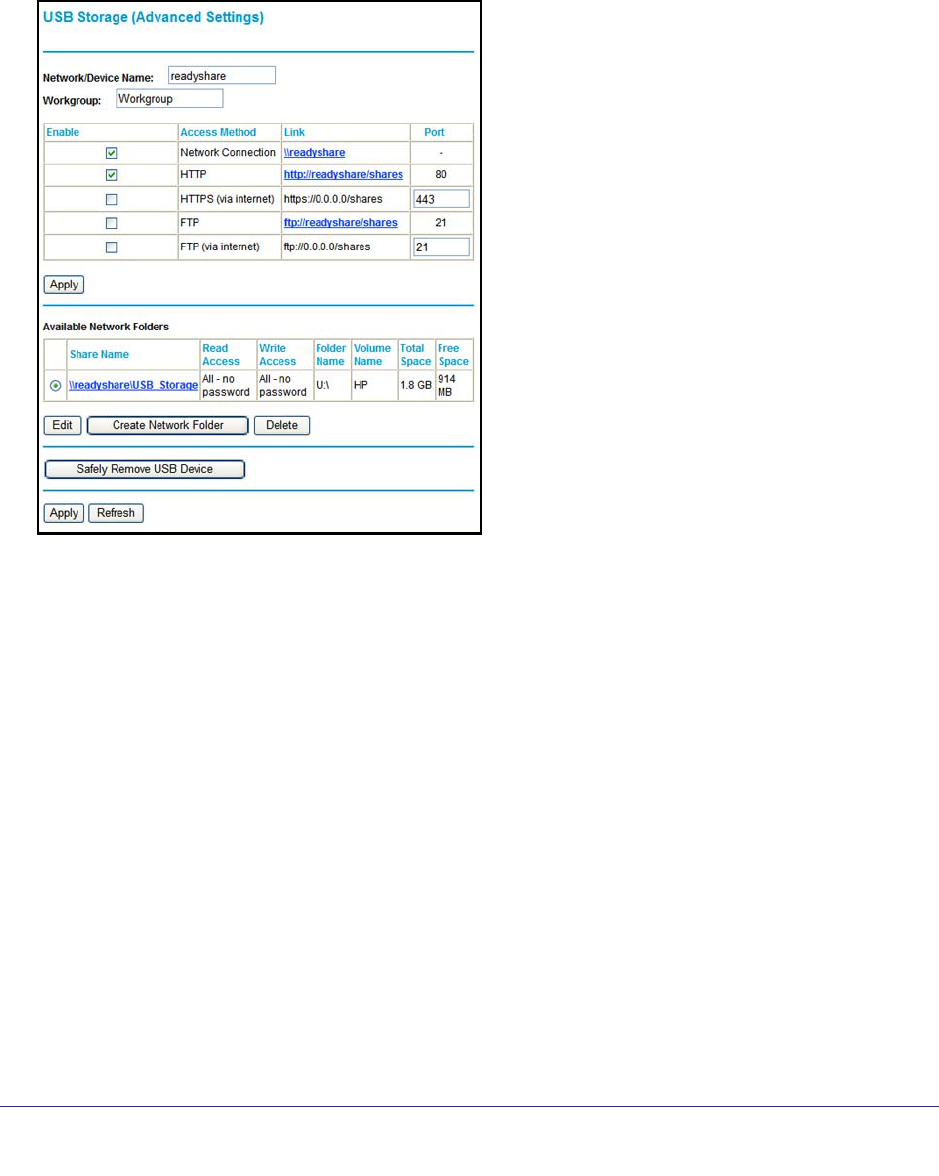

To view or change advanced USB settings, select USB > Advanced Settings. The USB
Storage (Advanced Settings) screen displays:
You can use this screen to specify access to the USB storage device. The settings are as
follows:
• Network Device Name. The default is readyshare. This is the name used to access the
USB device connected to the modem router from your computer.
• Workgroup. If you are using a Windows Workgroup rather than a domain, the workgroup
name is displayed here.
Access Method
• Network Connection. Enabled by default, this allows all users on the LAN to have
access to the USB drive.
• HTTP. Disabled by default. If you enable this setting, you can type http://readyshare to
access the USB drive.
• HTTP (via Internet). Disabled by default. If you enable this settings, remote users can
type http://readyshare to access the USB drive over the Internet.
• FTP. Disabled by default.
USB Storage
72
N300 Wireless ADSL2+ Modem Router DGN2200v3
• FTP (via Internet). Disabled by default. If you enable this settings, remote users can
access the USB drive via FTP over the Internet.
Available Network Folders
• Folder Name. Full path of the Network folder.
• Volume Name. Volume name from the storage device (either USB drive or HDD).
• Total Free Space. The space currently available on the storage device.
• Share Name. You can click the name shown or you can type it into the address field of
your Web browser. If Not Shared is shown, then the default share has been deleted and
no other share for the root folder exists. Click the link to change this setting.
• Read/Write Access. Shows the permissions and access controls on the Network folder.
Selecting All no password allows all users to access the Network folder. You are
prompted to enter the same password that you use to log in to the modem router.
Create a Network Folder
You can create a network folder on the USB device that is attached to the USB port on the
rear panel of the modem router.
To create a network folder:
1. From the USB Storage (Advanced Settings) screen, click the Create Network Folder
button to open the Create a Network Folder screen:
2. Type a name in the Folder field.
• You can specify the folder’s share name, read access, and write access from All-no
password to admin.
• The password for admin is the same one that is used to log in to the modem router
main menu. By default it is password.
3. Click Apply so that your changes take effect.
USB Storage
73
N300 Wireless ADSL2+ Modem Router DGN2200v3
Safely Remove USB Drive
To unmount a USB disk drive so that no users can access it, from the USB Settings screen,
click the Safely Remove USB button. This takes the drive offline.
CAUTION:
Unmount the USB drive before physically unplugging it from the modem
router. If the USB disk is removed or a cable is pulled while data is being
written to the disk, it could result in file or disk corruption.

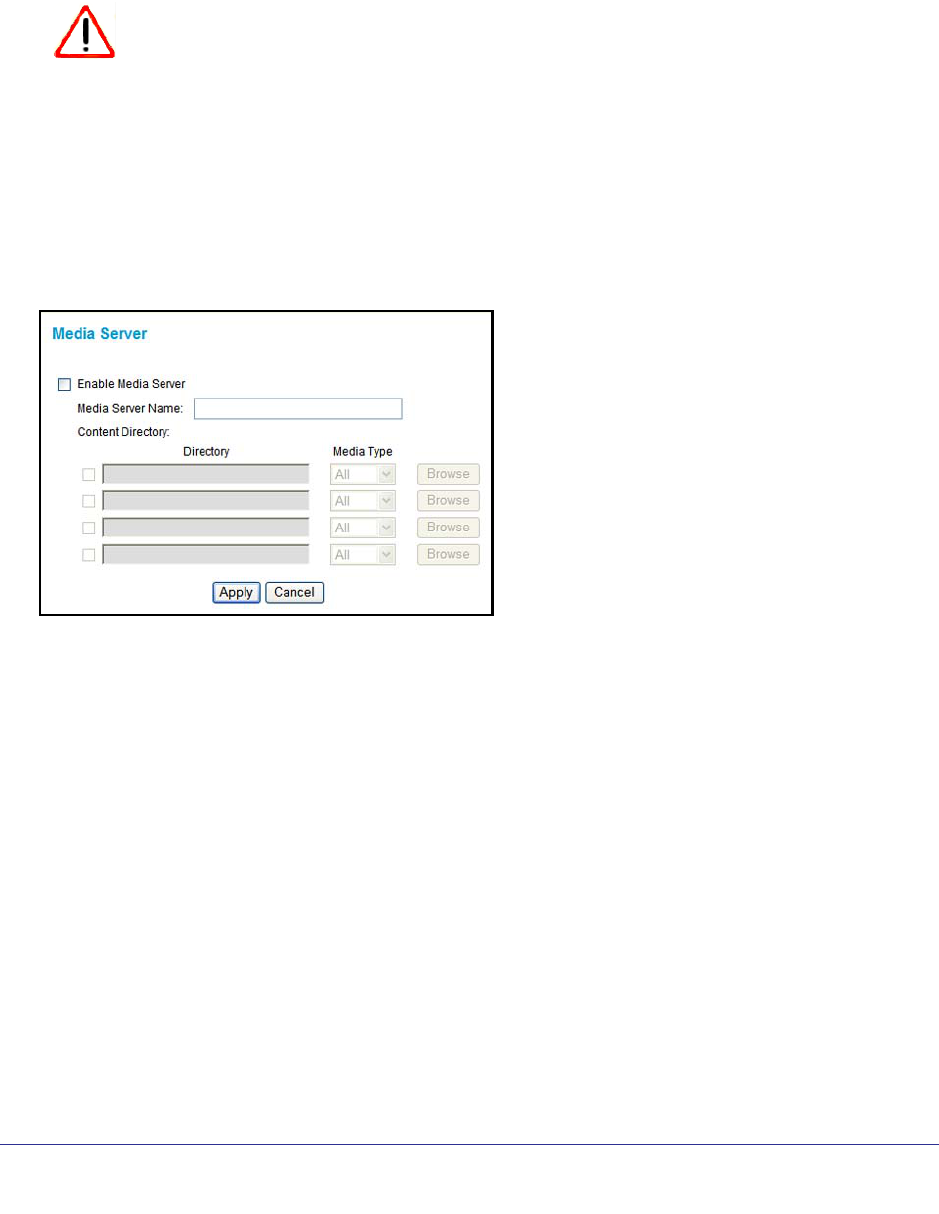

Media Server Settings
You can set up the modem router to work with compatible media adapters. Select USB
Storage > Media Servers to display the following screen:
Enable Media Server. If this feature is enabled, the DGN2200v3 can be located by
compatible media adapters, using the UPnP AV standard developed by Intel and its partners.
Media content on the DGN2200v3 (in the Content Directories that you specify) can then be
accessed and played by the media adapters.
Server Name. The name of the media server that is displayed on client devices. Note that
some special characters (such as " / \ [ ] : ; |= , + * ? < > ` ( ) # $ %) and 2-byte characters
cannot be used in the server name.
Content Directory. Specify the directories (folders) that the media server should scan for
media content. You can specify up to four. Click the Browse button to locate and select the
folder you want. Each directory can be limited to a certain media type. The default setting will
scan for all content types. Note that some special characters (e.g. " \ : * ? < > | ' `) cannot be
used in the folder names.
USB Storage
74
N300 Wireless ADSL2+ Modem Router DGN2200v3
Approved USB Devices (Advanced USB Settings)
You can specify which USB devices are approved for use when connected to the modem
router.
To allow only approved USB devices to be accessed:
1. Select Advanced > USB Settings.
2. Click Approved Devices.
3. On the USB Drive Approved Devices screen, select the USB device from the Available USB
Devices list.
4. Click Add.
5. Select the Allow only approved devices check box.
6. Click Apply so that your change takes effect.
If you want to approve another USB device, you must first use the Safely Remove USB
Device button to unmount the currently connected USB device. Connect the other USB
device, and then repeat this process.
Connect to the USB Drive from a Remote Computer
To connect to the USB drive from remote computers using a Web browser, you use the
modem router’s Internet port IP address.
USB Storage
75
N300 Wireless ADSL2+ Modem Router DGN2200v3
To connect to the modem router’s USB drive using a Web browser:
1. First, locate the Internet port IP address. You can view this in the Router Status screen.
a. Select Maintenance > Router Status.
b. Record the IP address that is listed for the Internet port. This is the IP address you
can use to connect to the modem router remotely.
2. Use a web browser to connect to the modem router by typing ftp:// and the Internet port IP
address in the address field.
For example, type ftp://10.1.65.4. If you are using Dynamic DNS, you can type the DNS
name rather than the IP address.
3. Type the name and password of the account that has access rights to the USB drive.
The directories of the USB drive that your account has access to display, for example,
share/partition1/directory1. You can now read and copy files from the USB directory.
Connect to the USB Drive with Microsoft Network Settings
You can access the USB drive from local computers on your home or office network using
Microsoft network settings. You must be running Microsoft Windows 2000, XP, or older
versions of Windows with Microsoft networking enabled. You can use normal Explorer
operations such as dragging and dropping, opening files, or cutting and pasting files from:
• Microsoft Windows Start menu, Run option
• Windows Explorer
• Network Neighborhood or My Network Place
Enabling File and Printer Sharing
Each computer’s network properties have to be set to enable network communication with
the USB drive. File and Printer Sharing for Microsoft networking have to be enabled, as
described in the following sections.
Note: In Windows 2000 and Windows XP, File and Printer Sharing is
enabled by default.
Configuring Windows 98SE and Windows ME
The easiest way to get to your network properties is to go to your desktop, right-click
Network Neighborhood and then select Properties. File and Printer Sharing for Microsoft
Windows should be listed. If not, click Add and follow the installation prompts.
USB Storage
76
N300 Wireless ADSL2+ Modem Router DGN2200v3
Note: If you have any questions about File and Printer Sharing, contact
Microsoft for assistance.
Configuring Windows 2000 and Windows XP
Right-click the network connection for your local area network. File and Printer Sharing for
Microsoft Windows should be listed. If not, click Install and follow the installation prompts.
77
7
7. Advanced Settings
Configuring for unique situations
This chapter describes the advanced features of your modem router. The information is for users
with a solid understanding of networking concepts who want to set the modem router up for
unique situations such as when remote access from the Internet by IP or domain name is
needed.
This chapter contains the following sections:
• WAN Setup
• Dynamic DNS

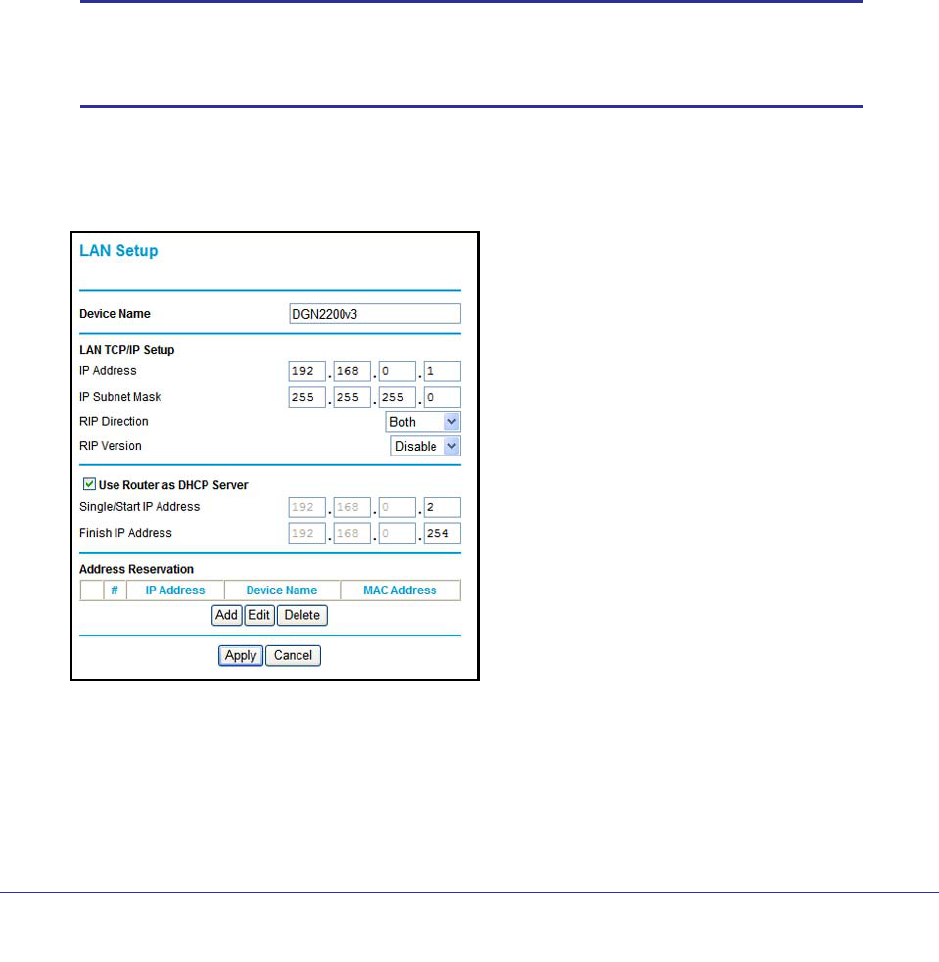

• LAN Setup
• Quality of Service (QoS)
• Advanced Wireless Settings
• Remote Management

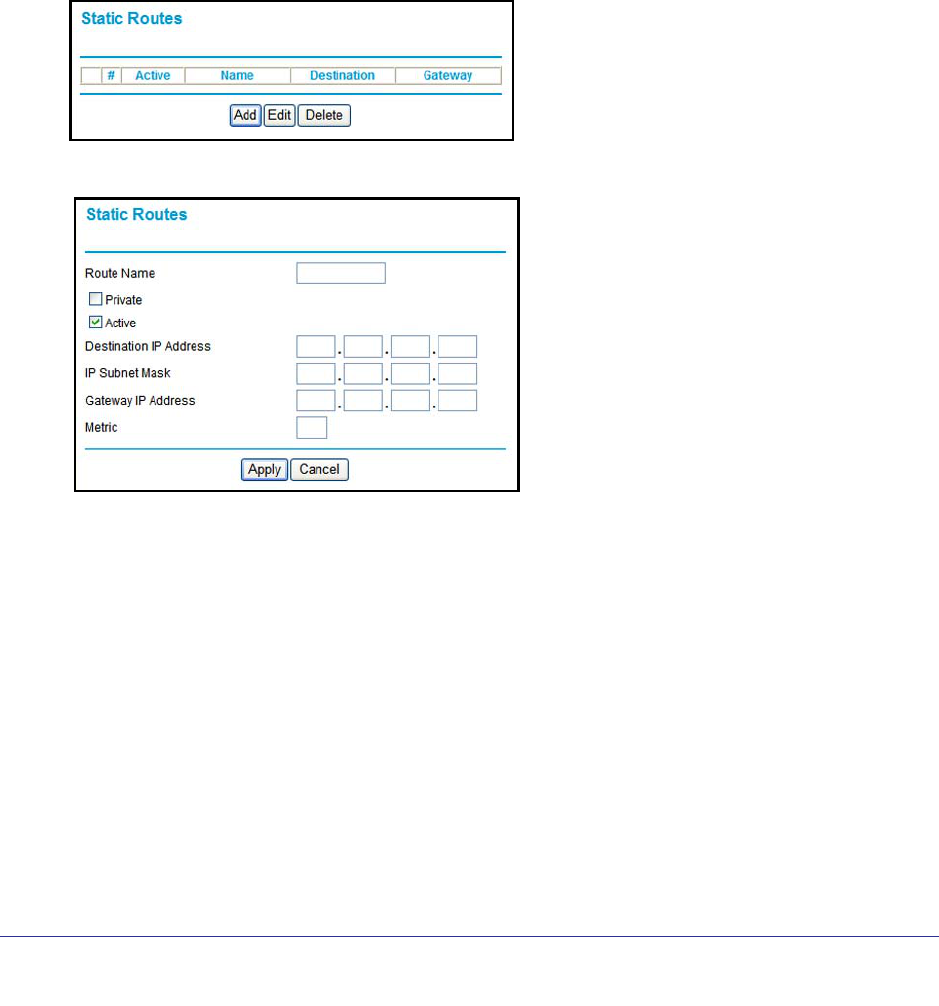

• Static Routes
• Universal Plug and Play

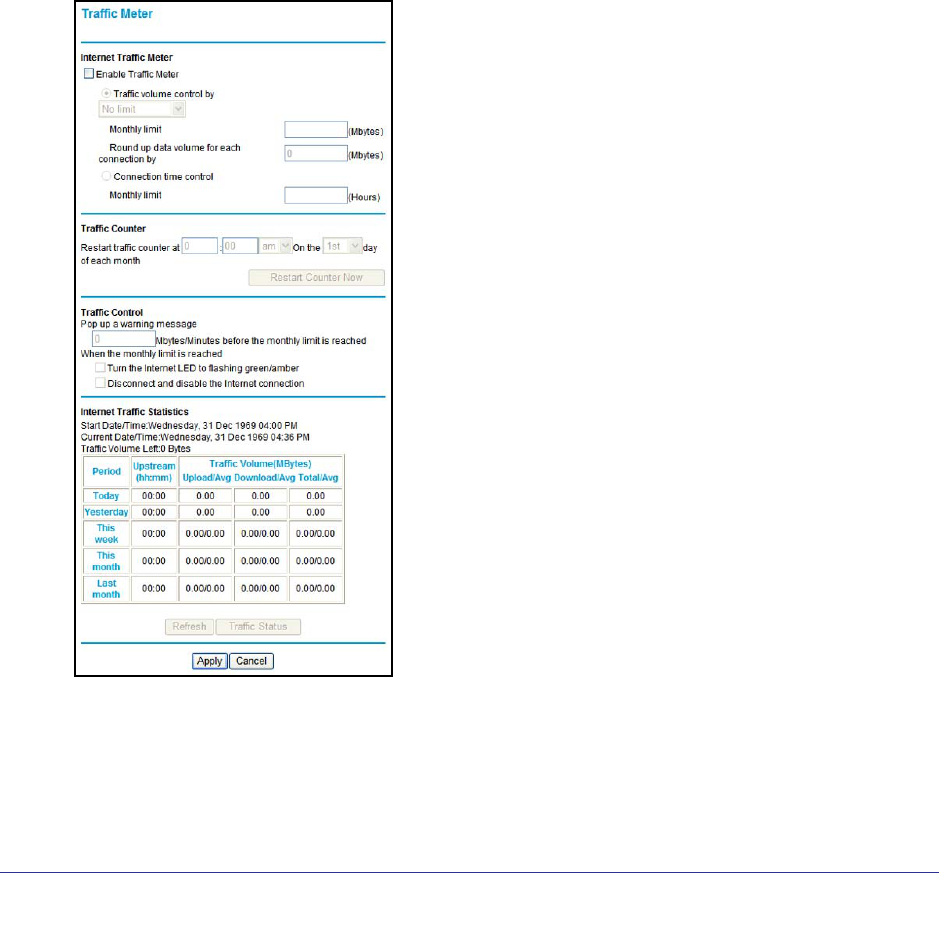

• Traffic Meter

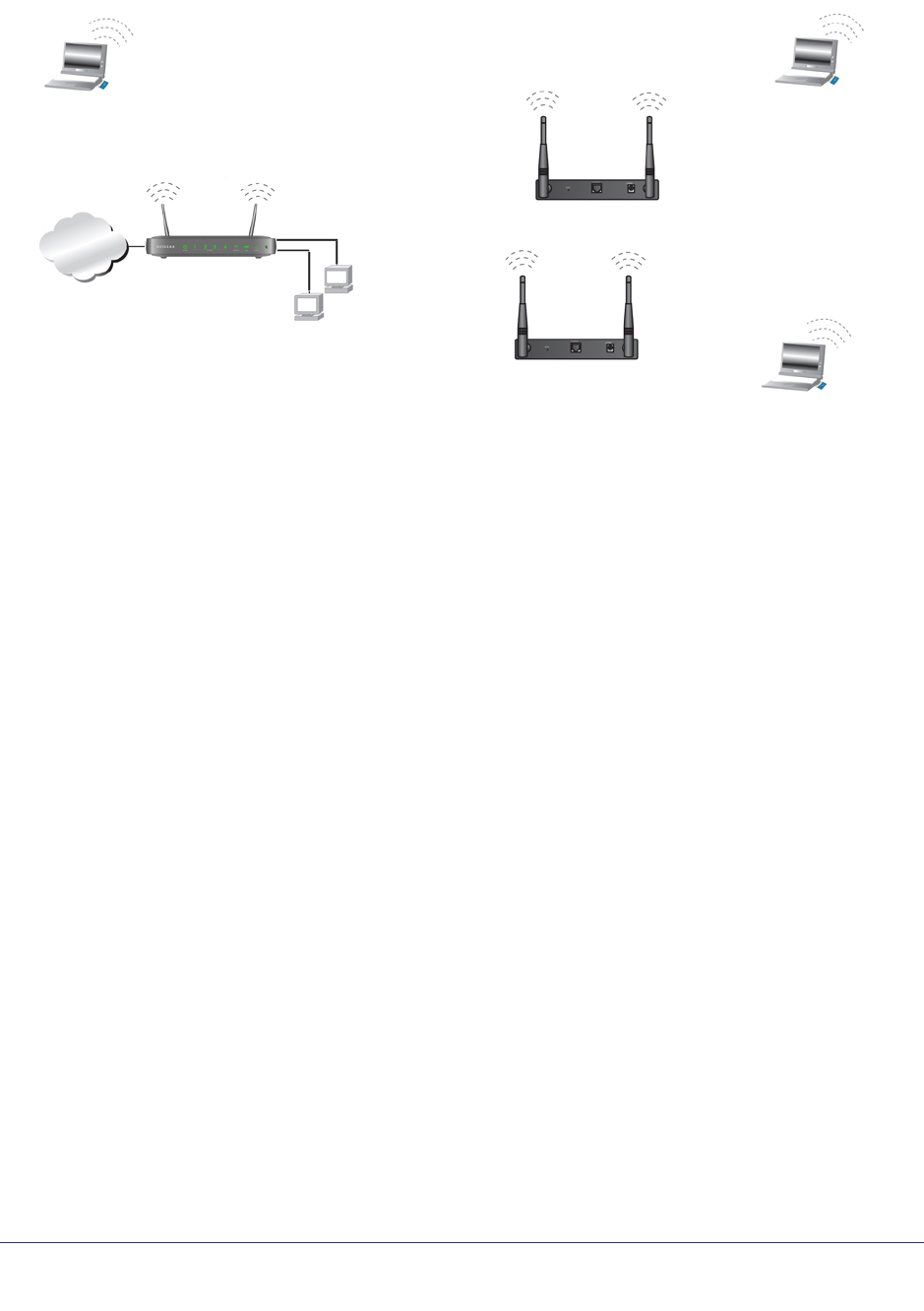

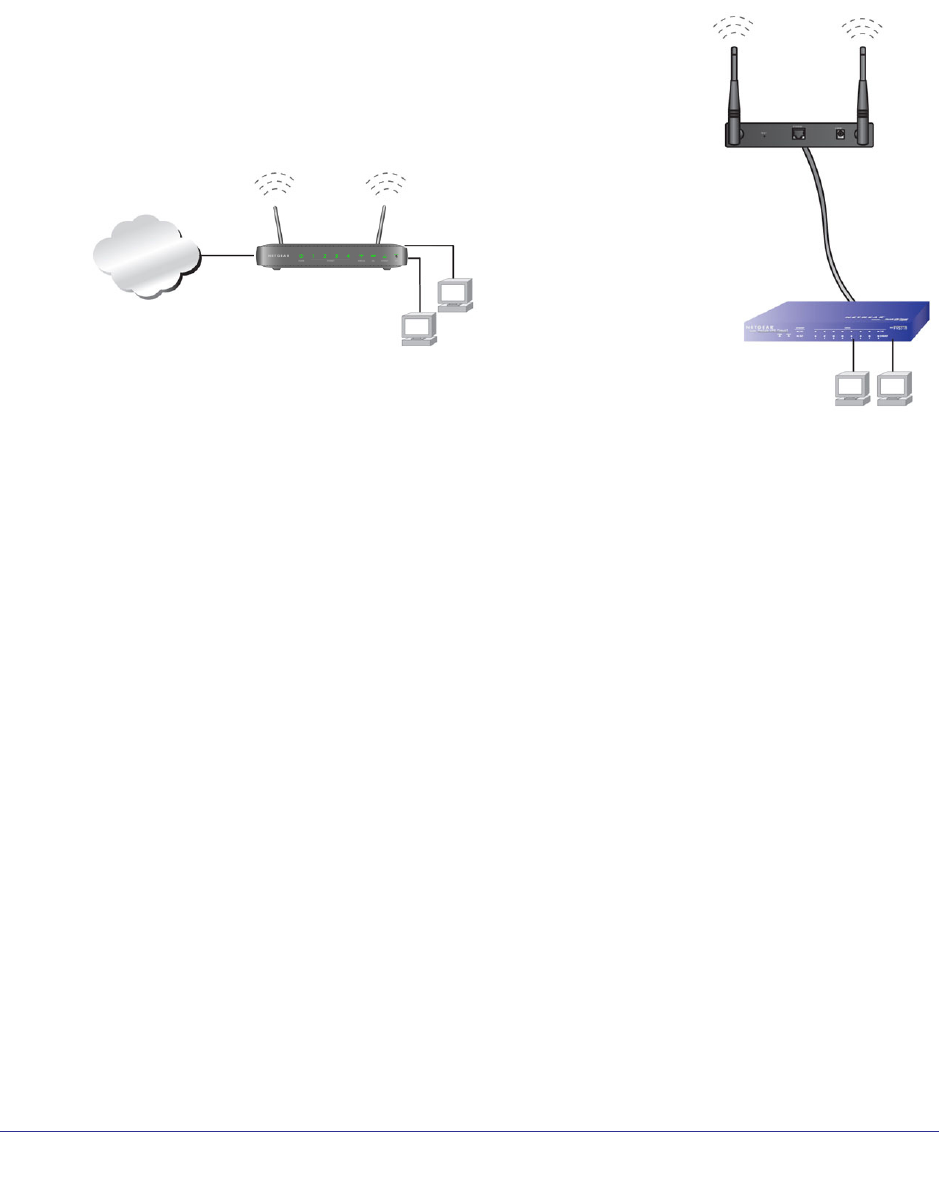

• Wireless Bridging and Repeating Networks
• Change the Device Mode
For information about the Port Forwarding/Port Triggering menu selection, see Set Up Port
Forwarding to Local Servers on page 46 and Set Up Port Triggering on page 49.
For information about Advanced USB Settings, see Approved USB Devices (Advanced USB
Settings) on page 74.
Advanced Settings
78
N300 Wireless ADSL2+ Modem Router DGN2200v3
WAN Setup

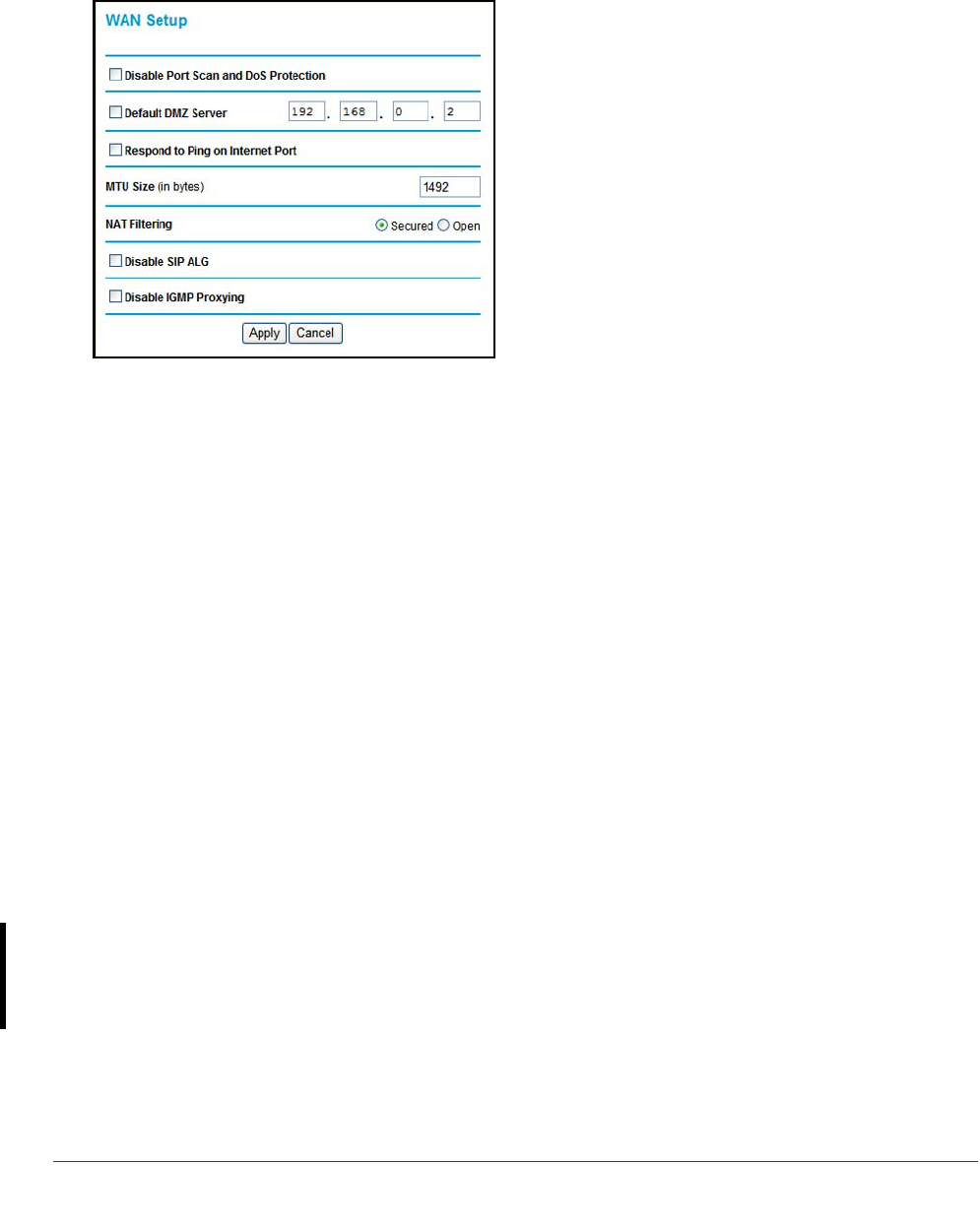

Select Advanced > WAN Setup to display the following screen:
The following settings are available:
• Disable Port Scan and DoS Protection. The firewall protects your LAN against port
scans and denial of service (DoS) attacks. This protection should be disabled only in
special circumstances.
• Default DMZ Server. The default demilitarized zone (DMZ) server feature is helpful when
you use online games and video conferencing applications that are incompatible with
NAT. See Default DMZ Server on page 79.
• Respond to Ping on Internet Port. If you want the modem router to respond to a ping
from the Internet, select this check box. This should be used only as a diagnostic tool,
because it allows your modem router to be discovered. Do not select this check box
unless you have a specific reason to do so.
• MTU Size (in bytes). The normal Maximum Transmit Unit (MTU) value for most Ethernet
networks is 1500 bytes, or 1492 bytes for PPPoE connections. For some ISPs you might
need to reduce the MTU. But this is rarely required, and should not be done unless you
are sure it is necessary for your ISP connection.
• NAT Filtering. By default NAT filtering is used.
• Disable SIP ALG. The Session Initiation Protocol (SIP) Application Level Gateway (ALG)
is enabled by default to optimize VoIP phone calls that use the SIP. The Disable SIP ALG
check box allows you to disable the SIP ALG. Disabling the SIP ALG might be useful
when running certain applications.
• Disable IGMP Proxying. The IGPM Proxying feature lets a LAN PC receive the multicast
traffic pertaining to it from the Internet. Selecting this check box prevents this from occur i
ng.
Advanced Settings
79
N300 Wireless ADSL2+ Modem Router DGN2200v3
Default DMZ Server
The default demilitarized zone (DMZ) server feature is helpful when you use online games
and video conferencing applications that are incompatible with NAT. The modem router is
programmed to recognize some of these applications and to work correctly with them, but
there are other applications that might not function well. In some cases, one local computer
can run the application correctly if that computer’s IP address is entered as the default DMZ
server.
Note: For security reasons, you should avoid using the default DMZ server
feature. When a computer is designated as the default DMZ server,
it loses much of the protection of the firewall. If compromised via the
Internet, the computer can be used to attack your network.
Incoming traffic from the Internet is usually discarded by the modem router unless the traffic
is a response to one of your local computers or a service that you have configured in the
Ports screen. Instead of discarding this traffic, you can have it forwarded to one computer on
your network. This computer is called the default DMZ server.

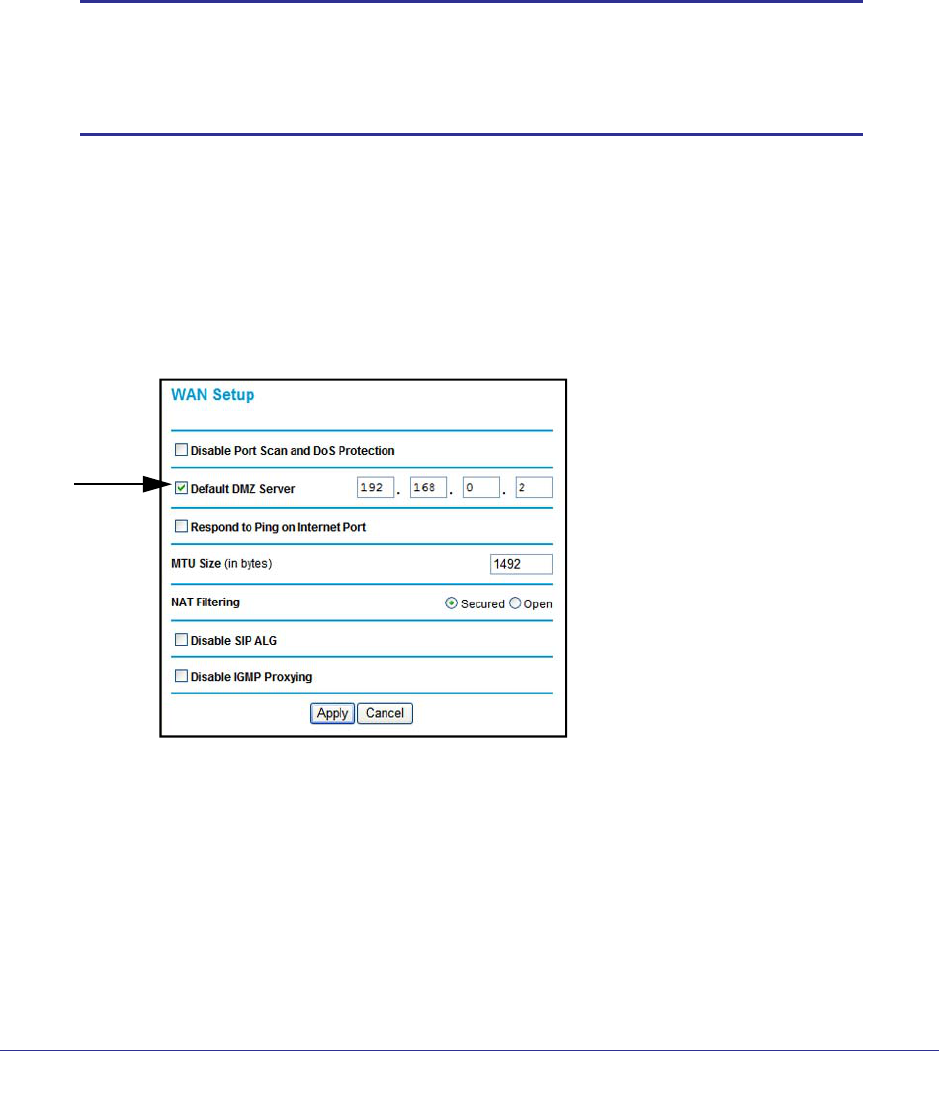

To assign a computer or server to be a default DMZ server:
1. In the WAN Setup screen, select the Default DMZ Server check box.
2. Type the IP address for that server and click Apply.
Advanced Settings
80
N300 Wireless ADSL2+ Modem Router DGN2200v3
Dynamic DNS
If your network has a permanently assigned IP address, you can register a domain name that
is linked to your IP address by public Domain Name Servers (DNS). More commonly, Internet
accounts have dynamically assigned IP addresses in which the IP addresses change
frequently. In this case, use a commercial Dynamic DNS service to register your domain to its
IP address and forward traffic directed at your domain to your current IP address.
The modem router has a client that can connect to a Dynamic DNS service provider. Once
you set up Dynamic DNS in the modem router, when your IP address changes, your modem
router contacts your Dynamic DNS service provider, logs in to your account, and registers
your new IP address.
To set up Dynamic DNS:

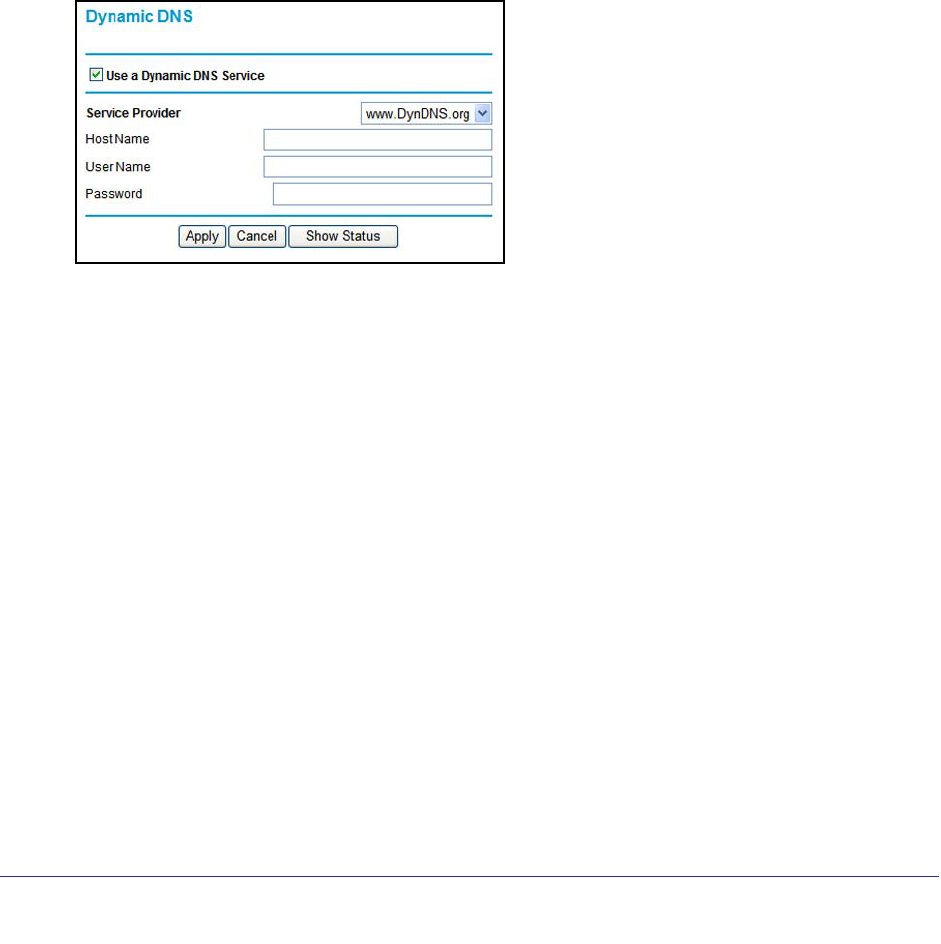

1. Select Advanced > Dynamic DNS to display the following screen.
2. Access the website of one of the Dynamic DNS service providers whose names appear in
the Service Provider drop-down list, and register for an account. For example, for
dyndns.org, go to www.dyndns.org.
3. Select the Use a Dynamic DNS Service check box.
4. Select the name of your Dynamic DNS service provider.
5. Type the host name that your Dynamic DNS service provider gave you. This is sometimes
called the domain name. If your URL is myName.dyndns.org, your host name is myName.
6. Type the user name for your Dynamic DNS account.
7. Type the password (or key) for your Dynamic DNS account.
8. If your Dynamic DNS provider allows the use of wildcards in resolving your URL, you can
select the Use Wildcards check box to activate this feature. For example, the wildcard
feature causes *.yourhost.dyndns.org to be aliased to the same IP address as
yourhost.dyndns.org.
9. Click Apply to save your settings.
If your ISP assigns a private WAN IP address such as 192.168.x.x or 10.x.x.x, the
Dynamic DNS service does not work because private addresses are not routed on the
Internet.
Advanced Settings
81
N300 Wireless ADSL2+ Modem Router DGN2200v3
LAN Setup
The LAN Setup screen allows configuration of LAN IP services such as DHCP and Routing
Information Protocol (RIP). The modem router is shipped preconfigured to use private IP
addresses on the LAN side and to act as a DHCP server. The modem router’s default LAN IP
configuration is as follows:
• LAN IP address. 192.168.0.1
• Subnet mask. 255.255.255.0
These addresses are part of the private address range designated by the Internet
Engineering Task Force (IETF http://www.ietf.org/) for use in private networks, and should be
suitable in most applications. If your network has a requirement to use a different IP
addressing scheme, you can make those changes in the LAN Setup screen.
Note: If you change the LAN IP address of the modem router while
connected through the browser, you are disconnected. To
reconnect, open a new connection to the new IP address and log in.
To change the LAN settings:
1. Select Advanced > LAN Setup.
2. Enter the LAN Setup configuration and click Apply to save your changes.
LAN Setup Screen Settings
• Device Name.
Advanced Settings
82
N300 Wireless ADSL2+ Modem Router DGN2200v3
• IP Address. The LAN IP address of the modem router.
• IP Subnet Mask. The LAN subnet mask of the modem router. Combined with the IP
address, the IP subnet mask allows a device to know which other addresses are local to
it, and which have to be reached through a gateway or modem router.
• RIP Direction.
• RIP Version.
• Use Router as DHCP Server. By default, the modem router is a Dynamic Host
Configuration Protocol (DHCP) server, allowing it to assign IP, DNS server, and default
gateway addresses to all computers connected to the modem router’s LAN. The assigned
default gateway address is the LAN address of the modem router. IP addresses are
assigned to the attached PCs from a pool of addresses specified in this screen. Each pool
address is tested before it is assigned to avoid duplicate addresses on the LAN.
For most applications, the default DHCP and TCP/IP settings of the modem router are
satisfactory.
• Reserved IP Addresses Setup. When you specify a reserved IP address for a computer
on the LAN, that computer always receives the same IP address each time it accesses
the modem router’s DHCP server. Reserved IP addresses should be assigned to servers
that require permanent IP settings.
IP Address Reservation
To reserve an IP address:
1. Select Advanced > LAN Setup and click the Add button.
2. In the IP Address field, type the IP address to assign to the computer or server. Choose an
IP
address from the modem router’s LAN subnet, such as 192.168.0.x.
3. Type the MAC address of the computer or server.
Tip: If the computer is already on your network, copy its MAC address from
the Attached Devices screen and paste it here.
4. Click Apply to enter the reserved address into the table.
Note: The reserved address is not assigned until the next time the computer
contacts the modem router’s DHCP server. Reboot the computer or access its
IP configuration to force a DHCP release and renew.
To edit or delete a reserved address entry:
1. Select the radio button next to the reserved address that you want to edit or delete.
2. Click Edit or Delete.
Advanced Settings
83
N300 Wireless ADSL2+ Modem Router DGN2200v3
Quality of Service (QoS)
Quality of Service (QoS) is an advanced feature that can be used to prioritize some types of
traffic ahead of others. The modem router can provide QoS prioritization over the wireless
link and on the Internet connection.
The modem router supports Wi-Fi Multimedia Quality of Service (WMM QoS) to prioritize
wireless voice and video traffic over the wireless link. WMM QoS provides prioritization of
wireless data packets from different applications based on four access categories: voice,
video, best effort, and background. For an application to receive the benefits of WMM QoS,
both it and the client running that application have to have WMM enabled. Legacy
applications that do not support WMM, and applications that do not require QoS, are
assigned to the best effort category, which receives a lower priority than voice and video.
To set up QoS:
1. Select Advanced > QoS Setup.
2. Click Setup QoS rule. The QoS Priority Rule list displays:
Advanced Settings
84
N300 Wireless ADSL2+ Modem Router DGN2200v3
3. To change a rule, select its radio button, scroll down and click Edit.
4. To add a custom rule, click Add Priority Rule.
5. Click Apply to save your changes and return to the QoS Setup screen.
6. In the QoS Setup screen, click Apply.

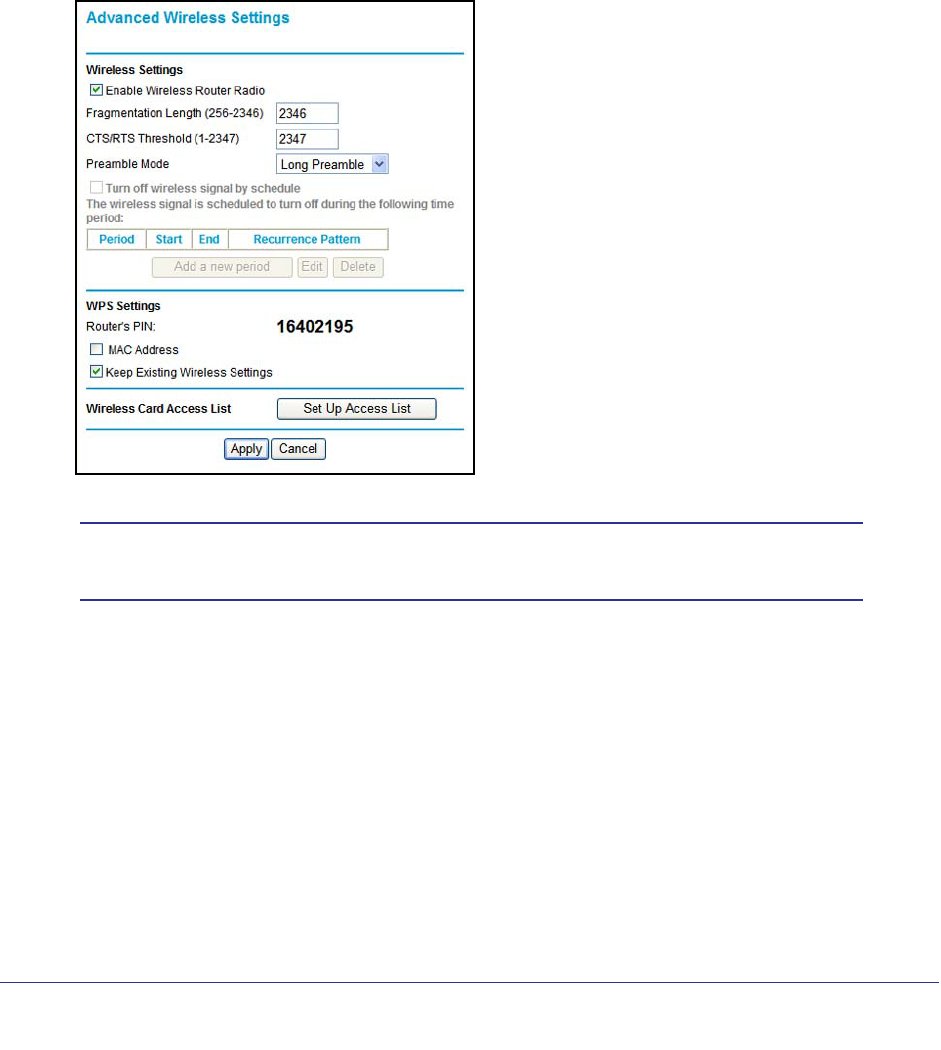

Advanced Wireless Settings
To view or change advanced wireless settings:
1. Select Advanced > Wireless Settings to display the following screen:
Note: The advanced WPS settings section is not displayed if you selected
WEP as the security option.
2. If you make changes, click Apply. Note that the WLAN settings come from the settings you
made in the Wireless Settings screen (see Wireless Settings Screen on page 33).
Advanced Wireless Settings
• Enable Wireless Router Radio. When this check box is selected, the modem router
works as an access point broadcasting a wireless signal.
• Fragmentation Length.
• CTS/RTS Threshold.
• Preamble Mode.
Advanced Settings
85
N300 Wireless ADSL2+ Modem Router DGN2200v3
WPS Settings
Router’s PIN. The PIN number that you use on a registrar (for example, from the Network
Explorer on a Vista Windows PC) to configure the modem router’s wireless settings through
WPS. You can also find the PIN on the modem router label.
The PIN function might temporarily be disabled when the modem router detects suspicious
attempts to break into the modem router’s wireless settings by using the modem router’s PIN
through WPS. You can manually enable the PIN function by clearing the Disable Router’s
PIN check box.
Keep Existing Wireless Settings. By default, the Keep Existing Wireless Settings check
box is selected. This allows the modem router to keep the same SSID and wireless security
settings when WPS-enabled devices are added to the network.
If the Keep Existing Wireless Settings check box is not selected, the next time you use WPS
to connect WPS-capable devices to your wireless network, the modem router generates a
new random SSID and WPA/WPA2 passphrase. NETGEAR does not recommend this.
Wireless Card Access List
The Wireless Card Access List lets you restrict access to your network to a specific list of
devices based on their MAC addresses.
To set up a wireless card access list:
1. Select Advanced > Wireless Settings, and click the Setup Access List button to
display the Wireless Card Access List screen:
The Turn Access Control On check box is not selected so that any computer configured
with the correct wireless network name (SSID) and passphrase to access the network.
2. Select the Turn Access Control On check box to enable access restriction by MAC
address.
3. Click Add to add your computer’s MAC address so that you do not lose your wireless
connection when you click Apply. If you lose your wireless connection, you have to access
Advanced Settings
86
N300 Wireless ADSL2+ Modem Router DGN2200v3
the wireless modem router from a wired computer or from a wireless computer that is on the

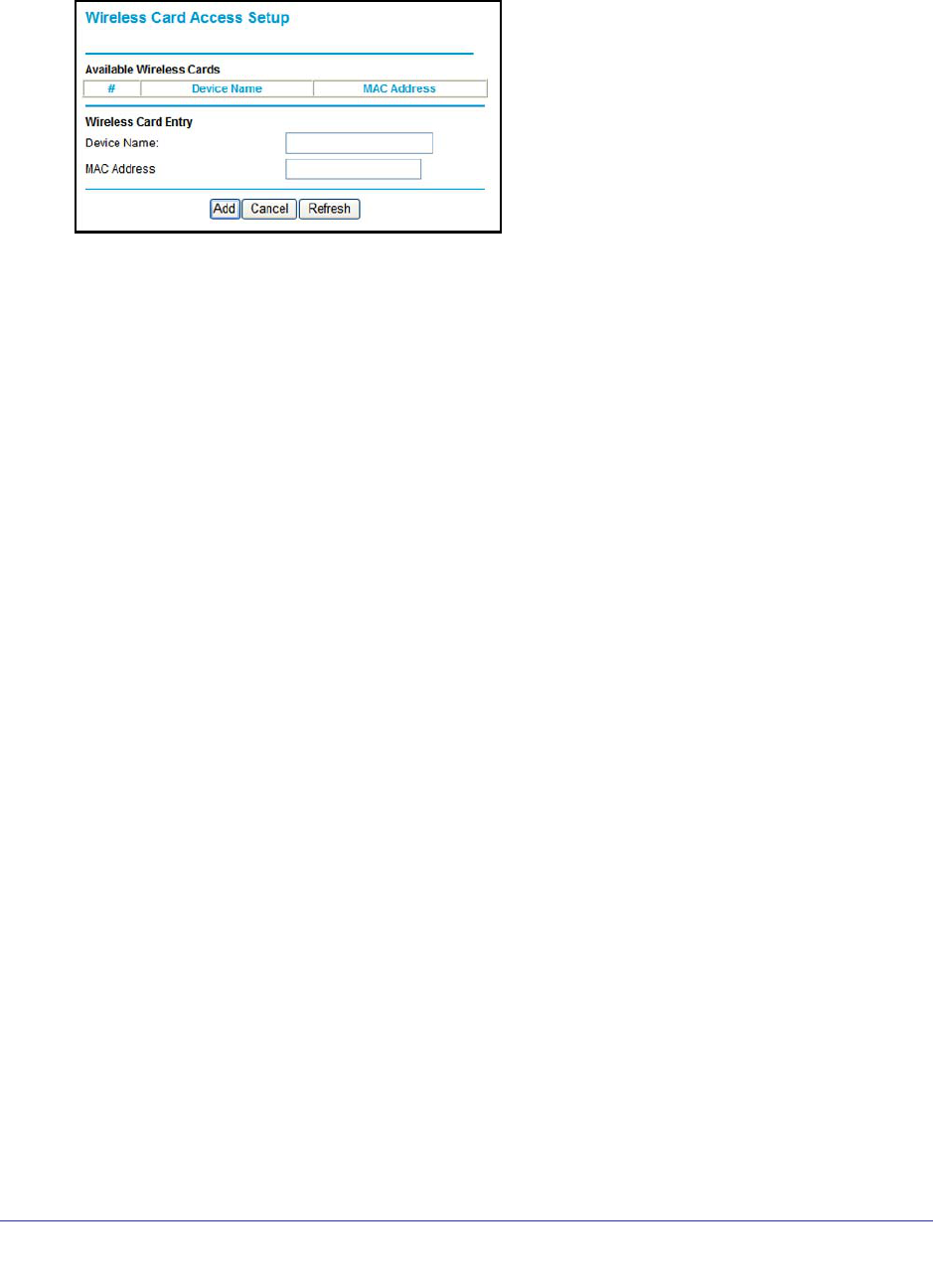

access control list. The following screen displays:
4. If a wireless station that you want to add is connected to the network, select it from the
Available Wireless Cards list and click Add.
5. You can enter MAC addresses manually. The MAC address is usually printed on the
wireless computer or device, or it might be in the modem router’s DHCP table. The MAC
address is 12 hexadecimal digits.
You can copy and paste the MAC addresses from the modem router’s Attached Devices
screen (see View Attached Devices on page 63) into the MAC Address field. This screen
shows computers connected to the network.
6. Click Apply to save your settings.
Advanced Settings
87
N300 Wireless ADSL2+ Modem Router DGN2200v3

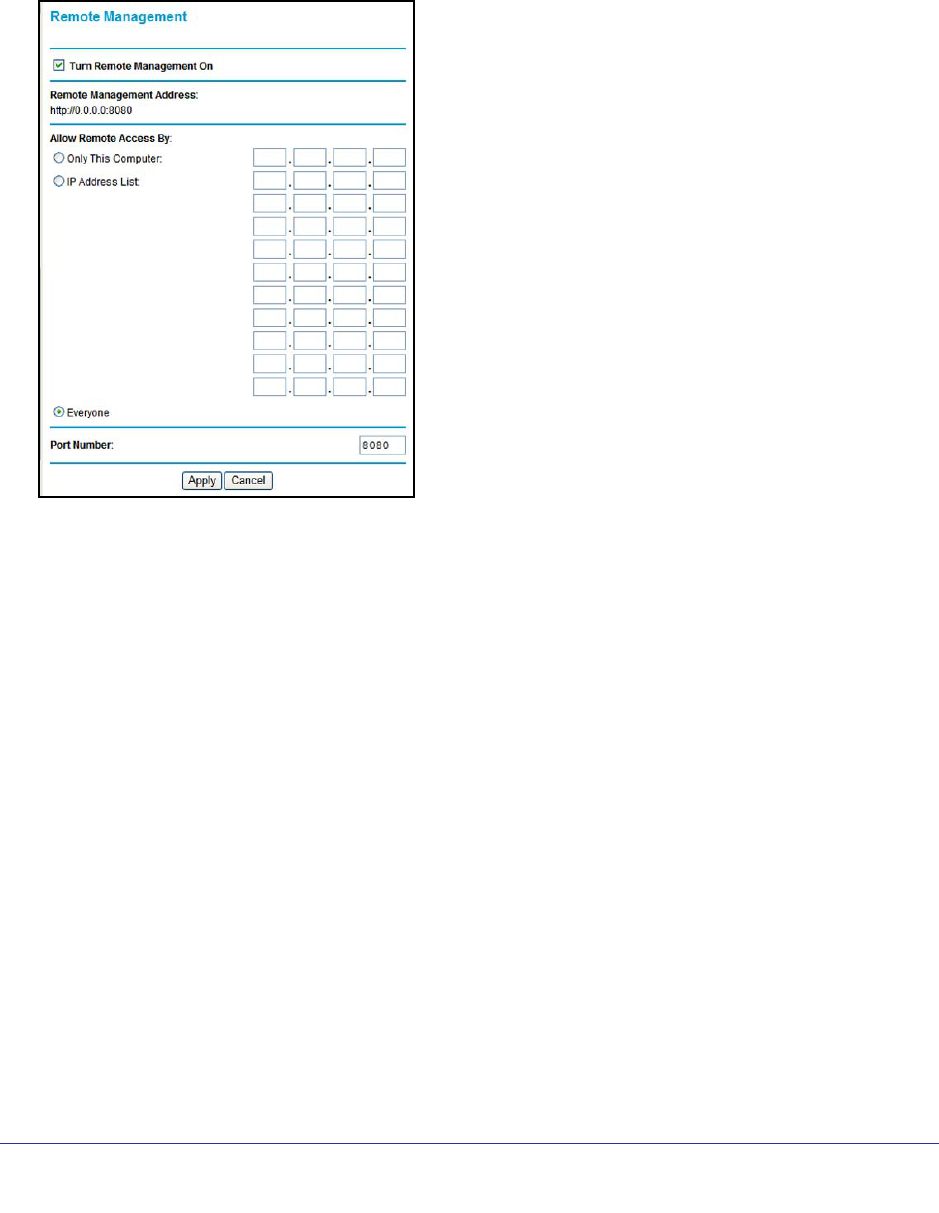

Remote Management
The Remote Management screen lets you allow a user or users on the Internet to configure,
upgrade, and check the status of your modem router. Select Advanced > Remote
Management to display this screen:
To set up remote management:
1. Select the Turn Remote Management On check box.
2. Specify the external addresses that can access remote management. For security, restrict
access to as few external IP addresses as practical. Select a radio button:
• Only This Computer. Allow access from a single IP address on the Internet.
• IP Address Range. Allow access from a range of IP addresses on the Internet.
• IP Address List. Enter each IP address that should have access.
• Everyone. Allow access from any IP address on the Internet.
3. Specify the port number to be used for accessing the modem router interface.
Web browser access usually uses the standard HTTP service port 80. For greater
security, you can change it so the remote modem router interface uses a custom port by
entering that number in the field provided. Choose a number between 1024 and 65535,
but do not use the number of any common service port. The default is 8080, which is a
common alternate for HTTP.
4. Click Apply to save your changes.
To access your modem router from the Internet, type your modem router’s WAN IP
address in your browser’s Address field, followed by a colon (:) and the custom port
number. For example, if your external address is 134.177.0.123 at port number 8080,
enter the following in your browser: http://134.177.0.123:8080.
Advanced Settings
88
N300 Wireless ADSL2+ Modem Router DGN2200v3
Note: The http:// has to be included in the address.
Static Routes
Static routes provide additional routing information to your modem router. Under normal
circumstances, the modem router has adequate routing information after it has been
configured for Internet access, and you do not need to configure additional static routes. You
configure static routes only for unusual cases such as multiple routers or multiple IP subnets
located on your network.

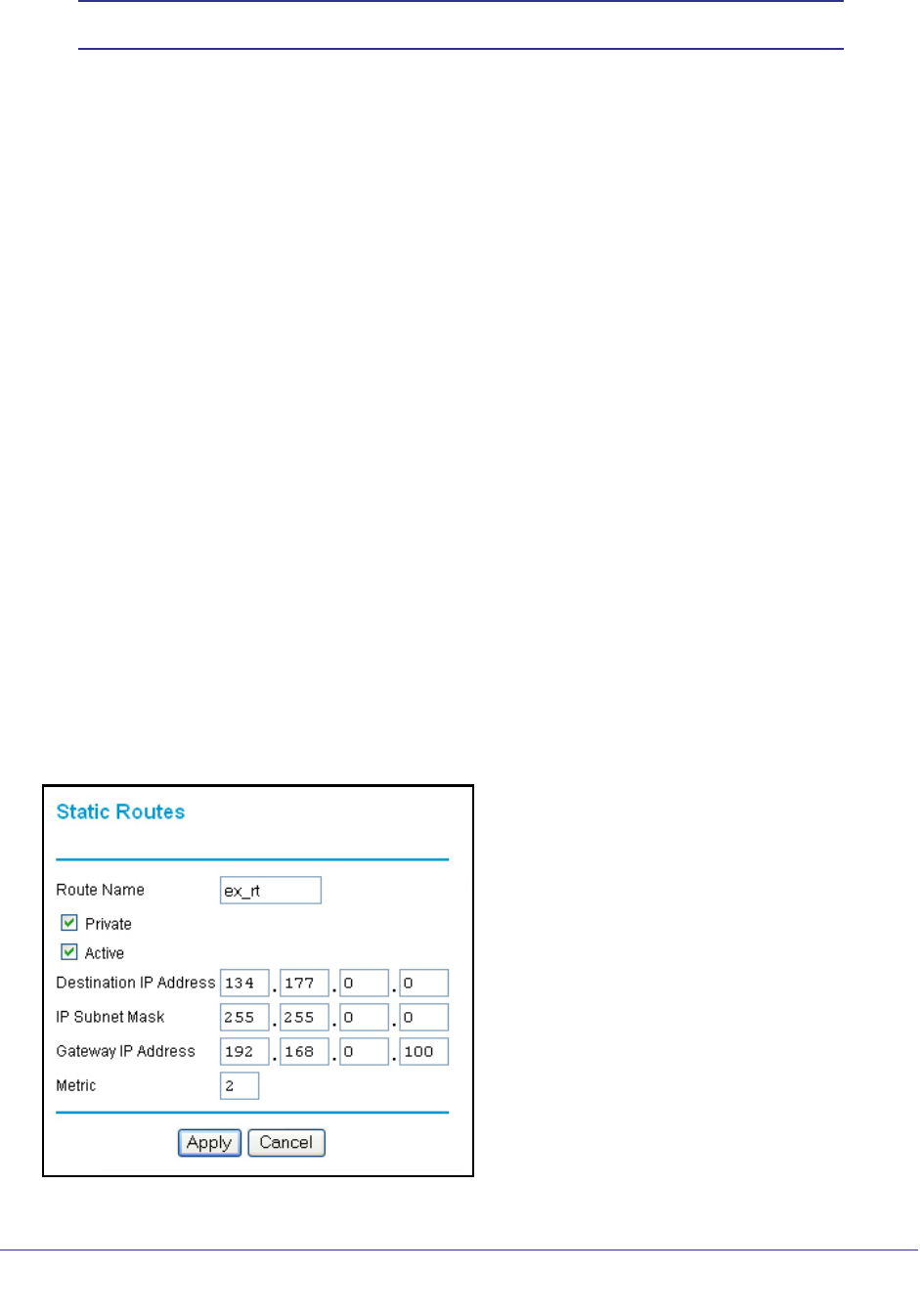

Static Route Example
As an example of when a static route is needed, consider the following case:
• Your primary Internet access is through a cable modem to an ISP.
• You have an ISDN router on your home network for connecting to the company where
you are employed. This router’s address on your LAN is 192.168.0.100.
• Your company’s network address is 134.177.0.0.
When you first configured your modem router, two implicit static routes were created. A
default route was created with your ISP as the modem router, and a second static route was
created to your local network for all 192.168.0.x addresses. With this configuration, if you
attempt to access a device on the 134.177.0.0 network, your modem router forwards your
request to the ISP. The ISP forwards your request to the company where you are employed,
and the request is likely to be denied by the company’s firewall.
In this case you need to define a static route, telling your modem router that 134.177.0.0
should be accessed through the ISDN router at 192.168.0.100.
Advanced Settings
89
N300 Wireless ADSL2+ Modem Router DGN2200v3
In this example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route
applies to all 134.177.x.x addresses.
• The Gateway IP Address field specifies that all traffic for these addresses is to be
forwarded to the ISDN router at 192.168.0.100.
• The value in the Metric field represents the number of routers between your network and
the destination. This is a direct connection, so it can be set to the minimum value of 2.
• The Private check box is selected only as a precautionary security measure in case RIP
is activated.
To add a static route:
1. Select Advanced > Static Routes to display the following screen:
2. Click Add to open the following screen.
3. Fill in the fields:
• In the Route Name field, enter a route name for this static route. This name is for
identification purpose only.
• Select Private if you want to limit access to the LAN only. The static route will not be
reported in RIP.
• Select Active to make this route effective.
• Enter the destination IP address of the final destination.
• Enter the IP subnet mask for this destination. If the destination is a single host, type
255.255.255.255.
• Enter the gateway IP address, which has to be a router on the same LAN segment as
the modem router.
Advanced Settings
90
N300 Wireless ADSL2+ Modem Router DGN2200v3
• In the Metric field, enter a number between 2 and 15 as the metric value. This
represents the number of routers between your network and the destination. Usually,
a setting of 2 or 3 works.
4. Click Apply to save your changes. The Static Routes table is updated to show the new
entry.
Universal Plug and Play
Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers,
access the network and connect to other devices as needed. UPnP devices can
automatically discover the services from other registered UPnP devices on the network.
To set up UPnP:

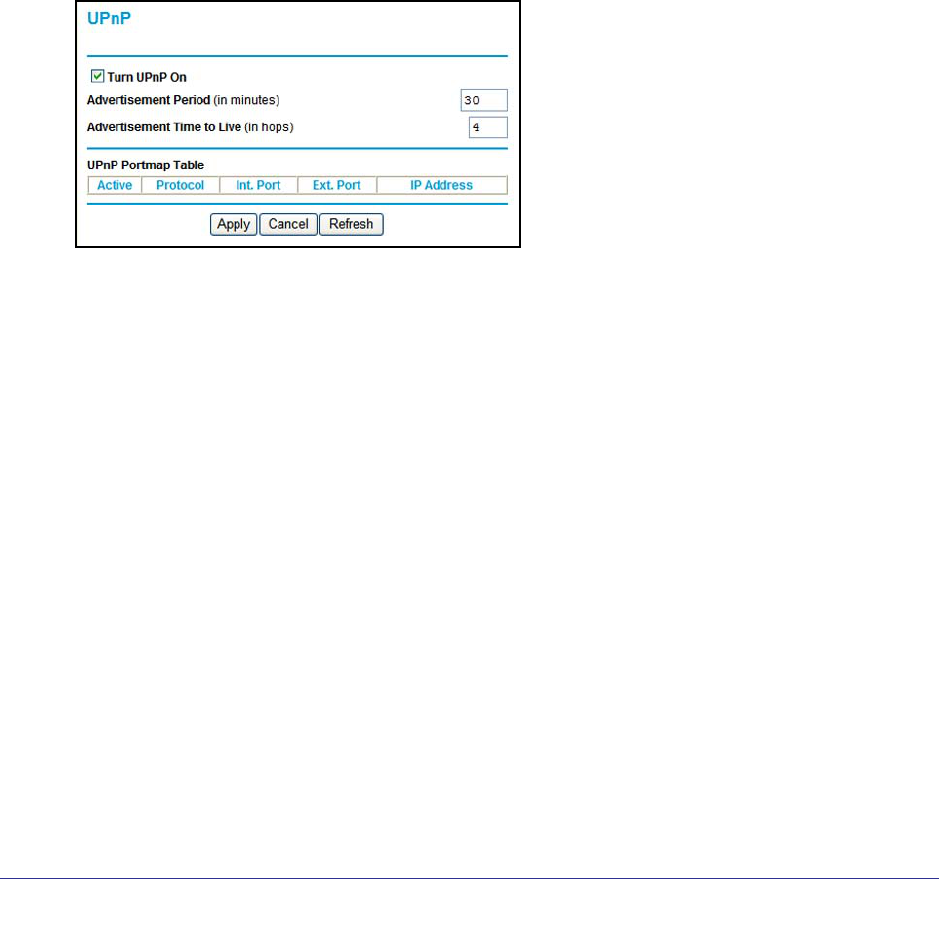

1. Select Advanced > UPnP to display the following screen:
2. Specify the settings as follows:
• Turn UPnP On. UPnP can be enabled or disabled for automatic device configuration.
The default setting for UPnP is enabled. If UPnP is disabled, the modem router does
not allow any device to automatically control the resources, such as port forwarding
(mapping), of the modem router.
• Advertisement Period. The advertisement period is how often the modem router
advertises (broadcasts) its UPnP information. This value can range from 1 to 1440
minutes. The default period is 30 minutes. Shorter durations ensure that control points
have current device status at the expense of additional network traffic. Longer
durations might compromise the freshness of the device status but can significantly
reduce network traffic.
• Advertisement Time to Live. This is measured in hops (steps) for each UPnP packet
sent. A hop is the number of steps allowed to propagate for each UPnP advertisement
before it disappears. The number of hops can range from 1 to 255. The default value
is 4 hops, which works for most home networks. If you notice that some devices are
not being updated or reached correctly, you might need to increase this value a little.
• UPnP Portmap Table. The UPnP Portmap Table displays the IP address of each
UPnP device that is currently accessing the modem router and which ports (internal
and external) that device has opened. The UPnP Portmap Table also displays what
type of port is opened and if that port is still active for each IP address.
Advanced Settings
91
N300 Wireless ADSL2+ Modem Router DGN2200v3
3. To save, cancel your changes, or refresh the table:
• Click Apply to save the new settings to the modem router.
• Click Cancel to disregard any unsaved changes.
• Click Refresh to update the portmap table and to show the active ports that are
currently opened by UPnP devices.
Traffic Meter
Traffic metering allows you to monitor the volume of Internet traffic passing through your
modem router’s Internet port. With the Traffic Meter utility, you can set limits for traffic volume,
set a monthly limit, and get a live update of traffic usage.
To monitor traffic on your modem router:
1. Select Advanced > Traffic Meter.
2. To enable the Traffic Meter, select the Enable Traffic Meter check box.
3. If you would like to record and restrict the volume of Internet traffic, select the Traffic
volume control by radio button. You can select one of the following options for controlling
the traffic volume:
• No limit. No restriction is applied when the traffic limit is reached.
Advanced Settings
92
N300 Wireless ADSL2+ Modem Router DGN2200v3
• Download only. The restriction is applied to incoming traffic only.
• Both directions. The restriction is applied to both incoming and outgoing traffic.
4. You can limit the amount of data traffic allowed per month:
• By specifying how many Mbytes per month are allowed.
• By specifying how many hours of traffic are allowed.
5. Set the Traffic Counter to begin at a specific time and date.
6. Set up Traffic Control to issue a warning message before the monthly limit of Mbytes or
hours is reached. You can select one of the following to occur when the limit is attained:
• The Internet LED flashes green or amber.
• The Internet connection is disconnected and disabled.
7. Set up Internet Traffic Statistics to monitor the data traffic.
8. Click the Traffic Status button if you want a live update on Internet traffic status on your
modem router.
9. Click Apply to save your settings.
Wireless Bridging and Repeating Networks
Note: If you want to use the Wireless Repeating feature, you have to go to
the Wireless Settings screen and change the wireless security
setting of the router to WEP or None, and you have to change the
Channel field to a different setting than Auto, which is the default.
For more information, see Wireless Settings Screen on page 33.
With the modem router, you can build large bridged wireless networks that form an
IEEE
802.11n Wireless Distribution System (WDS). Using the modem router with other
access points (APs) and wireless devices, you can connect clients using their MAC
addresses rather than IP addresses. Here are some examples of wireless bridged
configurations:
• Point-to-point bridge. The modem router communicates with another bridge-mode
wireless station. See Set Up a Point-to-Point Bridge on page 94.
• Multi-point bridge. The modem router is the “master” for a group of bridge-mode wireless
stations. Then all traffic is sent to this master, rather than to other access points. See Set
Up a Multi-Point Bridge on page 95.
• Repeater with wireless client association. Sends all traffic to the remote access point.
See Repeater with Wireless Client Association on page 96.
The wireless bridging and repeating feature uses the default security profile to send and
receive traffic.
Advanced Settings
93
N300 Wireless ADSL2+ Modem Router DGN2200v3

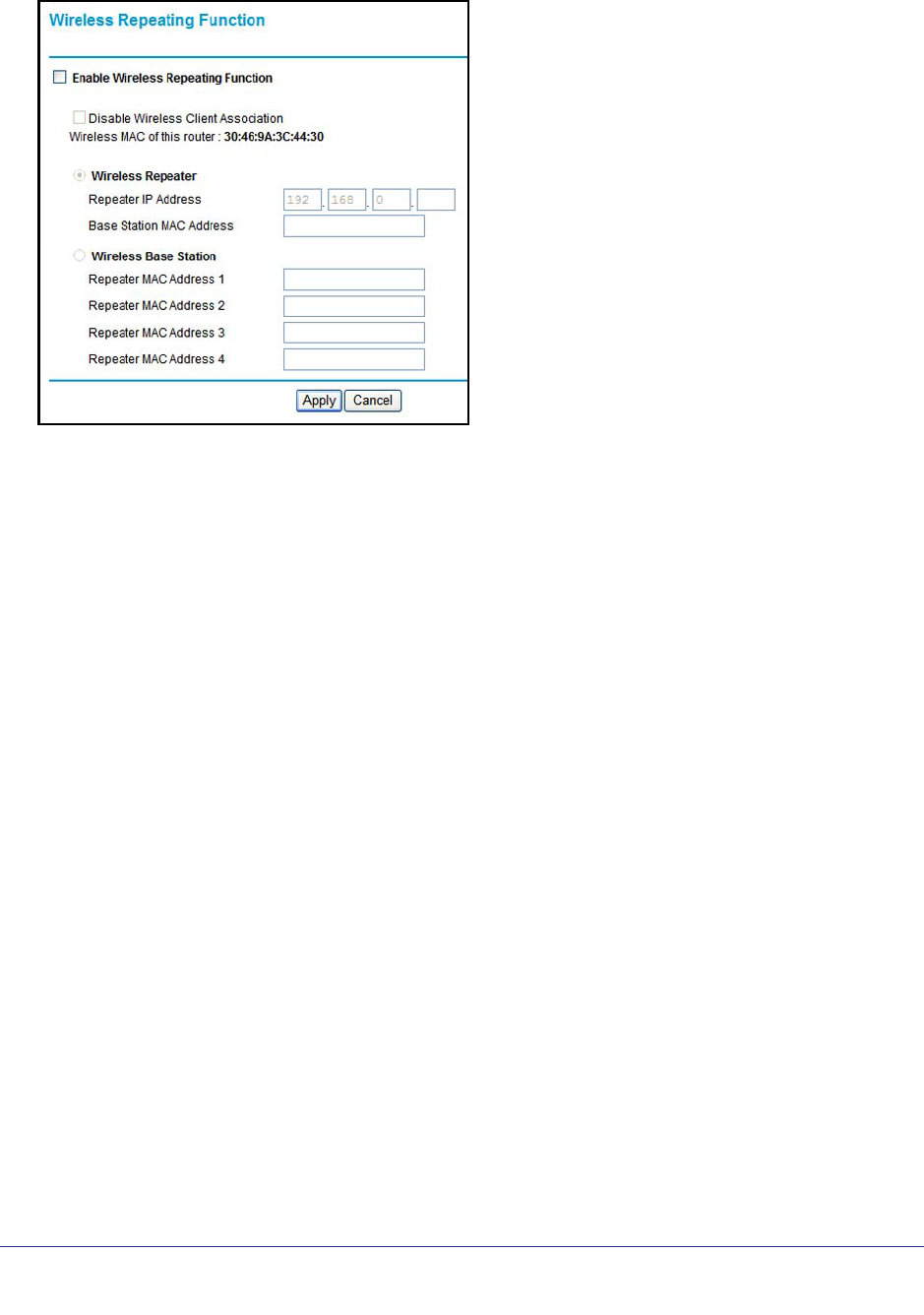

Select Advanced > Wireless Repeating Function to display the following screen:
• Enable Wireless Repeating Function. Select this check box if you want to use the
wireless repeating function.
• Disable Wireless Client Association. If your modem router is the repeater, selecting
this check box means that wireless clients cannot associate with it. Only LAN client
associations are allowed.
-If you are setting up a point-to-point bridge, select this check box.
-If you want all client traffic to go through the other access point (repeater with wireless
client association), leave this check box cleared.
• Wireless MAC of this router. This field displays the MAC address for your modem router
for your reference. You will need to enter this MAC address in the corresponding Wireless
Repeating Function screen of the other access point you are using.
• Wireless Repeater. If your modem router is the repeater, select this check box.
• Repeater IP Address. If your modem router is the repeater, enter the IP address of the
other access point.
• Base Station MAC Address. If your modem router is the repeater, enter the MAC
address for the access point that is the base station.
• Wireless Base Station. If your modem router is the base station, select this check box.
• Disable Wireless Client Association. If your modem router is the base station, selecting
this check box means that wireless clients cannot associate with it. Only LAN client
associations are allowed.
• Repeater MAC Address (1 through 4). If your modem router is the base station, it can
act as the “parent” of up to 4 other access points. Enter the MAC addresses of the other
access points in these fields.
Advanced Settings
94
N300 Wireless ADSL2+ Modem Router DGN2200v3
Set Up a Point-to-Point Bridge
In point-to-point bridge mode, the modem router communicates as an access point with
another bridge-mode wireless station. As a bridge, wireless client associations are disabled.
Only wired clients can be connected. Use wireless security to protect this communication.

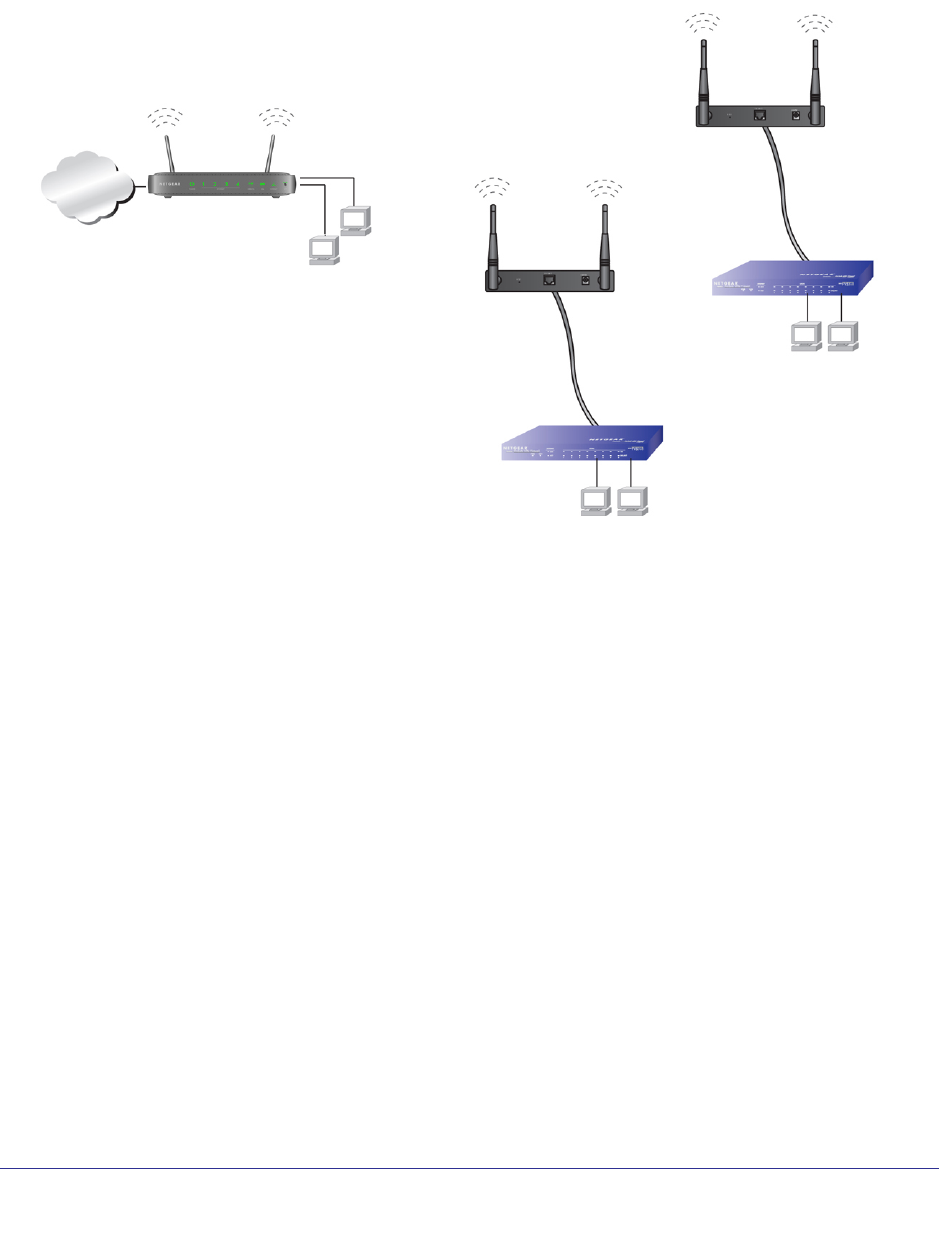

The following figure shows an example of point-to-point bridge mode.
LAN segment 1
PCs
PCs
LAN segment 2
Switch or hub
AP 2
Both access points (APs) are in
192.168.0.1
Internet
AP 1 (DGN2200 modem router)
point-to-point bridge mode.
Figure 9. Point-to-point bridge example
To set up a point-to-point bridge configuration:
1. Set up your modem router (AP 1) on LAN Segment 1 in point-to-point bridge mode.
a. In the Wireless Repeating Function screen, select the Enable Wireless Repeating
Function check box.
b. Select either the Wireless Repeater or Wireless Base Station radio button.
c. Select the corresponding Disable Wireless Client Association check box.
d. Enter the MAC address for the other access point in the bridge. Depending on your
selection in step a, use either the Base Station MAC Address field or the Repeater
MAC Address 1 field.
e. Click Apply.
2. Set up the other access point (AP 2) on LAN Segment 2 in point-to-point bridge mode.
If your modem router is the repeater, then set up AP 2 as the base station; otherwise set
up AP 2 as the repeater.
3. Set up both access points and verify that they use the same SSID, channel, authentication
mode, if any, and WEP security settings if security is in use.
4. Disable the DHCP server on AP 2. AP 1 will then be the DHCP server.
5. Verify connectivity across LAN Segment 1 and LAN Segment 2. A computer on either LAN
segment should be able to connect to the Internet or share files and printers of any other
PCs or servers connected to LAN Segment 1 or LAN Segment 2.
Advanced Settings
95
N300 Wireless ADSL2+ Modem Router DGN2200v3
Set Up a Multi-Point Bridge
Multi-point bridge mode allows a router to bridge to multiple peer access points
simultaneously. Wireless client associations are disabled. Only wired clients can be
connected.
Internet
LAN segment 1
PCs
PCs
Hub or switch
AP 3
AP 2
192.168.0.1
Point-to-point
bridge mode
bridge mode
Point-to-point
AP 1
DGN2200 modem router
PCs Hub or switch
LAN segment 3
LAN segment 2
Figure 10. Multi-point bridge example
Multi-point bridge mode configuration includes the following steps:
• Set up the modem router for wireless repeating as the base station, and specify the MAC
addresses of the access points that are repeaters.
• Set up the other access points for wireless repeating as repeaters, and specify the MAC
address of the modem router as the base station.
• Use wireless security to protect this traffic.
To set up the multi-point bridge configuration:
In this example, the modem router is AP 1 on LAN Segment 1 because it is in a central
location.
1. Set up your modem router to be the base station in the bridge.
a. In the Wireless Repeating Function screen for your modem router, select the Enable
Wireless Repeating Function check box.
b. Select the Wireless Base Station radio button.
c. Select the corresponding Disable Wireless Client Association check box.
d. Enter the MAC address for the other access points in the bridge in the Repeater
MAC Address 1 and Repeater MAC Address 2 fields.
e. Click Apply.
Advanced Settings
96
N300 Wireless ADSL2+ Modem Router DGN2200v3
2. Set up AP 2 and AP 3 to be wireless repeaters.
a. In the Wireless Repeating Function screen for AP 2 and AP 3, select the Enable
Wireless Repeating Function check box.
b. Select the Wireless Repeater radio button.
c. Select the corresponding Disable Wireless Client Association check box.
d. Enter the MAC addresses for your modem router in the Base Station MAC Address
field.
e. Click Apply.
3. Disable the DHCP server on AP 2 and AP 3. AP 1 will then be the DHCP server.
4. Verify the following for all access points:
• The modem router and other access points operate in the same LAN network address
range as the LAN devices.
• Only one access point, your modem router in Figure 10, Multi-point bridge example, is
set up as the base station. The others are set up as repeaters.
• All access points, including your modem router, are on the same LAN. That is, all the
access point LAN IP addresses are in the same network.
• If you are using DHCP, all access points should be set as DHCP clients. This setting
is Obtain an IP address automatically (DHCP Client) in the Basic Settings screen.
• All access points, including your modem router, use the same SSID, channel,
authentication mode, if any, and WEP security settings if security is in use.
5. Verify connectivity across the LANs. A computer on any LAN segment should be able to
connect to the Internet or share files and printers with any other PCs or servers connected to
any of the three LAN segments.
Note: Wireless stations configured as in Figure 9 on page 94 cannot
connect to the modem router or access points. If you want wireless
stations to access any LAN segment, use additional access points in
any LAN segment.
Repeater with Wireless Client Association
In the repeater mode with wireless client association, your modem router sends all traffic to a
base station access point. You can set up the modem router as either the base station
(parent) or as the repeater (child) access point.
Note that the following restrictions apply:
• You do not have the option of disabling client associations with this modem router.
• You cannot configure a sequence of parent-child APs. You are limited to only one parent
access point, although if your modem router is the parent access point, it can connect
with up to four child access points.
Advanced Settings
97
N300 Wireless ADSL2+ Modem Router DGN2200v3
The following figure shows an example of a repeater mode configuration.
Internet
PCs
Wireless PC
192.168.0.1
AP 1 (parent AP in repeater mode)
AP 3 in repeater mode
Wireless PC
associated
with AP 3
AP 2 in repeater mode
associated
with AP 2
Wireless PC
with AP 1
associated
DGN2200
Figure 11. Repeater example
To set up a repeater with wireless client association:
In this example, the modem router is the base station, but you can set it up to be the repeater
with another AP as the base station if you want.
1. Set up your modem router to be the base station.
a. In the Wireless Repeating Function screen for your modem router, select the Enable
Wireless Repeating Function check box.
b. Select the Wireless Base Station radio button.
c. Clear the corresponding Disable Wireless Client Association check box (make
sure it is not selected).
d. Enter the MAC addresses for AP 2 and AP 3 in the Repeater MAC Address 1 and
Repeater MAC Address 2 field.
e. Click Apply.
2. Set up AP 2 and AP 3 to be wireless repeaters.
a. In the Wireless Repeating Function screen for AP 2 and AP 3, select the Enable
Wireless Repeating Function check box.
b. Select the Wireless Repeater radio button.
c. Clear the corresponding Disable Wireless Client Association check box (make
sure it is not selected).
d. Enter the MAC addresses for your modem router in the Base Station MAC Address
field.
e. Click Apply.
3. Verify the following for all access points:
• Each access point operates in the same LAN network address range as the LAN
devices.
Advanced Settings
98
N300 Wireless ADSL2+ Modem Router DGN2200v3
• The access points are on the same LAN. That is, the LAN IP addresses for the access
points are in the same network.
• If you are using DHCP, access point devices are set to Obtain an IP address
automatically (DHCP Client) in the Basic Settings screen.
• Access point devices use the same SSID, channel, authentication mode, and
encryption.
Verify connectivity across the LANs. A computer on any LAN segment should be able to
connect to the Internet or share files and printers with any other PCs or servers connected to
any of the three WLAN segments.
Change the Device Mode
The modem includes a built-in router. If you want to configure the modem as a “pure bridge”
in Modem mode, first set up the Internet connection and then change the Device Mode
setting to Modem mode. In Modem mode, the device acts as a “pure bridge” or DSL modem.
When the device is in Modem mode, features that are not available are grayed out.
To change the device mode:
1. Select Advanced > Device Mode. The following screen displays:

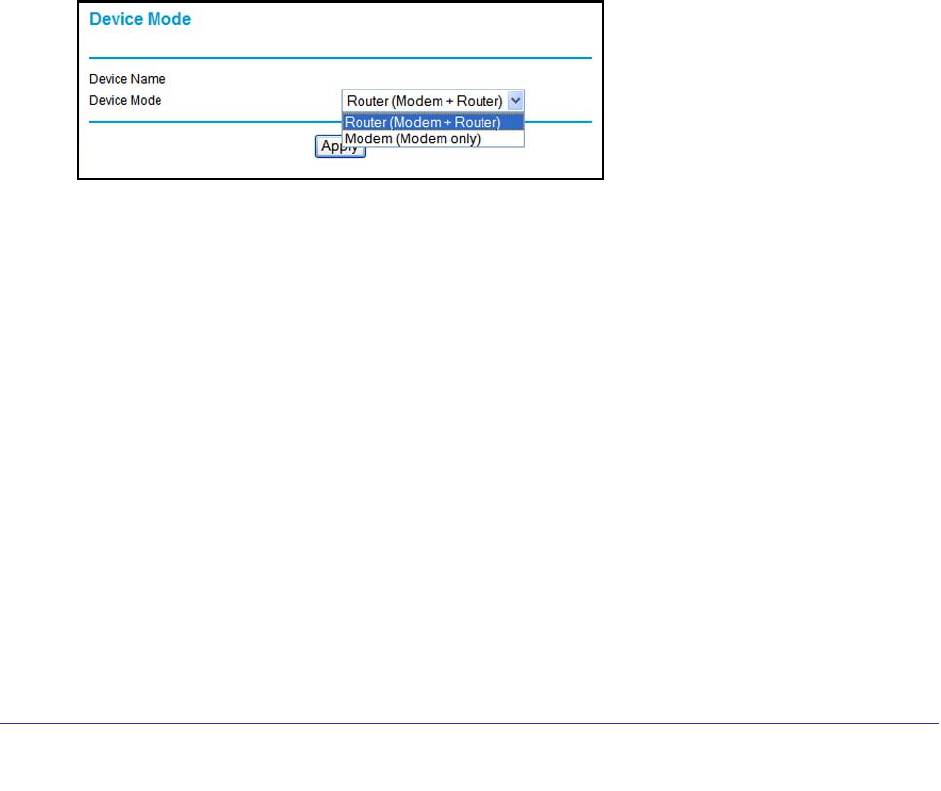

By default, the modem is in Router mode.
2. Select the device mode that you want from the drop-down list.
3. Click Apply so that your changes take effect.
99
8
8. Troubleshooting
Diagnosing and Solving Problems
This chapter provides information to help you diagnose and solve problems you might have with
your modem router. If you do not find the solution here, check the NETGEAR support site at
http://support.netgear.com for product and contact information.
This chapter contains the following sections:
• Troubleshooting with the LEDs
• Troubleshooting the Internet Connection
• TCP/IP Network Not Responding
• Cannot Log in
• Changes Not Saved
• Incorrect Date or Time
Troubleshooting
100
N300 Wireless ADSL2+ Modem Router DGN2200v3
Troubleshooting with the LEDs
When you turn the power on, the power, LAN, and DSL LEDs should light as described here.
If they do not, refer to the sections that follow for help.
1. When power is first applied, the Power LED lights.
2. After approximately 10 seconds, the LAN and DSL LEDs light as follows:
a. The LAN port LEDs light for any local ports that are connected.
b. The DSL link LED lights to indicate that there is a link to the connected device.
c. If a LAN port is connected to a 100 Mbps device, verify that the LAN port’s LED is
green. Note that if the LAN port is 10 Mbps, the LED is amber.

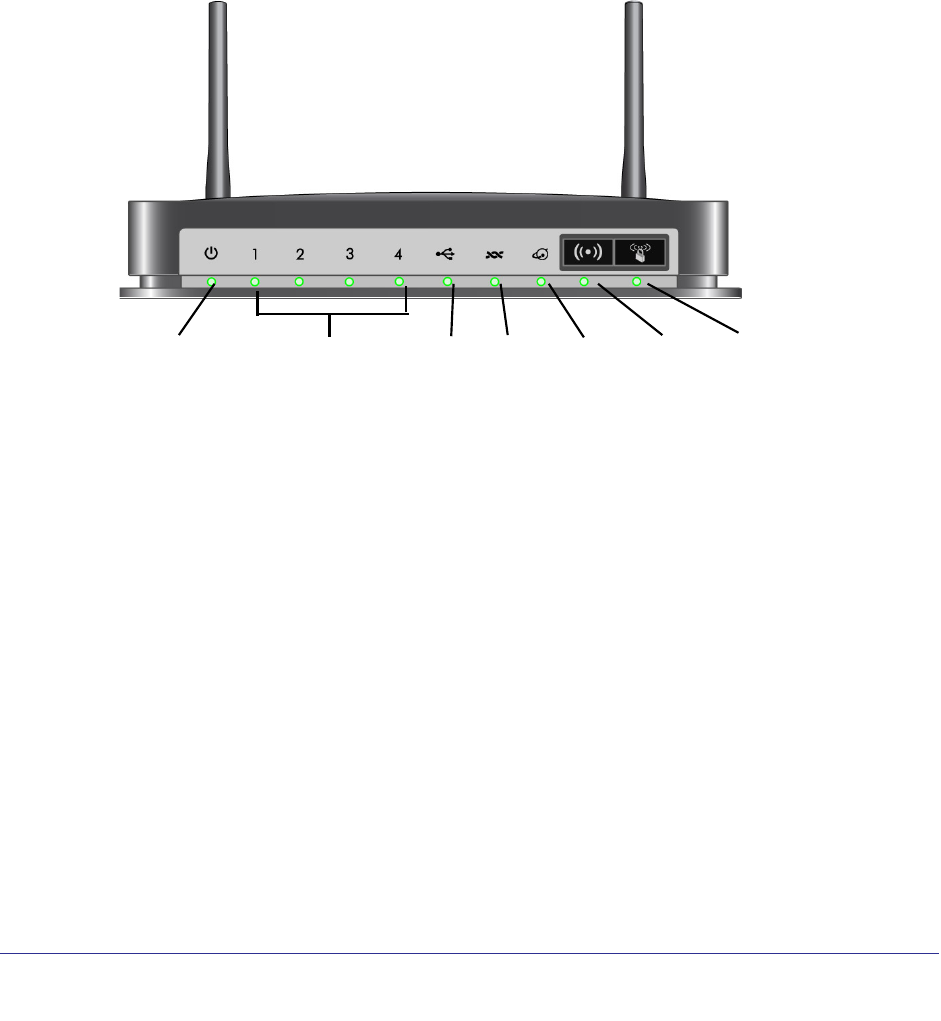

Power LAN Ports (1–4) USB DSL Wireless WPSInternet
Figure 12. Front panel LEDs
Power LED Is Off
If the Power and other LEDs are off when your modem router is turned on:
• Check that the power cord is correctly connected to your modem router and the power
supply adapter is correctly connected to a functioning power outlet.
• Check that you are using the 12 V DC power adapter supplied by NETGEAR for this
product.
If the error persists, you could have a hardware problem and should contact NETGEAR
Technical Support.
Power LED Is Red
When the modem router is turned on, it performs a power-on self-test. If the Power LED turns
red after a few seconds or at any other time during normal operation, there is a fault within the
modem router.
Troubleshooting
101
N300 Wireless ADSL2+ Modem Router DGN2200v3
If the Power LED turns red to indicate a modem router fault, turn the power off and on to see
if the modem router recovers. If the power LED is still red 1 minute after power-up:
• Turn the power off and on one more time to see if the modem router recovers.
• Clear the modem router’s configuration to factory defaults as explained in Factory
Settings on page 109. This sets the modem router’s IP address to 192.168.0.1.
If the error persists, you could have a hardware problem and should contact NETGEAR
Technical Support.
LAN LED Is Off
If the appropriate LAN LED does not light when the Ethernet connection is made, check the
following:
• The Ethernet cable connections are secure at the modem router and at the hub or
workstation.
• The power is turned on to the connected hub or workstation.
• You are using the correct cable.
Cannot Log In to the Wireless-N Modem Router
If you are unable to log in to the modem router from a computer on your local network, check
the following:
• If you are using an Ethernet-connected computer, check the Ethernet connection
between the computer and the modem router as described in the previous section.
• Make sure that your computer’s IP address is on the same subnet as the modem router.
If you are using the recommended addressing scheme, your computer’s address should
be in the range of 192.168.0.2 to 192.168.0.254.
• If your computer’s IP address is shown as 169.254.x.x, recent versions of Windows and
MacOS will generate and assign an IP address if the computer cannot reach a DHCP
server. These auto-generated addresses are in the range of 169.254.x.x. If your IP
address is in this range, check the connection from the computer to the modem router,
and reboot your computer.
• If your modem router’s IP address was changed and you do not know the current IP
address, clear the modem router’s configuration to factory defaults. This sets the modem
router’s IP address to 192.168.0.1. This procedure is explained in Factory Settings in
Appendix A.
• Make sure that your browser has Java, JavaScript, or ActiveX enabled. If you are using
Internet Explorer, click Refresh to be sure that the Java applet is loaded.
• Try quitting the browser and launching it again.
• Make sure you are using the correct login information. The factory default login name is
admin, and the password is password. Make sure that Caps Lock is off when you enter
this information.
Troubleshooting
102
N300 Wireless ADSL2+ Modem Router DGN2200v3
Troubleshooting the Internet Connection
If your modem router is unable to access the Internet, you should check the ADSL
connection, then the WAN TCP/IP connection.
ADSL Link
If your modem router is unable to access the Internet, you should first determine whether you
have an ADSL link with the service provider. The state of this connection is indicated with the
Internet LED.
ADSL Link LED Is Green
If your ADSL link LED is green, then you have a good ADSL connection. You can be
confident that the service provider has connected your line correctly and that your wiring is
correct.
ADSL Link LED Is Blinking Green
If your ADSL link LED is blinking green, then your modem router is attempting to make an
ADSL connection with the service provider. The LED should turn green within several
minutes.
If the ADSL link LED does not turn green, disconnect all telephones on the line. If this solves
the problem, reconnect the telephones one at a time, being sure to use a microfilter on each
telephone. If the microfilters are connected correctly, you should be able to connect all your
telephones.
If disconnecting telephones does not result in a green ADSL link LED, there might be a
problem with your wiring. If the telephone company has tested the ADSL signal at your
network interface device (NID), then you might have poor-quality wiring in your house.
ADSL Link LED Is Off
If the ADSL link LED is off, disconnect all telephones on the line. If this solves the problem,
reconnect the telephones one at a time, being sure to use a microfilter on each telephone. If
the microfilters are connected correctly, you should be able to connect all your telephones.
If disconnecting telephones does not result in a green ADSL link LED, check for the following:
• Check that the telephone company has made the connection to your line and tested it.
• Verify that you are connected to the correct telephone line. If you have more than one
phone line, be sure that you are connected to the line with the ADSL service. It might be
necessary to use a swapper if your ADSL signal is on pins 1 and 4 or the RJ-11 jack. The
modem router uses pins 2 and 3.
Troubleshooting
103
N300 Wireless ADSL2+ Modem Router DGN2200v3
Internet LED Is Red
If the Internet LED is red, the device was unable to connect to the Internet. Verify the
following:
• Check that your login credentials are correct, or that the information you entered on the
Basic Settings screen is correct.
• Check with your ISP to verify that the multiplexing method, VPI, and VCI settings on the
ADSL settings screen are correct.
• Check if your ISP has a problem—it might not be that the modem router cannot connect
to the Internet but, rather that your ISP that cannot provide an Internet connection.
Obtaining an Internet IP Address
If your modem router is unable to access the Internet, and your Internet LED is green, you
should determine whether the modem router is able to obtain an Internet IP address from the
ISP. Unless you have been assigned a static IP address, your modem router requests an IP
address from the ISP. You can determine whether the request was successful using the
browser interface.
To check the Internet IP address from the browser interface:
1. Launch your browser, and select an external site such as www.netgear.com.
2. Access the main menu of the modem router’s configuration at http://192.168.0.1.
3. In the main menu, under Maintenance, select Router Status and check that an IP address
is shown for the WAN port. If 0.0.0.0 is shown, your modem router has not obtained an IP
address from your ISP.
If your modem router is unable to obtain an IP address from the ISP, the problem might be
one of the following:
• If you have selected a login program, the service name, user name, or password might be
incorrectly set. See the following section, Troubleshooting PPPoE or PPPoA .
• Your ISP might check for your computer’s host name. Assign the computer host name of
your ISP account to the modem router in the browser-based Setup Wizard.
• Your ISP allows only one Ethernet MAC address to connect to Internet, and might check
for your computer’s MAC address. In this case, do one of the following:
-Inform your ISP that you have bought a new network device, and ask them to use the
modem router’s MAC address.
-Configure your modem router to spoof your computer’s MAC address. This can be
done in the Basic Settings screen.
Troubleshooting PPPoE or PPPoA
The PPPoE or PPPoA connection can be debugged as follows:
1. Access the main menu of the modem router at http://192.168.0.1.
Troubleshooting
104
N300 Wireless ADSL2+ Modem Router DGN2200v3
2. Select Maintenance > Router Status.
3. Click the Connection Status button.
4. If all of the steps indicate OK, then your PPPoE or PPPoA connection is up and working.
5. If any of the steps indicates Failed, you can attempt to reconnect by clicking Connect. The
modem router will continue to attempt to connect indefinitely.
If you cannot connect after several minutes, you might be using an incorrect service name,
user name, or password. There also might be a provisioning problem with your ISP.
Note: Unless you connect manually, the modem router will not
authenticate using PPPoE or PPPoA until data is transmitted to the
network.
Troubleshooting Internet Browsing
If your modem router can obtain an IP address, but your computer is unable to load any Web
pages from the Internet:
• Your computer might not recognize any DNS server addresses.
A DNS server is a host on the Internet that translates Internet names (such as www
addresses) to numeric IP
addresses. Typically your ISP provides the addresses of one or
two DNS servers for your use. If you entered a DNS address when you set up the modem
router, reboot your computer, and verify the DNS address. Alternatively, you can
configure your computer manually with DNS addresses, as explained in your operating
system documentation.
• Your computer might not have the modem router configured as its TCP/IP modem router.
If your computer obtains its information from the modem router by DHCP, reboot the
computer, and verify the modem router address.
TCP/IP Network Not Responding
Most TCP/IP terminal devices and routers have a ping utility for sending an echo request
packet to the designated device. The device responds with an echo reply to tell whether a
TCP/IP network is responding to requests.
Test the LAN Path to Your Modem Router
You can ping the modem router from your computer to verify that the LAN path to your
modem router is set up correctly.
Troubleshooting
105
N300 Wireless ADSL2+ Modem Router DGN2200v3
To ping the modem router from a PC running Windows 95 or later:
1. From the Windows task bar, click the Start button, and select Run.
2. In the field provided, type ping followed by the IP address of the modem router, as in this
example:
ping 192.168.0.1
3. Click OK.
You should see a message like this one:
Pinging <IP address> with 32 bytes of data
If the path is working, you see this message:
Reply from < IP address >: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
If the path is not functioning correctly, you could have one of the following problems:
• Wrong physical connections
- Make sure that the LAN port LED is on. If the LED is off, follow the instructions in
LAN LED Is Off on page 101.
- Check that the corresponding link LEDs are on for your network interface card
and for the hub ports (if any) that are connected to your workstation and modem
router.
• Wrong network configuration
- Verify that the Ethernet card driver software and TCP/IP software are both
installed and configured on your PC or workstation.
- Verify that the IP address for your modem router and your workstation are correct
and that the addresses are on the same subnet.
Test the Path from Your Computer to a Remote Device
After you verify that the LAN path works correctly, test the path from your PC to a remote
device. In the Windows Run screen, type:
ping -n 10 IP address
where IP address is the IP address of a remote device such as your ISP’s DNS server.
If the path is functioning correctly, replies as described in Test the LAN Path to Your Modem
Router on page 104 display. If you do not receive replies:
• Check that your PC has the IP address of your modem router listed as the default modem
router. If the IP configuration of your PC is assigned by DHCP, this information is not
visible in your PC’s Network Control Panel. Verify that the IP address of the modem
router is listed as the default router.
Troubleshooting
106
N300 Wireless ADSL2+ Modem Router DGN2200v3
• Check that the network address of your PC (the portion of the IP address specified by the
netmask) is different from the network address of the remote device.
• Check that your cable or DSL modem is connected and functioning.
• If your ISP assigned a host name to your PC, enter that host name as the account name
in the Basic Settings screen.
• Your ISP could be rejecting the Ethernet MAC addresses of all but one of your PCs. Many
broadband ISPs restrict access by allowing traffic only from the MAC address of your
modem, but some additionally restrict access to the MAC address of a single PC
connected to that modem. In this case, configure your modem router to clone or spoof the
MAC address from the authorized PC.
Cannot Log in
If you cannot log in to the modem router from a computer on your local network, check the
following:
• The modem router is plugged in and it is on.
• You are using the correct login information. The login name is admin, and the password is
password. Make sure that Caps Lock is off when you enter this information.
• If you cannot connect wirelessly, try an Ethernet connection and view the modem router
wireless settings and set up your wireless computer with corresponding wireless settings.
• If you are using an Ethernet-connected computer, check the Ethernet connection
between the computer and the modem router. The LAN LED for the port you are using on
the modem router should light up to show your connection.
• Your computer’s IP address is on the same subnet as the modem router. If you are using
the recommended addressing scheme, your computer’s address should be in the range
192.168.0.2 to 192.168.0.254.
• If the computer IP address is 169.254.x.x, recent versions of Windows and Mac OS
generate and assign an IP address when the computer cannot reach a DHCP server. The
auto-generated addresses are in the range 169.254.x.x. If your IP address is in this
range, check the connection from the computer to the modem router and reboot your
computer.
• If your modem router’s IP address was changed and you do not know the current IP
address, clear the modem router’s configuration to factory defaults as explained in
Factory Settings on page 109. This sets the modem router’s IP address to 192.168.0.1.
• Make sure that your browser has Java, JavaScript, or ActiveX enabled. If you are using
Internet Explorer, click Refresh to be sure that the Java applet is loaded.
• Try closing the browser and relaunching it.
Changes Not Saved
If the modem router does not save the changes you make in the modem router interface,
check the following:
Troubleshooting
107
N300 Wireless ADSL2+ Modem Router DGN2200v3
• When entering configuration settings, always click the Apply button before moving to
another screen or tab, or your changes are lost.
• Click the Refresh or Reload button in the Web browser. The changes might have
occurred, but the old settings might be in the Web browser’s cache.
Incorrect Date or Time
Select Security > Schedule to display the current date and time. The modem router uses the
Network Time Protocol (NTP) to obtain the current time from one of several network time
servers on the Internet. Each entry in the log is stamped with the date and time of day.
Problems with the date and time function can include the following:
• Date shown is January 1, 2000. This means the modem router has not yet successfully
reached a network time server. Check that your Internet access is configured correctly. If
you have just finished setting up the modem router, wait at least 5 minutes, and check the
date and time again.
• Time is off by one hour. The modem router does not automatically sense daylight savings
time. In the Schedule screen, select the Adjust for daylight savings time check box.
108
A
A. Supplemental Information
This appendix includes the factory default settings and technical specifications for the N300
Wireless ADSL2+ Modem Router DGN2200v3, and instructions for wall-mounting the unit.
This appendix contains the following sections:
• Factory Settings
• Specifications
Supplemental Information
109
N300 Wireless ADSL2+ Modem Router DGN2200v3
Factory Settings
You can return the modem router to its factory settings. On the bottom of the modem router,
use the end of a paper clip or some other similar object to press and hold the Restore Factory
Settings button for at least 7 seconds. The modem router resets, and returns to the factory
settings. Your device will return to the factory configuration settings shown in the following
table.
Table 3. Factory Default Settings
Feature Default Behavior
Router Login User login URL www.routerlogin.com or /www.routerlogin.net
User name (case-sensitive) admin
Login password (case-sensitive) password
Internet
connection
WAN MAC address Use default address
WAN MTU size 1492
Port speed Autosensing
Local network
(LAN)
LAN IP 192.168.0.1
Subnet mask 255.255.255.0
RIP direction None
RIP version Disabled
RIP authentication None
DHCP server Enabled
Local network
(LAN) continued
DHCP starting IP address 192.168.0.2
DHCP ending IP address 192.168.0.254
DMZ Enabled or disabled
Time zone GMT for WW except NA and GR, GMT+1 for GR, GMT-8
for NA
Time zone adjusted for daylight
savings time
Disabled
SNMP Disabled
Firewall Inbound (communications coming
in from the Internet)
Disabled (except traffic on port 80, the HTTP port)
Outbound (communications going
out to the Internet)
Enabled (all)
Source MAC filtering Disabled
Supplemental Information
110
N300 Wireless ADSL2+ Modem Router DGN2200v3
Wireless Wireless communication Enabled
SSID name Can be found on the label on the bottom of the unit.
Security Can be found on the label on the bottom of the unit.
Broadcast SSID Enabled
Country/region United States (in North America; otherwise, varies by
region)
RF channel Auto
Operating mode Up to 145 Mbps
Data rate Best
Output power Full
Access point Enabled
Authentication type Pre-Shared Key
Wireless card access list All wireless stations allowed
Table 3. Factory Default Settings (continued)
Feature Default Behavior
Supplemental Information
111
N300 Wireless ADSL2+ Modem Router DGN2200v3
Specifications
Specification Description
Network protocol and
standards compatibility
TCP/IP, RIP-1, RIP-2, DHCP, PPPoE or PPPoA, RFC 1483 Bridged or
Routed Ethernet, and RFC 1577 Classical IP over ATM
Power adapter North America: 120V, 60 Hz, input
UK, Australia: 240V, 50 Hz, input
Europe: 230V, 50 Hz, input
All regions (output): 12V @ 1.5A output
Physical Dimensions: 6.80 in. x 5.03 in. x 1.28 in. (173 mm x 128 mm x 33 mm)
Weight: 0.65 lbs. without the stand (0.29 kg)
Environmental Operating temperature: 0° to 40° C (32º to 104º F)
Operating humidity: 10% to 90% relative humidity, noncondensing
Storage temperature: -20° to 70° C (–4º to 158º F)
Storage humidity: 5 to 95% relative humidity, noncondensing
Regulatory compliance FCC Part 15 Class B; VCCI Class B; EN 55 022 (CISPR 22), Class B
Network protocol and
standards compatibility
TCP/IP, RIP-1, RIP-2, DHCP, PPPoE or PPPoA, RFC 1483 Bridged or
Routed Ethernet, and RFC 1577 Classical IP over ATM
Power adapter North America: 120V, 60 Hz, input
Regulatory compliance FCC Part 15 Class B; VCCI Class B; EN 55 022 (CISPR 22), Class B
Interface specifications LAN: 10BASE-T or 100BASE-Tx, RJ-45
WAN: ADSL, Dual RJ-11, pins 2 and 3
T1.413, G.DMT, G.Lite
ITU Annex A hardware or Annex B hardware
ITU G.992.5 (ADSL2+)
112
B
B. Notification of Compliance
NETGEAR Wireless Routers, Gateways, APs
Regulatory Compliance Information
Note: This section includes user requirements for operating this product in accordance with National laws for usage
of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable
requirements may result in unlawful operation and adverse action against the end-user by the applicable National
regulatory authority.
Note: This product's firmware limits operation to only the channels allowed in a particular Region or Country.
Therefore, all options described in this user's guide may not be available in your version of the product.
Europe – EU Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the
European Union (1999/5/EC). This equipment meets the following conformance standards:
EN300 328 (2.4Ghz), EN301 489-17 EN60950-1
For complete DoC, visit the NETGEAR EU Declarations of Conformity website at:
http://support.netgear.com/app/answers/detail/a_id/11621
EDOC in Languages of the European Community
Language Statement
Cesky [Czech] NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se základními
požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.
Dansk [Danish] Undertegnede NETGEAR Inc. erklærer herved, at følgende udstyr Radiolan overholder
de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Notification of Compliance
113
N300 Wireless ADSL2+ Modem Router DGN2200v3
Español
[Spanish]
Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR Inc. ΔΗΛΩΝΕΙ ΟΤΙ Radiolan ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ
ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1999/5/ΕΚ.
Français
[French]
Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo NETGEAR Inc. deklarē, ka Radiolan atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo NETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart NETGEAR Inc. dat het toestel Radiolan in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, NETGEAR Inc., jiddikjara li dan Radiolan jikkonforma mal-htigijiet essenzjali
u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, NETGEAR Inc. nyilatkozom, hogy a Radiolan megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym NETGEAR Inc. oświadcza, że Radiolan jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
NETGEAR Inc. declara que este Radiolan está conforme com os requisitos essenciais e
outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
NETGEAR Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
NETGEAR Inc. týmto vyhlasuje, že Radiolan spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] NETGEAR Inc. vakuuttaa täten että Radiolan tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar NETGEAR Inc. att denna Radiolan står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Notification of Compliance
114
N300 Wireless ADSL2+ Modem Router DGN2200v3
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and
EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to
use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or
network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may
be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user should
contact the national spectrum authority in France.
FCC Requirements for Operation in the United States
FCC Information to User
This product does not contain any user serviceable components and is to be used with approved antennas only.
Any product changes or modifications will invalidate all applicable regulatory certifications and approvals.
FCC Guidelines for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Declaration of Conformity
We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the
N300 Wireless ADSL2+ Modem Router DGN2200v3 complies with Part 15 Subpart B of FCC CFR47 Rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
• Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Íslenska
[Icelandic]
Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norsk
[Norwegian]
NETGEAR Inc. erklærer herved at utstyret Radiolan er i samsvar med de grunnleggende
krav og øvrige relevante krav i direktiv 1999/5/EF.
Notification of Compliance
115
N300 Wireless ADSL2+ Modem Router DGN2200v3
•For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not
possible.
•This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
Industry Canada
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE: Radiation Exposure Statement:
Caution:
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence.
Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
NOTE IMPORTANTE: Déclaration d'exposition aux radiations:
contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
GPL License Agreement
GPL may be included in this product; to view the GPL license agreement go to
ftp://downloads.netgear.com/files/GPLnotice.pdf.
For GNU General Public License (GPL) related information, please visit
http://support.netgear.com/app/answers/detail/a_id/2649.
RF exposure warning: The equipment complies with RF exposure limits set forth for an uncontrolled environment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Déclarations d'exposition aux RF liéesAvertissement d'exposition RF: L'équipement est conforme aux limites
d'exposition aux RF établies pour un environnement non contrôlé. L'antenne (s) utilisée pour ce transmetteur ne doit
pas être co-localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur.
Notification of Compliance
116
N300 Wireless ADSL2+ Modem Router DGN2200v3
Interference Reduction Table
The table below shows the Recommended Minimum Distance between NETGEAR equipment and household
appliances to reduce interference (in feet and meters).
Household Appliance Recommended Minimum Distance
(in feet and meters)
Microwave ovens 30 feet / 9 meters
Baby Monitor - Analog 20 feet / 6 meters
Baby Monitor - Digital 40 feet / 12 meters
Cordless phone - Analog 20 feet / 6 meters
Cordless phone - Digital 30 feet / 9 meters
Bluetooth devices 20 feet / 6 meters
ZigBee 20 feet / 6 meters
Notification of Compliance
117
N300 Wireless ADSL2+ Modem Router DGN2200v3
118
Index
A
access lists 85
adapter, wireless 29
adding
custom service 47
addresses, DNS 25
ADSL
see also DSL settings
ADSL microfilter
filter, described 12
ADSL settings 26
ADSL statistics, viewing 62
Advanced Wireless Settings screen 84
alerts, emailing 54
Application Level Gateway (ALG), disabling 78
approved USB devices 74
attached devices, viewing 63
automatic firmware checking 57
automatic Internet connection 23
B
back panel 9
backing up configuration 59
Basic Settings screen
described 24
manual setup 23
blocking content and services 39, 42
blocking keywords, examples 42
box contents 8
bridged networks 92
C
changes not saved, router 106
compliance 112
configuration file, managing 59
configuration, wireless network 33
configuring
port triggering 49
connecting USB drive 74
connecting wirelessly 12
connection, Internet 19
content filtering 39
country setting 22
custom service (port forwarding) 47
D
date and time 107
daylight savings time 52, 107
default demilitarized zone (DMZ) server 79
default factory settings 109
denial of service (DoS)
port scans 78
protection 39
devices, adding 31
diagnostic utilities 64
disabling
firewalls 25
SIP ALG 78
SSID broadcast 31
disconnecting USB drive 73
Domain Name Server (DNS) addresses 25, 80
Domain Name Server (DNS), secondary 25
DSL port settings 61
DSL settings 26
Dynamic DNS 80
Dynamic Host Configuration Protocol (DHCP) server
82
E
email notices 54
erasing configuration file 60
F
factory settings
list of 109
resetting 8
file and printer sharing 75
file sharing 67
filtering content 39
firewalls
119
N300 Wireless ADSL2+ Modem Router DGN2200v3
IM ports 44
rules 43
firmware, upgrading 57, 88
at log in 21
automatic check 57
manually 58
front panel 9
LEDs described 9
G
gateway IP address 25
genie, NETGEAR 19
guest networks 37
H
host name 24
host, trusted 42
I
installing
manual setup 23
NETGEAR genie 19
Setup Wizard 22
Instant Messaging (IM) ports 44
Internet connection
troubleshooting 102, 103, 104
Internet port 19, 23
Internet port, no connection 27
Internet Relay Chat (IRC) 44
Internet Service Provider (ISP), see ISP
Internet traffic statistics 92
IP address 74, 75
DHCP 18
LAN service 81
reserved 82
IP setup, LAN 81
ISP
account information 18
Basic Settings screen 24
DSL settings 26
DSL synchronization 10
ISP login 18
K
keywords, blocking traffic using 42
L
label, product 8
LAN ports 61
LAN setup 81
language setting 22
large files, sharing 68
LEDs
troubleshooting 100
verifying cabling 16
logging in
cannot 106
changing password 27
ISP 18
router 20
time-out 27
types 28
upgrade firmware 21
logs 40, 41
logs, emailing 54
M
MAC address, product label 8
MAC address, spoofing 103
MAC addresses
described 31
filtering by 86
rejected 106
restricting access by 36, 85
maintenance settings 56
manual logout 28
manual setup 23
Maximum Transmit Unit (MTU) 78
menus, described 21
metric, number of routers 90
modem settings status 61
multi-point bridge mode 95
N
NETGEAR genie 19
Network Address Translation (NAT) 25
network folder
creating 72
editing 70
Network Time Protocol (NTP) 52, 107
networks
controlling access 43
guest 37
troubleshooting 104
no Internet connection 27
O
120
N300 Wireless ADSL2+ Modem Router DGN2200v3
On/Off LED 10
one-line ADSL microfilter 13
online help, router 21
P
passphrase, product label 8
passphrases 36, 37
passwords, see passphrases
photos, sharing 67
plug and play, universal (UPnP) 90
point-to-point bridge mode 94
Point-to-Point Tunneling Protocol (PPTP) 23
port forwarding 45, 46
example 45
port scanning, disabling 78
port triggering 44, 46, 49
configuring 49
ports
Instant Messaging 44
listed, back panel 9
positioning the router 12
PPPoA or PPPoE, troubleshooting 103
preset security 30, 36
primary DNS addresses 25
printing files and photos 67
Q
Quality of Service (QoS) 83
R
range of wireless connections 12
ReadySHARE access 66
remote management 74, 87
removing USB drive 73
repeater mode with wireless client association 96
replace existing router 18
reserved IP address 82
restore
configuration file 60
factory settings button 109
restricting wireless access by MAC addresses 36
router interface, described 21
router, status 60
Router_Setup.html 19
Routing Information Protocol (RIP} 81
S
secondary DNS 25
security 31
security features 30
security options 31
security options, described 31
security PIN 8, 33
security settings 39
sending logs by email 54
serial number, product label 8
Session Initiation Protocol (SIP), disabling 78
setting time zone 52
settings (Genie), viewing 19
Setup Wizard 22, 23
sharing files 67
Simple Mail Transfer Protocol (SMTP) 54
sites, blocking 42
SSID
described 35
disable 31
SSID, product label 8
static routes 88, 89
statistics, viewing 62
status
Internet connection 63
router 60
storage drive. See USB storage
syslog 40
T
TCP/IP
network troubleshooting 104
no Internet connection 27
technical specifications 111
technical support 2
time of day 107
time zone, setting 52
time-out
port triggering 50
time-stamping 52
trademarks 2
traffic metering 91, 92
troubleshooting 99
cannot log in 106
date or time incorrect 107
Internet browsing 104
Internet connection 102, 103
LEDs 100, 101, 103
log in access 101
network 104
PPPoA or PPPoE 103
121
N300 Wireless ADSL2+ Modem Router DGN2200v3
router changes not saved 106
router not on 100
trusted host 42
Trusted IP Address field 42
trusted wireless stations 86
turn off wireless connectivity 30
two-line ADSL microfilter 13
U
Universal Plug and Play (UPnP) 90
unmounting USB drive 73
upgrading firmware 57, 88
USB
file sharing 67
ReadySHARE access 66
USB devices 66, 73
USB devices, approved 74
USB storage 65
basic settings 68
connecting 74, 75
creating a network folder 72
editing a network folder 70
V
virtual channel identifier (VCI) 18, 26
virtual path identifier (VPI) 18, 26
W
WAN 78
WAN port
default 19
scanning 78
Wi-Fi Protected Setup (WPS) 32, 33
adding devices 32
keep existing settings 85
settings 84
Wired Equivalent Privacy (WEP) encryption 36
passphrase 36
wireless adapter 29
wireless advanced settings 84
wireless bridging and repeating 92
wireless channel 35
wireless connections 12
wireless connectivity 30
wireless distribution system (WDS) 92, 94, 95, 96
wireless guest network 37
wireless isolation 35
Wireless LAN (WLAN) 62
wireless mode 35
wireless network configuration 33
wireless network name 8
wireless network name (SSID) broadcast 37
wireless network settings 35
wireless port settings 61
wireless region 35
wireless security 30
wireless security options 31
wireless settings
SSID broadcast 37
Wireless Settings screen 33
wireless settings, SSID broadcast 35
Wireless Stations Access List 85
WPS button 32
wrong date or time 107
