Nokia of America ONEBTS-23 AWS DIGITAL HOST WIRELESS BASE STATION User Manual USERS MANUAL 1

Alcatel-Lucent USA Inc. AWS DIGITAL HOST WIRELESS BASE STATION USERS MANUAL 1

USERS MANUAL 1

Alcatel-Lucent CDMA Base Station 8420
Indoor Cabinet Installation Manual
401-703-444
Issue 4
November 2007
Alcatel-Lucent - Proprietary
This document contains proprietary information of Alcatel-Lucent and
is not to be disclosed or used except in accordance with applicable agreements.
Copyright © 2007 Alcatel-Lucent
Unpublished and Not for Publication
All Rights Reserved
See notice on first age
Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their
respective owners.
The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.
Copyright © 2007 Alcatel-Lucent. All Rights Reserved.
Notice
Every effort was made to ensure that the information in this Information Product (IP) was complete and accurate at the time of printing.
However, information is subject to change.
Ordering Information
The ordering number for this IP is 401-703-444. To order this IP, use one of the following numbers to call the Alcatel-Lucent Customer
Information Center in Indianapolis, Indiana.
Within the United States: 1-888-LUCENT8 (1-888-582-3688; fax 1-800-566-9568)
From Canada: 1-317-322-6615 (fax 1-317-322-6699)
From all other countries: 1-317-322-6416 (fax 1-317-322-6699)
Technical Support
For technical support, see “To obtain documentation, training, and technical support, or submit feedback” on the Flexent®
AUTOPLEX®Wireless Networks System Documentation CD-ROM, 401-010-001 or the documentation web site at https://wireless.support.
lucent.com/amps/rls_info/rls_doc/cd_docs/customer.support/customer.support_toc.pdf.wen
Technical Support Telephone Numbers
Lucent Technologies provides technical assistance support for its wireless products. The support numbers are:
Support via Customer Technical Support (CTS) in the United States: 1-866-LUCENT8 (1-866-582-3688)
From all other countries: 1-630-224-4672
Alternate: 1-800-CAL-4NSC (1-800-225-4672)
Developed by Alcatel-Lucent
See notice on first age
Alcatel-Lucent - Proprietary
See notice on first page
Contents
About this information product
Purpose ............................................................................................................................................................................................ ixix
Reason for reissue ....................................................................................................................................................................... ixix
Intended audience ......................................................................................................................................................................... xx
Systems supported ........................................................................................................................................................................ xx
Conventions used .......................................................................................................................................................................... xx
Site preparation checklists ...................................................................................................................................................... xiixii
Related documentation ............................................................................................................................................................. xiixii
Related training ......................................................................................................................................................................... xiiixiii
Information product support ................................................................................................................................................. xiiixiii
Technical support ...................................................................................................................................................................... xiiixiii
How to order .............................................................................................................................................................................. xiiixiii
Safety information .................................................................................................................................................................... xivxiv
How to comment ....................................................................................................................................................................... xivxiv
1Overview of indoor Alcatel-Lucent CDMA Base Station 8420 radio cabinet site
installation
Overview ...................................................................................................................................................................................... 1-11-1
Background information
Overview ...................................................................................................................................................................................... 1-31-3
Functional description ............................................................................................................................................................. 1-51-5
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page iii
Physical description
Overview ...................................................................................................................................................................................... 1-71-7
Cabinet information ................................................................................................................................................................. 1-81-8
Cabinet weights and dimensions ...................................................................................................................................... 1-181-18
Cabinet components .............................................................................................................................................................. 1-231-23

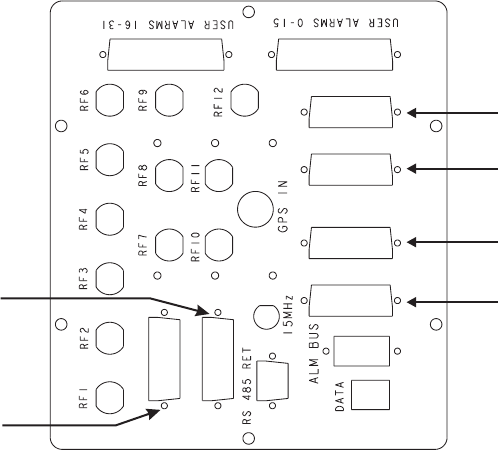

Physical interfaces ................................................................................................................................................................. 1-251-25

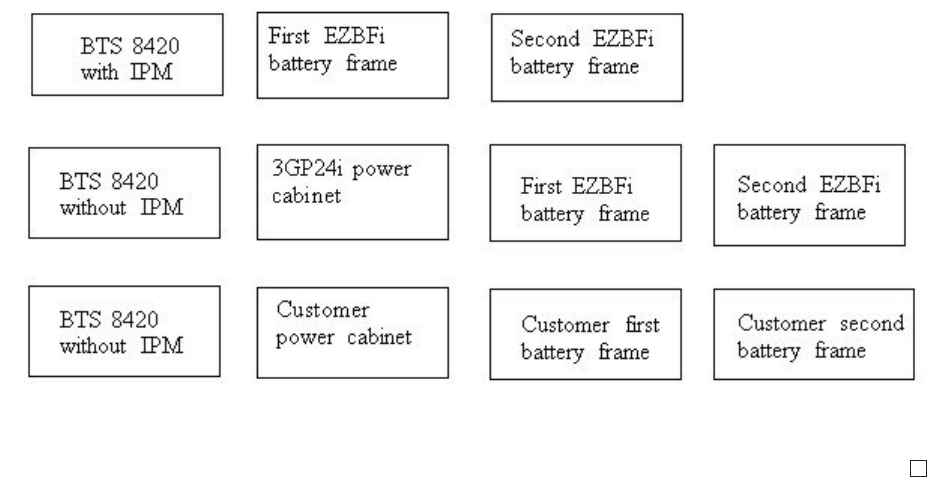

Site configurations ................................................................................................................................................................. 1-341-34
Power specifications
Overview .................................................................................................................................................................................... 1-351-35
Input power ............................................................................................................................................................................... 1-361-36
Site power configurations ................................................................................................................................................... 1-381-38
Backup power options .......................................................................................................................................................... 1-391-39
2Safety
Overview ...................................................................................................................................................................................... 2-12-1
Structure of hazard statements ............................................................................................................................................ 2-22-2
Safety - General precautions for installation procedures ......................................................................................... 2-42-4
Safety - specific hazards ........................................................................................................................................................ 2-62-6
Product safety ............................................................................................................................................................................. 2-92-9
Safety labels on cabinet ....................................................................................................................................................... 2-102-10
3Tools, materials, and checklist
Overview ...................................................................................................................................................................................... 3-13-1
Preparatory information
Overview ...................................................................................................................................................................................... 3-23-2
Tools, supplies, and parts required (master list) .......................................................................................................... 3-33-3
Torque requirements ................................................................................................................................................................ 3-73-7
Physical installation process ................................................................................................................................................. 3-93-9
Contents
...................................................................................................................................................................................................................................
iv Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Verify site preparation completed .................................................................................................................................... 3-113-11
4Transport, mount, and ground cabinet
Overview ...................................................................................................................................................................................... 4-14-1
General information
Overview ...................................................................................................................................................................................... 4-24-2
Clearances and layout requirements ................................................................................................................................. 4-34-3
How to prepare for cabinet or frame placement
Overview ...................................................................................................................................................................................... 4-64-6
Anchor specifications .............................................................................................................................................................. 4-74-7
How to drill anchor holes and install the mounting plate for BTS 8420/AWS 8420 radio cabinet ...... 4-84-8
Lifting and moving cabinets .............................................................................................................................................. 4-144-14
How to place, anchor, and ground cabinets, frames, or stands
Overview .................................................................................................................................................................................... 4-174-17
Anchor and torque requirements ...................................................................................................................................... 4-184-18
Placement, anchoring, and grounding of the indoor radio cabinet .................................................................... 4-194-19
5Connecting cables to BTS 8420/AWS 8420 radio cabinet
Overview ...................................................................................................................................................................................... 5-15-1
How to connect the GPS antenna jumper cable
Overview ...................................................................................................................................................................................... 5-25-2
Connecting GPS antenna jumper cable ........................................................................................................................... 5-35-3
How to connect T1/E1 lines and external alarm cables
Overview .................................................................................................................................................................................... 5-105-10

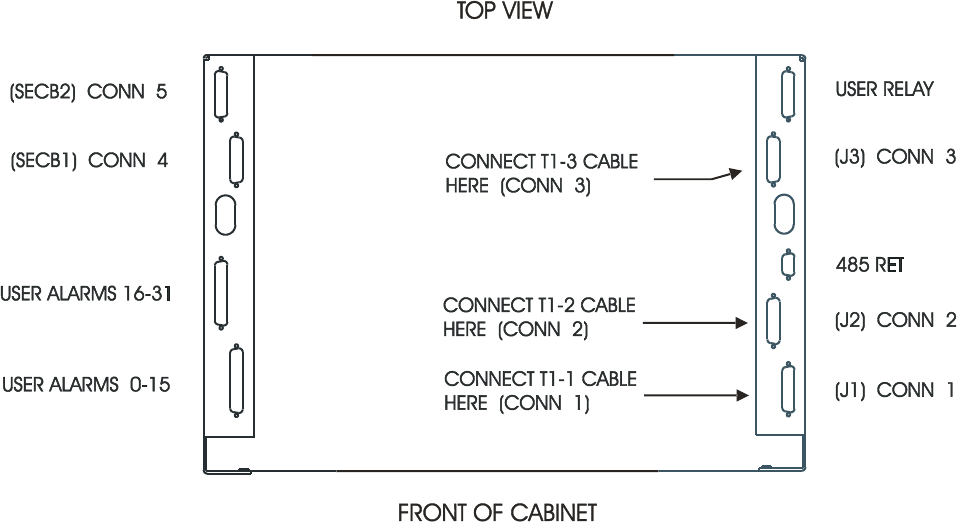

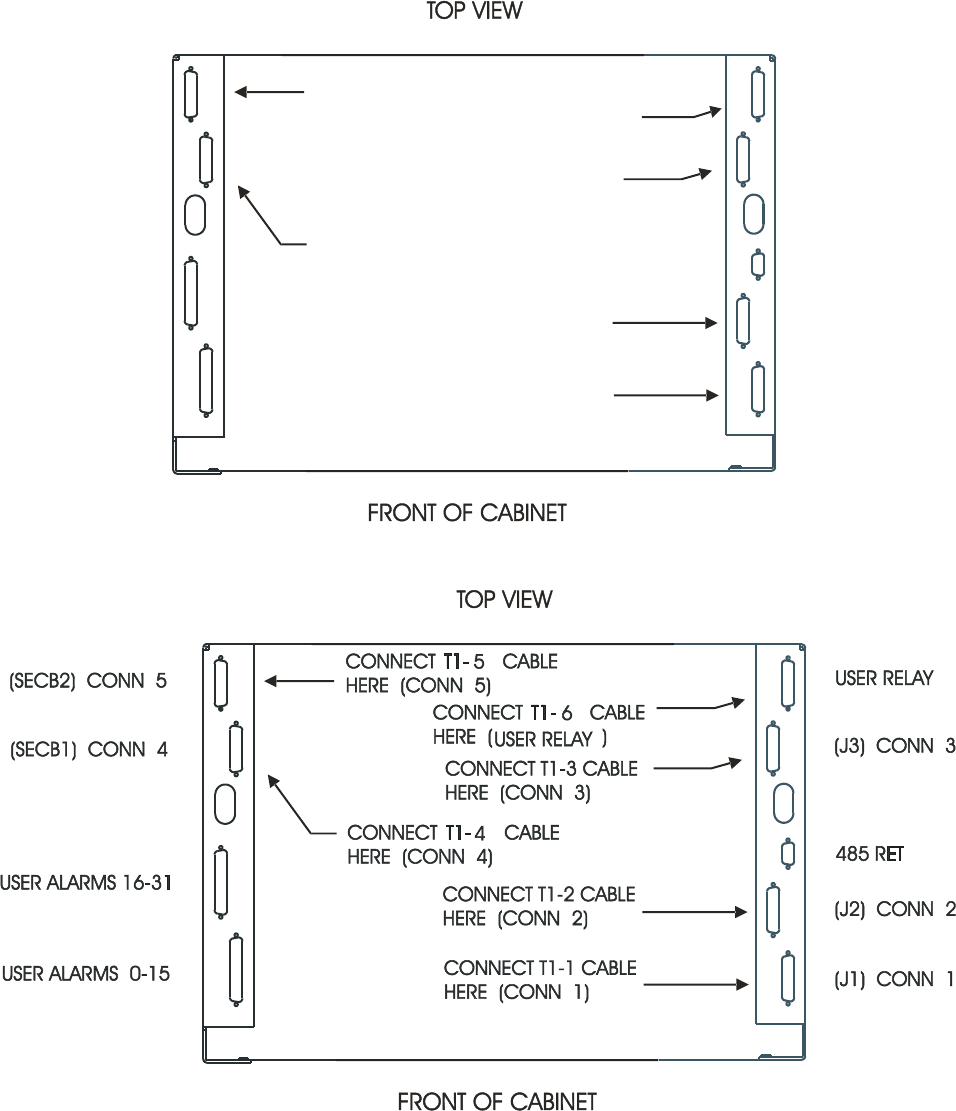

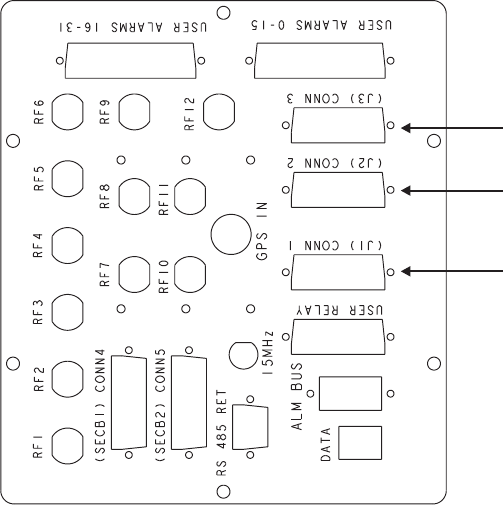

How to route and connect T1/E1 cables to BTS 8420/AWS 8420 radio cabinet ....................................... 5-165-16
How to route and connect User Alarm cable(s) to indoor BTS 8420/AWS 8420 radio cabinet .......... 5-405-40
Balun block connections (if applicable)
Overview .................................................................................................................................................................................... 5-615-61
Contents
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page v
How to connect twisted-wire pairs in T1/E1 cable(s) to Balun Blocks ........................................................ 5-625-62
6Power connections
Overview ...................................................................................................................................................................................... 6-16-1
Customer-supplied power
Overview ...................................................................................................................................................................................... 6-26-2
Safety precautions .................................................................................................................................................................... 6-36-3
Power wiring overview .......................................................................................................................................................... 6-46-4
Installation of integrated power AC connections
Overview ...................................................................................................................................................................................... 6-56-5
Wiring overview ........................................................................................................................................................................ 6-66-6
How to install the integrated power AC connections ................................................................................................ 6-76-7
7Component installation in Integrated Power Module
Overview ...................................................................................................................................................................................... 7-17-1
How to install rectifiers in Integrated Power Module ............................................................................................... 7-27-2
8Finishing the installation
Overview ...................................................................................................................................................................................... 8-18-1
General
Overview ...................................................................................................................................................................................... 8-28-2
Antenna connections ................................................................................................................................................................ 8-38-3
Initial start-up and system test ............................................................................................................................................ 8-48-4
Install RF antenna jumper cables (indoor) ..................................................................................................................... 8-58-5
Finish installation of indoor BTS 8420/AWS 8420 radio cabinet
Overview .................................................................................................................................................................................... 8-118-11
Final indoor BTS 8420/AWS 8420 radio cabinet installation procedures ..................................................... 8-128-12
AInstalling 3GP24i power cabinet, if applicable
Overview ..................................................................................................................................................................................... A-1A-1
Contents
...................................................................................................................................................................................................................................
vi Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Safety precautions and wiring overview
Overview ..................................................................................................................................................................................... A-2A-2
Safety precautions ................................................................................................................................................................... A-3A-3
Power wiring overview ......................................................................................................................................................... A-4A-4
How to make 3GP24i power cabinet DC and AC connections
Overview ..................................................................................................................................................................................... A-5A-5
Access to the 3GP24i power cabinet .............................................................................................................................. A-6A-6
Pre-installation instructions ................................................................................................................................................. A-9A-9
How to install DC power cables ..................................................................................................................................... A-12A-12
How to install the AC utility power cables ................................................................................................................ A-20A-20
How to install 3GP24i power cabinet components
Overview ................................................................................................................................................................................... A-28A-28
How to install the rectifiers in the 3GP24i power cabinet .................................................................................. A-29A-29
How to install the DC circuit breakers in the 3GP24i power cabinet ............................................................ A-32A-32
Prepare to install batteries in the 3GP24i power cabinet ..................................................................................... A-35A-35
How to install batteries in the 3GP24i power cabinet ........................................................................................... A-40A-40
BPost-installation checklist by cabinet and frame
Overview ..................................................................................................................................................................................... B-1B-1
Instructions for use of the checklists and punchlist .................................................................................................. B-2B-2
IN1: BTS 8420/AWS 8420 radio cabinet ...................................................................................................................... B-3B-3
IN2: 3GP24i power cabinet ................................................................................................................................................. B-5B-5
IN-3: Installation Punchlist Sheet ..................................................................................................................................... B-6B-6
CProduct Conformance Statements
Overview ..................................................................................................................................................................................... C-1C-1
FCC and Industry Canada (IC) conformance statements ........................................................................................ C-2C-2
Antenna exposure statements .............................................................................................................................................. C-5C-5
Contents
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page vii
UL and UL Canada conformance statements ............................................................................................................... C-6C-6
Eco-environmental statements ............................................................................................................................................ C-7C-7
Glossary
Index
Contents
...................................................................................................................................................................................................................................
viii Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
About this information productAbout this information product
Purpose
This information product (IP) provides instructions for the physical installation of the
Alcatel-Lucent CDMA BTS 8420 and AWS 8420 indoor radio cabinets.
The tasks are to be performed after completion of all site preparation tasks, which are
covered in Alcatel-Lucent CDMA Base Station 8420 Indoor Site Preparation
Guidelines, 401-703-443.
Following installation of the indoor 8420 radio cabinet, the next step is to test and
integrate it into the network. Procedures for testing and integration may be found in
CDMA Modcell and Base Station Integrated Engineering Handbook (IEH 238).
Important! The procedures contained in this IP are based on Alcatel-Lucent
standard practices. Prior to beginning an indoor radio cabinet, power cabinet or
frame, or battery frame or stand installation, installers should be familiar with these
practices. If there is a conflict, standard practices take precedence. However, this IP
takes precedence for identification of parts and materials specific to an indoor radio
cabinet.
Reason for reissue
This is Issue 4.0 of the Alcatel-Lucent CDMA Base Station 8420 Indoor Cabinet
Installation Manual, document number 401-703-444. This issue incorporates
information available as of November 2007.
In Issue 2, information was added about two new versions of the BTS 8420 radio
cabinet -- Filtered version and Low Power version. The previous or original release
covered only the Digital Only version. In this release the Filtered, and Low Power
versions were added. In addition, Appendix A was added, which covers 3GP24i and
EZBFi installation information for the non-integrated version of the BTS 8420 radio
cabinet.
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007
,
Alcatel-Lucent - Proprietary
See notice on first page ix
In Issue 3, information was added about a new configuration of the Digital Only
version the Digital Only version with two Digital Shelves. The weight and power
tables as well as the T1/E1 and User Alarm tables were updated. The Universal
Hatchplate figures were replaced with updated figures. Also, changes to EZBFi
material were made throughout the document.
In Issue 4, information about the EZBFi was removed. (From now on, refer to the
EZBFi Modular Battery System Installation Manual for +24V and -48V, 401-703-507,
when installing and connecting the EZBFi Modular Battery System.) Also, the Z-IDC
information was updated. (The Z-IDC is no longer required if the NIU is located
within the 10 meter (33 foot) cable length distance from the AWS 8420 or BTS 8420
radio cabinet.) In addition, information was added about the new AWS 8420 indoor
radio cabinet.
Intended audience
This IP is intended for use by Alcatel-Lucent installation technicians.
Systems supported
This document applies to Alcatel-Lucent CDMA Base Station 8420 indoor cell sites.
Conventions used
In this IP, all parts are described as they are shipped. Metric parts are specified in
metric units. Non-metric parts are specified in non-metric units.
Lengths and other measurements are given in metric units, with non-metric units given
as equivalents for use in non-metric markets.
For manufactured parts, the following system of conventions is used:
•Metric sizes of nuts, bolts, flat washers, and lock washers are identified by an
uppercase letter M followed immediately by a size in millimeters (example: M10)
•American fractional sizes of nuts, bolts, anchor bolts, and washers are identified by
a number followed immediately by a double apostrophe (example: 3/8″). In the
case of lengths measured in feet, ″2 feet″is used rather than ″2’″so that the single
apostrophe is not overlooked.
Wire gauges are specified in metric units. Equivalent sizes in the American Wire
Gauge (AWG) system are given in the following table.
Important! the measurement in millimeters in the following table is the
cross-sectional area of the wire.
About this information product
...................................................................................................................................................................................................................................
xAlcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
,
The following table is from CEI/IEC 60947-1:2004, Table 1, Standard cross-sections of
round copper conductors and approximate relationship between mm2and AWG/kcmil
sizes for reference. Additional wire sizes are included in this information product as
appropriate for the topic.
ISO rated cross-sectional area (mm2) AWG/kcmil size
0.2 24
0.34 22
0.5 20
0.75 18
1-
1.5 16
2.5 14
412
610
10 8
16 6
25 4
35 2
-1
50 0 (1/0)
70 00 (2/0)
95 000 (3/0)
- 0000 (4/0)
120 250 kcmil
150 300 kcmil
185 350 kcmil
- 400 kcmil
240 500 kcmil
300 600 kcmil
NOTE: The dash, when it appears, counts as a size when considering connecting
capacity (see 7.1.7.2 in the standard).
About this information product
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007
,
Alcatel-Lucent - Proprietary
See notice on first page xi
Site preparation checklists
All site preparation activities, as well as adherence to the guidelines, should be verified
prior to the installation of the cell site equipment. Various checklists and punchlist
sheets have been provided in Appendix A of the site preparation document (see Related
documentation) to aid customers and Alcatel-Lucent personnel during a base station
site Method of Procedure (MOP) walk-through, prior to the equipment installation. A
general list is provided in Chapter 1.
Utilization of the checklists helps ensure a quality installation and provides a base
station site history file for later reference. The punchlist is used to track completion of
any outstanding site preparation items, and to aid in the project management of
installation resources.
Related documentation
Installation personnel must have the appropriate reference material, and all applicable
local, regional and national code documentation.
Alcatel-Lucent documents (required)
•Alcatel-Lucent CDMA Base Station BTS 8420/ AWS 8420 Indoor Site Preparation
Guidelines, 401-703-443
•Alcatel-Lucent Engineering Rules Document, ER_0102_0005
•EZBFi Modular Battery System Installation Manual for +24V and -48V,
401-703-507
•Grounding and Lightning Protection Guidelines for Alcatel-Lucent Technologies
Network Wireless System Cell Sites, 401-200-115
•Alcatel-Lucent CDMA Base Stations System Description, 401-703-463
•Alcatel-Lucent CDMA Base Stations Operations, Administration, and Maintenance,
401-703-407
•Thermal Probe Multiplexer 210E Control Module J85501X-1, 157-010-202
•Supplemental Battery Stand J85504D-1, 157-003-101
These documents may be ordered by contacting the Alcatel-Lucent Customer
Information Center (CIC). Use the telephone numbers listed on the back of the title
page of this manual.
A password-protected Web site is available where customers can obtain the most recent
information about Mobility products.
That Web site is the documentation downloads area of the Alcatel-Lucent customer
support Web site. You can access that site at the following URL:
https://wireless.support.lucent.com/amps/rls_info/rls_doc/index.html
About this information product
...................................................................................................................................................................................................................................
xii Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
,
Related training
Safety training in the following areas is required for personnel installing the
Alcatel-Lucent CDMA Base Station 8420 and associated equipment:
•Hazard Communication
•Lift Safety
•Hoist Safety
•Lock Out/Tag Out
•Accident/Incident Reporting.
Other related training is for:
•Integration into the cell site
•Operation, Administration, and Maintenance (OA&M) .
Information product support
For questions or concerns about this or any other Alcatel-Lucent information products,
please contact us at one of the following numbers:
•1 888 727 3615 (for the continental United States)
•1 630 713 5000 (for all countries)
Technical support
For technical support, contact your local customer support team. You can reach them
via the web at https://support.lucent.com/ or the telephone number listed under the
Technical Assistance Center menu at http://www.lucent.com/contact/.
At the time of issue of this information product, the following telephone numbers are
supported, depending on the region:
Customer Technical Support:
In the United States: 1-866-LUCENT8 (1-866-582-3688) or from all other countries:
+1 630 224 4672
Alternate: 1-800-CAL-4NSC (1-800-225-4672)
How to order
To order Alcatel-Lucent information products, use the following websites or the email,
phone, and fax contacts linked from ″Contact Us″on those sites:
•Documentation: http://www.lucentdocs.com
•Training: https://training.lucent.com/
About this information product
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007
,
Alcatel-Lucent - Proprietary
See notice on first page xiii
Safety information
This information product contains hazard statements for your safety. Hazard statements
are given at points where safety consequences to personnel, equipment, and operation
may exist. Failure to follow these statements may result in serious consequences.
How to comment
To comment on this information product, go to the Online Comment Form
(http://www.lucent-info.com/comments/enus/) or e-mail your comments to the
Comments Hotline (comments@alcatel-lucent.com).
About this information product
...................................................................................................................................................................................................................................
xiv Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
,
11Overview of indoor
Alcatel-Lucent CDMA Base
Station 8420 radio cabinet site
installation
Overview
...................................................................................................................................................................................................................................
Purpose
The following chapter describes the Alcatel-Lucent CDMA BTS 8420 and AWS 8420
radio cabinets. They are referred to in the text as “BTS 8420 radio cabinet,” “AWS
8420 radio cabinet,” or “radio cabinet.” This chapter also describes how they are used
in the wireless network and their physical characteristics.
The information in the first part of this chapter familiarizes the installer with the
wireless network to which the cabinet will be connected. It also discusses how the
radio cabinet will be used as an integral part of that network. Next the physical
characteristics of the radio cabinet are discussed: its site requirements, its dimensions
and weights, and the location of items and components on associated with the cabinet.
Finally, the radio cabinet power back-up options are discussed.
Installation procedures
Before starting installation of the cabinet, the installer should become familiar with the
safety precautions, warnings, and product conformance statements in Chapter 2,
“Safety”.
Chapter 3, “Tools, materials, and checklist” provides the needed tools and materials for
installation and a process checklist. Chapter 4, “Transport, mount, and ground cabinet”
provides instructions for anchoring the cabinet to the floor. These instructions include
handling, placement, anchoring, grounding, and cabling of the cabinet. Chapter 5,
“Connecting cables to BTS 8420/AWS 8420 radio cabinet” shows how to connect the
radio cabinet to the network -- this includes T1/E1, GPS jumper cable, and user/Power
Alarm cables. Chapter 6, “Power connections” shows how to connect the radio cabinet
to the power source. (The power source for an integrated radio cabinet is AC line
voltage. The power source for the regular radio cabinet is 24 VDC from an external
power source.) covers finishing the installation.Chapter 8, “Finishing the installation”
provides instructions for installing the EZBFi battery back-up cabinet.
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-1
Contents
Background information 1-3
Functional description 1-5
Physical description 1-7
Cabinet information 1-8
Cabinet weights and dimensions 1-18
Cabinet components 1-23
Physical interfaces 1-25
Site configurations 1-34
Power specifications 1-35
Input power 1-36

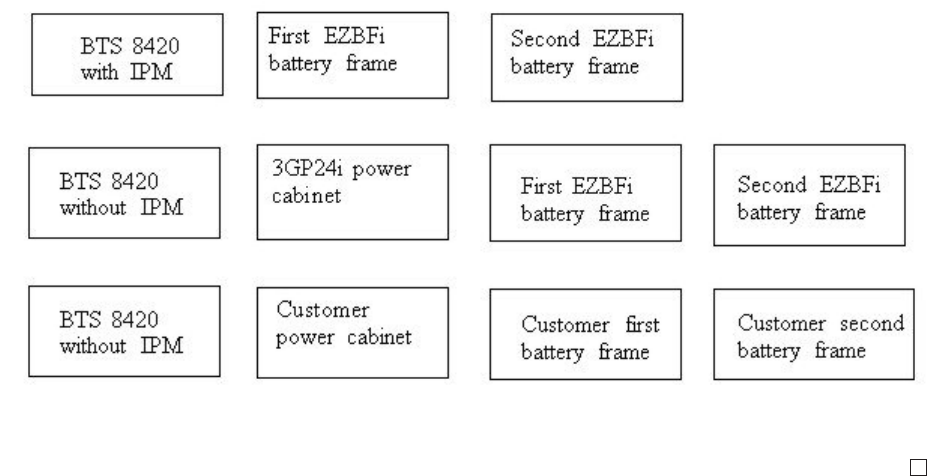

Site power configurations 1-38
Backup power options 1-39
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Overview
....................................................................................................................................................................................................................................
1-2 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Background information
Overview
...................................................................................................................................................................................................................................
Purpose
The following section provides background information on the cabinet, such as the
network overview, product overview, and site configurations.
These topics are presented to provide the installer with sufficient background material
to better understand the methods and procedures required to install the cabinet.
Installation details
This equipment is intended for installation in restricted access locations where access is
controlled or where access can only be gained by service personnel with a key or tool.
Access to this equipment is restricted to qualified service personnel only.
Install only in a controlled environment (an area where the humidity is maintained at
levels that cannot cause condensation on the equipment, and where contaminating dust
is controlled, and steady state temperature is within the range specified in the site
preparation guidelines listed below). This equipment has been evaluated for use in an
indoor ambient temperature range from 0° C to +40° C (continuous) and -5° C to 50°
C (short-term).
The cabinet, frame, or stand must only be mounted on a concrete floor or other
noncombustible surface.
For complete details on installation requirements, refer to the following documents:
•Alcatel-Lucent CDMA Base Station BTS 8420 and AWS 8420 Indoor Site
Preparation Guidelines, 401-703-443
Definitions
The following terms are used when describing an installation site.
Controlled Environment An indoor location in which temperature, humidity, and
ventilation are maintained at specific levels.
Indoor Site Installation site in a Controlled Environment, allowing use of indoor
cabinets: OneBTS cabinets and Galaxy Power System.
For more information on indoor site environmental requirements, refer to
Alcatel-Lucent CDMA Base Station BTS 8420/AWS 8420 Indoor Site Preparation
Guidelines, 401-703-443.
Radio Cabinet An indoor radio cabinet is the cabinet that houses the CDMA radio
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-3
communication electronics, amplifiers, and filters (if present, depending on the
configuration). The radio cabinet contains all of the cell site control electronics,
alarms, and T1/E1 facilities interface, as well as the user alarm interface.
Contents
Functional description 1-5
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Overview
....................................................................................................................................................................................................................................
1-4 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Functional description
...................................................................................................................................................................................................................................
Overview
This topic describes relevant product functional information.
General description
The BTS 8420 is a CDMA product intended for indoor applications. It is used with a
third party Distributed Antenna System (DAS) that is provided by the customer. The
DAS is a self-contained unit that is separate from the BTS 8420/AWS 8420 radio
cabinet and connects the BTS 8420/AWS 8420 radio cabinet to the antenna system.
The BTS 8420 provides 1xEV-DO service in the 850 and 1900 MHz bands
The AWS 8420 provides service in the 2100 MHz band only. In the present release, it
is a standalone cabinet.
In this release, the BTS 8420 is available in the following versions:
•Digital Only version with one Digital Shelf (no Amplifiers or Filters)
•Digital Only version with two Digital Shelves (no Amplifiers or Filters)
•Filtered version (Digital Shelf + Filters)
•Low Power version (Digital Shelf + Amplifiers + Filters).
In this release, the AWS 8420 is available in the following versions:
•Digital Shelf + Amplifiers + Filters for 3 sectors
•Digital Shelf + Amplifiers + Filters for 6 sectors
Product configurations
The BTS 8420 radio cabinet can be deployed as one of the following:
•Dual band -- 850 MHz and 1900 MHz in same cabinet
•Single band -- 850 MHz
•Single band -- 1900 MHz.
The AWS 8420 can be deployed in the following configurations:
•2100 MHz with 3 sectors
•2100 MHz with 6 sectors
Product capabilities
The product capabilities of the BTS 8420 in this release are as follows:
•Indoor, with or without integrated power, +24 VDC
•Up to three sectors.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-5
•Dual Band: up to eight 850 MHz carriers and up to eleven 1900 MHz carriers. The
combination must not exceed 15.
•Single Band,850 MHz: up to eight carriers (two carriers can be 1xEV-DO).
The minimum configurations are:
– One carrier -- Voice only (no 1xEV-DO)
– Two carriers -- one Voice carrier and one 1xEV-DO carrier
•Single Band, 1900 MHz: up to 11 carriers (two carriers can be 1xEV-DO)
The minimum configurations are:
– One carrier -- Voice only (no 1xEV-DO)
– Two carriers -- one Voice carrier and one 1xEV-DO carrier.
•Up to 12 T1/E1 lines supported when URCs are used in Digital Shelf (SECBs not
offered)
•Up to 24 T1/E1 lines supported in Digital Only version with two Digital Shelves
(12 T1/E1 lines per Digital Shelf)
•In Digital Only version with two Digital Shelves, user alarms 0-15 go to first (or
bottom) Digital Shelf and user alarms 16-31 go to second (or top) Digital Shelf
•In all versions except Digital Only version with two Digital Shelves, user alarms 0
through 31 go to Digital Shelf
•Connection to GPS
•URCs installed in Digital Shelf in the original release
•URC-IIs installed in Digital Shelf in this release and the release preceding this one.
The product capabilities of the AWS 8420 in this release are as follows:
•Indoor, with or without integrated power, +24 VDC
•Single Band, 2100 MHz: up to 7 carriers (two carriers can be 1xEV-DO)
The minimum configurations are:
– One carrier -- Voice only (no 1xEV-DO)
– Two carriers -- one Voice carrier and one 1xEV-DO carrier.
•Up to 12 T1/E1 lines supported when URCs are used in the Digital Shelf (SECBs
not offered)
•User alarms 0 through 31 go to the Digital Shelf
•Connection to GPS
•URC-IIs installed in Digital Shelf in this release.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Functional description
....................................................................................................................................................................................................................................
1-6 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Physical description
Overview
...................................................................................................................................................................................................................................
Purpose
This topic provides an overview of the various versions of the BTS 8420 and AWS
8420 radio cabinet.
In the present release, the BTS 8420/AWS 8420 radio cabinet is available only for the
indoor environment. It is anchored to the floor.
Contents
Cabinet information 1-8
Cabinet weights and dimensions 1-18
Cabinet components 1-23
Physical interfaces 1-25
Site configurations 1-34
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-7
Cabinet information
...................................................................................................................................................................................................................................
Overview
This topic provides an overview of the various versions of the BTS 8420 and AWS
8420 radio cabinet. The BTS 8420 radio cabinet is available in four configurations:
Digital Only version, Digital Only version with two Digital Shelves, Filtered version,
and Low Power version. The AWS 8420 radio cabinet is available in two
configurations: a three sector and a six sector version.
Filtered version of BTS 8420 radio cabinet

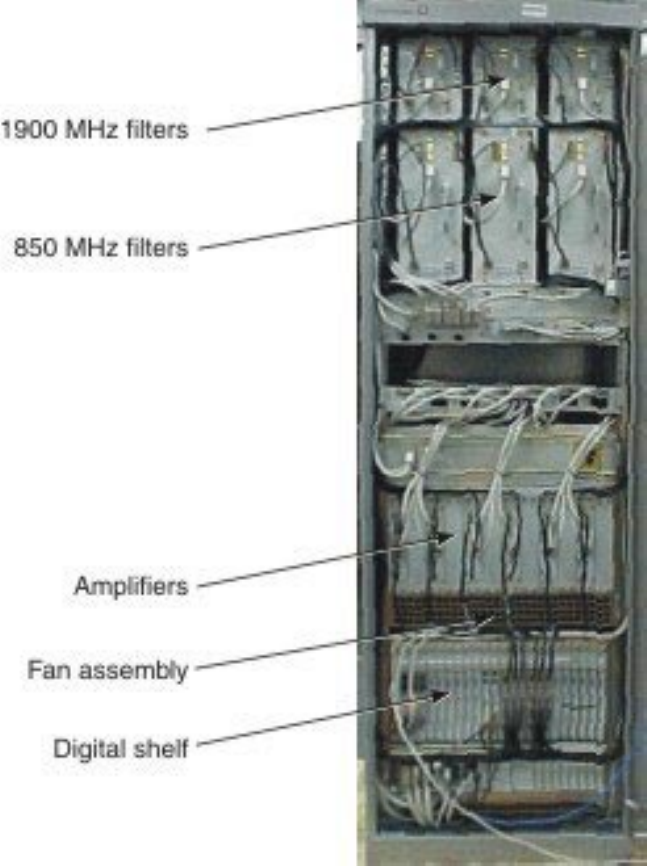

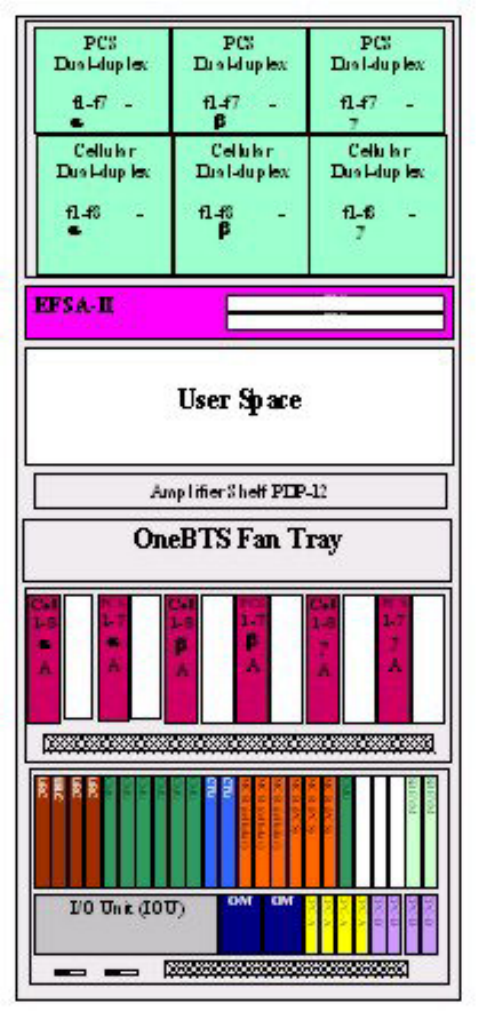

The following two figures display the interior of the Filtered version of the BTS 8420
radio cabinet. It contains one Digital Shelf, amplifiers, and 850 MHz and 1900 MHz
filters. The first figure is an actual photo. The second figure is a diagram. The
individual components are labeled in the diagram.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
1-8 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-9
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
1-10 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007

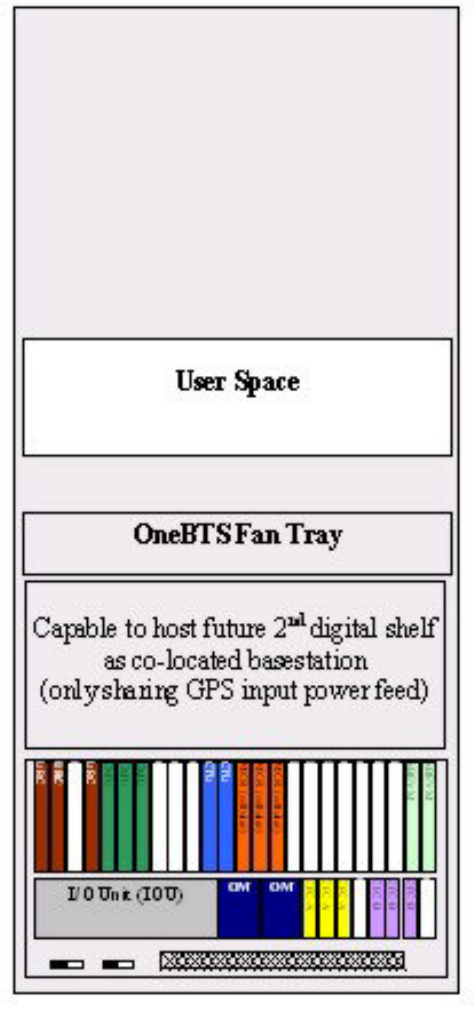

Digital Only version of BTS 8420 radio cabinet
The following figure shows the interior of the Digital Only version of the BTS 8420
radio cabinet. It contains one Digital Shelf. The first figure is an actual photo. The
second figure is a diagram. The individual components are labeled in the diagram.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-11
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
1-12 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007

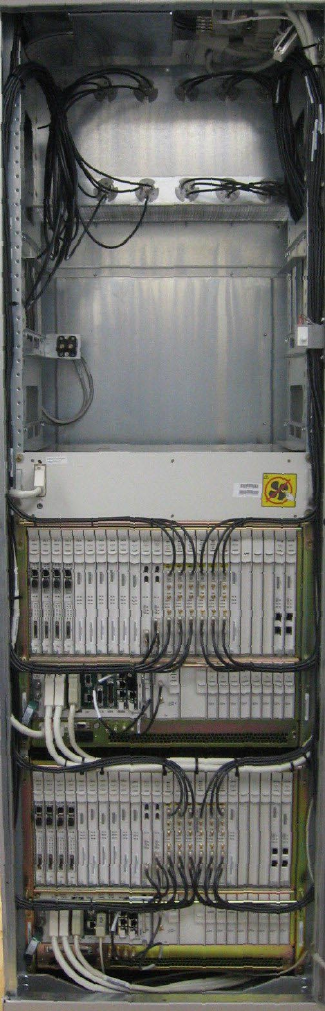

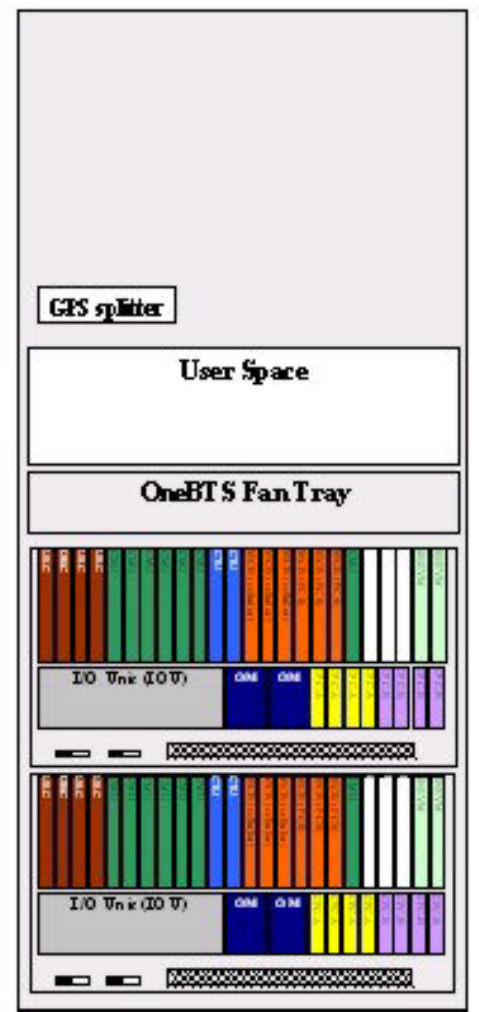

Digital Only version of the BTS 8420 radio cabinet with two Digital Shelves
The figure below shows the interior of the Digital Only version of the BTS 8420 with
two Digital Shelves. It is the same as the Digital Only version except there is one
additional Digital Shelf. Each Digital Shelf represents a separate cell occurrence. The
first figure is an actual photo. The second figure is a diagram. The individual
components are labeled in the diagram.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-13
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
1-14 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
AWS 8420 radio cabinets
The AWS 8420 is available in two versions -- a three sector and a six sector version.
Each version consists of the following components:
•Digital Shelf
•Amplifiers
•Filters
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-15
AWS 8420 radio cabinet -- three sector
Shown below is a diagram of the three sector version of the AWS 8420 radio cabinet.
It contains amplifiers, six filters and one Digital Shelf.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
1-16 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
AWS 8420 radio cabinet -- six sector

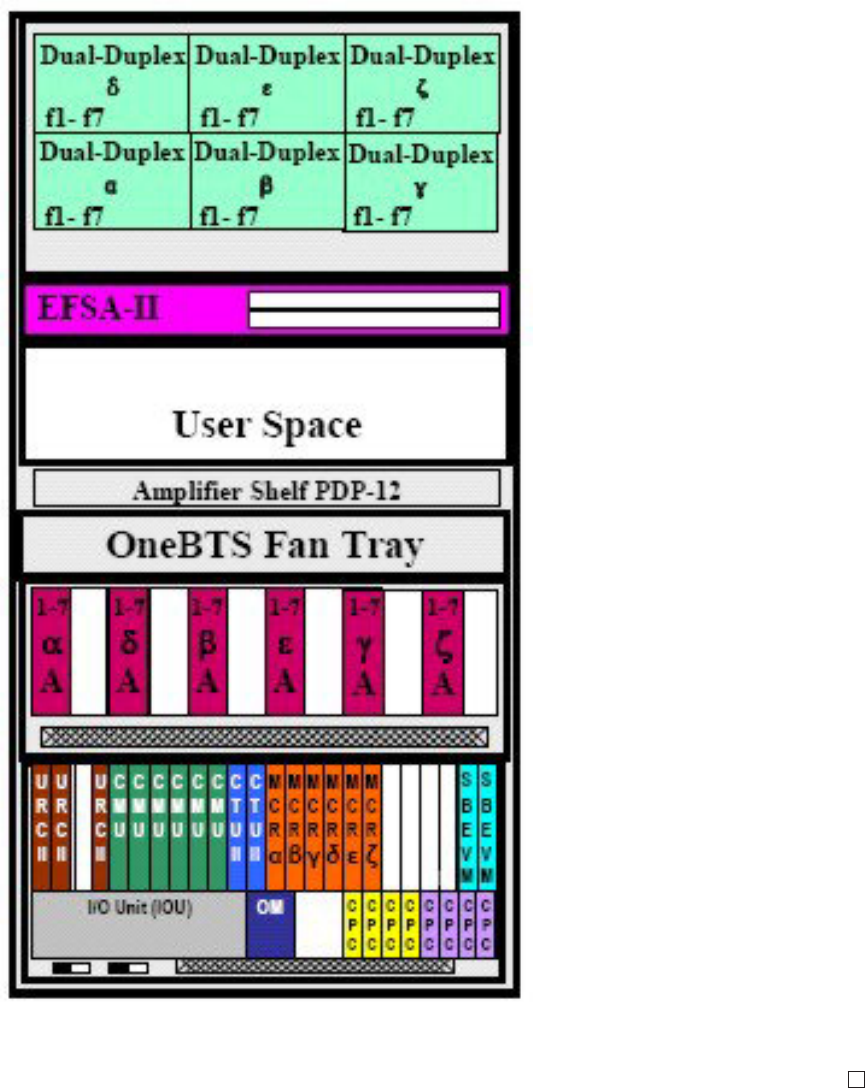

Shown below is a diagram of the six sector version of the AWS 8420 radio cabinet. It
contains amplifiers, six filters and one Digital Shelf.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet information
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-17
Cabinet weights and dimensions
...................................................................................................................................................................................................................................
Overview
This topic covers the cabinet weight and dimensions.
Weights and dimensions of BTS 8420/AWS 8420 radio cabinet, battery frame, power shelf, and
mounting plate
The following table provides the weights and dimensions for the BTS 8420/AWS 8420
radio cabinet, power shelf, mounting plate, and EZBFi battery frame.
Cabinet Configuration Maximum estimated
installed weight, kg
(lb)
Reference
dimensions width x
depth x height, mm
(inches)
BTS 8420 (850/1900
MHz)
Digital Only Version --
one Digital Shelf
204 (450) 600 x 600 x 1880
(23.6 x 23.6 x 74)
BTS 8420 (850/1900
MHz)
Digital Only Version --
two Digital Shelves
230 (508) 600 x 600 x 1880
(23.6 x 23.6 x 74)
BTS 8420 Filtered Version
(Digital Shelf + Filter
263 (581) 600 x 600 x 1880
(23.6 x 23.6 x 74)
BTS 8420 Low Power Version
(Digital Shelf + Filter
+ Amplifier)
284 (630) 600 x 600 x 1880
(23.6 x 23.6 x 74)
AWS 8420 (2100
MHz)
Low Power Version
(Digital Shelf + Filter
+ Amplifier), 3 sector
284 (630) 600 x 600 x 1880
(23.6 x 23.6 x 74)
AWS 8420 (2100
MHz)
Low Power Version
(Digital Shelf + Filter
+ Amplifier), 6 sector
284 (630) 600 x 600 x 1880
(23.6 x 23.6 x 74)
Mounting plate Always required 11 (24) 600 x 600 x 3 (23.6 x
23.6 x 0.12)

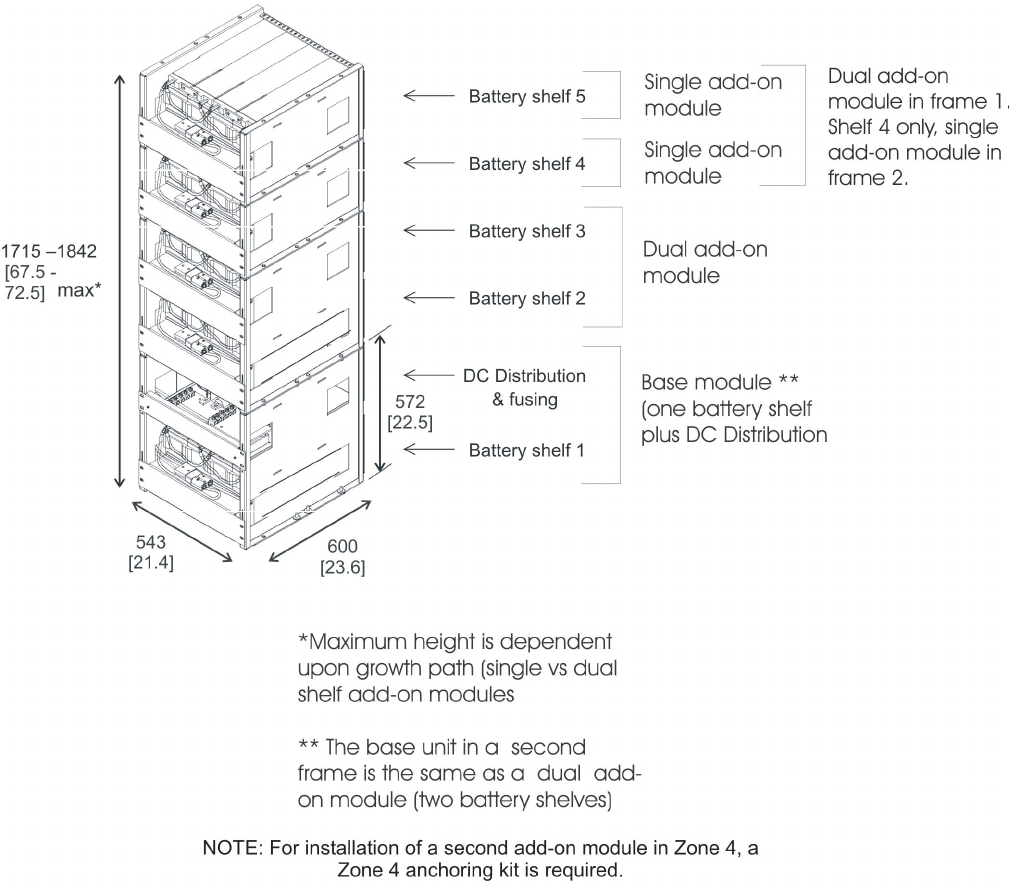

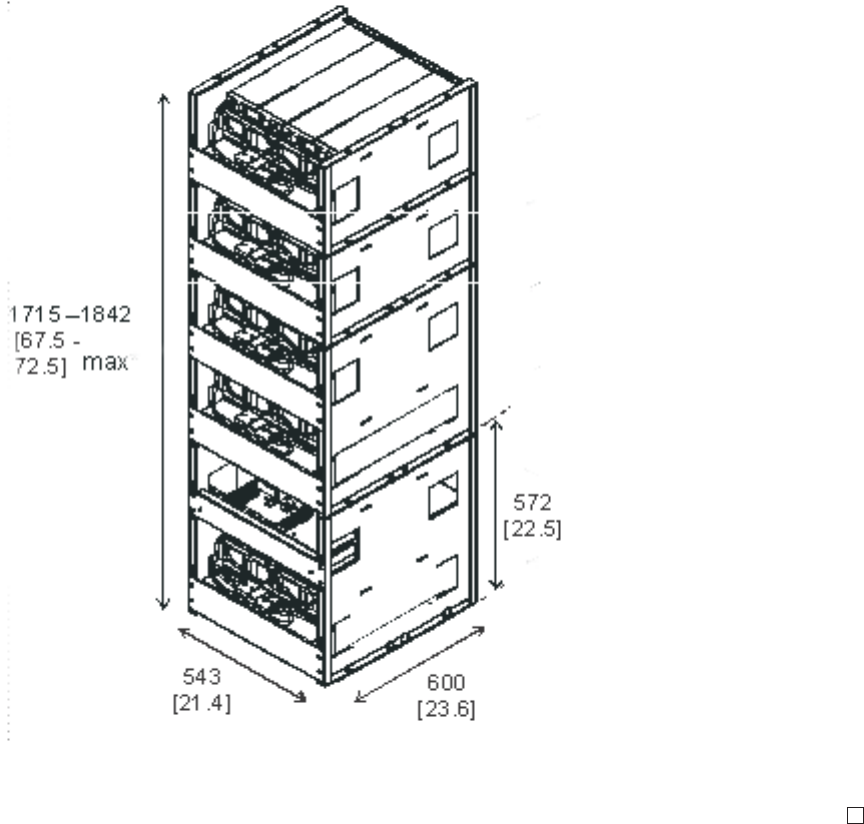

EZBFi Battery frame Fully equipped with:
(4) battery shelves and
(16) 12IR125-LP
batteries
817 (1800) 543 x 600 x 1842
(21.4 x 23.6 x 72.5)

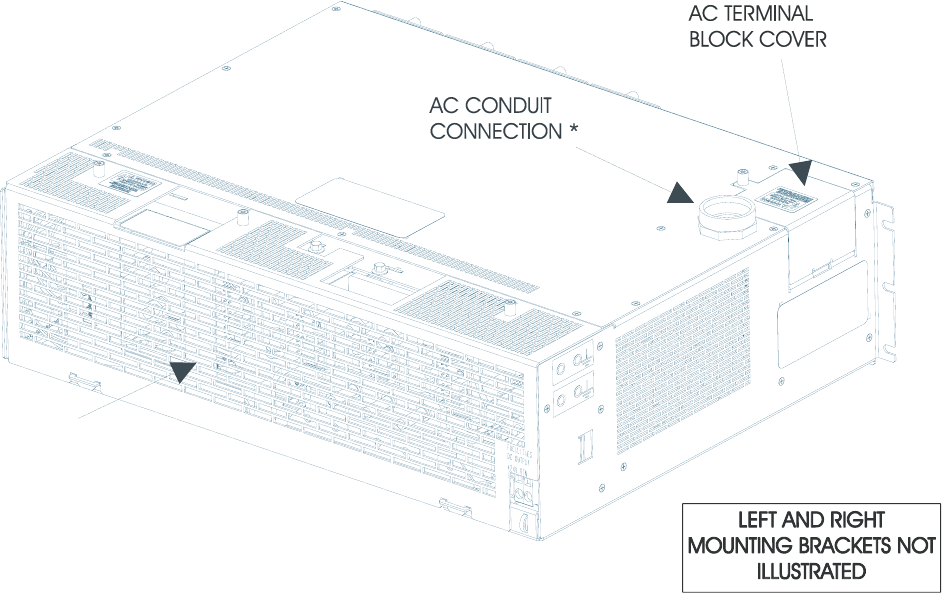

Integrated Power
Module
BTS 8420/AWS 8420
with integrated power
17 (36) 525 x 406 x 150 (20.7
x 16.0 x 5.9)
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
1-18 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Weights of battery, rectifier, and pallet
The following table provides approximate weights for batteries, rectifier, and pallet.
Item Weight, kg (lb)
Battery (L1) 32 (71)
Rectifier KS-24734L1 (1500 W) 3.0 (6.6)
Pallet 30 (65)
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet weights and dimensions
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-19
Dimensions of BTS 8420/AWS 8420 radio cabinet
The following diagram shows the dimensions of the BTS 8420/AWS 8420 radio
cabinet. The integrated power shelf, which mounts on top of the cabinet is not shown.
When the Integrated Power Module is added, the height of the cabinet increases by
210 mm (8.27 inches).
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet weights and dimensions
....................................................................................................................................................................................................................................
1-20 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
600
[23.6]
1168
[45.98]
600
[23.6]
600
[23.6]
600
[23.6]
600
[23.6]
325
[12.8]
121
[4.8]
370
[14.6]
175
[6.9]
1555
[61.2]
Note 1
Note 1
Note 1 Note 1
Note 1: Rear filter cover not
present on BTS 8420 cabinets
Note 2: The Integrated Power
Module (not illustrated) adds
210 mm (8.25 Inches)
to the height of the cabinet
Note 2
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet weights and dimensions
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-21
Dimensions of EZBFi
The following diagram shows the dimensions of the first and second EZBFi battery
cabinet. (Refer to EZBFi Modular Battery System Installation Manual for +24V and
-48V, 401-703-507. for installation of the EZBFi.)
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet weights and dimensions
....................................................................................................................................................................................................................................
1-22 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Cabinet components
...................................................................................................................................................................................................................................
Overview
This topic covers the components inside the BTS 8420/AWS 8420 radio cabinet.
The basic configuration is implemented in one cabinet.
Hardware components inside Digital Only version of BTS 8420 radio cabinet
The hardware components inside the Digital Only version of BTS 8420 radio cabinet
include:
•One fan tray
•One Digital Shelf with circuit packs.
Hardware components inside Digital Only version with two Digital Shelves of BTS 8420 radio
cabinet
The hardware components inside the Digital Only version with two Digital Shelves of
the BTS 8420 radio cabinet include:
•Two fan trays
•Two Digital Shelves with circuit packs.
Hardware components inside Filtered version of BTS 8420 radio cabinet
The hardware components inside the Low Power version of the BTS 8420 radio
cabinet include:
•Amplifiers
•One or two fan trays
•One or two Digital Shelves with circuit packs.
Hardware components inside the Low Power version of BTS 8420 radio cabinet
The hardware components inside the Filtered version of BTS 8420 radio cabinet are:
•850 MHz and 1900 MHz filters
•Amplifiers
•One or two fan trays
•One or two Digital Shelves with circuit packs.
Hardware components inside the AWS 8420 radio cabinet
The hardware components inside the three sector AWS 8420 radio cabinet are:
•Three 2100 MHz filters
•Three amplifiers
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-23
•One fan tray
•One Digital Shelf with circuit packs.
The hardware components inside the six sector AWS 8420 radio cabinet are:
•Six 2100 MHz filters
•Six amplifiers
•One fan tray
•One Digital Shelf with circuit packs.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Cabinet components
....................................................................................................................................................................................................................................
1-24 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Physical interfaces
...................................................................................................................................................................................................................................
Overview
This topic covers the following physical interface points on the BTS 8420/AWS 8420
radio cabinet: input power, RF, GPS, T1/E1, Power Alarms, user alarms, relay alarms,
and cabinet grounding.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-25
Cable interfaces on the BTS 8420/AWS 8420 radio cabinet without integrated power
Refer to the following figure. The cable interface points on the Universal Hatchplate
(which is located on top of the BTS 8420/AWS 8420 radio cabinet without integrated
power) are for the following:
•DC power feeder
•Ground
•T1/E1 lines
•User alarms
•User relay alarms (used to interface T1/E1 lines to Digital Shelf)
•Power alarms
•GPS antenna.
The RF (Rx/Tx) cable interface connectors are located at the top-rear of the BTS
8420/AWS 8420 radio cabinet.
BTS 8420/AWS 8420 radio cabinet without integrated power - external top view

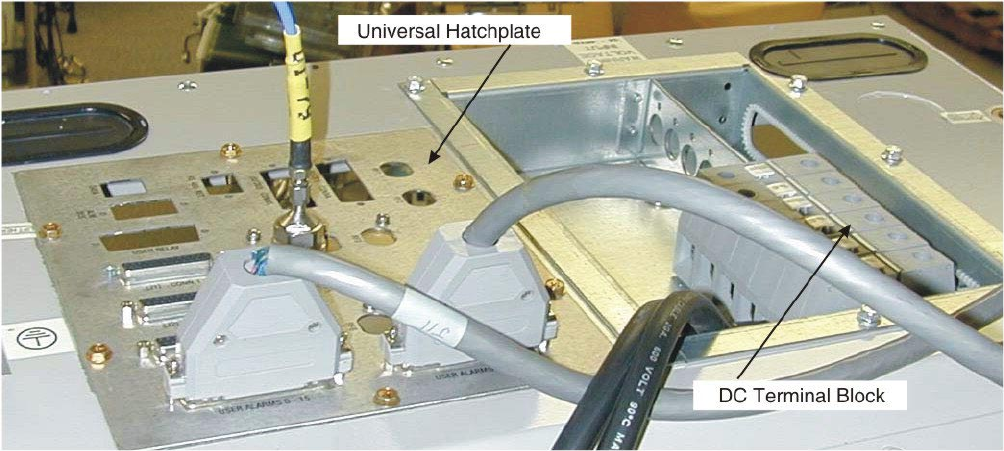

Shown below is the top panel of the BTS 8420/AWS 8420 radio cabinet without
integrated power. The Universal Hatchplate (on the left) provides connections to the
GPS, T1/E1, and alarm cables. The DC Terminal Block (on the right) provides
connections to the DC power feeder cables. Connections for the RF (Rx/Tx) cables are
located on the rear panel of the BTS 8420/AWS 8420 radio cabinet.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Physical interfaces
....................................................................................................................................................................................................................................
1-26 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
BTS 8420/AWS 8420 radio cabinet with integrated power
Shown below is the BTS 8420/AWS 8420 radio cabinet with integrated power. The
BTS 8420/AWS 8420 radio cabinet with integrated power is equipped with an
integrated power module. The integrated power module is mounted on top of the BTS
8420/AWS 8420 radio cabinet and converts AC input power to +24 VDC for the BTS
8420/AWS 8420 radio cabinet. The T1/E1, User Alarm, Power Alarm, User Relay
Alarm, and GPS cables are connected directly to the integrated power module. The AC
input power is also connected directly to the integrated power module. AC input power
is connected to the AC terminal block, underneath the AC terminal block cover, on top
of the integrated power module support bracket. The integrated power module is
illustrated in the figure below. The RF (Rx/Tx) jumper cables are connected to the
BTS 8420/AWS 8420 radio cabinet at the rear panel.
I/O cable termination points on BTS 8420/AWS 8420 radio cabinet without integrated power
The following cables (each containing 8 twisted-wire pairs) are connected to the
Universal Hatchplate: T1/E1, User Alarms, Power Alarms, and User Relay Alarms.
Each of these cables is terminated with a D-sub connector. The GPS cable is coaxial
and is terminated with a coaxial connector. Callouts are shown only for the T1 cables
here.
* ONE INCH TRADE SIZE
FLEXIBLE CONDUIT FITTING
(FACTORY EQUIPPED)
REAR PANEL
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Physical interfaces
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-27
The figure below shows the cable termination points on the Universal Hatchplate
located on top of all versions of the BTS 8420 radio cabinet, except the Digital Only
version with two Digital Shelves, and is only for configurations without integrated
power.
The figure below shows the cable termination points on the Universal Hatchplate
located on top of the Digital Only with two Digital Shelves version of the BTS 8420
radio cabinet and is only for configurations without integrated power. Again, only
callouts for T1 cable connections are shown here.
FRONT
CONNECT T1-3 (J3)
CABLE HERE
CONNECT T1-2 (J2)
CABLE HERE
CONNECT T1-1 (J1)
CABLE HERE
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Physical interfaces
....................................................................................................................................................................................................................................
1-28 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
I/O cable termination points on BTS 8420/AWS 8420 radio cabinet with integrated power
The figure below shows the cable termination points on the Integrated Power Module,
which is located on top of the BTS 8420/AWS 8420 radio cabinet with integrated
power.
The following cables are connected to the top of the Integrated Power Module, at the
left and right sides: T1/E1, User Alarm, Power Alarm, and User Relay Alarm. The GPS
cable is connected at the rear of the Integrated Power Module.
The following cables (each containing 8 twisted-wire pairs) are connected to the
Integrated Power Module bracket on top of the Integrated Power Module: T1/E1, User
Alarms, Power Alarms, and User Relay Alarms. Each of these cables is terminated
with a D-sub connector. The GPS cable is coaxial and is terminated with a coaxial
connector. The GPS cable is connected at the rear of the Integrated Power Module.
Callouts are shown only for the T1 cables here.
The figure below shows the cable termination points on the Integrated Power Module
bracket on top of the Integrated Power Module, located on the BTS 8420 radio cabinet
with two Digital Shelves, and is only for configurations with integrated power.
FRONT
CONNECT T1-3
(BOT SHELF J3)
CABLE HERE
CONNECT T1-2
(BOT SHELF J2)
CABLE HERE
CONNECT T1-1
(BOT SHELF J1)
CABLE HERE
CONNECT T1-4
(TOP SHELF J1)
CABLE HERE
CONNECT T1-5
(TOP SHELF J2)
CABLE HERE
CONNECT T1-6
(TOP SHELF J3)
CABLE HERE
BOT SHELF (J3)
BOT SHELF (J2)
BOT SHELF (J1)
TOP SHELF (J3)
TOP SHELF (J1)
TOP SHELF (J2)
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Physical interfaces
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-29
The figure below shows the cable termination points on the Integrated Power Module
bracket located on top of the Integrated Power Module and is for the Digital Only with
two Digital Shelves version of the BTS 8420/AWS 8420 radio cabinet. It is only for
configurations with integrated power. Again, only callouts for T1 cable connections are
shown here. The bracket will have labels that match one of the figures below.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Physical interfaces
....................................................................................................................................................................................................................................
1-30 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
BOT SHELF (J1)
BOT SHELF (J2)
BOT SHELF (J3)TOP SHELF (J1)
TOP SHELF (J2) TOP SHELF (J3)
CONNECT T1-5 CABLE
CONNECT T1-4 CABLE
CONNECT T1-6 CABLE
HERE
HERE
HERE
HERE
HERE
HERE
CONNECT T1-3 CABLE
CONNECT T1-2 CABLE
CONNECT T1-1 CABLE
485 RET
USER ALARMS 16-31
USER ALARMS 0-15
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Physical interfaces
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-31
RF antenna jumper cable connections
The Digital Shelf contains the equipment that performs the signal processing functions
for a three-sector CDMA base station.
The following antenna cables need to be connected to the Digital Only, Filtered, and
Low Power versions of the BTS 8420/AWS 8420 radio cabinet:
•RF jumper cables (provided by customer).
Customer-provided RF jumper cables are connected from the BTS 8420/AWS 8420
radio cabinet to the customer-provided Distributed Antenna System (DAS). The DAS is
external to the BTS 8420/AWS 8420 radio cabinet.

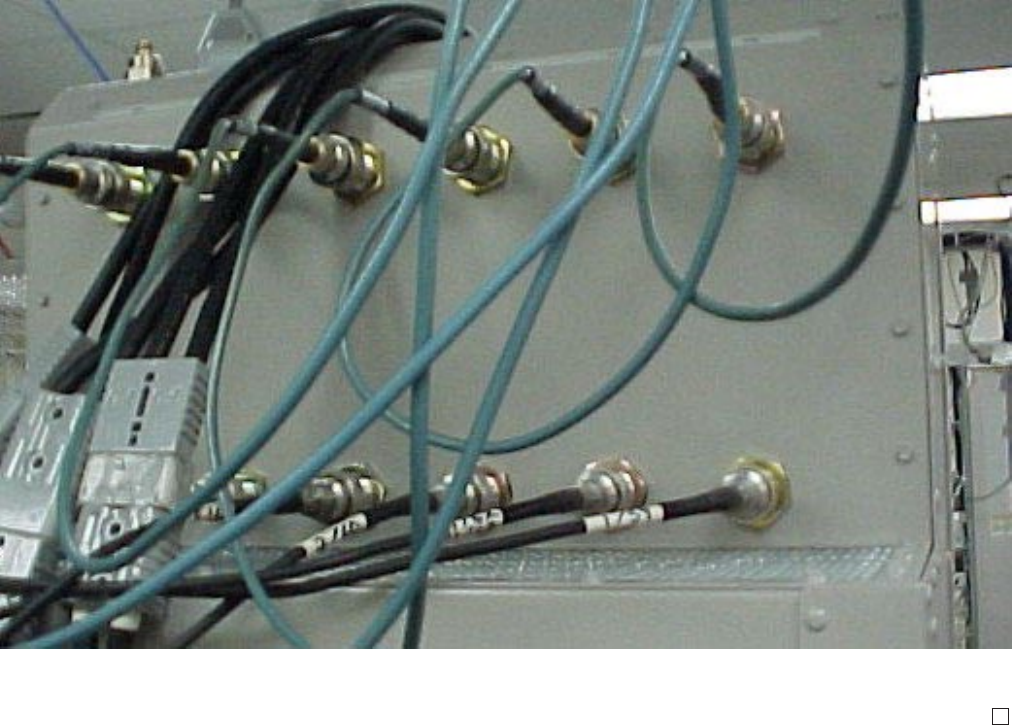

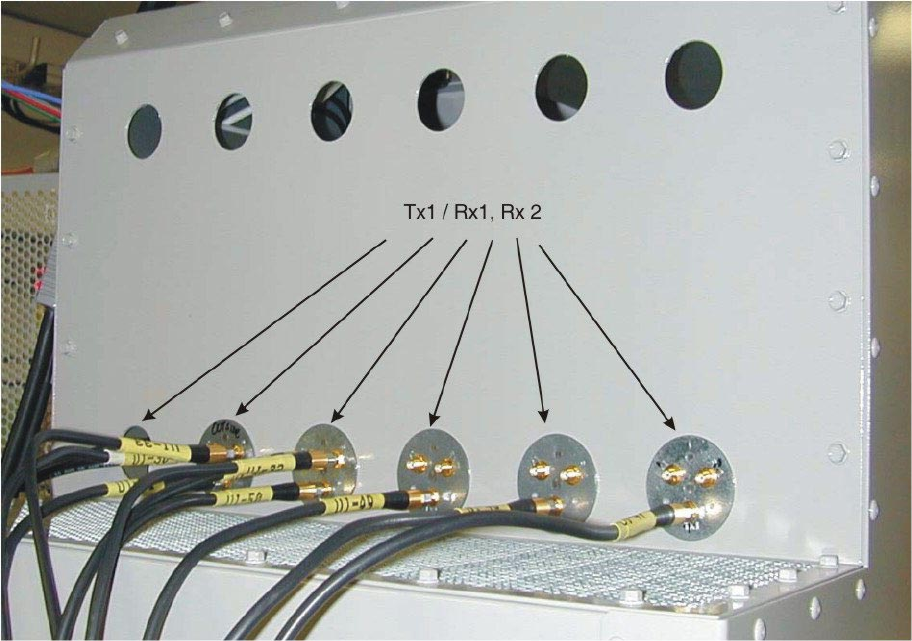

Shown in the figure below are the RF antenna jumper cable interface connectors on the
back of the Digital Only version with one Digital Shelf. The Digital Only version with
two Digital Shelves differs from the Digital Only version with one Digital Shelf only
in the sense that it has a second row of RF antenna jumper cable interface connectors.
Shown in the figure below are the RF antenna jumper cable interface connectors on the
rear panel of the Filtered and Low Power versions equipped with 850 MHz and 1900
MHz filters.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Physical interfaces
....................................................................................................................................................................................................................................
1-32 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Physical interfaces
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-33
Site configurations
...................................................................................................................................................................................................................................
Overview
This topic covers the possible configurations for the BTS 8420 radio cabinet at the site.
Site configurations for BTS 8420/AWS 8420 radio cabinets with and without integrated power
The following diagram (applies to both BTS 8420 and AWS 8420) shows typical site
configurations for:
•An indoor BTS 8420/AWS 8420 radio cabinet with integrated power and two
EZBFi battery frames
•An indoor BTS 8420/AWS 8420 radio cabinet without integrated power, a 3GP24i
power cabinet, and two EZBFi battery frames
•An indoor BTS 8420/AWS 8420 radio cabinet without integrated power, a customer
power cabinet, and two customer battery frames
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
1-34 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Power specifications
Overview
...................................................................................................................................................................................................................................
Purpose
This section covers the power specifications for the BTS 8420/AWS 8420 radio
cabinet, such as input power, power configurations, and power back-up options.
BTS 8420/AWS 8420 radio cabinets with integrated power
BTS 8420/AWS 8420 radio cabinets with integrated power are equipped with an
Integrated Power Module, which converts AC input power to +24 VDC. The Integrated
Power Module is mounted on top of the BTS 8420/AWS 8420 radio cabinet.
Rectifier modules inside Integrated Power Module
The Integrated Power Module contains rectifier modules. The rectifier modules convert
AC line voltage to +24 VDC. The number of rectifier modules is determined by the
number of configured carriers. One additional rectifier module is needed for
redundancy or to charge the batteries.
BTS 8420/AWS 8420 radio cabinets without integrated power
The BTS 8420/AWS 8420 radio cabinet without integrated power requires +24 VDC
input power. +24 VDC input power can be provided by a Alcatel-Lucent 3GP24i
power cabinet or a customer-supplied power source. The DC feeder cables consist of
1/0 AWG wire and are protected with 150 A circuit breakers.
Contents
Input power 1-36
Site power configurations 1-38
Backup power options 1-39
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-35
Input power
...................................................................................................................................................................................................................................
Overview
The BTS 8420/AWS 8420 radio cabinet is available with or without integrated power.
The BTS 8420 radio cabinet without integrated power requires +24 VDC input power.
The BTS 8420/AWS 8420 radio cabinet with integrated power requires AC input
power.
AC power for BTS 8420/AWS 8420 radio cabinet with integrated power
The Integrated Power Module on the BTS 8420/AWS 8420 radio cabinet with
integrated power requires AC input power and converts AC input power into +24
VDC. +24 VDC powers the apparatus inside the BTS 8420 radio cabinet.
AC input power for the BTS 8420/AWS 8420 radio cabinet with integrated power must
meet the following requirements:
Characteristic Supported values
Number of branch circuits 2
Input voltage(s), nominal(s) Domestic 208 VAC, 240 VAC
International 230 VAC
Frequency, nominal Domestic 60 Hz
International 50 Hz
Phases 1
In a single-phase branch circuit, the AC power cables are designated:
•L1
•L2/N
•GND/PE.
The AC power cables are connected to the AC terminal block on top of the Integrated
Power Module.
AC input power requirements for BTS 8420/AWS 8420 radio cabinet with integrated power
The BTS 8420/AWS 8420 radio cabinet with integrated power requires two
single-phase branch circuits. AC power is supplied from an external service panel. The
service panel is installed during site preparation.
The AC service panel must be rated 100 A for each BTS 8420/AWS 8420 radio
cabinet. If additional cabinets or other AC equipment is to be installed at the site, the
total power consumption for all site equipment must not exceed the service rating.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
1-36 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
The AC power feeders must consist of Class B, stranded, THHN insulated cable.
The following table provides the AC input requirements for a fully-configured system
(8 carriers).
AC input requirements for fully-configured system with 100 A service panel
Type of cabinet Equipment Circuit 1 Circuit 2
BTS 8420/AWS 8420 radio cabinet
with integrated power
Circuit breaker rating 50 Amp 50 Amp
L1 wire gauge 8 AWG 8 AWG
L2 (Neutral) wire gauge 8 AWG 8 AWG
Ground wire gauge 8 AWG
Location/color/voltage Wire
size Function Circuit
Domestic: 208-240
VAC International: 230
VAC
F1 L1 / Black F1 L1 / Brown 8 AWG Feeder line 1 Branch circuit 1
F1 L2 / Red F1 N / Blue 8 AWG
Ground - Green /
Yellow
PE - Green / Yellow 8 AWG Ground/PE
F2 L1 / Black F2 L1 / Brown 8 AWG Feeder line 2 Branch circuit 2
F2 L2 / Red F2 N / Blue 8 AWG
DC input power for BTS 8420/AWS 8420 radio cabinet without integrated power
The BTS 8420/AWS 8420 radio cabinet without integrated power requires +24 VDC
input power. 1/0 AWG feeders with 150 A circuit breakers are needed.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Input power
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-37
Site power configurations
...................................................................................................................................................................................................................................
Power options
There are three power configurations for the BTS 8420/AWS 8420 radio cabinet. They
are as follows:
•In the first configuration, the BTS 8420/AWS 8420 radio cabinet with integrated
power is connected to a first and second EZBFi battery frame.
•In the second configuration, the BTS 8420/AWS 8420 radio cabinet without
integrated power is connected to a 3GP24i power cabinet and a first and second
EZBFi battery frame.
•In the third configuration, the BTS 8420/AWS 8420 radio cabinet without
integrated power is connected to a customer power cabinet and a first and second
customer battery frame.
Shown below are block diagrams for the three power configurations. These power
configurations apply to both BTS 8420 and AWS 8420 radio cabinets.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
1-38 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Backup power options
...................................................................................................................................................................................................................................
Overview
This topic discuss the various battery backup options that are available for the BTS
8420 radio cabinet.
Power options
The following table provides the power options available for the BTS 8420 radio
cabinet.
Power options Details
Integrated power + EZBFi BTS 8420/AWS 8420 radio cabinet with Integrated
Power Module + EZBFi
Non-integrated power BTS 8420/AWS 8420 radio cabinet without
Integrated Power Module + 3GP24i or customer
provided power
Battery backup
Battery backup is available to ensure uninterrupted base station operation in the event
of a power interruption.
The Alcatel-Lucent EZBFi battery frames and 3GP24i power cabinet are installed next
to the BTS 8420/AWS 8420 radio cabinet. The 3GP24i power cabinet provides +24
VDC and contains only the minimum number of batteries that are needed for battery
backup. The EZBFi battery cabinet contains additional batteries.
The customer has the option of supplying his own power cabinet and battery frames.
Battery backup requires N+1 rectifiers. Rectifier N+1 is provides redundancy and
additional power for charging the batteries.
EZBFi battery frame
The EZBFi battery frame is the standard backup power configuration for indoor
applications.
One or more EZBFi frames can be deployed and installed side-by-side to the right of
the BTS 8420 radio cabinet. The EZBFi battery frame is modular in design. The
frames can be stacked on top of each other. This gives the service provider the option
of installing as much battery back up as is needed.
The procedures for installing and connecting EZBFi battery frames are covered in the
EZBFi Modular Battery System Installation Manual for +24V and -48V, 401-703-507.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
...................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-39
EZBFi battery frames (first and second) standard
The optional EZBFi battery frame provides additional battery backup (up to 20
batteries) to supplement the batteries in a 3GP24i power cabinet. The batteries are
charged by the integrated power shelf or 3GP24i power cabinet.
Battery frame modules
The entire assembly consists of a Battery Base Module and one or two Add-On Battery
Modules stacked on top of the Battery Base Module, which is referred to in the text as
the “first” or “second” battery frame.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Backup power options
....................................................................................................................................................................................................................................
1-40 Alcatel-Lucent - Proprietary
See notice on first page 401-703-444
Issue 4, November 2007
Each battery frame must include a battery base module, consisting of one battery shelf
and a DC distribution and fusing panel. The difference between a battery base module
and add-on battery modules is that the add-on battery modules do not include a DC
distribution and fusing panel. As its name implies, the DC distribution and fusing panel
provide the DC distribution buses required for power connection to the cabinet and
fusing protection, as well as the Power Alarm interface.
The Battery Base Module contains one battery shelf. Each add-on battery module
contains two battery shelves.
L1 100-Ah 12-VDC batteries are used in the EZBFi battery cabinet. The batteries are
connected in a series-parallel manner to provide 24 VDC.
Overview of indoor Alcatel-Lucent CDMA Base Station
8420 radio cabinet site installation
Backup power options
....................................................................................................................................................................................................................................
401-703-444
Issue 4, November 2007 Alcatel-Lucent - Proprietary
See notice on first page 1-41
