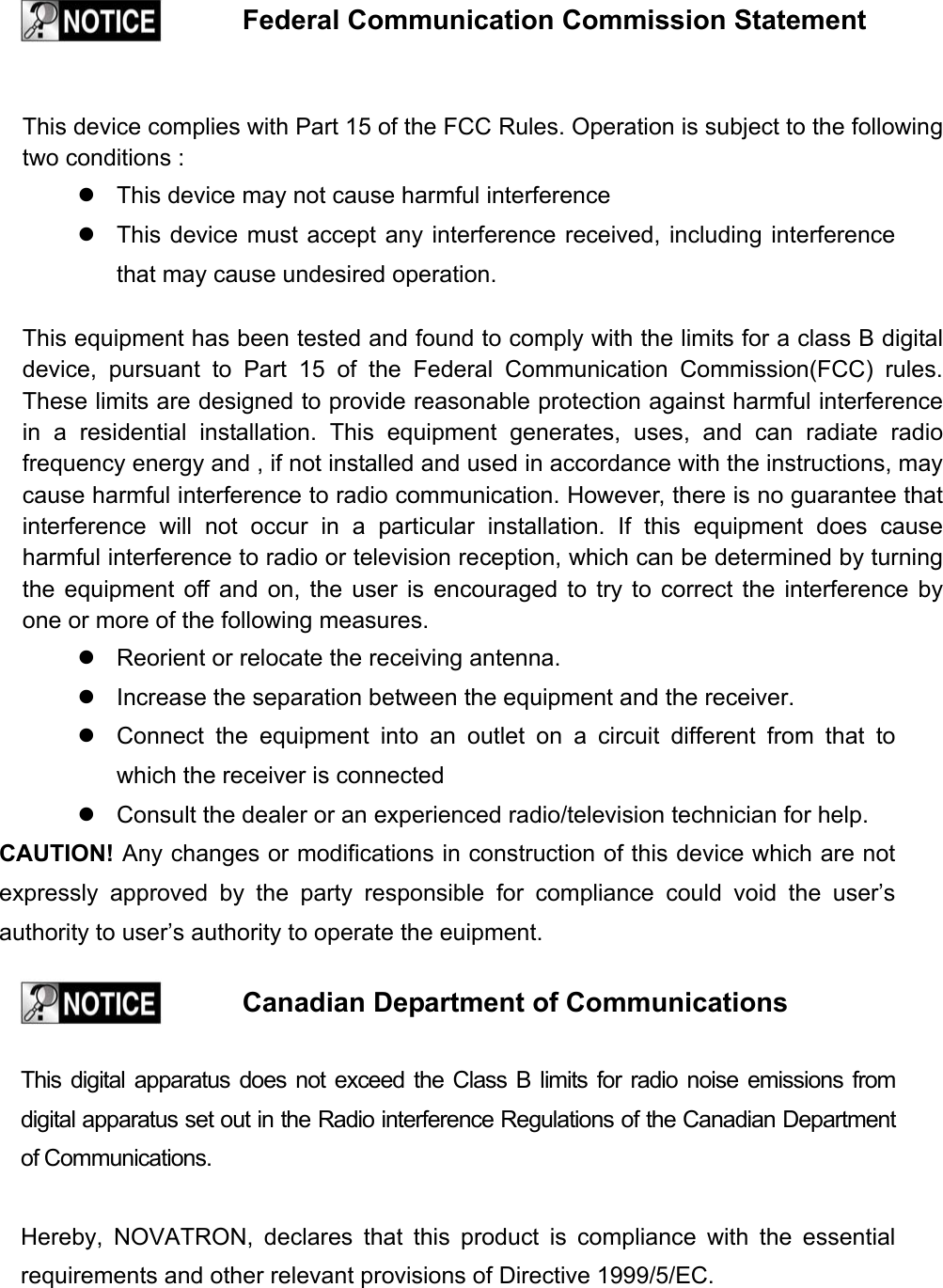

   Federal Communication Commission Statement    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :  This device may not cause harmful interference  This device must accept any interference received, including interference that may cause undesired operation.  This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communication Commission(FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected  Consult the dealer or an experienced radio/television technician for help. CAUTION! Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to user’s authority to operate the euipment.    Canadian Department of Communications   This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio interference Regulations of the Canadian Department of Communications.  Hereby, NOVATRON, declares that this product is compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

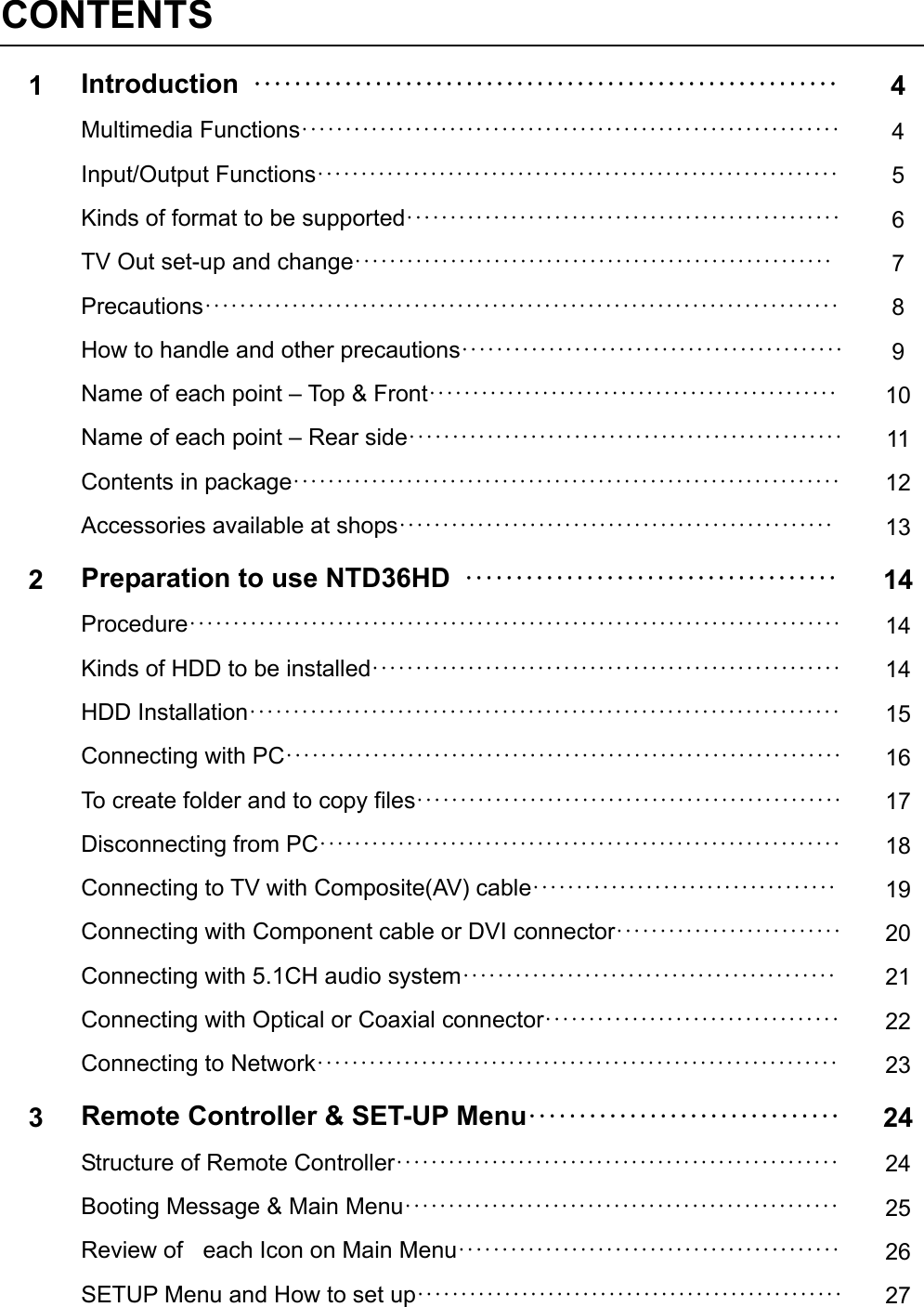

CONTENTS 1  Introduction  ·························································· 4  Multimedia Functions······························································ 4  Input/Output Functions···························································· 5  Kinds of format to be supported·················································· 6  TV Out set-up and change······················································· 7  Precautions········································································· 8  How to handle and other precautions············································ 9  Name of each point – Top & Front··············································· 10 Name of each point – Rear side·················································· 11 Contents in package······························································· 12 Accessories available at shops·················································· 132  Preparation to use NTD36HD  ····································· 14 Procedure··········································································· 14 Kinds of HDD to be installed······················································ 14 HDD Installation···································································· 15 Connecting with PC································································ 16 To create folder and to copy files················································· 17 Disconnecting from PC···························································· 18 Connecting to TV with Composite(AV) cable··································· 19 Connecting with Component cable or DVI connector·························· 20 Connecting with 5.1CH audio system··········································· 21 Connecting with Optical or Coaxial connector·································· 22 Connecting to Network···························································· 233  Remote Controller & SET-UP Menu······························· 24 Structure of Remote Controller··················································· 24 Booting Message & Main Menu·················································· 25 Review of    each Icon on Main Menu············································ 26 SETUP Menu and How to set up················································· 27

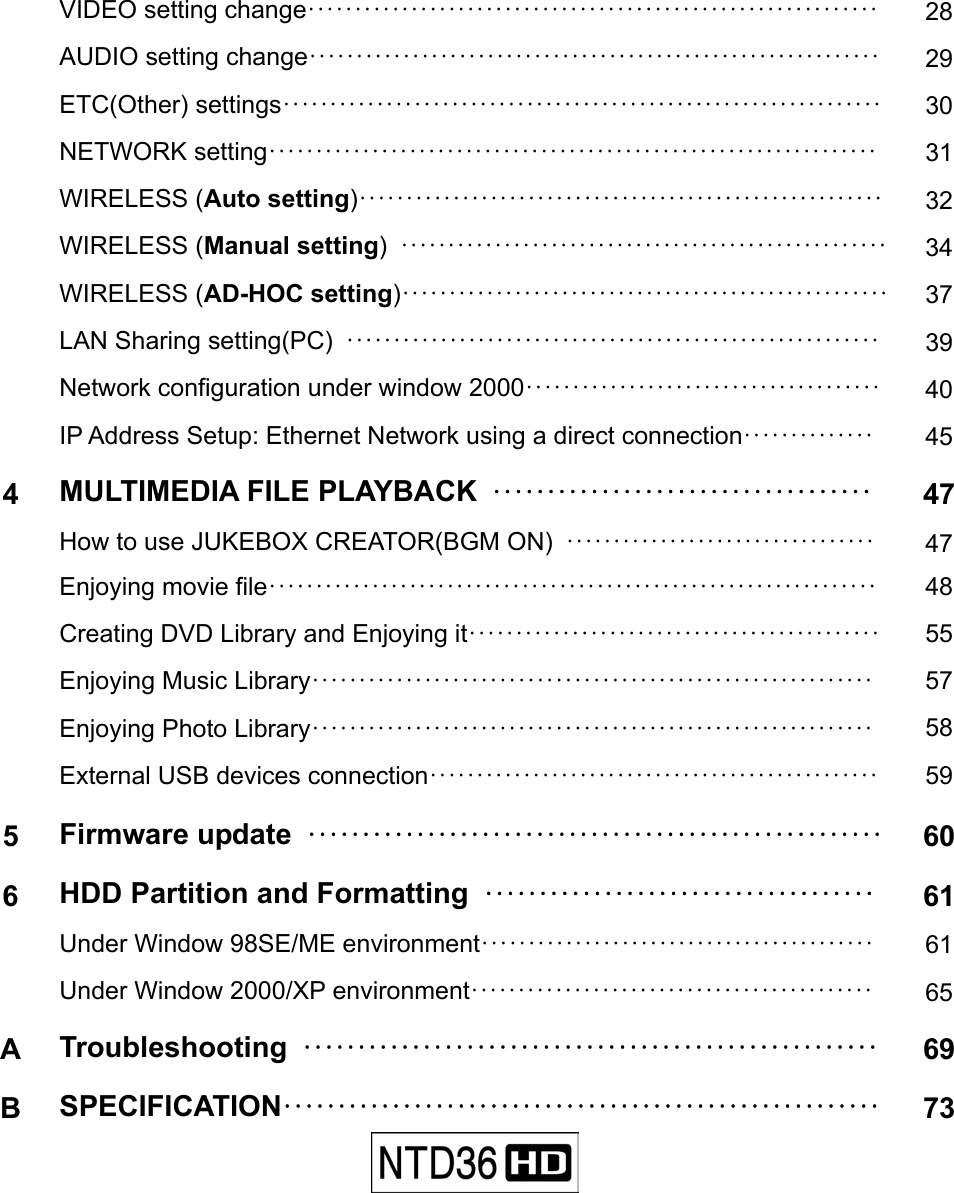

 VIDEO setting change····························································· 28 AUDIO setting change····························································· 29 ETC(Other) settings································································ 30 NETWORK setting································································· 31 WIRELESS (Auto setting)························································ 32 WIRELESS (Manual setting)  ···················································· 34 WIRELESS (AD-HOC setting)···················································· 37 LAN Sharing setting(PC)  ························································· 39 Network configuration under window 2000······································ 40 IP Address Setup: Ethernet Network using a direct connection·············· 454  MULTIMEDIA FILE PLAYBACK  ··································· 47 How to use JUKEBOX CREATOR(BGM ON)  ································· 47 Enjoying movie file································································· 48 Creating DVD Library and Enjoying it············································ 55 Enjoying Music Library···························································· 57 Enjoying Photo Library···························································· 58 External USB devices connection················································ 595  Firmware update  ····················································· 606  HDD Partition and Formatting  ···································· 61 Under Window 98SE/ME environment·········································· 61 Under Window 2000/XP environment··········································· 65A  Troubleshooting  ····················································· 69B  SPECIFICATION······················································· 73

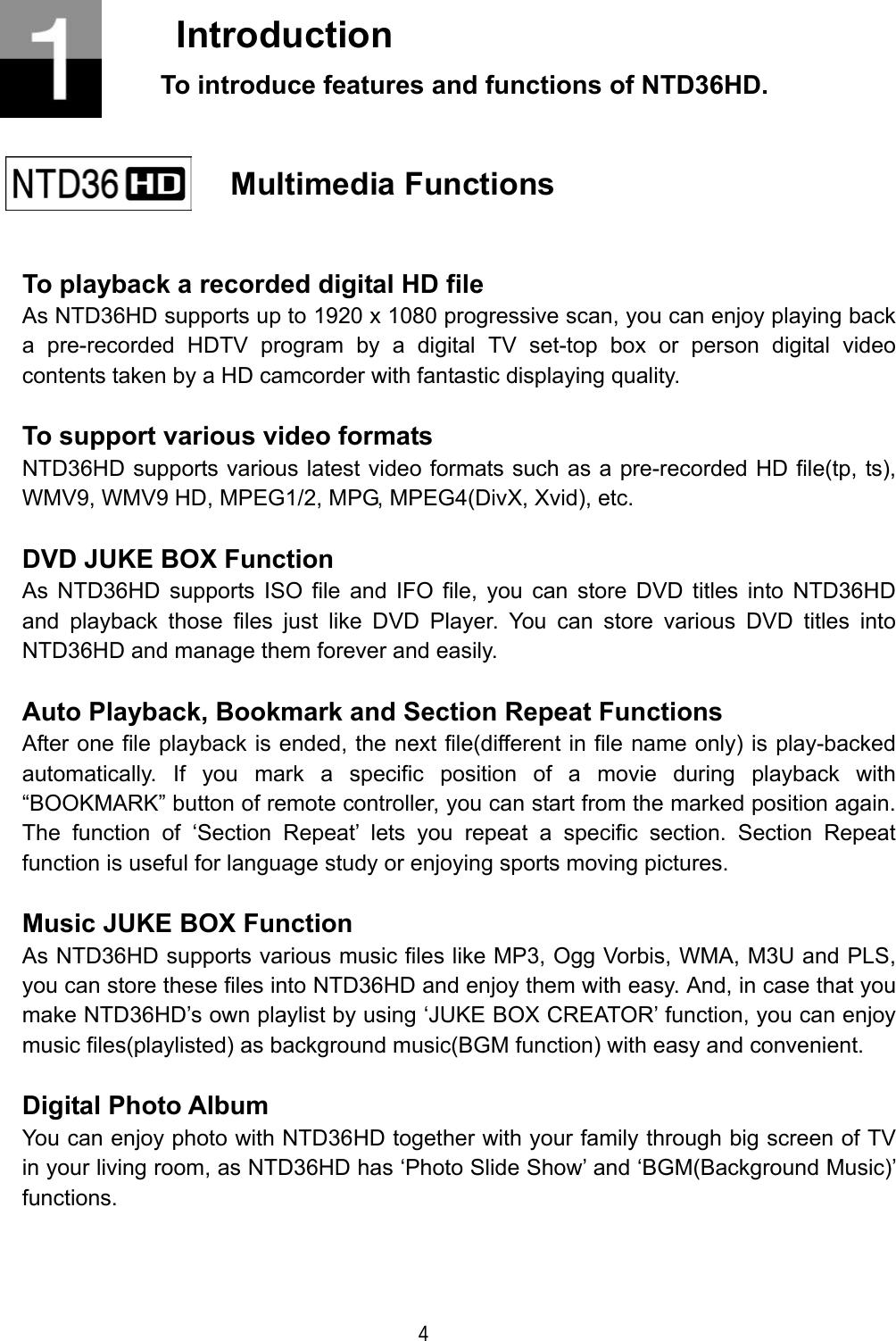

 4  Introduction To introduce features and functions of NTD36HD.     Multimedia Functions    To playback a recorded digital HD file As NTD36HD supports up to 1920 x 1080 progressive scan, you can enjoy playing back a pre-recorded HDTV program by a digital TV set-top box or person digital video contents taken by a HD camcorder with fantastic displaying quality.  To support various video formats NTD36HD supports various latest video formats such as a pre-recorded HD file(tp, ts), WMV9, WMV9 HD, MPEG1/2, MPG, MPEG4(DivX, Xvid), etc.  DVD JUKE BOX Function As NTD36HD supports ISO file and IFO file, you can store DVD titles into NTD36HD and playback those files just like DVD Player. You can store various DVD titles into NTD36HD and manage them forever and easily.  Auto Playback, Bookmark and Section Repeat Functions After one file playback is ended, the next file(different in file name only) is play-backed automatically. If you mark a specific position of a movie during playback with “BOOKMARK” button of remote controller, you can start from the marked position again. The function of ‘Section Repeat’ lets you repeat a specific section. Section Repeat function is useful for language study or enjoying sports moving pictures.  Music JUKE BOX Function As NTD36HD supports various music files like MP3, Ogg Vorbis, WMA, M3U and PLS, you can store these files into NTD36HD and enjoy them with easy. And, in case that you make NTD36HD’s own playlist by using ‘JUKE BOX CREATOR’ function, you can enjoy music files(playlisted) as background music(BGM function) with easy and convenient.  Digital Photo Album You can enjoy photo with NTD36HD together with your family through big screen of TV in your living room, as NTD36HD has ‘Photo Slide Show’ and ‘BGM(Background Music)’ functions.

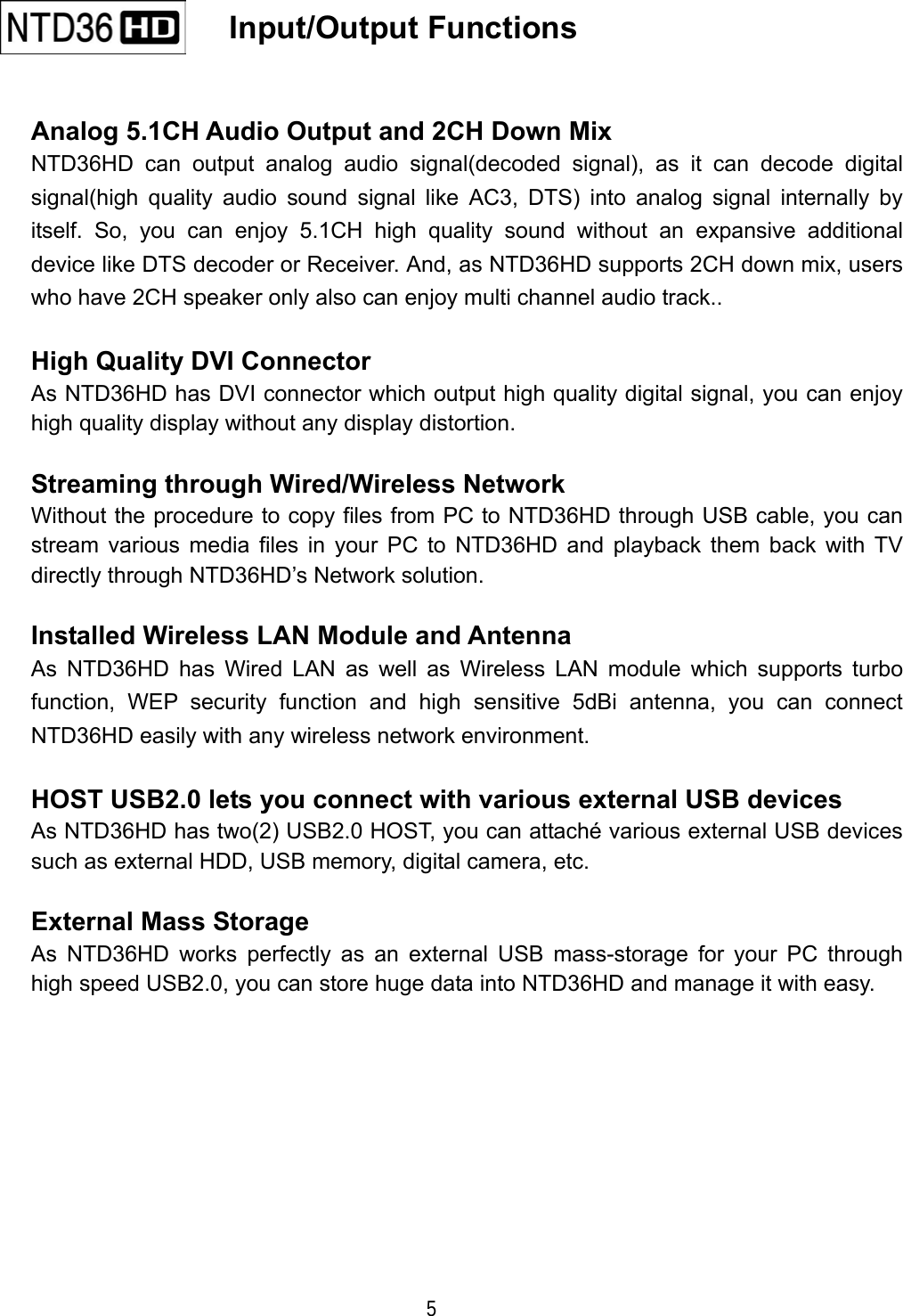

 5    Input/Output Functions    Analog 5.1CH Audio Output and 2CH Down Mix NTD36HD can output analog audio signal(decoded signal), as it can decode digital signal(high quality audio sound signal like AC3, DTS) into analog signal internally by itself. So, you can enjoy 5.1CH high quality sound without an expansive additional device like DTS decoder or Receiver. And, as NTD36HD supports 2CH down mix, users who have 2CH speaker only also can enjoy multi channel audio track..  High Quality DVI Connector As NTD36HD has DVI connector which output high quality digital signal, you can enjoy high quality display without any display distortion.  Streaming through Wired/Wireless Network Without the procedure to copy files from PC to NTD36HD through USB cable, you can stream various media files in your PC to NTD36HD and playback them back with TV directly through NTD36HD’s Network solution.  Installed Wireless LAN Module and Antenna As NTD36HD has Wired LAN as well as Wireless LAN module which supports turbo function, WEP security function and high sensitive 5dBi antenna, you can connect NTD36HD easily with any wireless network environment.  HOST USB2.0 lets you connect with various external USB devices As NTD36HD has two(2) USB2.0 HOST, you can attaché various external USB devices such as external HDD, USB memory, digital camera, etc.  External Mass Storage As NTD36HD works perfectly as an external USB mass-storage for your PC through high speed USB2.0, you can store huge data into NTD36HD and manage it with easy.

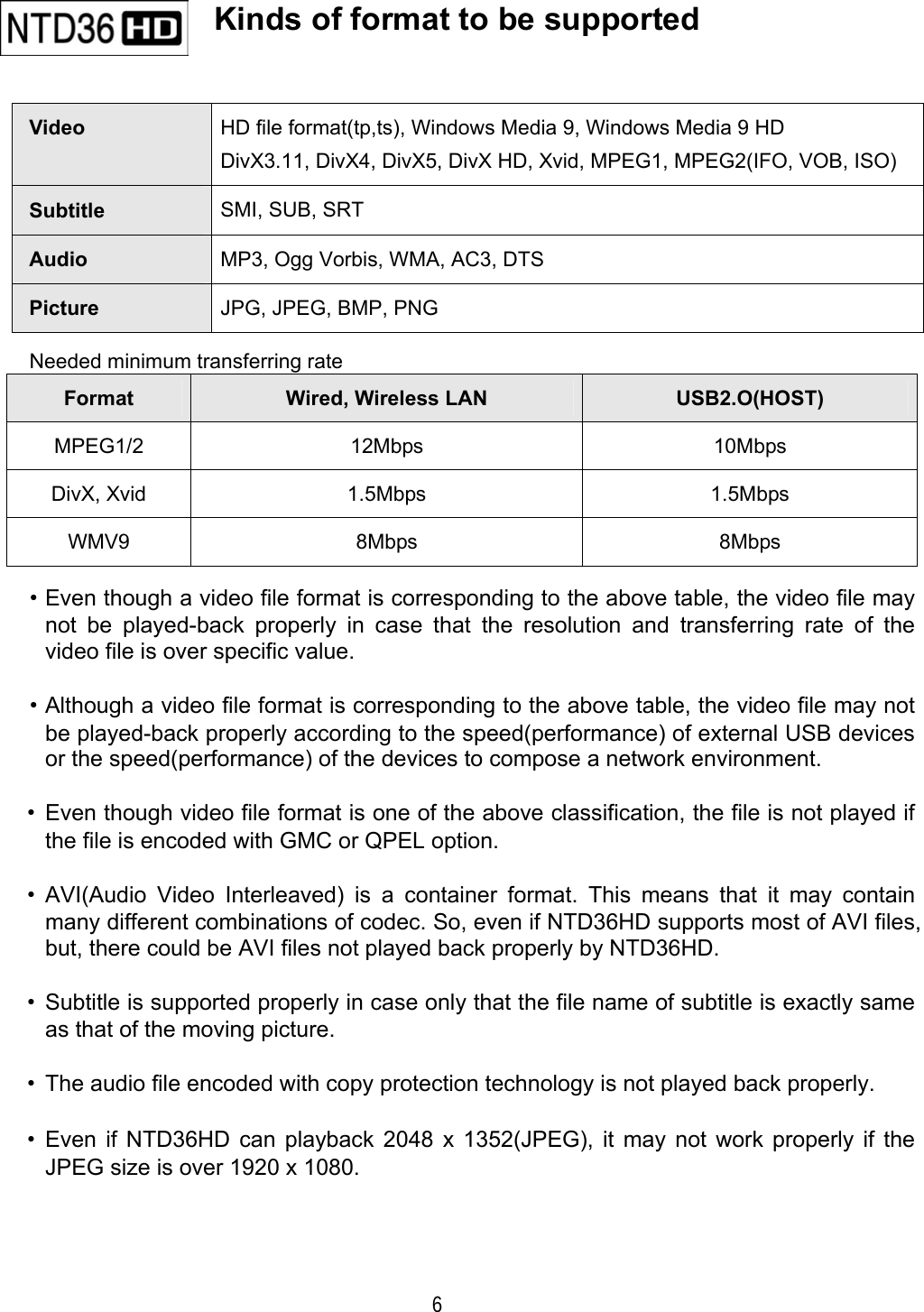

 6    Kinds of format to be supported  Video  HD file format(tp,ts), Windows Media 9, Windows Media 9 HD DivX3.11, DivX4, DivX5, DivX HD, Xvid, MPEG1, MPEG2(IFO, VOB, ISO) Subtitle  SMI, SUB, SRT Audio  MP3, Ogg Vorbis, WMA, AC3, DTS Picture  JPG, JPEG, BMP, PNG Needed minimum transferring rate Format  Wired, Wireless LAN  USB2.O(HOST) MPEG1/2 12Mbps  10Mbps DivX, Xvid  1.5Mbps  1.5Mbps WMV9 8Mbps  8Mbps • Even though a video file format is corresponding to the above table, the video file may not be played-back properly in case that the resolution and transferring rate of the video file is over specific value. • Although a video file format is corresponding to the above table, the video file may not be played-back properly according to the speed(performance) of external USB devices or the speed(performance) of the devices to compose a network environment. • Even though video file format is one of the above classification, the file is not played if the file is encoded with GMC or QPEL option. • AVI(Audio Video Interleaved) is a container format. This means that it may contain many different combinations of codec. So, even if NTD36HD supports most of AVI files, but, there could be AVI files not played back properly by NTD36HD. •  Subtitle is supported properly in case only that the file name of subtitle is exactly same as that of the moving picture. •  The audio file encoded with copy protection technology is not played back properly. • Even if NTD36HD can playback 2048 x 1352(JPEG), it may not work properly if the JPEG size is over 1920 x 1080.

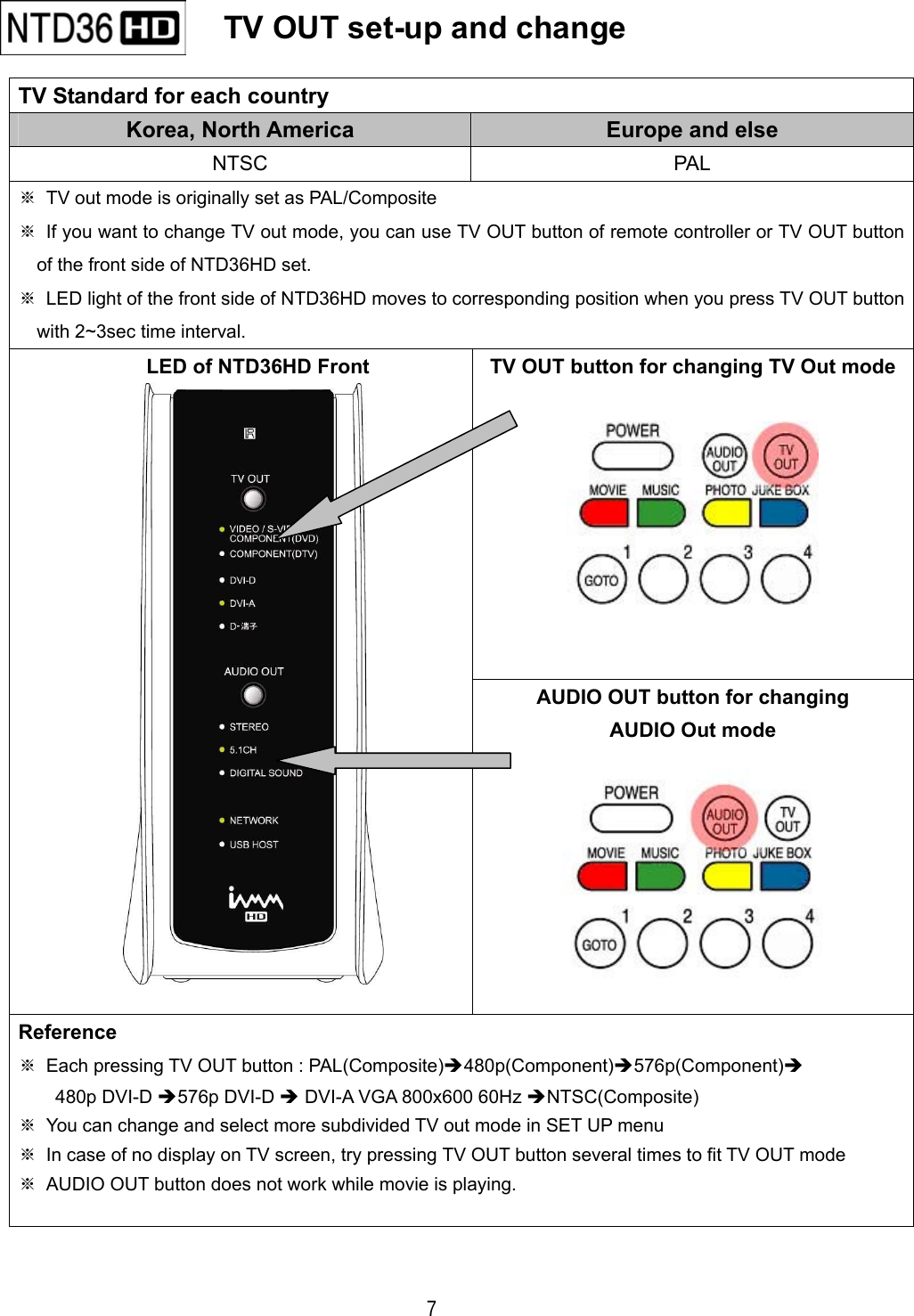

 7    TV OUT set-up and change   TV Standard for each country Korea, North America  Europe and else NTSC PAL ※  TV out mode is originally set as PAL/Composite ※  If you want to change TV out mode, you can use TV OUT button of remote controller or TV OUT button of the front side of NTD36HD set. ※  LED light of the front side of NTD36HD moves to corresponding position when you press TV OUT button with 2~3sec time interval. TV OUT button for changing TV Out mode     LED of NTD36HD Front  AUDIO OUT button for changing   AUDIO Out mode  Reference ※  Each pressing TV OUT button : PAL(Composite)480p(Component)576p(Component) 480p DVI-D 576p DVI-D  DVI-A VGA 800x600 60Hz NTSC(Composite) ※  You can change and select more subdivided TV out mode in SET UP menu ※  In case of no display on TV screen, try pressing TV OUT button several times to fit TV OUT mode ※  AUDIO OUT button does not work while movie is playing.

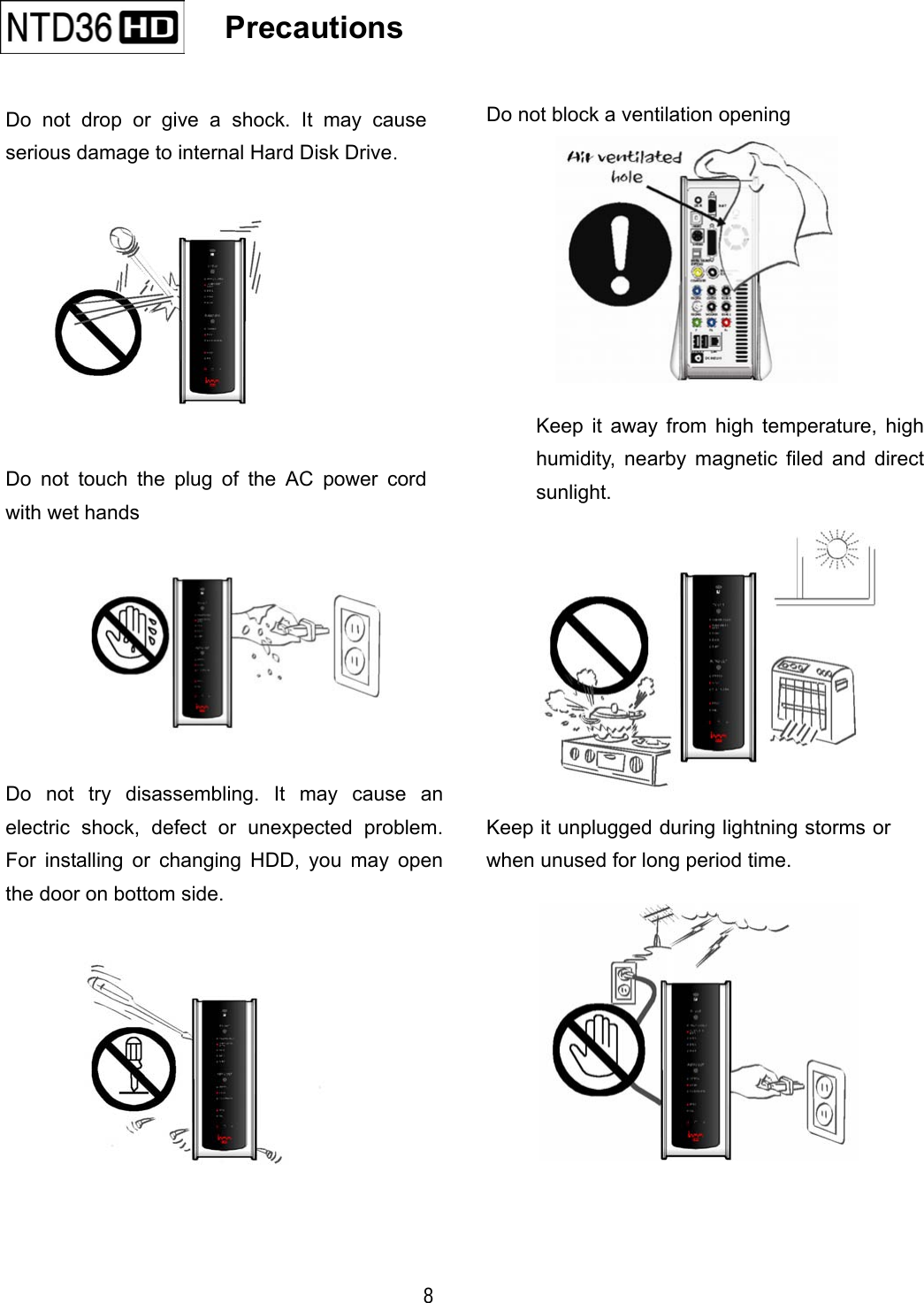

 8    Precautions                               Do not drop or give a shock. It may causeserious damage to internal Hard Disk Drive. Keep it away from high temperature, highhumidity, nearby magnetic filed and directsunlight. Do not block a ventilation opening Keep it unplugged during lightning storms orwhen unused for long period time. Do not try disassembling. It may cause anelectric shock, defect or unexpected problem.For installing or changing HDD, you may openthe door on bottom side. Do not touch the plug of the AC power cordwith wet hands

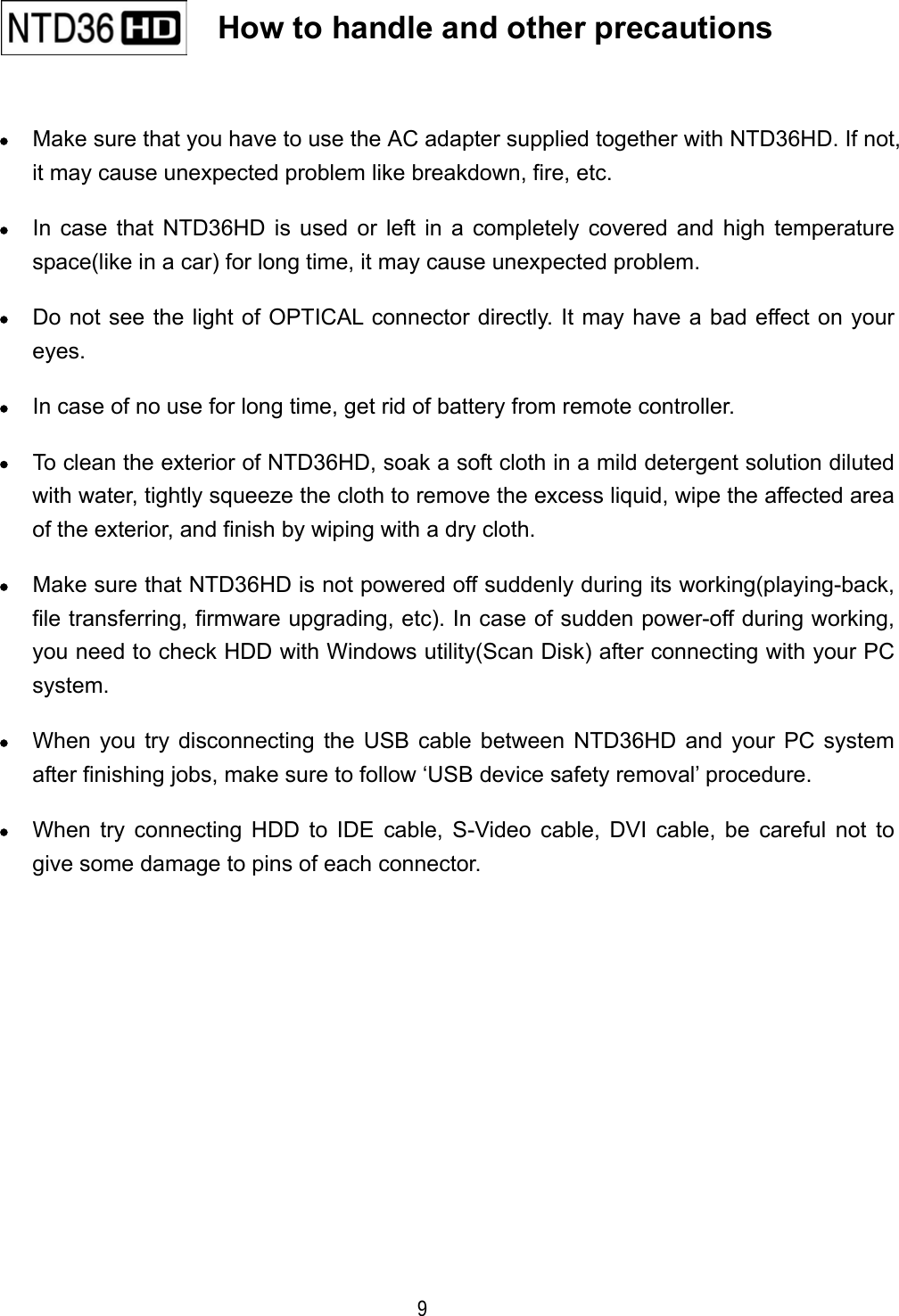

 9  •  Make sure that you have to use the AC adapter supplied together with NTD36HD. If not, it may cause unexpected problem like breakdown, fire, etc. •  In case that NTD36HD is used or left in a completely covered and high temperature space(like in a car) for long time, it may cause unexpected problem. •  Do not see the light of OPTICAL connector directly. It may have a bad effect on your eyes. •  In case of no use for long time, get rid of battery from remote controller. •  To clean the exterior of NTD36HD, soak a soft cloth in a mild detergent solution diluted with water, tightly squeeze the cloth to remove the excess liquid, wipe the affected area of the exterior, and finish by wiping with a dry cloth. •  Make sure that NTD36HD is not powered off suddenly during its working(playing-back, file transferring, firmware upgrading, etc). In case of sudden power-off during working, you need to check HDD with Windows utility(Scan Disk) after connecting with your PC system. •  When you try disconnecting the USB cable between NTD36HD and your PC system after finishing jobs, make sure to follow ‘USB device safety removal’ procedure. •  When try connecting HDD to IDE cable, S-Video cable, DVI cable, be careful not to give some damage to pins of each connector.   How to handle and other precautions

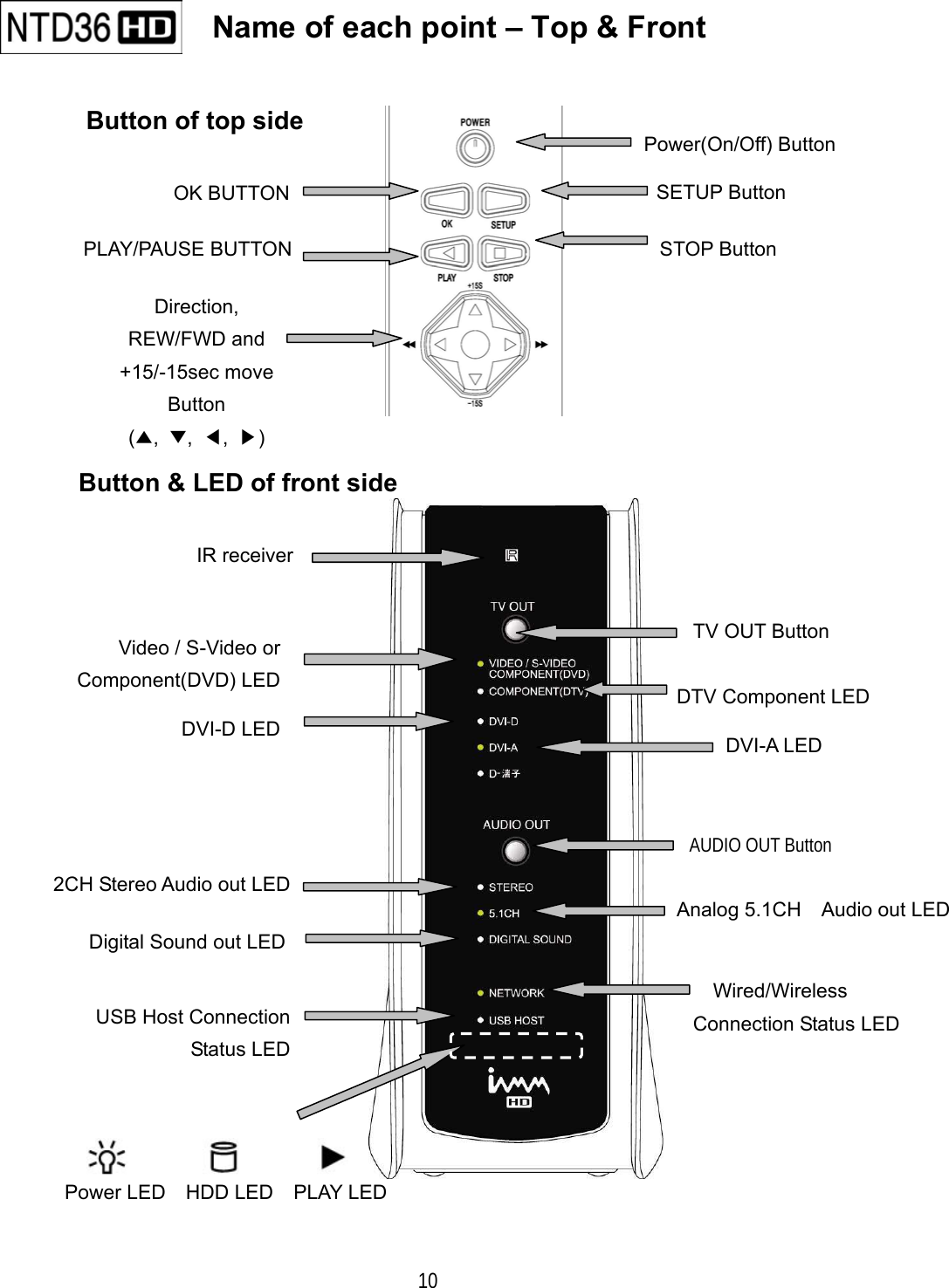

 10    Button of top side                Name of each point – Top & Front   OK BUTTONPLAY/PAUSE BUTTONDirection, REW/FWD and +15/-15sec move Button (▲,  ▼,  ◀,  ▶) Power(On/Off) ButtonSETUP Button STOP Button Button & LED of front side IR receiverVideo / S-Video orComponent(DVD) LEDDVI-D LED 2CH Stereo Audio out LEDDigital Sound out LEDUSB Host ConnectionStatus LEDTV OUT Button DTV Component LED AUDIO OUT Button Analog 5.1CH    Audio out LEDWired/Wireless Connection Status LEDDVI-A LED                 Power LED  HDD LED  PLAY LED

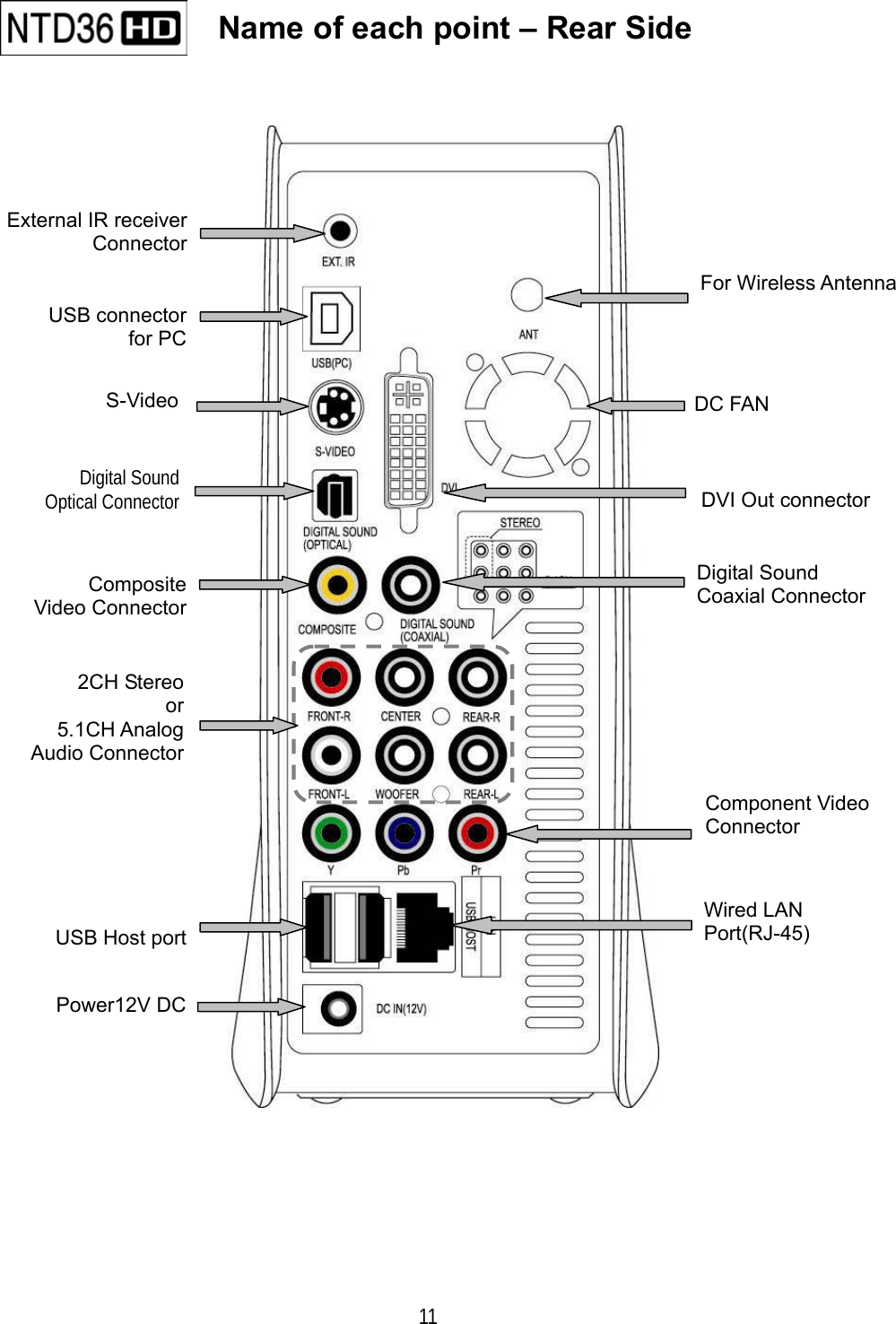

 11          Name of each point – Rear Side    External IR receiverConnectorUSB connectorfor PCS-VideoDigital SoundOptical ConnectorCompositeVideo Connector2CH Stereoor 5.1CH AnalogAudio ConnectorUSB Host portPower12V DCComponent Video Connector DVI Out connector   Digital Sound Coaxial Connector DC FAN For Wireless Antenna Wired LAN Port(RJ-45)

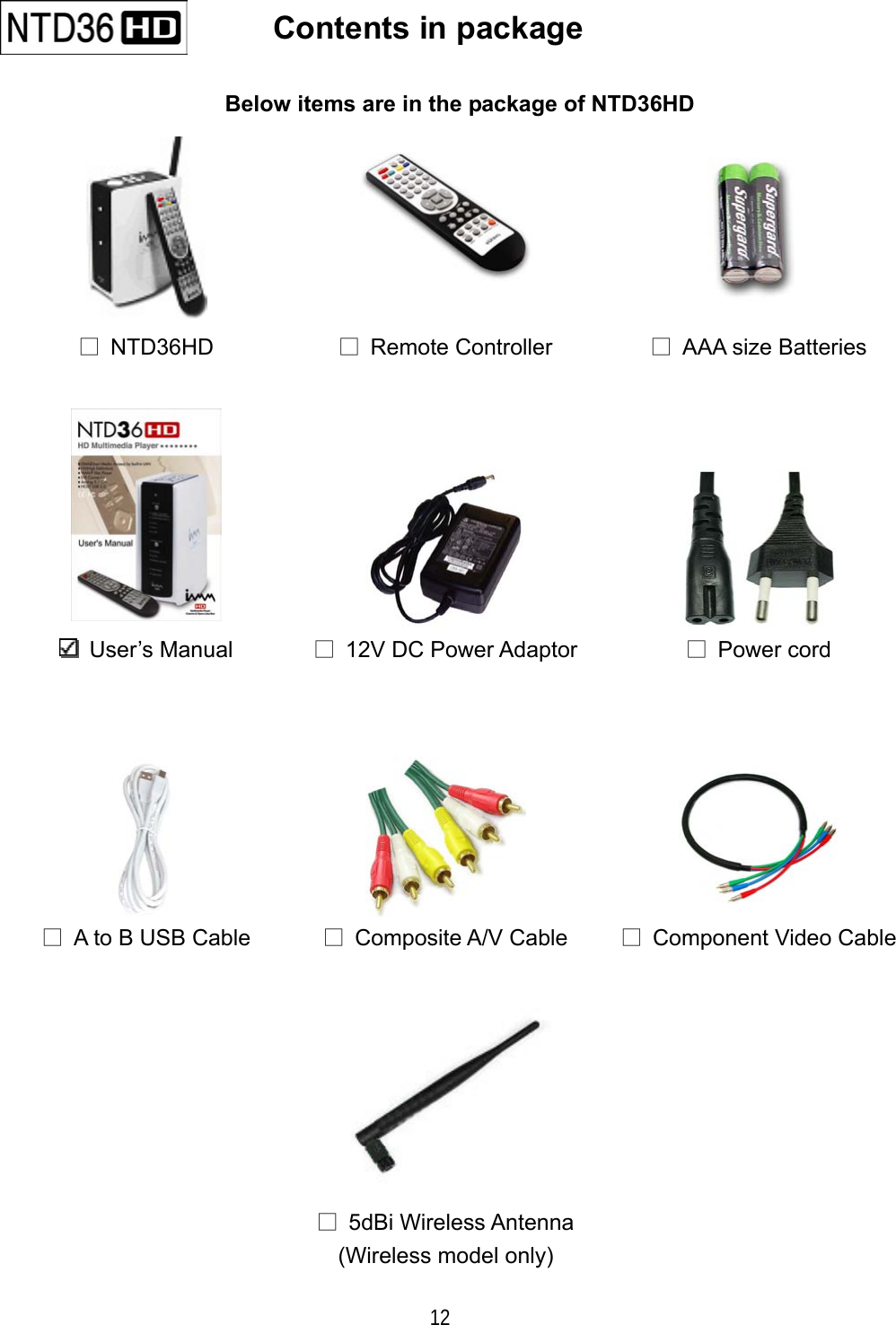

 12    Contents in package   Below items are in the package of NTD36HD      □ NTD36HD  □ Remote Controller  □  AAA size Batteries     User’s Manual □  12V DC Power Adaptor  □ Power cord    □  A to B USB Cable  □ Composite A/V Cable  □  Component Video Cable     □ 5dBi Wireless Antenna (Wireless model only)

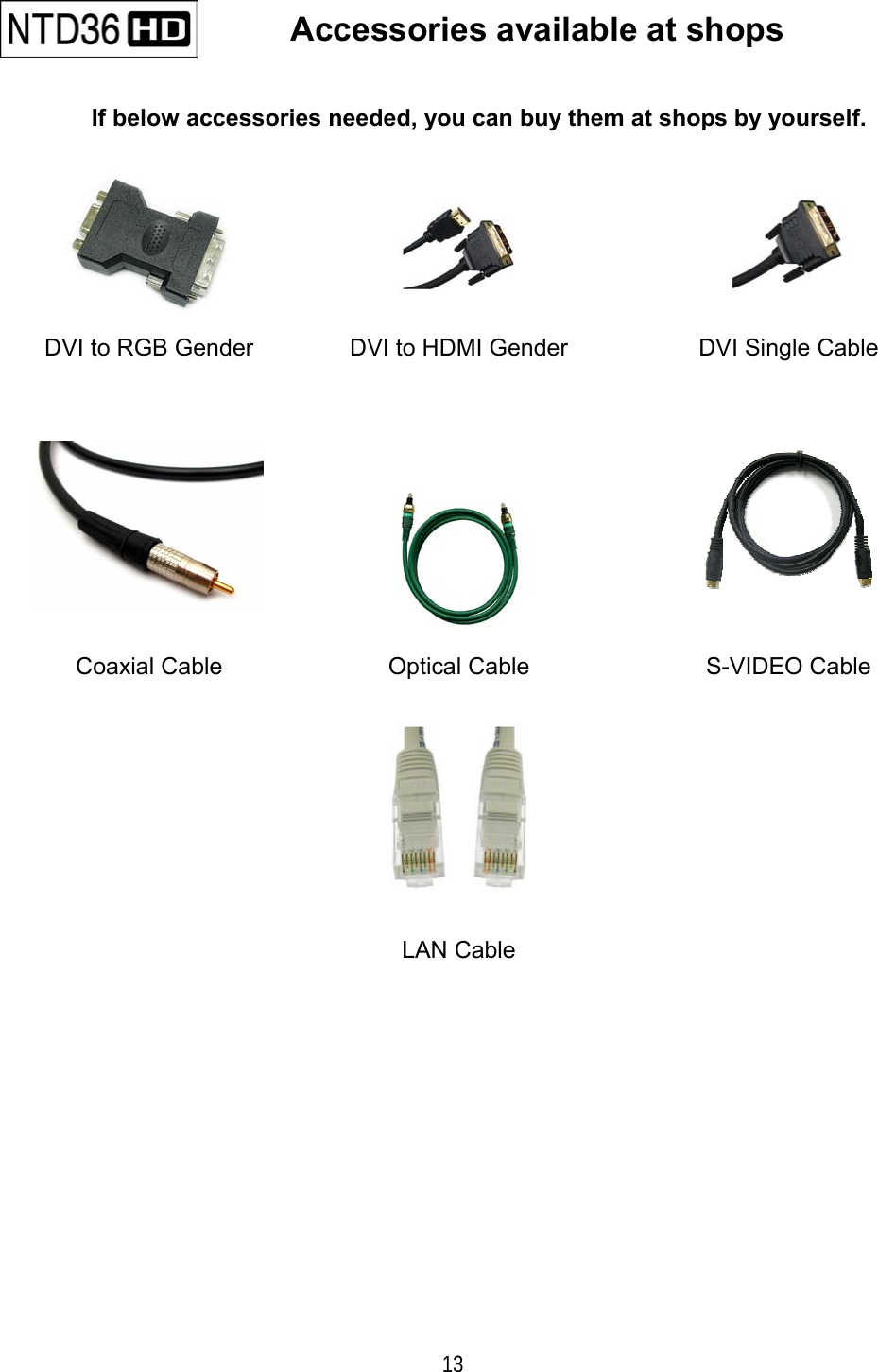

 13     Accessories available at shops   If below accessories needed, you can buy them at shops by yourself.     DVI to RGB Gender  DVI to HDMI Gender  DVI Single Cable      Coaxial Cable  Optical Cable  S-VIDEO Cable      LAN Cable

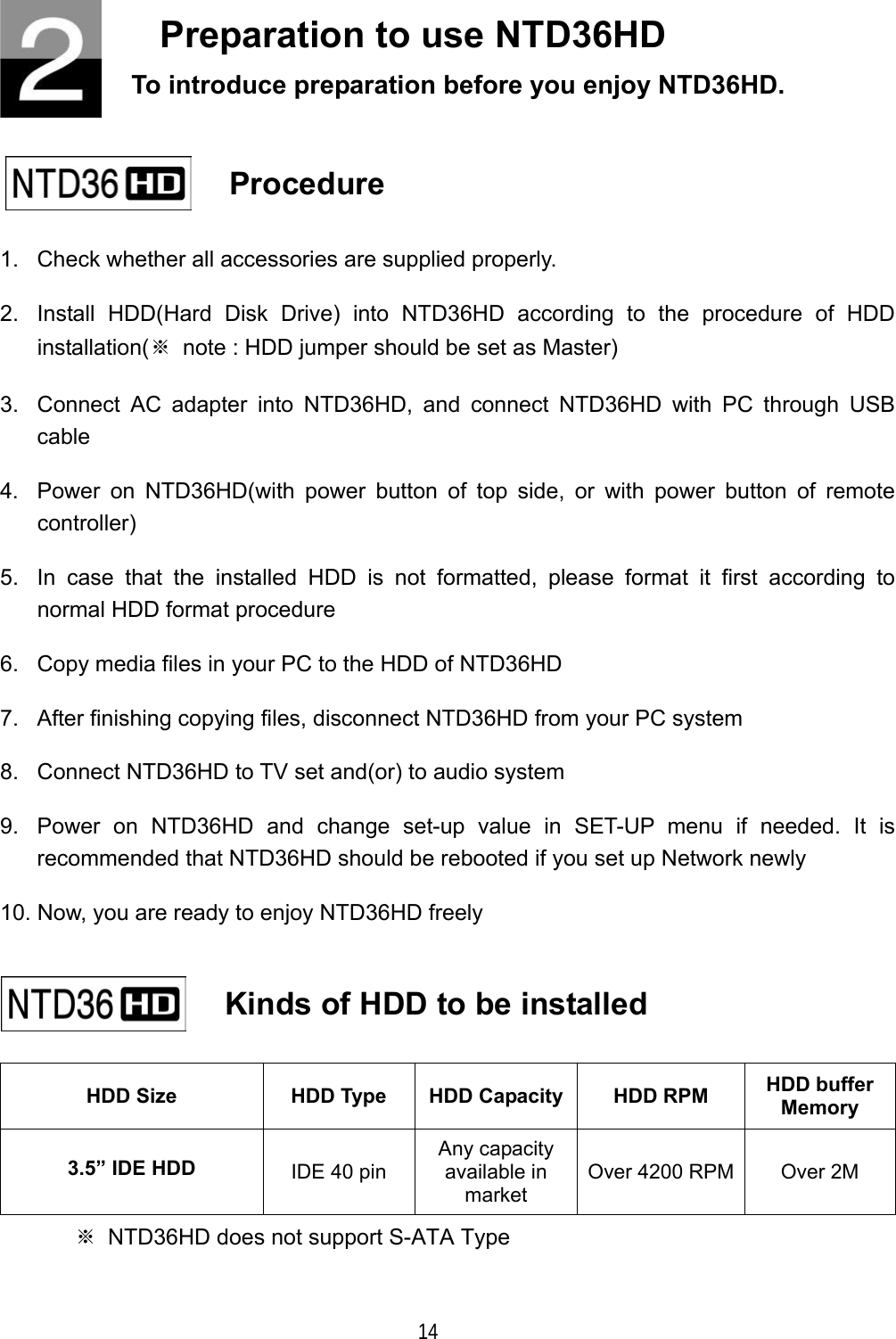

 14 Preparation to use NTD36HD To introduce preparation before you enjoy NTD36HD.     Procedure   1.  Check whether all accessories are supplied properly. 2.  Install HDD(Hard Disk Drive) into NTD36HD according to the procedure of HDD installation(※  note : HDD jumper should be set as Master) 3.  Connect AC adapter into NTD36HD, and connect NTD36HD with PC through USB cable 4.  Power on NTD36HD(with power button of top side, or with power button of remote controller) 5.  In case that the installed HDD is not formatted, please format it first according to normal HDD format procedure 6.  Copy media files in your PC to the HDD of NTD36HD 7.  After finishing copying files, disconnect NTD36HD from your PC system 8.  Connect NTD36HD to TV set and(or) to audio system 9.  Power on NTD36HD and change set-up value in SET-UP menu if needed. It is recommended that NTD36HD should be rebooted if you set up Network newly 10. Now, you are ready to enjoy NTD36HD freely  HDD Size  HDD Type  HDD Capacity HDD RPM  HDD buffer Memory 3.5” IDE HDD  IDE 40 pin Any capacity available in market Over 4200 RPM  Over 2M ※  NTD36HD does not support S-ATA Type    Kinds of HDD to be installed

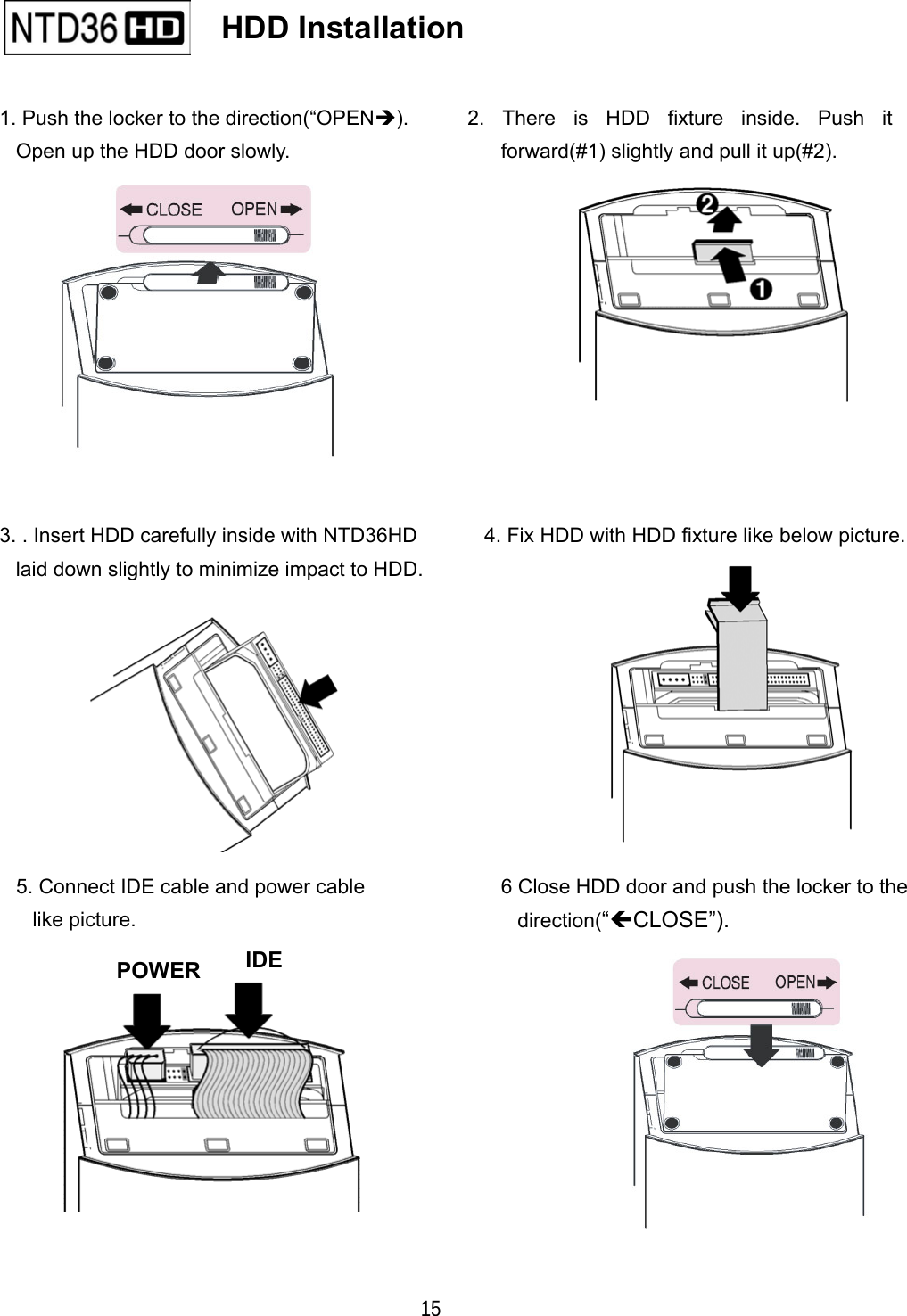

  15                                                 IDE                      HDD Installation   1. Push the locker to the direction(“OPEN). Open up the HDD door slowly. 4. Fix HDD with HDD fixture like below picture. 2. There is HDD fixture inside. Push itforward(#1) slightly and pull it up(#2). 5. Connect IDE cable and power cable like picture. 3. . Insert HDD carefully inside with NTD36HD laid down slightly to minimize impact to HDD. 6 Close HDD door and push the locker to the direction(“CLOSE”). POWER

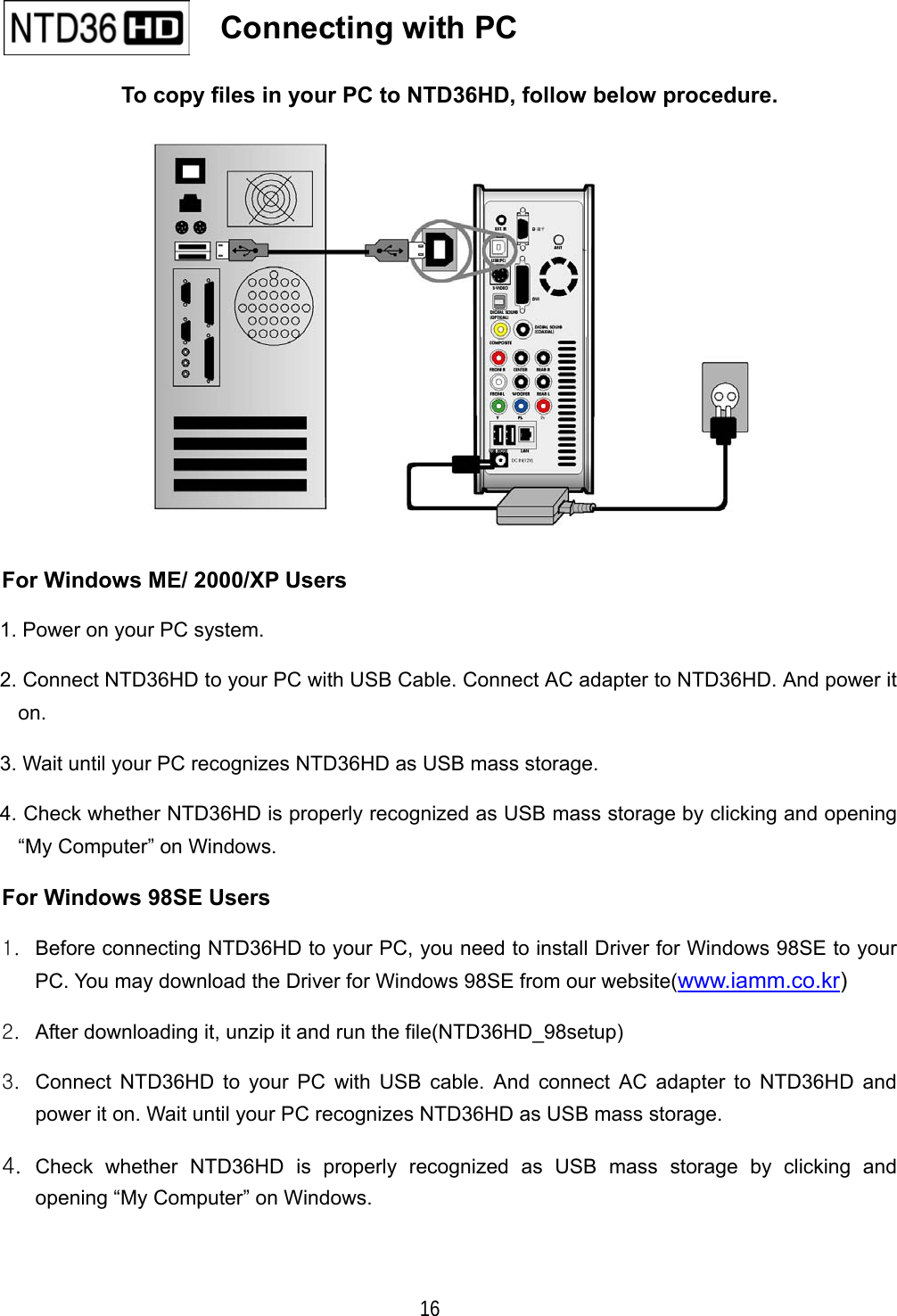

  16 To copy files in your PC to NTD36HD, follow below procedure.  For Windows ME/ 2000/XP Users 1. Power on your PC system. 2. Connect NTD36HD to your PC with USB Cable. Connect AC adapter to NTD36HD. And power it on.  3. Wait until your PC recognizes NTD36HD as USB mass storage. 4. Check whether NTD36HD is properly recognized as USB mass storage by clicking and opening “My Computer” on Windows. For Windows 98SE Users 1.  Before connecting NTD36HD to your PC, you need to install Driver for Windows 98SE to your PC. You may download the Driver for Windows 98SE from our website(www.iamm.co.kr) 2.  After downloading it, unzip it and run the file(NTD36HD_98setup) 3.  Connect NTD36HD to your PC with USB cable. And connect AC adapter to NTD36HD and power it on. Wait until your PC recognizes NTD36HD as USB mass storage. 4.  Check whether NTD36HD is properly recognized as USB mass storage by clicking and opening “My Computer” on Windows.    Connecting with PC

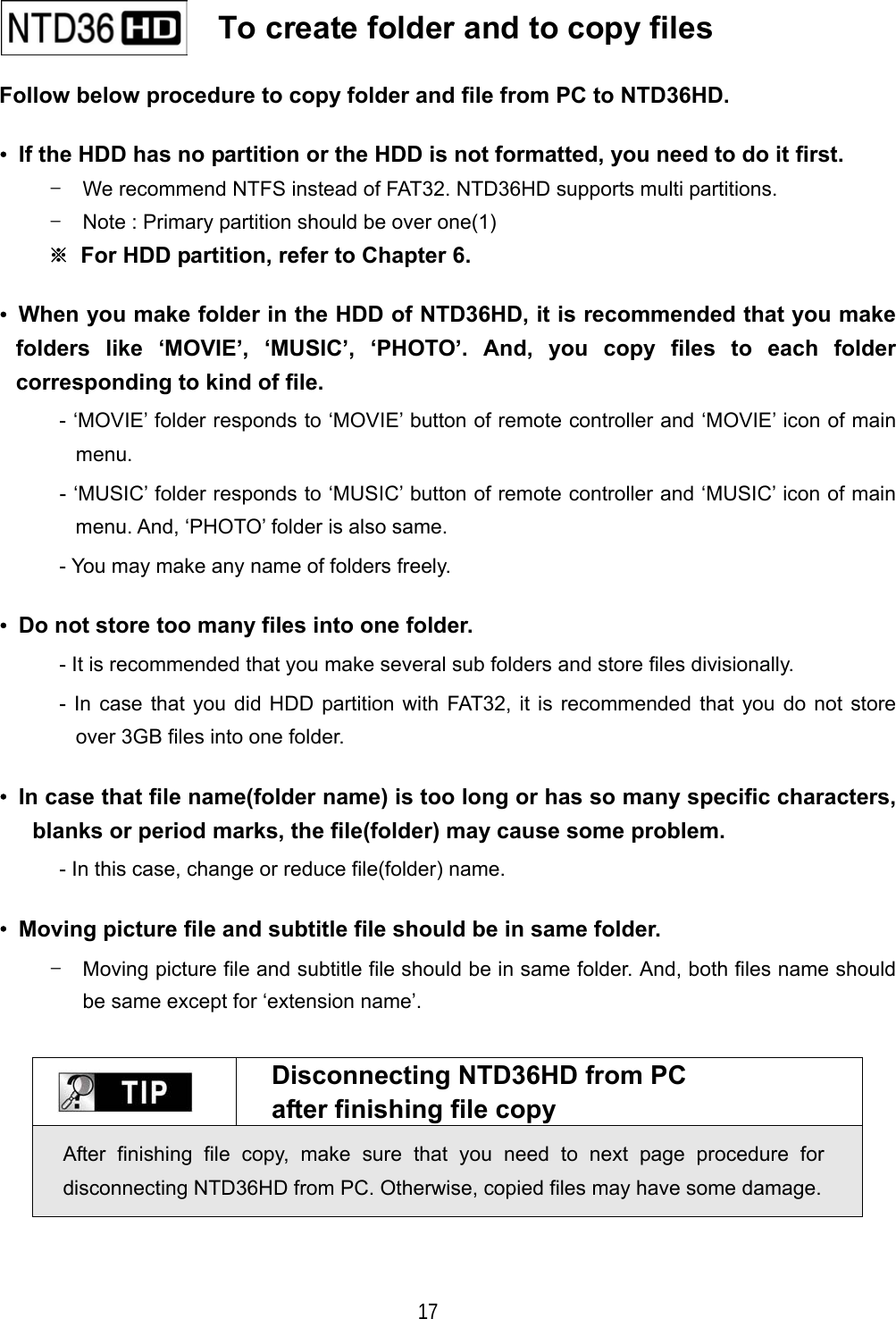

  17 Follow below procedure to copy folder and file from PC to NTD36HD. •  If the HDD has no partition or the HDD is not formatted, you need to do it first. -  We recommend NTFS instead of FAT32. NTD36HD supports multi partitions. -  Note : Primary partition should be over one(1) ※  For HDD partition, refer to Chapter 6. •  When you make folder in the HDD of NTD36HD, it is recommended that you make folders like ‘MOVIE’, ‘MUSIC’, ‘PHOTO’. And, you copy files to each folder corresponding to kind of file. - ‘MOVIE’ folder responds to ‘MOVIE’ button of remote controller and ‘MOVIE’ icon of main menu. - ‘MUSIC’ folder responds to ‘MUSIC’ button of remote controller and ‘MUSIC’ icon of main menu. And, ‘PHOTO’ folder is also same. - You may make any name of folders freely. •  Do not store too many files into one folder. - It is recommended that you make several sub folders and store files divisionally. - In case that you did HDD partition with FAT32, it is recommended that you do not store over 3GB files into one folder. •  In case that file name(folder name) is too long or has so many specific characters, blanks or period marks, the file(folder) may cause some problem. - In this case, change or reduce file(folder) name. •  Moving picture file and subtitle file should be in same folder. -  Moving picture file and subtitle file should be in same folder. And, both files name should be same except for ‘extension name’.   Disconnecting NTD36HD from PC after finishing file copy After finishing file copy, make sure that you need to next page procedure for disconnecting NTD36HD from PC. Otherwise, copied files may have some damage.      To create folder and to copy files

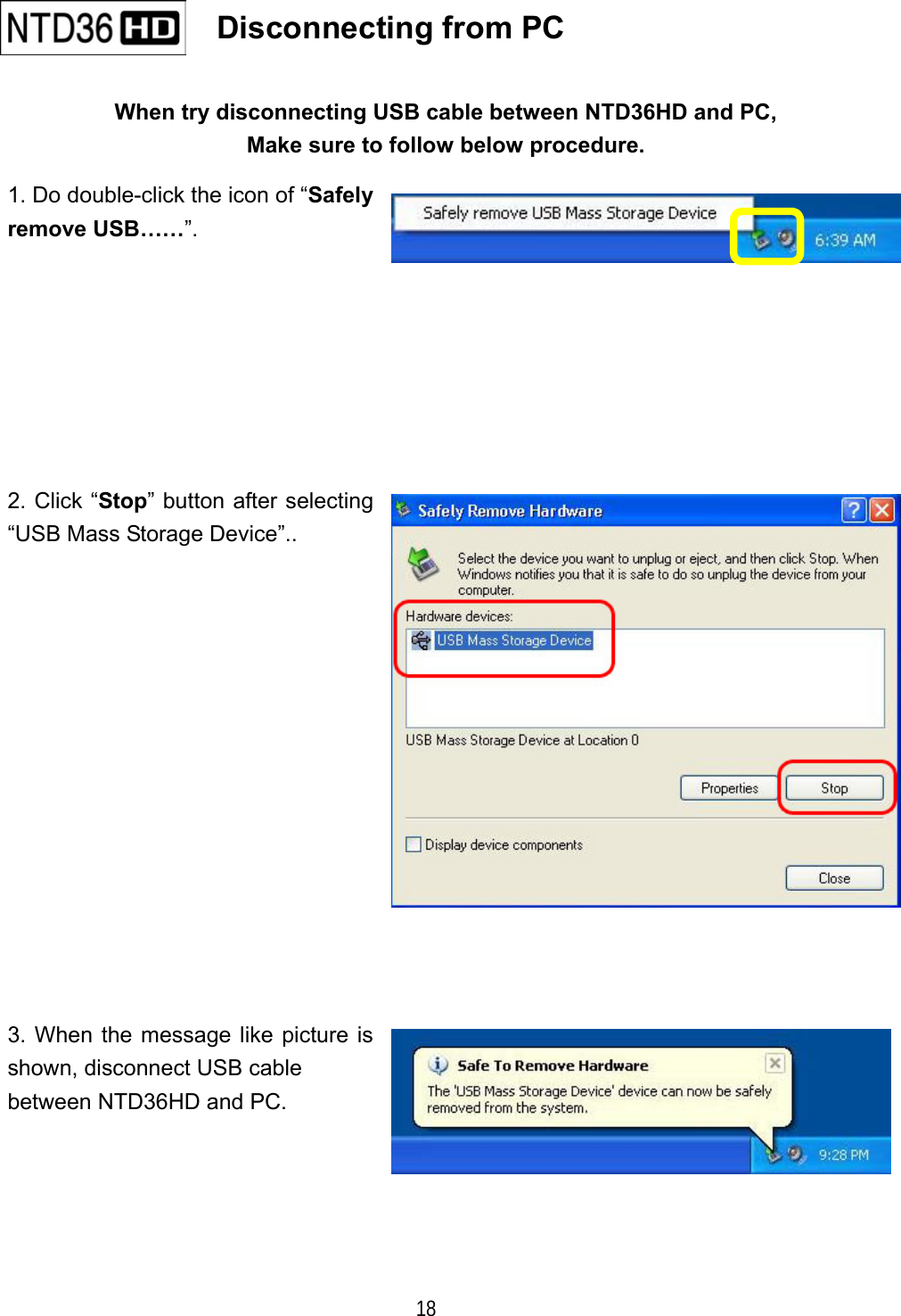

  18 When try disconnecting USB cable between NTD36HD and PC, Make sure to follow below procedure. 1. Do double-click the icon of “Safely remove USB……”. 2. Click “Stop” button after selecting “USB Mass Storage Device”.. 3. When the message like picture is shown, disconnect USB cable between NTD36HD and PC.    Disconnecting from PC

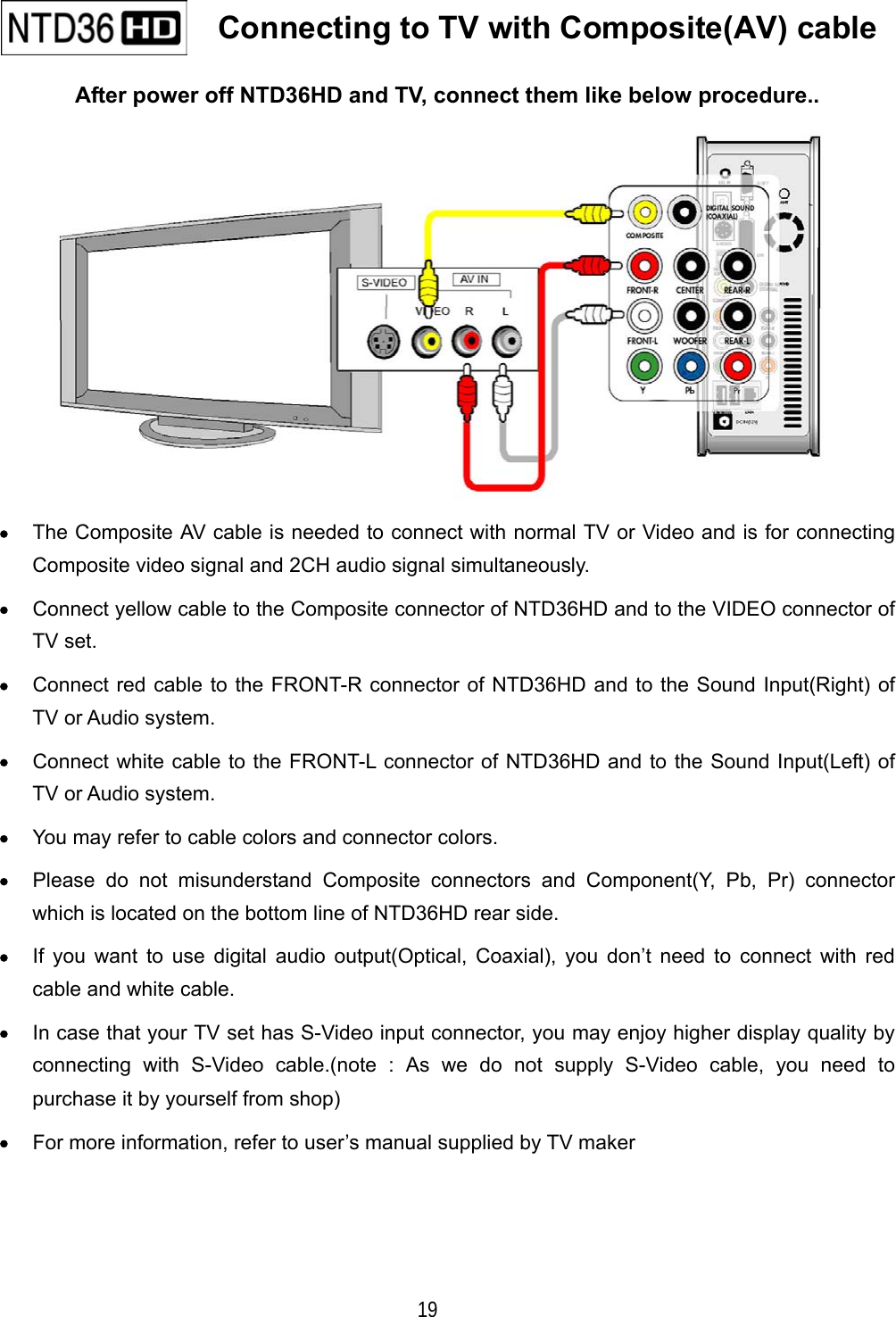

  19 After power off NTD36HD and TV, connect them like below procedure..  •  The Composite AV cable is needed to connect with normal TV or Video and is for connecting Composite video signal and 2CH audio signal simultaneously. •  Connect yellow cable to the Composite connector of NTD36HD and to the VIDEO connector of TV set. •  Connect red cable to the FRONT-R connector of NTD36HD and to the Sound Input(Right) of TV or Audio system. •  Connect white cable to the FRONT-L connector of NTD36HD and to the Sound Input(Left) of TV or Audio system. •  You may refer to cable colors and connector colors. •  Please do not misunderstand Composite connectors and Component(Y, Pb, Pr) connector which is located on the bottom line of NTD36HD rear side. •  If you want to use digital audio output(Optical, Coaxial), you don’t need to connect with red cable and white cable. •  In case that your TV set has S-Video input connector, you may enjoy higher display quality by connecting with S-Video cable.(note : As we do not supply S-Video cable, you need to purchase it by yourself from shop) •  For more information, refer to user’s manual supplied by TV maker    Connecting to TV with Composite(AV) cable

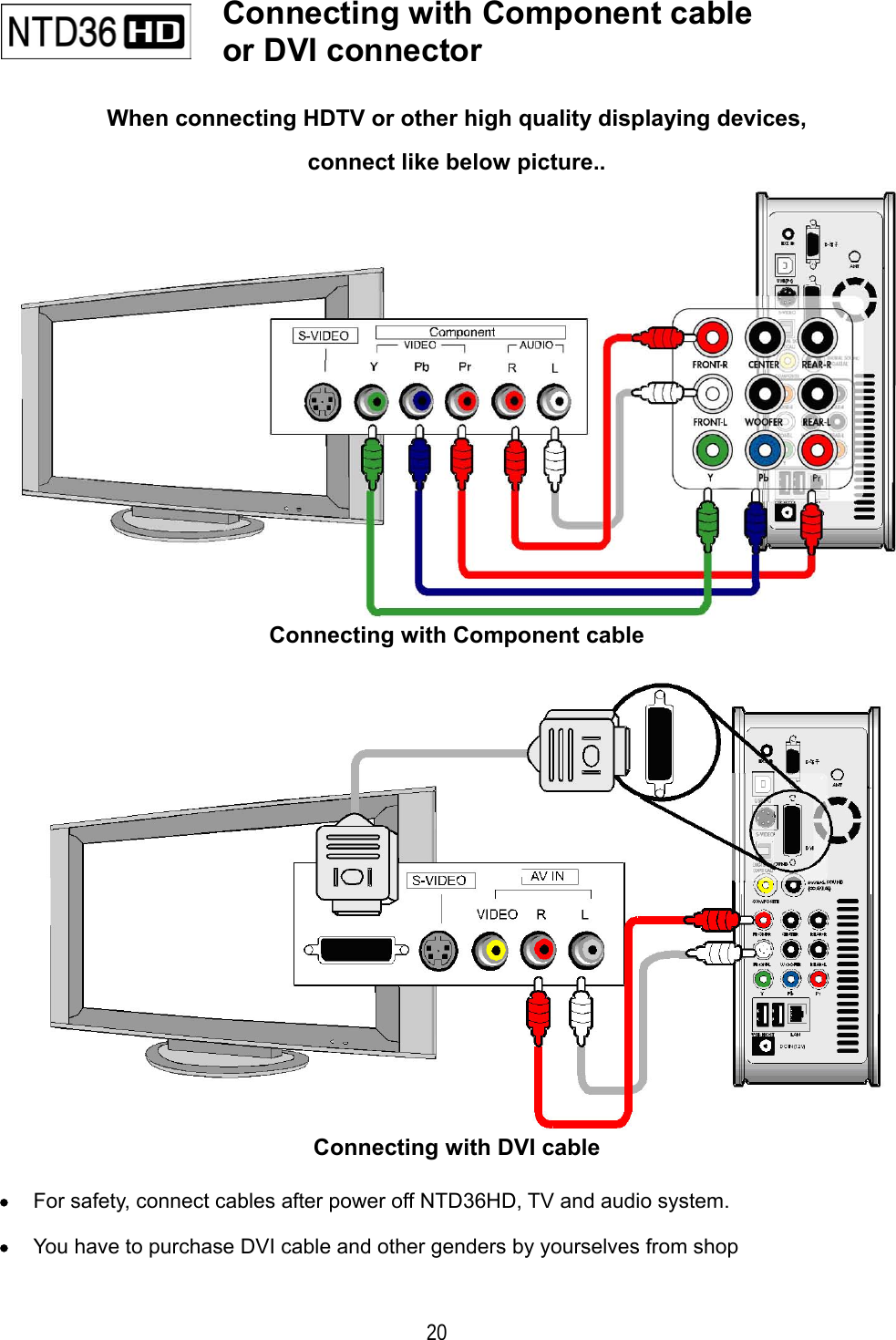

  20 When connecting HDTV or other high quality displaying devices,   connect like below picture..  Connecting with Component cable  Connecting with DVI cable •  For safety, connect cables after power off NTD36HD, TV and audio system. •  You have to purchase DVI cable and other genders by yourselves from shop    Connecting with Component cable or DVI connector

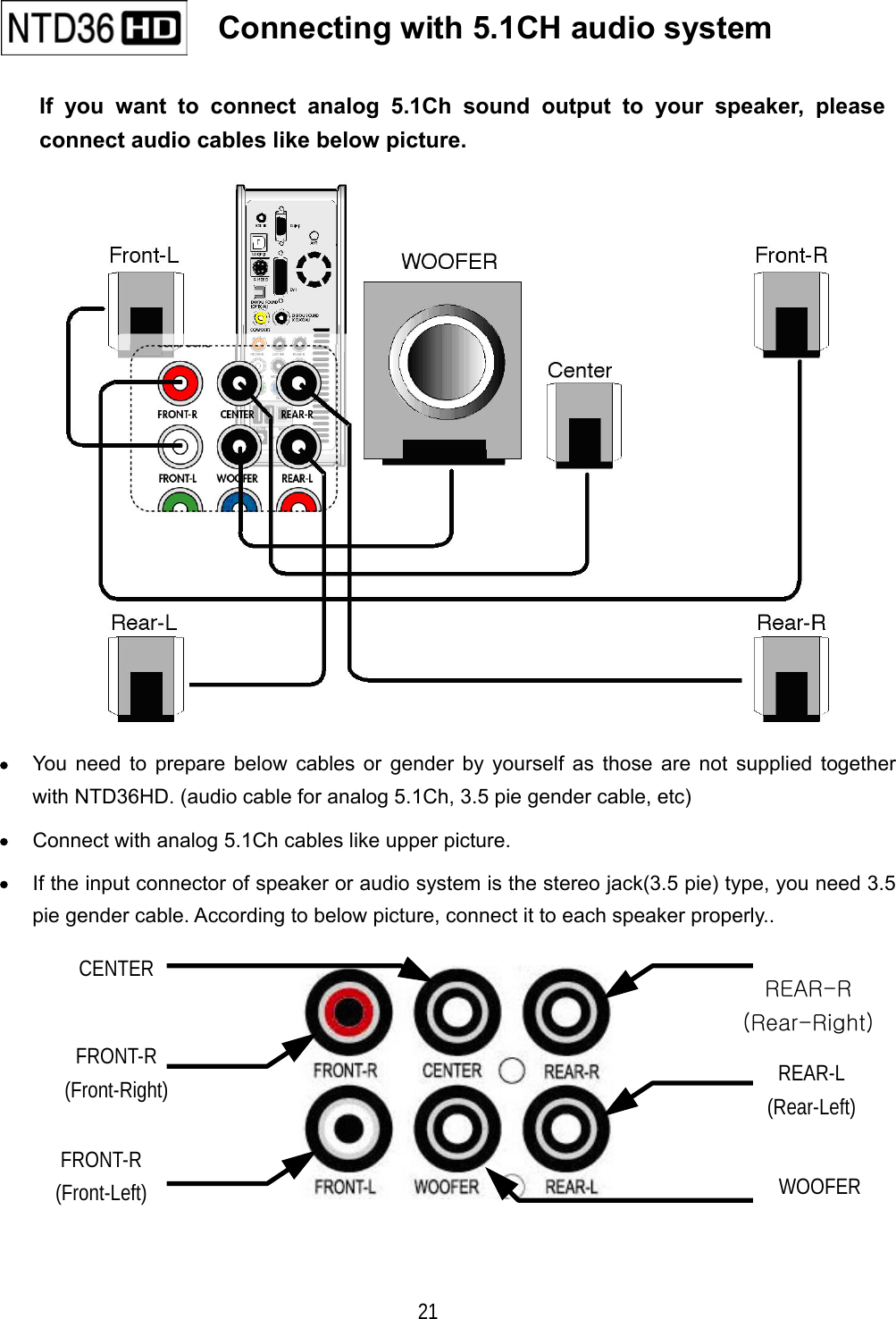

  21 If you want to connect analog 5.1Ch sound output to your speaker, please connect audio cables like below picture.  •  You need to prepare below cables or gender by yourself as those are not supplied together with NTD36HD. (audio cable for analog 5.1Ch, 3.5 pie gender cable, etc) •  Connect with analog 5.1Ch cables like upper picture. •  If the input connector of speaker or audio system is the stereo jack(3.5 pie) type, you need 3.5 pie gender cable. According to below picture, connect it to each speaker properly..          Connecting with 5.1CH audio system   CENTER  FRONT-R (Front-Right)FRONT-R (Front-Left) REAR-L (Rear-Left)WOOFER REAR-R (Rear-Right)

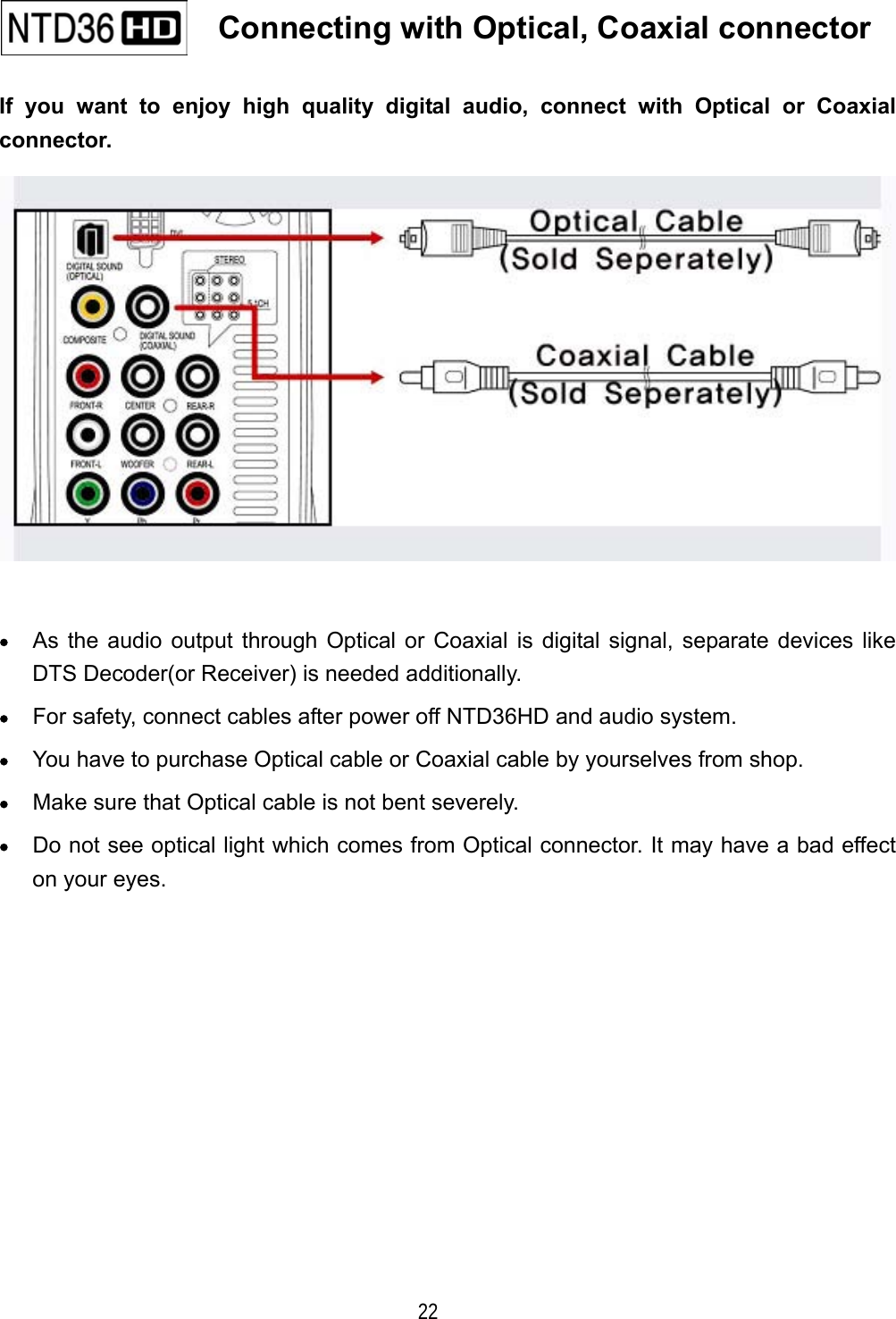

  22 If you want to enjoy high quality digital audio, connect with Optical or Coaxial connector.   •  As the audio output through Optical or Coaxial is digital signal, separate devices like DTS Decoder(or Receiver) is needed additionally. •  For safety, connect cables after power off NTD36HD and audio system. •  You have to purchase Optical cable or Coaxial cable by yourselves from shop. •  Make sure that Optical cable is not bent severely. •  Do not see optical light which comes from Optical connector. It may have a bad effect on your eyes.               Connecting with Optical, Coaxial connector

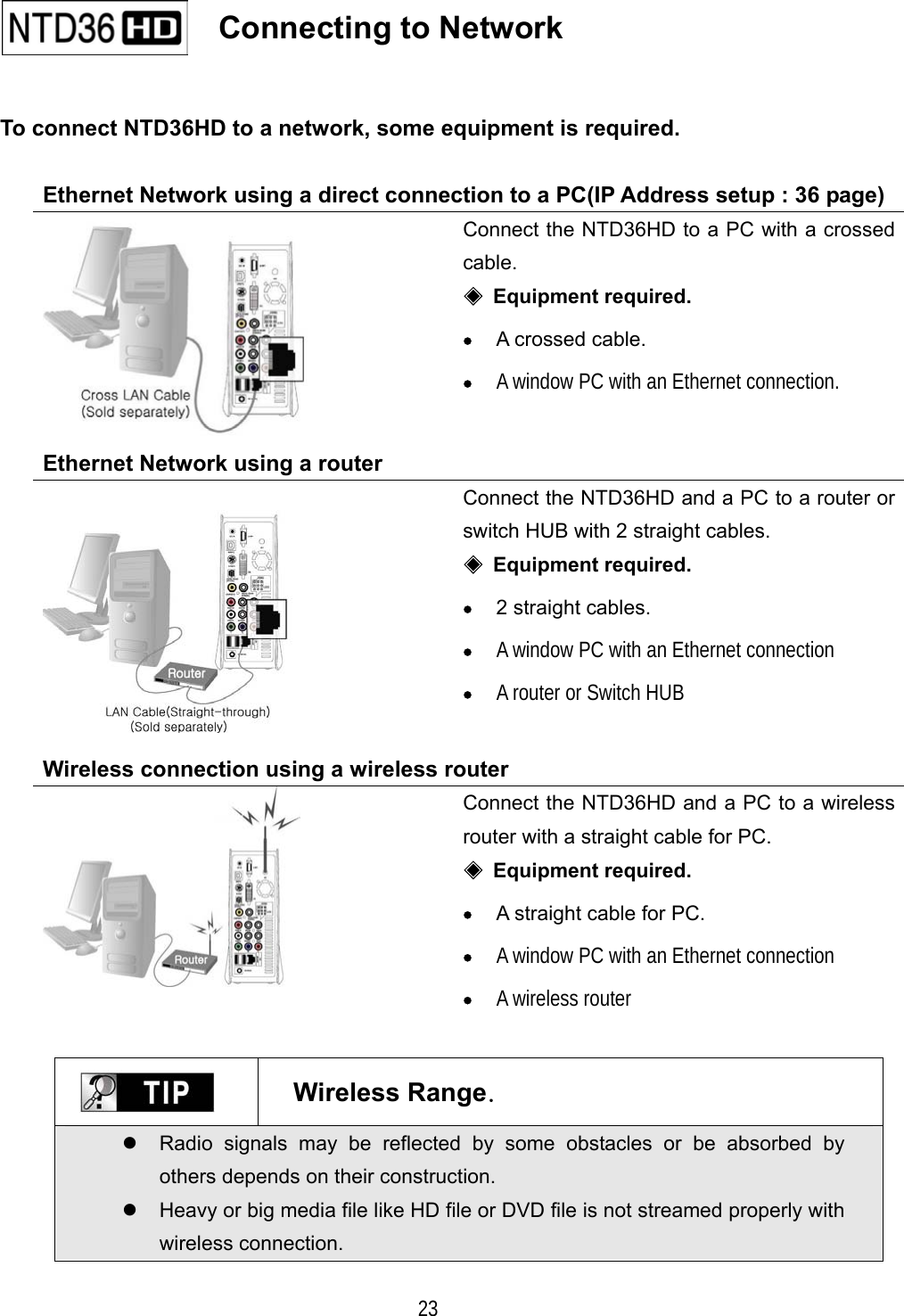

  23  To connect NTD36HD to a network, some equipment is required.  Ethernet Network using a direct connection to a PC(IP Address setup : 36 page)  Connect the NTD36HD to a PC with a crossed cable. ◈ Equipment required. •  A crossed cable. •  A window PC with an Ethernet connection. Ethernet Network using a router  Connect the NTD36HD and a PC to a router or switch HUB with 2 straight cables. ◈ Equipment required. •  2 straight cables. •  A window PC with an Ethernet connection •  A router or Switch HUB  Wireless connection using a wireless router  Connect the NTD36HD and a PC to a wireless router with a straight cable for PC. ◈ Equipment required. •  A straight cable for PC. •  A window PC with an Ethernet connection •  A wireless router   Wireless Range.  Radio signals may be reflected by some obstacles or be absorbed by others depends on their construction.  Heavy or big media file like HD file or DVD file is not streamed properly with wireless connection.       Connecting to Network

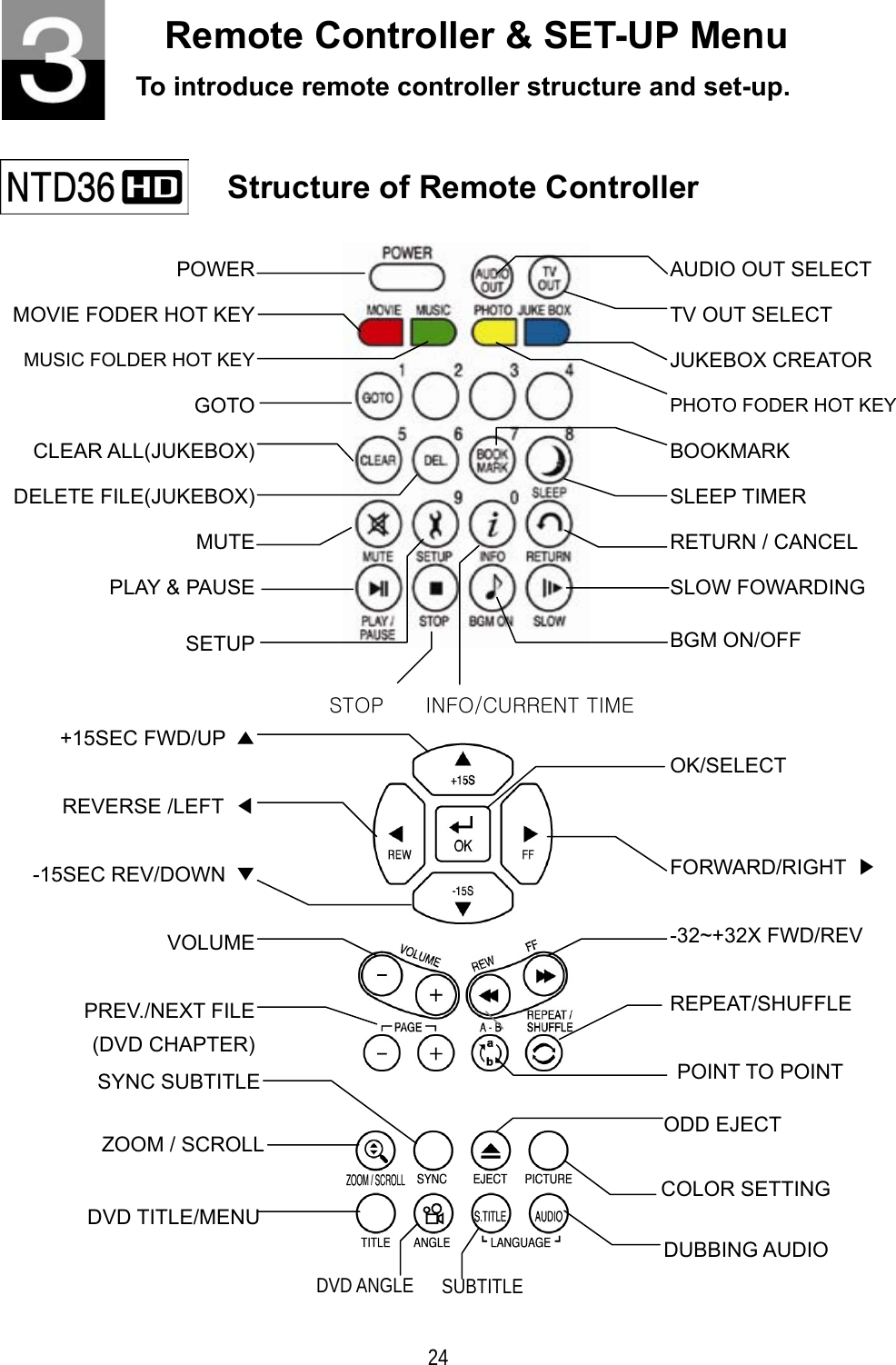

  24 Remote Controller & SET-UP Menu To introduce remote controller structure and set-up.     Structure of Remote Controller   POWER MOVIE FODER HOT KEY MUSIC FOLDER HOT KEY GOTO   CLEAR ALL(JUKEBOX) DELETE FILE(JUKEBOX) MUTE PLAY & PAUSE SETUP     AUDIO OUT SELECT TV OUT SELECT JUKEBOX CREATOR PHOTO FODER HOT KEY BOOKMARK  SLEEP TIMER RETURN / CANCEL SLOW FOWARDING BGM ON/OFF  +15SEC FWD/UP  ▲  REVERSE /LEFT  ◀  -15SEC REV/DOWN  ▼  VOLUME  PREV./NEXT FILE (DVD CHAPTER)   OK/SELECT   FORWARD/RIGHT  ▶  -32~+32X FWD/REV  REPEAT/SHUFFLE   POINT TO POINT     ZOOM / SCROLLSYNC SUBTITLEDVD TITLE/MENUDVD ANGLEODD EJECT COLOR SETTING SUBTITLE DUBBING AUDIO  STOP    INFO/CURRENT TIME

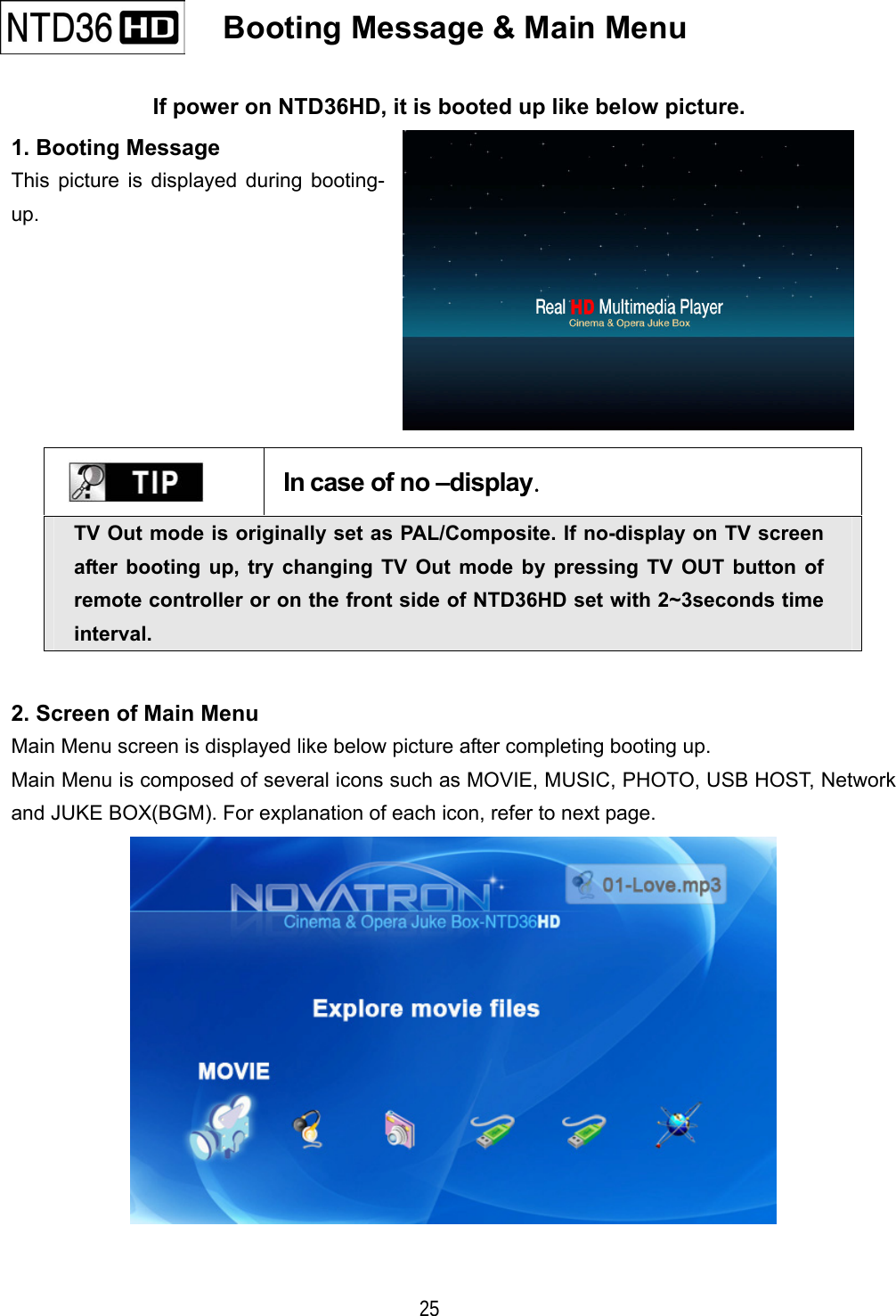

  25    Booting Message & Main Menu   If power on NTD36HD, it is booted up like below picture. 1. Booting Message This picture is displayed during booting- up.     In case of no –display. TV Out mode is originally set as PAL/Composite. If no-display on TV screen after booting up, try changing TV Out mode by pressing TV OUT button of remote controller or on the front side of NTD36HD set with 2~3seconds time interval. 2. Screen of Main Menu Main Menu screen is displayed like below picture after completing booting up. Main Menu is composed of several icons such as MOVIE, MUSIC, PHOTO, USB HOST, Network and JUKE BOX(BGM). For explanation of each icon, refer to next page.

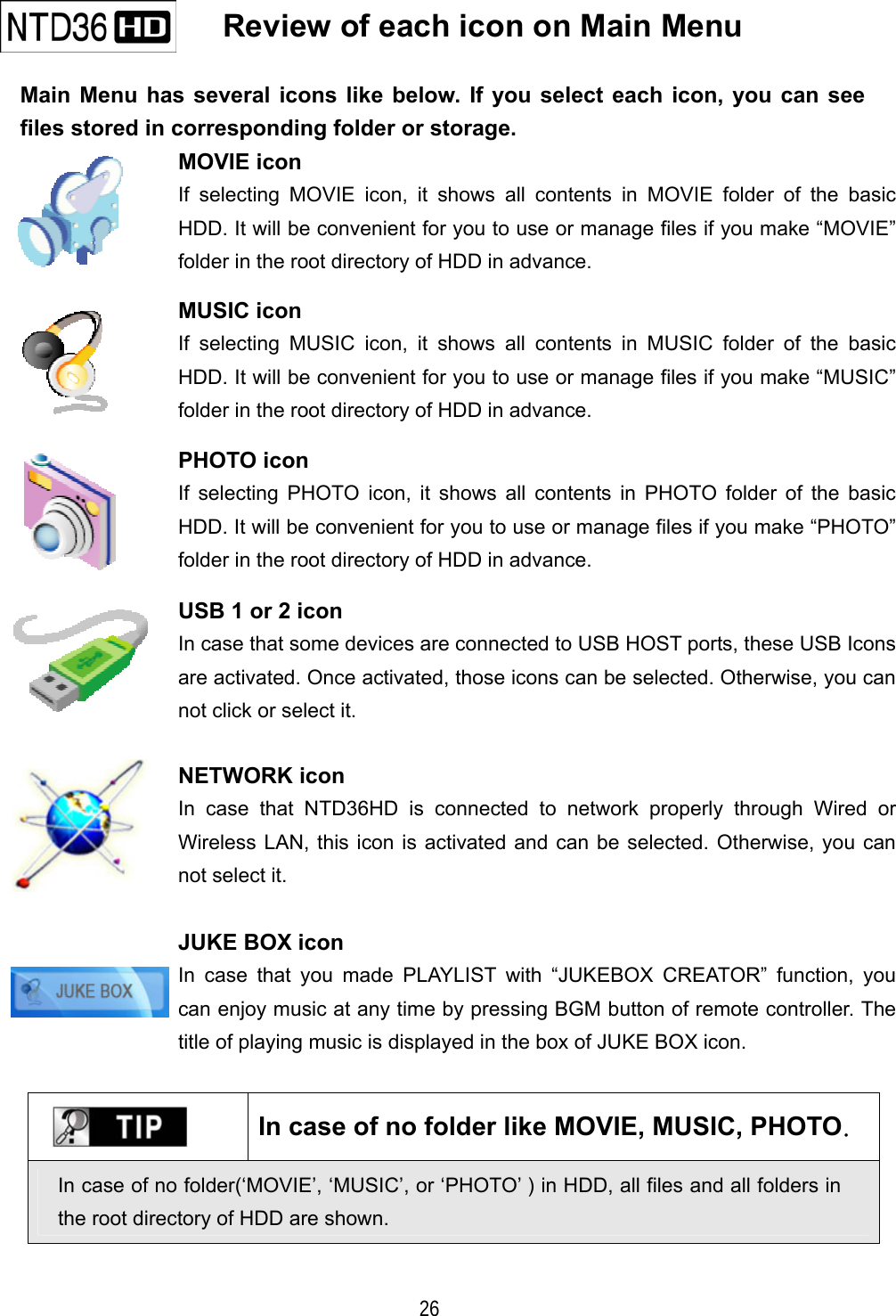

  26    Review of each icon on Main Menu   Main Menu has several icons like below. If you select each icon, you can see files stored in corresponding folder or storage.  MOVIE icon If selecting MOVIE icon, it shows all contents in MOVIE folder of the basic HDD. It will be convenient for you to use or manage files if you make “MOVIE” folder in the root directory of HDD in advance.  MUSIC icon If selecting MUSIC icon, it shows all contents in MUSIC folder of the basic HDD. It will be convenient for you to use or manage files if you make “MUSIC” folder in the root directory of HDD in advance.  PHOTO icon If selecting PHOTO icon, it shows all contents in PHOTO folder of the basic HDD. It will be convenient for you to use or manage files if you make “PHOTO” folder in the root directory of HDD in advance.  USB 1 or 2 icon In case that some devices are connected to USB HOST ports, these USB Icons are activated. Once activated, those icons can be selected. Otherwise, you can not click or select it.  NETWORK icon In case that NTD36HD is connected to network properly through Wired or Wireless LAN, this icon is activated and can be selected. Otherwise, you can not select it.    JUKE BOX icon In case that you made PLAYLIST with “JUKEBOX CREATOR” function, you can enjoy music at any time by pressing BGM button of remote controller. The title of playing music is displayed in the box of JUKE BOX icon.    In case of no folder like MOVIE, MUSIC, PHOTO.  In case of no folder(‘MOVIE’, ‘MUSIC’, or ‘PHOTO’ ) in HDD, all files and all folders in the root directory of HDD are shown.

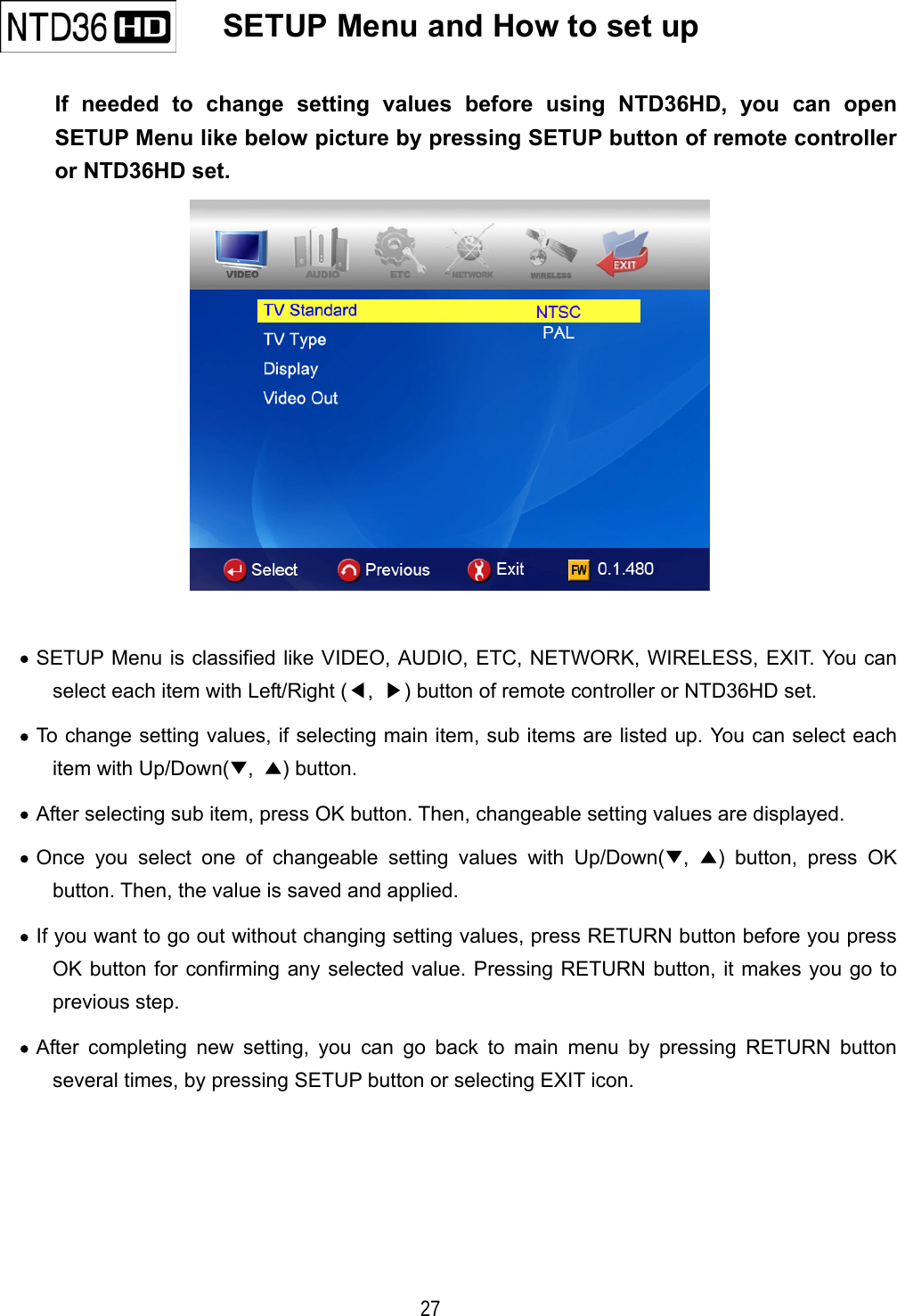

  27   SETUP Menu and How to set up   If needed to change setting values before using NTD36HD, you can open SETUP Menu like below picture by pressing SETUP button of remote controller or NTD36HD set.   •  SETUP Menu is classified like VIDEO, AUDIO, ETC, NETWORK, WIRELESS, EXIT. You can select each item with Left/Right (◀,  ▶) button of remote controller or NTD36HD set. •  To change setting values, if selecting main item, sub items are listed up. You can select each item with Up/Down(▼,  ▲) button. •  After selecting sub item, press OK button. Then, changeable setting values are displayed. •  Once you select one of changeable setting values with Up/Down(▼,  ▲) button, press OK button. Then, the value is saved and applied. •  If you want to go out without changing setting values, press RETURN button before you press OK button for confirming any selected value. Pressing RETURN button, it makes you go to previous step. •  After completing new setting, you can go back to main menu by pressing RETURN button several times, by pressing SETUP button or selecting EXIT icon.

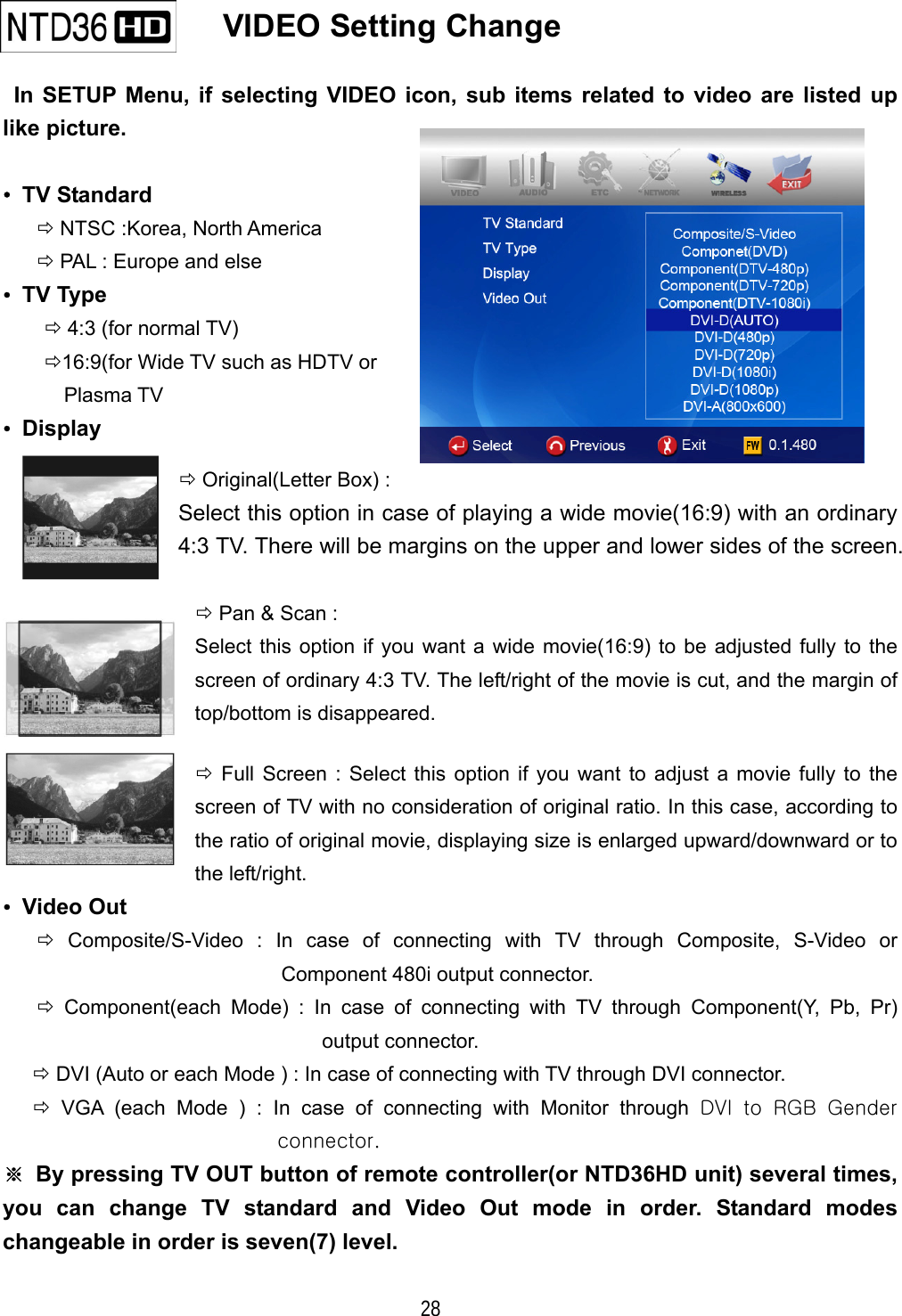

  28    VIDEO Setting Change    In SETUP Menu, if selecting VIDEO icon, sub items related to video are listed up like picture.  • TV Standard  NTSC :Korea, North America  PAL : Europe and else • TV Type  4:3 (for normal TV) 16:9(for Wide TV such as HDTV or Plasma TV • Display  Original(Letter Box) :   Select this option in case of playing a wide movie(16:9) with an ordinary 4:3 TV. There will be margins on the upper and lower sides of the screen.   Pan & Scan :   Select this option if you want a wide movie(16:9) to be adjusted fully to the screen of ordinary 4:3 TV. The left/right of the movie is cut, and the margin of top/bottom is disappeared.  Full Screen : Select this option if you want to adjust a movie fully to the screen of TV with no consideration of original ratio. In this case, according to the ratio of original movie, displaying size is enlarged upward/downward or to the left/right. • Video Out  Composite/S-Video : In case of connecting with TV through Composite, S-Video or Component 480i output connector.  Component(each Mode) : In case of connecting with TV through Component(Y, Pb, Pr) output connector.  DVI (Auto or each Mode ) : In case of connecting with TV through DVI connector.  VGA (each Mode ) : In case of connecting with Monitor through DVI to RGB Gender connector. ※  By pressing TV OUT button of remote controller(or NTD36HD unit) several times, you can change TV standard and Video Out mode in order. Standard modes changeable in order is seven(7) level.

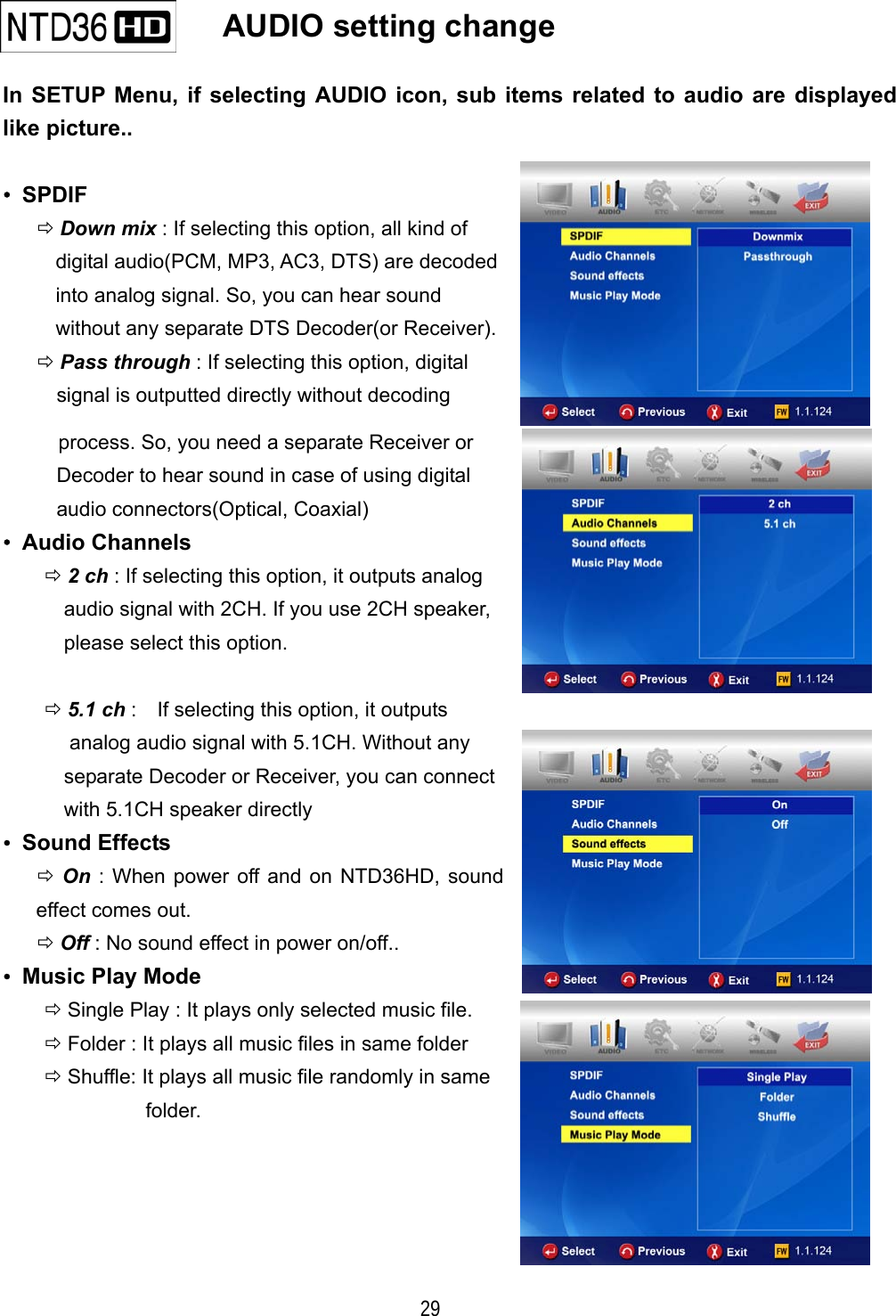

  29    AUDIO setting change   In SETUP Menu, if selecting AUDIO icon, sub items related to audio are displayed like picture..  • SPDIF  Down mix : If selecting this option, all kind of digital audio(PCM, MP3, AC3, DTS) are decoded into analog signal. So, you can hear sound   without any separate DTS Decoder(or Receiver).  Pass through : If selecting this option, digital signal is outputted directly without decoding process. So, you need a separate Receiver or Decoder to hear sound in case of using digital   audio connectors(Optical, Coaxial) • Audio Channels  2 ch : If selecting this option, it outputs analog   audio signal with 2CH. If you use 2CH speaker, please select this option.  5.1 ch :    If selecting this option, it outputs   analog audio signal with 5.1CH. Without any   separate Decoder or Receiver, you can connect   with 5.1CH speaker directly • Sound Effects  On : When power off and on NTD36HD, sound effect comes out.  Off : No sound effect in power on/off.. •  Music Play Mode  Single Play : It plays only selected music file.  Folder : It plays all music files in same folder  Shuffle: It plays all music file randomly in same   folder.

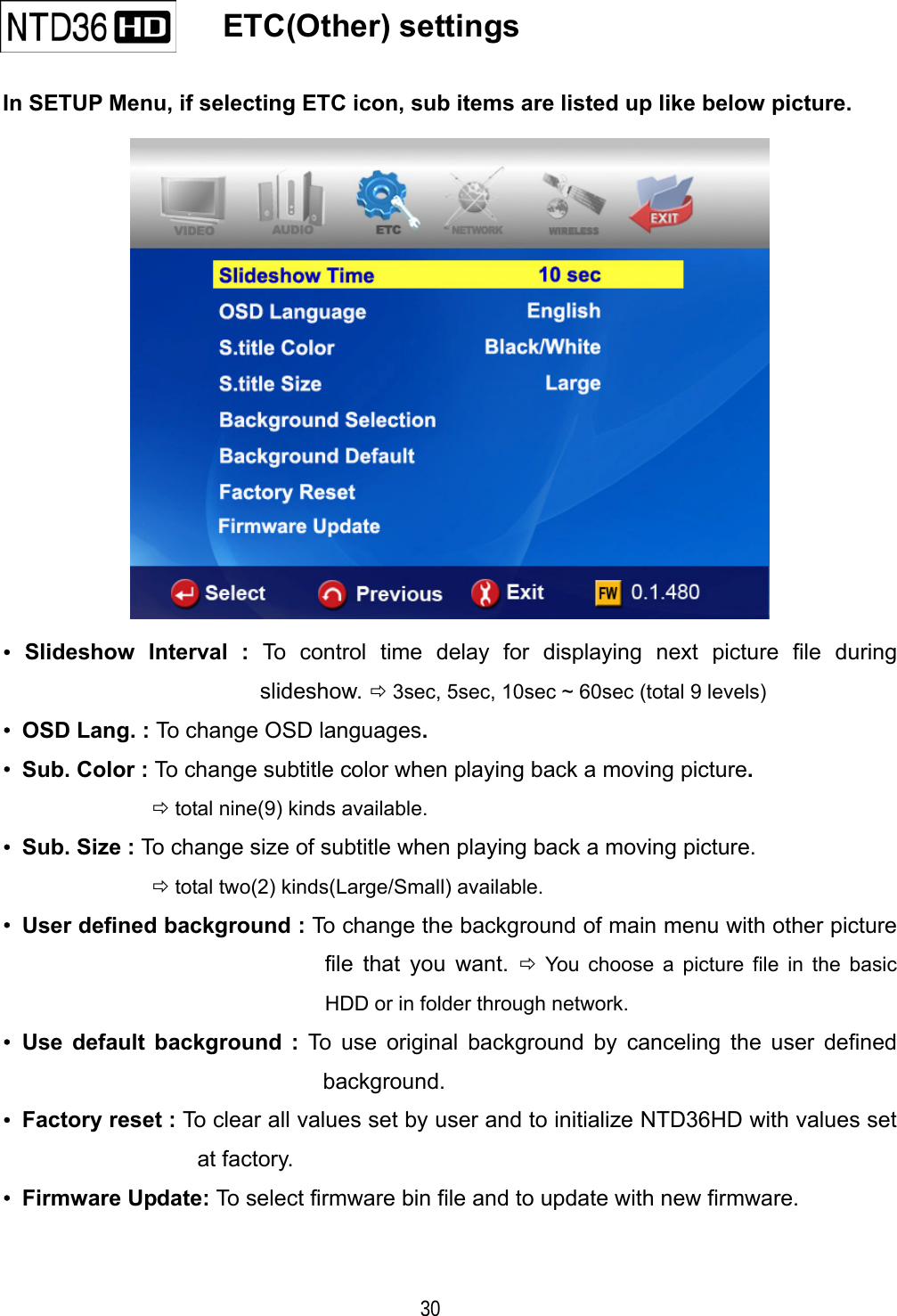

  30    ETC(Other) settings   In SETUP Menu, if selecting ETC icon, sub items are listed up like below picture.  • Slideshow Interval : To control time delay for displaying next picture file during slideshow.  3sec, 5sec, 10sec ~ 60sec (total 9 levels) •  OSD Lang. : To change OSD languages. •  Sub. Color : To change subtitle color when playing back a moving picture.   total nine(9) kinds available. •  Sub. Size : To change size of subtitle when playing back a moving picture.   total two(2) kinds(Large/Small) available. •  User defined background : To change the background of main menu with other picture file that you want.  You choose a picture file in the basic HDD or in folder through network. • Use default background : To use original background by canceling the user defined background. • Factory reset : To clear all values set by user and to initialize NTD36HD with values set at factory. • Firmware Update: To select firmware bin file and to update with new firmware.

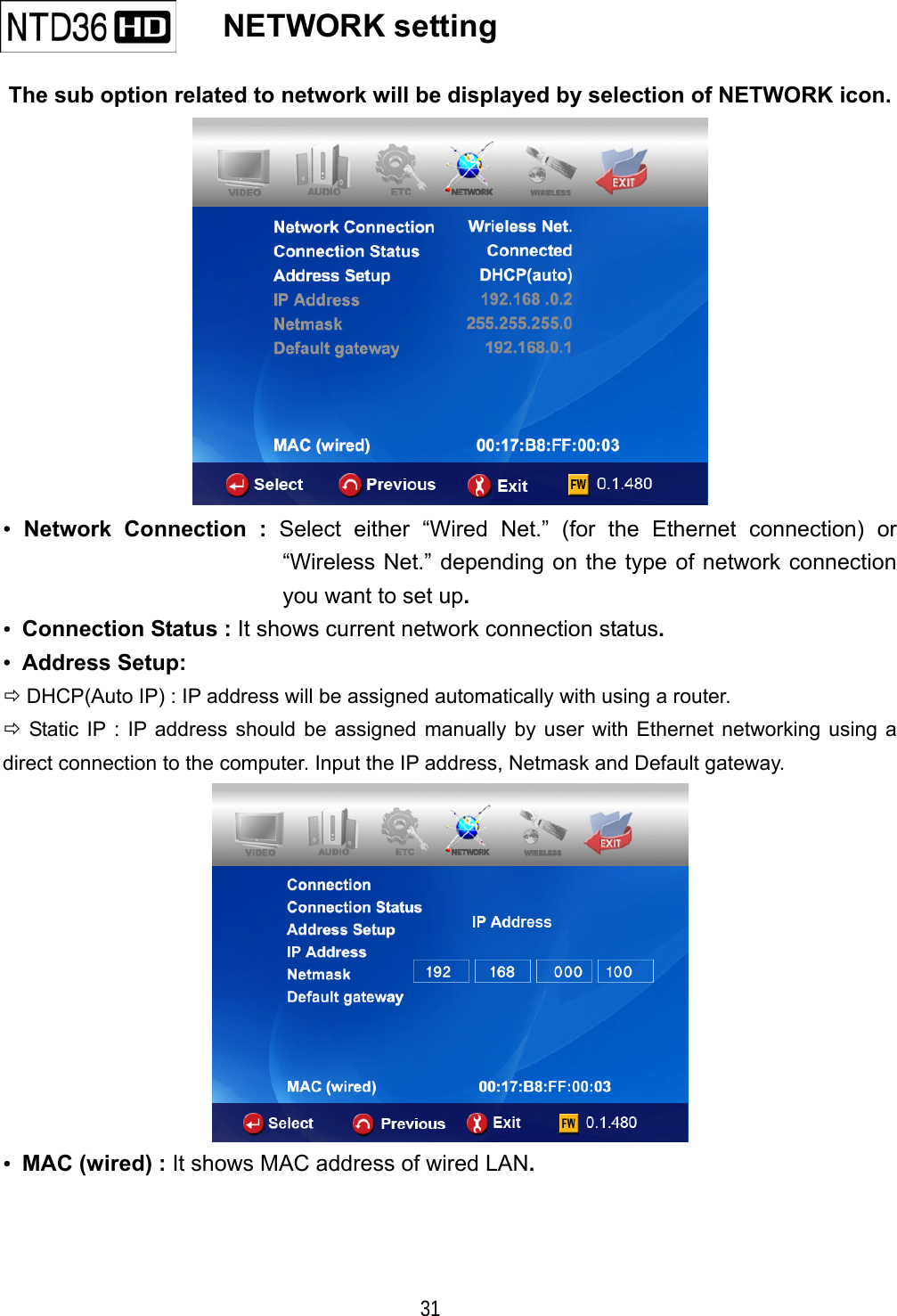

  31    NETWORK setting   The sub option related to network will be displayed by selection of NETWORK icon.  • Network Connection : Select either “Wired Net.” (for the Ethernet connection) or “Wireless Net.” depending on the type of network connection you want to set up. •  Connection Status : It shows current network connection status. • Address Setup:   DHCP(Auto IP) : IP address will be assigned automatically with using a router.  Static IP : IP address should be assigned manually by user with Ethernet networking using a direct connection to the computer. Input the IP address, Netmask and Default gateway.  •  MAC (wired) : It shows MAC address of wired LAN.

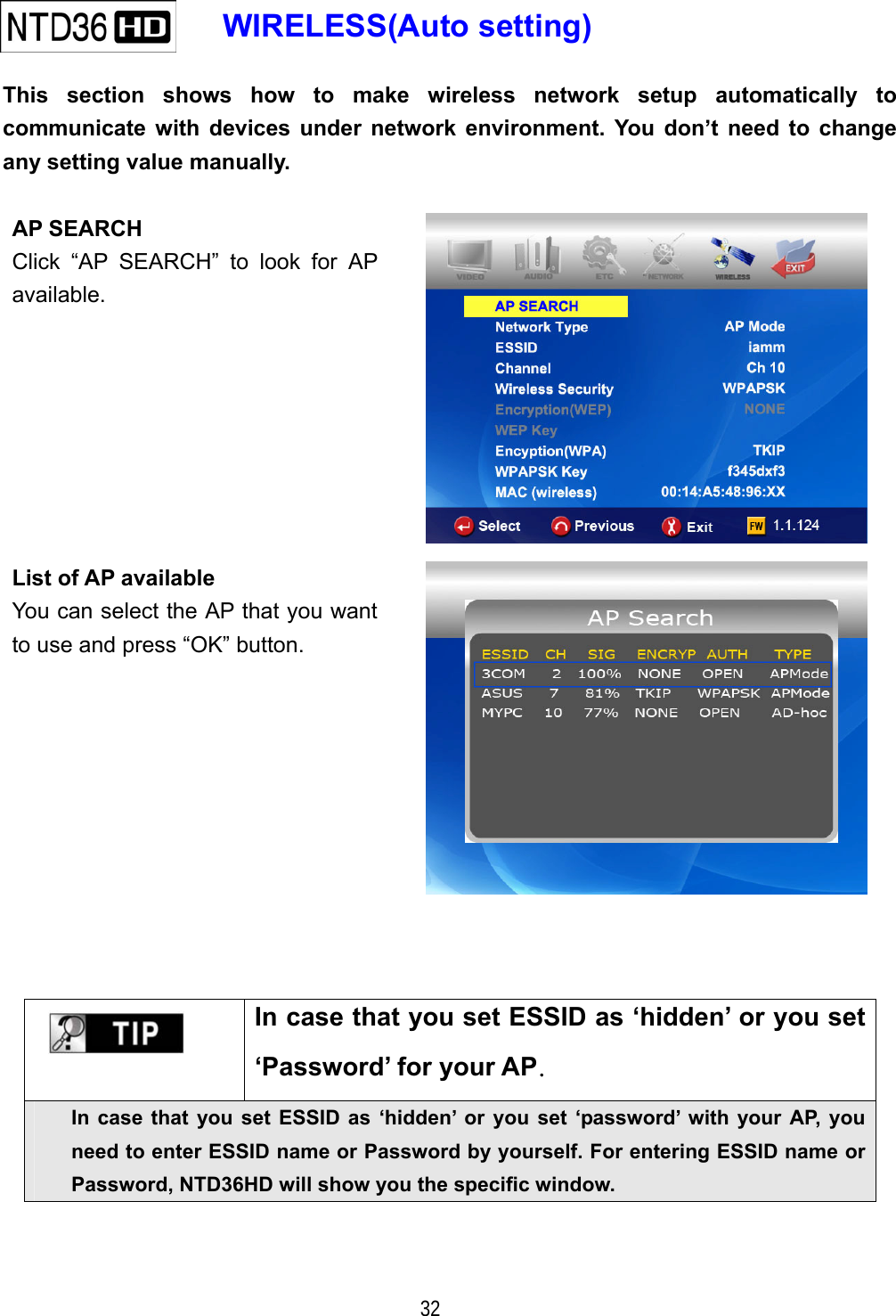

  32    WIRELESS(Auto setting)   This section shows how to make wireless network setup automatically to communicate with devices under network environment. You don’t need to change any setting value manually.  AP SEARCH Click “AP SEARCH” to look for AP available.   List of AP available You can select the AP that you want to use and press “OK” button.        In case that you set ESSID as ‘hidden’ or you set ‘Password’ for your AP. In case that you set ESSID as ‘hidden’ or you set ‘password’ with your AP, you need to enter ESSID name or Password by yourself. For entering ESSID name or Password, NTD36HD will show you the specific window.

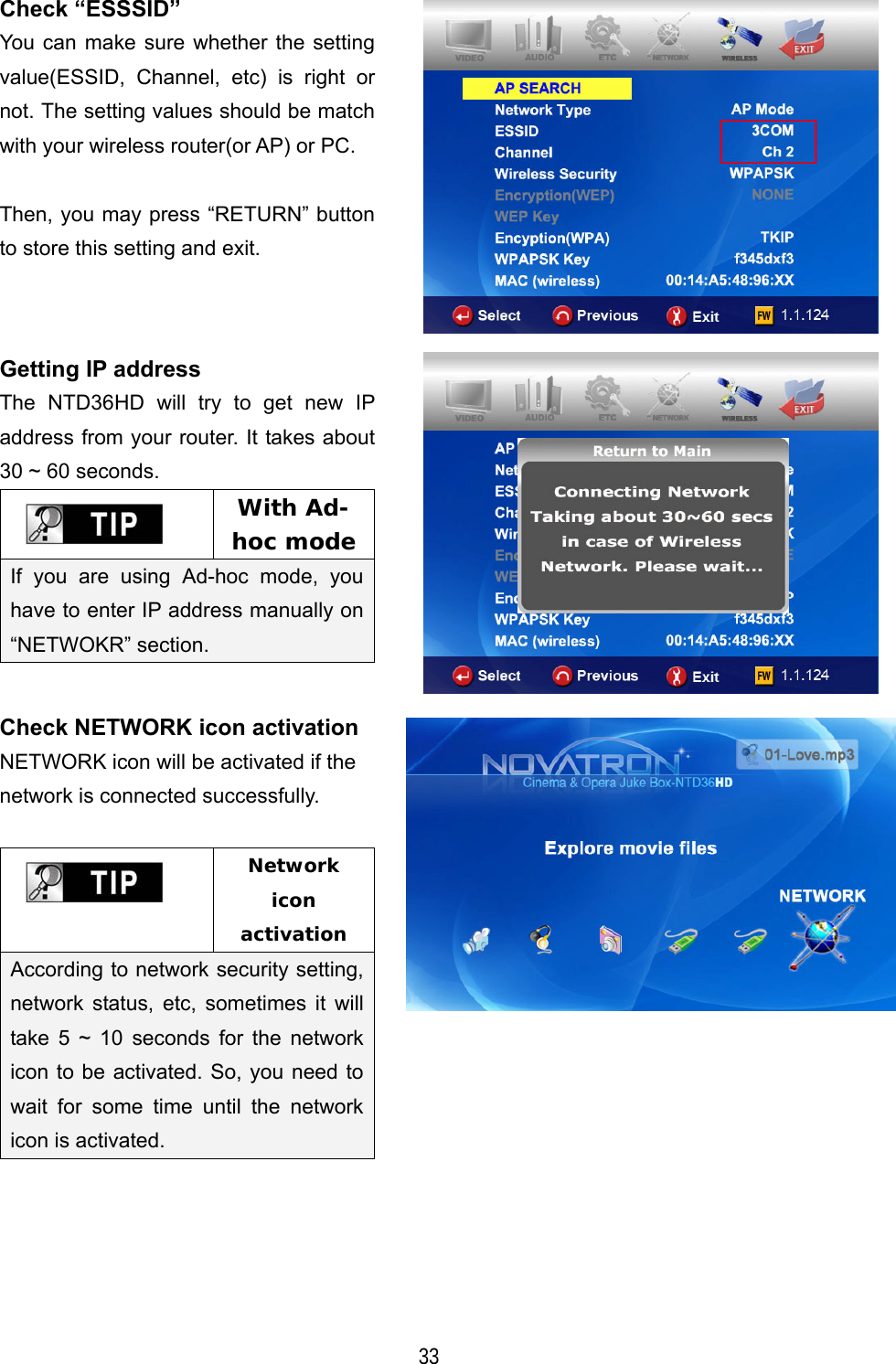

  33 Check “ESSSID” You can make sure whether the setting value(ESSID, Channel, etc) is right or not. The setting values should be match with your wireless router(or AP) or PC.  Then, you may press “RETURN” button to store this setting and exit.  Getting IP address The NTD36HD will try to get new IP address from your router. It takes about 30 ~ 60 seconds.  With Ad-hoc mode If you are using Ad-hoc mode, you have to enter IP address manually on “NETWOKR” section.   Check NETWORK icon activation NETWORK icon will be activated if the network is connected successfully.   Network icon activation According to network security setting, network status, etc, sometimes it will take 5 ~ 10 seconds for the network icon to be activated. So, you need to wait for some time until the network icon is activated.

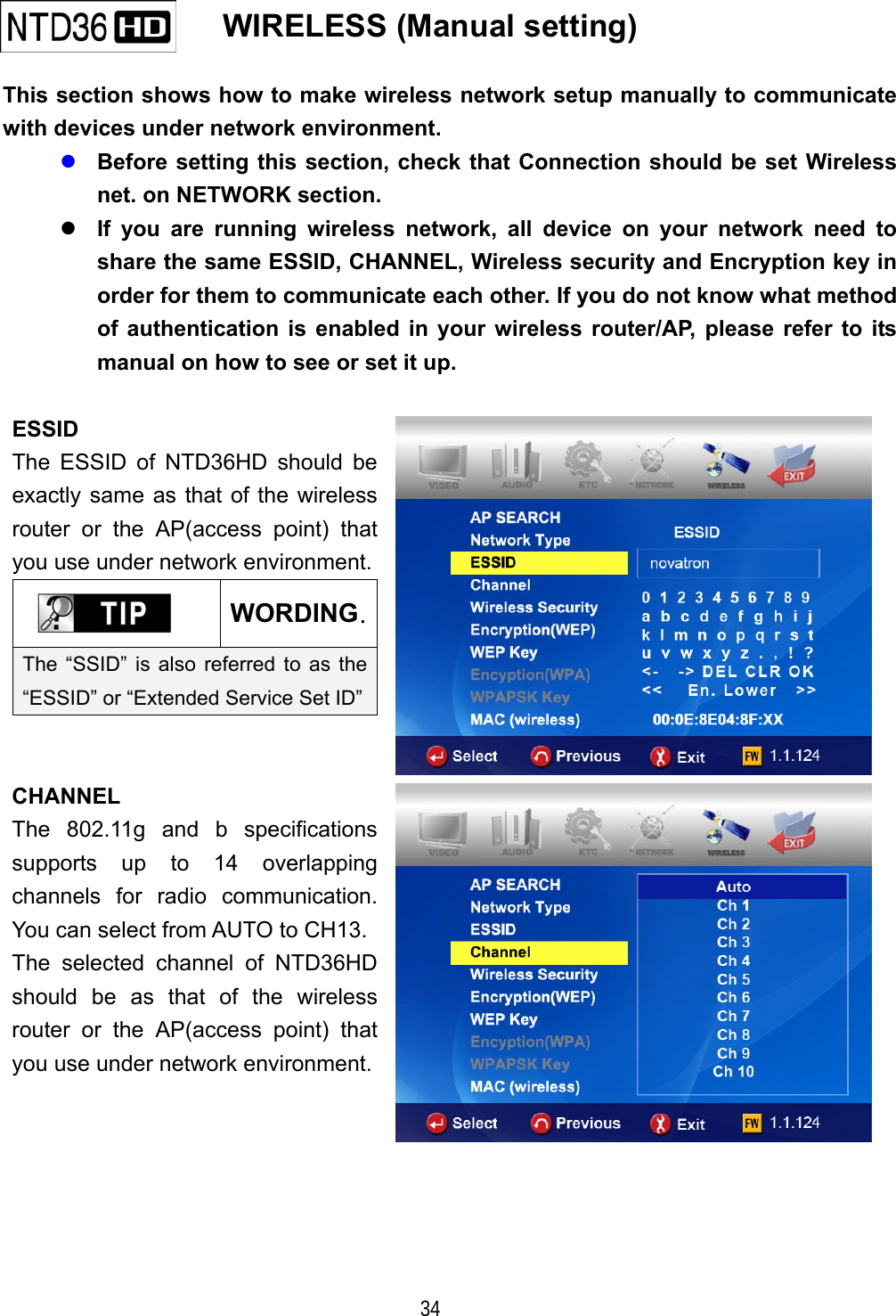

  34    WIRELESS (Manual setting)   This section shows how to make wireless network setup manually to communicate with devices under network environment.  Before setting this section, check that Connection should be set Wireless net. on NETWORK section.  If you are running wireless network, all device on your network need to share the same ESSID, CHANNEL, Wireless security and Encryption key in order for them to communicate each other. If you do not know what method of authentication is enabled in your wireless router/AP, please refer to its manual on how to see or set it up.    ESSID The ESSID of NTD36HD should be exactly same as that of the wireless router or the AP(access point) that you use under network environment. WORDING.The “SSID” is also referred to as the “ESSID” or “Extended Service Set ID”  CHANNEL The 802.11g and b specifications supports up to 14 overlapping channels for radio communication. You can select from AUTO to CH13. The selected channel of NTD36HD should be as that of the wireless router or the AP(access point) that you use under network environment.

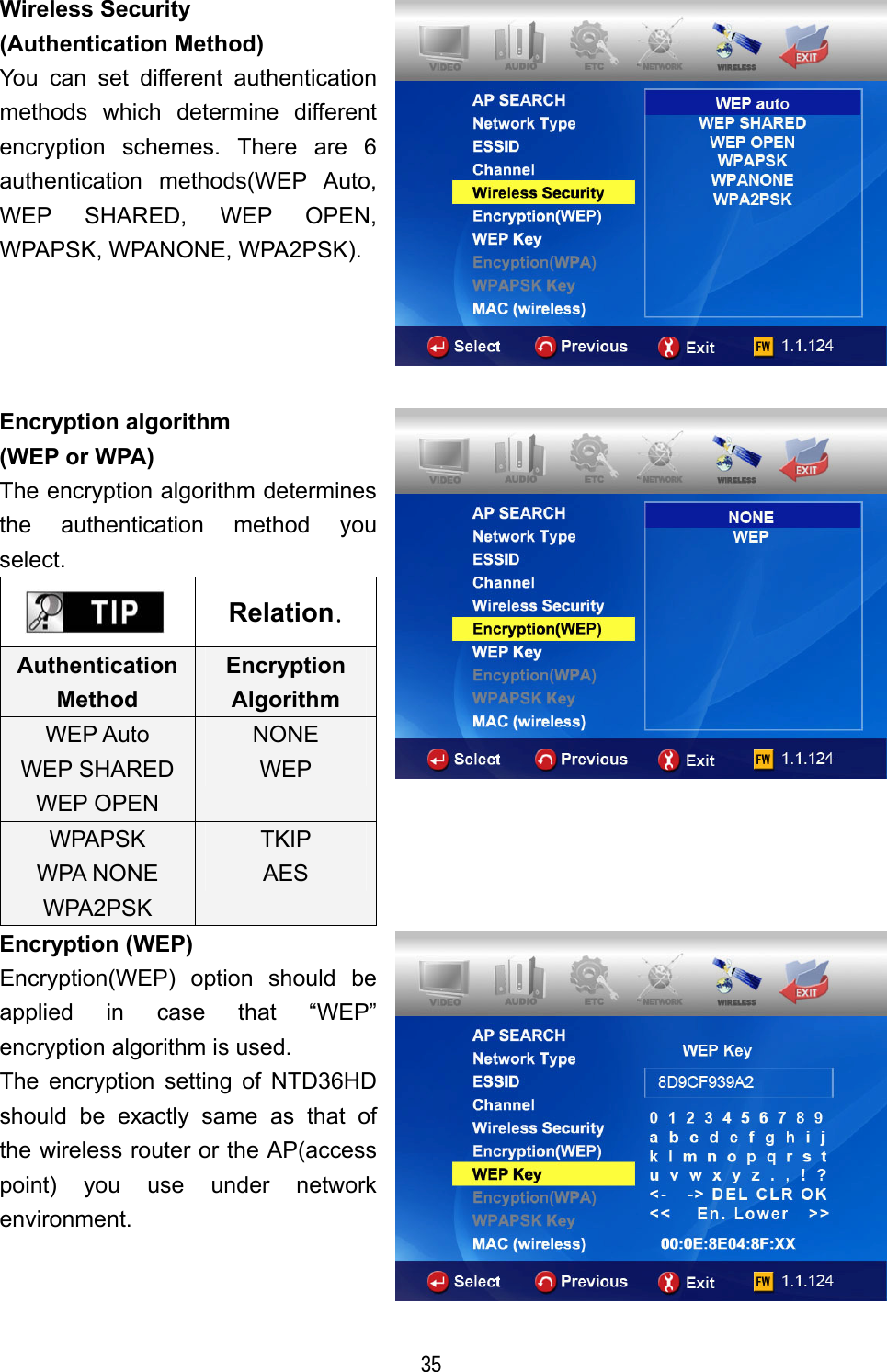

  35 Wireless Security (Authentication Method) You can set different authentication methods which determine different encryption schemes. There are 6 authentication methods(WEP Auto, WEP SHARED, WEP OPEN, WPAPSK, WPANONE, WPA2PSK).  Encryption algorithm (WEP or WPA) The encryption algorithm determines the authentication method you select.  Relation. Authentication Method Encryption Algorithm WEP Auto WEP SHARED WEP OPEN NONE WEP WPAPSK WPA NONE WPA2PSK TKIP AES   Encryption (WEP) Encryption(WEP) option should be applied in case that “WEP” encryption algorithm is used.   The encryption setting of NTD36HD should be exactly same as that of the wireless router or the AP(access point) you use under network environment.

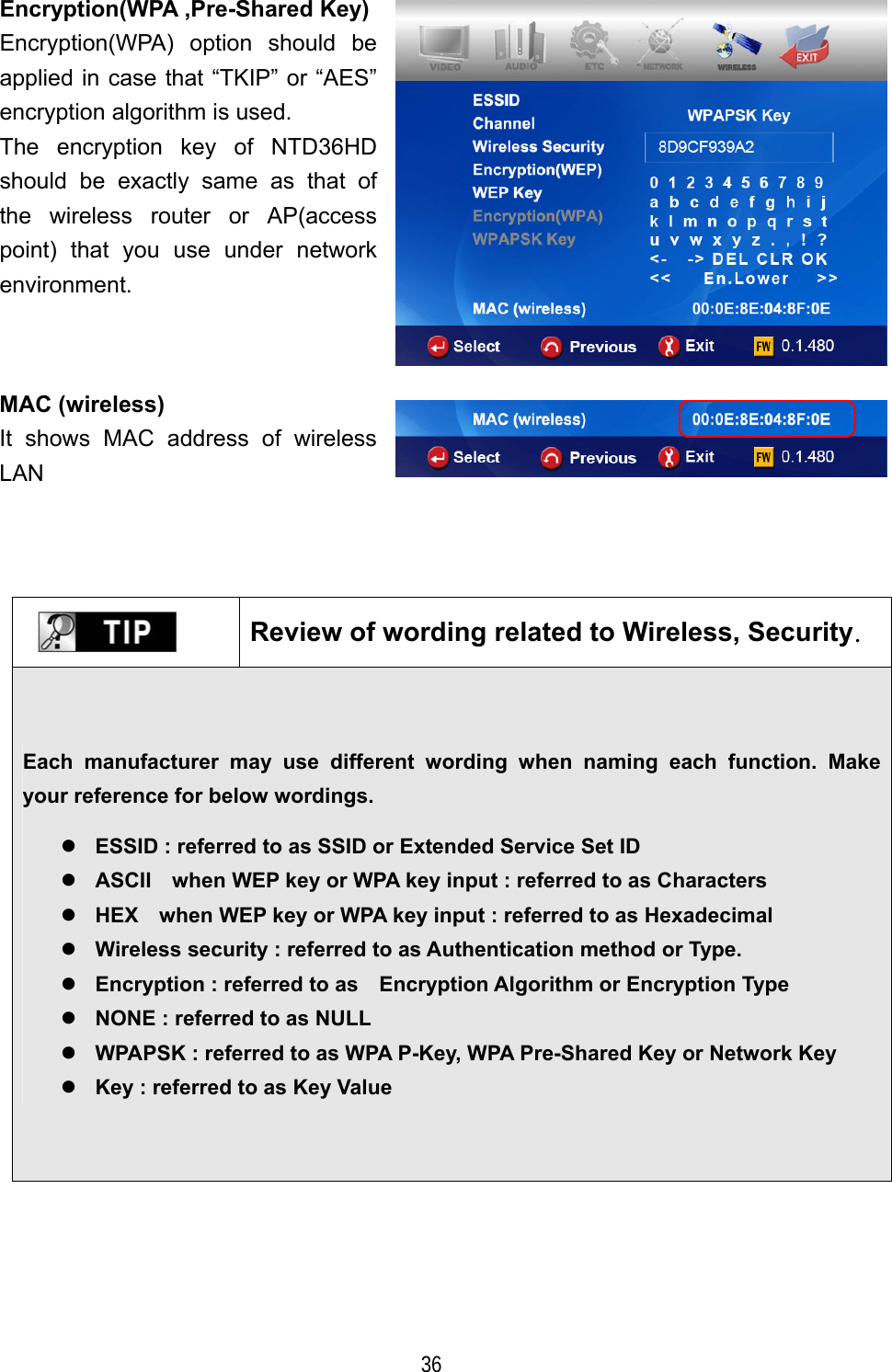

  36 Encryption(WPA ,Pre-Shared Key)Encryption(WPA) option should be applied in case that “TKIP” or “AES” encryption algorithm is used. The encryption key of NTD36HD should be exactly same as that of the wireless router or AP(access point) that you use under network environment.  MAC (wireless) It shows MAC address of wireless LAN         Review of wording related to Wireless, Security. Each manufacturer may use different wording when naming each function. Make your reference for below wordings.   ESSID : referred to as SSID or Extended Service Set ID  ASCII    when WEP key or WPA key input : referred to as Characters  HEX    when WEP key or WPA key input : referred to as Hexadecimal    Wireless security : referred to as Authentication method or Type.  Encryption : referred to as    Encryption Algorithm or Encryption Type  NONE : referred to as NULL    WPAPSK : referred to as WPA P-Key, WPA Pre-Shared Key or Network Key  Key : referred to as Key Value
