Main Settings Menu
Adjusting the Display
Page 8
MX-980 OWNERS MANUAL

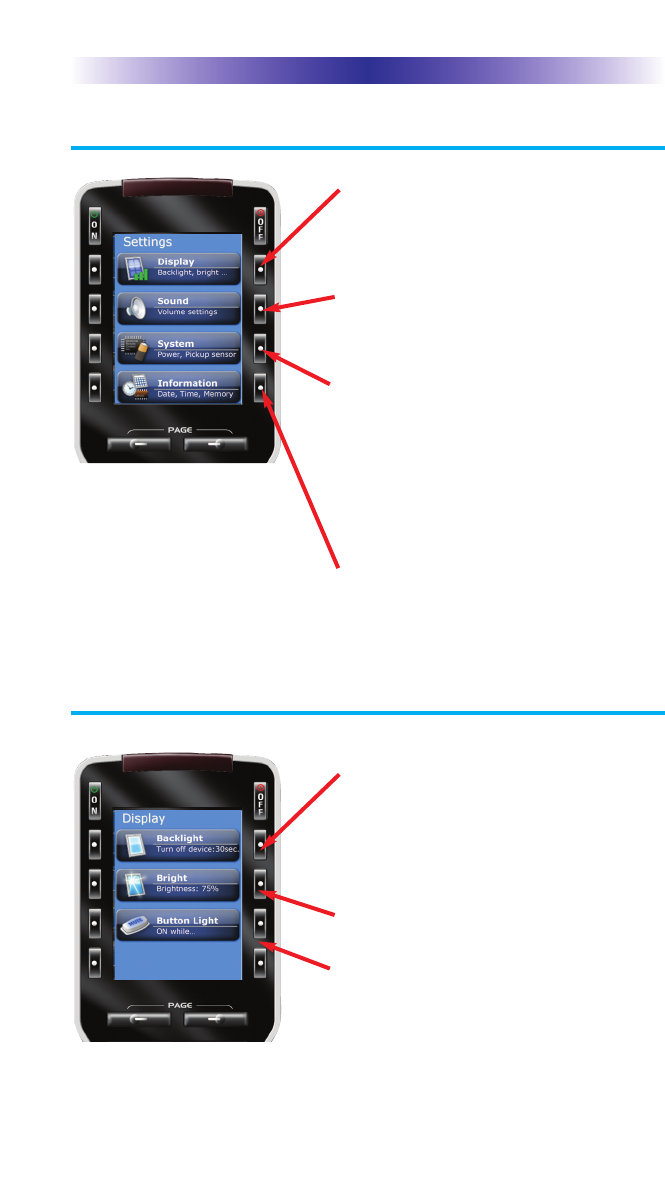

DISPLAY- Press this setting button to
adjust the screen and button backlight-
ing. The longer your screen is lit, the
more frequently you’ll need to charge
the MX-980.
SOUND - Adjust the volume of the
sounds your MX-980 makes when you
press buttons.
SYSTEM - These settings are for service
use. For diagnostic purposes, an installer
can turn off the Pick Up sensor, display
remaining battery charge and erase all
programming permanently. Some of this
menu may have been disabled by your
installer as a safety measure.

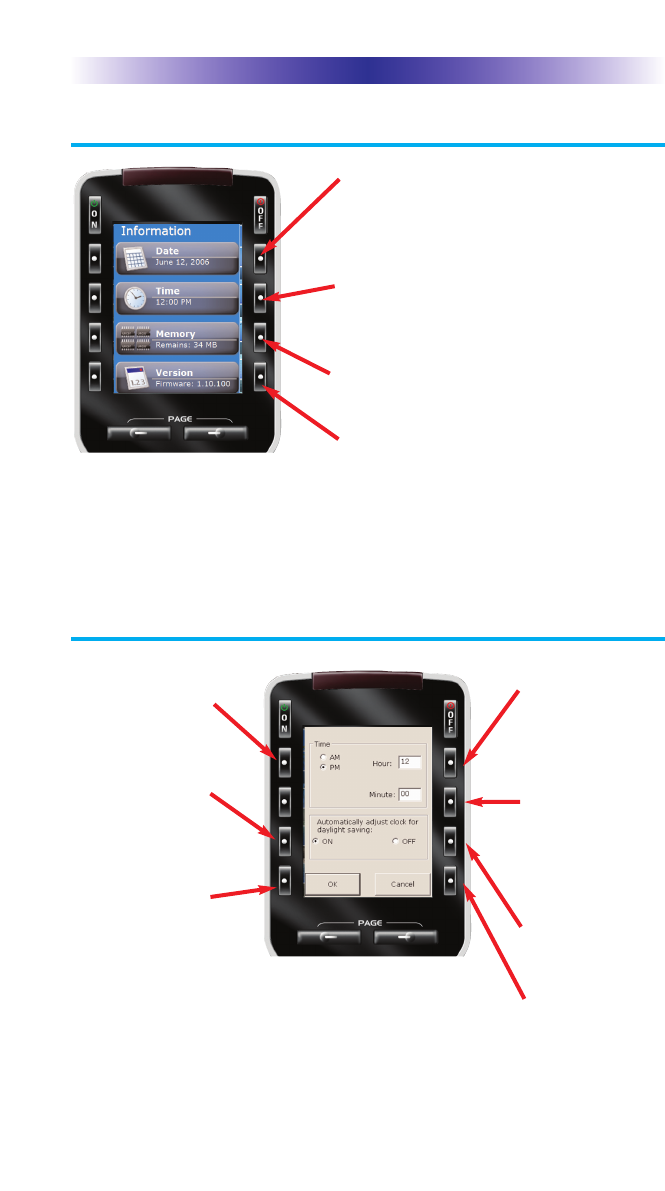

INFORMATION - Adjust the time, date
or you can display the amount of mem-
ory available and the version number of
the firmware loaded into your MX-980.
BACKLIGHT - Specify how long the
MX-980 screen should stay lit after you
press a button. You can select two dif-
ferent time out settings. One for when it
is hand held, another for when it is in
the charging base.
BRIGHT - Adjust the brightness of the
screen.
BUTTON LIGHT - Turn the backlighting
for all buttons on or off. When on, all
the buttons backlight so that you can
read their labels in total darkness.
System Settings Menu
Page 9
MX-980 OWNERS MANUAL
Sound Volume
Press this button
to raise the vol-
ume.
Press this button
to cancel any
changes you’ve
made and return
to the Main
Setting menu.
Press this button
to lower the vol-
ume.
Press this button
to save any
changes you’ve
made and return
to the Main
Setting menu.
POWER- Displays the current power
remaining and enables you to set the
level that triggers a warning when you
are using the MX-980.
PICKUP - The MX-980 normally turns
itself on when its angle is changed. This
can be disabled for diagnostic purposes.
FACTORY DEFAULT - WARNING!
This setting is for service use. Your
installer can erase all programming per-
manently, before downloading your
configuration back into the MX-980 via
his/her PC. This button may have been
disabled by your installer as a safety
measure.
Setting Time
Information Menu
Page 10
MX-980 OWNERS MANUAL
Each time you
press this button
the hour will
change.
Each time you
press this button
the minute will
change.
Press this button
to cancel any
changes you’ve
made and return
to the Main
Setting menu.
Press this button
to change from
AM to PM.
Press this button
to save any
changes you’ve
made and return
to the Main
Setting menu.
Press this button
to turn daylight
savings time on.
Press this button
to turn daylight
savings time off.
DATE- Press this button to set the date.
TIME - Press this button to set the time.
MEMORY - Press this button to display
the amount of memory available.
VERSION - Press this button to display
the version of the MX-980 firmware.
Page 11
MX-980 OWNERS MANUAL
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condi-
tion, is warranted against defects in materials or workmanship as fol-
lows: UNIVERSAL REMOTE CONTROL, INC. warrants this product
against defects in material or workmanship for a period of one (1) year
and as set forth below. Universal Remote Control will, at its sole
option, repair the product using new or comparable rebuilt parts, or
exchange the product for a comparable new or rebuilt product. In the
event of a defect, these are your exclusive remedies.
This Limited Warranty covers only the hardware components packaged with
the Product. It does not cover technical assistance for hardware or software
usage and it does not cover any software products whether or not contained
in the Product; any such software is provided "AS IS" unless expressly pro-
vided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid, in
its original packaging or packaging affording adequate protection to
Universal Remote Control at the address provided in the Owner's Manual. It
is your responsibility to backup any macro programming, artwork, software
or other materials that may have been programmed into your unit. It is likely
that such data, software, or other materials will be lost during service and
Universal Remote Control will not be responsible for any such damage or
loss. A dated purchase receipt, Bill of Sale, Installation Contract or other veri-
fiable Proof of Purchase is required. For product support and other impor-
tant information visit Universal Remote Control's website:
http://www.UniversalRemote.com
Or call the Universal Remote Control Customer Service Center
(914) 835-4484.
This Limited Warranty only covers product issues caused by defects in mate-
rial or workmanship during ordinary consumer use. It does not cover prod-
uct issues caused by any other reason, including but not limited to product
issues due to commercial use, acts of God, third-party installation, misuse,
limitations of technology, or modification of or to any part of the Universal
Remote Control product. This Limited Warranty does not cover Universal
Remote Control products sold as USED, AS IS, REFURBISHED, so-called "B
STOCK" or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed from the
product. This Limited Warranty is valid only in the United States of America.
This Limited Warranty specifically excludes products sold by unauthorized
resellers.
Page 12
MX-980 OWNERS MANUAL
Specifications
Microprocessor: ARM9 32bit 202MHz
LCD - 2.4” TFT (QVGA) 262,144 Colors
Memory - 64 Megabytes of SDRAM & 32 Megabytes of Nand Flash
Devices - Supports up to 255 Devices with text, less with heavy
graphics usage
Pages - Supports up to 255 Pages on each Device with text, less
with heavy graphics usage
Learning Capability - Standard frequencies (15kHz to 455kHz)
Macro Capability - Up to 255 steps each, however nesting is
allowed
IR Range (Line of Sight via Infrared): 30-50 feet, depending on the envi-
ronment
RF Range (radio frequency): 50 to 100 feet, depending upon the envi-
ronment
RF Frequency: 418MHz
Batteries: 1070mAh, 3.7 Volt Lithium Ion battery pack included
Battery Life: 120 minutes continuous use, 6000 minutes in standby
mode.
Weight: 7 oz. (with battery)
Size: 2.4” x 9.2 x 1”
Page 13
MX-980 OWNERS MANUAL
Information To The User
