User Manual Part 6 of 6

Appendix19-2319

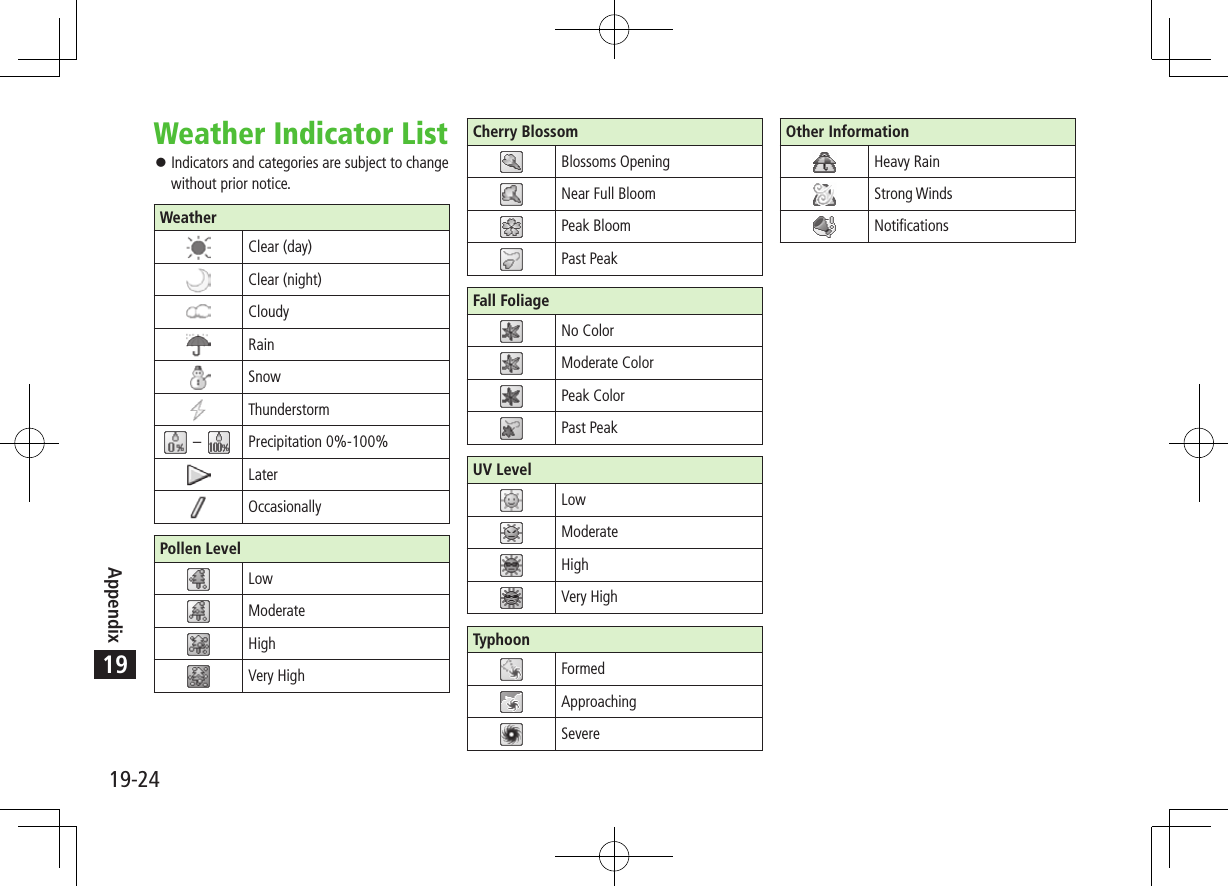

19-24Appendix19Weather Indicator List ⿟Indicators and categories are subject to change without prior notice.WeatherClear (day)Clear (night)CloudyRainSnowThunderstorm – Precipitation 0%-100%LaterOccasionallyPollen LevelLowModerateHighVery HighCherry BlossomBlossoms OpeningNear Full BloomPeak BloomPast PeakFall FoliageNo ColorModerate ColorPeak ColorPast PeakUV LevelLowModerateHighVery HighTyphoonFormedApproachingSevereOther InformationHeavy RainStrong WindsNotifications

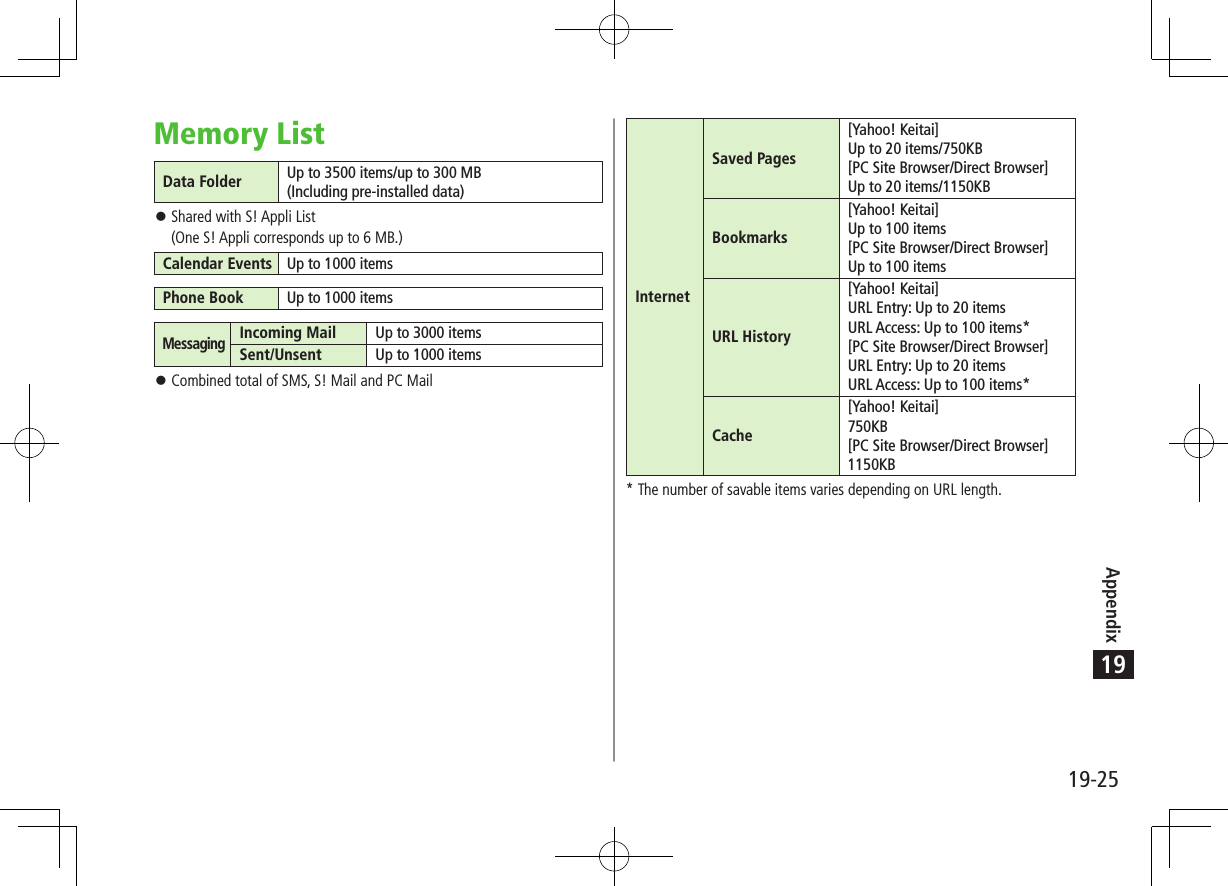

Appendix19-2519Memory ListData Folder Up to 3500 items/up to 300 MB(Including pre-installed data) ⿟Shared with S! Appli List (One S! Appli corresponds up to 6 MB.)Calendar Events Up to 1000 itemsPhone Book Up to 1000 itemsMessaging Incoming Mail Up to 3000 itemsSent/Unsent Up to 1000 items ⿟Combined total of SMS, S! Mail and PC MailInternetSaved Pages[Yahoo! Keitai]Up to 20 items/750KB[PC Site Browser/Direct Browser]Up to 20 items/1150KBBookmarks[Yahoo! Keitai]Up to 100 items[PC Site Browser/Direct Browser]Up to 100 itemsURL History[Yahoo! Keitai]URL Entry: Up to 20 itemsURL Access: Up to 100 items*[PC Site Browser/Direct Browser]URL Entry: Up to 20 itemsURL Access: Up to 100 items*Cache[Yahoo! Keitai]750KB[PC Site Browser/Direct Browser]1150KB* The number of savable items varies depending on URL length.
Appendix19-2619Specifications942PWeight (including battery) XXX g*Dimensions (closed) 51 x 114 x 119 mm*Standby Time 3G 600 hours*GSM 350 hours*Talk Time3G 220 minutes*Video Call 140 minutes*GSM 230 minutes*TV Reception TimeNormal Mode 3.4 hours*ECO Mode 4.7 hours*Charging Time AC Charger 130 minutes*In-Car Charger 130 minutes*Maximum Output3G 0.25 WGSM 2.0 W* Approximate value ⿟Values above were calculated with battery installed. ⿟Charging time is an average measured within temperatures of 5°C to 35°C. ⿟Talk Time is an average measured with a new, fully charged battery, with stable signals. ⿟Standby Time is an average measured with a new, fully charged battery, with handset closed without calls or operations, in Standby with stable signals. ⿟TV-Reception Time is an average measured using Earphone Microphone, with stable signals. ⿟Talk Time and Standby Time may vary by environment (battery status, temperature, etc.). ⿟Talk Time and Standby Time may decrease when an S! Appli is active.BatteryVoltage 3.7 VBattery Type Lithium-ionCapacity 800 mAhDimensions 37 x 5.4 x 37 mm** Approximate valueDesktop HolderInput Voltage/Current DC 5.4 V/700 mAOutput Voltage/Current DC 5.4 V/700 mACharging Temperature 5°C to 35°CDimensions 66 x 24 x 128 mm** Approximate value ⿟Specifications subject to change without notice.

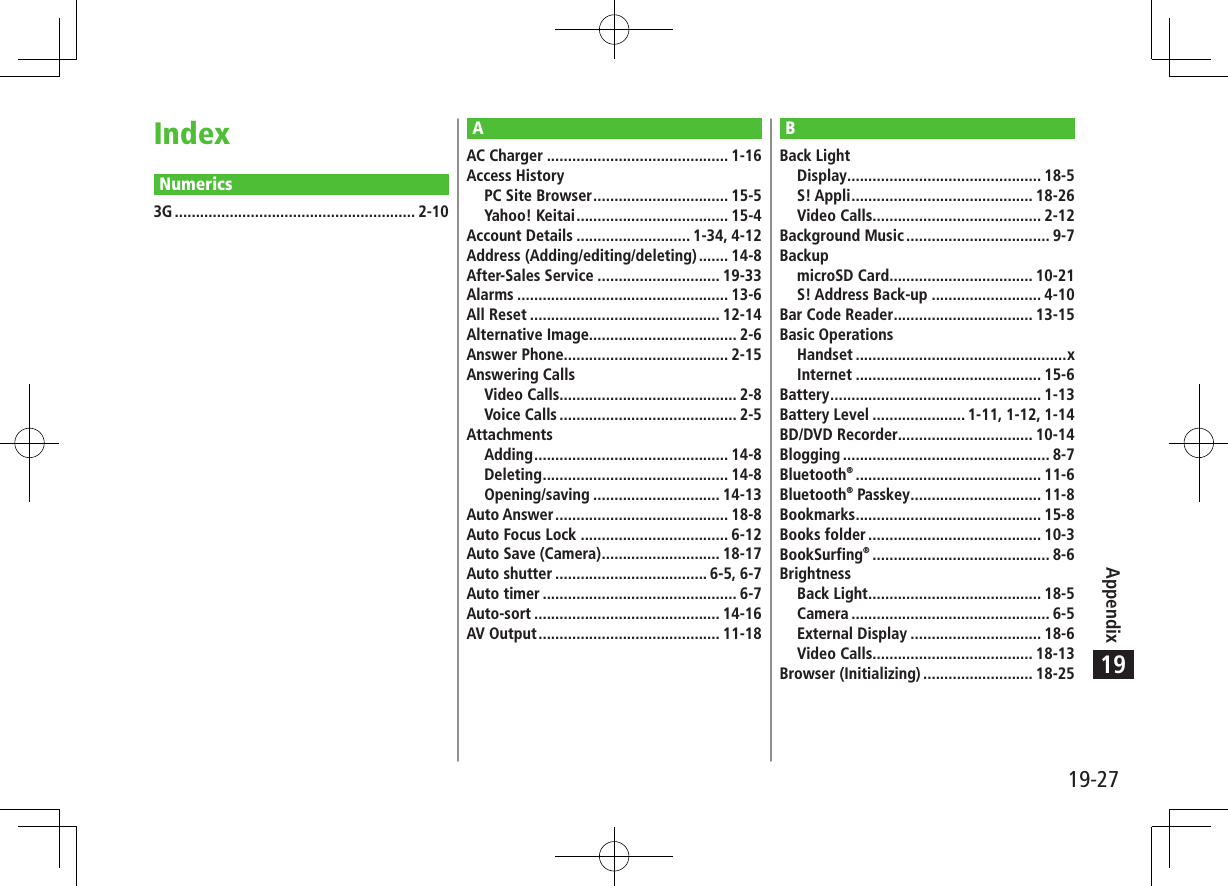

19-27Appendix19IndexNumerics3G ......................................................... 2-10BBack LightDisplay .............................................. 18-5S! Appli ........................................... 18-26Video Calls........................................ 2-12Background Music .................................. 9-7BackupmicroSD Card .................................. 10-21S! Address Back-up .......................... 4-10Bar Code Reader ................................. 13-15Basic OperationsHandset ..................................................xInternet ............................................ 15-6Battery .................................................. 1-13Battery Level ...................... 1-11, 1-12, 1-14BD/DVD Recorder................................ 10-14Blogging ................................................. 8-7Bluetooth® ............................................ 11-6Bluetooth® Passkey ............................... 11-8Bookmarks ............................................ 15-8Books folder ......................................... 10-3BookSurfing® .......................................... 8-6BrightnessBack Light ......................................... 18-5Camera ............................................... 6-5External Display ............................... 18-6Video Calls...................................... 18-13Browser (Initializing) .......................... 18-25AAC Charger ........................................... 1-16Access HistoryPC Site Browser ................................ 15-5Yahoo! Keitai .................................... 15-4Account Details ........................... 1-34, 4-12Address (Adding/editing/deleting) ....... 14-8After-Sales Service ............................. 19-33Alarms .................................................. 13-6All Reset ............................................. 12-14Alternative Image................................... 2-6Answer Phone....................................... 2-15Answering CallsVideo Calls.......................................... 2-8Voice Calls .......................................... 2-5AttachmentsAdding .............................................. 14-8Deleting ............................................ 14-8Opening/saving .............................. 14-13Auto Answer ......................................... 18-8Auto Focus Lock ................................... 6-12Auto Save (Camera) ............................ 18-17Auto shutter .................................... 6-5, 6-7Auto timer .............................................. 6-7Auto-sort ............................................ 14-16AV Output ........................................... 11-18

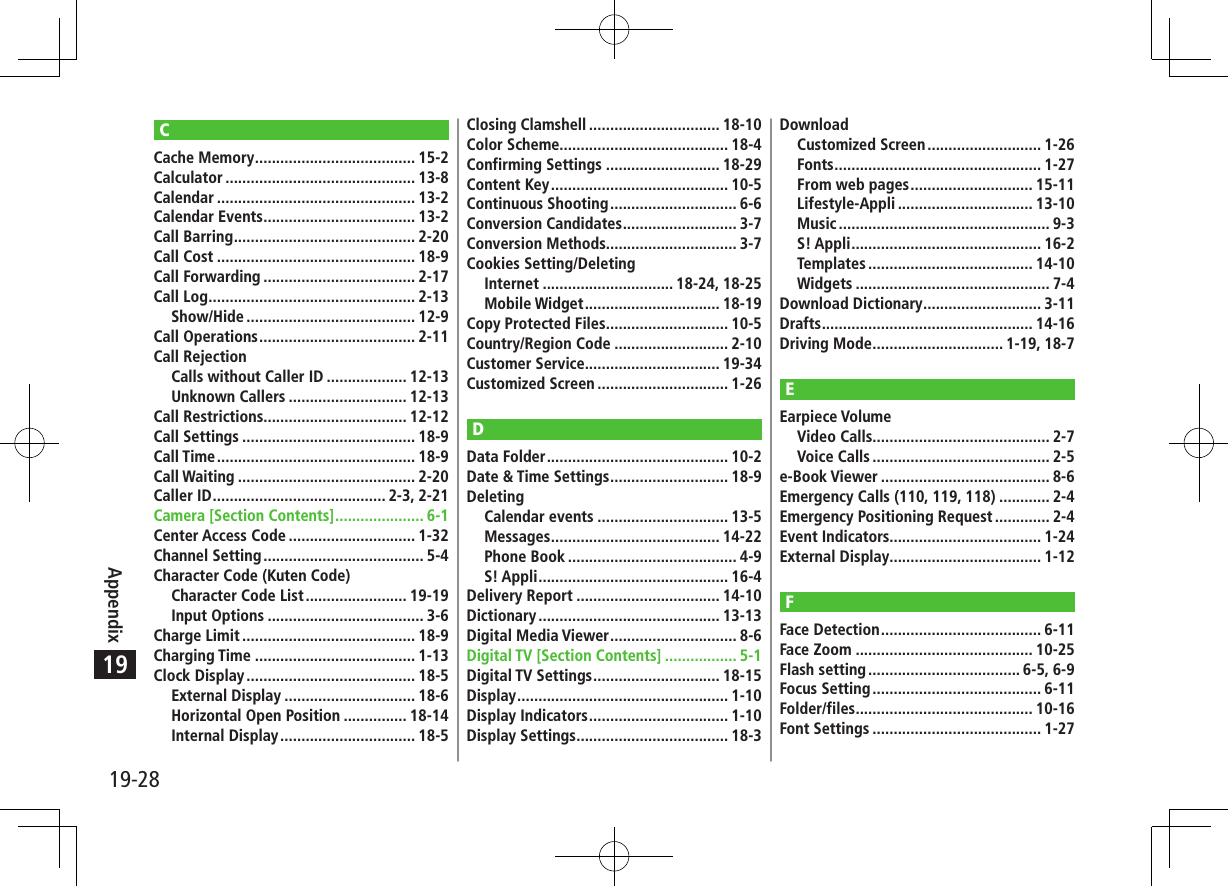

19-28Appendix19CCache Memory ...................................... 15-2Calculator ............................................. 13-8Calendar ............................................... 13-2Calendar Events .................................... 13-2Call Barring ........................................... 2-20Call Cost ............................................... 18-9Call Forwarding .................................... 2-17Call Log ................................................. 2-13Show/Hide ........................................ 12-9Call Operations ..................................... 2-11Call RejectionCalls without Caller ID ................... 12-13Unknown Callers ............................ 12-13Call Restrictions.................................. 12-12Call Settings ......................................... 18-9Call Time ............................................... 18-9Call Waiting .......................................... 2-20Caller ID ......................................... 2-3, 2-21Camera [Section Contents] ..................... 6-1Center Access Code .............................. 1-32Channel Setting ...................................... 5-4Character Code (Kuten Code)Character Code List ........................ 19-19Input Options ..................................... 3-6Charge Limit ......................................... 18-9Charging Time ...................................... 1-13Clock Display ........................................ 18-5External Display ............................... 18-6Horizontal Open Position ............... 18-14Internal Display ................................ 18-5Closing Clamshell ............................... 18-10Color Scheme........................................ 18-4Confirming Settings ........................... 18-29Content Key .......................................... 10-5Continuous Shooting .............................. 6-6Conversion Candidates ........................... 3-7Conversion Methods............................... 3-7Cookies Setting/DeletingInternet ............................... 18-24, 18-25Mobile Widget ................................ 18-19Copy Protected Files ............................. 10-5Country/Region Code ........................... 2-10Customer Service................................ 19-34Customized Screen ............................... 1-26DData Folder ........................................... 10-2Date & Time Settings ............................ 18-9DeletingCalendar events ............................... 13-5Messages ........................................ 14-22Phone Book ........................................ 4-9S! Appli ............................................. 16-4Delivery Report .................................. 14-10Dictionary ........................................... 13-13Digital Media Viewer .............................. 8-6Digital TV [Section Contents] ................. 5-1Digital TV Settings .............................. 18-15Display .................................................. 1-10Display Indicators ................................. 1-10Display Settings .................................... 18-3DownloadCustomized Screen ........................... 1-26Fonts ................................................. 1-27From web pages ............................. 15-11Lifestyle-Appli ................................ 13-10Music .................................................. 9-3S! Appli ............................................. 16-2Templates ....................................... 14-10Widgets .............................................. 7-4Download Dictionary ............................ 3-11Drafts .................................................. 14-16Driving Mode ............................... 1-19, 18-7EEarpiece VolumeVideo Calls.......................................... 2-7Voice Calls .......................................... 2-5e-Book Viewer ........................................ 8-6Emergency Calls (110, 119, 118) ............ 2-4Emergency Positioning Request ............. 2-4Event Indicators.................................... 1-24External Display.................................... 1-12FFace Detection ...................................... 6-11Face Zoom .......................................... 10-25Flash setting .................................... 6-5, 6-9Focus Setting ........................................ 6-11Folder/files .......................................... 10-16Font Settings ........................................ 1-27

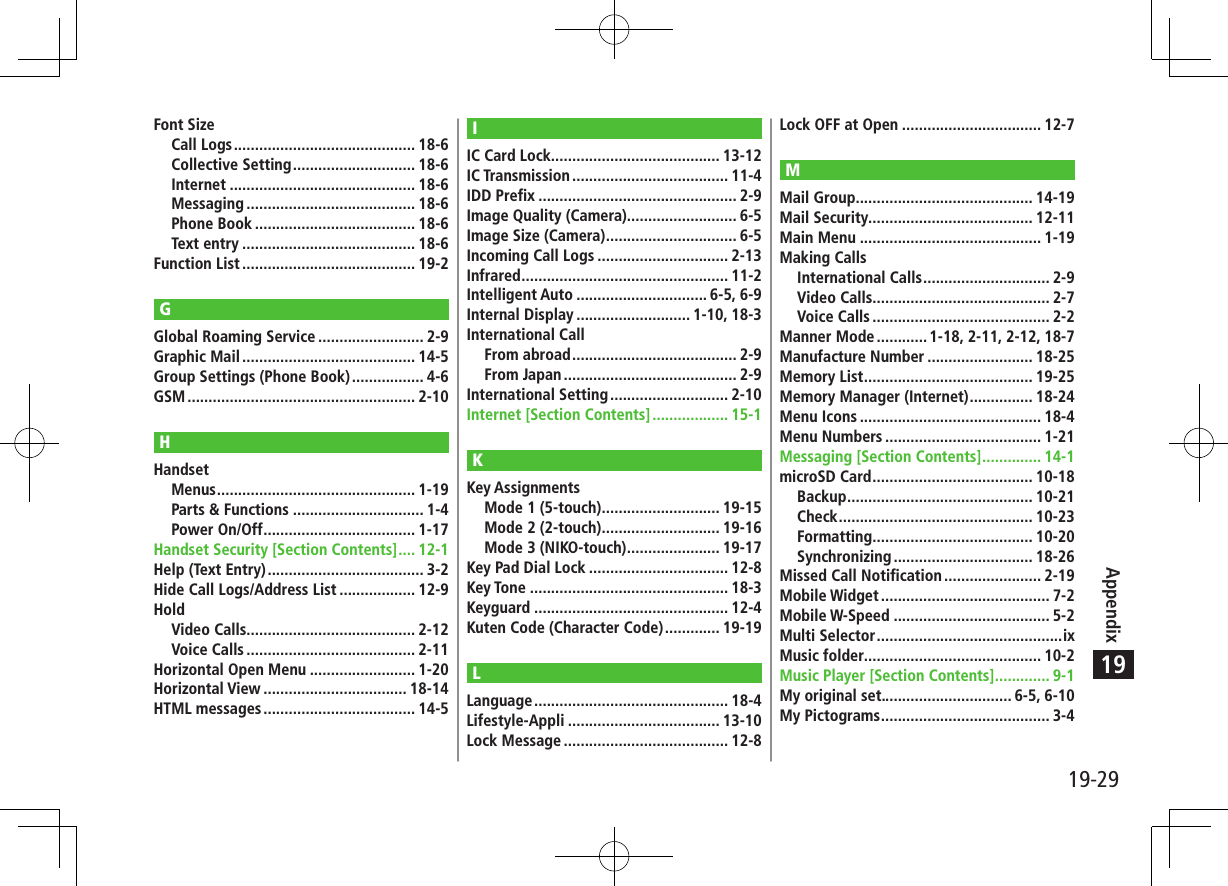

19-29Appendix19Font SizeCall Logs ........................................... 18-6Collective Setting ............................. 18-6Internet ............................................ 18-6Messaging ........................................ 18-6Phone Book ...................................... 18-6Text entry ......................................... 18-6Function List ......................................... 19-2GGlobal Roaming Service ......................... 2-9Graphic Mail ......................................... 14-5Group Settings (Phone Book) ................. 4-6GSM ...................................................... 2-10HHandsetMenus ............................................... 1-19Parts & Functions ............................... 1-4Power On/Off .................................... 1-17Handset Security [Section Contents] .... 12-1Help (Text Entry) ..................................... 3-2Hide Call Logs/Address List .................. 12-9HoldVideo Calls........................................ 2-12Voice Calls ........................................ 2-11Horizontal Open Menu ......................... 1-20Horizontal View .................................. 18-14HTML messages .................................... 14-5IIC Card Lock ........................................ 13-12IC Transmission ..................................... 11-4IDD Prefix ............................................... 2-9Image Quality (Camera).......................... 6-5Image Size (Camera) ............................... 6-5Incoming Call Logs ............................... 2-13Infrared ................................................. 11-2Intelligent Auto ............................... 6-5, 6-9Internal Display ........................... 1-10, 18-3International CallFrom abroad ....................................... 2-9From Japan ......................................... 2-9International Setting ............................ 2-10Internet [Section Contents] .................. 15-1KKey AssignmentsMode 1 (5-touch) ............................ 19-15Mode 2 (2-touch) ............................ 19-16Mode 3 (NIKO-touch) ...................... 19-17Key Pad Dial Lock ................................. 12-8Key Tone ............................................... 18-3Keyguard .............................................. 12-4Kuten Code (Character Code) ............. 19-19LLanguage .............................................. 18-4Lifestyle-Appli .................................... 13-10Lock Message ....................................... 12-8Lock OFF at Open ................................. 12-7MMail Group .......................................... 14-19Mail Security....................................... 12-11Main Menu ........................................... 1-19Making CallsInternational Calls .............................. 2-9Video Calls.......................................... 2-7Voice Calls .......................................... 2-2Manner Mode ............ 1-18, 2-11, 2-12, 18-7Manufacture Number ......................... 18-25Memory List ........................................ 19-25Memory Manager (Internet) ............... 18-24Menu Icons ........................................... 18-4Menu Numbers ..................................... 1-21Messaging [Section Contents] .............. 14-1microSD Card ...................................... 10-18Backup ............................................ 10-21Check .............................................. 10-23Formatting ...................................... 10-20Synchronizing ................................. 18-26Missed Call Notification ....................... 2-19Mobile Widget ........................................ 7-2Mobile W-Speed ..................................... 5-2Multi Selector ............................................ixMusic folder.......................................... 10-2Music Player [Section Contents] ............. 9-1My original set............................... 6-5, 6-10My Pictograms ........................................ 3-4

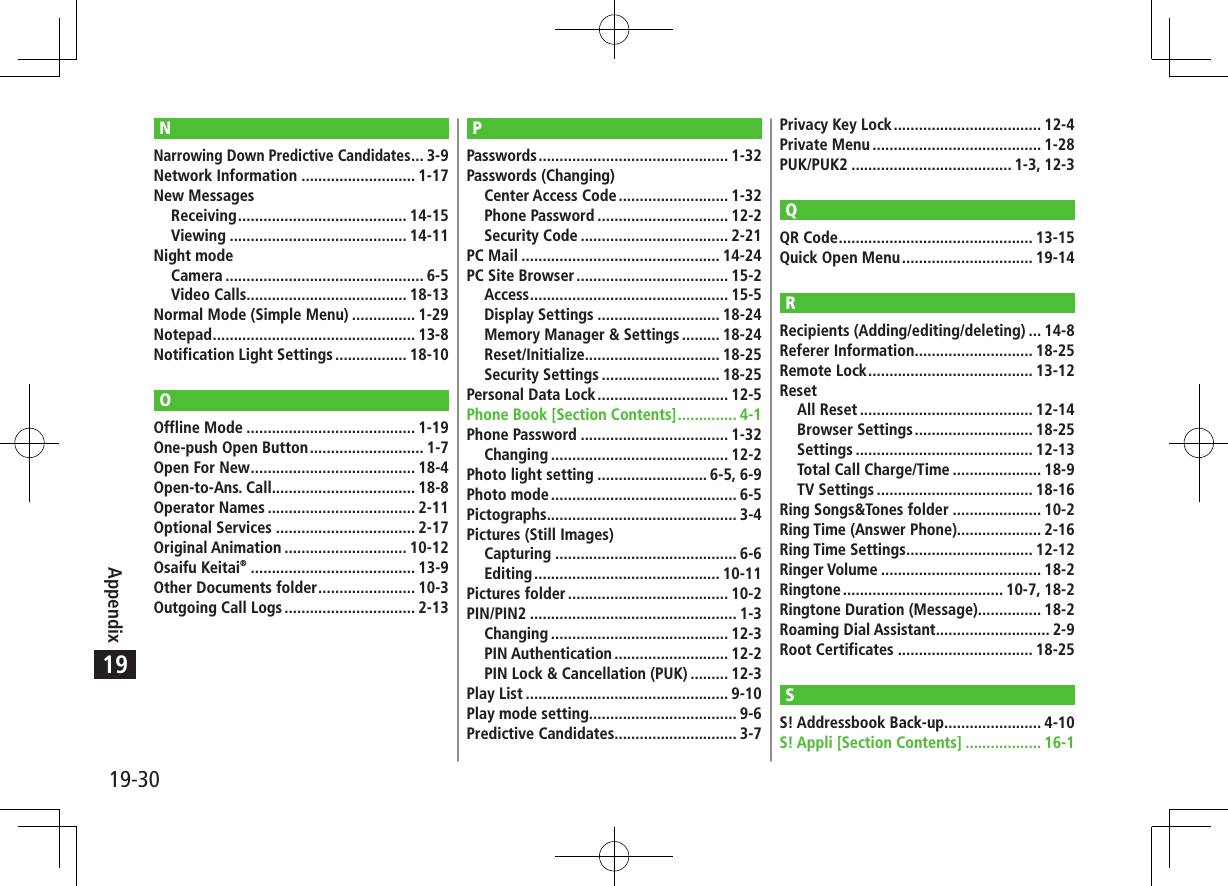

19-30Appendix19NNarrowing Down Predictive Candidates ... 3-9Network Information ........................... 1-17New MessagesReceiving ........................................ 14-15Viewing .......................................... 14-11Night modeCamera ............................................... 6-5Video Calls...................................... 18-13Normal Mode (Simple Menu) ............... 1-29Notepad ................................................ 13-8Notification Light Settings ................. 18-10OOffline Mode ........................................ 1-19One-push Open Button ........................... 1-7Open For New ....................................... 18-4Open-to-Ans. Call.................................. 18-8Operator Names ................................... 2-11Optional Services ................................. 2-17Original Animation ............................. 10-12Osaifu Keitai® ....................................... 13-9Other Documents folder ....................... 10-3Outgoing Call Logs ............................... 2-13PPasswords ............................................. 1-32Passwords (Changing)Center Access Code .......................... 1-32Phone Password ............................... 12-2Security Code ................................... 2-21PC Mail ............................................... 14-24PC Site Browser .................................... 15-2Access ............................................... 15-5Display Settings ............................. 18-24Memory Manager & Settings ......... 18-24Reset/Initialize................................ 18-25Security Settings ............................ 18-25Personal Data Lock ............................... 12-5Phone Book [Section Contents] .............. 4-1Phone Password ................................... 1-32Changing .......................................... 12-2Photo light setting .......................... 6-5, 6-9Photo mode ............................................ 6-5Pictographs ............................................. 3-4Pictures (Still Images)Capturing ........................................... 6-6Editing ............................................ 10-11Pictures folder ...................................... 10-2PIN/PIN2 ................................................. 1-3Changing .......................................... 12-3PIN Authentication ........................... 12-2PIN Lock & Cancellation (PUK) ......... 12-3Play List ................................................ 9-10Play mode setting................................... 9-6Predictive Candidates............................. 3-7Privacy Key Lock ................................... 12-4Private Menu ........................................ 1-28PUK/PUK2 ...................................... 1-3, 12-3QQR Code .............................................. 13-15Quick Open Menu ............................... 19-14RRecipients (Adding/editing/deleting) ... 14-8Referer Information ............................ 18-25Remote Lock ....................................... 13-12ResetAll Reset ......................................... 12-14Browser Settings ............................ 18-25Settings .......................................... 12-13Total Call Charge/Time ..................... 18-9TV Settings ..................................... 18-16Ring Songs&Tones folder ..................... 10-2Ring Time (Answer Phone).................... 2-16Ring Time Settings .............................. 12-12Ringer Volume ...................................... 18-2Ringtone ...................................... 10-7, 18-2Ringtone Duration (Message) ............... 18-2Roaming Dial Assistant ........................... 2-9Root Certificates ................................ 18-25SS! Addressbook Back-up....................... 4-10S! Appli [Section Contents] .................. 16-1

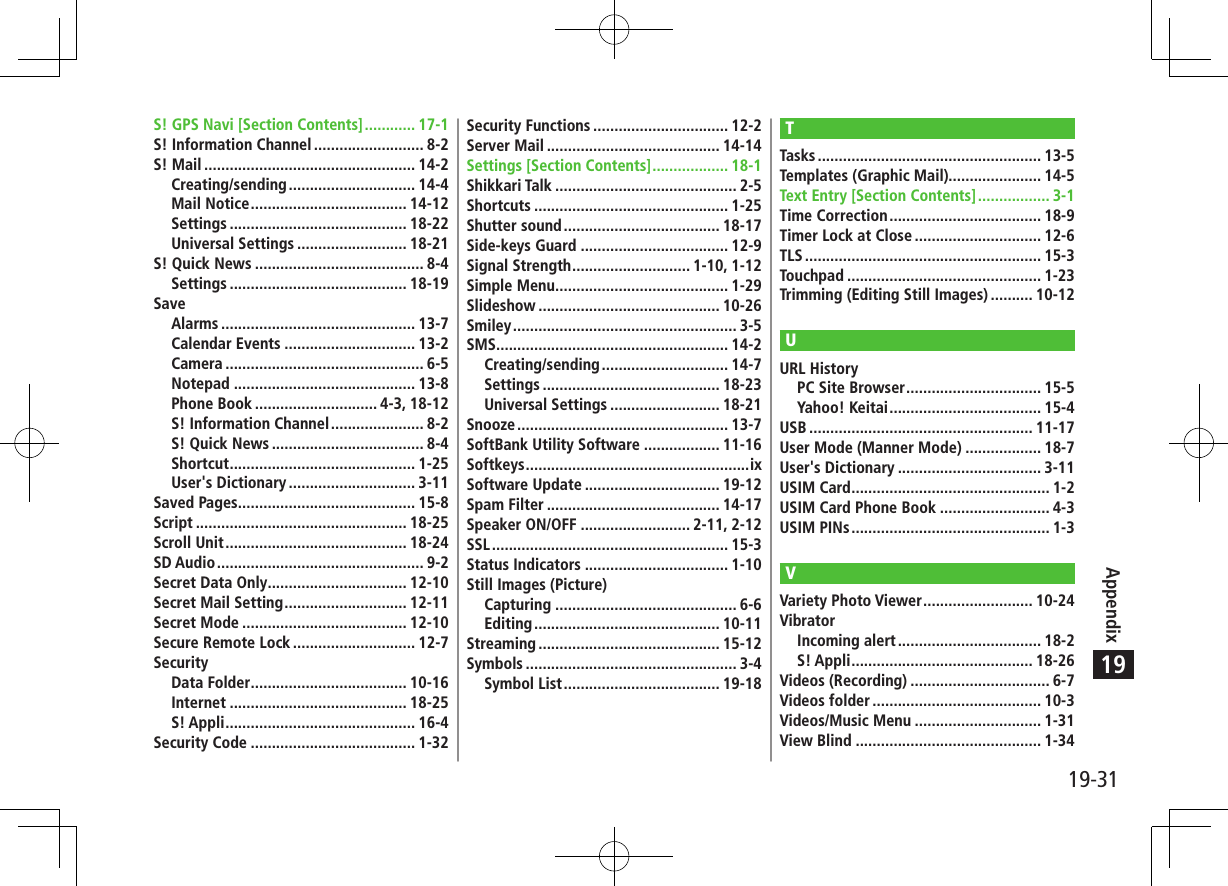

19-31Appendix19S! GPS Navi [Section Contents] ............ 17-1S! Information Channel .......................... 8-2S! Mail .................................................. 14-2Creating/sending .............................. 14-4Mail Notice ..................................... 14-12Settings .......................................... 18-22Universal Settings .......................... 18-21S! Quick News ........................................ 8-4Settings .......................................... 18-19SaveAlarms .............................................. 13-7Calendar Events ............................... 13-2Camera ............................................... 6-5Notepad ........................................... 13-8Phone Book ............................. 4-3, 18-12S! Information Channel ...................... 8-2S! Quick News .................................... 8-4Shortcut ............................................ 1-25User's Dictionary .............................. 3-11Saved Pages .......................................... 15-8Script .................................................. 18-25Scroll Unit ........................................... 18-24SD Audio ................................................. 9-2Secret Data Only ................................. 12-10Secret Mail Setting ............................. 12-11Secret Mode ....................................... 12-10Secure Remote Lock ............................. 12-7SecurityData Folder ..................................... 10-16Internet .......................................... 18-25S! Appli ............................................. 16-4Security Code ....................................... 1-32Security Functions ................................ 12-2Server Mail ......................................... 14-14Settings [Section Contents] .................. 18-1Shikkari Talk ........................................... 2-5Shortcuts .............................................. 1-25Shutter sound ..................................... 18-17Side-keys Guard ................................... 12-9Signal Strength ............................ 1-10, 1-12Simple Menu ......................................... 1-29Slideshow ........................................... 10-26Smiley ..................................................... 3-5SMS ....................................................... 14-2Creating/sending .............................. 14-7Settings .......................................... 18-23Universal Settings .......................... 18-21Snooze .................................................. 13-7SoftBank Utility Software .................. 11-16Softkeys .....................................................ixSoftware Update ................................ 19-12Spam Filter ......................................... 14-17Speaker ON/OFF .......................... 2-11, 2-12SSL ........................................................ 15-3Status Indicators .................................. 1-10Still Images (Picture)Capturing ........................................... 6-6Editing ............................................ 10-11Streaming ........................................... 15-12Symbols .................................................. 3-4Symbol List ..................................... 19-18TTasks ..................................................... 13-5Templates (Graphic Mail)...................... 14-5Text Entry [Section Contents] ................. 3-1Time Correction .................................... 18-9Timer Lock at Close .............................. 12-6TLS ........................................................ 15-3Touchpad .............................................. 1-23Trimming (Editing Still Images) .......... 10-12UURL HistoryPC Site Browser ................................ 15-5Yahoo! Keitai .................................... 15-4USB ..................................................... 11-17User Mode (Manner Mode) .................. 18-7User's Dictionary .................................. 3-11USIM Card ............................................... 1-2USIM Card Phone Book .......................... 4-3USIM PINs ............................................... 1-3VVariety Photo Viewer .......................... 10-24VibratorIncoming alert .................................. 18-2S! Appli ........................................... 18-26Videos (Recording) ................................. 6-7Videos folder ........................................ 10-3Videos/Music Menu .............................. 1-31View Blind ............................................ 1-34

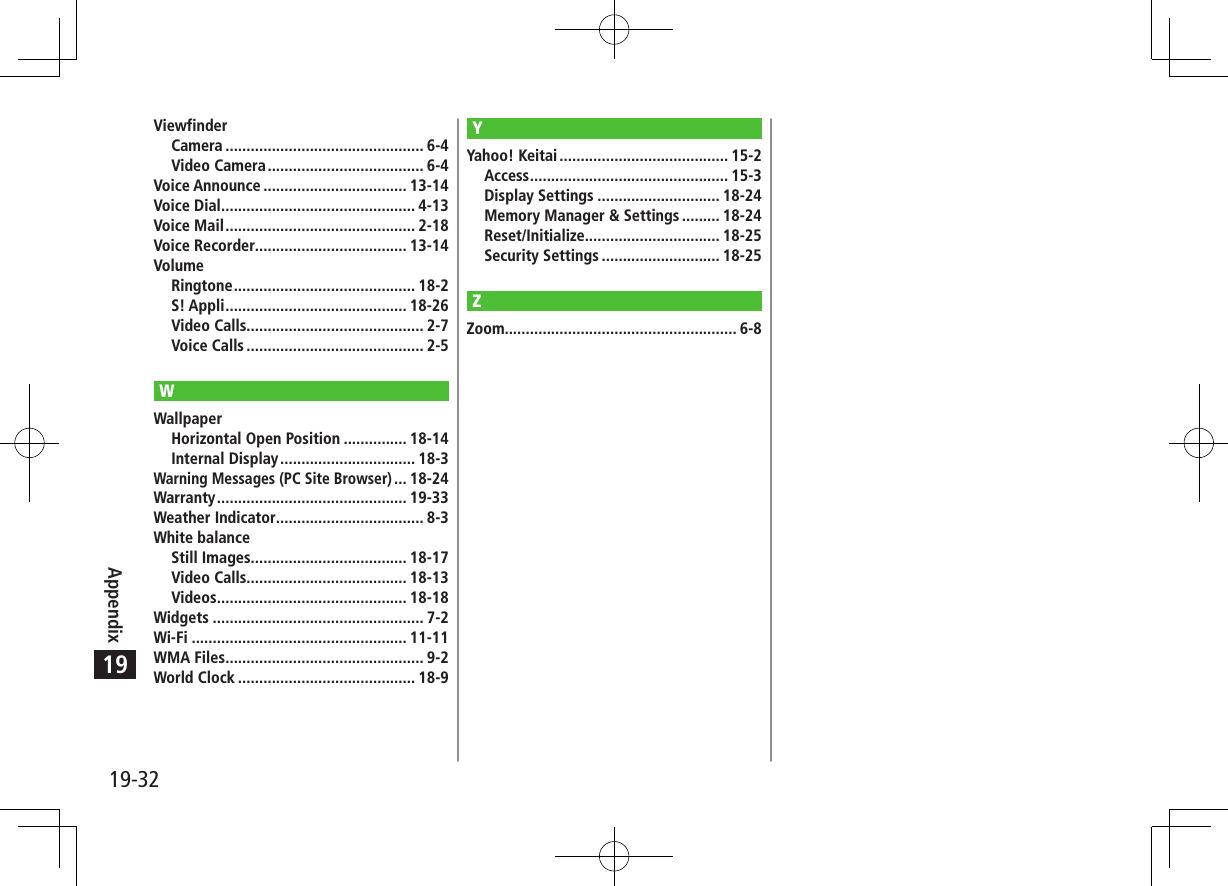

19-32Appendix19ViewfinderCamera ............................................... 6-4Video Camera ..................................... 6-4Voice Announce .................................. 13-14Voice Dial .............................................. 4-13Voice Mail ............................................. 2-18Voice Recorder.................................... 13-14VolumeRingtone ........................................... 18-2S! Appli ........................................... 18-26Video Calls.......................................... 2-7Voice Calls .......................................... 2-5WWallpaperHorizontal Open Position ............... 18-14Internal Display ................................ 18-3Warning Messages (PC Site Browser) ... 18-24Warranty ............................................. 19-33Weather Indicator ................................... 8-3White balanceStill Images..................................... 18-17Video Calls...................................... 18-13Videos ............................................. 18-18Widgets .................................................. 7-2Wi-Fi ................................................... 11-11WMA Files ............................................... 9-2World Clock .......................................... 18-9YYahoo! Keitai ........................................ 15-2Access ............................................... 15-3Display Settings ............................. 18-24Memory Manager & Settings ......... 18-24Reset/Initialize................................ 18-25Security Settings ............................ 18-25ZZoom....................................................... 6-8

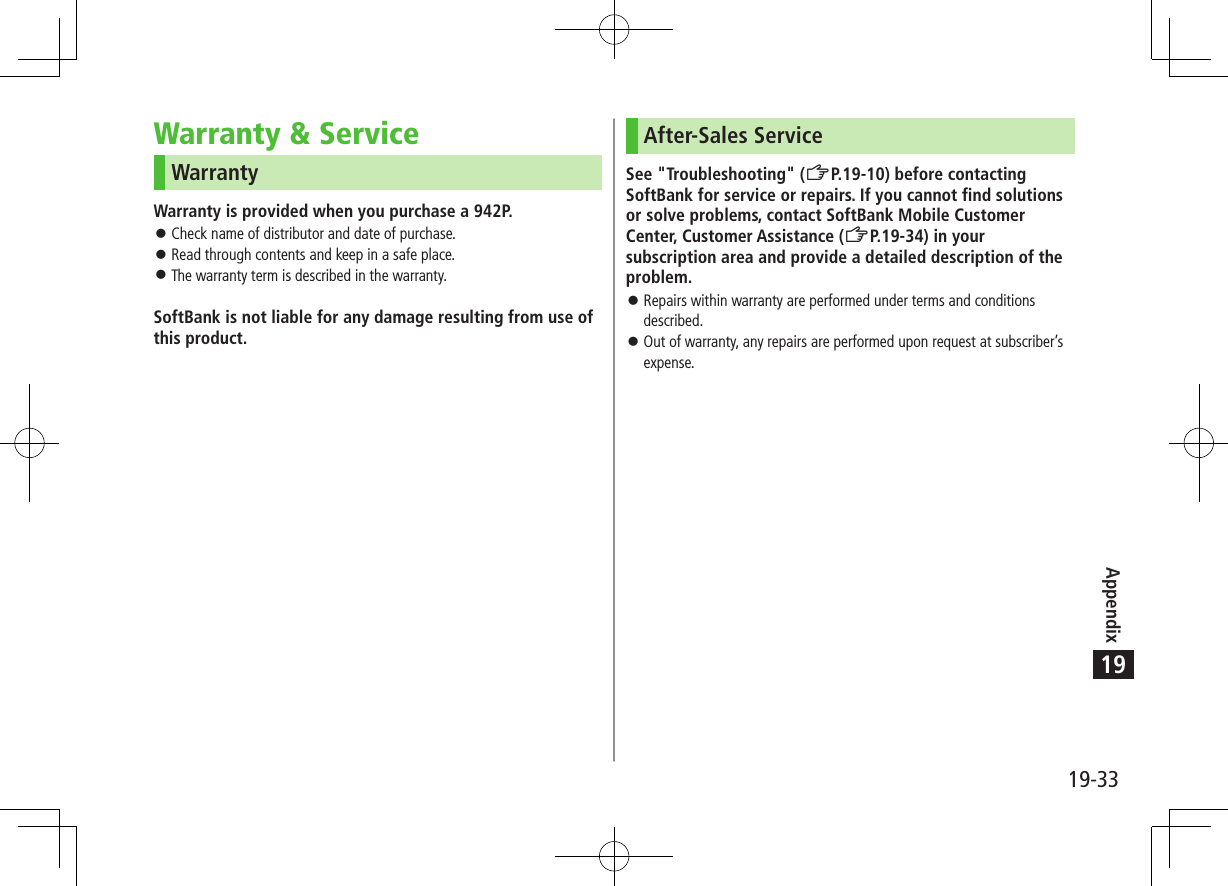

Appendix19-3319Warranty & ServiceWarrantyWarranty is provided when you purchase a 942P. ⿟Check name of distributor and date of purchase. ⿟Read through contents and keep in a safe place. ⿟The warranty term is described in the warranty.SoftBank is not liable for any damage resulting from use of this product.After-Sales ServiceSee "Troubleshooting" (ZP.19-10) before contacting SoftBank for service or repairs. If you cannot find solutions or solve problems, contact SoftBank Mobile Customer Center, Customer Assistance (ZP.19-34) in your subscription area and provide a detailed description of the problem. ⿟Repairs within warranty are performed under terms and conditions described. ⿟Out of warranty, any repairs are performed upon request at subscriber’s expense.

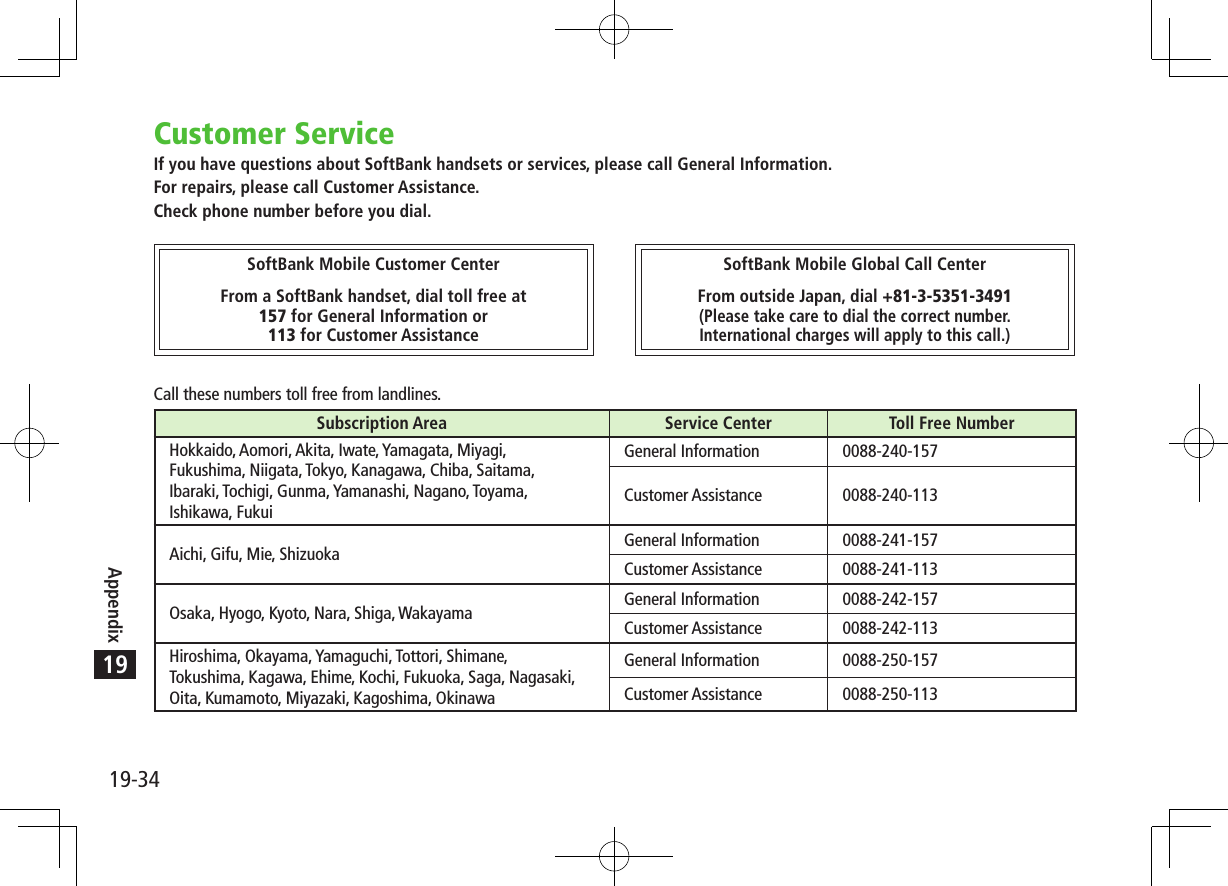

19-34Appendix19Customer ServiceIf you have questions about SoftBank handsets or services, please call General Information.For repairs, please call Customer Assistance.Check phone number before you dial.Call these numbers toll free from landlines.Subscription Area Service Center Toll Free NumberHokkaido, Aomori, Akita, Iwate, Yamagata, Miyagi,Fukushima, Niigata, Tokyo, Kanagawa, Chiba, Saitama,Ibaraki, Tochigi, Gunma, Yamanashi, Nagano, Toyama,Ishikawa, FukuiGeneral Information 0088-240-157Customer Assistance 0088-240-113Aichi, Gifu, Mie, Shizuoka General Information 0088-241-157Customer Assistance 0088-241-113Osaka, Hyogo, Kyoto, Nara, Shiga, Wakayama General Information 0088-242-157Customer Assistance 0088-242-113Hiroshima, Okayama, Yamaguchi, Tottori, Shimane,Tokushima, Kagawa, Ehime, Kochi, Fukuoka, Saga, Nagasaki,Oita, Kumamoto, Miyazaki, Kagoshima, OkinawaGeneral Information 0088-250-157Customer Assistance 0088-250-113SoftBank Mobile Customer CenterFrom a SoftBank handset, dial toll free at157 for General Information or113 for Customer AssistanceSoftBank Mobile Global Call CenterFrom outside Japan, dial +81-3-5351-3491(Please take care to dial the correct number. International charges will apply to this call.)

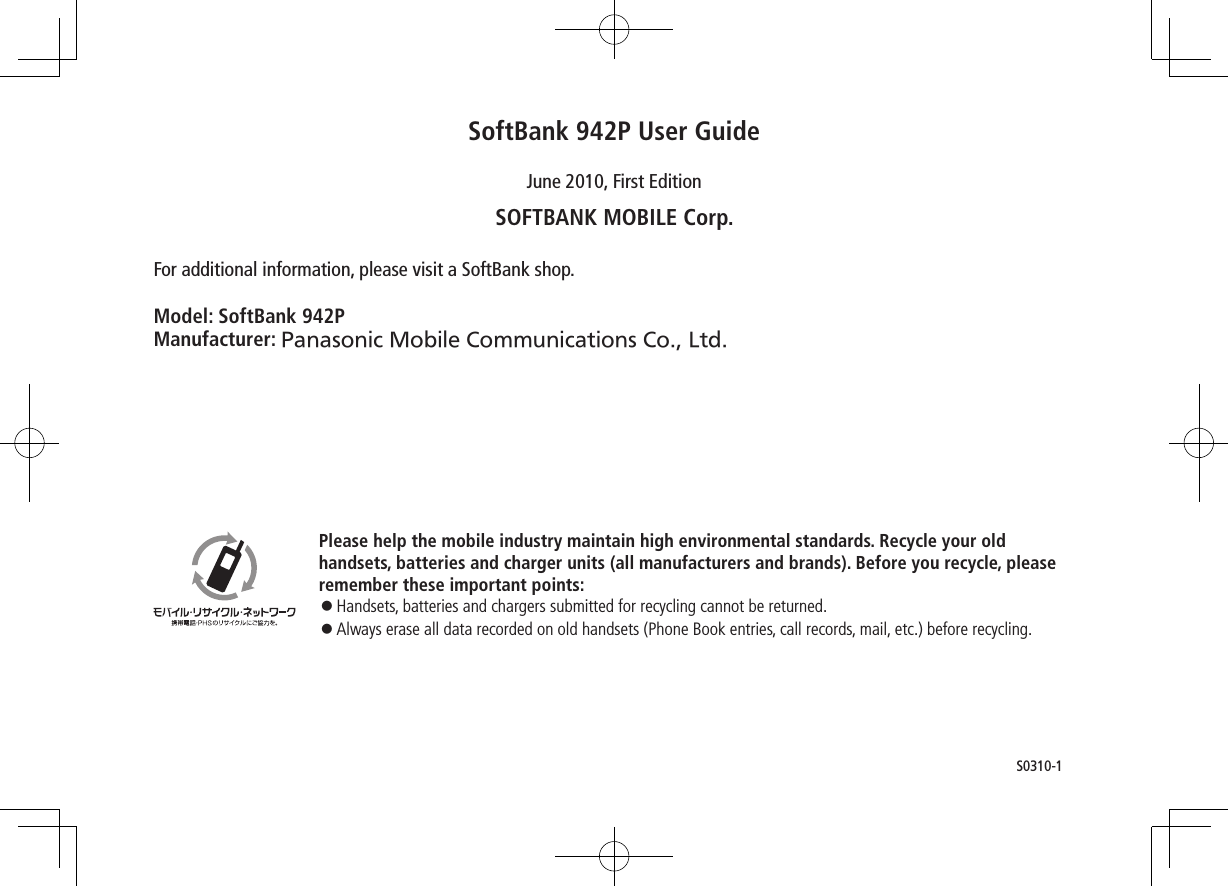

Please help the mobile industry maintain high environmental standards. Recycle your oldhandsets, batteries and charger units (all manufacturers and brands). Before you recycle, please remember these important points:◦Handsets, batteries and chargers submitted for recycling cannot be returned.◦Always erase all data recorded on old handsets (Phone Book entries, call records, mail, etc.) before recycling.SoftBank 942P User GuideJune 2010, First EditionSOFTBANK MOBILE Corp.For additional information, please visit a SoftBank shop.Model: SoftBank 942PManufacturer: Panasonic Mobile Communications Co., Ltd.S0310-1
