User manual

Contents

Getting Started

OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-D1 series

Introduction ................................................................. 2

Read Me First ............................................................. 3

(Precautions)

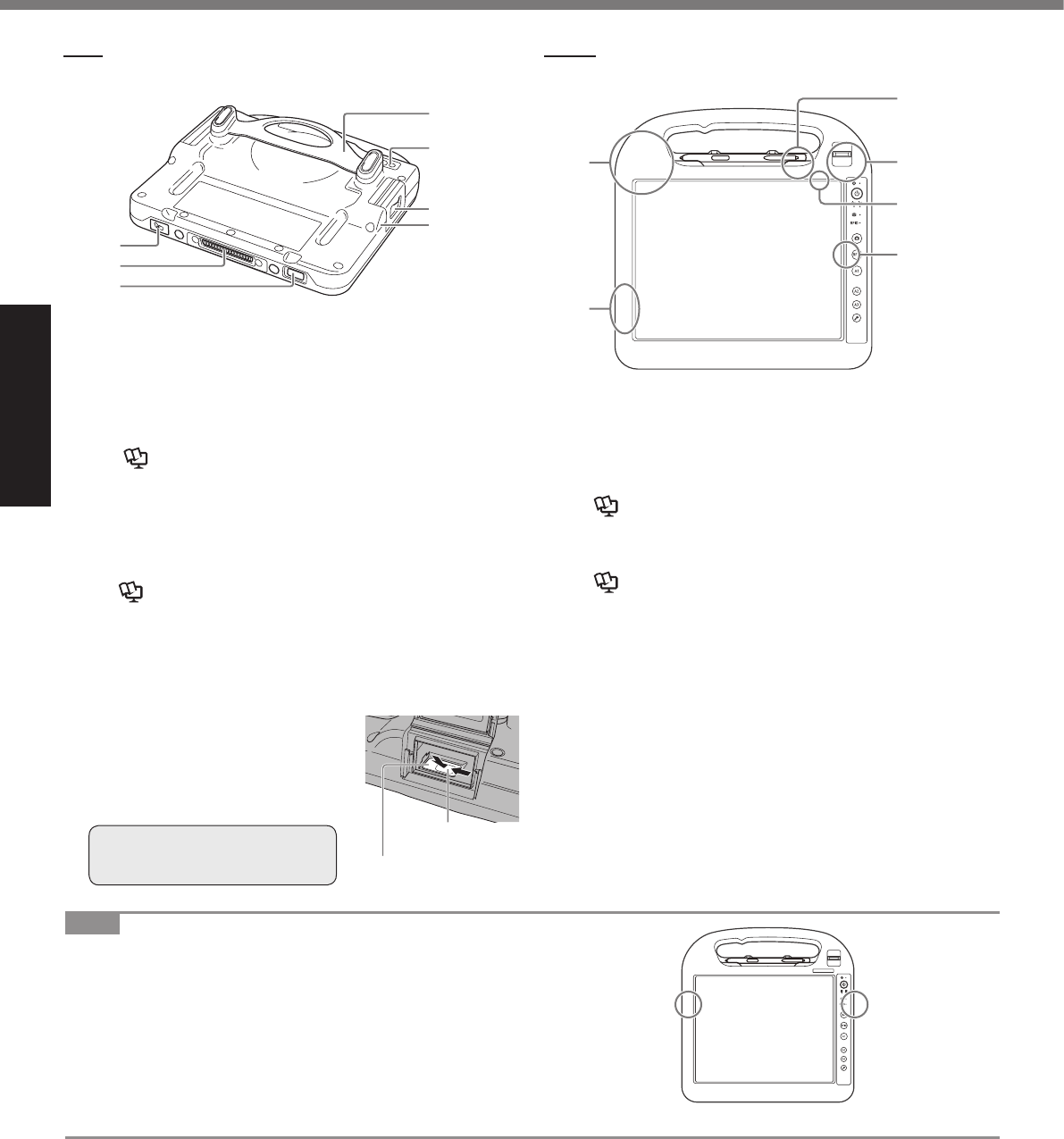

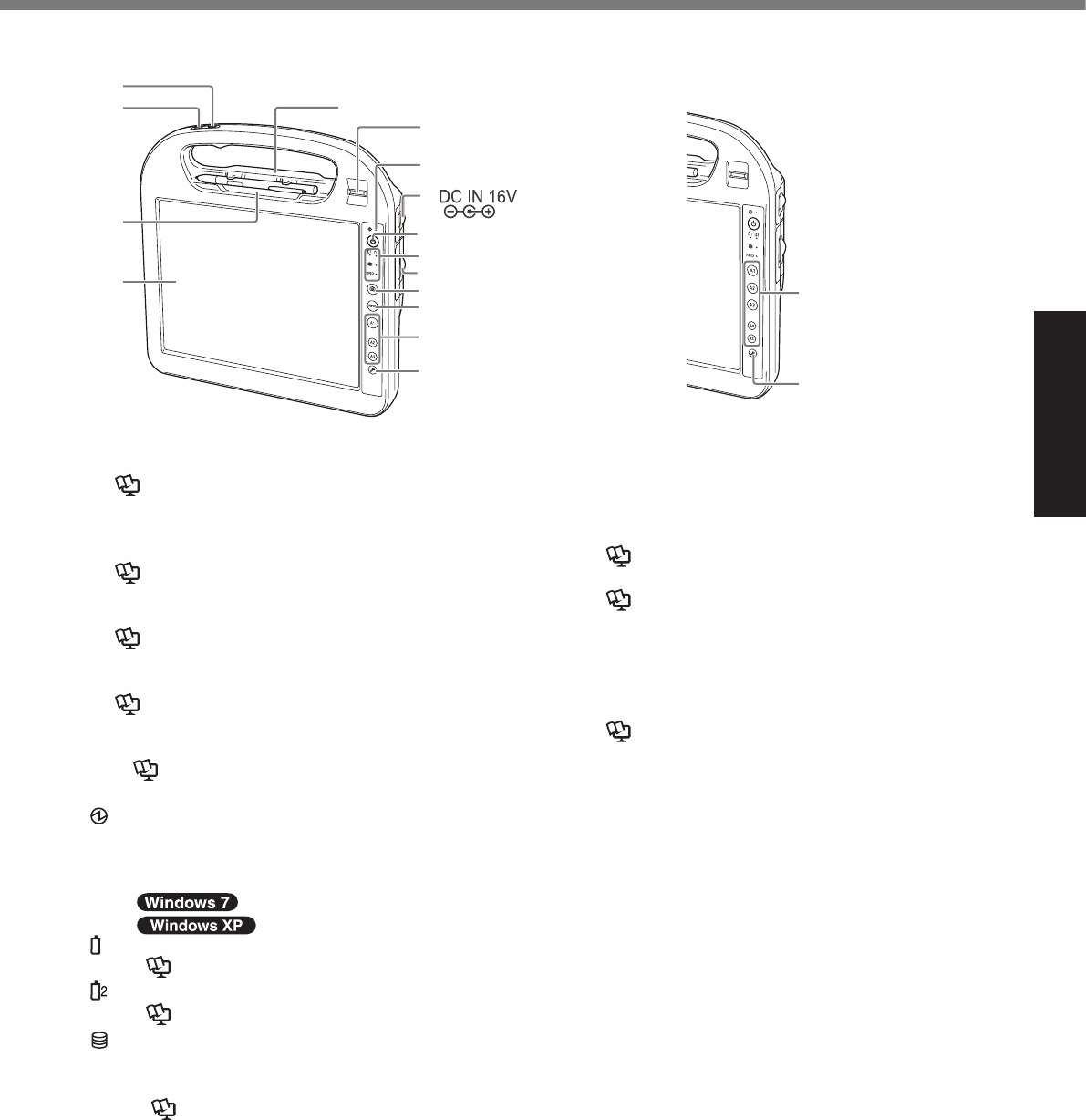

Description of Parts ..................................................11

First-time Operation ..................................................14

Useful Information

On-screen Manual ....................................................22

Handling and Maintenance .......................................23

Reinstalling Software ................................................25

Troubleshooting

Troubleshooting (Basic)............................................28

Appendix

LIMITED USE LICENSE AGREEMENT ...................33

Speciﬁ cations ...........................................................34

Please read these instructions carefully before using this product, and save this manual for future use.

For further information about the com-

puter, you can refer to the on-screen

manual.

To access the on-screen manual

 page 22 “On-screen Manual”

Getting StartedUseful InformationTroubleshootingAppendix

Getting Started

Introduction

Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instruc-

tions carefully.

 Terms and illustrations in these instructions

CAUTION : Conditions that may result in minor or moderate injury.

NOTE : Useful and helpful information.

(Start) - [All Programs] : Click (Start), and then click [All Programs]. You may need to double-click in some

cases.

[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.

 : Page in these Operating Instructions or in the Reference Manual.

: Reference to the on-screen manuals.

Enter

: Click [Enter] key.

: Click [Fn] key, and then click [F5] key.

Enter

: Press [Enter] key.

: Press and hold [Fn] key, and then press [F5] key.

 The display of the key may be different from this manual according to the keyboard used. (e.g. “Delete” instead

of “Del”)

 indicates Genuine Windows® 7 Professional Operating System.

 indicates Genuine Microsoft® Windows® XP Professional Operating System.

 Some illustrations are simpliﬁ ed to help your understanding and may look different from the actual unit.

 If you do not log on as an administrator, you cannot use some functions or cannot display some screens.

 Refer for the latest information about optional products to the catalogs, etc.

 In these instructions, the names and terms are referred as follows.

 “Genuine Windows® 7 Professional 32-bit Service Pack 1” and “Genuine Windows® 7 Professional 64-bit Service

Pack 1” as “Windows” or “Windows 7”

 “Genuine Microsoft® Windows® XP Professional Service Pack 3” as “Windows”, “Windows XP” or “Windows XP

Professional”

 Circular media including DVD-ROM and CD-ROM as “discs”

 Disclaimer

Computer speciﬁ cations and manuals are subject to change without notice. Panasonic Corporation assumes no li-

ability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the

manuals.

 Trademarks

Microsoft®, Windows®, the Windows logo, and IntelliMouse are registered trademarks of Microsoft Corporation of the

United States and/or other countries.

Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.

SDXC Logo is a trademark of SD-3C, LLC.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo-

rated in the United States and/or other countries.

Bluetooth

™

is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective

own companies.

Getting Started

Read Me First

Information to the User

This product and your Health

This product, like other radio devices, emits radio fre-

quency electromagnetic energy. The level of energy

emitted by this product however is far much less than the

electromagnetic energy emitted by wireless devices like

for example mobile phones.

Because this product operates within the guidelines

found in radio frequency safety standards and recom-

mendations, we believe this product is safe for use by

consumers. These standards and recommendations re-

ﬂ ect the consensus of the scientiﬁ c community and result

from deliberations of panels and committees of scientists

who continually review and interpret the extensive re-

search literature.

In some situations or environments, the use of this prod-

uct may be restricted by the proprietor of the building or

responsible representatives of the organization. These

situations may for example include:

 Using this product on board of airplanes, or



In any other environment where the risk of interference

to other devices or services is perceived or identiﬁ ed as

harmful.

If you are uncertain of the policy that applies on the use

of wireless devices in a speciﬁ c organization or environ-

ment (e.g. airports), you are encouraged to ask for autho-

rization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interfer-

ence caused by unauthorized modiﬁ cation of this product.

The correction of interference caused by such unauthor-

ized modiﬁ cation will be the responsibility of the user. We

and its authorized resellers or distributors are not liable

for damage or violation of government regulations that

may arise from failing to comply with these guidelines.

26-M-1

Lithium Battery / Pile au lithium

Lithium Battery!

This computer contains a lithium battery to enable the

date, time, and other data to be stored. The battery

should only be exchanged by authorized service person-

nel.

Warning! A risk of explosion from incorrect installation or

misapplication may possibly occur.

15-E-1

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui

permet de sauvegarder certaines données, notamment la

date et l’heure. La pile ne doit être remplacée que par un

technicien qualiﬁ é.

Danger ! Risque d’explosion en cas de non respect de

cette mise en garde!

15-F-1

Information for Users on Collection

and Disposal of Old Equipment and

used Batteries

These symbols on the products, packaging,

and/or accompanying documents mean that

used electrical and electronic products and

batteries should not be mixed with general

household waste.

For proper treatment, recovery and recycling of old prod-

ucts and used batteries, please take them to applicable

collection points, in accordance with your national legisla-

tion and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly,

you will help to save valuable resources and prevent any

potential negative effects on human health and the envi-

ronment which could otherwise arise from inappropriate

waste handling.

For more information about collection and recycling of old

products and batteries, please contact your local munici-

pality, your waste disposal service or the point of sale

where you purchased the items.

Penalties may be applicable for incorrect disposal of this

waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment,

please contact your dealer or supplier for further informa-

tion.

[Information on Disposal in other Countries

outside the European Union]

These symbols are only valid in the European

Union. If you wish to discard this product,

please contact your local authorities or dealer

and ask for the correct method of disposal.

Note for the battery symbol (bottom two

symbol examples):

This symbol might be used in combination with

a chemical symbol. In this case it complies with

the requirement set by the Directive for the

chemical involved.

53-E-1

Safety Precautions

The following safety precautions must be observed dur-

ing all phases of the operation, usage, service or repair

of any Personal Computer or Handheld Computer in-

corporating wireless WAN modem. Manufacturers of

the cellular terminal are advised to convey the following

safety information to users and operating personnel and

to incorporate these guidelines into all manuals supplied

with the product. Failure to comply with these precautions

violates safety standards of design, manufacture and in-

tended use of the product. Panasonic assumes no liability

for customer failure to comply with these precautions.

Getting Started

Read Me First

When in a hospital or other health care facility,

observe the restrictions on the use of mobiles.

Switch Personal Computer or Handheld Com-

puter incorporating wireless WAN modem off,

if instructed to do so by the guidelines posted

in sensitive areas. Medical equipment may be

sensitive to RF energy.

The operation of cardiac pacemakers, other

implanted medical equipment and hearing

aids can be affected by interference from

Personal Computer or Handheld Computer

incorporating wireless WAN modem placed

close to the device. If in doubt about potential

danger, contact the physician or the manufac-

turer of the device to verify that the equipment

is properly shielded. Pacemaker patients are

advised to keep their Personal Computer or

Handheld Computer incorporating wireless

WAN modem away from the pacemaker,

while it is on.

Switch off Personal Computer or Handheld

Computer incorporating wireless WAN mo-

dem before boarding an aircraft. Make sure

it cannot be switched on inadvertently. The

operation of wireless appliances in an air-

craft is forbidden to prevent interference with

communications systems. Failure to observe

these instructions may lead to the suspension

or denial of cellular services to the offender,

legal action, or both.

For details on usage of this unit in aircrafts

please consult and follow instruction provided

by the airline.

Do not operate Personal Computer or Hand-

held Computer incorporating wireless WAN

modem in the presence of ﬂ ammable gases

or fumes. Switch off the cellular terminal when

you are near petrol stations, fuel depots,

chemical plants or where blasting operations

are in progress. Operation of any electrical

equipment in potentially explosive atmo-

spheres can constitute a safety hazard.

Your Personal Computer or Handheld Com-

puter incorporating wireless WAN modem

receives and transmits radio frequency energy

while switched on. Remember that interfer-

ence can occur if it is used close to TV sets,

radios, computers or inadequately shielded

equipment. Follow any special regulations

and always switch off Personal Computer or

Handheld Computer incorporating wireless

WAN modem wherever forbidden, or when

you suspect that it may cause interference or

danger.

Road safety comes ﬁ rst! Do not use a Per-

sonal Computer or Handheld Computer incor-

porating wireless WAN modem while driving a

vehicle. Do not place the computer with wire-

less WAN modem in an area where it could

cause personal injury to the driver or passen-

gers. It is recommended to stow the unit in the

boot or secure stowage area while driving.

Do not place the computer with wireless WAN

modem in an area over an air bag or in the

vicinity where an air bag may deploy.

Air bags inﬂ ate with great force and if the

computer with wireless WAN modem is

placed in the air bag deployment area may be

propelled with great force and cause serious

injury to occupants of the vehicle.

IMPORTANT!

Personal Computer or Handheld Computer

incorporating wireless WAN modem operate

using radio signals and cellular networks can-

not be guaranteed to connect in all conditions.

Therefore, you should never rely solely upon

any wireless device for essential communica-

tions, for example emergency calls.

Remember, in order to make or receive calls,

Personal Computer or Handheld Computer

incorporating wireless WAN modem must

be switched on and in a coverage area with

adequate cellular signal strength.

Some networks do not allow for emergency

calls if certain network services or phone

features are in use (e.g. lock functions, ﬁ xed

dialing etc.). You may need to deactivate

those features before you can make an emer-

gency call.

Some networks require that a valid SIM card

be properly inserted in Personal Computer or

Handheld Computer incorporating wireless

WAN modem.

Getting Started

Models for U.S.A.

Federal Communications Commission Radio Fre-

quency Interference Statement

Note: This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment gener-

ates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television

reception, which can be determined by turning the equip-

ment off and on, the user is encouraged to try to correct

the interference by one or more of the following mea-

sures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and

receiver.

 Connect the equipment into an outlet on a circuit dif-

ferent from that to which the receiver is connected.

 Consult the Panasonic Service Center or an experi-

enced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded inter-

face cables when connecting to a computer or peripheral.

Also, any changes or modiﬁ cations not expressly ap-

proved by the party responsible for compliance could void

the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired

operation.

 This equipment is provided with PC Card slot that

could be used with wireless transmitters, which will be

speciﬁ cally recommended when they become avail-

able.

Other third-party wireless transmitters have not been

RF exposure evaluated for use with this computer and

may not comply with FCC RF exposure requirements.

 This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

 This equipment has been approved for portable op-

eration, and does not require any minimum spacing

be provided between antennas and all person’s body.

If provided with wireless WAN transmitter, requires

LCD side panel spacers to provide minimum 1.5 cm

spacing between antenna located within the LCD side

panel, and all person’s body (excluding extremities of

hands, wrist and feet) during wireless modes of opera-

tion.

 This equipment may not be co-located or operated

with any other antenna or transmitter.

 This equipment is provided with external antenna

connector(s) for connection to optional Car Mounter

or Port Replicator for mobile external mounted

antenna(s).

External antenna(s) must be professionally installed

and cannot exceed recommended maximum antenna

gain as described in individual provided supplement

instructions for wireless transmitters.

For WLAN, the Car Mounter should be used

with Radiall/ Larsen WLAN whip antenna, type

NMO5E2400BKTNC with 5 dBi antenna gain or less.

Also, user must maintain minimum 20 cm spacing

between external antenna(s) and all person’s body

(excluding extremities of hands, wrist and feet) during

wireless modes of operation.

25-M-1

This product is restricted to indoor use due to its operation in

the 5.15 to 5.25 GHz frequency range.

FCC requires this product to be used indoors for the frequen-

cy range 5.15 to 5.25 GHz to reduce the potential for harmful

interference to co-channel Mobile Satellite systems. High

power radars are allocated as primary users of the 5.25 to

5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations

can cause interference with and/or damage this product.

25-M-W-1

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

6-M-1

FCC RF Exposure Warning:

This equipment is provided with external antenna

connector(s) for connection to optional Car Mounter or

Port Replicator for mobile external mounted antenna(s).

External antenna(s) must be professionally installed

and cannot exceed recommended maximum antenna

gain as described in individual provided supplement

instructions for wireless transmitters. The Car Mounter is

provided with Radiall/Larsen WLAN whip antenna, type

NMO5E2400BKTNC with 5 dBi antenna gain. Also, user

must maintain minimum 20 cm spacing between external

antenna(s) and all person’s body (excluding extremities

of hands, wrist and feet) during wireless modes of opera-

tion. 32-M-1

USA Only: Disposal may be regulated in your commu-

nity due to Environmental considerations. For disposal

or recycling information, please visit Panasonic web site:

http://www.panasonic.com/environmental or call 1-888-

769-0149 65-M-2

Models for Canada

Canadian ICES-003

This Class B digital apparatus complies with Canadian

ICES-003.

7-M-2

<Only for model with wireless LAN/Bluetooth/wireless

WAN/GPS>

Industry Canada

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of

the device.

<Ne s’applique qu’aux modèles avec technologie Blue-

tooth/LAN sans ﬁ l/WAN sans ﬁ l/GPS>

Industrie Canada

Cet équipement est conforme à la norme CNR-210 d’In-

dustrie Canada. Son fonctionnement est soumis aux

deux conditions suivantes :

(1) ce dispositif ne peut produire de brouillage, et

Getting Started

Read Me First

(2) ce dispositif doit accepter le brouillage, y compris le

brouillage pouvant entraîner le fonctionnement non

désiré de l’appareil.

30-Ca-1-1

This product (local network devices) for the band 5150-

5250 MHz is only for indoor usage to reduce potential

for harmful interference to co-channel Mobile Satellite

systems.

High power radars are allocated as primary users (mean-

ing they have priority) of 5250-5350 MHz and 5650-5850

MHz and these radars could cause interference and/or

damage to LELAN devices.

<Ne s’applique qu’aux modèles avec technologie LAN

sans ﬁ l>

Cet appareil (pour réseaux locaux radioélectriques) dans

les bandes de fréquences 5150-5250 MHz est réservé à

une utilisation à l’intérieur aﬁ n de réduire le risque d’inter-

férence avec les systèmes satellites mobiles bicanaux.

Les radars forte puissance sont désignés comme étant

les premiers utilisateurs (c’est-à-dire qu’ils ont la priorité)

des bandes de fréquences 5250-5350 MHz et 5650-5850

MHz. Ces stations radars peuvent provoquer des interfé-

rences et/ou des dommages à ce périphérique.

30-Ca-2-1

This device has been designed to operate with the Ra-

diall/Larsen whip antenna, type NMO5E2400BKTNC

WLAN antenna having a maximum gain of 5 dBi. A

WLAN Antenna having a higher gain is strictly prohibited

per regulations of Industry Canada. The Required an-

tenna impedance is 50 ohms.

To reduce potential radio interference to other users, the

antenna type and its gain should be so chosen that the

equivalent isotropically radiated power (EIRP) is not more

than that required for successful communication.

<Ne s’applique qu’aux modèles avec technologie LAN

sans ﬁ l>

Cet appareil est conçu pour opérer avec l’antenne-fouet

Radiall/Larsen, type WLAN NMO5E2400BKTNC, ayant

un gain maximum de 5 dB. Les règlements d’Industrie

Canada interdisent l’utilisation d’une antenne WLAN dont

le gain serait supérieur à cette limite. L’antenne doit avoir

une impédance de 50 ohms.

Aﬁ n de réduire le risque d’interférence radioélectrique

aux autres utilisateurs des bandes de fréquences, le type

d’antenne et son gain doivent être tels que la puissance

isotrope rayonnée équivalente (PIRE) n’est pas plus éle-

vée que le niveau requis pour assurer la communication.

25-Ca-1-1

For Used in Motor Vehicle

Warning: Notebook Computer may be installed in a mo-

tor vehicle and visible to the driver only if used to support

vehicle related functions such as vehicle information,

system control, rear or side observation and navigation.

If used for entertainment purpose, such as television

reception or video play, it must be installed to the rear

of the driver’s seat where it will not be visible, directly or

indirectly, to the operator of the motor vehicle. Check with

individual state/provincial laws to determine lawful use of

this product while operating within a motor vehicle.

35-M-1

FOR USE WITH MODEL NO. : CF-AA5713A

POUR UTILISER AVEC MODÈLE : CF-AA5713A

20-Ca-1

Models for Europe

<Only for model with a “CE ” mark on the bottom of

the computer>

Declaration of Conformity (DoC)

“Hereby, Panasonic declares that this

Personal Computer is in compliance with

the essential requirements and other relevant provisions

of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our above

mentioned products,

please contact our web address:

http://www.doc.panasonic.de

Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Indication of the countries where WLAN is intended to be

used:

AT BE BG CH CY CZ DE DK EE ES

FI FR GB GR HU IE IS IT LT LU

LV MT NL NO PL PT RO SE SI SK TR

18-25-E-1

<Only for model with a “CE“ mark on the bottom of

the computer>

Declaration of Conformity (DoC)

“Hereby, Panasonic declares that this Personal

Computer is in compliance with the essential

requirements and other relevant provisions of

the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our above

mentioned products,

please contact our web address:

http://www.doc.panasonic.de

Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Indication of the countries where WLAN is intended to be

used:

AT BE BG CH CY CZ DE DK EE ES

FI FR GB GR HU IE IS IT LT LU

LV MT NL NO PL PT RO SE SI SK TR

18-E-1

Getting Started

Regulations for Wireless LAN/Bluetooth

Country / Region 802.11a 802.11b/g

Bluetooth

Austria, Belgium,

Croatia, Cyprus,

Czech Republic,

Denmark, Estonia,

Finland, Germany,

Greece, Hungary,

Iceland, Ireland,

Latvia, Lithuania,

Macedonia, Malta,

Netherlands,

Poland, Portugal,

Slovakia, Slove-

nia, Spain, Swe-

den, Switzerland,

United Kingdom

Restricted to

indoor use.

France Restricted to

indoor use. Restricted to

indoor use.

Italy

Restricted to indoor

use.

General authoriza-

tion required if used

outside.

General authoriza-

tion required if used

outside of own

premises.

Luxembourg Restricted to

indoor use.

General authori-

zation required for

public service.

General authori-

zation required for

public service.

Turkey Restricted to

indoor use.

Prohibited within

an 1 km radius

from the centre of

the runway of the

airports.

Norway Restricted to

indoor use. Prohibited within a

20 km radius from

the centre of Ny-

Ålesund.

• The latest version of “ERC RECOMMENDATION 70-

03” by European Radiocommunications Committee and

the regulation in Turkey.

• Use only the antenna speciﬁ ed by Panasonic.

• Conﬁ rm the latest information to the radio regulation

authorities.

40-E-1

For Used in Motor Vehicle

Warning: Check the following Commission Recommen-

dation to determine proper installation and usage of this

product while operating within a motor vehicle.

“Commission Recommendation on safe and efﬁ cient

in-vehicle information and communication systems: A

European statement of principles on human machine

interface.”

Commission Recommendation is available from Ofﬁ cial

Journal of the European Communities. 35-E-1

When using Port Replicator or Car Mounter on which

an external antenna can be installed:

• External antenna for wireless LAN must be profession-

ally installed.

• The gain of external antenna for wireless LAN must not

exceed 5 dBi.

• The user must maintain minimum of 20 cm spacing

between the external antenna and all people (exclud-

ing extremities of hands, wrist and feet) during wireless

modes of operation.

41-E-1-1

This equipment requires minimum 20 cm spacing from

all person’s body (excluding extremities of hands, wrist

and feet) in directions of the back and both sides of the

LCD display during wireless modes of operation. 60-E-1

Models for UK

Warning

This apparatus must be earthed for your safety.

To ensure safe operation the three-pin plug must be in-

serted only into a standard three-pin power point which is

effectively earthed through the normal household wiring.

Extension cords used with the equipment must be three-

core and be correctly wired to provide connection to

earth. Wrongly wired extension cords are a major cause

of fatalities.

The fact that the equipment operates satisfactorily does

not imply that the power point is earthed and that the

installation is completely safe.

For your safety, if you have any doubt about the effective

earthing of the power point, consult a qualiﬁ ed electrician.

FOR YOUR SAFETY PLEASE READ THE FOLLOW-

ING TEXT CAREFULLY

This appliance is supplied with a moulded three pin

mains plug for your safety and convenience.

A 3 amp fuse is ﬁ tted in this plug.

Should the fuse need to be replaced please ensure that

the replacement fuse has a rating of 3 amps and that it is

approved by ASTA or BSI to BS 1362.

Check for the ASTA mark A S A or the BSI mark on the

body of the fuse.

If the plug contains a removable fuse cover you must

ensure that it is reﬁ tted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until

a replacement cover is obtained.

A replacement fuse cover can be purchased from your

local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR

THE SOCKET OUTLET IN YOUR HOME THEN THE

FUSE SHOULD BE REMOVED AND THE PLUG CUT

OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL

SHOCK IF THE CUT OFF PLUG IS INSERTED INTO

ANY 13 AMP SOCKET.

If a new plug is to be ﬁ tted please observe the wiring

code as shown below.

If in any doubt please consult a qualiﬁ ed electrician.

Warning: THIS APPLIANCE MUST BE EARTHED.

Important

The wires in this mains lead are coloured in accordance

with the following code:

Green-and-yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this ap-

paratus may not correspond with the coloured markings

identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-and-YELLOW must

be connected to the terminal in the plug which is marked

by the letter E or by the safety earth symbol coloured

GREEN or GREEN-and-YELLOW.

Getting Started

Read Me First

The wire which is coloured Blue must be connected to

the terminal which is marked with the letter N or coloured

BLACK.

The wire which is coloured Brown must be connected to the

terminal which is marked with the letter L or coloured RED.

The mains plug on this equipment must be used to dis-

connect the mains power.

Please ensure that a socket outlet is available near the

equipment and shall be easily accessible.

 How to replace the fuse

Open the fuse compartment with a screwdriver and re-

place the fuse.

Warnings

 This equipment is not designed for connection to an IT

power system.

(An IT system is a system having no direct connec-

tions between live parts and Earth; the exposed-con-

ductive-parts of the electrical installation are earthed.

An IT system is not permitted where the computer

is directly connected to public supply systems in the

U.K.)

 Disconnect the mains plug from the supply socket

when the computer is not in use.

This equipment is produced to BS800/1983. 8-E-1

Precautions

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR

AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR

TRAFFIC CONTROL EQUIPMENT/SYSTEMS, AIRCRAFT

COCKPIT EQUIPMENT/SYSTEMS *1, MEDICAL DEVICES

OR ACCESSORIES *2, LIFE SUPPORT SYSTEMS OR

OTHER EQUIPMENTS/DEVICES/SYSTEMS THAT ARE

INVOLVED WITH ENSURING HUMAN LIFE OR SAFETY.

PANASONIC WILL NOT BE RESPONSIBLE FOR ANY

LIABILITY RESULTING FROM THE USE OF THIS PROD-

UCT ARISING OUT OF THE FOREGOING USES.

*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include

Class2 Electrical Flight Bag (EFB) Systems and Class1

EFB Systems when used during critical phases of ﬂ ight

(e.g., during take-off and landing) and/or mounted on to

the aircraft. Class1 EFB Systems and 2 EFB Systems

are deﬁ ned by FAA: AC (Advisory Circular) 120-76A or

JAA: JAA TGL (Temporary Guidance Leaﬂ ets) No.36.

*2 As deﬁ ned by the European Medical Device Directive

(MDD) 93/42/EEC.

Panasonic cannot guarantee any speciﬁ cations, technolo-

gies, reliability, safety (e.g. Flammability/Smoke/Toxicity/

Radio Frequency Emission, etc) requirements related to

aviation standards and medical equipment standards that

differ from the speciﬁ cations of our COTS (Commercial-

Off-The-Shelf) products.

This computer is not intended for use in medical equipment

including life-support systems, air trafﬁ c control systems, or

other equipment, devices or systems that are involved with

ensuring human life or safety. Panasonic cannot be held

responsible in any way for any damages or loss resulting

from the use of this unit in these types of equipment, devices

or systems, etc.

This product was developed based on thorough research

into the real-world portable computing environments. Ex-

haustive pursuit of usability and reliability under harsh con-

ditions led to innovations such has the magnesium alloy

exterior, vibration damped hard disk drive and ﬂ oppy disk

drive, ﬂ exible internal connections. This product’s outstand-

ing engineering has been tested using the strict MIL-STD-

810F (for vibration and shock) and IP (for dust and water)

based procedures.

As with any portable computer device precautions should be

taken to avoid any damage. The following usage and han-

dling procedures are recommended.

Before putting the computer away, be sure to wipe off

any moisture.

If a Malfunction or Trouble Occurs, Immediately Stop

Use

If a Malfunction Occurs, Immediately Unplug the AC

Plug and the Battery Pack

 This product is damaged

 Foreign object inside this product

 Smoke emitted

 Unusual smell emitted

 Unusually hot

Continuing to use this product while any of the above condi-

tions are present may result in ﬁ re or electric shock.

 If a malfunction or trouble occurs, immediately turn the

power off and unplug the AC plug, and then remove the

battery pack. Then contact your technical support ofﬁ ce for

repair.

Do Not Touch This Product and Cable When It Starts

Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a Power Source

Other Than a Standard Household AC Outlet

Otherwise, a ﬁ re due to overheating may result. Connecting

to a DC/AC converter (inverter) may damage the AC adap-

tor. On an airplane, only connect the AC adaptor/charger to

an AC outlet speciﬁ cally approved for such use.

Do Not Do Anything That May Damage the AC Cord, the

AC Plug, or the AC Adaptor

Do not damage or modify the cord, place it near hot tools,

bend, twist, or pull it forcefully, place heavy objects on it, or

bundle it tightly.

Continuing to use a damaged cord may result in ﬁ re, short

circuit, or electric shock.

Do Not Pull or Insert the AC Plug If Your Hands Are Wet

Electric shock may result.

Clean Dust and Other Debris of the AC Plug Regularly

If dust or other debris accumulates on the plug, humidity,

etc. may cause a defect in the insulation, which may result

in a ﬁ re.

 Pull the plug, and wipe it with a dry cloth.

Pull the plug if the computer is not being used for a long

period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, ﬁ re due to overheating

or electric shock may result.

 Do not use a damaged plug or loose AC outlet.

Do Not Place Containers of Liquid or Metal Objects on

Top of This Product

If water or other liquid spills, or if paper clips, coins, or for-

eign matter get inside this product, ﬁ re or electric shock may

result.

 If foreign matter has found its way inside, immediately turn

the power off and unplug the AC plug and remove the bat-

tery pack. Then contact your technical support ofﬁ ce.

Close the Connector Cover Tightly When Using This

Getting Started

Product Where Is a Lot of Water, Moisture, Steam, Dust,

Oily Vapors, etc.

The entry of foreign matter may cause a ﬁ re or electric

shocks.

 If foreign matter has found its way inside, immediately turn

the power off and unplug the AC cord, and then remove

the battery pack. Then contact your technical support of-

ﬁ ce.

Do Not Disassemble This Product

You may receive an electric shock, or foreign matter may

enter and result in a ﬁ re.

Keep SD Memory Cards Away from Infants and Small

Children

Accidental swallowing will result in bodily injury.

 In the event of accidental swallowing, see a doctor imme-

diately.

Do Not Place This Product on Unstable Surfaces

If balance is lost, this product may fall over or drop, resulting

in an injury.

Avoid Stacking

If balance is lost, this product may fall over or drop, resulting

in an injury.

Do Not Block the Ventilation Hole (Exhaust )

Using this product wrapped in cloth or on top of bedding or

a blanket can block the ventilation hole and cause heat to

build up inside, possibly resulting in a ﬁ re.

Hold the Plug When Unplugging the AC Plug

Pulling on the cord may damage the cord, resulting in a ﬁ re

or electric shock.

Do Not Move This Product While the AC Plug Is Con-

nected

The AC cord may be damaged, resulting in ﬁ re or electric

shock.

 If the AC cord is damaged, unplug the AC plug immedi-

ately.

Use Only the Speciﬁ ed AC Adaptor With This Product

Using an AC adaptor other than the one supplied (supplied

with the unit or one sold separately as an accessory) may

result in a ﬁ re.

Do Not Subject the AC Adaptor to Any Strong Impact

Using the AC adaptor after a strong impact such as being

dropped may result in electric shock, short circuit, or ﬁ re.

Take a Break of 10-15 Minutes Every Hour

Using this product for long periods of time may have detri-

mental health effects on the eyes or hands.

Networks other than 1000BASE-T, 100BASE-TX or

10BASE-T

 Phone lines (IP phone (Internet Protocol Telephone), Tele-

phone lines, internal phone lines (on-premise switches),

digital public phones, etc.)

Do Not Use With Exposing the Skin to This Product For

a Long Period of Time

Using this product with exposing the skin to the heat source

of this product or AC adaptor for a long period of time can

cause a low-temperature burn.

Do Not Expose Yourself to the Hot Wind from the Venti-

lation Hole (Exhaust) For a Long Period of Time.

Low-temperature burns may result.

Covering the ventilation hole (exhaust) with your hand or

other object can cause heat to build up inside, possibly

resulting in burns.

Do Not Expose the Skin To This Product When Using

the Product In A Hot Or Cold Environment.

Burns, low-temperature burns, or frostbite may result.

• When it is necessary to expose the skin to this product

such as to scan a ﬁ ngerprint, perform the operation in the

shortest time possible.

Do Not Turn the Volume Up Too Loud When Using

Headphones

Listening at high volumes that overstimulate the ear for long

periods of time may result in loss of hearing.

 Do not place the computer near a television or radio re-

ceiver.

 Keep the computer away from magnets. Data stored on

the hard disk may be lost.

 This computer is not intended for the display of images for

use in medical diagnosis.

 This computer is not intended for a use with connection of

medical equipment for the purpose of medical diagnosis.

 Panasonic shall not be liable for loss of data or other inci-

dental or consequential damages resulting from the use of

this product.

Interface Cable

Use of an interface cable longer than 3 m {9.84 feet} is not

recommended.

11-E-1

Precautions (Battery Pack)

Do Not Use With Any Other Product

The battery pack is rechargeable and was intended for the

speciﬁ ed product. If it is used with a product other than the

one for which it was designed, electrolyte leakage, genera-

tion of heat, ignition or rupture may result.

Do Not Charge the Battery Using Methods Other Than

Those Speciﬁ ed

If the battery is not charged using one of the speciﬁ ed

methods, electrolyte leakage, generation of heat, ignition or

rupture may result.

Do Not Throw the Battery Pack into a Fire or Expose It

to Excessive Heat

Generation of heat, ignition or rupture may result.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight,

for Example)

Electrolyte leakage, generation of heat, ignition or rupture

may result.

Do Not Insert Sharp Objects into the Battery Pack, Ex-

pose It to Bumps or Shocks, Disassemble, or Modify It

Electrolyte leakage, generation of heat, ignition or rupture

may result.

 If this product is subjected to a strong impact, stop using it

immediately.

Do Not Short the Positive (+) and Negative (-) Contacts

Generation of heat, ignition or rupture may result.

 Do not place the battery pack together with articles such

as necklaces or hairpins when carrying or storing.

Do Not Use This Product With a Battery Pack Other

Than the One Speciﬁ ed

Use only the speciﬁ ed battery pack ( page 14) with your

product. Use of battery packs other than those manufac-

tured and supplied by Panasonic may present a safety

hazard (generation of heat, ignition or rupture).

When battery pack has deteriorated, replace it with a

new one

Continued use of a damaged battery pack may result in heat

generation, ignition or battery rupture.

Getting Started

CAUTION:

Risk of Explosion if Battery is replaced by an Incorrect

Type. Dispose of Used Batteries According to the Instruc-

tions.

58-E-1

ATTENTION:

Il y a risque d’explosion si la batterie est remplacée par

une batterie de type incorrect.

Mettre au rebut les batteries usagées conformément aux

instructions.

58-F-1

 Do not touch the terminals on the battery pack. The bat-

tery pack may no longer function properly if the contacts

are dirty or damaged.

 Do not expose the battery pack to water, or allow it to

become wet.

 If the battery pack will not be used for a long period of

time (a month or more), charge or discharge (use) the

battery pack until the remaining battery level becomes

30% to 40% and store it in a cool, dry place.

 This computer prevents overcharging of the battery by

recharging only when the remaining power is less than

approx. 95% of capacity.

 The battery pack is not charged when the computer is

ﬁ rst purchased. Be sure to charge it before using it for

the ﬁ rst time. When the AC adaptor is connected to the

computer, charging begins automatically.

 Should the battery leak and the ﬂ uid get into your eyes,

do not rub your eyes. Immediately ﬂ ush your eyes with

clear water and see a doctor for medical treatment as

soon as possible.

NOTE

 The battery pack may become warm during recharg-

ing or normal use. This is completely normal.

 Recharging will not commence if internal tempera-

ture of the battery pack is outside of the allowable

temperature range (0 °C to 50 °C) ( Reference

Manual “Battery Power”). Once the allowable range

requirement is satisﬁ ed, charging begins automati-

cally. Note that the recharging time varies based on

the usage conditions. (Recharging takes longer than

usual when the temperature is 10 °C or below.)

 If the temperature is low, the operating time is short-

ened. Only use the computer within the allowable

temperature range.

 This computer has a high temperature mode function

that prevents the degradation of the battery in high

temperature environments. ( Reference Manual

“Battery Power”) A level corresponding to a 100%

charge for high temperature mode is approximately

equivalent to an 80% charge level for normal tempera-

ture mode.

 The battery pack is a consumable item. If the amount

of time the computer can be run by using a particular

battery pack becomes dramatically shorter and re-

peated recharging does not restore its performance,

the battery pack should be replaced with a new one.

 When transporting a spare battery inside a package,

briefcase, etc., it is recommended that it be placed in

a plastic bag so that its contacts are protected.

 Always power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not

connected will exhaust the remaining battery capacity

( Reference Manual “LAN”).

A lithium ion battery that is recy-

clable powers the product you have

purchased.

Please call 1-800-8-BATTERY for

information on how to recycle this

battery.

L’appareil que vous vous êtes pro-

curé est alimenté par une batterie

au lithium-ion.

Pour des renseignements sur le

recyclage de la batterie, veuillez

composer le 1-800-8-BATTERY.

48-M-1

Read Me First

Getting Started

Description of Parts

Tether HooksA:

The tether hooks are not provided for some models.

Tablet ButtonsB:

 Reference Manual “Tablet Buttons”

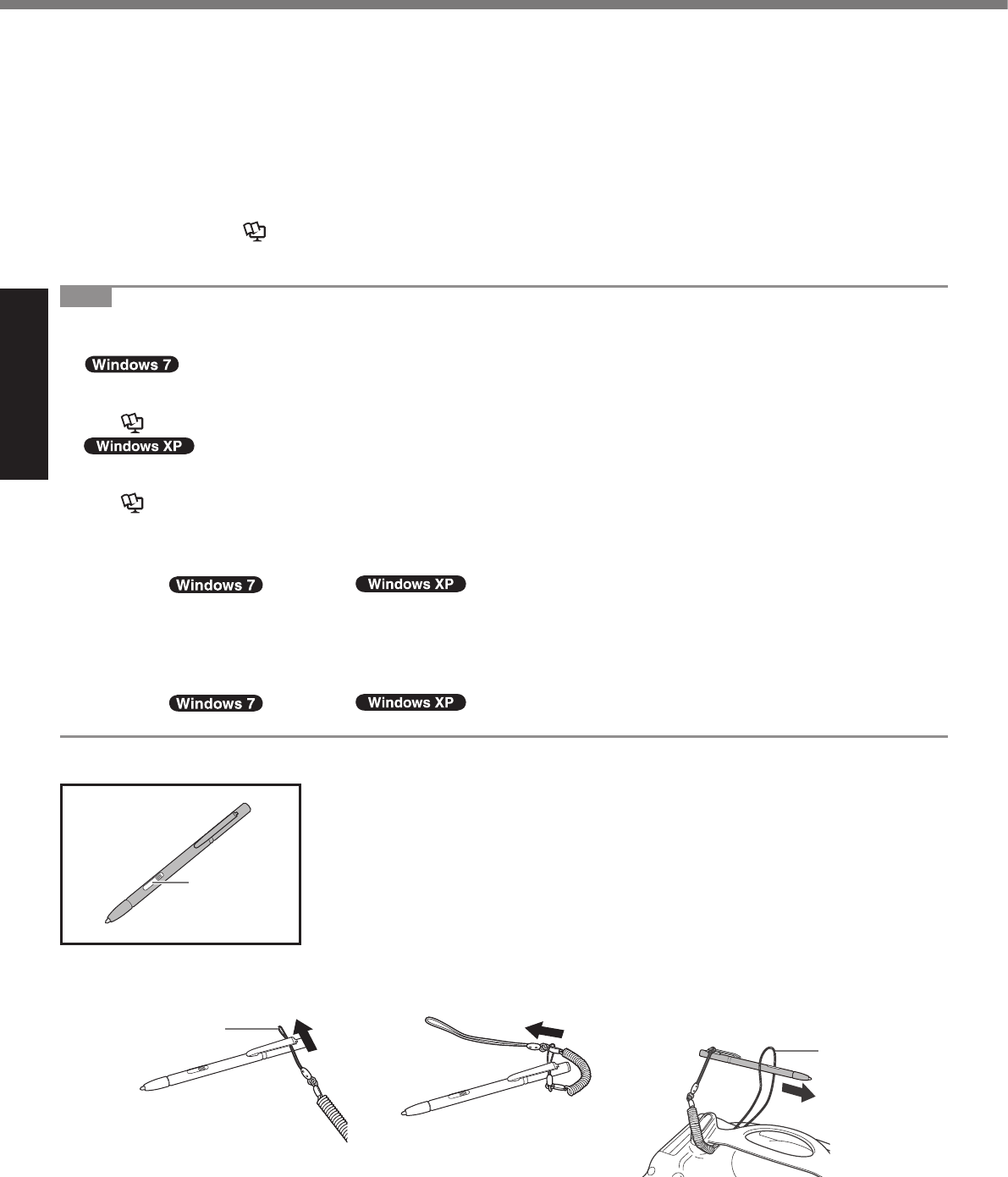

Pen HolderC:

LED IndicatorD:

: Battery status

 Reference Manual “Battery Power”

: Wireless ready

This indicator lights when wireless LAN, Blu-

etooth, and/or Wireless WAN are connected and

ready. It does not necessarily indicate the On/Off

condition of the wireless connection.



Reference Manual “Wireless LAN”, “Blu-

etooth”, “Wireless WAN”, “Disabling/Enabling

Wireless Communication”

: Hard disk drive status

: SD Memory Card Indicator

(Blinking: During access)

 Reference Manual “SD Memory Card”

Power SwitchE:

Power StatusF:

(Off: Power off/Hibernation, Green: Power on, Blinking

green: Sleep( ) / Standby( ),

Blinking green rapidly: Cannot power on or resume

due to low temperature.)

SpeakerG:

 Reference Manual “Dashboard for Panasonic

PC”

LCDH:

 Reference Manual “Touchscreen”

Bluetooth AntennaI:

 Reference Manual “Bluetooth”

Wireless WAN AntennaJ:

 Reference Manual “Wireless WAN”

Wireless LAN AntennaK:

 Reference Manual “Wireless LAN”

Front CameraL:

 Reference Manual “Camera”

Hard Disk DriveM:

Battery PackN:

Speciﬁ ed Battery pack: CF-VZSU73U

Rear CameraO:

 Reference Manual “Camera”

RAM Module SlotP:

 Reference Manual “RAM Module”

External Antenna ConnectorQ:

Expansion Bus ConnectorR:

 Reference Manual “Cradle”

Ventilation Hole (Intake)S:

Bottom and rear side

CDE F G

M N

SR Q P O

Getting Started

OFF ON

DC-IN JackA:

LAN PortB:

 Reference Manual “LAN”

Serial PortC: *1 / VGA Port*2

*1 <Only for model with serial port>

*2 <Only for model with VGA port>

 Reference Manual “External Display”

Security LockD:

A Kensington cable can be connected.

For further information, read the manual that comes

with the cable.

Ventilation Hole (Exhaust)E:

4th USB2.0 PortF: *3 / 2nd LAN Port*4 / Fingerprint

Reader*5 / Rugged USB2.0 Port*6

*3 <Only for model with 4th USB2.0 port>

 Reference Manual “USB Devices”

*4 <Only for model with 2nd LAN port>

 Reference Manual “LAN”

*5 <Only for model with Fingerprint reader>

 Reference Manual “Fingerprint Reader”

*6 <Only for model with rugged USB2.0 port>

 Reference Manual “USB Devices”

Wireless SwitchG:

 Reference Manual “Disabling / Enabling Wire-

less Communication”

ExpressCard SlotH:

 Reference Manual “PC Card / ExpressCard”

SD Memory Card SlotI:

 Reference Manual “SD Memory Card”

USB2.0 PortsJ:

 Reference Manual “USB Devices”

Microphone JackK:

A condenser microphone can be used. If other types

of microphones are used, audio input may not be pos-

sible, or malfunctions may occur as a result.

Headphone JackL:

You can connect headphones or ampliﬁ ed speakers.

When they are connected, audio from the internal

speakers is not heard.

SIM Card SlotM:

Insert the SIM card into the SIM card slot with the

contact side facing downward and with the cut corner

oriented forward.

 Reference Manual “Wireless WAN”

PC Card SlotN: *7 / Smart Card Slot*8

*7 <Only for model with PC Card slot>

 Reference Manual “PC Card”

*8 <Only for model with Smart Card slot>

 Reference Manual “Smart Card”

Description of Parts

Right side

Parts (F) illustrated below are all optional.

Left side

To set the wireless switch to ON,

slide and align it to the V mark.

A B

FF *3*4*5

F*6

C C

E D

*1*2

Getting Started

 This computer contains a magnet and magnetic products at the location cir-

cled in the illustration at right. Avoid leaving metallic object or magnetic media

in contact with this area.

Getting Started

 Preparation

A Check and identify the supplied accessories.

If you do not ﬁ nd the described accessories, contact Panasonic Technical Support.

• AC Adaptor . . . . . 1

Model No: CF-AA5713A

• AC Cord . . . . . . . . 1 • Battery Pack . . . . 1

Model No: CF-VZSU73U

• Soft Cloth . . . . . . . 1 • Stylus . . . . . . . . . . 1

Model No: CF-VNP017U

• Tether . . . . . . . . . . 1

Model No: CF-VNT004U

(

Reference Manual “Touchscreen”)

• Safety Precautions and Regulatory Information . . . . . . . . . . . . . . . . . . . . . 1

• <Only for model with OPERATING INSTRUCTIONS CD-ROM>

OPERATING INSTRUCTIONS (CD-ROM) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

For some models, Operating Instructions are installed in the hard disk.

• Product Recovery DVD-ROM Windows® 7 Professional . . . . . . . . . . . . . . . 1

B Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging

( page 33).

 Inserting the Battery Pack

A Slide the latch (A) in the direction of the arrow.

B Open the cover.

C Insert the battery pack until it securely ﬁ ts the connector.

D Close the cover until it clicks.

E Slide the latch (A) in the direction of the arrow.

 To remove the battery pack

In step C above, pull the tab (B) of the battery pack.

CAUTION

 Make sure the latch is securely locked. Otherwise the battery pack may fall

when you carry the computer.

NOTE

 Note that the computer consumes electricity even when the computer power is

off. If the battery pack is fully charged, the battery will fully discharge in the fol-

lowing period of time:

• When power is off: Approx. @@ weeks

• In sleep ( )/standby ( ): Approx. @@ days

• In hibernation: Approx. @@ days

At the time of purchase, “Wake Up from LAN” is enabled.

If “Wake Up from LAN” is disabled, the period of time in sleep will become

slightly longer, and the period of time in hibernation will become about the same

as during power-off.

 When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet. Power is consumed simply by having the AC adaptor

plugged into an electrical outlet.

First-time Operation

①

②

④

⑤

③

Getting Started

 Attaching the stylus to the computer

Use the tether to attach the stylus to the computer so you will not lose it.

There are holes (A) to attach it.

A Pass one of the loops through the hole.

B Pass the second loop on the tether through the ﬁ rst one.

C Thread the second loop through the hole (A).

D Pass the stylus through the second loop.

①

②

④

③

Getting Started

First-time Operation

①

⑦

⑥

⑤

④

⑧

③

②

1 Inserting the Battery Pack ( page 14)

 Do not touch the terminals of the battery pack and the computer. Doing so can

make the terminals dirty or damaged, and may cause malfunction of the battery

pack and the computer.

 Be sure to attach the cover for use.

2 Connect your computer to a power outlet, and connect the

external keyboard and mouse to the USB ports.

A Slide the latch in the direction of the arrow.

B Open the cover.

C Connect the AC adaptor.

The battery charging starts automatically.

D Slide the latch of one of the three USB ports in the direction of the arrow.

E Open the cover.

F Slide the latch of another USB port in the direction of the arrow.

G Open the cover.

H Connect the external keyboard and mouse to the USB ports.

CAUTION

 Do not disconnect the AC adaptor and do not switch the wireless switch to on

until the ﬁ rst-time operation procedure is completed.

 When using the computer for the ﬁ rst time, do not connect any peripheral de-

vice except the battery pack, AC adaptor, external keyboard and mouse.

 Handling the AC adaptor

 Problems such as sudden voltage drops may arise during periods of thunder

and lightning. Since this could adversely affect your computer, an uninter-

ruptible power source (UPS) is highly recommended unless running from the

battery pack alone.

3 Turn on the computer.

A Conﬁ rm the wireless switch ( page 12) is OFF.

B Press and hold the power switch until the power indicator (A) lights.

CAUTION

 Do not press the power switch repeatedly.

 The computer will forcibly be turned off if you press and hold the power switch

for 4 seconds or longer.

 Once you turn off the computer, wait for 10 seconds or more before you turn on

the computer again.



Do not perform the following operation until the hard disk drive indicator turns off.

 Connecting or disconnecting the AC adaptor

 Pressing the power switch



Touching the touchscreen, external keyboard or external mouse



Turn on/off the wireless switch

 When the CPU temperature is high, the computer may not start up to prevent

overheating of the CPU. Wait until the computer cools down, and then turn the

power on again. If the computer does not power on even after cooling down,

contact Panasonic Technical Support.

 Any changes from the default setting of the Setup Utility must not be made until

the First-time Operation is completed.

Getting Started

4 <For MUI OS model>

Select language and OS (32 bit or 64 bit).

NOTE

 You can operate with the Tablet Buttons. Follow the instructions displayed on

the screen.

A Select language and OS (32bit or 64bit) on “Select OS” screen and click

[OK].

The language setting will start by clicking [OK] on the conﬁ rmation screen.

You can return to the “Select OS” screen by clicking [Cancel].

The language and OS setting will be completed in about 15 minutes.

B When termination screen is displayed, click [OK] to turn off the computer.

C Turn on the computer.

CAUTION

 Carefully choose your language because you cannot change it later. If you set a

wrong language, you need to reinstall Windows.

5 Setup Windows.

Follow the on-screen instructions.

 The computer restarts several times. Do not touch the touchscreen, external

keyboard or external mouse, and wait until the hard disk drive indicator

has turned off.

 After the computer is turned on, the screen remains black or unchanged for

a while. This is not a malfunction. Wait for a moment until the Windows setup

screen appears.

 During setup of Windows, use the touchscreen, external mouse, external

keyboard and clicking to move the cursor and to click an item.

 Setup of Windows will take approximately 20 minutes.

Go to the next step, conﬁ rming each message on the display.

 “Join a wireless network” screen may not appear.

You can set the Wireless Network after the setup of Windows is complete.

 Setup of Windows will take approximately 20 minutes. Go to the next step,

conﬁ rming each message on the display.

 For some languages, the characters on the key and inputted character may

not match. Set the keyboard properly after the setup is complete. Then set

the password.

 Do not change the settings on the screen where you select a country or re-

gion. You can set a country, region or keyboard layout in [Clock, Language,

and Region] of [Control Panel] after the Windows setup is complete.

CAUTION

 Wait until the hard disk drive indicator has turned off.

 You can change the user name, password, image and Wireless Networks

( ) / security setting ( ) after setup of Windows.

 Use standard characters as a computer name: numbers 0 through 9, uppercase

and lowercase letters from A to Z, and the hyphen (-) character. If the error

message “The computer name is not valid” appears, check if characters other

than the above are not entered. If the error message still remains on the dis-

play, set the key entry mode to English (“EN”) and enter characters.

Getting Started

 Do not use the following words for user name: CON, PRN, AUX, CLOCK$,

NUL, COM1 to COM9, LPT1 to LPT9, @. In particular, if you create a user

name (account name) that includes the “@” mark, a password will be requested

at the log-on screen, even if no password has been set. If you try to log on

without entering a password, “The user name or password is incorrect.” may be

displayed and you will not be able to log on to Windows ( page 30).

 The wallpaper for the ﬁ rst logon user has already been set on “5 Setup Win-

dows.”.

When using this computer under the Sun, the screen becomes easily viewable

by changing the wallpaper to the white wallpaper.

A Right-click on the desktop, and click [Personalize] - [Desktop Background].

B Select [Solid Colors] at [Picture Location].

C Select the white wallpaper and click [Save changes].

 When setting up the keyboard, choose the appropriate one to your computer.

Otherwise, input by the keyboard may become unavailable.

 You cannot choose the following words for user name and password: CON,

PRN, AUX, CLOCK$, NUL, COM1 to COM9, LPT1 to LPT9.

 When you set date/time/time zone and click [Next], the screen may not go to the

next step for a few minutes. Do not touch the keyboard or touch pad, and wait

until the screen changes.

 If “An unexpected error has occurred ...” (or a similar message) is displayed,

click [OK]. This is not a malfunction.

 Wait until the hard disk drive indicator has turned off.

 The keyboard will operate as the US keyboard until the keyboard setting is

changed. Because of this, some alphabets shown on display may differ from

inputted ones.

To avoid the accidental selections, during setting up Windows,

 Use the external mouse to make some selections.

 To match the languages, change the language settings after setting up Win-

dows ( page 17). Do not change the settings in [To change system or these

settings, click Customize] of [Regional and Language Options] during setting up

Windows.

First-time Operation

Getting Started

6 <For MUI OS model>

Change the language settings.

• English • Arabic • Bulgarian • Chinese (Simpliﬁ ed)

• Chinese (Traditional) • Croatian • Czech

• Danish • Dutch • Estonian • Finnish

• French • German • Greek • Hebrew

• Hungarian • Italian • Japanese • Korean

• Latvian • Lithuanian • Norwegian • Polish

• Portuguese • Portuguese (Brazilian) • Romanian

• Russian • Slovak • Slovenian • Spanish

• Swedish • Thai • Turkish

Change the language settings in the following menu.

[start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Regional

and Language Options]

 [Regional Options] - [Standards and Formats]

 [Languages] - [Language used in menus and dialogs]

 [Languages] - [Details] - [Default input language]

 [Advanced] - [Language for non-unicode Programs]

NOTE

 When you use MUI OS and localized OS versions together on the same net-

work, use English computer names on localized versions of Windows.

 Some UI (User Interface) strings remain in English even if the user’s UI is set to

another language.

 For more information, refer to “c:\windows\mui\relnotes.txt”.

If you change the language in [Languages] - [Language used in menus and dia-

logs], the desktop color will be changed when logging on to Windows next time.

The desktop color can be changed by following the procedure below.

Click [start] - [Control Panel] - [Appearance and Themes] - [Display] - [Desktop]

and select color from [Color], then click [OK].

7 Perform the touchscreen calibration.

 To calibrate the touchscreen, use the stylus.

 Before performing the calibration, close Tablet PC Input Panel.

NOTE

 At ﬁ rst, log on to Windows as an administrator and perform this calibration.

A Open the Dashboard for Panasonic PC, and click [Change Settings] in

[Touch Calibration].

Alternatively, proceed with the following operation.

Click (Start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Set-

ting].

B Click [Calibrate].

C Using the stylus, touch each of the “+” target marks one by one, and then

click [Yes].

D Click [OK].

NOTE

 After completing the calibration as an administrator, perform the calibration for

each user by the above steps.

Perform the calibration for the orientation to be used.

Getting Started

A Open the Dashboard for Panasonic PC, and click [Change Settings] in

[Touch Calibration].

Alternatively, proceed with the following operation.

Click [start] - [All Programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen

Calibration Utility].

B Using the stylus, touch each of the “+” target marks one by one until it blinks.

8 Create a new account.

Click [start] - [Control Panel] - [User Accounts] - [Create a new account].

Follow the on-screen instructions to create an account.

CAUTION

 Remember your password. If you forget the password, you cannot use the Win-

dows operating system. Creating a password reset disk beforehand is recom-

mended.

NOTE

 PC Information Viewer

This computer periodically records the management information of the hard disk, etc. The maximum data volume for

each record is 1024 bytes. This information is only used for estimating the cause in the case when the hard disk goes

down by any possibility. They are never sent to outside via network nor used for any other purpose except for the pur-

pose described the above.

To disable the function, add the check mark for [Disable the automatic save function for management information history]

in [Hard Disk Status] of PC Information Viewer, and click [OK].

(



Reference Manual “Checking the Computer’s Usage Status”)

 When Starting Up/Shutting Down

 Do not do the following

 Connecting or disconnecting the AC adaptor

 Pressing the power switch

 Touching the touchscreen, external mouse or external keyboard

 Turn on/off the wireless switch

NOTE

 To conserve power, the following power saving methods are set at the time of purchase.

 The screen automatically turns off after 10*1 minutes of inactivity.

 The computer automatically enters sleep*2 ( )/standby*2 ( ) after 20 minutes of inactivity.

*1 Windows XP :15 minutes

*2 Refer to Reference Manual “Sleep and Hibernation Functions” about resuming from sleep.

First-time Operation

Getting Started

 When Logging on to Windows

Do not log on to Windows by the Guest account.

 To change the partition structure

You can shrink a part of an existing partition to create unallocated disk space, from which you can create a new parti-

tion. This computer has a single partition as default setting.

A Click (Start) and right-click [Computer], then click [Manage].

 A standard user needs to enter an administrator password.

B Click [Disk Management].

C Right-click the partition for Windows (“c” drive in the default setting), and click [Shrink Volume].

 The partition size depends on the computer speciﬁ cations.

D Input the size in [Enter the amount of space to shrink in MB] and click [Shrink].

 You cannot input a larger number than the displayed size.

 To select [Reinstall to the ﬁ rst 2 partitions.] in reinstalling Windows 7 ( page 25), 30000 MB*3 or more is

necessary for [Total size after shrink in MB].

E Right-click [Unallocated] (the shrunk space in the step D) and click [New Simple Volume].

F Follow the on-screen instructions to make the settings, and click [Finish].

Wait until formatting is completed.

*3 For MUI OS model, 60000 MB or more is necessary.

NOTE

 You can create an additional partition using remaining unallocated space or newly creating unallocated space.

 To delete a partition, right-click the partition and click [Delete Volume] in step C.

Useful Information

On-screen Manual

You can access the following manuals on the computer screen.

 Reference Manual

The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.

To access the Reference Manual:

Double-click on the desktop.

 Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference Manual].

Click [start] - [Reference Manual].

 Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference Manual].

To display “Battery Power” of the Reference Manual, proceed as follows.

Double-click on the desktop.

 Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

Double-click on the desktop.

 Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

NOTE

 When you access the document of PDF format for the ﬁ rst time, the License Agreement of the Adobe Reader may

be displayed. Read it carefully and select [Accept] to proceed.

 When Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure and update.

See http://www.adobe.com/ for the latest version of Adobe Reader.

Useful Information

Handling and Maintenance

Operation environment

 Place the computer on a ﬂ at stable surface. Do not place the computer upright or turn it over. If the computer is

exposed to an extremely strong impact, it may become damaged.

 Temperature: Operation : -10 °C to 50 °C (IEC60068-2-1, 2)*1

Storage : -20 °C to 60 °C

Humidity: Operation : 30 % to 85 % RH (No condensation)

Storage : 30 % to 85 % RH (No condensation)

Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in

the product deterioration and will shorten the product life.

*1 Do not expose the skin to this product when using the product in a hot or cold environment. ( page 9)

If the computer is wet in temperatures of 0 °C {32 °F} or below, freeze damage may occur. Make sure to dry off the computer in

such temperatures.

 Do not place the computer in the following areas, otherwise the computer may be damaged.

 Near electronic equipment. Image distortion or noise may occur.

 In extremely high or low temperature.

 As the computer can become hot during operation, keep it away from items that are sensitive to heat.

Handling cautions

This computer is designed to minimize shock to parts such as the LCD and the hard disk drive, but no warranty is pro-

vided against any trouble caused by shock. Be extremely careful when handling the computer.

 When carrying the computer:

 Turn off the computer.

 Remove all external devices, cables, Express Cards and other protruding objects.

 Do not drop or hit the computer against solid objects.

 Do not grip the display part.

 When you board an airplane, take the computer with you and never put it in your checked luggage. When using the

computer on airplane, follow the airline’s instructions.

 When carrying a spare battery, put it in a plastic bag to protect its terminals.

 Be careful not to get injured by dropping or getting hit when carrying the computer.

 Use only the included stylus to touch the touchscreen. Do not place any object on its surface and do not press

down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

 Do not use the touchscreen when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen/

stylus can scratch the screen surface or obstruct the stylus operation.

 Use the stylus only for touching the screen. Using it for any other purpose may damage the stylus and result in

scratches on the screen.

 When using peripheral devices

Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction

manuals of the peripheral devices.

 Use the peripheral devices conforming to the computer’s speciﬁ cations.

 Connect to the connectors in the correct direction.

 If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.

 If screws are included, fasten them securely.

 Remove the cables when you carry the computer. Do not pull the cables forcibly.

 Preventing your computer from unauthorized use via wireless LAN/Bluetooth/wireless WAN

 Before using wireless LAN/Bluetooth/wireless WAN, make the appropriate security settings such as data encryp-

tion.

 Battery Recalibration

 The battery recalibration may take a long time due to the large battery capacity. This is not a malfunction.

<CF-D1ASBX>

 Full charge: Approximately @@ hours

 Complete discharge: Approximately @@ hours

<CF-D1DVAX>

 Full charge: Approximately @@ hours

 Complete discharge: Approximately @@ hours

(



Reference Manual “Battery Power”)

Useful Information

Maintenance

To clean the LCD panel

Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD

Surface”.  Reference Manual “Touchscreen”)

To clean areas other than the LCD panel

Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it

thoroughly.

CAUTION

 Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.

Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to

the surface.

 Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause

malfunction or damage.

Handling and Maintenance

Useful Information

Reinstalling Software

Reinstalling software will return the computer to the default condition. When you reinstall the software, the hard disk

data will be erased.

Back up important data to other media or an external hard disk before reinstallation.

 Hard Disk Recovery

CAUTION

Area usable by Windows

Hard disk

HDD Recovery partition

Recovery partition

 You can install Windows 7 only.

 Do not delete the recovery partition on the hard disk.

The disk space in the partition is not available to store data.

NOTE

 You can operate with the Tablet Buttons. Follow the instructions displayed on the screen.

You can also use the external keyboard and external mouse.

Preparation

 Remove all peripherals.

 Connect the AC adaptor and do not remove it until reinstallation is complete.

1 Turn off the computer and connect the external keyboard and mouse to the USB ports.

2 Turn on the computer, and press while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the [Panasonic] boot screen is not displayed, as soon as the computer starts up, press several times until

the Setup Utility screen appears.

 If the password is requested, enter the Supervisor Password.

3 Write down all of the contents of the Setup Utility and click

At the conﬁ rmation message, select [Yes] and click

Enter

4 Click

F10

At the conﬁ rmation message, select [Yes] and click

Enter

Computer will restart.

5 Press

Del

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the [Panasonic] boot screen is not displayed, as soon as the computer starts up, press several times until

the Setup Utility screen appears.

 If the password is requested, enter the Supervisor Password.

6 Select the [Exit] menu, then select [Repair Your Computer] and click

Enter

7 Click [Reinstall Windows] and click [Next].

The License Agreement screen appears.

8 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].

9 Select the settings and click [Next].

 [Reinstall Windows to the whole Hard Disk to factory default.]

Select this option when you want to reinstall Windows to the factory default. After reinstallation, you can cre-

ate a new partition. For how to create a new partition, refer to “To change the partition structure” ( page 21).

 [Reinstall to the System and OS partitions.]*1

Select this option when the hard disk has already been divided into several partitions. For how to create a

new partition, refer to “To change the partition structure” ( page 21).

You can keep the partition structure.

*1 This does not appear if Windows cannot be reinstalled to the partition containing boot ﬁ les and the area usable by

Windows.

10 At the conﬁ rmation message, click [YES].

11 <For model with localized OS>

Select OS (32bit or 64bit) and click [OK].

Select language and OS (32bit or 64bit), then click [OK].

Useful Information

12 At the conﬁ rmation message, click [OK].

Reinstallation starts according to the instructions on the screen.

 Do not interrupt reinstallation, for example by turning off the computer. Otherwise reinstallation may become

unavailable as Windows may not start up or the data may be corrupted.

13 When termination screen is displayed, click [OK] to turn off the computer.

14 Turn on the computer.

 If the password is requested, enter the Supervisor Password.

15 Perform the “First-time Operation” ( page 17).

16 Start the Setup Utility and change the settings as necessary.

17 Perform Windows Update.

 Using Product Recovery DVD-ROM <Only for model with Product Recovery DVD-ROM>

Use the Product Recovery DVD-ROM for reinstallation in the following conditions.

 You have forgotten the administrator password.

 Reinstallation is not complete. The recovery partition may be broken.

NOTE

 When you reinstall OS using the Product Recovery DVD-ROM, OS which was installed as the factory default will

be installed. To change OS from 32-bit to 64-bit, or vice versa, reinstall OS using the recovery partition in the hard

disk.

 You can operate with the Tablet Buttons. Follow the instructions displayed on the screen.

You can also use the external keyboard and external mouse.

Preparation

 Prepare the Product Recovery DVD-ROM

 Prepare the following items:

 USB DVD drive (refer to recent catalogs and other sources for information about the products available)

 Remove all peripherals (excluding USB DVD drive)

 Connect the AC adaptor and do not remove it until reinstallation is complete.

1 Turn off the computer and connect the external keyboard, external mouse and DVD

drive to the USB ports.

2 Turn on the computer, and press while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the [Panasonic] boot screen is not displayed, as soon as the computer starts up, press several times until

the Setup Utility screen appears.

 If the password is requested, enter the Supervisor Password.

3 Write down all of the contents of the Setup Utility and click

At the conﬁ rmation message, select [Yes] and click

Enter

4 Click

F10

At the conﬁ rmation message, select [Yes] and click

Enter

Computer will restart.

5 Press while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the [Panasonic] boot screen is not displayed, as soon as the computer starts up, press several times until

the Setup Utility screen appears.

 If the password is requested, enter the Supervisor Password.

6 Set the Product Recovery DVD-ROM into the DVD drive.

7 Select the [Exit] menu, then select your DVD drive in [Boot Override].

8 Click

Enter

The computer will restart.

9 Click [Reinstall Windows] and click [Next].

The License Agreement screen appears.

10 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].

Reinstalling Software

Useful Information

11 Select the settings and click [Next].

 [Reinstall Windows to the whole Hard Disk to factory default.]

Select this option when you want to reinstall Windows to the factory default. After reinstallation, you can cre-

ate a new partition. For how to create a new partition, refer to “To change the partition structure” ( page 21).

 [Reinstall to the ﬁ rst 3 partitions.]*2

Select this option when the hard disk has already been divided into several partitions. For how to create a

new partition, refer to “To change the partition structure” ( page 21).

You can keep the partition structure.

This does not appear if Windows cannot be reinstalled to the partition containing boot ﬁ les and the area usable by Windows.

12 At the conﬁ rmation message, click [YES].

Reinstallation starts. (It will take approximately @@ minutes.)

According to the screen, replace the Product Recovery DVD-ROM.

 Do not interrupt reinstallation, for example by turning off the computer. Otherwise reinstallation may become

unavailable as Windows may not start up or the data may be corrupted.

13 When termination screen is displayed, remove the Product Recovery DVD-ROM, and

then click [OK] to turn off the computer.

14 Remove the DVD drive.

15 Turn on the computer.

 If the password is requested, enter the Supervisor Password.

16 Perform the “First-time Operation” ( page 17).

17 Start the Setup Utility and change the settings as necessary.

18 Perform Windows Update.

Troubleshooting

Troubleshooting (Basic)

Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the

“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact

Panasonic Technical Support. You can also check the computer’s status in the PC Information Viewer ( Refer-

ence Manual “Checking the Computer’s Usage Status”).

 Starting Up

Cannot start up.

The power indicator or bat-

tery indicator is not lit.

 Connect the AC adaptor.

 Insert a fully charged battery.

 Remove the battery pack and the AC adaptor, then connect them again.

 Even if the AC adaptor and battery pack are correctly connected, if the battery indicator

is not lit, the AC adaptor protection function may be operating. Disconnect the AC cord,

wait three minutes or more, and reconnect the AC cord.

 If a device is connected to the USB port, disconnect the device, or set [USB Port] or

[Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup Utility.

 If a device is connected to the ExpressCard slot, disconnect the device, or set [Express-

Card Slot] to [Disabled] in the [Advanced] menu of the Setup Utility.

The power is turned on but

“Warming up the system (up

to 30 minutes)” appears.

 The computer is warming up before start up. Wait for the computer to start up (takes

up to 30 minutes). If, “Cannot warm up the system” is displayed, the computer failed to

warm up and does not start. In this case, turn off the computer, leave it in an environ-

ment of 5 °C or higher temperature for about an hour, and then turn on the power once

more.

Cannot turn on the comput-

er. The computer does not

resume from sleep

( )/standby

( ).

(The power indicator blinks

quickly in green.)

 Leave it in an environment of 5 °C or higher temperature for about an hour, then turn on

the power once more.

After adding or changing

the RAM module, the power

is turned on but nothing is

displayed on the screen.

 Turn off the computer and remove the RAM module, then conﬁ rm whether the RAM

module has conformed to speciﬁ cation. When the RAM module has conformed to speci-

ﬁ cation, install it again.

The computer does not

enter sleep mode while the

screen saver is running (The

screen stays black).

 Press and hold the power switch for four seconds or longer to shut down the computer

forcibly. (Data not saved will be lost.) Then disable the screen saver.

It takes time for the power

indicator to light up.

 If the power switch is pressed immediately after the battery pack has been mounted on

the computer, and while the AC adaptor is not connected, it may take about ﬁ ve sec-

onds before the power indicator lights up and the computer turns on. This is because

the computer is checking the remaining battery charge; it is not a malfunction.

You have forgotten the

password.

 Supervisor Password or User Password: Contact Panasonic Technical Support.

 Administrator password:

 If you have a password reset disk, you can reset the administrator password. Set the

disk and enter any wrong password, then follow the on-screen instructions and set a

new password.

 If you do not have a password reset disk, reinstall ( page 25) and set up Windows,

and then set a new password.

“Remove disks or other

media. Press any key to

restart” or a similar message

appears.

 A ﬂ oppy disk in the drive or USB memory is connected, and it does not contain system

startup information. Remove the ﬂ oppy disk and USB memory, connect an external

keyboard and then press any key.

 If a device is connected to the USB port, disconnect the device, or set [USB Port] or

[Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup Utility.

 If a device is connected to the ExpressCard slot, disconnect the device, or set [Express

Card Slot] to [Disabled] in the [Advanced] menu of the Setup Utility.

 <Only for model with ExpressCard slot>

If the problem persists after removing the disk, it may be a hard disk failure. Contact

Panasonic Technical Support.

Troubleshooting

 Starting Up

Windows startup and opera-

tion is slow.

 Click

in the Setup Utility ( Reference Manual “Setup Utility”) to return the

Setup Utility settings (excluding the passwords) to the default values. Start the Setup

Utility and make the settings again. (Note that the processing speed depends on the ap-

plication software, so this procedure may not make Windows faster.)

 If you installed a resident software after purchase, turn off the residence.

 Disable Indexing Service in the following menu.

Click [start] - [Search] - [Change preferences] - [With Indexing Service (for faster local

searches)].

The date and time are incor-

rect

 Make the correct settings.

Click (Start) - [Control Panel] - [Clock, Language, and Region] -

[Date and Time].

Click [start] - [Control Panel] - [Date, Time, Language, and Regional

Options] - [Date and Time].

 If the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support.

 When the computer is connected to LAN, check the date and time of the server.

 The 2100 A.D. or later year will not be correctly recognized on this computer.

[Executing Battery Recali-

bration] screen appears.

 The Battery Recalibration was canceled before Windows was shut down last time.

To start up Windows, turn off the computer by the power switch, and then turn on.

[Enter Password] does not

appear when resuming from

sleep ( )/

standby ( )/

hibernation.

 Select [Enabled] in [Password On Resume] in the [Security] menu of the Setup Utility

( Reference Manual “Setup Utility”).

 The Windows password can be used instead of the password set in the Setup Utility.

A Click (Start) - [Control Panel] - [User Accounts and Family Safety] - [Add or

remove user accounts] and select the account, and set the password.

B Click (Start) - [Control Panel] - [System and Security] - [Power Options] - [Re-

quire a password on wakeup] and add a check mark for [Require a password].

A Click [start] - [Control Panel] - [User Accounts] and select the account, and set the

password.

B Click [start] - [Control Panel] - [Performance and Maintenance] - [Power Options]

- [Advanced] and add a check mark for [Prompt for password when computer re-

sumes from standby].

Cannot resume.  An error may occur when the computer automatically enters the sleep /

standby or hibernation mode while the screen saver is active. In this

case, turn off the screen saver or change the pattern of the screen saver.

Other startup problems.  Click

in the Setup Utility ( Reference Manual “Setup Utility”) to return the

Setup Utility settings (excluding the passwords) to the default values. Start the Setup

Utility and make the settings again.

 Remove all peripheral devices.

 Check to see if there was a disk error.

A Remove all peripheral devices including an external display.

B Click (Start) - [Computer] and right-click [Local Disk (C:)], and click [Proper-

ties].

C Click [Tools] - [Check Now...].

 A standard user needs to enter an administrator password.

D Select the option in [Check disk options] and click [Start].

E Click [Schedule disk check] and restart the computer.

A Click [start] - [My Computer] and right-click [Local Disk(C:)], and click [Properties].

B Click [Tools] - [Check Now].

C Select the option in [Check disk options] and click [Start].

 Connect the external keyboard to the computer, and start it in Safe Mode and check the

error details. When the [Panasonic] boot screen disappears*1 at startup, press and hold

until the Windows Advanced Options Menu is displayed. Select the Safe Mode and

press

Enter

*1 When [Password on boot] is set to [Enabled] in the [Security] menu of the Setup Utility,

[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you

enter the password and press

Enter

, press and hold

Troubleshooting

 Entering Password

Cannot log on to Windows.

(“The user name or pass-

word is incorrect.” is dis-

played.)

 The user name (account name) includes an “@” mark.

- If another user account exists:

Log on to Windows using another user account, and delete the account that includes

“@”. Then create a new account.

- If no other account exists:

You need to reinstall Windows ( page 25).

 Shutting down

Windows does not shut

down.

 Remove the USB device and the ExpressCard.

 Wait one or two minutes. It is not a malfunction.

 Display

No display.  <Only for model with VGA port>

The external display is selected. Change the display output destination.

 <Only for model with VGA port>

When using an external display,

 Check the cable connection.

 Turn on the display.

 Check the settings of external display.

 The display is turned off by the power-saving function. To resume, touch the screen.

 The computer entered sleep ( ) / standby ( ) or hibernation

by the power-saving function. To resume, press the power switch.

The screen is dark.  The screen might be darker when the AC adaptor is not connected. Adjust the bright-

ness by using Dashboard for Panasonic PC. As you increase the brightness, battery

consumption increases.

You can separately set the brightness for when the AC adaptor is connected and when

not connected.

The screen is disordered.  Changing the number of display colors and resolution may affect the screen. Restart the

computer.

 Connecting/disconnecting an external display may affect the screen. Restart the com-

puter.

 Resuming from sleep ( ) /standby ( ) or hibernation may af-

fect the screen of the external display. Restart the computer.

<Only for model with VGA

port>

During Simultaneous dis-

play, one of the screens

becomes disordered.

 When using the Extended Desktop, use the same display colors for the external display

as those used by the LCD.

If you continue to experience problems, try changing the display.

A Right-click on the desktop, and click [Graphics Properties].

B Select [Basic mode] and click [OK].

C Click [Display].

A Click [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Graphics and

Media].

B Select [Basic mode] and click [OK].

C Click [Display].

 Simultaneous display cannot be used until Windows startup is complete (during Setup

Utility, etc.).

 When the [Command Prompt] is set to “Full Screen” by pressing

Alt

Enter

, the

picture is displayed on one of the screens only. When the window display is restored

by pressing

Alt

Enter

on the external keyboard, the picture is displayed on both

screens.

<Only for model with VGA

port>

The external display does

not work normally.

 If the external display does not support the power saving function, it may not work nor-

mally when the computer enters the power saving mode. Turn off the external display.

Troubleshooting (Basic)

Troubleshooting

 Display

The cursor cannot be con-

trolled properly.

 Operate the following steps.

A Set [GPS] to [Disabled] in the [Advanced - Serial Port Setting] of the Setup Utility.

B Click

F10

and select [Yes] at the conﬁ rmation message, and click

Enter

(Enter).

The computer will restart.

C Log on to Windows as an administrator.

D Click (Start) and input “c:\util\drivers\gps\GPS.reg” in [Search programs and

ﬁ les], and click

Enter

E Click [Yes], click [Yes] and click [OK].

Then restart the computer.

F Click [Click for Enter Setup] that appears at the upper left corner on the screen while

[Panasonic] boot screen is displayed.

G Set [GPS] to [Enabled] in the [Advanced - Serial Port Setting].

H Click

F10

and select [Yes] at the conﬁ rmation message, and click

Enter

 Touchscreen

The cursor does not work.  When using the external mouse, connect it correctly.

 Restart the computer using the external keyboard.

Press and press  two times, and press  to select [Restart] and press

Enter

Press ,

, and

to select [Restart].

 If the computer does not respond to the external keyboard commands, read “No re-

sponse” (



page 32).

Cannot input using the

touchscreen.  Set [Touchscreen Mode] to [Auto] or [Tablet Mode] in the [Main] menu of the Setup Util-

ity.



Set [Touchscreen Mode] to [Auto] or [Touchscreen Mode] in the [Main] menu of the Setup

Utility.

Cannot point the correct

position using the included

stylus.

 Perform the touchscreen calibration ( page 19).

 On-screen Document

The document of PDF for-

mat is not displayed.

 Install Adobe Reader.

According to the language you have selected, the following version of Adobe Reader is

installed.

English: English version

French: French version

German: German version

Other languages: English version

If you need Adobe Reader in a language other than above described languages, down-

load from Adobe web site and install it.

A Click [start] - [Run], input the following, then click [OK].

[c:\util\reader\**\Setup.exe]

 “**” depends on the language.

English : m

French : f

German : g

If you need Adobe Reader in a language other than above described languages,

download from Adobe web site and install it.

Troubleshooting

 Others

No response. 

Press button to open Task Manager and close the software application that is not

responding.

Connect the external keyboard and press

Ctrl

Shift

ESC

to open Task Man-

ager and close the software application that is not responding.

 An input screen (e.g., password input screen at startup) may be hidden behind another

window. Click

Alt

Tab

to check.



Press the power switch for 4 seconds or longer to shut down the computer, and then press

the power switch to turn it on. If the application program does not work normally, uninstall

and reinstall the program. To uninstall,

click (Start) - [Control Panel] - [Programs] - [Uninstall a program].

click [start] - [Control Panel] - [Add or Remove Programs].

Troubleshooting (Basic)

Appendix

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY

DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You

assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intend-

ed results, and for the installation, use and results obtained therefrom.

LICENSE

A. Panasonic Corporation hereby grants you a personal, non-transferable and non-exclusive right and license to use

the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are

receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain

no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,

concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of

which title, ownership and rights shall remain with Panasonic Corporation or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the conﬁ dentiality of the Programs. You may not dis-

tribute or otherwise make the Programs or related documentation available to any third party, by time-sharing or

otherwise, without the prior written consent of Panasonic Corporation.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for

any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your

use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or at-

tempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the single

Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also

transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,

to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identiﬁ cation from the Programs and you

must reproduce and include any such notice or product identiﬁ cation on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY

TRACE THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PER-

MITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate

this license at any time by destroying, at your expense, the Programs and related documentation together with all cop-

ies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions thereof

set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any

such termination, you agree to destroy, at your expense, the Programs and related documentation together with all

copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE

BOUND BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLU-

SIVE STATEMENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR

AGREEMENT, ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE

SUBJECT MATTER OF THIS AGREEMENT.

Appendix

Speciﬁ cations

This page provides the speciﬁ cations for the basic model. The model number is different according to the unit conﬁ gu-

ration.

 To check the model number:

Check the bottom of the computer or the box the computer came in at the time of purchase.

 To check CPU speed, memory size and the hard disk drive (HDD) size:

Run the Setup Utility ( Reference Manual “Setup Utility”) and select [Information] menu.

[Processor Speed]: CPU speed, [Memory Size]: Memory size, [Hard Disk]: Hard disk drive size

 Main Speciﬁ cations

Model No. CF-D1A Series CF-D1D Series

CPU Intel® Core™ i5-2520M

(2.5 GHz, Intel® Smart Cache 3 MB*1)

Intel® Celeron® Processor 857

(1.2 GHz, Intel® Smart Cache 2 MB*1)

Chip Set Intel® 6 Series Express Chipsets QM67 Intel® 6 Series Express Chipsets HM65

Video controller Built-in Chip Set

Main Memory*2 2 GB*1, DDR3 SDRAM (8 GB*1 Max.)

Video Memory

UMA (<32-bit> 773 MB*1 Max., <64-bit> 776 MB*1 Max.)*3

UMA (1024 MB*1 Max.)*3

Hard Disk Drive 250 GB*4 (Serial ATA)

Approx. @@ GB*4 is used as a partition with

recovery tools. (Users cannot use this parti-

tion.)

160 GB*4 (Serial ATA)

Approx. @@ GB*4 is used as a partition with

recovery tools. (Users cannot use this parti-

tion.)

Display Method 13.3 type with Touchscreen (TFT) (1366 × 768 dots) (16:9)

Internal LCD 65,536/16,777,216 colors

(800 × 600 dots / 1024 × 768 dots / 1280 × 600 dots / 1280 × 720 dots / 1280 × 768 dots /

1360 × 768 dots / 1366 × 768 dots)*5

External Display*6 65,536 / 16,777,216 colors (800 × 600 dots / 1024 × 768 dots / 1280 × 768 dots /

1366 × 768 dots / 1600 × 1200 dots / 1920 × 1080 dots / 1920 × 1200 dots)

Touchscreen Resistive

Circular Polarizer

Resistive

Wireless LAN Intel® Centrino® Advanced - N 6205 ( page 35)

Bluetooth*7  page 35

Wireless WAN*8 Ericsson F5521gw ( page 35)

LAN IEEE 802.3 10Base-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T

(2nd LAN*9: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX)

Sound WAVE and MIDI playback, Intel® High Deﬁ nition Audio subsystem support

Security Chip TPM (TCG V1.2 compliant)*10

Card

Slots PC Card Slot*11 × 1, Type I or Type II, Allowable current 3.3 V: 400 mA, 5 V: 400 mA

ExpressCard Slot × 1, ExpressCard/34 or ExpressCard/54

SD Memory Card Slot*12 × 1

Contact Smart Card Slot*13 × 1

SIM Card Slot*8 × 1

RAM Module Slot × 2, DDR3 SDRAM, 204-pin, 1.5 V, SO-DIMM, PC3-10600 Compliant

Interface USB2.0 Ports × 3 or × 4*14 / Serial Port (Dsub 9-pin male)*15 / LAN Port (RJ-45) × 1 or × 2*9 /

VGA Port (Mini DSub 15-pin female)*16 / Microphone Jack (Miniature jack, 3.5 DIA) / Head-

phone Jack (Miniature jack, 3.5 DIA, Impedance 32 Ω, Output Power 4 mW × 2, Stereo) /

Expansion Bus Connector (Dedicated 100-pin female) / Rugged USB2.0 Port *17

Pointing Device Touchscreen

Button Security, Application × 3, Function

Fingerprint Reader*18 Array Size : 192 × 4 pixels, Image Size : 192 × 512 pixels, Image Resolution : 508 DPI

Front Camera*19 Speciﬁ cations differ depending on the model.

Rear Camera*20 Speciﬁ cations differ depending on the model.

Appendix

 Main Speciﬁ cations

Model No. CF-D1A Series CF-D1D Series

Power Supply AC adaptor or Battery pack

AC Adaptor Input: 100 V to 240 V AC, 50 Hz/60 Hz, Output: 15.6 V DC, 7.05 A

Battery Pack Li-ion 10.8 V, Typical 6200 mAh / Minimum 5800 mAh

Operating Time*21 Approx. @@ hours Approx. @@ hours

Charging Time*22 Approx. @@ hours

Power Consumption*23 Approx. @@ W*24 / Approx. @@ W (maximum when recharging in the ON state)

Physical Dimensions (W × D × H)

(excluding projecting parts) @@ mm × @@ mm × @@ mm @@ mm × @@ mm × @@ mm

Weight Approx. @@ kg Approx. @@ kg

Environment

Operat-

ing Temperature -10 °C to 50 °C (IEC60068-2-1, 2)*25

Humidity 30 % to 85 % RH (No condensation)

Storage Temperature -20 °C to 60 °C

Humidity 30 % to 85 % RH (No condensation)

 Software

Base OS Genuine Windows® 7 Professional

Installed OS*26 Genuine Windows® 7 Professional 32-bit Service Pack 1 / Genuine Windows 7 Professional

64-bit Service Pack 1

Pre-installed Software*26 Adobe Reader, PC Information Viewer, Loupe Utility, Intel® PROSet/Wireless Software, Blu-

etooth™ Stack for Windows® by TOSHIBA*27, Wireless Switch Utility, Wireless Connection

Disable Utility*28, Battery Recalibration Utility, Inﬁ neon TPM Professional Package*28, Protector

Suite QL*18 *28, Aptio Setup Utility, Hard Disk Data Erase Utility*29, PC Diagnostic Utility, Wire-

less WAN Connection Manager*8, Camera Utility*19 *20, Quick Boot Manager, Dashboard for

Panasonic PC, Display Rotation Tool, Tablet Button Manager, Hotkey Appendix, Power Plan

Extension Utility, Hand Writing, Software Keyboard

 Wireless LAN <Only for model with wireless LAN>

Data Transfer Rates IEEE802.11a : 54/48/36/24/18/12/9/6 Mbps (automatically switched)*30

IEEE802.11b : 11/5.5/2/1 Mbps (automatically switched)*30

IEEE802.11g : 54/48/36/24/18/12/9/6 Mbps (automatically switched)*30

IEEE802.11n*31 : (HT20) GI*32 = 400ns: 150/130/115/86/72/65/57/43/28/21/14/7 Mbps

(automatically switched)*30

GI*32 = 800ns: 130/117/104/78/65/58/52/39/26/19/13/6 Mbps

(HT40) GI*32 = 400ns: 300/270/240/180/150/135/120/90/60/45/30/15 Mbps

(automatically switched)*30

GI*32 = 800ns: 270/243/216/162/135/121/108/81/54/40/27/13 Mbps

Standards Supported IEEE802.11a / IEEE802.11b / IEEE802.11g / IEEE802.11n

Transmission method OFDM system, DSSS system

Wireless Channels Used IEEE802.11a : Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/153/

157/161/165

IEEE802.11b/IEEE802.11g : Channels 1 to 13

IEEE802.11n : Channels 1-13/36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/14

9/153/157/161/165

RF Frequency Band IEEE802.11a : 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz

IEEE802.11b/IEEE802.11g : 2.412 GHz - 2.472 GHz

IEEE802.11n : 2.412 GHz - 2.472 GHz, 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz

 BluetoothTM <Only for model with Bluetooth>

Bluetooth Version version 2.1 +EDR (Toshiba Stack)

Transmission method FHSS system

Wireless Channels Used Channel 1 to 79

RF Frequency Band 2.402 GHz - 2.480 GHz

Appendix

 Wireless WAN <Only for model with wireless WAN>

Data Communication HSUPA Category 6, 5.7 Mbps

HSDPA (HSPA+) Category 14, 21 Mbps

UMTS 3GPP Release 7

EDGE

GPRS MultiSlot Class 10

Circuit Switched Data

Other Features SMS Mobile Originated SMS (MO-SMS) / Mobile Terminated SMS (MT-SMS)

FAX No Support

Voice No Support

SIM 1.8/3 V SIM Support

*1 1 MB = 1,048,576 bytes /1 GB = 1,073,741,824 bytes

*2 Memory size of the factory default depends on the model.

You can physically expand the memory up to 8 GB, but the total amount of usable memory available will be less depending on

the actual system conﬁ guration.

*3 A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video

Memory cannot be set by the user. The size of Video memory is allotted depending on the operating system.

*4 1 GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.

*5 A 16,777,216 color display is achieved by using the dithering function.

*6 Display may be impossible using some connected external displays.

*7 Only for model with Bluetooth.

*8 Only for model with wireless WAN.

*9 Only for model with 2nd LAN.

*10 Only for model with TPM.

For information on TPM, refer to the Installation Manual of “TrustedPlatform Module (TPM)” by the following procedure.

Click (Start) and input “c:\util\drivers\tpm\index.hta” in [Search programs and ﬁ les] and press

Enter

Click [start] - [Run] and input “c:\util\drivers\tpm\index.hta” and click [OK].

*11 Only for model with PC Card slot.

*12 This slot is compatible with High-Speed Mode. Operation has been tested and conﬁ rmed using Panasonic SD/SDHC/SDXC

Memory Cards with a capacity of up to 64 GB. Operation on other SD equipment is not guaranteed.

*13 Only for model with Smart Card slot.

*14 Only for model with 4th USB2.0 port.

*15 Only for model with serial port.

*16 Only for model with VGA port.

*17 Only for model with rugged USB2.0 port.

*18 Only for model with Fingerprint reader.

*19 Only for model with front camera.

*20 Only for model with rear camera.

*21 Measured with LCD brightness : 60 cd/m2

Varies depending on the usage conditions, or when an optional device is attached.

*22 Varies depending on the usage conditions, CPU speed, etc.

*23 Approx. 0.5 W when the battery pack is fully charged (or not being charged) and the computer is off.

Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.2 W) simply by having the AC adaptor

plugged into an AC outlet.

Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.3 W) simply by having the AC adaptor

plugged into an AC outlet.

*24 Rated power consumption. 23-E-1

*25 Do not expose the skin to this product when using the product in a hot or cold environment. ( page 9)

When using in hot or cold environment, some peripherals may fail to work properly. Check the operation environment of the

peripherals.

Using this product continuously in a hot environment will shorten the product life. Avoid use in these types of environments.

When using in low temperature environment, startup may become slow or battery operation time may become short.

The computer consumes power when the hard disk is warming up during startup. Therefore, if you are using battery power and

the remaining power is low, the computer may not start up.

*26 When reinstalling Windows using the data of the recovery area on the hard disk, you can select the OS to be installed (either

Windows 7 (32-bit) or Windows 7 (64-bit)). An OS that has been installed at the time of purchase or an OS that has been in-

stalled using the hard disk recovery function or the Product Recovery DVD-ROM can be supported.

*27 May not be installed depending on the model.

*28 Must be installed before use.

*29 Perform on the recovery partition. (If this software can not be performed on the recovery partition, perform from the Product

Recovery DVD-ROM)

*30 These are speeds speciﬁ ed in IEEE802.11a+b+g+n standards. Actual speeds may differ.

*31 Available when set to “WPA-PSK”, “WPA2-PSK” or “none”.

*32 Only available when HT40 enabled by the computer and access point which associated supports HT40.

Speciﬁ cations

MEMO

As an ENERGY STAR® Partner, Panasonic Corporation has determined that this product meets

ENERGY STAR® guidelines for energy efﬁ ciency. By enabling available power management

settings, Panasonic computers enter a low-power sleep mode after a period of inactivity, saving

the user energy.

To learn more about power management, please visit the web site:

www.energystar.gov/index.cfm?c=power_mgt.pr_power_management

Outline of the International ENERGY STAR® Ofﬁ ce Equipment Program

The international ENERGY STAR® Ofﬁ ce Equipment Program is an international program that promotes energy

saving through the use of computers and other ofﬁ ce equipment. The program backs the development and dis-

semination of products with functions that effectively reduce energy consumption. It is an open system in which

business proprietors can participate voluntarily. The targeted products are ofﬁ ce equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.

22-E-1

For information about ENERGY STAR®, refer to the following web side:

Web Site: www.energystar.gov

Panasonic Corporation

Panasonic Solutions Company

3 Panasonic Way, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3

Panasonic Computer Products Europe, Panasonic Marketing Europe GmbH

Hagenauer Straße 43

65203 Wiesbaden

Germany

PS0611-0
