COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. Copyright © 2015 Pepwave Ltd. All Rights Reserved.
Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned
may be trademarks or registered trademarks of their respective owners.
Pepwave MAX and Surf
User Manual
Pepwave Products:
MAX 700/HD2/HD2 IP67/HD2 mini/HD4/BR1/BR1 Slim/BR1 ENT/BR1 Pro LTE/BR1
IP55/BR2 IP55/On-The-Go/MAX HD2/HD4 with MediaFast/ Surf SOHO
Pepwave Firmware 6.2.1
July 2015
Pepwave MAX and Surf User Manual
http://www.pepwave.com 2 Copyri
g
ht @ 2015 Pepwave
Table of Contents
1 INTRODUCTION AND SCOPE ................................................................................................. 5
2 GLOSSARY ............................................................................................................................. 6
3 PRODUCT FEATURES ............................................................................................................. 7
3.1 SUPPORTED NETWORK FEATURES .................................................................................7
3.2 OTHER SUPPORTED FEATURES......................................................................................9

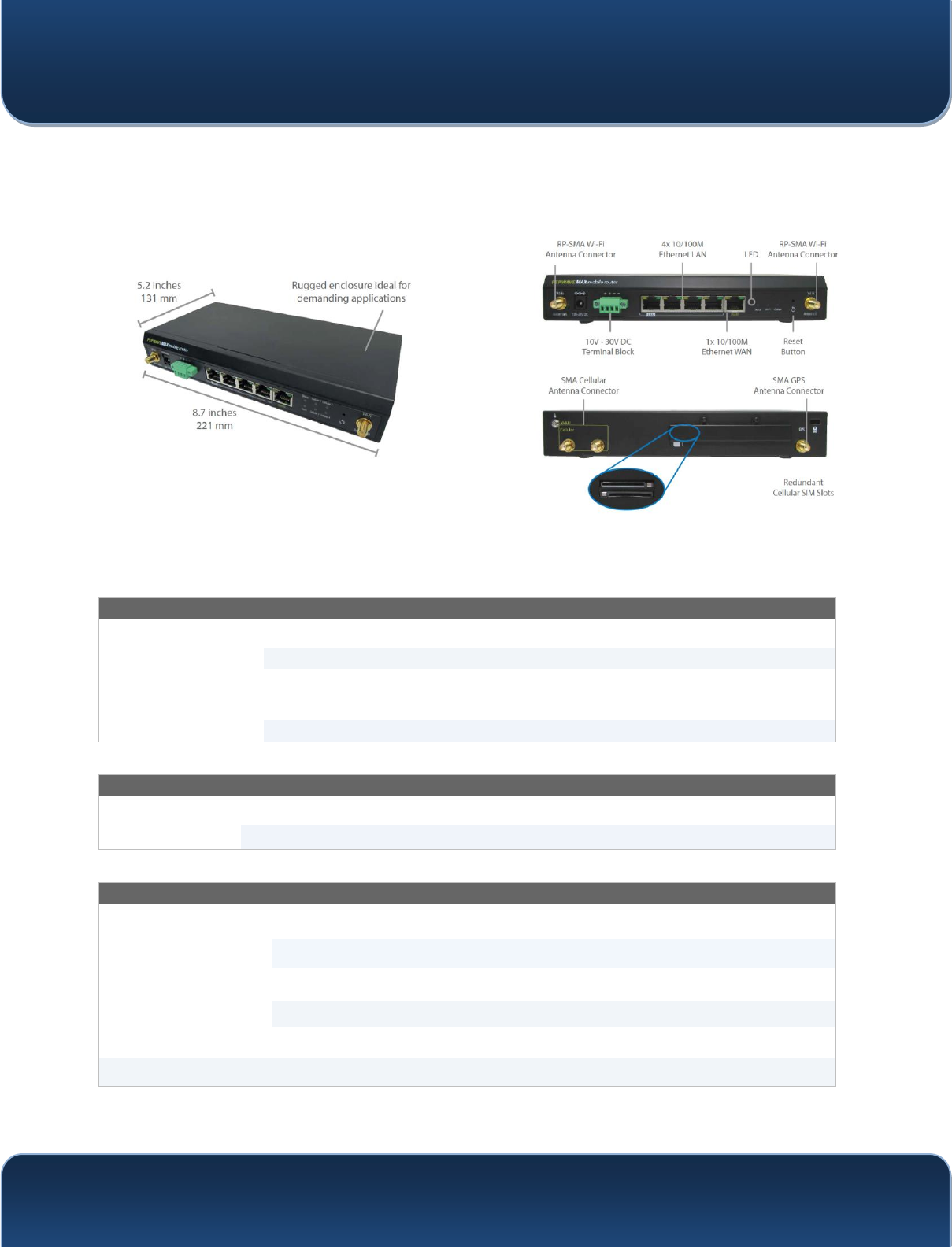

4 PEPWAVE MAX MOBILE ROUTER OVERVIEW ..................................................................... 10
4.1 MAX 700 ............................................................................................................10
4.2 MAX HD2 ...........................................................................................................12
4.3 MAX HD2 IP67 ....................................................................................................14
4.4 MAX HD2 MINI .....................................................................................................15
4.5 MAX HD4 ...........................................................................................................17

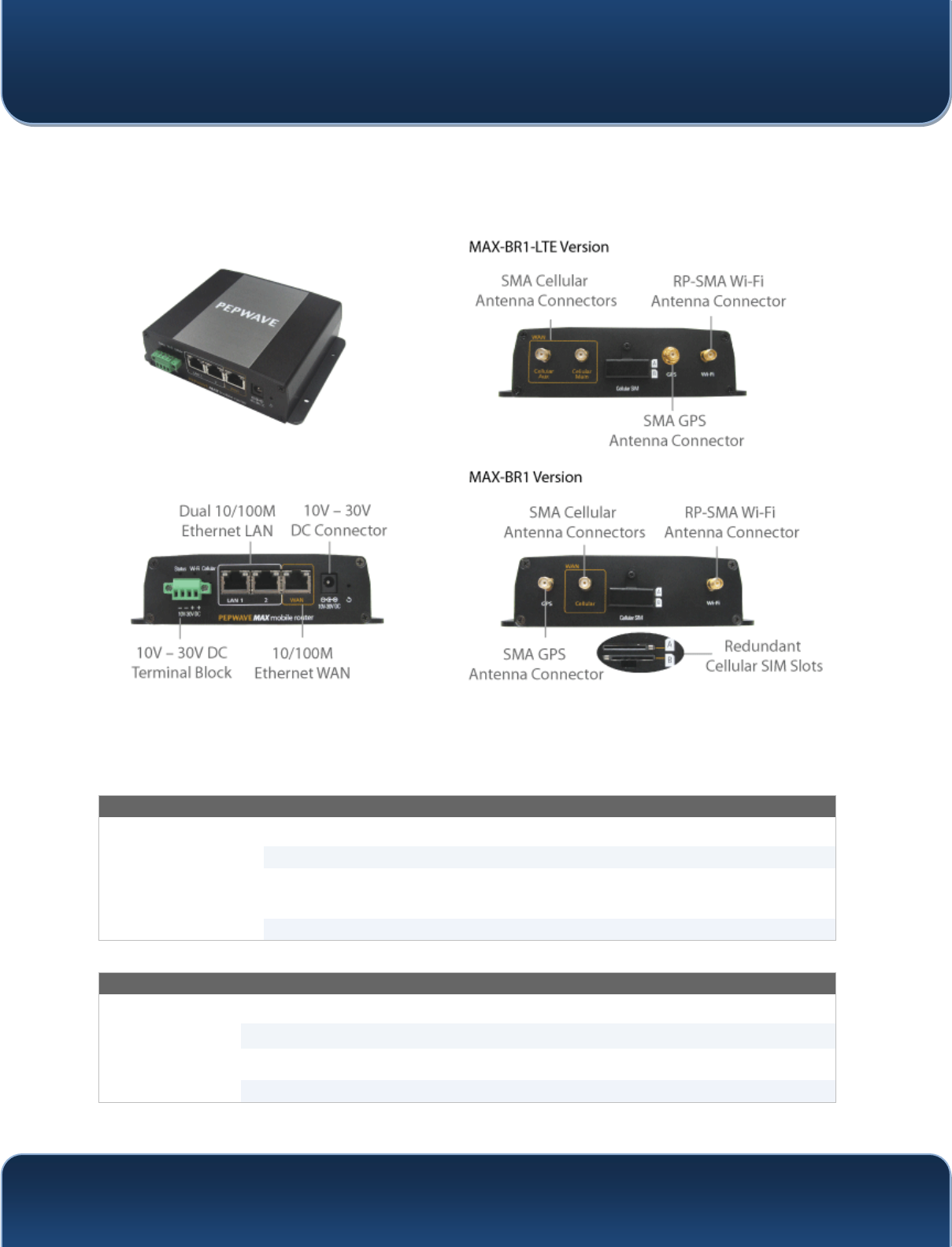

4.6 MAX BR1 ............................................................................................................18
4.7 MAX BR1 SLIM .....................................................................................................20
4.8 MAX BR1 ENT .....................................................................................................22
4.9 MAX BR1 PRO LTE ................................................................................................23

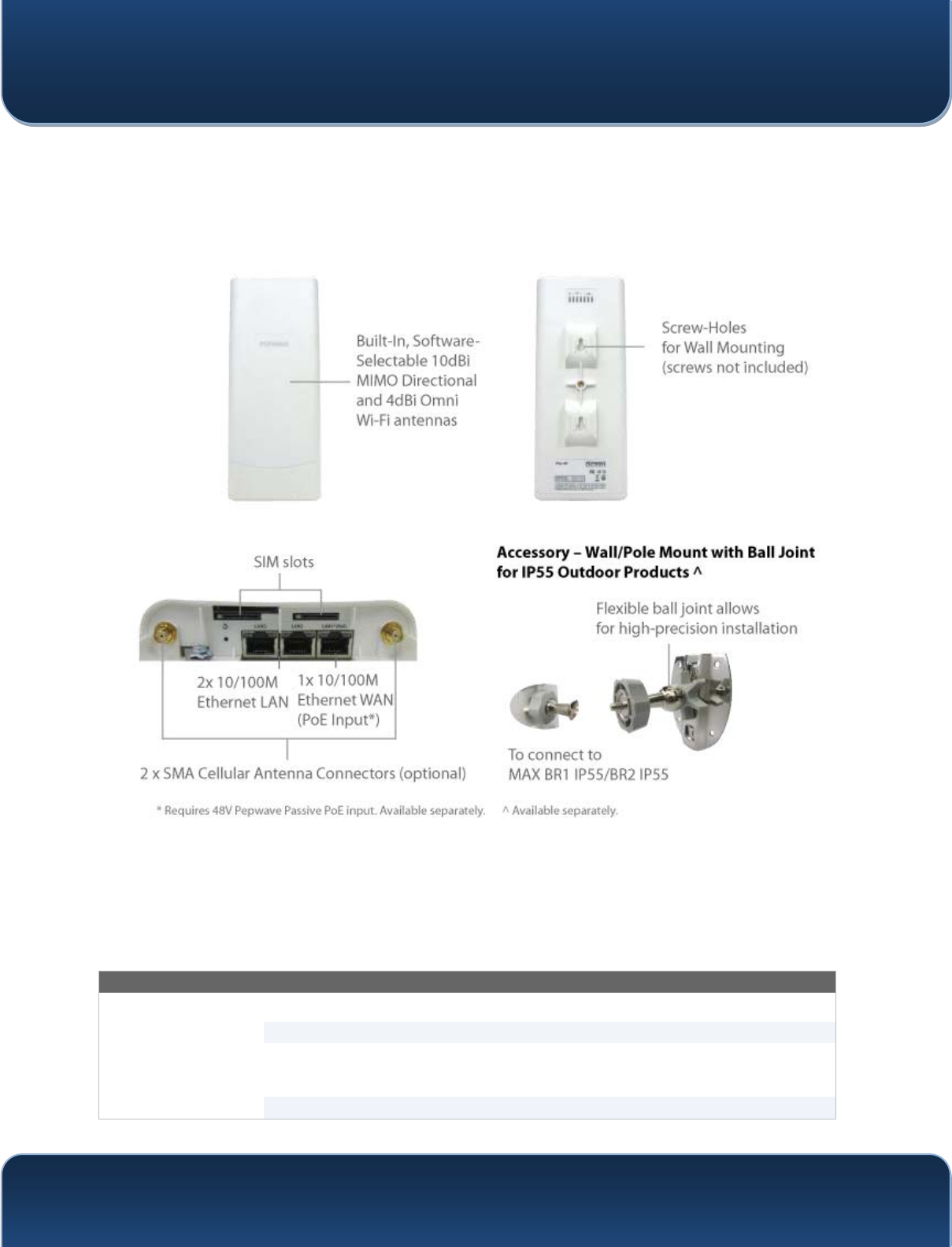

4.10 MAX BR1/2 IP55 .................................................................................................24
4.11 MAX ON-THE-GO ..................................................................................................26

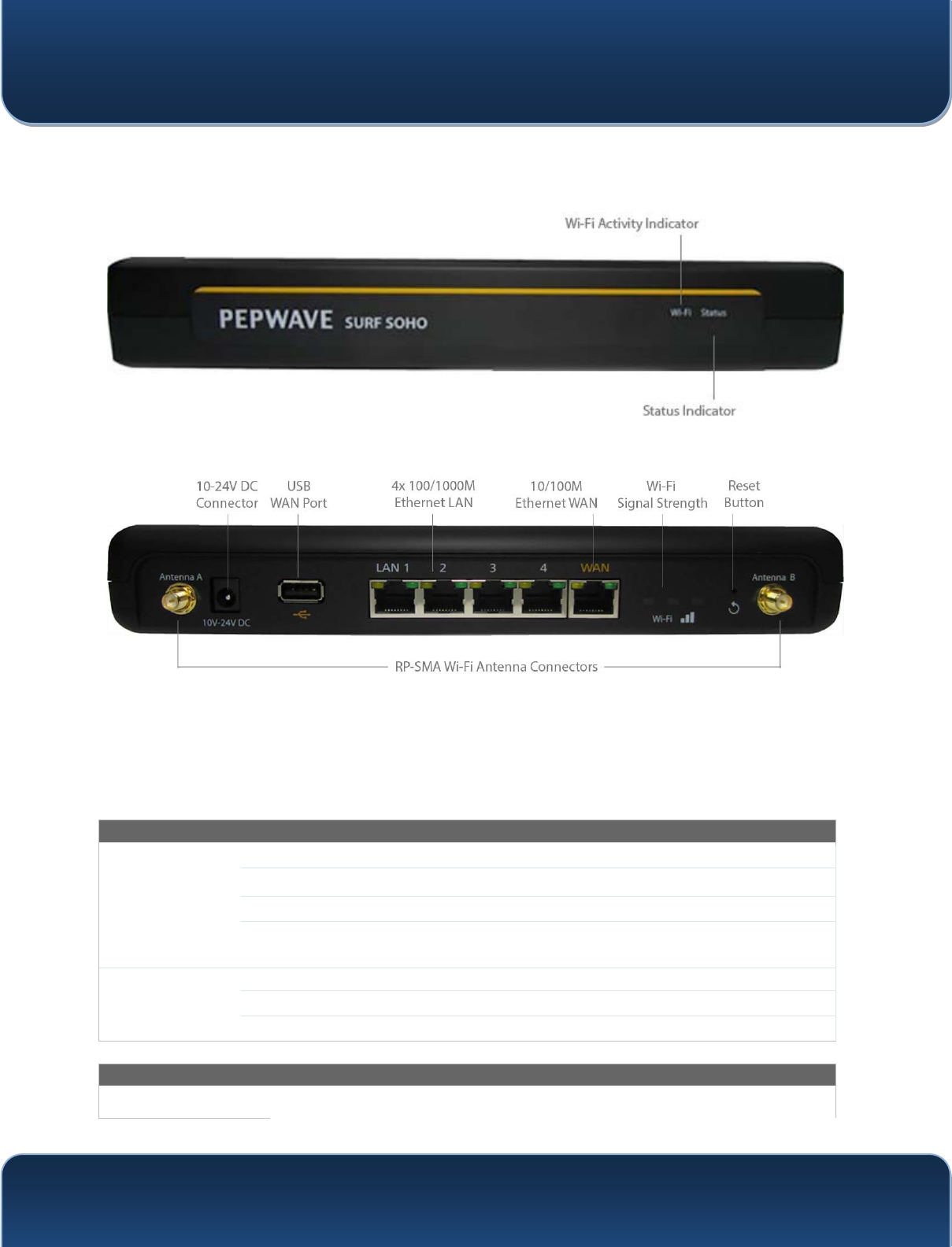

4.12 SURF SOHO ..........................................................................................................27
5 INSTALLATION .................................................................................................................... 29
5.1 PREPARATION ........................................................................................................29
5.2 CONSTRUCTING THE NETWORK ..................................................................................30
5.3 CONFIGURING THE NETWORK ENVIRONMENT ................................................................31
6 MOUNTING THE UNIT ......................................................................................................... 32
6.1 WALL MOUNT .......................................................................................................32
6.2 CAR MOUNT..........................................................................................................32
6.3 IP67 INSTALLATION GUIDE........................................................................................32
7 CONNECTING TO THE WEB ADMIN INTERFACE .................................................................. 32

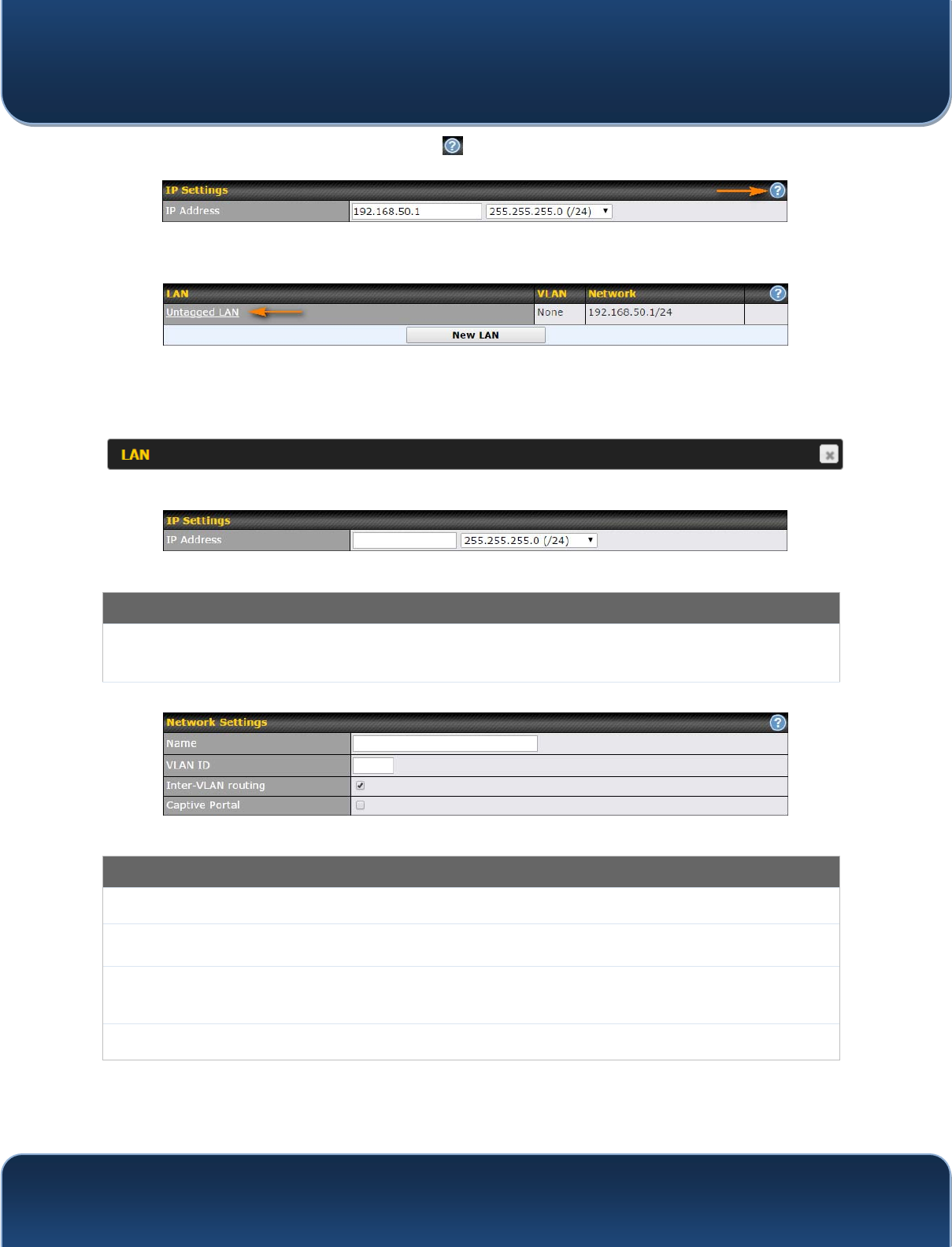

8 CONFIGURING THE LAN INTERFACE(S)................................................................................ 35
8.1 BASIC SETTINGS ......................................................................................................35

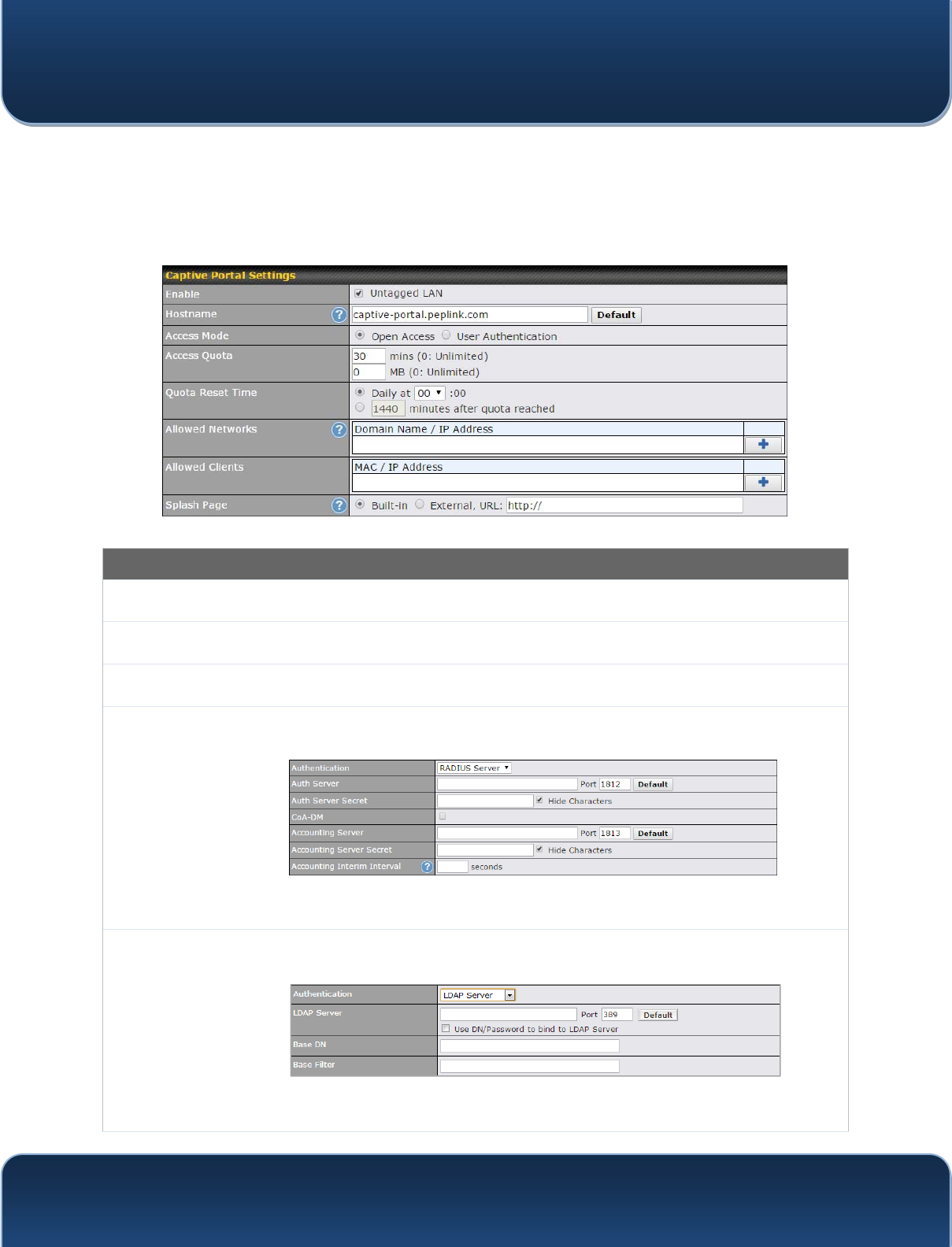

8.2 CAPTIVE PORTAL .....................................................................................................45
9 CONFIGURING THE WAN INTERFACE(S) .............................................................................. 47
9.1 ETHERNET WAN ....................................................................................................48

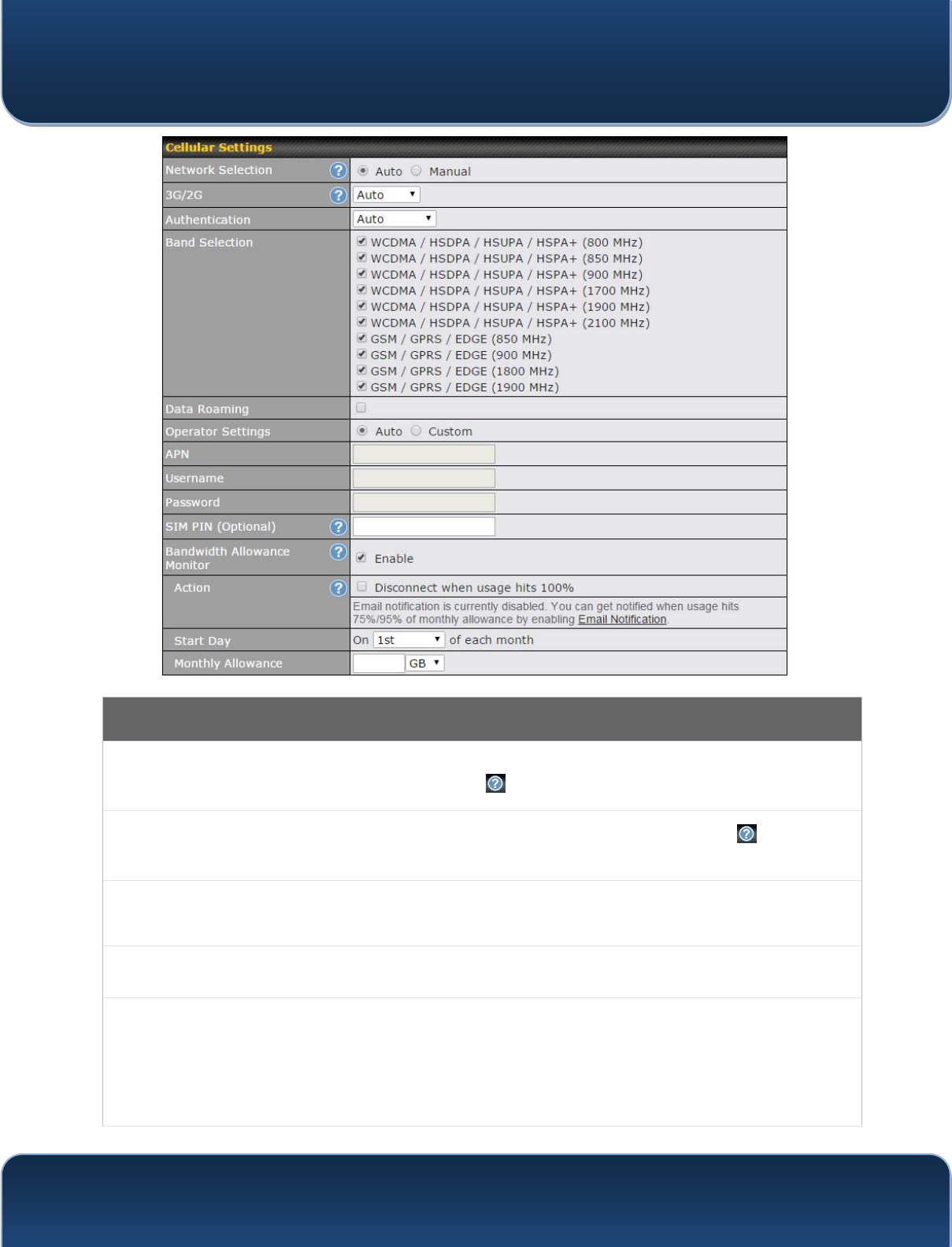

9.2 CELLULAR WAN .....................................................................................................56

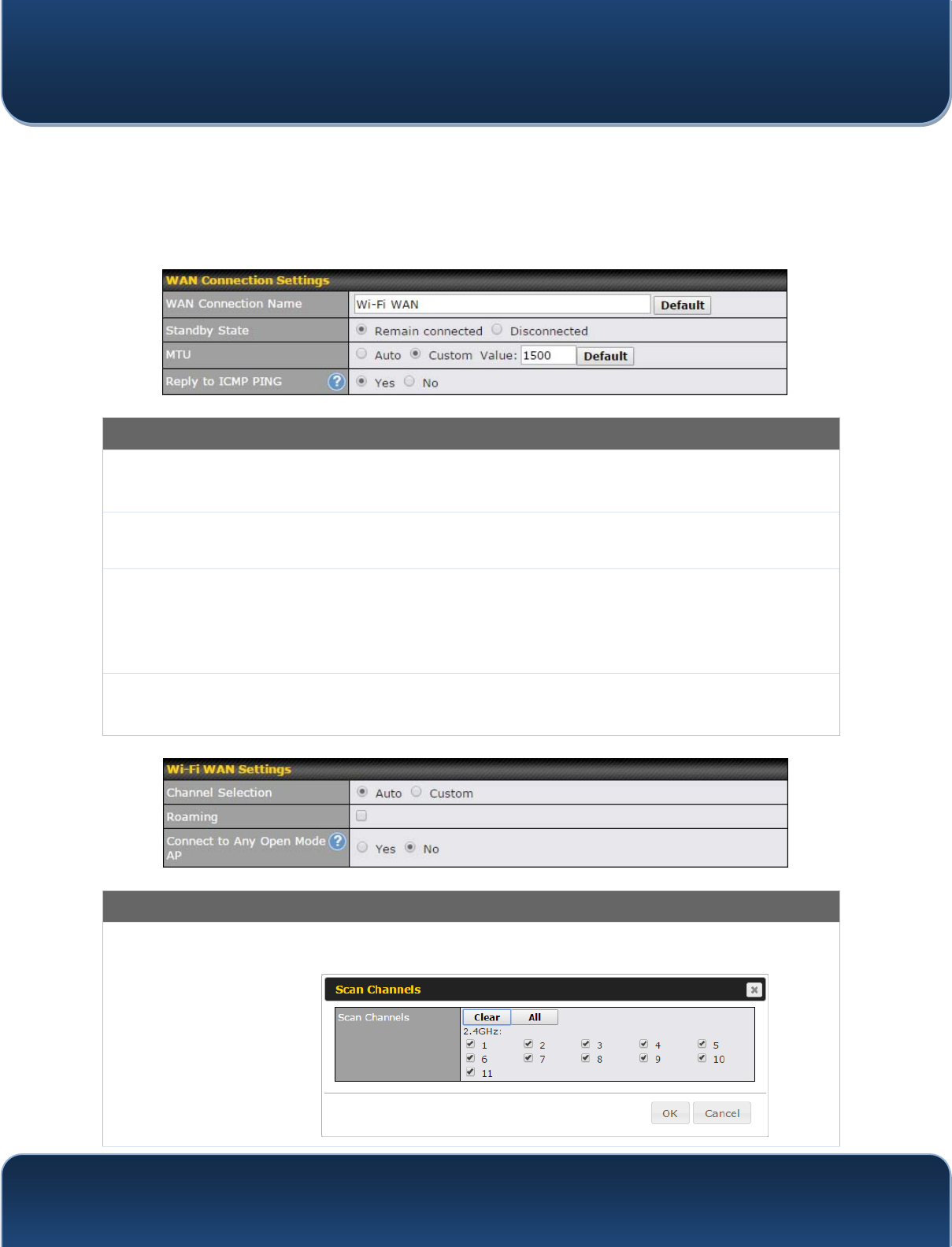

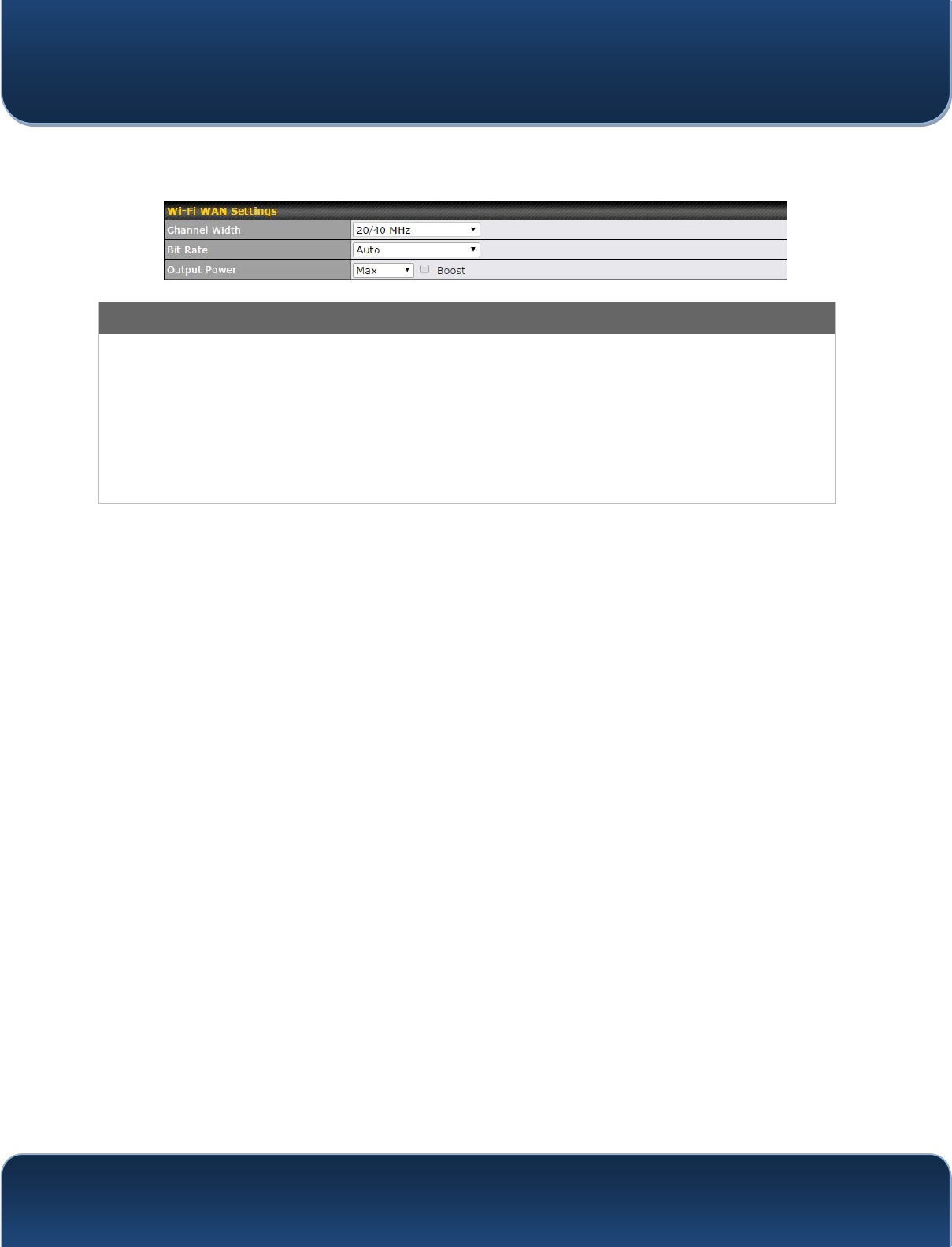

9.3 WI-FI WAN ..........................................................................................................61

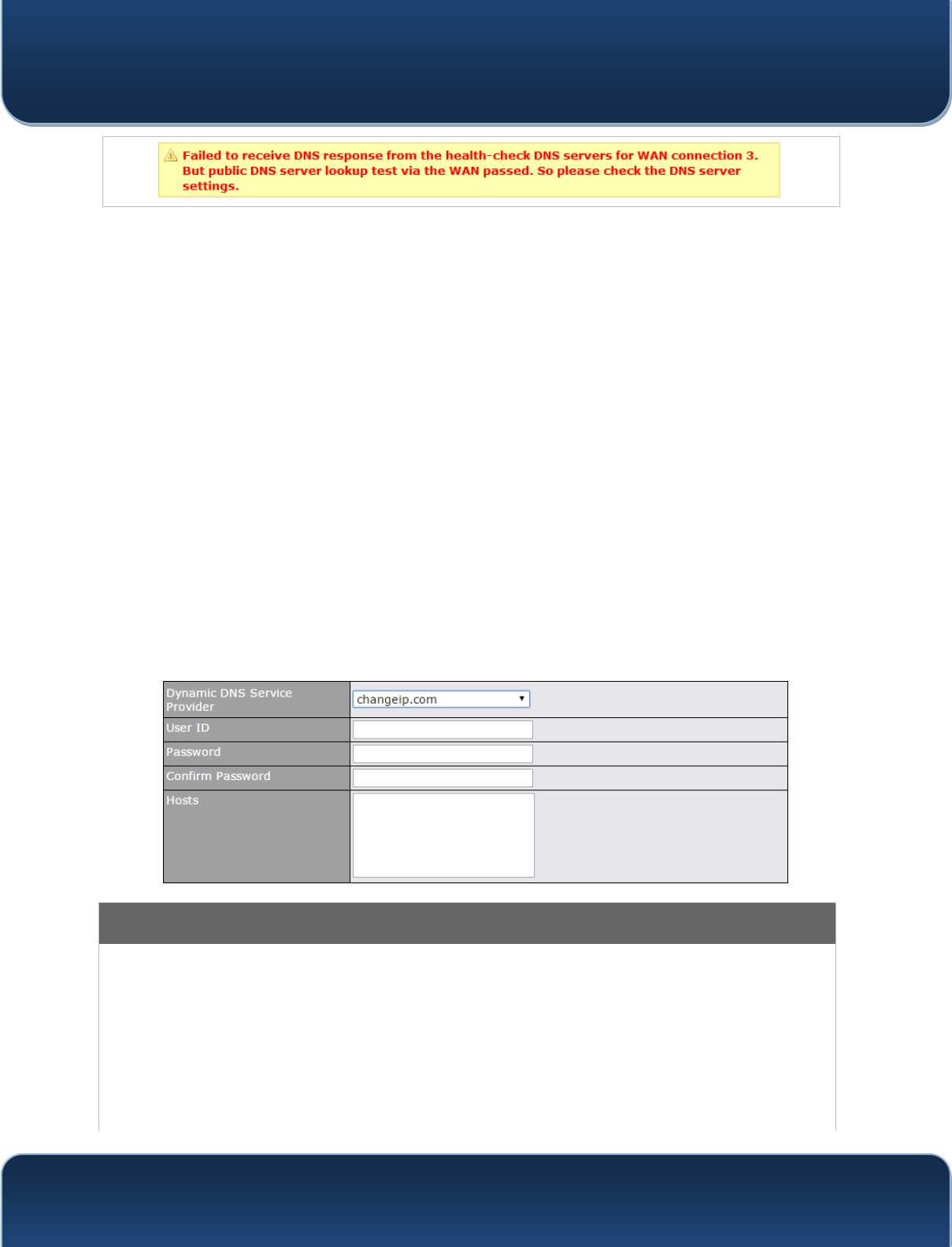

9.4 WAN HEALTH CHECK ..............................................................................................68
Pepwave MAX and Surf User Manual
http://www.pepwave.com 3 Copyri
g
ht @ 2015 Pepwave
9.5 DYNAMIC DNS SETTINGS..........................................................................................70
10 ADVANCED WI-FI SETTINGS ................................................................................................ 72
11 MEDIAFAST CONFIGURATION............................................................................................. 75
11.1 SETTING UP MEDIAFAST CONTENT CACHING .................................................................75
11.2 SCHEDULING CONTENT PREFETCHING ..........................................................................76
11.3 VIEWING MEDIAFAST STATISTICS ................................................................................77
12 BANDWIDTH BONDING SPEEDFUSIONTM / PEPVPN ............................................................ 78

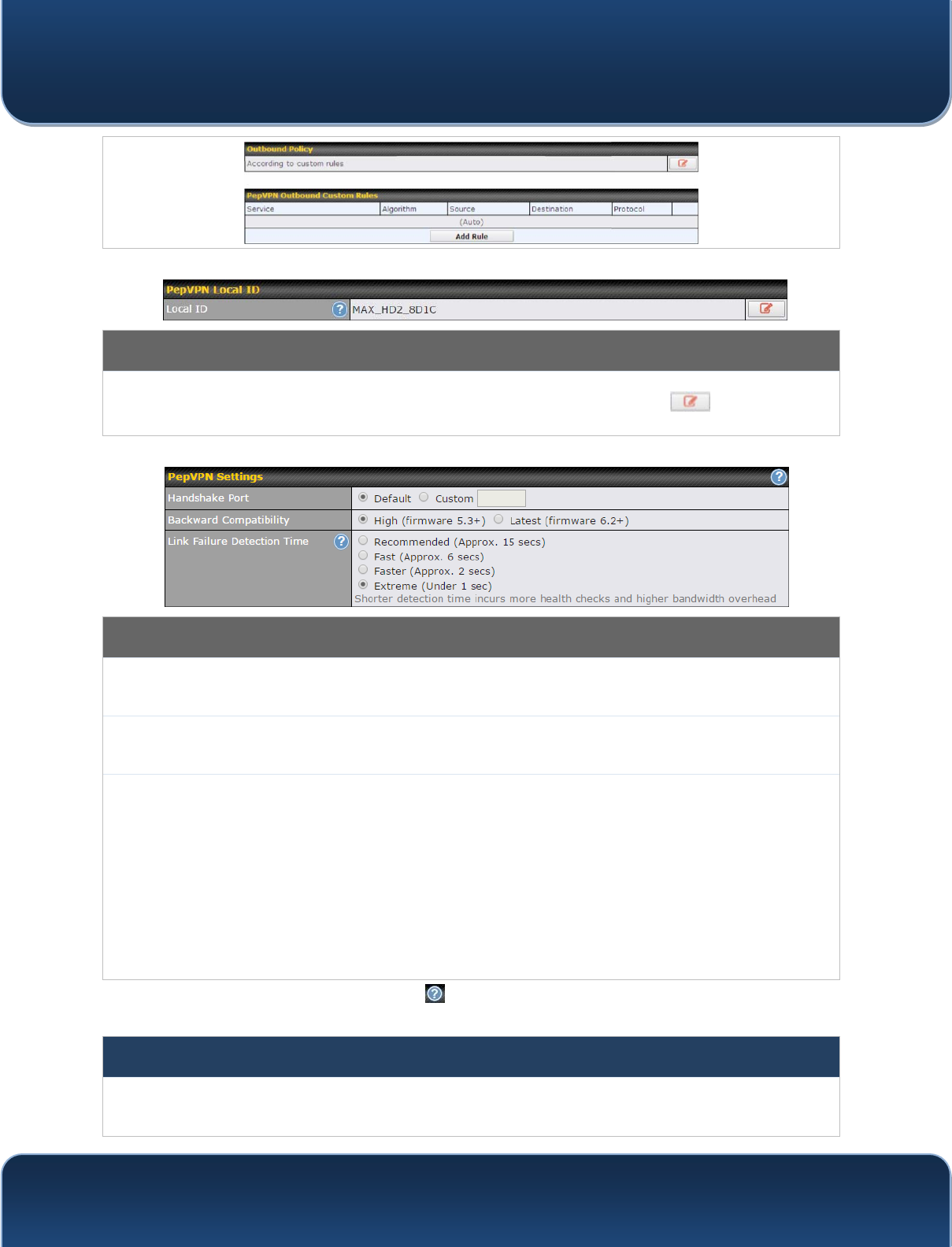

12.1 PEPVPN ...............................................................................................................78

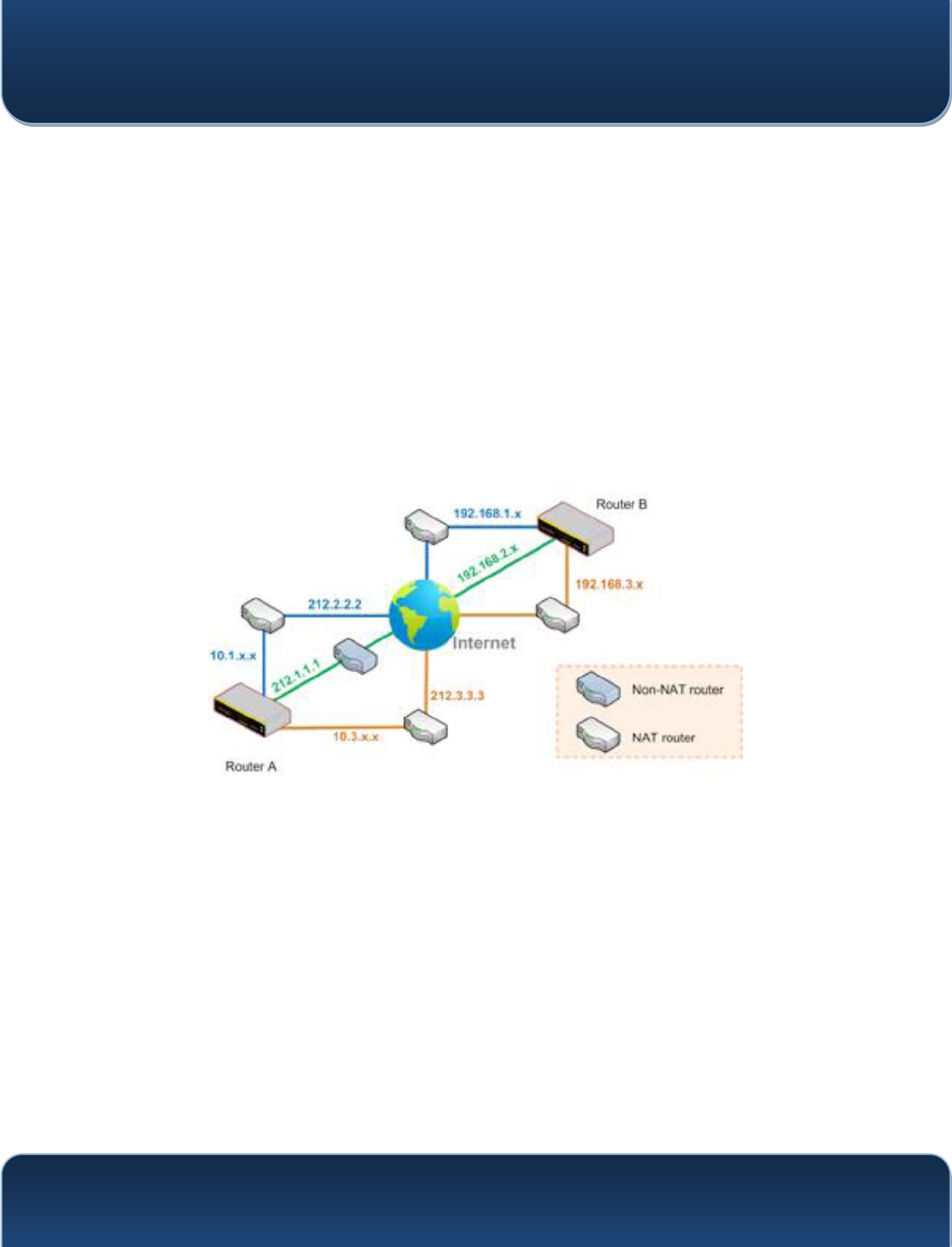

12.2 THE PEPWAVE ROUTER BEHIND A NAT ROUTER ............................................................84
12.3 SPEEDFUSIONTM STATUS ..........................................................................................85
13 IPSEC VPN ........................................................................................................................... 86
13.1 IPSEC VPN SETTINGS ...............................................................................................86
14 OUTBOUND POLICY MANAGEMENT ................................................................................... 90
14.1 OUTBOUND POLICY .................................................................................................90
14.2 CUSTOM RULES FOR OUTBOUND POLICY ......................................................................91
15 INBOUND ACCESS ............................................................................................................. 100
15.1 PORT FORWARDING SERVICE ................................................................................... 100
16 NAT MAPPINGS ................................................................................................................ 103
17 QOS 105
17.1 USER GROUPS ...................................................................................................... 105
17.2 BANDWIDTH CONTROL ........................................................................................... 106
17.3 APPLICATION ....................................................................................................... 106
18 FIREWALL .......................................................................................................................... 108
18.1 OUTBOUND AND INBOUND FIREWALL RULES ............................................................... 108
18.2 WEB BLOCKING .................................................................................................... 113
18.3 OSPF & RIPV2 .................................................................................................... 113
18.4 REMOTE USER ACCESS ........................................................................................... 115
MISCELLANEOUS SETTINGS .................................................................................................... 117
18.5 HIGH AVAILABILITY ................................................................................................ 117
18.6 PPTP SERVER ...................................................................................................... 120
18.7 CERTIFICATE MANAGER .......................................................................................... 121
18.8 SERVICE FORWARDING ........................................................................................... 121
18.9 SERVICE PASSTHROUGH .......................................................................................... 124
18.10 GPS FORWARDING ............................................................................................... 125
19 AP CONTROLLER ............................................................................................................... 126
Pepwave MAX and Surf User Manual
http://www.pepwave.com 4 Copyri
g
ht @ 2015 Pepwave
19.1 WIRELESS SSID .................................................................................................... 126
19.2 SETTINGS ............................................................................................................ 130
19.3 TOOLBOX ............................................................................................................ 134
20 SYSTEM SETTINGS ............................................................................................................. 135
20.1 ADMIN SECURITY .................................................................................................. 135
20.2 FIRMWARE .......................................................................................................... 139
20.3 TIME .................................................................................................................. 140
20.4 EMAIL NOTIFICATION ............................................................................................. 140
20.5 EVENT LOG .......................................................................................................... 142
20.6 SNMP ............................................................................................................... 143
20.7 INCONTROL ......................................................................................................... 145
20.8 CONFIGURATION ................................................................................................... 146
20.9 FEATURE ADD-ONS................................................................................................ 147
20.10 REBOOT .............................................................................................................. 147
20.11 PING .................................................................................................................. 148
20.12 TRACEROUTE TEST ................................................................................................ 149
20.13 PEPVPN TEST ...................................................................................................... 149
20.14 CLI (COMMAND LINE INTERFACE SUPPORT) ................................................................ 150
21 STATUS ............................................................................................................................. 151
21.1 DEVICE ............................................................................................................... 151
21.2 ACTIVE SESSIONS .................................................................................................. 153
21.3 CLIENT LIST ......................................................................................................... 155
21.4 WINS CLIENT ...................................................................................................... 155
21.5 UPNP / NAT-PMP .............................................................................................. 156
21.6 SPEEDFUSION STATUS ............................................................................................ 156
21.7 EVENT LOG .......................................................................................................... 160
21.8 BANDWIDTH ........................................................................................................ 160
APPENDIX A. RESTORATION OF FACTORY DEFAULTS ........................................................ 166
APPENDIX B. DECLARATIO N .............................................................................................. 167
Pepwave MAX and Surf User Manual
http://www.pepwave.com 5 Copyri
g
ht @ 2015 Pepwave
1 Introduction and Scope
Pepwave routers provide link aggregation and load balancing across multiple WAN
connections, allowing a combination of technologies like 3G HSDPA, EVDO, 4G LTE,
Wi-Fi, external WiMAX dongle, and satellite to be utilized to connect to the Internet.
This manual covers setting up Pepwave routers and provides an introduction to their
features and usage.
Tips

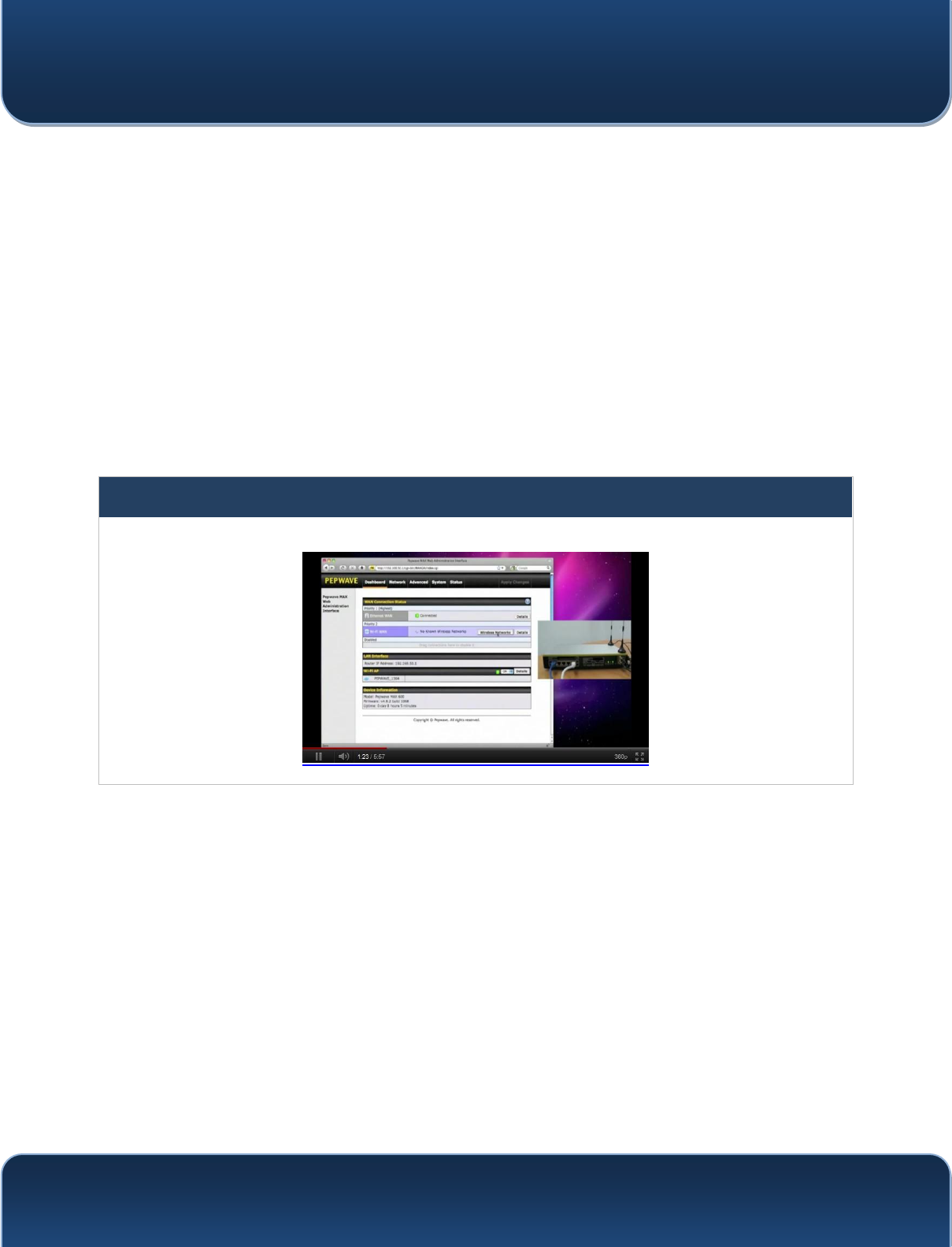

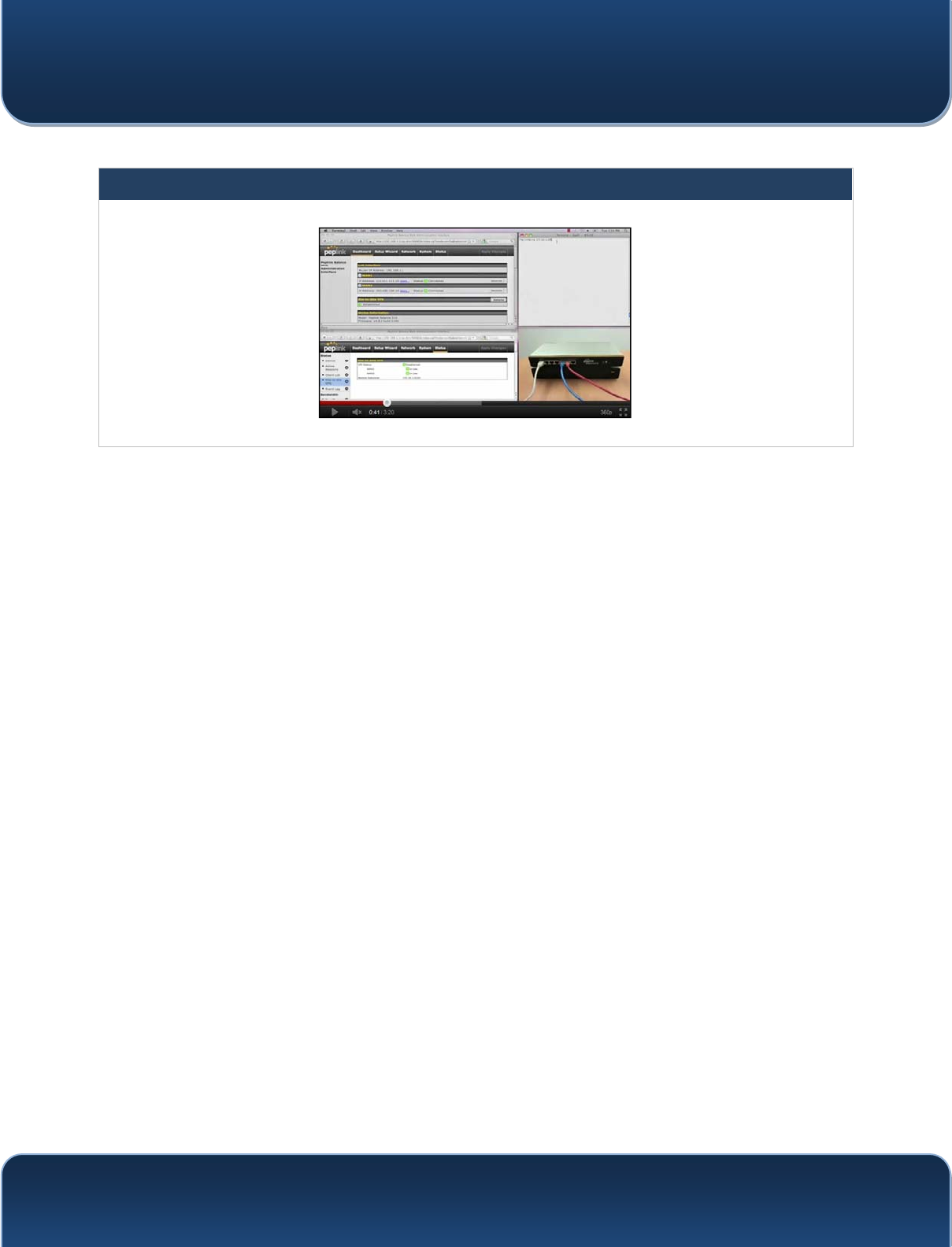

Want to know more about Pepwave routers? Visit our YouTube Channel for a video introduction!
http://youtu.be/UCkVQThLKO4
Pepwave MAX and Surf User Manual
http://www.pepwave.com 6 Copyri
g
ht @ 2015 Pepwave
2 Glossary
The following terms, acronyms, and abbreviations are frequently used in this manual:
Term Definition
3G 3rd Generation standards for wireless communications
4G 4th Generation standards for wireless communications
DHCP Dynamic Host Configuration Protocol
DNS Domain Name System
EVDO Evolution-Data Optimized
HSDPA High-Speed Downlink Packet Access
HTTP Hyper-Text Transfer Protocol
ICMP Internet Control Message Protocol
IP Internet Protocol
LAN Local Area Network
MAC Address Media Access Control Address
MTU Maximum Transmission Unit
MSS Maximum Segment Size
NAT Network Address Translation
PPPoE Point to Point Protocol over Ethernet
QoS Quality of Service
SNMP Simple Network Management Protocol
TCP Transmission Control Protocol
UDP User Datagram Protocol
VPN Virtual Private Network
VRRP Virtual Router Redundancy Protocol
WAN Wide Area Network
WINS Windows Internet Name Service
WLAN Wireless Local Area Network
Pepwave MAX and Surf User Manual
http://www.pepwave.com 7 Copyri
g
ht @ 2015 Pepwave
3 Product Features
Pepwave routers enable all LAN users to share broadband Internet connections, and
they provide advanced features to enhance Internet access. Below is a list of supported
features on Pepwave routers. Features vary by model. For more information, please
see peplink.com/products.
3.1 Supported Network Features
3.1.1 WAN
y Ethernet WAN connection in full/half duplex
y Static IP support for PPPoE
y Built-in HSPA and EVDO cellular modems
y USB mobile connection(s)
y Wi-Fi WAN connection
y Network address translation (NAT)/port address translation (PAT)
y Inbound and outbound NAT mapping
y IPsec NAT-T and PPTP packet passthrough
y MAC address clone and passthrough
y Customizable MTU and MSS values
y WAN connection health check
y Dynamic DNS (supported service providers: changeip.com, dyndns.org, no-
ip.org, tzo.com and DNS-O-Matic)
y Ping, DNS lookup, and HTTP-based health check
3.1.2 LAN
y Wi-Fi AP
y Ethernet LAN ports

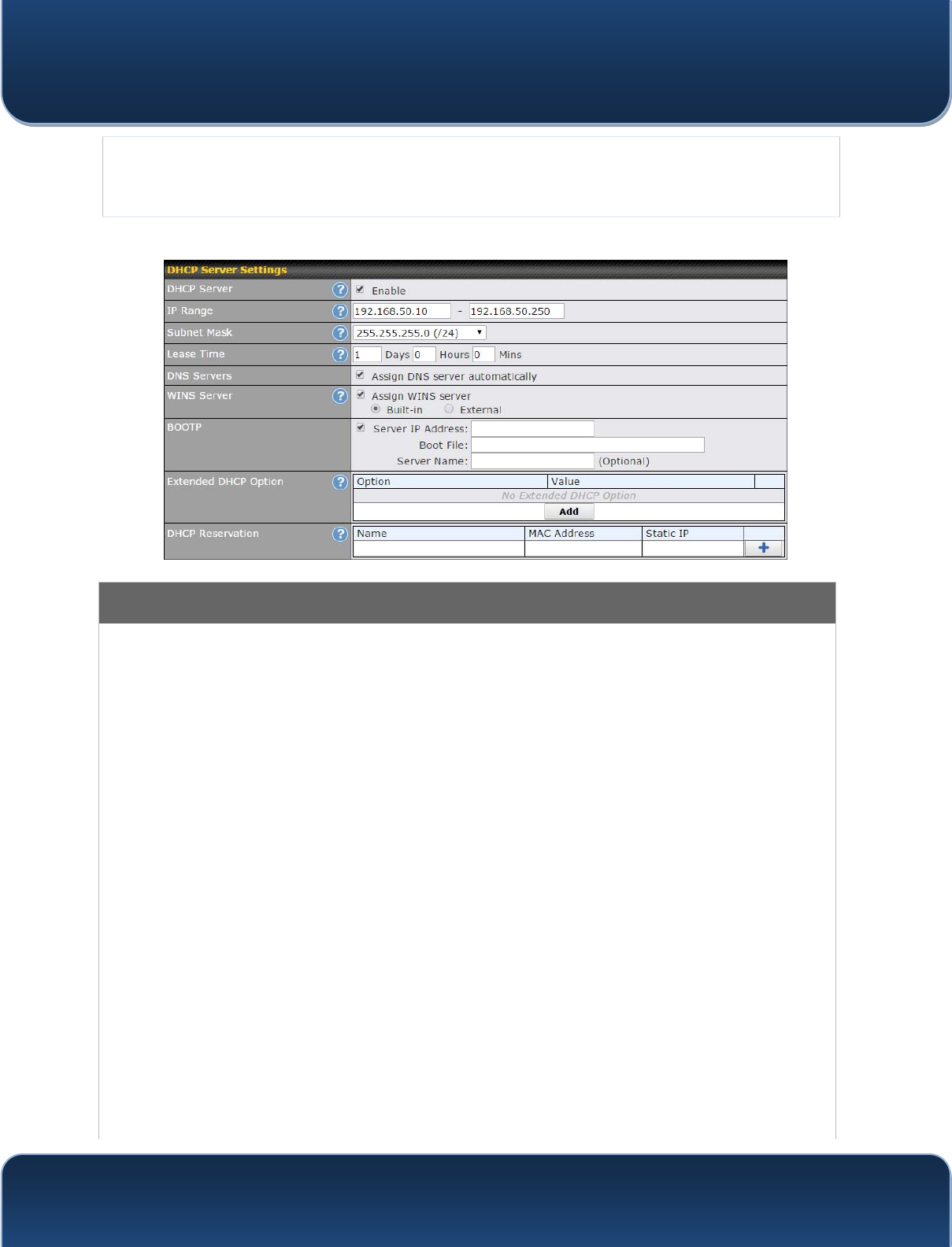

y DHCP server on LAN
y Extended DHCP option support
y Static routing rules
y VLAN on LAN support
3.1.3 VPN
y PepVPN with SpeedFusionTM
y PepVPN performance analyzer
y X.509 certificate support
y VPN load balancing and failover among selected WAN connections
Pepwave MAX and Surf User Manual
http://www.pepwave.com 8 Copyri
g
ht @ 2015 Pepwave
y Bandwidth bonding and failover among selected WAN connections
y IPsec VPN for network-to-network connections (works with Cisco and Juniper
only)
y Ability to route Internet traffic to a remote VPN peer
y Optional pre-shared key setting
y SpeedFusionTM throughput, ping, and traceroute tests
y PPTP server
y PPTP and IPsec passthrough
3.1.4 Firewall
y Outbound (LAN to WAN) firewall rules
y Inbound (WAN to LAN) firewall rules per WAN connection
y Intrusion detection and prevention
y Specification of NAT mappings
y Outbound firewall rules can be defined by destination domain name
3.1.5 Captive Portal
y Splash screen of open networks, login page for secure networks
y Customizable built-in captive portal
y Supports linking to outside page for captive portal
3.1.6 Outbound Policy
y Link load distribution per TCP/UDP service
y Persistent routing for specified source and/or destination IP addresses per
TCP/UDP service
y Traffic prioritization and DSL optimization
y Prioritize and route traffic to VPN tunnels with Priority and Enforced algorithms
3.1.7 AP Controller
y Configure and manage Pepwave AP devices
y Review the status of connected APs
3.1.8 QoS
y Quality of service for different applications and custom protocols
y User group classification for different service levels
y Bandwidth usage control and monitoring on group- and user-level
Pepwave MAX and Surf User Manual
http://www.pepwave.com 9 Copyri
g
ht @ 2015 Pepwave
y Application prioritization for custom protocols and DSL/cable optimization
3.2 Other Supported Features
y User-friendly web-based administration interface
y HTTP and HTTPS support for web admin interface
y Configurable web administration port and administrator password
y Firmware upgrades, configuration backups, ping, and traceroute via web admin
interface
y Remote web-based configuration (via WAN and LAN interfaces)
y Time server synchronization
y SNMP
y Email notification
y Read-only user for web admin
y Shared IP drop-in mode
y Authentication and accounting by RADIUS server for web admin
y Built-in WINS servers*
y Syslog
y SIP passthrough
y PPTP packet passthrough
y Event log
y Active sessions
y Client list
y WINS client list *
y UPnP / NAT-PMP
y Real-time, hourly, daily, and monthly bandwidth usage reports and charts
y IPv6 support
y Support USB tethering on Android 2.2+ phones
* Not supported on MAX Surf-On-The-Go, Surf SOHO, and BR1 variants
Pepwave MAX and Surf User Manual
http://www.pepwave.com 10 Copyri
g
ht @ 2015 Pepwave
4 Pepwave MAX Mobile Router Overview

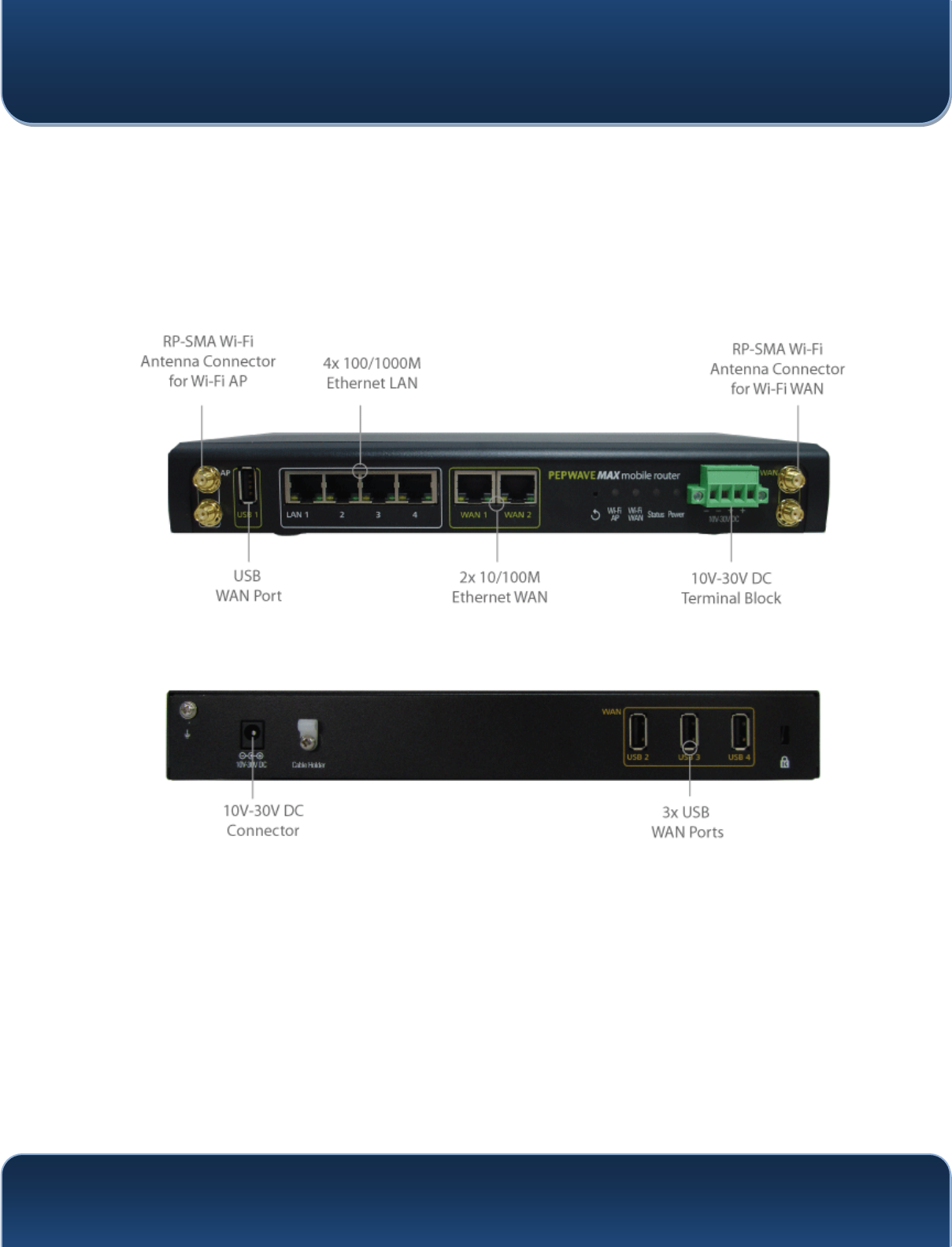

4.1 MAX 700

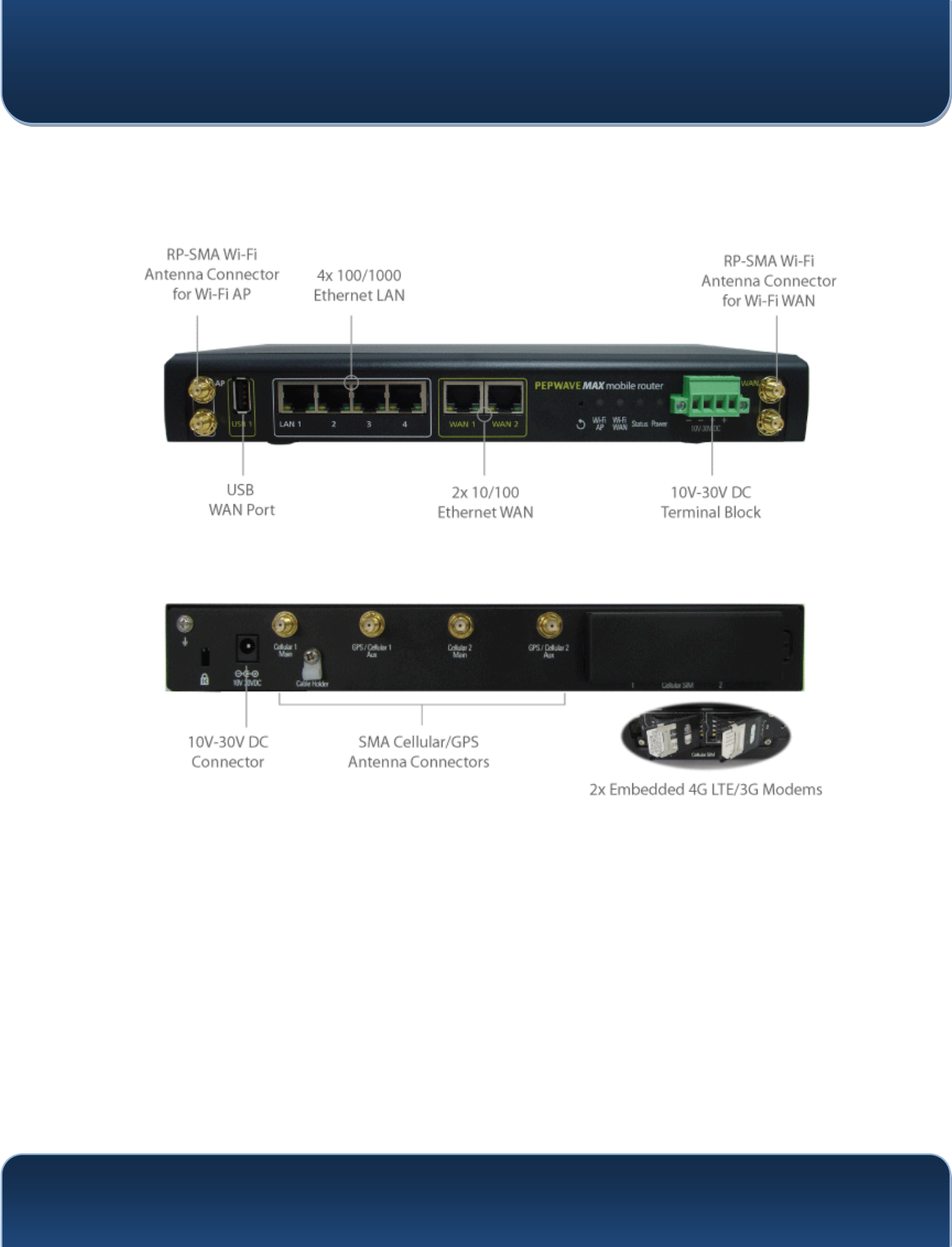

4.1.1 Panel Appearance
Pepwave MAX and Surf User Manual
http://www.pepwave.com 11 Copyri
g
ht @ 2015 Pepwave
4.1.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN
OFF Disconnected
Blinking slowly Connecting to network
Blinking Connected to network with traffic
ON Connected to network without traffic
Wi-Fi AP
OFF Disabled
Blinking slowly Enabled but no client connected
Blinking Connected to network with traffic
ON Client(s) connected to wireless network
LAN and Ethernet WAN Ports
Green LED ON 10 / 100/ 1000 Mbps
Orange LED Blinking Data is transferring
OFF No data is being transferred or port is not
connected
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 12 Copyri
g
ht @ 2015 Pepwave

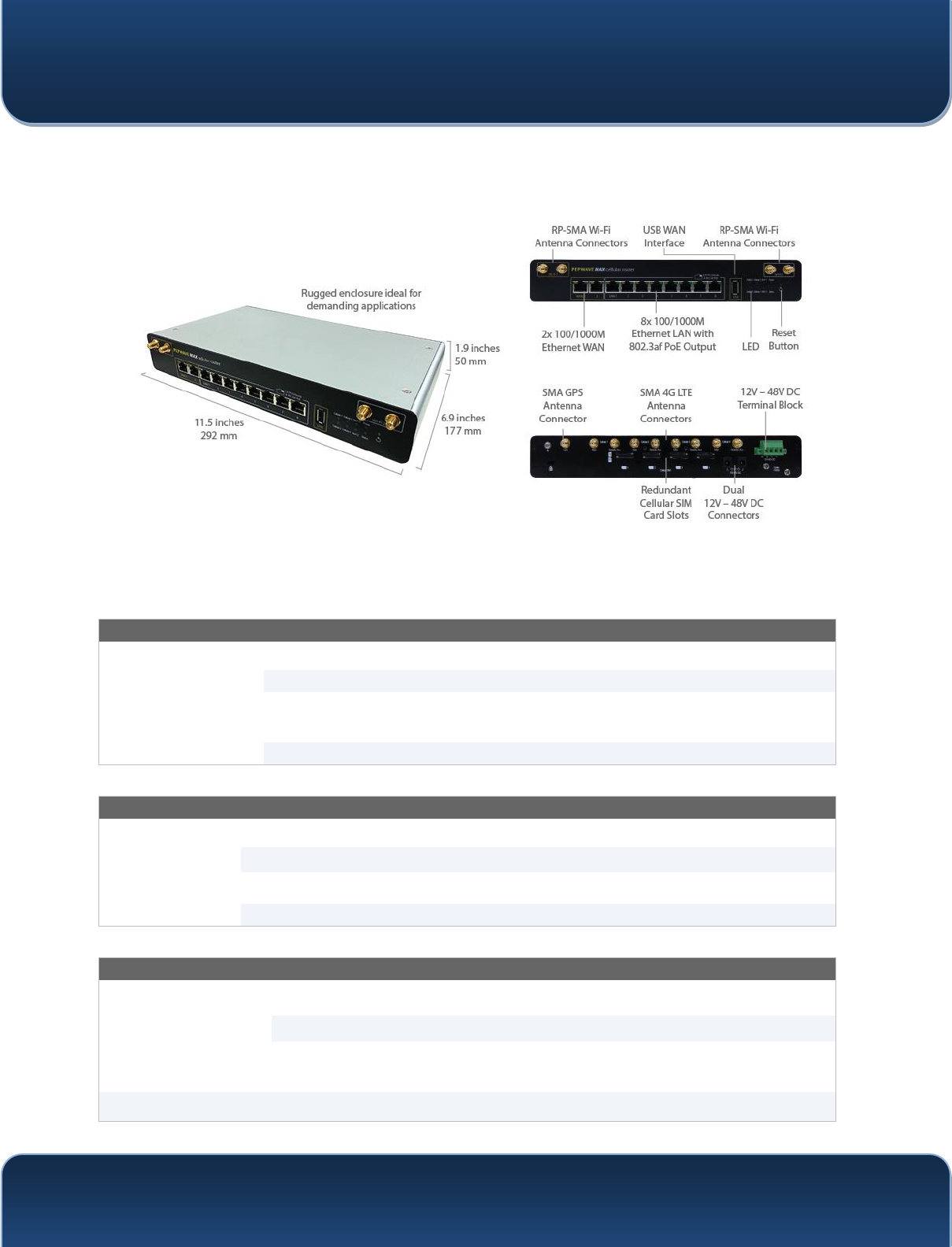

4.2 MAX HD2
4.2.1 Panel Appearance
Pepwave MAX and Surf User Manual
http://www.pepwave.com 13 Copyri
g
ht @ 2015 Pepwave
4.2.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF Disabled Intermittent
Blinking slowly Connecting to wireless network(s)
Blinking Connected to wireless network(s) with traffic
ON Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED ON 10 / 100 / 1000 Mbps
Orange LED Blinking Data is transferring
OFF No data is being transferred or port is not
connected
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 14 Copyri
g
ht @ 2015 Pepwave
4.3 MAX HD2 IP67

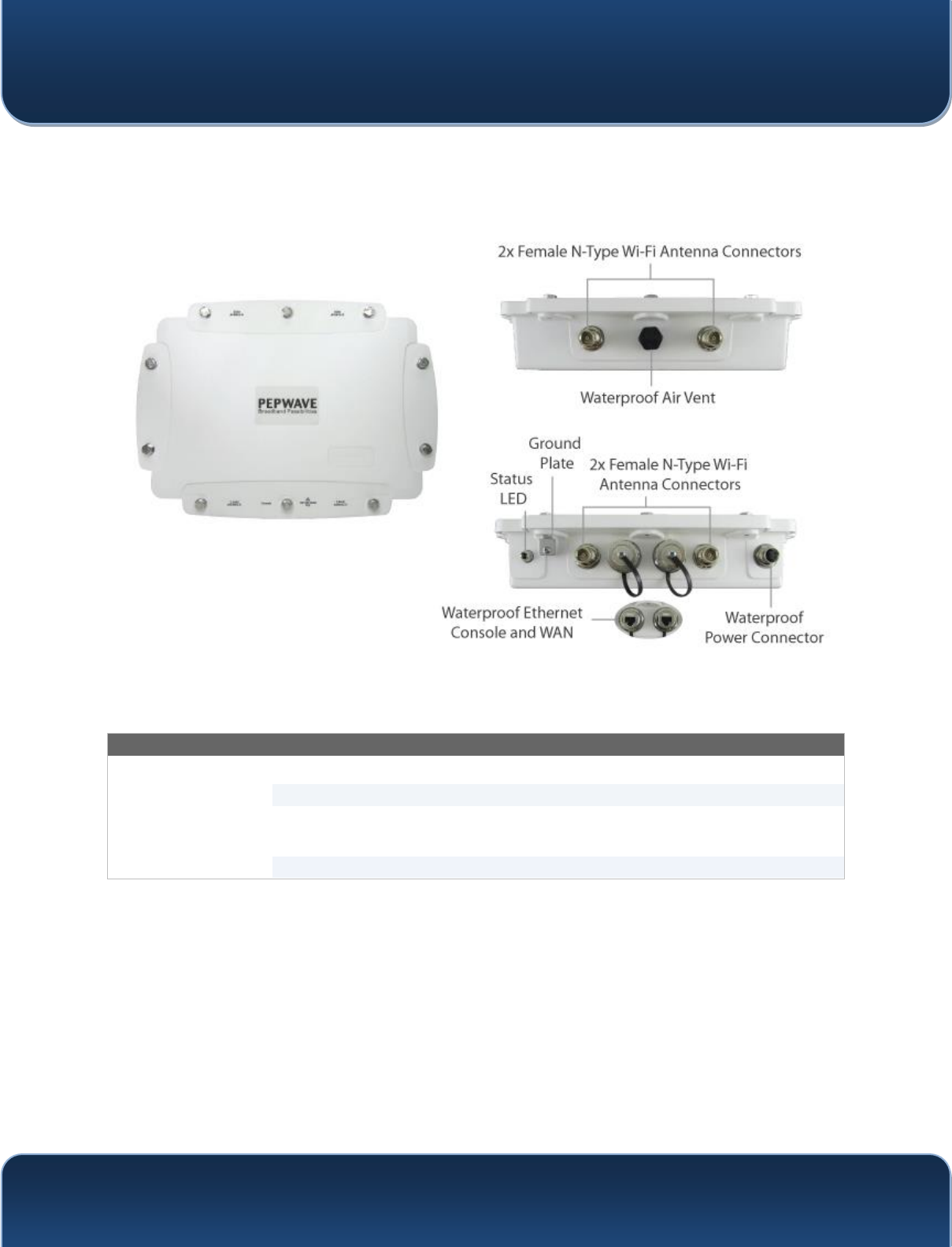

4.3.1 Panel Appearance
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Pepwave MAX and Surf User Manual
http://www.pepwave.com 15 Copyri
g
ht @ 2015 Pepwave
4.4 MAX HD2 mini
4.4.1 Panel Appearance
Pepwave MAX and Surf User Manual
http://www.pepwave.com 16 Copyri
g
ht @ 2015 Pepwave
4.4.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Cellular WAN Indicators
Cellular 1 /
Cellular 2
OFF Disabled intermittent
Blinking slowly Connecting to wireless network(s)
Blinking Connected to wireless network(s) with traffic
ON Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED ON 10 / 100 / 1000 Mbps
Orange LED Blinking Data is transferring
OFF No data is being transferred or port is not
connected
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 17 Copyri
g
ht @ 2015 Pepwave

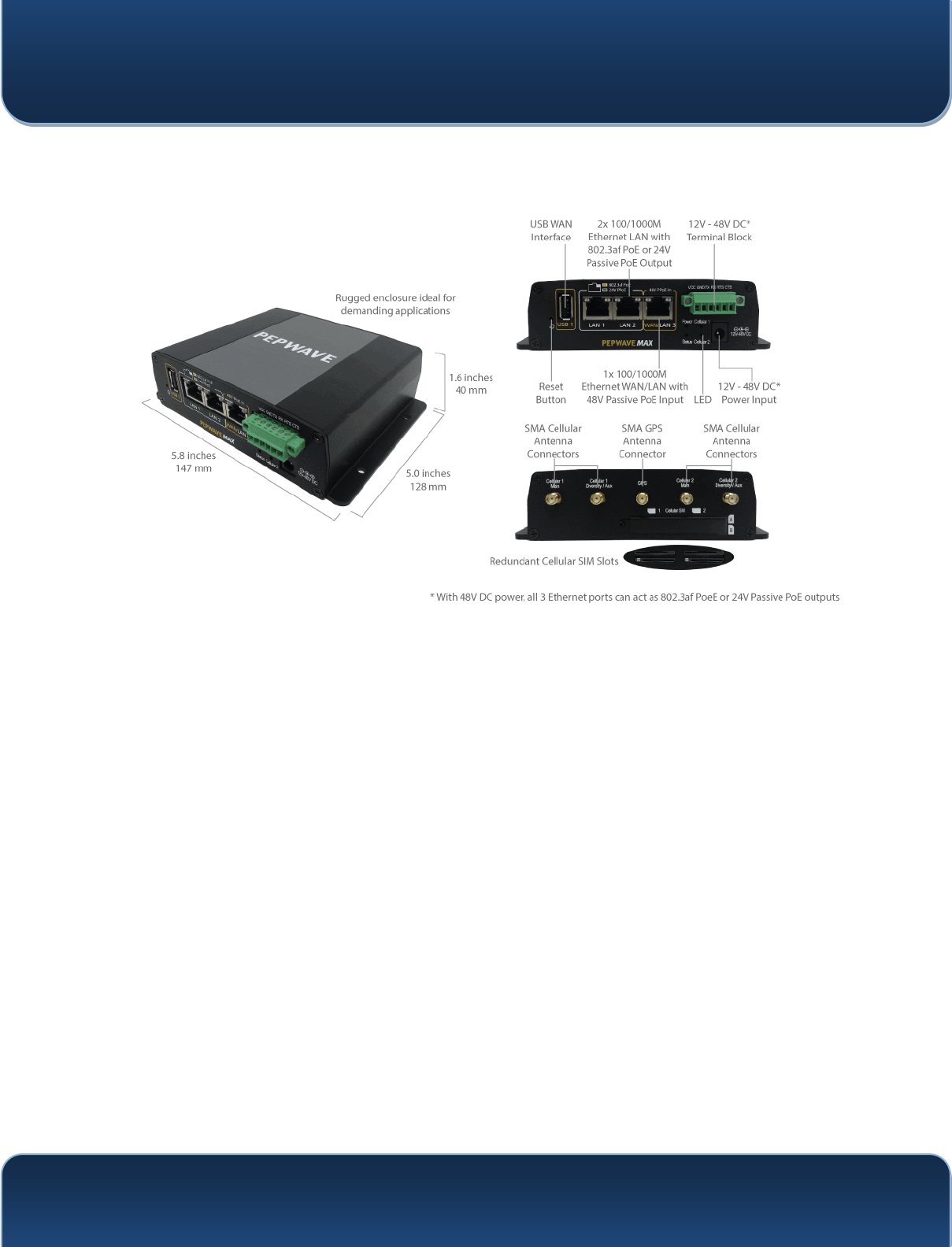

4.5 MAX HD4
4.5.1 Panel Appearance
4.5.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF Disabled Intermittent
Blinking slowly Connecting to wireless network(s)
Blinking Connected to wireless network(s) with traffic
ON Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED ON 10 / 100 / 1000 Mbps
Orange LED Blinking Data is transferring
OFF No data is being transferred or port is not
connected
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 18 Copyri
g
ht @ 2015 Pepwave
4.6 MAX BR1
4.6.1 Panel Appearance
4.6.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Wi-Fi Indicators
Wi-Fi
OFF Disabled intermittent
Blinking slowly Connecting to wireless network(s)
Blinking Connected to wireless network(s) with traffic
ON Connected to wireless network(s) without traffic
Pepwave MAX and Surf User Manual
http://www.pepwave.com 19 Copyri
g
ht @ 2015 Pepwave
Cellular Indicators
Cellular OFF Disabled or no SIM card inserted
ON Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED ON 100 Mbps
OFF 10 Mbps
Orange LED
ON Port is connected without traffic
Blinking Data is transferring
OFF Port is not connected
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 20 Copyri
g
ht @ 2015 Pepwave
4.7 MAX BR1 Slim
4.7.1 Panel Appearance
4.7.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Wi-Fi Indicators
Wi-Fi
OFF Disabled intermittent
Blinking slowly Connecting to wireless network(s)
Blinking Connected to wireless network(s) with traffic
ON Connected to wireless network(s) without traffic
Cellular Indicators
Cellular OFF Disabled or no SIM card inserted
ON Connecting or connected to network(s)
Pepwave MAX and Surf User Manual
http://www.pepwave.com 21 Copyri
g
ht @ 2015 Pepwave
y
LAN and Ethernet WAN Ports
Green LED ON 100 Mbps
OFF 10 Mbps
Orange LED
ON Port is connected without traffic
Blinking Data is transferring
OFF Port is not connected
Port Type Auto MDI/MDI-X ports
y
Pepwave MAX and Surf User Manual
http://www.pepwave.com 22 Copyri
g
ht @ 2015 Pepwave

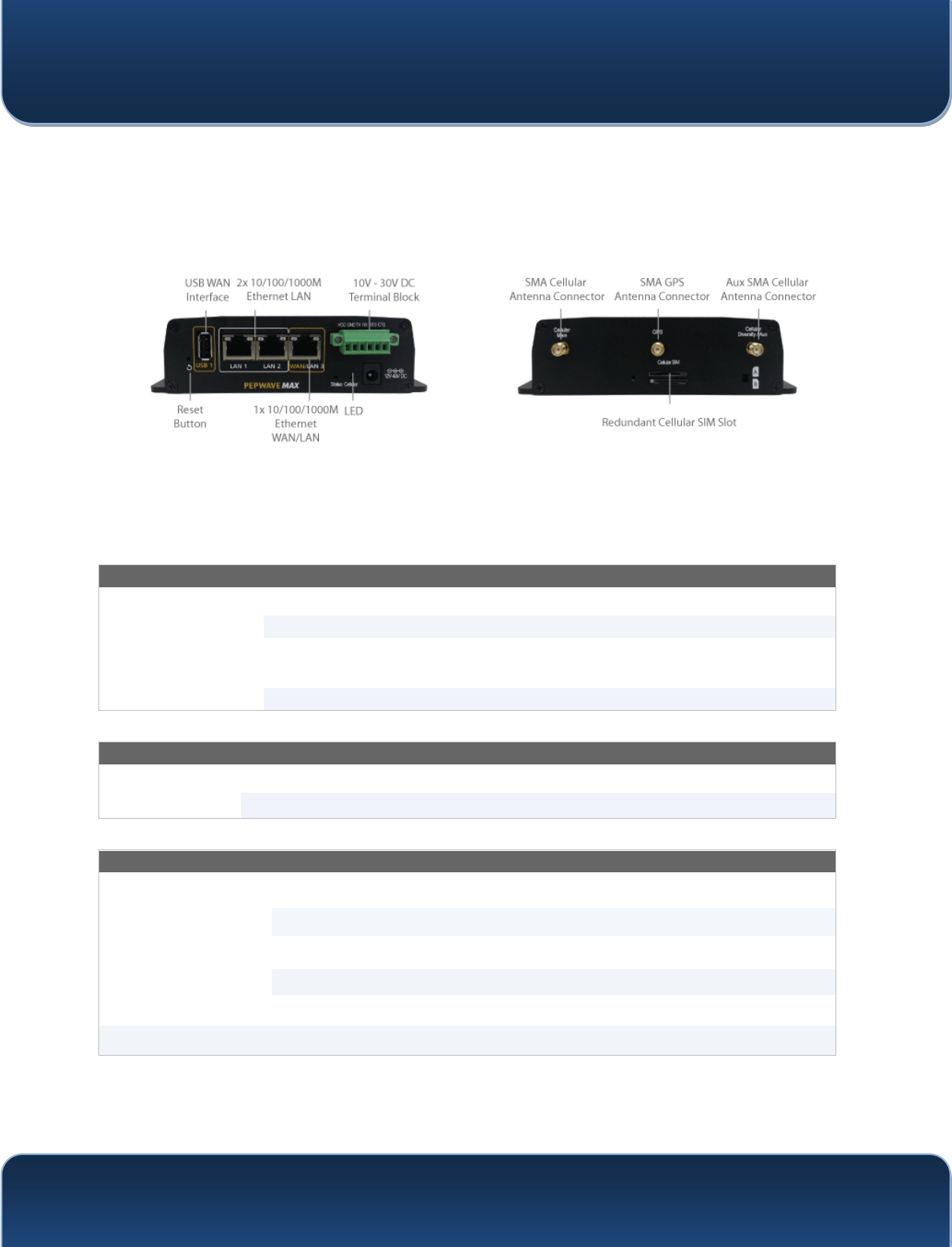

4.8 MAX BR1 ENT
4.8.1 Panel Appearance
4.8.2 LED Indicators
y The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Cellular Indicators
Cellular OFF Disabled or no SIM card inserted
ON Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED ON 100 Mbps
OFF 10 Mbps
Orange LED
ON Port is connected without traffic
Blinking Data is transferring
OFF Port is not connected
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 23 Copyri
g
ht @ 2015 Pepwave
4.9 MAX BR1 Pro LTE
4.9.1 Panel Appearence
4.9.2 LED Indicators
y The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Cellular Indicators
Cellular OFF Disabled or no SIM card inserted
ON Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED ON 100 Mbps
OFF 10 Mbps
Orange LED
ON Port is connected without traffic
Blinking Data is transferring
OFF Port is not connected
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 24 Copyri
g
ht @ 2015 Pepwave
4.10 MAX BR1/2 IP55
4.10.1 Panel Appearance
4.10.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Blinking
red Boot up error
Green Ready
Pepwave MAX and Surf User Manual
http://www.pepwave.com 25 Copyri
g
ht @ 2015 Pepwave
Wi-Fi Indicators
Wi-Fi
OFF Disabled Intermittent
Blinking slowly Connecting to wireless network(s)
Blinking Connected to wireless network(s) with traffic
ON Connected to wireless network(s) without traffic
Cellular Indicators
Cellular OFF Disabled or no SIM card inserted
ON Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED ON 100 Mbps
OFF 10 Mbps
Orange LED
ON Port is connected without traffic
Blinking Data is transferring
OFF Port is not connected
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 26 Copyri
g
ht @ 2015 Pepwave
4.11 MAX On-The-Go

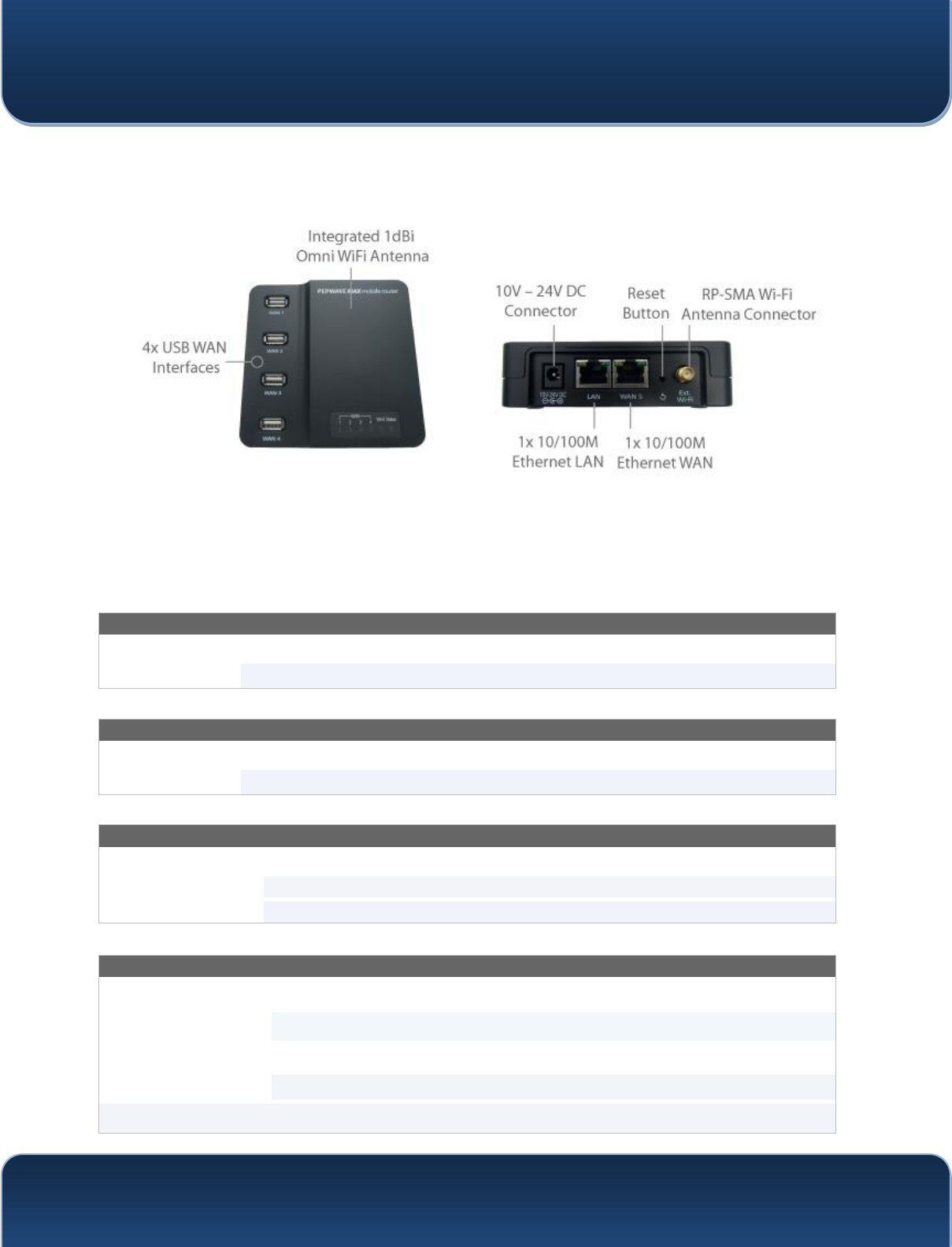

4.11.1 Panel Appearance
4.11.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Cellular Indicators
WAN OFF Modem is not attached to the port
Green Modem is attached to the port
Wi-Fi Indicators
Wi-Fi OFF Disconnected from AP
Green Connected to AP
Status Indicators
Status
OFF System initializing
Red Booting up or busy
Green Ready
LAN and Ethernet WAN Ports
Green LED ON 100 Mbps
OFF 10 Mbps
Orange LED ON Port is connected without traffic
Blinking Data is transferring
Port Type Auto MDI/MDI-X ports
Pepwave MAX and Surf User Manual
http://www.pepwave.com 27 Copyri
g
ht @ 2015 Pepwave
4.12 Surf SOHO
4.12.1 Panel Appearance
4.12.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Wi-Fi and Status Indicators
Wi-Fi
OFF Disabled Intermittent
Blinking Enabled but no client connected
ON Client(s) connected to wireless network
Continuous
blinking Transferring data to wireless network
Status
OFF System initializing
Red Booting up or busy
Green Ready state

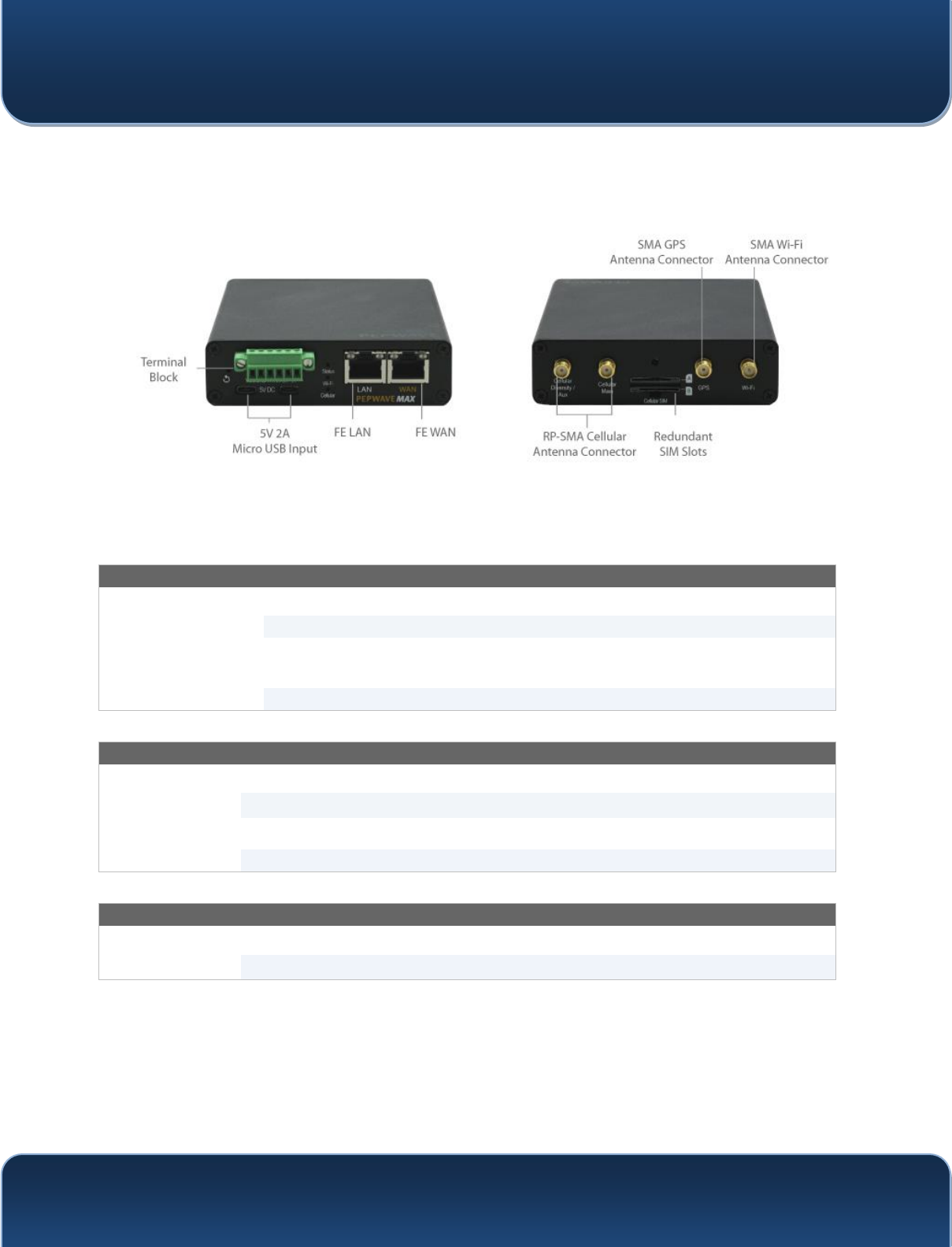

LAN and Ethernet WAN Ports
Green LED ON 10 / 100 Mbps
Pepwave MAX and Surf User Manual
http://www.pepwave.com 28 Copyri
g
ht @ 2015 Pepwave
Orange LED Blinking Data is transferring
OFF No data is being transferred or port is not
connected
Port type Auto MDI/MDI-X ports
Wi-Fi Signal
Off No connection
Signal strength Wi-Fi signal strength (low, medium, and high)
Pepwave MAX and Surf User Manual
http://www.pepwave.com 29 Copyri
g
ht @ 2015 Pepwave
5 Installation
The following section details connecting Pepwave routers to your network.
5.1 Preparation
Before installing your Pepwave router, please prepare the following as appropriate for
your installation:
y At least one Internet/WAN access account and/or Wi-Fi access information
y Depending on network connection type(s), one or more of the following:
y Ethernet WAN: A 10/100/1000BaseT UTP cable with RJ45 connector
y USB: A USB modem
y Embedded modem: A SIM card for GSM/HSPA service
y Wi-Fi WAN: Wi-Fi antennas
y PC Card/Express Card WAN: A PC Card/ExpressCard for the
corresponding card slot
y A computer installed with the TCP/IP network protocol and a supported web
browser. Supported browsers include Microsoft Internet Explorer 8.0 or above,
Mozilla Firefox 10.0 or above, Apple Safari 5.1 or above, and Google Chrome 18
or above.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 30 Copyri
g
ht @ 2015 Pepwave
5.2 Constructing the Network
At a high level, construct the network according to the following steps:
1. With an Ethernet cable, connect a computer to one of the LAN ports on the
Pepwave router. Repeat with different cables for up to 4 computers to be
connected.
2. With another Ethernet cable or a USB modem/Wi-Fi antenna/PC
Card/Express Card, connect to one of the WAN ports on the Pepwave router.
Repeat the same procedure for other WAN ports.
3. Connect the power adapter to the power connector on the rear panel of the
Pepwave router, and then plug it into a power outlet.
The following figure schematically illustrates the resulting configuration:
Pepwave MAX and Surf User Manual
http://www.pepwave.com 31 Copyri
g
ht @ 2015 Pepwave
5.3 Configuring the Network Environment
To ensure that the Pepwave router works properly in the LAN environment and can
access the Internet via WAN connections, please refer to the following setup
procedures:
y LAN configuration
For basic configuration, refer to Section 7, Connecting to the Web Admin
Interface.
For advanced configuration, go to Section 8, Configuring the LAN Interface(s).
y WAN configuration
For basic configuration, refer to Section 7, Connecting to the Web Admin
Interface.
For advanced configuration, go to Section 8.2, Captive Portal.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 32 Copyri
g
ht @ 2015 Pepwave
6 Mounting the Unit
6.1 Wall Mount
The Pepwave MAX 700/HD2/On-The-Go can be wall mounted using screws. After
adding the screw on the wall, slide the MAX in the screw hole socket as indicated below.
Recommeneded screw specification: M3.5 x 20mm, head diameter 6mm, head
thickness 2.4mm.
The Pepwave MAX BR1 requires four screws for wall mounting.

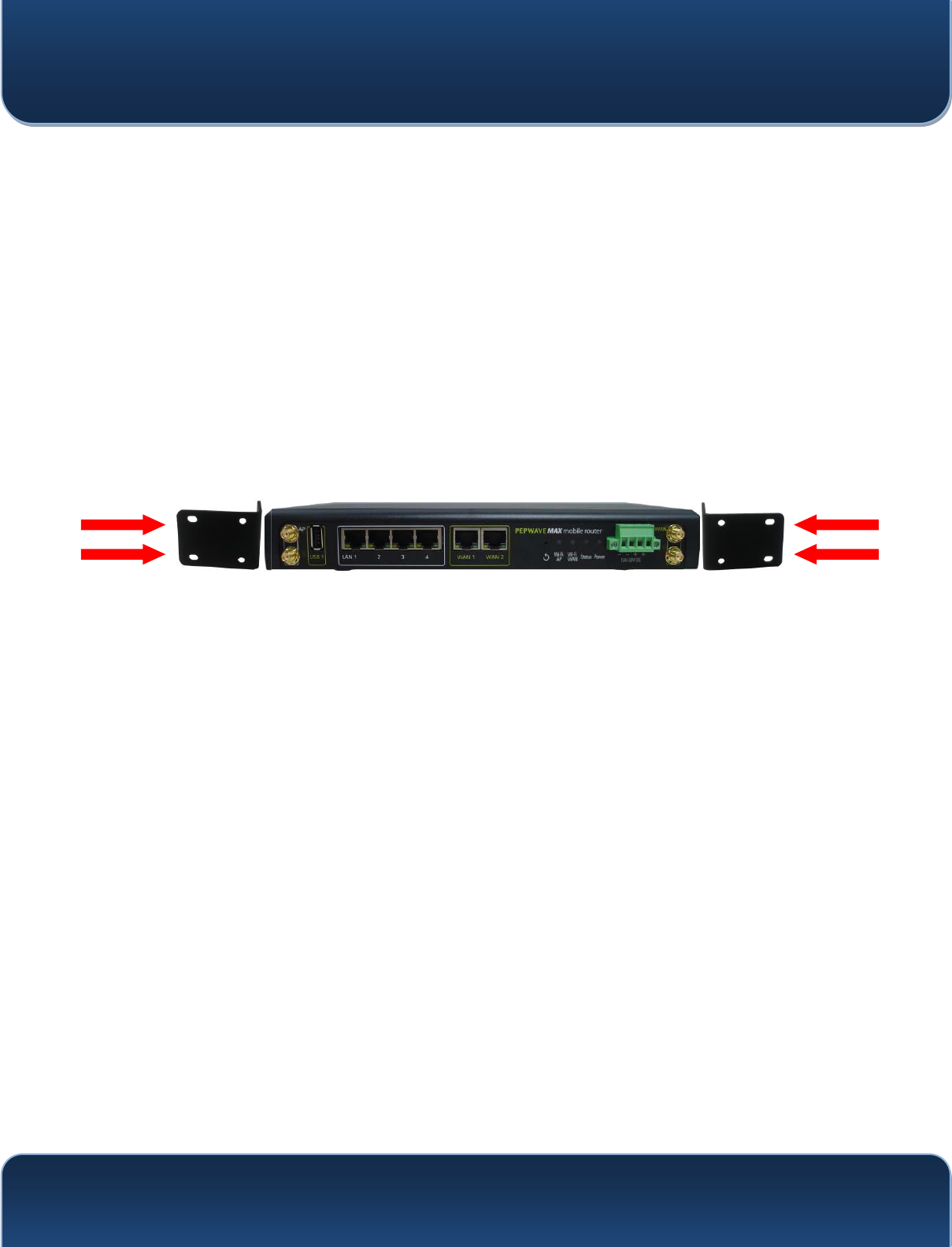

6.2 Car Mount
The Pepwave MAX700/HD2 can be mounted in a vehicle using the included mounting
brackets. Place the mounting brackets by the two sides and screw them onto the device.
6.3 IP67 Installation Guide
Installation instructions for IP67 devices can be found here:
http://download.peplink.com/manual/IP67_Installation_Guide.pdf
7 Connecting to the Web Admin Interface
Pepwave MAX and Surf User Manual
http://www.pepwave.com 33 Copyri
g
ht @ 2015 Pepwave

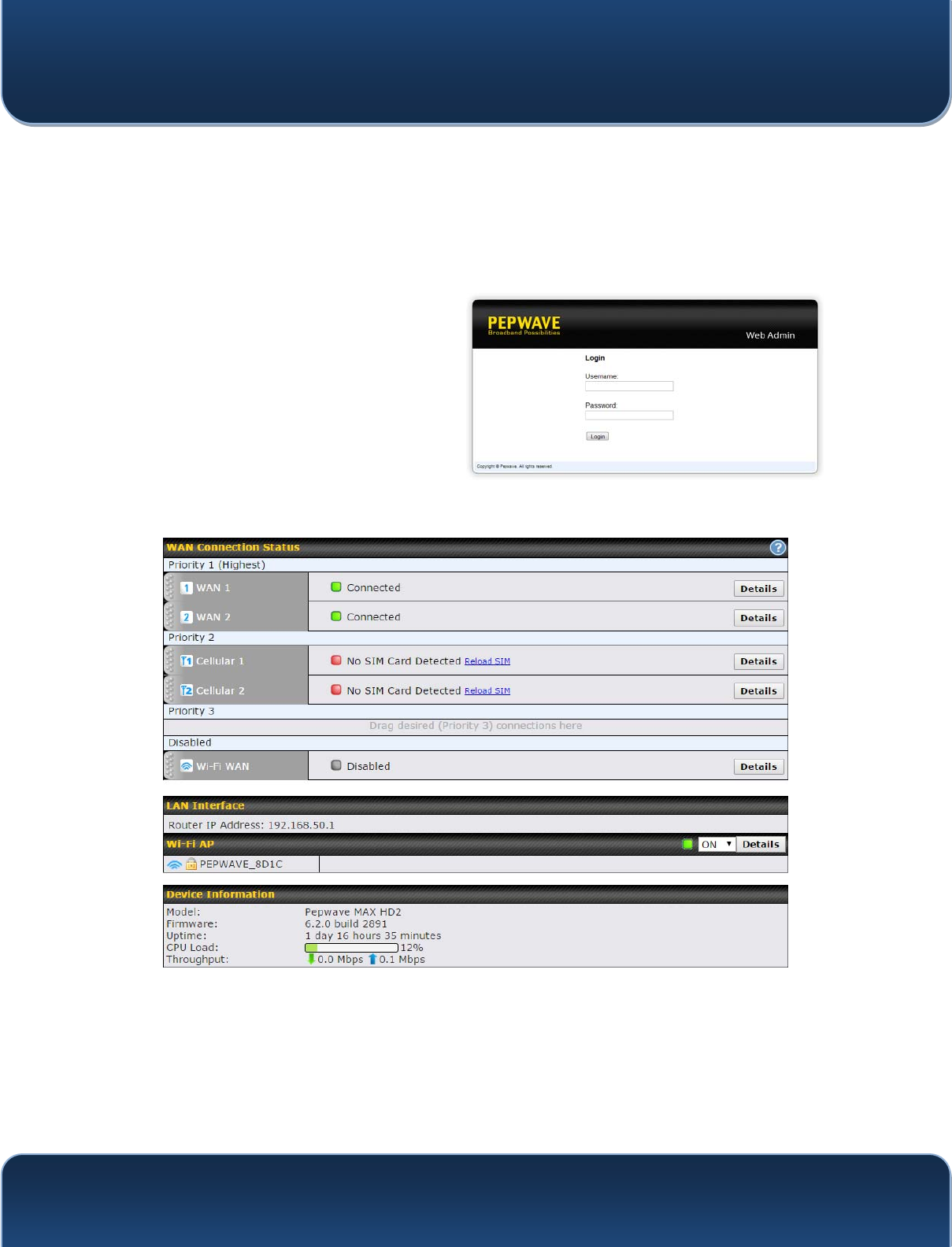

1. Start a web browser on a computer that is connected with the Pepwave router
through the LAN.
2. To connect to the URXWHU¶Vweb admin interface, enter the following LAN IP address
in the address field of the web browser:
http://192.168.50.1
(This is the default LAN IP address for Pepwave routers.)
3. Enter the following to access the web
admin interface.
Username: admin
Password: admin
(This is the default username and
password for Pepwave routers. The
admin and read-only user passwords
can be changed at System>Admin
Security.)
4. After successful login, the Dashboard will be displayed.

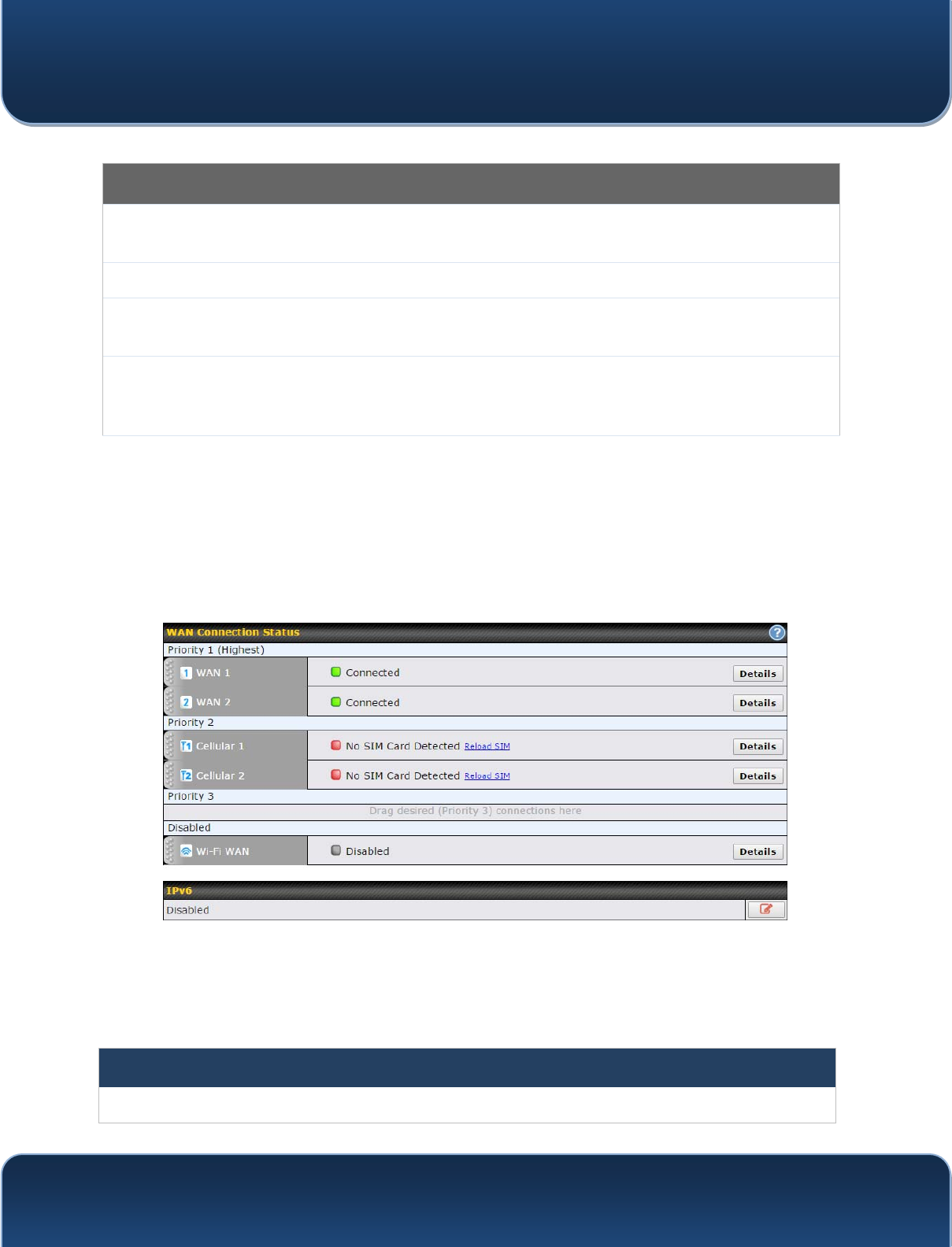

The Dashboard shows current WAN, LAN, and Wi-Fi AP statuses. Here, you can
change WAN connection priority and switch on/off the Wi-Fi AP. For further information
on setting up these connections, please refer to Sections 8 and 9.
Device Information displays details about the device, including model name, firmware
version, and uptime. For further information, please refer to Section 22.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 34 Copyri
g
ht @ 2015 Pepwave
Important Note
Configuration changes (e.g. WAN, LAN, admin settings, etc.) will take effect only after clicking the Save button at
the bottom of each page. The Apply Changes button causes the changes to be saved and applied.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 35 Copyri
g
ht @ 2015 Pepwave
8 Configuring the LAN Interface(s)

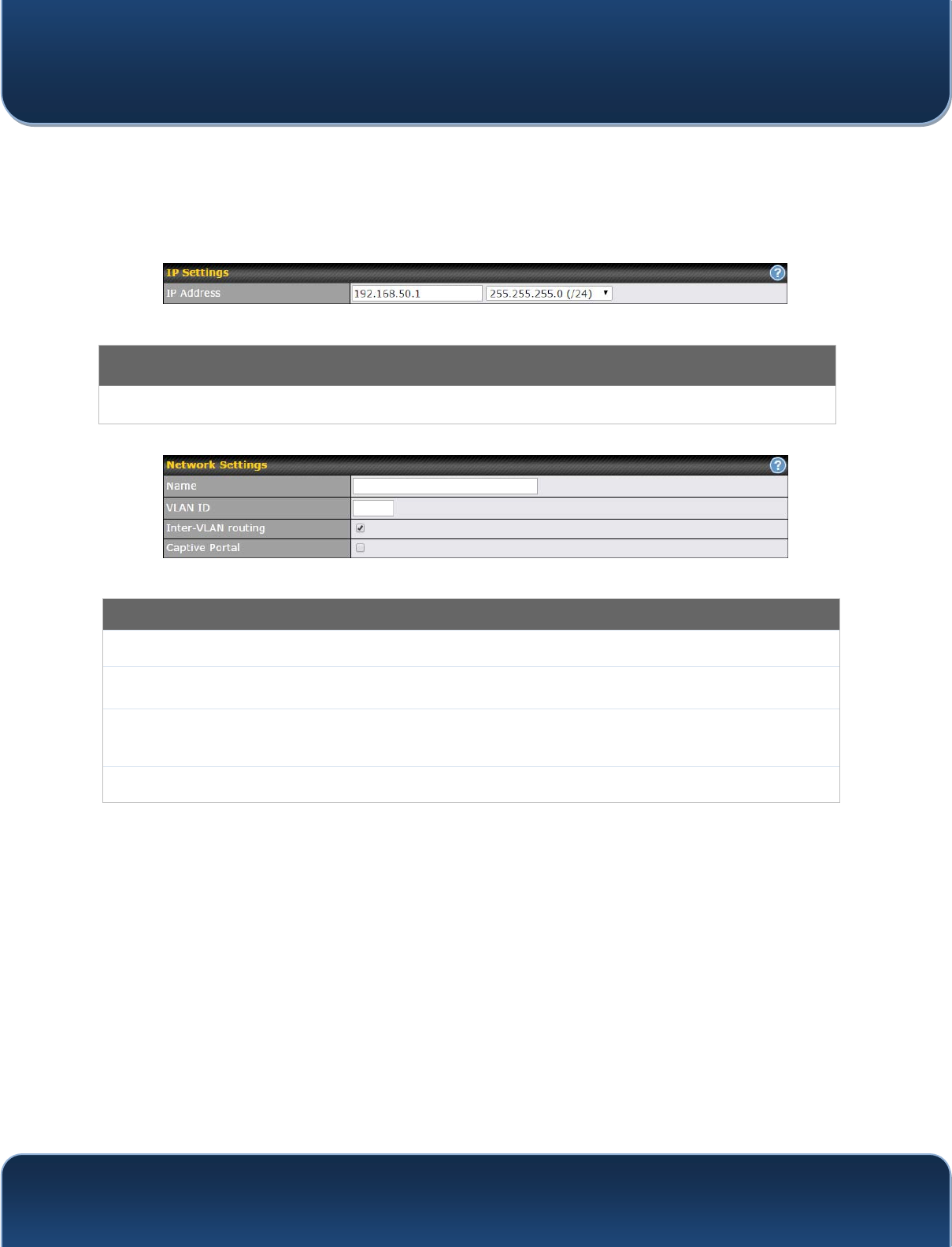

8.1 Basic Settings
LAN interface settings are located at Network>LAN>Basic Settings.
IP Settings
IP Address The IP address and subnet mask of the Pepwave router on the LAN.
Network Settings
Name Enter a name for the LAN.
VLAN ID Enter a number for your VLAN.
Inter-VLAN
routing Check this box to enable routing between virtual LANs.
Captive Portal Check this box to turn on captive portals.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 36 Copyri
g
ht @ 2015 Pepwave
Pepwave MAX and Surf User Manual
http://www.pepwave.com 37 Copyri
g
ht @ 2015 Pepwave

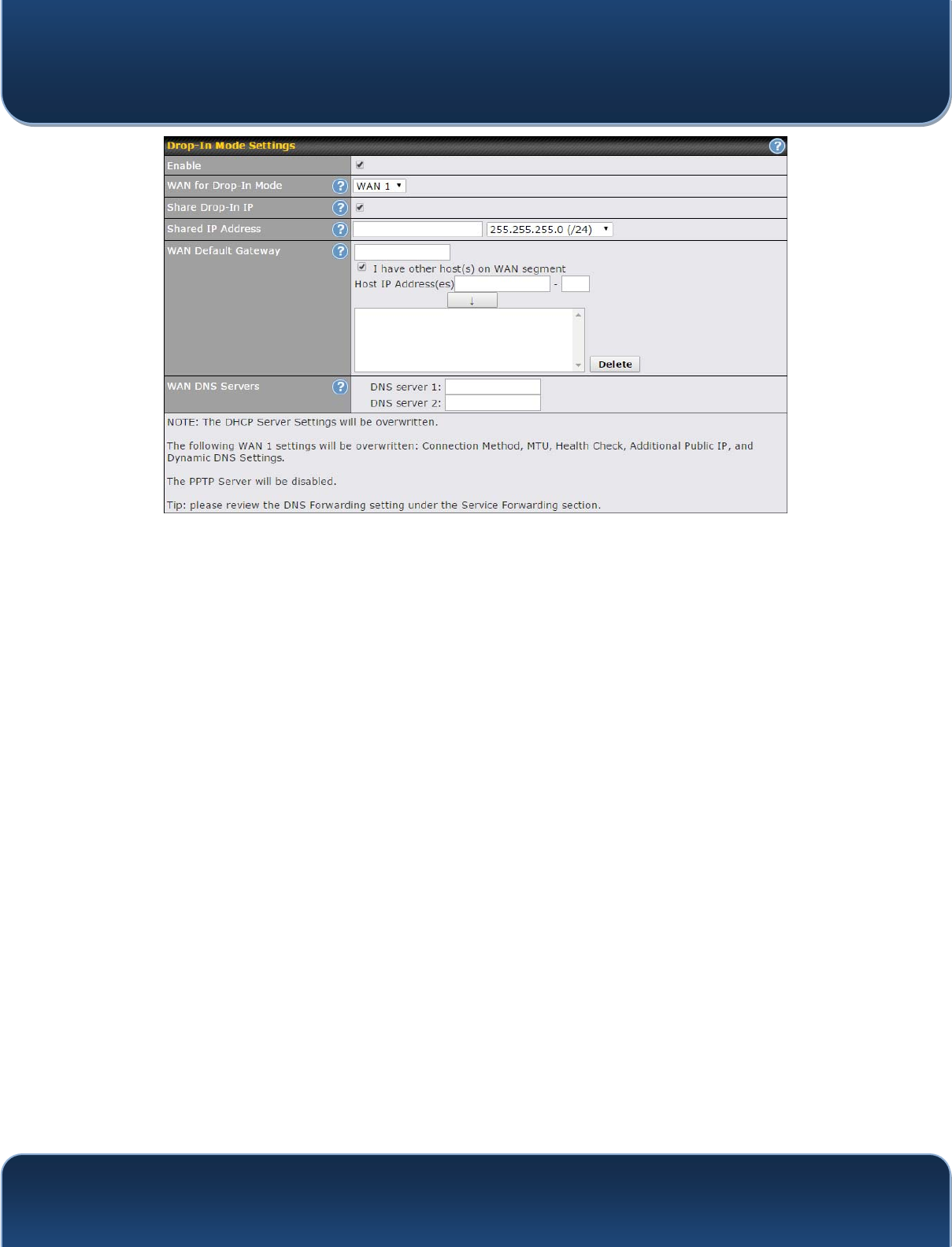

Drop-in Mode Settings
Enable Drop-in mode eases the installation of Peplink routers on a live network between the
existing firewall and router, such that no configuration changes are required on existing
equipment. Check the box to enable the drop-in mode feature, if available on your model.
WAN for Drop-
In Mode Select the WAN port to be used for drop-in mode. If WAN 1 with LAN Bypass is selected,
the high availability feature will be disabled automatically.
Share Drop-In
IPA
When this option is enabled, the passthrough IP address will be used to connect to WAN
hosts (email notification, remote syslog, etc.). The Pepwave router will listen for this IP
address when WAN hosts access services provided by the Pepwave router (web admin
access from the WAN, DNS server requests, etc.).
To connect to hosts on the LAN (email notification, remote syslog, etc.), the default gateway
address will be used. The Pepwave router will listen for this IP address when LAN hosts
access services provided by the Pepwave router (web admin access from the WAN, DNS
proxy, etc.).
Shared IP
AddressA
Access to this IP address will be passed through to the LAN port if this device is not serving
the service being accessed. The shared IP address will be used in connecting to hosts on
the WAN (email notification, remote syslog, etc.) The device will also listen on the IP
address when hosts on the WAN access services served on this device (web admin access
from the WAN, DNS server, etc.)
WAN Default
Gateway
Enter the WAN router's IP address in this field. If there are more hosts in addition to the
router on the WAN segment, check the I have other host(s) on WAN segment box and
enter the IP address of the hosts that need to access LAN devices or be accessed by
others.
WAN DNS
Servers Enter the selected WAN's corresponding DNS server IP addresses.
A - Advanced feature, please click the button on the top right-hand corner to activate.

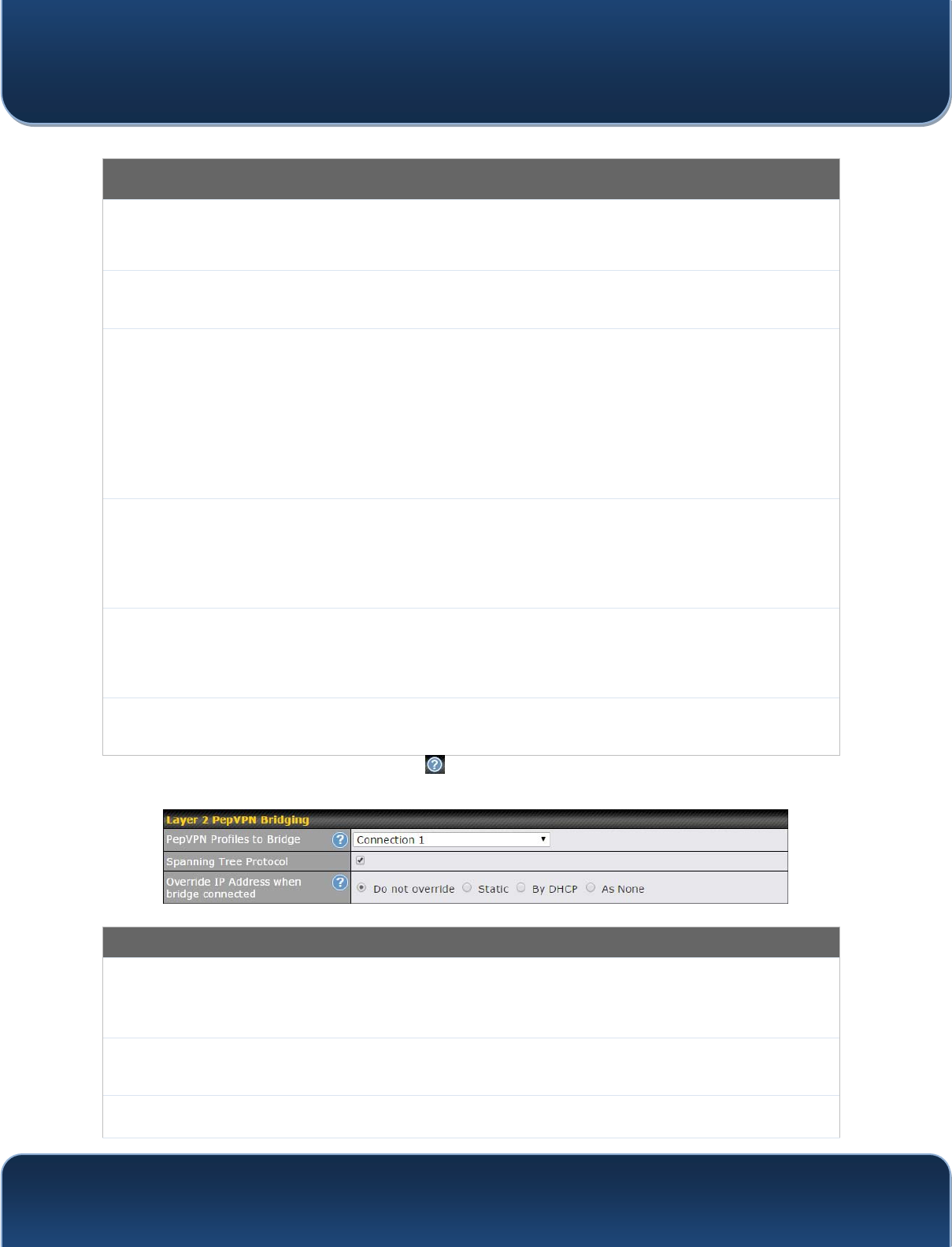

Layer 2 PepVPN Bridging
PepVPN
Profiles to
Bridge
The remote network of the selected PepVPN profiles will be bridged with this local LAN,
creating a Layer 2 PepVPN, they will be connected and operate like a single LAN, and any
broadcast or multicast packets will be sent over the VPN.
Spanning Tree
Protocol Click the box will enable STP for this layer 2 profile bridge.
Override IP Select "Do not override" if the LAN IP address and local DHCP server should remain
unchanged after the Layer 2 PepVPN is up.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 38 Copyri
g
ht @ 2015 Pepwave
Address when
bridge
connected
If you choose to override IP address when the VPN is connected, the device will not act as a
router, and most Layer 3 routing functions will cease to work.

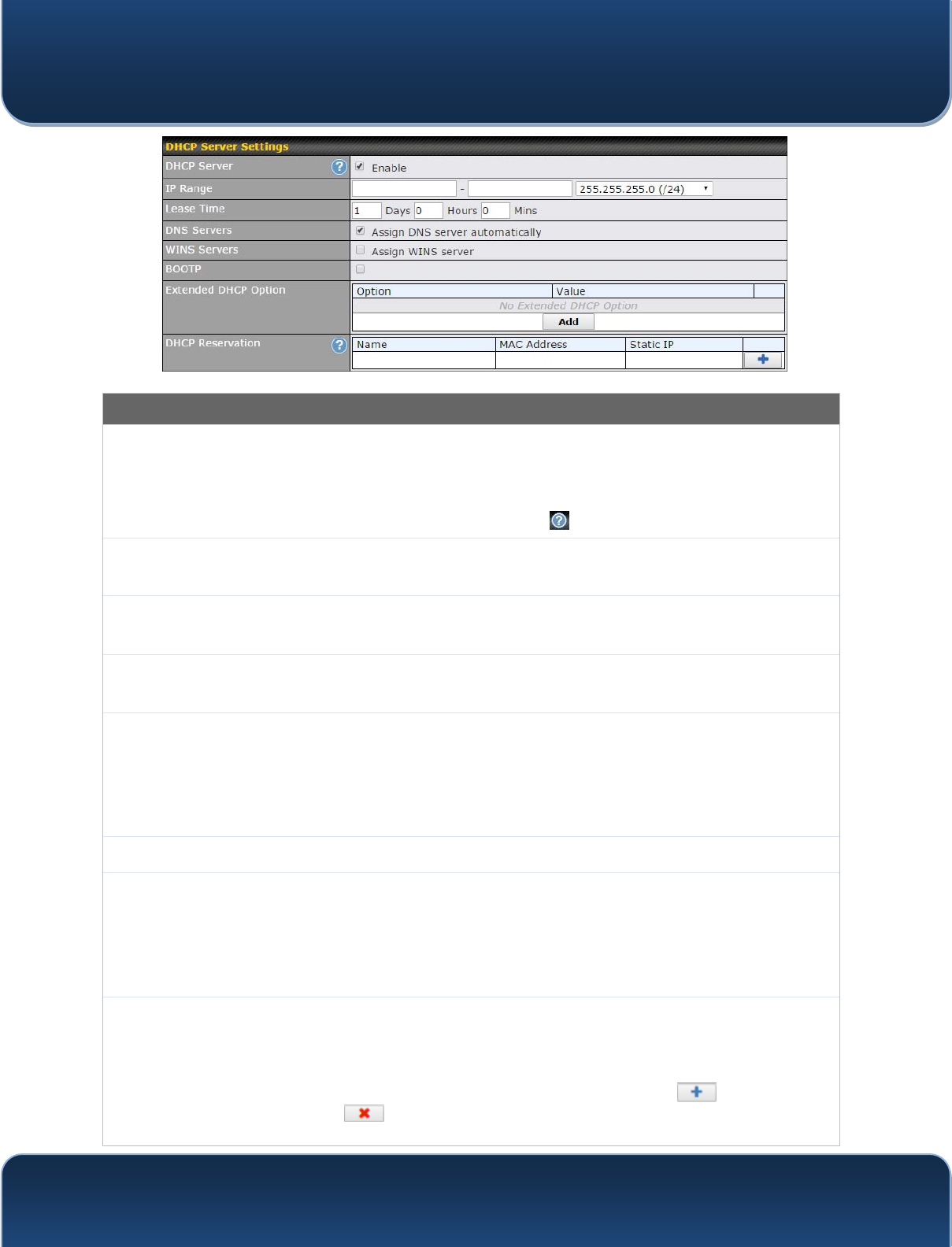

DHCP Server Settings
DHCP Server When this setting is enabled, the DHCP server automatically assigns an IP address to
each computer that is connected via LAN and configured to obtain an IP address via
DHCP. The Pepwave URXWHU¶VDHCP server can prevent IP address collision on the LAN.
IP Range &
Subnet Mask These settings allocate a range of IP addresses that will be assigned to LAN computers by
the 3HSZDYHURXWHU¶VDHCP server.
Lease Time This setting specifies the length of time throughout which an IP address of a DHCP client
remains valid. Upon expiration of the lease time, the assigned IP address will no longer be
valid and renewal of the IP address assignment will be required.
DNS Servers This option allows you to input the DNS server addresses to be offered to DHCP clients. If
Assign DNS server automatically is selected, the Pepwave URXWHU¶Vbuilt-in DNS server
address (i.e., LAN IP address) will be offered.
WINS Server
This option allows you to optionally specify a Windows Internet Name Service (WINS)
server. You may choose to use the built-in WINS server or external WINS servers.
When this unit is connected using SpeedFusionTM, other VPN peers can share this unit's
built-in WINS server by entering this unit's LAN IP address in their DHCP WINS Server
setting. Afterward, all PC clients in the VPN can resolve the NetBIOS names of other
clients in remote peers. If you have enabled this option, a list of WINS clients will be
displayed at Status>WINS Clients.
BOOTP Check this box to enable BOOTP on older networks that still require it.
Extended
DHCP Option
In addition to standard DHCP options (e.g., DNS server address, gateway address, subnet
mask), you can specify the value of additional extended DHCP options, as defined in RFC
2132. With these extended options enabled, you can pass additional configuration
information to LAN hosts.
To define an extended DHCP option, click the Add button, choose the option to define and
Pepwave MAX and Surf User Manual
http://www.pepwave.com 39 Copyri
g
ht @ 2015 Pepwave
enter its value. For values that are in IP address list format, you can enter one IP address
per line in the provided text area input control. Each option can be defined once only.
DHCP
Reservation
This setting reserves the assignment of fixed IP addresses for a list of computers on the
LAN. The computers to be assigned fixed IP addresses on the LAN are identified by their
MAC addresses. The fixed IP address assignment is displayed as a cross-reference list
EHWZHHQWKHFRPSXWHUV¶QDPHV0$&DGGUHVVHVDQGIL[HG,3DGGUHVVHV
Name (an optional field) allows you to specify a name to represent the device. MAC
addresses should be in the format of 00:AA:BB:CC:DD:EE. Press to create a new
record. Press to remove a record. Reserved client information can be imported from
the Client List, located at Status>Client List. For more details, please refer to Section
21.3.
LAN Physical Settings
Speed
This is the port speed of the LAN interface. It should be set to the same speed as the
connected device to avoid port negotiation problems. When a static speed is set, you may
choose whether to advertise its speed to the peer device. Auto is selected by default. You
can choose not to advertise the port speed if the port has difficulty negotiating with the
peer device.
Static Route Settings
Static Route
This table is for defining static routing rules for the LAN segment. A static route consists of
the network address, subnet mask, and gateway address. The address and subnet mask
values are in w.x.y.z format.
The local LAN subnet and subnets behind the LAN will be advertised to the VPN. Remote
routes sent over the VPN will also be accepted. Any VPN member will be able to route to
the local subnets. Press to create a new route. Press to remove a route.
WINS Server Settings
Enable Check the box to enable the WINS server. A list of WINS clients will be displayed at
Status>WINS Clients.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 40 Copyri
g
ht @ 2015 Pepwave

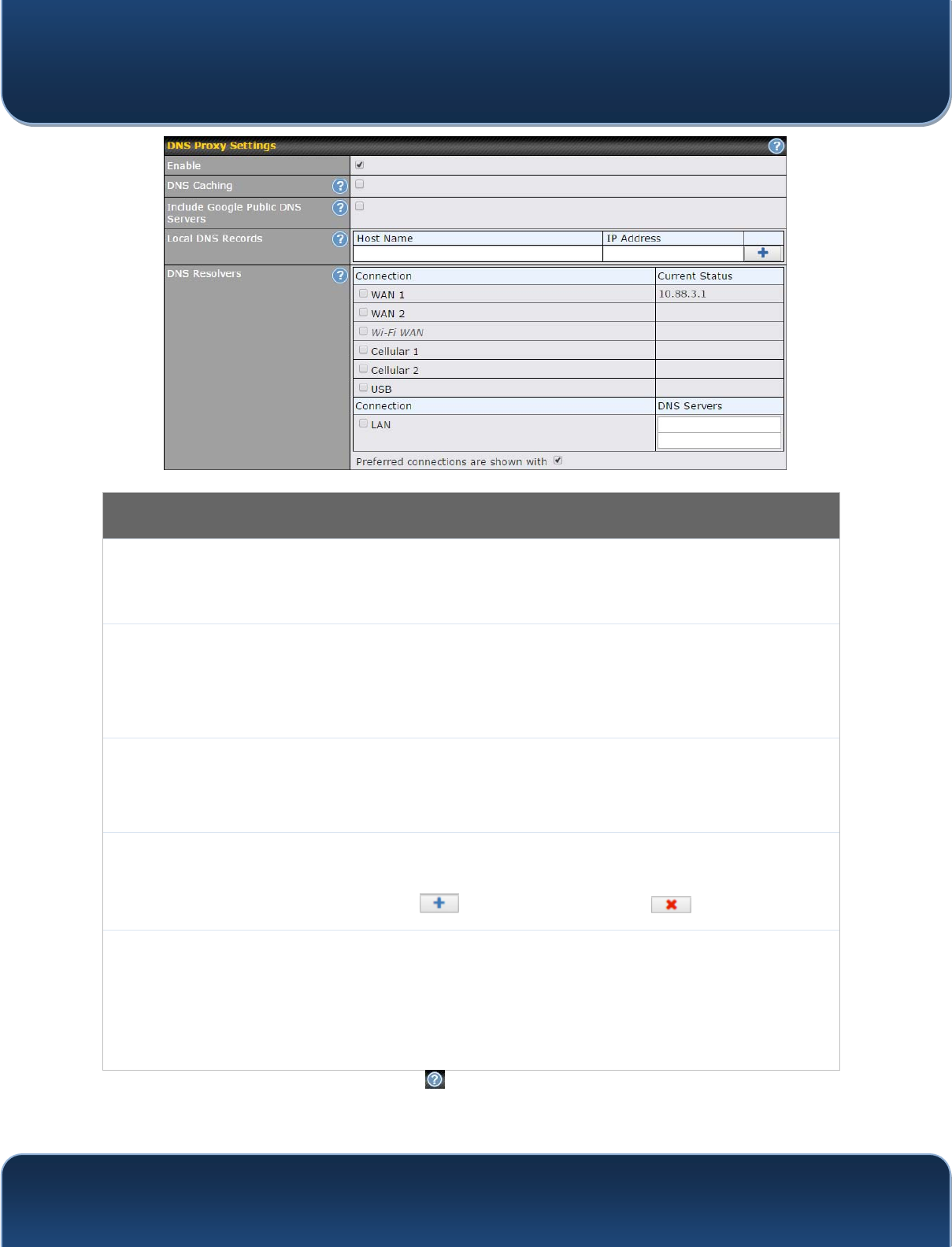

DNS Proxy Settings
Enable
To enable the DNS proxy feature, check this box, and then set up the feature at
Network>LAN>DNS Proxy Settings. A DNS proxy server can be enabled to
serve DNS requests originating from LAN/PPTP/SpeedFusionTM peers. Requests
are forwarded to the DNS servers/resolvers defined for each WAN connection.
DNS Caching
This field is to enable DNS caching on the built-in DNS proxy server. When the
RSWLRQLVHQDEOHGTXHULHG'16UHSOLHVZLOOEHFDFKHGXQWLOWKHUHFRUGV¶77/KDV
been reached. This feature can help improve DNS lookup time. However, it
cannot return the most up-to-date result for those frequently updated DNS
records. By default, DNS Caching is disabled.
Include Google Public
DNS Servers
When this option is enabled, the DNS proxy server will also forward DNS
requests to Google's Public DNS Servers, in addition to the DNS servers defined
in each WAN. This could increase the DNS service's availability. This setting is
disabled by default.
Local DNS Records
This table is for defining custom local DNS records. A static local DNS record
consists of a host name and IP address. When looking up the host name from the
LAN to LAN IP of the Pepwave router, the corresponding IP address will be
returned. Press to create a new record. Press to remove a record.
DNS Resolvers A
Check the box to enable the WINS server. A list of WINS clients will be displayed
at Network>LAN>DNS Proxy Settings>DNS Resolvers. This field specifies
which DNS resolvers will receive forwarded DNS requests. If no WAN/VPN/LAN
'16UHVROYHULVVHOHFWHGDOORIWKH:$1¶V'16UHVROYHUVZLOOEHVHOHFWHG
If a SpeedFusionTM SHHULVVHOHFWHG\RXPD\HQWHUWKH931SHHU¶V'16UHVROYHU
IP address(es). 4XHULHVZLOOEHIRUZDUGHGWRWKHVHOHFWHGFRQQHFWLRQV¶UHVROYHUV,I
all of the selected connections are down, queries will be forwarded to all resolvers
on healthy WAN connections.
A - Advanced feature, please click the button on the top right hand corner to activate.
)LQDOO\LIQHHGHGFRQILJXUH%RQMRXUIRUZDUGLQJ$SSOH¶V]HURFRQILJXUDWLRQQHWZRUNLQJ
Pepwave MAX and Surf User Manual
http://www.pepwave.com 41 Copyri
g
ht @ 2015 Pepwave
protocol. Once VLAN configuration is complete, click Save to store your changes.

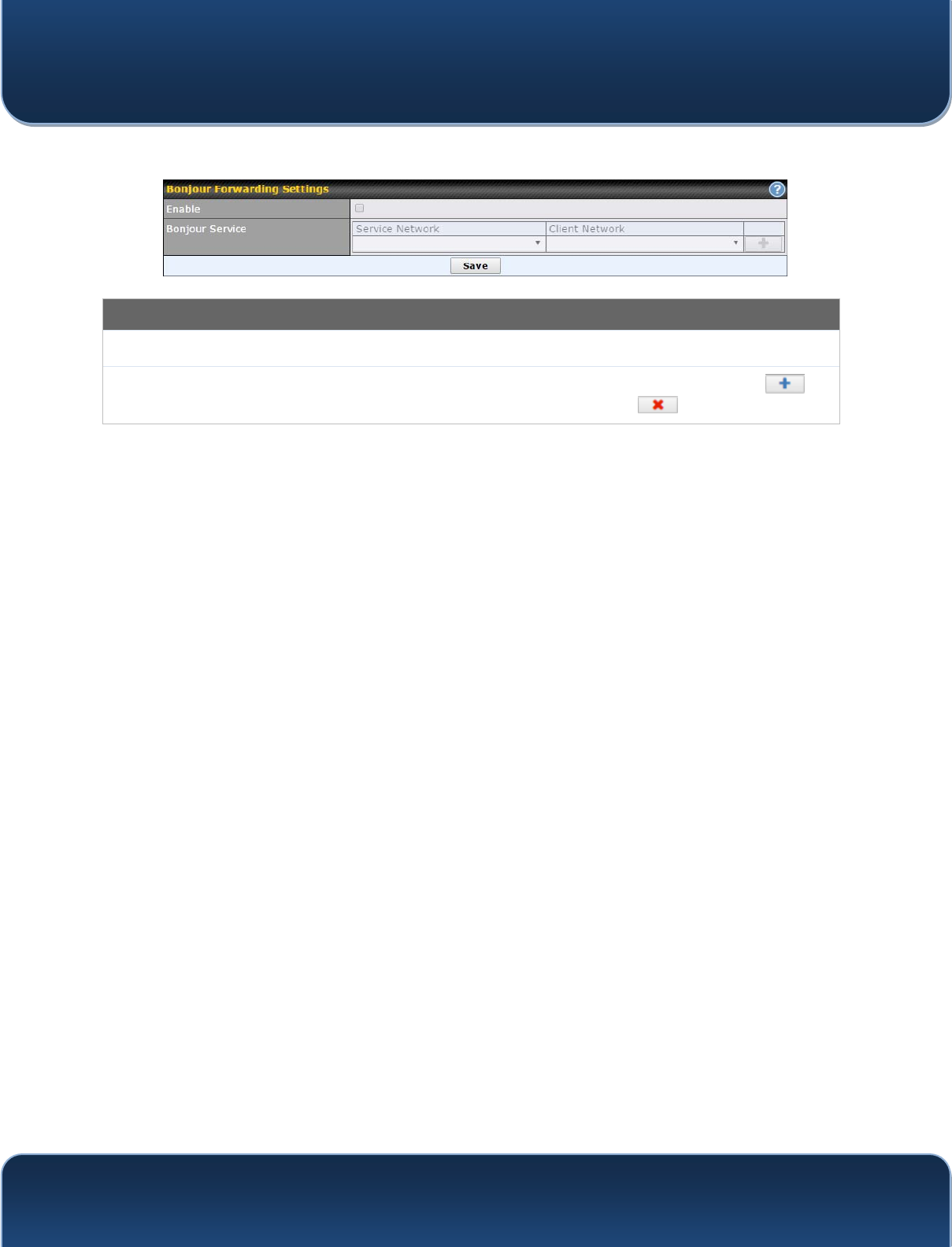

Bonjour Forwarding Settings
Enable Check this box to turn on Bonjour forwarding.
Bonjour
Service Choose Service and Client networks from the drop-down menus, and then click to
add the networks. To delete an existing Bonjour listing, click .
Pepwave MAX and Surf User Manual
http://www.pepwave.com 42 Copyri
g
ht @ 2015 Pepwave
To enable VLAN configuration, click the button in the IP Settings section.
To add a new LAN, click the New LAN button. To change LAN settings, click the name
of the LAN to change under the LAN heading.
The following settings are displayed when creating a new LAN or editing an existing
LAN.
IP Settings
IP Address &
Subnet Mask (QWHUWKH3HSZDYHURXWHU¶V,3DGGUHVVDQGVXEQHWPDVNYDOXHVWREHXVHGRQWKH/$1
Network Settings
Name Enter a name for the LAN.
VLAN ID Enter a number for your VLAN.
Inter-VLAN
routing Check this box to enable routing between virtual LANs.
Captive Portal Check this box to turn on captive portals.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 43 Copyri
g
ht @ 2015 Pepwave
DHCP Server Settings
DHCP Server
When this setting is enabled, the Pepwave URXWHU¶VDHCP server automatically assigns an
IP address to each computer that is connected via LAN and configured to obtain an IP
address via DHCP. The Pepwave URXWHU¶VDHCP server can prevent IP address collisions
on the LAN.
To enable DHCP bridge relay, please click the icon on this menu item.
IP Range &
Subnet Mask These settings allocate a range of IP address that will be assigned to LAN computers by the
Pepwave URXWHU¶VDHCP server.
Lease Time This setting specifies the length of time throughout which an IP address of a DHCP client
remains valid. Upon expiration of Lease Time, the assigned IP address will no longer be
valid and the IP address assignment must be renewed.
DNS Servers This option allows you to input the DNS server addresses to be offered to DHCP clients. If
Assign DNS server automatically is selected, the Pepwave URXWHU¶Vbuilt-in DNS server
address (i.e., LAN IP address) will be offered.
WINS Servers
This option allows you to specify the Windows Internet Name Service (WINS) server. You
may choose to use the built-in WINS server or external WINS servers. When this unit is
connected using SpeedFusionTM, other VPN peers can share this unit's built-in WINS server
by entering this unit's LAN IP address in their DHCP WINS Servers setting. Therefore, all
PC clients in the VPN can resolve the NetBIOS names of other clients in remote peers. If
you have enabled this option, a list of WINS clients will be displayed at Status>WINS
Clients.
BOOTP Check this box to enable BOOTP on older networks that still require it.
Extended
DHCP Option
In addition to standard DHCP options (e.g. DNS server address, gateway address, subnet
mask), you can specify the value of additional extended DHCP options, as defined in RFC
2132. With these extended options enabled, you can pass additional configuration
information to LAN hosts. To define an extended DHCP option, click the Add button, choose
the option to define, and then enter its value. For values that are in IP address list format,
you can enter one IP address per line in the provided text area input control. Each option
can be defined once only.
DHCP
Reservation
This setting reserves the assignment of fixed IP addresses for a list of computers on the
LAN. The computers to be assigned fixed IP addresses on the LAN are identified by their
MAC addresses. The fixed IP address assignment is displayed as a cross-reference list
EHWZHHQWKHFRPSXWHUV¶QDPHV0$&DGGUHVVHVDQGIL[HG,3DGGUHVVHV
Name (an optional field) allows you to specify a name to represent the device. MAC
addresses should be in the format of 00:AA:BB:CC:DD:EE. Press to create a new
record. Press to remove a record. Reserved clients information can be imported from
the Client List, located at Status>Client List. For more details, please refer to Section
Pepwave MAX and Surf User Manual
http://www.pepwave.com 44 Copyri
g
ht @ 2015 Pepwave
21.3.

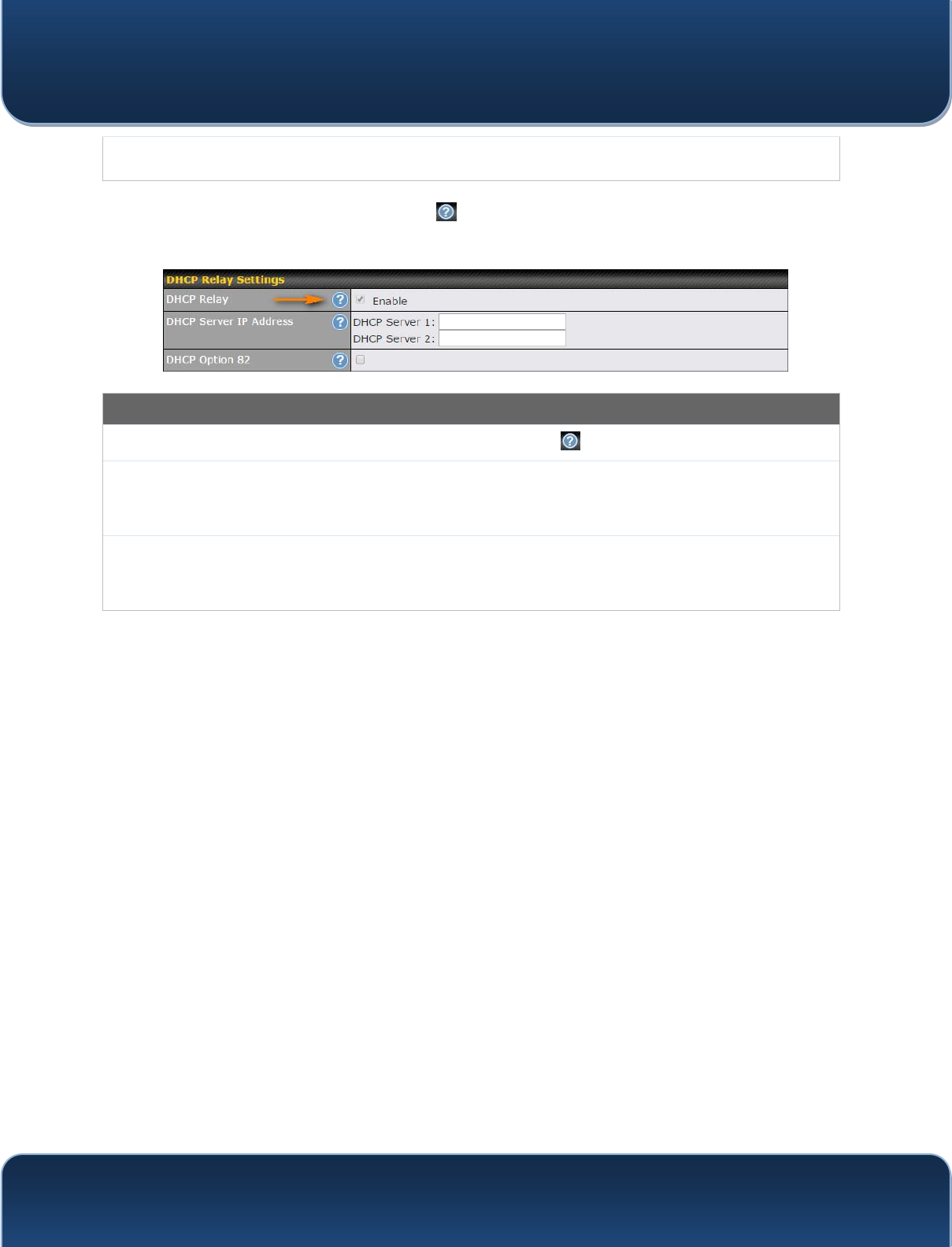

To configure DHCP relay, first click the button found next to the DHCP Server option
to display the settings.
DHCP Relay Settings
Enable Check this box to turn on DHCP relay. Click the icon to disable DHCP relay.
DHCP Server IP
Address
Enter the IP addresses of one or two DHCP servers in the provided fields. The DHCP
servers entered here will receive relayed DHCP requests from the LAN. For active-passive
DHCP server configurations, enter active and passive DHCP server relay IP addresses in
DHCP Server 1 and DHCP Server 2.
DHCP Option
82
DCHP Option 82 includes device information as relay agent for the attached client when
IRUZDUGLQJ'+&3UHTXHVWVIURPFOLHQWWRVHUYHU7KLVRSWLRQDOVRHPEHGVWKHGHYLFH¶V0$&
address and network name in circuit and remote IDs. Check this box to enable DHCP
Option 82.
Once DHCP is set up, configure LAN Physical Settings, Static Route Settings, WINS
Server Settings, and DNS Proxy Settings as noted above.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 45 Copyri
g
ht @ 2015 Pepwave
8.2 Captive Portal
The captive portal serves as gateway that clients have to pass if they wish to access the
internet using your router. To configure, navigate to Network>LAN>Captive Portal.
Captive Portal Settings
Enable Check Enable and then, optionally, select the LANs/VLANs that will use the captive
portal.
Hostname 7RFXVWRPL]HWKHSRUWDO¶VIRUPVXEPLVVLRQDQGUHGLUHFWLRQ85/HQWHUDQHZ85/LQWKLV
field. To reset the URL to factory settings, click Default.
Access Mode Click Open Access to allow clients to freely access your router. Click User
Authentication to force your clients to authenticate before accessing your router.
RADIUS Server
This authenticates your clients through a RADIUS server. After selecting this option, you
will see the following fields:
Fill in the necessary information to complete your connection to the server and enable
authentication.
LDAP Server
This authenticates your clients through a LDAP server. Upon selecting this option, you
will see the following fields:
Fill in the necessary information to complete your connection to the server and enable
authentication.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 46 Copyri
g
ht @ 2015 Pepwave
Access
Quota 6HWDWLPHDQGGDWDFDSWRHDFKXVHU¶V,QWHUQHWXVDJH
Quota Reset
Time
This menu determines how your usage quota resets. Setting it to Daily will reset it at a
specified time every day. Setting a number of minutes after quota reached establish a
timer for each user that begins after the quota has been reached.
Allowed
Networks
To whitelist a network, enter the domain name / IP address here and click . To
delete an existing network from the list of allowed networks, click the button next
to the listing.
Splash Page Here, you can choose between using the Pepwave routeU¶Vbuilt-in captive portal and
redirecting clients to a URL you define.
The Portal Customization menu has two options: and . Clicking
displays a pop-up previewing the captive portal that your clients will see. Clicking
displays the following menu:
Pepwave MAX and Surf User Manual
http://www.pepwave.com 47 Copyri
g
ht @ 2015 Pepwave

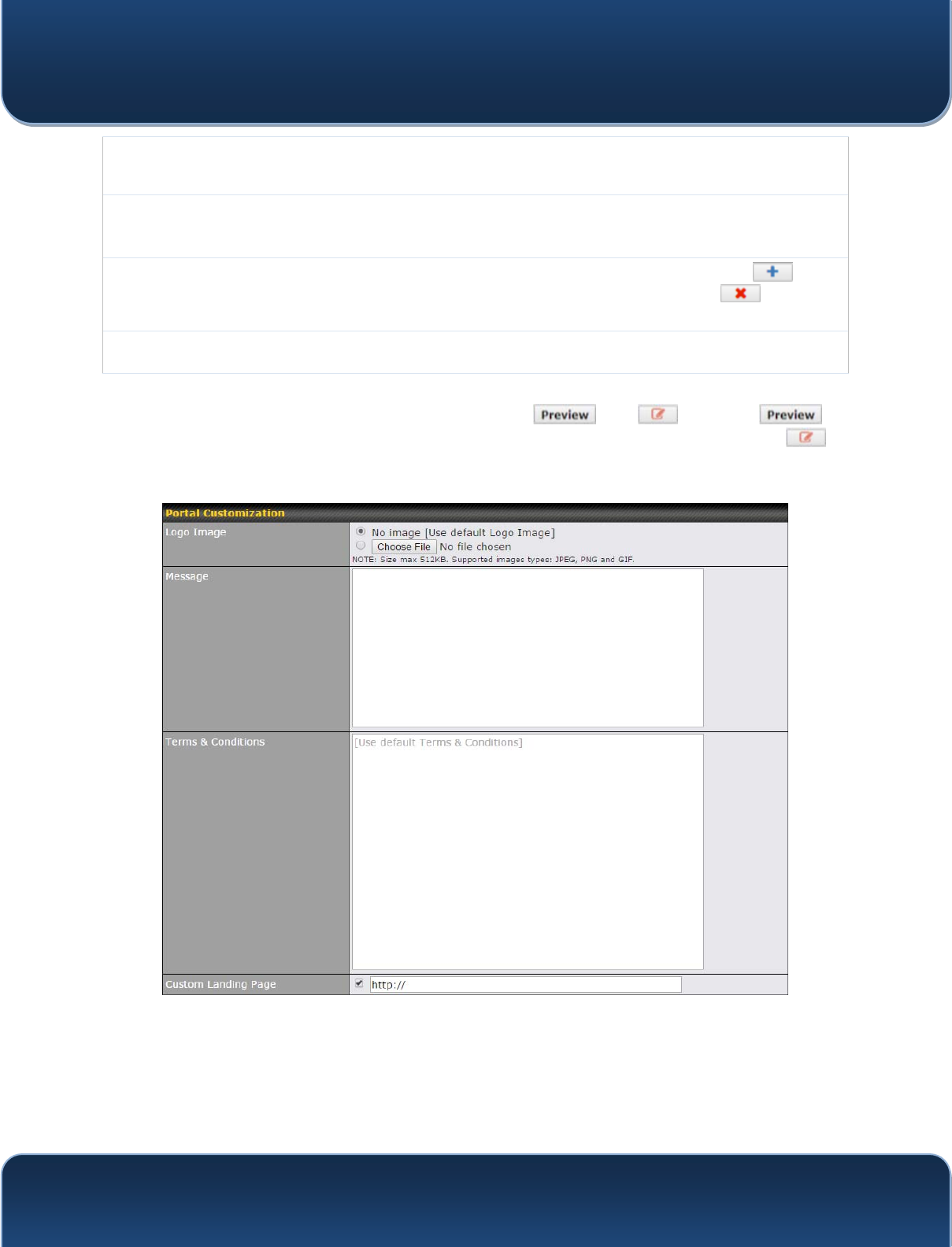

Portal Customization
Logo
Image Click the Choose File button to select a logo to use for the built-in portal.
Message If you have any additional messages for your users, enter them in this field.
Terms &
Conditions
If you would like to use your own set of terms and conditions, please enter them here. If
left empty, the built-in portal will display the default terms and conditions.
Custom
Landing
Page
Fill in this field to redirect clients to an external URL.
9 Configuring the WAN Interface(s)
WAN Interface settings are located at Network>WAN. To reorder WAN priority, drag on
the appropriate WAN by holding the left mouse button, move it to the desired priority
(the first one would be the highest priority, the second one would be lower priority, and
so on), and drop it by releasing the mouse button.
To disable a particular WAN connection, drag on the appropriate WAN by holding the
left mouse button, move it the Disabled row, and drop it by releasing the mouse button.

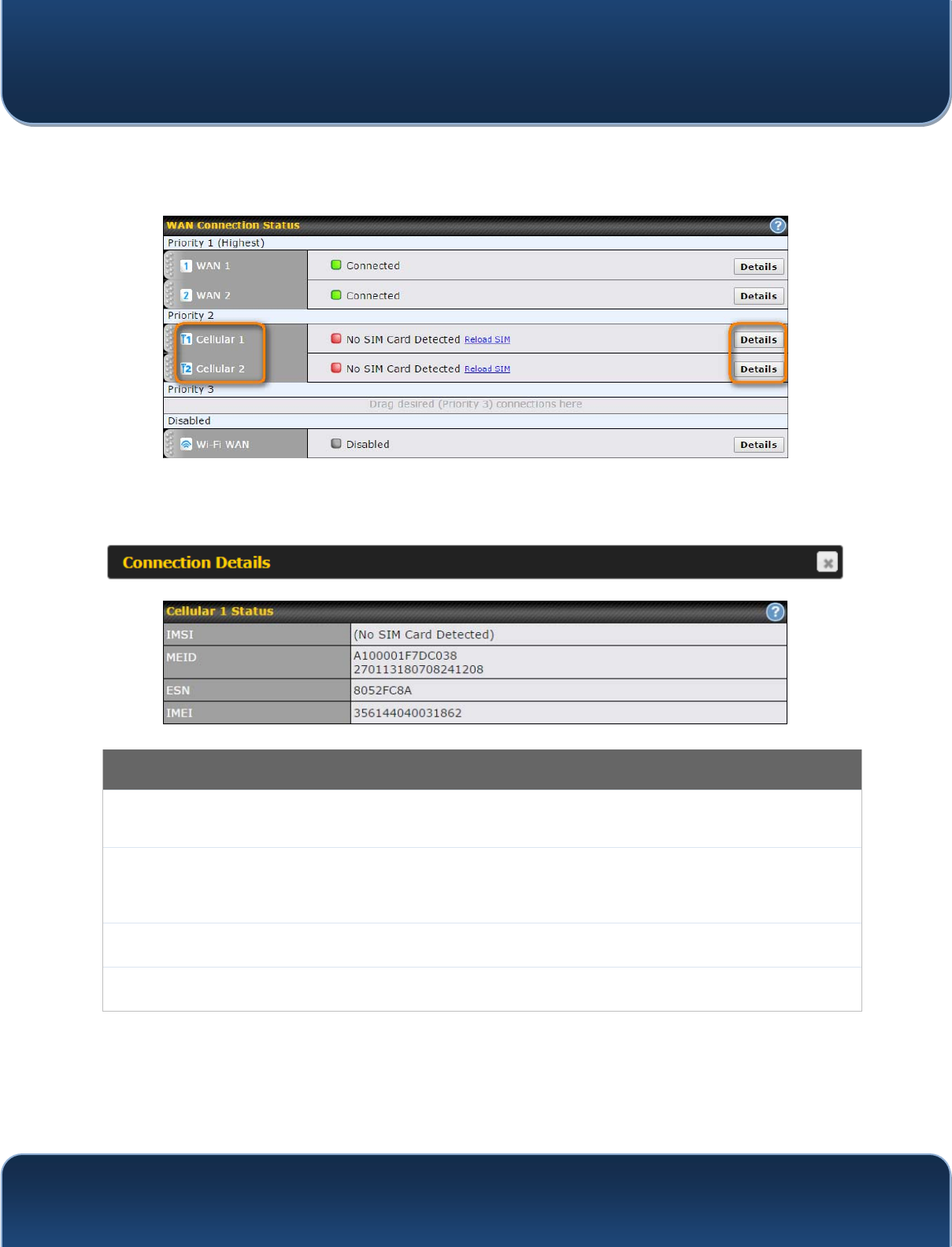

You can also set priorities on the Dashboard. Click the Details button in the
corresponding row to modify the connection setting.
Important Note
Connection details will be changed and become effective immediately after clicking the Save and Apply button.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 48 Copyri
g
ht @ 2015 Pepwave

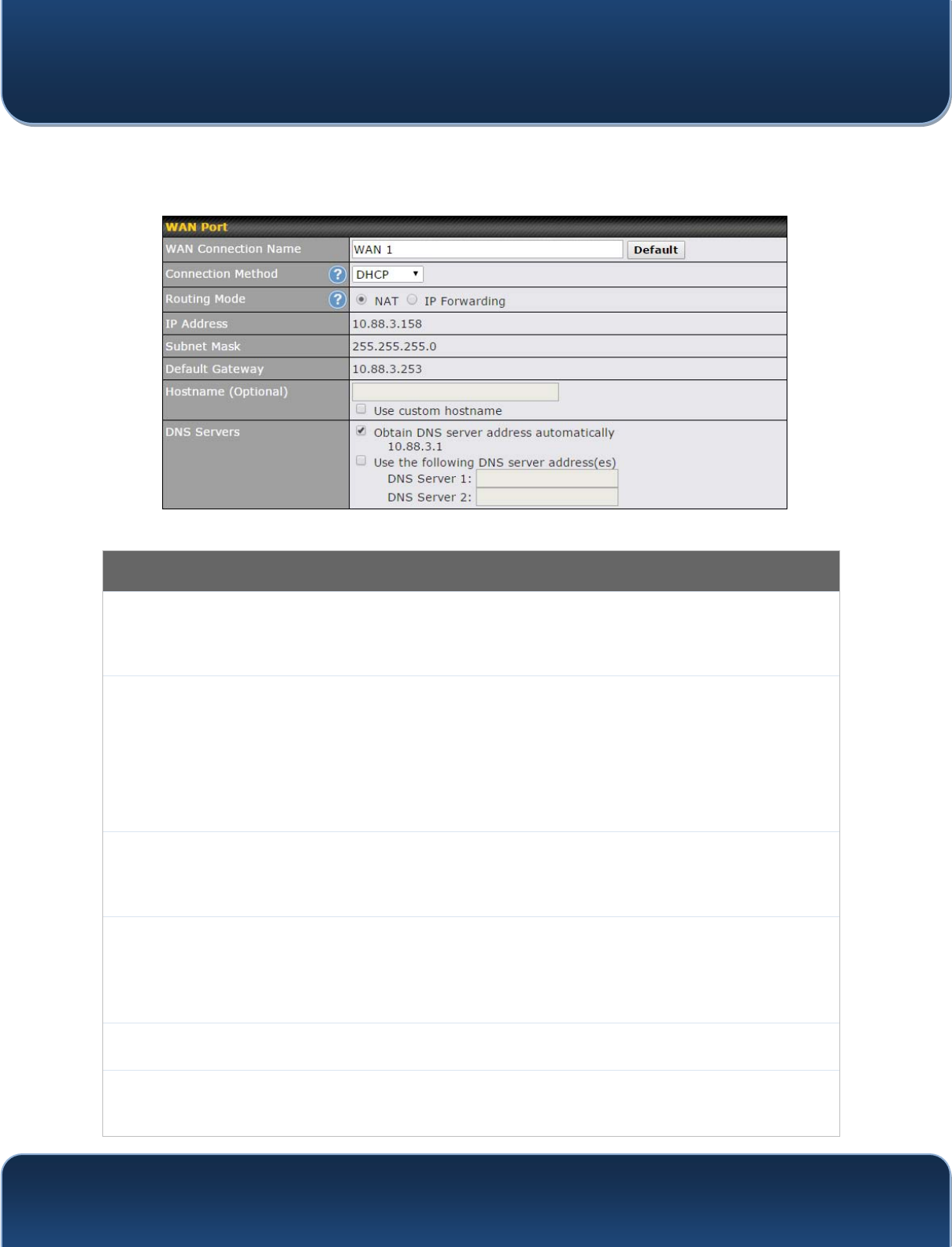

9.1 Ethernet WAN
From Network>WAN, choose a WAN connection and then click Details.
WAN Port (Section 1)
WAN
Connection
Name Enter a name to represent this WAN connection.
Connection
Method

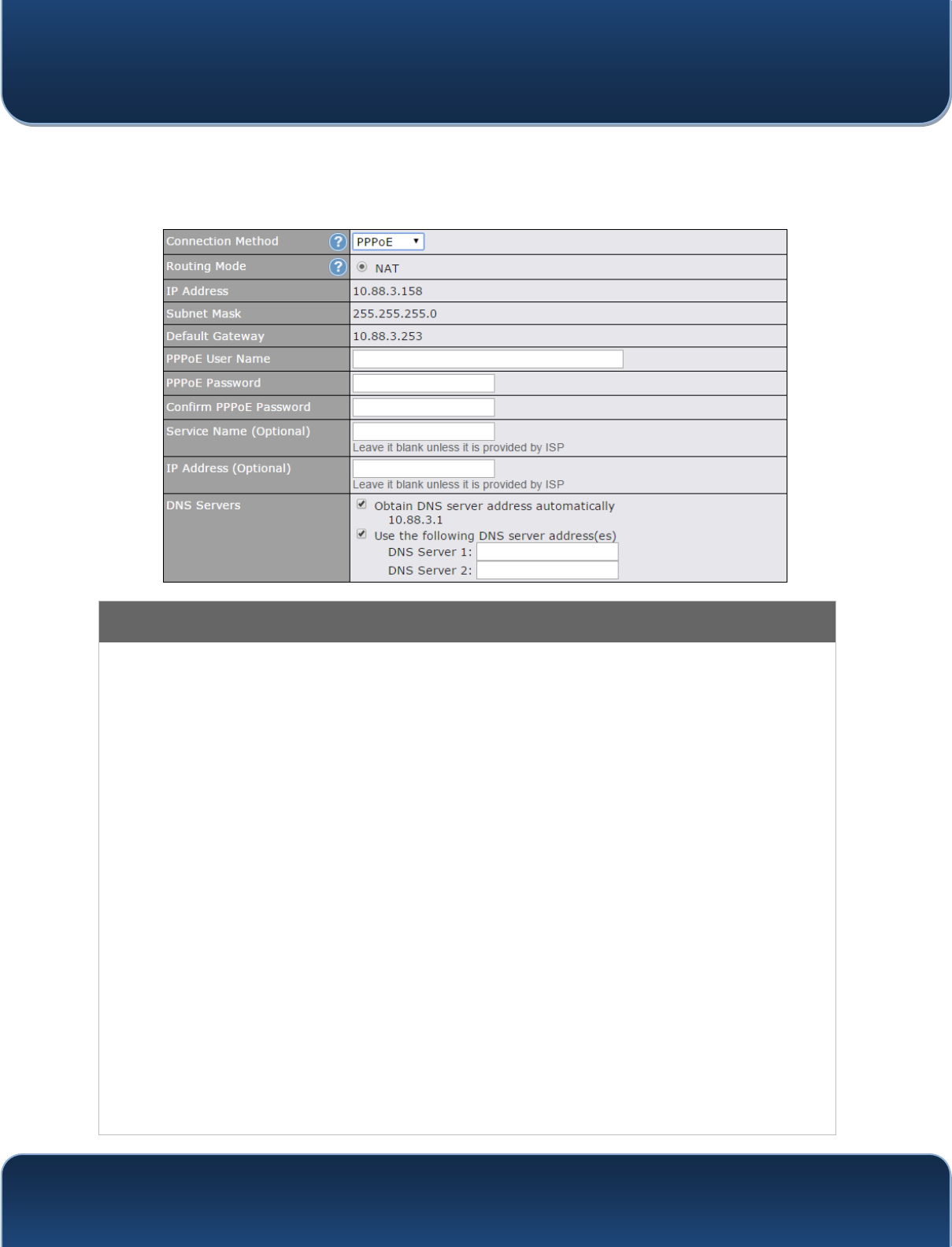

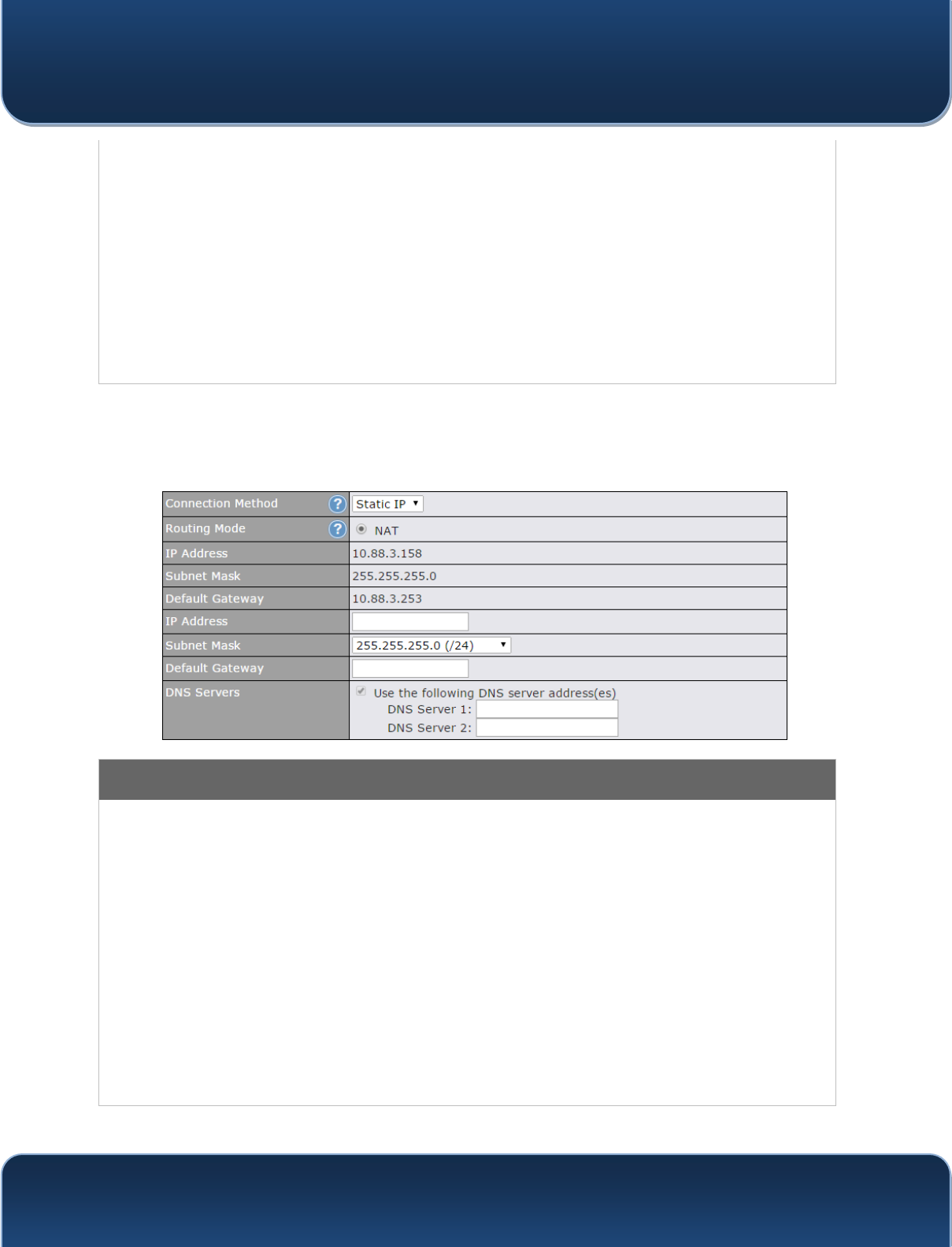

There are three possible connection methods for Ethernet WAN:
x DHCP
x Static IP
x PPPoE
The connection method and details are determined by, and can be obtained from, the ISP.
See the following sections for details on each connection method.
Routing Mode This field shows that NAT (network address translation) will be applied to the traffic routed
over this WAN connection. IP Forwarding is available when you click the link in the help
text.
IP
Address/Subnet
Mask/Default
Gateway
Enter the WAN IP address and subnet mask, as well as the IP address of the default
gateway, in these fields.
Hostname Enter a hostname for this WAN port if needed.
DNS Servers Select a DNS server for this port to use. This port can either be automatically selected or
manually designated.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 49 Copyri
g
ht @ 2015 Pepwave
WAN Port (Section 2)

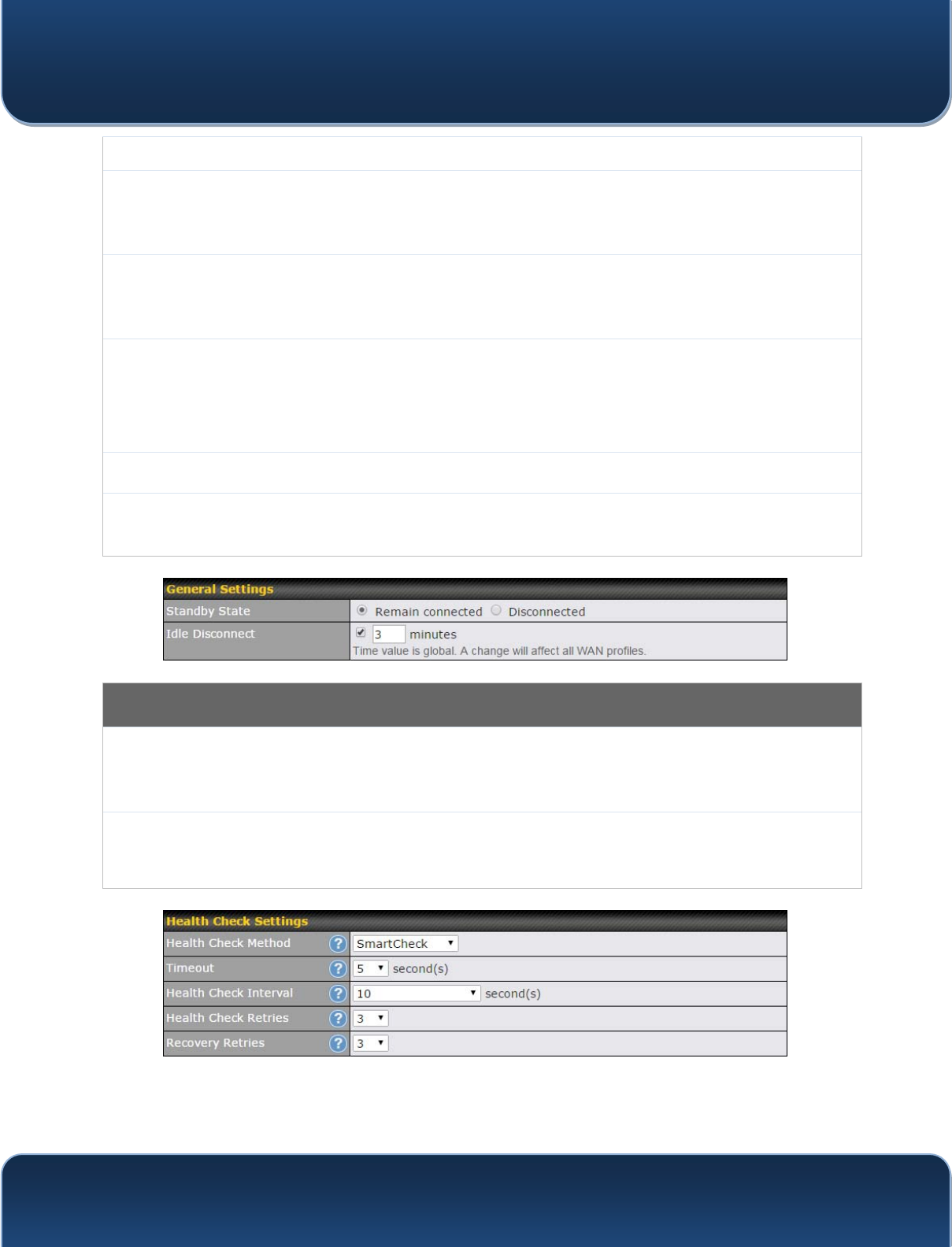

Standby State This setting specifies the standby state of the WAN connection. The available options are
Remain connected and Disconnect. The default state is Remain Connected.
Upstream
Bandwidth This setting specifies the data bandwidth in the outbound direction from the LAN through the
WAN interface.
Downstream
Bandwidth
This setting specifies the data bandwidth in the inbound direction from the WAN interface to
the LAN. This value is referenced as the default weight value when using the algorithm
Least Used or the algorithm Persistence (Auto) in outbound policy with Managed by
Custom Rules chosen (see Section 14.2).

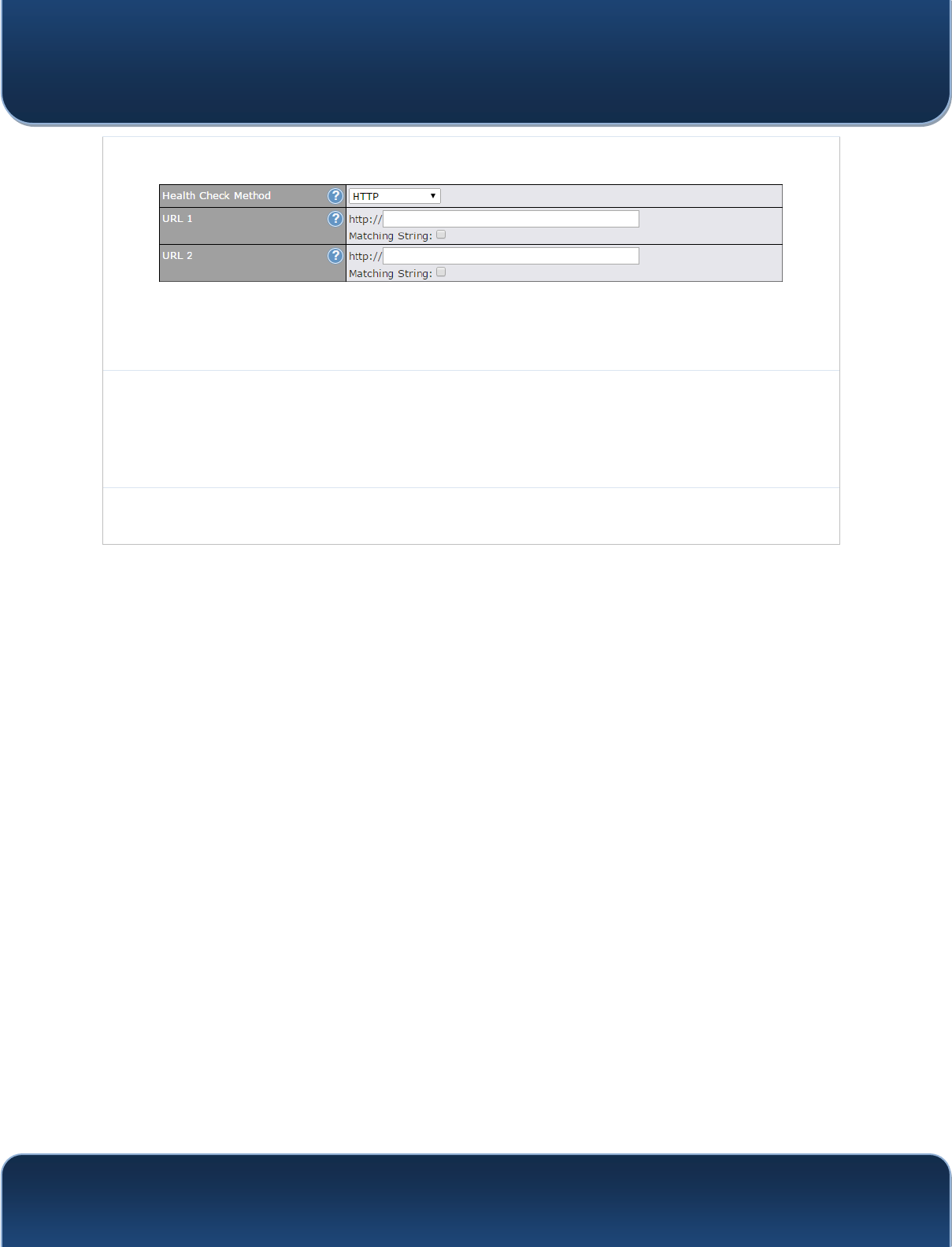

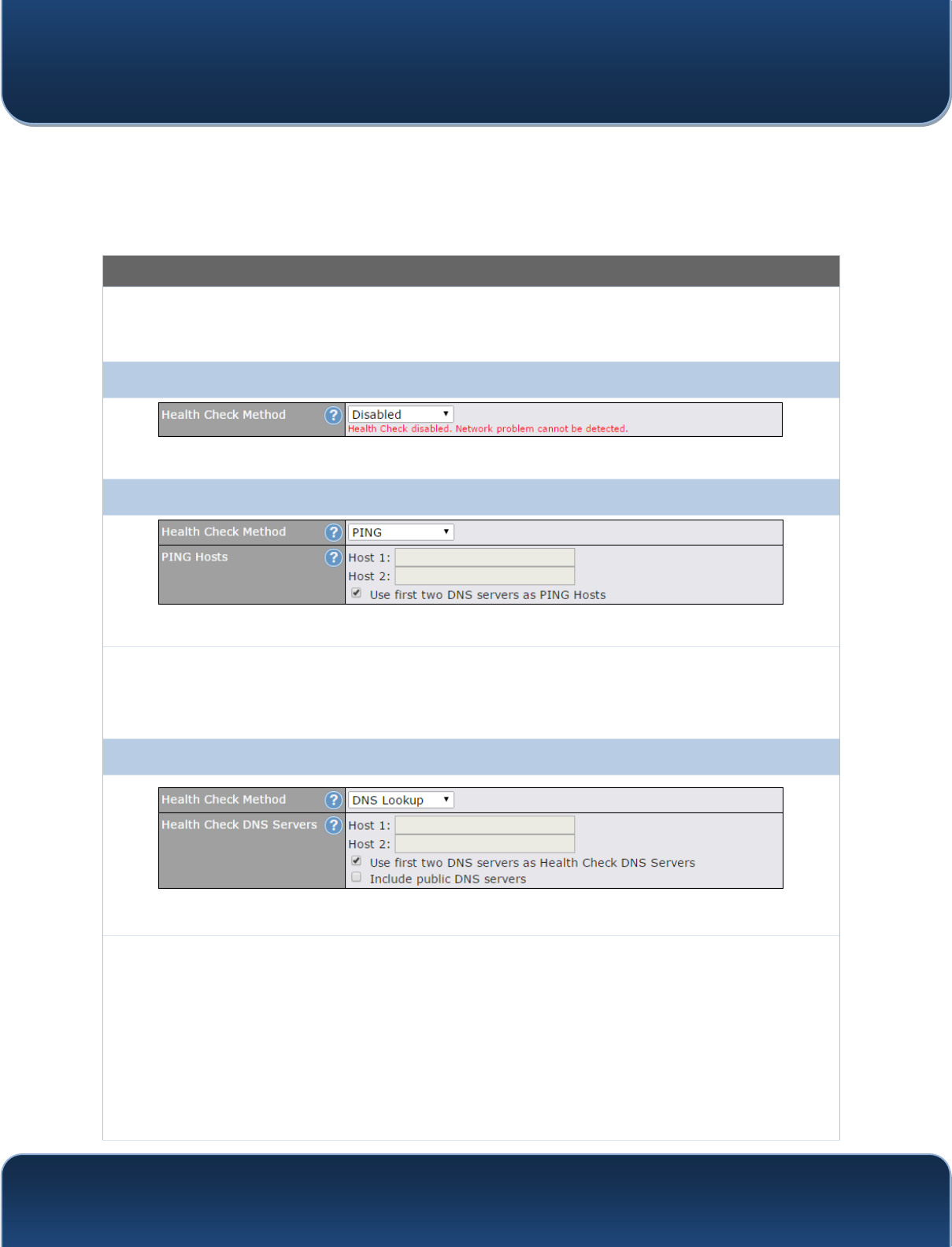

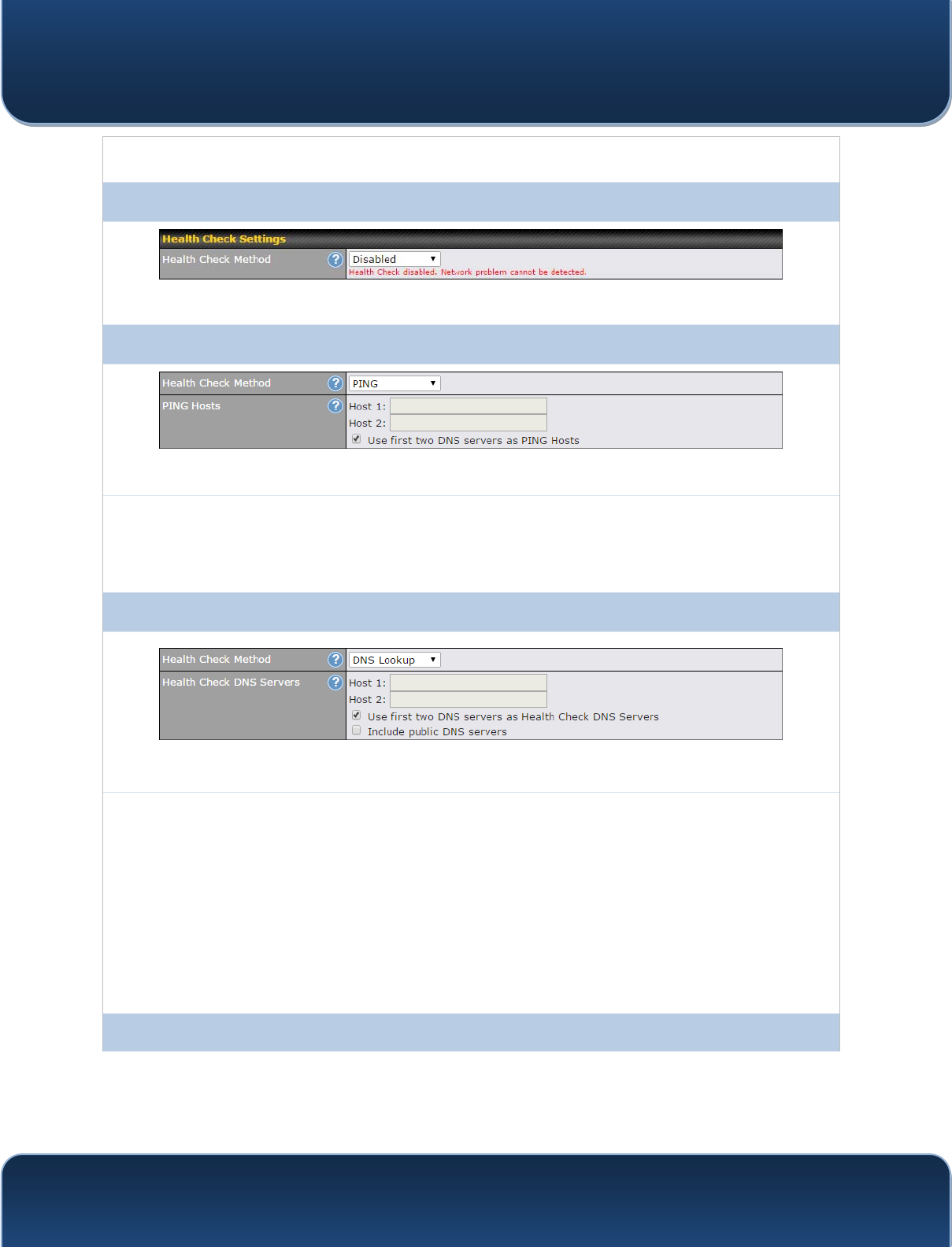

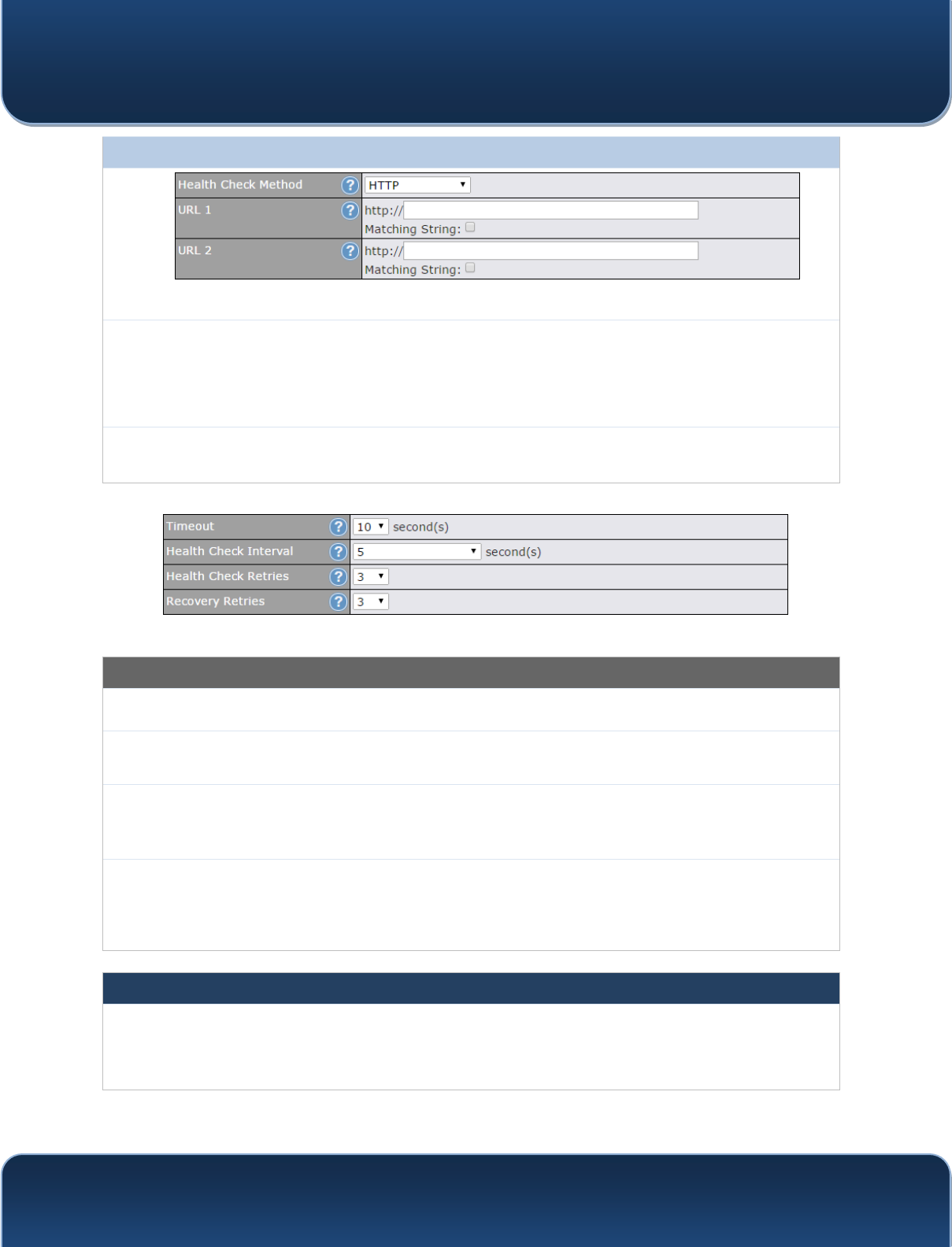

Health Check
Method This setting specifies the health check method for the WAN connection. The value of method
can be configured as Disabled, Ping, DNS Lookup, or HTTP. The default method is
Disabled. See Section 9.4 for configuration details.
PING Hosts
These fields are for specifying the target DNS servers where DNS lookups will be sent to for
health check.
If the box Use first two DNS servers as Health Check DNS Servers is checked, the first two
DNS servers will be the DNS lookup targets for checking the connection healthiness. If the
box is not checked, the field Host 1 must be filled and the field Host 2 is optional.
The connection is considered to be up if DNS responses are received from any one of the
health check DNS servers, regardless of whether the result is positive or negative.

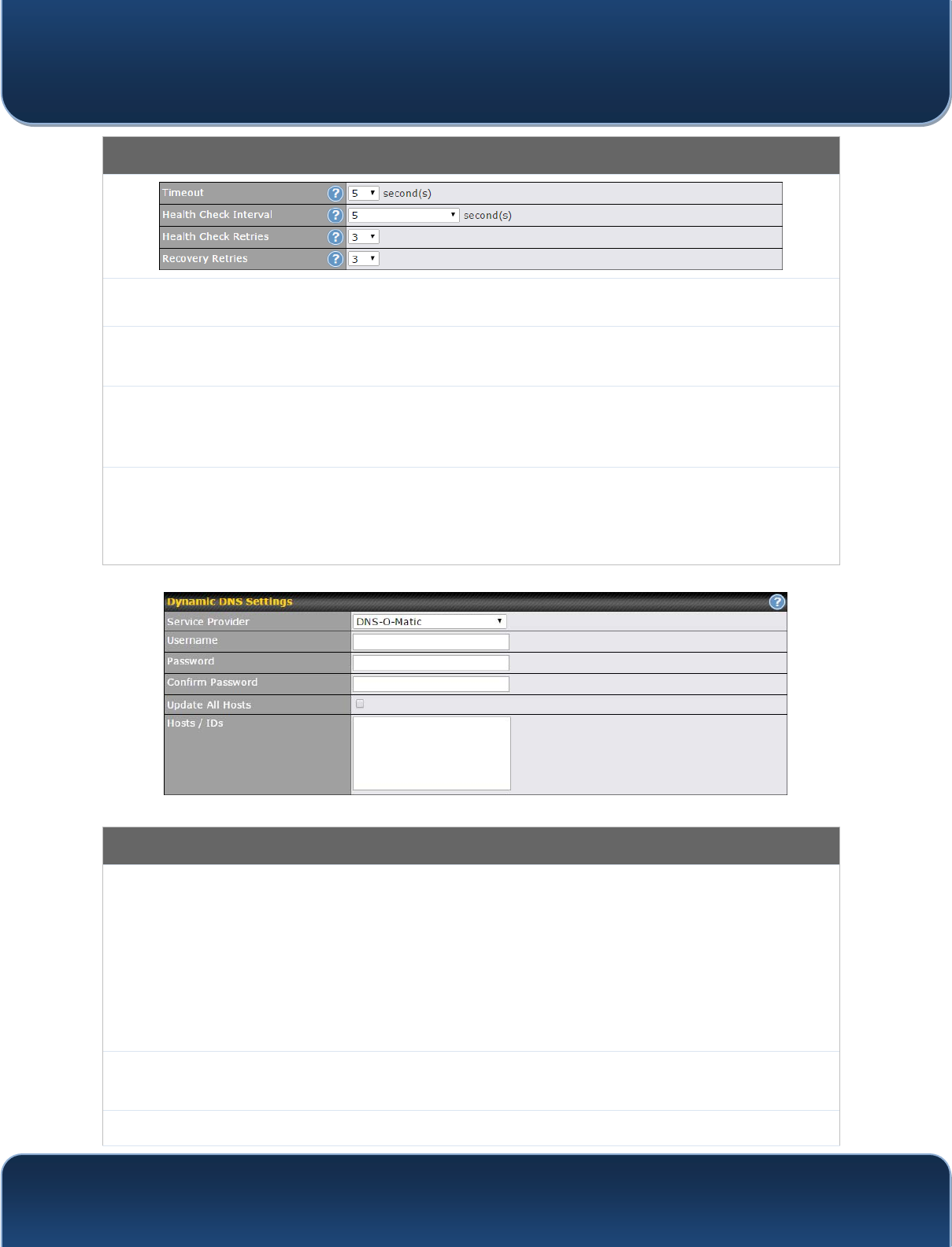

Timeout If a health check test cannot be completed within the specified amount of time, the test will
be treated as failed.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 50 Copyri
g
ht @ 2015 Pepwave
Health Check
Interval This is the number of consecutive check failures before treating a connection as down.
Health Check
Retries This is the number of consecutive check failures before treating a connection as down.
Recovery
Retries This is the number of responses required after a health check failure before treating a
connection as up again.
WAN Port (Section 3)

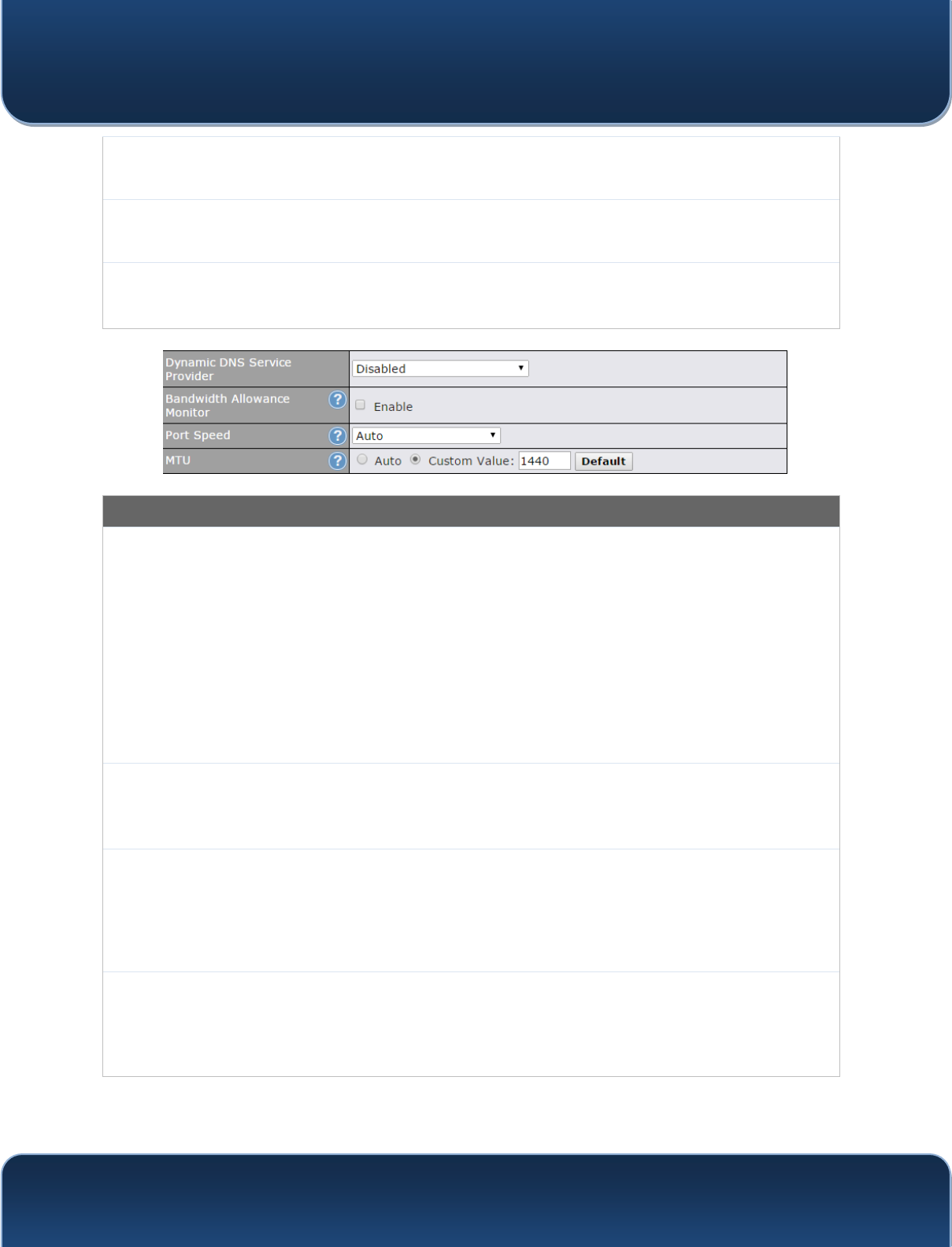

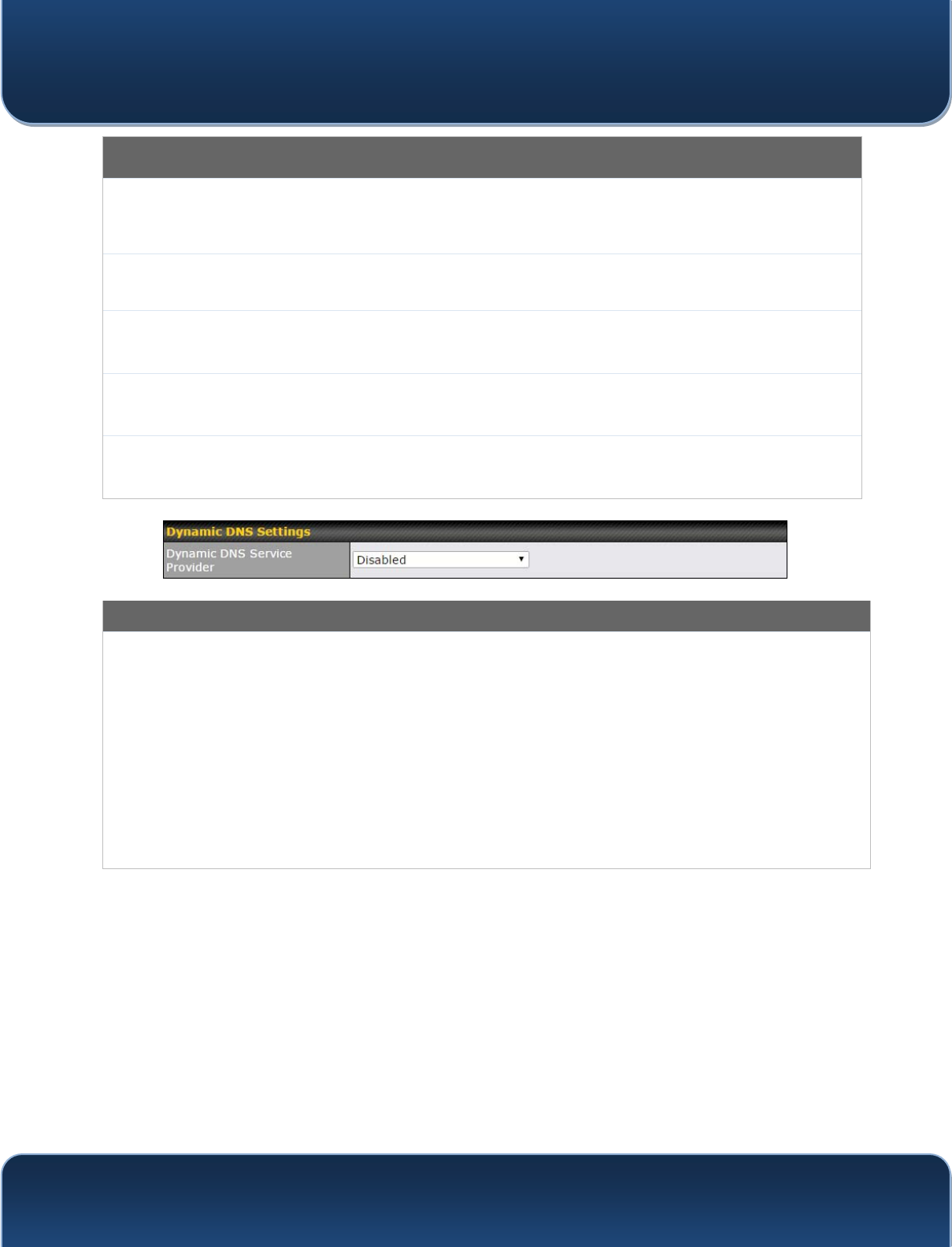

Dynamic DNS
Service
Provider
This setting specifies the dynamic DNS service provider to be used for the WAN based on
supported dynamic DNS service providers:
x changeip.com
x dyndns.org
x no-ip.org
x tzo.com
x DNS-O-Matic
Select Disabled to disable this feature. See Section 9.5 for configuration details.
Bandwidth
Allowance
Monitor
This option enables bandwidth usage monitoring on this WAN connection for each billing
cycle. When this setting is not enabled, HDFKPRQWK¶Vbandwidth usage is tracked, but no
action will be taken.
Port Speed
This setting specifies port speed and duplex configurations of the WAN port. By default,
Auto is selected and the appropriate data speed is automatically detected by the Pepwave
router. In the event of negotiation issues, the port speed can be manually specified. You can
also choose whether or not to advertise the speed to the peer by selecting the Advertise
Speed checkbox.
MTU This setting specifies the maximum transmission unit. By default, MTU is set to Custom
1440. You may adjust the MTU value by editing the text field. Click Default to restore the
default MTU value. Select Auto and the appropriate MTU value will be automatically
detected. Auto-detection will run each time the WAN connection establishes.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 51 Copyri
g
ht @ 2015 Pepwave
WAN Port (Section 4)
MSS This setting should be configured based on the maximum payload size that the local system
can handle. The MSS (maximum segment size) is computed from the MTU minus 40 bytes
for TCP over IPv4. If MTU is set to Auto, the MSS will also be set automatically. By default,
MSS is set to Auto.
MAC Address
Clone
Some service providers (e.g., FDEOHSURYLGHUVLGHQWLI\WKHFOLHQW¶V0$&DGGUHVVDQGUHTXLUH
the client to always use the same MAC address to connect to the network. In such cases,
FKDQJHWKH:$1LQWHUIDFH¶V0$&DGGUHVVWRWKHRULJLQDOFOLHQW3&¶VMAC address via this
field. The default MAC address is a unique value assigned at the factory. In most cases, the
default value is sufficient. Clicking Default restores the MAC address to the default value.
VLAN Click the square if you wish to enable VLAN functionality and enable multiple broadcast
domains. Once you enable VLAN, you will be able to enter a name for your network.
Reply to ICMP
PING If this field is disabled, the WAN connection will not respond to ICMP ping requests. By
default, this is enabled.
Additional
Public IP
Address
The IP Address list represents the list of fixed Internet IP addresses assigned by the ISP, in
the event that more than one Internet IP address is assigned to this WAN connection. Enter
the fixed Internet IP addresses and the corresponding subnet mask, and then click the
Down Arrow button to populate IP address entries to the IP Address List.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 52 Copyri
g
ht @ 2015 Pepwave
IPv6
IPv6
IPv6 support can be enabled on one of the available Ethernet WAN ports. On this screen, you
can choose which WAN will support IPv6. To enable IPv6 support on a WAN, the WAN router
must respond to stateless address auto configuration advertisements and DHCPv6 requests.
IPv6 clients on the LAN will acquire their IPv6, gateway, and DNS server addresses from it.
The device will also acquire an IPv6 address for performing ping/traceroute checks and
accepting web admin accesses. Note: This feature is only available on the Pepwave MAX 700,
HD2, and HD2 IP67.
9.1.1 DHCP Connection
There are four possible connection methods:
1. DHCP
2. Static IP
3. PPPoE
4. L2TP
The DHCP connection method is suitable if the ISP provides an IP address
automatically using DHCP (e.g., satellite modem, WiMAX modem, cable, Metro
Ethernet, etc.).
DHCP Connection Settings
Routing Mode NAT allows substituting the real address in a packet with a mapped address that is
routable on the destination network. By clicking the help icon in this field, you can
display the IP Forwarding option, if your network requires it.
IP Address/
Subnet Mask/
Default Gateway
This information is obtained from the ISP automatically.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 53 Copyri
g
ht @ 2015 Pepwave
Hostname
(Optional)
If your service provider's DHCP server requires you to supply a hostname value
upon acquiring an IP address, you may enter the value here. If your service
provider does not provide you with the value, you can safely bypass this option.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting
specifies the DNS (Domain Name System) servers to be used when a DNS lookup
is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers
being assigned by the WAN DHCP server to be used for outbound DNS lookups
over the connection. (The DNS servers are obtained along with the WAN IP
address assigned from the DHCP server.)
When Use the following DNS server address(es) is selected, you may enter
custom DNS server addresses for this WAN connection into the DNS Server 1
and DNS Server 2 fields.
9.1.2 Static IP Connection
The static IP connection method is suitable if your ISP provides a static IP address to
connect directly.
Static IP Settings
Routing Mode NAT allows substituting the real address in a packet with a mapped address that is
routable on the destination network. By clicking the help icon in this field, you can display
the IP Forwarding option, if your network requires it.
IP Address /
Subnet Mask /
Default
Gateway
These settings allow you to specify the information required in order to communicate on
the Internet via a fixed Internet IP address. The information is typically determined by and
can be obtained from the ISP.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the
DNS (Domain Name System) servers to be used when a DNS lookup is routed through
this connection. Selecting Obtain DNS server address automatically results in the DNS
servers being assigned by the WAN DHCP server to be used for outbound DNS lookups
over the connection. (The DNS servers are obtained along with the WAN IP address
assigned from the DHCP server.) When Use the following DNS server address(es) is
selected, you may enter custom DNS server addresses for this WAN connection into the
DNS Server 1 and DNS Server 2 fields.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 54 Copyri
g
ht @ 2015 Pepwave
9.1.3 PPPoE Connection
This connection method is suitable if your ISP provides a login ID/password to connect
via PPPoE.
PPPoE Settings
Routing Mode NAT allows substituting the real address in a packet with a mapped address that is
routable on the destination network. By clicking the help icon in this field, you can
display the IP Forwarding option, if your network requires it.
IP Address /
Subnet Mask /
Default Gateway
This information is obtained from the ISP automatically.
PPPoE User
Name / Password Enter the required information in these fields in order to connect via PPPoE to the ISP.
The parameter values are determined by and can be obtained from the ISP.
Confirm PPPoE
Password Verify your password by entering it again in this field.
Service Name
(Optional)
Service name is provided by the ISP.
Note: Leave this field blank unless it is provided by your ISP.
IP Address
(Optional)
If your ISP provides a PPPoE IP address, enter it here.
Note: Leave this field blank unless it is provided by your ISP.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies
the DNS (Domain Name System) servers to be used when a DNS lookup is routed
through this connection. Selecting Obtain DNS server address automatically results
in the DNS servers being assigned by the WAN DHCP server to be used for outbound
DNS lookups over the connection. (The DNS servers are obtained along with the WAN
IP address assigned from the DHCP server.) When Use the following DNS server
address(es) is selected, you may enter custom DNS server addresses for this WAN
Pepwave MAX and Surf User Manual
http://www.pepwave.com 55 Copyri
g
ht @ 2015 Pepwave
connection into the DNS Server 1 and DNS Server 2 fields.

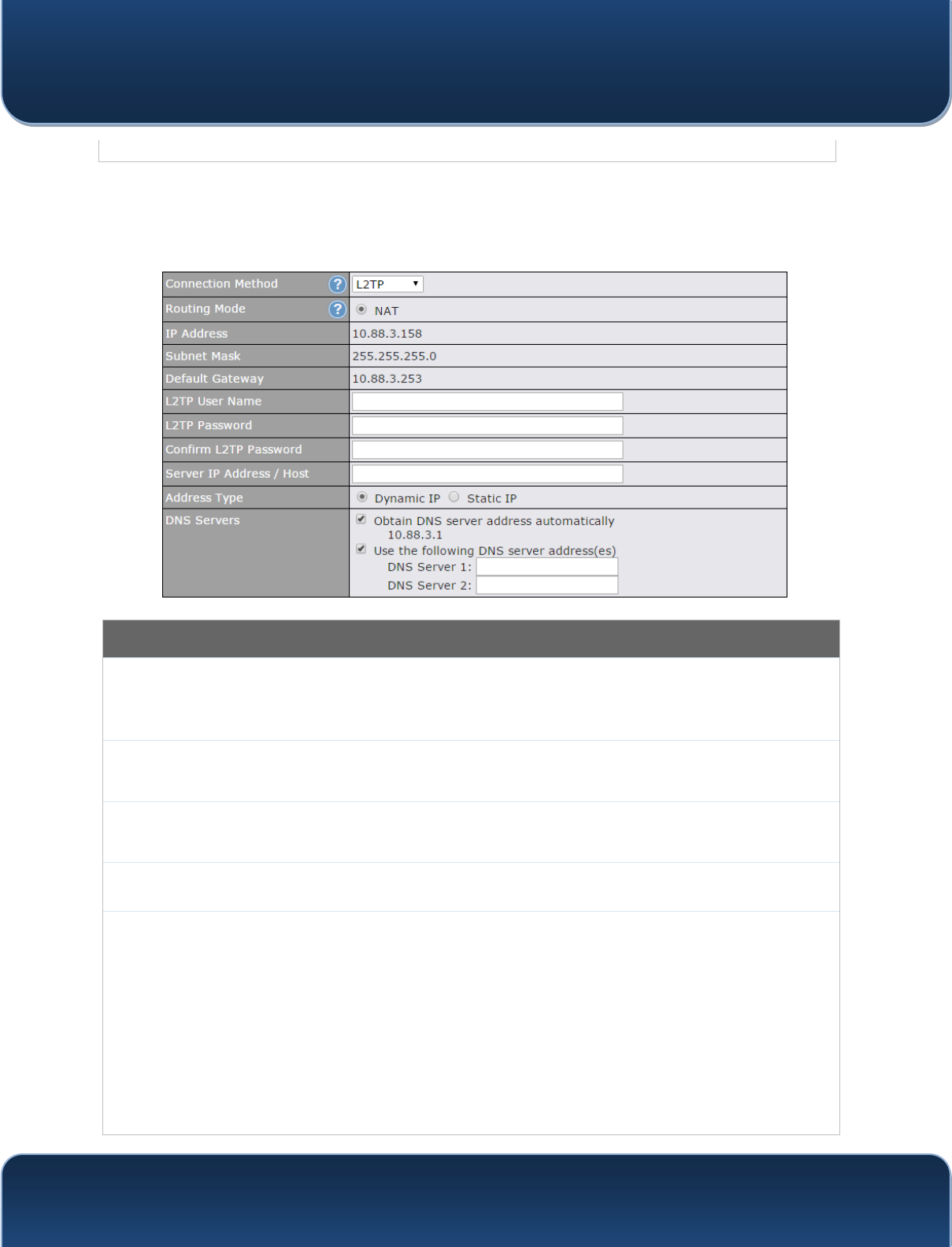

9.1.4 L2TP Connection
L2TP has all the compatibility and convenience of PPTP with greater security. Combine
this with IPsec for a good balance between ease of use and security.
L2TP Settings
L2TP User
Name /
Password
Enter the required information in these fields in order to connect via L2TP to your ISP.
The parameter values are determined by and can be obtained from your ISP.
Confirm L2TP
Password Verify your password by entering it again in this field.
Server IP
Address / Host L2TP server address is a parameter which is provided by your ISP.
Note: Leave this field blank unless it is provided by your ISP.
Address Type Your ISP will also indicate whether the server IP address is Dynamic or Static. Please click
the appropriate value.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the
DNS (Domain Name System) servers to be used when a DNS lookup is routed through this
connection.
Selecting Obtain DNS server address automatically results in the DNS servers assigned
by the PPPoE server to be used for outbound DNS lookups over the WAN connection.
(The DNS servers are obtained along with the WAN IP address assigned from the PPPoE
server.)
When Use the following DNS server address(es) is selected, you can enter custom DNS
server addresses for this WAN connection into the DNS server 1 and DNS server 2 fields.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 56 Copyri
g
ht @ 2015 Pepwave
9.2 Cellular WAN
To access cellular WAN settings, click Network>WAN>Details.
(Available on the Pepwave MAX BR1, HD2, and HD2 IP67 only)
Cellular Status
IMSI This is the International Mobile Subscriber Identity which uniquely identifies the SIM card. This
is applicable to 3G modems only.
MEID Some Pepwave routers support both HSPA and EV-DO. For Sprint or Verizon Wireless EV-DO
users, a unique MEID identifier code (in hexadecimal format) is used by the carrier to associate
the EV-DO device with the user. This information is presented in hex and decimal format.
ESN This serves the same purpose as MEID HEX but uses an older format.
IMEI This is the unique ID for identifying the modem in GSM/HSPA mode.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 57 Copyri
g
ht @ 2015 Pepwave

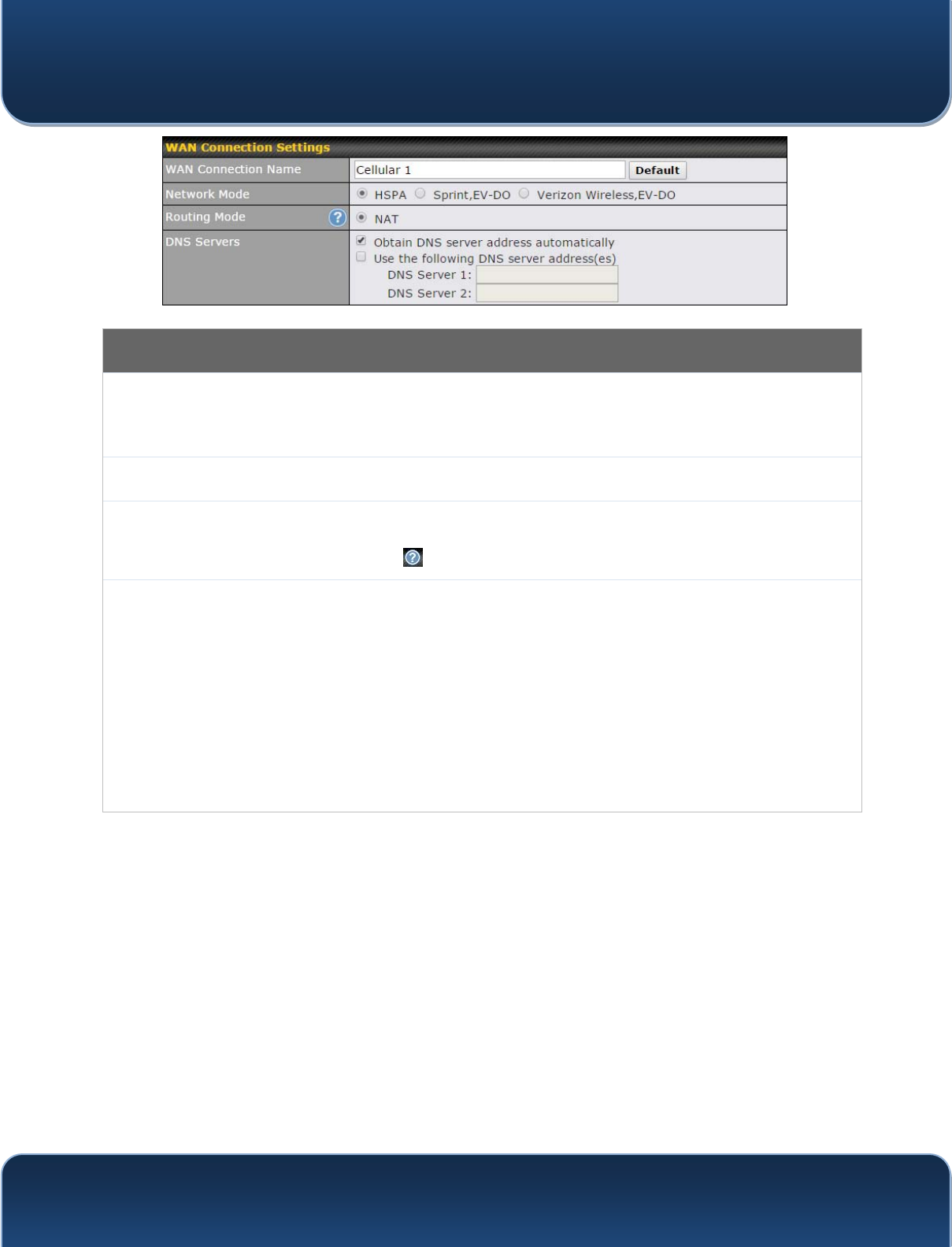

WAN Connection Settings
WAN
Connection
Name Enter a name to represent this WAN connection.
Network Mode Users have to specify the network they are on accordingly.
Routing Mode This option allows you to select the routing method to be used in routing IP frames via the
WAN connection. The mode can be either NAT (network address translation) or IP
Forwarding. Click the button to enable IP forwarding.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the
DNS (Domain Name System) servers to be used when a DNS lookup is routed through this
connection.
Selecting Obtain DNS server address automatically results in the DNS servers assigned
by the PPPoE server to be used for outbound DNS lookups over the WAN connection.
(The DNS servers are obtained along with the WAN IP address assigned from the PPPoE
server.)
When Use the following DNS server address(es) is selected, you can enter custom DNS
server addresses for this WAN connection into the DNS server 1 and DNS server 2 fields.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 58 Copyri
g
ht @ 2015 Pepwave
Cellular Settings
Network
Selection By default, the MAX router will automatically choose a network to connect to. If you wish to
use only certain networks, click the button beside the menu item.
3G/2G This drop-down menu allows restricting cellular to particular band. Click the button to
enable the selection of specific bands.
Authentication Choose from PAP Only or CHAP Only to use those authentication methods exclusively.
Select Auto to automatically choose an authentication method.
Data Roaming This checkbox enables data roaming on this particular SIM card. Please check your service
SURYLGHU¶VGDWDURDPLQJSROLF\EHIRUHSURFHHGLQJ
Operator
Settings
This setting applies to 3G/EDGE/GPRS modems only. It does not apply to EVDO/EVDO Rev.
A modems. This allows you to configure the APN settings of your connection. If Auto is
selected, the mobile operator should be detected automatically. The connected device will be
configured and connection will be made automatically. If there is any difficulty in making
connection, you may select Custom WRHQWHU\RXUFDUULHU¶VAPN, Login, Password, and Dial
Number settings manually. The correct values can be obtained from your carrier. The default
Pepwave MAX and Surf User Manual
http://www.pepwave.com 59 Copyri
g
ht @ 2015 Pepwave
and recommended setting is Auto.
APN / Login /
Password /
SIM PIN
When Auto is selected, the information in these fields will be filled automatically. Select
Custom to customize these parameters. The parameter values are determined by and can be
obtained from the ISP.
Bandwidth
Allowance
Monitor
Check the box Enable to enable bandwidth usage monitoring on this WAN connection for each
billing cycle. When this option is not enabled, bandwidth usage of each month is still being
tracked but no action will be taken.
Action
If email notification is enabled, you will be notified by email when usage hits 75% and 95% of
the monthly allowance. If Disconnect when usage hits 100% of monthly allowance is
checked, this WAN connection will be disconnected automatically when the usage hits the
monthly allowance. It will not resume connection unless this option has been turned off or the
usage has been reset when a new billing cycle starts.
Start Day This option allows you to define which day of the month each billing cycle begins.
Monthly
Allowance This field is for defining the maximum bandwidth usage allowed for the WAN connection each
month.
General Settings
Standby State
This option allows you to choose whether to remain connected or disconnected when this WAN
connection is no longer in the highest priority and has entered the standby state. When Remain
connected is chosen, bringing up this WAN connection to active makes it immediately available
for use.
Idle
Disconnect
When Internet traffic is not detected within the user-specified timeframe, the modem will
automatically disconnect. Once the traffic is resumed by the LAN host, the connection will be re-
activated.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 60 Copyri
g
ht @ 2015 Pepwave
Health Check Settings
Heath Check
Method This setting allows you to specify the health check method for the cellular connection. Available
options are Disabled, Ping, DNS Lookup, HTTP, and SmartCheck. The default method is
DNS Lookup. See Section 9.4 for configuration details.
Timeout If a health check test cannot be completed within the specified amount of time, the test will be
treated as failed.
Health Check
Interval This is the time interval between each health check test.
Health Check
Retries This is the number of consecutive check failures before treating a connection as down.
Recovery
Retries This is the number of responses required after a health check failure before treating a
connection as up again.
Dynamic DNS Settings
Dynamic DNS
Service
Provider
This setting specifies the dynamic DNS service provider to be used for the WAN based on
supported dynamic DNS service providers:
x changeip.com
x dyndns.org
x no-ip.org
x tzo.com
x DNS-O-Matic
Select Disabled to disable this feature. See Section 9.5 for configuration details.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 61 Copyri
g
ht @ 2015 Pepwave
9.3 Wi-Fi WAN
To access Wi-Fi WAN settings, click Network>WAN>Details.
Wi-Fi Connection Settings
WAN Connection
Name Enter a name to represent this WAN connection.
Standby State This setting specifies the state of the WAN connection while in standby. The available
options are Remain Connected (hot standby) and Disconnect (cold standby).
MTU
This setting specifies the maximum transmission unit. By default, MTU is set to Custom
1440. You may adjust the MTU value by editing the text field. Click Default to restore the
default MTU value. Select Auto and the appropriate MTU value will be automatically
detected. The auto-detection will run each time the WAN connection establishes
Reply to ICMP
PING If this setting is disabled, the WAN connection will not respond to ICMP ping requests. By
default, this setting is enabled.
Wi-Fi WAN Settings
Channel
Selection
Determine whether the channel will be automatically selected. If you select custom, the
following table will appear:
Pepwave MAX and Surf User Manual
http://www.pepwave.com 62 Copyri
g
ht @ 2015 Pepwave
Roaming Checking this box will enable Wi-Fi roaming. Click the icon for additional options.
Connect to
Any Open
Mode AP
This option is to specify whether the Wi-Fi WAN will connect to any open mode access
points it finds.
Bandwidth Allowance Monitor
Action
If Error! Reference source not found. is enabled, you will be notified by email
when usage hits 75% and 95% of the monthly allowance.
If Disconnect when usage hits 100% of monthly allowance is checked, this WAN
connection will be disconnected automatically when the usage hits the monthly allowance.
It will not resume connection unless this option has been turned off or the usage has been
reset when a new billing cycle starts.
Start Day This option allows you to define which day of the month each billing cycle begins.
Monthly
Allowance This field is for defining the maximum bandwidth usage allowed for the WAN connection
each month.
Health Check Settings
Method This setting specifies the health check method for the WAN connection. This value can be
configured as Disabled, PING, DNS Lookup, or HTTP. The default method is DNS
Pepwave MAX and Surf User Manual
http://www.pepwave.com 63 Copyri
g
ht @ 2015 Pepwave
Lookup. For mobile Internet connections, the value of Method can be configured as
Disabled or SmartCheck.
Health Check Disabled
When Disabled is chosen in the Method field, the WAN connection will always be considered as up. The
connection will NOT be treated as down in the event of IP routing errors.
Health Check Method: PING
ICMP ping packets will be issued to test the connectivity with a configurable target IP address or hostname. A WAN
connection is considered as up if ping responses are received from either one or both of the ping hosts.
PING Hosts
This setting specifies IP addresses or hostnames with which connectivity is to be tested via
ICMP ping. If Use first two DNS servers as Ping Hosts is checked, the target ping host
will be the first DNS server for the corresponding WAN connection. Reliable ping hosts with
a high uptime should be considered. By default, the first two DNS servers of the WAN
connection are used as the ping hosts.
Health Check Method: DNS Lookup
DNS lookups will be issued to test connectivity with target DNS servers. The connection will be treated as up if DNS
responses are received from one or both of the servers, regardless of whether the result was positive or negative.
Health Check
DNS Servers
7KLVILHOGDOORZV\RXWRVSHFLI\WZR'16KRVWV¶,3DGGUHVVHVZLWKZKLFKFRQQHFWLYLW\LVWREH
tested via DNS Lookup.
If Use first two DNS servers as Health Check DNS Servers is checked, the first two DNS
servers will be the DNS lookup targets for checking a connection's health. If the box is not
checked, Host 1 must be filled, while a value for Host 2 is optional.
If Include public DNS servers is selected and no response is received from all specified
DNS servers, DNS lookups will also be issued to some public DNS servers. A WAN
connection will be treated as down only if there is also no response received from the public
DNS servers.
Connections will be considered as up if DNS responses are received from any one of the
health check DNS servers, regardless of a positive or negative result. By default, the first
two DNS servers of the WAN connection are used as the health check DNS servers.
Health Check Method: HTTP
Pepwave MAX and Surf User Manual
http://www.pepwave.com 64 Copyri
g
ht @ 2015 Pepwave
HTTP connections will be issued to test connectivity with configurable URLs and strings to match.
URL1
WAN Settings>WAN Edit>Health Check Settings>URL1
The URL will be retrieved when performing an HTTP health check. When String to Match
is left blank, a health check will pass if the HTTP return code is between 200 and 299
(Note: HTTP redirection codes 301 or 302 are treated as failures). When String to Match is
filled, a health check will pass if the HTTP return code is between 200 and 299 and if the
HTTP response content contains the string.
URL 2 WAN Settings>WAN Edit>Health Check Settings>URL2
If URL2 is also provided, a health check will pass if either one of the tests passed.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 65 Copyri
g
ht @ 2015 Pepwave
Other Health Check Settings
Timeout This setting specifies the timeout in seconds for ping/DNS lookup requests. The default
timeout is 5 seconds.
Health Check
Interval This setting specifies the time interval in seconds between ping or DNS lookup requests.
The default health check interval is 5 seconds.
Health Check
Retries
This setting specifies the number of consecutive ping/DNS lookup timeouts after which the
Peplink Balance will treat the corresponding WAN connection as down. Default health
retries is set to 3. Using the default Health Retries setting of 3, the corresponding WAN
connection will be treated as down after three consecutive timeouts.
Recovery
Retries
This setting specifies the number of consecutive successful ping/DNS lookup responses
that must be received before the Peplink Balance treats a previously down WAN connection
as up again. By default, Recover Retries is set to 3. Using the default setting, a WAN
connection that is treated as down will be considered as up again upon receiving three
consecutive successful ping/DNS lookup responses.
Dynamic DNS Settings
Service Provider
This setting specifies the dynamic DNS service provider to be used for the WAN.
Supported providers are:
x changeip.com
x dyndns.org
x no-ip.org
x tzo.com
x DNS-O-Matic
Select Disabled to disable this feature.
User ID / User /
Email This setting specifies the registered user name for the dynamic DNS service.
Password / Pass / This setting specifies the password for the dynamic DNS service.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 66 Copyri
g
ht @ 2015 Pepwave
TZO Key
Update All Hosts Check this box to automatically update all hosts.
Hosts / Domain This setting specifies a list of hostnames or domains to be associated with the public
Internet IP address of the WAN connection.
Important Note
In order to use dynamic DNS services, appropriate hostname registration(s), as well as a valid account with a
supported dynamic DNS service provider, are required.
$G\QDPLF'16XSGDWHLVSHUIRUPHGZKHQHYHUD:$1¶V,3DGGUHVVLVFKDQJHGVXFKDVZKHQDQ,3LVFKDQJHG
after a DHCP IP refresh or reconnection.
'XHWRG\QDPLF'16VHUYLFHSURYLGHUV¶SROLcies, a dynamic DNS host expires automatically when the host record
has not been not updated for a long time. Therefore, the Peplink Balance performs an update every 23 days, even if
D:$1¶V,3DGGUHVVGLGQRWFKDQJH

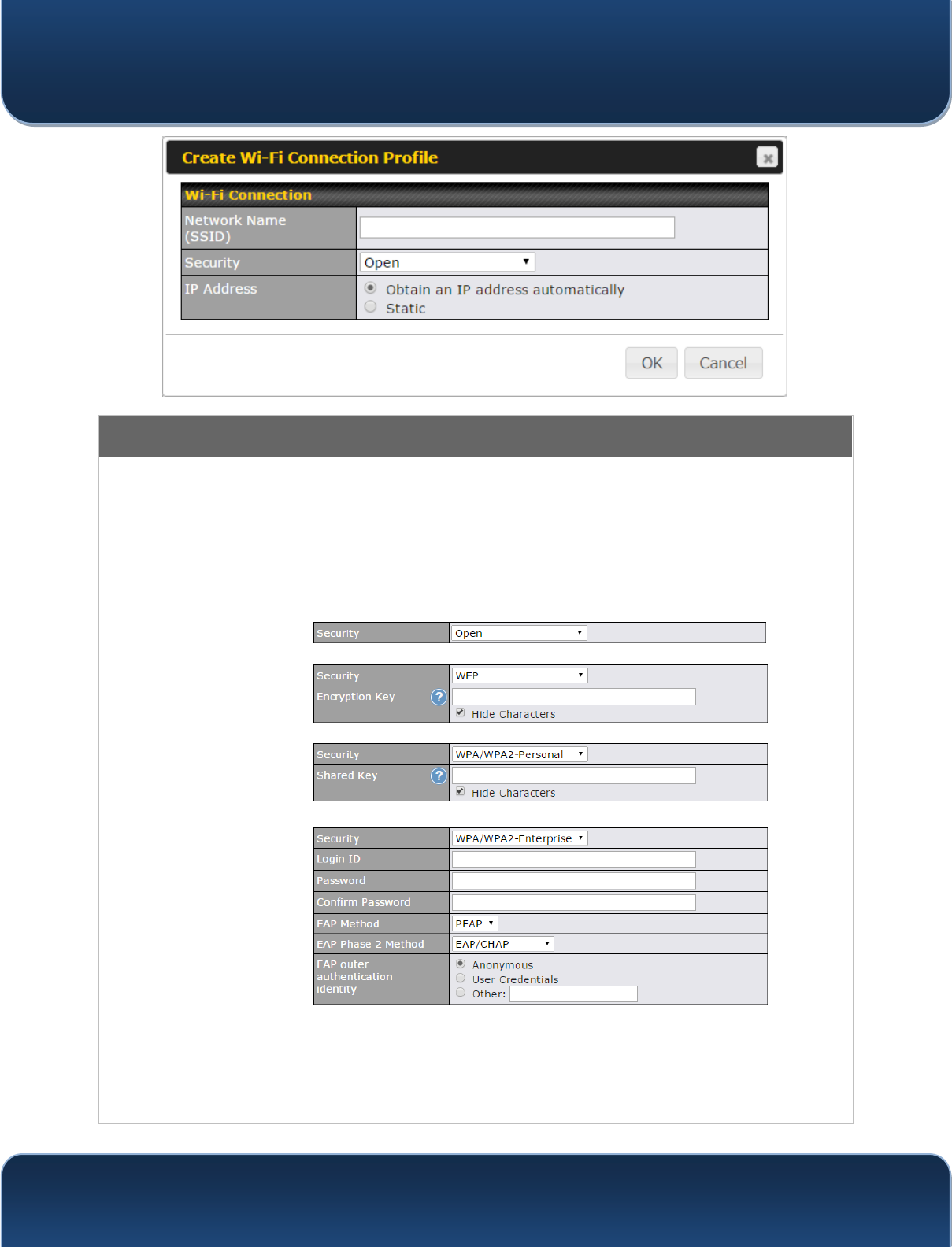

9.3.1 Creating Wi-Fi Connection Profiles
You can manually create a profile to connect to a Wi-Fi connection. This is useful for
creating a profile for connecting to hidden-SSID access points. Click
Network>WAN>Details>&UHDWH3URILOH« to get started.
This will open a window similar to the one shown below:
Pepwave MAX and Surf User Manual
http://www.pepwave.com 67 Copyri
g
ht @ 2015 Pepwave
Wi-Fi Connection Profile Settings
Type Select whether the network will connect automatically or manually.
Network Name
(SSID) Enter a name to represent this Wi-Fi connection.
Security
This option allows you to select which security policy is used for this wireless network.
Available options:
xOpen
x WEP
x WPA/WPA2 ± Personal
x WPA/WPA2 ± Enterprise
Pepwave MAX and Surf User Manual
http://www.pepwave.com 68 Copyri
g
ht @ 2015 Pepwave
9.4 WAN Health Check
To ensure traffic is routed to healthy WAN connections only, the Pepwave router can
periodically check the health of each WAN connection. The health check settings for
each WAN connection can be independently configured via Network>WAN>Details.
Health Check Settings
Method
This setting specifies the health check method for the WAN connection. This value can be
configured as Disabled, PING, DNS Lookup, or HTTP. The default method is DNS
Lookup. For mobile Internet connections, the value of Method can be configured as
Disabled or SmartCheck.
Health Check Disabled
When Disabled is chosen in the Method field, the WAN connection will always be considered as up. The
connection will NOT be treated as down in the event of IP routing errors.
Health Check Method: PING
ICMP ping packets will be issued to test the connectivity with a configurable target IP address or hostname. A WAN
connection is considered as up if ping responses are received from either one or both of the ping hosts.
PING Hosts
This setting specifies IP addresses or hostnames with which connectivity is to be tested via
ICMP ping. If Use first two DNS servers as Ping Hosts is checked, the target ping host
will be the first DNS server for the corresponding WAN connection. Reliable ping hosts with
a high uptime should be considered. By default, the first two DNS servers of the WAN
connection are used as the ping hosts.
Health Check Method: DNS Lookup
DNS lookups will be issued to test connectivity with target DNS servers. The connection will be treated as up if DNS
responses are received from one or both of the servers, regardless of whether the result was positive or negative.
Health Check
DNS Servers
7KLVILHOGDOORZV\RXWRVSHFLI\WZR'16KRVWV¶,3DGGUHVVHVZLWKZKLFKFRQnectivity is to be
tested via DNS lookup.
If Use first two DNS servers as Health Check DNS Servers is checked, the first two DNS
servers will be the DNS lookup targets for checking a connection's health. If the box is not
checked, Host 1 must be filled, while a value for Host 2 is optional.
If Include public DNS servers is selected and no response is received from all specified
DNS servers, DNS lookups will also be issued to some public DNS servers. A WAN
connection will be treated as down only if there is also no response received from the public
DNS servers.
Connections will be considered as up if DNS responses are received from any one of the
health check DNS servers, regardless of a positive or negative result. By default, the first
two DNS servers of the WAN connection are used as the health check DNS servers.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 69 Copyri
g
ht @ 2015 Pepwave
Health Check Method: HTTP
HTTP connections will be issued to test connectivity with configurable URLs and strings to match.
URL1
WAN Settings>WAN Edit>Health Check Settings>URL1
The URL will be retrieved when performing an HTTP health check. When String to Match
is left blank, a health check will pass if the HTTP return code is between 200 and 299
(Note: HTTP redirection codes 301 or 302 are treated as failures). When String to Match is
filled, a health check will pass if the HTTP return code is between 200 and 299 and if the
HTTP response content contains the string.
URL 2 WAN Settings>WAN Edit>Health Check Settings>URL2
If URL2 is also provided, a health check will pass if either one of the tests passed.
Other Health Check Settings
Timeout This setting specifies the timeout in seconds for ping/DNS lookup requests. The default
timeout is 5 seconds.
Health Check
Interval This setting specifies the time interval in seconds between ping or DNS lookup requests.
The default health check interval is 5 seconds.
Health Check
Retries
This setting specifies the number of consecutive ping/DNS lookup timeouts after which the
Pepwave router will treat the corresponding WAN connection as down. Default health
retries is set to 3. Using the default Health Retries setting of 3, the corresponding WAN
connection will be treated as down after three consecutive timeouts.
Recovery
Retries
This setting specifies the number of consecutive successful ping/DNS lookup responses
that must be received before the Pepwave router treats a previously down WAN connection
as up again. By default, Recover Retries is set to 3. Using the default setting, a WAN
connection that is treated as down will be considered as up again upon receiving three
consecutive successful ping/DNS lookup responses.
Automatic Public DNS Server Check on DNS Test Failure
When the health check method is set to DNS Lookup and health checks fail, the Pepwave router will automatically
perform DNS lookups on public DNS servers. If the tests are successful, the WAN may not be down, but rather the
target DNS server malfunctioned. You will see the following warning message on the main page:
Pepwave MAX and Surf User Manual
http://www.pepwave.com 70 Copyri
g
ht @ 2015 Pepwave
9.5 Dynamic DNS Settings
Pepwave routers are capable of registering the domain name relationships to dynamic
DNS service providers. Through registration with dynamic DNS service provider(s), the
default public Internet IP address of each WAN connection can be associated with a
host name. With dynamic DNS service enabled for a WAN connection, you can connect
to your WAN's IP address from the external, even if its IP address is dynamic. You must
register for an account from the listed dynamic DNS service providers before enabling
this option.
If the WAN connection's IP address is a reserved private IP address (i.e., behind a NAT
router), the public IP of each WAN will be automatically reported to the DNS service
provider.
Either upon a change in IP addresses or every 23 days without link reconnection, the
Pepwave router will connect to the dynamic DNS service provider to perform an IP
DGGUHVVXSGDWHZLWKLQWKHSURYLGHU¶VUHFRUGV
The settings for dynamic DNS service provider(s) and the association of hostname(s)
are configured via Network>WAN>Details>Dynamic DNS Service Provider/Dynamic
DNS Settings.
Dynamic DNS Settings
Dynamic DNS
This setting specifies the dynamic DNS service provider to be used for the WAN based
on supported dynamic DNS service providers:
x changeip.com
x dyndns.org
x no-ip.org
x tzo.com
x DNS-O-Matic
Select Disabled to disable this feature.
Account Name / This setting specifies the registered user name for the dynamic DNS service.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 71 Copyri
g
ht @ 2015 Pepwave
Email Address
Password / TZO
Key This setting specifies the password for the dynamic DNS service.
Hosts / Domain This field allows you to specify a list of host names or domains to be associated with
the public Internet IP address of the WAN connection. If you need to enter more than
one host, use a carriage return to separate them.
Important Note
In order to use dynamic DNS services, appropriate host name registration(s) and a valid account with a supported
dynamic DNS service provider are required. $G\QDPLF'16XSGDWHLVSHUIRUPHGZKHQHYHUD:$1¶V,3DGGUHVV
changes (e.g., the IP is changed after a DHCP IP refresh, reconnection, etc.). Due to dynamic DNS service
SURYLGHUV¶policy, a dynamic DNS host will automatically expire if the host record has not been updated for a long
time. Therefore the Pepwave router performs an update every 23 days, HYHQLID:$1¶V,3DGGUHVVKDVQRW
changed.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 72 Copyri
g
ht @ 2015 Pepwave
10 Advanced Wi-Fi Settings
Wi-Fi settings can be configured at Advanced>Wi-Fi Settings (or AP>Settings on
some models). Note that menus displayed can vary by model.

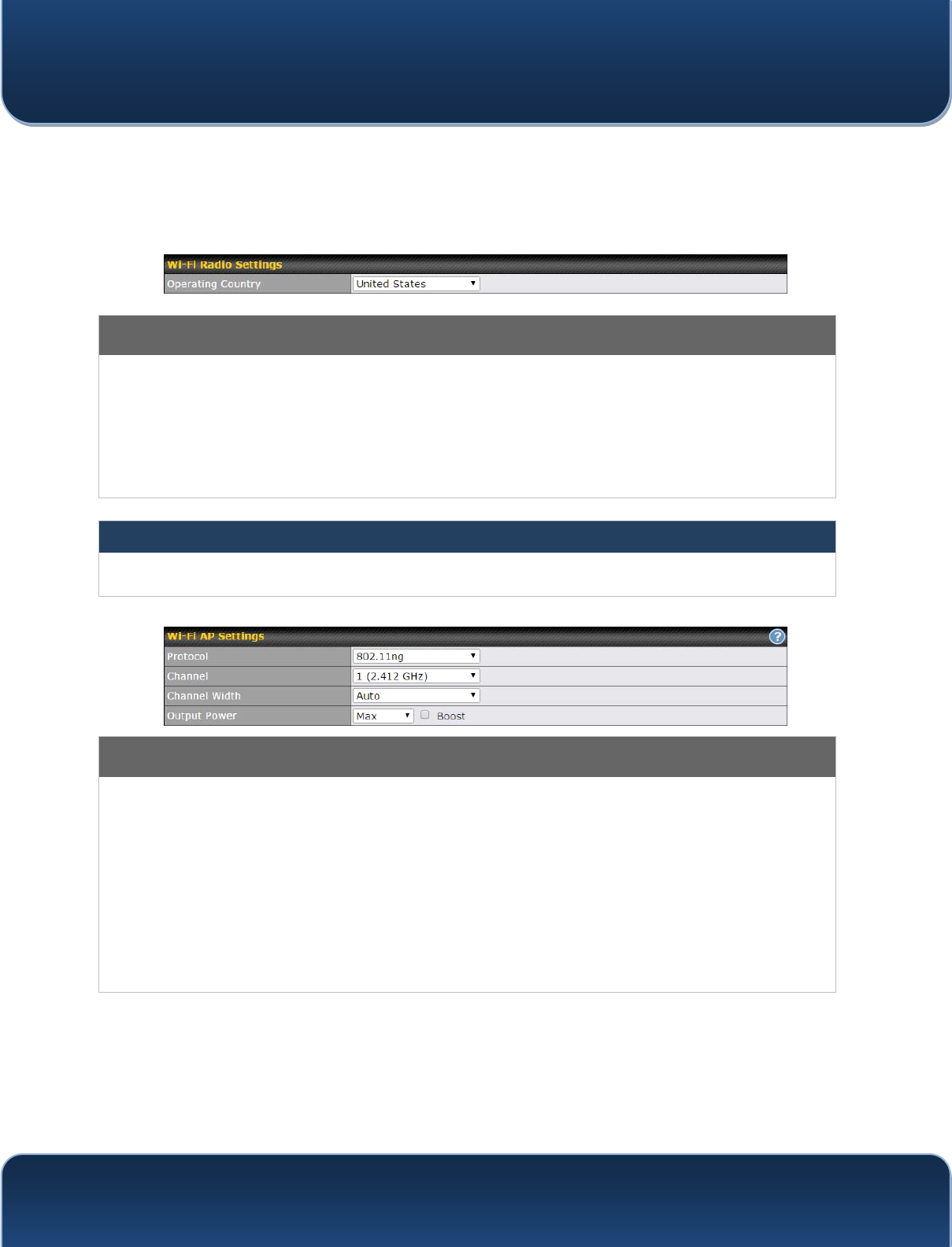

Wi-Fi Radio Settings
Operating
Country
This drop-down menu specifies the national/regional regulations which the Wi-Fi radio
should follow.
x If a North American region is selected, RF channels 1 to 11 will be available
and the maximum transmission power will be 26 dBm (400 mW).
x If European region is selected, RF channels 1 to 13 will be available. The
maximum transmission power will be 20 dBm (100 mW).
NOTE: Users are required to choose an option suitable to local laws and regulations.
Important Note
Per FCC regulation, the country selection is not available on all models marketed in
the US. All US models are fixed to US channels only.
Wi-Fi AP Settings
Protocol This option allows you to specify whether 802.11b and/or 802.11g client association
requests will be accepted. Available options are 802.11ng and 802.11na. By default,
802.11ng is selected.
Channel This option allows you to select which 802.11 RF channel will be utilized. Channel 1
(2.412 GHz) is selected by default.
Channel Width Available options are 20 MHz, 40 MHz, and Auto (20/40 MHz) . Default is Auto (20/40
MHz), which allows both widths to be used simultaneously.
Output Power This option is for specifying the transmission output power for the Wi-Fi AP. There are 4
relative power levels available ± Max, High, Mid, and Low. The actual output power
will be bound by the regulatory limits of the selected country.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 73 Copyri
g
ht @ 2015 Pepwave
Advanced Wi-Fi AP settings can be displayed by clicking the on the top right-hand
corner of the Wi-Fi AP Settings section, which can be found at AP>Settings. Other
models will display a separate section called Wi-Fi AP Advanced Settings, which can
be found at Advanced>Wi-Fi Settings.
Wi-Fi AP Advanced Settings
Beacon Rate A This option is for setting the transmit bit rate for sending a beacon. By default, 1Mbps is
selected.
Beacon Interval A This option is for setting the time interval between each beacon. By default, 100ms is
selected.
DTIM A This field allows you to set the frequency for the beacon to include delivery traffic
indication messages. The interval is measured in milliseconds. The default value is set to
1 ms.
Slot Time A This field is for specifying the unit wait time before transmitting a packet. By default, this
field is set to 9 µs.
ACK Timeout A This field is for setting the wait time to receive an acknowledgement packet before
performing a retransmission. By default, this field is set to 48 µs.
Frame
Aggregation A This option allows you to enable frame aggregation to increase transmission throughput.
Guard Interval A This is where you opt for a short or long guard period interval for your transmissions.
A - Advanced feature, please click the button on the top right-hand corner to activate.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 74 Copyri
g
ht @ 2015 Pepwave
Wi-Fi WAN settings can be configured at Advanced>Wi-Fi Settings (or
Advanced>Wi-Fi WAN or some models).
Wi-Fi WAN Settings
Channel Width Available options are 20/40 MHz and 20 MHz. Default is 20/40 MHz, which allows both
widths to be used simultaneously.
Bit Rate 7KLVRSWLRQDOORZV\RXWRVHOHFWDVSHFLILFELWUDWHIRUGDWDWUDQVIHURYHUWKHGHYLFH¶V:L-
Fi network. By default, Auto is selected.
Output Power
This option is for specifying the transmission output power for the Wi-Fi AP. There are 4
relative power levels available ± Max, High, Mid, and Low. The actual output power
will be bound by the regulatory limits of the selected country. Note that selecting the
Boost RSWLRQPD\FDXVHWKH0$;¶VUDGLRRXWSXWWRH[FHHGORFDOUHJXODWRU\OLPLWV
Pepwave MAX and Surf User Manual
http://www.pepwave.com 75 Copyri
g
ht @ 2015 Pepwave
11 MediaFast Configuration
MediaFast settings can be configured from the Network menu.

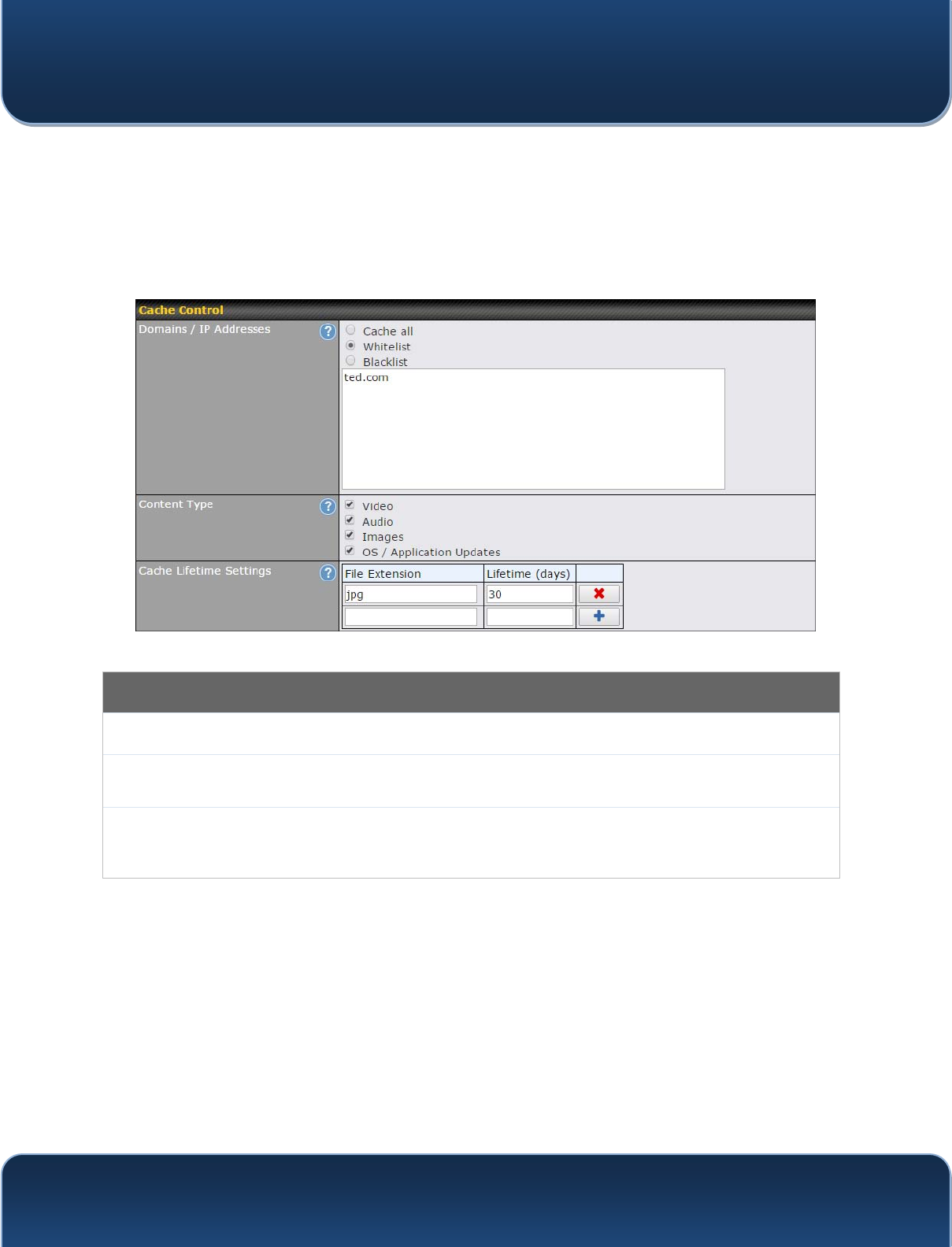

11.1 Setting Up MediaFast Content Caching
To access MediaFast content caching settings, select Advanced>Cache Control.
Cache Control Settings
Domain Choose to Cache on all domains, or enter domain names and then choose either Cache
the specified domains only or Do not cache the specified domains.
Content Type Check these boxes to cache the listed content types or leave boxes unchecked to disable
caching for the listed types.
Cache Lifetime
Settings
Enter a file extension, such as JPG or DOC. Then enter a lifetime in days to specify how
long files with that extension will be cached. Add or delete entries using the controls on the
right.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 76 Copyri
g
ht @ 2015 Pepwave
11.2 Scheduling Content Prefetching
Content prefetching allows you to download content on a schedule that you define,
which can help to preserve network bandwidth during busy times and keep costs down.
To access MediaFast content prefetching settings, select Advanced >Prefetch
Schedule.

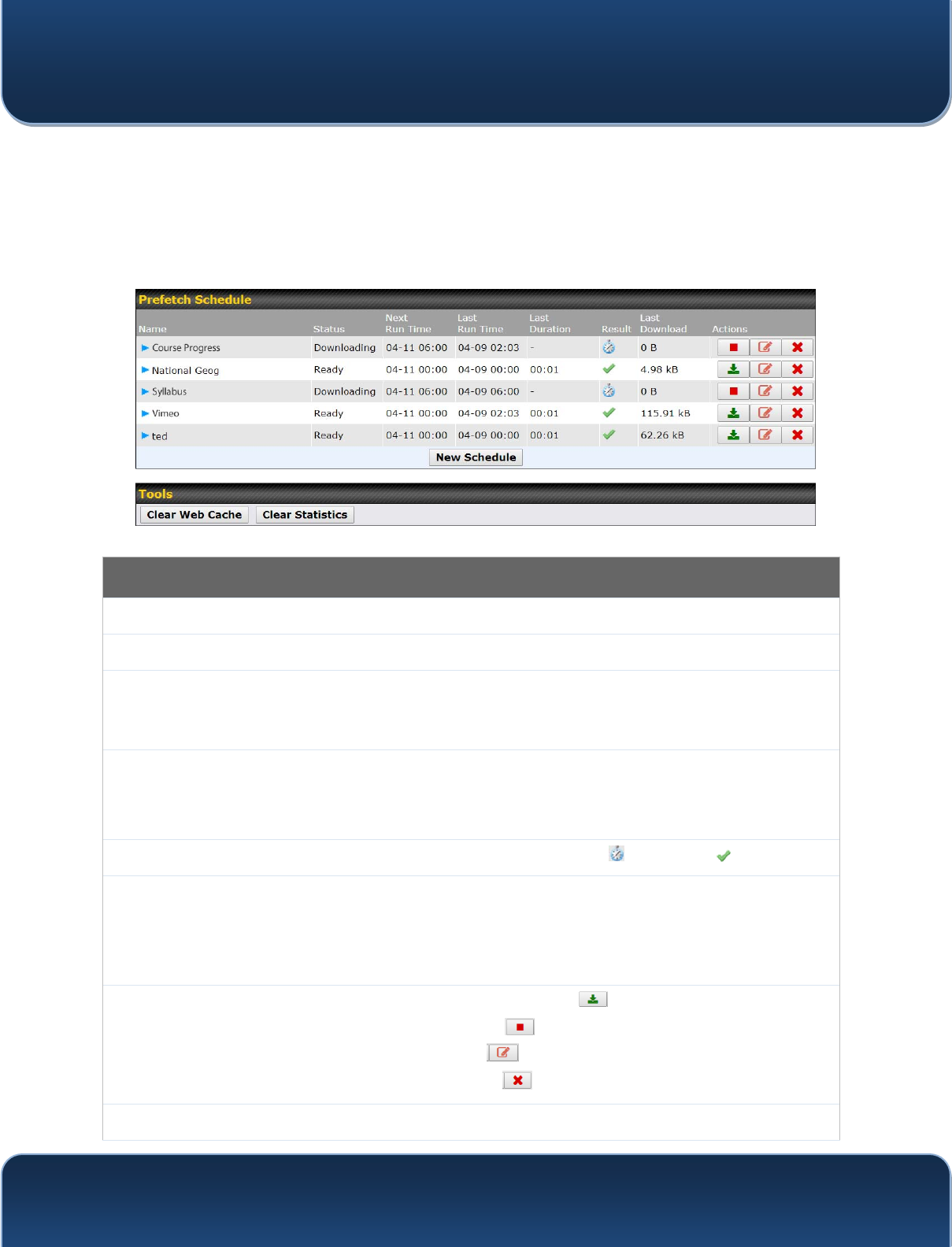

Prefetch Schedule Settings
Name This field displays the name given to the scheduled download.
Status Check the status of your scheduled download here.
Next Run
Time/Last Run
Time
These fields display the date and time of the next and most recent occurrences of the
scheduled download.
Last Duration
Check this field to ensure that the most recent download took as long as expected to
complete. A value that is too low might indicate an incomplete download or incorrectly
specified download target, while a value that is too long could mean a download with an
incorrectly specified target or stop time.
Result This field indicates whether downloads are in progress ( ) or complete ( ).
Last Download
Check this field to ensure that the most recent download file size is within the expected
range. A value that is too low might indicate an incomplete download or incorrectly specified
download target, while a value that is too long could mean a download with an incorrectly
specified target or stop time. This field is also useful for quickly seeing which downloads are
consuming the most storage space.
Actions
To begin a scheduled download immediately, click .
To cancel a scheduled download, click .
To edit a scheduled download, click .
To delete a scheduled download, click .
New Schedule To begin creating a new scheduled download, click this button.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 77 Copyri
g
ht @ 2015 Pepwave
Clear Web
Cache To clear all cached content, click this button. Note that this action cannot be undone.
Clear Statistics To clear all prefetch and status page statistics, click this button.

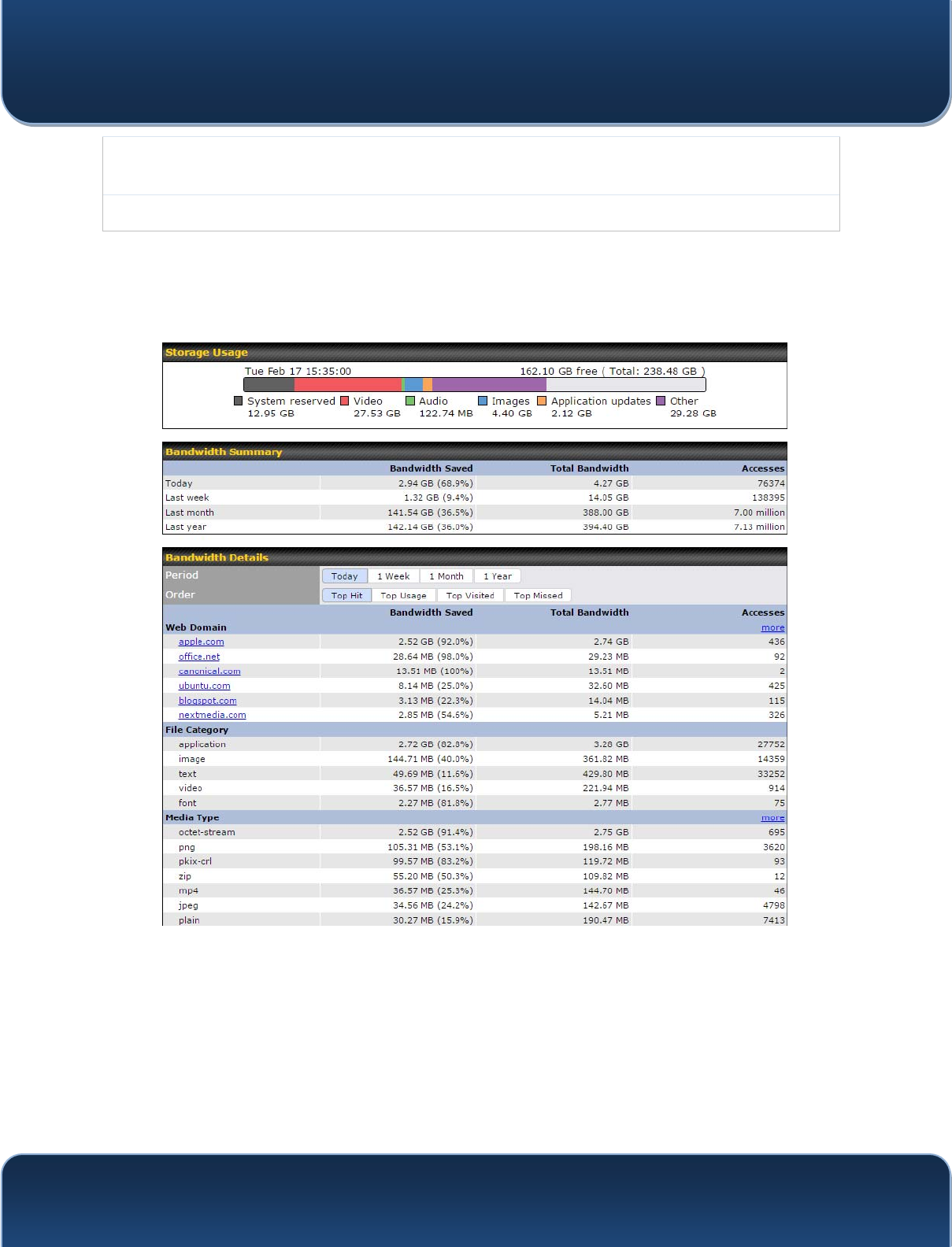

11.3 Viewing MediaFast Statistics
To get details on storage and bandwidth usage, select Status>MediaFast.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 78 Copyri
g
ht @ 2015 Pepwave

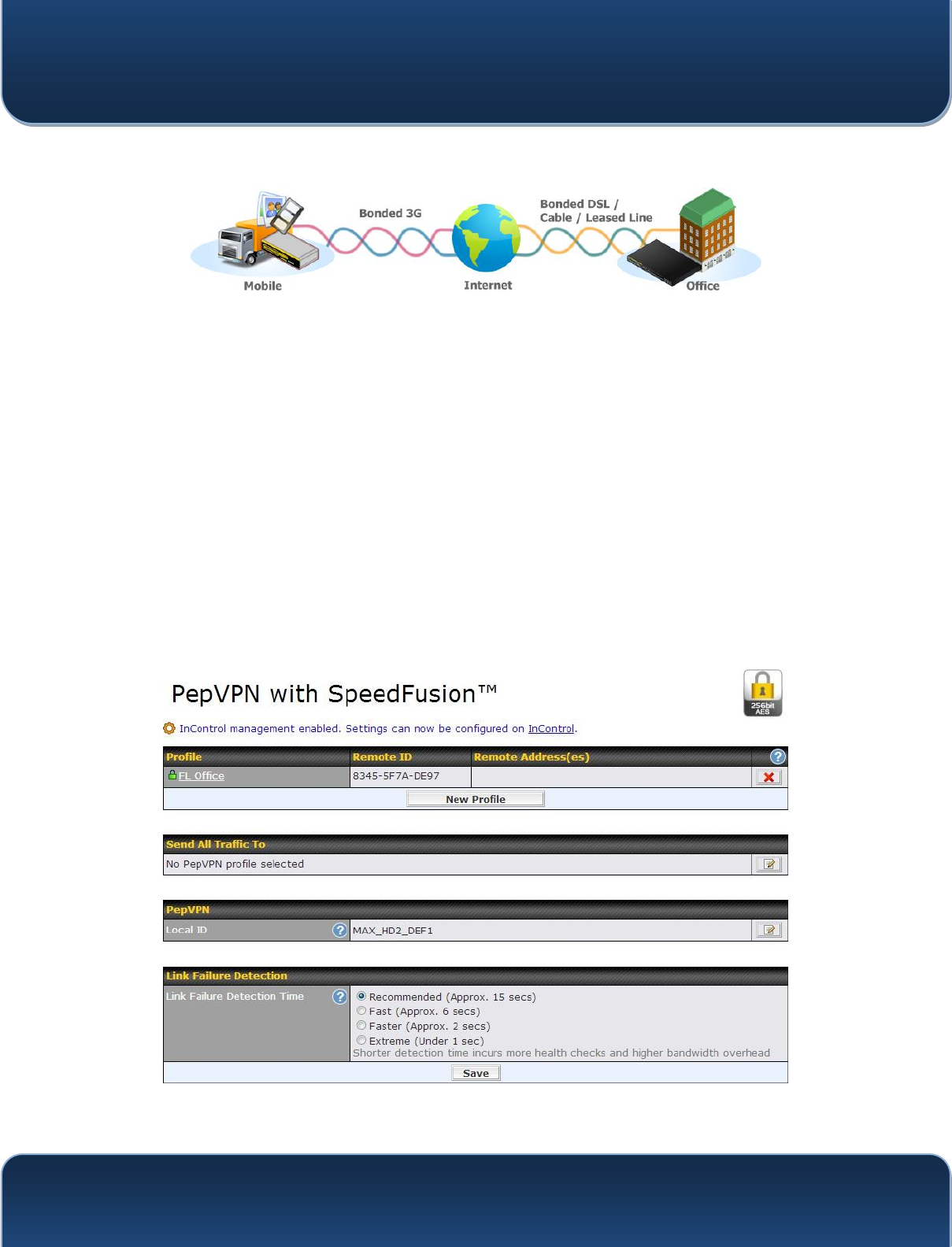

12 Bandwidth Bonding SpeedFusionTM / PepVPN
Pepwave bandwidth bonding SpeedFusionTM functionality securely connects your
Pepwave router to another Pepwave or Peplink device (Peplink Balance
210/310/380/580/710/1350 only). Data, voice, or video communications between these
locations are kept confidential across the public Internet.
Bandwidth bonding SpeedFusionTM is specifically designed for multi-WAN environments.
Pepwave routers FDQDJJUHJDWHDOO:$1FRQQHFWLRQV¶EDQGZLGWKIRUURXWLQJ
SpeedFusionTM traffic. Unless all the WAN connections of one site are down, Pepwave
routers can keep the VPN up and running.
VPN bandwidth bonding is supported in Firmware 5.1 or above. All available bandwidth
will be utilized to establish the VPN tunnel, and all traffic will be load balanced at packet
level across all links. VPN bandwidth bonding is enabled by default.
12.1 PepVPN
To configure PepVPN and SpeedFusion, navigate to Advanced>6SHHG)XVLRQor
Advanced>PepVPN.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 79 Copyri
g
ht @ 2015 Pepwave
The local LAN subnet and subnets behind the LAN (defined under Static Route on the
LAN settings page) will be advertised to the VPN. All VPN members (branch offices and
headquarters) will be able to route to local subnets.
Note that all LAN subnets and the subnets behind them must be unique. Otherwise,
VPN members will not be able to access each other.
All data can be routed over the VPN using the 256-bit AES encryption standard. To
configure, navigate to Advanced>6SHHG)XVLRQ or Advanced>PepVPN and click
the New Profile button to create a new VPN profile (you may have to first save the
displayed default profile in order to acesss the New Profile button). Each profile
specifies the settings for making VPN connection with one remote Pepwave or Peplink
device. Note that available settings vary by model.
A list of defined SpeedFusion connection profiles and a Link Failure Detection Time
option will be shown. Click the New Profile button to create a new VPN connection
profile for making a VPN connection to a remote Peplink Balance via the available WAN
connections. Each profile is for making a VPN connection with one remote Peplink
Balance.

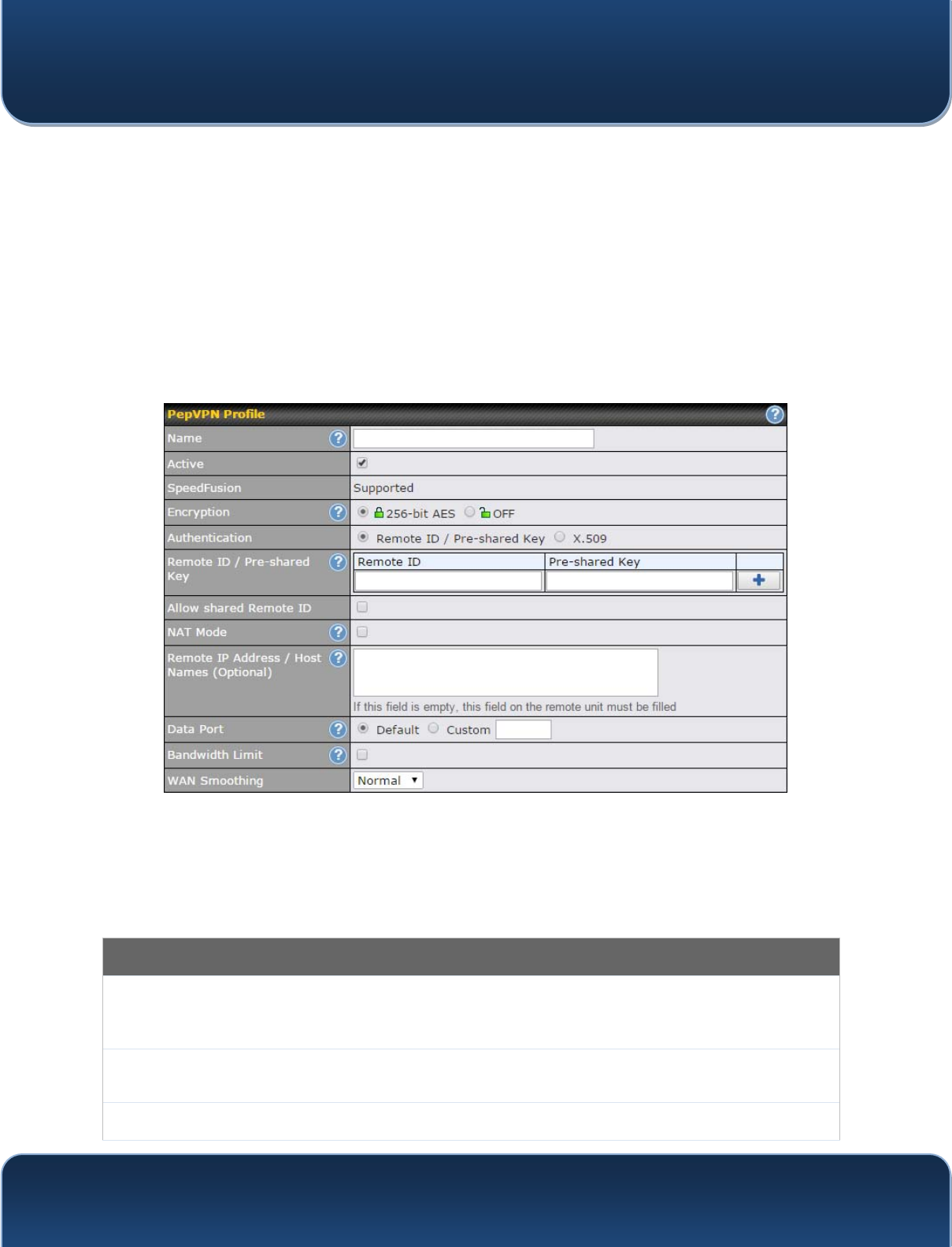

PepVPN Profile Settings
Name This field is for specifying a name to represent this profile. The name can be any
combination of alphanumeric characters (0-9, A-Z, a-z), underscores (_), dashes (-), and/or
non-leading/trailing spaces ( ).
Active When this box is checked, this VPN connection profile will be enabled. Otherwise, it will be
disabled.
Encryption By default, VPN traffic is encrypted with 256-bit AES. If Off is selected on both sides of a
Pepwave MAX and Surf User Manual
http://www.pepwave.com 80 Copyri
g
ht @ 2015 Pepwave
VPN connection, no encryption will be applied.
Authentication Select from By Remote ID Only, Preshared Key, or X.509 to specify the method the
Peplink Balance will use to authenticate peers. When selecting By Remote ID Only, be
sure to enter a unique peer ID number in the Remote ID field.
Remote ID /
Pre-shared Key
This optional field becomes available when Remote ID / Pre-shared Key is selected as the
3HSOLQN%DODQFH¶V931Authentication method, as explained above. Pre-shared Key
defines the pre-shared key used for this particular VPN connection. The VPN connection's
session key will be further protected by the pre-shared key. The connection will be up only if
the pre-shared keys on each side match. When the peer is running firmware 5.0+, this
setting will be ignored.
Enter Remote IDs either by typing out each Remote ID and Pre-shared Key, or by pasting a
CSV. If you wish to paste a CSV, click the LFRQQH[WWRWKH³5HPRWH,'3UHVKDUHG.H\´
setting.
Remote
ID/Remote
Certificate
These optional fields become available when X.509 LVVHOHFWHGDVWKH3HSOLQN%DODQFH¶V
VPN authentication method, as explained above. To authenticate VPN connections using
X.509 certificates, copy and paste certificate details into these fields. To get more
information on a listed X.509 certificate, click the Show Details link below the field.
Allow Shared
Remote ID When this option is enabled, the router will allow multiple peers to run using the same
remote ID.
NAT Mode Check this box to allow the local DHCP server to assign an IP address to the remote peer.
When NAT Mode is enabled, all remote traffic over the VPN will be tagged with the
assigned IP address using network address translation.
Remote IP
Address / Host
Names
(Optional)
If NAT Mode LVQRWHQDEOHG\RXFDQHQWHUDUHPRWHSHHU¶V:$1,3DGGUHVVRU
hostname(s) here. If the remote uses more than one address, enter only one of them here.
Multiple hostnames are allowed and can be separated by a space character or carriage
return. Dynamic-DNS host names are also accepted.
This field is optional. With this field filled, the Peplink Balance will initiate connection to each
of the remote IP addresses until it succeeds in making a connection. If the field is empty,
the Peplink Balance will wait for connection from the remote peer. Therefore, at least one of
the two VPN peers must specify this value. Otherwise, VPN connections cannot be
established.
Data Port
This field is used to specify a UDP port number for transporting outgoing VPN data. If
Default is selected, UDP port 4500 will be used. Port 32015 will be used if the remote unit
uses Firmware prior to version 5.4 or if port 4500 is unavailable. If Custom is selected,
enter an outgoing port number from 1 to 65535.
Bandwidth
Limit Define maximum download and upload speed to each individual peer. This functionality
requires the peer to use PepVPN version 4.0.0 or above.
WAN
SmoothingA Select the degree to which WAN Smoothing will be implemented across your WAN links.
A - Advanced feature, please click the button on the top right-hand corner to activate.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 81 Copyri
g
ht @ 2015 Pepwave
To enable Layer 2 Bridging between PepVPN profiles, navigate to
Network>LAN>Basic Settings>*LAN Profile Name* and refer to instructions in
section 8.1
8.41

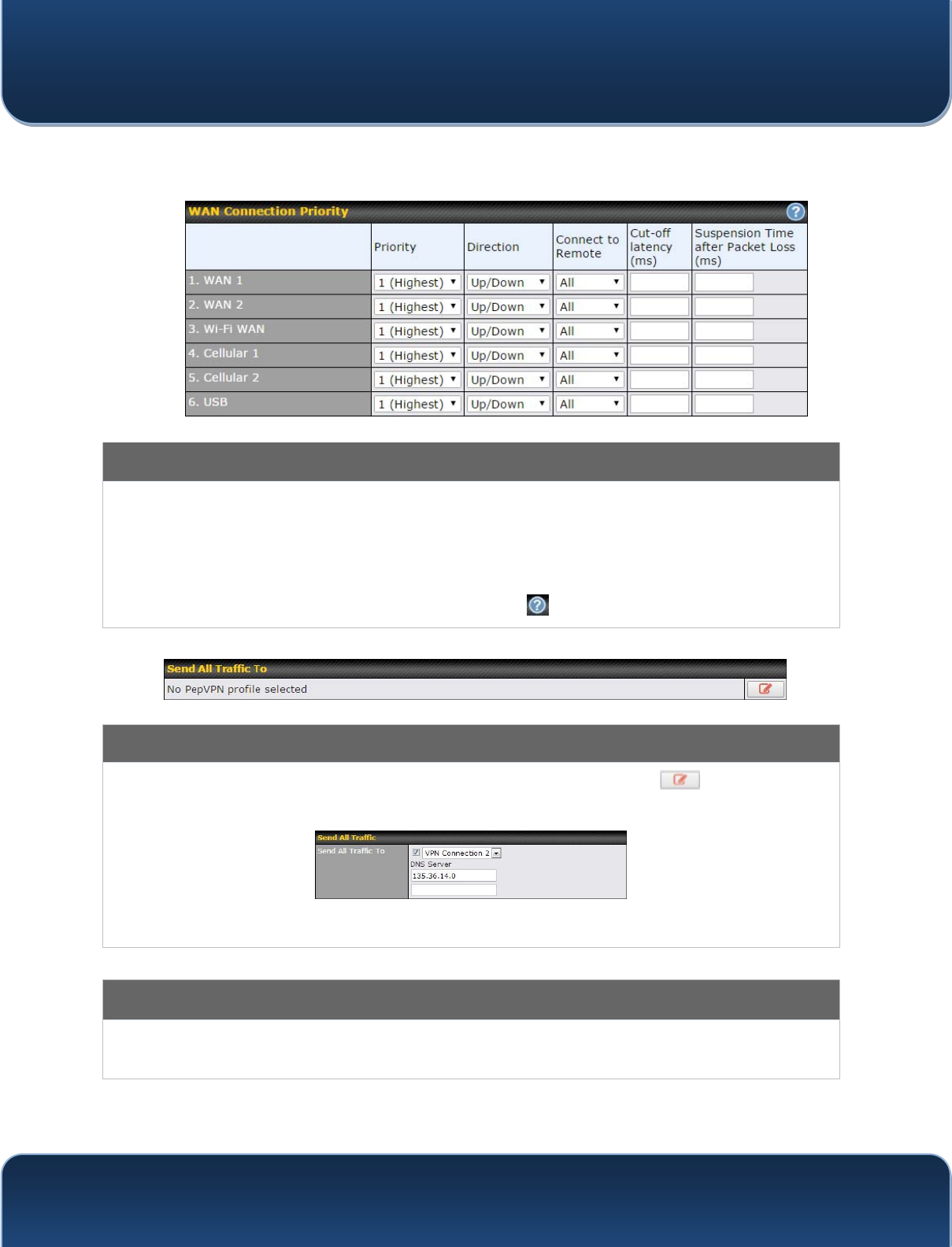

WAN Connection Priority
WAN
Connection
Priority
If your device supports it, you can specify the priority of WAN connections to be used for
making VPN connections. WAN connections set to OFF will never be used. Only available
WAN connections with the highest priority will be used.
To enable asymmetric connections, connection mapping to remote WANs, cut-off latency,
and packet loss suspension time, click the button.
Send All Traffic To
This feature allows you to redirect all traffic to a specified PepVPN connection. Click the button to select your
connection and the following menu will appear:
You could also specify a DNS server to resolve incoming DNS requests.
Outbound Policy/PepVPN Outbound Custom Rules
Some models allow you to set outbound policy and custom outbound rules from Advanced>PepVPN. See Section
14 for more information on outbound policy settings.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 82 Copyri
g
ht @ 2015 Pepwave
PepVPN Local ID
The local ID is a text string to identify this local unit when establishing a VPN connection. When creating a profile on
a remote unit, this local ID must be entered in the remote unit's Remote ID field. Click the icon to edit Local
ID.
PepVPN Settings
Handshake
PortA To designate a custom handshake port (TCP), click the custom radio button and enter the
port number you wish to designate.
Backward
Compatibility
Determine the level of backward compatibility needed for PepVPN tunnels. The use of the
Latest setting is recommended as it will improve the performance and resilience of
SpeedFusion connections.
Link Failure
Detection Time
The bonded VPN can detect routing failures on the path between two sites over each WAN
connection. Failed WAN connections will not be used to route VPN traffic. Health check
packets are sent to the remote unit to detect any failure. The more frequently checks are
sent, the shorter the detection time, although more bandwidth will be consumed.
When Recommended (default) is selected, a health check packet is sent every five
seconds, and the expected detection time is 15 seconds.
When Fast is selected, a health check packet is sent every three seconds, and the
expected detection time is six seconds.
When Faster is selected, a health check packet is sent every second, and the expected
detection time is two seconds.
When Extreme is selected, a health check packet is sent every 0.1 second, and the
expected detection time is less than one second.
A - Advanced feature, please click the button on the top right-hand corner to activate.
Important Note
Peplink proprietary SpeedFusionTM uses TCP port 32015 and UDP port 4500 for establishing VPN connections. If
you have a firewall in front of your Pepwave devices, you will need to add firewall rules for these ports and protocols
to allow inbound and outbound traffic to pass through the firewall.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 83 Copyri
g
ht @ 2015 Pepwave
Tip
Want to know more about VPN sub-second session failover? Visit our YouTube Channel for a video tutorial!
http://youtu.be/TLQgdpPSY88
Pepwave MAX and Surf User Manual
http://www.pepwave.com 84 Copyri
g
ht @ 2015 Pepwave
12.2 The Pepwave Router Behind a NAT Router
Pepwave routers support establishing SpeedFusionTM over WAN connections which are
behind a NAT (network address translation) router.
To enable a WAN connection behind a NAT router to accept VPN connections, you can
configure the NAT router in front of the WAN connection to inbound port-forward TCP
port 32015 to the Pepwave router.
If one or more WAN connections on Unit A can accept VPN connections (by means of
port forwarding or not), while none of the WAN connections on the peer Unit B can do
VR\RXVKRXOGHQWHUDOORI8QLW$¶VSXEOLF,3DGGUHVVHVRUKRVWQDPHVLQWR8QLW%¶V
Remote IP Addresses / Host Names field. Leave the field in Unit A blank. With this
setting, a SpeedFusionTM connection can be set up and all WAN connections on both
sides will be utilized.
See the following diagram for an example of this setup in use:
One of the WANs connected to Router A is non-1$7¶G212.1.1.1). The rest of the
WANs connected to Router A and all WANs connected to Router %DUH1$7¶G,QWKLV
case, the Peer IP Addresses / Host Names field for Router B should be filled with all of
Router $¶VKRVtnames or public IP addresses (i.e., 212.1.1.1, 212.2.2.2, and 212.3.3.3),
and the field in Router A can be left blank. The two NAT routers on WAN1 and WAN3
connected to Router A should inbound port-forward TCP port 32015 to Router A so that
all WANs will be utilized in establishing the VPN.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 85 Copyri
g
ht @ 2015 Pepwave

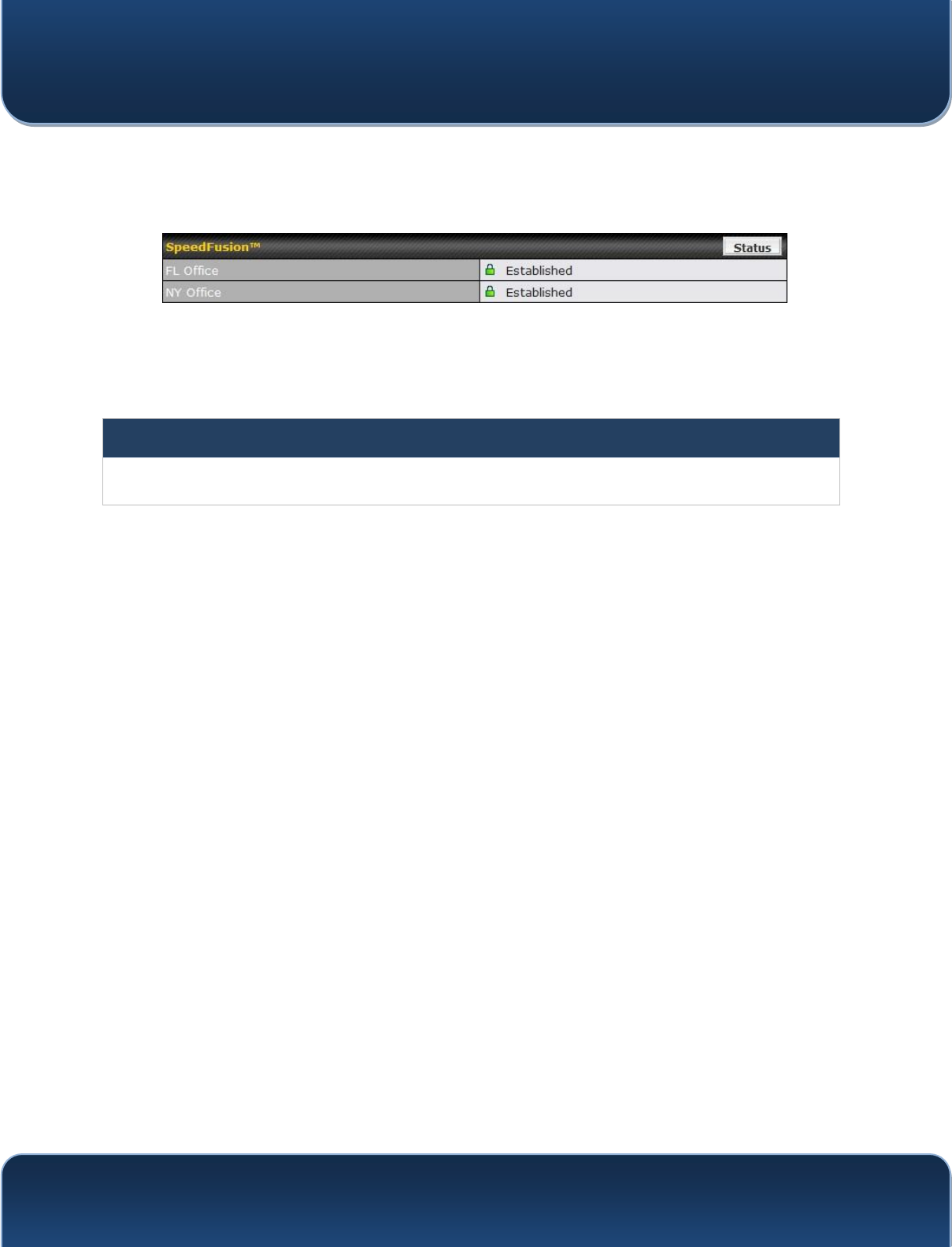

12.3 SpeedFusionTM Status
SpeedFusionTM status is shown in the Dashboard. The connection status of each
connection profile is shown as below.
After clicking the Status button at the top right corner of the SpeedFusionTM table, you
will be forwarded to Status>SpeedFusionTM, where you can view subnet and WAN
connection information for each VPN peer. Please refer to Section 21.6 for details.
IP Subnets Must Be Unique Among VPN Peers
The entire interconnected SpeedFusionTM network is a single non-NAT IP network. Avoid duplicating subnets in
your sites to prevent connectivity problems when accessing those subnets.
Pepwave MAX and Surf User Manual
http://www.pepwave.com 86 Copyri
g
ht @ 2015 Pepwave
13 IPsec VPN
IPsec VPN functionality securely connects one or more branch offices to your
company's main headquarters or to other branches. Data, voice, and video
communications between these locations are kept safe and confidential across the
public Internet.
IPsec VPN on Pepwave routers is specially designed for multi-WAN environments. For
instance, if a user sets up multiple IPsec profiles for a multi-WAN environment and
WAN1 is connected and healthy, IPsec traffic will go through this link. However, should
unforeseen problems (e.g., unplugged cables or ISP problems) cause WAN1 to go
down, our IPsec implementation will make use of WAN2 and WAN3 for failover.
13.1 IPsec VPN Settings
Many Pepwave products can make multiple IPsec VPN connections with Peplink,
Pepwave, Cisco, and Juniper routers. Note that all LAN subnets and the subnets behind
them must be unique. Otherwise, VPN members will not be able to access each other.
All data can be routed over the VPN with a selection of encryption standards, such as
3DES, AES-128, and AES-256. To configure IPsec VPN on Pepwave devices that
support it, navigate to Advanced>IPsec VPN.

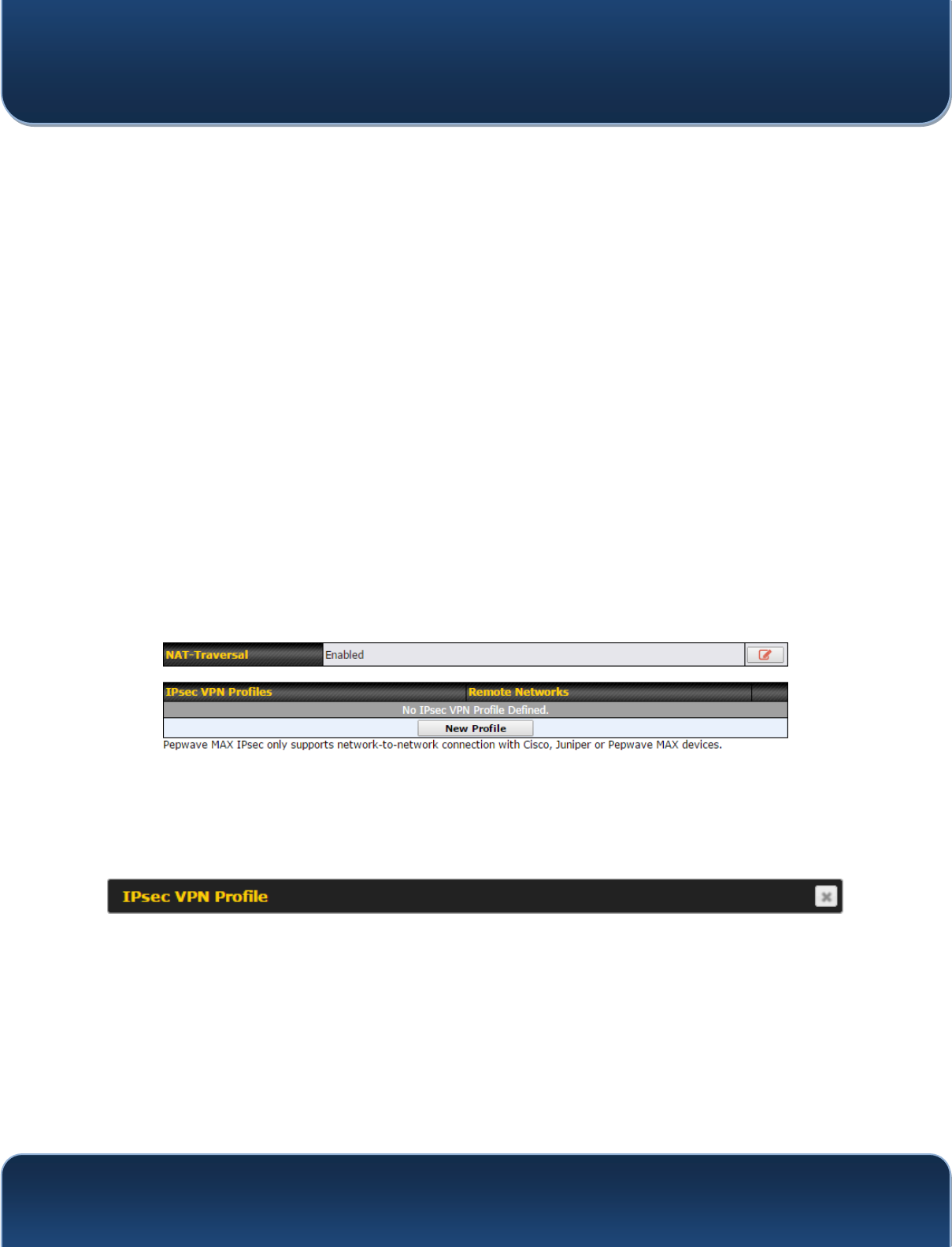

A NAT-Traversal option and list of defined IPsec VPN profiles will be shown. NAT-
Traversal should be enabled if your system is behind a NAT router. Click the New
Profile button to create new IPsec VPN profiles that make VPN connections to remote
Pepwave, Cisco, or Juniper routers via available WAN connections. To edit any of the
profiles, click on its associated connection name in the leftmost column.
