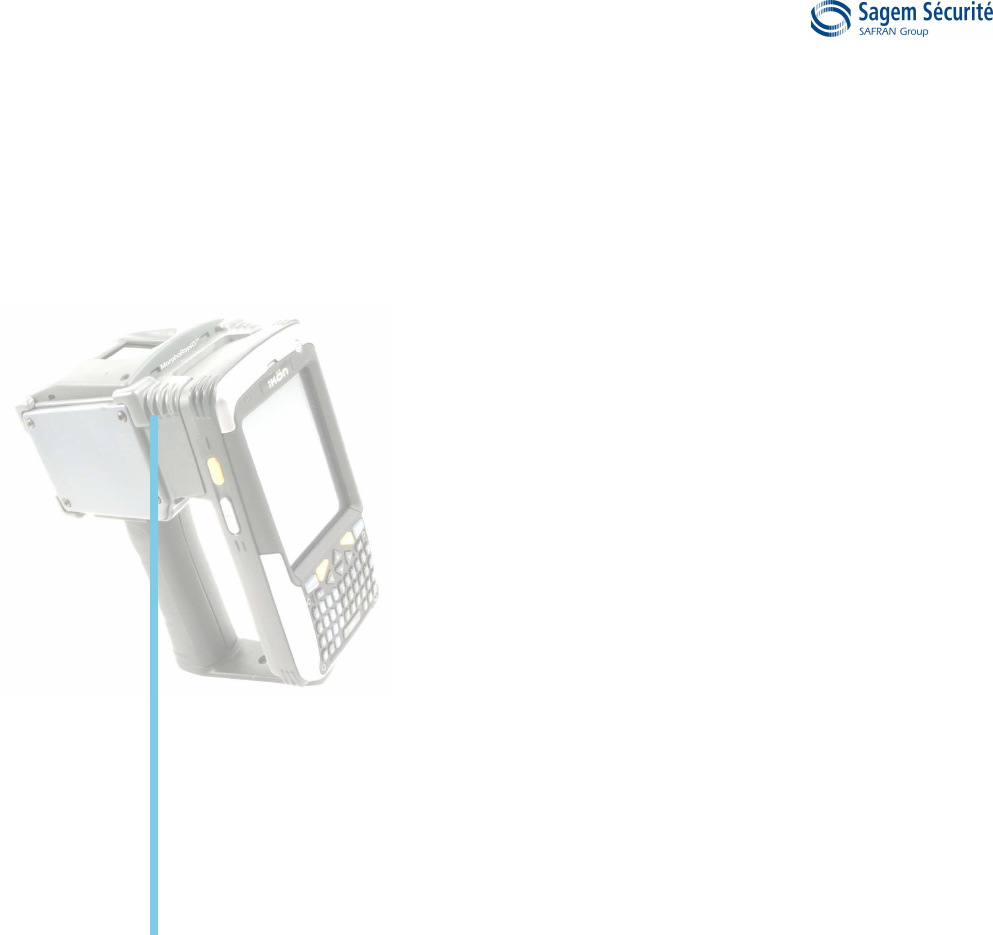

MorphoRapID™ Specifications
0000025754-07 - O
CTOBER
2008 1
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
MO R P H O RAPID QU I C K
US E R ’S GU I D E
1.MorphoRapID™ Specifications

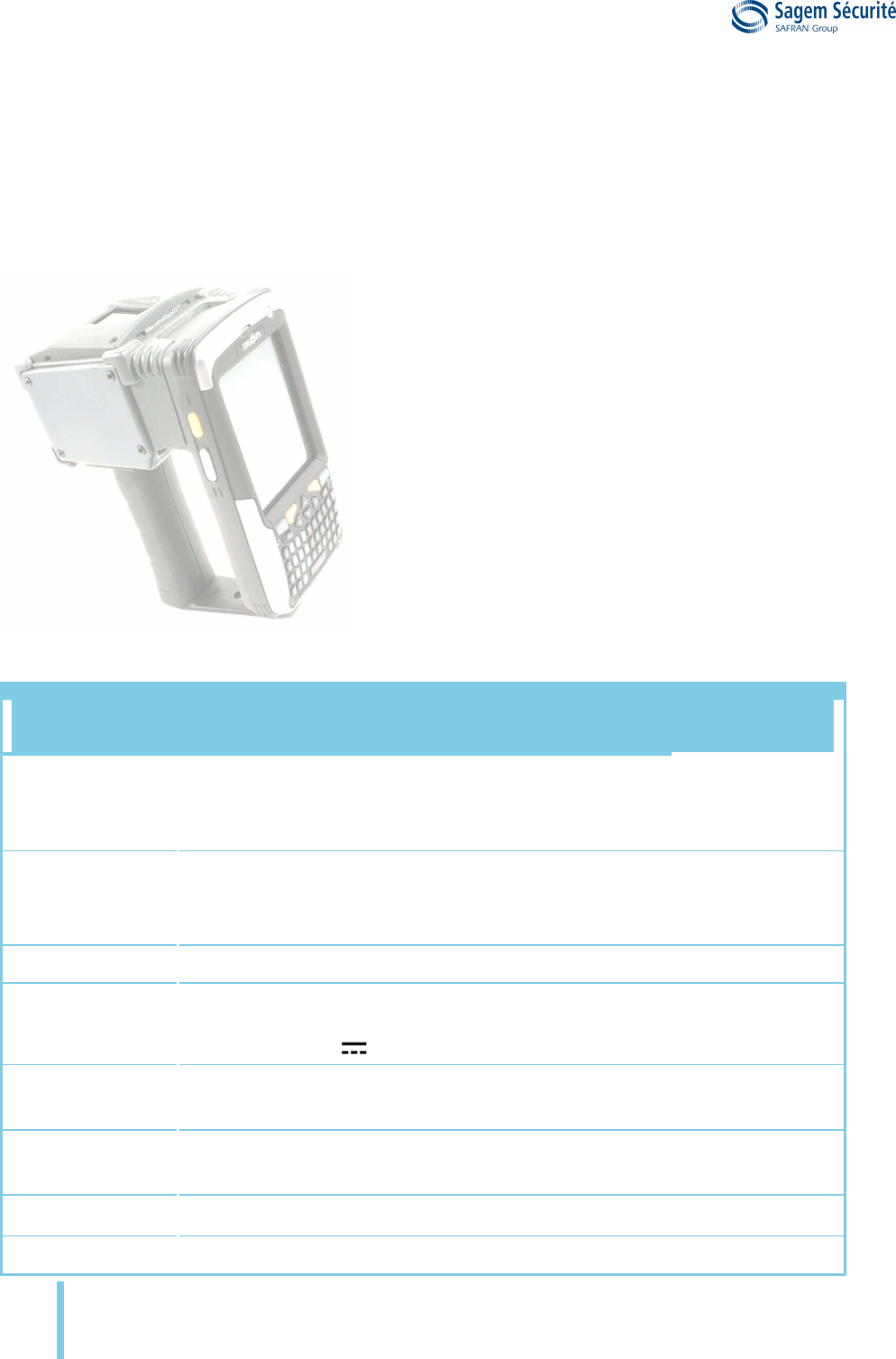

Technical Specifications
Display • Size: 3.7"
• VGA Display: 640 x 480 high resolution LCD Touch Panel
• 65536 Full-Colors
Sensor • 500 DPI in X and Y axis
• 8-bit gray scale
• Acquisition area 21 x 21 mm (0,8 x 0,8 ")
Input/Output USB 2.0
Power PSA 15R-050P Model
- Input: AC 100-240 V~ 50-60 Hz 0.5 A
- Output: DC 5.0 V 3.0 A
Temperature Range • Operating +0°C to 45°C
• Storage -20°C to 70°C
Humidity • Operating 15% < RH < 95% non-condensing
• Storage < 95%
Weight
800 g
Dimensions 89 x 126 x 185 mm
NOTE A removable power cord connects the MorphoRapID™ to the mains supply - Its socket
-
outlet shall be near the MorphoRapID™ and shall be easily accessible.
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
International Standards
0000025754-07 - O
CTOBER
2008 2
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
2.International Standards
The MorphoRapID™ terminal complies with both European and U.S. standards as follows:
Region Standards
Europe EMC Directive 89/336/EEC: EN55022 (1994) / EN55024 (1998)
Low voltage Directive 73/23/EEC amended by 93/68/EEC: EN60950
(2000)
USA FCC part 15 Class A digital device requirements
USA
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
Radiation Exposure Compliance
This product complies with the FCC RF exposure limits for an uncontrolled environment. For continued com-
pliance, the product must not be held closer than 20 cm from the rest of the body. This product must not be
used in a holster or on a belt-clip.’
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
WARNING Changes
or modifications not expressly approved by the party responsible for the
compliance could void the user’s authority to operate the equipment.
Canada
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regu-
lations. When using the 802.11 radio option, to prevent radio interference, this device is intended to be oper-
ated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that
is installed outdoors is subject to licensing.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur
du Canada. En cas d’utilisation du module radio 802.11, afin d'éviter toute interférence radio avec le service
autorisé, l'appareil doit être utilisé à l'intérieur, tout en étant éloigné de toute fenêtre afin de garantir le maxi-
mum de protection. Si cet équipement (ou son antenne émettrice) est installé à l'extérieur, il est alors soumis à
licence.
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
MorphoRapID™ Specifications
0000025754-07 - O
CTOBER
2008 3
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
Model Option
Morpho RapID 1100 Standard version
Morpho RapID 1100 W WiFi
Morpho RapID 1100 G GSM/GPRS/3G
Morpho RapID 1100 WG WiFi - GSM/GPRS/3G
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Cleaning
0000025754-07 - O
CTOBER
2008 4
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.

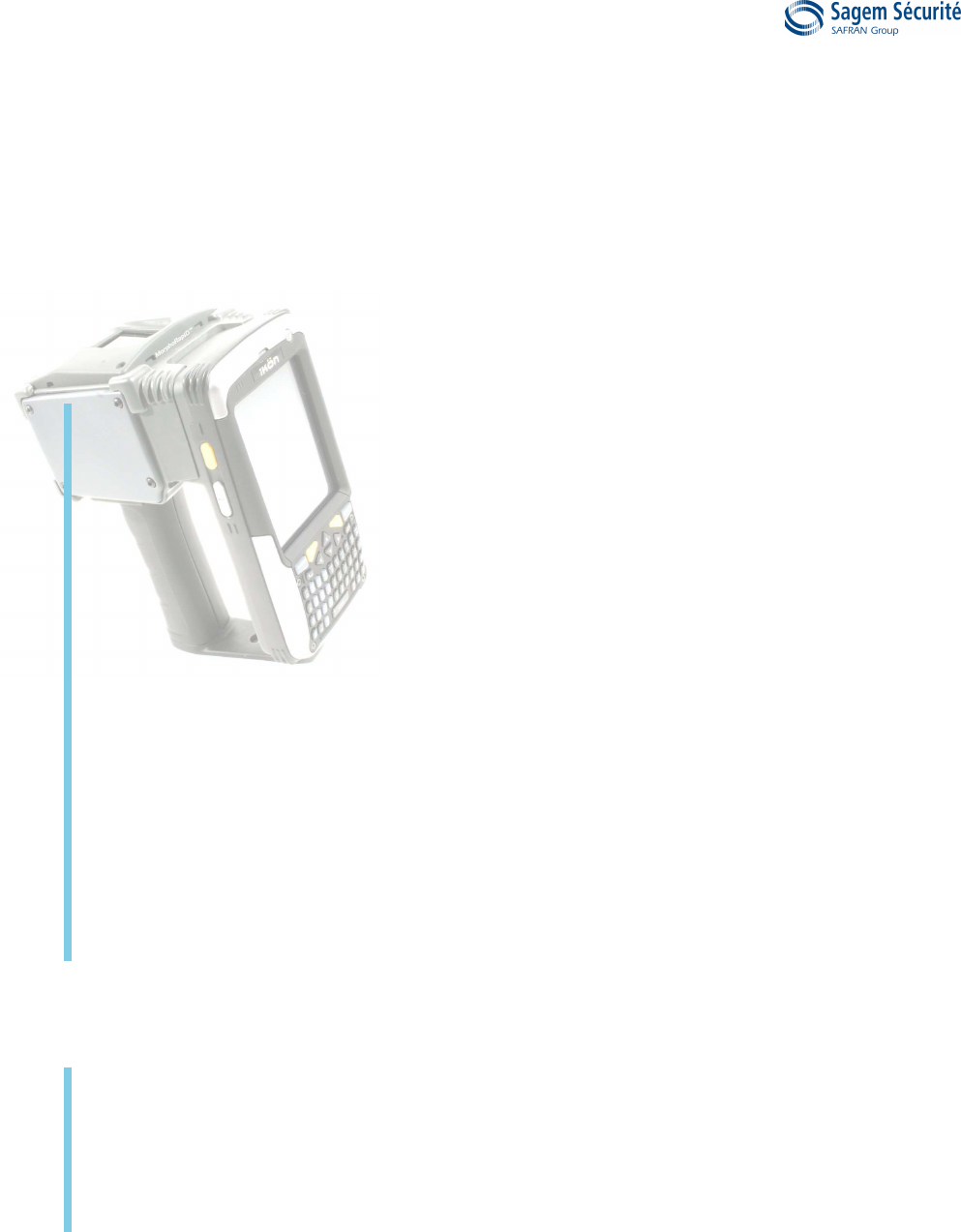

3.Cleaning
Clean the MorphoRapID™ body, screen and biometric sensor with a dry, non-abrasive, lint-free cloth and
only with a cleaning product recommended by Sagem Sécurité.
During periods of intense activity, the sensor should be cleaned as soon as smears are visible on-screen.
WARNING Avoid using any alcohol or by-
products that could damage the
MorphoRapID™ body or sensor p
art (cracks may appear on body or
prism).
Examples of corrosive chemicals to be avoided:
– acetone,
– ammoniac,
– benzene,
– ethanol,
– methanol,
– methylated spirit,
– petrol,
– thichlorethylene.
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Battery
0000025754-07 - O
CTOBER
2008 5
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
4.Battery
Precautions
Battery Handling
The battery handling precautions for MorphoRapID™ batteries are:
WARNING •
The battery used in this device may present a fire or chemical burn hazard if
mistreated.
• Do not disassemble, heat above 100°C (212°F) or incinerate.
• Never short-circuit the pack. It may cause electrolyte leakage, gazing or fire.
• Avoid all risk of short-circuit when handling the batteries or during storage.
•
Leakage under conditions of intended use and reasonably foreseeable misuse shall
not occur. Even so if electrolyte leaks out of the pack and comes into contact with
the skin,
eyes or others parts of body, the electrolyte should be flushed
immediately with fresh water. Seek medical advice from a physician.
• Never incinerate nor dispose of pack into fire.
• The pack should never be soaked in liquid.
• If any abnormal features of the
pack are found such as: damage to the plastic
envelope, deformation of the pack, smell of electrolyte, electrolyte leakage, or
other abnormalities, the cell should not be used anymore.
Battery Replacement
The battery replacement precautions are (see Battery Replacement):
WARNING Danger of explosion if battery is incorrectly replaced.
Replace only with the same battery type.
Must be disposed of properly.
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Battery
6 0000025754-07 - O
CTOBER
2008
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
Battery Transportation
It is recommended to remove batteries from the terminal when the product is transported on long distance.
Battery Charge
It is mandatory to only use the battery charger delivered by Sagem Sécurité for the MorphoRapID™
product for MorphoRapID™ battery charge.
The battery pack should be charged within the range of specified temperatures. If the pack is charged at a
temperature out of the specified range, leakage, heat generation, or other damages may occur.
The battery pack should be discharged within the range of specified temperatures.
NOTE Do not use MorphoRapID™
batteries for any other use than the
MorphoRapID™ product.
It should be noted that the battery pack may be overdischarged if the pack is not used for a long time. In
order to prevent overdischarging, the pack should be charged periodically. Overdischarging may cause loss
of pack performance, or damage battery functions.
So as to keep a correct autonomy, it is recommended to regularly perform complete charge/discharge cycles.
WARNING
To switch the terminal off for a period of storage longer than 7 days, it is
advised to disconnect the battery.
In the same way, to preserve battery life during a long period of storage, it is
advised to disconnect or to remove the battery w
ith a minimum charge of 30%
of battery capacity and not in deep discharge (0%).
Power Supply Precautions
The installation and maintenance of the MorphoRapID™ should be made by a qualified service person and
should conform to all local codes.
Before plugging the power source to your MorphoRapID™, check that the power source you intend to
connect do complies with the voltage, current and frequency specifications on the rating label on the power
supply unit.
NOTE Use only the power supply unit provided with your MorphoRapID™.
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Battery
0000025754-07 - O
CTOBER
2008 7
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.

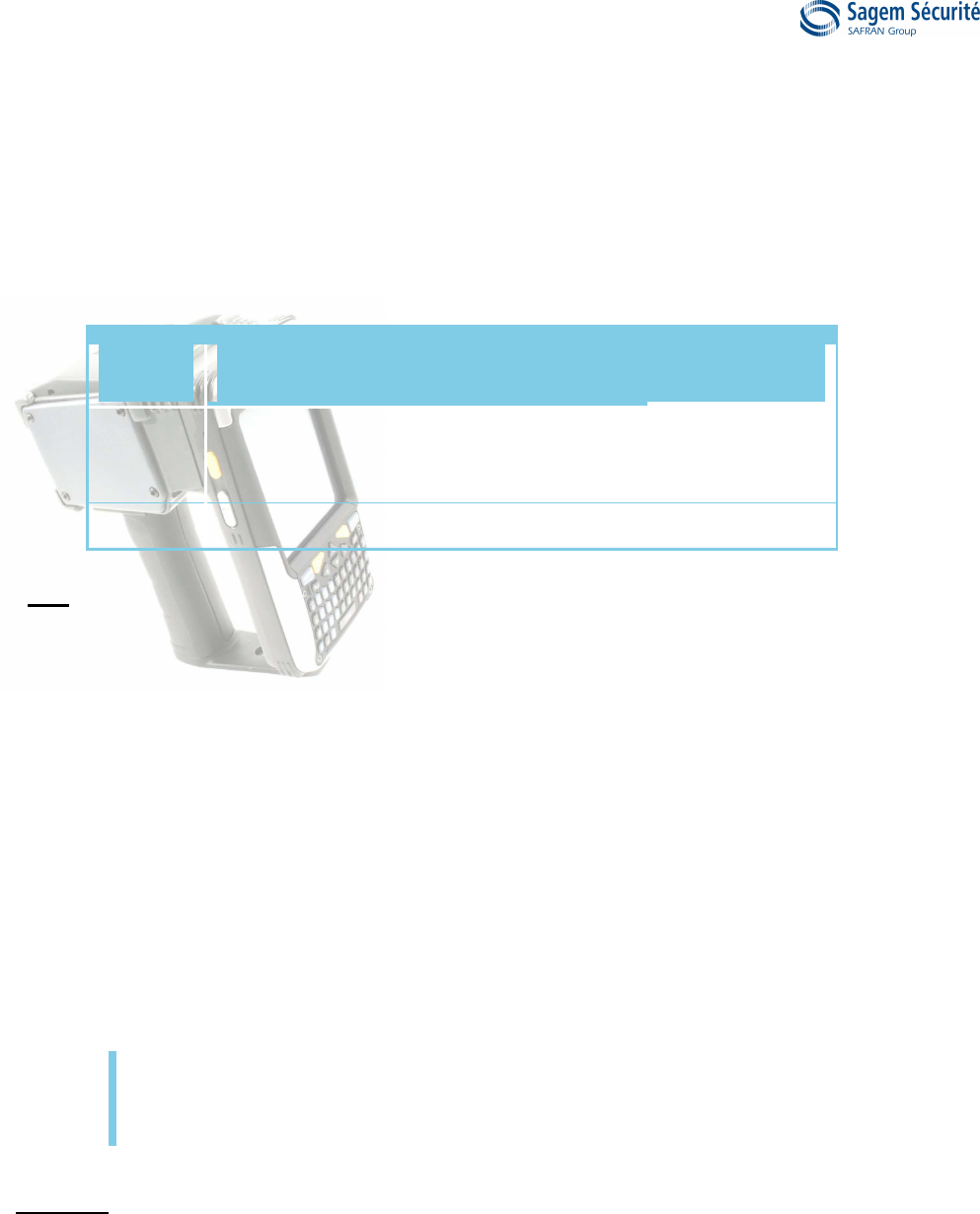

Battery Replacement
Here are the instructions to replace the battery:
Screen Action
1
At the back of the device, unlatch the battery cover
latches.
2
Open the battery compartment by pulling and sliding
its cover.
3
Take the discharged battery off its compartment.
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Battery
8 0000025754-07 - O
CTOBER
2008
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
Screen Action
4
Replace the discharged battery by the charged one:
insert the new battery.
5
Close the battery compartment.
6
Latch the battery compartment.
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Battery
0000025754-07 - O
CTOBER
2008 9
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
Battery Level Management
Battery Icon
The battery level is shown as a battery icon at the bottom of M
AIN
M
ENU
.
The battery levels are detailed in the following table:

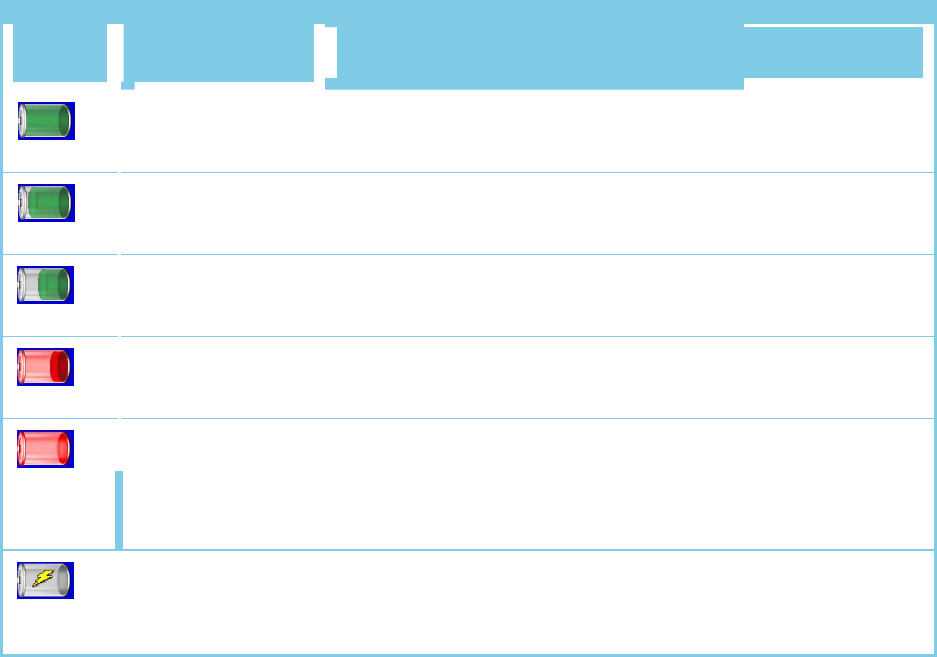

Icon Battery MorphoRapID™ Use
Full optimal
Good optimal
Medium optimal
Low works properly but should be charged soon
Empty must be charged
WARNING The fingerprint sensor may not be usable and captured data
accuracy is no longer guaranteed.
Terminal connected
to the mains and
charging
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Battery
10 0000025754-07 - O
CTOBER
2008
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
Battery Level Battery Level Percentage Check
To check the battery level, proceed as follows:
Screen Action
1 Start the MorphoRapID™ terminal.
2 Press, SETTINGS then POWER.
3 Check the battery level.
→ Proceed to charging the battery if needed.
4 Click to go back to the M
AIN
M
ENU
.
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Recommendations
0000025754-07 - O
CTOBER
2008 11
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.

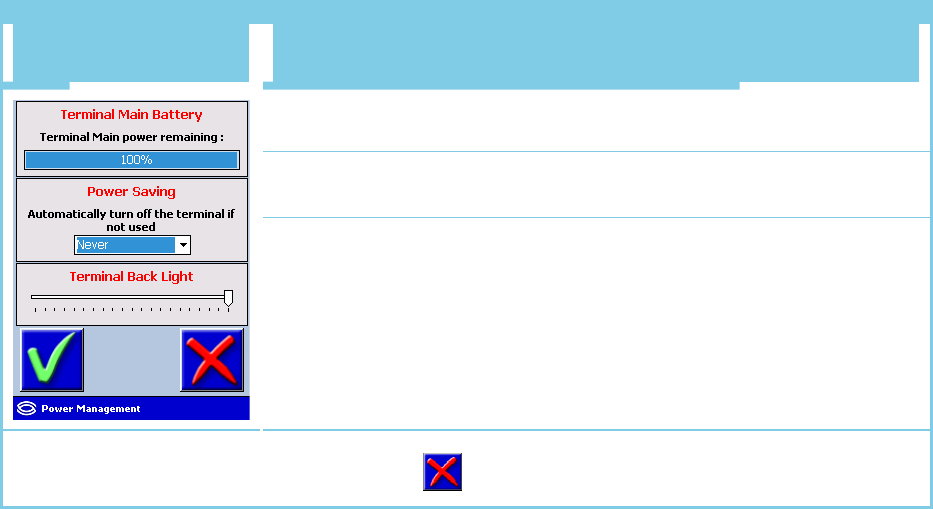

Power Management
Description
P
OWER
M
ANAGEMENT
provides a means of:
•knowing battery power level,
•setting power saving,
• setting terminal back light.
NOTE
The terminal backlight setting can also be accessed by clicking on the
Sagem Sécurité logo at the bottom left corner of the screen.
NOTE The terminal backlight setting can also be accessed by pressing
twice the
Orange key and then the ESC key
.
♦Press the key as many times as needed to adjust backlight.
5.Recommendations
General Precautions
.
WARNING The manufacturer cannot be held responsible if the above recommen
dations
are not followed or if the Sagem Sécurité MorphoRapID™
is used
incorrectly.
– Do not attempt to repair your Sagem Sécurité MorphoRapID™
yourself. The manufacturer cannot be held responsible for any
damage/accident that may result from attempts to repair components.
– Any work carried out by non-
authorized personnel will invalidate your
warranty.
– Do not expose your Sagem Sécurité MorphoRapID™ to extreme
temperatures.
– Attempts to integrate the MorphoRapID™ with unapproved
accessories will void your warranty.
–
The
MorphoRapID™
is not waterproof: Do not attempt to immerse
M
ORPHO
™ R
AP
ID QUICK U
SER
’
S
G
UIDE
Battery
12 0000025754-07 - O
CTOBER
2008
S
AGEM
S
ÉCURITÉ
D
OCUMENT
- R
EPRODUCTION AND
D
ISCLOSURE
P
ROHIBITED
.
it.
Areas Containing Combustibles
It is strongly recommended not to install the Sagem Sécurité MorphoRapID™ in the vicinity of gas
stations, petroleum processing facilities or any other facility containing flammable or combustible gas or
materials.
